Savannah Kruse Portfolio PART 1

SAVANNAH KRUSE ARCHITECTURE

PORTFOLIO

MISSION HILLS

LOCATION/YEAR: MISSION HILLS, KS / 2023

ARCHITECT: STUDIO BUILD

DESIGN TEAM: SAVANNAH KRUSE & CHRIS PENLAND

INTERIOR DESIGNER: KALI BUCHANAN INTERIOR DESIGN CONTRACTOR: FOSTERS INC.

CASEWORK: STUDIO BUILD

PHOTOGRAPHY: BOB GREENSPAN PHOTOGRAPHY

TYPE: NEW BUILD CUSTOM SINGLE FAMILY HOME

SIZE: 4,000 SQ.FT.

STATUS: COMPLETED

ROLE: ARCHITECTURAL DESIGNER (INTERIOR & ARCHITECTURE)

MISSION HILLS IS A NEWLY BUILT CUSTOM SINGLE-FAMILY HOME LOCATED IN A MODERN HISTORIC DISTRICT IN THE HEART OF KANSAS CITY. SURROUNDED BY ICONIC STRUCTURES FROM RENOWNED MODERN ARCHITECTS, STUDIO BUILD WAS ENTRUSTED WITH DESIGNING A SLEEK, SINGLE-STORY HOME AT THE NEIGHBORHOOD’S PROMINENT CORNER ENTRANCE. THE DESIGN EMPHASIZES SOFT COLOR PALETTES, OPEN LIVING SPACES, AND A MINIMAL IMPACT ON THE SURROUNDING ARCHITECTURE. CUSTOM PERFORATED SCREENS THROUGHOUT THE INTERIOR PROVIDE AN OPEN-CONCEPT FEEL WHILE MAINTAINING DISTINCT ZONES. ALL DRAWINGS, GRAPHICS, AND RENDERINGS FOR THIS PROJECT ARE MY OWN.

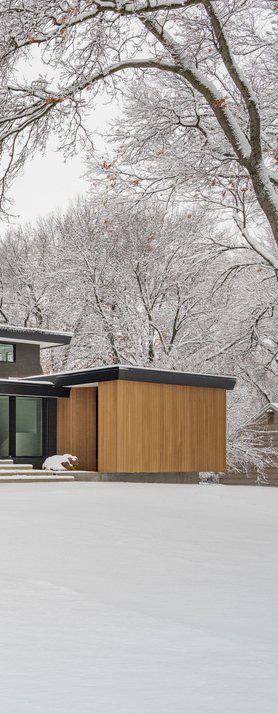

BUTTERFLY MODERN

LOCATION/YEAR: EVERGREEN, CO / 2024

ARCHITECT: NEST ARCHITECTURAL DESIGN

DESIGN TEAM: SAVANNAH KRUSE, SCOTT PARKER, XANDON SIGAFOOS & LAURA PARSONS

INTERIOR DESIGNER: NEST ARCHITECTURAL DESIGN

CONTRACTOR: BLUE DIVIDE

CASEWORK: VONMOD

TYPE: CUSTOM ADDITION & RENOVATION OF SINGLE FAMILY HOME SIZE: 8,800 SQ.FT.

STATUS: UNDER CONSTRUCTION

ROLE: PROJECT ARCHITECT

BUTTERFLY MODERN IS AN EXISTING SINGLE FAMILY HOME. THE SCOPE OF THE PROJECT INCLUDED AN ADDITION TO THE SOUTH WEST CORNER, NEW PATIO, POOL AND ENTIRE MAIN LEVEL/SECOND LEVEL REMOVATION. THE PROJECT’S MAIN GOALS WERE TO INCREASE INTERIOR AND EXTERIOR ENGAGEMENT WHILE ALLOWING EXPANSIVE VIEWS TO THE SOUTH WEST MOUNTAINS. ALL DRAWINGS, GRAPHICS & RENDERINGS ARE MY OWN.

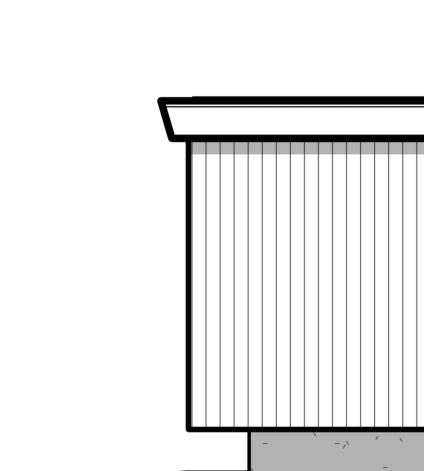

ELEVATION LOOKING EAST

1/16 IN. = 1 FT.

ELEVATION LOOKING WEST

1/16 IN. = 1 FT. BUTTERFLY

E/W ROOF SECTION

3/8 IN. = 1 FT.

TYP. MTL PANEL ACCENT WALL ASSEMBLY

PROCORE TWO PIECE MOLDING SYSTEM MTL PANEL BLOCKING AS REQUIRED

TYP. MTL PANEL ACCENT WALL ASSEMBLY PROCORE TWO PIECE MOLDING SYSTEM MTL PANEL BLOCKING AS REQUIRED

7/16" ZIP SHEATHING 2X6 LSL'S 16" O.C. (R-20) MIN. 3" CLOSED-CELL SPRAY FOAM INSULATION; BLOWN-IN INSULATION TO FILL REMAINDER OF STUD BAY

7/16" ZIP SHEATHING

2X6 LSL'S 16" O.C.

(R-20) MIN. 3" CLOSED-CELL SPRAY FOAM INSULATION; BLOWN-IN INSULATION TO FILL REMAINDER OF STUD BAY

CLASS 1 POLY-SHEET VAPOR BARRIER, PER R702.7.2 5/8" GYP BD

TYP. (N) STUCCO WALL SYSTEM 3-COAT CEMENTITIOUS STUCCO LATH ZIP SHEATHING 2X6 WD FRAMING (R-20) MIN. 3" CLOSED-CELL SPRAY FOAM INSULATION; BLOWN-IN INSULATION TO FILL REMAINDER OF STUD BAY

TYP. (N) STUCCO WALL SYSTEM 3-COAT CEMENTITIOUS STUCCO LATH ZIP SHEATHING 2X6 WD FRAMING

(R-20) MIN. 3" CLOSED-CELL SPRAY FOAM INSULATION; BLOWN-IN INSULATION TO FILL REMAINDER OF STUD BAY

CLASS 1 POLY-SHEET VAPOR BARRIER, PER R702.7.2 5/8" GYP BD

TYP (N) SECOND FLOOR WD FRAME ASSEMBLY FINISH FLOOR TBD SHEATHING 11-7/8" TJI 5/8" GYP BD

TYP. LOW SLOPE ROOF ASSEMBLY EPDM

TYP. LOW SLOPE ROOF ASSEMBLY EPDM POLYSTICK XFR SELF-ADHERED UNDERLAYMENT

POLYSTICK XFR SELF-ADHERED UNDERLAYMENT 30# BUILDING FELT GRACE ICE & WATER SHIELD 1/2" SECUROCK GYPSUM FIBER ROOF BOARD ROOF SHEATHING FOAM AND CAULK ALL CRACKS AND CREVICES 11 7/8" LVL'S R-49 SPRAY FOAM INSULATION

30# BUILDING FELT

GRACE ICE & WATER SHIELD 1/2" SECUROCK GYPSUM FIBER ROOF BOARD ROOF SHEATHING FOAM AND CAULK ALL CRACKS AND CREVICES 11 7/8" LVL'S R-49 SPRAY FOAM INSULATION

CLASS 1 POLY-SHEET VAPOR BARRIER, PER R702.7.2 5/8" GYP BD

1 // BUTTERFLY ROOF DETAIL

1 IN. = 1 FT.

TYP. EAVE ASSEMBLY STANDING SEAM MTL ROOF POLYSTICK XFR SELF-ADHERED UNDERLAYMENT W/ FIRE RESISTANCE 30# BUILDING FELT

GRACE ICE & WATER SHIELD ENTIRE ROOFS AT SLOPES < 2:12 1/2" SECUROCK GYPSUM FIBER ROOF BOARD ROOF SHEATHING, REF STR ENG FOAM AND CAULK ALL CRACKS AND CREVICES 9 1/2" TJI

TYP. STUCCO SOFFIT FIN. 1/2" SHEATHING 1-LAYER TYPE X DENSGLASS

OMEGA AKROFLEX REINFORCING MESH EMBEDDED IN OMEGA BASE COAT

TYP. STUCCO SOFFIT FIN. 1/2" SHEATHING 1-LAYER TYPE X DENSGLASS OMEGA AKROFLEX REINFORCING MESH EMBEDDED IN OMEGA BASE COAT OMEGA PRIMER AND FINISH 2 // ROOF EAVE DETAIL

OMEGA PRIMER AND FINISH

N/S ROOF SECTION

3/8 IN. = 1 FT.

TYP. LOW SLOPE MTL ROOF ASSEMBLY

STANDING SEAM MTL ROOF

POLYSTICK XFR SELF-ADHERED UNDERLAYMENT

30# BUILDING FELT

GRACE ICE & WATER SHIELD

1/2" SECUROCK GYPSUM FIBER ROOF BOARD

ROOF SHEATHING, REF STR ENG

FOAM AND CAULK ALL CRACKS AND CREVICES

11 7/8" LVL'S

R-49 SPRAY FOAM INSULATION

CLASS 1 POLY-SHEET VAPOR BARRIER

TYP. EAVE ASSEMBLY

STANDING SEAM MTL ROOFS

POLYSTICK XFR SELF-ADHERED UNDERLAYMENT

30# BUILDING FELT

GRACE ICE & WATER SHIELD

1/2" SECUROCK GYPSUM FIBER ROOF BOARD

ROOF SHEATHING, REF STR ENG

FOAM AND CAULK ALL CRACKS AND CREVICES

11 7/8" LVL'S

2STONE WALL ASSEMBLY @ GRILL CHIMNEY

2STONE

POLYMER-MODIFIED THIN-SET GROUT PER SPECS

CRACK ISOLATION & WATER RESISTIVE BARRIER

CEMENT BOARD BACKER

VERTICAL STRAPPING

1" AIR GAP

7/16" ZIP SHEATHING

2X6 WOOD STUD 16" O.C.

5/8" TYPE 'X' GYP BD

2STONE WALL ASSEMBLY @ GRILL CHIMNEY

2STONE

2STONE WALL ASSEMBLY @ GRILL CHIMNEY

2STONE

POLYMER-MODIFIED THIN-SET GROUT PER SPECS CRACK ISOLATION AND WATER RESISTIVE BARRIER

CEMENT BOARD BACKER

VERTICAL STRAPPING

1" AIR GAP

7/16" ZIP SHEATHING

2X6 WOOD STUD 16" O.C.

5/8" TYPE 'X' GYP BD 2 // ROOF SCUPPER DETAIL

2X6 WOOD STUD 16" O.C. 5/8" TYPE 'X' GYP BD

TERMINATON FLASHING AT INLET TO CORNER DRAIN

SCUPPER THRU-WAL CORNER DRAIN CONNECTS TO DOWNSPOUT

ROOF DRAIN & DOWNSPOUT

ROOFING MEMBRANE: WRAP INTO INSIDE OF WALL CONSTRUCTION

PRAIRIE VILLAGE

LOCATION/YEAR: PRAIRIE VILLAGE, KS / 2023

ARCHITECT: STUDIO BUILD

DESIGN TEAM: SAVANNAH KRUSE & JERAD FOSTER

INTERIOR DESIGNER: STUDIO BUILD

CONTRACTOR: FOSTERS INC.

CASEWORK: STUDIO BUILD

PHOTOGRAPHY: BOB GREENSPAN PHOTOGRAPHY

TYPE: NEW BUILD CUSTOM SINGLE FAMILY HOME

SIZE: 3,000 SQ.FT.

STATUS: COMPLETED

ROLE: LEAD ARCHITECTURAL DESIGNER

PRAIRIE VILLAGE IS A CUSTOM NEW-BUILD SINGLE-FAMILY HOME, SITUATED ON A LOT PURCHASED BY A YOUNG COUPLE IN AN EMERGING SUBURBAN NEIGHBORHOOD OF KANSAS CITY. I LED THE PROJECT THROUGH EVERY PHASE OF DESIGN, COORDINATED WITH ALL CONSULTANTS AND ENGINEERS, AND MANAGED THE INTERIOR DESIGN PROCESS. WORKING FOR A DESIGN-BUILD FIRM, I ALSO CONDUCTED NUMEROUS SITE VISITS TO ENSURE PROJECT ALIGNMENT. ALL DRAWINGS, GRAPHICS, AND RENDERINGS FOR THIS PROJECT ARE MY OWN.

RIVER MARKET LOFT

LOCATION/YEAR: KANSAS CITY, MO / 2023

ARCHITECT: STUDIO BUILD

DESIGN TEAM: SAVANNAH KRUSE & RYAN DEVENEY

INTERIOR DESIGNER: STUDIO BUILD

CONTRACTOR: FOSTERS INC.

CASEWORK: STUDIO BUILD

PHOTOGRAPHY: BOB GREENSPAN PHOTOGRAPHY TYPE: RENOVATION

SIZE: 1,500 SQ.FT.

STATUS: COMPLETED

ROLE: ARCHITECTURAL DESIGNER

RIVER MARKET LOFT IS A RENOVATION OF A LOFT APARTMENT IN DOWNTOWN KANSAS CITY. THE PROJECT INCLUDED UPDATES TO THE KITCHEN, PRIMARY BEDROOM, PRIMARY BATH, OFFICE, AND INTERIOR DESIGN THROUGHOUT. THE CLIENT PRIORITIZED A COHESIVE MODERN AESTHETIC, FOCUSING ON OPENING UP THE KITCHEN SPACE AND CREATING A FLEXIBLE OFFICE THAT COULD BE CLOSED OFF AS A TEMPORARY BEDROOM WITH A SLIDING BARN DOOR.

WEATHERBY BASEMENT

LOCATION/YEAR: WEATHERBY, MO / 2023

ARCHITECT: STUDIO BUILD

DESIGN TEAM: SAVANNAH KRUSE & RYAN DEVENEY

INTERIOR DESIGNER: STUDIO BUILD

CONTRACTOR: FOSTERS INC.

CASEWORK: STUDIO BUILD

PHOTOGRAPHY: BOB GREENSPAN PHOTOGRAPHY

TYPE: RENOVATION

SIZE: 1,400 SQ.FT.

STATUS: COMPLETED

ROLE: ARCHITECTURAL DESIGNER

WEATHERBY BASEMENT IS A FULL BASEMENT RENOVATION OF AN UNFINISHED SPACE WITH CHALLENGING CEILING HEIGHTS AND DISRUPTIVE COLUMNS. THE DESIGN STRATEGY FOCUSED ON CONCEALING THE COLUMNS BY WRAPPING THEM IN WALNUT VENEER. THE VARIATIONS IN CEILING HEIGHT WERE TRANSFORMED INTO A DESIGN FEATURE BY CREATING WALNUT VENEER CLOUDS ON THE CEILING THAT MIRROR THE CUSTOM CASEWORK BELOW.
