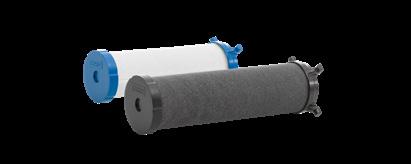

SATA Filter Cartridges

Filter Cartridges for SATA filter 200 & 400 series

First stage 1: sintered filter for all SATA filter series

the sintered filter eliminates particles > 5 µm

Exchange interval: every

6 months

Art. No. 22160

Filter stage 2: fine filter cartridge for SATA filter series 200 and 400

the fine filter eliminates particles > 0.01 µm

Exchange interval: every

6 months

Art. No. 81810

Filter stage 3: activated charcoal cartridge for SATA filter series 200 and 400

activated charcoal seperates oil vapours

Exchange interval: every

3 months

Art. No. 85373

Filter Cartridges for SATA filter 500 series

First stage 1: sintered filter for all SATA filter series

the sintered filter eliminates particles > 5 µm

Exchange interval: every

6 months

Art. No. 22160

Don‘t risk your health or the quality of your work! >> change your filter cartridges!

Filter stage 2: fine filter cartridge for SATA filter series 500

the fine filter eliminates particles > 0.01 µm

Exchange interval: every

6 months

Art. No. 1097999

Filter stage 3: activated charcoal cartridge for SATA filter series 500

activated charcoal seperates oil vapours

Exchange interval: every

6 months

Art. No. 1098004

SATA – Your experts for clean compressed and breathing air

The SATA filter series provide particle-free, clean compressed air for breathing and professional coating.

A well functioning compressed air circuit also includes regularly maintained compressed air filter units.

Filter stage 1: Filter stage 2: Filter stage 3:

Sintered filter to separate particles > 5 µm (separates condensate and oil droplets)

Fine filter cartridge to separate particles > 0.01 µm; separation efficiency 99.998 %

Activated charcoal cartridge filter with higher separation efficiency of oil vapors. Suitable for supplied air breathing and for spraying waterborne paint.

SATA filter cartridge maintenance

learn how to replace each filter stage in this official SATA application video

SATA filter timer – Safety at the push of a button

SATA equips all filter units with the SATA filter timers to remind users to regularly change the filter cartridges. Handling the SATA filter timer is as easy as: 1.

SATA filter packs – Save 10 - 12% on a one year supply

SATA six pack with #81810 (packing unit 2 pieces) and #85373 (packing unit 4 pieces) for SATA filter 484

Art. No. 214270

Service kit for SATA filter series 500: with fine filter and activated charcoal cartridge Art. No. 1098054

SATA compressed air filters prevent the following coating flaws:

Note: Don't forget to have your CO monitor calibrated every six months. Contact
