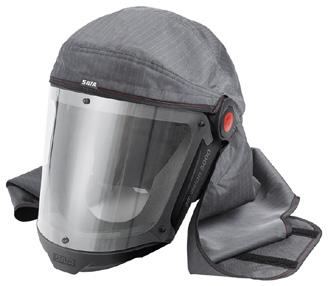

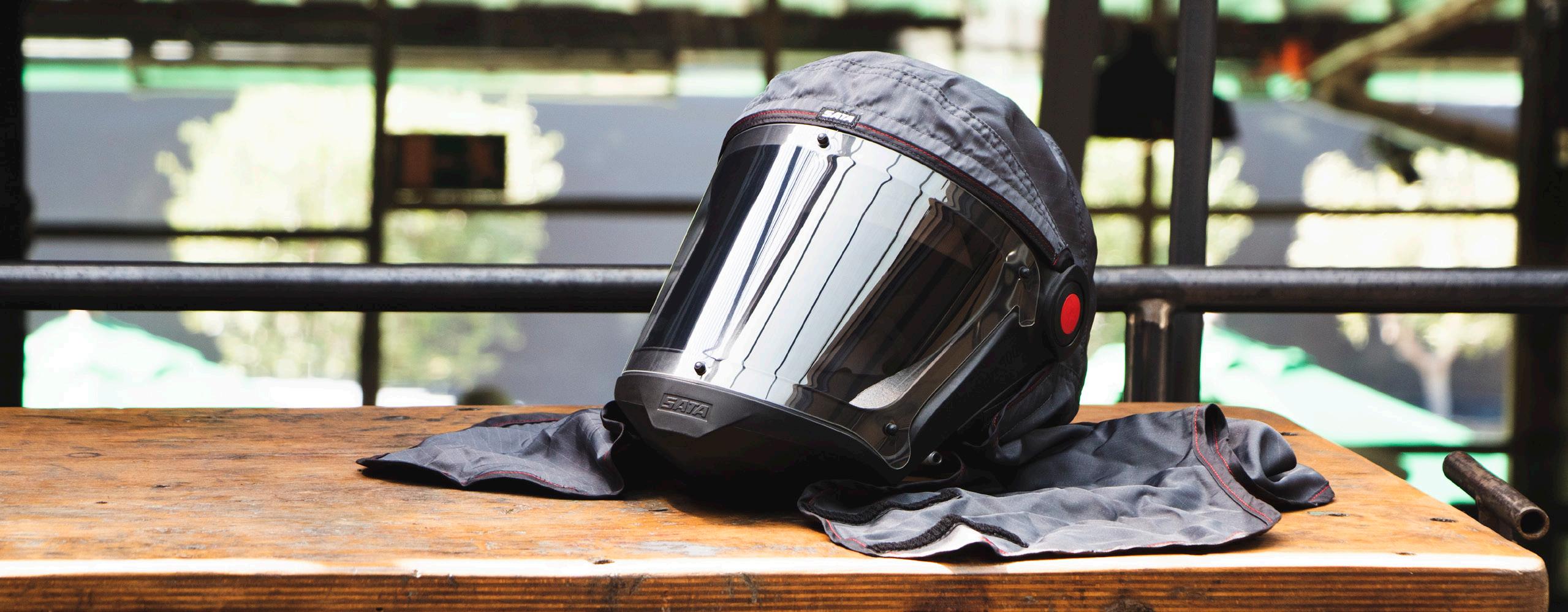

The SATA air vision 5000 puts the focus on effective health protection and lets you experience a whole new and comfortable way of breathing, due to a completely re-designed breathing air supply system. With its modern, ergonomic design, the hood can be adapted to fit almost any head shape, allowing the individual adjustment of its effective circumference, height and position.
SAFETY
A minimum of 6 to 15 cfm of technically clean compressed air, e.g. supplied from a SATA filter 584, ensures the slight positive pressure inside the hood, in order to securely prevent over spray and contaminants from penetrating. When the air volume falls below the required minimum threshold, an acoustic warning signal will be activated.
COMFORT
The new method of breathing air distribution inside the hood optimizes the air consumption and reduces the noise level to 64 dB(A). This way, working with personal protection equipment becomes exceptionally comfortable. An optionally available plug-in diffuser allows an alternative air flow inside the hood and the large, low-reflection visor shield offers a very generous field of vision. To ensure perfect wearer comfort, the hood can be adapted in circumference, height and position to fit almost any head shape. The comfort band cushioning the forehead can be mounted in just a few seconds –keeping the hood hygienically clean and comfortable at all times.
PRACTICAL
The modular design allows the adaptation and upgrade of the new belt unit according to the job requirements. Users, for instance, have now the choice to mount the air regulation unit either on the right or on the left of the belt unit. The same applies to the second available belt option, the activated charcoal adsorber incl. regulation. Useful accessories, such as the new SATA air warmer/cooler can be easily connected to the belt unit according to individual needs. Additionally, the SATA air warmer carbon has been developed as an option especially for the SATA air carbon regulator.
BENEFITS
High breathing air quality: The air supply independent of the ambient air eliminates all potential risks for the painter possibly arising from saturated filter cartridges
Low inhalation resistance, very comfortable breathing
High protective function (100-fold TRK value*)
Non-reflecting view due to solvent-resistant special foil
Low operating costs, quick pay-off of purchase costs
Soft-stream flow-optimized air distribution in the hood
Rigid scull cover for safer work conditions
The SATA CCS Disks (Color Code System) allow to personalize hood, SATA air regulator and SATA air carbon regulator
* TRK = Technical Reference Concentration (TRC)

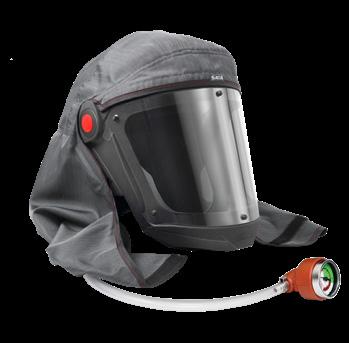

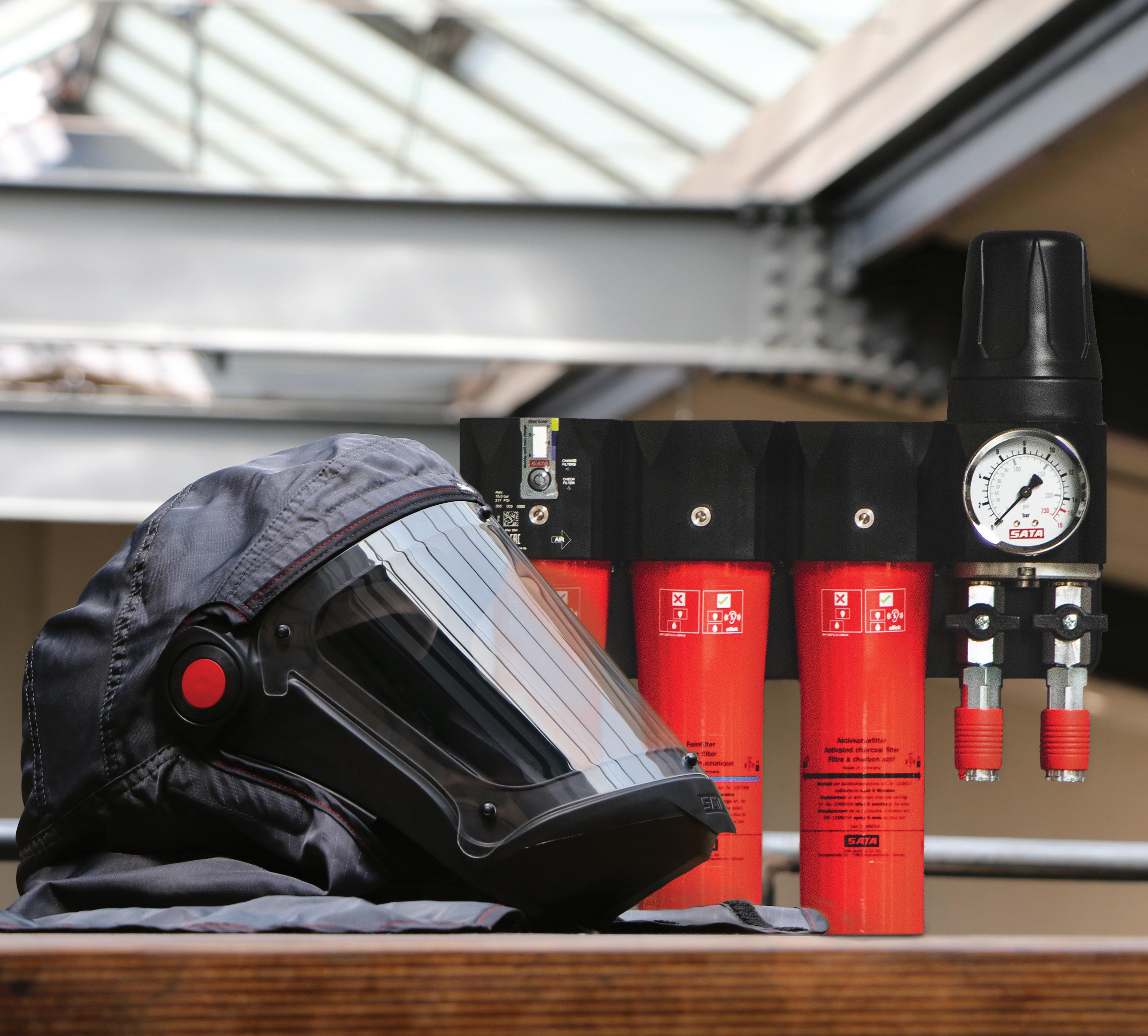

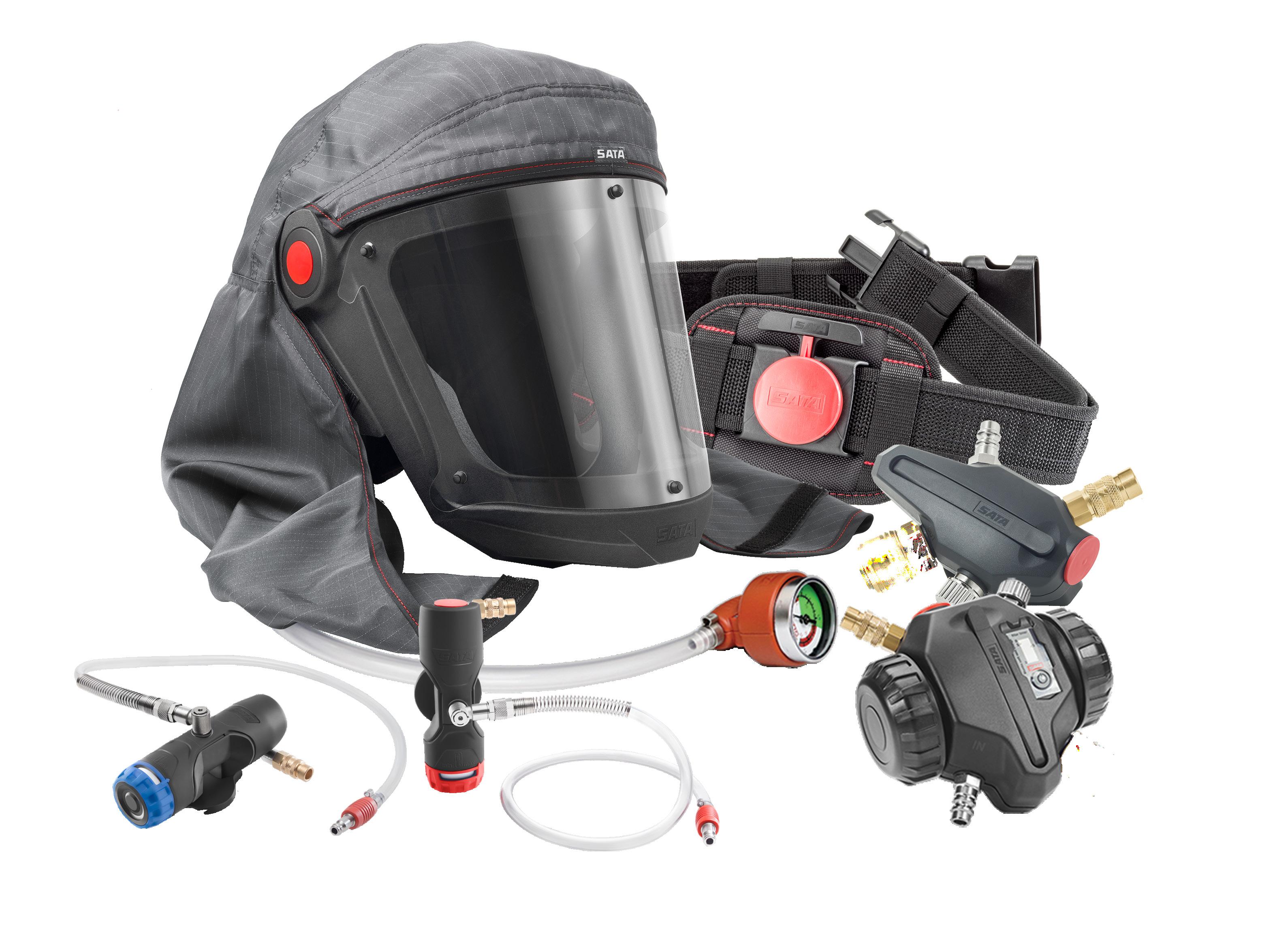

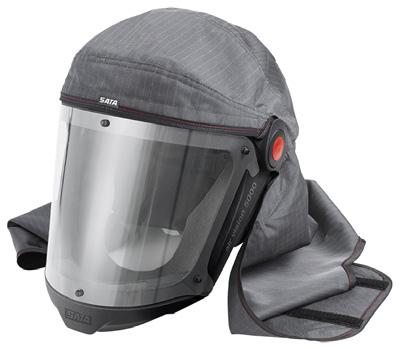

SATA air vision 5000
Structure and functional scheme of compressed air-supplied breathing protection
SATA filter 584
Compressed air also suitable for waterborne paints and breathing air
SATA filter 544
Compressed air also suitable for waterborne paints and for breathing air
SATA air vision 5000
The ergonomic design with a host of options for individual adaptations and flow-optimized air stream provides highest wearer comfort – easy to replace visor foils provide for unrestricted field of vision.
SATA air regulator belt plus This modular design is an accessory, with added comfort features.
SATA air regulator belt
The modular design allows the individual adaptation and upgrade with additional modules according to the job requirements.

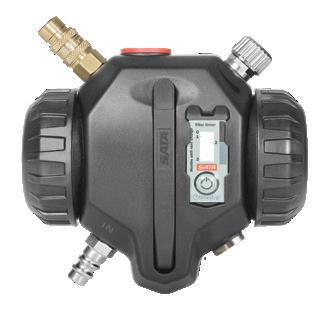

SATA air regulator For an increased wearing comfort, adjustable on the belt unit by up to +/- 45°.
SATA air carbon regulator Perfectly clean breathing air thanks to the integration of the activated charcoal adsorber. Can be adjusted on the belt unit by up to +/- 45°.
Heats up the breathing air to a comfortable level. The temperature can be individually adjusted.
OPTIONAL
SATA air warmer carbon Can be optionally used, depending on the actual demand of supplied air, the breathing air temperature can be adjusted between 4°C up to 20°C.
Cools down the breathing air to a comfortable level. The temperature can be individually adjusted.
SYSTEM STRUCTURE WITH THE THREE- AND TWO-STAGE COMPRESSED AIR FILTERS
SATA air vision 5000 carbon regulator set
Includes SATA air vision 5000 hood, SATA air regulator belt, SATA air carbon regulator. Version with activated charcoal adsorber Order No. 214718
SATA air carbon regulator set
Includes SATA air regulator belt, SATA air carbon regulator
Order No. 1000075
SATA air carbon regulator only
Can be swiveled and adjusted on belt unit by up to +/-45°. To be used with two stage filter unit
Order No. 1000182
SATA air vision 5000 hood only
SATA air vision 5000 hood only with pressure gauge
The ergonomic design with a host of options for individual adaptations and soft-stream flowoptimized air stream provides highest wearer comfort Order No. 1005596

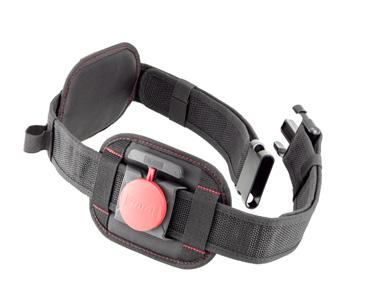

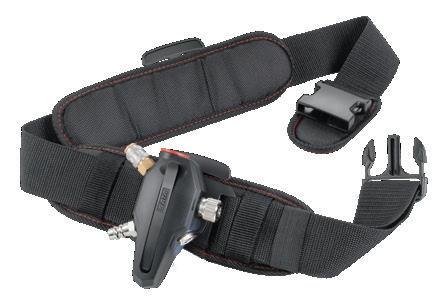

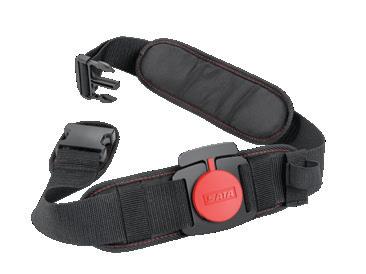

SATA air regulator belt
Comfortably cushioned belt allowing the individual adaptation and upgrade for modules
Order No. 1000223
SATA air regulator belt Plus
Comfortably cushioned belt, individual adaptation and room for modules, more rigid, longer belt with additional comfort features Order No. 1030668
SATA air vision 5000 regulator set
Includes SATA air vision 5000 hood, SATA air regulator belt, SATA air regulator (no charcoal)
Order No. 1005603
SATA air regulator set
Includes SATA air regulator belt, SATA air regulator (no charcoal)
Order No. 1000116
SATA air regulator only
Can be swiveled and adjusted on belt unity by up to +/-45°. To be used with three stage filter unit Order No. 1000207
Spare Parts
210405 Visor Foil, 6 perforations, 5 pieces
210468 Visor Foil, 6 perforations, 20 pieces
215550 Visor Foil, 6 perforations, 50 pieces
215590 Visor Foil, 6 perforations, 100 pieces
210526 Visor Foil, 6 perforations, 1000 pieces
1114256 Head fixation cpl 2.0
218206 Activated charcoal filter for SATA air carbon regulator
Increased air flow volume creates the required excess pressure inside the hood which prevents overspray intrusion.

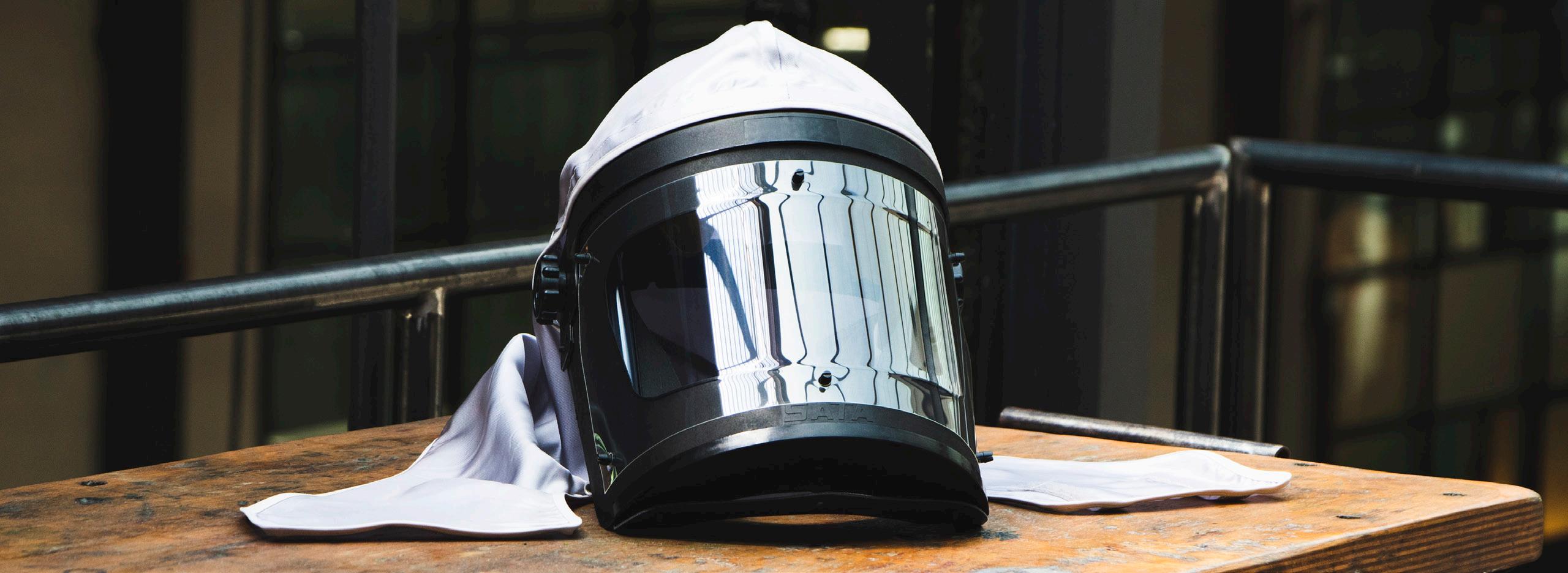

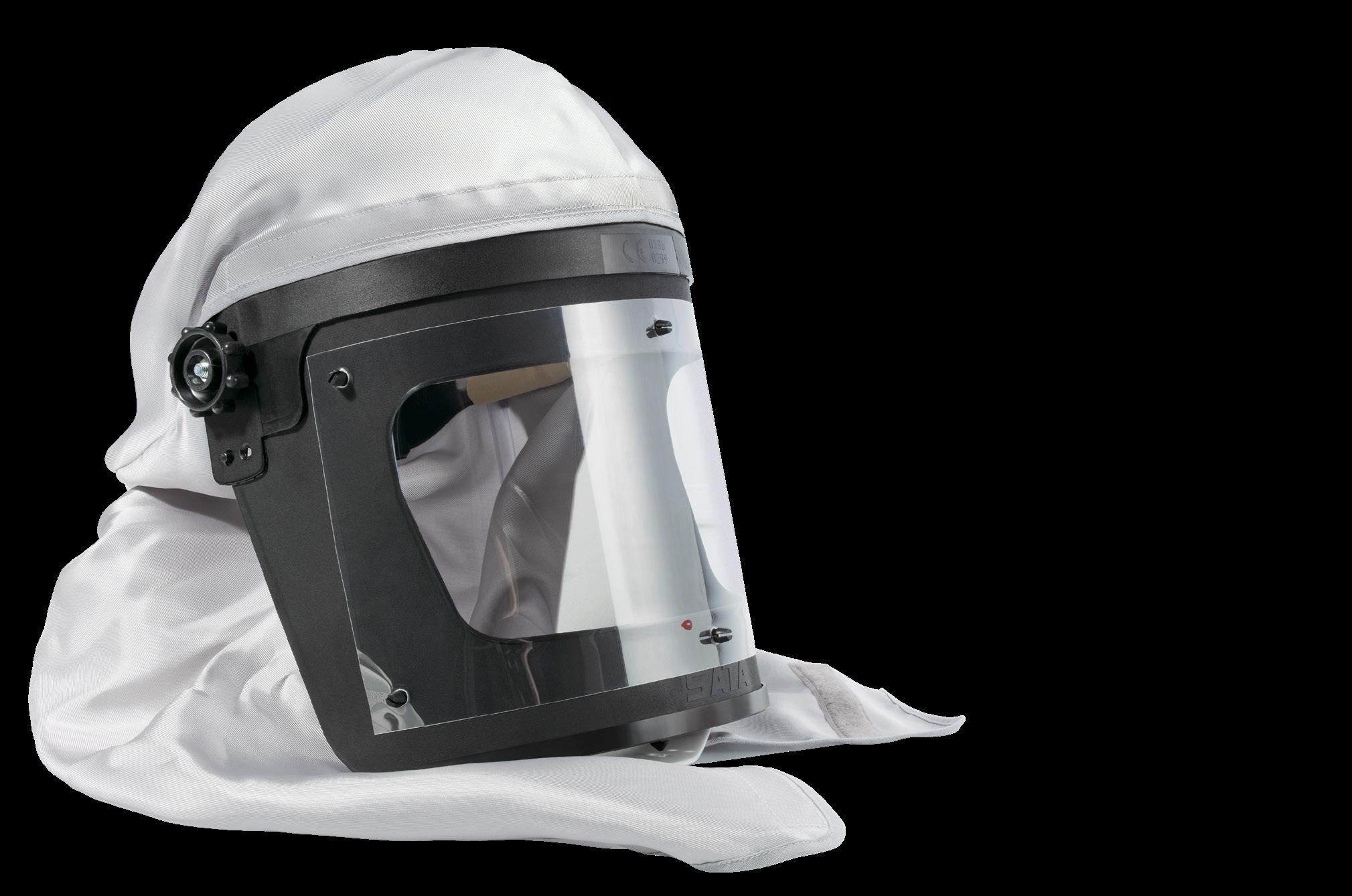

SATA vision 2000
The SATA vision 2000 offers maximum protection when processing paint materials. The lightweight hood with the simple belt system allows fatigue-free working without endangering the health of the painters. In combination with the optional air warmer or cooler, the air temperature can be adjusted individually.
This full hood is especially designed to meet the requirements of painters and protects the respiratory system, eyes, skin and hair, which is especially important when applying water-based materials. In addition, it offers a high wearing comfort and optimum hygiene. The respirator hood with silencer, hygienic hood inlay, replaceable sweatband is available as complete kit containing a belt unit – optionally available with activated charcoal adsorber and air flow control and air volume indicator or a T-piece with regulator.
MAXIMUM PROTECTION
An audible warning whistle indicates insufficient air supply which is complemented by a cross check indicator on the belt unit for highest possible safety (safety feature)
Head/chest cloth, which is breathable, solvent-resistant, lint-free, flame retardant and features a Velcro closure. Easy to remove and to replace, protects neck and chest.
HIGH WEARER COMFORT
Silencer
Individually adjustable
Exchangeable sweat band (microfiber velour) ensuring effective sweat absorption and highest hygienic standards
Removable hygiene inserts to minimize skin contact with contamination
LARGE FIELD OF VISION
Unique SATA single visor system
The tear-off visor foils are simply replaced with new ones ensuring perfect vision without reflections or distortions at any time.
BENEFITS
High breathing air quality due to air supply independent of ambient air
No inhalation resistance, high breathing comfort
High protective function (100-fold TRK value*)
Visor allows one-hand operation
Optimum visibility due to low-reflection solvent-resistant special film
Little operating costs, quick pay-off of purchase costs
Exchangeable hygiene components
SATA vision 2000 parts and accessories
SATA vision 2000
w/charcoal filter Order No. 36384 w/Ind. belt valve Order No. 60707
The complete health protection system
Supplied-air respirator hood with very high wearing comfort and optimum hygiene. The system perfectly complies with painters' requirements and protects their respiratory tracts, eyes, skin and hair (especially important for the application of waterborne paints).
SATA industrial belt valve
SATA industrial belt valve only is to be used in conjunction with a triple-stage filter
Order No. 61002 vision 2000
Order No. 138362 air star C
SATA activated charcoal belt unit
SATA activated charcoal adsorber belt unit only is an auxiliary filter. Breathing air is filtered through activated charcoal. to be used in conjunction with a double-stage filter
Order No. 37200 vision 2000
Order No. 37192 air star C
SATA vision 2000 hood only
Full hood respirator and full neck shield only
Order No. 51854
Spare Parts for SATA vision 2000
SATA vision 2000 sweat bands
Replacements for vision 2000
Natural Leather Order No. 61226
Artificial Leather Order No. 47571 10 pk Order No. 10330
SATA vision 2000 hood lining
Hygienic, 20 pk Order No. 69658
SATA vision 2000 grey cape only
Hood/chest cloth, anti-static Order No. 60541
35659
35675
35050
35100
36301
SATA vision 2000 tear-offs, 5 pk
SATA vision 2000 tear-offs, 25 pk
SATA vision 2000 tear-offs, 50 pk
SATA vision 2000 tear-offs, 100 pk
SATA vision 2000 tear-offs, 1000 pk
Optional Accessories for SATA® vision 2000
Breathing air warmer
Infinitely adjustable breathing air warmer Order No. 61242

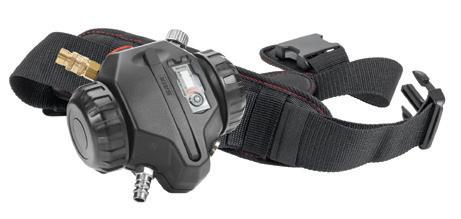

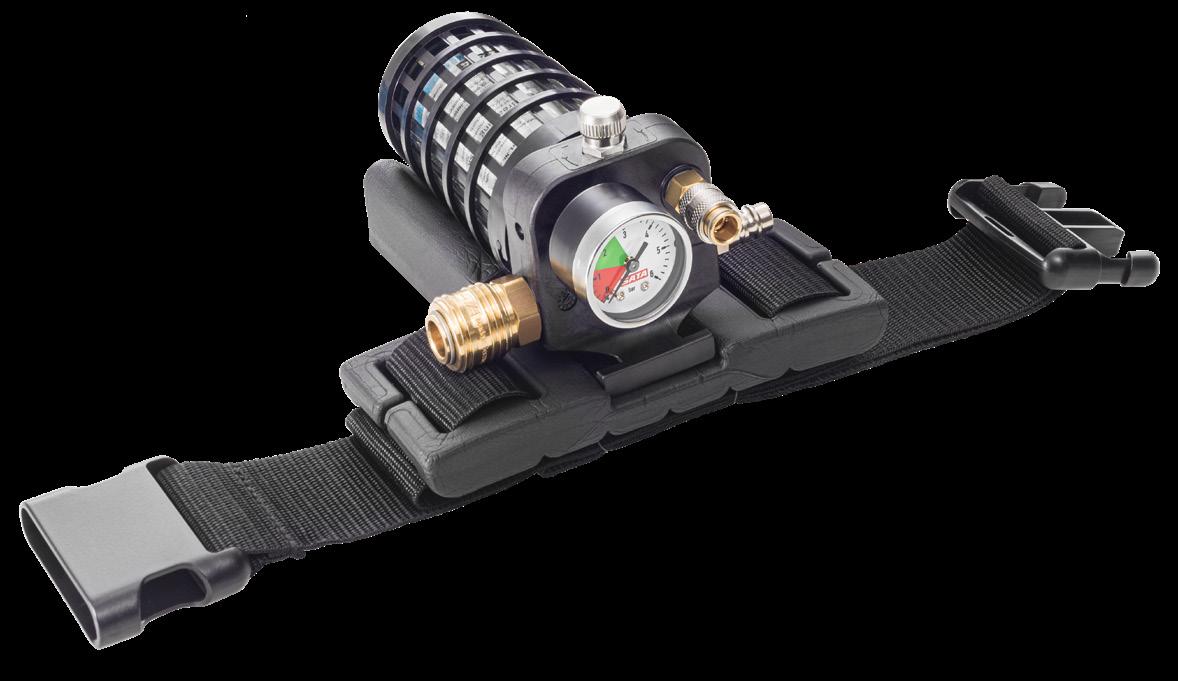

SATA BELT UNIT ACTIVATED CARBON ADSORBER
Quick coupling on the belt unit for easy coupling and uncoupling
Impact protection cage over the filter bow
Extra-large charcoal filter element for optimum breathing air quality
Air-flow-to-mask pressure gauge with red and green indication area to ensure correct pressure is maintained
Air volume adjuster control to ensure both sufficient and comfortable air supply
SATA air star C Secure. Comfortable. For continuous use.
SATA air star C with Activated Charcoal belt unit
Order No. 137547
SATA respirator kit: SATA air star C and belt unit with activated charcoal filter and air regulation valve

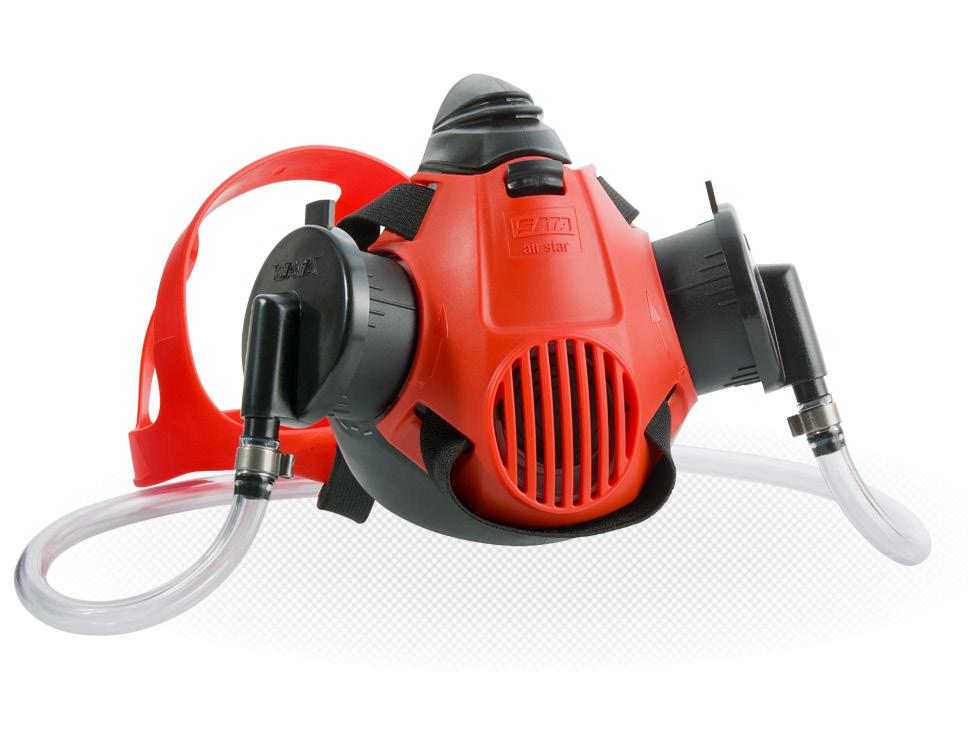

The SATA air star C is a NIOSH approved ventilated half-mask with adjustable continuous fresh-air supply.
The activated charcoal belt unit is an auxiliary filter. Breathing air is filtered through activated charcoal. The activated charcoal purifies the air and removes any odor or hydrocarbon vapor. Airflow is regulated with a throttle valve. A pressure gauge is mounted on the belt unit to visually monitor correct airflow setting. The charcoal belt unit is to be used in conjunction with a double stage filter; eg: SATA filter 544 or 444
Order No. 137653
SATA air star C respirator w/ breathing tube
Order No. 55798
Belt unit with activated charcoal adsorber and air regulation valve for SATA air star C
SATA air star C with Industrial belt valve
Order No. 137745
SATA air star C with belt valve
The SATA air star C is a NIOSH approved ventilated half-mask with adjustable continuous fresh-air supply. The SATA industrial belt valve is to be used in conjunction with a triple stage filter with an activated charcoal filter, eg: SATA 584 or 484 Triple stage filter. Airflow is regulated with a throttle valve.
Monitoring Air for Carbon Monoxide (CO)
Carbon monoxide is an odorless, colorless, highly poisonous gas caused by partial combustion. Combustion does not take place in a compressor. Yet an overheated compressor could convert lubricating oil to carbon monoxide, or contaminated air could be drawn into the compressor intake from an outside environment.

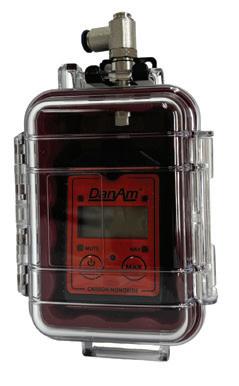

X288 SENTINEL
The Model X288 Carbon Monoxide (CO) Monitor and Alarm is a battery operated instrument that can be surface mounted on or near the outer wall of a paint booth or other position as close as possible to the air supply (within the temperature range of -4 F to 122 F). Recommended to mount in a highly visible area near entrance door to paint booth. Provided air supply hose and fittings allow to be connected to SATA filter/regulator with a 10’ hose. It continuously monitors a compressed air sample connected to its sample inlet and it gives an alarm when: The CO in the sample exceeds a preset level (adjustable, initially set at 10 PPM). It indicates CO concentration on a digital display
X767 GUARDIAN
The X767 is an AC powered Carbon Monoxide Monitor with LCD readout for larger shops or shops that require remote alarms. These monitors provide continuous digital indication of CO levels from 0 to 199 ppm and operate with the reliable Electrochemical sensor. The units give an audible (85db @ 3ft) and visual alarm at 10 ppm. Air sample tubing connects the monitor to the filter unit. The X767 monitor housing is fitted with RF filters to minimize interference from portable radios and cell phones. Optional remote alarms and horns are available.
CO Monitor Accessories
Over time the CO sensor becomes less sensitive with age making it necessary to re-calibrate the monitor. Calibration kits contain test gas, tubing with flow meter and regulator. Accessory alarm buzzers are available for shops that require sending an audible alarm to a remote location. Some installations may wish to mount the air horn alarm directly in the paint booth.
X288 Sentinel CO Monitor
The Model X288 Carbon Monoxide (CO) Monitor and Alarm is a battery-operated instrument that can be surface mounted on or near the outer wall of a paint booth, in visible area near entrance door. Indicates CO concentration on a digital display Order No. X288
X767 Guardian CO Monitor
110 volt AC Carbon Monoxide Monitor Audible and visual alarms for high CO or sensor failure. LCD digital readout Order No. X767-PLUS

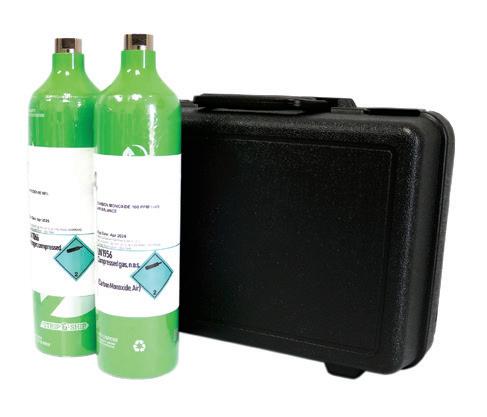

Calibration Kit
Calibration kit for carbon monoxide monitor
To be used on all current CO monitors. The more often the instrument is calibrated, the more accurate the instrument is.
Order No. X81-1232K

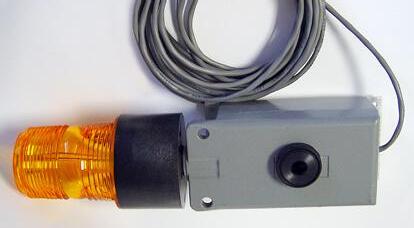

alarm with strobe light For use with X767 only Order No. XA166
No. XA176
No. XA176A

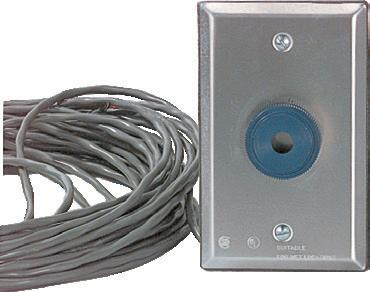

Remote Alarm
Siren Alarm
CO Protection Is a Must for Paint Technicians!
In addition to being a premium spray gun manufacturer, SATA also offers shop owners and painters innovative breathing protection through our filtration systems and air-fed full face positive pressure respirators.
Today’s painters want to protect themselves so that they can do the job longer and be healthier.
A shop’s air system is the heart of the operation. The compressor feeds all the technicians in the facility, and for most of us, we couldn’t do our job without it.
The quality of the compressed air that the painter is breathing must meet CSA Standard Z180. Clause 14.3 standards (Grade D breathable air in the United States).
Our SATA three-stage filtration provides 100% clean, breathable air. However, there is a one final component necessary to protect the painter and to be CSA and National Standards compliant, and that is a Carbon Monoxide Monitor.
CSA allowable breathing air means it meets specific purity levels measured in ppm (parts per million). These purity requirements focus on contaminants that are harmful to humans: carbon dioxide, carbon monoxide, oil, particulates, and condensates as well as other and limiting characteristics.
Provincial governments are taking a more proactive approach to enforcing guidelines for compressed breathing air – CSA Z180.1:19. Violations of allowable concentrations and carbon monoxide monitoring can lead to substantial fines and the shop being shut down until being made compliant.
Compressed breathing air and systems
Carbon monoxide monitoring
CSA Z180.1:19 Canadian standards state that all compressed air breathing systems that use oil or any other lubrication shall be continuously monitored for carbon monoxide to make sure the CO level does not exceed the allowable limit of < 5 mL/m3 (ppm)*.
In-line CO monitoring systems shall have an audible and visual alarm set to 5 ppm*.
So, somewhere in the compressed air system a CO monitor must be present for the detection of carbon monoxide. Both an audible alarm and strobe alarm warns the technicians to remove themselves from the compressed air system.
Fatalities have happened when a CO monitor was not present, due to compressor fires, poorly maintained compressors and intake air contamination. While most compressors don’t inherently produce CO, external factors like an idling delivery truck near the compressor intake can introduce dangerous exhaust into the air system.
This contaminated air can travel through the system undetected, posing serious health risks to technicians.
SATA Canada offers two reliable solutions:
•X288 Sentinel – Ideal for smaller shops or single-user setups. Mounts outside the booth near the door with a built-in alarm.

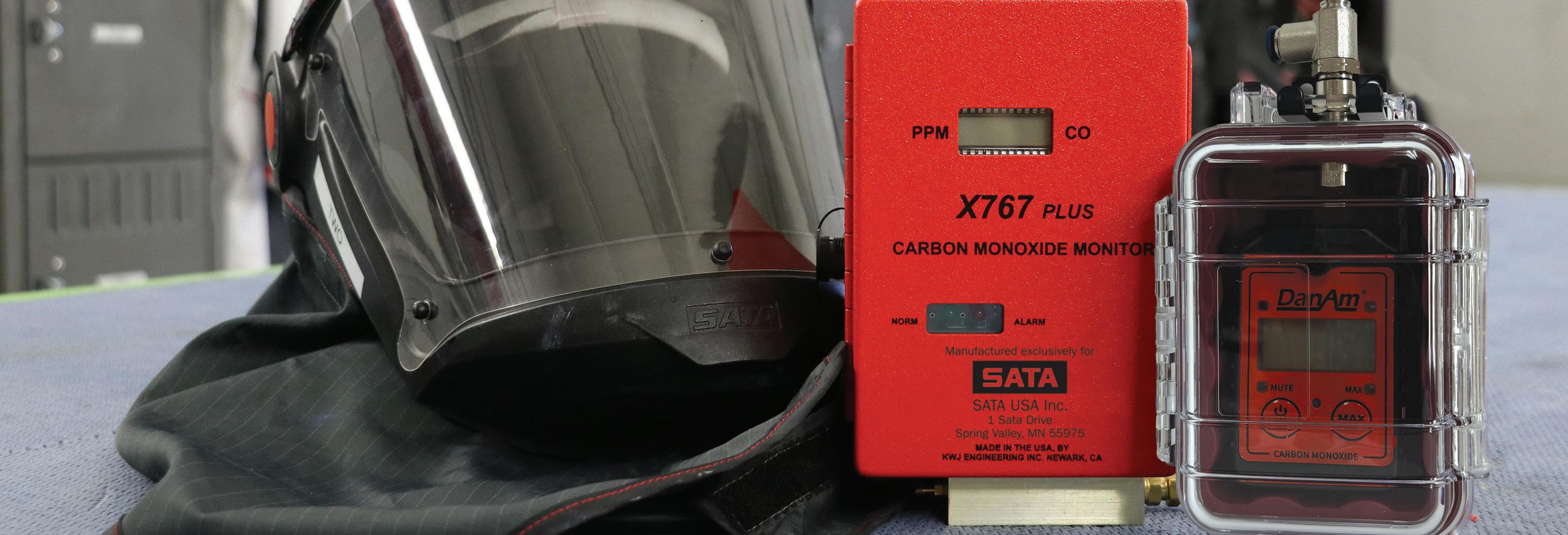

•X767 Plus – Recommended for larger facilities with multiple techs using supplied air. Integrates directly into the compressed air line.
Both models provide accurate, CSA and National rules-compliant CO detection and require calibration every six months for optimal performance—though more frequent calibration improves accuracy.
SATA also offers CO monitor accessories, including alarms with 85-120 decibels and strobe light alarm.
Paired with SATA filtration systems and supplied air respirators, these monitors offer industry-leading protection and peace of mind for paint technicians.
CSA guidelines state that a compressed air breathing system that use oil or any other lubrication shall be continuously monitored for carbon monoxide to make sure the CO level does not exceed the allowable limit of < 5 mL/m3 (ppm*).
Fresh Air Facts
Symptoms of Carbon Monoxide Exposure
OSHA - 8-Hour TWA
mild frontal headcahe in 2 to 3 hours. > NIOSH ceiling limit
Frontal headache and nausea after 1 to 2 hours. Occipital after 2.5 to 3.5 hours.
800 Headache, dizziness and nausea within 45 minutes. Collapse and possible death within 2 hours.
1500 IDLH (Immediately Dangerous to Life or Health)
1600 Headache, dizziness and nausea within 20 minutes. Collapse and possible death within 2 hours.
3200
Headache, dizziness in 5 to 10 minutes. Unconscious and danger of death within 30 minutes.
6400 Headache, dizziness in 1 to 2 minutes. Unconscious and danger of death within 10-15 minutes.
12800 Immediate Effect, Unconscious and danger of death within 1-3 minutes.
* (parts per million).
The SATA® filter 500 enables a higher absorption of contaminations and enhanced durability due to the optimized position of the charcoal filter and is available with three different filter stages. Changing the filter is simple and straightforward and filter maintenance is only necessary every 6 months for all stages.
Compressed air is one of the main sources of energy in paint shops. After being generated in the compressor, the air is fed into the compressed air circuit, whereby impurities such as tiny particles of compressor oil can be carried along right into the spray gun or breathing air. While such impurities are not particularly relevant for many industrial applications, they will inevitably cause coating flaws or pose a health risk in the paint application process. When working with waterborne paint systems, even the tiniest quantities of oil vapors can cause coating flaws, and consequently time-consuming, costly rework. Oil vapors or particles may also enter the respiratory system and cause health issues.
A well functioning compressed air circuit also includes regularly maintained compressed air filter units. To warrant trouble-free operation, a filter unit should be fitted either immediately in front of or directly inside the spray booth. While the SATA filter 544 will be sufficient for
solvent-based paints, the SATA filter 584 is required when applying waterborne paints.
The SATA filter series 500 is available either as a one-stage sintered filter with water and oil separator, as a two-stage combination filter with sintered and fine filter, or as a three-stage filter unit with additional sintered activated charcoal filter.

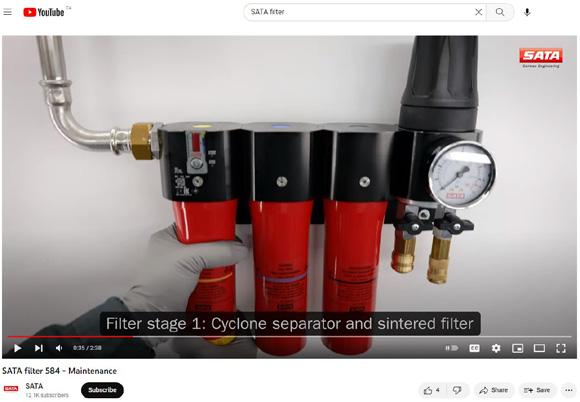

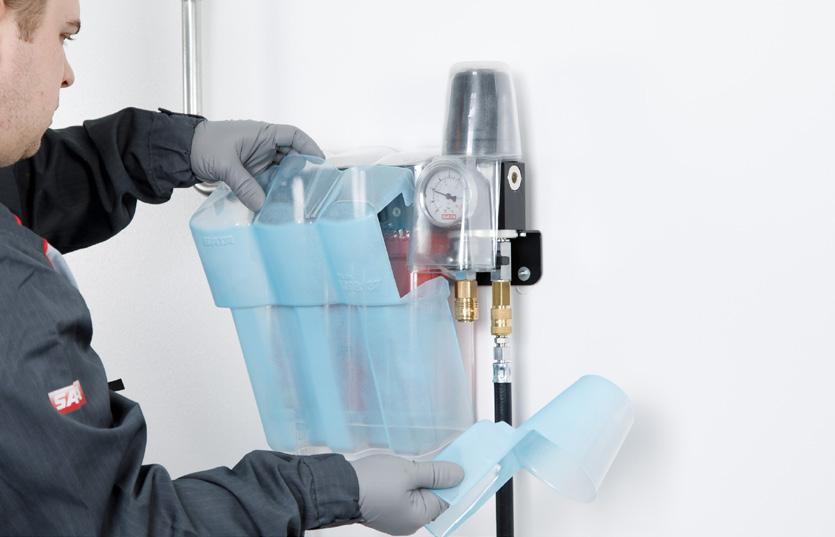

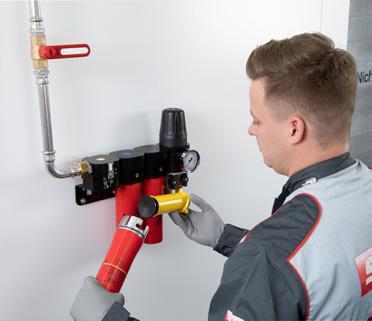

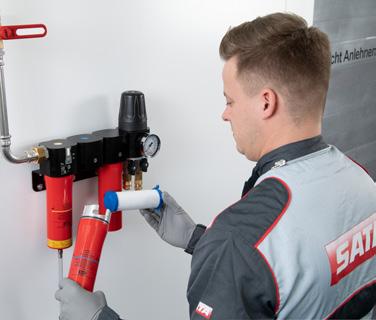

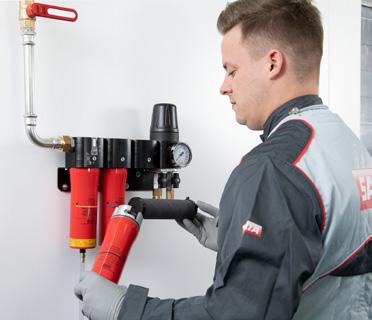

Every six months, all filter stages are maintained together in a procedure that takes just a few minutes without the need for tools, thanks to the bayonet lock and defined position of the filter cartridges, which are replaced simply by inserting them.
Furthermore, a flow-optimized cyclone separator minimizes pressure drop in the filter system and ensures a constant air flow of approximately 135 cfm.
BENEFITS
Air flow with 4 connections approx. 135 cfm

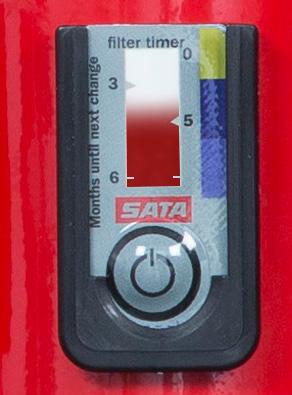

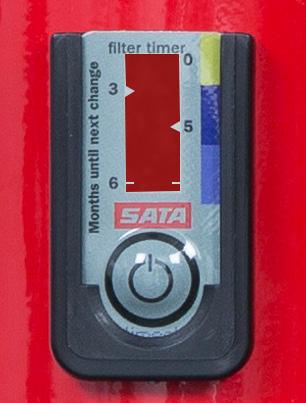

SATA filter timer to monitor the exchange intervals of all filter cartridges
Synchronized maintenance: Filter maintenance only necessary every 6 months for all stages

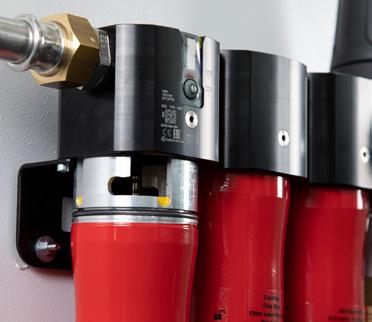

Maintenance-free bayonet lock with haptic and acoustic feedback

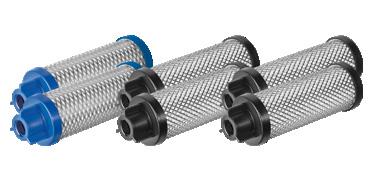

The fine filter and activated charcoal filter cartridges fit perfectly by simply being inserted – no screw fittings or additional seals
CCS (Color Code System) color coding of filter housing and filter cartridges for safe maintenance.
Upgrade of a SATA filter 544 to a 584 possible through a simple connector system
Maintenance-free sealing elements
Line connection optionally left or right

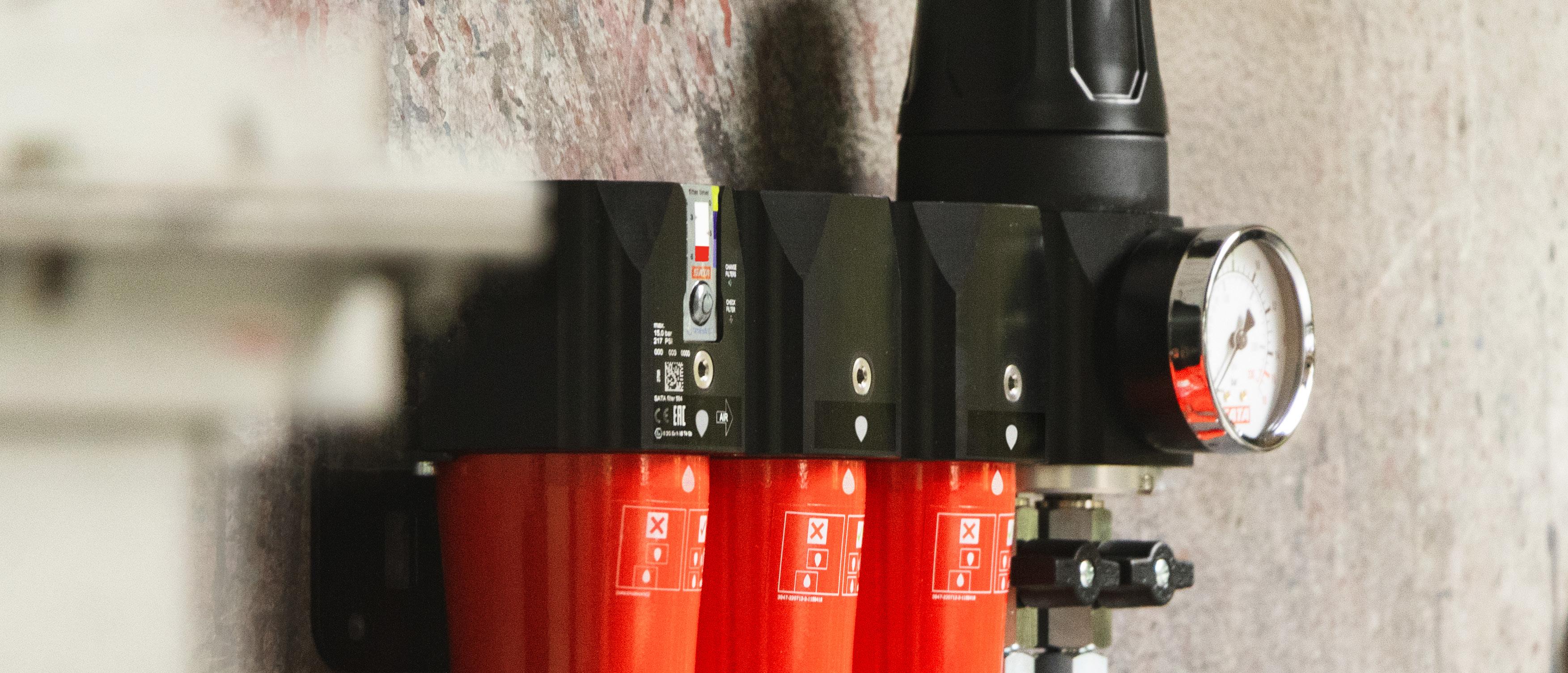

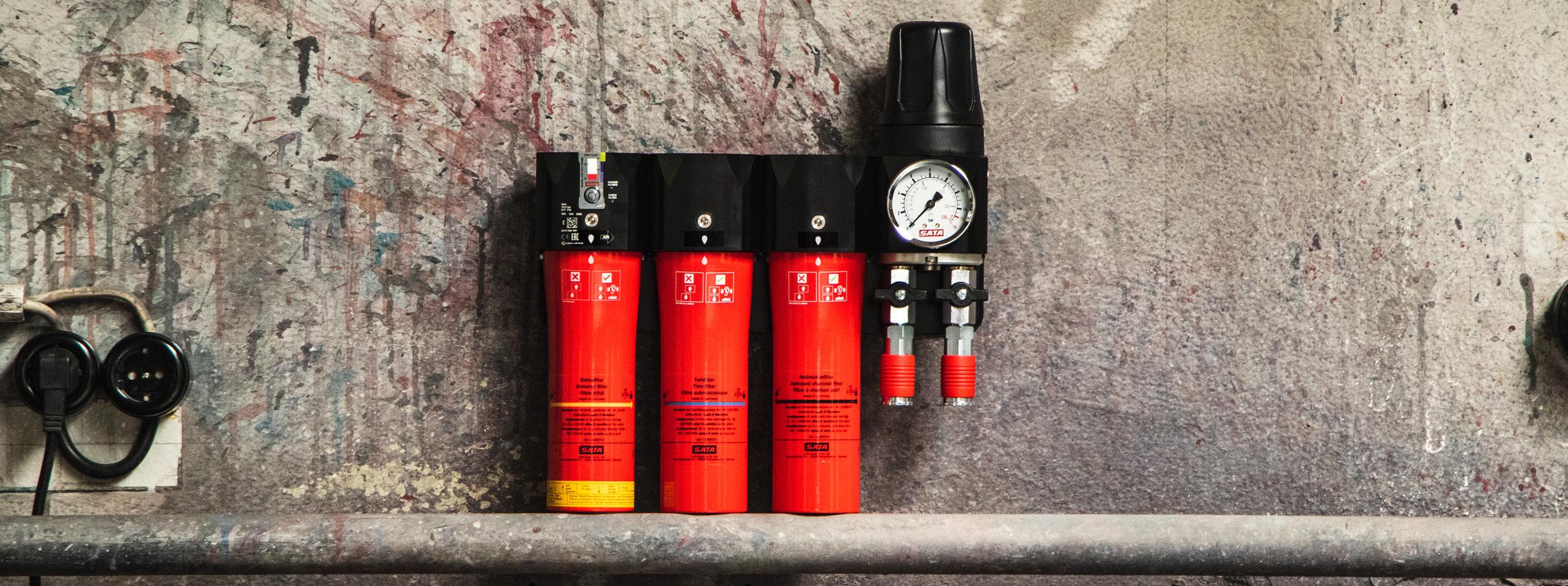

SATA filter 500 –Modular filter series for highest demands
The combination units SATA filter 544 and 584 are defining the standard in paint booths and breathing air treatment.

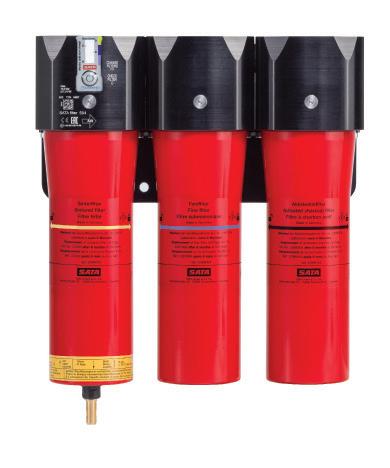

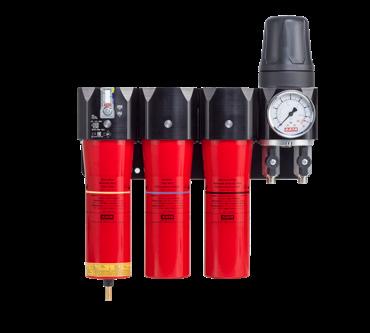

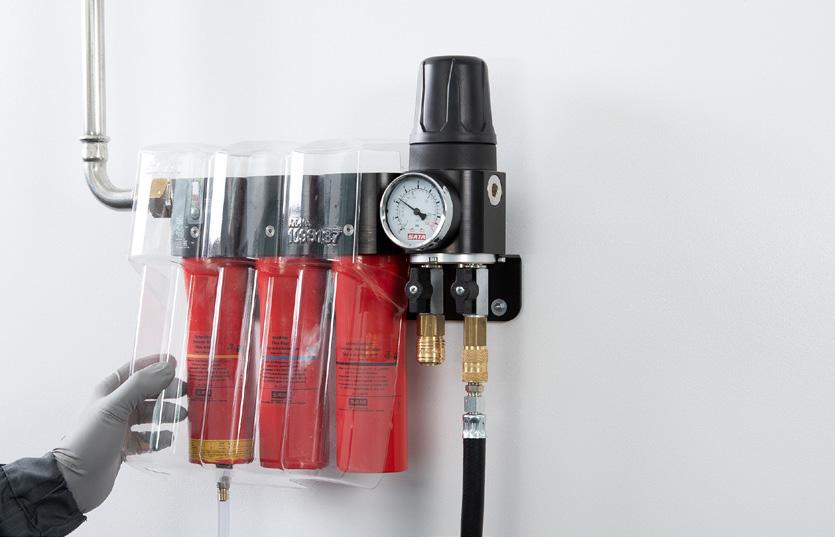

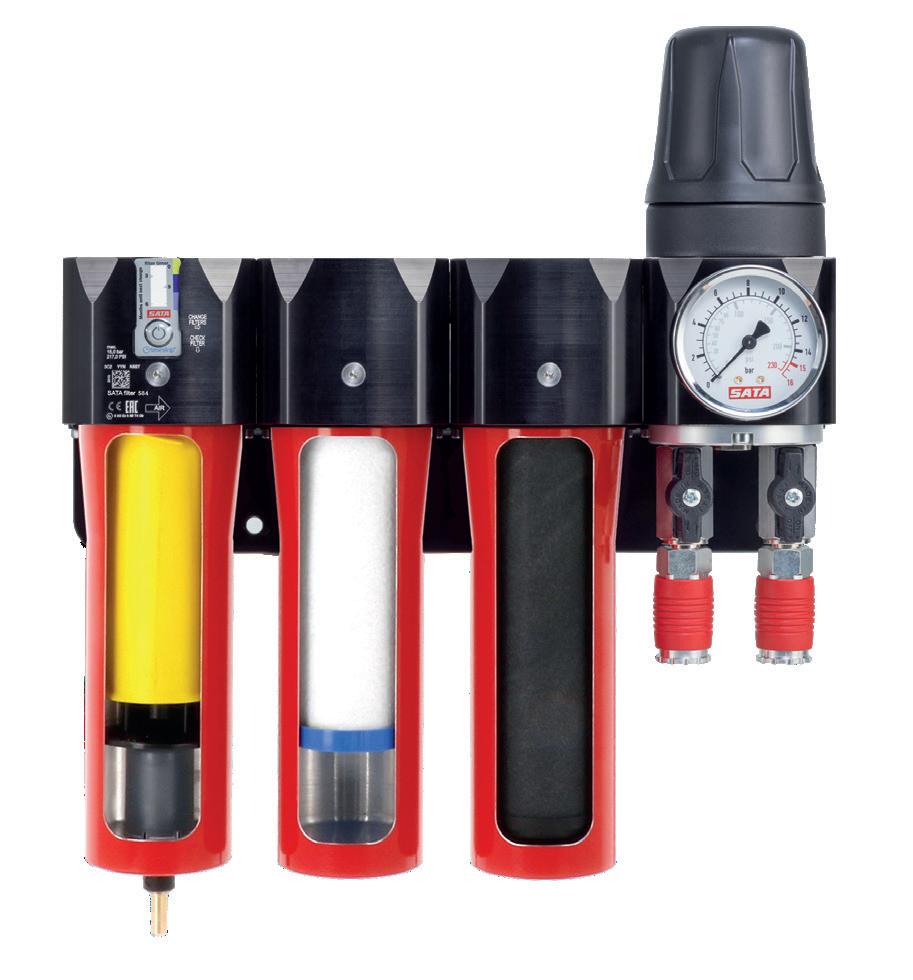

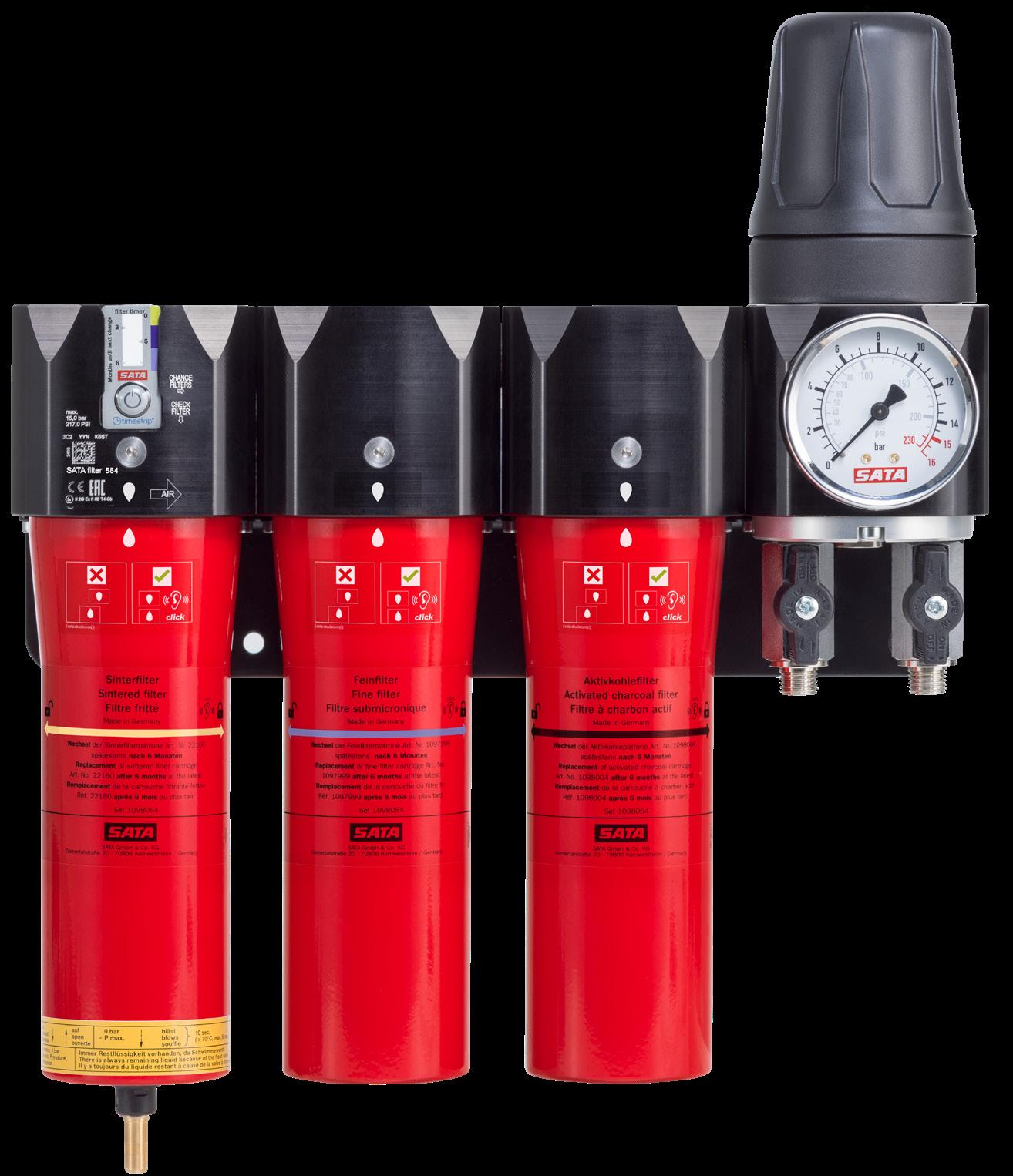

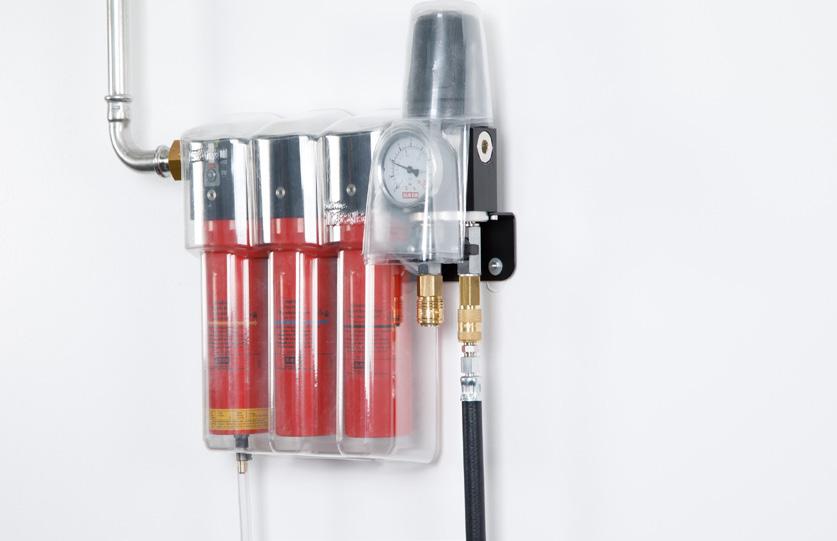

SATA®filter 584®| 3-stage combination filter
100% technically particle-free air
Filter fineness:
Sintered filter: 5 µm | Fine filter: 0.01 µm
Activated charcoal filter: oil vapors
Air flow at 87 psi: 135 cfm
Ambient temperature:
248 °F; with activated charcoal filter up to 140 °F
Activated charcoal: adsorbes oil vapors from the compressed air
Air flow at 87 psi: 135 cfm
Ambient temperature: 140 °F
Connection:
Air inlet: G 1/2" female thread
Air outlet: G 1/2" female thread
For retrofitting SATA 544 filter to SATA 584 filter
Order No. 1101005
SATA®filter 524®| Single-stage sintered filter
Filter fineness:
Sintered filter: 5 µm
Air flow at 87 psi: 135 cfm
Ambient temperature: 248 °F
Connection:
Air inlet: G 1/2" female thread
Air outlets: 1/4" male thread
Recommended for:
Gun cleaning equipment | pre-filter in compressed air circuit
Order No. 1101659
filter 544
SATA Filter 200 Series –
Professional Air Filtration for Small Shops
Along with the 500, the 200 filter series is the most versatile modular filter system currently on the market but at an unbeatable price. The 200 is rated at 72 cfm @ 90 psi, more than adequate for many small shops. Air flow is left to right, which can be converted if needed. When atomized air leaves the spray gun, it must be clean, dry and free of condensation, silicone, oil or any other contamination. Otherwise, the finished result can have a dull finish, fish eyes, water or dust. Clean, pure air is also a must for breathing air.

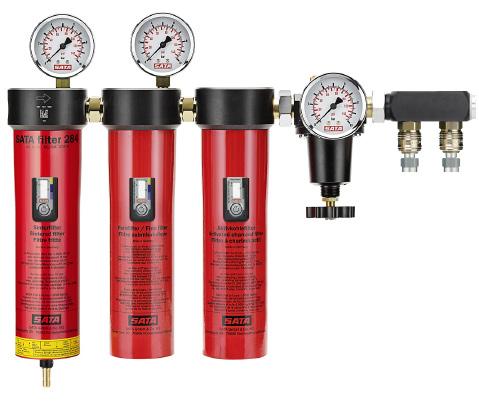

SATA®filter 284®| triple-stage in-line filter
100 % technically particle-free air
Filter fineness:
Sintered filter: 5 µm
Fine filter: 0.01 µm
Activated charcoal filter: oil vapours
Connection:
Air inlet: G 1/2" female thread
Air outlet: G 1/2" female thread,
Hi-flow coupling 1/4"
2 Drop Order No. 141218 | 4 Drop Order No. 141218-4

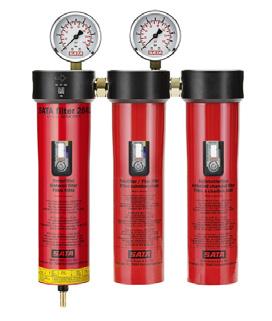

SATA®filter 282®| triple-stage in-line filter
100% technically particle-free air
Filter fineness:
Sintered filter: 5 µm
Fine filter: 0.01 µm
Activated charcoal filter: oil vapours
Connection: Air inlet: G 1/2" female thread
Air outlet: G 1/2" female thread
Order No. 189290
SATA®filter 244®| double-stage filter
Filter fineness:
Sintered filter: 5 µm
Fine filter: 0.01 µm
Connection: Air inlet: G 1/2" female thread
Air outlet: G 1/2" female thread, Hi-flow coupling 1/4"
2 Drop Order No. 44404 | 4 Drop Order No. 44404-4
SATA®filter 222®| single-stage sinter filter
Filter fineness:
Sinter filter with pressure gauge, automatic condensate discharger, use as an unregulated line filter
Sintered filter: 5 µm
Connection:
Air inlet: G 1/2" female thread
Air outlet: G 1/2" female thread
Order No. 43687
SATA®filter 234®| single-stage fine filter
Filter fineness:
In-line 0.01 micron filter unit. Provides 99.998% clean air. Compressed air must be pre-filtered when using this unit.
Activated charcoal: adsorbes oil vapours from the compressed air
Connection:
Air inlet: G 1/2" female thread
Air outlet: G 1/2" female thread
Order No. 141226
SATA®filter 242®| double-stage filter
Filter fineness:
Double-stage sinter filter/fine filter with pressure regulator for air installation (G 1/2 female thread). Use as an unregulated line filter for very fine particle separation
Connection: Air inlet: G 1/2" female thread
Air outlet: G 1/2" female thread
Order No. 43752
SATA compressed air filters prevent the following coating flaws:

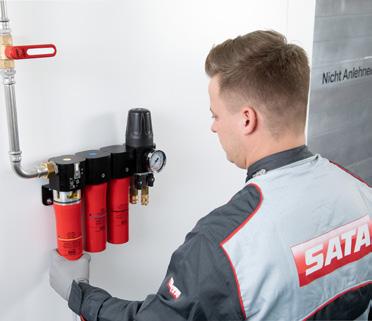

SATA filter cartridge maintenance
Filter cartridges
22160
First stage 1: sintered filter for all SATA filter series, 500, 400, 300, 200 the sintered filter eliminates particles > 5 µm Exchange interval: every 6 months
1097999
Filter stage 2: fine filter cartridge for SATA filter series 500 the fine filter eliminates particles > 0.01 µm Exchange interval: every 6 months
81810
Fine filter cartridge for SATA filter series 200, 300 and 400
1098004
Filter stage 3: Activated charcoal cartridge for SATA filter series 500 activated charcoal seperates oil vapours Exchange interval: every 6 months
85373
Activated charcoal cartridge for SATA filter series 200, 300 and 400 Exchange interval: every 3 months
1098054
SATA – Your experts for clean compressed and breathing air
The SATA filter series provide particle-free, clean compressed air for breathing and professional coating.
A well functioning compressed air circuit also includes regularly maintained compressed air filter units.
Service kit for SATA filter series 500: with fine filter and activated charcoal cartridge
214270
SATA six pack with #81810 (packing unit 2 pieces) and #85373 (packing unit 4 pieces) for SATA filter 484
Sintered filter to separate particles > 5 µm (separates condensate and oil droplets) Fine filter cartridge to separate particles > 0.01 µm; separation efficiency 99.998 %
Activated charcoal cartridge filter with higher separation efficiency of oil vapors. Suitable for supplied air breathing and for spraying waterborne paint.
learn how to replace each filter stage in this official SATA application video
SATA filter timer –
Safety at the push of a button
SATA equips all filter units with the SATA filter timers to remind users to regularly change the filter cartridges.
Handling the SATA filter timer is as easy as:
1. When a new filter regulator unit is installed, each filter timer must be activated by pressing the button.
2. Once activated, the maintenance interval for the respective filters starts "running". The window gradually changes colour to red during the course of the interval (6 months), corresponding approximately to the saturation progress made during normal use.
3. The filter cartridges must be replaced once the window changes colour to red.
1. Release of the SATA filter timer
The display window will gradually turn to red, indicating the passing of time
2.
Once the display window has completely changed to red, the filter needs to be replaced.
3.
Accessories for SATA filter series

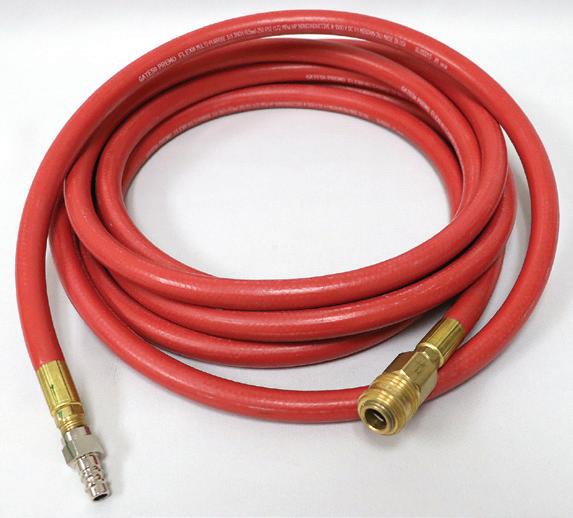

Premo Flex Red Breathing Hose
Silicone Free Air Hoses - for use with supplied air respirators and spray guns, 3/8" Premo Flex non-gassing 250 psi working pressure avail. w/coupler & nipple. NIOSH approved.
Order No. 676025
25 ft. / 7.6 m Premo Flex breathing hose 3/8” ID w/nipple/coupler
Order No. 676035
35 ft. / 7.6 m Premo Flex breathing hose 3/8” ID w/nipple/coupler
Order No. 676050
50 ft. / 7.6 m Premo Flex breathing hose 3/8” ID w/nipple/coupler
Order No. 676075
75 ft. / 7.6 m Premo Flex breathing hose 3/8” ID w/nipple/coupler
Order No. 676100
100 ft. / 7.6 m Premo Flex breathing hose 3/8” ID w/nipple/coupler
Dan-Am Air Regulators
675652
Dan-Am point of use regulator with 2 drop manifold, mouning bracket, 1/2" connection
675658
Dan-Am vertical line regulator with 45 degree 2 drop manifold
Filter Accessories
1101667
SATA pressure regulator 520 with gauge 0-145 PSI, air outlet G 1/2" (female thread)
171496
Pressure regulator, 200 series, 1/2" connection.
Max. inlet pressure 140 psi After 2011 version 13599
SATA quick coupling G 1/4" (female thread) 13623
SATA quick coupling G 1/4" (male thread) 6981
SATA HVLP female nipple - 5-pk Quick coupling nipple G 1/4 female thread 53942
SATA HVLP male nipple - Quick coupling nipple G 1/4 male thread
1101500
SATA filter cover (packing unit 4 pieces) for SATA filter series 500 215053
SATA filter cover (packing unit 4 pieces) for all SATA filter series, except 500

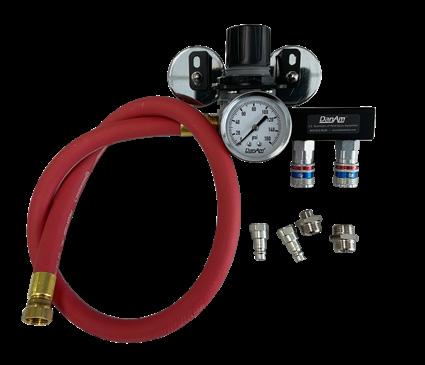

Tech Rep Demo Regulator
Use for demos or troubleshooting. portable, magnetic, easy to plumb in. 2 high flow couplers and fittings for gun and hose. 1/2" adapter and 1/4" adapter
Order No. 675652D
SATA filter cover – Cost-effective protection against overspray in the paint booth.
Apply SATA filter cover
If heavily soiled, remove the top SATA filter cover.
Reorder as soon as only one SATA filter cove remains 1. 2. 3.

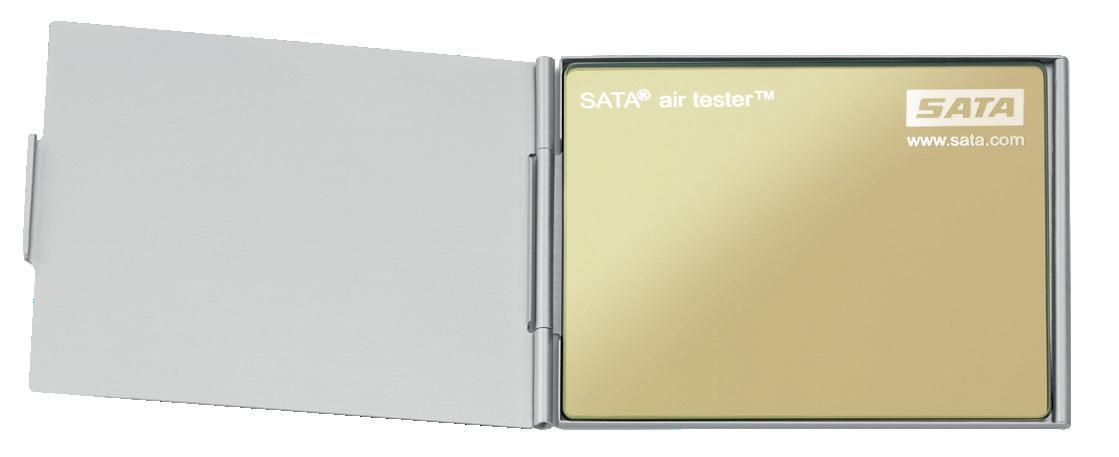

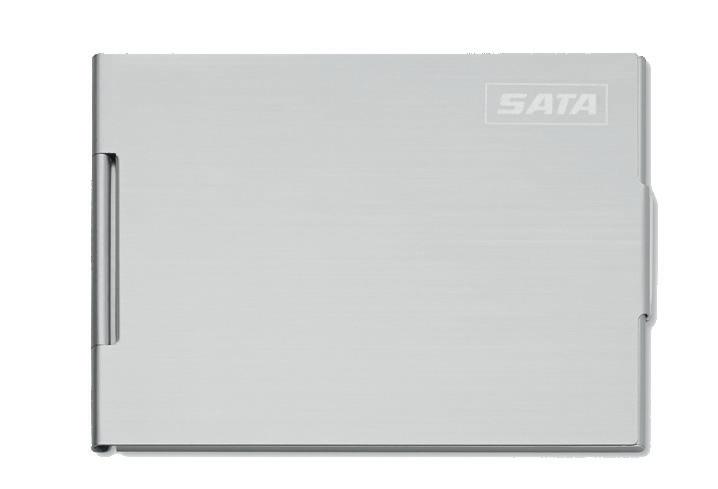

Air quality control – SATA air tester
Another “little helper” from SATA. This practical tool makes it easy for you to detect impurities in the compressed air.
The SATA air tester helps to drastically shorten the search for the cause; within a few seconds it indicates possible residues in the compressed air.
Painting defects cause high rework costs - that is well known. They also disrupt normal operations and annoy customers in the event of delays. Reasons enough to find out the cause of painting errors.
But where is the cause to be found? Often, the only way to find out is to use the process of elimination: This involves checking the individual areas such as compressed air supply, preparation, paint materials and spray guns.
These investigations cost the company valuable working time, and the results of the troubleshooting are not always obvious. The SATA air tester can help shorten the search. It provides immediately usable results for testing the compressed air supply

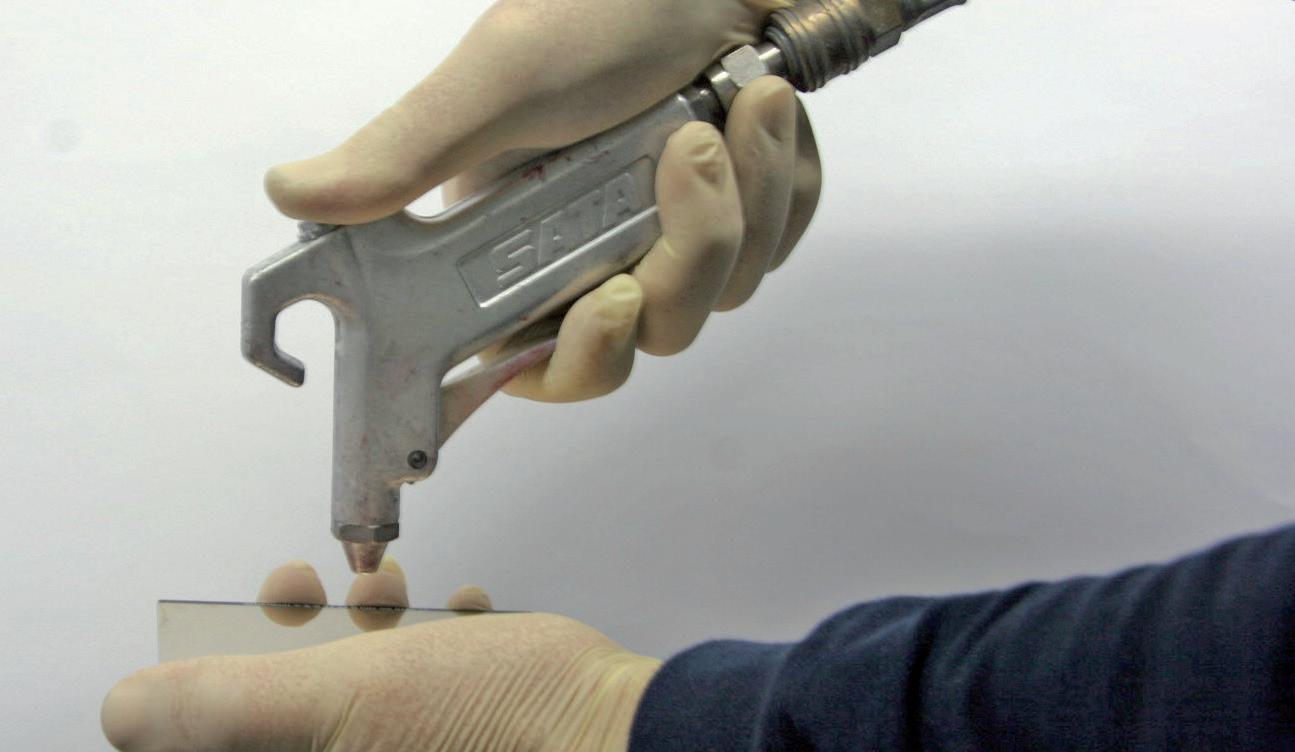

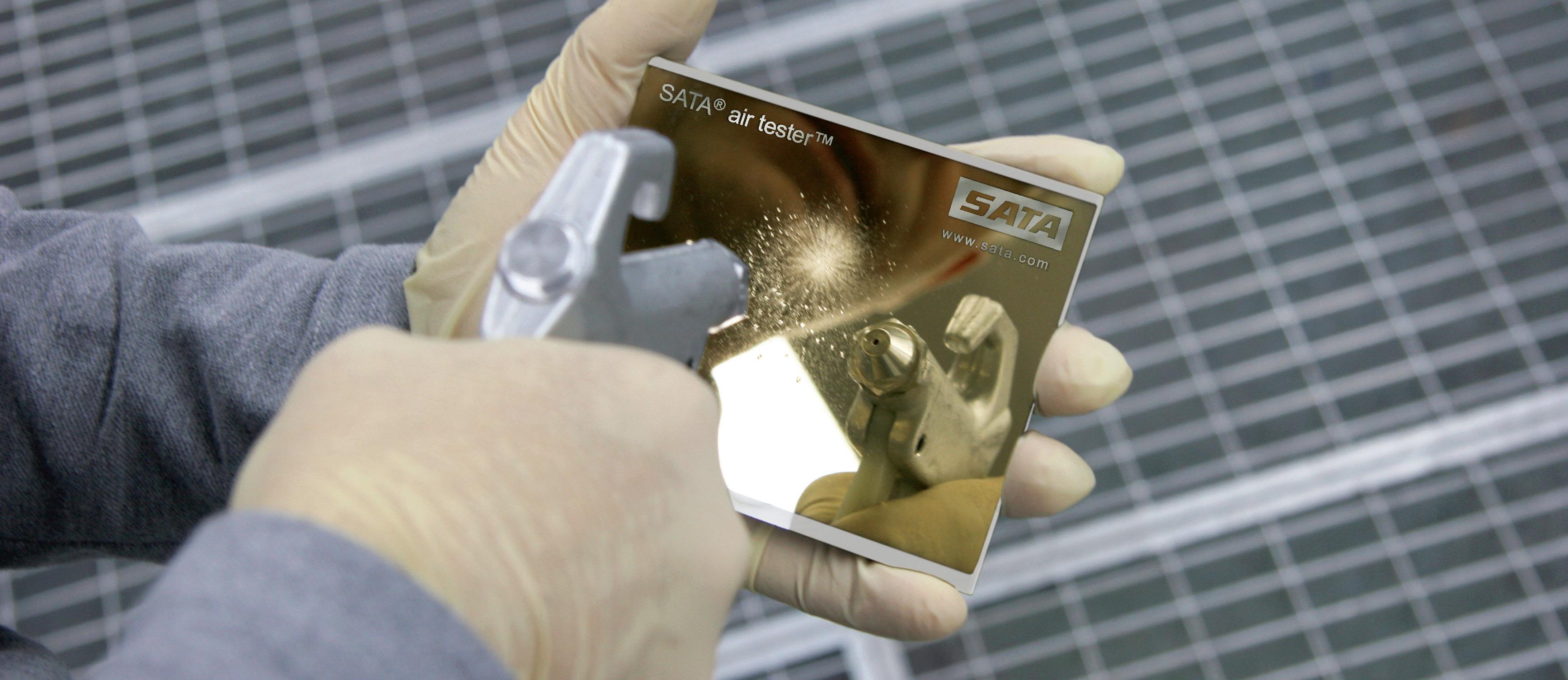

It is easy to use: the compressed air is blown onto the specially coated surface of the SATA air tester using the air supply from your spray gun or a blow gun. Hold the gun about 5 mm away from the cleaned surface at approximately 29 PSI for 30 seconds.
If paint-damaging substances such as condensate, oil and particles are present in the compressed air, they become visible on the mirrored surface.
When opening the SATA air tester, avoid touching the coated surface if possible. Then clean the air tester with a microfiber cloth and, if necessary, with a cleaner (silicone remover). No residue should be visible on the test surface.
Contaminated compressed air can be caused by an oily compressor, or the pipe network itself or - and this is not uncommon - inadequately maintained compressed air filters. For this reason, SATA recommends regularly checking the quality of the compressed air with the SATA air tester.
As the saying goes: “Prevention is better than rework.”
Business Development Specialists
Les Pawlowski
SATA Canada
National Sales Manager
Cell: 437 452 SATA (7282) les.pawlowski@sata.com
Todd Marshall
Business Development Specialist
Ontario
Cell: 437 350 SATA (7282) todd.marshall@sata.com
JP Kleniewski
Business Development Specialist
Ontario & Maritimes
Cell: 647 549 SATA (7282) jeanpaul.kleniewski@sata.com
Martin Smith
Business Development Specialist
Manitoba Cell: 431 374 SATA (7282) martin.smith@sata.com
Thomas Gierens
Business Development Specialist
Alberta & Saskatchewan, industrial and automotive Cell: 587 582 SATA (7282) thomas.gierens@sata.com
Michael Murphy
Business Development Specialist
British Columbia
Cell: 778 956 SATA (7282) michael.murphy@sata.com
Patrick Creaney
Business Development Specialist
Quebec
Cell: 514 915 SATA (7282) patrick.creaney@sata.com
Sebastien Bergeron Business Development Specialist
Quebec
Cell: 437 349 SATA (7282) sebastien.bergeron@sata.com
= 3
Premium Warranty
You will be granted for SATA paint spray guns, filters or air fed respirators a prolonged warranty period free of charge (1 year + 2 years = 3 years), provided you return to us within 30 days after purchasing date the duly filled Premium Warranty Form or effects the Premium Warranty Registration via Internet, www.sata.com
