SITE PLAN

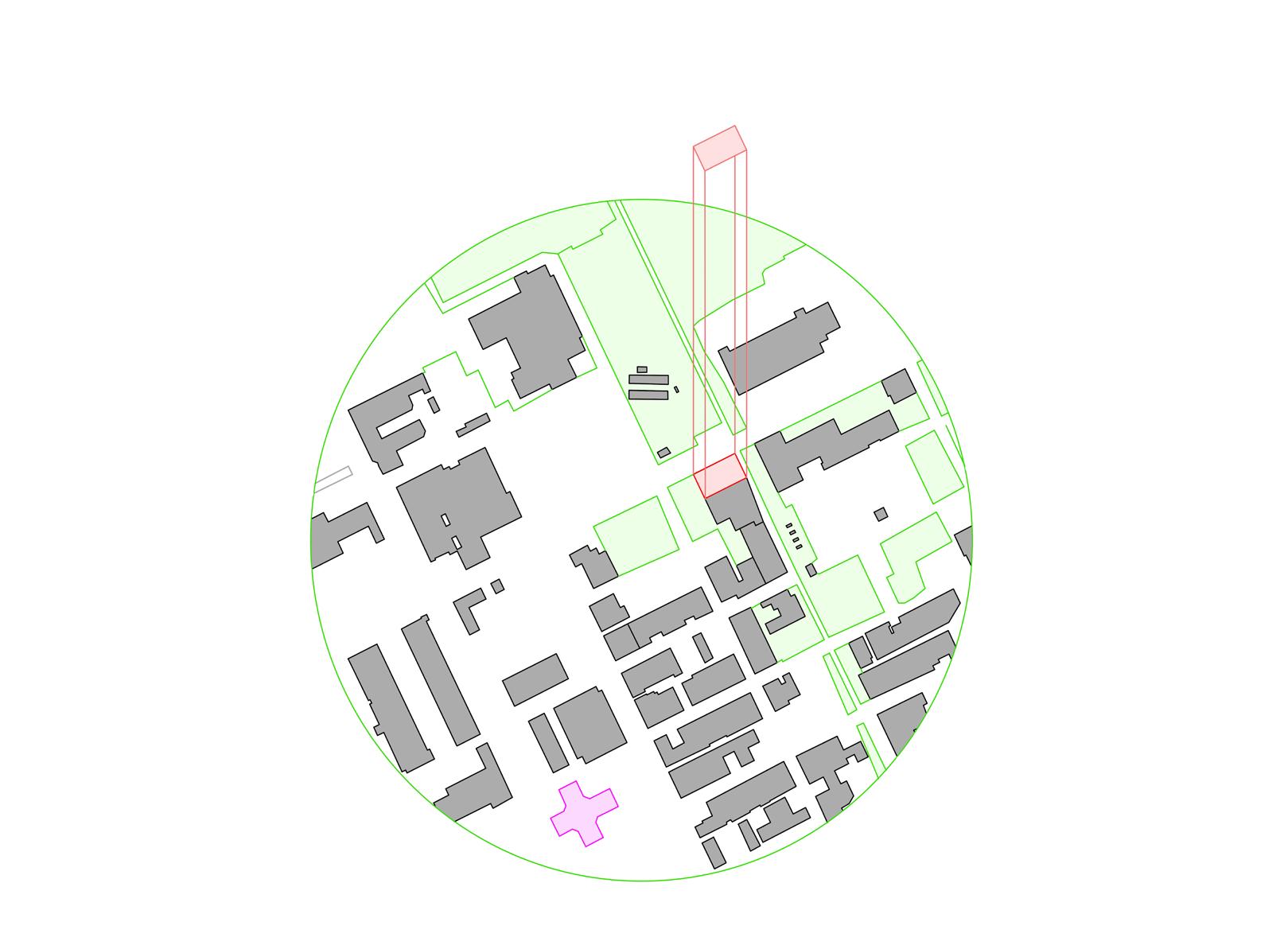

SITE LOCATION PLAN

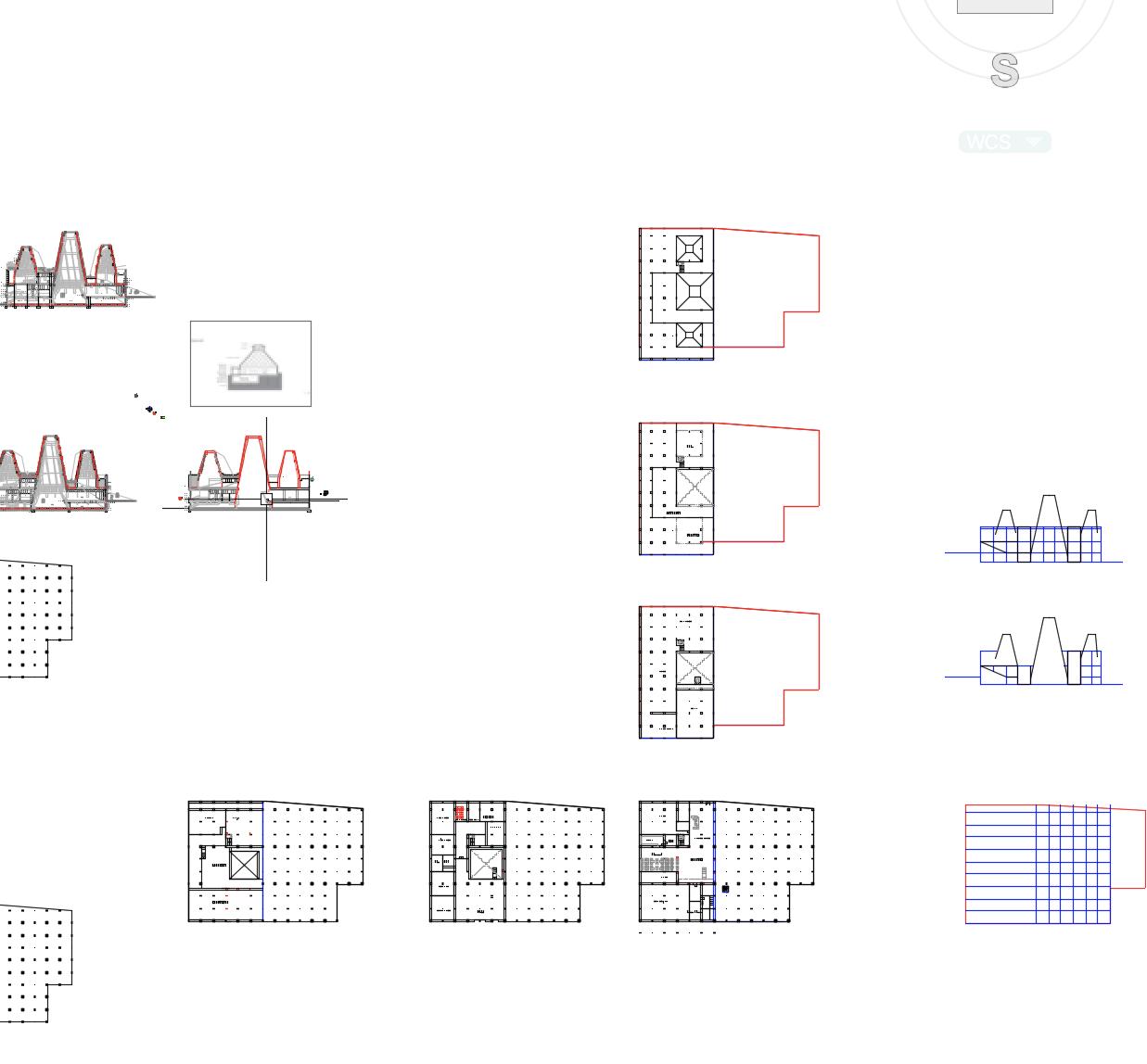

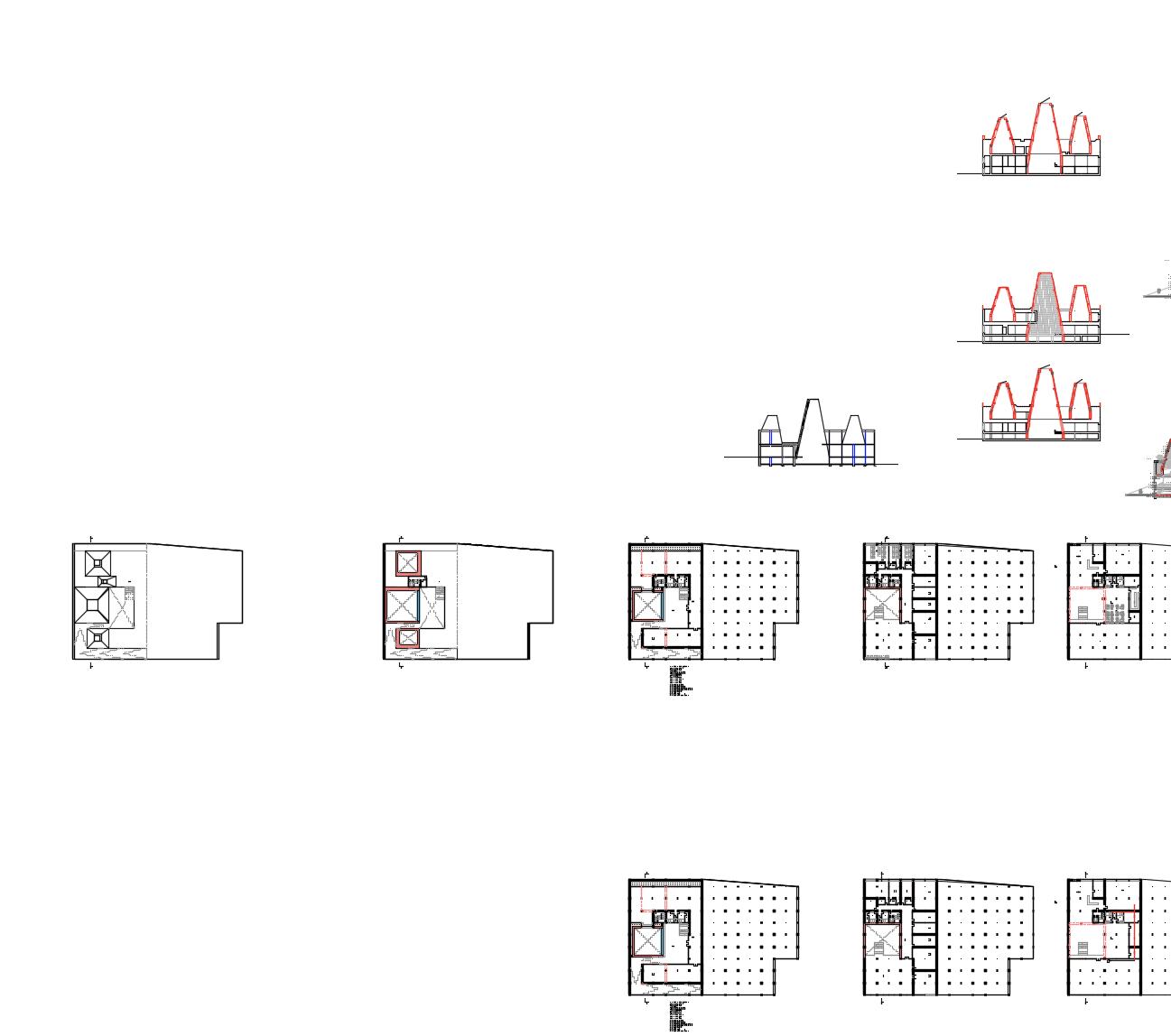

GROUND FLOOR PLAN FIRST FLOOR PLAN SECOND FLOOR PLAN KEY: RED- NEW STRUCTURE 1. Services/plant 2. Stores 3. W.C. 4. Restaurant 5. Kitchen 6. Offices 7. Entrance 8. Lounge 9. Market 10. Day Care 11. Class room 12. Lecture Theater 13. Garden 14. Study 15. Rooftop Farm
THIRD FLOOR PLAN ROOF PLAN

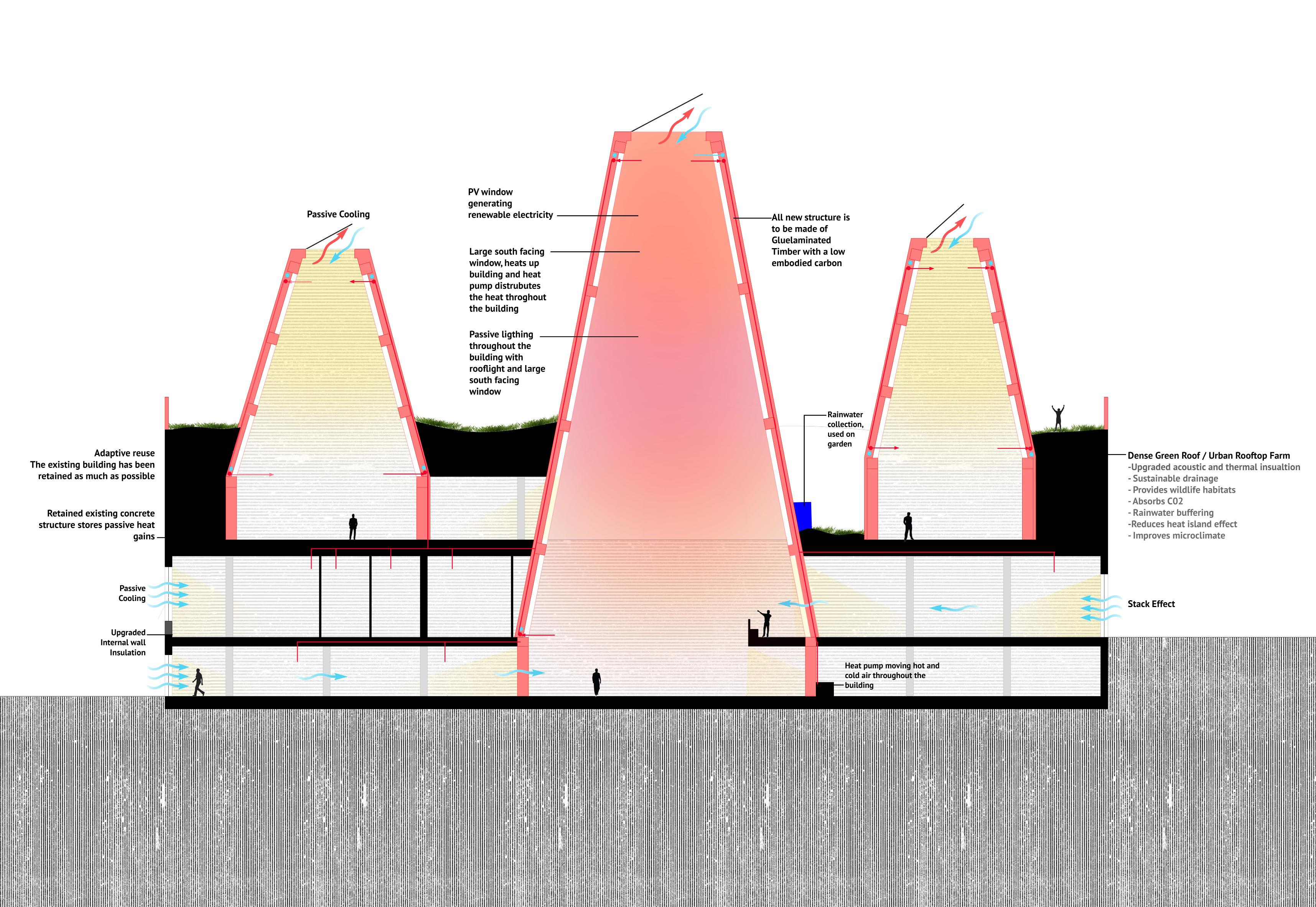

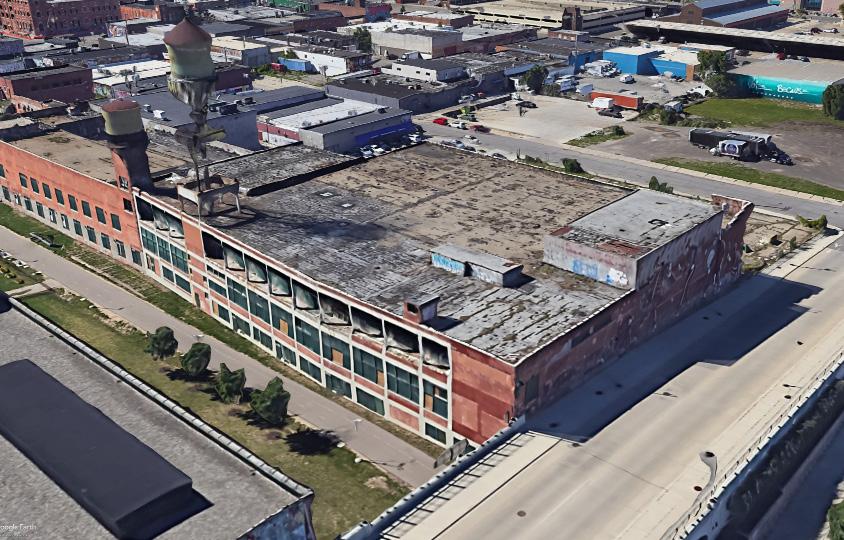

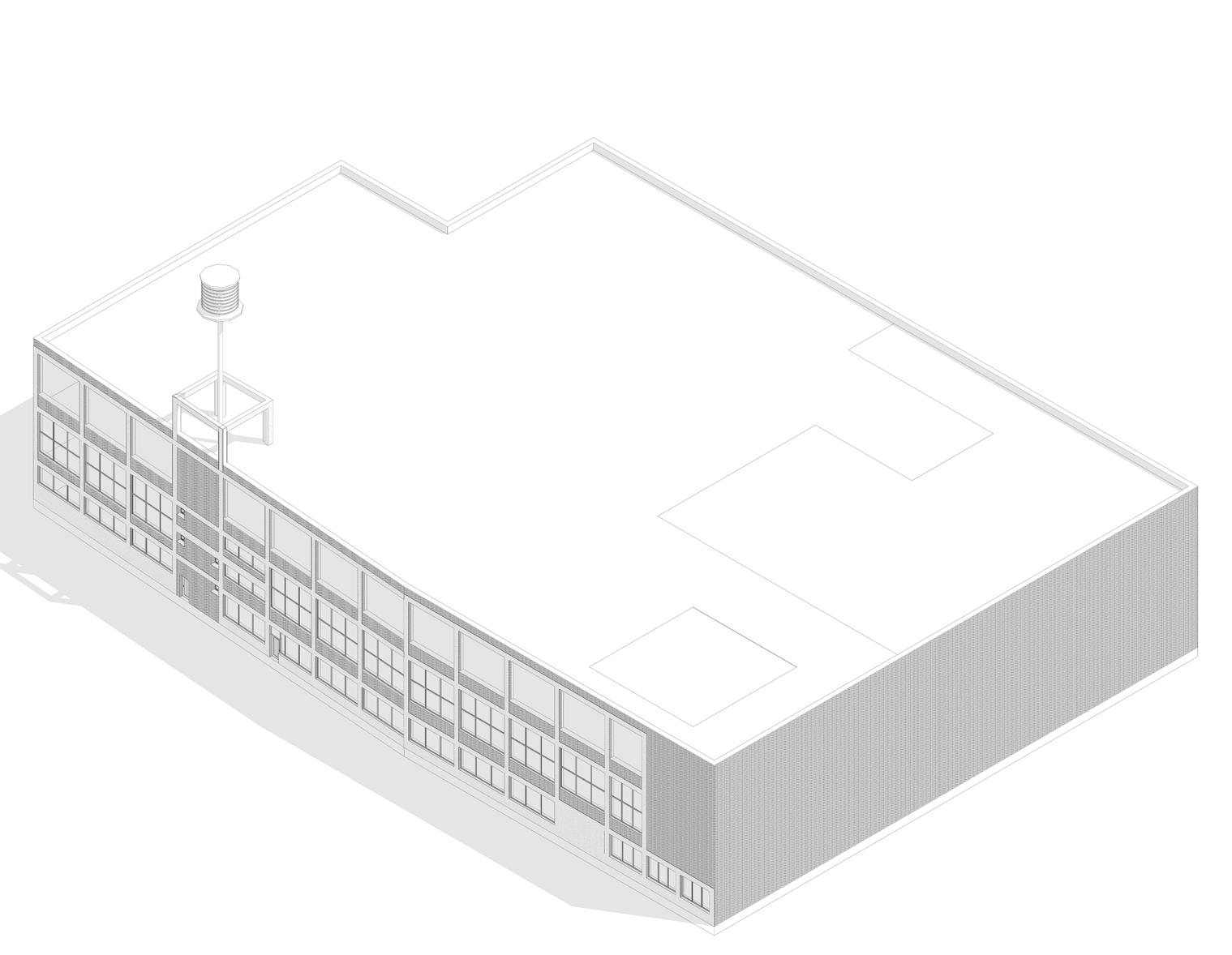

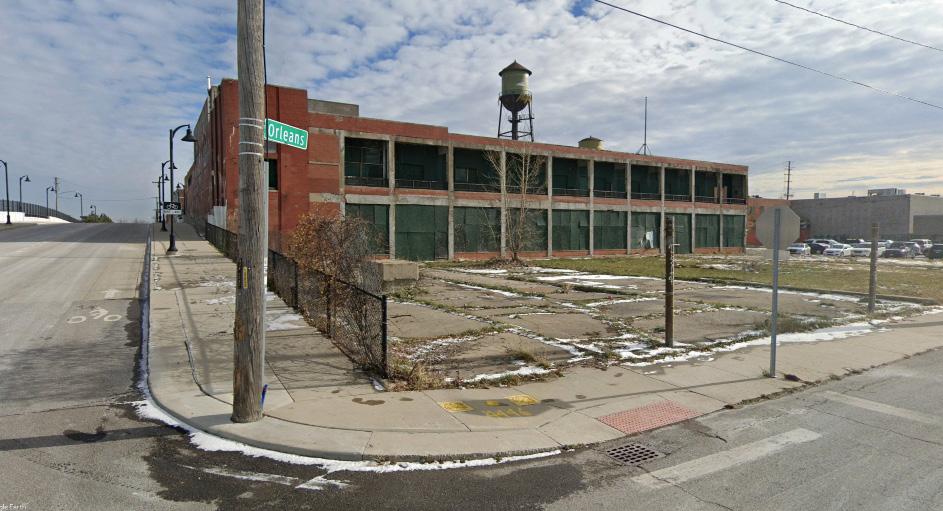

EXISTING MODEL

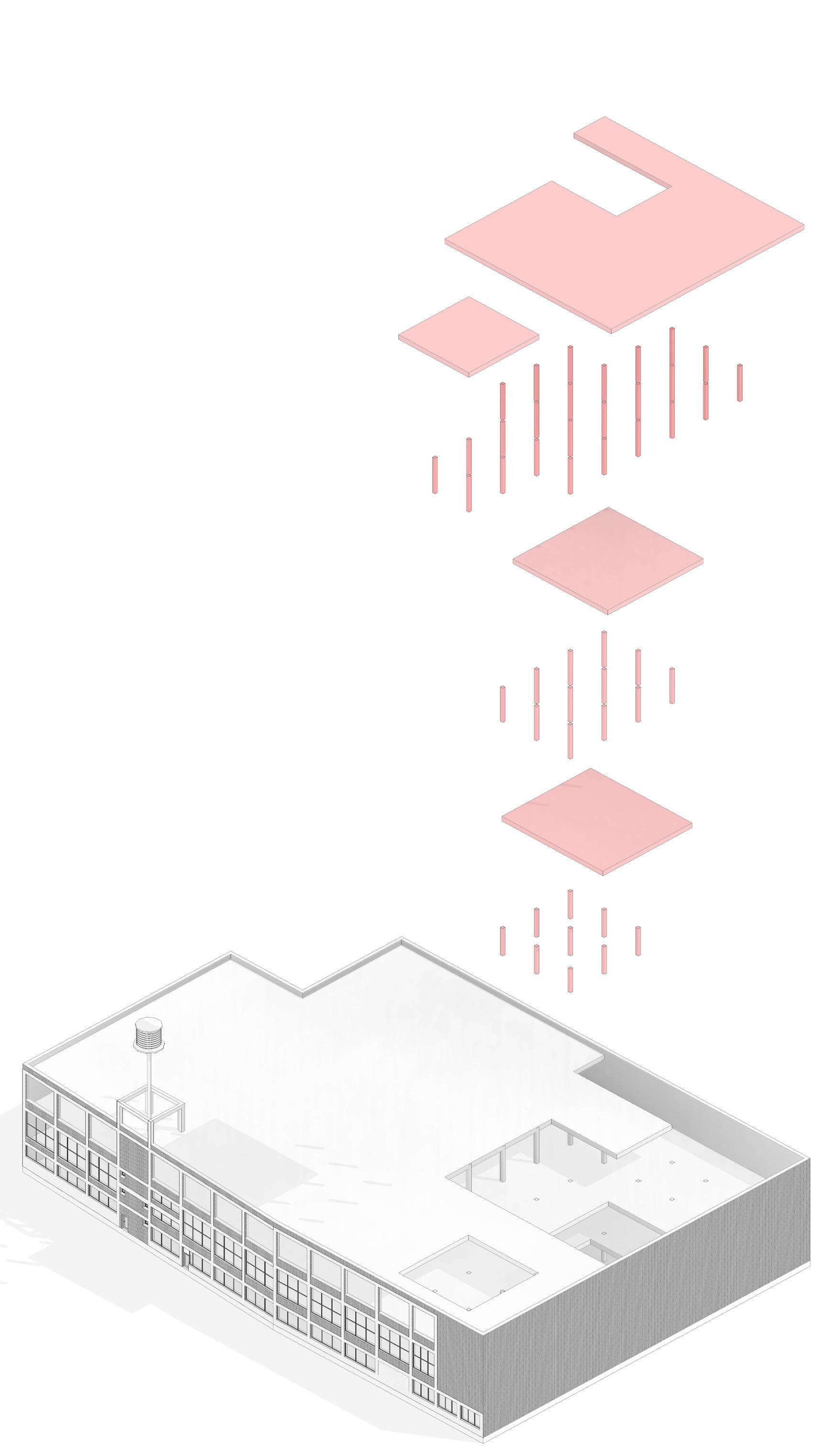

EXISTING BUILDING WITH DEMOLITIONS

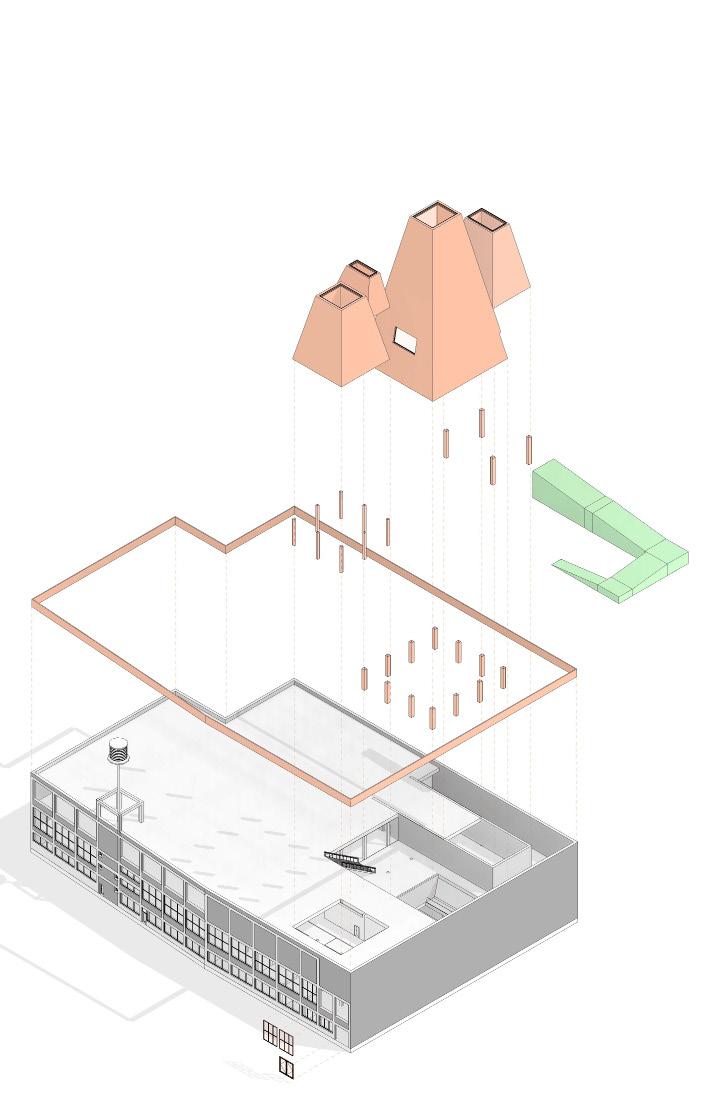

EXISTING BUILDING WITH ADDITIONS

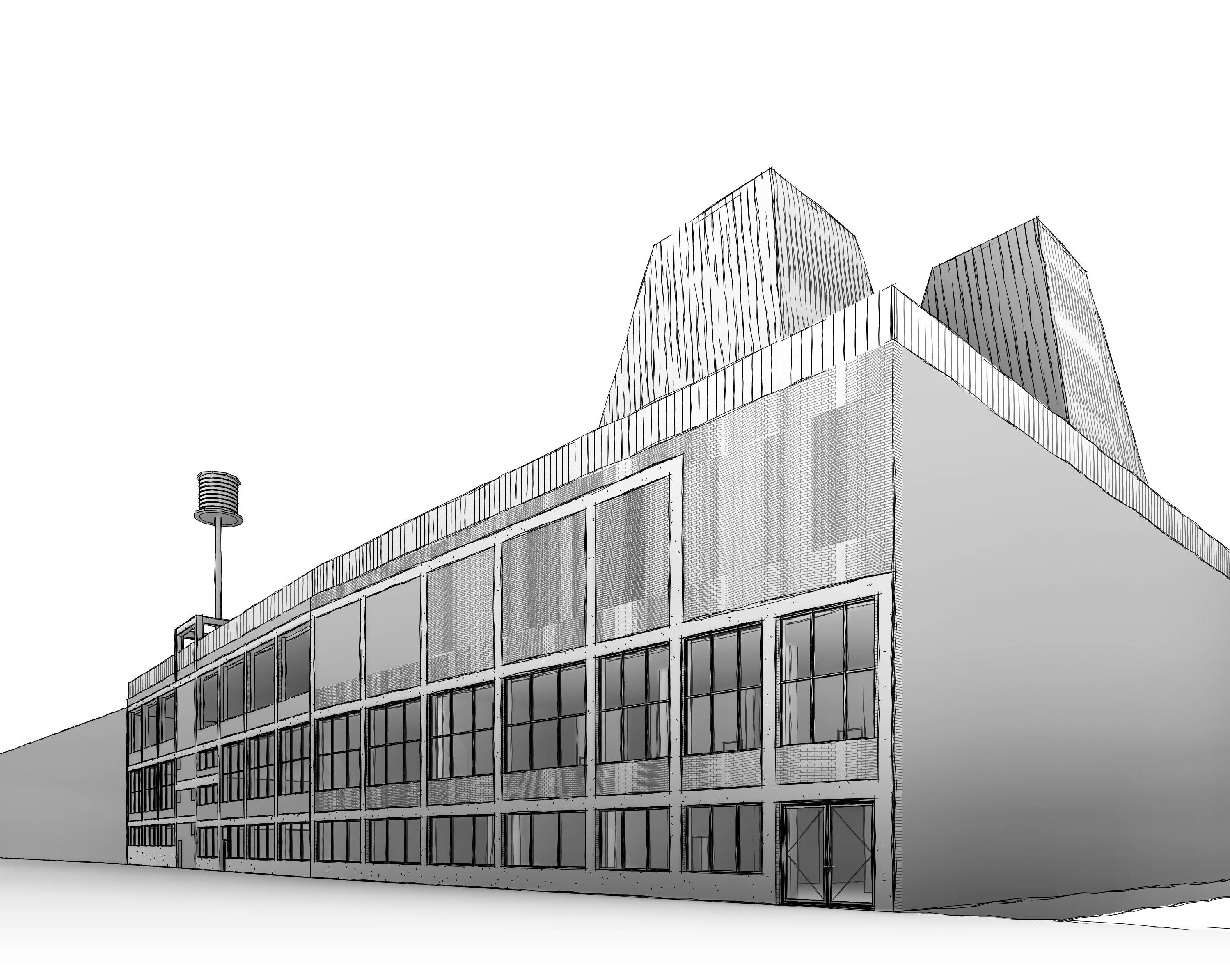

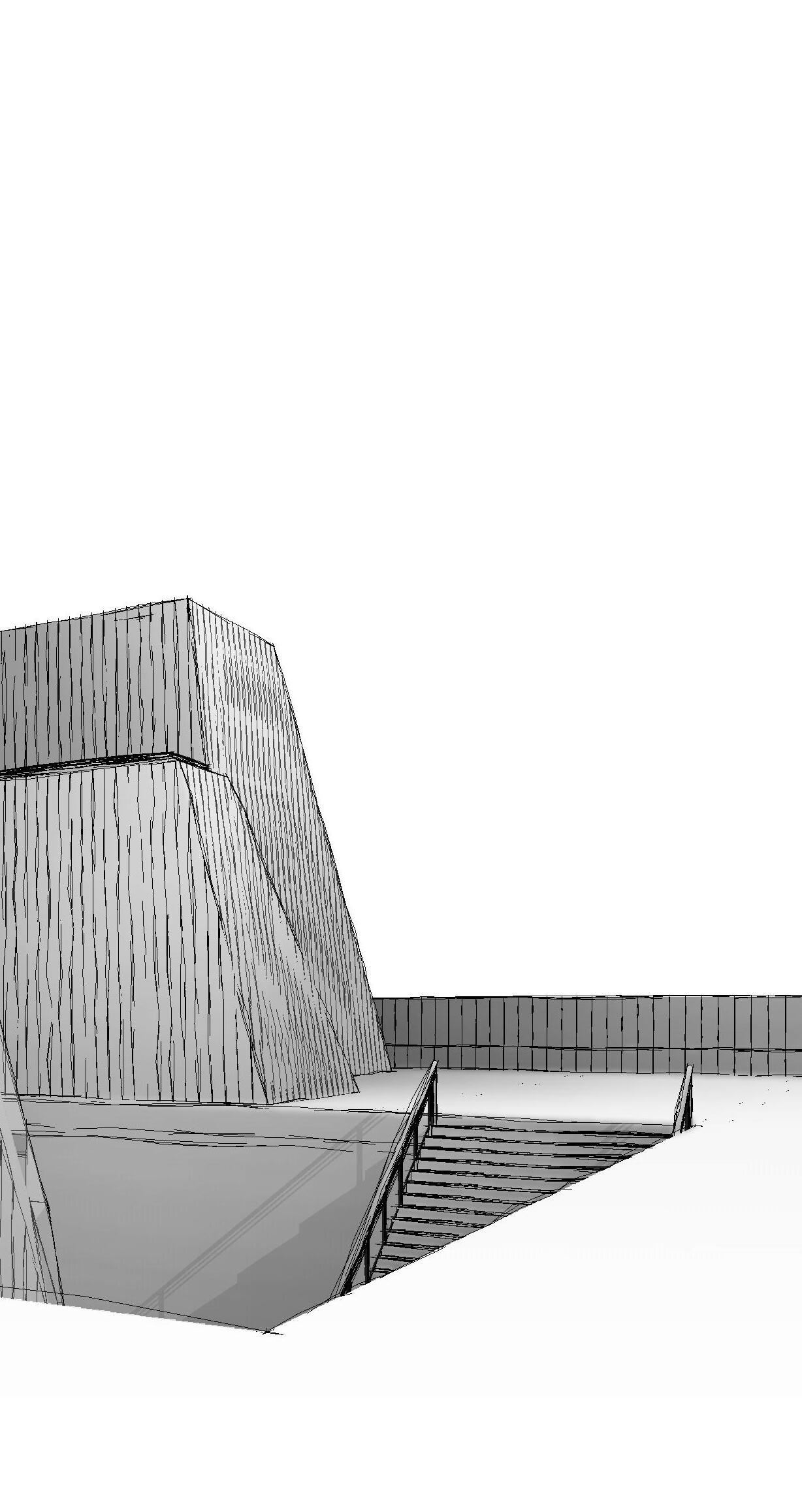

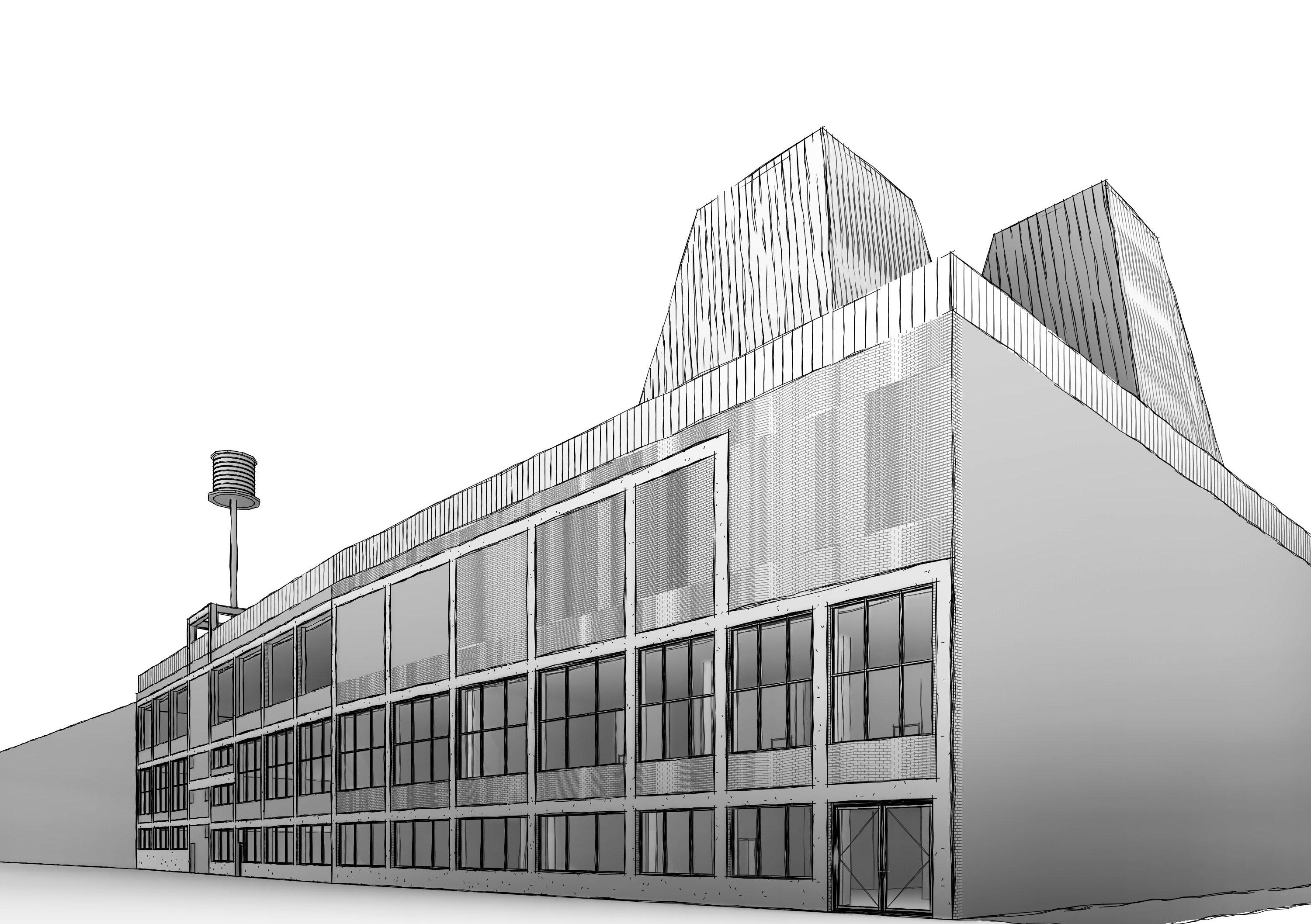

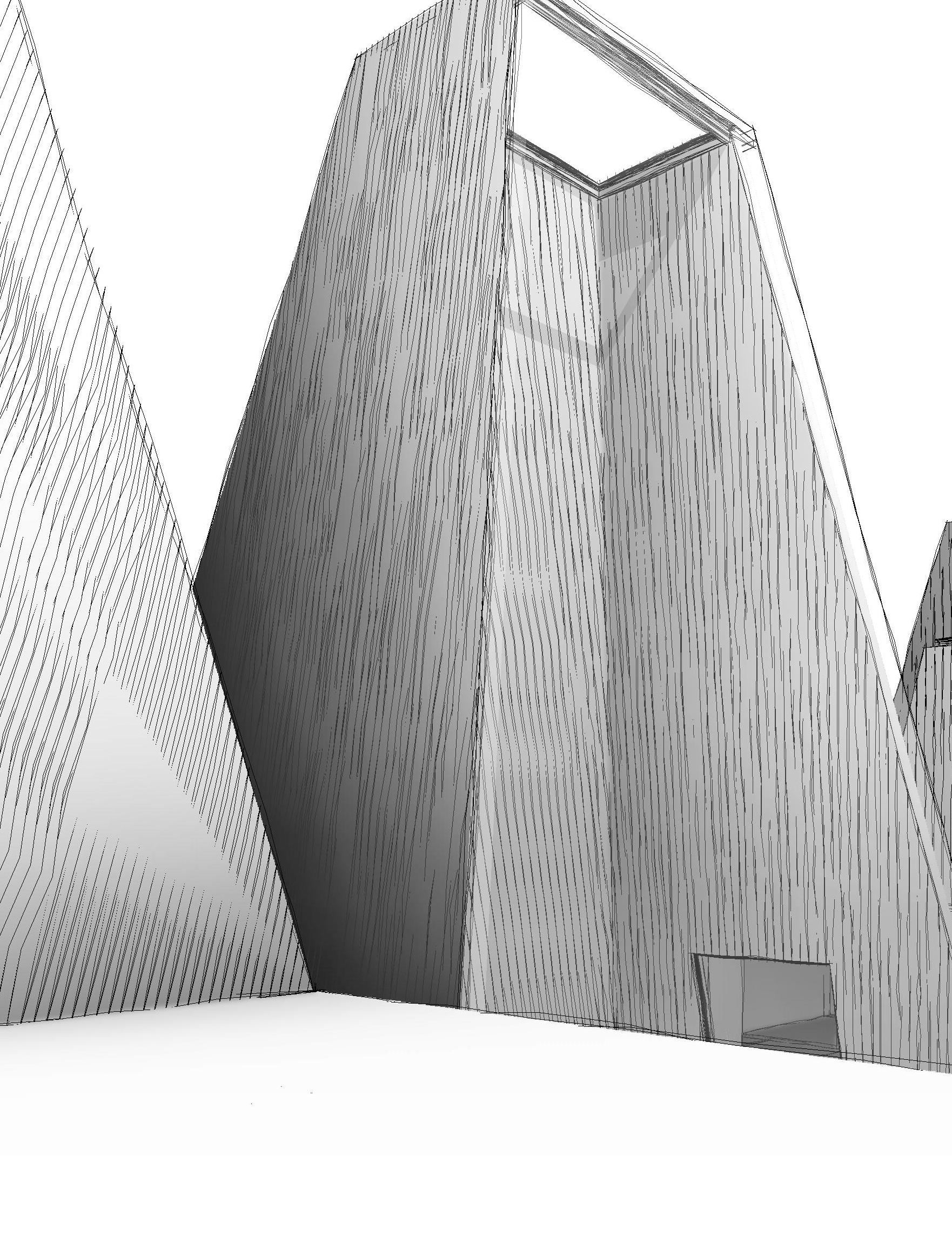

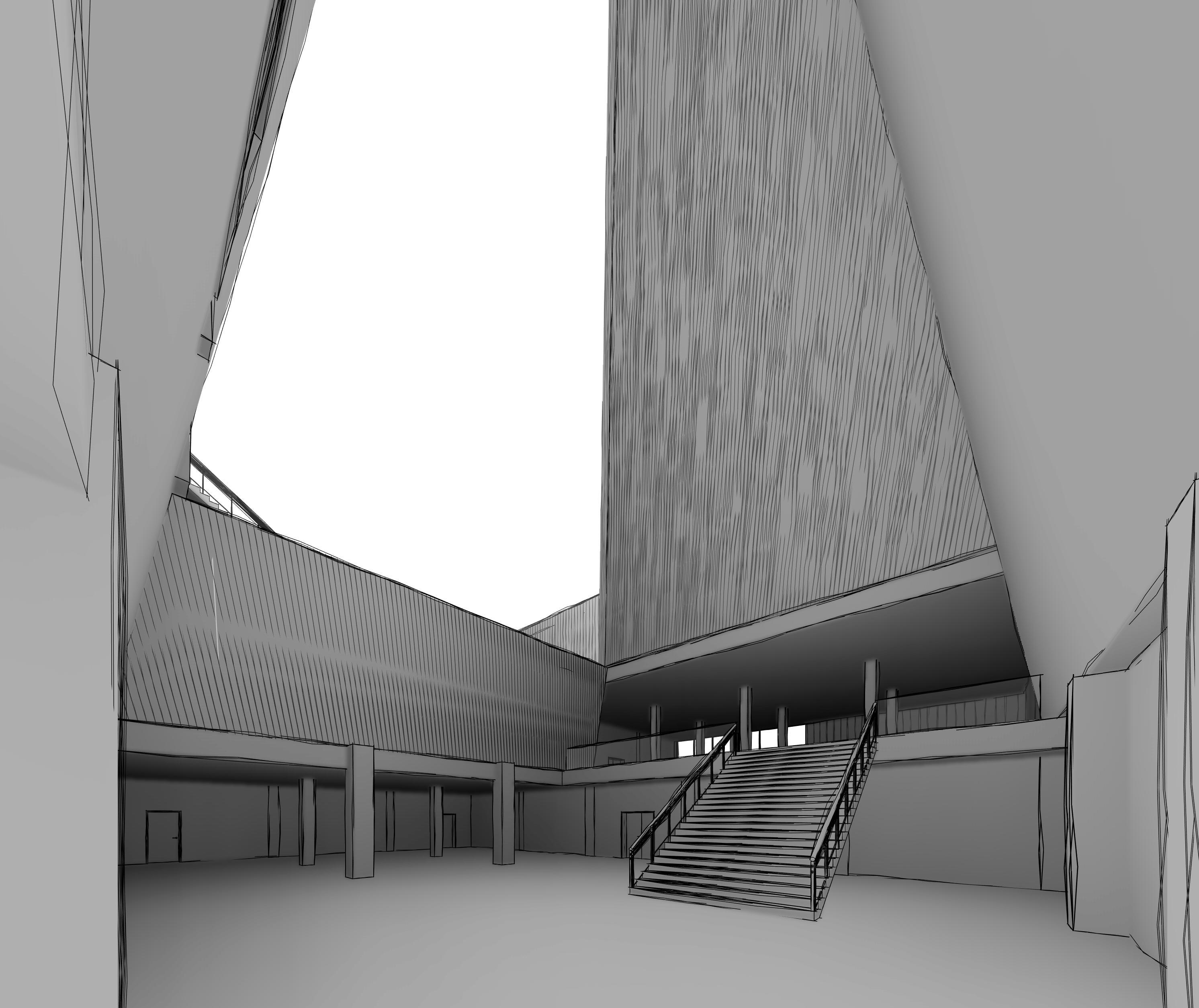

PROPOSED BUILDING
