Drop SlidesTM with Table

STRAIGHT SIDE SLIDES

GUARANTEE RANTEE

GUA

SIMPLE, CONVENIENT AND EASY ACCESS TO A FRIDGE.

This model is designed for specific applications where the Straight Slide is better suited sideways, as the vehicle does not have enough depth for a standard Straight Slide to be installed.

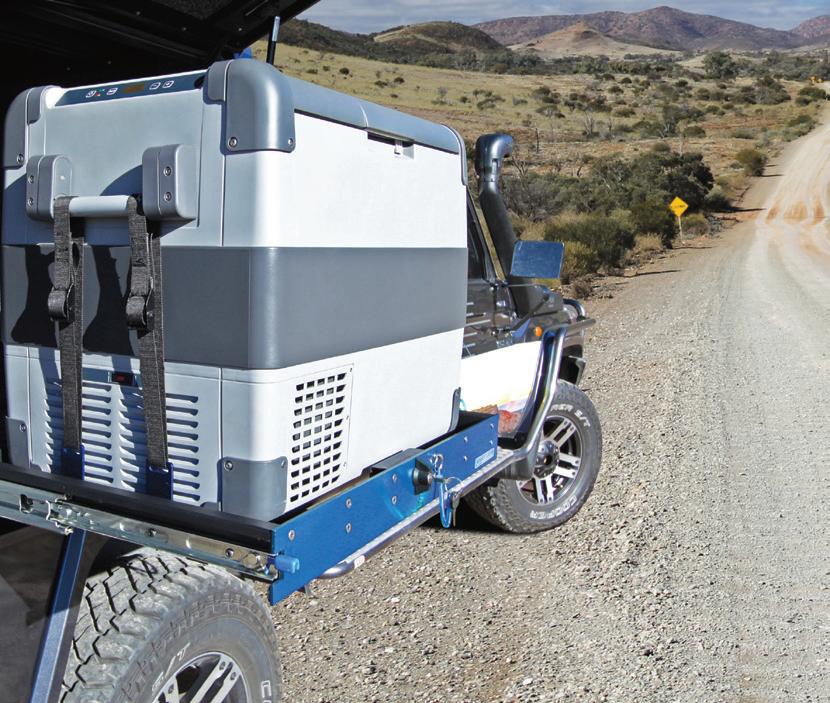

The Side Straight Slide has a flat mounting base allowing for a secure fitment into the back of a vehicle. Features high-quality, over-extension roller bearings that create a smooth, almost effortless slide-out and slide-in movement of the fridge. It also allows maximum slide extension, providing greater access to the fridge over the tailgate or rear bar. The unique lock-in and lock-out mechanism ensures the slide will stay in its intended position regardless of the angle of the vehicle. Key lock, runner locks and supplied tie down kit ensure the tray and fridge are secure whilst travelling. The uniquely recognisable MSA 4x4, blue anodised faceplate provides a tough, durable and eye-catching finish, is standard across the range. The frame is constructed from powder-coated steel.

FEATURES

• • FEATURESCompact size Easy install • • INCLUDE Lock-in and lock-out safety system Stainless steel and blue anodised aluminium fittings • Travel lock and key • Anodised blue faceplate

INCLUDES

• All fixing and tie-down straps • Pre-drilled tray holes • MSA 4x4 Lifetime Guarantee

NOTE

• 5 sizes available to suit a variety of applications • MSA 4x4 Fridge Barriers available for extra fridge protection

SLIDE DIMENSIONS

MODEL

FRIDGE TRAY 1

SLIDE LENGTH CLOSED 2

SLIDE LENGTH OPEN 3

OVERALL WIDTH 4

MOUNT TO BASE SL40SIDE SL45SIDE SL50SIDE SL60SIDE SL95SIDE

415 x 660 463 x 720 470 x 805 520 x 840 555 x 940 455 + 20 510 + 20 510 + 20 560 + 20 595 + 20 1005 + 20 1115 + 20 1115 + 20 1215 + 20 1315 + 20 720 + 20 780 + 20 865 + 20 905 + 20 1010 + 20 30mm (ALL MODELS)

ALL MEASUREMENTS DISPLAYED IN (mm)

MATCH A FRIDGE TO A MSA 4X4 FRIDGE SLIDE & BARRIER

Scan the QR Code above to view!

35 ) g e CLIP-ON TABLE COMPATIBLE ( se e p a
