CHAPTER 1 - PROJECT: VACATIONAL HOME, SECOND YEAR

DESCRIPTION:

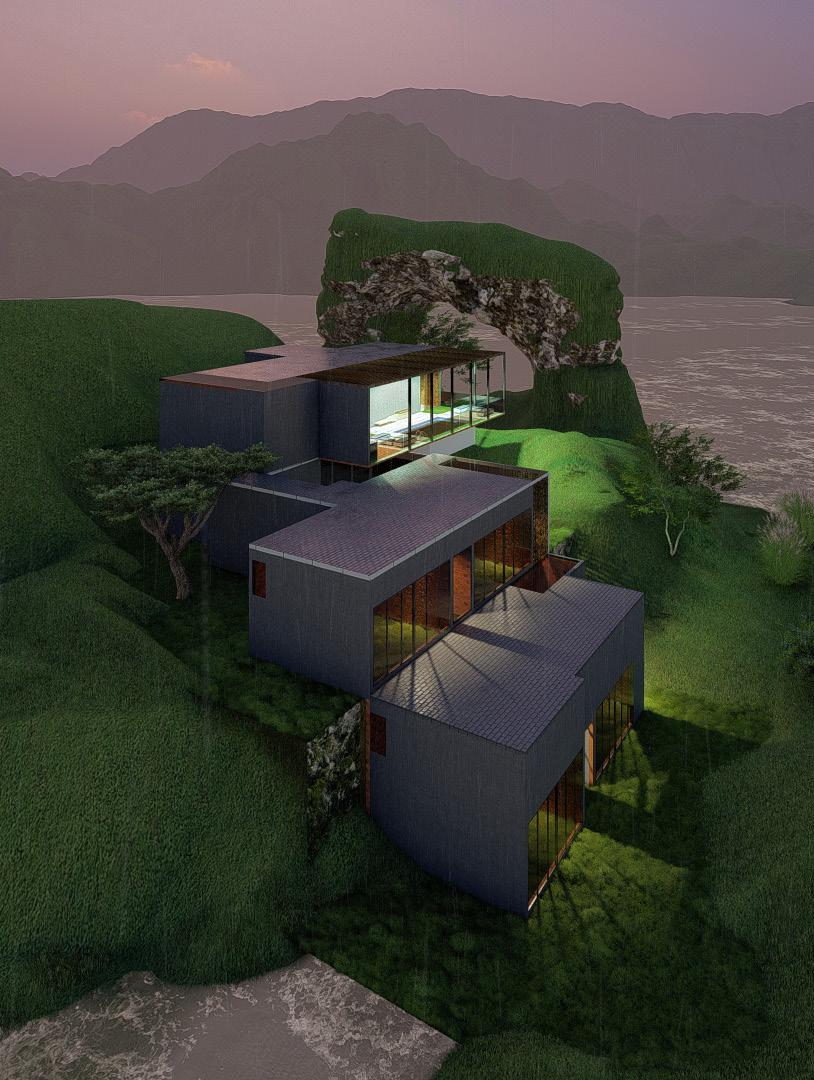

Located in the Lush Green area’s of Saral (Alibaug), offering a great scenic view, The design blends in with the surroundings, creating a mystery while keeping the ground floor from the upper half, coming down to the lower floors each bedroom has been provided with a persoal view of its own and giving it a sense of privacy, yet connecting it with nature.

An outdoor patio with a swimming pool has been provided which opens to the great view of the hills. The region chosen offers both the height and the scenic view of the waters that have been incorporated in context to the design.

The use of Plants bothe indoors and outdoors is what majorly connects it with the surroundings, tho being inside the houe, one feels a sense of security as well as connects with the outer part while being indoors.

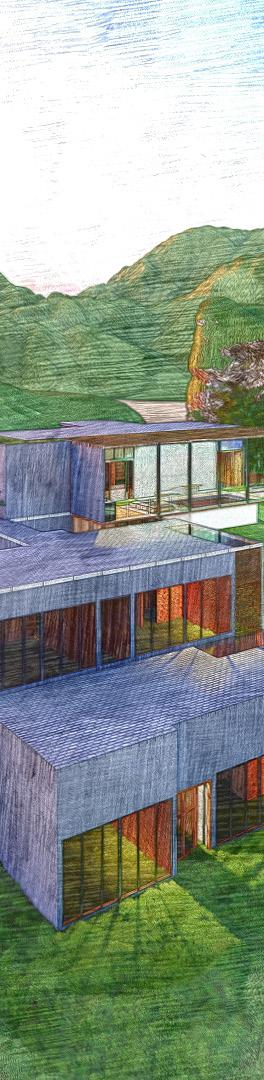

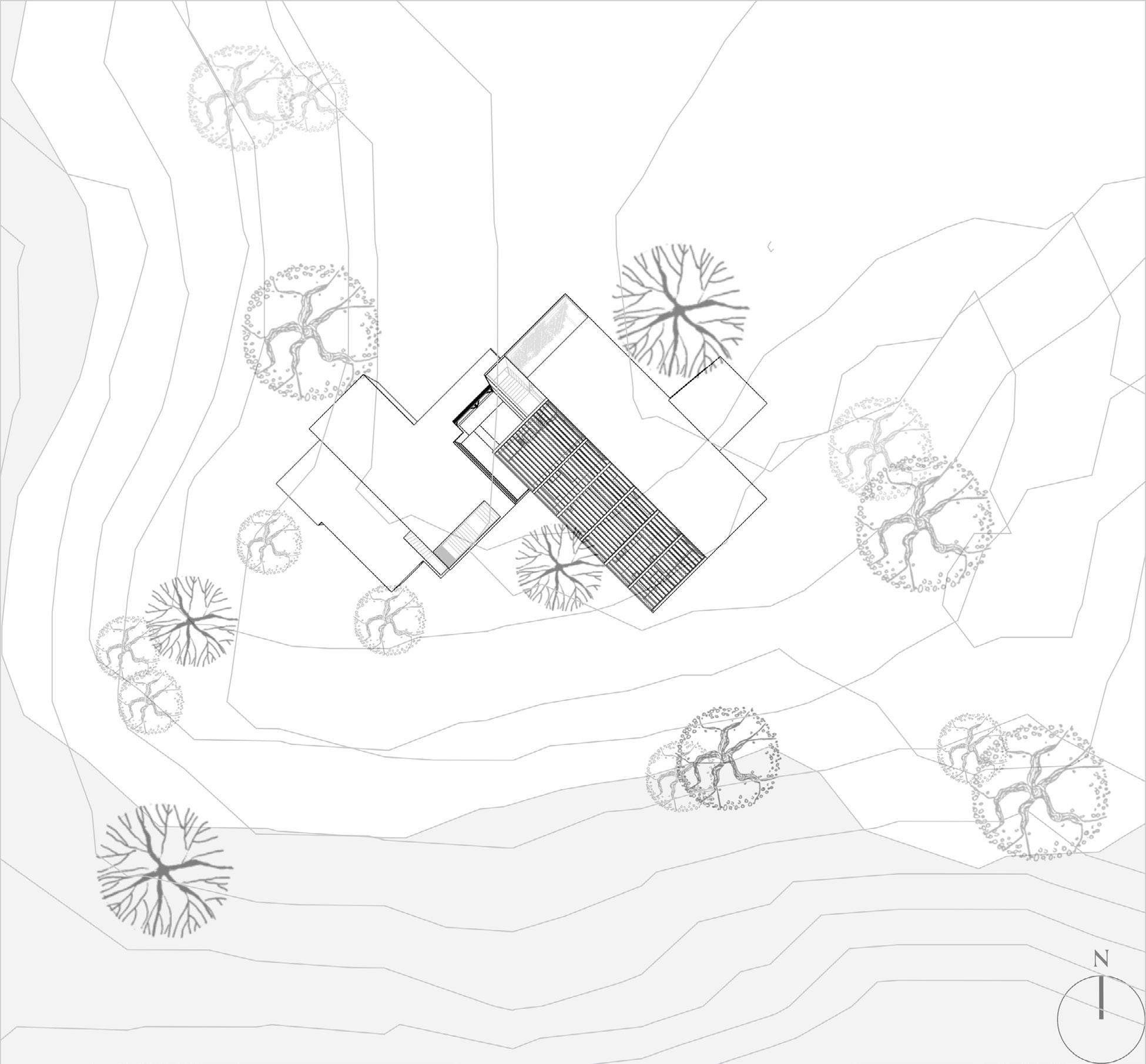

FLOOR PLAN

Ground Floor Ceiling Level + 3350 mm

Ground Railing Level + 1200 mm

Ground Floor Level 0.0

G-1 Floor Level - 3850 mm

G-2 Floor Level - 7250 mm

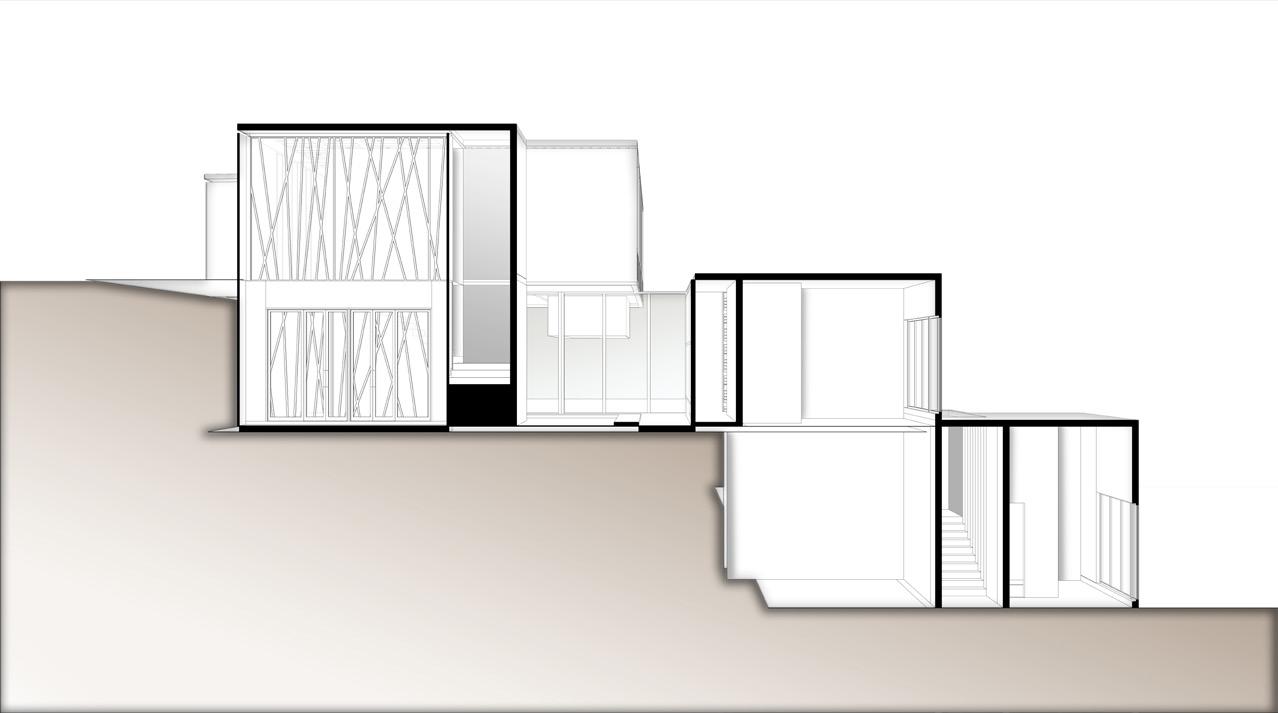

SECTION INDOOR GARDEN GLASS ROOF GLASS ROOF OPEN TERRACE

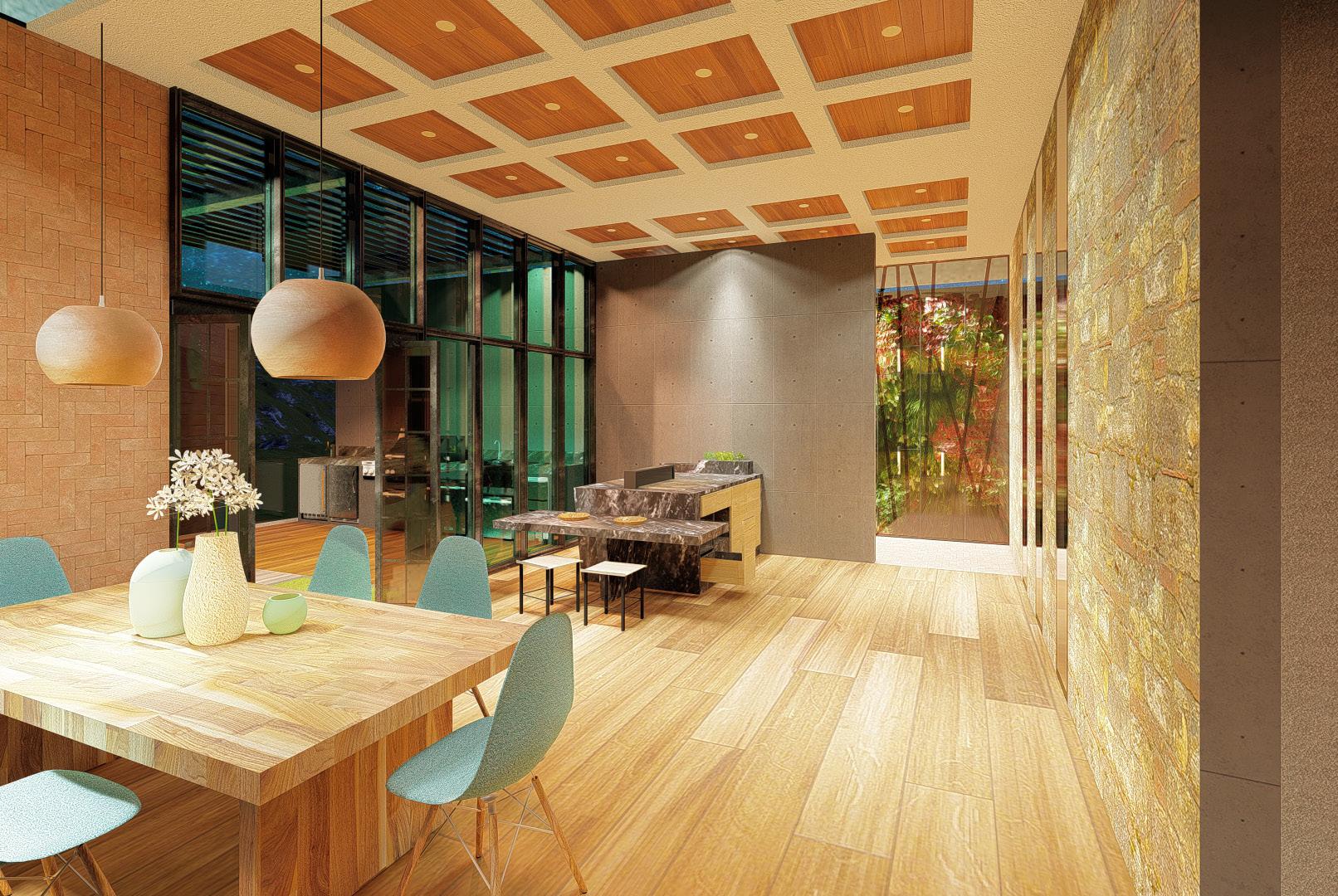

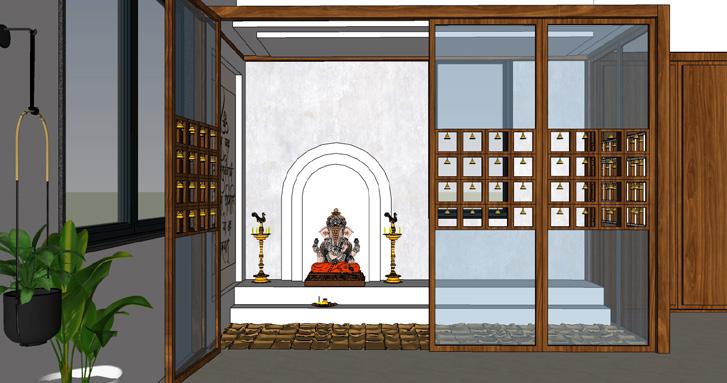

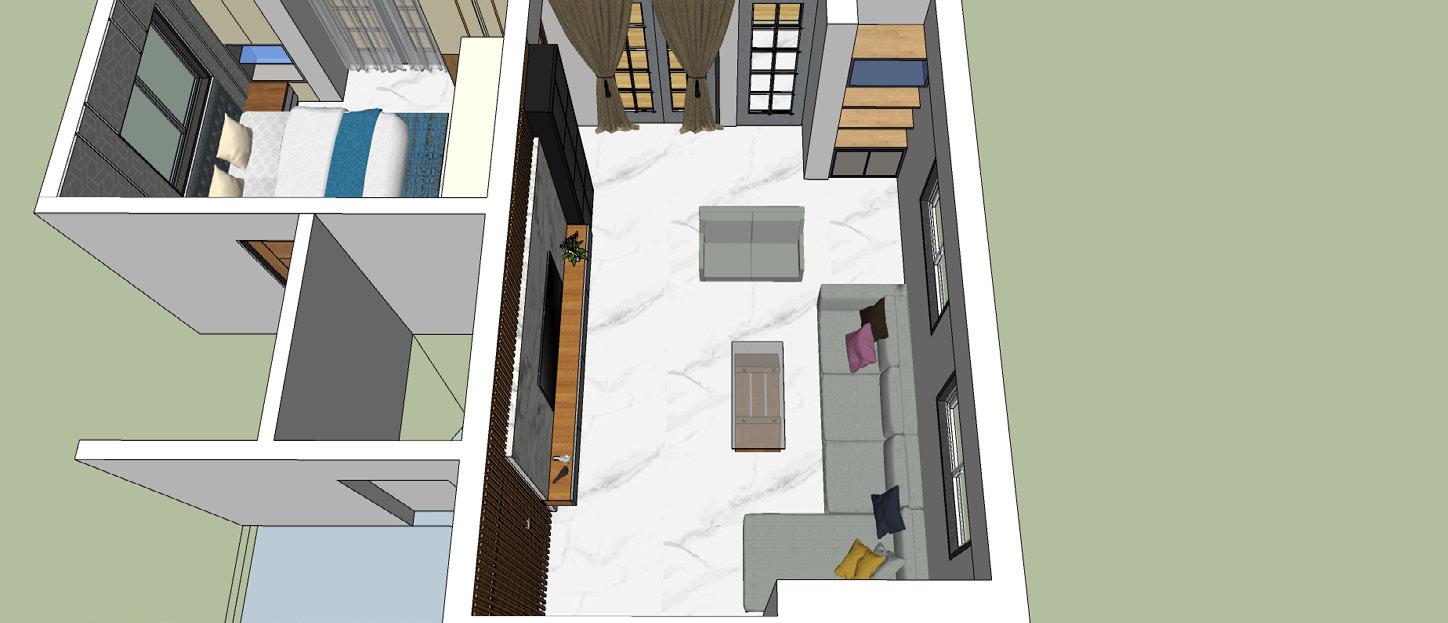

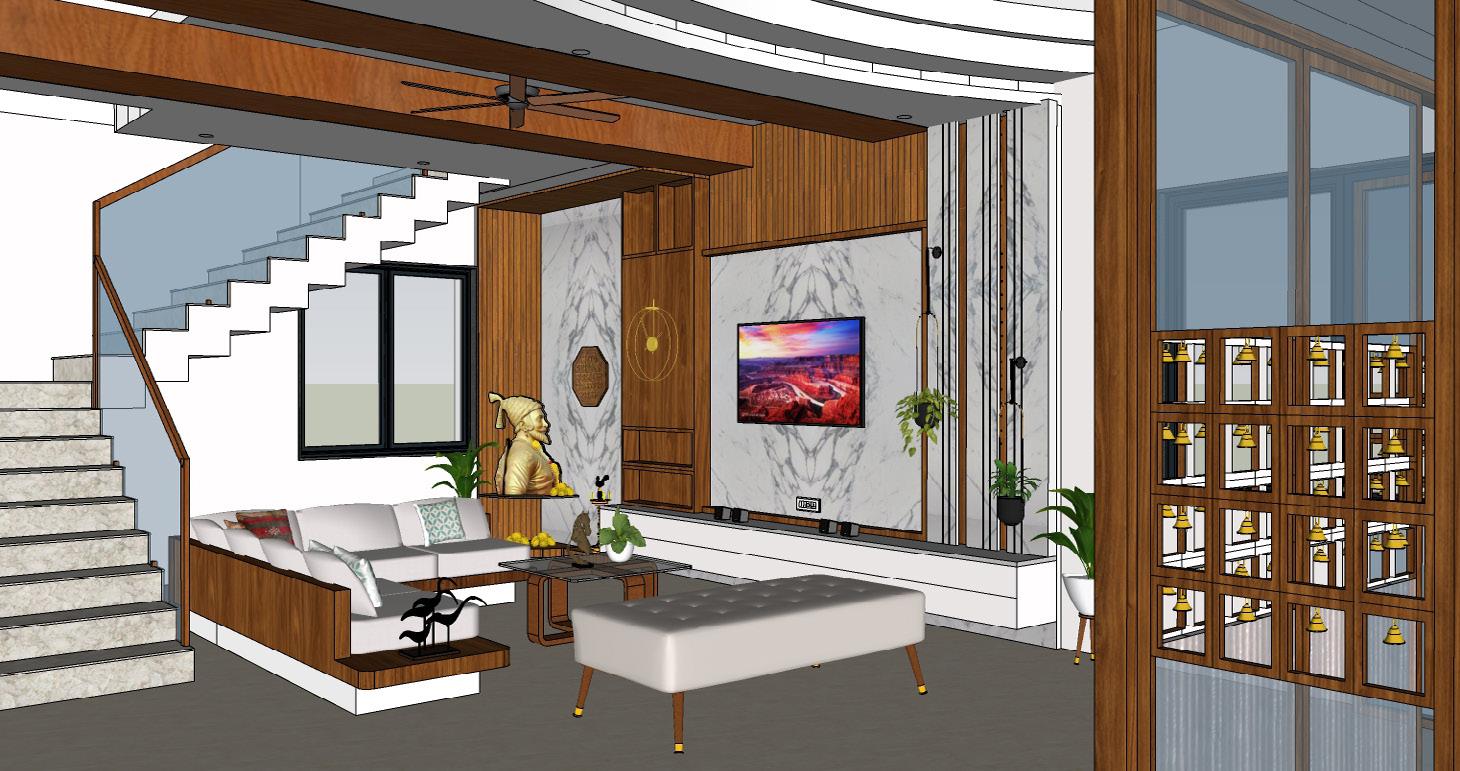

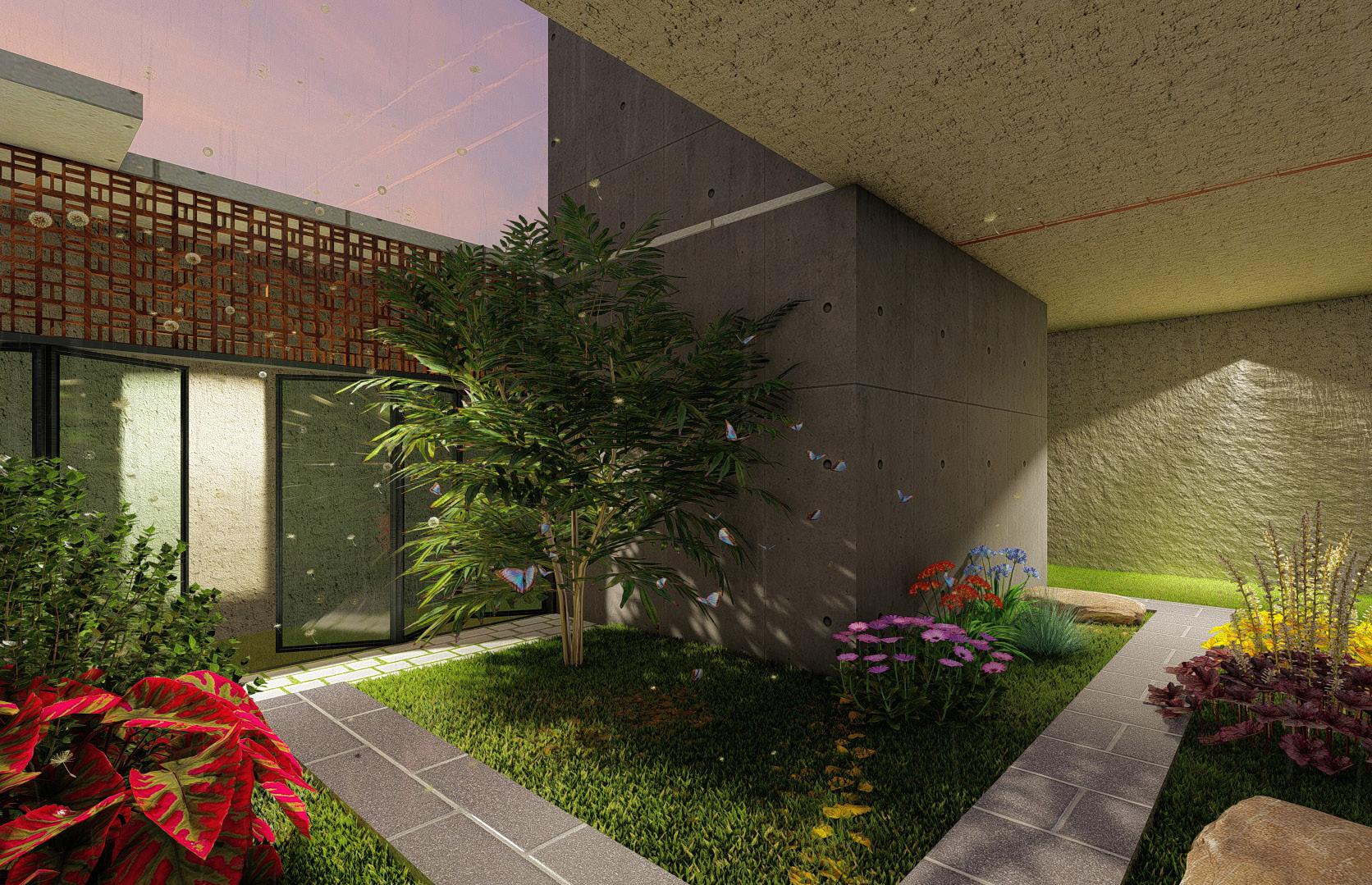

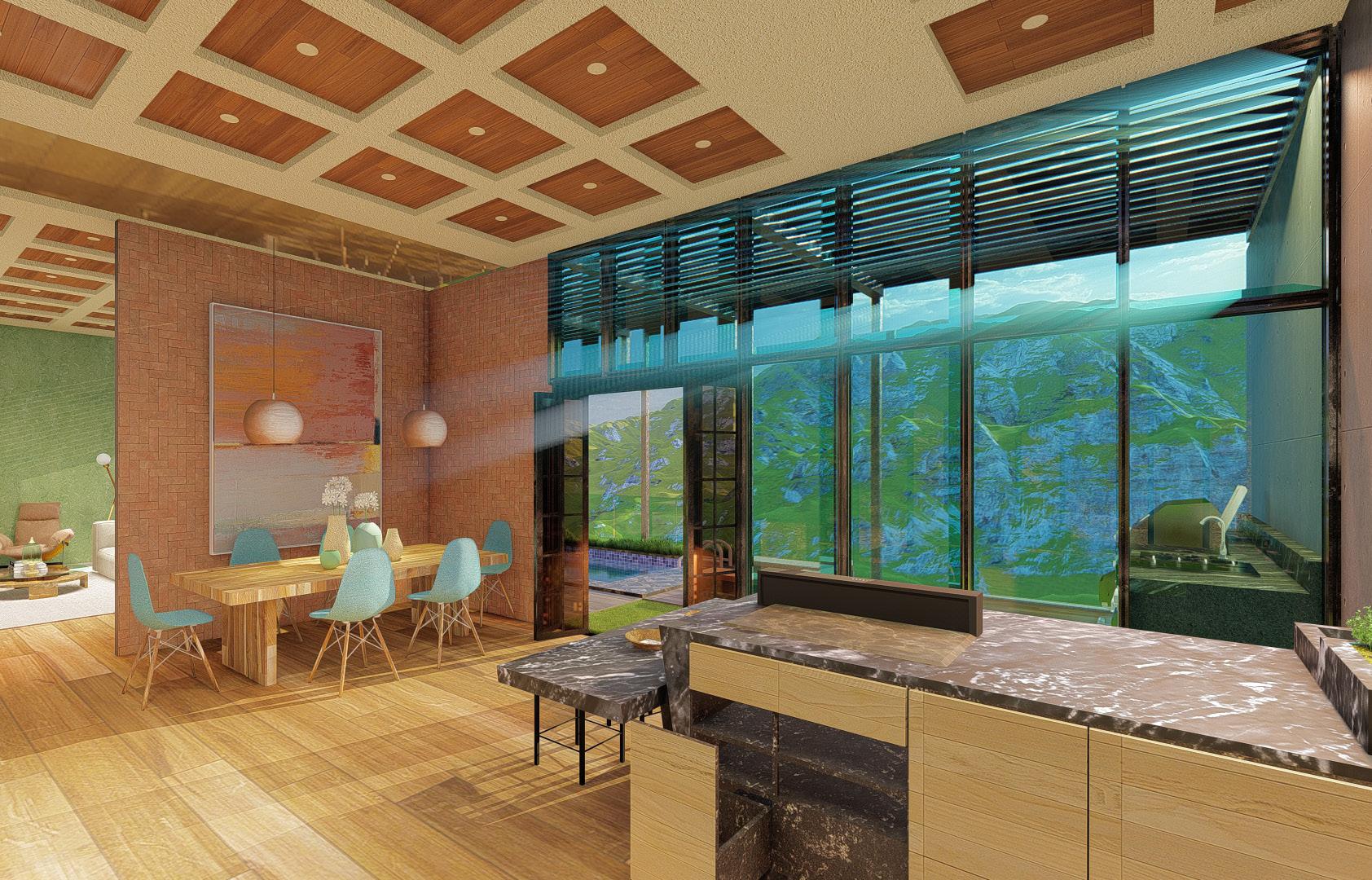

INTERIOR VIEWS

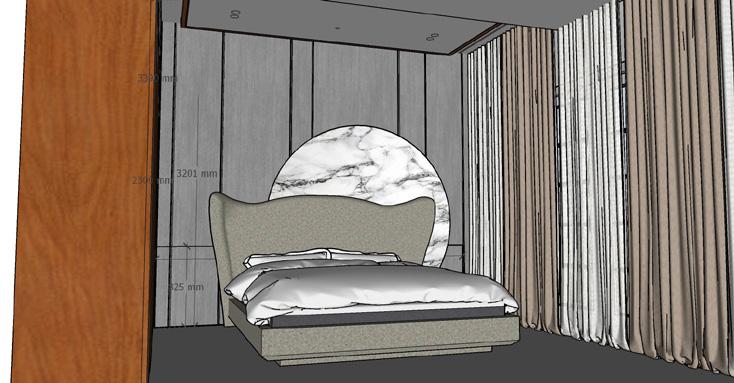

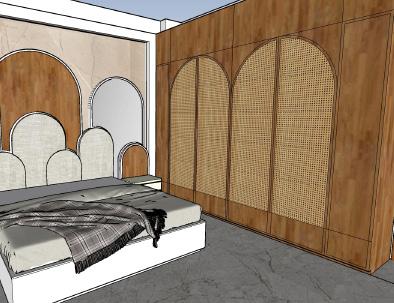

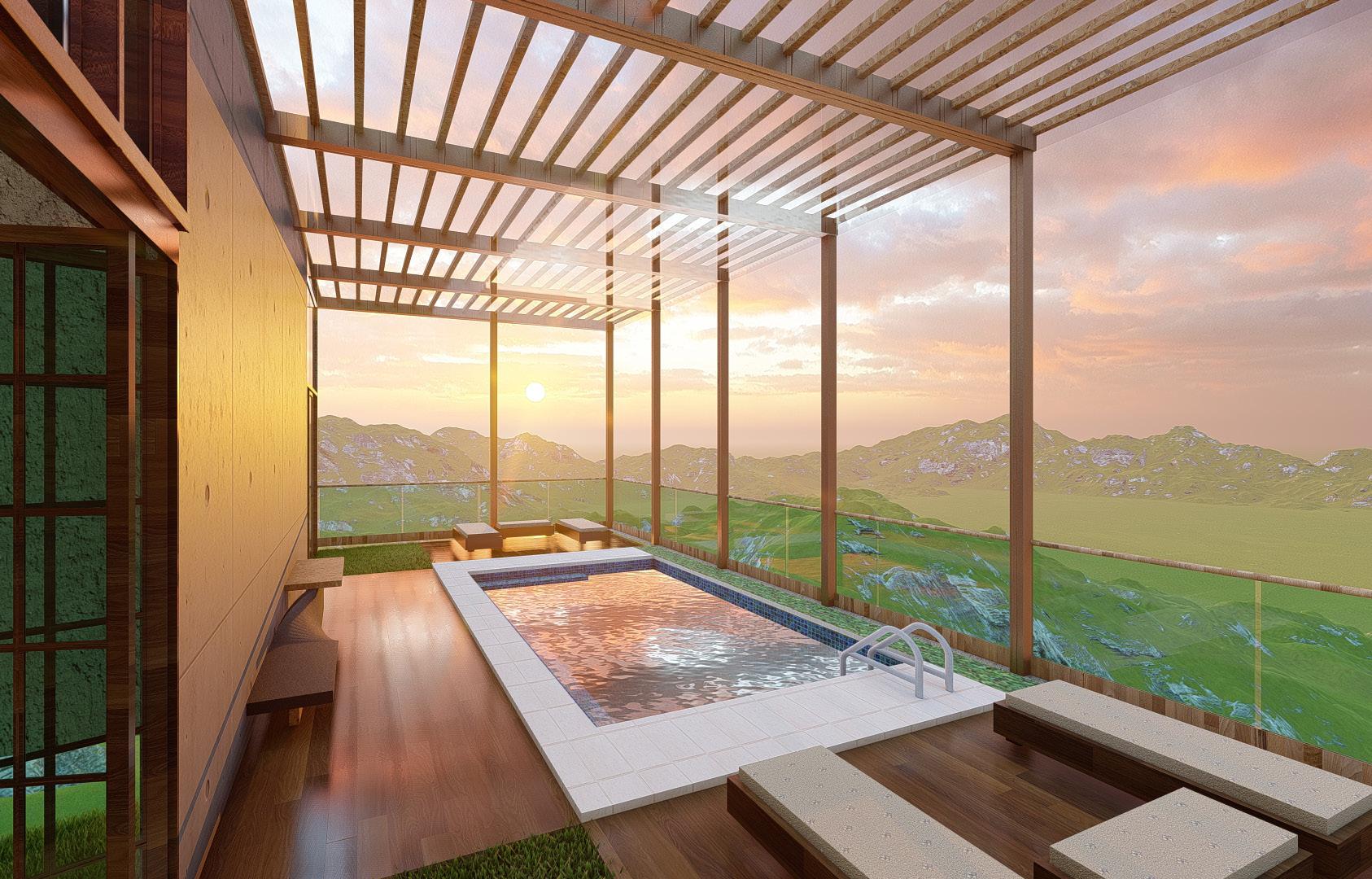

INTERIOR VIEWS

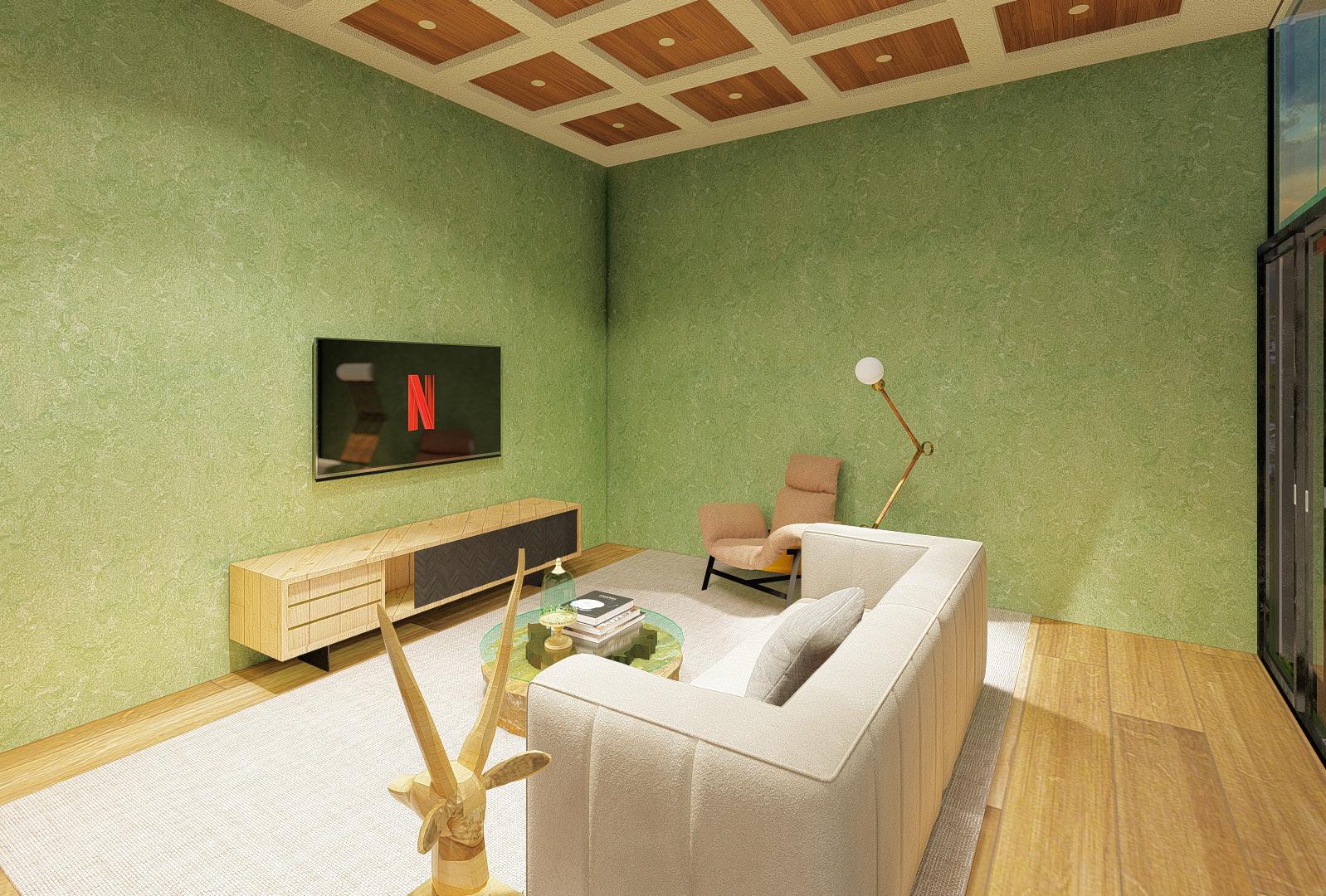

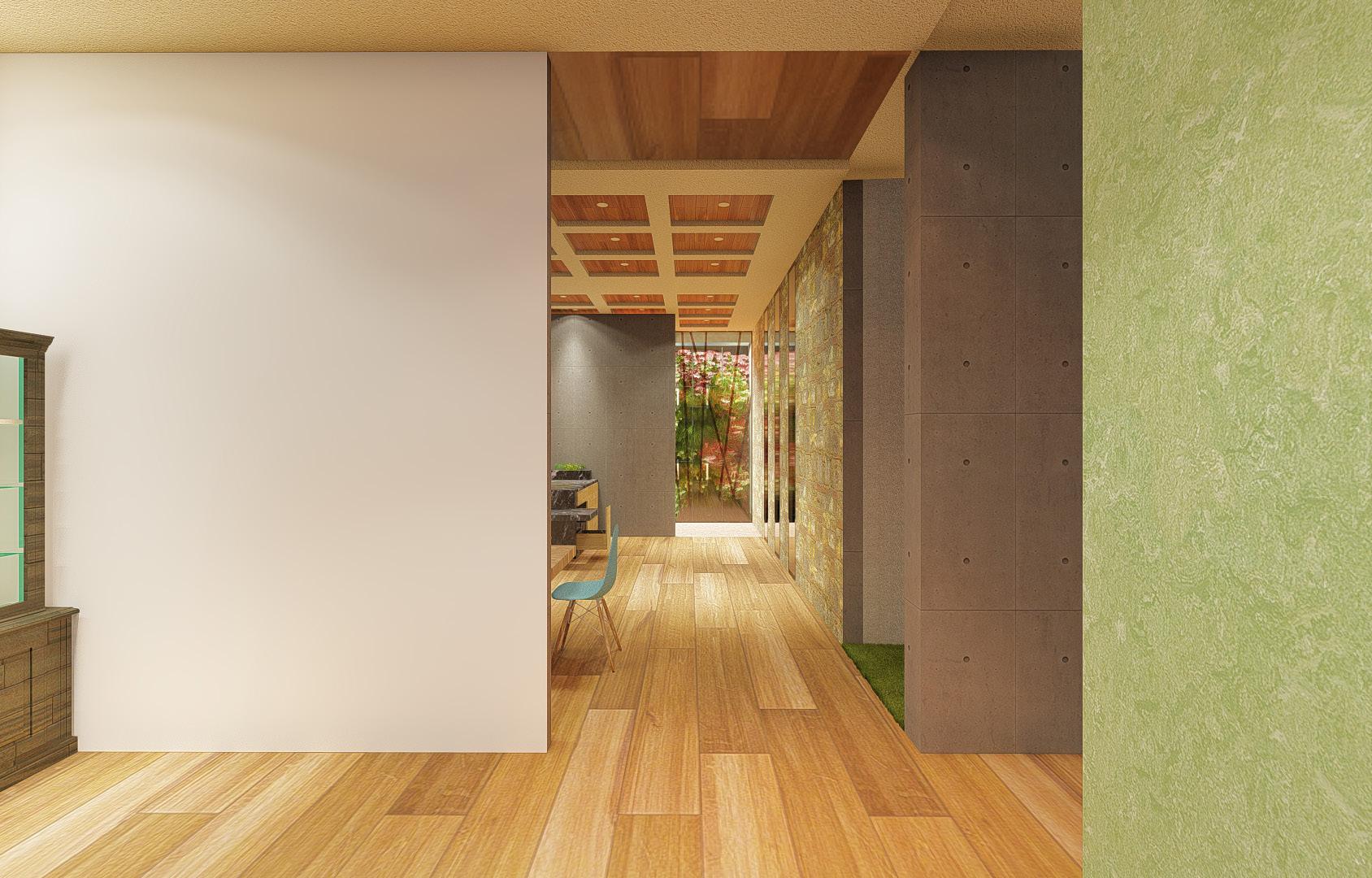

INTERIOR VIEWS

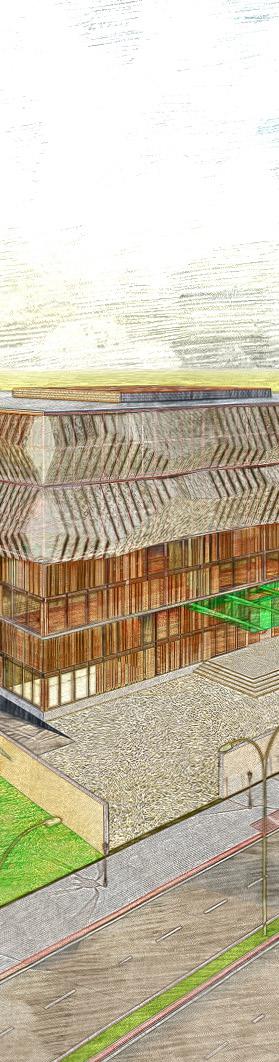

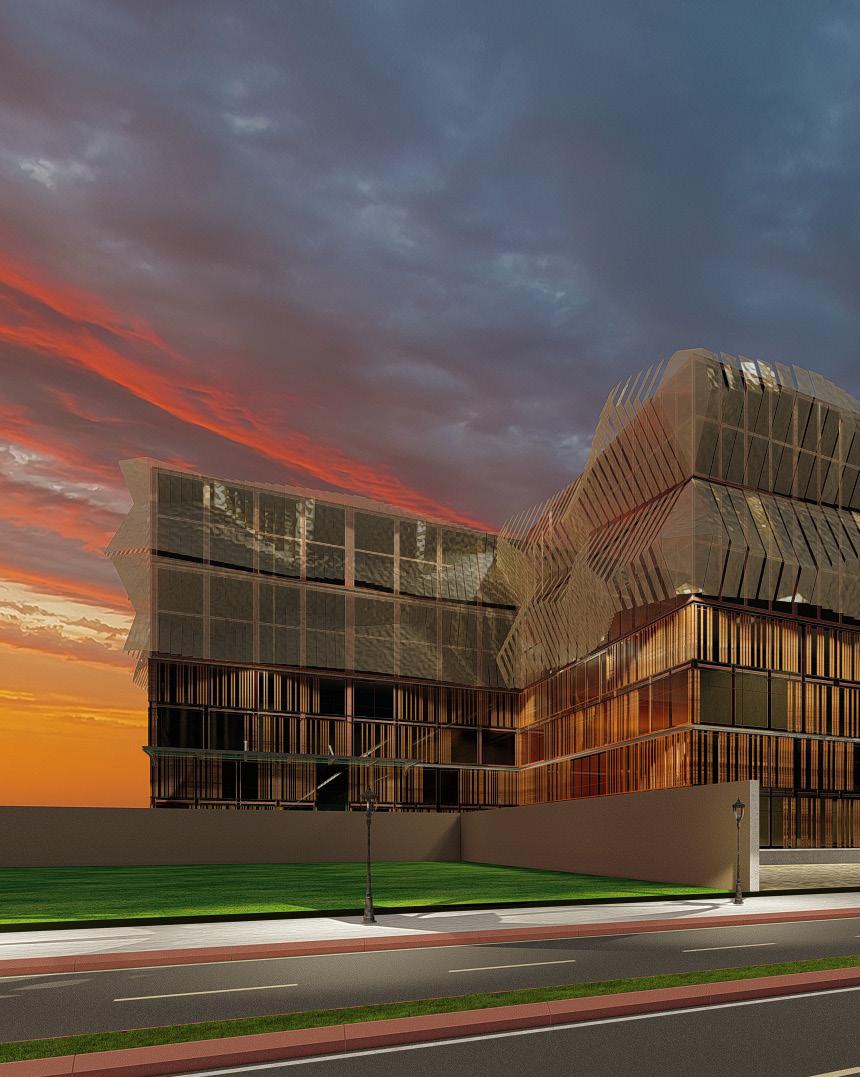

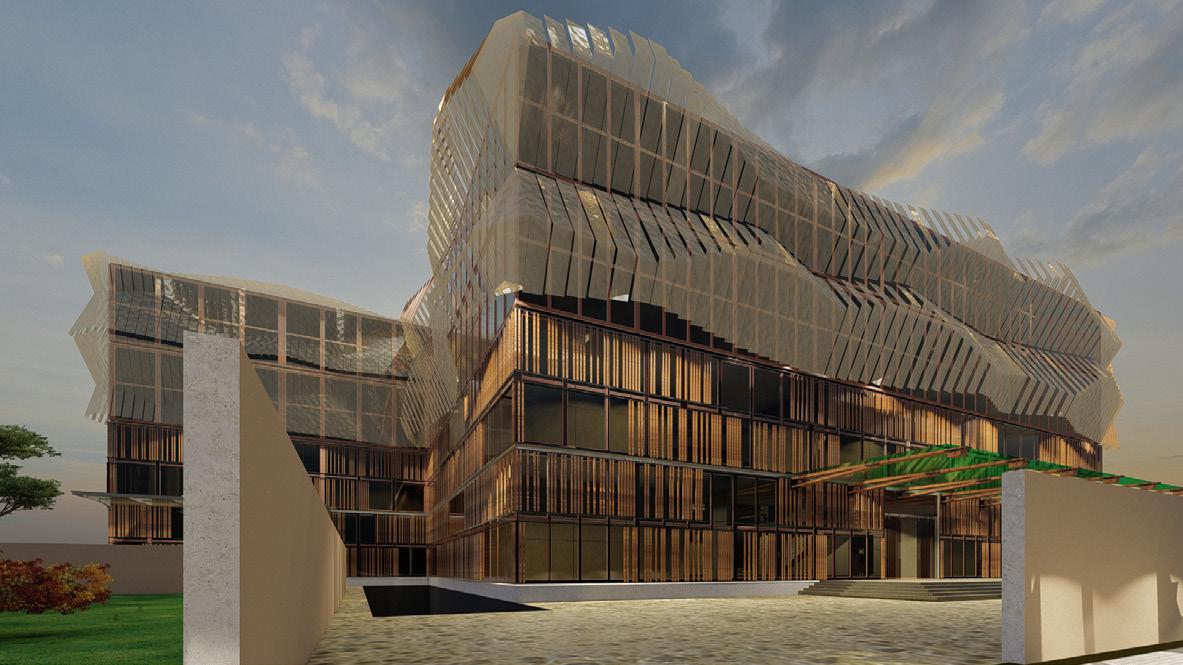

PROJECT: SHOPPING MALL (THIRD YEAR)

SITE AREA: 7030 SQM

DESCRIPTION: A Third Year Project, Located in Baner, Pune with a FAR of 2.0 and permissible ground coverage of 50%. The permissible height of the building allowed is 60 m. Leaving setbacks of 12 m in the front and 6 m each on the sides and rear. Giving a height of 6 m Floor to Floor, the design was based on creating an innovative facade since the front part of the site lies in West thus gaurding from the harsh sun rays the design serves a total number of 4 floors with a total built-up area of 3500 sq.m

30 M WIDE ROAD

EXIT SERVICE SERVICE CAFE/SNACK BAR UP FIRE FEMALE WC LOADING UNLOADING OF GOODS FOR SUPER MARKET WASHBASIN KIOSK SUPER MARKET 56 x 18 SQ.M. SQ.M. HT ROOM DOWN MAIN ENTRANCE WASHBASIN ROOM FRONT PORCH LVL 0.00 LVL 0.15 LVL 0.75 5.00 SITE ENTRANCE SITE EXIT GLASS FACADES PROVIDED IN CAFETERIA PORCH LVL 0.00 LVL 0.75 LVL 0.75 PORCH PEDESTRIAN ENTRY IN OUT 80.50 54.50 24.50 24.00 25.00 25.00 STAFF MALE WC A A' B B'

GARBAGE RAMP SPECIALTY STORE SPECIALTY STORE 10 x 5 SQ.M. SPECIALTY STORE 10 x 5 SQ.M. SPECIALTY STORE 10 SQ.M. SPECIALTY STORE 10 SQ.M. SPECIALTY STORE 10 SQ.M. SPECIALTY STORE 10 SQ.M. SPECIALTY STORE 10 SQ.M. IN OUT Urinal Urinal FIRE EXIT SERVICE LIFT FIRE EXIT STORE LIFT LIFT AHU ROOM 40 SQ.M. SHAFT HT ROOM 23 SQ.M. SERVICE LIFT BACK OFFICE 16 x 6 SQ.M. ANCHOR STORES 24 x 18 SQ.M. ANCHOR STORES 32 x 18 SQ.M. FIRST FLOOR PLAN UP DOWN UP DOWN ESCALATOR TO FIRST FLOOR ESCALATOR TO SECOND FLOOR WASHBASIN FEMALE WC MALE WC WASHBASIN DUCT staff locker 3.50 3.50 5.50 3.00 GLASS SLIDING DOORS GLASS SLIDING DOORS GLASS SLIDING DOORS GLASS SLIDING DOORS GLASS SLIDING DOORS GLASS SLIDING DOORS GLASS SLIDING DOORS GLASS SLIDING DOORS GLASS SLIDING DOORS EXTERNAL GLASS FACADE STAFF MALE WC STAFF FEMALE 80.50 24.50 24.00 30 56.50 54.50 A A' B B' GARBAGE CHUTE SPECIALTY STORE 10 5 SQ.M. SPECIALTY STORE 10 5 SQ.M. SPECIALTY STORE 10 5 SQ.M. SPECIALTY STORE 10 5 SQ.M. SPECIALTY STORE 10 5 SQ.M. SPECIALTY STORE 10 5 SQ.M. SPECIALTY STORE 10 5 SQ.M. SPECIALTY STORE 10 5 SQ.M. SPECIALTY STORE 10 5 SQ.M. SPECIALTY STORE 10 5 SQ.M. WC WC WC WC Urinal STORE

FIRE EXIT SERVICE LIFT FIRE EXIT STORE LIFT LIFT AHU ROOM 40 SQ.M. SHAFT FIRE SAFETY HT ROOM 23 SQ.M. SERVICE LIFT UP DOWN UP DOWN WASHBASIN FEMALE WC MALE WC WASHBASIN staff locker KIOSK KIOSK KIOSK KIOSK KIOSK KIOSK ESCALATOR TO THIRD FLOOR ESCALATOR TO FIRST FLOOR STAFF MALE WC STAFF FEMALE WC KITCHEN SPACE KITCHEN SPACE KITCHEN SPACE KITCHEN SPACE SPECIALITY RESTAURANT 150 SQ.M. SPECIALITY RESTAURANT 140 SQ.M. MULTICUISINE RESTAURANT 215 SQ.M. MULTICUISINE RESTAURANT 195 SQ.M. A A' B B' GARBAGE CHUTE ANCHOR STORES 24 x 18 SQ.M. ANCHOR STORES 32 x 18 SQ.M. STORE ROOM SECOND FLOOR PLAN FIRE EXIT SERVICE LIFT FIRE EXIT STORE LIFT LIFT AHU ROOM 40 SQ.M. HVAC FIRE MEDICAL STORE HT ROOM 23 SQ.M. SERVICE LIFT THIRD FLOOR PLAN UP DOWN GAME ZONE 675 SQ.M. WASHBASIN FEMALE WC MALE WC WASHBASIN STALL 1 15 SQ.M. STALL 2 STALL 4 15 SQ.M. STALL 5 18 SQ.M. STALL 6 18 SQ.M. STALL 7 18 SQ.M. STALL 8 18 SQ.M. STALL 9 18 SQ.M. STALL 10 18 SQ.M. STALL 11 21 SQ.M. STALL 3 STALL 15 STALL 16 STALL 12 22 SQ.M. BACK SPACE FOR SERVICES BACK SPACE FOR SERVICES BACK SPACE FOR SERVICES BACK SPACE FOR SERVICES KITCHEN SPACE PUB/ BISTRO 360 SQ.M. BACK ENTRY GARBAGE CHUTE BACK SPACE FOR SERVICES IN OUT A A' B B' STAFF MALE WC STAFF FEMALE WC Dance Area STORE ROOM

150mm

Ext

Double Skin Fenestration Curtain Wall

Inner Walls

thick

Glass Facade

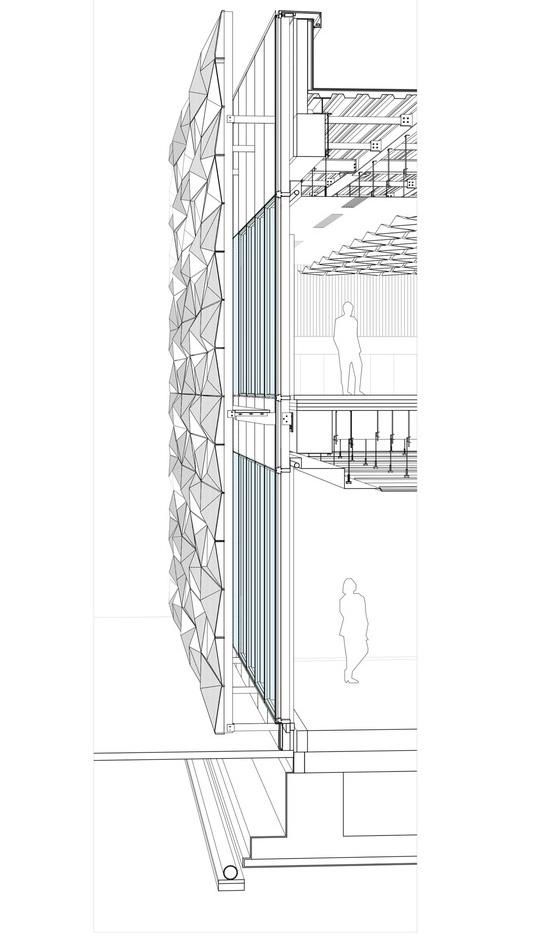

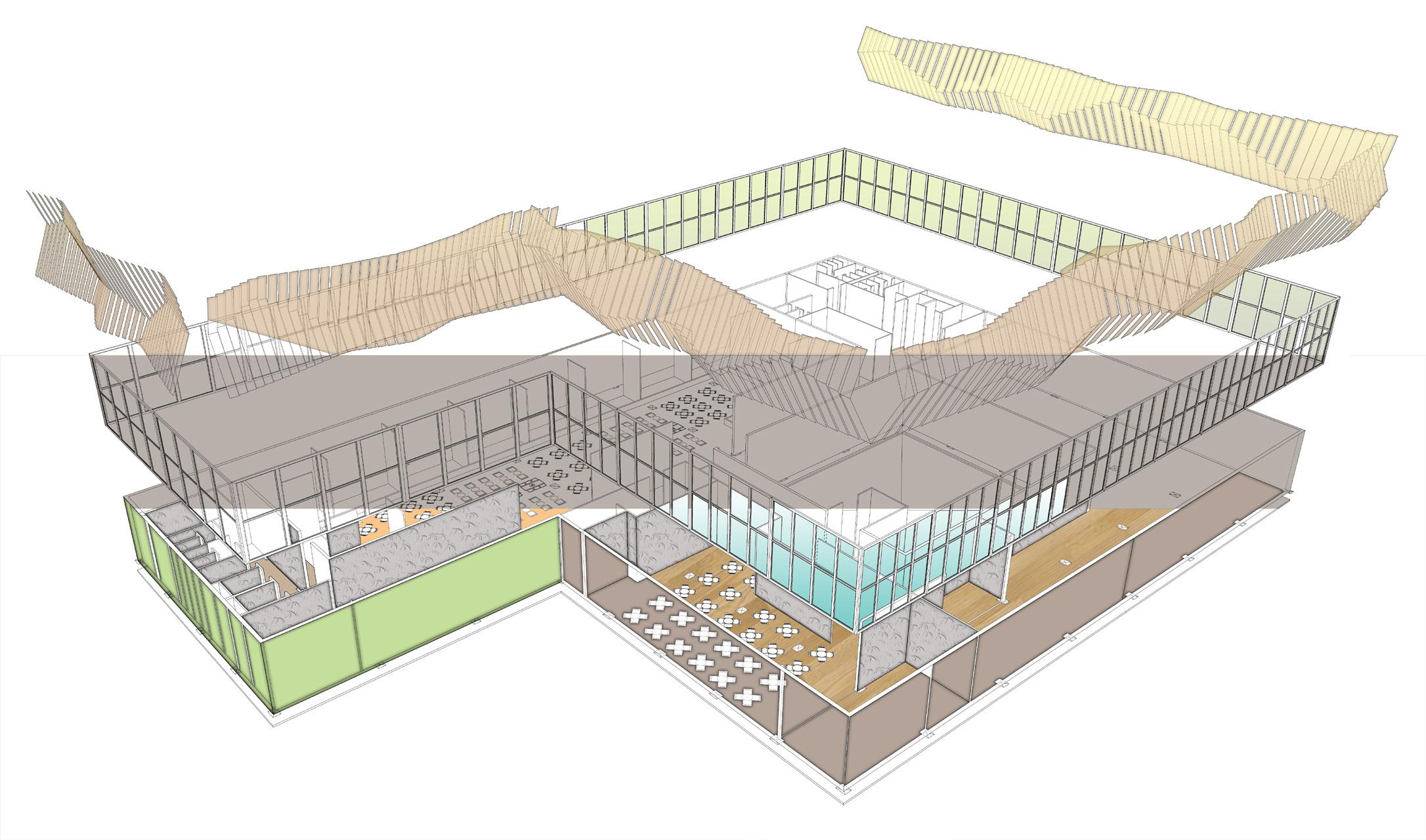

Double Skin Facade 3D Section

Exterior

False Ceiling 25 mm Thick Insulating Glass 150 mm slab Mullion 50 mm Thick Outer Double Skin Facade Ground Level Column CutThrough

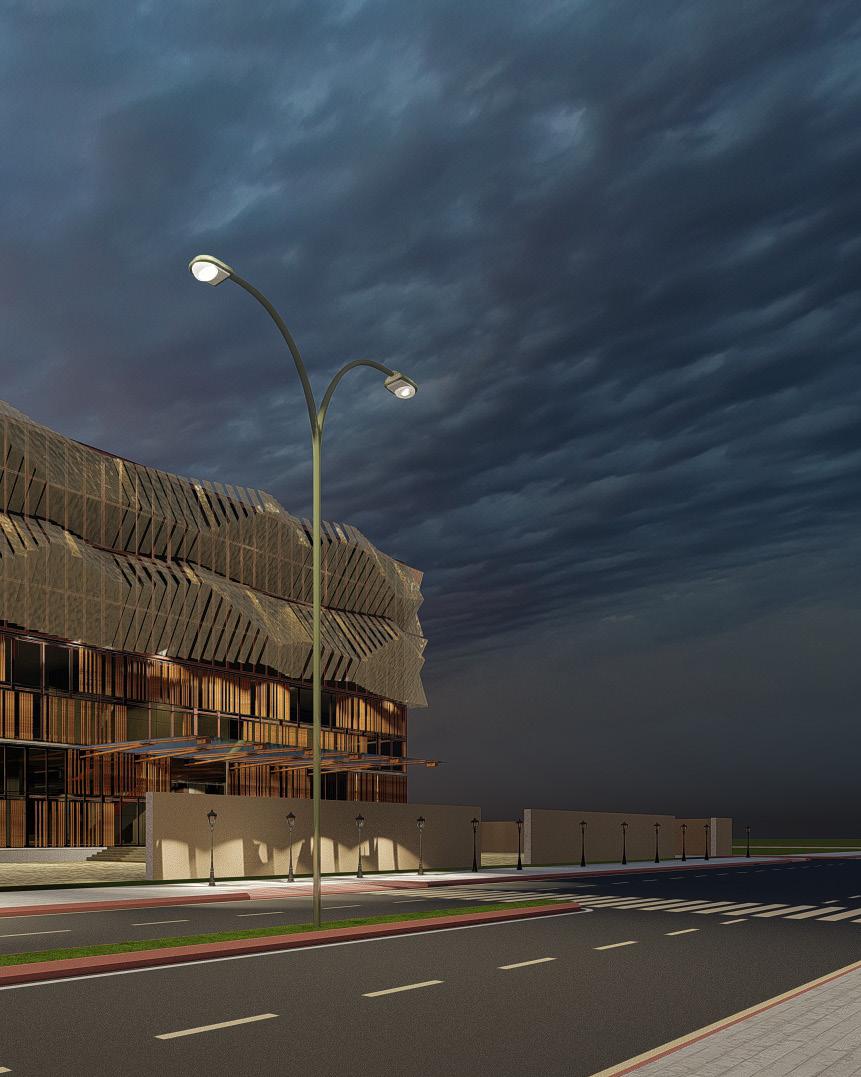

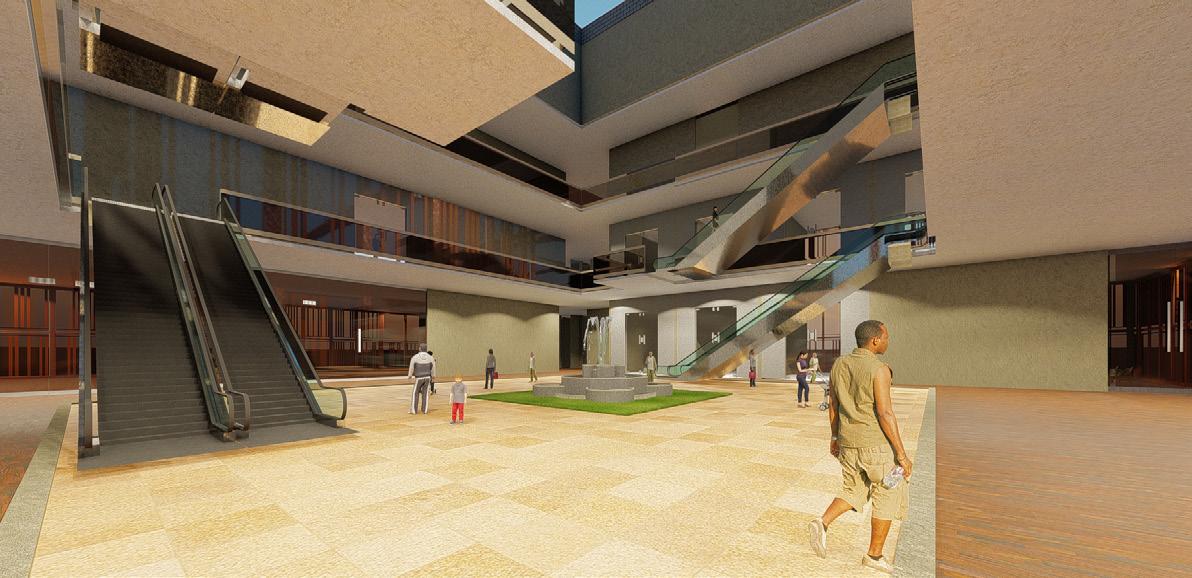

Interior View

View

section

Staircase to Floor SERVICE LIFT LIFT LIFT LT AND HT ROOM 7 12 sq.m. PUMP ROOM TRANSFORMER 8 6 sq.m. BASEMENT PLAN AC PLANT EXIT RAMP ENTRY RAMP GUTTER LINE GUTTER LINE 8 4 sq.m. Staircase to Floor LVL 0.00 LVL 3.50 LVL 3.50 LVL 0.00 2.50 6.00 1.50 2.50 4.00 4.00 5.00 5.00 5.50 6.00 35.00 SHEAR WALL TO BE PROVIDED STRAIGHT RAMP ENTERING THE PARKING SPACE CIRCULATION OF VEHICLES 4-WHEELER PARKING 2 WHEELER PARKING EXIT RAMP A A' B B' SECTION A-A' GL GL RAMP BASEMENT FLOOR LEVEL -4.00 GROUND LEVEL ±0.0 GROUND FLOOR LEVEL +6.00 FIRST FLOOR LEVEL +12.00 SECOND FLOOR LEVEL +18.00 THIRD FLOOR LEVEL +24.00 TERRACE FLOOR LEVEL +31.00 31.5 FIRE EXIT FIRE EXIT KIOSK KIOSK KIOSK KIOSK KIOSK KIOSK KIOSK KIOSK SECTION B-B' ELEVATOR PIT ELEVATOR MACHINE ROOM 4 7 6 6 6 GL GL RAMP BASEMENT FLOOR LEVEL -4.00 GROUND FLOOR LEVEL +6.00 FIRST FLOOR LEVEL +12.00 SECOND FLOOR LEVEL +18.00 THIRD FLOOR LEVEL +24.00 GROUND LEVEL ± 0.0

WORKING DRAWING

: THIRD YEAR

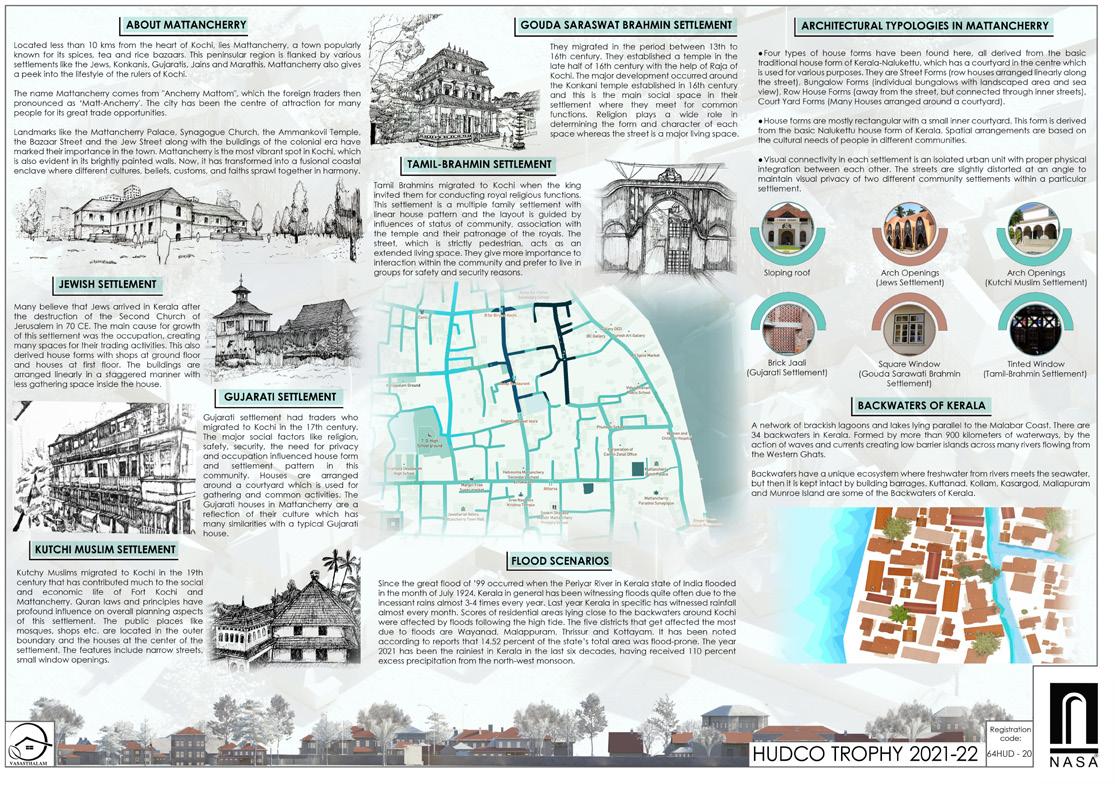

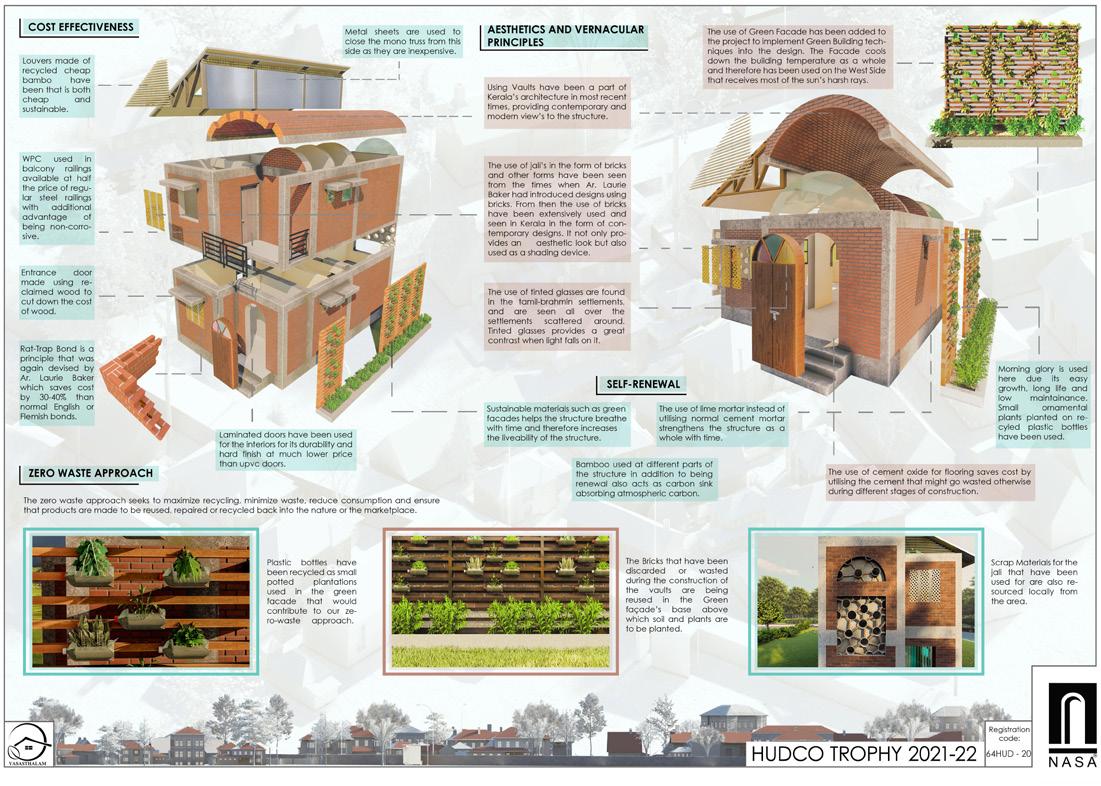

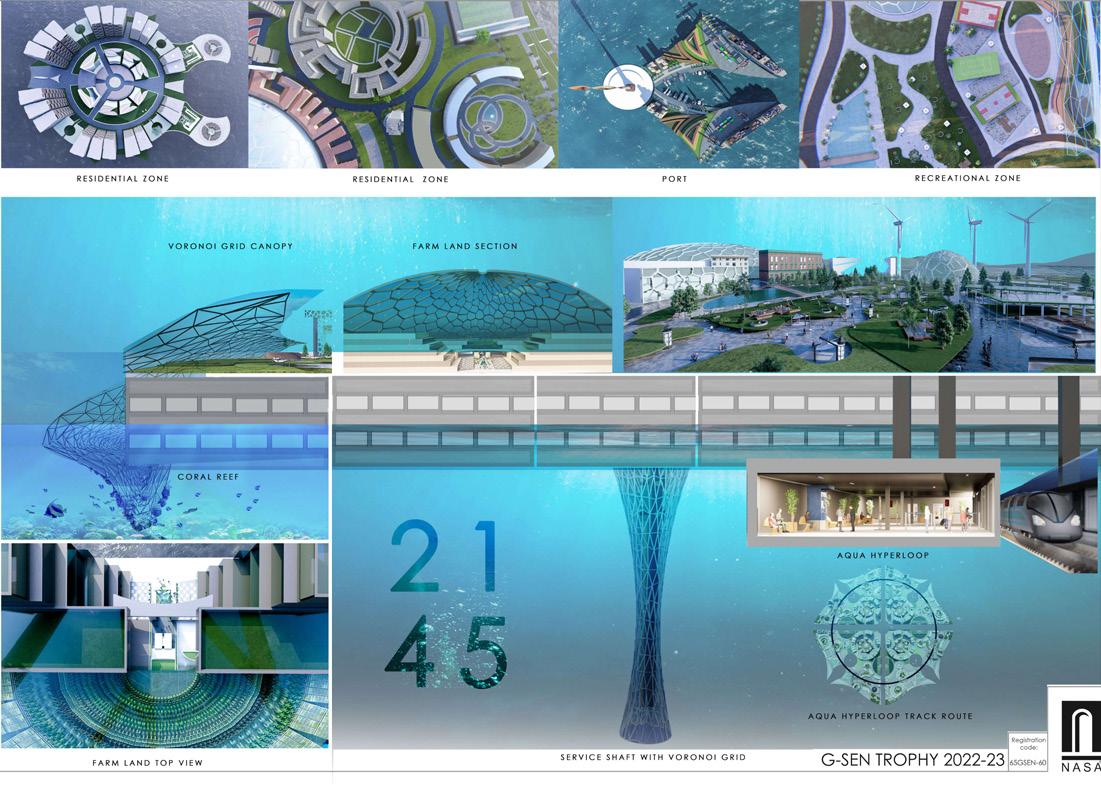

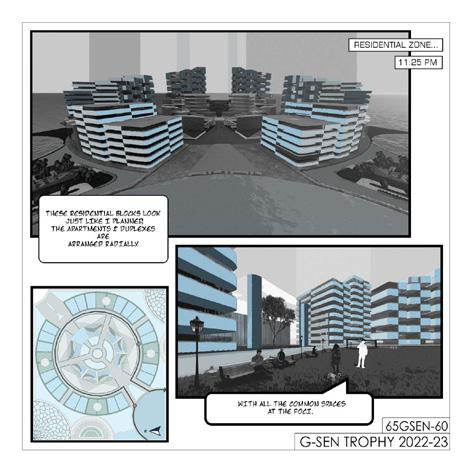

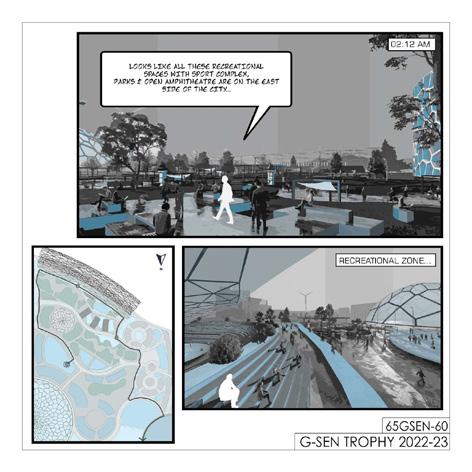

MISCELLANEOUS WORKS

INTERNSHIP AT DD CONCULTANTS- BEHALA

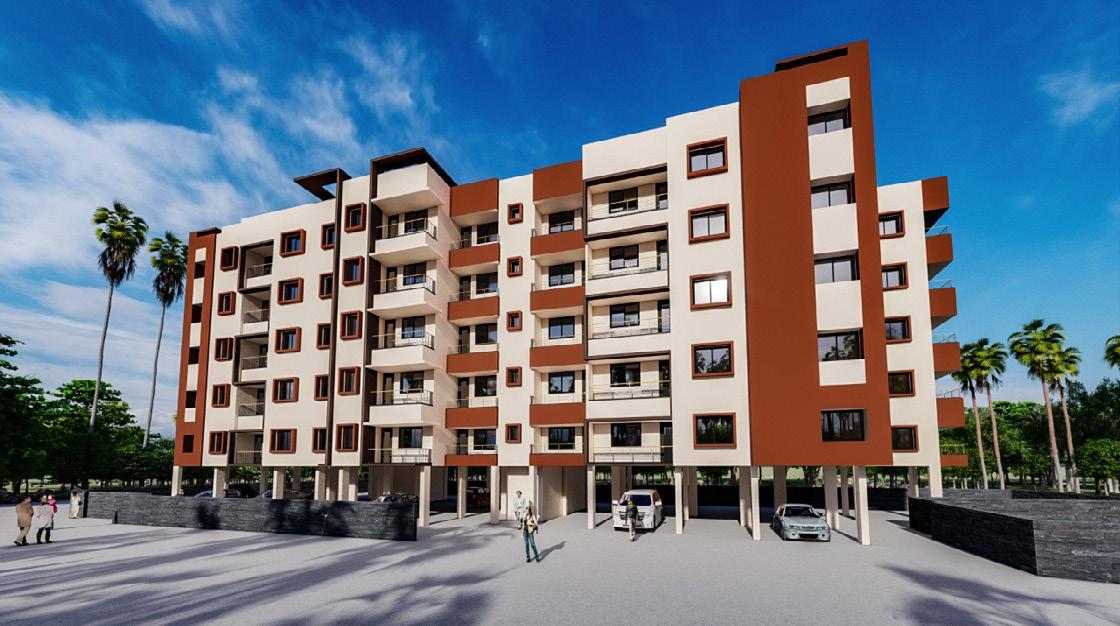

PROJECT NAME: EMPYREAN RESIDENCE

CATEGORY: RESIDENTIAL APARTMENTS

BEDROOM 10'-0"X12'-1" BEDROOM 10'-0"X13'-0" TOILET 4'-2"X 8'-3" W.C. 6'-8"X4'-0" LIV./DIN. 18'-11"X12'-10" 4'-0" WIDE VERANDAH 6 PS LIFT PS LIFT 4'-0" WIDE VERANDAH BEDROOM 10'-0"X12'-7" LIV./DIN. KITCHEN W.C. 4'-0"X 7'-0" 4'-2"X 7'-3" BEDROOM 10'-0"X12'-0" W.C. 4'-0"X 7'-0" LIV./DIN. 14'-1"X12'-0" TOILET 4'-0"X 7'-10" BEDROOM 12'-0"X11'-8" BEDROOM 12'-0"X10'-6" BEDROOM 12'-0"X10'-0" KITCHEN 10'-0"X6'-0" 4'-0" WIDE VERANDAH BEDROOM 12'-0"X10'-8" TOILET 11'-9"X4'-0" 4'-0" WIDE VERANDAH BEDROOM 10'-0"X12'-0" KITCHEN 10'-0"X5'-0" 7'-2" LIV./DIN. 13'-3"X17'-0" BEDROOM 10'-0"X13'-10" TOILET 6'-3"X 5'-10" 4'-7" WIDE VERANDAH 4'-0" WIDE VERANDAH BEDROOM 10'-0"X13'-2" LIV./DIN. 11'-11"X16'-8" BEDROOM 10'-0"X14'-6" 14'-5"X19'-10" 4'-0" WIDE VERANDAH KITCHEN 6'-0"X10'-0" TOILET 8'-6"X4'-0" W.C. 8'-6"X4'-0" VENTILATION SHAFT 9'-0"X8'-0" BEDROOM 10'-0"X12'-2" KITCHEN 6'-0"X9'-5" TOILET 8'-6"X4'-0" SHAFT 4'-8"X 5'-8" 4'-0" WIDE VERANDAH 4'-0" WIDE VERANDAH 898.0 SFT 1127.0 SFT 1129.0 SFT 877.0 SFT PROP COV AREA = 6937.0 SFT 6'-0" WIDE CORRIDOR 6'-0" WIDE CORRIDOR 5'-0" WIDE CORRIDOR FLAT-A FLAT-B FLAT-C FLAT-D FLAT-G KITCHEN 7'-10"X7'-0" UP DN 3'-6" WIDE VERANDAH LIV./DIN. 21'-0"X12'-0" TOILET 8'-3"X4'-0" KITCHEN 12'-0"X5'-0" 1800 864.0 SFT DATED 16-04-2021 W3 W3 W3 W4 W3 W3 W1 W2 W4 W4 W3 W3 W2 W W1 W1 W1 W1 W1 W3 W1 200 300 125 1255 690 460 250 575 575 975 250 650 400 525 1100 3755 300 500 2627 705 575 575 363 690 557 775 975 400 400 1000 875 940 500 125 75 200 250 250 125 975 650 250 125 1400 3580 5400 4500 450 1175 860 700 300 1205 1180 300 1495 2225 5355 542 300 990 128 502 288 3613 225 425 190 1500 3050 4015 1450 1650 1790 1000 800 940 1000 1500 1350 1500 1650 5442 3910 3050 1800 1200 2500 3303 3650 3050 3050 3025 3050 3695 1000 940 1800 2875 750 2075 750 2675 1200 3830 1200 2200 2092 1200 940 3950 1500 1200 2695 1200 4385 1425 3715 3000 1500 1000 2525 5585 1000 940 3775 1500 3255 1200 3650 2525 2380 2100 2217 3375 3650 1000 D1 D1 D1 D1 D1 D2 D2 D2 D2 D3 D3 D3 D3 D4 D4 D4 D4 D4 D4 PROPOSED G+V STORIED RESIDENTIAL BUILDING PLAN AT REGD. OFFICE - KHARAGPUR, P. S. & P. O. KHARAGPUR, DIST.- PASCHIM MEDENIPUR L. R.KHATIAN NO.- 1156, J. L. NO.- 312, MOUZA - SANJOAL, HOLDING NO.- 88B/81, WARD NO.- 29, L. R. PLOT NO.- 1128, E-mail :ddconarch@rediffmail.com PH: 2398-5100 KOLKATA 700 034 SCALE=1:70 337/5A, D.H. ROAD D.D. CONSULTANTS NORTH ARCH 1902002 WORK ARCHITECT FIRST FLOOR LAYOUT PLAN EMPYREAN RESIDENCY BLOCK- 3 SPECIFICATIONS 2. ALL PARTITION WALL 125 MM TH UNLESS OTHERWISE MENTIONED 5. 75 MM TH WALLS TO HAVE WIRE MESH EVERY THREE LAYERS 6. INTERNAL PLASTER 1:6 FOR 200MM 125MM TH WALLS 9. 18MM TH EXTERNAL PLASTER AFTER PLASTER WORKS DOOR SCHEDULE DOOR MKD WIDTH HEIGHT REMARKS D1 775 2100 25MM TH P.V.C D2 775 2100 30 MM TH FLUSH D3 940 2100 30 MM TH FLUSH NOTE: ALL FLUSH DOORS TO BE MADE OF COMMERCIAL PLY, LAMINATED OR PAINTED. DOOR FRAMES TO BE OF SAL WOOD 65X100 MM TH. WINDOW SCHEDULE WINDOW HEIGHT REMARKS MKD W1 300 750 LOUVERED W2 600 750 LOUVERED W3 1000 1000 SLIDING W3A 800 1000 CASEMENT W4A 1325 1200 SLIDING W4 1500 1200 SLIDING W6 600 300 SKYLIGHT NOTE: ALL WINDOWS TO BE OF ALUMINUM WITH CLEAR SHEET GLASS 4 MM TH. ALUMINUM SECTIONS TO BE ANODIZED DIMENSIONS ARE IN MM. THE CIVIL DIMENSIONS SHOULD BE 25 MM MORE THAN THE SIZE DIMENSION REVISION 21-02-2019 FLAT-A 1 2 3 4 5 6 7 8 10 9 3050 3625 1875 1800 3675 2050 1200 2315 1200 2500 1315 1800 3050 3050 1075 3650 3050 3900 3585 1075 3303 3950 3378 5442 2900 375 875 940 1315 1000 1315 525 250 3590 500 325 50 125 500 125 200 125 3378 2050 750 875 750 750 500 50 3050 1090 75 500 125 125 500 500 2950 285 125 125 125 2750 625 125 2800 100 1240 65 11 BEDROOM 10'-0"X12'-1" BEDROOM 10'-0"X13'-0" TOILET 4'-2"X 8'-3" W.C. 6'-8"X4'-0" LIV./DIN. 18'-11"X12'-10" 4'-0" WIDE VERANDAH BEDROOM 12'-0"X10'-0" 4'-0" WIDE VERANDAH 1129.0 SFT FLAT-A KITCHEN 10'-0"X6'-0"

SECTION AA'

INTERNSHIP AT AKRUTI, MOSHI

SECTION BB'

PLINTH LVL +450 FIRST FLOOR LVL +3650 TERRACE LVL +6850 TERRACE CAP LVL +9400 3200 3200 1500 450 G.L. 0.00 2100 1500 1500 900 900 900 RAILING LVL +9400 1200 600 1500 1500 600 PLINTH LVL +450 FIRST FLOOR LVL +3650 TERRACE LVL +6850 TERRACE CAP LVL +9400 3200 3200 1500 450 G.L. 0.00 RAILING LVL +9400 1200
