0 2 2 2 Architecture Portfolio. Sarah Marthalena sarahmtambun@gmail.com Selected Works 2020 - 2022
List of Contents Curriculum Vitae Selected Works 01 02 Other Works 03 Public Space for Vandalism & Community Center Urban Design S – House Residential Residential/ Vertical Housing Jogoyudan Social Housing Kranggan Urban Adaptive Market Commercial & Recreational Artakarya Art Space Cultural Space & Recreational TPS3R Sendangtirto Infrastructure Interior & Furniture Technical Drawings
+62 821-2187-1710
sarahmtambun@gmail.com
Perum. Taman Modern, Jakarta Timur
October 26th 2000
www.linkedin.com/in/sarahmarthalena-722058248/
A Fresh Graduate with a big passion for architecture & design. Highly-motivated, enthusiastic, and adaptable person who’s looking for new opportunity and challenges to learn more about architecture. I work best with team, but also enjoy working on my own initiative.
With 1+ year professional experience in architecture field, I have knowledge in all aspects of design from conceptual until development also their implementations on the real projects.
“ “
SARAH MARTHALENA Architectural Designer
01 Curriculum PROFILE
Vitae
by its to contribution but also decided by its ,visualisation
A good design is not only good context and surroundings
EDUCATION
2018 - 2022
Gadjah Mada University, Jogjakarta
Bachelor of Architecture GPA 3.42 / 4.00
VOLUNTARY EXPERIENCE
Architectural Designer
KKN-PPM UGM Berbah
2015 - 2018
89 Senior High School, Jakarta
WORKING EXPERIENCE
Project Architect
ESPERTA Architecture – Interior, Jakarta
Responsible on making Bill of Quantity (BoQ) and Rencana Anggaran Biaya (RAB) for Fitting Out Office, Interior and Housing Project, Supervising the needs of materials on the site, Making project time schedule, Working as a communicator between the peopleonthesiteandthedesigners.
Nov 2022 – Present
Architect Assistant
PT. Global Rancang Selaras, Yogyakarta
Assistedandsupportedarchitectsinallkindsofserviceasneeded in planning and designing , such as help drawing productions both 2D and 3D (schematic & shop drawing), building detailed informations, making presentation materials and diagrams Projectvariesinhealthfacilityandeducationalfacility
June 2021 – Aug 2022 (1 year 3 months)
Architectural Intern
PT. Dialog Desain Studio, Bali
Worked on several projects varies in residential and educational facility from 2D (Conceptual and Schematic drawing) also 3D Responsible in looking for precedents and making interior moodboard.
Jan 2021 – March 2021 (3 months)
Worked on an infrastructure project (TPS3R) in Sendangtirto, Yogyakarta. Collaborated with Pemuda Karang Taruna Berbah andBUMDesManagerforthedesign.Responsibleonmakingthe Siteplan andpresentedittothePemudaKarangTaruna.
June 2021 – Aug 2021 (2 months)
ORGANIZATION EXPERIENCE
2019 - 2021 Exhibition Division Staff of Architecture Exhibition “WEX”
2020 - 2021 Interest and Talent Division Staff of Keluarga Mahasiswa Teknik Arsitektur UGM
2019 - 2020 Social Community Division Staff of Keluarga Mahasiswa Teknik Arsitektur UGM
2019
Maharasthra (Evaluator) of Kaderisasi Arsitektur 2019
2019 Public Relations and Publication of Jamming Session DTAP UGM
EXPERTISE
Hands-On
Model-Making
Hand-Drawing
Cardboard, Ivory Paper, Mounting, Sticks Pencil, Drawing Pen,
Photography
Software
Proficient in:
Architectural
Watercolor
Digital Design & Layouting
AutoCAD, SketchUp, Enscape, CorelDRAW, Adobe Photoshop, Ms. Word, Ms. Power Point
Able To Use:
3Ds MAX, Dialux Evo, V-ray, Adobe InDesign, Adobe Premiere, Ms. Excel, ENVI-met Curriculum Vitae
Selected Works 02
Urban Design

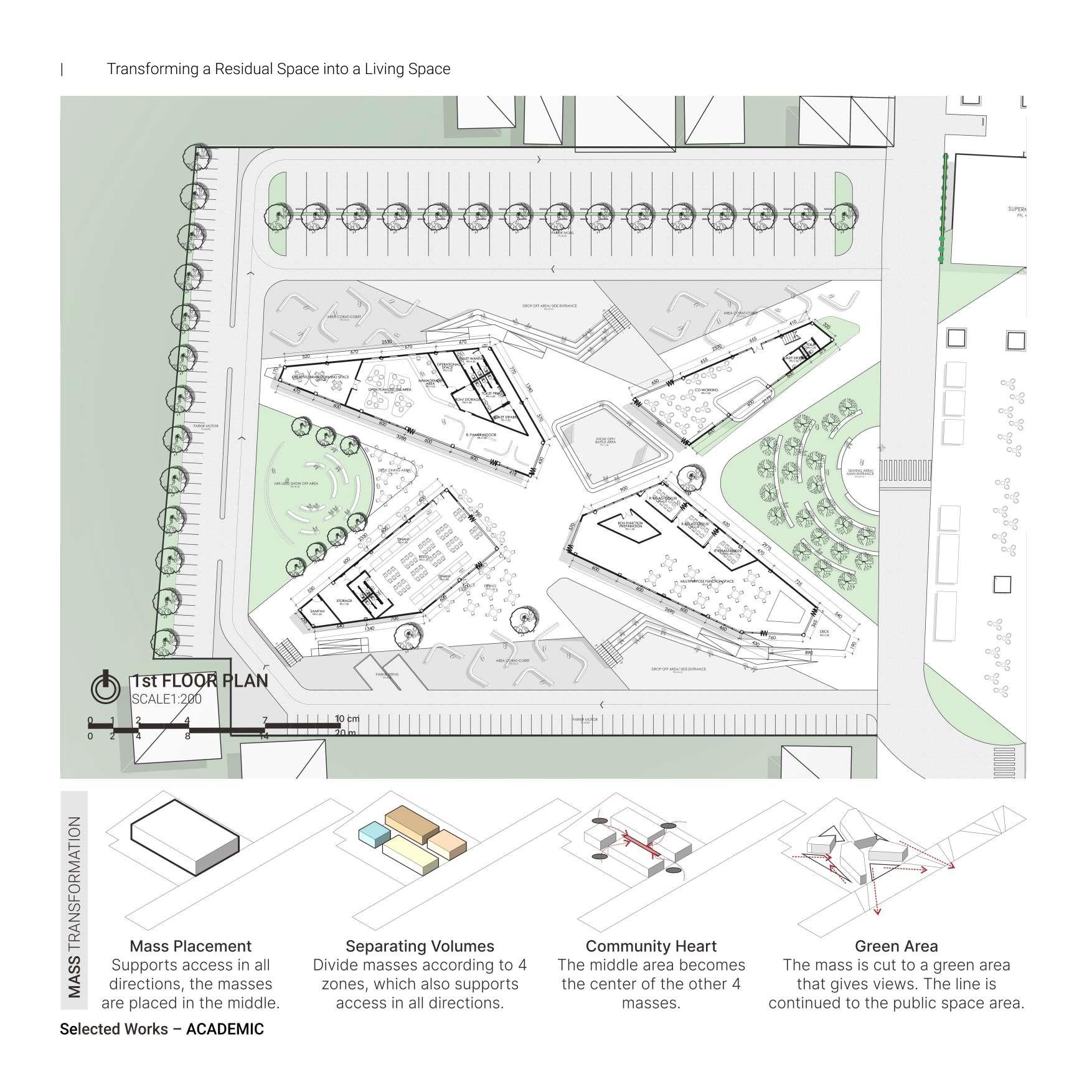

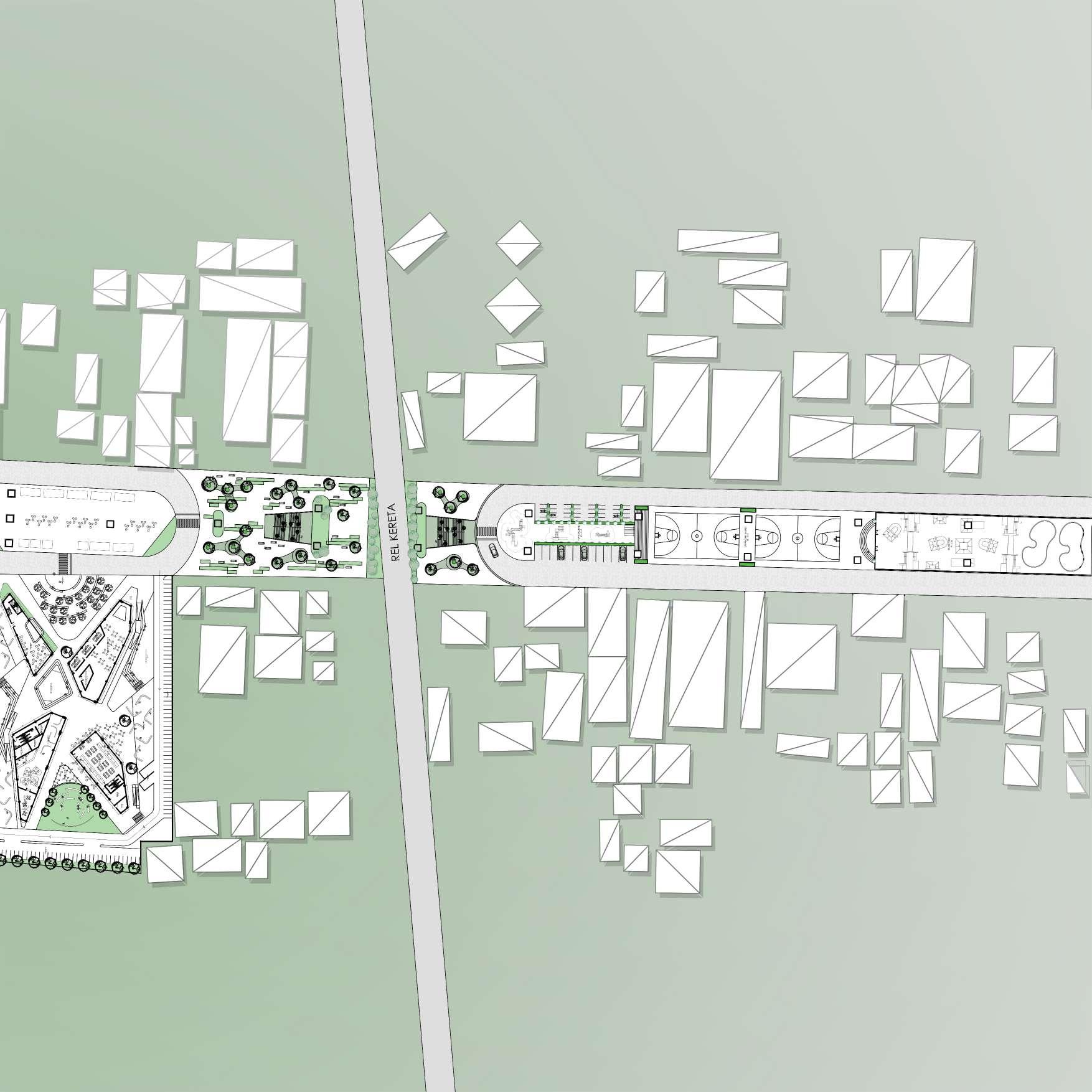

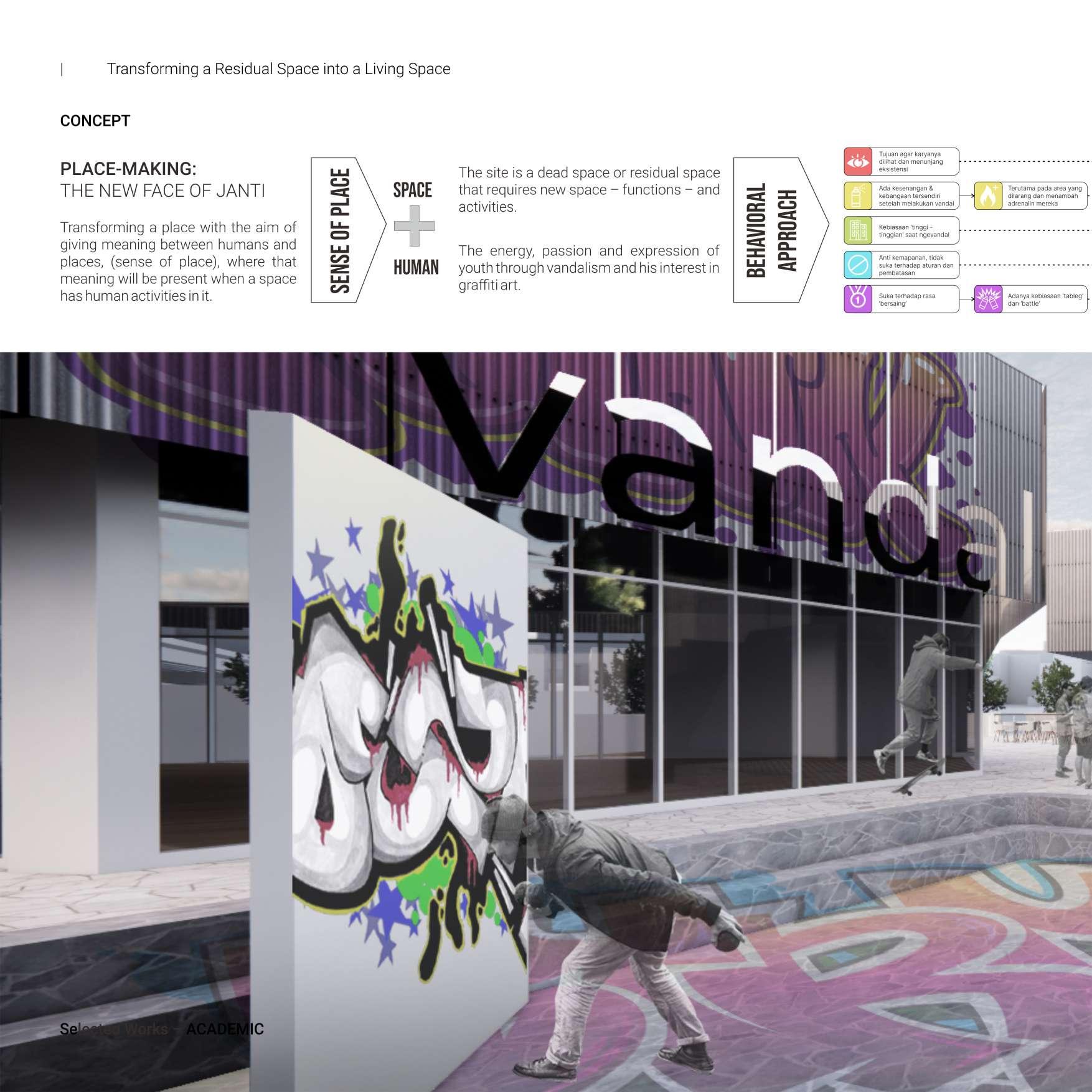

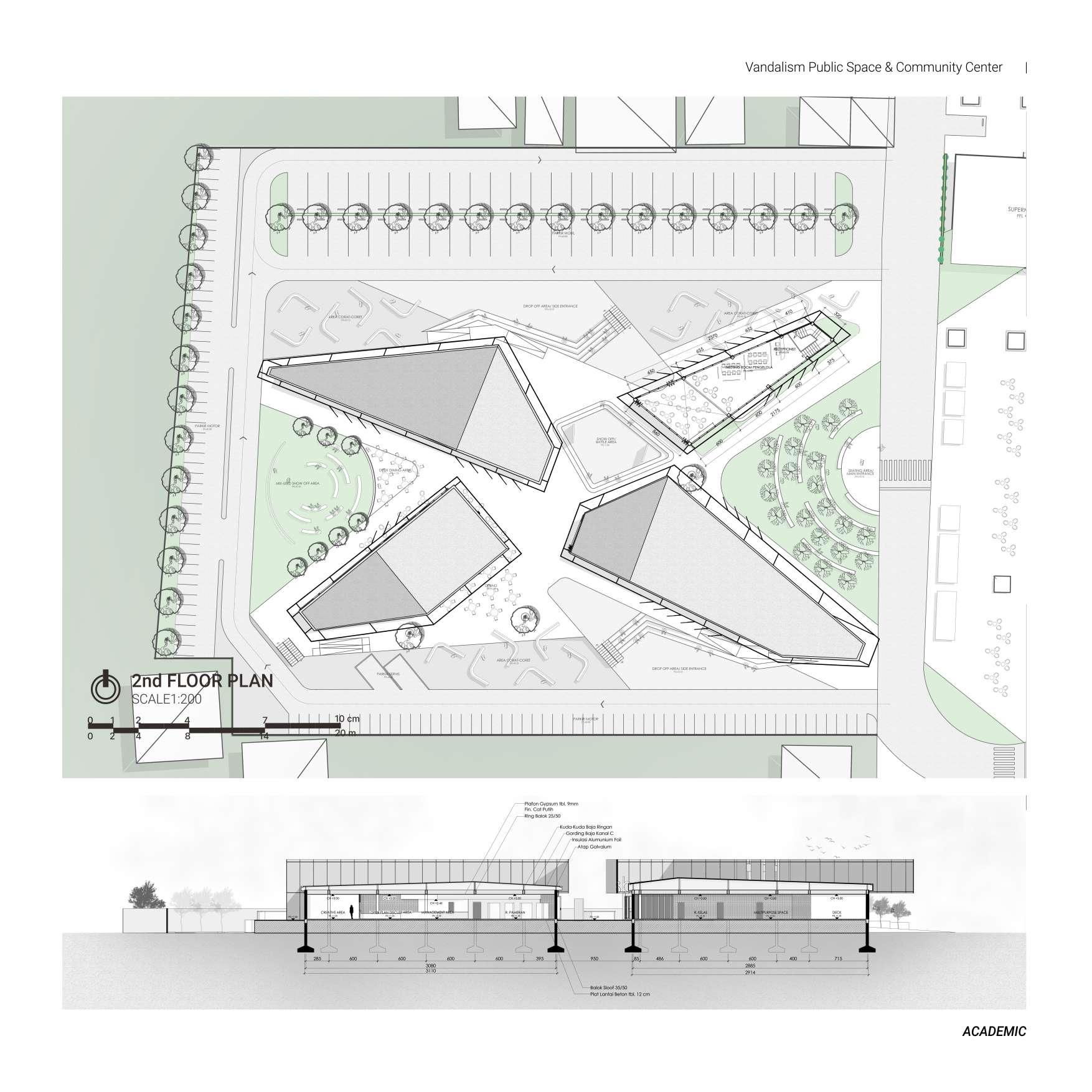

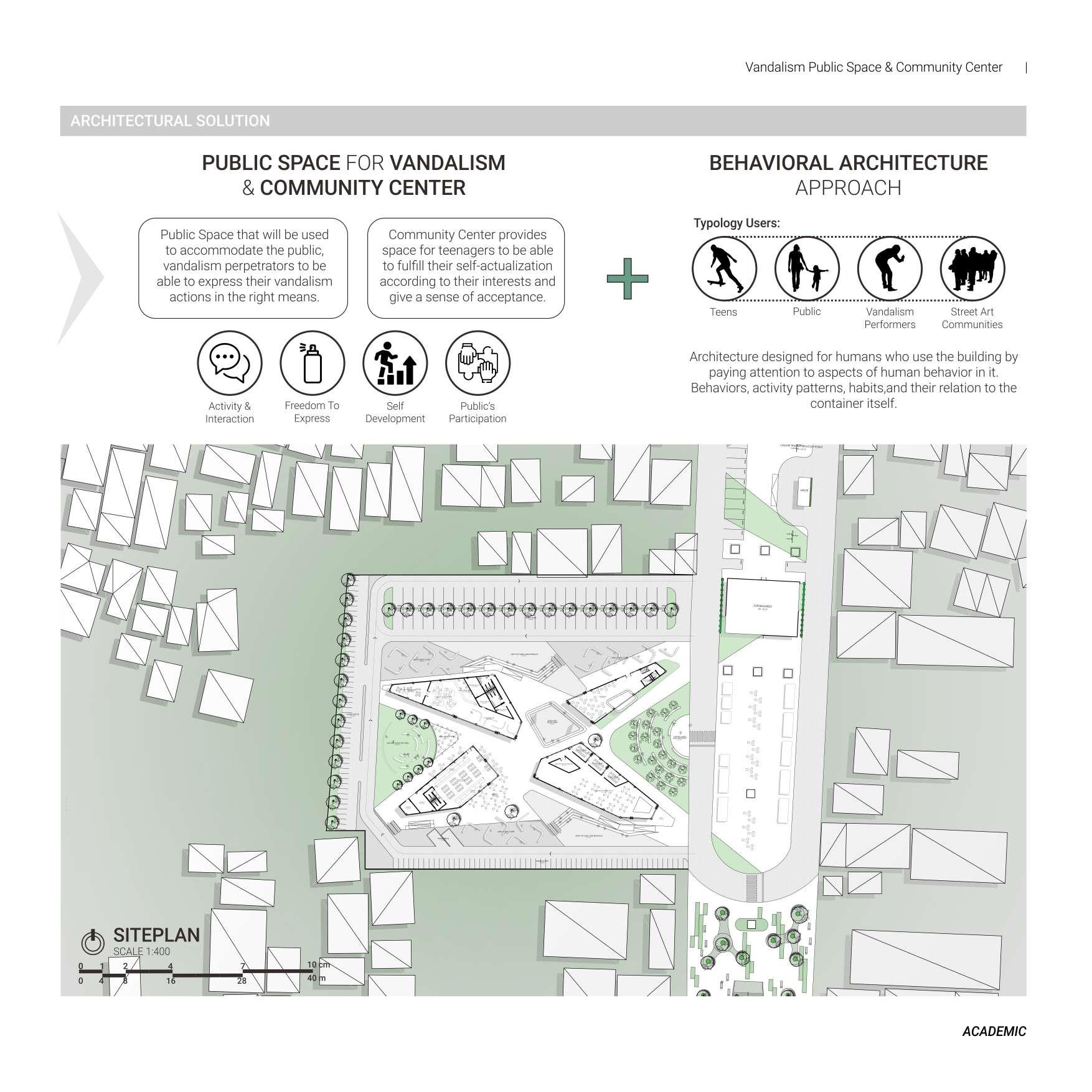

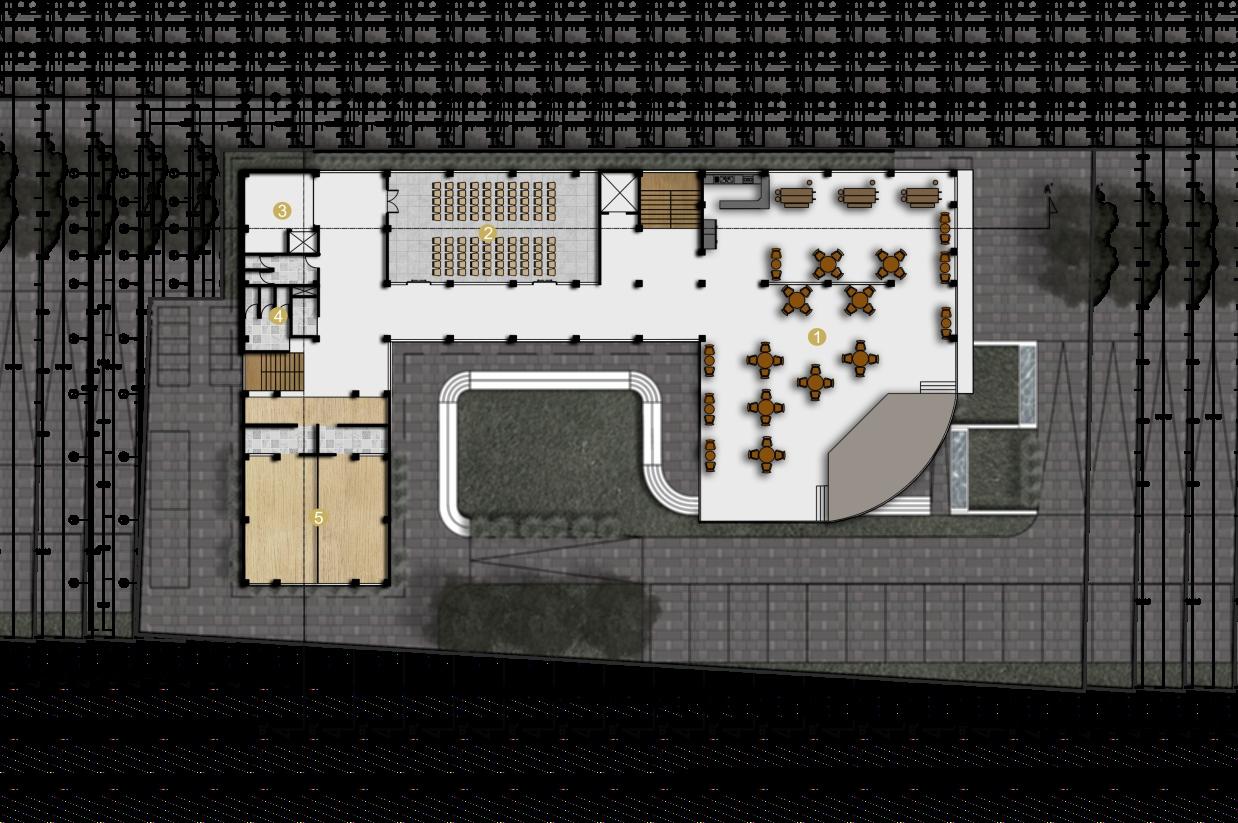

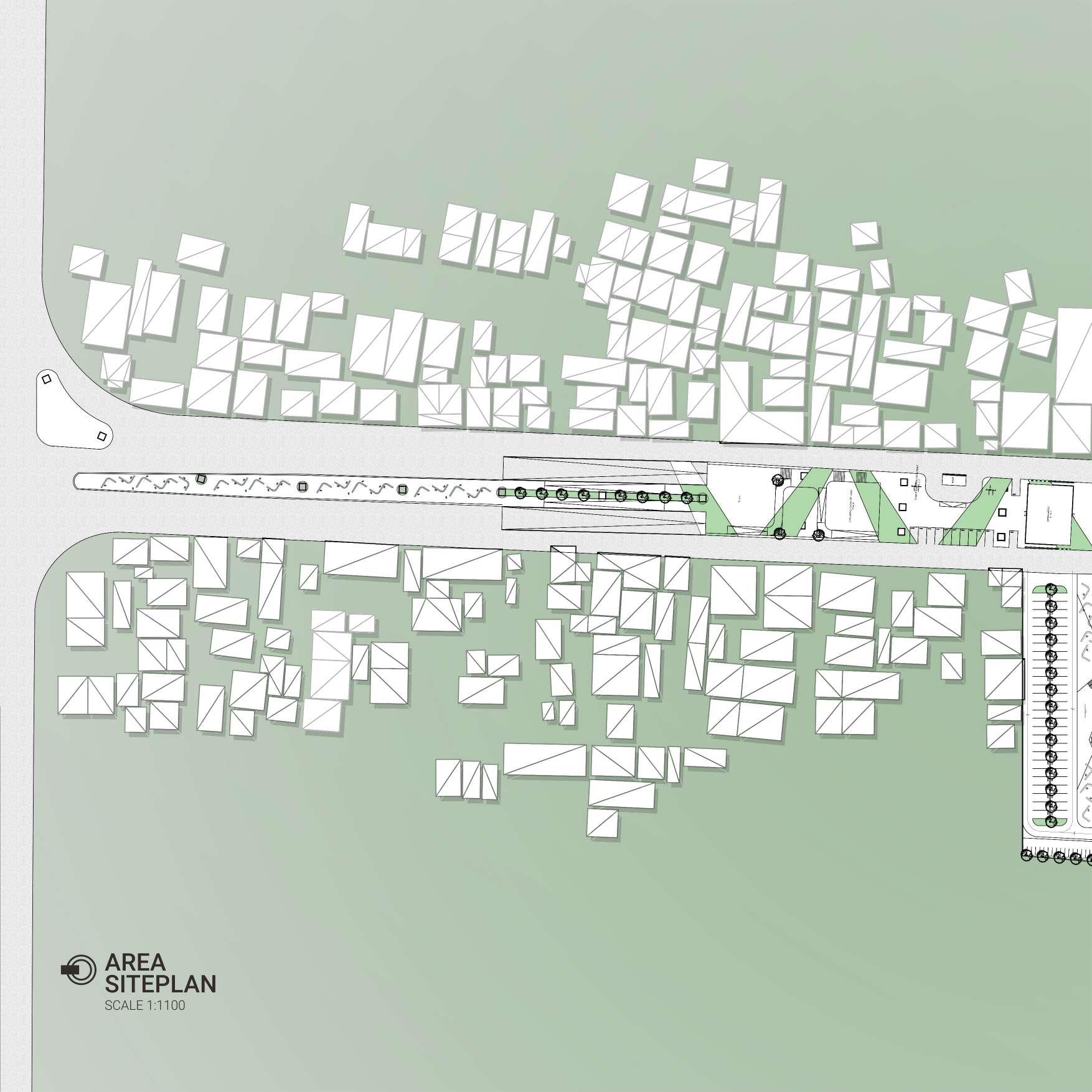

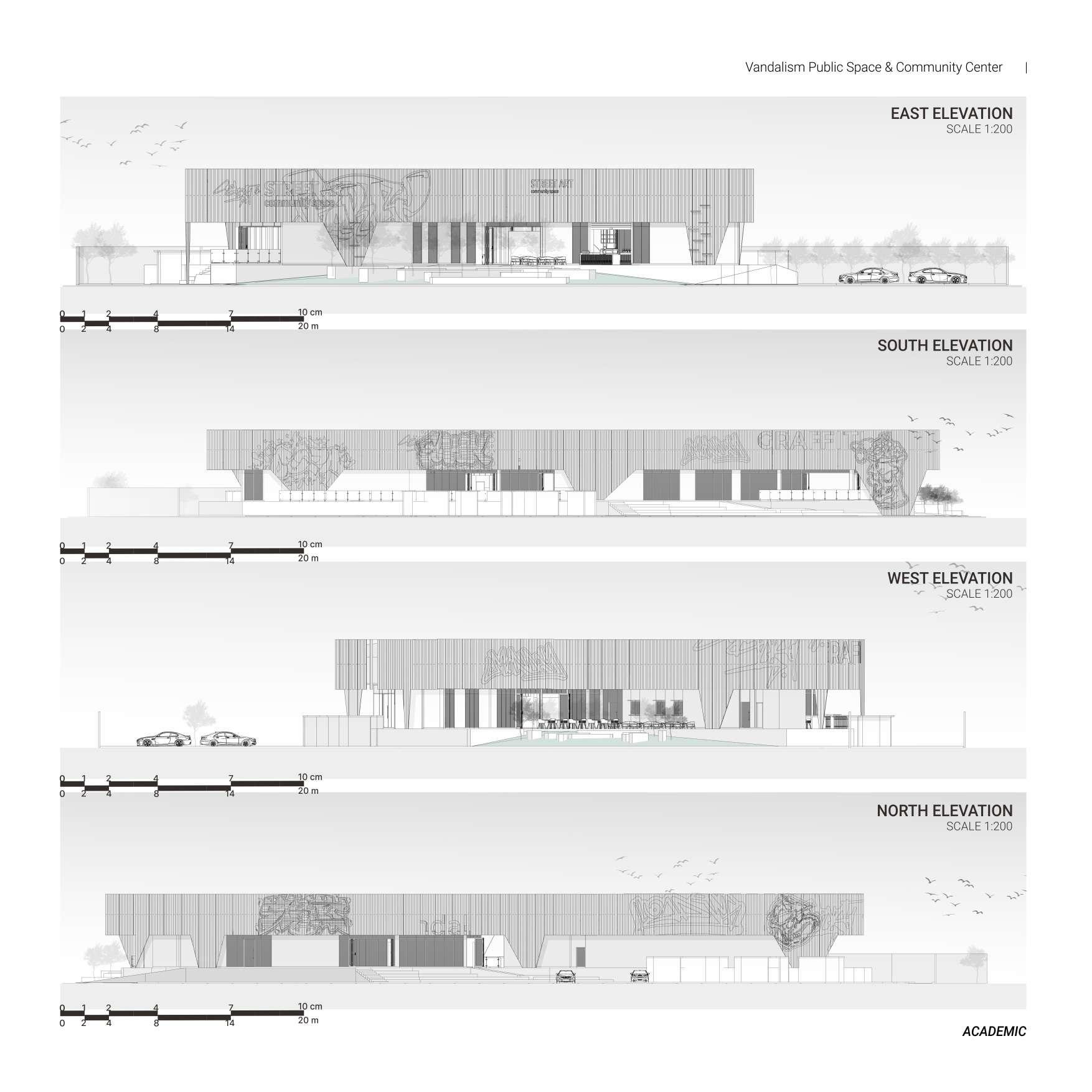

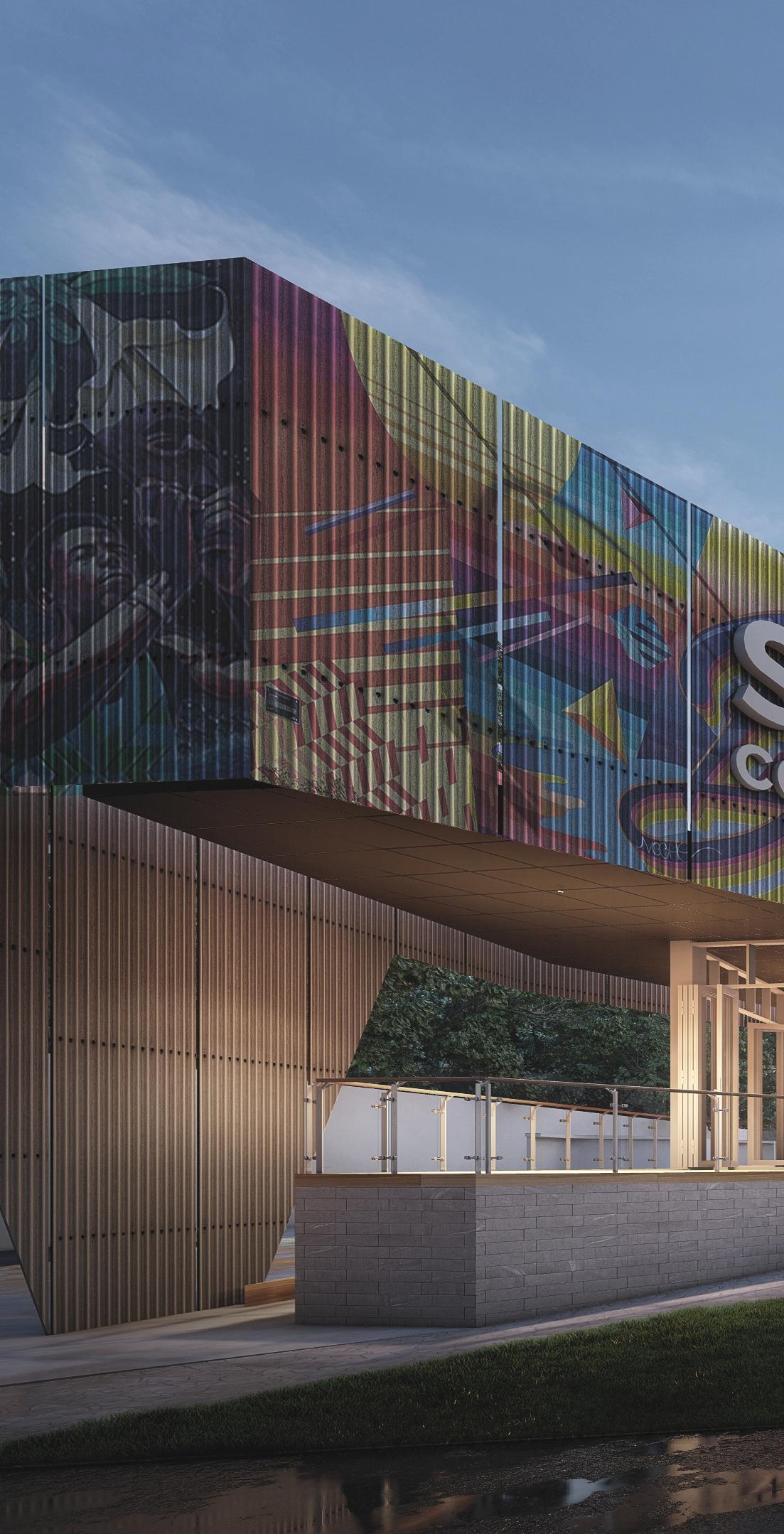

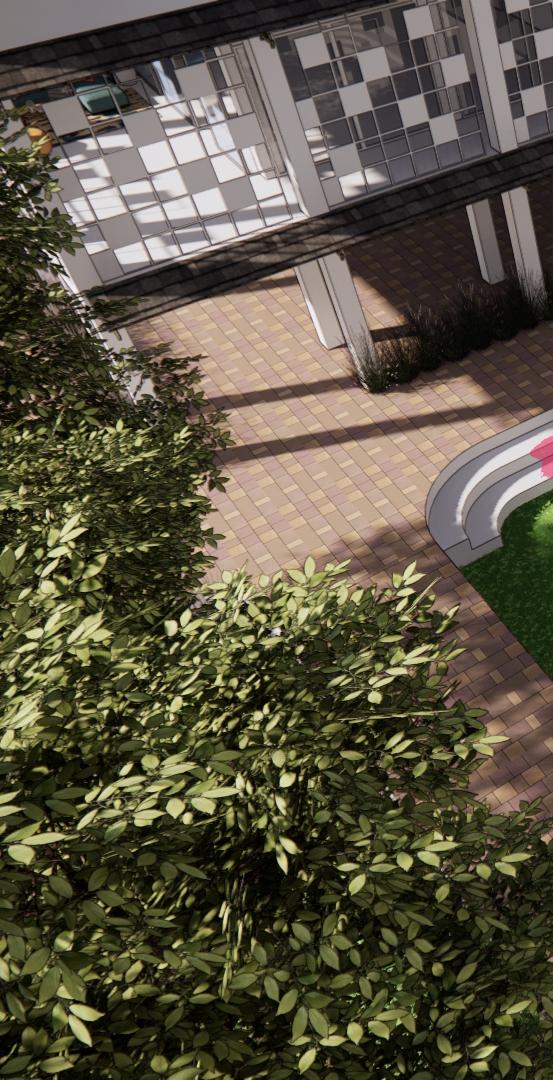

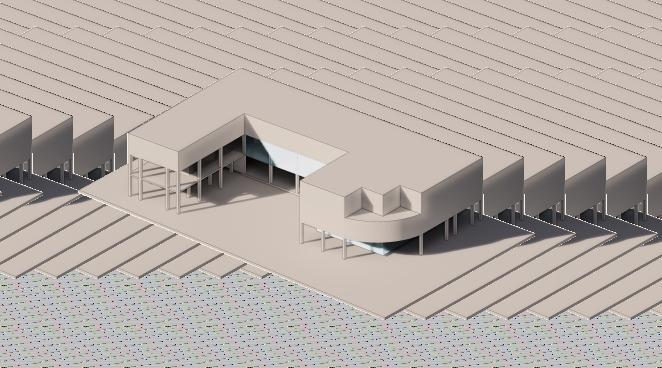

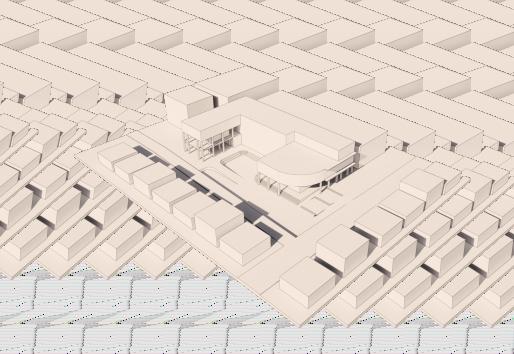

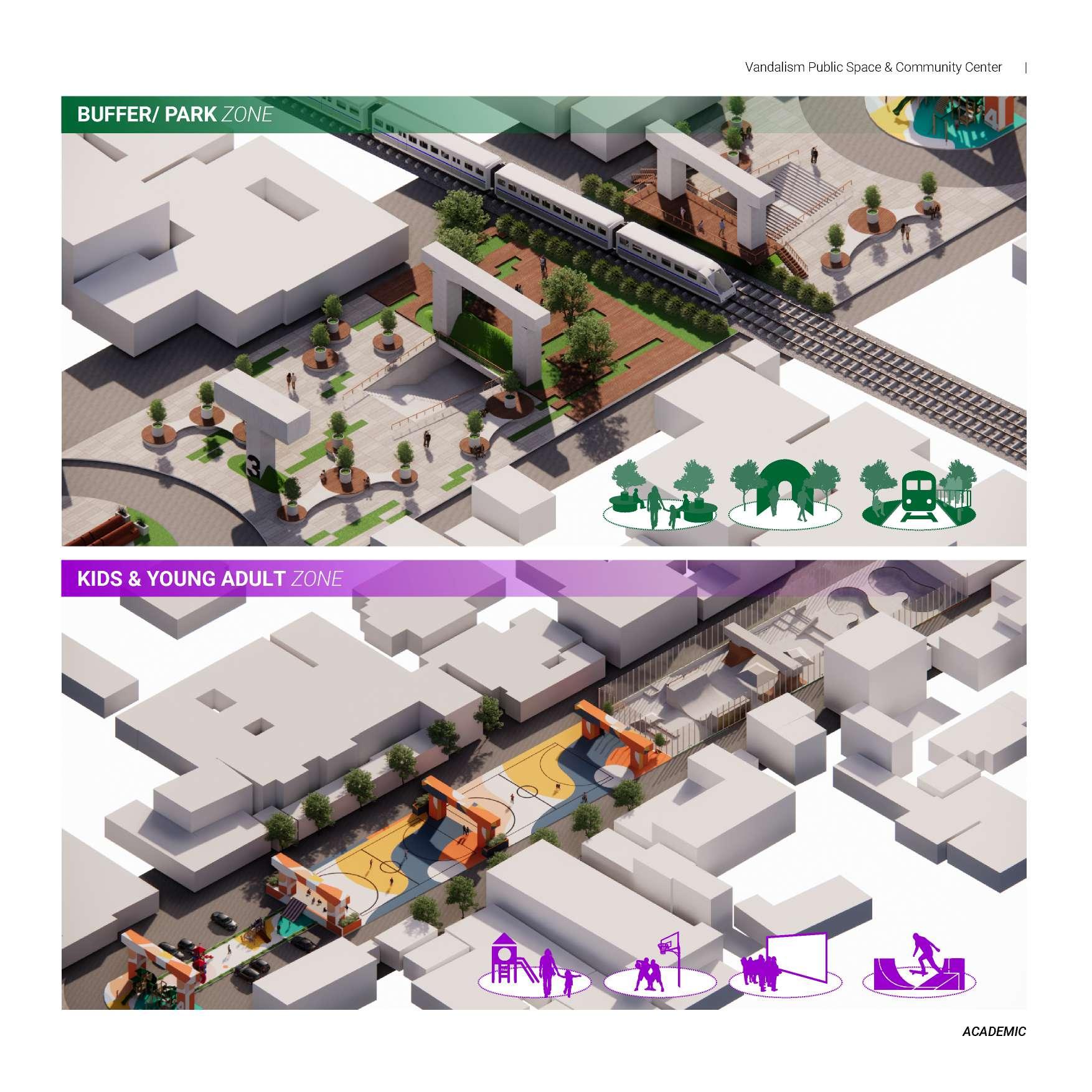

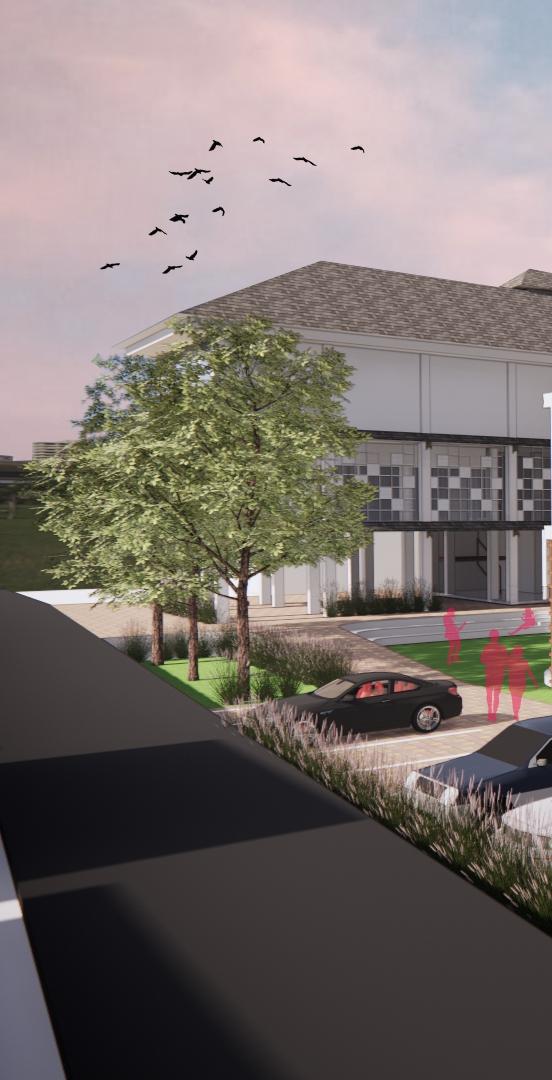

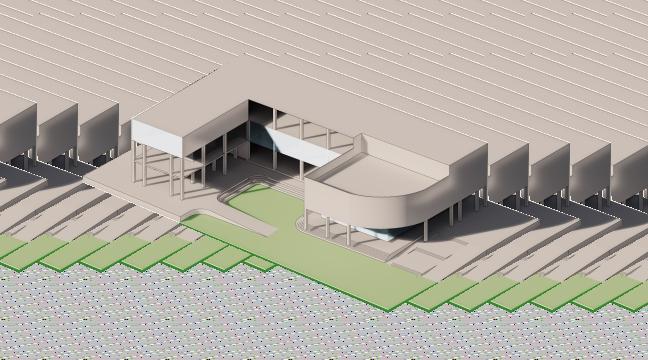

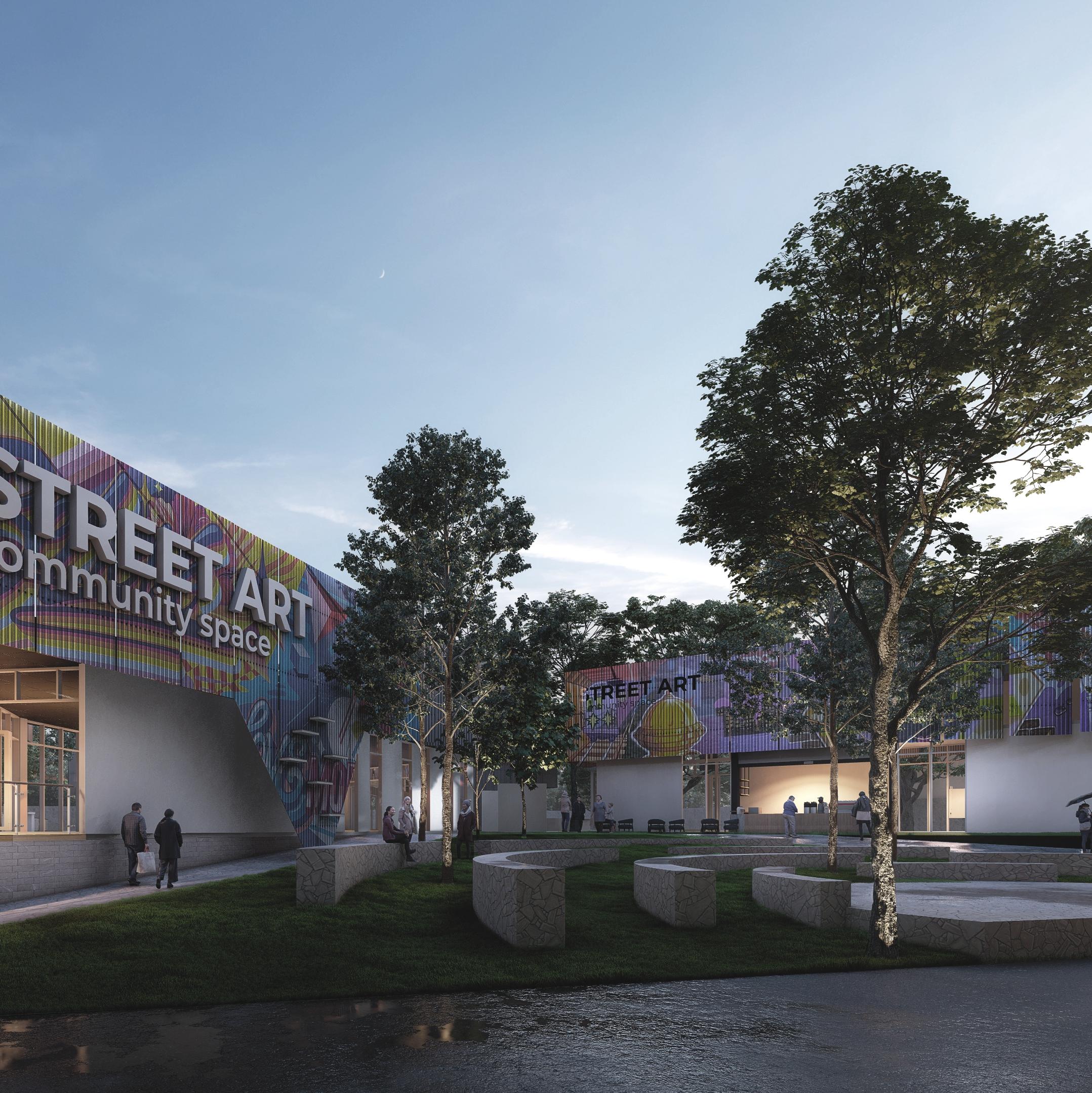

Public Space for Vandalism & Community Center
with Behavioral Architecture Approach
Undergraduate Final Project
Final
Project Supervisor:
Labdo Pranowo, S.T., M.T

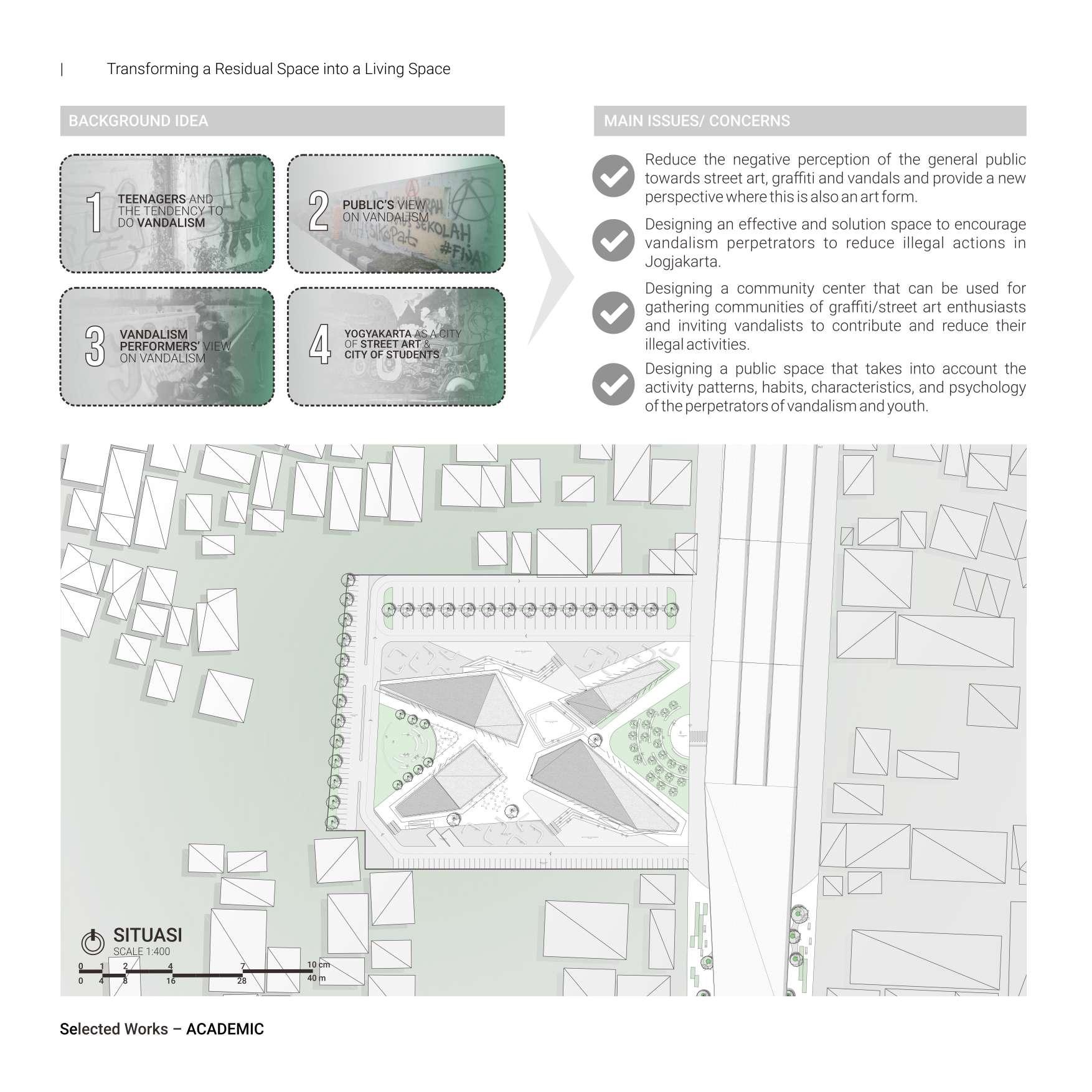

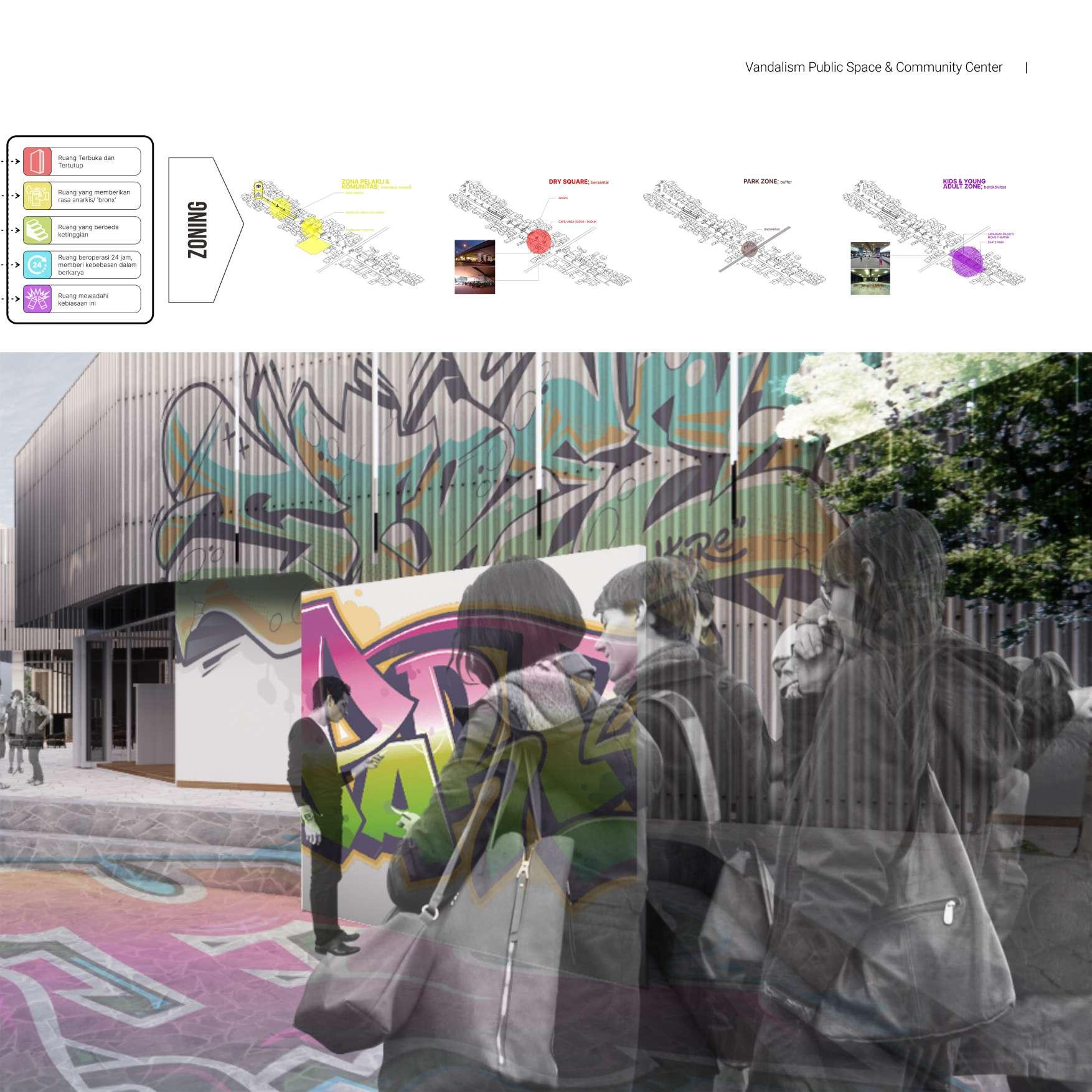

Vandalism as one of the biggest issue has yet to find a solution, it is felt that the reason why the solutions that has been applied never worked because we never really taken the vandalism performers or graffiti artists’ views and side into consideration.
Public Space and Community Center helps them to carry out, express, and to develop their 'talent' of vandalism, legally, with the hope of vandalisms in other public areas can be minimized. Through behavioral architecture approach, teenage vandals and graffiti artist portrayed as a subject that determine and contribute to the design aspects of the space.
Project Video:

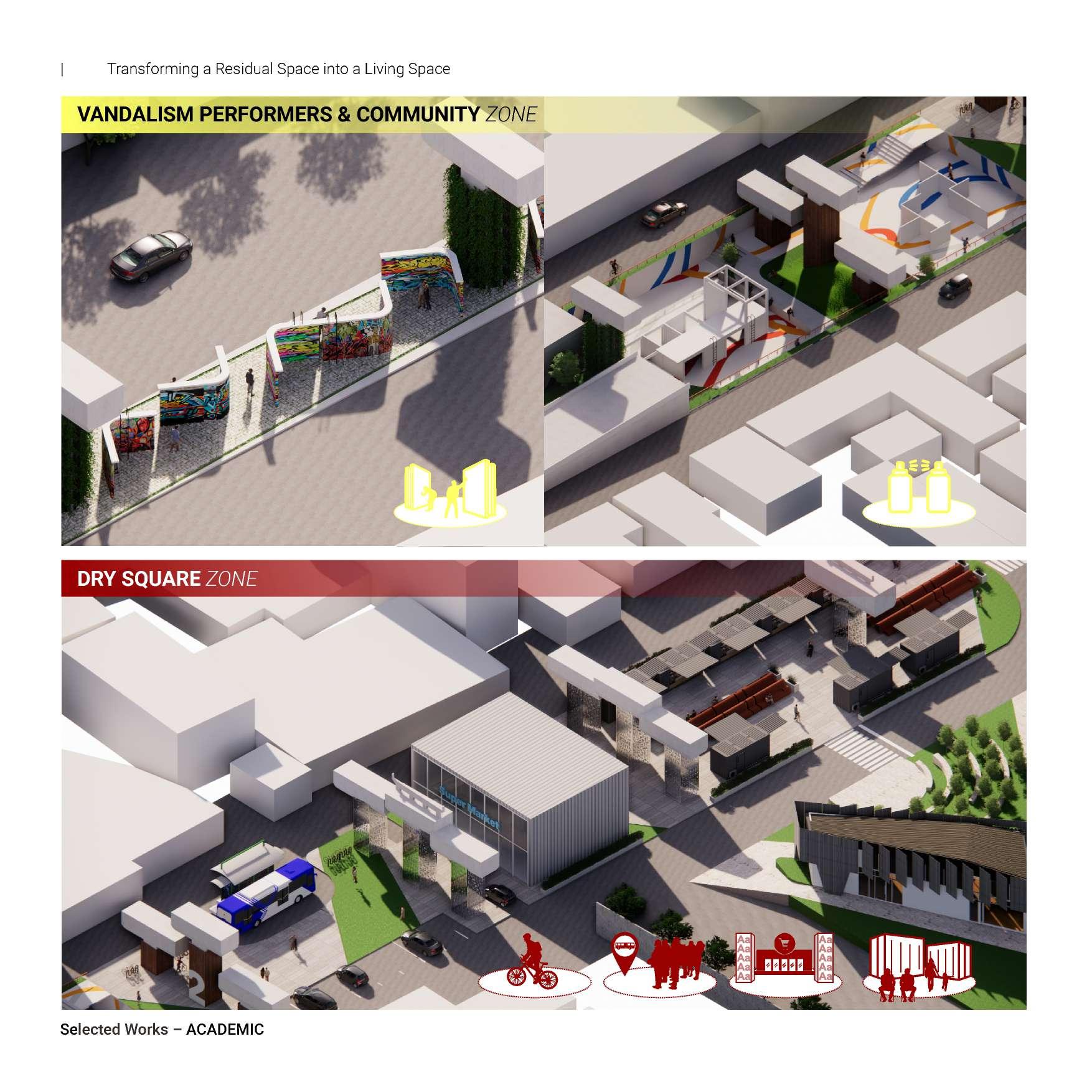

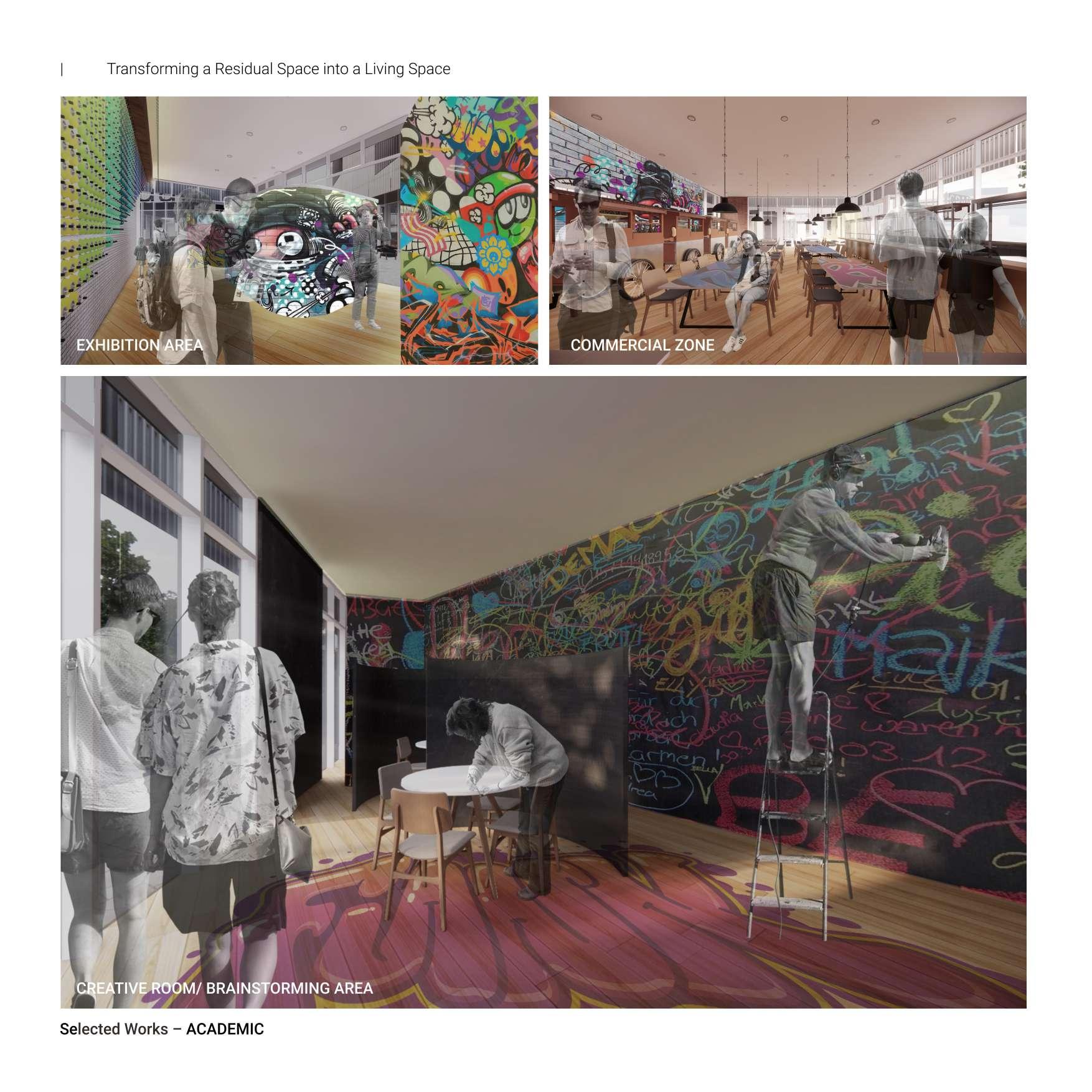

| Transforming a Residual Space into a Living Space
Se ACADEMIC lected Works –
Residential

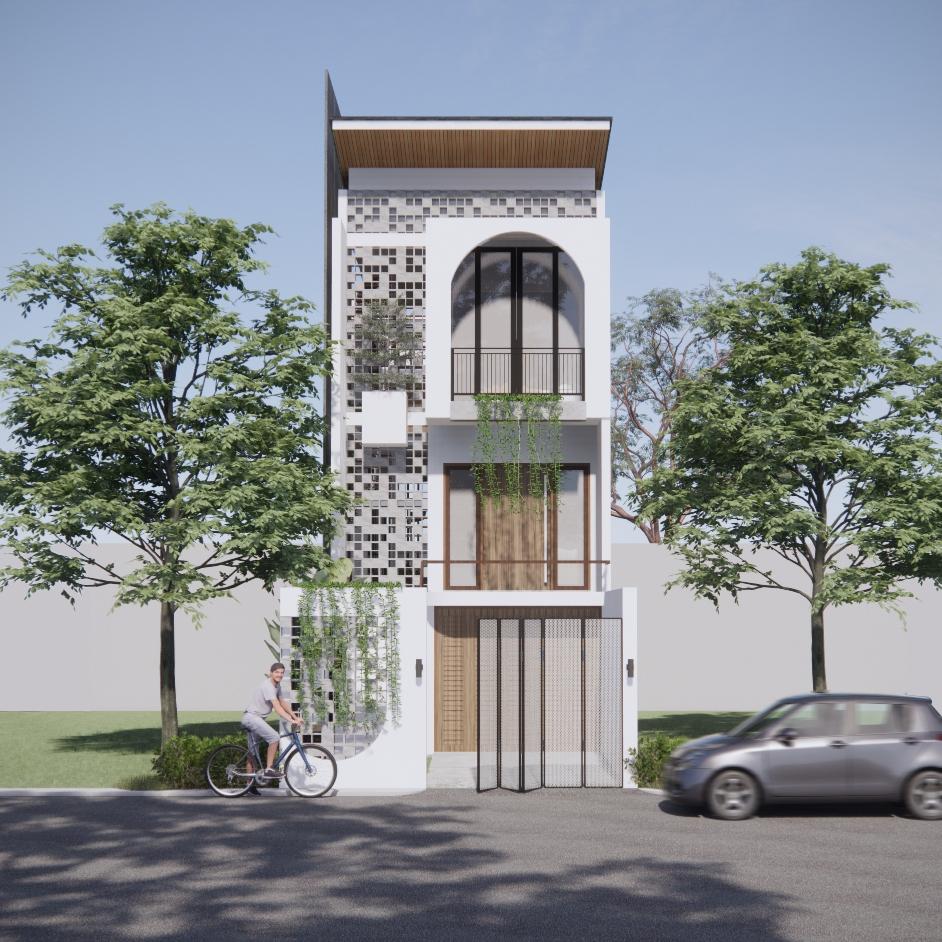

S - House
BSD Co-Housing
Intership Project
Team: Individual

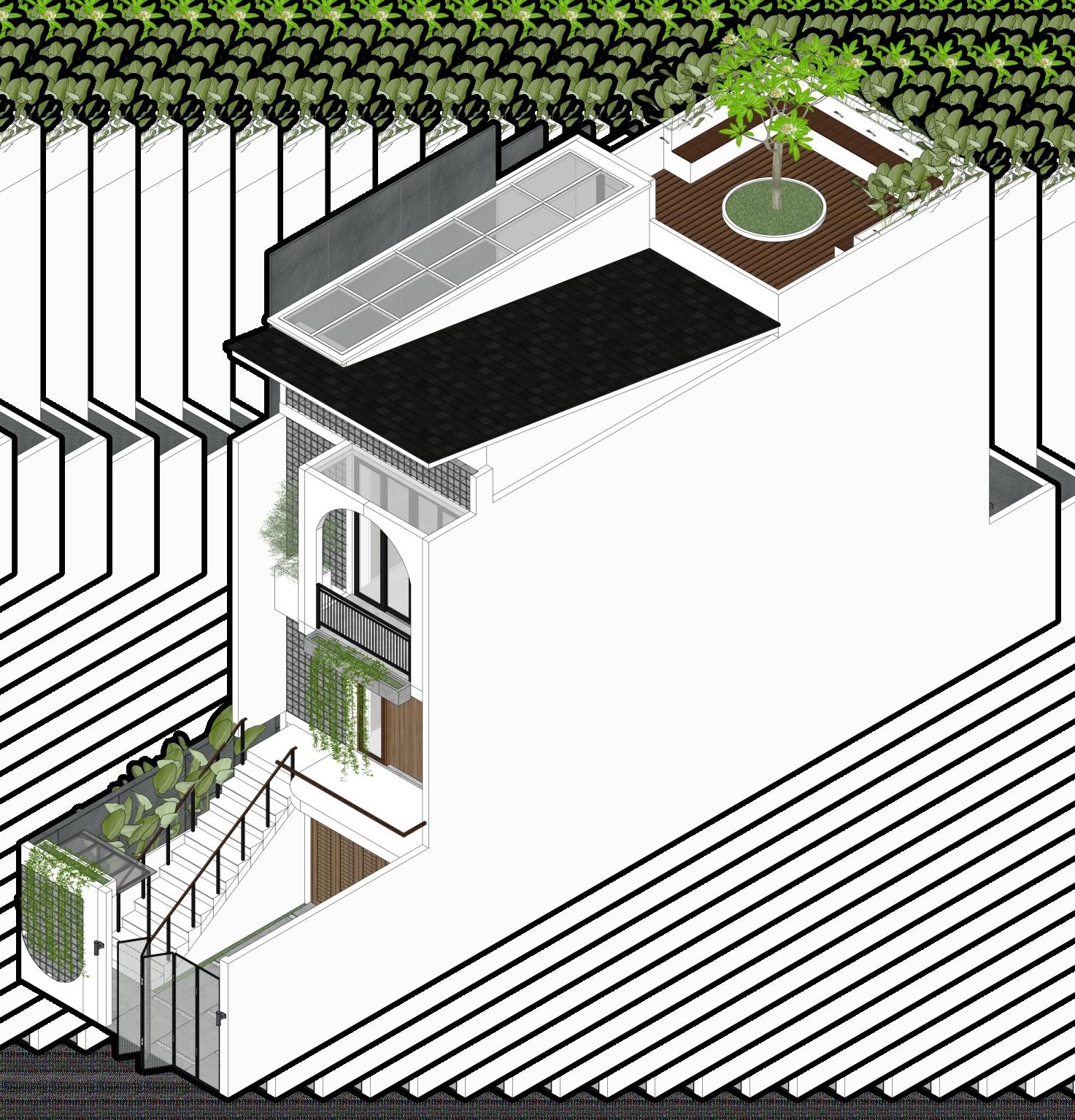

BSD Co-Housing Type - S is a Communal Housing with the main concept of Tropical & White, less color and more texture.
Located in Canggu, Bali, a floodprone area, with a building area of 100m2, 20x5 meters.
With limited land and squeezed by two houses next to the house
lighting and air circulation must be seriously considered.
Se COMPETITION lected Works –
| Small Area Housing
MAXIMIZING
NATURAL LIGHTING

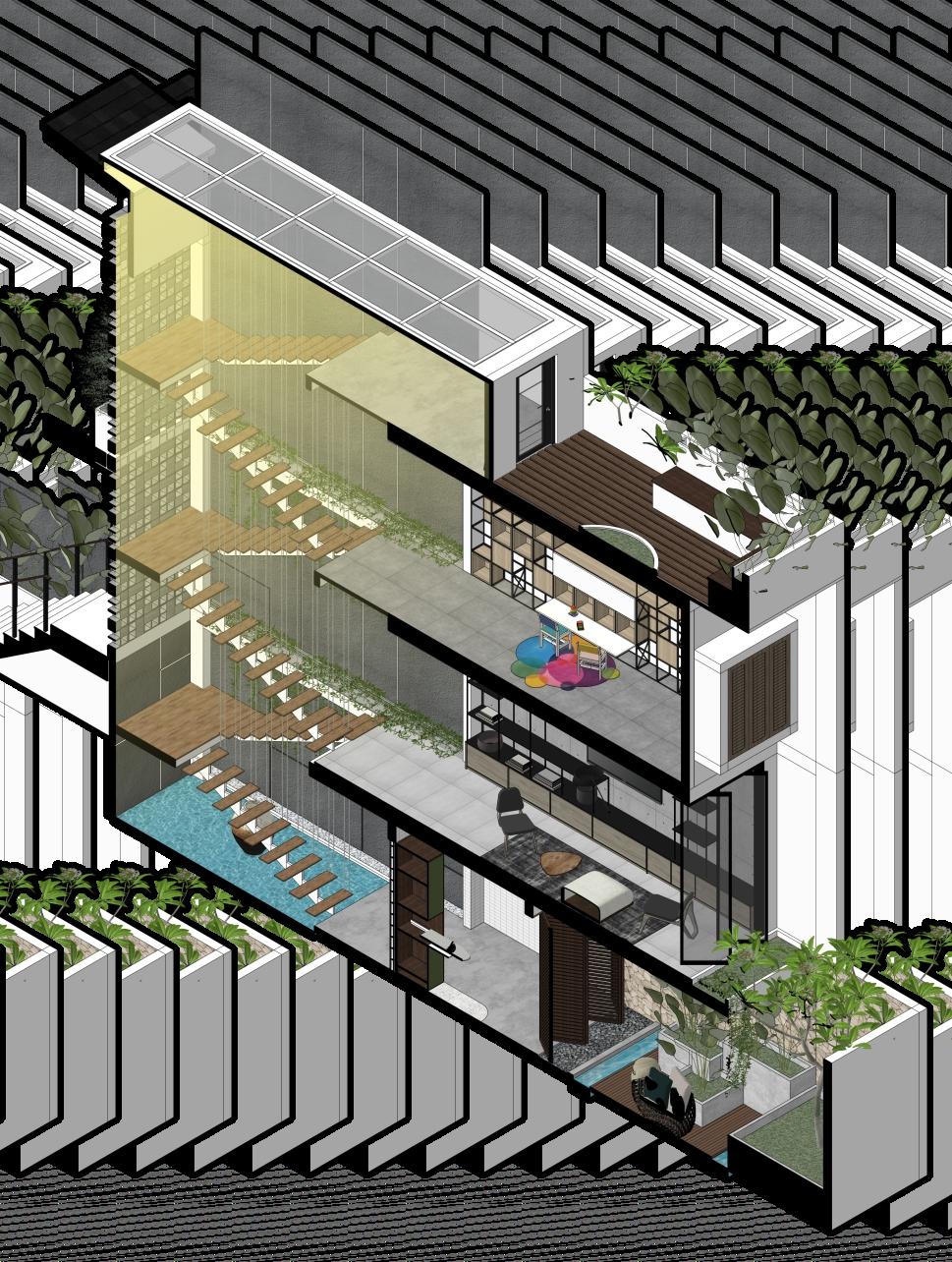

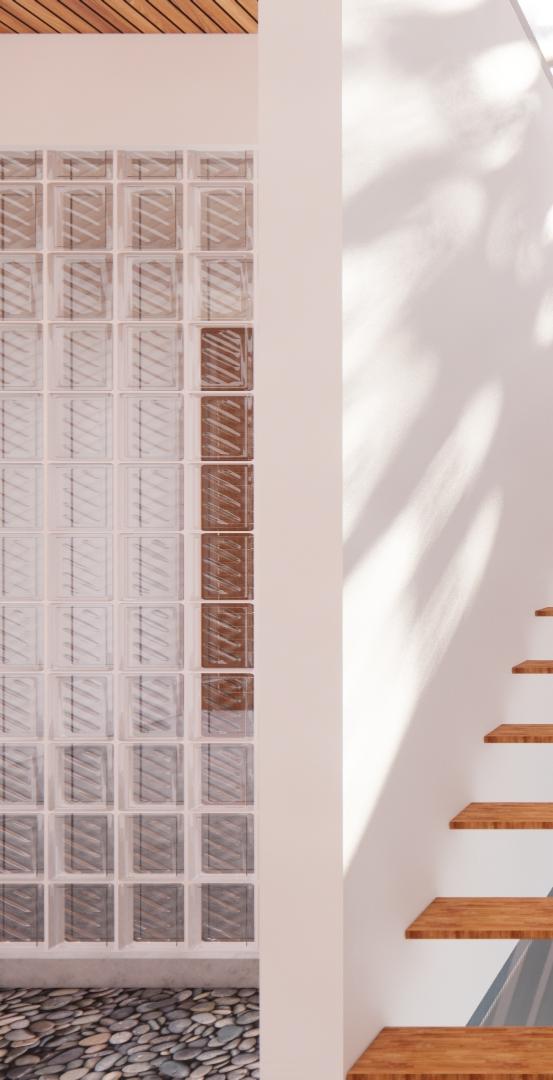

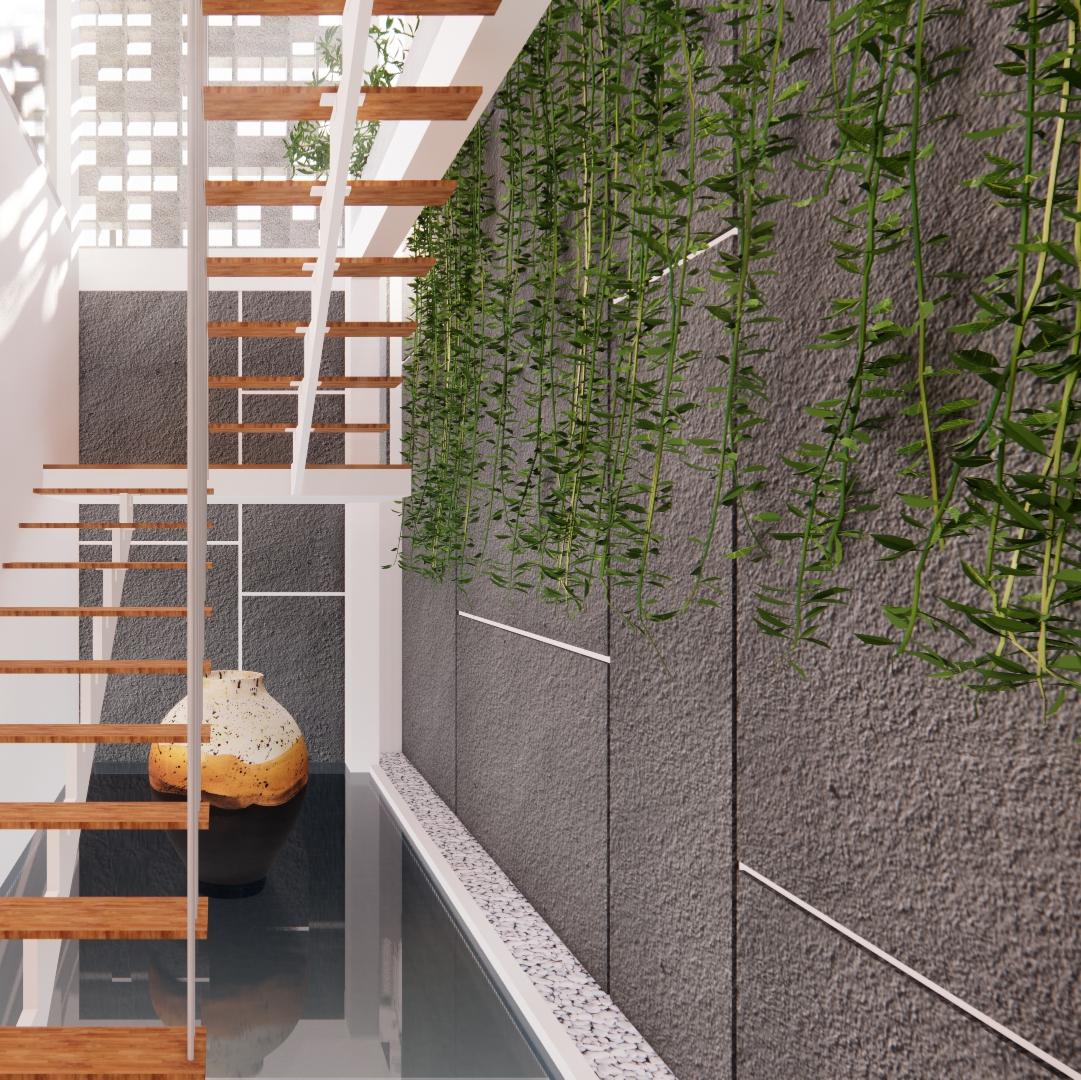

STAIRTOWER Concept
Withtheconditionofthehousebeingflanked,thebestlightcomes fromabovesothestairareaisusedasalightsourceinthehouse, thepositionofthecontinuousstairsbecomesa'stairtower'andis given a skylight above it (roof) so that light can be divided into the houseevenlyoneachfloor
SELECTED WORKS
| Small Area Housing
Concept

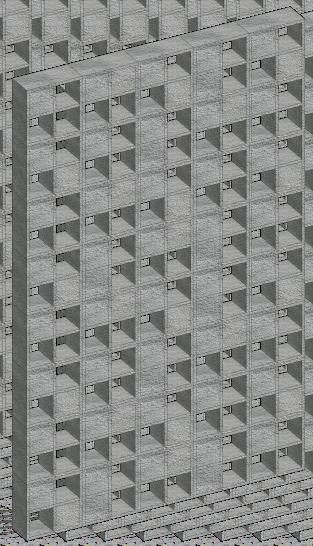

CROSSVENTILATION
Theuseofarosteronthefacadeofthe house and a pivot window on the back provides cross ventilation inside the house, wind andaircirculation can run properlyandnotbeobstructed.
SELECTED
| Small Area Housing
WORKS MAXIMIZING AIR CIRCULATION
LivingAreaInTheAfternoon–Sunlightcamefrominfrontofthehouse(West)
LivingAreaInTheMorning–Sunlightcamefrombackofthehouse(East)

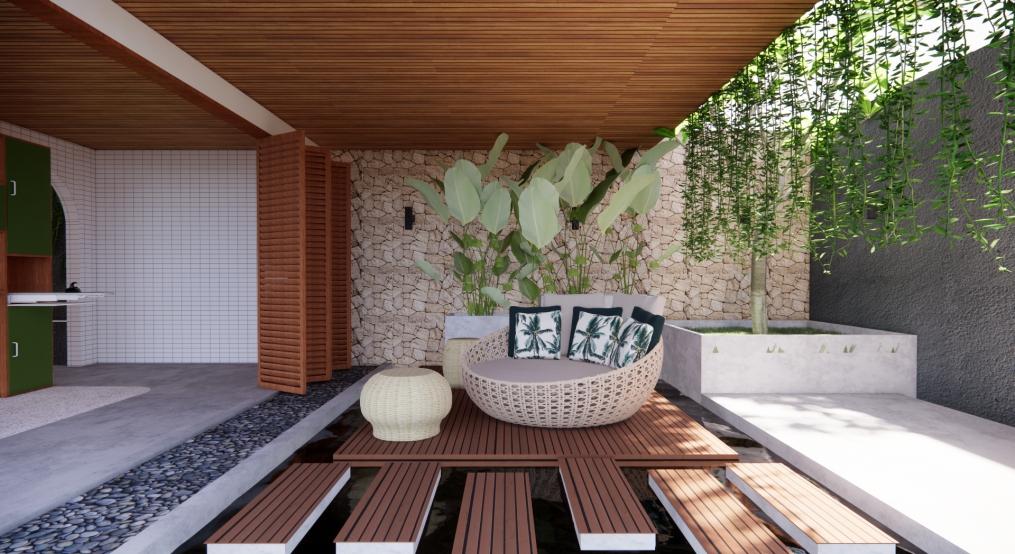

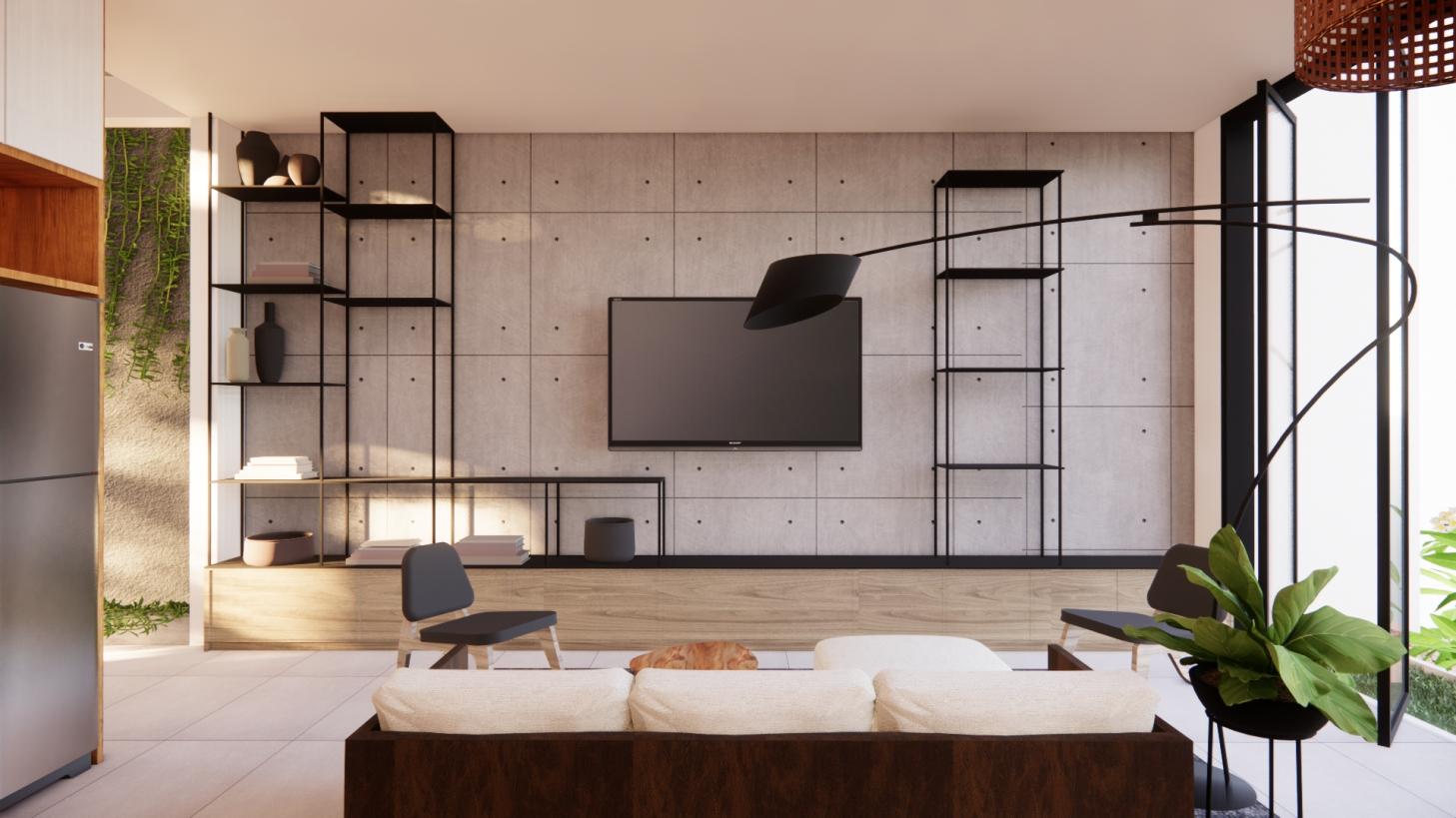

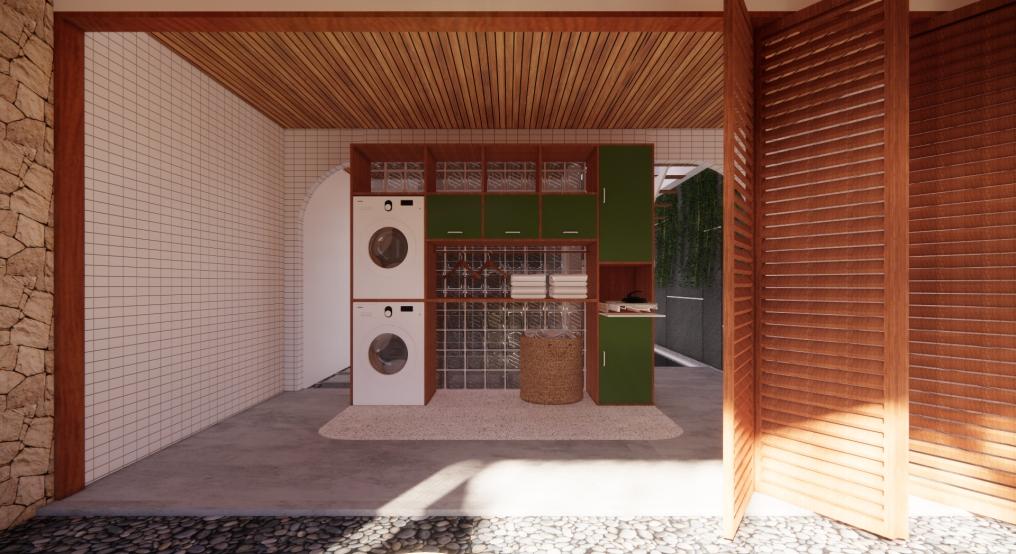

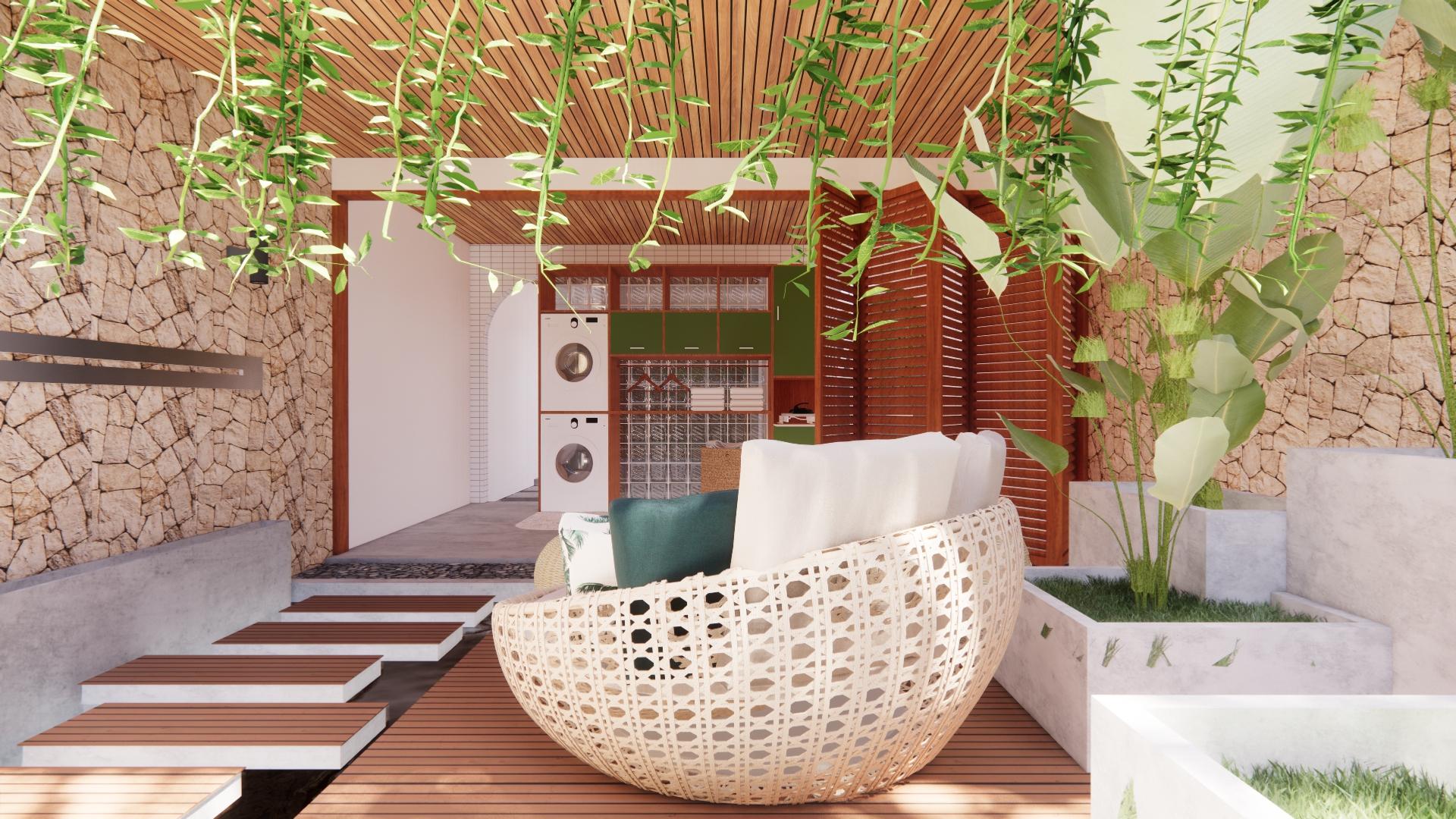

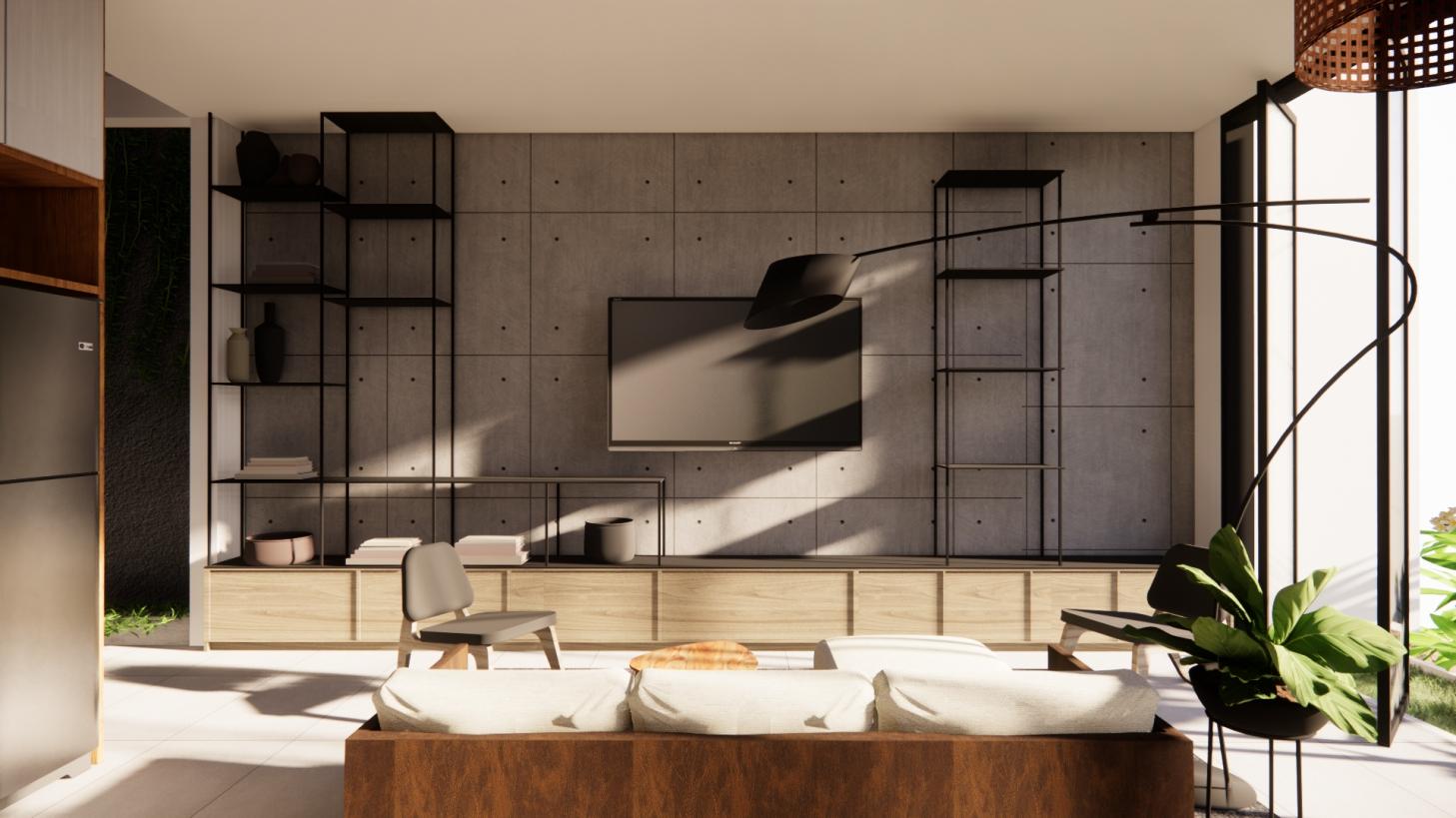

OPEN PLAN & MULTIFUNCTION AREA
The open plan concept helps to give a broad impression to homes with limited land. Apart from that, withthisconceptthesameareacanbeusedforseveralactivities.Theconnectionbetweenlaundryarea andfishpoolcanbeusedasayoga/exercisingarea.
S - House | ACADEMIC
First Floor Plan
Second Floor Plan
N SELECTED WORKS | Small Area Housing FFL ±0.00 CARPORT FFL +0.10 GARAGE FFL ±0.00 STORAGE ROOM FFL +0.10 LAUNDRY ROOM FFL +0.10 DRYING AREA +0.20 +0.40 2 +0.60 3 +0.80 4 +1.00 5 +1.20 6 +1.40 7 +1.60 8 +1.80 9 +2.00 10 +2.20 11 +2.40 12 +2.80 13 +0.15 1 +0.30 +0.45 +0.60 +0.75 +0.90 +1.05 +1.20 +1.35 +1.80 12 +1.65 11 FFL +0.10 25 +1.50 10 FFL +0.10 DECK FFL -0.60 FISH POND FFL -0.20 POOL Storage Shelf 170 145
FFL ±0.00 CARPORT FFL +0.10 GARAGE FFL ±0.00 STORAGE ROOM FFL +0.10 LAUNDRY ROOM FFL +0.10 DRYING AREA +0.20 1 +0.40 +0.60 +0.80 +1.00 +1.20 +1.40 +1.60 +1.80 +2.00 10 +2.20 11 +2.40 12 +2.80 13 +0.15 +0.30 2 +0.45 3 +0.60 4 +0.75 5 +0.90 6 +1.05 7 +1.20 8 +1.35 9 +1.80 12 +1.65 11 FFL +0.10 25 25 +1.50 10 FFL +0.10 DECK FFL -0.60 FISH POND FFL -0.20 POOL Storage Shelf 170 145 543 115 120 552 145 60 80 75 85 +7.65 11 80 210 80 210 +6.45 4 +7.05 7 +7.20 +7.35 +7.50 55 FFL ±0.00 CARPORT FFL +0.10 GARAGE FFL ±0.00 STORAGE ROOM FFL +0.10 LAUNDRY ROOM FFL +0.10 DRYING AREA +0.20 1 +0.40 +0.60 +0.80 +1.00 +1.20 +1.40 +1.60 +1.80 +2.00 10 +2.20 11 +2.40 12 +2.80 13 +0.15 +0.30 2 +0.45 3 +0.60 4 +0.75 5 +0.90 6 +1.05 7 +1.20 8 +1.35 9 +1.80 12 +1.65 11 FFL +0.10 25 25 +1.50 10 FFL +0.10 DECK FFL -0.60 FISH POND FFL -0.20 POOL Storage Shelf 170 145 120 210 FFL +2.85 RUANG TAMU 80 210 FFL +2.80 GUEST TOILET +3.25 +3.70 +4.15 10 FFL +2.85 KITCHEN FFL +2.85 DINING AREA FFL +2.85 LIVING AREA +4.45 11 452 178 350 100 FFL +2.80 +4.60 11 +4.75 115 115 31 60
Fourth Floor Plan
S - House | ACADEMIC
85 543 243 295 FFL ±0.00 CARPORT FFL +0.10 GARAGE FFL ±0.00 STORAGE ROOM FFL +0.10 LAUNDRY ROOM FFL +0.10 DRYING AREA +0.20 1 +0.40 2 +0.60 3 +0.80 4 +1.00 5 +1.20 6 +1.40 7 +1.60 8 +1.80 9 +2.00 10 +2.20 11 +2.40 12 +2.80 13 +0.15 +0.30 2 +0.45 3 +0.60 4 +0.75 5 +0.90 +1.05 7 +1.20 8 +1.35 +1.80 12 +1.65 11 FFL +0.10 25 25 +1.50 10 FFL +0.10 DECK FFL -0.60 FISH POND FFL -0.20 POOL Storage Shelf 170 145 500 80 210 230 FFL +9.10 COMMUNAL SPACE +9.00 20 +8.85 19 FFL +9.20 7 +7.65 11 +7.80 12 +9.15 21 +2.95 +8.70 18 +8.55 17 +8.40 16 +8.25 15 +8.10 14 13
MOODBOARD MATERIAL
04. Terasso Tile - For Wall & Floor 02. Square Stone Tile - For Indoor Floor 03. Mozaic Classic Tile - For Kitchen & Bathroom Wall 01. Conwood - For Deck 07. Cement - For Roster Facade 08. Plaster Kamprot - For Wall Finishing 05. Carrara Marble - For Kitchen Counter 06. Rattan - For Lamp 11. Polished Concrete - For Wall & Floor 09. Wood - For Furniture & Door 10. Asphalt Roofing - For Roof
Second Floor Plan
SELECTED WORKS
Third Floor Plan
400 400 400 400 400 400 400 400 450 450 1055 R. SERVIS MEP R. SERVIS MEP R. SERVIS MEP R. SAMPAH R. SERVIS MEP R. SAMPAH KALI CODE JL. KP JOGOYUDAN A B C D C D E E E E C C F G H I J area jemur komunal area jemur komunal area jemur komunal area jemur komunal area jemur komunal area jemur komunal S S R R F S S R R Q Q area jemur komunal area jemur komunal area jemur komunal R R R R R R R R T T S S S S V Siteplan

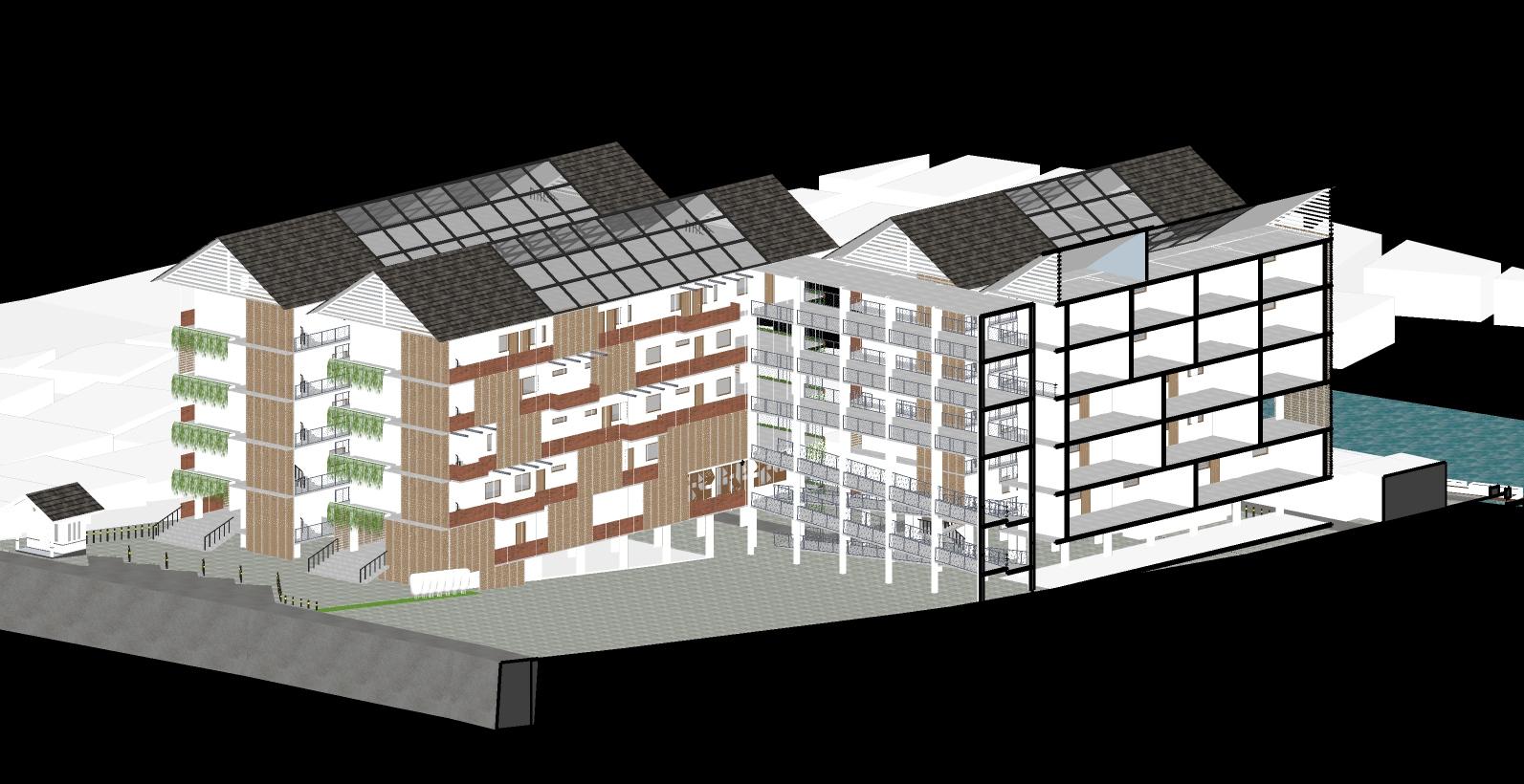

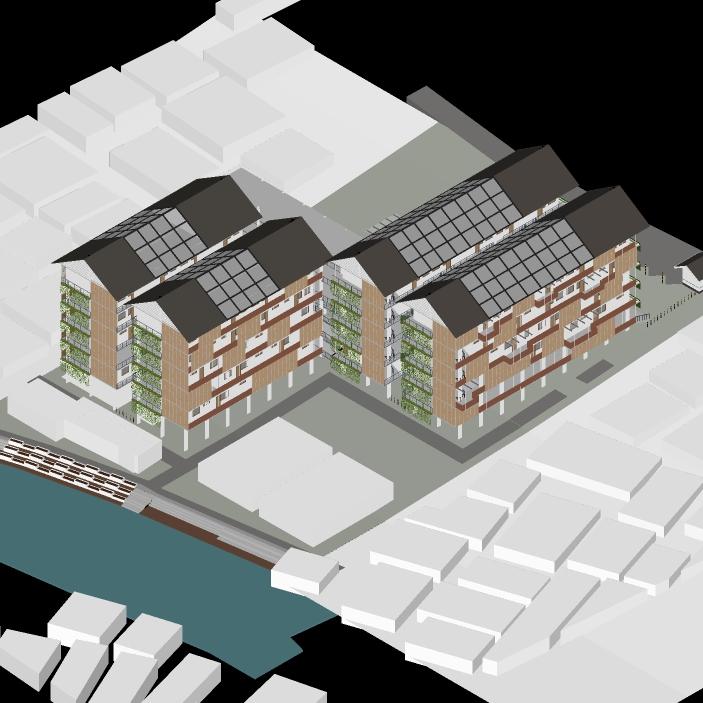

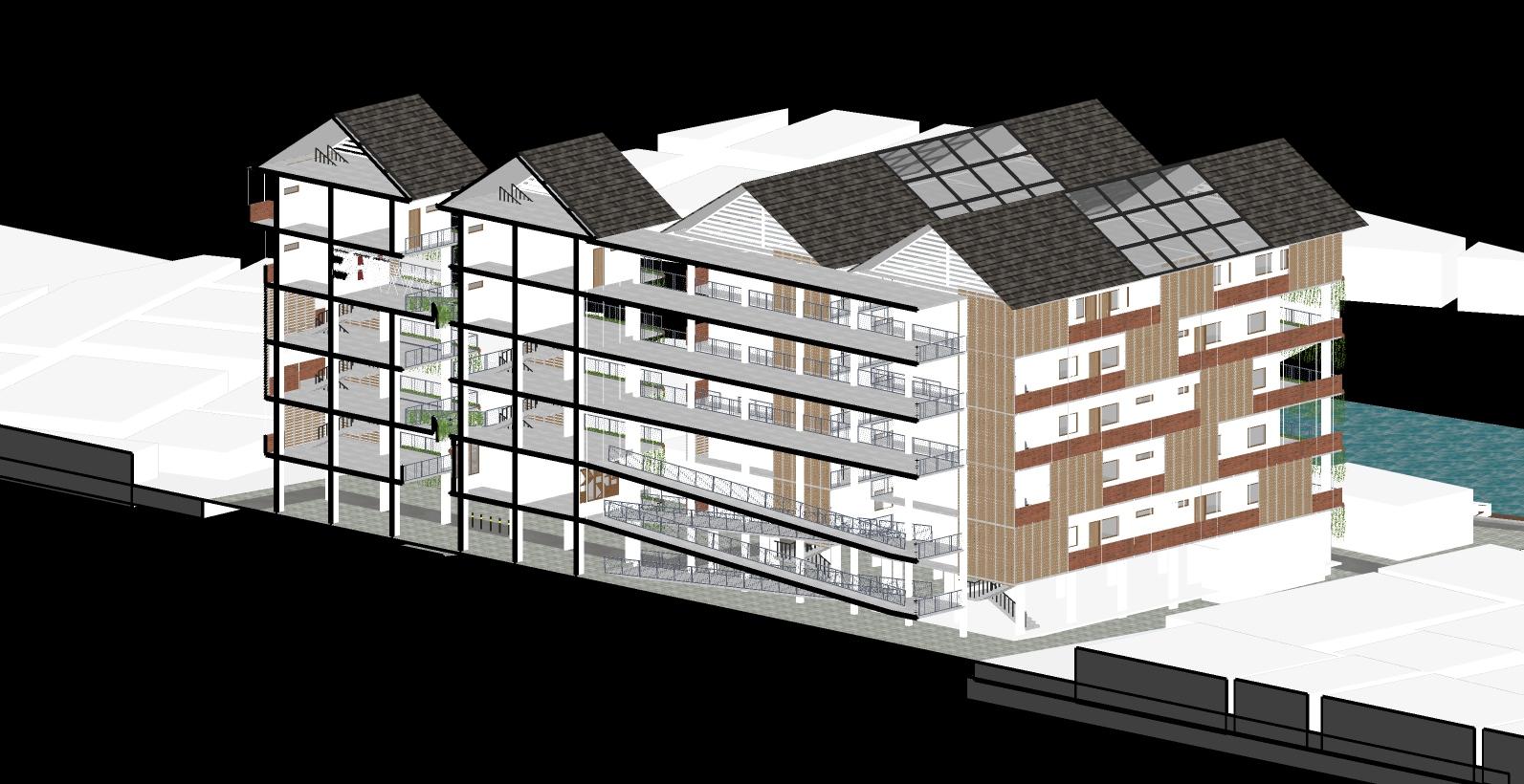

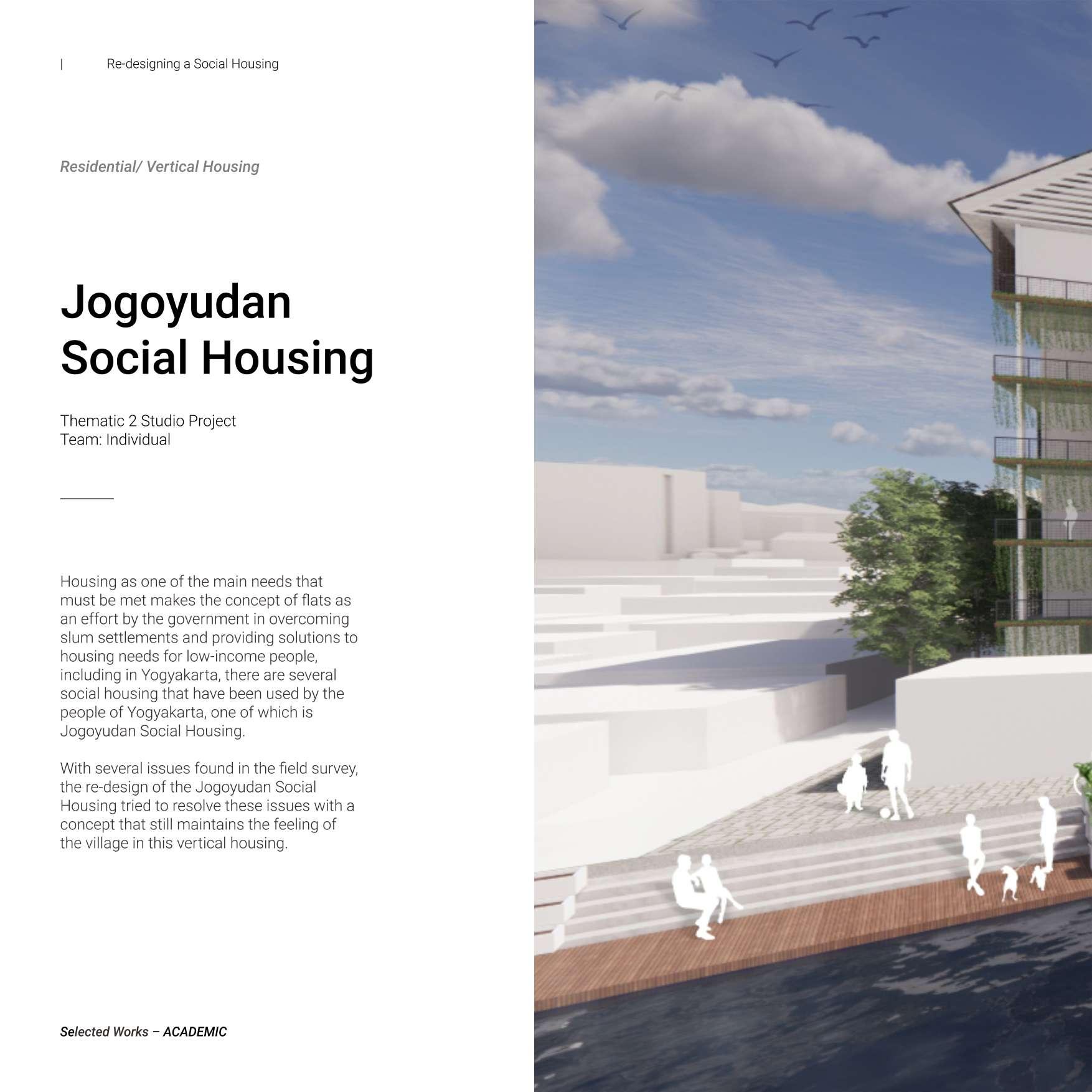

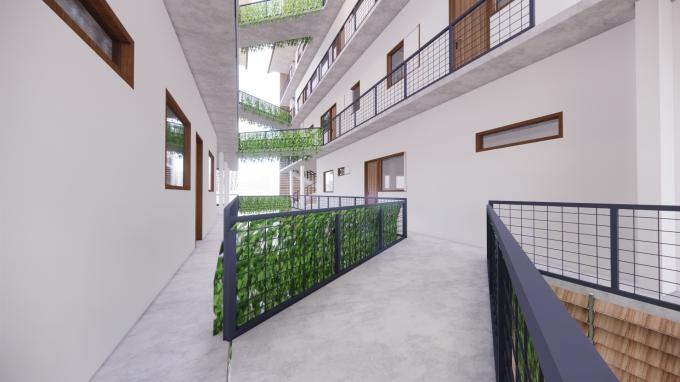

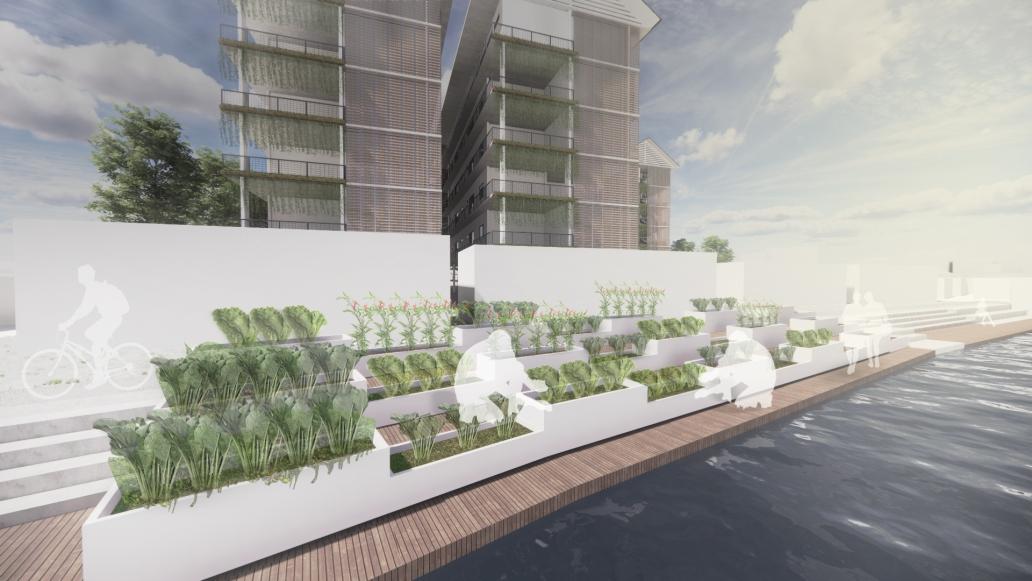

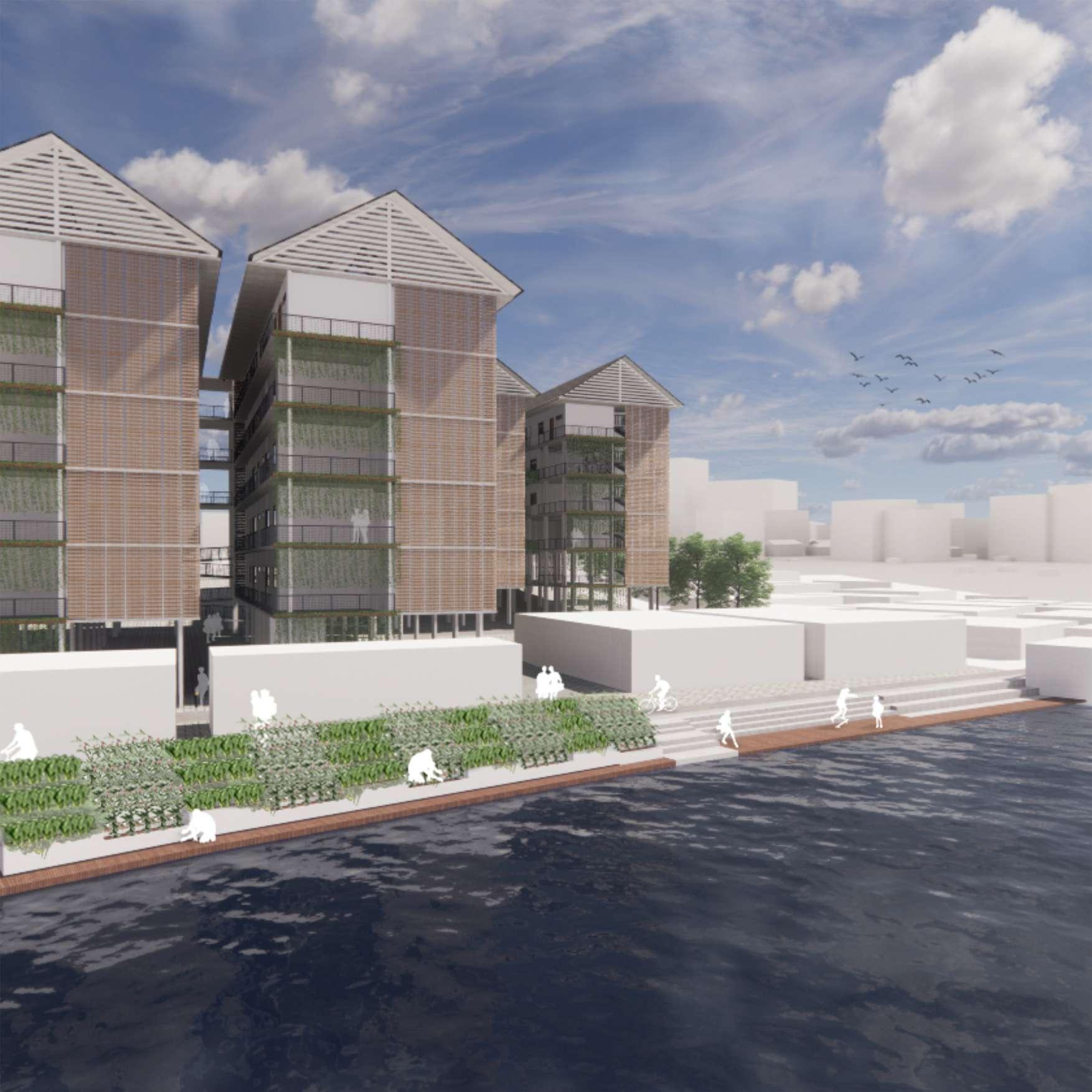

| Re-designing a Socia ousing l H

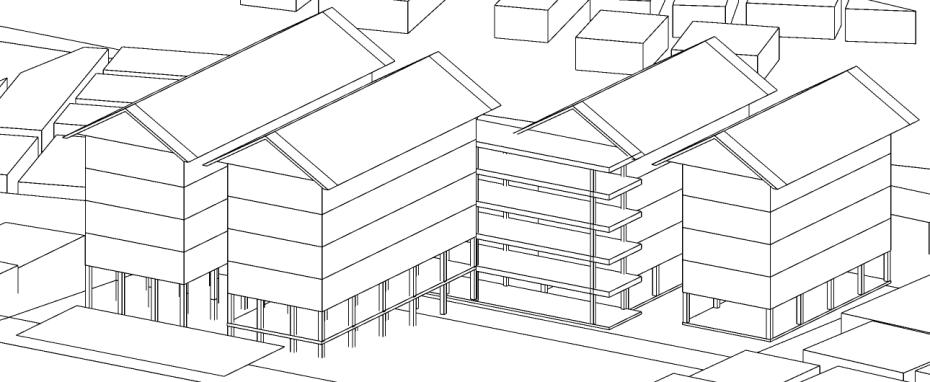

K L M N O K P P S S Q R Q R D Bin C.ServiceMEP A.PublicParkingArea B.Post E.Resident’sParkingArea area jemur komunal area jemur komunalS S S S T R R T V F Local’sMarket J.BicycleRoad G.KampungPlaza H.GardeningArea I.Promenade N.MultifunctionRoom K.PublicToilet L.FilesRoom O DiscussionRoom M.ManagementOffice P CommercialArea R.UnitTypeB S.CommunalDryingArea T UnitTypeA2 Q.UnitTypeC U.UnitTypeA1 V SocialCorridor LEGEND: UnitTypeA1 UnitTypeA2 UnitTypeB UnitTypeC U T U T U T U T V First Floor Plan Fourth Floor Plan Fifth Floor Plan Jogoyudan Social Housing | ACADEMIC

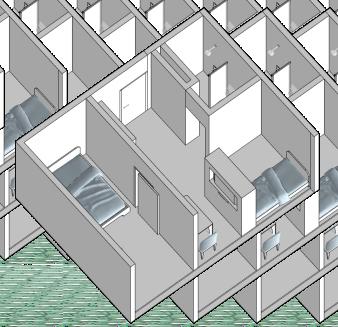

UNIT ZONING
Responding to the diverse number of residents of the flats, the design of the flats provides a variety of housing sizes/units. The occupancy that will be occupied by the occupants is adjusted to the number of family members. With the largest type of family being 3-5 people, from a total of 160 units, type B unit will have the most quantity
A1
Type: Open Plan
Capacity: 1-2 Ppl
Target User: Single Worker, New-ly Wed
A2
Type: 1 Room
Capacity: 2-3 Ppl
Target User: Single Worker, Parent & Baby
B C
Type: 2 Rooms
Capacity: 3-5 Ppl
Target User: Small Family (1-3 Childs)
Type: 3 Rooms
Capacity: 6-9 Ppl
Target User: Small Family & Grandparents
UNIT ADAPTABIITY
The design must be able to respond and anticipate the growth and changes of the occupants (5 years). The space must be able to increase the capacity and the solution proposed is to use movable furnitureandfoldabledoors.
GROWTH OF THE OCCUPANTS SCHEME Start
Each family will be given a room size according to the number of family members, for example a young couple/new couple. Then the type of unit given is type A2 (27m2).
Changes – Outcome
Families will have children and grow up, who used to be able to sleep together now must have privacy So that the unit that used to be 1 room was changed to 2 rooms without changingtheareaoftheunit.

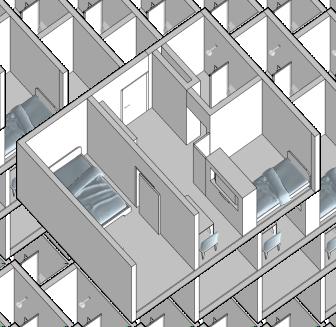

1 MOVABLEFURNITURE
Theinstructionsonthe floorindicatethe directionofmovement ofthefurniture
Increasethe occupancycapacity (1-2peoplemax)
Givestheimpression ofprivacyevenasan additionalspace
2FOLDABLEDOOR(HIDDENINSIDEFURNITURE)

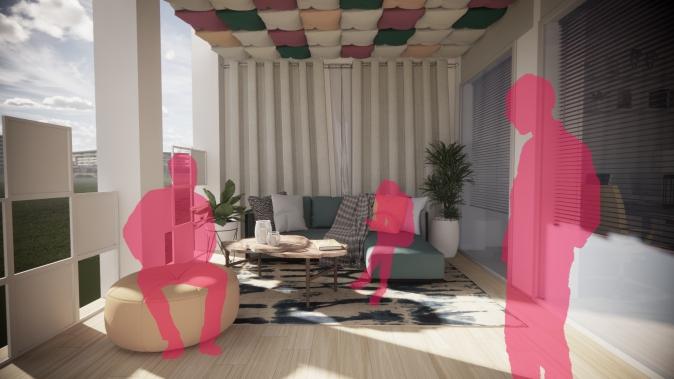

Jogoyudan Social Housing | ACADEMIC
1 2 3
4
PRIVACY
1 2
MovabIe Furniture FoIdabIeDoor (Hidden)
80 210 600 450 1 600 450 2
SELECTED
| Re-designing a Socia ousing l H
WORKS

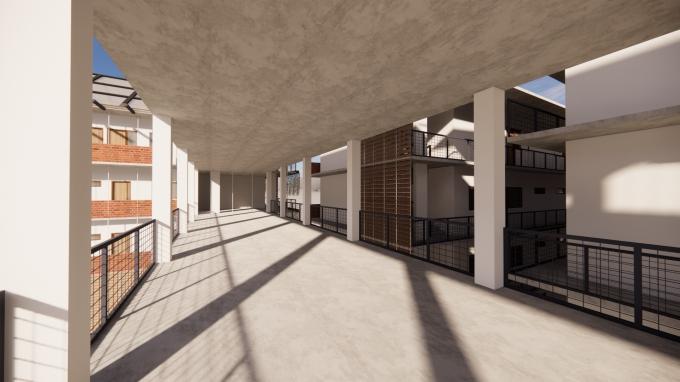

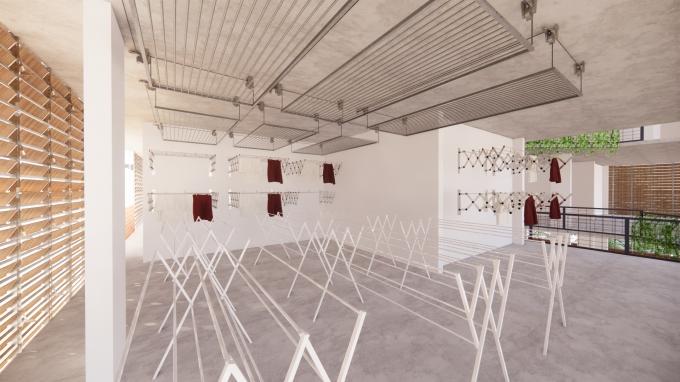

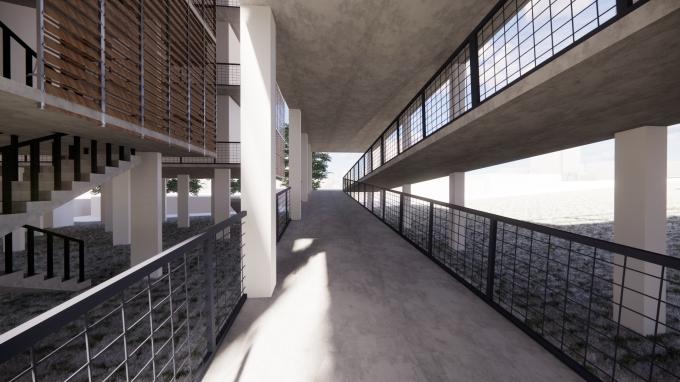

Bitumen Rooftile Wood Clear Polycarbonate Roof Bricks Polished Concrete Wire Mesh Railing Steel Structure Plaster Wall

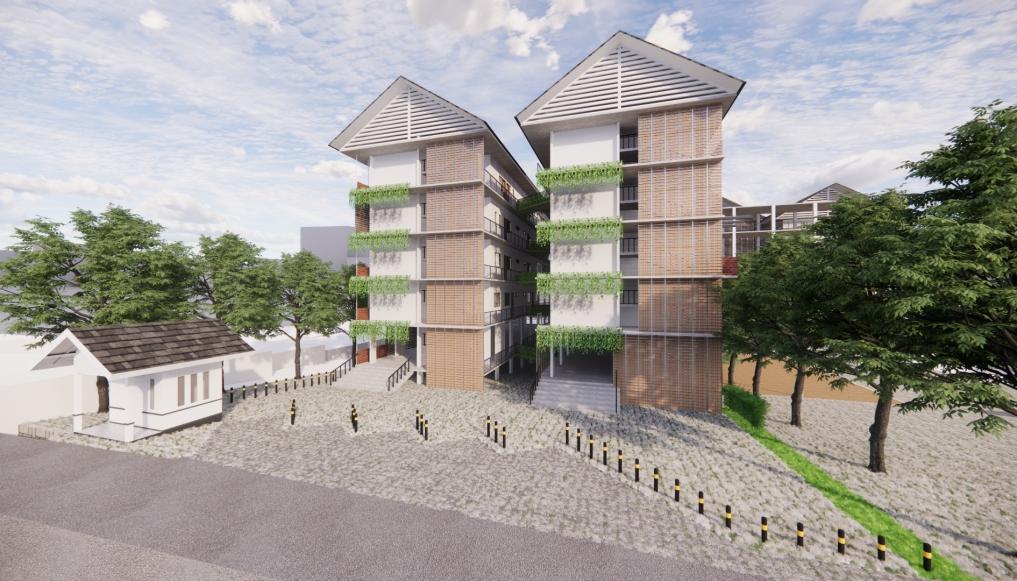

Jogoyudan Social Housing | ACADEMIC

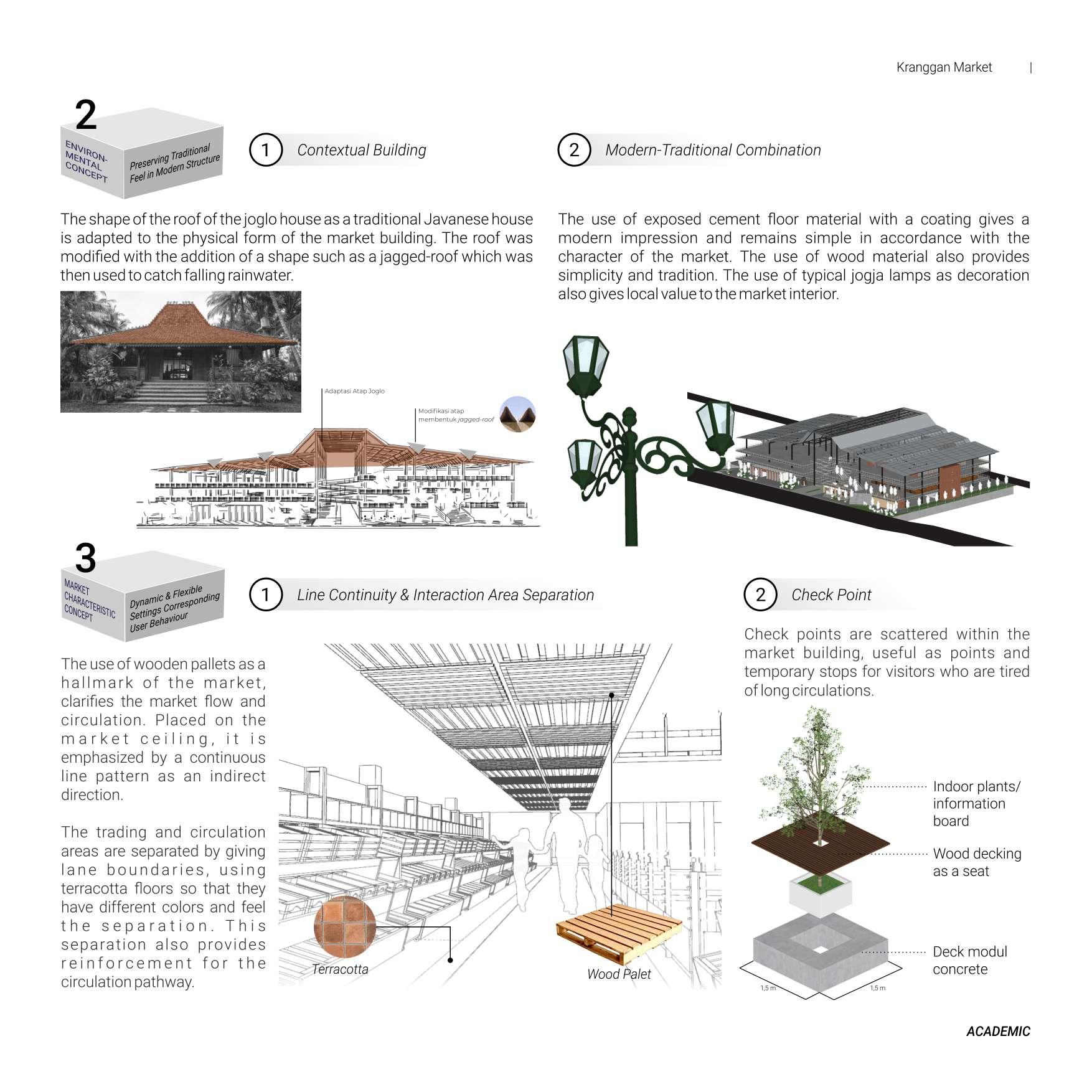

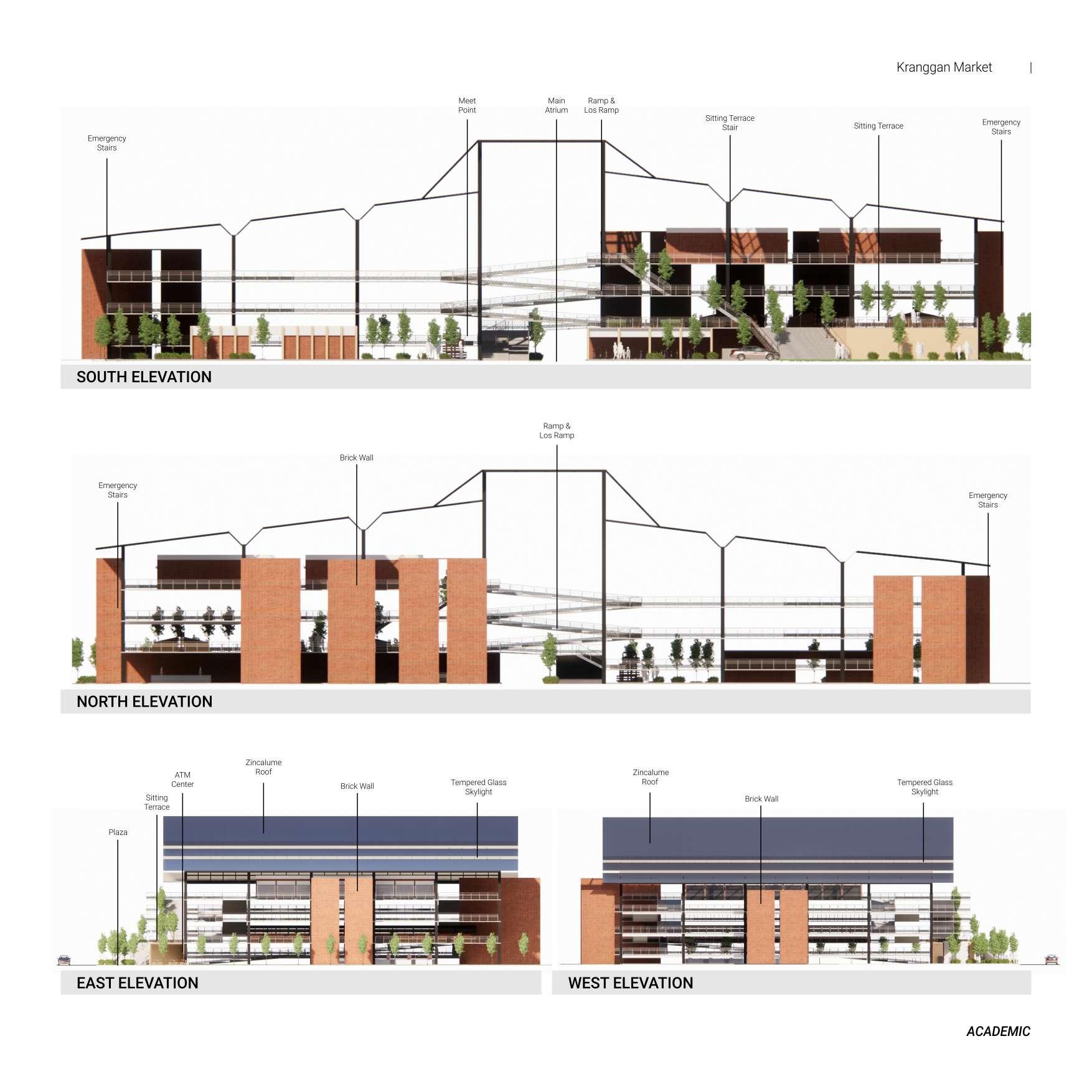

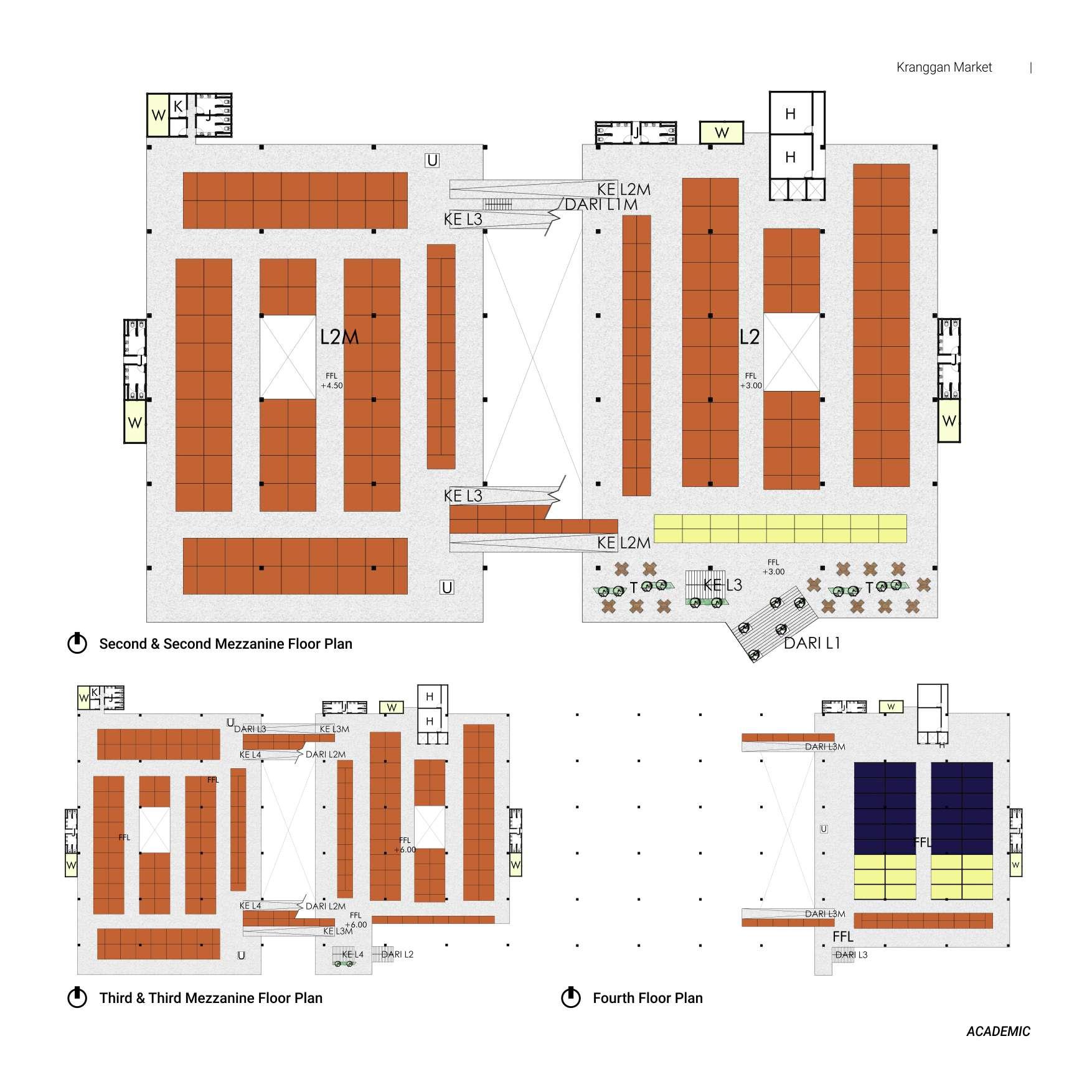

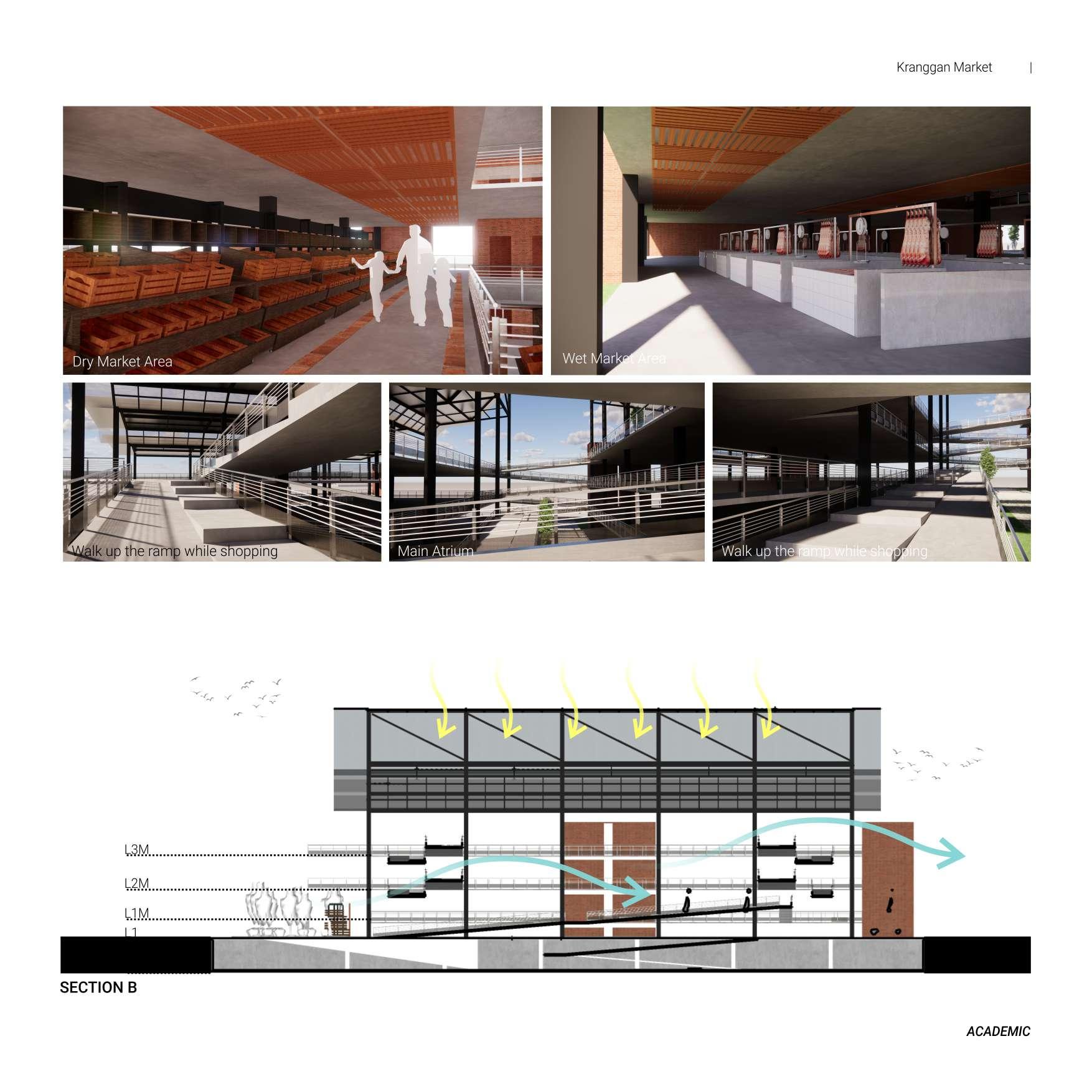

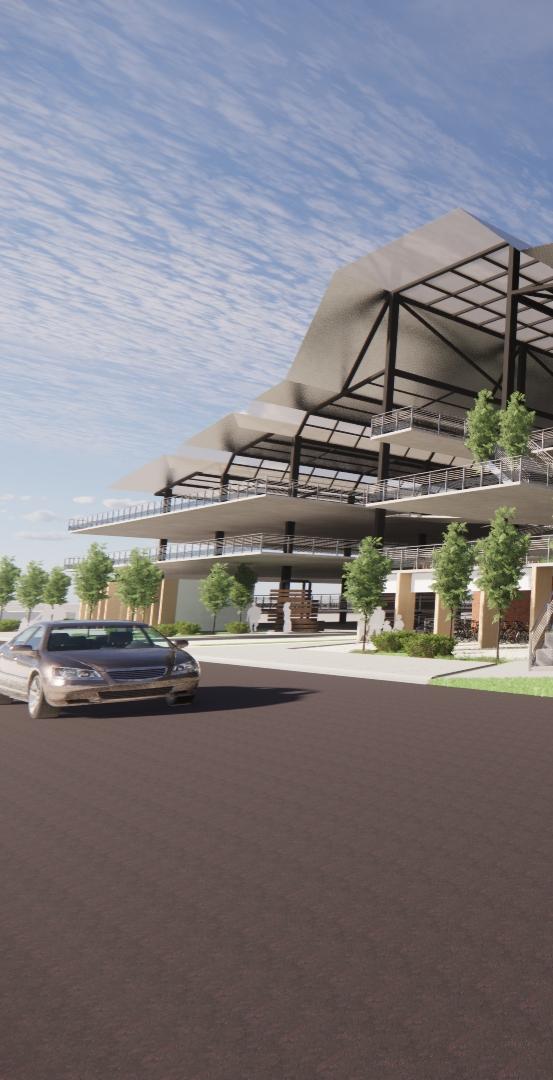

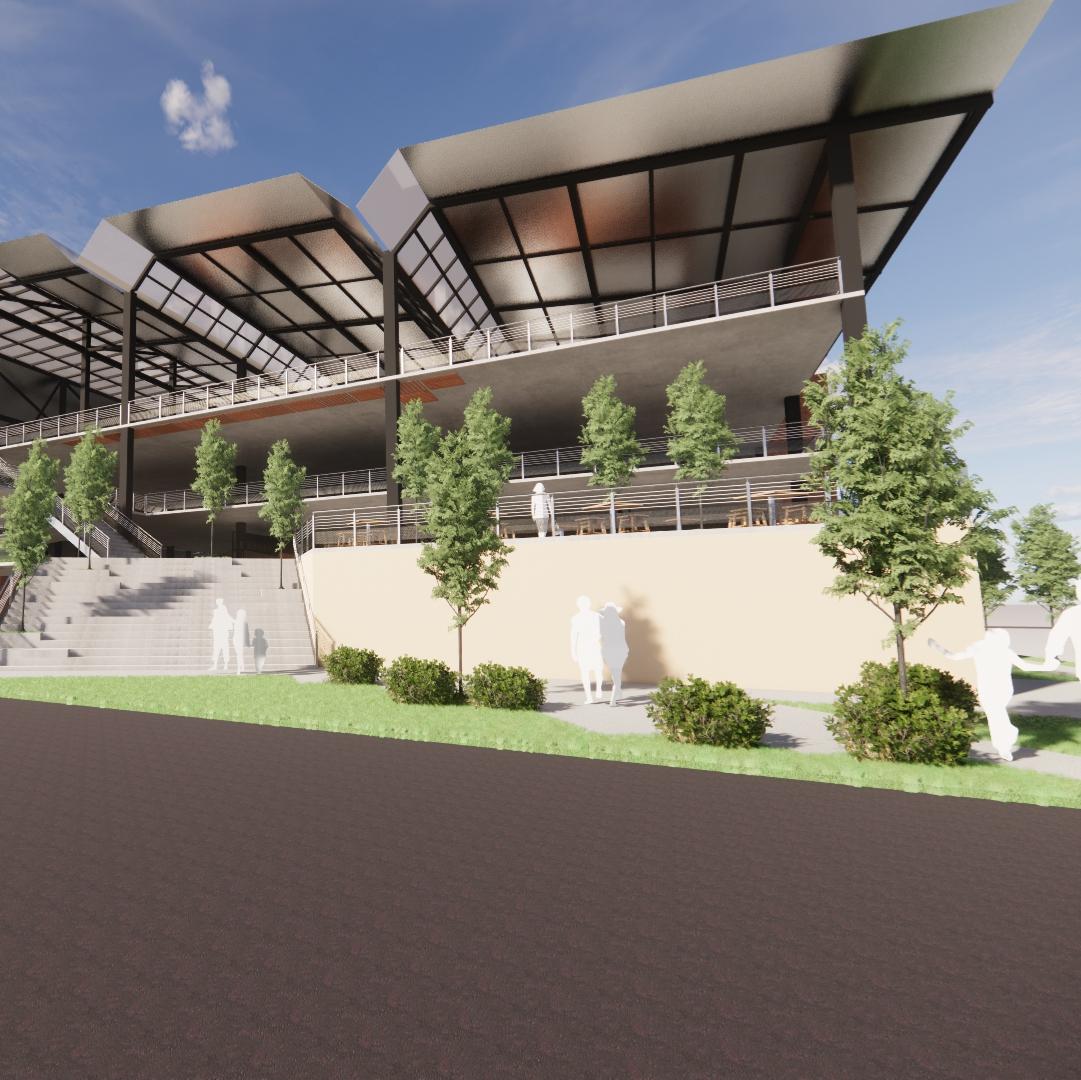

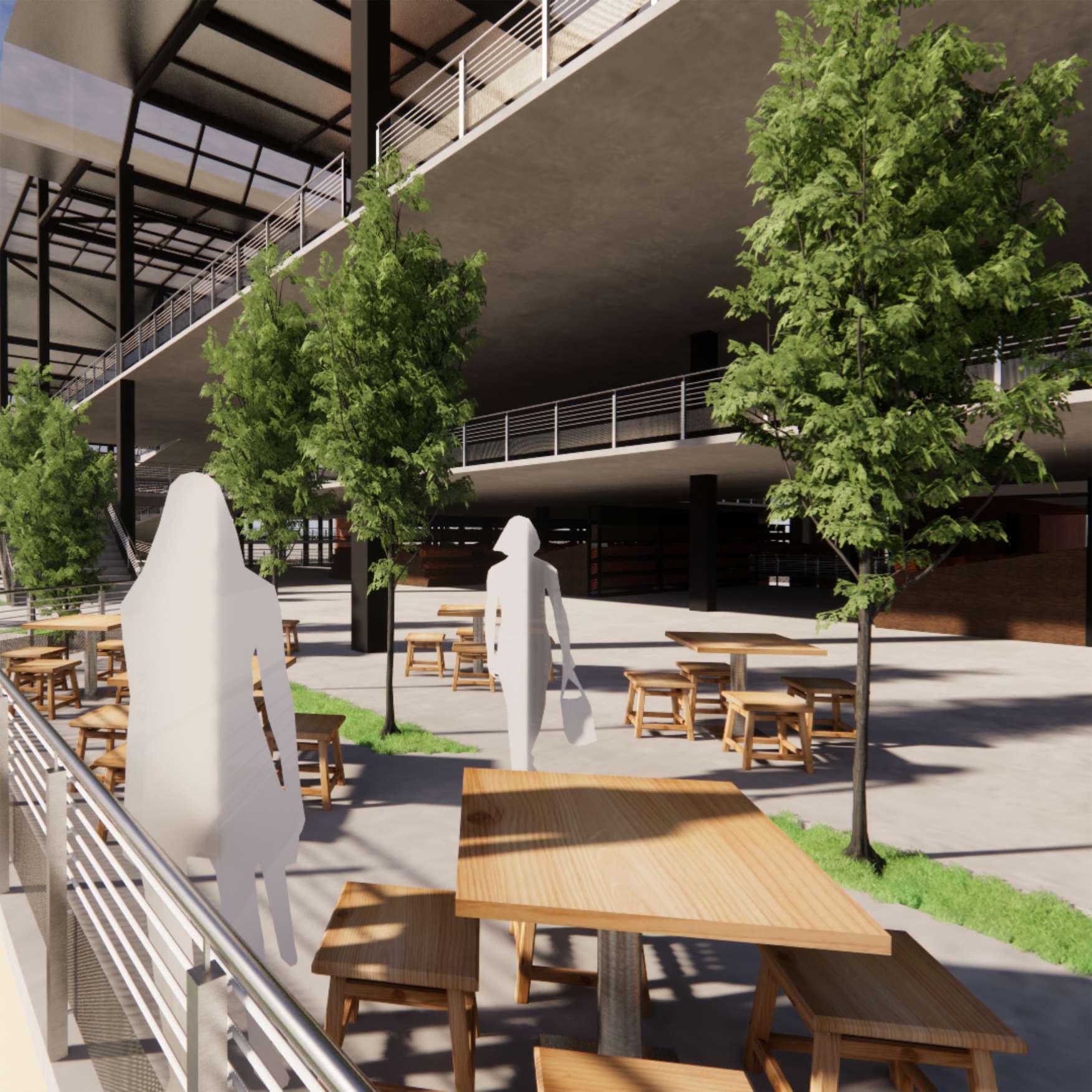

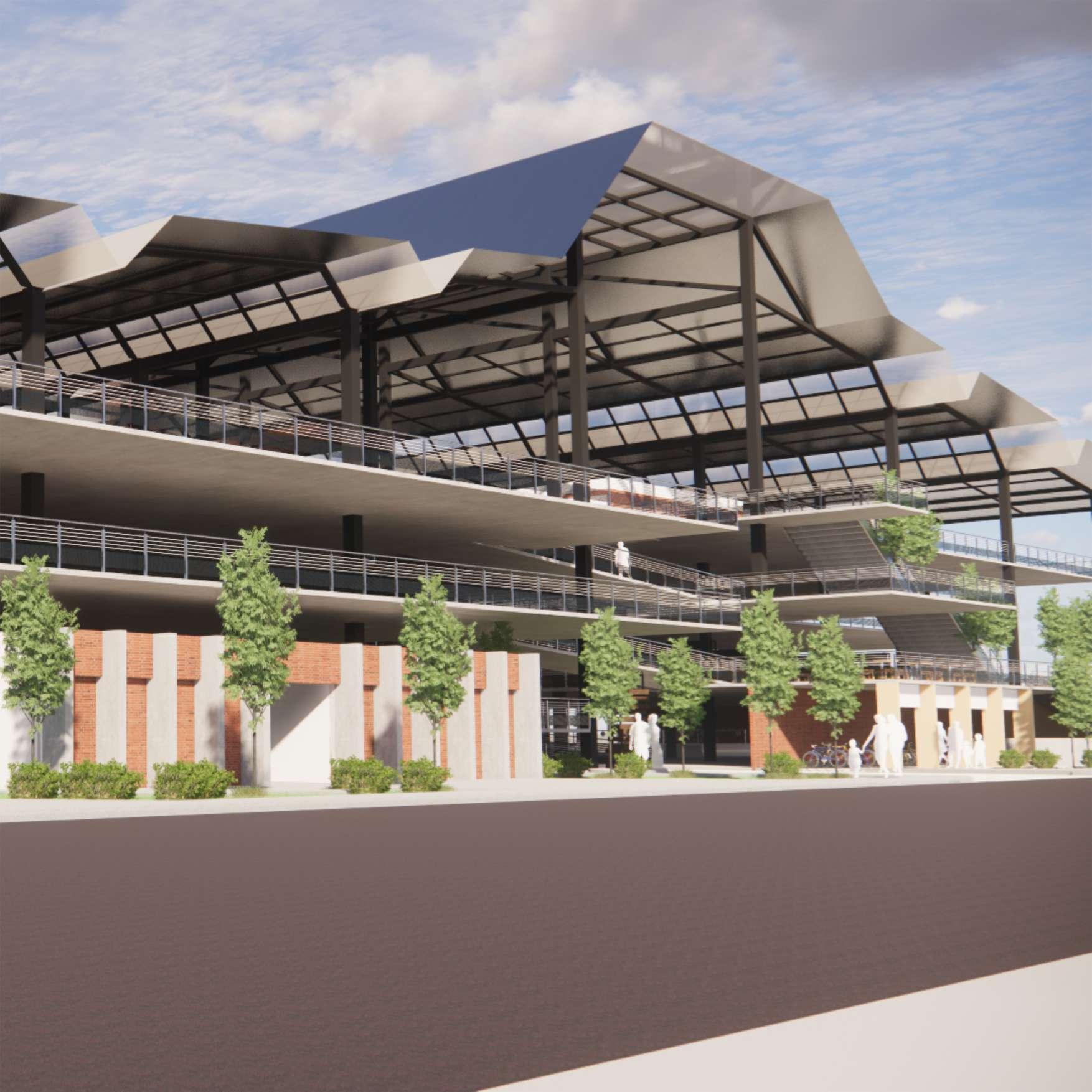

Urban Adaptive Kranggan Market:

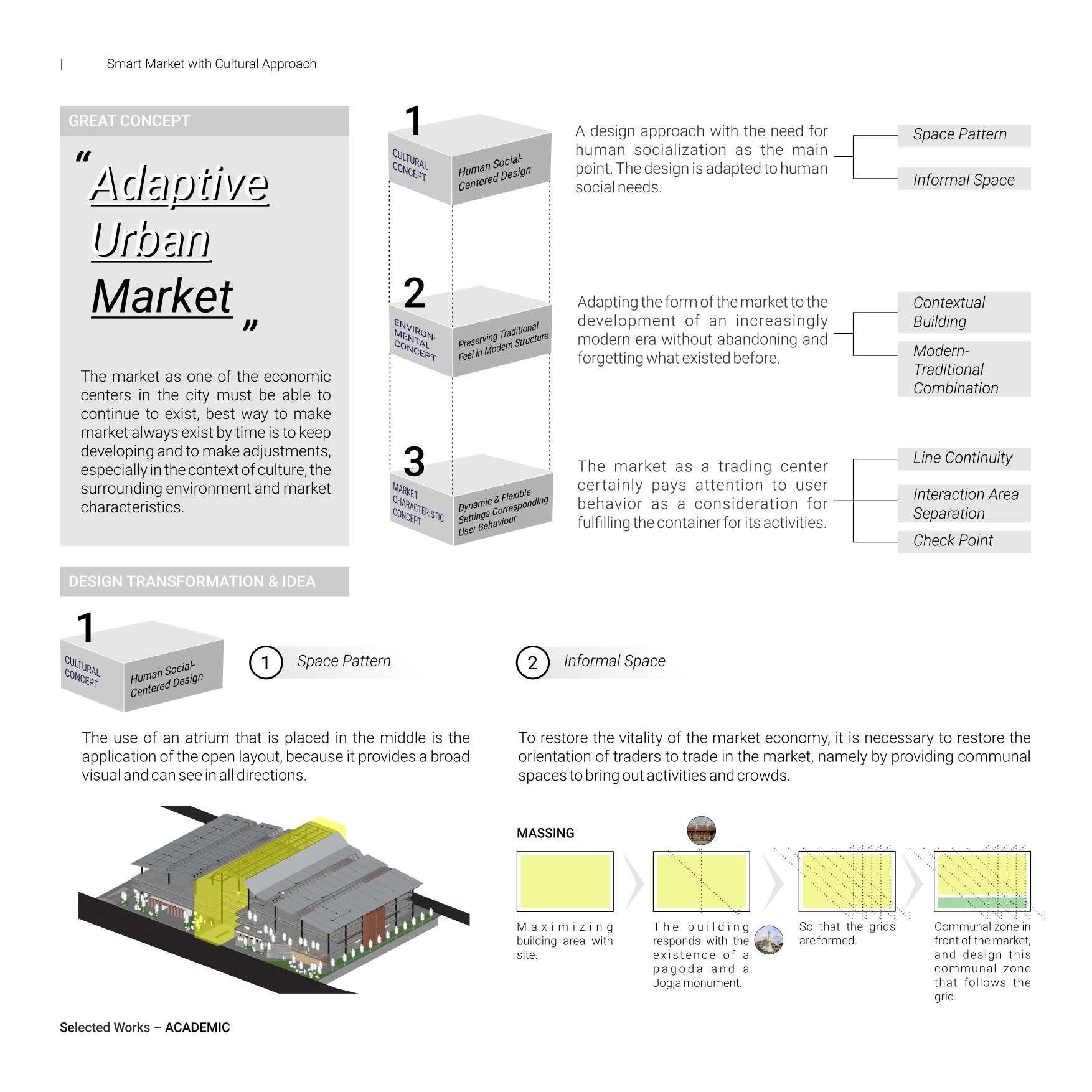

The market as one of the economic centers in the city must be able to continue to exist and exist, the best way so that the market can always exist and not be left behind by the times that are always developing is to make adjustments, especially in the context of culture, the surrounding environment and market characteristics.
This big concept raises how the Market in the Urban Context has a turning point through adjusting these parameters so that it becomes a profitable market.

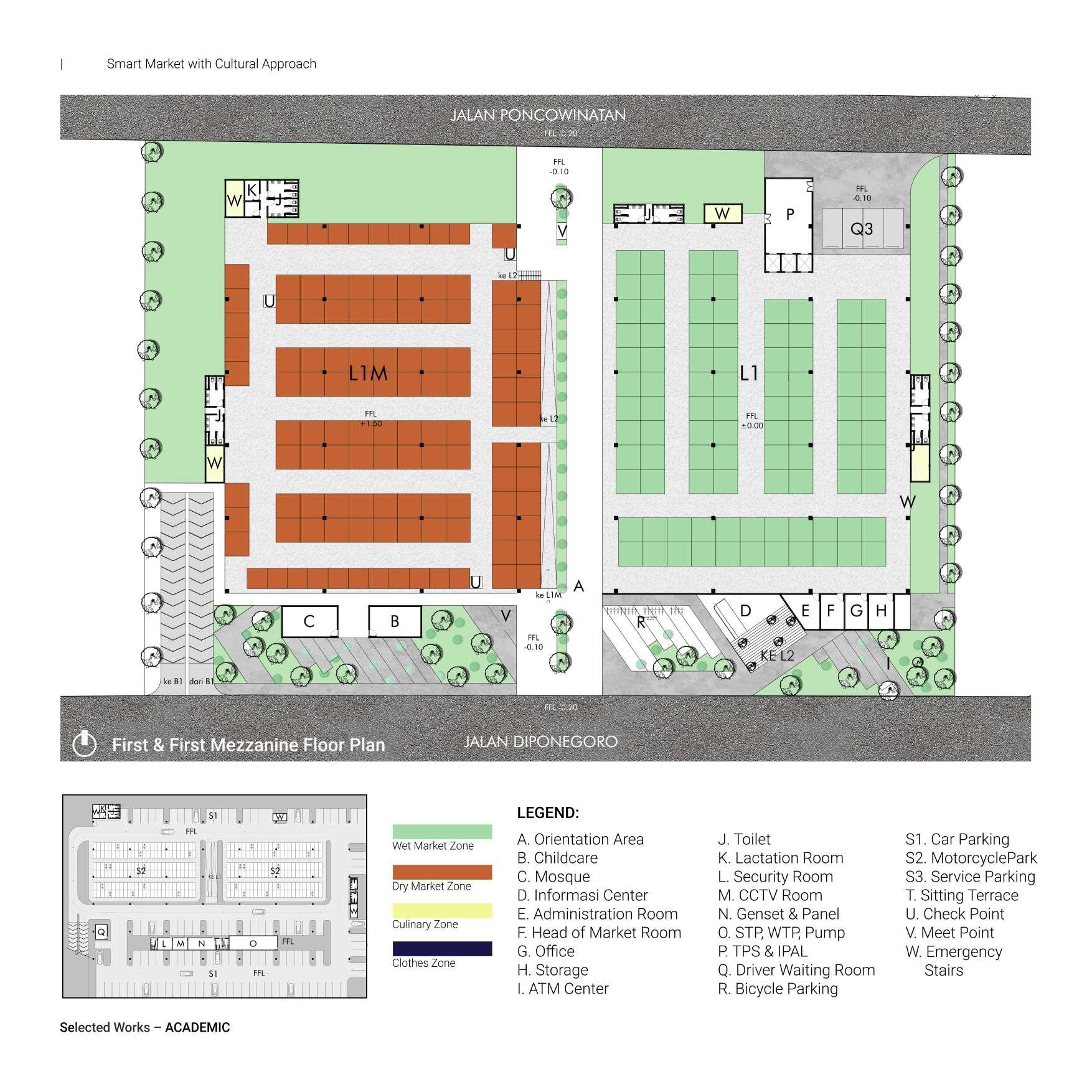

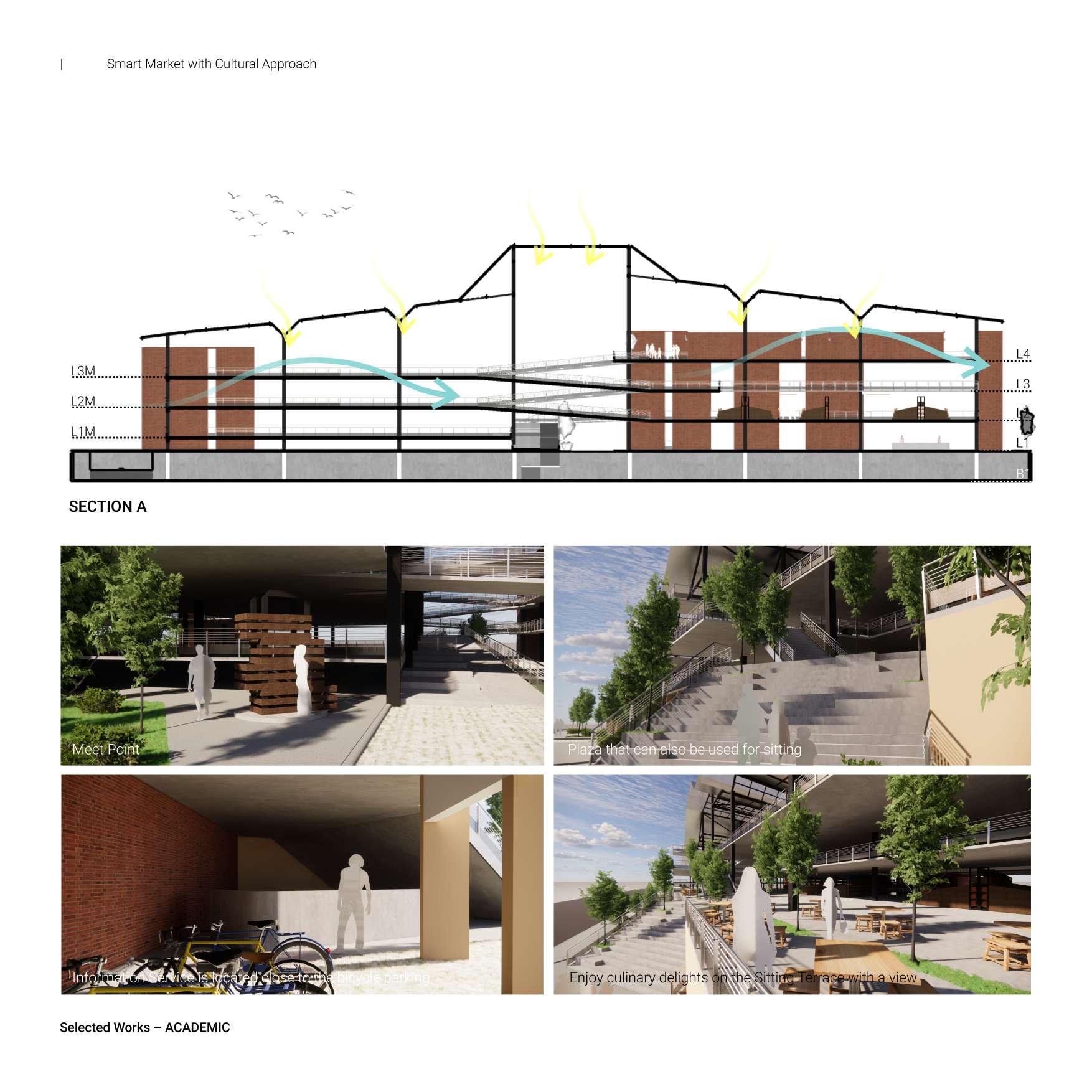

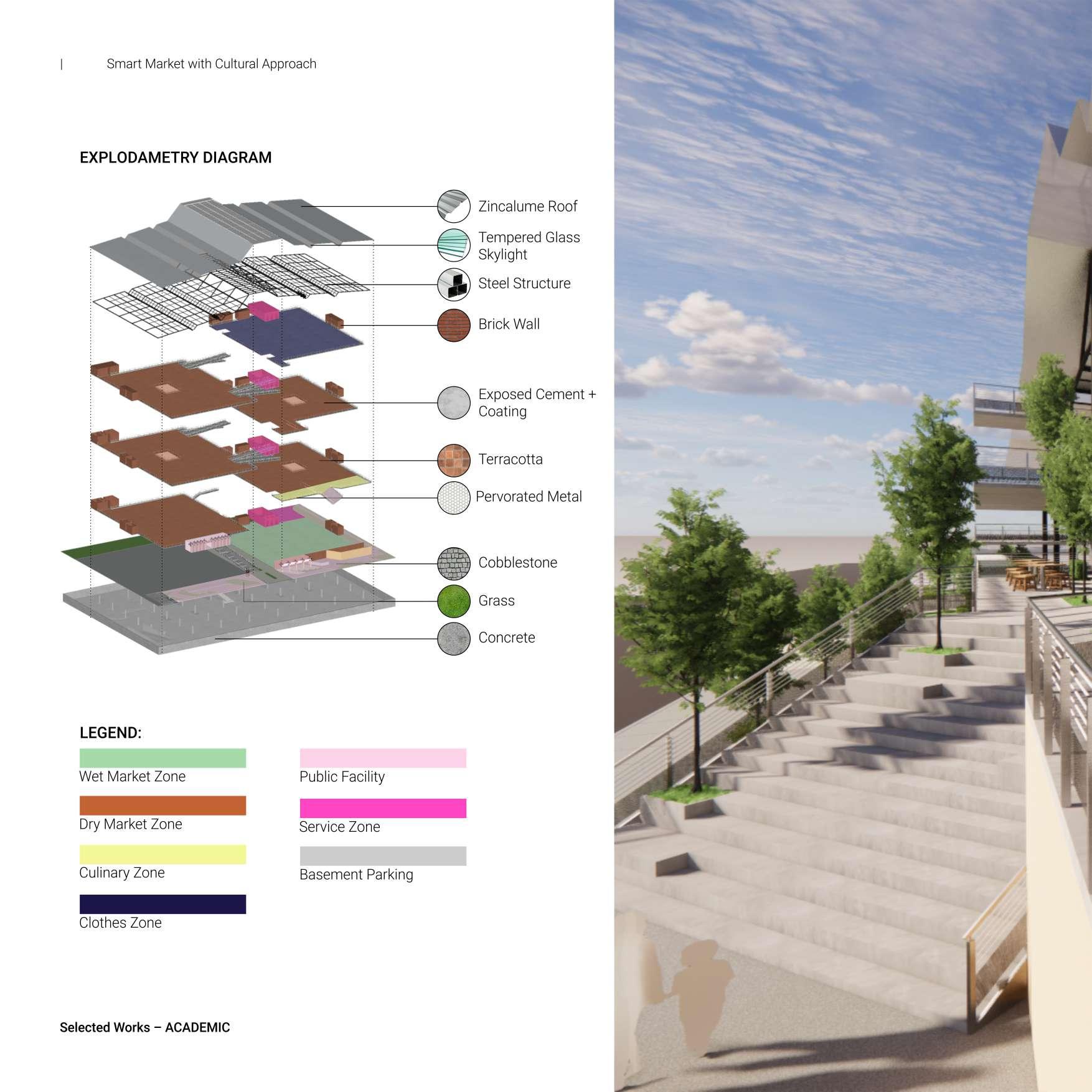

| Smart Market with Cultural Approach
Thematic 1 Studio Project Team: Individual
Commercial
& Recreational
Se ACADEMIC lected Works –
Cultural Space & Recreational

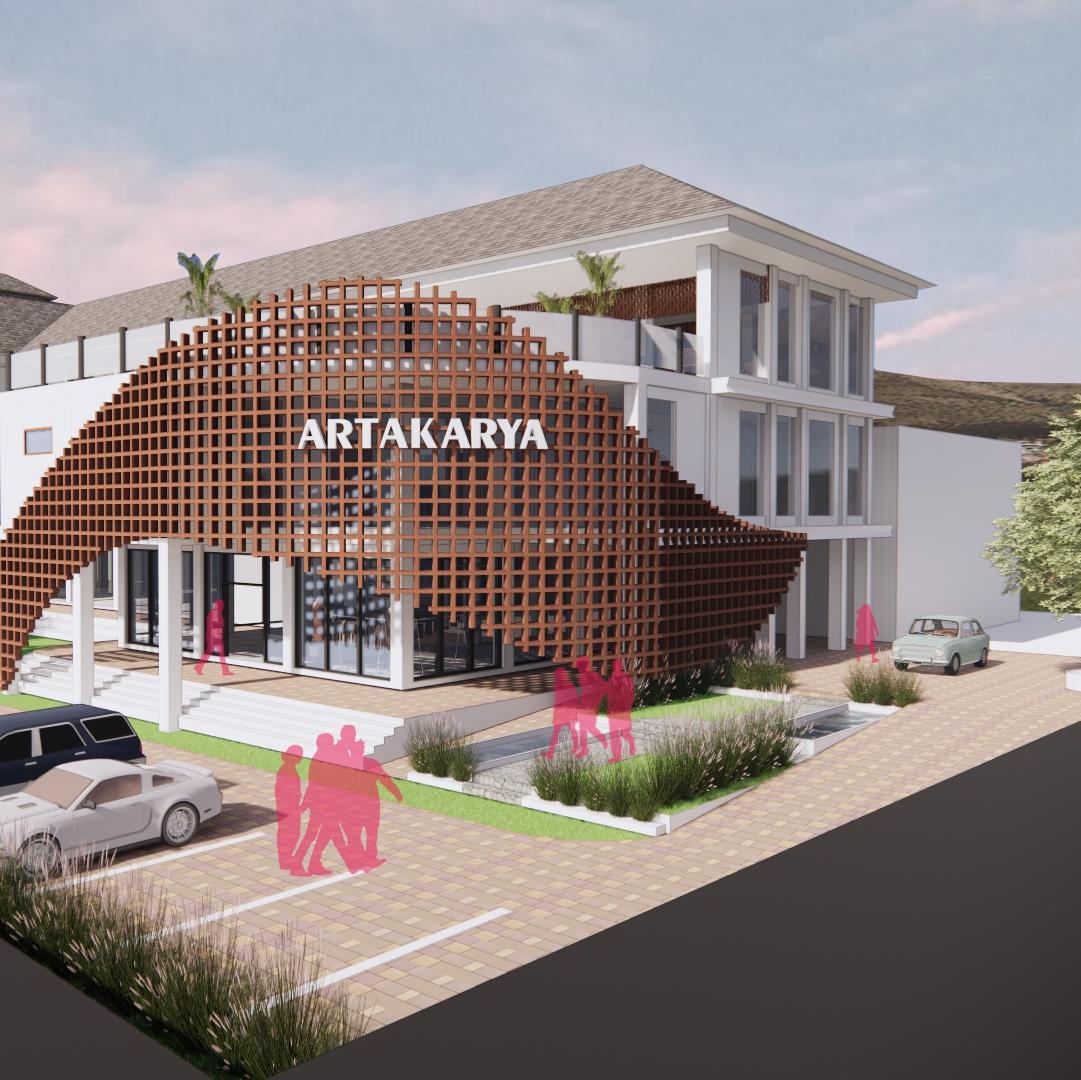

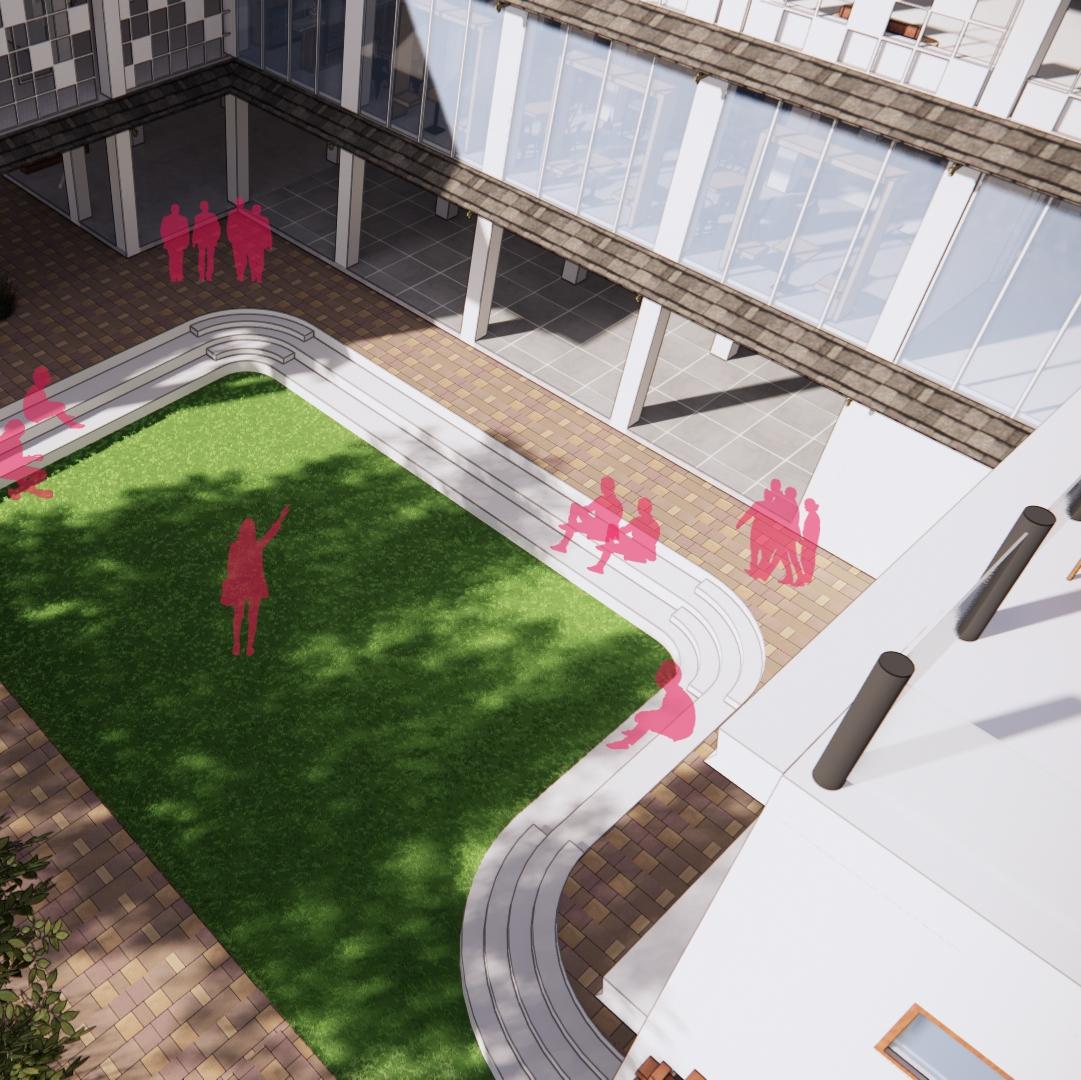

Artakarya
Art Space
Competition Entry
Team: Nurmalita & Diwa
Prawirotaman, one of the tourist areas with a thick culture, is known as the tourist village of Yogyakarta City The number of places such as restaurants, entertainment, encourages local communities to gather here to produce creative ideas that support the development of the creative economy era.
If you pay attention to between tourists and local communities, there is no “media” where the two can really interact that can generate new thoughts or at least learn about the existing culture.
For this reason, a public space in the form of Art Space was created, which was built in an abandoned building in Prawirotaman. Which with the existence of this public space, besides being able to give a new 'soul' to the building and the surrounding environment, it can accommodate the problem of the absence of a place for cultural interaction.
| Re-designing an Abandoned Building
Se COMPETITION lected Works –
BUILDINGFACE SPACEPROGRAM
Thepublicareaplacedinfrontas a potential area, while the back is foraprivate(service)area.
OPENINGS
Theopeningsarelaidinanorth - south orientation. Openings are marked in blue and shaded areasinpink.

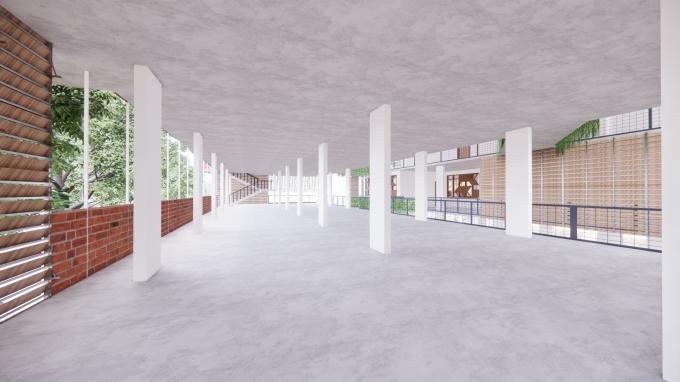

PRESER VED EXISTING
SELECTED WORKS

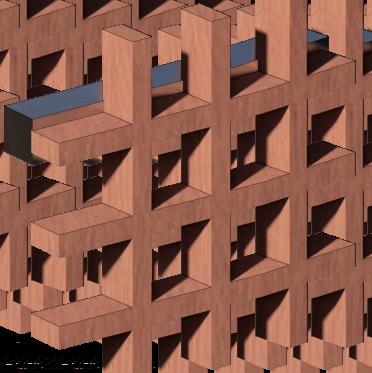

CONSOLE
This building has a walkway with console details forming asquarewithacrossinit.
WINDOWFRAME
On the west wing of the building there is a large window frame with square modular
| Re-designing an Abandoned Building
The entrance area is placed on the east in response to the locationofthemainroad.
SI TE AN ALY SIS
Second Floor Plan
Third Floor Plan
TOWER
Onthewestsideofthebuildingthereisa tower, probably was used as a water reservoir Inthenewdesign,itwasgiven thesamefunctionagain.

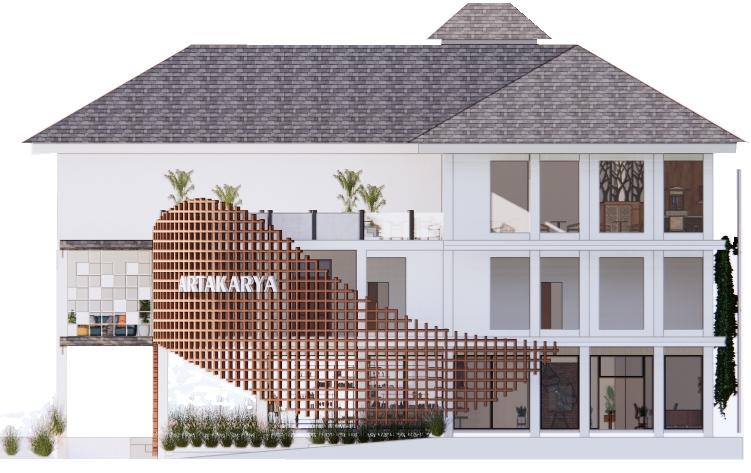

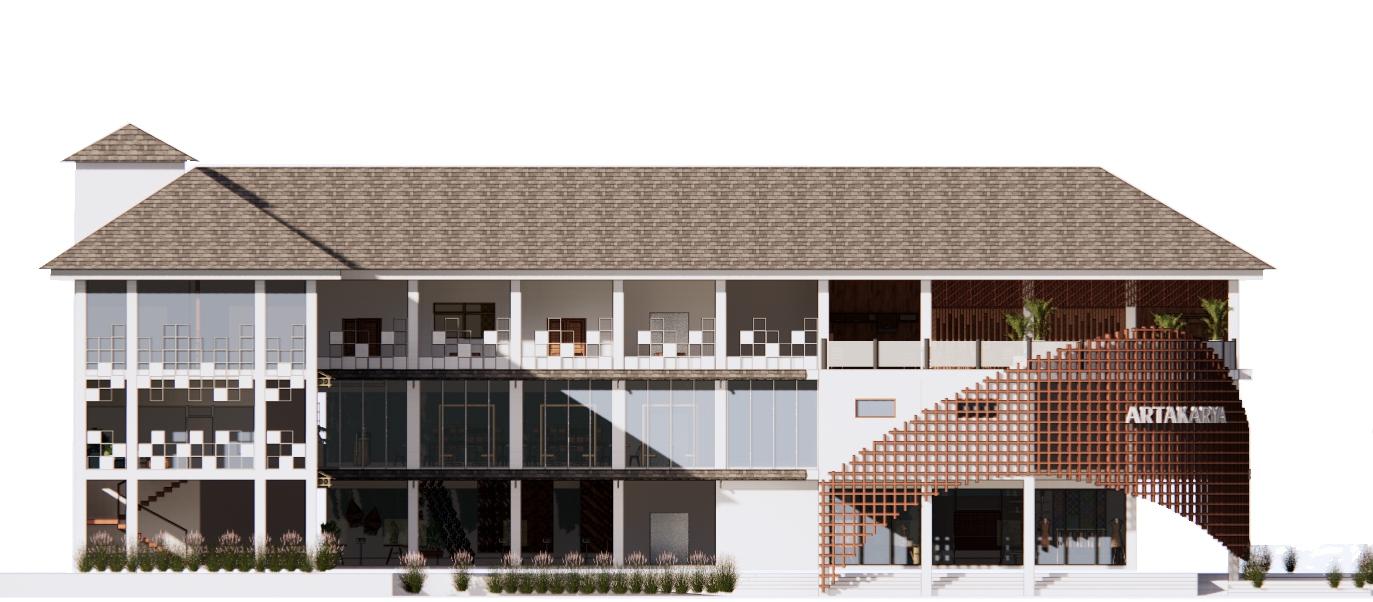

FACADE
The facade of the building is a brick wall with wide window openings. In order to get around the facade with openings facing west, a short cantilever was madeasshading.
DESIGN TRANSFORMATION
The gathering and performances area support group & individuals activities where individuals can relax and show their skills.Appliedinthedesignthroughthestageontherooftop.
The main activity areas for creators and daily visitor learning media are to support the main activities of creativity and interaction.Appliedindesignthroughbatik,paintingandstudio.
COMMUNAL INTERACTIVE BUSINESS
The exhibition and the shop area are places to appreciate the works and support the economic aspect. Applied in the design throughthesouvenirshop.
The existing is an abandoned building with 3 floors with the total floor area is 2487 2 m2 Located on Jl Sisingamangaraja, Prawirotaman, Kec
CONCEPT
COMPETITION ENTRY
Artakarya Art Space
|
1 2 3 4 5

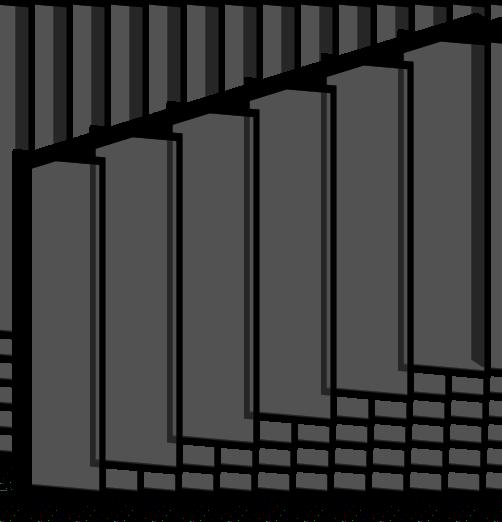

WOOD GRID FACADE DETAIL
GREENWALL DETAIL
STAINLESS STEEL
VINES IRON
SELECTED WORKS
| Re-designing an Abandoned Building
WOOD
STEEL
SELECTED WORKS
| Re-designing an Abandoned Building

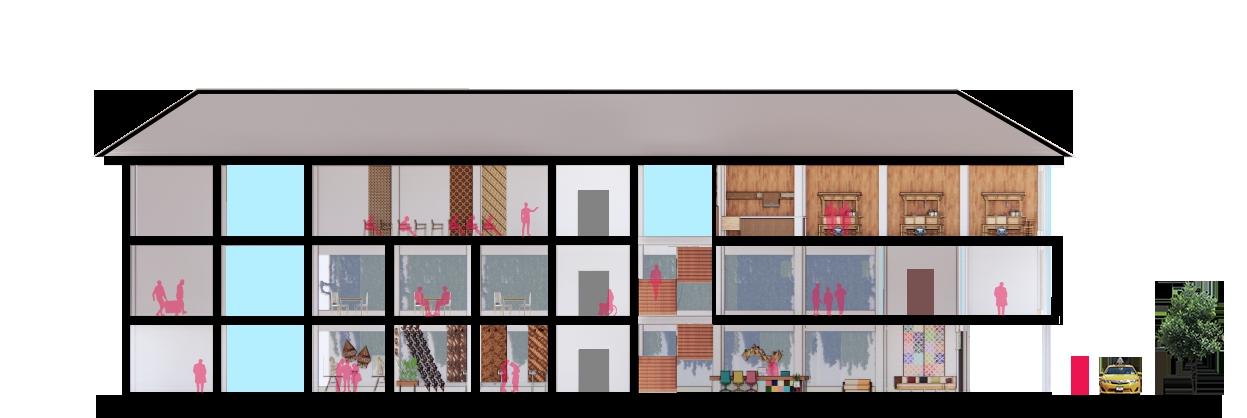

POTONGAN A-A’

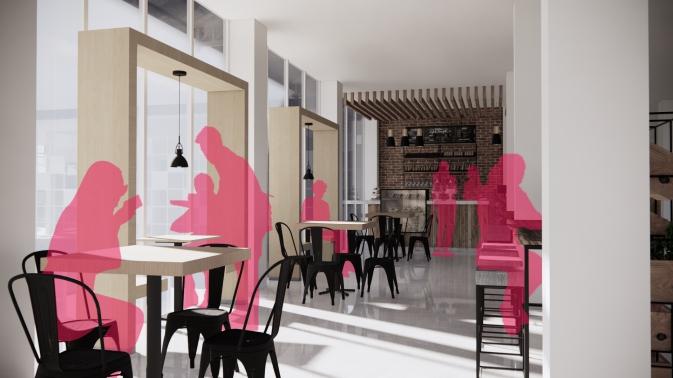

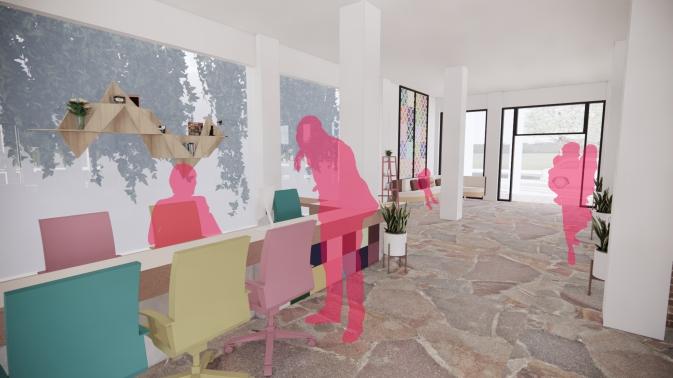

CO-WORKING AREA
LOBBY

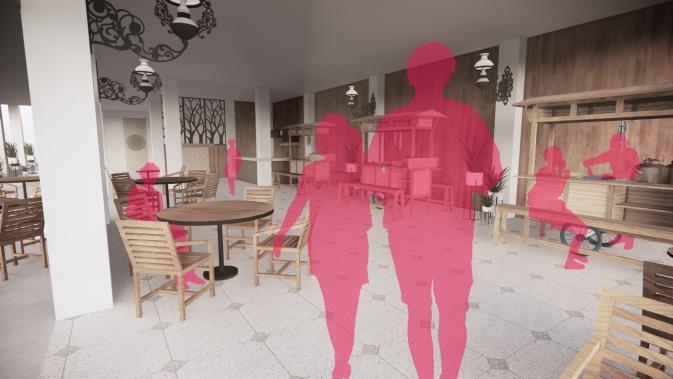

ANGKRINGAN
Artakarya Art Space | COMPETITION ENTRY
BATIK WORKSHOP

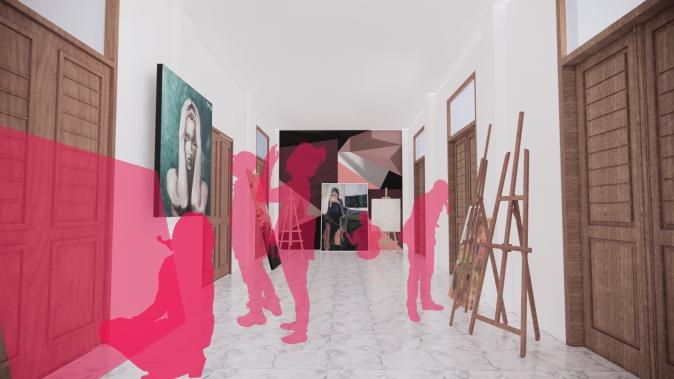

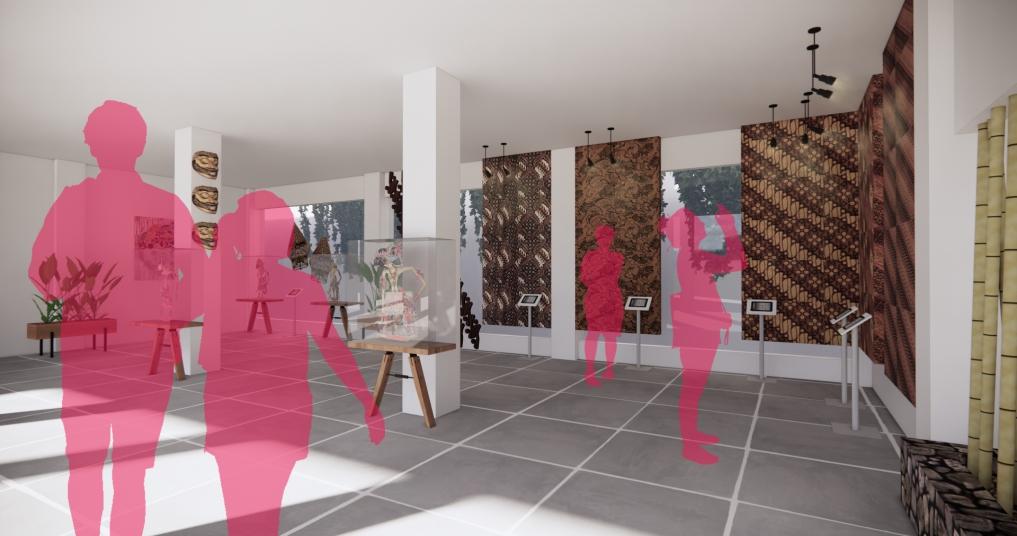

EXHIBITION AREA
PAINTING WORKSHOP

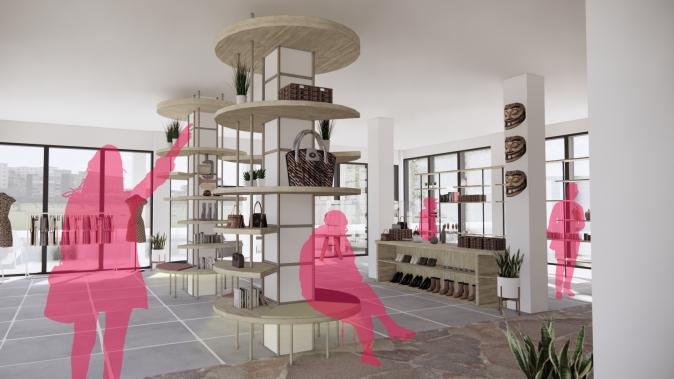

SOUVENIR SHOP OFFICE
Other Works 03
Infrastructure
TPS 3R
(Re-Use, Reduce, Recycle)
Waste Management
One of the work program for community service in Kecamatan Berbah, Yogyakarta. Planned infrastructure in the form of a 3R-based waste processing site in the village of Sendangtirto that has issues related to waste, especially household waste.
Other Works
| Designing a 3R-Based Waste Management
Site: Jl. Pajangan, Kec. Berbah, Kab. Sleman, DIY
RakBertelur RakBertelur
TPS3R DESIGN SITEPLAN AKSES JALANTPS JL. P AJANGAN IRIGASI KALI KUNING Area Pengepressan Area Pengepakan Gudang Hasil Anorganik dan Organik Rumah Biodigester 600 600 1000 600 800 300 155 300 300 950 300 RiseBed AreaDroping AreaPemilahan AreaPengomposan AreaPencacahan AreaPengayakan Parkir Pekerja Rak Susun R. Kepala TPS3R+0.30 Pick-Up Area Pencucian Area Pengeringan Mesin Parkir Pengunjung Parkir Pengelola Penampungan SampahAnorganik Penampungan SampahAnorganik SampahAnorganik Kandang BSF Rak Susun Rak Susun Biopond Indukan Biopond Pembesaran Mesin Sampah Organik Penampungan Hasil Sampah Cacah Penampungan Hasil Sampah Cacah Pilahan Sampah Anorganik Penampungan Hasil Sampah Cacah Untuk Maggot AKSES JALANTPS JL. P AJANGAN IRIGASI KALI KUNING HANGGAR GUDANG SEMPADAN SUNGAI AREATPS EKSISTING LAHAN KOSONG 7500 1700 2100 2200 2300 5900 1800 600 700 900 KUBANGAN 250 1000 2100 1 1 AKSES JALANTPS JL. P AJANGAN IRIGASI KALI KUNING SEMPADAN SUNGAI Rise Bed SITE EXISTING SCALE 1 : 350 SITUASI SCALE 1 : 350 TPS 3R Mandiri Makmur | Other Works
| Designing a 3R-Based Waste Management Other Works 1 2000 300 2 900 2 1 Area Droping Area Pemilahan Area Pengomposan Area Pencacahan Area Pengayakan 300 300 400 400 400 400 400 PROCESSING AREA PLAN SCALE 1 : 100 BACK ELEVATION SCALE 1 : 100 FRONT ELEVATION SCALE 1 : 100
TPS 3R Mandiri Makmur | Other Works
LEFT ELEVATION SCALE 1 : 100
RIGHT ELEVATION SCALE 1 : 100
| Designing a 3R-Based Waste Management Other Works 400 400
TPS 3R Mandiri Makmur | Other Works
400 400 -1.90 -1.65 -1.10 -0.40 -0.50 +2.50 +4.20 +6.30
Pasangan Batu Bata Bagian Sudut Plesteran Pasangan Batu Bata Lubang
Cor Plat LantaiT. 10 Cm Urugan PasirT. 5Cm Sloof 20 x 25
120 120 120 120 120 B A Zinckalum 0,3mm 900 598 Pasangan Batu Bata Bagian Sudut Plesteran Pasangan Batu Bata Pasangan Sudut/Kolom Slof 10/10 Pasangan Batu Bata Bagian Sudut Plesteran Pasangan Batu Bata Pasangan Batu Bata Bagian Sudut Plesteran Pasangan Batu Bata Cor Plat Lantai T. 10 Cm Urugan Pasir T. 5Cm Sloof 20 x 25 Nok | Designing a 3R-Based Waste Management Other Works Trestang
120 41 41 15
NOK GELOMBANG GORDING KANAL C. WF. 150x75x5x7 ZINGKALUM 0,3 mm 100x50x20x2,3 120 120 61 33 100
200x100x5,5x8
WF.150x75x5x7
WF.
WF.150x75x5x7
KANAL C. 100x50x20x2,3
WF.150x75x5x7 0,3 mm WF. 150x75x5x7 CNP 125x50x20x2,3(2x)
GORDING Kolom 25x25cm -0.40 -0.50
ZINGKALUM +2.50
+4.20
+6.30 -1.90 -1.65
-1.10 100 70
TPS 3R Mandiri Makmur | Other Works DETAIL A SCALE 1:20
B
1:20
WF.
200x100x5,5x8
DETAIL
SCALE
| Technical Drawing – Bathroom Interior Interior – Bathroom
Works F oor P an l l Section 01
Other
Section 02 Section 03
Furniture – Washtafel Cabinet
Technical Drawing – Furniture | Other Works
2 Portfolio. Architecture Sarah Marthalena sarahmtambun@gmail.com 0 22
