SARAH GRIFFITHS

The Institute of Change offers spaces, resources and experiences that explore the topic of change in all its forms. The facility aims to involve, inform or immerse visitors and creators by providing versatile areas, flexible building systems, maker spaces and exhibitions that promote engagement with material, spatial, or experiential possibilities. Spaces dedicated to creators allow for collaboration and experimentation, agile exhibition areas provide space for a revolving programme of activities and reflection spaces offer opportunities for contemplation. These offerings look to provide opportunities for personal or collective change, whether these relate to changes of perspective, changes in working practice or the evolving climate.

CHANGE

VERB

“1. make (someone or something) different; alter or modify.

2. replace (something) with something else, especially something of the same kind that is newer or better; substitute one thing for (another).

NOUN

1. An act or process through which something becomes different. 2. an alteration or modification.”

OXFORD LANGUAGES

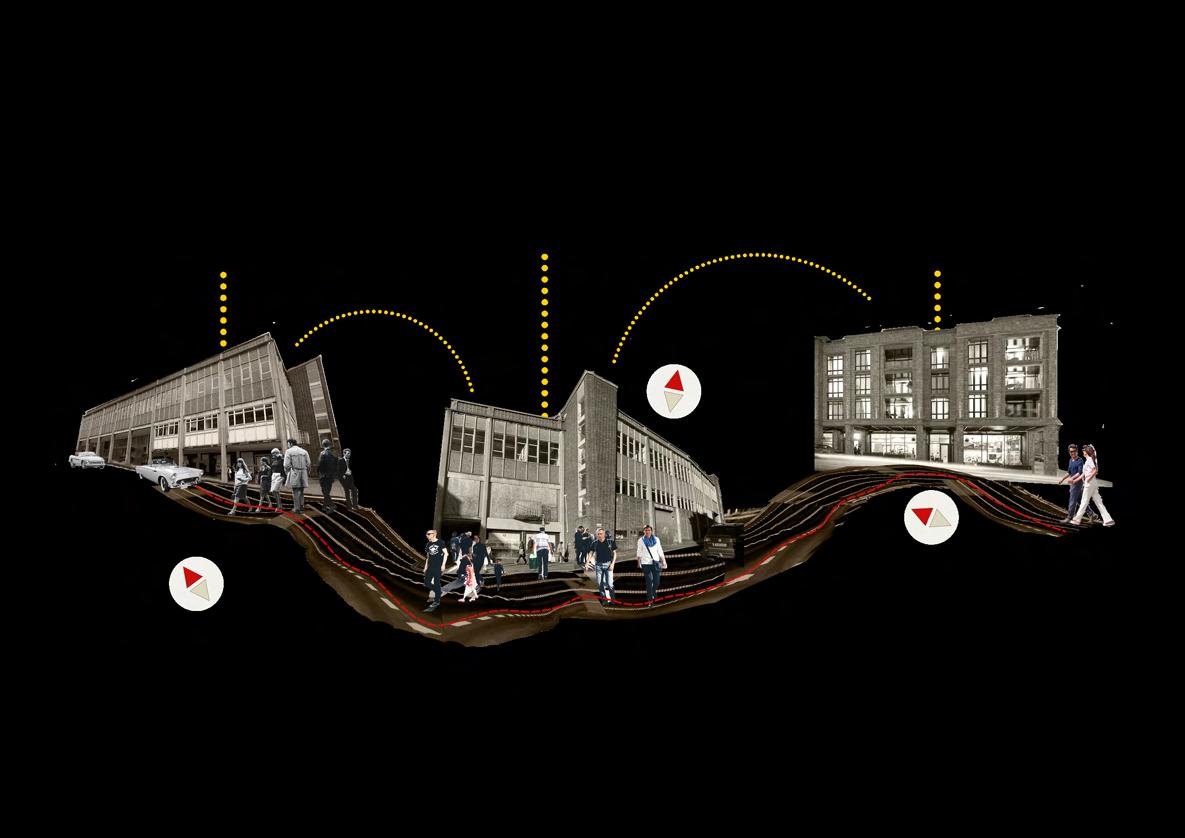

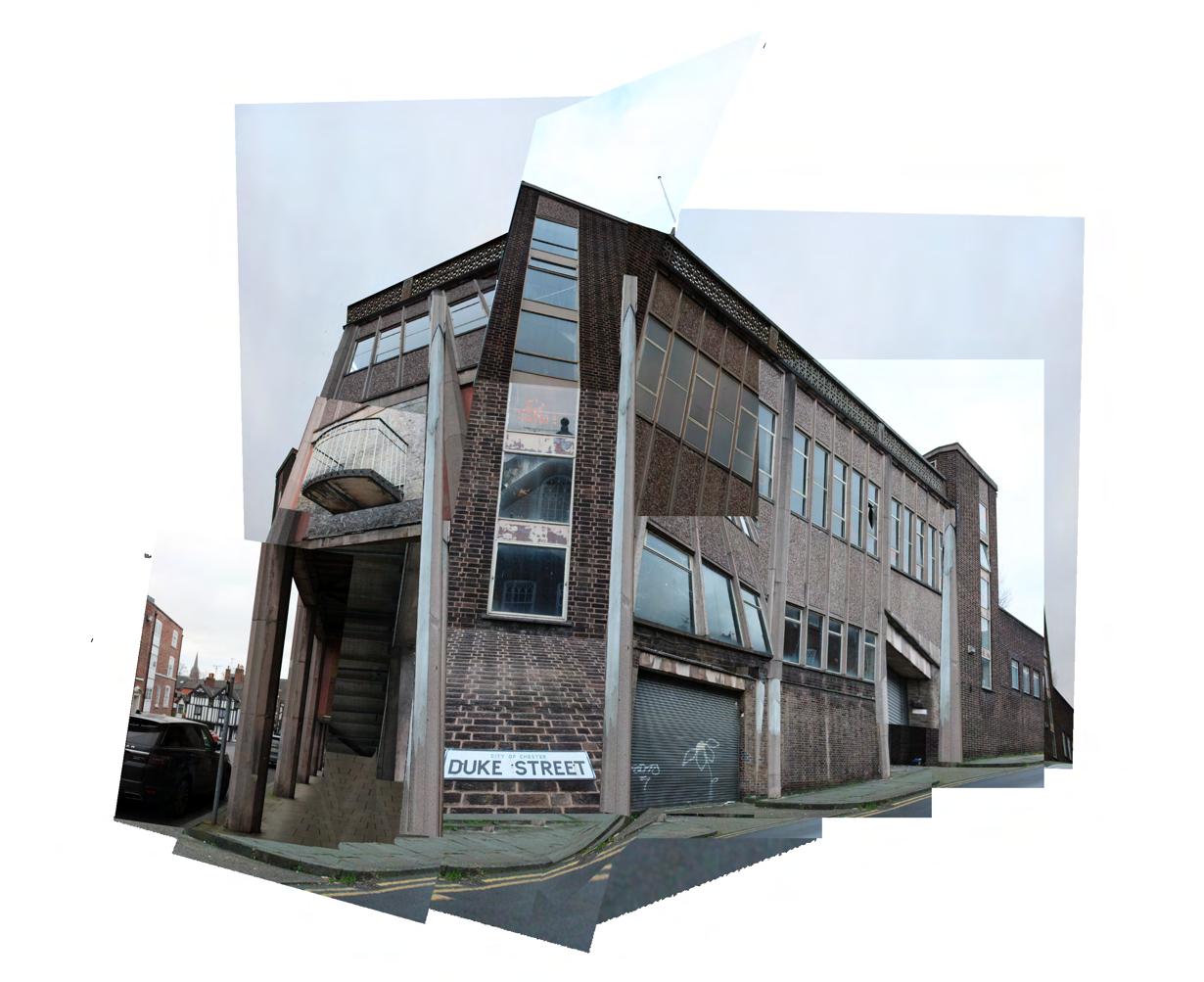

SITE ANALYSIS | LOCATION | HISTORY

QUICKS GARAGE Lower Bridge Street Chester CH1 1RU

Proposed Plan Rejected Demolish existing building Replace with Apartments/ Town houses

1965

2007

November 2007 2019

Brutalist Property Grosvenor Motors | Quicks Garage

Property unoccupied since

PUBLIC

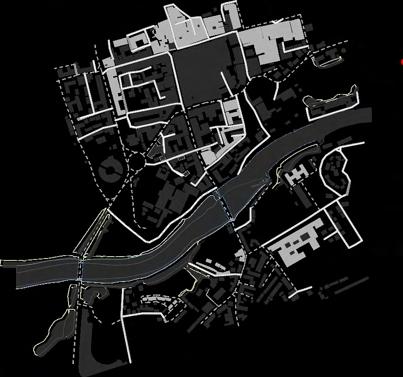

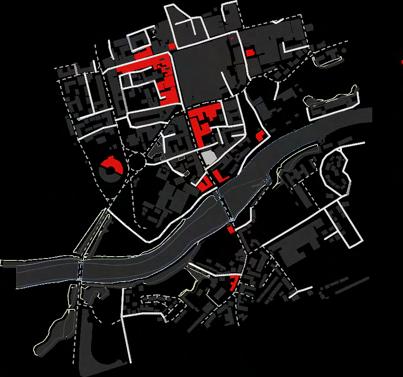

SITE ANALYSIS |

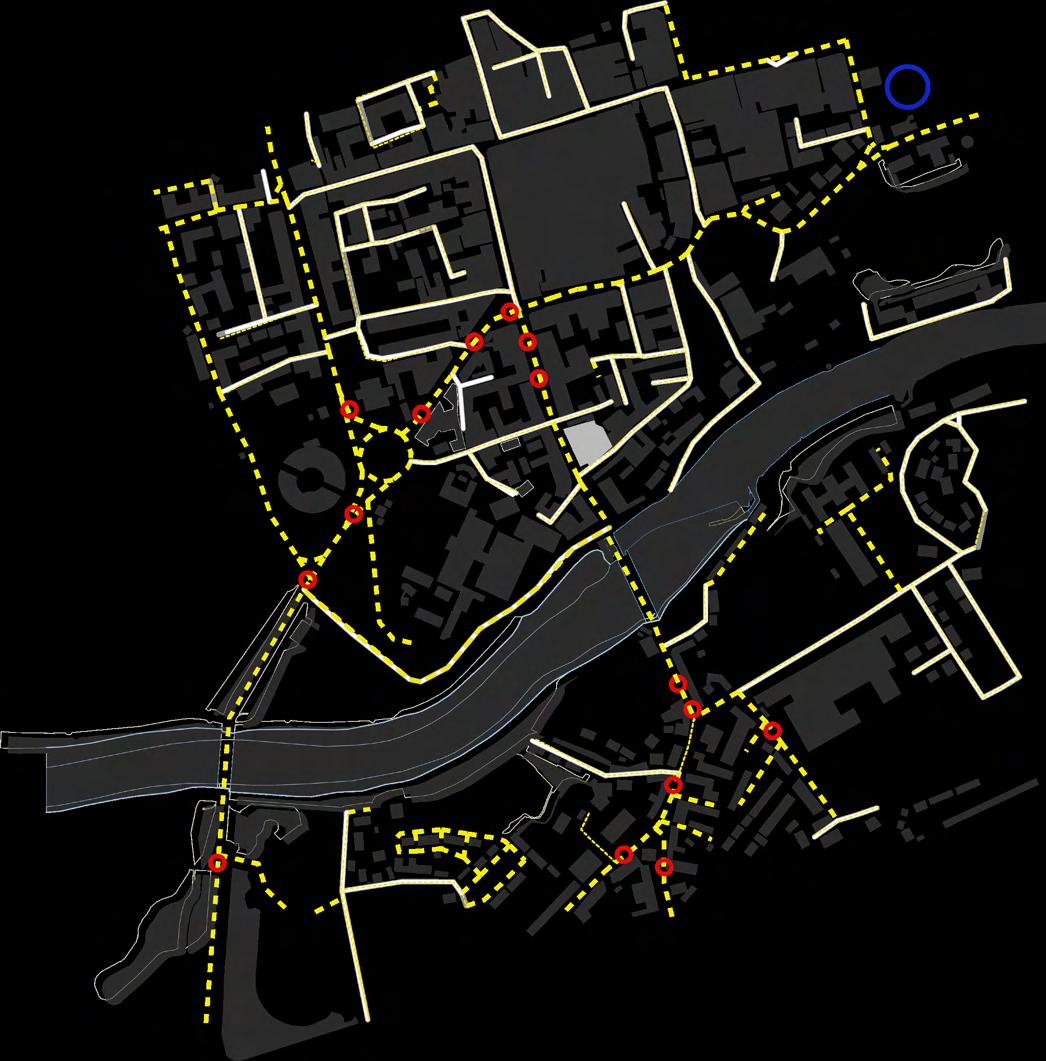

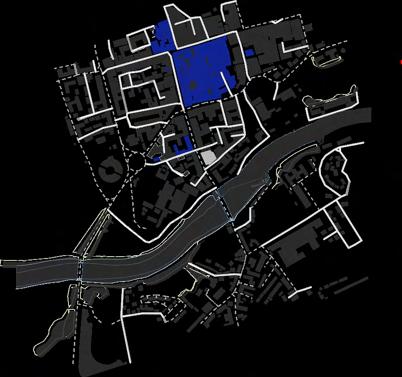

TRANSPORT | LAND USE

TRAIN STATION WALK/BIKE

PUBLIC TRANSPORT

BUS ROUTE

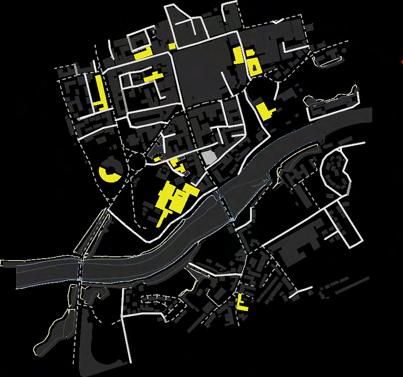

LAND USE

HOSPITALITY | RECREATION

RETAIL

PROFESSIONAL SERVICES | OFFICES

OTHER

INTERIOR EXTERIOR EXHIBITION 1 2 3 4 5 6 7 8 9

PRECEDENT PROJECTS | OVERVIEW

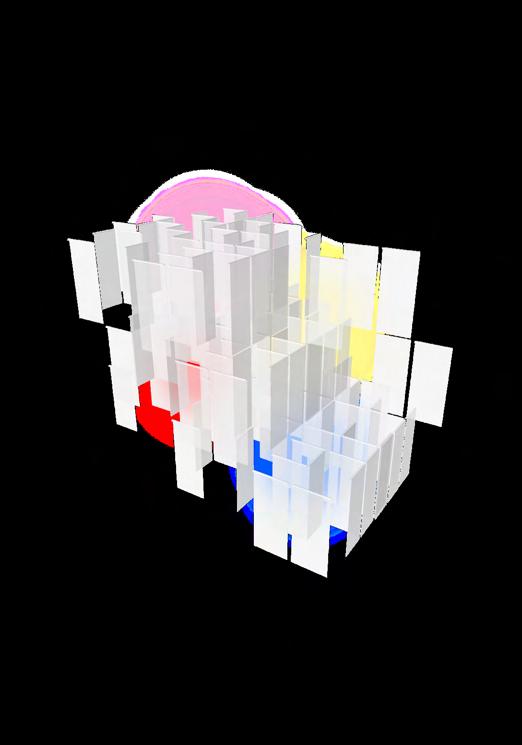

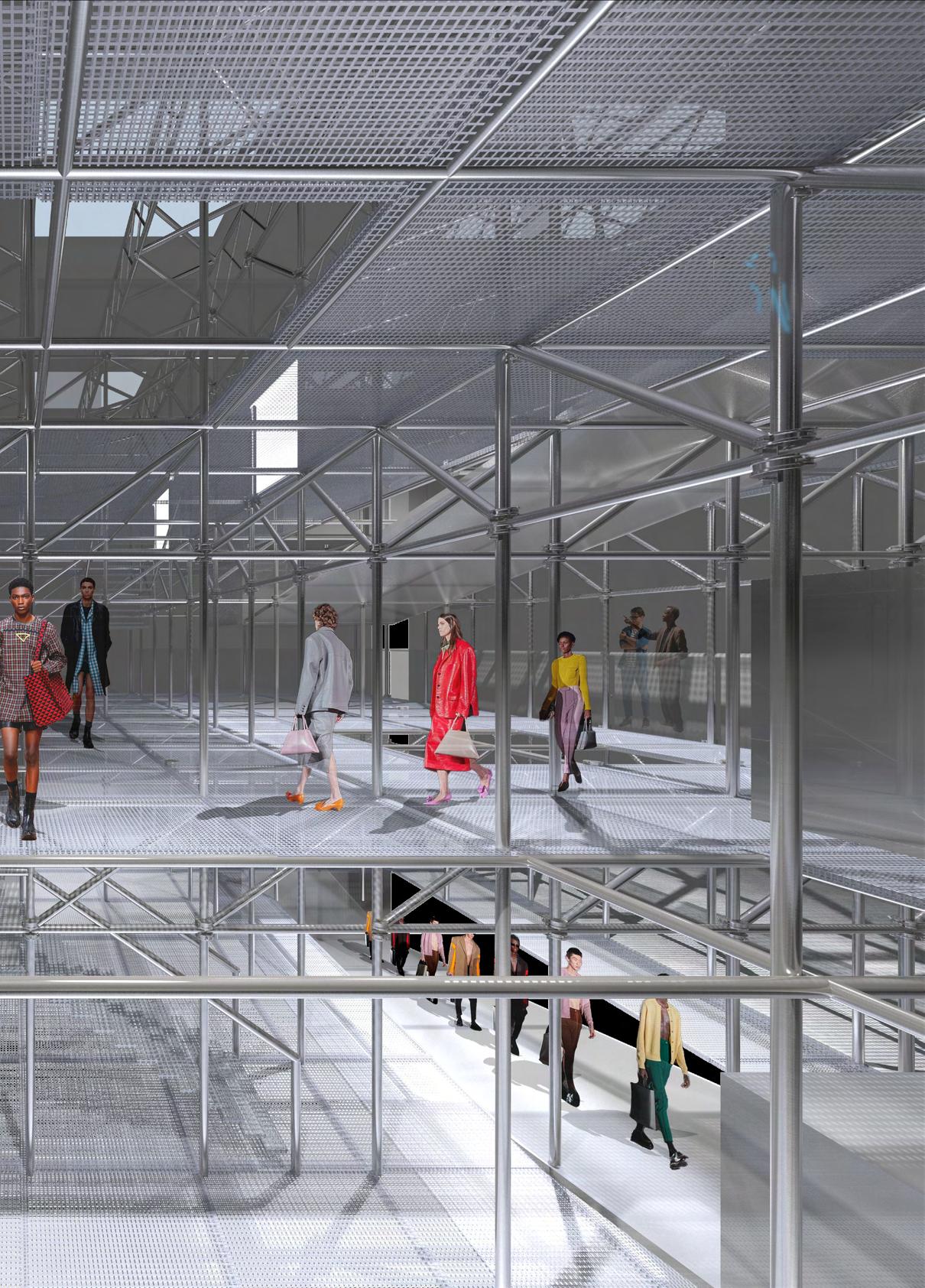

PROJECT PROPOSAL | EXPRESSIVE IMAGE

FIXED ENVIRONMENT

People adapting to the space around them.

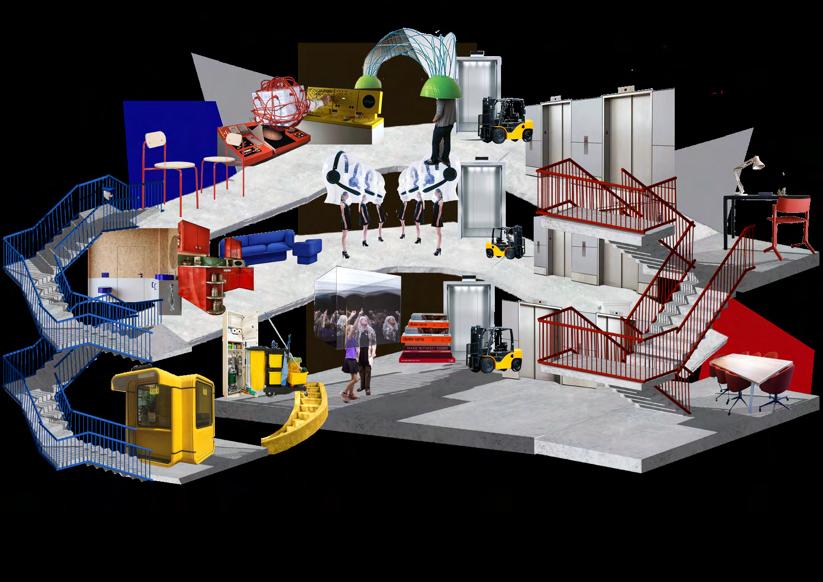

FLEXIBLE ENVIRONMENT

A space that can adapt to suit the users needs.

SPATIAL PLANNING | SCHEDULE OF ACCOMODATION

BREAK ROOM

TECHNICAL | ELECTRICAL

STAIR 1

ENTRANCE

STAFF ROOM

WAREHOUSE | PRIVATE LIFT

CLEANING ROOM | HVAC ROOM

CAFE

STAIR 2

WORKSHOP OFFICE

EDUCATION ROOM

EXHIBITION

CONFERENCE ROOM PUBLIC LIFT

ACTIVITY

ENTRANCE

STAFF ROOM

TOILETS

HVAC

CLEANING ROOM

LIFT (PUBLIC)

WAREHOUSE

LIFT (PRIVATE)

EXHIBITION

RAMP

OFFICE

CONFERENCE ROOM

LEARNING CENTER

BREAK ROOM

TECHNICAL ROOM

WORKSHOP

ACCESS

LOCATION

Lower Ground Floor Upper Ground Floor

Floors

Level not important

levels

Ground, First and Roof level

Level not important

RELATIONSHIP

Acess to ground floor (GF) toilets, Exhibition area (GF) and Stair 1.

Access to Stair 1, within close proximity to exhibition area.

Remain somewhat central to provide access from all areas.

Hidden away from public areas, easily accessable by staff.

Within close proximity to exhibition area / public areas.

No requirements.

Situated next to a private lift.

Situated next to Warehouse.

Center of the building, provides access to everywhere.

Exhibition area must be situated next to ramp.

Close proximity to conference room.

Close proximity to Office.

Access to toilets.

Must overlook exhibition area.

Access to warehouse

Must be situated on the roof level after exhibition area.

DESIGN REQUIREMENT

Requires space for toilets, disabled toilets, lounge and kitchen area.

Seperate clean and dirty work areas.

Must reach all all floor levels.

Extra attention to ventilation systems and weight restrictions.

Weight restrictions for goods lift.

Space allowance for adaptable structure.

Area requires walls as per health and safety instruction.

Natural daylight.

Space allowance for big groups and demonstration.

Natural daylight

Security and access must be of paramount importance.

ELECTRICAL ROOM

STAIR

Level not important All levels

No requirements.

Security and access must be of paramount importance. Must not be situated via Water supply.

Situated via NW of the building.

Third fire exit to be provided for all users in the event of an emergency.

CAFE

Artist Staff Public Artist Public Artist Staff Staff Staff Public Artist Staff Artist Staff Artist Staff Public Artist Staff Public Artist Staff Staff Artist Staff Public Artist Staff Public Artist Artist Staff Artist Staff Public Artist Staff Staff Public Artist Staff

Public

All

levels

Roof

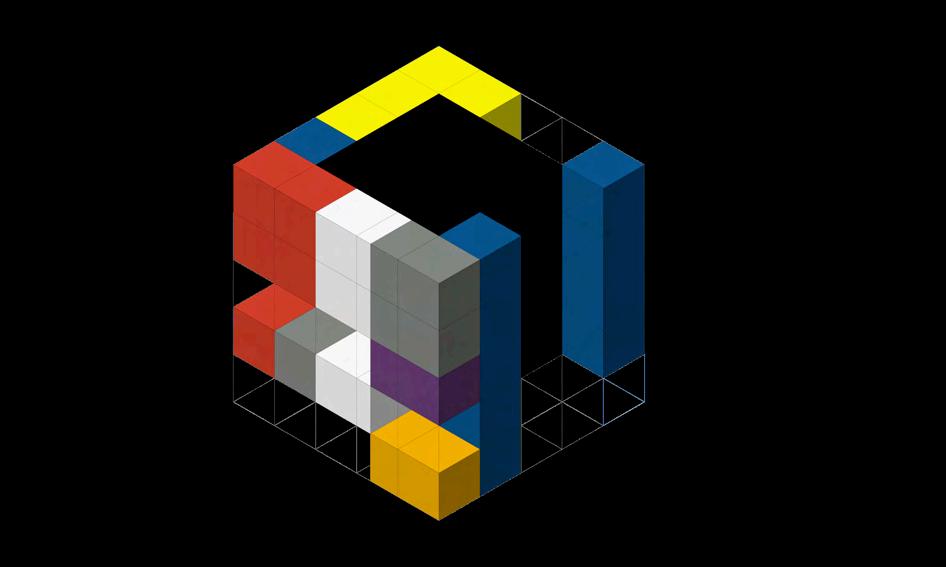

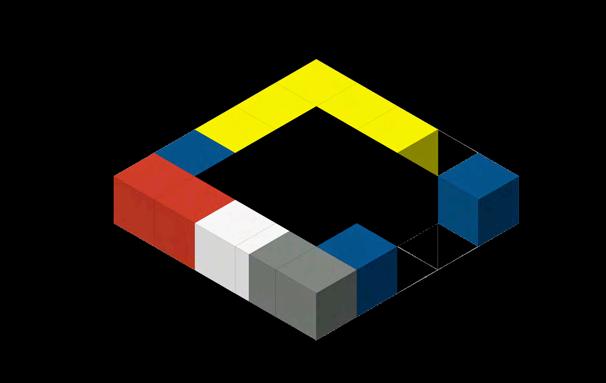

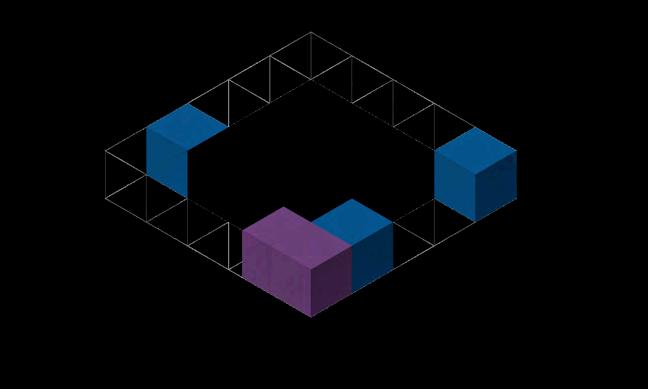

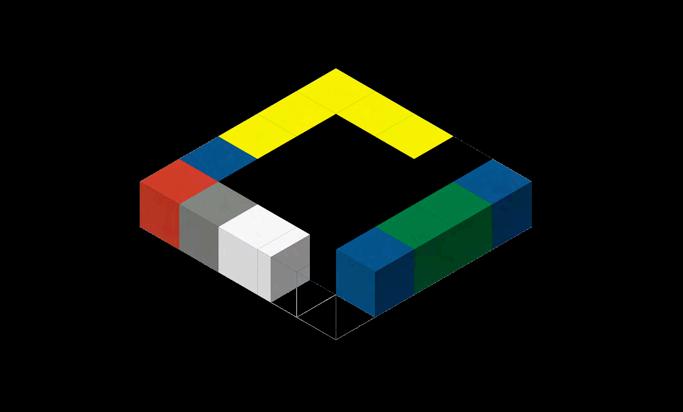

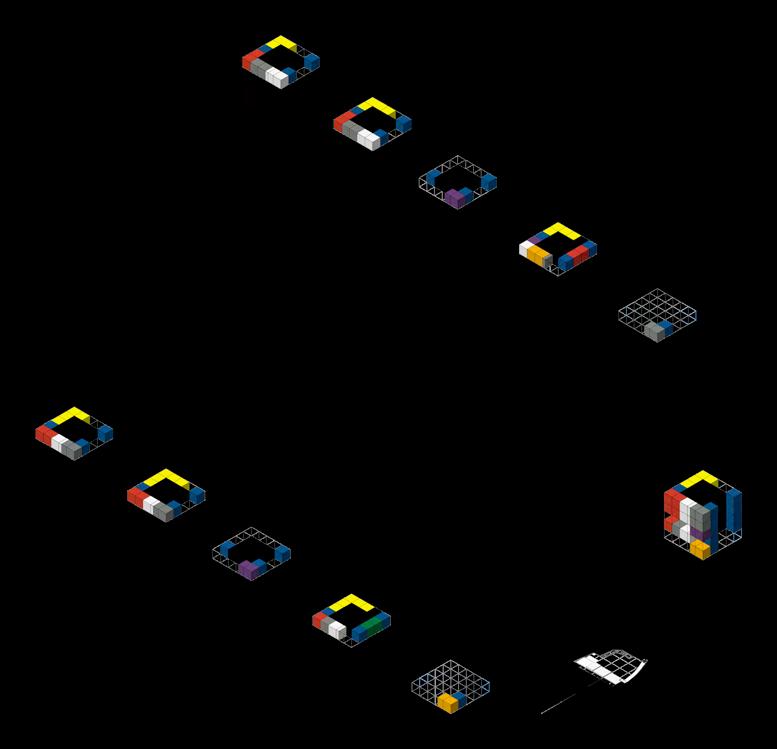

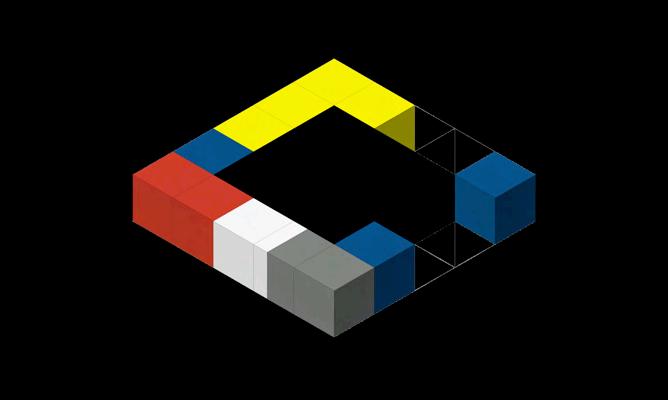

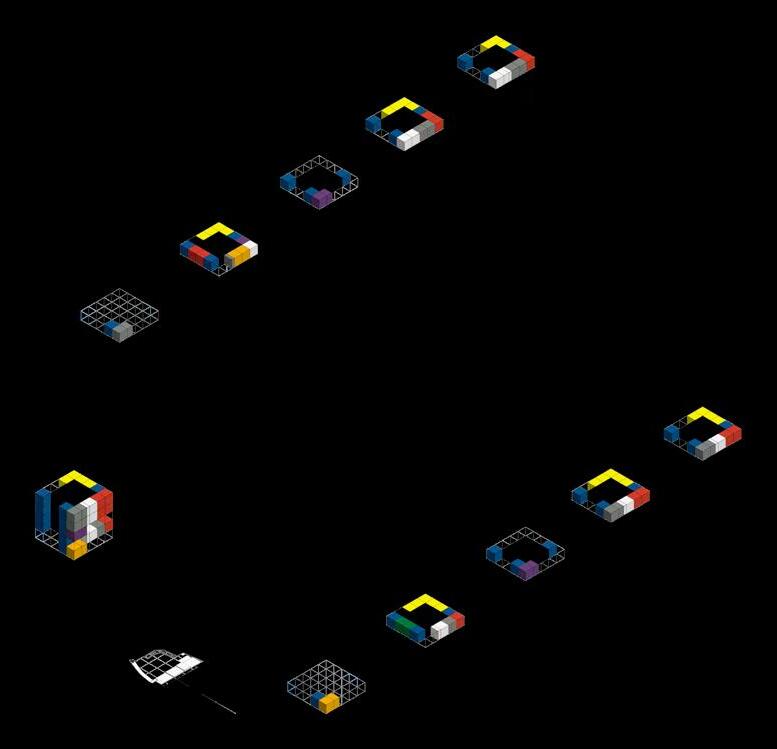

SPATIAL PLANNING | SPATIAL DIAGRAMS

OPTION THREE

ENTRANCE

LIFT/STAIRWAY

CUSTOMER TOILETS

STAFF OFFICE/TECHNICAL

STORAGE/WORKSHOP

EXHIBITION/REFLECTION

WALKWAY

RAMP

STAFF AREA

KEY POINTS

Staff office/Technical consume too much space. Storage/Workshop consume too much space.

LOWER GROUND FLOOR

GROUND FLOOR

UPPER GROUND FLOOR FIRST FLOOR ROOF

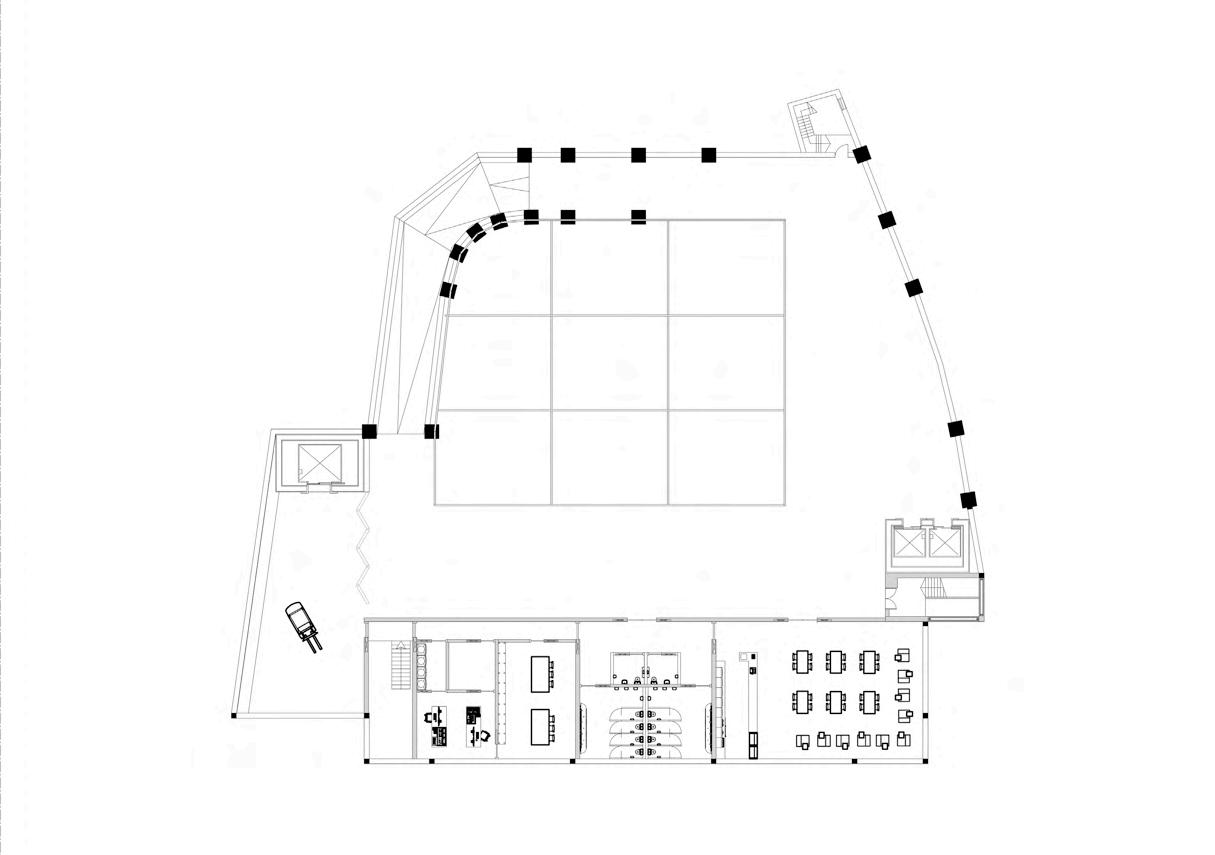

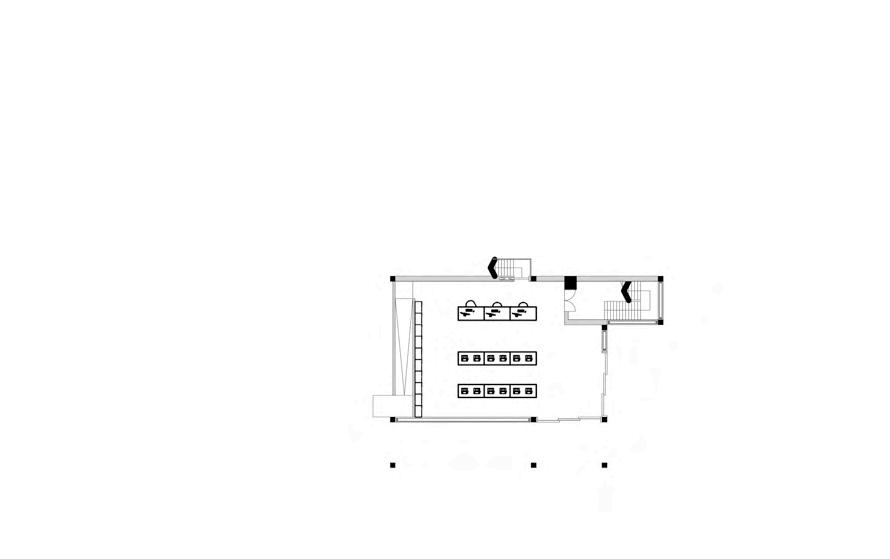

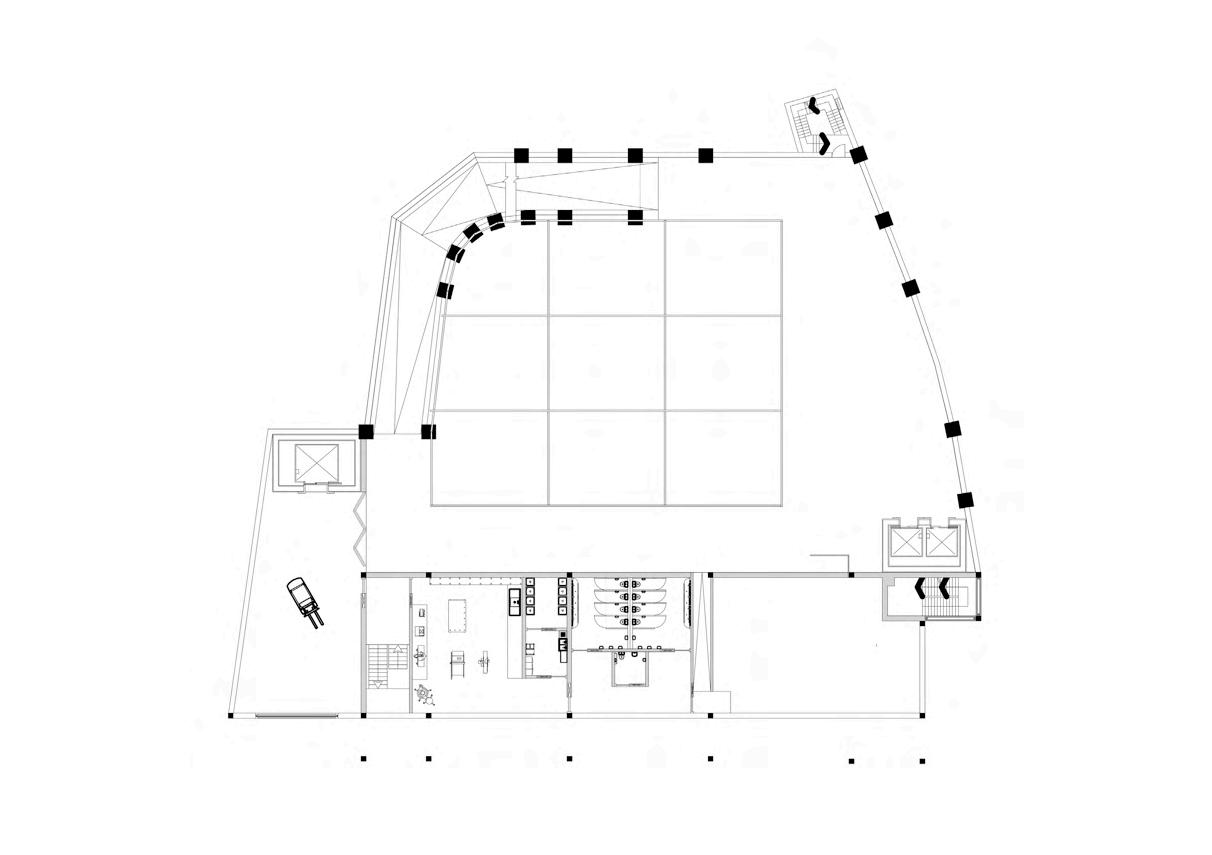

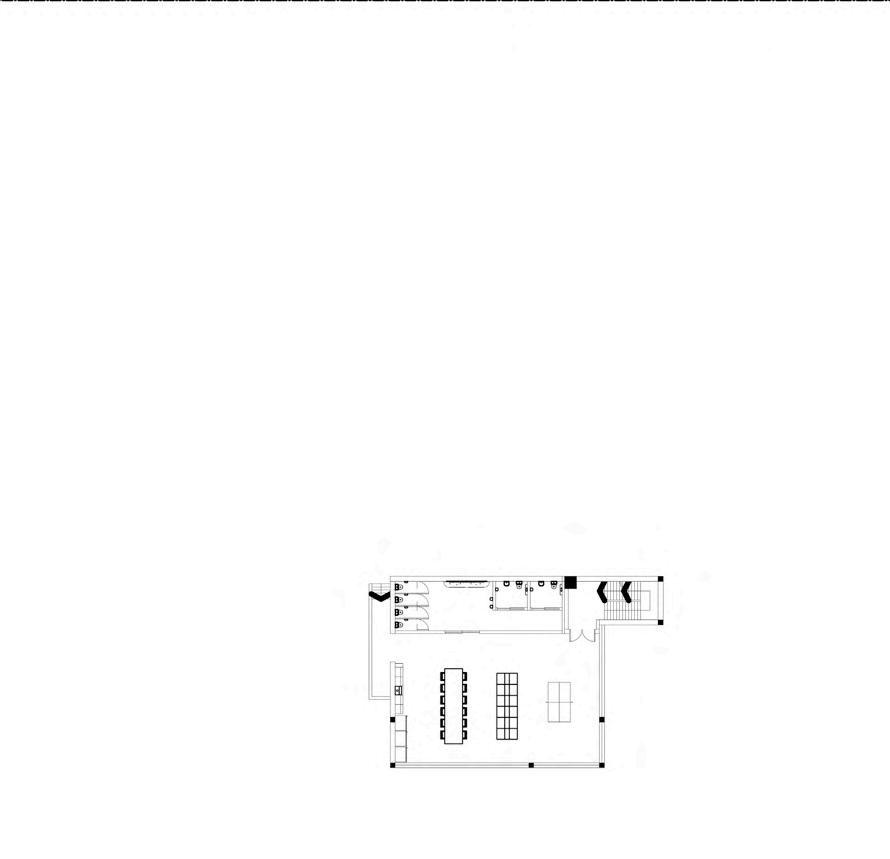

PROPOSED DESIGN | PLANS

1:200 A3

STAFF ROOM | TOILETS | DISABLED TOILETS | PRIVATE

STAFF ROOM | LOUNGE AND KITCHEN | PRIVATE

LOWER GROUND FLOOR (LGF) 1 2 3 4 EXISTING CONCRETE STAIRWELL 2 ENTRANCE | INFO DESK EXISTING STAIR TO GF | PRIVATE RAMP FROM LGF TO GF 1 2 3 2 1 2 3 4 EXISTING CONCRETE STAIRWELL 2

EXISTING HALLWAY

ACCESS FROM GF 1 2 3 4 UPPER GROUND FLOOR (UGF)

GROUND FLOOR (GF) 1 2 3 4 5 6 CONCRETE EXISTING RAMP EXISTING CONCRETE STAIRWELL 1 REMOVED EXISTING ROLLER SHUTTER EXISTING CONCRETE STAIRWELL 2 LIFT | PUBLIC GF TOILETS | PUBLIC 7 8 HVAC ROOM CLEANING ROOM 1 2 4 5 6 8 7 WORKSHOP | PRIVATE 9 9 NEW STAIRWELL | THIRD FIRE EXIT EXISTING ROLLER SHUTTER 10 10 11 11 12 13 12 13 WAREHOUSE | STORAGE GOODS LIFT | PRIVATE 3 14 EXISTING CONCRETE WALKWAY 15 FLEXIBLE EXHIBITION AREA 14 15

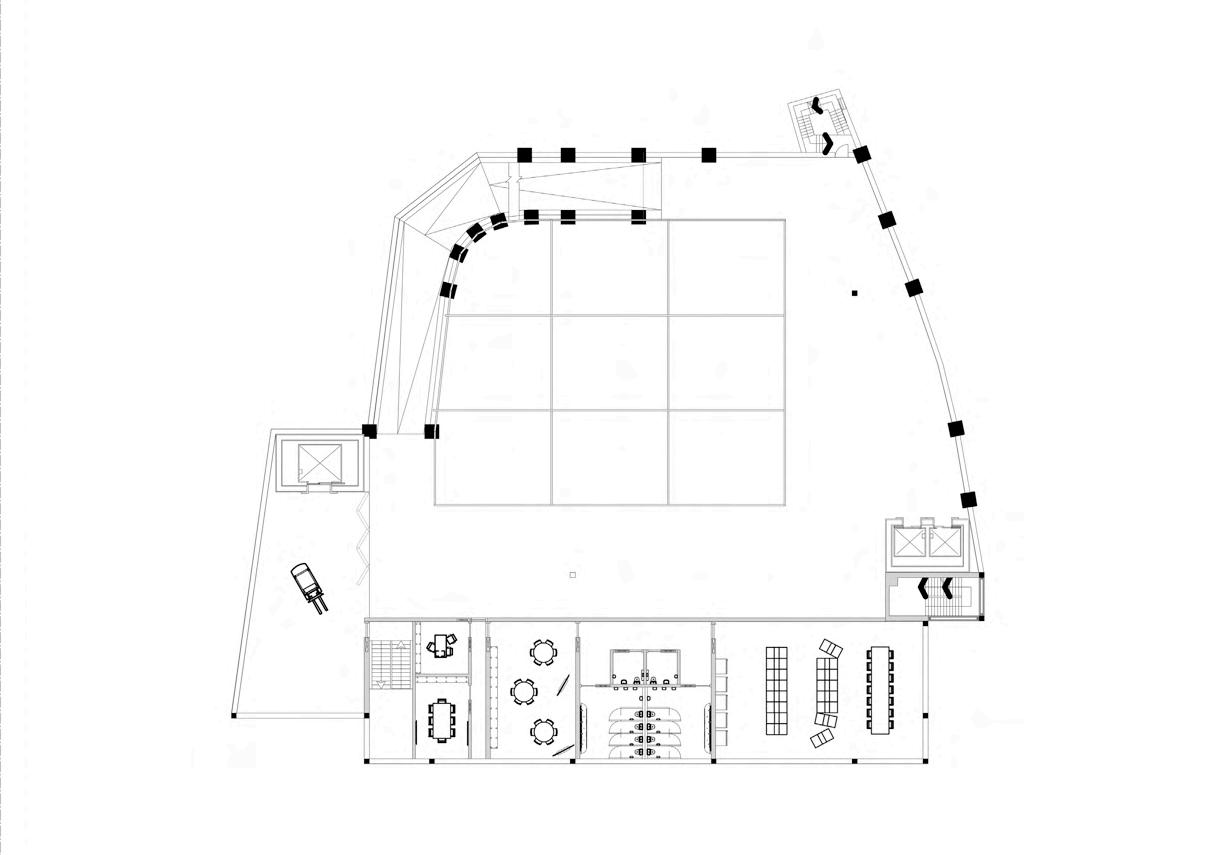

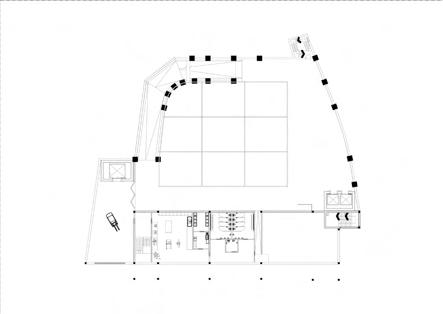

PROPOSED DESIGN | PLANS

FIRST FLOOR (FF) 1 2 3 4 5 6 CONCRETE EXISTING RAMP EXISTING CONCRETE STAIRWELL 1 REMOVED EXISTING ROLLER SHUTTER EXISTING CONCRETE STAIRWELL 2 LIFT | PUBLIC BREAK ROOM | PUBLIC 7 8 FF TOILETS | PUBLIC LEARNING CENTER CONFERENCE ROOM 9 NEW STAIRWELL | THIRD FIRE EXIT EXISTING ROLLER SHUTTER 10 11 12 13 WAREHOUSE | STORAGE GOODS LIFT | PRIVATE 14 EXISTING CONCRETE WALKWAY 15 FLEXIBLE EXHIBITION AREA 16 OFFICE | PRIVATE 1 2 4 5 6 8 7 9 10 11 12 13 3 14 15 16

1:200 A3

ROOF FLOOR (RF) 1 2 3 4 5 6 CONCRETE EXISTING RAMP EXISTING CONCRETE STAIRWELL 1 REMOVED EXISTING ROLLER SHUTTER EXISTING CONCRETE STAIRWELL 2 LIFT | PUBLIC CAFE | PUBLIC 7 8 RF TOILETS | PUBLIC STUDIO | PRIVATE TECH | LIGHTING ROOM 9 NEW STAIRWELL | THIRD FIRE EXIT EXISTING ROLLER SHUTTER 10 11 12 13 WAREHOUSE | STORAGE GOODS LIFT | PRIVATE 14 EXISTING CONCRETE WALKWAY 15 FLEXIBLE EXHIBITION AREA 16 ELECTRICAL ROOM 1 2 4 5 6 8 7 9 10 11 12 13 3 14 15 16

PROPOSED DESIGN | SECTION

CONCRETE GROUND TO FIRST FLOOR RAMP

EXISTING FLOOR LOWERED TO LOWER GROUND LEVEL

EXISTING GROUND FLOOR CONCRETE

HVAC ROOM

CLEANING ROOM

WORKSHOP | PRIVATE

1 2 3 4 5 6

7 8 OUTSIDE LEARNING CENTER 2 4 5 6 8 7 9 10 11 13 3 14 15

STUDIO PRIVATE 9 WAREHOUSE | STORAGE (FF) WAREHOUSE | STORAGE (RF) 10 11 12 13 CONCRETE GROUND TO ROOF FLOOR RAMP ROOF 14 EXISTING FIRST FLOOR CONCRETE 15 EXISTING ROOF FLOOR CONCRETE 16 EXHIBITION STRUCTURE | SCAFFOLDING 1 2 12 16

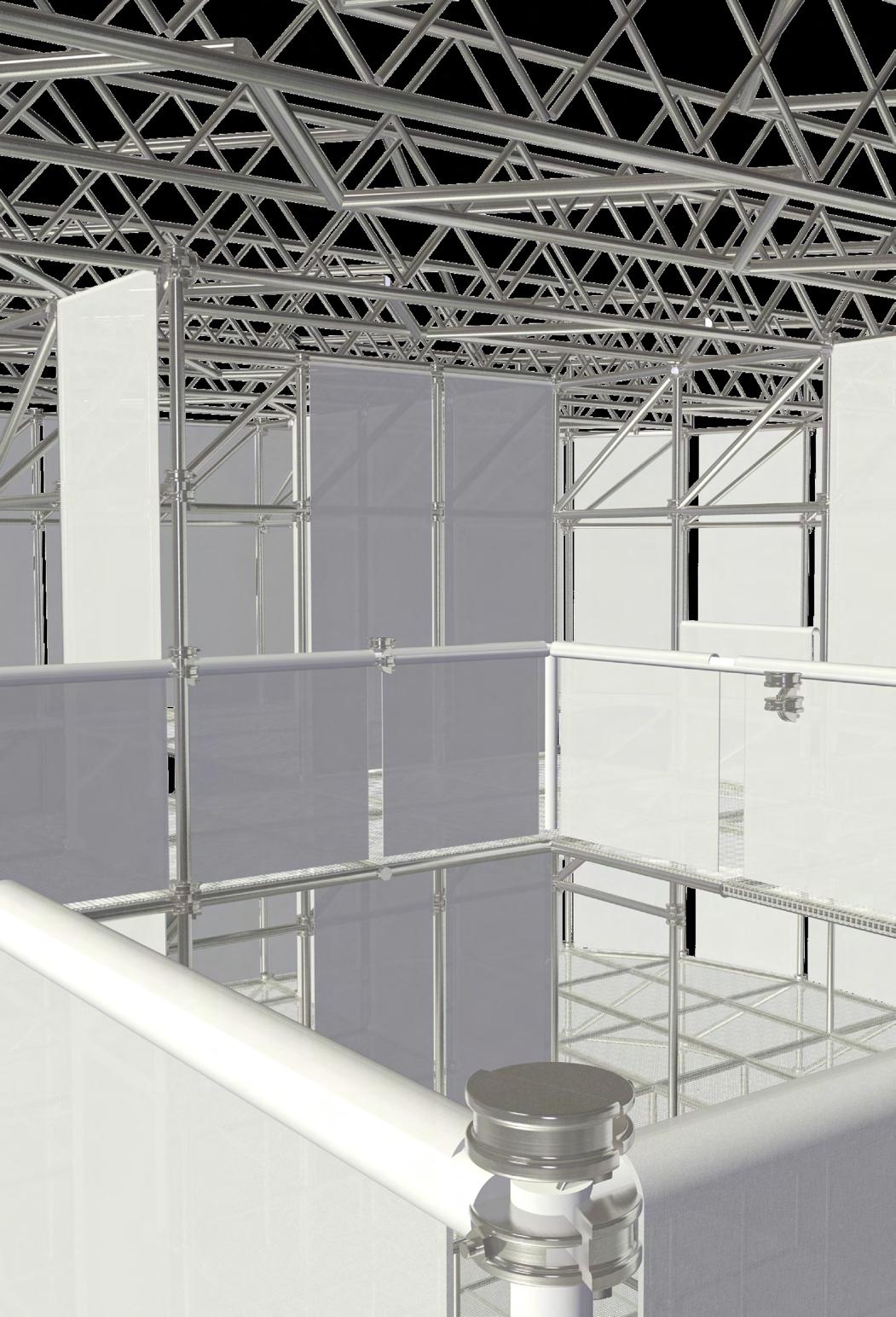

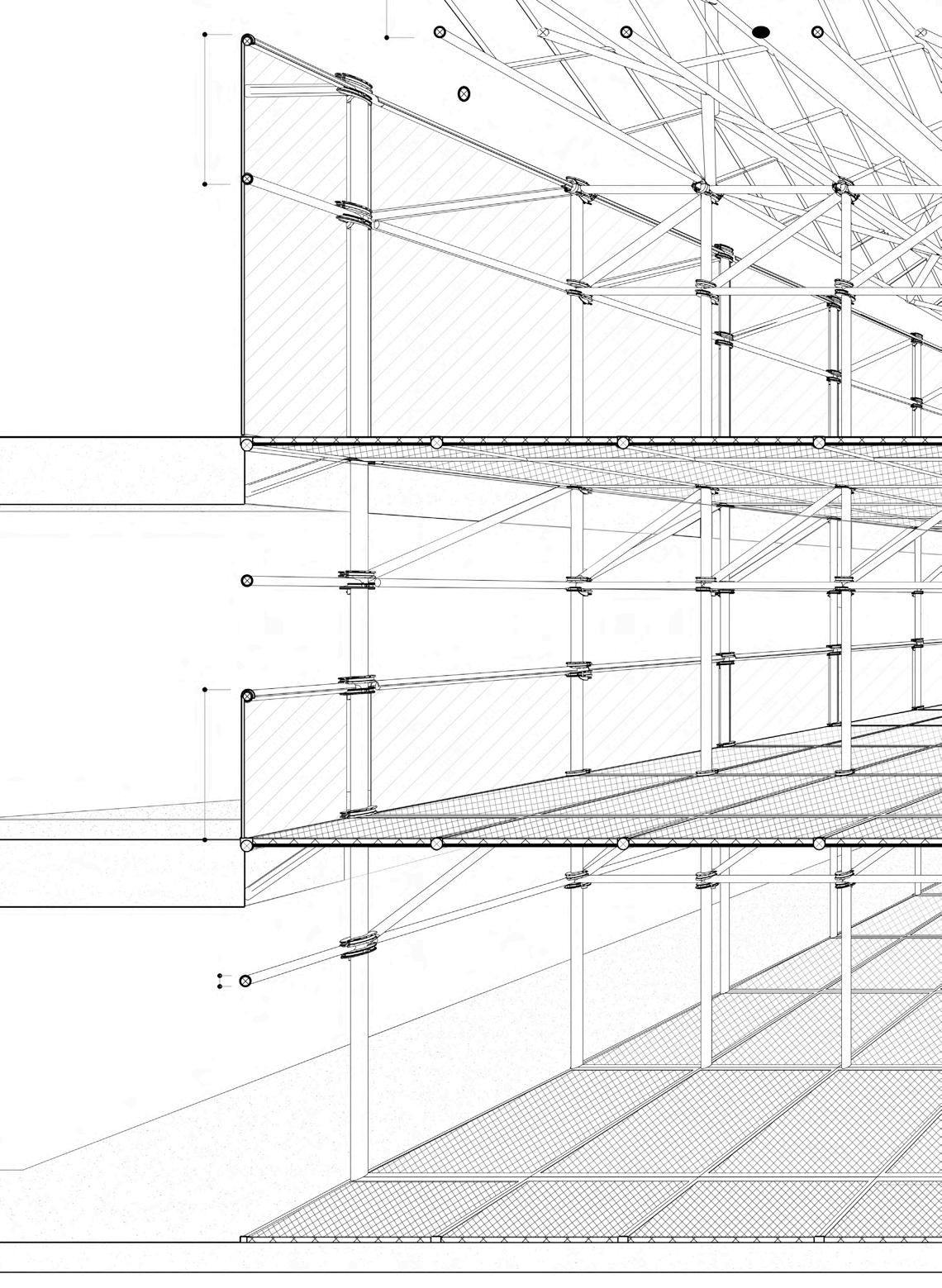

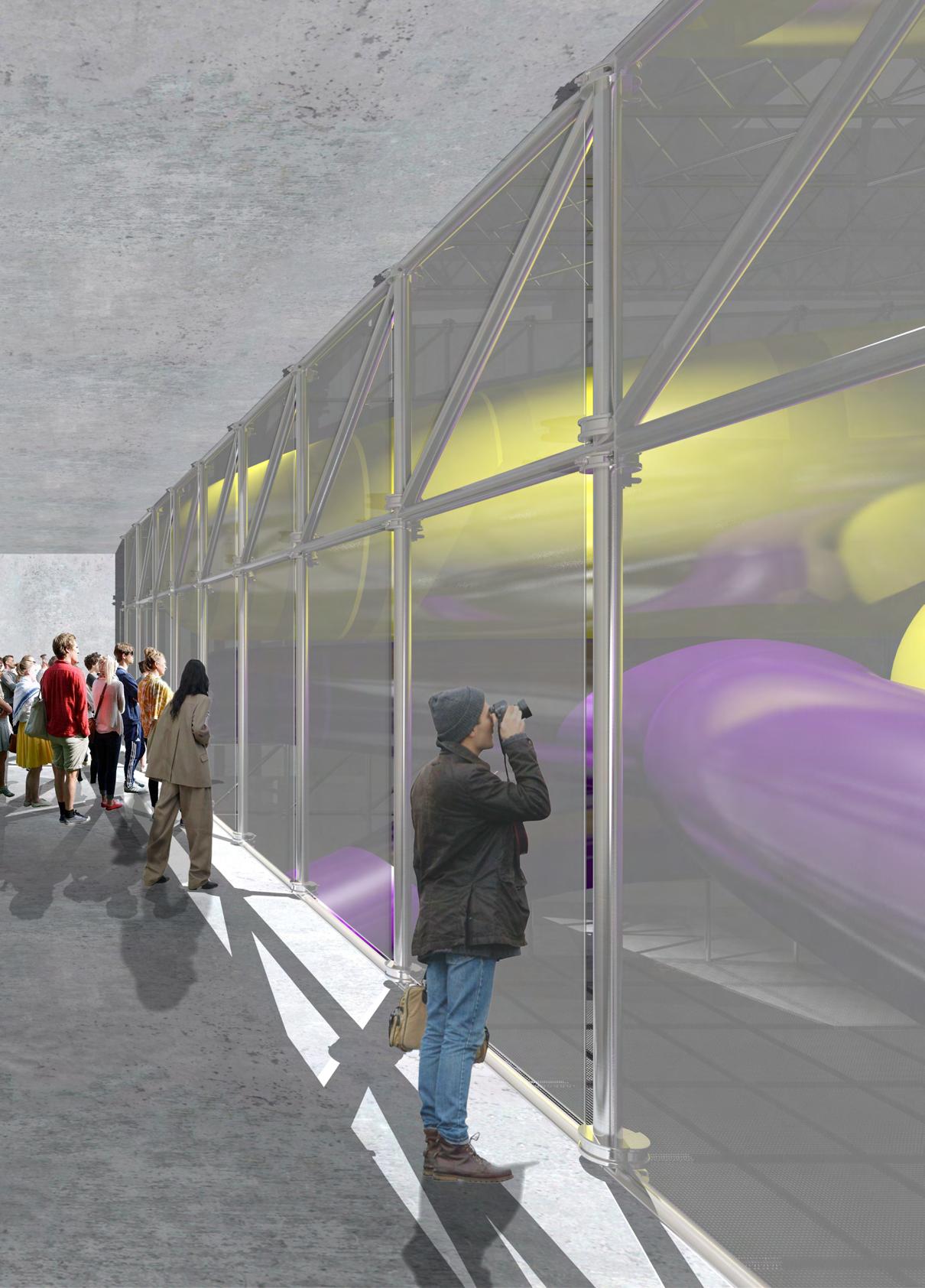

MATERIAL + DETAIL | WIDE PERSPECTIVE DETAIL

SECTION VIEW 1-50 A4

Vertical Round Tubing Steel

D 100mm H 4300mm

Second Floor

Existing Concrete

H 800mm FFL +10950mm

First Floor

Existing Concrete

H 800mm FFL +6450mm

Ground Floor

Existing Concrete

H 300mm

FFL +2150mm

Full Panel

Sheer Fabric

H 4200mm

Half Panel

Sheer Fabric

H 1000mm

Horizontal Round Tubing D 100mm Grid Mesh Panels Steel H 100mm

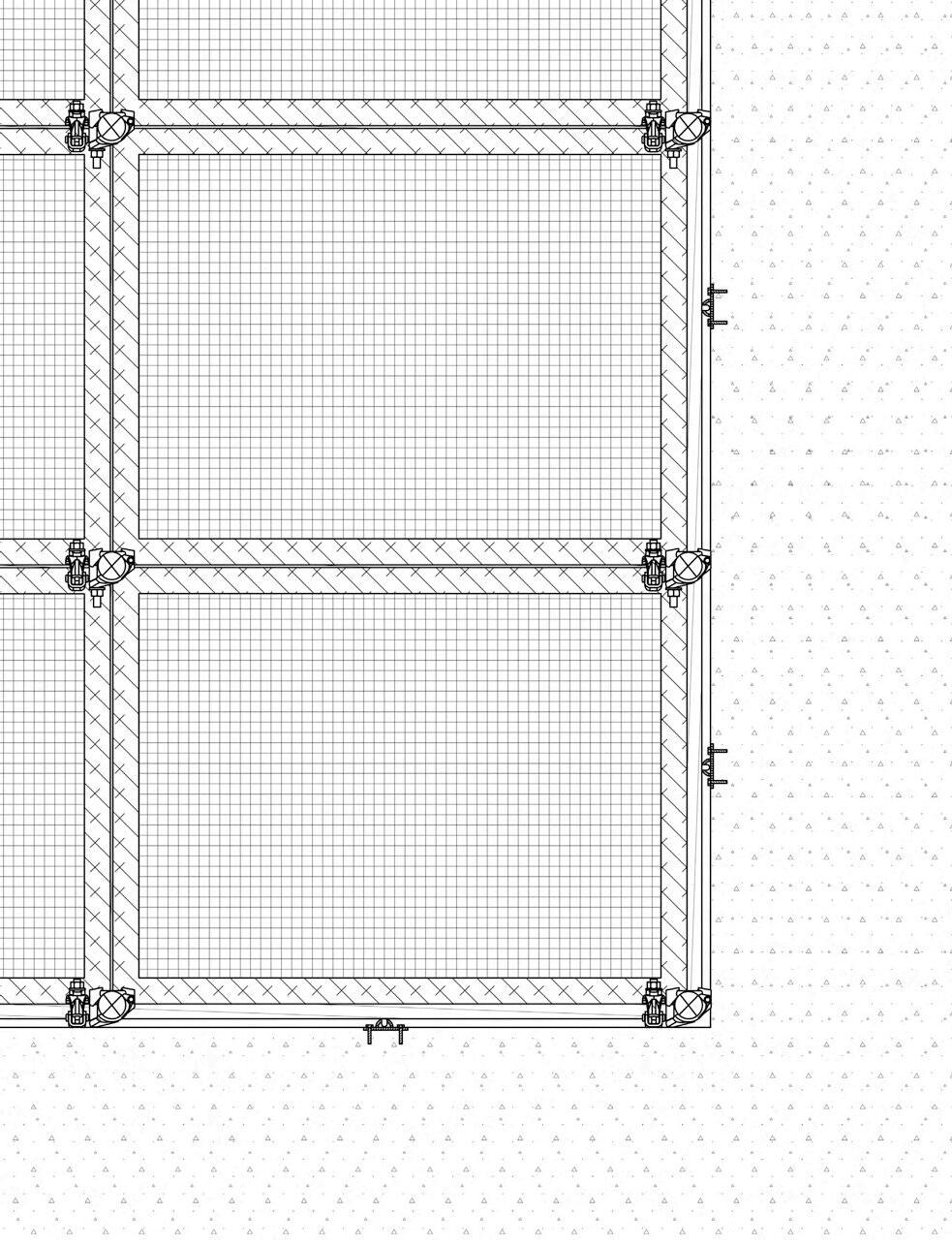

MATERIAL + DETAIL | SCAFFOLDING DETAIL

PLAN VIEW 1-20 A4

Horizontal Ledger H 2000mm

Frame with joining clamps (Page 104)

Grid Mesh Panel

Ground Floor (Page 104)

Double Coupler

Vertical Ledger H 1500mm

Scaffold Eyelet and Anchor

Standard D 100mm

First Floor Existing Concrete

W 100mm

2000mm

20mm

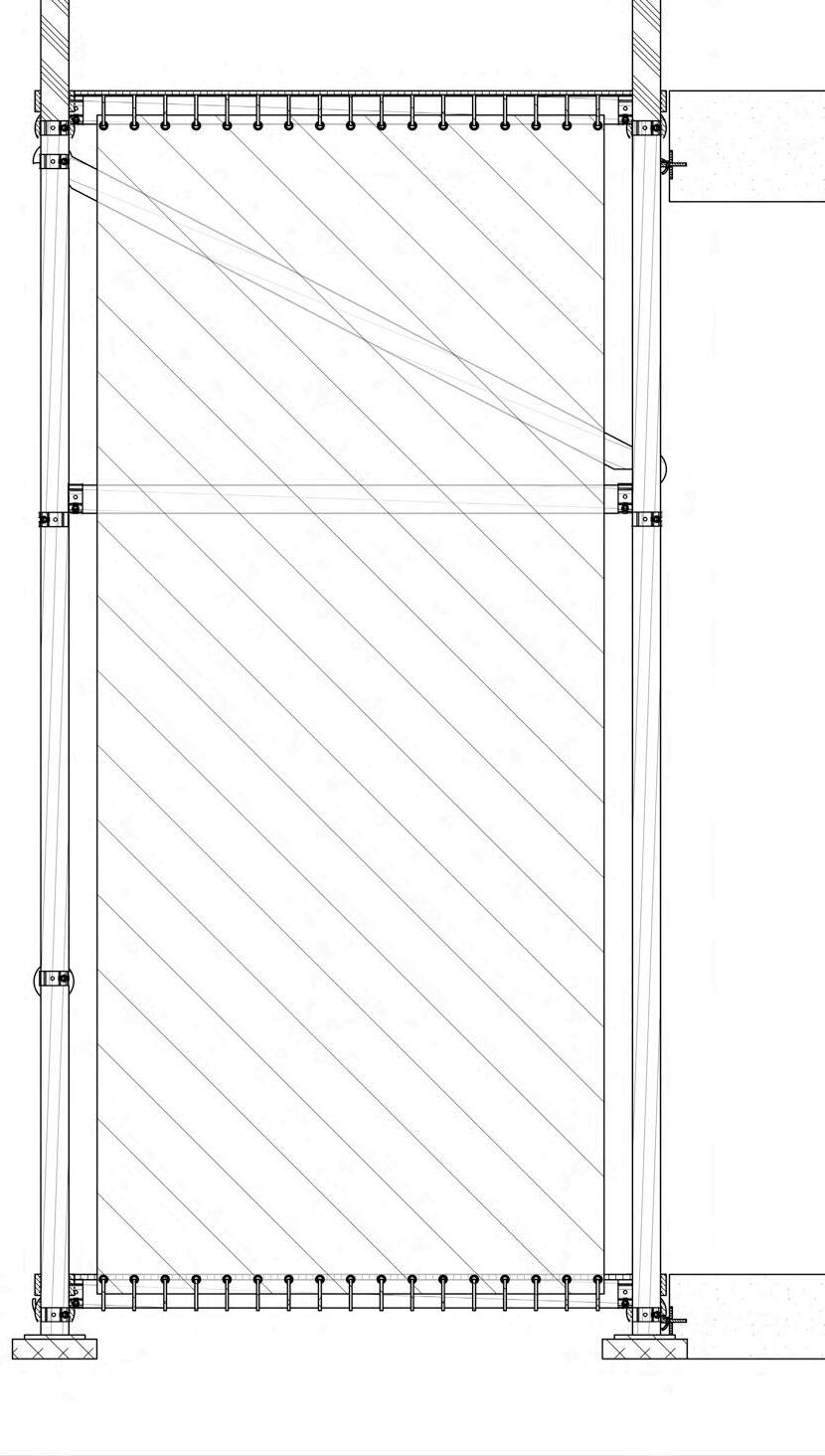

MATERIAL + DETAIL | SCAFFOLDING DETAIL

SECTION VIEW 1-20 A4

First Floor FFL +6450mm

Double Coupler at Joints H 100mm

FFL +4850mm

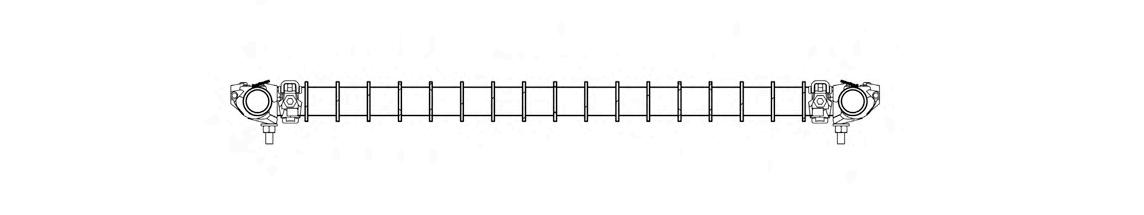

Hand Rail

Ledger Fixed with Coupler FFL +3150mm

Ground Floor Level

FFL +2150mm

First Floor Standard H 4200mm

Grid Mesh Floor Panel (Page104) Connects to Ledger at each Floor Level

Diagonal Brace H 2500mm Swivel Coupler H 100mm

Ground Floor Standard H 4200mm

Full Sheer Fabric Panel H 4200mm

Sheer Fabric Panel Cable tied with Eyelet Detail

Sole Plate Base Plate H 130mm

SECTION VIEW 1-20 PLAN VIEW 1-20 50mm 75mm 1800mm 1700mm 2000mm

DETAIL

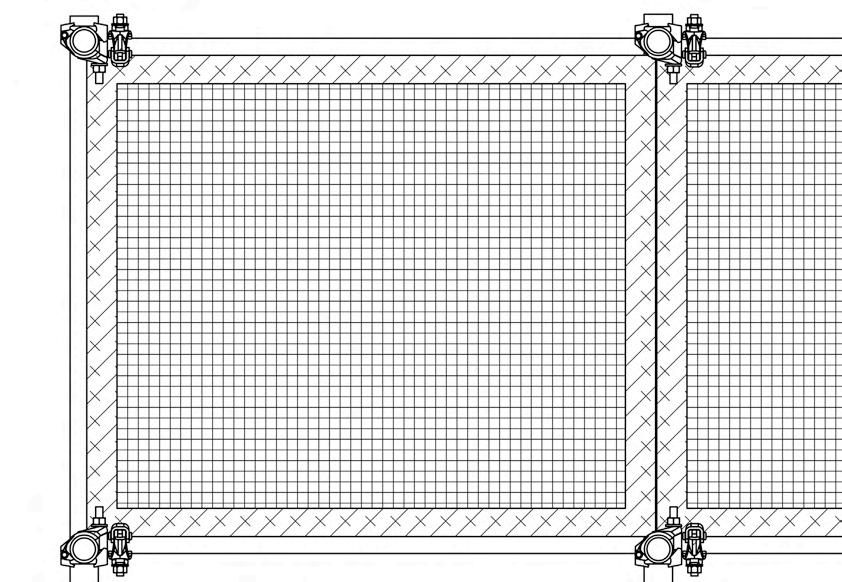

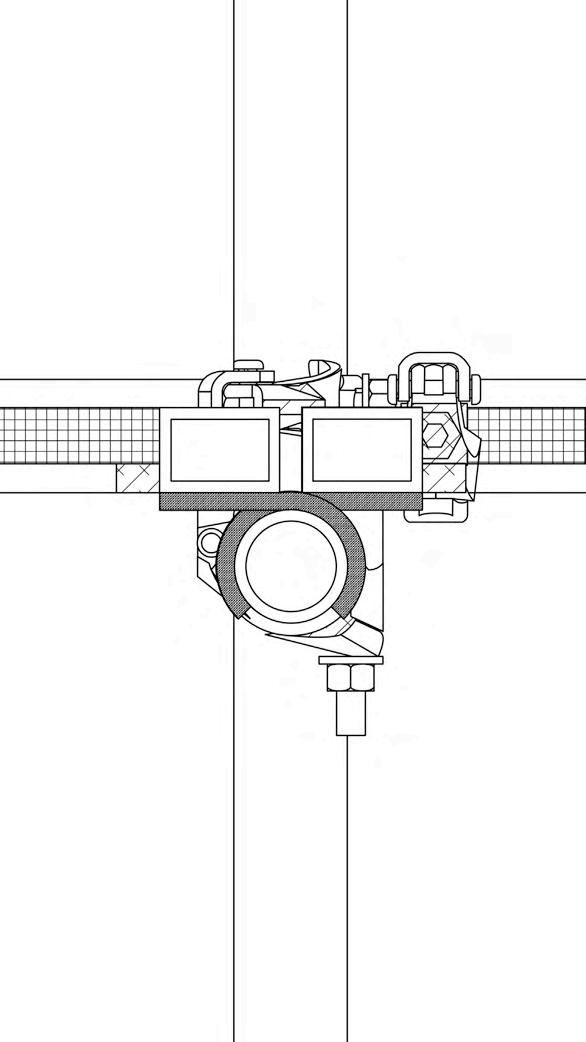

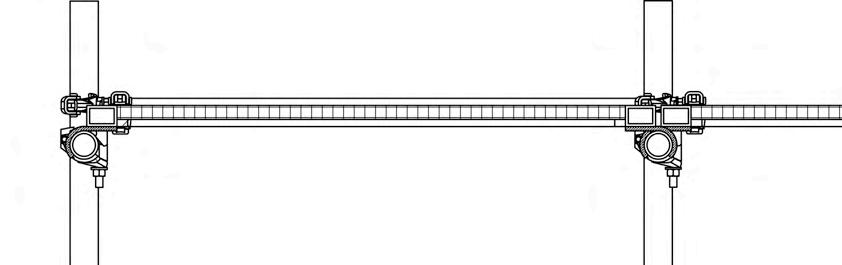

MATERIAL + DETAIL | GRID MESH FLOOR PANEL

First Floor Standard H 4200mm

Grid Mesh Insert H 50mm

RHS W 100mm H 75mm

Wall thickness 10mm

Clamp Connected to RHS

Bolted Connection

Clamps around Vertical Ledger

Thickness 20mm

Horizontal Ledger D 100mm

RHS W 100mm H 75mm

Wall Thickness 10mm

Vertical Ledger D 100mm

Double Coupler at Joints H 100mm

SECTION VIEW

1-5

PLAN VIEW 1-20

4200mm 50mm 1800mm 4050mm

SECTION VIEW 1-20

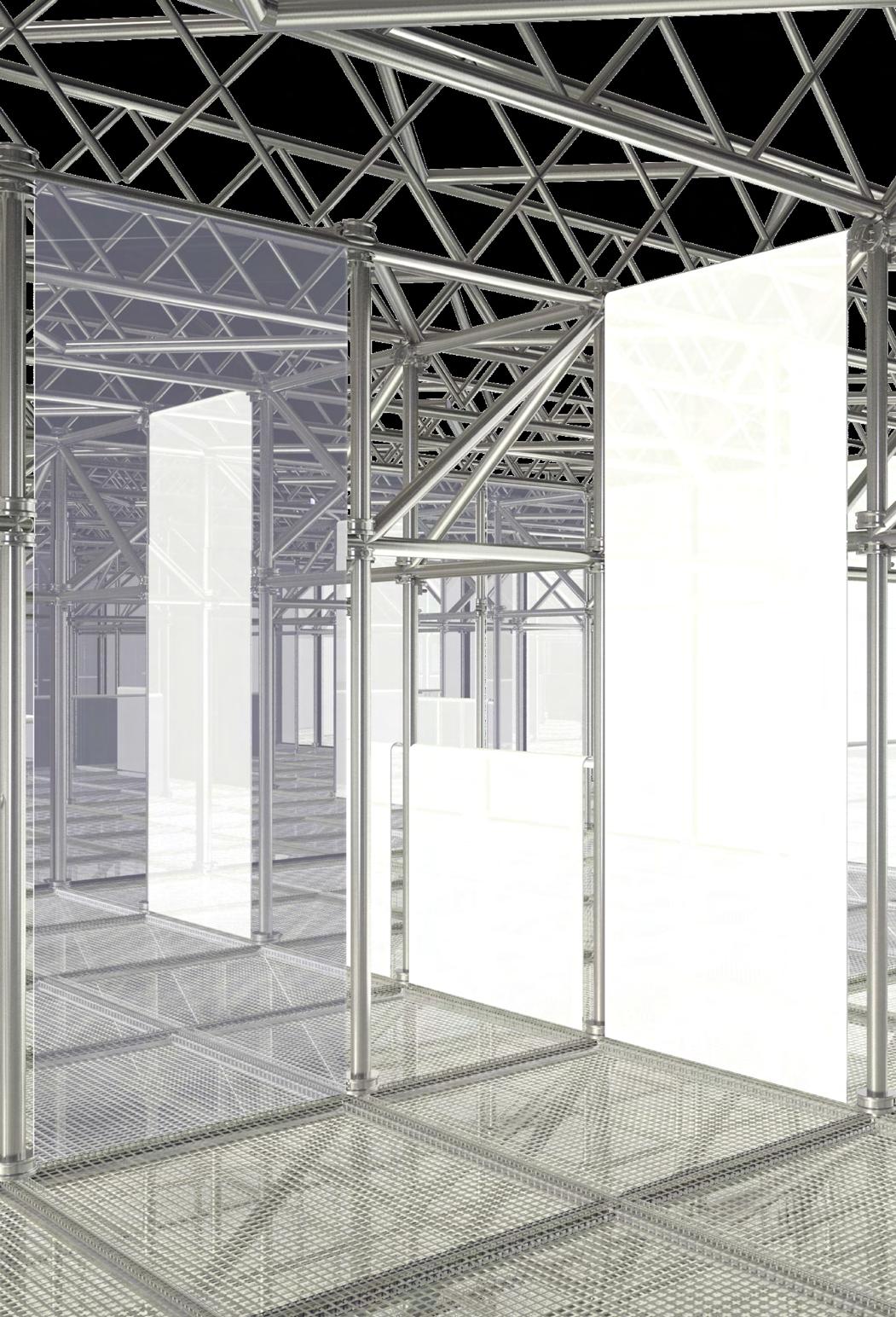

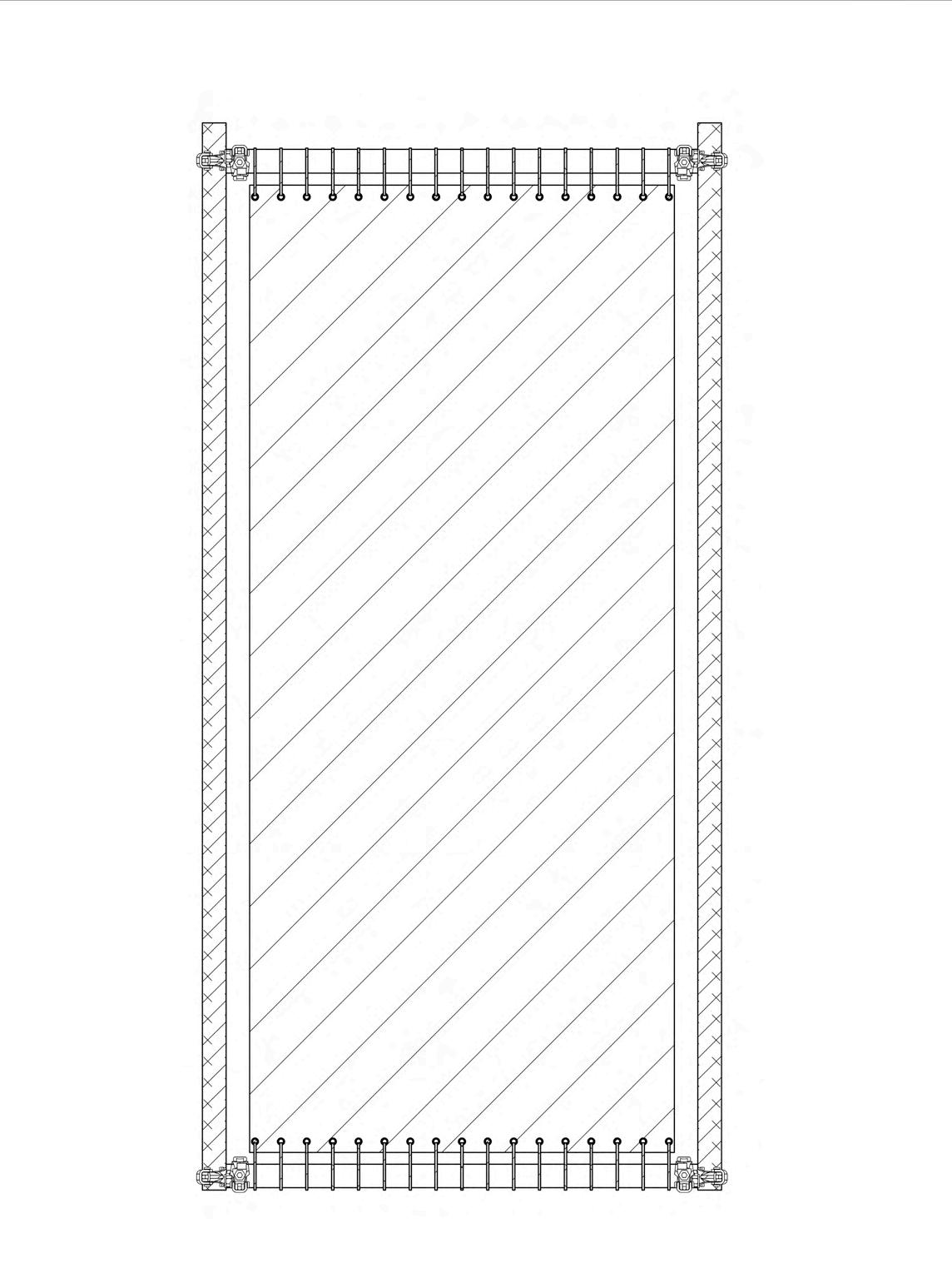

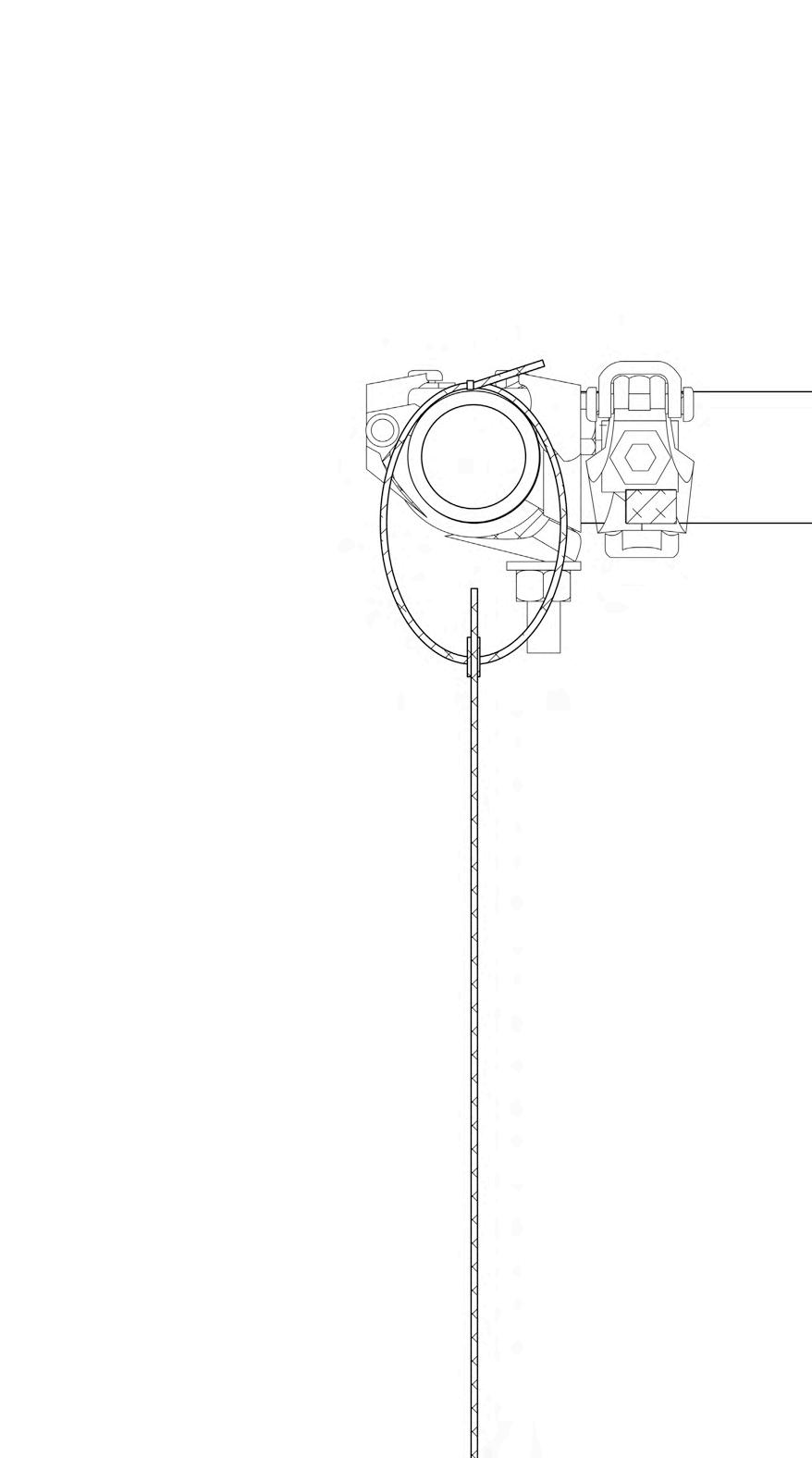

MATERIAL + DETAIL | SHEER FABRIC PANEL DETAIL

Ledger

D 100mm

Heavy Duty Cable Tie

H 200mm x W 10mm x D 5mm

Steel Eyelet

H 30mm x D 30mm

Sheer Fabric Panel

H 4050mm x W 1800mm x D 5mm

SECTION

1-4

VIEW

Vertical

MATERIAL + DETAIL | MATERIAL BOARD

STANDARD | 258

Steel Round Tubing

Overall D 100mm x H 4200mm

Wall Thickness 6mm

483 Scaffold Design

https://www.483.co.uk/what-we-do/scaffold-design/design-philosophy

LEDGER VERTICAL | 650

Steel Round Tubing

Overall D 100mm x H 1500mm

Wall Thickness 6mm

483 Scaffold Design

https://www.483.co.uk/what-we-do/scaffold-design/design-philosophy

HORIZTONAL LEDGER | 650

Steel Round Tubing

Overall D 100mm x H 2000mm

Wall Thickness 6mm

483 Scaffold Design

https://www.483.co.uk/what-we-do/scaffold-design/design-philosophy

DOUBLE COUPLER | 420

Steel Scaffolding Clamp

Overall W110mm x H240mm

483 Scaffold Design

https://www.483.co.uk/what-we-do/scaffold-design/design-philosophy

SWIVEL COUPLER | 420

Steel Scaffolding Clamp

Overall W110mm x H240mm

483 Scaffold Design

https://www.483.co.uk/what-we-do/scaffold-design/design-philosophy

FRAME | 396

Steel

Overall W 2000mm x H 1700mm x D 75mm

Indent 25mm

483 Scaffold Design

https://www.483.co.uk/what-we-do/scaffold-design/design-philosophy

GRID MESH PANEL | 396

Steel

Overall W 1800mm x H 1500mm x D 50mm

483 Scaffold Design

https://www.483.co.uk/what-we-do/scaffold-design/design-philosophy

DIAGONAL BRACE | 325

Steel Round Tubing

Brace Hooks | 2 per 1 Diagonal Brace

Overall H 2500mm x D 100mm

Wall Thickness 6mm

483 Scaffold Design

https://www.483.co.uk/what-we-do/scaffold-design/design-philosophy

HAND RAIL | 325

Steel Round Tubing

Overall D 100mm x H 1500mm

Wall Thickness 6mm

483 Scaffold Design

https://www.483.co.uk/what-we-do/scaffold-design/design-philosophy

BASE AND SOLE PLATE | 156

Base Plate | Concrete from existing structure

Sole Plate | Steel

Overall W x H 130mm x D

483 Scaffold Design

https://www.483.co.uk/what-we-do/scaffold-design/design-philosophy

HAND RAIL SHEER FABRIC PANEL | 325

Metallised Textile | Transparent Reflect 0100

Overall W 1500mm H 1000mm x 5mm

Kvadrat Textiles

https://www.kvadrat.dk/en/products/curtains/1035-transparent-reflect?id=1035:::0100:

WALL SHEER FABRIC PANEL | 325

Metallised Textile | Transparent Reflect 0100

Overall W 1500mm H 4000mm x 5mm

Kvadrat Textiles

https://www.kvadrat.dk/en/products/curtains/1035-transparent-reflect?id=1035:::0100:

HEAVY DUTY EYELET | 11,000 | 34 per panel

Steel Eyelet and Washer D 100mm x D 10mm

Kvadrat Textiles

https://www.kvadrat.dk/en/products/curtains/1035-transparent-reflect?id=1035:::0100:

HEAVY DUTY CABLE TIE | 11,000 | 34 per panel

Yellow Nylon H 400mm x W 10mm x D 5mm Amazon

https://www.amazon.co.uk/Oksdown-Yellow-200mm×76mm-Plastic-Locking/dp/B0BWTXTFL7?source=ps-sl-shoppingads-lpcontext&ref_=fplfs&smid=A3IG7HF2JWOAD3&th=1

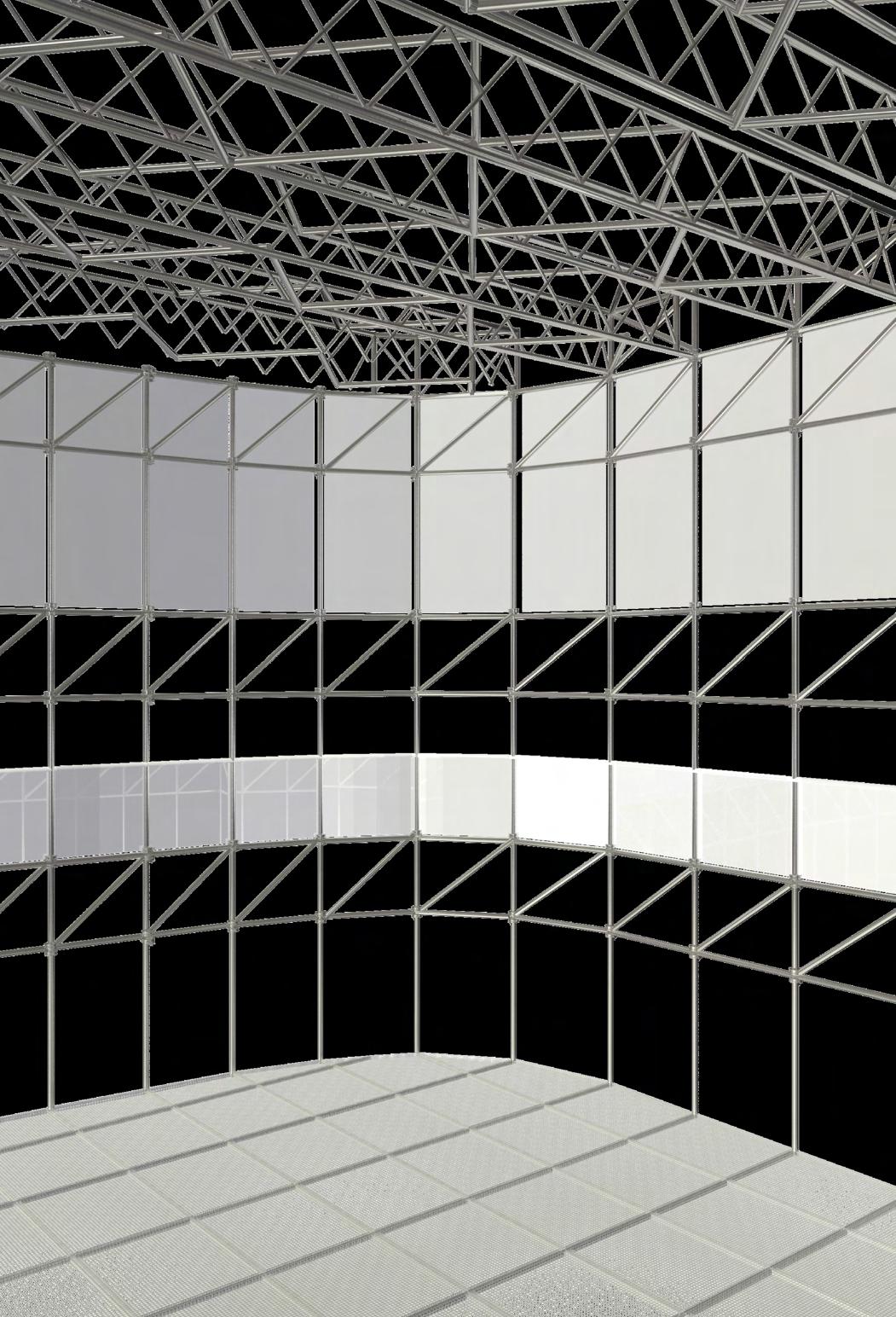

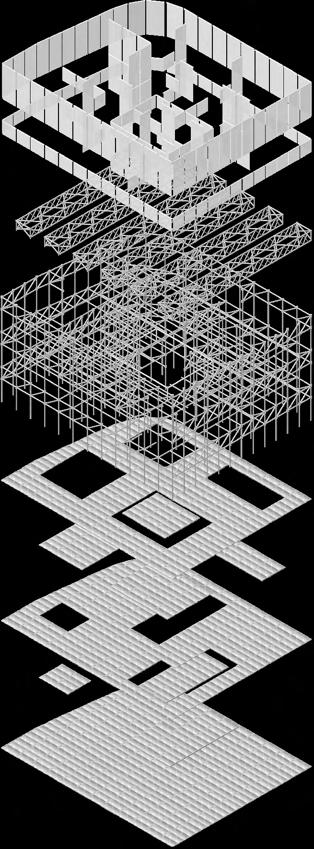

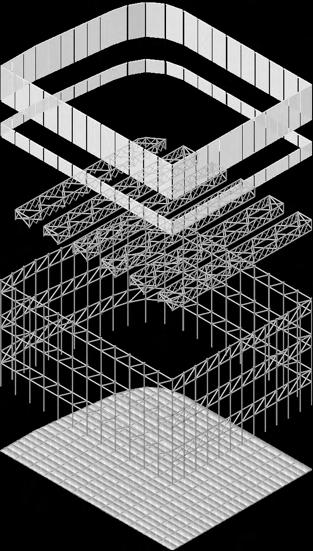

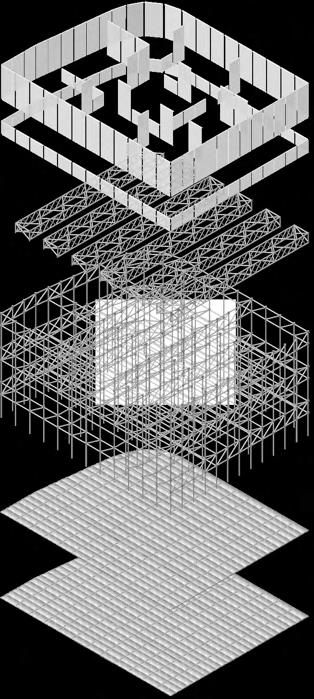

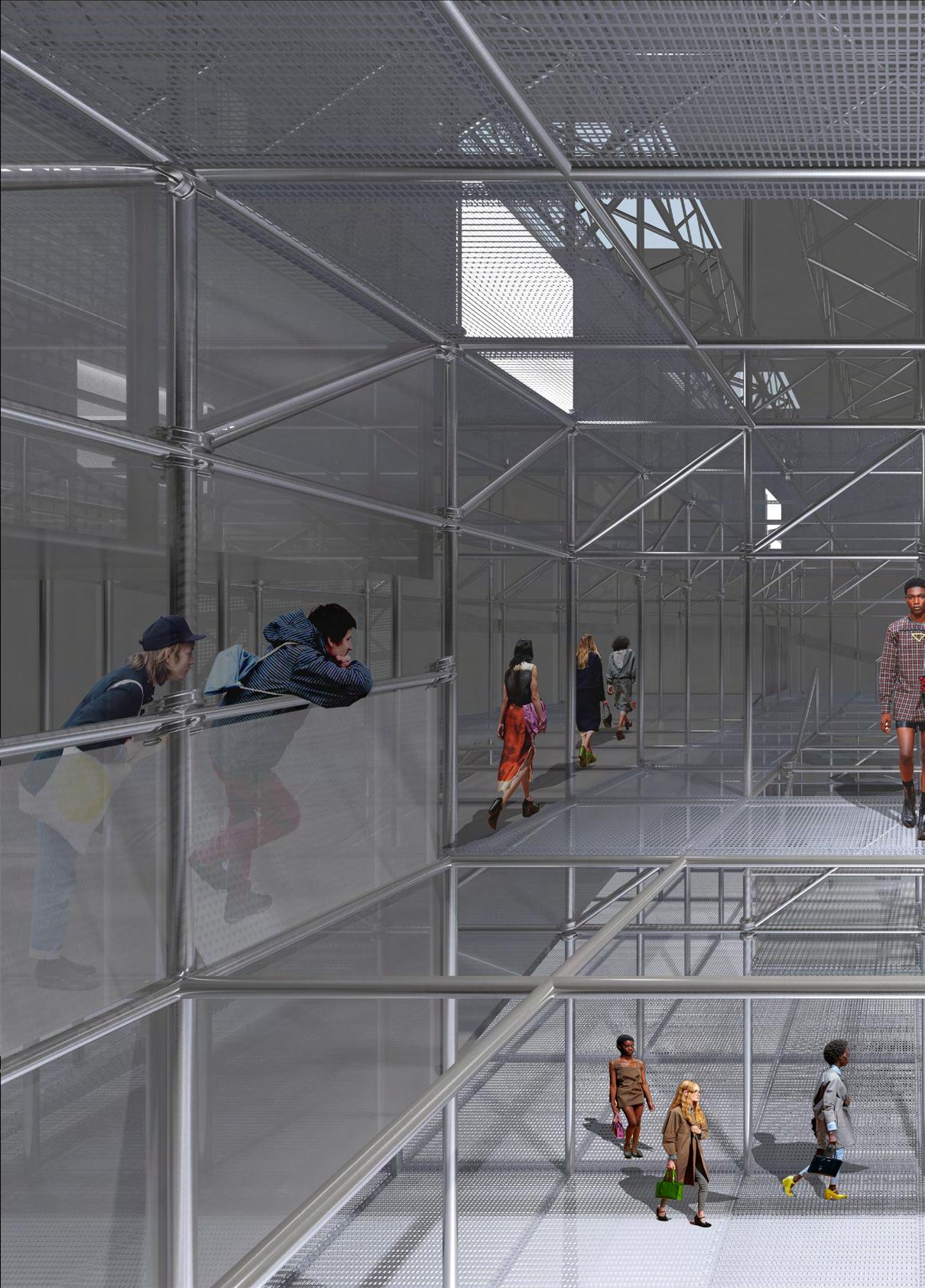

MATERIAL + DETAIL | EXHIBITION STRUCTURE

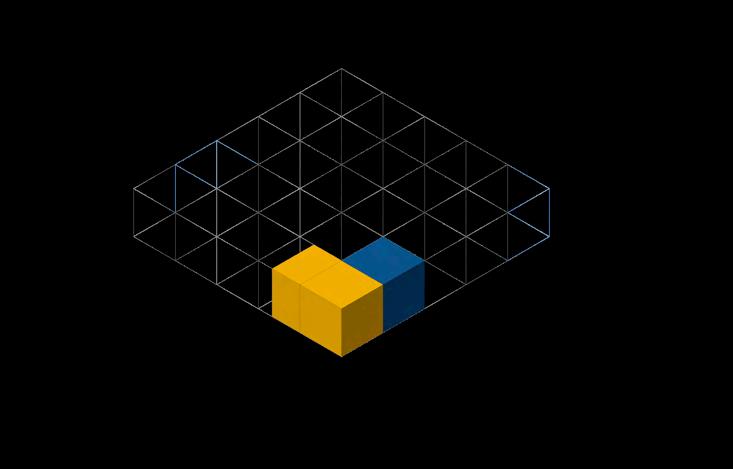

COMBINATION ONE | MINIMUM USE

The structure using the minimum amount of parts to construct one large space. The user is provided with the choice of full, half or no panels.

FABRIC PANELS STRUTS SCAFFOLDING FLOOR TILES

MATERIAL + DETAIL | EXHIBITION STRUCTURE

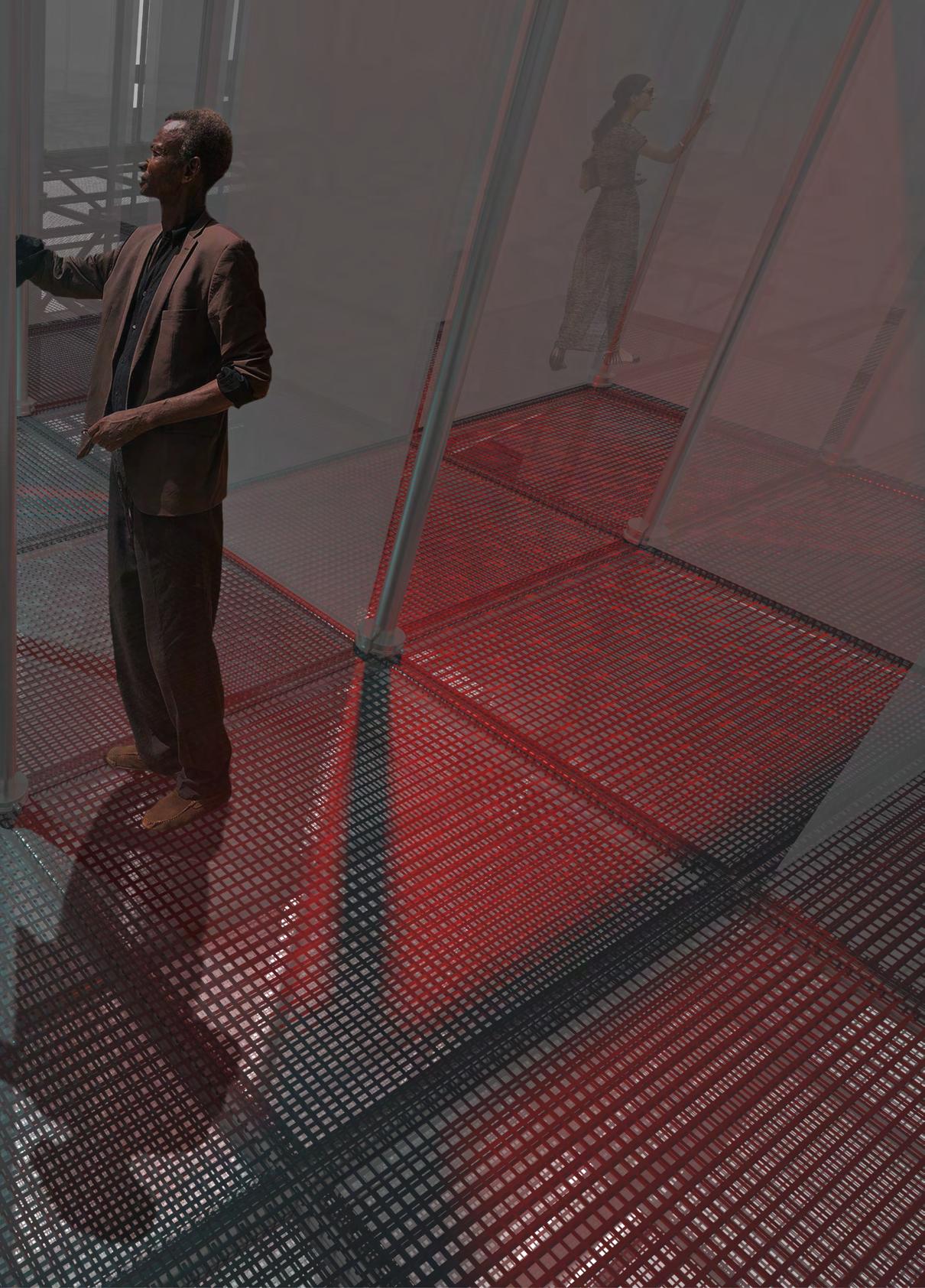

COMBINATION TWO | MAXIMUM USE

The space at its fullest with all scaffolding poles,floor tiles and fabric dividers in place. Sheer fabric panels can be used to subtly divide the space when used singlely or double up to change the translucenty of the material.

FABRIC PANELS STRUTS SCAFFOLDING FLOOR TILES

MATERIAL + DETAIL | EXHIBITION STRUCTURE

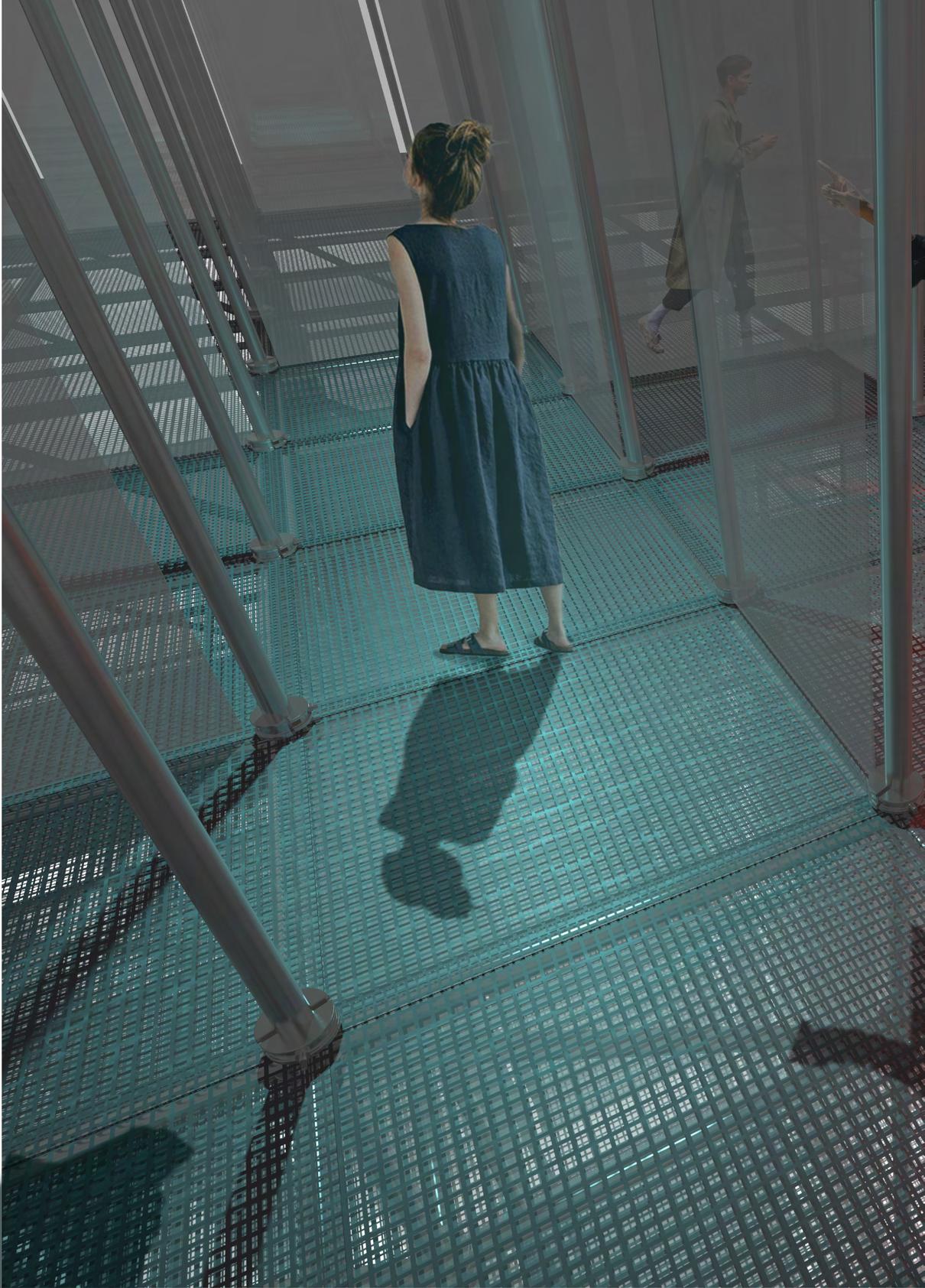

COMBINATION THREE | VARIED USE

Using partitians and railings to divide or corner off pockets of space for a number of different uses. The removal of floor tiles provides the user with the ability to adjust floor levels or simply remove entirely creating voided space.
