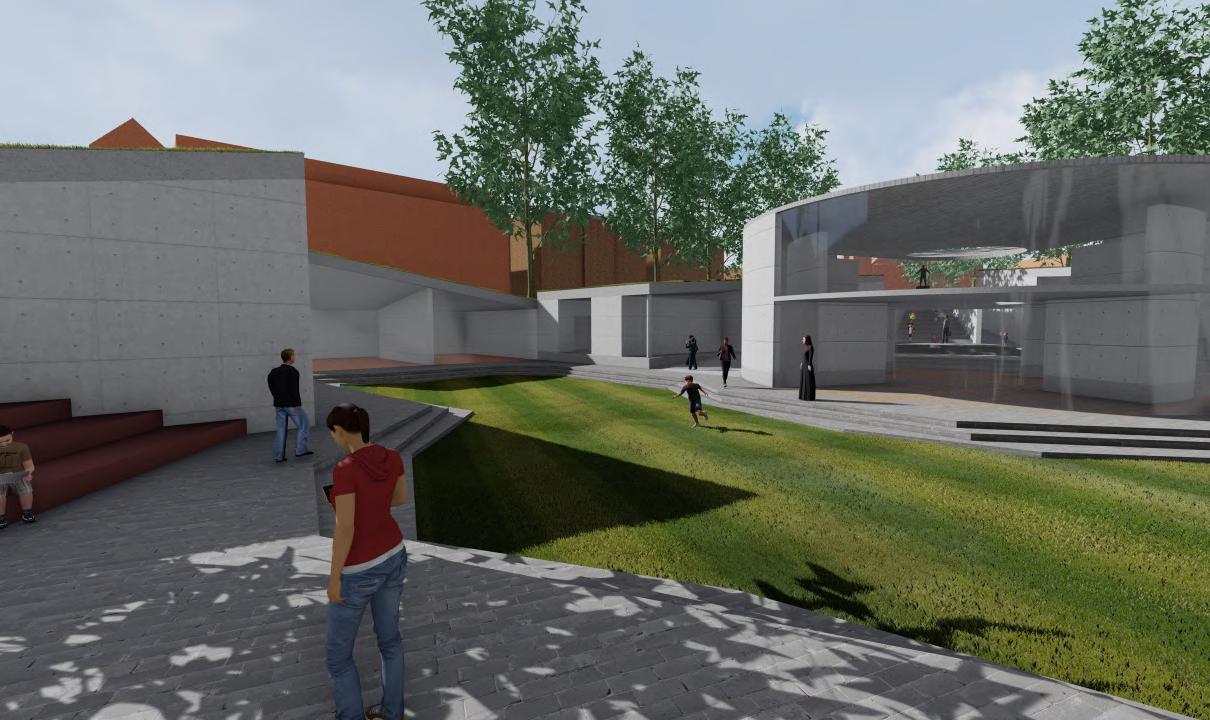

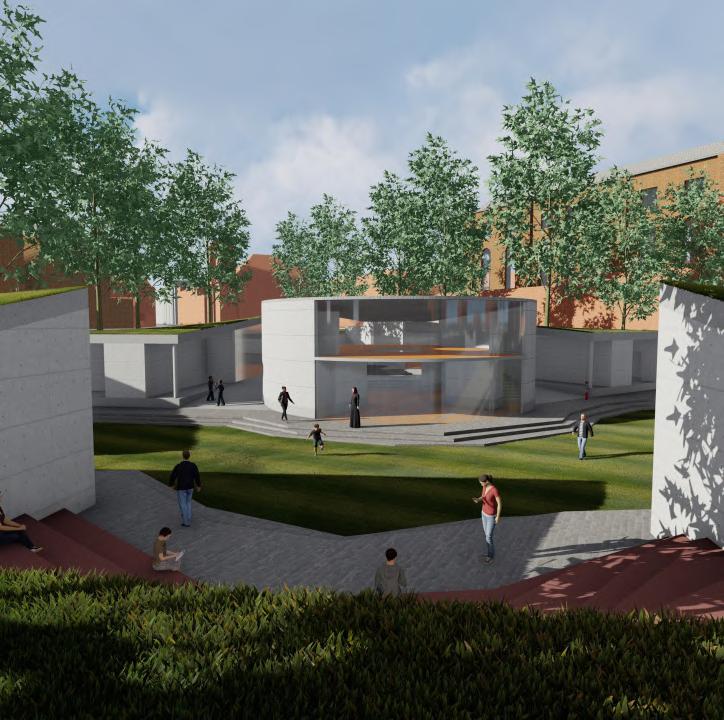

Neighbourhood Learning, Amsterdam
Learning Spaces, Beyond Schooling Semester 6
Tutors: Mitesh Panchal, Anagha Joshi

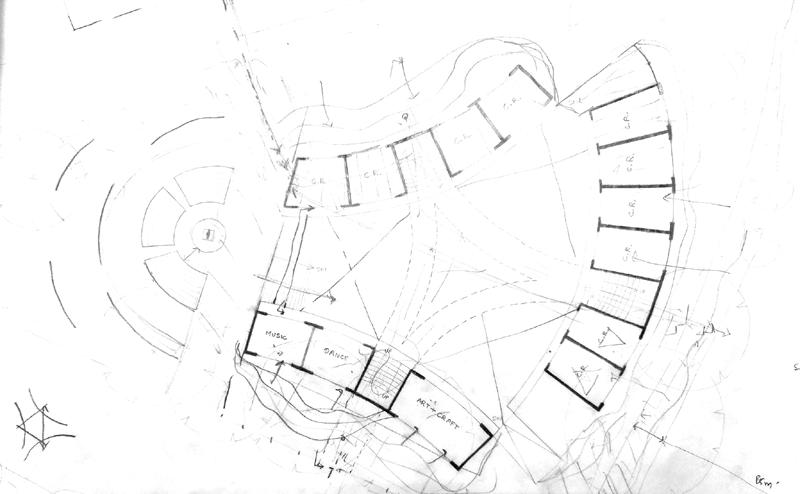

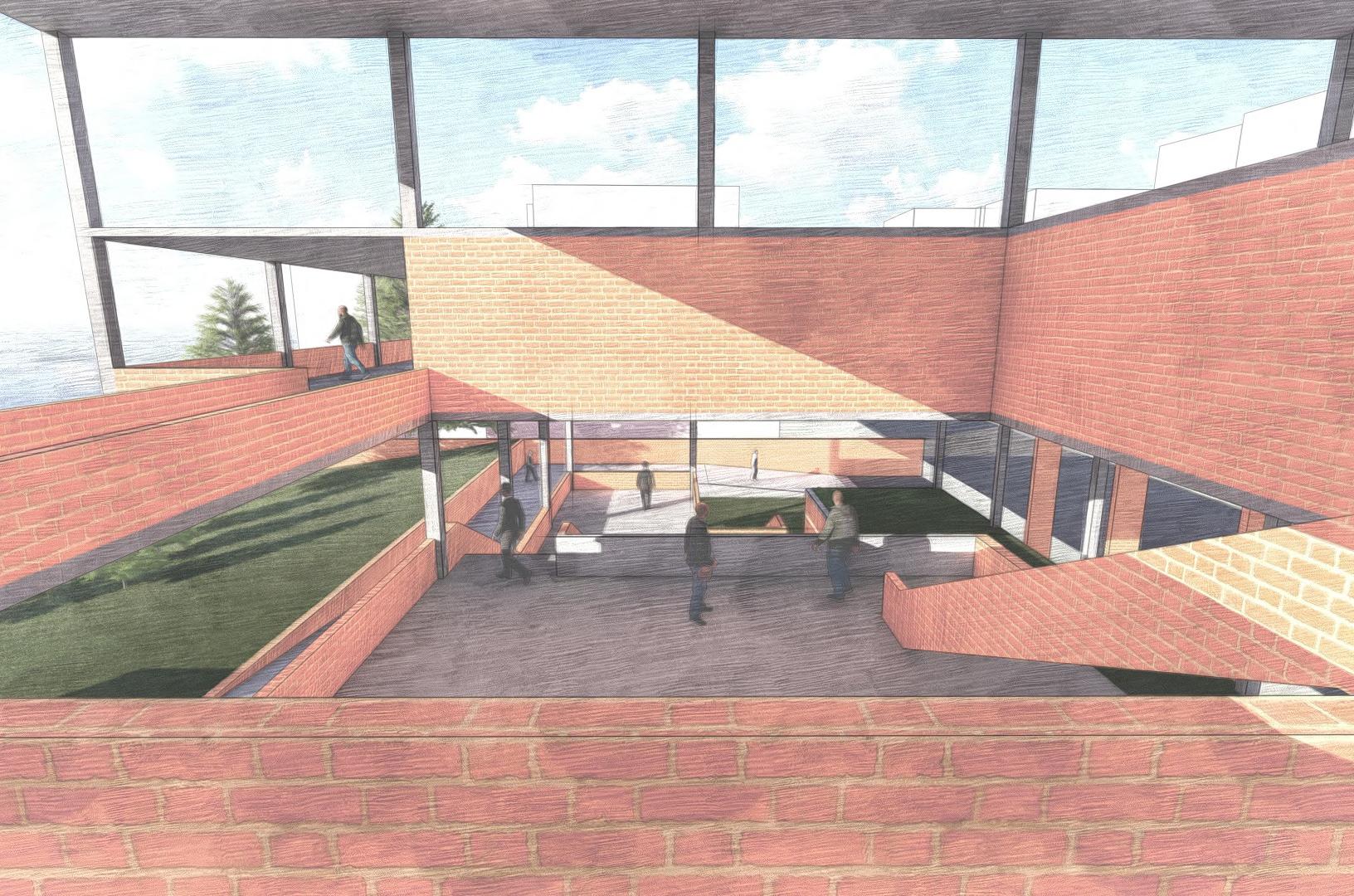

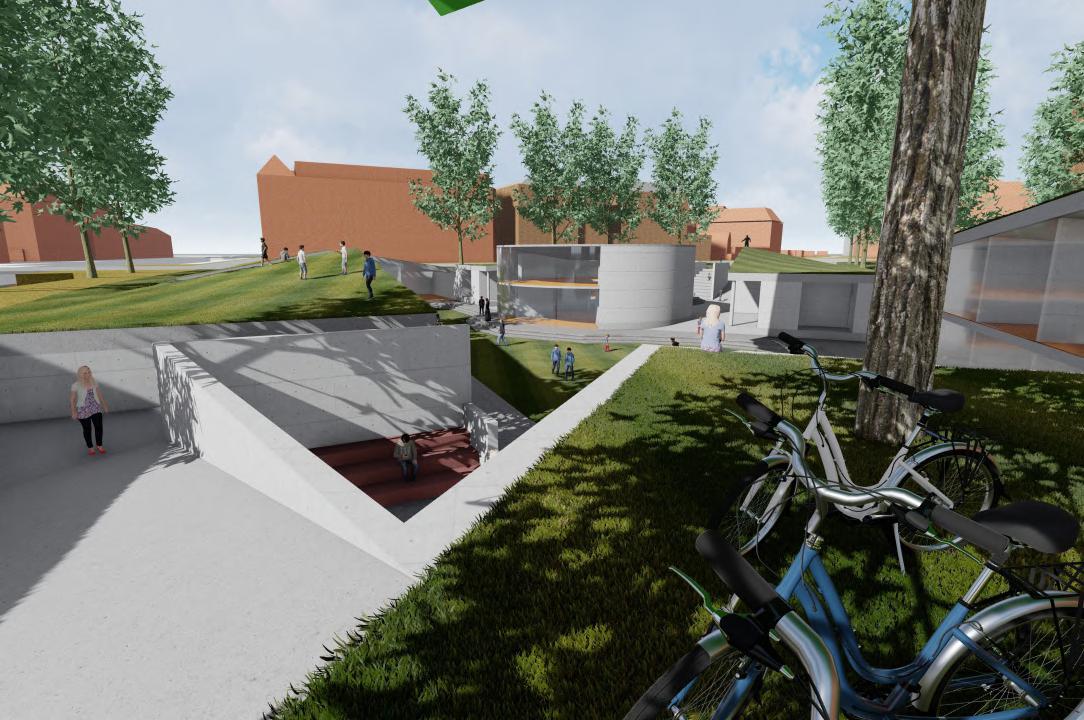

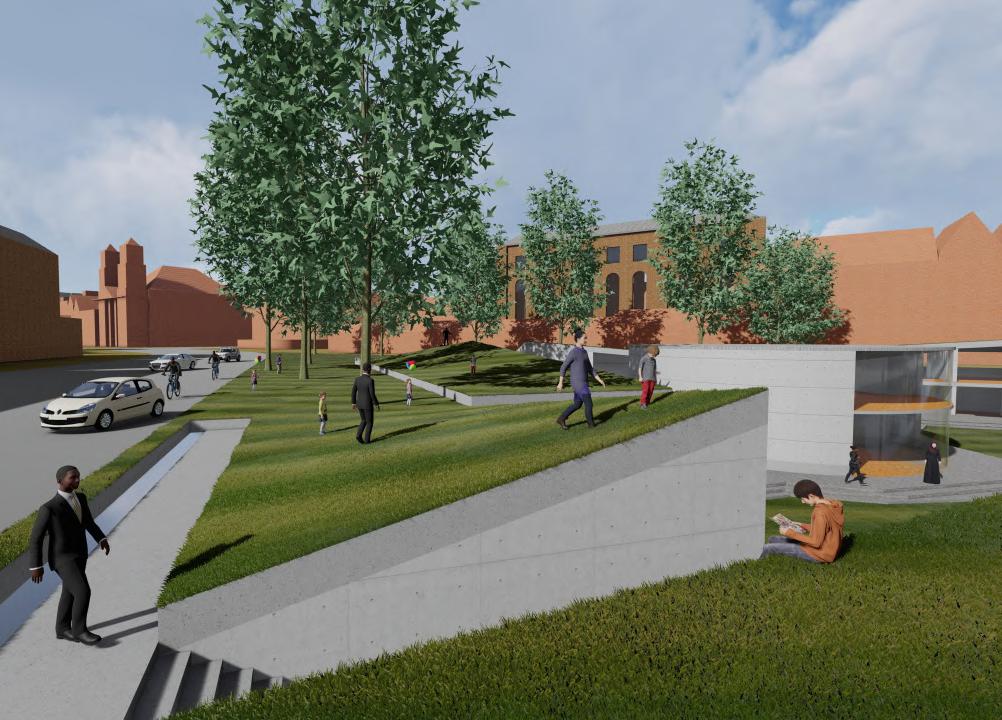

Located in a primarily Jewish community and surrounded by structures of historical importance, including the Dokwerker statue in the site and the Portuguese Synagogue. Respecting the built context, the existing vegetation and history; the entire proposal is submerged into the ground, and the functions are divided based on public usage, with the central library and exhibition building interacting with the statue and the main schooling area. The geomorphic green roof is created to increase the community interaction with the school, and the form gives and impression of the school rising up from the ground - rising from the painful history towards a bright future
Scan for complete project

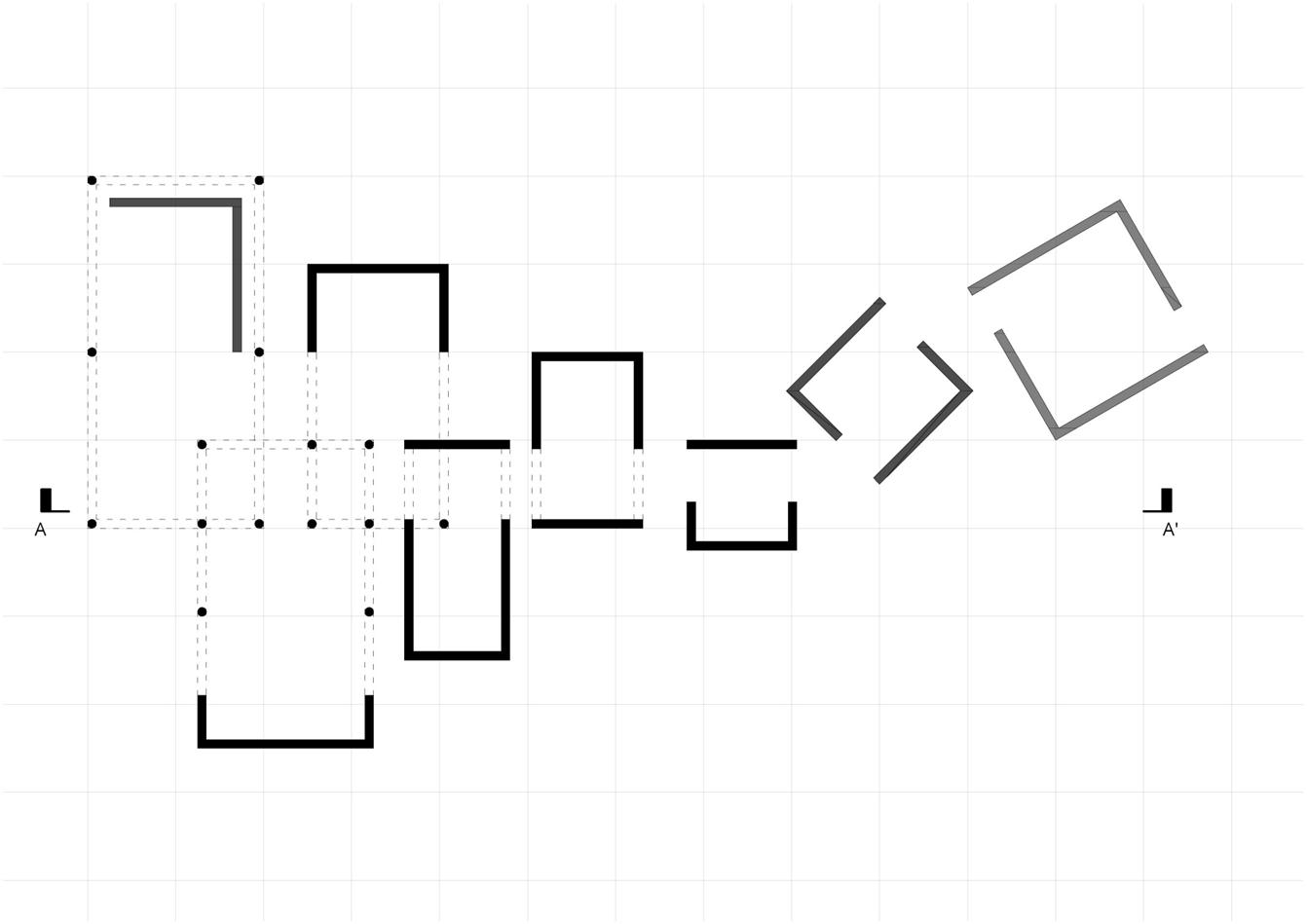

Forming a buillding zone by preserving the existing vegetation and along the grid. Going subterranean to preserve the sanctity of the statue
Adding Mass on the edges keeping the central space openresembling the context. The functions are divided based on the public usage

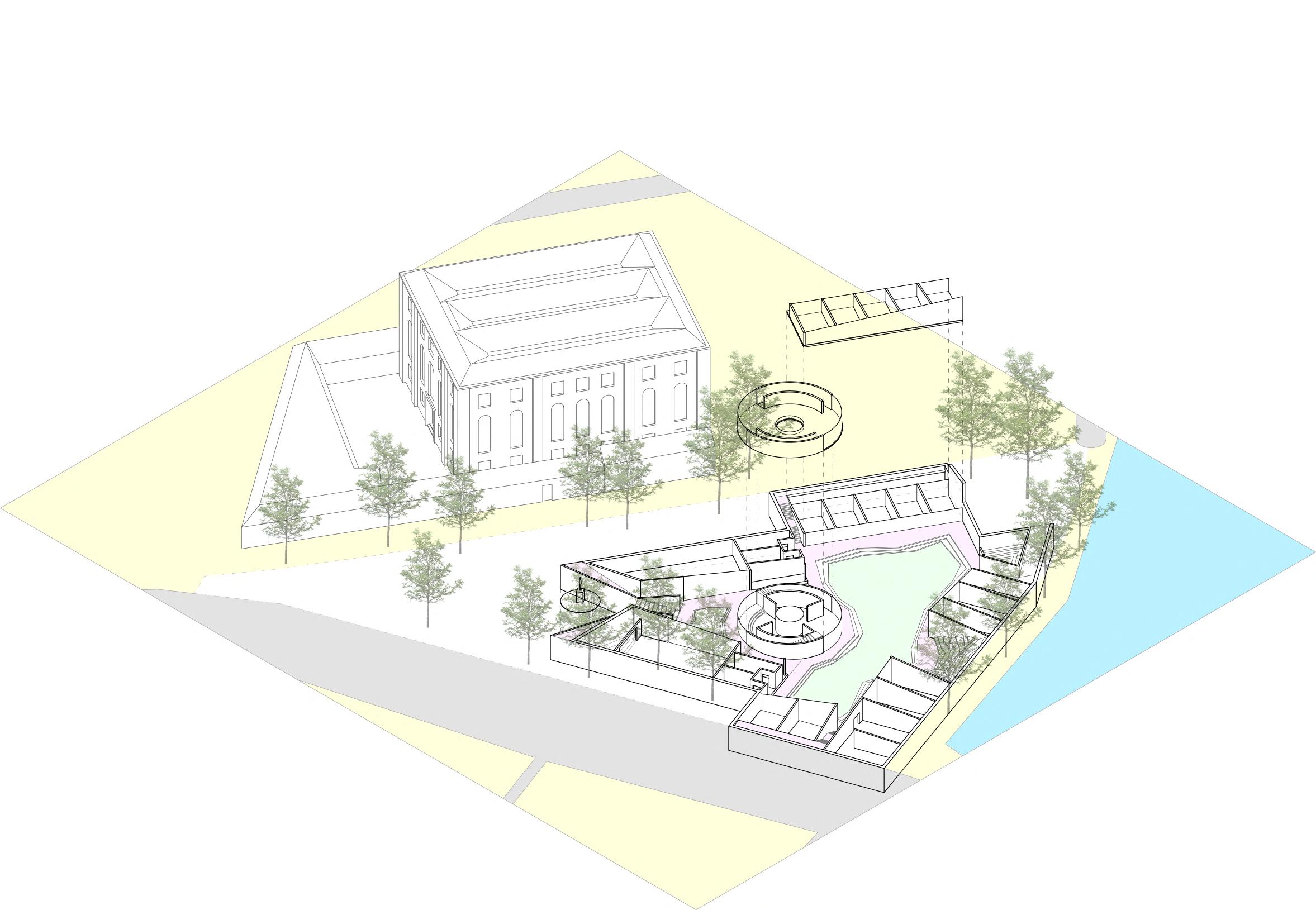

Adding walkways and plinth, and adding other details to the mass

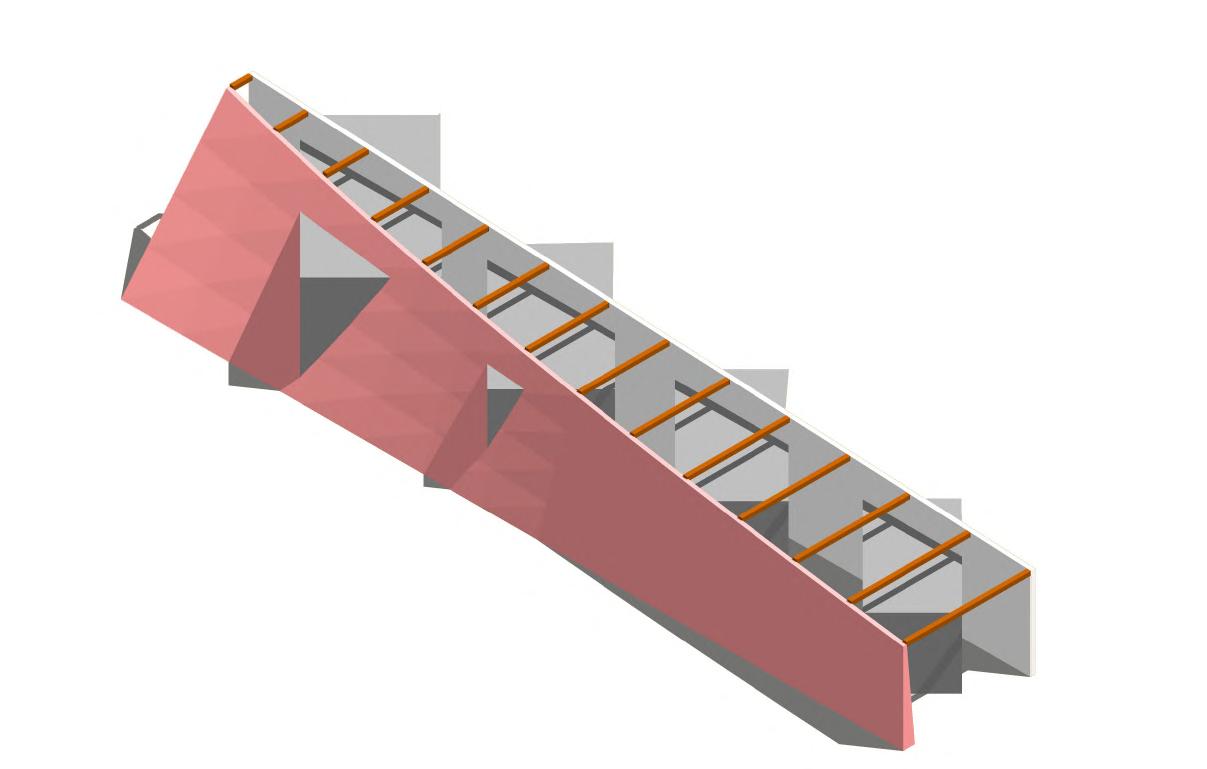

Adding the hyperbolic paraboloid green roofs to the built mass
Portfolio | Samyak Jain Neighbourhood Learning | Selected Works

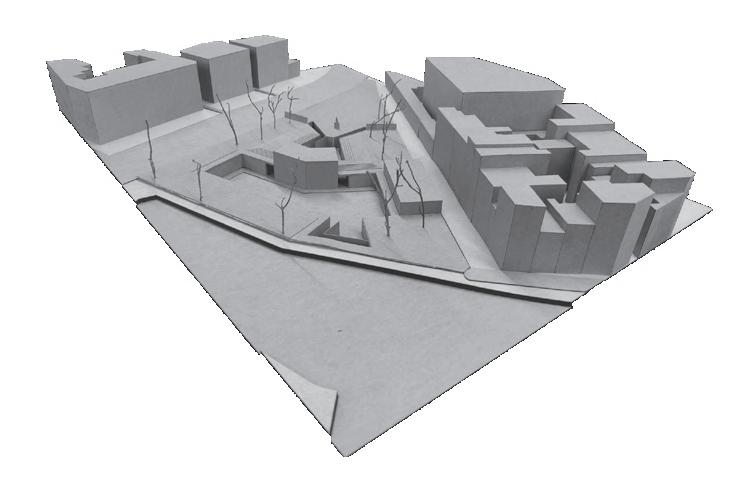

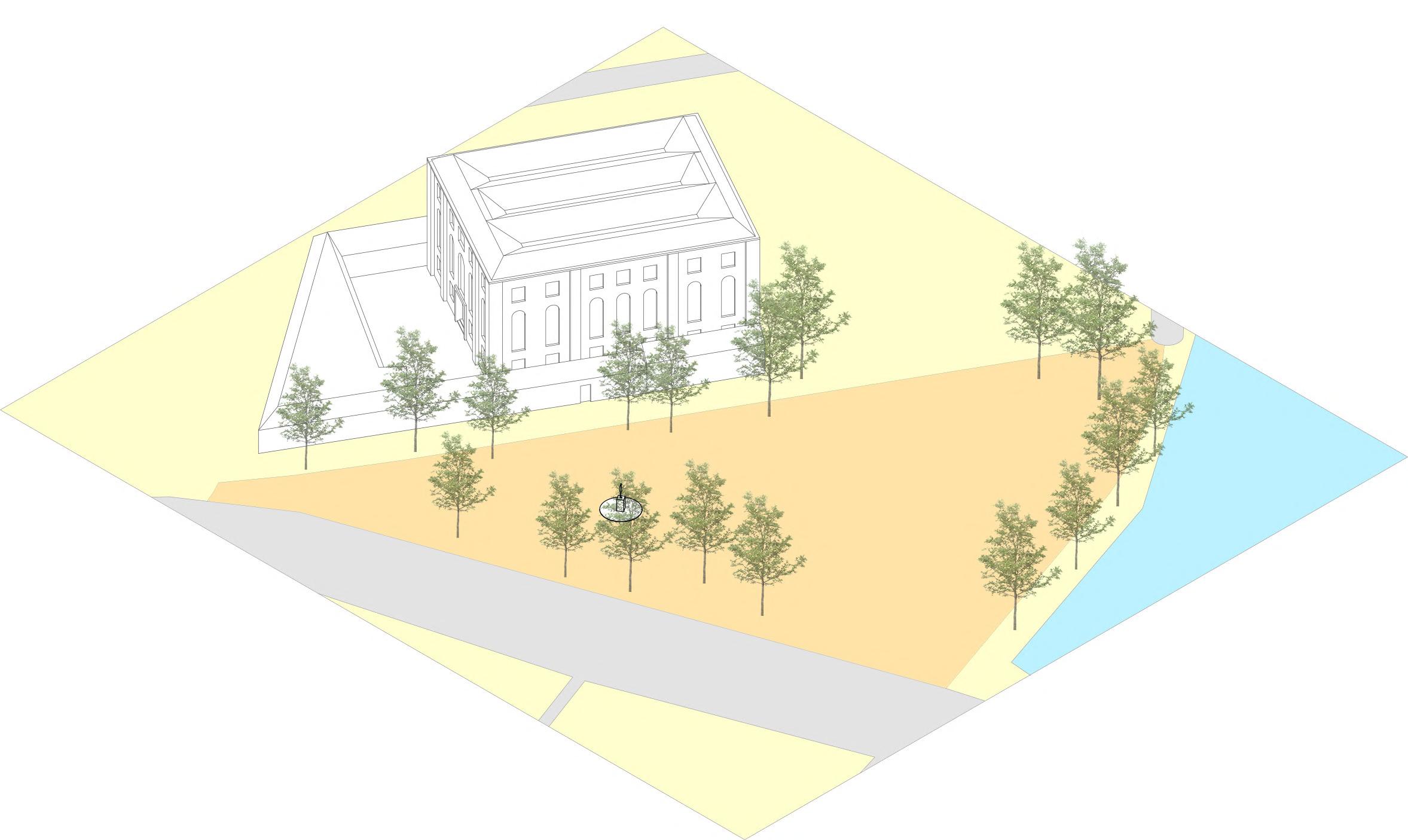

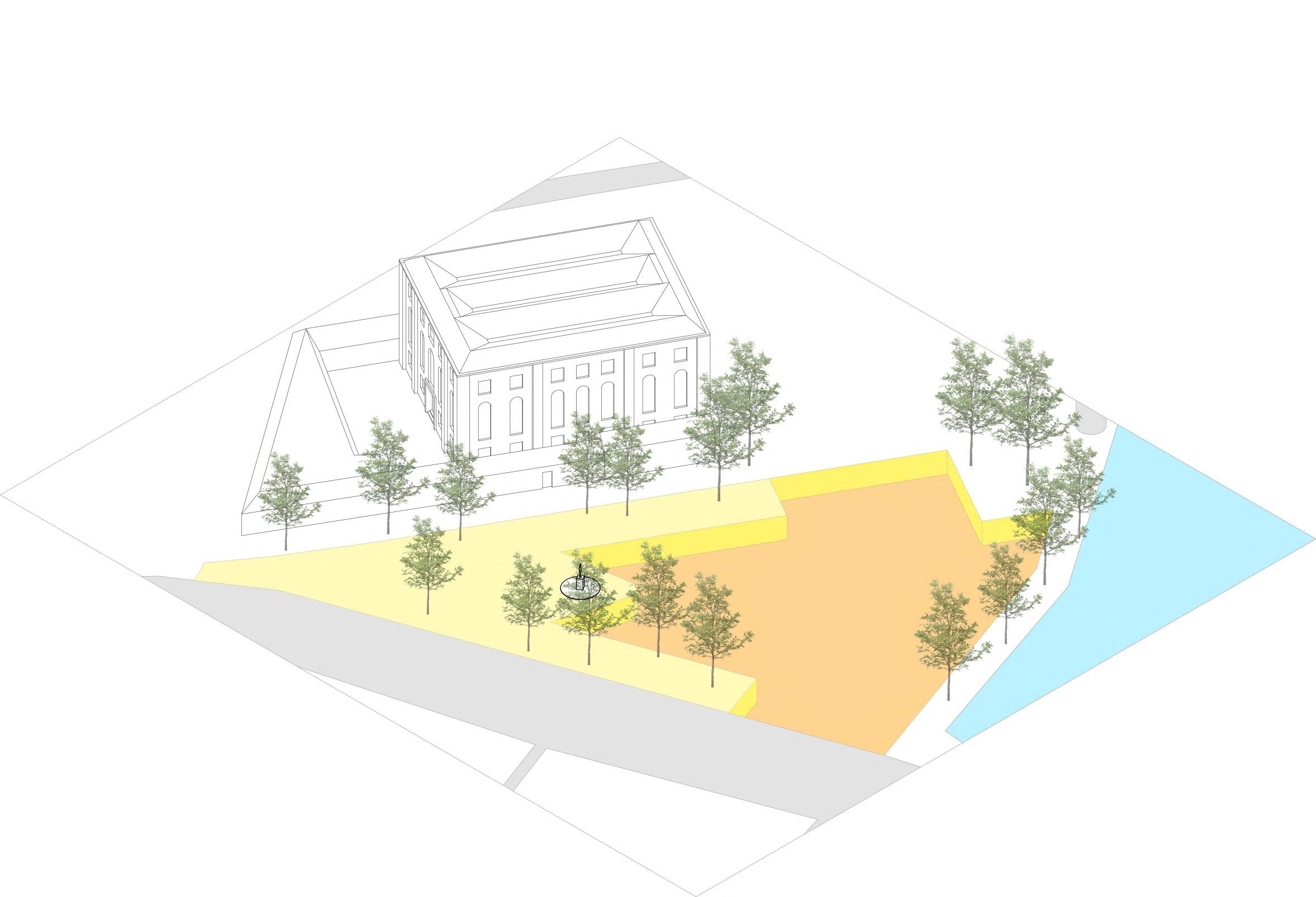

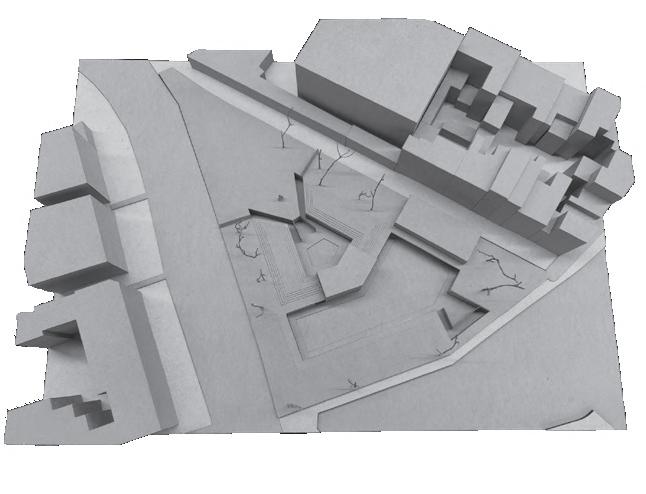

Existing Site- A playground located in a Jewish community with the Dokwerker Statue located in on the site

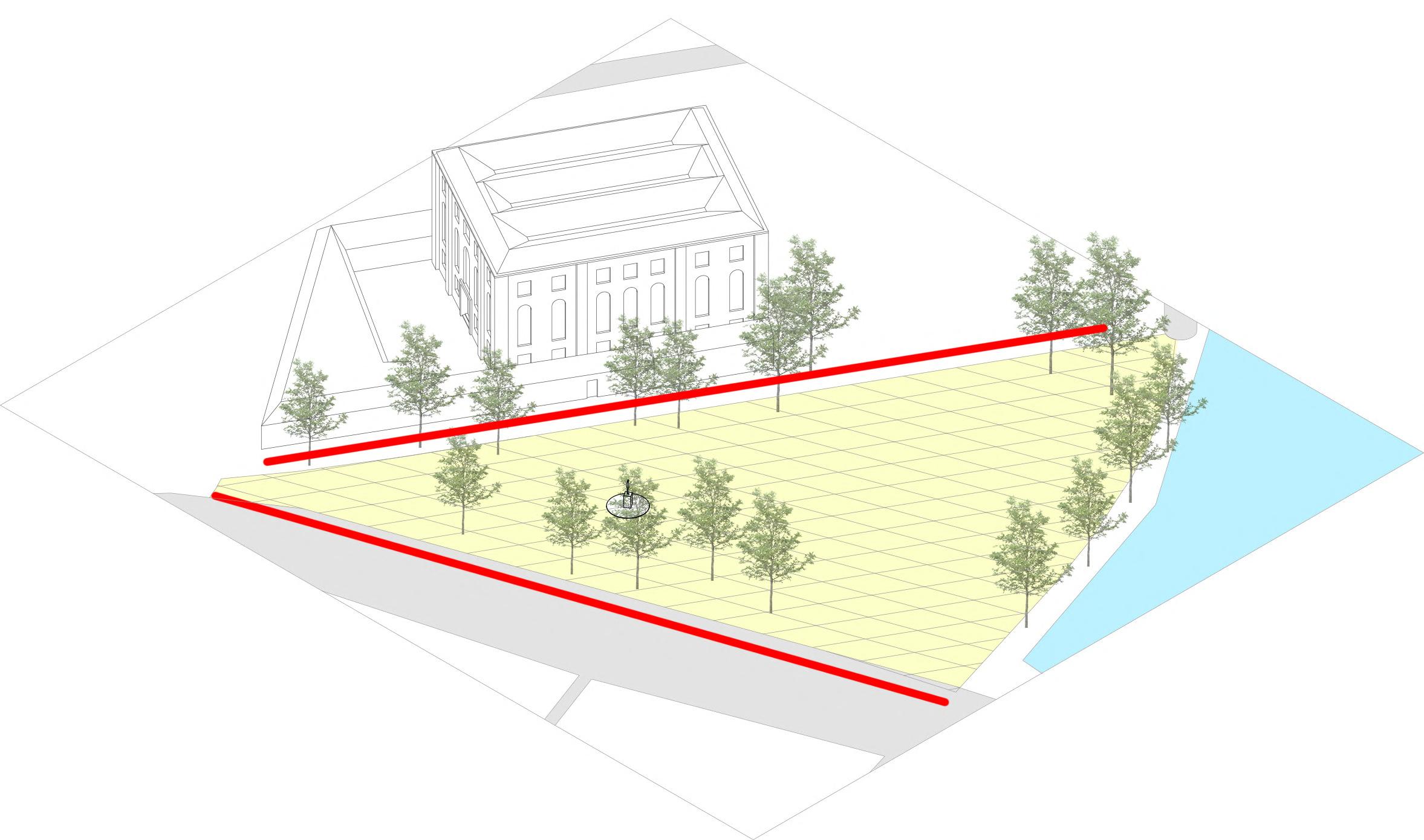

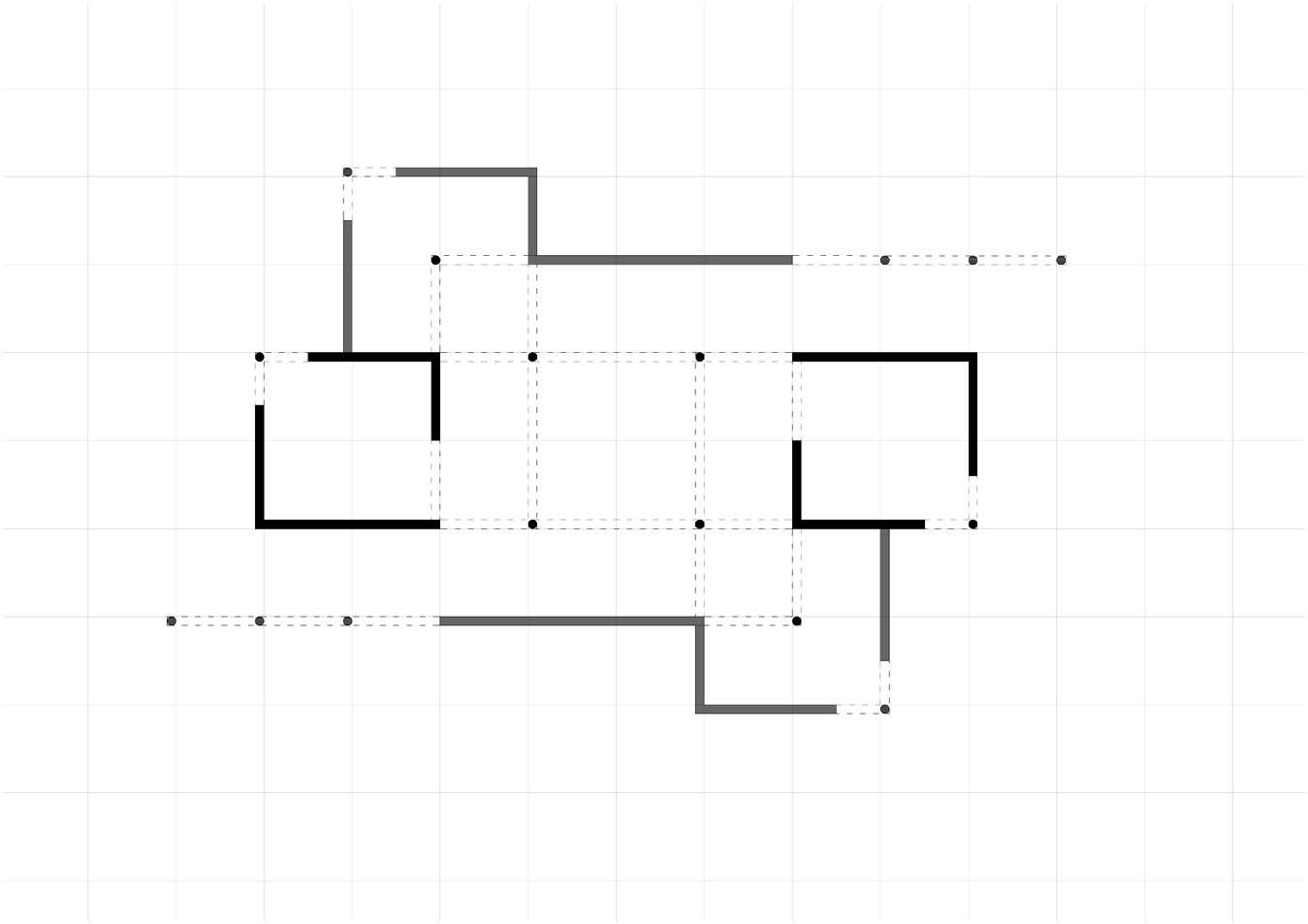

Following the grid by following the Axis of the Synagouge and walkway.
02 |

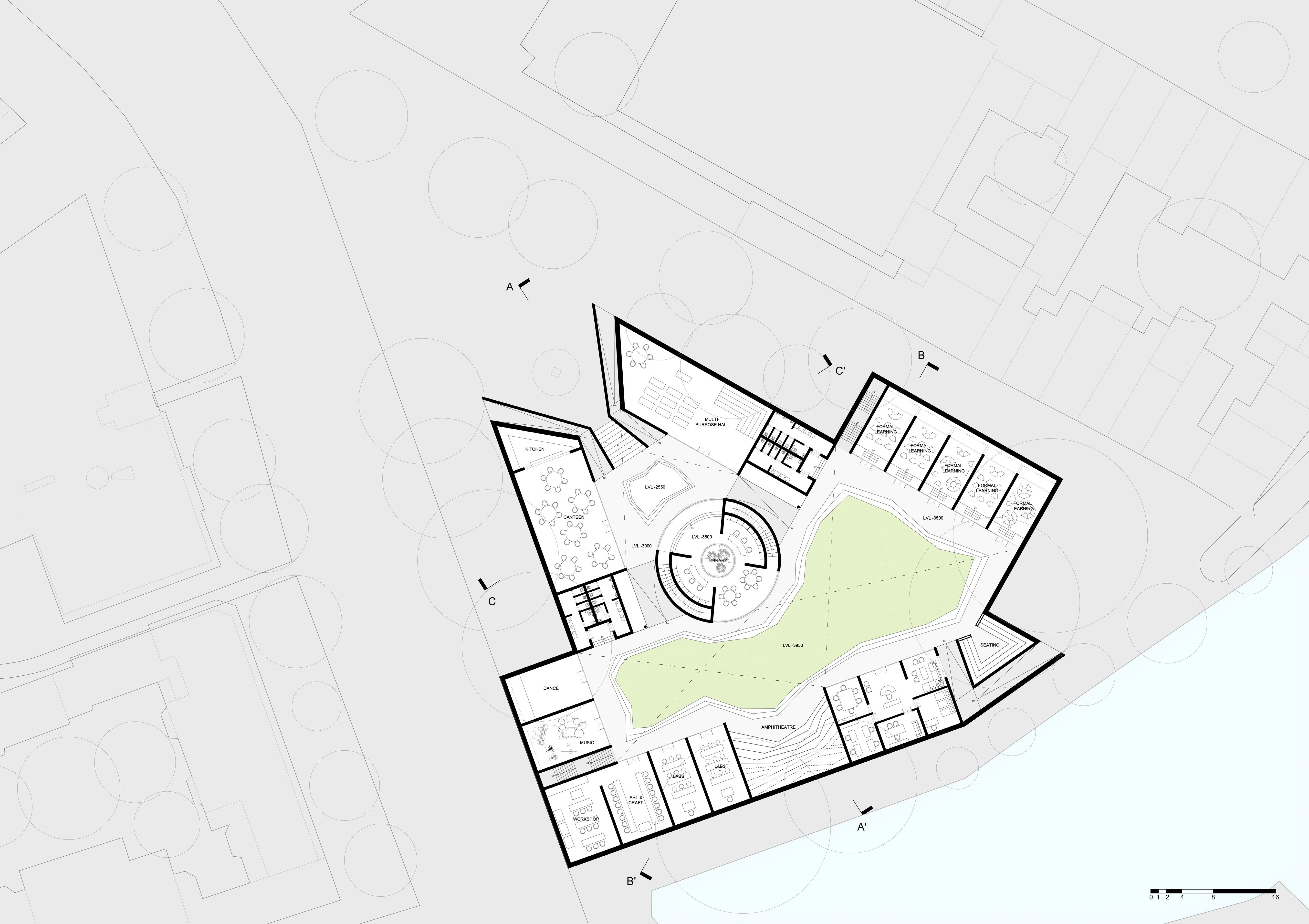

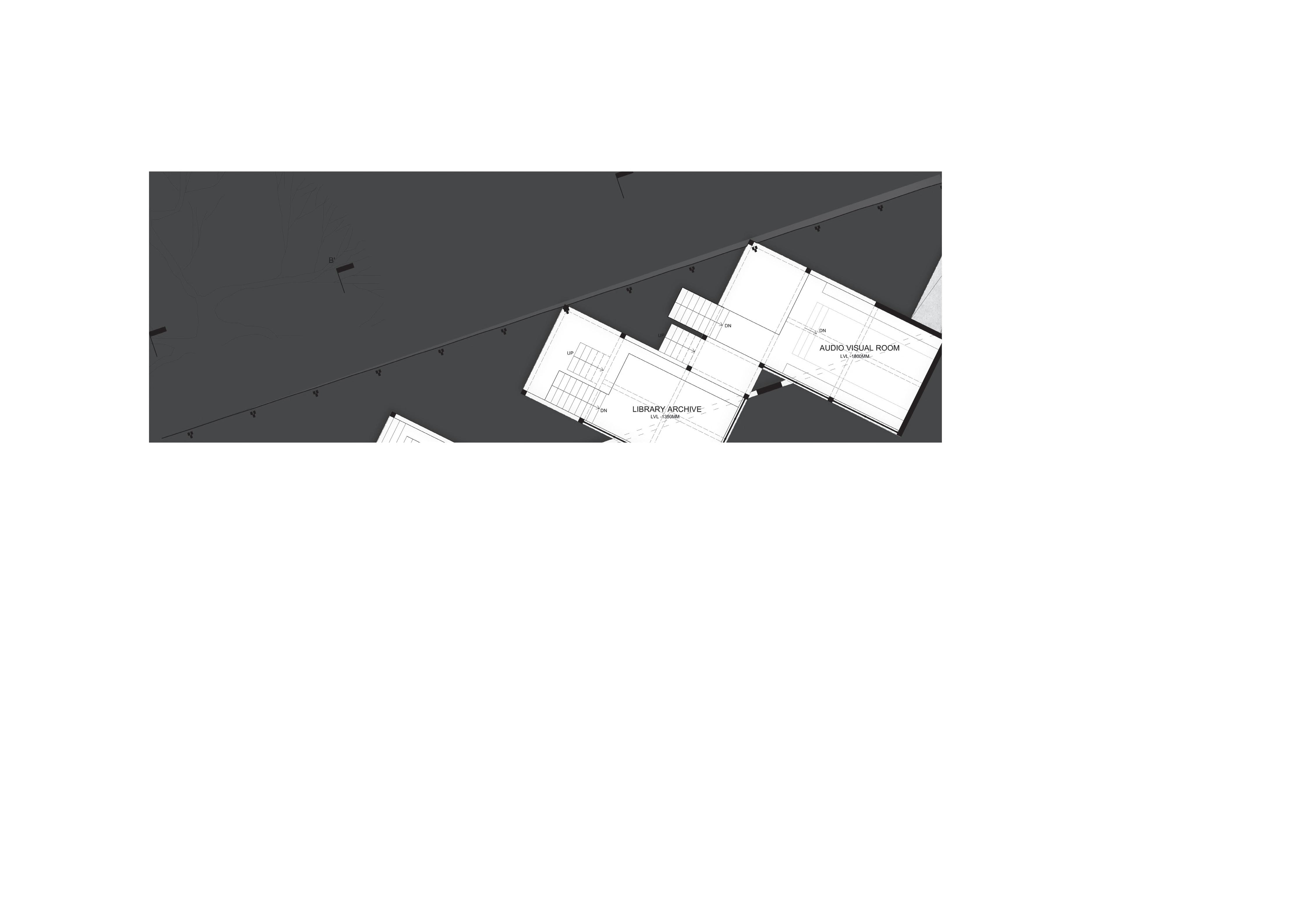

Ground Floor Plan N 0 2 1 8 4 16 | 03
Portfolio | Samyak Jain Neighbourhood Learning | Selected Works

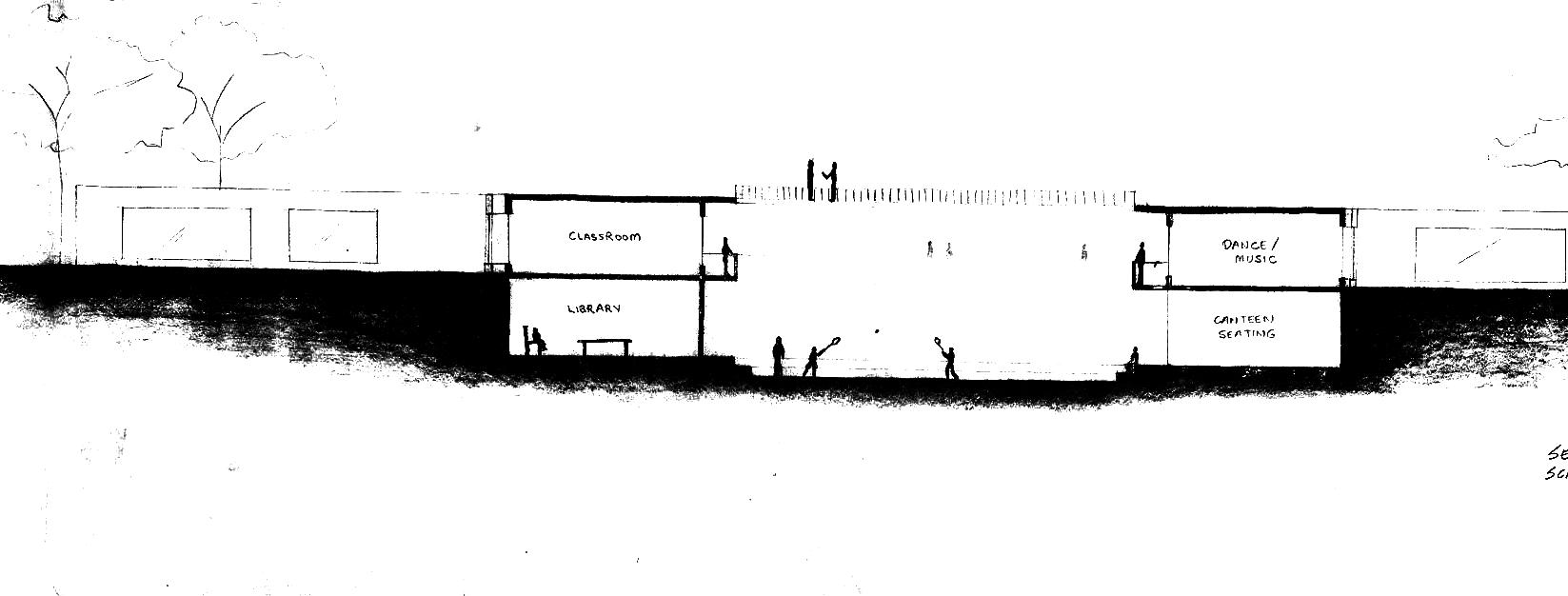

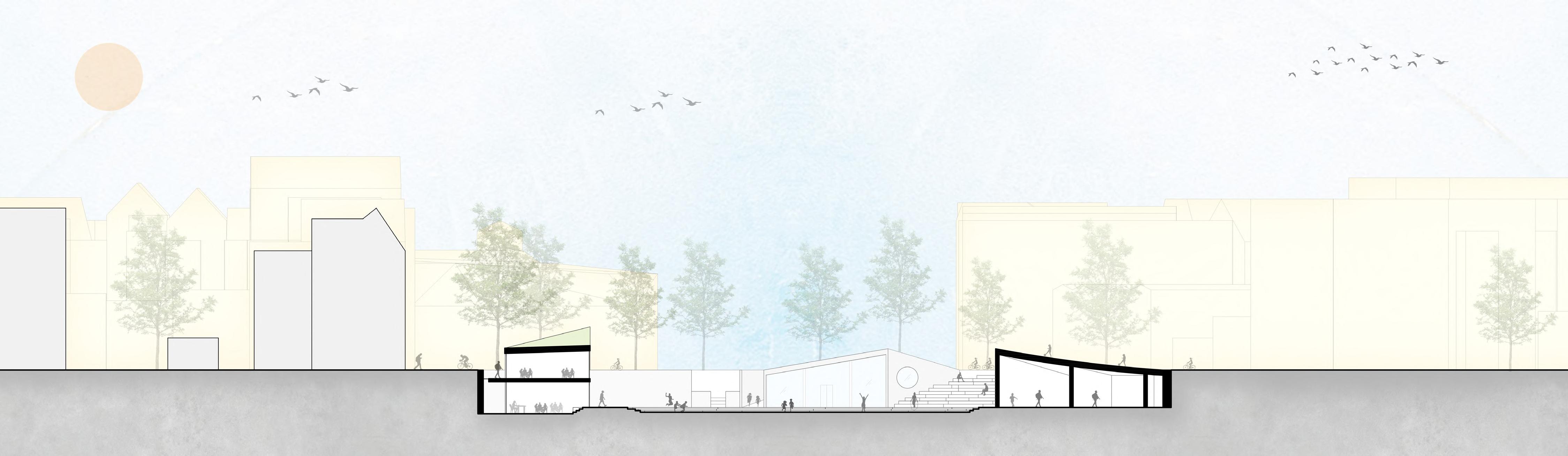

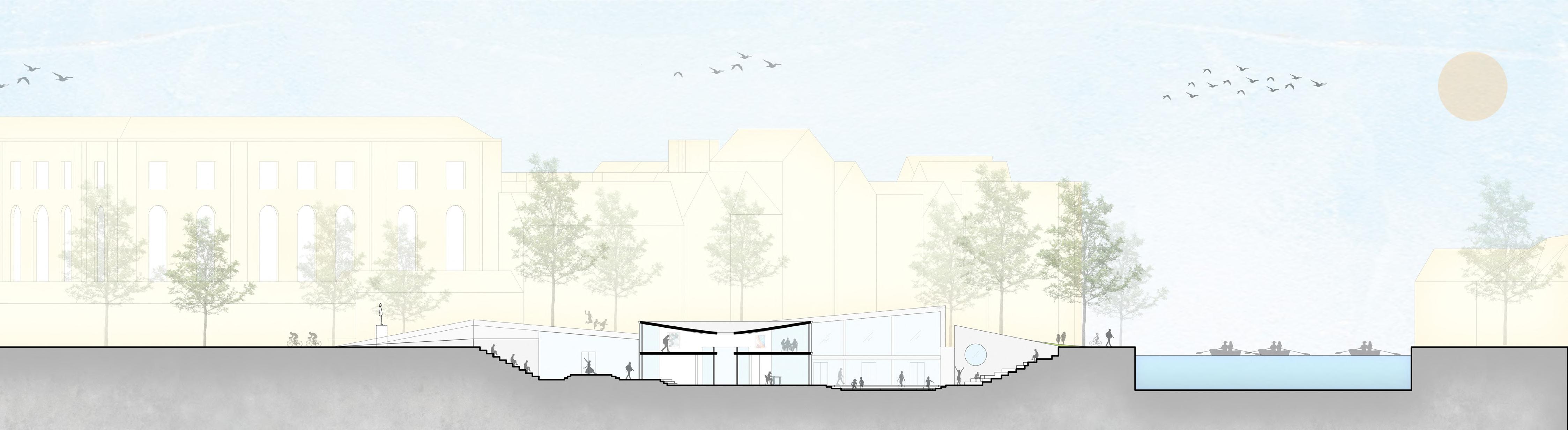

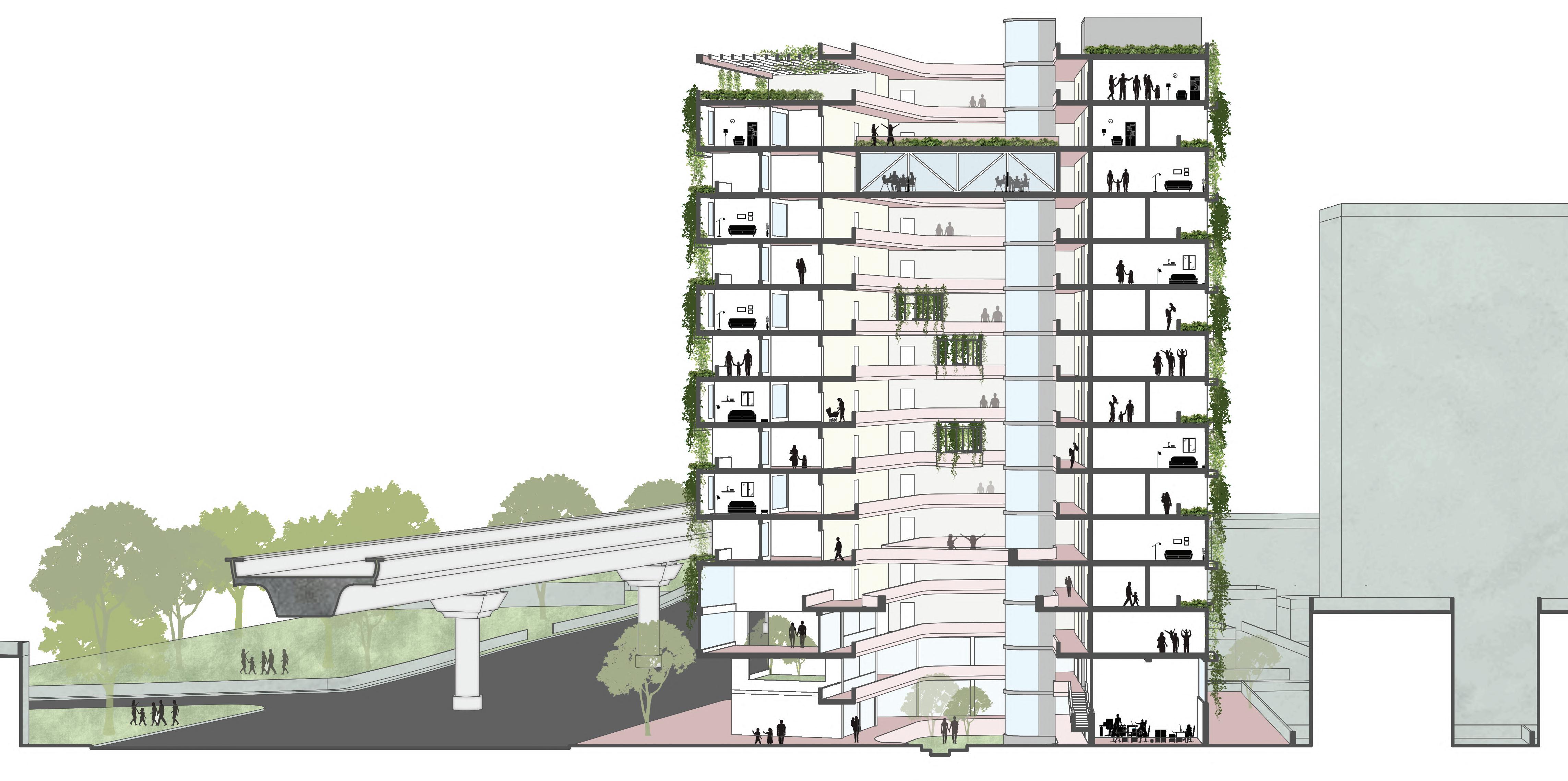

Section AA’

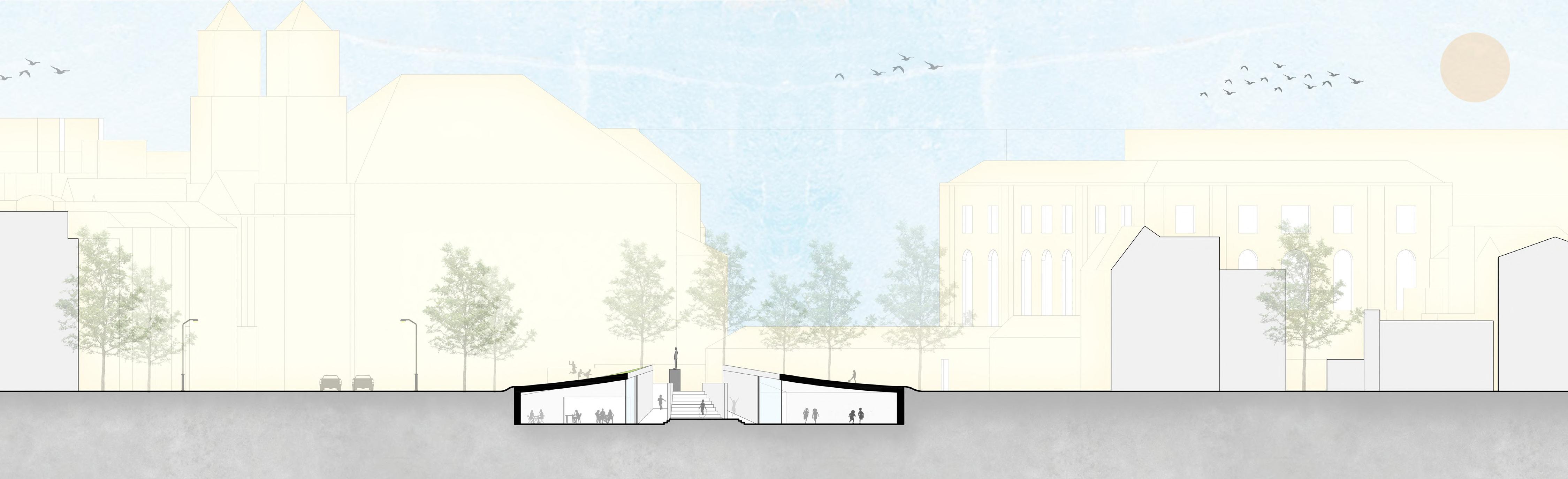

Section CC’
04 |
Section BB’

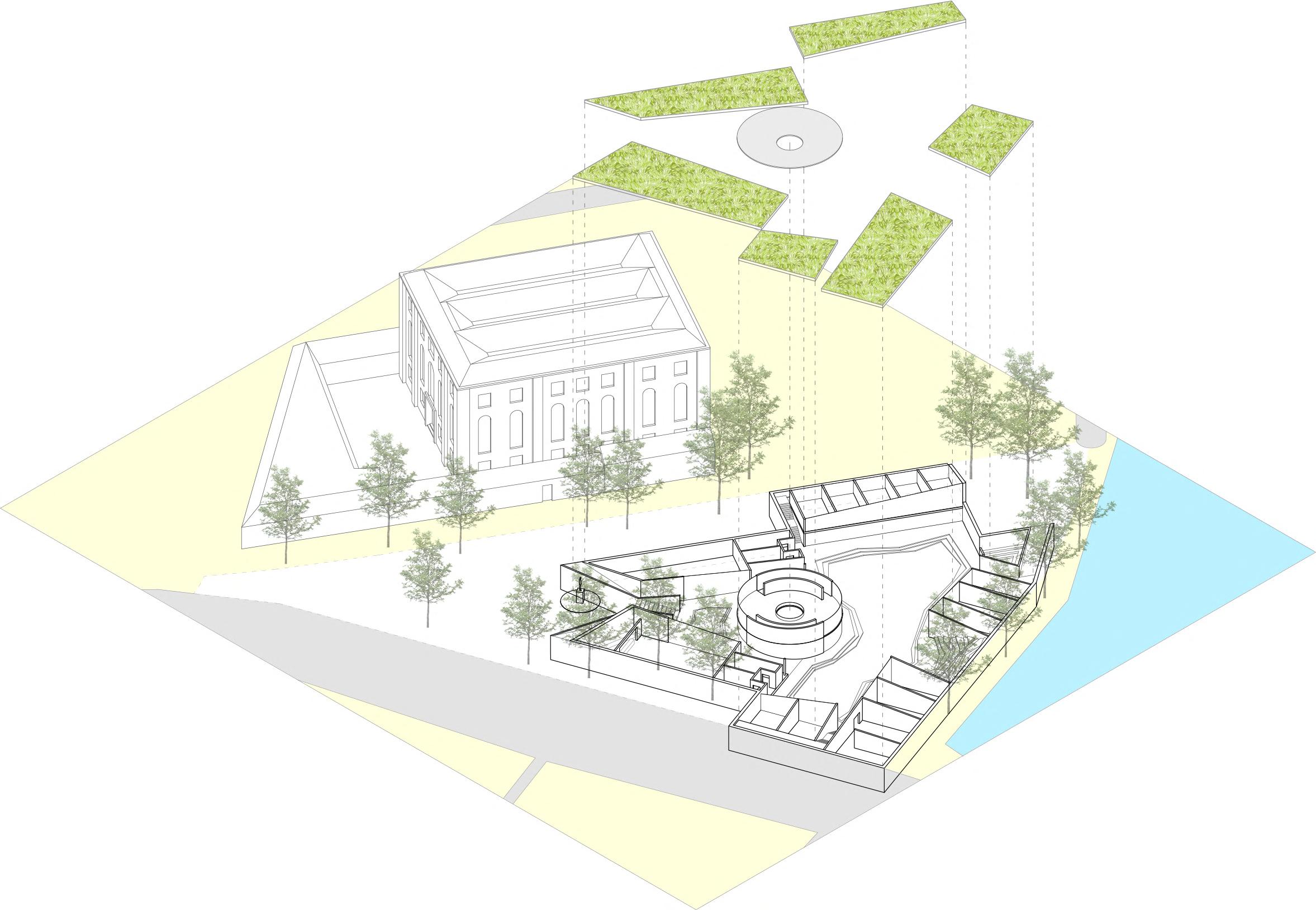

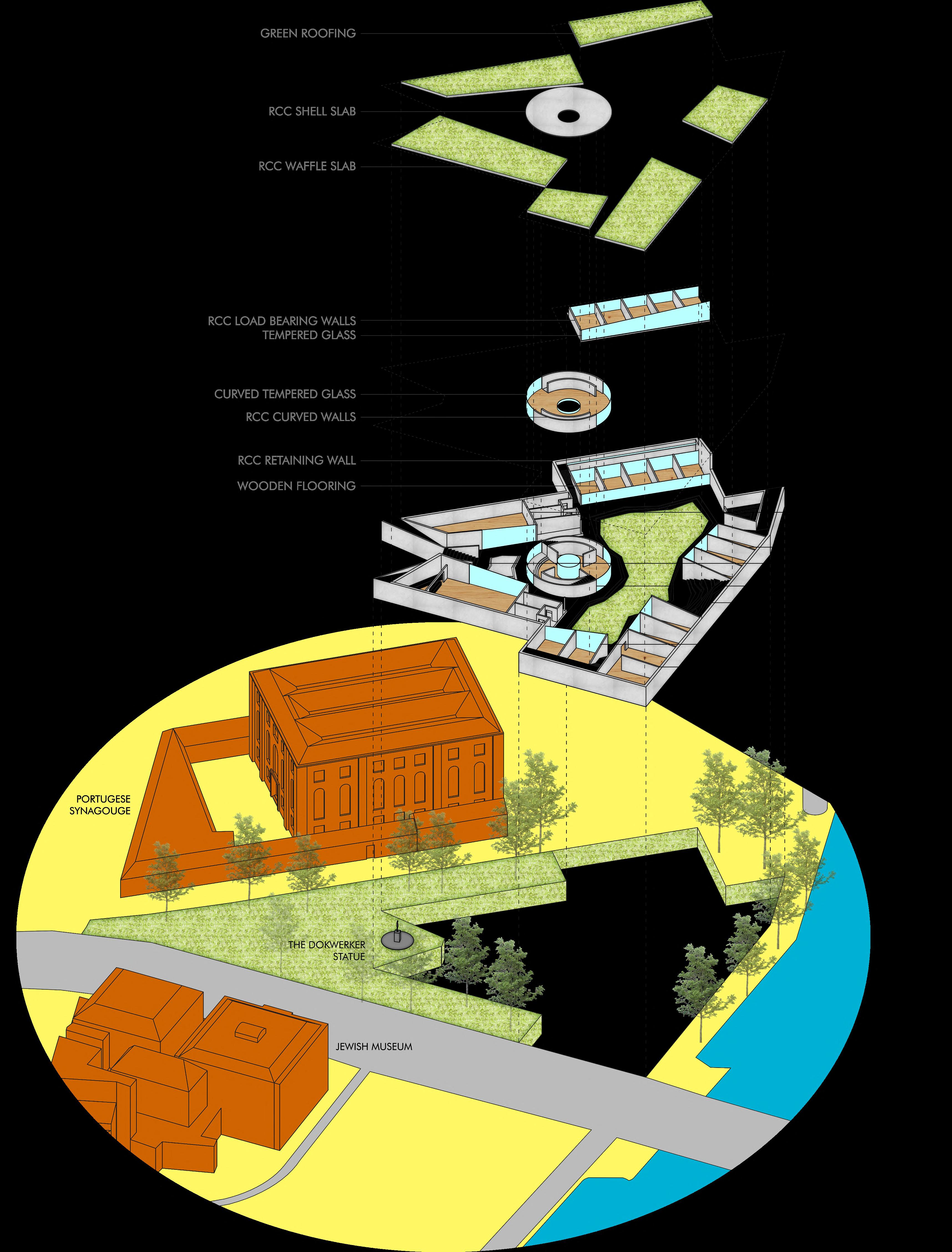

Portfolio | Samyak Jain Neighbourhood Learning | Selected Works Exploded View | 05

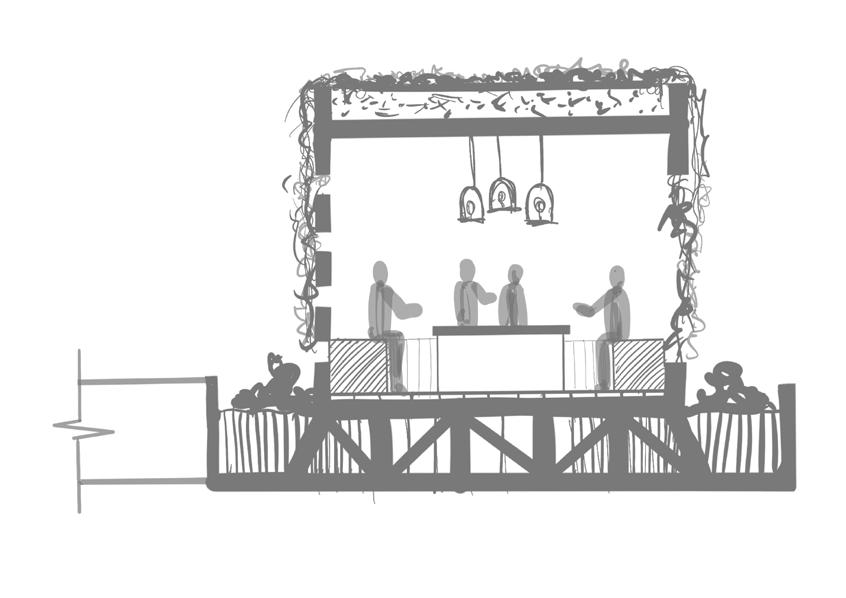

Floating Community ‘Pods’
Between Utopia and Reality : Reimaging Affordable Living for Millenials Semester 8
Tutors: Sandeep Amin, Shikha Parmar

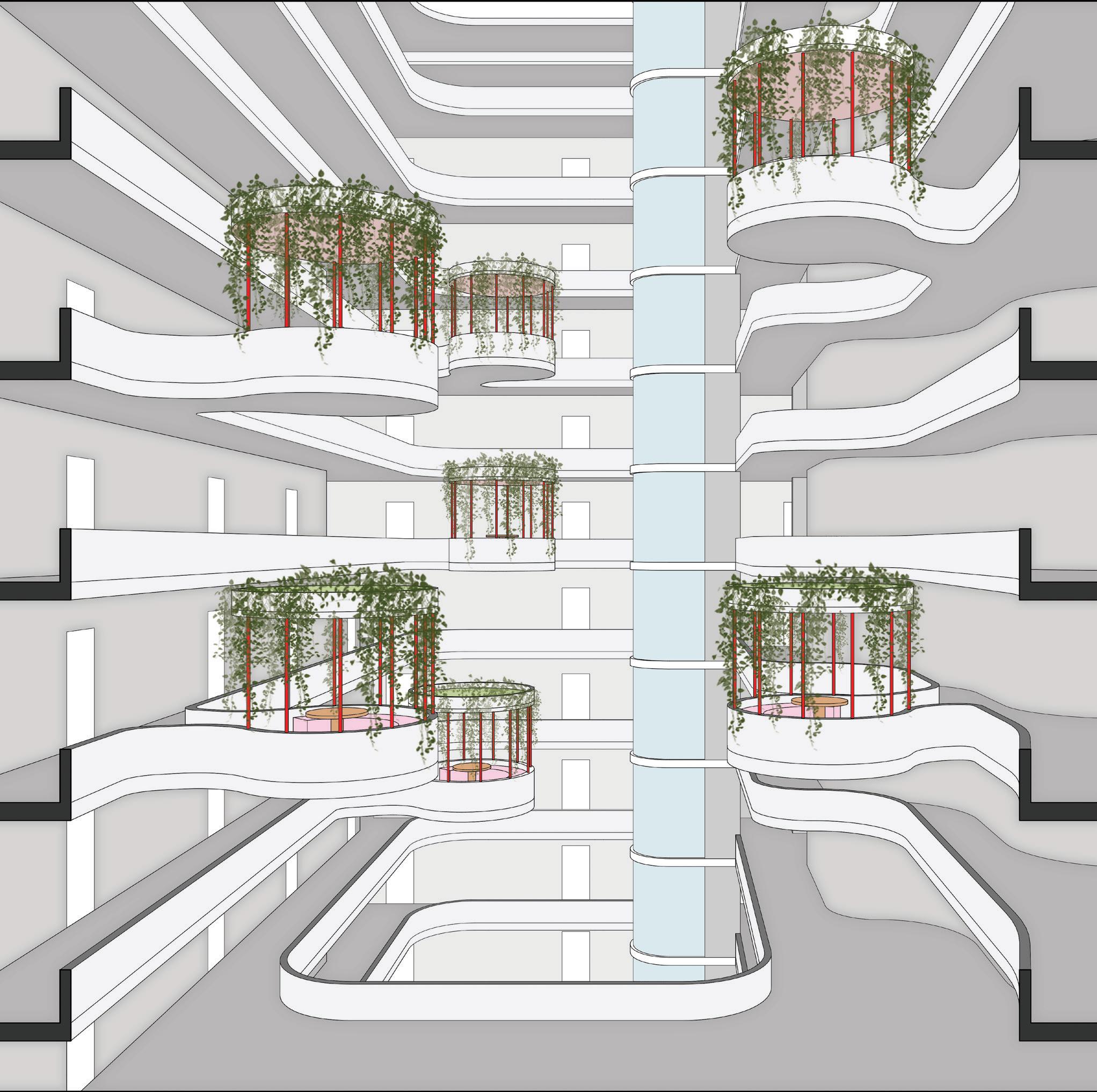

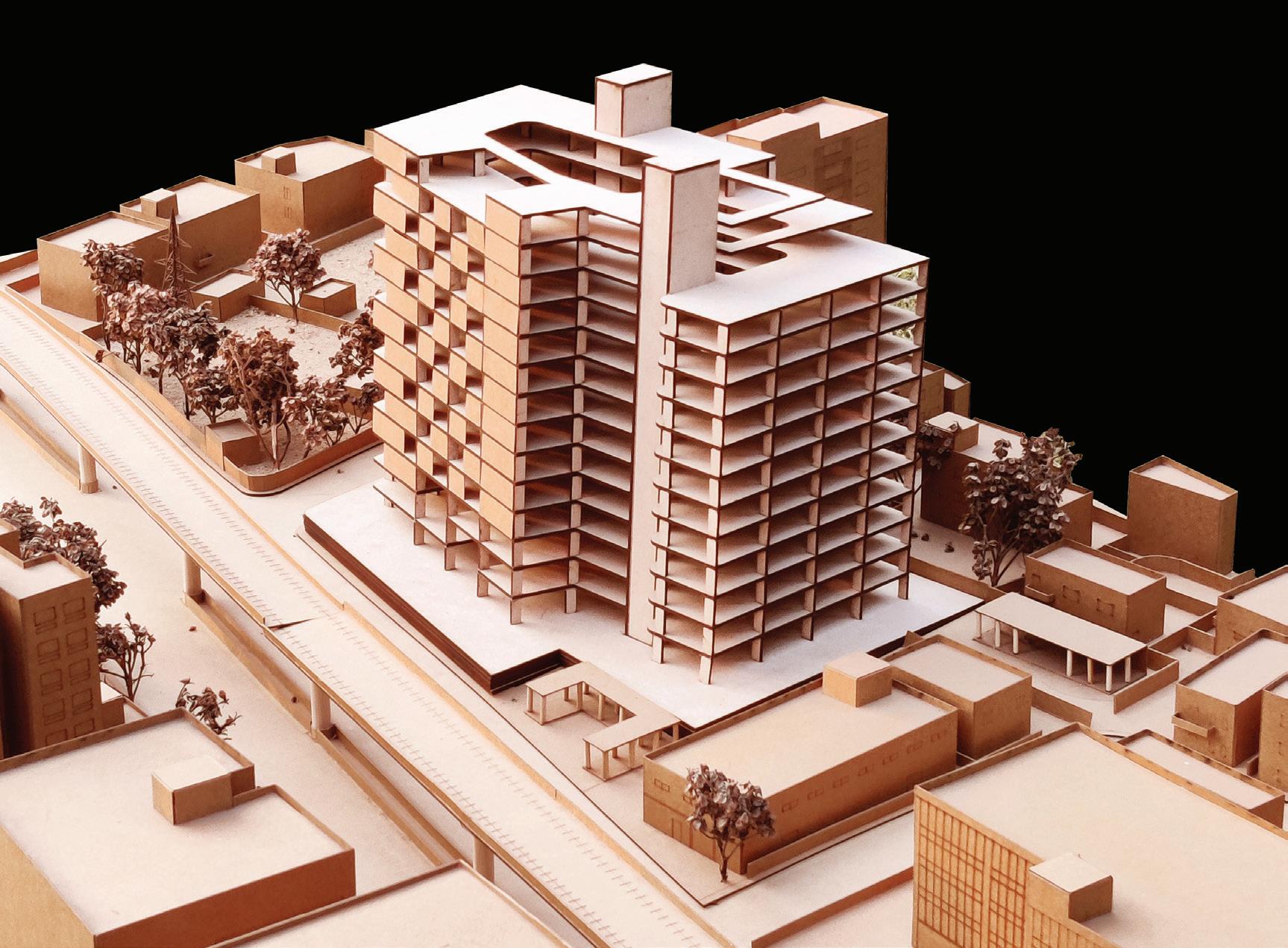

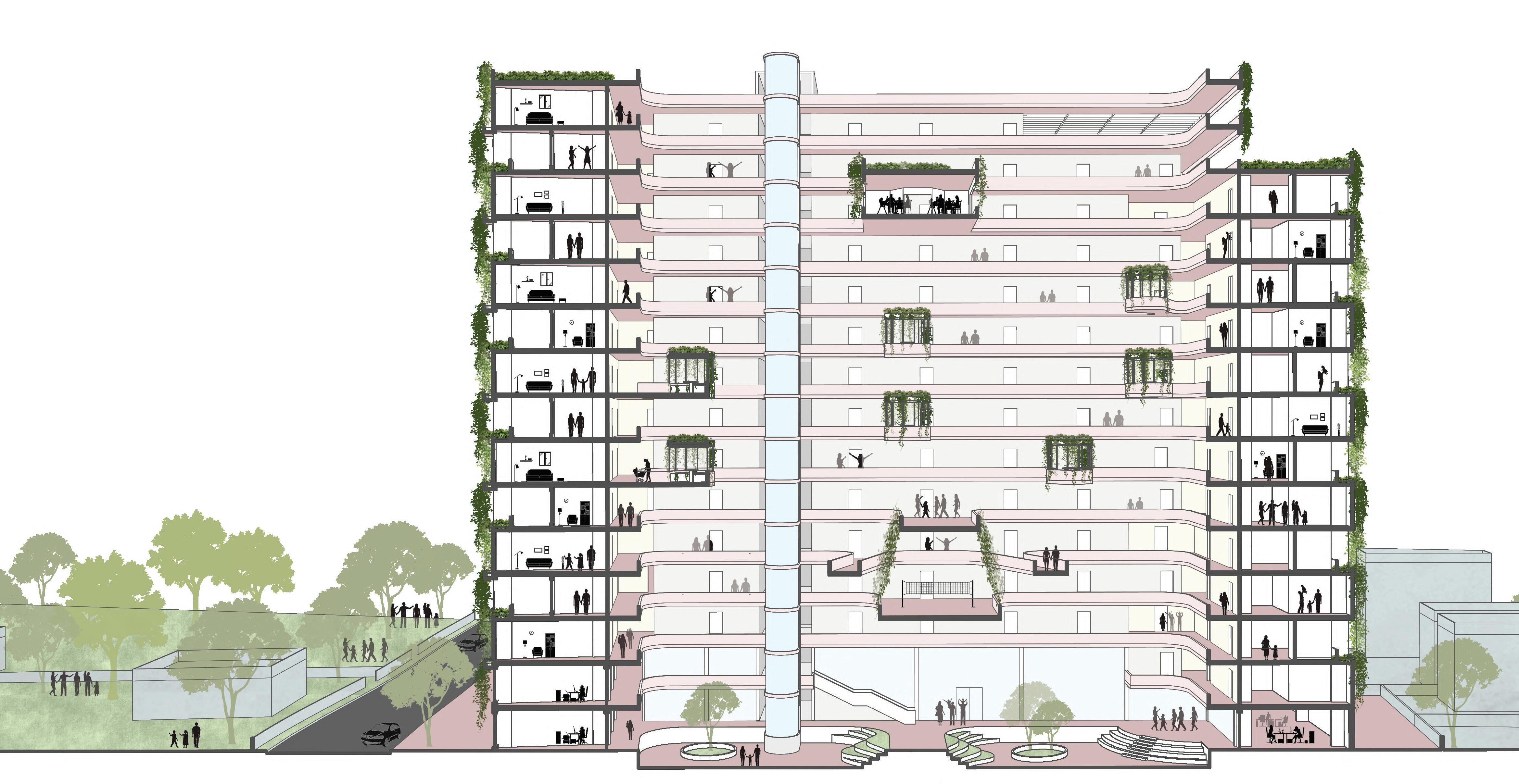

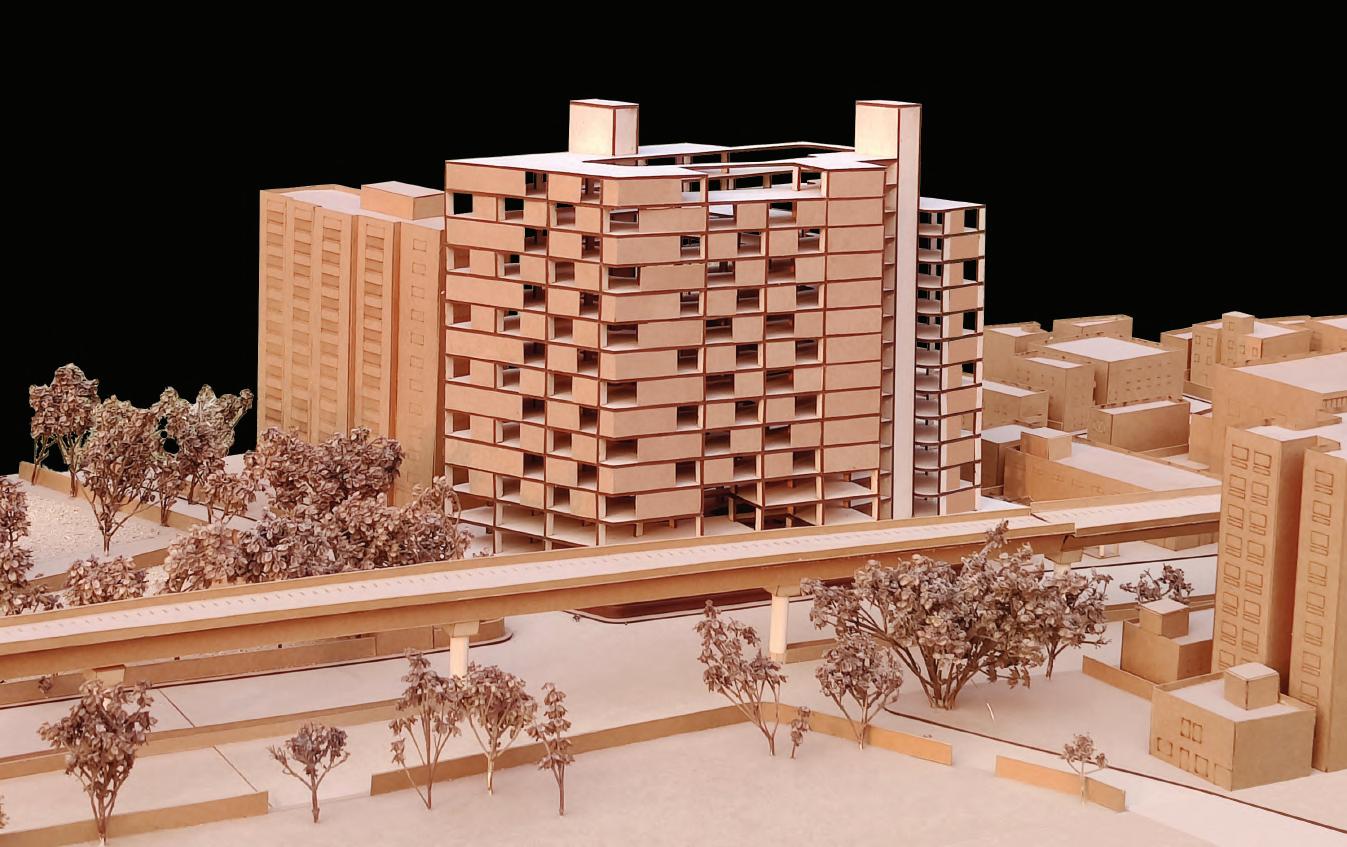

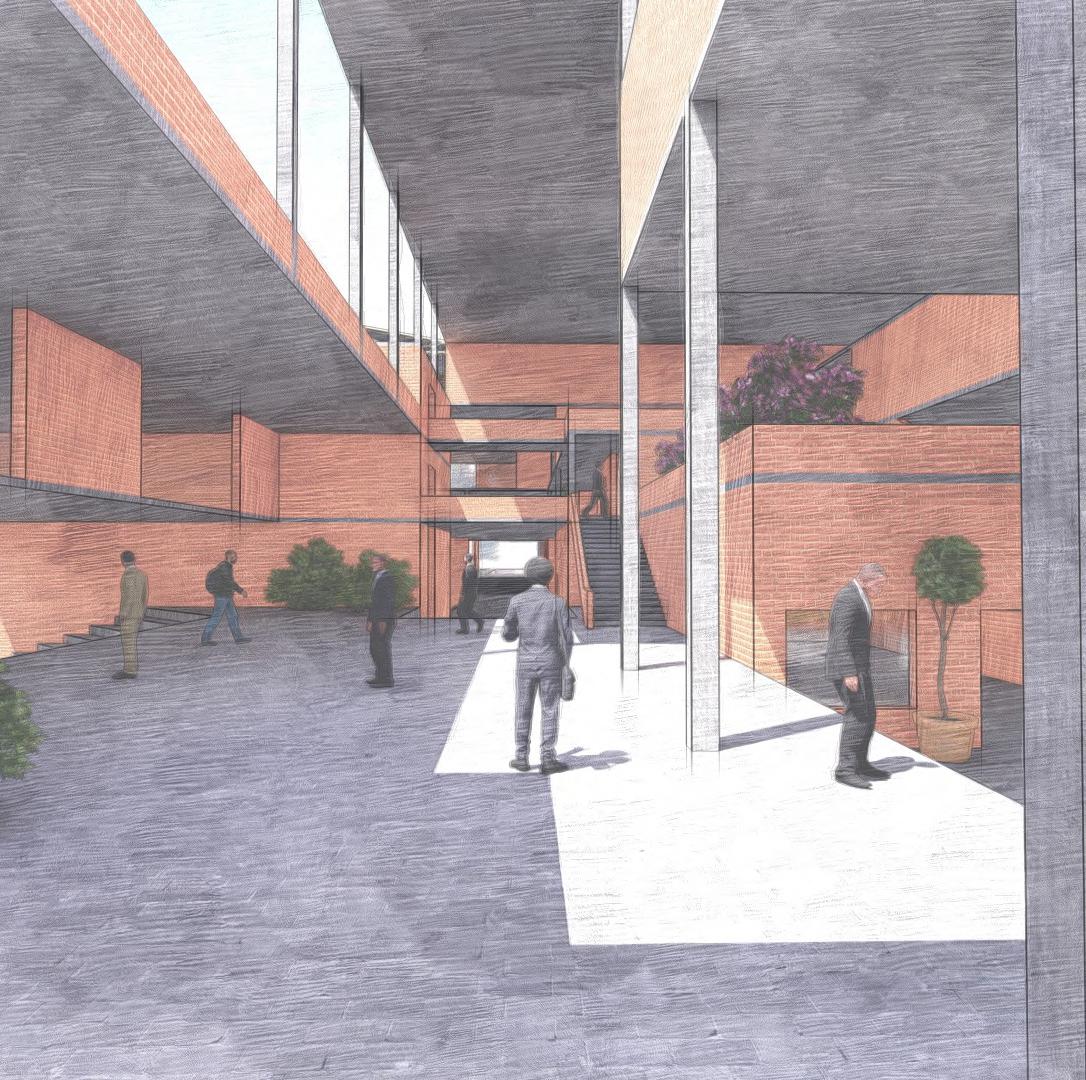

Located in a high density commercial region, surrounded by universities, the project aims to target the millenial generation - the generation which is striving to make a living, and provide them with an oasis which would act as a stepping stone of their lives, by creating an opportunity for them to own a home. In this urban landscape, it becomes necessary to create a soothing environment. The project is designed in a way that the shared spaced are internalised and the housing units are organised on the periphery of the site. The atrium inside is laced with “pods” – casual interactive spaces. The roof is also designed in a way to cater to vast number of communal activities.
Scan for complete project
Millenial Hosuing | Selected Works

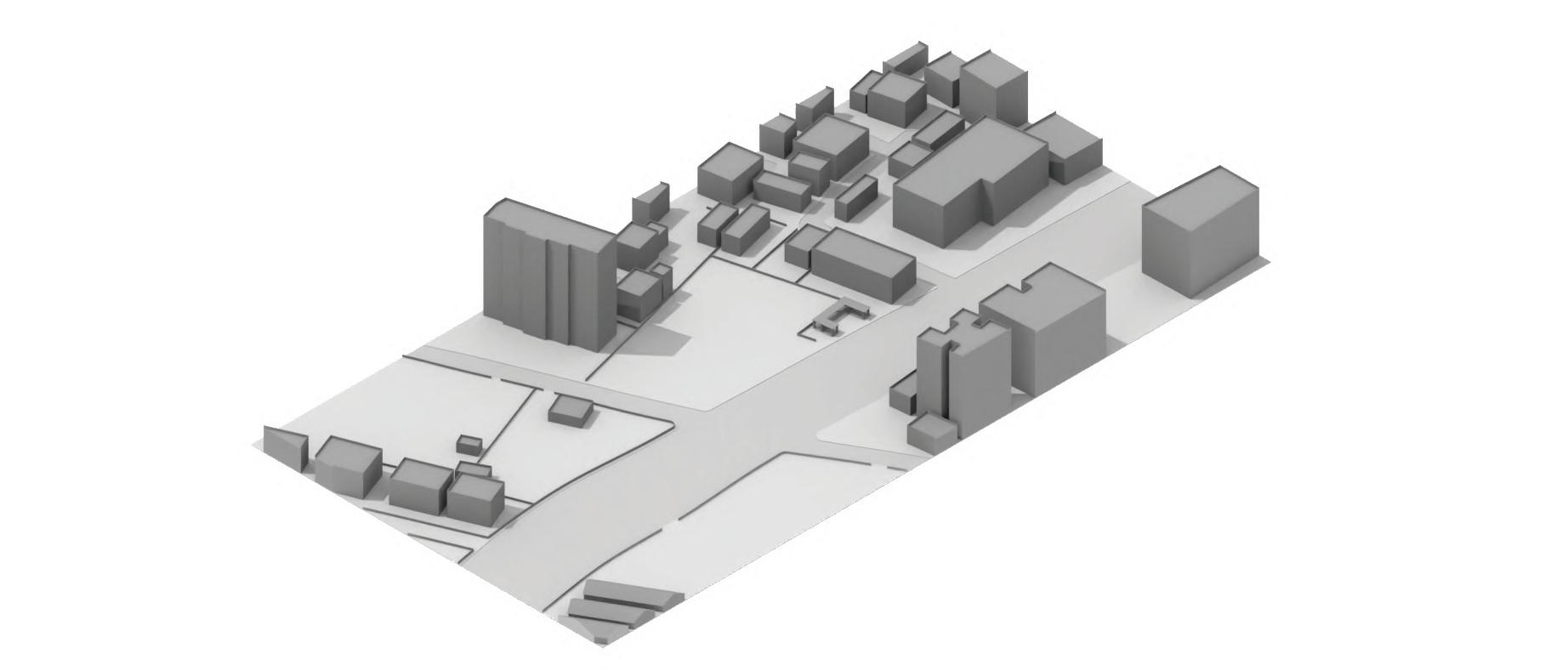

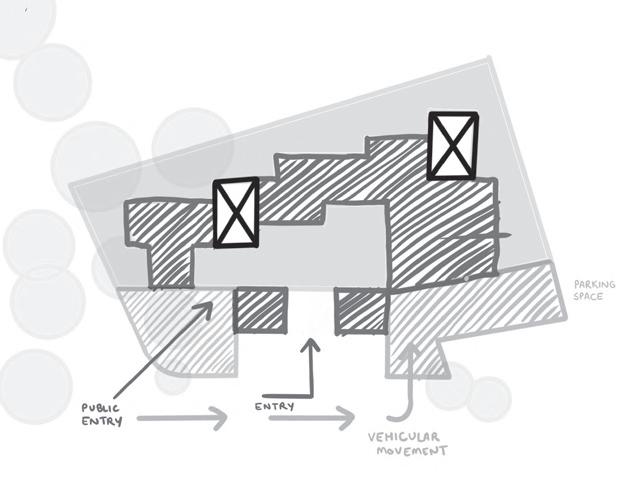

Site Edges and Main Access Routes
Units are organised in a way to create deep Balconies

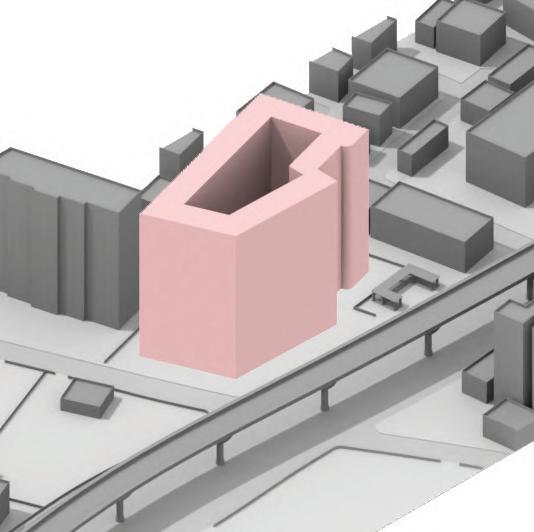

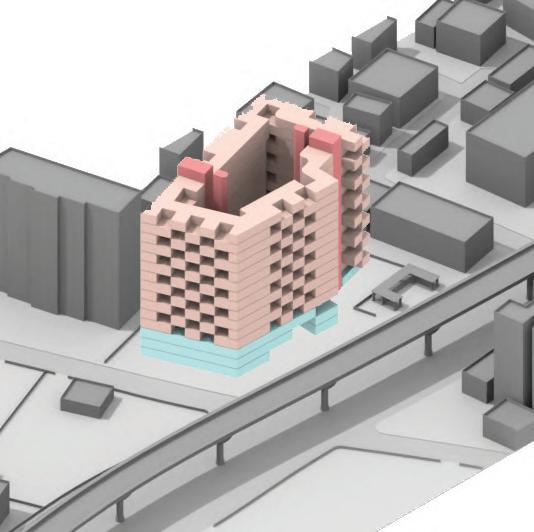

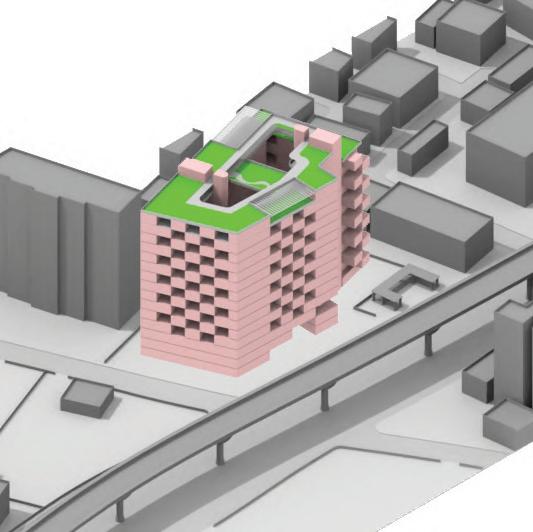

Creating Built Mass around the Periphery
Creating Level Difference on the Roof to generate Communal Spaces

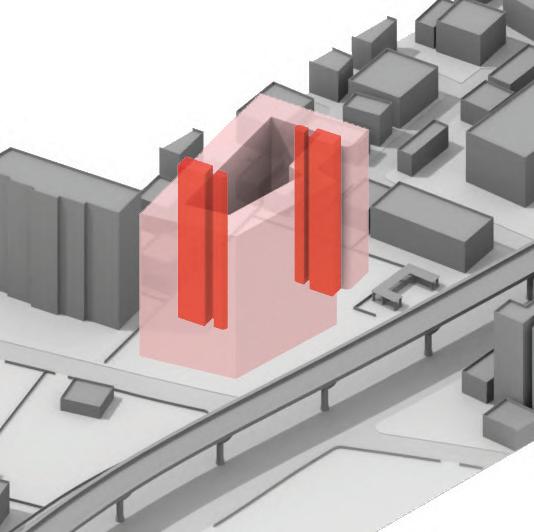

Primary Circulation Cores
| 07

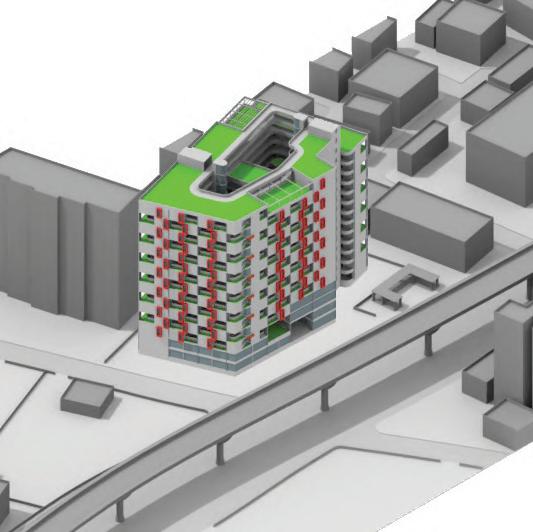

Adding Opening and Facade Details
Portfolio | Samyak Jain Millenial Hosuing | Selected Works

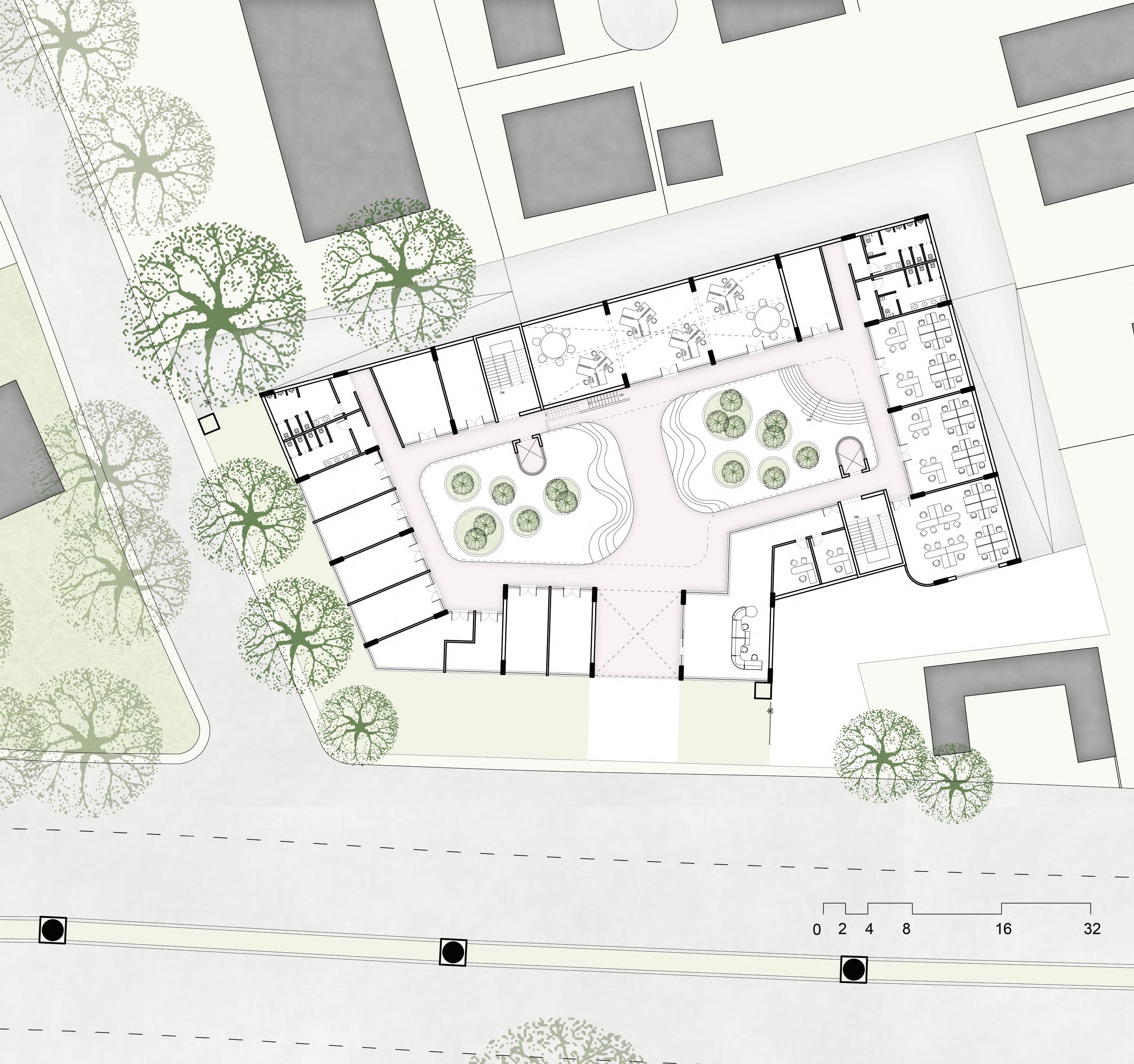

Ground Floor Plan
1. Main Entrance
2. Commercial Shops
3. Co- Working Spaces
4. Resident Offices
5. Office Spaces
0
1 3 5 2 4 6 08 |
6. Way to Parking Level
Plan
Portfolio | Samyak Jain Millenial Hosuing | Selected Works 1 5 3 2 4

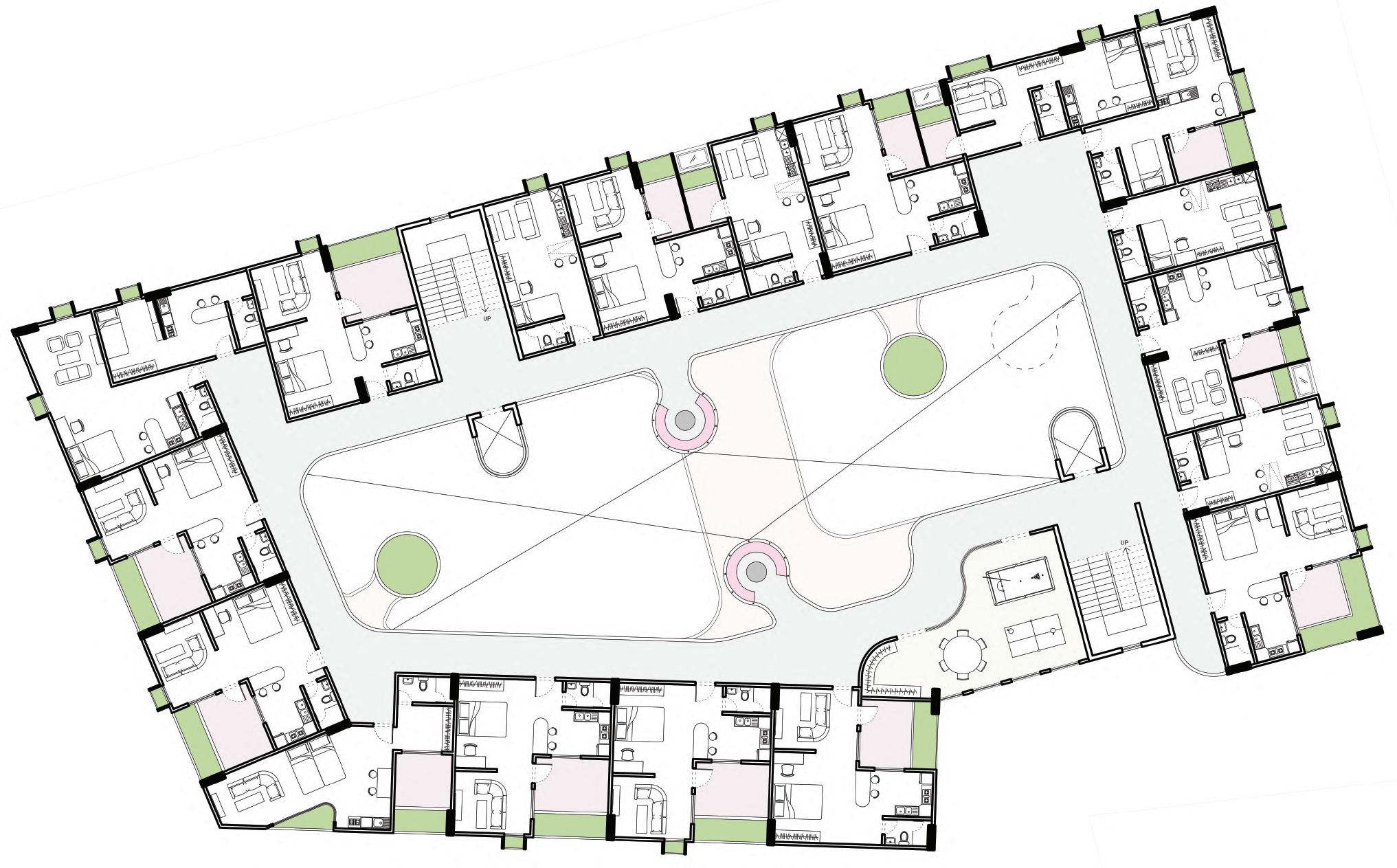

Typical Layout 1
1. Changing Area
2. Sports Arena
3. Double Units
4. Single Units
5. Club House/ Lounge | 09

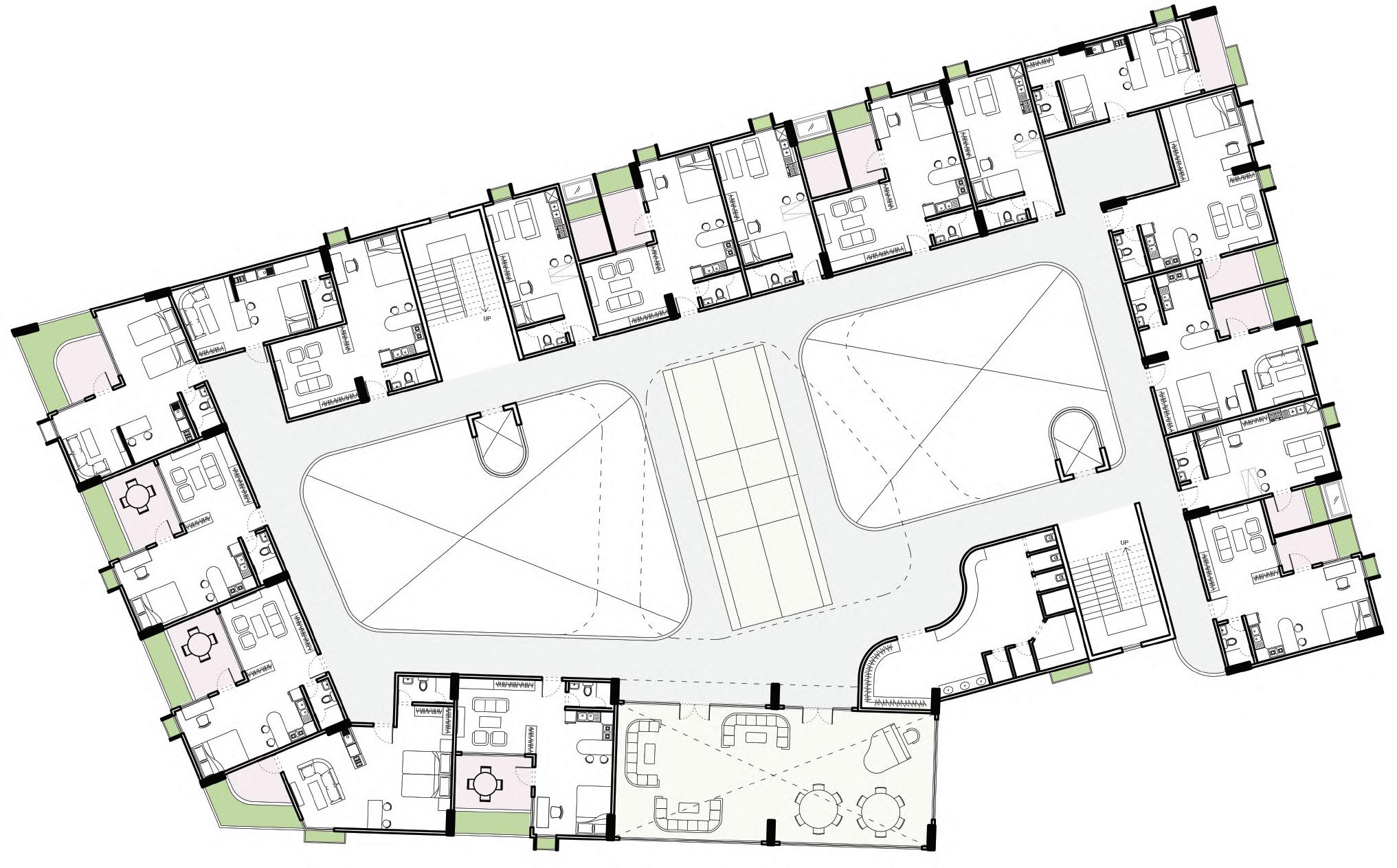

Level 4 Plan
Typical Layout 2
Level 8 Plan
1. Break-out Area
2. Pods
3. Single Unit
4. Double Unit
Portfolio | Samyak Jain Millenial Hosuing | Selected Works 10 | 1 3 2 4

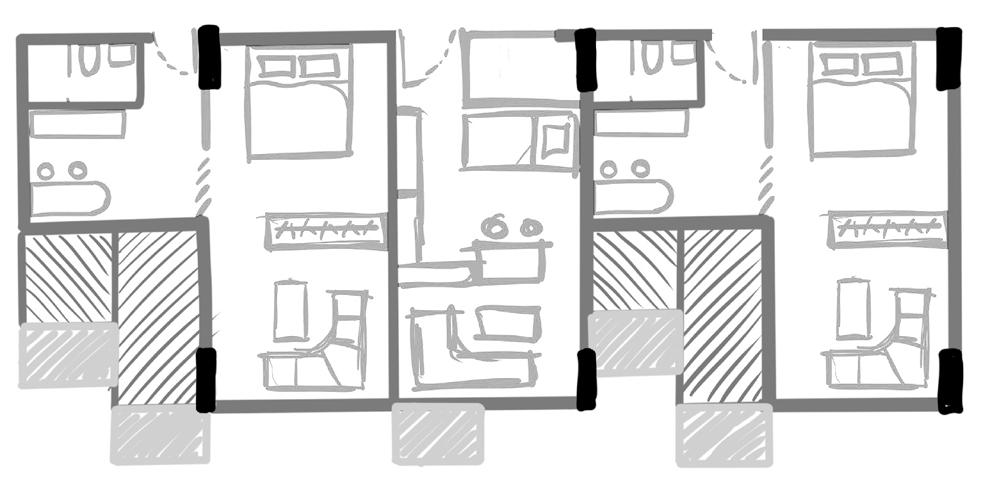

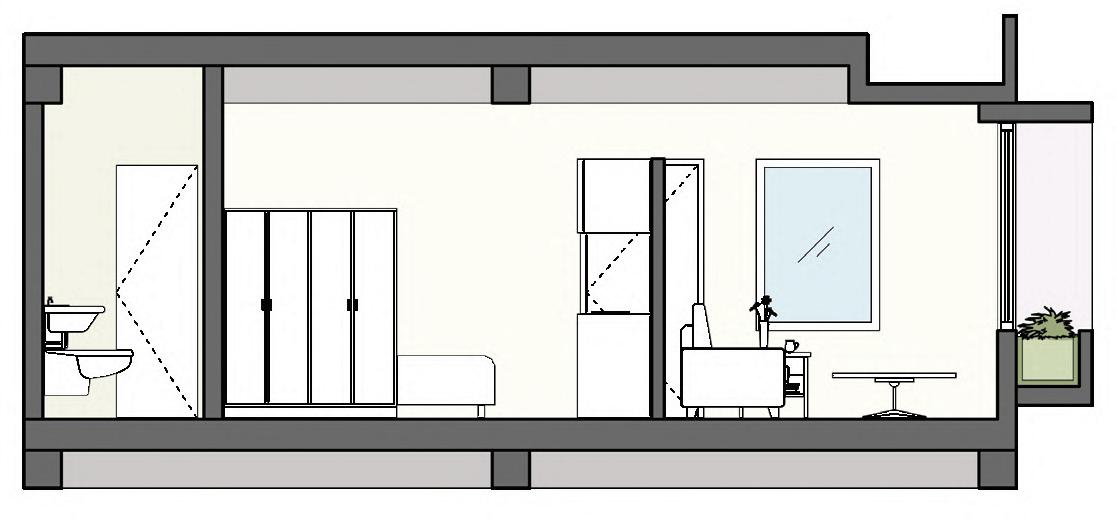

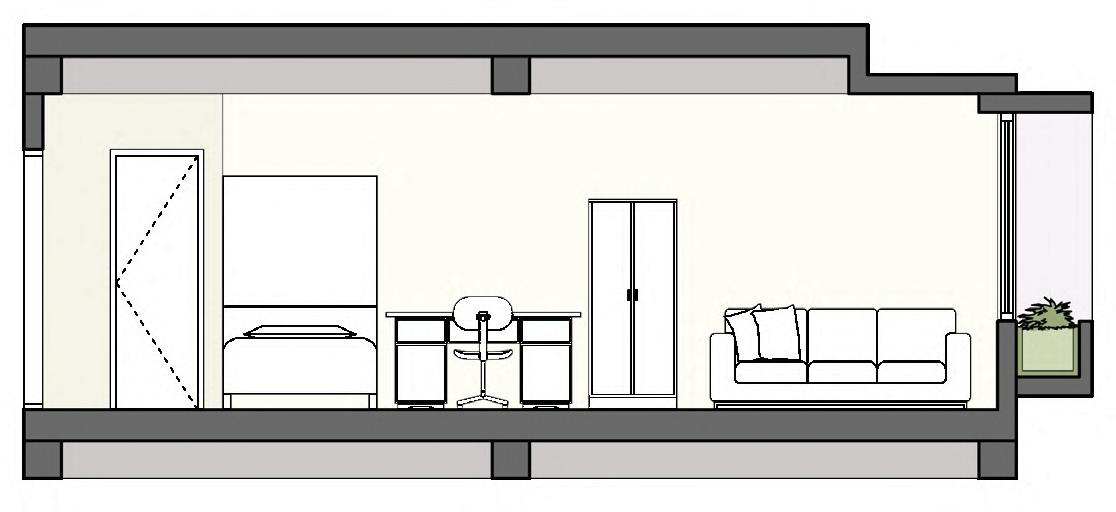

UNIT TYPE 1
Bachelor Unit with Balcony
UNIT TYPE 2
Double Unit with Balcony
UNIT TYPE 1a

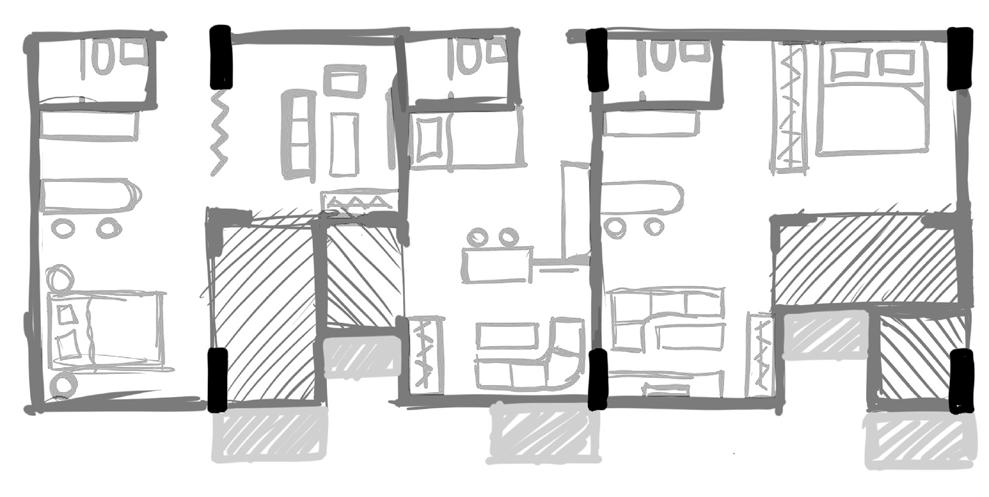

Single Unit without Balcony

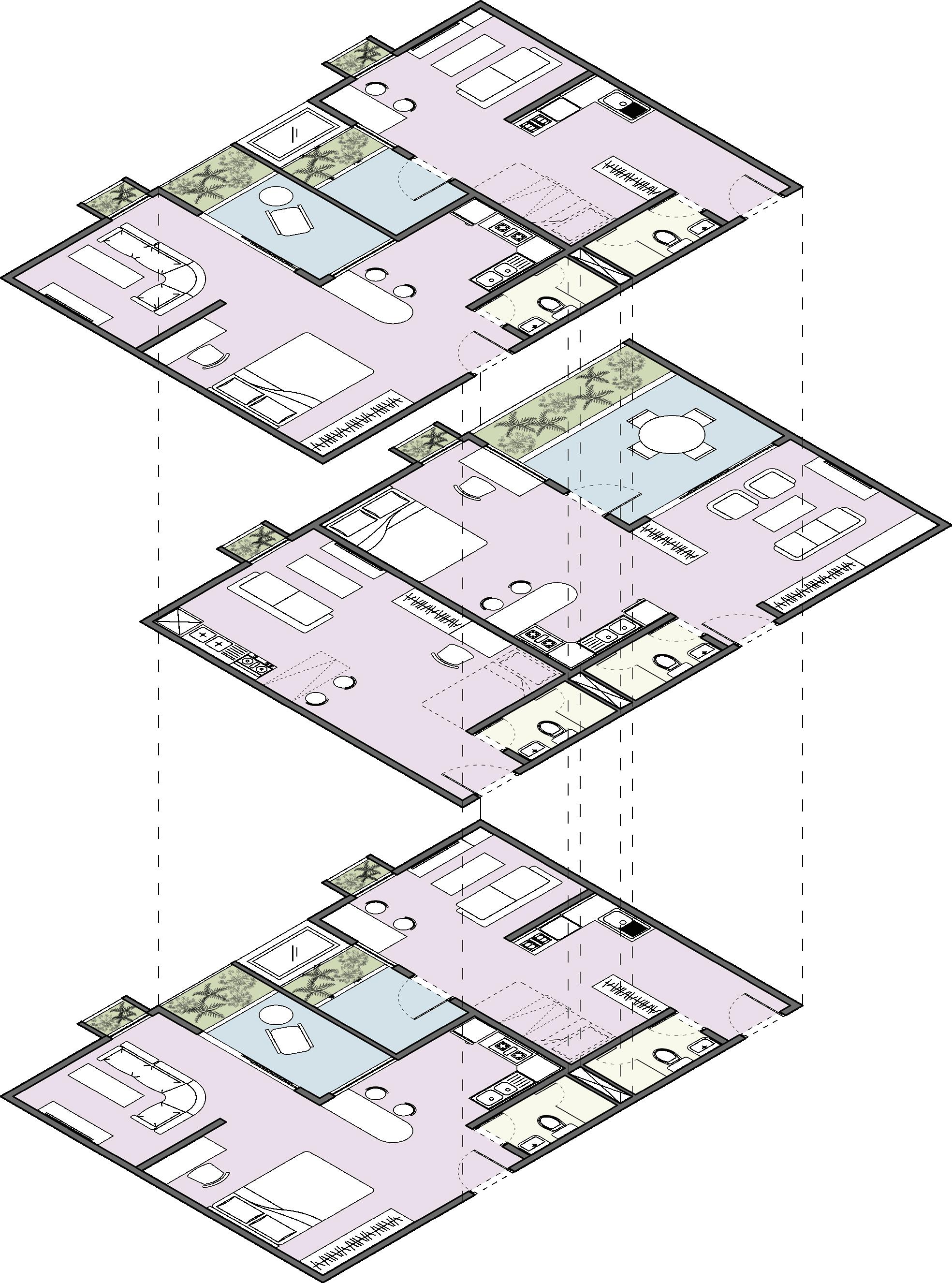

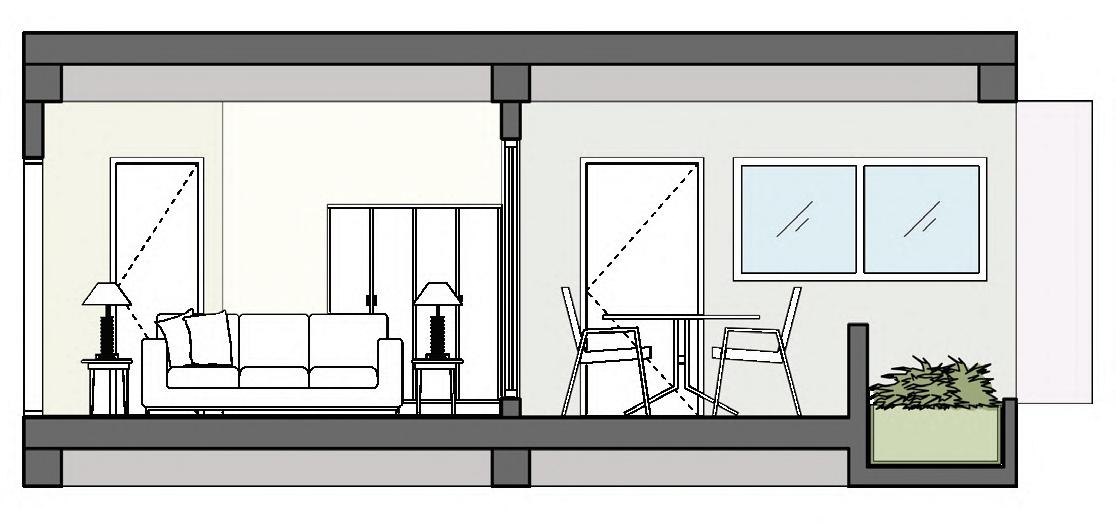

Unit Cluster Organisation - Staggering Of Units
Portfolio | Samyak Jain Millenial Hosuing | Selected Works
| 11

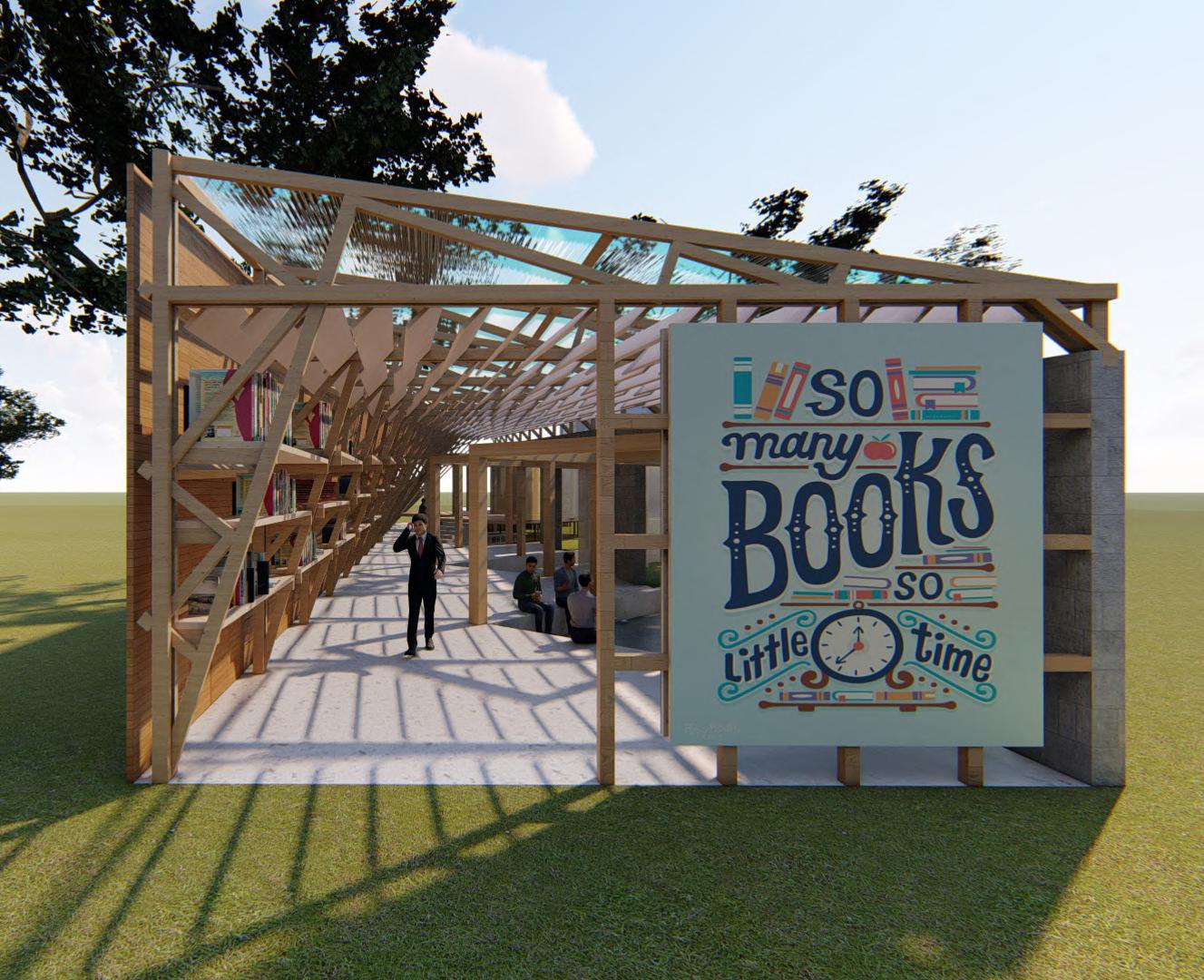

Book Studio, Kamati Baug
Design Fundamentals of Space Making Semester 4
Tutors: Percy Pithawala, Krishna Shah

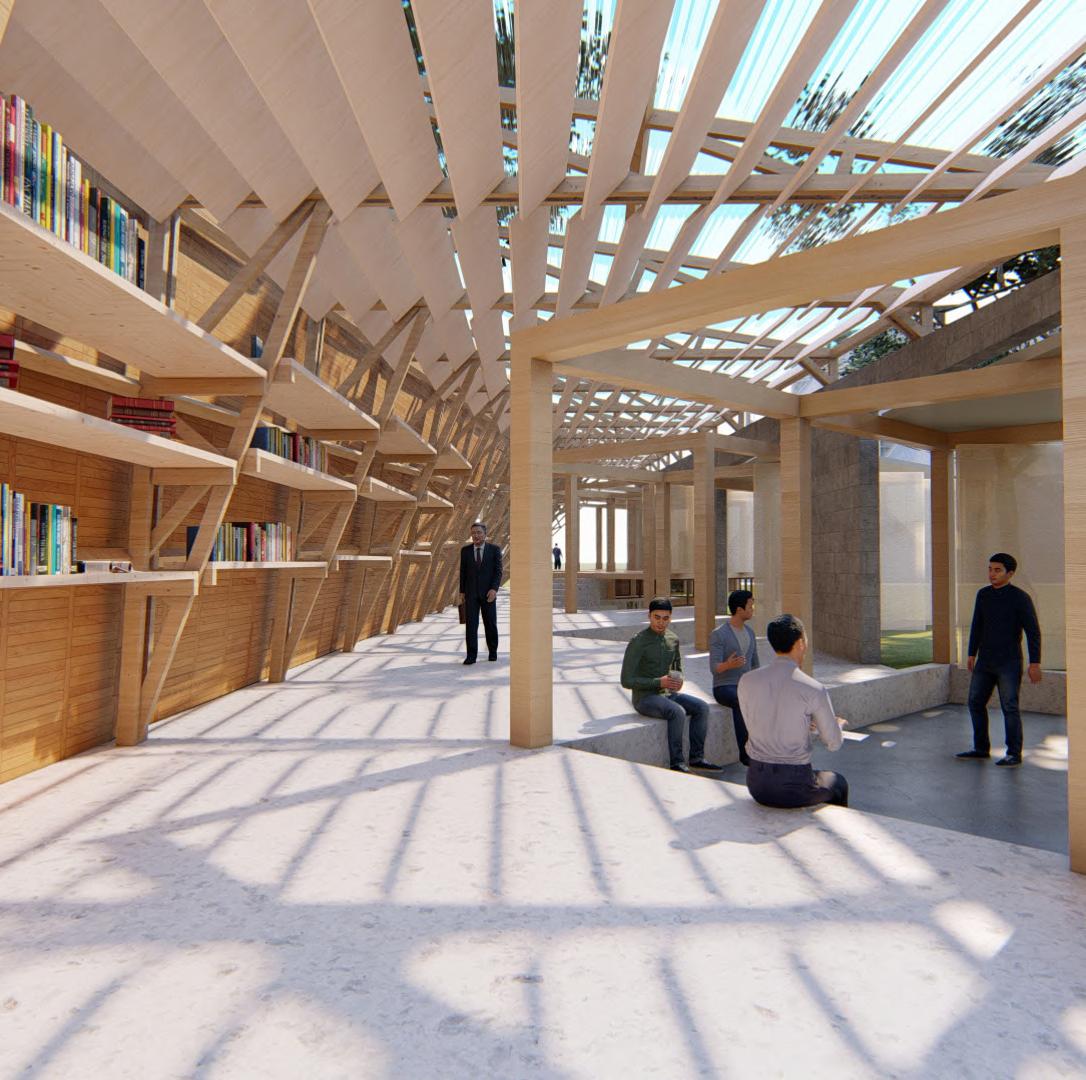

The book studio is a space which should be seen primarily as a place for book promotions by authors and writers rather than a book store or a library. A place which organizes book readings and promotions, author signings and exhibitions among other things rather than just being a place for reading books. The pavilion attempts to incorporate the language of the planetarium’s façade, to achieve similar pyramidal openings. The planetarium can be seen as a alien ship and the pavilion acts as a bridge between the terrestrial and extra - terrestrial.
Scan for complete project

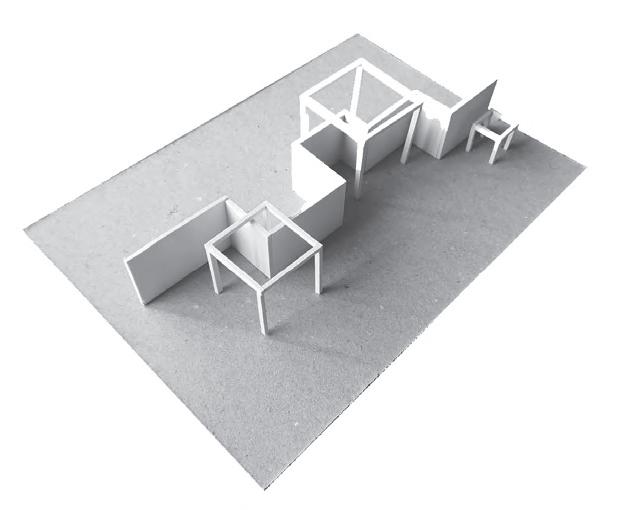

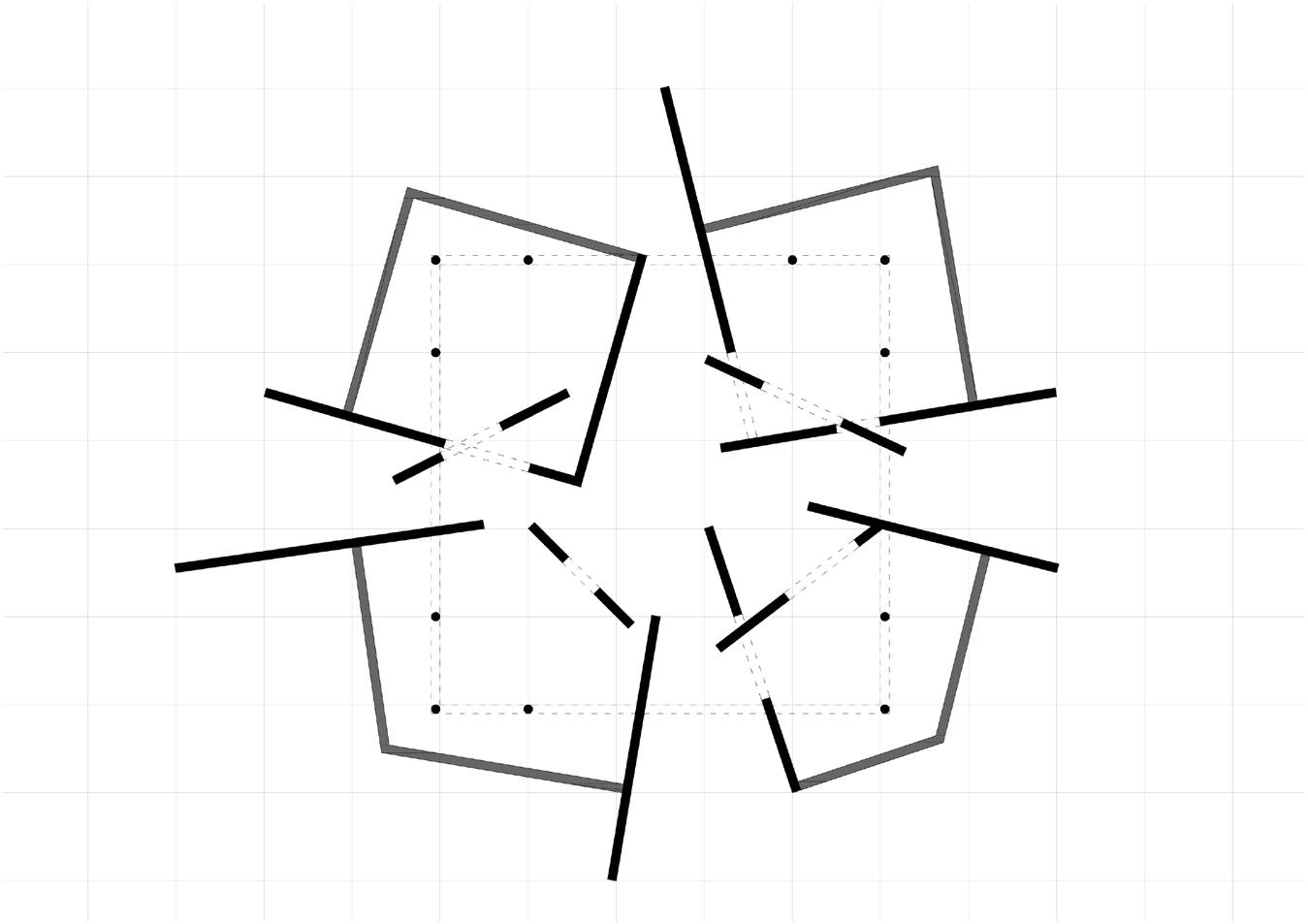

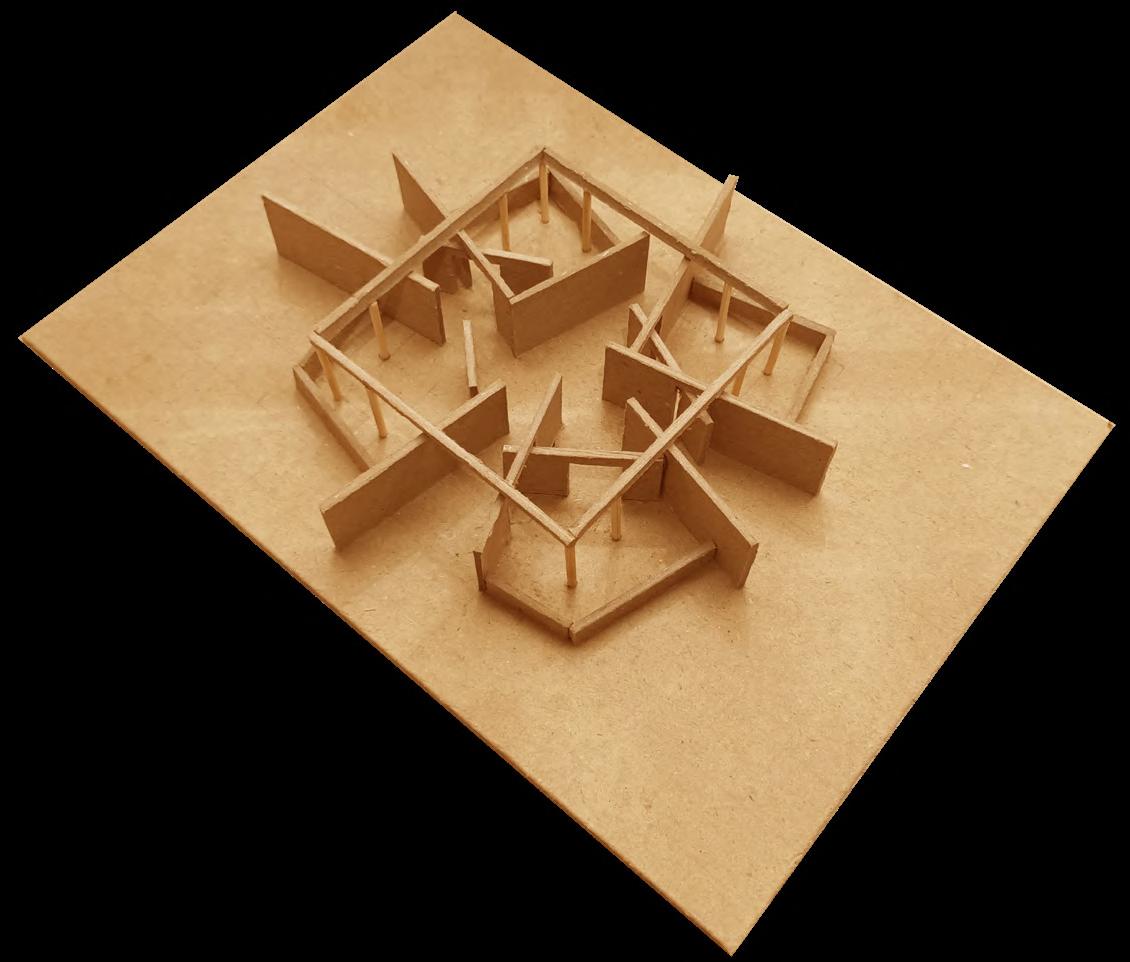

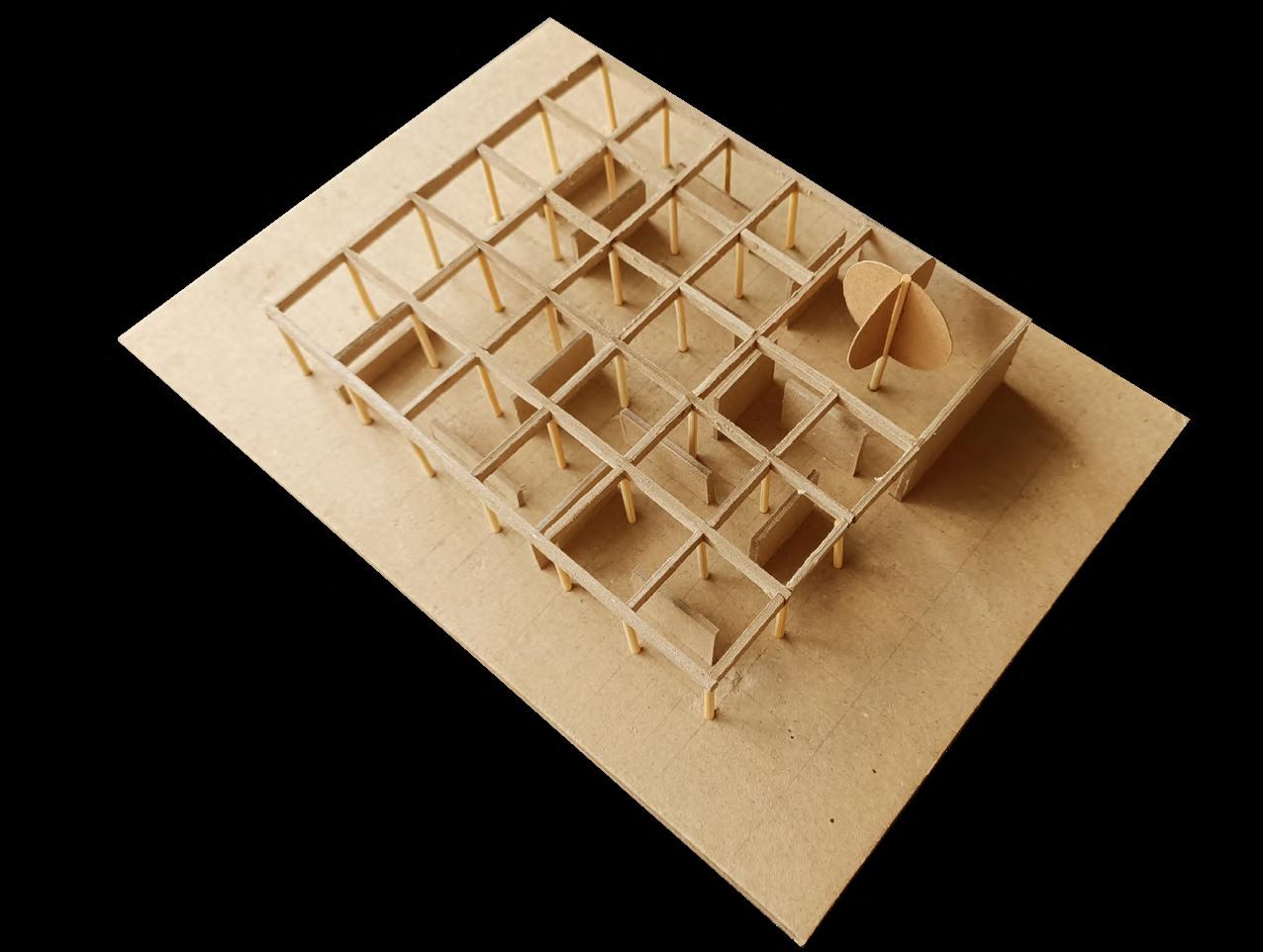

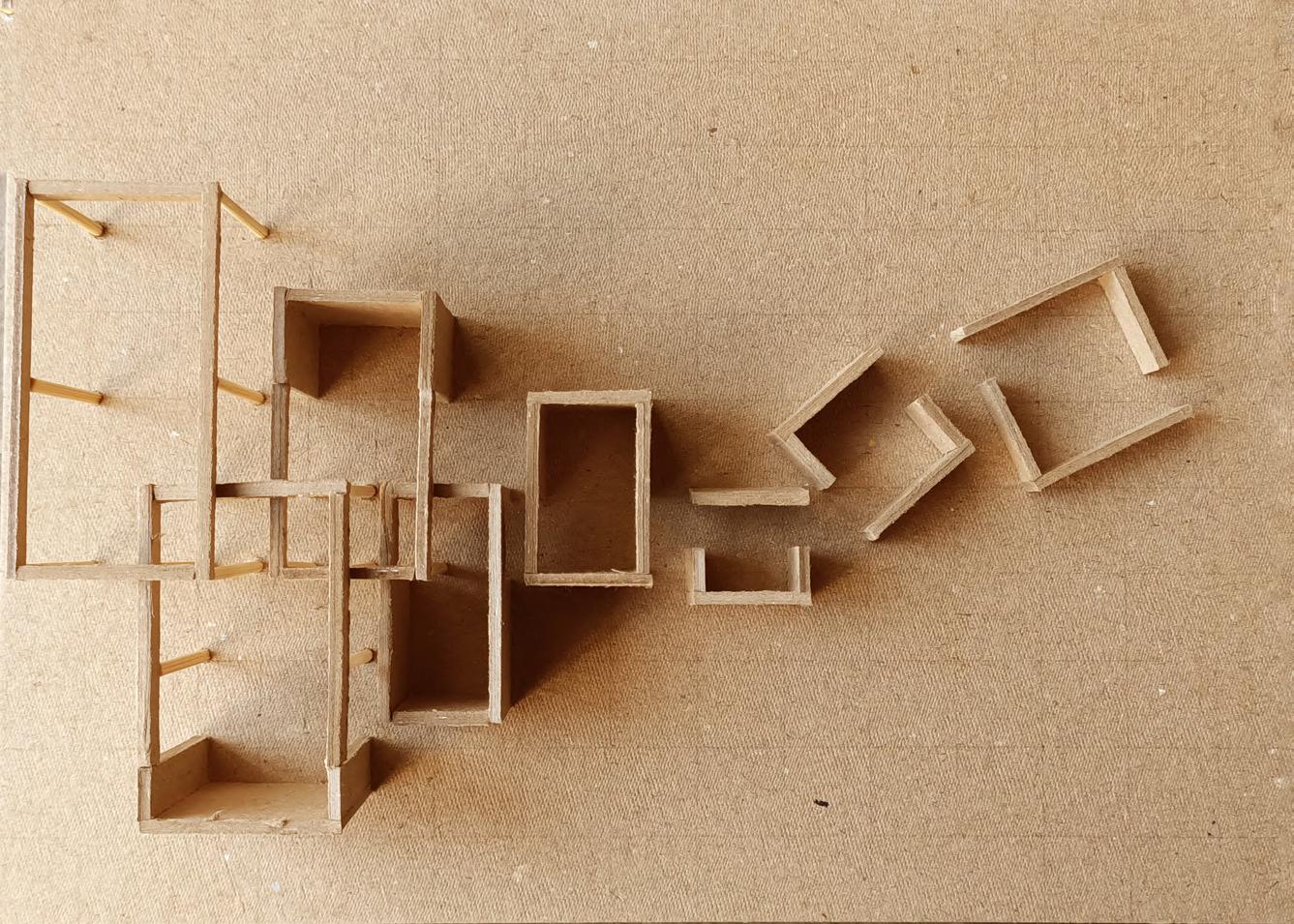

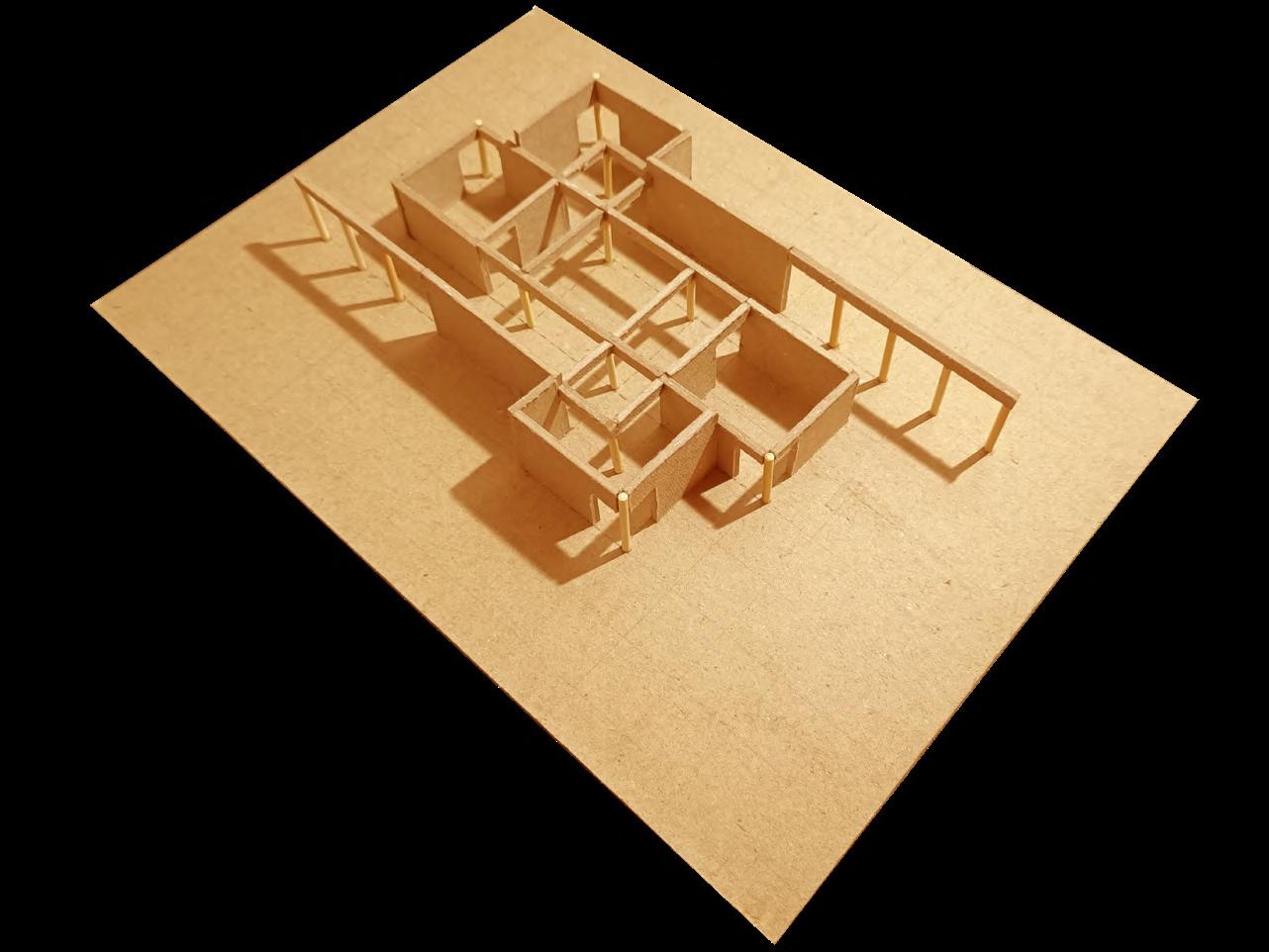

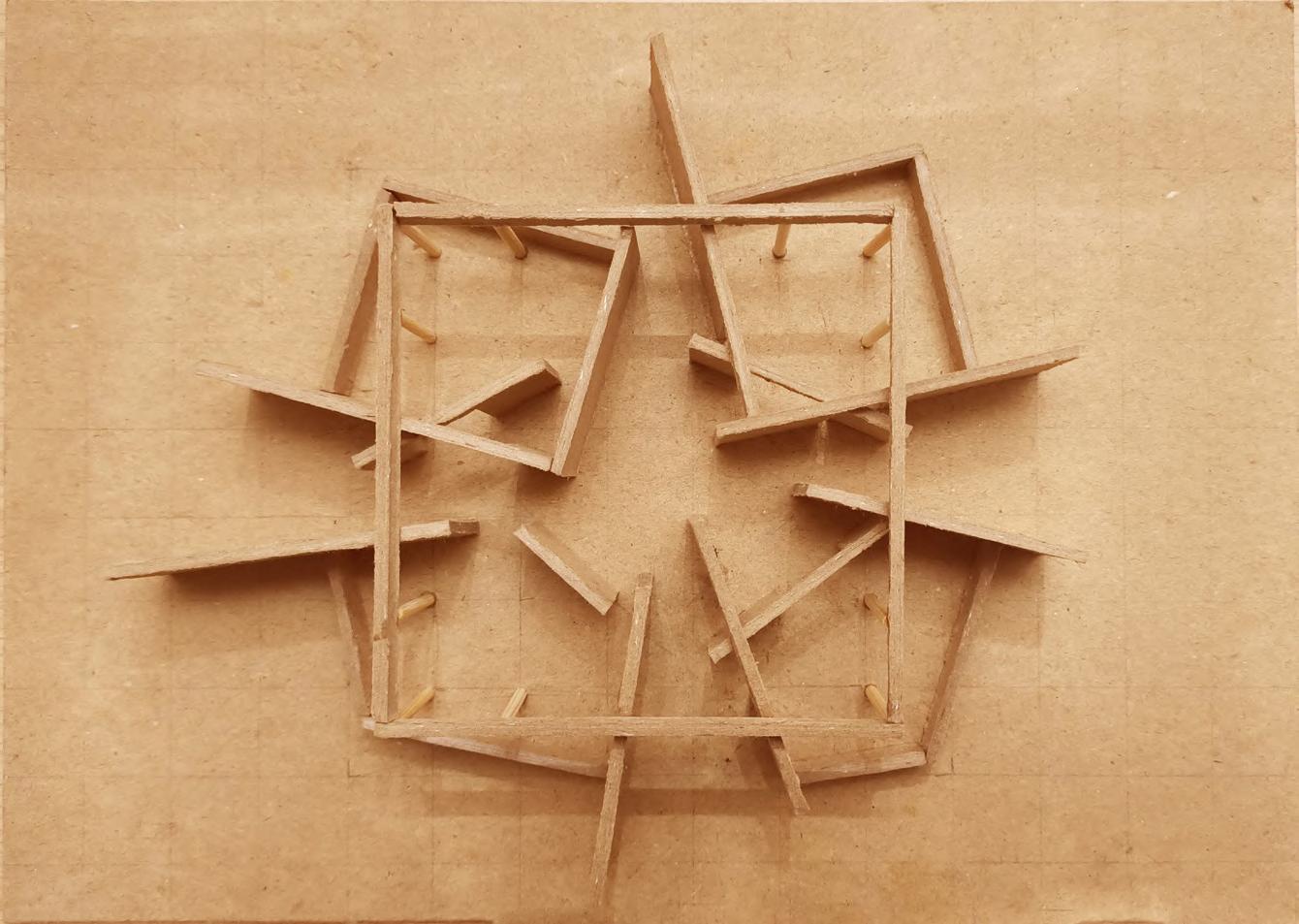

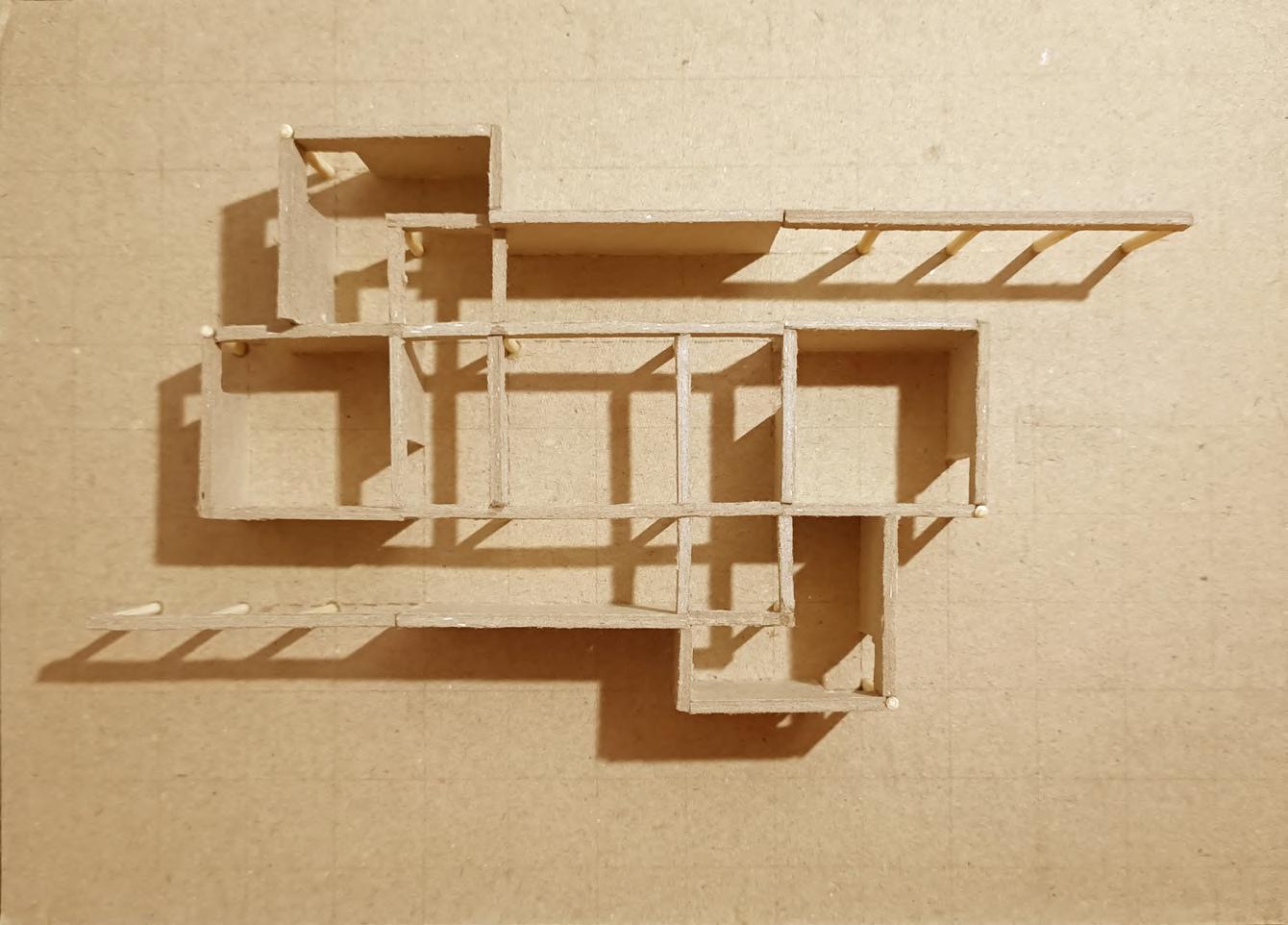

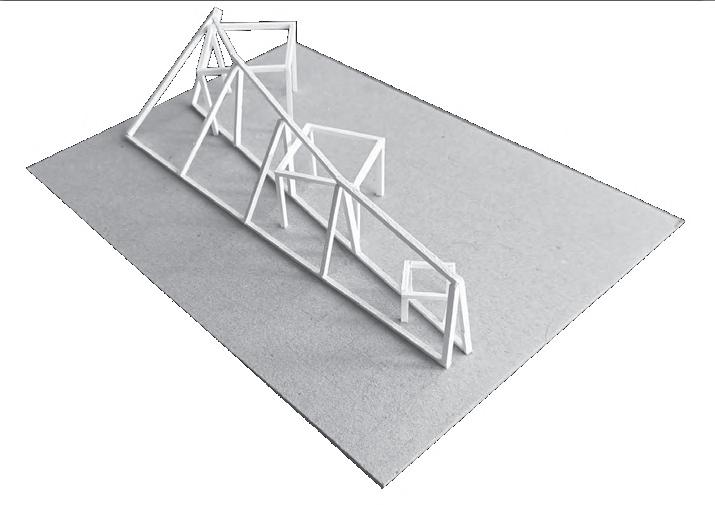

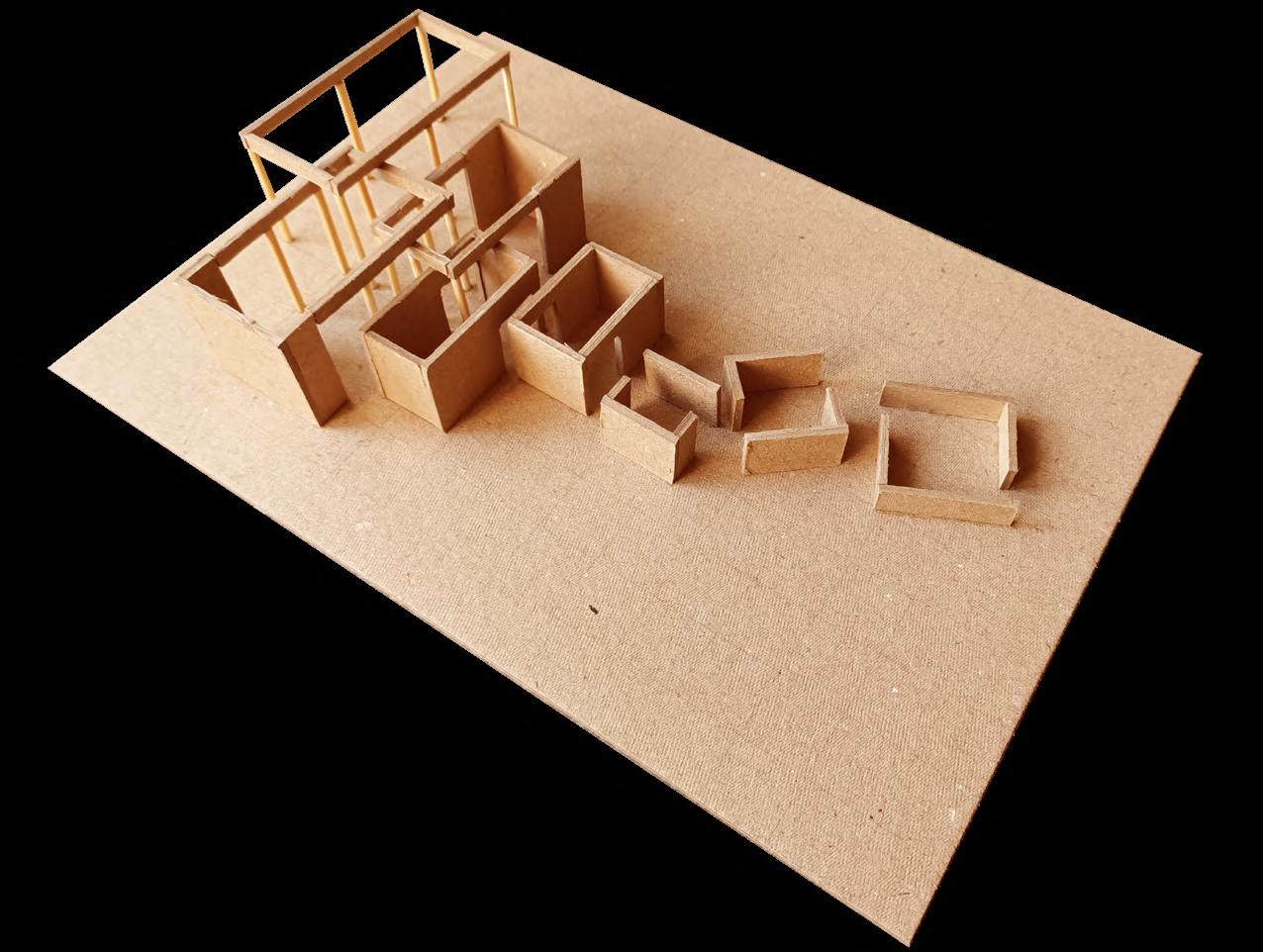

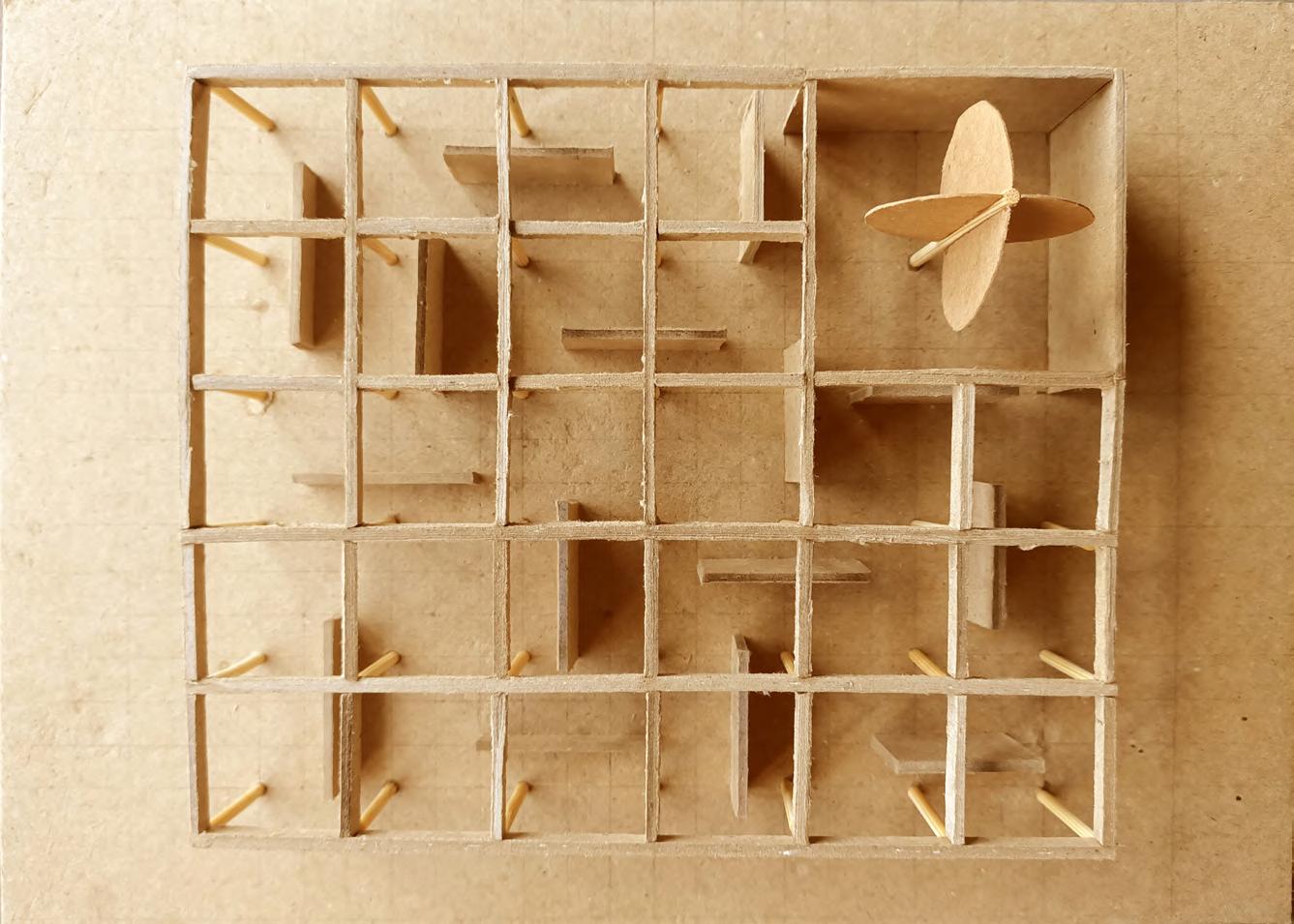

Process Models
Portfolio | Samyak Jain Book Studio, Kamati Baug | Selected Works | 13
Portfolio | Samyak Jain Book Studio, Kamati Baug | Selected Works 14 |

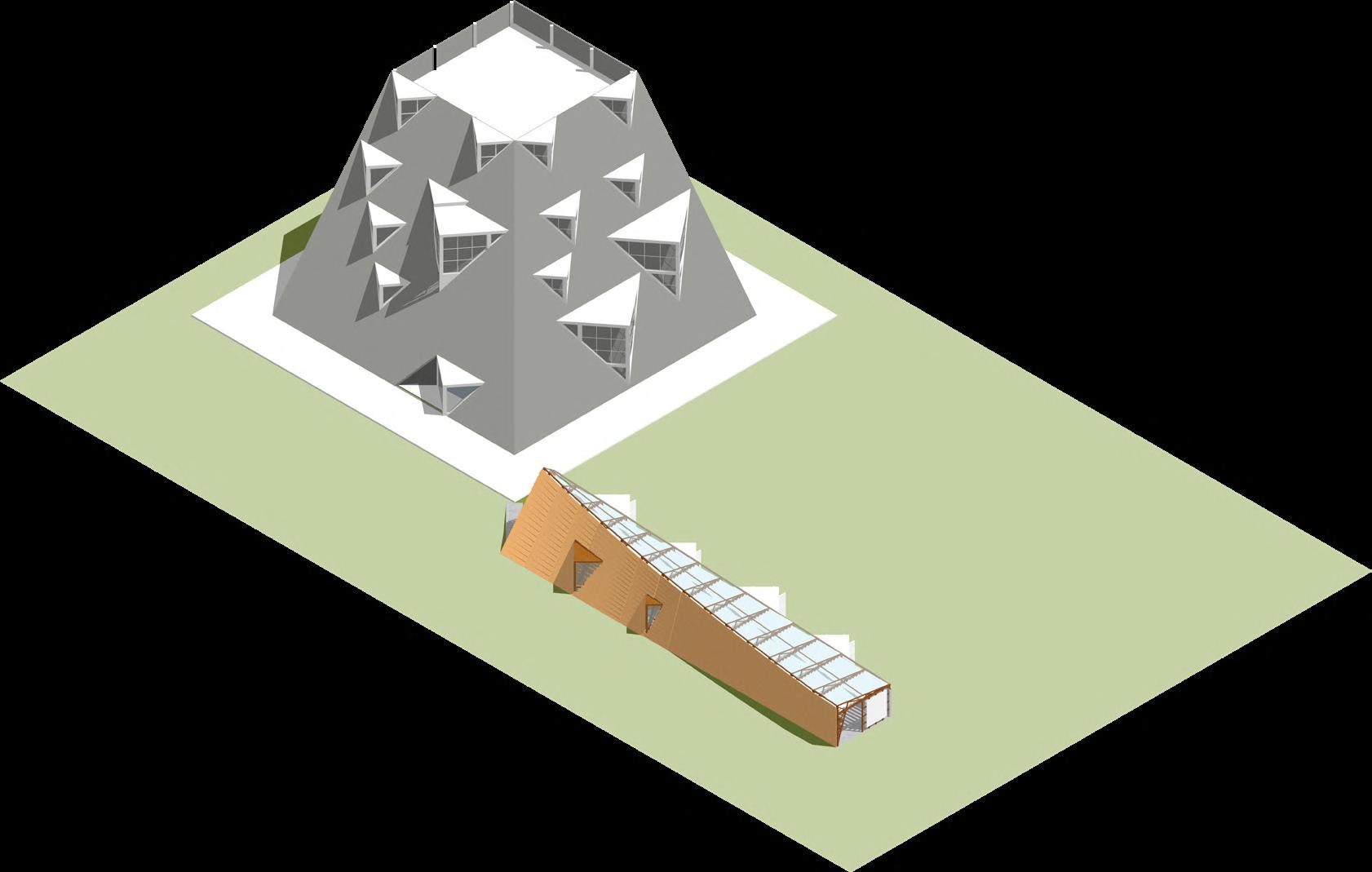

The site is located next to the planetarium

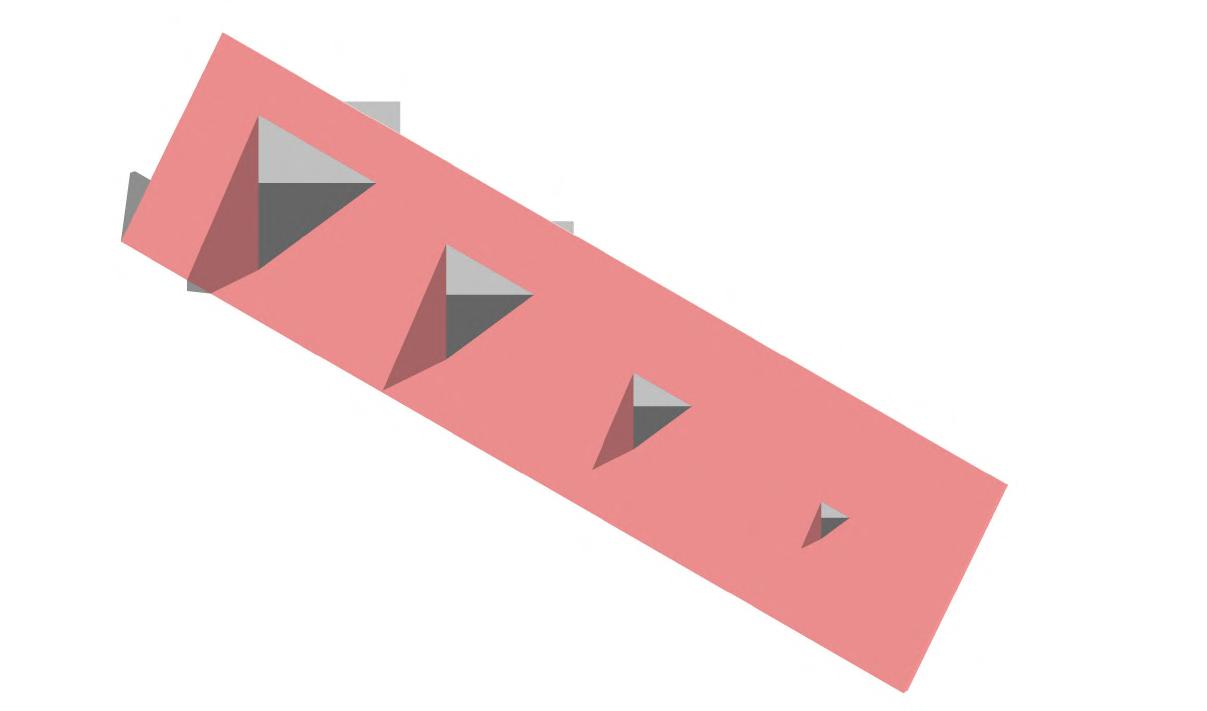

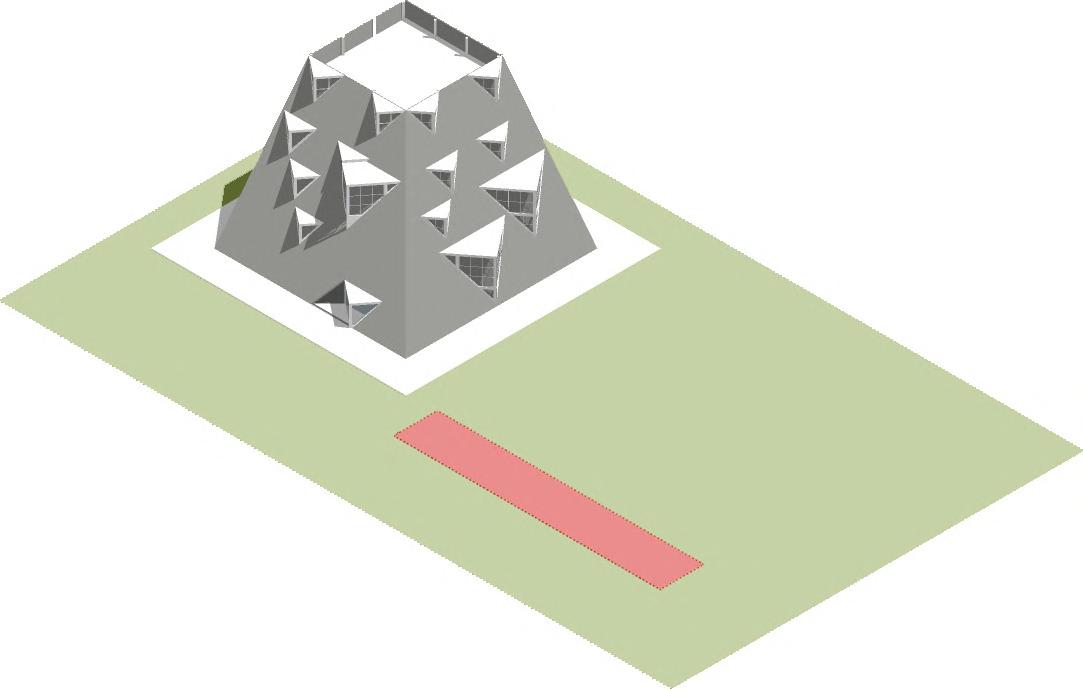

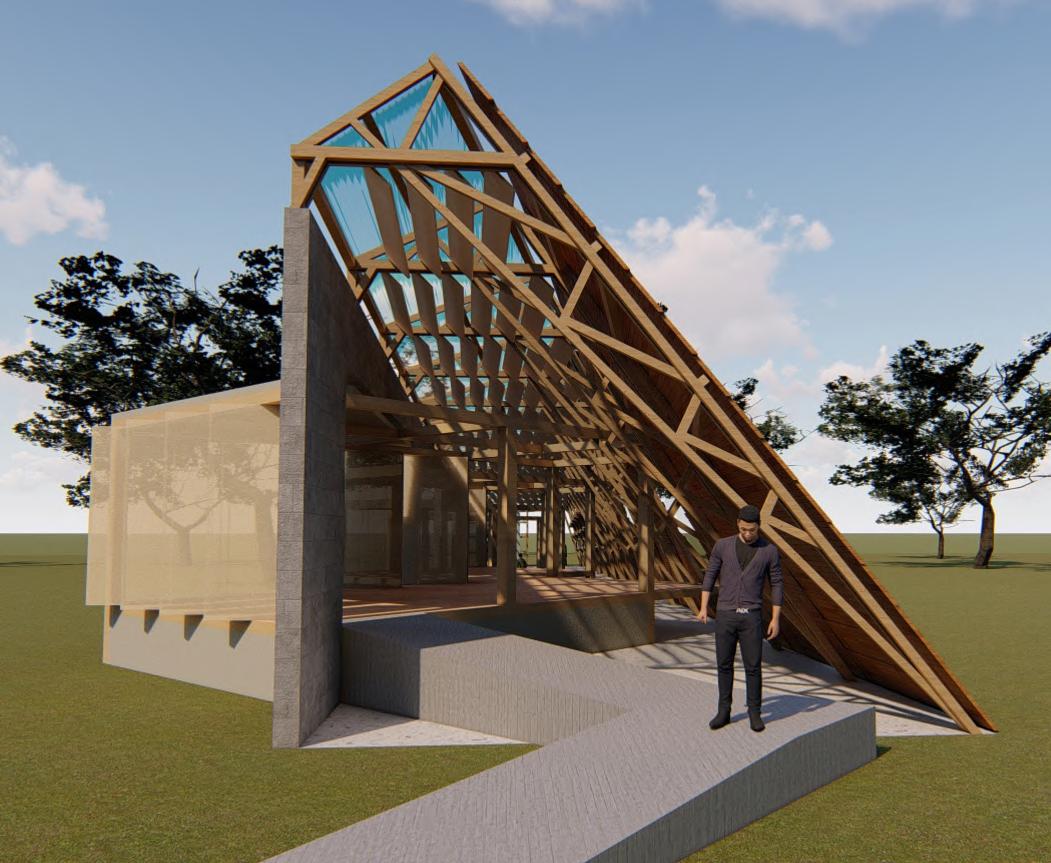

Using an inclined wall intersecting the cubes to resemble the planetarium facade
The wall is now twisted which is changing its angle at each point

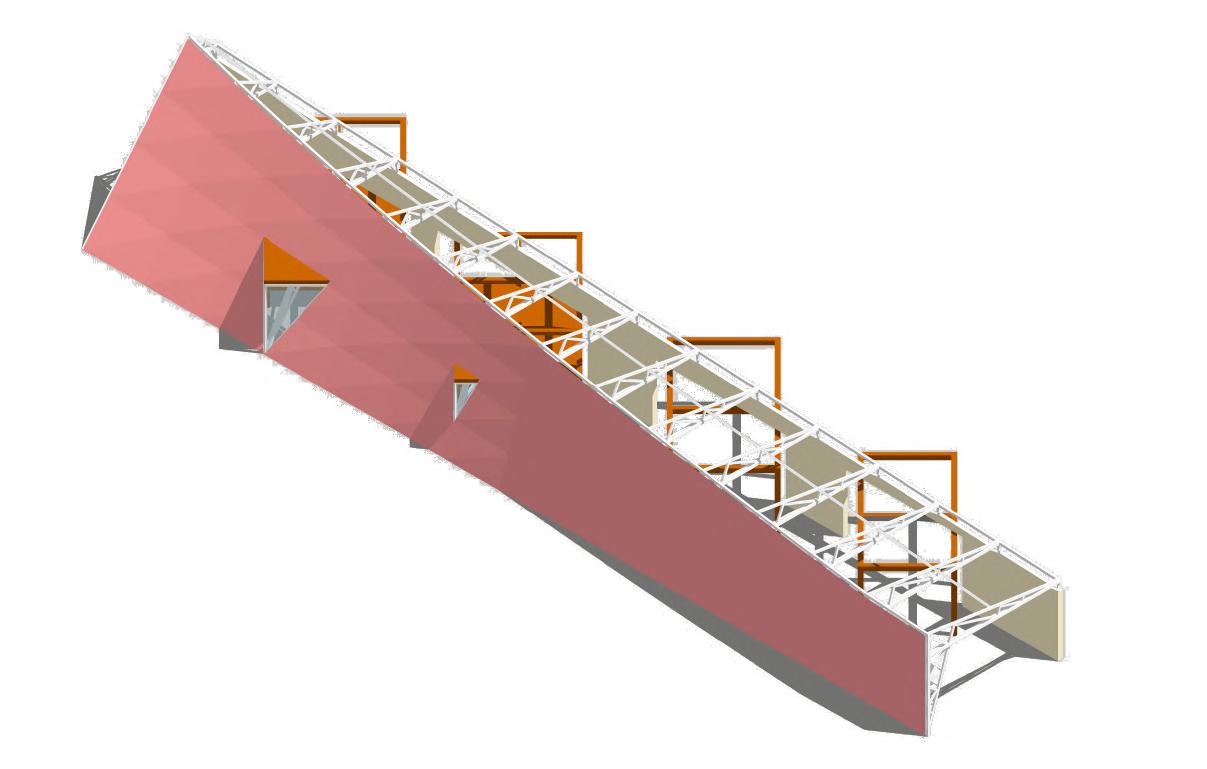

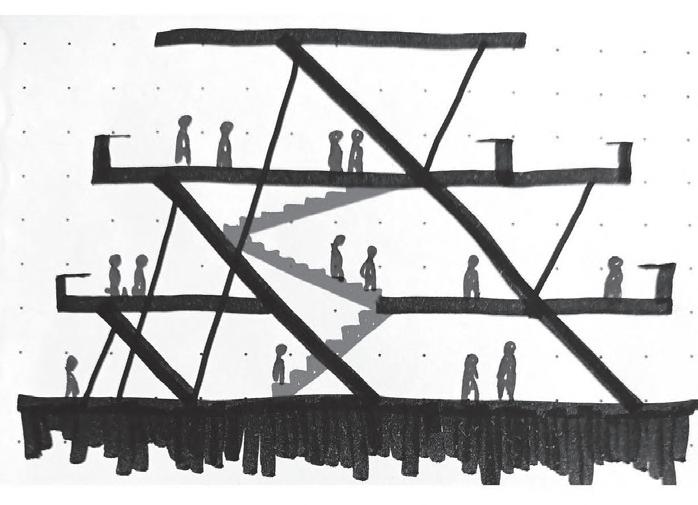

The wall is a truss system and the pods become structural framework
Addition of levels and wood panel skin to the framework
Details and roofing is added to the pavilion, material in contrast to the planetarium
Portfolio | Samyak Jain Book Studio, Kamati Baug | Selected Works Section EE’
| 15

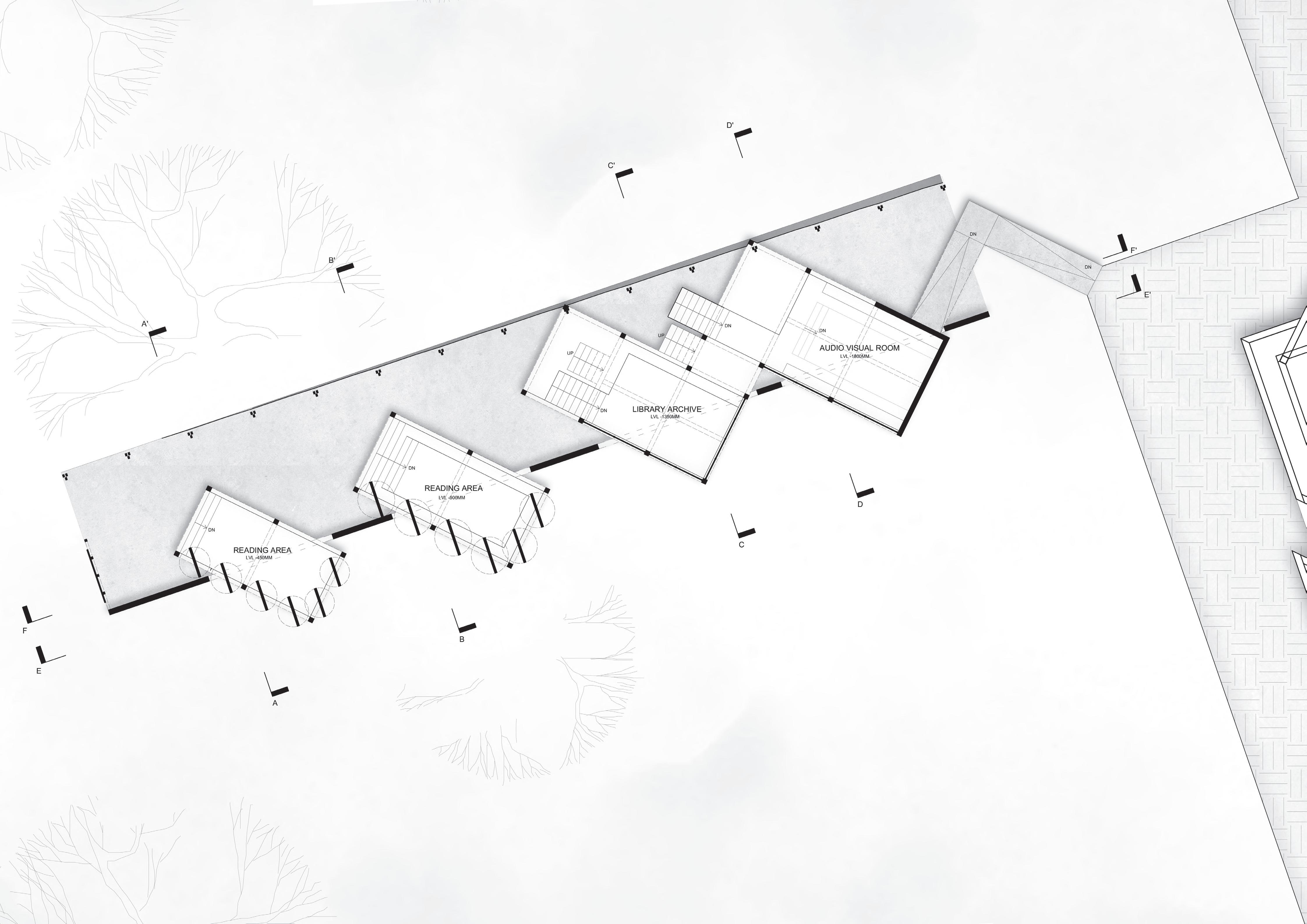

Plan at + 500mm
Portfolio | Samyak Jain Book Studio, Kamati Baug | Selected Works
16 |

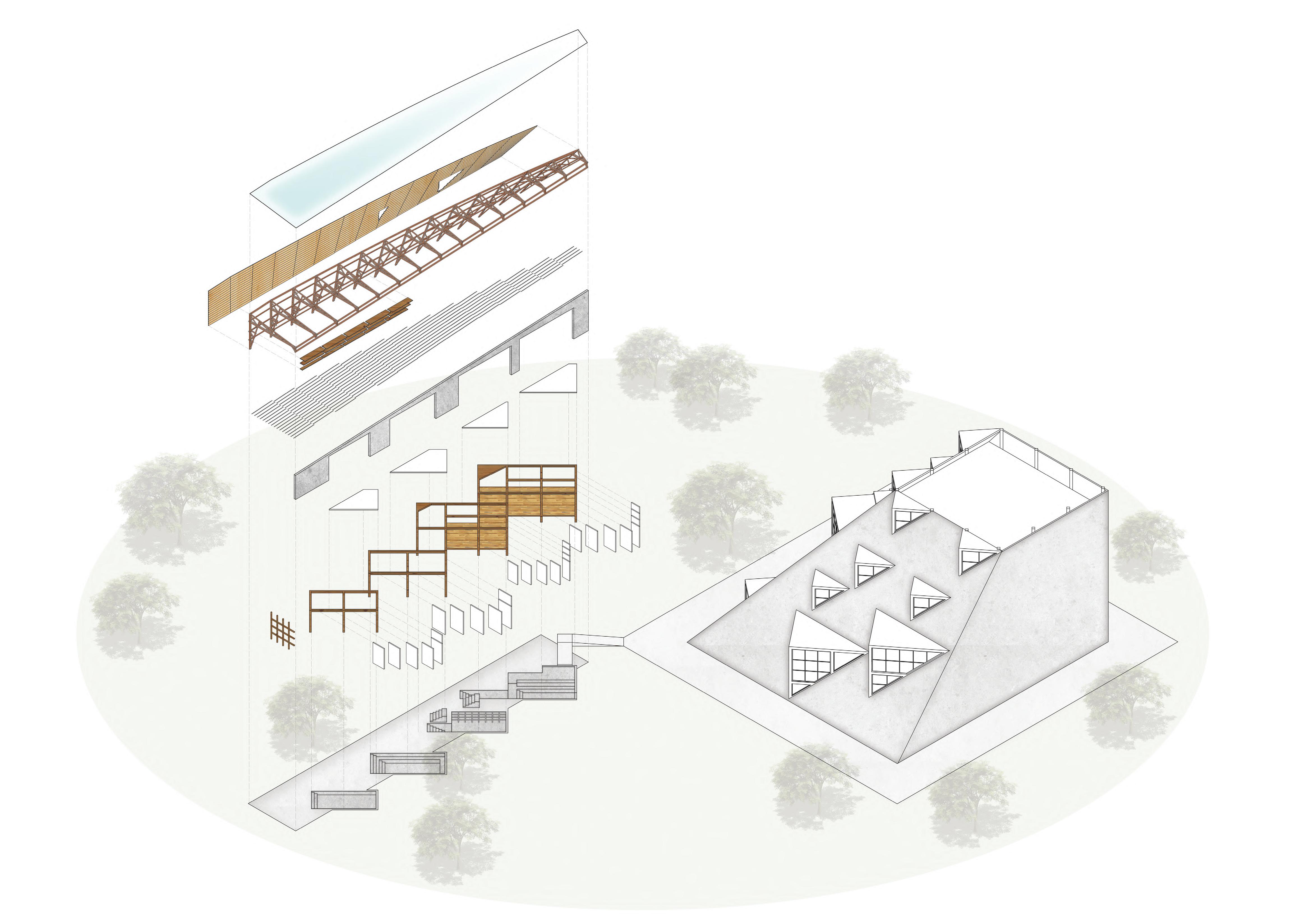

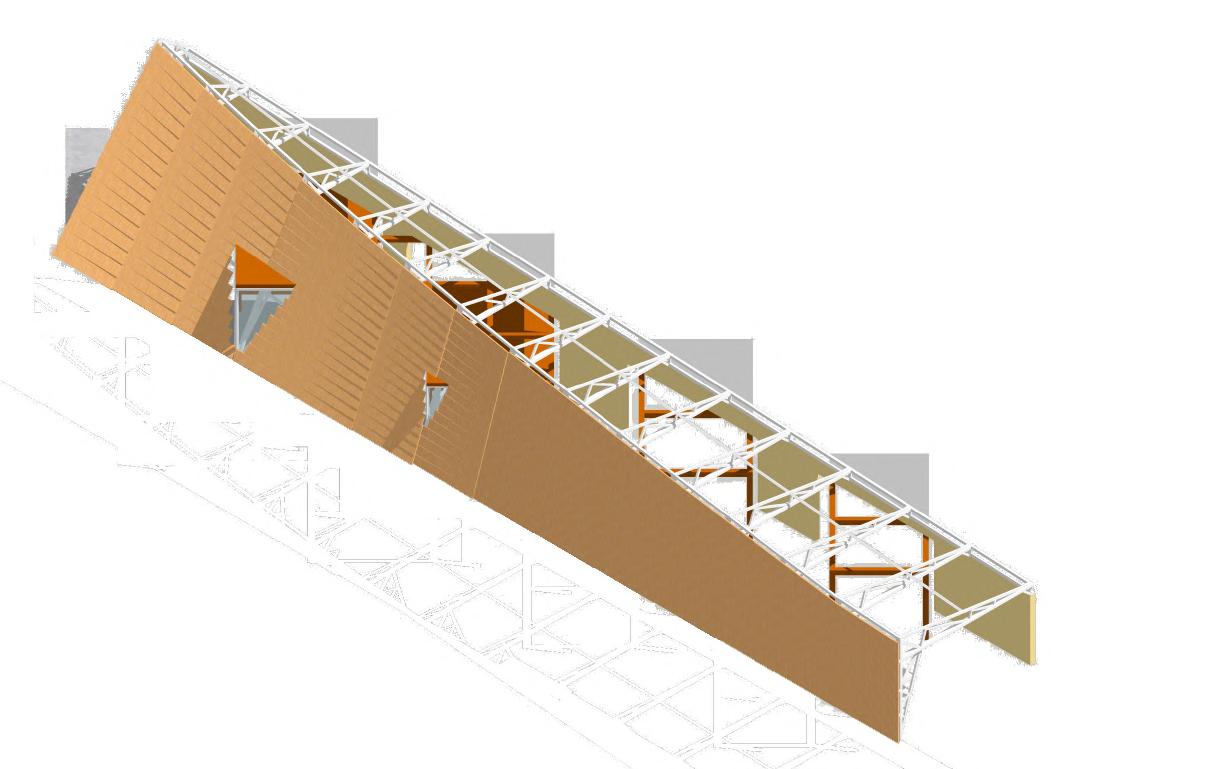

Exploded View of the Pavillion

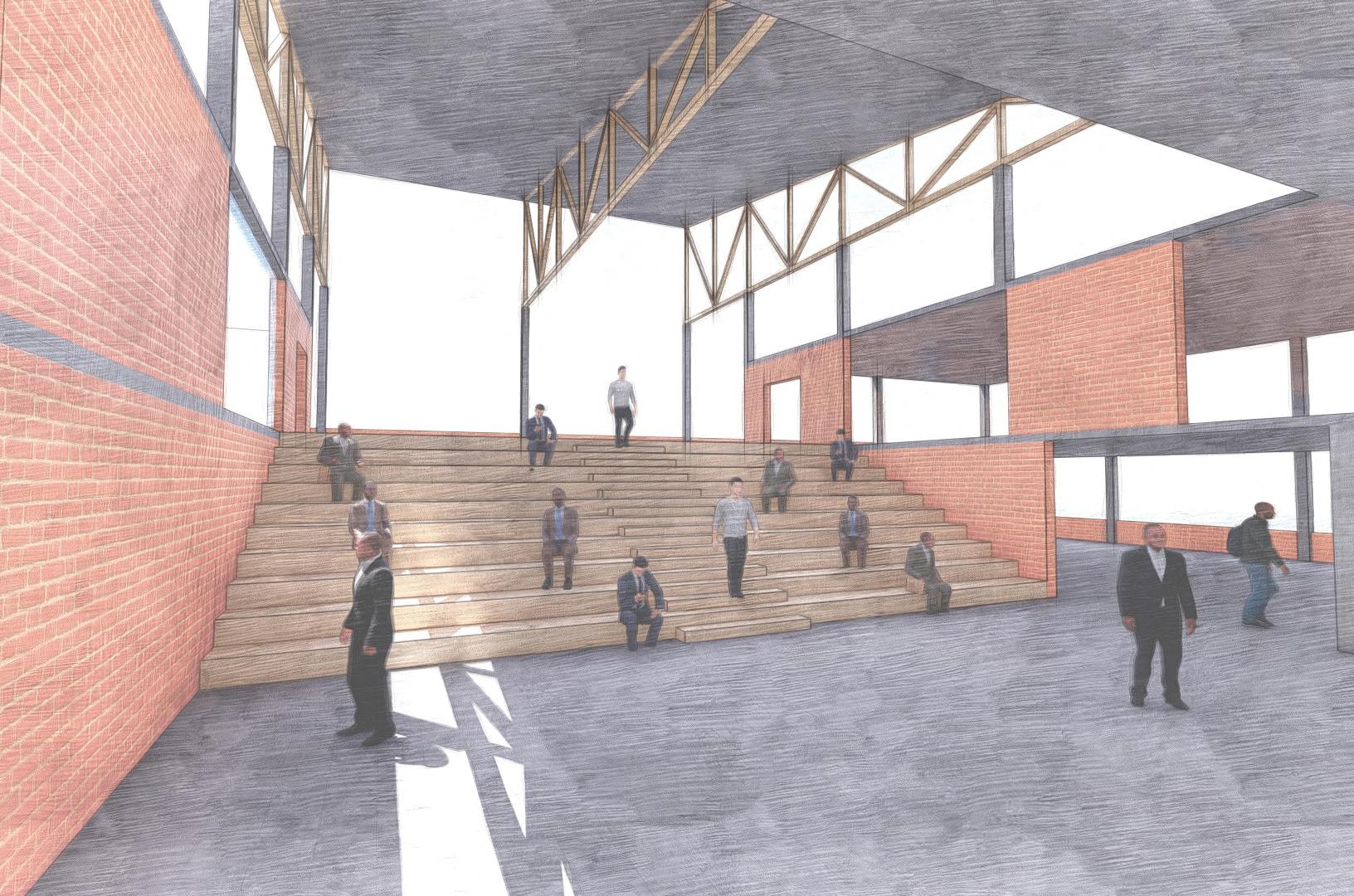

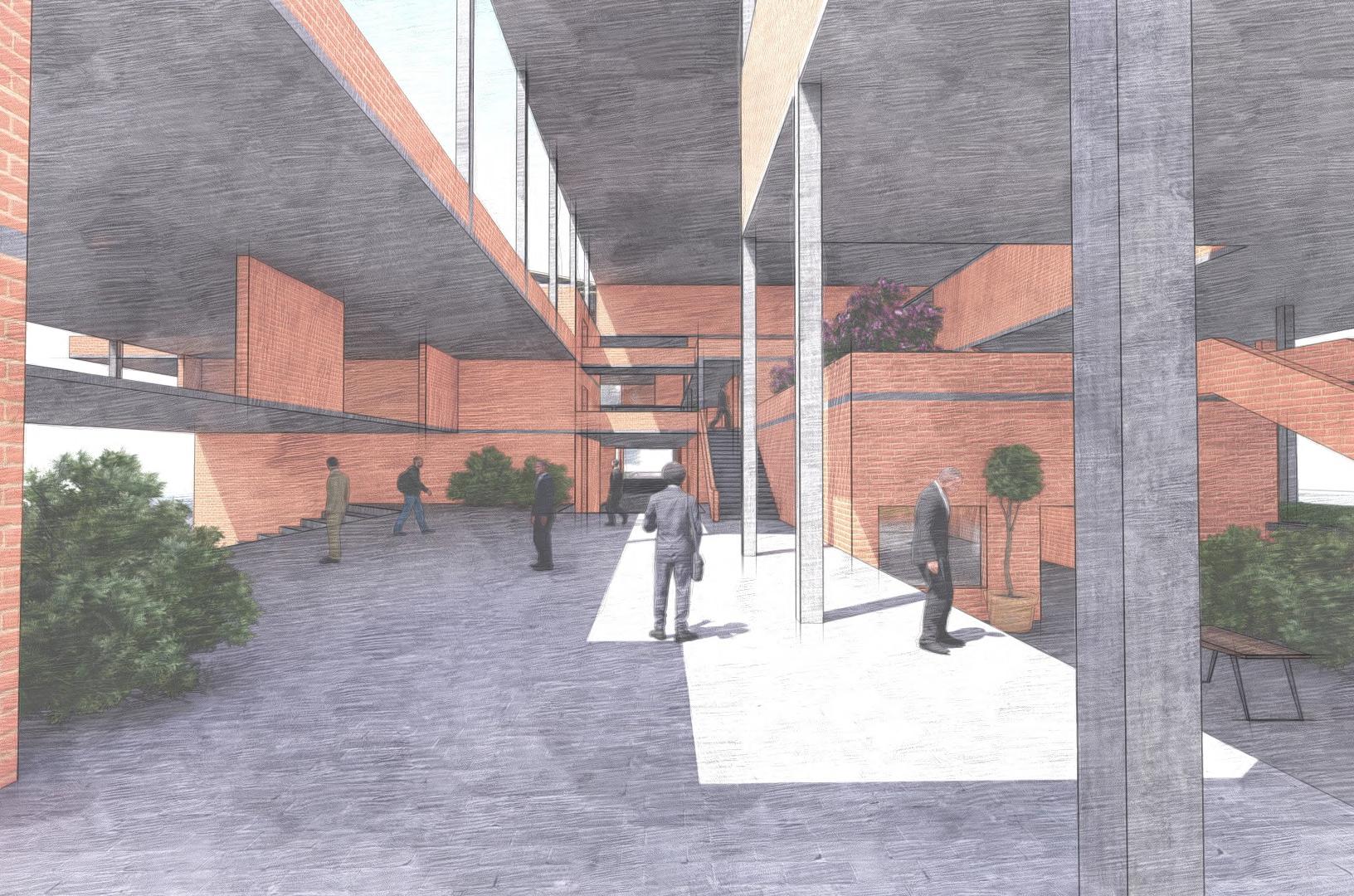

Workplace Neighbourhoods
Workplace Neighbourhoods Semester 7
Tutors: Nimit Killawala, Prateek Banerjee

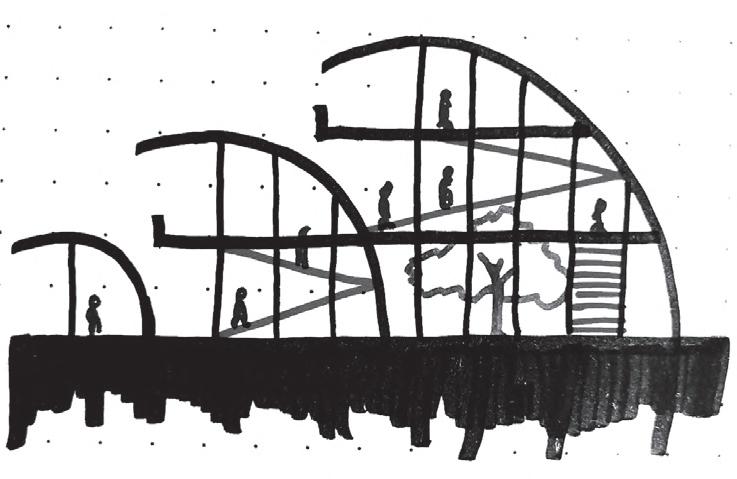

The project is proposed based on the collaboration between Academia, Government and Industry, located on an important junction of JVPD scheme - the Mumbai Selfie Point, which is an RG plot, surrounded by Joggers park on one edge and aerodome water body on the southern edge. The collaboration proposes a digital marketing and event management centre, which aims to provide its services as well as opportunities for community as well as the academia. Apart from that a ward office is also proposed for the K-West region, bringing in the government element. The project has a central spline running across the site, with three floors - lower for public activities, upper for private and middle for collaboration. Programs are organised to provide view towards the lake for high usage spaces and private functions along the V.M. Road’s edge.
Scan for complete project
Portfolio | Samyak Jain Workplace Neighbourhood | Selected Works | 19

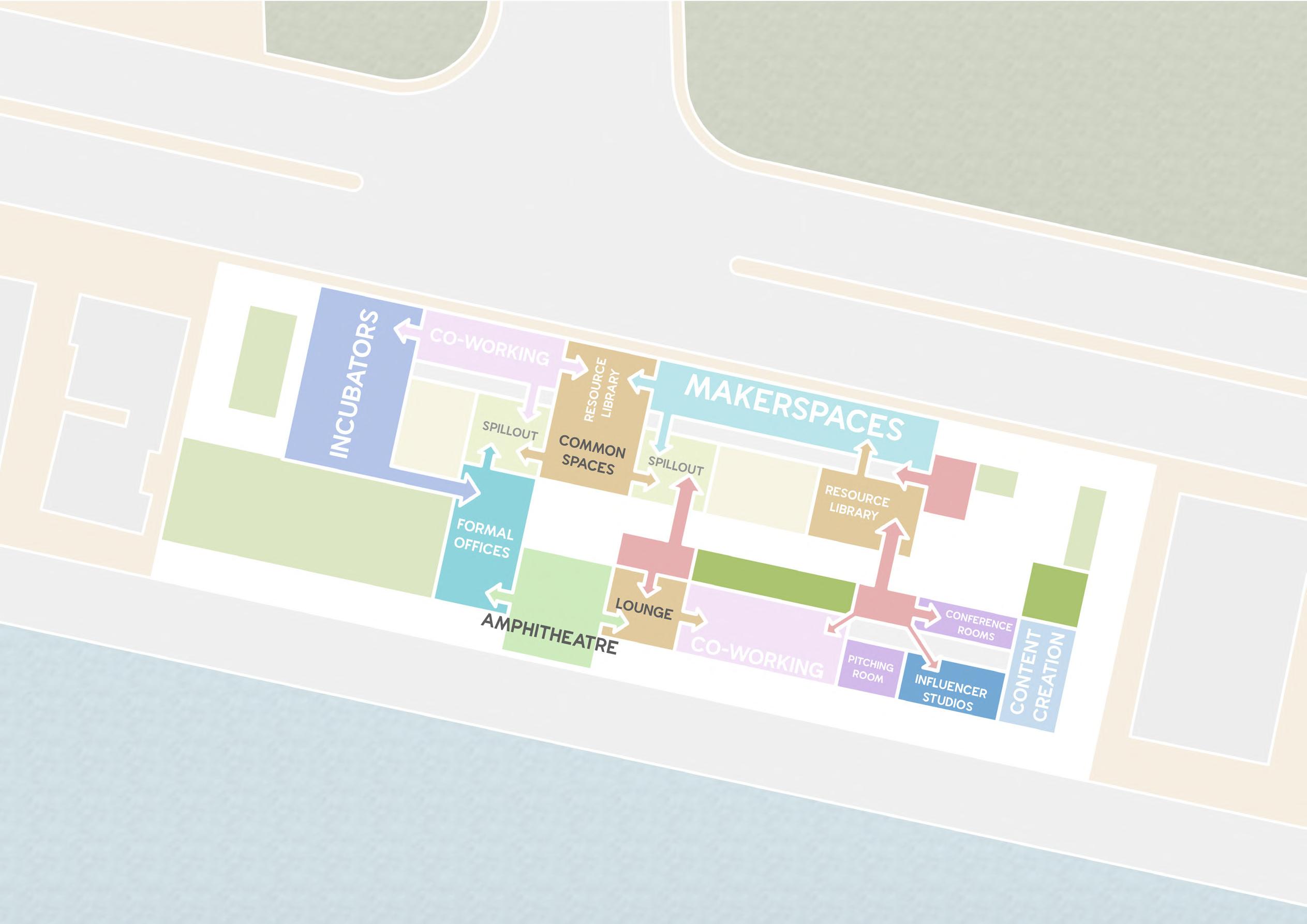

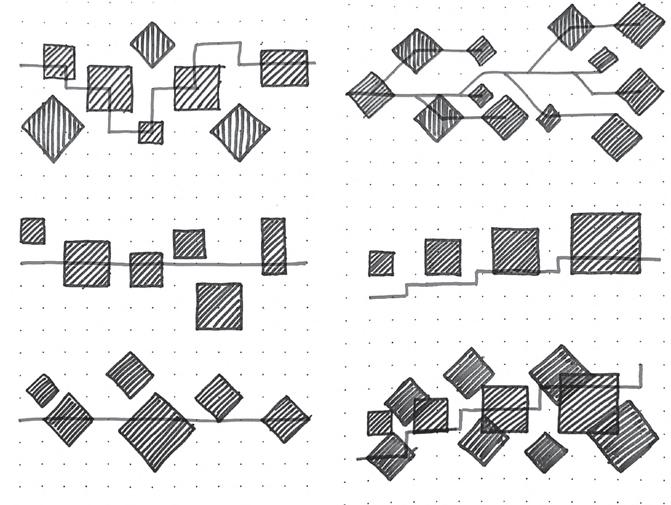

Evolving Synergies between three prominent Stakeholders

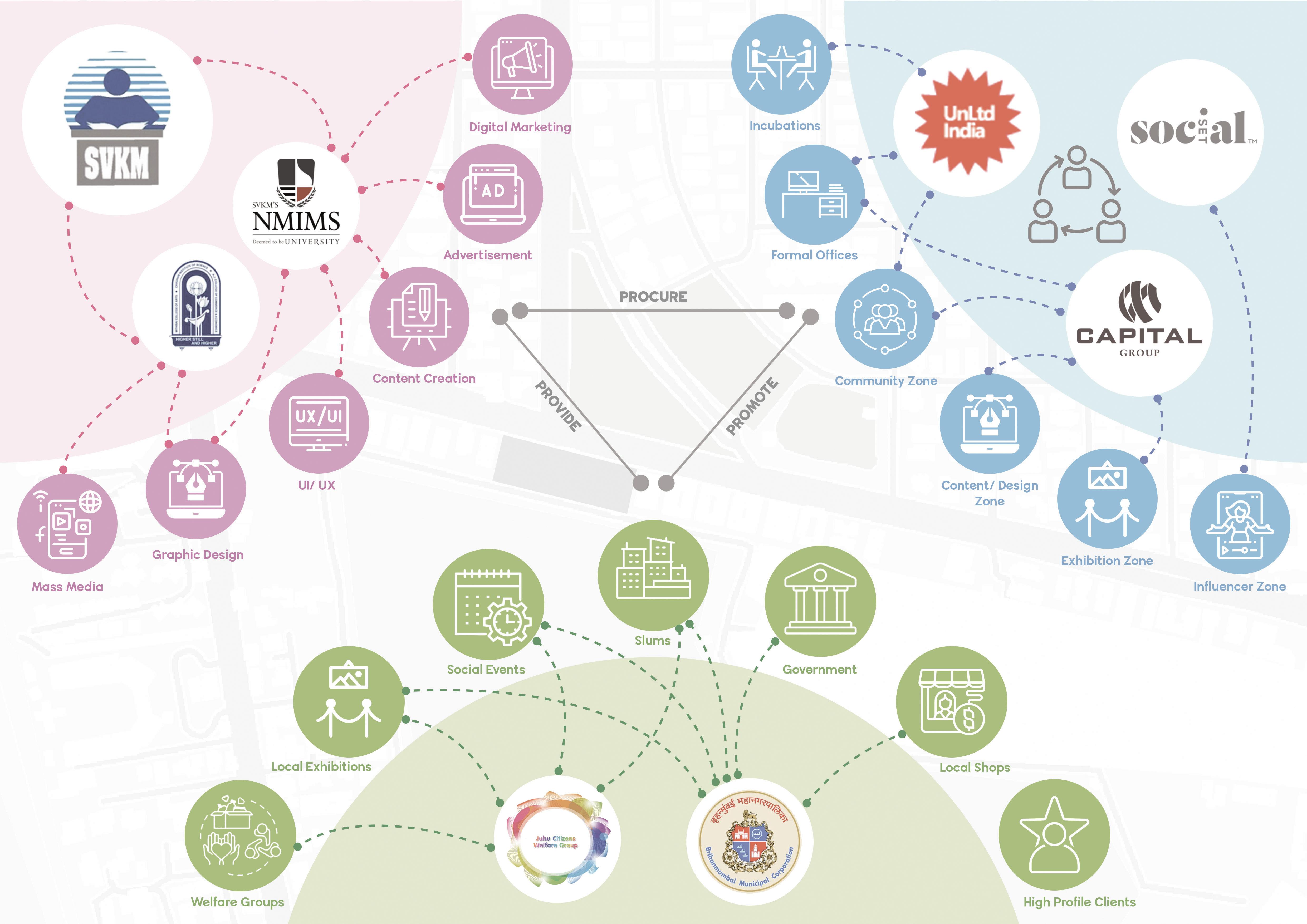

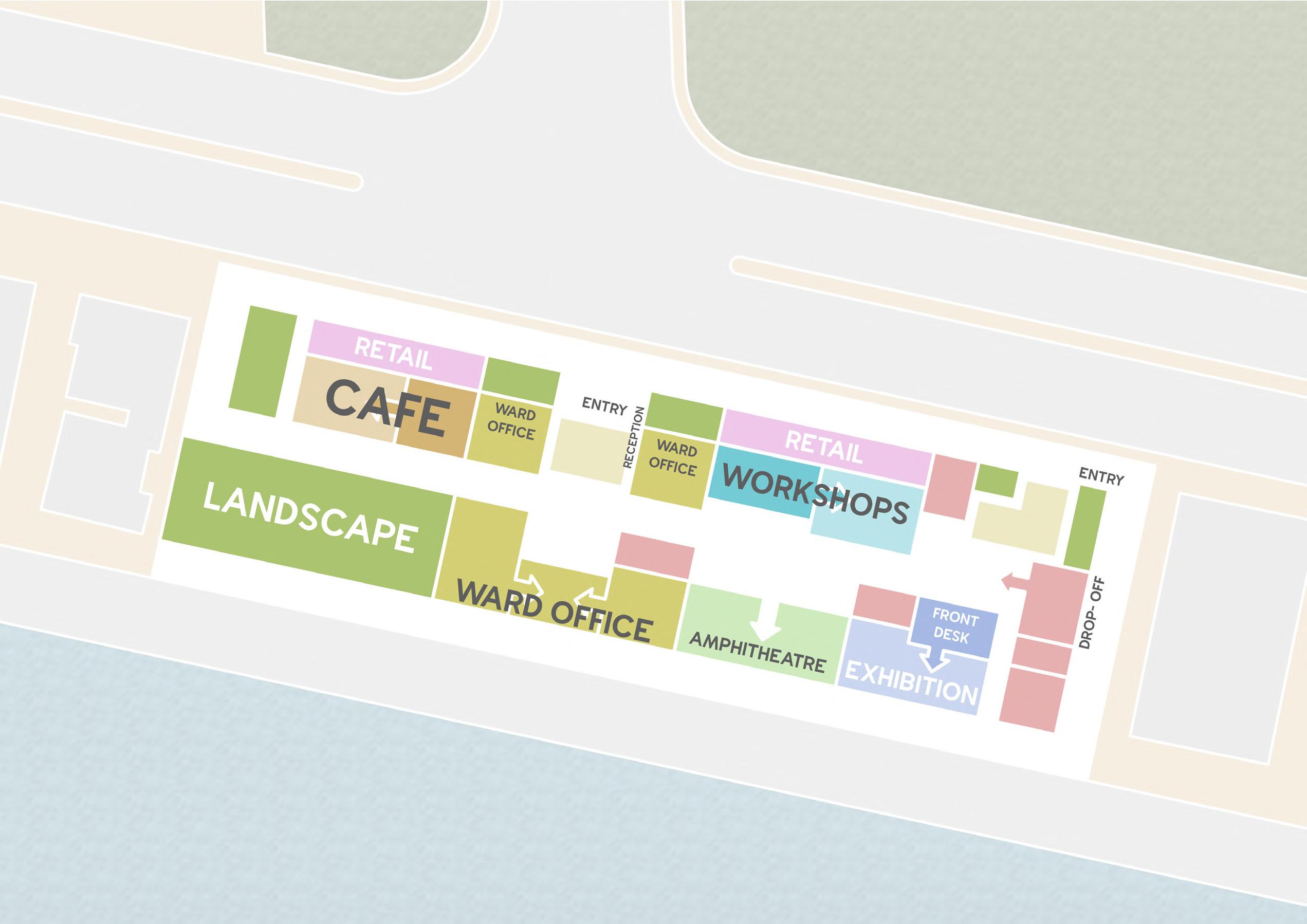

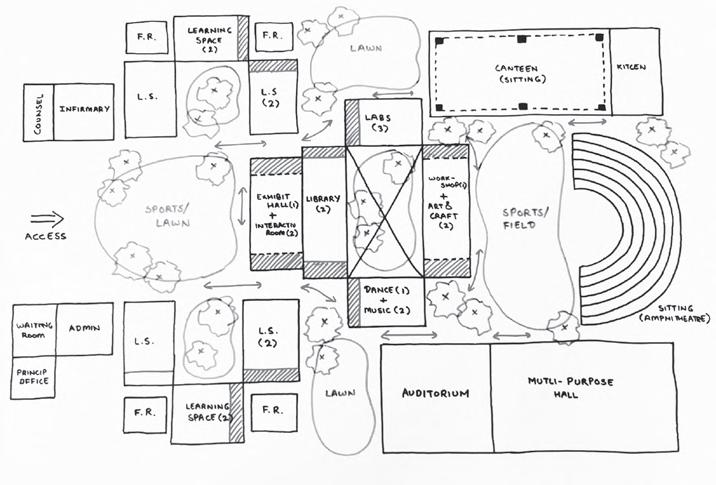

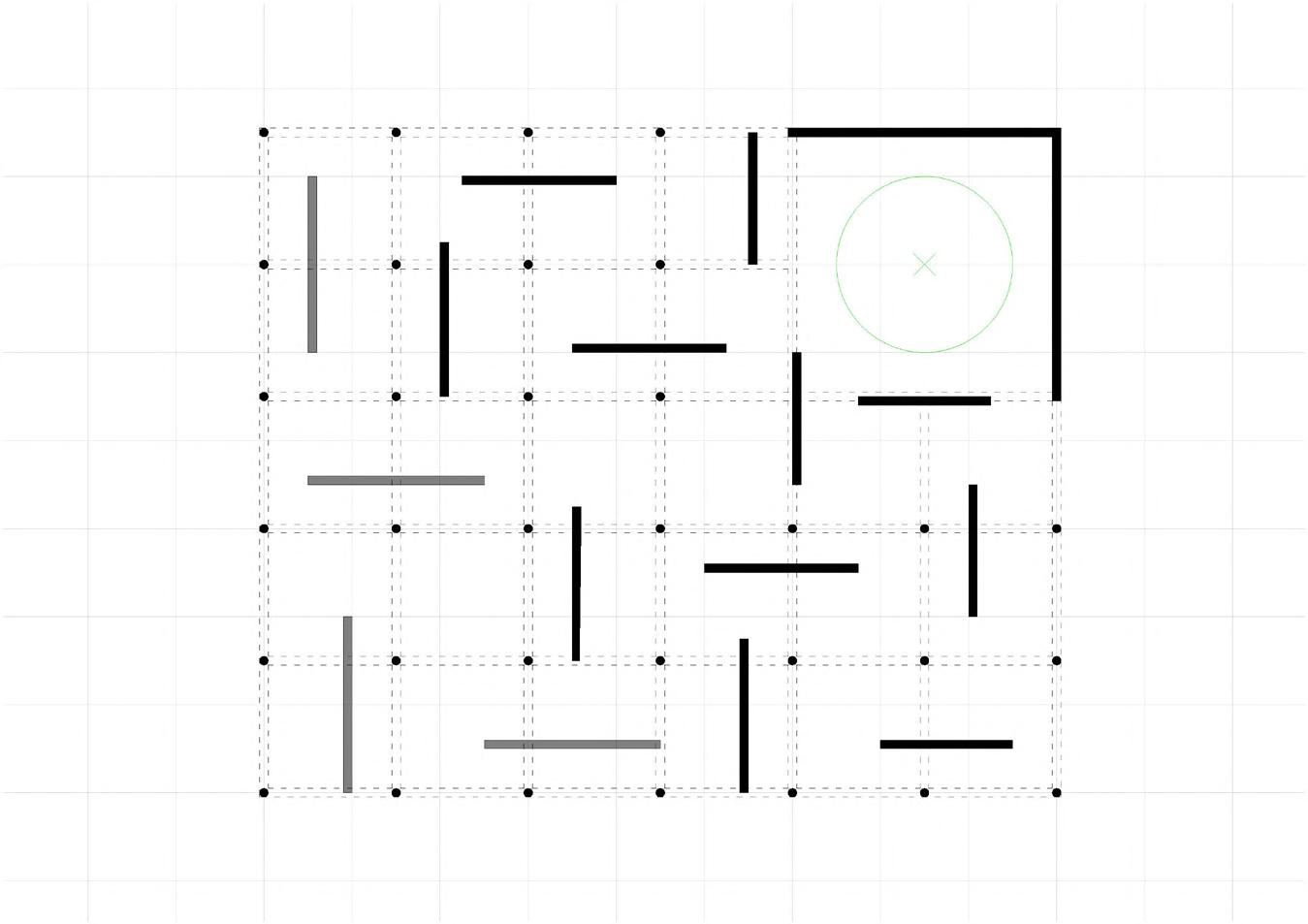

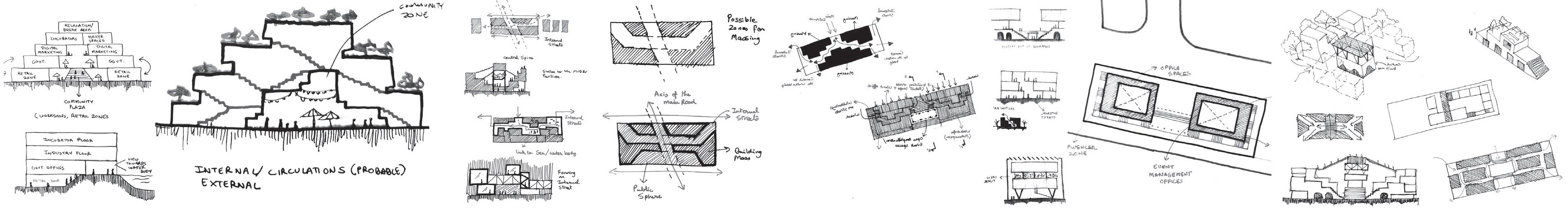

Program Diagrams
20 |

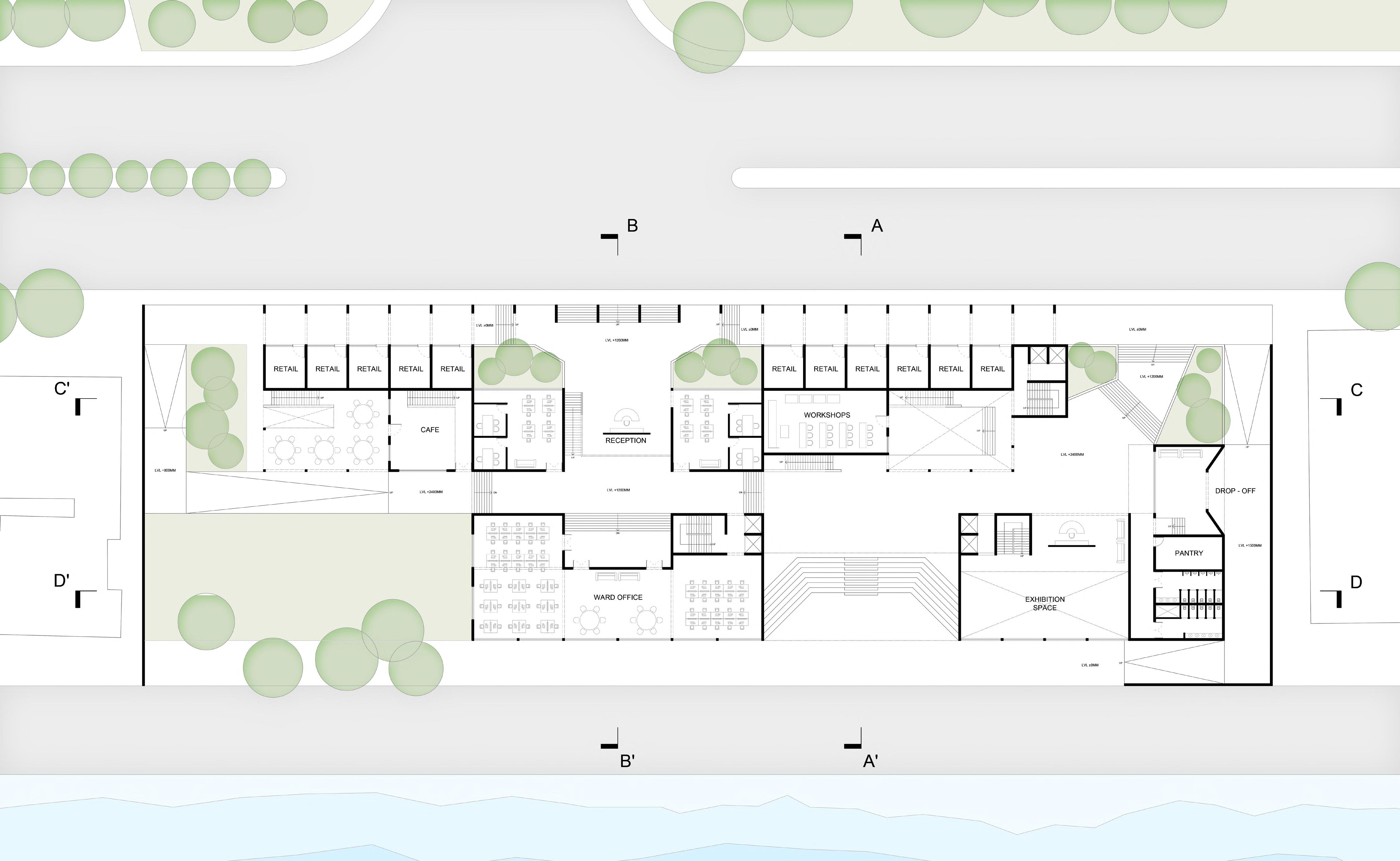

Ground Floor Layout
Portfolio | Samyak Jain Workplace Neighbourhood | Selected Works | 21
Annotated Documentation
Velangi Village, Vishakhapatnam SWS Course
Tutor: Sankalpa
The architecture measuring drawing project conducted for a local village home in Velangi, Vizag was a focused effort to create detailed plans of a specific residential structure. The project involved working closely with the homeowners to gather precise measurements of the house and its surroundings.
The project was a valuable tool for documenting and analyzing a specific residential structure in Velangi, and understanding the complete structural systems and drawing proper details
22 |
Portfolio | Samyak Jain Annotated Documentation | Selected Works Winter Velangi, Andhra Students From CEPT Samyak UG180544 Marni Ammanna's Annotated Documentation In collaboration Department of Architecture Andhra 0.5 0 Faculty of Architecture CEPT Faculty From CEPT SECTION AA' NORTH ELEVATION A B' B A' FURNITURE PLAN AT LVL+ 1732mm Winter Velangi, Andhra Students From CEPT Samyak UG180544 Marni Ammanna's Annotated Documentation In collaboration Department of Architecture Andhra 0.5 0 Faculty of Architecture CEPT Faculty SECTION AA' NORTH ELEVATION A B' B A' FURNITURE PLAN AT LVL+ 1732mm A B' B A' FURNITURE PLAN AT LVL+ 1732mm A B' B PLAN AT LVL+ 1732 mm A' Documentation Department Students From Samyak Faculty From A' B' A B REFLECTED ROOF PLAN AT LVL+ 1732 mm LEGENDS 1 2 3 4 UP UP DN LVL +232mm LVL +232mm LVL +272mm LVL +272mm LVL +272mm LVL +262mm LVL +232mm LVL +352mm LVL +402mm LVL ±0mm LVL +162mm LVL +142mm LVL +281mm Annotated Documentation In collaboration with Department of Architecture Andhra University Winter school 2019 0.5 1 2.5 0 Velangi, Andhra Pradesh Faculty of Architecture CEPT University Students From CEPT Samyak UG180544 From AU Roopa Faculty From CEPT Sankalpa Yash From AU Revathi Devi Vijaykumar Marni Ammanna's House EAST ELEVATION SITE PLAN SECTION BB' 1 2 5 0 EAST ELEVATION SITE PLAN SECTION BB' 1 2 5 0 PLAN AT +1732MM REFLECTED ROOF PLAN AT +1732MM SITE PLAN | 23
Portfolio | Samyak Jain Annotated Documentation | Selected Works Annotated 0.05 0.1 0.25 0 Marni Ammanna's House TIMBER RAFTERS 76mm X 60mm BRICK WALL 225mm THICK TIMBER BATONS 25mm X 50mm TIMBER BEAMS 76mm X 100mm TIMBER WALL PLATE 107mm X 167mm TIMBER JOIST 60mm X 80mm TIMBER BEAMS 25mm X 50mm TIMBER BEAM 80mm X 100mm TIMBER PURLINS 25mm X 50mm CEMENT PLASTER 5Omm THICK TIMBER LINTEL 100mm THICK TIMBER RAFTER 50mm X 100mm TIMBER WALL PLATE 100mm X 80mm LIME PLASTER 20mm THICK WALL SECTION STRUT AT CORNER POSTS RAFTER POSTS 0.2 0.4 1 0 Annotated Documentation 0.05 0.1 0.25 0 Marni Ammanna's House TIMBER RAFTERS 76mm X 60mm BRICK WALL 225mm THICK TIMBER BATONS 25mm X 50mm TIMBER BEAMS 76mm X 100mm TIMBER WALL PLATE 107mm X 167mm TIMBER JOIST 60mm X 80mm TIMBER BEAMS 25mm X 50mm TIMBER BEAM 80mm X 100mm TIMBER PURLINS 25mm X 50mm CEMENT PLASTER 5Omm THICK TIMBER LINTEL 100mm THICK TIMBER RAFTER 50mm X 100mm TIMBER WALL PLATE 100mm X 80mm LIME PLASTER 20mm THICK WALL SECTION 10mm dia METAL DOWELL WOODEN POST STRUT DETAIL A STRUT AT CORNER POSTS HIP RAFTER RAFTER POSTS 0.2 0.4 1 0 Winter school 2019 Velangi, Andhra Pradesh From AU Roopa 1 2.5 Students From CEPT Samyak UG180544 From AU Revathi Devi Vijaykumar Marni Ammanna's House Annotated Documentation In collaboration with Department of Architecture Andhra University 0.5 0 Faculty of Architecture CEPT University Faculty From CEPT Sankalpa Yash SECTION AA' NORTH ELEVATION A' Annotated Documentation In collaboration with Department of Architecture Andhra University Winter school 2019 0.5 1 2.5 0 Velangi, Andhra Pradesh Faculty of Architecture CEPT University Students From CEPT Samyak UG180544 From AU Roopa Faculty From CEPT Sankalpa Yash From AU Revathi Devi Vijaykumar Marni Ammanna's House EAST ELEVATION SITE PLAN SECTION
1 2 5 0 SECTION
WALL SECTION EXPLODED AXONOMETRIC SECTION
EXPLODED AXONOMETRIC VIEW PLINTH WALLS FALSE CEILING BRACINGS ROOF EXPLODED AXONOMETRIC VIEW PLINTH WALLS FALSE CEILING BRACINGS ROOF 24 |
BB'
AA’
BB’
Bamboo Structure
When Material Meets Design Semester 3
Tutors: Maulik Oza, Vishnu Kolleri

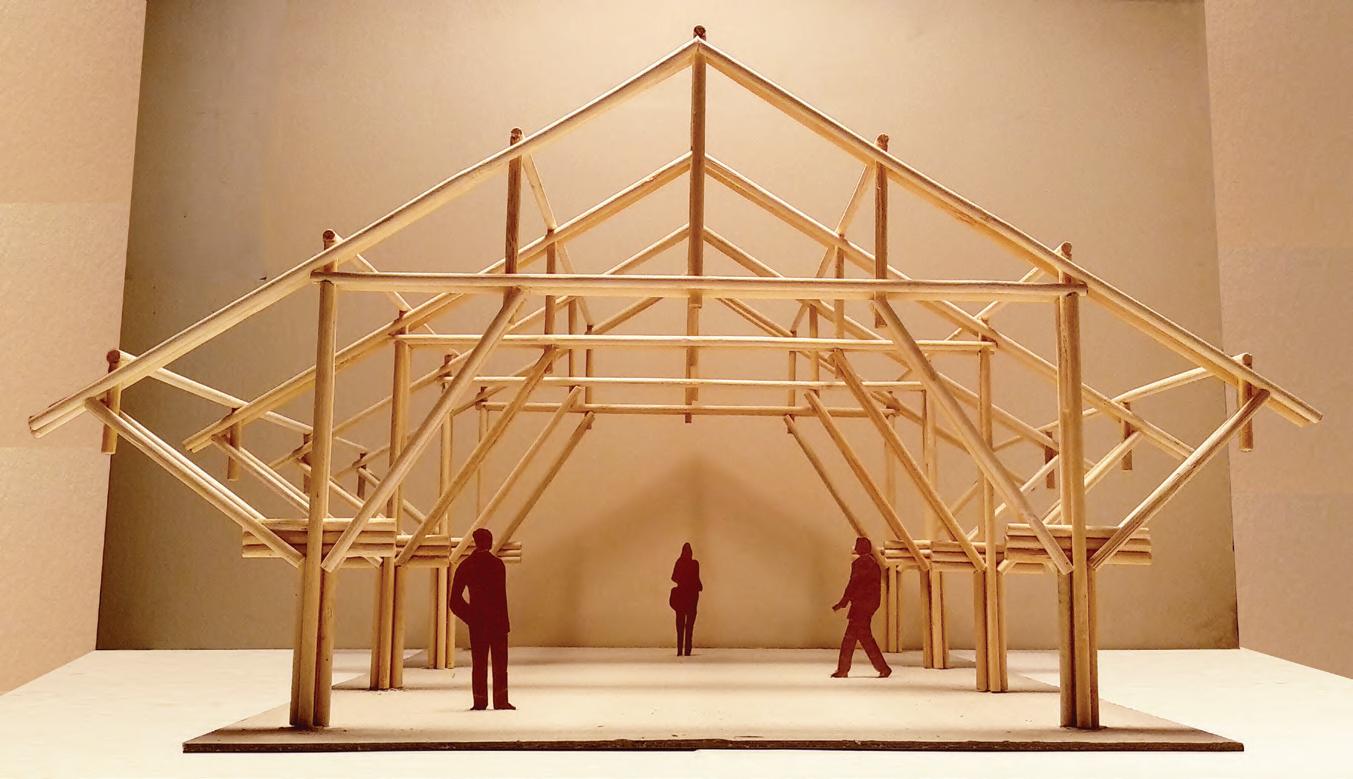

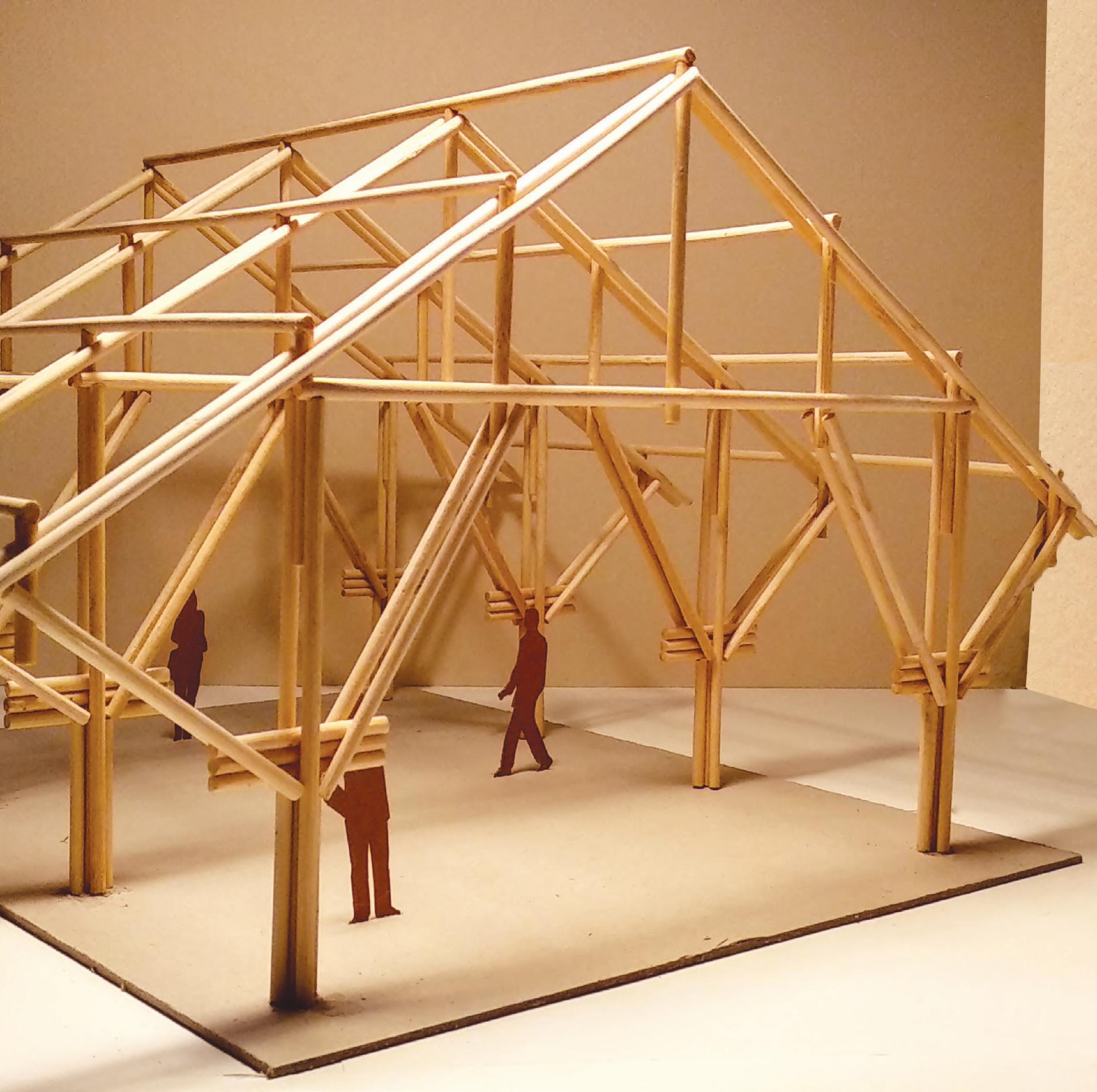

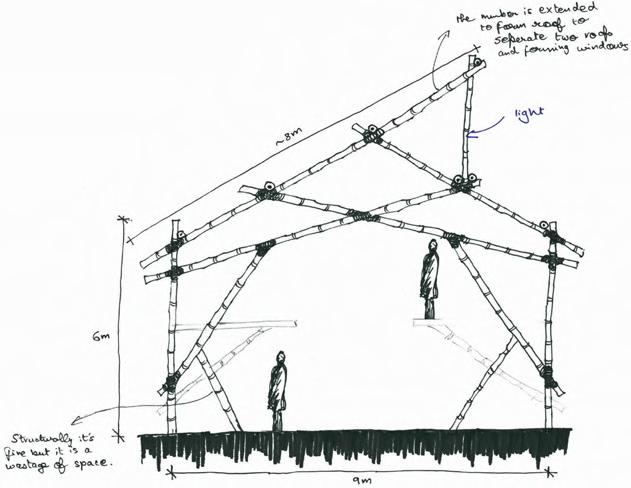

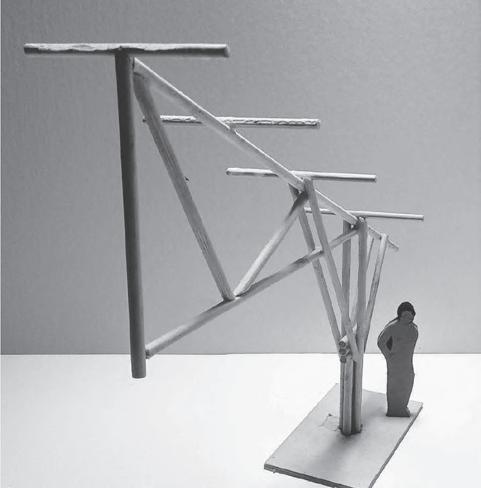

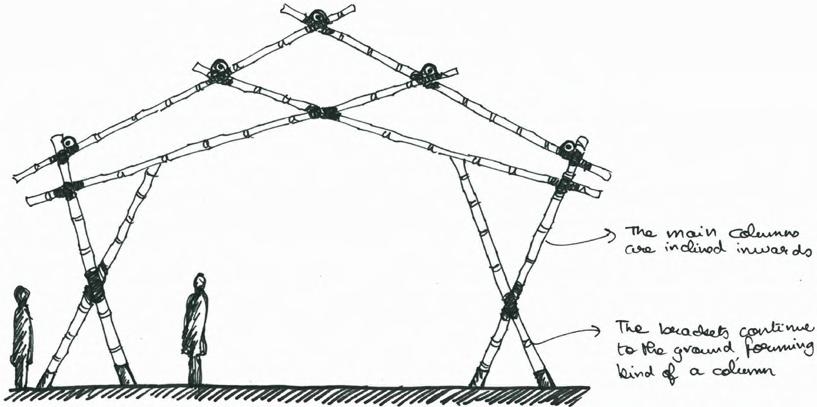

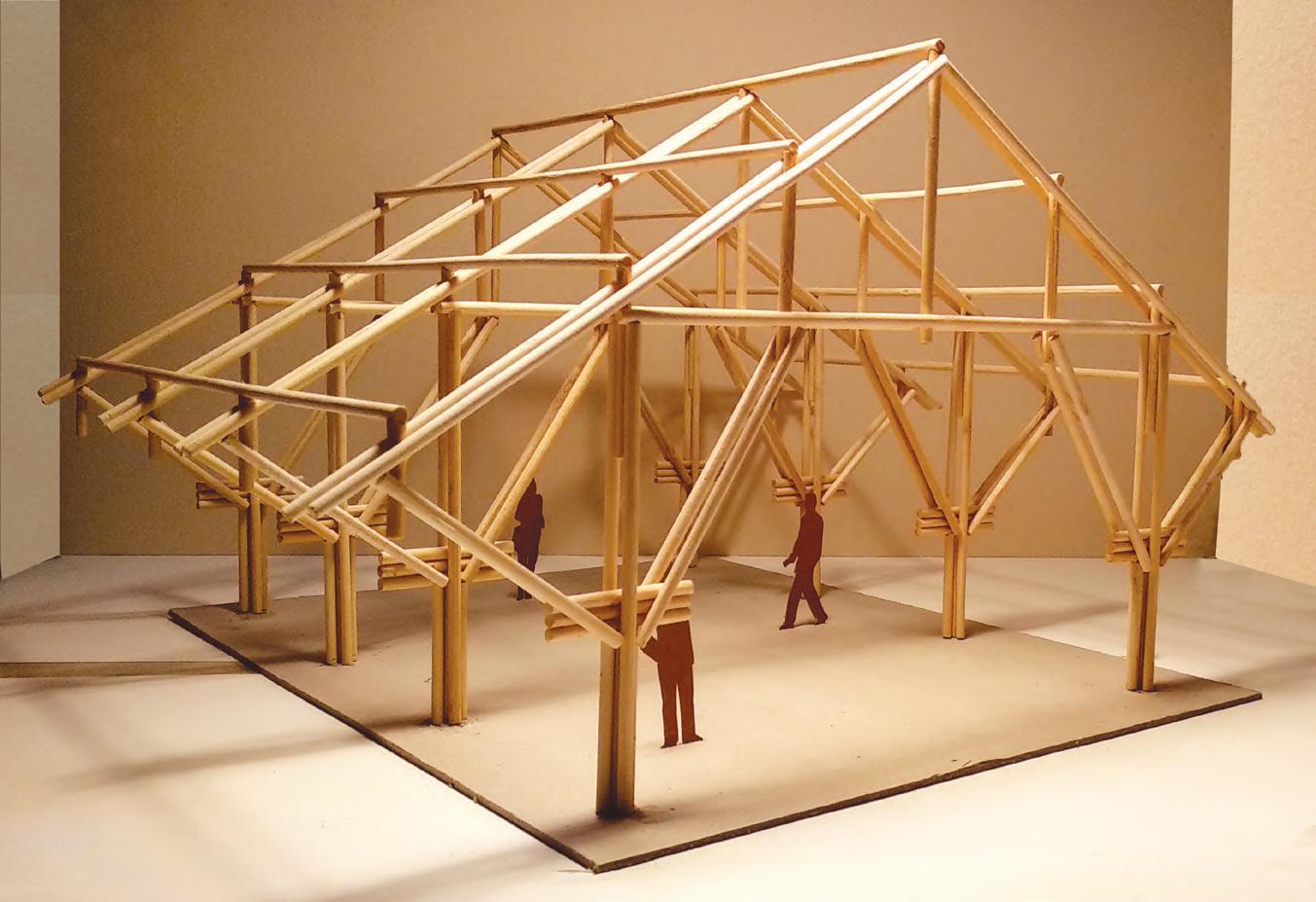

The idea is to explore various methods to create bamboo joineries and in turn design a system. The base idea was that since bamboo sections don’t come in consistent sizes. it might be beneficial to use bamboo members in sandwiching rather than join them in a single plane to increase strength of the system for creating a space frame, and use lashing to tie them.
Scan for complete project
Portfolio | Samyak Jain Bamboo Structure | Selected Works Column - Raft End Detail

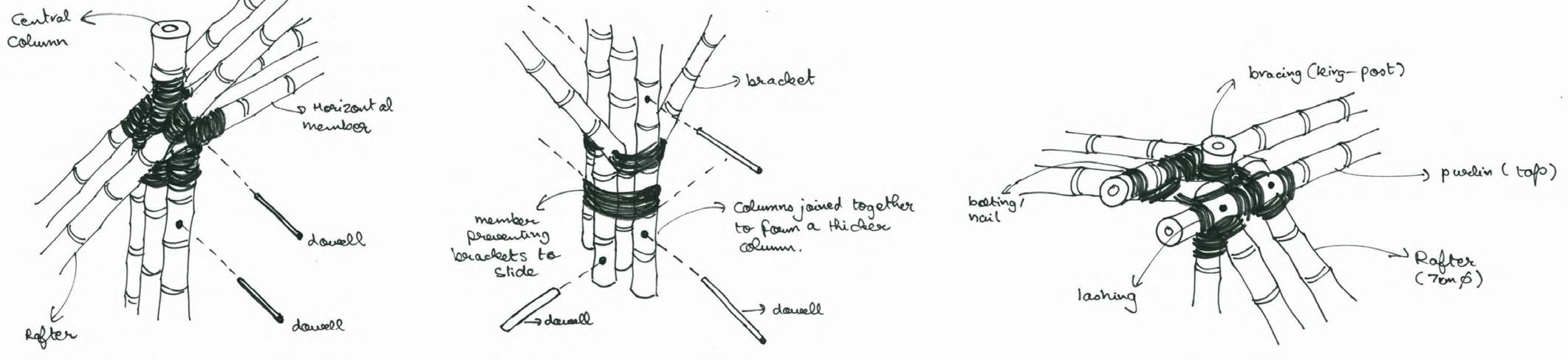

Column Detail Bracket - Bracing Detail Bracket Detail 26 |
Shop Drawing of a Singular Module
