Urban Heritage Gallery
“THE EHCOES OF COMMUNITY AND HERITAGE”
PUDU / KUALA LUMPUR
SAMMI CHEW JIA LING / 0347690 / Tutor: Dr Ar NG

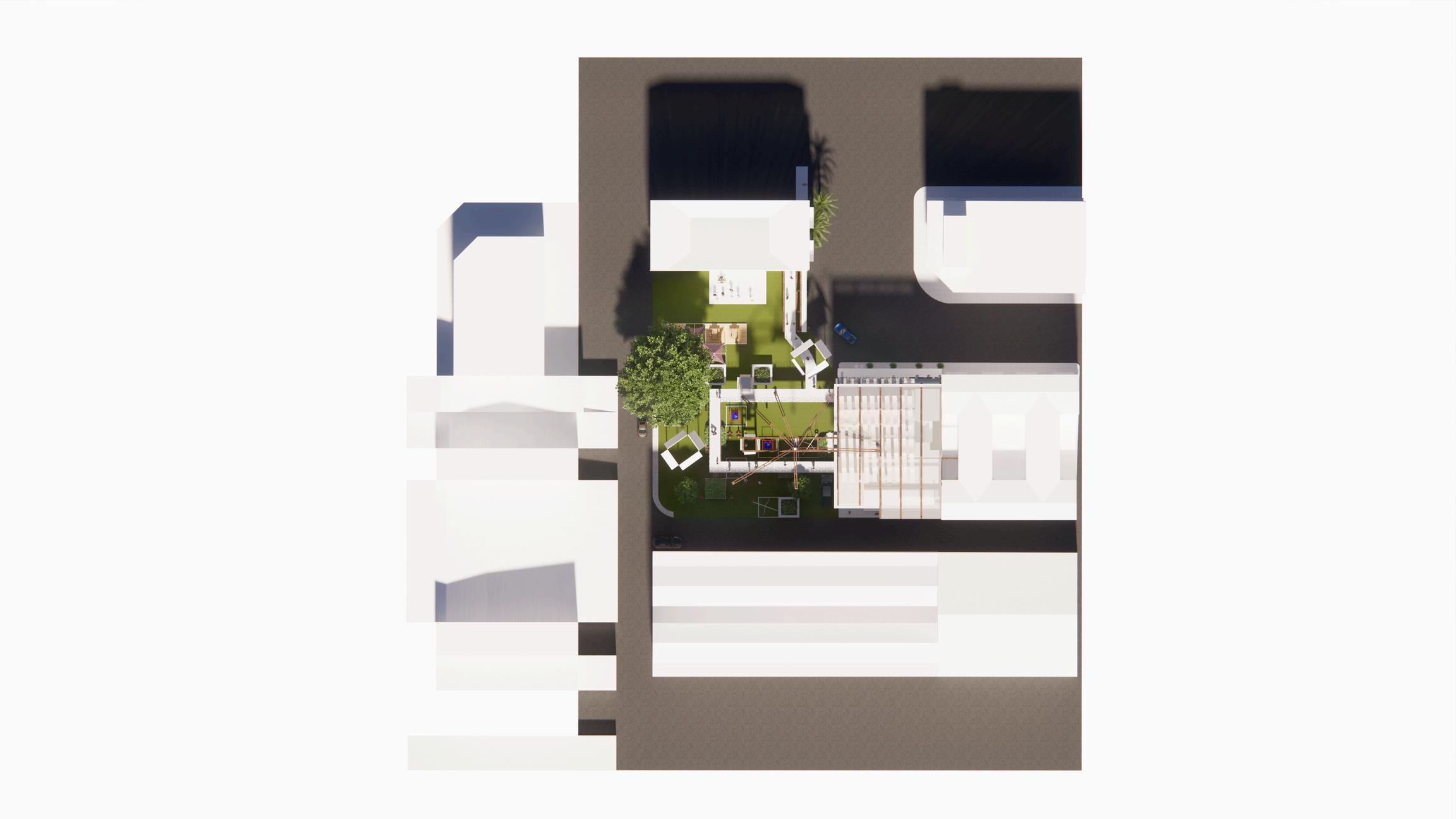

Urban Heritage Gallery

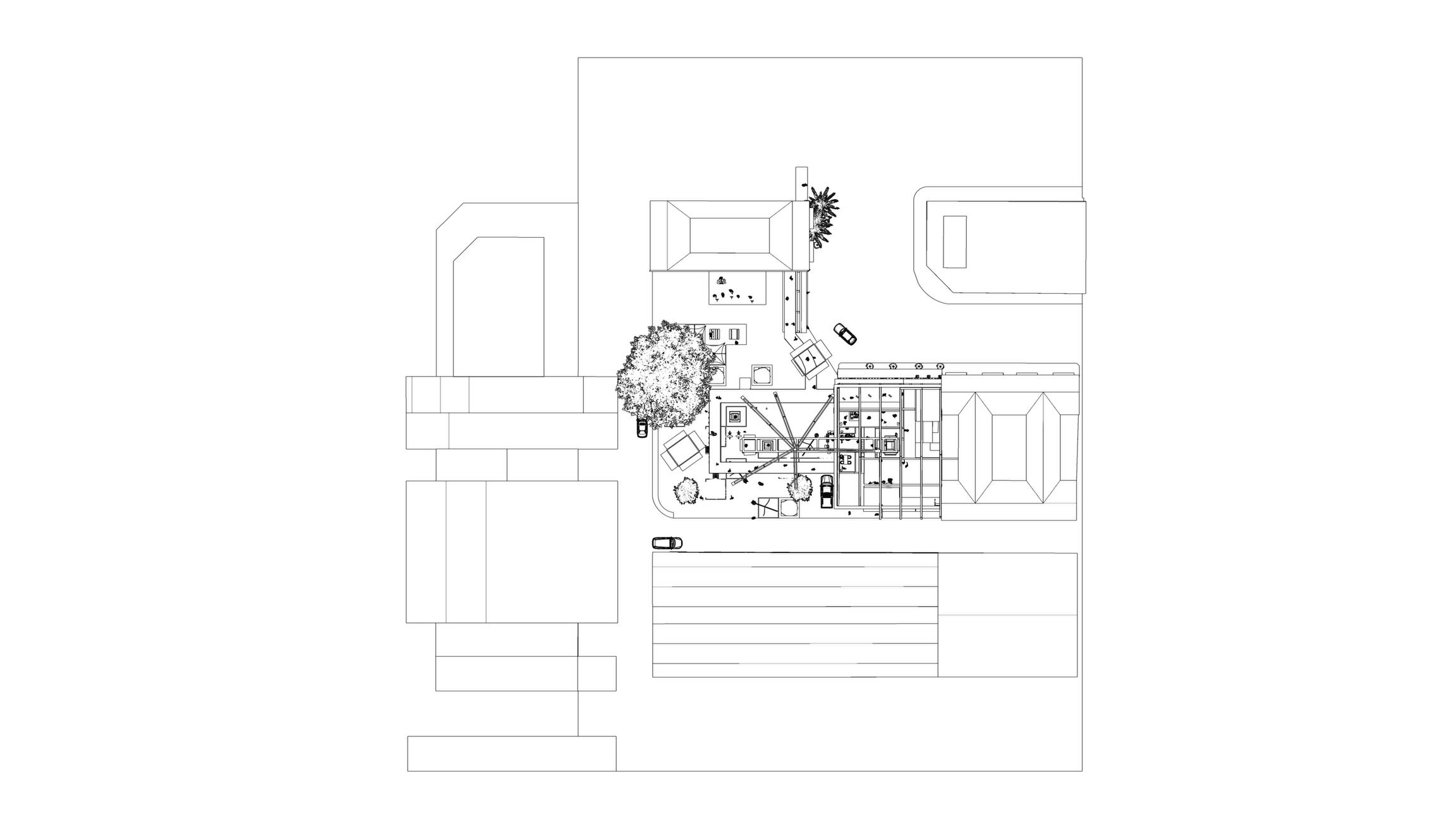

Urban Heritage Gallery
INTERLOCKING - FORMING - PUDU

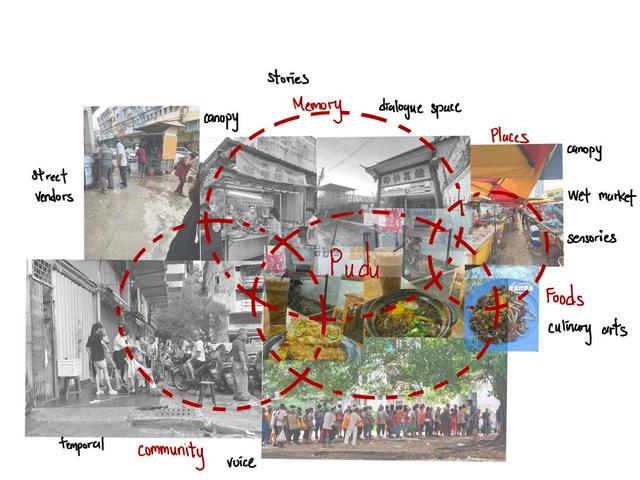

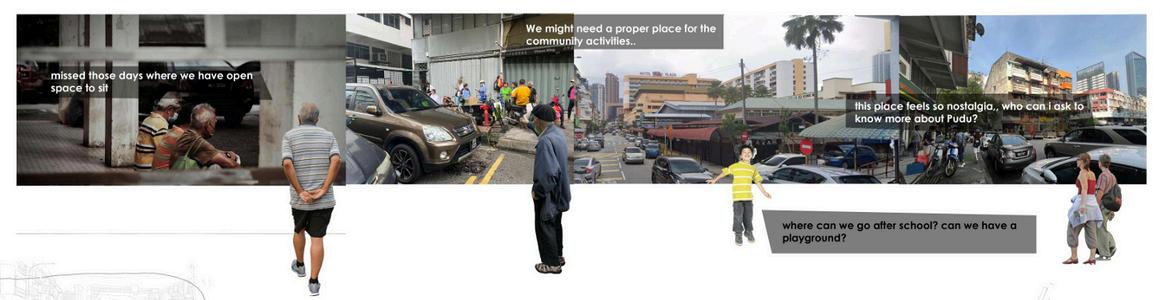

NEEDS AND DEMANDS
STRENGTH
A STRONG SENSE OF COMMUNITY SPIRIT FOSTERS CONNECTIONS AND BREAKS THROUGH THE BARRIERS OF ISOLATION
A SELF-CONTAINED CONVIINIENCE WITH THE VARIETY OF FOODS CHOICES, EDUCATIONS, PUBLIC TRANSPORT
A VARIETY AND AFFORTABLE FOODS CULTURE THAT CATER TO EVERY TASTE BUD AND BUDGET
COMMUNITY SPIRIT, CONVINIENT AND FOODS
/HOW CAN THIS BE CONTRIBUTED TO PUDU/
OPPORTUNITIES
CREATION OF NEUTRAL GROUND - JANE JACOBS STREESES THE CONTRACTICTION MOST FRIENDSHIPS AND THE CONSEQUENT NEED TO PROVIDE PLACES WHICH NONE ARE REQUIRED TO PLAY HOST
INFUSING LEVELER - ROY OLDERBURG TO REDUCES MEN TO AN EQUALITY, ACCESSIBLE TO THE GENERAL PUBLIC
THE REGULARS WHO GIVE THE PLACES ITS CHARACTER AND SET THE TONE OF CONVIVIALITY, INVENTING PUDU’S BRAND
NEUTRAL GROUND, LEVELER, REGULARS
/THIRD PLACE - ROY OLDERBURG/
WEAKNESS

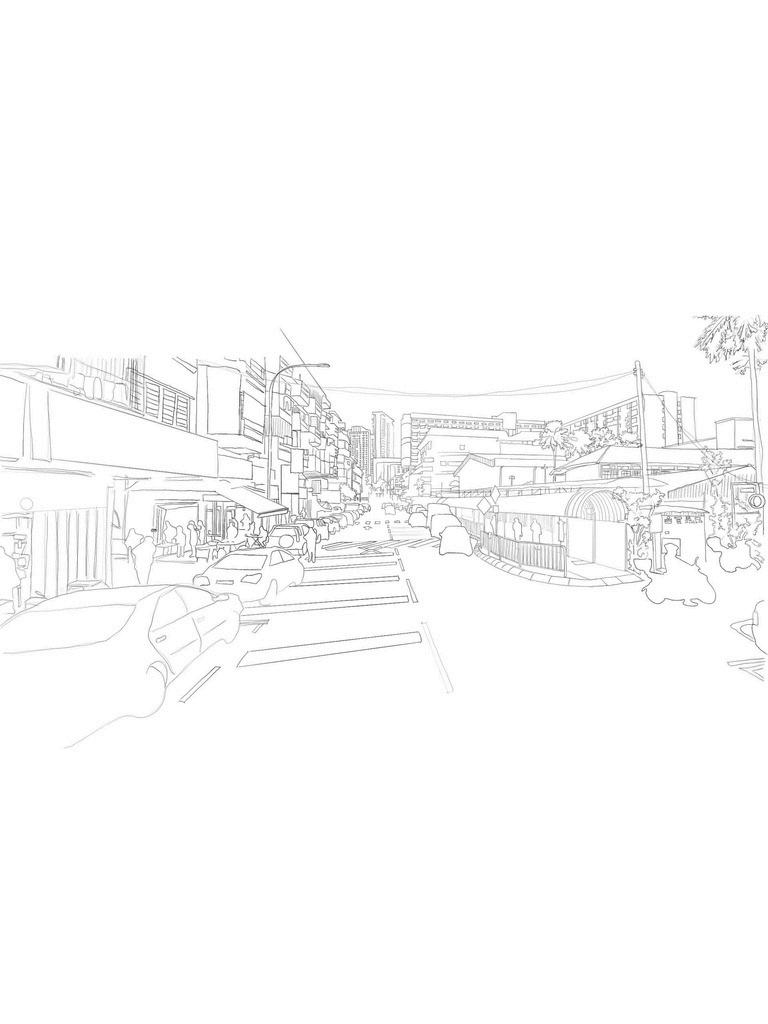

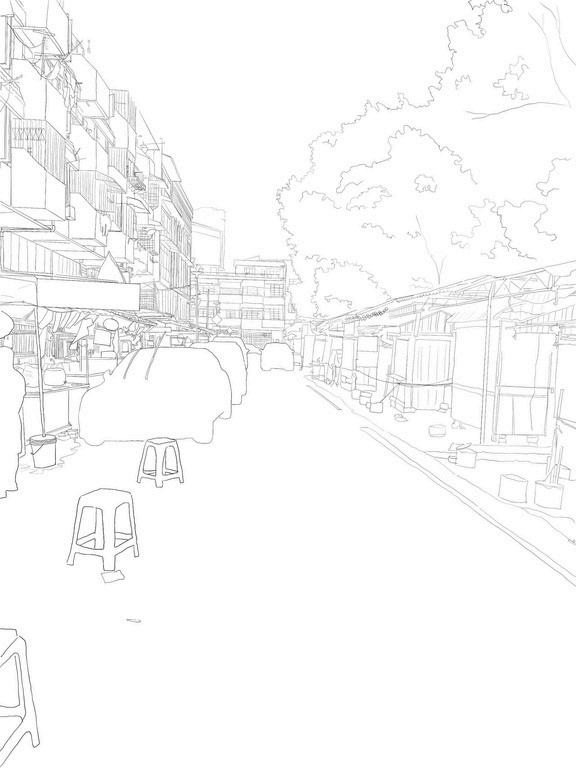

LOW LEVEL OF PEDESTRIAN FRIENDLINESS TOWARDS SITE B LOCATED AT JALAN SAYUR (SHATTERED CONCRETE SLAB)
LACK OF PUBLIC OPEN SPACE
BORING IN TERMS OF ENTERTAINMENT
PEDESTRIAN FRIENDLINESS, PUBLIC OPEN SPACES, AND ENTERTAINMENT
/DEFENSE LIVELINESS/
TREATS
THE DEVELOPMENT AROUND DRAWS THE PEOPLE AWAY FROM PUDU
FRAGMENTATION OF HUMAN ACTIVITIES BECAUSE NO PUBLIC SOCIAL SPACE FOR GATHERING
LOSSING IDENTITY OF THE LAND
EXTERNAL DEVELOPEMTN, FRAGMENTATION OF HUMAN ACTIVITIES, AND LOSSING IDENTITY
/SCATTERED OF NEIGHBOURHOOD/
Urban Heritage Gallery
Urban Heritage Gallery
Urban Heritage Gallery

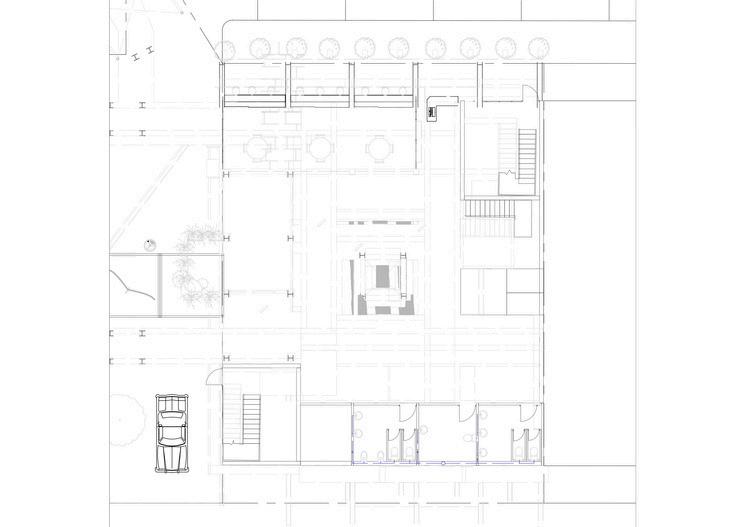

GF - CAFE

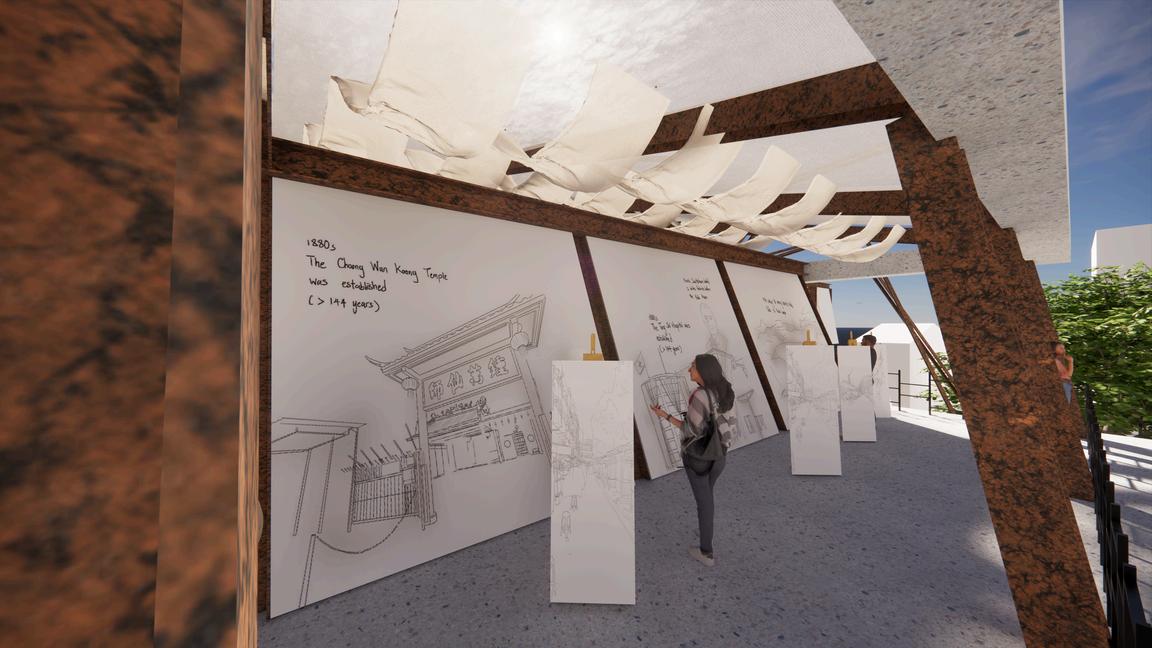

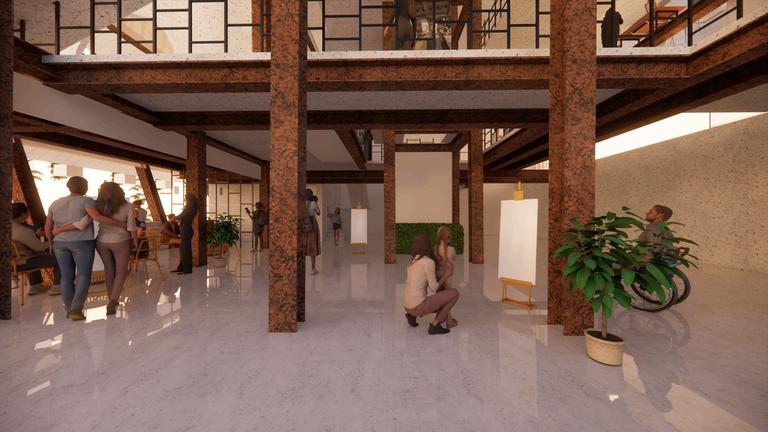

GF - TEMPORAL EXHIBITION

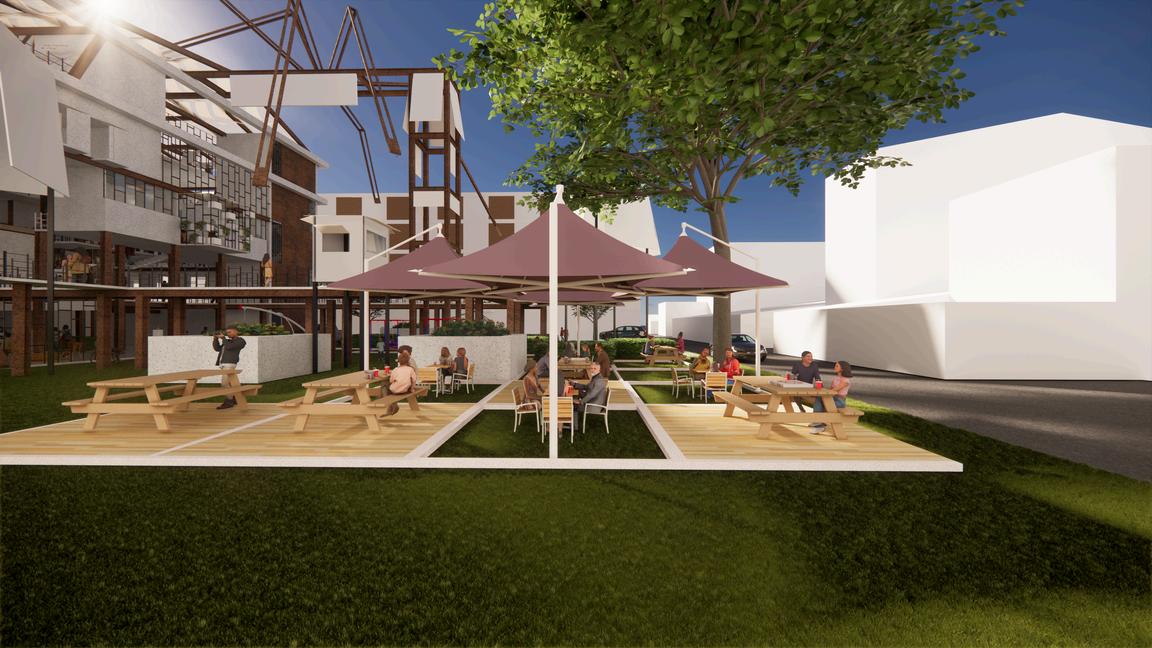

GF - PARK

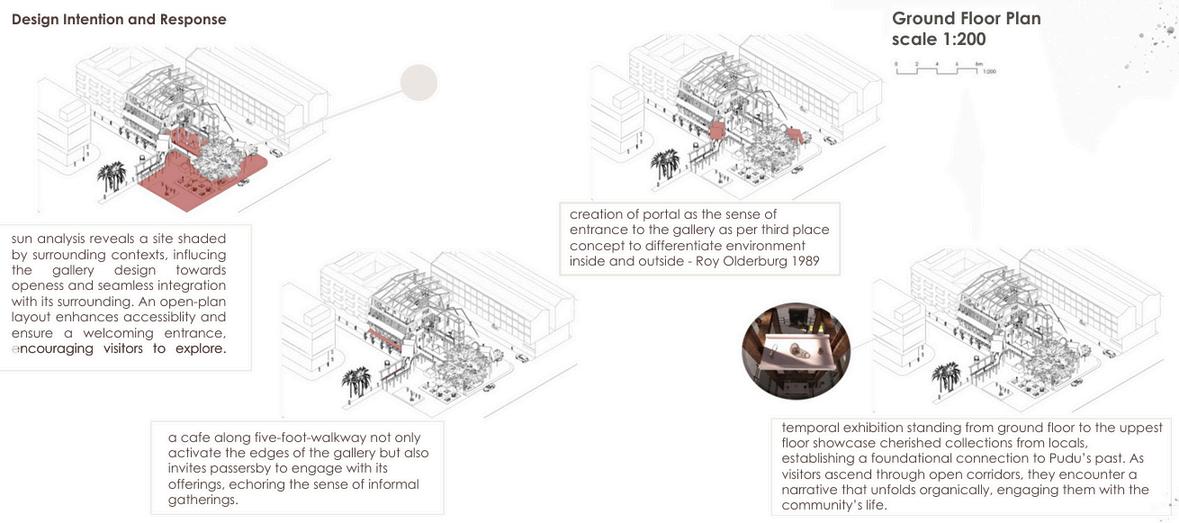

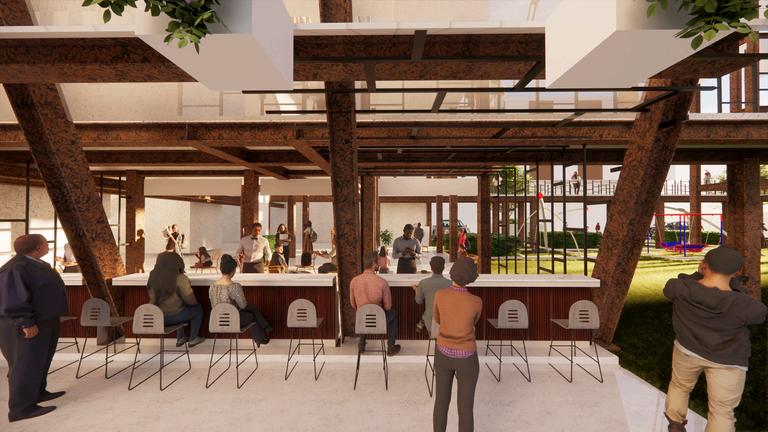

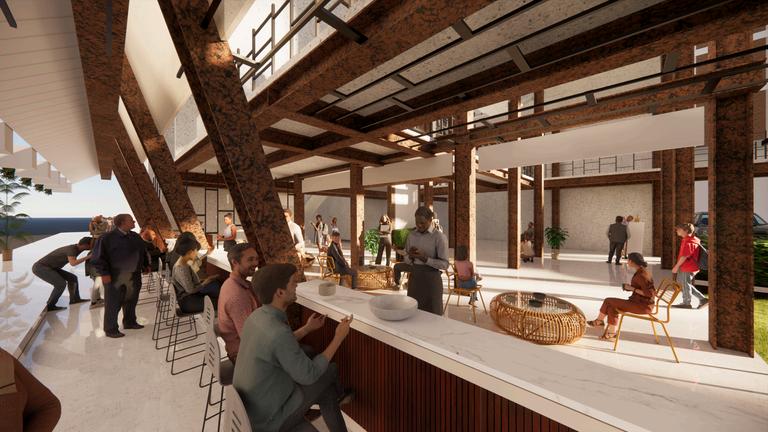

GF - CAFE (LOCATED AT FIVE FOOT WALKWAY TO ACTIVATE THE EDGES OF THE GALLERY)
Urban Heritage Gallery

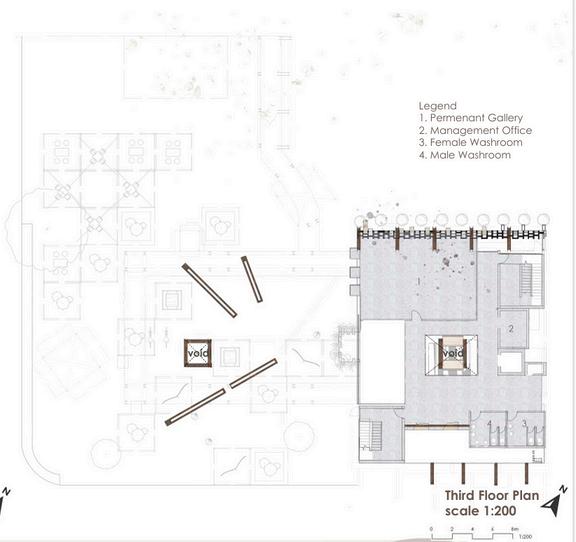

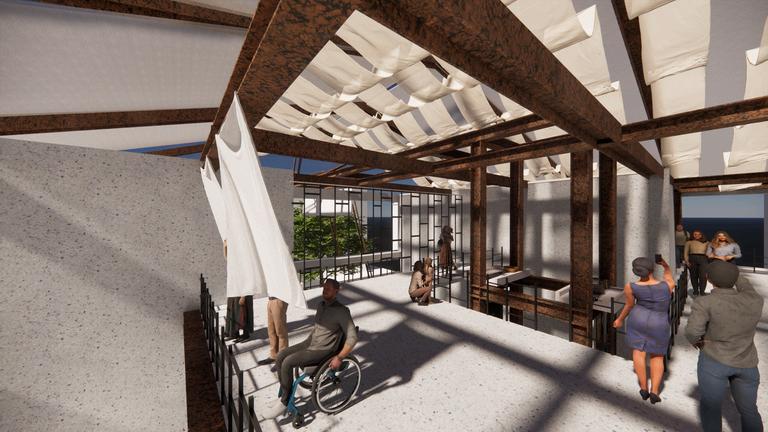

COLLECTION TOWER - SENSE OF BELONGINGS OPEN CORRIDOR- ACCESSIBILITY

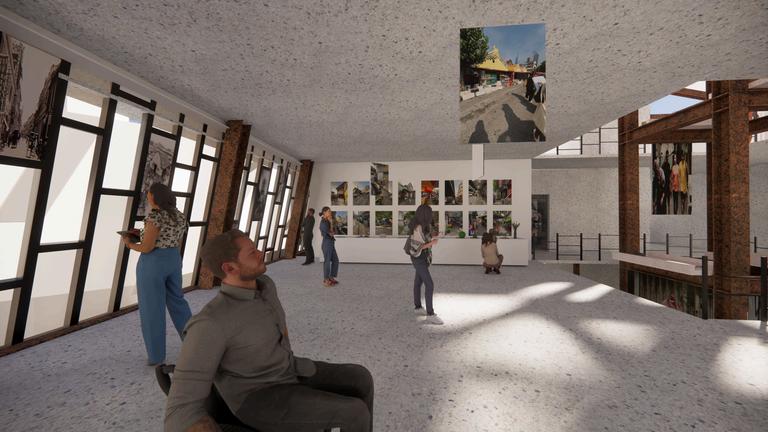

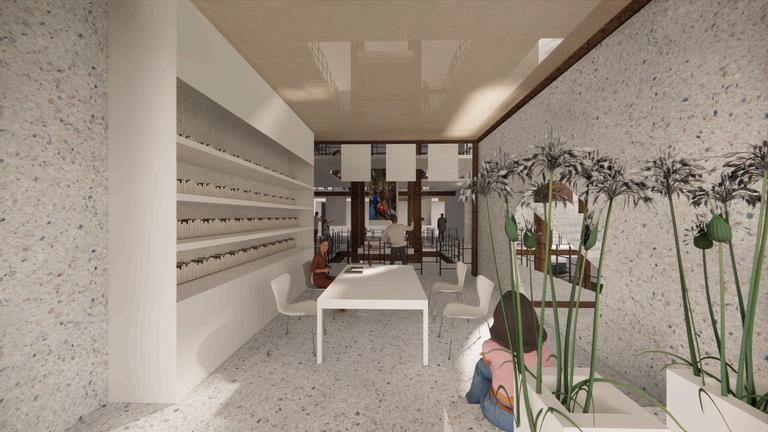

COLLECTION TOWER - FROM LOCALS (NARRATIVE OF PUDU)

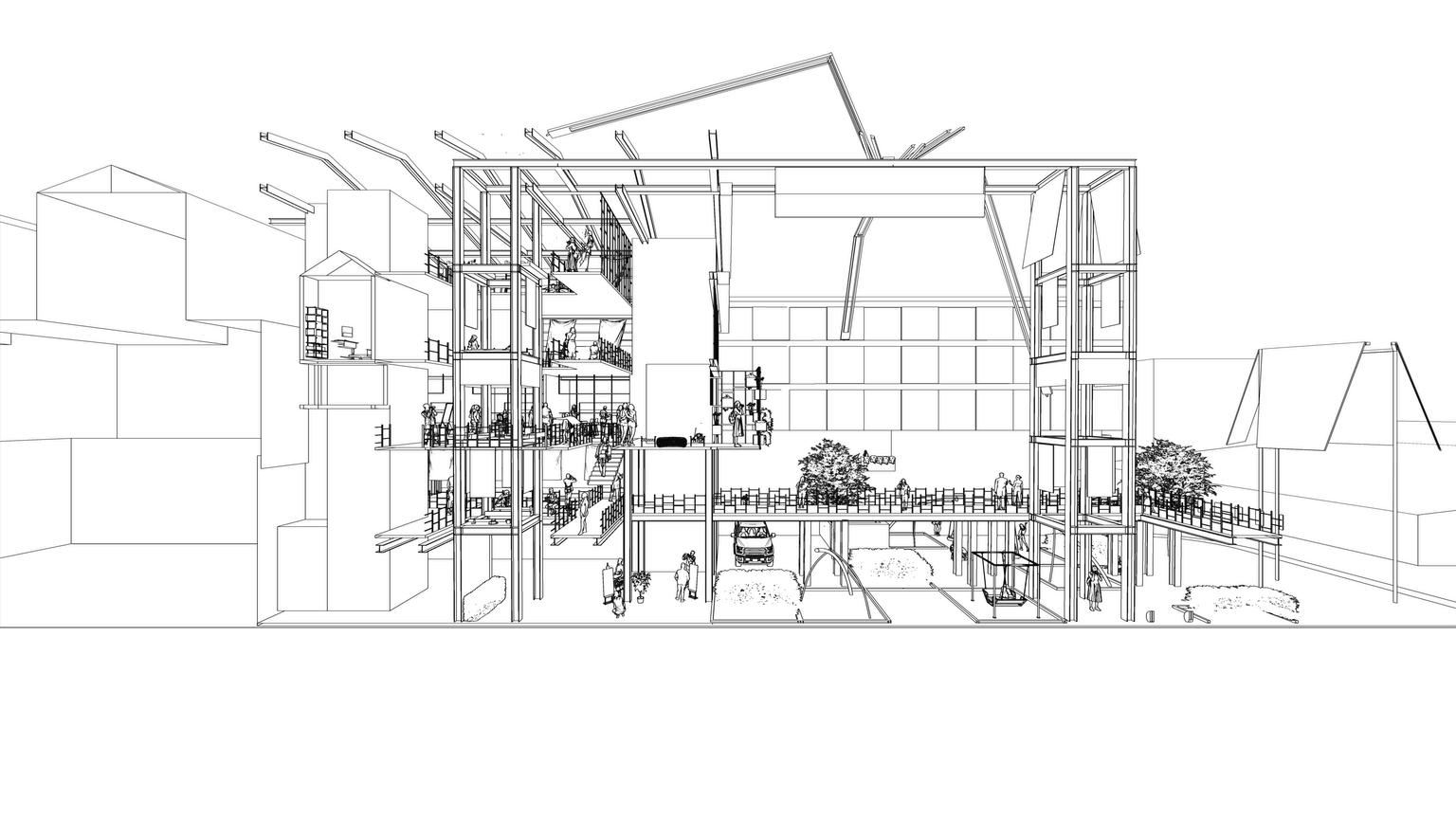

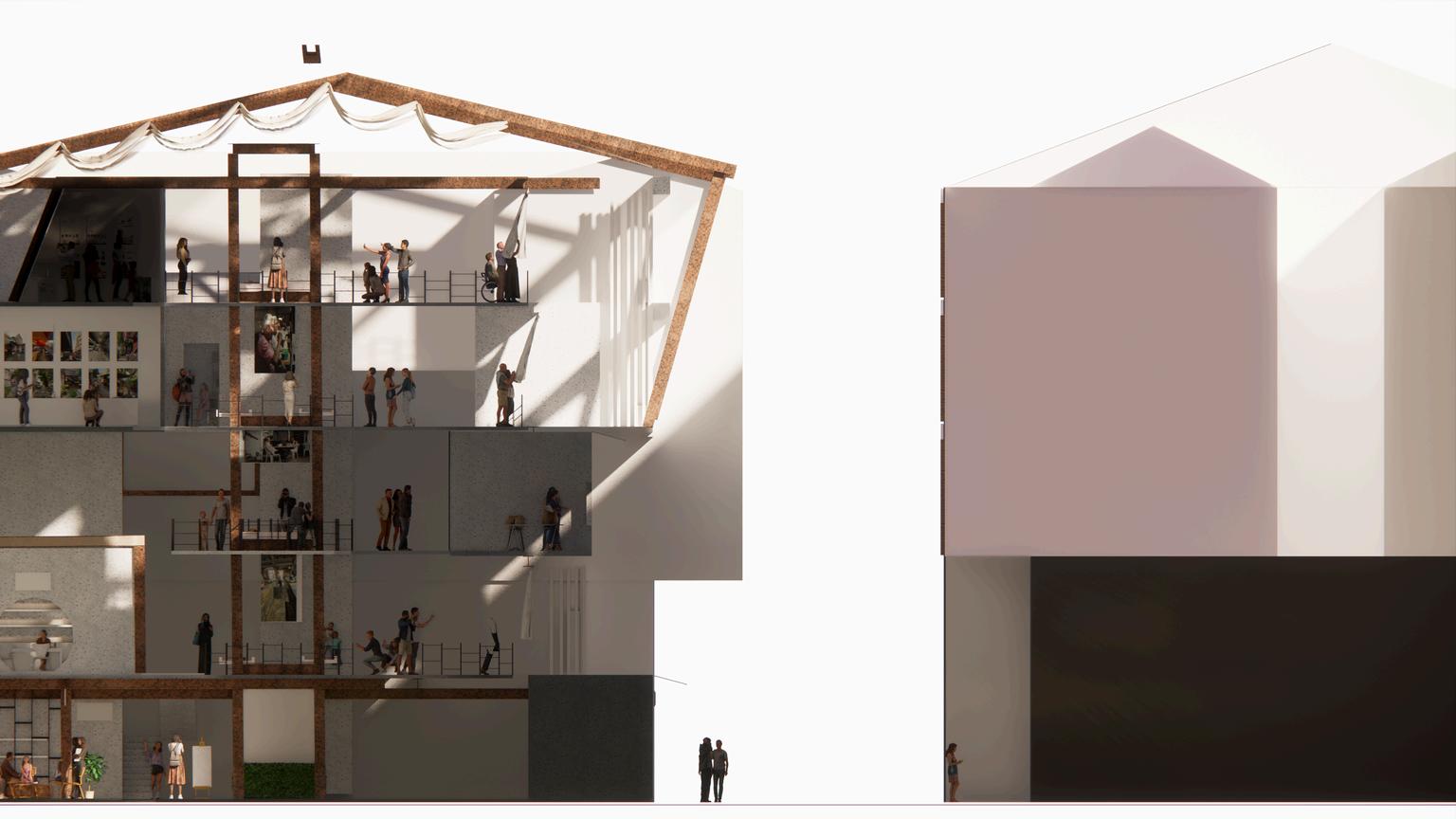

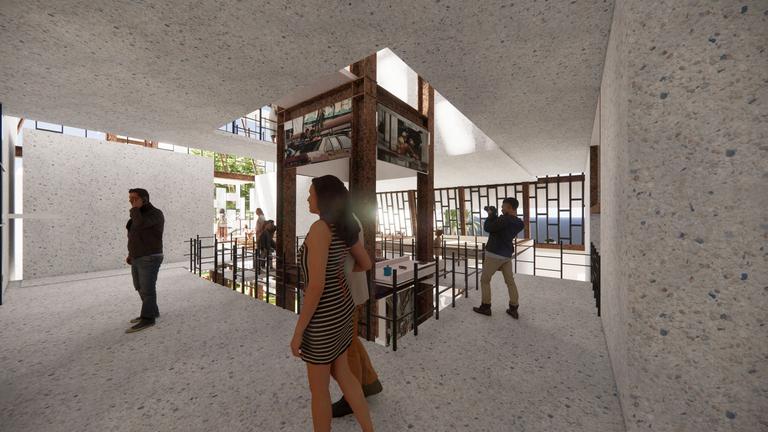

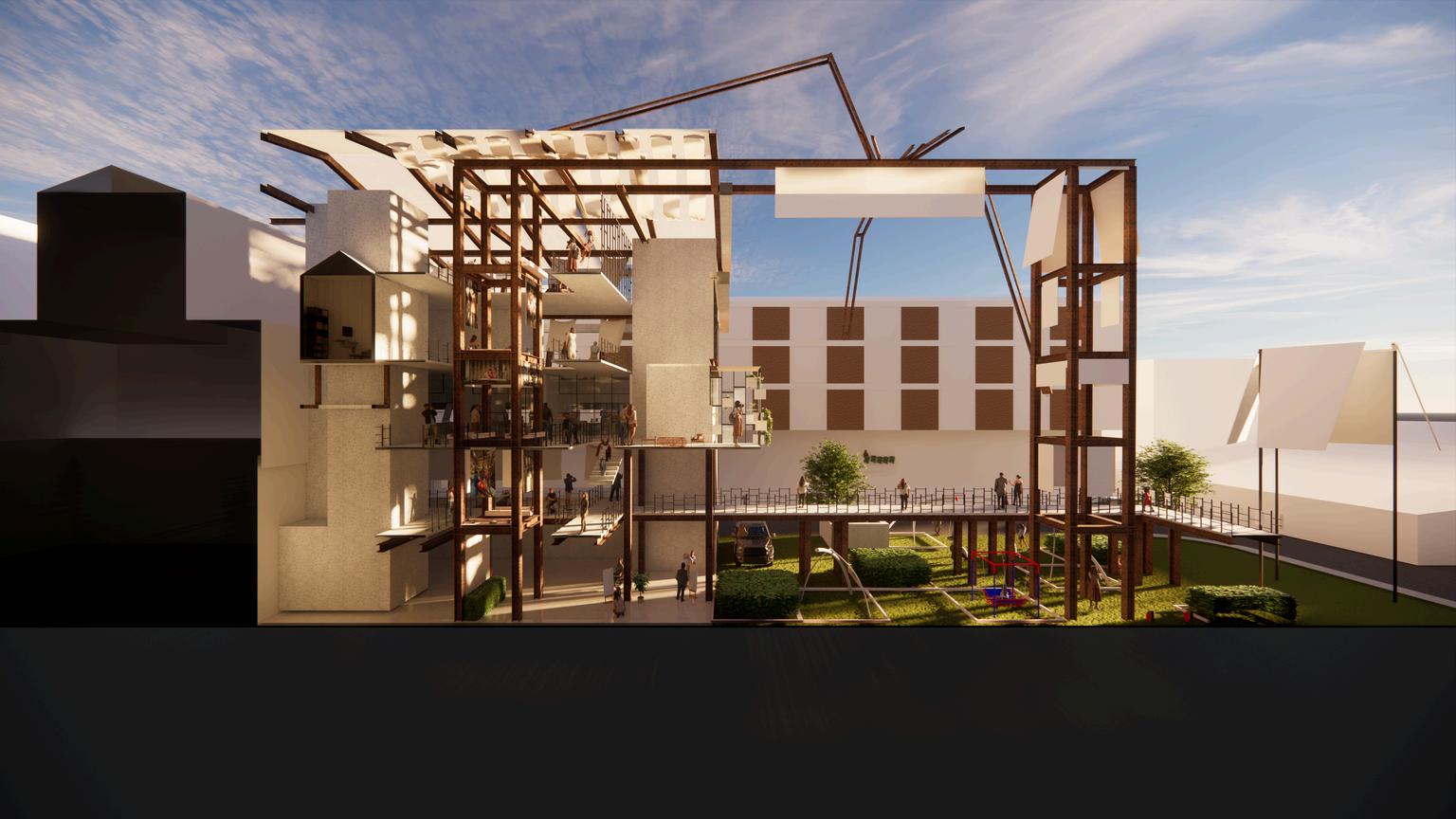

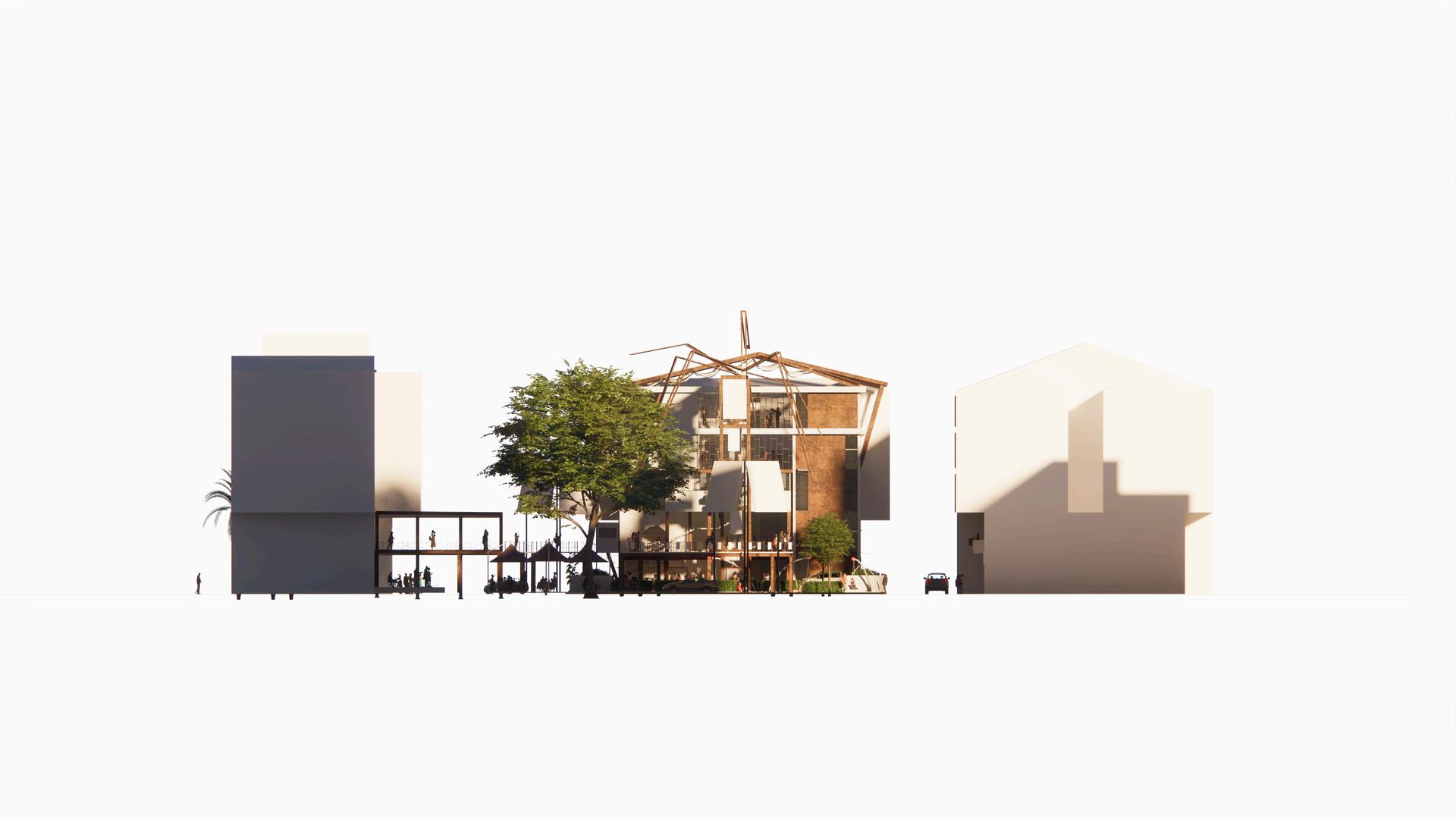

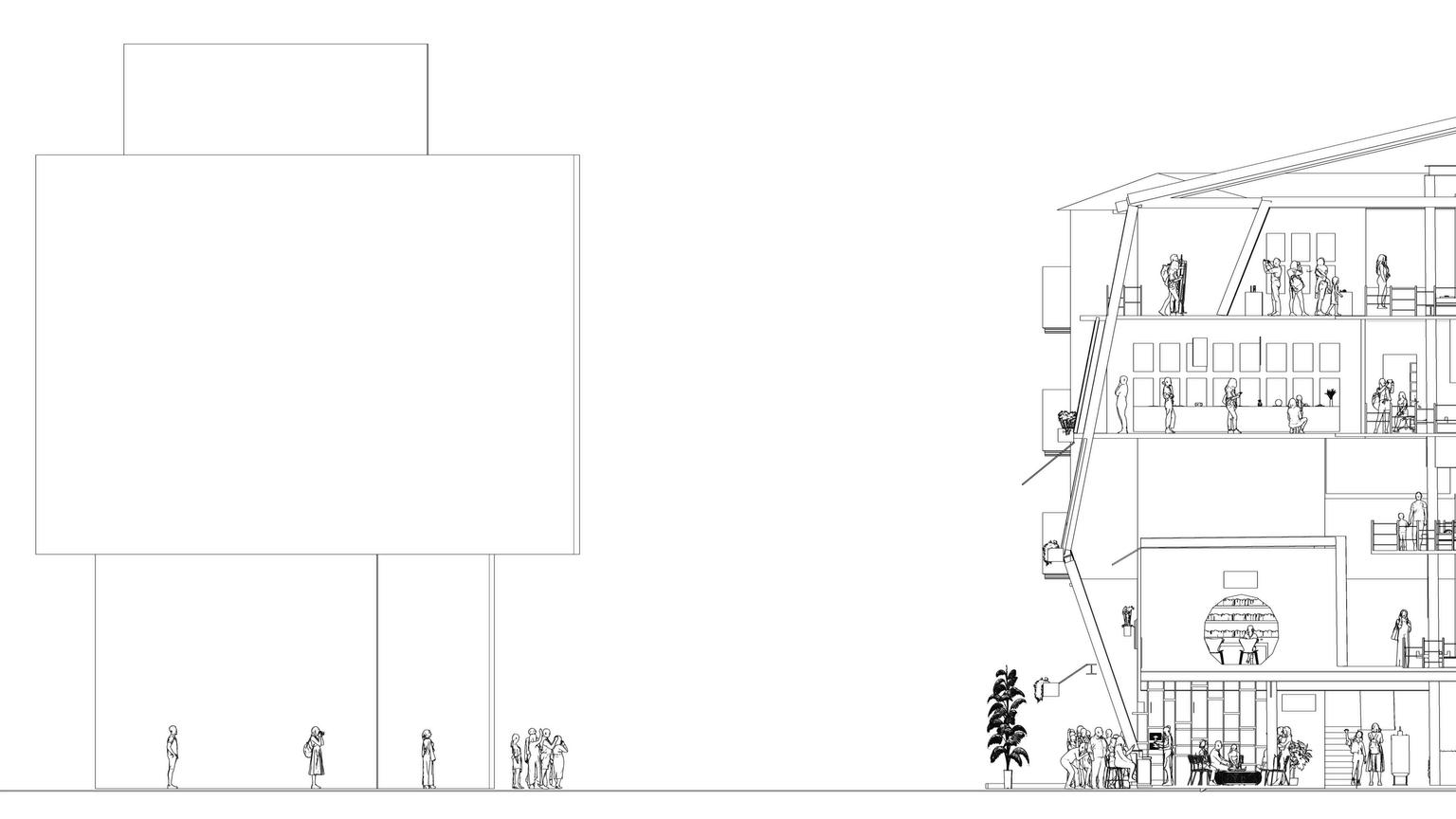

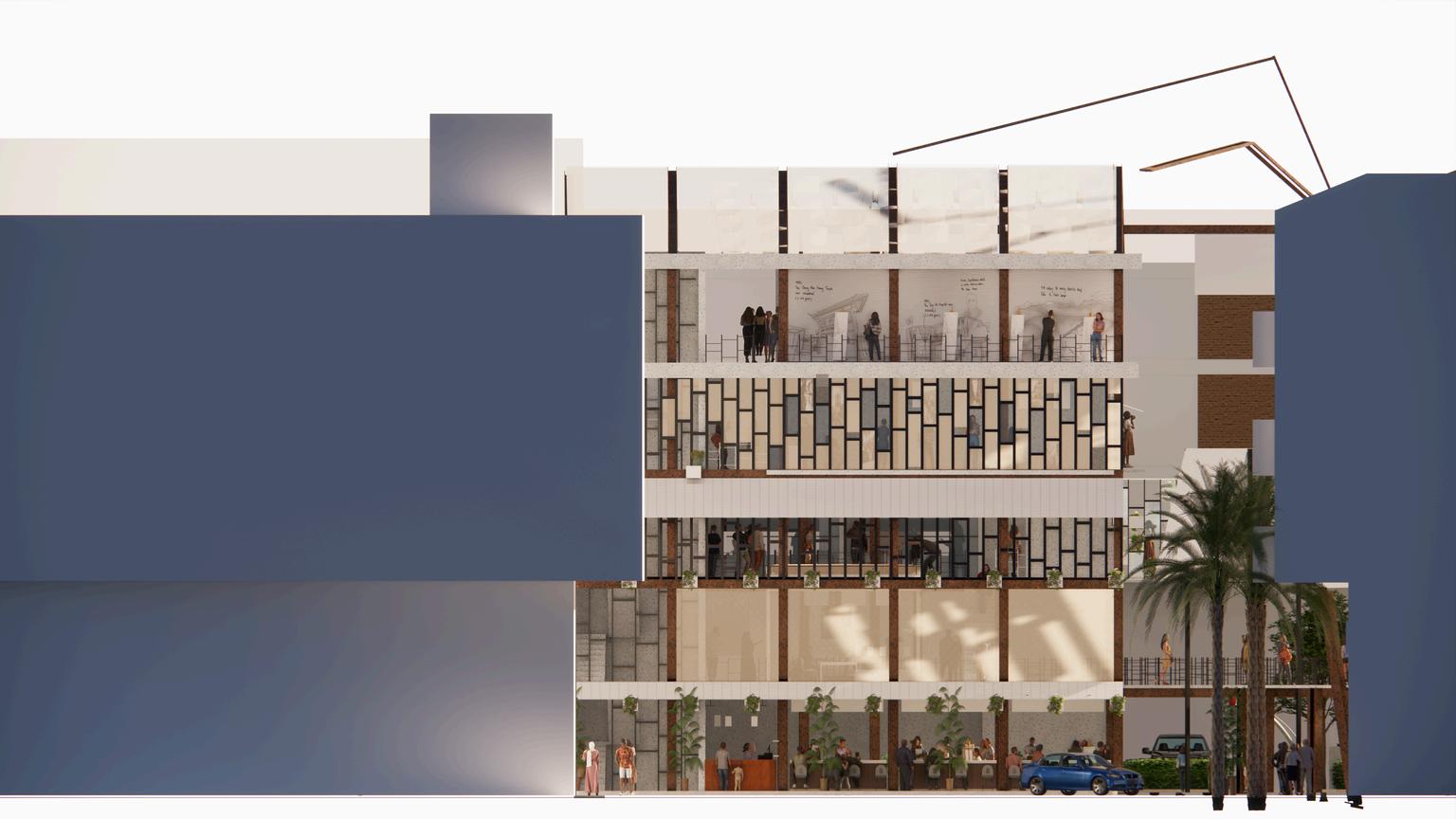

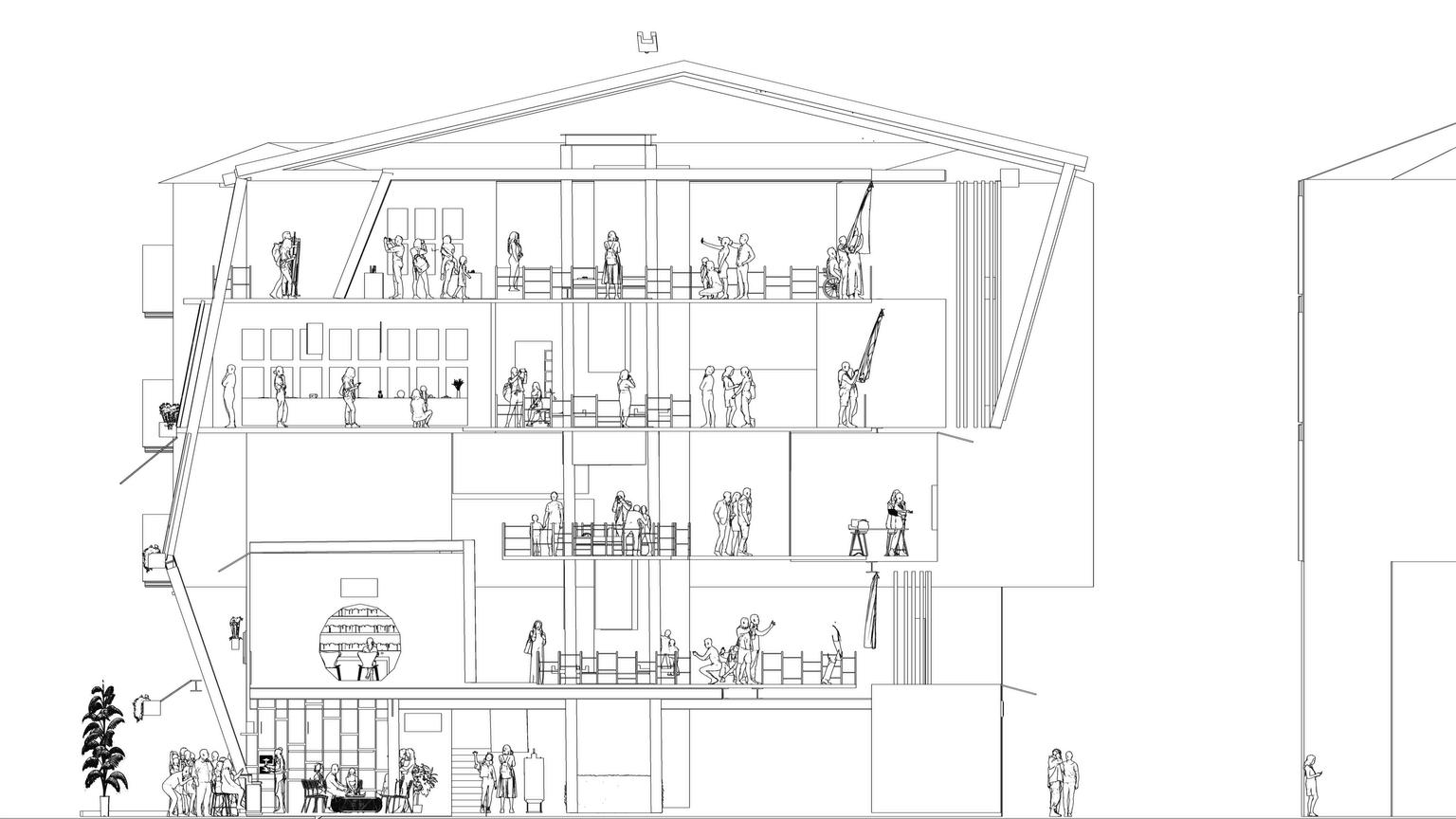

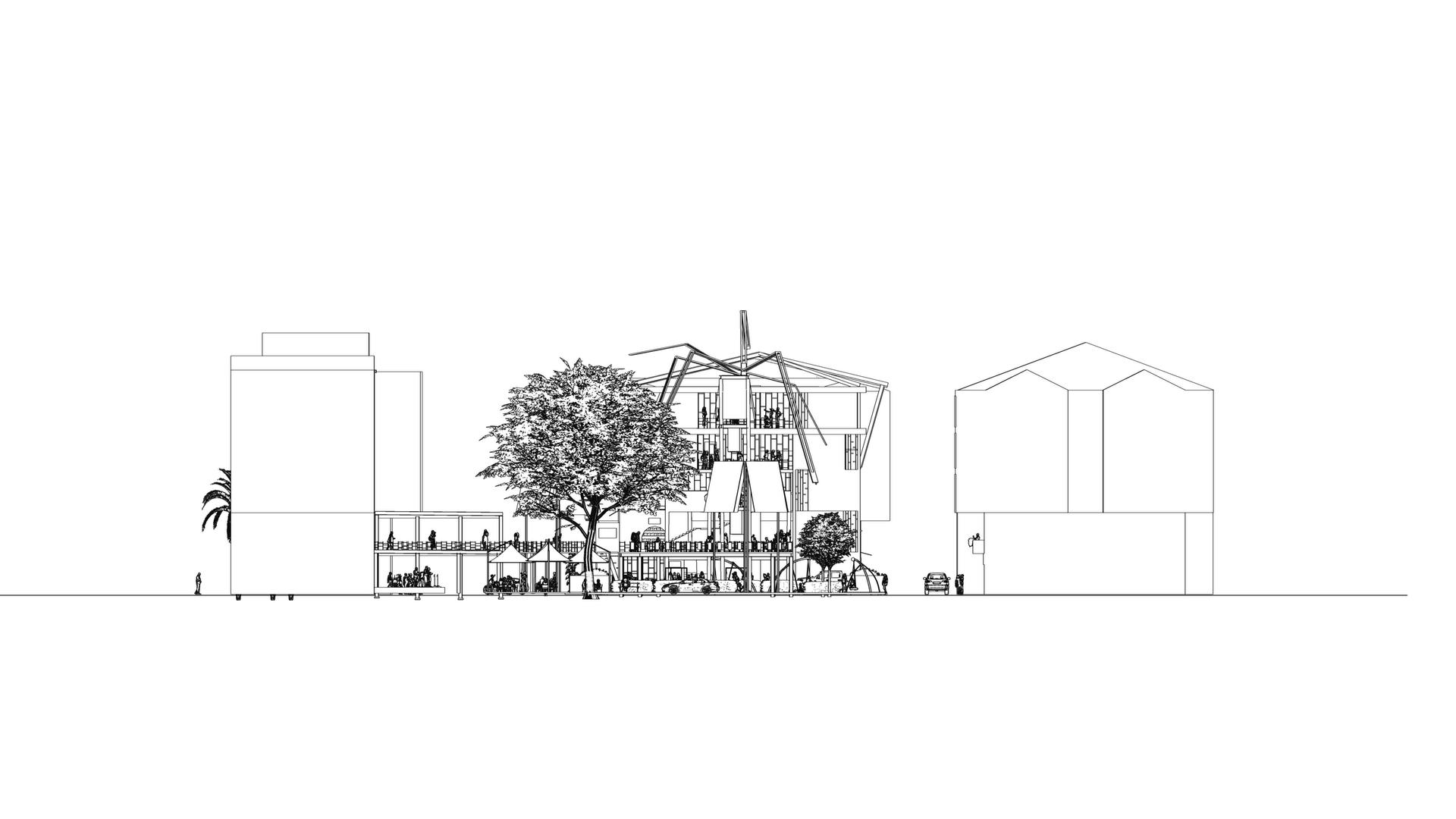

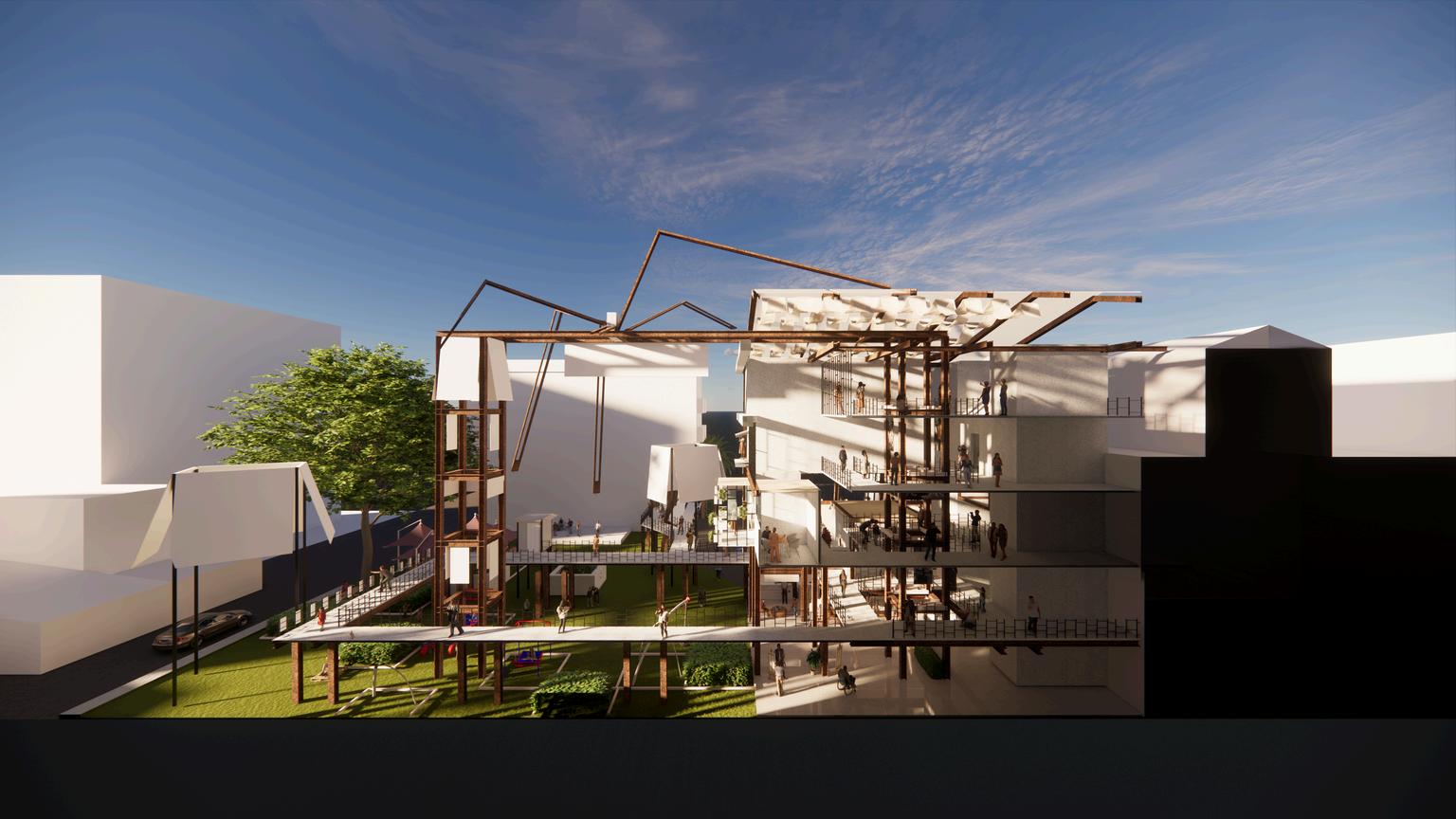

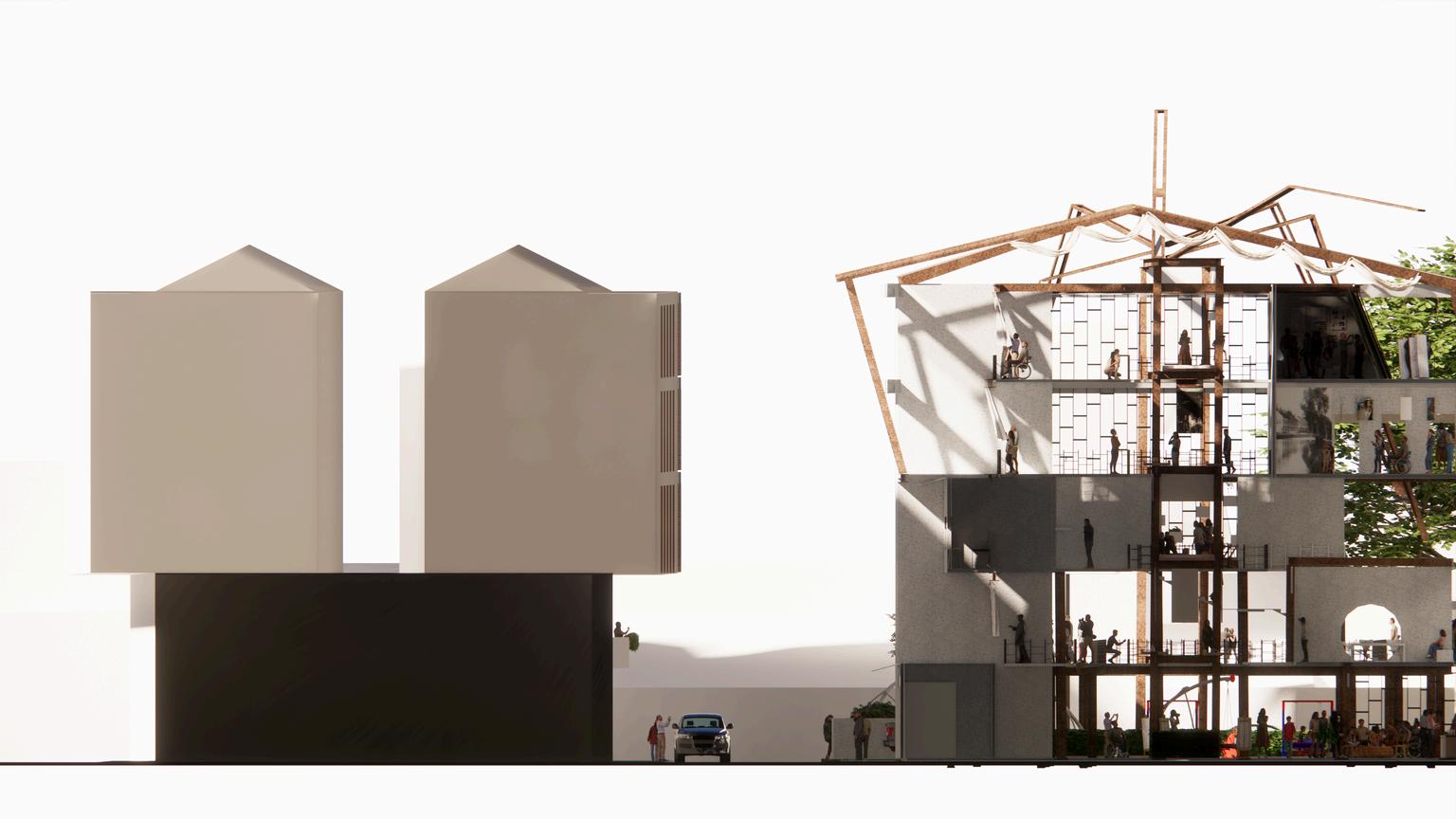

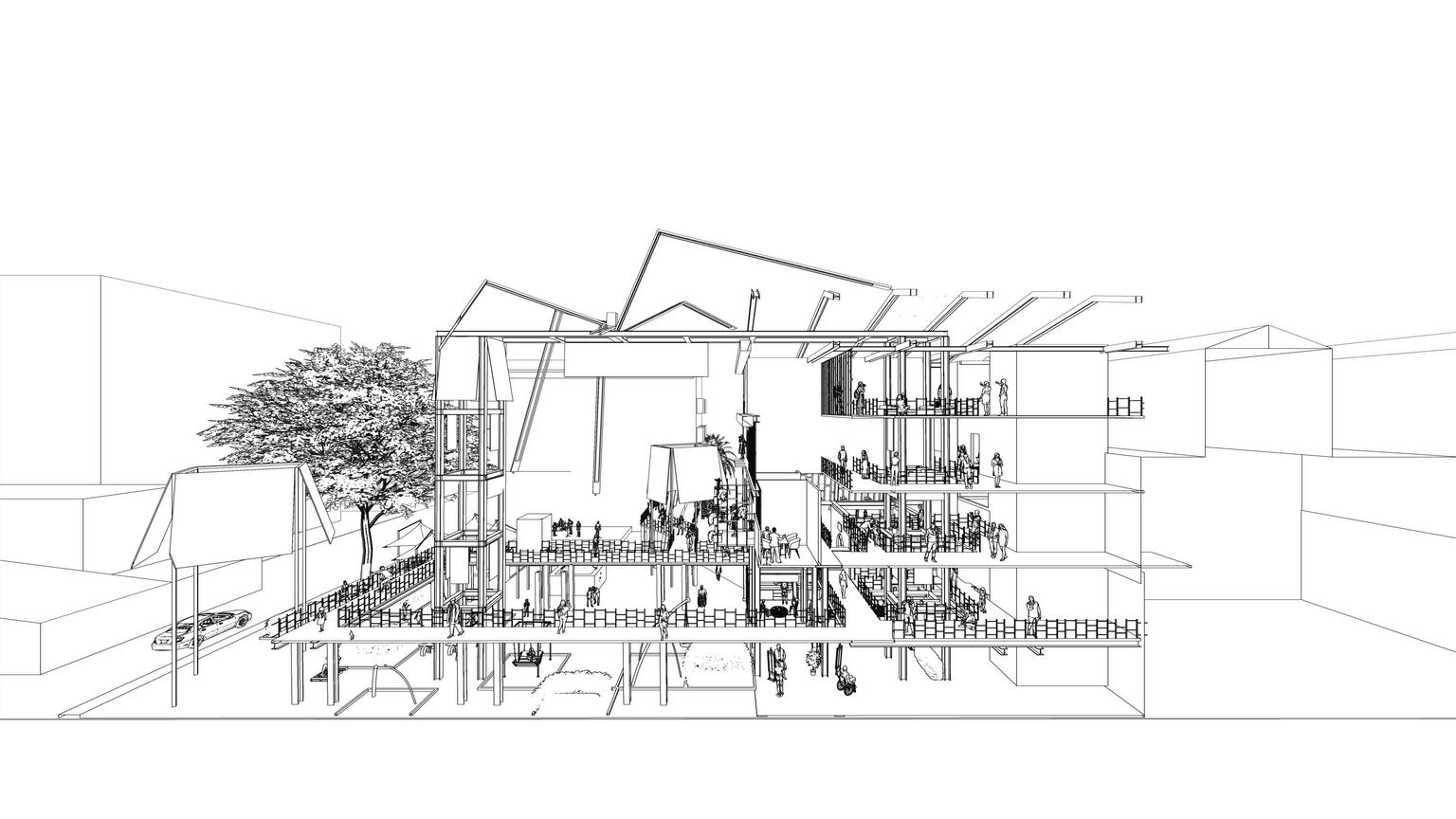

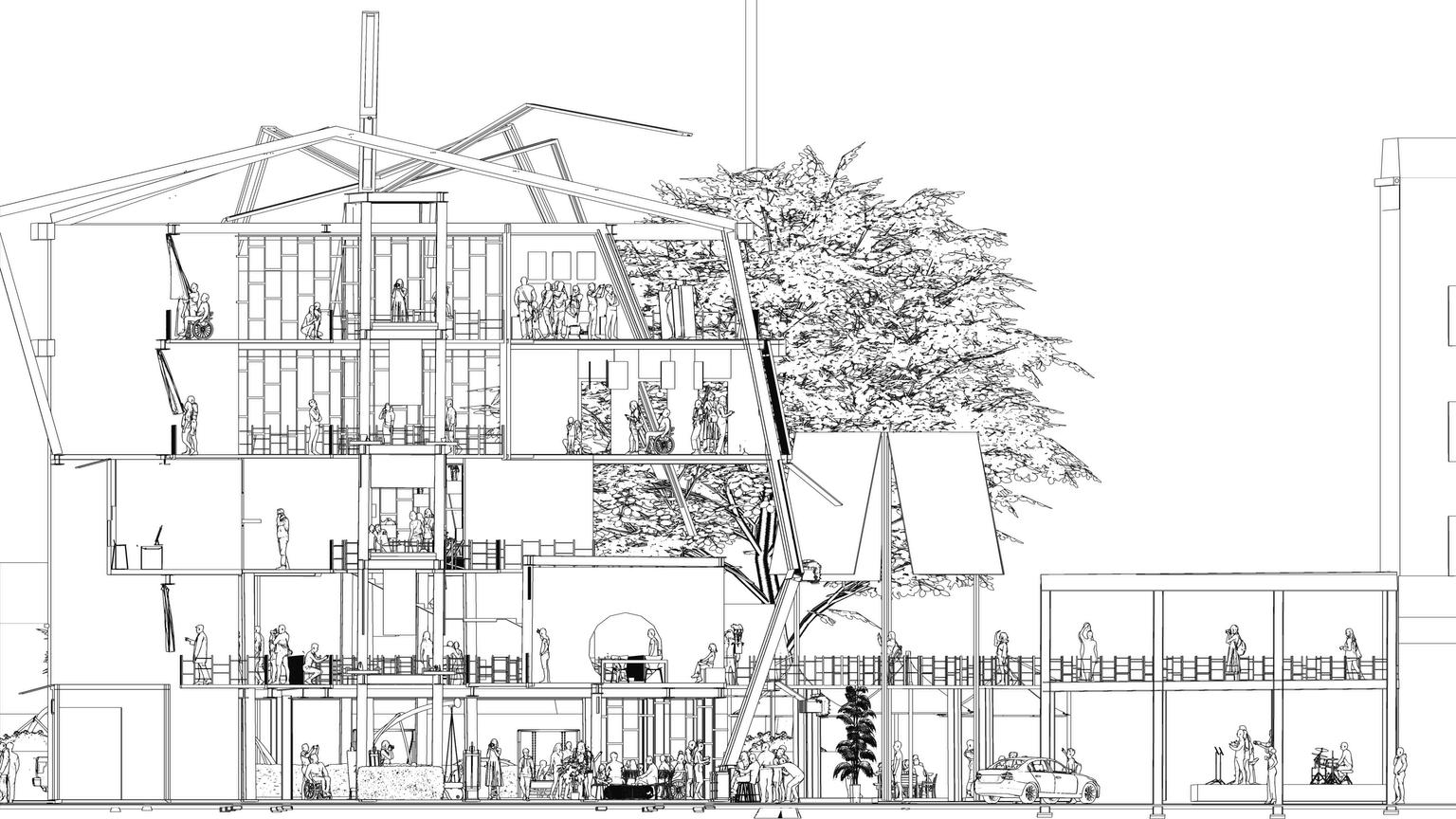

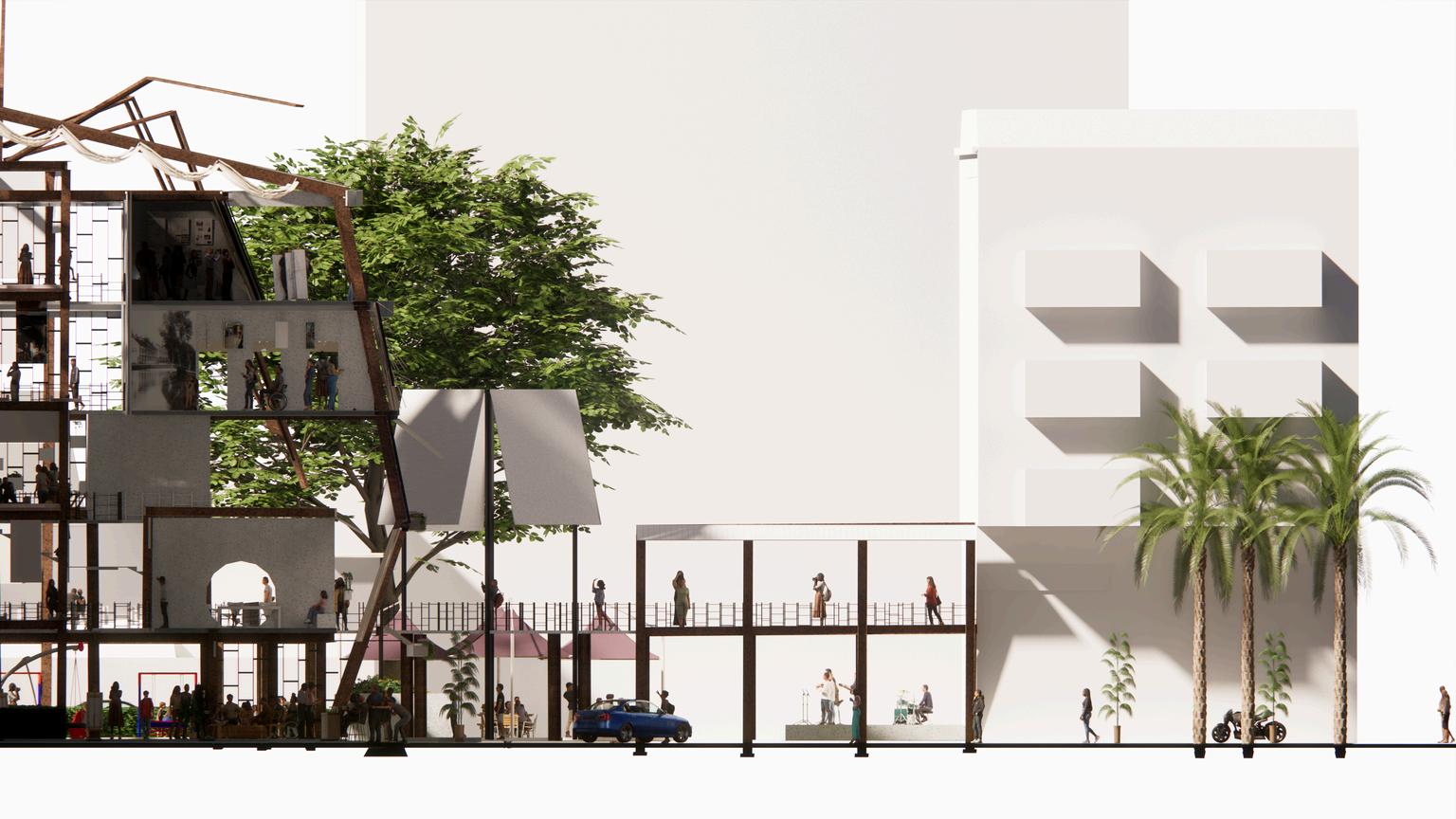

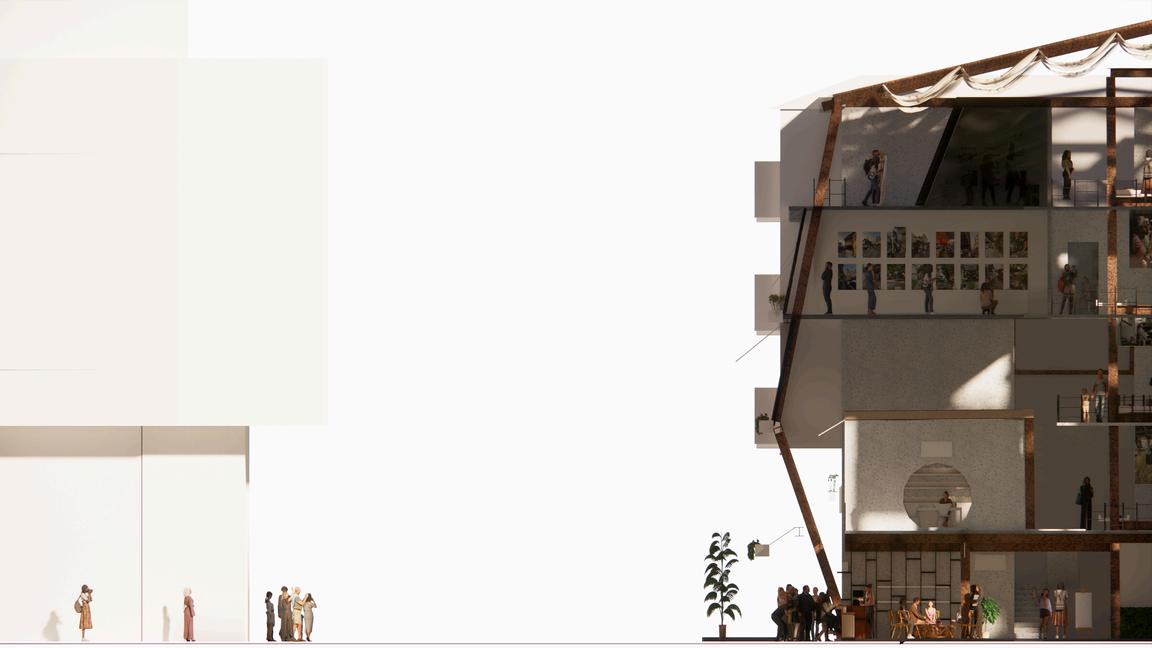

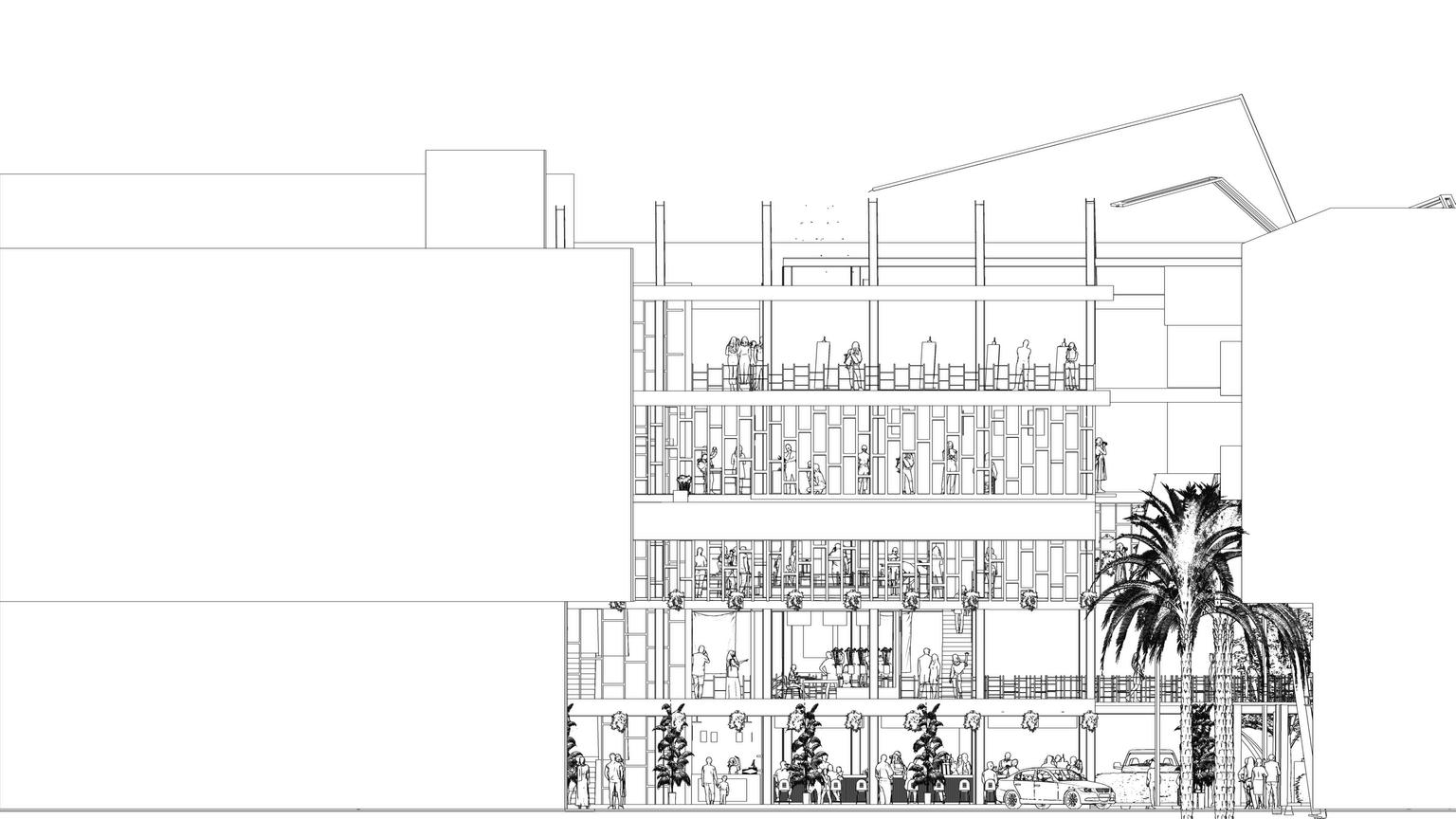

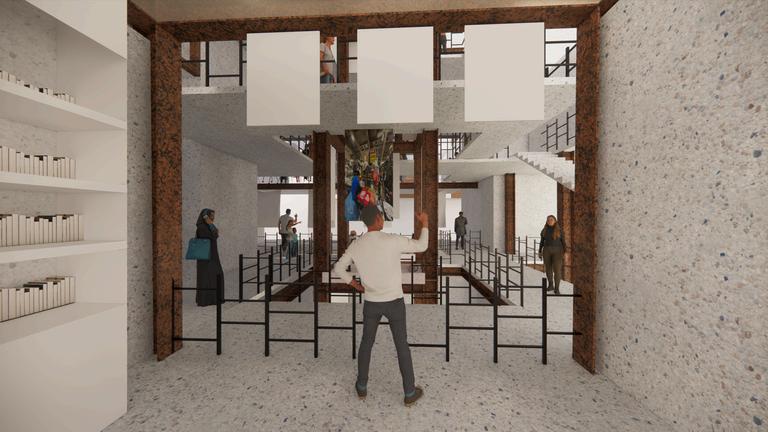

SECTION CUT FROM FRONT ELEVATION INTERIOR VISUALIZATION

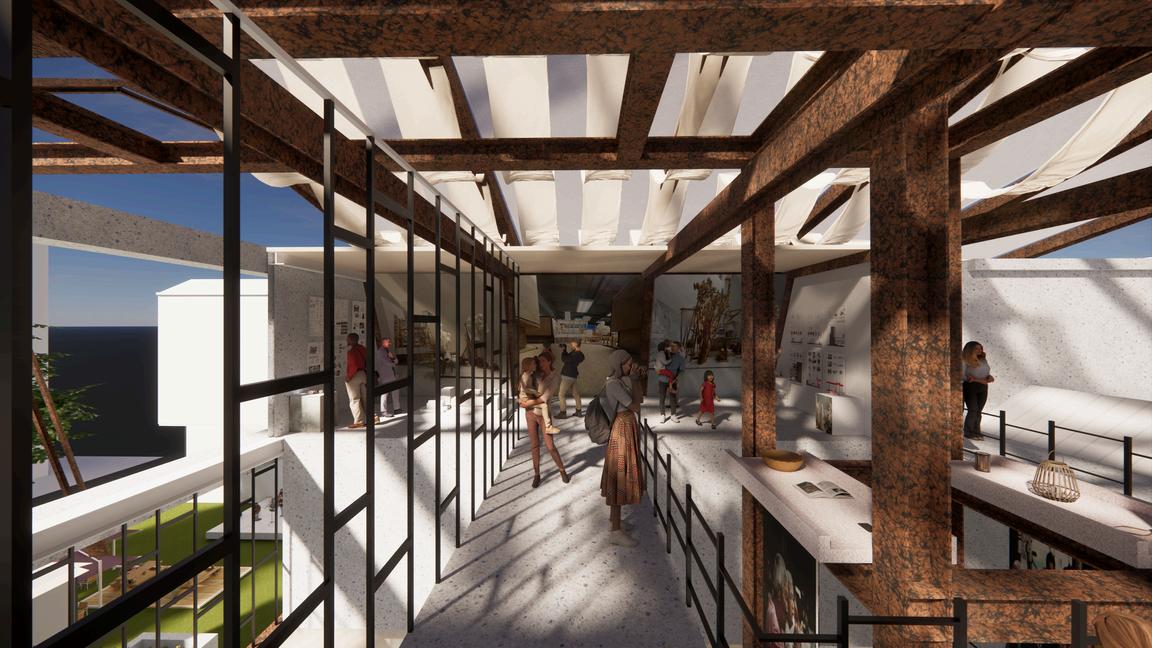

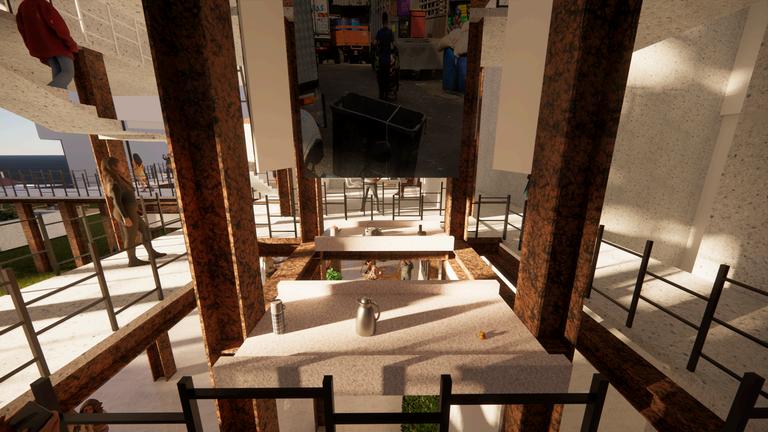

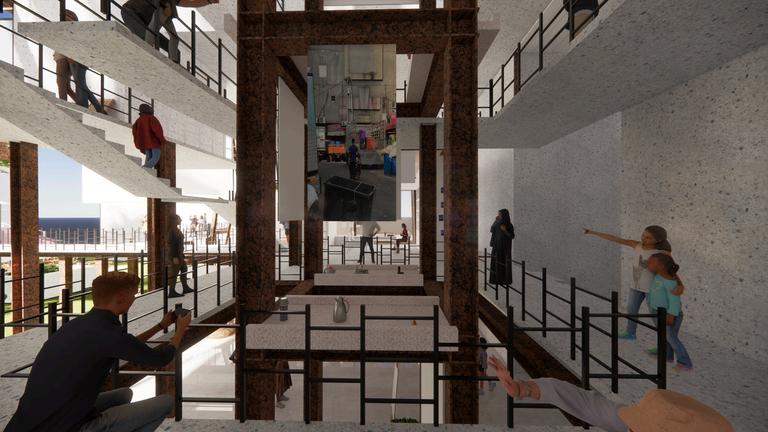

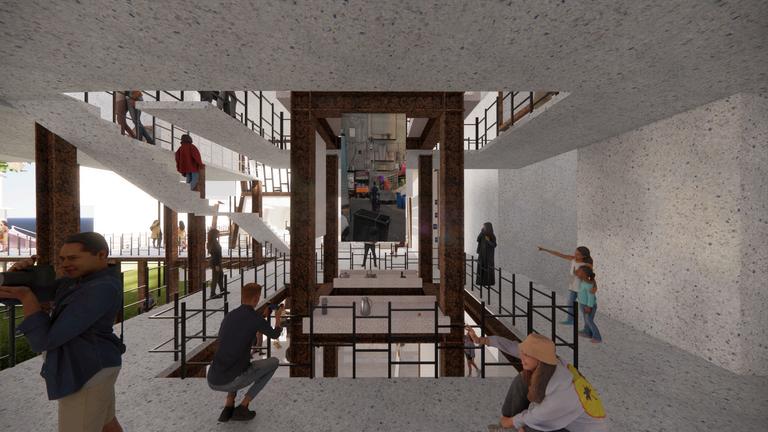

TOWER STAND AT THE MIDDLE SURROUNDED BY THE OPEN CORRIDOR
Urban Heritage Gallery
VIEW FROM BACK ALLEY

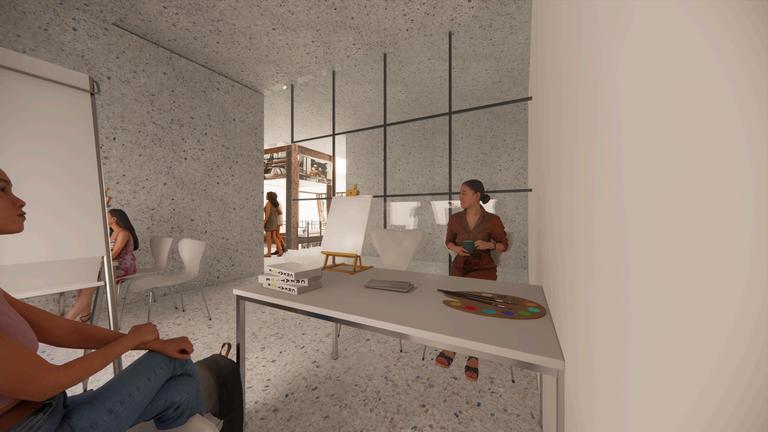

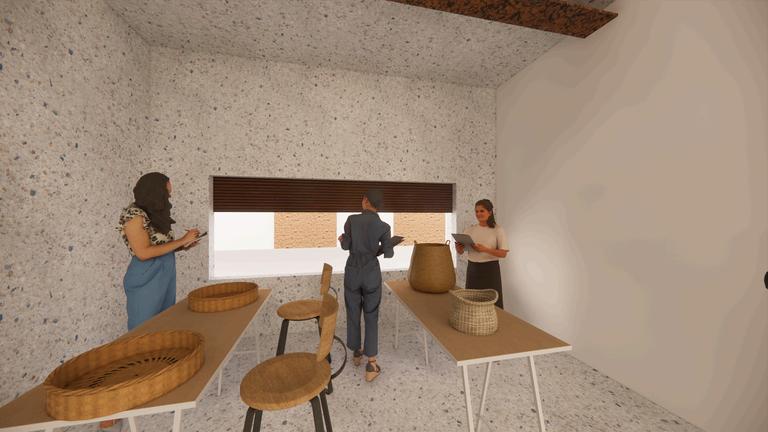

WORKSHOP - TRADITIONAL

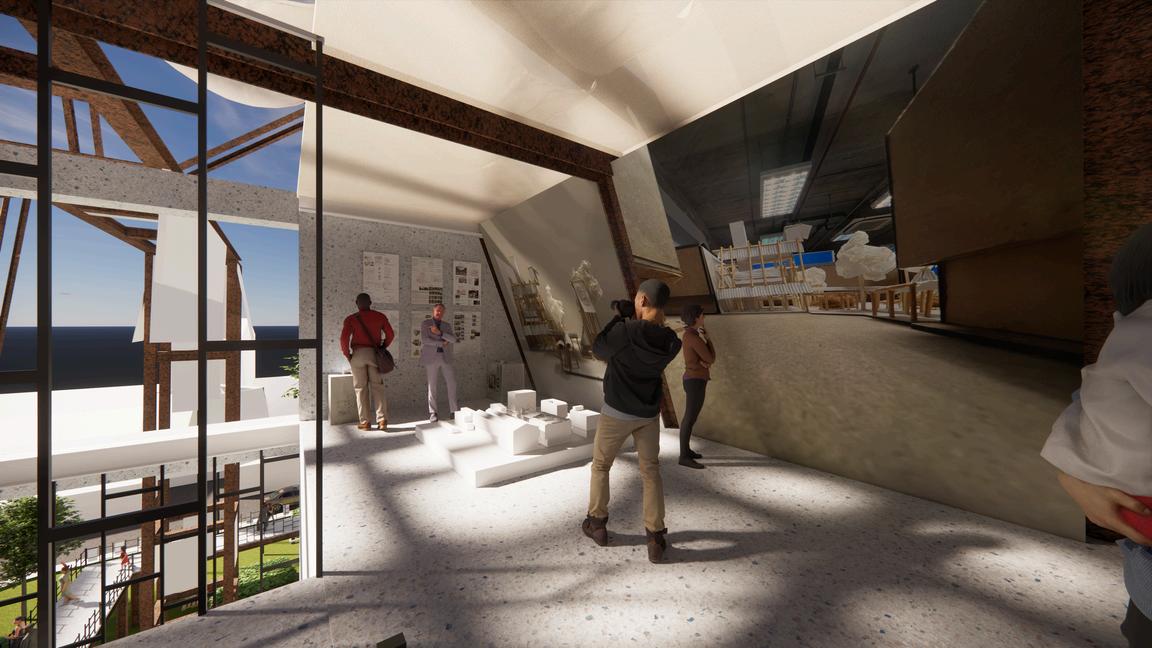

WORKSHOP - MEMORY MINING

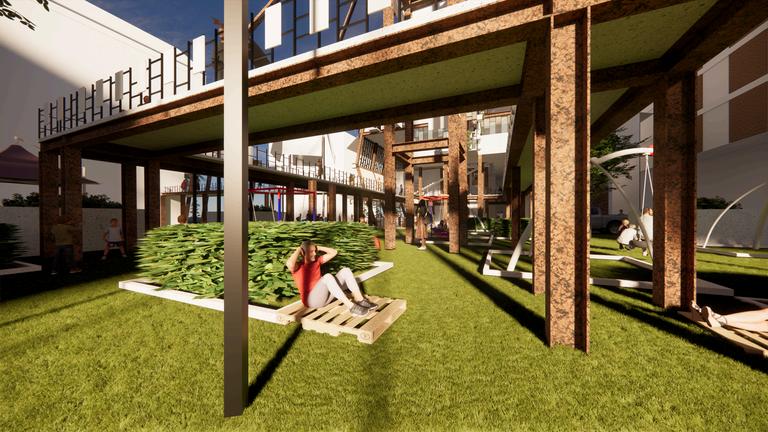

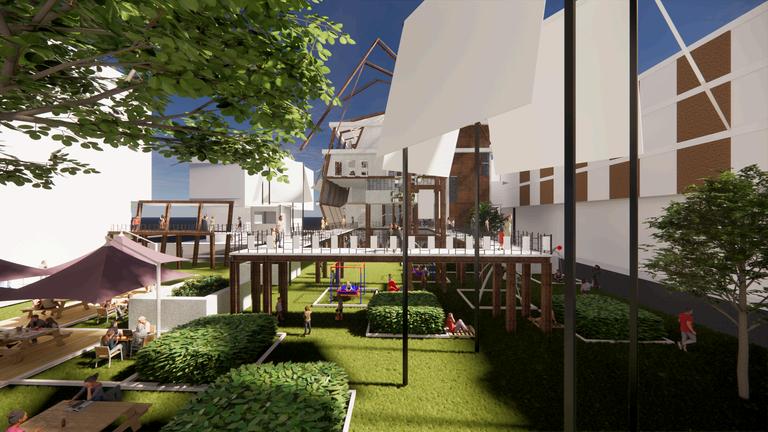

VIEW TO THE OUTDOOR PARK

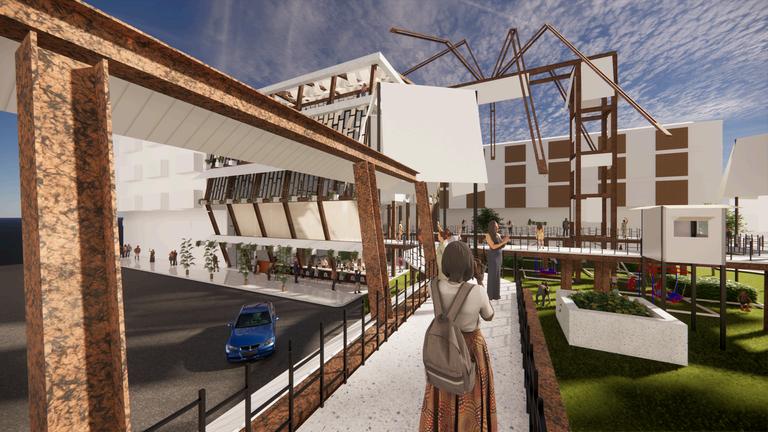

CANOPY WALKWAY
Urban Heritage Gallery
CLOTHES - SOFTEN THE EDGES OF THE GALLRY
DEVELOPMENT OF PUDU - GALLERY
Urban Heritage Gallery
ROOFTOP
ROOFTOP

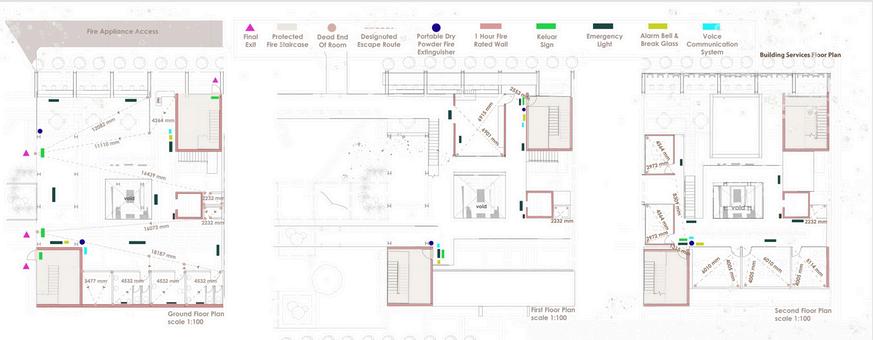

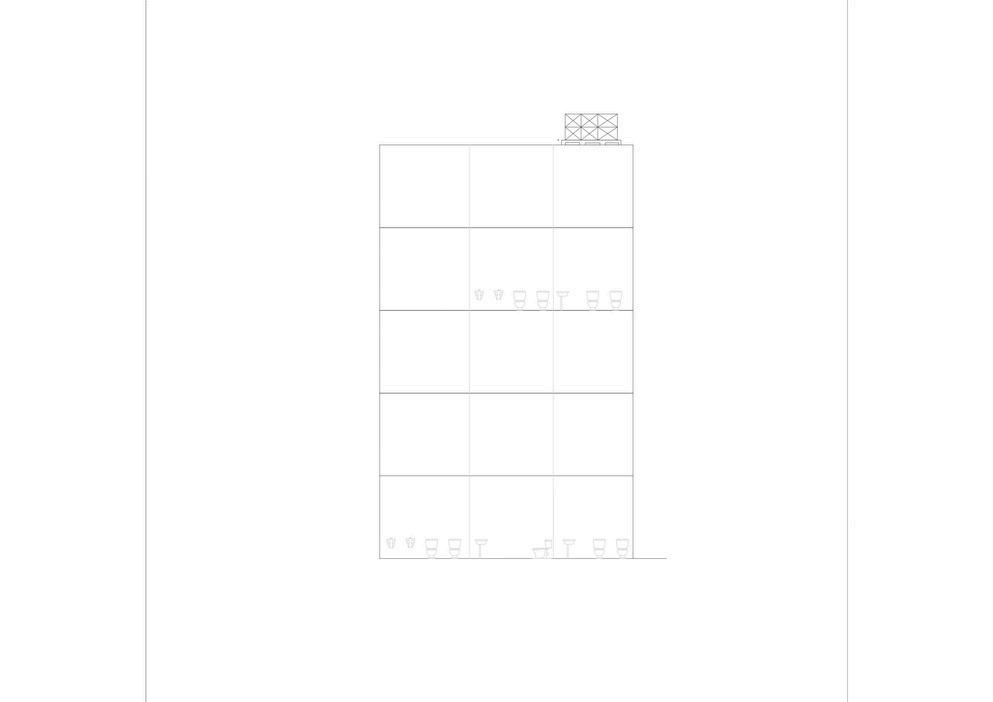

Building Services
ByLaw140(1) “Fireapplianceaccessshallbeprovided withinthesiteofabuildingtoenableafire appliancetogainaccesstothebuilding.”
ByLaw140(3)(a) “...thefireapplianceaccessshallhabethe minimumwidthof6meters...”

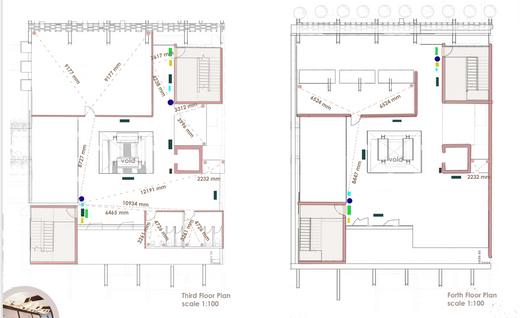

EscapeRoute DesignationofEscapeRouteUBBL1984
ByLaw165(2) “Inthecaseofopenareasthedistanceto existshallbemeasuredfromthemost remotepointofoccupancyprovidedthat thedirectdistanceshallnotexceed2/3the permittedtraveldistance.” ByLaw165(3) “Inanyindividualroomwhichissubjected totheoccupancyofnotmorethat6 persons,thetraveldistanceshallbe measuredfromthedoorofsuch room:providedthatthetraveldistancefrom themostremotepointintheroomtothe roomdoordoesnotexceed9meters...”
FireWall DesignationofFireWallUBBL 1984
ByLaw222(1) “Anystructure,otherthanan externalwall,enclosinga protectedshaftshall,ifeachside ofthewallisseperatelyexposed totestbyfire,havefireresistance fornotlessthantheminperiod required..”
FireStaircase DesignationofFireStaircaseUBBL1984
ByLaw106 “...riseofanystaircaseshallbenotmorethan180mmandthetread..not lessthan275mm..” ByLaw168(1) “Exceptasprovidedforinby-law194everyupperfloorshallhavemeansof egressviaatleasttwoseperatestaircases.”

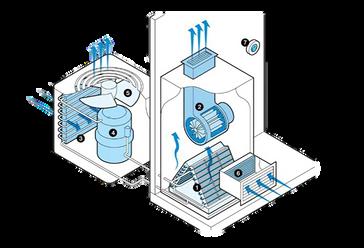

Air-ConditionerSystem Airconditioning(AC,A/C)isautilizingmechanicalsystem involvestreatingandcirculatingairtocontroltemperature,
Evaporator Coolingcoilsremoveheatandhumidityfromtheairusingrefrigerant.
Blower Ablowerorfancirculatesairovertheevaporator,dispersingthechilledair.
Condenser Hotcoilsreleasethecollectedheatintotheoutsideair.
Compressor Apumpthatmovesrefrigerantbetweentheevaporatorandthecondensertochill theindoorair.
Fan Blowsairoverthecondenser todissipatetheheatoutside.
Filter Locatedintheairconditioningunitto removeparticlesfromtheair. Centralized/plantedairconditioningsystem Centralairconditioningsystems,commonlyusedin largespaceslikegymsorofficebuildings,operatefrom anexternalcoolingcompressor.Theyusea refrigerant-filledcoiltocooltheair,whichafanthen circulatesthroughductsinthewallsorfloors.When warmairisdetected,itisreturnedtotheair conditionertobeexpelledoutside.
