Winches & Trailer Accessories
Winches & Trailer Accessories
Contents Atlantic® Winches
835
Tinny & Marine Winches . . . . . . . . . 835 Atlantic Marine Winches. . . . . . . . . 836 Atlantic Brake Winches & Winch Handles . . . 837
® ®
Winch Cables & Accessories
838
Winches - Electric
839

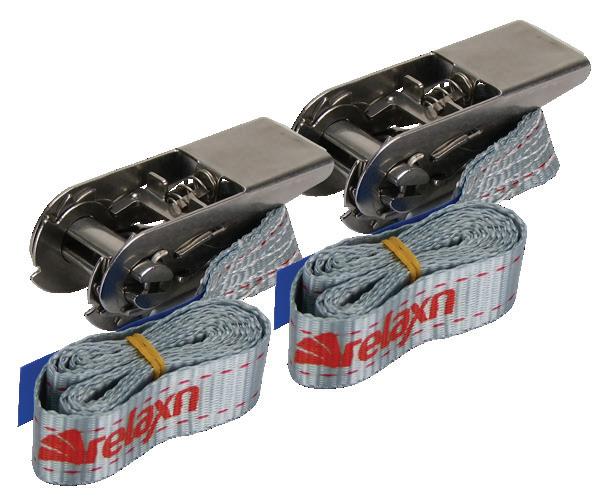

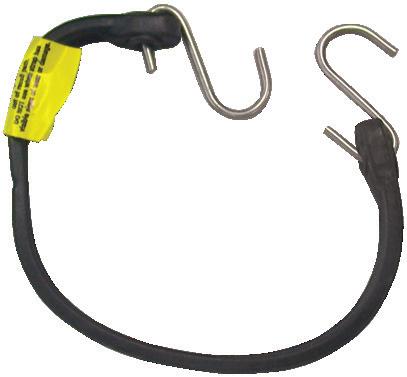

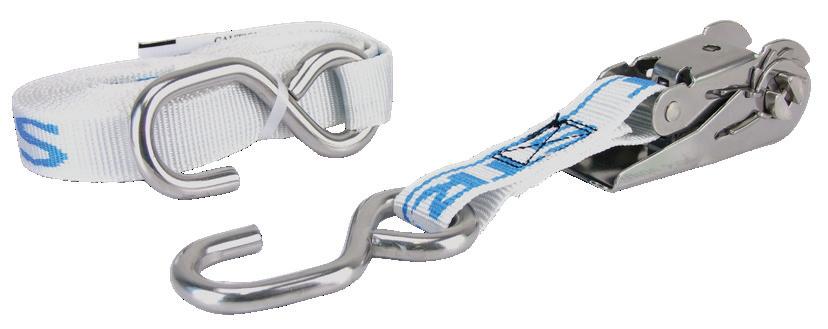

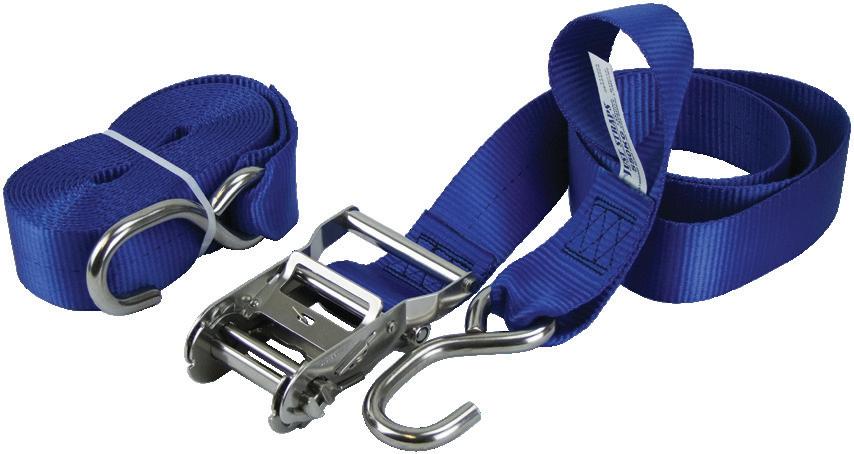

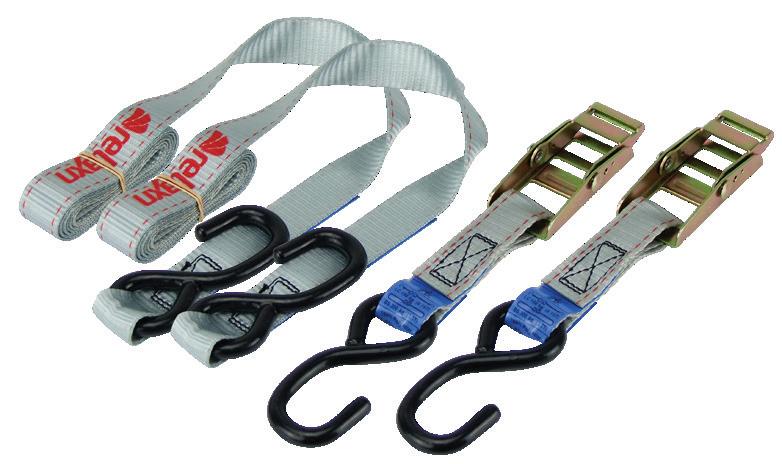

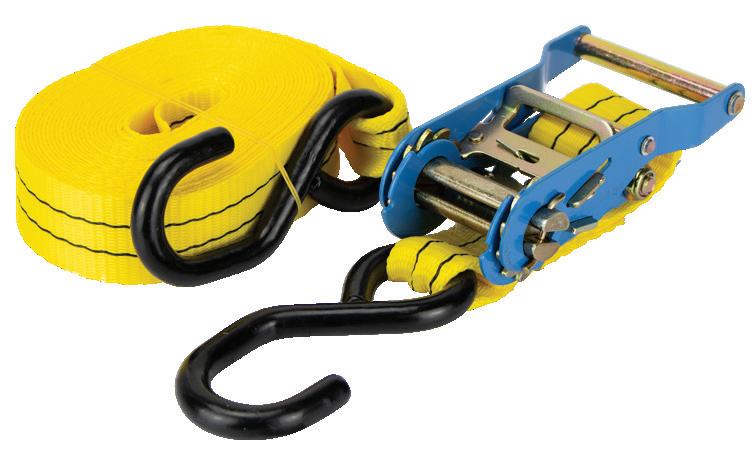

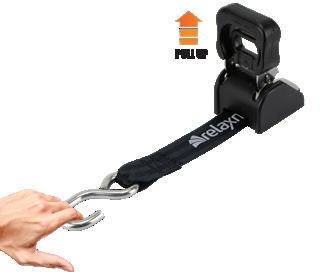

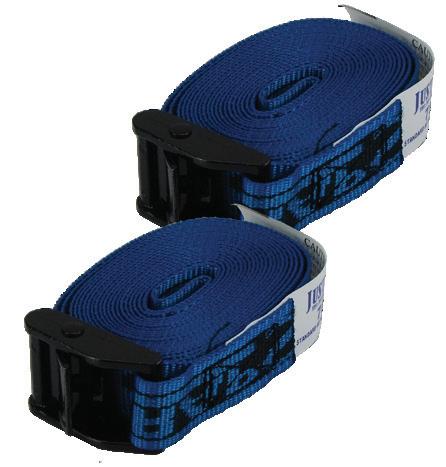

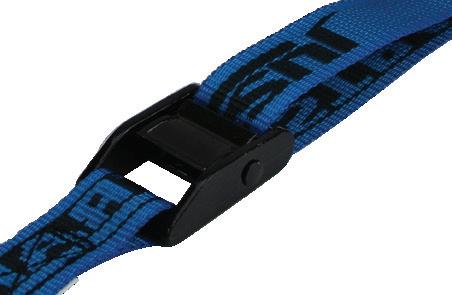

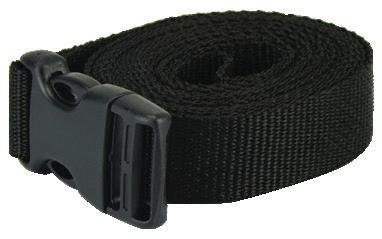

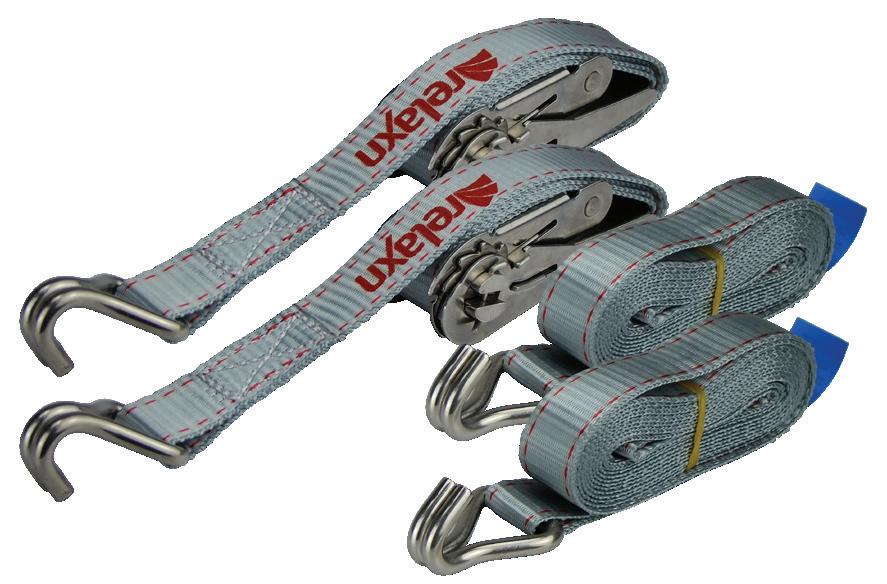

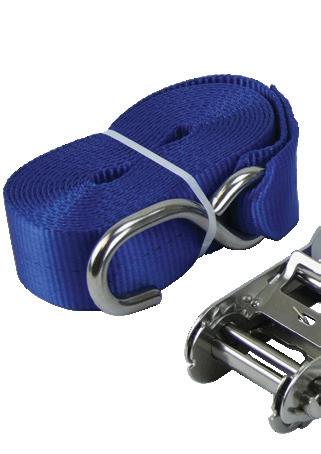

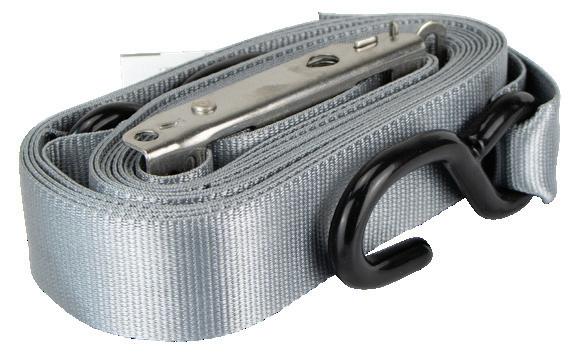

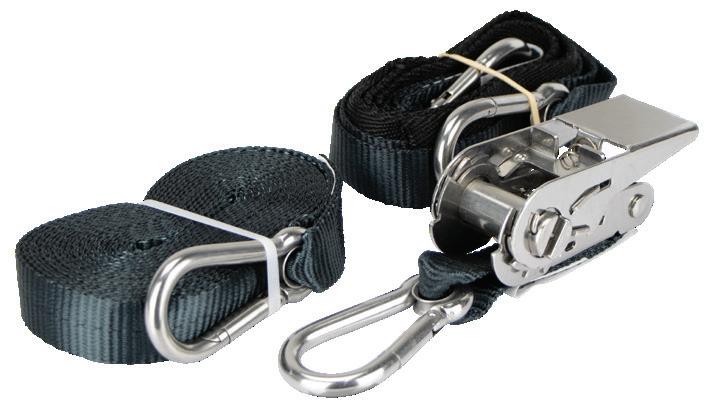

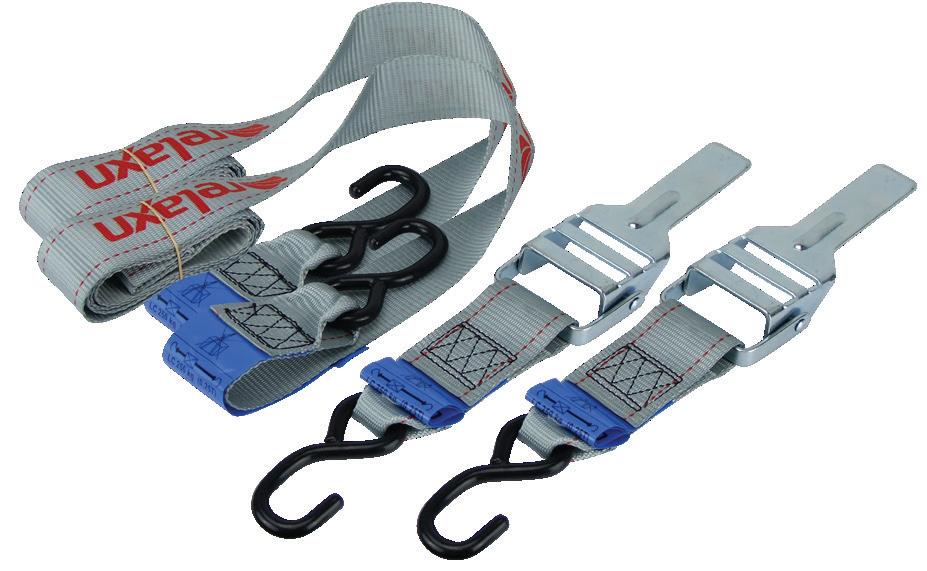

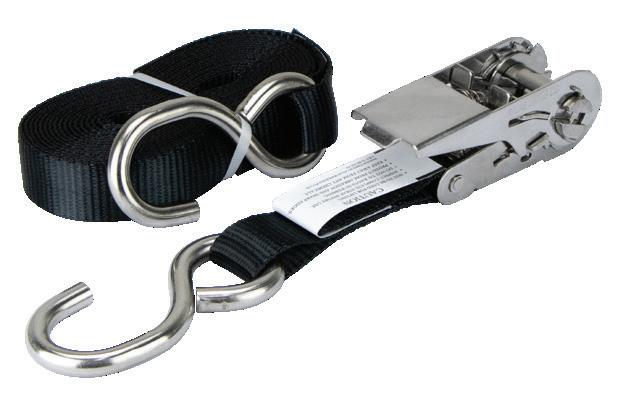

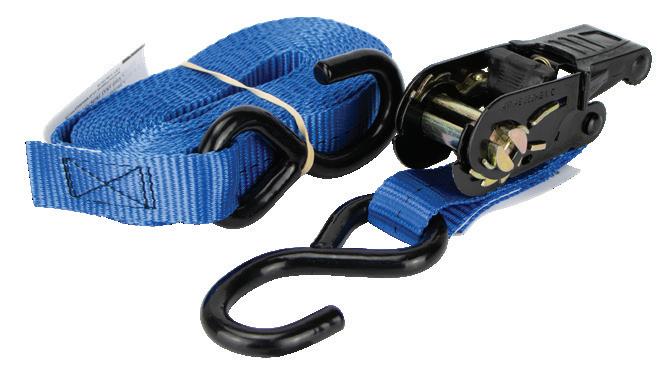

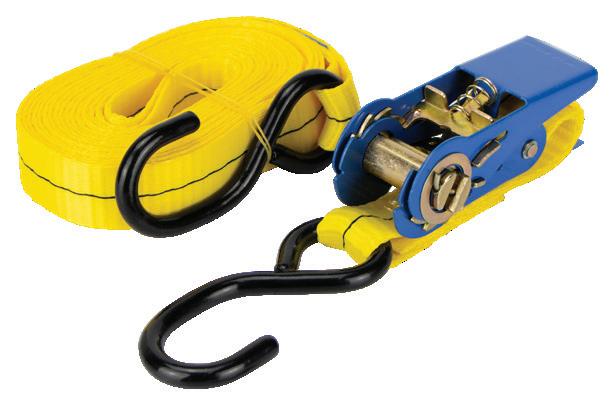

Tie Downs
845

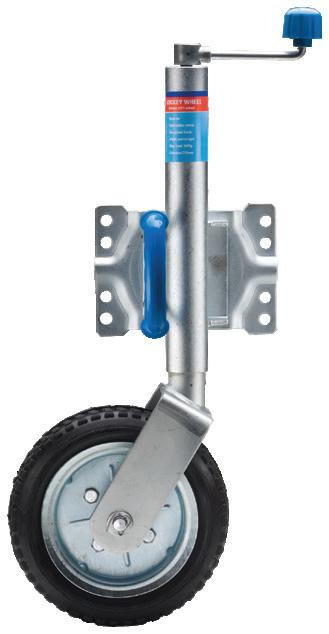

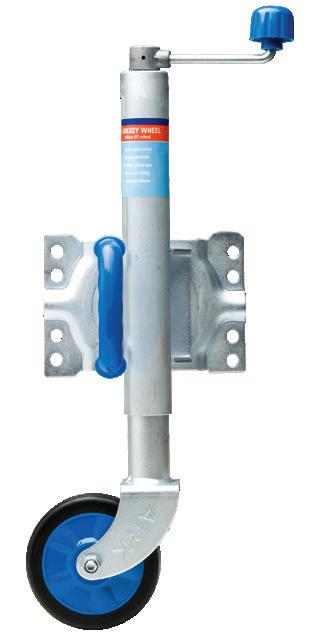

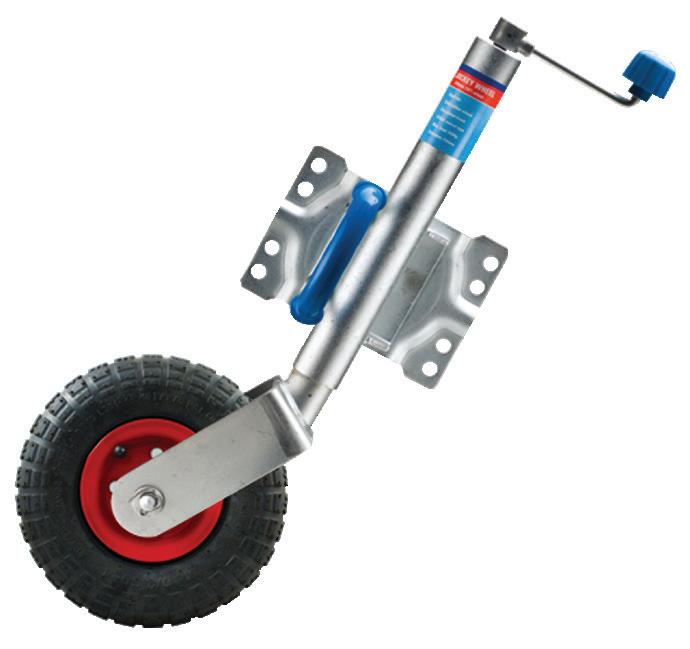

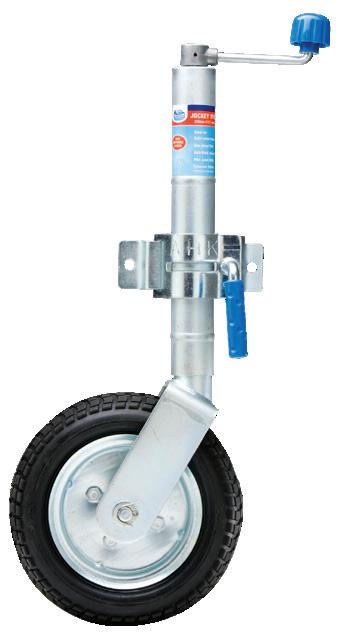

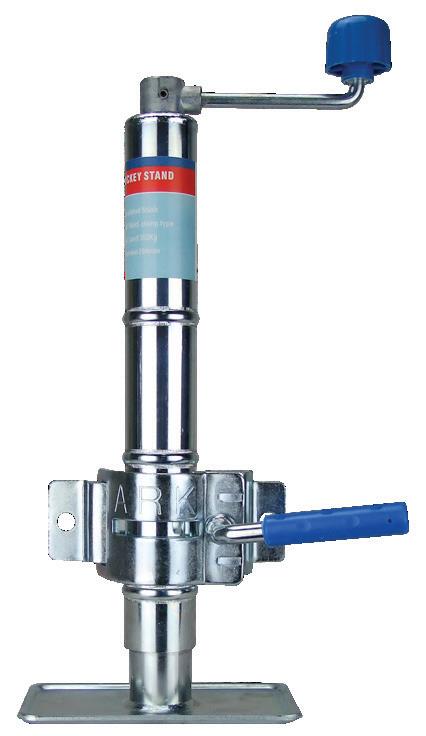

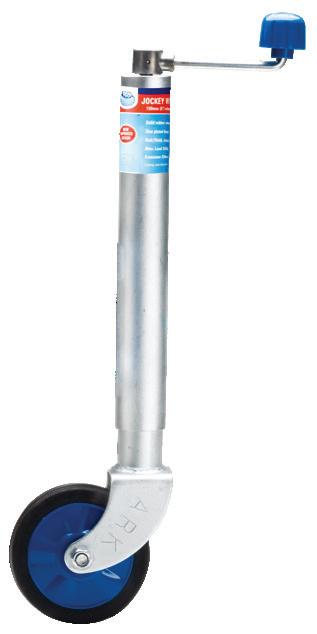

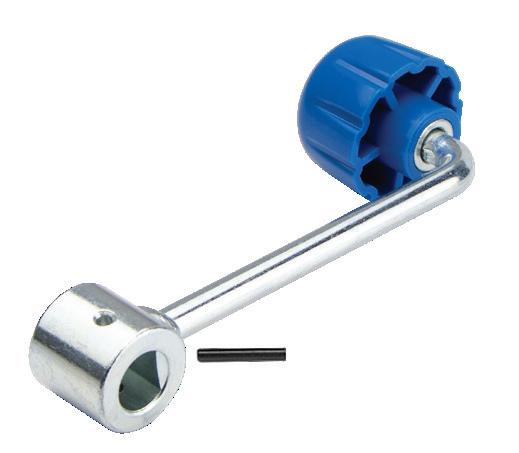

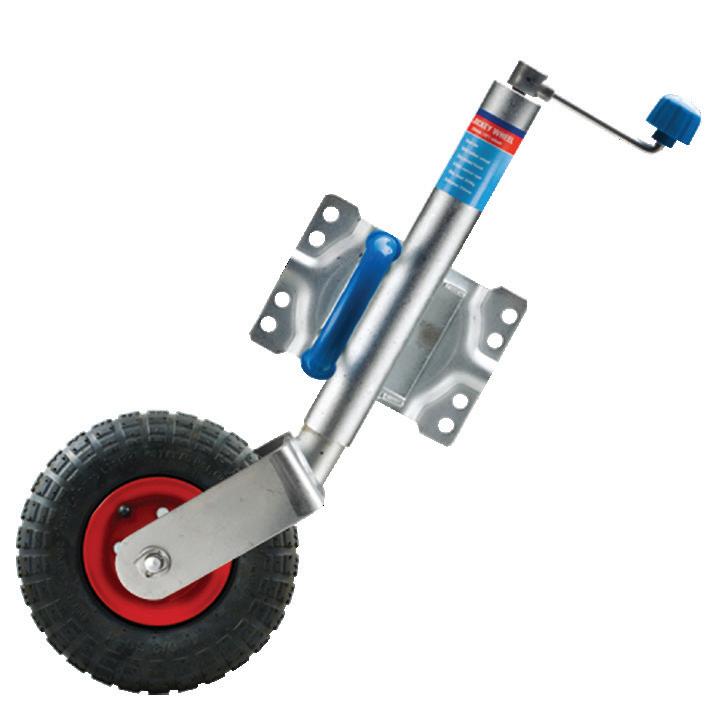

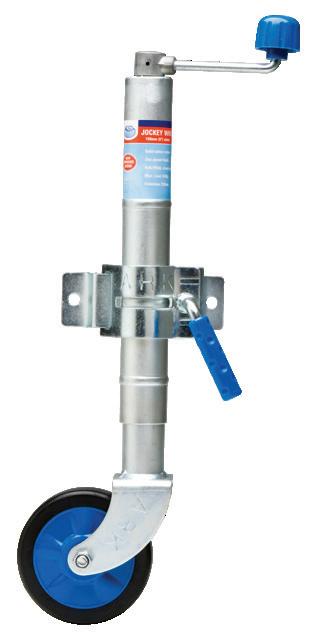

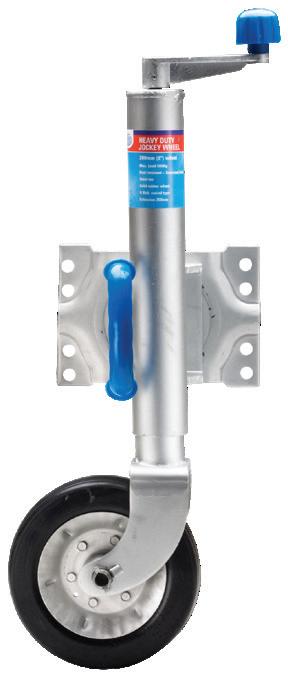

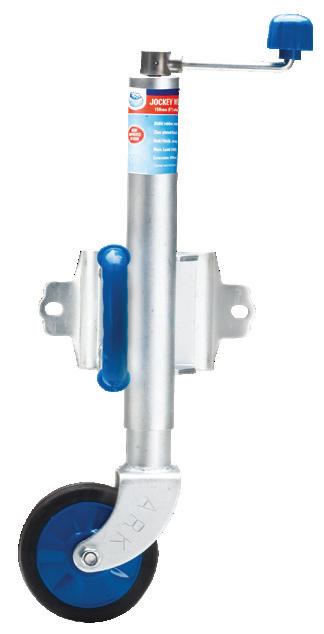

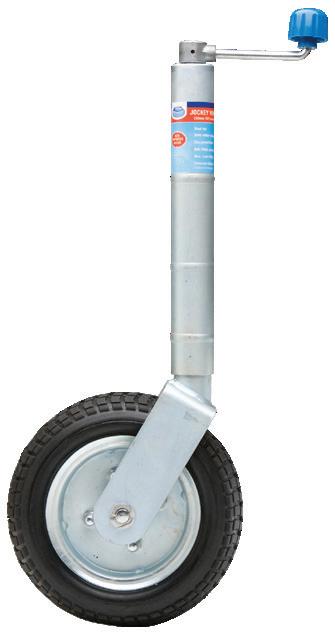

Jockey Wheels
851

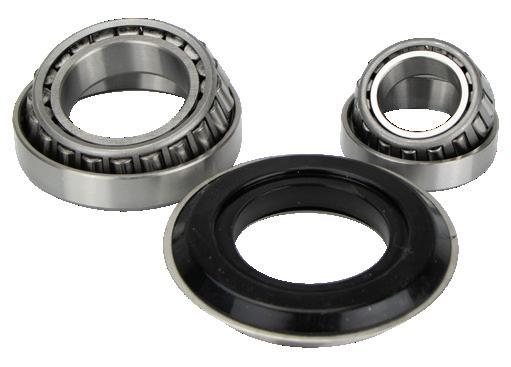

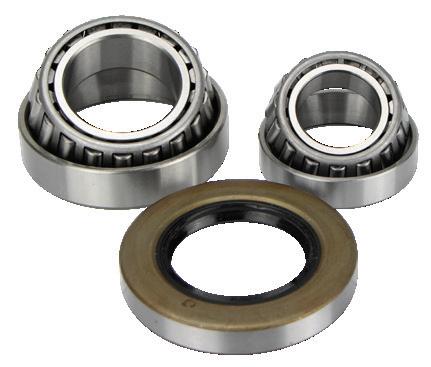

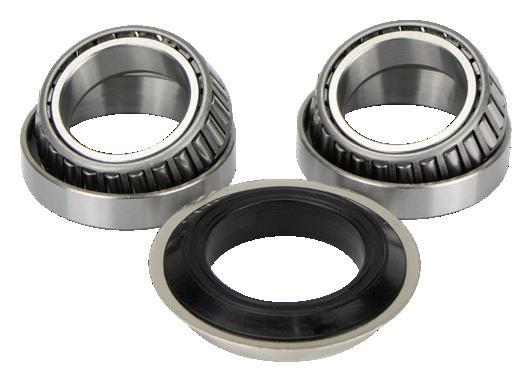

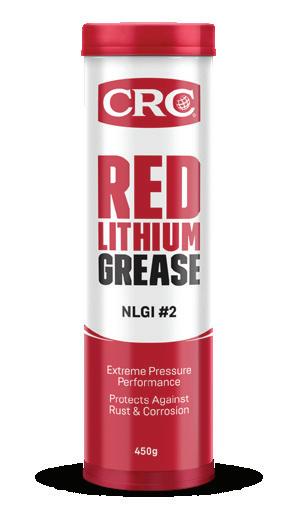

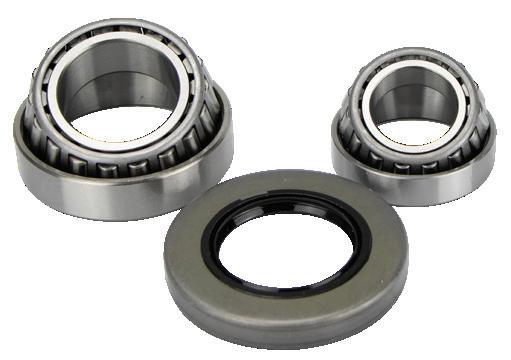

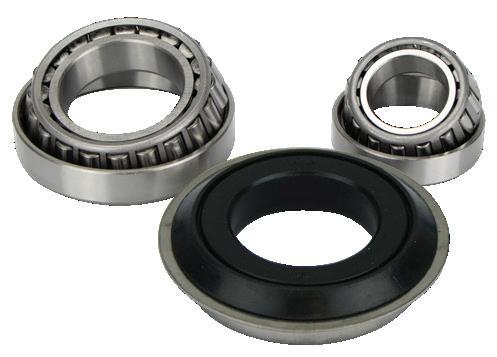

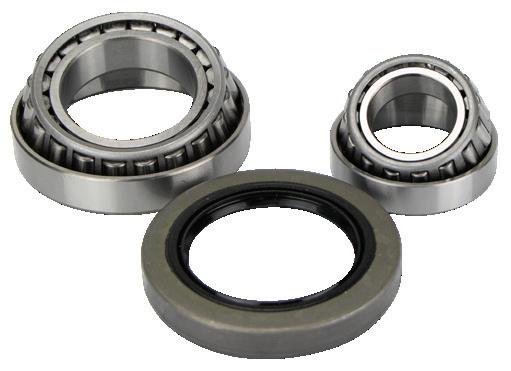

Wheel Bearing Kits & Grease
853

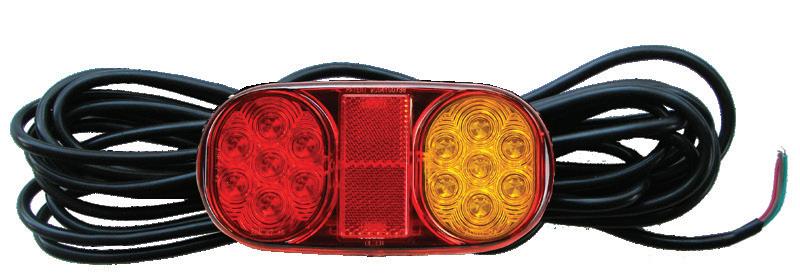

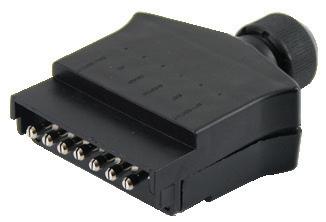

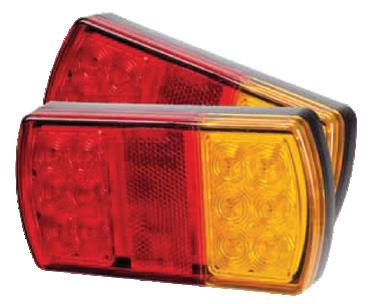

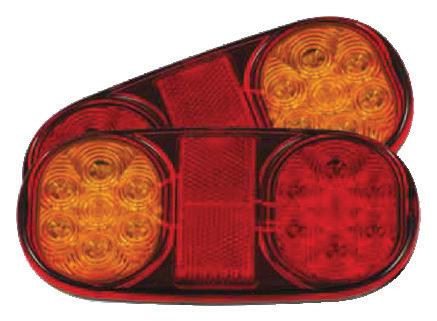

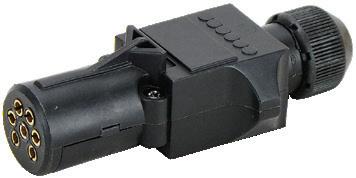

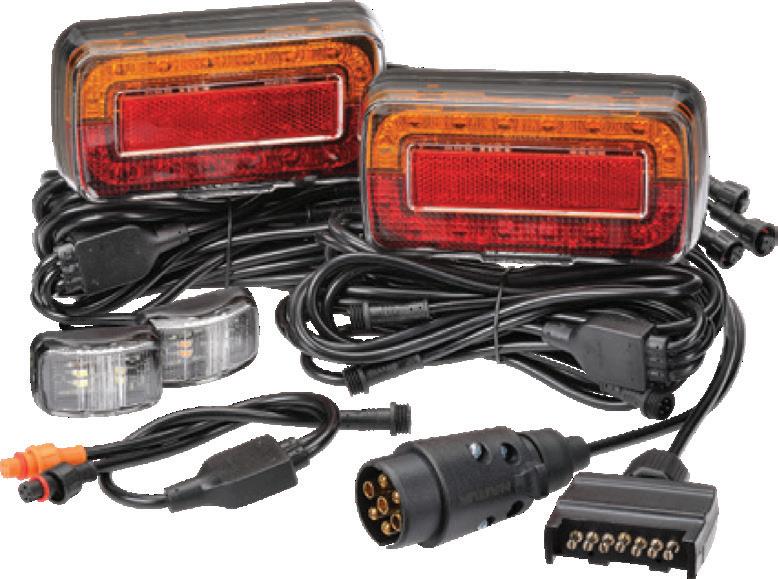

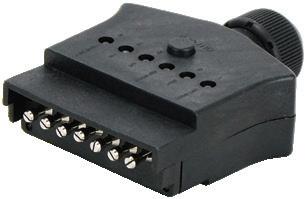

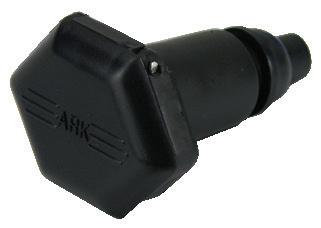

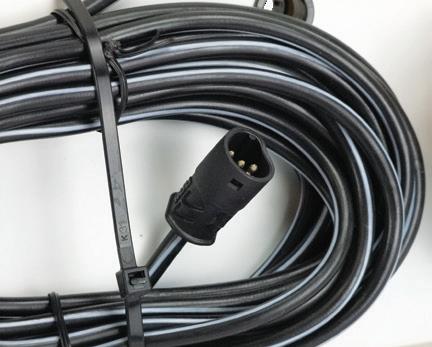

Trailer Plugs, Sockets & Adaptors LED Trailer Lights
854 855
Winch Cables & Accessories . . . . . . . .
838
Electric Winches . . . . . . . . . . . 839-840 Electric Trailer Winches. . . . . . . . 841-842 Electric Trailer Winches - Remote. . . . . 843-844 Transom Ratchet Tie Downs. . . . . . . . 845 Athwartship Ratchet Tie Downs . . . . . . . 846 Ratchet Tie Downs. . . . . . . . . . . . 847 Tie Downs . . . . . . . . . . . . . 848-849 Cam Buckle, Side Release, Octopus & Cargo Tie Downs. . . . . . . . . . . . 850 Jockey Wheels, Clamp & Handle. . . . . . . 852 1000kg - 2000kg Bearing Kits, Hub Protectors & Grease. . . . . . . . . . . . . . . . 853

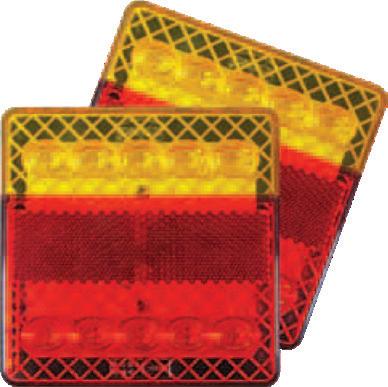

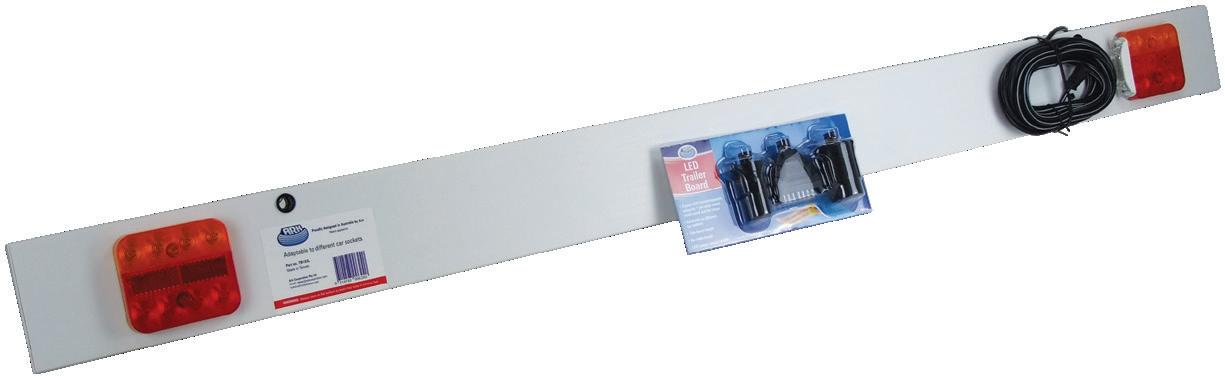

Light Boards & Trailer Lights . . . . . . . . 855 Trailer, Marker & Number Plate Lights & Trailer Accessories. . . . . . . . . . . . 856 Purple Line Trailer Anti-Theft Accessories . . 857-858
Marine & RV Winches, Ratchets & Tie Downs All of our products are designed and built for a specific type of use. DO NOT use these products for human suspension unless the product is specifically certified and labelled for such use.
www.samallen.com.au
834
Atlantic® Winches

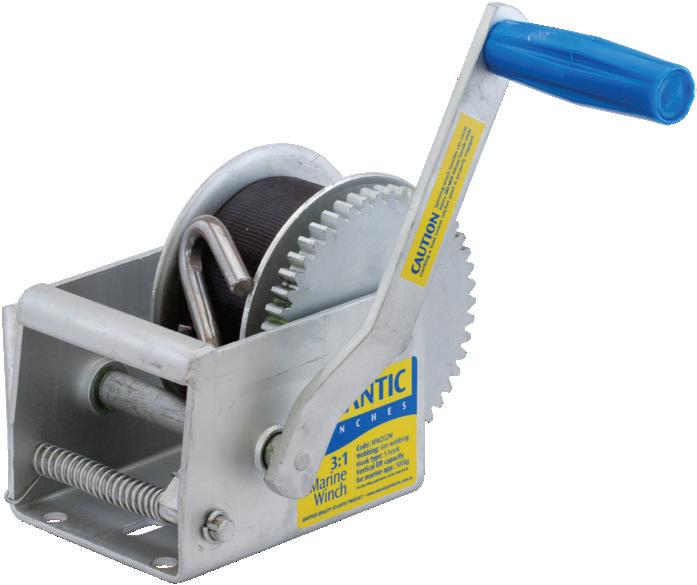

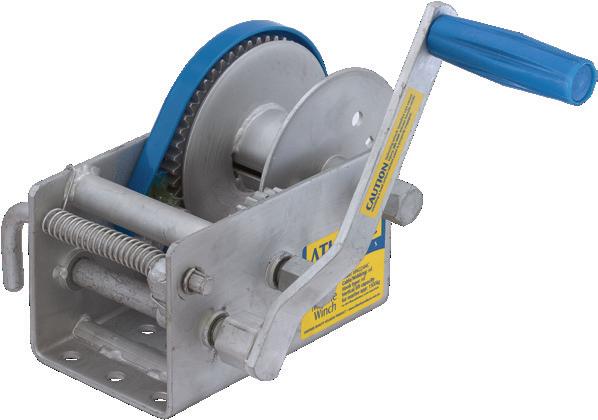

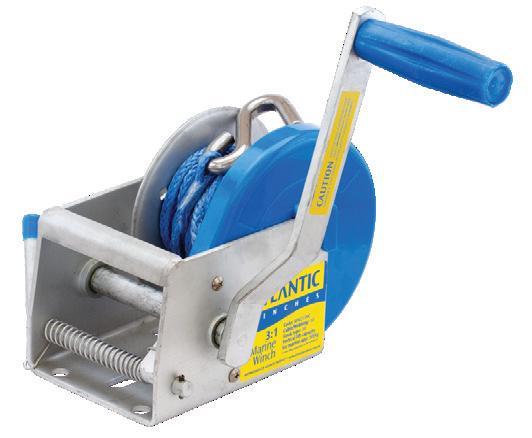

Tinny & Marine Winches Atlantic® Tinny Winch Series Suitable for retrieving either a small Tinny or large Jet Ski. The Atlantic® range of Tinny Winches are 3:1 ratio - with load capacity rated at 300kg and are NATA tested. They come in three options including galvanised cable, webbing strap or no cable. All are Dacromet® finished, and have a ratchet pawl style mechanism.

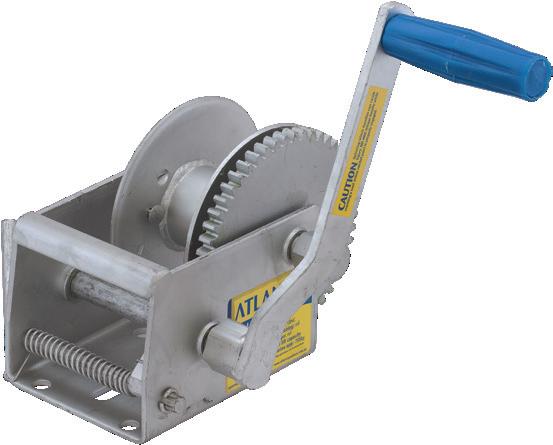

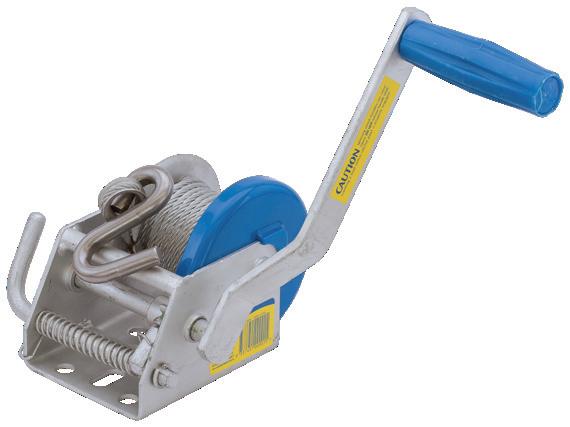

Winch - Hand - 3:1 - Mini Application
Part No.
542705
Gear Pull Ratio Capacity (kg)
Cable Type
Hook Type
'S' Hook
542704 Boat Trailer
3:1
300
4.5m Webbing
542705 Boat Trailer
3:1
300
6m x 4mm Cable
'S' Hook
542715 Boat Trailer
3:1
300
No Cable
No Hook
542704

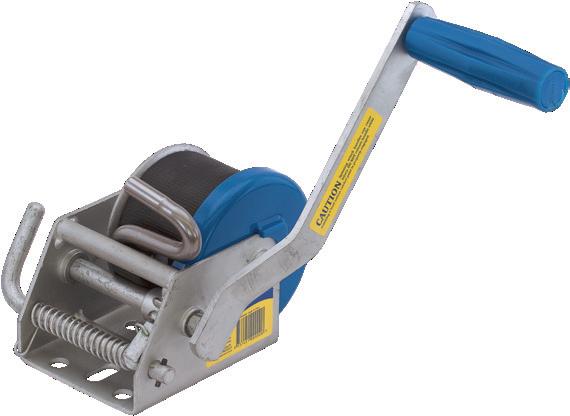

Atlantic® Marine Winch Series Suitable for retrieving boats up to 20 feet in length, the Atlantic® range of Marine Winches are available in five different ratios - 3:1, 5:1, 5:1/1:1, 10:1/5:1/1:1 or 15:1/5:1/1:1 - with load capacity ratings operating from 500kg to 1500kg respectively and are NATA tested. Depending on the application, there's a number of options available including cable, webbing strap, Atlantic Rope™ or no cable. The Atlantic Rope™ is made from lightweight, high strength, low stretch, polyethylene (UHMWPE) fibre, stronger than galvanised wire of the same diameter. They are Dacromet® finished, and have a ratchet pawl style mechanism.

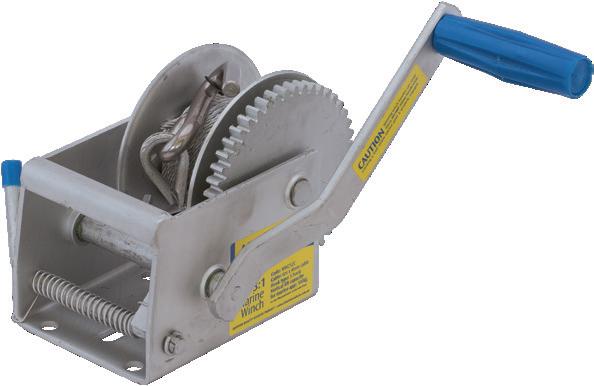

Winch - Hand - 3:1 Application
Part No.
542710
Gear Pull Ratio Capacity (kg)
Cable Type
Hook Type
6m x 4mm Rope
'S' Hook
542680 Boat Trailer
3:1
500
542700 Boat Trailer
3:1
500
6m Webbing
'S' Hook
542710 Boat Trailer
3:1
500
6m x 4mm Cable
'S' Hook
542720 Boat Trailer
3:1
500
No Cable
No Hook
Cable Type
Hook Type
542680

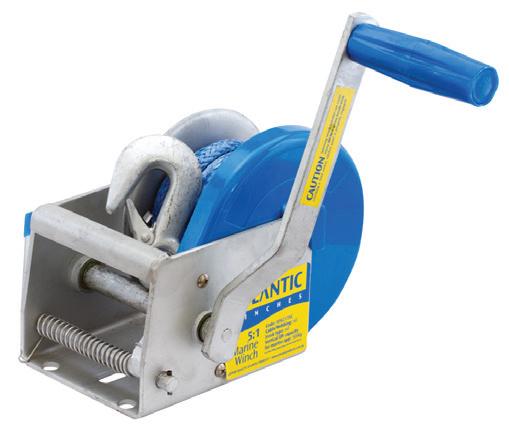

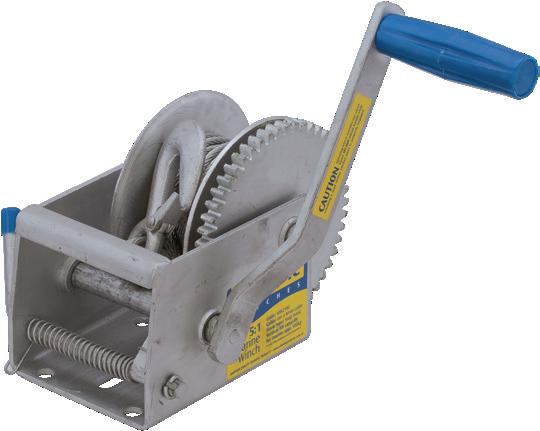

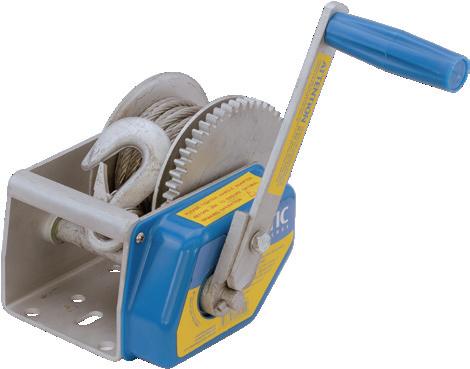

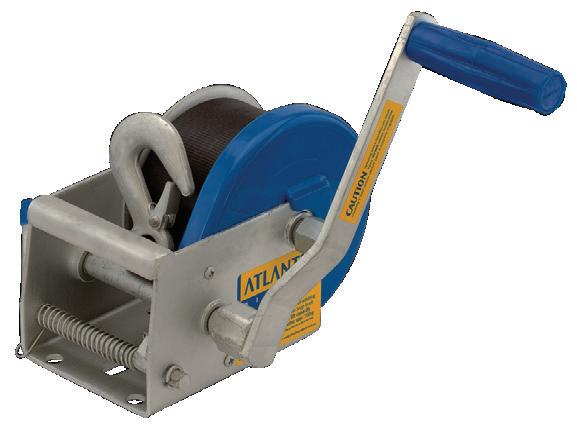

Winch - Hand - 5:1 Application
Part No.
Winches & Trailer Accessories
542682
542682 Boat Trailer
5:1
700
542701 Boat Trailer
5:1
700
542711 Boat Trailer
5:1
700
542721 Boat Trailer
5:1
700
No Cable
No Hook
Pull Gear Ratio Capacity (kg)
Cable Type
Hook Type
7.5m Webbing
Snap Hook
6m x 6mm Rope Snap Hook 6m Webbing
Snap Hook
6m x 5mm Cable Snap Hook
542711
Winch - Hand - 5:1/1:1 Part No.
542702
835
Gear Pull Ratio Capacity (kg)
Application
542702 Boat Trailer
5:1/1:1
700
542712 Boat Trailer
5:1/1:1
700
542722 Boat Trailer
5:1/1:1
700
542722
www.samallen.com.au
7.5m x 5mm Cable Snap Hook No Cable
No Hook

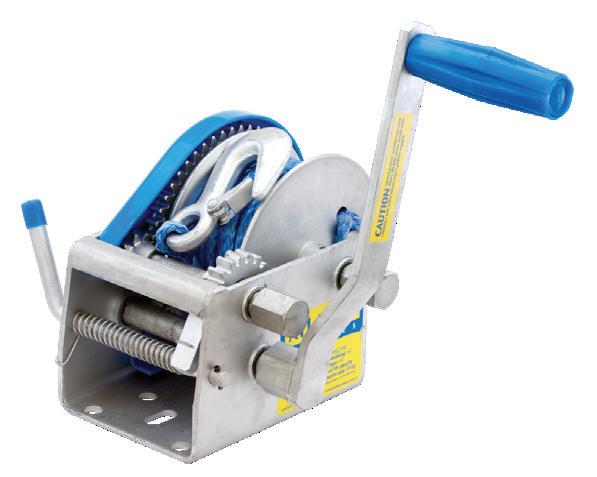

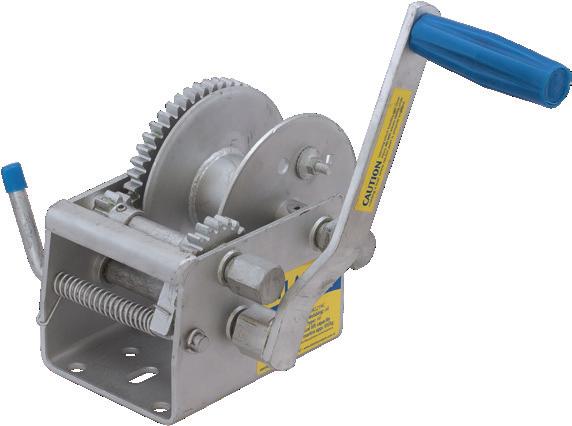

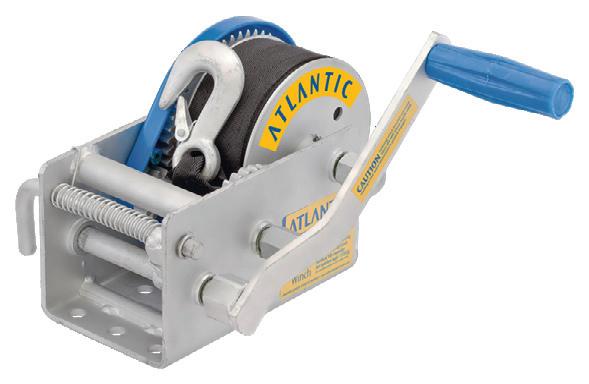

Atlantic® Marine Winches Winch - Hand - 10:1/5:1/1:1 Part No.
Application
Pull Capacity (kg)
Gear Ratio
Cable Type
Hook Type
542686 Boat Trailer
10:1/5:1/1:1 1000
7.5m x 6mm Rope Snap Hook
542703 Boat Trailer
10:1/5:1/1:1 1000
7.5m Webbing Snap Hook
542713 Boat Trailer
10:1/5:1/1:1 1000 7.5m x 6mm Cable Snap Hook
542723 Boat Trailer
10:1/5:1/1:1 1000
No Cable
No Hook 542686
542723
Winch - Hand - 15:1/5:1/1:1 Part No.
Application
Pull Capacity (kg)
Gear Ratio
Cable Type
Hook Type
542688 Boat Trailer
15:1/5:1/1:1 1500
7.5m x 7mm Rope Snap Hook
542707 Boat Trailer
15:1/5:1/1:1 1500
Webbing Strap Snap Hook
542714 Boat Trailer
15:1/5:1/1:1 1500 7.5m x 7mm Cable Snap Hook
542724 Boat Trailer
15:1/5:1/1:1 1500
No Cable
No Hook 542707
542724

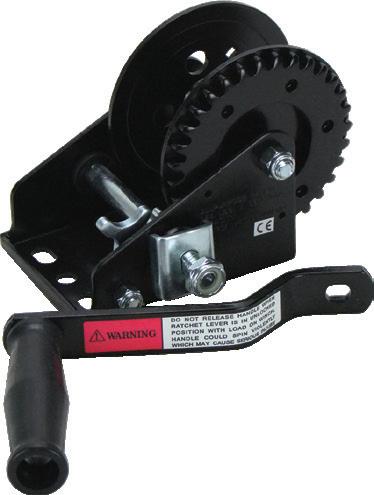

Winch - Hand - 3:1 - Dual Direction - Black EDC Coated Part No.
Description
Ratio
Pull Capacity (kg)
54270
Compact Manual Winch
3:1
380

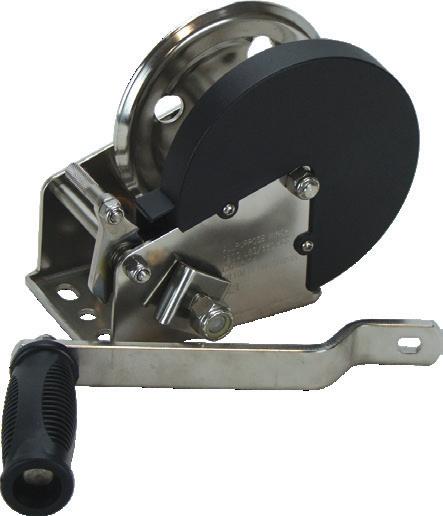

Winch - Hand - 3:1/4.1:1 - Dual Direction - Stainless Steel Ratio
Pull Capacity (kg)
54276 Stainless Steel Compact Manual Winch
3:1
270
54278 Stainless Steel Compact Manual Winch
4.1:1
545
Part No.
Description
• 304G stainless steel. • One piece solid gear with cover. • Comfort grip handle. • Two way ratchet pawl. • Suitable for wire, webbing or UHMWPE rope. • Not suitable for lifting purposes. NOTE: Cable and hook not included.
www.samallen.com.au
Winches & Trailer Accessories
• Solid gear. • Black EDC coating to ensure longevity. • Precise gear tooth engagement. • Two way ratchet pawl. • Suitable for wire, webbing or UHMWPE rope. • Not suitable for lifting purposes. NOTE: Cable and hook not included.
836

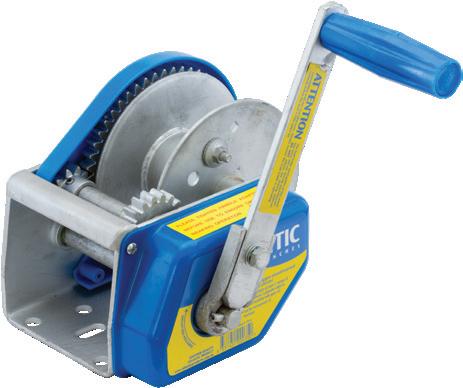

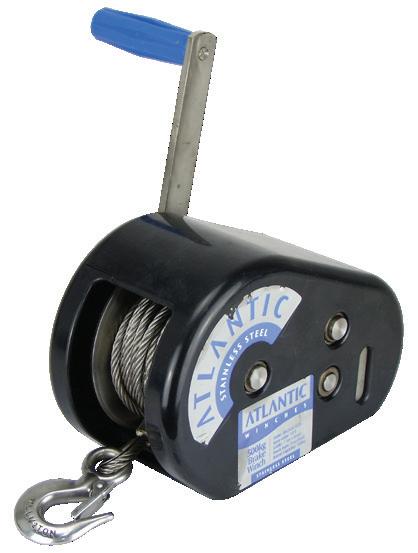

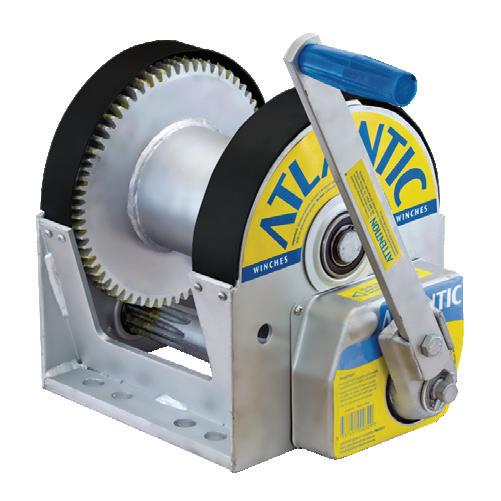

Atlantic® Brake Winches & Winch Handles Atlantic® Brake Winch Series
Atlantic® Large Brake Winch Series
The Atlantic® range of Brake Winches are available in 2 different ratio sizes – 5:1 and 10:1 with load capacity ratings of 300kg or 500kg respectively and are NATA tested. The range offers the option of cable, Atlantic Rope™ or no cable and are suitable for pulling or lifting. The self actuating automatic braking mechanism ensures the suspension of loads and jerk-free movement when lowering a load under pressure. The carbon copper fibre brake pads also ensure that a load is always secured under braking load. Available in Dacromet finish, with or without a full cover or stainless steel with full cover.
The Atlantic range of Large Brake Winches are available in 2 different ratio sizes – 8:1 and 15:1 with load capacity ratings of 750kg or 1500kg respectively and are NATA tested. The self actuating automatic braking mechanism ensures the suspension of loads and 'jerk-free' movement when lowering a load under pressure. The carbon copper fibre brake pads also ensure that a load is always secured under braking load.
Lift Gear Part No. Application Ratio Capacity (kg)
Winch - Hand - Brake - 5:1 Part No. Application
Finish
Lift Gear Ratio Capacity (kg)
Cable Type
Hook Type
542696 Lifting
Dacromet 5:1
300
7.5m x 5mm Snap Rope Hook
542730 Lifting
Dacromet 5:1
300
7.5m x 5mm Snap Cable Hook
542732 Lifting
Dacromet 5:1
300
No Cable
542730FC Lifting
Dacromet 5:1
300
7.5m x 5mm Snap Cable Hook
542730
Winch - Hand - Large Brake - 8:1
542740 Lifting
8:1
Cable Type
Hook Type
Max Cable/ Rope Capacity
No 15m x 10mm No Cable Hook
750
No Hook
542696
Winch - Hand - Large Brake - 15:1 Lift Gear Part No. Application Ratio Capacity (kg)
542742 Lifting
15:1
1500
Cable Type
Hook Type
Max Cable/ Rope Capacity
No 15m x 10mm No Cable Hook
Full Cover
542730FC
Winch - Hand - Brake - 10:1
Winches & Trailer Accessories
Part No. Application
Finish
Lift Gear Ratio Capacity (kg)
Cable Type
Hook Type
542698 Lifting
Dacromet 10:1
500
7.5m x 6mm Snap Rope Hook
542731 Lifting
Dacromet 10:1
500
7.5m x 6mm Snap Cable Hook
542733 Lifting
Dacromet 10:1
500
No Cable
542731SS Lifting
Stainless 10:1 Steel
500
7.5m x 6mm Snap Cable Hook
No Hook
Part No.
54240
DELETED
Length (mm)

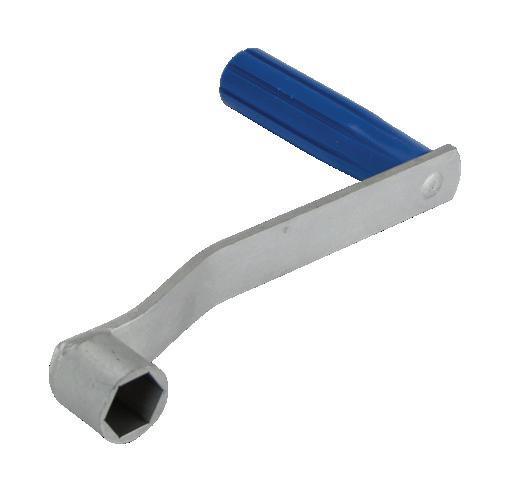

7/8" Removable Hex Winch Handle
205
542774 7/8" Removable Atlantic Hex Winch Handle
200
542774
542731SS
837
Description
• Galvanised steel. • Plastic grip.
542733
542731

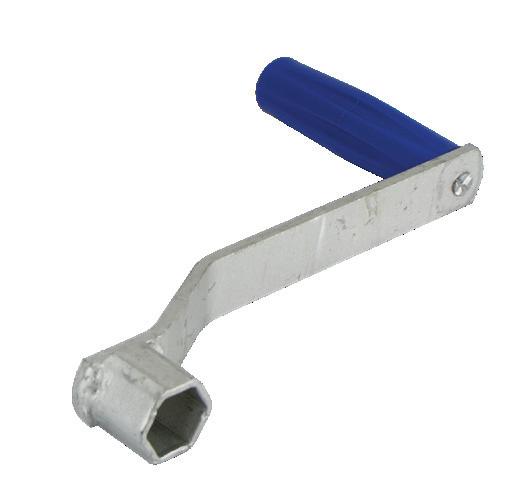

Winch - Spare Handles
Full Cover
www.samallen.com.au
54240
Winch Cables & Accessories Winch Cables & Accessories

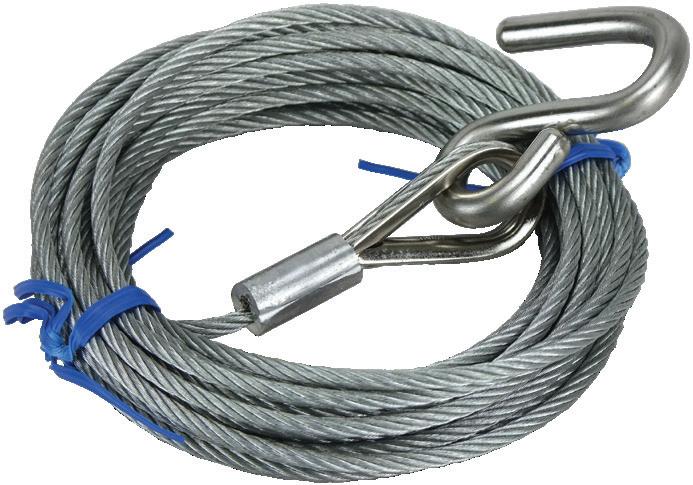

Winch Wire - 'S' Hook

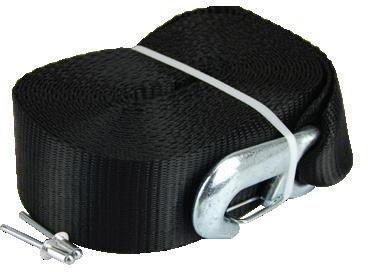

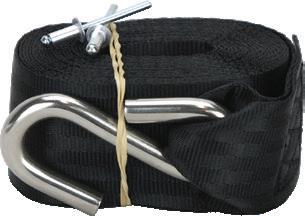

Winch Webbing with Hook
Part No.
Cable Dia. (mm)
Cable Strand
Cable Length (m)
'S' Hook Diameter (mm)
54100
4
6 x 19
4.5
8
54102
4
6 x 19
6.1
8
54109
4
6 x 19
7.6
8
54108
5
6 x 19
6.1
8
54110
5
6 x 19
7.6
8
Width (mm)
Part No.
Length (m)
SWL (kg)
Hook Type
54120
50
4.3
350
8mm 'S' Hook
54122
50
6.0
550
Snap Hook
54124
50
7.0
1000
Snap Hook
• Replacement winch strap. • For pulling loads only. Not to be used for lifting. • 54124 - Features heavy-duty webbing. • Australian/New Zealand Standard AS/NZS 4380:2001. • Australian made. NOTE: Colours may vary.
• Galvanised wire. • Galvanised thimble. • Stainless steel 'S' hook.
54120
54122
54124

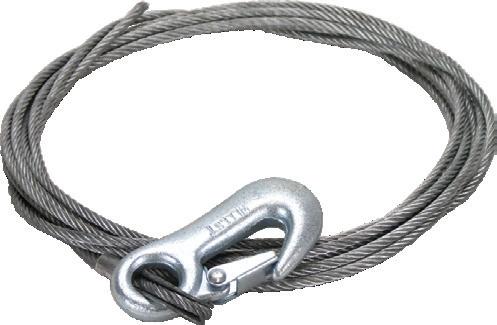

Winch Wire - Snap Hook Part No.
Cable Dia. (mm)
Cable Strand
Cable Length (m)
54150
4
6 x 19
4.5
54152
4
6 x 19
6.1
54153
4
6 x 19
7.6
54154
4
6 x 19
9.1
54158
5
6 x 19
6.1
54160
5
6 x 19
7.6
54167
5
6 x 19
9.1
71885
5
6 x 19
12.1
71856
6
6 x 19
12.1
• Galvanised wire. • Galvanised thimble. • Galvanised snap hook.
'S' Hook Stainless Steel Part No.
Ø (mm)
A (mm)
B (mm)
C (mm)
56201
6
65
10
12
56203
8
75
16
17
56204
9
84
18
18
• 316G stainless steel. Steel Part No.
Ø (mm)
A (mm)
B (mm)
C (mm)
52612
6
59
47
8.7
• Zinc plated steel. B C

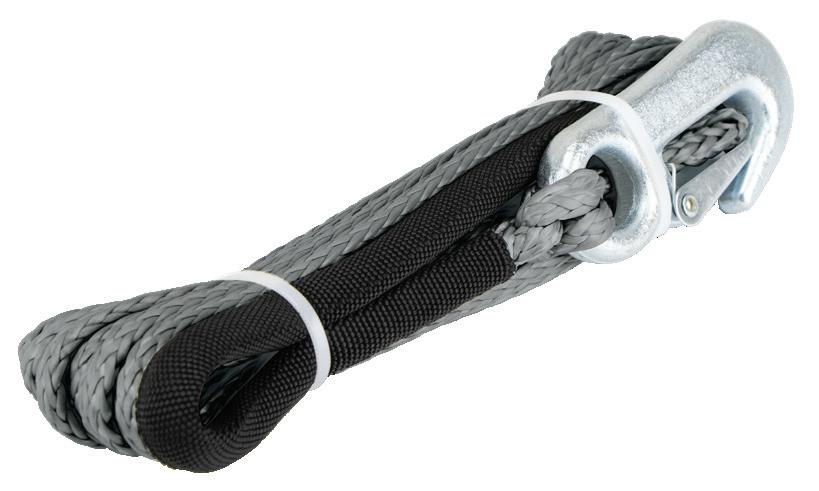

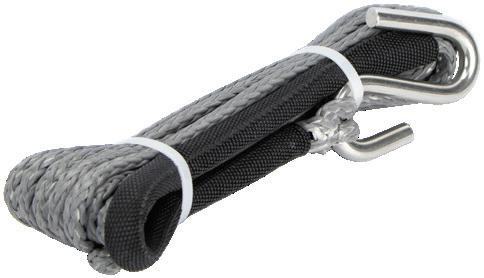

Winch Ropes - High Tech UHMWPE Part No.
Dia. Ø Length (mm) (m)
SWL (kg)
A
B
Ø
56201-56204
Hook Type
Suits Boat Length (m)
Up to 4.0
54170
4
4.5
200
Galvanised Snap Hook
54168
5
5
200
316G S/S 8mm 'S' Hook Up to 4.0
54174
5
6.0
350
Galvanised Snap Hook
5.0 - 5.5
54175
5
15.0
350
Galvanised Snap Hook
54180
6
7.6
700
Galvanised Snap Hook
54182
6
15.0
700
Galvanised Snap Hook
C
Ø
52612

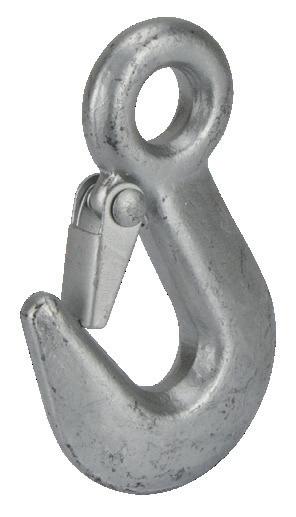

Galvanised Snap Hook Part No.
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
5.0 - 5.5
52611
92.5
45.0
34.3
17.8
13.3
1500
6.0 - 7.0
52613
96
58
33.5
15
18
1500
7.5 - 9.0
• Galvanised Steel.
• Made from high strength, low stretch UHMWPE. • Will not kink or curl like wire rope. • No build up like polyester webbing. • Attach by tying/looping tail end through fastening eyes on winch drum. NOTE: Rope colour may very.
C D
A E
SWL (kg)
Winches & Trailer Accessories
A
B
52611 54168
54170 / 54174 / 54175 / 54180 / 54182
www.samallen.com.au
52613
838
Winches - Electric Electric Winches

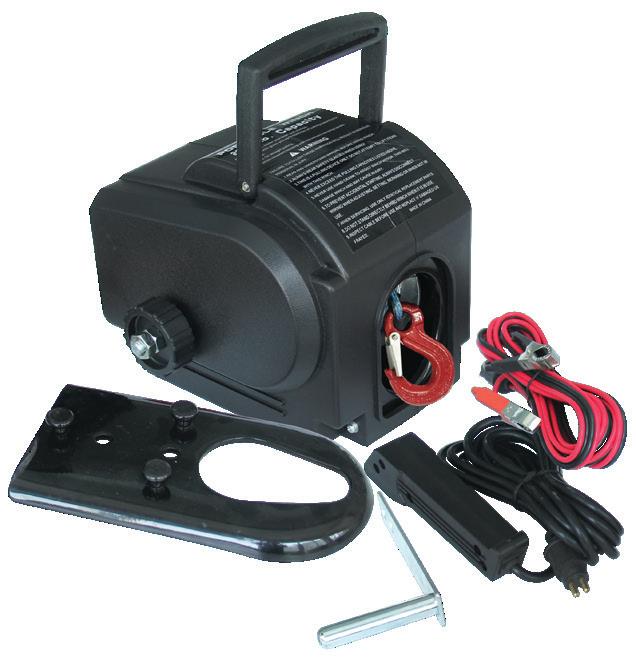

Electric Winch - Boat Trailer - 2000Lb (907kg) Part No.
Volts
Rated Line Pull
Remote Control
Weight (kg)
Overall Dimensions (mm)
Motor Drum Speed (HP) (m/min)
Synthetic Rope Ø x Length
Drum Size Dia. Ø x Length (mm)
542846
12V
2000Lb (907kg) Single-Line
Hard Wired
11
238 x 251.1 x 200
0.4
4.8mm x 9.2m
25 x 82
DELETED
• Suitable for intermittent use only, ideal for the retrieval of trailer boats up to approx 4.3m and a maximum loaded weight of 450kg. • Smooth power in/free wheel out operation. • Supplied with a hand-held remote for power-in only operation, quick release bracket for easy attachment and removal to either the tow ball or winch post. • Adjustable free-spooling clutch, UHMWPE rope cable and snap hook, emergency crank handle and thermal safety overload. • Supplied with mounting hardware and plug-in switch with 3 metre lead.
Winches & Trailer Accessories Photo courtesy of Cruise Craft
839
1.8
www.samallen.com.au

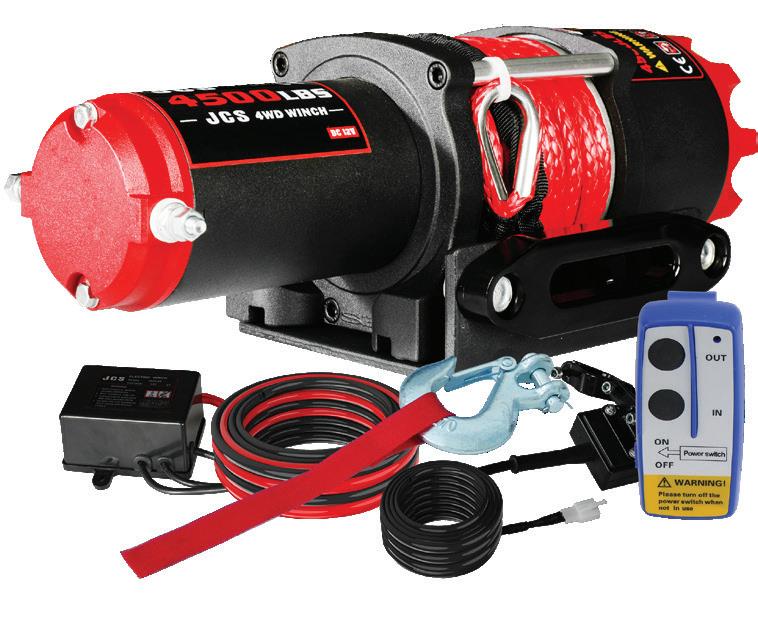

Electric Winches Electric Winch - 4500Lb (2045kg) Part No.
Volts (V)
Rated Line Pull
Remote Control
542841
12
4500Lb (2045kg) Single-Line
Wireless
Weight Gear Train Overall Dimensions Motor (kg) (mm) (HP)
Gear Reduction Ratio
Synthetic Rope Ø x Length
Drum Size Dia. Ø x Length (mm)
3-Stage Planetary 335 x 118 x 116
189:1
5.5mm x 13m
50 x 76.5
11
2.0
• Suitable for a variety of marine, industrial and recreational applications. • Dual direction - Power in and power out operation. • Three stage planetary gear train. • Freespool mechanism, simply turn knob to disengage the wheel drum gearbox. • Duty cycle intermittent. • Braking action automatic in drum. • Aluminium fairlead. • Supplied with mounting hardware, plug-in switch with 3 metre lead, and remote control switch. • Rated line pull is the load capable of being moved from a dead stop on flat ground with minimal friction. • When used in a boat trailer application, this winch is suitable for boats up to approx 5.5m with a max loaded weight of 1000kg.
DELETED

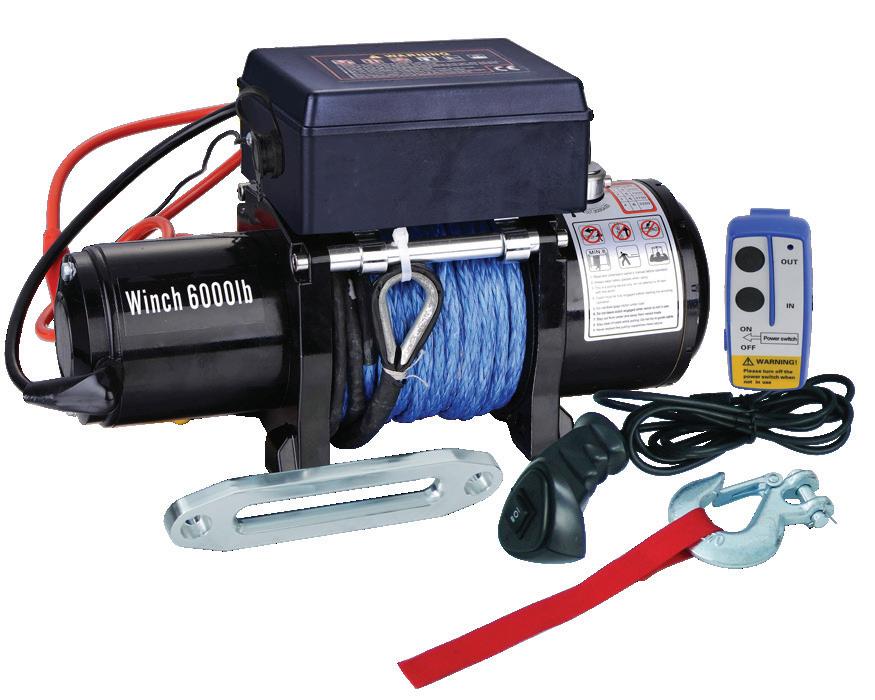

Electric Winch - 6000Lb (2722kg) Volts (V)
Rated Line Pull
Remote Control
542842
12
6000Lb (2722kg) Single-Line
Wireless
Weight Gear Train Overall Dimensions Motor (kg) (mm) (HP)
Gear Reduction Ratio
Synthetic Rope Ø x Length
Drum Size Dia. Ø x Length (mm)
3-Stage Planetary 430 x 160 x 216
160:1
7.2mm x 24m
64 x 134
22
3.0
• Suitable for a variety of marine, industrial and recreational applications. • Dual direction - Power in and power out operation. • Three stage planetary gear train. • Freespool mechanism, simply turn lever to disengage the wheel drum gearbox. • Duty cycle intermittent. • Braking action automatic in drum. • Aluminium fairlead. • Supplied with mounting hardware, plug-in switch with 3 meter lead, and remote control switch. • Rated line pull is the load capable of being moved from a dead stop on flat ground with minimal friction. • When used in a boat trailer application, this winch is suitable for boats up to approx 5.7m with a max loaded weight of 1400kg. • Boat weight can be increased by 50% when a 2:1 pulley of adequate strength is used at the hitch point, however retrieval speed is reduced by half.
DELETED

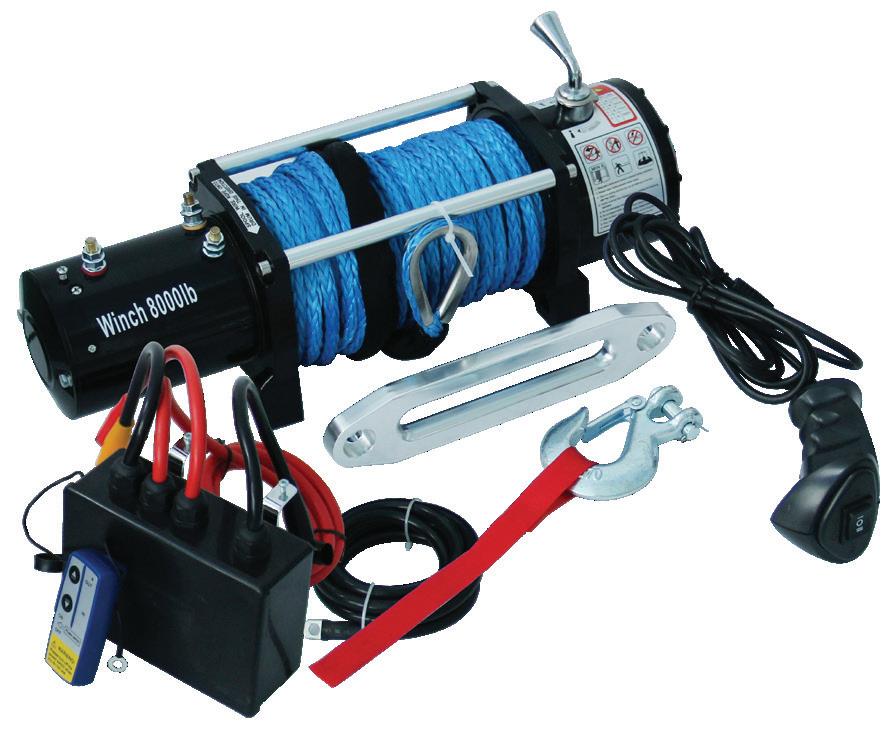

Electric Winch - 8000Lb (3628kg) Part No.
Volts (V)
Rated Line Pull
Remote Control
542838
12
8000Lb (3629kg) Single-Line
Wireless
542811
Weight Gear Train Overall Dimensions Motor (kg) (mm) (HP)
Gear Reduction Ratio
Synthetic Rope Ø x Length
Drum Size Dia. Ø x Length (mm)
3-Stage Planetary 530 x 160 x 216
202:1
8.3mm x 24m
64 x 224
28

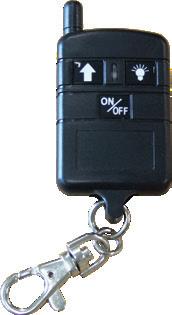

Solenoid Box & Remote Control (Only) - Suits 542838
• Suitable for a variety of marine, industrial and recreational applications. • Dual direction - Power in and power out operation. • Three stage planetary gear train. • Freespool mechanism, simply turn lever to disengage the wheel drum gearbox. • Duty cycle intermittent. • Braking action automatic in drum. • Aluminium fairlead. • Supplied with mounting hardware, plug-in switch with 3 meter lead, and remote control switch. • Rated line pull is the load capable of being moved from a dead stop on flat ground with minimal friction. • When used in a boat trailer application, this winch is suitable for boats up to approx 6.0m with a max loaded weight of 1800kg. • Boat weight can be increased by 50% when a 2:1 pulley of adequate strength is used at the hitch point, however retrieval speed is reduced by half.
www.samallen.com.au
5.5
Winches & Trailer Accessories
Part No.
840

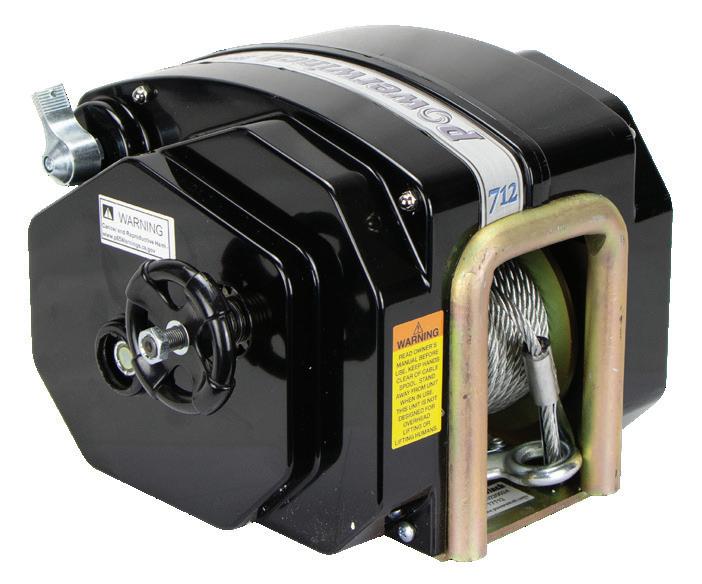

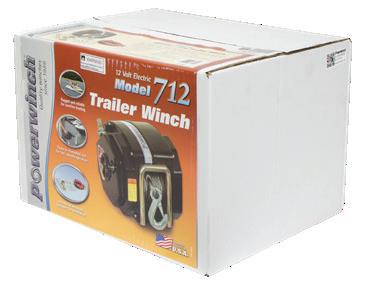

Electric Trailer Winches Powerwinch® PW712A Trailer Winch Part No.
Application
Max Boat Length (m)
Max Boat Weight (kg)
Circuit Breaker (Amp)
Line Speed (m/min)
Gear Ratio
Dimensions (mm)
PW712A
Trailer Winch
5.5
1250*
60
4.25
225:1
254 x 254 x 203
Winch Weight Winch Cable (kg)
15
5.5mm x 12m
• The PW712 is suitable for trailerable boats up to approximately 5.5m with a maximum loaded boat weight of 1250kg (single line pull). • The pulley block supplied can be used at the bow eye to increase the pulling power; however, retrieval speed is halved. Practically, the maximum loaded boat weight can be increased by approximately 50%*. • Smooth power in/free wheel out operation. • Powerwinches® are made from the highest grade materials and designed for durability. • Adjustable clutch for controlled boat launching. • Complete with colour coded 60 amp standard wiring harness for easy connection to the vehicle's battery. • Includes emergency manual handle. • 2 Year Warranty.

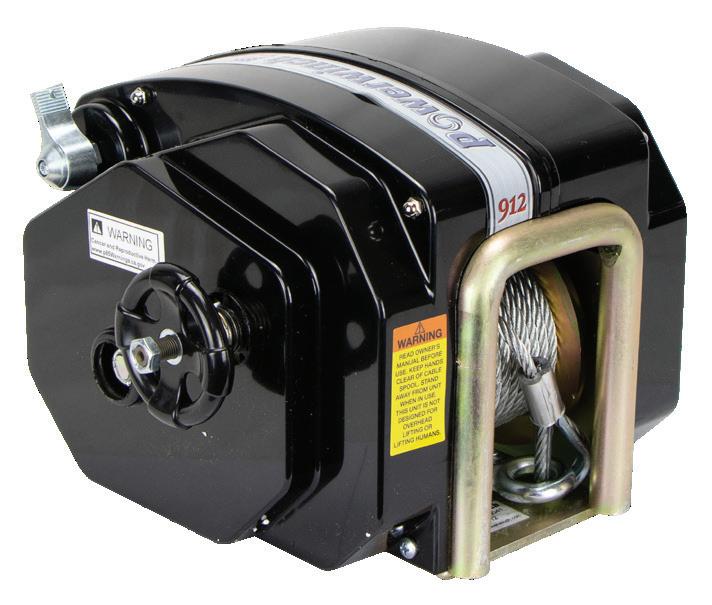

Powerwinch® PW912 Trailer Winch
Winches & Trailer Accessories 841
Part No.
Application
Max Boat Length (m)
Max Boat Weight (kg)
Circuit Breaker (Amp)
Line Speed (m/min)
Gear Ratio
Dimensions (mm)
PW912
Trailer Winch
6.5
2000*
60
2.44
225:1
254 x 254 x 203
Winch Weight Winch Cable (kg)
15.8
5.5mm x 12m
• The PW912 is suitable for trailerable boats up to 6.5m with a maximum loaded boat weight of 2000kg (single line pull). • The pulley block supplied can be used at the bow eye to increase the pulling power; however, retrieval speed is halved. Practically, the maximum loaded boat weight can be increased by approximately 50%*. • Smooth power in/free wheel out operation. • Powerwinches® are made from the highest grade materials and designed for durability. • Adjustable clutch for controlled boat launching. • Complete with colour coded 60 amp standard wiring harness for easy connection to the vehicle's battery. • Includes emergency manual handle. • 2 Year Warranty.
www.samallen.com.au

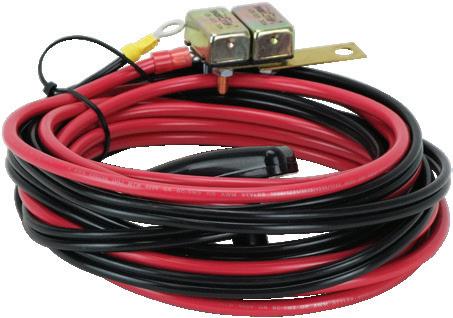

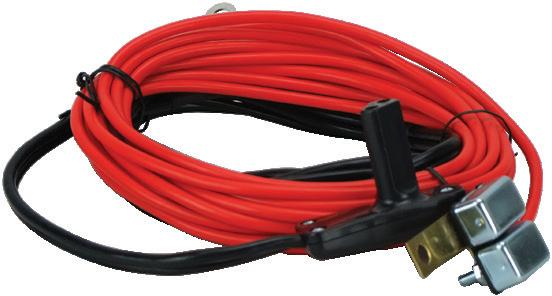

Electric Trailer Winches Powerwinch® PW712A & PW912 - Spare Parts
7
3 6
4 8 2 11 9 1
19 2 16 10 17
14
12
14 15
17
18 16
18
17 16 Item No.
PW712A
PW912
1
71888
71888
Powerwinch Cable Galvanised with Galvanised Snap Hook - 7/32" x 40ft
2
74156
74157
3
55947
4
79043
6
72003
Item No.
PW712A
PW912
13
71314
71314
Powerwinch Replacement Cover Kit
14
7160901
55947
Powerwinch Emergency Manual Crank handle
15
71716
Clutch Spring & Washer 7160901 Powerwinch Repair Kit Drive Gear Assembly 120 71759 Powerwinch Tooth
79043
Powerwinch 2:1 Pulley Block & Hook
16
71282
71290
Powerwinch Gear Kit
72002
Powerwinch Replacement Motor with Gear
17
71285
71293
Powerwinch Cable Shaft Kit
18
71281
71289
Powerwinch Bearing Kit
19
71286
71294
Powerwinch Cover Fastener Kit
20
91007
91007
Powerwinch Cable Shaft & Gear Kit
Description
Description
Powerwinch Clutch Knob & Spring Kit
7
78117
78117
Powerwinch Replacement Switch - 80A
8
78103
78103
Powerwinch Female Power Socket
9
78302
78302
Powerwinch Wiring Loom - 60A
10
78105
78105
Powerwinch Male Power Plug
21
-
91008
Powerwinch Intermediate Shaft & Gear Kit
11
78373
78373
Powerwinch Replacement 60A Circuit Breaker
22
91010
91009
Powerwinch Rear Drive Shaft & Gear Kit
12
71275
71275
Powerwinch Levelwind Plate Kit
www.samallen.com.au
Winches & Trailer Accessories
13
842
Electric Trailer Winches - Remote Powerwinch® Trailer Winches - Remote Controlled Part No.
Application
Max Boat Length (m)
Max Boat Weight (kg)
RC23
Remote Control
5.5
1250*
60
RC30
Remote Control
6.5
2000*
60
Gear Ratio
Dimensions (mm)
Winch Weight (kg)
Winch Cable
4.25
225:1
241 x 292 x 229
15.4
5.5mm x 12m
2.44
450:1
241 x 292 x 229
16.3
5.5mm x 12m
Circuit Breaker Line Speed (Amp) (m/min)
Wireless remote control for convenient power in operation
• Wireless remote operated - power-in/freewheel out operation. • Built in light for night launch/retrieve. • Emergency handle conveniently stored in winch cover. • Super strong housing. • Includes pulley block for double line applications. Practically, increases maximum loaded boat weight by approximately 50%*. • 60 Amp standard wiring harness. • 2 Year Warranty.
RC23
Wireless remote control for convenient power in operation
RC30
Winches & Trailer Accessories 843
Item No.
RC23
RC30
Description
1
71333
71311
Powerwinch Replacement Cover
Item No.
RC23
RC30
Description
16
71728
71728
Powerwinch Replacement LED Light Suits RC23/30
17
71320
71320
Powerwinch Light Switch Kit
18
72003
72002
Powerwinch Replacement Motor with Gear
2
55947
55947
3
71888
71888
Powerwinch Emergency Manual Crank Handle Powerwinch Cable Galvanised with Galvanised Snap Hook - 7/32" x 40ft
4
79043
79043
Powerwinch 2:1 Pulley Block & Hook
19
71317
71317
Powerwinch Solenoid Kit
5
78302
78302
Powerwinch Wiring Loom - 60A
20
71275
71275
Powerwinch Levelwind Plate Kit
6
78105
78105
Powerwinch Male Power Plug
21
71314
71314
Powerwinch Clutch Knob & Spring Kit
22
7160901
23
91011
Clutch Spring & Washer 7160901 Powerwinch Repair Kit 120T Clutch Gear & Stud 91012 Powerwinch Kit
24
91007
91007
Powerwinch Cable Shaft & Gear Kit
25
-
91008
Powerwinch Intermediate Shaft & Gear Kit
26
91010
91009
Powerwinch Rear Drive Shaft & Gear Kit
7
78373
78373
Powerwinch Replacement 60A Circuit Breaker
8
78103
78103
Powerwinch Female Power Socket
9
55904
55904
10
55901
55900
Powerwinch Remote Control Keyfob Suits RC23/30 Powerwinch Remote Control Receiver & Keyfob
14
55909
55909

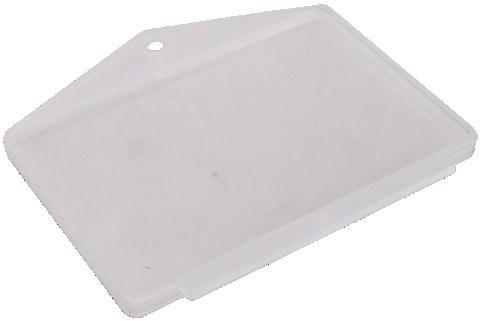

Powerwinch Light Lens - Suits RC23/30
www.samallen.com.au
Electric Trailer Winches - Remote Powerwinch® RC23 & RC30 - Spare Parts
17 1
16
17
14 18 1
19
12
10
8
3
2
5
1
4
7
6
21
26
20
23
22 23
26
26 22 25 25
Winches & Trailer Accessories
9
24
www.samallen.com.au
844
Tie Downs

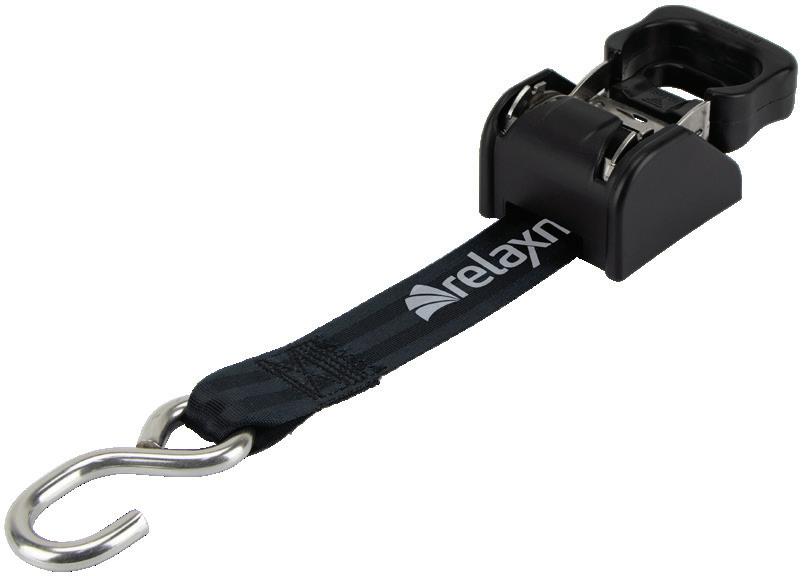

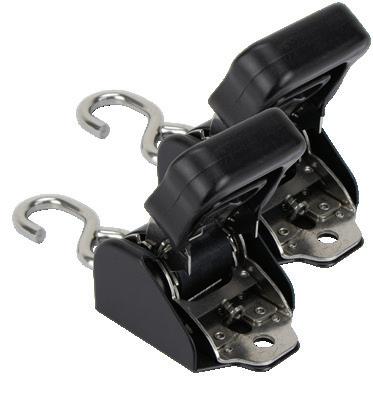

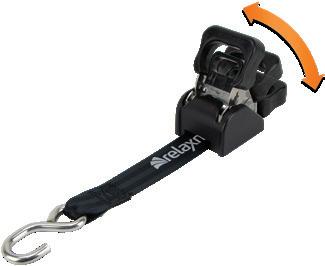

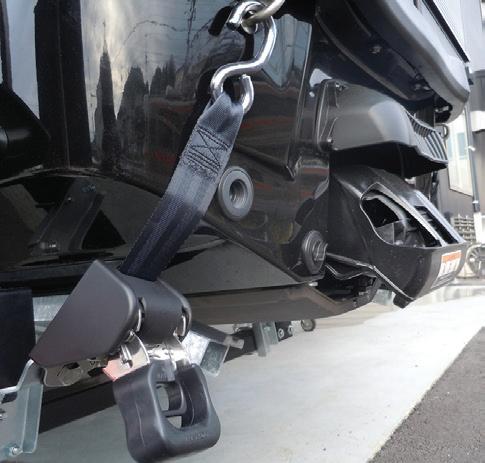

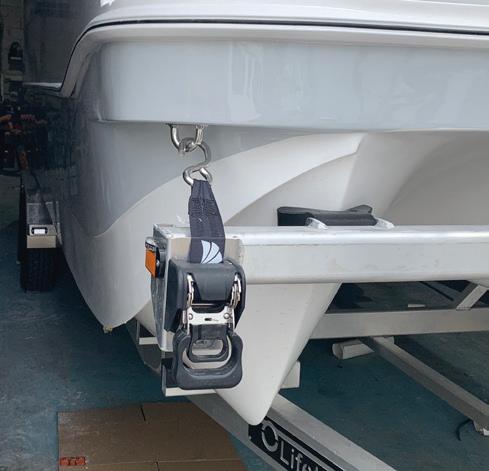

Transom Ratchet Tie Downs Ratchet Tie Down - Stainless Steel - Retractable Part No.
Type
70550
Retractable
Hook Material
Strap Colour
304G S/S Black
Strap Width (mm)
50
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
1.2
250
750
Pairs
• Strap retracts for easy and tangle free storage. • Automatically retracts once the ratchet is unlocked. • Dual security lock mechanism locks the ratchet in place. • Made from 304G stainless steel. • Bolts to desired location. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.
Pull handle up to release the strap.
Move handle up and down to tighten and lock in place
DELETED

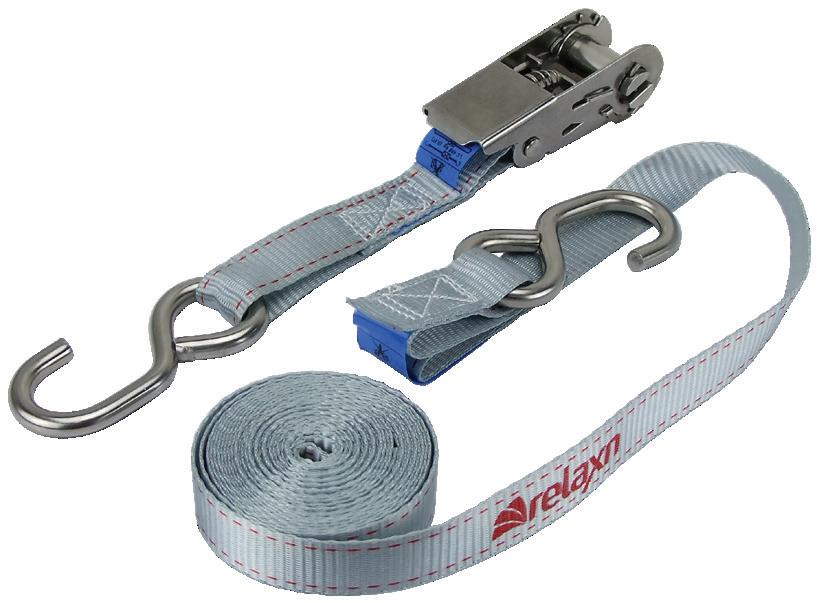

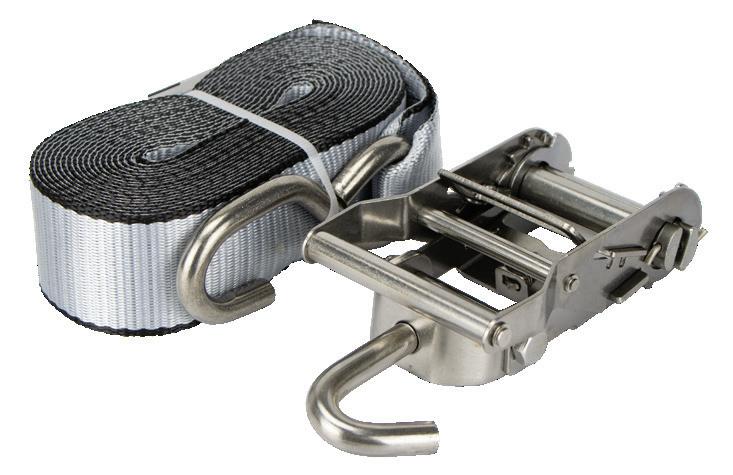

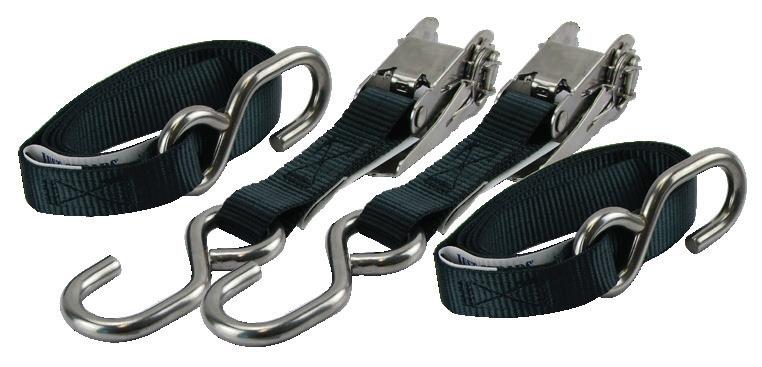

Ratchet Tie Downs - 'S' Hook to 'S' Hook - Stainless Steel Part No.
Type
Hook & Ratchet Material
Strap Colour
Strap Width (mm)
70492
Medium Duty
304G S/S
Grey
25
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
1.5
350
700
Pairs
• 304G stainless steel ratchet tensioner. • 304G stainless steel 'S' hook each end. • High quality heavy-duty webbing for lasting durability. • Ratchet positioned approximately 480mm from one end. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.
Ratchet Tie Down - Transom - Stainless Steel
Winches & Trailer Accessories 845
Part No.
Type
70534
Light Duty
Hook & Ratchet Material
Strap Colour
304G S/S Black
Strap Width (mm)
25
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
1.5
250
500
Pairs
• Light duty tie down strap ideally suited for use on transom. • 304G stainless steel ratchet tensioner. • 304G stainless steel 'S' hooks both ends. • Australian made to Standard AS/NZS 4380:2001. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.

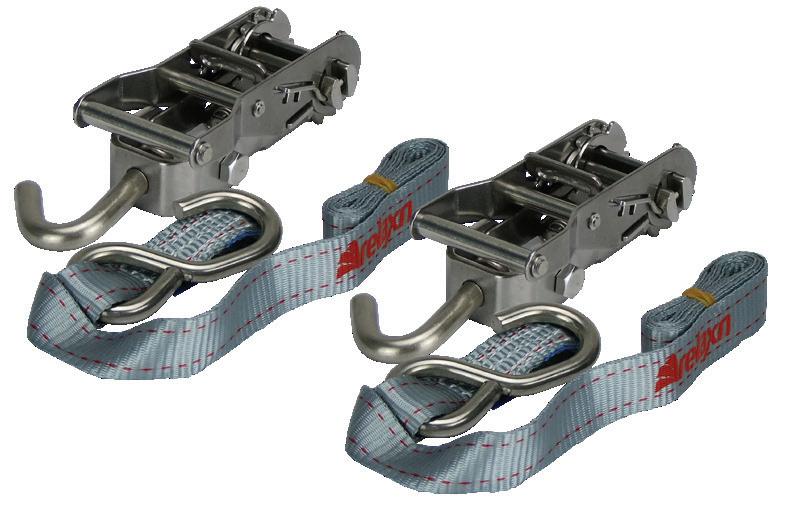

Ratchet Tie Downs - 'S' Hook to 'J' Hook - Stainless Steel Part No.
Type
Hook & Ratchet Material
Strap Colour
Strap Width (mm)
70537
Medium Duty
304G S/S
Grey
25
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
1.5
350
700
Pairs
• 304G stainless steel ratchet tensioner. • 304G stainless steel 'S' hook end on strap and 'J' hook ratchet end. • 100% polyester webbing. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.
www.samallen.com.au

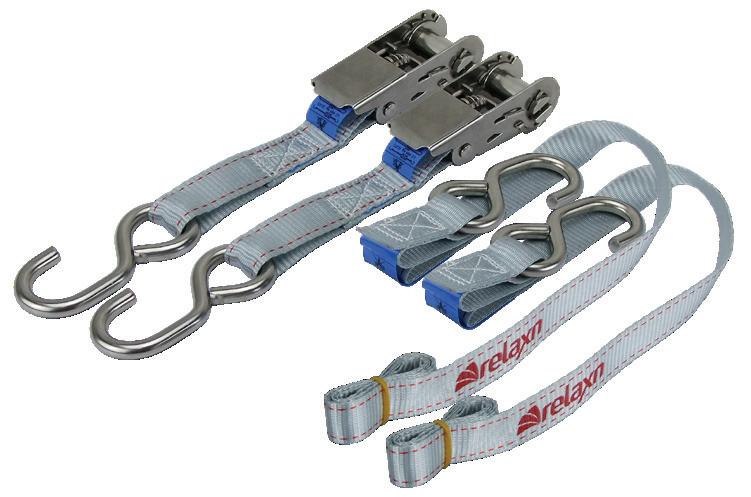

Athwartship Ratchet Tie Downs Ratchet Tie Downs - 'S' Hook to 'S' Hook - Stainless Steel Part No.
70491
Hook & Ratchet Material
Strap Colour
Strap Width (mm)
Medium 304G S/S Duty
Grey
25
Type
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
5
350
700
Singles
• 304G stainless steel ratchet tensioner. • 304G stainless steel 'S' hook each end. • High quality heavy-duty webbing for lasting durability. • Ratchet positioned approximately 480mm from one end. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.

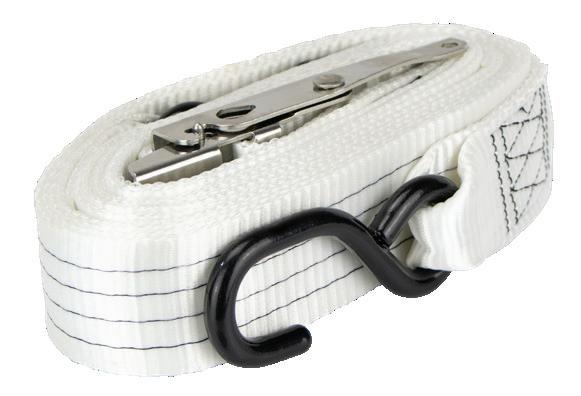

Ratchet Tie Down - Stainless Steel Part No.
Type
Hook & Ratchet Material
70530
Light Duty
304G S/S White
25
4.3
250
500
Singles
70530BLK
Light Duty
304G S/S Black
25
4.3
250
500
Singles
Strap Colour
Strap Width (mm)
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
70530BLK
• Light duty tie down strap ideally suited for small tinnies and inflatable boats. • 304G stainless steel ratchet tensioner. • 304G stainless steel 'S' hooks both ends. • Australian made to Standard AS/NZS 4380:2001. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only. 70530
Ratchet Tie Down - Stainless Steel - Medium
70526
Hook & Ratchet Material
Strap Colour
Strap Width (mm)
Medium 304G S/S Duty
Blue
50
Type
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
6
450
1100
Singles
• Premium strap with thick webbing for durability and added strength. • 304G stainless steel ratchet tensioner. • 304G stainless steel 'S' hooks both ends. • Ratchet tensioner positioned approximately 1.5 metres from one end. • Australian made to Standard AS/NZS 4380:2001. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.
Ratchet Tie Down - 'S' Hook to 'J' Hook Part No.
70532
Hook & Ratchet Material
Strap Colour
Strap Width (mm)
Medium 304G S/S Duty
Grey
50
Type
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
5.5
450
1100
Singles
• 304G stainless steel ratchet tensioner. • 304G stainless steel integral 'J' hook one end and stainless steel 'S' hook on other end. • Ideal for mid size boats. • Australian made to Standard AS/NZS 4380:2001. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.
www.samallen.com.au
Winches & Trailer Accessories
Part No.
846

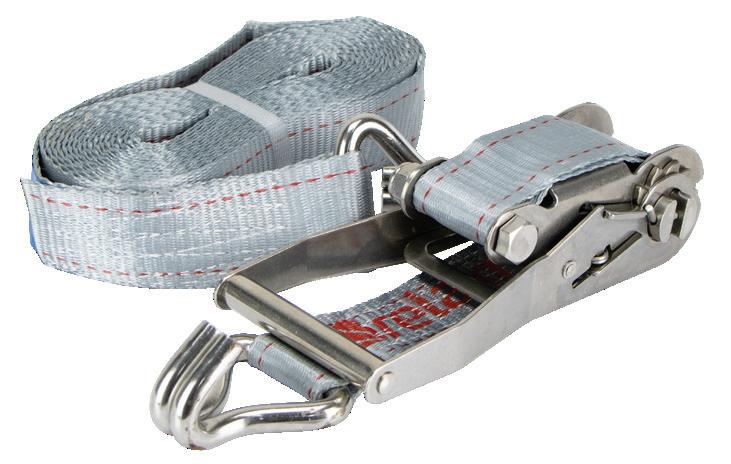

Ratchet Tie Downs Ratchet Tie Downs - 'J' Hook - Stainless Steel - Heavy-Duty Part No.
Type
Hook & Ratchet Material
Strap Colour
Strap Width (mm)
70494
Heavy Duty
304G S/S
Grey
50
Strap Lashing Length Capacity (m) (kg)
8
1500
Breaking Strength (kg)
Sold in
3000
Singles
• 304G stainless steel ratchet tensioner. • 304G stainless steel heavy-duty 'J' hook each end. • High quality heavy-duty webbing for lasting durability. • Ratchet positioned approximately 480mm from one end. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.
Ratchet Tie Down - Centre Ratchet - Stainless Steel Part No.
Type
Hook & Ratchet Material
Strap Colour
Strap Width (mm)
70498
Medium Duty
304G S/S
Grey
25
Strap Lashing Length Capacity (m) (kg)
4
Breaking Strength (kg)
Sold in
800
Pairs
400
• 304G stainless steel double J hooks. • 304G stainless steel ratchet tensioner. • 100% polyester webbing. • 1.2m ratchet strap and 2.8m free strap. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.
2.8m
1.2m
25mm
Ratchet Tie Down - Endless - Stainless Steel Type
Ratchet Material
Strap Colour
Strap Width (mm)
Strap Lashing Length Capacity (m) (kg)
70493
Medium Duty
304G S/S
Grey
25
1.5
70495
Medium Duty
304G S/S
Grey
25
5
Breaking Strength (kg)
Sold in
400
800
Pairs
400
800
Pairs
Winches & Trailer Accessories
• Endless Loop Strap. • Easy to use on roof racks. • 304G stainless steel ratchet tensioner. • High quality heavy-duty Polyester webbing for lasting durability. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.

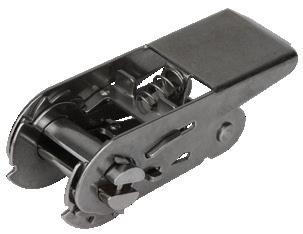

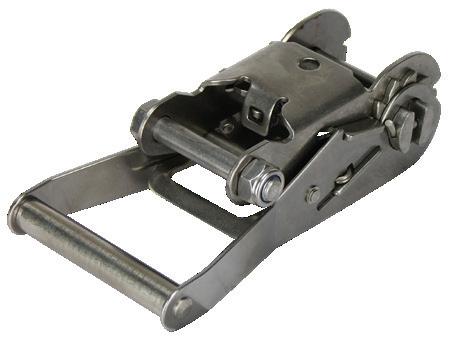

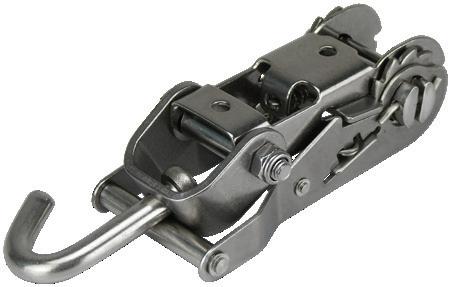

Ratchet Buckles - 25mm & 50mm - Stainless Steel 70490
70539
847
Part No.
70488
Part No.
Type
Buckle Material
T/S Strap Width (mm)
Lashing Capacity (kg)
Max. Breaking Strength (kg)
Sold in
70488
Heavy Duty
304G S/S
50
1500
3000
Singles
70490
Medium 304G S/S Duty
25
400
800
Singles
70539
Medium 304G S/S Duty
25
450
900
Singles
• Replacement stainless steel ratchet tensioners. • 70539 includes 'J' hook. NOTE: Safety Warning - 70488 & 70490 must be professionally sewn to webbing strap. Must not be used for any lifting purposes. For load restraint use only.
www.samallen.com.au

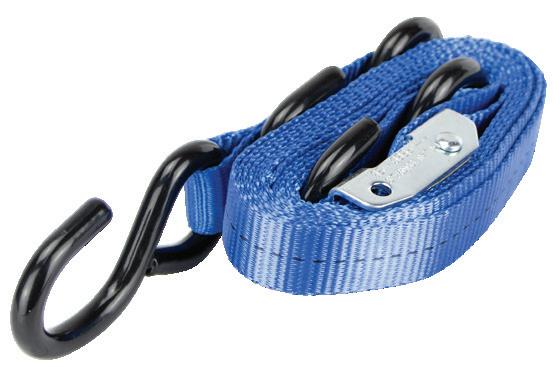

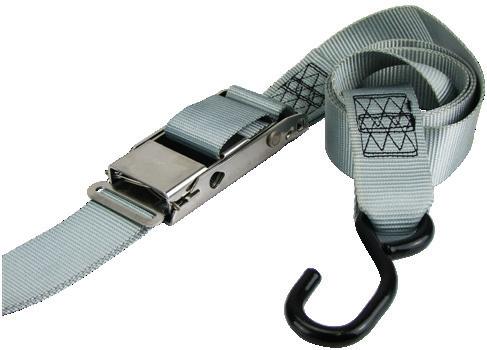

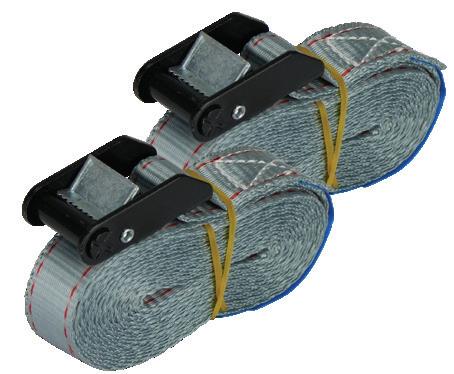

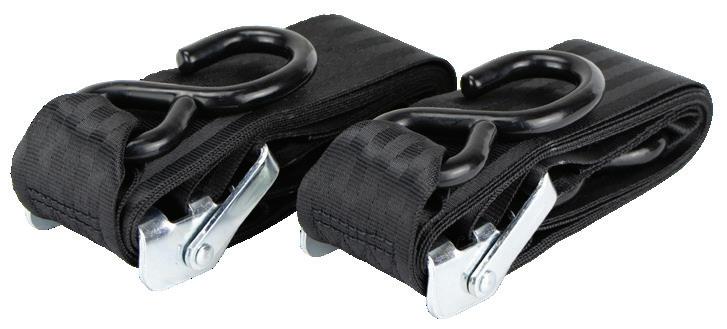

Tie Downs Tie Downs - 'S' Hook to 'S' Hook Part No.
Type
Buckle Material
Strap Colour
Strap Width (mm)
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
70565
Light Duty
Cadmium Plated Steel
Grey
25
1.5
150
450
Pairs
70567
Medium Duty
Zinc Plated Steel
Grey
50
1.8
250
500
Pairs
70565
• High quality webbing. • Buckle approximately 250mm from one end. • Over centre buckle with indent locking on 70565. • Over centre lever tensioner on 70567. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.
Over Lever Tie Down Strap Instruc�ons
70567

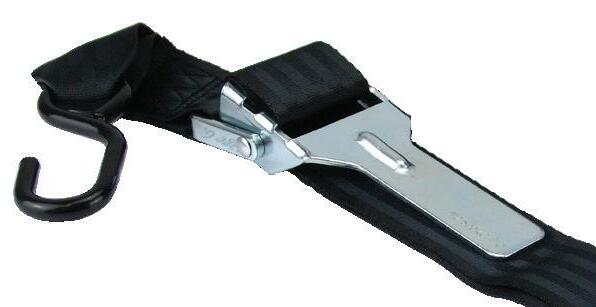

Tie Down - Over Centre Lever Part No.
Type
70520
Medium Duty
Buckle Material
Hook Strap Material Colour
Zinc Plated Plastic Steel Coated
Black
Strap Width (mm)
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
50
1.8
250
500
Pairs
• Medium duty tie down with zinc plated steel over centre lever fastening buckle, close to one end. • Plastic coated steel 'S' hooks at each end. • Australian made to Standard AS/NZS 4380:2001. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.

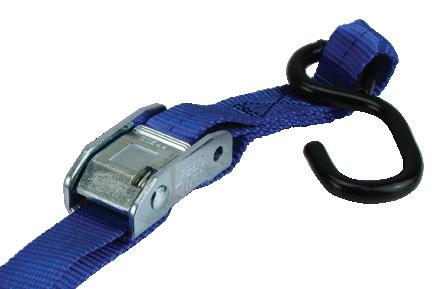

Tie Down - PWC Cam Buckle Type
70525
Light Duty
Buckle Material
Hook Material
Strap Strap Colour Width (mm)
Zinc Plated Plastic Steel Coated Steel Blue
25
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
2.6
150
300
Singles
• Attach the floating hook to the centre tow point at the rear of the PWC. • Connect the other two hooks to the trailer, creating an inverted shape. • Plastic coated steel 'S' hooks both ends and another floating on the strap. • Zinc plated steel cam action fastening buckle. • Australian made to Standard AS/NZS 4380:2001. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.
Connects to jet ski
DELETED
Connects to trailer
Ratchet Tie Down - Wake Board Kit Part No.
Hook & Ratchet Material
Strap Colour
Strap Width (mm)
Strap Length (m)
Lashing Capacity (kg)
Breaking Strength (kg)
Sold in
70556
304G S/S
Black
25
1.7 (Nose Strap) 4 (Main Strap)
250
500
Singles
• Designed to restrain a wake board pole from the bow of a ski boat. • 304G stainless steel light duty ratchet tensioner. • 304G stainless steel snap hook both ends. • Nose strap has two stainless steel snap hooks to connect onto bow hook and wear sleeves for protection over the bow. • Australian made to Standard AS/NZS 4380:2001. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.
www.samallen.com.au
Winches & Trailer Accessories
Part No.
848
Tie Downs Tie Down - Gunwale - Over Centre Hook Material
Strap Colour
Strap Width (mm)
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
Part No.
Type
Buckle Material
70515
Medium Duty
304G S/S
Plastic Coated Grey Steel
44
5.5
550
1100
Singles
70516
Medium Duty
304G S/S
Plastic Coated White Steel
50
5.5
550
1100
Singles
• Long strap, designed to be used over the gunwale towards the stern of the boat. • Ease of operation with a lock down, over centre stainless steel tensioner. • Buckle positioned mid way across the strap. • Plastic coated steel 'S' hooks both ends. • Australian made to Standard AS/NZS 4380:2001. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.
70515
70516
DELETED
Ratchet Tie Down - Tradesman - Epoxy Coated Part No.
Type
Ratchet Material
Hook Material
Strap Colour
Strap Width (mm)
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
70544
Light Duty
Epoxy Coated
Plastic Coated
Yellow
25
4
250
500
Singles
70542
Medium Duty
Epoxy Coated
Plastic Coated
Yellow
36
6
500
1000
Singles
• Versatile ratchet tie downs, well suited to general light and medium duty applications including bundling product, roof racks and load restraints. • Fitted with plastic coated steel 'S' hooks and epoxy coated steel ratchet tensioners. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.
70544
70542
Winches & Trailer Accessories
Ratchet Tie Down - Tradesman
70507
Part No.
Type
Ratchet Material
Hook Material
Strap Colour
Strap Width (mm)
70507
Light Duty
Epoxy Coated
Plastic Coated
Blue
25
4.3
250
1100
Singles
70509
Medium Cadmium Plated Duty Steel
Plastic Coated
Blue
50
5.5
550
1100
Singles
• Ideally suited for general tie-down applications. • Large plastic coated 'S' hooks. • Australian made to Standard AS/NZS 4380:2001. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.
70509
849
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
www.samallen.com.au

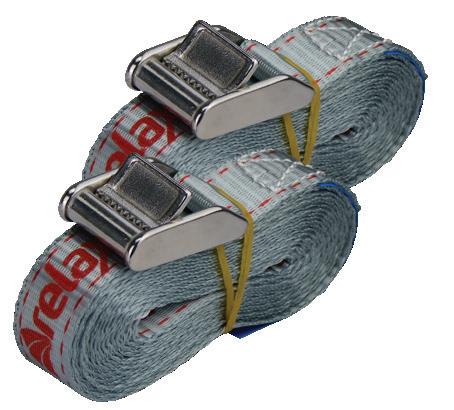

Cam Buckle, Side Release, Octopus & Cargo Tie Downs Cam Buckle - 25mm Endless Strap Part No.
Type
Buckle Material
Strap Colour
Strap Width (mm)
Strap Lashing Length Capacity (m) (kg)
70570
Light Duty
304G S/S
Grey
25
3.5
70572
Light Duty
Epoxy Coated Steel Grey
25
3.5
Breaking Strength (kg)
Sold in
125
250
Pairs
125
250
Pairs
• Endless strap with Cam buckle. • 100% polyester webbing. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only. 3.5m 25mm
Tie Down - Cam Buckle Part No.
Type
Buckle Material
Strap Colour
Strap Width (mm)
70518
Medium Duty
Die Cast Aluminium
Blue
25
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
3.5
75
150
Pairs
• Medium duty straps commonly used to loop around items to secure them to a roof rack. • Black coated, die cast aluminium cam action buckle fastener. • Polyester webbing for superior durability and UV resistance. • Australian made to Standard AS/NZS 4380:2001. NOTE: Safety Warning - Must not be used for any lifting purposes. For load restraint use only.
Tie Down - Side Release Part No.
Type
Buckle Material
Strap Colour
Strap Width (mm)
70517
Light Duty
Plastic
Black
25
Strap Lashing Breaking Length Capacity Strength Sold in (m) (kg) (kg)
2.5
50
100
Pairs

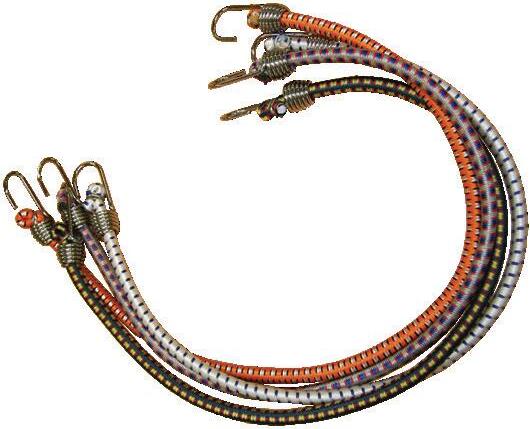

Octopus Straps - Stainless Steel Hooks Part No.
Length (mm)
Description
46118
Octopus Strap - Bungee Cord
300
46119
Octopus Strap - Bungee Cord
400
46120
Octopus Strap - Bungee Cord
500
46122
Octopus Strap - Bungee Cord
600
46124
Octopus Strap - Bungee Cord
750
• Ideal for outdoor or marine use. • Heavy-duty 8mm shock cord with stainless steel hooks. • Colours may vary.
Cargo Straps Part No.
70505
Description
Black Rubber Cargo Strap
Length (mm)
Winches & Trailer Accessories
• Commonly used as a general purpose lightweight restraining strap for roof racks. • Plastic adjustable buckle with side release. • Australian made to Standard AS/NZS 4380:2001.
380
70508
Black Rubber Cargo Strap
550
70506
Black Rubber Cargo Strap
790
• Stretches over 70% of original length. • Stainless steel 'S' hooks.
www.samallen.com.au
850
Jockey Wheels Jockey Wheel - Standard Part No.
54417
Type
Bracket Type
Overall Overall Load Post Wheel Length Length Diameter Diameter Retracted Extended Capacity (kg) (mm) (mm) (mm) (mm)
54417
Opening Standard Bolt-On Clamp
570
800
350
48
150
54414
Standard
Not Included
570
800
350
48
150
54412
Standard
Bolt-On Swivel Clamp
580
810
350
48
150
54413
Standard
U-Bolt Swivel Clamp
580
810
350
48
150
• Ideal for smaller and lighter trailers. • Quality zinc plated finish. • Replaceable winding handle. • Max. 250mm height extension. • Solid rubber wheel with plastic rim. • Rated up to 350kg. • 54413 Bracket suits 2", 3", 4", 5" and 6" U-bolts. NOTE: Mounting bolts not supplied.
54414
54412
54413
Jockey Wheel
54409
Type
Bracket Type
54409
Standard
Not Included
670
920
350
48
250
54415
Opening Standard Bolt-On Clamp
670
900
350
48
250
54411
Standard
U-Bolt Swivel Clamp
670
920
350
48
250
• Ideal for medium sized trailers. • Quality zinc plated finish. • Replaceable winding handle. • Max. 250mm height extension. • Solid rubber wheel with steel rim. • Rated up to 350kg. • 54411 Bracket suits 2", 3", 4", 5" and 6" U-bolts. NOTE: Mounting bolts not supplied.
54415
Winches & Trailer Accessories
54411

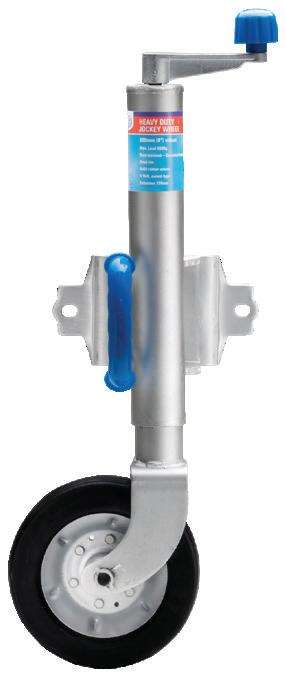

Jockey Wheel - Heavy-Duty Overall Overall Load Post Wheel Length Length Diameter Diameter Retracted Extended Capacity (kg) (mm) (mm) (mm) (mm)
Part No.
Type
Bracket Type
54408
Heavy Duty
Bolt-On Swivel Clamp
650
900
500
57
200
54410
Heavy Duty
U-Bolt Swivel Clamp
650
900
500
57
200
• Ideal for larger and heavier trailers. • Superior rust resistant dacromet finish. • Max. 250mm height extension. • Supplied with pin locking swivel bracket. • Solid rubber wheel with steel rim. • Rated up to 500kg. • 54410 Bracket suits 2", 3", 4", 5" and 6" U-bolts. NOTE: Mounting bolts not supplied. 54408
851
Overall Overall Load Post Wheel Length Length Diameter Diameter Retracted Extended Capacity (kg) (mm) (mm) (mm) (mm)
Part No.
54410
www.samallen.com.au
Jockey Wheels, Clamp & Handle Jockey Wheel - Pneumatic Part No.
54418
Type
Bracket Type
Overall Length Retracted (mm)
Overall Length Extended (mm)
Load Capacity (kg)
Post Diameter (mm)
Wheel Diameter (mm)
680
930
350
48
250
Swivel Pneumatic U-Bolt Clamp
• Designed for manoeuvring on sand and other similar soft ground with 250mm Ø pneumatic tyre. • Max. 250mm height extension. • Quality zinc plated finish. • Rated up to 350kg. • Supplied with pin locking swivel bracket for which suits 2", 3", 4", 5" and 6" U-bolts. NOTE: Mounting bolts not supplied.

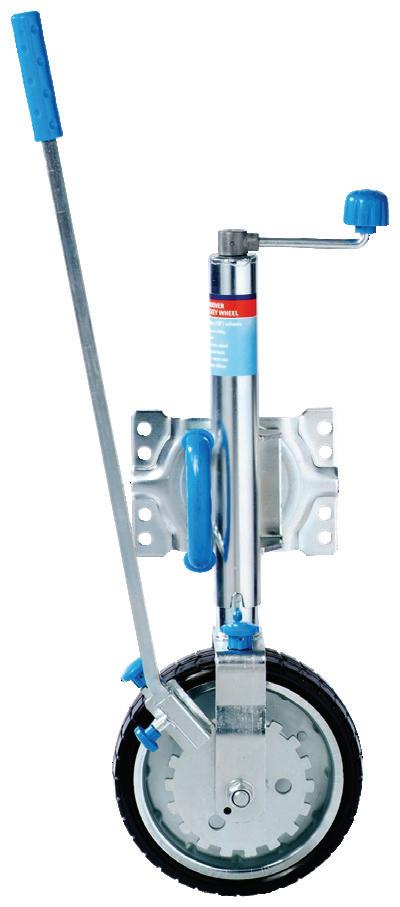

Jockey Wheel - Ezimover Part No.
Type
Bracket Type
Overall Length Retracted (mm)
Overall Length Extended (mm)
Load Capacity (kg)
Post Diameter (mm)
Wheel Diameter (mm)
54420
Ezimover
U-Bolt Swivel Clamp
680
930
350
48
250
• Capable of manoeuvring up to a 2 tonne trailer on an even surface with minimum effort. • Forward, reverse, neutral, stop/lock settings. • Removable steering and cranking handle. • Heavy duty solid rubber wheel. • Max. 250mm height extension. • Quality zinc plated finish. • Rated up to 350kg. • Supplied with pin locking swivel bracket for which suits 2", 3", 4", 5" and 6" U-bolts. NOTE: Mounting bolts not supplied.
Part No.
Type
Clamp Type
54400
Jockey Stand
Bolt/Weld
Overall Length Overall Length Retracted (mm) Extended (mm)
400
650
Load Capacity (kg)
Post Diameter (mm)
350
48
• Heavy Solid base plate. • Bolt-on opening clamp. • Max. 250mm height extension. • Quality zinc plated finish. • Rated up to 350kg. NOTE: Mounting bolts not supplied.
Jockey Wheel Clamp
Jockey Wheel Handle - Replacement
Part No.
Description
Min -Max (mm)
Mount Screws (mm)
54416
Jockey Wheel Clamp
40 - 50
13 r/h
• With 2 holes bolt-on or weld-on, suits 350kg jockey wheels. • Zinc plated steel.
Part No.
54406
Description
Replacement Jockey Wheel Handle
• Suits all standard jockey wheels, with flatted shaft and roll pin.
www.samallen.com.au
Length (mm)
145
Winches & Trailer Accessories
Jockey - Stand
852
Wheel Bearing Kits & Grease
1000kg - 2000kg Bearing Kits, Hub Protectors & Grease Bearing Hub Protector Part No.
Stainless steel internal components
Description
Suits Hub I.D

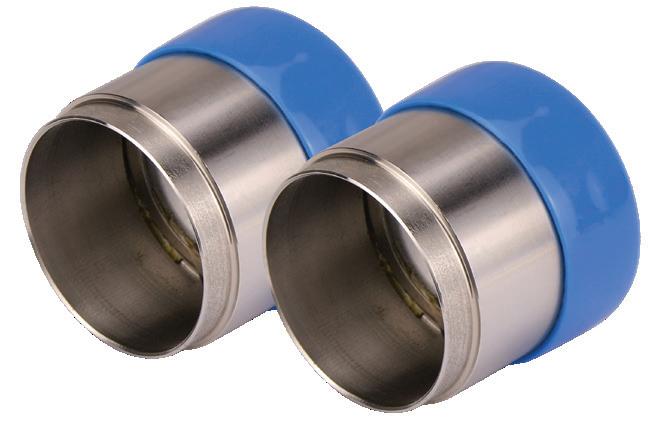

54190 Bearing Hub Protector - Chrome Plated Steel
48mm (1-7/8")
54194 Bearing Hub Protector - Stainless Steel
48mm (1-7/8")
• When filled with grease, automatically keeps trailer wheel bearings lubricated. • Keeps water and dirt out of hubs and bearings to prevent premature failure. • Choice of stainless steel or chrome plated steel body. • Stainless steel barrel and components provide maximum corrosion protection. • PVC cap included.
Wheel Bearing Kits - 1000kg* Tapered Marine - Ford & Holden Part No.
Description
Suits Hub
54600
Marine Wheel Bearing Kit
Ford Tapered
54602
Marine Wheel Bearing Kit
Holden Tapered
• Kit consists of inner and outer bearing cups, cones and waterproof seal. • Ford type suits 45mm square axle. • Holden type suits 39mm round and 40mm square axle. Note: One kit for each wheel. *Bearing load rating is a guide only, subject to axle size and tyre rating.
Wheel Bearing Kits - 1600kg* Parallel Marine - Ford Part No.
54601
Description
Marine Wheel Bearing Kit
Suits Hub
Ford Parallel
• Parallel bearings are often used in off-road or larger boat trailer applications. • Kit contains two like inner and outer bearing cups, cones and a waterproof seal. Note: One kit for each wheel. *Bearing load rating is a guide only, subject to axle size and tyre rating.
Wheel Bearing Kits - 2000kg* Tapered - Landcruiser, Dexter & Modcon Part No.
546060
Winches & Trailer Accessories 853
546062
Description
Suits Hub
546060 Marine Wheel Bearing Kit
Landcruiser Type
546062 Standard Wheel Bearing Kit
Landcruiser Type
546064 Standard Wheel Bearing Kit
Dexter
546066 Standard Wheel Bearing Kit
Modcon
• Commonly used in larger trailer assemblies for boats, caravans etc. • Kit contains inner and outer bearing cups, cones and seal. Marine kit includes a waterproof seal. Note: One kit for each wheel. *Bearing load rating is a guide only, subject to axle size and tyre rating.
546064
546066
Red Lithium Grease Part No.
324244
Description
CRC Red Lithium Grease Cartridge
Size
450g
• Multi-purpose, red lithium complex grease that withstands extreme pressures and temperature ranges. • Formulated with anti-oxidation, anti-rust, and anti-wear additives, it is a highly versatile grease for use in marine, automotive and industrial applications.
www.samallen.com.au
Trailer Plugs, Sockets & Adaptors Vehicle Sockets - Round
Trailer Plug - Flat
Part No.
Pin
Type
Size
Type
Part No.
Pin
Type
54620
6
Round
Small
Standard
54625
7
Flat
Standard
54622
7
Round
Small
Standard
54645
7
Flat
LED Indicator
54648
7
Round
Large
LED Indicator
• Accept all standard respective round 6 or 7 pin trailer plugs. • 3 step wiring body with brass terminals. • 54642/54648 have in-built LED circuit tester with simple colour coded wiring and integral on/off switch. DELETED • Meets AS4177.5 2004.
Type
• Fit all standard 7 pin flat vehicle sockets. • 3 step wiring body with brass terminals. • 54645 has in-built LED circuit tester with simple colour coded wiring and integral on/off switch. • Meets AS4177.5 2004.
54645
54625
54622
54620
54648
Trailer Plug Adaptors - Round to Round Part No.
54629
Vehicle Mounting Plate - Socket Dimensions Mount (mm) Screws (mm)
Part No.
Type
Material
54626
Flat
Epoxy Coated Steel
54627
72 x 65
Vehicle End
Trailer End
Pin
Size
Type
Pin
Size
Type
7
Small
Round
6
Small
Round
• 7 pin round vehicle to 6 pin round trailer. • Brass terminals.
5 r/h
Right Angle Epoxy Coated Steel 50 x 30 x 65
5 r/h
• Suitable for mounting small round trailer light sockets.
54627
Vehicle Sockets - Flat
Trailer Plug Adaptors - Round to Flat Part No.
Part No.
Pin
Type
Type
54624
7
Flat
Standard
54644
7
Flat
LED Indicator
54631
Vehicle End
Trailer End
Pin
Size
Type
Pin
Size
Type
7
Small
Round
7
Small
Flat
• 7 pin round vehicle to 7 pin flat trailer. • Brass terminals.
• Accept all standard 7 pin flat trailer plugs. • 3 step wiring body with brass terminals. • 54644 has in-built LED circuit tester with simple colour coded wiring. • Meets AS4177.5 2004.
54624
54644

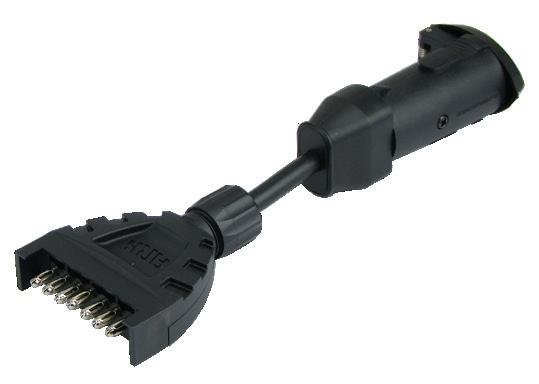

Trailer Plug Adaptors - Flat to Round
Trailer Plugs - Round Part No.
Pin
Type
Size
Type
54623
7
Round
Small
Standard
54643
7
Round
Small
LED Indicator
• Fit all standard 7 pin vehicle sockets. • 3 step wiring body with brass terminals. • 54643 has in-built LED circuit tester with simple colour coded wiring and integral on/off switch. • Meets AS4177.5 2004.
Part No.
54633
Vehicle End
Trailer End
Pin
Type
Pin
Size
Type
7
Flat
7
Small
Round
• 7 pin flat vehicle to either 6 or 7 pin round trailer. • Brass terminals.
Winches & Trailer Accessories
54626
54623 54643
www.samallen.com.au
854
LED Trailer Lights

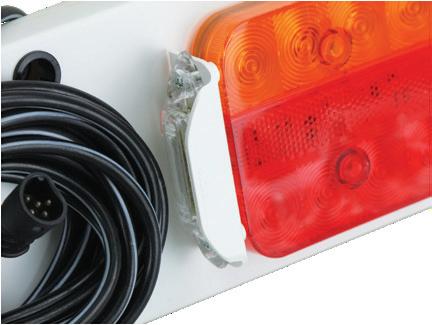

Light Boards & Trailer Lights Trailer Light Boards - LED
LED - Box Trailer Lights - Kit
Part No.
Volts
Length (m)
Height (mm)
Sockets
54535
12
1.5
115
Quick Change Plugs
54536
12
1.8
115
Quick Change Plugs
Part No.
Function
Current Draw @ 13.8V
Volts (V)
547102
Stop Tail Indicator
0.09A-1.2W 0.02-0.3W 0.09-1.22W
12
Dimensions L x H x D (mm)
Side
Left/Right 100 x 100 x 21
• Compact LED combination Lamp. • 100,000 hour rated LED lifespan with solid state technology. • Water and dust proof. • Submersible. • Sealed polycarbonate lens and housing. • Integrated reflector. • Pre-wired 300mm sheathed tinned wire. • Maintenance free. • Stainless steel twin stud mount. • ADR/ECE approved. 21mm • Approvals: Ind - E4-6R-0116003 70mm S/T - E4-7R-0216003 Ref - E4-3R-0216003 • Sold in pairs. 100mm
• Interchangeable plug system with the three most popular plugs included, 7 pin flat, 7 pin round and 7 pole large round. • Supplied with 8 metres of cable moulded to a newly designed universal socket. • Easy plug in/out attachment. • 2 mounting points. • ADR compliant.
SUITABLE FOR DC 12V / 24V MULTI-VOLTS
7 Pin Flat
7 Pin Round
12V
SUBMERSIBLE
100mm
7 Pole Large Round
LED Trailer Lights - 162mm with Cable
LED - Trailer Lights - Kits
Cable Dimensions Current Draw Volts Side Length LxHxD @ 13.8V (V) (m) (mm)
547112
Stop Tail Indicator
0.1A-1.4W 0.05A-0.7W 10-30 Left 0.1A-1.4W
547113
Function
Current Draw @ 13.8V
Volts (V)
547104
Stop Tail Indicator
0.09A-1.2W 0.02-0.3W 0.09-1.22W
12
Left/Right 150 x 80 x 23
547114
547108
Stop Tail Indicator
0.1A-1.4W 0.05A-0.7W 0.1A-1.4W
12
Left/Right 162 x 80 x 19
547115
Side
Winches & Trailer Accessories
• Compact LED combination Lamp. • 100,000 hour rated LED lifespan with solid state technology. • Water and dust proof. • Submersible. • Sealed polycarbonate lens and housing. 547108 • Integrated reflector. • Pre-wired 300mm sheathed tinned wire. • Maintenance free. • Stainless steel twin stud mount. • ADR/ECE approved. • 547104 Approvals: Ind - E4-6R-0115611 S/T - E4-7R-0215611 Ref - E4-3R-0215611 • 547108 Approvals: Ind - CRN 46077 SUITABLE FOR Stop - CRN 46100 Tail - CRN 46139 DC 12V / 24V 12V MULTI-VOLTS Ref - CRN 46123 • Sold in pairs. 23mm
547104
150mm 547104
Stop 0.1A-1.4W Tail 0.05A-0.7W 10-30 Right 7.2 162 x 80 x 35 Indicator 0.1A-1.4W Number Plate Stop Tail Indicator
0.1A-1.4W 0.05A-0.7W 10-30 Left 0.1A-1.4W
8.3 162 x 80 x 35
Stop 0.1A-1.4W Tail 0.05A-0.7W 10-30 Right 8.3 162 x 80 x 35 Indicator 0.1A-1.4W Number Plate
• Compact LED combination Lamp. • 100,000 hour rated LED lifespan with solid state technology. • Water and dust proof. • Submersible. • High Impact ABS housing and polycabonate lens. • Integrated reflector. • Pre-wired 7.2m or 8.3m sheathed tinned wire. • Maintenance free. • Simple surface mount design. • ADR/ECE approved. 100mm • Approvals: Ind - CRN 46076 S/T - CRN 46097, 46098 Ref - CRN 46123 • 547114/547115 have side marker lights. 162mm
35mm
80mm
Right hand number plate light
100mm
19mm Water drainage hole at the base of trailer light housing.
80mm 162mm
7.2 162 x 80 x 35
SUBMERSIBLE
80mm
855
Function
Part No.
100mm
Dimensions L x H x D (mm)
Part No.
547108
UPON INSTALLATION MAKE SURE THE TWO DRAINAGE HOLES ARE AT THE BOTTOM!
www.samallen.com.au
SUITABLE FOR
12V/24V
SUBMERSIBLE
Trailer, Marker & Number Plate Lights & Trailer Accessories LED Trailer Lights - Plug 'n' Play Kit Part No.
Function
Current Draw @ 12V
Volts Light Dimensions (V) L x H x D (mm)
547118
Indicator/Stop Tail Number Plate Marker Lamps
0.13A-1.6W 0.03A-0.4W 0.08A-1W 0.04A-0.5W
12
150 x 80 x 28
547117 Trailer Lights (Pair) Only • LED slimline rear stop/tail, indicator, licence plate light. • Flat pin and large round pin plug included. • Plug 'n' play harness with waterproof connectors. • Ideal for trailers up to 7m. • Brighter than conventional incandescent systems. • High Impact ABS housing and polycabonate lens. • Maintenance free. SUITABLE FOR • ADR/ECE approved DC 12V / 24V • Protection Rating: IP66 and IP68. MULTI-VOLTS 12V
Rego Holder Description
Width (mm)
Height (mm)
Mounting Diameter (mm)
54650 Plastic Rego Holder
130
85
7
Part No.
• Protects registration or other documents from the elements. • Made from high quality polypropylene. • Closes firmly to keep documents dry.

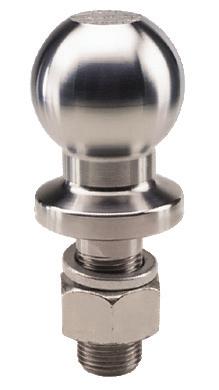

Tow Ball - Chrome Plated
SUBMERSIBLE
Part No.
Finish
Tow Dimensions Thread Bolt Ø Capacity L x W (mm) Length (mm) (mm) (kg)
54609
Chrome Plated
125 x 50
62
22
3500
• Heavy duty cast steel. • Rated up to 3500kg.
Trailer Lock
547118 Part No.
Part No.
Function
547180
Amber Side Directional Marker

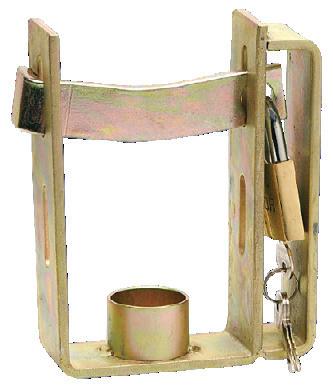

54612 Dual Slot Trailer Lock
Current Cable Draw Watts Dimensions Length Volts (V) @ 13.8V (W) L x W x D (mm) (m) (A)
0.5 10-30 0.05
0.7
60 x 30 x 22
Side 547181 Red/Amber Position Marker
0.5 10-30 0.05
0.7
60 x 30 x 22
Red Rear 547182 Position Marker
0.5 10-30 0.05
0.7
60 x 30 x 22
0.5 10-30 0.05
0.7
60 x 30 x 22
547183
White Front Marker
• Brighter than conventional incandescent systems. • 100,000 hour rated LED lifespan with solid state technology. • High Impact ABS housing and polycabonate lens. • Compact body allows fitment into tight applications. • Pre-wired 0.5m or 2.5m tinned wire. • Separate clip in lens and surface mount base. SUITABLE FOR • Pre-wired sheathed tinned wire. 12V/24V • ADR/ECE approved.
547180
547181
547182
547183
LED - Number Plate Lights Part No.
Function
547194
Number Plate Light
Mount Style
Volts (V)
Dimensions L x W x D (mm)
Top Screw 10-30
81 x 41 x 34
• Brighter than conventional incandescent systems. • 100,000 hour rated LED lifespan with solid state technology. • Water, dust, vibration and shock proof. SUITABLE FOR • High Impact ABS housing and 12V/24V polycabonatelens. • Pre-wired 300mm tinned wire. • Maintenance free. • Simple surface mount design. • ADR/ECE approved. • Approvals: CRN 46101
28
• Strong 6mm thick cadmium plated steel with solid welds provides enormous strength to deter most thieves. • The solid steel locking bar is reversible to ensure a perfect fit on all trailer couplings. • The dual slot enables locking of the trailer when connected to a tow vehicle or when free standing. NOTE: Padlocks sold separately.

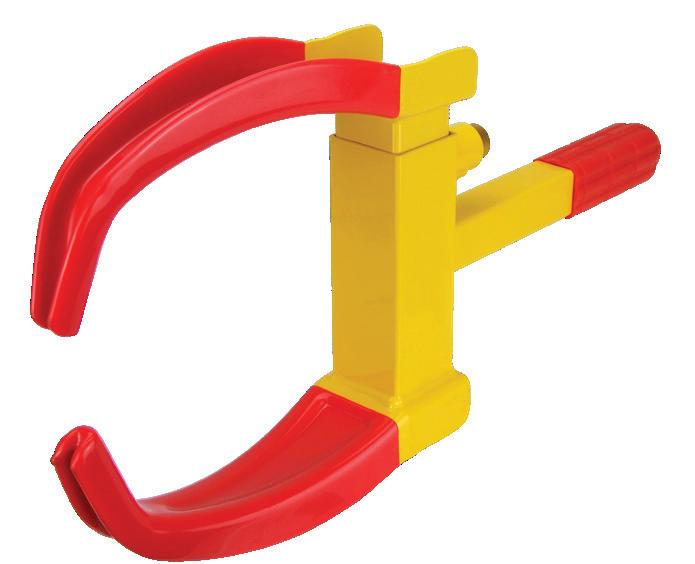

Wheel Locks - Relaxn Part No.
Description
Wheel 180284 Stretchmaster Lock
Closed Dimensions Fit Wheel Width L x W x H (mm) Range (mm)
490 x 70 x 240
155-290
• The fastest way to ensure your motor vehicle, trailer, caravan and camper trailer stays secure. • Insurance company approved. • Fits up to 290mm wide wheels. • Made out of hardened steel. • Attaches in seconds. • Weighs under 3kg. • Stops wheel from rotating. • Highly visible. • Immobilises almost anything with wheels. • Push button lock. • Complete with three high security keys. NOTE: Integrated Lock.
Pulls apart for easy storage
www.samallen.com.au
Cap to cover the lock
3 security keys
Winches & Trailer Accessories
LED - Marker Lights
Mounting Diameter Ø (mm)
Description
856

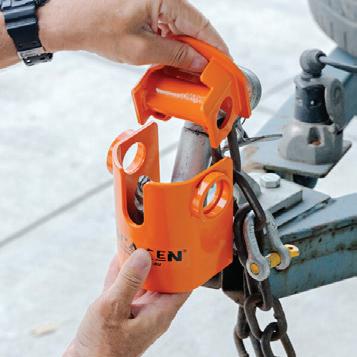

Purple Line Trailer Anti-Theft Accessories Saracen Trailer Hitch Lock Part No.

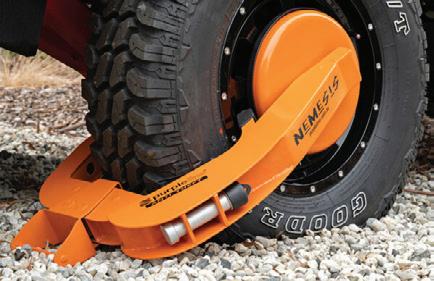

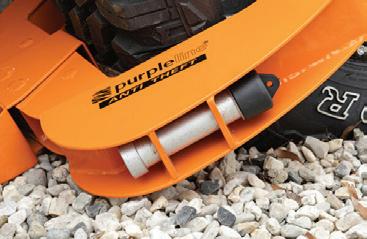

Nemesis Wheel Clamp Part No.
Description
Description

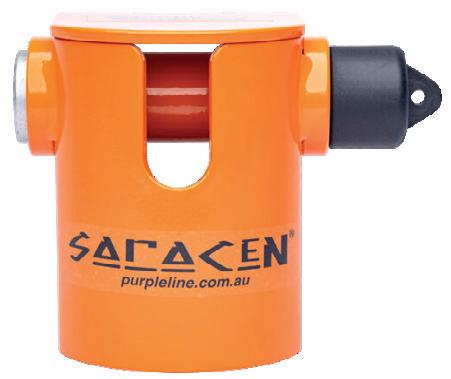

54674 Saracen Trailer Hitch Lock

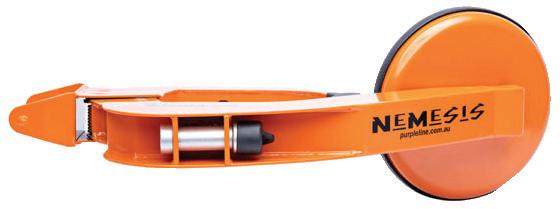

54668 Nemesis Wheel Clamp
• Ideal for locking trailer hitches when unhitched. • Made from high strength steel. • 7-Pin cylinder lock resistant to cutting, picking, drilling and gas freezing. • Anti-copy tubular key for added security. • Suits most standard Australian 50mm trailer hitches.
• Highly visible deterrent. • Made from hardened, high strength composite steel, resistant to cutting, drilling and gas freezing. • Incorporating a seven-pin anti-pick and anti-drill locking bolt with a tubular anti-copy key. • Strong, secure and tough, it remains quick and easy to fit. • Suitable for steel and alloy wheels up to 275R17 covering the wheel nuts so the locked wheel cannot be removed. • Supplied with a handy carry bag to store the unit when not in use.

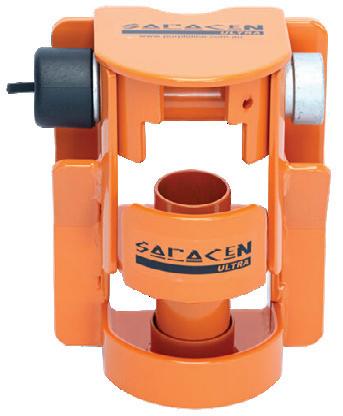

Saracen Ultra Hitch Lock Part No.
Description
54676 Saracen Ultra Hitch Lock • Ideal for locking trailer hitches. • Can be used when hitched or unhitched. • Made from high strength steel. • 7-Pin cylinder lock resistant to cutting, picking, drilling and gas freezing. • Anti-copy tubular key for added security. • Suits most standard Australian 50mm trailer hitches.

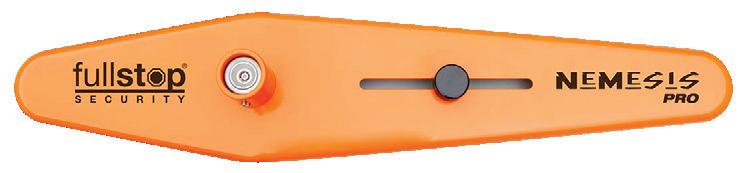

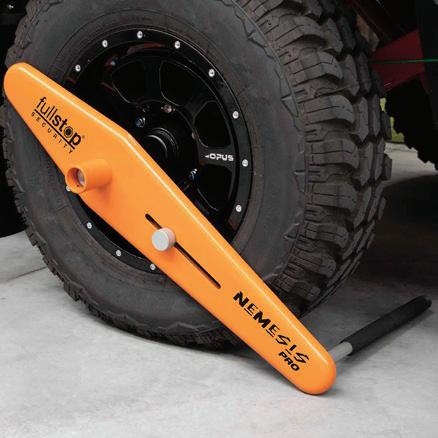

Nemesis Pro Wheel Clamp Part No.
Description
54670 Nemesis Pro Wheel Clamp • Super quick and easy installation. • Uses a receiver nut to attach to the wheel. • Covers your wheel nuts to prevent wheel removal. • Suitable for all-sized steel and alloy wheels. • Made from hardened, high-strength composite steel. • 7-Pin cylinder lock resists cutting, picking, drilling and freezing. • Includes 3 anti-copy tubular keys for added security. • The Nemesis Pro wheel lock is the perfect highly visible deterrent.

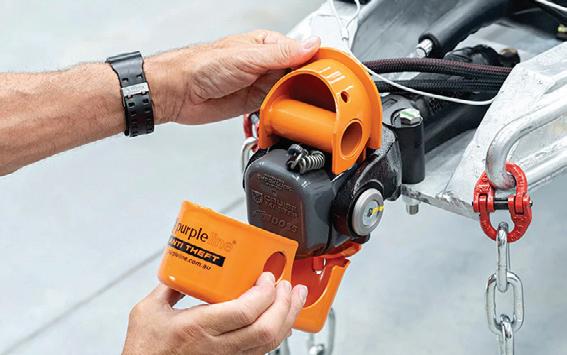

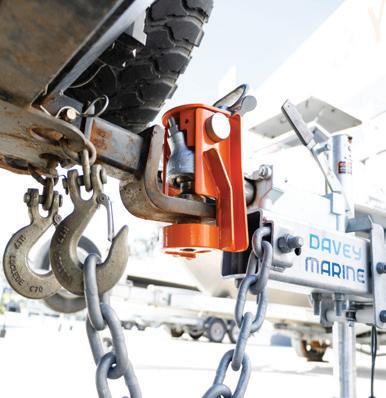

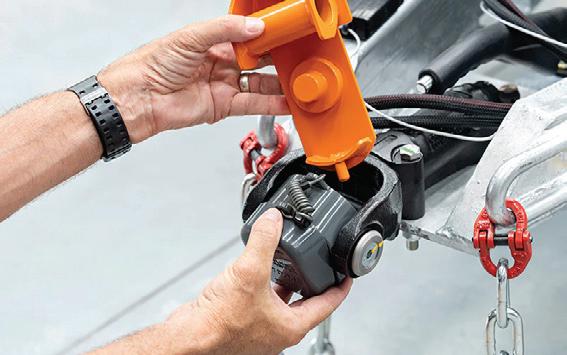

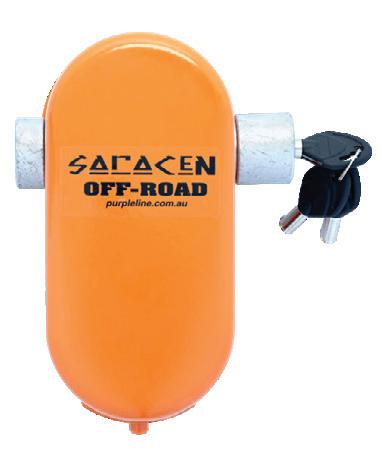

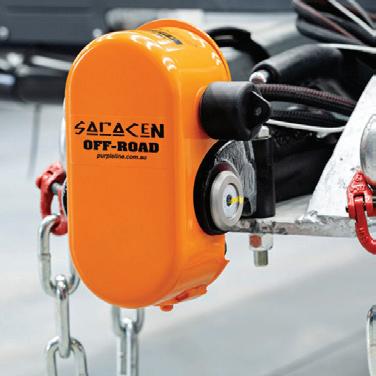

Saracen Off Road Trailer Hitch Lock
Winches & Trailer Accessories 857
Part No.
Description
54678 Saracen Off Road Hitch Lock • Designed for HITCHMASTER DO35 articulated hitch and Alko Click Lock hitches. • Made from high strength steel. • 7-Pin cylinder lock resistant to cutting, picking, drilling and gas freezing. • Anti-copy tubular key for added security.

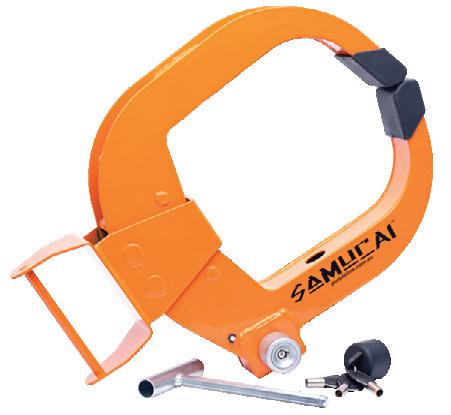

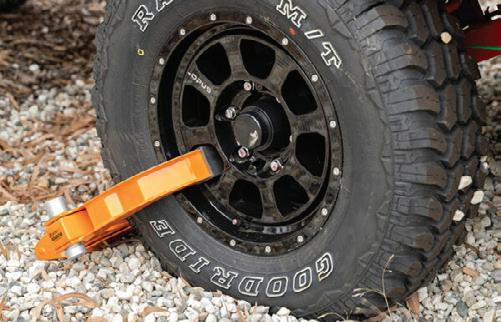

Samurai Wheel Clamp Part No.
Description
54666 Samurai Wheel Clamp • Made from high strength steel. • 7-Pin cylinder lock resistant to cutting, picking, drilling and gas freezing. • Anti-copy tubular key for added security. • Suitable for steel and alloy wheels up to 275R17.
www.samallen.com.au

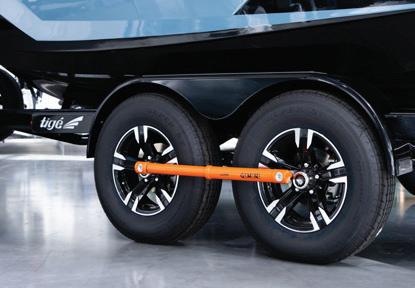

Purple Line Trailer Anti-Theft Accessories Gemini Twin Axle Wheel Clamp Part No.
Description
Description
54672 Gemini Twin Axle Wheel Clamp

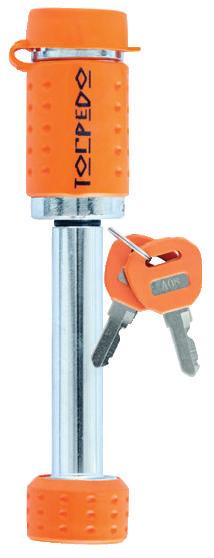

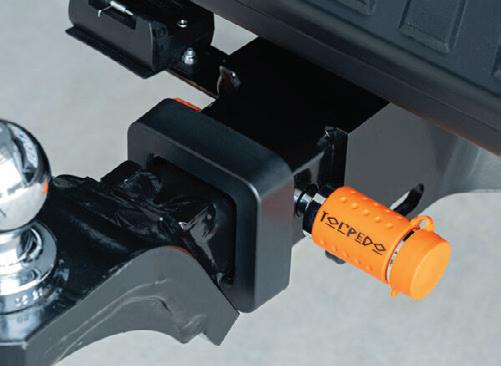

54680 Torpedo Locking Hitch Pin
• Suitable for twin axle trailers. • Two high-security locks bind the wheels together. • Super quick and easy installation. • Uses a receiver nut to attach to the wheel. • Made from hardened, high-strength composite steel. • 7-Pin cylinder lock resists cutting, picking, drilling and freezing. • Includes 3 anti-copy tubular keys for added security.
• Suits articulating poly block trailer couplings. • Suits Class 4 receiver up to 75mm wide. • Fits 5/8" (16mm) hitches. • 2 keys provided. • Tow-rated up to 3500kg.

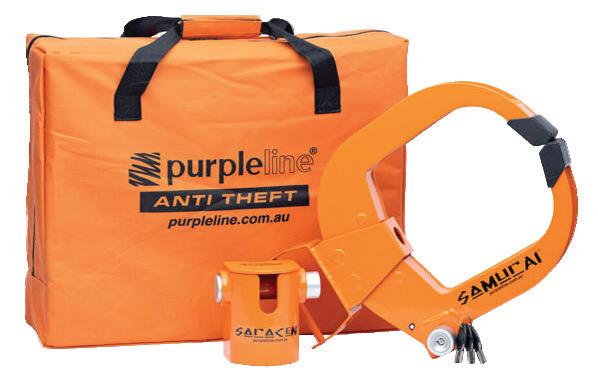

Fullstop Complete Security Kits Part No.

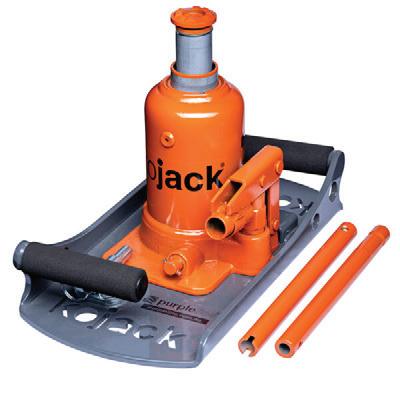

Kojack Hydraulic Caravan Jacks 4T
Description
Part No.
Description
54660 Fullstop Complete Standard Security Kit

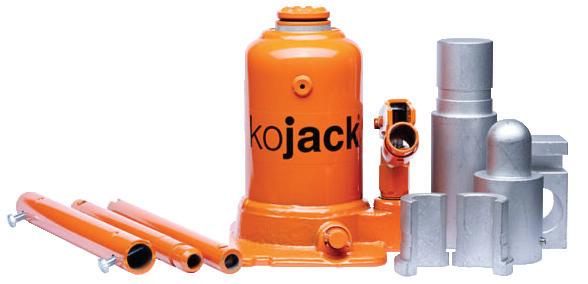

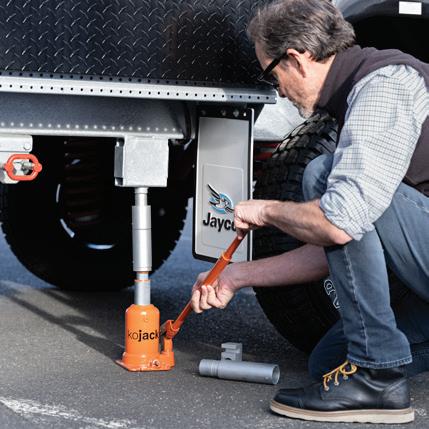

54682 Kojack Hydraulic Caravan Jack
54661 Fullstop Complete Ultra Security Kit
54684 Kojack Hydraulic Caravan High Lift Jack
• 54660: 1 x Saracen Hitch Lock 1 x Samurai Wheel Clamp 1 x Carry Bag • 54661: 1 x Saracen Ultra Hitch Lock 1 x Samurai Wheel Clamp • Made from high strength steel. • 7-Pin cylinder lock resistant to cutting, picking, drilling and gas freezing. • Anti-copy tubular key for added security. • Keyed alike.
54688 Kojack Extension Piece • Two-piece collar. • 2x heads (Round & Square). • 100mm Extension for added height. • Convenient Carry Bag. • 4T capacity - certified to AS/NZS 2693:2007. • Lifting range of 220mm and lightweight at 12kgs. Note: 54684 includes additional 150mm extension. Max open height of 750mm.
54660
54682/54684
54661
54688
Fullstop Complete Off Road Security Kit Part No.
Description

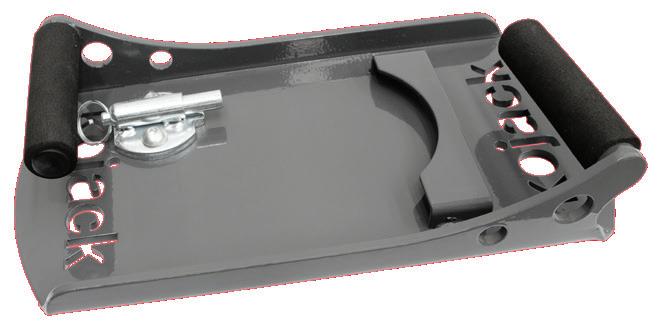

Kojack Baseplate Part No.
Description
54662 Fullstop Complete Off Road Security Kit
54686 Kojack Baseplate
• Kit contains: 1 x Saracen Off Road Hitch Lock 1 x Samurai Wheel Clamp • Designed for HITCHMASTER DO35 articulated hitch and Alko Click Lock hitches. • Made from high strength steel. • 7-Pin cylinder lock resistant to cutting, picking, drilling and gas freezing. • Anti-copy tubular key for added security. • Keyed alike. • Convenient carry bag.
• Steel locking pin secures Kojack in place. • Soft grip handles make for easy positioning. • Suitable on most terrain including sand, mud, soft camp grounds, bitumen driveways and gravel • Plate dimensions: 35 x 18 x 7cm (L x W x H). • Made from steel. • Can also be used with your jockey wheel.
www.samallen.com.au
Winches & Trailer Accessories
Part No.
Torpedo Locking Hitch Pin
858
