LITHOS
LITHOS 10K
RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong MOTOR Bosch Performance Line CX-R
AKKU Bosch PowerTube 600, 600Wh
800 W h
DISPLAY Bosch Kiox 400C
SWITCH Bosch Mini Remote
FEDERBEIN Fox Float X Factory Live Valve Neo
RAHMEN LITHOS CF, material: carbon, 160mm suspension travel, 29" x 2,4" max. wheelsize, 148x12mm axle standard, intube, removeable
GABEL Fox Podium Factory, 170mm suspension travel, tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Sram X0 Eagle Transmission AXS
SCHALTHEBEL VORNE Sram dropper lever MMX
SCHALTHEBEL HINTEN Sram AXS Pod Ultimate Controller
BREMSE VORNE Sram Maven Ultimate, 4 piston
BREMSE HINTEN Sram Maven Ultimate, 4 piston
KURBEL Sram XO Eagle E-MTB Crank, 160mm all sizes
KASSETTE Sram XX Eagle Transmission E-MTB for BOSCH, 36 teeth
FREILAUF Sram XS-1295 T-TYPE, 10-52 teeth, 12 speed
KETTE Sram X0 Eagle Transmission, Flattop
REIFEN VORNE Continental Kryptotal-F, 29x2.4", fold, TR, Enduro casing, Super soft compund
REIFEN HINTEN Continental Kryptotal-R, 27.5x2.4", fold, Enduro casing, soft compound
SATELSTÜTZE
MERIDA TEAM TR II 34.9mm diameter, 0mm setback, all sizes 30-230mm travel seatpost
SATTEL Proxim Altius Tirox, V-mount adapter, incl. MERIDA minitool
LITHOS 8000
RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong MOTOR Bosch Performance Line CX-R
AKKU Bosch PowerTube 800, 800Wh
DISPLAY Bosch Kiox 400C
SWITCH Bosch Mini Remote
FEDERBEIN Rock Shox Vivid Ultimate
RAHMEN LITHOS CF, material: carbon, 160mm suspension travel, 29" x 2,4" max. wheelsize, 148x12mm axle standard, intube, removeable
GABEL Rock Shox Zeb Ultimate eMTB, Air, 170mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Sram GX Eagle Transmission AXS
SCHALTHEBEL VORNE Sram dropper lever MMX
SCHALTHEBEL HINTEN Sram AXS Pod Controller
BREMSE VORNE Sram Maven Bronze, 4 piston
BREMSE HINTEN Sram Maven Bronze, 4 piston
KURBEL Sram S1000 Eagle E-MTB Crank, 160mm all sizes
KASSETTE Sram Eagle Transmission E-MTB for BOSCH, 36 teeth
FREILAUF Sram XS-1275 T-TYPE, 10-52 teeth, 12 speed
KETTE Sram GX Eagle Transmission, Flattop
REIFEN VORNE Continental Kryptotal-F, 29x2.4", fold, TR, Enduro casing, Super soft compund
REIFEN HINTEN Continental Kryptotal-R, 27.5x2.4", fold, Enduro casing, soft compound
SATELSTÜTZE MERIDA TEAM TR II 34.9mm diameter, 0mm setback, all sizes 30-230mm travel seatpost
SATTEL Proxim Altius, V-mount adapter, incl. MERIDA minitool
RAHMENGRÖSSEN Short, Mid, Long, XLong MOTOR Bosch Performance Line CX
XShort, Short, Mid, Large, XLarge
AKKU Bosch PowerTube 800, 800Wh
DISPLAY Bosch Kiox 400C
SWITCH Bosch Mini Remote
FEDERBEIN Rock Shox Vivid Base
RAHMEN LITHOS CF, material: carbon, 160mm suspension travel, 29" x 2,4" max. wheelsize, 148x12mm axle standard, intube, removeable
GABEL Rock Shox Zeb Select eMTB, Air, 170mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Sram Eagle 70 Transmission
SCHALTHEBEL VORNE Sram dropper lever MMX
SCHALTHEBEL HINTEN Sram Eagle 70 Transmission Shifter
BREMSE VORNE Sram DB6 stealth, 4 piston
BREMSE HINTEN Sram DB6 stealth, 4 piston
KURBEL Sram S1000 Eagle E-MTB Crank, 160mm all sizes
KASSETTE Sram Eagle Transmission E-MTB for BOSCH, 36 teeth
FREILAUF Sram XS-1270 T-TYPE, 10-52 teeth, 12 speed
KETTE Sram Eagle 70, Flattop
FELGE Reynolds 309 Enduro Comp, 30mm inner width, material: aluminium, Tubeless ready (tubeless tape installed), front 29", rear 27.5"
REIFEN VORNE Continental Kryptotal-F, 29x2.4", fold, TR, Enduro casing, Soft compund
REIFEN HINTEN Continental Kryptotal-R 27.5x2.4", fold, Enduro casing, soft compound
SATELSTÜTZE MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost - S: 150mm travel seatpost - M: 170SPT - L: 200mm travel seatpost - XL: 230mm travel seatpost
SATTEL MERIDA COMP SL, V-mount, incl. MERIDA minitool
1
LITHOS CF – AM0
LITHOS CF – AM6

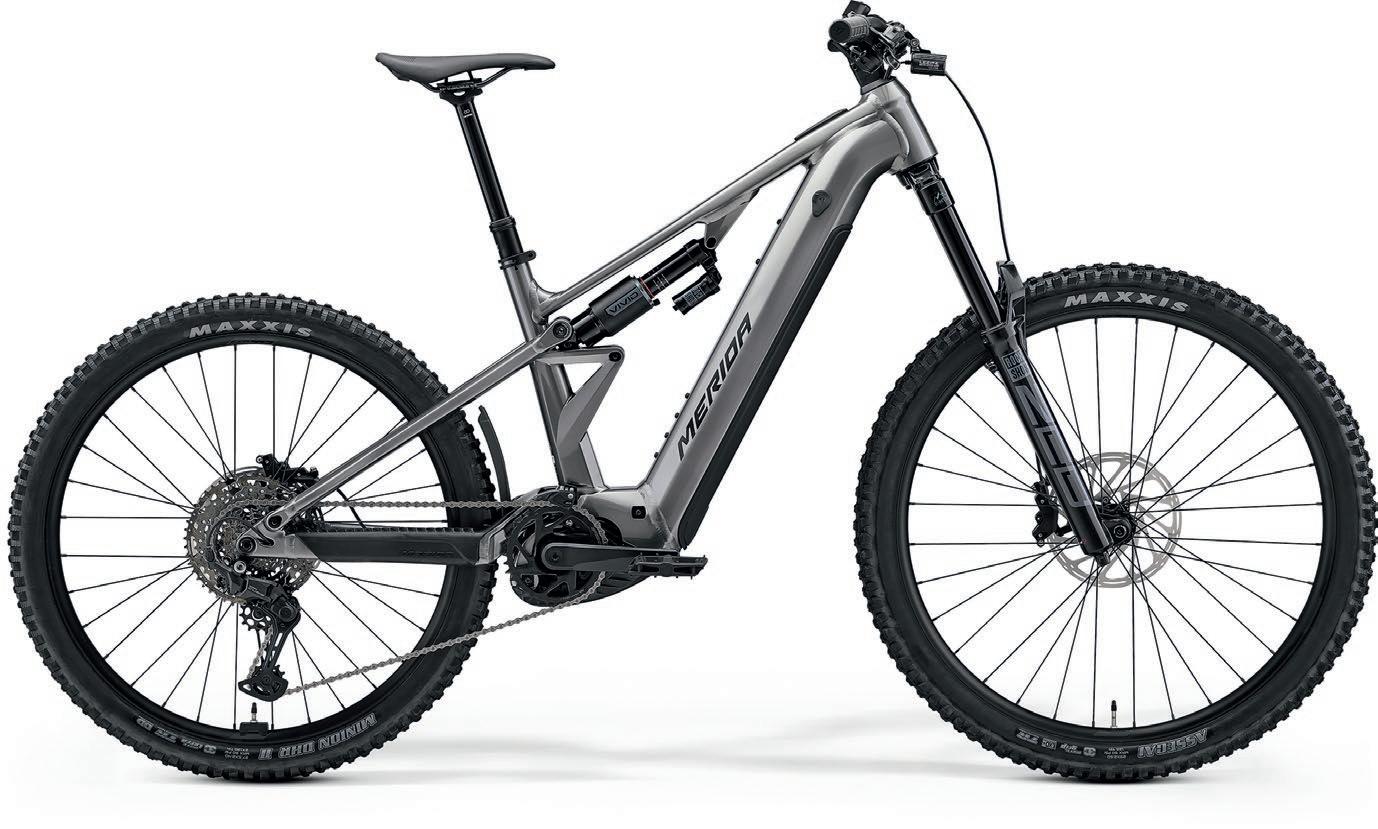

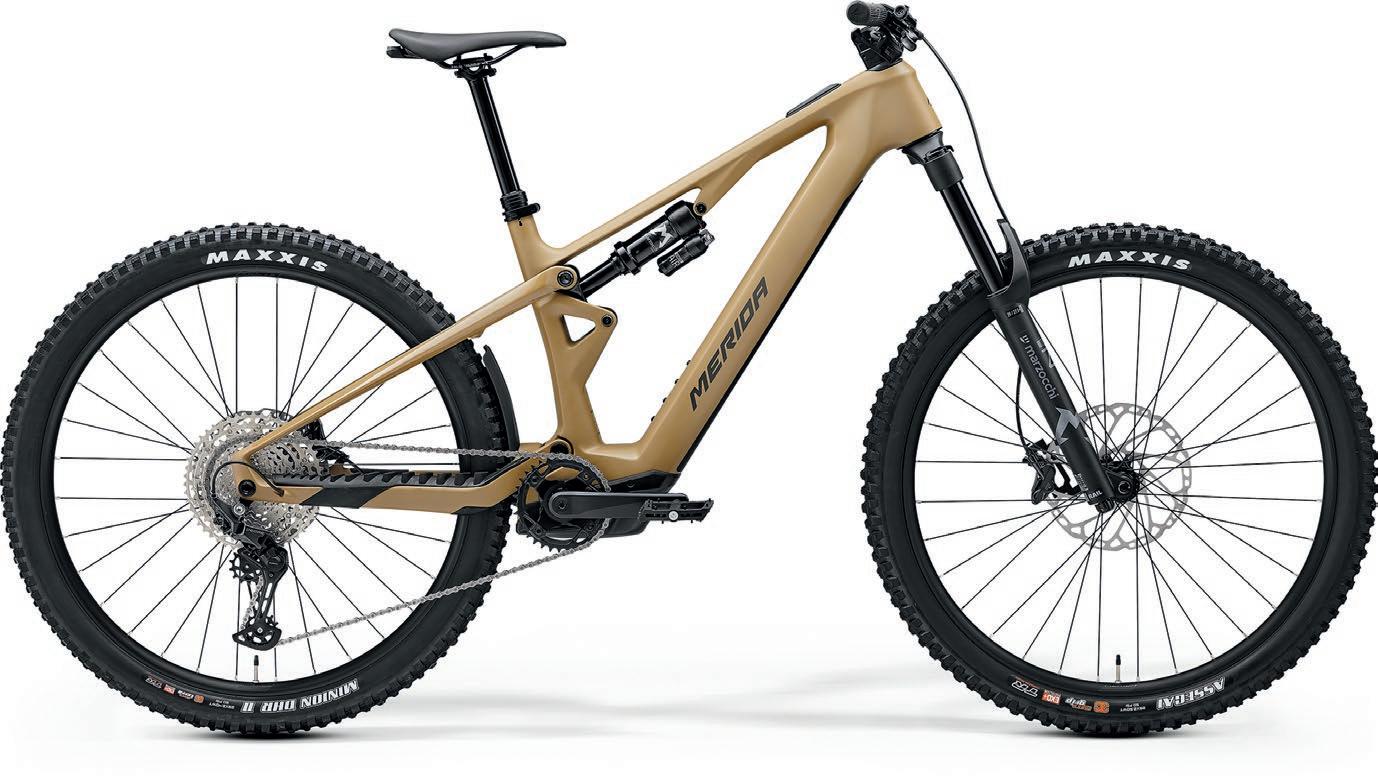

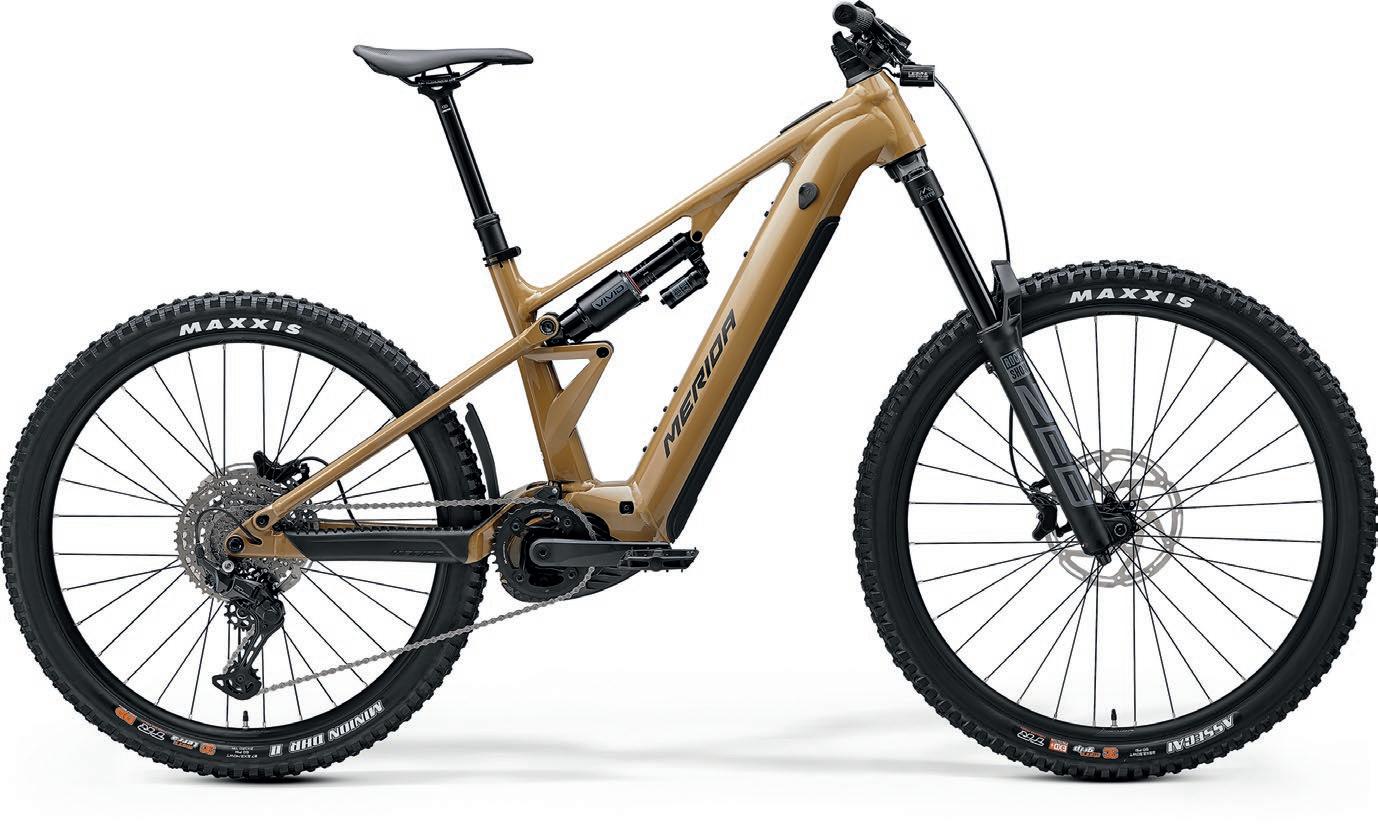

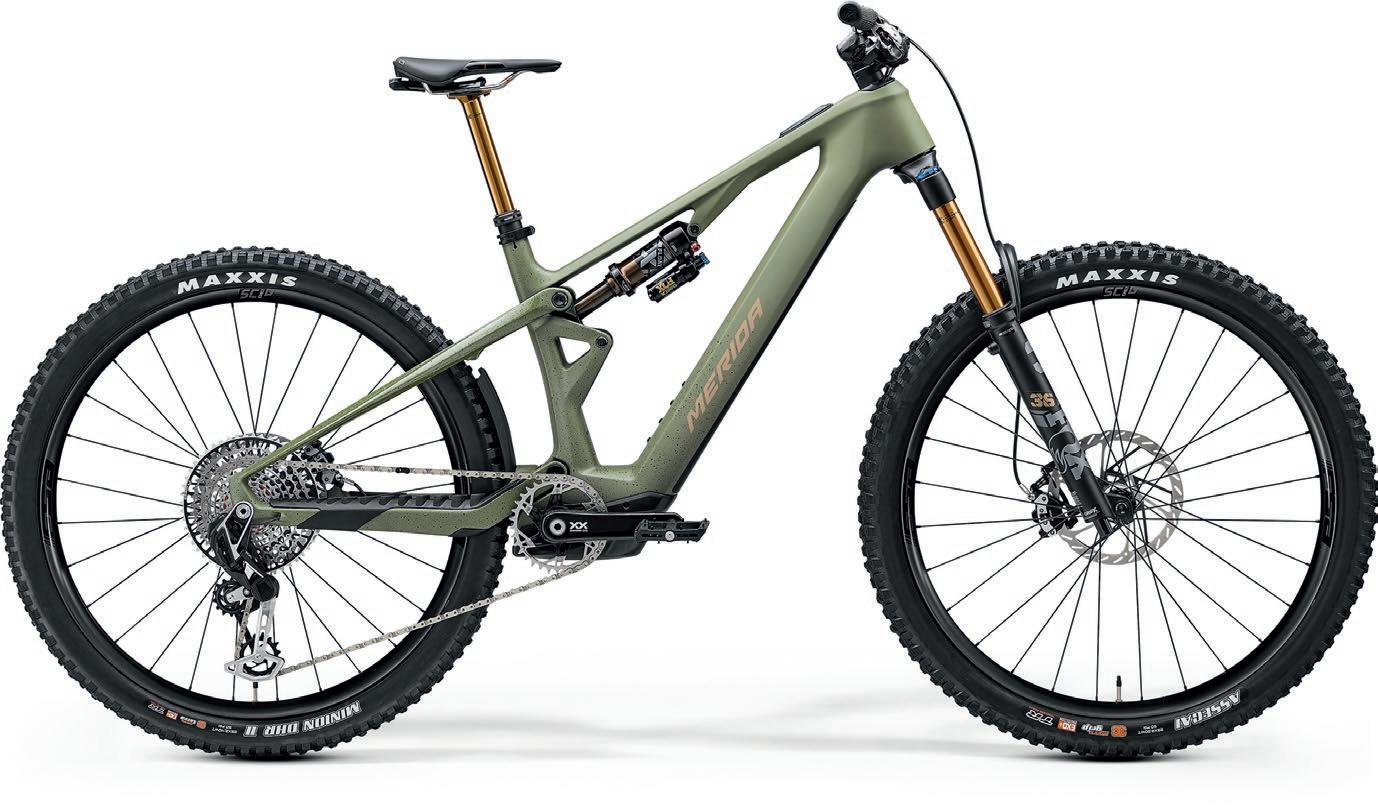

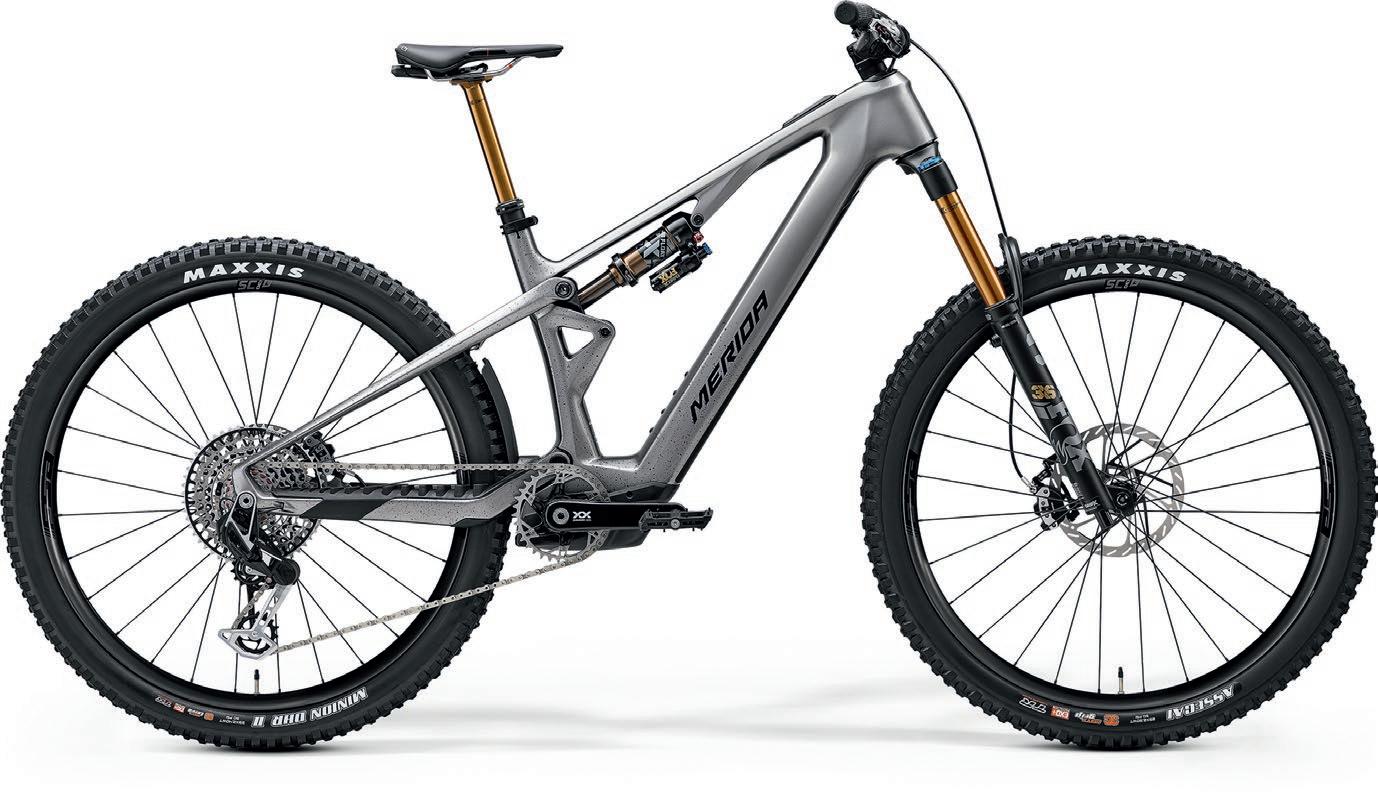

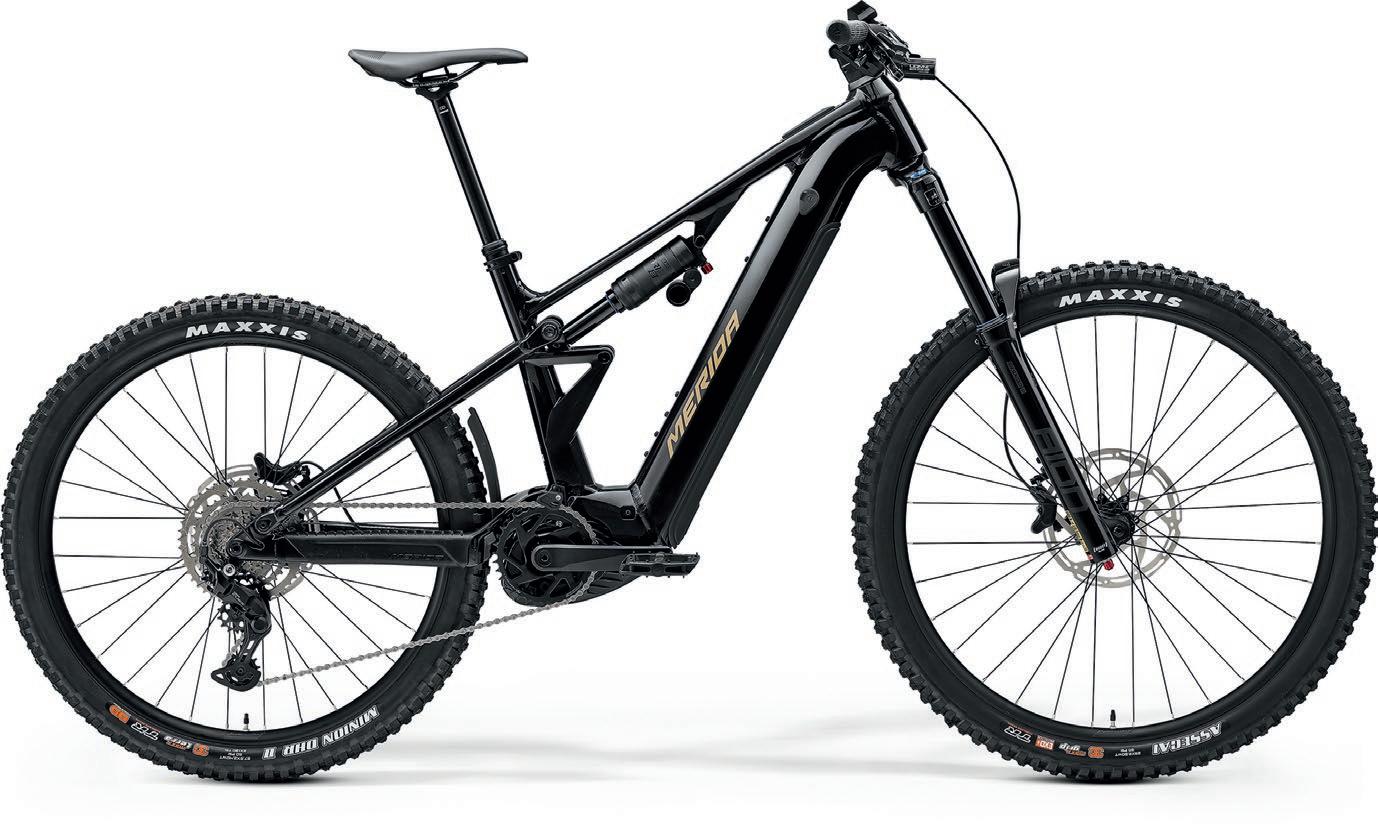

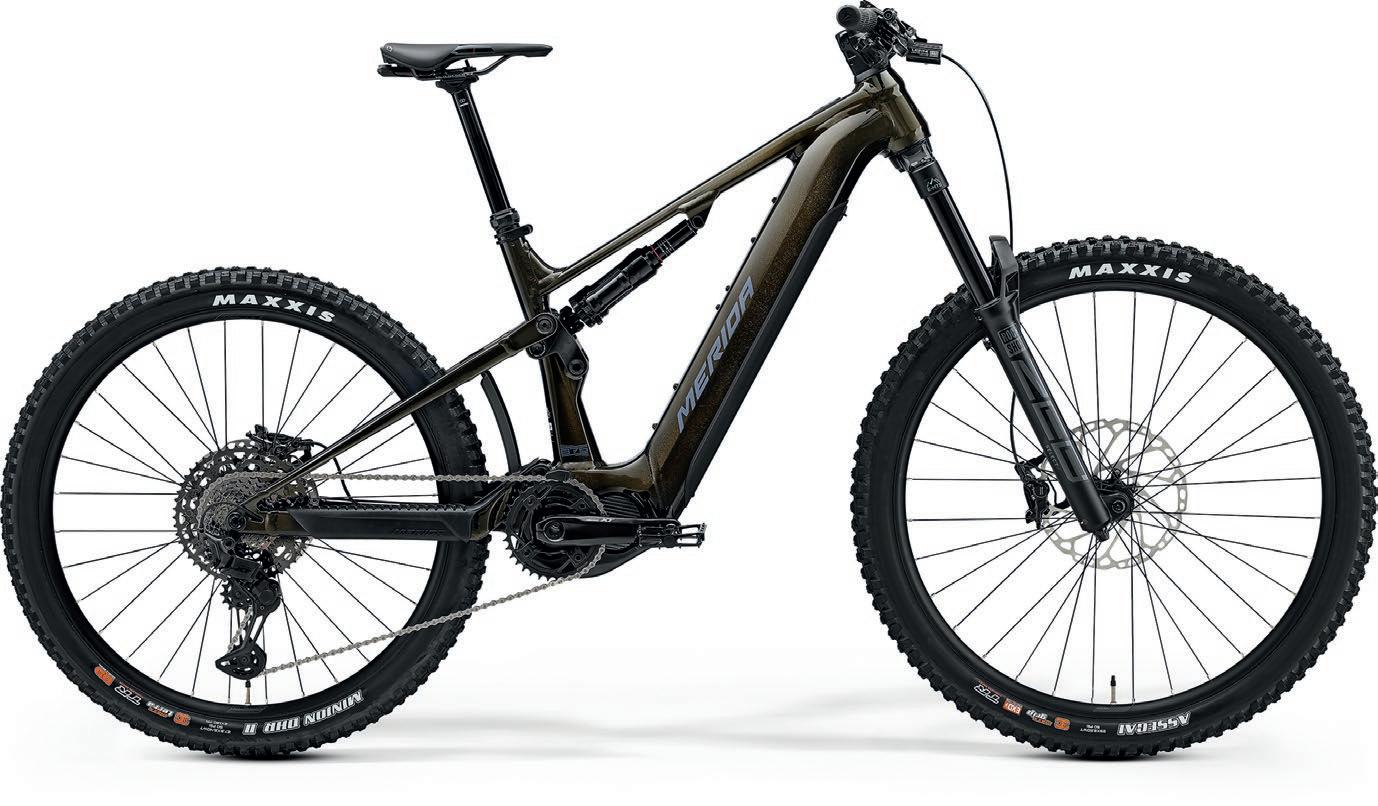

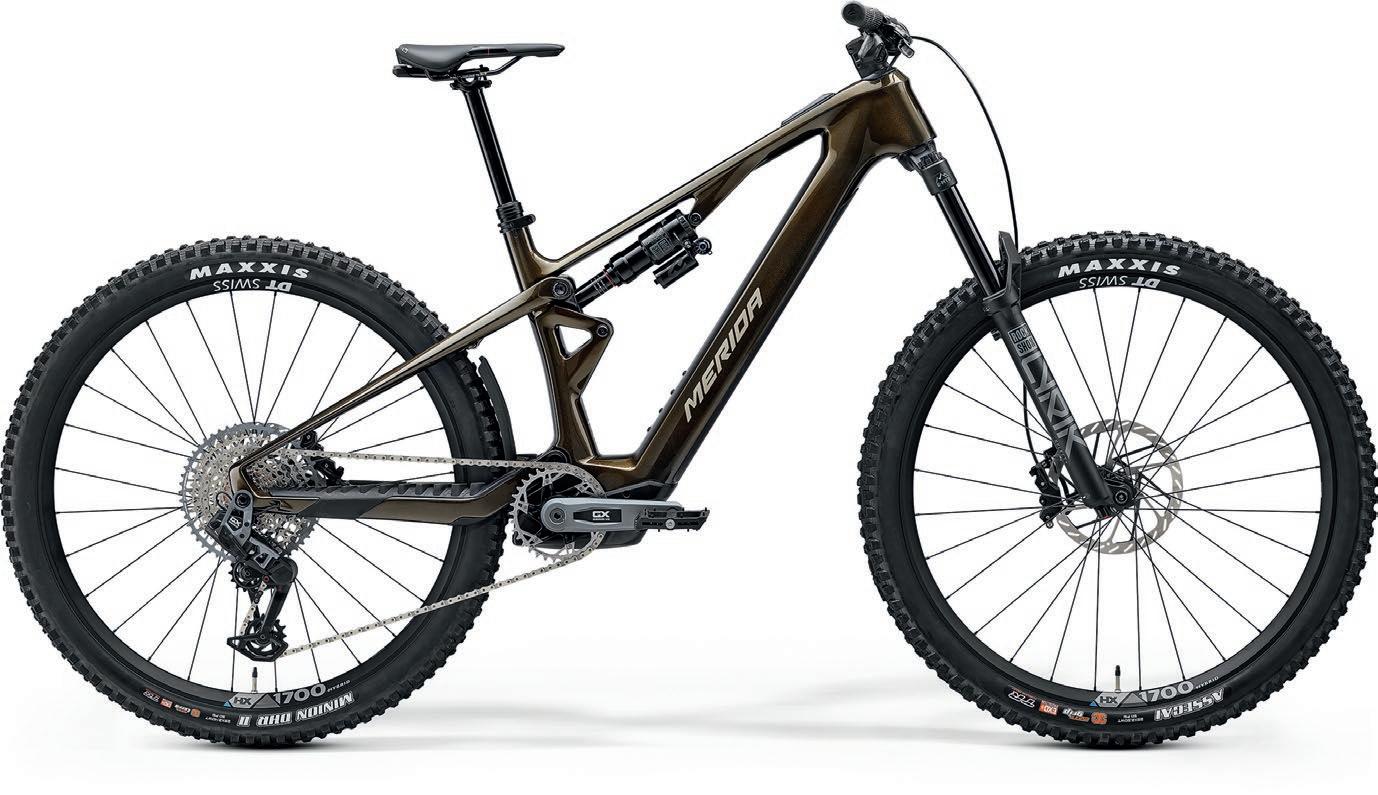

eONE-SIXTY

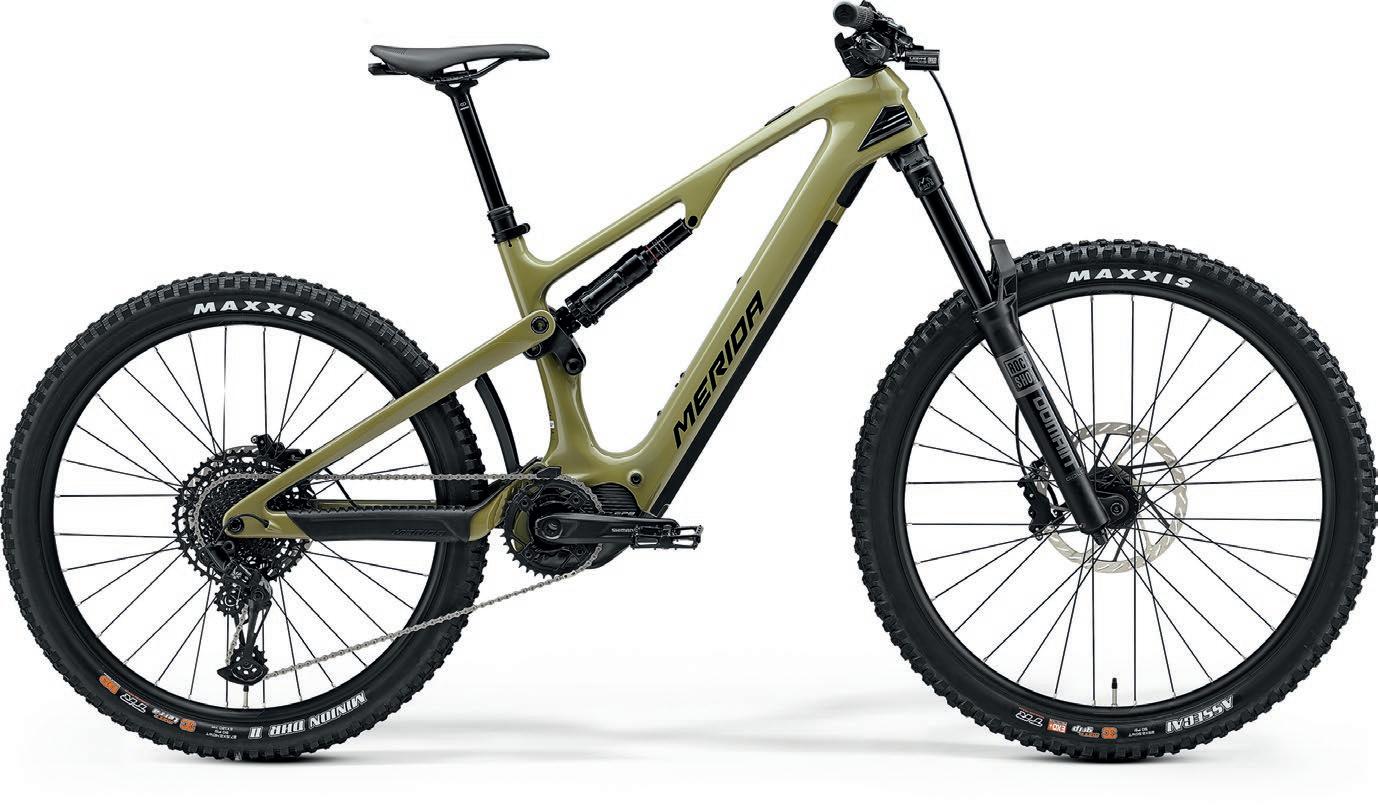

eONE-SIXTY SL 10K
RAHMENGRÖSSEN Mid, Long, XLong
MOTOR Bosch Performance Line SX
AKKU Bosch CompactTube 400 Wh, integrated
DISPLAY Bosch Purion 400
SWITCH Bosch Mini Remote
FEDERBEIN Fox Float X Factory
RAHMEN eONE-SIXTY SL CF4, material: carbon, 160mm suspension travel, 29x2,4" max. wheelsize, 148x12mm axle standard, fixed battery
GABEL Fox 36 Float Factory, Air, 160mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Sram XX Eagle Transmission AXS
SCHALTHEBEL VORNE Fox Transfer remote
SCHALTHEBEL HINTEN Sram AXS Pod Ultimate Controller
BREMSE VORNE Sram Maven Ultimate, 4 piston
BREMSE HINTEN Sram Maven Ultimate, 4 piston
KURBEL Sram XX Eagle E-MTB Crank, 165 mm for all sizes
KASSETTE Sram XX Eagle Transmission E-MTB for BOSCH, 34 teeth
FREILAUF Sram XX Eagle Transmission, 10-52, 12 speed
KETTE Sram XX Eagle Transmission, Flattop
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 29x2.4 ", fold, TR EXO+ 3C MaxxTerra
SATELSTÜTZE Fox Transfer Factory, 34.9mm diameter, 0mm setback, XSHORT/SHORT: 150mm travel seatpost : MID: 180mm travel seatpost LONG: 210mm travel seatpost : XLONG: 240mm travel seatpost
SATTEL Proxim Nembo Triox, V-mount adapter, incl. MERIDA minitool
GEWICHT (CA.)
19.5 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
eONE-SIXTY SL 10K
RAHMENGRÖSSEN Mid, Long
MOTOR Bosch Performance Line SX
AKKU Bosch CompactTube 400 Wh, integrated
DISPLAY Bosch Purion 400
SWITCH Bosch Mini Remote
FEDERBEIN Fox Float X Factory
RAHMEN eONE-SIXTY SL CF4, material: carbon, 160mm suspension travel, 29x2,4" max. wheelsize, 148x12mm axle standard, fixed battery
GABEL Fox 36 Float Factory, Air, 160mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Sram XX Eagle Transmission AXS
SCHALTHEBEL VORNE Fox Transfer remote
SCHALTHEBEL HINTEN Sram AXS Pod Ultimate Controller
BREMSE VORNE Sram Maven Ultimate, 4 piston
BREMSE HINTEN Sram Maven Ultimate, 4 piston
KURBEL Sram XX Eagle E-MTB Crank, 165 mm for all sizes
KASSETTE Sram XX Eagle Transmission E-MTB for BOSCH, 34 teeth
FREILAUF Sram XX Eagle Transmission, 10-52, 12 speed
KETTE Sram XX Eagle Transmission, Flattop
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 29x2.4 ", fold, TR EXO+ 3C MaxxTerra
SATELSTÜTZE Fox Transfer Factory, 34.9mm diameter, 0mm setback, XSHORT/SHORT: 150mm travel seatpost : MID: 180mm travel seatpost LONG: 210mm travel seatpost : XLONG: 240mm travel seatpost
SATTEL Proxim Nembo Triox, V-mount adapter, incl. MERIDA minitool
GEWICHT (CA.) 19.5 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
RAHMENGRÖSSEN Short, Mid, Long, XLong MOTOR Bosch Performance Line SX
AKKU Bosch CompactTube 400 Wh, integrated
DISPLAY Bosch Purion 400
SWITCH Bosch Mini Remote
FEDERBEIN Rock Shox Super Deluxe Select+
RAHMEN eONE-SIXTY SL CF4, material: carbon, 160mm suspension travel, 29x2,4" max. wheelsize, 148x12mm axle standard, fixed battery
GABEL Rock Shox Lyric Select+ eMTB, Air, 160mm suspension travel: Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Sram GX Eagle Transmission AXS
SCHALTHEBEL VORNE JD GLS Stealth MMX
SCHALTHEBEL HINTEN Sram AXS Pod Controller
BREMSE VORNE Sram DB8 Stealth, 4 piston
BREMSE HINTEN Sram DB8 Stealth, 4 piston
KURBEL Sram GX Eagle E-MTB Crank, 165 mm for all sizes
KASSETTE Sram XX Eagle Transmission E-MTB for BOSCH, 34 teeth
FREILAUF Sram GX Eagle Transmission, 10-52, 12 speed
KETTE Sram GX Eagle Transmission, Flattop
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 29x2.4 ", fold, TR EXO+ 3C MaxxTerra
SATELSTÜTZE MERIDA COMP TR III, 34.9mm diameter, 0mm setback, XSHORT: 150mm travel seatpost : SHORT/MID: 170mm travel seatpost : LONG/XLONG: 200mm travel seatpost
SATTEL Proxim Nembo Steel, V-mount adapter, incl. MERIDA minitool
GEWICHT (CA.)
20.3 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

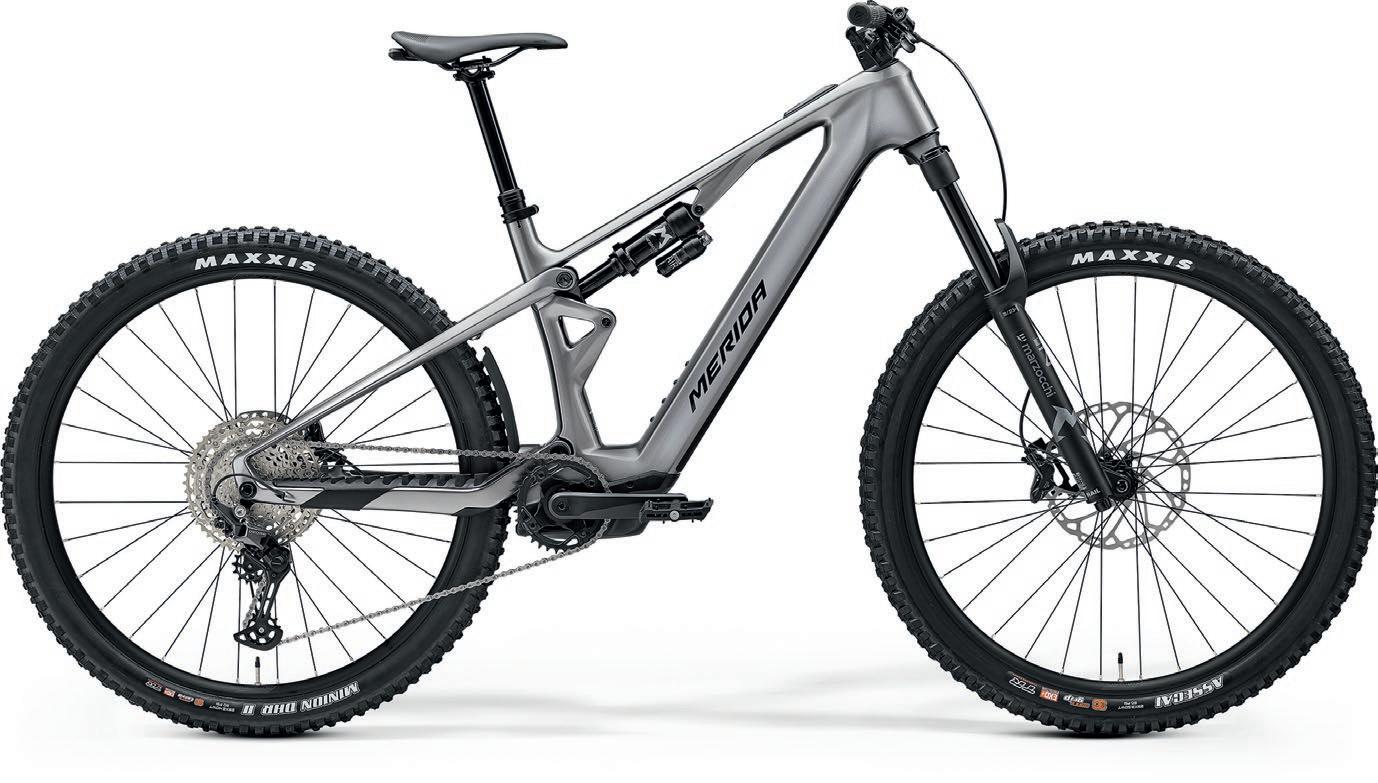

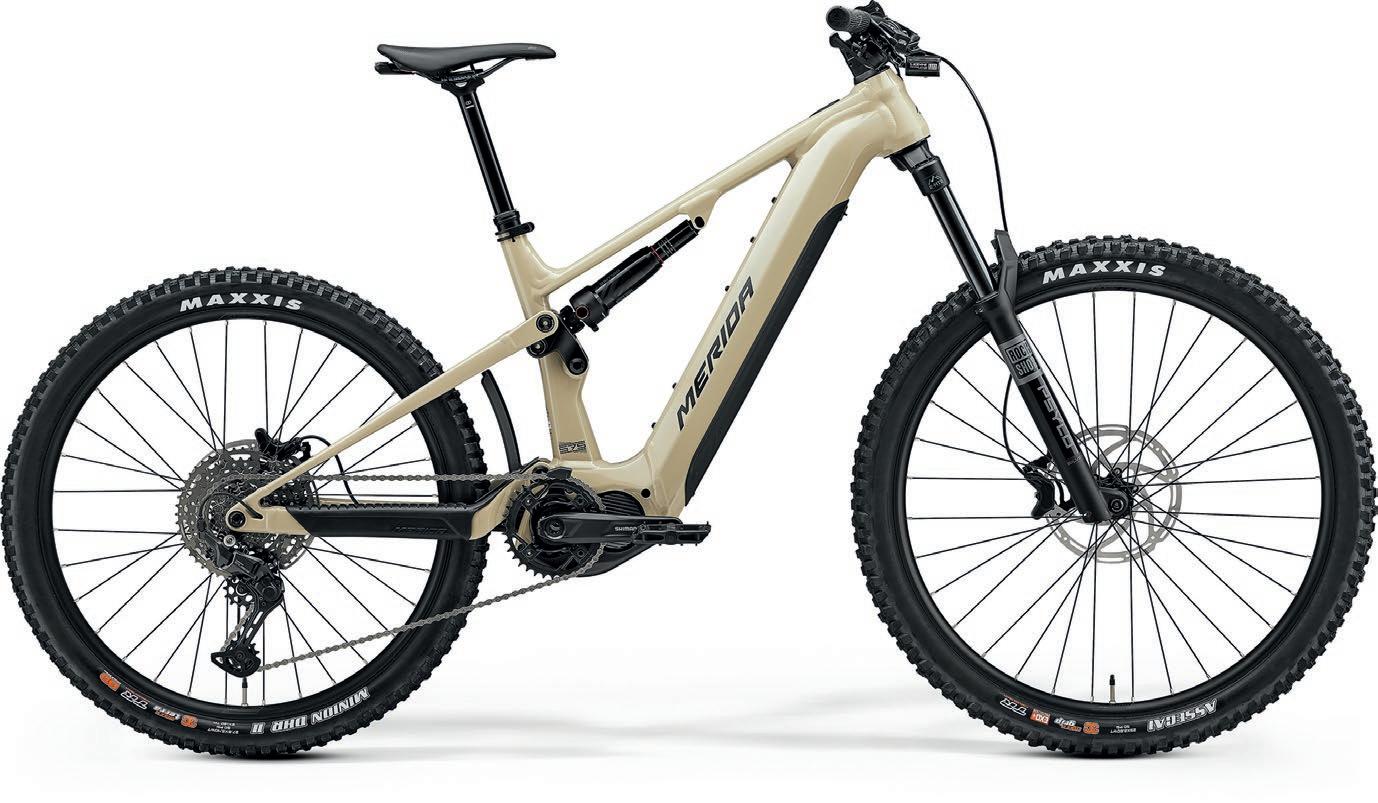

eONE-SIXTY SL 6000
RAHMENGRÖSSEN Short, Mid, Long, XLong MOTOR Bosch Performance Line SX
AKKU Bosch CompactTube 400 Wh, integrated DISPLAY Bosch Purion 400
SWITCH Bosch Mini Remote
FEDERBEIN Marzocchi Bomber Air, Platform
RAHMEN eONE-SIXTY SL CF4, material: carbon, 160mm suspension travel, 29x2,4" max. wheelsize, 148x12mm axle standard, fixed battery
GABEL Marzocchi Z1 eMTB, Air, 160mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano Deore
SCHALTHEBEL VORNE Shimano SL: MT500-IL
SCHALTHEBEL HINTEN Shimano Deore
BREMSE VORNE Shimano Deore M6120, 4 piston
BREMSE HINTEN Shimano Deore M6120, 4 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
KASSETTE FSA 1x Alloy Spider + Mega Tooth steel chain ring, 34 teeth
FREILAUF Shimano Deore, 10-51 teeth, 12 speed
KETTE Shimano Deore M6100
FELGE MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 29"
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 29x2.4 ", fold, TR EXO+ 3C MaxxTerra
SATELSTÜTZE
SATTEL
GEWICHT (CA.)
MERIDA COMP TR III, 34.9mm diameter, 0mm setback, XSHORT: 150mm travel seatpost : SHORT/MID: 170mm travel seatpost : LONG/XLONG: 200mm travel seatpost
MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool
20.8 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
eONE-SIXTY SL 6000
RAHMENGRÖSSEN Short, Mid, Long, XLong MOTOR Bosch Performance Line SX
AKKU Bosch CompactTube 400 Wh, integrated
DISPLAY Bosch Purion 400
SWITCH Bosch Mini Remote
FEDERBEIN Marzocchi Bomber Air, Platform
RAHMEN eONE-SIXTY SL CF4, material: carbon, 160mm suspension travel, 29x2,4" max. wheelsize, 148x12mm axle standard, fixed battery
GABEL Marzocchi Z1 eMTB, Air, 160mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano Deore
SCHALTHEBEL VORNE Shimano SL: MT500-IL
SCHALTHEBEL HINTEN Shimano Deore
BREMSE VORNE Shimano Deore M6120, 4 piston
BREMSE HINTEN Shimano Deore M6120, 4 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
KASSETTE FSA 1x Alloy Spider + Mega Tooth steel chain ring, 34 teeth
FREILAUF Shimano Deore, 10-51 teeth, 12 speed
KETTE Shimano Deore M6100
FELGE MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 29"
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 29x2.4 ", fold, TR EXO+ 3C MaxxTerra
SATELSTÜTZE
SATTEL
GEWICHT (CA.)
MERIDA COMP TR III, 34.9mm diameter, 0mm setback, XSHORT: 150mm travel seatpost : SHORT/MID: 170mm travel seatpost : LONG/XLONG: 200mm travel seatpost
MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool
20.8 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
e ONE-SIXTY SL CF4 – AM0
1
e ONE-SIXTY SL CF4 – AM6

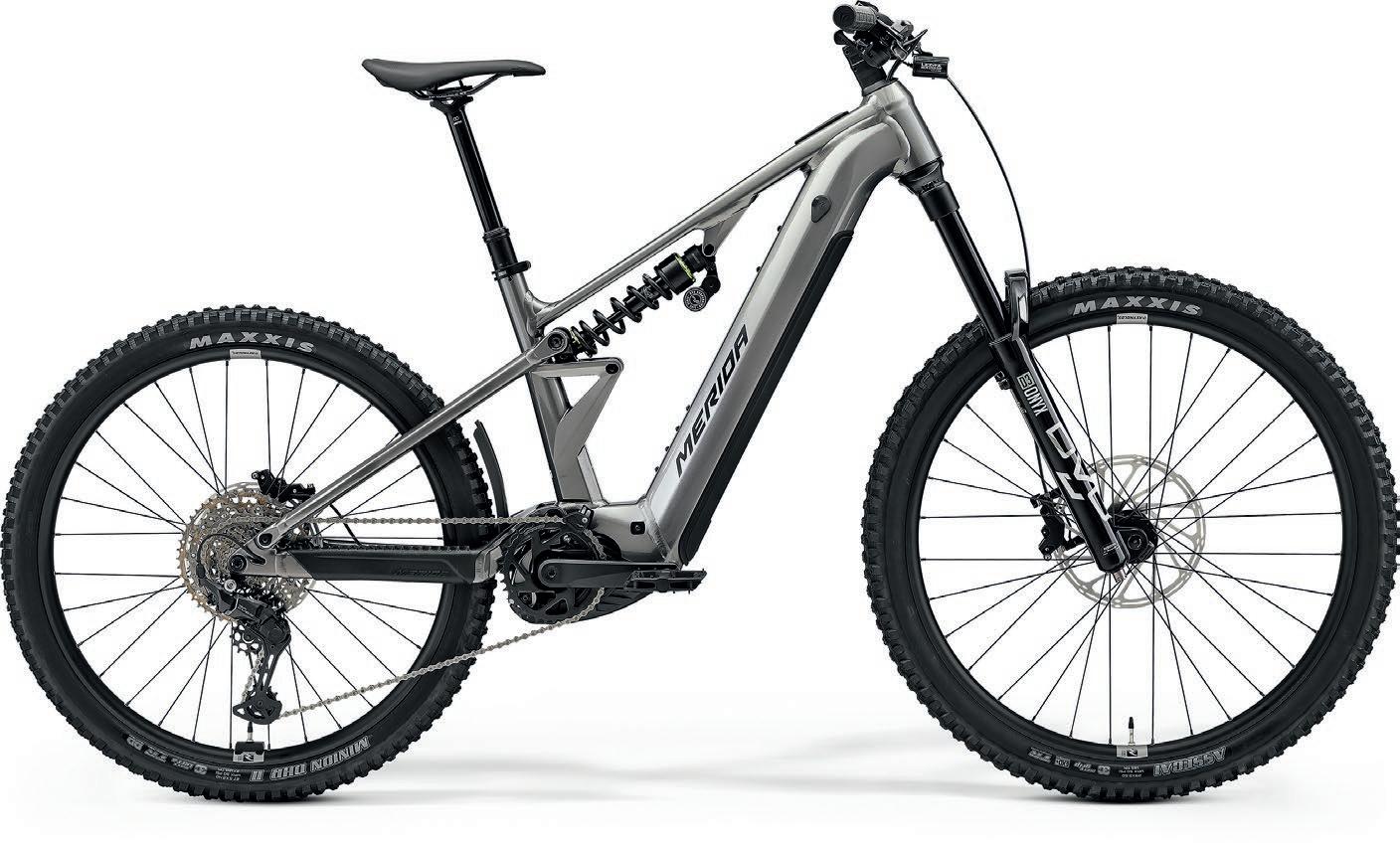

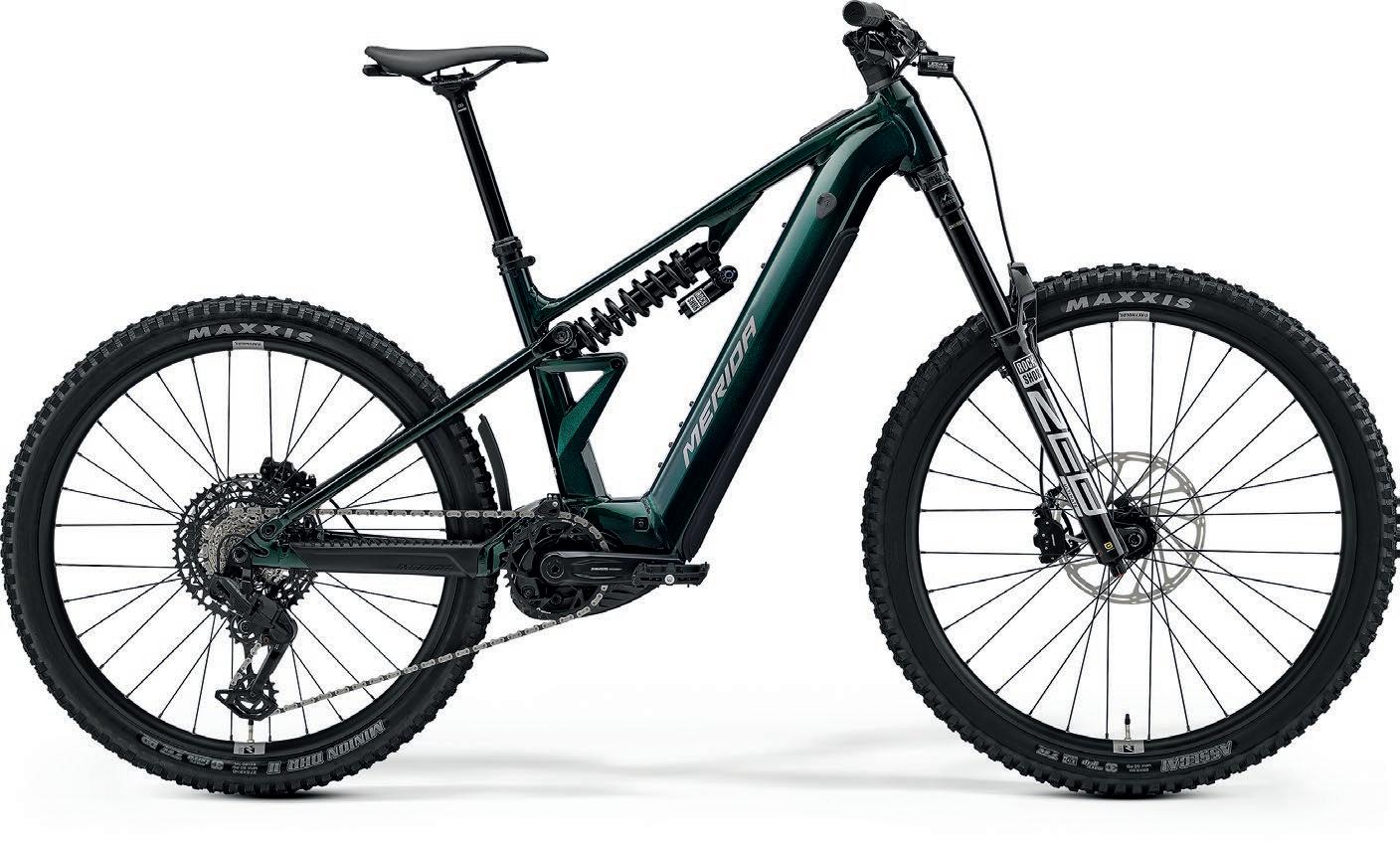

eONE-EIGHTY FR
RAHMENGRÖSSEN Short, Mid, Long, XLong MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800, 800Wh DISPLAY Bosch Purion 400
SWITCH Bosch Mini Remote
FEDERBEIN Rock Shox Vivid Coil Ultimate, coil spring rates: XSHORT and SHORT: 300lbs - MID: 350 lbs - LONG: 400 lbs - XLONG: 450 lbs
RAHMEN eONE-EIGHTY LITE, material: Aluminum, 180mm suspension travel, 29” x 2,6” max. wheelsize, 148x12mm axle standard, intube
GABEL Rock Shox Zeb Ultimate eMTB, Air, 180mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Sram Eagle 70 Transmission
SCHALTHEBEL VORNE Sram Dropper Lever MMX
SCHALTHEBEL HINTEN Sram Eagle 70 Transmission Shifter
BREMSE VORNE Sram Maven Base, 4 piston
BREMSE HINTEN Sram Maven Base, 4 piston
KURBEL Sram S1000 Eagle E-MTB Crank, 160mm all sizes
KASSETTE Sram Eagle Transmission E-MTB for BOSCH, 36 teeth
FREILAUF Sram XS-1270 T-TYPE, 10-52 teeth, 12 speed
KETTE Sram Eagle 70, Flattop
FELGE Reynolds 309 Enduro Comp, 30mm inner width, material: aluminium, Tubeless ready (tubeless tape installed), front 29", rear 27.5"
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
SATELSTÜTZE
MERIDA TEAM TR II, 34.9mm diameter, 0mm setback, SHORT, MID, LONG and XLONG 30-230mm travel seatpost, XSHORT 30-200mm travel seatpost
SATTEL MERIDA COMP SL, V-mount, incl. MERIDA minitool
RAHMENGRÖSSEN Short, Mid, Long MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800, 800Wh
DISPLAY Bosch Purion 200
FEDERBEIN DVO Jade X D3
RAHMEN eONE-EIGHTY LITE, material: Aluminum, 180mm suspension travel, 29 x 2,6 max. wheelsize, 148x12mm axle standard, intube
GABEL DVO Onyx 38 D3, Air, 180mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano CUES U6000, GS
SCHALTHEBEL VORNE Shimano SL -MT500-L
SCHALTHEBEL HINTEN Shimano CUES U6000-10
BREMSE VORNE Sram DB4 stealth, 4 piston
BREMSE HINTEN Sram DB4 stealth, 4 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 160mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring, 36 teeth
FREILAUF Shimano Cues LG400, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE Reynolds 309 Enduro Comp, 30mm inner width, material: aluminium, Tubeless ready (tubeless tape installed), front 29", rear 27.5"
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
SATELSTÜTZE MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost - S: 150mm travel seatpost - M: 170SPT - L: 200mm travel seatpost - XL: 230mm travel seatpost
SATTEL MERIDA COMP SL, V-mount, incl. MERIDA minitool

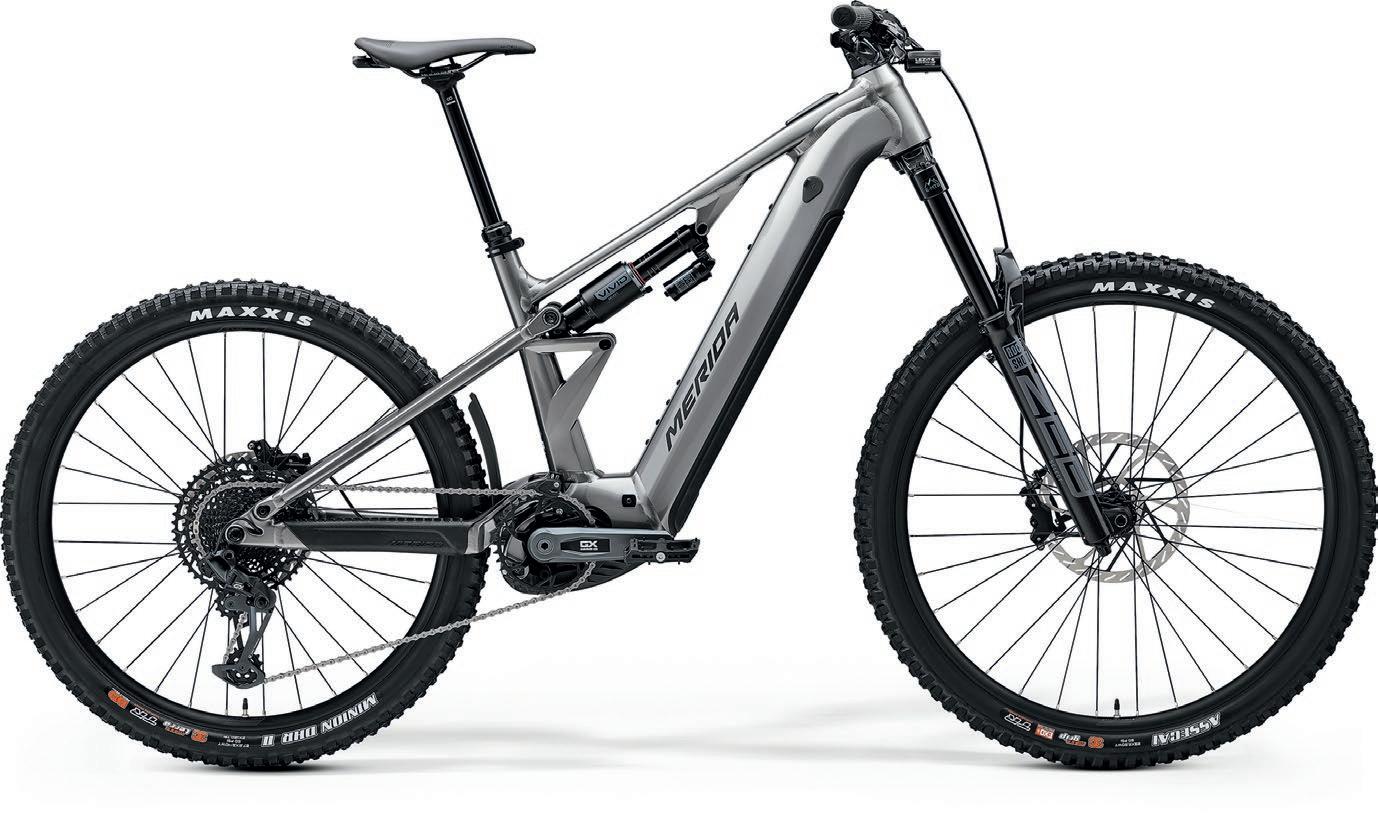

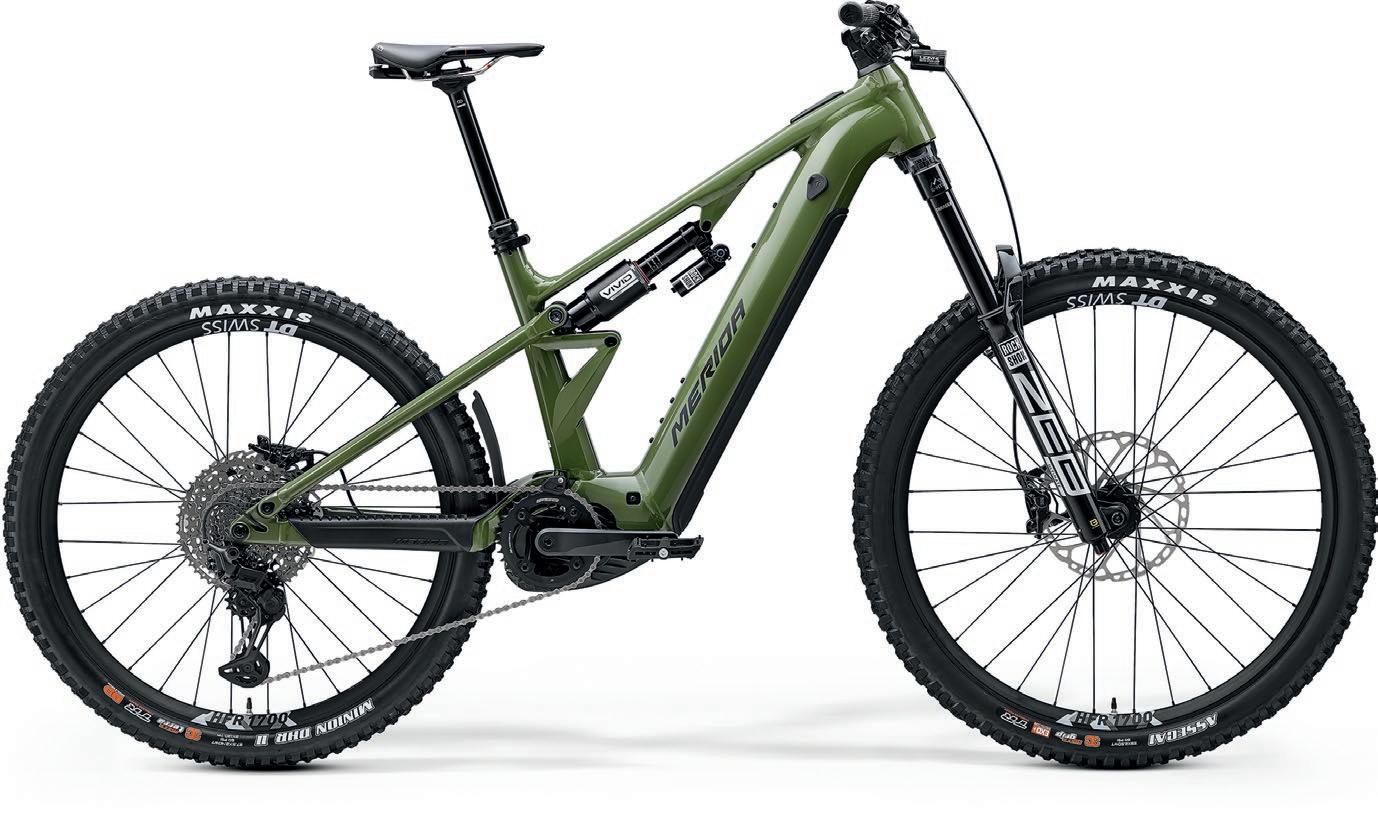

e ONE-EIGHTY LITE – AM0
e ONE-EIGHTY LITE – AM7
eONE-EIGHTY
RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800 Wh, removeable
DISPLAY Bosch Purion 400
SWITCH Bosch Mini Remote
FEDERBEIN Rock Shox Vivid Ultimate, platform
RAHMEN eONE-EIGHTY LITE, material: aluminium, 180mm suspension travel, 27.5" x 2.6" max. wheelsize, 148x12mm axle standard
GABEL Rock Shox Zeb Ultimate eMTB, Air, 180mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano XT LG
SCHALTHEBEL VORNE Shimano SL: MT500-IL
SCHALTHEBEL HINTEN Shimano XT
BREMSE VORNE Shimano XT, 4 piston
BREMSE HINTEN Shimano XT, 4 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
KASSETTE FSA 1x Alloy Spider + Mega Tooth steel chain ring, 36 teeth
FREILAUF Shimano LG400, 11-50 teeth, 11 speed
KETTE Shimano LG500
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
SATELSTÜTZE MERIDA TEAM TR II, 34.9mm diameter, 0mm setback, SHORT, MID, LONG and XLONG 30-230mm travel seatpost, XSHORT 30-200mm travel seatpost
SATTEL Proxim Nembo Triox, V-mount adapter, incl. MERIDA minitool
GEWICHT (CA.) 27.2 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800 Wh, removeable
DISPLAY Bosch Purion 400
SWITCH Bosch Mini Remote
FEDERBEIN Rock Shox Vivid Select, platform
RAHMEN eONE-EIGHTY LITE, material: aluminium, 180mm suspension travel, 27.5" x 2.6" max. wheelsize, 148x12mm axle standard
GABEL Rock Shox Zeb Select eMTB, Air, 180mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Sram GX Eagle
SCHALTHEBEL VORNE Limotech RM10 (For SRAM MMX)
SCHALTHEBEL HINTEN Sram GX Eagle Single Click
BREMSE VORNE Sram DB8 Stealth, 4 piston
BREMSE HINTEN Sram DB8 Stealth, 4 piston
KURBEL Sram GX Eagle E-MTB Crank, 165mm all sizes
KASSETTE Sram Eagle Transmission E-MTB chainring, 36 teeth
FREILAUF Sram CS PG1230 EAGLE 11-50T
KETTE Sram NX Eagle
FELGE MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
SATELSTÜTZE MERIDA TEAM TR II, 34.9mm diameter, 0mm setback, SHORT, MID, LONG and XLONG 30-230mm travel seatpost, XSHORT 30-200mm travel seatpost
SATTEL MERIDA COMP SL, 28% recycled material, V-mount
GEWICHT (CA.)
27.0 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800 Wh, removeable DISPLAY Bosch Purion 200
FEDERBEIN Rock Shox Vivid Base
RAHMEN eONE-EIGHTY LITE, material: aluminium, 180mm suspension travel, 27.5" x 2.6" max. wheelsize, 148x12mm axle standard
GABEL Rock Shox Zeb Base eMTB, Air, 180mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano CUES U6000, GS
SCHALTHEBEL VORNE Shimano SL: MT500-L
SCHALTHEBEL HINTEN Shimano Cues U6000-10
BREMSE VORNE Tektro Gemini M535, 4 piston
BREMSE HINTEN Tektro Gemini M535, 4 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
KASSETTE FSA 1x Alloy Spider + Mega Tooth steel chain ring, 36 teeth
FREILAUF Shimano Cues LG400, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
SATELSTÜTZE MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost
SATTEL MERIDA COMP SL, 28% recycled material, V-mount
GEWICHT (CA.)
27.0 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800, 800Wh DISPLAY Bosch Purion 200
FEDERBEIN Rock Shox Vivid Base
RAHMEN eONE-EIGHTY LITE, material: Aluminum, 180mm suspension travel, 29 x 2,6 max. wheelsize, 148x12mm axle standard, intube
GABEL Rock Shox Zeb eMTB, Air, 180mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano CUES U6000, GS
SCHALTHEBEL VORNE Shimano SL -MT500-L
SCHALTHEBEL HINTEN Shimano CUES U6000-10
BREMSE VORNE Sram DB4 stealth, 4 piston
BREMSE HINTEN Sram DB4 stealth, 4 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 160mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring, 36 teeth
FREILAUF Shimano Cues LG400, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
REIFEN VORNE
Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
SATELSTÜTZE
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, travel seatpost: 125mm (XS), 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
SATTEL MERIDA COMP SL, V-mount, incl. MERIDA minitool
RAHMENGRÖSSEN Short, Mid, Long, XLong MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 600 Wh, removeable DISPLAY Bosch Purion 200
FEDERBEIN SR Suntour TRIAIR2
RAHMEN eONE-EIGHTY LITE, material: aluminium, 180mm suspension travel, 27.5" x 2.6" max. wheelsize, 148x12mm axle standard
GABEL SR Suntour Aion 38X, Air, 180mm suspension travel, Tapered, 44mm fork off set, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano Cues U4000, GS
SCHALTHEBEL VORNE Shimano SL: MT500-L
SCHALTHEBEL HINTEN Shimano Cues U4000-9
BREMSE VORNE Tektro Gemini M535, 4 piston
BREMSE HINTEN Tektro Gemini M535, 4 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring, 36T
FREILAUF Shimano LG400-9, 11-46 teeth, 9 speed
KETTE Shimano LG500
FELGE MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
SATELSTÜTZE MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost
SATTEL MERIDA COMP SL, 28% recycled material, V-mount
e ONE-EIGHTY LITE – AM0
e ONE-EIGHTY LITE – AM7

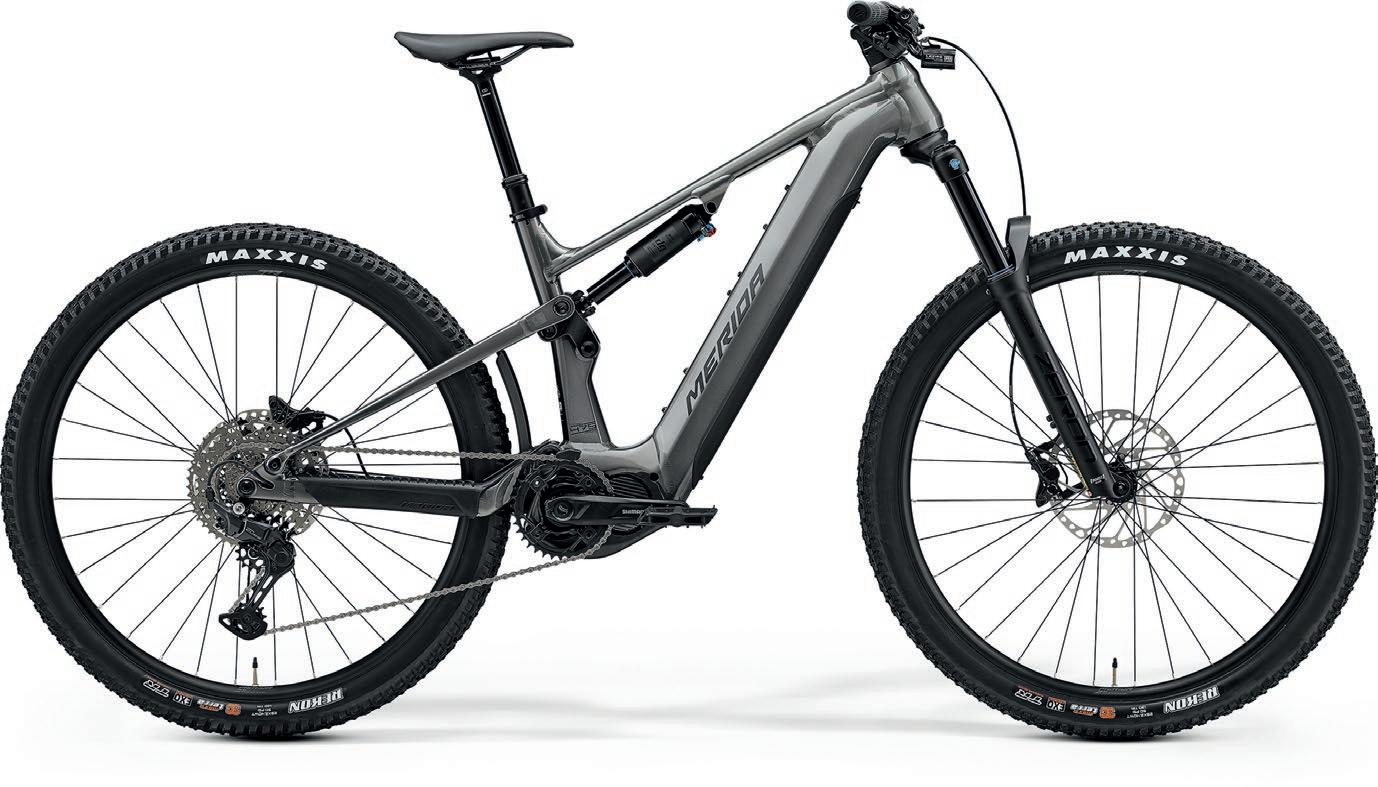

ETMO PRO
ETMO 500 PRO
RAHMENGRÖSSEN Short, Mid, Long, XLong MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800, 800Wh
DISPLAY Bosch Purion 200
FEDERBEIN SR Suntour Edge X
RAHMEN ETMO LITE, material: aluminium, 142mmmm suspension travel, 27.5" x 2,6 max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour Zeron 36X, Air, 140mm suspension travel, Tapered, 44mm fork off set, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano CUES U6000, GS
SCHALTHEBEL VORNE Shimano SL -MT500-L
SCHALTHEBEL HINTEN Shimano CUES U6000-10
BREMSE VORNE Sram DB4 stealth, 4 piston
BREMSE HINTEN Sram DB4 stealth, 4 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 160mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring, 36 teeth
FREILAUF Shimano Cues LG400, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
REIFEN VORNE Maxxis Minion DHF, 29x2.5", EXO wire, tubeless ready
REIFEN HINTEN Maxxis Dissector, 27.5x2.4" wired, tubeless ready
SATELSTÜTZE MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost - S: 150mm travel seatpost - M: 170SPT - L: 200mm travel seatpost - XL: 230mm travel seatpost
SATTEL MERIDA COMP SL, V-mount, incl. MERIDA minitool
ETMO 400 PRO
840714
RAHMENGRÖSSEN Short, Mid, Long, XLong MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800, 800Wh
DISPLAY Bosch Purion 200
FEDERBEIN X-Fusion O2Pro
RAHMEN ETMO LITE, material: aluminium, 142mmmm suspension travel, 27.5" x 2,6 max. wheelsize, 148x12mm axle standard, intube
GABEL X-Fusion Migo 34, Air, 140mm suspension travel, Tapered, 44mm fork off set, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano Cues U4000, GS
SCHALTHEBEL VORNE Shimano SL -MT500-L
SCHALTHEBEL HINTEN Shimano Cues U4000-9
BREMSE VORNE Sram DB4 stealth, 4 piston
BREMSE HINTEN Sram DB4 stealth, 4 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 160mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring, 36 teeth
FREILAUF Shimano Cues LG400-9, 11-46 teeth, 9 speed
KETTE Shimano LG500
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
REIFEN VORNE Maxxis Minion DHF, 29x2.5", EXO wire, tubeless ready
REIFEN HINTEN Maxxis Dissector, 27.5x2.4" wired, tubeless ready
SATELSTÜTZE MERIDA COMP TR IV, 34.9mm diameter, 0mm setback, S/M/L/XL: 150mm travel seatpost
SATTEL MERIDA COMP SL V-mount, incl. MERIDA minitool
ETMO 400 PRO
RAHMENGRÖSSEN Short, Mid, Long, XLong MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800, 800Wh
SATTEL MERIDA COMP SL V-mount, incl. MERIDA minitool 840715
DISPLAY Bosch Purion 200
FEDERBEIN X-Fusion O2Pro
RAHMEN ETMO LITE, material: aluminium, 142mmmm suspension travel, 27.5" x 2,6 max. wheelsize, 148x12mm axle standard, intube
GABEL X-Fusion Migo 34, Air, 140mm suspension travel, Tapered, 44mm fork off set, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano Cues U4000, GS
SCHALTHEBEL VORNE Shimano SL -MT500-L
SCHALTHEBEL HINTEN Shimano Cues U4000-9
BREMSE VORNE Sram DB4 stealth, 4 piston
BREMSE HINTEN Sram DB4 stealth, 4 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 160mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring, 36 teeth
FREILAUF Shimano Cues LG400-9, 11-46 teeth, 9 speed
KETTE Shimano LG500
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
REIFEN VORNE Maxxis Minion DHF, 29x2.5", EXO wire, tubeless ready
REIFEN HINTEN Maxxis Dissector, 27.5x2.4" wired, tubeless ready
SATELSTÜTZE MERIDA COMP TR IV, 34.9mm diameter, 0mm setback, S/M/L/XL: 150mm travel seatpost

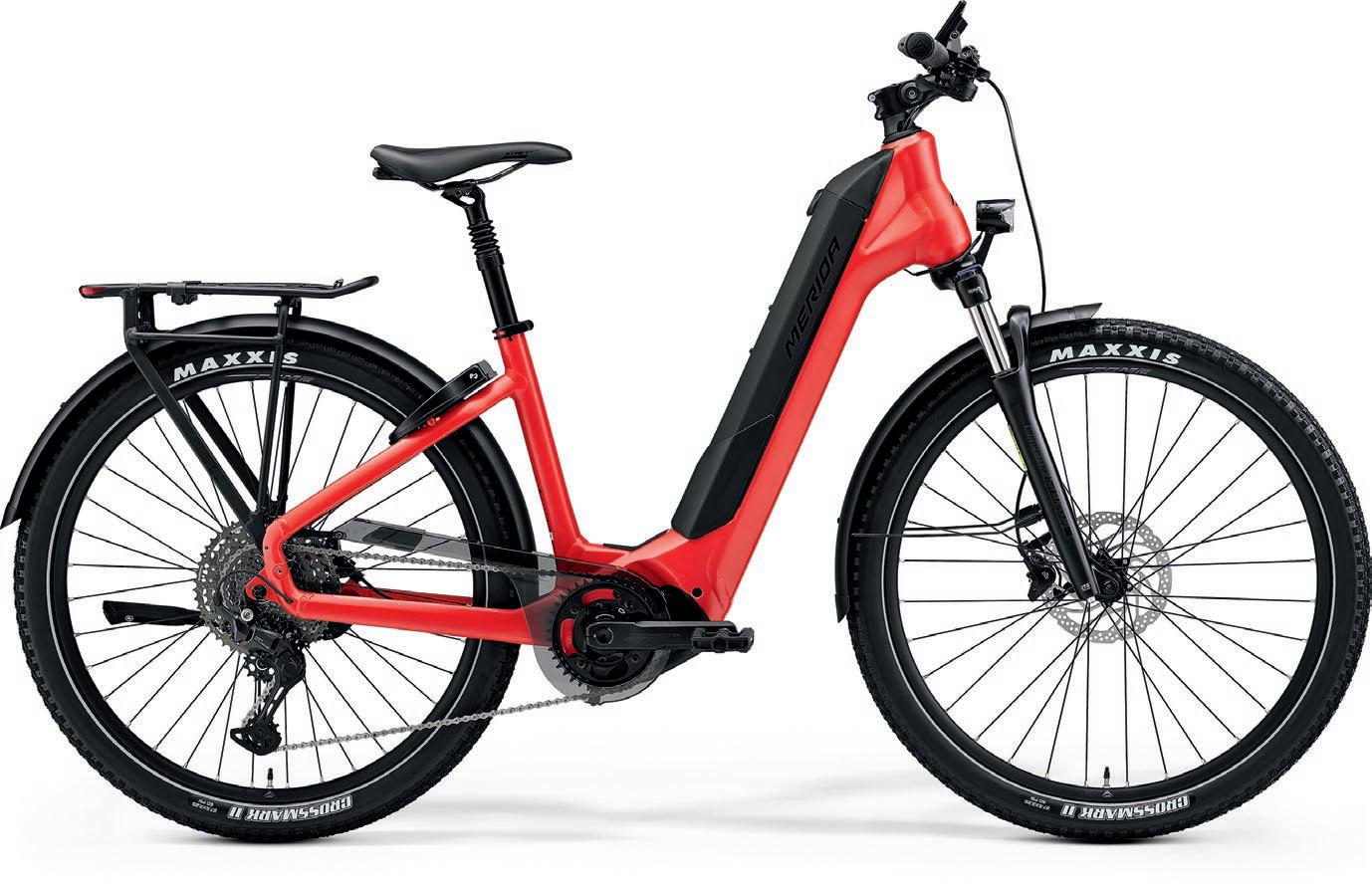

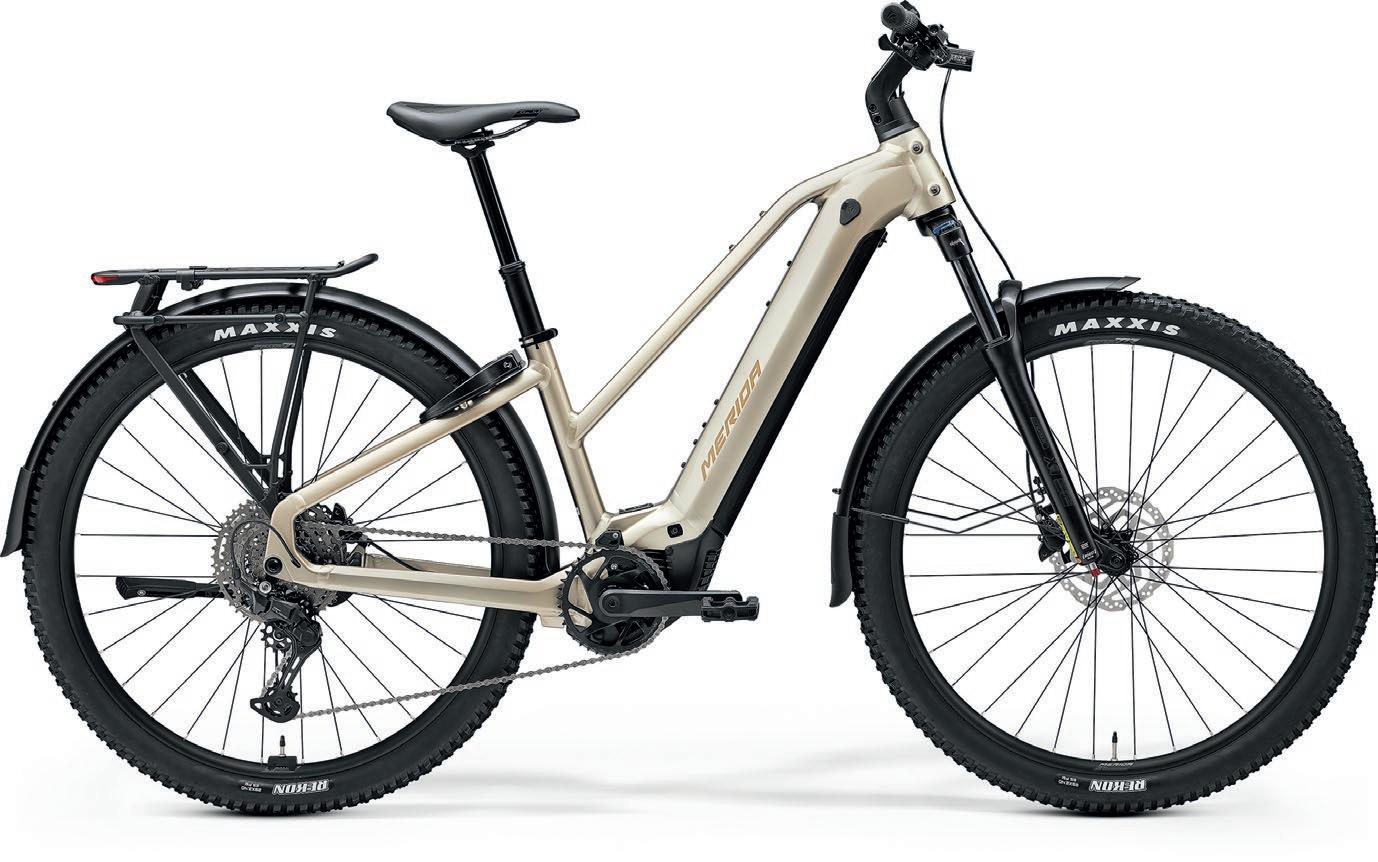

eFLOAT
eFLOAT CC L 600 EQ
RAHMENGRÖSSEN S, M, L
MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800, 800Wh
DISPLAY Bosch Kiox 500
SWITCH Bosch LED Remote
RAHMEN eFLOAT CC L LITE II, material: aluminium, 29"x2.4" with fender max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour Mobie 34-D-Boost, Air, 120mm suspension travel, 29x2.4 max wheelsize
UMWERFER HINTEN Shimano XT LG
SCHALTHEBEL VORNE Shimano SL -MT500-L
SCHALTHEBEL HINTEN Shimano XT
BREMSE VORNE Shimano Cues U8000, 4 piston
BREMSE HINTEN Shimano Cues U8000, 2 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring, 38 teeth
FREILAUF Shimano LG400, 11-50 teeth, 11 speed
KETTE Shimano LG500
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
REIFEN VORNE Maxxis Metropass AT, 29x2.4", wire
REIFEN HINTEN Maxxis Metropass AT, 29x2.4", wire
SATELSTÜTZE MERIDA COMP TR IV, 34.9mm diameter, 0mm setback, S/M/L/XL: 150mm travel seatpost SATTEL MERIDA EXPERT TK II V-mount

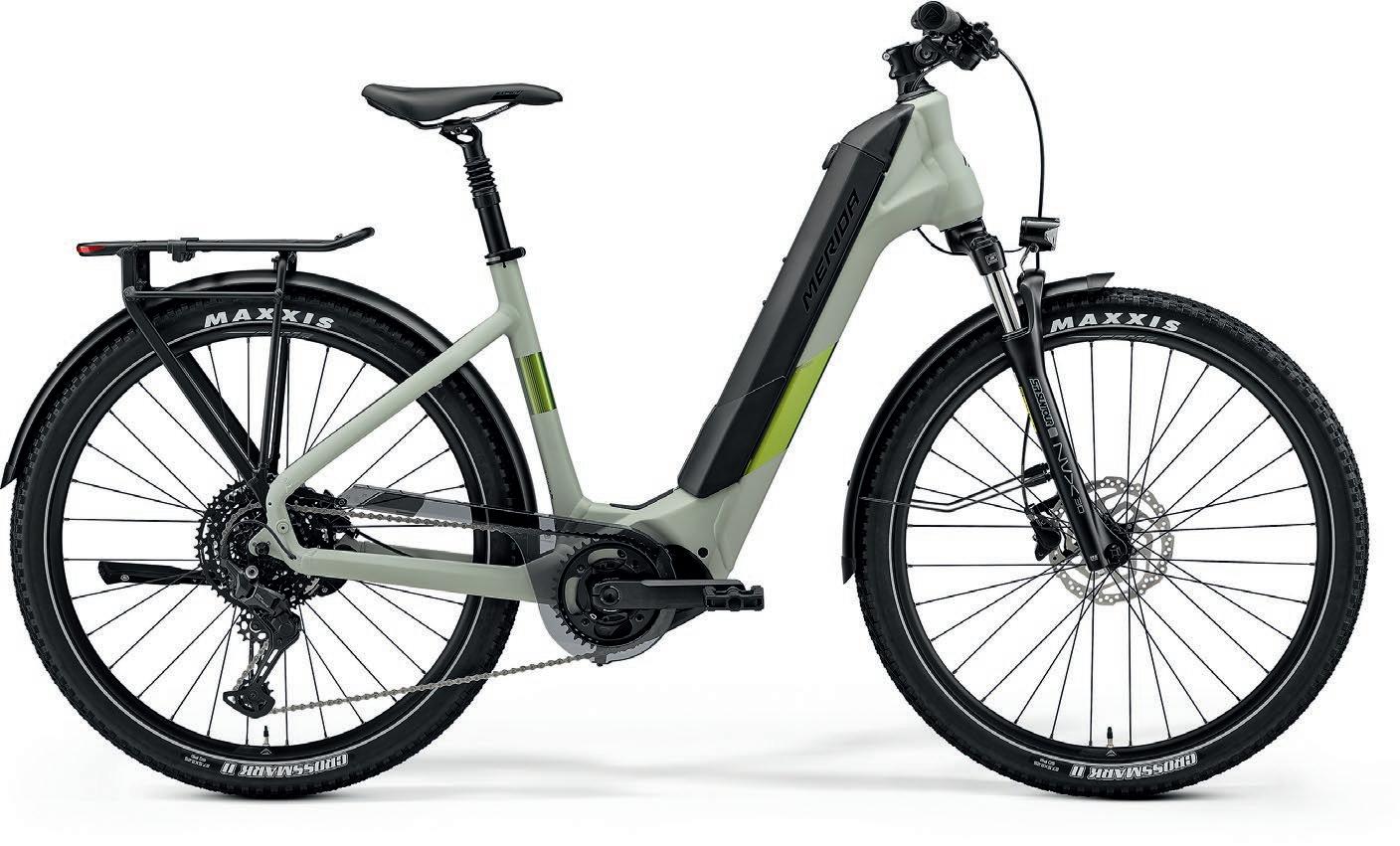

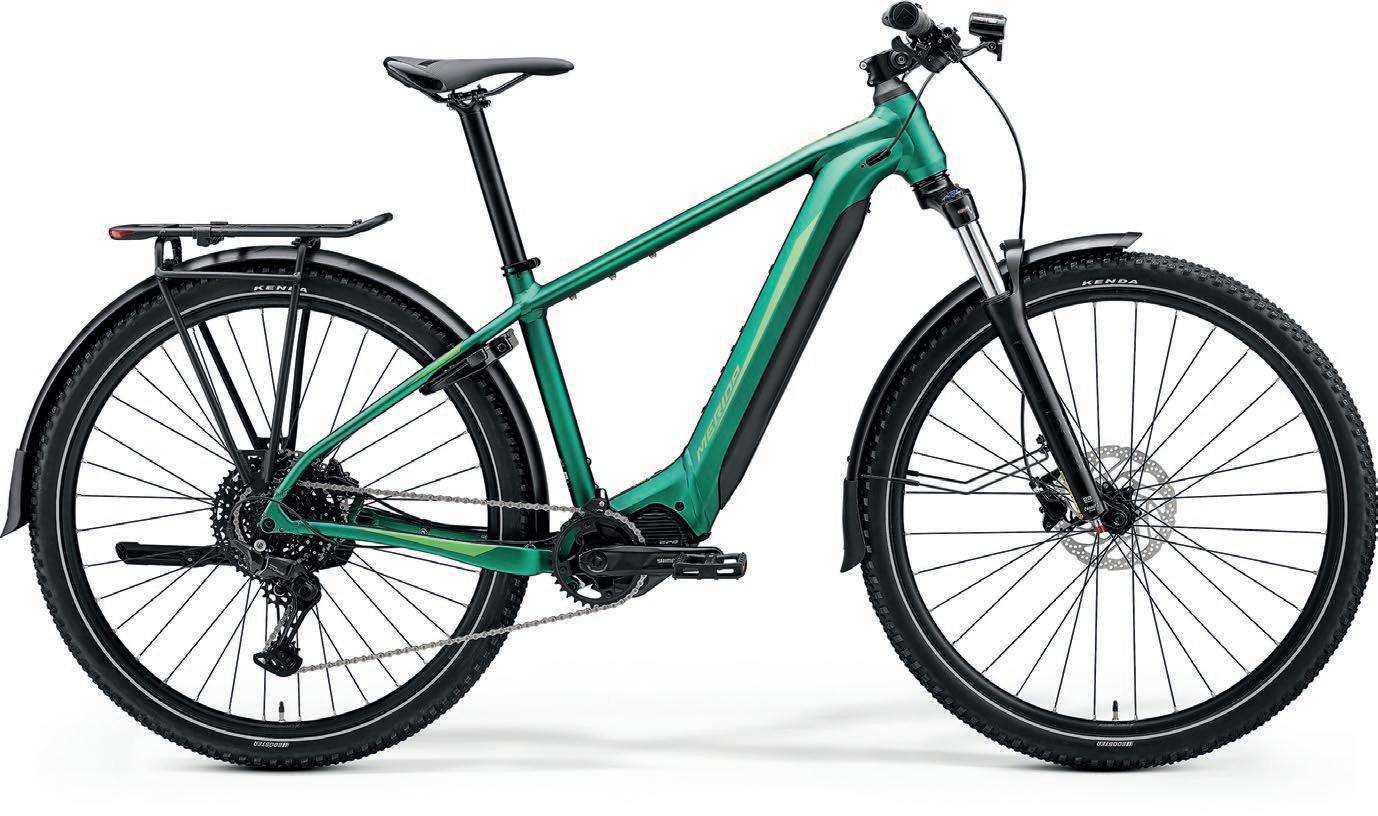

eFLOAT CC 500 EQ
RAHMENGRÖSSEN S, M, L, XL
MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800 Wh, removeable
DISPLAY Bosch Purion 200
RAHMEN eFLOAT CC LITE II, material: aluminium, 29"x2.4" with fender max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour X1-Boost, Air, 120mm suspension travel, 29x2.4" max wheelsize
UMWERFER HINTEN Shimano Cues U6000, GS
SCHALTHEBEL VORNE Shimano SL-MT500-L
SCHALTHEBEL HINTEN Shimano Cues U6000-10
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring, 38 teeth
FREILAUF Shimano Cues LG400, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
REIFEN VORNE Maxxis Rekon, 29x2.4", wire
REIFEN HINTEN Maxxis Rekon, 29x2.4", wire
SATELSTÜTZE
MERIDA COMP TR IV, 34.9mm diameter, 0mm setback, S/M/L/XL: 150mm travel seatpost
SATTEL MERIDA EXPERT TK II, 24% recycled material V-mount
GEWICHT (CA.)
28.7 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
eFLOAT CC L 500 EQ
RAHMENGRÖSSEN S, M, L
S, M, L, XL

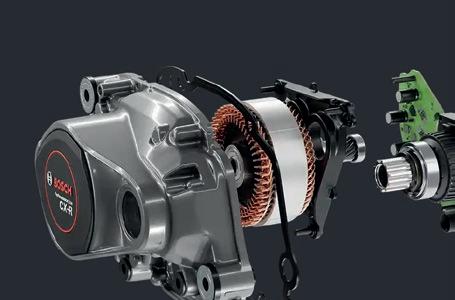

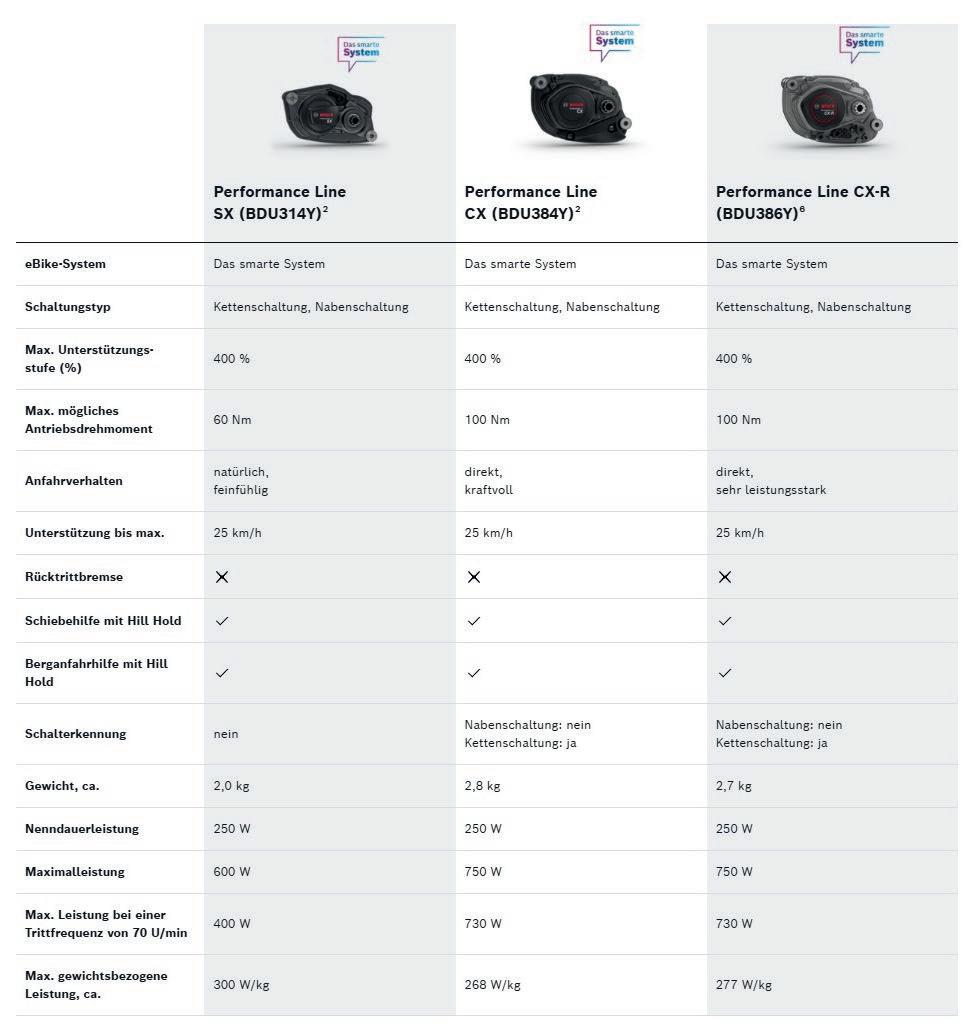

MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800 Wh, removeable
DISPLAY Bosch Purion 200
RAHMEN eFLOAT CC L LITE II, material: aluminium, 29"x2.4" with fender max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour X1-Boost, Air, 120mm suspension travel, 29x2.4" max wheelsize
UMWERFER HINTEN Shimano Cues U6000, GS
SCHALTHEBEL VORNE Shimano SL-MT500-L
SCHALTHEBEL HINTEN Shimano Cues U6000-10
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring, 38 teeth
FREILAUF Shimano Cues LG400, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
REIFEN VORNE Maxxis Rekon, 29x2.4", wire
REIFEN HINTEN Maxxis Rekon, 29x2.4", wire
SATELSTÜTZE
MERIDA COMP TR IV, 34.9mm diameter, 0mm setback, S/M/L/XL: 150mm travel seatpost
SATTEL MERIDA EXPERT TK II, 24% recycled material V-mount
GEWICHT (CA.)
28.7 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
eFLOAT CC L 500 EQ
RAHMENGRÖSSEN S, M
S, M, L, XL
MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800 Wh, removeable
DISPLAY Bosch Purion 200
RAHMEN eFLOAT CC L LITE II, material: aluminium, 29"x2.4" with fender max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour X1-Boost, Air, 120mm suspension travel, 29x2.4" max wheelsize
UMWERFER HINTEN Shimano Cues U6000, GS
SCHALTHEBEL VORNE Shimano SL-MT500-L
SCHALTHEBEL HINTEN Shimano Cues U6000-10
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring, 38 teeth
FREILAUF Shimano Cues LG400, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
REIFEN VORNE Maxxis Rekon, 29x2.4", wire
REIFEN HINTEN Maxxis Rekon, 29x2.4", wire
SATELSTÜTZE
MERIDA COMP TR IV, 34.9mm diameter, 0mm setback, S/M/L/XL: 150mm travel seatpost
SATTEL MERIDA EXPERT TK II, 24% recycled material V-mount
GEWICHT (CA.)
28.7 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
eFLOAT TK 500 EQ
RAHMENGRÖSSEN S, M, L, XL
MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800 Wh, removeable
DISPLAY Bosch Purion 200
RAHMEN eFLOAT TK LITE II, material: aluminium, 29"x2.4" with fender max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour X1-Boost, Air, 120mm suspension travel, 29x2.4" max wheelsize
UMWERFER HINTEN Shimano Cues U6000, GS
SCHALTHEBEL VORNE Shimano SL-MT500-L
SCHALTHEBEL HINTEN Shimano Cues U6000-10
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
KASSETTE FSA Direct Mount Steel MT Chainring and Chainguard, 38 teeth
FREILAUF Shimano Cues LG400, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
REIFEN VORNE Schwalbe Energizer Plus, 622-55, wire, reflecting line
REIFEN HINTEN Schwalbe Energizer Plus, 622-55, wire, reflecting line
SATELSTÜTZE
MERIDA COMP TR IV, 34.9mm diameter, 0mm setback, S/M/L/XL: 150mm travel seatpost
SATTEL MERIDA EXPERT TK II, 24% recycled material V-mount
GEWICHT (CA.)
29.0 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
eFLOAT TK L 500 EQ
RAHMENGRÖSSEN S, M, L
S, M, L, XL
MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 800 Wh, removeable
DISPLAY Bosch Purion 200
RAHMEN eFLOAT TK L LITE II, material: aluminium, 29"x2.4" with fender max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour X1-Boost, Air, 120mm suspension travel, 29x2.4" max wheelsize
UMWERFER HINTEN Shimano Cues U6000, GS
SCHALTHEBEL VORNE Shimano SL-MT500-L
SCHALTHEBEL HINTEN Shimano Cues U6000-10
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
KASSETTE FSA Direct Mount Steel MT Chainring and Chainguard, 38 teeth
FREILAUF Shimano Cues LG400, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
REIFEN VORNE Schwalbe Energizer Plus, 622-55, wire, reflecting line
REIFEN HINTEN Schwalbe Energizer Plus, 622-55, wire, reflecting line
SATELSTÜTZE
MERIDA COMP TR IV, 34.9mm diameter, 0mm setback, S/M/L/XL: 150mm travel seatpost
SATTEL MERIDA EXPERT TK II, 24% recycled material V-mount
GEWICHT (CA.)
28.7 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
eFLOAT CC 400 EQ
RAHMENGRÖSSEN S, M, L, XL MOTOR Bosch Performance Line CX
800 Wh
AKKU Bosch PowerTube 600 Wh, removeable DISPLAY Bosch Purion 200
RAHMEN eFLOAT CC LITE II, material: aluminium, 29"x2.4" with fender max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour XCM34-Boost, Coil, 120mm suspension travel, 29x2.4" max wheelsize
UMWERFER HINTEN Shimano Cues U4000, GS
SCHALTHEBEL HINTEN Shimano Cues U4000-9
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring, 38 teeth
FREILAUF Shimano LG400-9, 11-46 teeth, 9 speed
KETTE Shimano LG500
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
REIFEN VORNE Maxxis Rekon, 29x2.4", wire
REIFEN HINTEN Maxxis Rekon, 29x2.4", wire
SATELSTÜTZE MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
SATTEL MERIDA EXPERT TK II 24% recycled material V-mount
eFLOAT CC L 400 EQ
812448 840785
RAHMENGRÖSSEN S, M, L, XL
MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 600 Wh, removeable DISPLAY Bosch Purion 200
REIFEN HINTEN Maxxis Rekon, 29x2.4", wire
SATELSTÜTZE MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
SATTEL MERIDA EXPERT TK II 24% recycled material V-mount 800 Wh
RAHMEN eFLOAT CC L LITE II, material: aluminium, 29"x2.4" with fender max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour XCM34-Boost, Coil, 120mm suspension travel, 29x2.4" max wheelsize
UMWERFER HINTEN Shimano Cues U4000, GS
SCHALTHEBEL HINTEN Shimano Cues U4000-9
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring, 38 teeth
FREILAUF Shimano LG400-9, 11-46 teeth, 9 speed
KETTE Shimano LG500
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
REIFEN VORNE Maxxis Rekon, 29x2.4", wire
eFLOAT TK L 400 EQ
eFLO AT TK L 400 EQ AT
- AT
PEARL WHITE (GUNMETAL GREY)
PEARL WHITE (GUNMETAL GREY)
RAHMENGRÖSSEN S, M, L, XL
RAHMENGRÖSSEN S, M, L, XL
MOTOR Bosch Performance Line CX
MOTOR Bosch Performance Line CX
AKKU Bosch PowerTube 600, 600Wh
AKKU Bosch PowerTube 800 Wh
800 Wh
DISPLAY Bosch Purion 200
DISPLAY Bosch Pruion 200
RAHMEN eFLOAT TK L LITE II
RAHMEN eFLOAT TK L LITE II, material: aluminium, 29"x2.4" with fender max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour XCM34-Boost
UMWERFER HINTEN Shimano Cues U4000
GABEL SR Suntour XCM34-Boost, Coil, 120mm suspension travel, 29x2.4" max wheelsize
SCHALTHEBEL HINTEN Shimano Cues U4000-9
UMWERFER HINTEN Shimano Cues U4000, GS
BREMSE VORNE Shimano MT200
SCHALTHEBEL HINTEN Shimano Cues U4000-9
BREMSE HINTEN Shimano MT200
BREMSE VORNE Shimano MT-200, 2 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset
BREMSE HINTEN Shimano MT-200, 2 piston
KURBEL FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
KASSETTE FSA Direct Mount Steel MT Chainring and Chainguard
FREILAUF Shimano LG400-9
KASSETTE FSA Direct Mount Steel MT Chainring and Chainguard, 38 teeth
KETTE Shimano LG500
FREILAUF Shimano LG400-9, 11-46 teeth, 9 speed
FELGE MERIDA COMP TR II
KETTE Shimano LG500
REIFEN VORNE Schwalbe Energizer Plus
REIFEN HINTEN Schwalbe Energizer Plus
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
SATELSTÜTZE MERIDA EXPERT CC
REIFEN VORNE Schwalbe Energizer Plus Performance, 622-55, wire, reflecting line
REIFEN HINTEN Schwalbe Energizer Plus Performance 622-55, wire, reflecting line
SATELSTÜTZE MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
SATTEL MERIDA EXPERT TK II
SATTEL
MERIDA EXPERT TK II, V-mount
eFLOAT CITY 600 EQ
RAHMENGRÖSSEN XS, S, M, L, XL
XS, S, M
MOTOR Bosch Performance Line
AKKU Bosch PowerTube 750 Wh, removeable
DISPLAY Bosch Kiox 300
SWITCH Bosch LED Remote
RAHMEN eFLOAT CITY LITE, material: aluminium, 700x50C (with fender) max. wheelsize, 135x9mm axle standard, internal
GABEL SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
29.9 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues. 840567
UMWERFER HINTEN Shimano Cues U6000, GS
SCHALTHEBEL VORNE Shimano SL-MT500-L
SCHALTHEBEL HINTEN Shimano Cues U6000-11
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL FSA CK-220 Gen3 E-Bike Forgerd Crankset, 165mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring w/ MegaTooth, 38 teeth
FREILAUF Shimano LG400-11, 11-50 teeth, 11 speed
KETTE Shimano LG500
FELGE
REIFEN VORNE
REIFEN HINTEN
SATELSTÜTZE
MERIDA COMP TK, 20mm inner width, material: aluminium
Maxxis Metropass, 622-50, wire, reflecting line
Maxxis Metropass, 622-50, wire, reflecting line
MERIDA COMP TR IV, 34.9mm diameter, 0mm setback, S/M/L/XL: 150mm travel seatpost
SATTEL MERIDA EXPERT CT, V-mount
GEWICHT (CA.)
eFLOAT CITY 400 EQ
RAHMENGRÖSSEN XS, S, M
MOTOR Bosch Performance Line
AKKU Bosch PowerTube 625 Wh, removeable
SWITCH Bosch LED Remote
RAHMEN eFLOAT CITY LITE, material: aluminium, 700x50C (with fender) max. wheelsize, 135x9mm axle standard, internal
GABEL SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
UMWERFER HINTEN Shimano Cues U4000, GS
SCHALTHEBEL HINTEN Shimano Cues U4000-9
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL FSA CK-220 Gen3 E-Bike Forgerd Crankset, 165mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring w/ MegaTooth, 38 teeth
FREILAUF Shimano LG400-9, 11-46 teeth, 9 speed
KETTE Shimano LG500
FELGE MERIDA COMP TK, 20mm inner width, material: aluminium
REIFEN VORNE Maxxis Metropass, 622-50, wire, reflecting line
REIFEN HINTEN Maxxis Metropass, 622-50, wire, reflecting line
SATELSTÜTZE MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
SATTEL MERIDA EXPERT CT V-mount
GEWICHT (CA.)
29.3 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
eFLOAT CITY 400 EQ
840570
RAHMENGRÖSSEN XS, S, M
XS, S
MOTOR Bosch Performance Line
AKKU Bosch PowerTube 625 Wh, removeable
SWITCH Bosch LED Remote
RAHMEN eFLOAT CITY LITE, material: aluminium, 700x50C (with fender) max. wheelsize, 135x9mm axle standard, internal
GABEL SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
UMWERFER HINTEN Shimano Cues U4000, GS
SCHALTHEBEL HINTEN Shimano Cues U4000-9
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL FSA CK-220 Gen3 E-Bike Forgerd Crankset, 165mm for all sizes
KASSETTE FSA Direct Mount Steel Chainring w/ MegaTooth, 38 teeth
FREILAUF Shimano LG400-9, 11-46 teeth, 9 speed
KETTE Shimano LG500
FELGE MERIDA COMP TK, 20mm inner width, material: aluminium
REIFEN VORNE Maxxis Metropass, 622-50, wire, reflecting line
REIFEN HINTEN Maxxis Metropass, 622-50, wire, reflecting line
SATELSTÜTZE MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
SATTEL MERIDA EXPERT CT V-mount
GEWICHT (CA.)
29.3 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
e FLOAT LITE II (TK / HD / CC)
e FLOAT L LITE II (TK / HD / CC)
eONE-SIXTY
eONE-SIXTY 6000
RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong MOTOR Shimano EP801, 85Nm
AKKU Trendpower Internal Battery 600 Wh TPS-C15-58SD, Shimano Gen 2, integrated
DISPLAY Shimano SC-EM800
SWITCH Shimano SW-EM800-L
FEDERBEIN Rock Shox Super Deluxe Select, platform
RAHMEN eONE-SIXTY CF4 III, material: carbon, 160mm suspension travel, 2 9 x 2,6 max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh
GABEL Rock Shox Domain Gold RC E-MTB, Air, 170mm suspension travel, Tapered, 44mm fork offset, 29x3.0" max wheelsize
UMWERFER HINTEN Sram NX Eagle
SCHALTHEBEL VORNE Limotech RM10 (For SRAM MMX)
SCHALTHEBEL HINTEN Sram NX Eagle Single Click
BREMSE VORNE Sram DB8 Stealth, 4 piston
BREMSE HINTEN Sram DB8 stealth, 4 piston
KURBEL Shimano FC-EM600, 165 mm all sizes
KASSETTE Sram Eagle Transmission E-MTB chainring, 36 teeth
FREILAUF Sram CS PG1230 EAGLE 11-50T
KETTE Sram NX Eagle
FELGE MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
SATELSTÜTZE
SATTEL
GEWICHT (CA.)
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost
MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool
23.6 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
S, XL S, M, L, XL
RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong MOTOR Shimano EP801, 85Nm
AKKU Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable
DISPLAY Shimano SC-EM800
SWITCH Shimano SW-EM800-L
FEDERBEIN Rock Shox Super Deluxe Select, platform
RAHMEN eONE-SIXTY LITE IV, material: aluminium, 160mm suspension travel, 29x2.6" max. wheelsize, 148x12mm axle standard, intube, 750 Wh
GABEL Rock Shox ZEB Select, Air, 170mm suspension travel, Tapered, 44mm fork offset, 29x2.8" max wheelsize
UMWERFER HINTEN Shimano XT RDM8130 LinkGlide 11
SCHALTHEBEL VORNE Shimano SL: MT500-IL
SCHALTHEBEL HINTEN Shimano XT M8130 11
BREMSE VORNE Shimano XT, 4 piston
BREMSE HINTEN Shimano XT, 4 piston
KURBEL Shimano FC-E8150, 165 mm all sizes
KASSETTE FSA 1x Steel Chainring, 36 teeth
FREILAUF Shimano LG700, 11-50 teeth, 11 speed
KETTE LG500
FELGE MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
SATELSTÜTZE MERIDA TEAM TR II, 34.9mm diameter, 0mm setback, SHORT, MID, LONG and XLONG 30-230mm travel seatpost, XSHORT 30-200mm travel seatpost
SATTEL Proxim Nembo Steel, V-mount adapter, incl. MERIDA minitool
GEWICHT (CA.)
26.1 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
XS, S, M, L, XL
S, M, L, XL
RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong MOTOR Shimano EP801, 85Nm
AKKU Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable
DISPLAY Shimano SC-EM800
SWITCH Shimano SW-EM800-L
FEDERBEIN Marzocchi Bomber Air, platform
RAHMEN eONE-SIXTY LITE IV, material: aluminium, 160mm suspension travel, 29x2.6" max. wheelsize, 148x12mm axle standard, intube, 750 Wh
GABEL Marzocchi Z1 eMTB, Air, 170mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano Deore RDM5130 LinkGlide 10
SCHALTHEBEL VORNE Shimano SL: MT500-L
SCHALTHEBEL HINTEN Shimano XT M5130 10
BREMSE VORNE Shimano Deore M6120, 4 piston
BREMSE HINTEN Shimano Deore M6120, 4 piston
KURBEL Shimano FC-EM600, 165 mm for all sizes
KASSETTE FSA 1x Steel Chainring, 36 teeth
FREILAUF Shimano LG400, 11-43 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
SATELSTÜTZE
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost
SATTEL MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool
GEWICHT (CA.)
26.6 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
XS,
RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong MOTOR Shimano EP801, 85Nm
AKKU Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable
DISPLAY Shimano SC-EM800
SWITCH Shimano SW-EM800-L
FEDERBEIN Rock Shock Deluxe
RAHMEN eONE-SIXTY LITE IV, material: aluminium, 160mm suspension travel, 29x2.6" max. wheelsize, 148x12mm axle standard, intube, 750 Wh
GABEL Rock Shock Psylo Silver R, 160mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano Cues U6000, GS
SCHALTHEBEL VORNE Shimano SL: MT500-L
SCHALTHEBEL HINTEN Shimano Cues U6000-10
BREMSE VORNE Tektro Gemini M535, 4 piston
BREMSE HINTEN Tektro Gemini M535, 4 piston
KURBEL Shimano FC-EM600, 165 mm for all sizes
KASSETTE FSA 1x Steel Chainring, 36 teeth
FREILAUF Shimano Cues LG400, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE
MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
REIFEN VORNE Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
REIFEN HINTEN Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
SATELSTÜTZE
SATTEL
GEWICHT (CA.)
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost
MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool
27.8 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
XS, S, M, L, XL
e ONE-SIXTY LITE IV – AM0
eONE-FORTY
RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong MOTOR Shimano EP801, 85Nm
AKKU Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable
DISPLAY Shimano SC-EN600
SWITCH Shimano SW-EN600-L
FEDERBEIN Rock Shox Deluxe Select
RAHMEN eONE-FORTY LITE IV, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, 750 Wh
GABEL SR Suntour Aion 36X, Air, 150mm suspension travel, Tapered, 44mm fork off set, 29x2.6" max wheelsize
UMWERFER HINTEN Sram NX Eagle
SCHALTHEBEL VORNE Limotech RM10 (For SRAM MMX)
SCHALTHEBEL HINTEN Sram NX Eagle Single Click
BREMSE VORNE Sram DB8 stealth, 4 piston
BREMSE HINTEN Sram DB8 stealth, 4 piston
KURBEL Shimano FC-EM600, 165 mm for all sizes
KASSETTE Sram Eagle Transmission E-MTB chainring, 36 teeth
FREILAUF Sram CS PG1230 EAGLE 11-50T
KETTE Sram NX Eagle
FELGE MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
REIFEN VORNE Maxxis Rekon, 29x2.4", fold, TR 3C EXO MaxxTerra
REIFEN HINTEN Maxxis Rekon, 29x2.4", fold, TR 3C EXO MaxxTerra
SATELSTÜTZE
SATTEL
GEWICHT (CA.)
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost
MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool
26.1 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
XS, S, M, L
RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong MOTOR Shimano EP801, 85Nm
AKKU Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable
DISPLAY Shimano SC-EN600
SWITCH Shimano SW-EN600-L
FEDERBEIN SR Suntour Edge Plus, platform
RAHMEN eONE-FORTY LITE IV, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube
GABEL SR Sunotur Zeron 36X, Air, 150mm suspension travel, Tapered, 44mm fork off set, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano Cues U6000, GS
SCHALTHEBEL VORNE Shimano SL: MT500-IL
SCHALTHEBEL HINTEN Shimano CUES U6000 10
BREMSE VORNE Shimano MT420, 4 piston
BREMSE HINTEN Shimano MT420, 4 piston
KURBEL Shimano FC-EM600, 165 mm for all sizes
KASSETTE FSA 1x Steel Chainring, 36 teeth
FREILAUF Shimano LG400, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
REIFEN VORNE
REIFEN HINTEN
SATELSTÜTZE
SATTEL
GEWICHT (CA.)
Maxxis Rekon, 29x2.4", fold, TR 3C EXO MaxxTerra
Maxxis Rekon, 29x2.4", fold, TR 3C EXO MaxxTerra
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost
MERIDA COMP SL, 28% recycled material, V-mount
29.4 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
XS, S, M, L, XL
RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong MOTOR Shimano EP801, 85Nm
AKKU Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable
DISPLAY Shimano SC-EN600
SWITCH Shimano SW-EN600-L
FEDERBEIN SR Suntour Edge Plus, platform
RAHMEN eONE-FORTY LITE IV, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube
GABEL SR Sunotur Zeron 36X, Air, 150mm suspension travel, Tapered, 44mm fork off set, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano Cues U6000, GS
SCHALTHEBEL VORNE Shimano SL: MT500-IL
SCHALTHEBEL HINTEN Shimano CUES U6000 10
BREMSE VORNE Shimano MT420, 4 piston
BREMSE HINTEN Shimano MT420, 4 piston
KURBEL Shimano FC-EM600, 165 mm for all sizes
KASSETTE FSA 1x Steel Chainring, 36 teeth
FREILAUF Shimano LG400, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
REIFEN VORNE Maxxis Rekon, 29x2.4", fold, TR 3C EXO MaxxTerra
REIFEN HINTEN Maxxis Rekon, 29x2.4", fold, TR 3C EXO MaxxTerra
SATELSTÜTZE
SATTEL
GEWICHT (CA.)
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost
MERIDA COMP SL, 28% recycled material, V-mount
26.5 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
XS, S, M, L, XL
RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong MOTOR Shimano EP801, 85Nm
AKKU Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable
DISPLAY Shimano SC-EN600
SWITCH Shimano SW-EN600-L
FEDERBEIN SR Suntour Edge Plus, platform
RAHMEN eONE-FORTY LITE IV, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube
GABEL SR Sunotur Zeron 36X, Air, 150mm suspension travel, Tapered, 44mm fork off set, 29x2.6" max wheelsize
UMWERFER HINTEN Shimano Cues U6000, GS
SCHALTHEBEL VORNE Shimano SL: MT500-IL
SCHALTHEBEL HINTEN Shimano CUES U6000 10
BREMSE VORNE Shimano MT420, 4 piston
BREMSE HINTEN Shimano MT420, 4 piston
KURBEL Shimano FC-EM600, 165 mm for all sizes
KASSETTE FSA 1x Steel Chainring, 36 teeth
FREILAUF Shimano LG400, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
REIFEN VORNE Maxxis Rekon, 29x2.4", fold, TR 3C EXO MaxxTerra
REIFEN HINTEN Maxxis Rekon, 29x2.4", fold, TR 3C EXO MaxxTerra
SATELSTÜTZE
SATTEL
GEWICHT (CA.)
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost
MERIDA COMP SL, 28% recycled material, V-mount
26.5 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
XS, S, M, L
e ONE-FORTY LITE IV – AM0
e ONE-FORTY LITE IV – AM5
eBIG.NINE / TOUR
RAHMENGRÖSSEN S, M, L, XL
S, M, L, XL
MOTOR Shimano EP6, 85Nm
W h
AKKU Shimano EN806 630 Wh, removeable, No Range Extender compatibility
DISPLAY Shimano SC-EN500
RAHMEN eBIG.NINE LITE III, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize
UMWERFER HINTEN Shimano Cues U4000, GS
SCHALTHEBEL HINTEN Shimano CUES U6000
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL Shimano FC-EM600, 165 mm for all sizes
KASSETTE Shimano CRE70-B, 34 teeth
FREILAUF Shimano LG300, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP CC II, 25mm inner width, material: aluminium
REIFEN VORNE Kenda Booster, 29x2.2", wire
REIFEN HINTEN Kenda Booster, 29x2.2", wire
SATELSTÜTZE
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
SATTEL MERIDA EXPERT TK V-mount
RAHMENGRÖSSEN S, M, L, XL
M, L, XL
MOTOR Shimano EP6, 85Nm
W h
AKKU Shimano EN806 630 Wh, removeable, No Range Extender compatibility
DISPLAY Shimano SC-EN500
RAHMEN eBIG.NINE LITE III, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize
UMWERFER HINTEN Shimano Cues U4000, GS
SCHALTHEBEL HINTEN Shimano CUES U6000
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL Shimano FC-EM600, 165 mm for all sizes
KASSETTE Shimano CRE70-B, 34 teeth
FREILAUF Shimano LG300, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP CC II, 25mm inner width, material: aluminium
REIFEN VORNE Maxxis Ikon, 29x2.2", kevlar bead
REIFEN HINTEN Maxxis Ikon, 29x2.2", kevlar bead
SATELSTÜTZE
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
SATTEL MERIDA COMP SL 28% recycled material, V-mount
GEWICHT (CA.)
24.2 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
RAHMENGRÖSSEN S, M, L, XL
M, L, XL
MOTOR Shimano EP6, 85Nm
W h
AKKU Shimano EN806 630 Wh, removeable, No Range Extender compatibility
DISPLAY Shimano SC-EN500
RAHMEN eBIG.NINE LITE III, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize
UMWERFER HINTEN Shimano Cues U4000, GS
SCHALTHEBEL HINTEN Shimano CUES U6000
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL Shimano FC-EM600, 165 mm for all sizes
KASSETTE Shimano CRE70-B, 34 teeth
FREILAUF Shimano LG300, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP CC II, 25mm inner width, material: aluminium
REIFEN VORNE Maxxis Ikon, 29x2.2", kevlar bead
REIFEN HINTEN Maxxis Ikon, 29x2.2", kevlar bead
SATELSTÜTZE
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
SATTEL MERIDA COMP SL 28% recycled material, V-mount
GEWICHT (CA.)
24.2 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
RAHMENGRÖSSEN S, M, L, XL
S, M, L, XL
MOTOR Shimano EP6, 85Nm
W h
AKKU Shimano EN806 630 Wh, removeable, No Range Extender compatibility
DISPLAY Shimano SC-EN500
RAHMEN eBIG.TOUR LITE IV, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize
UMWERFER HINTEN Shimano Cues U4000, GS
SCHALTHEBEL HINTEN Shimano CUES U6000
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL Shimano FC-EM600, 165mm
KASSETTE Shimano CRE70-B, 34 teeth
FREILAUF Shimano LG300, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP CC II, 25mm inner width, material: aluminium
REIFEN VORNE Kenda Booster, 29x2.2", wire
REIFEN HINTEN Kenda Booster, 29x2.2", wire
SATELSTÜTZE MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
SATTEL MERIDA EXPERT TK V-mount
RAHMENGRÖSSEN S, M, L, XL
S, M, L, XL
MOTOR Shimano EP6, 85Nm
750 W h
AKKU Shimano EN806 630 Wh, removeable, No Range Extender compatibility
DISPLAY Shimano SC-EN500
RAHMEN eBIG.TOUR LITE IV, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube
GABEL SR Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize
UMWERFER HINTEN Shimano Cues U4000, GS
SCHALTHEBEL HINTEN Shimano CUES U6000
BREMSE VORNE Shimano MT200, 2 piston
BREMSE HINTEN Shimano MT200, 2 piston
KURBEL Shimano FC-EM600, 165mm
KASSETTE Shimano CRE70-B, 34 teeth
FREILAUF Shimano LG300, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP CC II, 25mm inner width, material: aluminium
REIFEN VORNE Kenda Booster, 29x2.2", wire
REIFEN HINTEN Kenda Booster, 29x2.2", wire
SATELSTÜTZE MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
SATTEL MERIDA EXPERT TK V-mount
e BIG.NINE LITE III
e BIG.TOUR LITE IV
eSPRESSO
RAHMENGRÖSSEN XS, S, M, L, XL
XS, S, M, L
MOTOR Shimano EP6, 85Nm
AKKU Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable
DISPLAY Shimano SC-EN610
SATTEL MERIDA EXPERT TK II, 24% recycled material V-mount 840316
SWITCH Shimano SW-EN600-L
RAHMEN eSPRESSO CC LITE III, material: aluminium, 27,5x2,25" max. wheelsize, 135x9mm axle standard, internal
GABEL SR Suntour MOBIE A32, Coil, 75mm suspension travel, lockout, 27,5x2,4" max wheelsize
UMWERFER HINTEN Shimano CUES U6000, GS
SCHALTHEBEL HINTEN Shimano CUES U6000
BREMSE VORNE Shimano MT410, 2 piston
BREMSE HINTEN Shimano MT410, 2 piston
KURBEL MERIDA EXPERT TK, 165mm
KASSETTE Samox NWP203, 38 teeth
FREILAUF Shimano LG400, 11-50 teeth, 11 speed
KETTE Shimano LG500
FELGE MERIDA COMP TK, 20mm inner width, material: aluminium
REIFEN VORNE Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
REIFEN HINTEN Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
SATELSTÜTZE JD SP79, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
RAHMENGRÖSSEN XS, S, M
MOTOR Shimano EP6, 85Nm
AKKU Shimano EN817, 712Wh
DISPLAY Shimano SC-EN500
RAHMEN eSPRESSO CC LITE III, material: aluminium, 27,5x2,25" max. wheelsize, 135x9mm axle standard, internal
GABEL SR Suntour NVX30 DS, Coil, 80mm suspension travel, 27,5x2,4" max wheelsize
UMWERFER HINTEN Shimano CUES U6000, GS
SCHALTHEBEL HINTEN Shimano CUES U6000-10
BREMSE VORNE Shimano MT-200, 2 piston
BREMSE HINTEN Shimano MT-200, 2 piston
KURBEL MERIDA EXPERT TK, 165mm
KASSETTE Samox NWP203, 38 teeth
FREILAUF Shimano LG300, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP TK, 20mm inner width, material: aluminium
REIFEN VORNE Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
REIFEN HINTEN Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
SATELSTÜTZE JD-SP79, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
SATTEL MERIDA EXPERT TK II V-mount
XS, S, M
RAHMENGRÖSSEN XS, S, M
XS, S, M
MOTOR Shimano EP6, 85Nm
AKKU Shimano EN817, 712Wh
DISPLAY Shimano SC-EN500
RAHMEN eSPRESSO CC LITE III, material: aluminium, 27,5x2,25" max. wheelsize, 135x9mm axle standard, internal
GABEL SR Suntour NVX30 DS, Coil, 80mm suspension travel, 27,5x2,4" max wheelsize
UMWERFER HINTEN Shimano CUES U6000, GS
SCHALTHEBEL HINTEN Shimano CUES U6000-10
BREMSE VORNE Shimano MT-200, 2 piston
BREMSE HINTEN Shimano MT-200, 2 piston
KURBEL MERIDA EXPERT TK, 165mm
KASSETTE Samox NWP203, 38 teeth
FREILAUF Shimano LG300, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP TK, 20mm inner width, material: aluminium
REIFEN VORNE Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
REIFEN HINTEN Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
SATELSTÜTZE JD-SP79, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
SATTEL MERIDA EXPERT TK II V-mount
840780
RAHMENGRÖSSEN XS, S, M
XS, S, M
MOTOR Shimano EP6, 85Nm
AKKU Shimano EN806, 630Wh
DISPLAY Shimano SC-EN500
RAHMEN eSPRESSO CC LITE III, material: aluminium, 27,5x2,25" max. wheelsize, 135x9mm axle standard, internal
GABEL SR Suntour NVX30 DS, Coil, 80mm suspension travel, 27,5x2,4" max wheelsize
UMWERFER HINTEN Shimano CUES U6000, GS
SCHALTHEBEL HINTEN Shimano CUES U6000-10
BREMSE VORNE Shimano MT-200, 2 piston
BREMSE HINTEN Shimano MT-200, 2 piston
KURBEL MERIDA EXPERT TK, 165mm
KASSETTE Samox NWP203, 38 teeth
FREILAUF Shimano LG300, 11-48 teeth, 10 speed
KETTE Shimano LG500
FELGE MERIDA COMP TK, 20mm inner width, material: aluminium
REIFEN VORNE Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
REIFEN HINTEN Maxxis Crossmark II, 27.5x2.25", wire, reflecting line SATELSTÜTZE JD-SP79, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel SATTEL MERIDA EXPERT TK II V-mount
eSPRESSO CITY / CC LITE III
eROAD
RAHMENGRÖSSEN XS, S, M, L, XL
MOTOR Mahle X30 Drive Unit
AKKU Mahle ix250Wh Battery Pack, 250Wh SWITCH Mahle iWoc ONE
RAHMEN eSILEX LITE II, material: aluminium, 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize, 100x9/135x9mm axle standard, BSA bottom bracket standard
GABEL MERIDA SILEX CF2, carbon, max. 700x42C / 700x35C (with fender) / max. 50x650B wheelsize
UMWERFER HINTEN Sram Apex Eagle
BREMSE VORNE Sram Apex
BREMSE HINTEN Sram Apex
KURBEL Sram Apex 1 Wide Crankset, 40 teeth, 170 mm-XS/S/SM/ML, 175 mm-L/XL
FREILAUF Sram PG-1210 Eagle, 11-50 teeth, 12 speed
KETTE Sram SX Eagle
FELGE MERIDA EXPERT CX, 19mm inner width, 24mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
REIFEN VORNE Maxxis Rambler, 650Bx47, ShieldWall / TLR
REIFEN HINTEN Maxxis Rambler, 650Bx47, ShieldWall / TLR
SATELSTÜTZE MERIDA EXPERT CC material: carbon, 30.9mm diameter, 0mm setback
SATTEL MERIDA COMP SL, V-mount, incl. MERIDA minitool
RAHMENGRÖSSEN XS, S, M, L
MOTOR Mahle X30 Drive Unit
AKKU Mahle ix250Wh Battery Pack, 250Wh
SWITCH Mahle iWoc ONE
RAHMEN eSILEX LITE II, material: aluminium, 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize, 100x9/135x9mm axle standard, BSA bottom bracket standard
GABEL MERIDA SILEX CF2, carbon, max. 700x42C / 700x35C (with fender) / max. 50x650B wheelsize
UMWERFER VORNE Shimano GRX400
UMWERFER HINTEN Shimano GRX400
BREMSE VORNE Shimano GRX400, 2 piston
BREMSE HINTEN Shimano GRX400, 2 piston
KURBEL Shimano GRX600, 46-30 teeth, 170 mm-XS/S/SM/ML, 175 mm-L/XL
FREILAUF Shimano CS-HG50, 11-36 teeth, 10 speed
KETTE KMC e10
FELGE MERIDA COMP SL, 17mm inner width, 22mm height, material: aluminium
REIFEN VORNE Maxxis Rambler, 700Cx40, fold, EXO
REIFEN HINTEN Maxxis Rambler 700Cx40, fold, EXO
SATELSTÜTZE MERIDA EXPERT, material: aluminium, 30.9mm diameter, 0mm setback
SATTEL MERIDA COMP SL V-mount
eSCULTURA 400
RAHMENGRÖSSEN XS, S, M, L, XL
MOTOR Mahle X30
AKKU Mahle 250 Wh, integrated
SWITCH Mahle iWoc ONE
SATELSTÜTZE
SATTEL MERIDA EXPERT SL V-mount
GEWICHT (CA.)
12.2 kg weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues. 840637
RAHMEN eSPEEDER LITE II, material: aluminium, 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize, 100x9/135x9mm axle standard, BSA bottom bracket standard
GABEL MERIDA Mission CX, carbon, max. 700x40C (with fender) wheelsize
UMWERFER VORNE Shimano 105 R7100
UMWERFER HINTEN Shimano 105 R7100, GS
BREMSE VORNE Shimano 105 R7100, 2 piston
BREMSE HINTEN Shimano 105 R7100, 2 piston
KURBEL Shimano 105 R7100, 52-36 teeth, 170 mm-XS/S/SM/ML, 175 mm (L/XL)
FREILAUF Shimano 105, 11-36 teeth, 12 speed
KETTE Shimano M7100
FELGE MERIDA Expert SL, 17mm inner width, 22mm height aluminium, Tubeless ready (tubeless tape and valves not included)
REIFEN VORNE Maxxis Pursuer, 700x32C, fold
REIFEN HINTEN Maxxis Pursuer 700x32C, fold
MERIDA EXPERT CC, material: carbon, 30.9mm diameter, 0mm setback
GEOMETRIEN
FS Rahmengröße ST Rahmenhöhe = Sitzrohrlänge [mm] TT Oberrohrlänge [mm]
HT Steuerrohrlänge [mm] HTA Steuerrohrwinkel [°] STA Sitzrohrwinkel effektiv [°]
CS Hinterbaulänge [mm] BD Tretlagerabsenkung [mm] FO Gabeleinbaulänge [mm] SH Überstandshöhe [mm] S Stack [mm] R Reach [mm] WB Radstand [mm]
FS Rahmengröße ST Rahmenhöhe = Sitzrohrlänge [mm] TT Oberrohrlänge [mm]
FS
.at
SAIL & SURF PRODUKTIONS- UND HANDELSGESELLSCHAFT M.B.H. BUNDESSTRASSE 55, 4822 BAD GOISERN, ÖSTERREICH FON +43 6135 20633-0 FAX +43 6135 20634 OFFICE@SAILSURF.AT
Änderungen und Irrtümer vorbehalten. Stand: 02/2026
SAILSURF
