2026 Merida Bikes Katalog

20 26 BIKES

EINE WEITERGABE AN DRITTE IST NICHT GESTATTET.

REACTO 2027 EMBARGO bis 06.03.2026

Bis zu diesem Datum dürfen die Bilder der Reactos 2027 nicht an Endverbraucher ausgehändigt oder über andere Kanäle an die Öffentlichkeit gebracht werden!

Andreas Leopoldinger

Wien, NÖ, OÖ, Burgenland, Salzburg (Stadt, Flachgau, Tennengau)

E-Mail: andreas.leopoldinger@sailsurf.at Mobil: +43 664 1075907

Franz Kendlbacher

Kärnten, Steiermark, Tirol, Vorarlberg, Salzburg (Pongau, Pinzgau, Lungau)

E-Mail: franz.kendlbacher@sailsurf.at Mobil: +43 664 4512513

SAIL & SURF

Produktions- & Handelsgesellschaft m.b.H.

A-4822 Bad Goisern, Bundesstraße 55

Telefon: +43 6135 20633-0

Telefax: +43 6135 20634

E-Mail: office@sailsurf.at

Ausstattungen, Farben und technische Angaben entsprechen dem Stand bei Drucklegung. Änderungen, insbesondere der Spezifikation oder UVP Angaben sowie Irrtümer und Fehler vorbehalten. Gewichtsangaben sind gerundet. Farbabweichungen der abgebildeten Produkte können drucktechnisch bedingt vorkommen. © 11/2025 | 2. Auflage

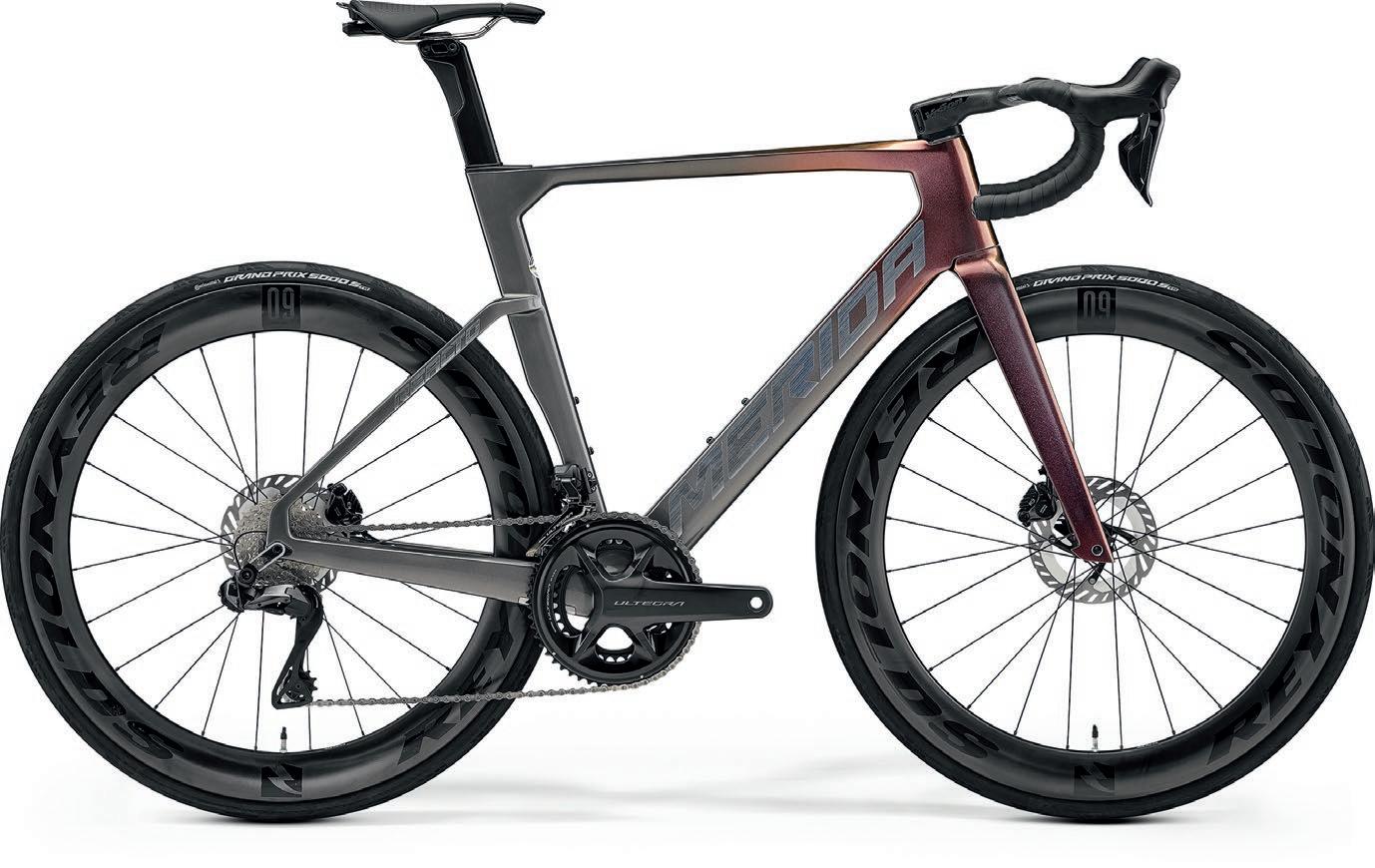

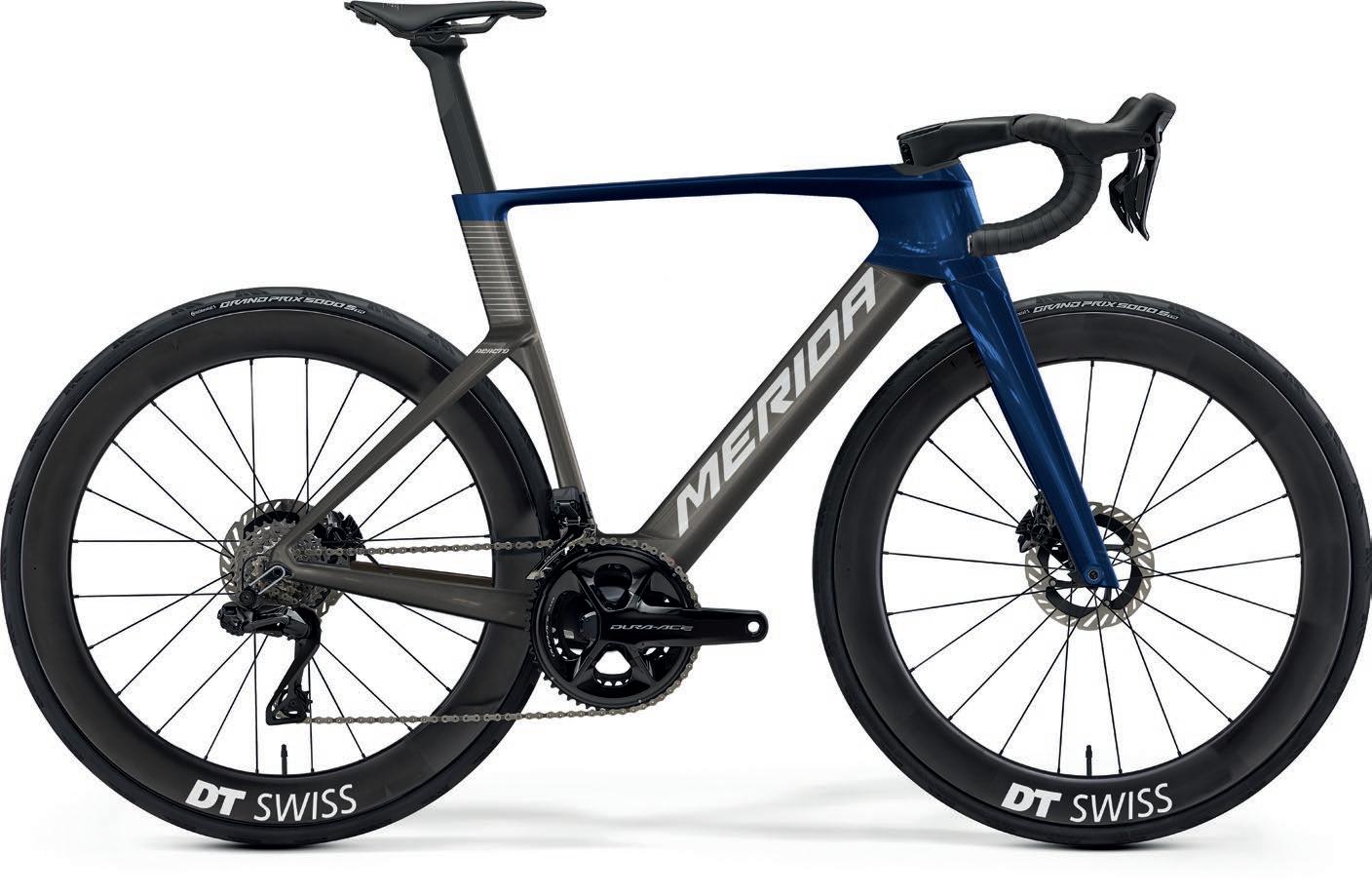

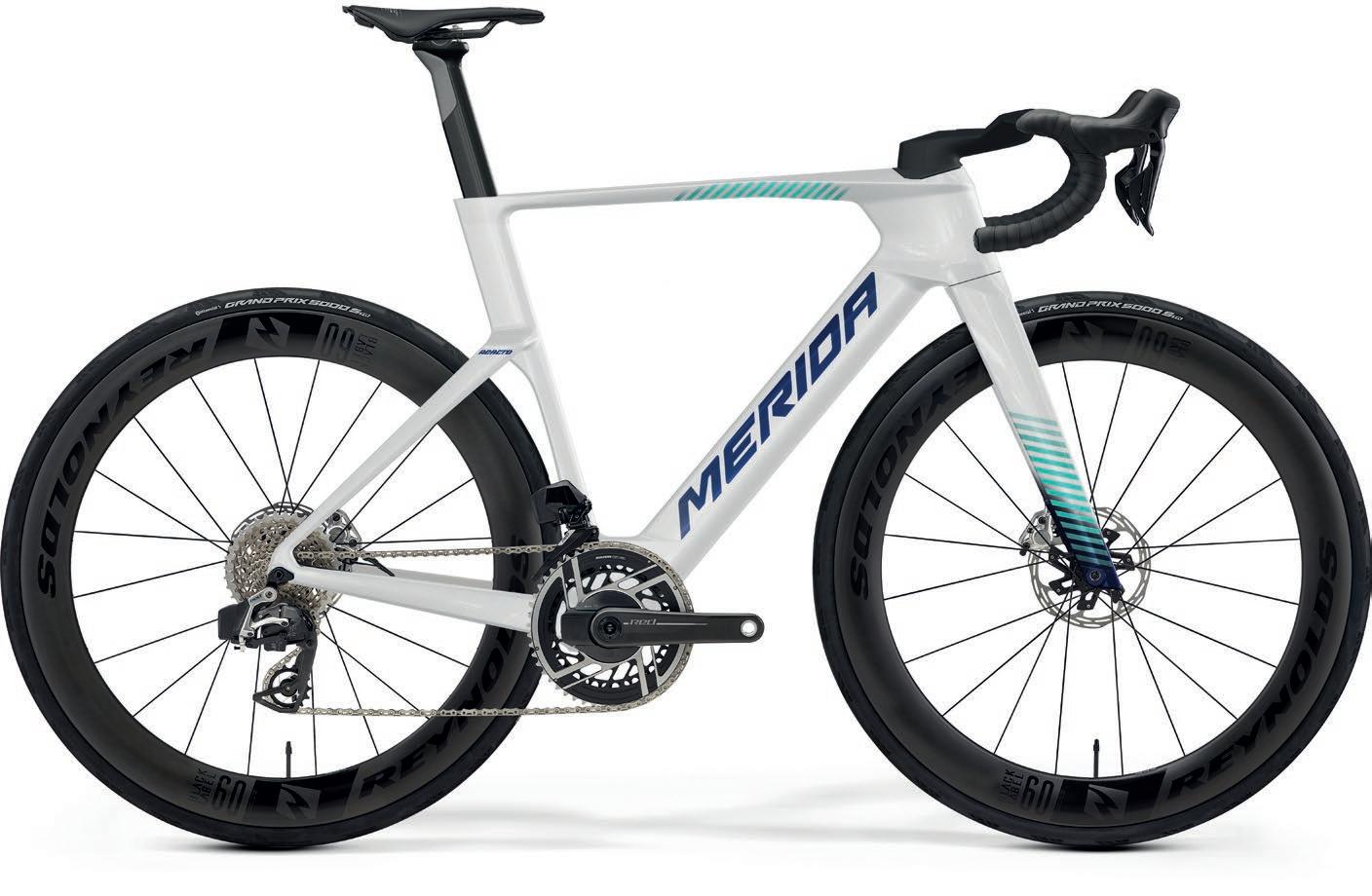

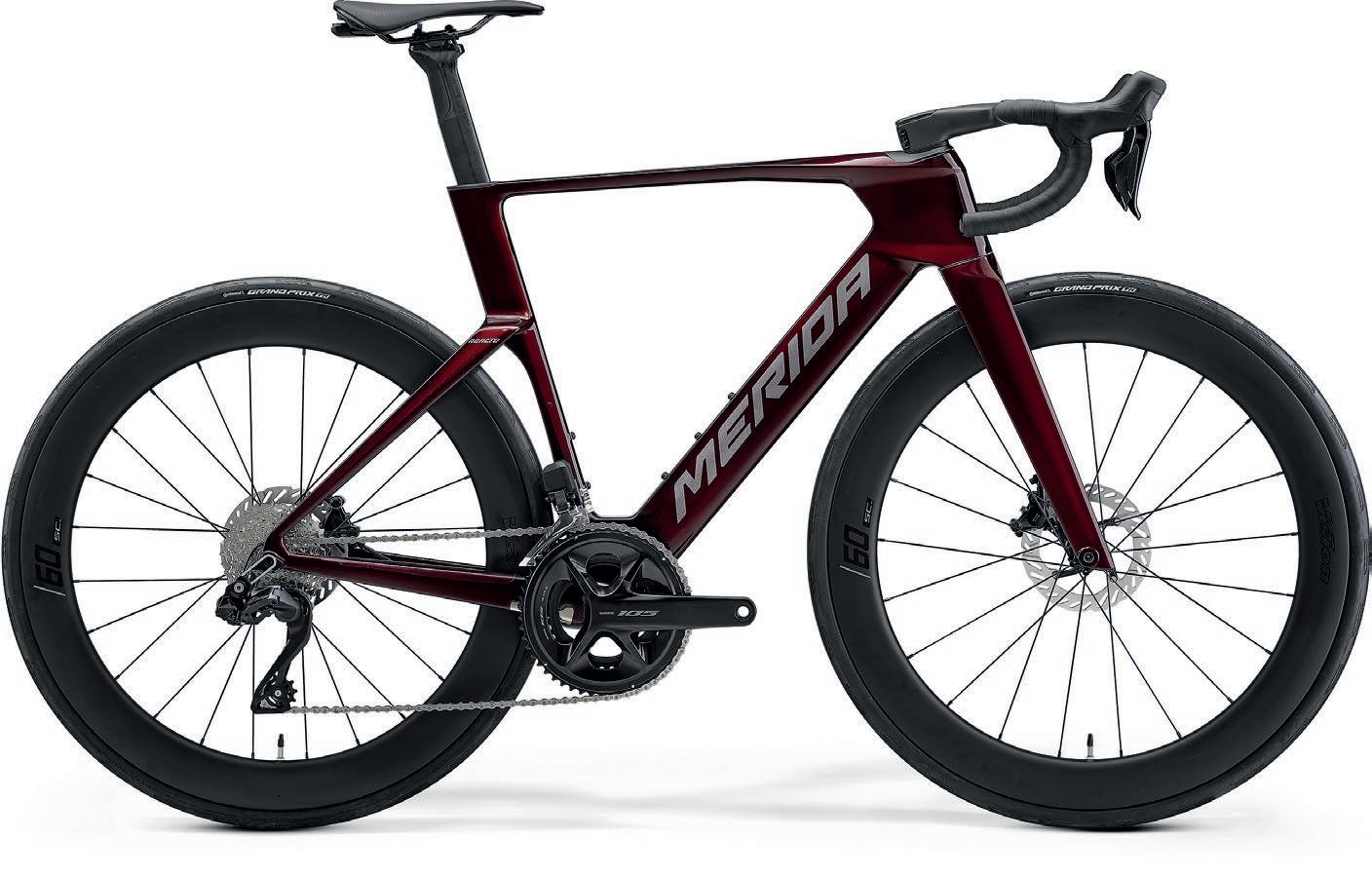

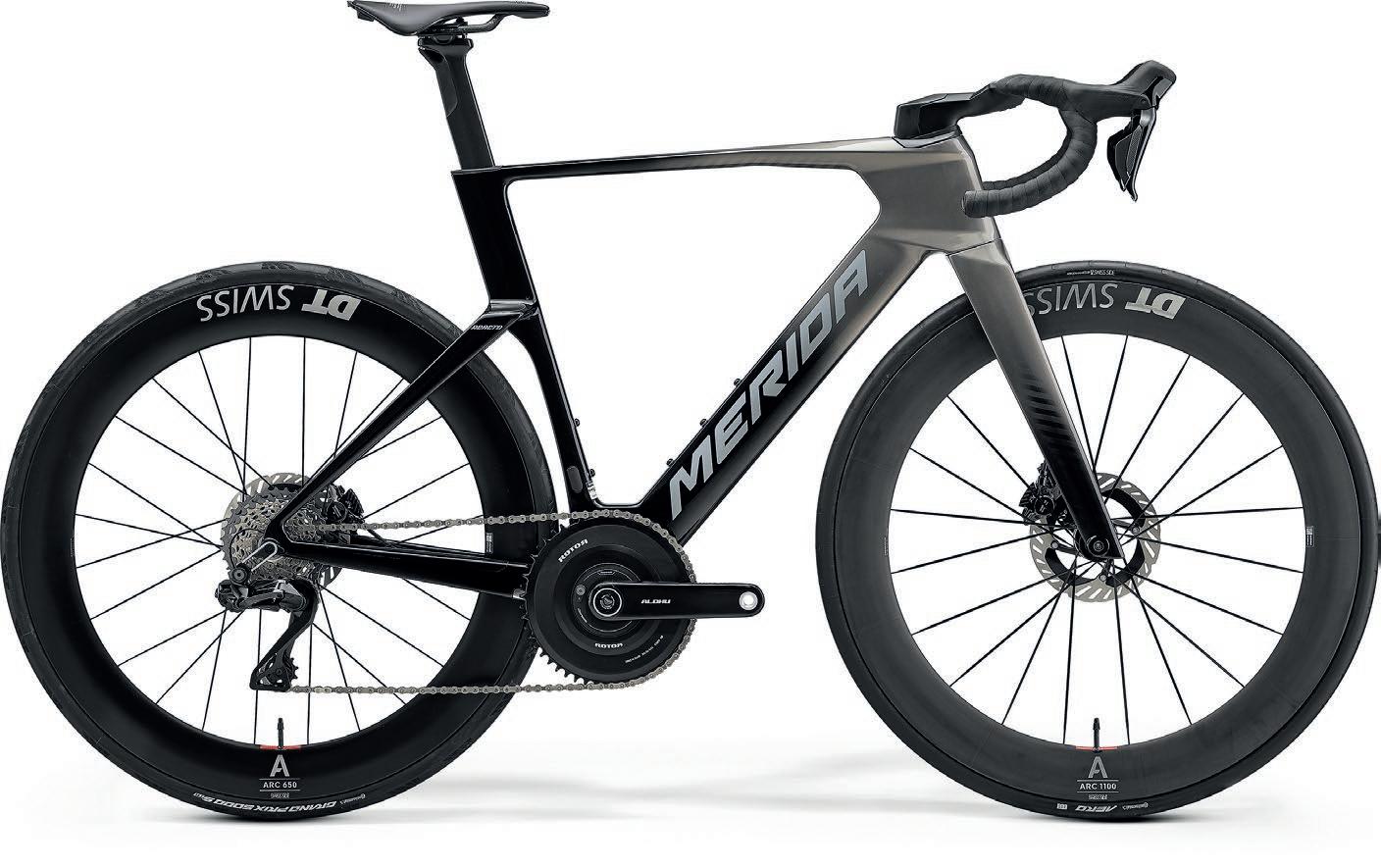

REACTO 2027

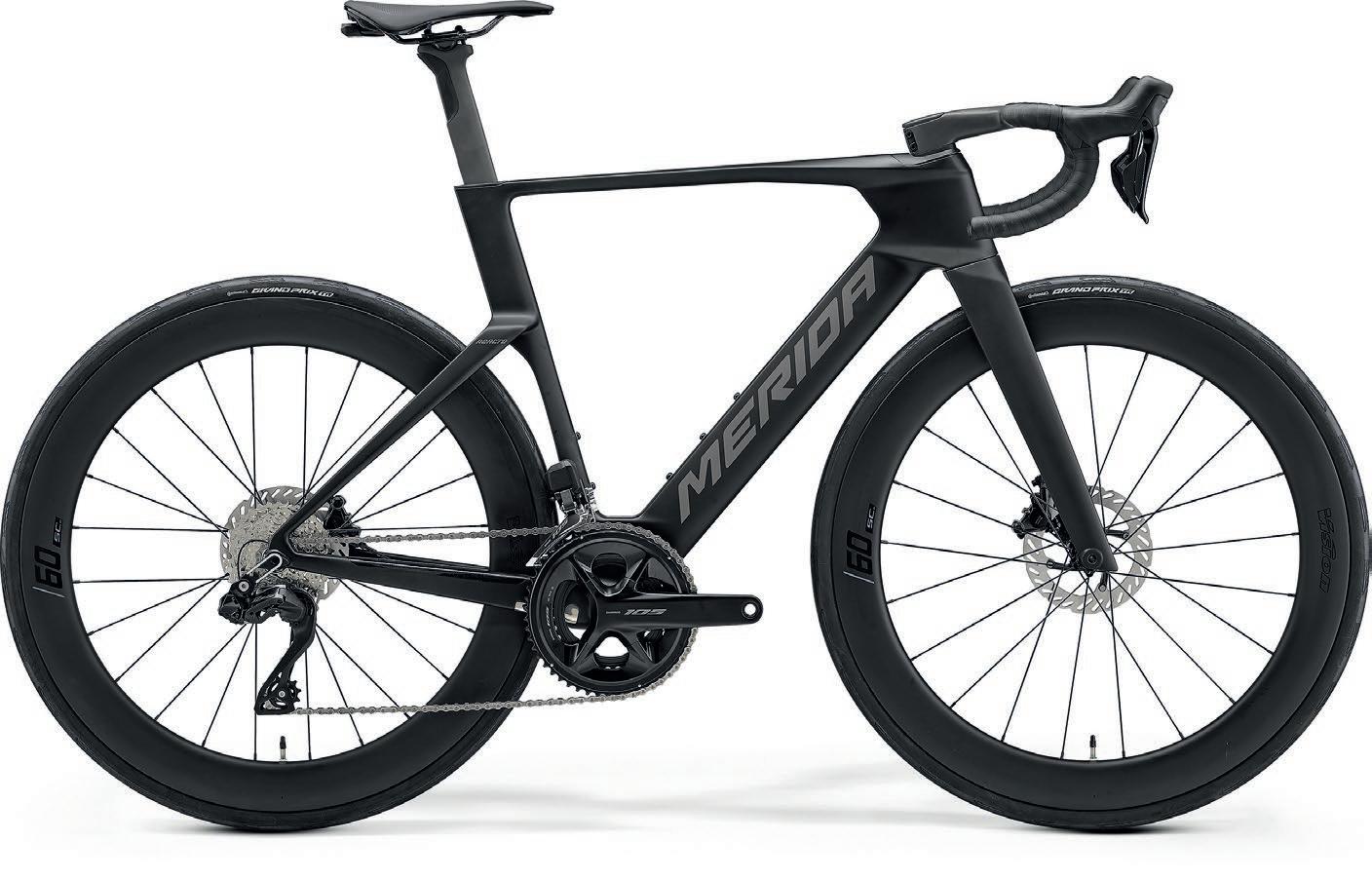

REACTO 8000

REACTO 10K

2027 MODELL

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

Rahmengröße XXS, XS, S, M, L

Rahmen REACTO CF5 V; MAT carbon; 700x32C max. WHS; 100x12/ 142x12 AST; BB86,5 BBR

RAHMEN REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard

Gabel MEARIDA REACTO CF5 V DISC; MAT carbon; 700x32C max. WHS

GABEL MERIDA REACTO CF3 IV DISC, material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Shimano Ultegra Di2

Bremshebel Sram Red AXS HRD

Bremse vorne Sram Red; Disc

UMWERFER HINTEN Shimano Ultegra Di2

SCHALTHEBEL VORNE Shimano Ultegra disc Di2

Bremse hinten Sram Red; Disc

SCHALTHEBEL HINTEN Shimano Ultegra disc Di2

Bremsscheibe vorne Sram Paceline X; 160mm

BREMSE VORNE Shimano Ultegra, Disc

Bremsscheibe hinten Sram Paceline X; 160mm

BREMSE HINTEN Shimano Ultegra, Disc

Kette Sram Red E1; Flattop

KURBEL Shimano Ultegra, 52-36 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

Kettenblatt Sram Red Power Meter; 50-37 ATC

FREILAUF Shimano Ultegra R8101, 11-30 teeth, 12 speed

Kurbel 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

KETTE Shimano M6100-12

Umwerfer vorne Sram Red AXS

LAUFRADSATZ Reynolds AR 60 DB, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 60mm height, Centerlock

Umwerfer hinten Sram Red AXS

REIFEN VORNE Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Freilauf Sram Red XG-1290; 10-36 ATC; 12 GER

REIFEN HINTEN Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Lenker MERIDA TEAM CW AERO; MAT carbon; 380mm (3S-XXS-XS-S); 400mm (M-L); 420mm-(XL), Mono

Vorbau MERIDA TEAM CW AERO; MAT carbon

SATELSTÜTZE MERIDA TEAM CW, Aero shape, 15mm setback, Carbon

Vorbaulänge 90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

SATTEL Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool

Steuersatz FSA ACR NO.55R; SL bearing (Cone spacer: TH 2630A)

Spacer MERIDA TEAM ONE-PIECE INTEGRATED 2*10mm, 1*5mm

Laufrad Reynolds BL60 Pro, 100x12 WHF; 142x12 WHR; 21 IWR; 60 HRI; Centerlock; Sram XDR; MAT carbon; Tubeless ready (tubeless tape and valves included)

Sattel Prologo Nago R4 PAS; Nack

Sattelstütze MERIDA REACTO V S-FLEX; Aero Shape; 0 SSB; MAT Carbon

Schalthebel vorne Sram Red AXS; Hydraulic Disc

Schalthebel hinten Sram Red AXS; Hydraulic Disc

Schlauch Ultralite 80

Reifen vorne Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready

Reifen hinten Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready

Gepäckträger Garmin mount for New Reacto Cockpit

REACTO 8000

REACTO ONE

2027 MODELL

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

Rahmengröße XS, S, M, L

Rahmen REACTO CF5 V; MAT carbon; 700x32C max. WHS; 100x12/ 142x12 AST; BB86,5 BBR

RAHMEN REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard

Gabel MEARIDA REACTO CF5 V DISC; MAT carbon; 700x32C max. WHS

GABEL MERIDA REACTO CF3 IV DISC, material: carbon, 700x30C max. wheelsize

Bremshebel Shimano Dura Ace

UMWERFER VORNE Shimano Ultegra Di2

UMWERFER HINTEN Shimano Ultegra Di2

Bremse vorne Shimano Dura Ace; Disc

Steuersatz FSA ACR NO.55R; SL bearing (Cone spacer: TH 2630A)

SATELSTÜTZE MERIDA TEAM CW, Aero shape, 15mm setback, Carbon SATTEL Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool

Spacer MERIDA TEAM ONE-PIECE INTEGRATED 2*10mm, 1*5mm

Laufrad DT Swiss ARC 1100 Dicut® DB 65; Centerlock; Sram XDR; MAT carbon; Tubeless ready (tubeless tape and valves included)

Sattel Prologo Nago R4 PAS; Nack

Sattelstütze MERIDA REACTO V S-FLEX; Aero Shape; 0 SSB; MAT Carbon

SCHALTHEBEL VORNE Shimano Ultegra disc Di2

Bremse hinten Shimano Dura Ace; Disc

SCHALTHEBEL HINTEN Shimano Ultegra disc Di2

Bremsscheibe vorne Shimano CL900; 160mm

BREMSE VORNE Shimano Ultegra, Disc

Bremsscheibe hinten Shimano CL900; 160mm

BREMSE HINTEN Shimano Ultegra, Disc

Kette Shimano M9100-12

KURBEL Shimano Ultegra, 52-36 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

Kettenblatt Rotor Alduh Carbon; 52 ATC; Power Meter

FREILAUF Shimano Ultegra R8101, 11-30 teeth, 12 speed

Kurbel 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

KETTE Shimano M6100-12

Umwerfer hinten Shimano Dura Ace Di2

Freilauf Classifi ed 12 Speed Cassette; 11-34 ATC; 12 GER

LAUFRADSATZ Reynolds AR 60 DB, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 60mm height, Centerlock

Schalthebel vorne Shimano Dura Ace disc Di2

Schalthebel hinten Shimano Dura Ace disc Di2

Schlauch Continental TPU 80

Reifen vorne Continental Aero 111; 700x28C; fold; tubeless ready

Reifen hinten Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready

Lenker MERIDA TEAM CW AERO ; MAT carbon; 380mm (3S-XXS-XS-S); 400mm (M-L); 420mm-(XL)

REIFEN VORNE Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

REIFEN HINTEN Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Vorbau MERIDA TEAM CW AERO; MAT carbon

Vorbaulänge 90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

REACTO 8000

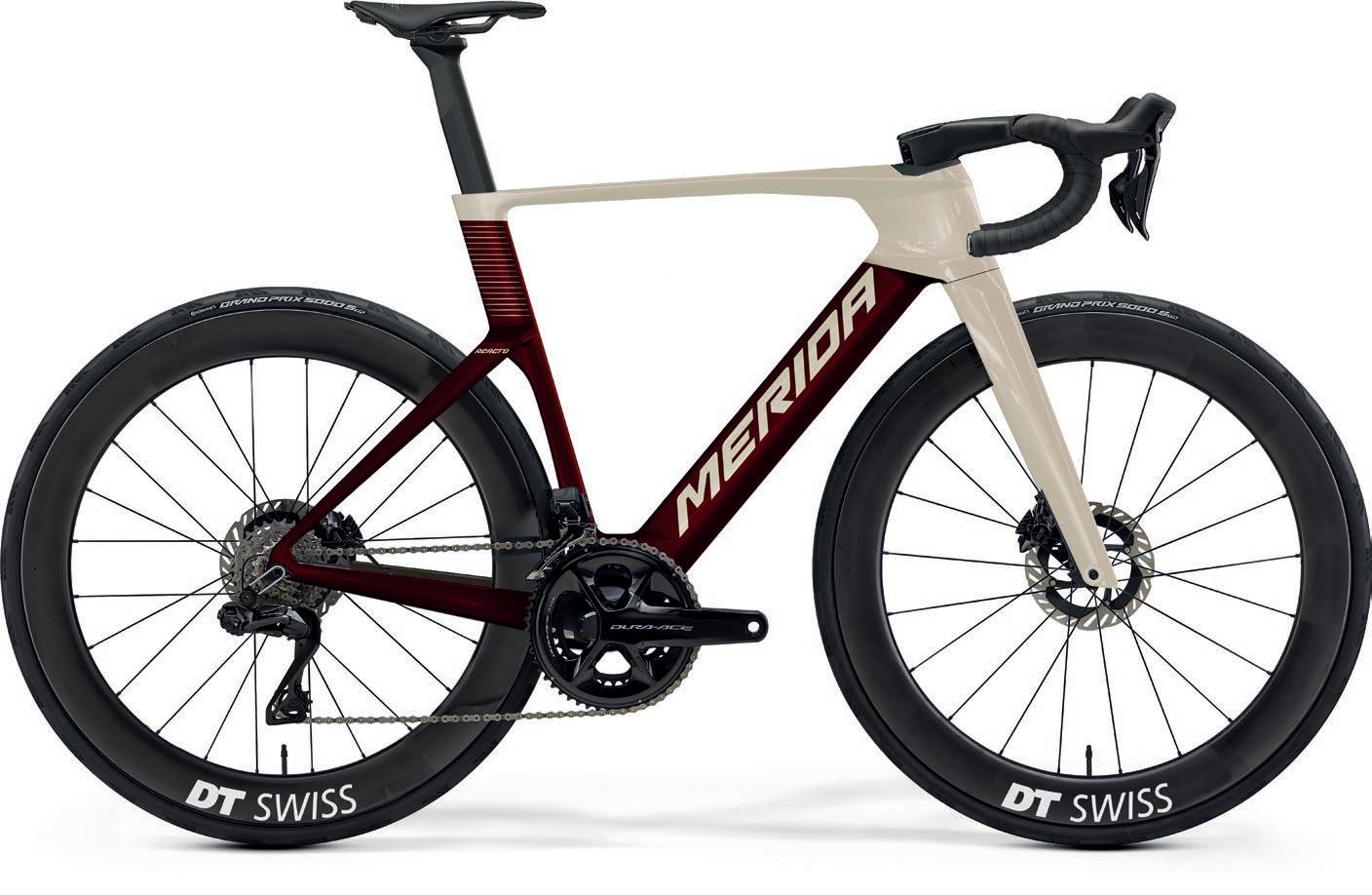

REACTO TEAM

2027 MODELL

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

Rahmengröße XS, S, M, L

Rahmen REACTO CF5 V; MAT carbon; 700x32C max. WHS; 100x12/ 142x12 AST; BB86,5 BBR

RAHMEN REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard

Gabel MEARIDA REACTO CF5 V DISC; MAT carbon; 700x32C max. WHS

GABEL MERIDA REACTO CF3 IV DISC, material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Shimano Ultegra Di2

Bremshebel Shimano Dura Ace disc

UMWERFER HINTEN Shimano Ultegra Di2

Bremse vorne Shimano Dura Ace; Disc

SCHALTHEBEL VORNE Shimano Ultegra disc Di2

Bremse hinten Shimano Dura Ace; Disc

SCHALTHEBEL HINTEN Shimano Ultegra disc Di2

Bremsscheibe vorne Shimano CL900; 160mm

BREMSE VORNE Shimano Ultegra, Disc

Bremsscheibe hinten Shimano CL900; 160mm

BREMSE HINTEN Shimano Ultegra, Disc

Kette Shimano M9100-12

KURBEL Shimano Ultegra, 52-36 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

Kettenblatt Shimano Dura Ace; 52-36 ATC; Power Meter

FREILAUF Shimano Ultegra R8101, 11-30 teeth, 12 speed

Kurbel 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

KETTE Shimano M6100-12

Umwerfer vorne Shimano Dura Ace Di2

LAUFRADSATZ Reynolds AR 60 DB, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 60mm height, Centerlock

Umwerfer hinten Shimano Dura Ace Di2

REIFEN VORNE Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Freilauf Shimano Dura-Ace R9200; 11-30 ATC; 12 GER

REIFEN HINTEN Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Lenker Vision Metron 5D ACR EVO; MAT carbon; 380mm (3S-XXS-XS-S); 400mm (M-L); 420mm (XL)

Vorbau Vision Metron 5D ACR EVO; MAT carbon

SATELSTÜTZE MERIDA TEAM CW, Aero shape, 15mm setback, Carbon

Vorbaulänge 90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

SATTEL Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool

Steuersatz FSA ACR, SL bearing (Cone spacer: RCT-609)

Spacer FSA ACR

Laufrad Vision Metron 60 RS i23 Clincher TL; 100x12 WHF; 142x12 WHR; IWR; HRI; Centerlock; MAT carbon; Tubeless ready (tubeless tape and valves not included)

Sattel Prologo Nago R4 PAS; Nack

Sattelstütze MERIDA REACTO V S-FLEX; Aero Shape; 0 SSB; MAT Carbon

Schalthebel vorne Shimano Dura Ace disc Di2

Schalthebel hinten Shimano Dura Ace disc Di2

Schlauch Ultralite 80

Reifen vorne Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready

Reifen hinten Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready

REACTO 8000

REACTO PRO

2027 MODELL

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

Rahmengröße XS, S, M, L

Rahmen REACTO CF5 V; MAT carbon; 700x32C max. WHS; 100x12/ 142x12 AST; BB86,5 BBR

RAHMEN REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard

Gabel MEARIDA REACTO CF5 V DISC; MAT carbon; 700x32C max. WHS

GABEL MERIDA REACTO CF3 IV DISC, material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Shimano Ultegra Di2

Bremshebel Shimano Dura Ace; Disc

UMWERFER HINTEN Shimano Ultegra Di2

Bremse vorne Shimano Dura Ace; Disc

SCHALTHEBEL VORNE Shimano Ultegra disc Di2

Bremse hinten Shimano Dura Ace; Disc

SCHALTHEBEL HINTEN Shimano Ultegra disc Di2

Bremsscheibe vorne Shimano CL900; 160mm

BREMSE VORNE Shimano Ultegra, Disc

Bremsscheibe hinten Shimano CL900; 160mm

BREMSE HINTEN Shimano Ultegra, Disc

Kette Shimano M9100-12

KURBEL Shimano Ultegra, 52-36 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

Kettenblatt Shimano Dura Ace; 52-36 ATC; left arm 4iiii Power Meter

FREILAUF Shimano Ultegra R8101, 11-30 teeth, 12 speed

Kurbel 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

KETTE Shimano M6100-12

Umwerfer vorne Shimano Dura Ace Di2

LAUFRADSATZ Reynolds AR 60 DB, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 60mm height, Centerlock

Umwerfer hinten Shimano Dura Ace Di2

REIFEN VORNE Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Freilauf Shimano Dura-Ace R9200; 11-30 ATC; 12 GER

REIFEN HINTEN Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Lenker MERIDA TEAM SL 1P INTEGRATED; MAT carbon; 380mm (3S-XXS-XS-S); 400mm (M-L-XL)

Vorbau MERIDA TEAM ONE-PIECE INTEGRATED; MAT carbon

SATELSTÜTZE MERIDA TEAM CW, Aero shape, 15mm setback, Carbon

Vorbaulänge 90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

SATTEL Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool

Steuersatz FSA ACR, SL bearing (Cone spacer: RCT-608)

Spacer TEAM ONE-PIECE INTEGRATED

Laufrad DT-Swiss ARC 1600 SPLINE®; 100x12 WHF; 142x12WHR; IWR 22; HRI 65; Centerlock; Shimano HG; MAT carbon; Tubeless ready

Sattel Prologo Scratch M5; V-mount adapter; incl. MERIDA minitool

Sattelstütze MERIDA REACTO V S-FLEX; Aero Shape; 0 SSB; MAT Carbon

Schalthebel vorne Shimano Dura Ace disc Di2

Schalthebel hinten Shimano Dura Ace disc Di2

Schlauch Ultralite 80

Reifen vorne Continental Grand Prix TR; 700x28C; fold; tubeless ready

Reifen hinten Continental Grand Prix TR; 700x28C; fold; tubeless ready

REACTO 8000

REACTO PRO

VANILLA / PASSION RED

2027 MODELL

Rahmengröße XS, S, M, L

XXXS, XXS, XS, S

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

Rahmen REACTO CF5 V; MAT carbon; 700x32C max. WHS; 100x12/ 142x12 AST; BB86,5 BBR

RAHMEN REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard

Gabel MEARIDA REACTO CF5 V DISC; MAT carbon; 700x32C max. WHS

GABEL MERIDA REACTO CF3 IV DISC, material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Shimano Ultegra Di2

Bremshebel Shimano Dura Ace; Disc

UMWERFER HINTEN Shimano Ultegra Di2

Bremse vorne Shimano Dura Ace; Disc

SCHALTHEBEL VORNE Shimano Ultegra disc Di2

Bremse hinten Shimano Dura Ace; Disc

SCHALTHEBEL HINTEN Shimano Ultegra disc Di2

Bremsscheibe vorne Shimano CL900; 160mm

BREMSE VORNE Shimano Ultegra, Disc

Bremsscheibe hinten Shimano CL900; 160mm

BREMSE HINTEN Shimano Ultegra, Disc

Kette Shimano M9100-12

KURBEL Shimano Ultegra, 52-36 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

Kettenblatt Shimano Dura Ace; 52-36 ATC; left arm 4iiii Power Meter

FREILAUF Shimano Ultegra R8101, 11-30 teeth, 12 speed

Kurbel 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

KETTE Shimano M6100-12

Umwerfer vorne Shimano Dura Ace Di2

LAUFRADSATZ Reynolds AR 60 DB, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 60mm height, Centerlock

Umwerfer hinten Shimano Dura Ace Di2

REIFEN VORNE Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Freilauf Shimano Dura-Ace R9200; 11-30 ATC; 12 GER

REIFEN HINTEN Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Lenker MERIDA TEAM SL 1P INTEGRATED; MAT carbon; 380mm (3S-XXS-XS-S); 400mm (M-L-XL)

Vorbau MERIDA TEAM ONE-PIECE INTEGRATED; MAT carbon

SATELSTÜTZE MERIDA TEAM CW, Aero shape, 15mm setback, Carbon

Vorbaulänge 90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

SATTEL Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool

Steuersatz FSA ACR, SL bearing (Cone spacer: RCT-608)

Spacer TEAM ONE-PIECE INTEGRATED

Laufrad DT-Swiss ARC 1600 SPLINE®; 100x12 WHF; 142x12WHR; IWR 22; HRI 65; Centerlock; Shimano HG; MAT carbon; Tubeless ready

Sattel Prologo Scratch M5; V-mount adapter; incl. MERIDA minitool

Sattelstütze MERIDA REACTO V S-FLEX; Aero Shape; 0 SSB; MAT Carbon

Schalthebel vorne Shimano Dura Ace disc Di2

Schalthebel hinten Shimano Dura Ace disc Di2

Schlauch Ultralite 80

Reifen vorne Continental Grand Prix TR; 700x28C; fold; tubeless ready

Reifen hinten Continental Grand Prix TR; 700x28C; fold; tubeless ready

REACTO 8000

REACTO PRO

2027 MODELL

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

Rahmengröße XS, S, M, L

Rahmen REACTO CF5 V; MAT carbon; 700x32C max. WHS; 100x12/ 142x12 AST; BB86,5 BBR

RAHMEN REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard

Gabel MEARIDA REACTO CF5 V DISC; MAT carbon; 700x32C max. WHS

GABEL MERIDA REACTO CF3 IV DISC, material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Shimano Ultegra Di2

Bremshebel Shimano Dura Ace; Disc

UMWERFER HINTEN Shimano Ultegra Di2

Bremse vorne Shimano Dura Ace; Disc

Vorbaulänge 90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

SATELSTÜTZE MERIDA TEAM CW, Aero shape, 15mm setback, Carbon SATTEL Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool

Steuersatz FSA ACR, SL bearing (Cone spacer: RCT-608)

Spacer TEAM ONE-PIECE INTEGRATED

Laufrad DT-Swiss ARC 1600 SPLINE®; 100x12 WHF; 142x12WHR; IWR 22; HRI 65; Centerlock; Shimano HG; MAT carbon; Tubeless ready

Sattel Prologo Scratch M5; V-mount adapter; incl. MERIDA minitool

SCHALTHEBEL VORNE Shimano Ultegra disc Di2

Bremse hinten Shimano Dura Ace; Disc

SCHALTHEBEL HINTEN Shimano Ultegra disc Di2

Bremsscheibe vorne Shimano CL900; 160mm

BREMSE VORNE Shimano Ultegra, Disc

Bremsscheibe hinten Shimano CL900; 160mm

BREMSE HINTEN Shimano Ultegra, Disc

Kette Shimano M9100-12

KURBEL Shimano Ultegra, 52-36 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

Kettenblatt Shimano Dura Ace; 52-36 ATC; left arm 4iiii Power Meter

Sattelstütze MERIDA REACTO V S-FLEX; Aero Shape; 0 SSB; MAT Carbon

Schalthebel vorne Shimano Dura Ace disc Di2

Schalthebel hinten Shimano Dura Ace disc Di2

Schlauch Ultralite 80

Reifen vorne Continental Grand Prix TR; 700x28C; fold; tubeless ready

FREILAUF Shimano Ultegra R8101, 11-30 teeth, 12 speed

Kurbel 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

KETTE Shimano M6100-12

Umwerfer vorne Shimano Dura Ace Di2

LAUFRADSATZ Reynolds AR 60 DB, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 60mm height, Centerlock

Umwerfer hinten Shimano Dura Ace Di2

REIFEN VORNE Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Freilauf Shimano Dura-Ace R9200; 11-30 ATC; 12 GER

REIFEN HINTEN Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Lenker MERIDA TEAM SL 1P INTEGRATED; MAT carbon; 380mm (3S-XXS-XS-S); 400mm (M-L-XL)

Vorbau MERIDA TEAM ONE-PIECE INTEGRATED; MAT carbon

Reifen hinten Continental Grand Prix TR; 700x28C; fold; tubeless ready

REACTO 8000

REACTO 8000

2027 MODELL

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

Rahmengröße XXS, XS, S, M, L, XL

Rahmen REACTO CF3 V; MAT carbon; 700x32C max. WHS; 100x12/ 142x12 AST; BB86,5 BBR

RAHMEN REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard

Gabel MEARIDA REACTO CF3 V DISC; MAT carbon; 700x32C max. WHS

GABEL MERIDA REACTO CF3 IV DISC, material: carbon, 700x30C max. wheelsize

Bremshebel Shimano Ultegra

UMWERFER VORNE Shimano Ultegra Di2

UMWERFER HINTEN Shimano Ultegra Di2

Bremse vorne Shimano Ultegra; Disc

Vorbaulänge 90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

SATELSTÜTZE MERIDA TEAM CW, Aero shape, 15mm setback, Carbon SATTEL Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool

Steuersatz FSA ACR, SL bearing (Cone spacer: RCT-609)

Spacer MERIDA TEAM ONE-PIECE INTEGRATED 2*10mm, 1*5mm

Laufrad Reynolds AR 60 DB, 100x12 WHF; 142x12 WHR; 21 IWR; 60 HRI; Centerlock

Sattel Prologo Scratch M5; V-mount adapter; incl. MERIDA minitool

SCHALTHEBEL VORNE Shimano Ultegra disc Di2

Bremse hinten Shimano Ultegra; Disc

SCHALTHEBEL HINTEN Shimano Ultegra disc Di2

Bremsscheibe vorne Shimano CL800; 160mm

BREMSE VORNE Shimano Ultegra, Disc

Bremsscheibe hinten Shimano CL800; 160mm

BREMSE HINTEN Shimano Ultegra, Disc

Kette Shimano M6100-12

KURBEL Shimano Ultegra, 52-36 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

Kettenblatt Shimano Ultegra; 52-36 ATC

Sattelstütze MERIDA REACTO V S-FLEX; Aero Shape; 0 SSB; MAT Carbon

Schalthebel vorne Shimano Ultegra disc Di2

Schalthebel hinten Shimano Ultegra disc Di2

Schlauch Ultralite 80

Reifen vorne Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready

FREILAUF Shimano Ultegra R8101, 11-30 teeth, 12 speed

Kurbel 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

KETTE Shimano M6100-12

Umwerfer vorne Shimano Ultegra Di2

LAUFRADSATZ Reynolds AR 60 DB, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 60mm height, Centerlock

Umwerfer hinten Shimano Ultegra Di2

REIFEN VORNE Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Freilauf Shimano Ultegra R8101; 11-30 ATC; 12 GER

REIFEN HINTEN Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Lenker Vision Metron 5D ACR EVO; MAT carbon; 380mm (3S-XXS-XS-S); 400mm (M-L); 420mm (XL)

Vorbau Vision Metron 5D ACR EVO; MAT carbon

Reifen hinten Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready

REACTO 8000

REACTO 6000

2027 MODELL

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

Rahmengröße S, M

Rahmen REACTO CF3 V; MAT carbon; 700x32C max. WHS; 100x12/ 142x12 AST; BB86,5 BBR

RAHMEN REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard

Gabel MEARIDA REACTO CF3 V DISC; MAT carbon; 700x32C max. WHS

GABEL MERIDA REACTO CF3 IV DISC, material: carbon, 700x30C max. wheelsize

Bremshebel Shimano 105

UMWERFER VORNE Shimano Ultegra Di2

Bremse vorne Shimano 105; Disc

UMWERFER HINTEN Shimano Ultegra Di2

SCHALTHEBEL VORNE Shimano Ultegra disc Di2

Bremse hinten Shimano 105; Disc

SCHALTHEBEL HINTEN Shimano Ultegra disc Di2

Bremsscheibe vorne Shimano CL700; 160mm

BREMSE VORNE Shimano Ultegra, Disc

Bremsscheibe hinten Shimano CL700; 160mm

BREMSE HINTEN Shimano Ultegra, Disc

Kette Shimano M6100-12

KURBEL Shimano Ultegra, 52-36 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

Kettenblatt Shimano 105 R7100; 52-36 ATC

FREILAUF Shimano Ultegra R8101, 11-30 teeth, 12 speed

Kurbel 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

KETTE Shimano M6100-12

Umwerfer vorne Shimano 105 Di2

Umwerfer hinten Shimano 105 Di2

LAUFRADSATZ Reynolds AR 60 DB, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 60mm height, Centerlock

Freilauf Shimano 105 R7101; 11-34 ATC; 12 GER

REIFEN VORNE Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

REIFEN HINTEN Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Lenker MERIDA TEAM SL 1P INTEGRATED; MAT carbon; 380mm (3S-XXS-XS-S); 400mm (M-L-XL)

Vorbau MERIDA TEAM ONE-PIECE INTEGRATED; MAT carbon

SATELSTÜTZE MERIDA TEAM CW, Aero shape, 15mm setback, Carbon

Vorbaulänge 90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

SATTEL Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool

Steuersatz FSA ACR, SL bearing (Cone spacer: RCT-609)

Spacer TEAM ONE-PIECE INTEGRATED (RCT-608)

Laufrad Vision SC 60 Disc brake; 100x12 WHF; 142x12 WHR; 23 IWR; 60 HRI; Centerlock; MAT carbon; Tubeless tape ready

Sattel Akero RS PAS T2.0; V-mount adapter; incl. MERIDA minitool

Sattelstütze MERIDA REACTO V S-FLEX; Aero Shape; 0 SSB; MAT Carbon

Schalthebel vorne Shimano 105 disc Di2

Schalthebel hinten Shimano 105 disc Di2

Schlauch Ultralite 80

Reifen vorne Continental Grand Prix TR; 700x28C; fold; tubeless ready

Reifen hinten Continental Grand Prix TR; 700x28C; fold; tubeless ready

REACTO 8000

REACTO 6000

2027 MODELL

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

Rahmengröße XXS, XS, S, M, L

Rahmen REACTO CF3 V; MAT carbon; 700x32C max. WHS; 100x12/ 142x12 AST; BB86,5 BBR

RAHMEN REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard

Gabel MEARIDA REACTO CF3 V DISC; MAT carbon; 700x32C max. WHS

GABEL MERIDA REACTO CF3 IV DISC, material: carbon, 700x30C max. wheelsize

Bremshebel Shimano 105

UMWERFER VORNE Shimano Ultegra Di2

Bremse vorne Shimano 105; Disc

UMWERFER HINTEN Shimano Ultegra Di2

SCHALTHEBEL VORNE Shimano Ultegra disc Di2

Bremse hinten Shimano 105; Disc

SCHALTHEBEL HINTEN Shimano Ultegra disc Di2

Bremsscheibe vorne Shimano CL700; 160mm

BREMSE VORNE Shimano Ultegra, Disc

Bremsscheibe hinten Shimano CL700; 160mm

BREMSE HINTEN Shimano Ultegra, Disc

Kette Shimano M6100-12

KURBEL Shimano Ultegra, 52-36 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

Kettenblatt Shimano 105 R7100; 52-36 ATC

FREILAUF Shimano Ultegra R8101, 11-30 teeth, 12 speed

Kurbel 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

KETTE Shimano M6100-12

Umwerfer vorne Shimano 105 Di2

LAUFRADSATZ Reynolds AR 60 DB, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 60mm height, Centerlock

Umwerfer hinten Shimano 105 Di2

REIFEN VORNE Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Freilauf Shimano 105 R7101; 11-34 ATC; 12 GER

REIFEN HINTEN Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Lenker MERIDA TEAM SL 1P INTEGRATED; MAT carbon; 380mm (3S-XXS-XS-S); 400mm (M-L-XL)

Vorbau MERIDA TEAM ONE-PIECE INTEGRATED; MAT carbon

SATELSTÜTZE MERIDA TEAM CW, Aero shape, 15mm setback, Carbon

Vorbaulänge 90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

SATTEL Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool

Steuersatz FSA ACR, SL bearing (Cone spacer: RCT-609)

Spacer TEAM ONE-PIECE INTEGRATED (RCT-608)

Laufrad Vision SC 60 Disc brake; 100x12 WHF; 142x12 WHR; 23 IWR; 60 HRI; Centerlock; MAT carbon; Tubeless tape ready

Sattel Akero RS PAS T2.0; V-mount adapter; incl. MERIDA minitool

Sattelstütze MERIDA REACTO V S-FLEX; Aero Shape; 0 SSB; MAT Carbon

Schalthebel vorne Shimano 105 disc Di2

Schalthebel hinten Shimano 105 disc Di2

Schlauch Ultralite 80

Reifen vorne Continental Grand Prix TR; 700x28C; fold; tubeless ready

Reifen hinten Continental Grand Prix TR; 700x28C; fold; tubeless ready

REACTO 8000

REACTO 5000

2027 MODELL

Rahmengröße

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

XXXS, XXS, XS, S, M, L

Rahmen REACTO CF3 V; MAT carbon; 700x32C max. WHS; 100x12/ 142x12 AST; BB86,5 BBR

RAHMEN REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard

Gabel MEARIDA REACTO CF3 V DISC; MAT carbon; 700x32C max. WHS

GABEL MERIDA REACTO CF3 IV DISC, material: carbon, 700x30C max. wheelsize

Bremshebel Shimano 105

UMWERFER VORNE Shimano Ultegra Di2

Bremse vorne Shimano 105; Disc

UMWERFER HINTEN Shimano Ultegra Di2

Vorbaulänge 90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

SATELSTÜTZE MERIDA TEAM CW, Aero shape, 15mm setback, Carbon SATTEL Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool

Steuersatz MERIDA TEAM SL (Cone RCT-608)

Spacer MERIDA EXPERT SL 2PII 10mm

Laufrad Vision Team 35 Clincher Disc Centerlock; 19 IWR; 35 HRI; MAT aluminium; Tubeless tape ready

Sattel Akero RS PAS T2.0; V-mount adapter; incl. MERIDA minitool

Bremse hinten Shimano 105; Disc

SCHALTHEBEL VORNE Shimano Ultegra disc Di2

Sattelstütze MERIDA REACTO V S-FLEX; Aero Shape; 0 SSB; MAT Carbon

SCHALTHEBEL HINTEN Shimano Ultegra disc Di2

Bremsscheibe vorne Shimano RT64; 160mm

BREMSE VORNE Shimano Ultegra, Disc

Bremsscheibe hinten Shimano RT64; 160mm

BREMSE HINTEN Shimano Ultegra, Disc

Kette Shimano M6100-12

KURBEL Shimano Ultegra, 52-36 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

Kettenblatt Shimano 105 R7100; 52-36 ATC

Schalthebel vorne Shimano 105 disc Di2

Schalthebel hinten Shimano 105 disc Di2

Schlauch Ultralite 60

Reifen vorne Continental Grand Prix TR; 700x28C; fold; tubeless ready

FREILAUF Shimano Ultegra R8101, 11-30 teeth, 12 speed

Kurbel 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

KETTE Shimano M6100-12

Umwerfer vorne Shimano 105 Di2

LAUFRADSATZ Reynolds AR 60 DB, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 60mm height, Centerlock

Umwerfer hinten Shimano 105 Di2

REIFEN VORNE Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Freilauf Shimano 105 R7101; 11-34 ATC; 12 GER

REIFEN HINTEN Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Lenker MERIDA EXPERT CW; MAT aluminium; 380mm (3S-XXS-XS-S); 400mm (M-L); 420mm (XL)

Vorbau MERIDA EXPERT SL 2PII; MAT aluminium; -9 ASD

Reifen hinten Continental Grand Prix TR; 700x28C; fold; tubeless ready

Computer Mount Garmin Carrier + Garmin insert*2 + GoPro/Light Mount

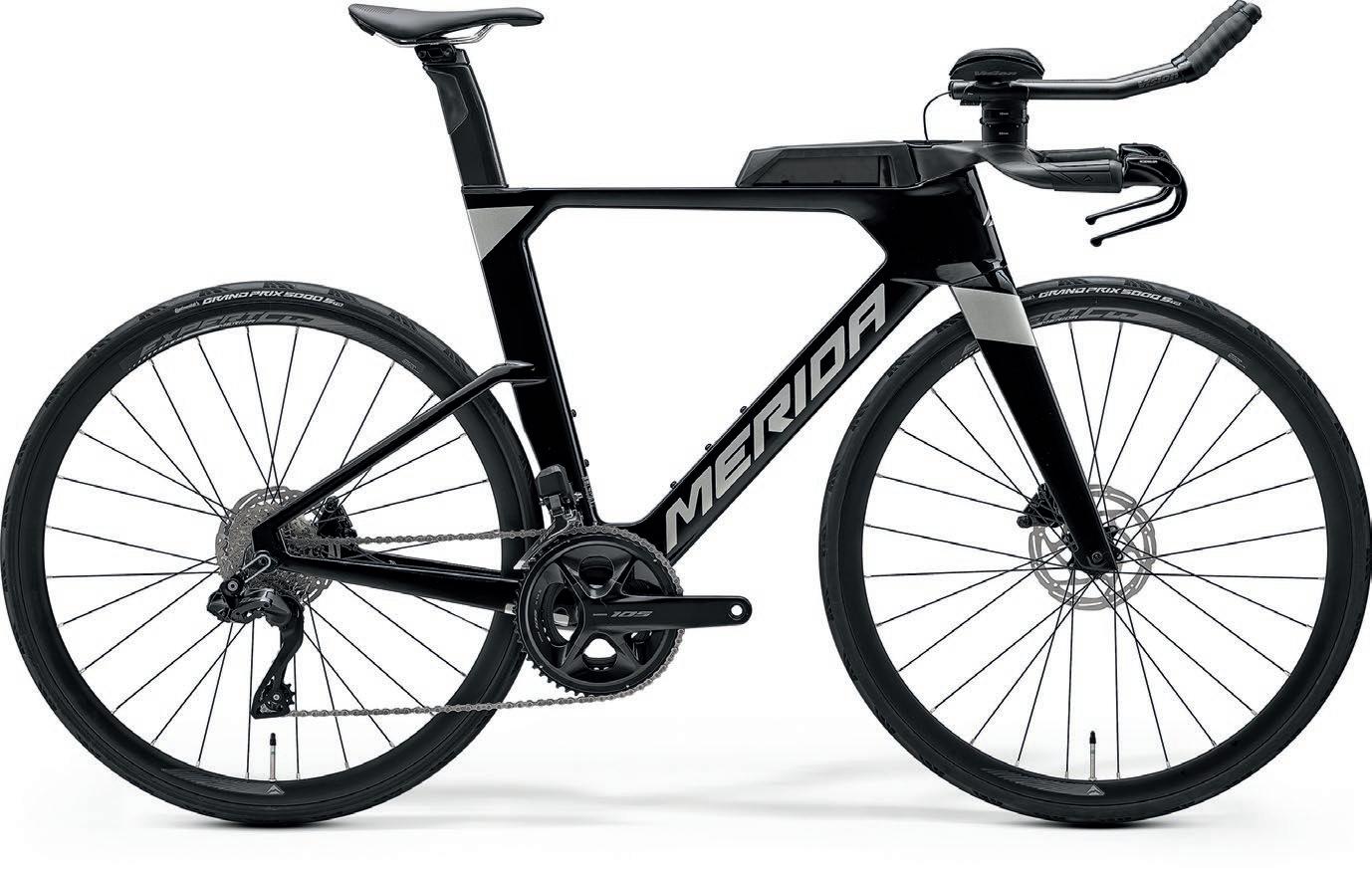

TIME WARP

TIME WARP TRI 5000

RAHMENGRÖSSEN XS, S, M, L

RAHMEN TIME-WARP TRI CF5 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5

GABEL TIME-WARP TRI CF5 IV disc, material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Shimano 105 Di2

UMWERFER HINTEN Shimano 105 Di2

SCHALTHEBEL VORNE Shimano ST-R9160

SCHALTHEBEL HINTEN Shimano ST-R9160

BREMSE VORNE Riverever Triva, Hydraulic disc

BREMSE HINTEN Riverever Triva, Hydraulic disc

KURBEL Shimano 105, 52-36 teeth, 170 mm-XS, 172.5 mm-S/M, 175 mm-L

FREILAUF Shimano 105 R7101, 11-34 teeth, 12 speed

KETTE Shimano M6100-12

FELGE MERIDA EXPERT CW, 19mm inner width, 30mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Highroad, 700x28C, fold, tubeless ready

REIFEN HINTEN Maxxis Highroad, 700x28C, fold, tubeless ready

LENKER MERIDA Metron TT, material: carbon

VORBAU MERIDA Metron TT, material: carbon, 17° stem angle

SATELSTÜTZE MERIDA TEAM TT II, Aero shape, Carbon

SATTEL MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool

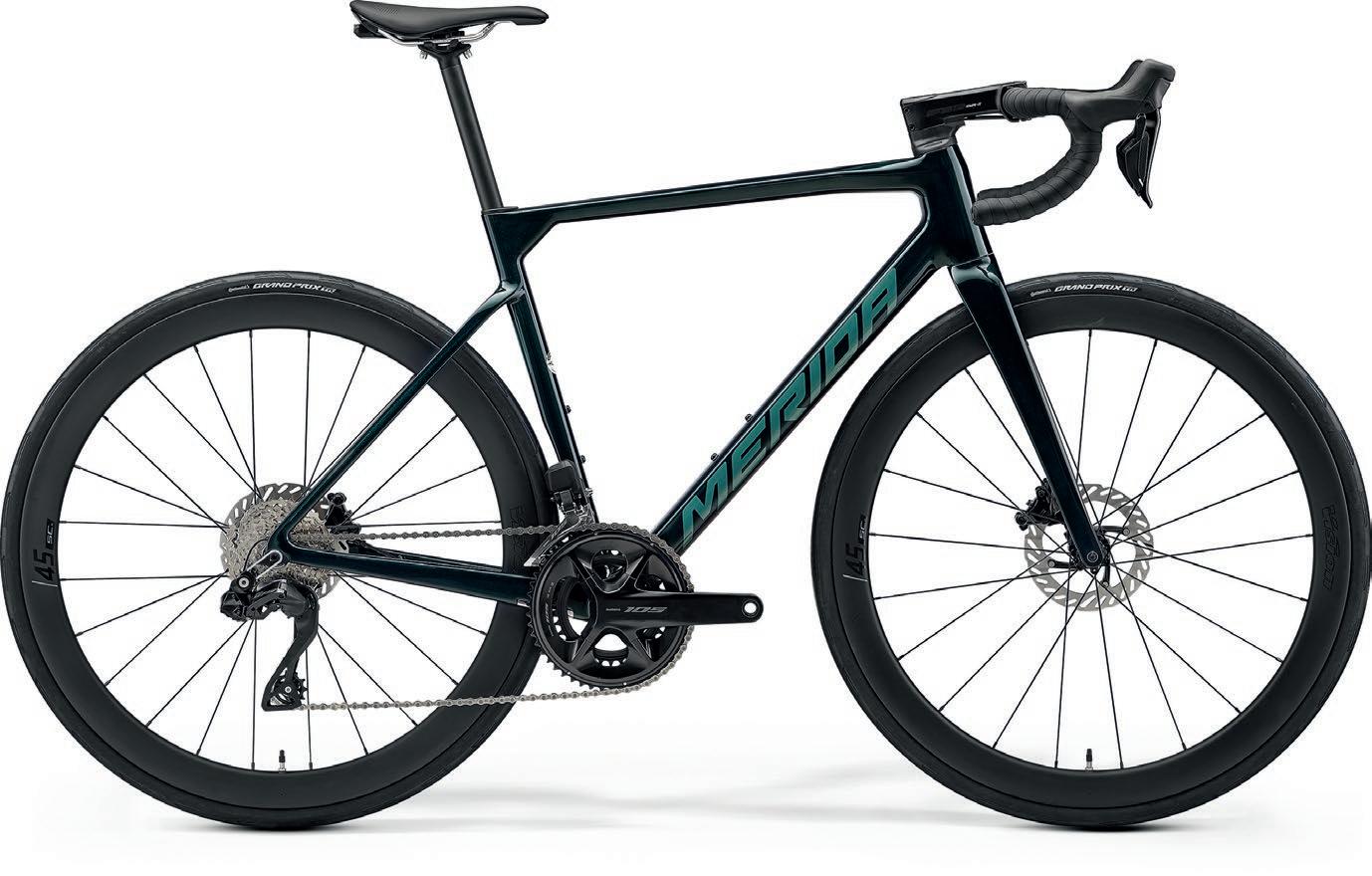

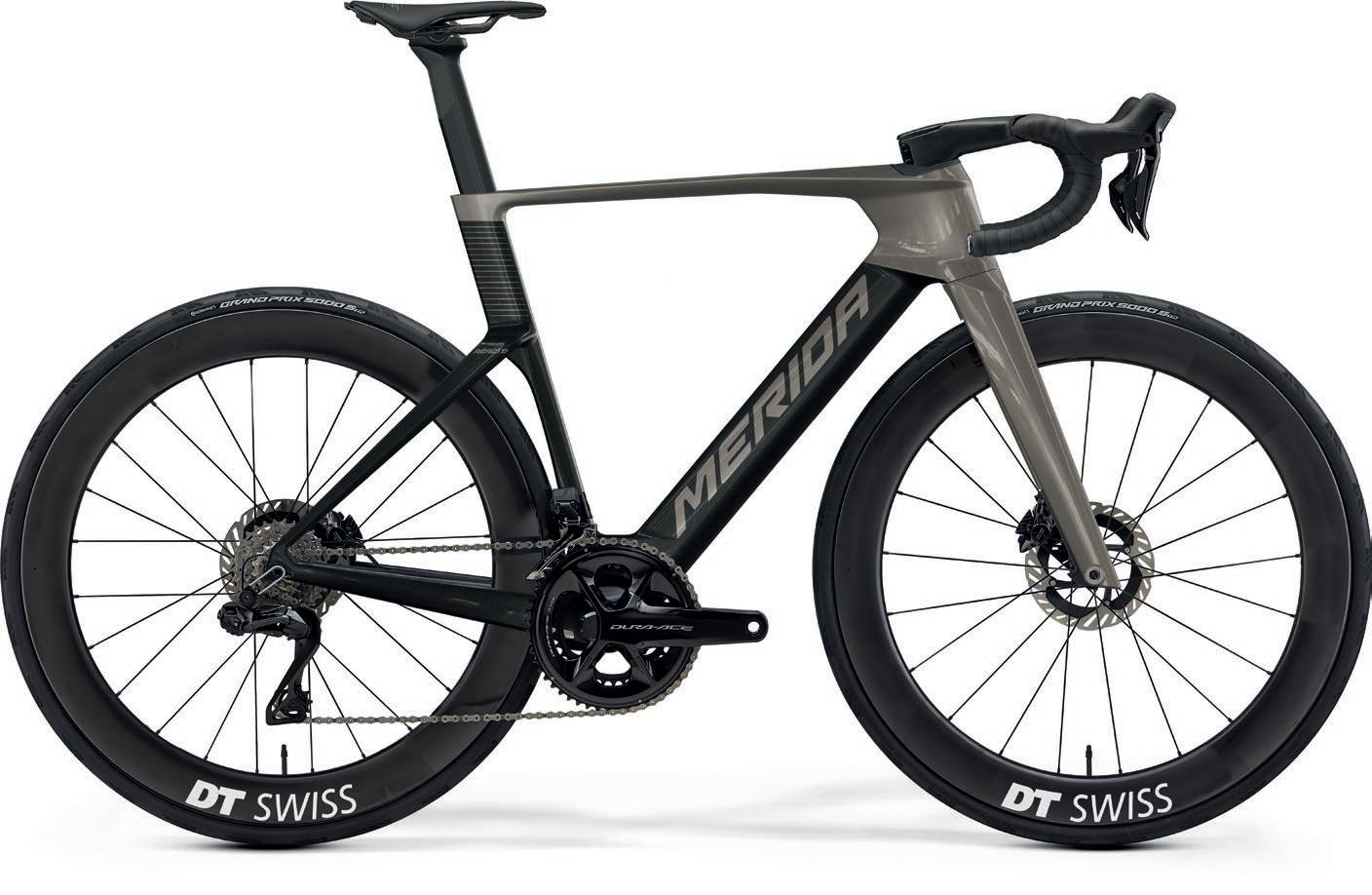

REACTO

REACTO 8000

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard

GABEL MERIDA REACTO CF3 IV DISC, material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Shimano Ultegra Di2

UMWERFER HINTEN Shimano Ultegra Di2

SCHALTHEBEL VORNE Shimano Ultegra disc Di2

SCHALTHEBEL HINTEN Shimano Ultegra disc Di2

BREMSE VORNE Shimano Ultegra, Disc

BREMSE HINTEN Shimano Ultegra, Disc

KURBEL Shimano Ultegra, 52-36 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

FREILAUF Shimano Ultegra R8101, 11-30 teeth, 12 speed

KETTE Shimano M6100-12

LAUFRADSATZ Reynolds AR 60 DB, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 60mm height, Centerlock

REIFEN VORNE Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

REIFEN HINTEN Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

LENKER Vision Metron 5D ACR EVO, material: carbon, 380mm (3S-XXS-XS-S), 400mm (M-L), 420mm-(XL)

VORBAU Vision Metron 5D ACR EVO material: carbon, 90 mm (XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)

SATELSTÜTZE MERIDA TEAM CW, Aero shape, 15mm setback, Carbon

SATTEL Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool

GEWICHT (CA.) 8.7 kg, weighed at frame size M

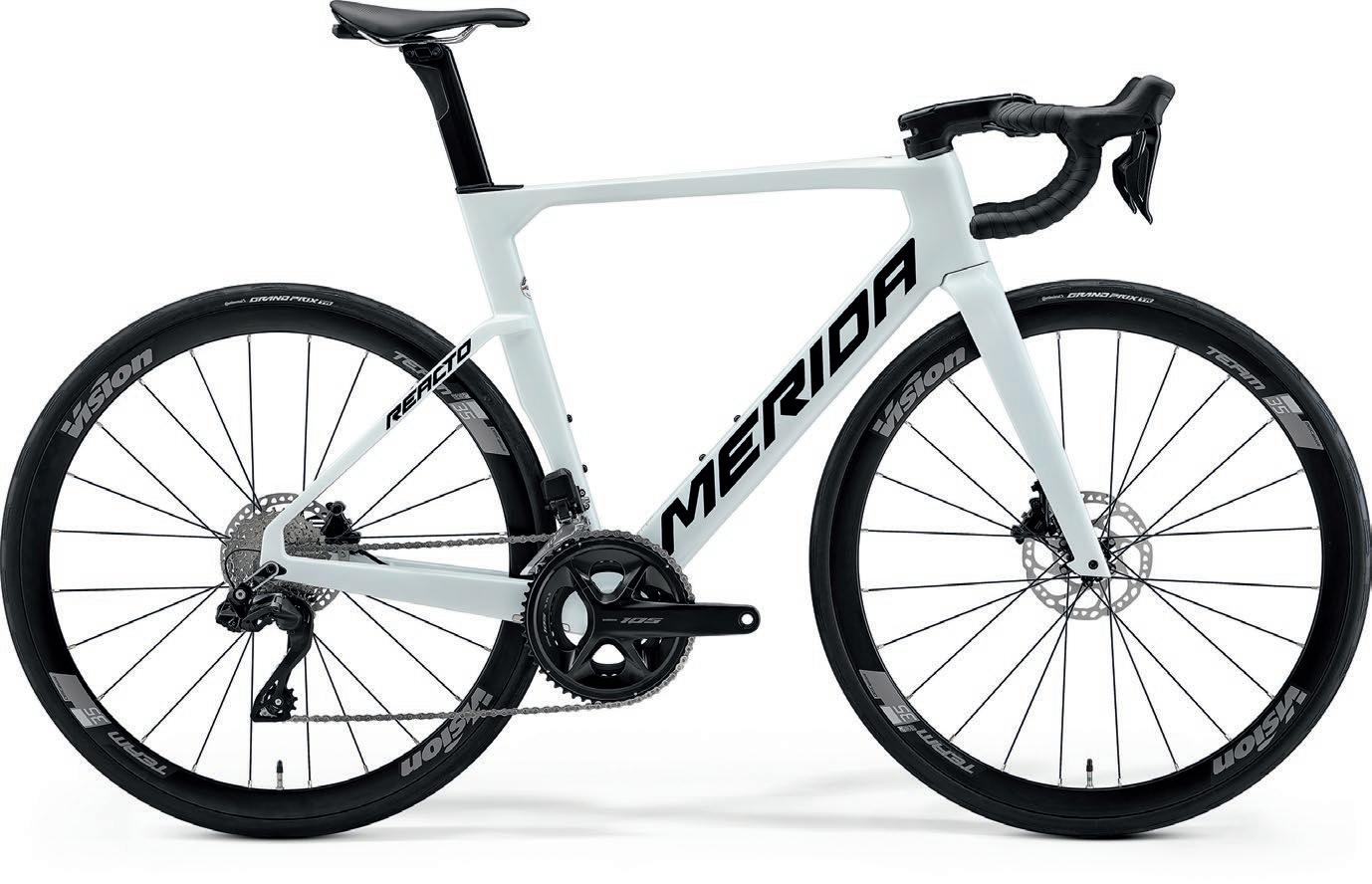

REACTO 5000

RAHMENGRÖSSEN XXS, XS, S, M, L

XS, S, M, L

RAHMEN REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard

GABEL MERIDA REACTO CF3 IV DISC, material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Shimano 105 Di2

UMWERFER HINTEN Shimano 105 Di2

SCHALTHEBEL VORNE Shimano 105 disc Di2

SCHALTHEBEL HINTEN Shimano 105 disc Di2

BREMSE VORNE Shimano 105, Disc

BREMSE HINTEN Shimano 105, Disc

KURBEL Shimano 105 R7100, 52-36 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

FREILAUF Shimano 105 R7101, 11-34 teeth, 12 speed

KETTE Shimano M6100-12

LAUFRADSATZ Vision Team 35 Clincher Disc, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 35mm height, material: aluminium, Centerlock

REIFEN VORNE Continental Grand Prix TR 700x28C, fold, tubeless ready

REIFEN HINTEN Continental Grand Prix TR 700x28C, fold, tubeless ready

LENKER MERIDA EXPERT CW, material: aluminium, 380mm (3S-XXS-XS-S), 400mm (M-L) 420mm (XL)

VORBAU MERIDA EXPERT SL 2P II material: aluminium, -9°° stem angle, incl. MERIDA SMART MOUNT, 90 mm (XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)

SATELSTÜTZE MERIDA TEAM CW, Aero shape, 15mm setback, Carbon

SATTEL MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 9.0 kg, weighed at frame size M

XXS,

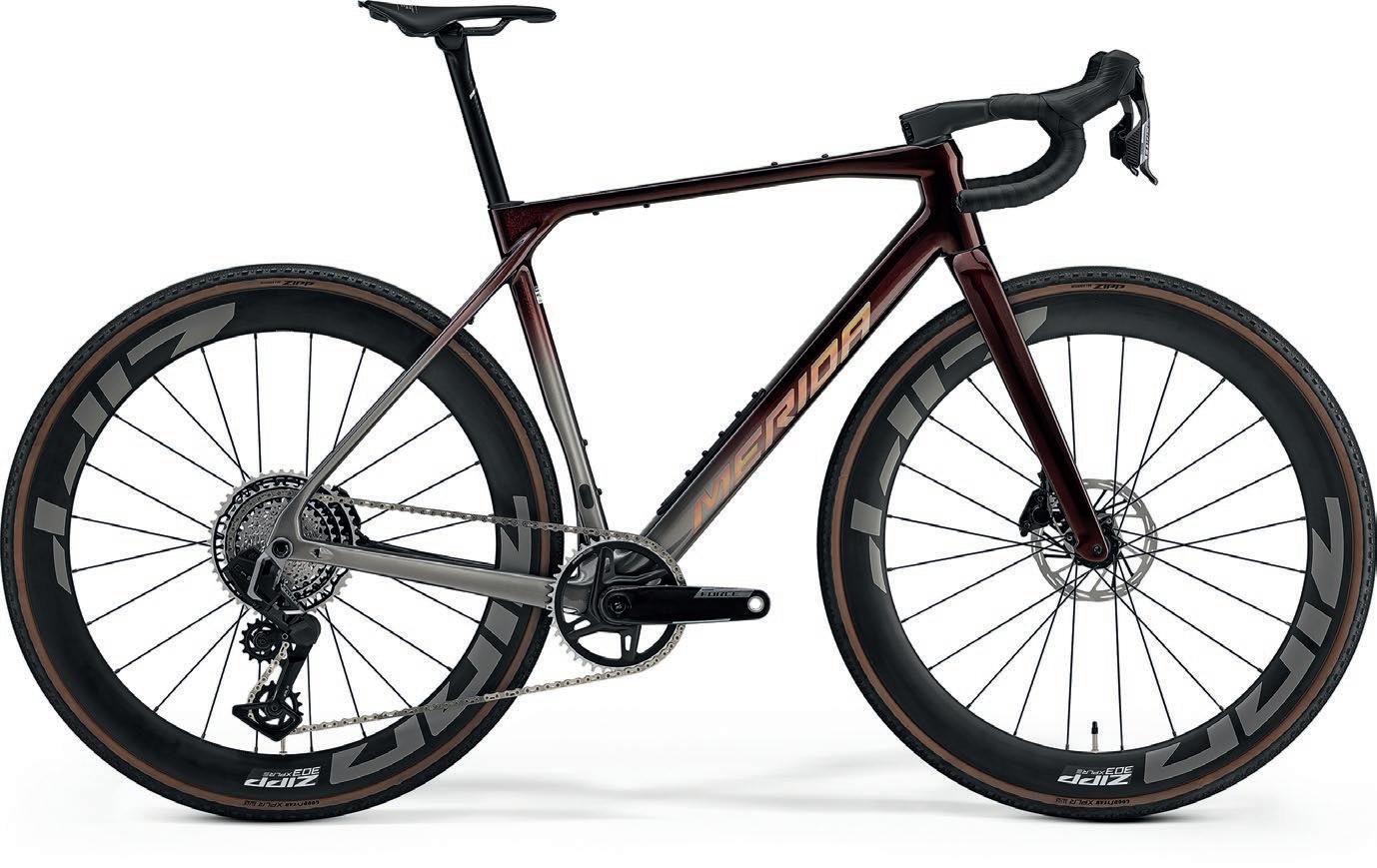

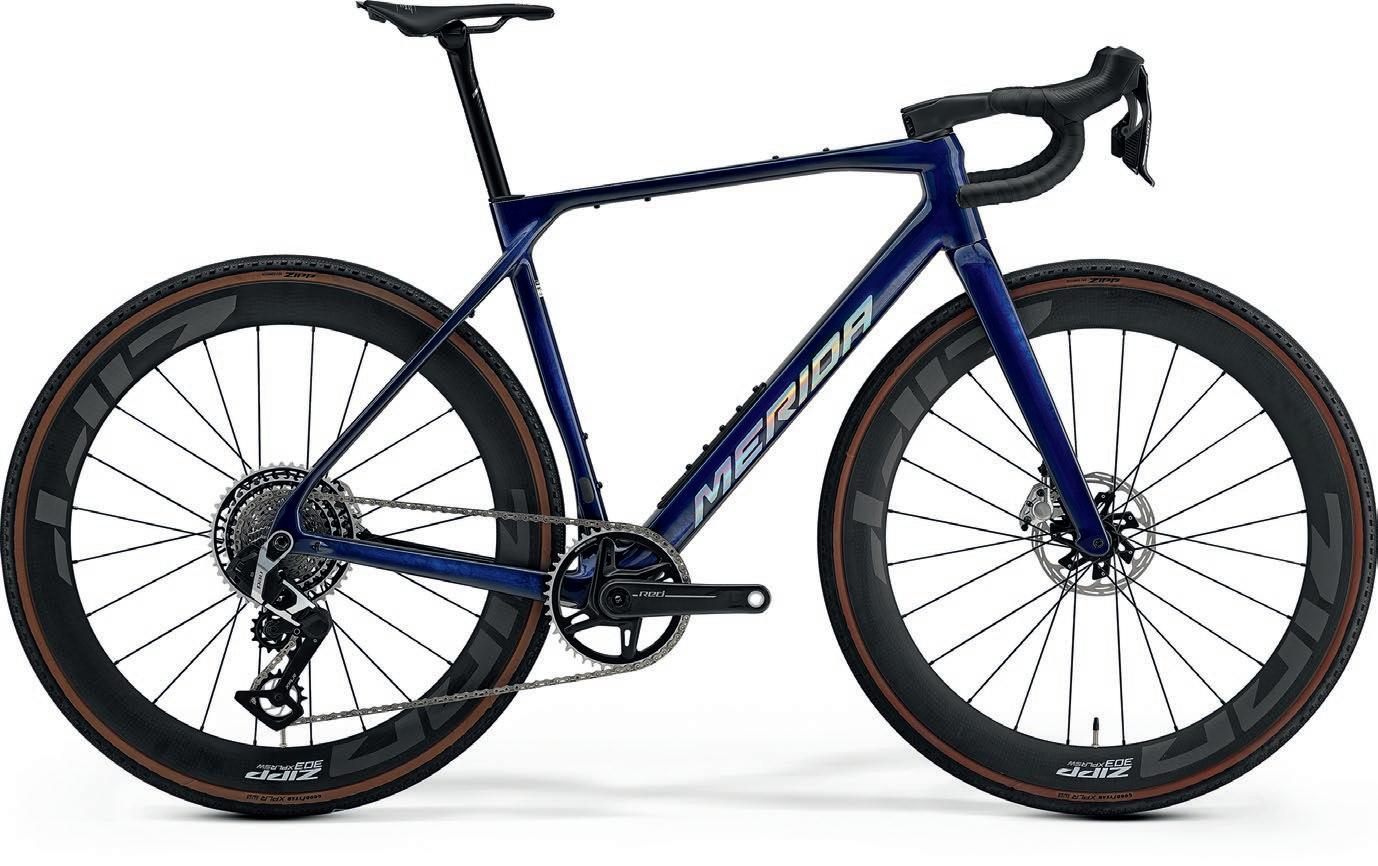

MISSION

812470

RAHMENGRÖSSEN XS, S, M, L

RAHMEN MISSION CF4 II, material: carbon, 700x40C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA MISSION CF4 II Tapered, material: carbon, 700x45C max. wheelsize

UMWERFER HINTEN Sram Red XPLR, AXS wireless, T-Type

SCHALTHEBEL VORNE Sram Red AXS, Hydraulic disc

SCHALTHEBEL HINTEN Sram Red AXS, Hydraulic disc

BREMSE VORNE Sram Red AXS, Disc

BREMSE HINTEN Sram Red AXS, Disc

KURBEL Sram Red XPLR AXS Power Meter, 44 teeth, MAT Carbon, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Sram Red XPLR, XG-1391, 10-46 teeth, 13GER

KETTE Sram Red, Flattop

LAUFRADSATZ Zipp 303 XPLR SW, 100x12mm width front hub, 142x12mm width rear hub, 32mm inner width, 54mm height, Centerlock, material: carbon

REIFEN VORNE Goodyear XPLR Slick designed for Zipp 40mm, 40-622, TLR

REIFEN HINTEN Goodyear XPLR Slick designed for Zipp 40mm, 40-622, TLR

SATELSTÜTZE MERIDA TEAM SL II, 27.2mm diameter, 0mm setback, Carbon

SATTEL Prologo Nago R4 PAS, Nack

MISSION 9000

812473

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN MISSION CF4 II, material: carbon, 700x40C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA MISSION CF4 II Tapered, material: carbon, 700x45C max. wheelsize

UMWERFER HINTEN Sram Force XPLR, AXS wireless, T-Type

SCHALTHEBEL VORNE Sram Force, Hydraulic disc

SCHALTHEBEL HINTEN Sram Force, Hydraulic disc

BREMSE VORNE Sram Force XPLR, Disc

BREMSE HINTEN Sram Force XPLR, Disc

KURBEL Sram Force XPLR AXS Power Meter, 44 teeth, MAT Carbon, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Sram Force XPLR XG-1371, 10-46 teeth, 13 speed

KETTE Sram Rival, Flattop

LAUFRADSATZ Zipp 303 XPLR S, 100x12mm width front hub, 142x12mm width rear hub, 32mm inner width, 54mm height, Centerlock, material: carbon

REIFEN VORNE Goodyear XPLR Slick designed for Zipp 40mm, 40-622, TLR

REIFEN HINTEN Goodyear XPLR Slick designed for Zipp 40mm, 40-622, TLR

LENKER MERIDA TEAM SL 1P GR, material: carbon, 380 (XXS-XS-S), 400 (M-L), 420 (XL)

VORBAU MERIDA TEAM ONE-PIECE GR, material: carbon, incl. MERIDA SMART MOUNT, 90 (XXS-XS-S), 100 (M), 110 (L-XL)

SATELSTÜTZE MERIDA TEAM SL II 27.2mm diameter, 0mm setback, Carbon

SATTEL Prologo Nago R4 PAS Nack

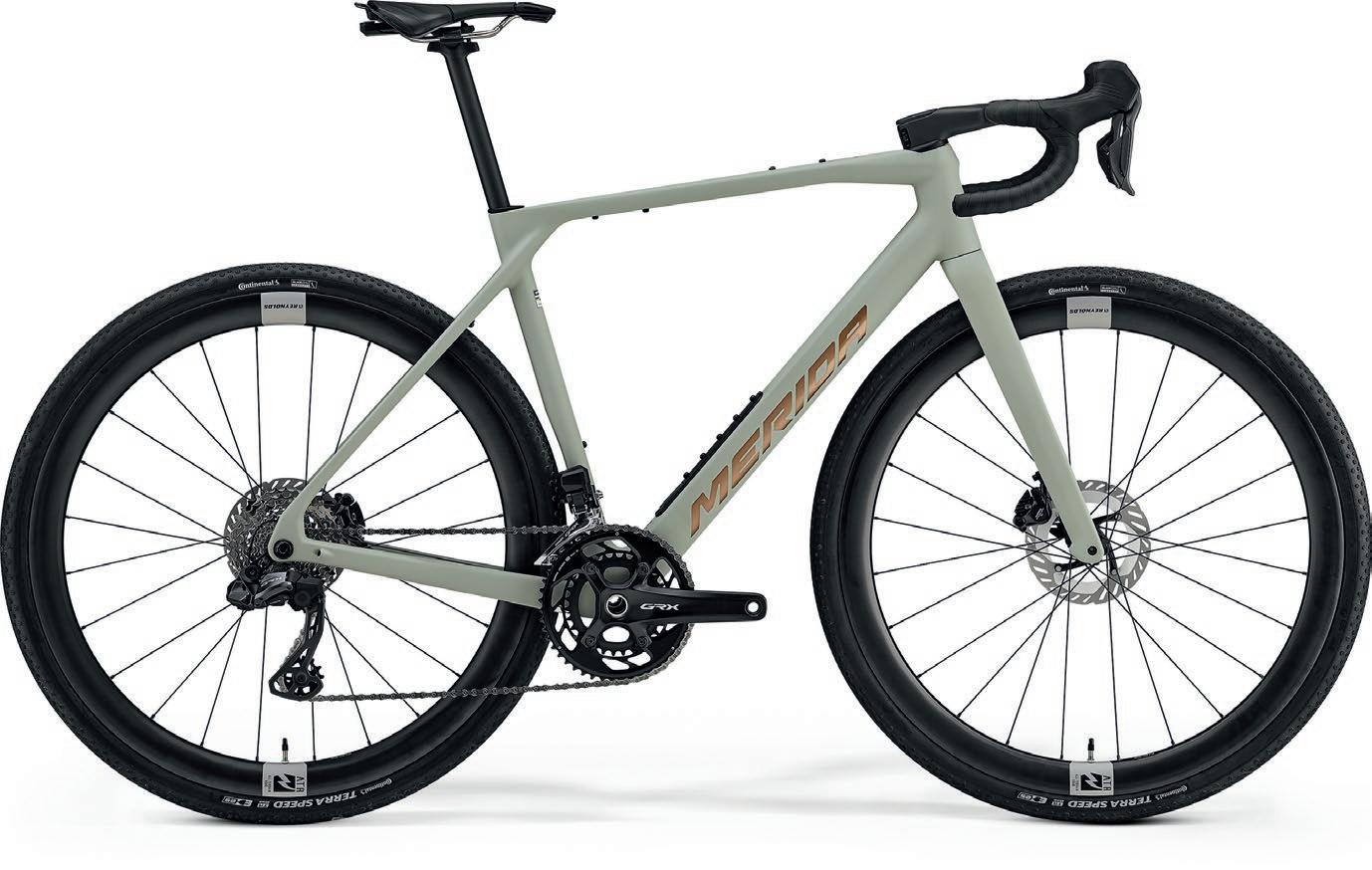

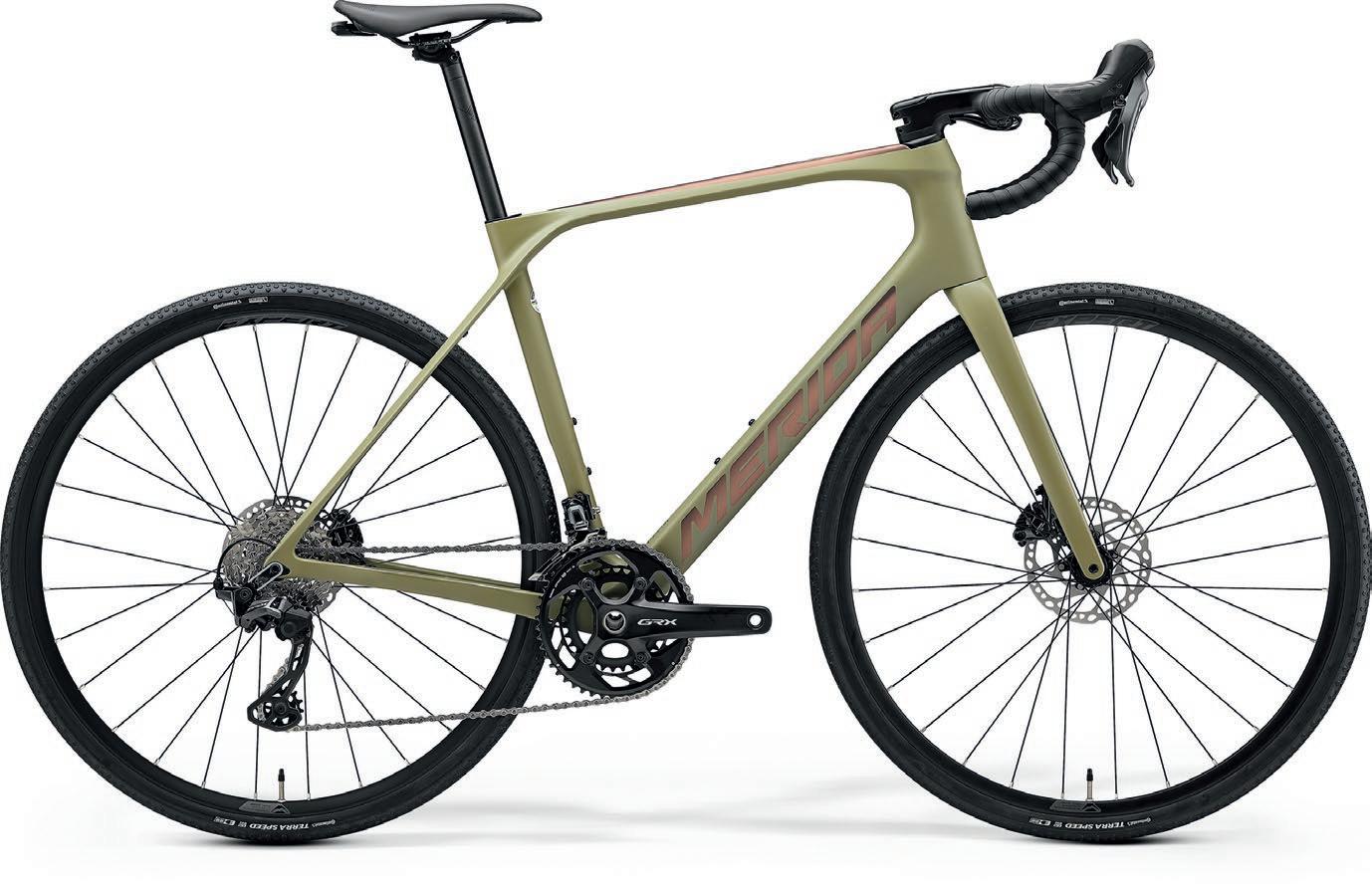

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN MISSION CF4 II, material: carbon, 700x40C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA MISSION CF4 II Tapered, material: carbon, 700x45C max. wheelsize

UMWERFER VORNE Shimano GRX825 Di2

UMWERFER HINTEN Shimano GRX825 Di2

SCHALTHEBEL VORNE Shimano GRX825 Di2, Hydraulic disc

SCHALTHEBEL HINTEN Shimano GRX825 Di2, Hydraulic disc

BREMSE VORNE Shimano GRX820, Disc

BREMSE HINTEN Shimano GRX820, Disc

KURBEL Shimano GRX820, 48-31 teeth, 170mm XXS/XS/S/M, 172,5mm L/XL

FREILAUF Shimano GRX HG710, 11-36 teeth, 12 speed

KETTE Shimano Deore M6100-12

LAUFRADSATZ Reynolds ATR TSS CL, 100x12mm width front hub, 142x12mm width rear hub, 25mm inner width, 42mm height, Centerlock, material: carbon

REIFEN VORNE Continental Terra Speed ProTection 40mm, 40-622, TLR, foldable skin SL

REIFEN HINTEN Continental Terra Speed ProTection 40mm, 40-622, TLR, foldable skin SL

LENKER MERIDA TEAM SL 1P GR, material: carbon, 380 (XXS-XS-S), 400 (M-L), 420 (XL)

VORBAU MERIDA TEAM ONE-PIECE GR material: carbon, incl. MERIDA SMART MOUNT, 90 (XXS-XS-S), 100 (M), 110 (L-XL)

SATELSTÜTZE MERIDA TEAM SL II, 27.2mm diameter, 0mm setback, Carbon

SATTEL Prologo Scratch M5 AGX, V-mount adapter, incl. MERIDA minitool

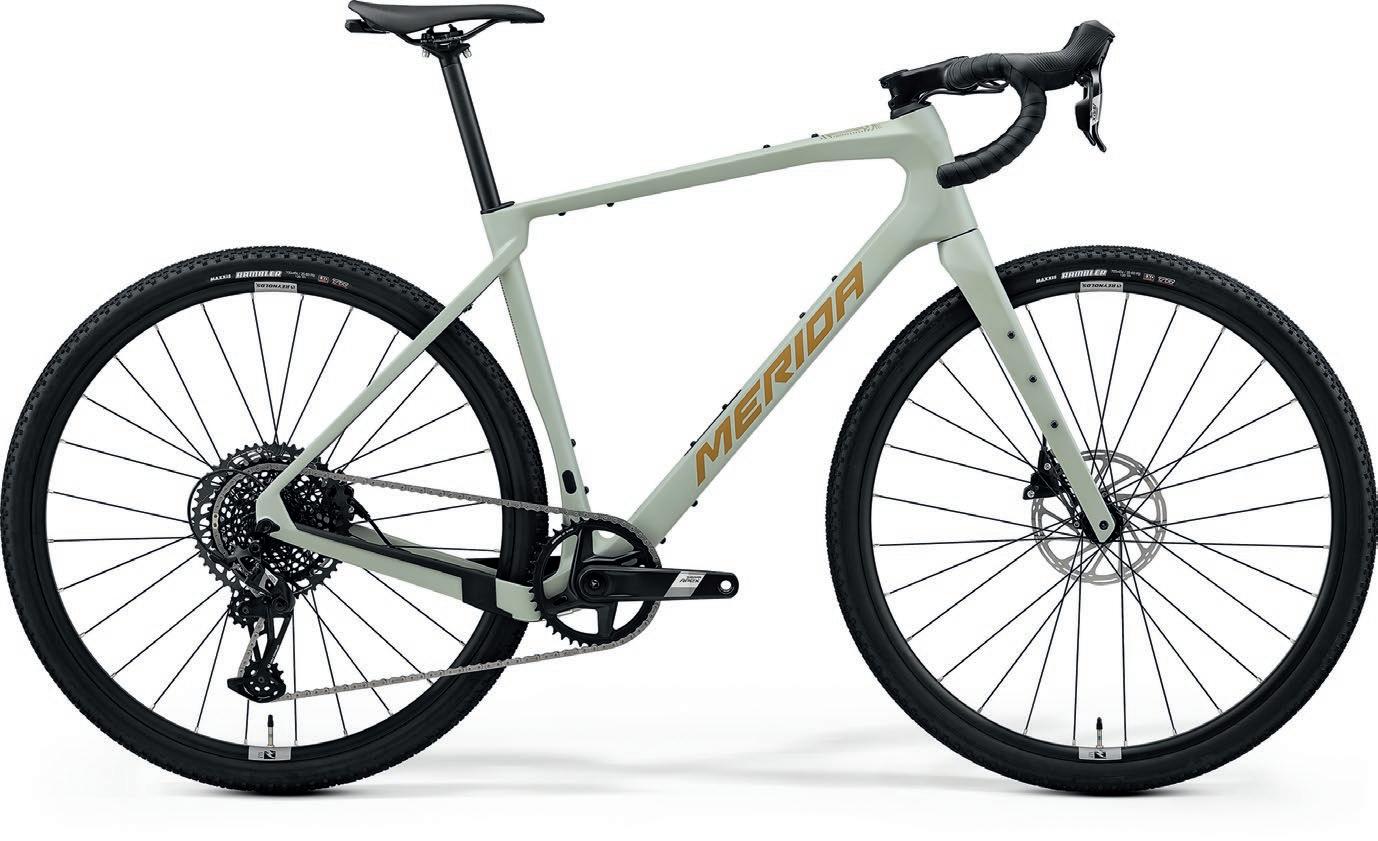

MISSION 6000

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN MISSION CF4 II, material: carbon, 700x40C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA MISSION CF4 II, Tapered, material: carbon, 700x45C max. wheelsize

UMWERFER HINTEN Sram Rival XPLR, AXS wireless, T-Type

SCHALTHEBEL VORNE Sram Rival AXS, Hydraulic disc

SCHALTHEBEL HINTEN Sram Rival AXS, Hydraulic disc

BREMSE VORNE Sram Rival AXS XPLR, Disc

BREMSE HINTEN Sram Rival AXS XPLR, Disc

KURBEL Sram Rival XPLR, 42 teeth, MAT Aluminium, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Sram Rival XPLR, 10-46 teeth, 13 speed

KETTE Sram Rival, Flattop

LAUFRADSATZ DT Swiss G 1800 spline, CL, 100x12mm width front hub, 142x12mm width rear hub, 24mm inner width, 25mm height, Centerlock, material: aluminium

REIFEN VORNE Continental Terra Speed ProTection 40mm, 40-622, TLR, foldable skin SL

REIFEN HINTEN Continental Terra Speed ProTection 40mm, 40-622, TLR, foldable skin SL

LENKER MERIDA EXPERT GR II, material: aluminium, 380mm (XXS-XS-S), 400mm (M-L) , 420mm (XL)

VORBAU MERIDA TEAM CC III, material: aluminium, 31.8mm diameter, -6°° stem angle, 90 mm-XXS/XS/S, 100 mm-M, 110 mm-L/XL

SATELSTÜTZE MERIDA EXPERT SL, 27.2mm diameter, 0mm setback, Carbon

SATTEL MERIDA COMP SL, 25% recycled material, V-mount

GEWICHT (CA.) 9.1 kg, weighed at frame size M

MISSION 4000

ART.NR.:

812483

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN MISSION CF4 II, material: carbon, 700x40C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA MISSION CF4 II Tapered, material: carbon, 700x45C max. wheelsize

UMWERFER VORNE Shimano GRX400

UMWERFER HINTEN Shimano GRX400

SCHALTHEBEL VORNE Shimano GRX 400, Hydraulic disc

SCHALTHEBEL HINTEN Shimano GRX 400, Hydraulic disc

BREMSE VORNE Shimano STRX410, Disc

BREMSE HINTEN Shimano STRX410, Disc

KURBEL Shimano GRX600, 46-30 teeth, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Shimano Claris HG50, 11-36 teeth, 10 speed

KETTE KMC X10

LAUFRADSATZ Shimano WH-RX180-700C, CL, 100x12mm width front hub, 142x12mm width rear hub, 25mm inner width, 25mm height, Centerlock, material: aluminium

REIFEN VORNE Maxxis Receptor 40mm, 700x40C, Wire, EXO

REIFEN HINTEN Maxxis Receptor 40mm, 700x40C, Wire, EXO

LENKER MERIDA EXPERT GR II, material: aluminium, 380mm (XXS-XS-S) , 400mm (M-L) , 420mm (XL)

VORBAU MERIDA TEAM CC III material: aluminium, 31.8mm diameter, -6°° stem angle, 80 mm all sizes

SATELSTÜTZE MERIDA EXPERT SL, 27.2mm diameter, 0mm setback, Carbon

SATTEL MERIDA COMP SL, 22% recycled material, V-mount

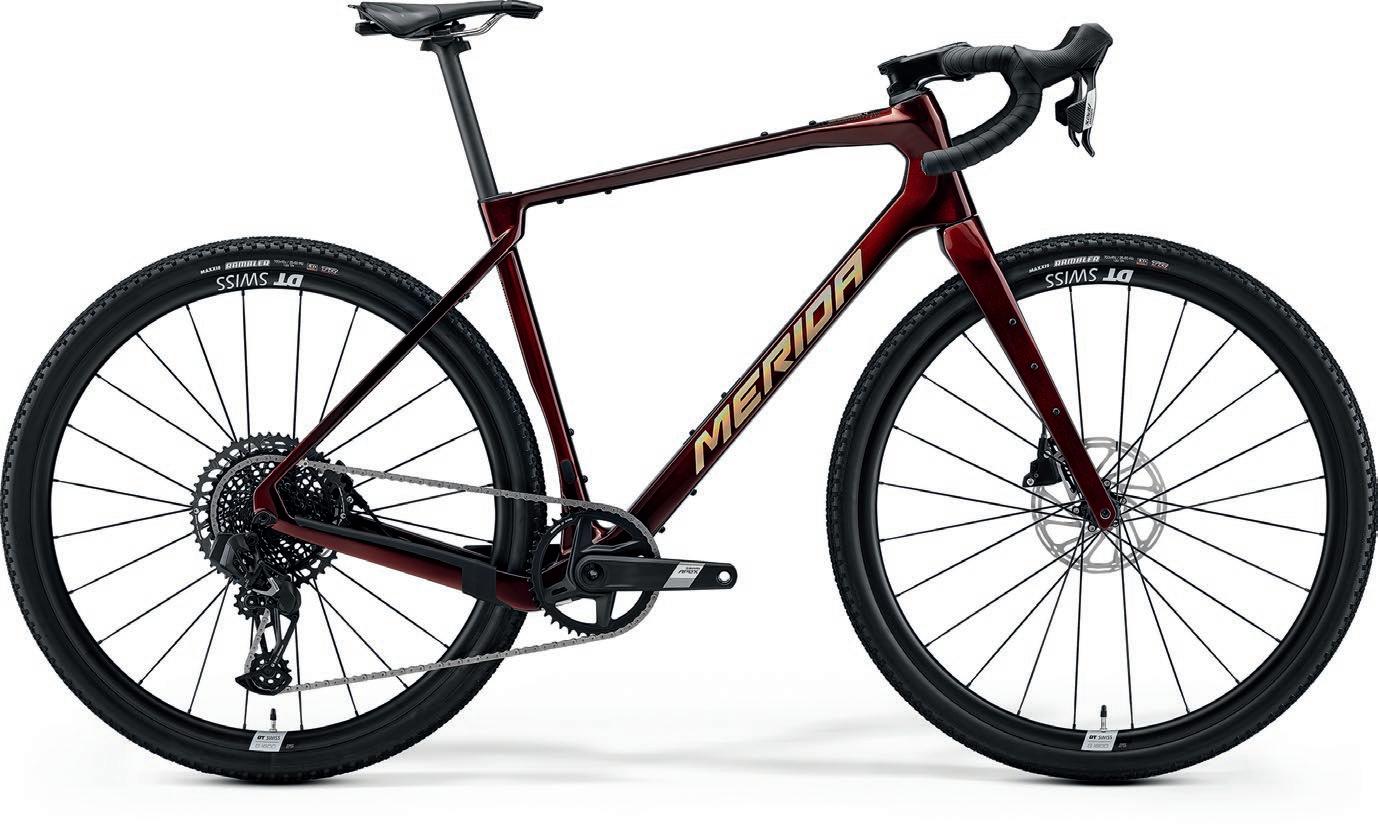

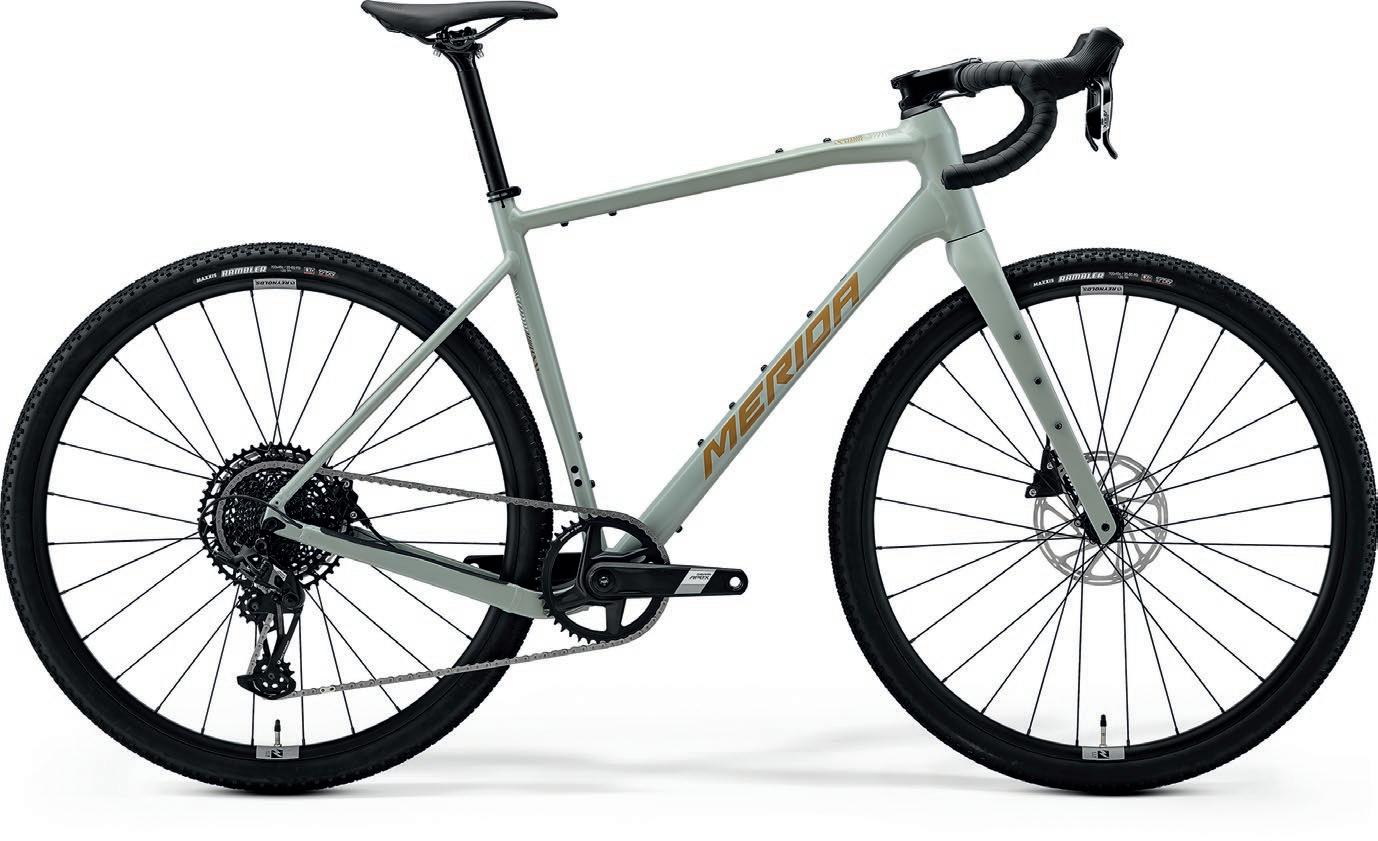

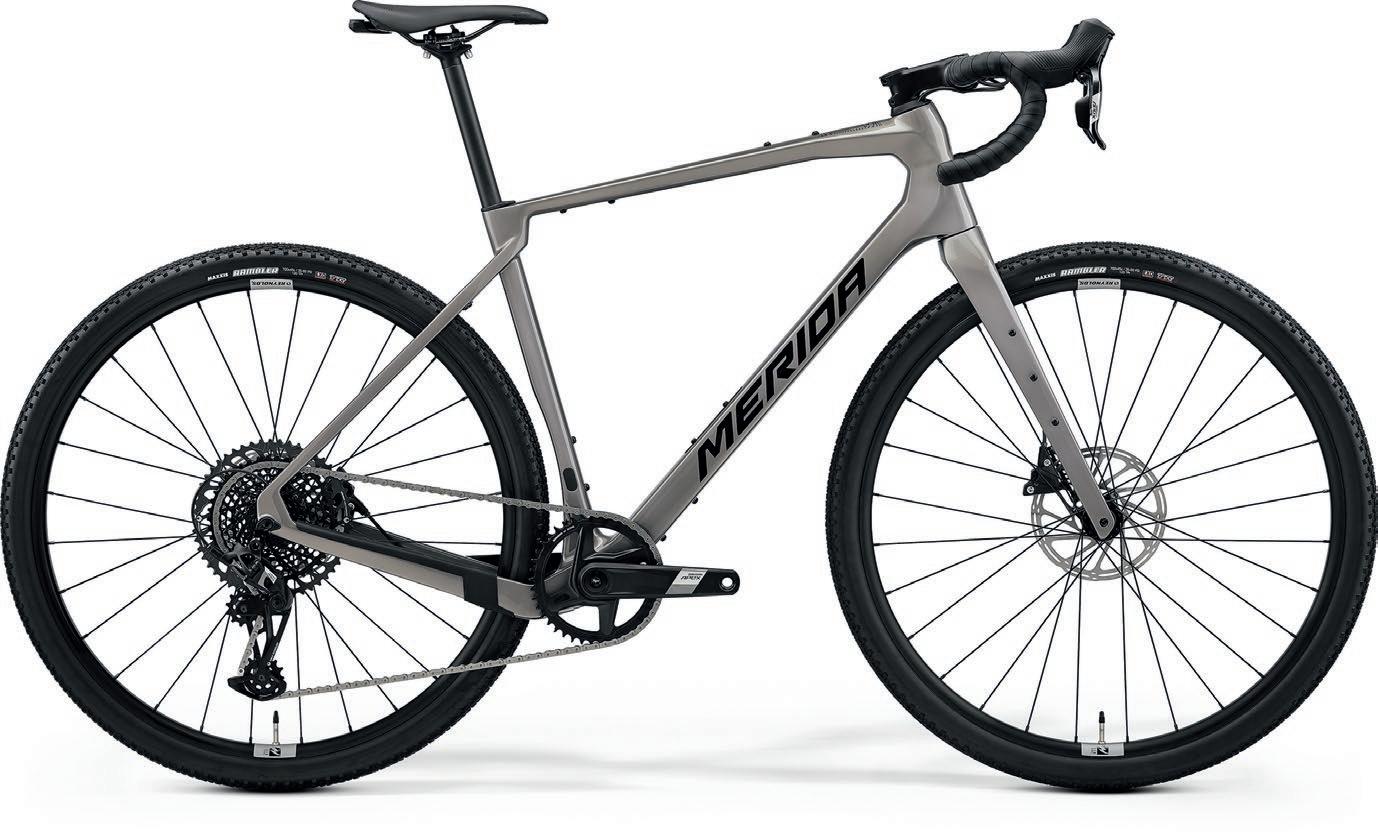

SILEX

RAHMENGRÖSSEN S, M, L

RAHMEN SILEX CF2 II, material: carbon, 700x45C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA SILEX II CF2, Tapered, material: carbon, 700x47C max. wheelsize

GEWICHT (CA.) 8.7 kg, weighed at frame size M 812448

UMWERFER HINTEN Shimano GRX827-SGS Di2

SCHALTHEBEL VORNE Shimano GRX825 Di2, Hydraulic disc

SCHALTHEBEL HINTEN Shimano GRX825 Di2, Hydraulic disc

BREMSE VORNE Shimano GRX825, Disc

BREMSE HINTEN Shimano GRX825, Disc

KURBEL Shimano GRX820-1, 42 teeth, 170mm XXS/XS/S/M, 172,5mm L/XL

FREILAUF Shimano CS-M8200, 10-51 teeth, 12 speed

KETTE Shimano M6100-12

LAUFRADSATZ Reynolds BL ATR EXPERT CL, 100x12mm width front hub, 142x12mm width rear hub, 25mm inner width, 42mm height, Centerlock, material: carbon

REIFEN VORNE Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

REIFEN HINTEN Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

LENKER Easton EC90 AX, material: carbon, 400mm (XXS-XS-S), 420mm (M), 440mm (L/XL)

VORBAU MERIDA TEAM CC III, material: aluminium, 31.8mm diameter, -6°° stem angle, incl. MERIDA SMART MOUNT, 80 mm all sizes

SATELSTÜTZE MERIDA TEAM SL II, 27.2mm diameter, 0mm setback, Carbon

SATTEL Prologo Scratch M5 AGX, V-mount adapter, incl. MERIDA minitool

RAHMENGRÖSSEN XXS, XS, S, M, L

RAHMEN SILEX CF2 II, material: carbon, 700x45C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA SILEX II CF2, Tapered, material: carbon, 700x47C max. wheelsize

UMWERFER HINTEN Sram X1 Eagle, AXS, wireless

SCHALTHEBEL VORNE Sram Apex AXS, Hydraulic disc

SCHALTHEBEL HINTEN Sram Apex AXS, Hydraulic disc

BREMSE VORNE Sram Apex, Disc

BREMSE HINTEN Sram Apex, Disc

KURBEL Sram Apex 1 Wide Crankset, teeth 42, MAT Aluminium, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Sram XG 1275, 10-52 teeth, 12 speed

KETTE Sram Apex, CN-APX-D1

LAUFRADSATZ DT Swiss G 1800 spline, CL, 100x12mm width front hub, 142x12mm width rear hub, 24mm inner width, 25mm height, Centerlock, material: aluminium

REIFEN VORNE Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

REIFEN HINTEN Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

LENKER Easton EC90 AX, material: carbon, 400mm (XXS-XS-S), 420mm (M), 440mm (L/XL)

VORBAU MERIDA TEAM CC III, material: aluminium, 31.8mm diameter, -6°° stem angle, incl. MERIDA SMART MOUNT, 80 mm all sizes

SATELSTÜTZE MERIDA TEAM SL II, 27.2mm diameter, 0mm setback, Carbon

SATTEL Prologo Scratch M5 AGX, V-mount adapter, incl. MERIDA minitool

GEWICHT (CA.) 9.2 kg, weighed at frame size M

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN SILEX CF2 II, material: carbon, 700x45C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA SILEX II CF2, Tapered, material: carbon, 700x47C max. wheelsize

GEWICHT (CA.) 9.6 kg, weighed at frame size M 812453

UMWERFER HINTEN Sram Apex Eagle

SCHALTHEBEL VORNE Sram Apex, Hydraulic disc

SCHALTHEBEL HINTEN Sram Apex, Hydraulic disc

BREMSE VORNE Sram Apex, Disc

BREMSE HINTEN Sram Apex, Disc

KURBEL Sram Apex 1 Wide Crankset, teeth 42, MAT Aluminium, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Sram XG 1275, 10-52 teeth, 12 speed

KETTE Sram Apex, CN-APX-D1

FELGE Reynolds Duroc G30, 622 28H, 26mm inner width, 17mm height

REIFEN VORNE Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

REIFEN HINTEN Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

LENKER MERIDA EXPERT GR II, material: aluminium, 400mm (XXS-XS-S), 420mm (M) , 440mm (L/XL)

VORBAU MERIDA TEAM CC III, material: aluminium, 31.8mm diameter, -6°° stem angle, 80 mm all sizes

SATELSTÜTZE MERIDA EXPERT SL, 27.2mm diameter, 0mm setback, Carbon

SATTEL MERIDA COMP SL, 25% recycled material, V-mount

ART.NR.:

812454

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN SILEX CF2 II, material: carbon, 700x45C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA SILEX II CF2, Tapered, material: carbon, 700x47C max. wheelsize

UMWERFER HINTEN Sram Apex Eagle

SCHALTHEBEL VORNE Sram Apex, Hydraulic disc

SCHALTHEBEL HINTEN Sram Apex, Hydraulic disc

BREMSE VORNE Sram Apex, Disc

BREMSE HINTEN Sram Apex, Disc

KURBEL Sram Apex 1 Wide Crankset, teeth 42, MAT Aluminium, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Sram XG 1275, 10-52 teeth, 12 speed

KETTE Sram Apex, CN-APX-D1

FELGE Reynolds Duroc G30, 622 28H, 26mm inner width, 17mm height

REIFEN VORNE Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

REIFEN HINTEN Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

LENKER MERIDA EXPERT GR II, material: aluminium, 400mm (XXS-XS-S), 420mm (M), 440mm (L/XL)

VORBAU MERIDA TEAM CC III, material: aluminium, 31.8mm diameter, -6°° stem angle, 80 mm all sizes

SATELSTÜTZE MERIDA EXPERT SL, 27.2mm diameter, 0mm setback, Carbon

SATTEL MERIDA COMP SL, 25% recycled material, V-mount

GEWICHT (CA.) 9.6 kg, weighed at frame size M

812455

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN SILEX CF2 II, material: carbon, 700x45C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA SILEX II CF2 Tapered, material: carbon, 700x47C max. wheelsize

UMWERFER VORNE Shimano GRX400

UMWERFER HINTEN Shimano GRX400

SCHALTHEBEL VORNE Shimano GRX 400, disc

SCHALTHEBEL HINTEN Shimano GRX 400, disc

BREMSE VORNE Shimano GRX400, Disc

BREMSE HINTEN Shimano GRX400, Disc

KURBEL Shimano GRX600, 46-30 teeth, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Shimano Claris HG50, 11-36 teeth, 10 speed

KETTE KMC X10

FELGE Reynolds Duroc G30, 622 28H, 26mm inner width, 17mm height

REIFEN VORNE Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

REIFEN HINTEN Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

LENKER MERIDA EXPERT GR II, material: aluminium, 400mm (XXS-XS-S) , 420mm (M) , 440mm (L/XL)

VORBAU MERIDA TEAM CC III material: aluminium, 31.8mm diameter, -6°° stem angle, 80 mm all sizes

SATELSTÜTZE MERIDA EXPERT SL, 27.2mm diameter, 0mm setback, Carbon

SATTEL MERIDA COMP SL, 22% recycled material, V-mount

GEWICHT (CA.) 10.1 kg, weighed at frame size M

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN SILEX CF2 II, material: carbon, 700x45C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA SILEX II CF2 Tapered, material: carbon, 700x47C max. wheelsize

UMWERFER VORNE Shimano GRX400

UMWERFER HINTEN Shimano GRX400

SCHALTHEBEL VORNE Shimano GRX 400, disc

SCHALTHEBEL HINTEN Shimano GRX 400, disc

BREMSE VORNE Shimano GRX400, Disc

BREMSE HINTEN Shimano GRX400, Disc

KURBEL Shimano GRX600, 46-30 teeth, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Shimano Claris HG50, 11-36 teeth, 10 speed

KETTE KMC X10

FELGE Reynolds Duroc G30, 622 28H, 26mm inner width, 17mm height

REIFEN VORNE Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

REIFEN HINTEN Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

LENKER MERIDA EXPERT GR II, material: aluminium, 400mm (XXS-XS-S) , 420mm (M) , 440mm (L/XL)

VORBAU MERIDA TEAM CC III material: aluminium, 31.8mm diameter, -6°° stem angle, 80 mm all sizes

SATELSTÜTZE MERIDA EXPERT SL, 27.2mm diameter, 0mm setback, Carbon

SATTEL MERIDA COMP SL, 22% recycled material, V-mount

GEWICHT (CA.) 10.1 kg, weighed at frame size M

ART.NR.:

812460

RAHMENGRÖSSEN XXS, XS, S, M, L

RAHMEN SILEX LITE II, material: aluminium, 700x45C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA SILEX II CF2, Tapered, material: carbon, 700x47C max. wheelsize

UMWERFER HINTEN Sram Apex Eagle

SCHALTHEBEL VORNE Sram Apex, Hydraulic disc

SCHALTHEBEL HINTEN Sram Apex, Hydraulic disc

BREMSE VORNE Sram Apex, Disc

BREMSE HINTEN Sram Apex, Disc

KURBEL Sram Apex 1 Wide Crankset, teeth 42, MAT Aluminium, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Sram PG-1230, 11-50 teeth, 12 speed

KETTE Sram Apex, CN-APX-D1

FELGE Reynolds Duroc G30, 622 28H, 26mm inner width, 17mm height

REIFEN VORNE Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

REIFEN HINTEN Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

LENKER MERIDA EXPERT GR II, material: aluminium, 400mm (XXS-XS-S), 420mm (M), 440mm (L/XL)

VORBAU MERIDA TEAM CC III, material: aluminium, 31.8mm diameter, -6°° stem angle, 80 mm all sizes

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA COMP SL, 25% recycled material, V-mount

GEWICHT (CA.) 10.8 kg, weighed at frame size M

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN SILEX LITE II, material: aluminium, 700x45C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA SILEX II CF2 Tapered, material: carbon, 700x47C max. wheelsize

UMWERFER VORNE Shimano GRX400

UMWERFER HINTEN Shimano GRX400

SCHALTHEBEL VORNE Shimano GRX 400, disc

SCHALTHEBEL HINTEN Shimano GRX 400, disc

BREMSE VORNE Shimano GRX400, Disc

BREMSE HINTEN Shimano GRX400, Disc

KURBEL Shimano GRX600, 46-30 teeth, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Shimano Claris HG50, 11-36 teeth, 10 speed

KETTE KMC X10

FELGE MERIDA EXPERT SL III, 23mm inner width, 26mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

REIFEN HINTEN Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

LENKER MERIDA EXPERT GR II, material: aluminium, 400mm (XXS-XS-S) , 420mm (M) , 440mm (L/XL)

VORBAU MERIDA TEAM CC III material: aluminium, 31.8mm diameter, -6°° stem angle, 80 mm all sizes

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA COMP SL, 25% recycled material, V-mount

GEWICHT (CA.) 11.1 kg, weighed at frame size M

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN SILEX LITE II, material: aluminium, 700x45C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA SILEX II CF2 Tapered, material: carbon, 700x47C max. wheelsize

UMWERFER VORNE Shimano GRX400

UMWERFER HINTEN Shimano GRX400

SCHALTHEBEL VORNE Shimano GRX 400, disc

SCHALTHEBEL HINTEN Shimano GRX 400, disc

BREMSE VORNE Shimano GRX400, Disc

BREMSE HINTEN Shimano GRX400, Disc

KURBEL Shimano GRX600, 46-30 teeth, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Shimano Claris HG50, 11-36 teeth, 10 speed

KETTE KMC X10

FELGE MERIDA EXPERT SL III, 23mm inner width, 26mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

REIFEN HINTEN Maxxis Rambler 45mm, 700x45C, fold, TR, EXO

LENKER MERIDA EXPERT GR II, material: aluminium, 400mm (XXS-XS-S) , 420mm (M) , 440mm (L/XL)

VORBAU MERIDA TEAM CC III material: aluminium, 31.8mm diameter, -6°° stem angle, 80 mm all sizes

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA COMP SL, 25% recycled material, V-mount

GEWICHT (CA.) 11.1 kg, weighed at frame size M

RAHMENGRÖSSEN S, M, L, XL

XS, S, M, L, XL

RAHMEN SILEX LITE II, material: aluminium, 700x45C max.WHS, 100x12/142x12mm axle standard, BSA bottom bracket standard

GABEL MERIDA SILEX II CF2 Tapered, material: carbon, 700x47C max. wheelsize

UMWERFER VORNE Shimano Sora

UMWERFER HINTEN Shimano Sora, GS

SCHALTHEBEL VORNE Shimano Sora

SCHALTHEBEL HINTEN Shimano Sora

BREMSE VORNE Promax DSK-330R, Mechanical disc

BREMSE HINTEN Promax DSK-330R, Mechanical disc

KURBEL FSA Omega, 48-32 teeth, 170 mm (XS/S), 172,5 mm (M), 175 mm (L/XL)

FREILAUF Shimano Altus HG200, 11-34 teeth, 9 speed

KETTE KMC M99

FELGE MERIDA COMP SL II, 23mm inner width, 24mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Rambler, 700x45C, fold, TR, EXO

REIFEN HINTEN Maxxis Rambler, 700x45C, fold, TR, EXO

LENKER MERIDA EXPERT GRII, material: aluminium, 400mm (XS-S) , 420mm (M) , 440mm (L/XL)

VORBAU MERIDA COMP CC material: aluminium, 31.8mm diameter, 6° stem angle, 80 mm all sizes

SATELSTÜTZE MERIDA COMP CC, material: aluminium, 27.2mm diameter, 5mm setback

SATTEL MERIDA COMP SL, 28% recycled material, V-mount

GEWICHT (CA.) 11.1 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

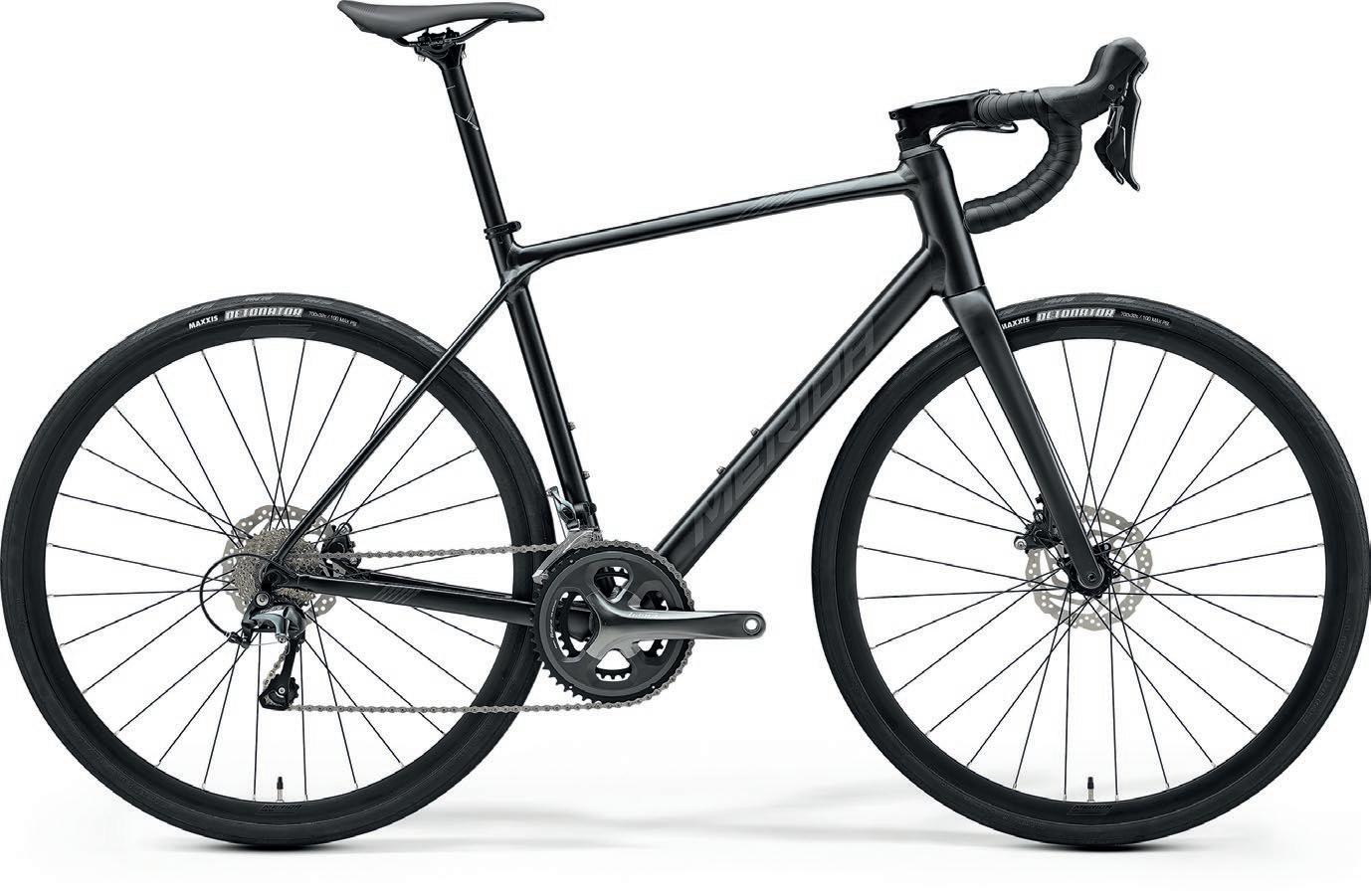

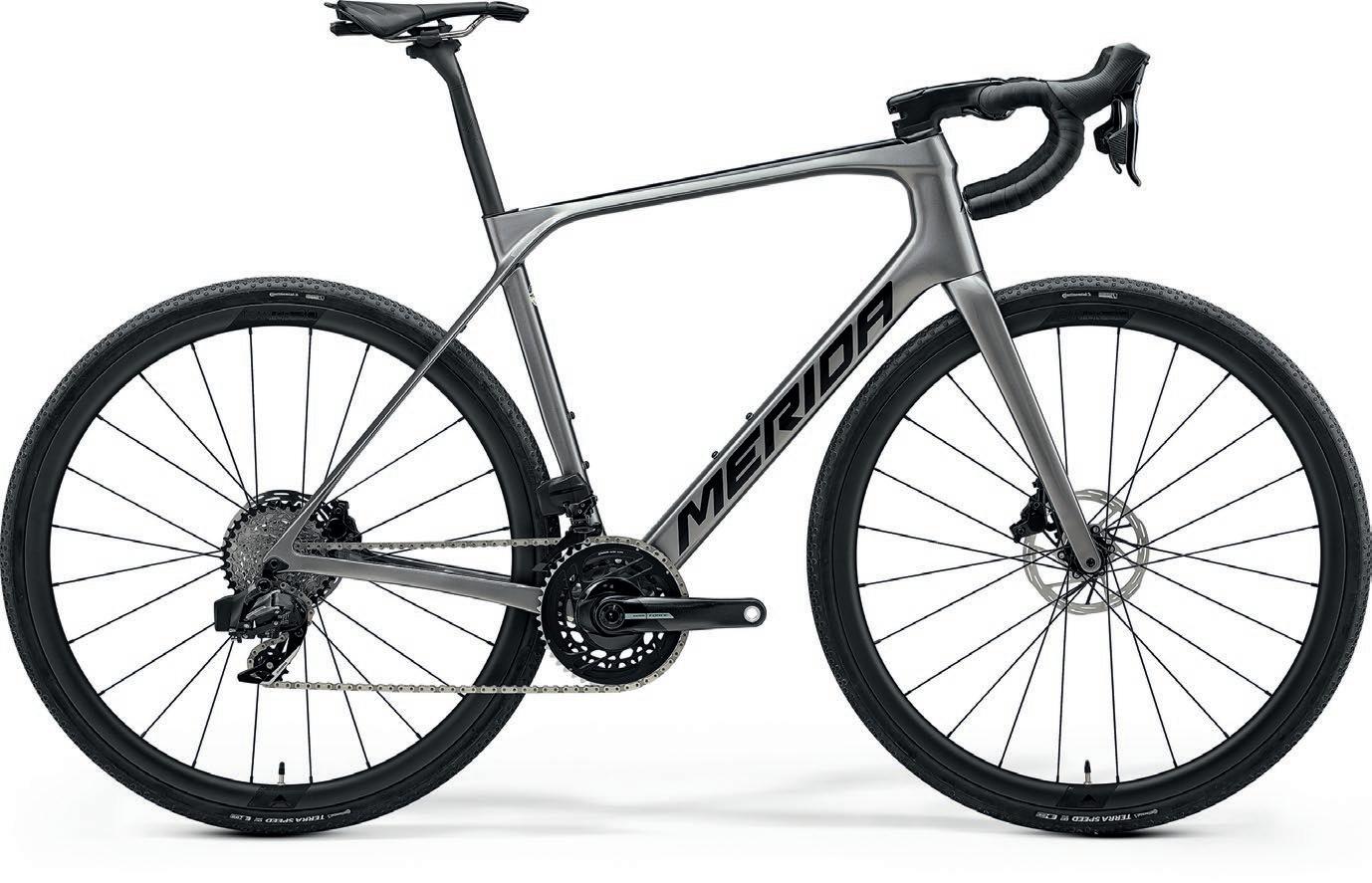

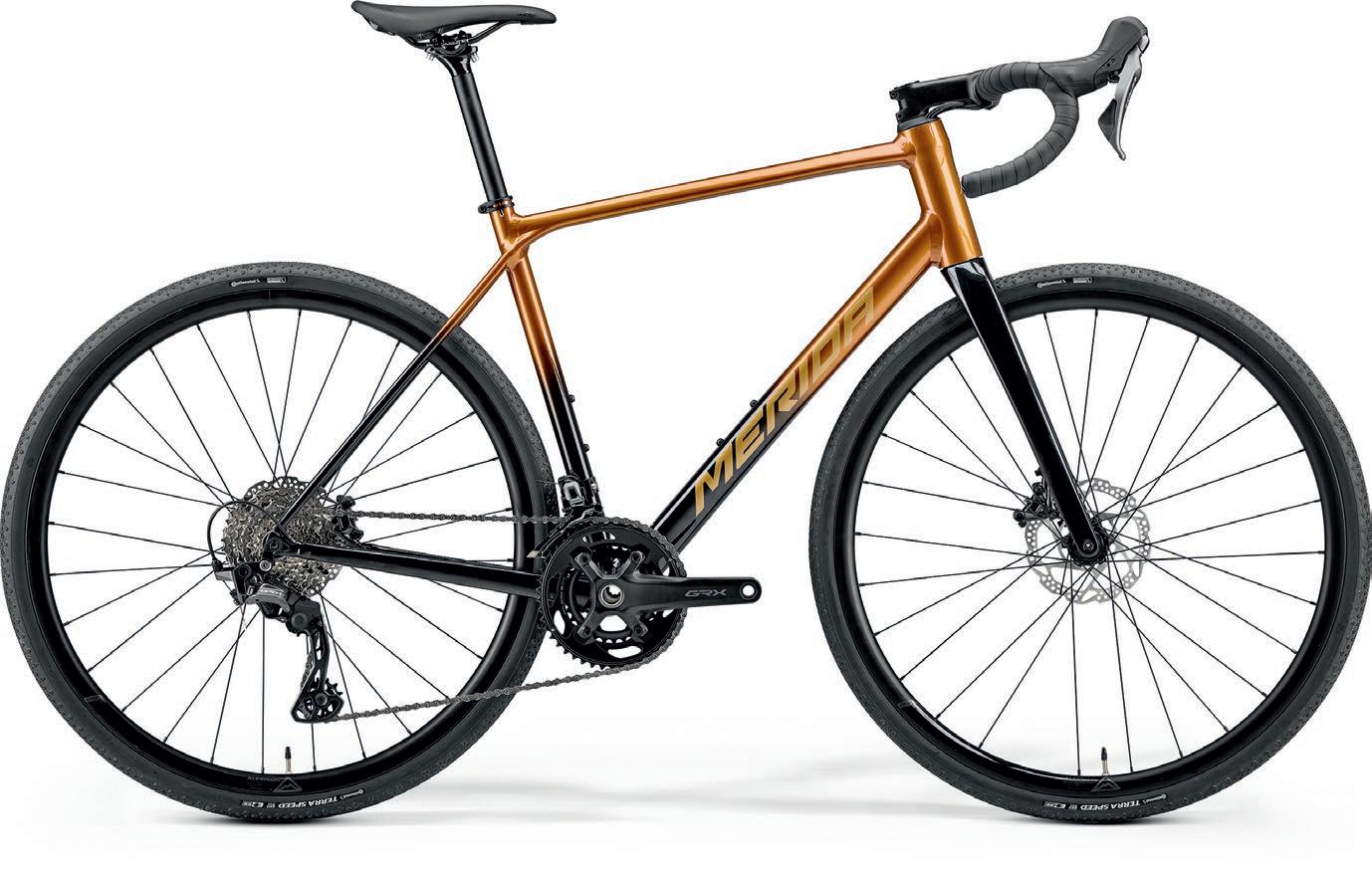

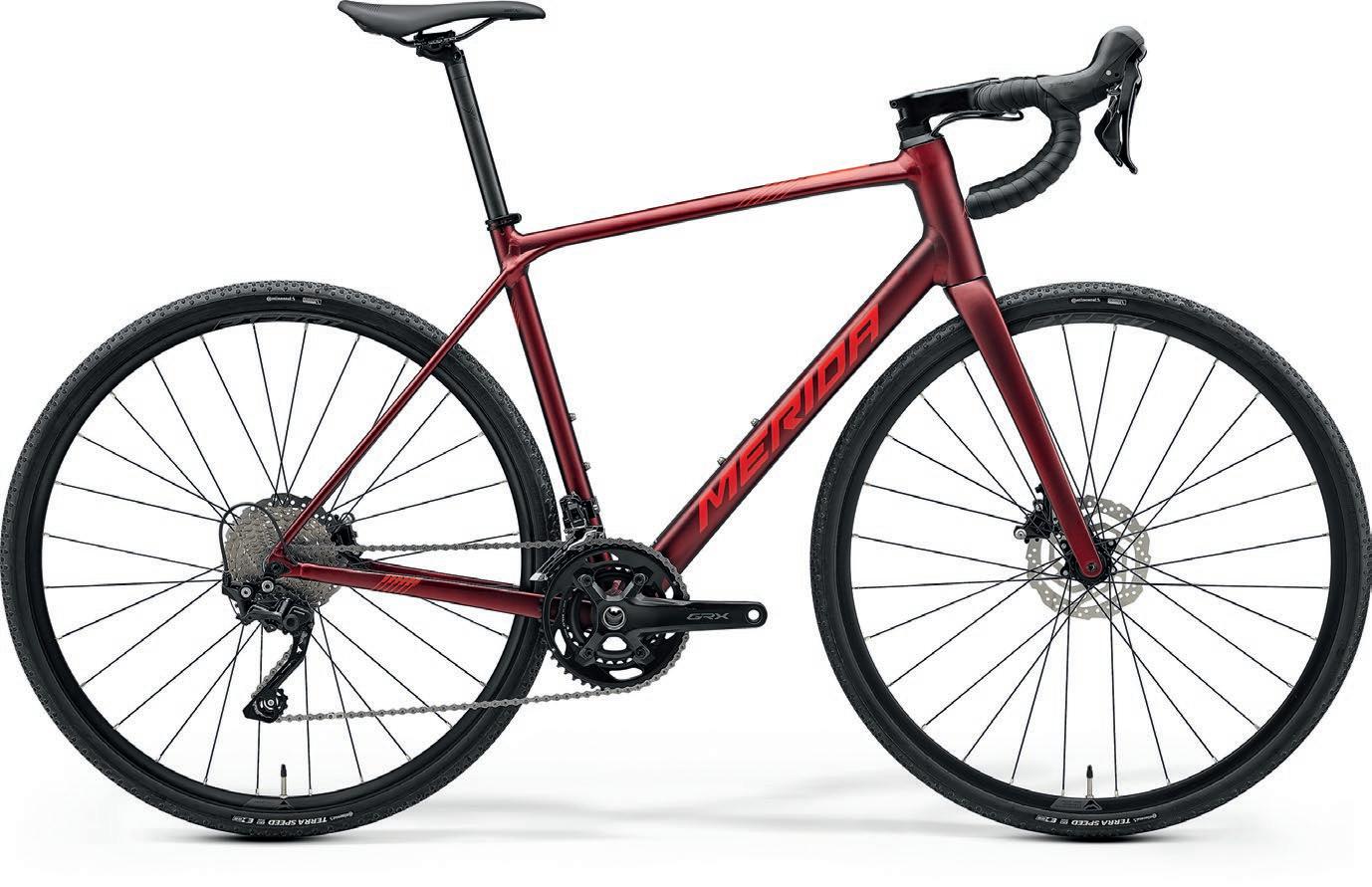

SCULTURA ENDURANCE GR

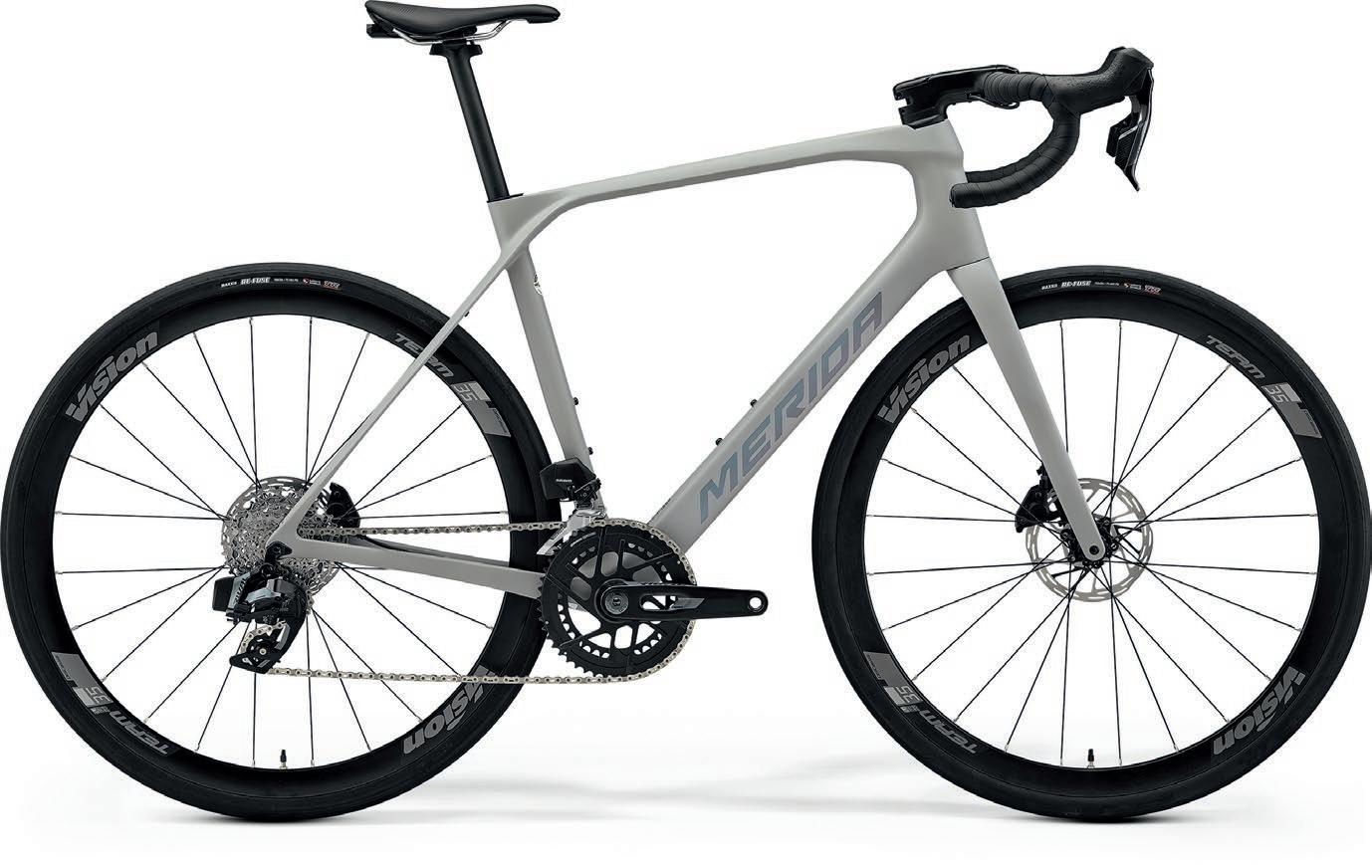

SCULTURA ENDURANCE GR 8000

RAHMENGRÖSSEN XXS, XS, S, M, L

RAHMEN SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard

GABEL SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Sram Force AXS

UMWERFER HINTEN Sram Force AXS

SCHALTHEBEL VORNE Sram Force AXS

SCHALTHEBEL HINTEN Sram Force AXS

BREMSE VORNE Sram Force AXS, Hydraulic disc

BREMSE HINTEN Sram Force AXS, Hydraulic disc

KURBEL Sram Force AXS, 46-33 teeth, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),

FREILAUF Sram XG 1270 D1, 10-36 teeth, 12 speed

KETTE Sram Force D1 12S

LAUFRADSATZ MERIDA TEAM GR30, 100x12mm width front hub, 142x12mm width rear hub, 25mm inner width, 30mm height, Centerlock, material: carbon

REIFEN VORNE Continental Terra Speed ProTection 700x35C, fold

REIFEN HINTEN Continental Terra Speed ProTection 700x35C, fold

LENKER MERIDA EXPERT GRII, material: aluminium, 380mm (XXS-XS) 400mm (S-M), 420mm (L-XL)

VORBAU MERIDA EXPERT SL 2PII material: aluminium, 9° stem angle, 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL), incl. MERIDA SMART MOUNT

SATELSTÜTZE MERIDA TEAM SL, 27.2mm diameter, 15mm setback, Carbon, S-Flex

SATTEL Prologo Scratch M5 AGX, V-mount adapter, incl. MERIDA minitool

GEWICHT (CA.) 8.6 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

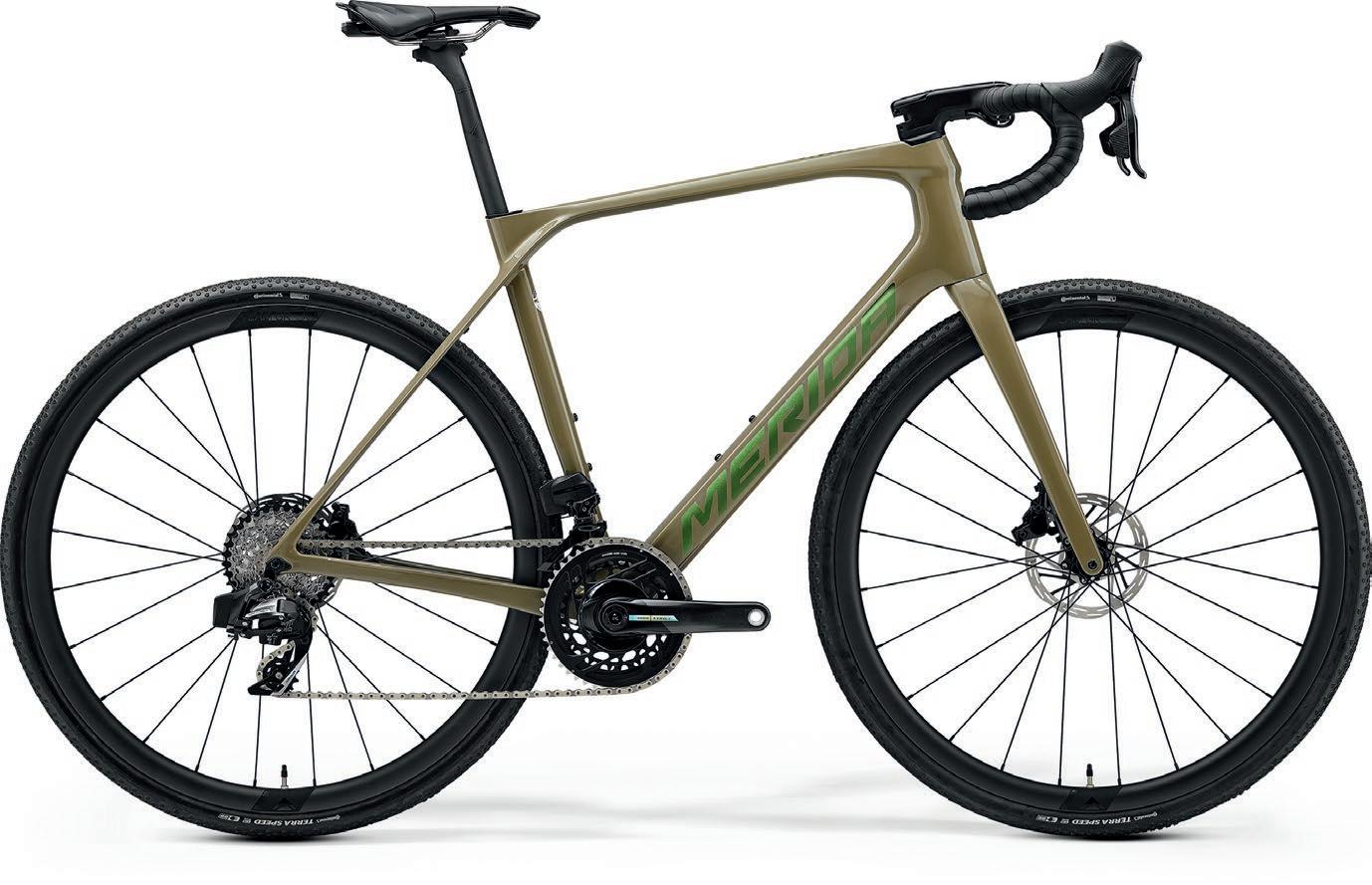

SCULTURA ENDURANCE GR 8000

RAHMENGRÖSSEN XS, S, M, L, XL

RAHMEN SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard

GABEL SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Sram Force AXS

UMWERFER HINTEN Sram Force AXS

SCHALTHEBEL VORNE Sram Force AXS

SCHALTHEBEL HINTEN Sram Force AXS

BREMSE VORNE Sram Force AXS, Hydraulic disc

BREMSE HINTEN Sram Force AXS, Hydraulic disc

KURBEL Sram Force AXS, 46-33 teeth, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),

FREILAUF Sram XG 1270 D1, 10-36 teeth, 12 speed

KETTE Sram Force D1 12S

LAUFRADSATZ MERIDA TEAM GR30, 100x12mm width front hub, 142x12mm width rear hub, 25mm inner width, 30mm height, Centerlock, material: carbon

REIFEN VORNE Continental Terra Speed ProTection 700x35C, fold

REIFEN HINTEN Continental Terra Speed ProTection 700x35C, fold

LENKER MERIDA EXPERT GRII, material: aluminium, 380mm (XXS-XS) 400mm (S-M), 420mm (L-XL)

VORBAU MERIDA EXPERT SL 2PII material: aluminium, 9° stem angle, 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL), incl. MERIDA SMART MOUNT

SATELSTÜTZE MERIDA TEAM SL, 27.2mm diameter, 15mm setback, Carbon, S-Flex

SATTEL Prologo Scratch M5 AGX, V-mount adapter, incl. MERIDA minitool

GEWICHT (CA.) 8.6 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

SCULTURA ENDURANCE GR 5000

RAHMENGRÖSSEN XS, S, M, L, XL

RAHMEN SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard

GABEL SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Shimano GRX820

UMWERFER HINTEN Shimano GRX820

SCHALTHEBEL VORNE Shimano GRX820

SCHALTHEBEL HINTEN Shimano GRX820

BREMSE VORNE Shimano GRX820, Hydraulic disc

BREMSE HINTEN Shimano GRX820, Hydraulic disc

KURBEL Shimano GRX820, 48-31 teeth, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),

FREILAUF Shimano GRX HG710, 11-36 teeth, 12 speed

KETTE Shimano M6100-12

FELGE MERIDA EXPERT CC, 23mm inner width, 19mm height, material: aluminium, hookless, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Continental Terra Speed ProTection 700x35C, fold

REIFEN HINTEN Continental Terra Speed ProTection 700x35C, fold

LENKER MERIDA EXPERT GRII, material: aluminium, 380mm (XXS-XS) 400mm (S-M), 420mm (L-XL)

VORBAU MERIDA EXPERT SL 2PII material: aluminium, 9° stem angle, 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL), incl. MERIDA SMART MOUNT

SATELSTÜTZE MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon

SATTEL MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 9.1 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

SCULTURA ENDURANCE GR 700

RAHMENGRÖSSEN 3XS, XXS, XS, S, M, L, XL

RAHMEN SCULTURA ENDURANCE LITE, material: aluminium, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard

GABEL MERIDA SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Shimano GRX820

UMWERFER HINTEN Shimano GRX820

SCHALTHEBEL VORNE Shimano GRX820, Hydraulic disc

SCHALTHEBEL HINTEN Shimano GRX820, Hydraulic disc

BREMSE VORNE Shimano GRX400, Disc

BREMSE HINTEN Shimano GRX400, Disc

KURBEL Shimano GRX610, 46-30 teeth, 165 mm-4S/3S/XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

FREILAUF Shimano HG710-12, 11-36 teeth, 12 speed

KETTE Shimano M6100-12

FELGE MERIDA EXPERT SL III, 23mm inner width, 26mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Continental Terra Speed ProTection 35mm 700x35C, fold

REIFEN HINTEN Continental Terra Speed ProTection 35mm 700x35C, fold

LENKER MERIDA EXPERT GR II, material: aluminium, 380mm (4S-3XS-XXS-XS-S) 400mm (M-L), 420mm (XL)

VORBAU MERIDA TEAM CC III material: aluminium, 31.8mm diameter, -6°° stem angle, 80mm (4S/3S), 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL)

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA COMP SL, 25% recycled material, V-mount

GEWICHT (CA.) 10.1 kg, weighed at frame size M

SCULTURA ENDURANCE GR 500

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN SCULTURA ENDURANCE LITE, material: aluminium, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard

GABEL SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Shimano GRX400

UMWERFER HINTEN Shimano GRX400

SCHALTHEBEL VORNE Shimano GRX400

SCHALTHEBEL HINTEN Shimano GRX400

BREMSE VORNE Shimano GRX400, Hydraulic disc

BREMSE HINTEN Shimano GRX400, Hydraulic disc

KURBEL Shimano GRX600, 46-30 teeth, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),

FREILAUF Shimano HG50, 11-36 teeth, 10 speed

KETTE KMC X10

FELGE MERIDA EXPERT CC, 23mm inner width, 19mm height, material: aluminium, hookless, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Continental Terra Speed ProTection 700x35C, fold

REIFEN HINTEN Continental Terra Speed ProTection 700x35C, fold

LENKER MERIDA EXPERT GRII, material: aluminium, 380mm (XXS-XS) 400mm (S-M), 420mm (L-XL)

VORBAU MERIDA TEAM CC III material: aluminium, 31.8mm diameter, 6° stem angle, 80mm (4XS/3XS), 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL)

SATELSTÜTZE MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon

SATTEL MERIDA COMP SL, 28% recycled material, V-mount

GEWICHT (CA.) 10.0 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

SCULTURA ENDURANCE GR 500

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN SCULTURA ENDURANCE LITE, material: aluminium, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard

GABEL SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Shimano GRX400

UMWERFER HINTEN Shimano GRX400

SCHALTHEBEL VORNE Shimano GRX400

SCHALTHEBEL HINTEN Shimano GRX400

BREMSE VORNE Shimano GRX400, Hydraulic disc

BREMSE HINTEN Shimano GRX400, Hydraulic disc

KURBEL Shimano GRX600, 46-30 teeth, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),

FREILAUF Shimano HG50, 11-36 teeth, 10 speed

KETTE KMC X10

FELGE MERIDA EXPERT CC, 23mm inner width, 19mm height, material: aluminium, hookless, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Continental Terra Speed ProTection 700x35C, fold

REIFEN HINTEN Continental Terra Speed ProTection 700x35C, fold

LENKER MERIDA EXPERT GRII, material: aluminium, 380mm (XXS-XS) 400mm (S-M), 420mm (L-XL)

VORBAU MERIDA TEAM CC III material: aluminium, 31.8mm diameter, 6° stem angle, 80mm (4XS/3XS), 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL)

SATELSTÜTZE MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon

SATTEL MERIDA COMP SL, 28% recycled material, V-mount

GEWICHT (CA.) 10.0 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

SCULTURA ENDURANCE GR 200

812403

RAHMENGRÖSSEN 3XS, XXS, XS, S, M, L, XL

RAHMEN SCULTURA ENDURANCE LITE, material: aluminium, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard

GABEL MERIDA SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Shimano CUES

UMWERFER HINTEN Shimano CUES, SGS

SCHALTHEBEL VORNE Shimano CUES, Mechanical disc

SCHALTHEBEL HINTEN Shimano CUES, Mechanical disc

BREMSE VORNE Shimano CUES, Mechanical disc

BREMSE HINTEN Shimano CUES, Mechanical disc

KURBEL Shimano CUES, 50-34 teeth, 165 mm-4S/3S/XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

FREILAUF Shimano LG300-9, 11-36 teeth, 9 speed

KETTE KMC xGlide

FELGE MERIDA COMP SL II, 23mm inner width, 24mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Kenda Tanwall 35mm, 700x35C

REIFEN HINTEN Kenda Tanwall 35mm, 700x35C

LENKER MERIDA EXPERT GR II, material: aluminium, 380mm (4S-3XS-XXS-XS-S), 400mm (M-L), 420mm (XL)

VORBAU MERIDA TEAM CC III material: aluminium, 31.8mm diameter, -6°° stem angle, 80mm (4S/3S), 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL)

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA COMP SL, 22% recycled material, V-mount

GEWICHT (CA.) 10.7 kg, weighed at frame size M

SCULTURA ENDURANCE

SCULTURA ENDURANCE 8000 CH

RAHMENGRÖSSEN XS, S, M, L, XL

M, L

RAHMEN SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard

GABEL SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Shimano Ultegra Di2

UMWERFER HINTEN Shimano Ultegra Di2

SCHALTHEBEL VORNE Shimano Ultegra disc Di2

SCHALTHEBEL HINTEN Shimano Ultegra disc Di2

BREMSE VORNE Shimano Ultegra, Hydraulic disc

BREMSE HINTEN Shimano Ultegra, Hydraulic disc

KURBEL Shimano Ultegra, 50-34 teeth, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),

FREILAUF Shimano Ultegra R8100, 11-34 teeth, 12 speed

KETTE Shimano M6100-12

LAUFRADSATZ Vision SC30 DB, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 30mm height, Centerlock, material: carbon

REIFEN VORNE Continental GP5000 AllSeason TR 700x32C, fold

REIFEN HINTEN Continental GP5000 AllSeason TR 700x32C, fold

LENKER MERIDA EXPERT SLII, material: aluminium, 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)

VORBAU MERIDA EXPERT SL 2PII material: aluminium, 9° stem angle, 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL), incl. MERIDA SMART MOUNT

SATELSTÜTZE MERIDA TEAM SL, 27.2mm diameter, 15mm setback, Carbon, S-Flex

SATTEL Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool

GEWICHT (CA.) 8.4 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

S,

SCULTURA ENDURANCE RIVAL EDITION

RAHMENGRÖSSEN XXS, XS, S, M, L

RAHMEN SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard

GABEL MERIDA SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Sram Rival AXS E1

UMWERFER HINTEN Sram Rival AXS E1, wireless

SCHALTHEBEL VORNE Sram ED Rival AXS E1, Hydraulic disc

SCHALTHEBEL HINTEN Sram ED Rival AXS E1, Hydraulic disc

BREMSE VORNE Sram ED Rival AXS E1, Disc

BREMSE HINTEN Sram ED Rival AXS E1, Disc

KURBEL Sram Rival, 48-35 teeth, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Sram XG 1250 D1, 10-36 teeth, 12 speed

KETTE Sram Rival E1

LAUFRADSATZ Vision Team 35 Clincher Disc Centerlock, 19mm inner width, 35mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis RE-FUSE 700x32C, fold

REIFEN HINTEN Maxxis RE-FUSE 700x32C, fold

LENKER MERIDA EXPERT SL II, material: aluminium, 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)

VORBAU MERIDA EXPERT SL 2PII material: aluminium, -9°° stem angle, incl. MERIDA SMART MOUNT, 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL)

SATELSTÜTZE MERIDA TEAM SL II, 27.2mm diameter, 0mm setback, Carbon

SATTEL MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 9 kg, weighed at frame size M

SCULTURA ENDURANCE 6000

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard

GABEL MERIDA SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Shimano 105 Di2

UMWERFER HINTEN Shimano 105 Di2

SCHALTHEBEL VORNE Shimano 105 disc Di2

SCHALTHEBEL HINTEN Shimano 105 disc Di2

BREMSE VORNE Shimano 105, Disc

BREMSE HINTEN Shimano 105, Disc

KURBEL Shimano 105 R7100, 50-34 teeth, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Shimano 105 R7101, 11-34 teeth, 12 speed

KETTE Shimano M6100-12

FELGE MERIDA EXPERT SL III, 23mm inner width, 26mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis RE-FUSE 700x32C, fold

REIFEN HINTEN Maxxis RE-FUSE 700x32C, fold

LENKER MERIDA EXPERT SL II, material: aluminium, 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)

VORBAU MERIDA EXPERT SL 2PII material: aluminium, -9°° stem angle, incl. MERIDA SMART MOUNT, 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL)

SATELSTÜTZE MERIDA EXPERT SL, 27.2mm diameter, 0mm setback, Carbon

SATTEL MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 9.2 kg, weighed at frame size M

SCULTURA ENDURANCE 6000

RAHMENGRÖSSEN XS, S, M, L, XL

RAHMEN SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard

GABEL MERIDA SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Shimano 105 Di2

UMWERFER HINTEN Shimano 105 Di2

SCHALTHEBEL VORNE Shimano 105 disc Di2

SCHALTHEBEL HINTEN Shimano 105 disc Di2

BREMSE VORNE Shimano 105, Disc

BREMSE HINTEN Shimano 105, Disc

KURBEL Shimano 105 R7100, 50-34 teeth, 165mm-XXS/XS, 170mm S/M, 172,5mm L/XL

FREILAUF Shimano 105 R7101, 11-34 teeth, 12 speed

KETTE Shimano M6100-12

FELGE MERIDA EXPERT SL III, 23mm inner width, 26mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis RE-FUSE 700x32C, fold

REIFEN HINTEN Maxxis RE-FUSE 700x32C, fold

LENKER MERIDA EXPERT SL II, material: aluminium, 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)

VORBAU MERIDA EXPERT SL 2PII material: aluminium, -9°° stem angle, incl. MERIDA SMART MOUNT, 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL)

SATELSTÜTZE MERIDA EXPERT SL, 27.2mm diameter, 0mm setback, Carbon

SATTEL MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 9.2 kg, weighed at frame size M

SCULTURA ENDURANCE 6000

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard

GABEL SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Shimano 105 Di2

UMWERFER HINTEN Shimano 105 Di2

SCHALTHEBEL VORNE Shimano 105 disc Di2

SCHALTHEBEL HINTEN Shimano 105 disc Di2

BREMSE VORNE Shimano 105, Hydraulic disc

BREMSE HINTEN Shimano 105, Hydraulic disc

KURBEL Shimano 105 R7100, 50-34 teeth, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),

FREILAUF Shimano 105 R7101, 11-34 teeth, 12 speed

KETTE Shimano M6100-12

FELGE MERIDA EXPERT SLII, 23mm inner width, 25mm height, material: aluminium, hookless, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis RE-FUSE 700x32C, fold

REIFEN HINTEN Maxxis RE-FUSE 700x32C, fold

LENKER MERIDA EXPERT SLII, material: aluminium, 380mm (XXS-XS) 400mm (S-M), 420mm (L-XL)

VORBAU MERIDA EXPERT SL 2PII material: aluminium, 9° stem angle, 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL), incl. MERIDA SMART MOUNT

SATELSTÜTZE MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon

SATTEL MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 9.2 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

SCULTURA ENDURANCE 400

RAHMENGRÖSSEN XXS, XS, S, M, L, XL

RAHMEN SCULTURA ENDURANCE LITE, material: aluminium, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard

GABEL SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Shimano 105

UMWERFER HINTEN Shimano 105, GS

SCHALTHEBEL VORNE Shimano 105 disc

SCHALTHEBEL HINTEN Shimano 105 disc

BREMSE VORNE Shimano 105, Hydraulic disc

BREMSE HINTEN Shimano 105, Hydraulic disc

KURBEL Shimano 105 R7100, 50-34 teeth, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),

FREILAUF Shimano 105 R7101, 11-34 teeth, 12 speed

KETTE Shimano M6100-12

FELGE MERIDA EXPERT SLII, 23mm inner width, 25mm height, material: aluminium, hookless, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Detonator 700x32C, fold

REIFEN HINTEN Maxxis Detonator 700x32C, fold

LENKER MERIDA EXPERT SLII, material: aluminium, 380mm (XXS-XS) 400mm (S-M), 420mm (L-XL)

VORBAU MERIDA TEAM CC III material: aluminium, 31.8mm diameter, 6° stem angle, 80mm (4XS/3XS), 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL)

SATELSTÜTZE MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon

SATTEL MERIDA COMP SL, 28% recycled material, V-mount

GEWICHT (CA.) 9.5 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

SCULTURA ENDURANCE 300

RAHMENGRÖSSEN 3XS, XXS, XS, S, M, L, XL

RAHMEN SCULTURA ENDURANCE LITE, material: aluminium, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard

GABEL SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Shimano Tiagra

UMWERFER HINTEN Shimano Tiagra, GS

SCHALTHEBEL VORNE Shimano Tiaga disc

SCHALTHEBEL HINTEN Shimano Tiaga disc

BREMSE VORNE Shimano Tiagra, Hydraulic disc

BREMSE HINTEN Shimano Tiagra, Hydraulic disc

KURBEL Shimano Tiagra, 50-34 teeth, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),

FREILAUF Shimano HG500, 12-28 teeth, 10 speed

KETTE KMC X10

FELGE MERIDA EXPERT SLII, 23mm inner width, 25mm height, material: aluminium, hookless, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Detonator 700x32C, fold

REIFEN HINTEN Maxxis Detonator 700x32C, fold

LENKER MERIDA EXPERT SLII, material: aluminium, 380mm (XXS-XS) 400mm (S-M), 420mm (L-XL)

VORBAU MERIDA TEAM CC III material: aluminium, 31.8mm diameter, 6° stem angle, 80mm (4XS/3XS), 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL)

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 5mm setback, material: aluminium

SATTEL MERIDA COMP SL, 28% recycled material, V-mount

GEWICHT (CA.) 9.8 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

SCULTURA

SCULTURA 10K

RAHMENGRÖSSEN XXS, XS, S, M, L

RAHMEN SCULTURA CF5 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5

GABEL MERIDA SCULTURA CF5 disc material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Sram Red AXS

UMWERFER HINTEN Sram Red AXS, wireless

SCHALTHEBEL VORNE Sram Red AXS, Hydraulic disc

SCHALTHEBEL HINTEN Sram Red AXS, Hydraulic disc

BREMSE VORNE Sram Red AXS, Disc

BREMSE HINTEN Sram Red AXS, Disc

KURBEL Sram Red AXS, 50-37 teeth, MAT Carbon, Power Meter, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

FREILAUF Sram XG 1290 E1, 10-36 teeth, 12 speed

KETTE Sram Red E1

LAUFRADSATZ Zipp 353 NSW Tubeless, 12x100mm width front hub, 12x142mm width rear hub, 25mm inner width, Centerlock, Sram XDR, material: carbon

REIFEN VORNE Schwalbe Pro One Aero, Super Race, RaceGuard, 700x28C,

REIFEN HINTEN Schwalbe Pro One Aero, Super Race, RaceGuard, 700x28C,

LENKER MERIDA TEAM SL 1P, material: carbon, 380mm (3S-XXS-XS-S), 400mm (M-L), 420mm (XL)

VORBAU MERIDA TEAM ONE-PIECE material: carbon, incl. MERIDA SMART MOUNT, 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)

SATELSTÜTZE MERIDA TEAM SL II, 27.2mm diameter, 0mm setback, Carbon

SATTEL Prologo Nago R4 PAS, Nack

GEWICHT (CA.) 6.7 kg, weighed at frame size M

SCULTURA TEAM CH

RAHMENGRÖSSEN XS, S, M, L, XL

RAHMEN SCULTURA CF5 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5

GABEL MERIDA SCULTURA CF5 disc, material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Shimano Dura Ace Di2

UMWERFER HINTEN Shimano Dura Ace Di2

SCHALTHEBEL VORNE Shimano Dura Ace disc Di2

SCHALTHEBEL HINTEN Shimano Dura Ace disc Di2

BREMSE VORNE Shimano Dura Ace, Disc

BREMSE HINTEN Shimano Dura Ace, Disc

KURBEL Shimano Dura Ace, 50-34 teeth, Power Meter, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

KASSETTE Shimano Dura Ace, 50-34 ATC, Power Meter

FREILAUF Shimano Dura-Ace R9200, 11-34 teeth, 12 speed

KETTE Shimano M9100-12

FELGE Vision Metron RS 45 SL Clincher TL Disc, 100x12 WHF; 142x12 WHR; 23 IWR; 45 HRI; Centerlock; MAT carbon; Tubeless tape ready

LAUFRADSATZ Vision Metron RS 45 i23 Disc, 100x12mm width front hub, 142x12mm width rear hub, 23mm inner width, 45mm height, Centerlock, material: carbon, Tubeless ready (tubeless tape and valves included)

REIFEN VORNE Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

REIFEN HINTEN Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

LENKER Vision Metron 5D ACR EVO, material: carbon, 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)

VORBAU Vision Metron 5D ACR EVO, material: carbon, 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)

SATELSTÜTZE MERIDA TEAM SL, 27.2mm diameter, 0mm setback, Carbon

SATTEL Prologo Nago R4 PAS, Nack

GEWICHT (CA.) 6.8 kg, weighed at frame size M

SCULTURA 9000 CH

RAHMENGRÖSSEN 3XS, XXS, XS, S, M, L, XL

RAHMEN SCULTURA CF5 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5

GABEL MERIDA SCULTURA CF5 disc, material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Shimano Ultegra Di2

UMWERFER HINTEN Shimano Ultegra Di2

SCHALTHEBEL VORNE Shimano Ultegra disc Di2

SCHALTHEBEL HINTEN Shimano Ultegra disc Di2

BREMSE VORNE Shimano Ultegra, Disc

BREMSE HINTEN Shimano Ultegra, Disc

KURBEL Shimano Ultegra, 50-34 teeth, left arm 4IIII PM, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

KASSETTE Shimano Ultegra, 50-34 ATC

FREILAUF Shimano Ultegra R8101, 11-34 teeth, 12 speed

KETTE Shimano M6100-12

FELGE Vision SC 45 SL i23 Disc, 100x12 WHF; 142x12 WHR; 23 IWR; 45 HRI; Centerlock; MAT carbon; Tubeless tape ready

LAUFRADSATZ Reynolds BL 46 Expert DB, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 46mm height, Centerlock, Shimano HG, material: carbon, Tubeless ready (tubeless tape and valves included)

REIFEN VORNE Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

REIFEN HINTEN Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

LENKER MERIDA TEAM SL 1P, material: carbon, 380mm (3S-XXS-XS-S), 400mm (M-L), 420mm (XL)

VORBAU MERIDA TEAM ONE-PIECE, material: carbon, incl. MERIDA SMART MOUNT, 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)

SATELSTÜTZE MERIDA TEAM SL, 27.2mm diameter, 0mm setback, Carbon

SATTEL Prologo Nago R4 PAS, Nack

GEWICHT (CA.) 7.1 kg, weighed at frame size M

SCULTURA 6000

RAHMENGRÖSSEN XXS, XS, S, M, L

RAHMEN SCULTURA CF3 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5

GABEL MERIDA SCULTURA CF3 disc material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Shimano 105 Di2

UMWERFER HINTEN Shimano 105 Di2

SCHALTHEBEL VORNE Shimano 105 disc Di2

SCHALTHEBEL HINTEN Shimano 105 disc Di2

BREMSE VORNE Shimano 105, Disc

BREMSE HINTEN Shimano 105, Disc

KURBEL Shimano 105 R7100, 50-34 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

FREILAUF Shimano 105 R7101, 11-34 teeth, 12 speed

KETTE Shimano M6100-12

LAUFRADSATZ Vision SC 45 i23 Disc brake, 100x12mm width front hub, 142x12mm width rear hub, 23mm inner width, 45mm height, Centerlock, material: carbon

REIFEN VORNE Continental Grand Prix TR, 700x28C, fold, tubeless ready

REIFEN HINTEN Continental Grand Prix TR, 700x28C, fold, tubeless ready

LENKER MERIDA EXPERT SL II, material: aluminium, 380mm (3S-XXS-XS-S), 400mm (M-L), 420mm (XL)

VORBAU FSA SMR-II material: aluminium, -10°, 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)

SATELSTÜTZE MERIDA EXPERT SL, 27.2mm diameter, 0mm setback, Carbon

SATTEL MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 8.2 kg, weighed at frame size M

SCULTURA 5000

RAHMENGRÖSSEN 3XS, XXS, XS, S, M, L, XL

RAHMEN SCULTURA CF3 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5

GABEL MERIDA SCULTURA CF3 disc material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Shimano 105 Di2

UMWERFER HINTEN Shimano 105 Di2

SCHALTHEBEL VORNE Shimano 105 disc Di2

SCHALTHEBEL HINTEN Shimano 105 disc Di2

BREMSE VORNE Shimano 105, Disc

BREMSE HINTEN Shimano 105, Disc

KURBEL Shimano 105 R7100, 50-34 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

FREILAUF Shimano 105 R7101, 11-34 teeth, 12 speed

KETTE Shimano M6100-12

LAUFRADSATZ Vision Team 35 Clincher Disc, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 35mm height, centerlock, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Continental Grand Prix TR 700x28C, fold, tubeless ready

REIFEN HINTEN Continental Grand Prix TR 700x28C, fold, tubeless ready

LENKER MERIDA EXPERT SL II, material: aluminium, 380mm (3S-XXS-XS-S), 400mm (M-L), 420mm (XL)

VORBAU FSA SMR-II material: aluminium, -10°, 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)

SATELSTÜTZE MERIDA EXPERT SL, 27.2mm diameter, 0mm setback, Carbon

SATTEL MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 8.6 kg, weighed at frame size M

SCULTURA 5000

RAHMENGRÖSSEN 3XS, XXS, XS, S, M, L, XL

RAHMEN SCULTURA CF3 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5

GABEL MERIDA SCULTURA CF3 disc material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Shimano 105 Di2

UMWERFER HINTEN Shimano 105 Di2

SCHALTHEBEL VORNE Shimano 105 disc Di2

SCHALTHEBEL HINTEN Shimano 105 disc Di2

BREMSE VORNE Shimano 105, Disc

BREMSE HINTEN Shimano 105, Disc

KURBEL Shimano 105 R7100, 50-34 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

FREILAUF Shimano 105 R7101, 11-34 teeth, 12 speed

KETTE Shimano M6100-12

LAUFRADSATZ Vision Team 35 Clincher Disc, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 35mm height, centerlock, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Continental Grand Prix TR 700x28C, fold, tubeless ready

REIFEN HINTEN Continental Grand Prix TR 700x28C, fold, tubeless ready

LENKER MERIDA EXPERT SL II, material: aluminium, 380mm (3S-XXS-XS-S), 400mm (M-L), 420mm (XL)

VORBAU FSA SMR-II material: aluminium, -10°, 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)

SATELSTÜTZE MERIDA EXPERT SL, 27.2mm diameter, 0mm setback, Carbon

SATTEL MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 8.6 kg, weighed at frame size M

WHITE (BLACK)

SCULTURA 4000

811497

RAHMENGRÖSSEN S, M, L, XL

S, M, L

RAHMEN SCULTURA CF3 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5

GABEL SCULTURA CF3 disc material: carbon, 700x30C max. wheelsize

UMWERFER VORNE Shimano 105

UMWERFER HINTEN Shimano 105, GS

SCHALTHEBEL VORNE Shimano 105 disc

SCHALTHEBEL HINTEN Shimano 105 disc

BREMSE VORNE Shimano 105, Hydraulic disc

BREMSE HINTEN Shimano 105, Hydraulic disc

KURBEL Shimano 105 R7100, 52-36 teeth, 165 mm-3XS-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),

FREILAUF Shimano 105 R7101, 11-34 teeth, 12 speed

KETTE Shimano M6100-12

FELGE MERIDA EXPERT SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Continental Ultra Sport III, 700x28C, fold

REIFEN HINTEN Continental Ultra Sport III, 700x28C, fold

SATELSTÜTZE MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon

SATTEL MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 8.8 kg weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

XS,

SPEEDER

SPEEDER 300

812505

RAHMENGRÖSSEN XXS, XS, S, M, L

RAHMEN SPEEDER LITE III, material: aluminium, 700x35C max. wheelsize, 100x9/135x9mm axle standard, BSA bottom bracket standard

GABEL MERIDA SPEEDER CF2 Tapered, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Shimano Tiagra

UMWERFER HINTEN Shimano Tiagra, GS

SCHALTHEBEL VORNE Shimano Tiagra

SCHALTHEBEL HINTEN Shimano Tiagra

BREMSE VORNE Shimano MT200, 2 piston, Disc

BREMSE HINTEN Shimano MT200, 2 piston, Disc

KURBEL Shimano RS400, 50-34 teeth, 170 mm-XXS/XS/S/M, 175 mm-L/XL

FREILAUF Shimano GRX HG500, 11-32 teeth, 10 speed

KETTE KMC X10

FELGE MERIDA COMP SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Kenda Piedmond Tanwall, 700x35C

REIFEN HINTEN Kenda Piedmond Tanwall, 700x35C

SATELSTÜTZE MERIDA COMP CC, 30.9mm diameter, 5mm setback, material: aluminium

SATTEL MERIDA COMP SL, 28% recycled material, V-mount

SPEEDER 300

RAHMENGRÖSSEN S, M, L, XL

RAHMEN SPEEDER LITE III, material: aluminium, 700x35C max. wheelsize, 100x9/135x9mm axle standard, BSA bottom bracket standard

GABEL MERIDA SPEEDER CF2 Tapered, material: carbon, 700x35C max. wheelsize

UMWERFER VORNE Shimano Tiagra

UMWERFER HINTEN Shimano Tiagra, GS

SCHALTHEBEL VORNE Shimano Tiagra

SCHALTHEBEL HINTEN Shimano Tiagra

BREMSE VORNE Shimano MT200, 2 piston, Disc

BREMSE HINTEN Shimano MT200, 2 piston, Disc

KURBEL Shimano RS400, 50-34 teeth, 170 mm-XXS/XS/S/M, 175 mm-L/XL

FREILAUF Shimano GRX HG500, 11-32 teeth, 10 speed

KETTE KMC X10

FELGE MERIDA COMP SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Kenda Piedmond Tanwall, 700x35C

REIFEN HINTEN Kenda Piedmond Tanwall, 700x35C

SATELSTÜTZE MERIDA COMP CC, 30.9mm diameter, 5mm setback, material: aluminium

SATTEL MERIDA COMP SL, 28% recycled material, V-mount

CROSSWAY

CROSSWAY 300

RAHMENGRÖSSEN S, M, L

RAHMEN CROSSWAY TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL SR Suntour NX1 Coil, 63mm suspension travel, Lockout, 700x50C max. wheelsize

UMWERFER VORNE Shimano Deore

UMWERFER HINTEN Shimano Deore T6000, SGS

SCHALTHEBEL VORNE Shimano Deore

SCHALTHEBEL HINTEN Shimano Deore

BREMSE VORNE Tektro M275, 2 piston

BREMSE HINTEN Tektro M275, 2 piston

KURBEL FSA Alpha Drive, 48-36-26 teeth, 170 mm-XXS/XS/S, 175 mm-M/XL

FREILAUF Shimano HG500, 11-34 teeth, 10 speed

KETTE KMC X10

FELGE MERIDA COMP TK, 20mm inner width, 17mm height, material: aluminium

REIFEN VORNE Maxxis Overdrive Excel, 700x40C, wire, reflective stripe, Silkshild

REIFEN HINTEN Maxxis Overdrive Excel, 700x40C, wire, reflective stripe, Silkshild

SATELSTÜTZE MERIDA TK, 30.9mm diameter, 10mm setback, 45mm seatpost suspension travel

SATTEL MERIDA CROSS SPORT

CROSSWAY L 300

RAHMENGRÖSSEN S, M, L

RAHMEN CROSSWAY L TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

SATTEL MERIDA CROSS SPORT 810813

GABEL SR Suntour NX1 Coil, 63mm suspension travel, Lockout, 700x50C max. wheelsize

UMWERFER VORNE Shimano Deore

UMWERFER HINTEN Shimano Deore T6000, SGS

SCHALTHEBEL VORNE Shimano Deore

SCHALTHEBEL HINTEN Shimano Deore M6000

BREMSE VORNE TEKTRO M275, 2 piston

BREMSE HINTEN TEKTRO M275, 2 piston

KURBEL FSA Alpha Drive, 48-36-26 teeth, 170 mm-XXS/XS/S, 175 mm-M/XL

FREILAUF Shimano HG500, 11-34 teeth, 10 speed

KETTE KMC X10

FELGE MERIDA COMP TK, 20mm inner width, 17mm height, material: aluminium

REIFEN VORNE Maxxis Overdrive Excel, 700x40C, wire, reflective stripe, Silkshild

REIFEN HINTEN Maxxis Overdrive Excel, 700x40C, wire, reflective stripe, Silkshild

SATELSTÜTZE MERIDA TK, 30.9mm diameter, 10mm setback, 45mm seatpost suspension travel

CROSSWAY 20

ART.NR.:

811406

RAHMENGRÖSSEN XS, S, M, L, XL

RAHMEN CROSSWAY TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL Suntour NEX HLO Coil, 63mm suspension travel, lockout, 700x50C max. wheelsize

UMWERFER HINTEN Shimano ESSA RD-U2000-8, GS

SCHALTHEBEL HINTEN Shimano ESSA SL-315-8R

BREMSE VORNE Tektro HD-M275, hydraulic brake

BREMSE HINTEN Tektro HD-M275, hydraulic brake

KURBEL Shimano ESSA FC-U2001 40 teeth, MAT Aluminium, 170 mm (XXS/XS/S), 175 mm-M up

FREILAUF Shimano CS-HG400-8, 11-45 teeth, 8 speed

KETTE KMC Z8.3

FELGE MERIDA CC, 17mm inner width, material: aluminium

REIFEN VORNE MERIDA K1171, 700x40C, wire

REIFEN HINTEN MERIDA K1171, 700x40C, wire

SATELSTÜTZE MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel

SATTEL MERIDA Cross Sport

CROSSWAY L 20

ART.NR.:

811407

RAHMENGRÖSSEN XS, S, M, L

S, M, L

RAHMEN CROSSWAY L TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL Suntour NEX HLO Coil, 63mm suspension travel, lockout, 700x50C max. wheelsize

UMWERFER HINTEN Shimano ESSA RD-U2000-8, GS

SCHALTHEBEL HINTEN Shimano ESSA SL-315-8R

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL Shimano ESSA FC-U2001 40 teeth, MAT Aluminium, 170 mm (XXS/XS/S), 175 mm-M up

FREILAUF Shimano CS-HG400-8, 11-45 teeth, 8 speed

KETTE KMC Z8.3

FELGE MERIDA CC, 17mm inner width, material: aluminium

REIFEN VORNE MERIDA K1171, 700x40C, wire

REIFEN HINTEN MERIDA K1171, 700x40C, wire

SATELSTÜTZE MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel

SATTEL MERIDA Cross Sport

CROSSWAY 20

811408

RAHMENGRÖSSEN XS, S, M, L, XL

RAHMEN CROSSWAY TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL Suntour NEX HLO Coil, 63mm suspension travel, lockout, 700x50C max. wheelsize

UMWERFER HINTEN Shimano ESSA RD-U2000-8, GS

SCHALTHEBEL HINTEN Shimano ESSA SL-315-8R

BREMSE VORNE Tektro HD-M275, hydraulic brake

BREMSE HINTEN Tektro HD-M275, hydraulic brake

KURBEL Shimano ESSA FC-U2001 40 teeth, MAT Aluminium, 170 mm (XXS/XS/S), 175 mm-M up

FREILAUF Shimano CS-HG400-8, 11-45 teeth, 8 speed

KETTE KMC Z8.3

FELGE MERIDA CC, 17mm inner width, material: aluminium

REIFEN VORNE MERIDA K1171, 700x40C, wire

REIFEN HINTEN MERIDA K1171, 700x40C, wire

SATELSTÜTZE MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel

SATTEL MERIDA Cross Sport

CROSSWAY 10-V

RAHMENGRÖSSEN S, S/M, M/L, L

RAHMEN CROSSWAY DT, material: aluminium, 700x42C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL SR Suntour NEX Coil, 63mm suspension travel, 700x50C max. wheelsize

UMWERFER VORNE Shimano FD-TY510

UMWERFER HINTEN Shimano RD-M310

SCHALTHEBEL VORNE Shimano ST-EF500

SCHALTHEBEL HINTEN Shimano ST-EF500

BREMSE VORNE PROMAX MTV-117A

BREMSE HINTEN PROMAX MTV-117A

KURBEL Shimano TY301, 48-38-28 teeth, 170 mm-XXS/SM, 175 mm-ML/XXL

FREILAUF Shimano MF-TZ500, 14-28 teeth, 7 speed

KETTE KMC NS8

FELGE MERIDA CC, 17mm inner width, material: aluminium

REIFEN VORNE MERIDA K1171, 700x40C, wire

REIFEN HINTEN MERIDA K1171, 700x40C, wire

SATELSTÜTZE MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel

SATTEL MERIDA CROSS SPORT

ONE-SIXTY

RAHMENGRÖSSEN Short, Mid, Long

FEDERBEIN Fox DHX Factory Live Valve Neo, electrionic suspension, XSHORT: 300 lbs, SHORT: 350 lbs, MID: 400 lbs, LONG: 450 lbs, XLONG: 500 lbs

RAHMEN ONE-SIXTY CF4 III, 171mm suspension travel mullet / 162mm suspension travel 29", material: carbon, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard

GABEL Fox Podium Factory Grip X2, Air, 170mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max. wheelsize

UMWERFER HINTEN Sram X0 Eagle Transmission AXS, wireless, T-Type

SCHALTHEBEL VORNE Fox Transfer dropper lever

SCHALTHEBEL HINTEN Sram AXS POD Controller

BREMSE VORNE TRP Evo Pro HD-M9040, 4 piston

BREMSE HINTEN TRP Evo Pro HD-M9040, 4 piston

KURBEL Sram XO Eagle Transmission, 32 teeth, 2 guards, 165 mm for all sizes

FREILAUF Sram XS-1295 X0 Eagle Transmission, 10-52 teeth, 12 speed

KETTE Sram XO Eagle Transmission, Flattop

LAUFRADSATZ DT Swiss FR 1500, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, Centerlock, Sram XD, material: aluminium, Tubeless ready (tubeless tape and valves included)

REIFEN VORNE Continental Kryptotal-F, 29x2.4", fold, TR, Enduro casing, Super soft compund

REIFEN HINTEN Continental Kryptotal-R, 27.5x2.4" XS/S/M 29x2.4" L/XL, fold, Enduro casing, soft compound

SATELSTÜTZE Fox Transfer, 34.9mm diameter, 0mm setback, 25mm travel adjustability, SHORT: 180mm, SHORT/MID: 210mm, LONG/XLONG: 240mm

SATTEL Prologo Pyuma Tirox, V-mount adapter, incl. MERIDA minitool

GEWICHT (CA.) 16.3 kg, weighed at frame size M

ONE-SIXTY 10K

RAHMENGRÖSSEN Short, Mid, Long

FEDERBEIN Rock Shox Super Deluxe Flight Attendant, platform, adjustable low speed compression, electronic suspension system

RAHMEN ONE-SIXTY CF4 III 171 mm suspension travel mullet / 162 mm suspension travel 29", material: carbon, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Rock Shox Zeb Flight Attendant, Air, 170 mm suspension travel, Tapered, 44 mm fork offset, 29x2.8" max. wheelsize, electric suspension system

UMWERFER HINTEN Sram XX Eagle Transmission AXS, wireless, T-Type

SCHALTHEBEL HINTEN Sram AXS POD Ultimate Controller

BREMSE VORNE Sram Code Ultimate Stealth, 4 piston

BREMSE HINTEN Sram Code Ultimate Stealth, 4 piston

KURBEL Sram XX Eagle Transmission, 32 teeth, 2 guards, incl. Powermeter, 170 mm for all sizes

FREILAUF Sram XX Eagle Transmission, 10-52 teeth, 12 speed

KETTE Sram XX Eagle Transmission, Flattop

LAUFRADSATZ Reynolds Blacklabel Enduro 289/287 I9, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, Centerlock, Sram XD, material: carbon, Tubeless ready (tubeless tape and valves included), rear 27.5" up to Size M / L & XL rear 29", Lifetime warranty

REIFEN VORNE Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip

REIFEN HINTEN Maxxis DHR II, 27.5x2.4" XS/S/M 29x2.4" L/XL, fold, TR DD 3C MaxxTerra

SATELSTÜTZE MERIDA TEAM TR II, 34.9 mm diameter, 0 mm setback, all sizes 30-230 mm travel seatpost

SATTEL Proxim W400 T2.0 V-mount adapter, incl. MERIDA minitool

GEWICHT (CA.) 15.0 kg weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

ONE-SIXTY 8000

RAHMENGRÖSSEN Short, Mid, Long

FEDERBEIN Rock Shox Super Deluxe Ultimate, platform, adjustable low speed compression

RAHMEN ONE-SIXTY CF4 III 171 mm suspension travel mullet / 162 mm suspension travel 29", material: carbon, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Rock Shox Zeb Ultimate, Air, 170 mm suspension travel, Tapered, 42 mm fork offset, 29x2.8" max. wheelsize

UMWERFER HINTEN Sram GX Eagle Transmission AXS, wireless, T-Type

SCHALTHEBEL HINTEN Sram AXS POD Controller

BREMSE VORNE Sram Code Bronze Stealth, 4 piston

BREMSE HINTEN Sram Code Bronze Stealth, 4 piston

KURBEL Sram GX Eagle Transmission, 32 teeth, 2 guards, 170 mm for all sizes

FREILAUF Sram GX Eagle Transmission, 10-52 teeth, 12 speed

KETTE Sram GX Eagle Transmission, Flattop

LAUFRADSATZ Race Face Turbine R30, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, Centerlock, Sram XD, material: aluminium, Tubeless ready (tubeless tape and valves included), Lifetime warranty

REIFEN VORNE Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip

REIFEN HINTEN Maxxis DHR II, 27.5x2.4" XS/S/M 29x2.4" L/XL, fold, TR DD 3C MaxxTerra

SATELSTÜTZE MERIDA TEAM TR II, 34.9 mm diameter, 0 mm setback, all sizes 30-230 mm travel seatpost

SATTEL Proxim W400 STN V-mount adapter, incl. MERIDA minitool

GEWICHT (CA.) 15.1 kg weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

ONE-SIXTY 7000

8100361

RAHMENGRÖSSEN Short, Mid, Long, XLong

FEDERBEIN Fox Float X Performance, platform

SATELSTÜTZE

SATTEL MERIDA EXPERT SL V-mount, incl. MERIDA minitool Short, Mid, Long

MERIDA TEAM TR, 34.9mm diameter, 0mm setback, 30-230mm travel seatpost

RAHMEN ONE-SIXTY CF4 III, 171mm suspension travel mullet / 162mm suspension travel 29", material: carbon, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard

GABEL FOX 38 Elite Air, Air, 170 STR, Tapered, 51mm fork offset, 29x2.6" max WHS

UMWERFER HINTEN Sram GX Eagle

SCHALTHEBEL VORNE Shimano SL -MT500-IL

SCHALTHEBEL HINTEN Eagle GX 12s

BREMSE VORNE SRAM DB-G2-RSC-A2

BREMSE HINTEN SRAM DB-G2-RSC-A2 J-KIT

KURBEL Sram GX Eagle, 32 teeth

FREILAUF Sram GX, 10-52 ATC teeth, 12 speed

KETTE Sram GX

FELGE MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), rear 27.5" up to Size M, rear 29" L & XL

REIFEN VORNE Maxxis Assegai, 29x2.5", fold, TR DD 3C MaxxGrip

REIFEN HINTEN Maxxis DHR II, 27.5x2.4" XS/S/M 29x2.4" L/XL, fold, TR DD 3C MaxxTerra

ONE-SIXTY 6000

RAHMENGRÖSSEN Short, Mid, Long, XLong

FEDERBEIN Rock Shox Super Deluxe Select+, platform

RAHMEN ONE-SIXTY CF4 III, 171 mm suspension travel mullet / 162 mm suspension travel 29", material: carbon, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Rock Shox Zeb Select, Air, 170 mm suspension travel, Tapered, 44 mm fork offset, 29x2.6" max. wheelsize

UMWERFER HINTEN Shimano Deore M6100, SGS

SCHALTHEBEL VORNE Shimano SL-MT500-IL

SCHALTHEBEL HINTEN Shimano XT M8100, Multi Release

BREMSE VORNE TRP Trail Evo HD-M843, 4 piston

BREMSE HINTEN TRP Trail Evo HD-M843, 4 piston

KURBEL Race Face Turbine, 32 teeth, 170 mm for all sizes

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA EXPERT TR II, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), rear 27.5" up to Size M / L & XL rear 29"

REIFEN VORNE Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip

REIFEN HINTEN Maxxis DHR II, 27.5x2.4" XS/S/M 29x2.4" L/XL, fold, TR DD 3C MaxxTerra

SATELSTÜTZE MERIDA TEAM TR II 34.9 mm diameter, 0 mm setback, all sizes 30-230 mm travel seatpost

incl.

(CA.) 15.8 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

SATTEL MERIDA EXPERT SL, V-mount,

MERIDA minitool

GEWICHT

ONE-SIXTY 6000

RAHMENGRÖSSEN Short, Mid, Long, XLong

FEDERBEIN Rock Shox Super Deluxe Select+, platform

RAHMEN ONE-SIXTY CF4 III, 171 mm suspension travel mullet / 162 mm suspension travel 29", material: carbon, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Rock Shox Zeb Select, Air, 170 mm suspension travel, Tapered, 44 mm fork offset, 29x2.6" max. wheelsize

UMWERFER HINTEN Shimano Deore M6100, SGS

SCHALTHEBEL VORNE Shimano SL-MT500-IL

SCHALTHEBEL HINTEN Shimano XT M8100, Multi Release

BREMSE VORNE TRP Trail Evo HD-M843, 4 piston

BREMSE HINTEN TRP Trail Evo HD-M843, 4 piston

KURBEL Race Face Turbine, 32 teeth, 170 mm for all sizes

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA EXPERT TR II, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), rear 27.5" up to Size M / L & XL rear 29"

REIFEN VORNE Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip

REIFEN HINTEN Maxxis DHR II, 27.5x2.4" XS/S/M 29x2.4" L/XL, fold, TR DD 3C MaxxTerra

SATELSTÜTZE MERIDA TEAM TR II 34.9 mm diameter, 0 mm setback, all sizes 30-230 mm travel seatpost

SATTEL MERIDA EXPERT SL, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 15.8 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong

FEDERBEIN Marzocchi Bomber Air, platform

RAHMEN ONE-SIXTY LITE III, 171 mm suspension travel mullet / 162 mm suspension travel 29", material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Marzocchi Z1, Air, 170 mm suspension travel, Tapered, 44 mm fork offset, 29x2.6" max. wheelsize

UMWERFER HINTEN Sram NX Eagle

SCHALTHEBEL HINTEN Sram NX

BREMSE VORNE Sram DB8, 4 piston

BREMSE HINTEN Sram DB8, 4 piston

KURBEL Sram NX Eagle DUB, 32 teeth, 170 mm for all sizes

FREILAUF Sram PG-1210 Eagle, 10-50 teeth, 12 speed

KETTE Sram SX Eagle

FELGE MERIDA EXPERT TR II, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), rear 27.5" up to Size M / L & XL rear 29"

REIFEN VORNE Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip

REIFEN HINTEN Maxxis DHR II, 27.5x2.4" XS/S/M 29x2.4" L/XL, fold, TR DD 3C MaxxTerra

SATELSTÜTZE

MERIDA TEAM TR II, 34.9 mm diameter, 0 mm setback, all sizes 30-230 mm travel seatpost

SATTEL MERIDA EXPERT SL V-mount, incl. MERIDA minitool

GEWICHT (CA.) 16.7 kg weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

RAHMENGRÖSSEN Short, Mid, Long, XLong

FEDERBEIN Marzocchi Bomber Air, platform

RAHMEN ONE-SIXTY LITE III, 171 mm suspension travel mullet / 162 mm suspension travel 29", material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Marzocchi Z1, Air, 170 mm suspension travel, Tapered, 44 mm fork offset, 29x2.6" max. wheelsize

UMWERFER HINTEN Sram NX Eagle

SCHALTHEBEL HINTEN Sram NX

BREMSE VORNE Sram DB8, 4 piston

BREMSE HINTEN Sram DB8, 4 piston

KURBEL Sram NX Eagle DUB, 32 teeth, 170 mm for all sizes

FREILAUF Sram PG-1210 Eagle, 10-50 teeth, 12 speed

KETTE Sram SX Eagle

FELGE MERIDA EXPERT TR II, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), rear 27.5" up to Size M / L & XL rear 29"

REIFEN VORNE Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip

REIFEN HINTEN Maxxis DHR II, 27.5x2.4" XS/S/M 29x2.4" L/XL, fold, TR DD 3C MaxxTerra

SATELSTÜTZE MERIDA TEAM TR II 34.9 mm diameter, 0 mm setback, all sizes 30-230 mm travel seatpost

SATTEL MERIDA EXPERT SL, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 16.7 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

RAHMENGRÖSSEN XShort, Short, Mid, Long

FEDERBEIN Rock Shox Deluxe Select+, lockout

RAHMEN ONE-SIXTY LITE III, 171 mm suspension travel mullet / 162 mm suspension travel 29", material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Rock Shox Domain R, Air, 170 mm suspension travel, Tapered, 44 mm fork offset, 29.5x2.8" max. wheelsize

UMWERFER HINTEN Shimano Deore M6100, SGS

SCHALTHEBEL VORNE Shimano SL-MT500-IL

SCHALTHEBEL HINTEN Shimano Deore M6100

BREMSE VORNE Shimano Deore M6120, 4 piston

BREMSE HINTEN Shimano Deore M6120, 4 piston

KURBEL Shimano Deore MT512, 32 teeth, 170 mm for all sizes

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA COMP TR II, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), rear 27.5" up to Size M / L & XL rear 29"

REIFEN VORNE Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip

SATELSTÜTZE MERIDA EXPERT TR II 34.9 mm diameter, 0 mm setback, XS/S: 150 mm travel seatpost - M: 170 mm travel seatpost - L/XL: 200 mm travel seatpost

SATTEL MERIDA COMP SL, V-mount

GEWICHT (CA.) 16.5 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

REIFEN HINTEN Maxxis DHR II, 27.5x2.4" XS/S/M 29x2.4" L/XL, fold, TR DD 3C MaxxTerra

ONE-SIXTY FR

ONE-SIXTY FR 600

RAHMENGRÖSSEN XShort, Short, Mid, Long

FEDERBEIN DVO Jade X D2, coil, spring rate per size XSHORT and SHORT 300 lbs, MID: 350 lbs, LONG: 400 lbs, XLONG: 450 lbs

RAHMEN ONE-SIXTY FR LITE III 171 mm suspension travel mullet, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL DVO Onyx 38 D2, Air, 180 mm suspension travel, tapered, 44 mm Offset, 29"

UMWERFER HINTEN Shimano Deore M6100, SGS

SCHALTHEBEL VORNE Shimano SL-MT500-IL

SCHALTHEBEL HINTEN Shimano Deore M6100

BREMSE VORNE TRP Trail Evo HD-M843, 4 piston

BREMSE HINTEN TRP Trail Evo HD-M843, 4 piston

KURBEL Shimano Deore MT512, 32 teeth, 170 mm for all sizes

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA EXPERT TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"

REIFEN VORNE Continental Kryptotal-F 29x2.4", fold, TR, Enduro casing, Soft Compund

REIFEN HINTEN Continental Kryptotal-R, 27.5x2.4", fold, TR, Downhill Casing, Soft Compound

SATELSTÜTZE

MERIDA TEAM TR II, 34.9 mm diameter, 0 mm setback, all sizes 30-230 mm travel seatpost

SATTEL MERIDA COMP SL V-mount, incl. MERIDA minitool

GEWICHT (CA.) 17.7 kg weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

ONE-SIXTY FR 600

RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong

FEDERBEIN DVO Jade X D2, coil, spring rate per size XSHORT and SHORT 300 lbs, MID: 350 lbs, LONG: 400 lbs, XLONG: 450 lbs

RAHMEN ONE-SIXTY FR LITE III 171 mm suspension travel mullet, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL DVO Onyx 38 D2, Air, 180 mm suspension travel, tapered, 44 mm Offset, 29"

UMWERFER HINTEN Shimano Deore M6100, SGS

SCHALTHEBEL VORNE Shimano SL-MT500-IL

SCHALTHEBEL HINTEN Shimano Deore M6100

BREMSE VORNE TRP Trail Evo HD-M843, 4 piston

BREMSE HINTEN TRP Trail Evo HD-M843, 4 piston

KURBEL Shimano Deore MT512, 32 teeth, 170 mm for all sizes

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA EXPERT TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"

REIFEN VORNE Continental Kryptotal-F 29x2.4", fold, TR, Enduro casing, Soft Compund

REIFEN HINTEN Continental Kryptotal-R, 27.5x2.4", fold, TR, Downhill Casing, Soft Compound

SATELSTÜTZE MERIDA TEAM TR II, 34.9 mm diameter, 0 mm setback, all sizes 30-230 mm travel seatpost

SATTEL MERIDA COMP SL V-mount, incl. MERIDA minitool

GEWICHT (CA.) 17.7 kg weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

ONE-SIXTY FR 400

RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong

FEDERBEIN DVO Jade X D3, coil, spring rate per size XSHORT and SHORT 300 lbs, MID: 350 lbs, LONG: 400 lbs, XLONG: 450 lbs

RAHMEN ONE-SIXTY FR LITE III 171 mm suspension travel mullet, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL SR Suntour Durolux 38 RC, Air, 180 mm suspension travel, Tapered, xx mm fork offset, 29x2.60" max. wheelsize

UMWERFER HINTEN Shimano CUES U6000, GS

SCHALTHEBEL VORNE Shimano SL-MT500-L

SCHALTHEBEL HINTEN Shimano CUES U6000

BREMSE VORNE Tektro Gemini HD-M535, 4 piston

BREMSE HINTEN Tektro Gemini HD-M535, 4 piston

KURBEL MERIDA Expert TR, 32 teeth, 170 mm for all sizes

FREILAUF Shimano LG300, 11-48 teeth, 10 speed

KETTE Shimano LG500

FELGE MERIDA COMP TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"

REIFEN VORNE Continental Kryptotal-F 29x2.4", fold, TR, Enduro casing, Soft Compund

REIFEN HINTEN Continental Kryptotal-R, 27.5x2.4", fold, TR, Enduro Casing, Soft Compound

SATELSTÜTZE

MERIDA EXPERT TR II, 34.9 mm diameter, 0 mm setback, XS/S: 150 mm travel seatpost - M: 170 mm travel seatpost - L/XL: 200 mm travel seatpost

SATTEL MERIDA COMP SL, V-mount

GEWICHT (CA.) 17.8 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

ONE-SIXTY FR 400

RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong

FEDERBEIN DVO Jade X D3, coil, spring rate per size

XSHORT and SHORT 300 lbs, MID: 350 lbs, LONG: 400 lbs, XLONG: 450 lbs

RAHMEN ONE-SIXTY FR LITE III 171 mm suspension travel mullet, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL SR Suntour Durolux 38 RC, Air, 180 mm suspension travel, Tapered, xx mm fork offset, 29x2.60" max. wheelsize

UMWERFER HINTEN Shimano CUES U6000, GS

SCHALTHEBEL VORNE Shimano SL-MT500-L

SCHALTHEBEL HINTEN Shimano CUES U6000

BREMSE VORNE Tektro Gemini HD-M535, 4 piston

BREMSE HINTEN Tektro Gemini HD-M535, 4 piston

KURBEL MERIDA Expert TR, 32 teeth, 170 mm for all sizes

FREILAUF Shimano LG300, 11-48 teeth, 10 speed

KETTE Shimano LG500

FELGE MERIDA COMP TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"

REIFEN VORNE Continental Kryptotal-F 29x2.4", fold, TR, Enduro casing, Soft Compund

REIFEN HINTEN Continental Kryptotal-R, 27.5x2.4", fold, TR, Enduro Casing, Soft Compound

SATELSTÜTZE

MERIDA EXPERT TR II, 34.9 mm diameter, 0 mm setback, XS/S: 150 mm travel seatpost - M: 170 mm travel seatpost - L/XL: 200 mm travel seatpost

SATTEL MERIDA COMP SL, V-mount

GEWICHT (CA.) 17.8 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

ONE-FORTY

ONE-FORTY 6000

RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong

FEDERBEIN Rock Shox Deluxe Select+, lockout

RAHMEN ONE-FORTY CF4 III, 143 mm suspension travel 29", material: carbon, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Marzocchi Z1, Air, 150 mm suspension travel, Tapered, 44 mm fork offset, 29.5x2.6" max. wheelsize

UMWERFER HINTEN Shimano Deore M6100, SGS

SCHALTHEBEL VORNE Shimano SL-MT500-IL

SCHALTHEBEL HINTEN Shimano XT M8100, Multi Release

BREMSE VORNE Shimano Deore M6120, 4 piston

BREMSE HINTEN Shimano Deore M6120, 4 piston

KURBEL Race Face Turbine, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA EXPERT TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"

REIFEN VORNE Maxxis Minion DHF, 29x2.5", fold, TR EXO 3C MaxxTera

REIFEN HINTEN Maxxis Dissector, 29x2.4", fold, TR EXO+ MaxxTerra

SATELSTÜTZE MERIDA TEAM TR II, 34.9 mm diameter, 10 mm setback, all sizes 30-230 mm travel seatpost

MERIDA EXPERT SL, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 15.1 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

SATTEL

RAHMENGRÖSSEN Short, Mid, Long, XLong

FEDERBEIN Rock Shox Deluxe Select+, lockout

RAHMEN ONE-FORTY LITE III, 143 mm suspension travel 29", material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Marzocchi Z1, Air, 150 mm suspension travel, Tapered, 44 mm fork offset, 29.5x2.6" max. wheelsize

UMWERFER HINTEN Sram NX Eagle

SCHALTHEBEL HINTEN Sram NX

BREMSE VORNE Sram DB8, 4 piston

BREMSE HINTEN Sram DB8, 4 piston

KURBEL Sram NX Eagle DUB, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Sram PG-1210 Eagle, 10-50 teeth, 12 speed

KETTE Sram SX Eagle

FELGE MERIDA EXPERT TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"

REIFEN VORNE Maxxis Minion DHF, 29x2.5", fold, TR EXO 3C MaxxTera

REIFEN HINTEN Maxxis Dissector, 29x2.4", fold, TR EXO+ MaxxTerra

SATELSTÜTZE MERIDA TEAM TR II, 34.9 mm diameter, 10 mm setback, all sizes 30-230 mm travel seatpost

SATTEL MERIDA EXPERT SL V-mount, incl. MERIDA minitool

GEWICHT (CA.) 15.8 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong

FEDERBEIN Rock Shox Deluxe Select+, lockout

RAHMEN ONE-FORTY LITE III, 143 mm suspension travel 29", material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Marzocchi Z2, Air, 150 mm suspension travel, Tapered, 44 mm fork offset

UMWERFER HINTEN Shimano Deore M6100, SGS

SCHALTHEBEL VORNE Shimano SL-MT500-IL

SCHALTHEBEL HINTEN Shimano Deore M6100

BREMSE VORNE Shimano Deore M6120, 4 piston

BREMSE HINTEN Shimano Deore M6120, 4 piston

KURBEL Shimano Deore MT512, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA COMP TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"

REIFEN VORNE Maxxis Minion DHF, 29x2.5", fold, TR EXO 3C MaxxTera

REIFEN HINTEN Maxxis Dissector, 29x2.4", fold, TR EXO+ MaxxTerra

SATELSTÜTZE MERIDA EXPERT TR II, 34.9 mm diameter, 10 mm setback, XS/S: 150 mm travel seatpost - M: 170 mm travel seatpost - L/XL: 200 mm travel seatpost

SATTEL MERIDA COMP SL, V-mount

GEWICHT (CA.) 16.1 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

ONE-FORTY 500

RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong

XShort, Short, Mid, Long

FEDERBEIN Rock Shox Deluxe Select+, lockout

RAHMEN ONE-FORTY LITE III, 143 mm suspension travel 29", material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Marzocchi Z2, Air, 150 mm suspension travel, Tapered, 44 mm fork offset

UMWERFER HINTEN Shimano Deore M6100, SGS

SCHALTHEBEL VORNE Shimano SL-MT500-IL

SCHALTHEBEL HINTEN Shimano Deore M6100

BREMSE VORNE Shimano Deore M6120, 4 piston

BREMSE HINTEN Shimano Deore M6120, 4 piston

KURBEL Shimano Deore MT512, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA COMP TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"

REIFEN VORNE Maxxis Minion DHF, 29x2.5", fold, TR EXO 3C MaxxTera

REIFEN HINTEN Maxxis Dissector, 29x2.4", fold, TR EXO+ MaxxTerra

SATELSTÜTZE

MERIDA EXPERT TR II, 34.9 mm diameter, 10 mm setback, XS/S: 150 mm travel seatpost - M: 170 mm travel seatpost - L/XL: 200 mm travel seatpost

SATTEL MERIDA COMP SL, V-mount

GEWICHT (CA.) 16.1 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong

FEDERBEIN Rock Shox Deluxe Select+, lockout

RAHMEN ONE-FORTY LITE III, 143 mm suspension travel 29", material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCR34 2CR, Air, 140 mm, Tapered, 44 mm fork offset, 29x2.4" max. wheelsize

UMWERFER HINTEN Shimano CUES U6000, GS

SCHALTHEBEL VORNE Shimano SL-MT500-L

SCHALTHEBEL HINTEN Shimano CUES U6000

BREMSE VORNE Tektro Gemini M535, 4 piston

BREMSE HINTEN Tektro Gemini M535, 4 piston

KURBEL MERIDA Expert TR, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Shimano LG400, 11-50 teeth, 11 speed

KETTE Shimano LG500

FELGE MERIDA COMP TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"

REIFEN VORNE Kenda Regolith, 29x2.4", wire

REIFEN HINTEN Kenda Regolith, 29x2.4", wire

SATELSTÜTZE MERIDA EXPERT TR II, 34.9 mm diameter, 10 mm setback, XS/S: 150 mm travel seatpost - M: 170 mm travel seatpost - L/XL: 200 mm travel seatpost

SATTEL MERIDA COMP SL, V-mount

GEWICHT (CA.) 16.5 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues. Short, Mid, Long, XLong

811168

RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong

FEDERBEIN Rock Shox Deluxe Select+, lockout

RAHMEN ONE-FORTY LITE III, 143 mm suspension travel 29", material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCR34 2CR, Air, 140 mm, Tapered, 44 mm fork offset, 29x2.4" max. wheelsize

UMWERFER HINTEN Shimano CUES U6000, GS

SCHALTHEBEL VORNE Shimano SL-MT500-L

SCHALTHEBEL HINTEN Shimano CUES U6000

BREMSE VORNE Tektro Gemini M535, 4 piston

BREMSE HINTEN Tektro Gemini M535, 4 piston

KURBEL MERIDA Expert TR, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Shimano LG400, 11-50 teeth, 11 speed

KETTE Shimano LG500

FELGE MERIDA COMP TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"

REIFEN VORNE Kenda Regolith, 29x2.4", wire

REIFEN HINTEN Kenda Regolith, 29x2.4", wire

SATELSTÜTZE MERIDA EXPERT TR II, 34.9 mm diameter, 10 mm setback, XS/S: 150 mm travel seatpost - M: 170 mm travel seatpost - L/XL: 200 mm travel seatpost

SATTEL MERIDA COMP SL, V-mount

GEWICHT (CA.) 16.5 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

ONE-TWENTY

ONE-TWENTY 700

RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong

FEDERBEIN Rock Shox Deluxe Select+, lockout

RAHMEN ONE-TWENTY LITE V, 130 mm suspension travel, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Rock Shox PIKE Select, Air, 130 mm suspension travel, Tapered, 44 mm fork offset, platform, 29x2.X" max. wheelsize

UMWERFER HINTEN Sram NX Eagle

SCHALTHEBEL HINTEN Sram NX

BREMSE VORNE Sram DB8, 4 piston

BREMSE HINTEN Sram DB8, 4 piston

KURBEL Sram NX Eagle DUB, 32 teeth, 170 mm on all sizes

FREILAUF Sram PG-1210 Eagle, 10-50 teeth, 12 speed

KETTE Sram SX Eagle

FELGE MERIDA EXPERT TR, 29 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Forekaster, 29x2.4", fold, TR EXO 3C MaxxTerra

REIFEN HINTEN Maxxis Forekaster, 29x2.4", fold, TR EXO 3C MaxxTerra

SATELSTÜTZE MERIDA EXPERT TR II, Diameter: 34.9 mm, Setback: 0 mm, Travel: 150 mm XSHORT/SHORT, 170 mm MID, 200 mm LONG/XLONG

W400 STN, V-mount adapter, incl.

14.9 kg, weighed at frame size M,

vary depending on bike size, finish or possible specification changes due to supply chain issues.

SATTEL Proxim

MERIDA minitool GEWICHT (CA.)

Weight may

ONE-TWENTY 600

RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong

FEDERBEIN Rock Shox Deluxe Select+, lockout

RAHMEN ONE-TWENTY LITE V, 130 mm suspension travel, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Marzocchi Z2, Air, 130 mm suspension travel, Tapered, 44 mm fork offset, platform, 29x2.6" max. wheelsize

UMWERFER HINTEN Shimano Deore M6100, SGS

SCHALTHEBEL VORNE Shimano SL-MT500-IL

SCHALTHEBEL HINTEN Shimano Deore M6100

BREMSE VORNE Shimano Deore M6120, 4 piston

BREMSE HINTEN Shimano Deore M6100, 2 piston

KURBEL Shimano Deore MT512, 32 teeth, 170 mm on all sizes

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA COMP TR, 29 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Forekaster, 29x2.4", fold, TR Dual

REIFEN HINTEN Maxxis Forekaster, 29x2.4", fold, TR Dual

SATELSTÜTZE MERIDA EXPERT TR II, Diameter: 34.9 mm, Setback: 0 mm, Travel: 150 mm XSHORT/SHORT, 170 mm MID, 200 mm LONG/XLONG

SATTEL MERIDA COMP SL, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 15.2 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

ONE-TWENTY 600

RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong

FEDERBEIN Rock Shox Deluxe Select+, lockout

RAHMEN ONE-TWENTY LITE V, 130 mm suspension travel, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Marzocchi Z2, Air, 130 mm suspension travel, Tapered, 44 mm fork offset, platform, 29x2.6" max. wheelsize

UMWERFER HINTEN Shimano Deore M6100, SGS

SCHALTHEBEL VORNE Shimano SL-MT500-IL

SCHALTHEBEL HINTEN Shimano Deore M6100

BREMSE VORNE Shimano Deore M6120, 4 piston

BREMSE HINTEN Shimano Deore M6100, 2 piston

KURBEL Shimano Deore MT512, 32 teeth, 170 mm on all sizes

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA COMP TR, 29 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Forekaster, 29x2.4", fold, TR Dual

REIFEN HINTEN Maxxis Forekaster, 29x2.4", fold, TR Dual

SATELSTÜTZE MERIDA EXPERT TR II, Diameter: 34.9 mm, Setback: 0 mm, Travel: 150 mm XSHORT/SHORT, 170 mm MID, 200 mm LONG/XLONG

SATTEL MERIDA COMP SL, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 15.2 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

ONE-TWENTY 300

RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong

FEDERBEIN SR Suntour Edge Plus 2CR, lockout

RAHMEN ONE-TWENTY LITE V, 130 mm suspension travel, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Suntour XCR34 2CR, Air, 130 mm suspension travel, Tapered, lockout, 44 mm fork offset, 29x2.4" max. wheelsize

UMWERFER HINTEN Shimano CUES U6000, GS

SCHALTHEBEL VORNE Shimano SL-MT500-L

SCHALTHEBEL HINTEN Shimano CUES U6000

BREMSE VORNE Shimano MT200, 2 piston

BREMSE HINTEN Shimano MT200, 2 piston

KURBEL MERIDA Expert TR, 32 teeth, 170 mm on all sizes

FREILAUF Shimano CUES LG400, 11-48 teeth, 10 speed

KETTE Shimano LG500

FELGE MERIDA COMP CC II, 25 mm inner width, material: aluminium, tubeless ready

REIFEN VORNE Maxxis Rekon, 29x2.4", wire

REIFEN HINTEN Maxxis Rekon, 29x2.4", wire

SATELSTÜTZE MERIDA EXPERT TR II, Diameter: 34.9 mm, Setback: 0 mm, Travel: 150 mm XSHORT/SHORT, 170 mm MID, 200 mm LONG/XLONG

SATTEL MERIDA COMP SL, V-mount

GEWICHT (CA.) 15.7 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

ONE-TWENTY 300

RAHMENGRÖSSEN XShort, Short, Mid, Long, XLong

FEDERBEIN SR Suntour Edge Plus 2CR, lockout

RAHMEN ONE-TWENTY LITE V, 130 mm suspension travel, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Suntour XCR34 2CR, Air, 130 mm suspension travel, Tapered, lockout, 44 mm fork offset, 29x2.4" max. wheelsize

UMWERFER HINTEN Shimano CUES U6000, GS

SCHALTHEBEL VORNE Shimano SL-MT500-L

SCHALTHEBEL HINTEN Shimano CUES U6000

BREMSE VORNE Shimano MT200, 2 piston

BREMSE HINTEN Shimano MT200, 2 piston

KURBEL MERIDA Expert TR, 32 teeth, 170 mm on all sizes

FREILAUF Shimano CUES LG400, 11-48 teeth, 10 speed

KETTE Shimano LG500

FELGE MERIDA COMP CC II, 25 mm inner width, material: aluminium, tubeless ready

REIFEN VORNE Maxxis Rekon, 29x2.4", wire

REIFEN HINTEN Maxxis Rekon, 29x2.4", wire

SATELSTÜTZE MERIDA EXPERT TR II, Diameter: 34.9 mm, Setback: 0 mm, Travel: 150 mm XSHORT/SHORT, 170 mm MID, 200 mm LONG/XLONG

SATTEL MERIDA COMP SL, V-mount

GEWICHT (CA.) 15.7 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

NINETY-SIX

RAHMENGRÖSSEN S, M, L, XL

S, M, L 811108

FEDERBEIN Fox Float Factory, adjustable low speed compression, platform

RAHMEN NINETY-SIX CF4 III, 100 mm suspension travel, material: carbon, 29x2.35" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Fox 34 Float SC Factory, Air, 120 mm suspension travel, Tapered, 3 Pos lockout, 44 mm fork offset, 29x2.4" max. wheelsize

UMWERFER HINTEN Sram GX Eagle Transmission AXS, wireless, T-Type

SCHALTHEBEL VORNE Sram AXS POD Controller

SCHALTHEBEL HINTEN Sram AXS POD Controller

BREMSE VORNE Sram Level Silver Stealth, 4 piston

BREMSE HINTEN Sram Level Silver Stealth, 2 piston

KURBEL Sram GX Eagle, 32 teeth, 170 mm-S, 175 mm-M up

KASSETTE Sram GX Eagle Transmission, 32 teeth

FREILAUF Sram GX Eagle Transmission, 10-52 teeth, 12 speed

KETTE Sram GX Eagle Transmission, Flattop

REIFEN VORNE Maxxis Minion DHR II, 29x2.3", fold, TR EXO 3C MaxxTerra

REIFEN HINTEN Maxxis Minion DHR II, 29x2.3", fold, TR EXO 3C MaxxTerra

SATELSTÜTZE Rock Shox Reverb AXS, 30.9 mm diameter, 0 mm setback, S:125 mm travel seatpost - M 150 mm travel seatpost - L/XL 170 mm travel seatpost

SATTEL SCRATCH M5 PAS TIROX, V-mount adapter, incl. MERIDA minitool

GEWICHT (CA.) 12.0 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

8105111

RAHMENGRÖSSEN S, M, L, XL

SATELSTÜTZE

M, L, XL

FEDERBEIN Fox Float SL Performance Elite, remote lockout

RAHMEN NINETY-SIX RC CF4 III, 100 mm suspension travel, material: carbon, 29x2.35" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Fox 32 Float SC Performance, Air, 100 mm suspension travel, Tapered, Remote lockout, 44 mm fork offset

UMWERFER HINTEN Shimano XT M8100 Shadow+, SGS

SCHALTHEBEL VORNE Trans-X JD-FL remote

SCHALTHEBEL HINTEN Shimano XT M8100, Multi Release

BREMSE VORNE Shimano XT M8100, 2 piston

BREMSE HINTEN Shimano XT M8110, 2 piston

KURBEL Shimano XT, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Shimano XT, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA EXPERT CC, 22.8 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Rekon Race, 29x2.25", fold, TR EXO 120 TPI

REIFEN HINTEN Maxxis Rekon Race, 29x2.25", fold, TR EXO 120 TPI

MERIDA EXPERT TR LIGHT, 30.9 mm diameter, 0 mm setback, S/M/L/XL: 100 mm travel seatpost

SATTEL MERIDA EXPERT SL V-mount, incl. MERIDA minitool

GEWICHT (CA.) 11.7 kg weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

BIG.TRAIL

BIG.TRAIL 600

RAHMENGRÖSSEN S, M, L, XL, XXL

RAHMEN BIG.TRAIL TFS, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Marzocchi Z2 Air, 140 mm suspension travel, Tapered, 44 mm fork offset

UMWERFER HINTEN Shimano CUES U6000, GS

SCHALTHEBEL VORNE Shimano SL-MT500-IL

SCHALTHEBEL HINTEN Shimano CUES U6000

BREMSE VORNE Shimano Deore M6120, front 4 piston

BREMSE HINTEN Shimano Deore M6100, rear 2 piston

KURBEL Shimano CUES U6000, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Shimano LG400, 11-50 teeth, 11 speed

KETTE Shimano LG500

FELGE MERIDA EXPERT TR, 29 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Dissector, 29x2.4", fold, TR EXO Dual

REIFEN HINTEN Maxxis Dissector, 29x2.4", fold, TR EXO Dual

SATELSTÜTZE MERIDA COMP TR, 30.9 mm diameter, 0 mm setback, S: 125 mm travel seatpost - M/L: 150 mm travel seatpost - XL/XXL 175 mm travel seatpost

MERIDA COMP SL, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 14.1 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

SATTEL

BIG.TRAIL 500

RAHMENGRÖSSEN S, M, L, XL, XXL

RAHMEN BIG.TRAIL TFS, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL Rock Shox Recon Silver RL 140 mm suspension travel, Tapered, 42 mm fork offset

UMWERFER HINTEN Shimano CUES U6000, GS

SCHALTHEBEL VORNE Shimano SL-MT500-L

SCHALTHEBEL HINTEN Shimano CUES U6000

BREMSE VORNE Tektro Gemini M530, 4 piston

BREMSE HINTEN Tektro Gemini M530, 2 piston

KURBEL Shimano CUES U6000, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Shimano LG300, 11-48 teeth, 10 speed

KETTE Shimano LG500

FELGE MERIDA COMP TR, 29 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Dissector, 29x2.4", fold, TR EXO Dual

REIFEN HINTEN Maxxis Dissector, 29x2.4", fold, TR EXO Dual

SATELSTÜTZE MERIDA COMP TR, 30.9 mm diameter, 0 mm setback, S: 125 mm travel seatpost - M/L: 150 mm travel seatpost - XL/XXL 175 mm travel seatpost

SATTEL MERIDA COMP SL, V-mount

GEWICHT (CA.) 14.5 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

BIG.TRAIL 400

RAHMENGRÖSSEN S, M, L, XL, XXL

RAHMEN BIG.TRAIL TFS, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCR34 2CR Air, 140 mm, Tapered, 44 mm fork offset, 29x2.4" max. wheelsize

UMWERFER HINTEN Shimano CUES U6000, GS

SCHALTHEBEL VORNE Shimano SL-MT500-L

SCHALTHEBEL HINTEN Shimano CUES U6000

BREMSE VORNE Shimano MT200, 2 piston

BREMSE HINTEN Shimano MT200, 2 piston

KURBEL Shimano CUES U4000, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Shimano LG300, 11-48 teeth, 10 speed

KETTE Shimano LG500

FELGE MERIDA COMP TR, 29 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Kenda Regolith, 29x2.4", wire

REIFEN HINTEN Kenda Regolith, 29x2.4", wire

SATELSTÜTZE MERIDA COMP TR, 30.9 mm diameter, 0 mm setback, S: 125 mm travel seatpost - M/L: 150 mm travel seatpost - XL/XXL 175 mm travel seatpost

SATTEL MERIDA COMP SL, V-mount

GEWICHT (CA.) 14.4 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

BIG.TRAIL 200

RAHMENGRÖSSEN S, M, L, XL, XXL

RAHMEN BIG.TRAIL TFS, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCM32 DS Coil, 120 mm suspension travel, Lockout, 46 mm fork offset, 29x2.4" max. wheelsize 15 mm thru-axle 15, 100

UMWERFER HINTEN Shimano CUES U4000, GS

SCHALTHEBEL HINTEN Shimano CUES U4000

BREMSE VORNE Shimano MT200, 2 piston

BREMSE HINTEN Shimano MT200, 2 piston

KURBEL Shimano CUES U4000, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Shimano LG300, 11-46 teeth, 9 speed

KETTE Shimano LG500

FELGE MERIDA COMP TR, 29 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Kenda Regolith, 29x2.4", wire

REIFEN HINTEN Kenda Regolith, 29x2.2", wire

SATELSTÜTZE MERIDA COMP CC, material: aluminium, 30.9 mm diameter, 0 mm setback

SATTEL MERIDA COMP SL, V-mount

GEWICHT (CA.) 14.5 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

BIG.NINE TR

BIG.NINE TR 8000

RAHMENGRÖSSEN M, L

RAHMEN BIG.NINE TR CF3 III, material: carbon, 29x2.4" max wheelsize, 148x12mm axle standard, BSA bottom bracket standard

GABEL Rock Shox SID Select+ Air, 120mm suspension travel, 2 position remote lockout, 29x2.4" max. wheelsize, 44mm fork offset

UMWERFER HINTEN Sram GX Eagle Transmission AXS, wireless, T-Type

SCHALTHEBEL VORNE Sram dropper lever MMX

SCHALTHEBEL HINTEN Sram AXS POD Controller

BREMSE VORNE Sram Level Bronze stealth, 2 piston

BREMSE HINTEN Sram Level Bronze stealth, 2 piston

KURBEL Sram GX Eagle, 34 teeth, 170 mm for all sizes

FREILAUF Sram GX Eagle Transmission, 10-52 teeth, 12 speed

KETTE Sram GX Eagle Transmission, Flattop

REIFEN VORNE Maxxis Rekon, 29x2.4" WT, tubeless ready, 3C EXO

REIFEN HINTEN Maxxis Rekon, 29x2.4" WT, tubeless ready, 3C EXO

SATELSTÜTZE MERIDA TEAM TR SL, 30.9mm diameter, 0mm setback, S/M: 150mm travel seatpost - L/XL/XXL: 170mm travel seatpost

SATTEL Prologo Scratch M5 PAS Tirox, V-mount adapter, incl. MERIDA minitool

GEWICHT (CA.) 10.8 kg, weighed at frame size M

BIG.NINE TR 5000

811754

RAHMENGRÖSSEN S, M, L

RAHMEN BIG.NINE TR CF3 III, material: carbon, 29x2.4" max wheelsize, 148x12mm axle standard, BSA bottom bracket standard

GABEL Rock Shox Judy Gold Air, 120mm suspension travel, Tapered, Remote lockout, 51 mm fork offset

UMWERFER HINTEN Shimano XT, SGS

SCHALTHEBEL VORNE JD-FL lever

SCHALTHEBEL HINTEN Shimano Deore M6100

BREMSE VORNE Shimano SLX M7100, 2 piston

BREMSE HINTEN Shimano SLX M7100, 2 piston

KURBEL Shimano Deore MT512, 32 teeth, 170 mm (S), 175 mm-M up

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA EXPERT CC II, 25mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Rekon, 29x2.4" WT, tubeless ready, 3C EXO

REIFEN HINTEN Maxxis Rekon Race, 29x2.4" WT, tubeless ready, 3C MaxxTerra EXO

SATELSTÜTZE MERIDA TEAM TR SL, 30.9mm diameter, 0mm setback, S/M: 150mm travel seatpost : L/XL/XXL: 170mm travel seatpost

SATTEL MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool

S, M, L, XL, XXL

BIG.NINE TR 700

RAHMENGRÖSSEN S, M, L, XL

RAHMEN BIG.NINE TR LITE III, material: aluminium, 29x2.4" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard

GABEL Manitou Machete Comp Air, 120mm suspension travel, Tapered, 44 mm fork offset

UMWERFER HINTEN Shimano Deore M6100, SGS

SCHALTHEBEL VORNE Shimano SL-MT500-IL

SCHALTHEBEL HINTEN Shimano Deore M6100

BREMSE VORNE Shimano MT200, 2 piston

BREMSE HINTEN Shimano MT200, 2 piston

KURBEL Shimano Deore MT512, 32 teeth, 170 mm for all sizes

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA COMP CC II, 25mm inner width, material: aluminium, tubeless ready

REIFEN VORNE Maxxis Rekon, 29x2.4", wire

REIFEN HINTEN Maxxis Rekon, 29x2.4", wire

SATELSTÜTZE MERIDA COMP TR, 30.9mm diameter, 0mm setback, S: 125mm travel seatpost - M/L: 150mm travel seatpost - XL/XXL 175mm travel seatpost

SATTEL MERIDA COMP SL 25% recycled material, V-mount, incl. MERIDA minitool

BIG.NINE

RAHMENGRÖSSEN S, M, L, XL, XXL

M, L, XL

RAHMEN BIG.NINE CF5 III, material: carbon, 29x2.4" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard

GABEL Fox 32 SC Factory Air, 100mm suspension travel, Tapered, 2 Position Remote lockout, 44mm fork offset, 29x2.4" max. wheelsize

UMWERFER HINTEN Shimano XTR M9250, wireless, Shadow+ GS

SCHALTHEBEL HINTEN Shimano XTR M9250, wireless

BREMSE VORNE Shimano XTR M9220, 2 piston

BREMSE HINTEN Shimano XTR M9220, 2 piston

KURBEL Shimano XTR M9200, 30 teeth, 170 mm (S), 175 mm-M up

FREILAUF Shimano XTR M9200, 9-45t

KETTE Shimano XTR M9100

REIFEN VORNE Maxxis Rekon Race, 29x2.4" WT, tubeless ready, 3C MaxxTerra EXO

REIFEN HINTEN Maxxis Rekon Race, 29x2.4" WT, tubeless ready, 3C MaxxTerra EXO

SATELSTÜTZE FSA SL-K, material: carbon, 30.9mm diameter, 0mm setback

SATTEL Prologo Scratch M5 PAS Nack, V-mount adapter, incl. MERIDA minitool

S,

812241

RAHMENGRÖSSEN S, M, L, XL, XXL

M, L, XL

RAHMEN BIG.NINE CF3 III, material: carbon, 29x2.4" max wheelsize, 148x12mm axle standard, BSA bottom bracket standard

GABEL Fox 32 SC Performance Air, 100mm suspension travel, Tapered, 2 position remote lockout, 29x2.4" max. wheelsize, 44 mm fork offset

UMWERFER HINTEN Shimano XT DI2 M8250, wireless, SGS

SCHALTHEBEL HINTEN Shimano XT DI2 M8250, wireless

BREMSE VORNE Shimano XT M8200, 2 piston

BREMSE HINTEN Shimano XT M8200, 2 piston

KURBEL Shimano XT M8200, 34 teeth, S/M: 170 mm, L/XL/XXL: 175 mm

FREILAUF Shimano Deore M8200, 10-51 teeth, 12 speed

KETTE KMC X12

REIFEN VORNE Maxxis Rekon Race, 29x2.4" WT, tubeless ready, 3C MaxxTerra EXO

REIFEN HINTEN Maxxis Rekon Race, 29x2.4" WT, tubeless ready, 3C MaxxTerra EXO

SATELSTÜTZE FSA SL-K, material: carbon, 30.9mm diameter, 0mm setback

SATTEL Prologo Akero R PAS, reycled, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 9.9 kg, weighed at frame size M

BIG.NINE 7000

RAHMENGRÖSSEN S, M, L, XL, XXL

S, M, L, XL 812229

RAHMEN BIG.NINE CF3 III, material: carbon, 29x2.4" max wheelsize, 148x12mm axle standard, BSA bottom bracket standard

GABEL Fox 32 SC Performance Air, 100mm suspension travel, Tapered, 2 position remote lockout, 29x2.4" max. wheelsize, 44 mm fork offset

UMWERFER HINTEN Shimano Deore DI2 M6250, wireless, SGS

SCHALTHEBEL HINTEN Shimano Deore DI2 M6250, wireless

BREMSE VORNE Shimano SLX M7100, 2 piston

BREMSE HINTEN Shimano SLX M7100, 2 piston

KURBEL Shimano Deore M6100, 32 teeth, S/M: 170 mm, L/XL/XXL: 175 mm

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA EXPERT CC II, 25mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Rekon Race, 29x2.4" WT, tubeless ready, 3C MaxxTerra EXO

REIFEN HINTEN Maxxis Rekon Race, 29x2.4" WT, tubeless ready, 3C MaxxTerra EXO

SATELSTÜTZE FSA SL-K, material: carbon, 30.9mm diameter, 0mm setback

SATTEL Prologo Akero R PAS, reycled, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 10.9 kg, weighed at frame size M

RAHMENGRÖSSEN S, M, L, XL, XXL

RAHMEN BIG.NINE CF3 III, material: carbon, 29x2.4" max wheelsize, 148x12mm axle standard, BSA bottom bracket standard

GABEL Fox 32 SC Performance Air, 100mm suspension travel, Tapered, 2 position remote lockout, 29x2.4" max. wheelsize, 44 mm fork offset

UMWERFER HINTEN Shimano XT, SGS

SCHALTHEBEL HINTEN Shimano XT M8100, Multi Release

BREMSE VORNE Shimano XT M8100, 2 piston

BREMSE HINTEN Shimano XT M8110, 2 piston

KURBEL Shimano XT, 34 teeth, 170 mm (S), 175 mm-M up

FREILAUF Shimano XT, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA EXPERT CC II, 25mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Rekon Race, 29x2.4" WT, tubeless ready, 3C MaxxTerra EXO

REIFEN HINTEN Maxxis Rekon Race, 29x2.4" WT, tubeless ready, 3C MaxxTerra EXO

SATELSTÜTZE FSA SL-K, material: carbon, 30.9mm diameter, 0mm setback

SATTEL MERIDA COMP SL, 25% recycled material, V-mount

GEWICHT (CA.) 10.5 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

BIG.NINE 3000

RAHMENGRÖSSEN S, M, L, XL, XXL

RAHMEN BIG.NINE CF3 III, material: carbon, 29x2.4" max wheelsize, 148x12mm axle standard, BSA bottom bracket standard

GABEL SR Suntour Raidon 34 R-2CR Air, 100mm suspension travel, Tapered, Remote lockout, 29x2.4" max. wheelsize, 46 mm fork offset

UMWERFER HINTEN Shimano Deore M6100, SGS

SCHALTHEBEL HINTEN Shimano Deore M6100

BREMSE VORNE Shimano MT200, 2 piston

BREMSE HINTEN Shimano MT200, 2 piston

KURBEL Shimano Deore MT512, 32 teeth, 170 mm (S), 175 mm-M up

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA COMP CC II, 25mm inner width, material: aluminium, tubeless ready

REIFEN VORNE Maxxis Rekon Race, 29x2.25", wire

REIFEN HINTEN Maxxis Rekon Race, 29x2.25", wire

SATELSTÜTZE MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback

SATTEL MERIDA COMP SL, 25% recycled material, V-mount

BIG.NINE XT-EDITION

RAHMENGRÖSSEN S, M, L, XL, XXL

RAHMEN BIG.NINE TFS IV, material: aluminum, 29" wheelsize, 135x9 mm axle standard, BSA bottom bracket standard, Smooth welding

GABEL Manitou Markhor Comp Air, 100 mm suspension travel, Tapered, Remote lockout, 51 mm fork offset

UMWERFER HINTEN Shimano XT M8100 Shadow+, SGS

SCHALTHEBEL HINTEN Shimano XT M8100, Multi Release

BREMSE VORNE Shimano XT M8100, 2 piston

BREMSE HINTEN Shimano XT M8100, 2 piston

KURBEL Shimano XT, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA EXPERT CC, 22.8 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Ikon, 29x2.2", wire

REIFEN HINTEN Maxxis Ikon, 29x2.2", wire

SATELSTÜTZE MERIDA COMP CC, material: aluminium, 30.9 mm diameter, 0 mm setback

SATTEL MERIDA COMP SL, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 11.5 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

BIG.NINE XT-EDITION

RAHMENGRÖSSEN S, M, L, XL, XXL

L, XL, XXL

RAHMEN BIG.NINE TFS IV, material: aluminum, 29" wheelsize, 135x9 mm axle standard, BSA bottom bracket standard, Smooth welding

GABEL Manitou Markhor Comp Air, 100 mm suspension travel, Tapered, Remote lockout, 51 mm fork offset

UMWERFER HINTEN Shimano XT M8100 Shadow+, SGS

SCHALTHEBEL HINTEN Shimano XT M8100, Multi Release

BREMSE VORNE Shimano XT M8100, 2 piston

BREMSE HINTEN Shimano XT M8100, 2 piston

KURBEL Shimano XT, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA EXPERT CC, 22.8 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

REIFEN VORNE Maxxis Ikon, 29x2.2", wire

REIFEN HINTEN Maxxis Ikon, 29x2.2", wire

SATELSTÜTZE MERIDA COMP CC, material: aluminium, 30.9 mm diameter, 0 mm setback

SATTEL MERIDA COMP SL, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 11.5 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues. M,

BIG.NINE SLX-EDITION

ART.NR.:

810650

RAHMENGRÖSSEN S, M, L, XL, XXL

RAHMEN BIG.NINE TFS III, material: aluminum, 29x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard, Smooth welding

GABEL Manitou Markhor Comp, Air, 100mm suspension travel, Tapered, Remote lockout, 51mm fork offset

UMWERFER HINTEN Shimano XT M8100 Shadow+, SGS

SCHALTHEBEL HINTEN Shimano SLX

BREMSE VORNE Shimano M4100, 2 piston

BREMSE HINTEN Shimano M4100, 2 piston

KURBEL Shimano SLX, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA COMP CC, 20mm inner width, material: aluminium

REIFEN VORNE Maxxis Ikon, 29x2.2", wire

REIFEN HINTEN Maxxis Ikon, 29x2.2", wire

SATELSTÜTZE MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback

SATTEL MERIDA COMP SL, V-mount

BIG.NINE SLX-EDITION

810649

RAHMENGRÖSSEN S, M, L, XL, XXL

RAHMEN BIG.NINE TFS III, material: aluminum, 29x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard, Smooth welding

GABEL Manitou Markhor Comp, Air, 100mm suspension travel, Tapered, Remote lockout, 51mm fork offset

UMWERFER HINTEN Shimano XT M8100 Shadow+, SGS

SCHALTHEBEL HINTEN Shimano SLX

BREMSE VORNE Shimano M4100, 2 piston

BREMSE HINTEN Shimano M4100, 2 piston

KURBEL Shimano SLX, 32 teeth, 170 mm-S, 175 mm-M up

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA COMP CC, 20mm inner width, material: aluminium

REIFEN VORNE Maxxis Ikon, 29x2.2", wire

REIFEN HINTEN Maxxis Ikon, 29x2.2", wire

SATELSTÜTZE MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback

SATTEL MERIDA COMP SL, V-mount

RAHMENGRÖSSEN S, M, L, XL, XXL

RAHMEN BIG.NINE LITE III, material: aluminium, 29x2.4" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard

GABEL Manitou Machete Comp Air, 100mm suspension travel, Tapered, Remote lockout, 44 mm fork offset

UMWERFER HINTEN Shimano Deore M6100, SGS

SCHALTHEBEL HINTEN Shimano Deore M6100

BREMSE VORNE Shimano MT200, 2 piston

BREMSE HINTEN Shimano MT200, 2 piston

KURBEL Shimano Deore MT512, 32 teeth, 170 mm (S), 175 mm-M up

FREILAUF Shimano Deore M6100, 10-51 teeth, 12 speed

KETTE KMC X12

FELGE MERIDA COMP CC II, 25mm inner width, material: aluminium, tubeless ready

REIFEN VORNE Maxxis Rekon Race, 29x2.25", wire

REIFEN HINTEN Maxxis Rekon Race, 29x2.25", wire

SATELSTÜTZE MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback

SATTEL MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool

GEWICHT (CA.) 12.9 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

S, M, L, XL

BIG.NINE 400

RAHMENGRÖSSEN S, M, L, XL

RAHMEN BIG.NINE TFS V, material: aluminum, 29 wheelsize, 135x9mm axle standard, BSA bottom bracket standard, Smooth welding

GABEL Rock Shox Judy Gold RL Air, 120mm suspension travel, Tapered, Lockout, 51mm fork offset

UMWERFER HINTEN Shimano CUES U6000, GS

SCHALTHEBEL VORNE Shimano SL-MT500-IL

SCHALTHEBEL HINTEN Shimano CUES U6000

BREMSE VORNE Shimano M4100, 2 piston

BREMSE HINTEN Shimano M4100, 2 piston

KURBEL Shimano CUES U6000, 32 teeth, 170mm for all sizes

FREILAUF SunRace 10-50t ZX11, CS-UX700 EA5, 10-50 teeth, 11 speed, Linkglide

KETTE KMC xGlide

FELGE MERIDA COMP CC II, 25mm inner width, material: aluminium, tubeless ready

REIFEN VORNE Maxxis Rekon Race, 29x2.4"

REIFEN HINTEN Maxxis Rekon Race, 29x2.4"

SATELSTÜTZE MERIDA COMP TR IV, 30.9mm diameter, 0mm setback, S: 125mm travel seatpost - M/L: 150mm travel seatpost - XL/XXL 175mm travel seatpost

SATTEL MERIDA COMP SL, V-mount

GEWICHT (CA.) 13.3 kg

RAHMENGRÖSSEN S, M, L, XL, XXL

RAHMEN BIG.NINE TFS IV, 100 mm suspension travel, material: aluminum, 29x2.25" max. wheelsize, 135x9 mm axle standard, BSA bottom bracket standard

GABEL Rock Shox Judy TK, Coil, 100 mm suspension travel Lockout, 46 mm fork offset, 29x2.25" max. wheelsize

UMWERFER HINTEN Shimano CUES U4000-9, GS

SCHALTHEBEL HINTEN Shimano CUES U4000-9R

BREMSE VORNE Shimano BR-MT200, hydraulic brake

BREMSE HINTEN Shimano BR-MT200, hydraulic brake

KURBEL Shimano CUES U4000, 32 teeth, MAT Aluminium, 170 mm-S, 175 mm-M up

FREILAUF Shimano CUES LG300-9, 11-46 teeth, 9 speed

KETTE Shimano CN-LG500

FELGE MERIDA CC, 17 mm inner width, material: aluminium

REIFEN VORNE MERIDA K1080, 29x2.2", wire

REIFEN HINTEN MERIDA K1080, 29x2.2", wire

SATELSTÜTZE MERIDA CC, 30.9 mm diameter, 15 mm setback, material: aluminium

SATTEL MERIDA Sport comfort

GEWICHT (CA.) 14.4 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

RAHMENGRÖSSEN S, M, L, XL, XXL

RAHMEN BIG.NINE TFS IV, 100 mm suspension travel, material: aluminum, 29x2.25" max. wheelsize, 135x9 mm axle standard, BSA bottom bracket standard

GABEL Rock Shox Judy TK, Coil, 100 mm suspension travel Lockout, 46 mm fork offset, 29x2.25" max. wheelsize

UMWERFER HINTEN Shimano CUES U4000-9, GS

SCHALTHEBEL HINTEN Shimano CUES U4000-9R

BREMSE VORNE Shimano BR-MT200, hydraulic brake

BREMSE HINTEN Shimano BR-MT200, hydraulic brake

KURBEL Shimano CUES U4000, 32 teeth, MAT Aluminium, 170 mm-S, 175 mm-M up

FREILAUF Shimano CUES LG300-9, 11-46 teeth, 9 speed

KETTE Shimano CN-LG500

FELGE MERIDA CC, 17 mm inner width, material: aluminium

REIFEN VORNE MERIDA K1080, 29x2.2", wire

REIFEN HINTEN MERIDA K1080, 29x2.2", wire

SATELSTÜTZE MERIDA CC, 30.9 mm diameter, 15 mm setback, material: aluminium

SATTEL MERIDA Sport comfort

GEWICHT (CA.) 14.4 kg, weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

M, L, XL, XXL

RAHMENGRÖSSEN S, M, L, XXL

RAHMEN BIG.NINE TFS IV, 100 mm suspension travel, material: aluminum, 29x2.25" max. wheelsize, 135x9 mm axle standard, BSA bottom bracket standard

GABEL Rock Shox Judy TK, Coil, 100 mm suspension travel Lockout, 46 mm fork offset, 29x2.25" max. wheelsize

UMWERFER VORNE Shimano CUES U4000

UMWERFER HINTEN Shimano CUES U3020-9, SGS

SCHALTHEBEL VORNE Shimano CUES U4000

SCHALTHEBEL HINTEN Shimano CUES U4000

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL Shimano CUES U4000-2, 36-22 teeth, MAT Aluminium, 170 mm-S, 175 mm-M up

FREILAUF Shimano CUES LG300, 11-36 teeth, 9 speed

KETTE Sunrace CN11A

FELGE MERIDA CC, 17 mm inner width, material: aluminium

REIFEN VORNE MERIDA K1080, 29x2.2", wire

REIFEN HINTEN MERIDA K1080, 29x2.2", wire

SATELSTÜTZE

MERIDA CC, 30.9 mm diameter, 15 mm setback, material: aluminium

SATTEL MERIDA Sport comfort

GEWICHT (CA.)

14.7 kg weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

RAHMENGRÖSSEN S, M, L, XL

RAHMEN BIG.NINE TFS V, material: aluminum, 29 wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL X-Fusion Migo 32 Air 120mm suspension travel, lockout, max. 29x2,4" wheelsize

UMWERFER HINTEN Shimano Cues U4000, GS

SCHALTHEBEL HINTEN Shimano Cues U4000

BREMSE VORNE Shimano MT200, hydraulic brake

BREMSE HINTEN Shimano MT200, hydraulic brake

KURBEL Shimano Cues UT400-1, 32 teeth, MAT Aluminium, S: 165mm, M/L/XL/XXL: 170mm

FREILAUF SunRace U980 9AZ, 11-46 teeth, 9 speed

KETTE KMC xGlide

FELGE MERIDA COMP CC, 20mm inner width, material: aluminium

REIFEN VORNE Kenda Booster, 29x2.4"

REIFEN HINTEN Kenda Booster, 29x2.4"

SATELSTÜTZE MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback

SATTEL MERIDA COMP SL

GEWICHT (CA.) 14.2 kg

RAHMENGRÖSSEN S, M

M, L, XL, XXL

RAHMEN BIG.NINE TFS V, material: aluminum, 29 wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCM32 NLO Coil, 120mm suspension travel, lockout, 29x2,4" max. wheelsize

UMWERFER HINTEN Shimano Essa RD-U2000-8, GS

SCHALTHEBEL HINTEN Shimano Essa SL-315-8R

BREMSE VORNE Shimano MT200, hydraulic brake

BREMSE HINTEN Shimano MT200, hydraulic brake

KURBEL Prowheel Epro-MD26S, 32 teeth, MAT Aluminium, S: 165mm, M/L/XL/XXL: 170mm

FREILAUF Shimano CS-HG300-8, 11-45 teeth, 8 speed

KETTE KMC Z8.3

FELGE MERIDA COMP CC, 20mm inner width, material: aluminium

REIFEN VORNE Kenda Booster, 29x2.4"

REIFEN HINTEN Kenda Booster, 29x2.4"

SATELSTÜTZE MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback

SATTEL MERIDA Sport

GEWICHT (CA.) 14.4 kg

812295

RAHMENGRÖSSEN S, M, L, XL, XXL

S, M

RAHMEN BIG.NINE TFS IV, 100 mm suspension travel, material: aluminum, 29x2.25" max. wheelsize, 135x9 mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCT30 HLO, Coil, 100 mm suspension travel, lockout, max. 29x2,25" wheelsize

UMWERFER VORNE Shimano FD-M315-TS

UMWERFER HINTEN Shimano RD-M380-8, SGS

SCHALTHEBEL VORNE Shimano ST-EF505

SCHALTHEBEL HINTEN Shimano ST-EF505

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL Shimano FC-M315-2, 36-22 teeth, MAT Aluminium, 170 mm-S, 175 mm-M up

FREILAUF Sunrace CSM558AU, 11-32 teeth, 8 speed

KETTE KMC Z8.3

FELGE MERIDA CC, 17 mm inner width, material: aluminium

REIFEN VORNE MERIDA K1080, 29x2.2", wire

REIFEN HINTEN MERIDA K1080, 29x2.2", wire

SATELSTÜTZE MERIDA CC, 30.9 mm diameter, 15 mm setback, material: aluminium

SATTEL MERIDA Sport comfort

GEWICHT (CA.)

14.8 kg weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

RAHMENGRÖSSEN S, M, L, XL, XXL

M, L, XL, XXL 810682

RAHMEN BIG.NINE TFS IV, 100 mm suspension travel, material: aluminum, 29x2.25" max. wheelsize, 135x9 mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCT30 HLO, Coil, 100 mm suspension travel, lockout, max. 29x2,25" wheelsize

UMWERFER VORNE Shimano FD-M315-TS

UMWERFER HINTEN Shimano RD-M380-8, SGS

SCHALTHEBEL VORNE Shimano ST-EF505

SCHALTHEBEL HINTEN Shimano ST-EF505

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL Shimano FC-M315-2, 36-22 teeth, MAT Aluminium, 170 mm-S, 175 mm-M up

FREILAUF Sunrace CSM558AU, 11-32 teeth, 8 speed

KETTE KMC Z8.3

FELGE MERIDA CC, 17 mm inner width, material: aluminium

REIFEN VORNE MERIDA K1080, 29x2.2", wire

REIFEN HINTEN MERIDA K1080, 29x2.2", wire

SATELSTÜTZE MERIDA CC, 30.9 mm diameter, 15 mm setback, material: aluminium

SATTEL MERIDA Sport comfort

GEWICHT (CA.) 14.8 kg weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

RAHMENGRÖSSEN S, M, L, XL, XXL

S, L, XL, XXL

RAHMEN BIG.NINE TFS IV, 100 mm suspension travel, material: aluminum, 29x2.25" max. wheelsize, 135x9 mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCT30 HLO, Coil, 100 mm suspension travel, lockout, max. 29x2,25" wheelsize

UMWERFER VORNE Shimano FD-M315-TS

UMWERFER HINTEN Shimano RD-M380-8, SGS

SCHALTHEBEL VORNE Shimano ST-EF505

SCHALTHEBEL HINTEN Shimano ST-EF505

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL Shimano FC-M315-2, 36-22 teeth, MAT Aluminium, 170 mm-S, 175 mm-M up

FREILAUF Sunrace CSM558AU, 11-32 teeth, 8 speed

KETTE KMC Z8.3

FELGE MERIDA CC, 17 mm inner width, material: aluminium

REIFEN VORNE MERIDA K1080, 29x2.2", wire

REIFEN HINTEN MERIDA K1080, 29x2.2", wire

SATELSTÜTZE MERIDA CC, 30.9 mm diameter, 15 mm setback, material: aluminium

SATTEL MERIDA Sport comfort

GEWICHT (CA.)

14.8 kg weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

RAHMENGRÖSSEN S, M

RAHMEN BIG.NINE TFS V, material: aluminum, 29 wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCM32 NLO Coil, 120mm suspension travel, lockout, 29x2,4" max. wheelsize

UMWERFER HINTEN Shimano Essa RD-U2000-8, GS

SCHALTHEBEL HINTEN Shimano Essa SL-315-8R

BREMSE VORNE Shimano MT200, hydraulic brake

BREMSE HINTEN Shimano MT200, hydraulic brake

KURBEL Prowheel Epro-MD26S, 32 teeth, MAT Aluminium, S: 165mm, M/L/XL/XXL: 170mm

FREILAUF Shimano CS-HG300-8, 11-45 teeth, 8 speed

KETTE KMC Z8.3

FELGE MERIDA COMP CC, 20mm inner width, material: aluminium

REIFEN VORNE Kenda Booster, 29x2.4"

REIFEN HINTEN Kenda Booster, 29x2.4"

SATELSTÜTZE MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback

SATTEL MERIDA Sport

GEWICHT (CA.) 14.4 kg

RAHMENGRÖSSEN S, M, L, XL, XXL

RAHMEN BIG.NINE TFS IV, material: aluminum, 29x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCT30 Coil, 100mm suspension travel, 29x2.25" max. wheelsize

UMWERFER VORNE Shimano FD-TY700

UMWERFER HINTEN Shimano RD-M300-7

SCHALTHEBEL VORNE Shimano FH-TY505-3L

SCHALTHEBEL HINTEN Shimano FH-TY505-7R

BREMSE VORNE Shimano ST-EF505, hydraulic brake

BREMSE HINTEN Shimano ST-EF505, hydraulic brake

KURBEL Shimano TY301, 42-34-24 teeth, MAT Aluminium, 170 mm (S), 175 mm-M up

FREILAUF Shimano CS-HG200-7, 12-32 teeth, 7 speed

KETTE Sunrace CNM84

FELGE MERIDA CC, 17mm inner width, material: aluminium

REIFEN VORNE MERIDA K1080, 29x2.2", wire

REIFEN HINTEN MERIDA K1080, 29x2.2", wire

SATELSTÜTZE MERIDA CC, 30.9mm diameter, 15mm setback, material: aluminium

SATTEL MERIDA Sport comfort

S, M

BIG.SEVEN

BIG.SEVEN 20

RAHMENGRÖSSEN XS, S, M, L

RAHMEN BIG.SEVEN TFS IV, 100 mm suspension travel, material: aluminium, 27.5x2.25" max. wheelsize, 135x9 mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCT30 HLO, Coil, 100 mm suspension travel, Lockout, 27.5x2.25" max. wheelsize

UMWERFER VORNE Shimano FD-TY600

UMWERFER HINTEN Shimano RD-M310

SCHALTHEBEL VORNE Shimano ST-EF505

SCHALTHEBEL HINTEN Shimano ST-EF505

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL Shimano TY301, 42-34-24 teeth, MAT Aluminium, 170 mm-XS/S, 175 mm-M/L

FREILAUF Sunrace CSM668, 11-32 teeth, 8 speed

KETTE KMC Z8.1

FELGE MERIDA CC, 17 mm inner width, material: aluminium

REIFEN VORNE MERIDA K1080, 27.5x2.2", wire

REIFEN HINTEN MERIDA K1080, 27.5x2.2", wire

SATELSTÜTZE MERIDA CC, 30.9 mm diameter, 15 mm setback, material: aluminium

SATTEL MERIDA Sport comfort

GEWICHT (CA.)

14.8 kg weighed at frame size M, Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

BIG.SEVEN 15

RAHMENGRÖSSEN XS, S, M, L

RAHMEN BIG.SEVEN TFS IV, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCT30 Coil, 100mm suspension travel, 27.5x2.25" max. wheelsize

UMWERFER VORNE Shimano FD-TY700

UMWERFER HINTEN Shimano RD-M300-7

SCHALTHEBEL VORNE Shimano FH-TY505-3L

SCHALTHEBEL HINTEN Shimano FH-TY505-7R

BREMSE VORNE Shimano ST-EF505, hydraulic brake

BREMSE HINTEN Shimano ST-EF505, hydraulic brake

KURBEL Shimano TY301, 42-34-24 teeth, MAT Aluminium, 170 mm (XS/S), 175 mm (M/L)

FREILAUF Shimano CS-HG200-7, 12-32 teeth, 7 speed

KETTE Sunrace CNM84

FELGE MERIDA CC, 17mm inner width, material: aluminium

REIFEN VORNE MERIDA K1080, 27.5x2.2", wire

REIFEN HINTEN MERIDA K1080, 27.5x2.2", wire

SATELSTÜTZE MERIDA CC, 30.9mm diameter, 15mm setback, material: aluminium

SATTEL MERIDA Sport comfort

RAHMENGRÖSSEN XS, S, M, L

RAHMENGRÖSSEN XS, S, M, L

RAHMEN BIG.SEVEN SPEED, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

RAHMEN BIG.SEVEN SPEED, material: aluminium, 27.5x2.25" max.

SATTEL MERIDA Sport comfort 881915

REIFEN HINTEN MERIDA K1080, 27.5x2.2", wire

REIFEN HINTEN MERIDA K1080, 27.5x2.2", wire

SATELSTÜTZE MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback

wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL Suntour XCT30, Coil, 100mm suspension travel, 27.5x2.25" max. wheelsize

SATELSTÜTZE MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback

SATTEL MERIDA Sport comfort

UMWERFER VORNE Shimano FD-TY700

GABEL Suntour XCT30 Coil, 100mm suspension travel, 27.5x2.25" max. wheelsize

UMWERFER HINTEN Shimano RD-M310

UMWERFER VORNE Shimano FD-TY700

UMWERFER HINTEN Shimano RD-M310

SCHALTHEBEL VORNE Shimano ST-EF505

SCHALTHEBEL VORNE Shimano ST-EF505

SCHALTHEBEL HINTEN Shimano ST-EF505

SCHALTHEBEL HINTEN Shimano ST-EF505

BREMSE VORNE Shimano ST-EF505, BR-MT200 brake caliper

BREMSE VORNE Shimano ST-EF505, BR-MT200 brake caliper

BREMSE HINTEN Shimano ST-EF505, BR-MT200 brake caliper

BREMSE HINTEN Shimano ST-EF505, BR-MT200 brake caliper

KURBEL 170 mm-S, 175 mm-M/XXL

KURBEL 170 mm-S, 175 mm-M/XXL

KASSETTE Shimano TY301, 42-34-24 teeth, 170 mm-S, 175 mm-M/XXL

KASSETTE Shimano TY301, 42-34-24 teeth, 170 mm-S, 175 mm-M/XXL

FREILAUF Sunrace CSM668, 11-32 teeth, 8 speed

FREILAUF Sunrace CSM668, 11-32 teeth, 8 speed

KETTE Sunrace M84

KETTE Sunrace M84

FELGE MERIDA CC, 17mm inner width, material: aluminium

FELGE MERIDA CC, 17mm inner width, material: aluminium

REIFEN VORNE MERIDA K1080, 27.5x2.2", wire

REIFEN VORNE MERIDA K1080, 27.5x2.2", wire

ART.NR.:

RAHMENGRÖSSEN XS, S, M, L

RAHMEN BIG.SEVEN SPEED, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL Suntour XCT30 Coil, 100mm suspension travel, 27.5x2.25" max. wheelsize

UMWERFER VORNE Shimano FD-TY700

UMWERFER HINTEN Shimano RD-M310

SCHALTHEBEL VORNE Shimano ST-EF505

SCHALTHEBEL HINTEN Shimano ST-EF505

BREMSE VORNE Shimano ST-EF505, BR-MT200 brake caliper

BREMSE HINTEN Shimano ST-EF505, BR-MT200 brake caliper

KURBEL 170 mm-S, 175 mm-M/XXL

KASSETTE Shimano TY301, 42-34-24 teeth, 170 mm-S, 175 mm-M/XXL

FREILAUF Sunrace CSM668, 11-32 teeth, 8 speed

KETTE Sunrace M84

FELGE MERIDA CC, 17mm inner width, material: aluminium

REIFEN VORNE MERIDA K1080, 27.5x2.2", wire

REIFEN HINTEN MERIDA K1080, 27.5x2.2", wire

SATELSTÜTZE MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback

SATTEL MERIDA Sport comfort

RAHMENGRÖSSEN XS, S, M, L

RAHMENGRÖSSEN XS, S, M, L

RAHMEN BIG.SEVEN SPEED

RAHMEN BIG.SEVEN SPEED, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL Suntour XCT30

REIFEN HINTEN MERIDA K1080, 27.5x2.2", wire

SATELSTÜTZE MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback

SATTEL MERIDA Sport comfort

UMWERFER VORNE Shimano FD-TY700

GABEL Suntour XCT30, Coil, 100mm suspension travel, 27.5x2.25" max. wheelsize

UMWERFER HINTEN Shimano RD-M310

UMWERFER VORNE Shimano FD-TY700

SCHALTHEBEL VORNE Shimano ST-EF505

UMWERFER HINTEN Shimano RD-M310

SCHALTHEBEL HINTEN Shimano ST-EF505

SCHALTHEBEL VORNE Shimano ST-EF505

BREMSE VORNE Shimano ST-EF505

SCHALTHEBEL HINTEN Shimano ST-EF505

BREMSE VORNE Shimano ST-EF505 BR-MT200 brake caliper

BREMSE HINTEN Shimano ST-EF505

KURBEL 170 mm-S, 175 mm-M/XXL

BREMSE HINTEN Shimano ST-EF505 BR-MT200 brake caliper

KASSETTE Shimano TY301

KURBEL 170 mm-S, 175 mm-M/XXL

FREILAUF Sunrace CSM668

KASSETTE Shimano TY301, 42-34-24 teeth, 170 mm-S, 175 mm-M/XXL

FREILAUF Sunrace CSM668, 11-32 teeth, 8 speed

KETTE Sunrace M84

FELGE MERIDA CC

KETTE Sunrace M84

REIFEN VORNE MERIDA K1080

FELGE MERIDA CC, 17mm inner width, material: aluminium

REIFEN HINTEN MERIDA K1080

REIFEN VORNE MERIDA K1080, 27.5x2.2", wire

SATELSTÜTZE MERIDA CC

SATTEL MERIDA Sport comfort

RAHMENGRÖSSEN XS, S, M, L

RAHMEN BIG.SEVEN SPEED

RAHMENGRÖSSEN XS, S, M, L

GABEL Suntour XCT30

RAHMEN BIG.SEVEN SPEED

UMWERFER VORNE Shimano FD-TY700

GABEL Suntour XCT30

UMWERFER HINTEN Shimano RD-M310

UMWERFER VORNE Shimano FD-TY700

SCHALTHEBEL VORNE Shimano ST-EF505

UMWERFER HINTEN Shimano RD-M310

SCHALTHEBEL HINTEN Shimano ST-EF505

SCHALTHEBEL VORNE Shimano ST-EF505

BREMSE VORNE Shimano ST-EF505

SCHALTHEBEL HINTEN Shimano ST-EF505

BREMSE HINTEN Shimano ST-EF505

BREMSE VORNE Shimano ST-EF505

BREMSE HINTEN Shimano ST-EF505

KURBEL 170 mm-S, 175 mm-M/XXL

KASSETTE Shimano TY301

KURBEL 170 mm-S, 175 mm-M/XXL

FREILAUF Sunrace CSM668

KASSETTE Shimano TY301

KETTE Sunrace M84

FREILAUF Sunrace CSM668

FELGE MERIDA CC

KETTE Sunrace M84

REIFEN VORNE MERIDA K1080

FELGE MERIDA CC

REIFEN HINTEN MERIDA K1080

REIFEN VORNE MERIDA K1080

SATELSTÜTZE MERIDA CC

REIFEN HINTEN MERIDA K1080

SATELSTÜTZE MERIDA CC

SATTEL MERIDA Sport comfort

SATTEL MERIDA Sport comfort

RAHMENGRÖSSEN XS, S, M, L

SPEED

RAHMEN BIG.SEVEN SPEED, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL Suntour XCT30

REIFEN HINTEN MERIDA K1080, 27.5x2.2", wire

SATELSTÜTZE MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback

SATTEL MERIDA Sport comfort

UMWERFER VORNE Shimano FD-TY700

GABEL Suntour XCT30 Coil, 100mm suspension travel, 27.5x2.25" max. wheelsize

UMWERFER HINTEN Shimano RD-M310

UMWERFER VORNE Shimano FD-TY700

SCHALTHEBEL VORNE Shimano ST-EF505

UMWERFER HINTEN Shimano RD-M310

SCHALTHEBEL HINTEN Shimano ST-EF505

SCHALTHEBEL VORNE Shimano ST-EF505

BREMSE VORNE Shimano ST-EF505

SCHALTHEBEL HINTEN Shimano ST-EF505

BREMSE HINTEN Shimano ST-EF505

BREMSE VORNE Shimano ST-EF505, BR-MT200 brake caliper

GEWICHT (CA.) 14.4 kg, weighed with 27.5" wheels and at frame size M, without pedals

BREMSE HINTEN Shimano ST-EF505, BR-MT200 brake caliper

KURBEL 170 mm-S, 175 mm-M/XXL

KASSETTE Shimano TY301

KURBEL 170 mm-S, 175 mm-M/XXL

FREILAUF Sunrace CSM668

KASSETTE Shimano TY301, 42-34-24 teeth, 170 mm-S, 175 mm-M/XXL

KETTE Sunrace M84

FREILAUF Sunrace CSM668, 11-32 teeth, 8 speed

FELGE MERIDA CC

KETTE Sunrace M84

REIFEN VORNE MERIDA K1080

FELGE MERIDA CC, 17mm inner width, material: aluminium

REIFEN HINTEN MERIDA K1080

REIFEN VORNE MERIDA K1080, 27.5x2.2", wire

SATELSTÜTZE MERIDA CC

SATTEL MERIDA Sport comfort

RAHMENGRÖSSEN M, L

RAHMEN DIRT TFS, material: aluminum, 26 wheelsize, 135x10mm axle standard, BSA bottom bracket standard

GABEL Manitou Circus Expert, Air 100mm suspension travel, 110x20mm, 41mm fork offset, tapered

BREMSE VORNE Shimano MT200, 2 piston

BREMSE HINTEN Shimano MT200, 2 piston

KURBEL MERIDA Expert TR II, 32 teeth, 160mm

FREILAUF 14t singlespeed cog

KETTE KMC Z1 narrow

FELGE Alexrims MD30, 30mm inner width, material: aluminum, 32H, tubeless ready

REIFEN VORNE Kenda K-Rad K905, 26x2.3", wire

REIFEN HINTEN Kenda K-Rad K905, 26x2.3", wire

SATELSTÜTZE MERIDA COMP DR, material: aluminium, 27.2mm diameter, 0mm setback, 250mm length

SATTEL MERIDA COMP DR

GEWICHT (CA.) 12.0 kg, Weighted at frame size M

RAHMENGRÖSSEN M, L

RAHMEN DIRT TFS, material: aluminum, 26 wheelsize, 135x10mm axle standard, BSA bottom bracket standard

GABEL Manitou Circus Expert, Air 100mm suspension travel, 110x20mm, 41mm fork offset, tapered

BREMSE VORNE Shimano MT200, 2 piston

BREMSE HINTEN Shimano MT200, 2 piston

KURBEL MERIDA Expert TR II, 32 teeth, 160mm

FREILAUF 14t singlespeed cog

KETTE KMC Z1 narrow

FELGE Alexrims MD30, 30mm inner width, material: aluminum, 32H, tubeless ready

REIFEN VORNE Kenda K-Rad K905, 26x2.3", wire

REIFEN HINTEN Kenda K-Rad K905, 26x2.3", wire

SATELSTÜTZE MERIDA COMP DR, material: aluminium, 27.2mm diameter, 0mm setback, 250mm length

SATTEL MERIDA COMP DR

GEWICHT (CA.) 12.0 kg, Weighted at frame size M

MATTS J.

MATTS J. CHAMPION

RAHMENGRÖSSEN XS

RAHMEN MATTS J. 26, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL Suntour XCR32 ATB LOR Air, 100mm suspension travel, Lockout, 42mm fork offset, 27.5x2.25" max. wheelsize

UMWERFER HINTEN Shimano CUES U6000, GS

SCHALTHEBEL HINTEN Shimano CUES U6000

BREMSE VORNE Shimano MT200, hydraulic brake

BREMSE HINTEN Shimano MT200, hydraulic brake

KURBEL Shimano CUES U4000-1, 30 teeth, MAT Aluminium, 170 mm-XS

FREILAUF Shimano LG300, 11-48 teeth, 10 speed

KETTE KMC xGlide

FELGE MERIDA CC, 17mm inner width, material: aluminium

REIFEN VORNE MERIDA K1227, 26x2.2", fold

REIFEN HINTEN MERIDA K1227, 26x2.2", fold

LENKER MERIDA CC, material: aluminium, 640mm width, 15mm rise

VORBAU MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 60 mm

SATELSTÜTZE MERIDA CC, 30.9mm diameter, 15mm setback, material: aluminium

SATTEL MERIDA EXPERT JR

MATTS J. CHAMPION

RAHMENGRÖSSEN XXS

RAHMEN MATTS J. 26 TFS V, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL X-Fusion RC32 120mm, 120mm suspension travel, Lockout, 46mm fork offset, 27.5x2.4" max. wheelsize

UMWERFER HINTEN Shimano Cues U4000, GS

GEWICHT (CA.) 12.1 kg 812513

SCHALTHEBEL VORNE Limotec RM06

SCHALTHEBEL HINTEN Shimano Cues U4050, short reach

BREMSE VORNE Tektro HD-J2820, hydraulic disc brake, short reach

BREMSE HINTEN Tektro HD-J2820, hydraulic disc brake, short reach

KURBEL Prowheel A10B, 30 teeth, MAT Aluminium, 140 mm

FREILAUF SunRace U9 CS-U980 9AZ, 11-46 teeth, 9 speed

KETTE KMC xGlide

FELGE MERIDA CC, 17mm inner width, material: aluminium

REIFEN VORNE Kenda Booster K1227, 26x2.2", foldable

REIFEN HINTEN Kenda Booster K1227, 26x2.2", foldable

LENKER MERIDA CC, material: aluminium, 640mm width, 15mm rise

VORBAU

MERIDA COMP CC, material: aluminium, 31.8mm diameter, 7° stem angle, 50mm

SATELSTÜTZE MERIDA COMP JR, 30.9mm diameter, 100mm diameter, 0mm setback, material: aluminium, Dropper

SATTEL MERIDA EXPERT JR

MATTS J. CHAMPION

ART.NR.:

812514

RAHMENGRÖSSEN XXS

RAHMEN MATTS J. 26 TFS V, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

GABEL X-Fusion RC32 120mm, 120mm suspension travel, Lockout, 46mm fork offset, 27.5x2.4" max. wheelsize

UMWERFER HINTEN Shimano Cues U4000, GS

SCHALTHEBEL VORNE Limotec RM06

SCHALTHEBEL HINTEN Shimano Cues U4050, short reach

BREMSE VORNE Tektro HD-J2820, hydraulic disc brake, short reach

BREMSE HINTEN Tektro HD-J2820, hydraulic disc brake, short reach

KURBEL Prowheel A10B, 30 teeth, MAT Aluminium, 140 mm

FREILAUF SunRace U9 CS-U980 9AZ, 11-46 teeth, 9 speed

KETTE KMC xGlide

FELGE MERIDA CC, 17mm inner width, material: aluminium

REIFEN VORNE Kenda Booster K1227, 26x2.2", foldable

REIFEN HINTEN Kenda Booster K1227, 26x2.2", foldable

LENKER MERIDA CC, material: aluminium, 640mm width, 15mm rise

VORBAU

MERIDA COMP CC, material: aluminium, 31.8mm diameter, 7° stem angle, 50mm

SATELSTÜTZE MERIDA COMP JR, 30.9mm diameter, 100mm diameter, 0mm setback, material: aluminium, Dropper

SATTEL MERIDA EXPERT JR

GEWICHT (CA.) 12.1 kg

MATTS J. 24+

RAHMENGRÖSSEN 11.5"

RAHMEN MATTS J. 24+, material: aluminium, 24x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

GABEL MERIDA MATTS J. 24+ material: aluminium, 24x2.4" max. wheelsize

UMWERFER HINTEN Microshift Acolyte Speed Super Short Cage, RD-M5180S, Super short cage

SCHALTHEBEL HINTEN Microshift Acolyte Quick Trigger Pro, SL-M6285-R, Super short reach, Gear indicator

BREMSE VORNE Tektro HD-J2820, hydraulic disc brake, short reach

BREMSE HINTEN Tektro HD-J2820, hydraulic disc brake, short reach

KURBEL Prowheel A10PP, 32 teeth, MAT Aluminium, 127 mm

FREILAUF Microshift CS-083, 11-38 teeth, 8 speed

KETTE KMC Z8.3

FELGE MERIDA JR 24+, material: aluminium

REIFEN VORNE Maxxis Pace, 24x2.10", wired

REIFEN HINTEN Maxxis Pace, 24x2.10", wired

LENKER MERIDA EXPERT JR, material: aluminium, 600mm width, 25mm rise

VORBAU MERIDA COMP CC, material: aluminium, 31.8mm diameter, 7° stem angle, 50mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA EXPERT JR GEWICHT (CA.) 10.1 kg

MATTS J. 24+

RAHMENGRÖSSEN 11.5"

RAHMEN MATTS J. 24+, material: aluminium, 24x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

GABEL MERIDA MATTS J. 24+ material: aluminium, 24x2.4" max. wheelsize

UMWERFER HINTEN Microshift Acolyte Speed Super Short Cage, RD-M5180S, Super short cage

SCHALTHEBEL HINTEN Microshift Acolyte Quick Trigger Pro, SL-M6285-R, Super short reach, Gear indicator

BREMSE VORNE Tektro HD-J2820, hydraulic disc brake, short reach

BREMSE HINTEN Tektro HD-J2820, hydraulic disc brake, short reach

KURBEL Prowheel A10PP, 32 teeth, MAT Aluminium, 127 mm

FREILAUF Microshift CS-083, 11-38 teeth, 8 speed

KETTE KMC Z8.3

FELGE MERIDA JR 24+, material: aluminium

REIFEN VORNE Maxxis Pace, 24x2.10", wired

REIFEN HINTEN Maxxis Pace, 24x2.10", wired

LENKER MERIDA EXPERT JR, material: aluminium, 600mm width, 25mm rise

VORBAU MERIDA COMP CC, material: aluminium, 31.8mm diameter, 7° stem angle, 50mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA EXPERT JR GEWICHT (CA.) 10.1 kg

MATTS J. 24+

RAHMENGRÖSSEN 11.5"

RAHMEN MATTS J. 24+, material: aluminium, 24x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

GABEL MERIDA MATTS J. 24+ material: aluminium, 24x2.4" max. wheelsize

UMWERFER HINTEN Microshift Acolyte Speed Super Short Cage, RD-M5180S, Super short cage

SCHALTHEBEL HINTEN Microshift Acolyte Quick Trigger Pro, SL-M6285-R, Super short reach, Gear indicator

BREMSE VORNE Tektro HD-J2820, hydraulic disc brake, short reach

BREMSE HINTEN Tektro HD-J2820, hydraulic disc brake, short reach

KURBEL Prowheel A10PP, 32 teeth, MAT Aluminium, 127 mm

FREILAUF Microshift CS-083, 11-38 teeth, 8 speed

KETTE KMC Z8.3

FELGE MERIDA JR 24+, material: aluminium

REIFEN VORNE Maxxis Pace, 24x2.10", wired

REIFEN HINTEN Maxxis Pace, 24x2.10", wired

LENKER MERIDA EXPERT JR, material: aluminium, 600mm width, 25mm rise

VORBAU MERIDA COMP CC, material: aluminium, 31.8mm diameter, 7° stem angle, 50mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA EXPERT JR GEWICHT (CA.) 10.1 kg

MATTS J. 24+

RAHMENGRÖSSEN 11.5"

RAHMEN MATTS J. 24+, material: aluminium, 24x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

SATTEL MERIDA EXPERT JR 8829938

GABEL MERIDA MATTS J. 24+ material: aluminium, 24x2.4" max. wheelsize

UMWERFER HINTEN Shimano RD-M310

SCHALTHEBEL HINTEN Shimano Altus

BREMSE VORNE Power DS100, 2 piston, hydraulic disc brake

BREMSE HINTEN Power DS100, 2 piston, hydraulic disc brake

KURBEL MERIDA EXPERT JR, 28 teeth, 140 mm

FREILAUF Sunrace CSM668, 11-34 teeth, 8 speed

KETTE Sunrace M84

FELGE MERIDA JR 24+, material: aluminium

REIFEN VORNE CST Jet C1820, 24x2.4", wire

REIFEN HINTEN CST Jet C1820, 24x2.4", wire

LENKER MERIDA EXPERT JR, material: aluminium, 620mm width, 0mm rise

VORBAU MERIDA EXPERT CC, material: aluminium, 31.8mm diameter, -5° stem angle, 60 mm

SATELSTÜTZE MERIDA CC, material: aluminium, 27.2mm diameter, 15mm setback

MATTS J. 24+

RAHMENGRÖSSEN 11.5"

RAHMEN MATTS J. 24+, material: aluminium, 24x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

GABEL MERIDA MATTS J. 24+ material: aluminium, 24x2.4" max. wheelsize

UMWERFER HINTEN Shimano RD-M310

SCHALTHEBEL HINTEN Shimano Altus

BREMSE VORNE Power DS100, 2 piston, hydraulic disc brake

BREMSE HINTEN Power DS100, 2 piston, hydraulic disc brake

KURBEL MERIDA EXPERT JR, 28 teeth, 140 mm

FREILAUF Sunrace CSM668, 11-34 teeth, 8 speed

KETTE Sunrace M84

FELGE MERIDA JR 24+, material: aluminium

REIFEN VORNE CST Jet C1820, 24x2.4", wire

REIFEN HINTEN CST Jet C1820, 24x2.4", wire

LENKER MERIDA EXPERT JR, material: aluminium, 620mm width, 0mm rise

VORBAU MERIDA EXPERT CC, material: aluminium, 31.8mm diameter, -5° stem angle, 60 mm

SATELSTÜTZE MERIDA CC, material: aluminium, 27.2mm diameter, 15mm setback

SATTEL MERIDA EXPERT JR

RAHMENGRÖSSEN 11.5"

RAHMEN MATTS J. 24+ material: aluminium, 24x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCT-JR DS, Custom coil, 50mm suspension travel, 24x2.1" max. wheelsize

SATTEL MERIDA EXPERT JR GEWICHT (CA.) 11.1 kg 812527

UMWERFER HINTEN Microshift Acolyte Speed Super Short Cage, RD-M5180S, Super short cage

SCHALTHEBEL HINTEN Microshift Acolyte Quick Trigger Pro, Super short reach, Gear indicator

BREMSE VORNE Tektro HD-J2820 hydraulic disc brake, short reach

BREMSE HINTEN Tektro HD-J2820 hydraulic disc brake, short reach

KURBEL Prowheel A10PP 32 teeth, MAT Aluminium, 127 mm

FREILAUF Microshift CS-083 11-38 teeth, 8 speed

KETTE KMC Z8.3

FELGE MERIDA JR 24+ material: aluminium

REIFEN VORNE Kenda Small Block 8 24x1.95", wired

REIFEN HINTEN Kenda Small Block 8 24x1.95", wired

LENKER MERIDA EXPERT JR, material: aluminium, 600mm width, 25mm rise

VORBAU MERIDA COMP CC, material: aluminium, 31.8mm diameter, 7° stem angle, 50mm

SATELSTÜTZE MERIDA COMP CC 27.2mm diameter, 0mm setback, material: aluminium

RAHMENGRÖSSEN 11.5"

RAHMEN MATTS J. 24+, material: aluminium, 24x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCT-JR DS Custom coil, 50mm suspension travel, 24x2.1" max. wheelsize

UMWERFER HINTEN Microshift Acolyte Speed Super Short Cage, RD-M5180S, Super short cage

SCHALTHEBEL HINTEN Microshift Acolyte Quick Trigger Pro, Super short reach, Gear indicator

BREMSE VORNE Tektro HD-J2820, hydraulic disc brake, short reach

BREMSE HINTEN Tektro HD-J2820, hydraulic disc brake, short reach

KURBEL Prowheel A10PP, 32 teeth, MAT Aluminium, 127 mm

FREILAUF Microshift CS-083, 11-38 teeth, 8 speed

KETTE KMC Z8.3

FELGE MERIDA JR 24+, material: aluminium

REIFEN VORNE Kenda Small Block 8, 24x1.95", wired

REIFEN HINTEN Kenda Small Block 8, 24x1.95", wired

LENKER MERIDA EXPERT JR, material: aluminium, 600mm width, 25mm rise

VORBAU MERIDA COMP CC, material: aluminium, 31.8mm diameter, 7° stem angle, 50mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA EXPERT JR GEWICHT (CA.) 11.1 kg

MATTS J. 24

RAHMENGRÖSSEN 11.5"

RAHMEN MATTS J. 24+, material: aluminium, 24x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

GABEL Suntour XCT-JR DS Custom coil, 50mm suspension travel, 24x2.1" max. wheelsize

UMWERFER HINTEN Shimano RD-M370, SGS

SCHALTHEBEL HINTEN Shimano SL-M315-8

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL MERIDA EXPERT JR, 28 teeth, MAT Aluminium, 140 mm

FREILAUF Sunrace CSM558AU, 11-32 teeth, 8 speed

KETTE KMC Z8.3

FELGE MERIDA JR 24+, material: aluminium

REIFEN VORNE Kenda Small Block 8, 24x1.95", fold

REIFEN HINTEN Kenda Small Block 8, 24x1.95", fold

LENKER MERIDA EXPERT JR, material: aluminium, 620mm width, 25mm rise

VORBAU MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 60 mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA EXPERT JR

RAHMENGRÖSSEN 11.5"

RAHMEN MATTS J. 24+, material: aluminium, 24x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

SATTEL MERIDA EXPERT JR 8829947

GABEL SR Suntour XCT-JR DS Custom coil, 50mm suspension travel, 24x2.1" max. wheelsize

UMWERFER HINTEN Shimano RD-M310

SCHALTHEBEL HINTEN Shimano Altus

BREMSE VORNE Power DS100, 2 piston, hydraulic disc brake

BREMSE HINTEN Power DS100, 2 piston, hydraulic disc brake

KURBEL MERIDA EXPERT JR, 28 teeth, 140 mm

FREILAUF Sunrace CSM668, 11-34 teeth, 8 speed

KETTE Sunrace M84

FELGE MERIDA JR 24+, material: aluminium

REIFEN VORNE Kenda Small Block 8, 24x1.95", fold

REIFEN HINTEN Kenda Small Block 8, 24x1.95", fold

LENKER MERIDA EXPERT JR, material: aluminium, 620mm width, 0mm rise

VORBAU MERIDA EXPERT CC, material: aluminium, 31.8mm diameter, -5° stem angle, 60 mm

SATELSTÜTZE MERIDA CC, material: aluminium, 27.2mm diameter, 15mm setback

MATTS J. 24

RAHMENGRÖSSEN 11.5"

RAHMEN MATTS J. 24+, material: aluminium, 24x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

GABEL SR Suntour XCT-JR DS Custom coil, 50mm suspension travel, 24x2.1" max. wheelsize

UMWERFER HINTEN Shimano RD-M310

SCHALTHEBEL HINTEN Shimano Altus

BREMSE VORNE Power DS100, 2 piston, hydraulic disc brake

BREMSE HINTEN Power DS100, 2 piston, hydraulic disc brake

KURBEL MERIDA EXPERT JR, 28 teeth, 140 mm

FREILAUF Sunrace CSM668, 11-34 teeth, 8 speed

KETTE Sunrace M84

FELGE MERIDA JR 24+, material: aluminium

REIFEN VORNE Kenda Small Block 8, 24x1.95", fold

REIFEN HINTEN Kenda Small Block 8, 24x1.95", fold

LENKER MERIDA EXPERT JR, material: aluminium, 620mm width, 0mm rise

VORBAU MERIDA EXPERT CC, material: aluminium, 31.8mm diameter, -5° stem angle, 60 mm

SATELSTÜTZE MERIDA CC, material: aluminium, 27.2mm diameter, 15mm setback

SATTEL MERIDA EXPERT JR

MATTS J. 20+

811602

RAHMENGRÖSSEN 10"

RAHMEN MATTS J. 20+, material: aluminium, 20x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

GABEL MERIDA MATTS J. 20+ material: aluminium, 20x2.4" max. wheelsize

UMWERFER HINTEN Shimano RD-TY300

SCHALTHEBEL HINTEN Shimano SL-M315-7

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL MERIDA EXPERT JR, 28 teeth, MAT Aluminium, 127 mm

FREILAUF Shimano MF-TZ500, 14-34 teeth, 7 speed

KETTE KMC Z8.3

FELGE MERIDA JR 20+, material: aluminium

REIFEN VORNE CST Jet C1820, 20x2.4", wire

REIFEN HINTEN CST Jet C1820, 20x2.4", wire

LENKER MERIDA EXPERT JR, material: aluminium, 620mm width, 25mm rise

VORBAU MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 60 mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA COMP JR

MATTS J. 20+

ART.NR.:

811603

RAHMENGRÖSSEN 10"

RAHMEN MATTS J. 20+, material: aluminium, 20x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

GABEL MERIDA MATTS J. 20+ material: aluminium, 20x2.4" max. wheelsize

UMWERFER HINTEN Shimano RD-TY300

SCHALTHEBEL HINTEN Shimano SL-M315-7

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL MERIDA EXPERT JR, 28 teeth, MAT Aluminium, 127 mm

FREILAUF Shimano MF-TZ500, 14-34 teeth, 7 speed

KETTE KMC Z8.3

FELGE MERIDA JR 20+, material: aluminium

REIFEN VORNE CST Jet C1820, 20x2.4", wire

REIFEN HINTEN CST Jet C1820, 20x2.4", wire

LENKER MERIDA EXPERT JR, material: aluminium, 620mm width, 25mm rise

VORBAU MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 60 mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA COMP JR

MATTS J. 20+

RAHMENGRÖSSEN 10"

RAHMEN MATTS J. 20+, material: aluminium, 20x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

GABEL MERIDA MATTS J. 20+ material: aluminium, 20x2.4" max. wheelsize

UMWERFER HINTEN Shimano RD-TY300

SCHALTHEBEL HINTEN Shimano SL-M315-7

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL MERIDA EXPERT JR, 28 teeth, MAT Aluminium, 127 mm

FREILAUF Shimano MF-TZ500, 14-34 teeth, 7 speed

KETTE KMC Z8.3

FELGE MERIDA JR 20+, material: aluminium

REIFEN VORNE CST Jet C1820, 20x2.4", wire

REIFEN HINTEN CST Jet C1820, 20x2.4", wire

LENKER MERIDA EXPERT JR, material: aluminium, 620mm width, 25mm rise

VORBAU MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 60 mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA COMP JR

MATTS J. 20+

RAHMENGRÖSSEN 10"

RAHMEN MATTS J. 20+, material: aluminium, 20x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

SATTEL MERIDA COMP JR 812534

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

GABEL MERIDA MATTS J. 20+ material: aluminium, 20x2.4" max. wheelsize

UMWERFER HINTEN Shimano RD-TY300

SCHALTHEBEL HINTEN Shimano SL-M315-7

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL MERIDA EXPERT JR, 28 teeth, MAT Aluminium, 127 mm

FREILAUF Shimano MF-TZ500, 14-34 teeth, 7 speed

KETTE KMC Z8.3

FELGE MERIDA JR 20+, material: aluminium

REIFEN VORNE CST Jet C1820, 20x2.4", wire

REIFEN HINTEN CST Jet C1820, 20x2.4", wire

LENKER MERIDA EXPERT JR, material: aluminium, 620mm width, 25mm rise

VORBAU MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 60 mm

MATTS J. 20

RAHMENGRÖSSEN 10"

RAHMEN MATTS J. 20+, material: aluminium, 20x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

GABEL Suntour XCT-JR P Custom coil, 40mm suspension travel, 20x2.2" max. wheelsize

UMWERFER HINTEN Shimano RD-TY300

SCHALTHEBEL HINTEN Shimano SL-M315-7

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL MERIDA EXPERT JR, 28 teeth, MAT Aluminium, 127 mm

FREILAUF Shimano MF-TZ500, 14-34 teeth, 7 speed

KETTE KMC Z8.3

FELGE MERIDA JR 20+, material: aluminium

REIFEN VORNE Kenda Small Black 8, 20x1.95", wire

REIFEN HINTEN Kenda Small Black 8, 20x1.95", wire

LENKER MERIDA EXPERT JR, material: aluminium, 620mm width, 25mm rise

VORBAU MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 60 mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA COMP JR

MATTS J. 20

RAHMENGRÖSSEN 10"

RAHMEN MATTS J. 20+, material: aluminium, 20x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

SATTEL MERIDA COMP JR 811609

GABEL Suntour XCT-JR P Custom coil, 40mm suspension travel, 20x2.2" max. wheelsize

UMWERFER HINTEN Shimano RD-TY300

SCHALTHEBEL HINTEN Shimano SL-M315-7

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL MERIDA EXPERT JR, 28 teeth, MAT Aluminium, 127 mm

FREILAUF Shimano MF-TZ500, 14-34 teeth, 7 speed

KETTE KMC Z8.3

FELGE MERIDA JR 20+, material: aluminium

REIFEN VORNE Kenda Small Black 8, 20x1.95", wire

REIFEN HINTEN Kenda Small Black 8, 20x1.95", wire

LENKER MERIDA EXPERT JR, material: aluminium, 620mm width, 25mm rise

VORBAU MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 60 mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

MATTS J. 20

811610

RAHMENGRÖSSEN 10"

RAHMEN MATTS J. 20+, material: aluminium, 20x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

GABEL Suntour XCT-JR P Custom coil, 40mm suspension travel, 20x2.2" max. wheelsize

UMWERFER HINTEN Shimano RD-TY300

SCHALTHEBEL HINTEN Shimano SL-M315-7

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL MERIDA EXPERT JR, 28 teeth, MAT Aluminium, 127 mm

FREILAUF Shimano MF-TZ500, 14-34 teeth, 7 speed

KETTE KMC Z8.3

FELGE MERIDA JR 20+, material: aluminium

REIFEN VORNE Kenda Small Black 8, 20x1.95", wire

REIFEN HINTEN Kenda Small Black 8, 20x1.95", wire

LENKER MERIDA EXPERT JR, material: aluminium, 620mm width, 25mm rise

VORBAU MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 60 mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA COMP JR

MATTS J. 20

RAHMENGRÖSSEN 10"

RAHMEN MATTS J. 20+, material: aluminium, 20x2.4" max. wheelsize, 135x9/100x9mm axle standard, BSA bottom bracket standard

GABEL Suntour XCT-JR P Custom coil, 40mm suspension travel, 20x2.2" max. wheelsize

UMWERFER HINTEN Shimano RD-TY300

SCHALTHEBEL HINTEN Shimano SL-M315-7

BREMSE VORNE Tektro M275, hydraulic brake

BREMSE HINTEN Tektro M275, hydraulic brake

KURBEL MERIDA EXPERT JR, 28 teeth, MAT Aluminium, 127 mm

FREILAUF Shimano MF-TZ500, 14-34 teeth, 7 speed

KETTE KMC Z8.3

FELGE MERIDA JR 20+, material: aluminium

REIFEN VORNE Kenda Small Black 8, 20x1.95", wire

REIFEN HINTEN Kenda Small Black 8, 20x1.95", wire

LENKER MERIDA EXPERT JR, material: aluminium, 620mm width, 25mm rise

VORBAU MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 60 mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA COMP JR

MATTS J. 16

RAHMENGRÖSSEN 8.5"

RAHMEN MATTS J. 16 II, material: aluminium, 16" wheelsize, 112x9/100x9 wheelsize, BMX bottom bracket standard

GABEL MERIDA MATTS J. 16, material: Alloy

BREMSE VORNE Tektro RX1F, 85mm, EN shoe 63mm, steel pipe.

BREMSE HINTEN Tektro 837AL, 85mm, EN shoe 63mm, steel pipe.

KURBEL Prowheel A10B, 28 teeth, MAT Aluminium, 89 mm

FREILAUF 16T, single.

KETTE KMC S1 single

FELGE MERIDA JR 16 material: aluminium

REIFEN VORNE Kid, 16x1.50" wire

REIFEN HINTEN Kid, 16x1.50" wire

LENKER MERIDA KID material: aluminium, 500mm width, 19mm rise

VORBAU MERIDA COMP CC material: aluminium, 31.8mm diameter, 7° stem angle, 50mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA COMP JR

GEWICHT (CA.) 6.7 kg

MATTS J. 16

812550

RAHMENGRÖSSEN 8.5"

RAHMEN MATTS J. 16 II, material: aluminium, 16" wheelsize, 112x9/100x9 wheelsize, BMX bottom bracket standard

GABEL MERIDA MATTS J. 16 material: Alloy

BREMSE VORNE Tektro RX1F, 85mm, EN shoe 63mm, steel pipe.

BREMSE HINTEN Tektro 837AL, 85mm, EN shoe 63mm, steel pipe.

KURBEL Prowheel A10B, 28 teeth, MAT Aluminium, 89 mm

FREILAUF 16T, single.

KETTE KMC S1 single

FELGE MERIDA JR 16, material: aluminium

REIFEN VORNE Kid, 16x1.50", wire

REIFEN HINTEN Kid, 16x1.50", wire

LENKER MERIDA KID, material: aluminium, 500mm width, 19mm rise

VORBAU MERIDA COMP CC, material: aluminium, 31.8mm diameter, 7° stem angle, 50mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA COMP JR

GEWICHT (CA.) 6.7 kg

MATTS J. 16

RAHMENGRÖSSEN 8.5"

RAHMEN MATTS J. 16 II, material: aluminium, 16" wheelsize, 112x9/100x9 wheelsize, BMX bottom bracket standard

GABEL MERIDA MATTS J. 16 material: Alloy

BREMSE VORNE Tektro RX1F, 85mm, EN shoe 63mm, steel pipe.

BREMSE HINTEN Tektro 837AL, 85mm, EN shoe 63mm, steel pipe.

KURBEL Prowheel A10B, 28 teeth, MAT Aluminium, 89 mm

FREILAUF 16T, single.

KETTE KMC S1 single

FELGE MERIDA JR 16, material: aluminium

REIFEN VORNE Kid, 16x1.50", wire

REIFEN HINTEN Kid, 16x1.50", wire

LENKER MERIDA KID, material: aluminium, 500mm width, 19mm rise

VORBAU MERIDA COMP CC, material: aluminium, 31.8mm diameter, 7° stem angle, 50mm

SATELSTÜTZE MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium

SATTEL MERIDA COMP JR

GEWICHT (CA.) 6.7 kg

GEOMETRIEN

FS Rahmengröße ST Rahmenhöhe = Sitzrohrlänge [mm] TT Oberrohrlänge [mm]

HT Steuerrohrlänge [mm] HTA Steuerrohrwinkel [°] STA Sitzrohrwinkel effektiv [°]

CS Hinterbaulänge [mm] BD Tretlagerabsenkung [mm] FO Gabeleinbaulänge [mm]

Überstandshöhe [mm] S Stack [mm] R Reach [mm] WB

REACTO CF3 IV

SCULTURA ENDURANCE CF3 II

REACTO CF3 V

SILEX CF2 II

SCULTURA

FS Rahmengröße ST Rahmenhöhe = Sitzrohrlänge [mm] TT Oberrohrlänge [mm]

HT Steuerrohrlänge [mm] HTA Steuerrohrwinkel [°] STA Sitzrohrwinkel effektiv [°]

CS Hinterbaulänge [mm] BD Tretlagerabsenkung [mm] FO Gabeleinbaulänge [mm]

Überstandshöhe [mm] S Stack [mm] R Reach [mm] WB Radstand [mm]

FS Rahmengröße ST Rahmenhöhe = Sitzrohrlänge [mm] TT Oberrohrlänge [mm]

HT Steuerrohrlänge [mm] HTA Steuerrohrwinkel [°] STA Sitzrohrwinkel effektiv [°]

CS Hinterbaulänge [mm] BD Tretlagerabsenkung [mm] FO Gabeleinbaulänge [mm] SH Überstandshöhe [mm] S Stack [mm] R Reach [mm] WB Radstand [mm]

BIG.NINE CF5 III

BIG.NINE CF5 III

SAILSURF.at

SAIL & SURF PRODUKTIONS- UND HANDELSGESELLSCHAFT M.B.H. BUNDESSTRASSE 55, 4822 BAD GOISERN, ÖSTERREICH FON +43 6135 20633-0 FAX +43 6135 20634 OFFICE@SAILSURF.AT

Änderungen und Irrtümer vorbehalten. Stand: 02/2026
