Safelift Technical Product Catalogue

SAFELIFT OFFSHORE LTD

Manual Handling Equipment Product Catalogue

“Products “ProductsThat thatMake makeAaDifference” difference” www.safelift.co.uk > T: +44 (0) 1224 775774 > E: sales@safelift.co.uk

Mechanical Handling & Deck Equipment Specialist

Design | Supply | Hire | Service

MANUAL & MECHANICAL HANDLING PRODUCTS

BROWNFIELD & GREENFIELD PROJECT SUPPLY

SHORT & LONG TERM EQUIPMENT HIRE

PRODUCT TRAINING

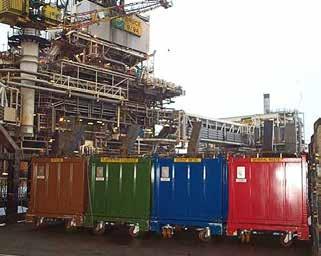

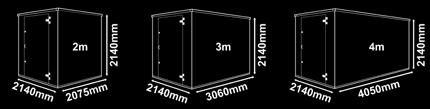

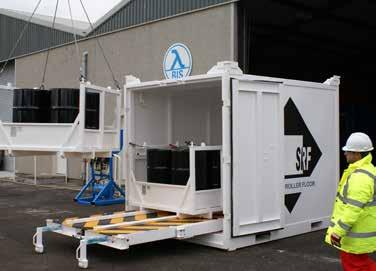

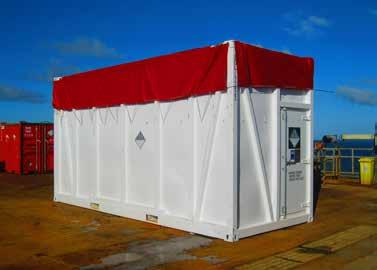

SPECIALIST CONTAINERS

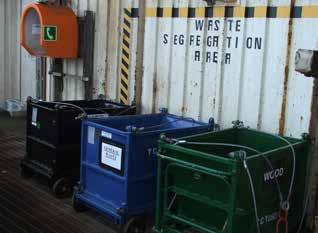

ENVIRONMENTAL PRODUCT SUPPLY

OFFSHORE SURVEYS

REPAIR & RE-CERTIFICATION

THE COMPANY Since our establishment in 1994 Safelift has become recognised as a market leader in the design, supply and manufacture of all types of handling equipment to the Offshore Industry. With our practical advice and unique depth of Offshore experience our clients appreciate that we can fully relate to and understand what is required of products and equipment in an offshore environment.

We only supply products and equipment that we deem 100% fit for purpose.

INTERNATIONALLY RECOGNISED YOU CAN FIND OUR PRODUCTS ALL OVER THE WORLD.

Safelift Standard Products

1 Safelift Work / Access Baskets

They are designed specifically for the offshore industry and manufactured in excess of current legislation requirements.

Model SOL1MAB SOL2MAB SOL3MAB SOL4MAB

• 500kg Capacity • Non slip floor & rubber base buffers as standard

Capacity 1-Person 2-Person 3-Person 4-Person

Length 950mm 1300mm 1500mm 2000mm

Width 650mm 1000mm 1000mm 1000mm

Height 2200mm 2200mm 2200mm 2200mm

Work Access Baskets

Safelift Work / Access Baskets are available in 1 to 4 person models. All with a safe working load of 500kgs.

• 360 degree clip in rail & kick plates • Optional extras: corner buffers, inward opening door & galvanised finish • Designed to BS EN 14502-1 • Meets NORSOK R-002 & American OSHA standards • Supplied with 6-leg wire rope sling assembly BS EN13414 pt1

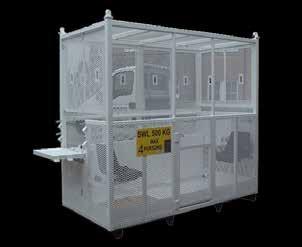

Safelift Emergency Response Basket

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

To complement our range of Work/Access Baskets we have added an Model > SOLERMAB Emergency Response Basket to handle a stretcher and medics.

• Designed to accomodate a stretcher with fold down stretcher support • Loading access for stretcher at each end • 2-off shock absorbing impact seats for medic/first aider • Integrated drip rail • Can be used as a general work access basket for daily use • Designed to BS EN 14502-1 and meets NORSOK standard R-002 • Supplied with 6-leg wire rope sling assembly BS EN13414 pt1

Safelift Standard Products

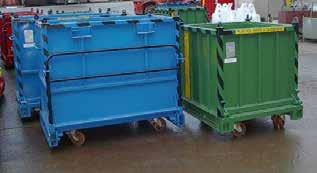

2 Safelift Deck Baskets

Deck Baskets

Our range of Heavy Duty Drop Front & Twin Door Baskets are designed to be used as general cargo baskets or as a drum transporter. They are ideal for the quick, safe movement of items around the installation.

The drop front provides a non slip ramp which allows access to load and unload items.

Safelift Standard Products

• For Safe Movement of general cargo around the installation • Non-slip drop down ramp on Drop Front Baskets • Supplied with four leg wire rope sling BS EN13414 pt1 • Full NDT & Load Test Certification • Manufactured & painted to Offshore Specification Model

Type

Capacity (SWL)

The baskets can be supplied with externally mounted expamet or internally mounted plate sides with the ramp and floor in non slip patterned durbar plate.

If required we can also fit braked swivel castors to the bottom of the baskets to enable movement when no crane access is available.

Length

Width

Height

SOLDFBS1.5

Drop Front

1.5te

1000mm

1000mm

750mm

SOLDFBS21.24

Drop Front

2te

1240mm

1240mm

1000mm

SOLDFBS21.6

Drop Front

2te

1620mm

1240mm

1000mm

SOLDFBS31.24 SOLDFBS31.6

Drop Front Drop Front

3te 3te

1240mm 1620mm

1240mm 1240mm

1000mm 1000mm

SOLDFBS32.12

Drop Front

3te

2120mm

1240mm

1000mm

SOLTDB SOLDFBC1.5 SOLDFBC2.0

Twin Door 2te Wheeled Drop Front 1.5te Wheeled Drop Front 2te

1620mm 1000mm 1000mm

1240mm 1000mm 1000mm

1150mm 860mm 860mm

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

3 Safelift Deck Baskets

Deck Baskets

• Safelift Scaffold Tube/Board Basket for safe movement of scaffold components around the installation • Safelift Barrel Handling Baskets with low gradient ramp for safe movement of Barrels/Drums around the installation.

• Twin Access Doors or Drop Front Doors • Supplied with four leg wire rope sling BS EN13414 pt1 • Full NDT & Load test certification • Manufactured & painted to offshore specification

Special Sizes and SWL Available.

Contact us with your request

Model

Type

SOLDFSB

Scaffold Basket - Drop front

Capacity (SWL) 3te

SOLTDSB

Scaffold Basket - Twin door

2te

Length

Width

Height

3780mm

920mm

920mm

1000mm

1000mm

3000mm

Barrel Handling - Drop Front

1.5te

1000mm

1000mm

1000mm

Barrel Handling - Drop Front

2te

1240mm

1240mm

1150mm

SOLDFBH4

Barrel Handling - Drop Front

2te

1620mm

1240mm

1150mm

SOLDFBH6

Barrel Handling - Drop Front

3te

2120mm

1240mm

1150mm

SOLTDBH4

Barrel Handling - Twin Door

2te

1620mm

1240mm

1150mm

Safelift DNV 2.7-1/BS EN ISO 10855 Baskets • A general range of deck baskets manufactured to DNV2.1-7 and BSEN10855 Please call for details and sizes.

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

SOLDFBH1 SOLDFBH2

Safelift Standard Products

4

Barrel Handling

Safelift Vertical Barrel Clamp A unique design specifically developed for the offshore industry.

It is simple to use and reduces any possible chance of operator error to a minimum.

• 500kg Capacity

Model > SOLVBC1

• Simple operation to minimises operator error • 100% positive grip on barrel • Full NDT & Load Test Certification • Painted to offshore specification • Supplied with four leg chain sling BS EN818-4

Safelift Vertical Drum Clamp A unique design specifically developed for the offshore industry.

It is simple to use and reduces any possible chance of operator error to a minimum.

• 500kg Capacity

Model > SOLVDC1

• Simple operation • Minimises operator error Safelift Standard Products

• 100% positive grip on barrel • Full NDT & Load Test Certification • Painted to offshore specification • Supplied with four leg chain sling BS EN818-4

Safelift Universal Barrel Transporter The Universal Barrel Transporter has been designed and certified to lift and transport all types of barrels and drums currently in use offshore today.

• 500kg Capacity

Model > SOLUBT

• Use for lifting & general deck movement • Barrel secured via ratchet webbing straps • For use with steel barrels & plastic drums • Tapered floor & slide bearings to aid handling • Full NDT & Load Test Certification • Painted to offshore specification • Supplied with two leg wire rope sling BS EN13414 pt1

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

5 Safelift Leva Drum Transporter Model > SOLLEVDT

Designed for easy handling, convenient storage & access for decanting 210L steel barrels or plastic drums.

Barrel Handling

• 350KG Capacity • 1130mm L x 650mm W x 1040mm H • Foldable push/pull hande for easy storage • Twin rollers built in to fully rotate • Large wheels to make it easier to manoeuvre • All in one unit for tilting, rotating & transporting • Supplied with Certificate of Conformity

Safelift Universal Drum Truck Model > SOLUDT

Ideal for transporting all types of barrels and drums. Supplied with a height adjustable spring clamp for steel barrels and a hinged clamp for plastic drums.

• 350KG Capacity • Use for general drum movement • Auto clamp positively locks on the drum rim • Supplied with Certificate of Conformity

Hinged Clamp Attachment Included For Handling Plastic Drums!

Safelift Bunded Drum Frames Safelift Bunded Lifting Frames have been designed to safely and securely transport all types of barrels and drums. The units are securely enclosed in a fully welded compartment that acts as a bunded sealed sump during shipping.

• Greatly reduces handling of drums and barrels

Model > SOLBDF1

• Hazardous substances are bunded at all times during transportation • Lifting points on each corner for lifting offshore • Full hydro-fluorescent bund testing • Painted to offshore specification • Full NDT and Load Test Certification

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

• Supplied c/w hinged clamp for plastic drums

Safelift Standard Products

6

Cylinder Handling

Safelift Universal Gas Bottle Carrier The Universal Single Gas Bottle Carrier provides a straightforward and easily operated method of transporting & lifting gas cylinders around the site/plant. The design incorporates a unique quick change retaining strap system allowing the single main frame to be used with the 3 main bottle diameters: 230mm, 295mm & 375mm.

• 150kg Capacity

Model > SOLUGBC

• Supplied with 3-off interchangeable straps • Large diameter wheels for travelling over sites • Gauges & hoses can remain connected during transit • Supplied with crane connector for lifting via crane • Full NDT & Load Test Certification

Safelift Double Gas Bottle Carrier The Double Gas Bottle Carrier is ideal for all burning & heat treatment operations throughout the site/plant.

The carrier can accommodate Oxygen/Propane or Oxygen/ Acetylene combinations and is supplied with 3 retaining bands to allow operator choice.

• 250kg Capacity

Model > SOLDGBC

SAFELIFT STANDARD SafeliftPRODUCTS Standard Products

• Use for burning & heat treatment operations • Large diameter wheels for travelling over sites • Gauges & hoses can remain connected during transit • Supplied with 2-leg sling for lifting via crane • Full NDT & Load Test Certification

Safelift Caged Double Gas Bottle Carrier To suit oxygen/acetylene bottles 1525mm high x 230mm dia c/w hinged and meshed door. 2-off main Ø350mm rubber cushion swivel wheels and 200mm dia rear rubber cushion swivel castors.

• 250kg capacity

Model > SOLDGBCC

• Use for oxygen/acetylene bottles • Purpose built for offshore walkways • Large diameter wheels for travelling over grating • Supplied with 2-leg sling • Full NDT & Load Test Certification • Manufactured and painted to offshore specification

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

7 Safelift Vertical Cylinder Lifter Model > SOLVCL

• Use for offshore gas bottles up to Ø380mm • Purpose built for offshore walkways • Large diameter wheels for travelling over grating • Vertical lifts of 300mm by manual winding handle • Full NDT & Load Test Certification • Manufactured and painted to offshore specification

Cylinder Handling

Safelift Offshore Specification Vertical Cylinder Lifter for the safe lifting of all types of gas cylinders up to 380mm dia.

• 250kg capacity

Safelift Mini Quads Safelift Mini Quads are available in three Safe Working Loads and Model > SOLGBMQ(1-3) sizes. All types are c/w non-slip ramp door and internal ratchet straps.

For safe movement of Gas Cylinders around the installation.

• 3 Sizes Available - 0.6te, 0.9te and 1.35te • Non slip ramp door • Supplied with four leg wire rope sling • Manufactured & painted to offshore specification • Galvanised finish available

Safelift Manual Cylinder Clamps Model > SOLMCC Manual Cylinder Clamps provide a safe method of lifting gas cylinders. The device enables gas cylinders to be lifted simply and safely by one person improving posture and reduces strain on the operators back and shoulders. It also provides means of lifting cylinders by 2 people as a team lift.

• Safe method of lifting gas cylinders • Max. Load 100KG • Supplied with Certificate of Conformity

Tel: 01224 775774

203mm dia

215mm dia

230mm dia 254mm dia Choice of 4 different sizes! sales@safelift. co.uk www.safelift.co.uk

Safelift Standard Products

• Full NDT & Load Test Certification

Safelift Standard Products

8 Safelift 4-Wheel Turntable Trucks

Turntable Trucks

A large selection of Turntable Trucks manufactured from quality hollow sections specially designed & developed for the rigors of the Oil & Gas industry.

Heavy duty ball bearing turntable design assuring easy turning even when fully laden. All models have steel centre solid rubber wheels for ease of movement over offshore grating.

Each truck has 4-off certified padeyes, 1-off positioned at each corner of the truck for pulling purposes and also serves for lifting the empty truck around the installation.

Heavy duty marine plywood decks. Handle stops prevent the push/pull handle from dropping to the ground.

All models are supplied with individual Load Test and NDT certification and painting to offshore specification.

Safelift Standard Products

Model

Capacity (SWL) SOL2TT1.22 2te

Options: Parking brake Fixed ends & drop down sides Steering Stop

Width

Height

1220mm

610mm

450mm

2te

1500mm

800mm

450mm

SOL3TT0.72 3te

1500mm

720mm

545mm

SOL3TT1.5

3te

1500mm

1000mm

545mm

SOL3TT2.0

3te

2000mm

1000mm

545mm

SOL5TT2.0

5te

2000mm

1000mm

570mm

SOL2TT1.5

Special Dual Wheels

Length

• Designed for the rigors of the Oil & Gas Industry • Heavy duty ball bearing turntable steering • Marine plywood deck • 4-off certified pulling padeyes also serve for lifting the empty truck • Individual NDT & Load Test Certification • Manufactured & painted to offshore specification

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

9

A large selection of Ackerman Trucks manufactured from quality hollow sections specially designed & developed for the rigors of the Oil & Gas industry.

The Ackerman steering increases stability and improves the steering radius when turning the trucks. All models have steel centre solid rubber wheels for ease of movement over offshore grating.

Each truck has 4-off certified padeyes, 1-off positioned at each corner of the truck for pulling purposes and also serves for lifting the empty truck around the installation.

Ackerman Steering Trucks

Safelift 4-Wheel Ackerman Steering Trucks

Heavy duty marine plywood decks. Handle stops prevent the push/pull handle from dropping to the ground.

All models are supplied with individual Load Test and NDT certification and painting to offshore specification.

Model

Width

Height

1220mm

610mm

430mm

SOLAST1T1.5

1te

1500mm

610mm

430mm

SOLAST1T2

1te

2000mm

1000mm

430mm

SOLAST2T1.2

2te

1220mm

610mm

430mm

SOLAST2T1.5

2te

1500mm

750mm

430mm

SOLAST2T2

2te

2000mm

1000mm

430mm

SOLAST3T1.5

3te

1500mm

700mm

450mm

SOLAST3T2

3te

2000mm

1000mm

450mm

Parking brake available as an option • Designed for the rigors of the Oil & Gas Industry • Ackerman steering increases stability • Improved steering radius • 4-off certified pulling padeyes also serve for lifting the empty truck • Individual NDT & Load Test Certification • Manufactured & painted to offshore specification

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

Caged Sides

Length

SOLAST1T1.2

Capacity (SWL) 1te

Safelift Standard Products

10 Safelift Swivel Castor Trolleys Swivel Castor Trolleys

A range of heavy duty offshore specification Swivel Castor Trolleys in a wide variety of capacities.

All our trolleys are supplied with single or twin polyurethane rimmed swivel castors with omni-directional manoeuvrability and minimal height.

Detachable steering handle can be used at either end of the trolley.

Each trolley has 4-off certified padeyes, 1-off positioned at each corner of the truck for pulling purposes and also serves for lifting the empty trolley around the installation.

All models are supplied with individual Load Test and NDT certification and painting to offshore specification, top coat white.

Safelift Standard Products

Model

Options: Directional lock castors Adjustable beams & chocks

Length

Width

SOL2TSCT1.2

Capacity (SWL) 2te

Height

1220mm

610mm

280mm

SOL2TSCT1.5

2te

1500mm

800mm

280mm

SOL3TSCT1.5

3te

1500mm

1000mm

370mm

SOL3TSCT2.0

3te

2000mm

1000mm

370mm

SOL6TSCT1.5

6te

1500mm

1000mm

390mm

SOL6TSCT2.0

6te

2000mm

1000mm

390mm

SOL10TSCT1.5

10te

1500mm

1000mm

390mm

SOL10TSCT2.0

10te

2000mm

1000mm

390mm

• Designed for the rigors of the Oil & Gas Industry • Heavy duty construction • Minimal height • Steel deck as standard • 4-off certified pulling padeyes also serve for lifting the empty truck • Individual NDT & Load Test Certification • Manufactured & painted to offshore specification

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

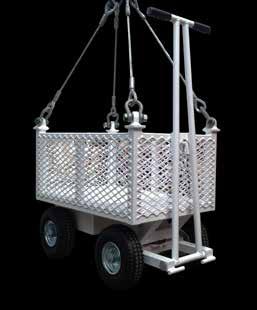

11 Safelift 4-Wheel Liftable Trucks Originally designed to provide a quick and safe method of transporting scaffold clips around offshore installations, this truck has gone on to establish itself as a general load mover.

The foam filled wheels provide all the characteristics of pneumatic but without the risk of puncture. This ensures the truck can be easily moved over nets, cable tracks, ramps, etc.

Liftable Trucks

Versatility is assured, common tasks are transporting scaffold clips or multiple items of loose rigging equipment direct to the job location.

All trucks come c/w 4-off certified lifting padeyes, 1-off positioned at each corner of the truck for lifting the fully loaded truck around the installation and are supplied with 4-leg wire rope sling assembly BS EN13414 pt1, individual Load Test and NDT certification and painting to Offshore specification, top coat white.

Model SOLFWLT750

Capacity (SWL) Length 0.75te 800mm

Width 500mm

Height 630mm

SOLFWLT1T SOLFWLT2T

1te

1000mm 500mm

860mm

2te

1500mm 800mm

1050mm

SOLCFWLT4T

2.5te*

1500mm 800mm

990mm

• Designed for the rigors of the Oil & Gas Industry • Heavy duty construction • Puncture proof wheels

* This model has a SWL of 2500kg for lifting and a SWL of 4000kg for deck use

Tel: 01224 775774

• 4-off certified lifting points for fully loaded truck • Individual NDT & Load Test Certification • Manufactured & painted to offshore specification

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

Options: Parking brake Steering Stop

Safelift Standard Products

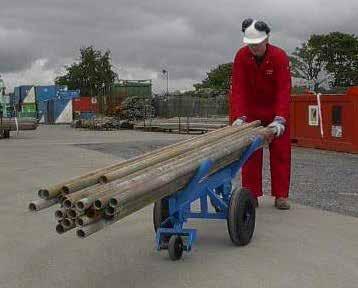

12 Safelift Scaffold Tube Transporter

Model > SOLSTT Specialist Trolleys

• Swl 800kg. Dims: 1300mm long x 620mm wide.

• Designed for transporting Scaffold Tubes • Heavy duty construction • Large diameter cushion rubber wheels • Individual NDT & Load Test Certification • Manufactured & painted to offshore specification

Safelift Spool Trolley Model > SOLTST1.5T Model > SOLTST2T • Swl 1.5te or 2te.

• Dims: 1350mm long x 800mm wide.

Safelift Standard Products

• Designed for transporting round sections • Heavy duty construction • Large diameter cushion rubber wheels • Individual NDT & Load Test Certification • Manufactured & painted to offshore specification

Safelift Beam Transporter Model > SOLSBEAMT1T • Swl 1te. Dims: 1350mm long x 600mm wide.

• Designed for transporting steel beams • Heavy duty construction • Large diameter cushion rubber wheels • Individual NDT & Load Test Certification • Manufactured & painted to offshore specification

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

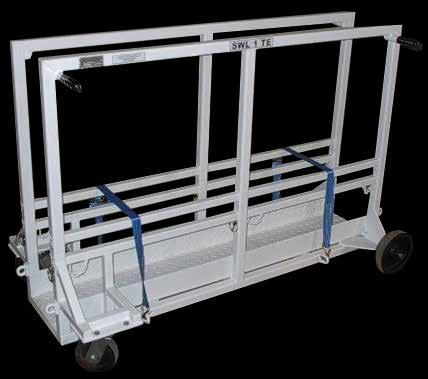

13 Safelift Board Transporter Model > SOLSBT1.0T > SOLSBT1.5T

• Swl 1te. Dims: 1350mm long x 885mm wide

Specialist Trolleys

• Swl 1.5te. Dims: 1350mm long x 890mm wide • Designed for transporting Scaffold Boards • Heavy duty construction • Large diameter cushion rubber wheels • Individual NDT & Load Test Certification • Manufactured & painted to offshore specification

Safelift Spool M Trolley Model > SOLTST2T1.0M

• Swl 2te. Dims: 1000mm long x 600mm wide.

• Designed for transporting Round Sections • Heavy duty construction • Heavy duty swivel castors • Individual NDT & Load Test Certification

Safelift Gas Quad Truck Moving Gas Cylinder Quads from the landing area to the worksite can be a major problem on an offshore installation.

Our custom designed four wheel low loading truck has been designed to help ease these problems.

• Swl 2.7te. Dims: 2275mm long x 1100 mmwide

Model > SOLN2QT

• Ackerman steering operated by a pulling handle • 300mm diameter cushion rubber rimmed wheels • 4-off pulling padeyes (2-each end) which also serve as lifting points for the empty truck • 2-off anchor points each side c/w heavy duty ratchet straps

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

• Manufactured & painted to offshore specification

Safelift Standard Products

14

Specialist Trolleys

Safelift Sheet Carrying Trolley

For the movement of Kennedy Grating or sheet steel and compressor doors etc. We have designed two versions, the 1000kg trolley for general transport and a 500kg liftable unit for lifting the load and the trolley.

Model

Capacity (SWL)

Length

Width

Height

SOLSTLIFT0.5T SOLST1.0T

0.5te (lifting) 1te

1500mm 1500mm

740mm 740mm

1040mm 1040mm

SOLSTLIFT0.5T-N

0.5te (lifting)

1500mm

500mm

1170mm

Safelift Standard Products

• Standard: 2-off Ø150mm rubber swivel castors, 2-off Ø200mm Fixed Wheels • Durbar floor plate for sheet grip • 2 side mounted cargo ratchets for retaining sheets • Full NDT and Load Test Certification • 4 leg wire rope sling assembly BS EN13414 pt1 (lifting only) and 2 ratchet straps • Painted to offshore specification

Narrow Sheet Carrying Trolley

When faced with narrow walkways or confined workspaces, our Narrow Sheet Carrying Trolley is ideal for manuoevring sheets, doors and panels with a maximum width of 150mm.

Model > SOLSTLIFT0.5T-N

Tel: 01224 775774

•

2-off Ø150mm swivel castors & 2-off Ø300mm wheels

•

Durbar floor plate for sheet grip

•

2 side mounted cargo ratchets for retaining sheets

•

Full NDT and Load Test Certification

•

4 leg wire rope sling assembly

•

Painted to offshore specification

sales@safelift. co.uk

www.safelift.co.uk

15 Safelift Transportation Dollies

Various sizes and SWL available

Safelift Moving Systems

Transportation Dollies, Moving Systems & Gin Pole

Safelift Standard Products

Safelift moving systems are portable matching pairs of hydraulic lifting frames placed at opposite ends of a load in order to raise the load onto castors and easily move in any direction. They are designed for use with heavy and bulky loads of any size and shape and are supplied with heavy duty straps to hold the units firmly in place.

• Range of systems available from 600kg to 5000kg capacity • Compact design for easy transportation • Hydraulic jacks raise and lower the load • Four-Way directional locks are fitted to the castors • Load is held firmly in place by supplied straps • Four swivel castors allow easy manoeuvrability • 360° rotation capability allows for easy movement in confined spaces

Safelift Gin Pole Safety System Legislation, in combination with serious safety concerns regardng personnel working at heights is a major offshore issue at the moment.

Safelift, again working with offshore personnel, have tackled this and have designed an offshore specification Height Safety System which can be used with your existing safety harnesses and fall arrest units.

• • • •

Model > SOLGP

150kg SWL Clamps onto 100 x 100mm square box corner section Manufactured and Painted to Offshore Specification Full NDT and Load Test Certification

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

• Only 15mm load elevation required for insertion of the toe plate

Safelift Standard Products

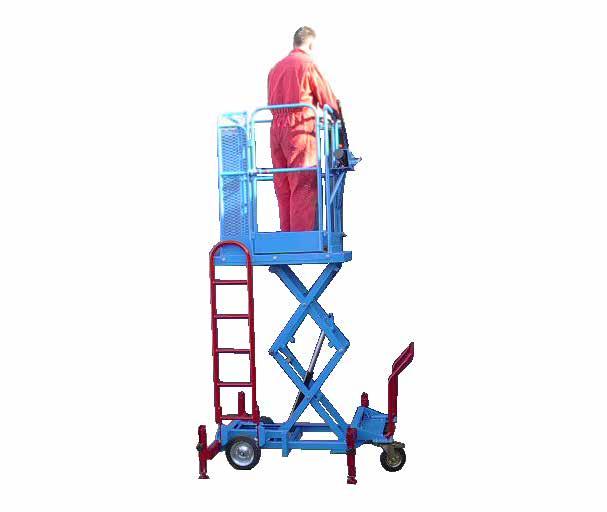

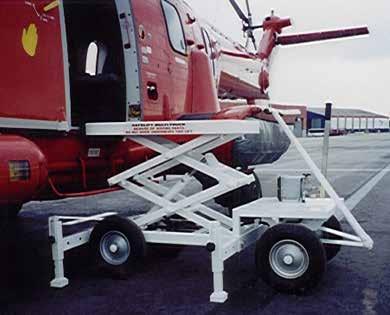

16 Safelift Multi Truck

Model > SOLMT

Multi Truck

Our Multi Truck was designed not only to provide a truck capable of being used on the Heli-deck to unload cargo but also as an item that was of equal use for many tasks throughout the installation when fitted with its custom designed accessories.

The Truck has a Swl of 500kgs and a manually operated hydraulic scissors action lift platform with a raised height of 1.7m.

• 500kg Capacity • 1.7m Raised Height • Ackerman steering

Safelift Standard Products

• 4m working height when used with removable access cage & outriggers • Ø400mm puncture proof foam filled pneumatic wheels • Optional waterproof flame retardant cover • Custom designed accessories

Tel: 01224 775774

sales@safelift. co.uk

When fitted with its removable access cage and outriggers the truck converts into a portable man access unit providing a safe working platform which enables operators to reach equipment approximately 4m high.

With its custom built pig tops in place, the truck converts into a mobile pig launcher receiver unit and with the roller top fitted it is ideal for the removal of switch gear items.

Batteries and can be used as a work positioned or adjustable support unit.

www.safelift.co.uk

Safelift Standard Products

17 Safelift Heli-Deck Crane

Our Heli-Deck Crane is manufactured to offshore specification.

Model > SOLHDC Heli-Deck Equipment

Four lifting points are welded to the top members of the crane for movement between locations.

Supply includes Load Test, NDT Certification and four leg wire rope sling assembly BS EN13414 pt1.

Painting to Offshore Specification and c/w Flame Retardant waterproof PVC cover.

• 500kg Capacity • 2.56m max lift height • 3 Position Extending Telescopic Jib • Ackerman steering • Folds for ease of storage • Ø400mm puncture proof foam filled pneumatic wheels • Optional waterproof flame retardant cover

Safelift Heli-Deck Baggage Trolley Model > SOLHDBT

A 950 mm high mesh cage has one fixed and one hinged roof panel and a drop down section on one side to allow ease of access for loading and un-loading bags.

Supply includes Load Test and NDT Certification.

• Dims: 2000 x 1000 x 1485mm high • 430mm x 100mm wide pneumatic foam filled wheels • Turntable steering marine plywood deck c/w water drain holes • Manually operated front wheel parking brake • Manufactured and painted to offshore specification • Optional flame retardant cover and steering stop

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

Our Heli-Deck Baggage Trolley is manufactured specifically for heli-deck use.

Safelift Standard Products

Environmental Equipment

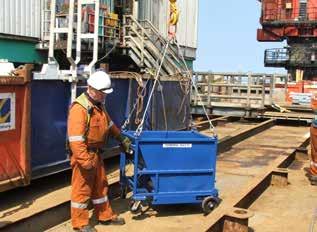

18 Safelift Drop Bottom Skips

Our range of Heavy Duty Drop Bottom waste management skips are specifically designed for the offshore industry and incorporate all the main features required for simple, straight forward and safe use.

The versatility of our skips means you can safely control and co-ordinate your offshore waste management segregation of different waste types while at the same time reduce manual handling.

Safelift Standard Products

Model

Capacity (SWL)

Length

Width

Height

SOLDBS0.5

0.5te

1000mm

700mm

760mm

SOLDBS1

1te

1400mm

800mm

1300mm

SOLDBS2

2te

1000mm

1000mm

1185mm

• Improve on waste segregation • Unique drop bottom mechanism • Swivel castors for ease of movement • Painted to any offshore paint specification to suit any waste segregation requirements • Full NDT and Load Test Certification

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

19

Model > SOLOWS

• Dimensions: 820mm x 1050mm x 1020mm high • 1.5te SWL / 500ltr capacity • Protected valve/hose assembly located on the bottom for easy decanting • Fully welded and pressure tested unit c/w sealed access hatch which is c/w an oil strainer • Manufactured and painted to offshore specification • Supply c/w 4-leg wire rope sling BS EN13414 pt1, NDT and load

Environmental Equipment

Safelift Oil Waste Skip

test certification

Safelift Glass Waste Skips • SOLGWSS: 1030mm x 800mm x 1020mm high • SOLGWSL: 1600mm x 800mm x 1020mm high

Model > Small: SOLGWSS

Large: SOLGWSL

• 1.5te capacity • Unit c/w removable sealed lid c/w access hatch.

• Segregation Panels as option • Supply c/w 4-leg wire rope sling BS EN13414 pt1, full NDT and load test certification

Safelift Crane Calibration Weight / Rubbish Compactor Model > SOLCCW

• Gross Weight 3000kg • Dimensions: 1150mm x 1150mm x 1320mm high • Weight has internally mounted plate sides • Concrete filled • Manufactured & painted to offshore specification • Supply c/w 4-leg wire rope sling BS EN13414 pt1, Full NDT & Load Test Certification

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

• Manufactured and painted to offshore specification

Safelift Standard Products

Environmental Equipment

20

Safelift Fluorescent Tube Container Model > SOLFTC

• Dimensions: 2100mm x 1000mm x 1000mm high • 1te capacity • Unit c/w hinged sealed lid • Forklift pockets • Manufactured & painted to offshore specification • Supply c/w 4-leg wire rope sling, Full NDT & Load Test Certification

Safelift Cardboard Compactor & Bags Model > SOLCCW

• Dimensions: 1200mm x 1050mm x 3250mm high • Manual operation which gives 10te compaction capatibility via twin rack and pinion style jacks.

• Unit supplied with 4-off lifting points for offshore lifting • Manufactured and painted to offshore specification

Safelift Standard Products

• Supply c/w 4-leg wire rope sling, NDT and load test certification

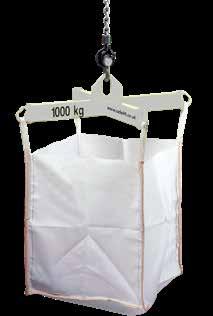

Model > Compactor Bags

• Dimensions: 900mm x 900mm x 1200mm high • 1te capacity • Bag c/w 4-off lifting loops and a flap over cover • Supplied in packs of 10

Safelift Wheelie Bin Tipper Model > SOLWBT

• Dimensions: 1300mm x 890mm x 1890mm high • 150kg capacity • Max skip height 1500mm high.

• Suitable for wheelie bins 80 to 360litre capacity.

• Simple manual operation • Bin Secured via ratchet webbing strap • Manufactured & painted to offshore specification • Supply c/w 4-leg wire rope sling, NDT & Load Test Certification

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

21

Safelift Offshore Blueline KDC Stores • Instant secure storage solution supplied in flat pack form • Fully galvanised & powder coated finish

1

• All panels are lightweight & easily handled • Easy assembly — no skills required KDC Stores

• Can be linked together to create any size of store 2

• Double locking system for additional security • Practical and Cost Effective

3 5 Model

Door size

Internal Depth

Height

Width

Length

KDC2

1250mm

2000mm

2100mm

2140mm 2075mm

KDC3

1250mm

3000mm

2100mm

2140mm 3060mm

KDC4

1250mm

4000mm

2100mm

2140mm 4050mm

4 ready for use

Safelift Offshore Blueline KDC Chemical Stores • Fully galvanised & powder coated finish 1

• All panels are lightweight & easily handled.

arrives flat-pack

• Easy assembly — no skills required • Can be linked together to create any size of store • Double locking system for additional security

2

• Practical and Cost Effective

3

side assembly

bunded flooring

5 Model

Door size

Height

Width

Length

KDCC2

1900mm

2247mm

2350mm

2160mm

KDCC3

1900mm

2247mm

3080mm

2160mm

KDCC4

1900mm

2247mm

4080mm

2160mm

Tel: 01224 775774

sales@safelift. co.uk

ready for use

4

roof assembly

www.safelift.co.uk

Safelift Standard Products

• Instant secure storage solution supplied in flat pack form

Safelift Standard Products

22

Containers

Safelift DNV 2.7-1/BS EN ISO 10855 Containers

Model > SOLDNV6 6ft x 6ft x 8ft

Model > SOLDNV10

Safelift Standard Products

20ft x 8ft x 8ft 6”

• 6FT, 10FT & 20FT Enclosed Containers

• Dual certified for offshore handling & CSC shipping • EX STOCK for immediate delivery

• Certified to DNV 2.7-1 and BS EN ISO 10855.

• CSC Safety Approved for global transportation • Offshore paint specification

SOLDNV6

Max. gross Weight 5,000kg

1,550kg

SOLDNV10

10,000kg

2,010kg

SOLDNV20

20,000kg

4,000kg

Model

Model > SOLDNV20

10ft x 8ft x 8ft 6”

Tare Weight

3,450kg

Length mm ft 1830 6’

Width mm ft 1830 6’

Height mm ft 2438 8’

7,990kg

2991

10’

2438

8’

2591

8’6”

16,000kg

6058

20’

2438

8’

2591

8’6”

Max payload

Replace your old BS 7072 container for a new BS EN ISO 10855 container Now is the time to replace your specialist BS 7072 containers to the current BS EN ISO 10855 legislation. We can design and build to your individual requirements.

Old BS 7072 Generator Container

New BS EN ISO 10855 Generator Container

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

23

Safelift Workshop / Rigging Loft Containers

Containers

• Custom Built Rigging Loft and Workshop Containers • This includes design and fabrication of heavy duty shelving, work benches, tool cabinets, hooks and security cages.

• Full electrics to Zone 1 or Zone 2 rating

Contact us with your request

• To aid handling in and out of the container we can incorporate certified runway beams and cantilever beams

Freezer Containers

Hazardous Stores

Insulated Containers

Rigging Lofts

Workshops

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

Flange Stores

Safelift Standard Products

24

Safelift Standard Products

Roller Floor Containers

Safelift Roller Floor Containers Model > SOLSRF The Safelift Roller Floor Container has been designed and developed in response to safety concerns over the high risk nature of manual handling heavy loads in enclosed containers. The container and its associated Bunded Drum and IBC lifting frames provide the ultimate solution to minimise the risks associated with the movement, manual handling and transportation of loads and hazardous substances in enclosed containers.

The Safelift Roller Floor Container is loaded like any other container when onshore, however once offshore it can be easily unloaded by crane using the inbuilt and manually operated wind out floor section, which has a SWL of 3.5TE.

SWL: 3500kg

Loaded as normal Onshore

Integrated Tie-Down Points and Guide Rails

Simple Manual Operation

• DNV2.7-1 Container • 3500kg SWL • Loaded Onshore as normal by forklift or crane • Load secured with internal tie-down points • Manually operated wind out floor section for safe unloading offshore by crane • Can be used in conjunction with any bunded IBC and Drum frame • Available to hire Adhoc or Long Term

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

25

• Dimensions: 1570mm x 1380mm x 1110mm high

Model > SOLBDF1

• 1.5te capacity • Hazardous substances are bunded at all times during transportation • Lifting padeyes on each corner for lifting • Full hydro-fluorescent bund testing • Painted to offshore paint specification • Full NDT and Load Test Certification

Environmental Equipment

Safelift Bunded Drum Frames

• Supplied with heavy duty PVC cover

Safelift Non-Bunded IBC Frames • Dimension: 1380mm x 1600mm x 1500mm high

Model > SOLIBCTF

• 1.2te capacity • Non Bunded Lifting Frame • Hinged door to front for ease of loading • Lifting padeyes on each corner for lifting • Painted to offshore paint specification • Full NDT and Load Test Certification • Supplied with heavy duty PVC cover

Safelift Bunded IBC Transportation Frames • Dimensions: 1600mm x 1380mm x 1975mm high

Model > SOLBIBCTF

• 1.2te capacity • Hinged door to front for ease of loading • Lifting padeyes on each corner for lifting • Supply c/w ratchets to hold down IBC • Full hydro-fluorescent bund testing • Painted to offshore paint specification • Full NDT and Load Test Certification • Supplied with heavy duty PVC cover

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

• Supply c/w Ratchets to secure IBC to frame

Safelift Standard Products

Half Height Container Access

26 Safelift Access / Egress Ladder

Model > SOLHHL The one piece Access / Egress Ladder is suitable for accessing all types of open top baskets or half height containers with 75mm wide to 190mm wide top section rail.

• Light weight aluminium construction • Outside ladder 1200mm long x 380mm • Inside ladder 750mm long x 380mm • Non slip surface to top platform • Hand hold arm extensions • Gross Weight: 28kg • Manufactured in accordance with BS EN 131:1999 • Supplied with Certificate of Conformity

Safelift Standard Products

Safelift Container Stile The light weight Container Stile provides safe access and egress of all types of skips, open top baskets or half height containers with 75mm wide to 190mm wide top section rails. It is a one person operation and used in the same way as a stile. There is a large handle for stability as the user steps up and swings their leg over the top rail and into the basket. The same procedure is used to egress the basket.

• 150KG SWL

Model > SOLCS

• Dims: 485 x 440 x 930mm high (including Handle) • Lightweight aluminium alloy structure, Weight: 14kg, makes the unit easy to handle and install.

• White protective rubberised coating.

• Unit is anti-spark and anti-slip.

• Glow in the dark luminous toe treads and luminous location strips ensure the unit is easily seen in poor light.

• Supplied with Certificate of Conformity

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

27 Safelift Folding Access Platform Model > SOLFAP • • • • • • • • • •

1150mm long x 730mm wide platform Only 320mm high when folded Weight 22kg Easy one man assembly Maximum working height: 3000mm Min Platform Height: 465mm Max Platform Height: 840mm Capacity: 200kgs Full guard rails all round Gates at either end for ease of access

Access Equipment

Compact and lightweight folding access platform which can be easily transported and assembled by one man. Ideal for both internal & external maintenance tasks.

Safelift Container Ramps Model > SOLCLR1T

Model > SOLCLR2T

• 1te fixed container ramp

• 2te adjustable container ramp

• One piece lightweight aluminium

• Height Adjustment: 150mm to 250mm

• Dimensions: 2000mm x 1000mm

• Dimensions: 1150mm x 540mm

Model > CONTR10 > CONTR15

• Choice of two sizes: 1000mm long x 800mm wide or 1500mm long x 800mm wide • 500kg capacity • Ultra lightweight aluminium • Folds up for ease of storage • All weather anti slip surface • Full length centre hinge

Tel: 01224 775774

• Quick release catch

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

Safelift Folding Container Ramps

Safelift Standard Products

28 Safelift Hose Bag Stands • Self Standing ‘A’ Frame Hose Bag Stand Storage & Lifting

• Available in 3 sizes • Supplied with ’S’ hooks and bags • Full NDT & Load Test Certification • Manufactured & painted to Offshore specification Model

Capacity (SWL)

Length

Width

Height

‘S’ Hooks 3

SOLAHBS0.9 25kg per 300mm 900mm

900mm 1600mm

SOLAHBS1.8 25kg per 300mm 1800mm

900mm 1600mm

6

25kg per 300mm 3000mm

900mm 1600mm

10

SOLAHBS3

Safelift Liftmate Slings

Safelift Standard Products

Provide a safe and easy method of lifting various items by one person, improving posture and reducing strain on the operators back and Model > Model > Model > shoulders. The double leg model provides SOLSHLM SOLSMHCS SOLDHLM a means of lifting awkward heavier items by 2 people as a team lift.

• Supplied with a Certificate of Conformity • Single handle: 75kg WLL • Double handle: 100kg WLL • Choke Valve:

50kg WLL

Single Handle

Choke Valve Handling

Double Handle

Safelift Cargo Nets Model > SOLCN8X6 8ft x 6ft Net

Model > SOLCN20X8 20ft x 8ft Net

Polyethylene HDPE Cargo netting for the transportation of general cargo around the installation / platform.

• Available in two standard sizes: 8ft x 6ft and 20ft x 8ft

Other Sizes Available

• Mesh size: 50mm • Made from heavy duty polyethylene • Available in a range of sizes, capacities & materials • Supplied with a Certificate of Conformity

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

29 Safelift Deck Ops Buddy Model > SOLDOB1 Container Safety

Extending pole for guiding and setting down general loads on the deck during crane lifting operations. Keeps a safe distance between the load and the user ensuring a hands free operation.

• Shock absorbing rubber head with sling hook • Hook on opposite end for fishing taglines and slings • Lightweight and balanced • Easily Adjustable Extendable Pole

Unique hook for use with taglines

• Closed length 1220mm • Extended length 2120mm • Available in two colours - Red and Black • CE Marked

storage stations also available

Improved head now with sling hook

Safelift Heavy Lift Pennants Model > SOLHLP Re-Usable Pennant

Model > SOLHLPSU Single Use Pennant

Safelift Heavy Lift Pennants are available in single use or re-usable versions.

• Dims: 600mm x 430mm • Any lift over 7te requires a lift pennant

Single Use

• High visual design to signify heavy lift • Luminous design means they are easily seen from a distance • Re-Usable: Can be secured using cable ties • Single-Use: Secured using double sided tape

Tel: 01224 775774

sales@safelift. co.uk

Re-Usable

www.safelift.co.uk

Safelift Standard Products

Available in two colours: Red & Black

Safelift Standard Products

30

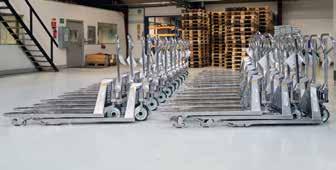

Safelift 2.5te Heavy Duty Pallet Truck

Pallet Trucks

Best Seller

Model > SPT2500 Model > SPT2500W (wide) • 2500KG Capacity • • • • •

Heavy duty forks - 1150 x 540mm / 1220 x 685mm (wide) Twin polyurethane wheels to reduce noise / vibration Guide rollers to prevent damage to pallets Supplied c/w Grease points for ease of maintenance L.O.L.E.R Min/Max fork height 85mm / 205mm Load Test Cert

Safelift 3te Heavy Duty Pallet Truck Model > SPT3000 Model > SPT3000W (wide) • 3000KG Capacity • • • • •

Heavy duty forks - 1150 x 540mm / 1220 x 685mm (wide) Twin polyurethane wheels to reduce noise / vibration Guide rollers to prevent damage to pallets Supplied c/w Grease points for ease of maintenance L.O.L.E.R Min/Max fork height 85mm / 205mm Load Test Cert

Safelift Standard Products

Safelift 5te Heavy Duty Pallet Truck Huge 5000kg SWL.

Model > SPT5000 • 5000KG Capacity • • • • •

Heavy duty forks - 1150mm long x 580mm Twin steel load & steer wheels Guide rollers to prevent damage to pallets Grease points for ease of maintenance Min/Max fork height 90mm / 200mm

Supplied c/w L.O.L.E.R Load Test Cert

Safelift Galvanised Pallet Truck Model > SPTGALV Model > SPTGALVW (wide) • 2000KG Capacity • • • • • •

Fork size - 1150mm x 540mm / 1220mm x 685mm (wide) Designed for use in wet & corrosive environment Twin polyurethane wheels to reduce noise / vibration Guide rollers to prevent damage to pallets Supplied c/w Grease points for ease of maintenance L.O.L.E.R Load Test Cert Min/Max fork height 85mm / 205mm

Tel: 01224 775774

sales@safelift. co.uk

Full Wet Spec.

www.safelift.co.uk

Safelift Standard Products

31 Safelift Braked Pallet Truck

Progressive Brake

Model > SPTB • 2500KG Capacity

Heavy duty forks - 1150mm long x 540mm Progressive brake with parking lock Twin polyurethane wheels to reduce noise / vibration Guide rollers to prevent damage to pallets Supplied c/w Grease points for ease of maintenance L.O.L.E.R Min/Max fork height 85mm / 205mm Load Test Cert

Safelift High Lift Pallet Truck

Pallet Trucks

• • • • • •

Model > SPTHL • 1000KG Capacity • • • • • •

Fork size - 1170mm long x 540mm Twin polyurethane wheels to reduce noise / vibration Guide rollers to prevent damage to pallets Supplied c/w Grease points for ease of maintenance L.O.L.E.R Min/Max fork height 85mm / 800mm Load Test Cert Can only be used with open pallets

Safelift Pallet Trucks c/w Certified Lifting Points All Safelift Pallet Trucks can be fitted with certified lifting points to enable transportation between levels on offshore platforms.

Supplied c/w Supplied with NDT & Load test Certificate

L.O.L.E.R

Load Test Cert

Safelift Atex Pallet Trucks • Up to 5000KG Capacity • • • • •

Heavy duty forks Anti-Static wheels Guide rollers to prevent damage to pallets Grease points for ease of maintenance Zone 1 or 2 compliant Supplied c/w L.O.L.E.R

Load Test Cert

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

Lifting Points

Model > SPT2500L

Safelift Standard Products

32 Safelift Heavy Duty Floor Cranes

• All Robust Construction

Heavy Duty Floor Crane Specification

• Easily Manouevered on heavy duty castors

Floor Cranes

• Relief valve to prevent overloading • Manual Hydraulic Operation • Marine Specification rams • Low Maintenance • All supplied with Load Test Certification

Model HDFC1000 HDFC2000 HDFC3000 Load Capacity 1000kg 2000kg 3000kg Minimum Extension (1) 925mm 1220mm 1340mm Capacity 750kg 1750kg 2000kg Centre Extension (2) 1145mm 1360mm 1520mm Capacity 500kg 1000kg 1500kg Maximum Extension (3) 1330mm 1500mm 1700mm Capacity 1000kg Maximum Extension 1800mm Min. height hook to ground 525mm 950mm 930mm (A) Max. height hook to ground 2295mm 2855mm 2750mm (B) Column height 1690mm 1850mm 1750mm Overall Base Length (D) 1555mm 1710mm 1785mm Max. width between legs 780mm 835mm 1090mm (E) Max. overall width (F) 950mm 1040mm 1280mm Height of top of legs (G) 150mm 200mm 220mm Diameter of wheel 125mm 150mm 150mm

Safelift Standard Products

Safelift Counter Balance Floor Crane The Counter Balance Floor Cranes are a compact crane mounted on a highly maneuverable trolley. A ballast box counter balances the load with an extending jib with three hook positions. Heavy Duty polyurethane swivel castors and rear castor fitted with brake.

Counter Balanced Floor Crane Specification Model SOLCBC1000 SOLCBC2000 Load Capacity 1000kg 2000kg Capacity Position 1 1000kg 2000kg Capacity Position 2 750kg 1500kg Capacity Position 3 500kg 1000kg Max. Height Hook hp1* 2350mm 2462mm Max. Height Hook hp2* 2490mm 2606mm Max. Height Hook hp3* 2730mm 2868mm Min. Height Hook hp1** 800mm 867mm Min. Height Hook hp2** 670mm 737mm Min. Height Hook hp3** 420mm 500mm Column height 1850mm 1869mm Overall Base Length 1470mm 2110mm Base Width 640mm 670mm Wheel Diameter 200mm 200mm Weight without counter weight 265kg 400kg

*hp - height position

Tel: 01224 775774

sales@safelift. co.uk

**hp - hook position

www.safelift.co.uk

Safelift Standard Products

33

Folding Floor Crane Specification Model

Folds down

• Folds down, compact for storage

FFC500

FFC1000 FFC2000

Capacity Position 1

500kg

1000kg

2000kg

Capacity Position 2

381kg

750kg

1500kg

Capacity Position 3

254kg

500kg

1000kg

Min height hook to ground

420mm

265mm

500mm

Max height hook to ground

2105mm

1970mm

2440mm

Column height

1850mm

1615mm

1880mm

Overall base length

1495mm

1690mm

1870mm

Max width between legs

680mm

640mm

590mm

Max overall width

780mm

800mm

800mm

• Robust construction

Height to top of legs

125mm

160mm

225mm

Diameter of wheels

200mm

200mm

200mm

• Strong and Light

Knock down height

500mm

580mm

660mm

90kg

125kg

200kg

Weight

• Safety Relief valve

Folding Floor & Jib Cranes

Safelift Folding Floor Cranes

• Supplied with Load Test Certification • Other sizes available on request

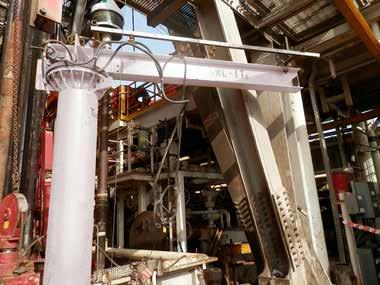

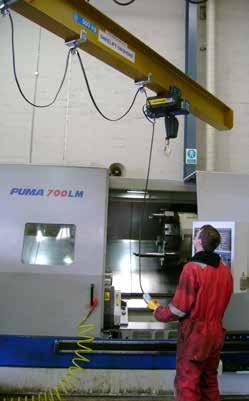

Safelift Jib Cranes Safelift Standard Products

• Post or wall mounted Jib Cranes • Manual or Powered Operation • Manufactured to your requirements • Offshore paint specification • All supplied with Load Test Certification

Various Sizes and SWL Available.

Contact us with your request Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Special Products

Utility Gantries & A-Frames

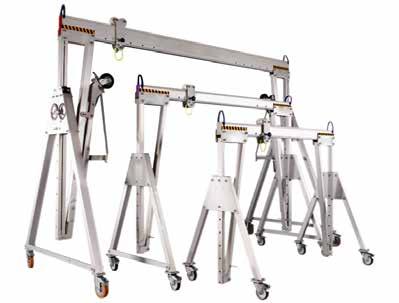

34 Safelift Utility Gantries

• Knock Down Construction A frame utility gantry crane • 500kg Capacity • Lightweight aluminium construction • Suitable for 2-person fall arrest or single person manriding • Adjustable height to maximum 2160mm • 1600mm beam length • Supplied with transportation trolley • Various options available

Safelift Standard Products

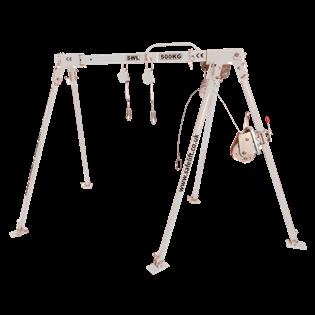

Safelift A-Frames • Lightweight aluminium construction • 500kg to 5000kg SWL • Beam length 3m to 9m • Simple height adjustment • Certified for Zone 2 hazardous area use

Various Sizes and SWL Available.

Contact us with your request Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

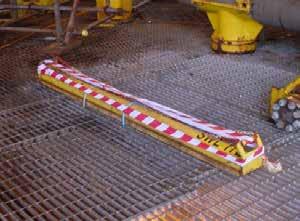

Safelift Temporary Spanning Beams Safelift Temporary Spanning Beams are designed to provide a certified lifting point for non-routine tasks around the platform. The beams are available in a wide range of capacities and lengths.

By placing the beam over supports a soft sling can be inserted through grating and over the beam to provide a temporary overhead lifting point.

• Simply place between supports to provide a certified lifting point • Easily handled by 2 persons • Fitted with a plaswood base • Certified carrying handles each end for lifting manually or via crane • Full NDT and Load Test Certification Model

Capacity (SWL)

Length

Gross Weight (kg)

SOLTSB0.5T1.5 SOLTSB1T1

0.5te 1te

1500mm 1000mm

35 35

SOLTSB1T1.5

1te

1500mm

45

SOLTSB1T2

1te

2000mm

68

SOLTSB1T2.5

1te

2500mm

75

SOLTSB2T1

2te

1000mm

65

SOLTSB2T1.5

2te

1500mm

75

SOLTSB2T2

2te

2000mm

115

SOLTSB5T1.5

5te

1500mm

160

Safelift IBC Liftng Frames are designed to safely handle IBC’s via crane.

The lifting beams are supplied as a complete kit including chain slings and connecting shackles.

Model > SOLIBCFRAME • 2000kg Capacity • Suitable for lifting IBC’s using an overhead crane • Crane slung top beam, 2-off lower side beams and 2-off 1300mm long bottom bars as standard • Variations to meet your requirements • Supplied with 2-off 2-leg chain sling assemblies • Supplied with Certificate of Conformity

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

Safelift IBC Lifting Frame

Spanning Beams & IBC Lifting Frame

35

Safelift Standard Products

36 Safelift Manway / Ladder Barriers

Safety Barriers

Designed to physically prevent unauthorised access to circular manways/ladders. These Safety barriers are telescopic in design and therefore are suitable for various manways and rung lengths.

Manway Barrier

Ladder Barrier

Model > MBS10Z

Model > LBS10Z • Prevents unauthorised access to a range of circular man ways.

• Supplied with weather proof lock and 2 keys • Information can be added to sign using a China Graph Pencil • Telescopic design to

• Prevents unauthorised access to all types of ladders • Supplied with weather proof lock and 2 keys • Information can be added to sign using a China Graph Pencil • Telescopic Design to enable use on various sizes.

enable use on various sizes

Safelift Standard Products

Safelift Belt Barriers In response to many operators requesting a temporary or permanent barrier that could with stand the harsh offshore environment, we have designed a full offshore spcification belt barrier.

Model > SOLBB

• Secure method of cordoning areas off • Compact and Robust • Can mount to scaffold poles • Use with specifically designed red mobile base post • Choice of S-hook or scaffold clamp attachment

Mobile Base Post Scaffold Clamp Attachment

Offshore Specification

S-Hook Tel: 01224 775774

Mobile Pole BaseFixing Post Scaffold sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

37 Safelift Flange Lifter

The Safelift Flange Lifting Device is designed to lift, transport and align all types of flanges.

Model > SOLFL

Height Safety

• Suits bolt holes from 19mm dia to 42mm dia • Max thickness 67mm • Lifted by crane via integrated swivel hoist ring • Manual adjustment to centre load • Full NDT and Load Test Certification

Safelift Auto Brake Pulley System Automatic braking system engages if the operator releases the rope on lifting & lowering operations.

Model > SOLABP

• 25kg capacity • 1-Man operation • Supplied with mounting arm & scaffold attachment hook • Certified waterproof scaffold bag

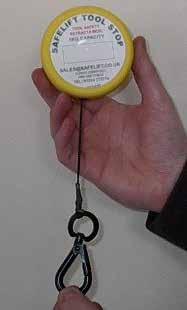

Safelift Tool Stop Safelift Tool Stop fully retractable safety reel for working with tools at height.

Model > SOLTS

• Clips onto operator’s harness or belt • Hooks onto most tools • Lightweight — only 75grams • Supplied with Certificate of Conformity

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

• 50m marine rope with stainless steel safety

Safelift Standard Products

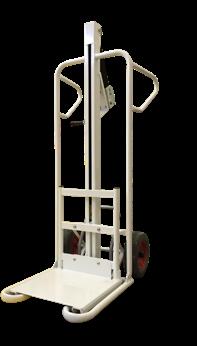

38 Safelift 1-Man Access Trolley 1-Man Access Trolley

Model > SOLAT1.6M Our 1-Man Access Trolley was designed to provide an offshore specification, portable man access unit for maintenance/inspection tasks around the platform or installation with a max working height of 3.5m.

• •

Safelift Standard Products

•

• •

The trolley has a SWL of 200kgs to enable it to be used for one man + tools. The unit has a manually operated hydraulic scissors lift platform with a raised height of 1.65m. The pump unit is conveniently positioned on the cage to enable one user to raise and lower the platform to the desired height. The integrated ladder provides a means of access 200kg Capacity and egress from the working platform 0.38m Closed Platform Height via the entry door without the need to lower and raise the platform each 1.65m Raised Platform Height 4-off integrated outriggers are ø280mm wheels & ø200mm braked swivel castorstime. positioned at each corner to 4-off outriggers for stabibilty provide additional stability.

• Optional waterproof flame retardant cover

Safelift can provide operator • Pre-set flow control for controlled descend in the training at our onshore facility in the operation and maintenance of the units. event of hose failure

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

39

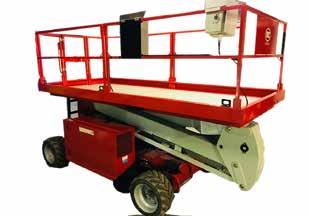

Safelift Scissor Lifts • Certified for Zone 1 or Zone 2 hazardous area use • Various platform heights available • Various platform sizes available • Various SWL available • All terrain options • Offshore specification

Powered Access Machines

Safelift Powered Access Machines

Contact us with your request Safelift Boom Lifts (Cherry Pickers) • Certified for Zone 1 or Zone 2 hazardous area use • Various platform heights available • Various platform sizes available Safelift Standard Products

• Various SWL available • All terrain options • Offshore specification

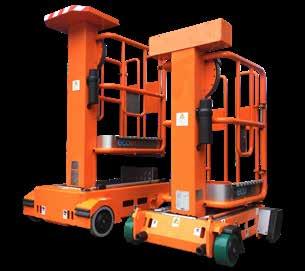

Safelift Individual Work Platforms • Certified for Zone 1 or Zone 2 hazardous area use • Various platform heights available • Various platform sizes available • Various SWL available • All terrain options • Offshore specification

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

40

Crane Forks

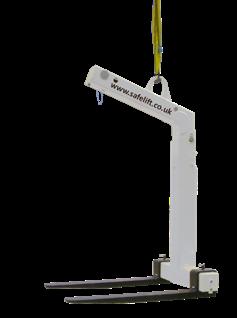

Safelift Offshore Specification Crane Fork Model > SOLOCF

The Adjustable Crane Fork Pallet Lifter is designed to be used with the platform pedestal crane and enables many of the functions generally associated with a fork lift truck to be performed. The strengthened forks are easily adjustable to suit any size of pallet and the mast has been designed to go over the front roof section and allow the forks access into the container. This makes the unit ideal for unloading standard enclosed offshore containers.

With a Swl of 2te. The fork can handle most of the palletised items being shipped in an offshore environment.

To ensure a level stable lift the centre of gravity is adjusted via the crane suspension link into one of the lifting points located on the top lifting plate. Unit is supplied with load test and NDT certification, work instruction and painting to offshore specification.

Model

WLL 0-2000kg

SOLOCF

Adjustment of Length of Section of Useable Height tines Tines Tines 400-900mm 2000mm 1000mm 90x50mm

Overall Height 3100mm

Weight 380kg

• Overall dims: 1070mm Wide x 1200mm Deep x 3100 max Height.

• Lift via: Master link fitted to adjustable lifting plate welded to top main member Safelift Standard Products

• Easy Adjustable tines for all pallet sizes • All Crane Forks comply to all current European Quality Standards

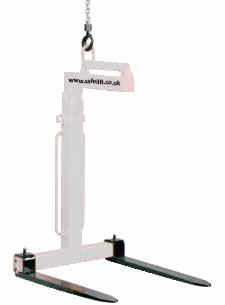

Safelift Manual Crane Fork The Manual Crane Fork comes with adjustable tines, adjustable height and a manual balancing system which engages when the shackle is manually hooked into the appropriate notch.

• All Crane Forks comply to all current European Quality Standards • For the transport of rings or coils, the fork tines are simply pushed together • Easily adjustable tines for all pallet sizes • Supplied with chain for securing the load Model

WLL

CFM1.0 CFM2.0 CFM3.0 CFM5.0

0-1000kg 0-2000kg 0-3000kg 0-5000kg

Adjustment of tines 350-900mm 400-900mm 450-900mm 500-1000mm

Tel: 01224 775774

Useable Height 1100-1600mm 1300-2000mm 1300-2000mm 1300-2000mm

Length of Tines 1000mm 1000mm 1000mm 1000mm

Section of Tines 100x30mm 120x40mm 120x50mm 150x60mm

Overall Height Weight 1390-1890mm 1640-2340mm 1670-2370mm 1700-2400mm

sales@safelift. co.uk

130kg 200kg 250kg 370kg

www.safelift.co.uk

Safelift Standard Products

41 Safelift Automatic Crane Forks

The Automatic Crane Fork comes with adjustable tines, height adjustability and self weight Balancing forks.

Adjustment of tines

WLL

Useable Height

Length of Tines

Section of Tines

CFA1.0

200-1000kg 350-900mm

1100-1600mm 1000mm 100x30mm

CFA2.0

400-2000kg 400-900mm

1300-2000mm 1000mm 120x40mm

CFA3.0

600-3000kg 450-900mm

1300-2000mm 1000mm 120x50mm

CFA5.0

500-5000kg 500-1000mm 1300-2000mm 1000mm 150x60mm

Overall Height 14201920mm 16552355mm 17202420mm 17102410mm

Weight 140kg 220kg 280kg 380kg

Crane Attachments

Model

• Maintenance free • Highly visible safety colour • For the transport of rings or coils, the fork tines are simply pushed together • Easily adjustable tines for all pallet sizes

Safelift Big Bag Spreader Beams

Model

WLL

Working Width (Z)

B

C

D

Weight

TTB1/1090

1000kg

750-800mm

210mm 60mm

110mm

27kg

TTB1/1320 TTB2/1090 TTB2/1320

1000kg 2000kg 2000kg

900-970mm 750-800mm 900-970mm

210mm 60mm 240mm 75mm 240mm 75mm

110mm 135mm 135mm

33kg 42kg 52kg

Tel: 01224 775774

Safelift Standard Products

The Big Bag Spreader Beam is designed to lift and transport large bags safely and securely. They are manufactured as a 4-point spreader beam in a fixed frame. The construction incorporates 4 hooks with safety latches that allow fast loading and unloading of the bags.

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

42

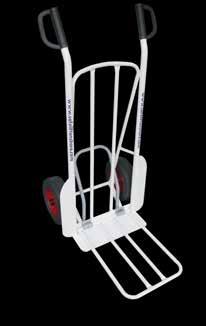

Safelift Easy Tilt Sack Truck Easy Tilt Sack Truck has been specifically designed to provide an ergonomic and robust sack truck for more frequent and demanding work environments. Its easy tilt mechanism is foot operated using the operators own body weight to tilt the loaded sack truck.

Model > SOLETST Sack Trucks

• Max. Load 250kg • Unique Easy Tilt Mechanism • Big Puncture Proof Tyres - foam filled • Ergonomic Handles • Solid & Folding Toe Plates • Supplied with Certificate of Conformity

Innovative Design Reduces operator effort by 50%

Safelift Standard Products

Safelift High Lift Easy Tilt Sack Truck High Lift Easy Tilt Sack Truck has been specifically designed to provide a safe and controlled lifting and lowering system combined with our unique easy tilt mechanism. A simple hand winch lifts the load to a height of 1m. The unit improves ergonomics in manual handling loads up to 100kg for a wide variety of applications including loading/unloading vehicles & stacking shelves.

Model > SOLHLST • Max. Load 100kg • Manually operated via hand winch • Unique Easy Tilt Mechanism • Big Puncture Proof Tyres - foam filled • Lift Height 1020mm • Minimum lift 30mm • Platform size 540 long x 400mm deep • Weight 39kg • Supplied with Load Test Certificate

Tel: 01224 775774

sales@safelift. co.uk

www.safelift.co.uk

Safelift Standard Products

43 Non-powered Access Platforms Model> SOLPECO3.5X Model> SOLECO4.2X

• 2 new models available: 3.5m and 4.2m working heights • Simple one man operation

New Products

• Compact and easy to manoeuvre in tight spaces • Offshore specification ATEX Zone 1 & 2 models available

Safelift are official distributors of Master Mover electric powered tugs. Safelift’s offshore knowledge and expertise enables the supply of ATEX powered tugs designed to meet client’s specifications for use in demanding and hazardous environments. UK designed and manufactured, the powered tugs provide a safe, controlled and efficient load moving solution.

• Move wheeled loads from 50kg to 120tonnes, safely and efficiently • Unrivalled range of battery powered, pedestrian operated electric tugs • Offshore specification ATEX Zone 1 and 2 models available

Please contact us with your request!

Safelift Standard Products

Powered Tugs

Safelift Standard Products

44

Atex Rated Equipment

Safelift Atex Rated Equipment Safelift manufacture and supply a wide range of manual and mechanical handling equipment for use in explosive atmospheres.

All equipment supplied in conformance with the ATEX Directive 2014/34/EU. The equipment can be certified for either Zone 1 or Zone 2 hazardous area use with the full specification to meet clients site specific requirements.

Contact us with your request

Safelift Standard Products

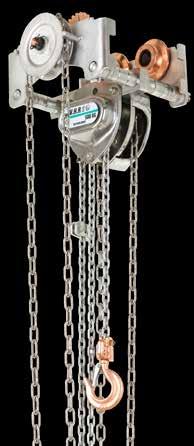

Air Hoists

Manual Hoists

Forklifts

Barrel Handling

Utility Vehicles Tel: 01224 775774

Trucksco.uk & Trolleys sales@safelift.

www.safelift.co.uk

Safelift Greenfield & Brownfield

Project Supply Services - Full Technical Procurement Phase 1 - Fixed Lifting Equipment

Phase 2 - Specialist Manual Handling Equipment

Phase 3 - General Manual Handling Equipment

Phase 4 - General Deck Equipment Fit Out

> A: Safelift Offshore Ltd Aquithie Road Kemnay Aberdeenshire Scotland AB51 5PD

www.safelift.co.uk > T: +44 (0) 1224 775774 > E: sales@safelift.co.uk
