RSVM DESIGN STUDIOS
ARCHITECTURE | INTERIOR | LANDSCAPE | PLANNING
“SPACE, LIGHT AND ORDER… THOSE ARE THINGS THAT MEN NEED JUST AS MUCH THEY NEED BREAD AND PLACE TO SLEEP.”
- LE CORBUSIER
Studio is based on pure aesthetic and function of a building and its impact on everyday life. We create dynamic forms and experiment with materials to create wonderful architecture that create a pause for people passing by. With a radical expression that gives us motivation to research its application in a sustainable manner.
We analyse site Contextual and constraints, socio-cultural and environmental issues. And evaluated and optimized in relation to the needs and demands of the brief and desire of the client. In addition to utilizing deep analytical research, our designs are creative and innovative, challenging existing thinking and presenting optimized and innovative solutions.
ARCHITECTURE | INTERIOR | LANDSCAPE | PLANNING
I am architect Sachin Maurya graduated with a bachelor’s degree in architecture (B.Arch.) in 2021 from Mumbai University L.S Raheja School of Architecture. A keen interest in residential projects such as bungalows, villas, and two to three story residences. Capable of producing architectural drawings and managing construction of various projects either interior or architectural. I intend to start this design firm so that I can take responsibility on my own and challenge myself to do good work. I am committed to good design and client satisfaction.
ABOUT

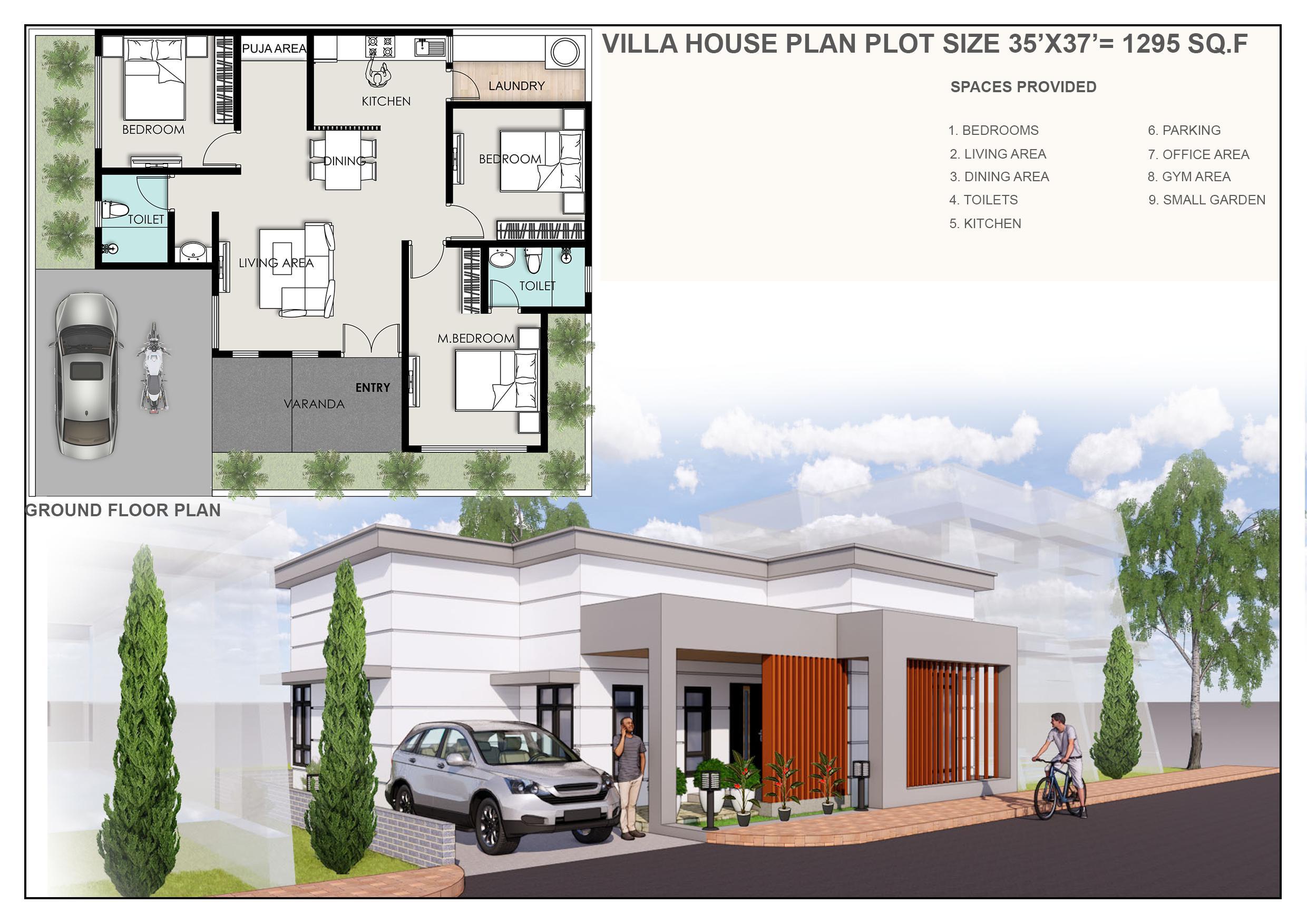

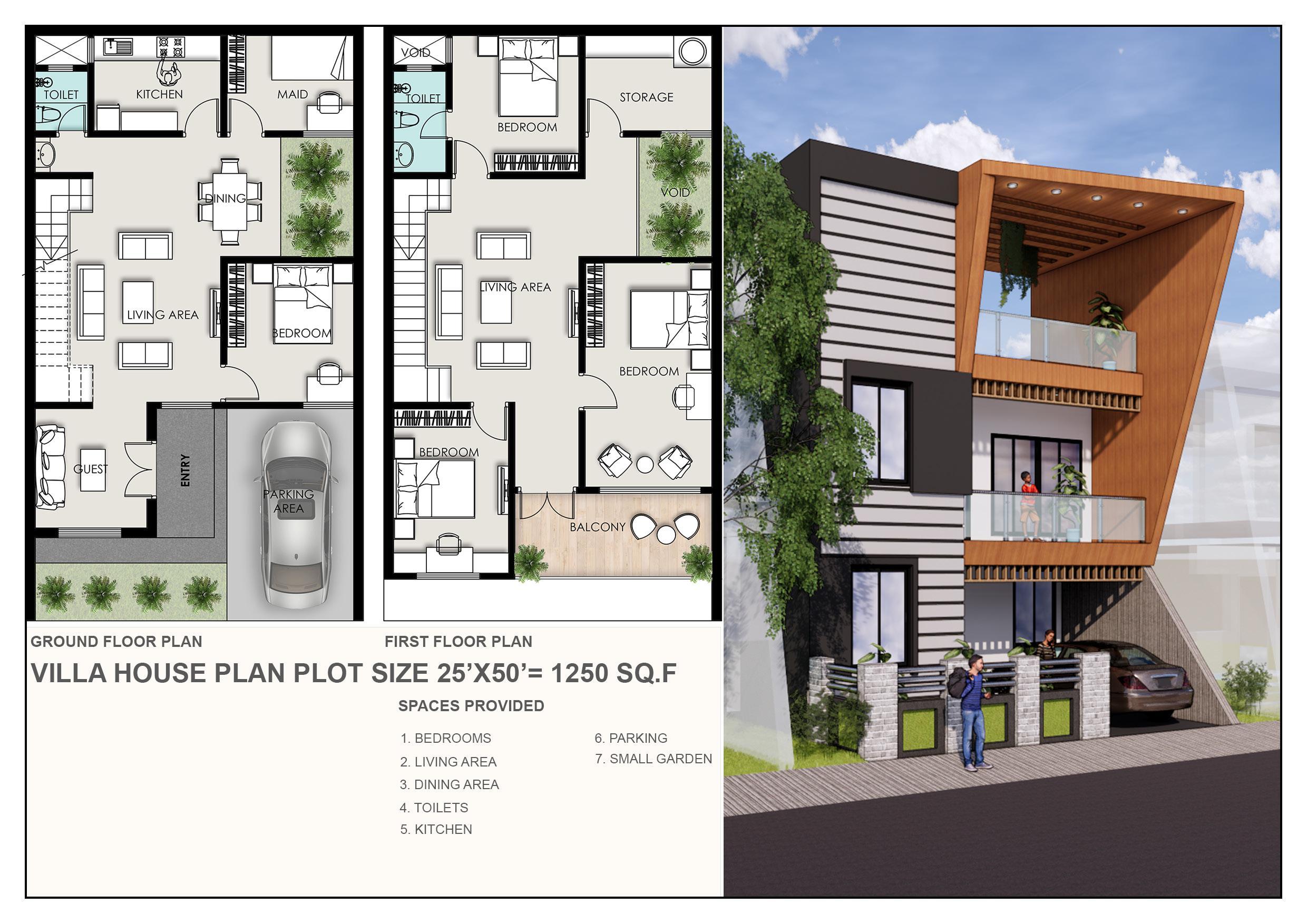

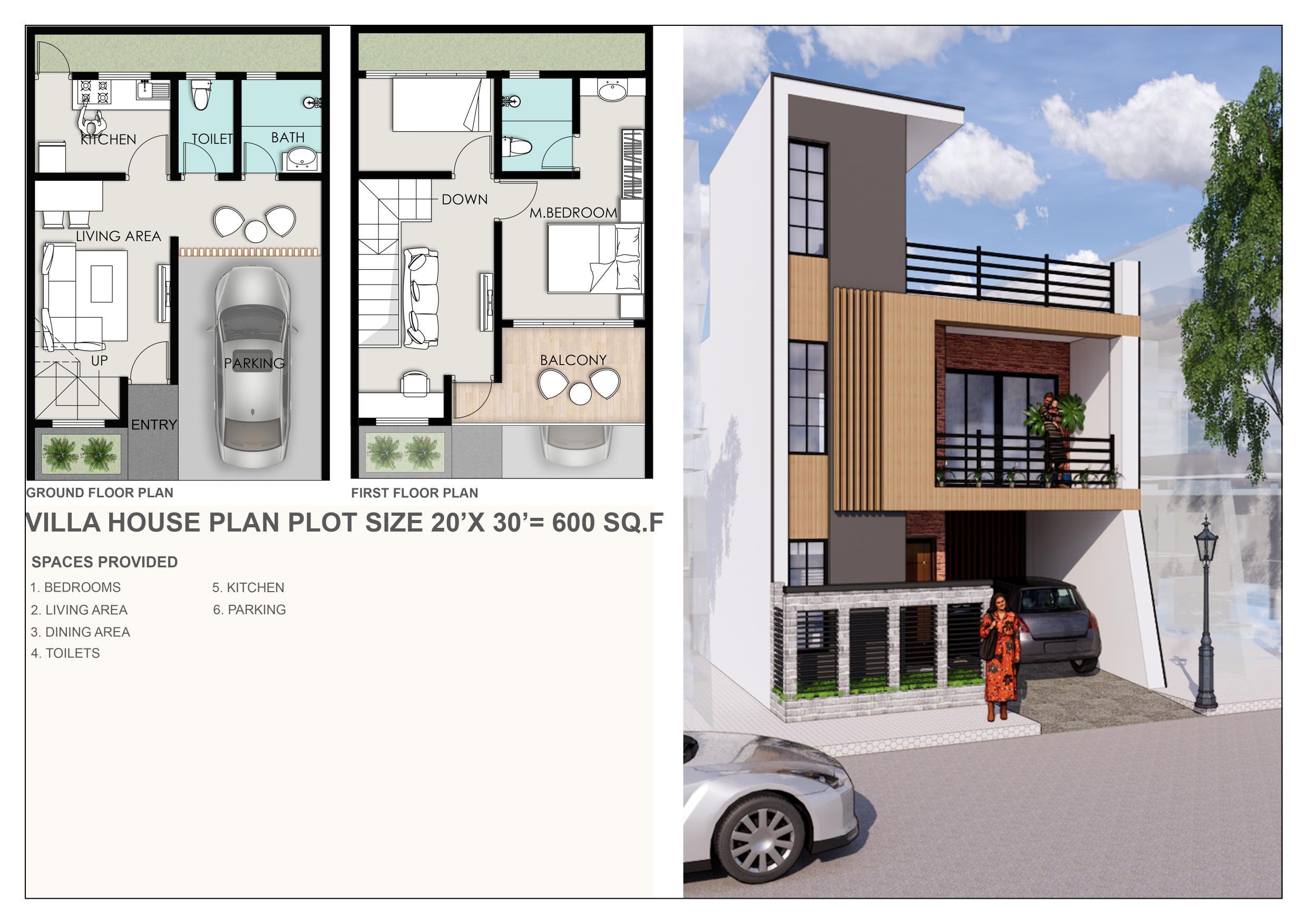

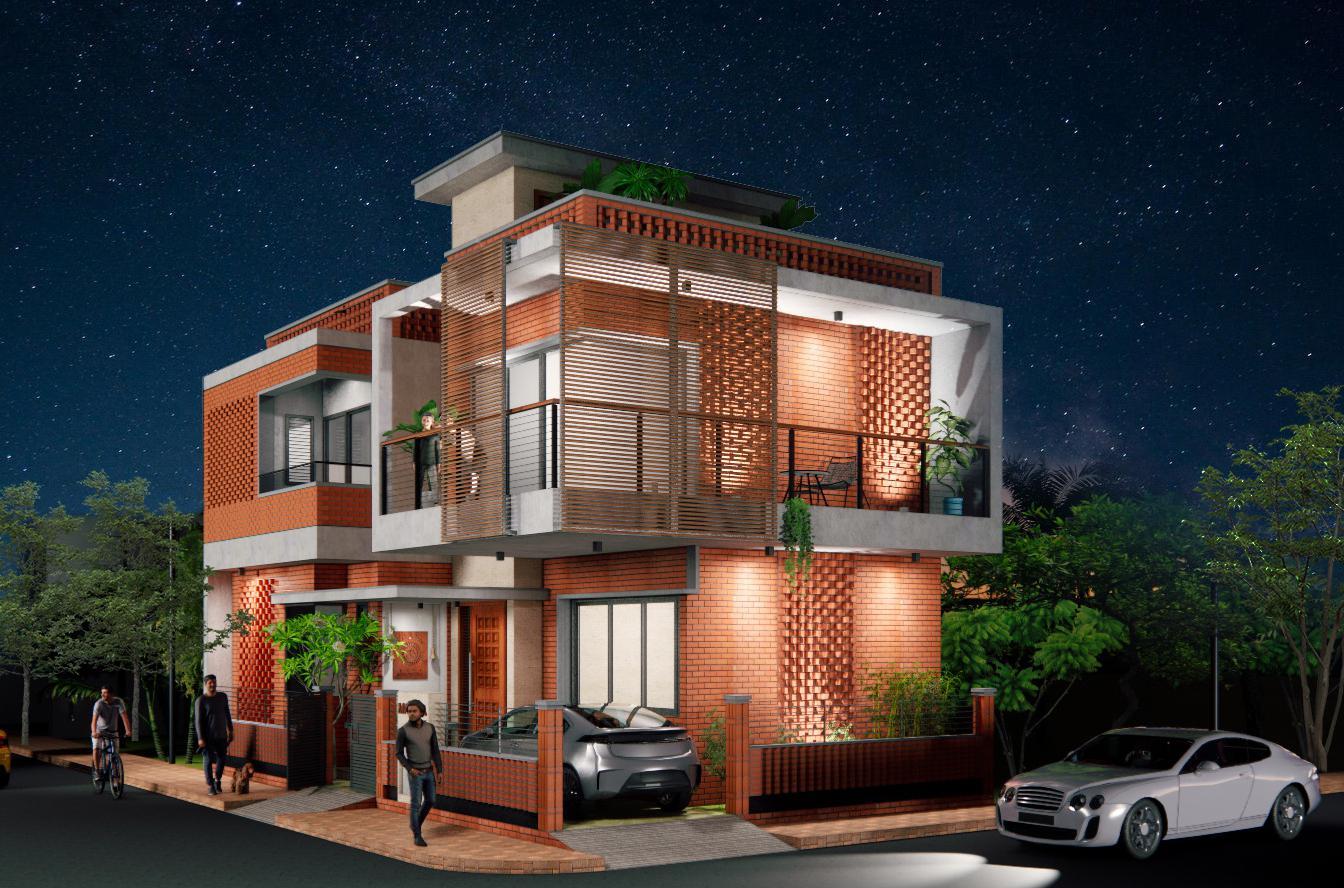

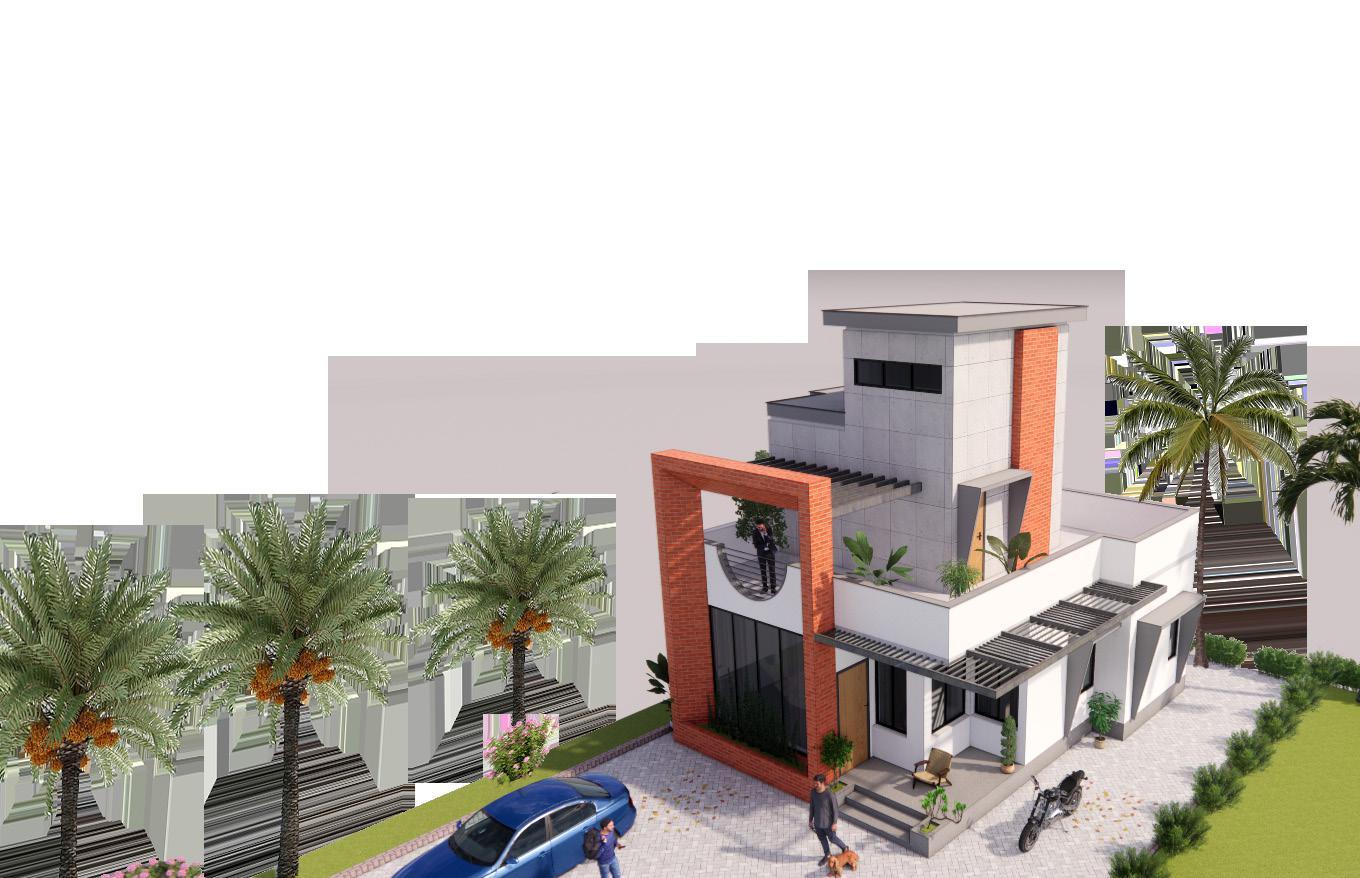

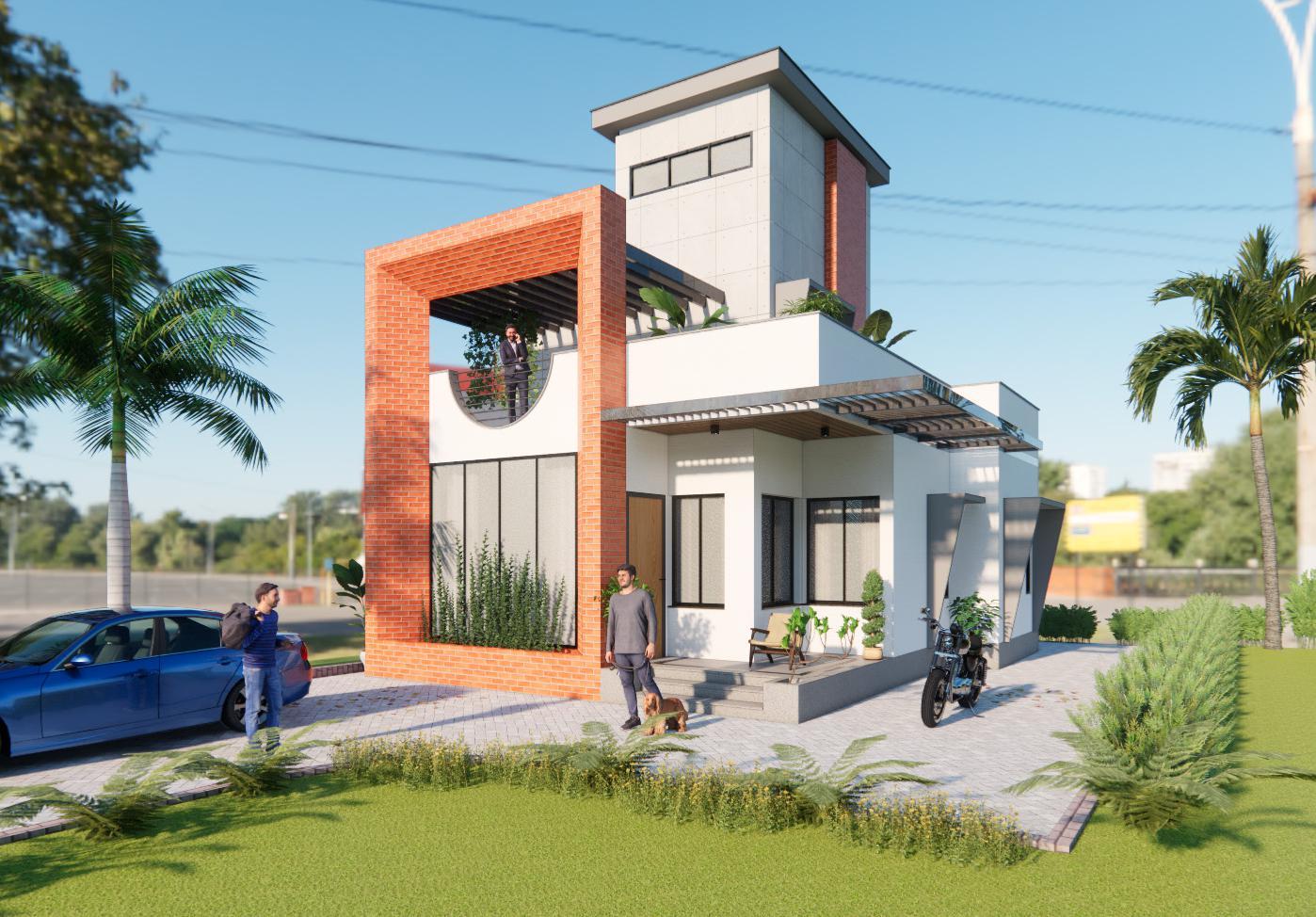

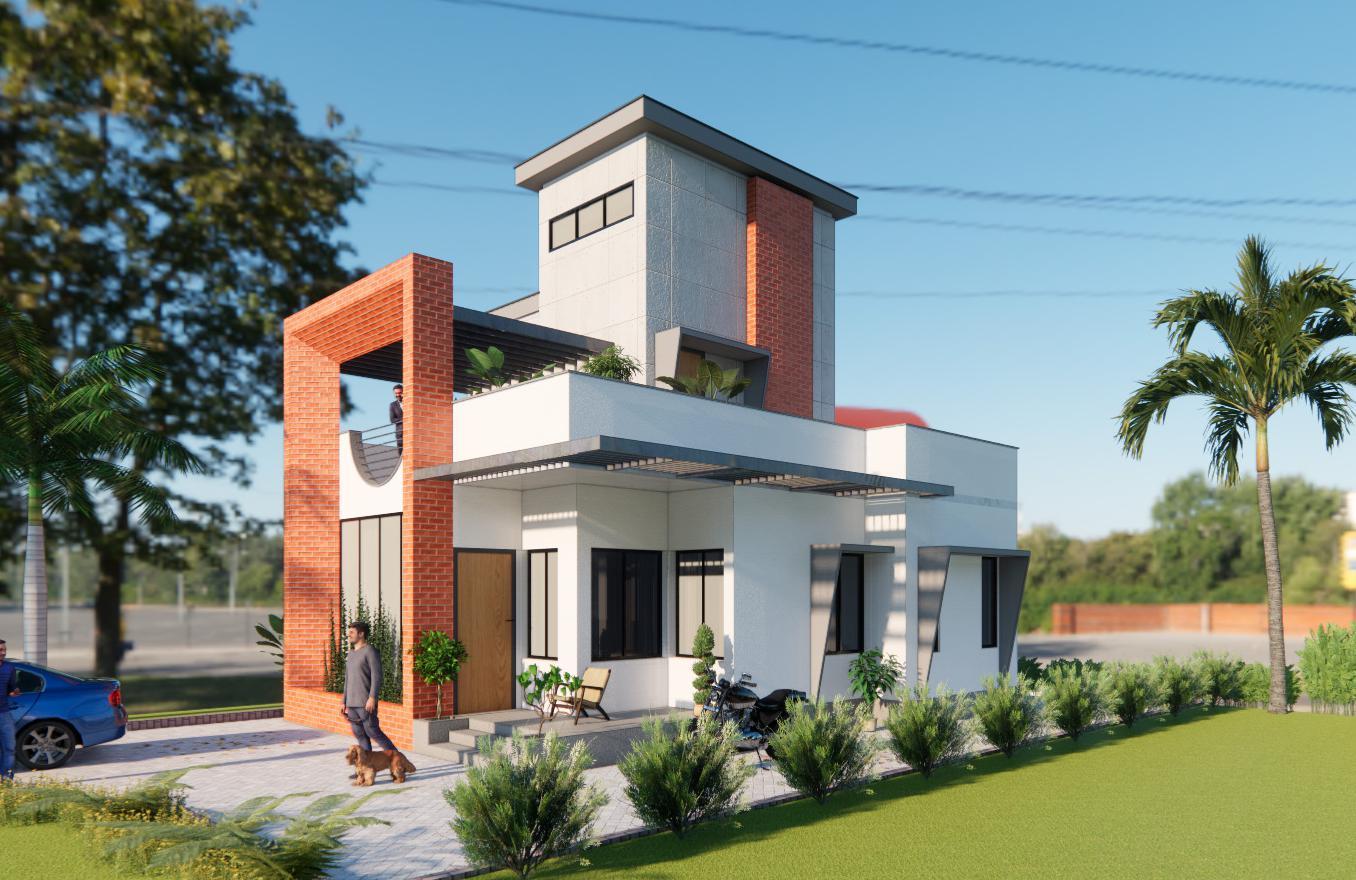

BUNGALOW HOUSE DESIGN IN AREA OF ONLY 1000 SQ.FT.
Brick and concrete are used for the exterior of the house, creating a raw look. Brick patterns are used to highlight the flat surfaces, adding depth to the walls. The large cantilever balcony allows the house to be a part of the surrounding nature.

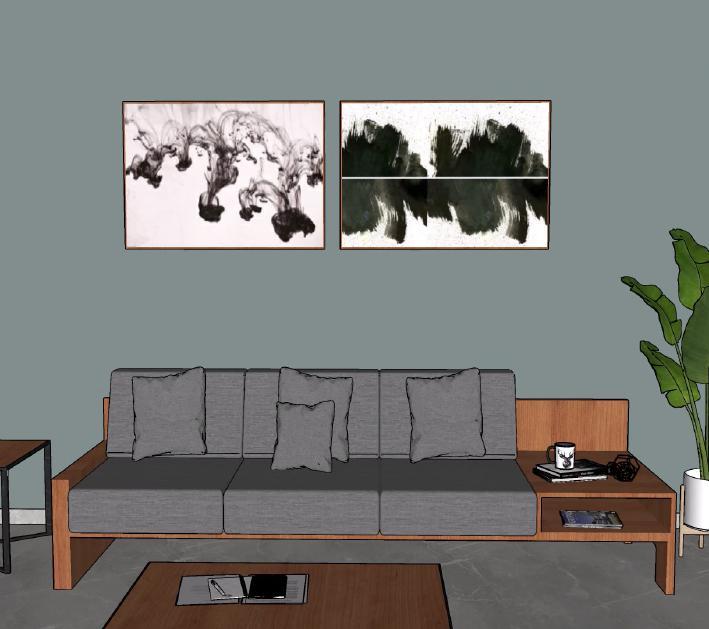

FURNITURES ARE DESIGNED IN SIMPLE AND MODERN LOOK .
GROUND FLOOR PLAN

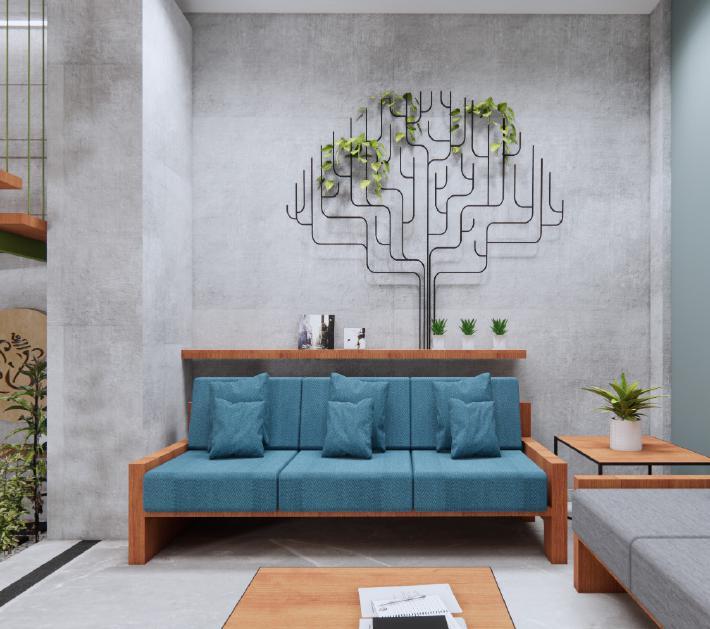

WASTE STEEL RODS DESIGNED INTO A TREE LIKE STRUCTURE FOR AN ART INSTALLATION.

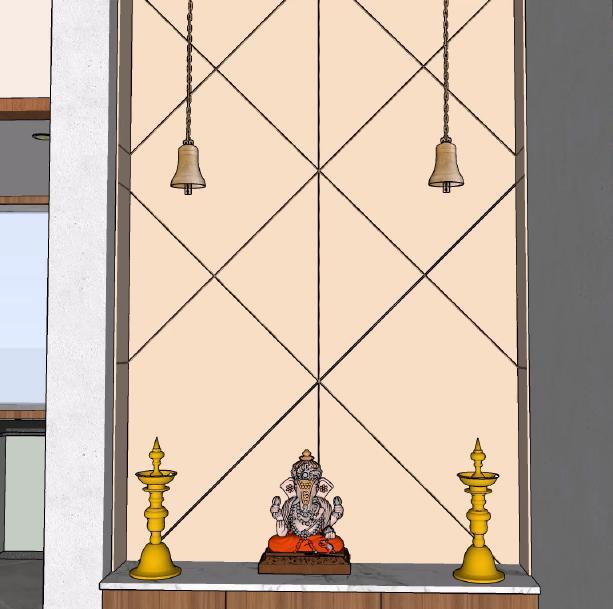

PUJA AREA

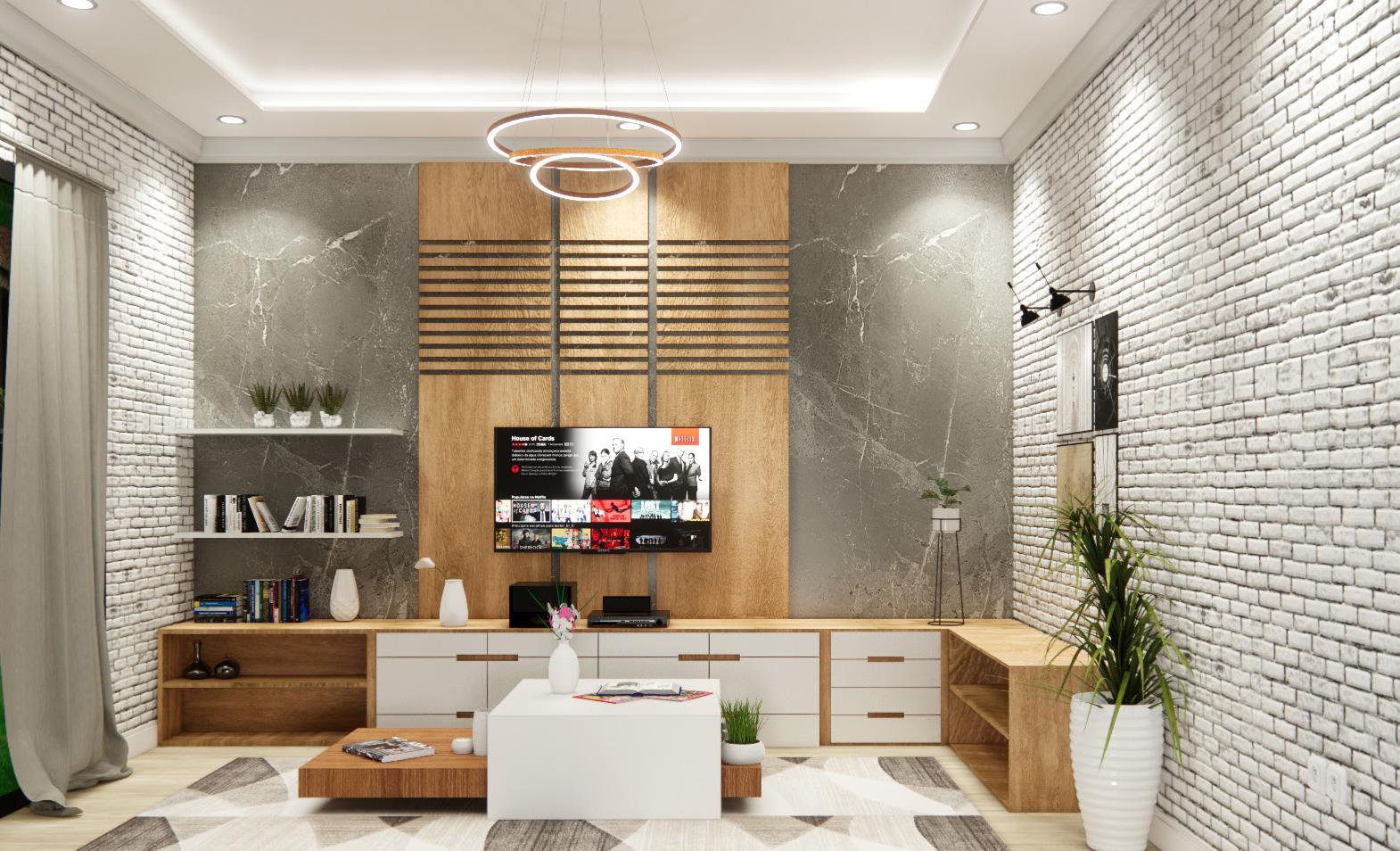

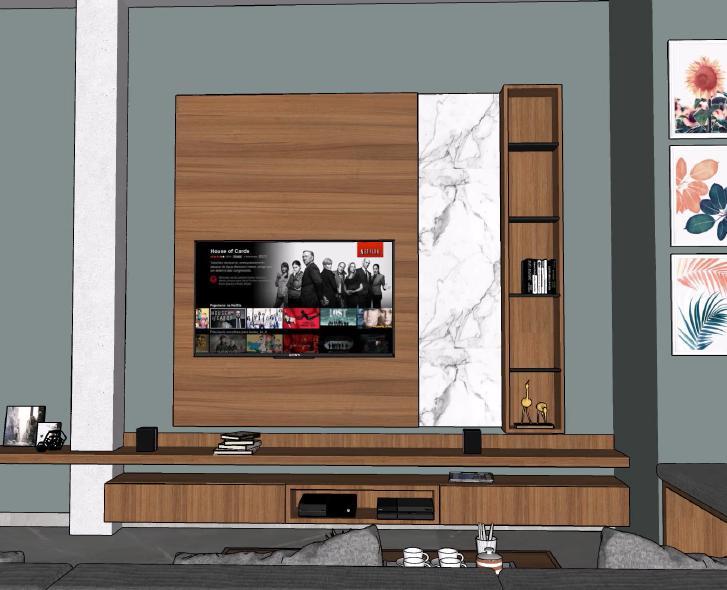

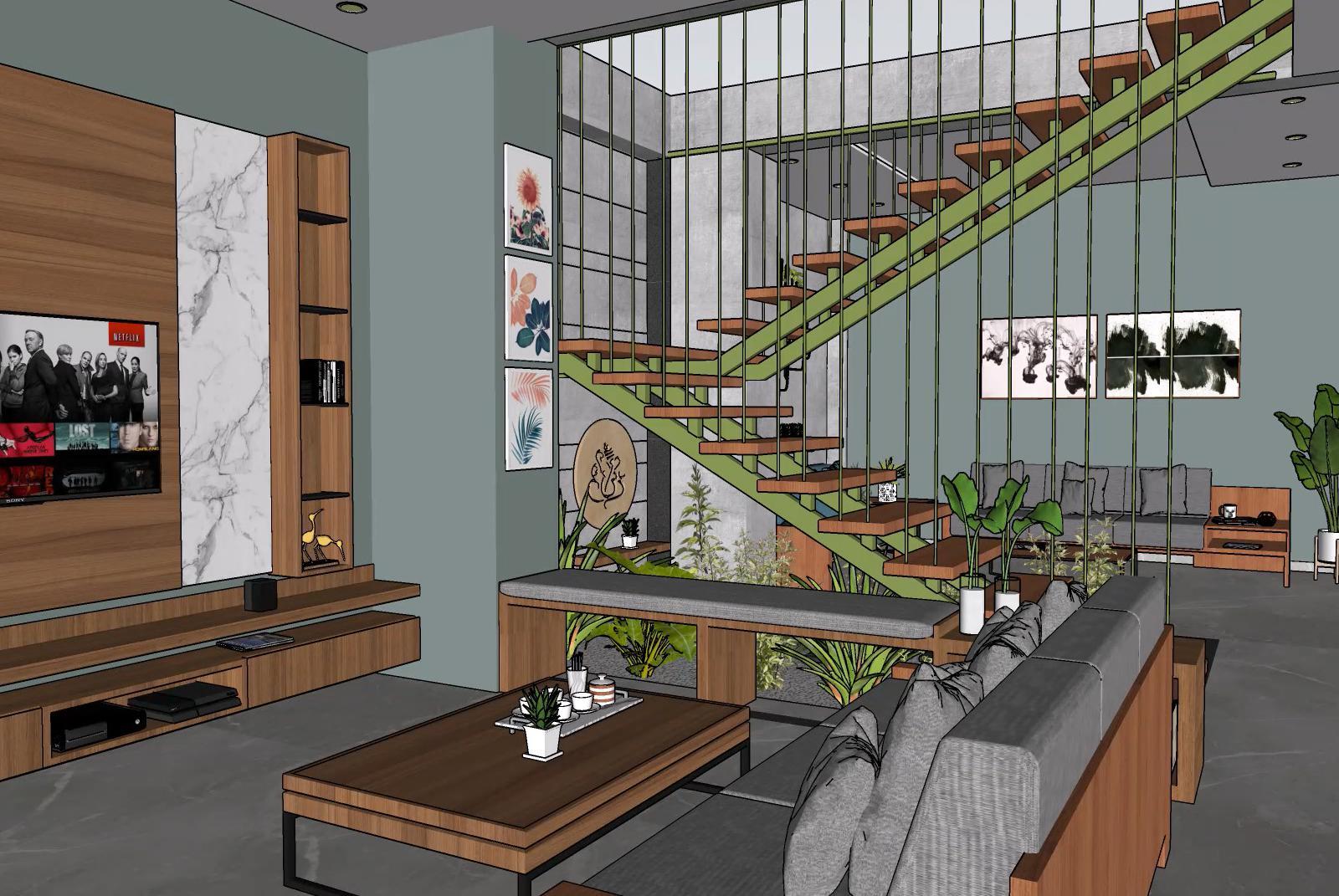

TV UNIT SETUP MINIMALISTIC DESIGN APPROACH

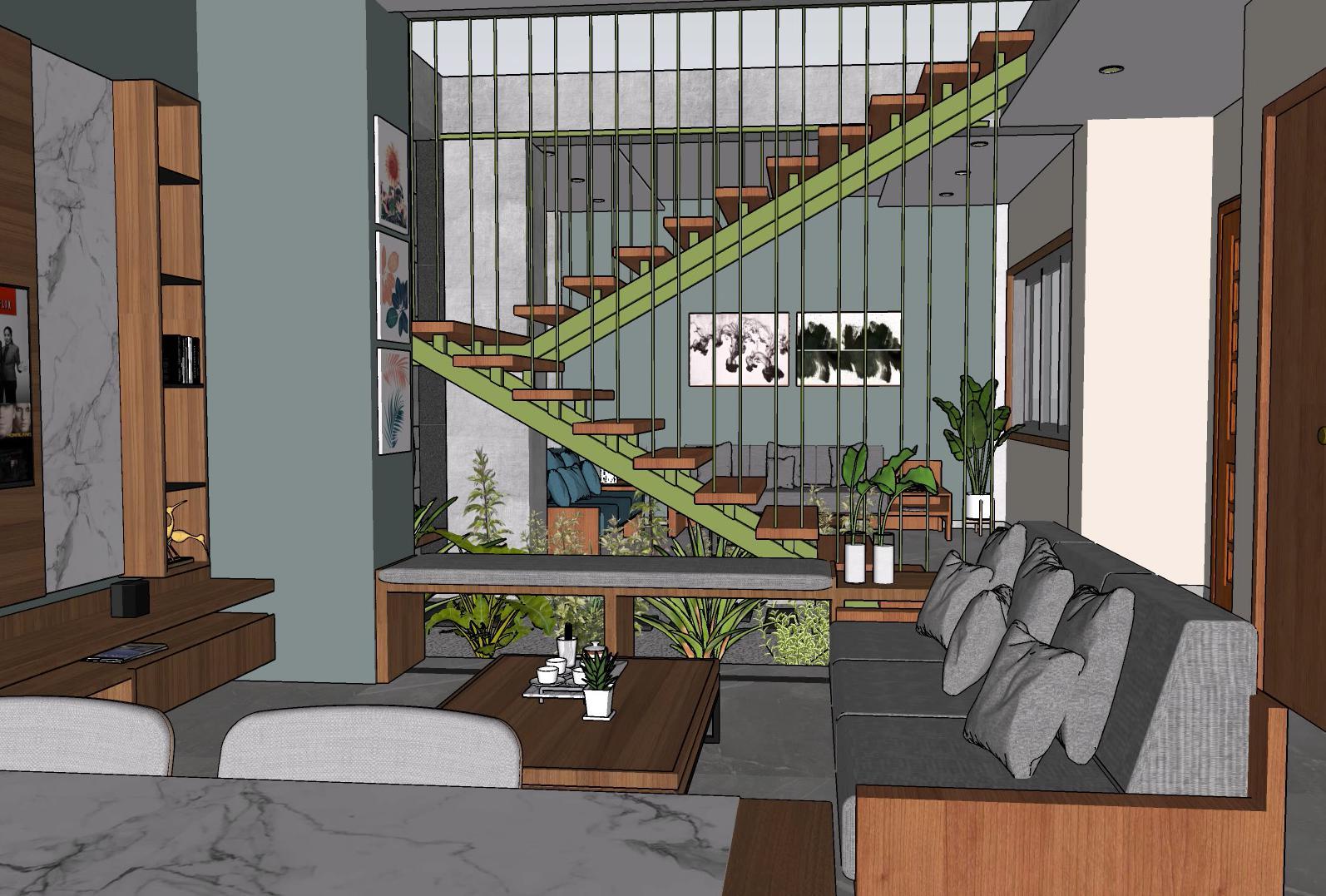

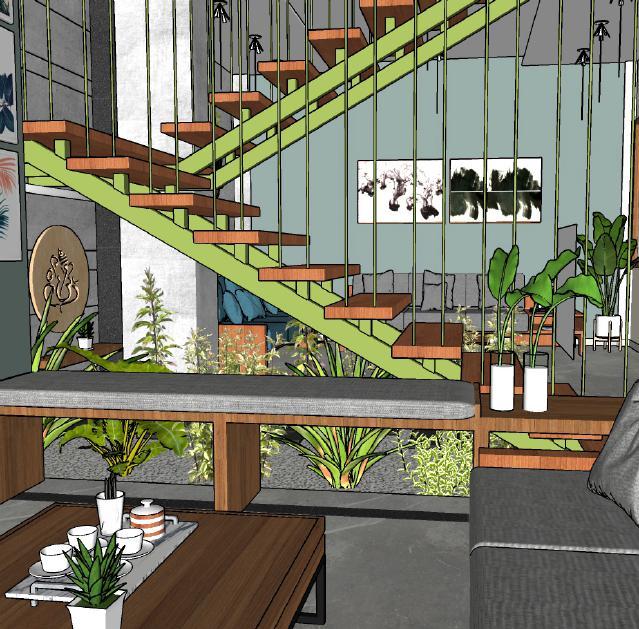

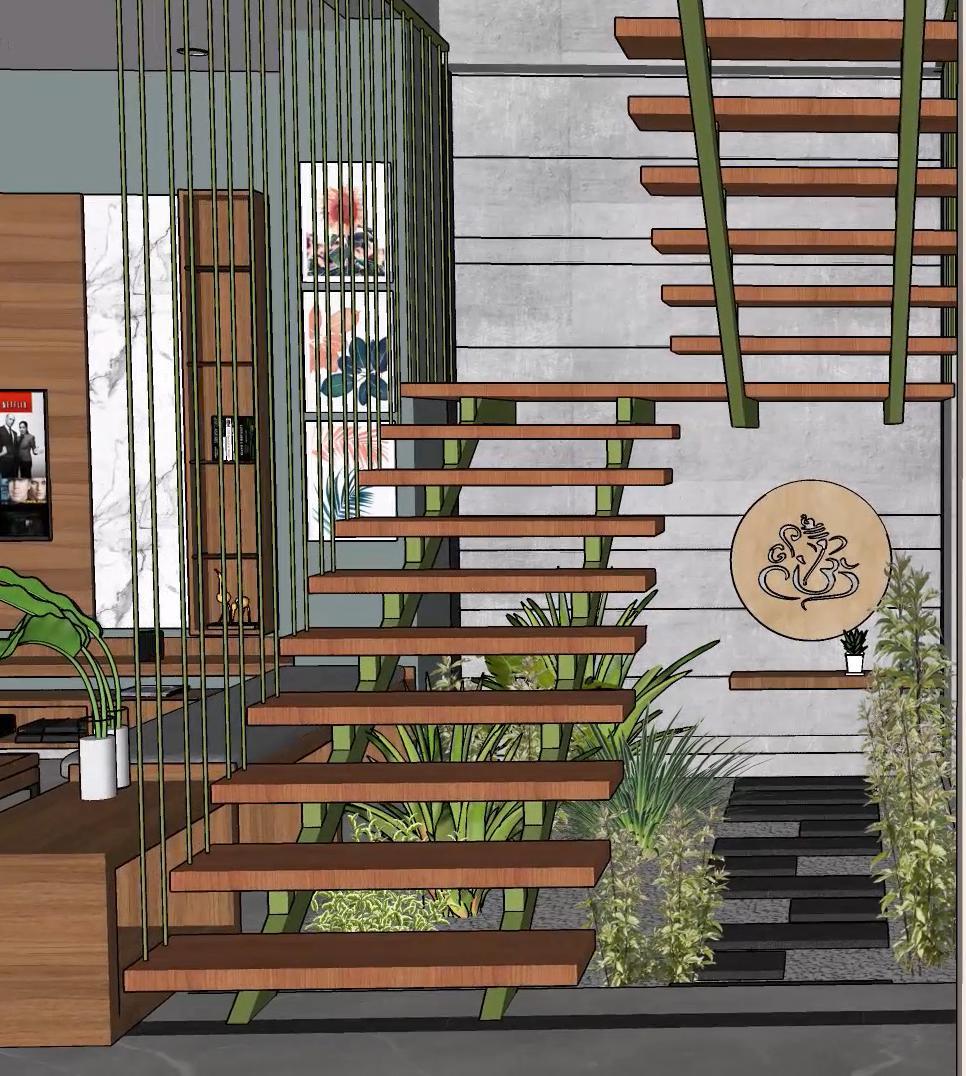

M.S STAIRCASE IS USED TO ACHIEVE OPENNESS INSIDE THE HOUSE.
BUILD IN SEATING
DRESSING AREA

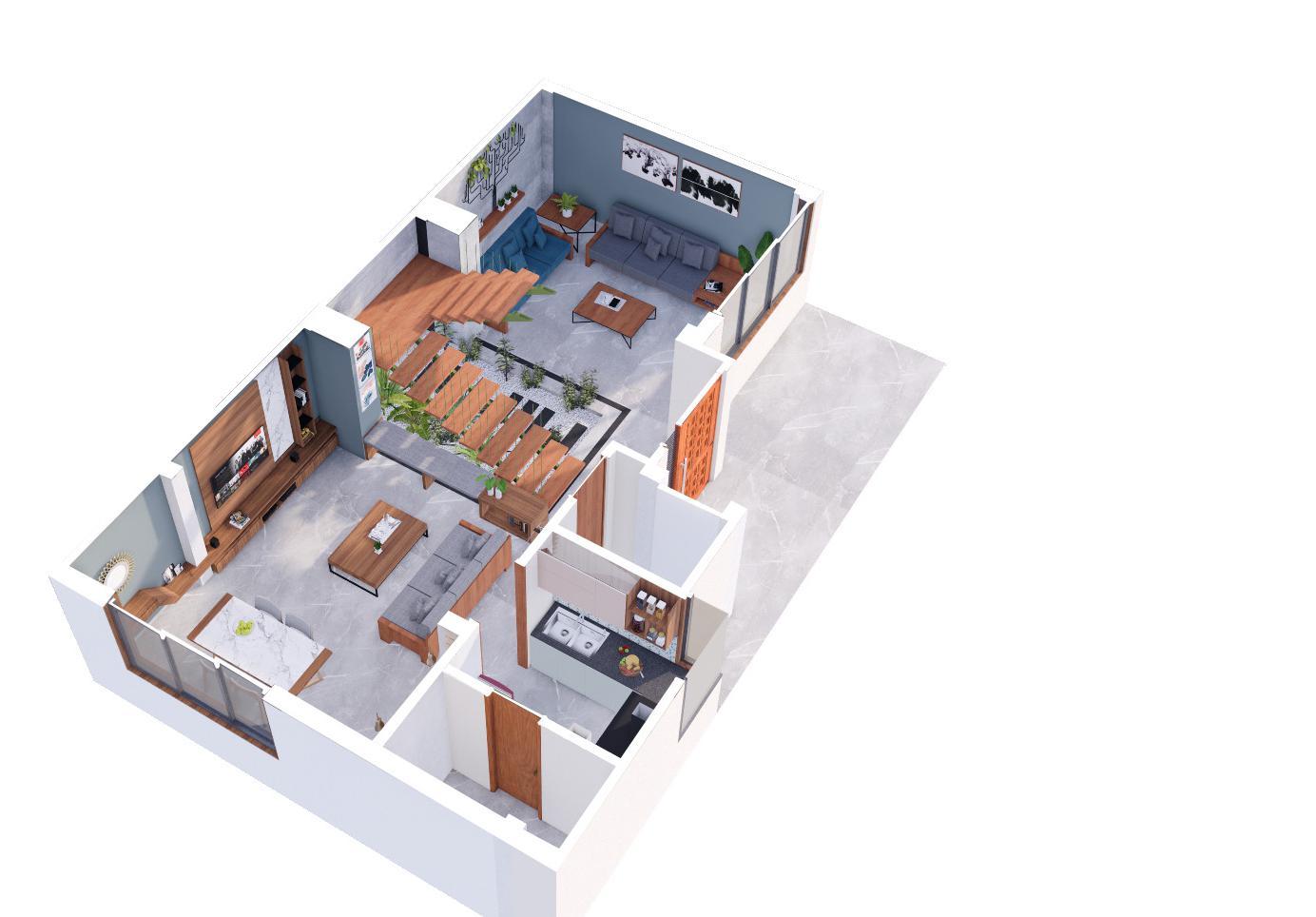

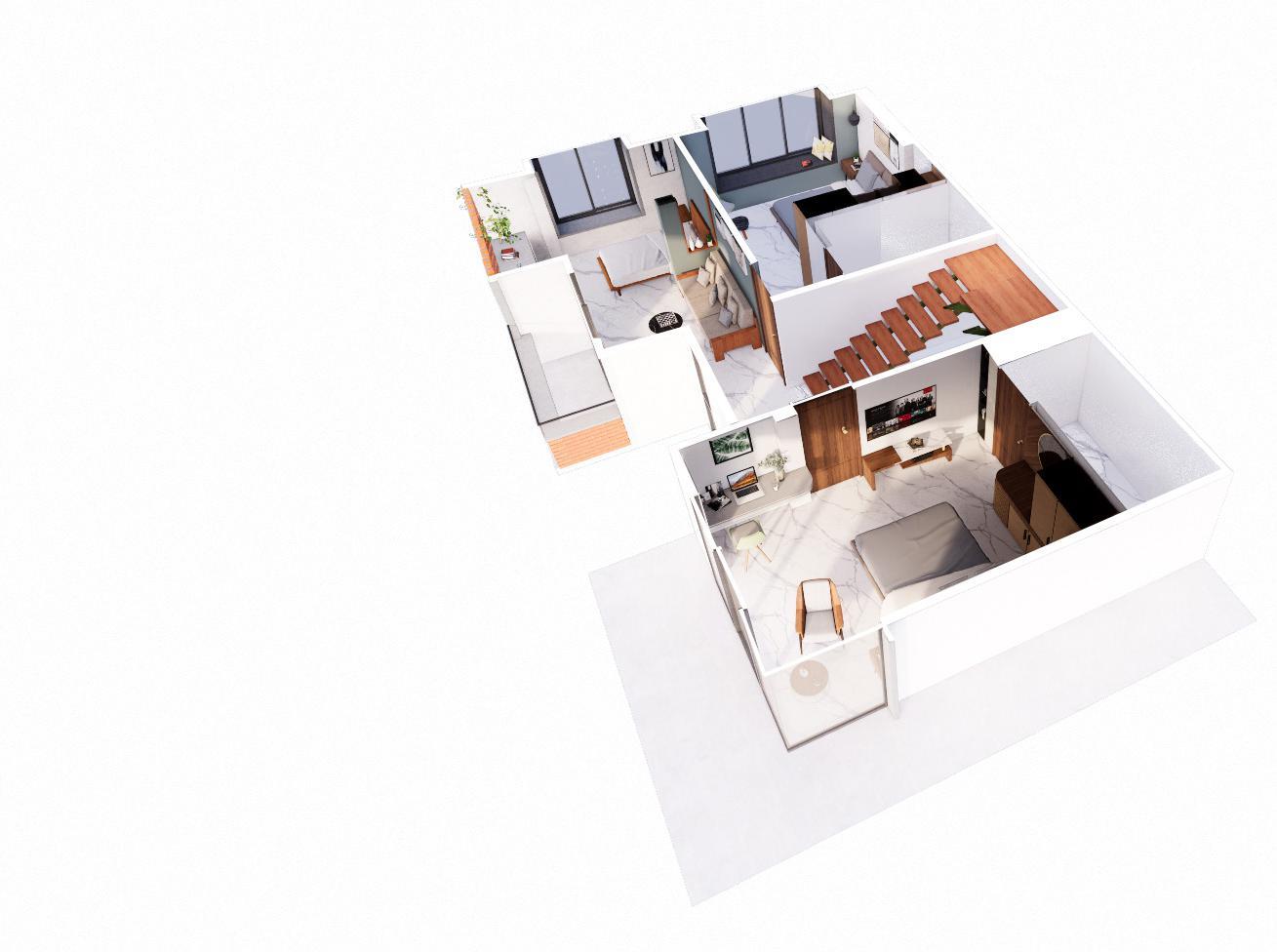

ISOMETRIC VIEW GROUND FLOOR

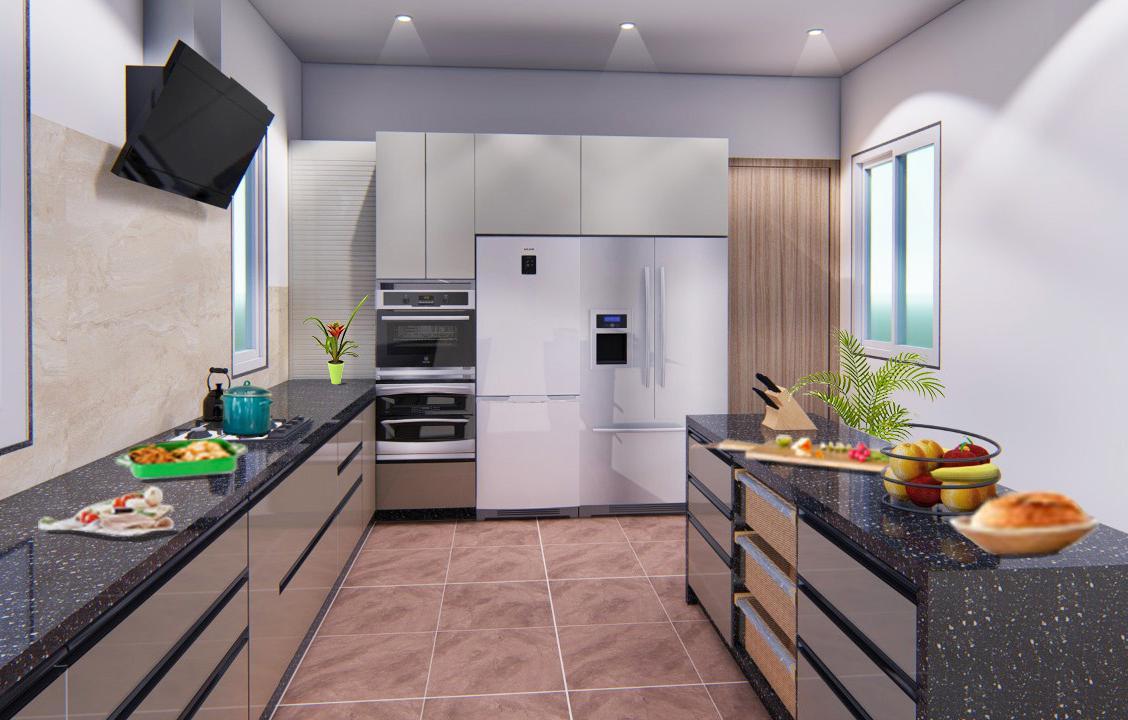

A CORNER WINDOW IN THE MODULAR KITCHEN ALLOWS IT TO OPEN UP TO THE OUTSIDE, AND IT IS VISUALLY CONNECTED WITH THE LIVING ROOM AND DINING AREA.

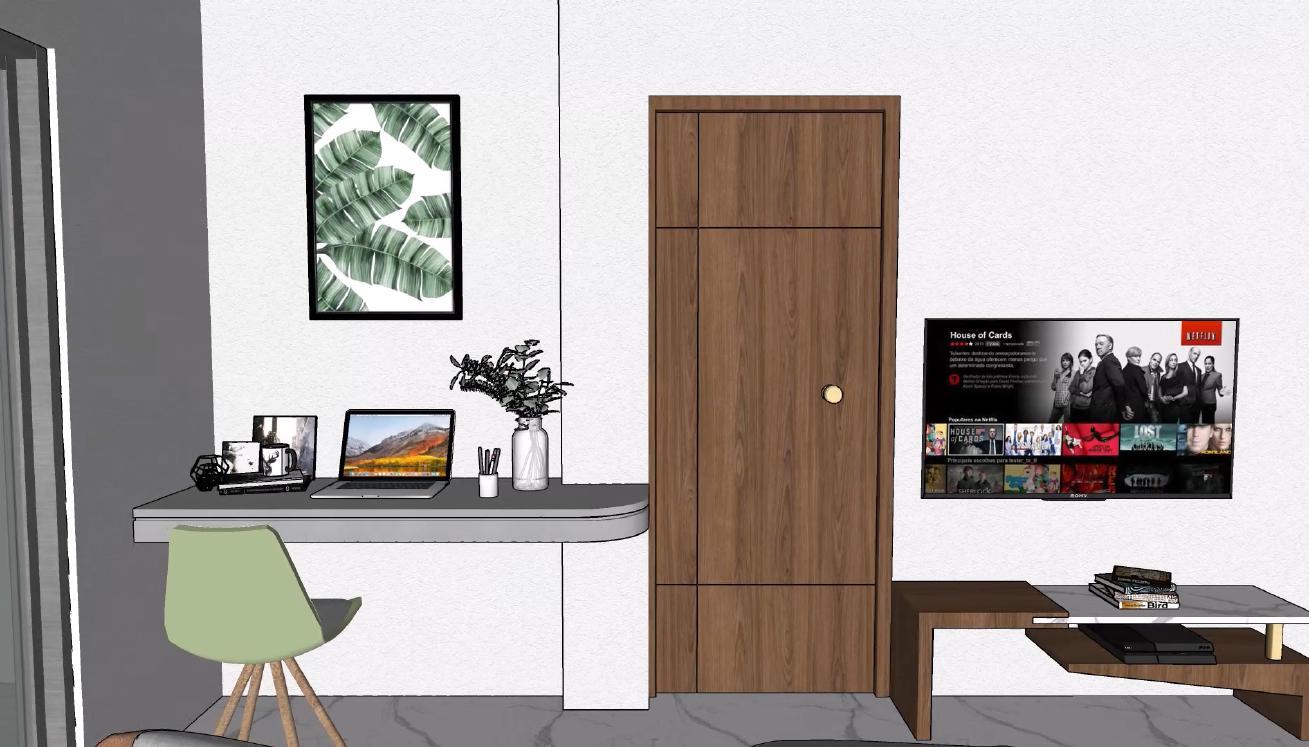

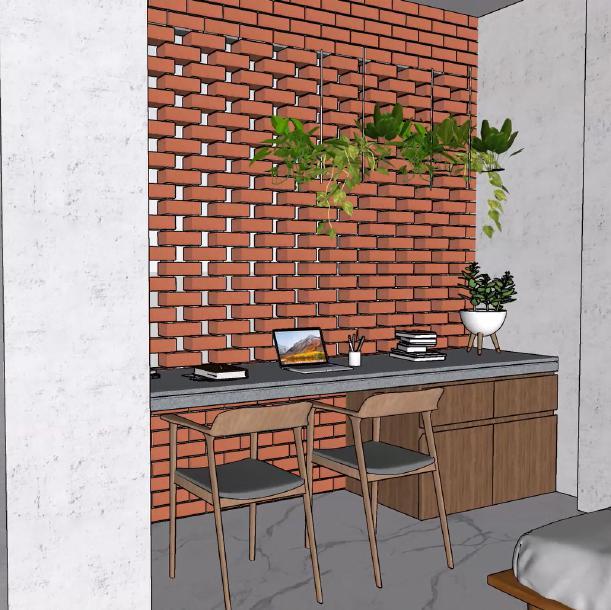

THE STUDY AREA IS SITUATED IN AN AREA WITH BRICKWORK THAT PROVIDES A NATURAL AND CALM ENVIRONMENT.

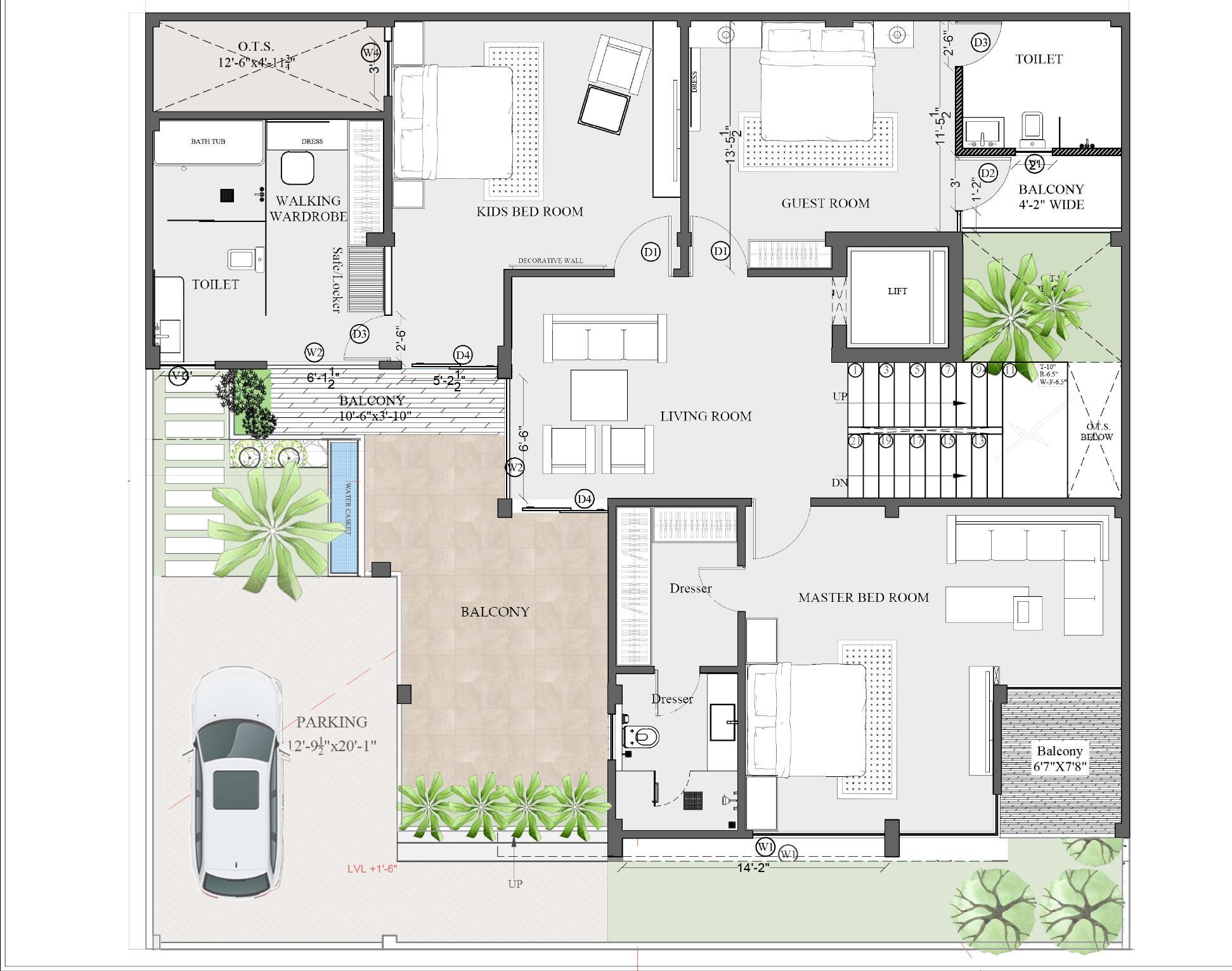

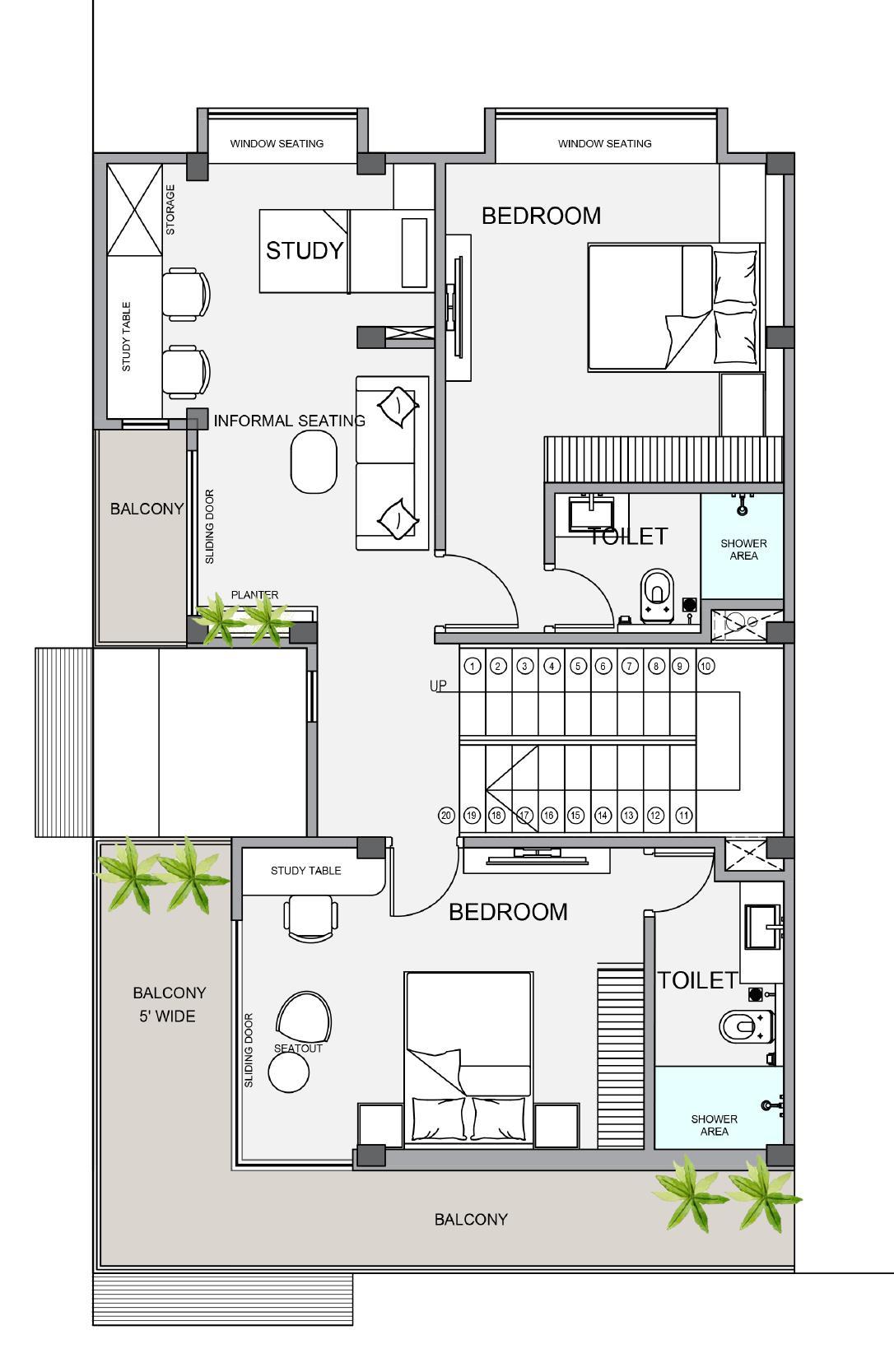

FIRST FLOOR PLAN

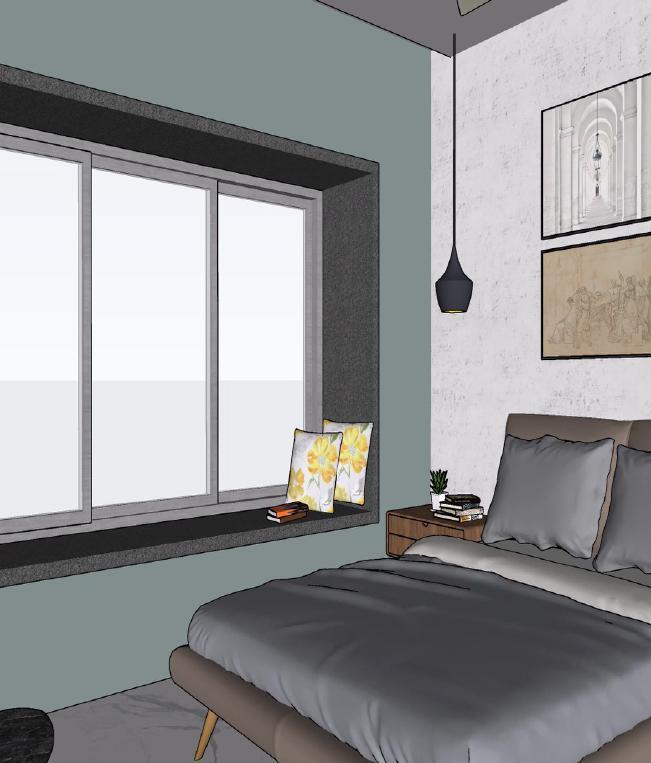

MASTER BEDROOM
BEDROOM -2
ISOMETRIC VIEW
1ST FLOOR PLAN BEDROOM 2

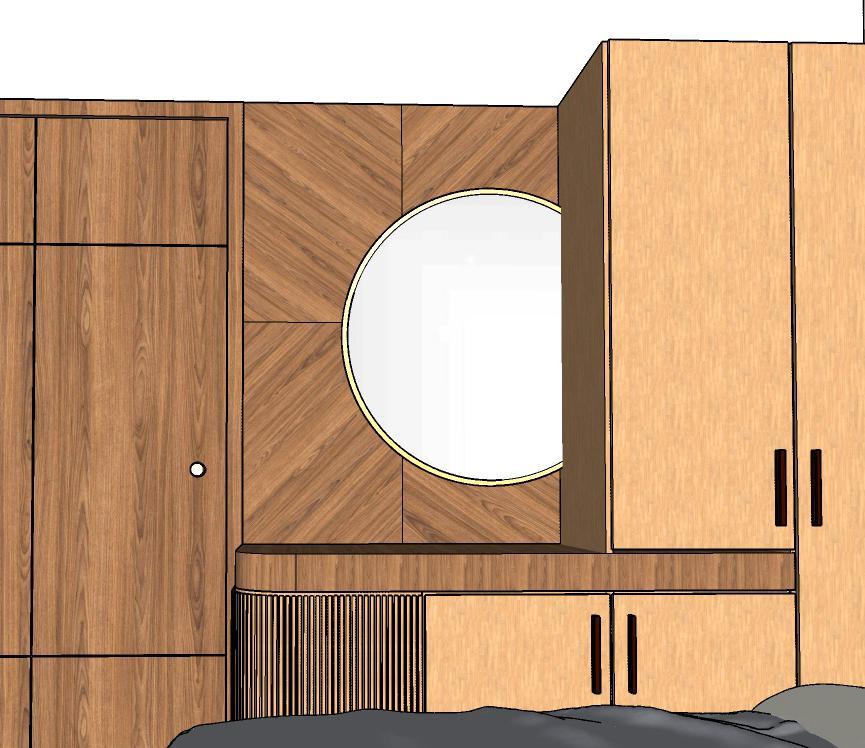

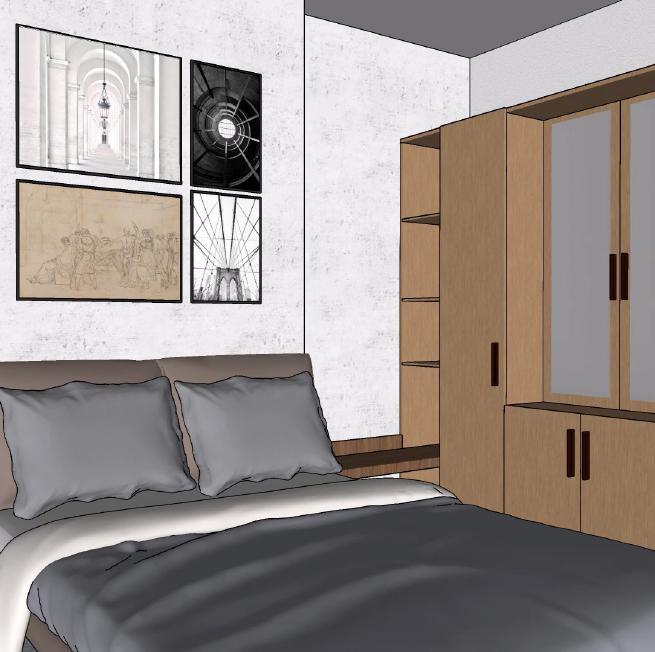

BEDROOM 3 MASTER BEDROOM WARDROBE AND DRESSING TABLE

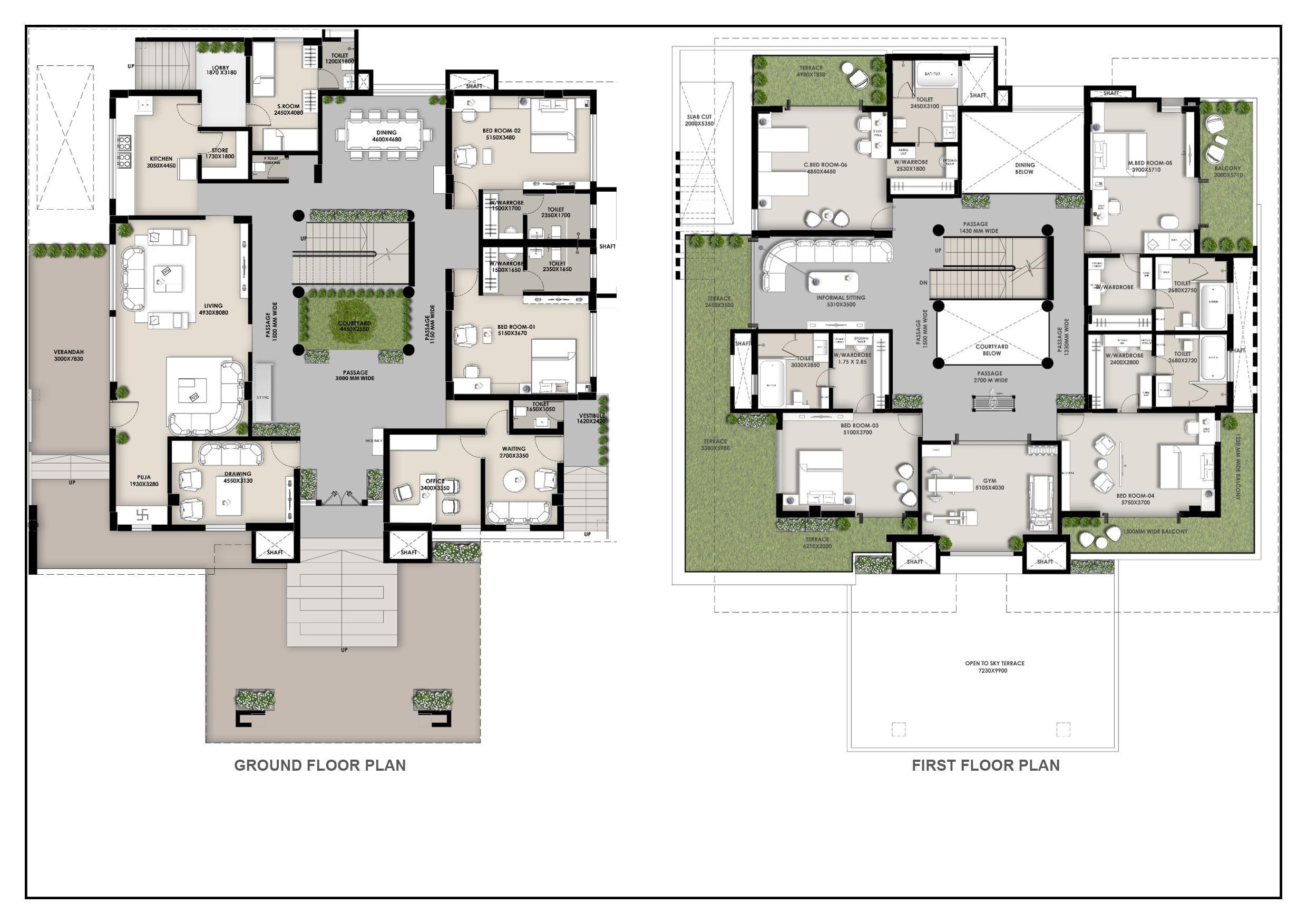

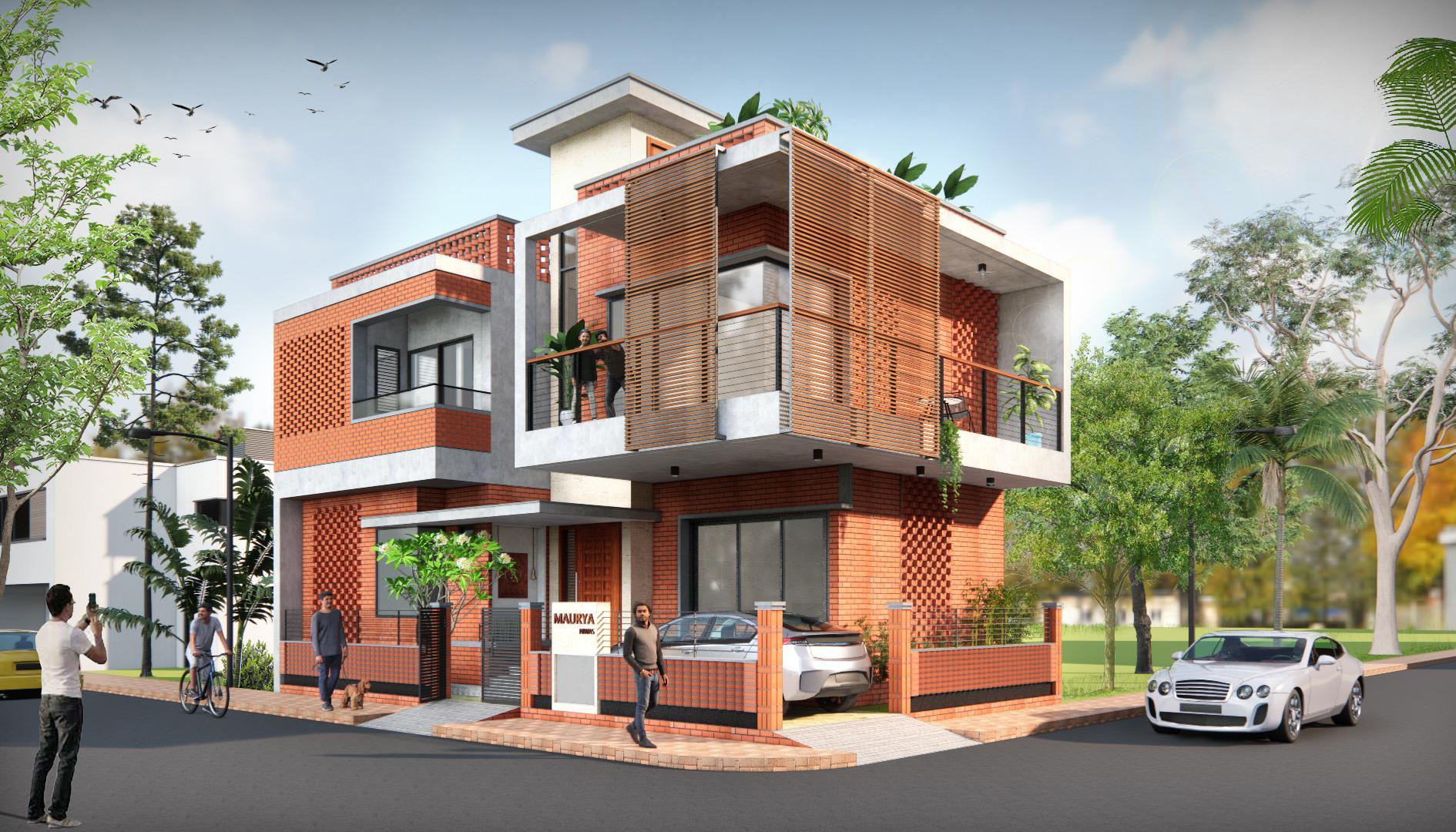

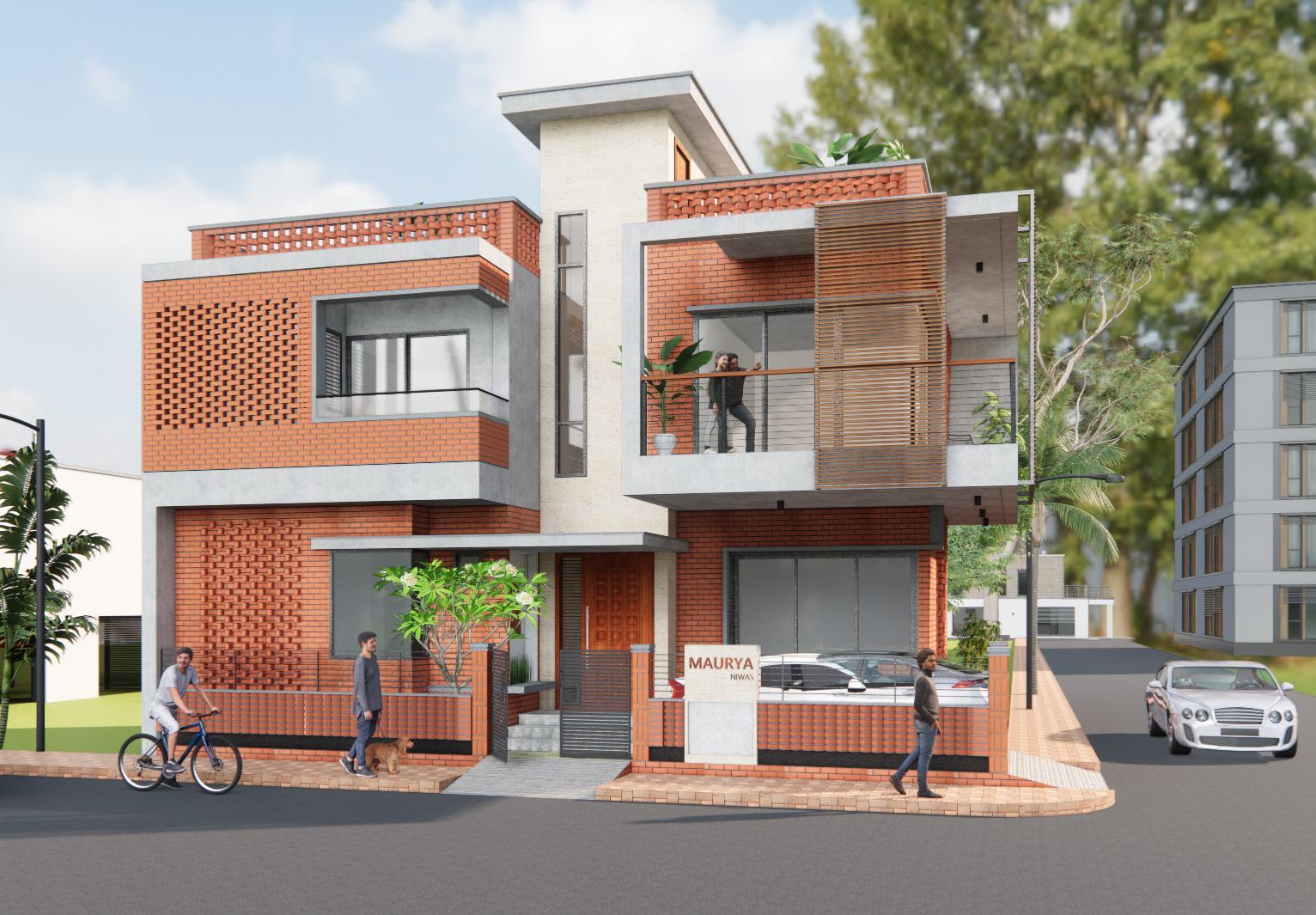

BUNGALOW HOUSE DESIGN FOR LARGE FAMILY

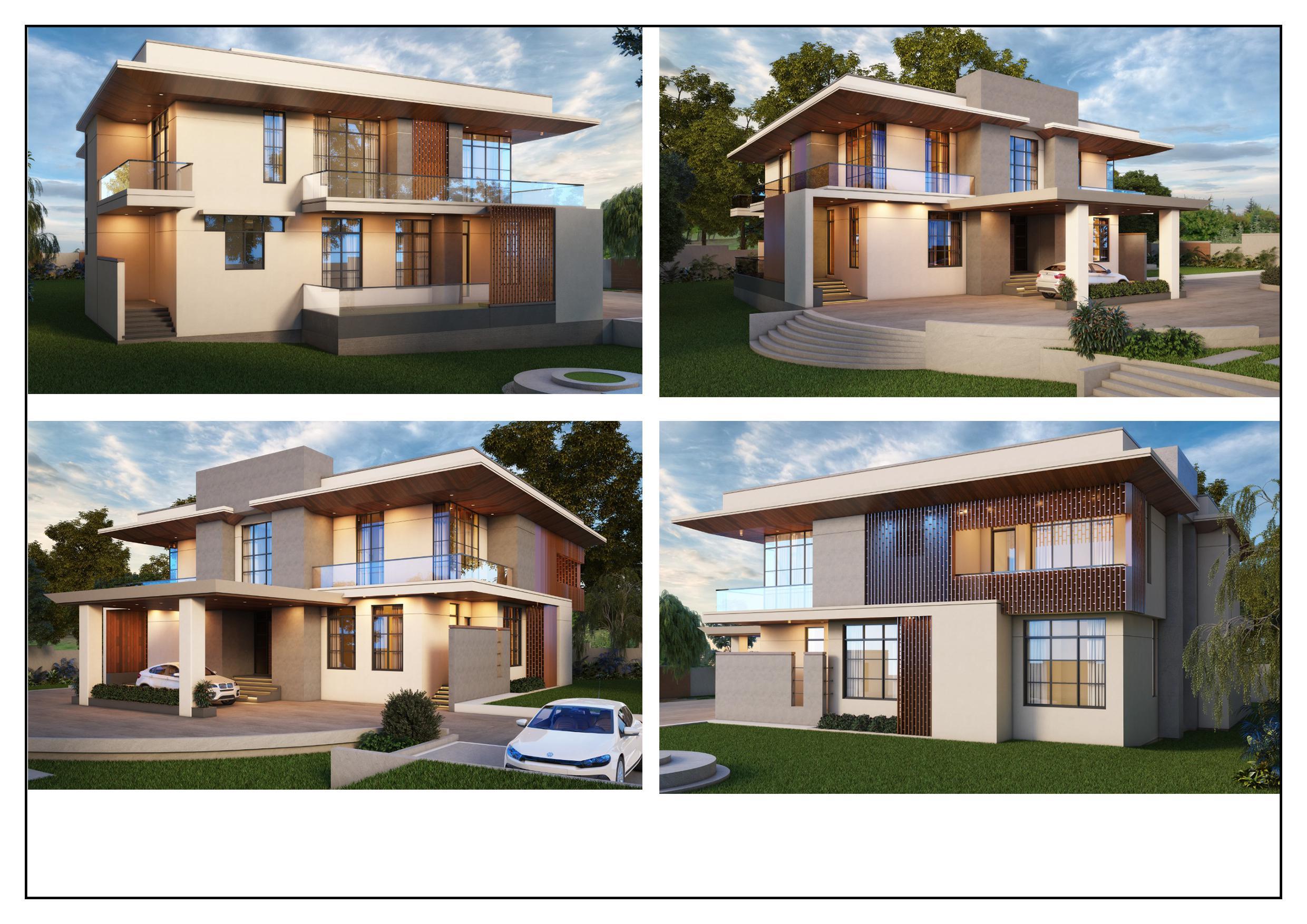

VIEW -3 VIEW -4 VIEW -1 VIEW -2

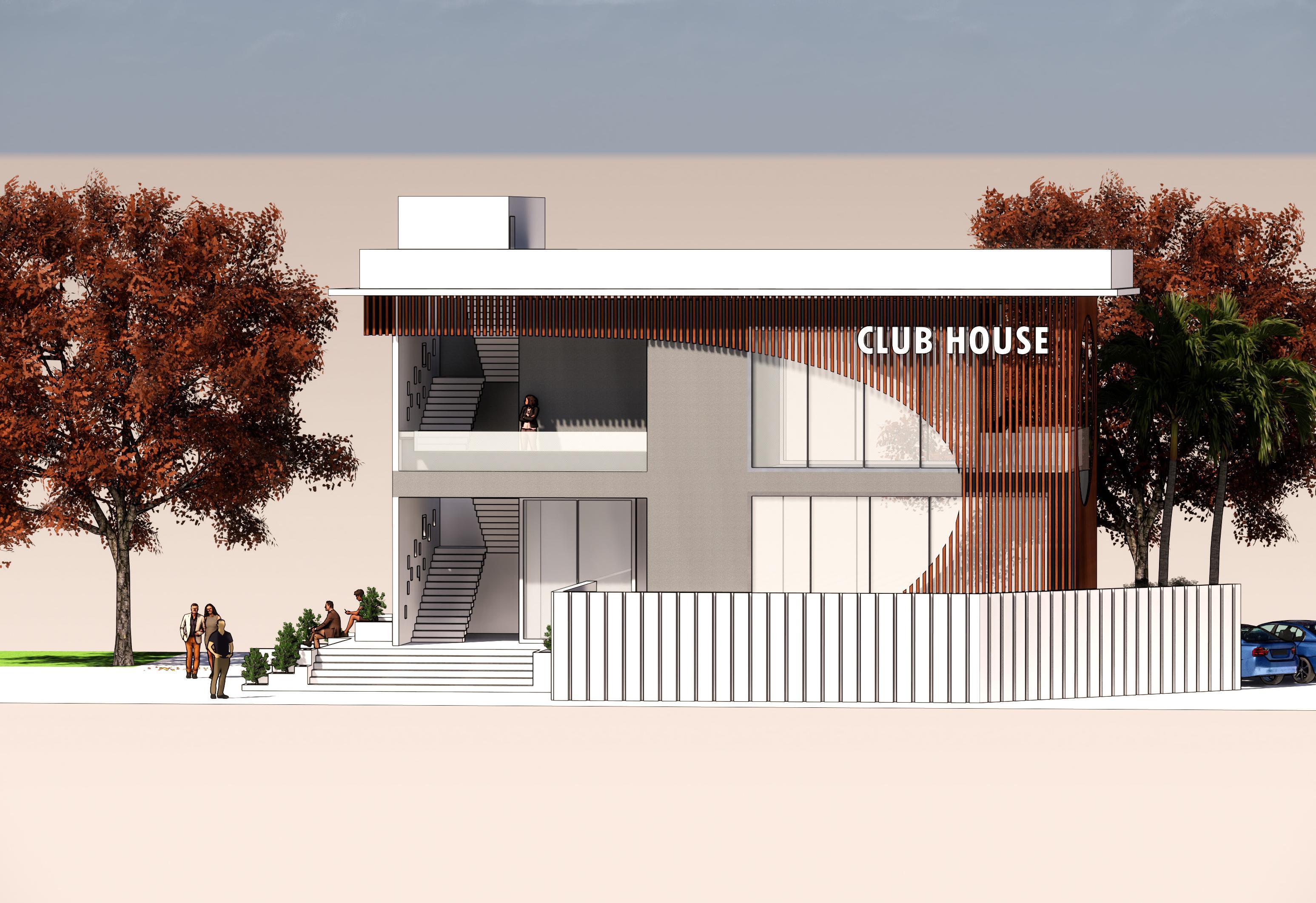

ELEVATION DESIGN OF A CLUB HOUSE
WORKING DRAWINGS
WORKING DRAWING OF A VILLA PROJECT BASIC PLANS, SECTIONS AND ELEVATION SHOWN AS SAMPLE WORK.
0.23M (9") THK BRICK WALLS SAND PLASTER CONTINUE TILL 3.30M (10'-10") CEILING HEIGHT.
0.23M (9") THK BRICK WALLS CONTINUE TILL 3.30M (10'-10") CEILING HEIGHT.
0.15M (6") THK BRICK WALLS SAND PLASTER CONTINUE TILL 3.30M (10'-10") CEILING HEIGHT.
0.23M (9") THK BRICK WALLS CONTINUE TILL 3.30M (10'-10") CEILING HEIGHT.
0.15M (6") THK BRICK WALLS
SAND PLASTER CONTINUE TILL 3.30M (10'-10") CEILING HEIGHT.
(9") THK BRICK WALLS CONTINUE TILL 3.30M (10'-10") CEILING HEIGHT.
0.15M (6") THK BRICK WALLS SAND PLASTER CONTINUE TILL 3.30M (10'-10") CEILING HEIGHT.
0.23M (9") THK BRICK WALLS CONTINUE TILL 3.30M (10'-10") CEILING HEIGHT.
SAND PLASTER
UP BEDROOM 01 3.15M x 3.20M 10'-5" x 10'-6" OTLA BEDROOM 02 2.90M x 3.50M 9'-6" x 11'-6" TOIILET BATH 1.50M x 1.00M 4'-11" x 3'-11" 1.50M x 1.00M 4'-11" x 3'-3" UP TOIILET 2.10M x 1.20M 6'-11" x 4'-0" 2.80M x 2.10M 9'-3" x 6'-10" ENTRANCE + 0.45M Lvl 3.15M 2.40M W1 7'-10" 10'-4" 0.90M 1.60M 2.40M W3 7'-10" 2'-11" 5'-3" 0.90M 1.10M 2.40M W2 7'-10" 2'-11" 3'-7" 0.90M 1.35M 2.40M W4 7'-10" 2'-11" 4'-11" 0.90M 1.50M 2.40M W5 7'-10" 2'-11" 4'-11" 0.90M 0.80M 2.40M W6 7'-10" 2'-11" 2'-8" 1.20M 0.60M 2.10M V1 7'-10" 3'-11" 2'-0" 0.90M 0.60M 2.40M W7 7'-10" 2'-11" 2'-0" 0.60M 2.40M W7 7'-10" 2'-0" 0.90M 1.50M 2.40M W7 7'-10" 2'-11" 4'-11" 1.00M 2.10M D1 7'-0" 3'-3" 0.90M 2.10M D3 7'-0" 2'-11" 0.90M 2.10M D3 7'-0" 2'-11" 0.75M 2.10M D2 7'-0" 2'-6" 0.75M 2.10M D2 7'-0" 2'-6" 2.10M D2 7'-0" 0.75M 2'-6" 1.20M 0.60M 2.10M V1 7'-10" 3'-11" 2'-0" 1.20M 0.60M 2.10M V1 7'-10" 3'-11" 2'-0" 0.23M
A A' B B' 0.90M 1.80M D4 5'-11" 2'-11" 2.90 [9'-6"] .50 [1'-8"] .60 [2'] 1.50 [4'-11"] .81 [2'-8"] .08 [3"] 1.64 [5'-5"] 1.33 [4'-4"] 1.50 [4'-11"] 1.68 [5'-6"] .99 [3'-3"] .68 [2'-3"] 1.50 [4'-11"] .45 [1'-6"] .55 [1'-10"] 3.16 [10'-4"] .77 [2'-6"] 2.88 [9'-5"] 2.78 [9'-1"] 3.17 [10'-5"] .22 [9"] .28 [11"] .60 [2'] 1.50 [4'-11"] .60 [2'] 1.38 [4'-6"] 1.64 [5'-5"] 1.33 [4'-4"] 1.83 [6'] 1.64 [5'-5"] 1.33 [4'-4"] 1.83 [6'] 1.00 [3'-3"] 1.10 [3'-7"] 1.43 [4'-8"] 1.50 [4'-11"] 1.35 [4'-5"] .17 [7"] .30 [1'] .60 [2'] .30 [1'] .25 [10"] 1.65 [5'-5"] .20 [8"] .60 [2'] .20 [8"] 1.50 [4'-11"] .21 [8"] .59 [1'-11"] .20 [8"] 1.13 [3'-8"] 1.75 [5'-9"] .67 [2'-2"] 1 .28 [11"] 1.00 [3'-3"] 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 UP LEGEND : SIZE LINTEL SILL SIZE LINTEL DOOR WINDOW DOOR NAME WIN. NAME SYMBOL :
FLOOR PLAN 1
GROUND
B 8.09 [26'-6"] DOOR WINDOW SYMBOL
SECTION A-A'
TOIILET 1.50M x 1.25M 4'-11" x 4'-1" V1 O.H.T. SYNTEX TANK (SIZE AS PER REQUIREMENT) D1
TOIILET 1.50M x 1.25M 4'-11" x 4'-1" V1 D1 D1 + 0.0 Ground lvl + 0.45M Plinth lvl + 3.75M First Floor + 7.05M Headroom LVL + 4.75M Parapet Level 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 17 18 19 16 20 D2 21 W8 .45 [1'-6"] 3.30 [10'-10"] 1.00 [3'-3"] 2.30 [7'-7"] .90 [2'-11"] 2.10 [6'-11"] .90 [2'-11"] .20 [8"] .20 [8"] 1.00 [3'-3"] 2.10 [6'-11"] .90 [2'-11"] 1.80 [5'-11"]
SECTION B-B'
O.H.T. SYNTEX TANK (SIZE AS PER REQUIREMENT)
11 10 9 12 13 14 15 16 17 18 19 20 21 22 1 2 3 4 5 6 7 8 D1 + 0.0 Ground lvl + 0.45M Plinth lvl + 3.75M First Floor + 7.05M Headroom LVL + 4.75M Parapet Level W8 D5 D4 D4 .45 [1'-6"] 3.30 [10'-10"] 1.00 [3'-3"] 2.30 [7'-7"] 1.80 [5'-11"] 4.50 [14'-9"] .90 [2'-11"] 1.95 [6'-5"] .30 [1'] 2.10 [6'-11"] .75 [2'-6"] .75 [2'-6"] 2.11 [6'-11"] 1.00 [3'-3"] .28 [11"] 1.26 [4'-2"] 1.00 [3'-3"] 2.10 [6'-11"] 3.15 [10'-4"] .28 [11"] TREAD SIZE- 280MM RISER SIZE - 150MM TOTAL NO. OF TREADS-21 TOTAL NO. OF RISERS -22 .15 [6"] .15 [6"]
HOME + 0.0 Ground lvl + 0.45M Plinth lvl + 3.75M First Floor + 7.05M Headroom LVL + 1.00M Parapet Level
ELEVATION A
A B
FURNITURE

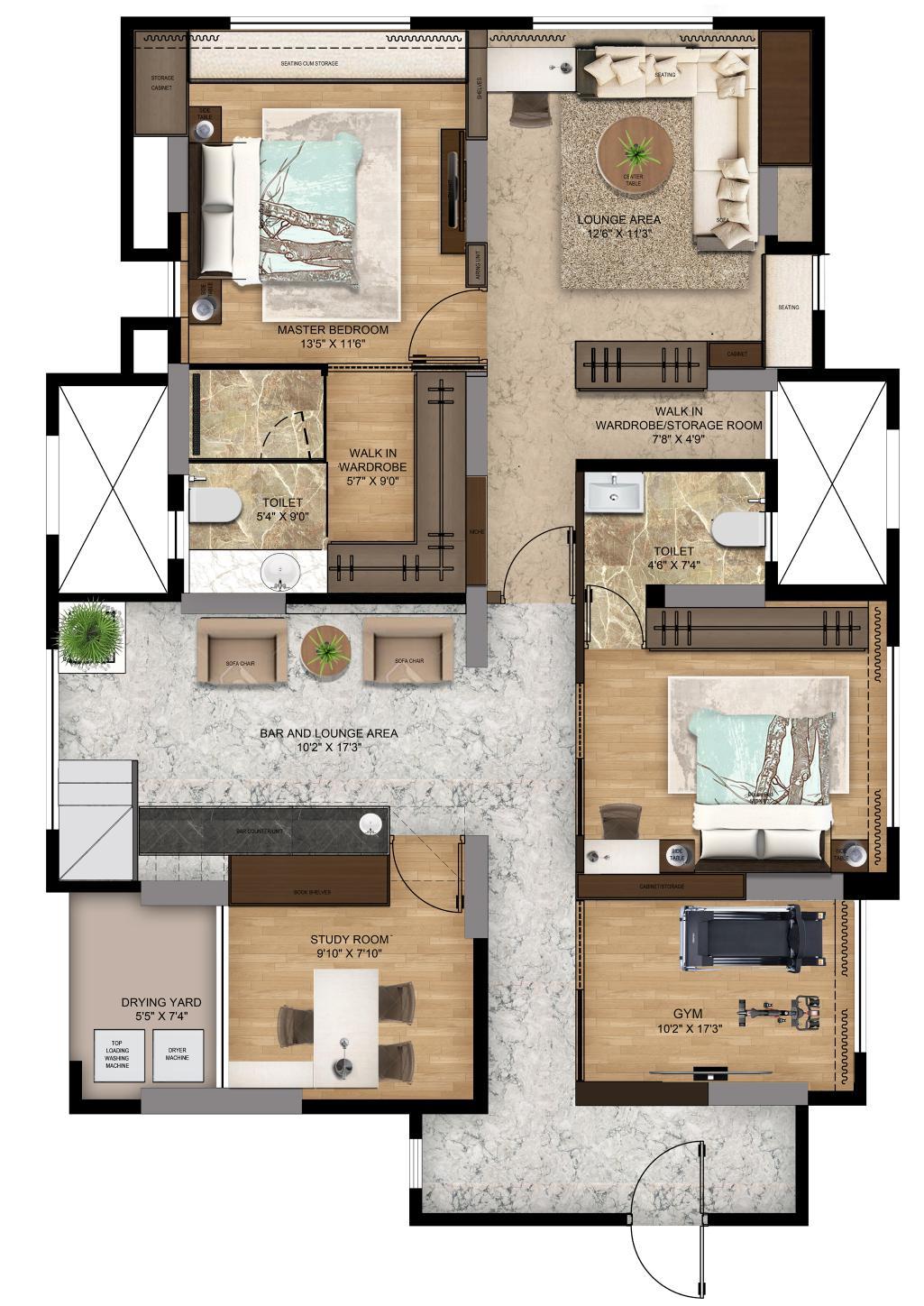

LAYOUT FOR APARTMENT INTERIOR DETAILS
Double Bed 5'6" X 6'3" SIDE TABLE WALK IN WARDROBE 5'7" X 9'0" TOILET 7'2" X 6'2" 2'-8" 2'-6" UTILITY AREA (MINI FRIDGE, MICROWAVE, INDUCTION) SIDE TABLE 1'-6" BOOK SHELVES STUDY ROOM 15'10" X 7'3" SIDE TABLE STORAGE STORAGE SIDE TABLE STORAGE STUDY TABLE NICHE/ STORAGE 3'-4" CENTER TABLE FOOTREST WARDROBE 1'-11" 3'-6" 2'-3" NICHE FOR PAINTING/ MURAL SHOWER CUBICLE MASTER BEDROOM 13'2" X 12'10" 3'-6" 3'-3" OPENABLE DOOR BEDROOM 12'3" X 10'8" LIBRARY/ STORAGE TV UNIT PUFFY PUFFY SLIDING DOOR ACCESSORIES UNIT ACCESSORIES UNIT SLIDING DOOR LOOSE SEATING TV UNIT 8'-7" CONSOLE TEMPLE PUFFY INFORMAL ROOM 14'6" X 6'8" 11' FAMILY ROOM 17'0" X 10'9" 6'-9" LIBRARY PUFFY PUFFY LOOSE TABLE SHOE RACK PUFFY WARDROBE OTTOMAN DRESSING STORAGE (PART OF WARDROBE) ROMAN BLINDS ROMAN BLINDS ROMAN BLINDS UP LOOSE SEATING 7'-1" 3'-9" 2'-7" LIVING AREA 15'5" X 12'10" RECLINER ENTRY GLASS/TIMBER DOOR OPTIONAL STORAGE 3'-7" STORAGE DRESSING STORAGE WC 5'-9" WC 5'4" X 5'9" BATH 4'2" X 3'0" OTTOMAN WASH BASIN COUNTER
INTERIOR WORK
PLAN 300 12 300 12 330 12 150 12 350 12 375 12 205 18 18 214 387 314 18 213 527 527 527 18 452 330 18 3563 2100 230 220 150 12 500 12 275 12 150 12 527 230 220 250 12 512 12 330 12 300 12 210 100 600 900 476 470 100 1994 470 250 12 150 12 276 12 200 12 475 12 350 12 327 2100 A' B'
200 Profile Light Louver 6mm Groove Profile Light Open Shelves Drawer Drawer Open Shelves T.V laminate Finish 01 laminate Finish 02 laminate Finish 03 Elevation A C' C Formal Living Room 3 Track UPVC Window in Wire mesh Slider In Wooden Finish Sill=0" Lintel As/Site 600 [2'] 75 [3"] 1890 6[ "2- 2040 [6'-8"] [3"]75 [1'-5"]425 [1'-8"]500 [1'-8"]500[1'-8"]500 14'-3" X 19'-10" 2100 6 113131[10'-3"] 1200[3'-11"] 2100 6 11Powder Toilet 4'-0" X 7'-0" 19 213 19 368 300 1608 19 180 452 329 19 275 200 18 75 362 275 250 247 247 3563 614 1686 1513 2238 6050 Corner Table Couche Center Table Side Table laminate Finish 7 Seater L-type Sofa 150 550 550 550 550 550 550 550 100 100 700 600 100 150 100 550 100 150 1800 150 A B C D Louvers 450 25 450 450 25 450 70 70 Shutter Opening Profile Light Louver

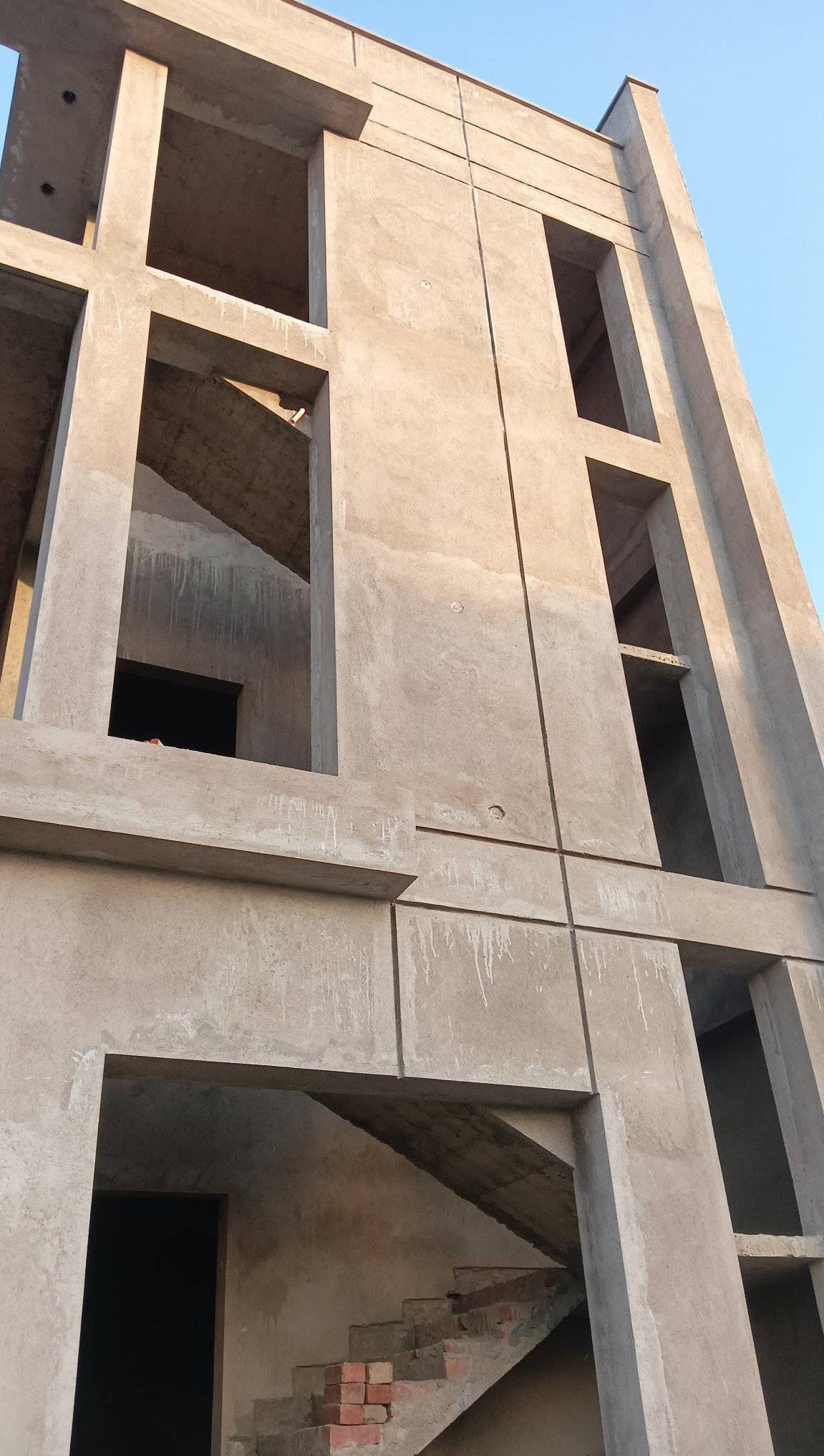

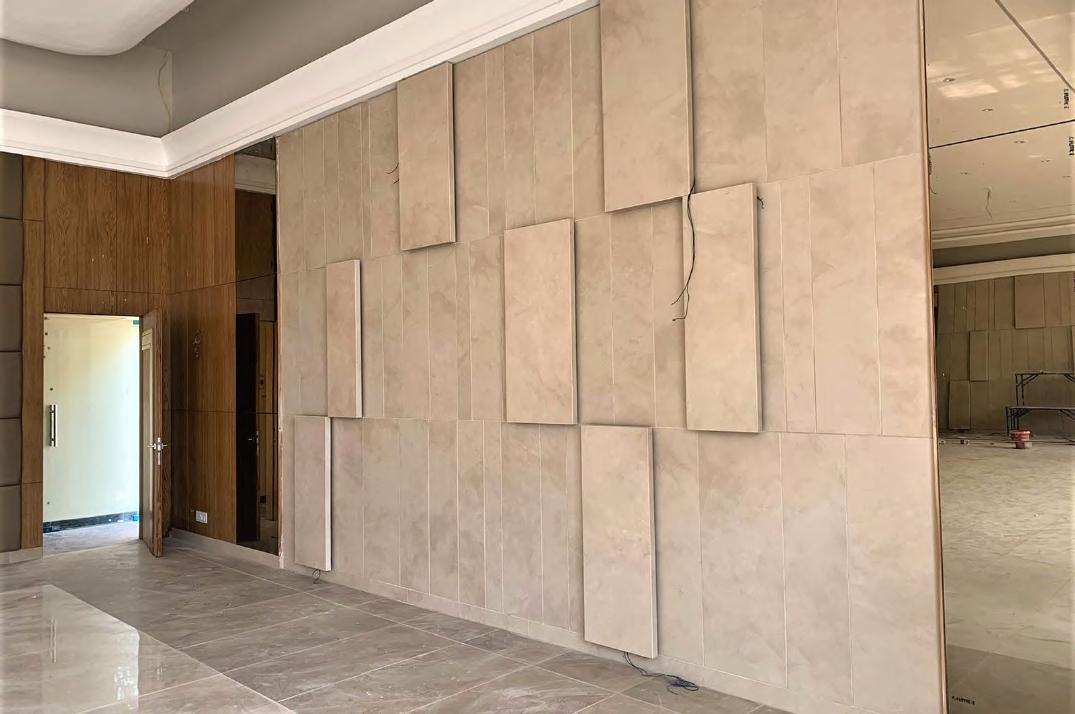

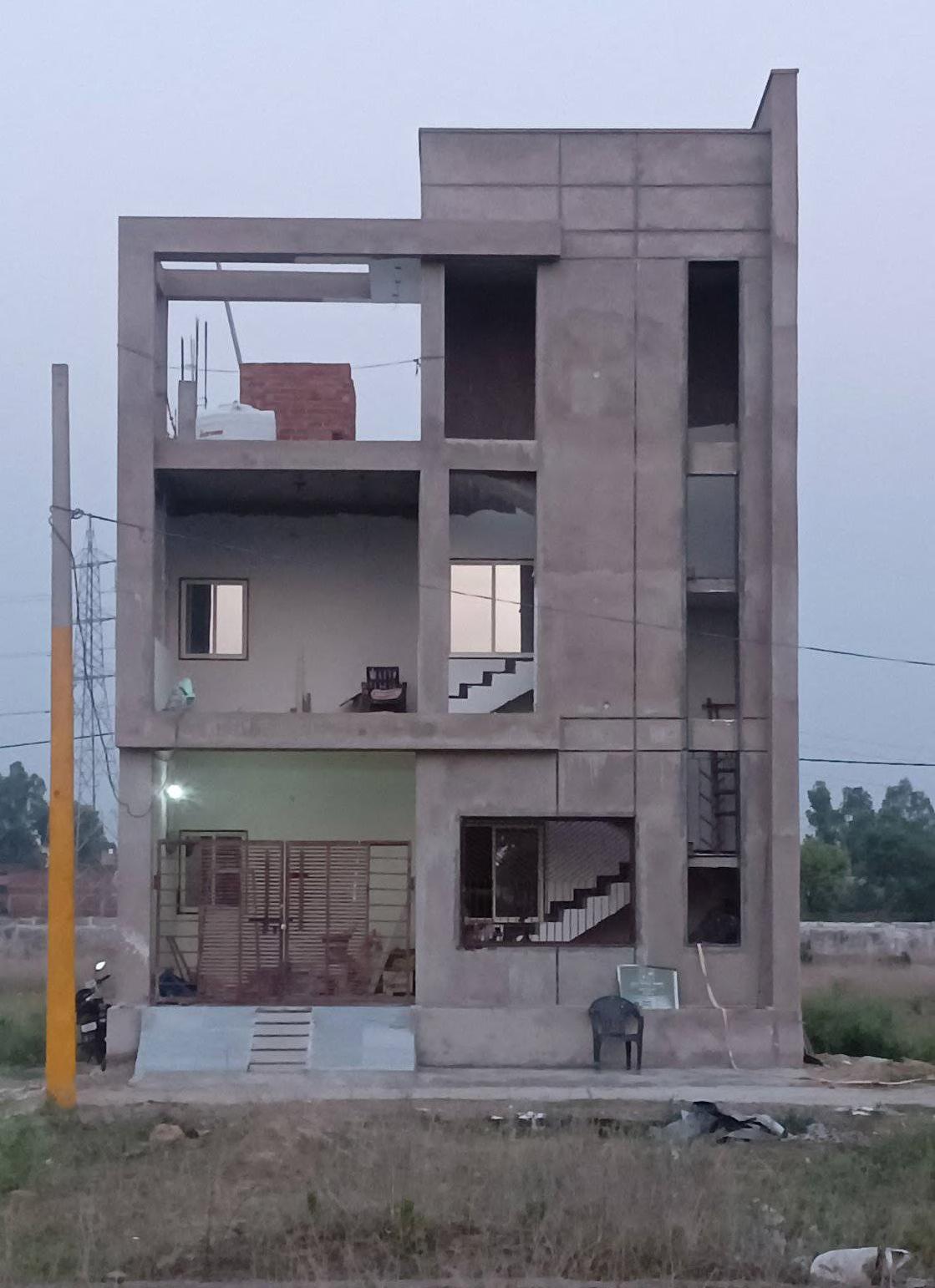

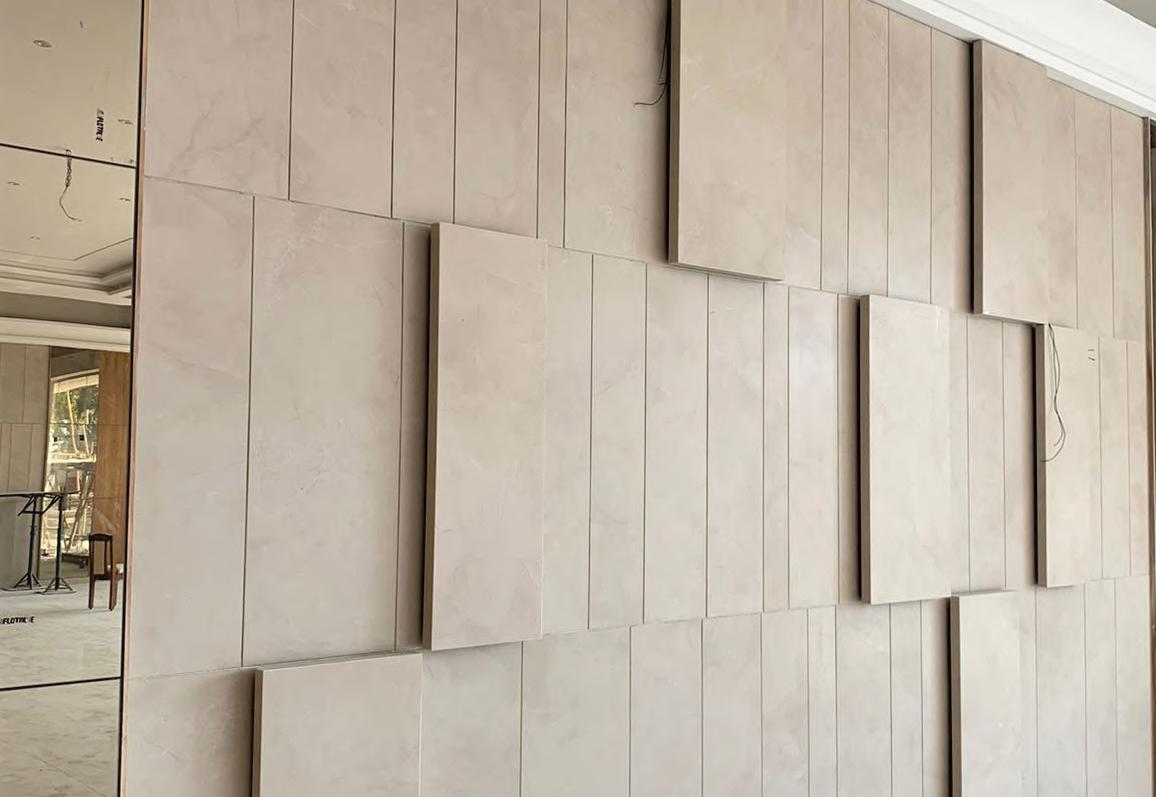

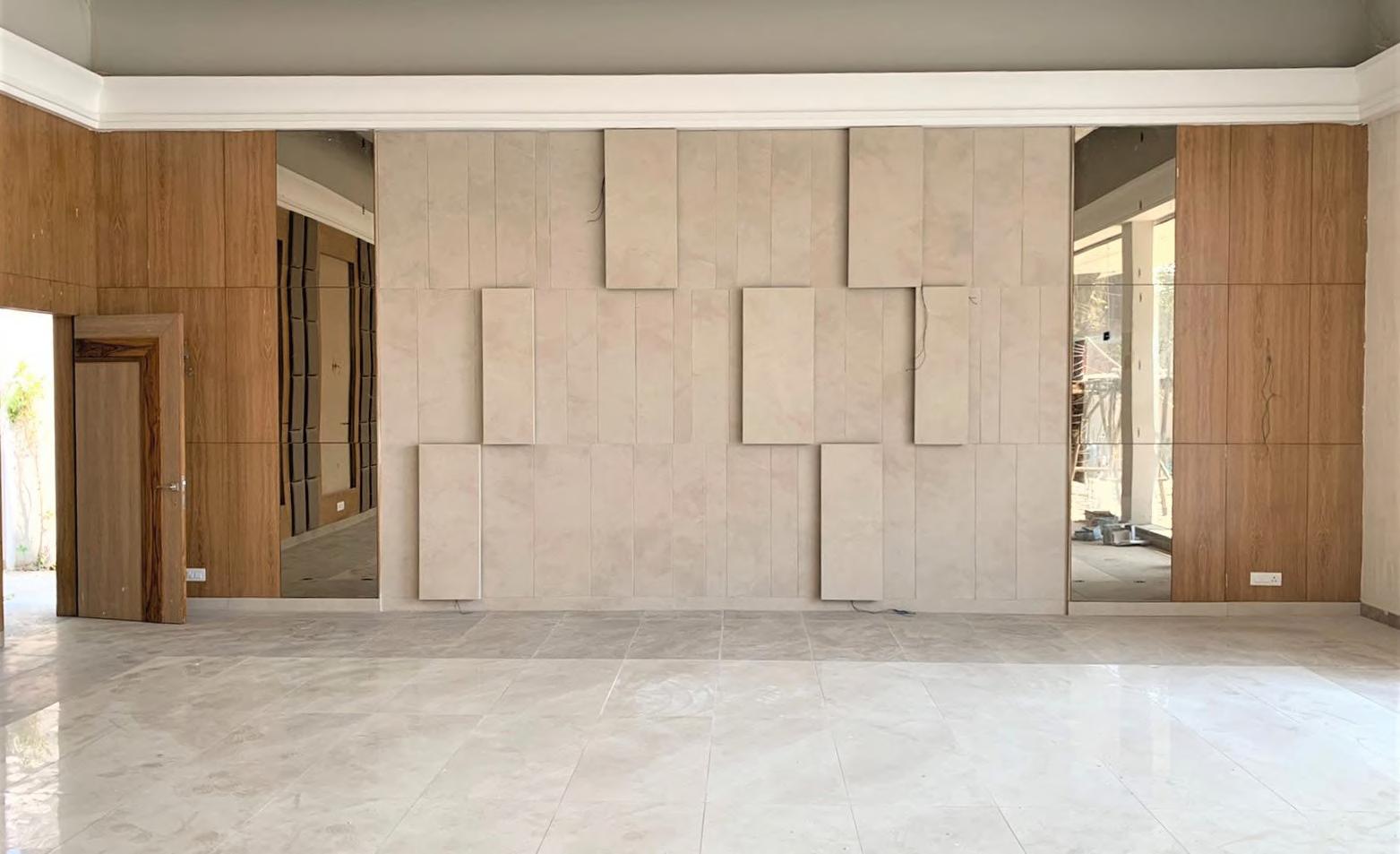

ONSITE WORK 100 1200 12 1200 12 1200 1400 5351 1400 2173 2173 28 100 3623 300 225 TRUSS LOWER LVL LVL TOP OF FALSE CEILING LVL BOTTOM OF FALSE CEILING 40 VENEER PASTED ON 12MM THK PLY BLACK TINT MIRROR 387 4 580 390 Wall Point @2100 681 40 387 4 4 386 580 WEST WALL ELEVATION ELECTRICAL WALL POINTS 600 600 600 600 774 774 375 375 8 8 375 8 375 8 2100 290 2100 290 600 567 8 8 8 8 8 3123 Wall Point at Center Tile Wall Points Heights 700 1912

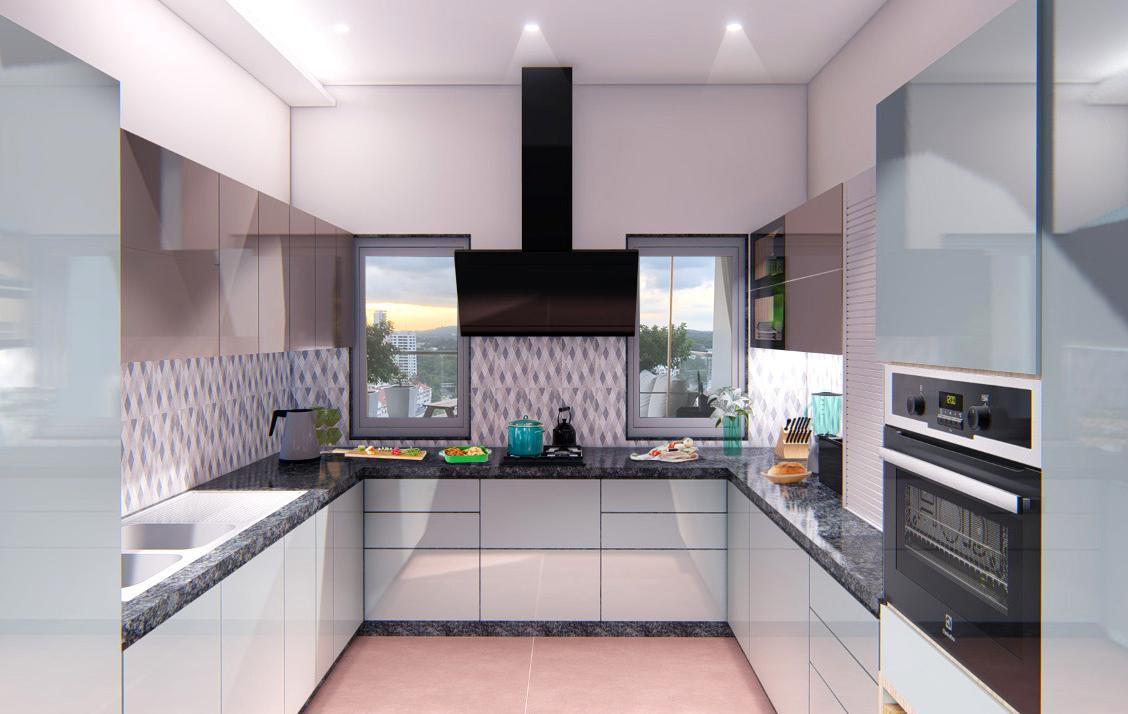

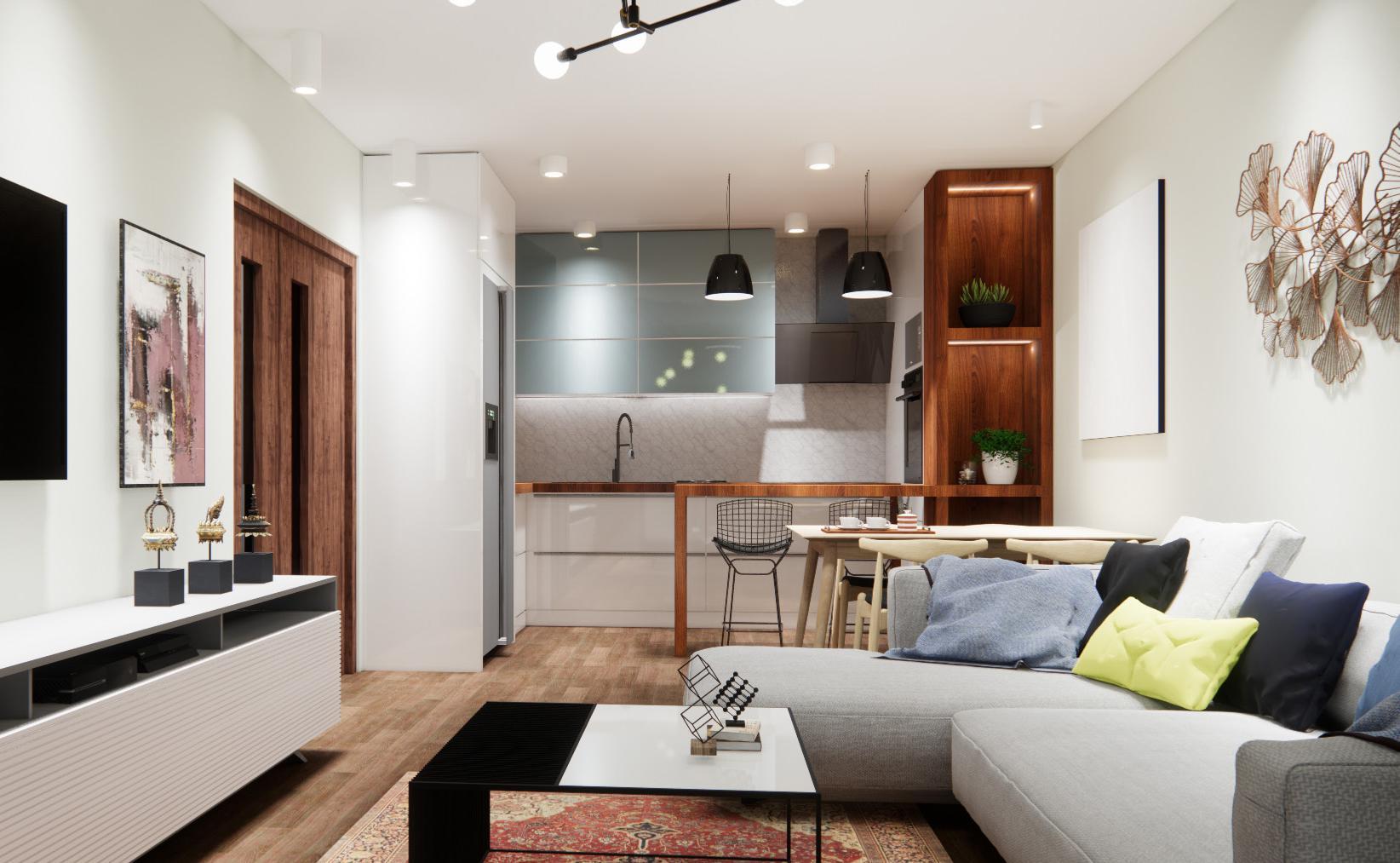

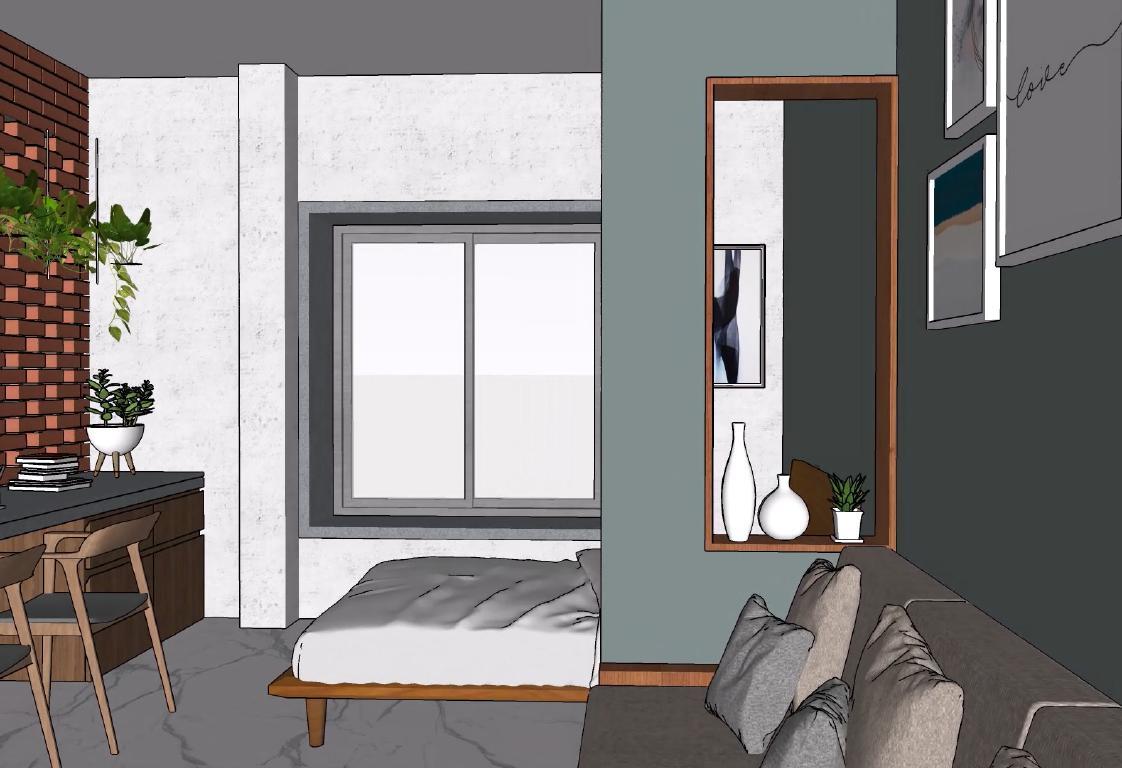

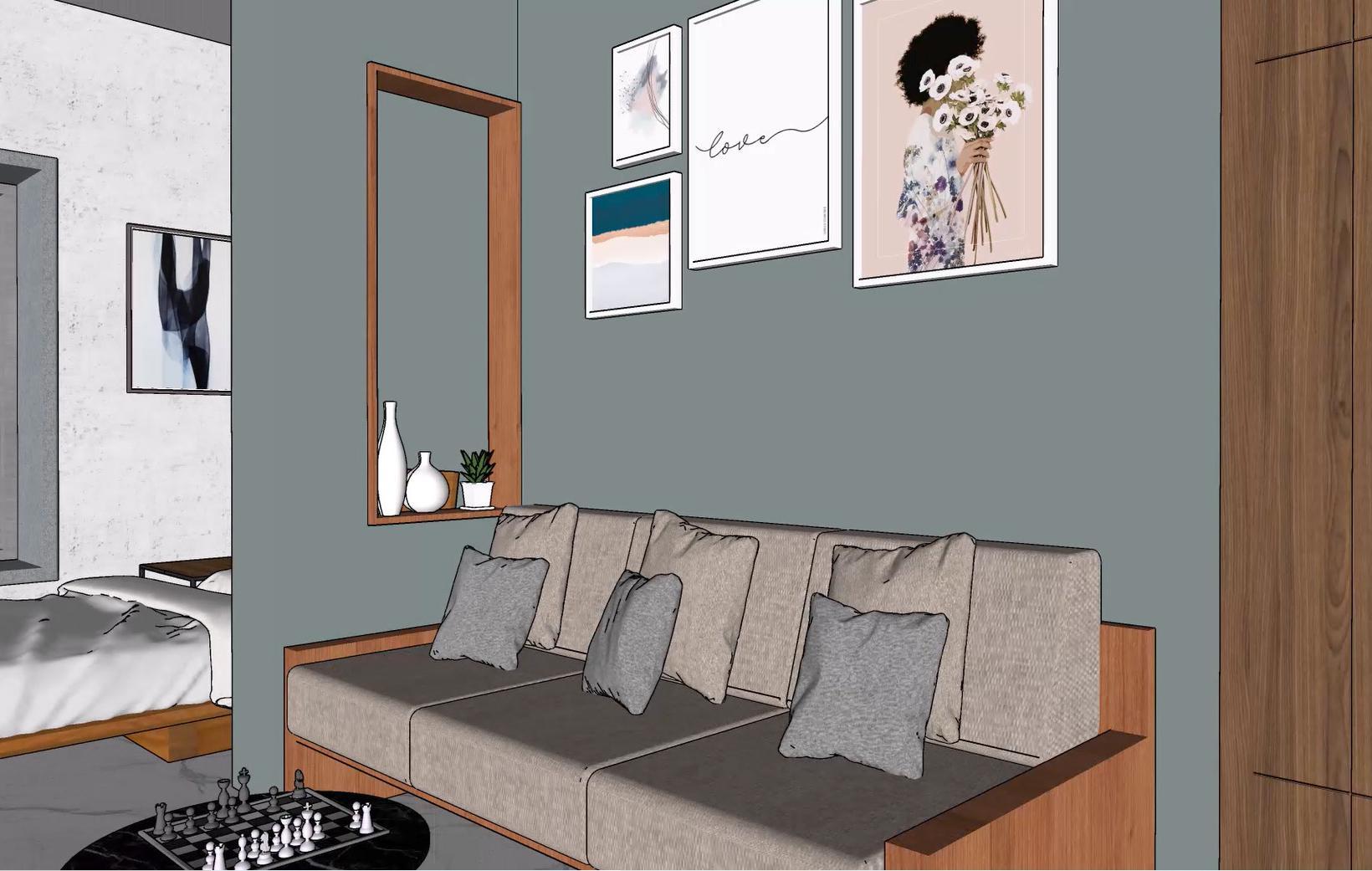

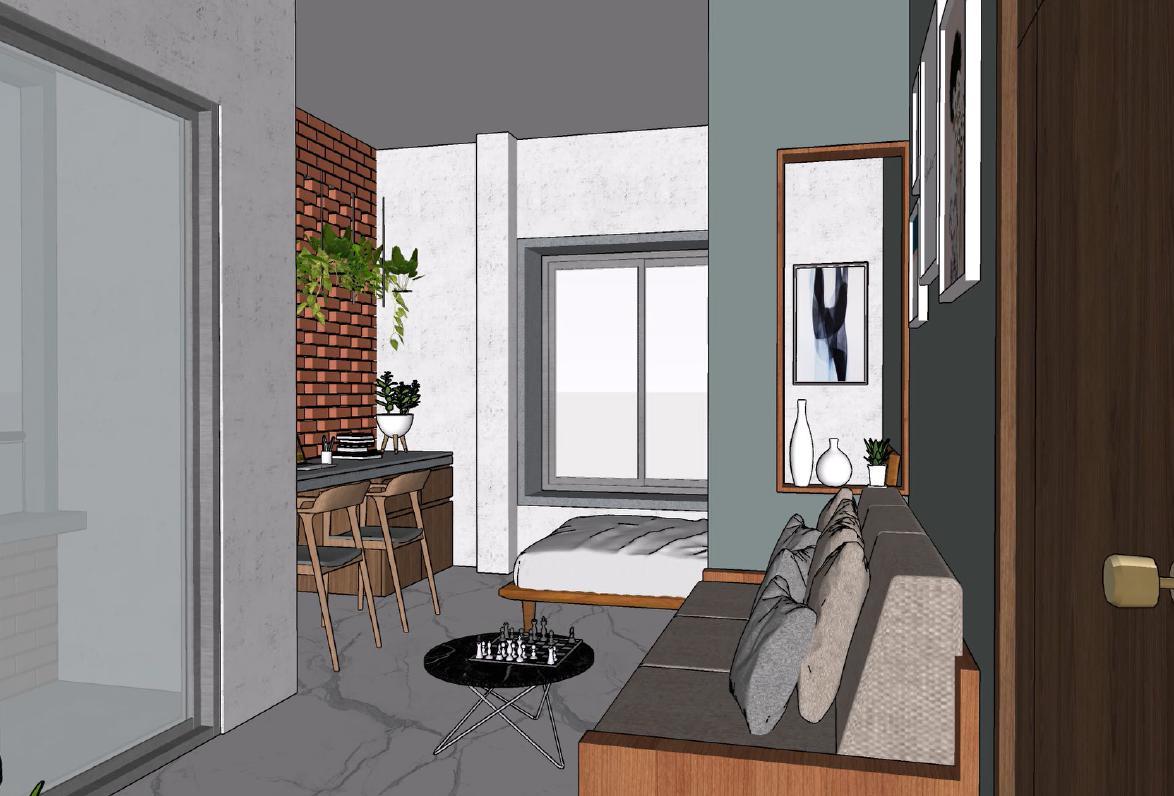

INTERIOR RENDERED VIEWS

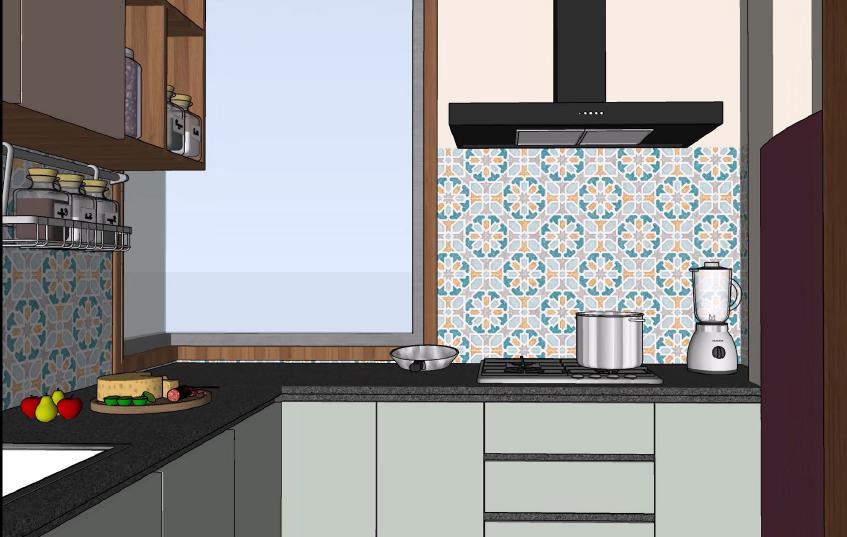

Elevation B NTS Anubhav This drawing the property of D 59/142-1 Sigra Mahmoorganj Road, varanasi-221010 Ph.: +91 542 2223577, 08800472024 anubhav.designatelier@gmail.com DO NOT SCALE THE DRAWING. ALL DIMENSIONS ARE IN FEET AND INCHES. THE ARCHITECTURAL WORKING DRAWINGS MUST BE COORDINATED WITH OTHER RELEVANT DRAWING FROM THE CONSULTANTS. ANY DISCREPANCY SHOULD BE BROUGHT TO THE ARCHITECTS NOTICE IMMEDIATELY. ALL LEVELS ARE FINISHED FLOOR LEVELS UNLESS OTHERWISE SPECIFIED. FLOOR FINISH THICKNESS SHOULD BE CONSIDERED 50mm UNLESS OTHERWISE SPECIFIED. REFER TO DETAIL SHEETS SPECIFIED FOR ARCHITECTURAL DETAIL. NOTES: and shall not be copied, reproduced used without written consent. DATE CHKD BY DRWN BY SCALE DRG. NO. REVISIONS DATE ISSUED TO GOOD FOR CONSTRUCTION Suraj Kitchen PROJECT TITLE SHEET TITLE Mr.Rakesh Client 27-10-2021 Built In Microwave 18 Rolling Shutter 13 Under counter storage (in section) Refrigerator 14 14 Corner storage Wheat Rice Drum 15 Drawer 7 By fold lift glass shutter 5 Dinner Set 10 Drawer 7 Drawer 8 19 560 450 750 505 600 300 880 4040 100 720 40 600 640 690 690 900 600 300 880 100 360 180 180 40 Kitchen & Toilet Plan This drawing the property of D 59/142-1 Sigra Mahmoorganj Road, varanasi-221010 Ph.: +91 542 2223577, 08800472024 anubhav.designatelier@gmail.com 1. DO NOT SCALE THE DRAWING. 2. ALL DIMENSIONS ARE IN FEET AND INCHES. 3. THE ARCHITECTURAL WORKING DRAWINGS MUST BE COORDINATED WITH OTHER RELEVANT DRAWING FROM THE CONSULTANTS. ANY DISCREPANCY SHOULD BE BROUGHT TO THE ARCHITECTS NOTICE IMMEDIATELY. 4. ALL LEVELS ARE FINISHED FLOOR LEVELS UNLESS OTHERWISE SPECIFIED. 5. FLOOR FINISH THICKNESS SHOULD BE CONSIDERED 50mm UNLESS OTHERWISE SPECIFIED. 6. REFER TO DETAIL SHEETS SPECIFIED FOR ARCHITECTURAL DETAIL. NOTES: and shall not be copied, reproduced or used without written consent. REVISIONS DATE ISSUED TO GOOD FOR CONSTRUCTION Plan PROJECT TITLE : SHEET TITLE : Mr. Rakesh Client Chimny Fridge Unit Plan Microwave Oven Tall Unit Pantry Cocking Hub Double Bowl Sink A B C D Kitchen 3X4.05m Over Head Storage Over Head Storage Rolling Shutter Tall unit pull out Toilet 2.14X1.35m MODULAR KITCHEN VIEW -1 SECTION VIEW -2 PLAN
PASSAGE UP FORMAL LIVING ROOM INFORMAL LIVING ROOM & DINING BEDROOM-1 (MASTER BEDROOM) MASTER TOILET MASTER DRESSER(HIS) BEDROOM-2 LAWN TOILET DRESSER KITCHEN STORE COURTYARD 6'-0" WIDE 5'-4" WIDE PASSAGE [17'-3.5" x 17'-3"] [14'-0" x 17'-0"] UP [13'-8" x 15'-0"] [5'3" x 5'3"] LIFT 6' WIDE DECK STAIRCASE 4'6" WIDE 3' WIDE STEP LAUNDRY AREA MASTER DRESSER(HER) UTILITY [11'-3.5" x 11'-0"] [6'-8" x 11'-4"] [13'-6" x 29'-1" including deck] [13'-7" x 8'-5"] [7'-7" X10'-0"] [21'-4" X28'-10"] including passage] [14'-0" x 19'-3"] [7'-11" X 10'-0"] ELECTRICAL SHAFT [13'-7" x 8'-5"] [10'-0" X 11'-0"] [13'-7" x 6'-0"] OPEN SPACE WASHING MACHINE [27'-6"x17'-3" 1 2" ] BEDROOM-3 PARKING POT WASH WORKING PLATFORM 4' SLAB PROJECTION [8'-3" X 5'-7.5"] CROCKERY UNIT DN BREAKFAST COUNTER BALCONY ABOVE SHED ABOVE 3" X 6" ISMC at Edge detail 3" X 6" ISMC at Edge detail PARKING SHED ABOVE SHED ABOVE A B D F G H I K E J C C2 C6 C1 C5 C5 C8 C5 C5 C3 C7 C4 C7 C4 C5 C2 C1 C3 C2 C2 C3 C1 C1 C4 C3 C2 C3 C1 C6 C1 C2 C1 C4 C4 C4 C4 C4 C3 C5 TOILET [5'-6" X7'-7.5"] D-03 D-01 D-01 D-01 D-02 D-02 D-02 W-01 D-01 D-01 D-01 D-02 W-06 W-07 W-07 DW-01 W-06 W-06 D-02 D-02 D-02 D-02 W-02 W-08 SLDW-02 SLDW-02 SLDW-01 W-04 W-08 W-08 W-08 W-06 W-06 W-03 LUXURY LUXURIOUS BUNGALOW PLAN

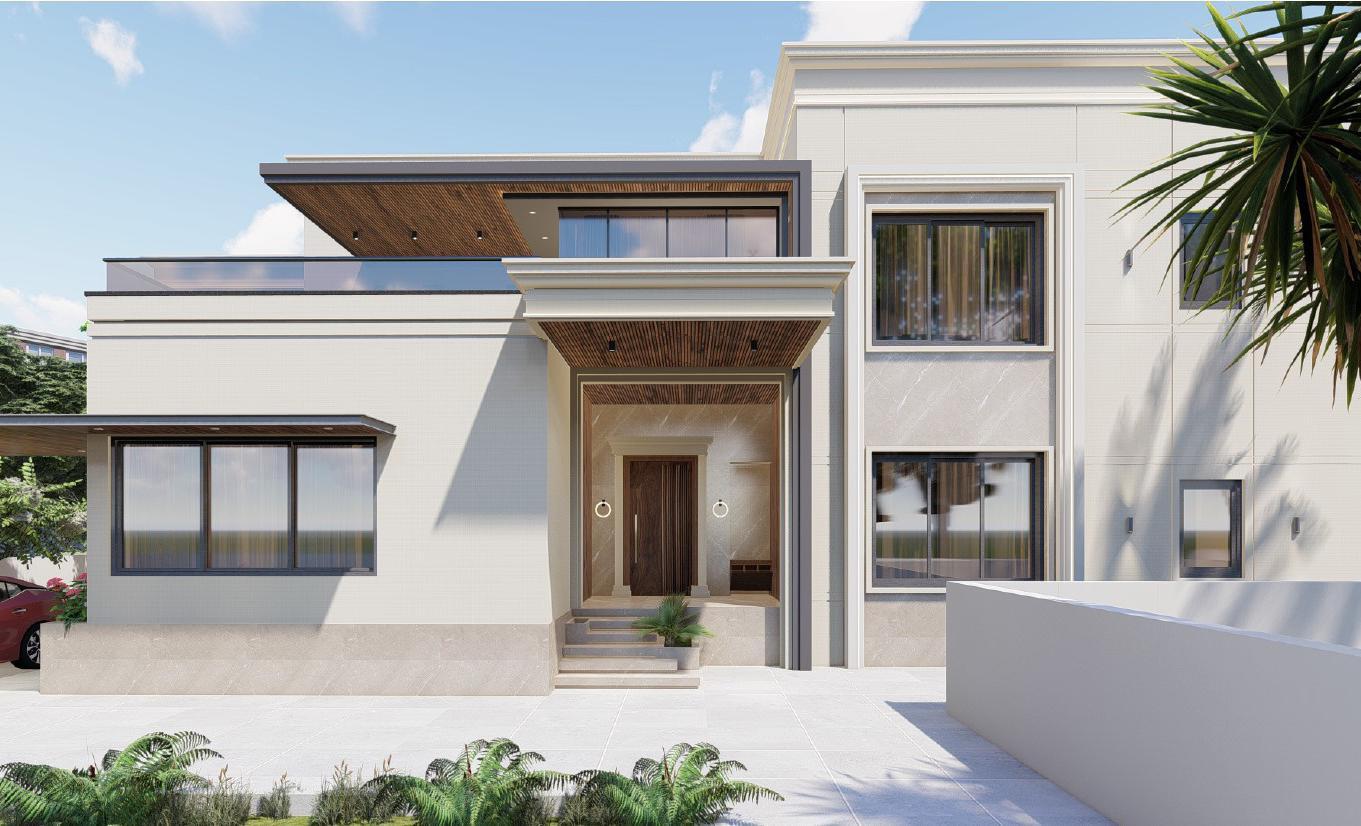

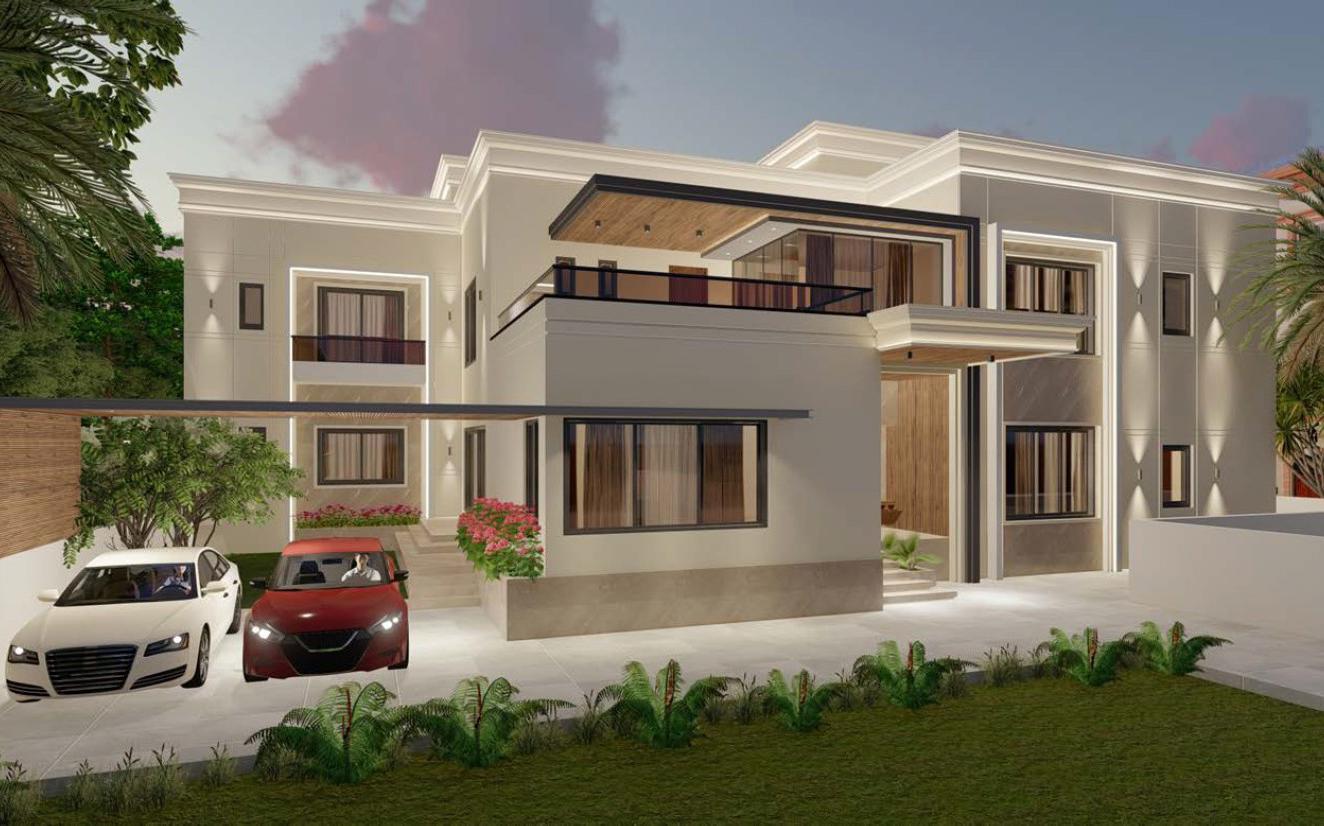

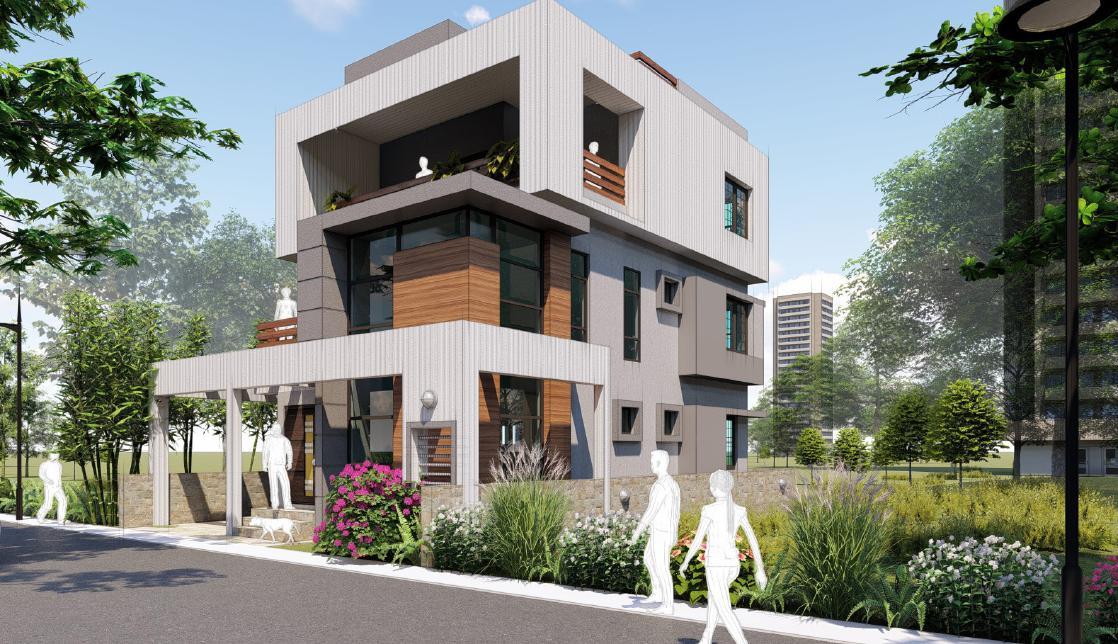

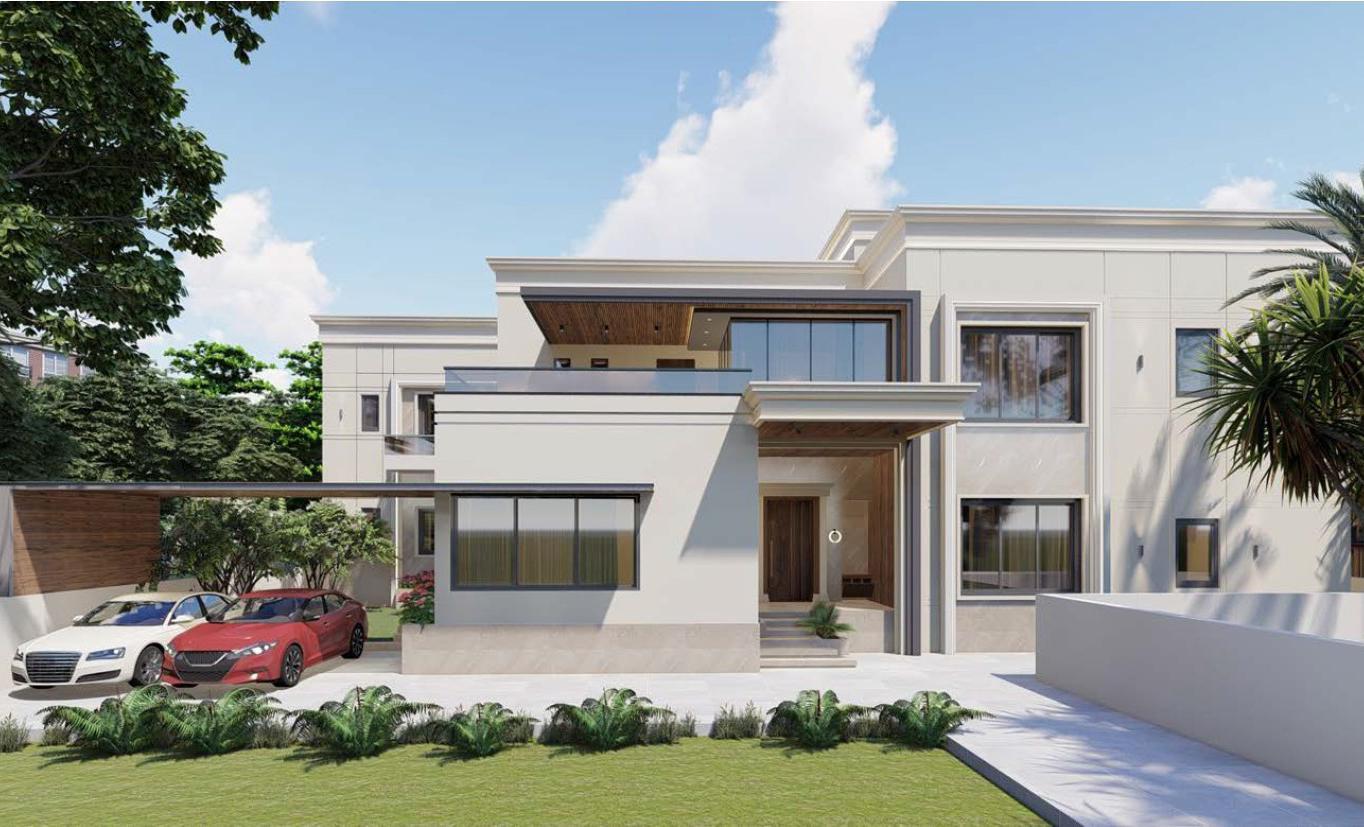

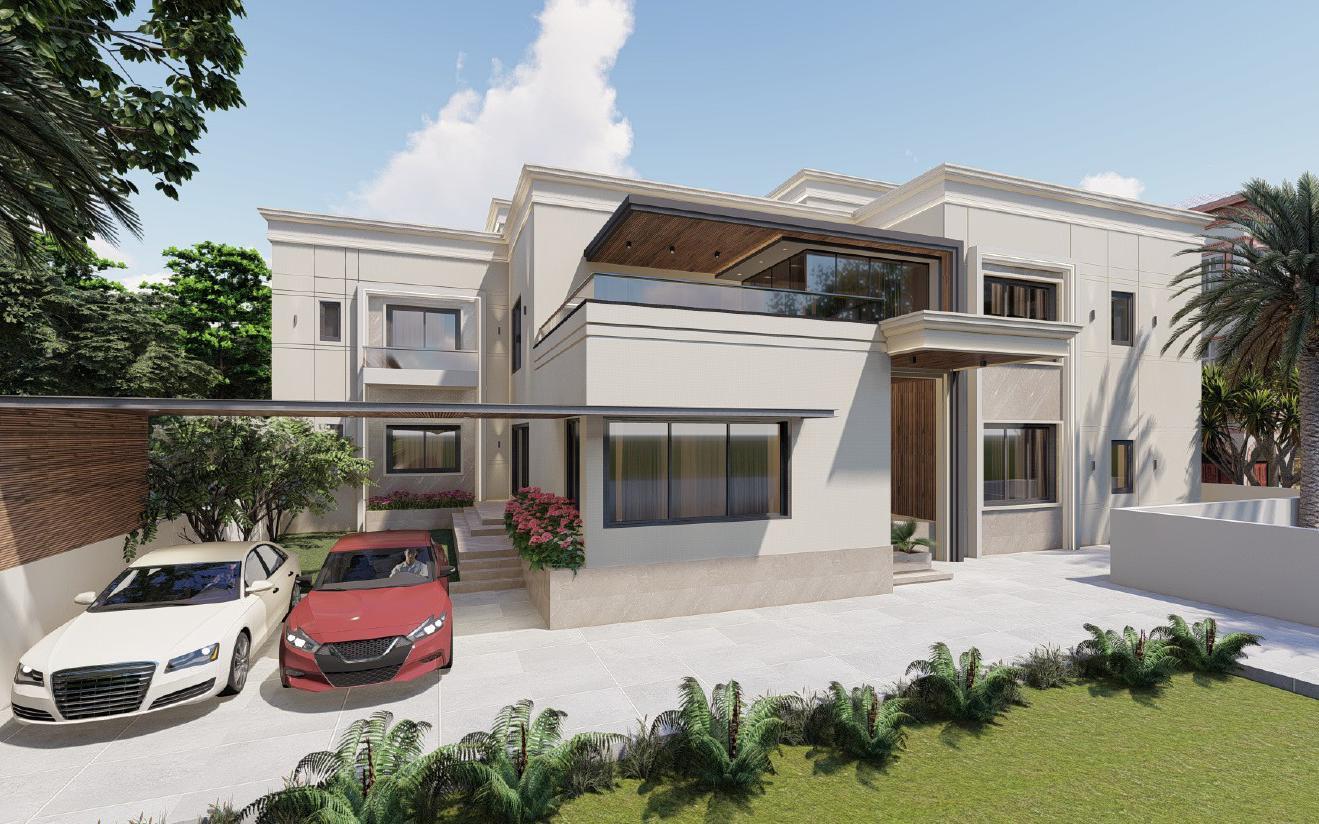

3D EXTERIOR VIEW BUNGALOW VIEWS
WELL PLANNED BUNGALOW WITH ALL NECESSARY SPACES PARKING AREA, VERANDA AT FRONT, FOYER SPACE, DRAWING ROOM WHICH IS CONNECTED TO DINNING AREA, A POWDER TOILET IS PROVIDED NEAR TO DRAWING AND DINING AREA AND OTHER SPACES LIKE BEDROOMS, KITCHEN, FAMILY LOUNGE, STAIRCASE AND LIFT ARE CONNECTED TO DINNING HALL. LINEAR ELEMENTS, SIMPLE FORMS, WIDE OPENING VIEWS AND LARGE AREAS WITH LOTS OF NATURAL LIGHT, MINIMIZE THE DISTANCE BETWEEN THE INDOOR AND OUTDOOR.

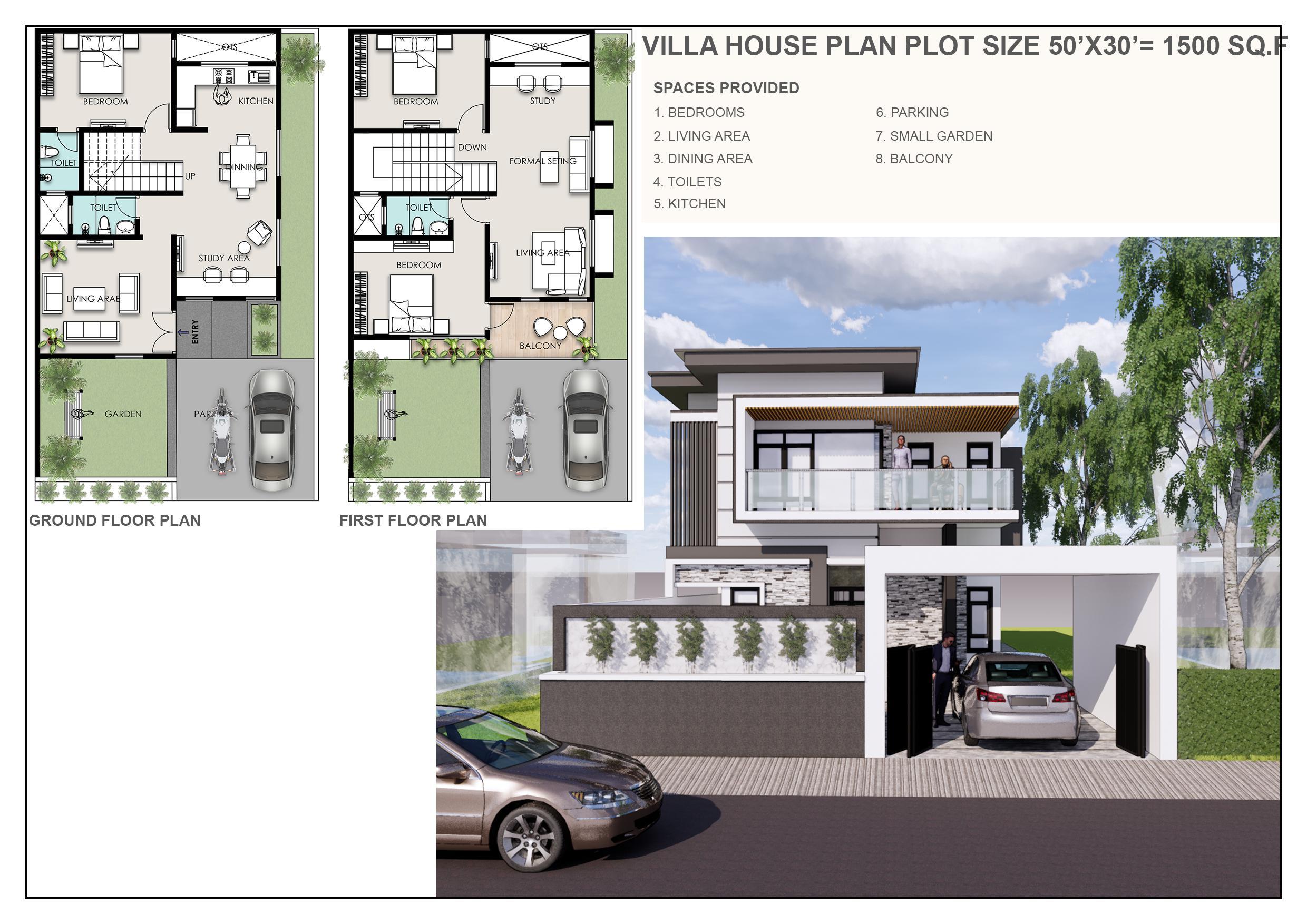

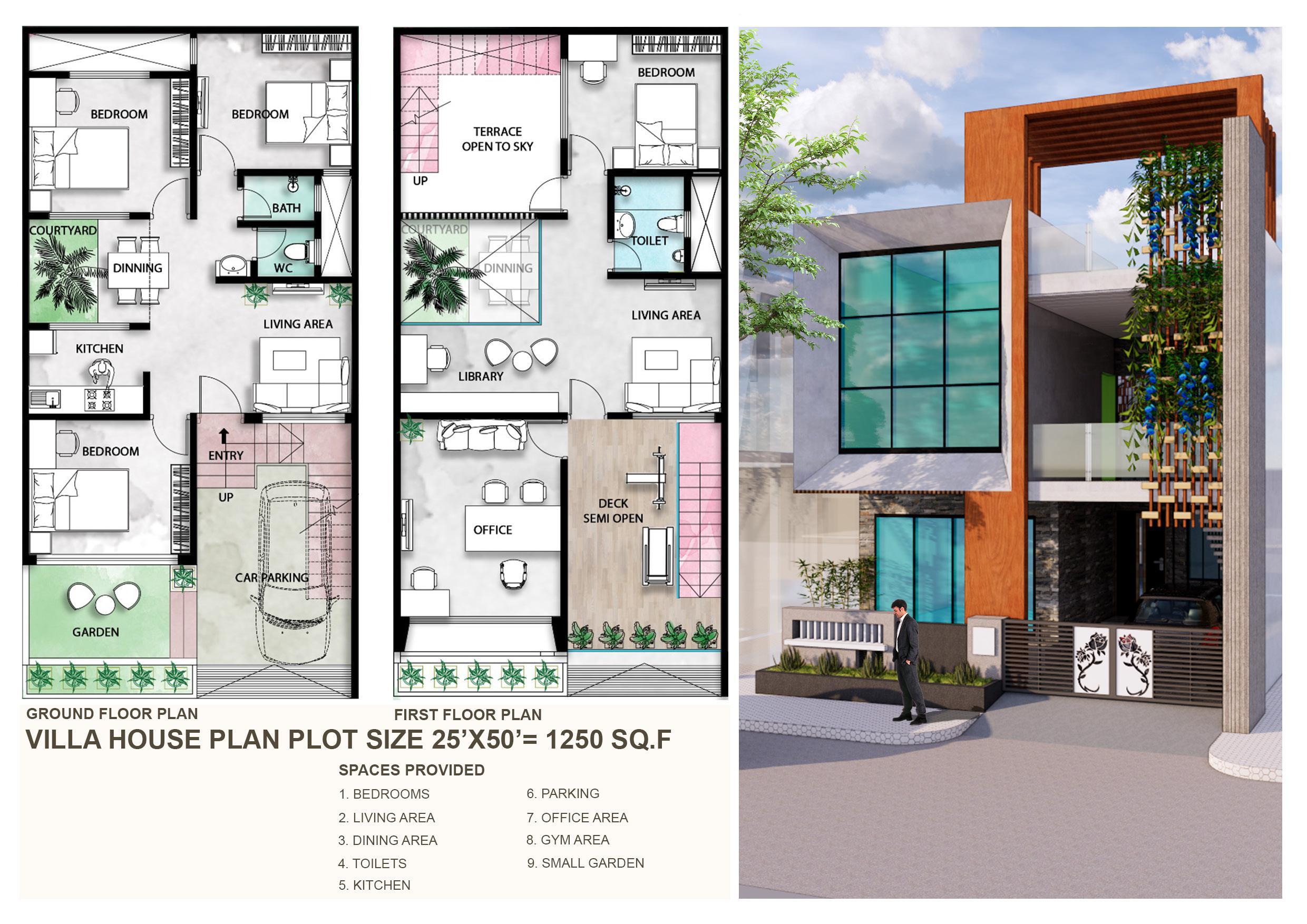

PLAN VILLA FOR MEDIUM TO LARGE FAMILY ABOUT

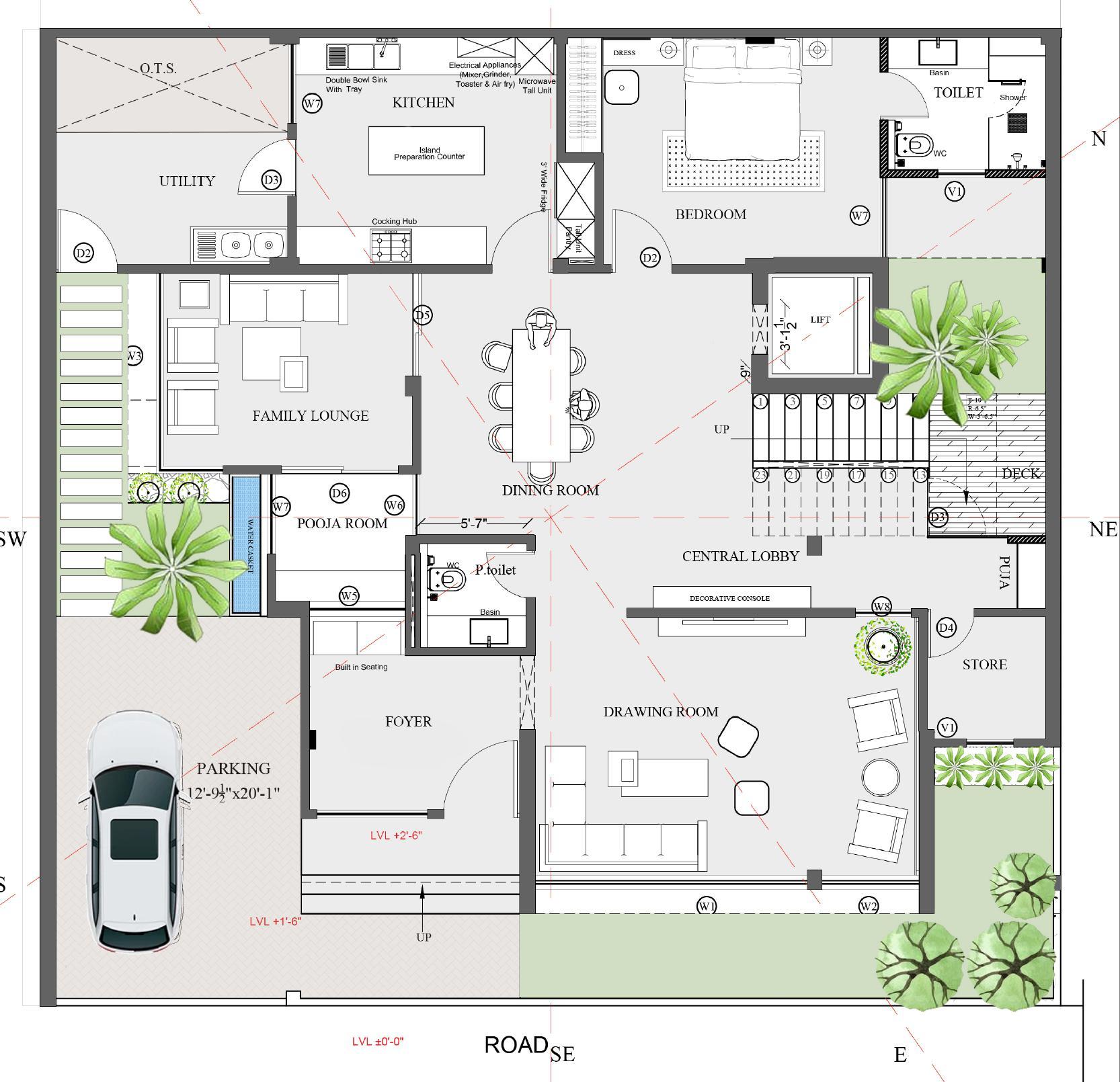

GROUND FLOOR PLAN
FIRST FLOOR PLAN

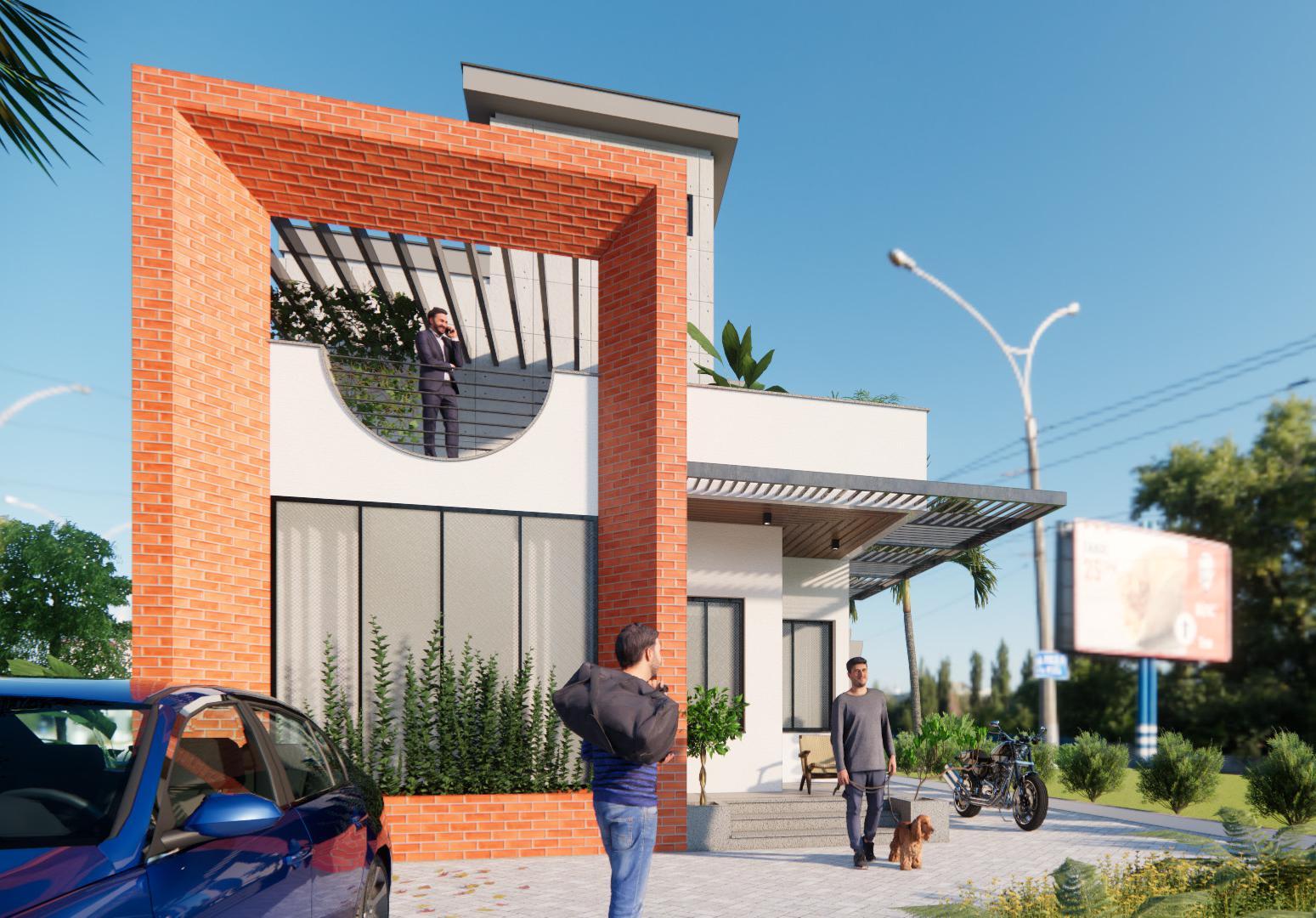

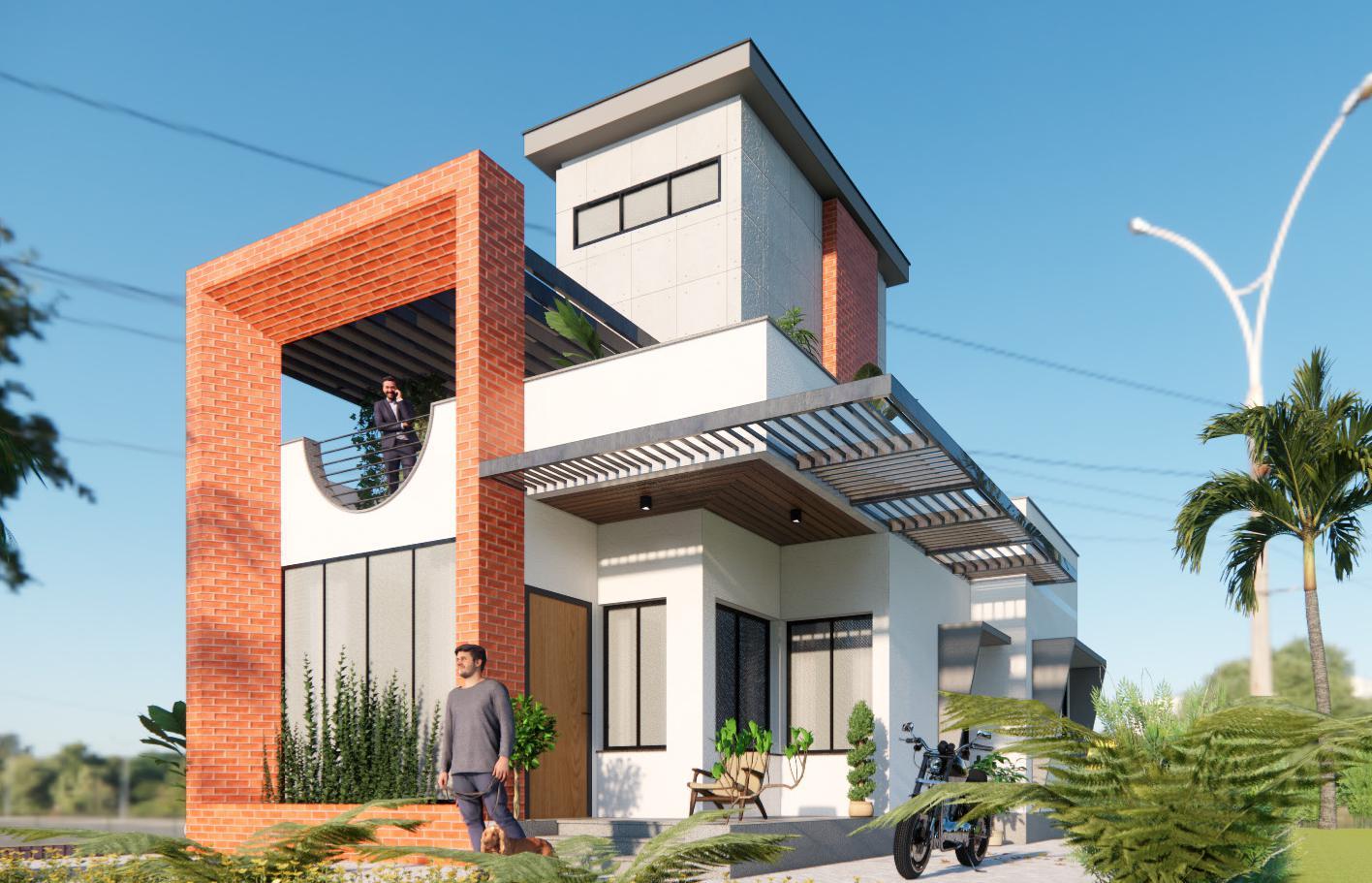

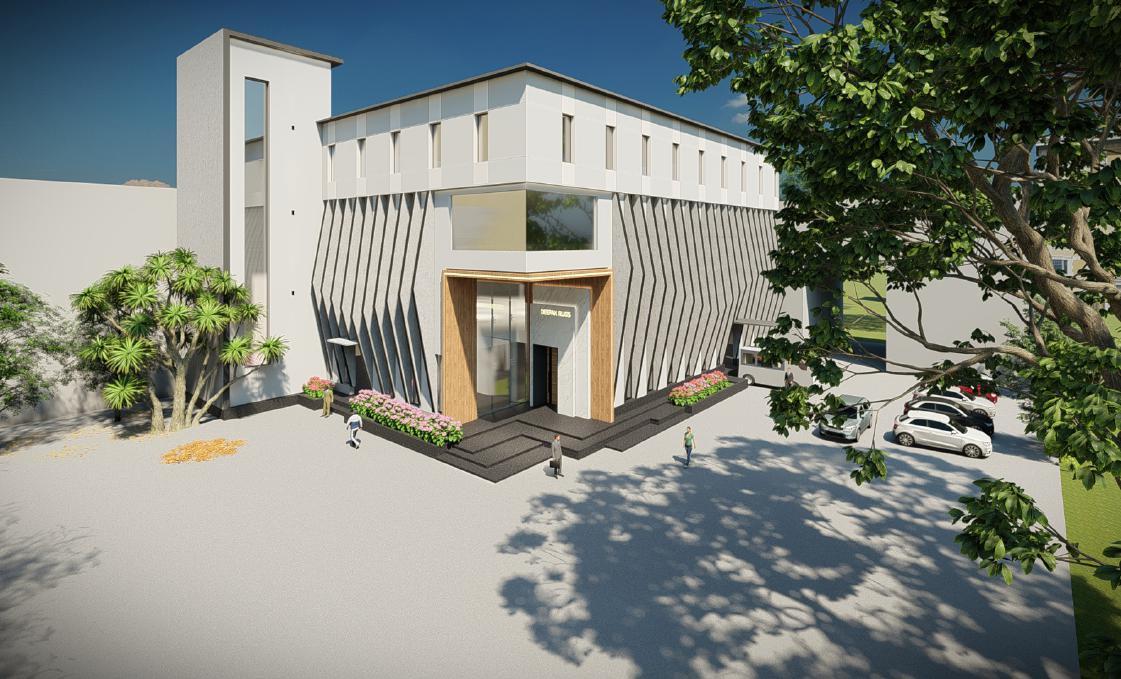

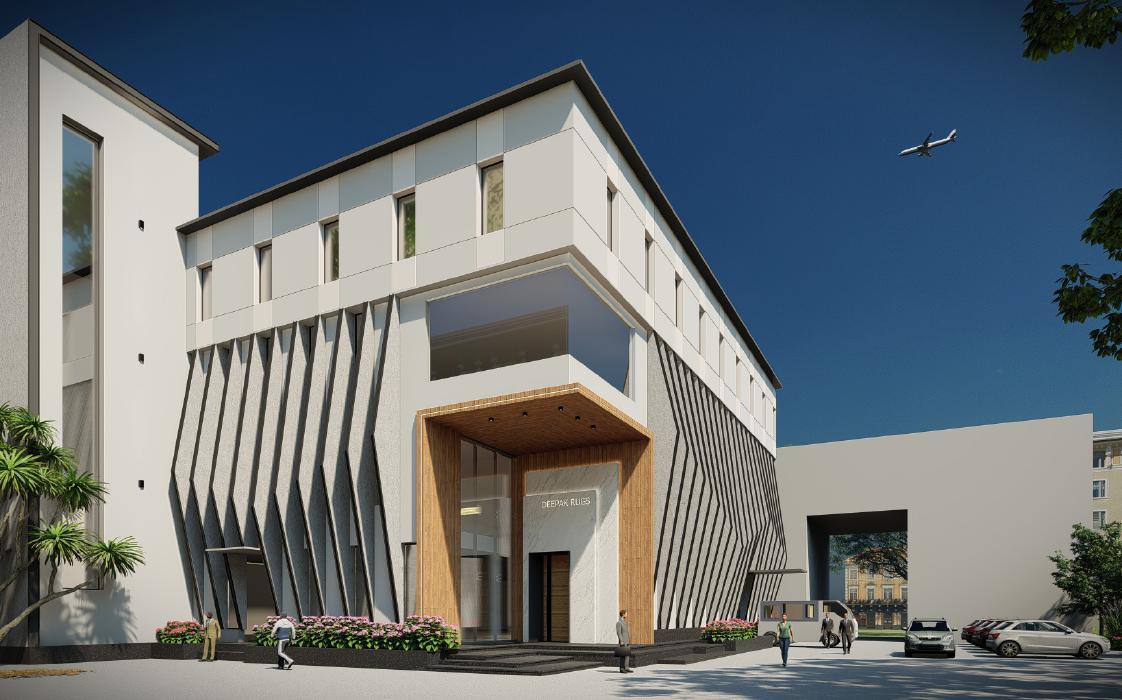

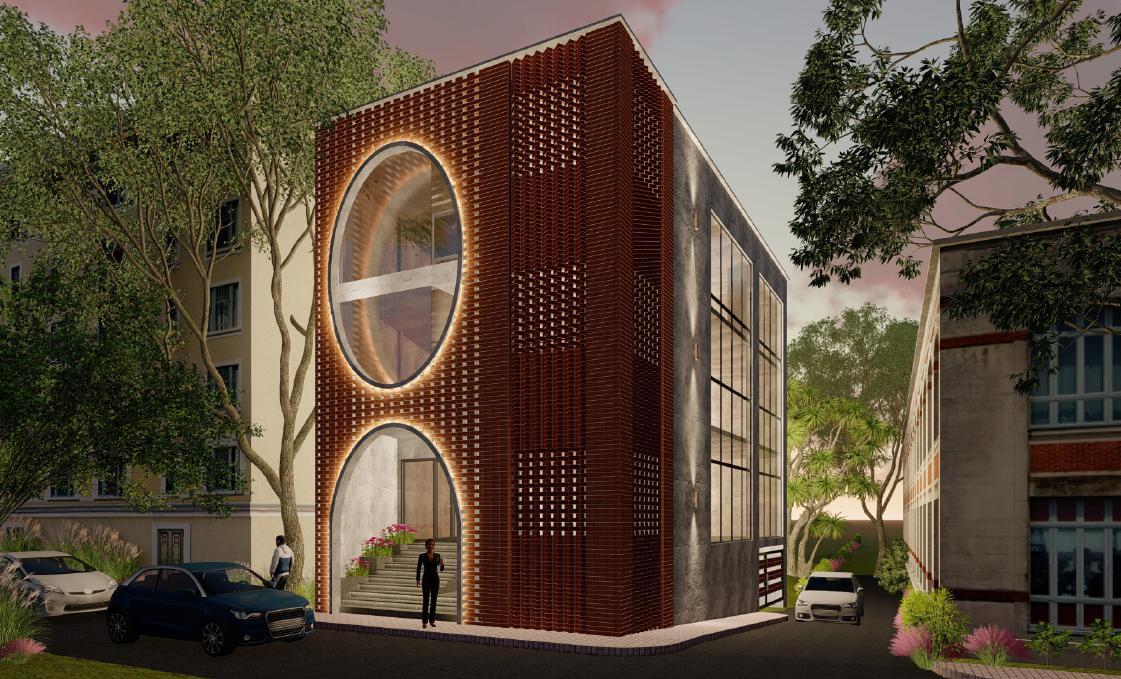

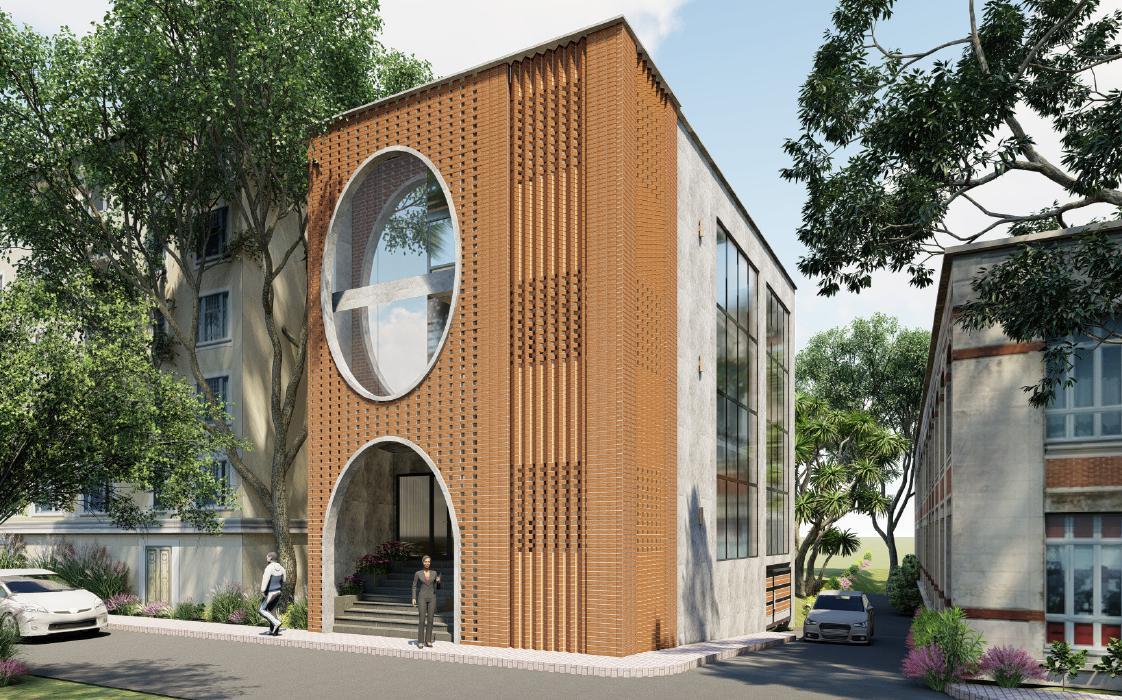

3D EXTERIOR DESIGN FOR DENTAL CLINIC

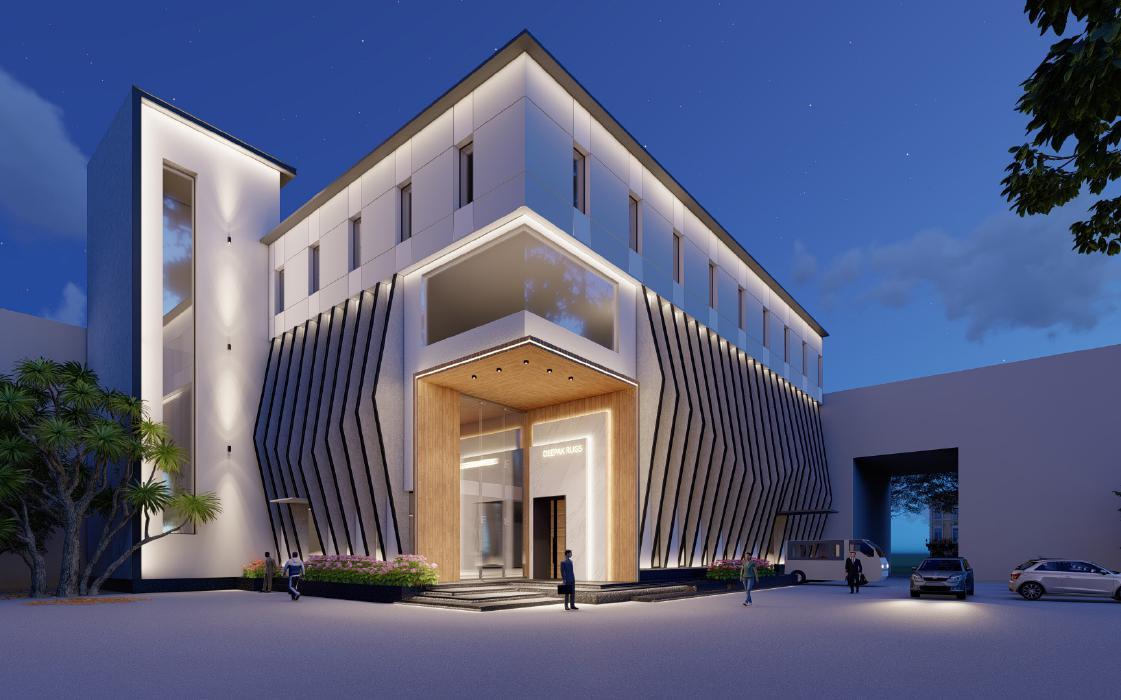

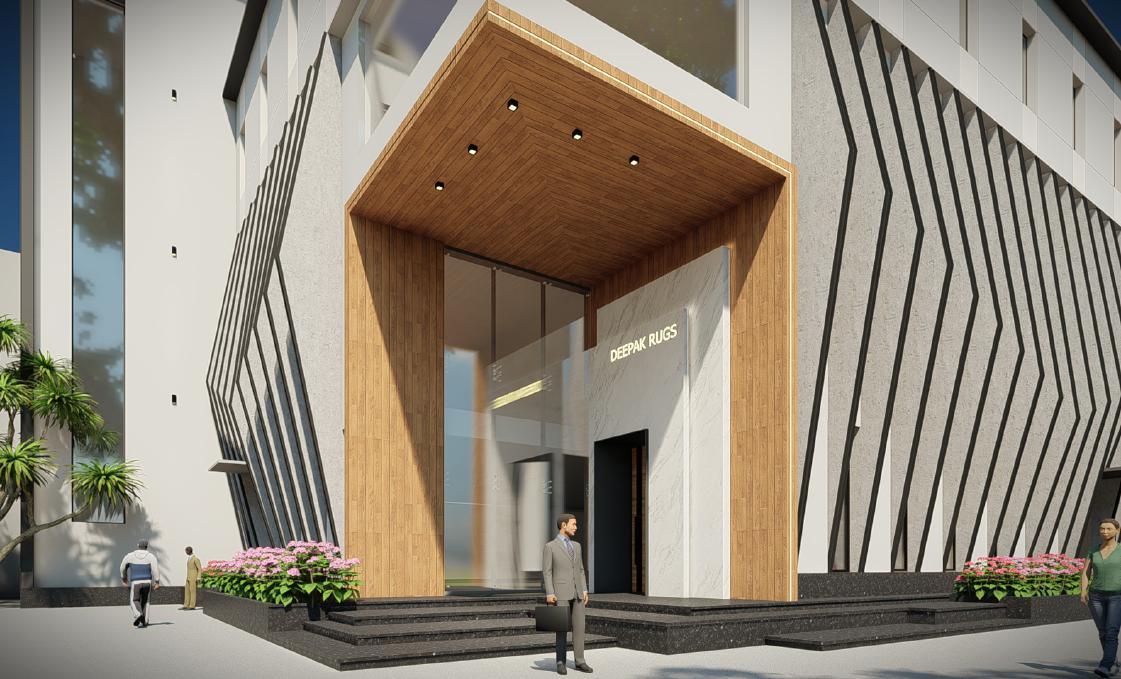

3D EXTERIOR DESIGN FOR CARPET FACTORY

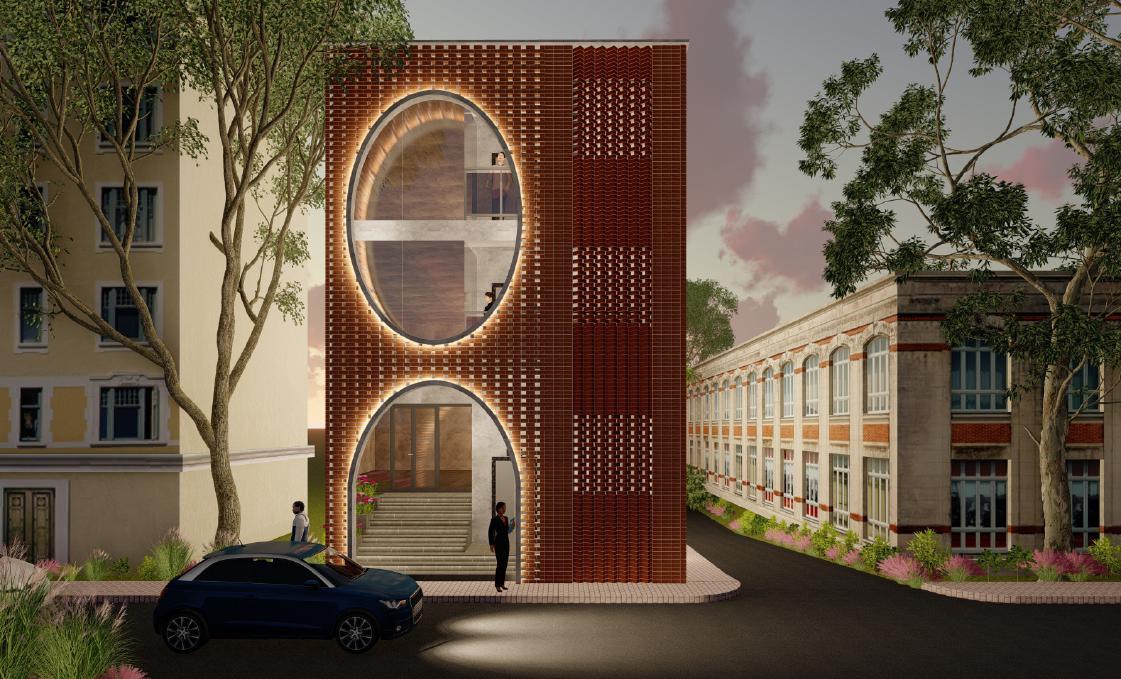

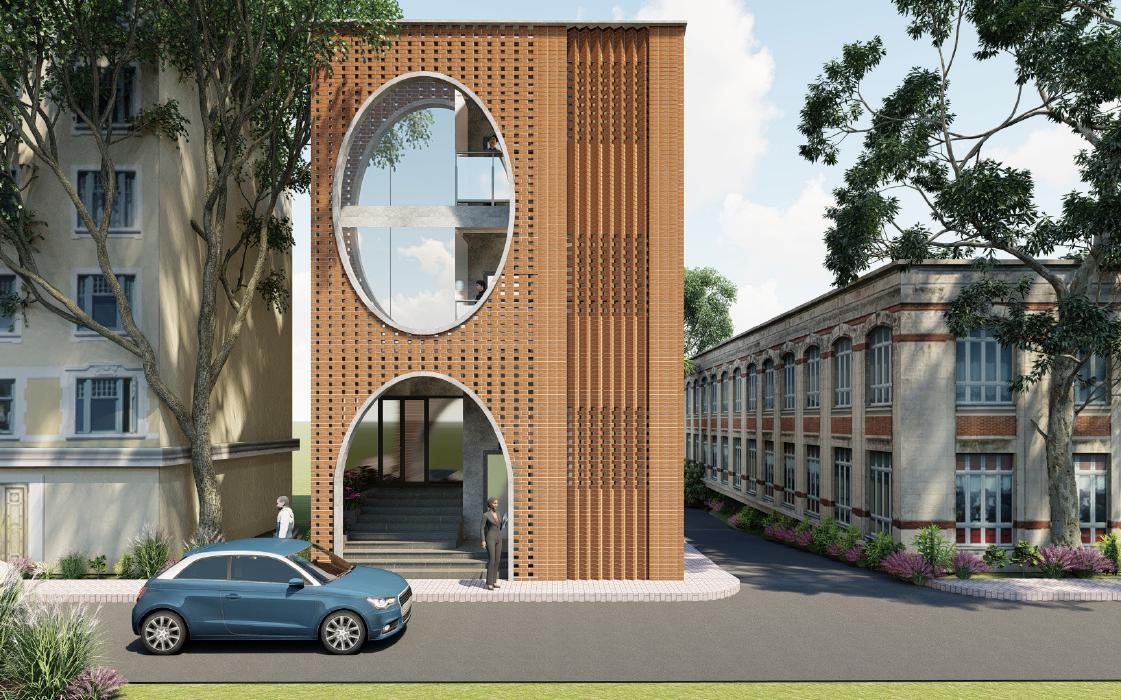

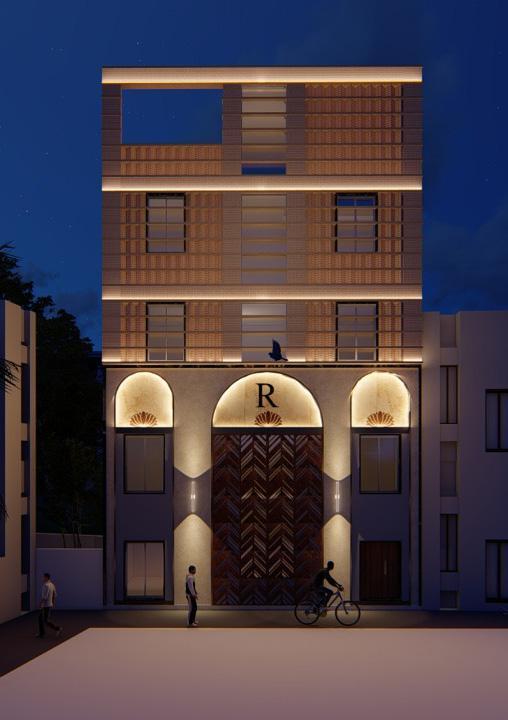

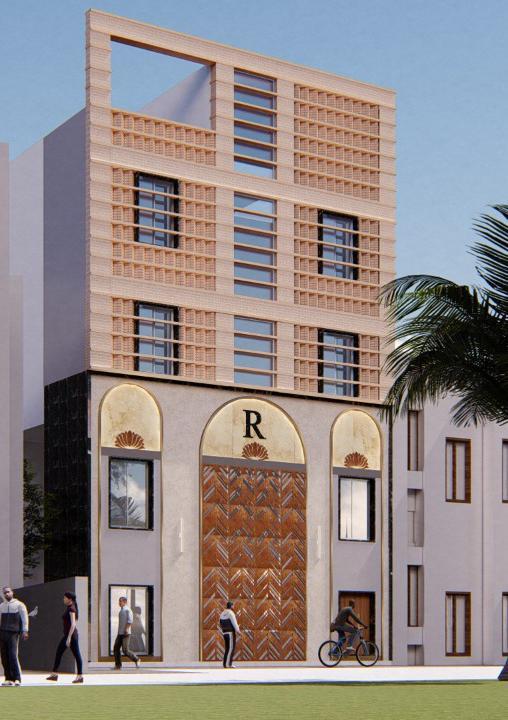

FRONT ELEVATION DESIGN FOR A SAREE RETAILER

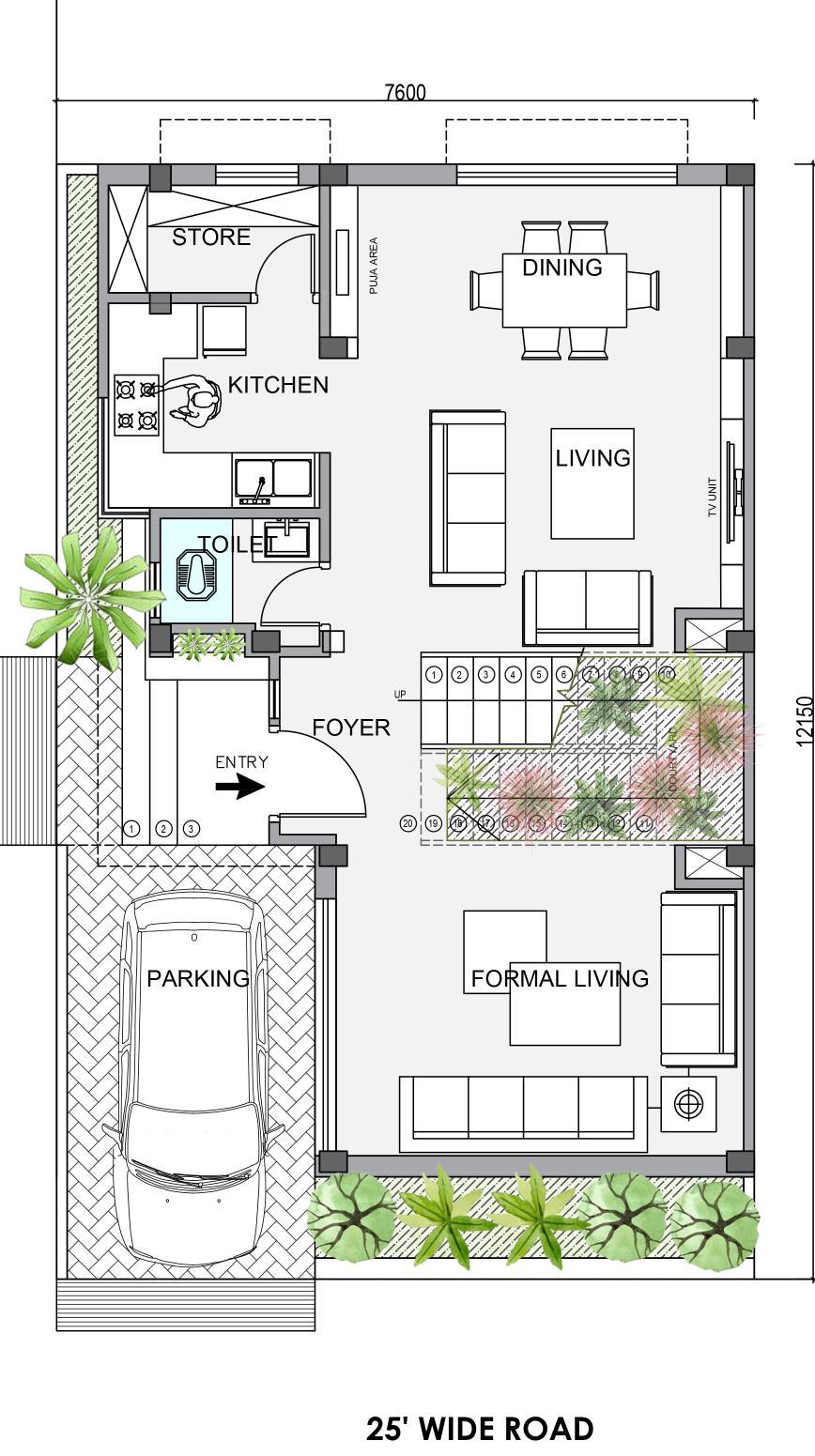

GROUND FLOOR PLAN
DRESS
POWDER TOILET KITCHEN DINING PUJA HALL ENTRY FOYER POWDER TOILET 2.5m WIDE DECK BEDROOM-2 BEDROOM-1 TOILET DRESS EXISTING LAWN CUT OUT ABOVE TOILET UTILITY 1.2m WIDE DECK (7.6X 7.4 m (2.7X 2.2 m (2.7X 3.4 m (4.8X 3.4 m (2.6X 3.4 m (4.2X 2.5 m 1.2m WIDE PASSAGE STAIRCASE (2.7X 5.0 m ) (7.5X 3.9 m 2.2m WIDE PASSAGE LIFT (1.5X1.6 m) (1.8X1.7 m) (6.1X4.7m) (7.6X4.1m) (2.6X2.5m) (3.3X2.5m) (3.5X2.7m) INFORMAL LIVING ROOM (7.6X7.0m) 1.3 m WIDE PASSAGE (4.0X2.7m) 2.4 m WIDE BALCONY PLAN FOR VILLA WITH LARGE FRONTYARD
3.0 m WIDE BALCONY BEDROOM-4 BEDROOM-3 1.5 m WIDE PASSAGE NON VEG KITCHEN 3.0 m WIDE BALCONY POWDER TOILET OPEN TERRACE WITH PERGOLA ABOVE CUT OUT BELOW & SKYLIGHT ABOVE 1.2 m WIDE PASSAGE TOILET DRESS OPEN TERRACE FAMILY LOUNGE COVERED TERRACE GYM AREA TOILET BEDROOM-5 BEDROOM-6 TOILET DRESS TOILET DRESS (Future extension) (Future extension) (5.2X 5.5 m (7.6X 4.2 m ) (5.0X 2.9 m (4.0X 2.1 m (4.0X 5.7 m (4.0X 5.7 m ) (2.5X 1.9 m (2.9X 2.9 m (2.9X 2.4 m (5.5X 1.6 m (16.9X 2.5 m 1.8m WIDE PASSAGE (4.9X 4.3 m 2.0 m WIDE PASSAGE 1.3 m WIDE PASSAGE (6.1X4.7m) (7.6X4.1m) (2.6X2.5m) (3.3X2.5m) (3.5X2.7m) (4.0X2.7m) LIFT (1.5X1.6 m) (1.8X1.7 m)
FIRST FLOOR PLAN

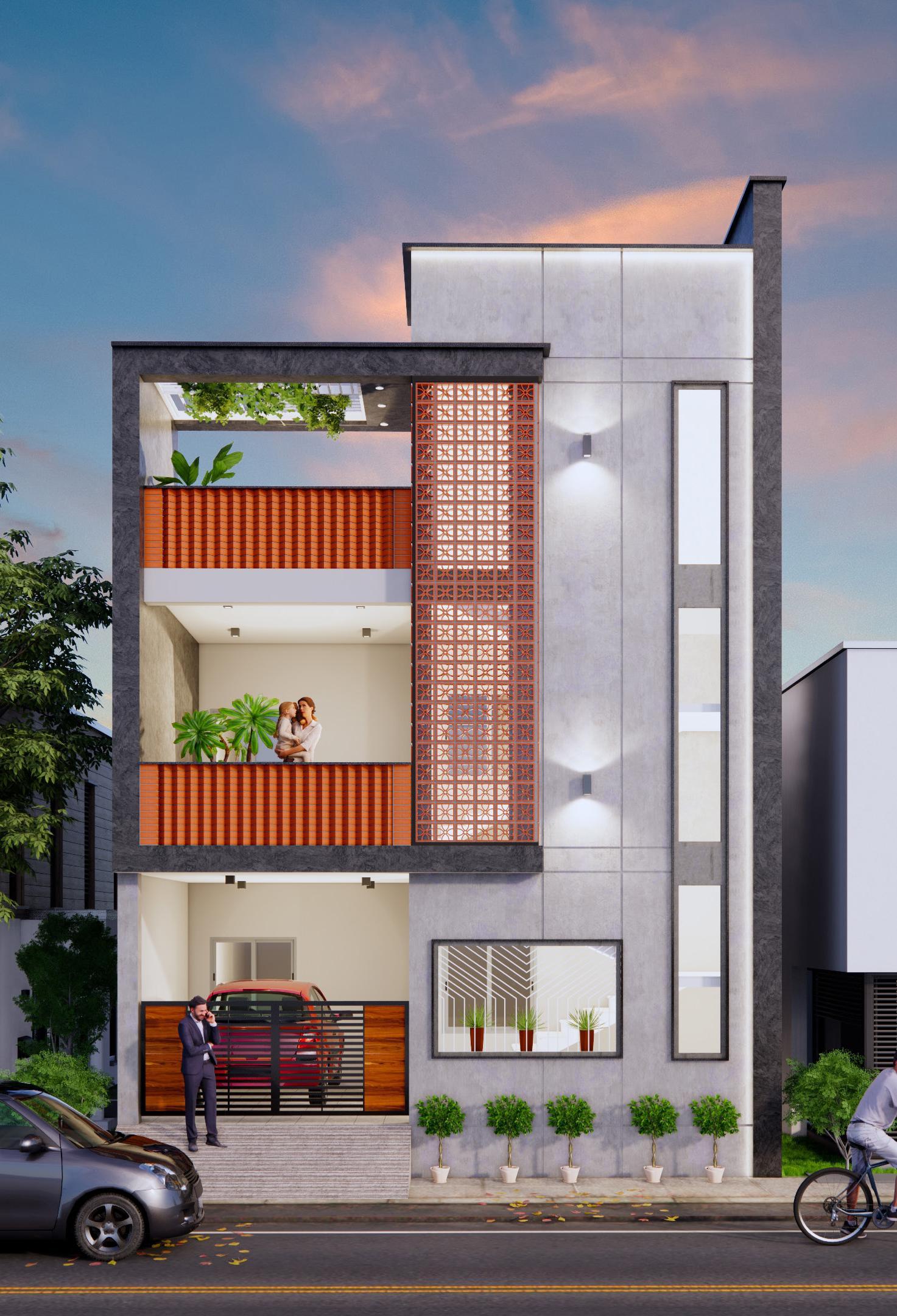

FRONT ELEVATION
C C' P1 P2 P3 RWP 7700 650 600 25 25 35 90 232 35 525 MS GATE AS PER DETAIL D 25 2065 322 25 35 35 35 35MM THK EXTERNAL PLASTER WITH LIGHT COLOUR EXPOSED CONCRETE TEXTURE 92 D' 50MM BLACK GRANITE STONE FIXED AS PER DETAILS 2 MM TEXTURED PLASTER OVER 15MM SAND PLASTER 25 X 25MM GROVE IN 35MM PLASTER 525 25 600 50 50 1535 25 840 25 1450 250 25 25 280 20 225 230 MID LANDING 600 25 575 25 250 25 250 25 725 2 MM TEXTURED PLASTER DARK GRAY CONCRETE OVER 15MM SAND PLASTER 50MM BLACK GRANITE STONE FIXED AS PER DETAILS E E' F F' 92 90 G G' BRICK PATTERN AS PER DETAIL
25MM THK GRANITE STONE 25MM THK GRANITE STONE TERRACOTTA JALI AS PER DETAIL
MS GRILL AS PER DETAIL UP AND DOWN LIGHTS UP AND DOWN LIGHTS 960 +0.28M +-0.00 MS GATE AS PER DETAIL 5250 +0.28M +-0.00 420 1312 420 1312 650 50 GROUND LEVEL +-0.00MM PLINTH LVL +750 MM LINTEL LVL +2850 MM FIRST FLOOR LVL +3900 MM 2ND FLOOR LVL +7050 MM MUMPTY LVL +9450 MM MUMPTY PARABET LVL +10650 MM TOP LVL +11350 MM 750 2100 1050 3150 2400 1200 700 11350
PART PLAN
MAID'S ROOM BEDROOM-1 TOILET TOILET BEDROOM - 2 STORE KITCHEN C.TOILET FORMAL & INFORMAL LIVING DINING VERANDA PUJA AREA COURTYARD ENTRY ROAD ROAD W.I.WARDROBE DRESSER FAMILY LOUNGE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 1 2 3 4 4190X4000 13'-9"X13'-1" 2205X2137 7'-3"X7' 2250X2137 7'-5"X7' 2205X1663 7'-3"X5'-5" 3345X3950 11'X13' 2250X1663 7'-5"X5'-5" 2850X1790 9'-4"X5'-10" 3520X7190 11'-7"X23'-7" 4656X2460 15'-3"X8'-1" 4660X2580 15'-3"X8'-6" 5745X3800 18'-10"X12'-6" PASSAGE 4" WIDE UP 1900X2150 6'-3"X7'-1" 3',4" WIDE BALCONY PEDESTRIAN WALK WAY DRESSER BURN FIRE SEATING WATER BODY & FOUNTAIN CONSOLE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 +0.45M +2.55 +3.0M +3.6M +0.45M +-0.00 +3.0M +3.0M +3.0M OUTDOOR PARKING +3.0M VEHICULAR ENTRY SWING +3.6M 2990X3210 10' X 10'-6" STONE WALL ELEVATION FEATURE CLIENT: MR.& MRS. SURVASE GYM BEDROOM- 3 HOME THEATER INFORMAL SEATING DRESSER COURTYARD ROAD ROAD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 4270X4080 14'X13'-5" 2205X2217 7'-3"X7'-3" 2205X1585 7'-3"X5'-2" M.BEDROOM-2 4625X4030 15'-2"X13'-3" 4270X5390 14'X17'-8" M.BEDROOM-1 5180X3880 17'X12'-9" 3910X3280 12'-10"X10'-9" 2010X2262 6'-7"X7'-5" 2110X1200 6'-11"X3'-11" 2000X1860 6'-7"X6'-1" 1780X1860 5'-10"X6'-1" TOILET W.I.WARDROBE W.I.WARDROBE TOILET C.TOILET W.I.WARDROBE 3470X5180 11'-5"X17' TOILET 4" WIDE BALCONY & PASSAGE 4" WIDE BRIDGE 4" WIDE BALCONY & PASSAGE UP 3',4" WIDE BALCONY DRESSER DRESSER WATER BODY & FOUNTAIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 +.45M +3.0M +3.0M OUTDOOR PARKING +3.6M PEDESTRIAN WALK WAY BURN FIRE SEATING 4" WIDE BALCONY & PASSAGE 2010X2380 6'-7"X7'-10"
RSVM DESIGN STUDIOS SACHIN MAURYA Architect 9920319741 ARCHITECTURE | INTERIOR | LANDSCAPE | PLANNING Email:- rsvmarch21@gmail.com Email:- sachinmurya398@gmail.com https://rsvmarch21.wixsite.com/rsvmarchitects
