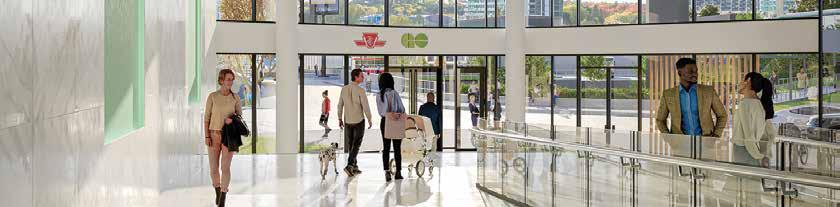

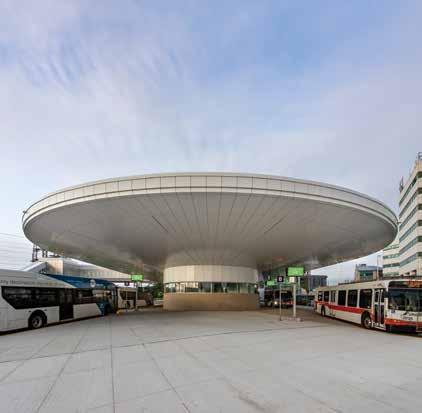

Kipling Transit Hub
Advanced steel framing cuts tonnage and costs

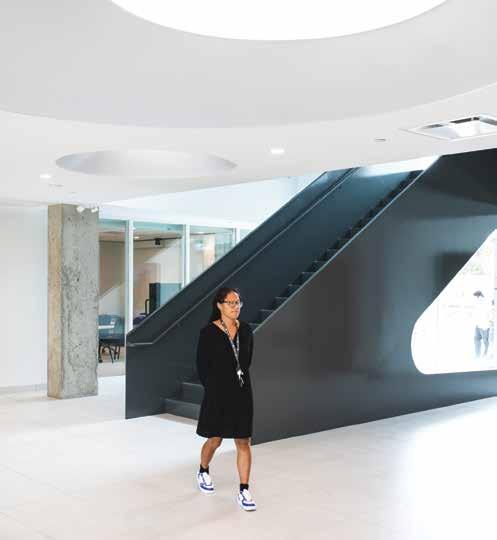

Giant Steps Autism Centre
A giant step for autism
Up to 60% Less Embodied Carbon Cradle-to-Gate.
That’s More to Love About Your Favourite Gypsum Solutions.
Coming in 2025 from North America’s First Zero Carbon*
Drywall Production Facility in Montreal
*Scopes 1 & 2
Prefabricated Balconies
Benefits in time, cost and performance
New Ecospex All-Canadian Platform
A one-stop shop to search and specify products for sustainable building
Best Sustainable Residential Development
Amexon wins prestigious IPAX Americas Property Award
Navigating the Transformation
The evolving role of wood in sustainable construction
Fast + Epp Head Office

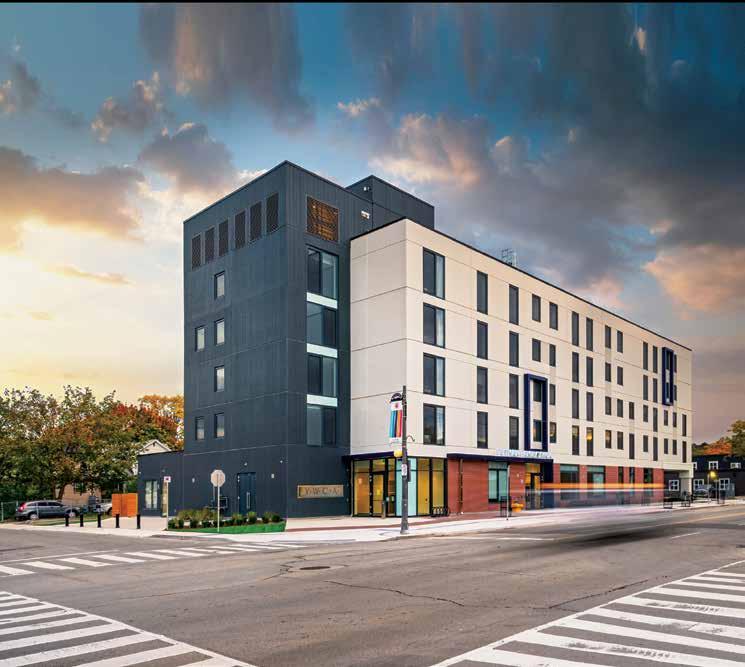

Urban infill building highlights hybrid construction
Building Better with Steel Guidelines for lowering GHG emissions in conventional steel structures

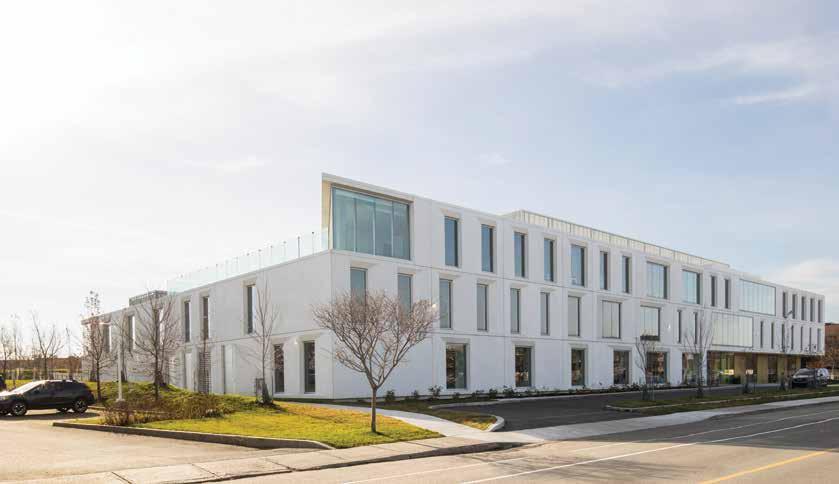

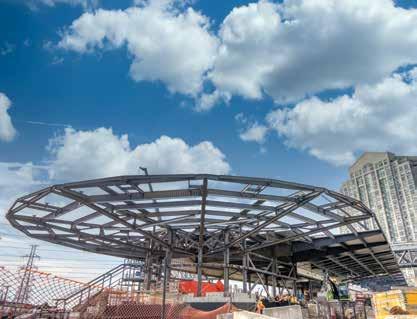

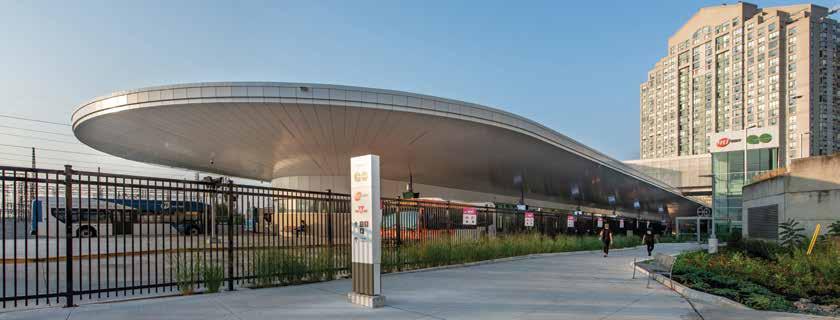

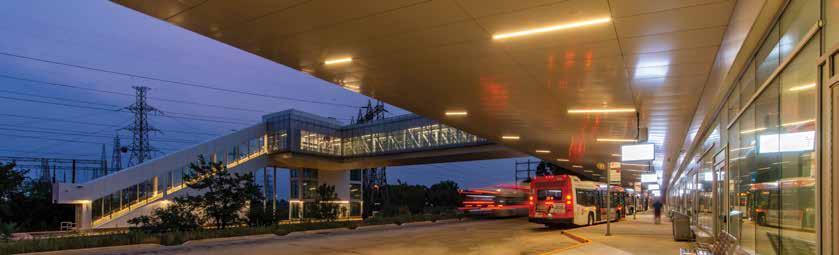

Kipling Transit Hub

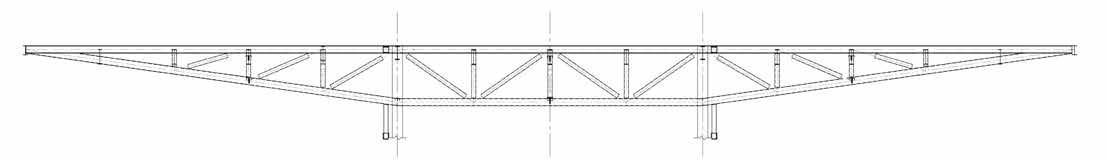

Advanced steel framing cuts tonnage and costs

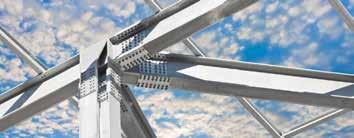

Canada’s Strong Upswing Galvanized Steel as the optimal sustainable construction material

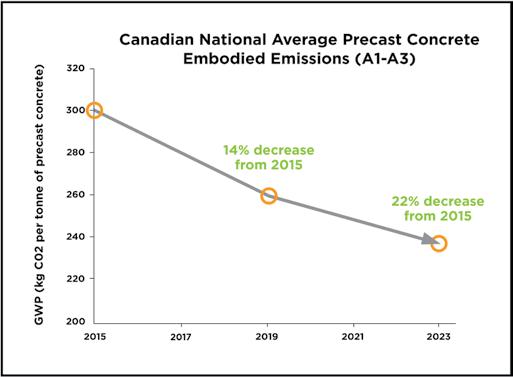

The Drive to Decarbonization
The Role of Prefabricated Precast Concrete

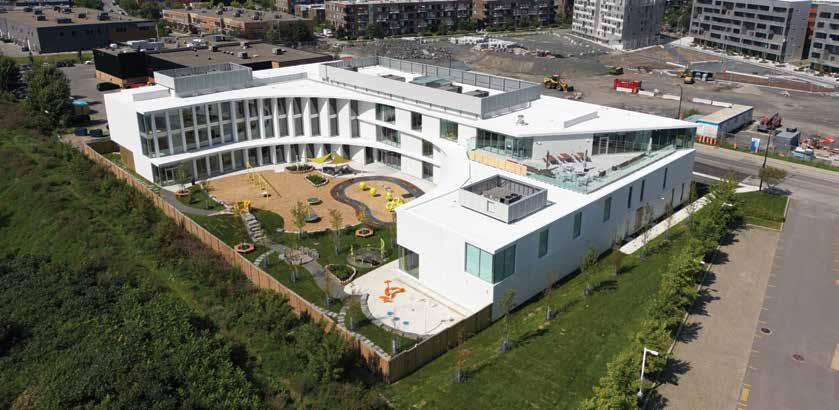

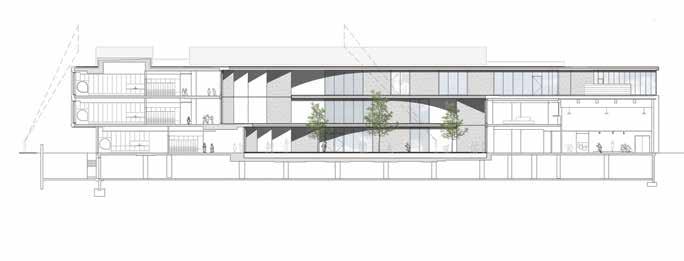

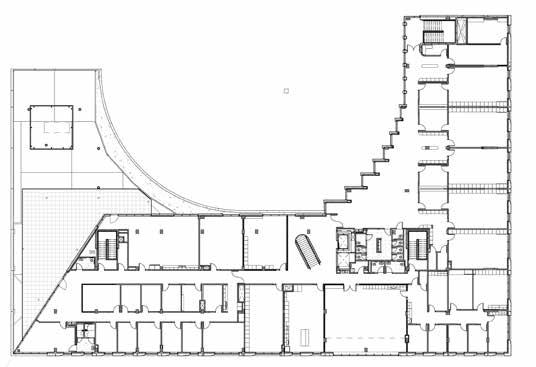

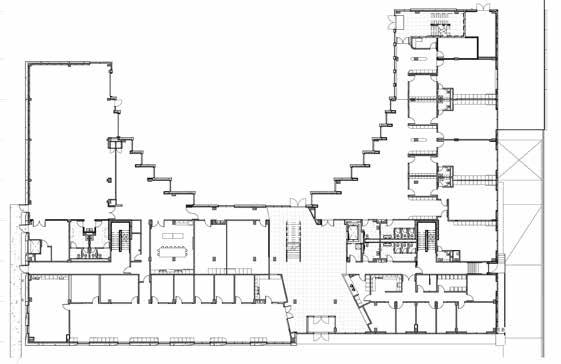

Giant Steps Autism Centre
A giant step for autism

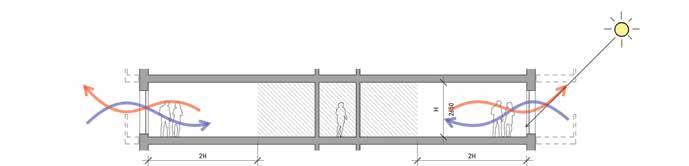

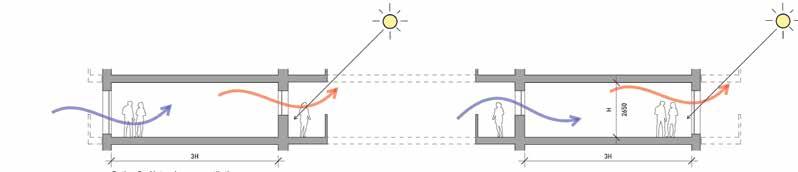

Mechanical Systems
Concepts for low energy buildings
CAGBC’s Zero Carbon Building Micro-Credential Building proficiency in low-carbon design
Interview with
The husband-and-wife team behind the FlexPlex® building
DON’T MISS
• təməsewtxʷ Aquatic and Community Centre
First all-electric facility to achieve CAGBC’s Zero Carbon Building-Design Standard. Photo: Nic Lehoux.
• Masonry for construction and life cycle considerations
• The 2025 Directory of Products and Services for Sustainable High-Performance Building
Our annual Special Supplement
… and more!
Cover: Fast + Epp Office, photo Michael Elkan; Kipling Transit Hub, photo Simon Liao; Giant Steps Autism Centre, photo Adrien Williams.

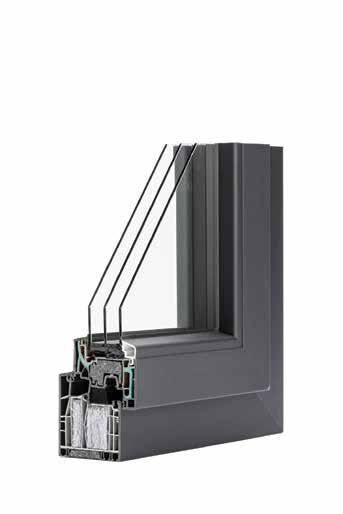

Windows + Doors for Passive House Projects
Innotech Windows + Doors is a Canadian manufacturer of high-performance windows and doors. The Defender 88PH+ System combines decades of fenestration knowledge to deliver a robust window and door system that is not only Passive House Institute certi ed, but that also delivers the air, water and structural performance required for highly sustainable housing developments.
Dedicated to high-performance building
Member Canada Green Building Council
SABMag is a proud member and official media partner of the Canada Green Building Council.
VISIT www.sabmagazine.com
Publisher Don Griffith
613-421-7588, dgriffith@sabmagazine.com
Editor Jim Taggart, FRAIC 604-874-0195, architext@telus.net
Senior Account Manager Patricia Abbas 416-438-7609, pabbas@sabmagazine.com
Graphic Design Carine De Pauw cdepauw@sabmagazine.com
Subscriptions/Change of Address Lyse Cadieux, lcadieux@sabmagazine.com
Published by www.janam.net 81 Leduc St.,Gatineau, Qc J8X 3A7
Subscription prices for print [taxes extra]
1 year [4 issues] $28.95 $39.95 $84.95
2 years [8 issues] $50.95 $69.95 $148.75
3 years [12 issues] $74.95 $104.95 $219.85
order print or digital: https://sabmagazine.com/subscribe/
ISSN 1911-4230
Copyright by Janam Publications Inc. All rights reserved. Contents may not be reprinted or reproduced without written permission. Views expressed are those of the authors exclusively.
Publication Mail Agreement #40024961 Return undelivered Canadian address mail to: Janam Publications Inc., 81 Leduc St., Gatineau, Qc J8X 3A7
Printed on EQUAL Offset paper.
COUNTING THE COST OF CLIMATE CHANGE
This past summer, scientists at Environment and Climate Change Canada (ECCC) analyzed the devastating heat waves that have recently affected many regions of Canada. They found that human-caused climate change made almost all of these heat waves hotter and their occurrence much more likely.
Using ECCC’s Rapid Extreme Weather Event Attribution (REWEA) system, they were able to compare today’s climate with a pre-industrial one. Comparing current and historic data helps us understand better how human emissions and activities are affecting our lives and weather today, and how those impacts are increasing in real time.
The analysis of 37 of the hottest heat waves in 17 regions across Canada determined that human-caused climate change made every one of these events more likely to occur; 32 of them by a factor of between 2 and 10 times.
As increasing greenhouse gas concentrations in the atmosphere continue to drive climate change, Canada is warming at roughly twice the global average rate. Spring and summer are becoming hotter, resulting in earlier snowmelt, dangerous heat waves, and conditions highly conducive to wildfires.
Moving forward, ECCC is expanding the scope of its REWEA system to analyze the connection between human-caused climate change and the odds of extreme cold temperature and extreme precipitation. These additional capabilities are expected to come online in 2025.
The direct and indirect costs of extreme weather are substantial, ranging from loss of productivity to loss of life. Understanding the causes and effects of extreme weather events can help us better plan for, respond to and rebuild from weather emergencies. Recent studies show that what were previously considered ‘ “once in 100 years” climate-related weather events are becoming more frequent, severe, and costly.
Based on insurance claims, 2020, 2021, 2022, and 2023 all rank in the top 10 most expensive years surpassed only by the 2016 Fort McMurray fires, the 2013 flooding in Calgary and Toronto, and the 1998 Quebec ice storm. The yearly average cost of claims related to catastrophic events has risen from $400 million between 1983 and 2008 to $2 billion from 2009 to 2023.
These figures make it clear that failure to meet our GHG reduction targets comes at an ever increasing cost – both economic and social.
Jim Taggart, FRAIC Editor
photo: Roy Grogan
RAIC REPORT: THINKING DIFFERENTLY TO SHAPE THE FUTURE
As I begin my role as President and Chair of the RAIC Board, at a time when our benchmarks and reference systems are rapidly evolving, I see it as both an honour and a significant responsibility. By the end of my term, I will have dedicated 30 years to architectural organizations, actively contributing to the positive transformation of our century-old institution. With deep optimism, I embrace our 2025-2027 strategic plan, a collective effort aimed at building a better world.
I share the view with my peers that the architectural profession is at a decisive turning point, where ecological challenges are no longer optional, but essential. It is crucial that we adapt and think differently. Together, we can address national issues while respecting regional and cultural nuances. Our past successes lay the groundwork for a future where creativity and innovation continue to inspire.
Alongside our team and partners, I aim to foster a culture of creativity and design excellence, particularly as our industry undergoes an unprecedented technological revolution.
By embracing innovation and emphasizing the value of design, we can strengthen our leadership, amplify our profession's cultural and economic impact, and expand our recent achievements on a national scale.
To ensure our voice is heard, we must communicate our work clearly, build a compelling value proposition, and enhance our market presence. It is vital that we deepen our engagement with our members, politicians, academics, professional bodies, and the public who place their trust in us.
I am confident that by reimagining our role, supporting innovation, and championing a bold design culture, we can shape a remarkable future for Canada’s architectural landscape.
Jonathan Bisson, architect, MOAQ, FIRAC
LITTLE BY LITTLE STUDIO
In the SABMag Summer issue, we should have reported that the architect of the Little by Little Studio, which received the Existing Building Upgrade Award in the 2024 Canadian Green Building Awards, was pico ARCHITECTURE inc. We regret our error.
CAMBRIDGE INDUSTRIAL PARK SHOOTS FOR ZERO CARBON BUILDING DESIGN V3
The Eagle Street Industrial Park in Cambridge, Ontario is expected to have the first industrial building in Ontario and one of only eight in all of Canada to be certified by the Canadian Green Building Council as ‘Zero Carbon Building Design v3’. The ‘v3’ certification demands carbon reduction be 30% below the Ontario average for embedded carbon in building materials. Further, it calls for full electrification of all heating and cooling systems down to -10 celsius. The Eagle Street project has gone well beyond the minimums. The steel is recycled from old projects and forged in electric arc furnaces for lower carbon emissions. The concrete for the foundations and footings came from recycled concrete from demolished projects and then mixed with new concrete. The building insulation is also unique, with R40 roof insulation, R30 wall insulation, and R20 foundation insulation. After consultation with Toronto based company ‘Ecovert’, every connecting point in the building has engineered thermal breaks, ensuring the energy that is put into the building stays in the building. Revolutionary air source heat pumps have been incorporated for heating and cooling the building. Projected annual reductions include 27% less electricity and 82% reduction in greenhouse gas intensity. Information: MichaelHilson@Crillion.com
Jonathan Bisson
Daylighting
productivity
To be most productive, one needs to be comfortable first. Add superior light quality and views to the outdoors along with natural ventilation to enhance indoor environmental quality and people thrive. Daylighting done right has been proven to increase productivity, reduce absenteeism and improve mood. Kalwall works hard so employees can work smart.
balance
Only Kalwall offers the power of beautifully balanced daylighting. Unlike other glazing products on the market, Kalwall provides predictable, glare-free daylight that blocks harmful UV-A and UV-B rays while transmitting the full spectrum of visible light for perfect color rendition within interiors.
sustainability
Translucent Kalwall panels provide perfectly diffuse daylighting that evenly bathes spaces in natural light, meaning fewer lights on during the day. Our high recyclability and low embodied carbon ratings are planet-friendly. Even better, our best-in-class thermal performance means you get superb daylight without any solar heat gain. That means savings for electrical and cooling costs, which is good for both your bottom line and the environment.

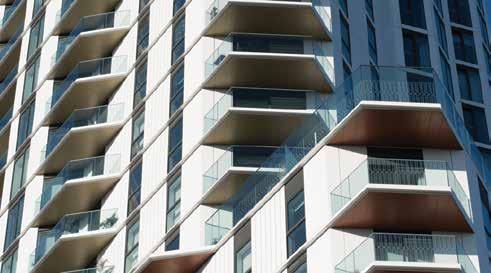

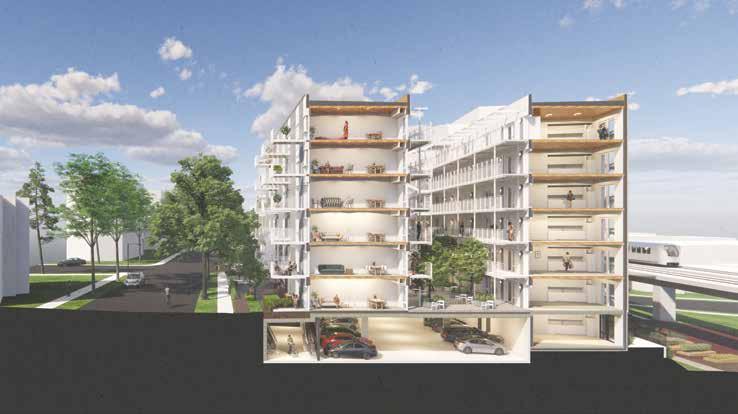

PREFABRICATED BALCONIES BRING BENEFITS IN TIME, COST AND PERFORMANCE
By Sam Estall
Prefabrication and modular construction are innovative approaches that can benefit a building project, and this includes balconies.
Reducing the time on site by not needing to manufacture balconies in-situ can be a time and cost-effective way to manage balconies on a development. Delivering fully assembled units means not only a decrease in cost, but also a reduction in risk.
And, since the floor of the prefabricated balcony is not continuous with the floor of the interior space, thermal bridging is all but eliminated.
Pre-finishing as much as possible in the factory reduces the requirement for secure storage on site – a further benefit particularly ideal for projects in city centres like Toronto or Vancouver where site space can often be extremely limited.
On-site health and safety issues, such as the risk of errors and potentially costly project delays due to bad weather, can be reduced with a prefabricated solution.
Finally, this increase in quality stretches out to quality assurance too – prefabricating balconies in factory conditions ensures a high degree of quality control which is almost impossible to achieve on site.
Prefabricated balconies do need to be designed to ensure compatibility with modular construction processes. Ensuring that the balcony design integrates seamlessly with other building systems, such as façade elements and structural supports, can enhance overall project coordination and efficiency.
Compliance with step codes in Canada must also be considered. Having a prefabricated balcony can lead to sustainability benefits, but making sure that balcony designs comply with relevant building codes and regulations, including requirements for structural integrity, fire safety, and accessibility, are crucial for ensuring code compliance.
Prefabrication is reinventing modern balcony construction – as time goes on, we at SAPPHIRE are seeing signs that the modular approach to balcony manufacturing could be on its way to becoming the norm.
With the various benefits of a prefabricated approach such as faster installation times, minimized thermal bridging, and quality assurance, a building development can benefit from not only a streamlined approach, but a lighter, safer, kinder one too, with more possibilities than ever before.
To learn more about how a prefabricated solution could benefit your project, visit balconies.global/visit-us-canada-showroom.

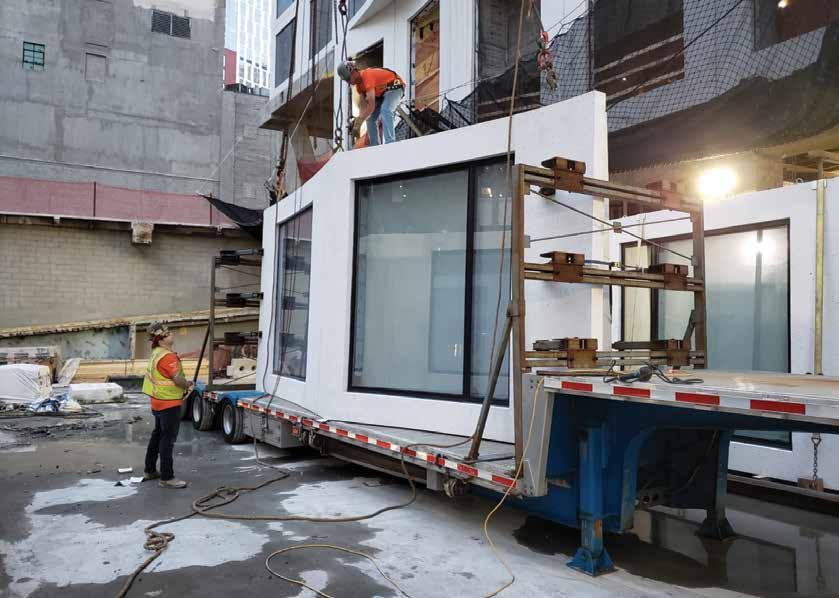

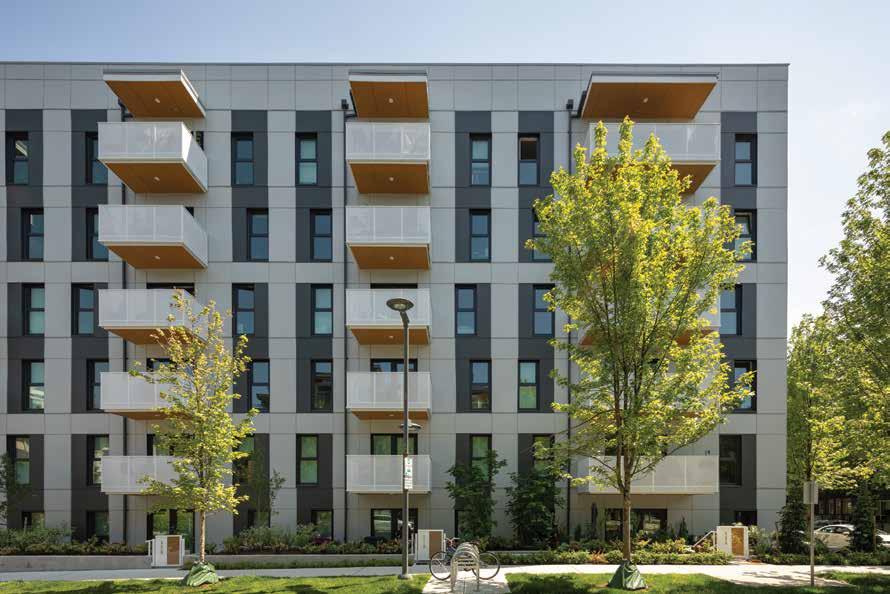

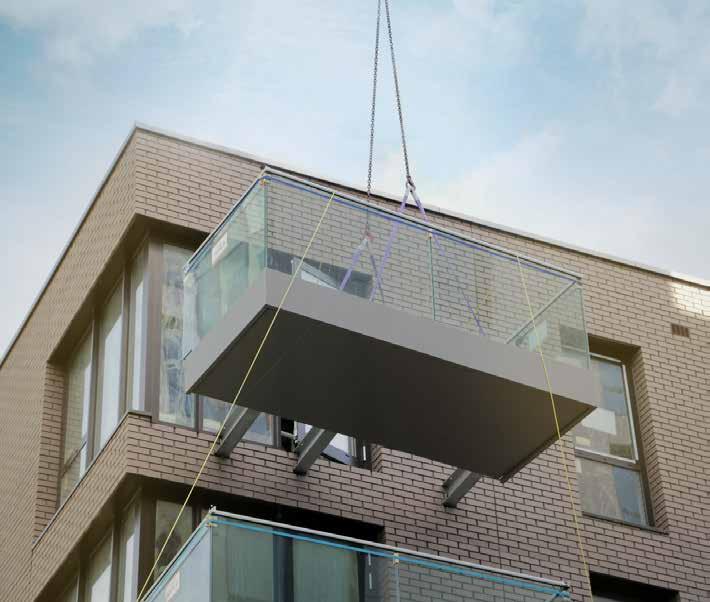

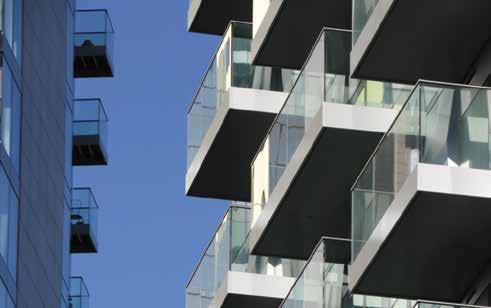

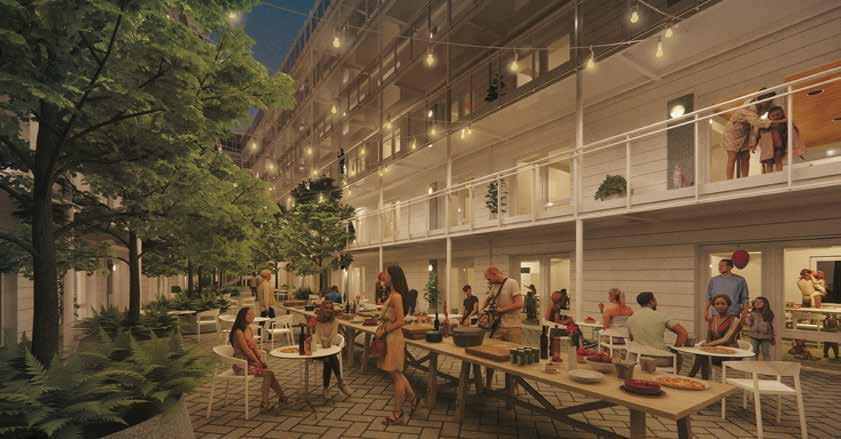

Prerfabricated balconies reduce on-site construction time, cost, and thermal bridging and adapt well to modular construction.
SAM
Efficiency Capital (EC), Canada’s first Energy-as-a-Service (EaaS) company, and Mitsubishi Electric Sales Canada Inc. (MESCA) have announced a strategic cross-promotional partnership to make low-carbon building solutions more accessible to building owners and operators across Canada. Energy efficiency in buildings, despite being one of the critical pathways to meet Canada’s climate goals, faces several systemic barriers for adoption at scale. As partners in sustainability, EC and MESCA will offer turnkey efficiency solutions with little to no upfront capital so that building and business owners can enjoy the financial benefits of upgrading their buildings. The partnership combines EC’s project investment and delivery model with MESCA’s heat pumps and related technologies in the drive towards net-zero buildings across Canada. This collaboration will better enable owners and operators to optimize their energy systems and capital expenditures while reducing their carbon footprint, contributing to a greener and more sustainable future. Information: Candace.Steinberg@mesca.ca
CASCADIA WINDOWS & DOORS THE FIRST TO ISSUE AN EPD IN ACCORDANCE WITH THE NEW PCR
Cascadia Windows & Doors in Langley has published Environmental Product Declarations (EPDs) for its Universal Series™ Windows, Doors and Window Wall uti-
lizing the new Fenestration Assemblies Product Category Rule (PCR) released in December, 2023. This milestone makes Cascadia Windows & Doors the first window manufacturer in the world to issue an EPD in accordance with the new PCR.
Visit SABMag's Directory of Sustainable Products and Services for Sustainable, High-Performance Building [sabmagazine. com/product-directory/ ] where products are organized by Product Category and by LEED Category. Examples of featured listings include:
Aqua-Tech Sales and Marketing Inc.Proudly providing the Canadian marketplace with highefficiency condensing boiler, water heater products manufactured by Lochinvar LLC. LEED v4.1 BD & C Category potential for New Construction, Major Renovations and Homes for energy performance. aquatech-canada.com Duxton Windows & Doors - The Future is FIBERGLASS: Super low Uvalues; Tough frames; Beautiful aesthetics; and Passive House Applications. duxtonwindows.com
PRODUCTS
ECO Building Resource - Suppliers of High-Performance Membranes & Tapes, Sealants & Adhesives, Paints & Finishes, Insulation and more. eco-building.ca
Forbo Flooring Systems - Marmoleum is CO2 neutral (from cradle to gate) due to natural ingredients that absorb carbon dioxide and a low energy production process, resulting in a sustainable floor that looks beautiful and lasts over 30 years. forbo.com
UNICEL Architectural - Specialists in the manufacturing of high energy- efficiency timber curtain wall with proven RAICO technology. Each Therm+ H-I system (56 and 76mm) combines Passive House certification-level thermal insulation, along with superior wind resistance and greater air tightness. unicelarchitectural.com
Innotech Windows + Doors - A BCbased manufacturer of Passive House Institute certified fenestration systems for deeply sustainable custom residences and multi-family developments. innotech-windows.com
Dulux/PPG - Dulux Paints operates the largest network of company-owned paint stores across Canada. Our highly experienced team of account representatives provides specification and on-site support, and we have the scale to deliver outstanding services to help you meet any of your design challenges. dulux.ca
Big Ass Fans - The world’s preeminent manufacturer of HVLS ceiling fans (high-volume, low-speed fans), we engineer and purpose-build our airflow products to provide significant energy savings and improve occupant comfort year-round. bigassfans.com
NZP Fenestration Passivhaus Windows and Doors - NZP Fenestration is a passivhaus certified tilt and turn window manufacturer in Quebec. We offer high-performance products and support from our team of experts from the production of the plans to the installation. Our uPVC profile allows us to manufacture very large dimensions, install the best triple glazing available and significantly reduce your energy use. nzpfenestration.com

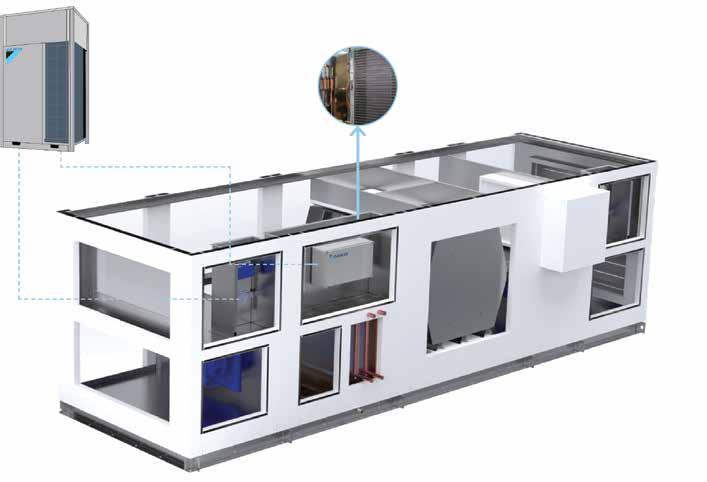

Daikin Applied - Designs and manufactures technologically advanced commercial HVAC systems for customers around the world. Our goal is to deliver superior air quality and energy efficiency to every solution with innovation in advanced technology, IoT, and next generation compressors. daikinapplied.com.
reducing carbon emissions and creating a more comfortable and consistent interior environment. ecopilotai.com
Efficiency Nova Scotia - Did you know installing energy efficient upgrades can make your commercial space more comfortable for tenants while saving on your bottom line? From new builds, building retrofits, optimizing controls and everything in between, we can safely help with incentives, financing, and expert advice. efficiencyns.ca
MAPEI Canada – We represent the Canadian subsidiary of the MAPEI Group. Founded in 1937 in Milan, MAPEI is one of the world’s leading manufacturers of chemical products for the building industry and has contributed to the construction of some of the most important architectural and infrastructure works worldwide. mapei.com
Mitsubishi Electric Sales Canada Inc. - We offer a wide range of solutions for the residential and commercial market including: Air Source VRF, Water Source VRF, Hybrid VRF, SingleSplit, Multi-Split, Hydronics and Ventilation. Mitsubishielectric.ca
SLOAN Valve - Our EPDs are produced in accordance with international standards and verified by an independent third party to ensure the data we communicate is credible, resulting in full LEED Material and Resource credits for your project. dobbinsales.com
Fantech - Specifying made simple. BIM models and CSI 3-part specifications make it easy to spec quality residential and commercial ventilation products providing a healthy indoor environment where people live and work. fantech.net
Ecopilot® - A clean-tech pioneer in intelligent building management software. Using real-time data to make continuous improvements to a building’s HVAC system, Ecopilot’s Artificial Intelligence saves heating and cooling costs while
Tempeff Inc.- Building on over 20 years of European innovation, we offer air to air Dual Core® energy recovery ventilation equipment with up to 90% energy efficiency in winter without any requirement for an energy robbing defrost strategy. Tempeff Dual Core® Technology is the highest efficiency solution available for your building ventilation needs. tempeff.com

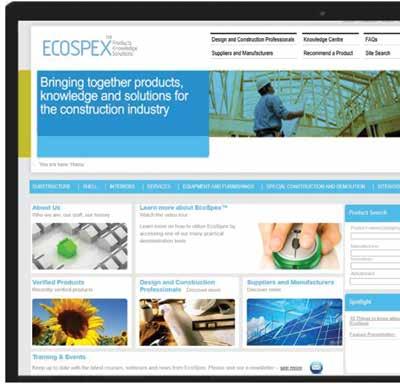

NEW ALL-CANADIAN PLATFORM
WHAT IS IT?

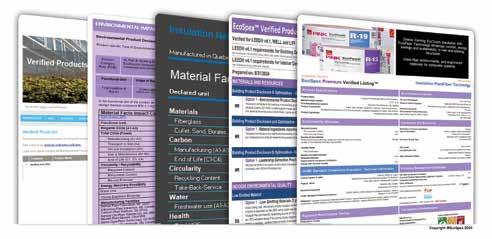

EcoSpex is a verified product specification platform designed to revolutionize how construction materials are specified for green and healthy buildings.
WHO IS IT FOR?
EcoSpex supports manufacturers by automating and digitizing the environmental certifications and other relevant documentation of their products on one platform so that Developers, Owners, Architects, Engineers, General Contractors, Interior Designers, and sustainability professionals can cut the time it takes to decide the suitability of products for sustainable building from hours to minutes.
WHY NOW, WHY CANADIAN?
EcoSpex consulted with the Federal Government, numerous companies and Industry Associations across Canada to discover the need for an all-encompassing, fully digitized one-stop platform that collects, verifies and automates environmental certifications of manufacturers’ products accessible in Canada and suitable for Canadian climates.

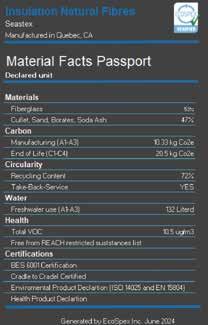

Product Passports are standardized to allow users to compare or review a summary of the sustainability attributes of product manufacturers' data.
The platform quickly provides an accurate set of documents to assure project teams that a product can meet sustainability and performance goals and compliance with LEEDv4, LEEDv5, WELL®, ILFI, International Passivhaus Institute, Fitwell, Green Globes, BOMA and BREEAM.
EcoSpex Low Carbon Platform allows project teams to:
• Access a Trusted Process
• Streamlined Product Evaluation
• New Product Alerts
• Get Guidance
• Powerful Search & Compare Tools
Start
• Fully prefabricated, modular balcony system
• 34% embodied carbon reduction compared to a traditional concrete slab
• Experienced in achieving Passive House standards
• Science-Based Targets approved
• Innovative interfacing for easy-install on any façade or structure
• Preferred by developers across North America
• Up to 10x faster to install than a concrete alternative
• 15,000 balconies sold globally in 3 years
Amexon Development Corporation wins prestigious IPAX Americas Property Award
The Residences at Central Park project by Amexon Development Corporation has won the coveted IPAX Americas Property Award for "Best Sustainable Residential Development" in Canada.
The globally-recognized IPAX Americas Awards honour outstanding achievements across the real estate sector from nine global regions, awarding projects that exemplify innovation, superior quality, and environmental responsibility.

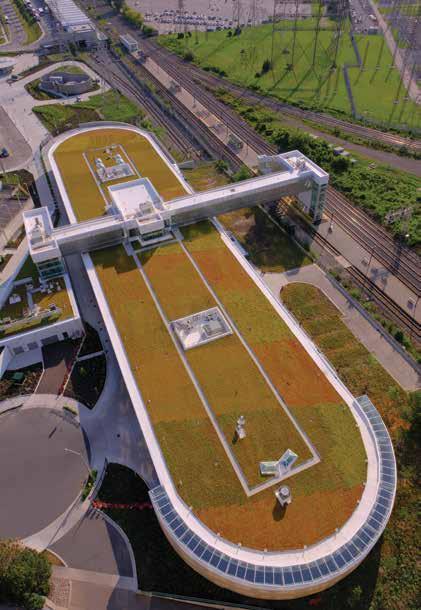

Amexon's award-winning Residences at Central Park in Toronto —a 12-acre master-planned community of five towers— contains numerous green technology measures, some of which include: In the building:
• Vegetated roofs reduce energy consumption and absorb rainwater
• Photovoltaic modules supplement the building’s power needs
• High-performance thermal building envelope minimizes unwanted solar gain and heat loss
• Over 1,500 electric car charging stations service every parking space, including visitor parking spaces, a first in North America
• Energy-efficient LED light fixtures and motion sensors in corridors and common areas
• Intelligent building automation system for heating and cooling controls in common areas
• Next-generation building mechanical systems feature improved air flow and HEPA filtration systems
• Central building water filtration system
• On-site car-share service and bicycle-share service
• Convenient access to transit
In each suite:
• Individually metered electrical and water usage provide control over consumption and water-wise fixtures for showers, sinks and dual-flush toilets
• Individually controlled and programmable comfort systems to control heating and cooling from smartphone
• Low-voc finishes and significant use of hardsurface flooring for easy maintenance
"The Award is a testament to our ongoing commitment to sustainability and forward-thinking design," said Ashling Evans, General Manager of Real Estate at Amexon Development Corporation.
The Residences at Central Park also recently won the Ontario Home Builders' Association's Project of the Year (People's Choice Award) and named a finalist for the BILD Green Builder of the Year and the OHBA Green Building of the Year.
The project seamlessly integrates with the adjacent East Don Parkland to create a mixed-use community that represents the future of sustainable urban living in North America. centralparktoronto.com
Every day, we support architects with their projects and greatest achievements, including the Property Tower in Baku, the Museum of the Future in Dubai, the Shanghai Astronomy Museum, the New Parliament House in New Delhi, the Research and Development District (RaDD) in San Diego, and the Forest Campus in Warsaw. These iconic buildings represent major technical and aesthetic achievements and our innovative solutions are helping reduce their energy consumption and use of natural resources(1) while ensuring comfort for everyone. Faced with today’s environmental, social and societal challenges, we stand by all the construction professionals shaping the world of tomorrow to leave behind a desirable and more sustainable heritage for future generations.
NAVIGATING THE TRANSFORMATION
The evolving role of wood in sustainable construction
By Peter Moonen
Around the globe, the construction sector is in the midst of a profound transformation. Faced with an array of social, economic, and environmental challenges, the industry is adapting to new demands and regulations. As urban populations swell—80% of the world’s population is projected to live in cities by 2050, with Canada already at 81%— the need for affordable, high-performance multifamily housing has never been more pressing. The sector is grappling with rising operational costs, material expenses, and a shrinking labour force, all while striving to enhance energy efficiency and affordability in rapidly densifying urban areas.
THE CARBON CONUNDRUM
Decarbonizing construction is a crucial part of this transformation. For decades, regulations have focused on operational energy, pushing the industry toward buildings with minimal energy demand and related monthly costs. Recently, however, there has been a shift toward addressing the carbon footprint of the construction process itself. Wood, with its low carbon emissions, is emerging as a key player in this shift. As building codes evolve to permit greater use of wood, particularly mass timber, there is a significant opportunity to reduce the carbon footprint of construction.
In Europe, energy efficiency has long been a standard, and now low-carbon building policies are becoming more prevalent. Canadian cities like Vancouver and Toronto are following suit with initiatives to cut embodied carbon in new construction. Provincial and federal governments are also setting carbon reduction targets in their procurement practices, creating a ripple effect across the industry.

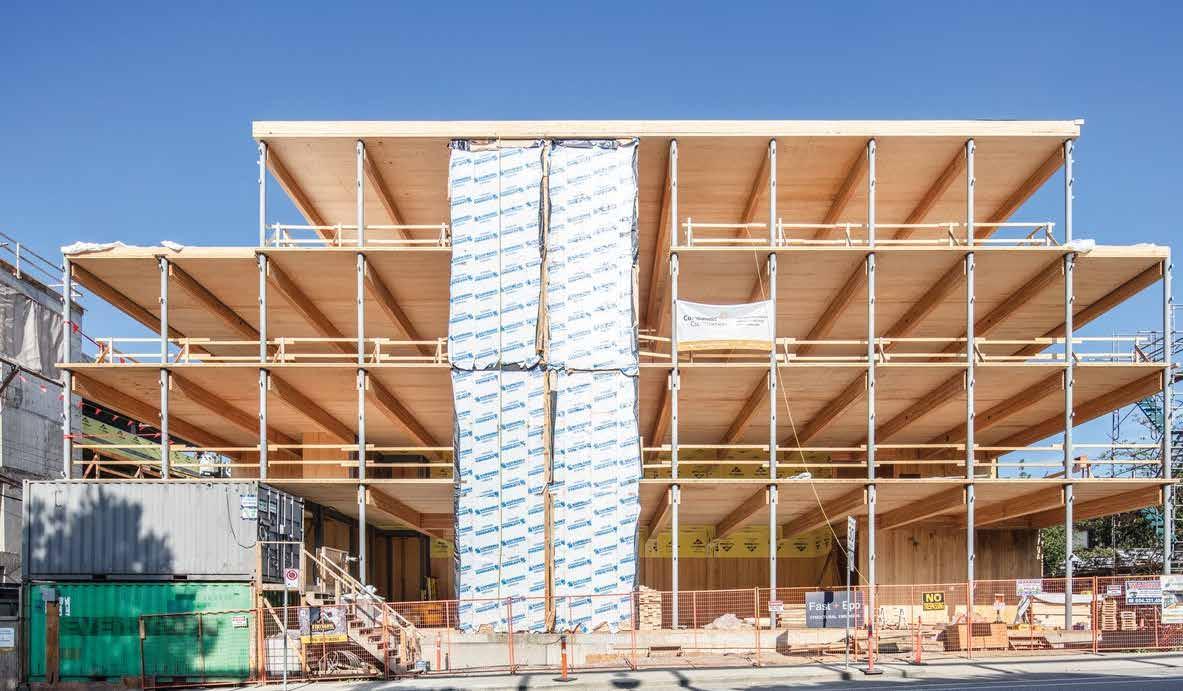

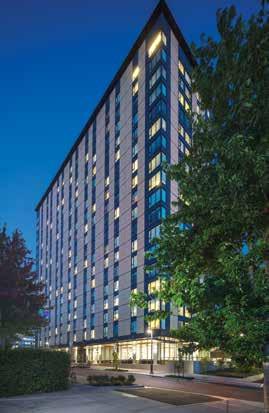

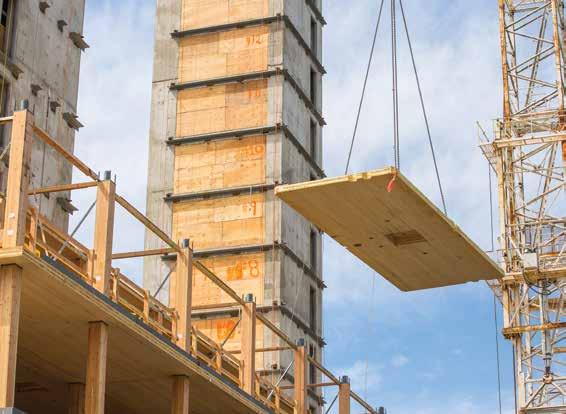

1. and 2. Brock Commons/Tallwood House.

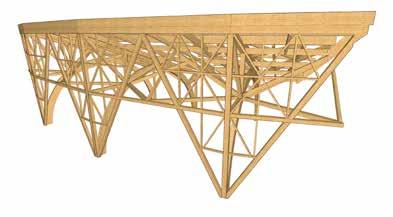

THE RISE OF MASS TIMBER
The past 15 years have seen a substantial growth in the mass timber sector in both Canada and the U.S. Building codes are increasingly recognizing the potential of mass timber products, which are now being used in structures previously deemed unsuitable because of their height and/or occupancy . Notable examples include Brock Commons/Tallwood House (Photos 1 and 2) , an 18-storey student residence at the University of British Columbia and the Fast + Epp Home Office Building, a mixed use, 4-storey infill building in Vancouver. These structures demonstrate the viability of mass timber in high-rise and hybrid construction, blending wood with other materials for enhanced performance.
THE IMPORTANCE OF COLLABORATION
For hybrid buildings such as these, designers and specifiers must work closely with contractors and suppliers to ensure that material choices align with the project’s goals. By fostering collaboration, teams can leverage the expertise of various stakeholders, ultimately leading to more innovative and efficient solutions. The transition from traditional construction methods to a hybrid approach is reshaping the way we build in Canada.
CODE CHANGES
Changes to building codes have been instrumental in this shift. For instance, the National Building Code now allows encapsulated mass timber construction (EMTC) up to 12 stories, with some jurisdictions permitting up to 18 stories. This increased acceptance is largely due to rigorous research by the National Research Council of Canada and other organizations, which has validated the performance capabilities of mass timber and engineered wood products.
RETHINKING PROCUREMENT AND PRODUCTIVITY
As building codes and carbon regulations evolve, so too do procurement practices. Cities like Vancouver and Toronto now require embodied impact assessments for new projects, signaling a broader shift towards sustainable materials. The Canadian government’s Greening Government mandate emphasizes carbon footprint reduction in new constructions and renovations, further highlighting the role of wood as a natural choice for low-impact projects.
IMPROVING PRODUCTIVITY
However, the construction sector faces a productivity challenge. Over the past 75 years, productivity has increased by a meager 0.1% per year, and labour shortages exacerbate the issue. Wood products, with their potential for offsite manufacturing and precise machining, offer solutions to these challenges. Their ease of assembly and improved performance can help address structural, economic, and labour issues, as demonstrated by projects like the new student residence at the British Columbia Institute of Technology.
GREENING GOVERNMENT: ADVANCING LOW CARBON CONSTRUCTION THROUGH LIFECYCLE ANALYSIS
As part of its Greening Government Strategy, the federal government, in collaboration with the National Research Council of Canada, is spearheading an initiative to develop a comprehensive database of embodied impacts and emissions linked to construction materials.
This ambitious project focuses on low-carbon assets through lifecycle analysis, supporting the major structural material sectors—wood, concrete, and steel—in gathering essential lifecycle information from manufacturers and industry members.
A COMPREHENSIVE SURVEY OF THE WOOD SECTOR
The Forest Products Association of Canada and the Canadian Wood Council have taken significant steps to advance this initiative. They conducted a survey of over 400 companies nationwide to collect data on embodied emissions across various production regions. This effort has culminated in the creation of regional environmental lifecycle analysis (LCA) reports for essential materials used in light-frame construction, including lumber, plywood, oriented strand board, I-joists, and open web trusses. As of August 2024, these reports are undergoing verification before being submitted to the National Research Council’s lifecycle inventory database.
Mass timber producers typically maintain their own LCA reports and environmental product declarations. They are being encouraged to contribute their findings to the lifecycle inventory database as well, thereby enriching the overall resource.
IMPACT ON DESIGN AND PROCUREMENT
These comprehensive reports will be invaluable to designers, specifiers, and procurement agents aiming to minimize the embodied carbon associated with construction projects. By providing detailed insights into the environmental impacts of various materials, these LCA reports will facilitate the advancement of low-carbon construction practices across Canada.
This initiative not only strengthens the push for sustainable building practices but also enhances transparency within the construction industry, empowering stakeholders to make informed decisions that align with environmental goals.
THE FUTURE OF CONSTRUCTION: CIRCULAR ECONOMY AND OFFSITE METHODS
Looking ahead, the construction industry must adapt to the complexities of urban densification and the constraints of existing infrastructure. The move towards offsite construction methods, whether through panel or volumetric approaches, is gaining traction. Wood, with its versatility and efficiency, is well-positioned to play a significant role in this shift.
The concept of a circular economy is also gaining momentum. Unlike simple recycling, circularity involves designing for deconstruction and recovery, allowing materials to be reused and repurposed. Companies like Unbuilders in Vancouver have led the way in holistic material recovery, emphasizing the need for designs that facilitate future reuse.One such project is the community hall and library in Radium Hot Springs BC, designed by Urban Arts Architecture with future disassembly in mind.
As we navigate these changes, it is clear that wood will play a crucial role in shaping the future of sustainable construction. By embracing innovative practices and focusing on low-carbon solutions, the industry can meet the demands of a growing urban population while mitigating its environmental impact.
EMBRACING HEALTH AND WELLNESS: THE ROLE OF WOOD IN SUSTAINABLE DESIGN
A growing body of research highlights the health and stressreduction benefits of incorporating natural materials—such as wood, plants, rocks, water, and natural light—into our built environments. The aesthetic and psychological advantages of these elements are becoming increasingly recognized, paving the way for more mindful architectural practices.
THE BENEFITS OF NATURAL MATERIALS
Exposing wood products in interior spaces is becoming more common, as studies—particularly those from Japan—underscore the biophilic benefits of such designs. Architects like Ty Farrow, who holds a master’s degree in neuroscience and architecture, are leading the way in understanding the intricate relationship between materials and their impact on occupants. Farrow's expertise in wood design, as affirmed in projects such as the Toronto Montessori School (Photos 3 and 4), illustrates how natural materials can positively affect individuals, both subconsciously and consciously.
BARRIERS TO MAINSTREAM ADOPTION
Despite the evident advantages and the growing demand for efficient and high-performance buildings, engineered wood products—such as cross-laminated timber and glue-lam—still represent a relatively small segment of the construction material market. The challenge lies in shifting perceptions and practices within the industry.
A PATH FORWARD: THE MASS TIMBER ROADMAP
To address these barriers and promote wider adoption, the Forest Products Association of Canada and the Canadian Wood Council have collaboratively developed a Mass Timber Roadmap. Released in the summer of 2024, this comprehensive document outlines the opportunities, processes, and requirements for success in the mass timber sector. It identifies regulatory, technical, and supply chain challenges while proposing actionable steps for stakeholders to expand the use of mass timber and engineered wood products.
This roadmap serves not only as a strategic guide for the wood industry but also as a crucial resource for architects and builders committed to enhancing health and wellness in their designs. As they embrace the diverse range of materials available, they are tasked with making informed decisions that balance functionality, cost, and environmental responsibility. In this dynamic landscape, the only constant is change, and those who adapt will lead the way in creating sustainable, resilient buildings for the future.
PETER MOONEN IS NATIONAL SUSTAINABILITY MANAGER FOR THE CANADIAN WOOD COUNCIL

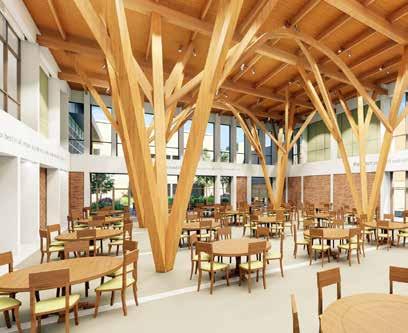

3. and 4. Toronto Montesorri School.
Urban infill building highlights hybrid construction
Completed in 2022, the Fast + Epp Home Office is an elegant, economic and highly transferable example of an urban densification project whose approach to material use is a pragmatic hybrid of mass timber, steel and concrete.
The four-storey mixed use building is located close to the city centre on the south shore of False Creek, an eclectic light industrial area that has undergone dramatic transformation over the past decade.
The 137.1m x 13.3m site is zoned for an FSR of 3.0, of which 1.0 must be an industrial use located at street level. A 1.2m right-of-way reduced the width of the site, forcing a portion of the industrial use to the second level and making vertical fire separations necessary.
Below grade, the reduced width required the elimination of interior columns in favour of a clear span, post-tensioned slab to accommodate a single row of parking and an aisle. This in turn influenced the design of the above ground structure, where clear spanning glulam beams informed both the subdivision of space and the routing of exposed building services.

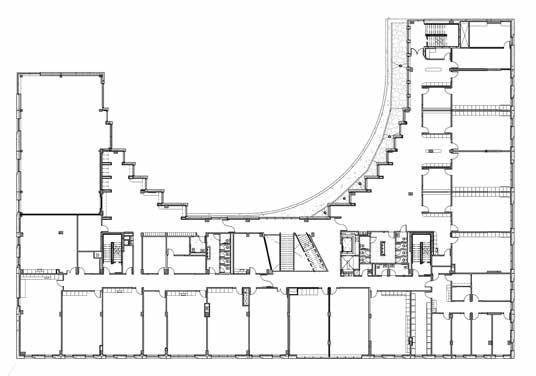

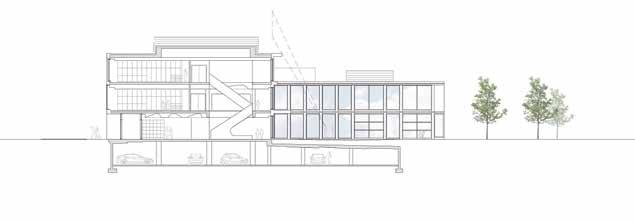

Site plan / Floor plan

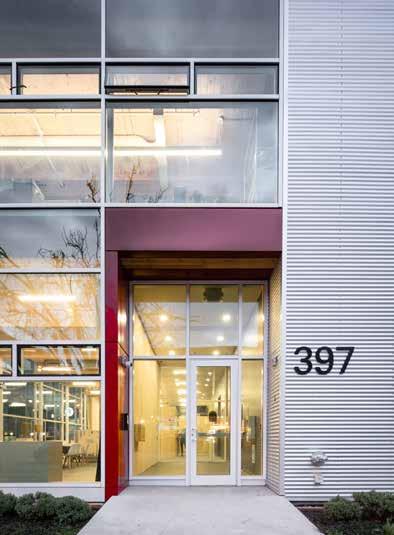

Entrance to parking
Light industrial / Concept lab
1. West elevation under construction. On this side of the building, the glulam and CLT structure is supported on slender steel columns to maximize daylight and views.
These constraints required a pragmatic design response, both in the use of space and choice of materials. This approach resonated with Fast + Epp (both client and structural engineer for the project) and with f2a architecture, which aims “to create buildings that are minimal, energy efficient, have healthy interiors and a direct relationship to their site.”
To maximize leasable area within the zoning envelope, floor to floor heights were carefully manipulated according to use; Level 1 being 4.8m; Levels 2 and 3 being 3.6m and the Level 4 penthouse 2.6m. There is an interconnected floor space (IFS) between Levels 3 and 4. There is a 2-hour fire separation between industrial and office occupancies, with 1-hour required for the other floors and supporting structure.

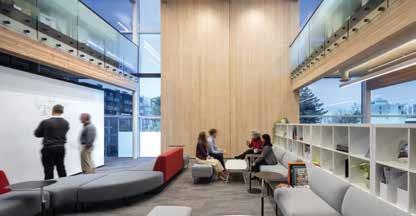

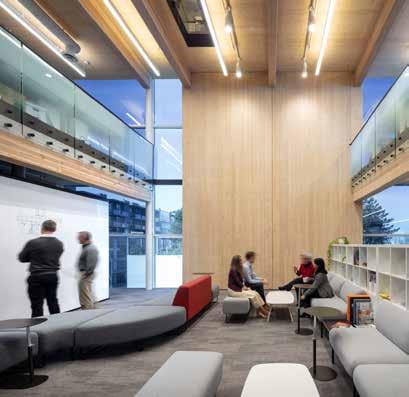

The IFS forms an atrium, serving as a meeting area and social space for the Fast + Epp office. The lower level has a small kitchen, while the upper level accommodates ‘touch down’ work stations and (being smaller than the lower floors) has access to a roof terrace.
Egress Stairs, elevators and a vertical service shaft are located
2.

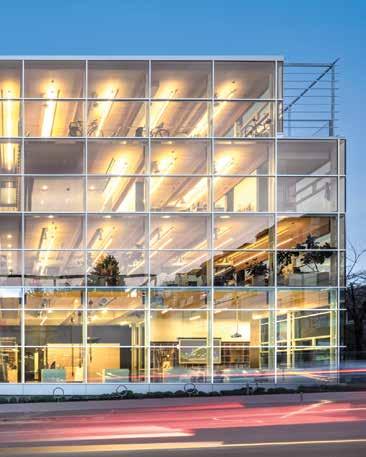

3. The metal and glazed cladding was optimized through energy modelling to allow a 40% window-to-wall ratio.

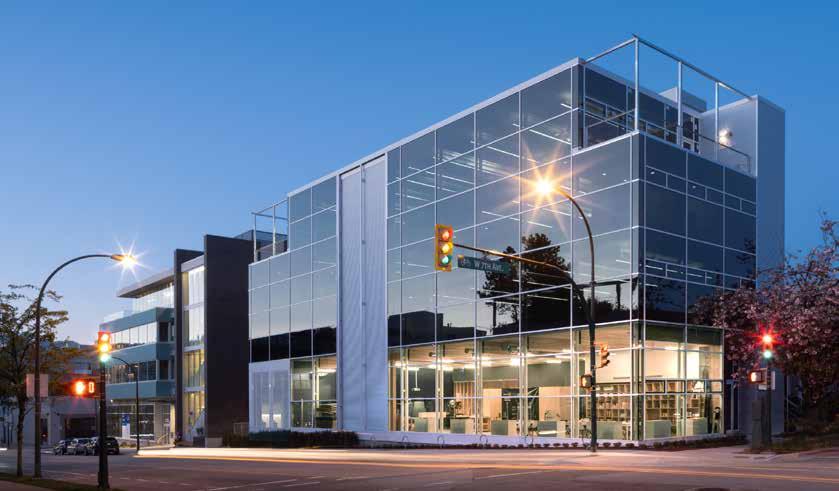

At dusk, the simple form and elegant detailing of the building affirm the architects’ vision of a ‘Noble Box’.
in the southeast and northeast corners of the building, adjacent to the lane. These form bookends to linear bulkheads on each floor, where the main north-south services run under the transverse glulam beams. East-west electrical and mechanical services run in the spaces between these beams, making them as unobtrusive as possible.
The east wall along the common property line is of preassembled CLT panel construction, which was supplied with cladding clips and girts, external mineral wool insulation and vapour barrier membrane.
Metal cladding was applied in the field. A 40% window-to-wall ratio, permitting much of the south and west walls to be glazed, was optimized through energy modelling.
Electrochromic glass was used on the west façade, providing protection from solar heat gain and glare without the legal and maintenance challenges of fixed shading, which would have encroached into the City right-of-way. Automatically adjusting its tint throughout the day, this dynamic glass maximizes natural daylight, maintains views, and controls solar heat gain (thus reducing the size of the mechanical system) and glare – while eliminating the installation and maintenance costs associated with interior blinds.
PROJECT CREDITS
OWNER/DEVELOPER
Fast + Epp Structural Engineers
ARCHITECT f2a architecture
GENERAL CONTRACTOR
Companion Construction Ltd
BUILDING CODE GHL Consultants
STRUCTURAL ENGINEER
Fast + Epp Structural Engineers
INTERIOR DESIGN
HCMA Architecture + Design
MECHANICAL ENGINEERING
Impact Engineering
PHOTOS Michael Elkan

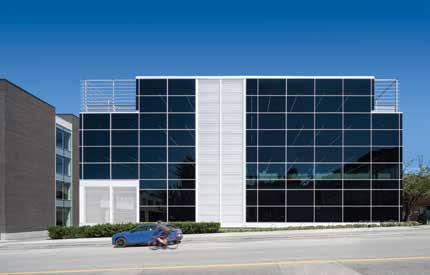

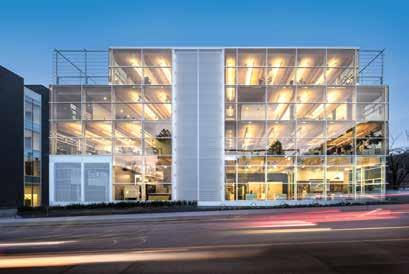

4. and 5. The electrochromic glass on the west façade automatically adjusts the tint throughout the day to control solar heat gain and unwanted glare while maintaining natural daylight and views.
6. The steel columns at the west façade supporting the glulam beams and 3-ply CLT panels extend the full height of the building.
To further increase light and views to the exterior, the glulam beams are supported on the west side by slender steel columns. Exposed glulam columns would have had larger dimensions and hence a greater impact on light and views.
As noted above, the superstructure is built on top of the post-tensioned concrete slab that forms the roof of the parking garage. The entire east wall of the building consists of 2-storey high, vertically oriented 5-ply CLT panels connected together at their vertical and horizontal joints. This wall forms part of the CLT stair cores at the northeast and southeast corners of the building and has glulam pilasters integrated into it at 3.0m centres, corresponding to the structural bays. This assembly required the code consultant to submit an alternative solution, demonstrating a level of fire safety equivalent to that of the non-combustible construction mandated by Code.
Anchored by the stair cores at either end, this composite CLT or glulam wall takes all the shear forces in the north-south direction. In the east-west direction, the CLT walls of the stair cores have Tectonus proprietary seismic dampers recessed into them.
These dampers use a Resilient Slip Friction Joint (RSFJ) and act as a hold down and energy dissipation system simultaneously.
The devices enable the shear wall to rock, then restore itself to its original configuration. Not yet codified, these dampers required an engineering letter of assurance. Additional steel cross bracing is used in the east-west direction at the north of the building to counteract torsional forces.
The floors consist of 105mm thick 3-ply CLT panels spanning 3m between the main glulam floor beams, and attached with long stainless-steel screws at opposing 45-degree angles. Plywood splines are used to create a floor diaphragm. The panels are covered with a 13mm acoustic mat that also acts as a membrane to prevent moisture damage from the 50mm concrete topping.
The steel columns supporting the glulam beams at the west façade extend the full height of the building and are coated in intumescent paint to achieve the required fire resistance.
Steel chases that carry the cabling for the electrochromic glass are attached to the columns, acting as drag straps that tie the horizontal and vertical elements of the structure together.
Architect Austin Hawkins of f2a architecture believes this project represents a new approach to the design of commercial buildings. “With its combination of panelized prefabrication, greater emphasis on non-toxic materials, and integrated digital technology, it uses technology to bring us closer to nature.”
7 8

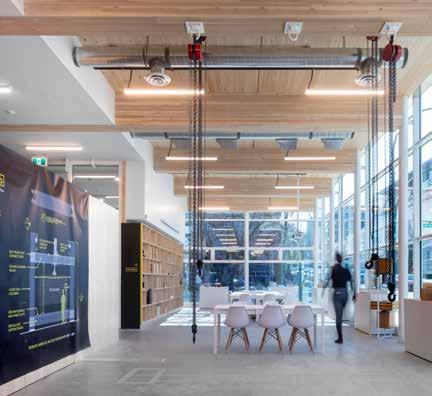

7. The light industrial/ concept lab. The superstructure rests on a post-tensioned concrete slab that forms the roof of the parking garage. 8. Interconnected floor space forms an atrium which serves as a meeting area and social space.
BUILDING BETTER WITH STEEL
Guidelines for lowering GHG emissions in conventional steel structures
By Scott Norris
Finding ways to reduce the carbon footprint of buildings is on every professional’s mind. While certification programs like LEED, Toronto Green Building Standards, and CAGBC Net Zero Carbon Building Standard have helped guide the industry in terms of reducing the environmental impact of buildings, including Global Warming Potential (GWP), it is an ever evolving mission.
The steel industry has begun to take a life cycle approach, reducing the emissions associated with the production of the material, the construction process, as well as the energy efficiency over its lifespan. Regardless of the building type, occupancy, or design material, it is critical that consultants reaffirm their design approaches to ensure they align with this more holistic goal.
In buildings where, large clear spans are required by the program, a steel structure with conventional cast in place concrete foundations is often preferred for reasons of economy. Steelwork that is efficiently fabricated off-site offers quality-assured, fully tested, and traceable products. On-site construction is fast and has minimal adverse local environmental impacts. These characteristics lend themselves well to warehouses, community centres, transit buildings, data centres and low-rise offices, among others.
For those involved with these building types for which steel is better suited, the overall embodied carbon in the structure can be reduced in several ways:
1. Design efficiently and purposefully. For example:
a. The consultants must work together to determine accurate design loading; excess loading compounds exponentially in the member design phase.
b. Work with the consultants and contractors to understand serviceability requirements of floors, finishes and curtain walls.
c. During preliminary building layout, opt for bays with a 3:4 rectangular aspect ratio for girders to beams. Also, aim for bay sizes of 7.5m x 10m to 10m x 13m to maximize deck spans and optimize framing weight and depth.
d. Utilize efficient framing systems, such as: SIN Beams, composite beams, gerber girder framing, open web steel joists (OWSJs), trusses, arches and tension only members wherever possible.
e. Avoid inefficient systems such as moment frames, transfers of gravity structure, Vierendeel trusses, etc., wherever possible.
f. Understand the transportation impacts created by the materials that you are choosing. Truck transportation produces 17 kg CO2 / tonne / 100 km, while train is 33% of that and marine shipping is 5%.
g. Prioritize members that are produced using an electric arc furnace (EAF). North American manufacturers typically use EAFs to manufacture steel for hot rolled shapes like wide-flange members, angles and channels.
h. Understand the benefits and limitations of hollow structural sections (HSS). These members are more efficient from a material standpoint, however if they are purchased in Canada, they currently come from basic oxygen furnace (BOF) coil which increases embodied carbon and reduces recycled content. If the HSS is purchased from US mills it is more likely that the coil will be coming from EAF.

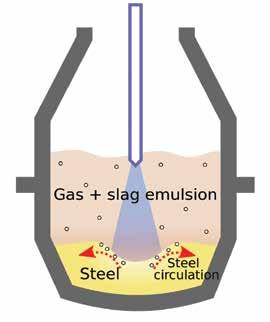

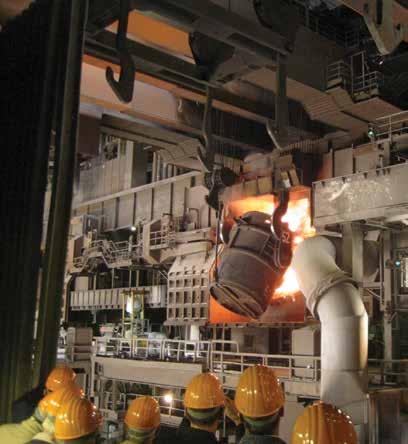

The basic oxygen furnace
This will change in coming years when the EAF mills at Algoma Steel and Dofasco come online in 2026.
i. Understand that plate, and cold form steel is often produced in using BOF. This impacts items such as roof deck for example which has high GWP values.
j. Investigate the use of high yield strength for tension members, simply supported columns, beam columns, and simply supported laterally restrained beams
k. Do not forget about the concrete works. Design foundations, slab on grade, floor deck and other elements efficiently and utilize reinforcement only as required Alternately, use fibre reinforcement instead of steel.
l. Work with the concrete suppliers to utilize low carbon mixes.
2. Specify the correct materials.
Steel as it is currently manufactured can be a carbon intensive material due to the materials used and high energy demands of the processes. However, not all steel is created equally, EAF produced steel has 40-60% lower embodied carbon than BOF produced steel, depending on the energy source. North America also happens to be ahead of the curve in converting from BOF to EAF steel production. When developing specifications, the manufacturing method and plant energy grid are the main ways to reduce GWP. The material travel from origin to project has a much lower overall effect on the GWP bottom line.
3. Understand the construction process.
Understanding how the contractor intends to construct the building, the construction cycle speeds and what falls on the critical path are vital to reducing embodied carbon in concrete works. For foundations that are not expected to see loading, or full design loading for an extended period, concrete mixes with slower strength gain can be utilized. 56-day or 90-day mixes will allow the concrete suppliers to reduce cement, increase supplementary cementitious materials (SCMs) and utilize admixtures to reduce the GWP. This could also be applicable for slab on grade, concrete on deck, toppings or other similar applications.

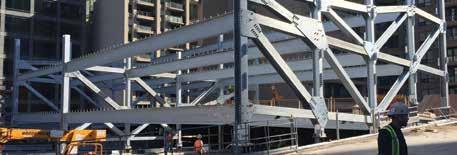

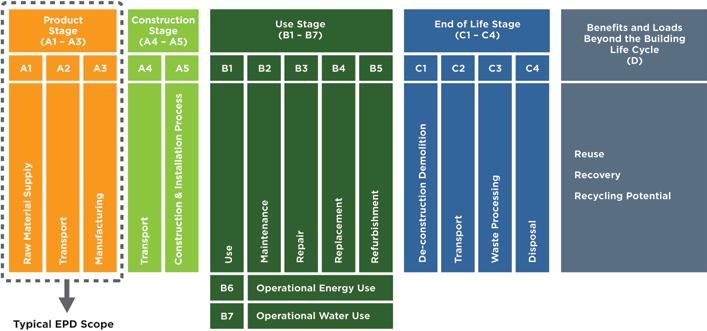

4. Understand the Environmental Product Declarations (EPDs) Consultants should request product specific EPDs for the materials utilized, as some steel producers utilize industry standards or weighted averages of all their production facilities, obscuring project specific values. Currently EPDs in the North American market typically only report on Product Stage (A1-A3) embodied carbon. In the coming years the reporting will be expanded to match the European markets which includes all building phases (A-D) providing a wider view of the full material impact.
5. Understand full building Life Cycle Assessments (LCAs) and Certifications.
As more information becomes available through EPDs and reporting, the carbon footprint of structural steel will be better understood in the North American market. Current full building LCAs in this market are able to report “cradle to grave” (A1-D) values; however, building certifications or code requirements do not consider anything beyond the “product stage” (A1-A3). This overlooks the inherent re-use and recycling potential of the structural steel. Not capturing this impact may result in unintended consequences caused by avoiding structural steel.
Moving forward
Steel remains an efficient design material for many structures; however, to further reduce GWP, the industry must continue to focus on lower-carbon steel. Building accreditation must expand its scope to include the “whole life” impact of structural steel —i.e. durability and resilience, flexibility and adaptability, versatility and reusability. Biogenic carbon and expected building lifespan should also be added to LCA requirements to create a level playing field.

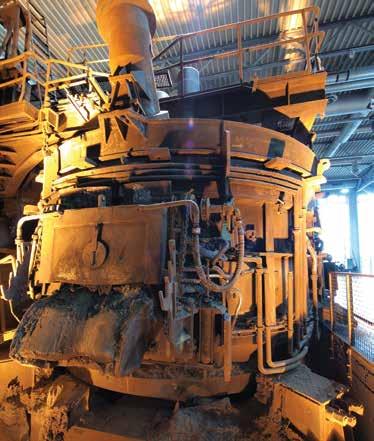

Electric arc furnaces use mainly scrap steel and generate about half the carbon emissions, as compared to basic oxygen furnaces, by not using coke in the production of steel.
Meanwhile, combined support is required from government agencies, owners, regulatory bodies and industry stakeholders to push towards lower carbon steel. Only if the industry values and is willing to invest in decarbonization, can a wholesale shift in production methods and technologies happen.
1. All levels of government are in the process of rolling out carbon targets which must be achieved during the design phase. Government must also continue to provide funding to the construction sector to drive decarbonization at the rate that is required.
Tariffs such as the EU Carbon Border Adjustment Mechanism (CBAM) or incentives such as the US Inflation Reduction Act (IRA) are being introduced to support the emerging green steel economy. These mechanisms are required to protect against carbon leakage from companies in countries not prioritizing decarbonization.
The recent influx of high emission steel production in developing countries presents a significant environmental challenge, particularly if this infrastructure reaches its 40 years lifespan.
2. Industry demand for sustainable materials will be one of the biggest drivers towards lowering construction related emissions. It is commendable that many owners have already developed ESG plans which set internal thresholds for their carbon emissions. Sources such as the Science Based Targets initiative (SBTi) are great guides for sustainable development.
3. Codes and material standards must start providing stipulated thresholds and guidance on embodied carbon. The National Building Code of Canada (NBCC) for example will include embodied carbon targets in its 2030 edition.
4. Industry stakeholders must utilize government incentives and internal investment to retrofit existing infrastructure, innovate how steel is currently produced and achieve long-term decarbonization of the processes. Some companies are proactively doing this, including ArcelorMittal, SSAB, Nucor Corporation, Gerdau, Tata Steel, Slazgitter AG, Thyssenkrupp, Voestalpine, and Bluescope Steel.
In conclusion, the steel industry must continue to innovate the manufacturing process. This includes known improvements to decarbonize existing infrastructure, conversion from BOF to EAF production, using less carbon intensive power sources and the improvements in the distribution network to make renewable energy more accessible. The implementation of longer-term approaches focusing on decarbonizing iron making must also be following close behind to hit the ever-lowering carbon targets.
Direct Reduced Iron (DRI) is a significant first decarbonization step which is currently utilized in markets with abundant supplies of cheap natural gas. This process is however still reliant on fossil fuels and the real win will be transitioning to DRI utilizing hydrogen, ammonia or another hydrogen dense gas. Beyond this point research into more advanced processes may result in the structural industry going beyond the net-zero carbon target.
Radical new developments such as the red mud iron reclamation or carbon capture technology provide possible avenues to where the steel industry is able to provide positive environment impacts.
SCOTT NORRIS IS DIRECTOR OF ENGINEERING SOLUTIONS AT STEELCON.
Find out more about carbon neutral steel designs at www.steelcongoc.com, follow Scott Norris on LinkedIn or contact him directly, snorris@steelcongoc.com.
Decarbonize your building envelope
Reduce the embodied carbon in your cladding by more than 40%.
Choose Bellara with XCarbTM
KIPLING TRANSIT HUB
Advanced steel framing cuts tonnage costs
By Scott Norris

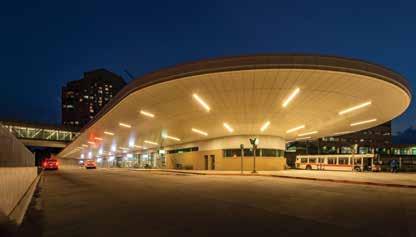

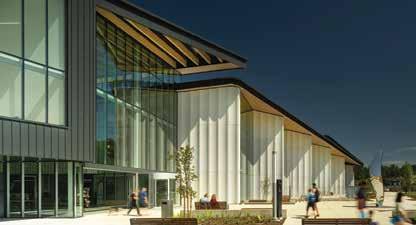

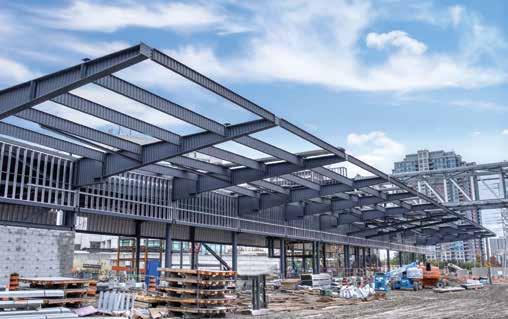

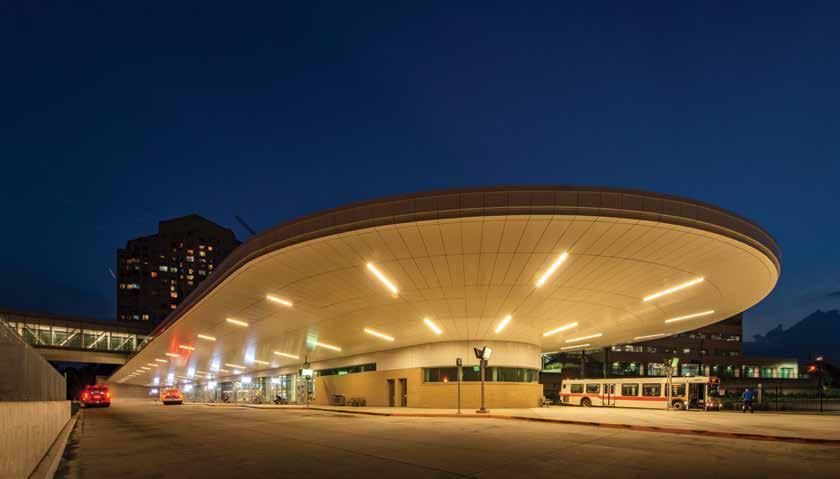

Completed in 2022, the Kipling Transit Hub is a 4,890m2 revitalization of an existing transit station. The LEED Gold station serves as a key transit interchange in Toronto’s west end, connecting GO Transit, TTC subway and MiWay buses under one roof.

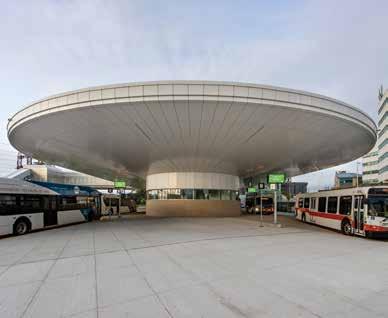

The focal point of the project was a new 300m2 bus terminal with a long curving cantilevered roof structure projecting out over the bus parking and circulation area. The $73 million design/build project was led by Ellis Don.
The elliptical shaped roof structure supports a 4,460m2 green roof which contributed to the LEED accreditation. Along with the station building there were many other components including a pedestrian bridge, tunnels, platforms and parking, which will not be covered in this article.
Over the course of the project it was determined that the scope of the structural steel work was expanding beyond the initial budget. At this point, Steelcon was brought on in a design assist role to determine whether its proprietary SIN beam member could be utilized to reduce cost, overall steel tonnage and improve delivery times.

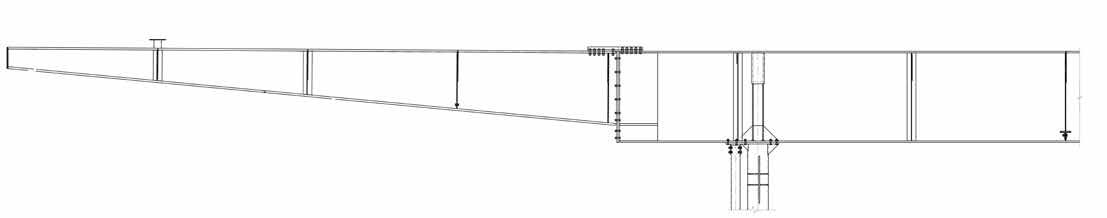

The SIN beam is a custom built-up beam with a corrugated web section that allows the web thickness to be optimized for the design loads. The sinusoidal (SIN) profile of the corrugations improves the strength-to-weight ratio of the web by virtue of its geometry. This web optimization along with substantial variability in the flange members resulted in significant reduction in the overall tonnage of steel required for the project.
