Édifice Wilder Espace Danse

With a total area of almost 222,000m2 (235,000sf) the project includes the renovation and expansion of the 10-storey Wilder Building, a heritage designated former furniture factory and warehouse, dating from 1918.

The program is arranged over all 10 floors: one basement level and nine floors above grade. The basement contains a Creation Studio, a Laboratory Studio and bicycle parking; the ground floor includes the main entrance hall, ticket office and a café and other retail spaces; while the upper floors contain rehearsal, workshop, studio, production, broadcasting and other specialized and support spaces as required by each of the organizations occupying the building.

As architects, we believe that sustainable design must embrace the ecological, economic, and social circumstances of a project and not be solely focused on energy performance to the exclusion of these other considerations. For that reason, the choice was made to preserve a vintage building, not for its economic value, but rather as a commitment to the preservation of architectural and cultural heritage and the conservation of resources. An integrated design approach was used to ensure a balance between quantitative environmental objectives, and the equally important, but more qualitative aspects of theatrical performance, luminosity and comfort that were central to the project.

On a tight urban site, one consequence of that decision was the limitations it placed on the implementation of passive design strategies, partly because of the existing solar orientation and partly because of the effect of surrounding buildings. However, the articulation of the façades and openings maximizes access to natural light and passive solar energy in the context of this project.

Rehabilitation of the existing site, previously paved with concrete, was limited to the remediation of contaminated soils and improvements to stormwater management. A portion of the rainwater is collected on a vegetated roof and the remainder is stored in a temporary retention tank before being discharged into the municipal stormwater system. Elsewhere, low-albedo roofing is used to help mitigate the urban heat island effect.

Given its location at the heart of the Quartier des Spectacles, the project was designed to encourage community interaction and enhance the public realm.

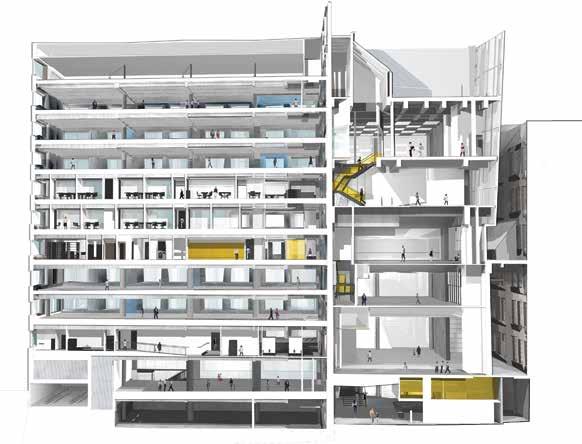

1 Creation studio 2 Laboratory studio 3 Bicycle parking 4 Commercial spaces 5 Security / Entrance 6 Main entrance hall 7 Ticket office hall 8 Transparent facade 9 Coffee house 10 Broadcasting studio 11 Grand lodge 12 Offices 13 Agora 14 Production studio 15 Atrium

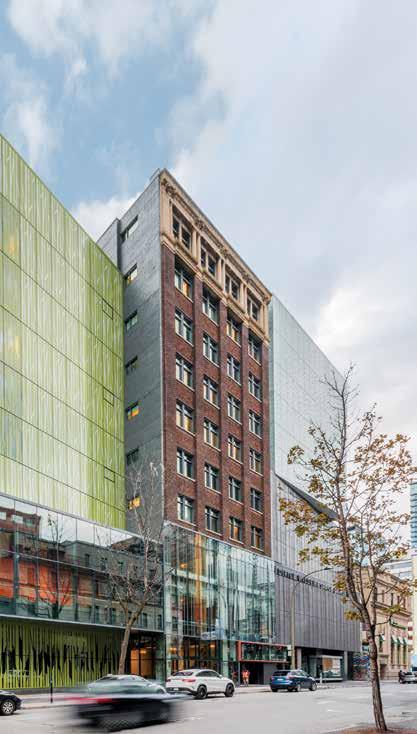

1. The articulation of the façades and openings maximizes access to natural light and passive solar energy on a tight urban site. 2. The project was designed to encourage community interaction and to enhance the public realm.

1 Offices 2 Restaurant 3 Studio 4 Lobby

Mayor Street Bleury Street

Mayor Street Balmoral Street

Energy intensity (building and process energy) = 193.2KWhr/m2/year Energy intensity reduction relative to reference building under ASHRAE 90.1 2007 = 34% Water consumption from municipal sources = 3,271 litres/occupants/year Reduction in water consumption relative to reference building under LEED = 35.2% Recycled material content by value = 15.6% Regional materials (800km radius) by value = 21.2% Construction waste diverted from landfill = 95.2%

Owner/Developer Société Québécoise des infrastructures (SQI) Architects Lapointe Magne + Ædifica in Joint-Venture General Contractor Pomerleau Landscape Architect Lapointe Magne Civil Engineer Nicolet Chartrand Knoll / SDK et associés in Joint-Venture Electrical Engineer SNC-Lavalin Mechanical Engineer Bouthillette Parizeau Structural Engineer Nicolet Chartrand Knoll / SDK et associés in Joint-Venture Sustainability Strategies & LEED Certification Ædifica Commissioning Agent Martin Roy et Associés Energy Modelling Bouthillette Parizeau in Joint-Venture Photos Michel Brunelle, David Boyer

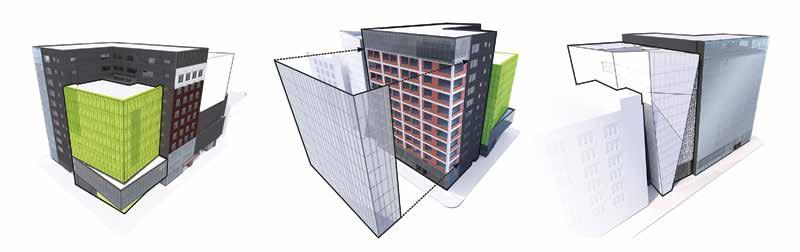

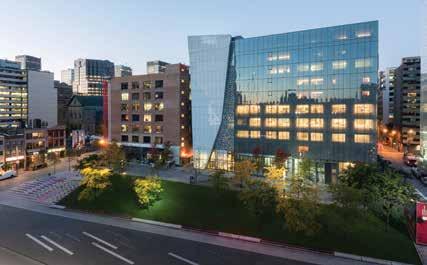

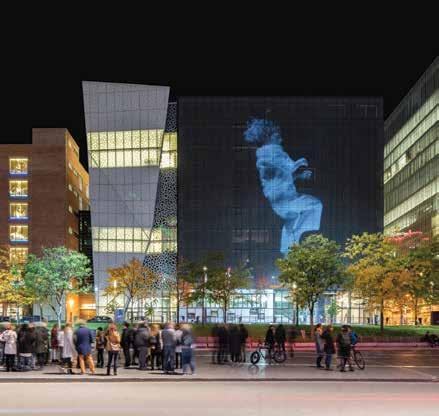

3. The double-envelope façade wraps around the existing building and greatly improves the energy performance of the building. 4. The new façade serves as a billboard - being used for activities, shows, and the projection or display of visual art installations.

This was made possible by the creation of a transparent and inviting double-envelope façade wrapped around the existing building. With its areas of translucent insulation, the façade greatly improves the energy performance of the building. This perimeter zone serves as a billboard - being used for activities, shows, and the projection or display of visual art installations.

Internally, the focus was on openness, transparency and the retention of existing windows to maximize daylight penetration and preserve views. With respect to the lighting system, energy consumption was reduced through the use of high-efficiency fixtures, with individual controls for the closed offices and occupancy sensors for the common areas. Also, a lighting schedule with override controls was created for open areas.

The project utilizes a high-volume, low-velocity displacement ventilation system in the office areas. Incoming fresh air is pretempered by the thermal flywheel effect of building mass. Air is distributed via a raised floor plenum which also serves to conceal the distribution of electrical, lighting and fire suppression systems. A ventilation rate of one air change per hour is achieved with little or no system noise.

Material selection was driven by sustainable design considerations, including durability, embodied energy, low toxicity and general occupant wellbeing. Natural materials like brick masonry and wood were chosen to complement plain concrete surfaces. Wood reclaimed from the bottoms of delivery trucks was refinished and reused as flooring and wall panels.

The biophilic attributes of the natural materials are supplemented by the leaf and branch patterns seen on the fritted glazing of the building envelope.

A significant project for the Quebec dance community, this building demonstrates that it is possible to create large-scale living environments that combine a distinct architectural signature with best practices in sustainable design.

PATRICK BERNIER IS DIRECTOR, ARCHITECTURE, MAUDE PINTAL IS PROJECT MANAGER, SUSTAINABLE DESIGN, AND GABRIEL TOURANGEAU IS DIRECTOR, COMMUNICATION & BRAND IMAGE AT ÆDIFICA.

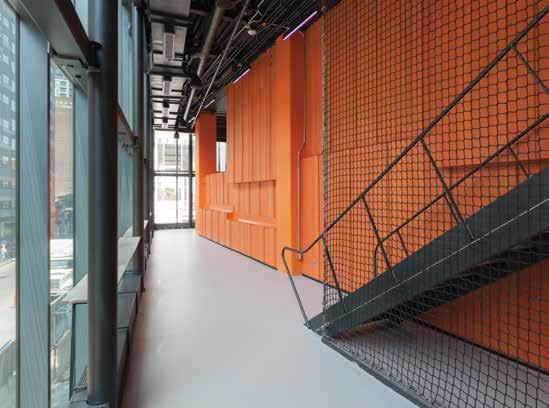

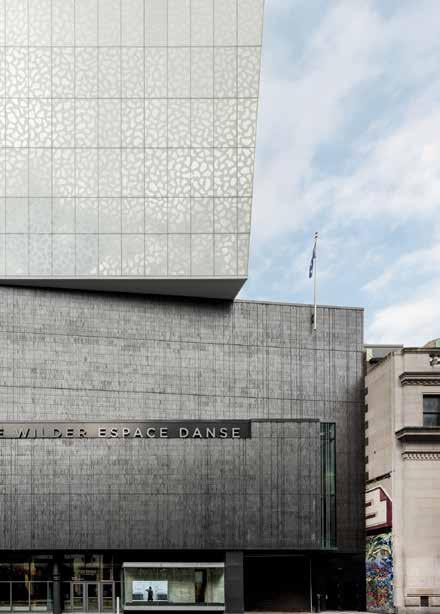

5. The double-envelope façade wraps around the existing building. 6. Internally, the focus was on openness, transparency and the retention of existing windows to maximize daylight penetration and preserve views.
