SABAAH SHAHBAN PORTFOLIO

2022-2024

CONTENT

2023-

YEAR 2- PROJECT 2- COMMUNITY LED SOCIAL HOUSING

YEAR TWO- PROJECT 4- NEIGBOURHOOD ANALYSIS

2024-

YEAR 3 FINAL PROJECT

YEAR 2- PROJECT 2- COMMUNITY LED SOCIAL HOUSING

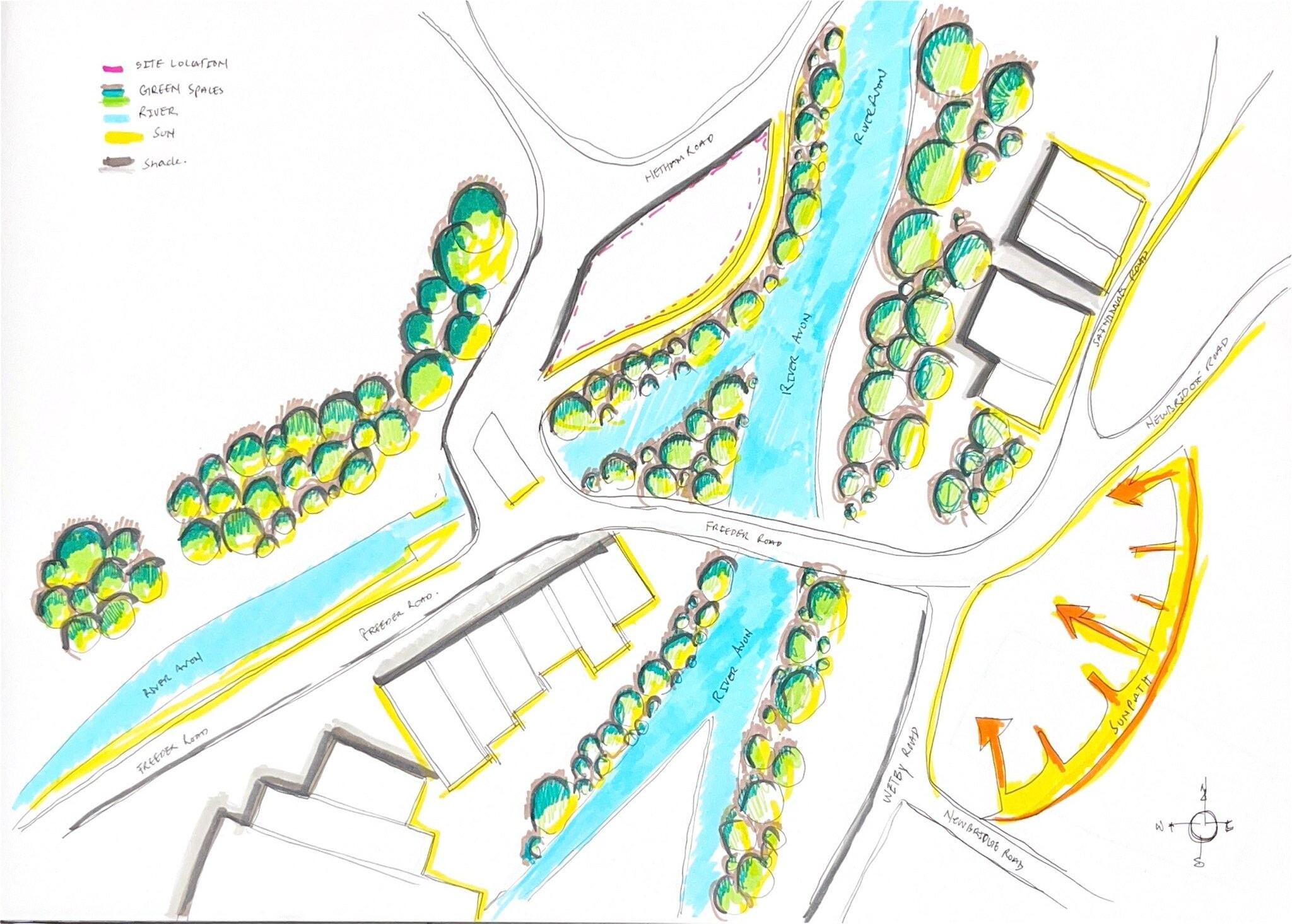

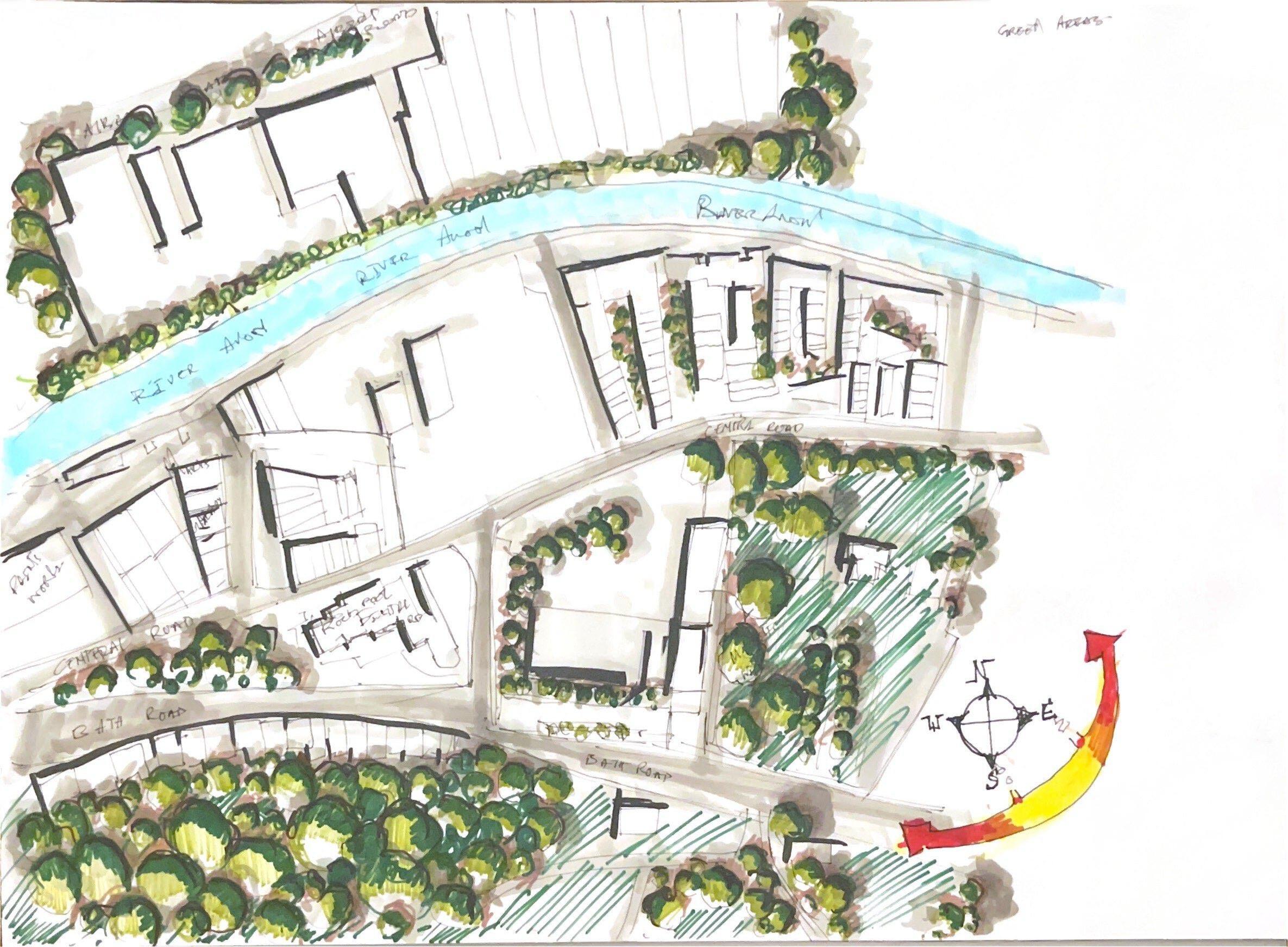

Green space areas

YEAR 2- PROJECT 2- COMMUNITY LED SOCIAL HOUSING

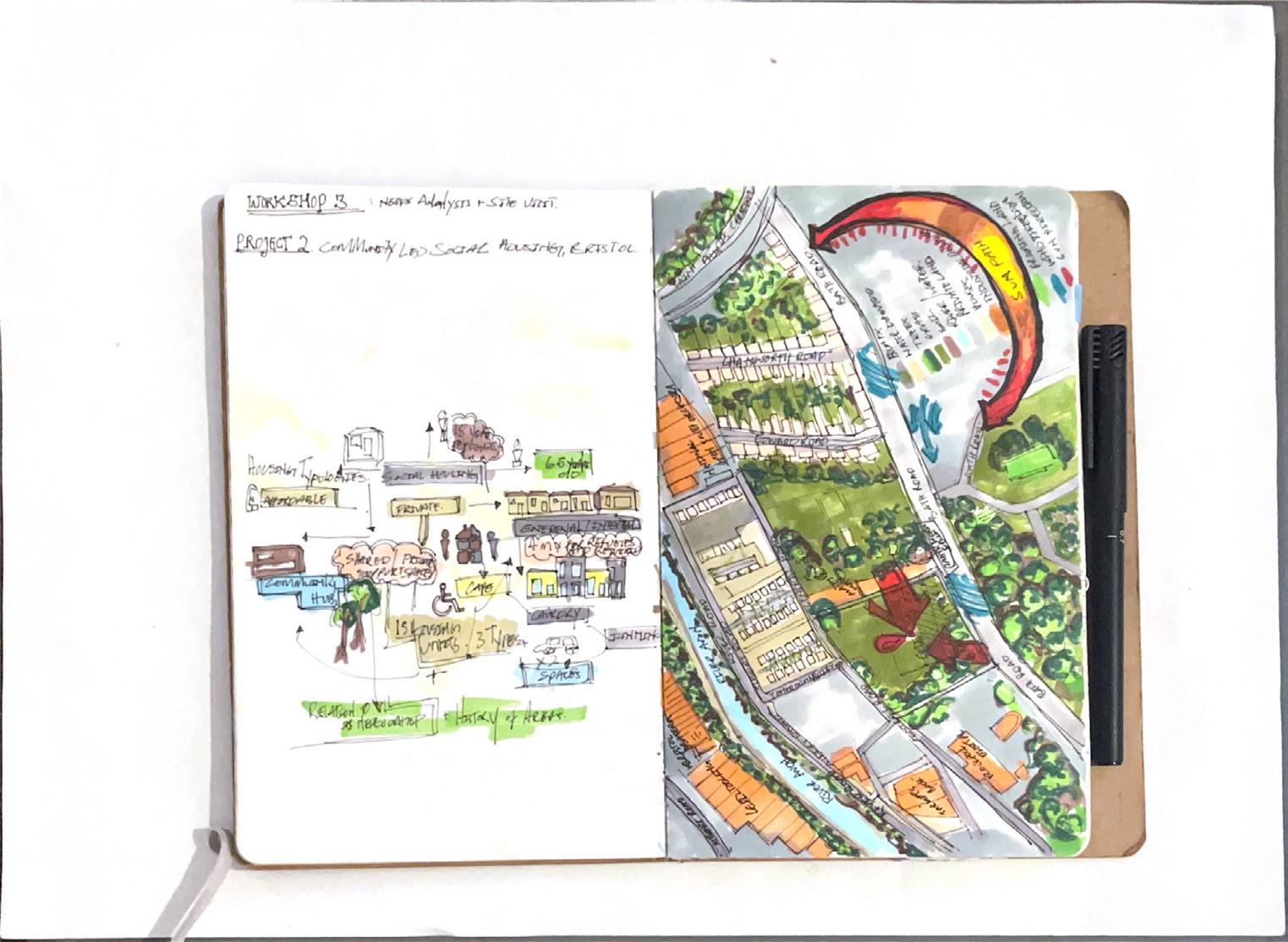

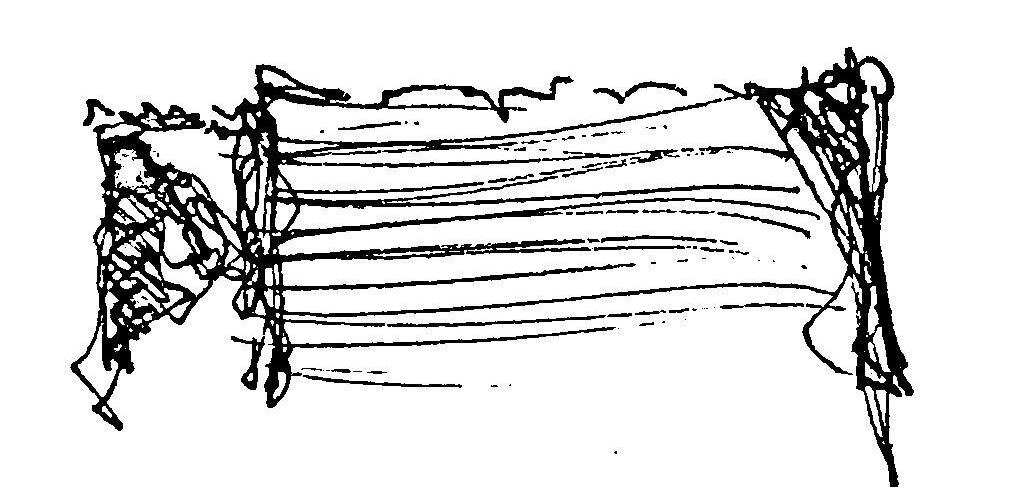

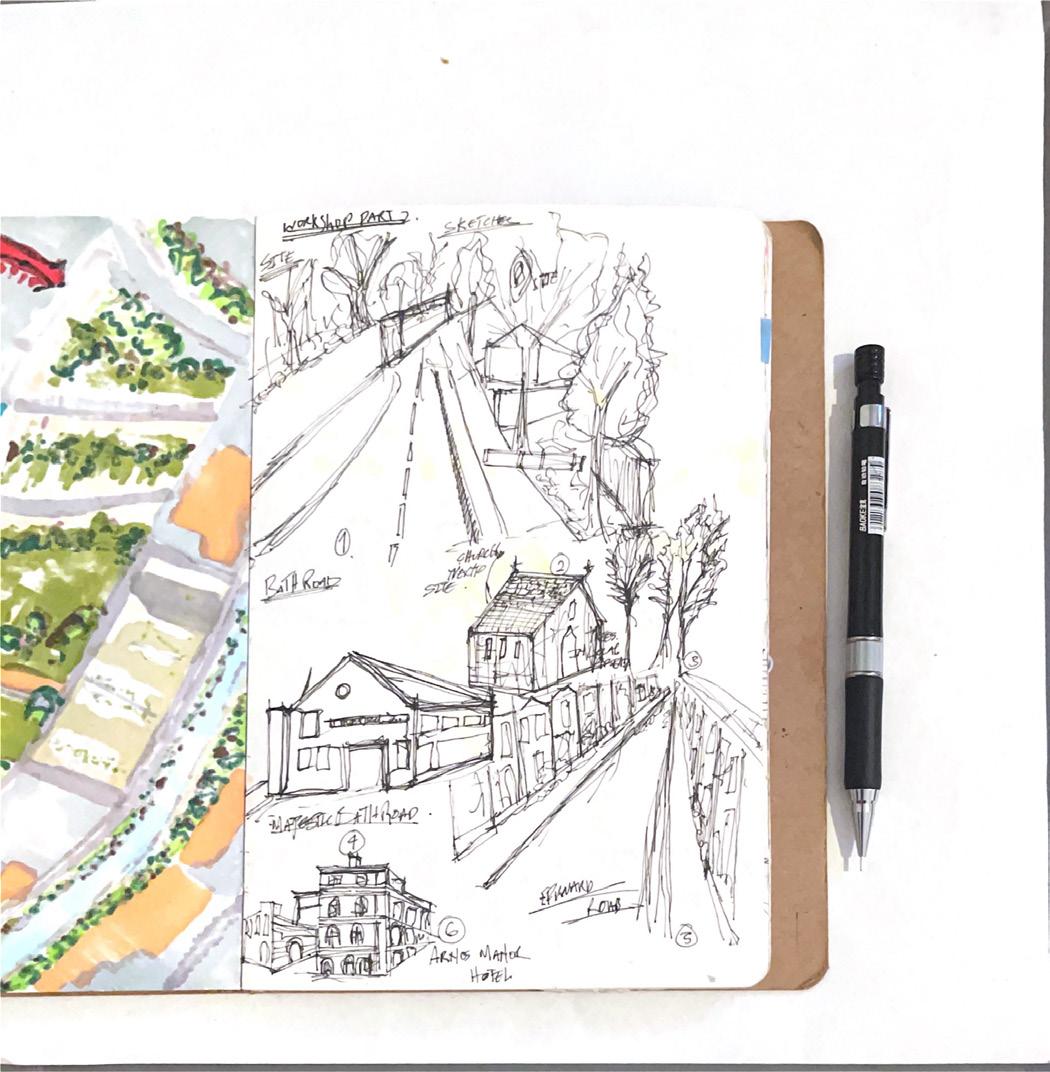

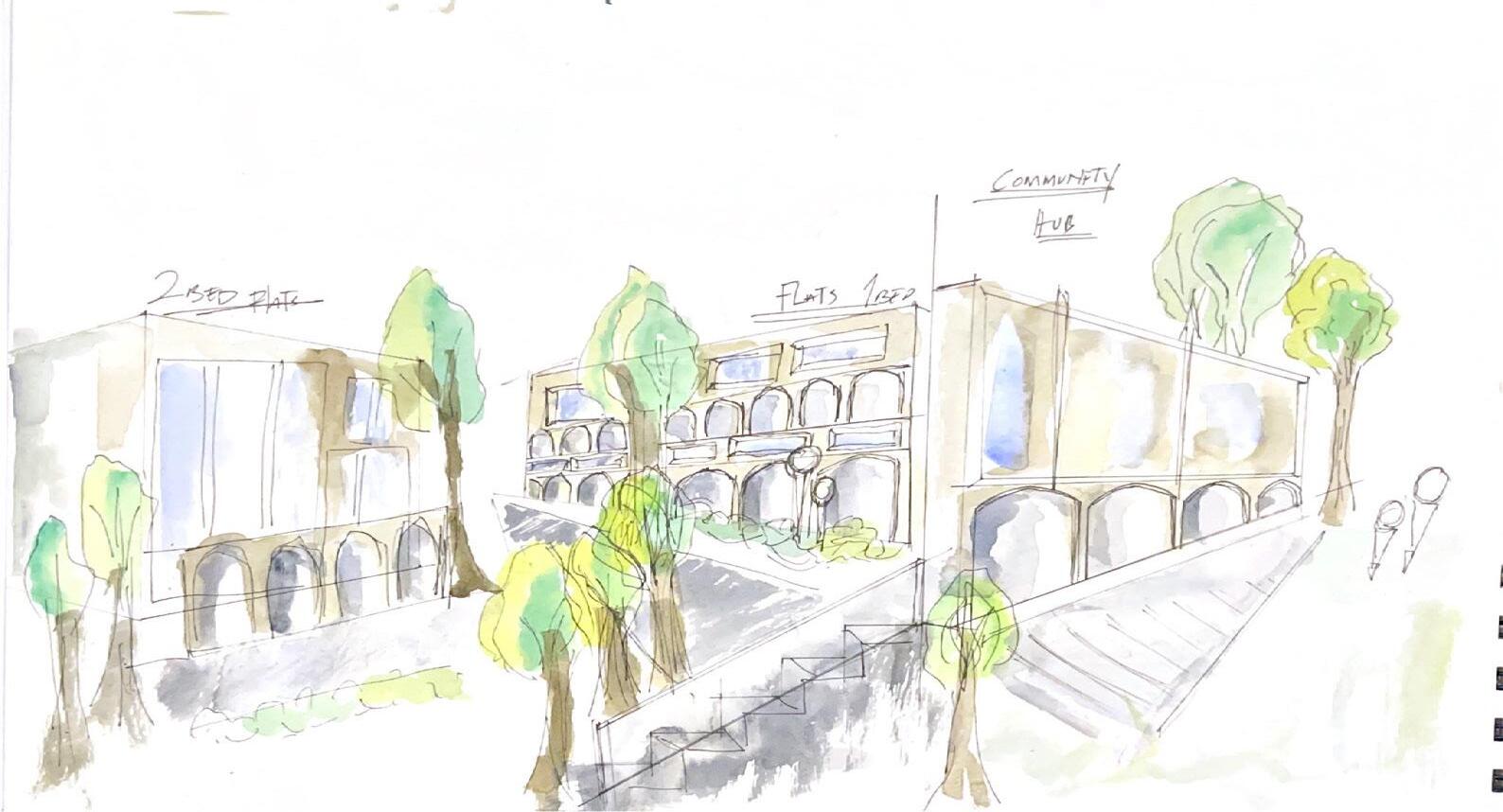

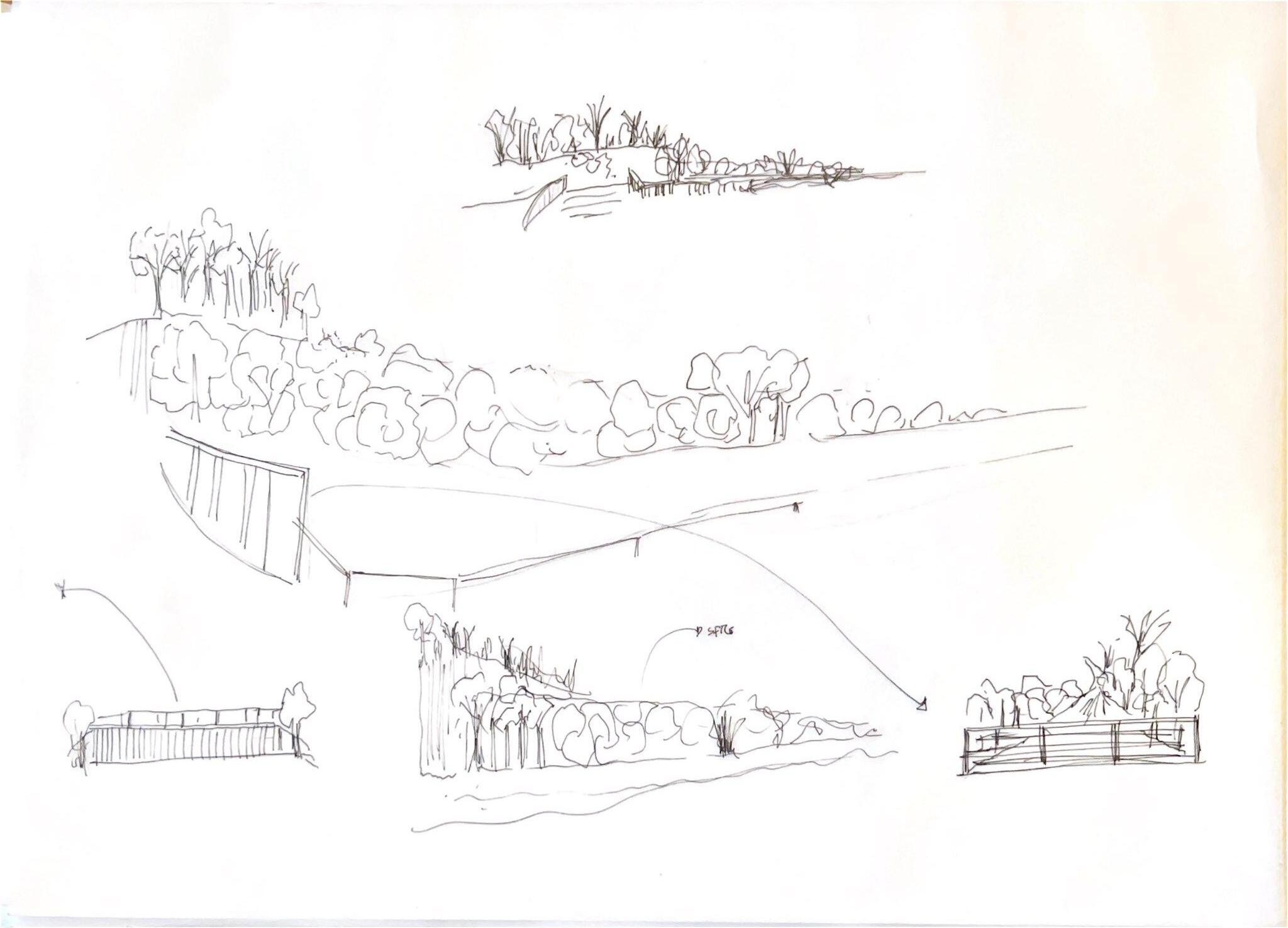

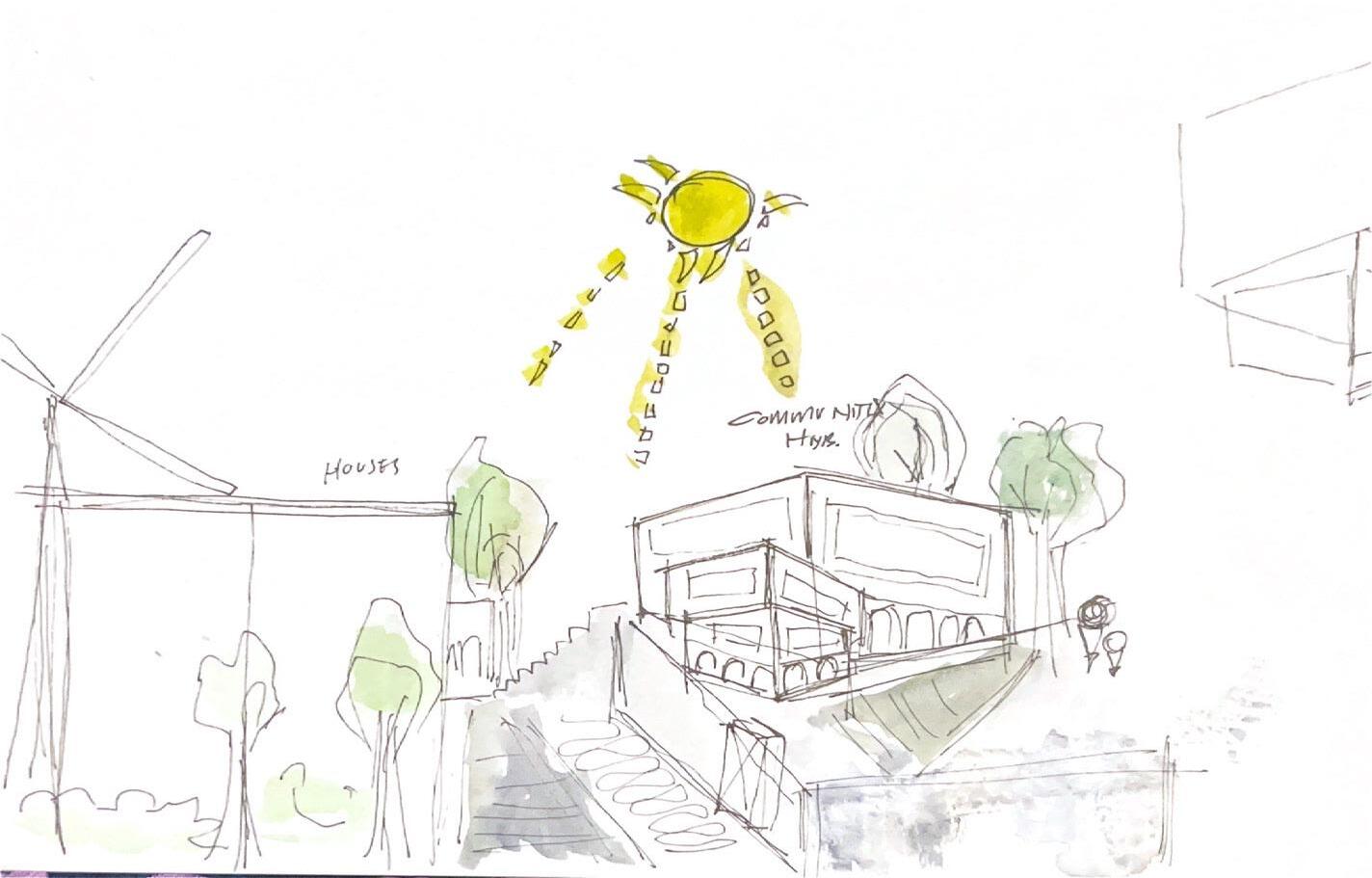

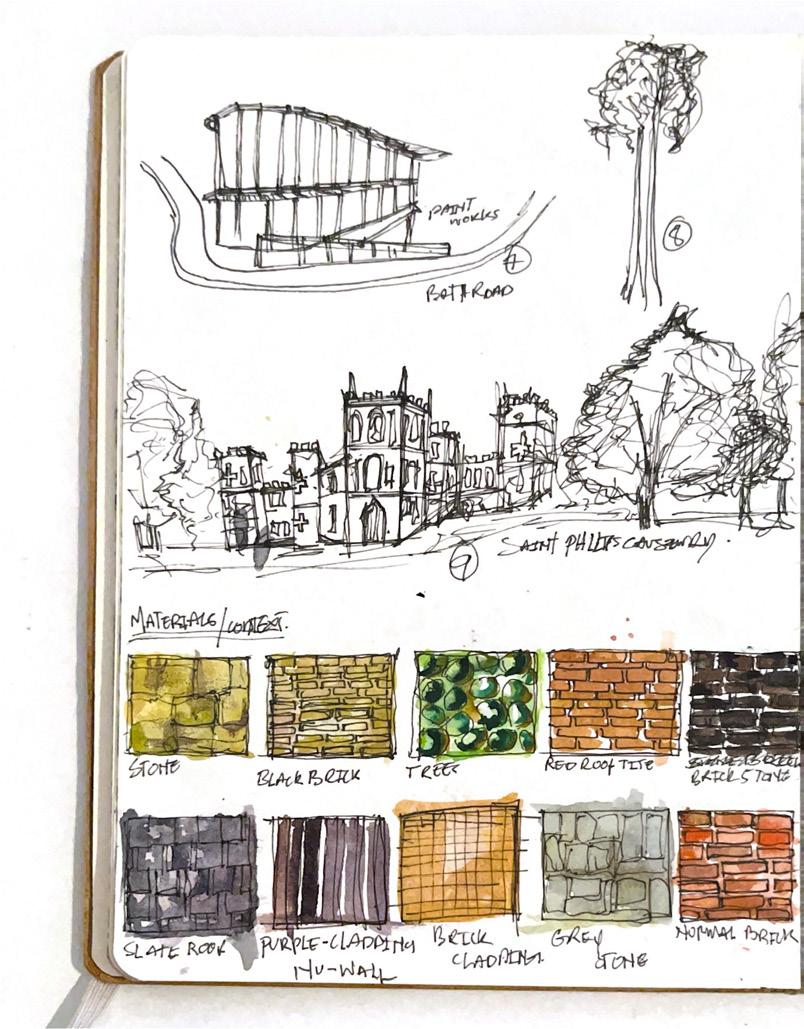

Site Sketches

YEAR 2- PROJECT 2- COMMUNITY LED SOCIAL HOUSING

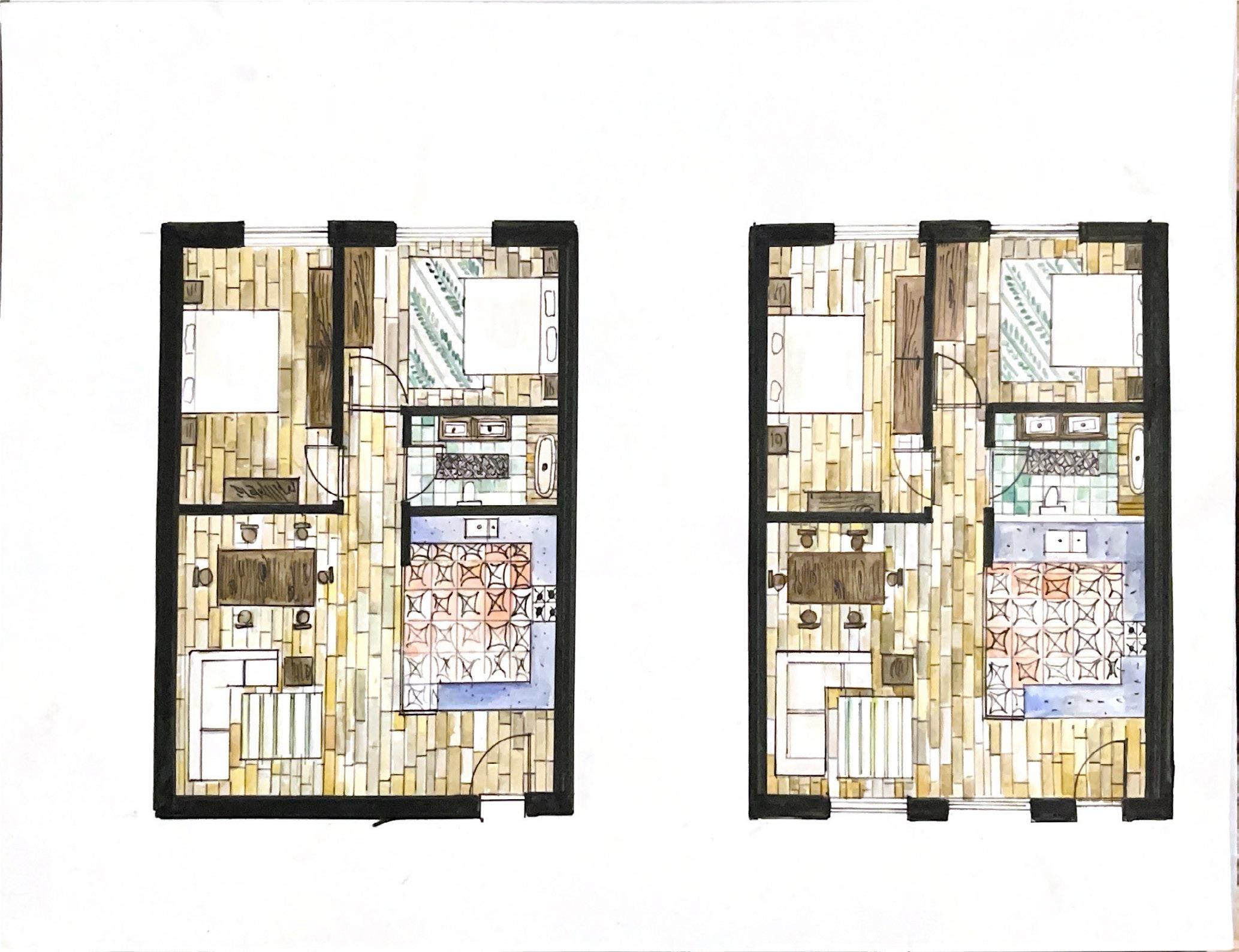

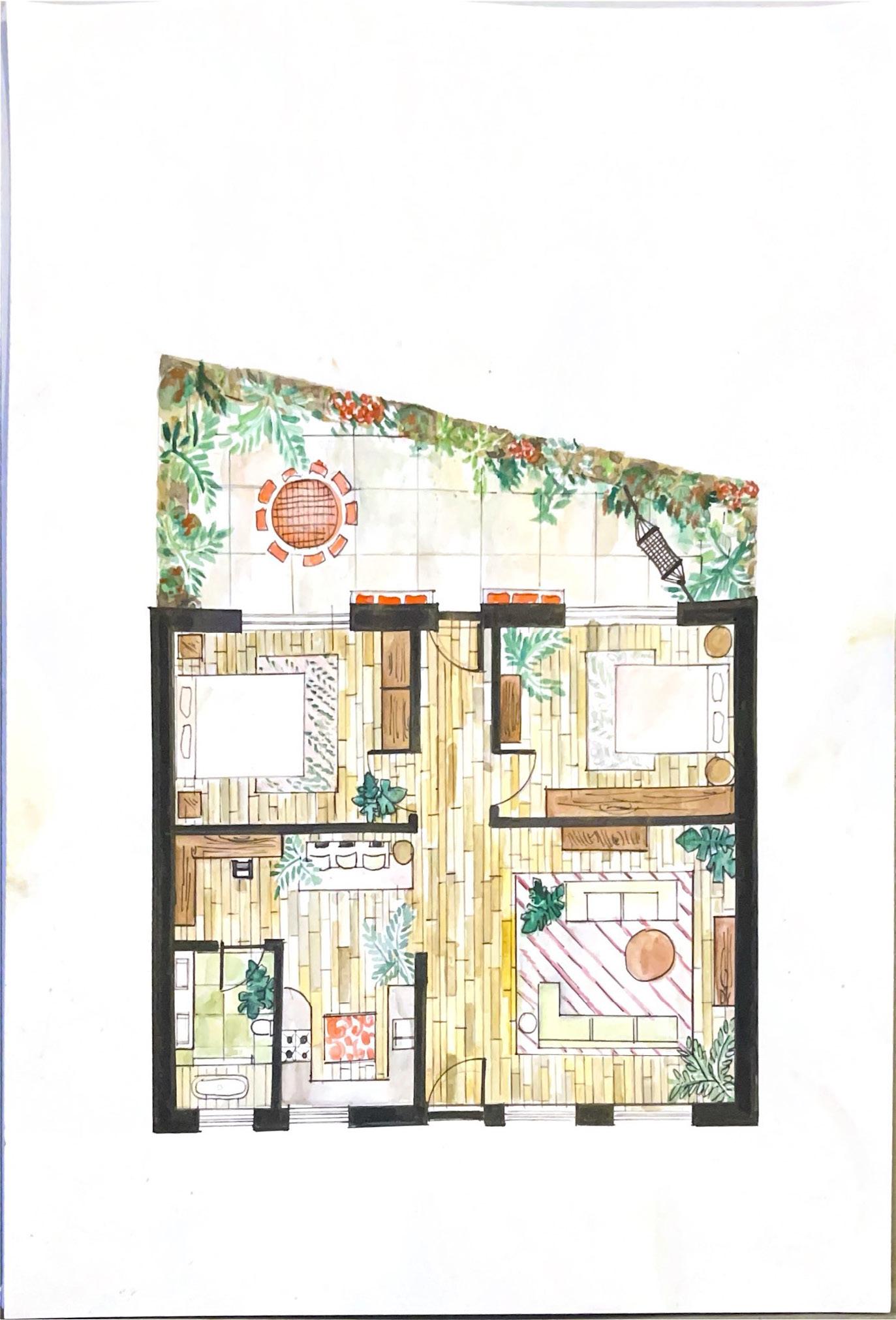

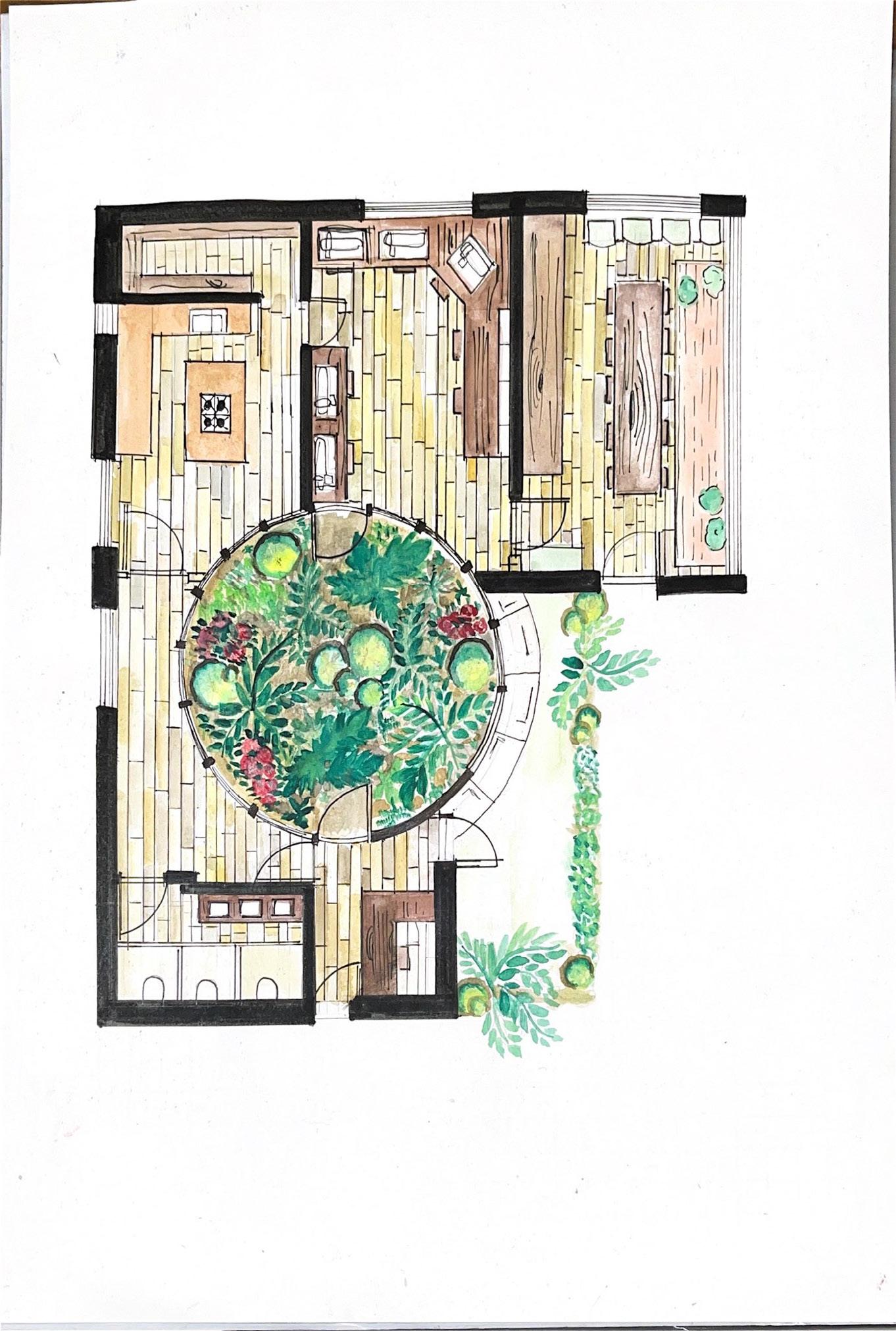

Plan of 2 bedroom flat.

YEAR 2- PROJECT 2- COMMUNITY LED SOCIAL HOUSING

plan of Single story house

YEAR 2- PROJECT 2- COMMUNITY LED SOCIAL HOUSING

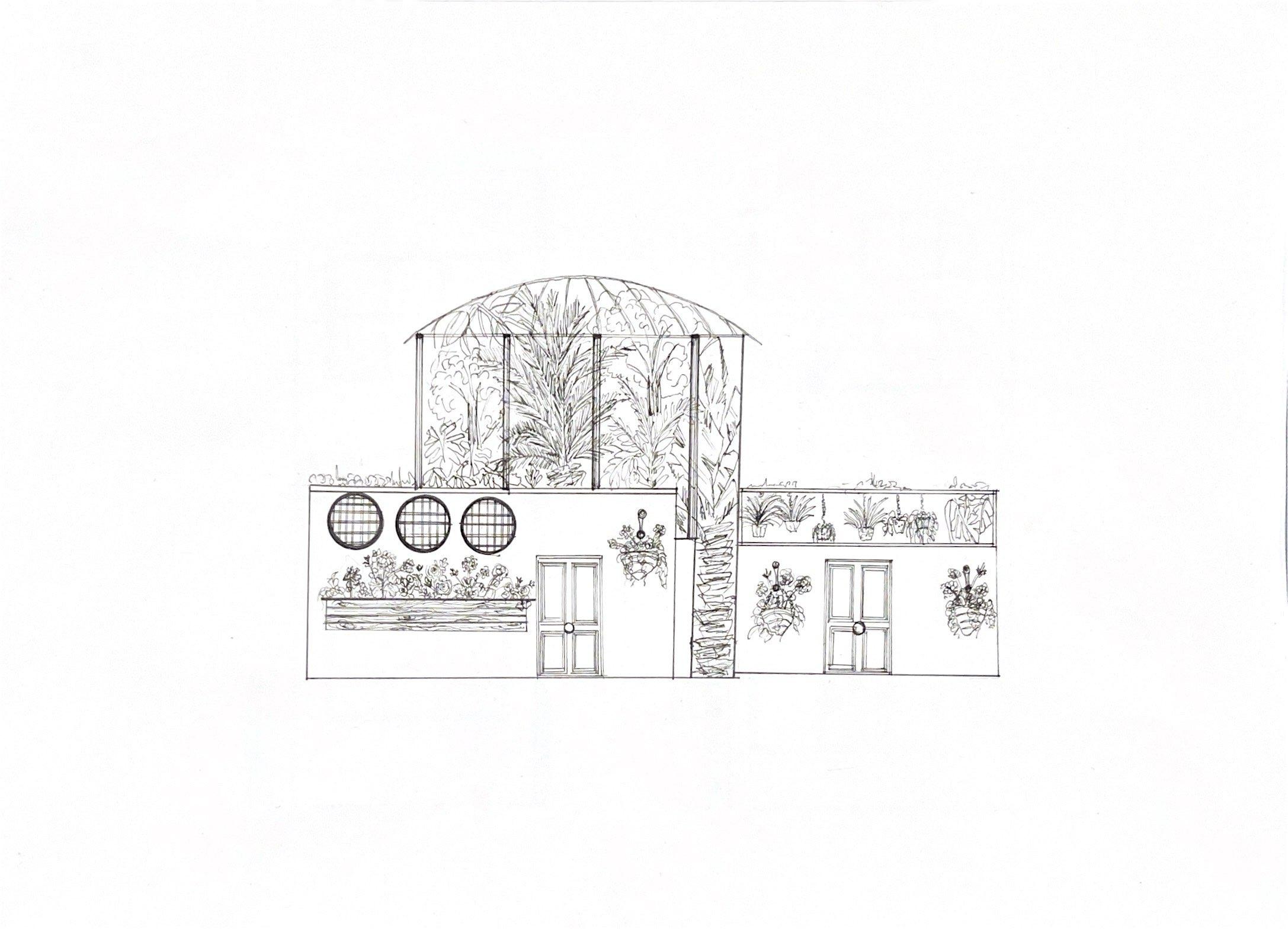

Plan of of community hub and elevation.

YEAR 2- PROJECT 2- COMMUNITY LED SOCIAL HOUSING

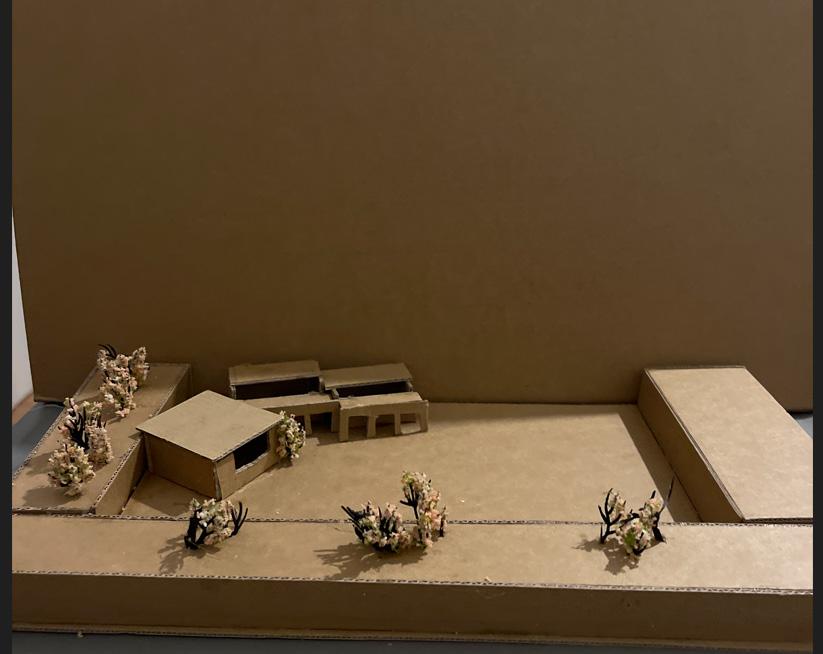

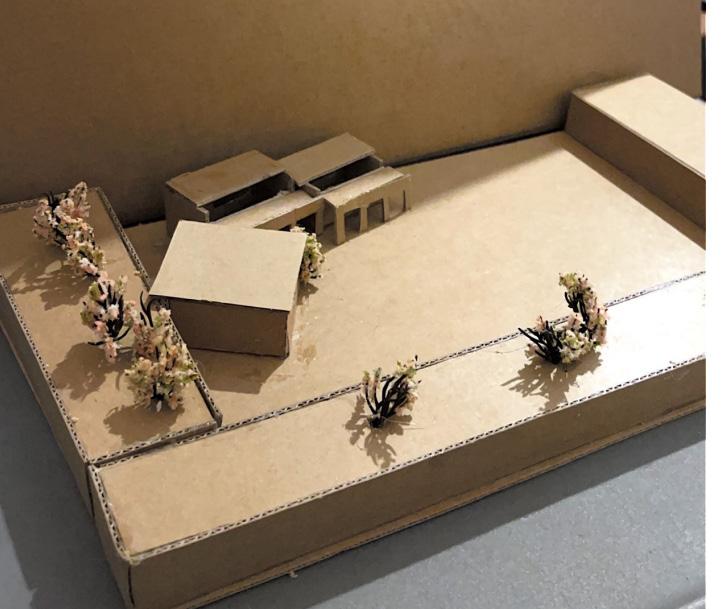

Site Model

YEAR 2- PROJECT 2- COMMUNITY LED SOCIAL HOUSING

Weekly log

The Brief was to design an exhibition space for a chosen artist. I chose Mohammed Ali, a local artist from Birmingham. He does street art on a large can-

I decided to do an outdoor and in indoor exhibition. I went with a maze idea for the walls where the art will display. I wanted the main exhibition museum areas to have a complete feeling so I decided to go for circular shapes for the building.

YEAR TWO- PROJECT 4- NEIGBOURHOOD ANALYSIS

Site Analysis

YEAR TWO- PROJECT 4- NEIGBOURHOOD ANALYSIS

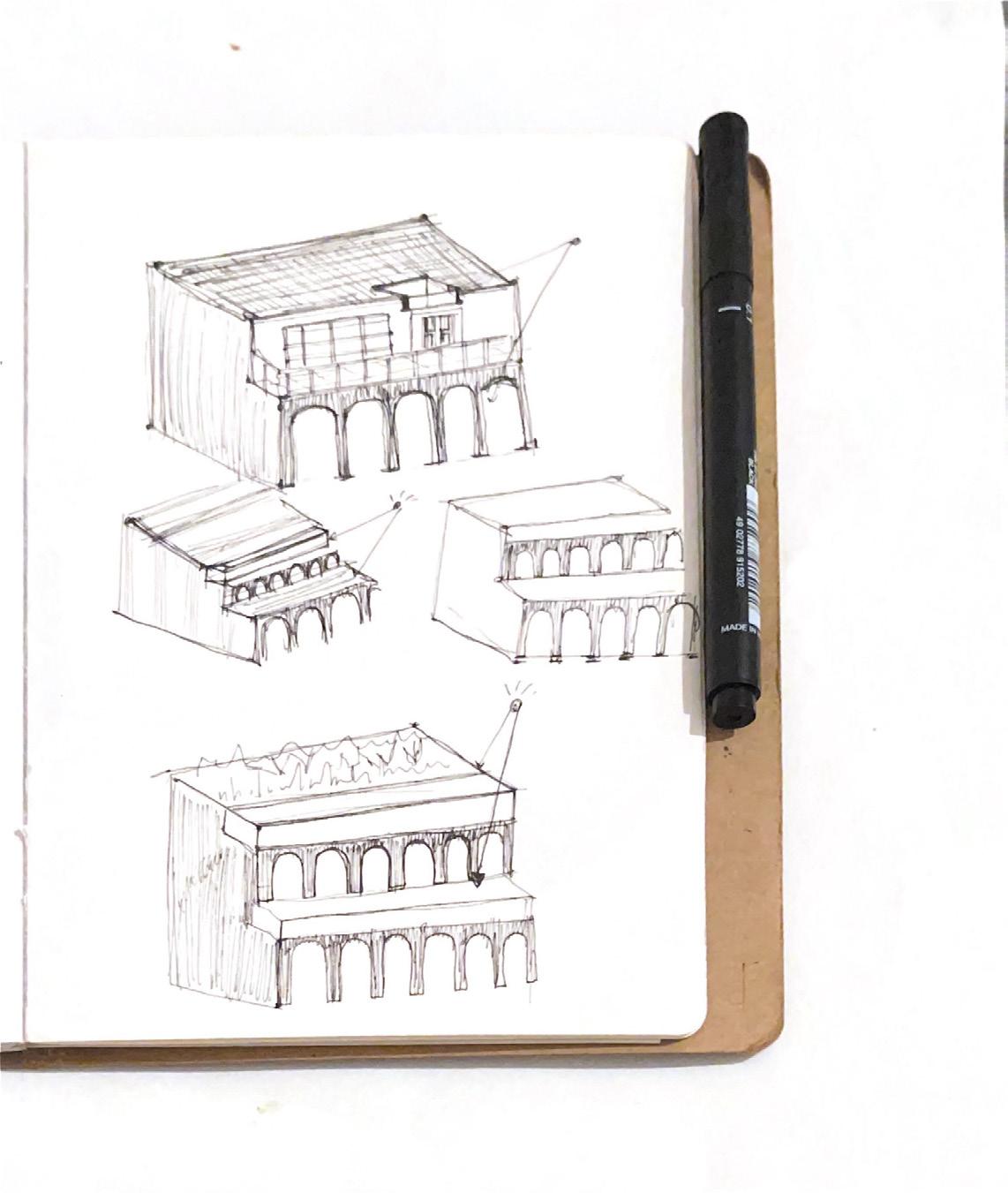

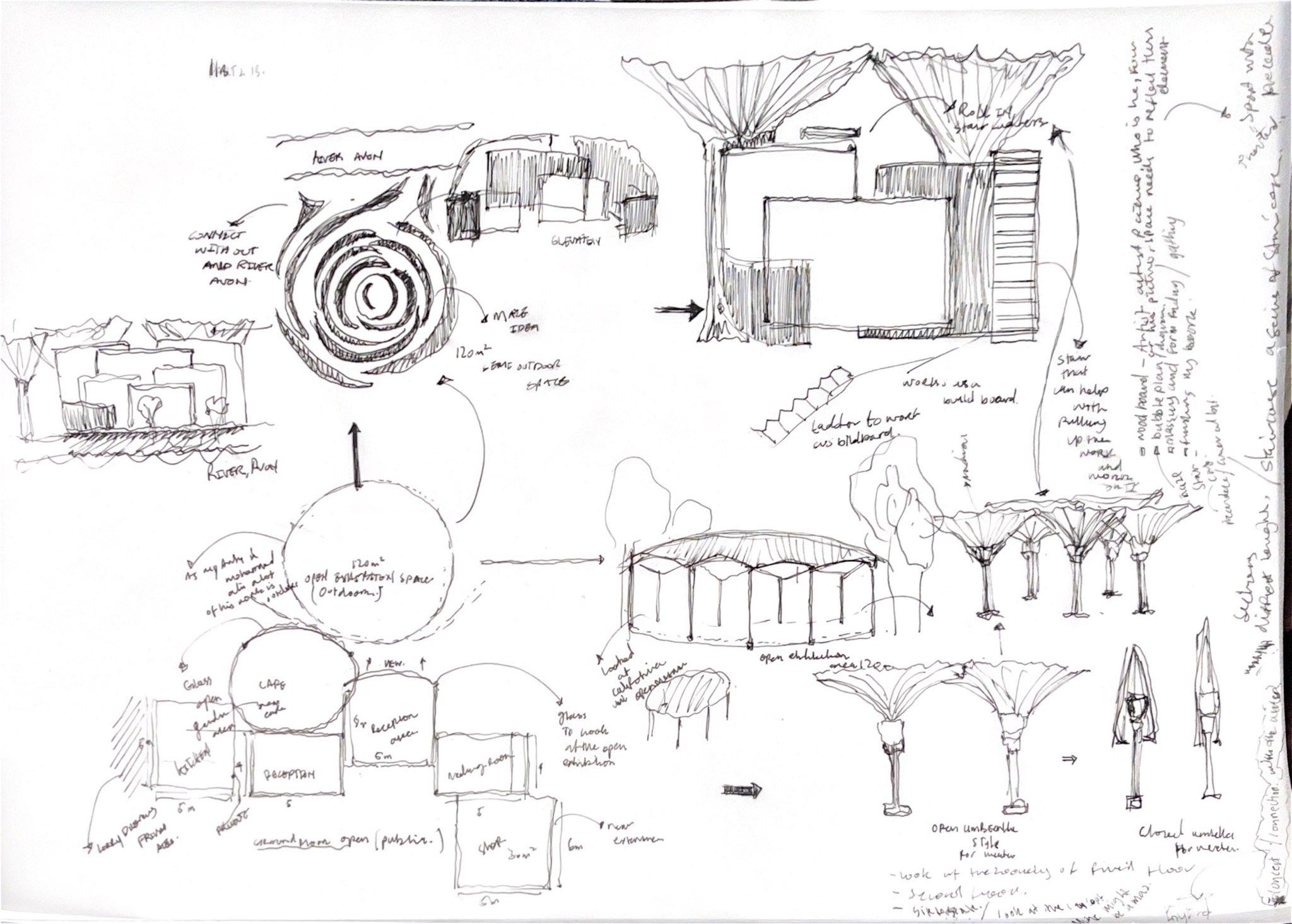

Process of Ideas

YEAR TWO- PROJECT 4- NEIGBOURHOOD ANALYSIS

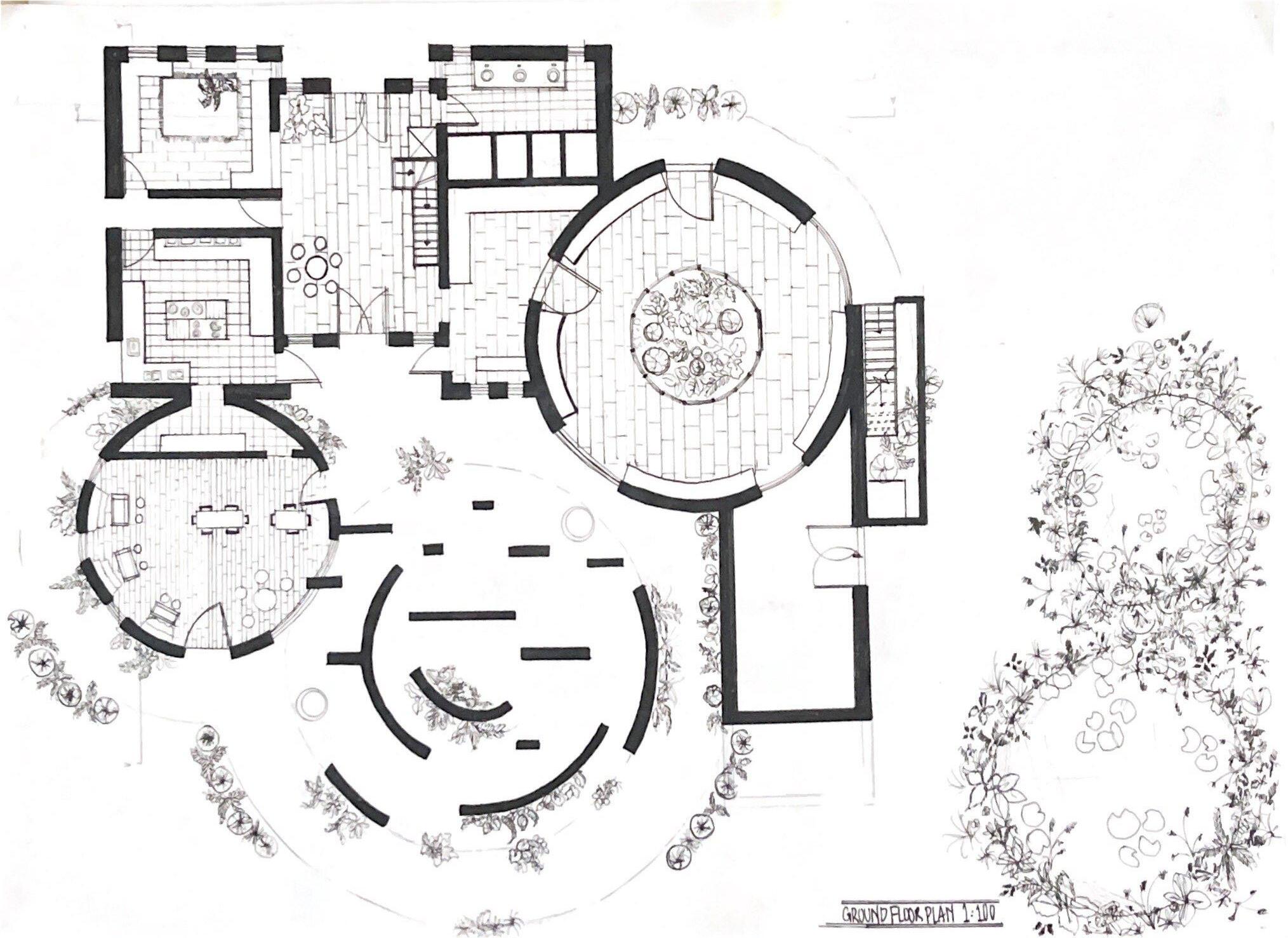

Ground floor plan.

YEAR TWO- PROJECT 4- NEIGBOURHOOD ANALYSIS

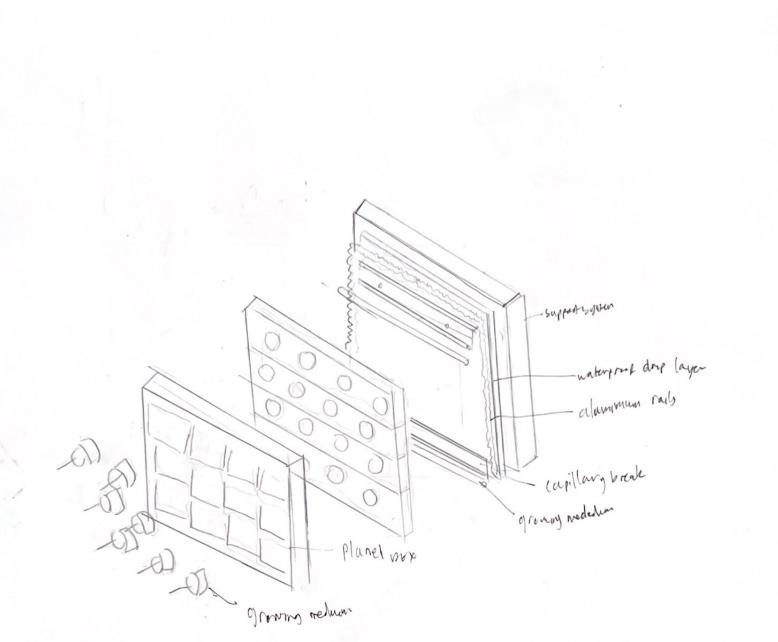

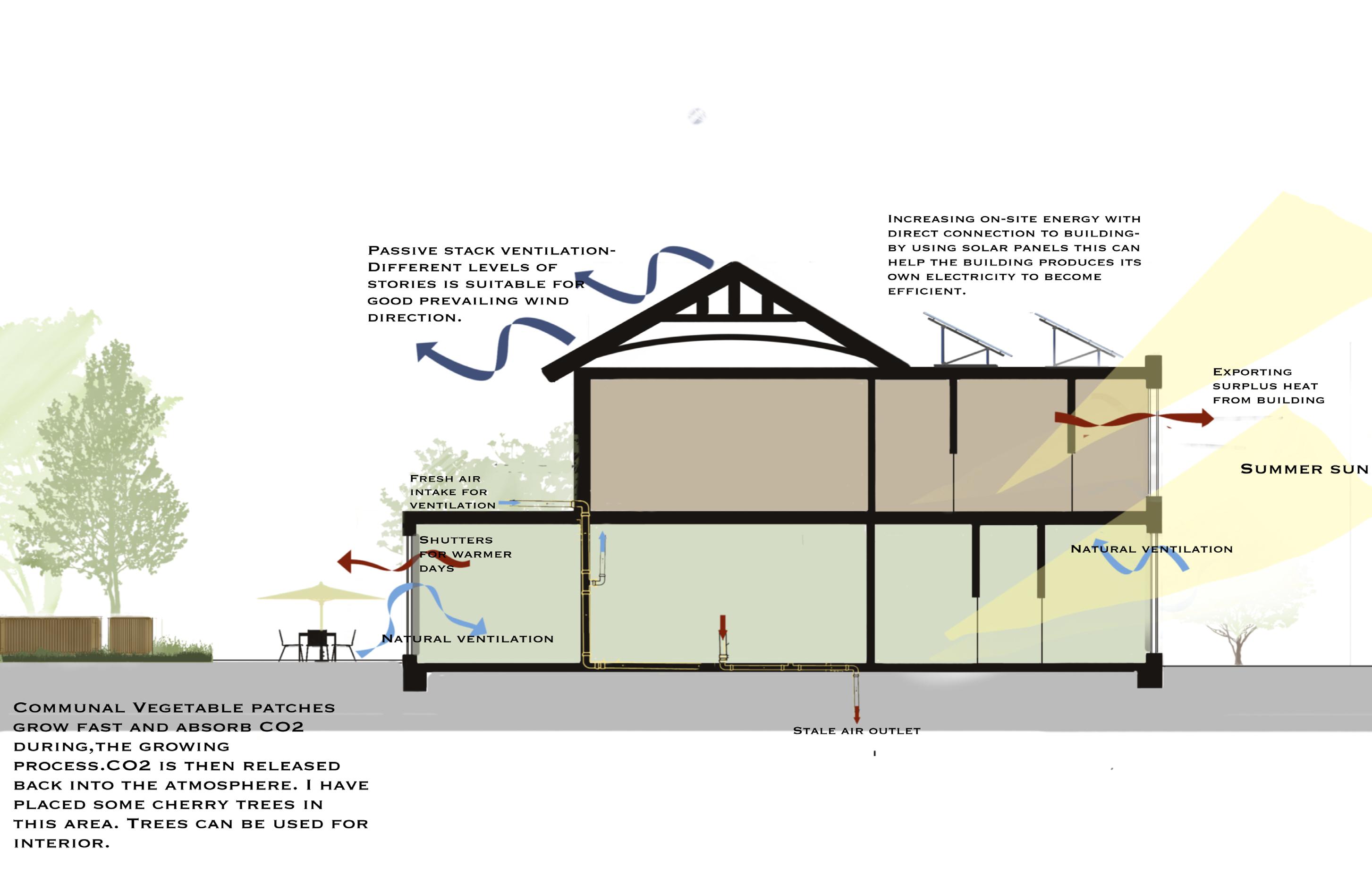

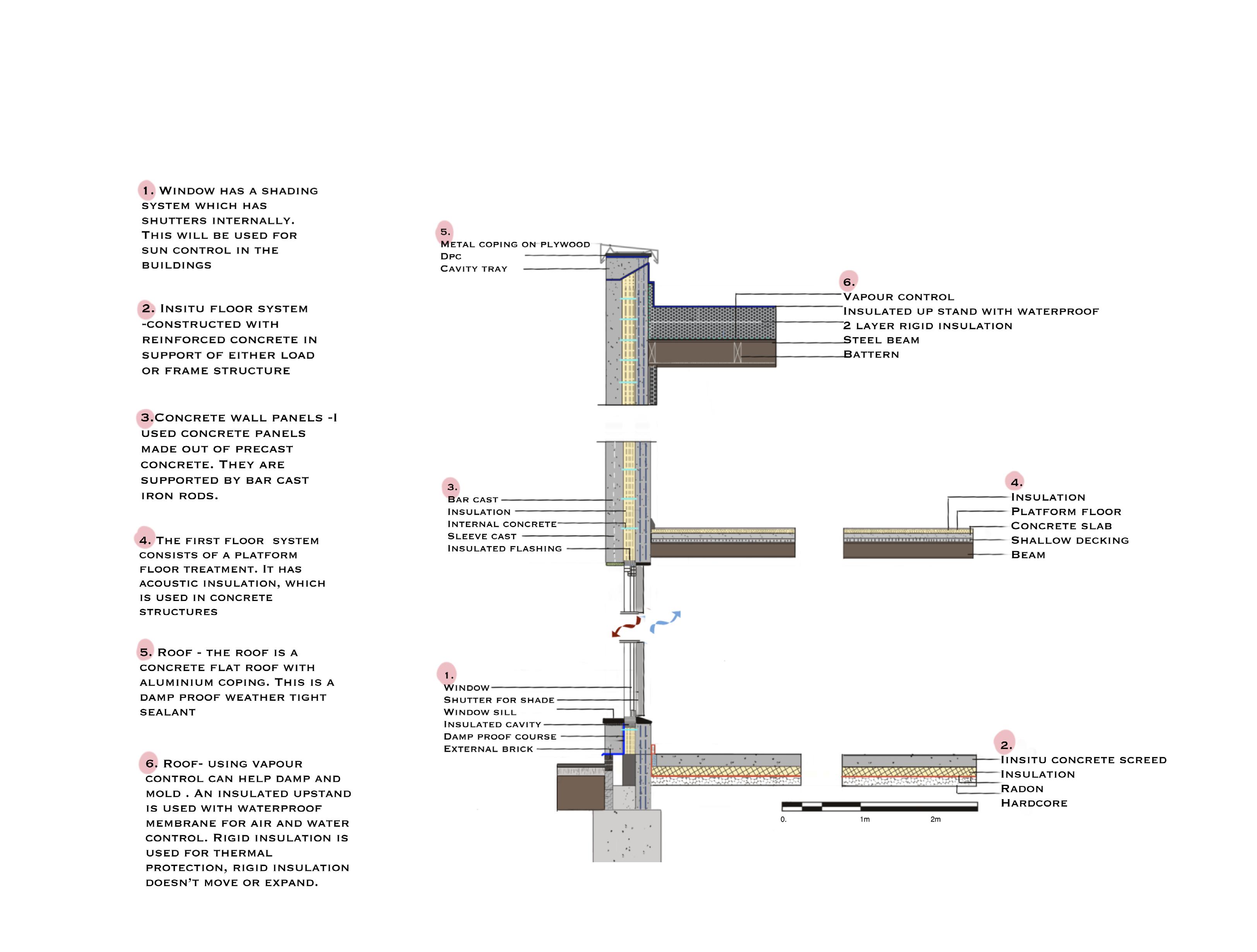

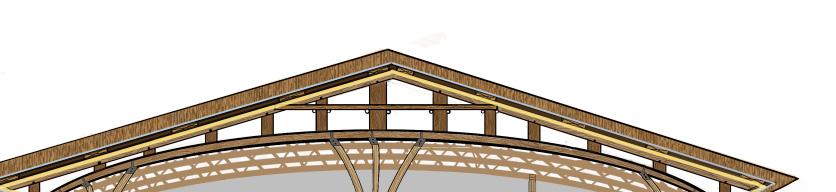

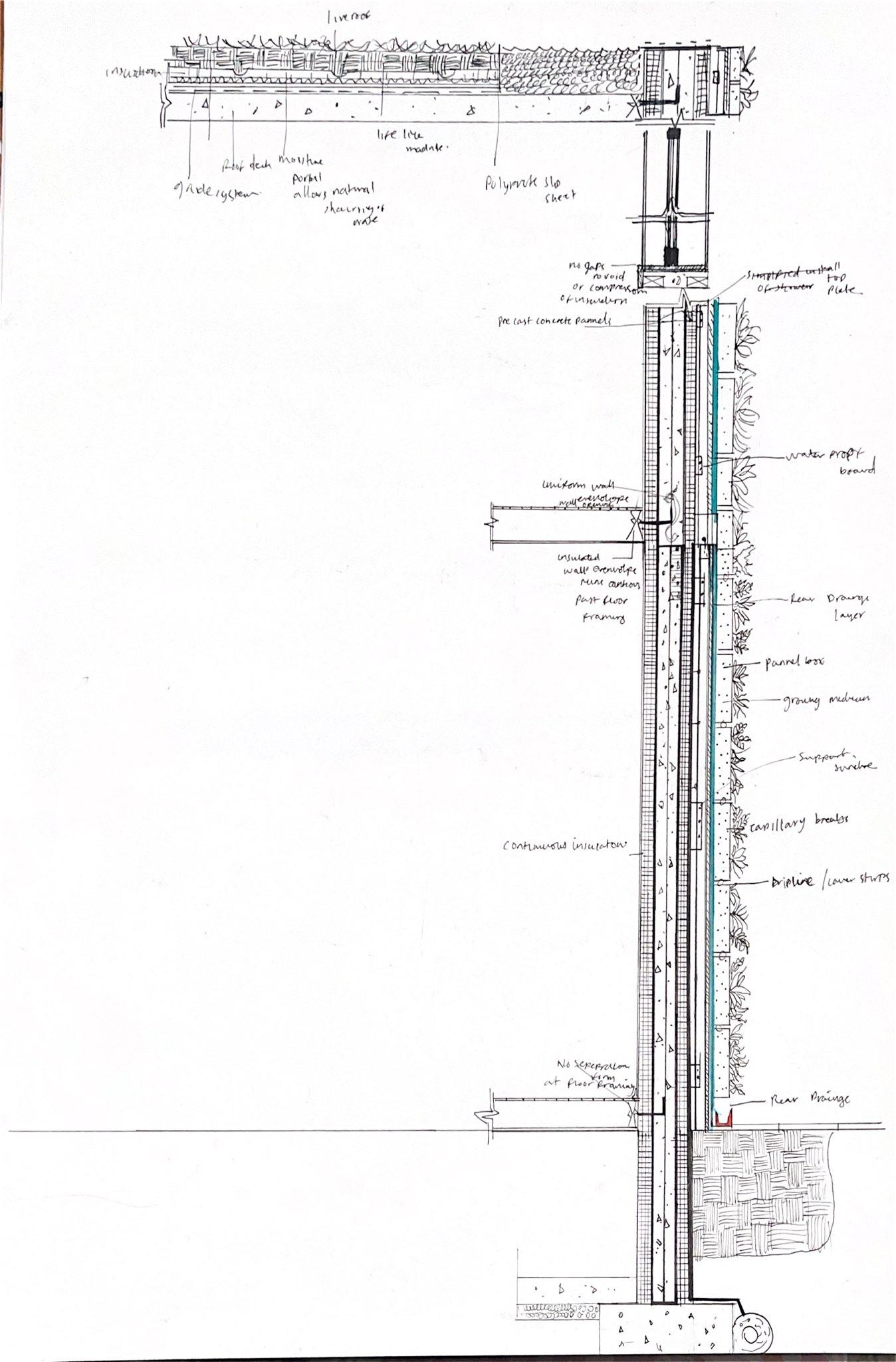

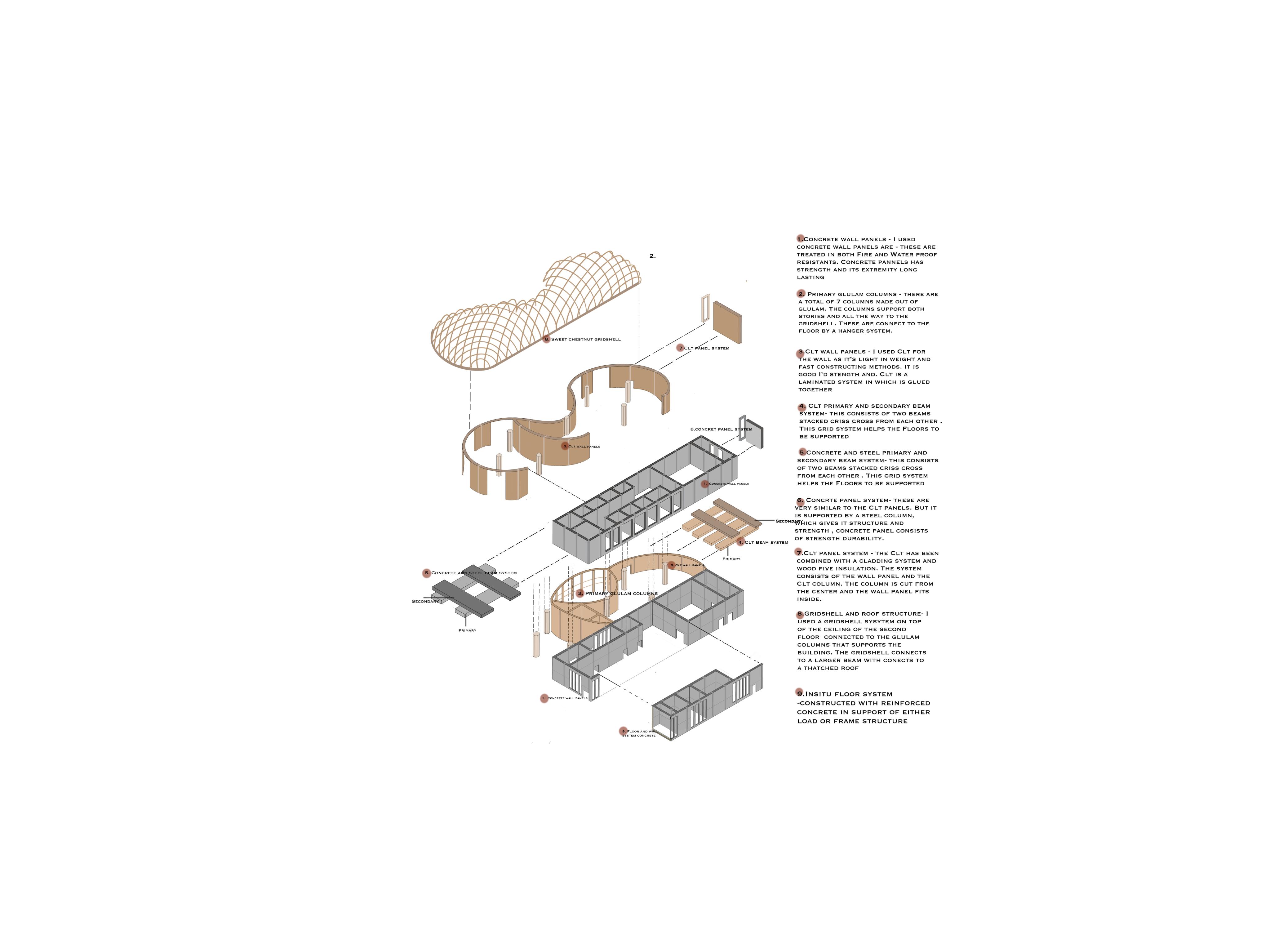

technical detail.

YEAR TWO- PROJECT 4- NEIGBOURHOOD ANALYSIS

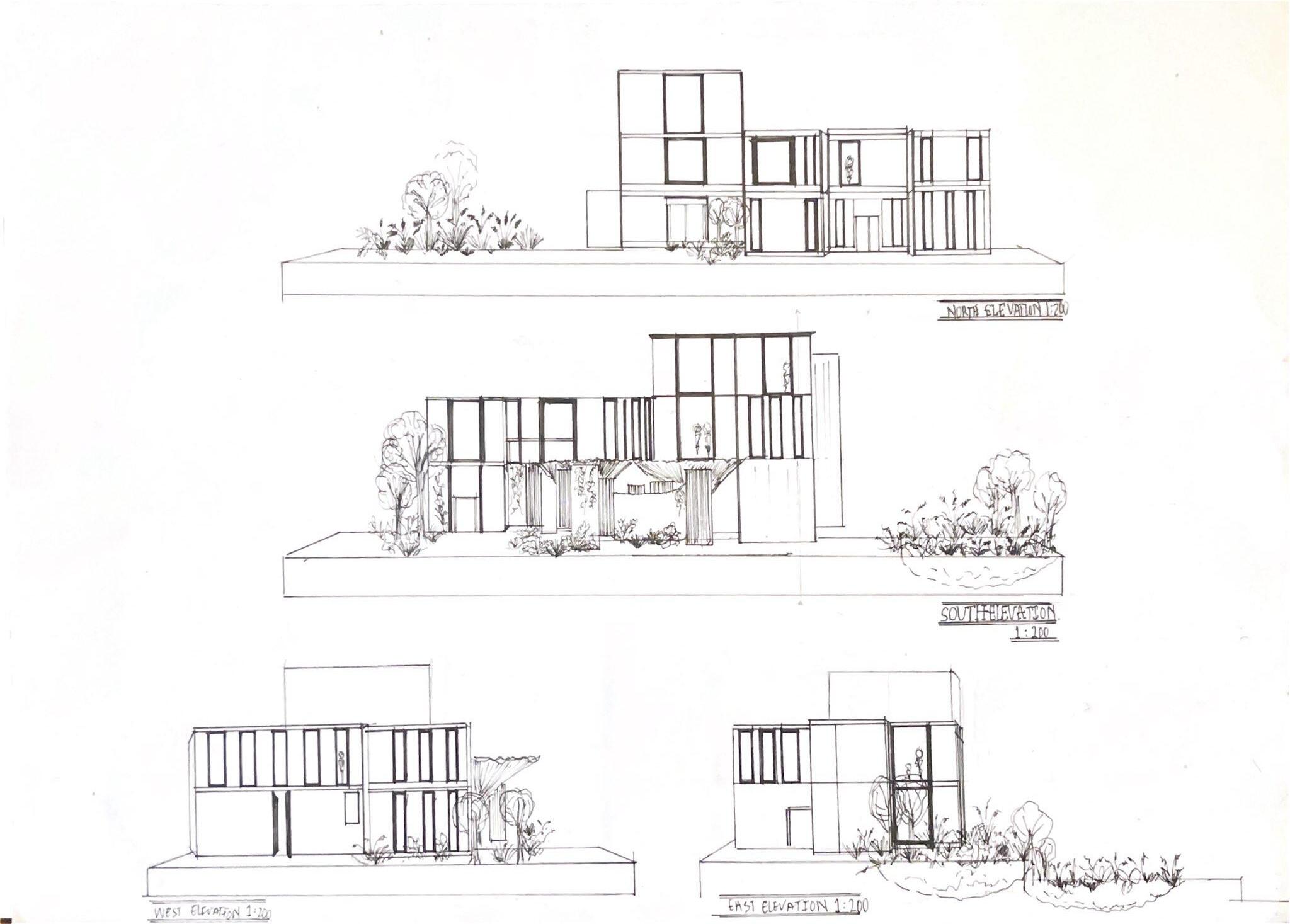

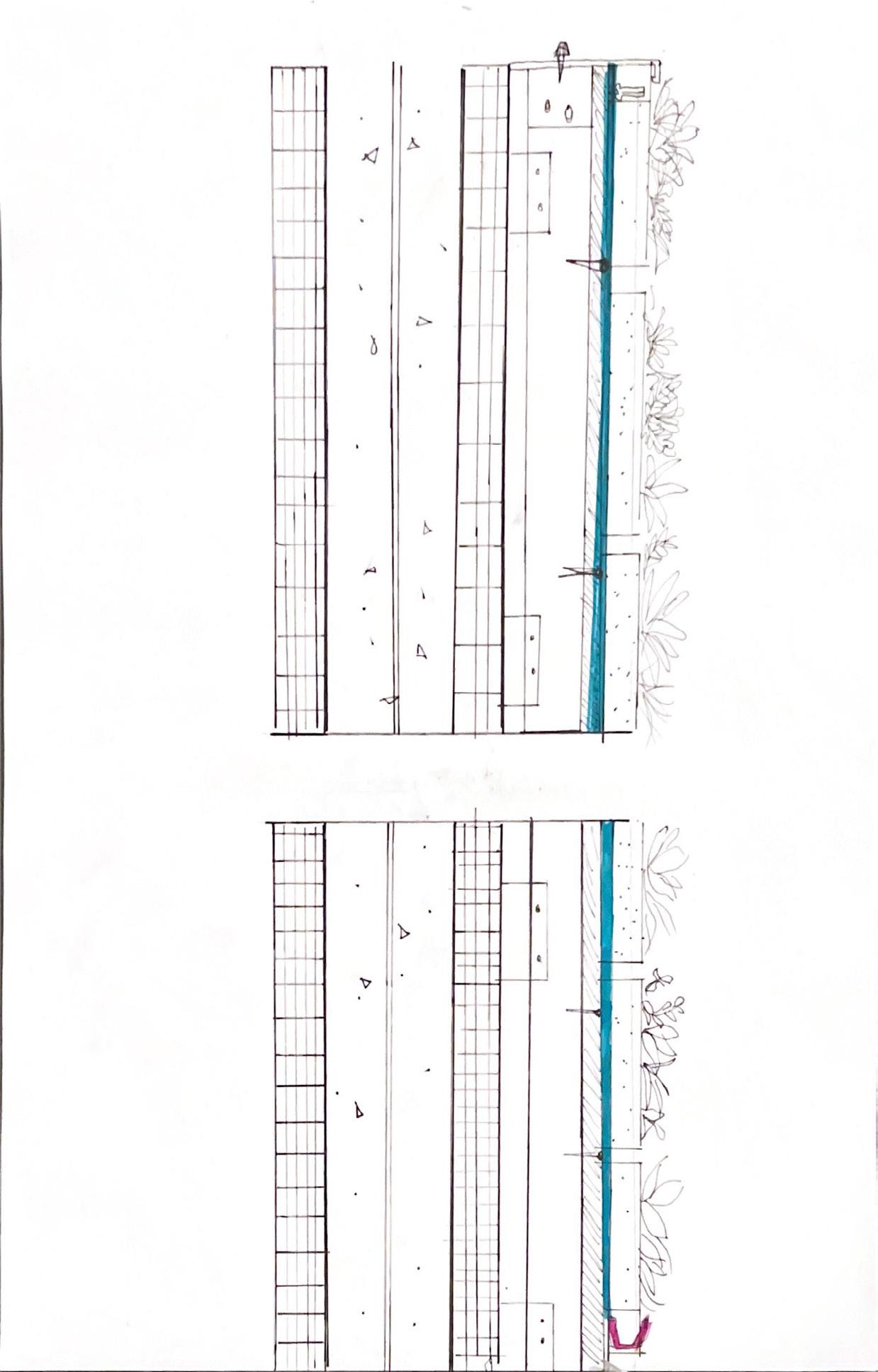

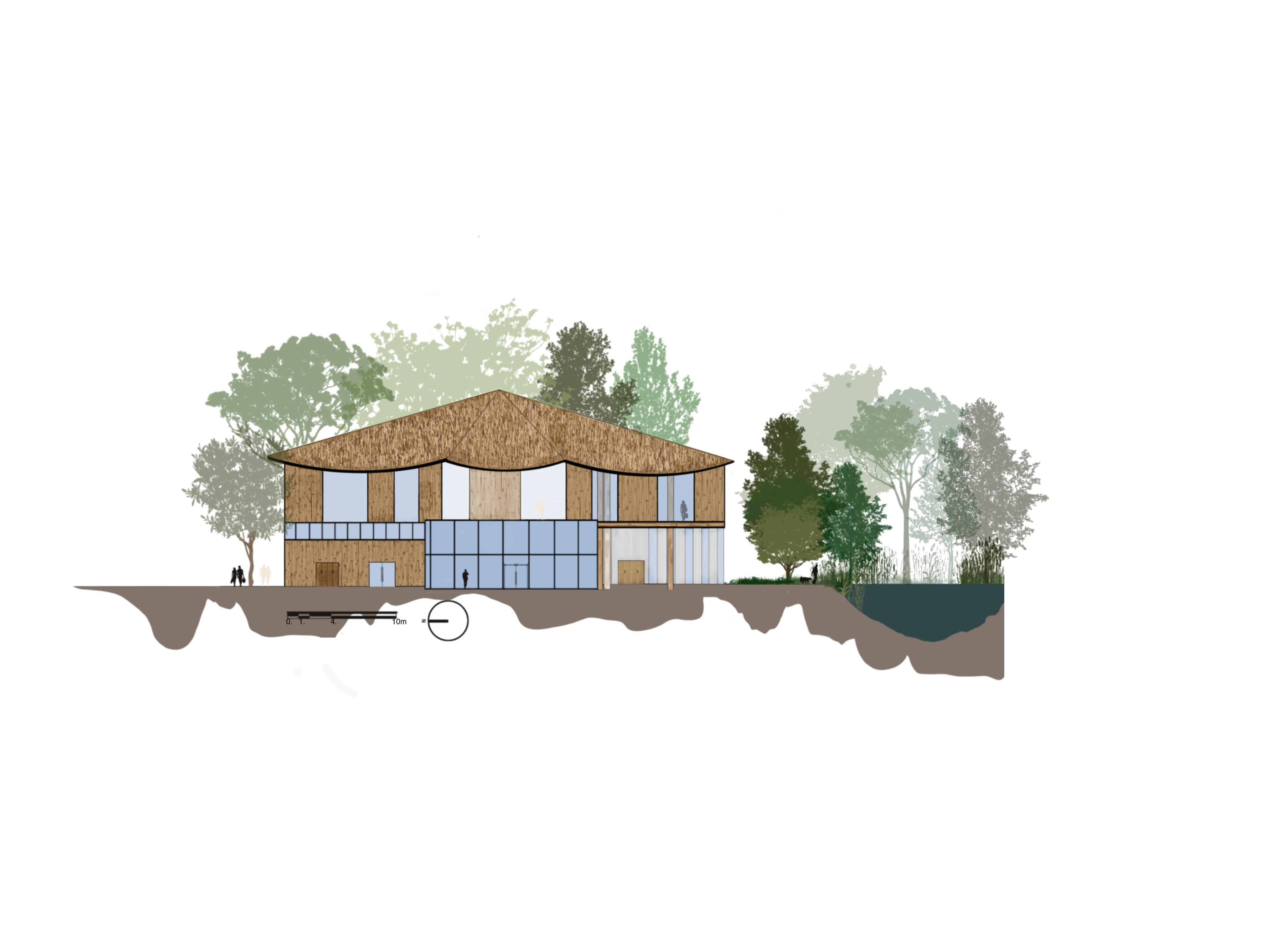

Elevations

YEAR 3 FINAL PROJECT

Throughout my final year, my classmate and I were assigned to design a building with a proposal of creating a building of cultural, recreational, workplaces and educational design process. My building falls under the category of Educational.

At the start of the year we were introduced to clusters, in which was considered in themes of the style in which we would be designing- I decided to go with materiality and context. The specific site that was chosen for my cluster was Bristol hotel on prince street.

I decided to design an educational learning centre for students who would like to focus on university work outside of university. I took my personal experience on how I feel working in place that’s I’m studying. I wanted to create a space that won’t affect a student’s mental health and don’t feel as much pressure as they would in a university institution and feel relaxed to they could exceed in doing well.

Element A- after analysing the Bristol hotel with a group site visit, I saw the building in a negative perspective. I took pictures of the decay and impurities in the building. I decided to study the area, and I found this part of the harbour to be neglected and full of decay. But the more I studied the building, I found my new passion of looking at decay as part of life and how natural it is. So towards the end of element a I now saw decay as a natural way in showing how a building ages.I expermented through painting skeching and drawing.

Element B- in element b I decided to design a learning institution in which used for large projects such as studying and experimenting on decay. I created a more relaxed environment in which students can relax. I saw and studied Uwe and saw what improvements its needs and decided to create a building according to.

Prince Street

Bristol Hotel

Queen Sqaure

Bristol harbour

Sun path

Site- The Bristol hotel

Regus Bristol Boat Quay

Sun directionHigher levels of daylighting reduce artiÞcial lighting.

Trees planted to help with fresher cleaner air

Wind directioncross ventillation

Rain water helps vegetation

Mariner house

The shakespeare Bush house

ELEMENT A- BOARD QUAY PANELS

THE PANELSTHESE PANELS WERE MADE IN HONOUR OF THE COLSTON’S. THE SEA LION REPRESENTS THE CREST OF THE FAMILY. THERE ARE 15 PANELS AND EACH BEING UNIQUE IN REPRESENTING BRISTOL. FOR EXAMPLE, THE BOMBED CHURCHED OF ST NICHOLAS, BAGE OF BRISTOL GUIDE WEAVERS, TADE TOKEN AND THE CORPORATIVE SOCIETY. THESE ARE SOME OF THE PANELS THAT INTERESTED ME.

THE ONES THAT I HAVE DRAWN ABOVE ARE, THE HISTORY OF BRISTOL, THE CORPORATIVE SOCIETY AND JET INTAKE. I THOUGHT THESE PANELS PERFECTLY REPRESENTED BRISTOL AS A WHOLE. FURTHERMORE I TOOK INSPIRATION FROM TO IN ORDER TO CREATE A COLLAGE OF REPRESENTING MY SITE.

ELEMENT A-TECTURE ON SITE- RUST, DECAY,MOLD AND PAINT STROKES.

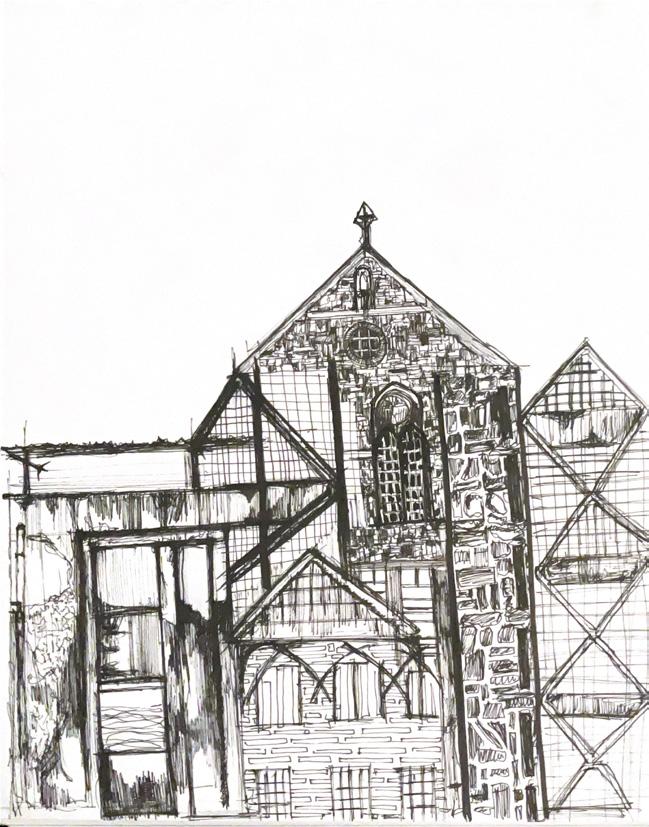

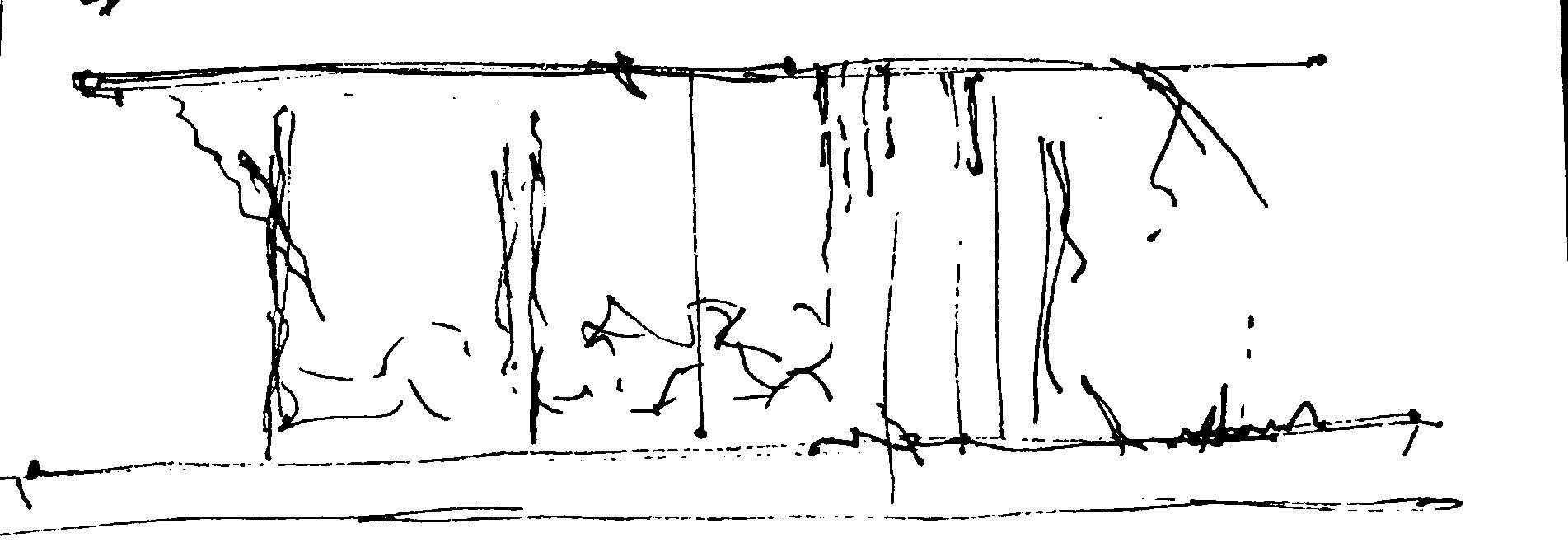

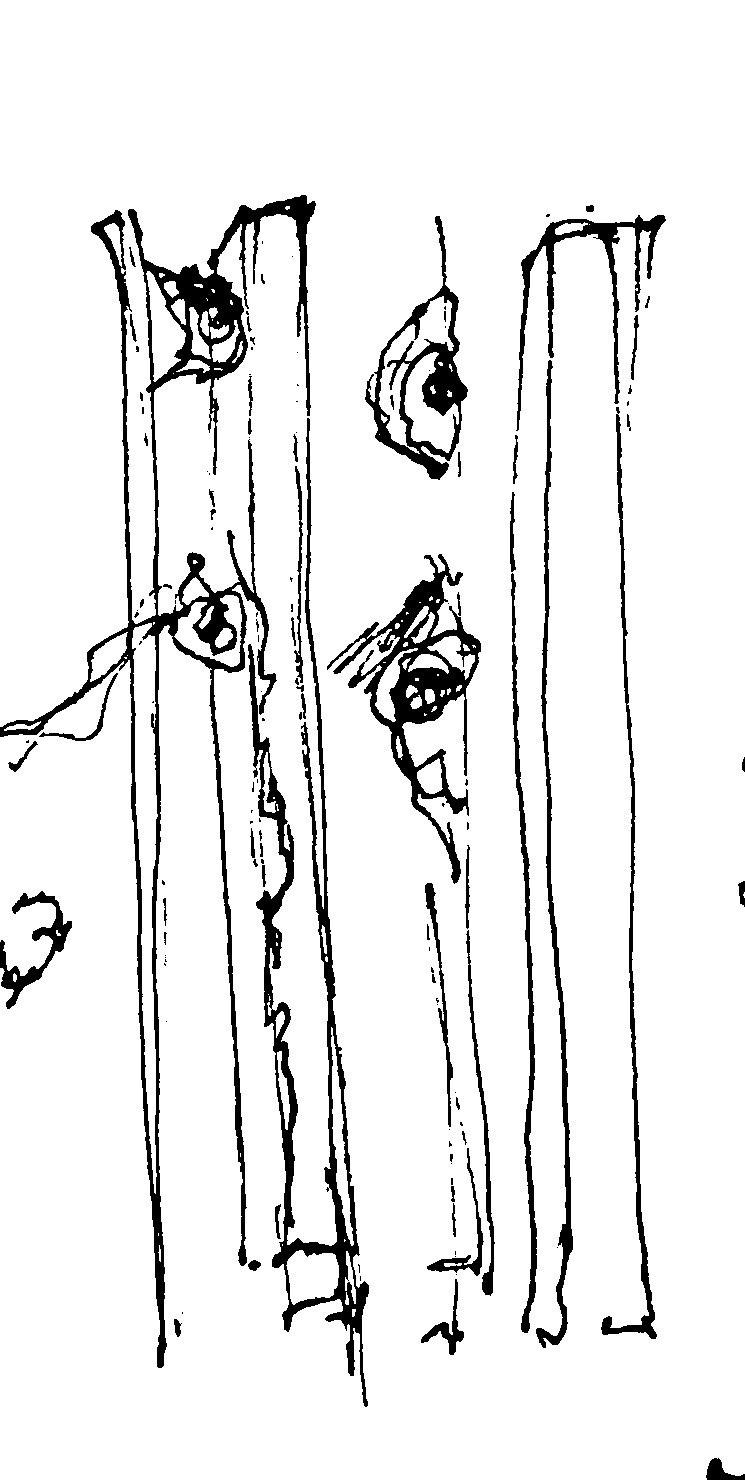

FROM THE SITE I TOOK A FEW SKETCHES, I CONCENTRATED ON MAJORLY ON TEXTURES. I FOUND THESE TEXTURES FROM THE NEGATIVES OF THE BUILDING FROM MOLD, DECAY, RUST AND PAINT STROKES. I REPRESENTED THE SKETCHES THROUGH A COLLAGE.

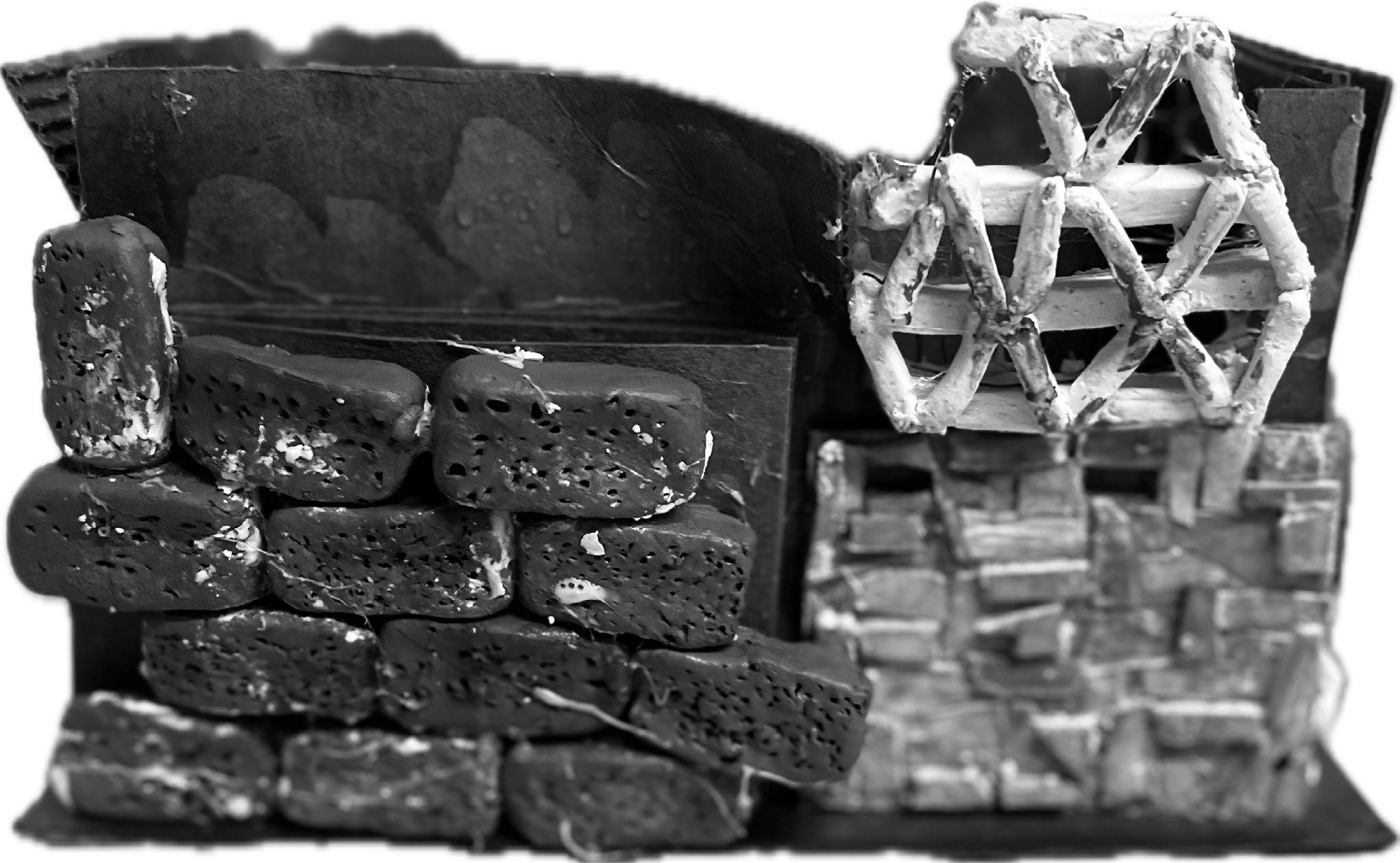

ELEMENT A- EXPERMENTING WITH A MATERIALS, PRESENTED IN EXHIBITION

AFTER RESEARCHING AND LOOKING FOR A PRECEDENCE I FOUND SOMETHING THAT WAS SIMILAR TO WHAT I AM STUDYING IN THE BUILDING ON PRINCE STREET.VTHESE WERE SIMILAR TO THE TEXTURES I SAW, SKETCHED AND EVEN PAINTED

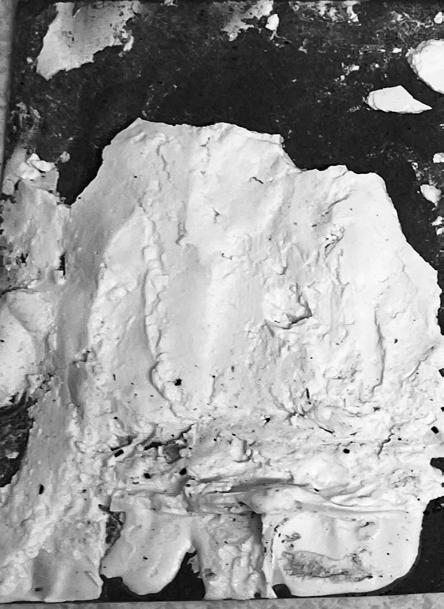

MATERIALS LEFT IN THE OPEN-

FOR THE EXHIBITION I WANTED TO PRESENT THIS EXPERIMENTED MODEL, TO SHOW THE AFFECTS OF DECAY. I USED MATERIALS SUCH AS PAIRS OF PLASTER, CLAY, CONCRETE, CARDBOARD MESH AND WIRE.

IT WAS INTERESTING TO SEE THE MOLD AND ALGAE FORMED ON THE MODEL. I LEFT THIS MODEL IN THE GARDEN FOR TWO WEEKS AT THE END OF NOVEM-BER. I LEFT IN IN A SEMI SHELTERED SPACE, OTHER WISE IT WOULD HAVE LOOKED A LOT WORSE.

ELEMENT A- PROCESS OF EXHIBITION

IN PREPARATION OF THE EXHIBITION, I DECIDED TO DO COLLAGES OF ALL THE BUILDINGS THAT HAD BEEN AFFECTED BY DEAY AND WEATHER-ING. THIS IS THE PROCESS OF ONE CANVAS. I USED PAINT, INK AND WA-TERCOLOURS. I THOUGHT THIS WOULD BE A GREAT WAY TO SHOW THE BEAUTY IN DECAY AND WEATHERING.

ELEMENT B- INTRODUCTION

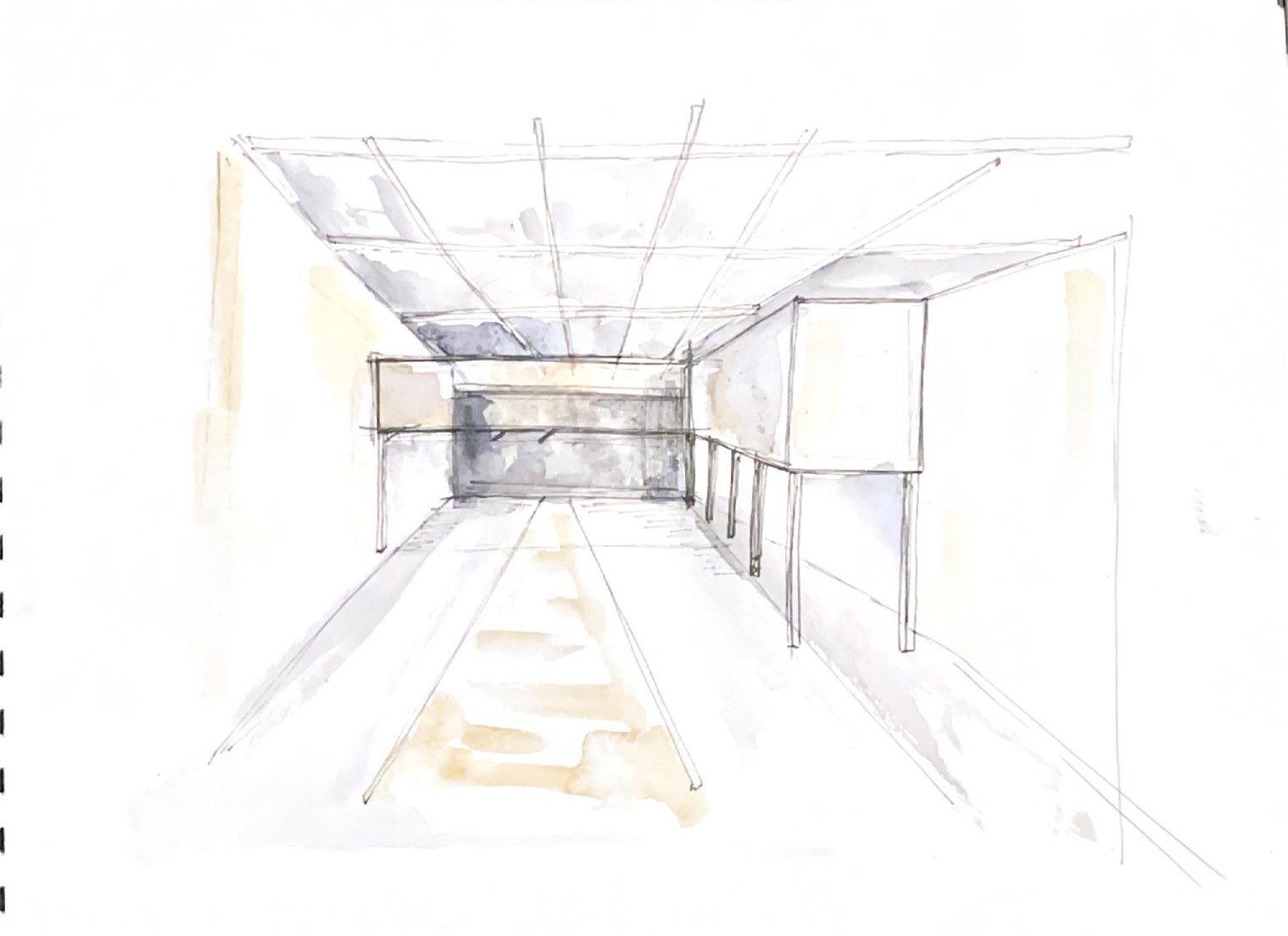

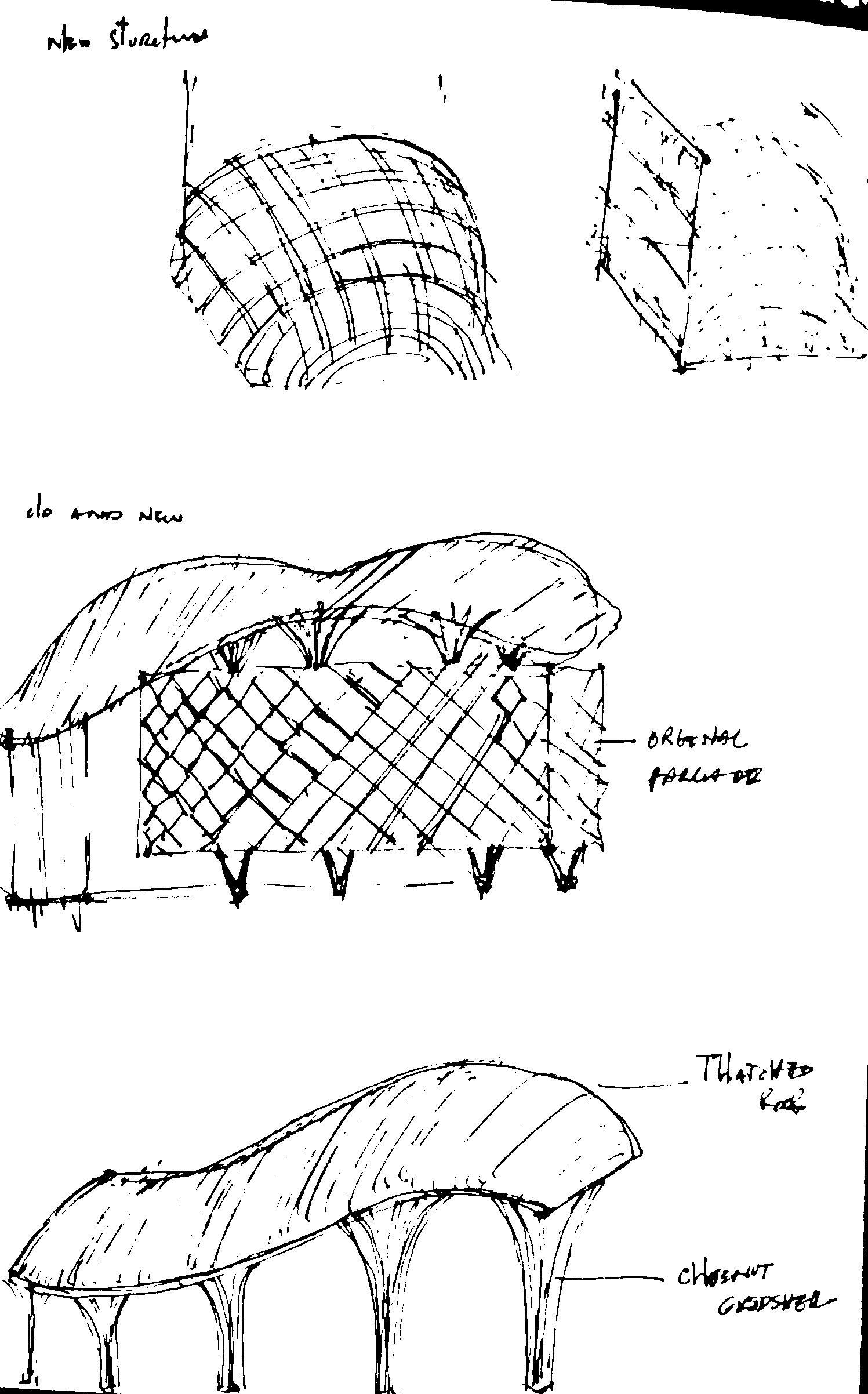

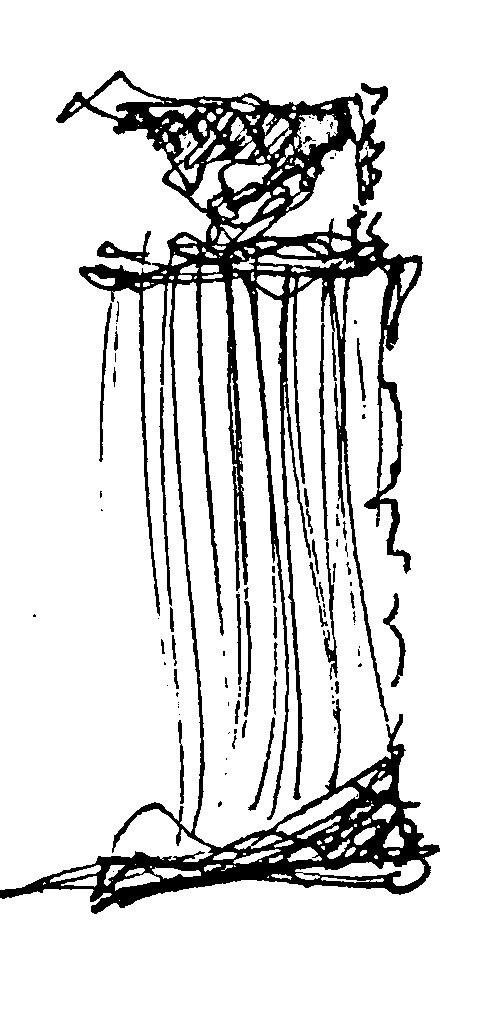

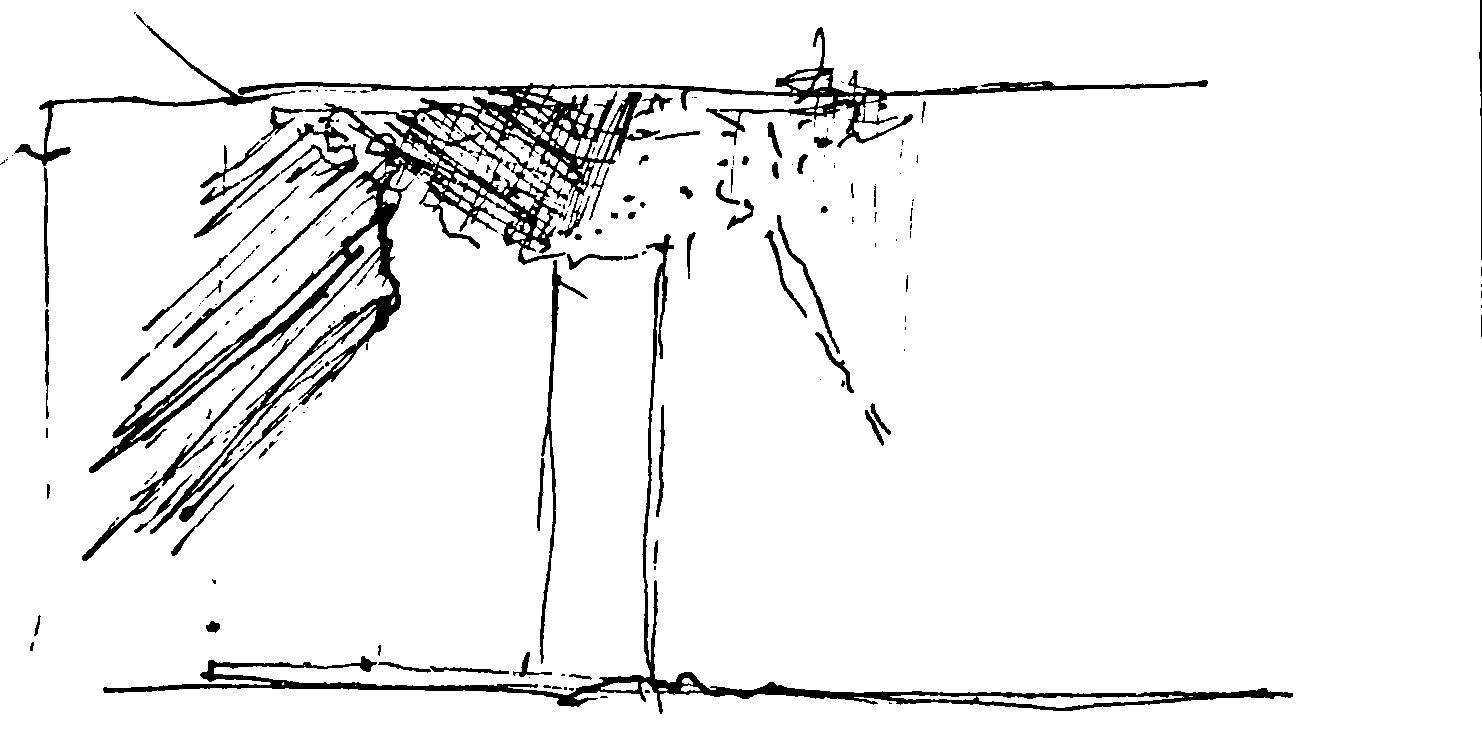

THESE ARE THE SKETCHED I DID, MAINLY WITH WATERCOLOURS. I CAPTURED IT ALONG SIDE DOING THEM.

Element B- in element b I decided to design a learning institution in which is used for large projects such as studying and experimenting on decay. I created a more relaxed environment in which students can relax. I saw and studied Uwe and saw what improvements its needs and decided to create a building according to.
