PROJECT 3 : CAMPUS CENTER BB’

ANDREW GOUVEIA

DN

MY PROPOSAL FOR A NEW CAMPUS CENTER AT ROGER WILLIAMS UNIVERSITY IS AIMED TO WORK WITH THE CAMPUS AS IT EXPANDS IN THE FUTURE. THE SITE IS SITUATED ON THE SOUTH END OF THE LAWN LOCATED IN FRONT OF THE ARCHITECTURE SCHOOL. TO ALLOW THIS NEW CAMPUS CENTER TO ENGAGE WITH THE CAMPUS THE REMOVAL OF THE ADMINISTRATION BUILDING WOULD TAKE PLACE. THIS WOULD ALLOW THE NEW CAMPUS CENTER FALL IN-LINE WITH THE GLOBAL HERITAGE HALL, CONNECTING IT TO THE EXISTING QUAD. THE PATHWAYS FROM THE EXISTING QUAD NETWORK WOULD BE EXTENDED TO BRING STUDENTS INTO THE NEW CAMPUS CENTER ALONG WITH THE FRONT LAWN. AS A WAY TO PLAN FOR FUTURE CAMPUS EXPANSION ACROSS THE ROAD WHERE THE UNIVERSITY HAS BOUGHT RECENTLY BOUGHT A LOT. THIS IS THE REASON FOR THE PLACEMENT OF THE NEW CAMPUS CENTER. WHILE IT IS NOT IN A CENTRALIZED LOCATION ON CAMPUS NOW, IT IS PLACED AS A PREPARATION FOR FUTURE EXPANSION OF THE CAMPUS. THE CAMPUS CENTER WILL INCLUDE A NUMBER OF PROGRAMS TO ACCOMMODATE WITH STUDENTS DAILY NEEDS. ON THE FIRST FLOOR THERE WILL BE A LARGE MULTI-USE SPACE THAT WILL BE USED PRIMARILY FOR STUDENTS TO SIT AND MEET WITH PEERS, GRAB SOMETHING TO EAT, AND WORK ON COURSE WORK. THIS SPACE WILL ALSO BE ABLE TO BE CONVERTED INTO A LARGE EVENT SPACE THAT CAN BE CONNECTED TO THE EXTERIOR PLAZA AS WELL THROUGH AN OPERABLE FACADE. TO HELP DIVIDE THESE TWO PROGRAMS WHEN THEY ARE BEING USED SIMULTANEOUSLY THERE IS A LINE SET BY A LINE OF STEPS THAT WRAPS THE TWO ALONG THE ENTIRE FIRST FLOOR. THE FITNESS CENTER WILL ALSO BE RELOCATED HERE SINCE IT IS SOMETHING USED OFTEN BY STUDENTS AND MAKE IT MORE ACCESSIBLE FOR EVERYONE TO USE. PLACE ON THE OPPOSITE SIDE OF THE FIRST FLOOR WILL BE THE ADMISSIONS / ALUMNI CENTER AND AA’ THE SCHOOL LIBRARY THAT WILL BE MOVED CREATING A NEW CAMPUS ENTRANCE IN COMBINATION WITH THE NEW VEHICULR ENTRANCE THAT WILL BRING VISITORS TOO. ON THE SECOND LEVEL THERE WILL BE A LARGER EMPHASISE ON THE EDUCATIONAL PORTION OF CAMPUS. THERE WILL BE A CLOSED OF SECTION FROM THE REST OF THE BUILDING WHICH WILL INCLUDE A QUIET STUDY, CLASSROOMS AND A VIEWING BALCONY ON CAMPUS. A NEW CLUB CENTER WILL ALSO BE ADDED HERE TO GIVE CLUBS A DEDICATED CLUB SPACE ON CAMPUS. ADDITIONALLY A COMBINATION OF GROUP STUDY ROOMS, COLLABORATIVE SPACE AND LOUNGES WILL SERVICE THE REST OF THE SPACES. THE ROOF IS PERFORATED TO ALLOW LIGHT INTO THE ATRIUM AND CLUB CENTER SPACES SINCE THERE IS A LACK OF OPEN FACADE ALONG THE SOUTH SIDE OF THE BUILDING. THE EXPANSIVE GLASS WALL ALONG THE MAJORITY OF THE NORTH FACADE CREATES A VISUAL AND DIRECT CONNECTION TO THE FRONT LAWN. A SORT OF INDOOR-OUTDOOR APPROACH TO THE OVERALL FEEL OF THE SPACE.

LOUNGE / VIEWING ROOM

ADMISSIONS EVENT / PRESENTATION SPACE

DN

AUMNI + ADMISSIONS CENTER

DN DN

QUIET STUDY + WORK SPACE

OPEN TO BELOW

STG.

UP

STG. BB’

THIRD FLOOR SCALE: 1/16” = 1’-0”

AUMNI + ADMISSIONS OFFICES

PLAZA

CLASSROOM

MULTI-PURPOSE + STUDENT DINING AND LOUNGE SPACE CLASSROOM

DN

DN

OPEN TO BELOW

DN

AA’

AA’

AA’

DN

DN

DN

SEATING

UP

MENS LOCKER ROOM UP

STG.

STG.

STG.

STUDENT KITCHEN

STUDY ROOMS

QUICK DINING

DN

SEATING

DN

STG.

SEATING

SEATING

SCHOOL LIBRARY

DN

CLUB + COLLABORATION SPACE

STUDENT LOUNGE

FITNESS CENTER STG.

EXTERIOR DECK

WOMENS LOCKER ROOM DN DN

DN

BB’

BB’

FIRST FLOOR PLAN - SCALE: 1’-0” = 1/16”

SECOND FLOOR - SCALE: 1’-0” = 1/16” THE ADDITION OF A LOWER PARKING GARAGE ACCESSIBLE DIRECTLY FROM THE ROAD AND

BY MOVING THE EXISTING BUS STOP TO BE INTEGRATED INTO THE CAMPUS CENTER WILL HELP TO REDUCE VEHICULAR TRAFFIC ON CAMPUS. IT WILL ALSO PROVIDE ADDITIONAL PARKING WHICH IS ALREADY A PROBLEM ON THE ROGER WILLIAMS CAMPUS AND WILL ONLY BECOME WORSE AS THE CAMPUS CONTINUES TO GROW.

UP LOADING DOCK BUILDING STORAGE

PARKING GARAGE

UP

DN

UP UP

GARAGE FLOOR PLAN - SCALE: 1’-0” = 1/32”

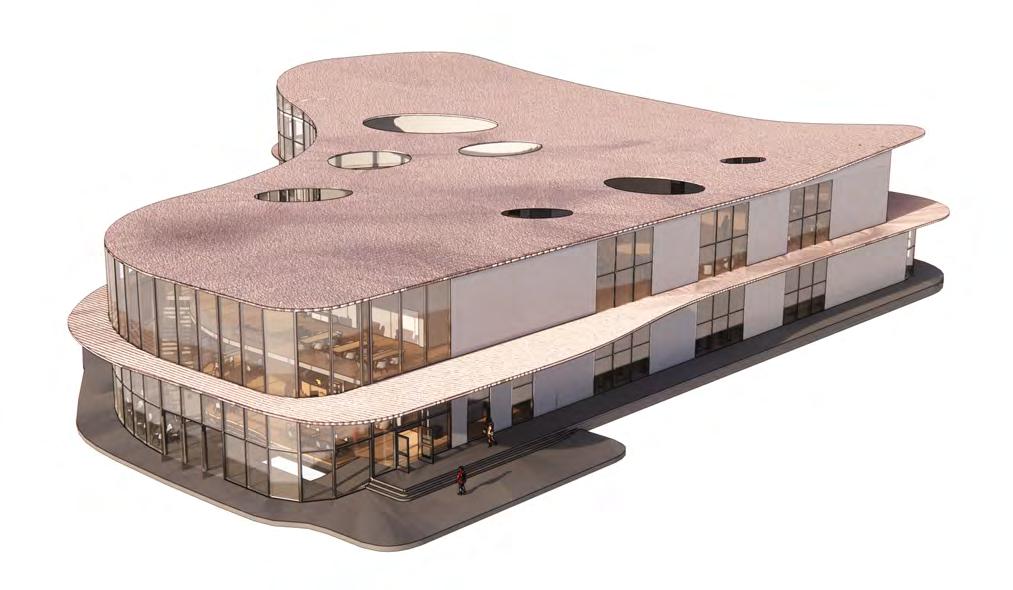

AXONS

CLASSROOM

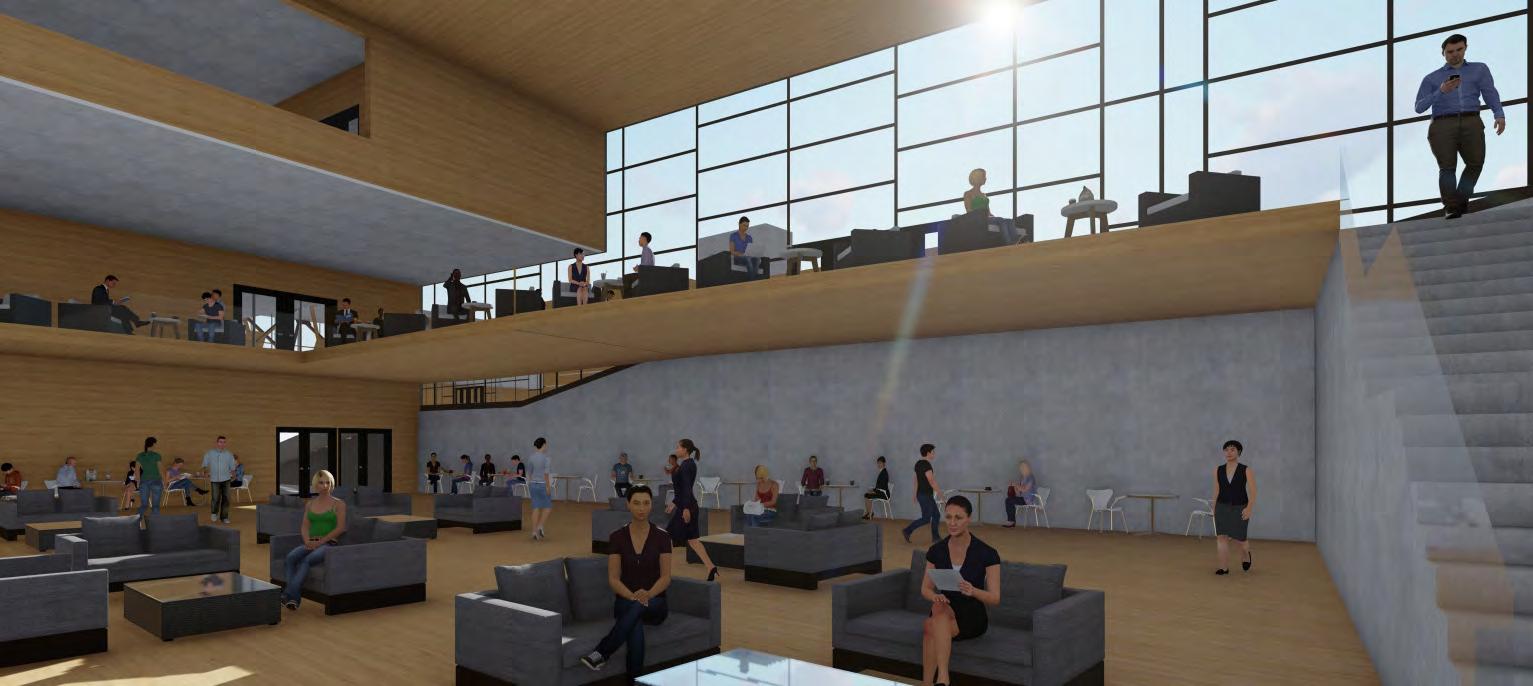

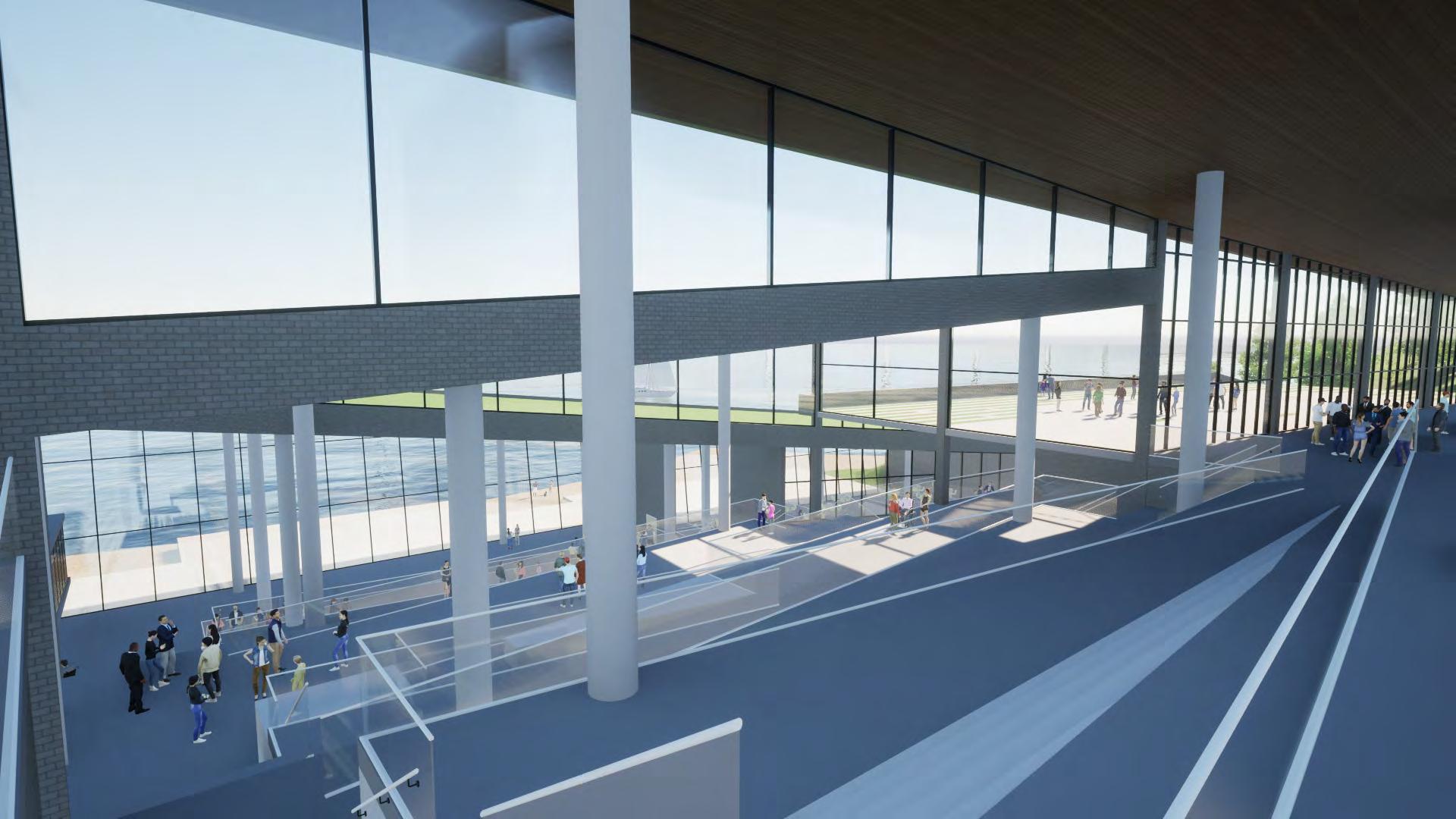

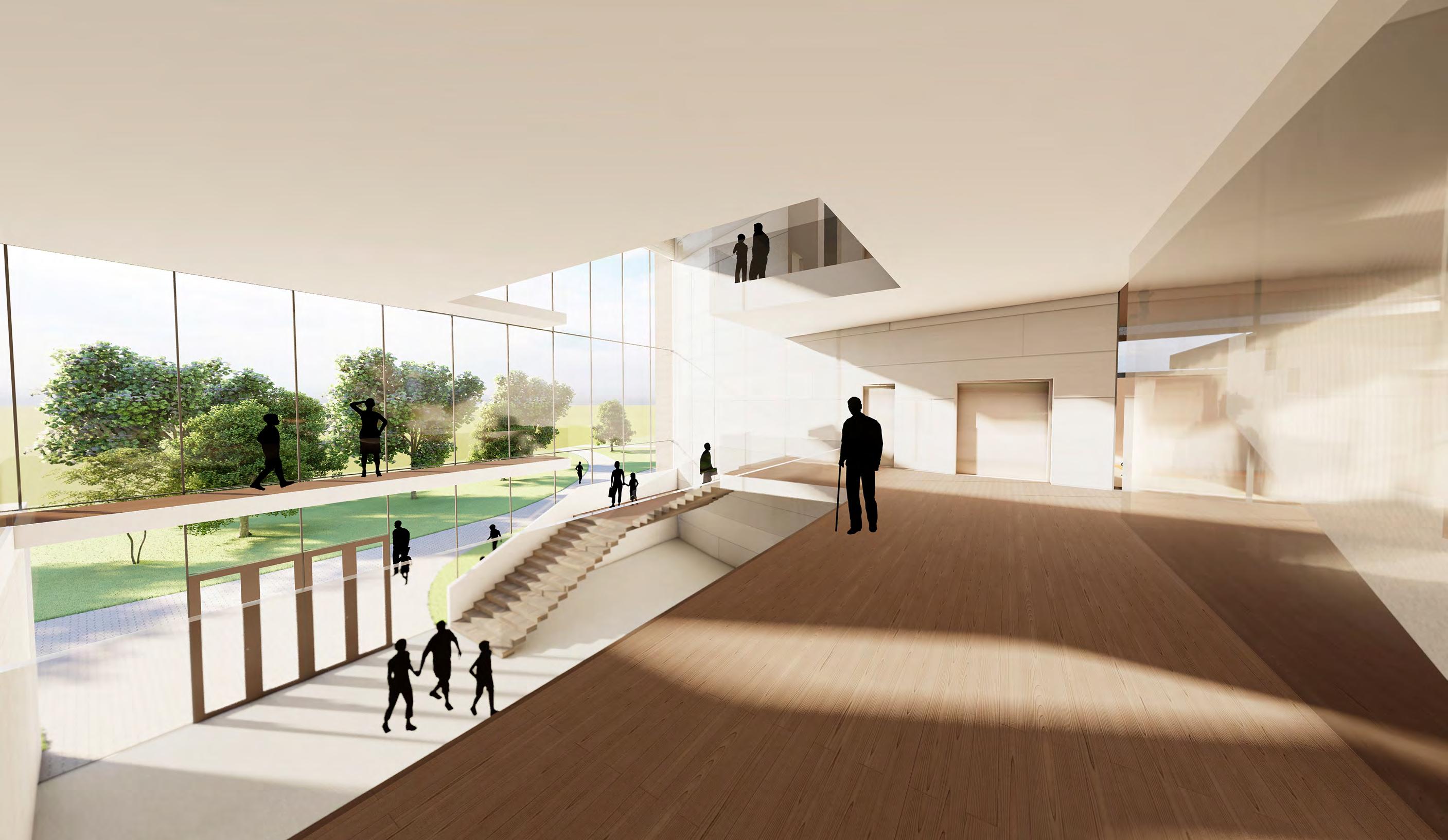

WEST ELEVATION SECOND LEVEL ATRIUM VIEW

EAST ELEVATION

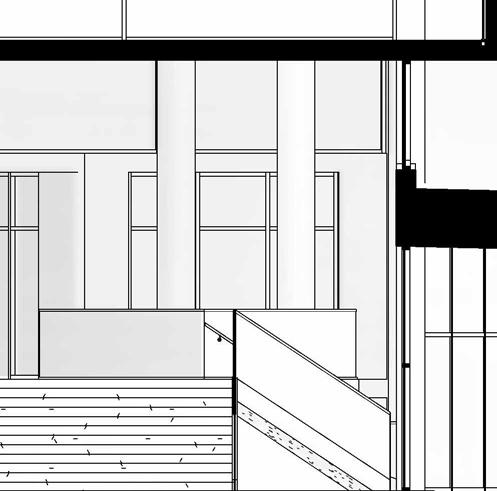

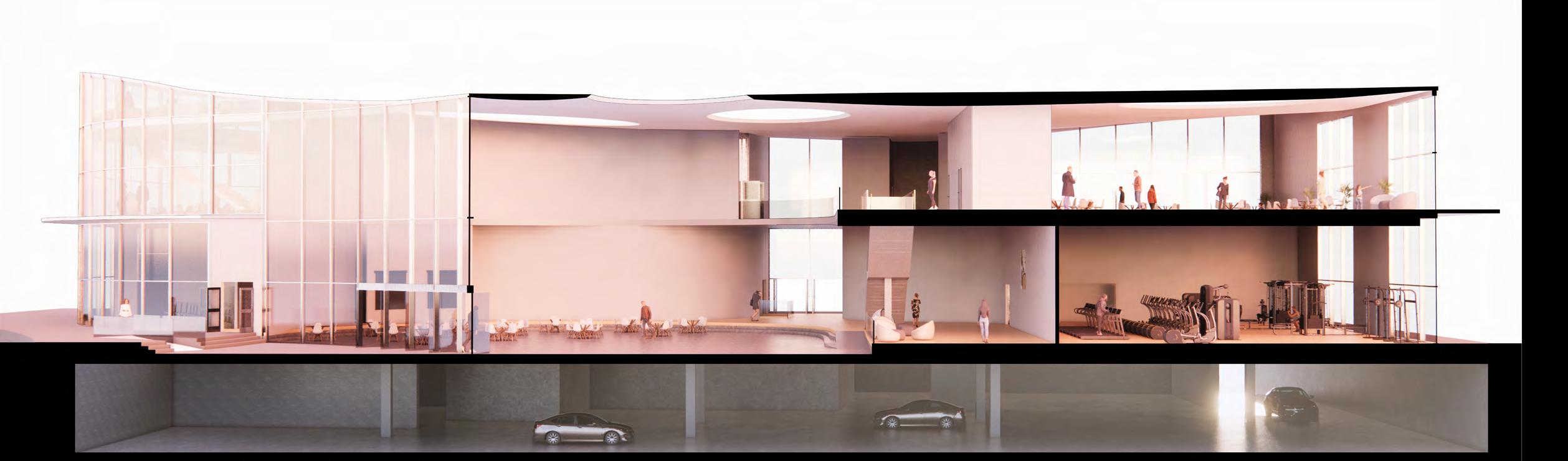

ENTRANCE VIEW SECTION AA’

SECTION BB’ MULTIPURPOSE / EVENT SPACE

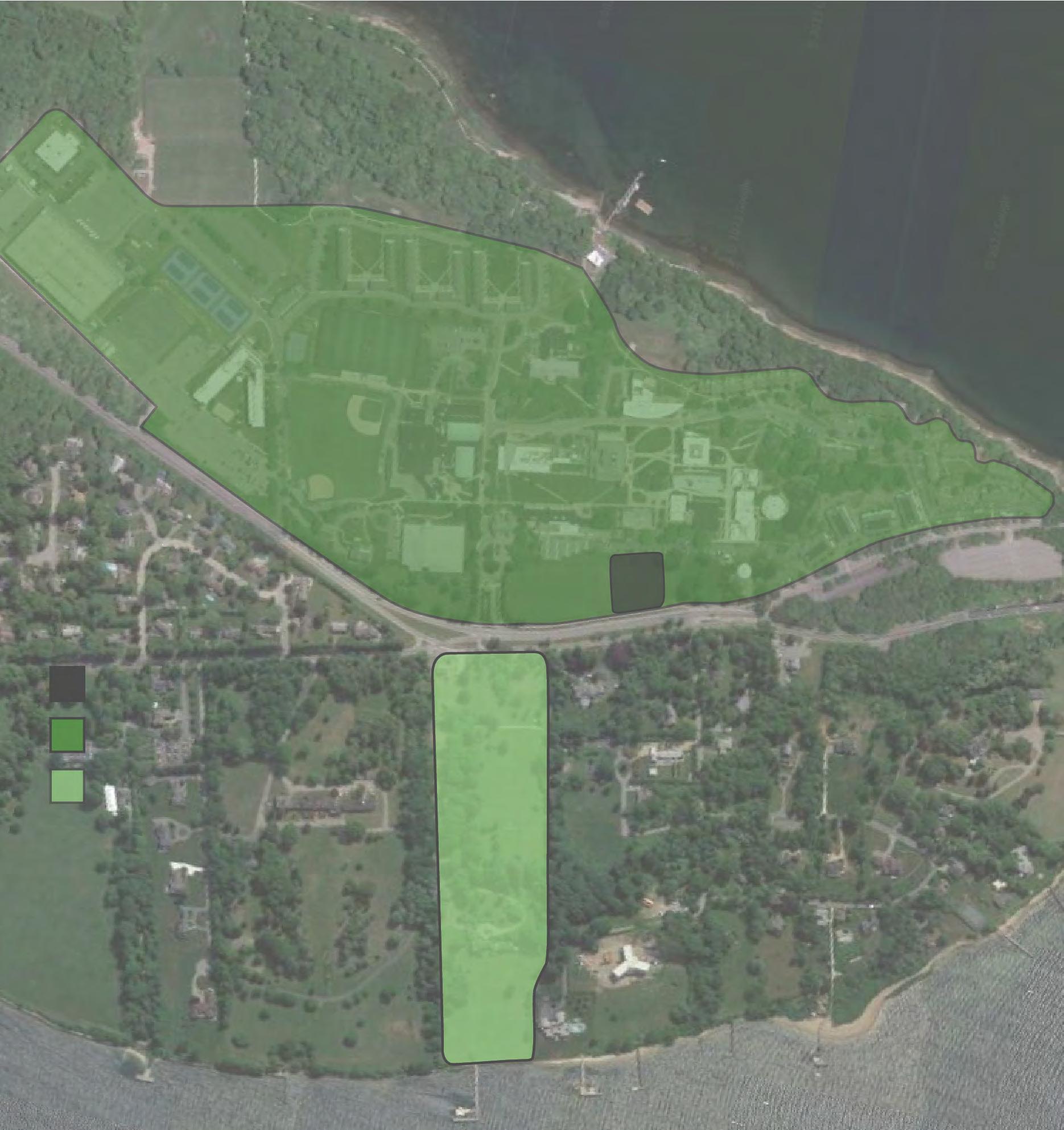

BUILDING SITE EXISTING CAMPUS CAMPUS EXPANSION

CONTEXT PLAN

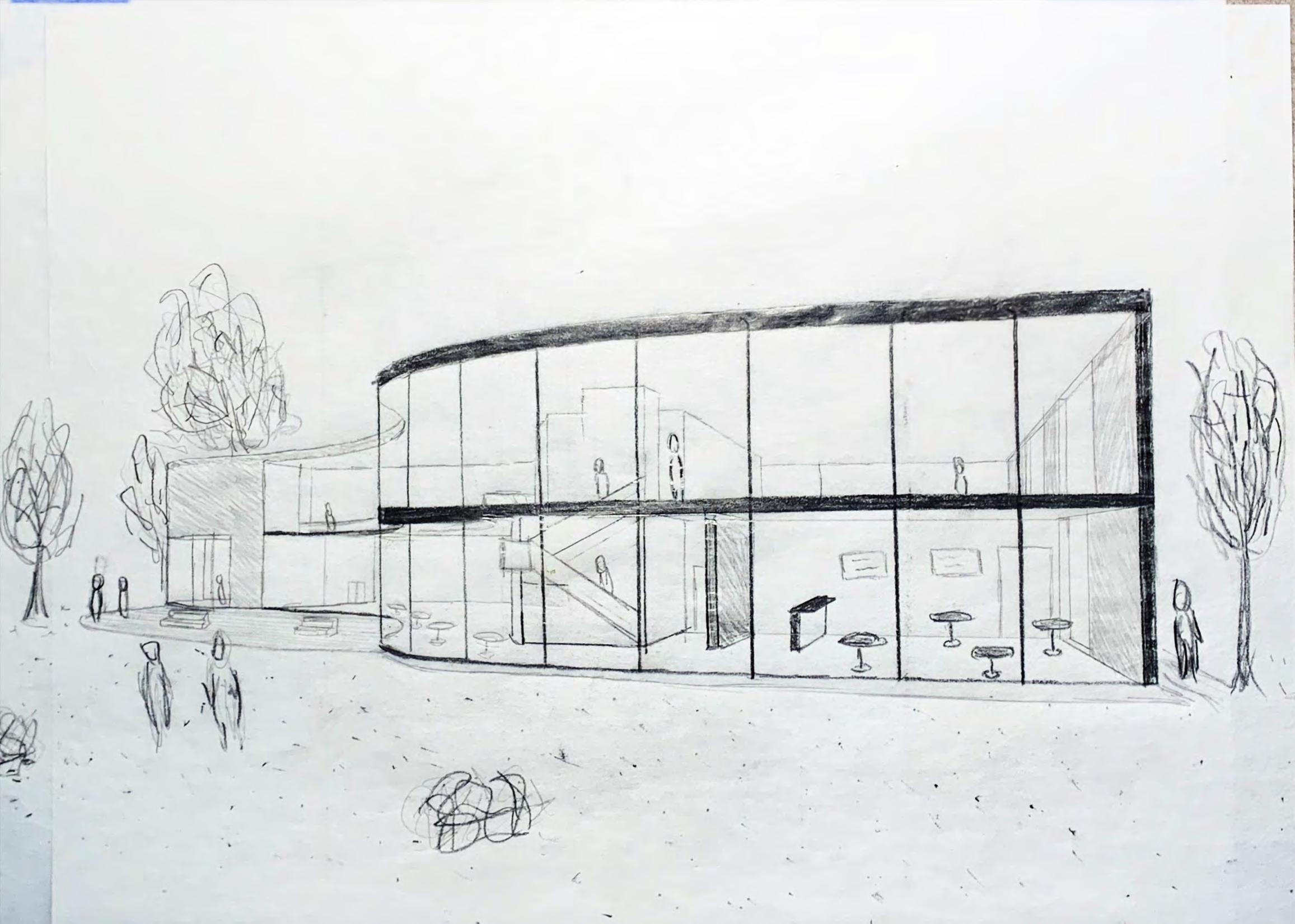

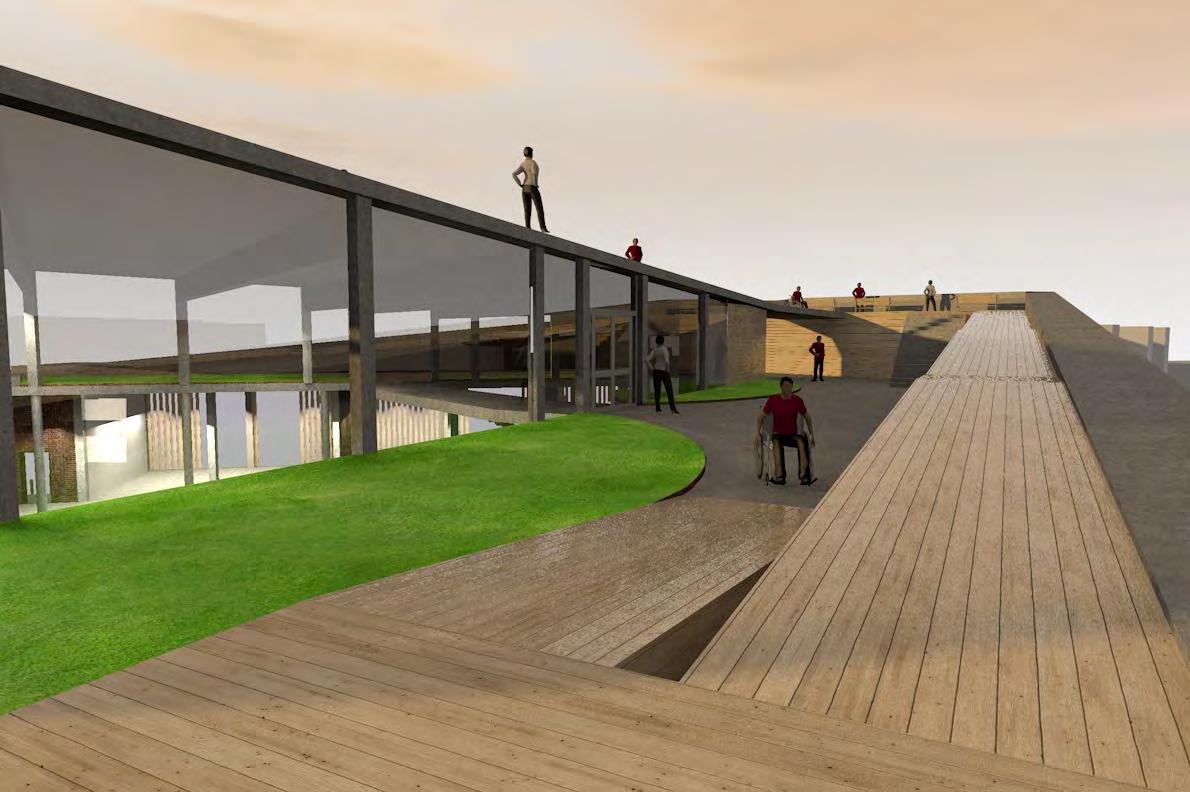

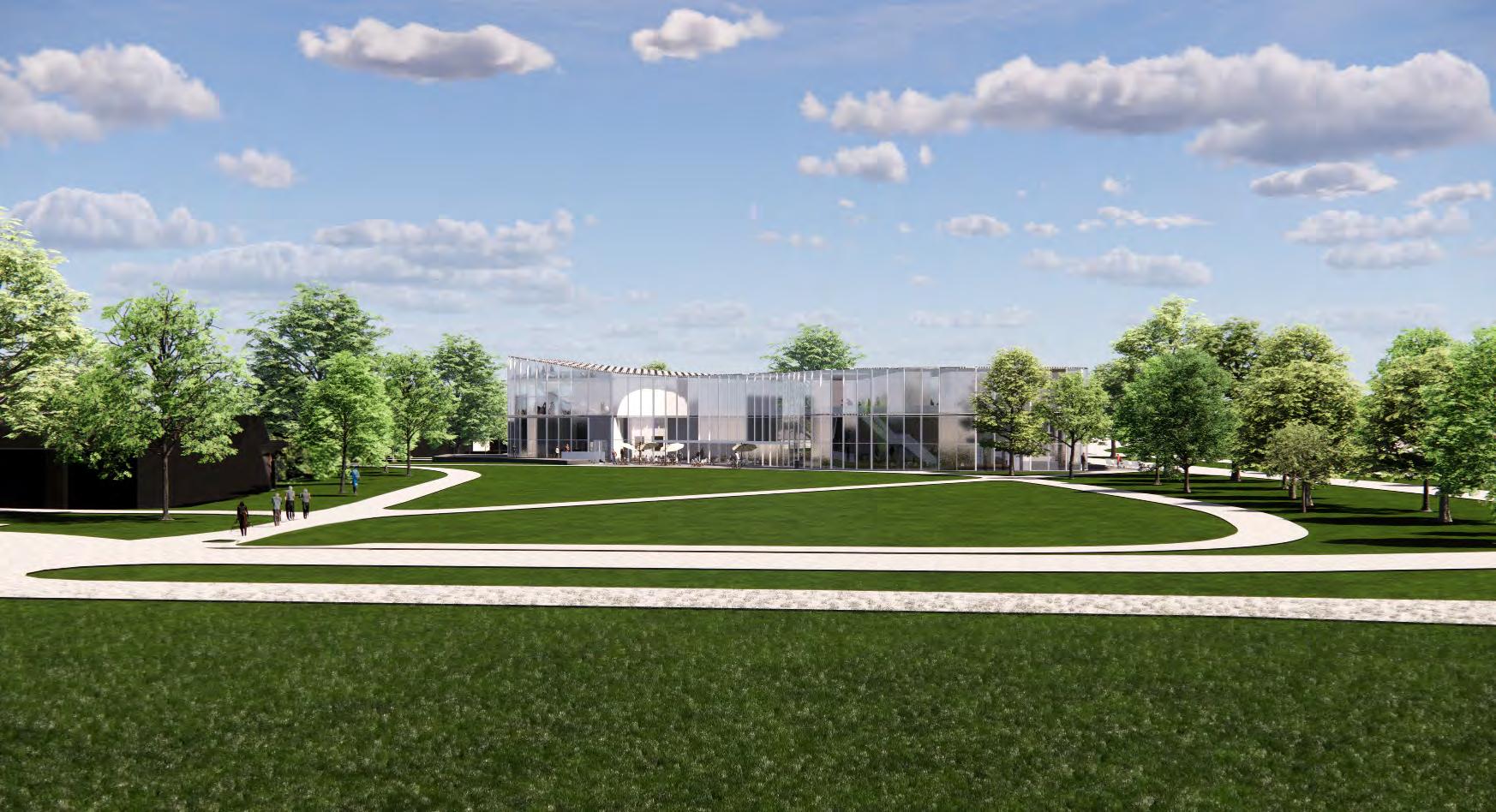

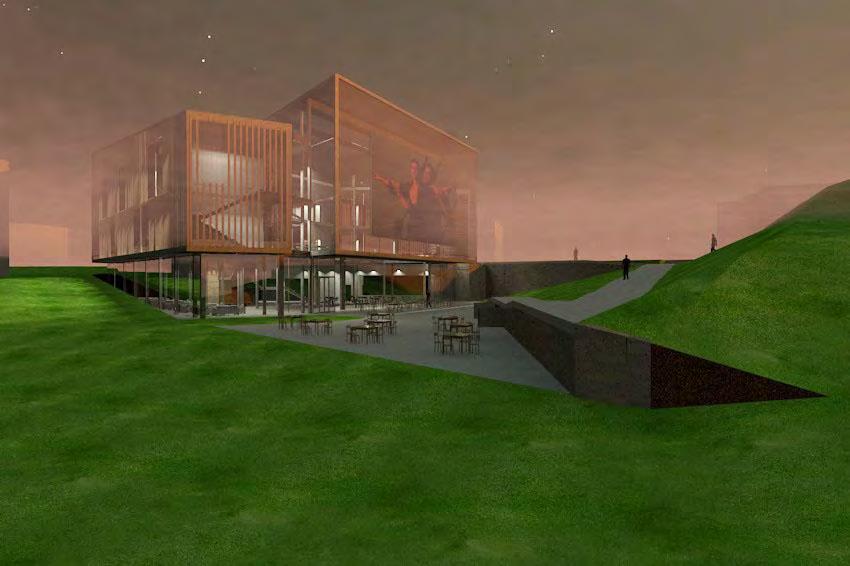

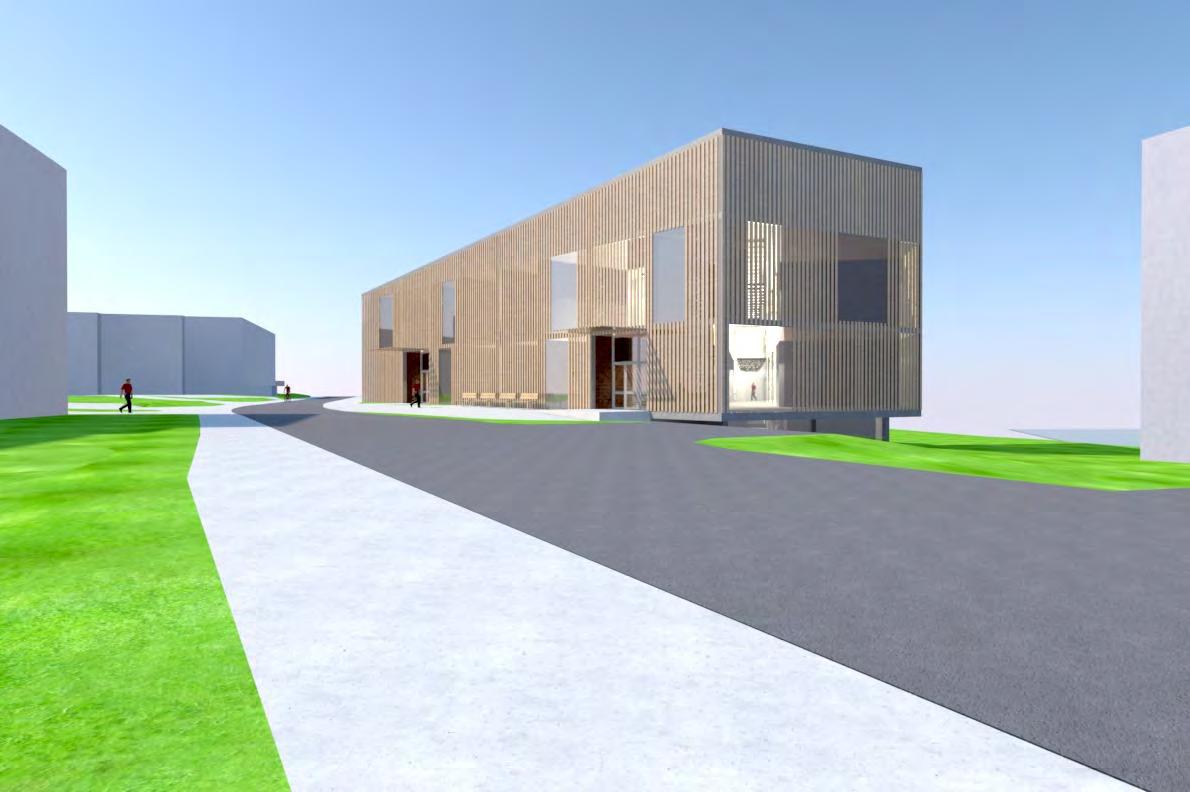

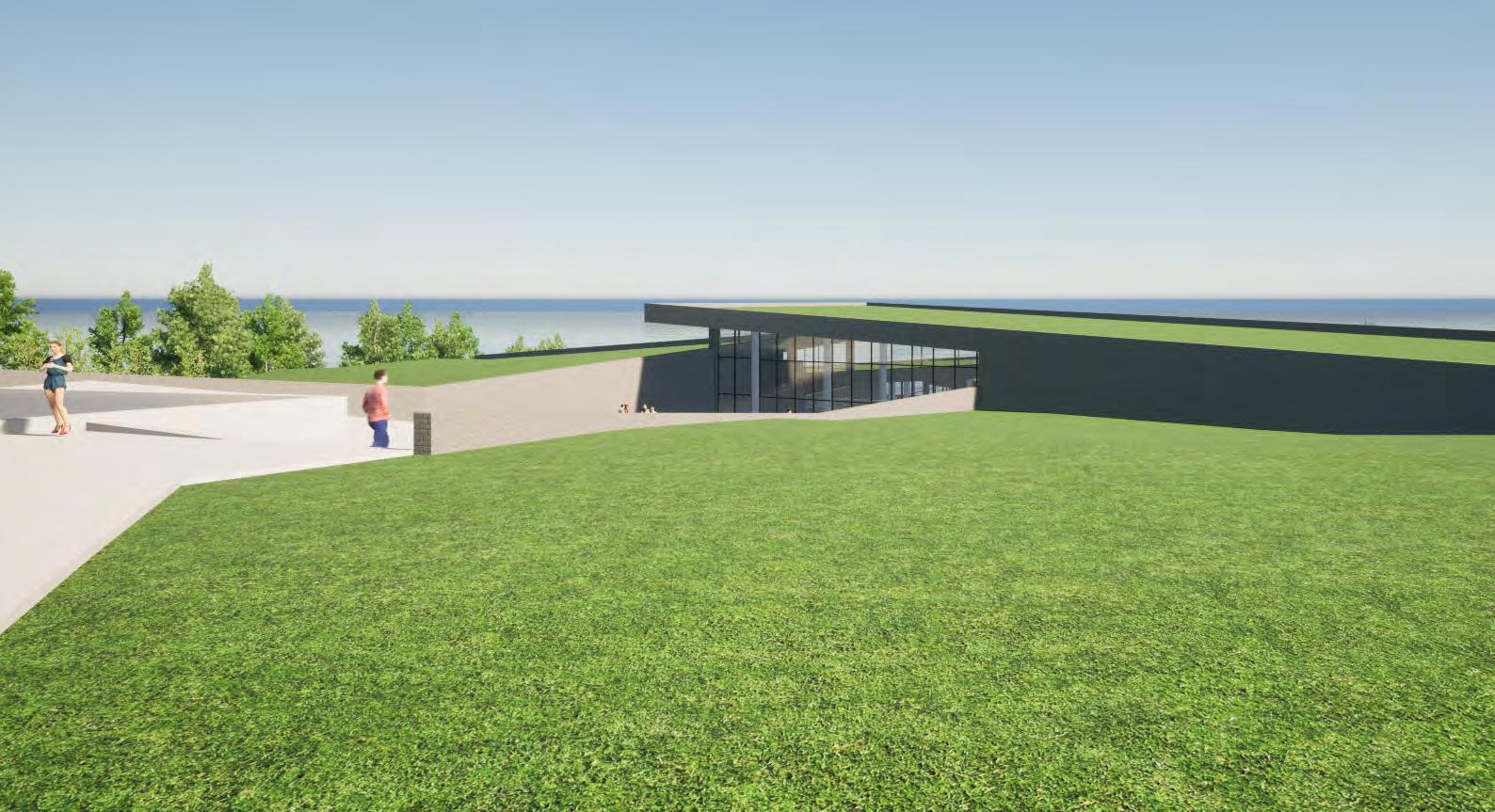

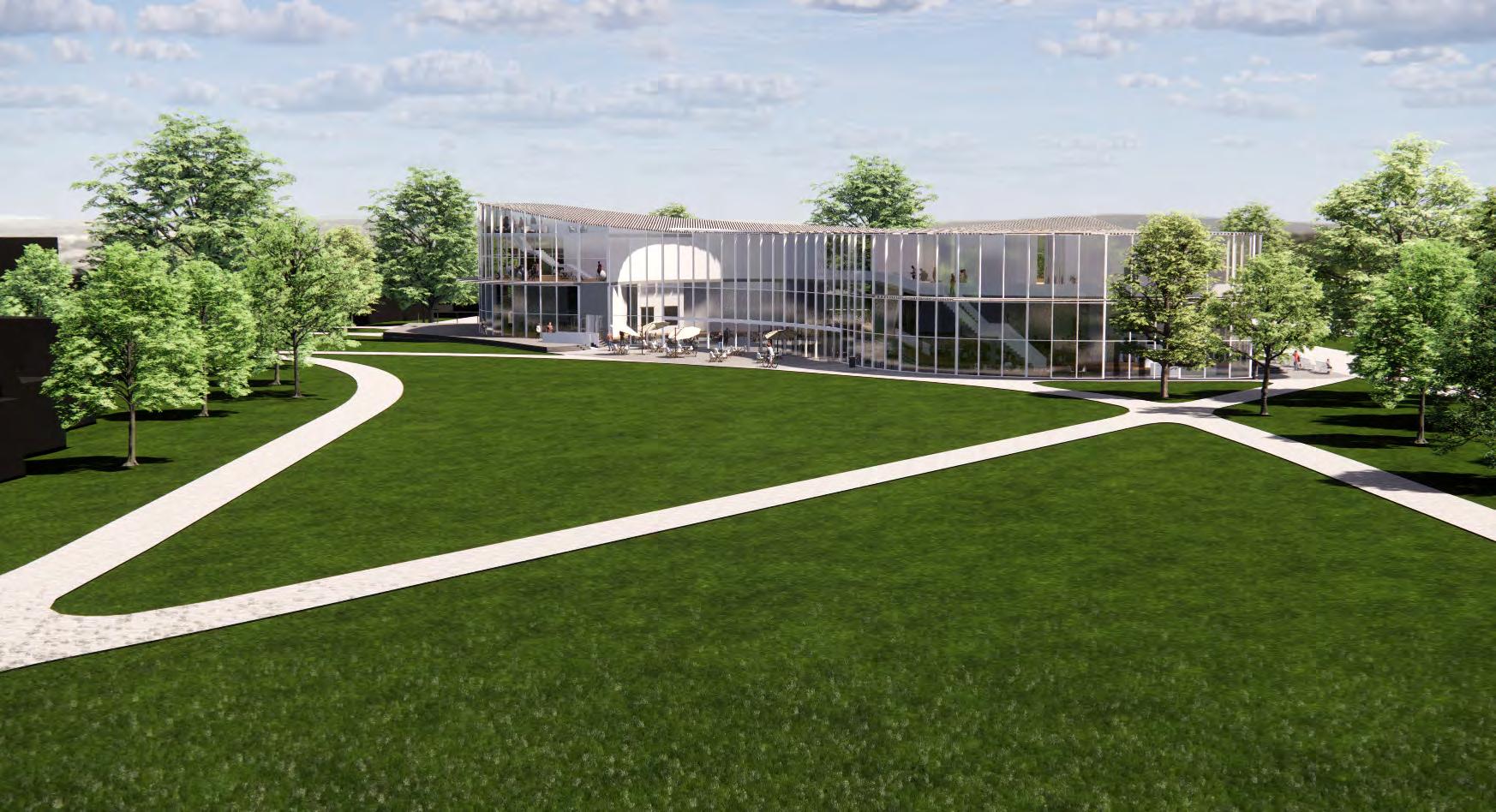

EXTERIOR LAWN PERSPECTIVES

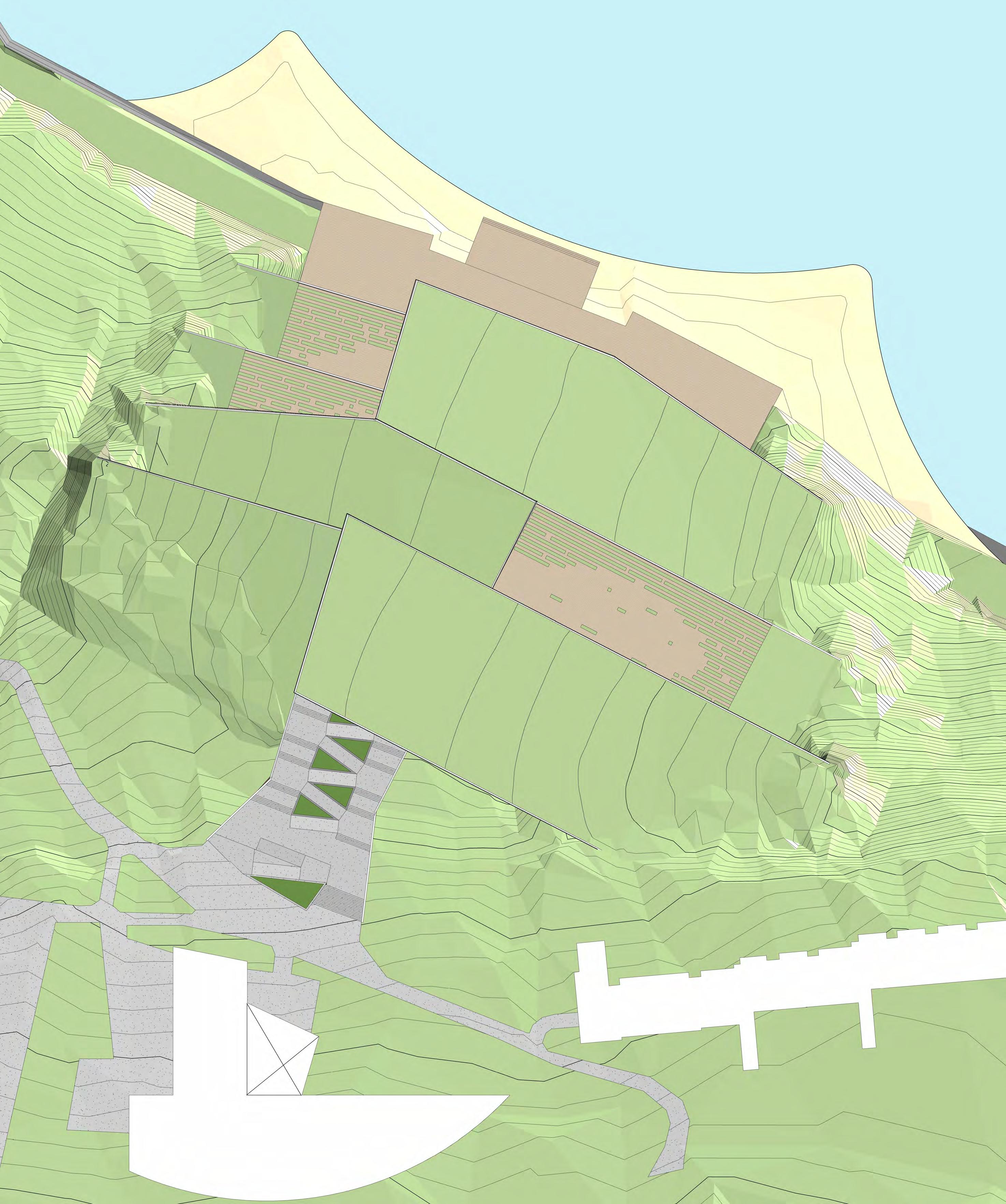

SITE PLAN - SCALE: 1’-0” = 1/64”

CLUB CENTER EXPERIENTIAL PERSPECTIVE

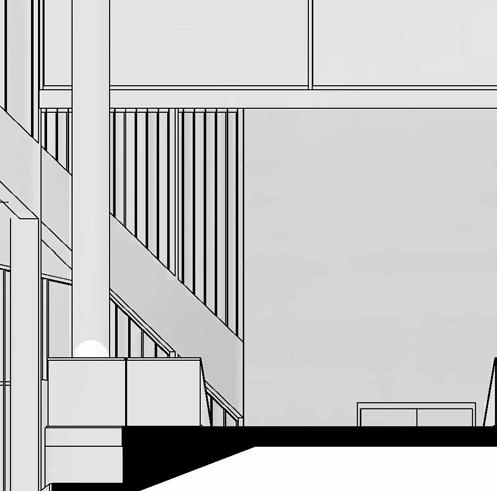

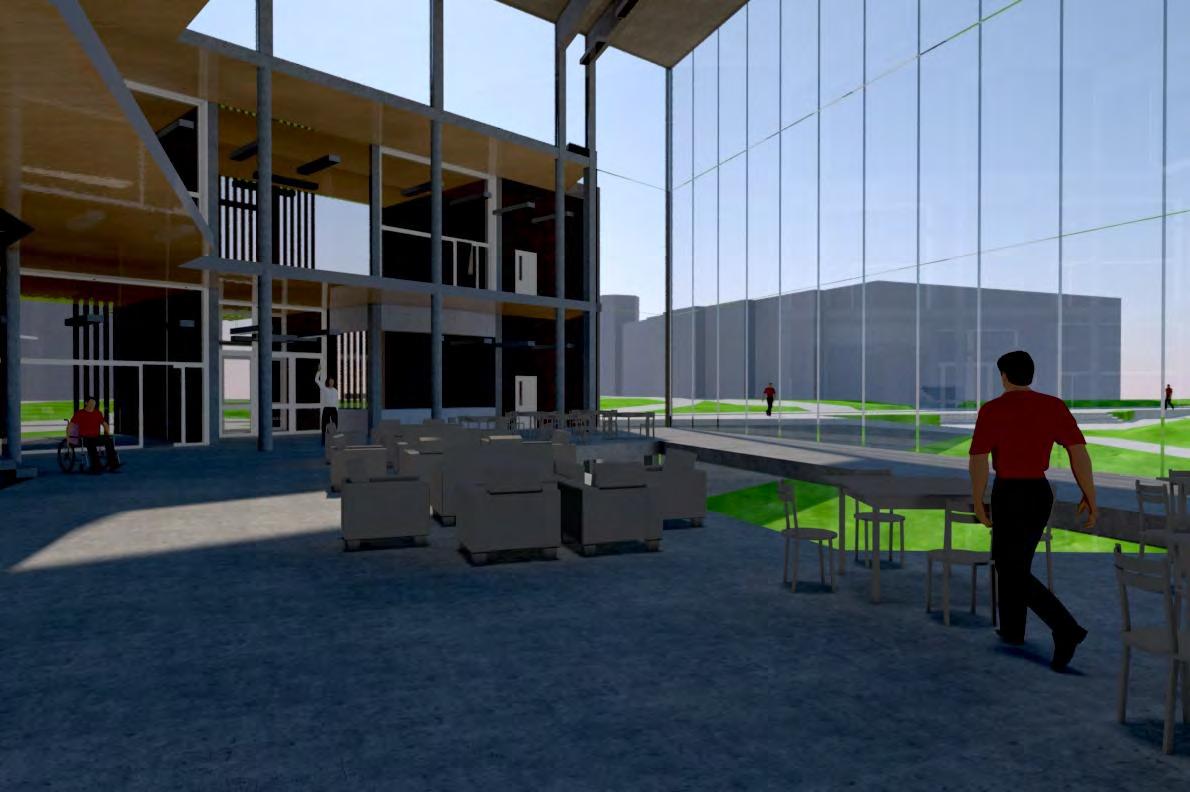

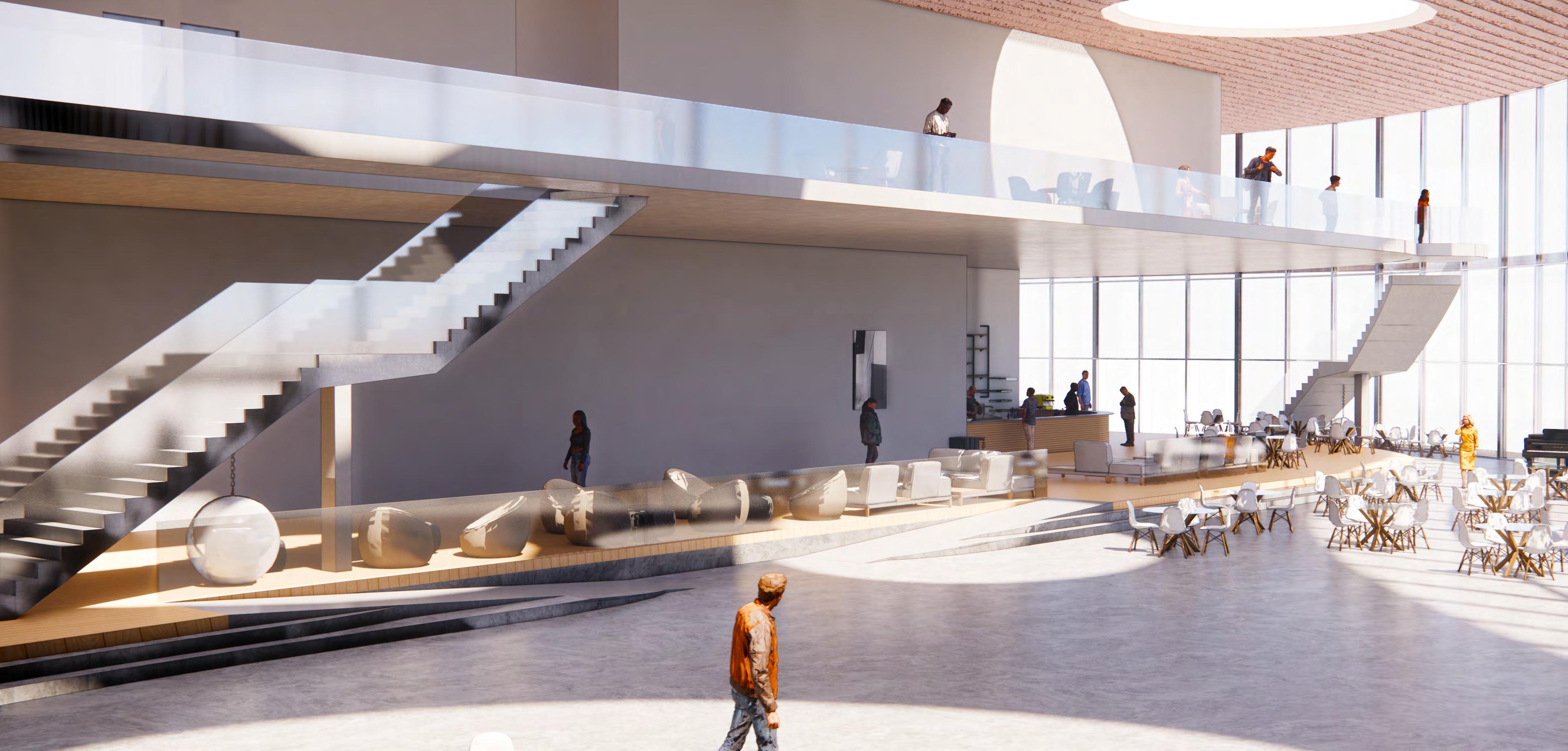

ATRIUM

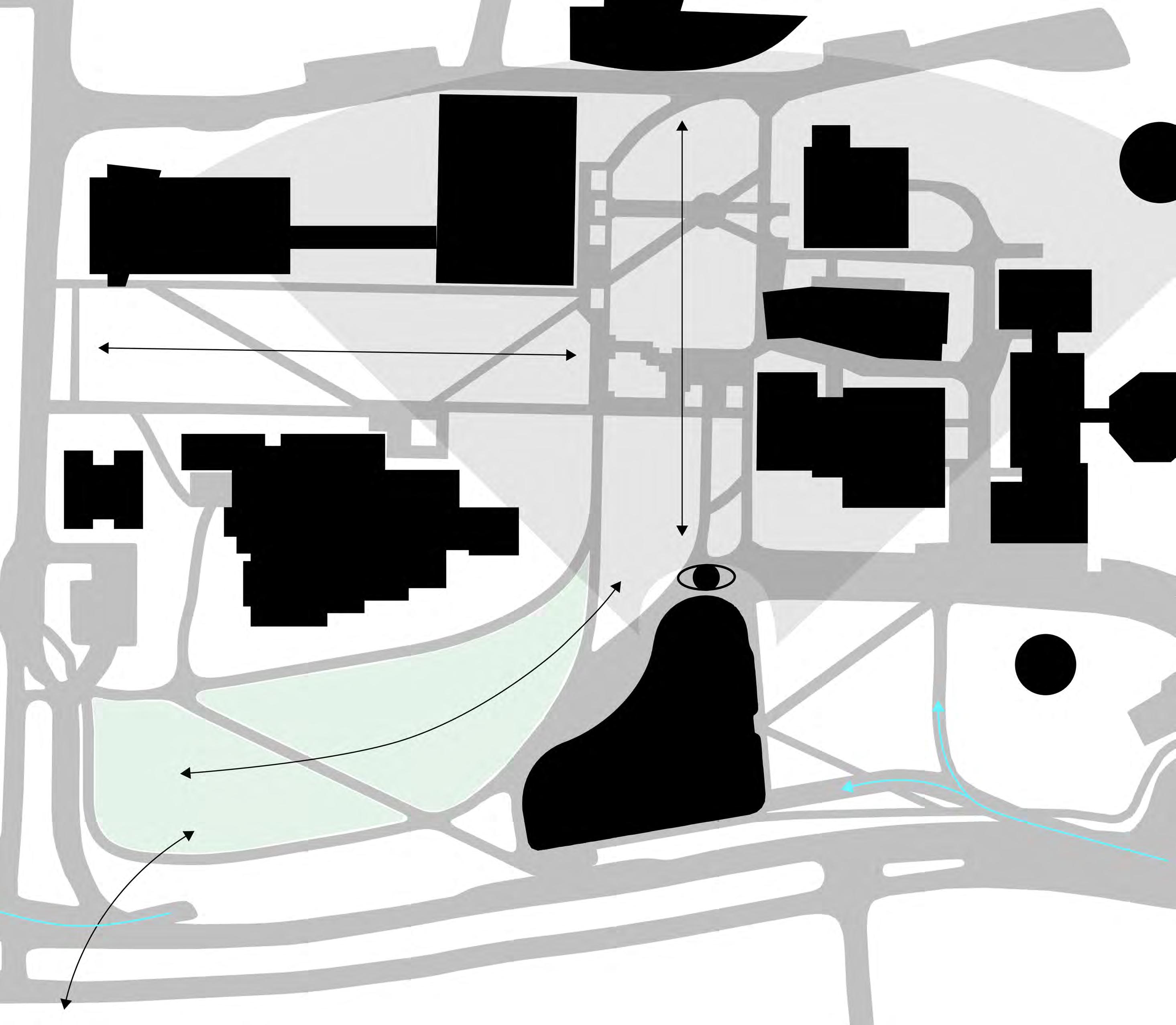

CIRCULATION + VIEW DIAGRAM

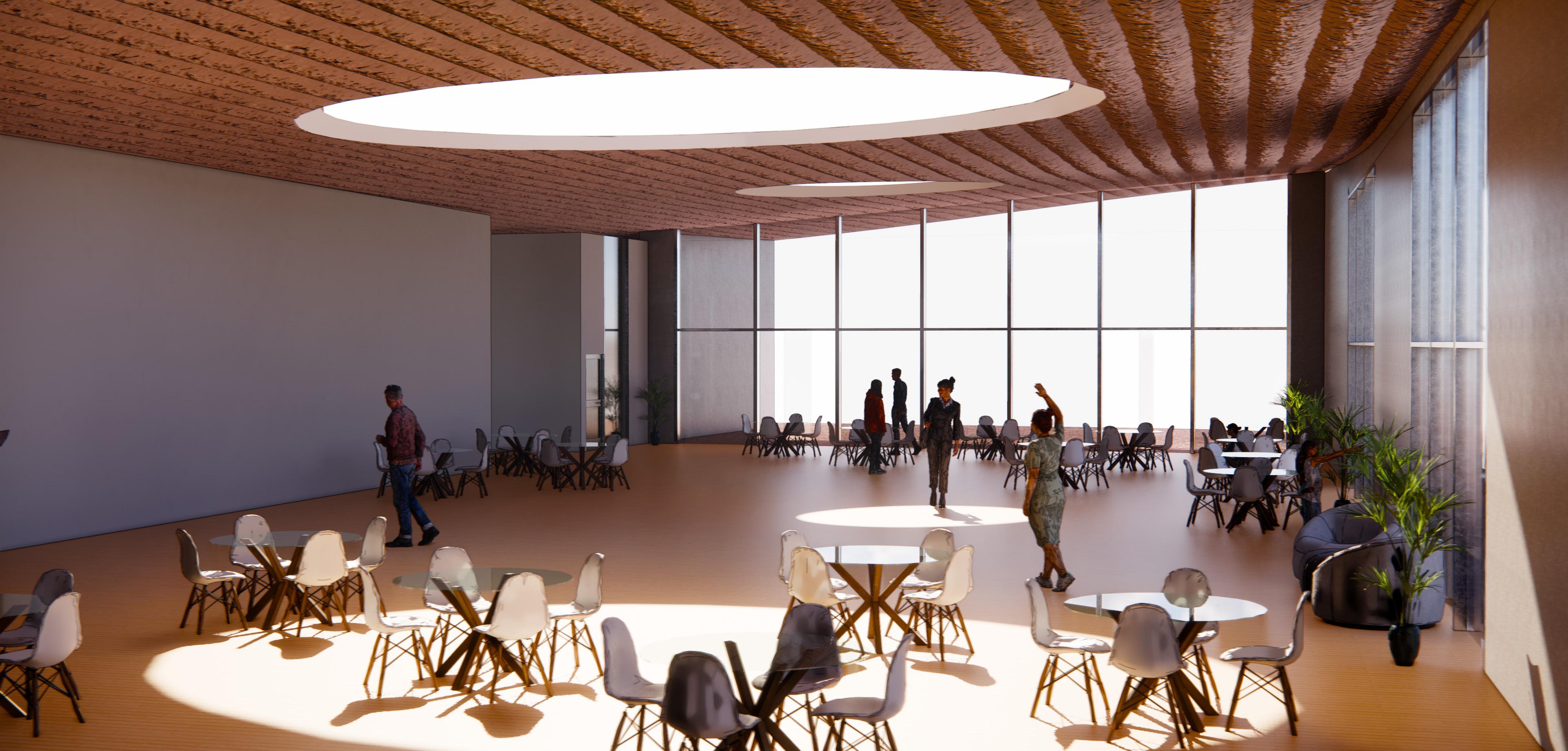

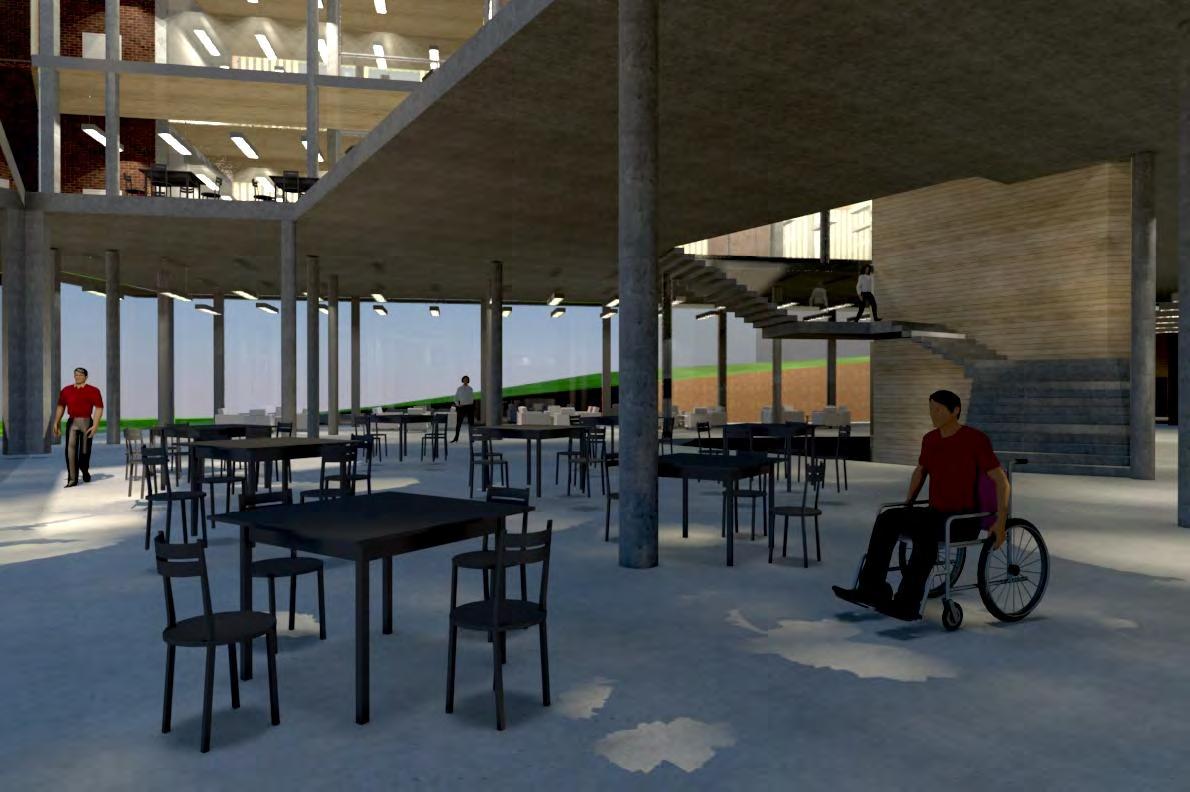

QUICK DINING

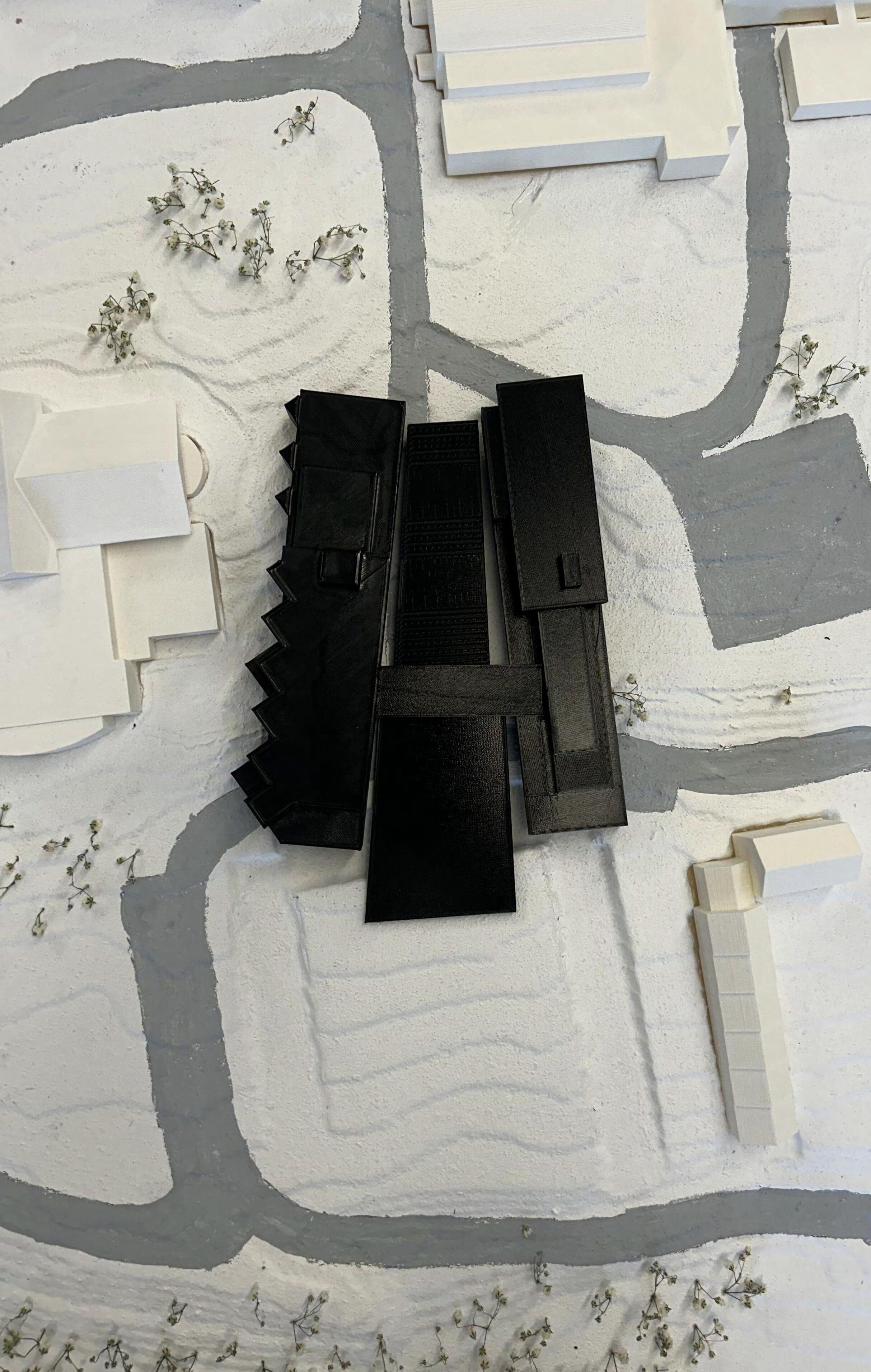

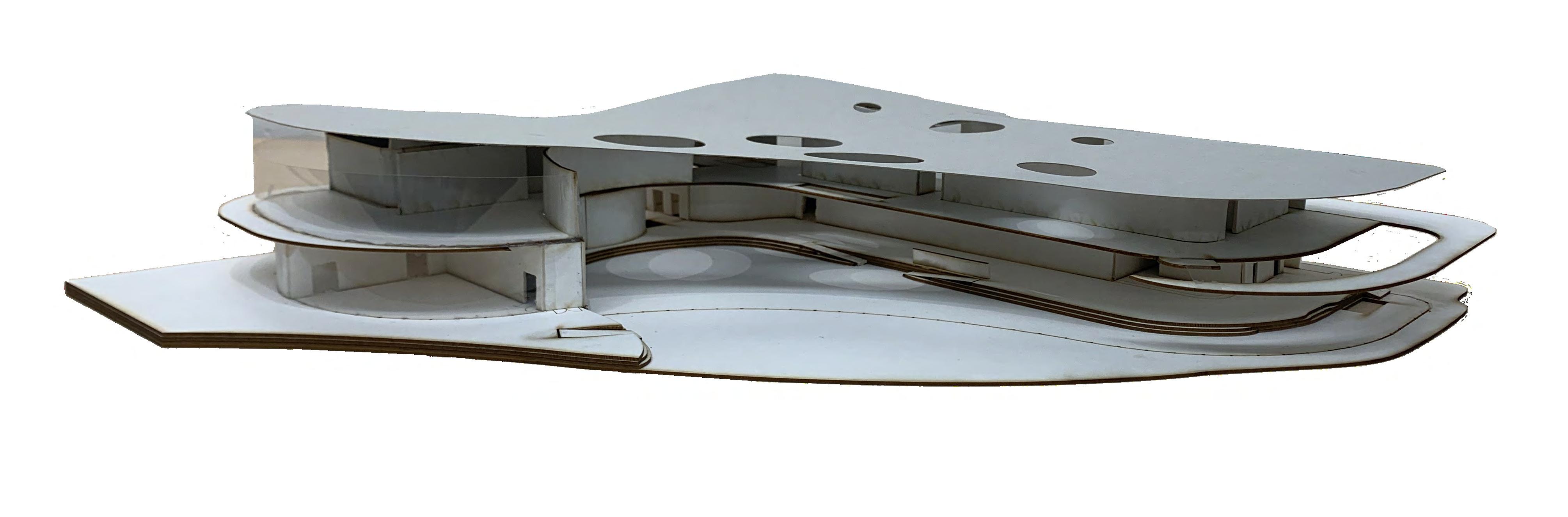

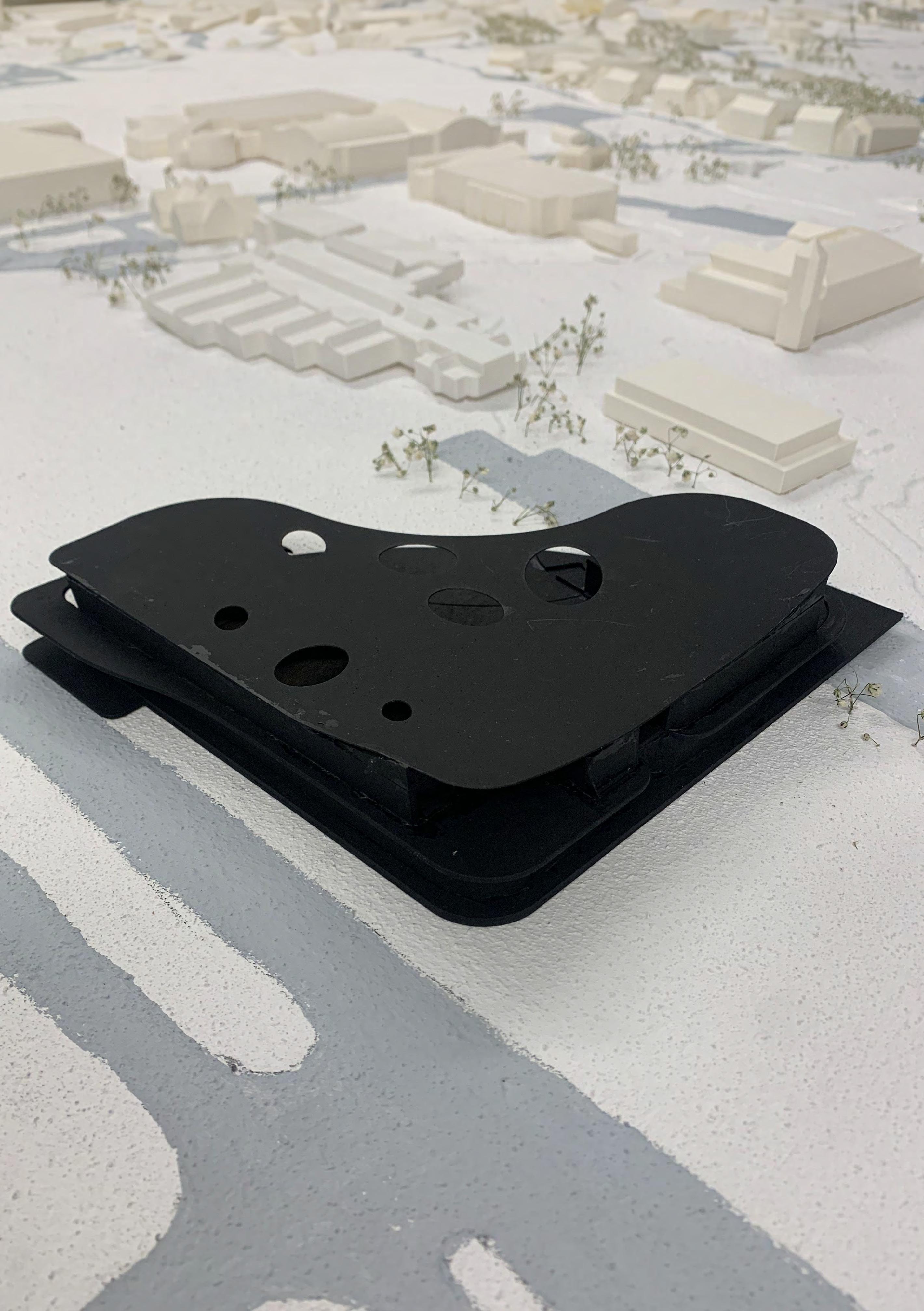

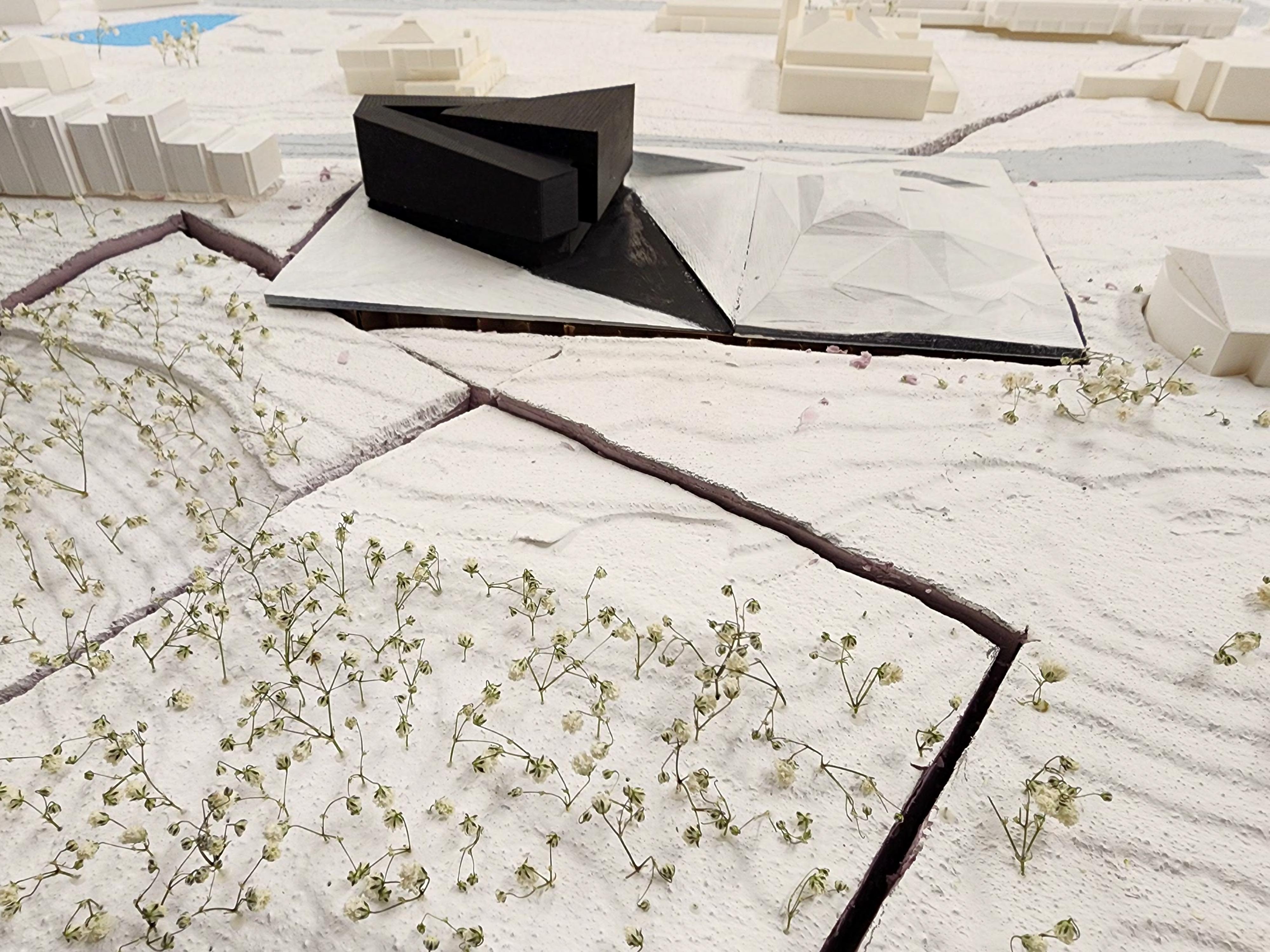

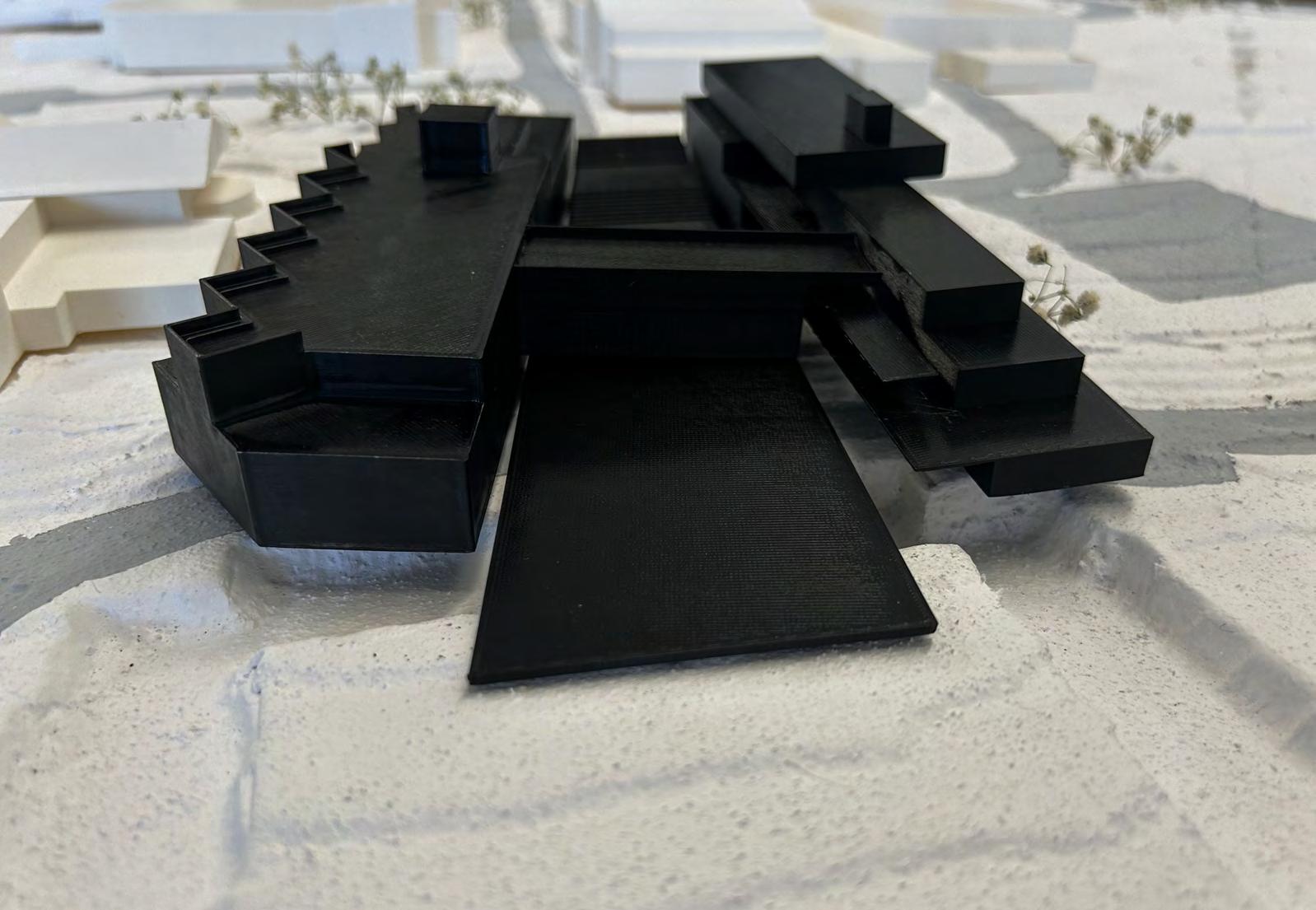

MASSING MODEL ON SITE - SCALE 1’-0” = 1/32”

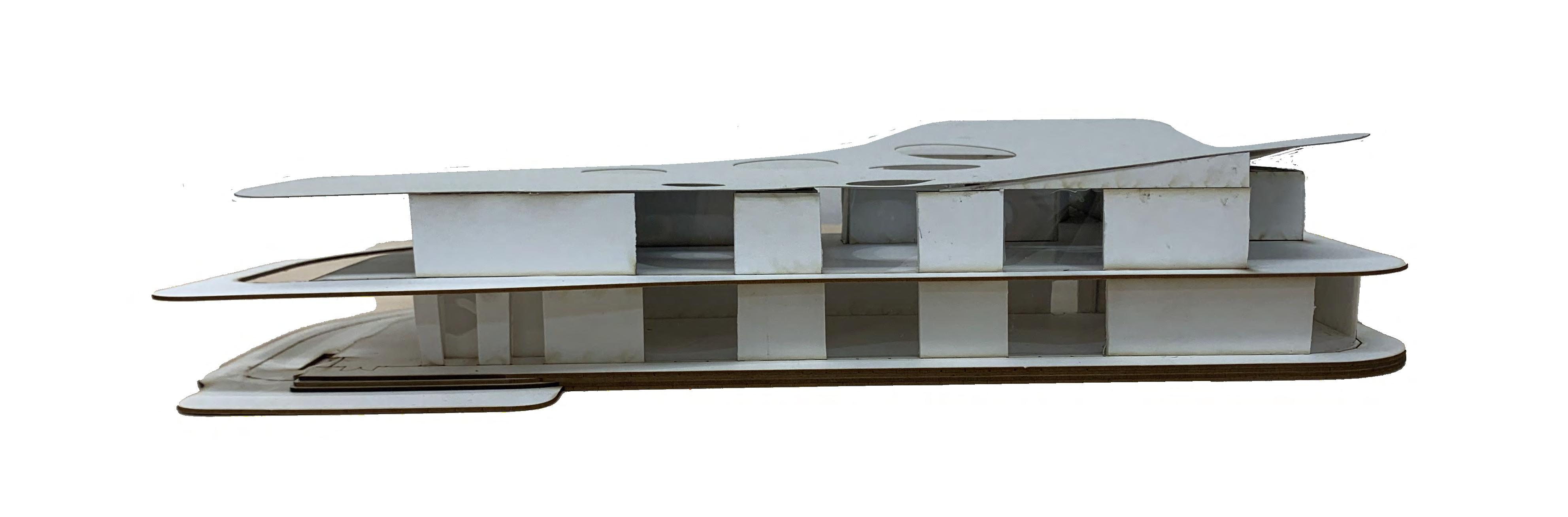

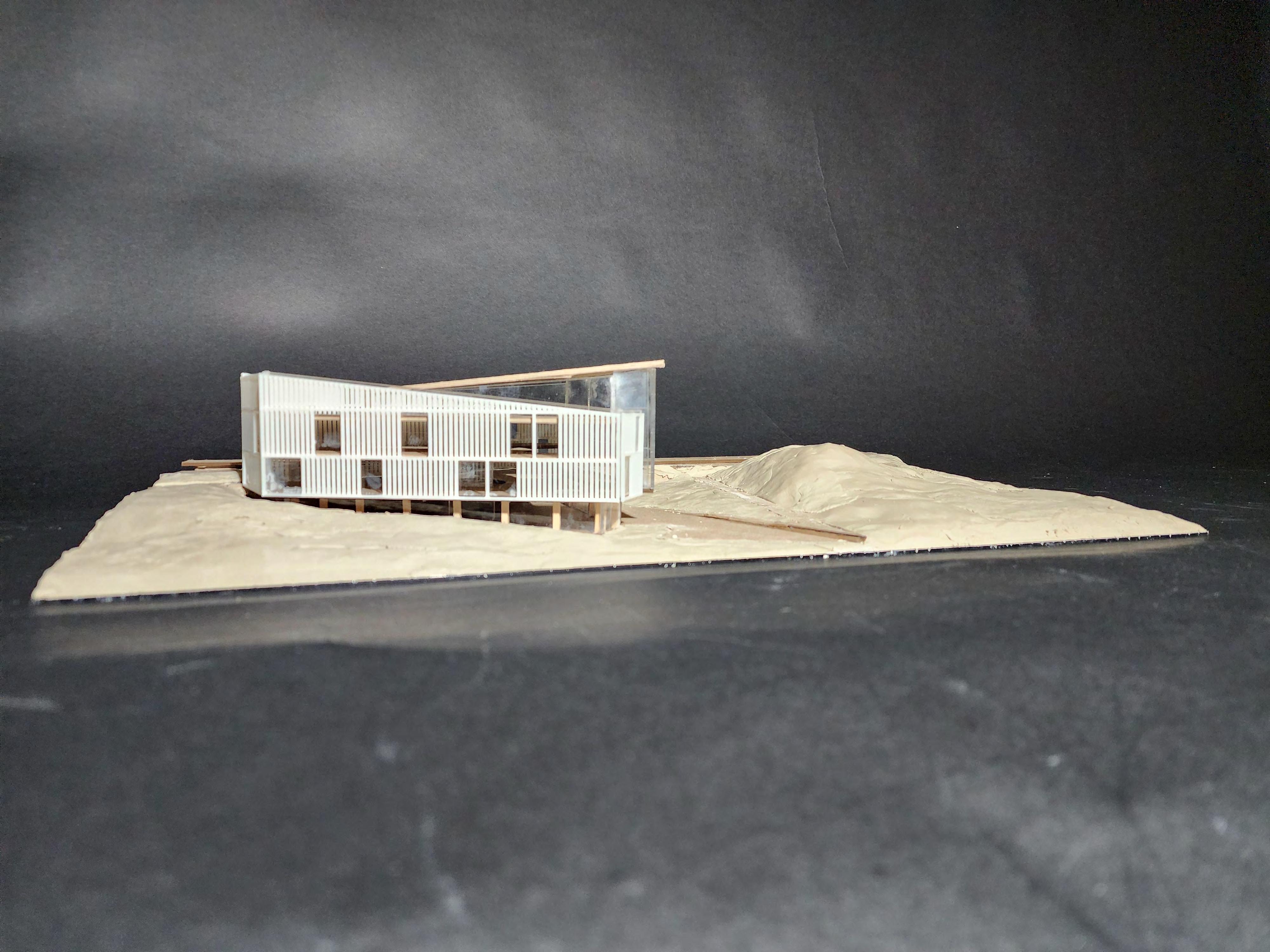

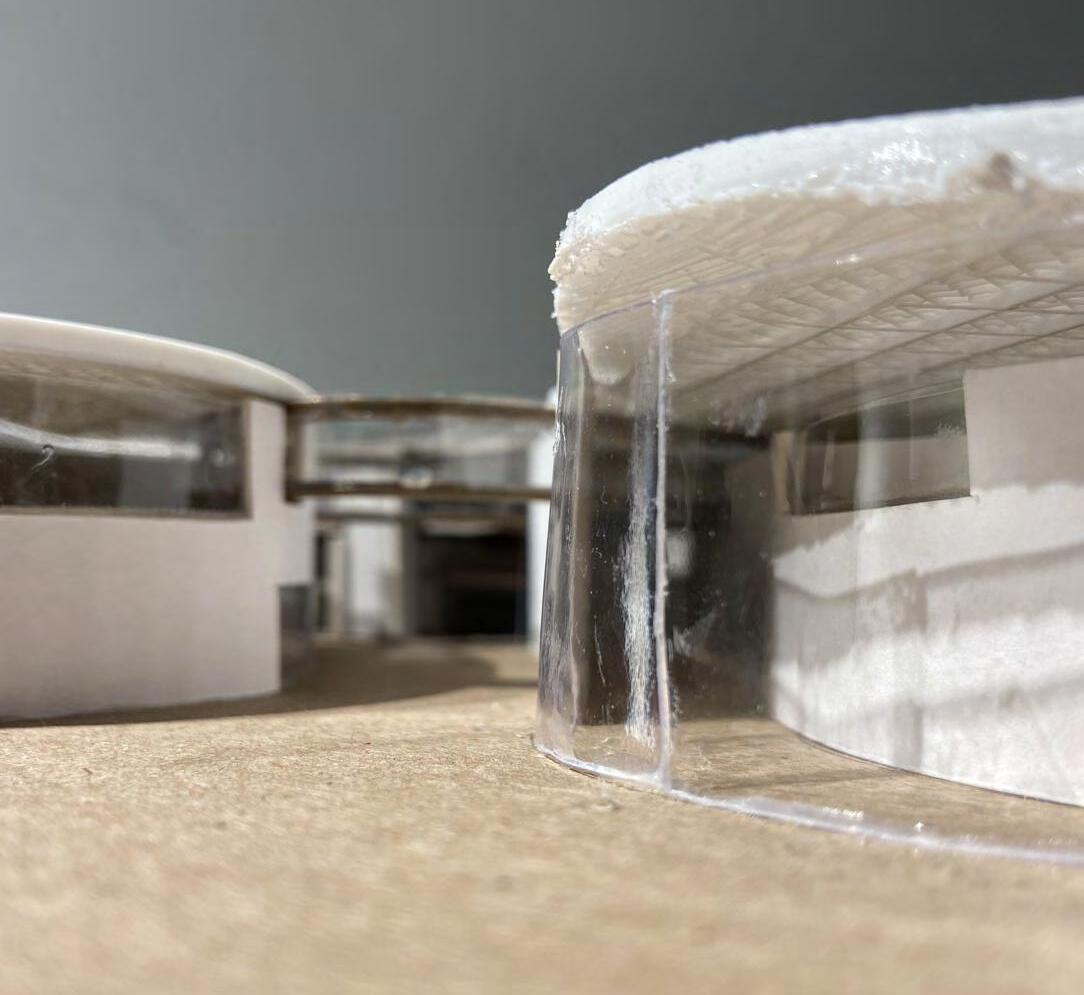

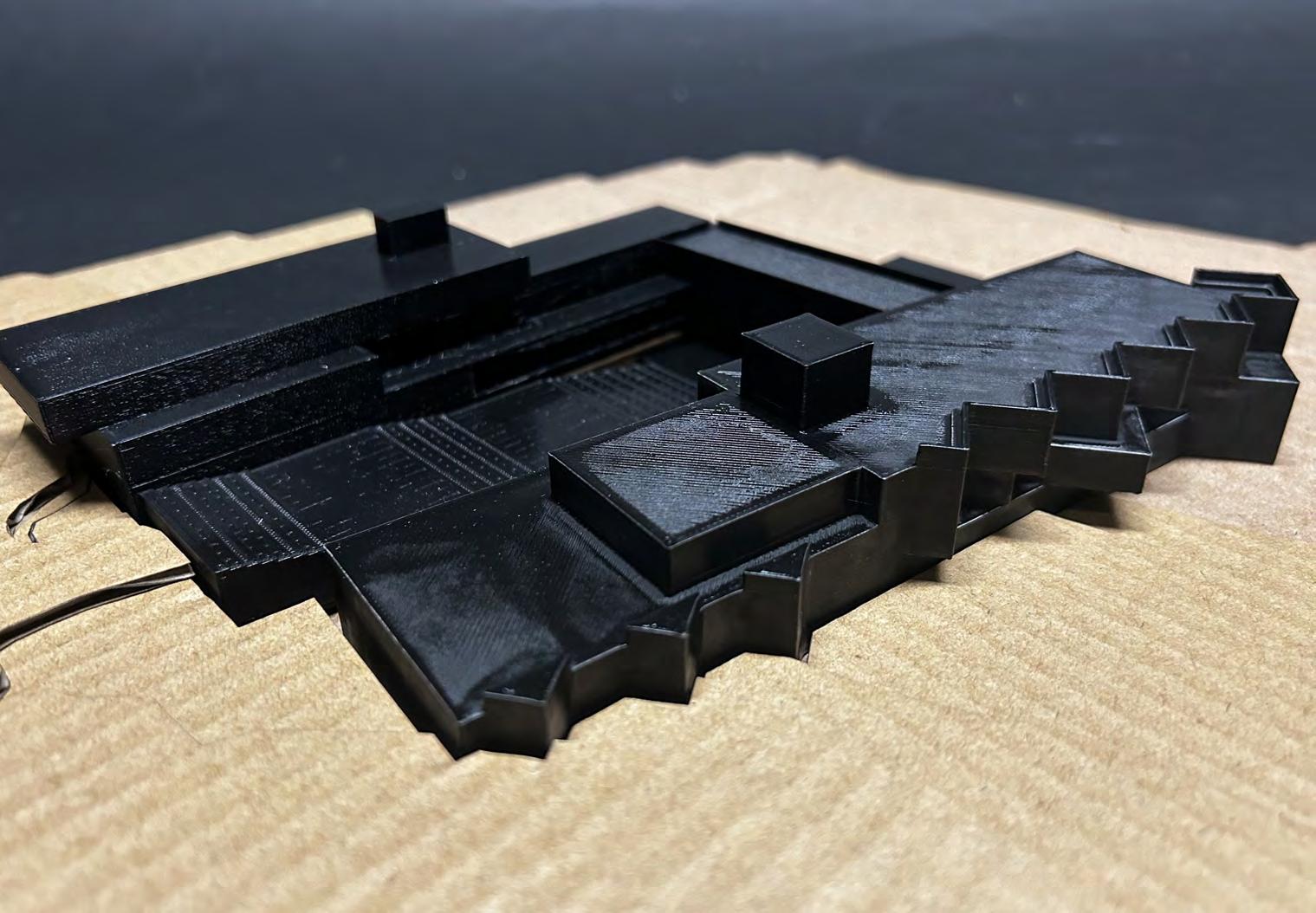

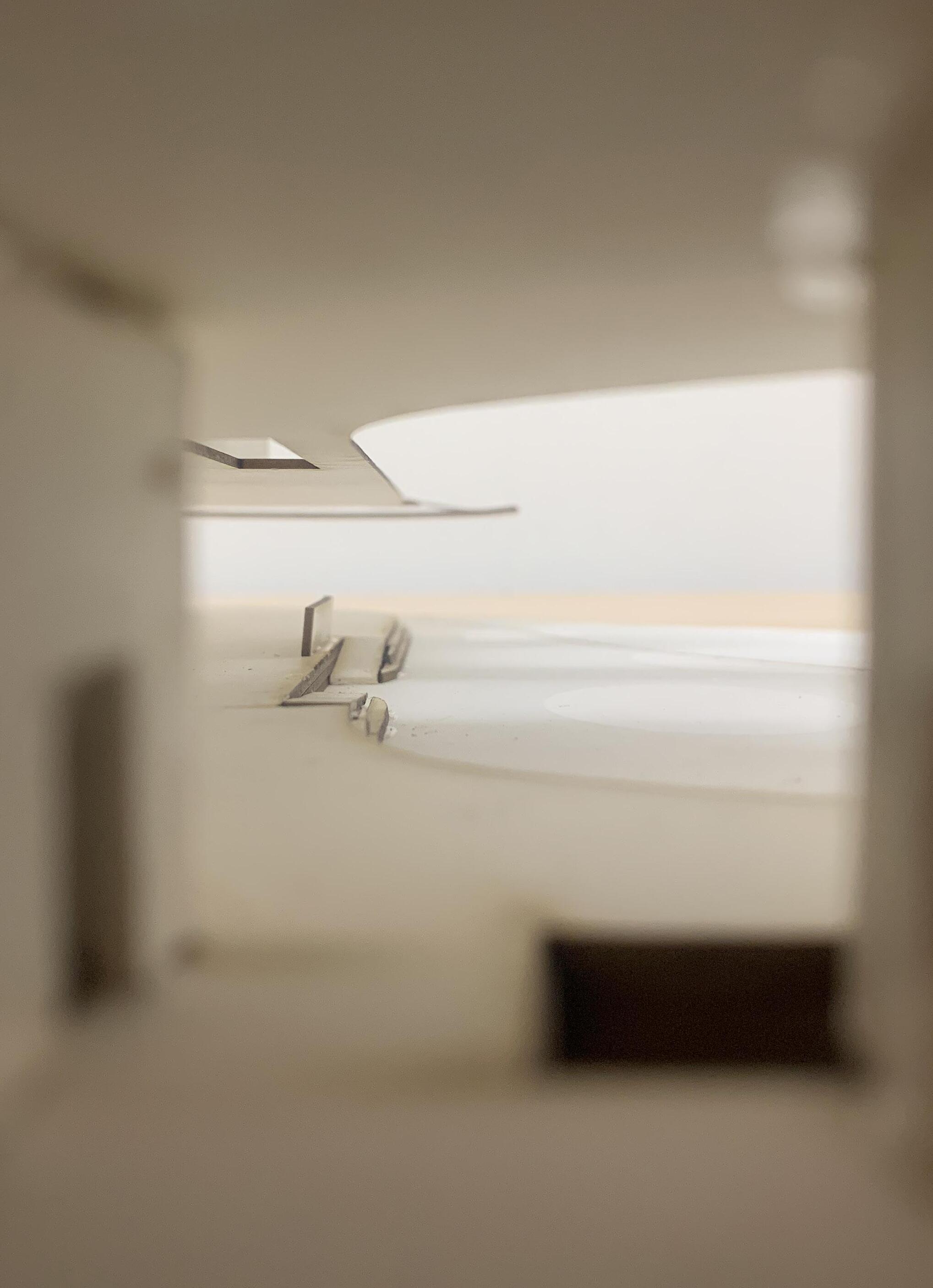

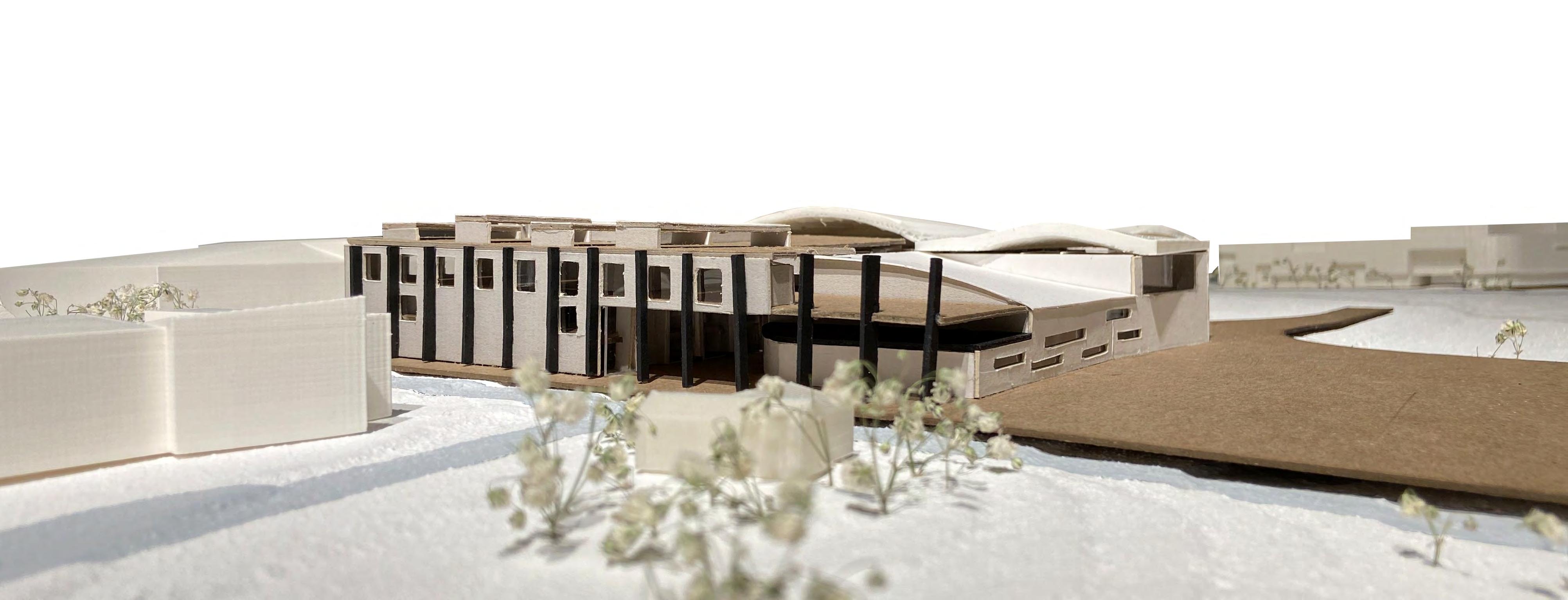

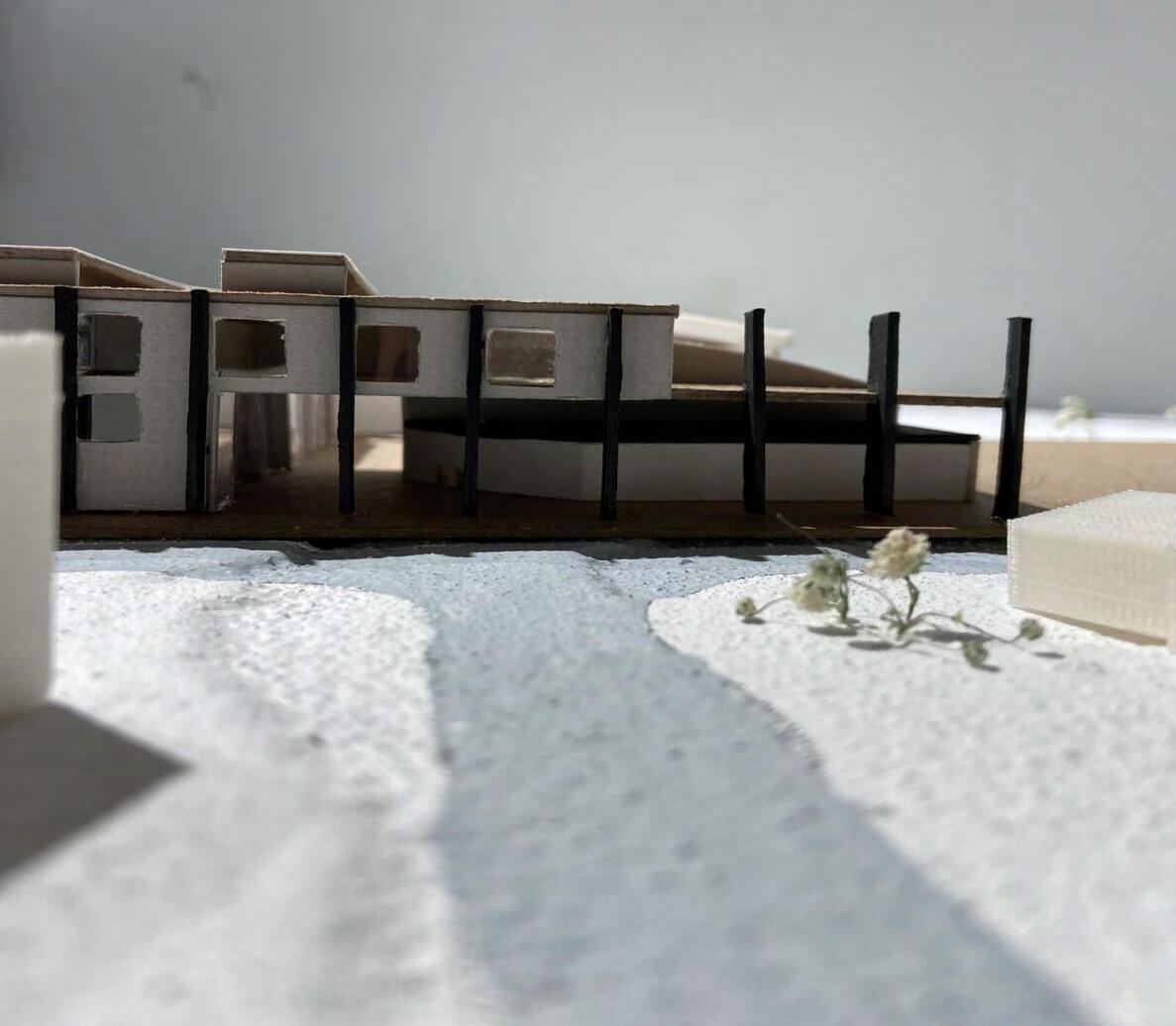

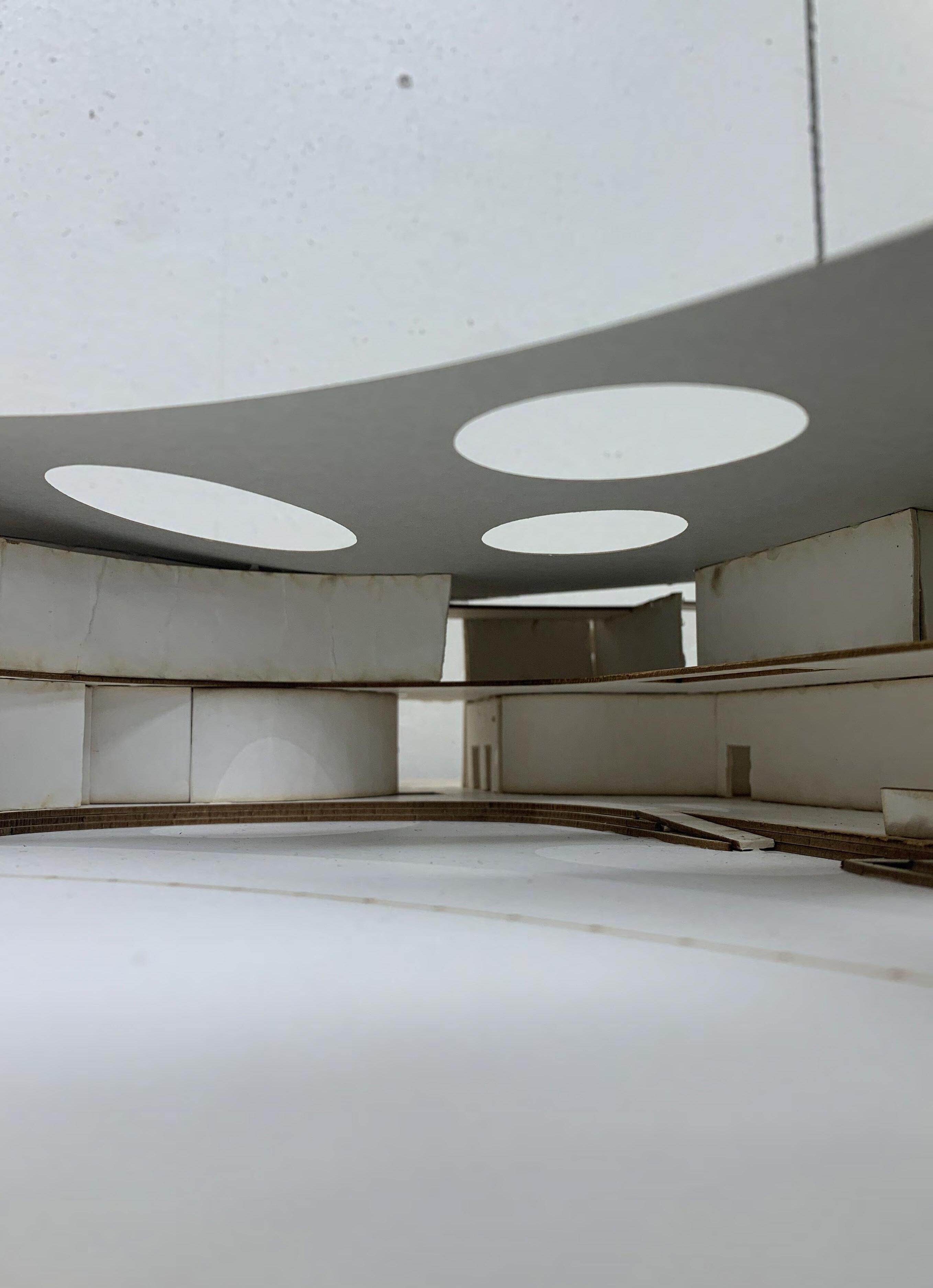

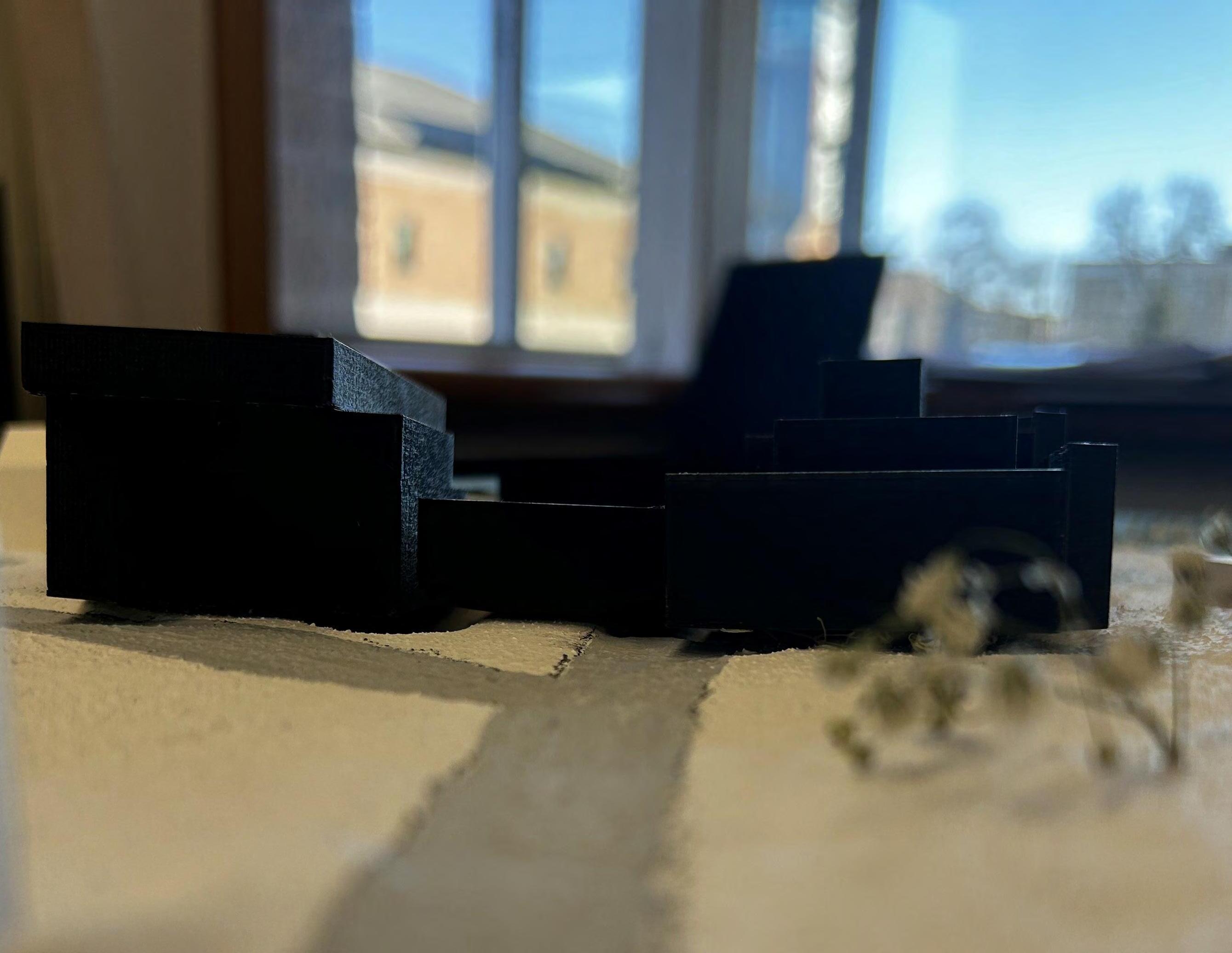

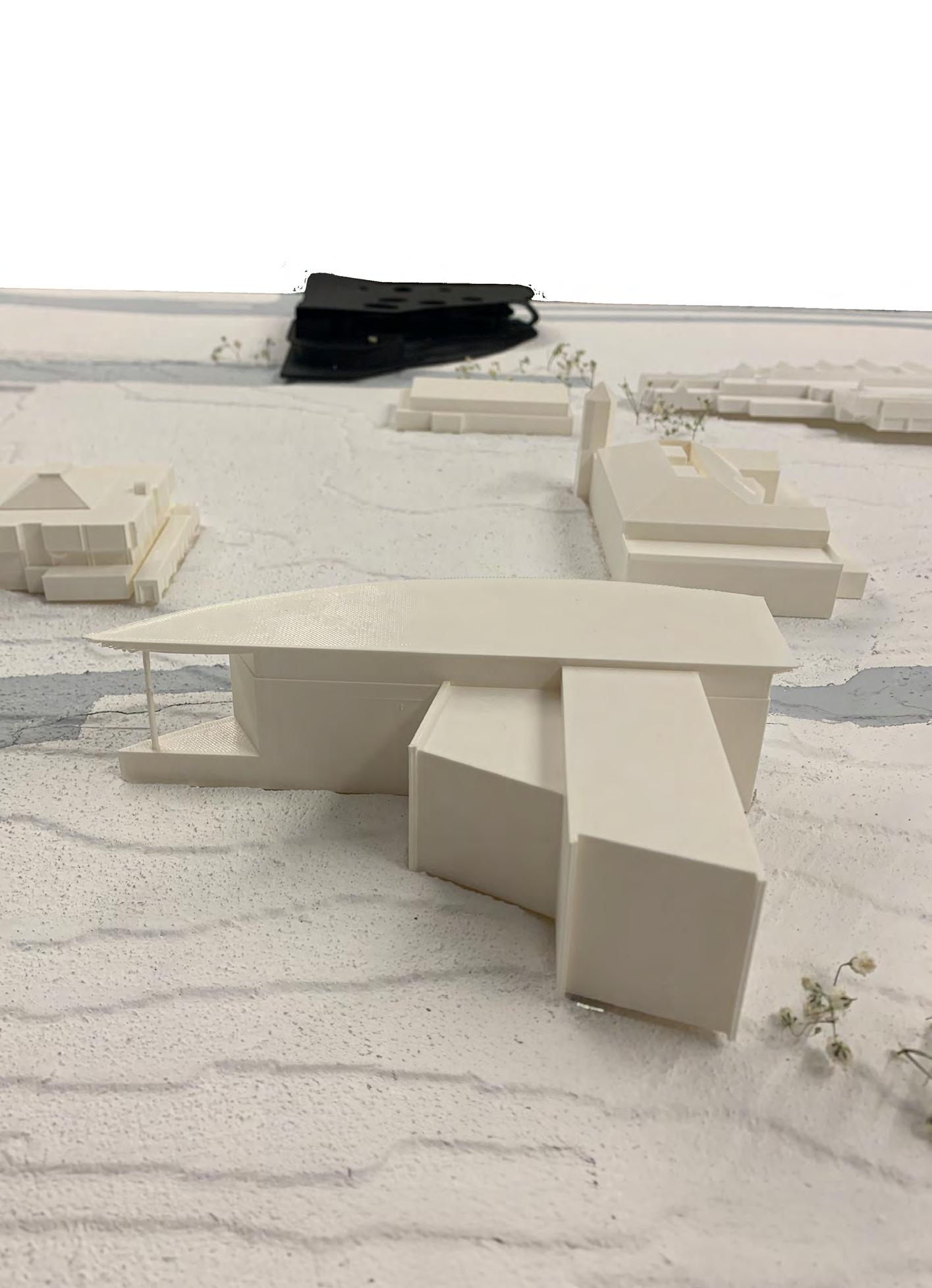

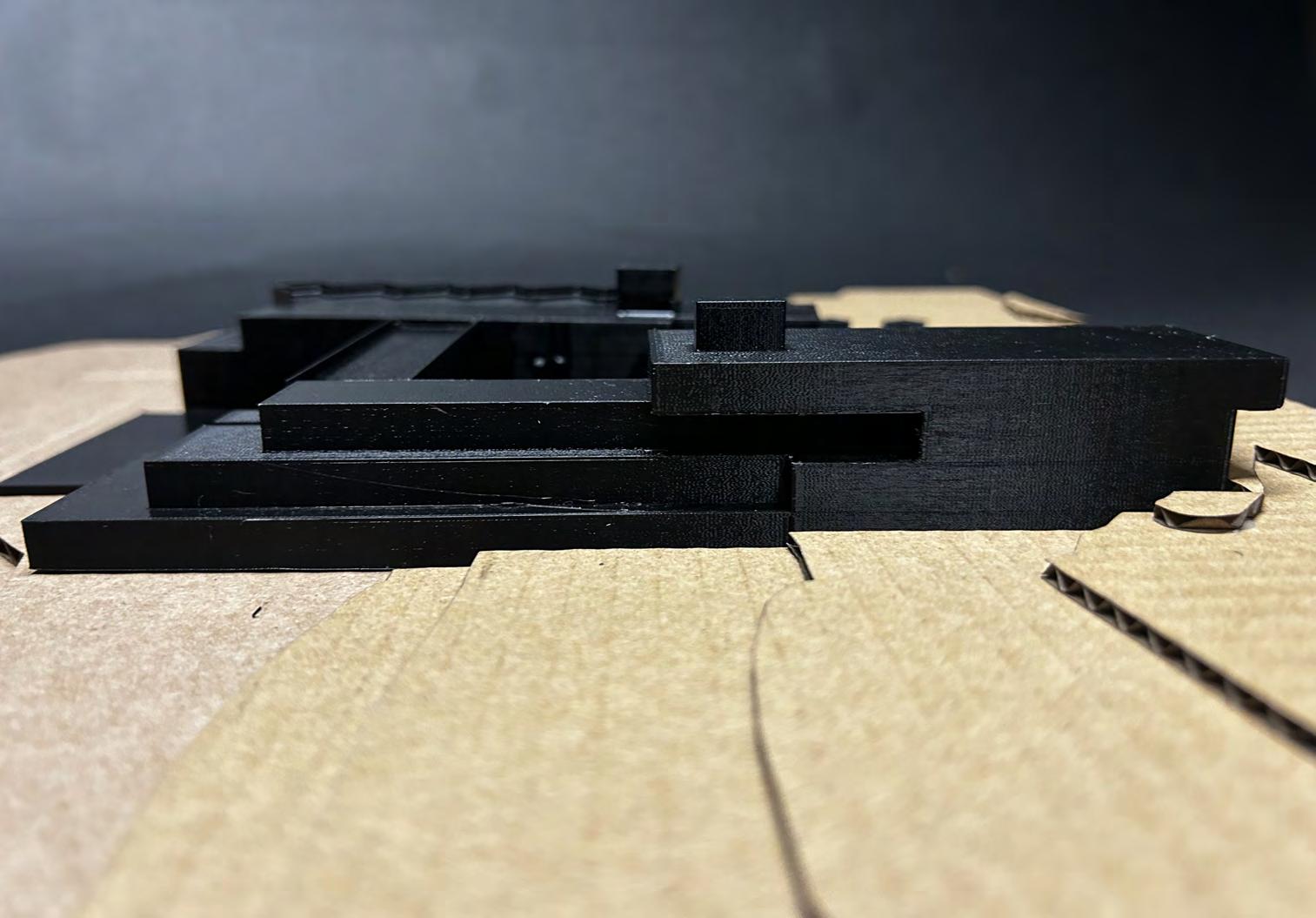

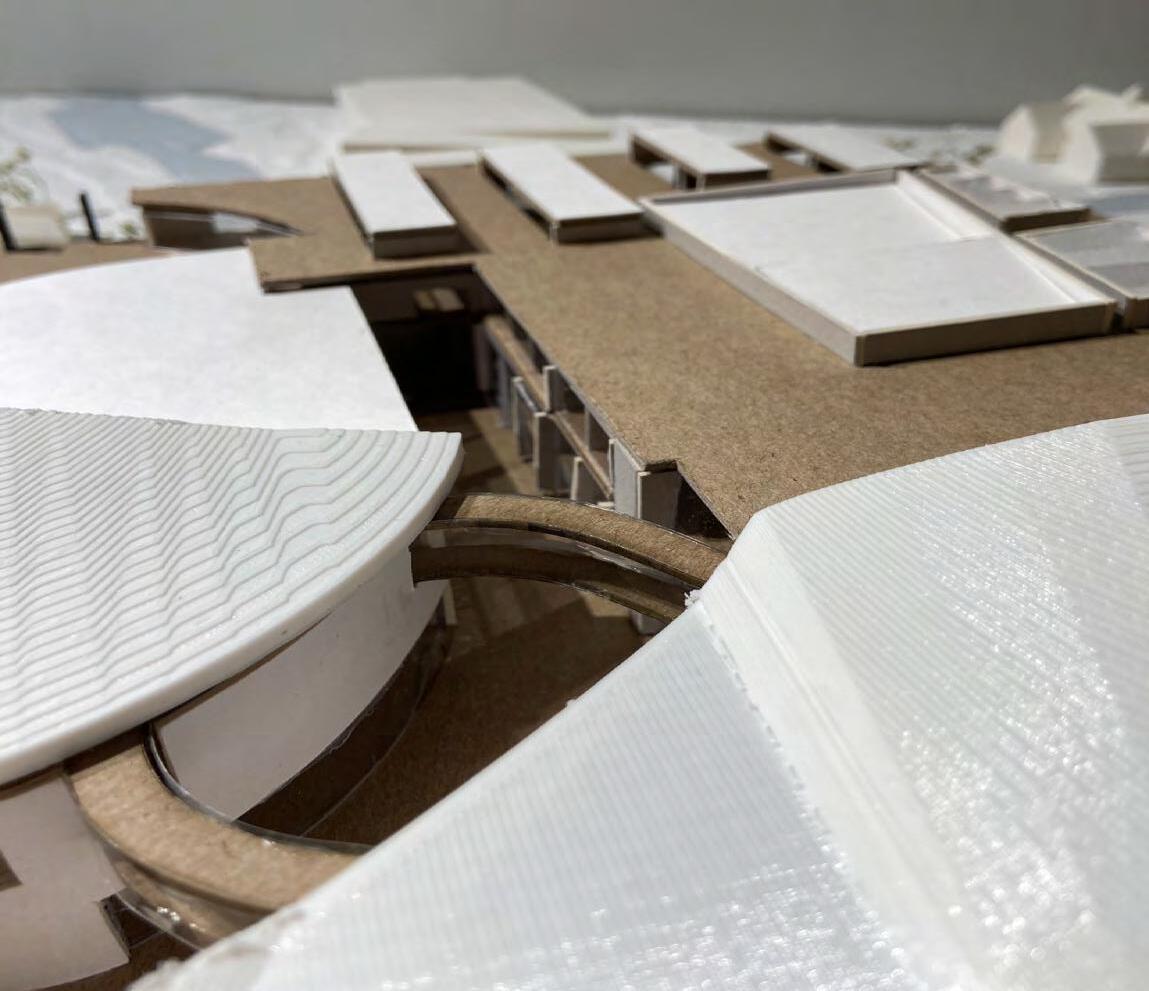

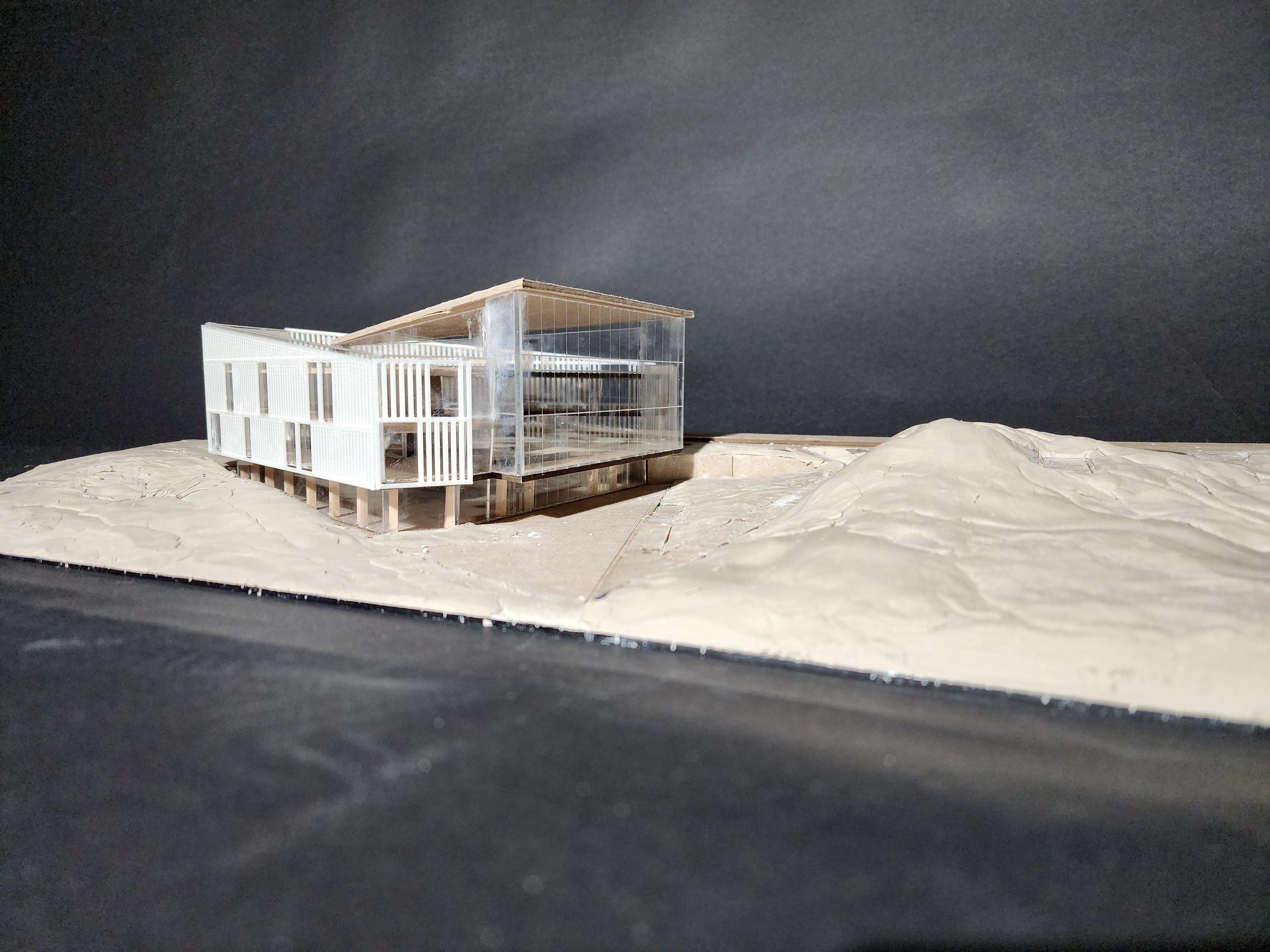

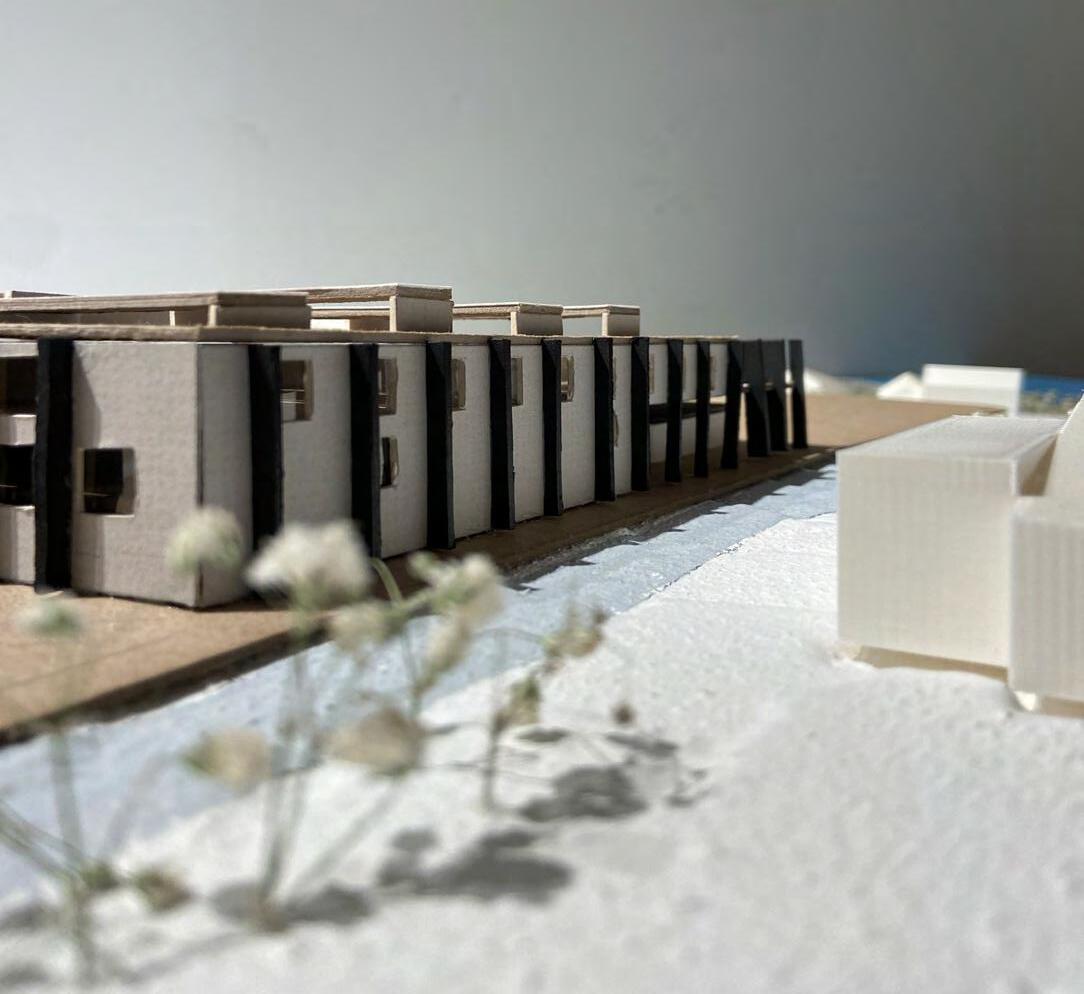

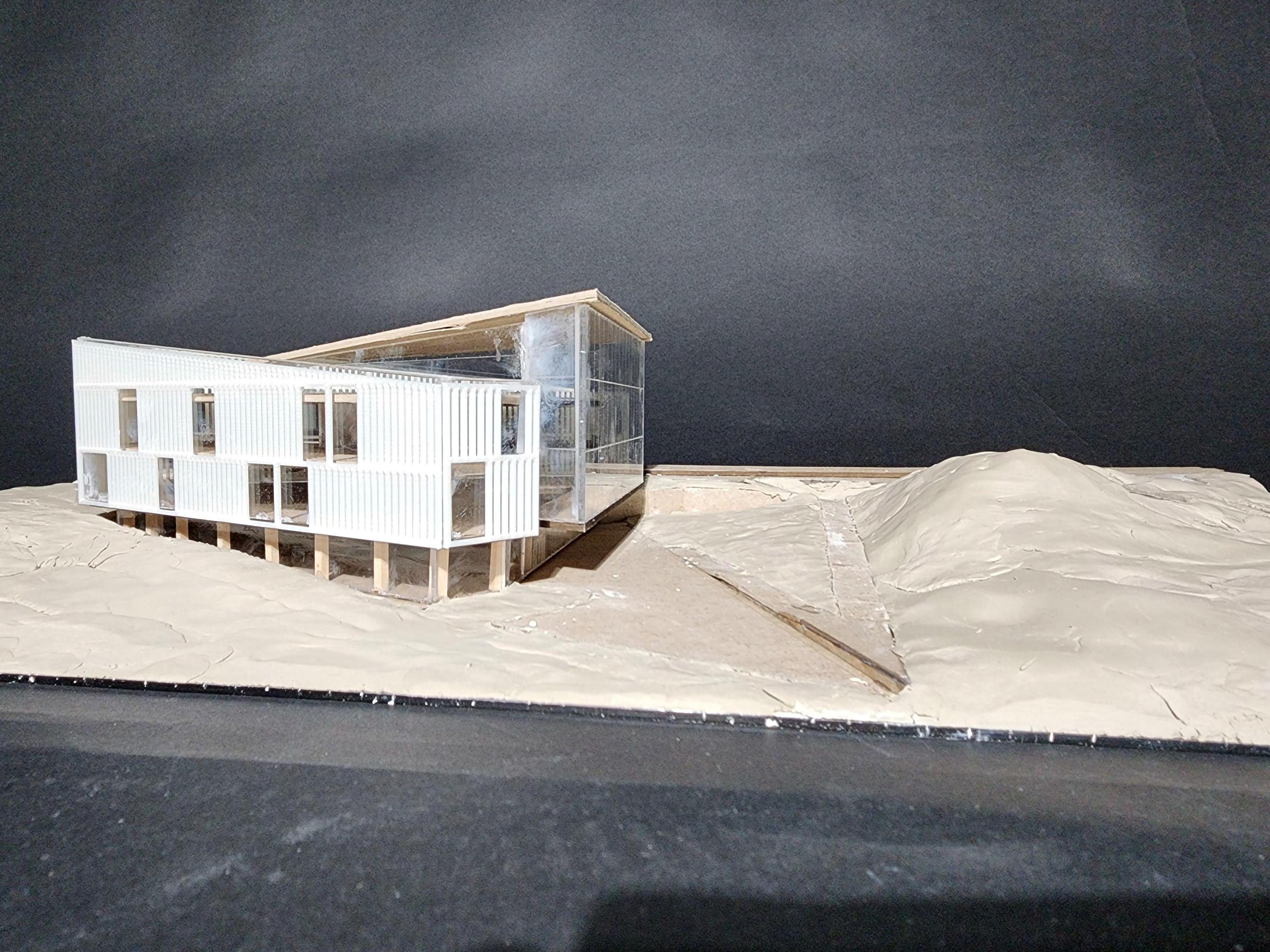

PHYSICAL MODEL - SCALE 1’-0” = 1/16”

ENTRENCE

ATRIUM

MASSING MODEL ON SITE - SCALE 1’-0” = 1/32”

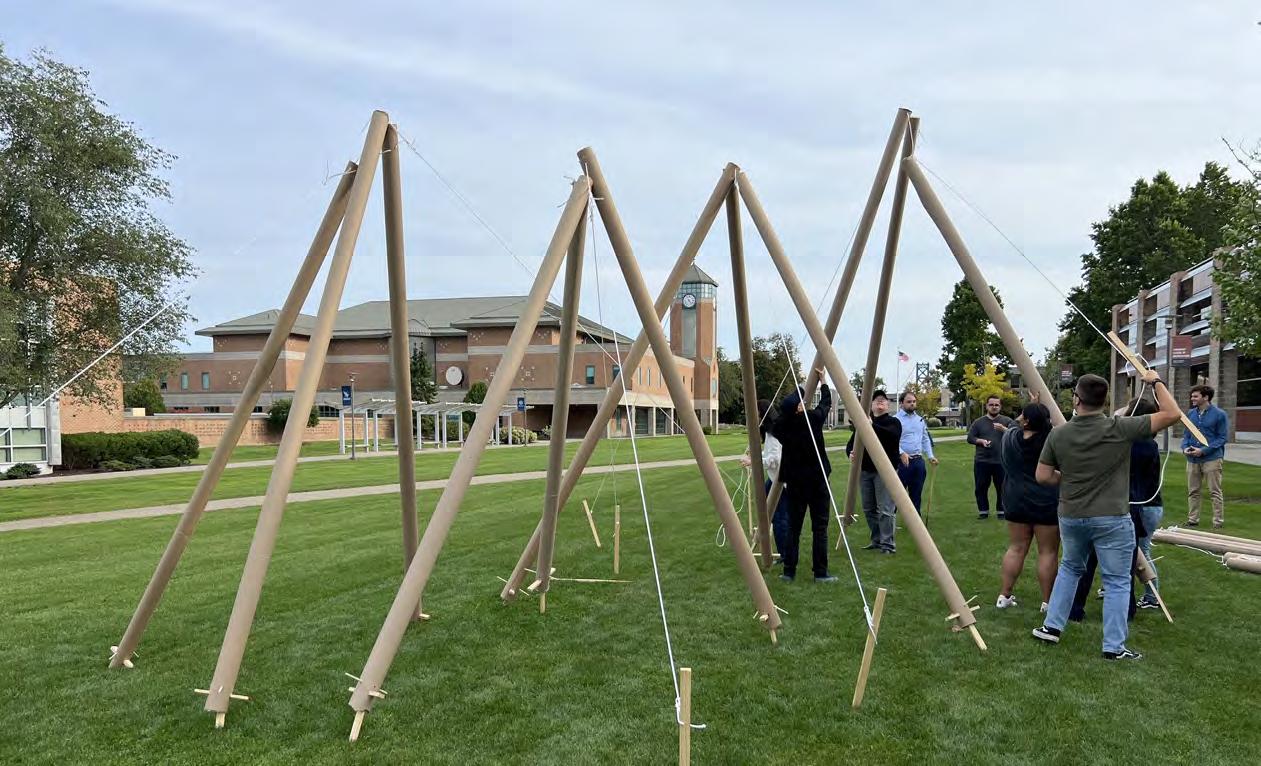

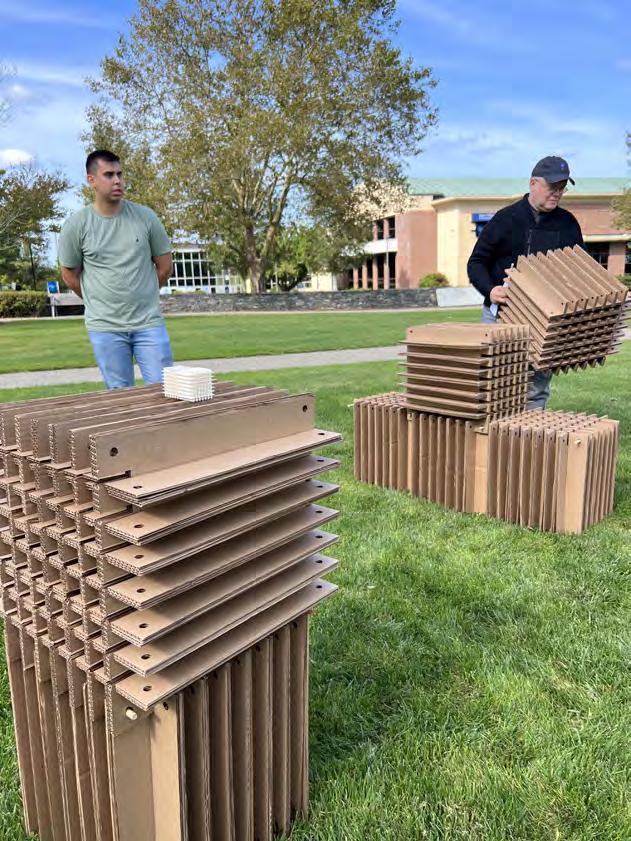

Tectonic Connection

Circulation

Program

Proposal for Student Center at RWU ARCH.515 Daniel Romero

Site Plan 1’ = 1/32”

Exploded Axon

Site Section A 1’ = 1/32”

Site Section B1’ = 1/32”

1st Floor 1’ = 1/32”

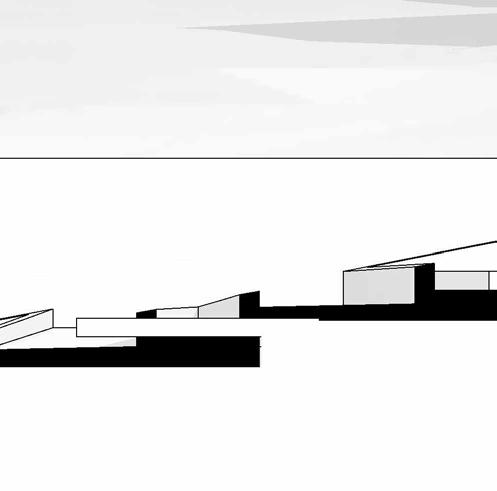

Elevation 1’ = 1/16”

2nd Floor 1’ = 1/32”

4th Floor 1’ = 1/32”

3rd Floor 1’ = 1/32”

5th Floor 1’ = 1/32”

Roger Williams University Student Center Ethan Medeiros The concept for this project was derived from the current lack of defined-use space in the current Roger Williams University Recreational Center. This design explores the combination of two major programs on campus, Rec. Life and Student life. This building is placed on the current site of the recreation center and would serve to be the new central hub for campus.

Located within the newly designed recreational space is the existing program that was utilized the most such as basketball courts, aquatic center, athletic offices, and more. Joined to the recreation space is the new-to-campus student center that will serve many purposes lacking on campus. Some of the program within the student center are 15+ club breakout spaces, 3 large lecture halls, 5 great rooms, and more.

Both of these programmatic necessities work to bring North and South campus together creating a central node. The buildings forms and materials were derived from their program and were situated on site in relation to the similar program existing on campus. New routes across campus were carved through the building to increase interaction between those passing by the exterior of the building while also creating new more convenient paths for students trekking from the far ends of campus.

Academic Recreation

Program Relationship Diagram

Pedestrian

Quad Extension Diagram

Important Nodes

Vehicular

Pedestrian v. Vehicular Traffic Diagram

Important Nodes Diagram Building Axonometric

Site Plan : 1/128” = 1’-0”

First Floorplan : 1/32” = 1’-0”

Transverse Building Section : 1/16” = 1’-0”

Second Floorplan : 1/32” = 1’-0”

Third Floorplan : 1/32” = 1’-0”

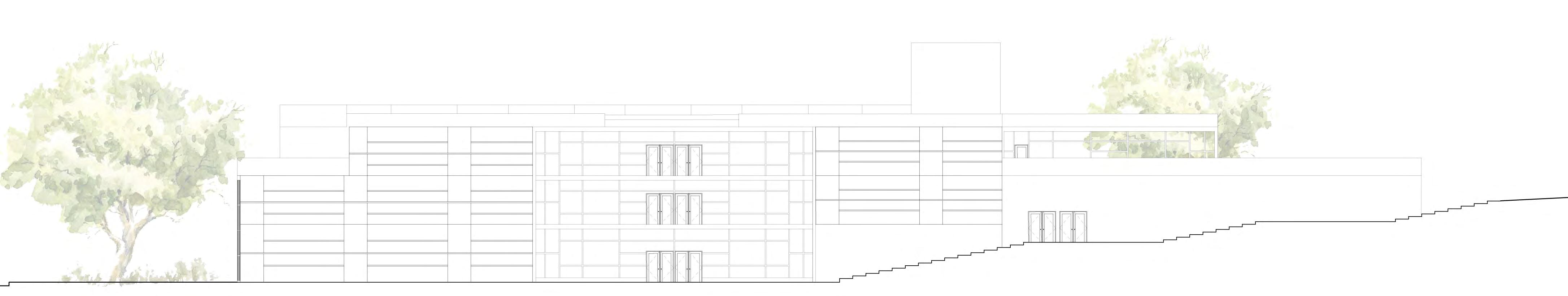

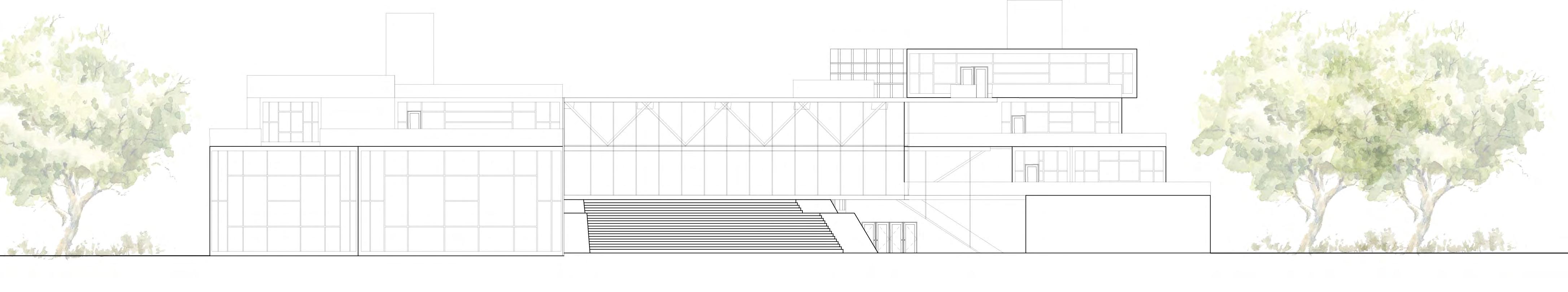

East Elevation : 1/16” = 1’-0”

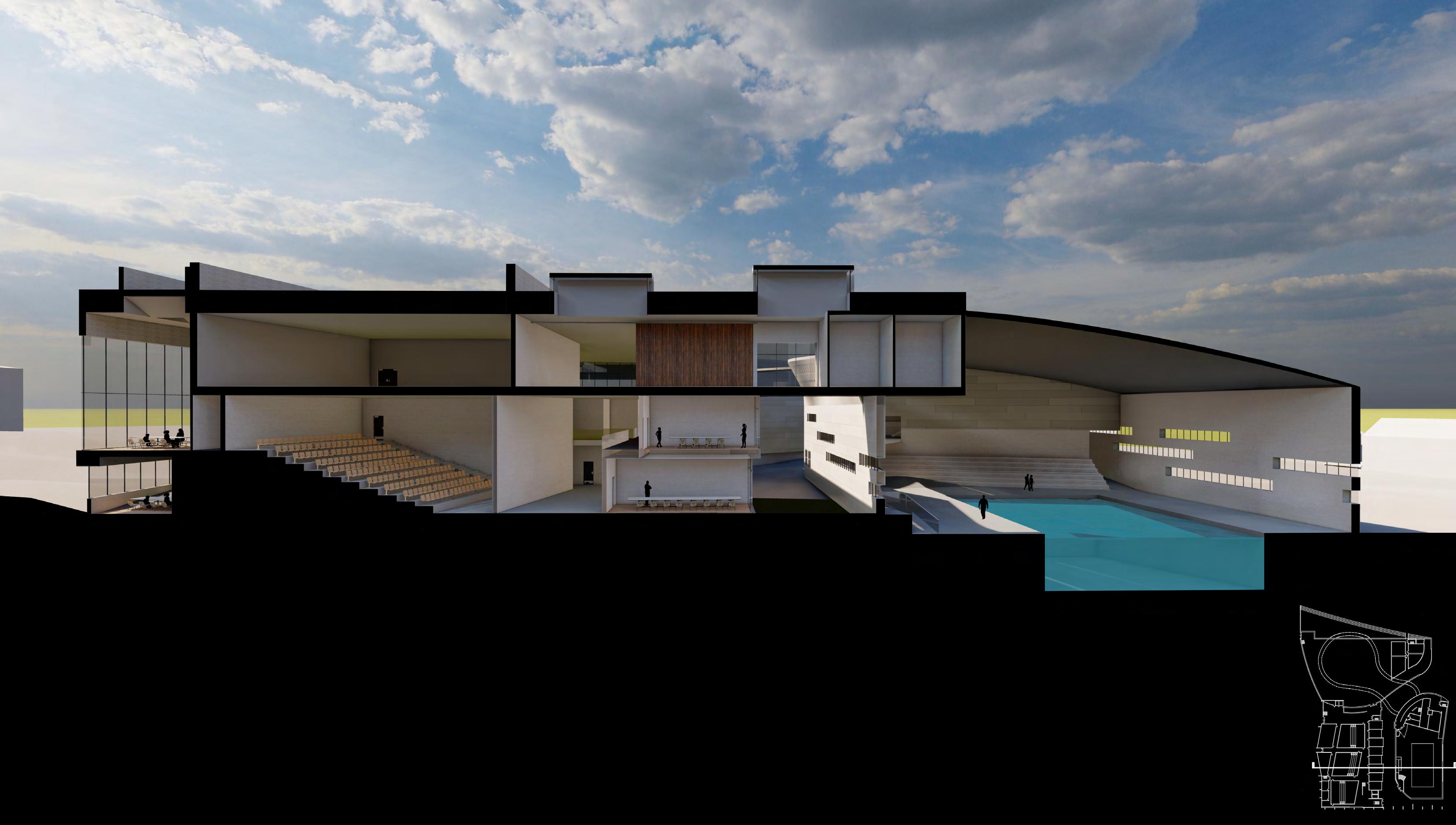

Longitudinal Building Section : 1/16” = 1’-0”

Transverse Site Section : 1/32” = 1’-0”

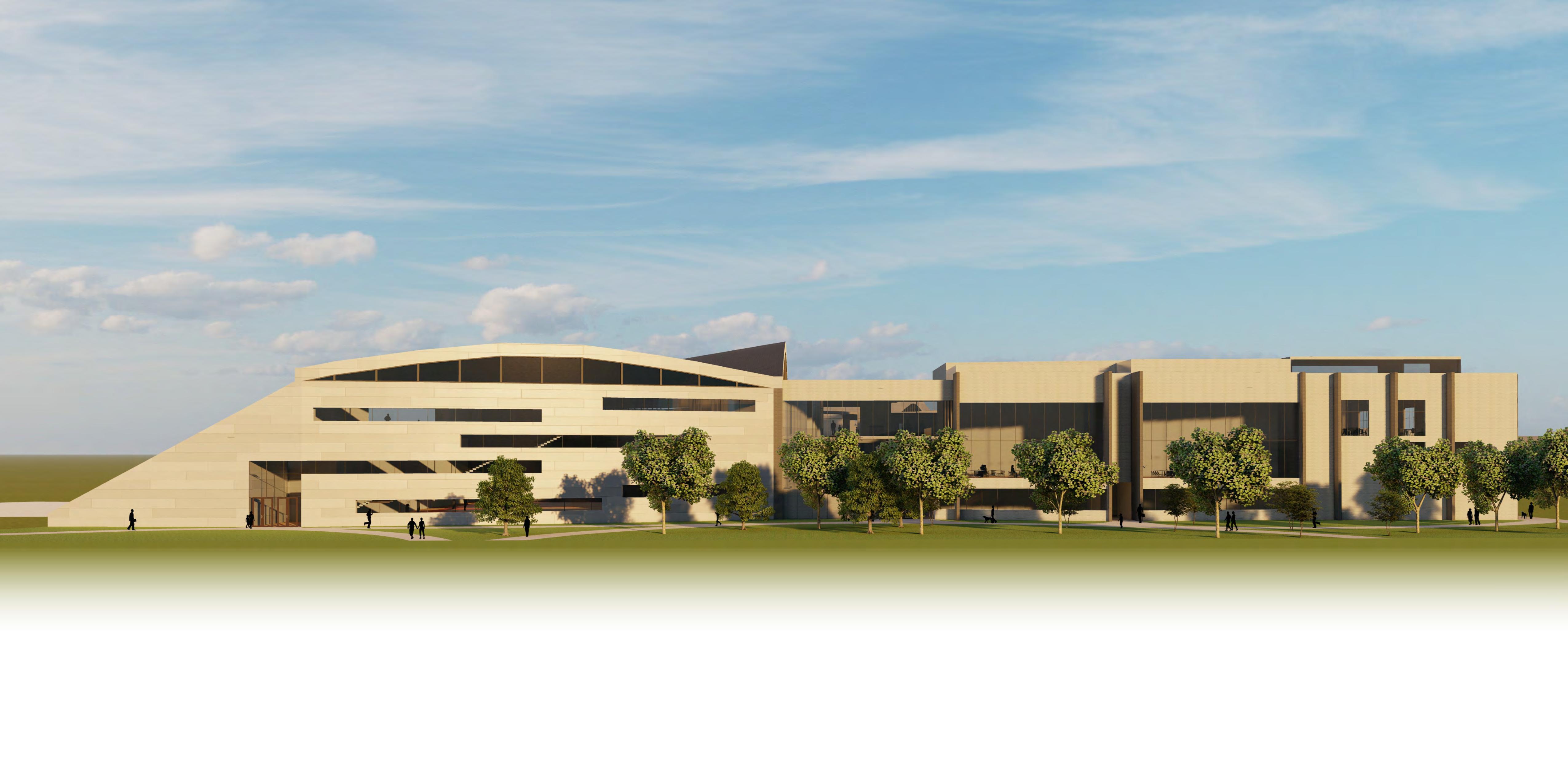

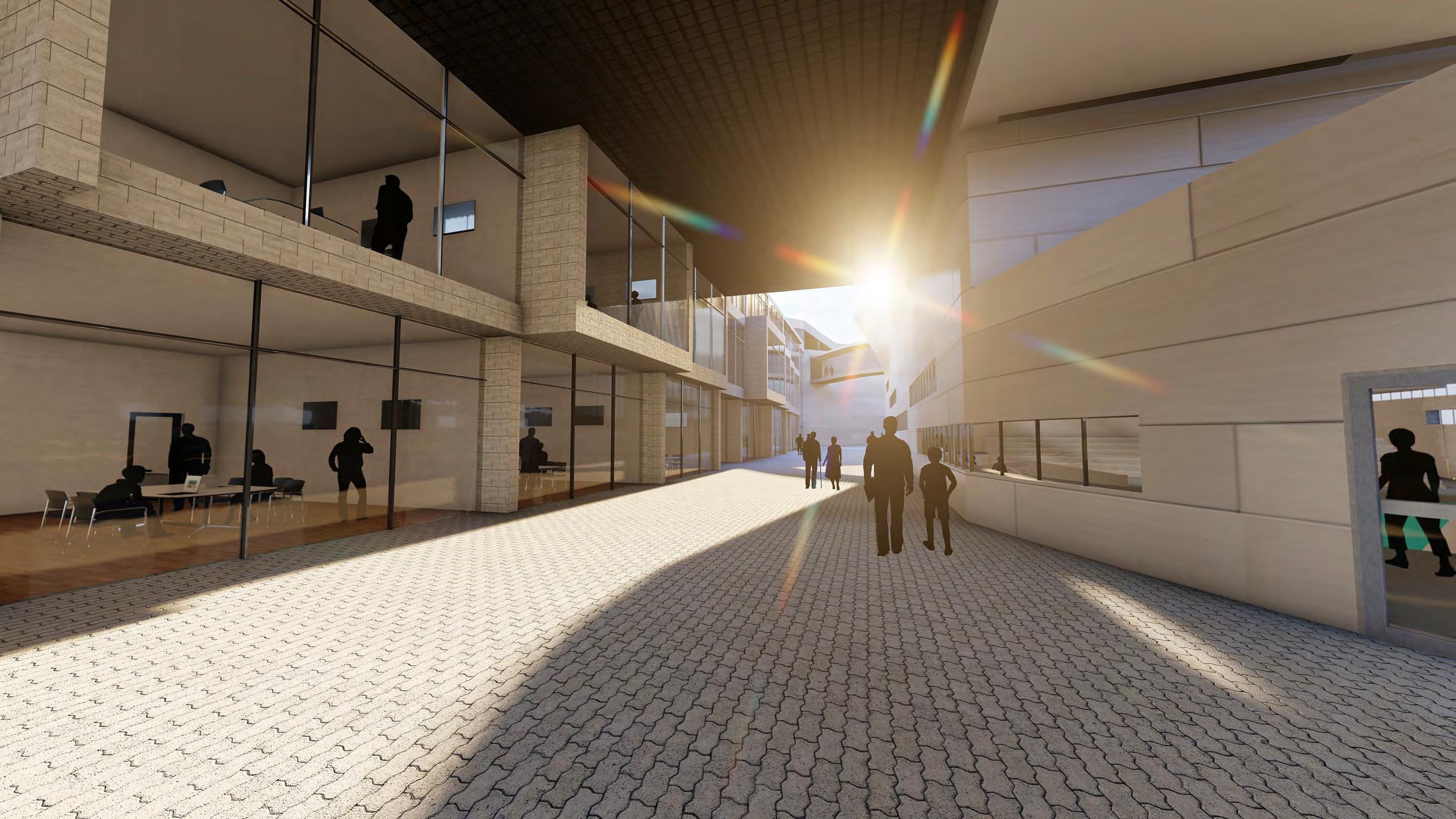

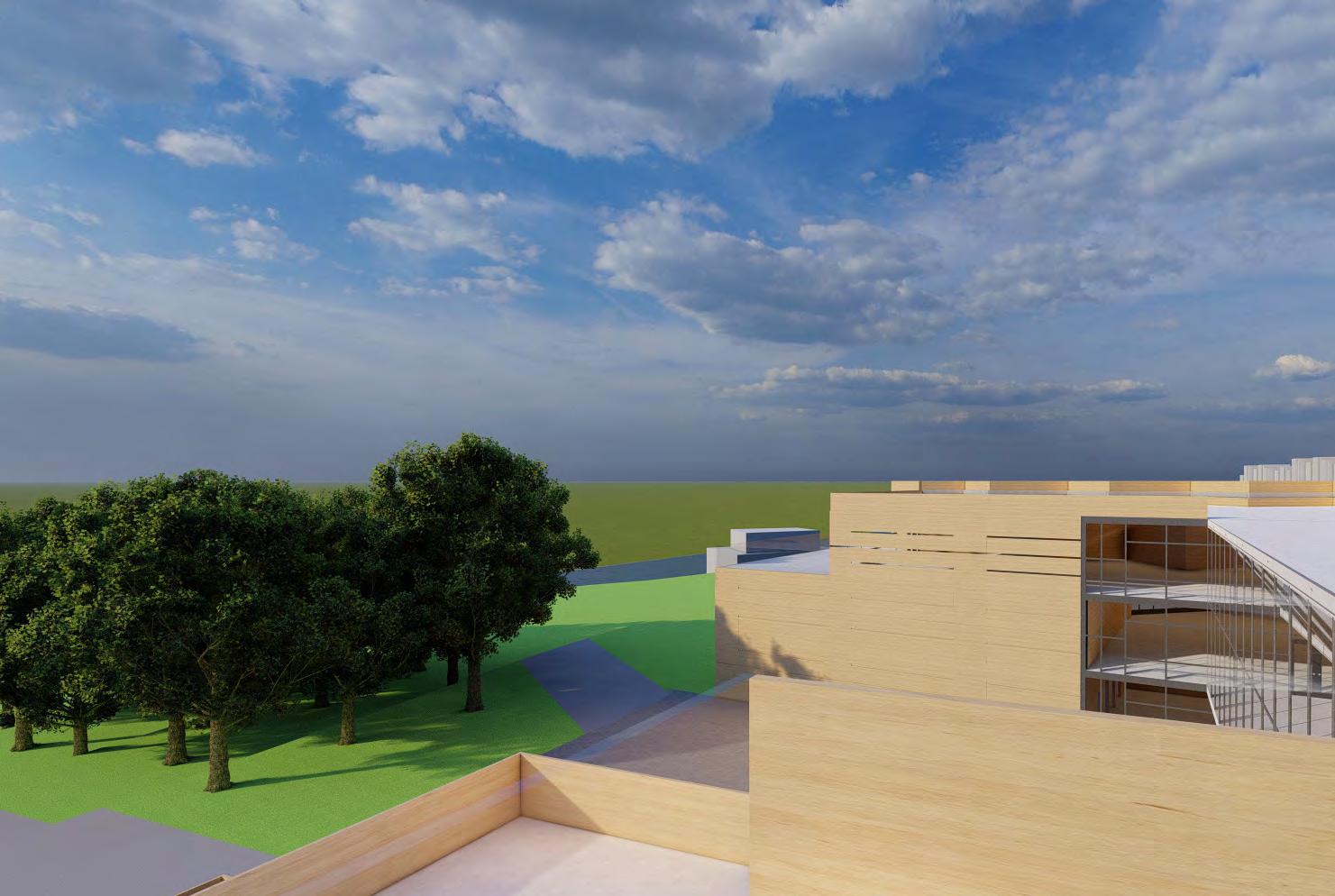

Exterior Perspective

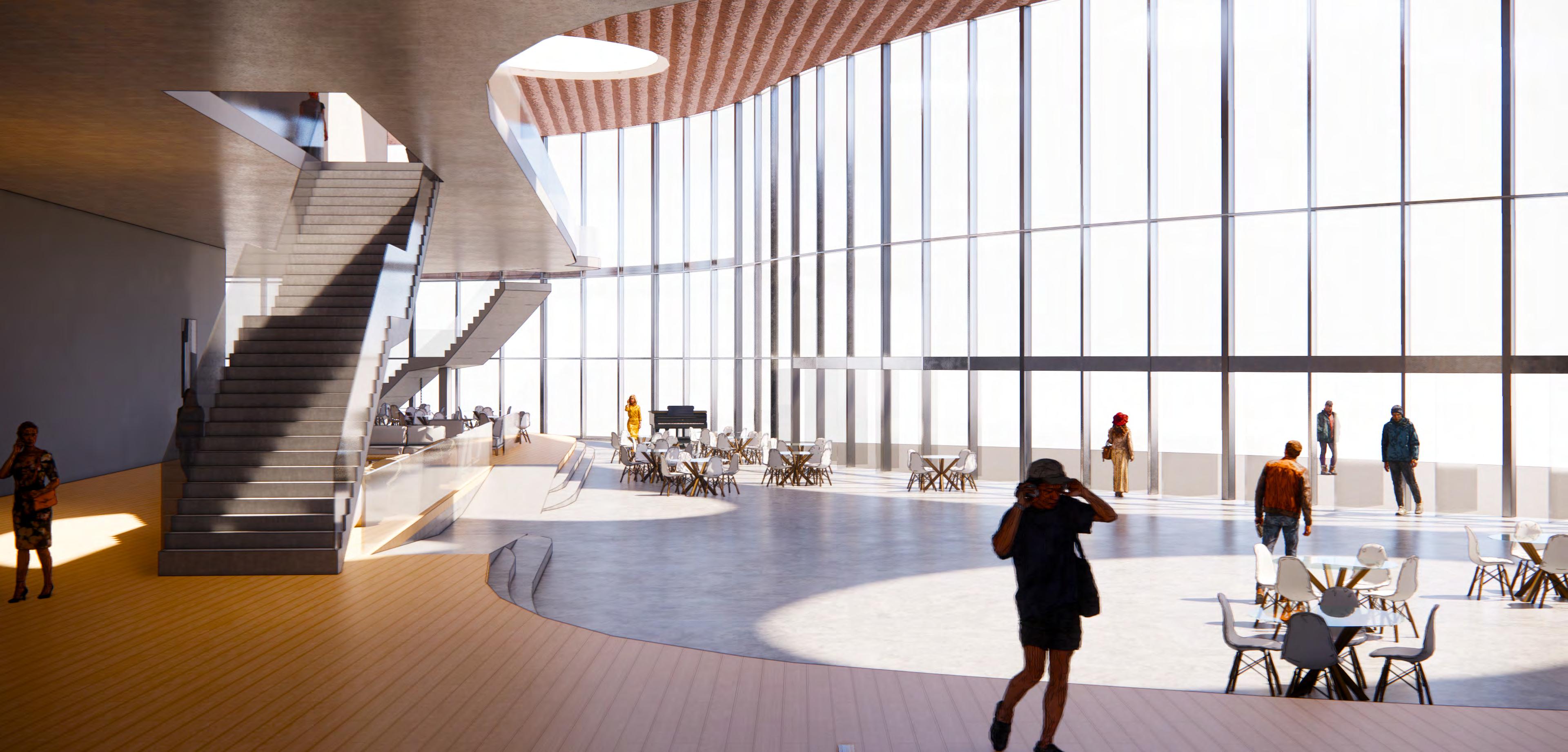

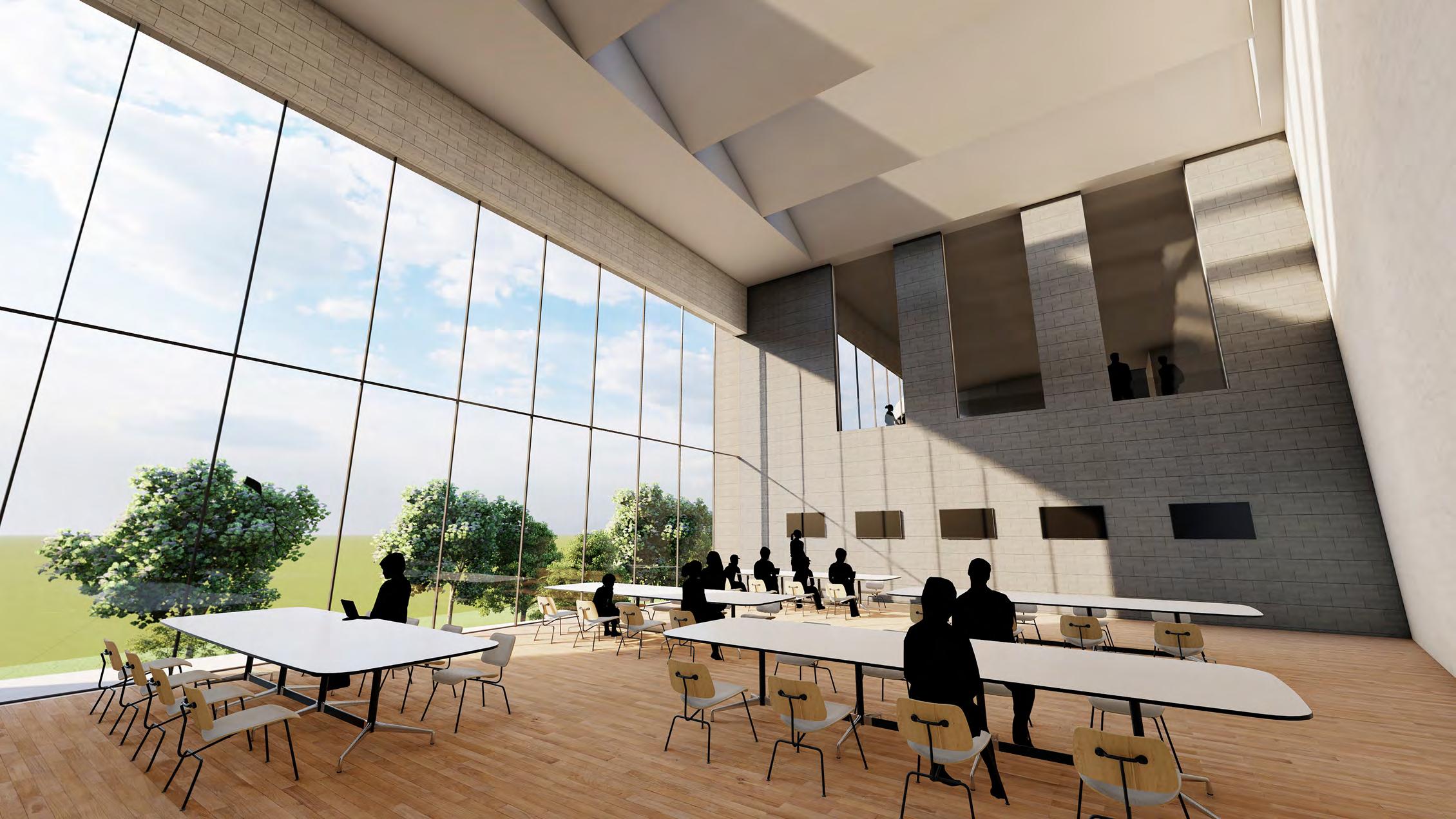

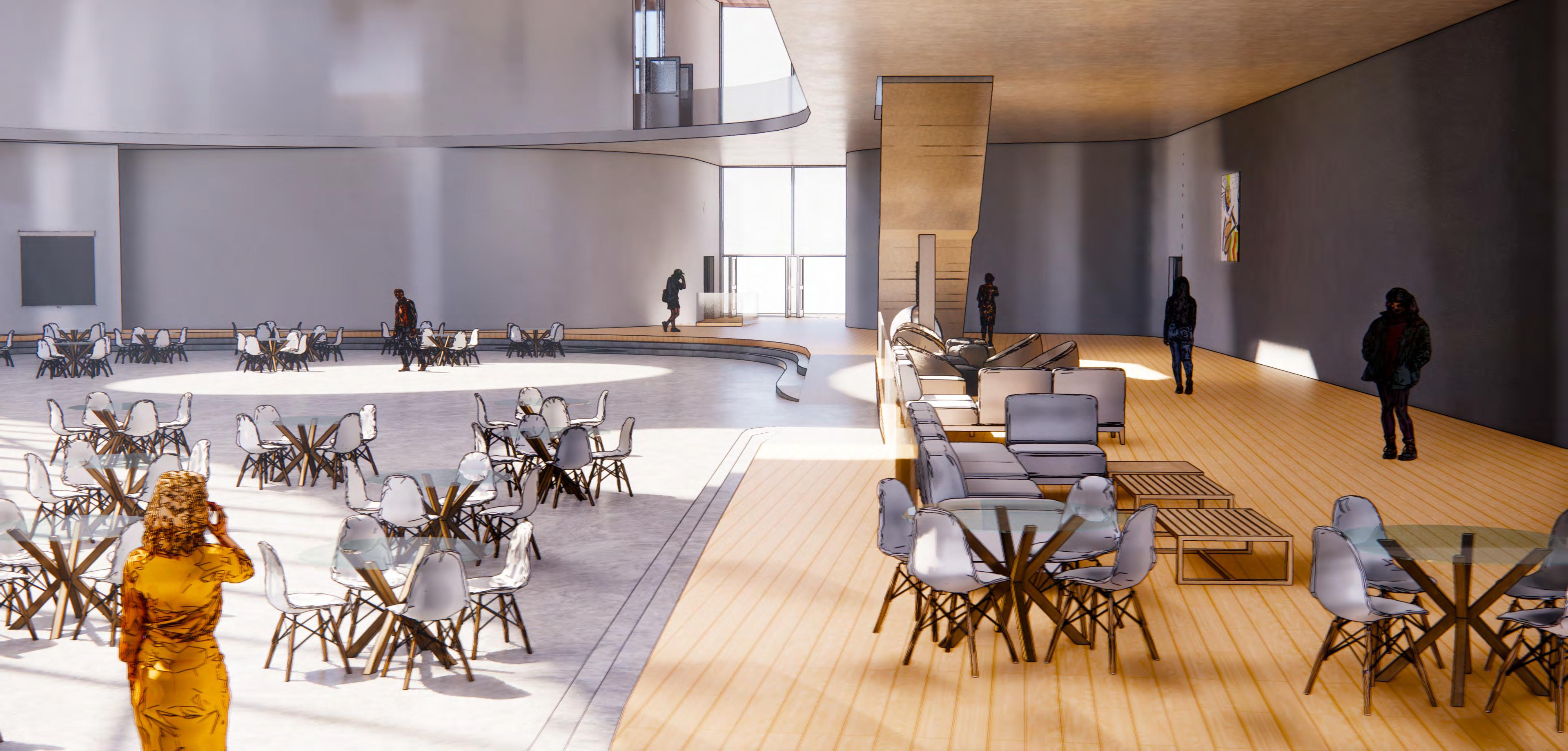

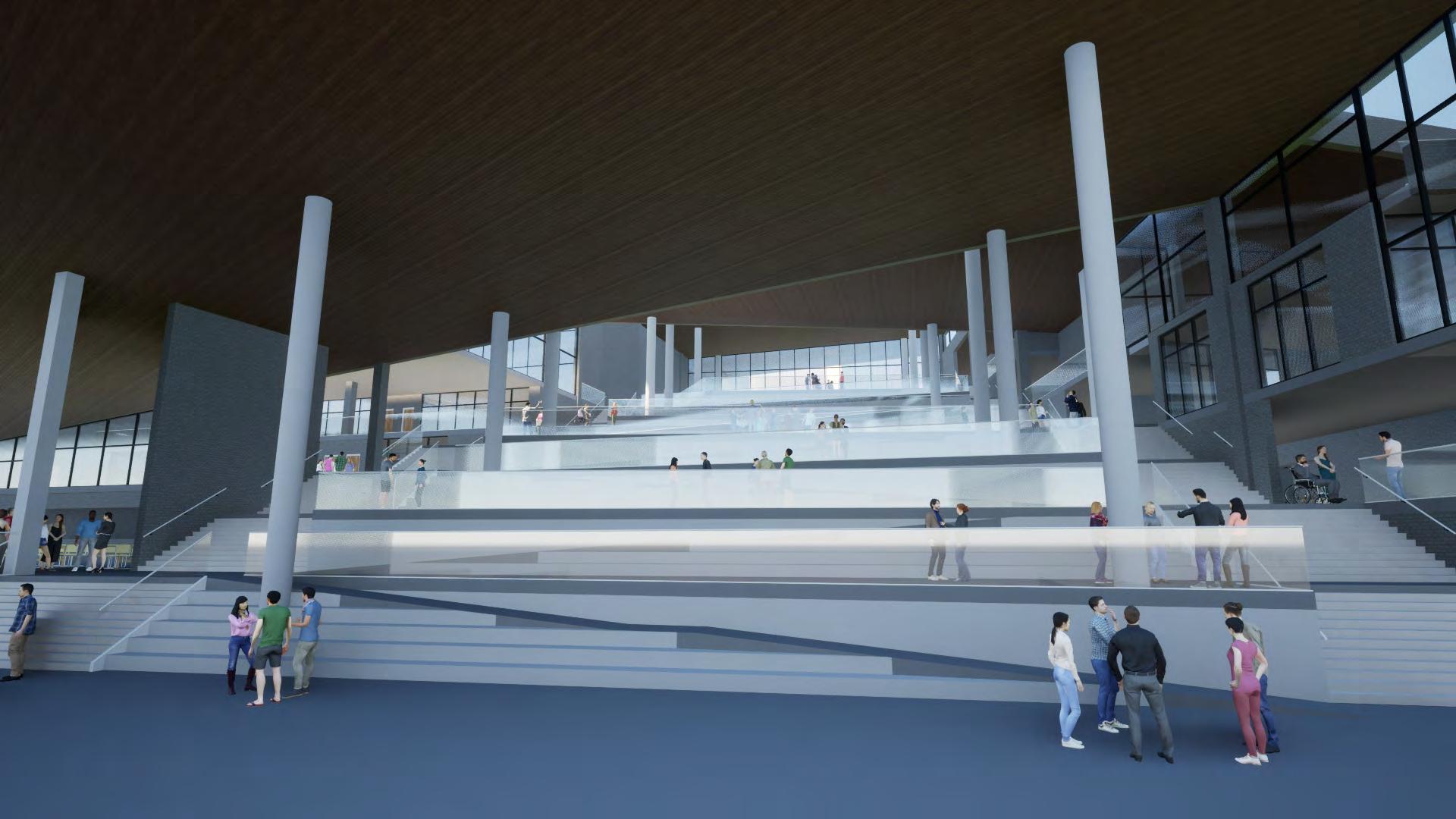

Interior Perspective

Interior Perspective

Interior Perspective

North Elevation : 1/16”-1’-0”

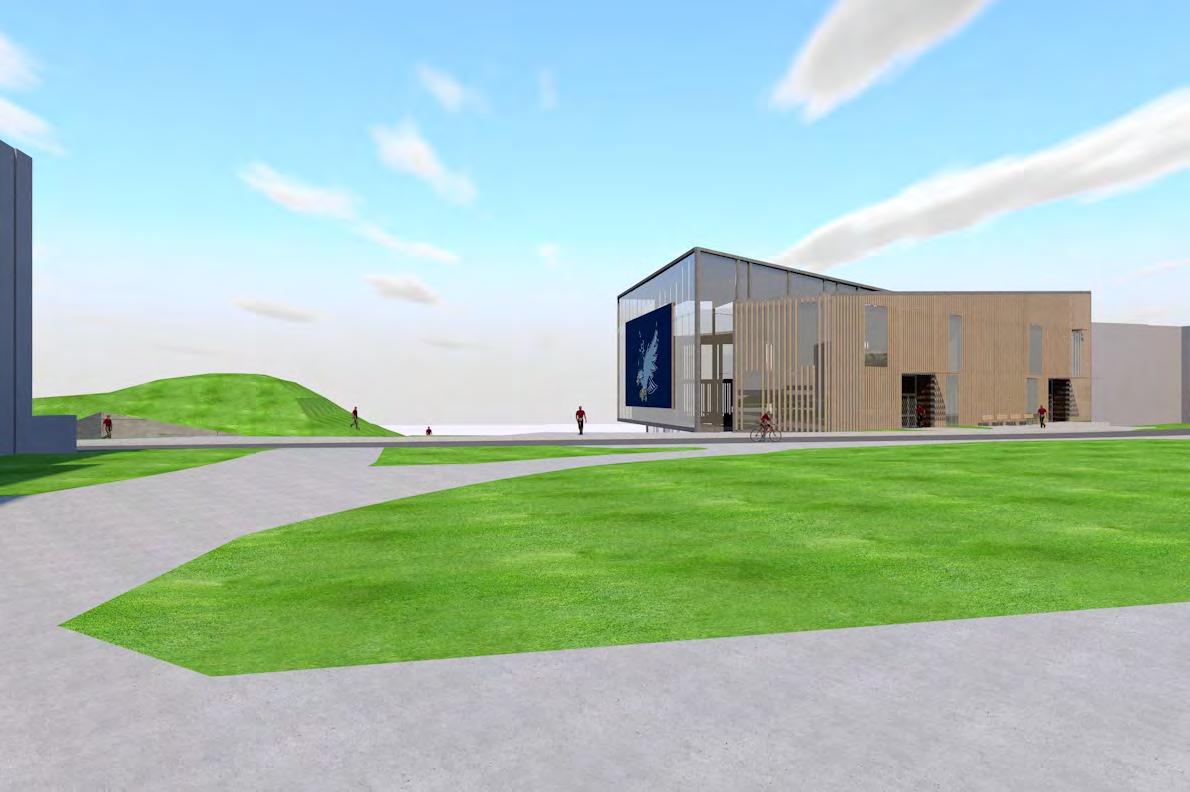

Exterior Perspective

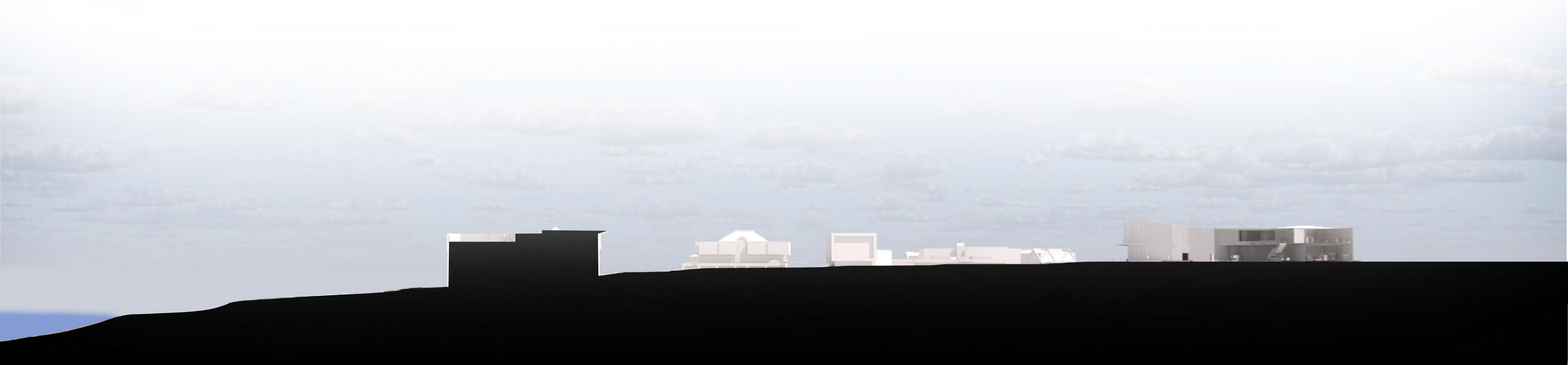

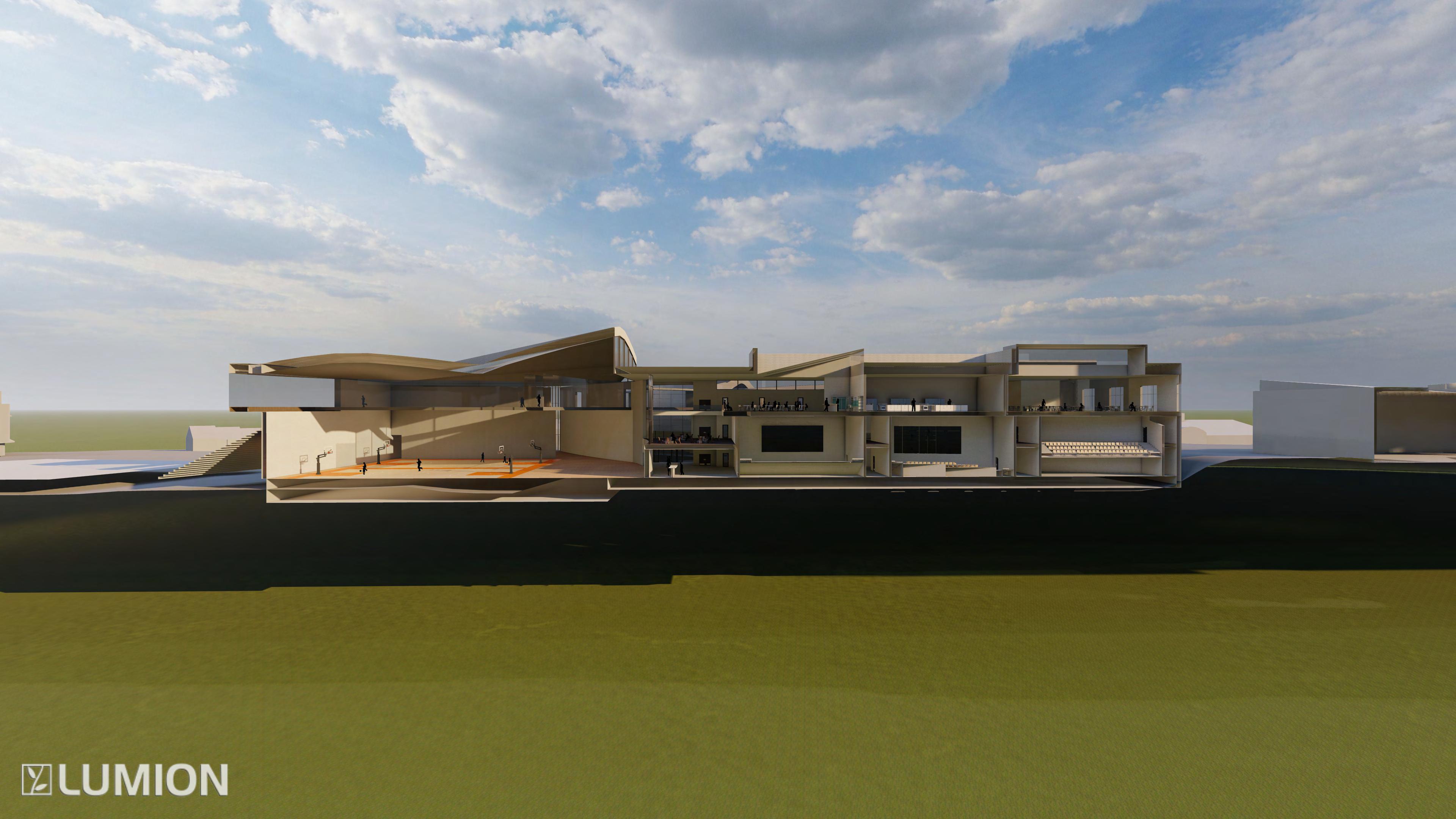

Longitudinal Site Section : 1/32” = 1’-0”

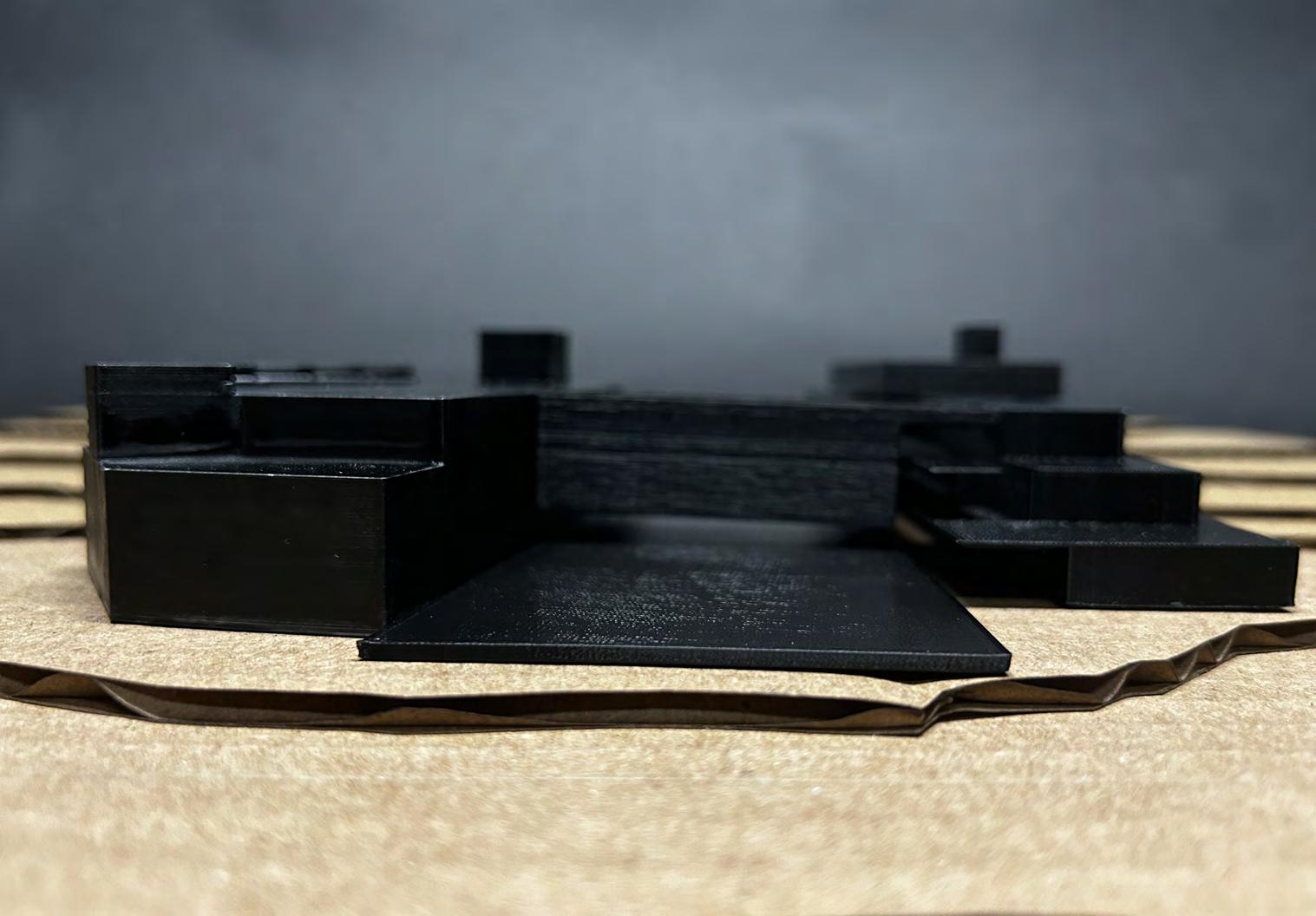

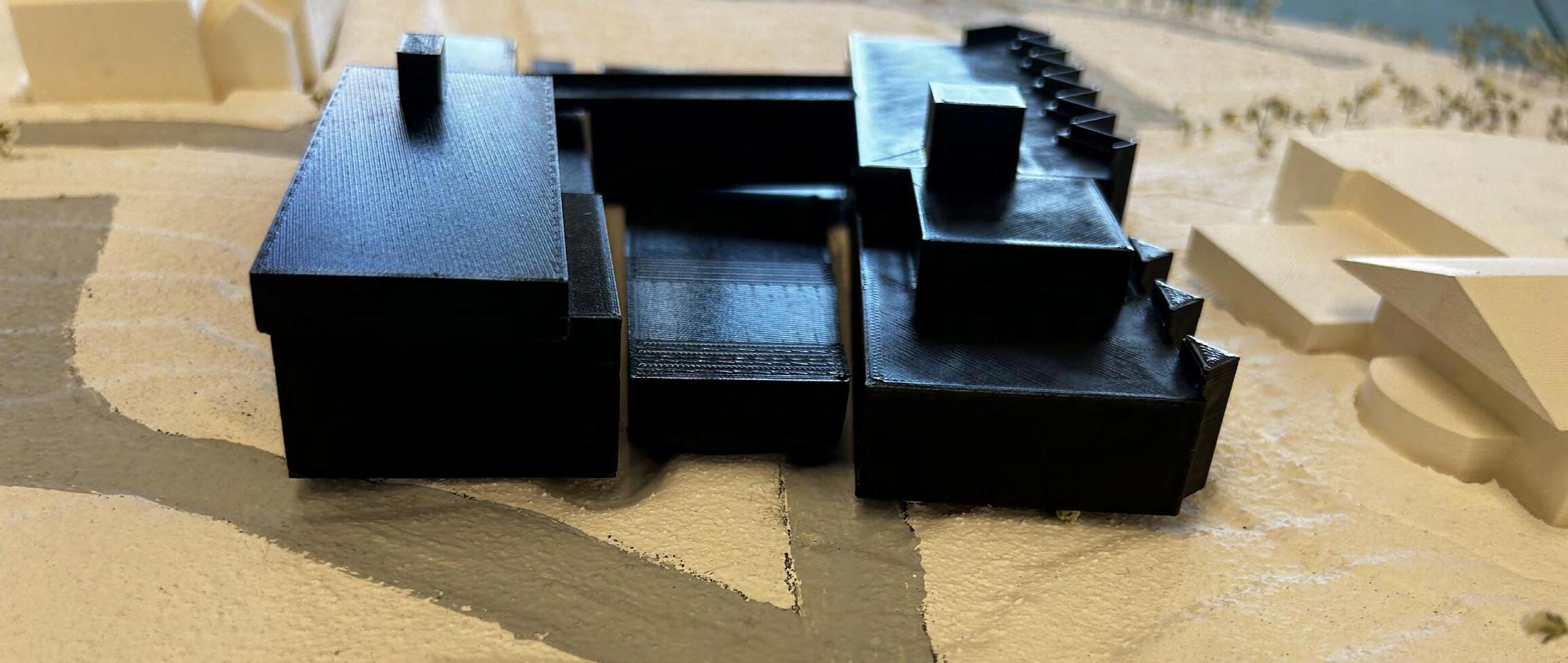

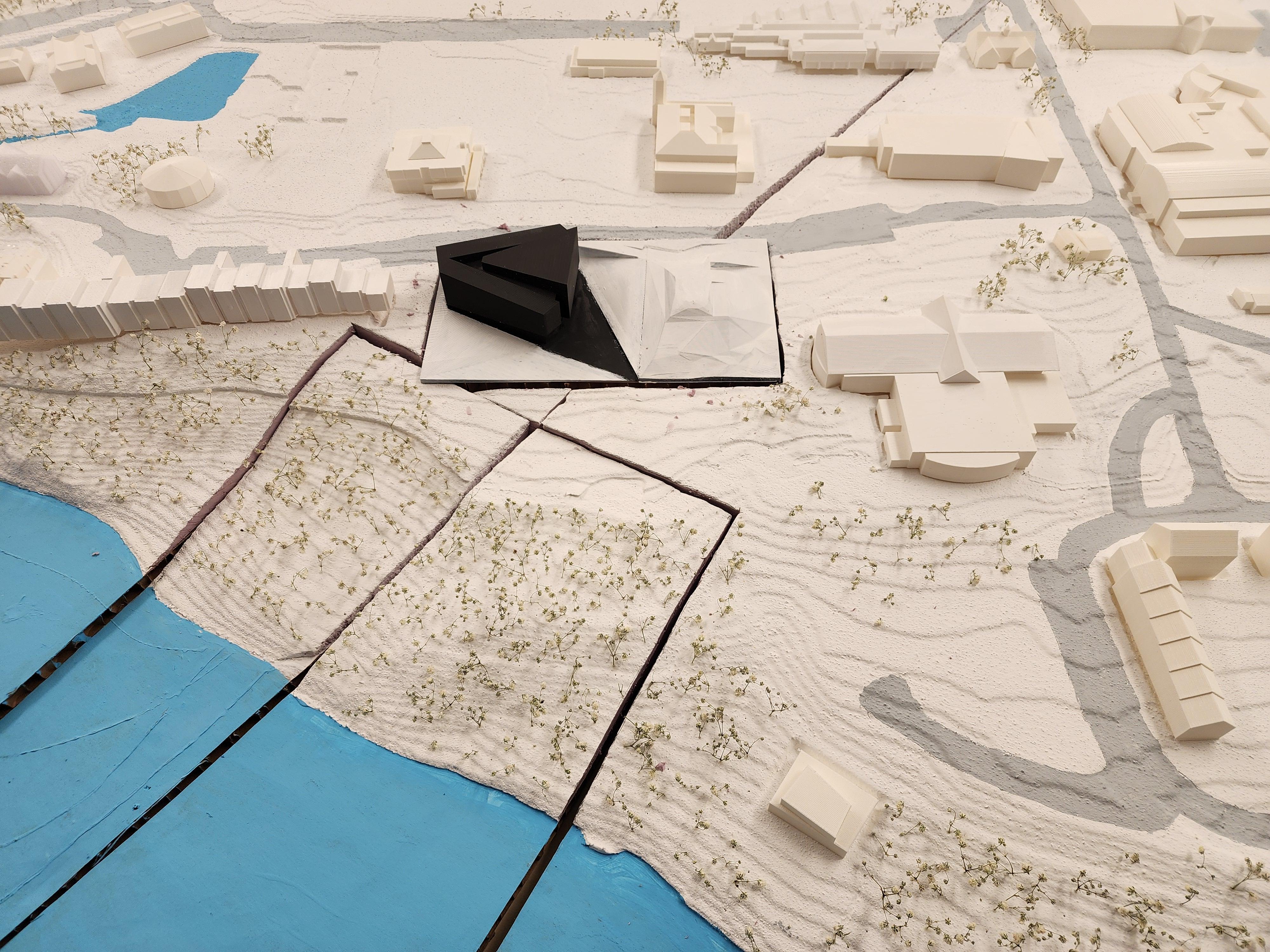

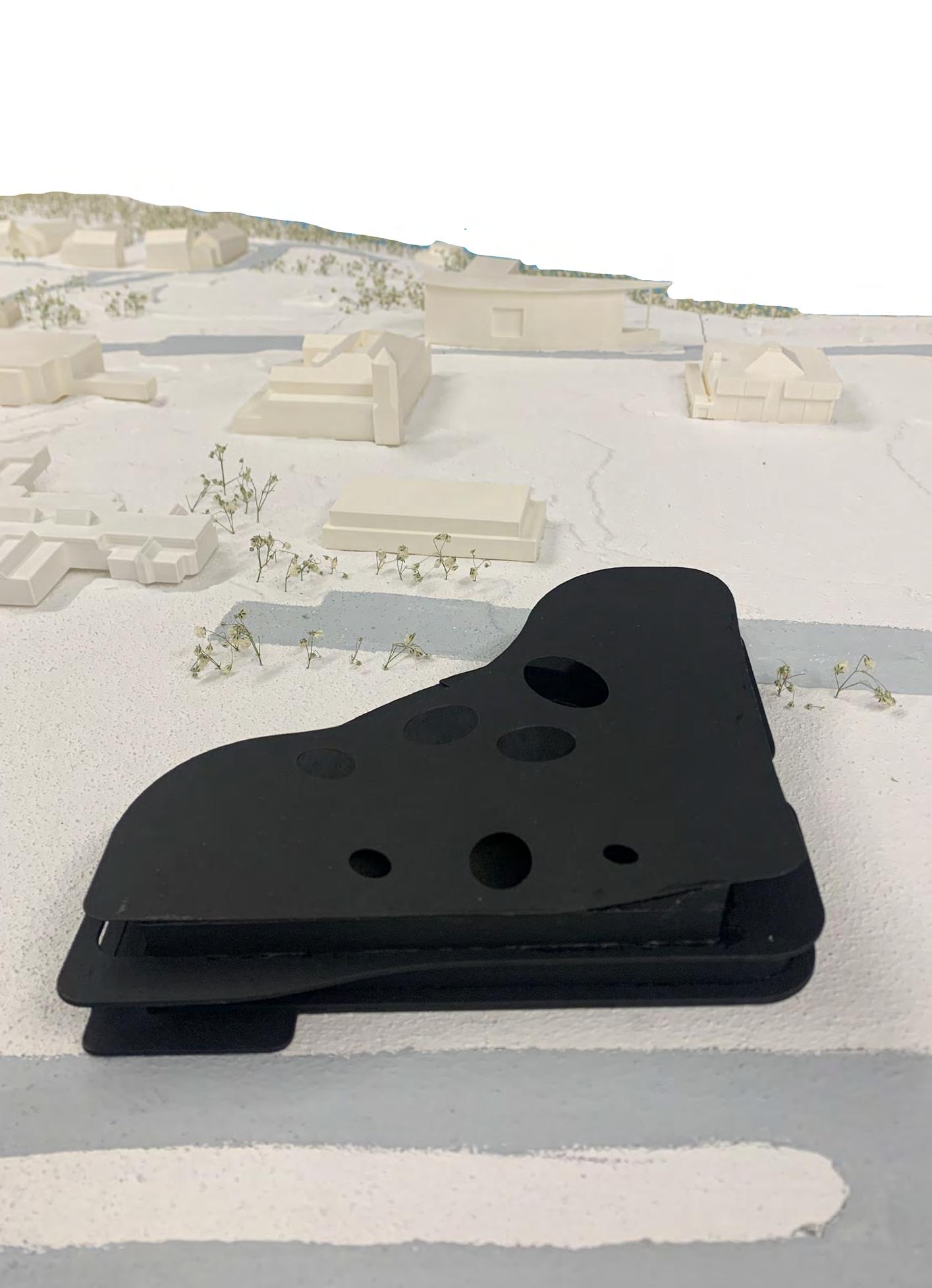

Univ. Cincinnati Precedent Massing Model in Roger Williams University Campus Site : 1/32” = 1’-0”

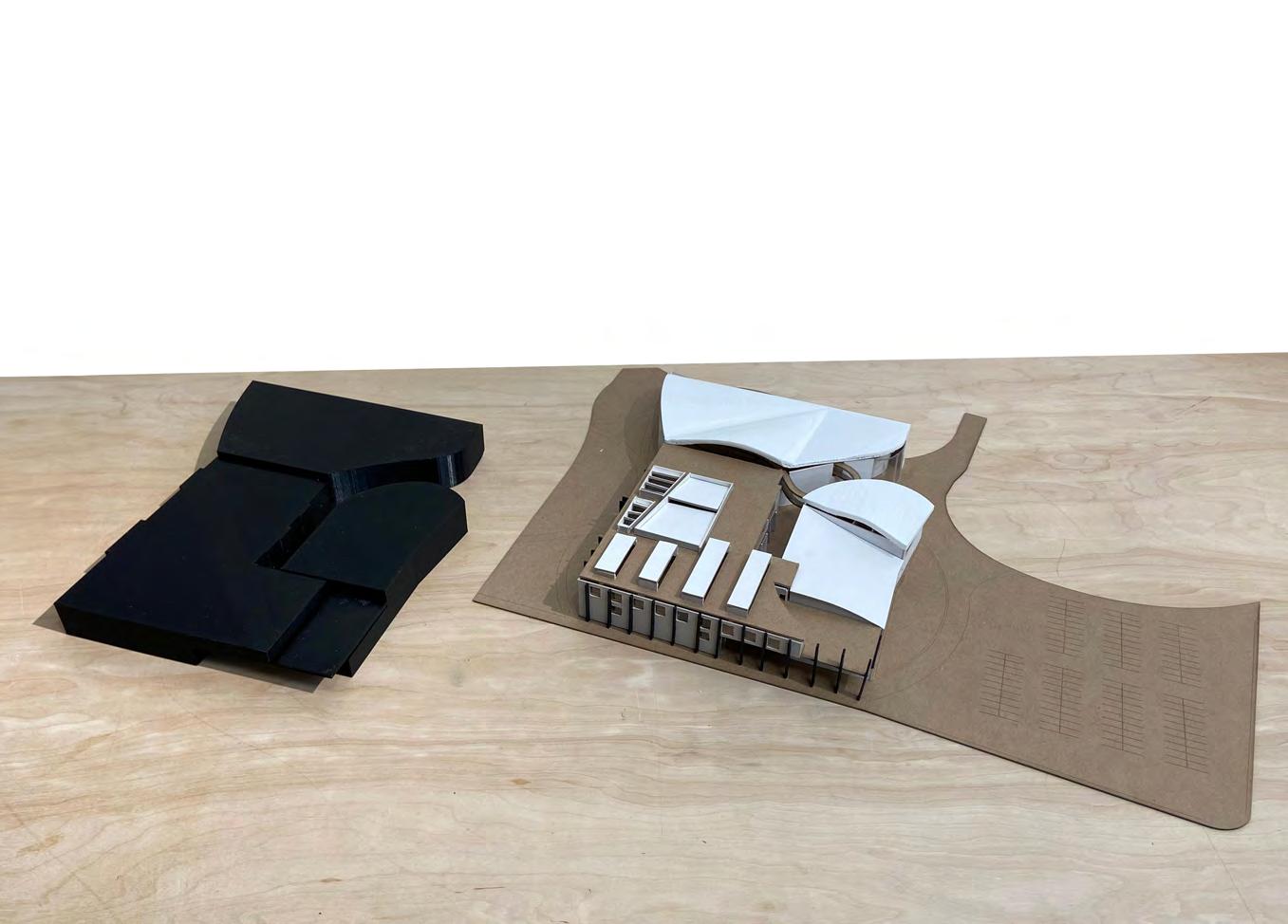

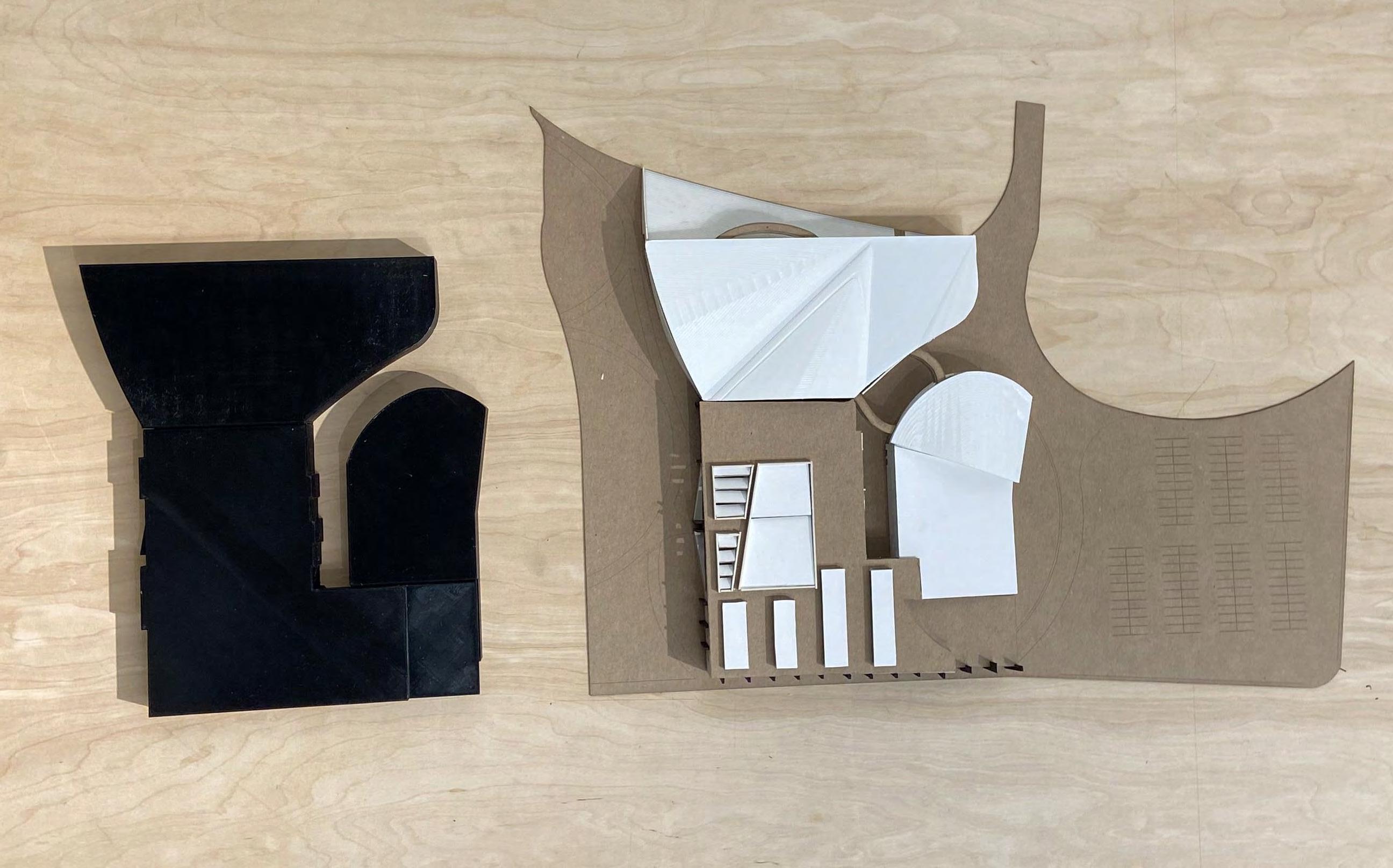

Massing v. Architectural Model : 1/32” = 1’-0”

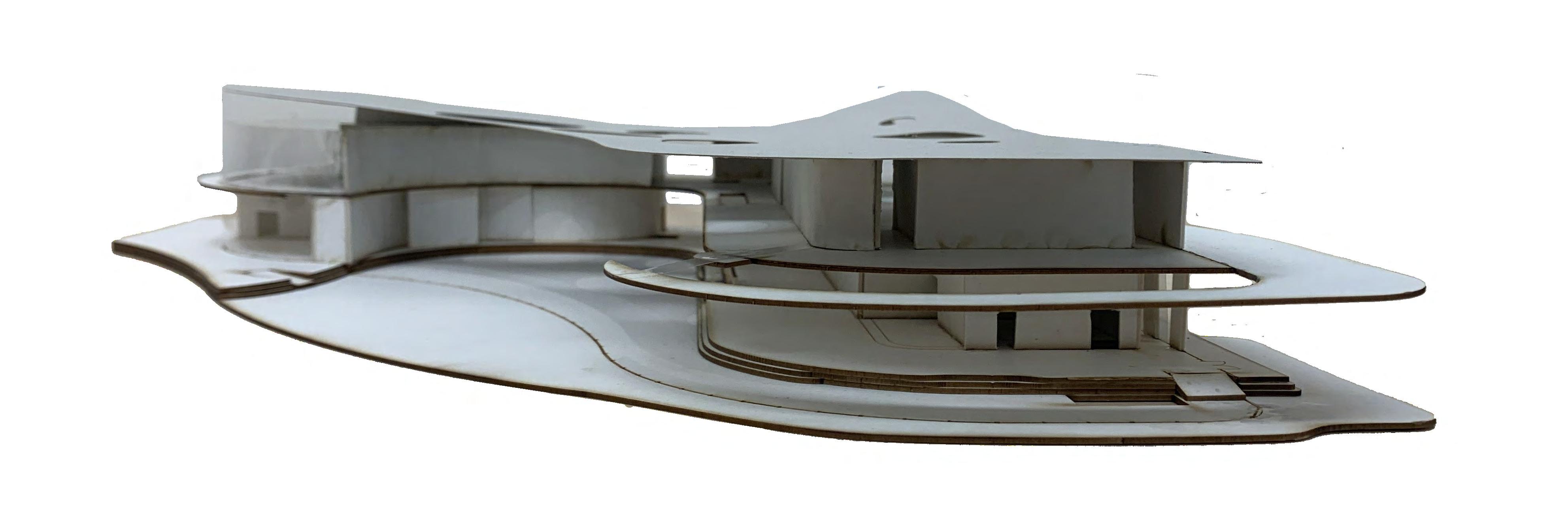

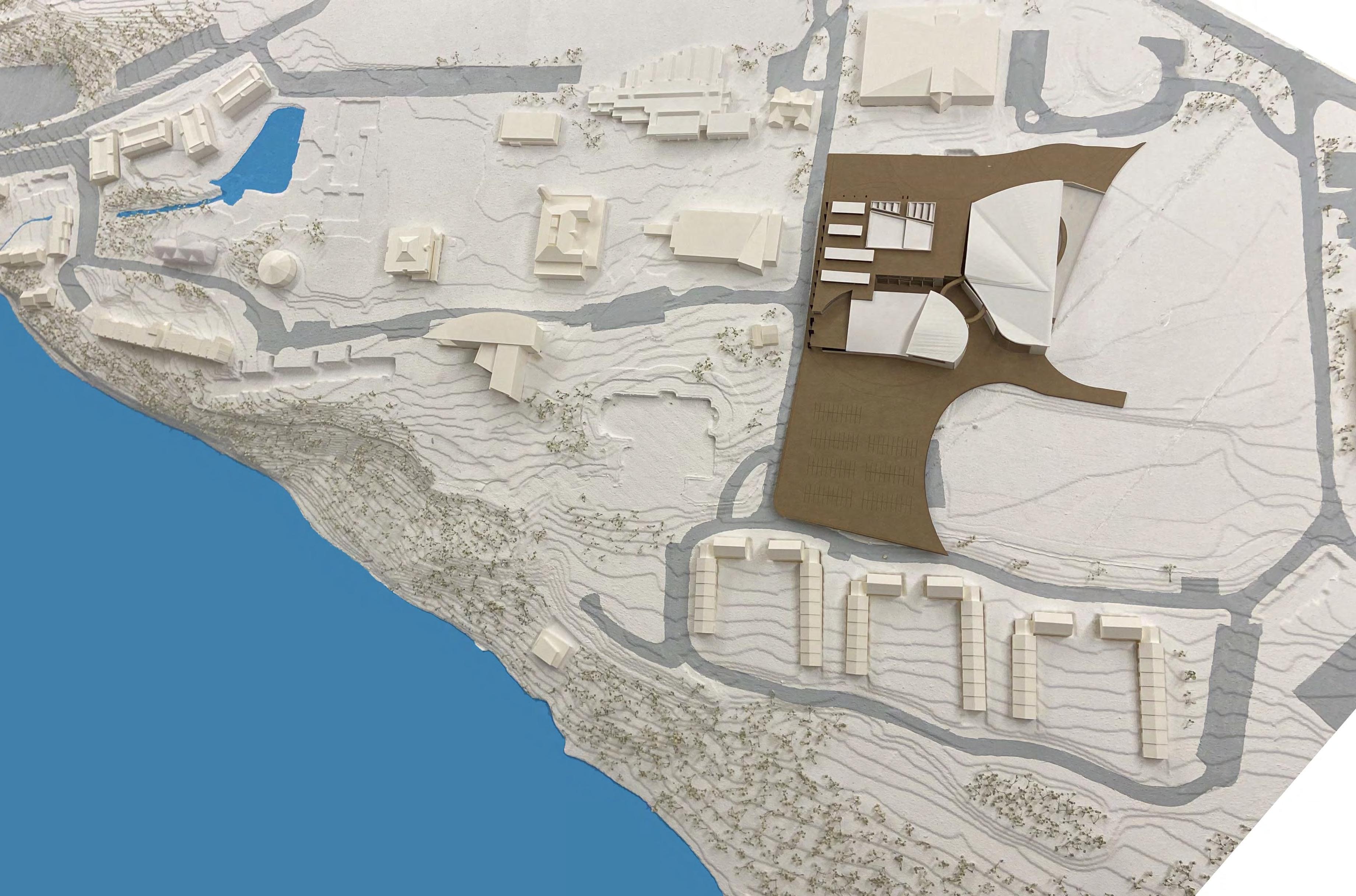

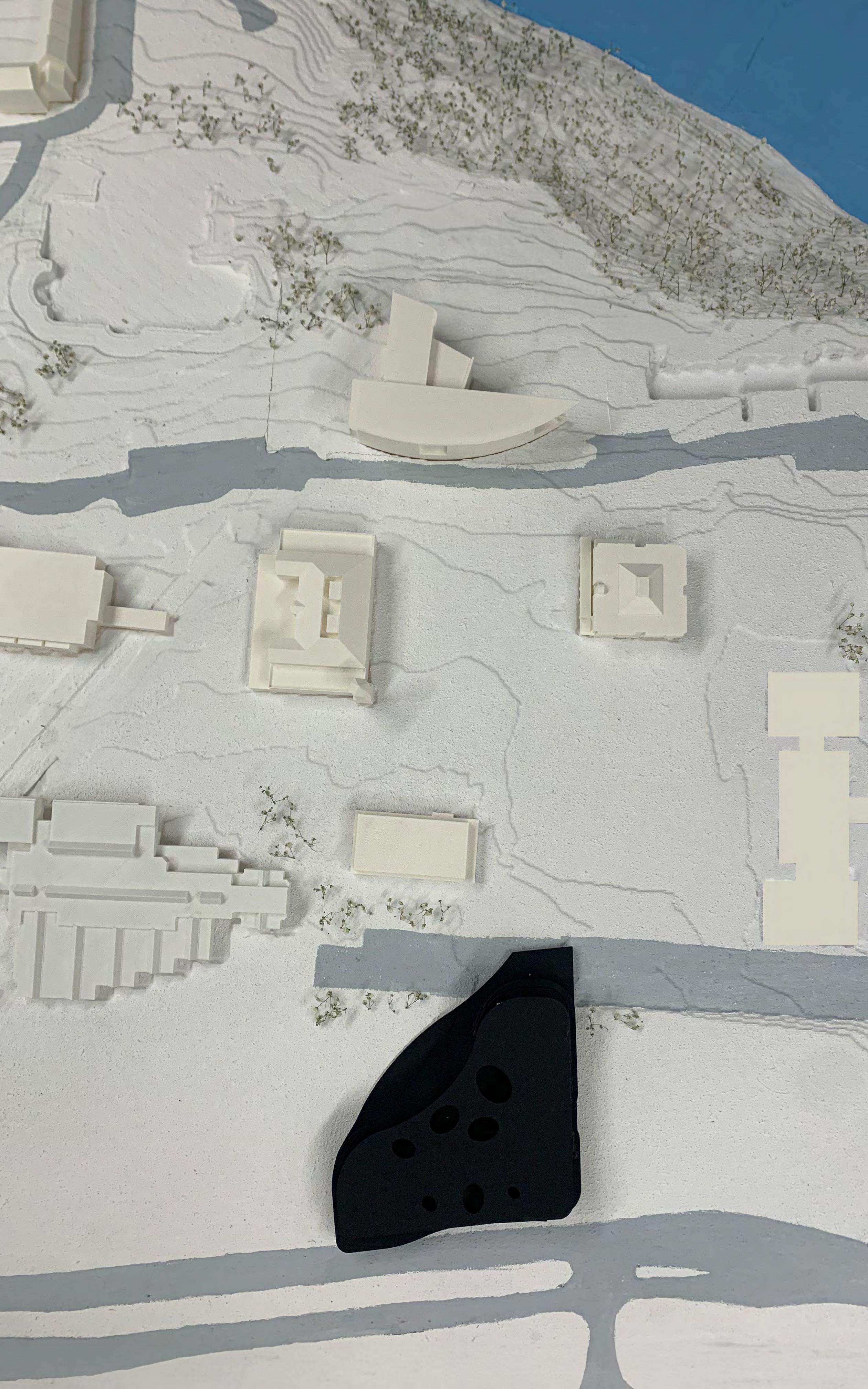

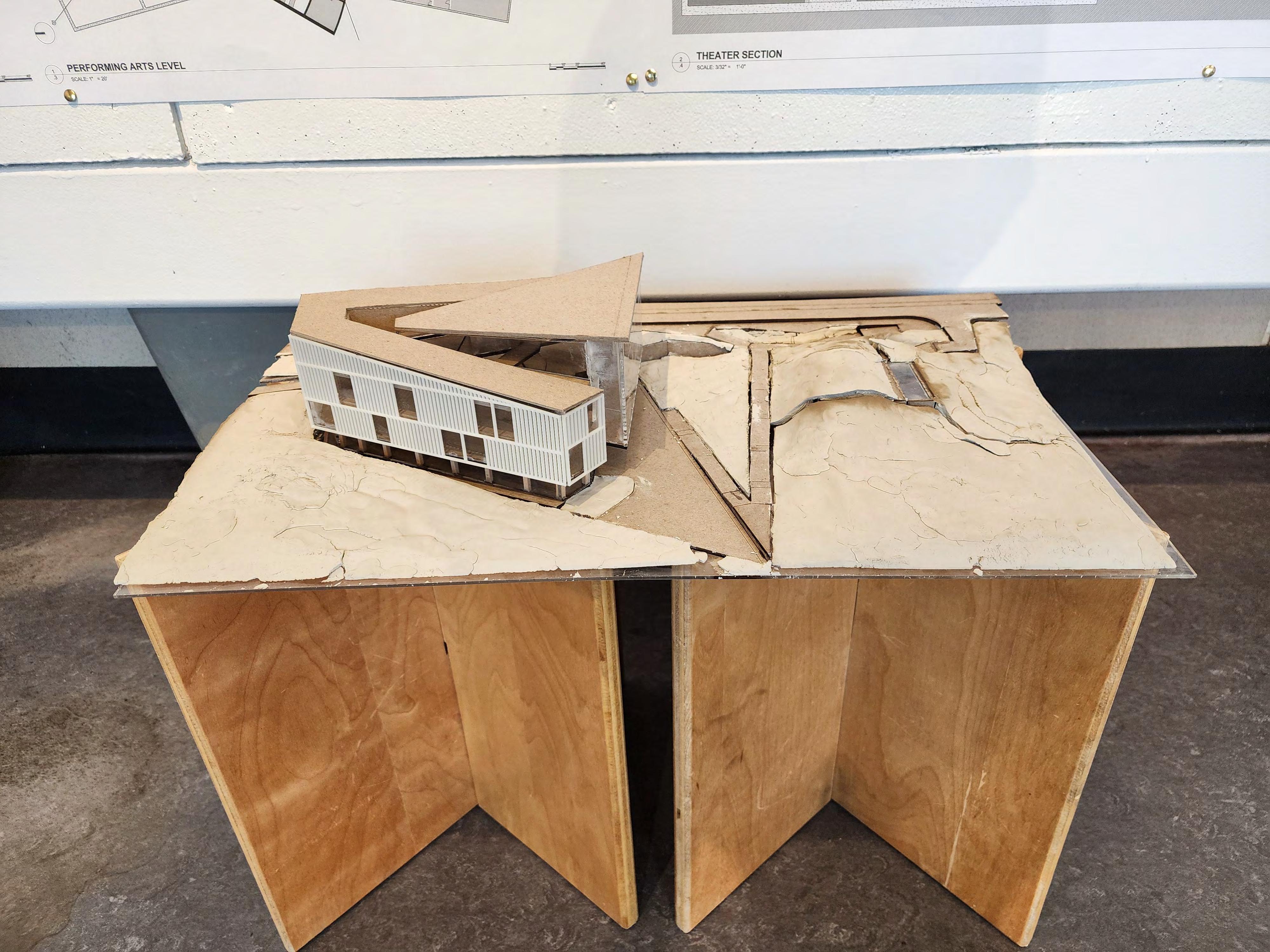

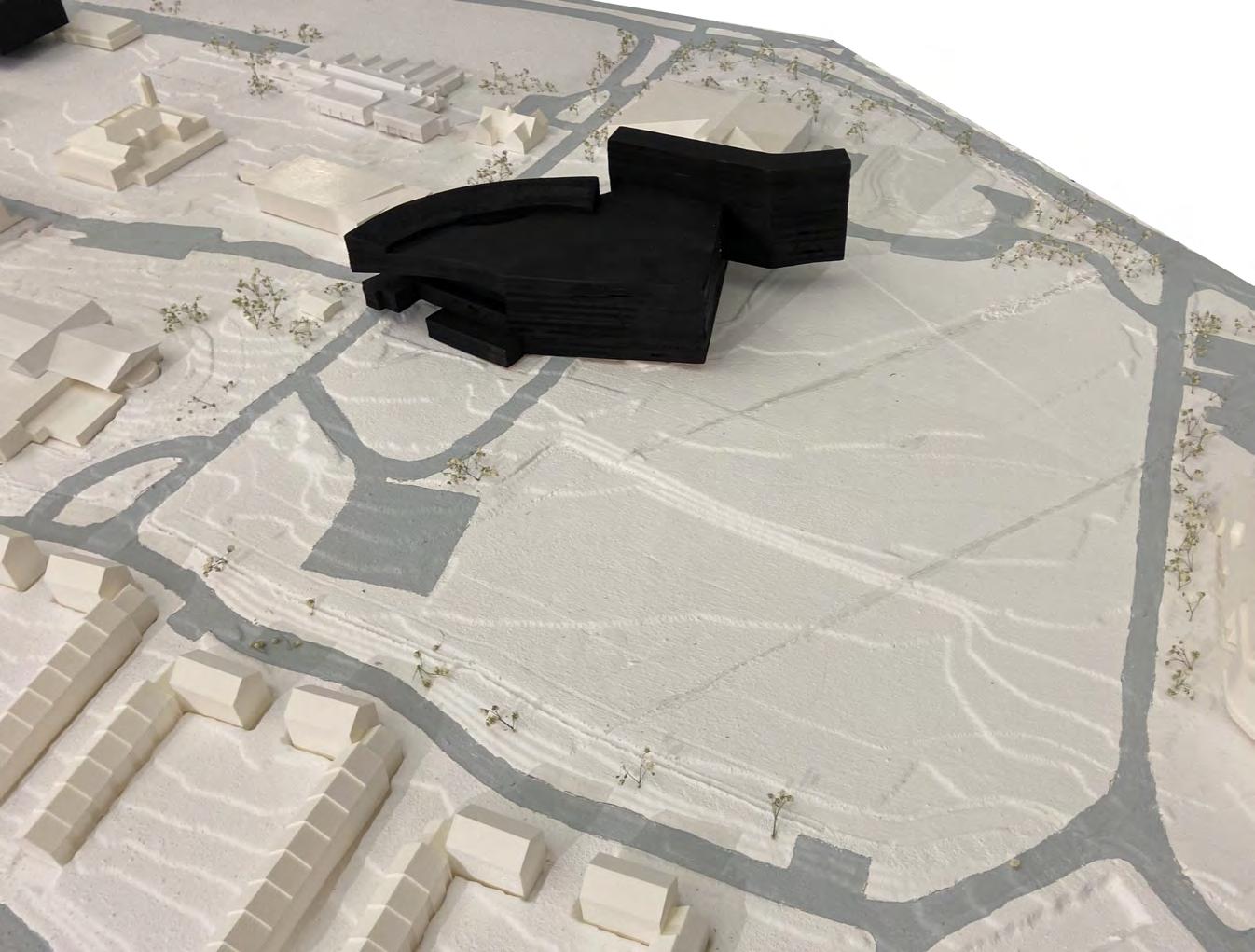

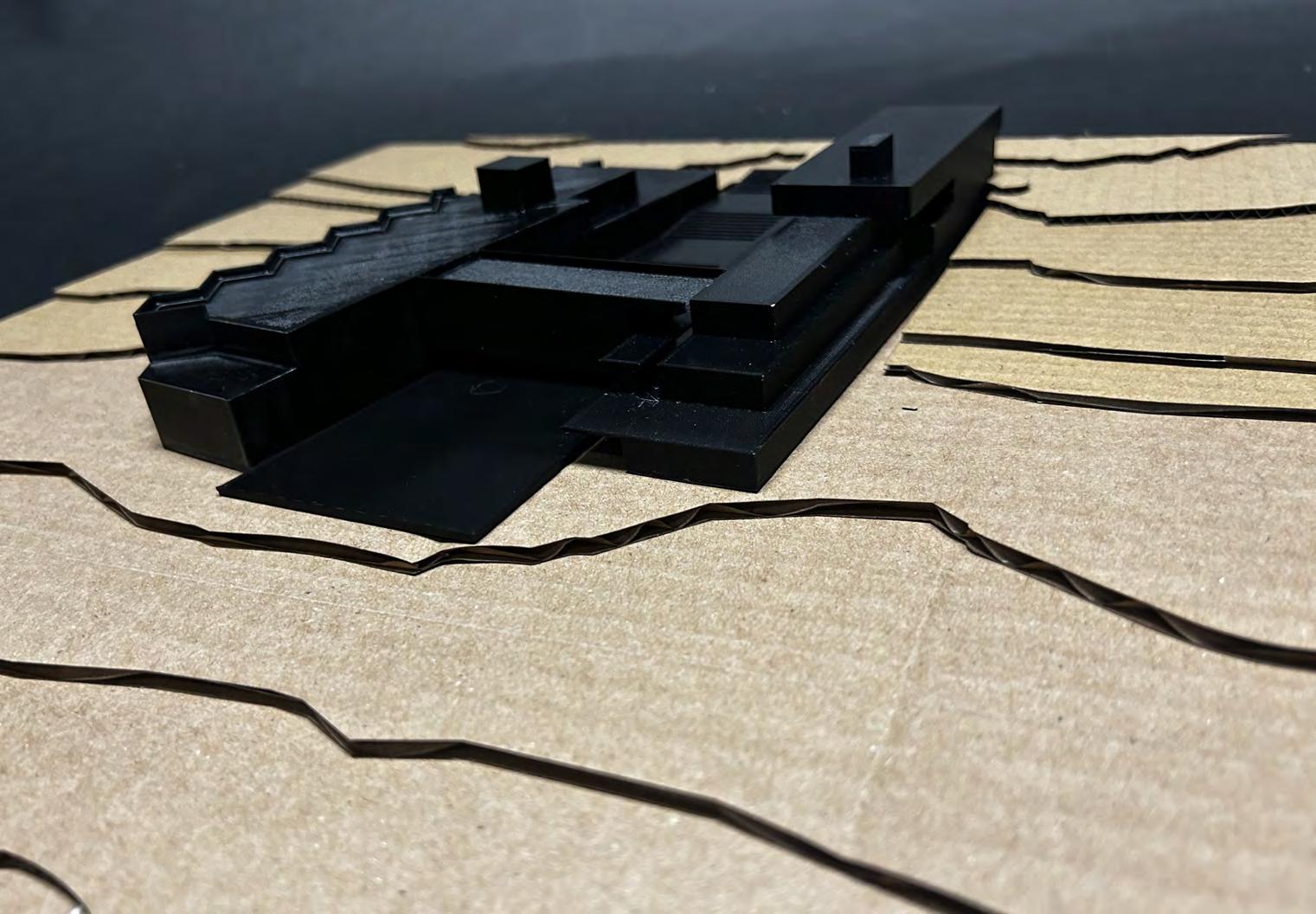

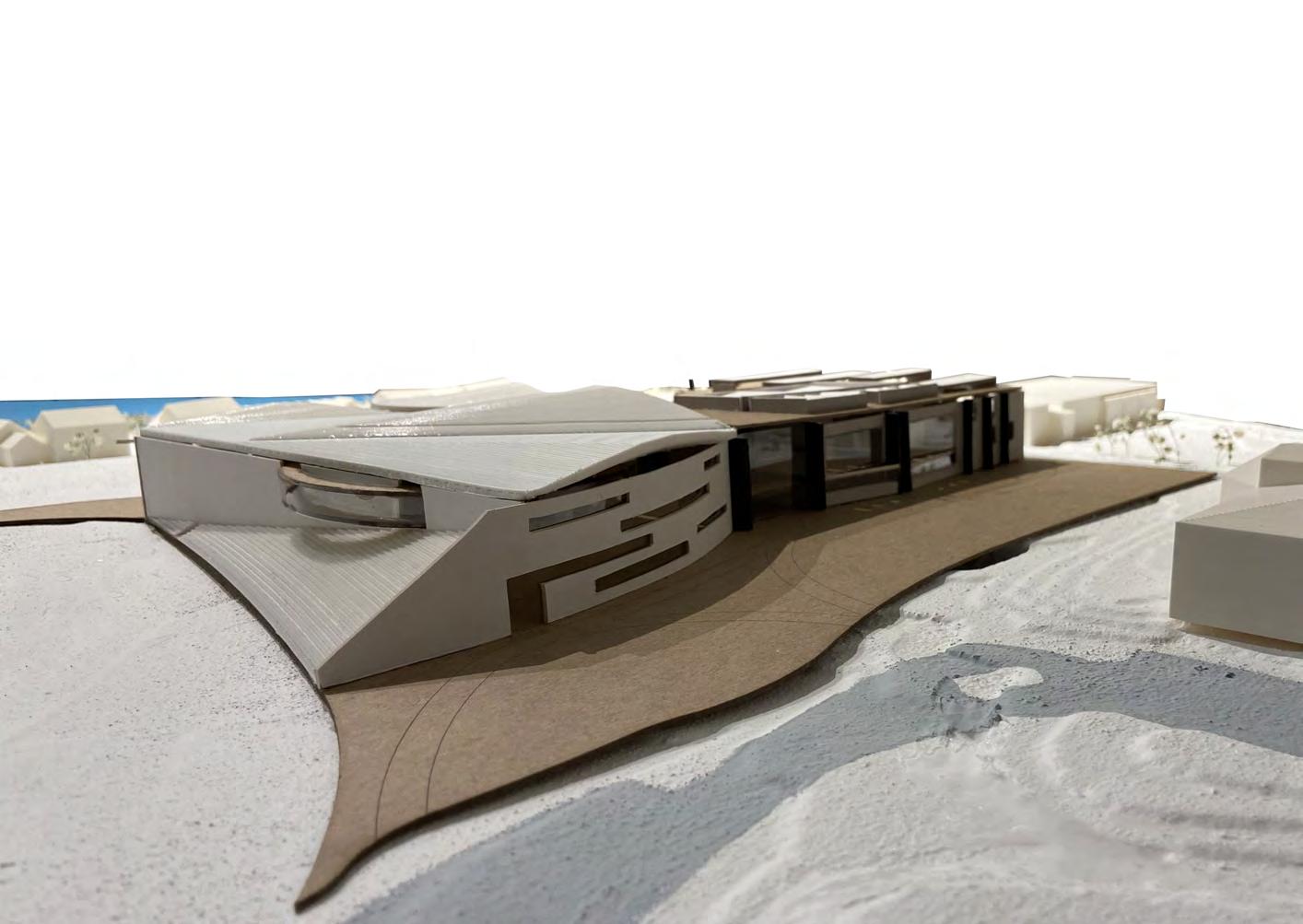

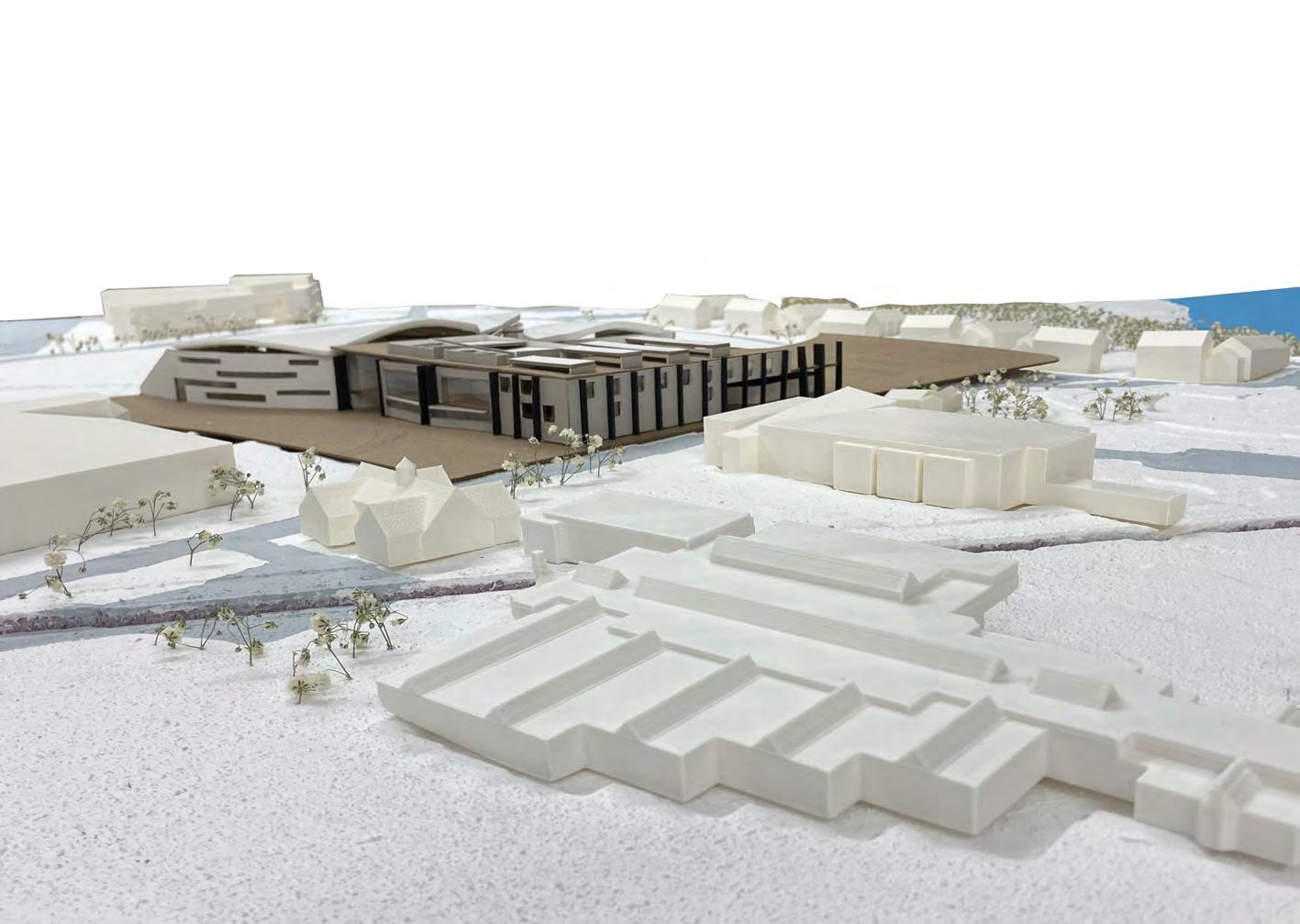

Architectural Model in Roger Williams University Campus Site : 1/32” = 1’-0”

Architectural Model in Roger Williams University Campus Site : 1/32” = 1’-0”

Architectural Model in Roger Williams University Campus Site : 1/32” = 1’-0”

RWU CAMPUS CENTER NIKKY TRIFERO

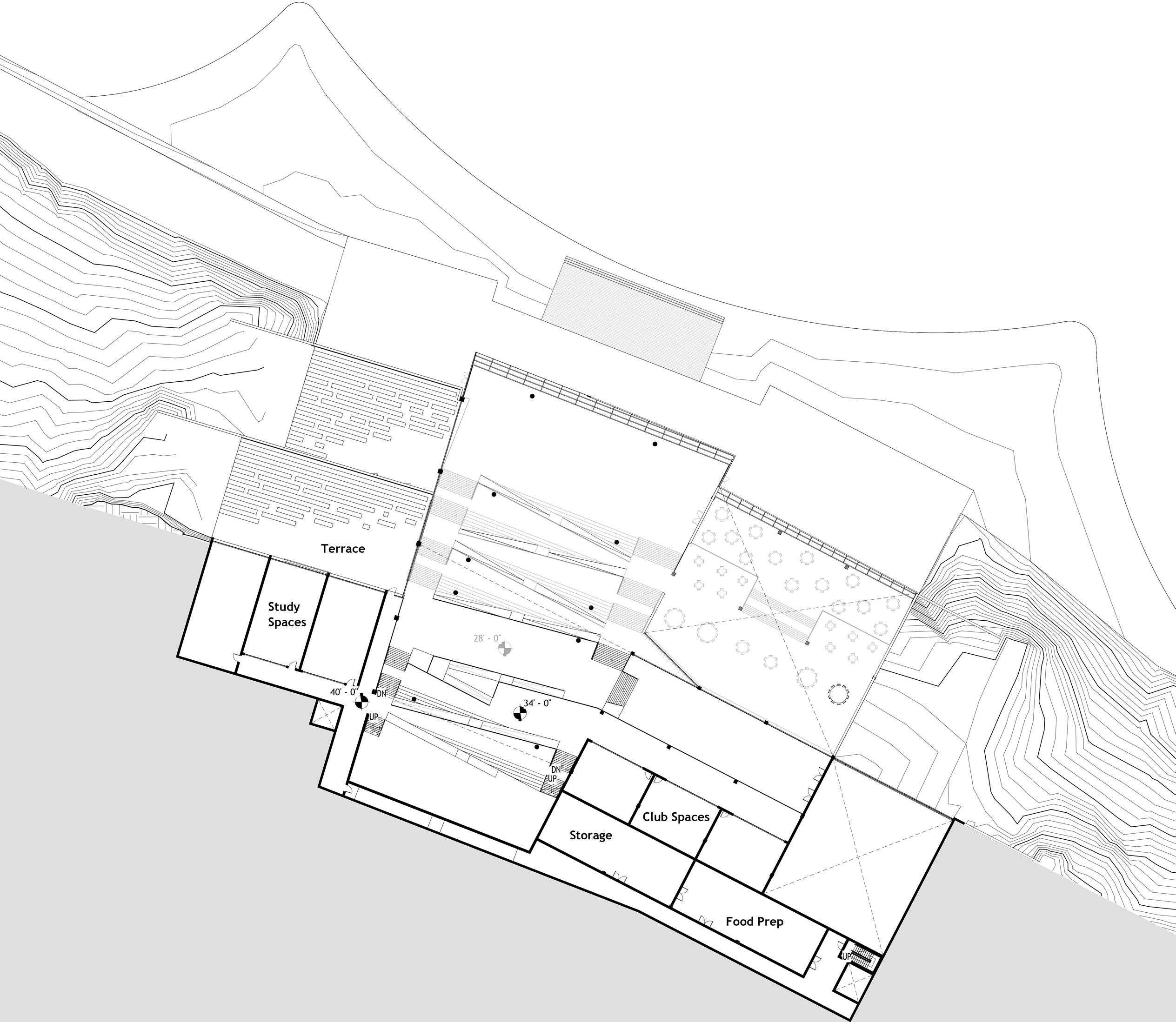

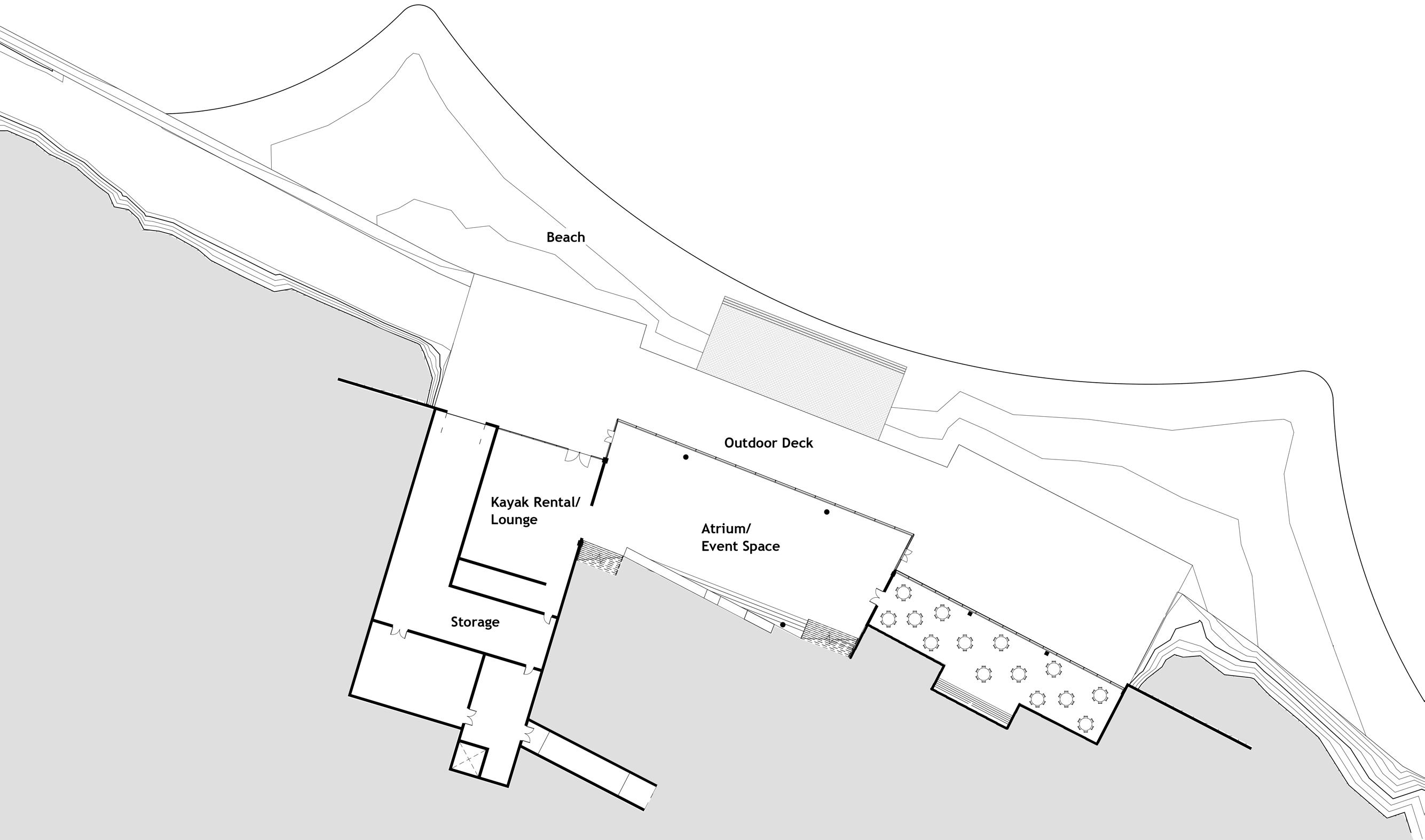

FIRST FLOOR

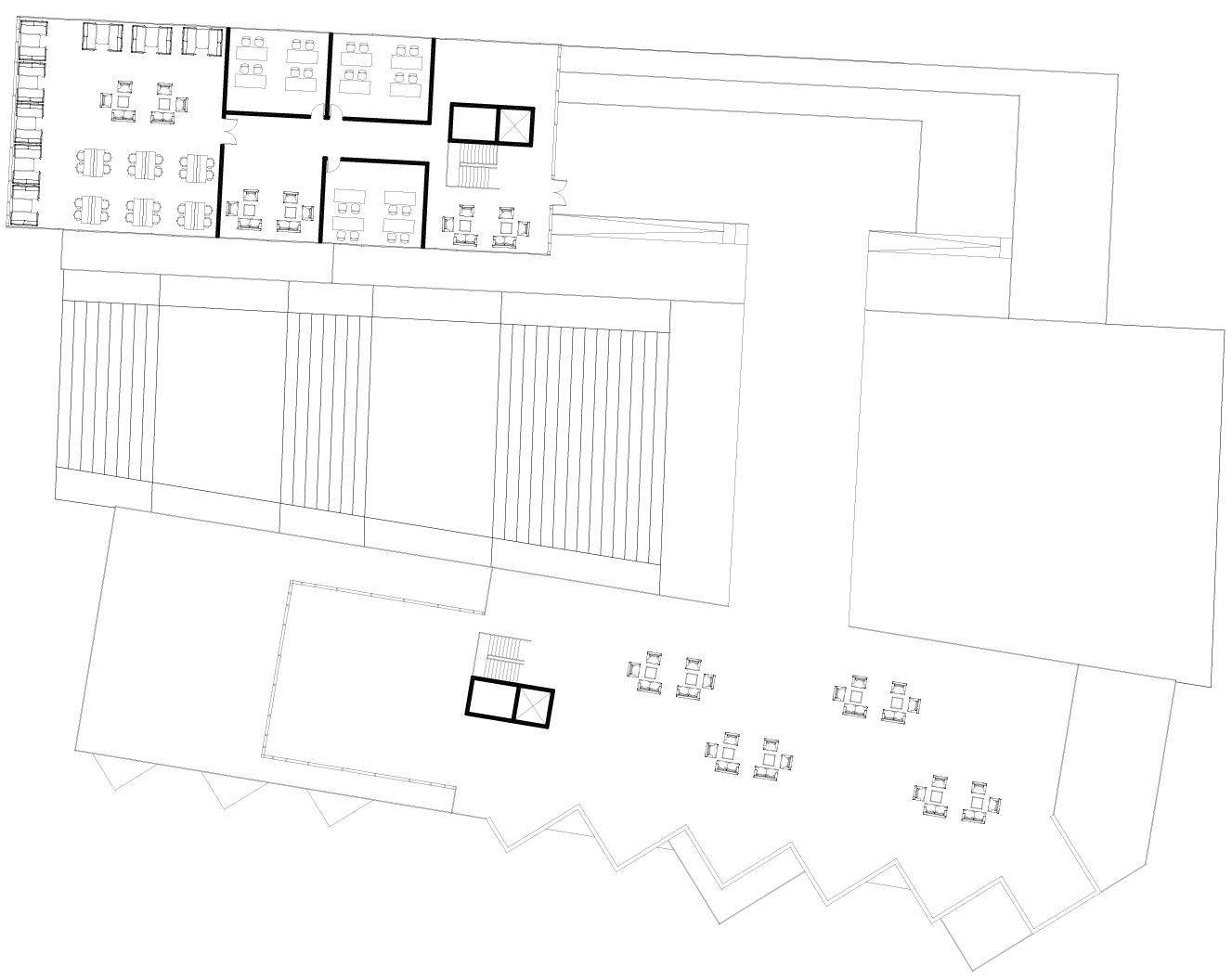

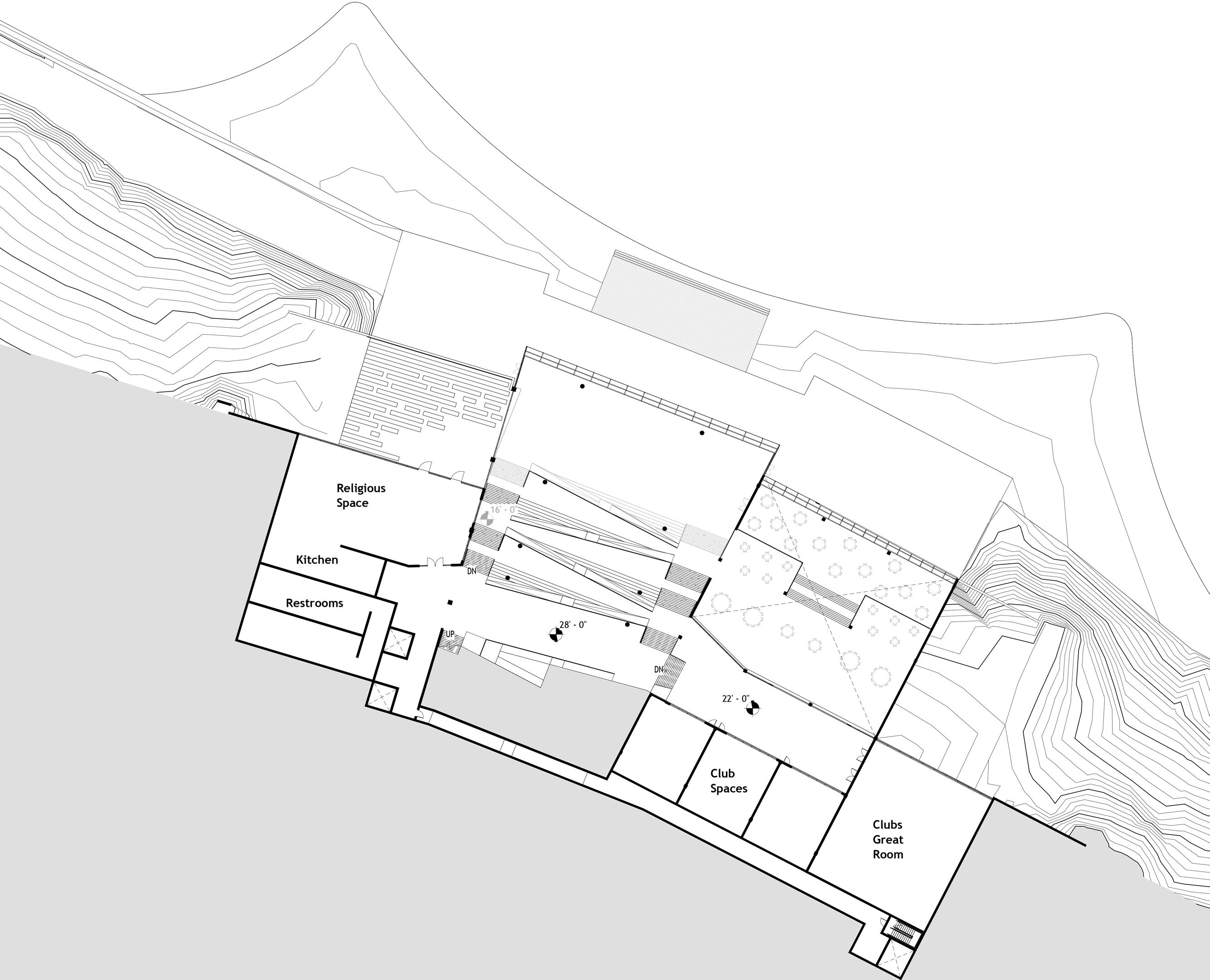

SECOND FLOOR

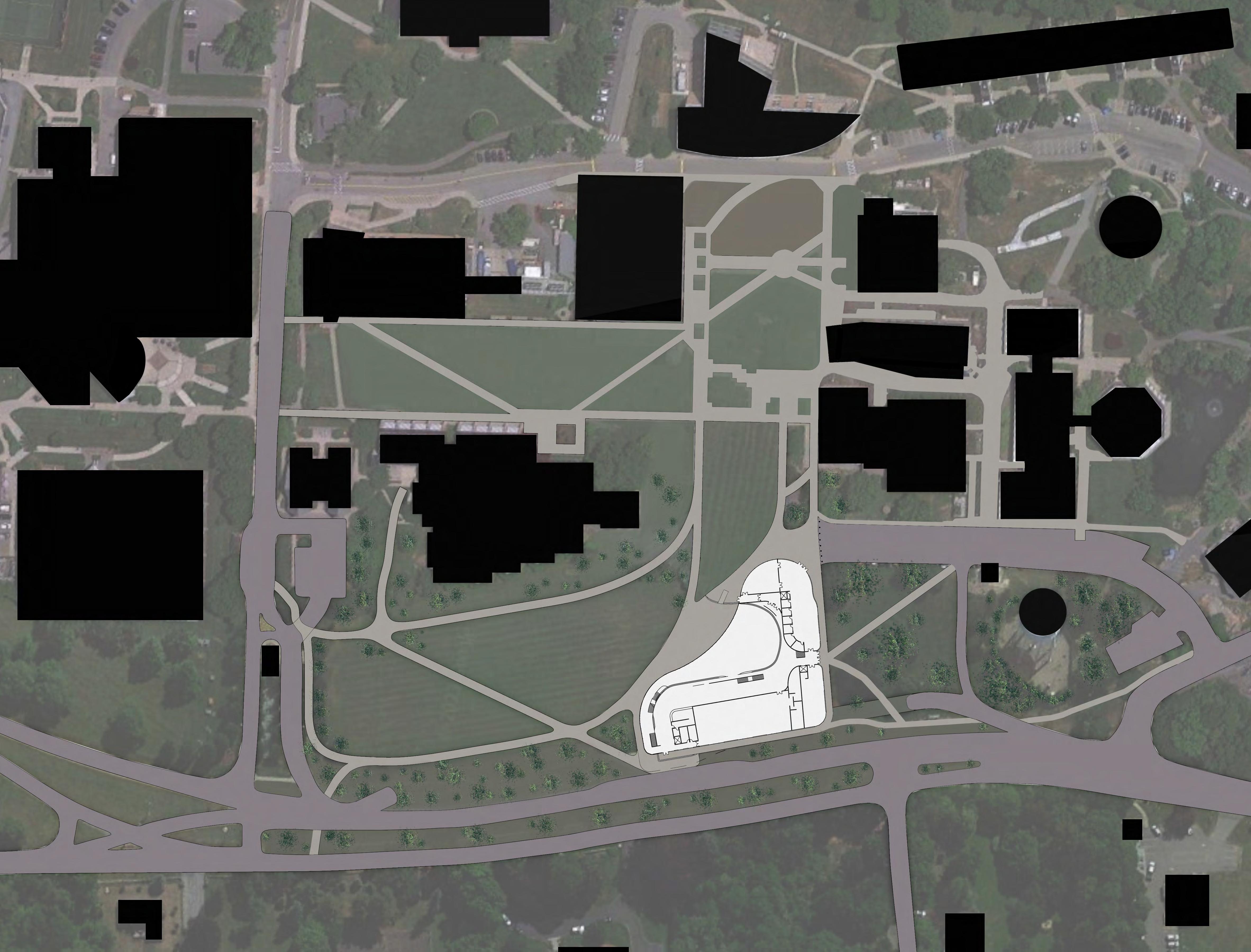

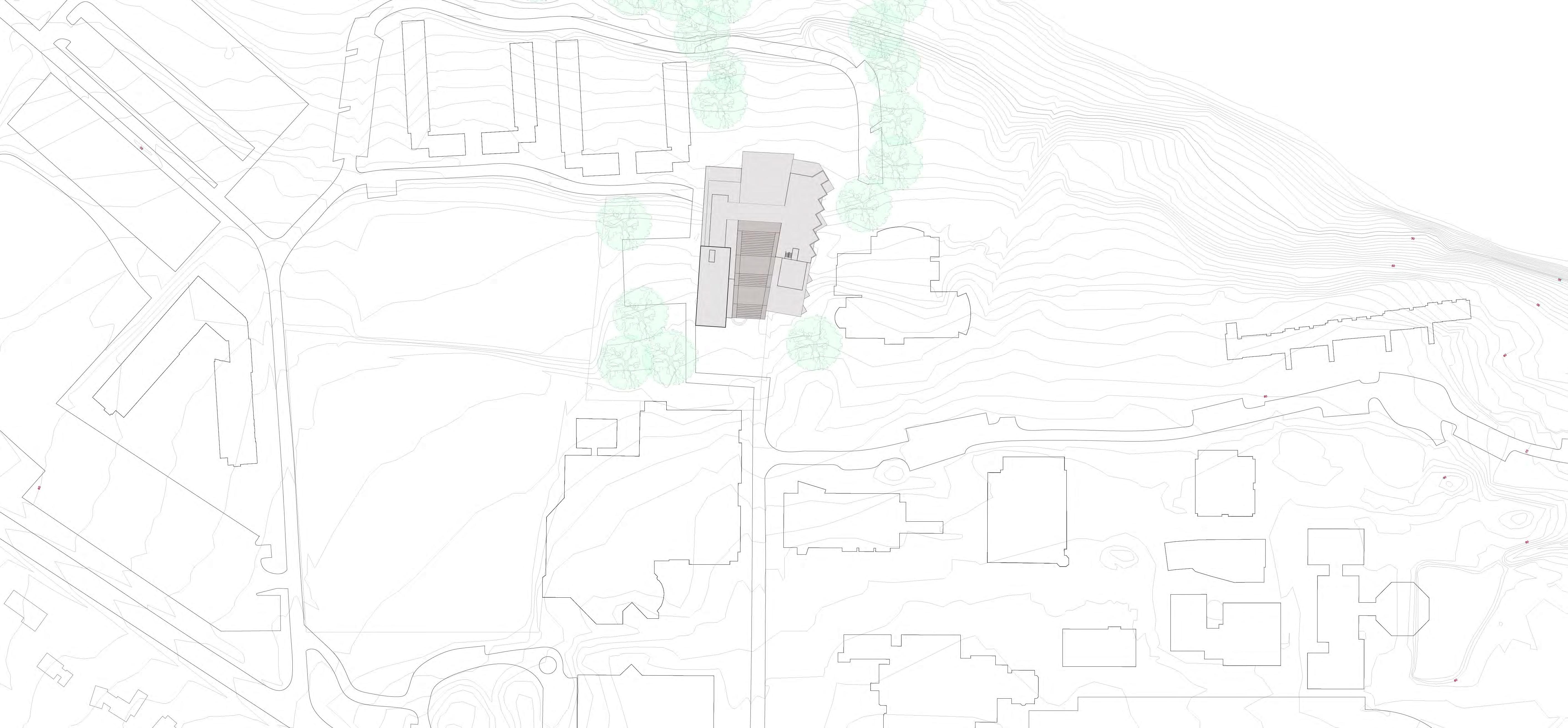

SITE PLAN

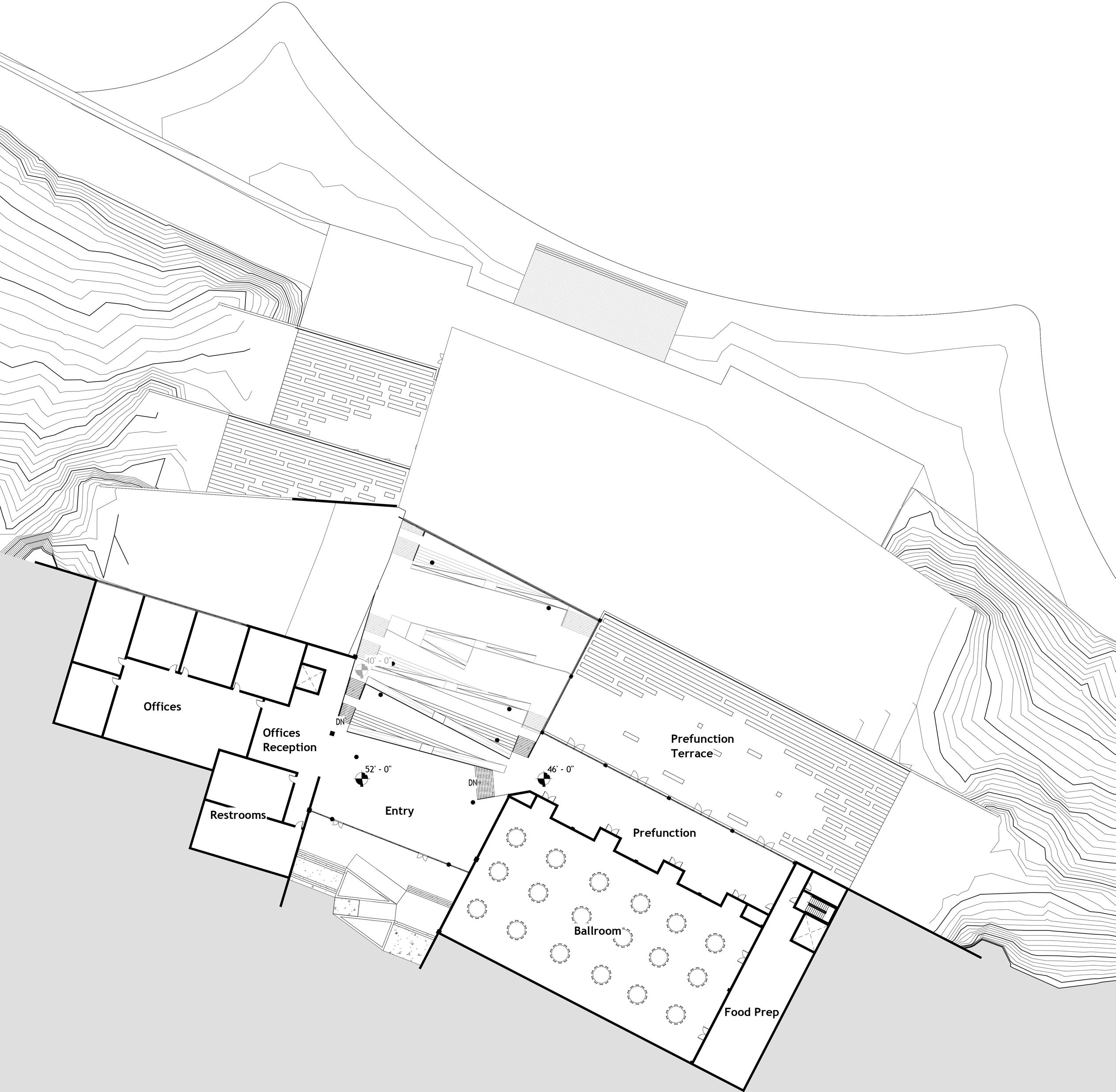

THIRD FLOOR

FOURTH FLOOR

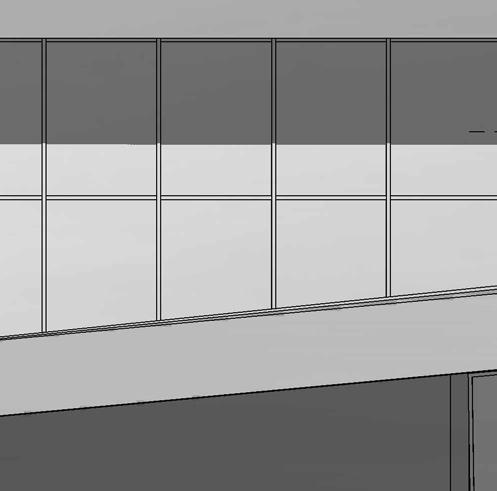

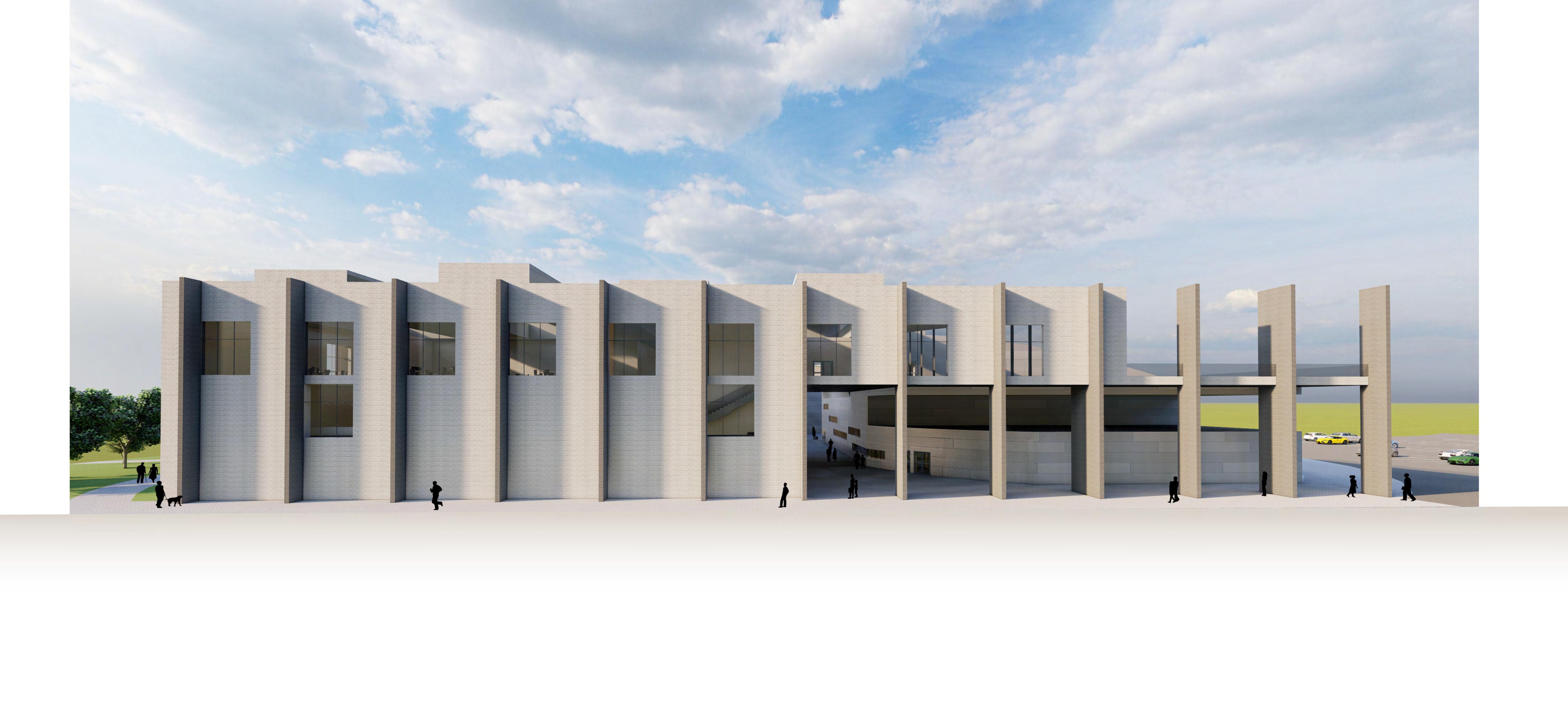

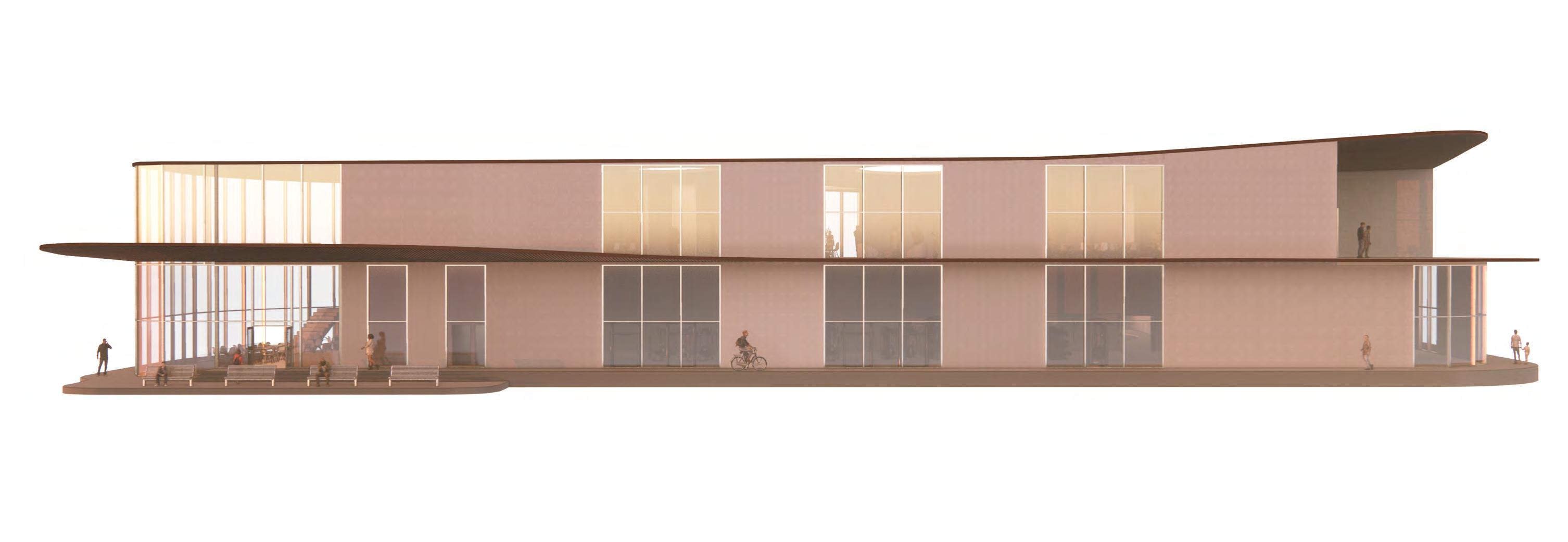

ELEVATION

ELEVATION

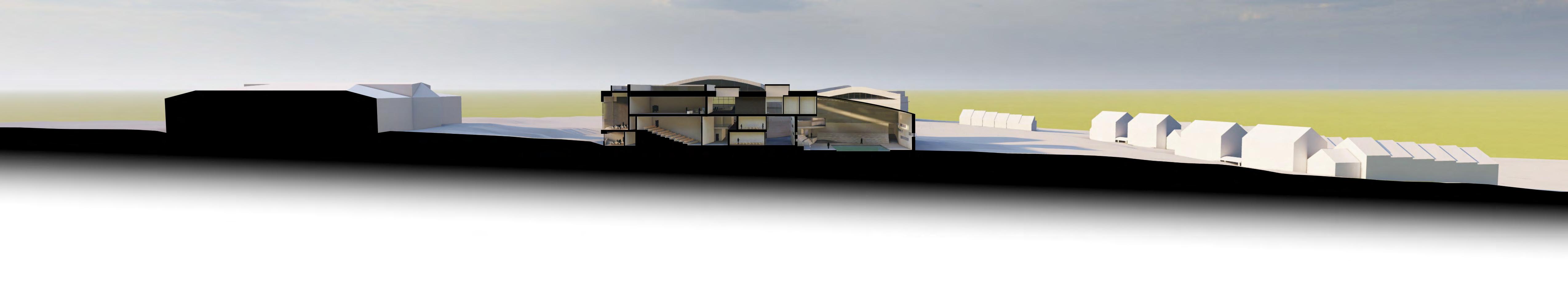

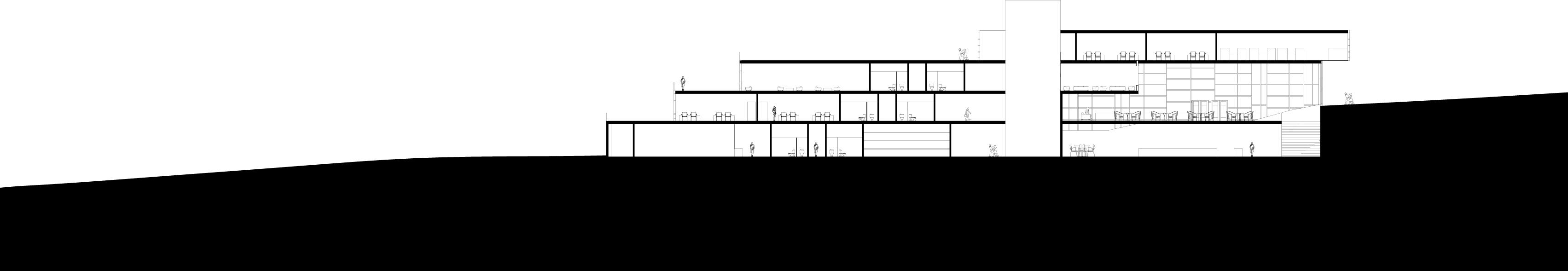

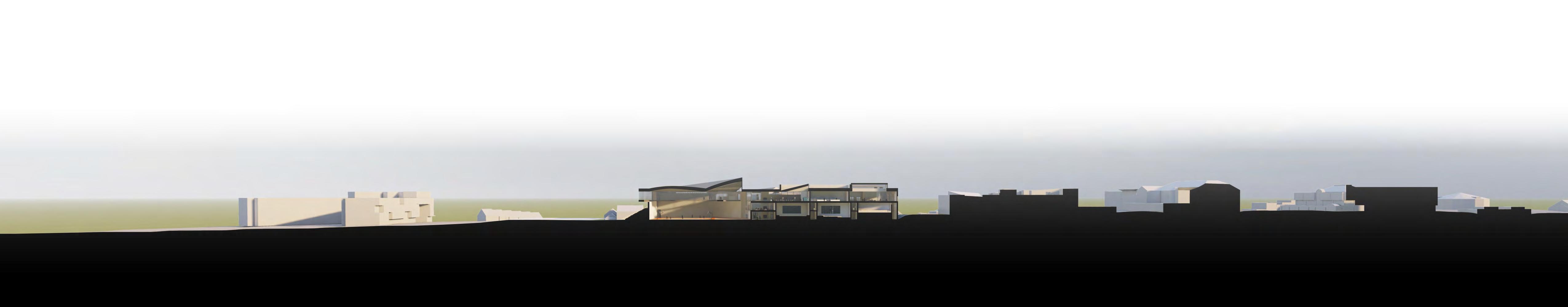

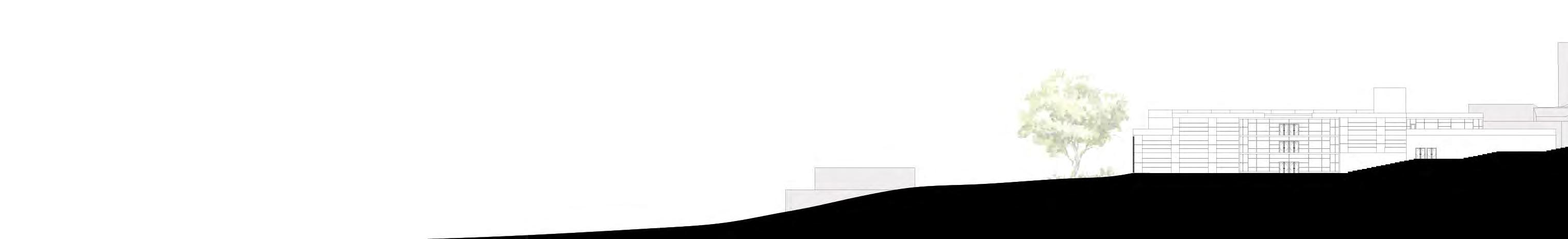

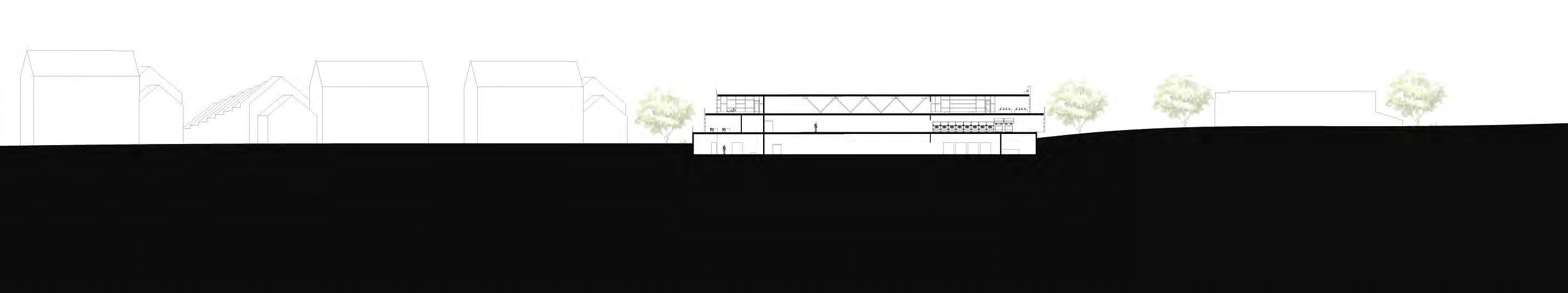

SITE SECTION

SITE SECTION

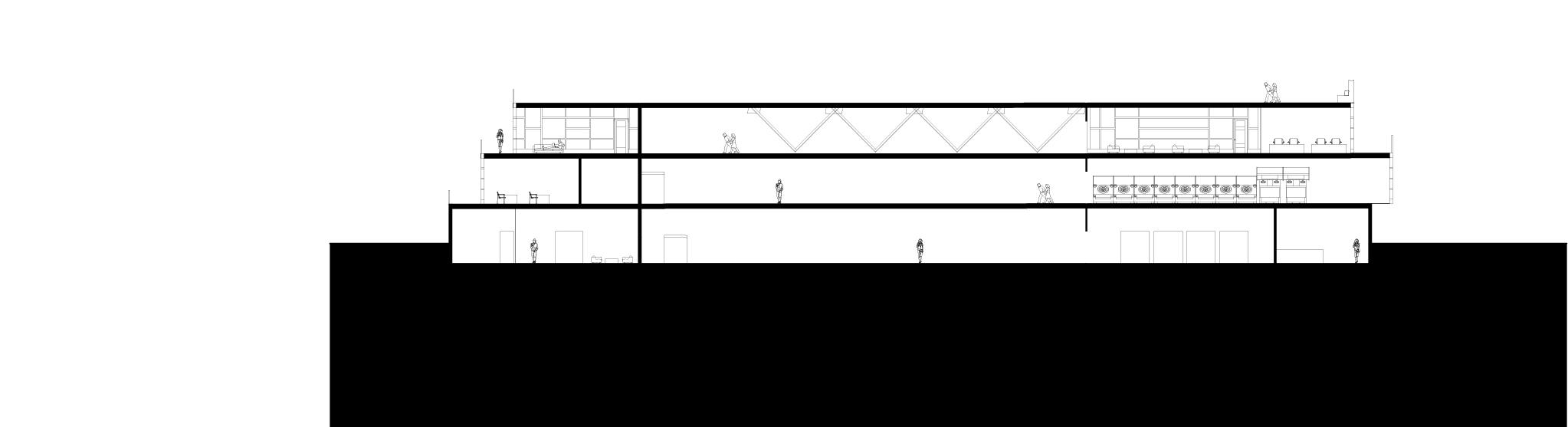

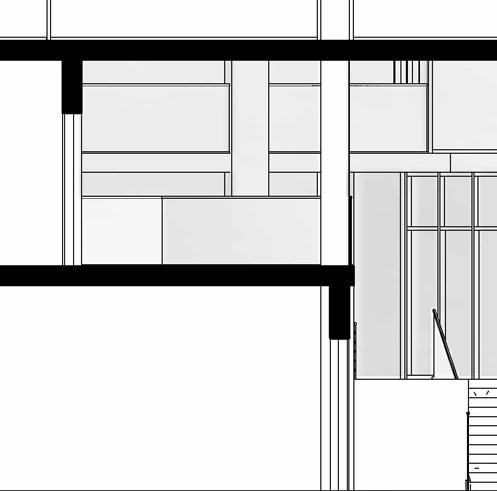

BUILDING SECTION

BUILDING SECTION

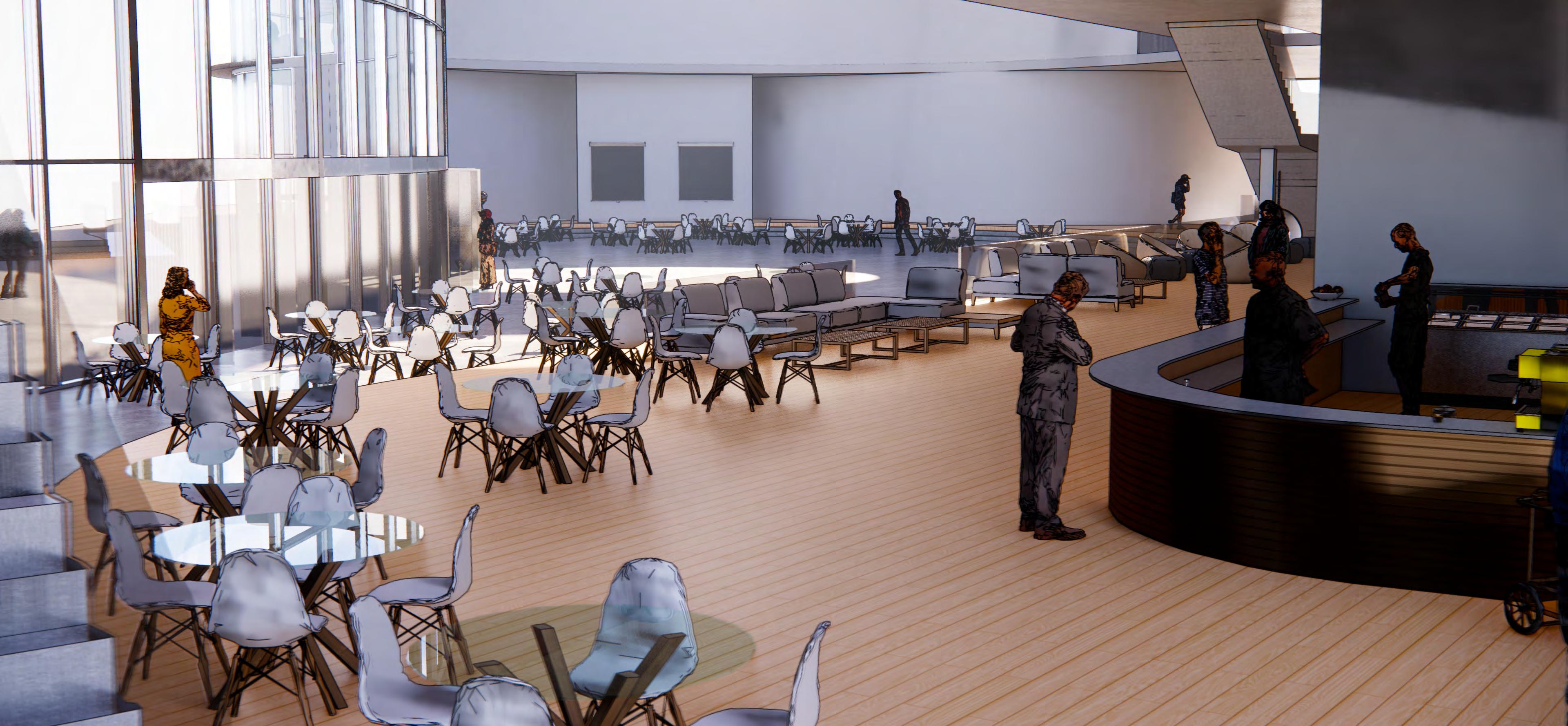

CAFE PERSPECTIVE

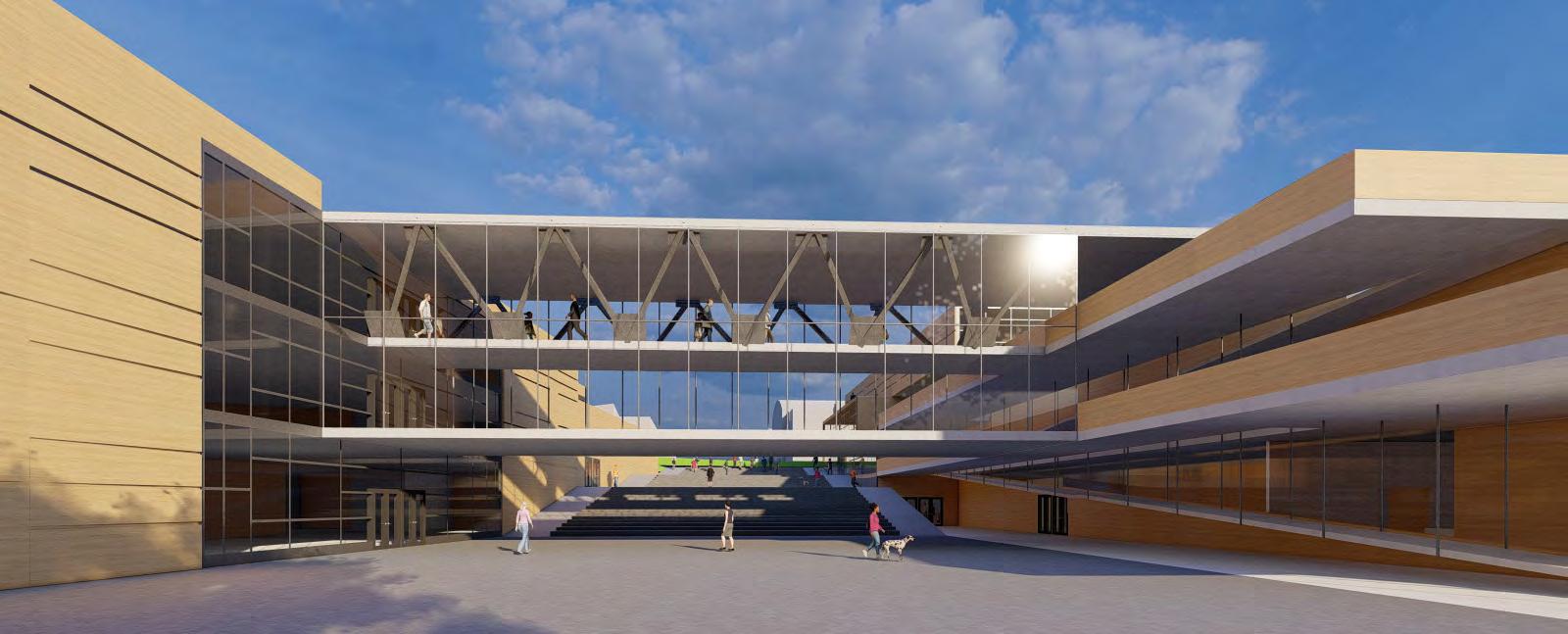

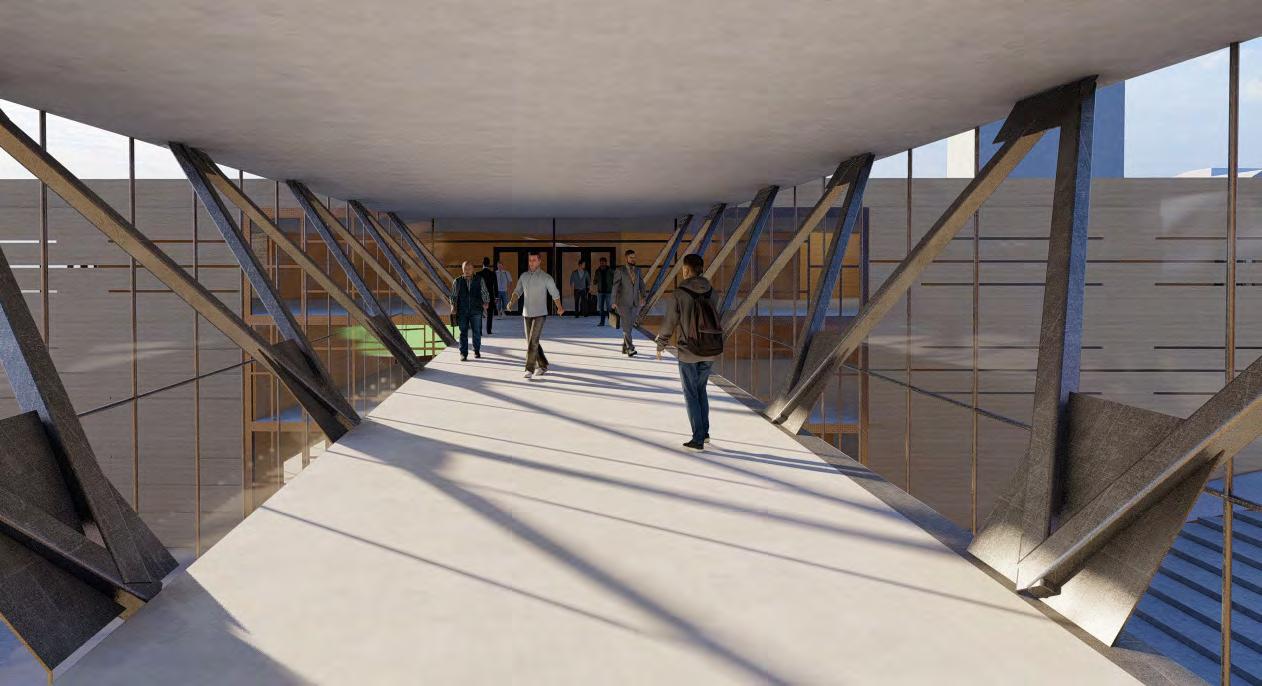

BRIDGE PERSPECTIVE

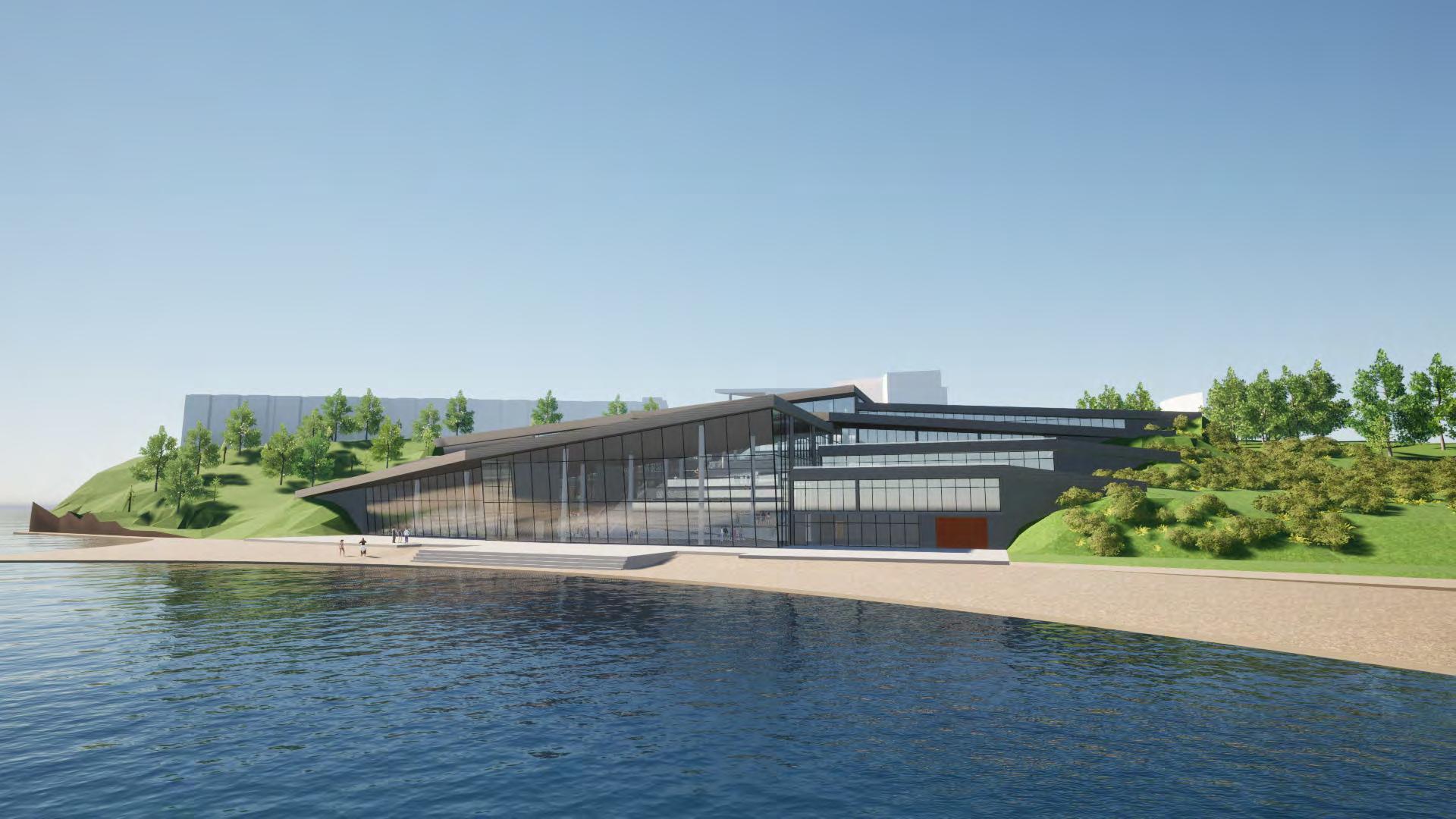

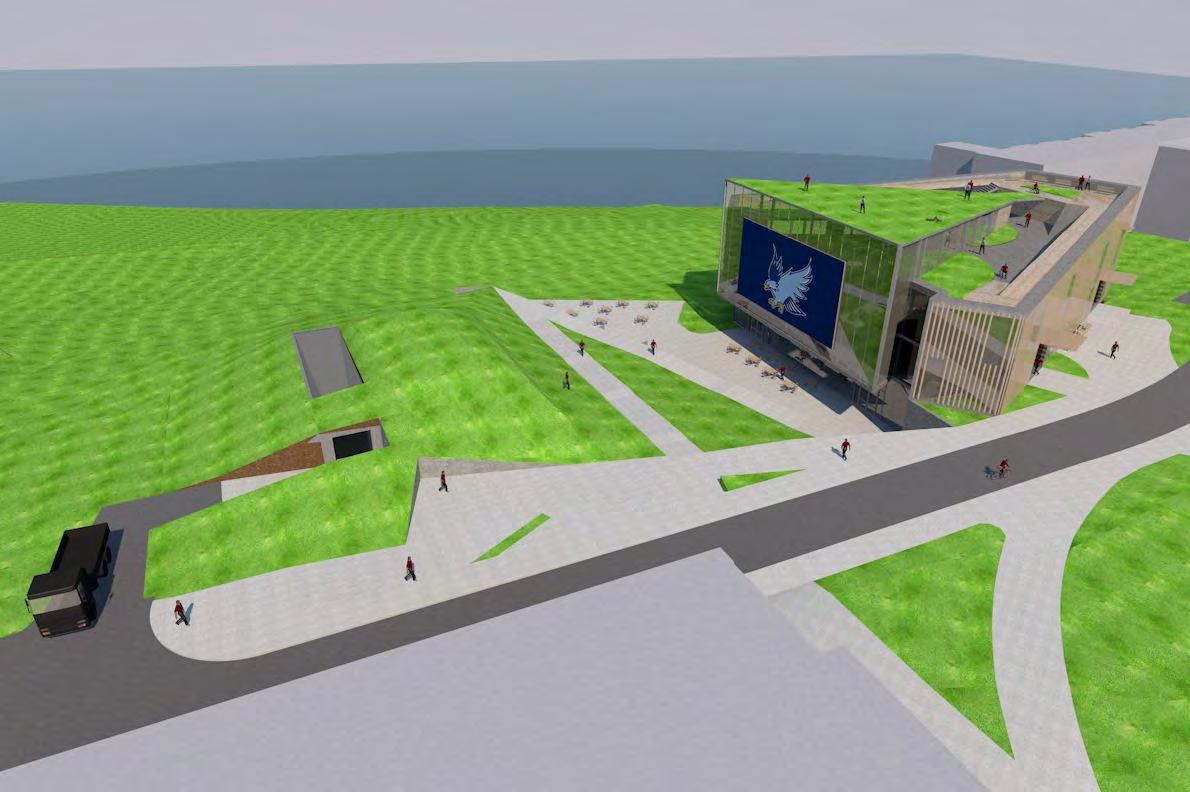

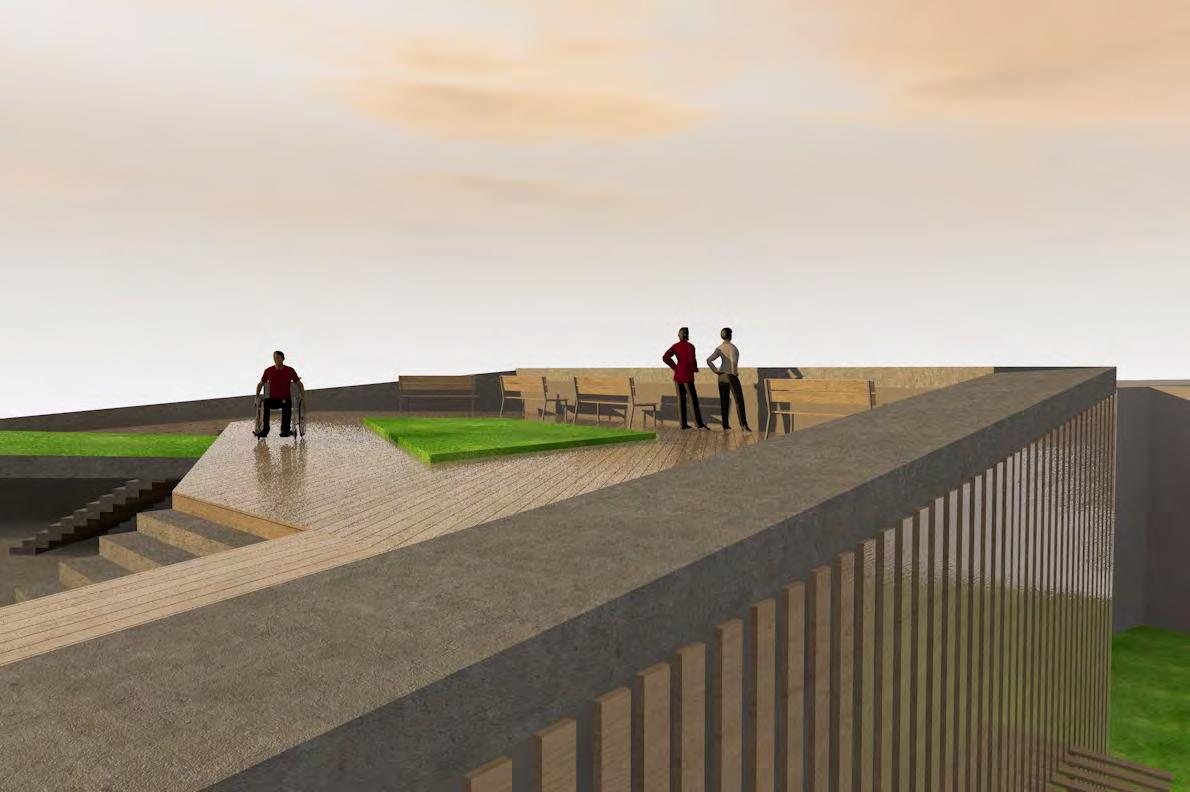

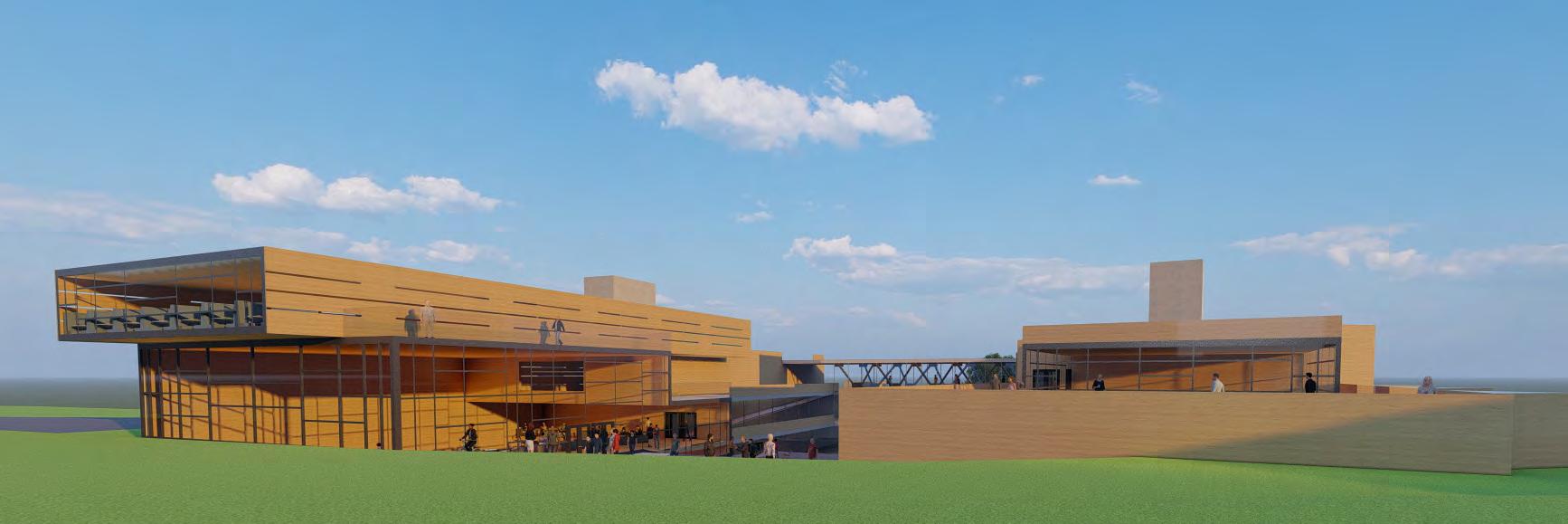

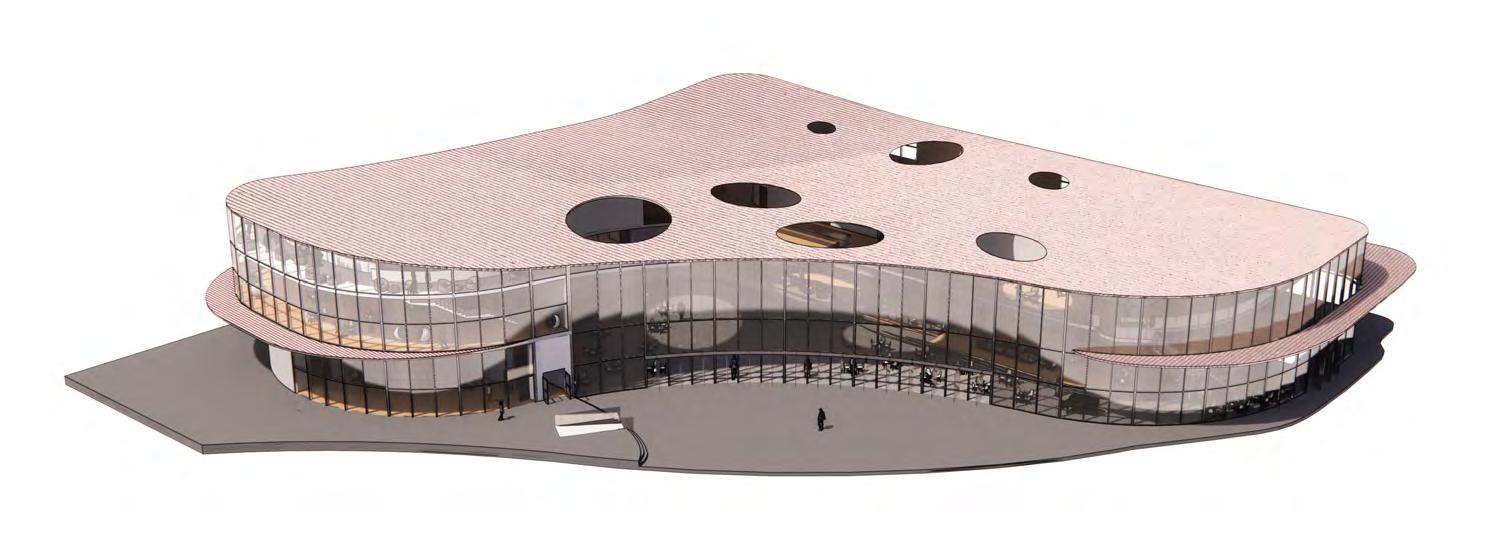

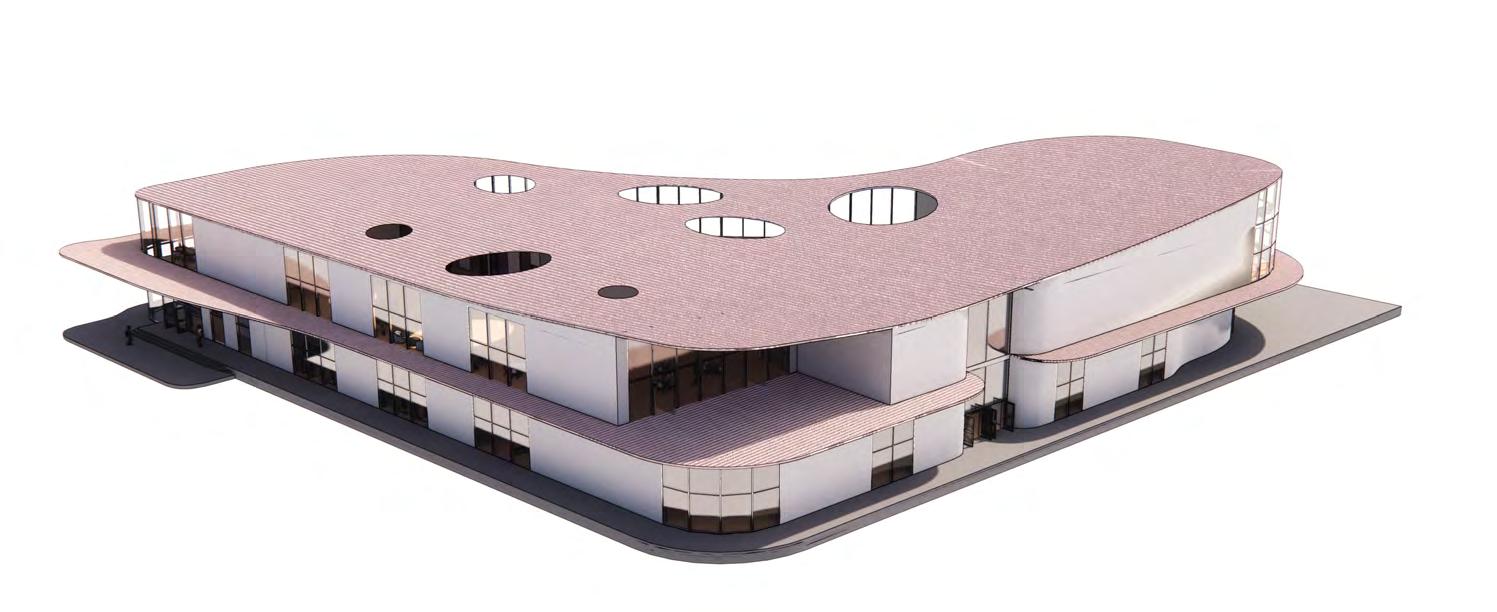

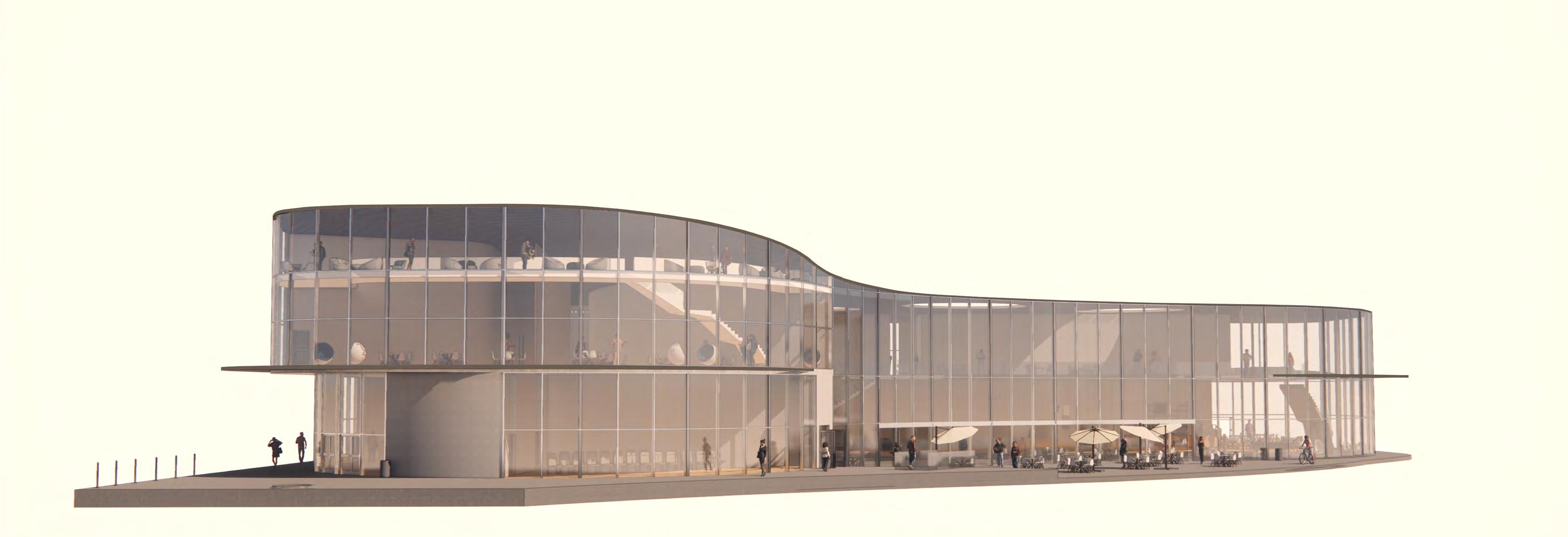

EXTERIOR PERSPECTIVE

EXTERIOR PERSPECTIVE

RWU STUDENT CENTER ZACK LAPLANT ARCH.515.04 FALL 2023

GSEducationalVersion

ROGER WILLIAMS UNIVERSITY STUDENT CENTER

ZACK LAPLANT Roger Williams University currently lacks a dedicated space for clubs and organizations to meet, and no central space on campus for the performing arts. The new RWU Student Center changes that. Boasting 11 dedicated club meeting rooms, a dedicated music wing, ample public space, 2 new cafes, a 1,032-seat theater, and a new outdoor gathering space, the new Student Center will enable students to create, connect, and grow. The new building will extend the quad, connect the campus to Mount Hope Bay, and bring students together.

3RD LEVEL/ROOF

2ND CLUB LEVEL

1ST CLUB LEVEL

PLAZA LEVEL

PERFORMING ARTS

1 .1

2 .1

3 .1 GSEducationalVersion

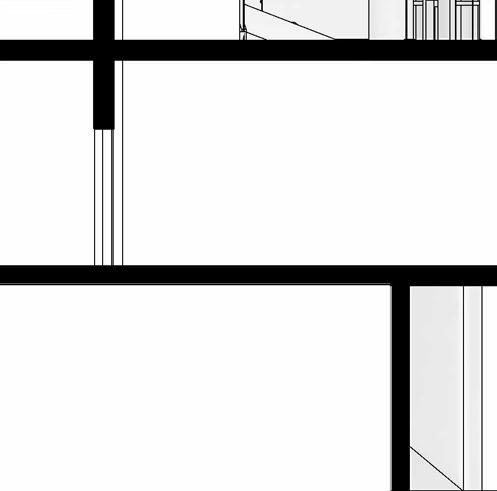

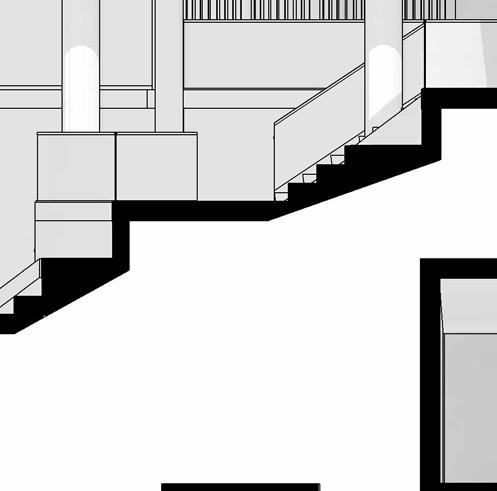

BUILDING SECTION A SCALE: 3/32" =

1'-0"

EAST-FACING ELEVATION SCALE: 3/32" =

1'-0"

WEST-FACING ELEVATION SCALE: 3/32" =

1'-0"

0

8'

16'

24'

5 .1

VIEW LOOKING NORTH

4 .1

0

8'

16'

24'

0

8'

16'

24'

QUAD EXTENSION

4 .2

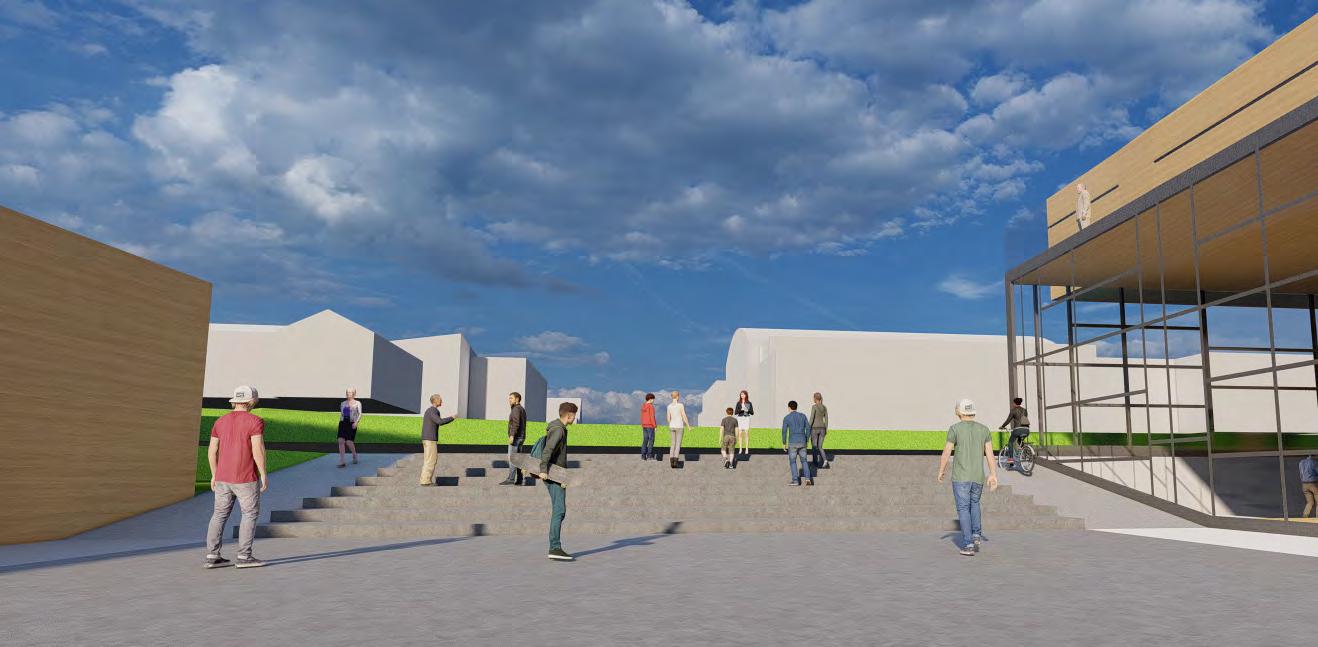

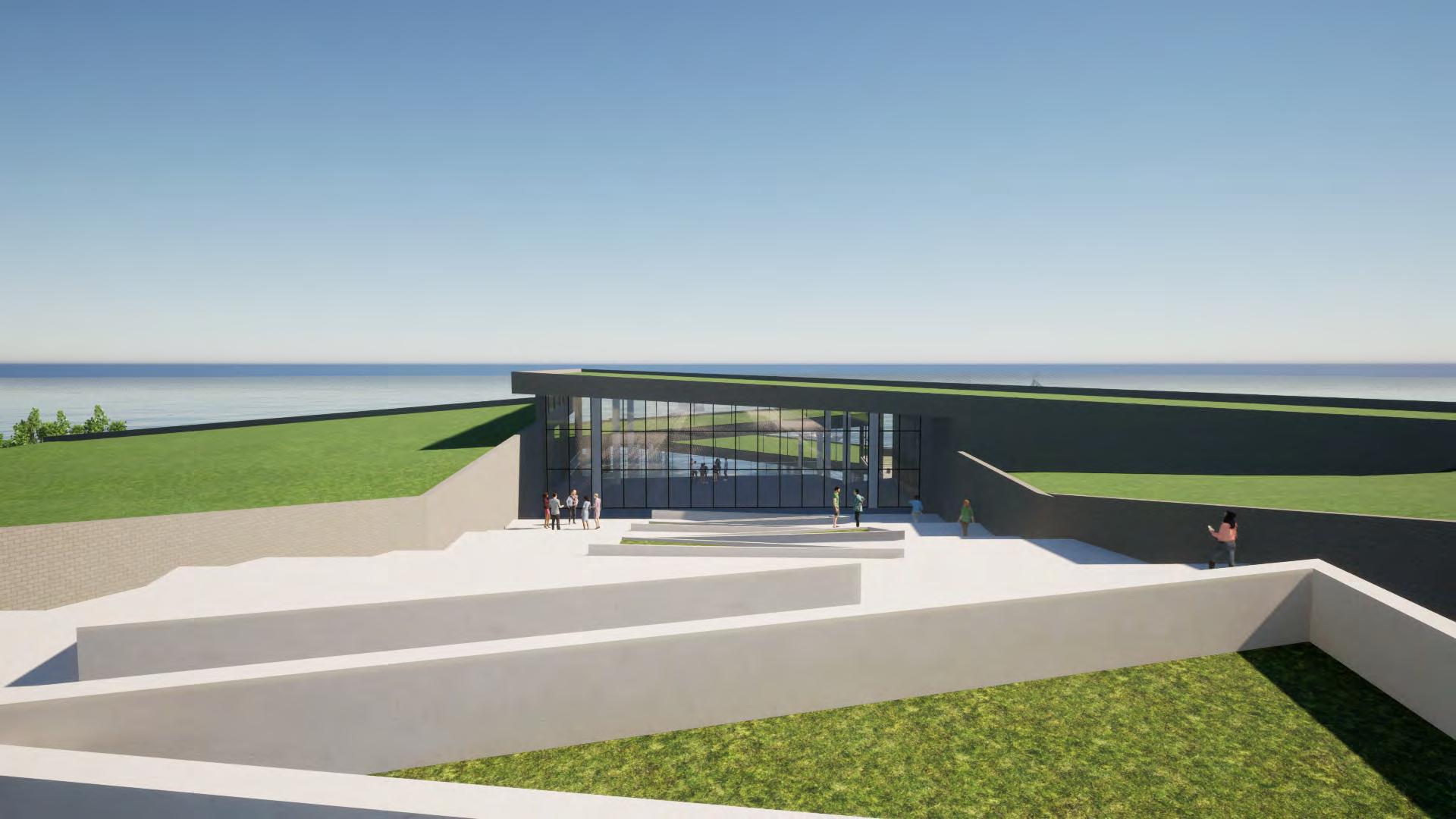

PLAZA VIEW

1 .2

SITE SECTION 1 SCALE: 1/16" =

1'-0"

0

8'

16'

32'

0

16'

32'

64'

60

70

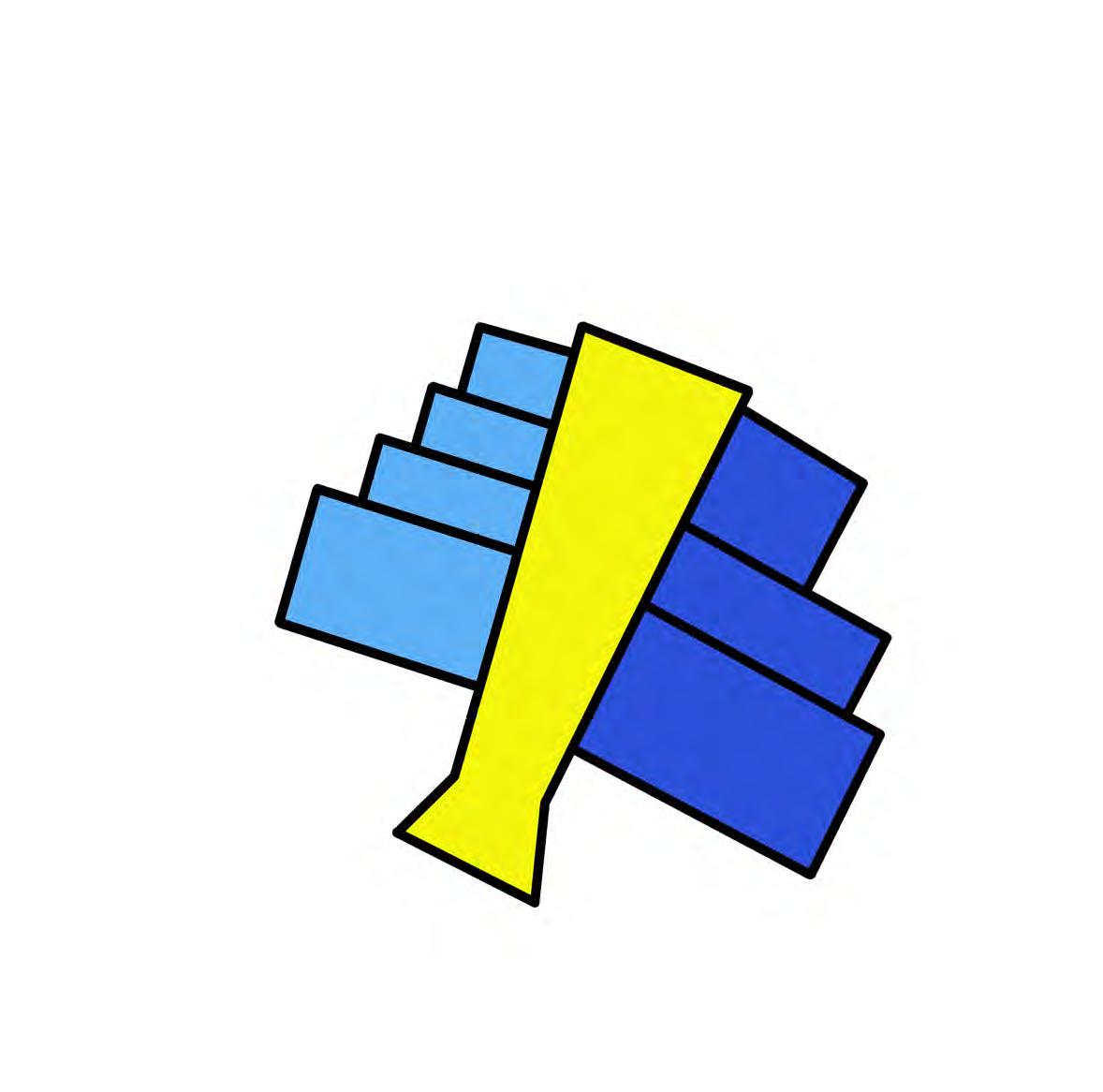

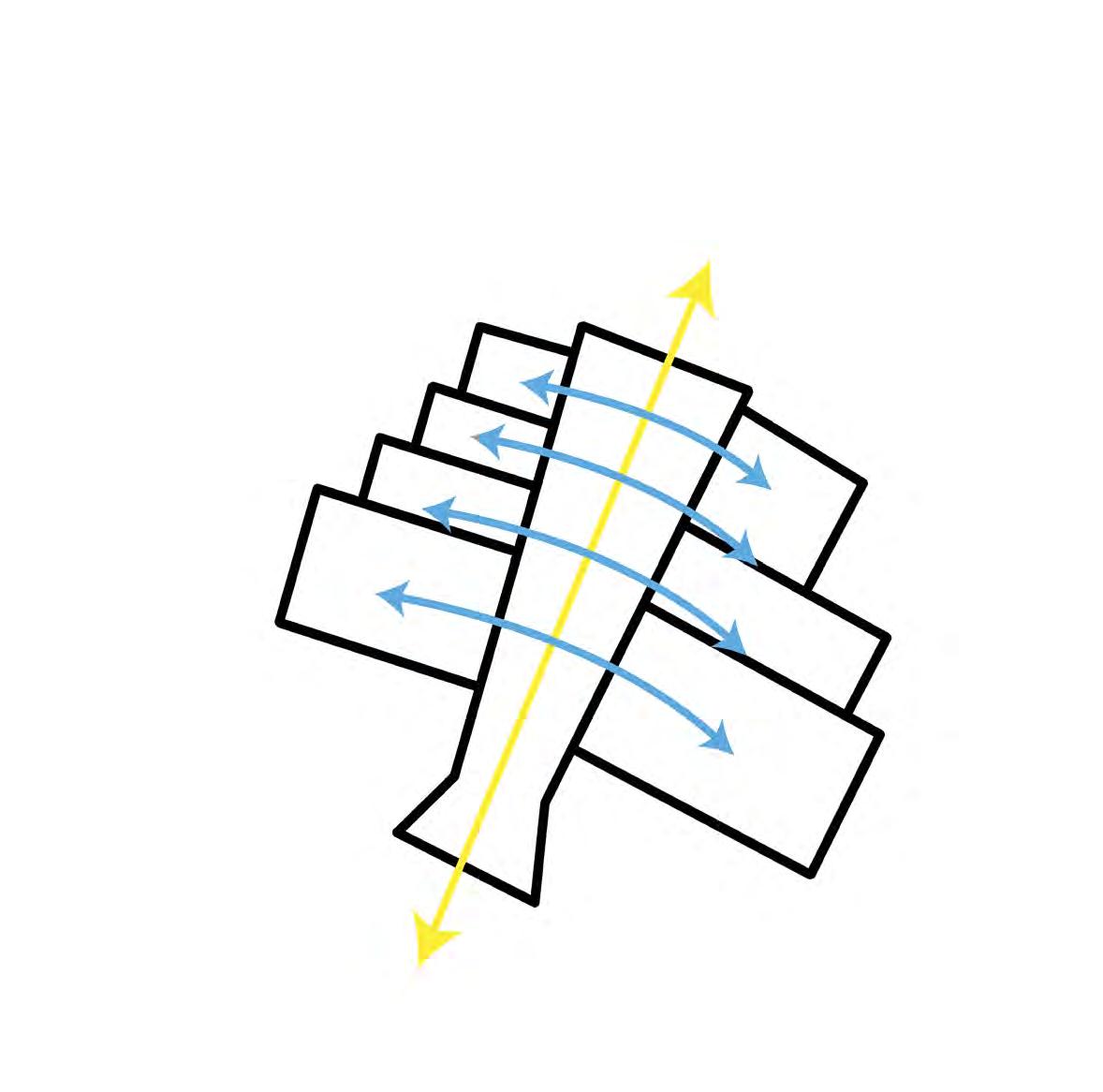

PARTI

3 .1

70 80

REPEATED "V's"

1 SD9 2 .1

2 .4

PRIVATE vs. PUBLIC SPACE

VERTICAL CIRCULATION GSEducationalVersion

2 .2

SITE PLAN SCALE: 1/32" =

1'-0"

3RD LEVEL/ROOF

2ND CLUB LEVEL

1ST CLUB LEVEL

PLAZA

PERFORMING ARTS

3 .1

3 .1

2 .1

3 .1

2 .1

2 .1

2 .4

3 .3

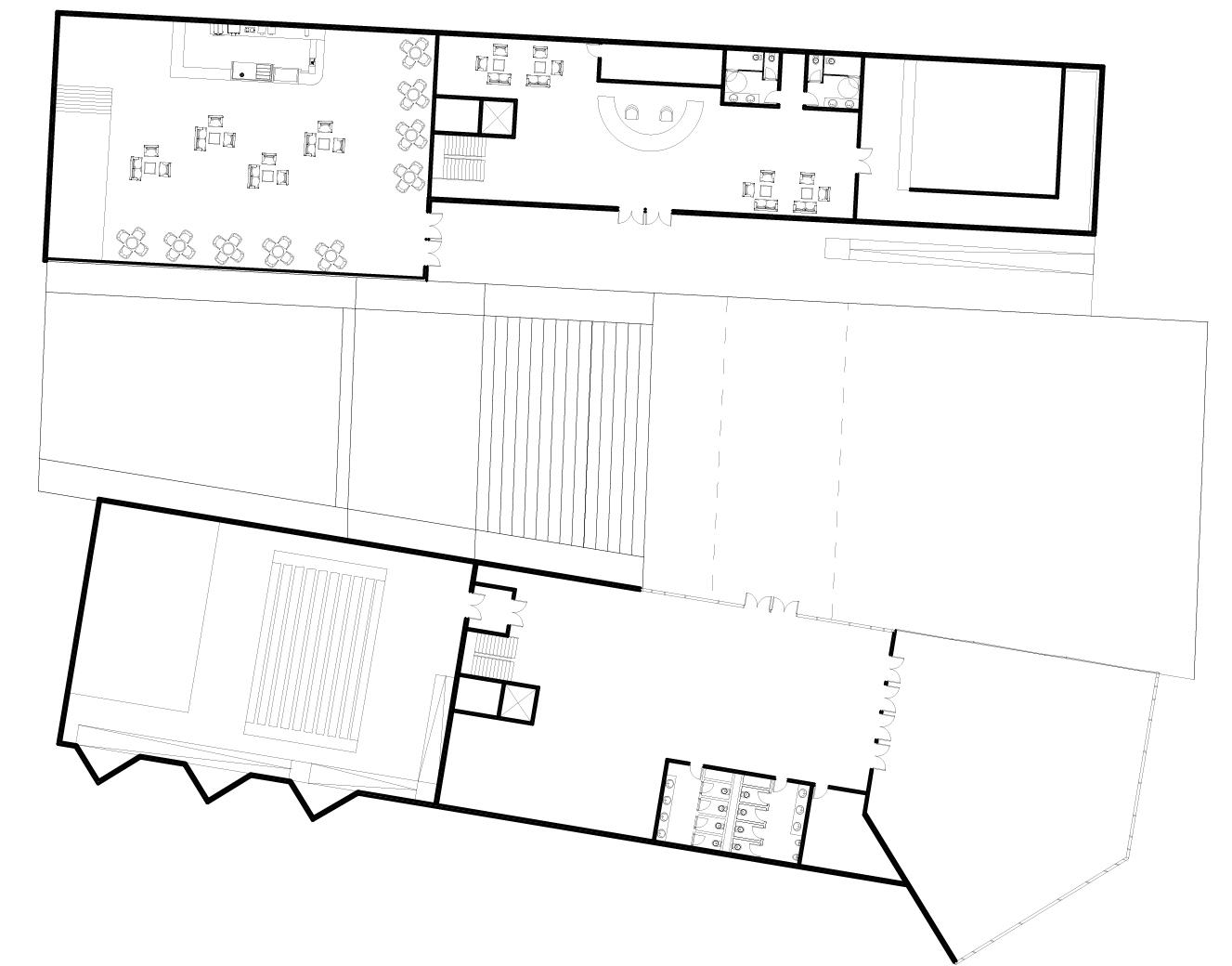

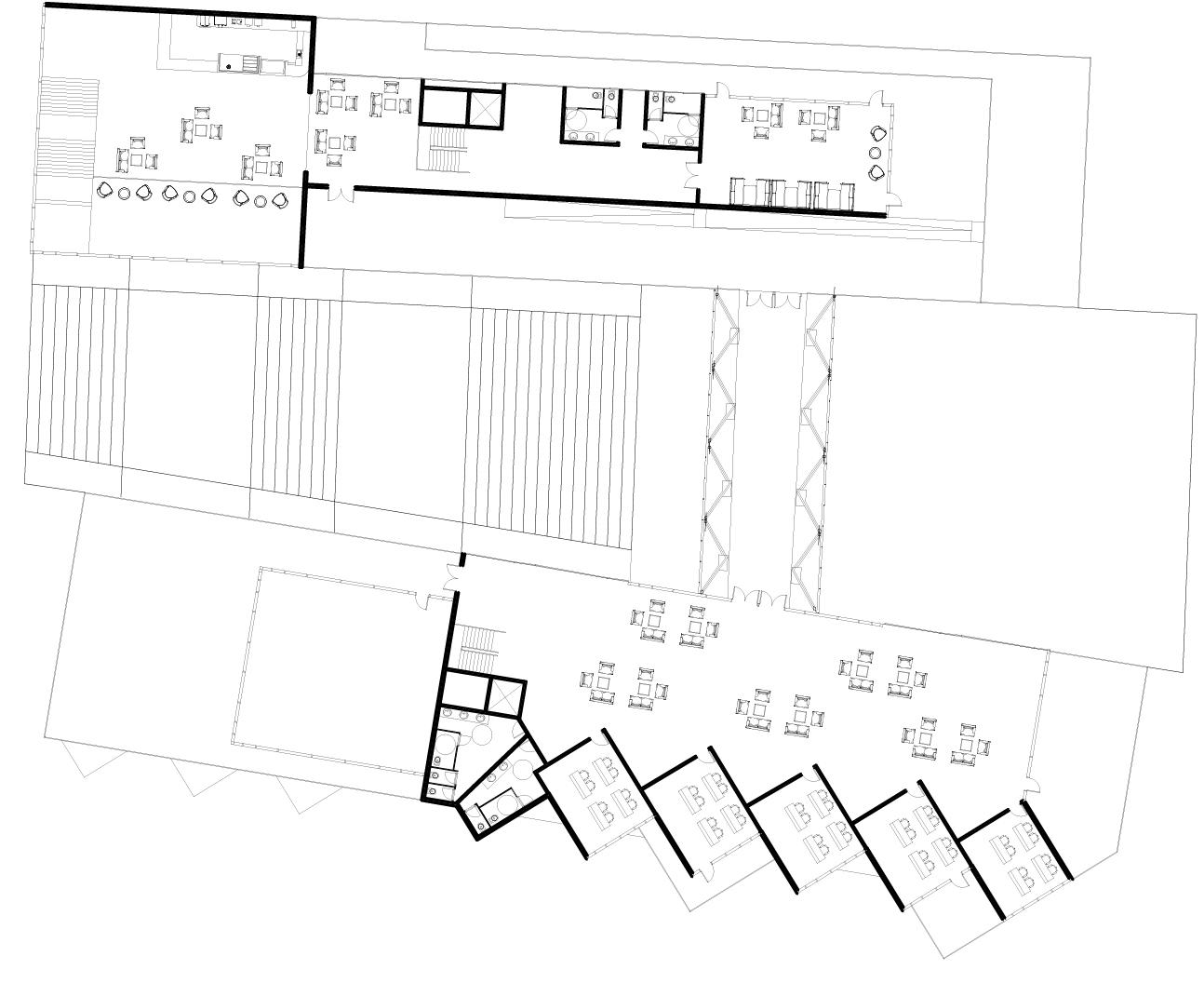

1ST CLUB LEVEL

0

SCALE: 1" = 20'

10'

20'

40'

4 .3

2ND CLUB LEVEL SCALE: 1" = 20'

0

10'

20'

40'

5 .3

3RD LEVEL/ROOF SCALE: 1" = 20'

0

10'

20'

40'

0

10'

20'

40'

3 .1 3 .1

2 .1 2 .1

2 .4 2 .4

2 .3 GSEducationalVersion

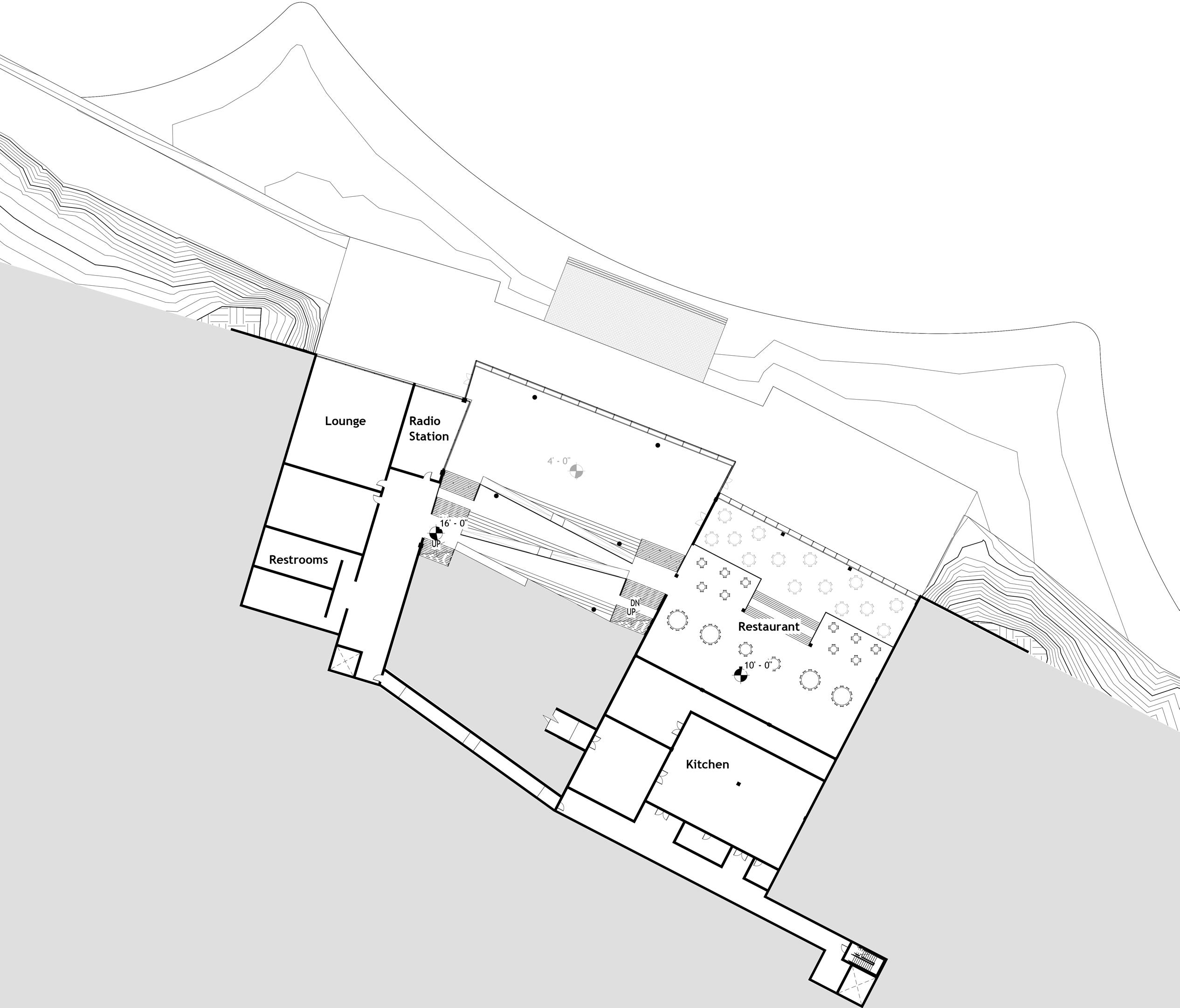

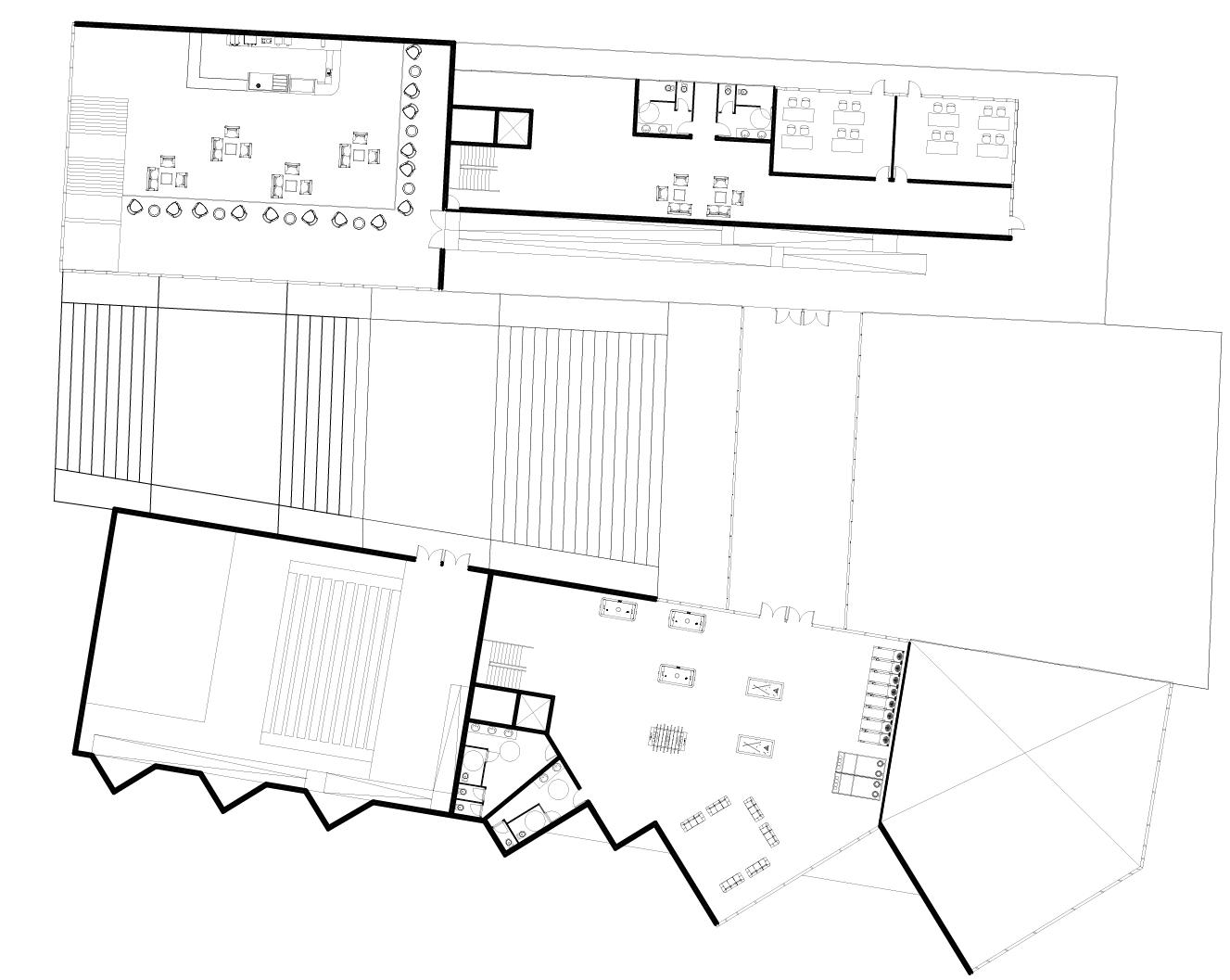

PLAZA LEVEL SCALE: 1" = 20'

0

10'

20'

40'

1 .3

PERFORMING ARTS LEVEL SCALE: 1" = 20'

6 .4

2 .4 GSEducationalVersion

AXONOMETRIC PERSPECTIVE

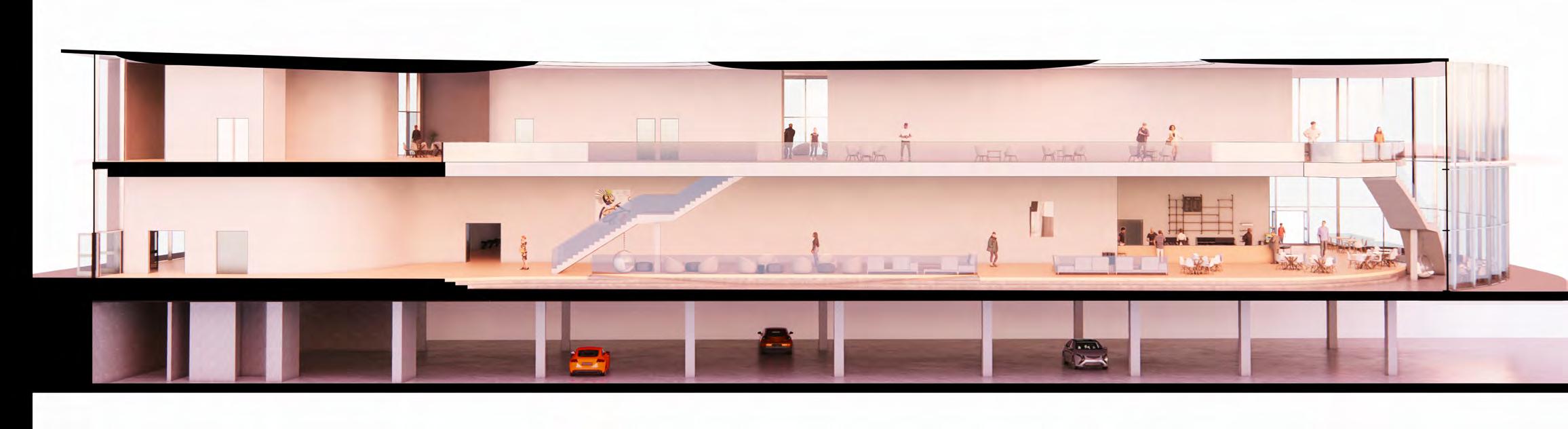

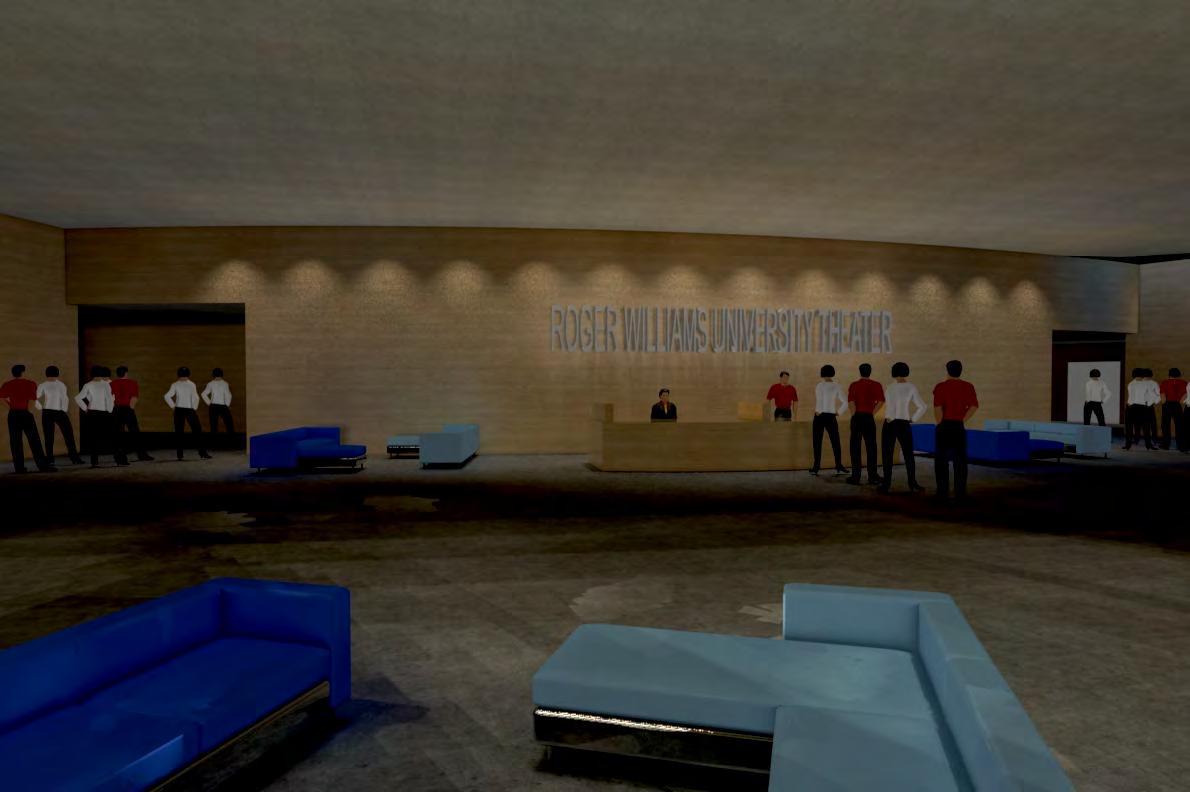

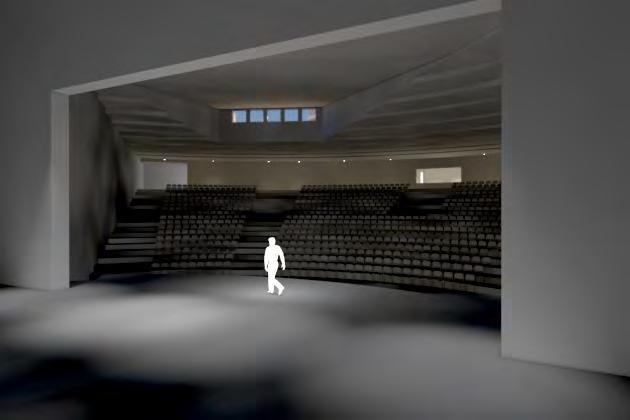

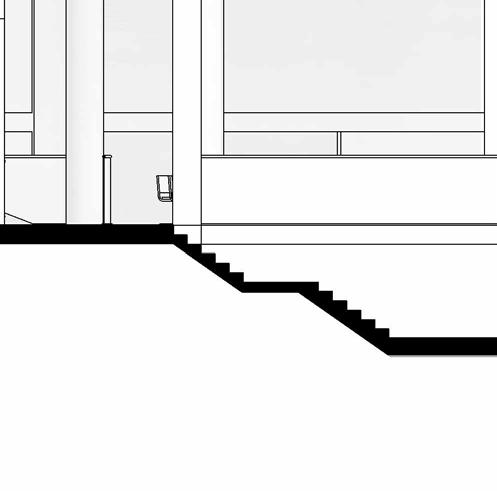

THEATER SECTION SCALE: 3/32" =

1'-0"

0

8'

16'

24'

GSEducationalVersion
