Spring 2023 - ARCH 517 - Collaborative Revitalization Studio

ARCH 517 COLLABORATIVE REVITALIZATION STUDIO SPRING 2023

Collaborative Revitalization Studio ARCH 517 Spring 2023 - Newports Bellevue Work by: Ben Bariso, Joe Bucci, Colleen Heemeyer and Megan Ripa Professors: Laramie, Tschirch and White

Newports Bellevue: Residences and Shops The mixed-use project aims to address Newport’s programmatic needs, activate the site, and create a harmonious continuity between historic and modern architecture. Located at the start of Bellevue Avenue, a street celebrated for its historic mansions, the site serves as a pivotal point in the city .Nearby landmarks include the Tennis Hall of Fame, Travers Block, Kingscote, and the Edward King House. The project transitions between the dense residential neighborhood to the north and the open greenery to the south. Mixed-use residential and commercial units to the north adapt in scale and form to complement the varied character of the William Street commercial buildings. To the south, the hotel is set back from Bellevue Avenue, creating a public space that honors the Tennis Hall of Fame while providing a grand entrance to Bellevue Avenue. The hotel’s courtyard is oriented toward Kingscote, and Aquidneck Park extends west of the hotel. A pedestrian street connects the Tennis Hall of Fame to Aquidneck Park and the Edward King House. This street acts as a transition between the different densities of residential units and the hotel. Underground parking ensures the site remains open and pedestrian-friendly. The mixed-use buildings feature white stucco on the commercial floors and wood board-and-batten siding on the residential floors. The white stucco draws attention to the retail shops, while the board-and-batten siding harmonizes with the diverse finishes along William Street. Both the hotel and mixed-use building utilize brick on the commercial levels and wood shake shingles on the upper floors to resonate with the architectural styles of the Tennis Hall of Fame and Travers Block. This new complex fosters continuity in Newport and offers a welcoming entrance to Bellevue Avenue.

Bellevue Gateway Public Space and Pedestrian Street create a transition between densities

William

Continuing Aquidneck Park

Travers Block

Street

Parking Entrance

Bellevue Avenue

King Street

Tennis Hall of Fame

Aquidneck Park

Edward King House

Jones Avenue

Kingscote

Residential Mixed Use

Site Plan: A Transition of Densities

Hotel

UP UP

UP

UP

DN

UP

UP UP

UP

UP UP

UP

UP

UP

UP

UP

Bellevue Floor Plan 2

UP

UP

UP

UP

DN

DN

DN

UP DN

DN

Typical Hotel Floor Plan

UP

Bellevue Floor Plan 3

24'-4"

Residential Floor Plans

UP

UP

UP

24'-4"

Hotel and Cafe Detail

Bellevue Avenue Mixed Use Elevation

Bellevue Avenue Hotel Elevation

Travers Block Elevation Analysis

Travers Block

Tennis Hall of Fame Elevation Analysis

Tennis Hall of Fame

Jones Avenue Hotel Elevation

Collaborative Revitalization Studio ARCH 517 Spring 2023 - The Grove at Bonniecrest Work by: Ryan Lehane, Avery Corcoran and Mel Bloom Professors: Laramie, Tschirch and White

SITE PLAN 1' = 1/32"

KEY: PUBLIC EXTERIOR SPACE INDIVIDUAL EXTERIOR SPACE HOUSING CIRCULATION & PARKING

SITE FEATURES 1' = 1/64"

SITE VIEWS 1' = 1/64"

EXISTING TOPOGRAPHY 1' = 1/64"

NEW TOPOGRAPHY 1' = 1/64"

SECTION 1' = 1/4"

SECTION 1' = 1/4"

SECTION 1' = 1/4"

35' - 0"

MAX. 35'-0" HEIGHT ALLOWANCE

ELEVATION 1' = 3/4"

THE KÁRMÁN LINE VILLAS OF THE WYNDHAM ESTATE, NEWPORT RI NICOLE CASLER | RENEE PARRY | ALYSSA BAILEY ARCH 517 05|23

DESIGNERS PRESERVATIONIST

PBC

| CONCEPTUAL DEVELOPMENT NATURAL GLACIAL ERRATIC SOLID MASS

“THE DESIGN OF KÁRMÁN LINE VILLAS STEMS FROM A REACTION TO THE EXISTING SITE CONTEXT AND A NEED TO ENHANCE THE OCCUPANTS EXPERIENCE THROUGH SUBTLE SCENOGRAPHIC CUES ALLOWING FOR A REALIZATION OF A GEOGRAPHICAL AND ASTRONAUMICAL AWARENESS. THE APPROACH OUR DESIGN TEAM HAS TAKEN AND RESHAPED THE CONNECTION BETWEEN EACH INDIVIDUAL DWELLING AND THE ENVIRONMENT IN WHICH IT IS EMBED-

EFFICIENT MODULAR FLOOR PLAN

DED. THIS IS ACCOMPLISHED THROUGH A SERIES OF AUTONMOUS YET FORMAL CUES AND SIGHT LINES, WHERE EACH DWELLING WILL CONSIST OF ITS OWN INDIVIDUAL EXPERIENCE AND SCENOGRAPHIC VIEWS FROM BOTH THE INTERIOR AND EXTERIOR. THESE ITERATIONS

INTEGRATION OF MASS AND GLACIER ERRATIC

RECALL THE HISTORIC, MAJESTIC SITE SCENES ALREADY DEVELOPED, WHILE IMPOSING ENTIRLY NEW TYPOLOGIES OF DWELLING PROGRAM.”

GEOLOGICAL REACTIVITY

TRANSFORMING PLAN

UNIT

CONCEPTUAL EVOLUTION

SOLAR STUDY

SCENOGRAPHY | BEFORE

SCENOGRAPHY | AFTER

1

2

3

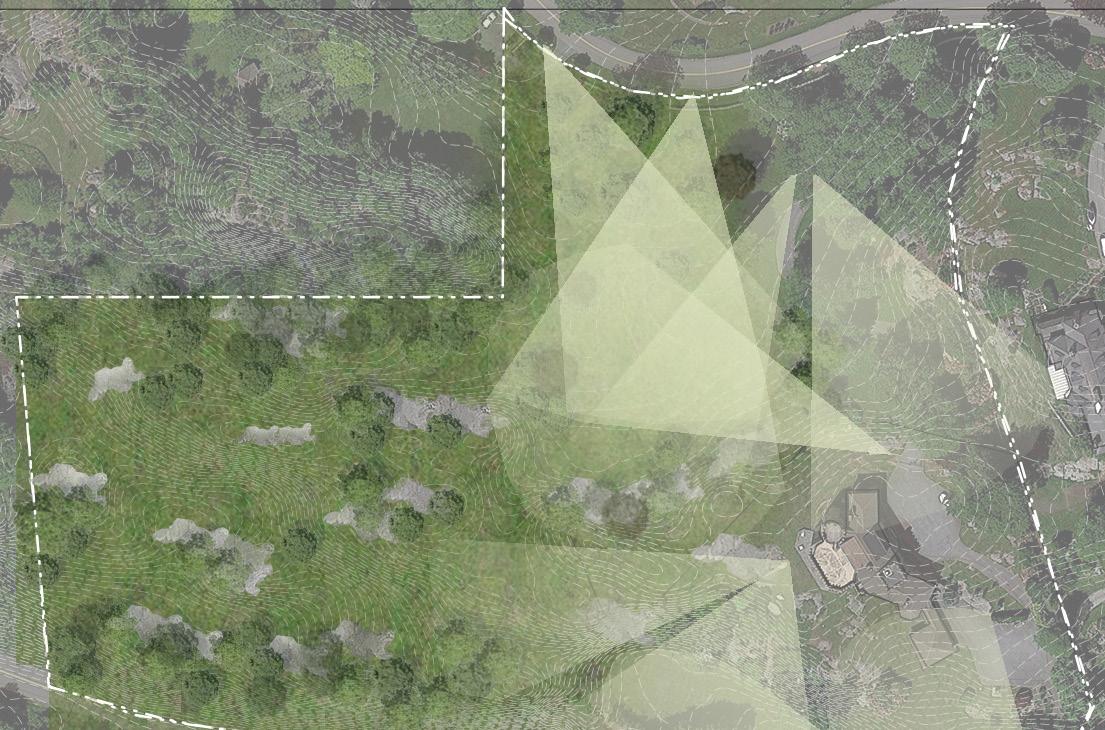

CHARACTER DEFINING VIEWS

4

UNIT AND SITE PLAN

STANDARD SEAM ROOF

CONNECTICUT FIELD STONE

3| CLERESTORY DETAIL

THERMORY VIVID SILVERED THERMOSPRUCE C24

UNIT ELEVATION

BRUSHED BLACK STAINLESS STEEL METAL

4| ROOF EDGE DETAIL FINISHED CONCRETE

DOUBLE PANE GLASS

1'-4"

1'-4" TYPICAL WALL TYPE -THERMORY C24 CLADDING -WOOD FRAMING -UNDERLAYMENT -AIR AND WATER MEMBRANE -3/4" EXTERIOR PLYWOOD SHEATHING -2 X 6 WOOD FRAMING -SPRAY ISO INSULATION -VAPOR RETARDER -1/2" GYP.

1 | ROOF EDGE DETAIL

MOSS GREEN ROOF

2 | EXTERIOR WALL BASE DETAIL

1'-4"

1'-4" TYPICAL WALL TYPE -THERMORY C24 CLADDING -WOOD FRAMING -UNDERLAYMENT -AIR AND WATER MEMBRANE -3/4" EXTERIOR PLYWOOD SHEATHING -2 X 6 WOOD FRAMING -SPRAY ISO INSULATION -VAPOR RETARDER -1/2" GYP.

WINDHAM CREAM 13 16" 3 16"

13" 116

5" 58

UNIT PLAN

WALL SECTION PLAN DETAIL

EXTERIOR CLADDING DETAIL

3

1 13 16" 3 16"

55 8"

13" 116

4

1 13 16" 3 16"

55 8"

13" 116

4

2

BUILDING SECTION

SITE SECTION 01

SITE SECTION 02

SITE SECTION 03

SITE SECTION 04
