RyanChemali_Portfolio

PORTFOLIO URBAN/ ARCHITECTURAL DESIGNER

RYAN CHEMALI

CONTENTS

01. RESUME

02. ACADEMIC PROJECTS

03. OFFICE PROJECTS

04. OTHER WORK

2

01

RESUME

3

1417 Beacon Street, Apt 3 Brookline, MA 02446

R RYAN C CHEMALI

571-232-9770

ARCHITECURAL & URBAN DESIGNER

ryanchemali@gmail.com

RYAN CHEMALI

studiox_certified Ryan Chemali

1417 Beacon Street 571-232-9770 ryanchemali@gmail.com

issuu.com/chemali

EXPERIENCE

ARCHITECTURE INTERNSHIP

ARCHITECTURAL ASSISTANT PROJECT MANAGER Leonardi Aray Architects | Cambridge, MA

I’ve worked engaged from concept to construction, bringing together design, technical details, and collaboration with clients and contractors.

• Managed projects from schematic design to construction administration • Coordinated with contractors and consultants to ensure integrated solutions • Maintained client relationships and provided project updates.

• Produced construction documents and detailed drawings.

• Supported project management with cost estimates, scheduling, documentatio. and site visits • Prepared and submitted RFQs and RFPs, supporting business development and project acquisition

ARCHITECTURAL DESIGNER

Cube 3 | Boston,MA

Architectural intern contributing to diverse commercial and residential projects while supporting design, coordination, and project delivery across multiple teams.

• Contributed to commercial and residential projects across multiple teams, adapting to shifting priorities • Collaborated with teammates through meetings to align expectations and address concerns • Managed deliverables and deadlines across project phases

Born in the United States and raised internationally, my journey has shaped both my perspective and my approach to design. I am an Architectural and Urban Designer with 3 years of experience working on affordable housing, commercial projects, and private residences. Growing up across continents, I’ve learned to approach architecture by blending local traditions with modern solutions, creating spaces that are both culturally grounded and forward-thinking.

DESIGN & PROJECT SKILLS

PROJECT SKILLS

DESIGN & TECHNICAL

Design Phases | % varies

Primary Skills | % varies

• • • • • • • •

• • • •

Revit 90% Rhino 90% Twinmotion, Enscape 85% SketchUp 85% AutoCAD 75% Adobe Suite 85% Microsoft Suite 85% International Building Code and ADA Code Awareness 80%

LANGUAGES

FRENCH, ARABIC, ENGLISH

100% Fluent

SPANISH, WOLOF

70% Conversation Level

Schematic Design 85% Design Development 82% Construction Documents 87% Construction Admin. 80%

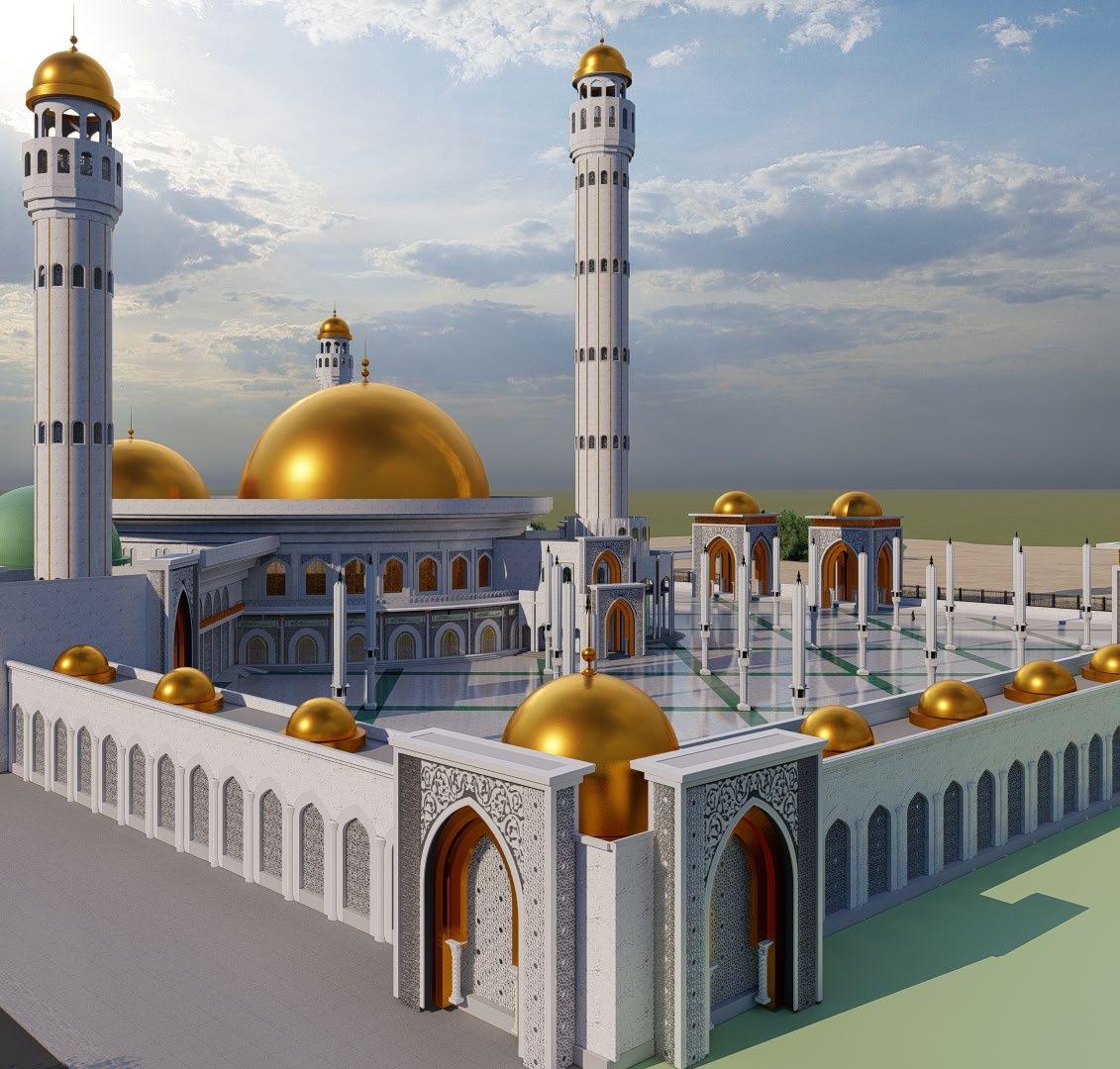

Architechnique | Dakar, Senegal

Contributed to projects from concept through construction, integrating design vision with technical execution.

• Contributed to local projects including residential, commercial, institutional, and religious building • Gained hands-on experience and leadership skills during my co-op, collaborating closely with colleagues and building lasting client relationships

EDUCATION

MASTER IN ARCHITECTURE

Wentworth Institute of Technology | Boston, MA

Paused Master’s program midway; leveraging professional experience to pursue Architecture licensure

BACHELOR OF SCIENCE IN ARCHITECTURE & URBAN PLANNING

Wentworth Institute of Technology | Boston, MA

Bachelor of Science in Architecture and Planning, Cum Laude; Merit Scholarship recipient and Dean’s List honoree

ASSOCIATE'S DEGREE IN ARCHITECTURE

Montgomery College| Rockville, MD

FRENCH BACCALAUREATE IN ECONOMICS French High School Elite of Beirut | Beirut, LB

COMPETITIONS FINALIST

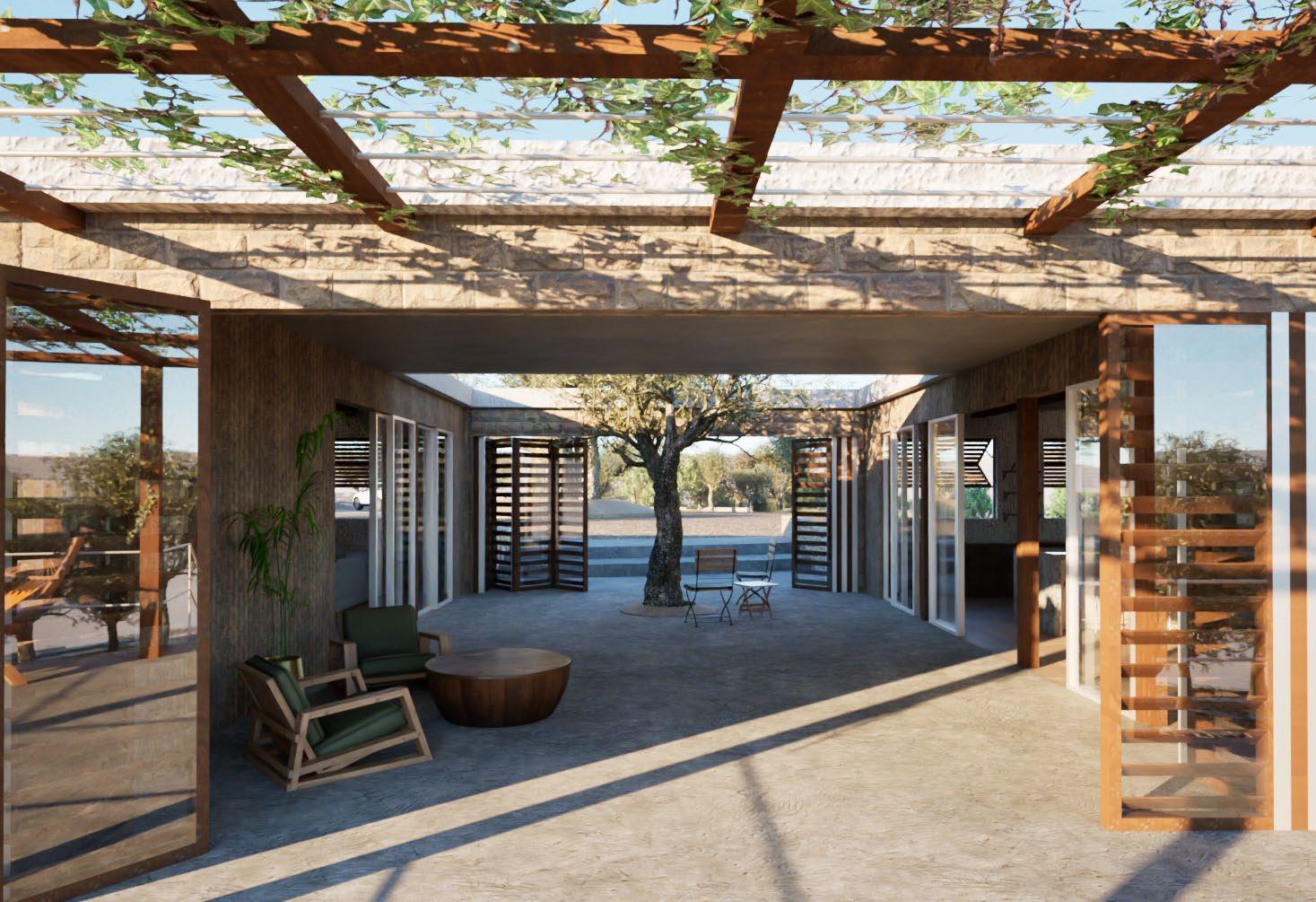

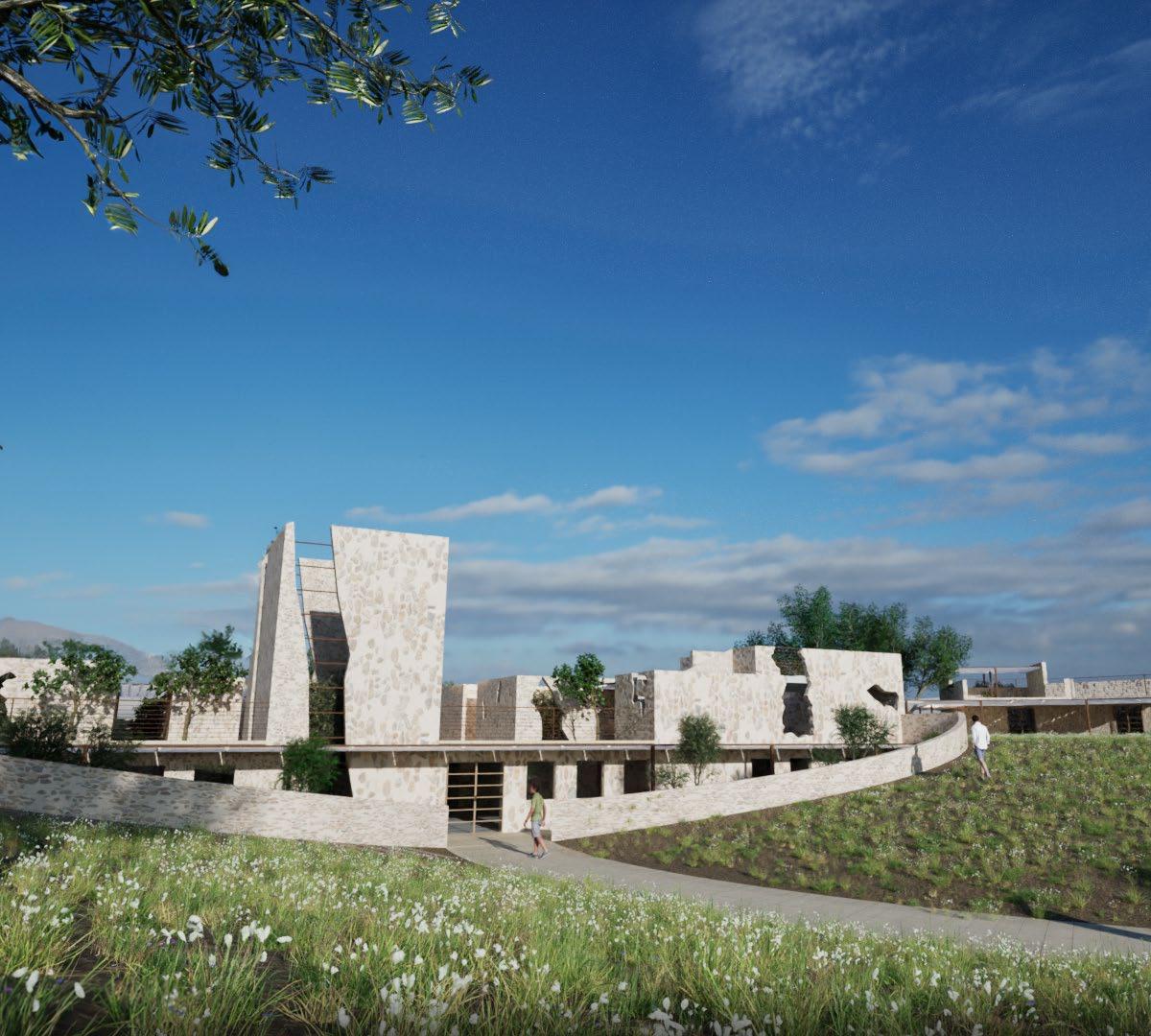

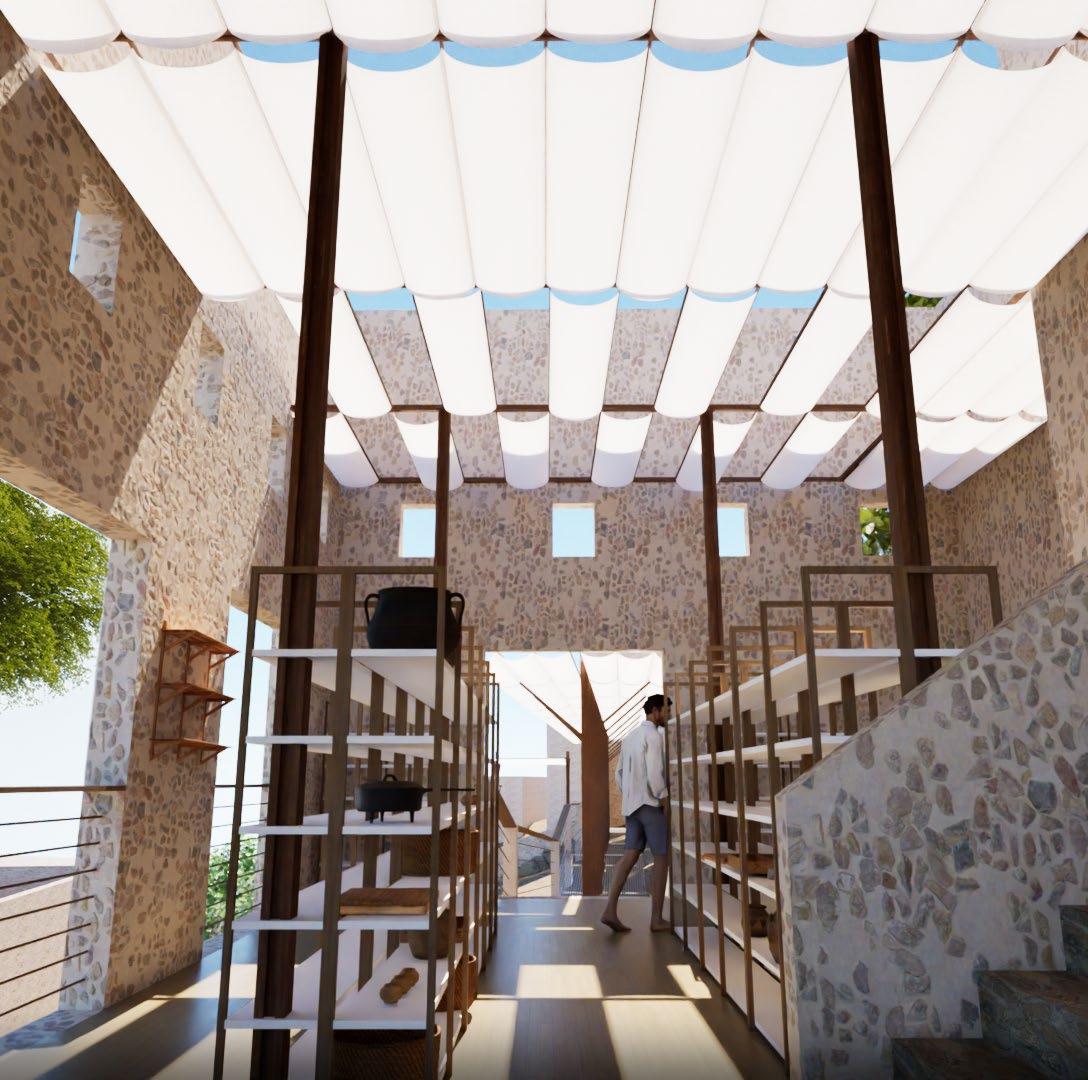

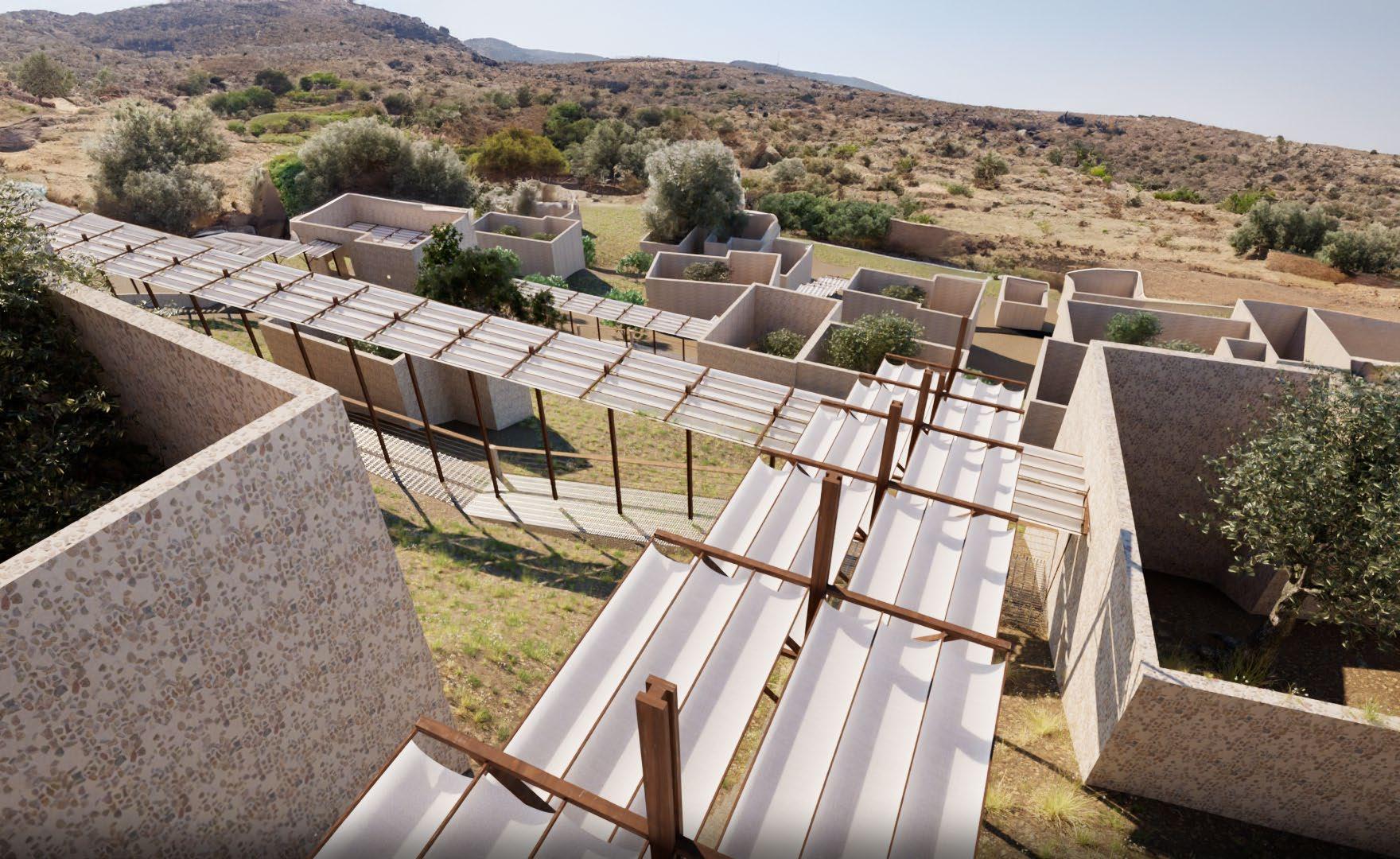

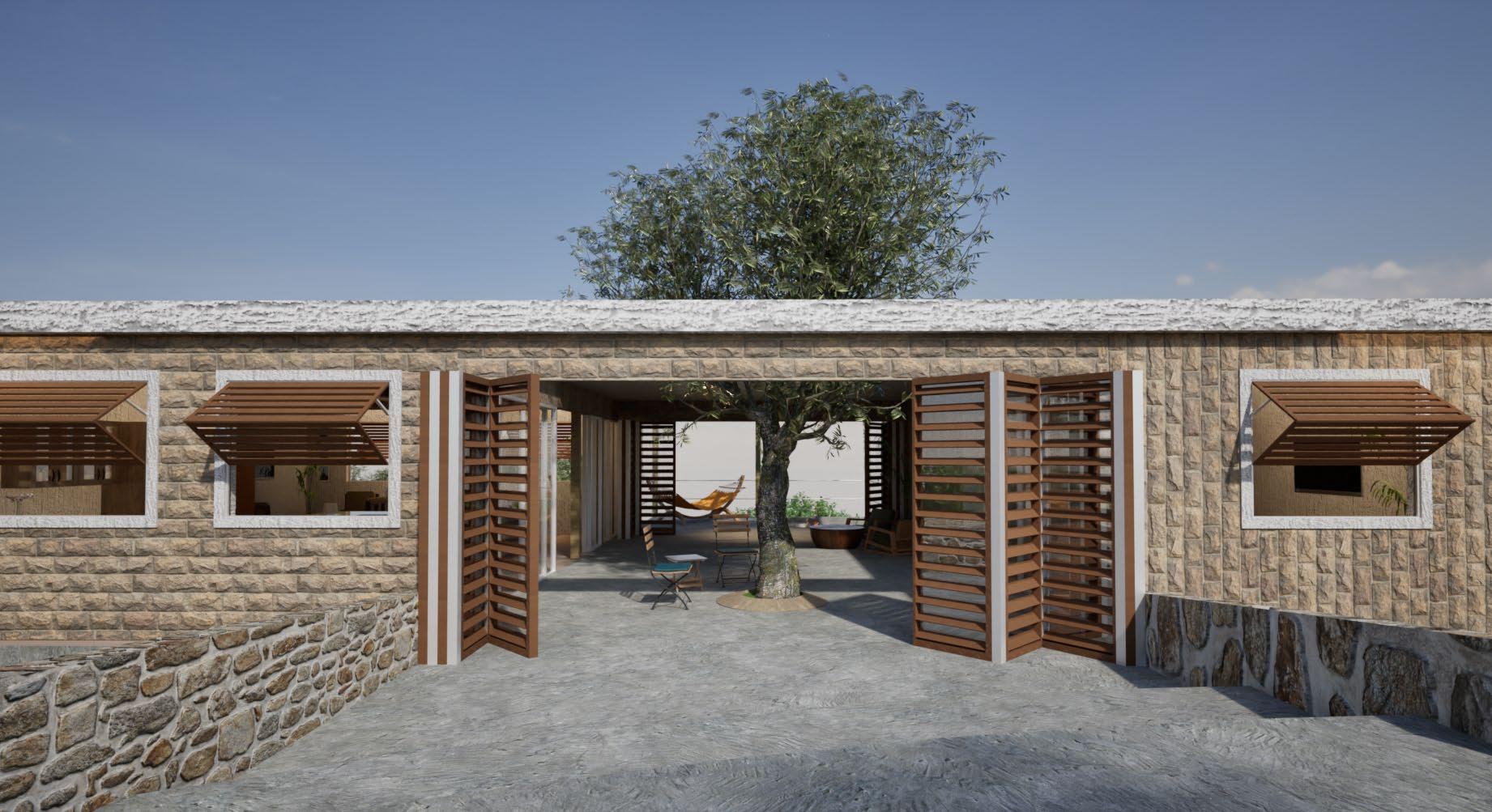

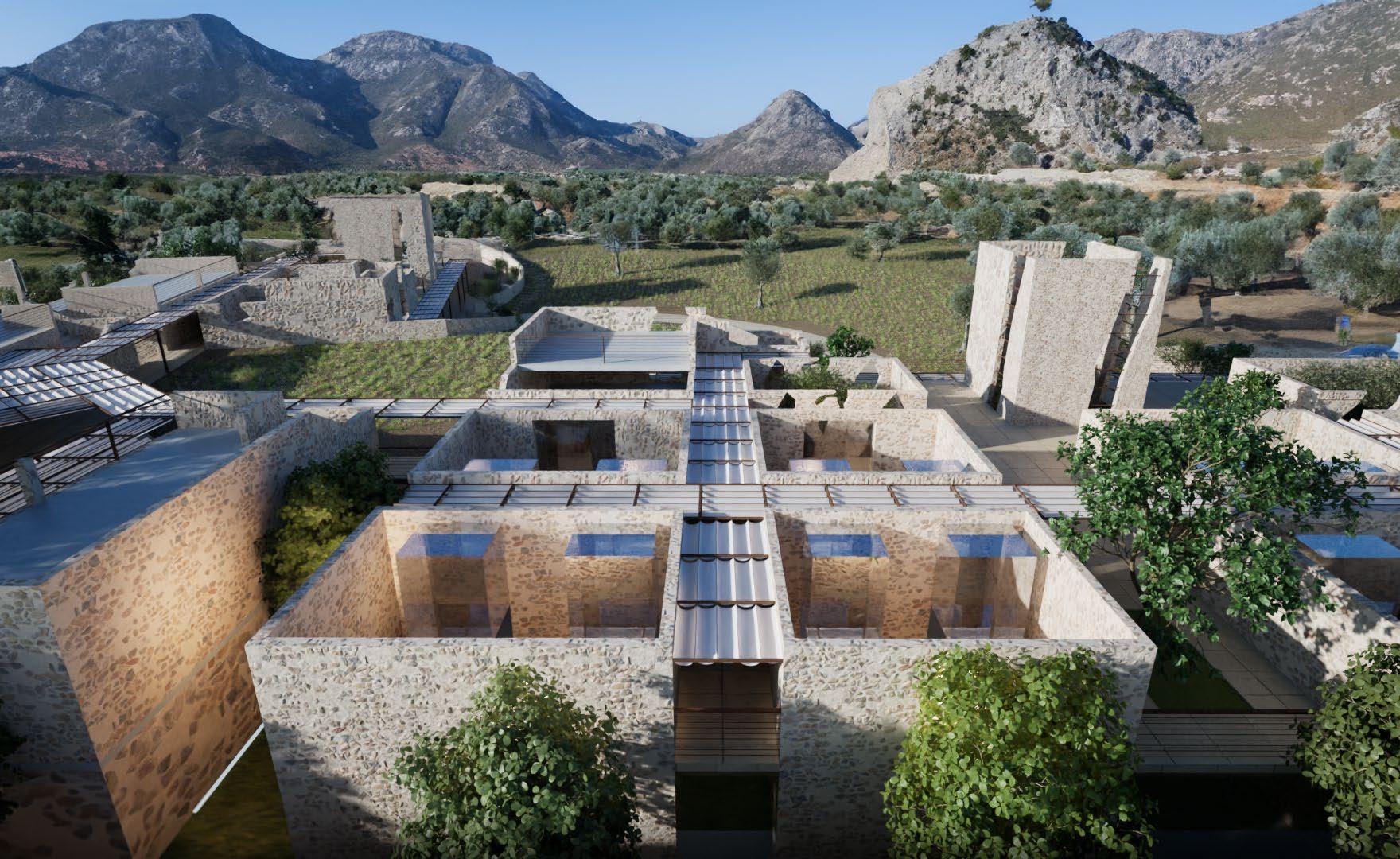

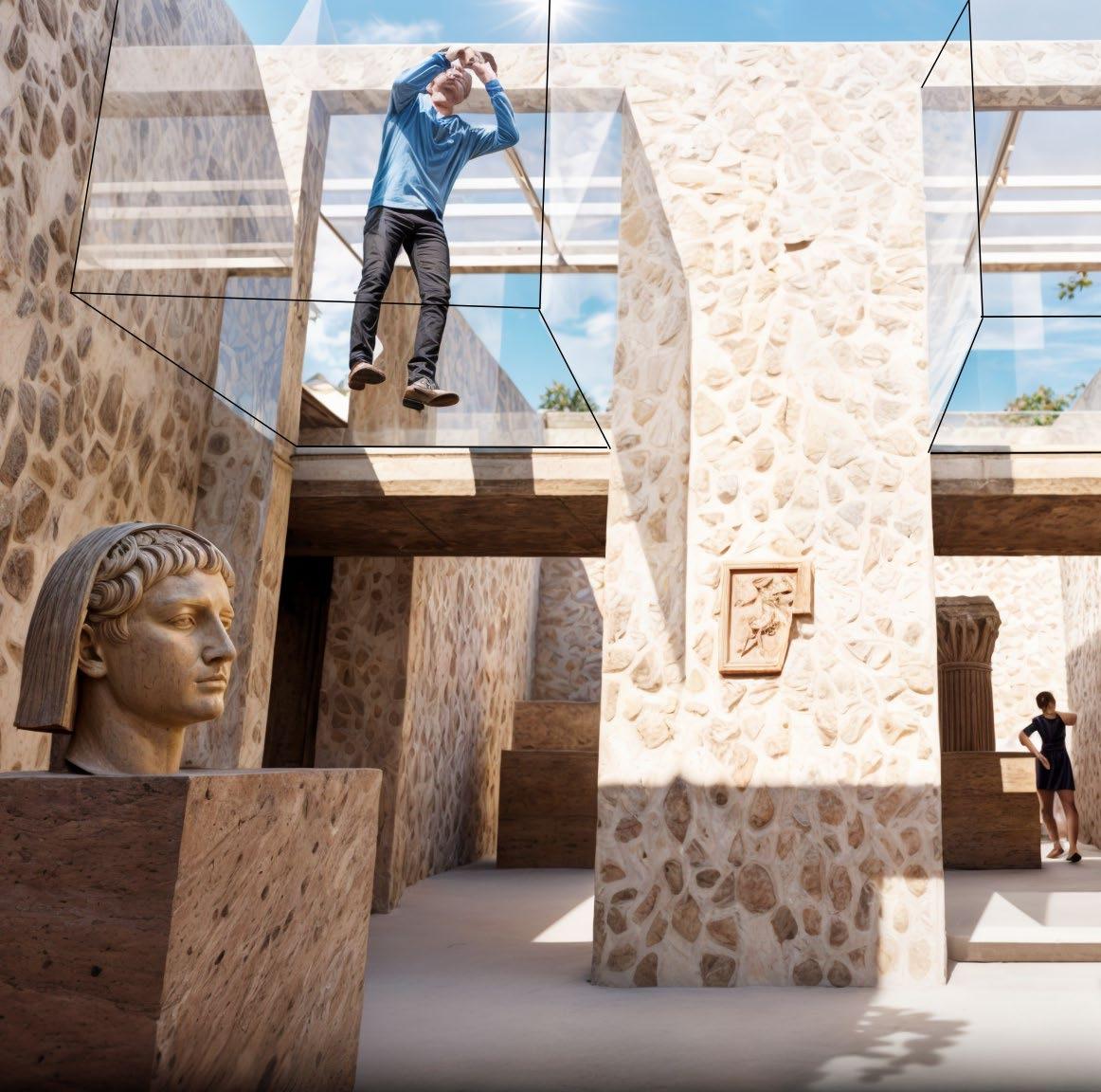

Living Ruins| Kayakoye, Turkey

The Geçit: Open-air museum blending history, nature, and modern design. A sustainable design merging history, culture, and modern visitor experiences

FINALIST

PROFESSIONAL SKILLS

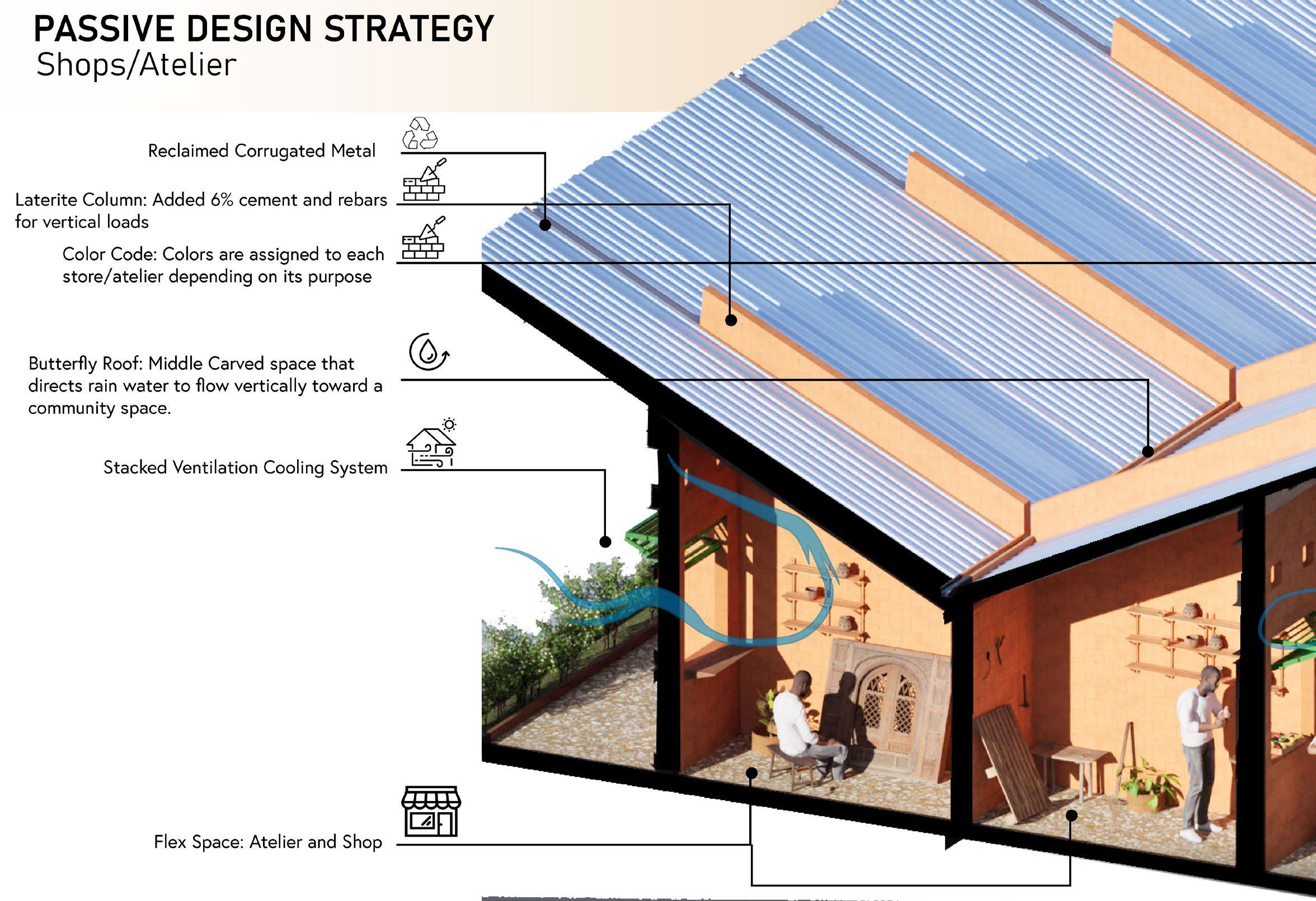

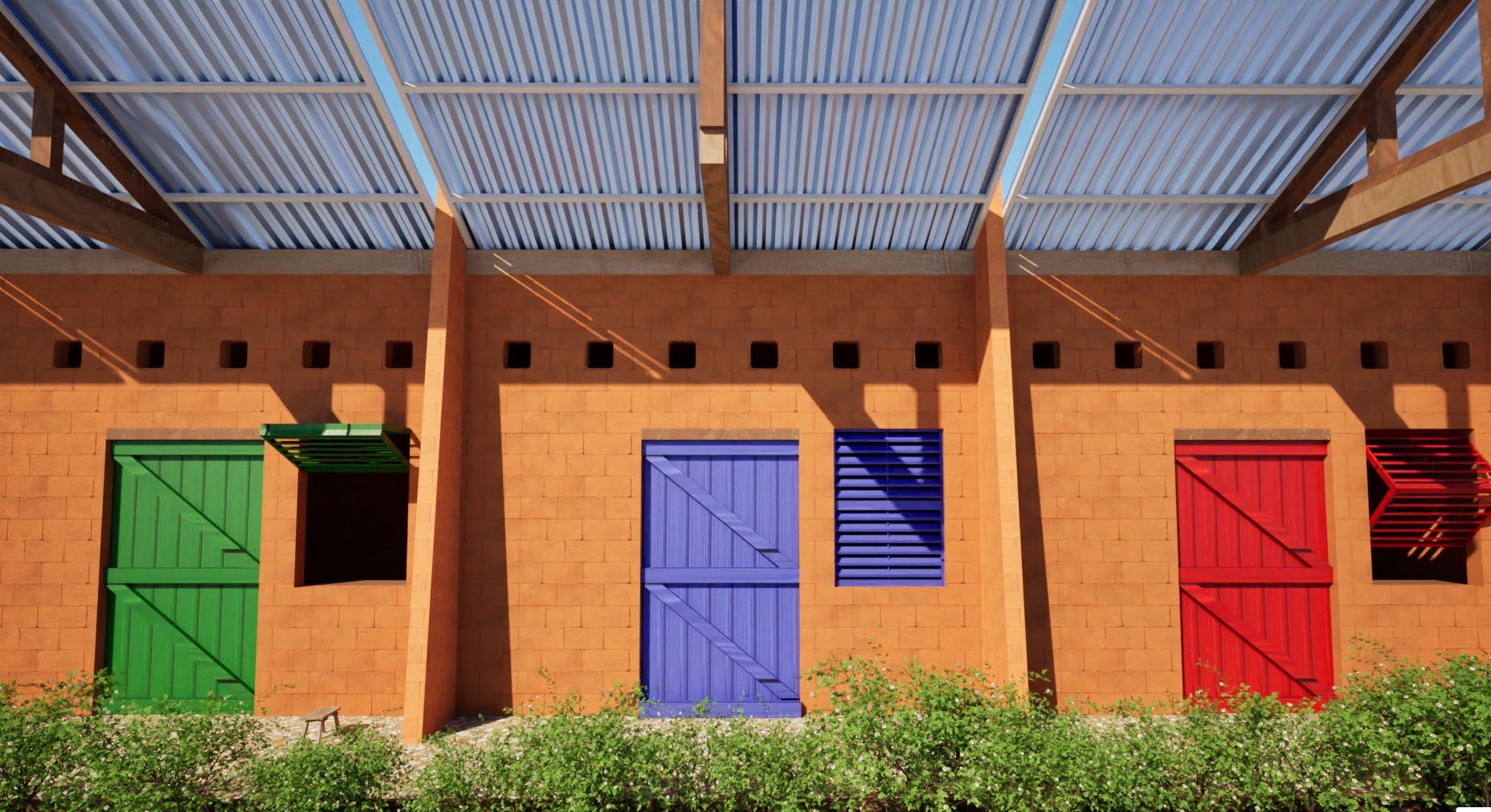

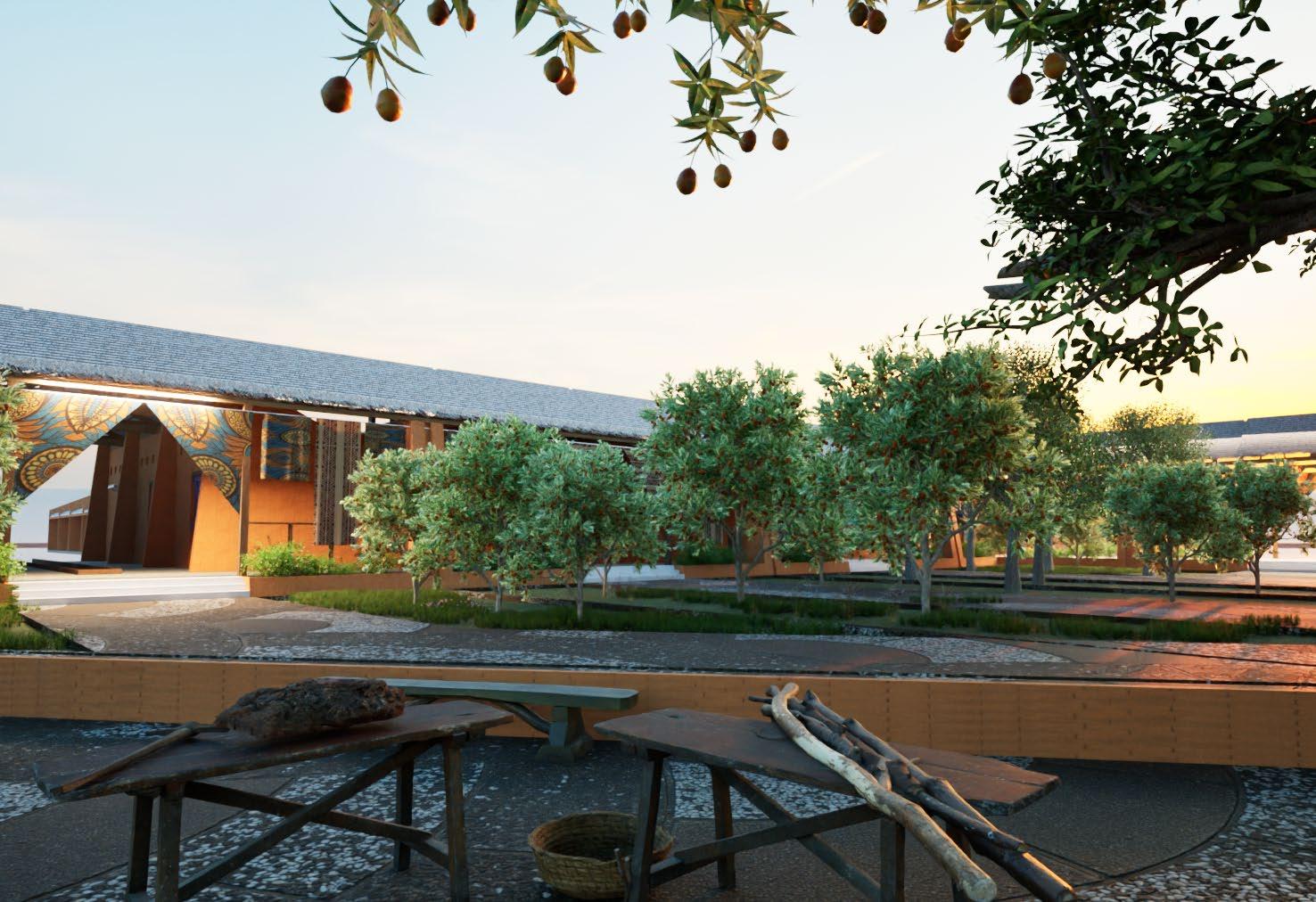

Eco-Marché Sikasso| Sikasso, Mali

• • •

farming to support local farmers and promote heritage

Relationship Skills | % varies Eco Marché de Sikasso: Blends traditional and modern Client Communication 85% Team Collaboration 84% Project Coordination 85%

HOBBIES • • • • • •

Psychology Books Soccer Architecture competitions Exploring New Places Volunteering Soccer Coaching part time 3-4 Grade

PARTICIPANT

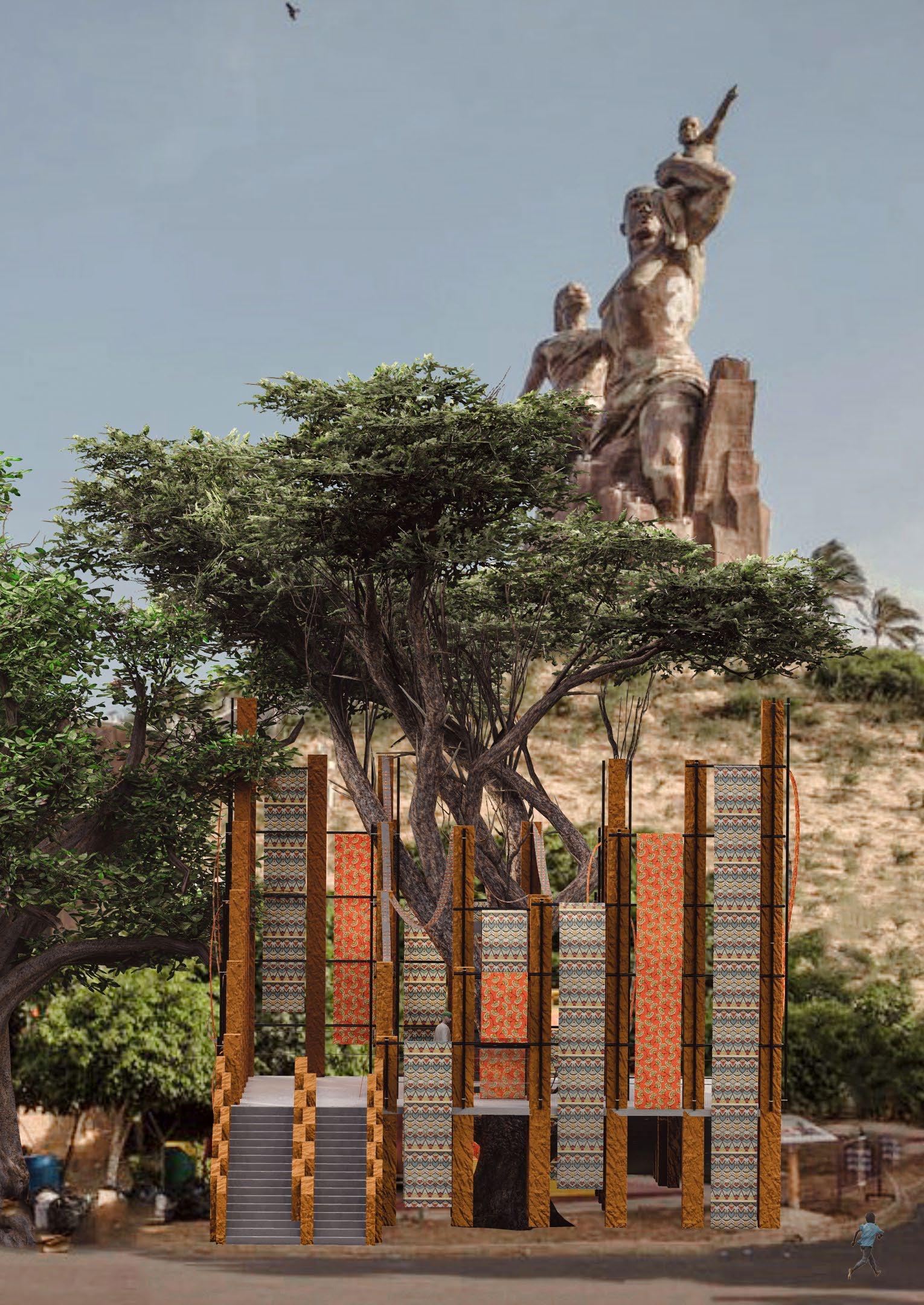

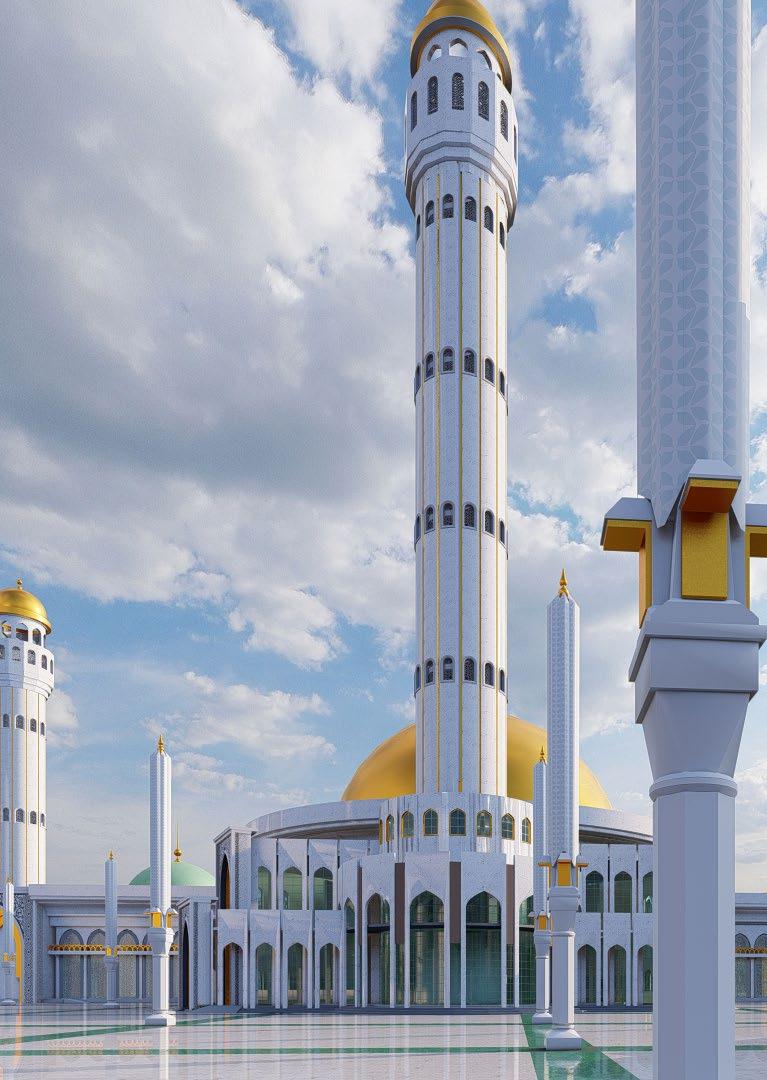

Temple de la Divinité Africaine| Dakar, Senegal

MEMBERSHIPS • • • • •

Boston Society of Architecture Consulting Planners of Mass.

WIT Alumni NCARB Alliance Francaise

4

02

ACADEMIC PROJECTS

5

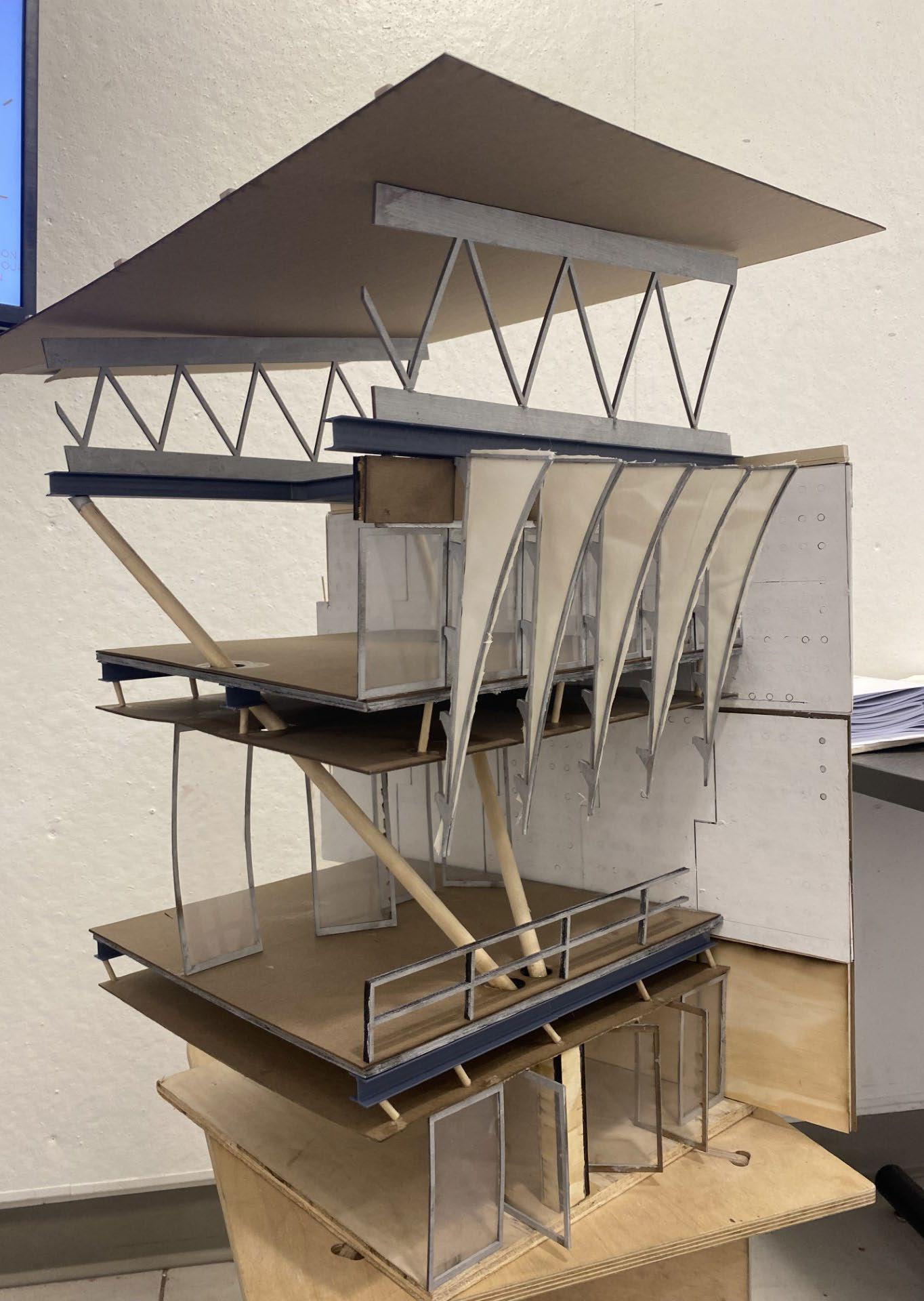

MAM

Mechanical Arts Museum

Manifesto on Technology: Technology’s role is architecture have been significantly

improving throughout time. However, technology should be used in our favor to create a better world by improving our lifestyle, but we rely on it for wrong reasons. Even though i think we should make a better use of technology, I am optimiste with the use of it in the future because of its multipurpose potential to improve our buildings.

Concept: Cultural Diversity

Concept Statement:

The MIT Campus offers a variety of architecture diverstity around campus. Walking around, I found buildings that caught my attention and got me thinking of combining those different elements into one building. The teaching museum for the mechanical arts blends those architectural elements by creating shadows, open spaces, and a unique experience for students and visitors.

PUBLIC SPACES HORIZONTAL CIRCULATION VERTICAL CIRCULATION FACADE CONCRETE ENVELOPE

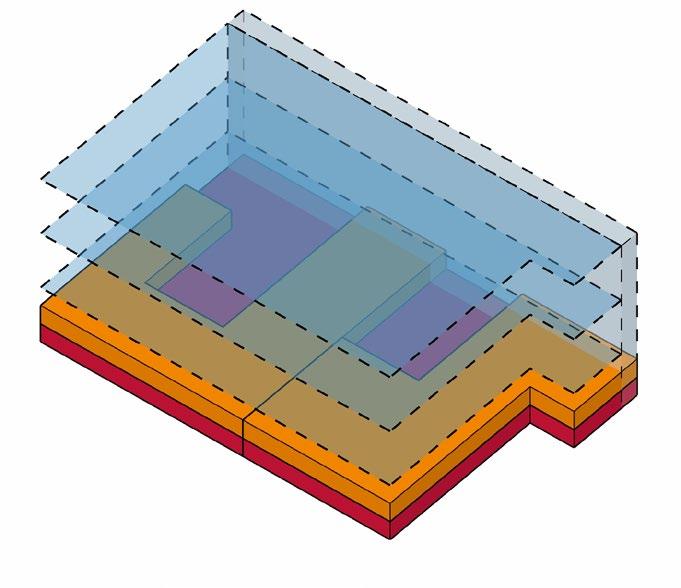

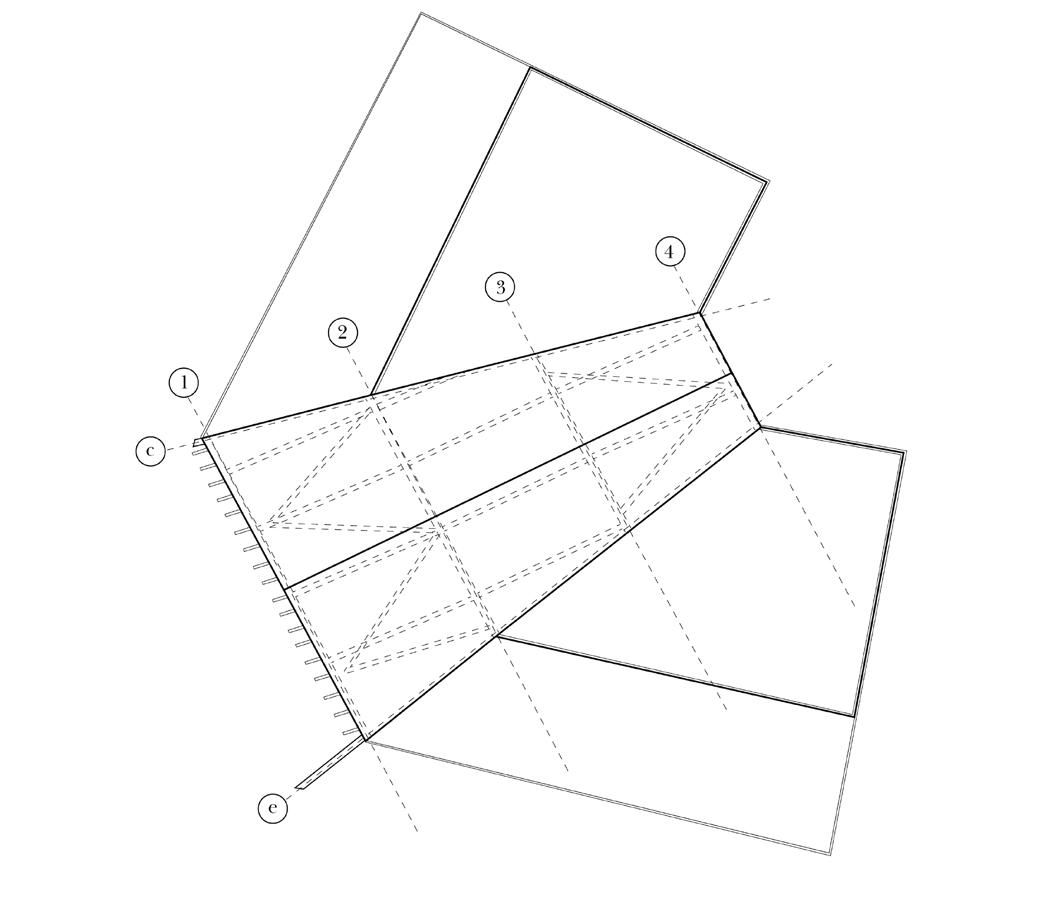

STRUCRURAL/MATERIAL DIAGRAM

PROGRAM DIAGRAM

CIRCULATION DIAGRAM

CONCRETE

CONCRETE ENVELOPE

STRUCTURE

STRUCTURE

ROOF

ROOF

CONCRETE ENVELOPE

STEEL FRAMING

STRUCTURE

FACADE COLUMNS STEEL

ROOF

ROOF STRUCTURE STEEL

READING ROOMS

RESEARCH LIBRARY

LEVEL III BATHROOMS LECTURE HALLS

THIRD FLOOR

THIRD FLOOR

READING ROOMS RESEARCH LIBRARY WORKSHOP BOOK STORAGE OFFICES

LEVEL II

CLASSROOMS

BATHROOMS

LECTURE HALLS

CLASSROOMS

SECOND FLOOR

SECOND FLOOR LECTURE HALLS AUDITORIUM OFFICES

AUDITORIUM

LEVEL I BEARING WALLS

BATHROOMS SHOP MAKERSPACE

FIRST FLOOR

CAFE/KICTHEN EXHIBITION SPACE SERVICE SPACE AUDITORIUM

CAFFE LOBBY EXHIBITION SPACE

FIRST FLOOR

CONCRETE

LMS

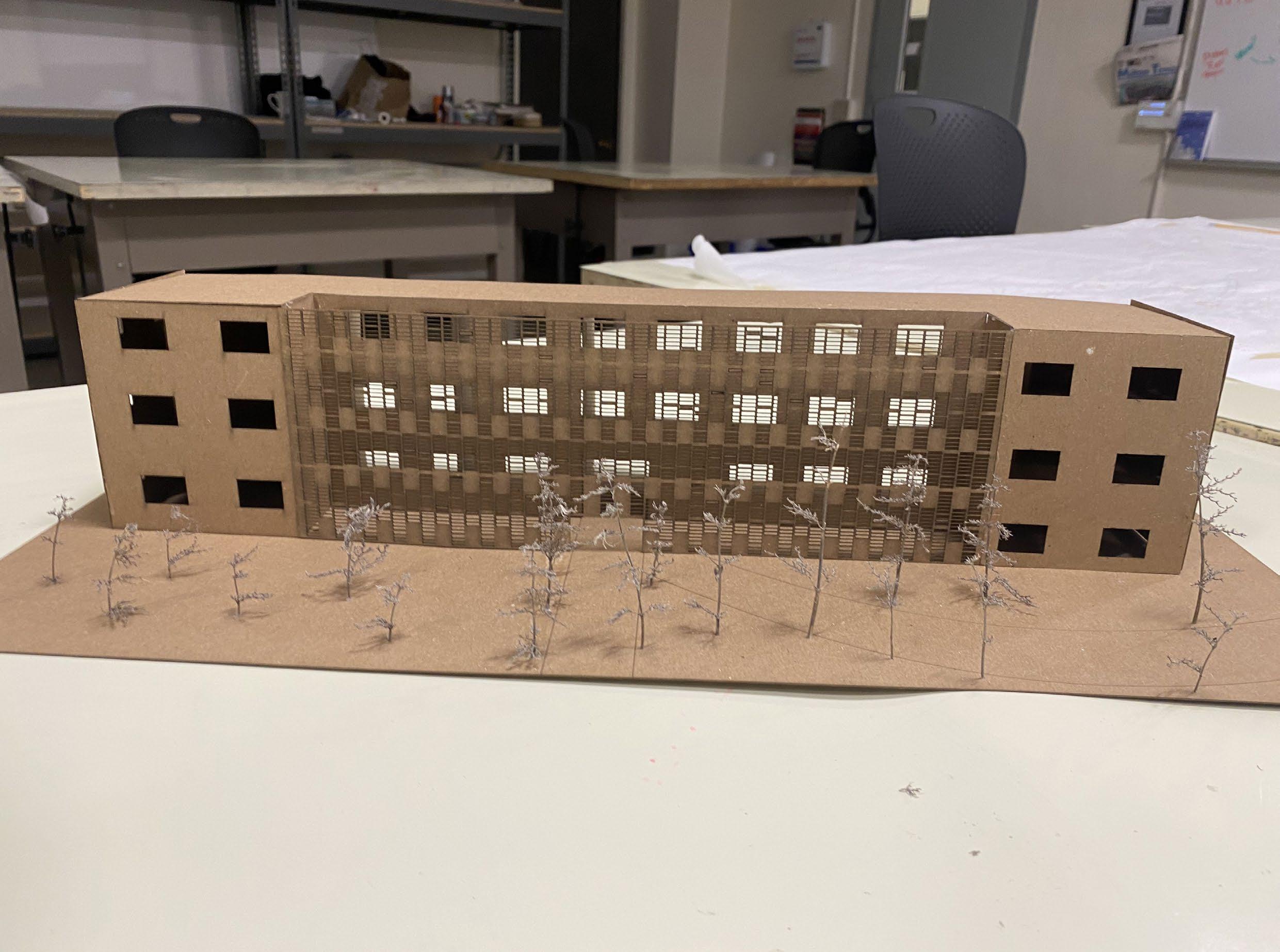

Lowell Maker Studio

Type:

Community makerspaces benefit neighborhoods by fostering creativity, encouraging skill development, and promoting collaboration. They provide shared resources, workshops, and a sense of community pride.

Concept:

Community Makerspace

Concept Statement:

The Lowell Community Makerspace is a visionary architectural project that seeks to bridge the gap between the residential district and the larger city of Lowell, Massachusetts.

Situated at a pivotal point, this multi-purpose building not only offers a thriving environment for creative expression and product design but also serves as a welcoming communal space that fosters a deeper connection with nature.

The integration of a large open courtyard on the second floor, surrounded by various creative workshops and ample green space, provides an innovative blend of artistic ingenuity and serene natural surroundings.

8

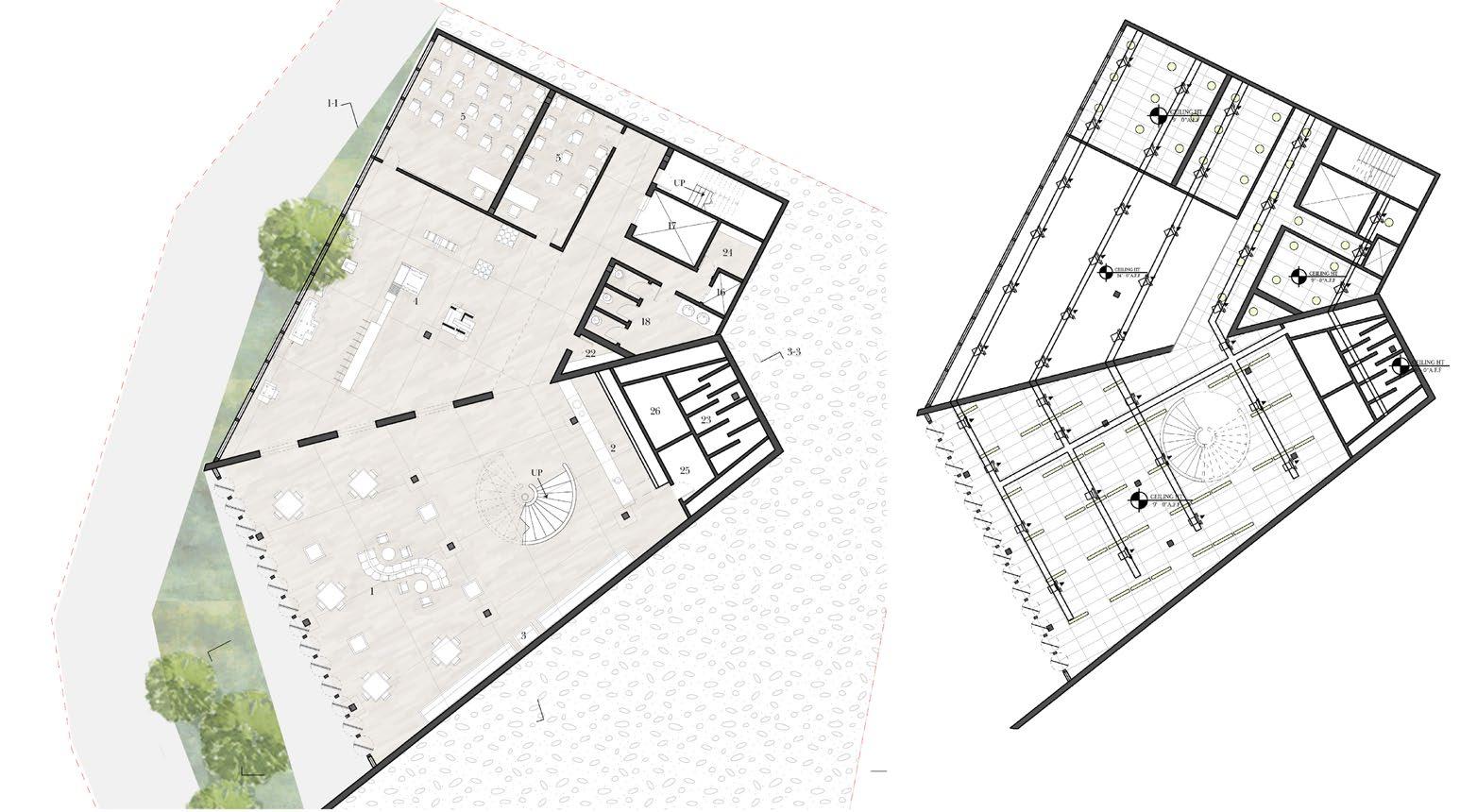

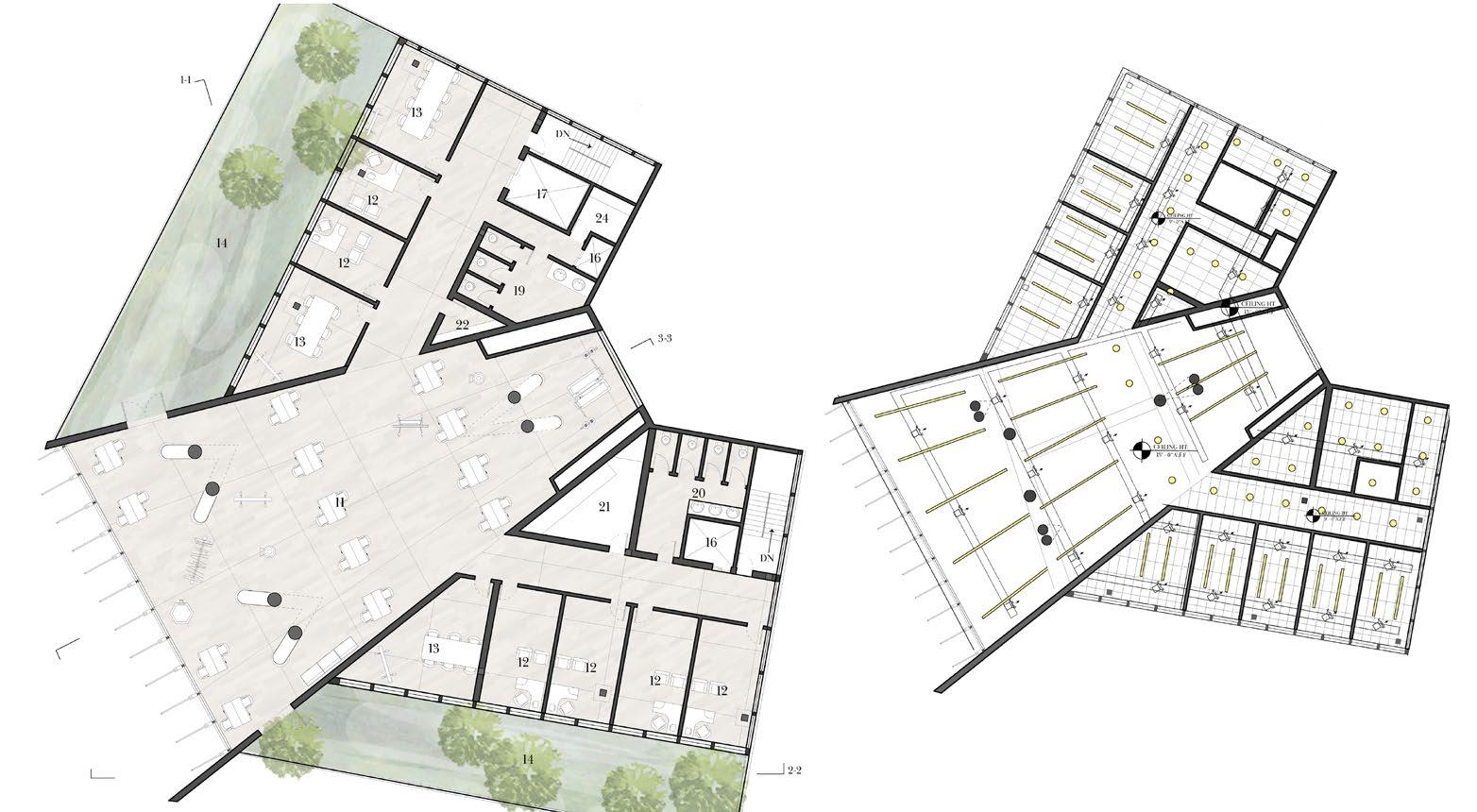

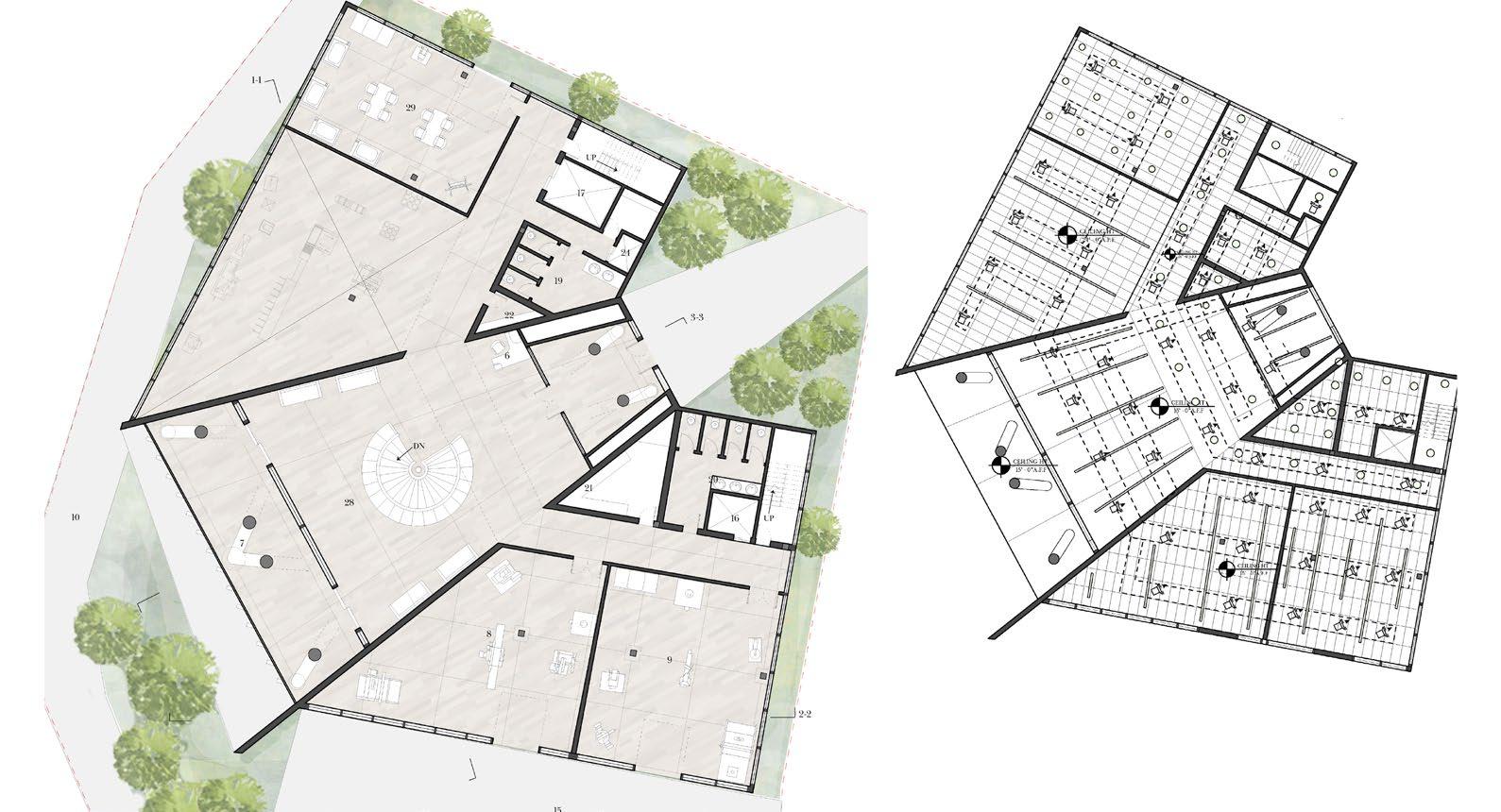

SECOND FLOOR AND R.C.P

FIRST FLOOR AND R.C.P

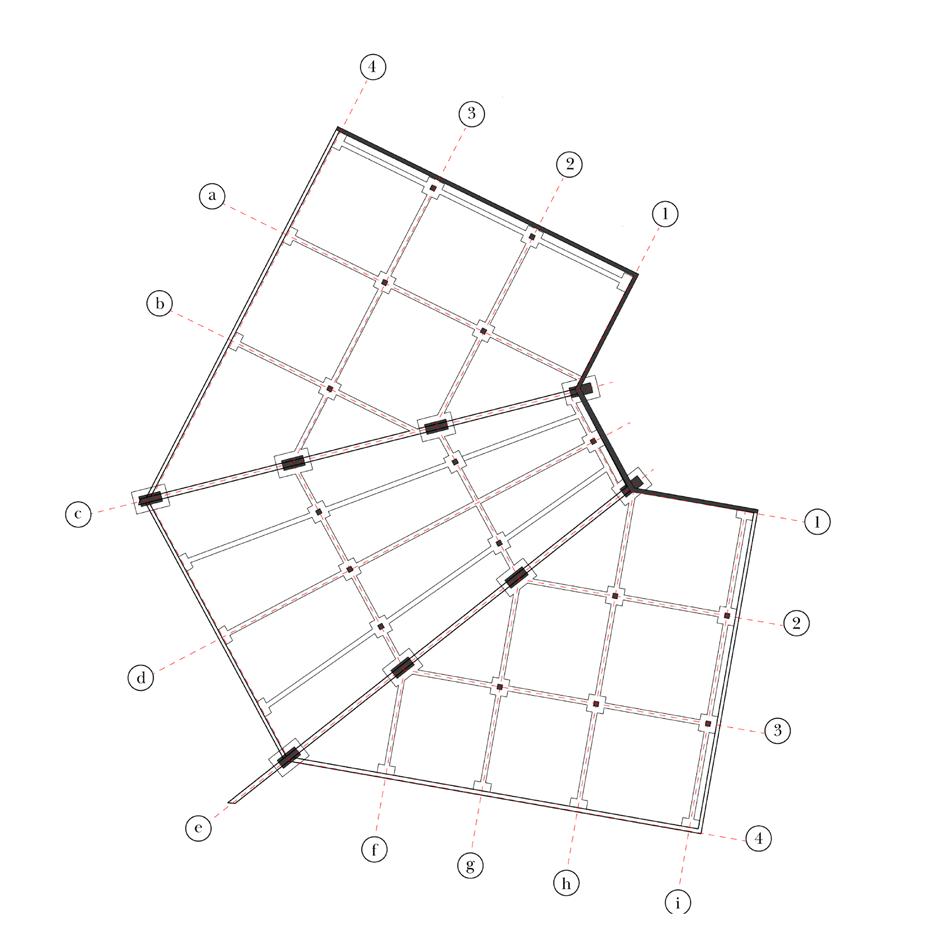

FOUNDATION PLAN

ROOF PLAN

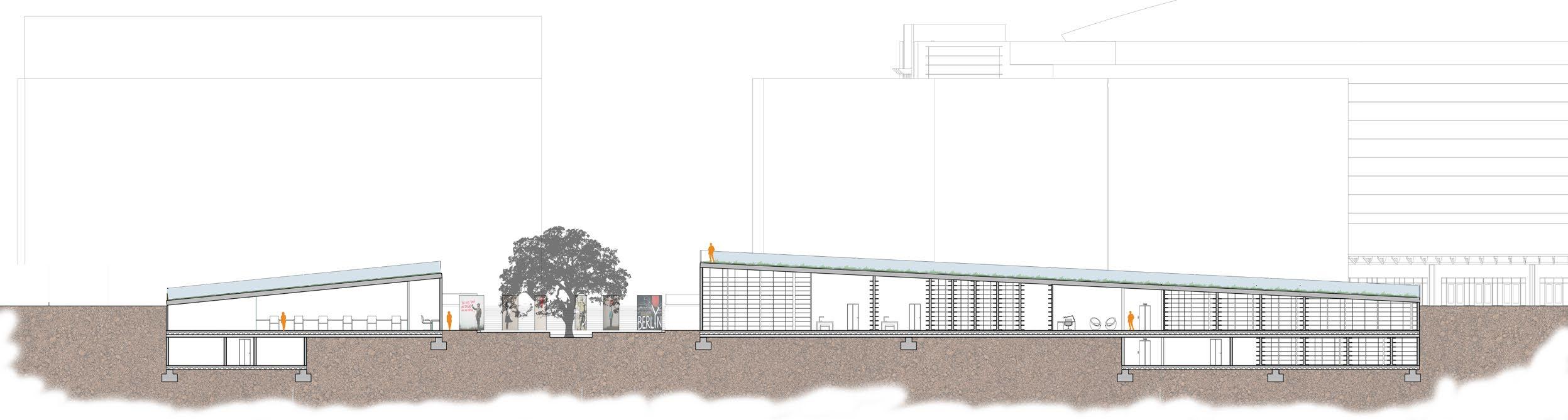

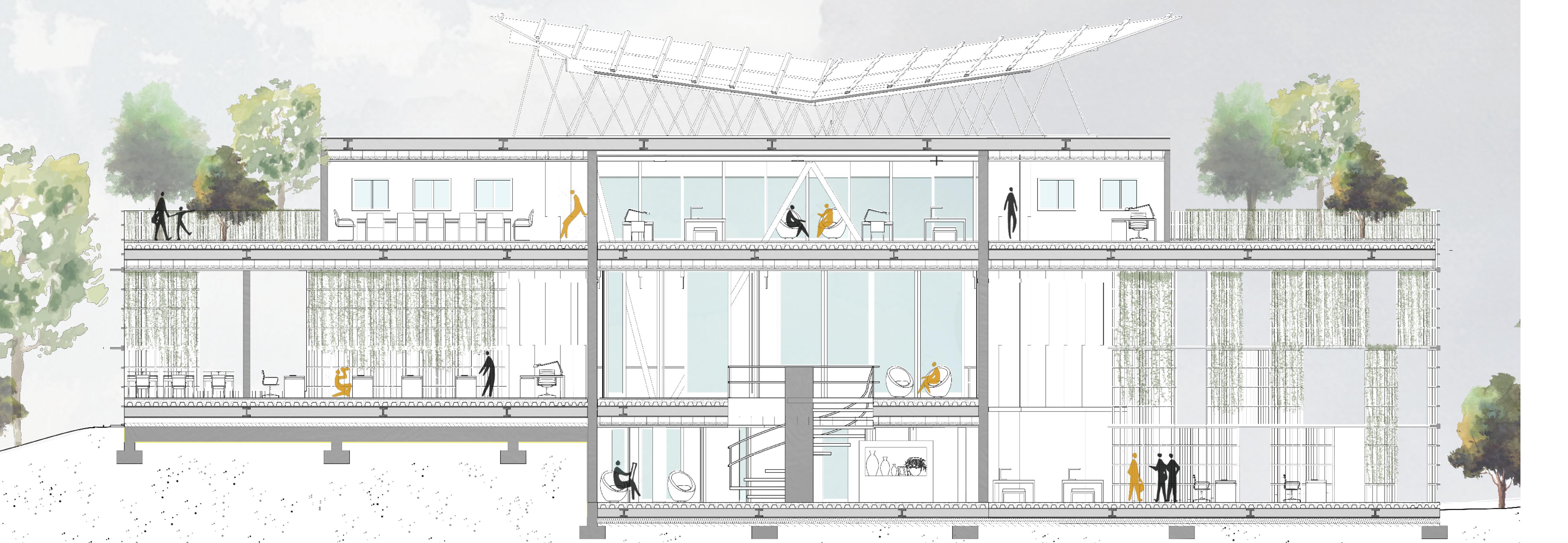

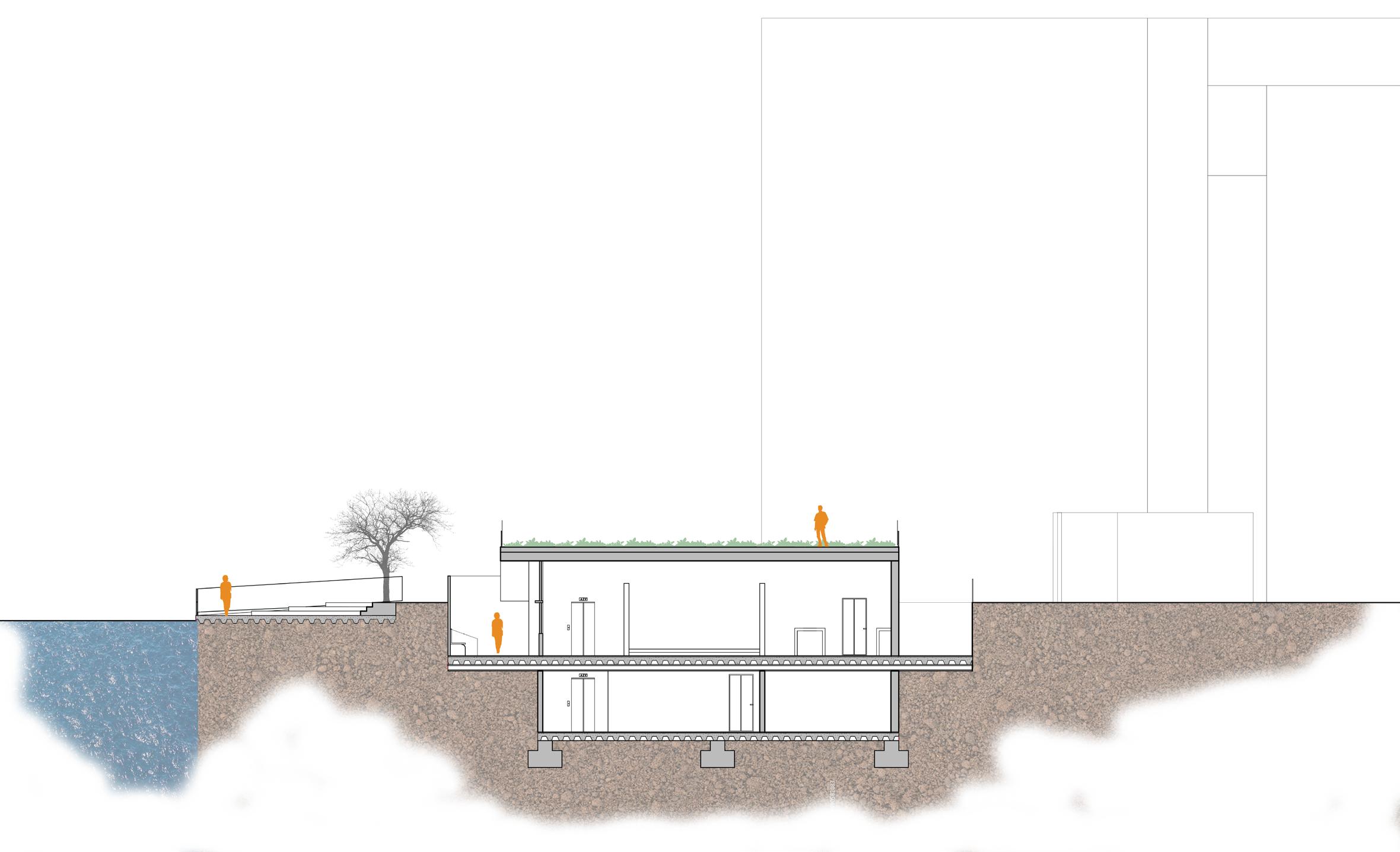

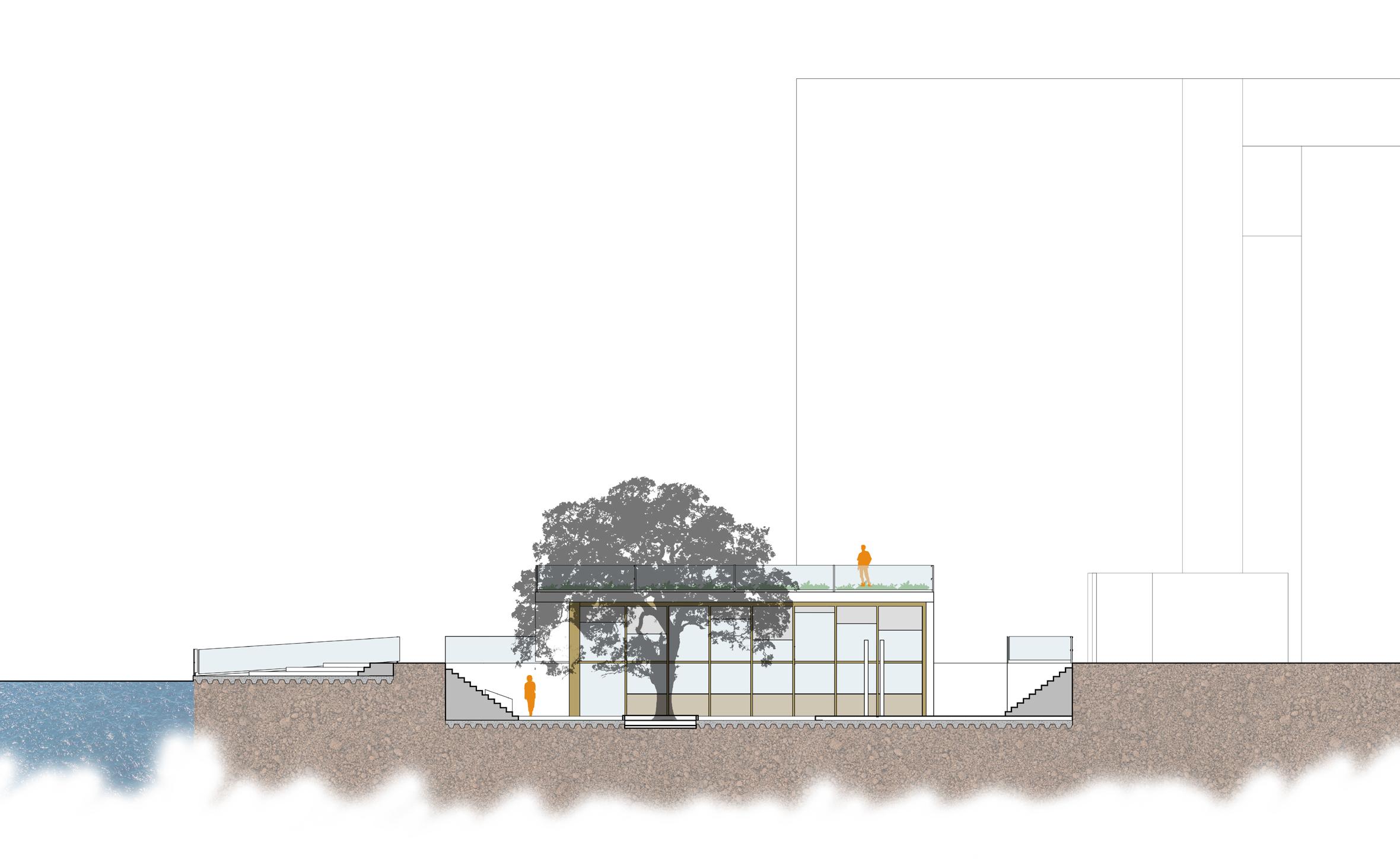

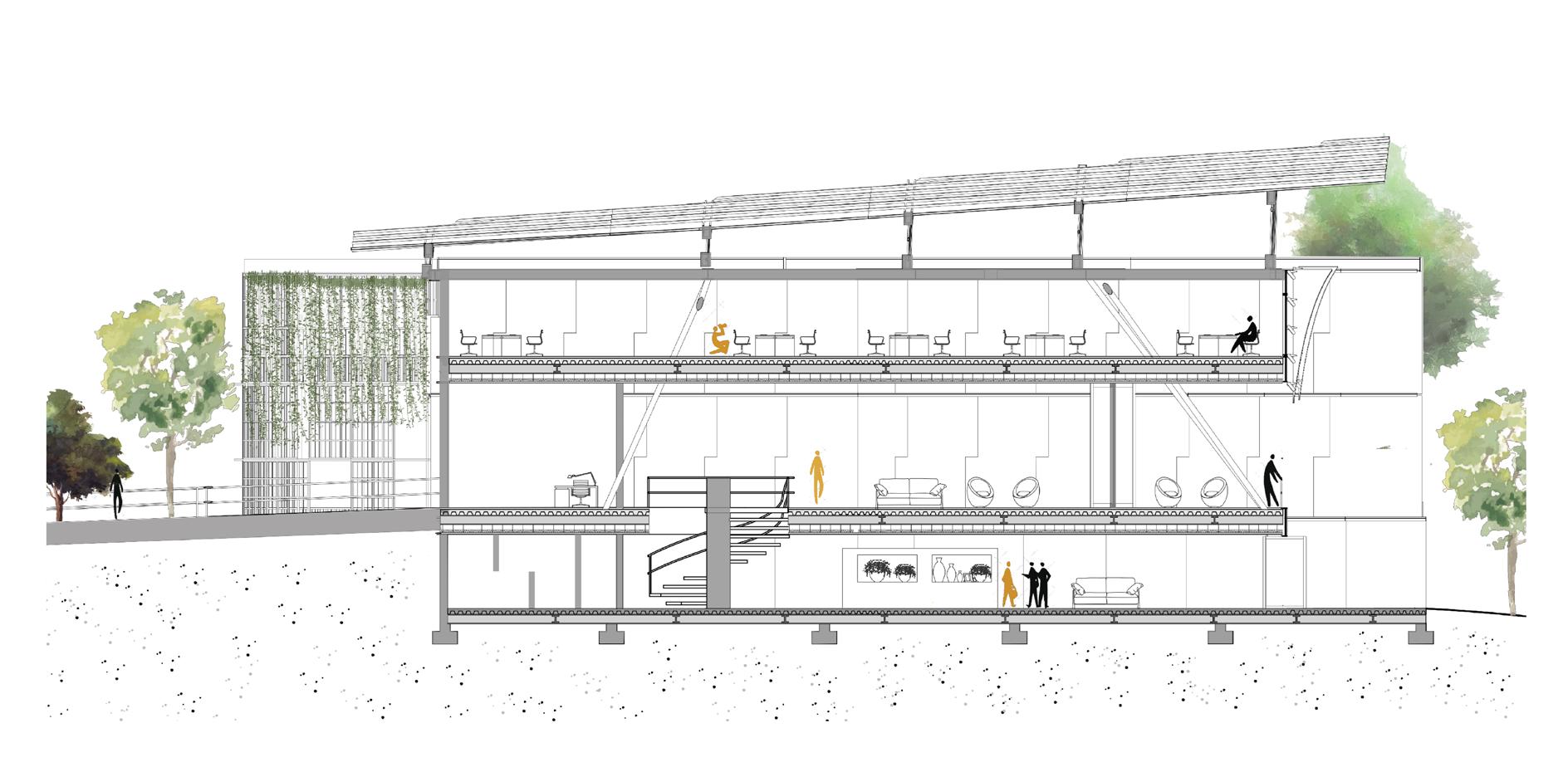

SECTION B

SECTION A

THIRD FLOOR AND R.C.P

MLD

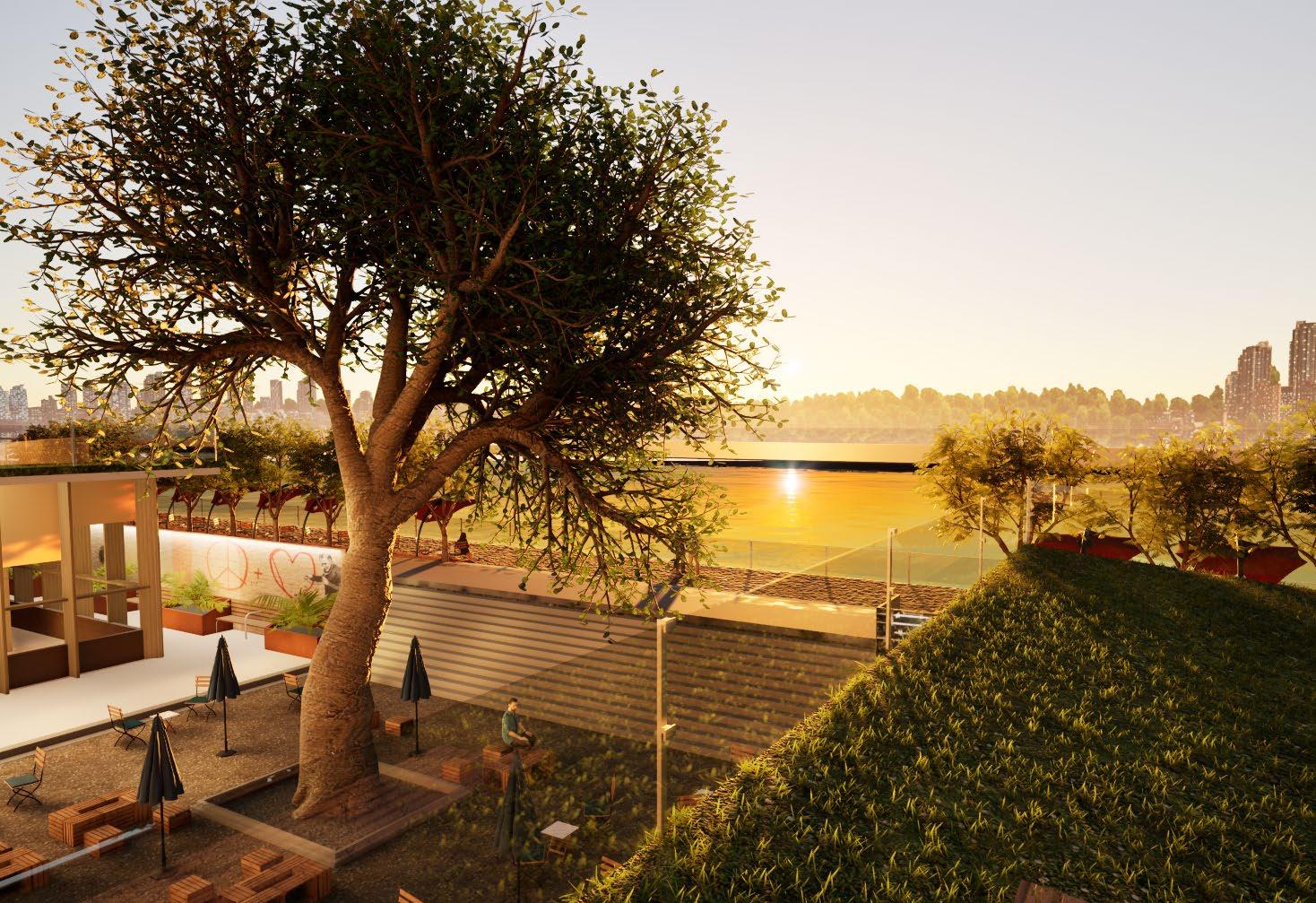

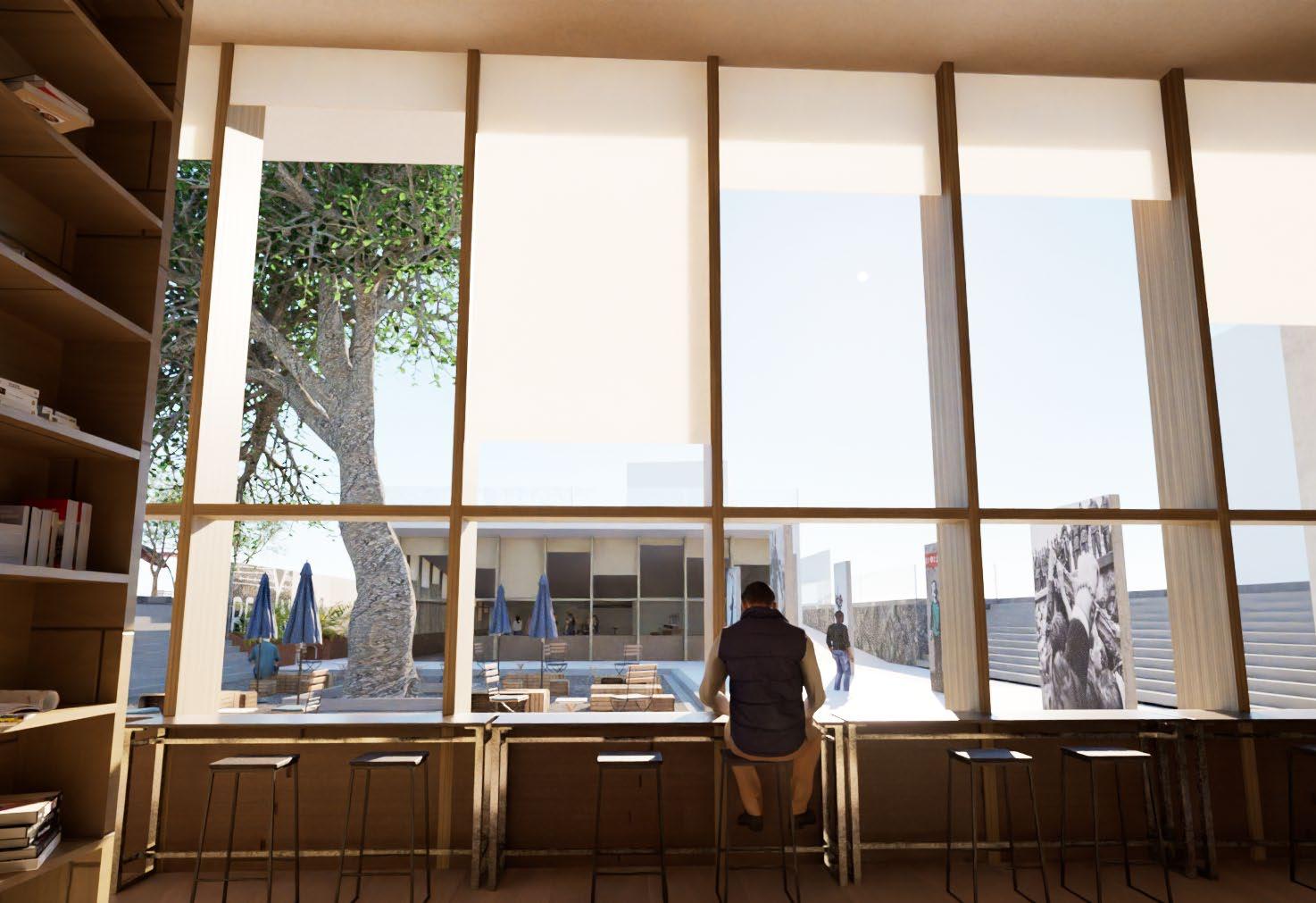

The Menschenland

Type:

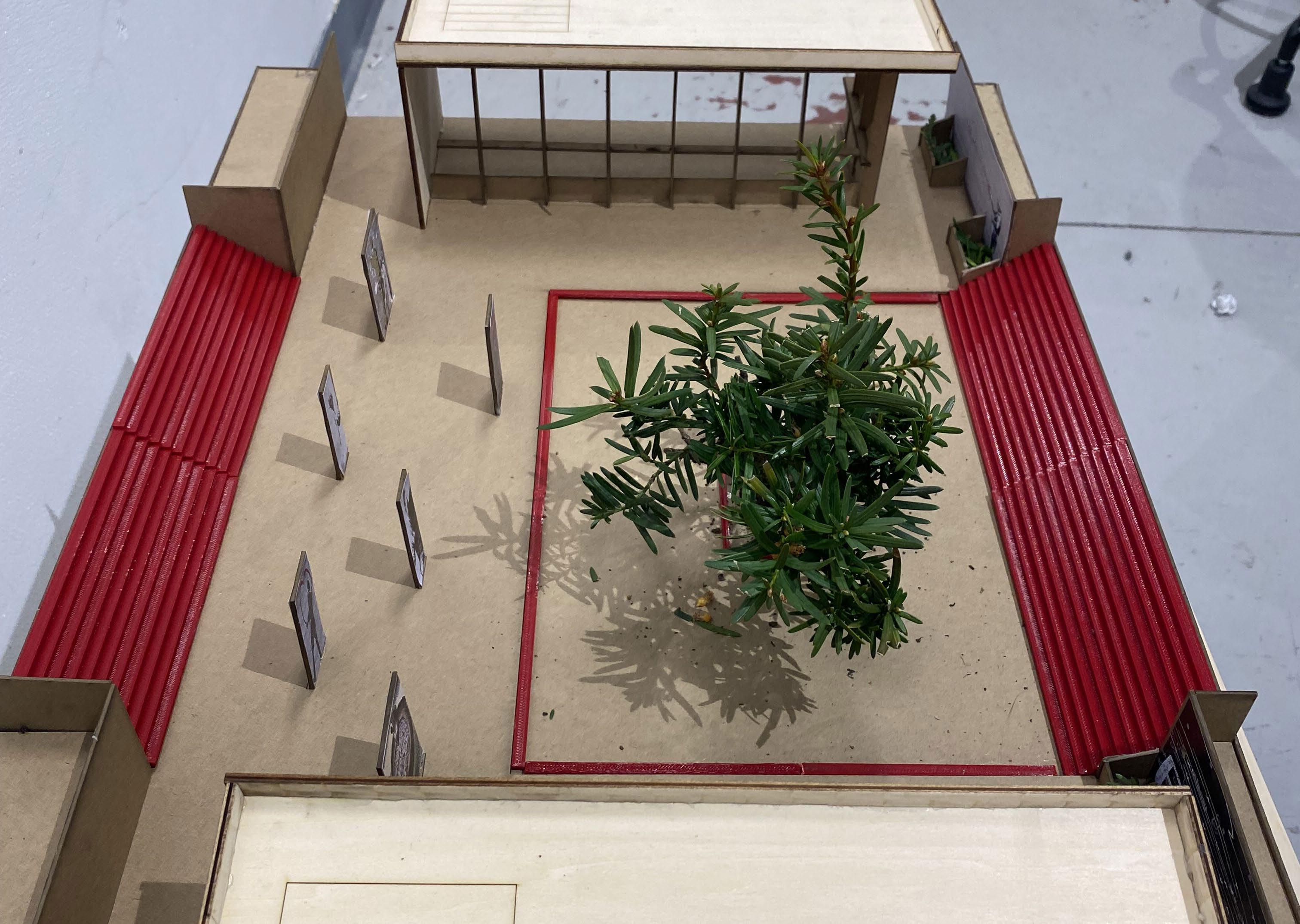

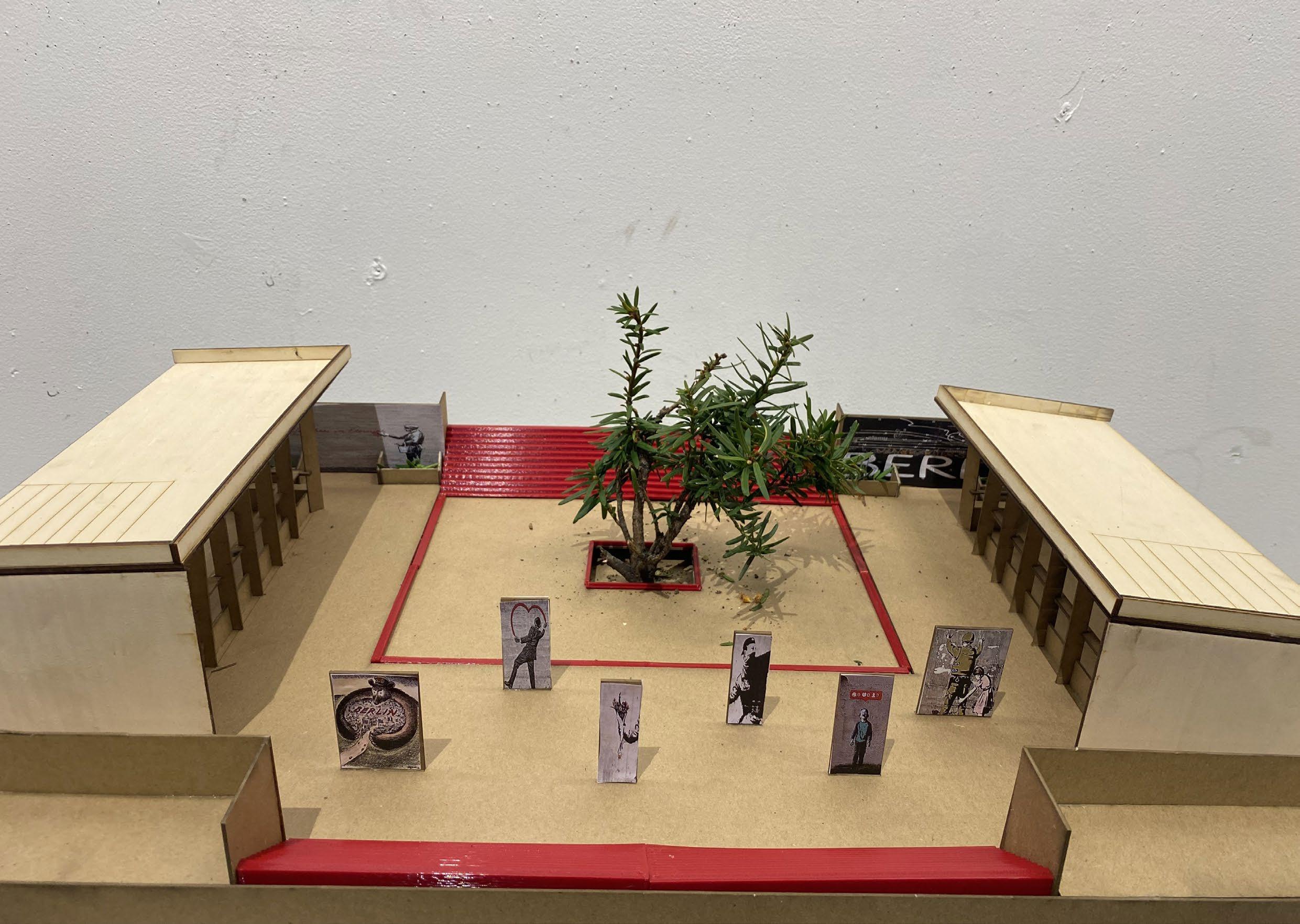

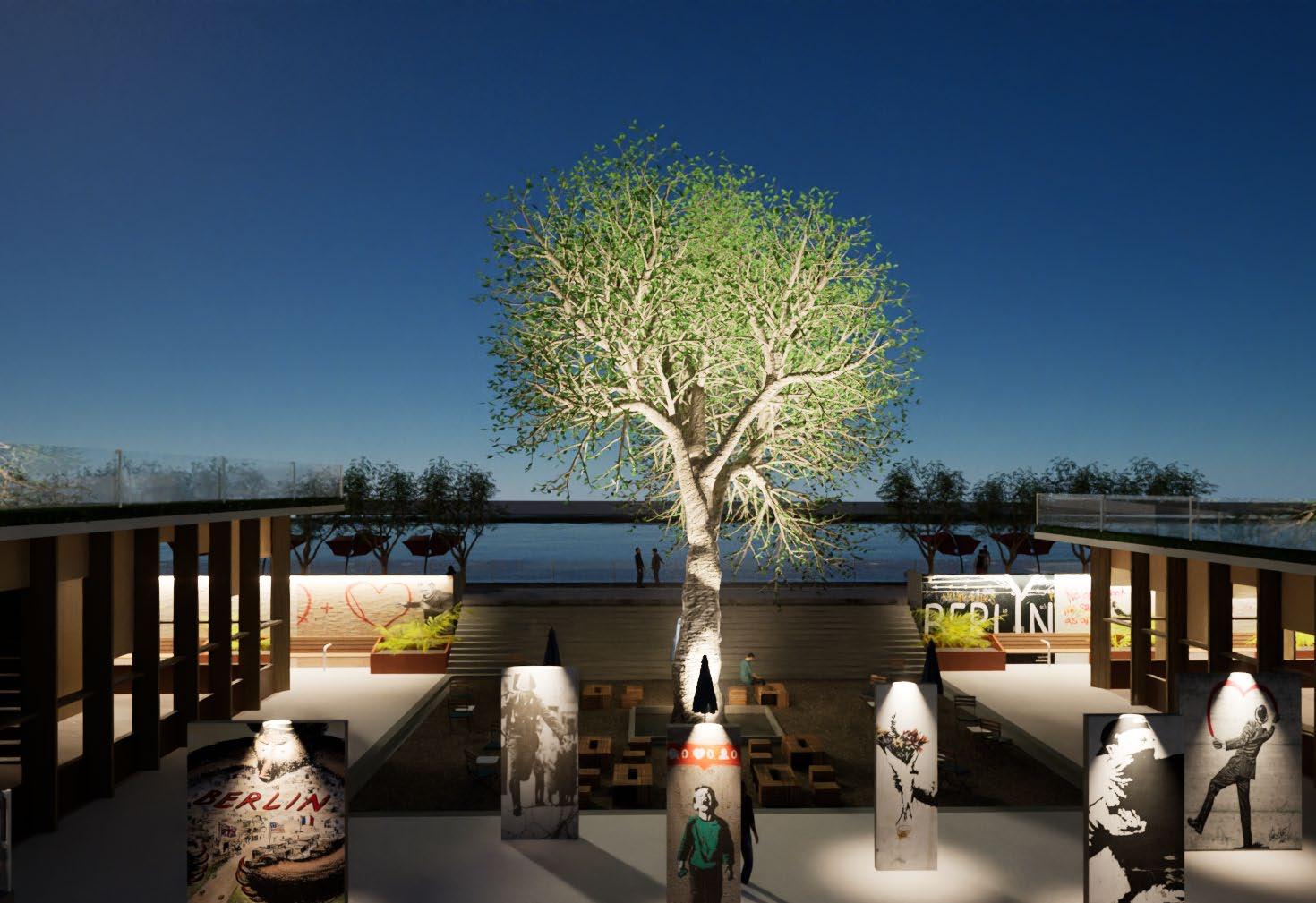

The Menschenland proposes a building type that acknowledges the historical trauma of the Berlin Wall and Niemandsland. It commemorates life and honors those who lost their lives attempting to cross, while also serving the community’s needs.

Concept:

Library and Flex Building ( Cafe/Speakeasy) and Memorial

Concept Statement:

the Menschenland acknowledges the historical, politcal, and social trauma inflicted by the Berlin Wall and the Niemandlsand by proposing a reinterpretation of the space that commemorates the essence of life through a building program that responds to the needs of the community and honors the death of those who have been tempted to cross

10

Semi Intensive Separation Fabric Drain Root Resistant Waterproofing Concrete Roofing Flashing

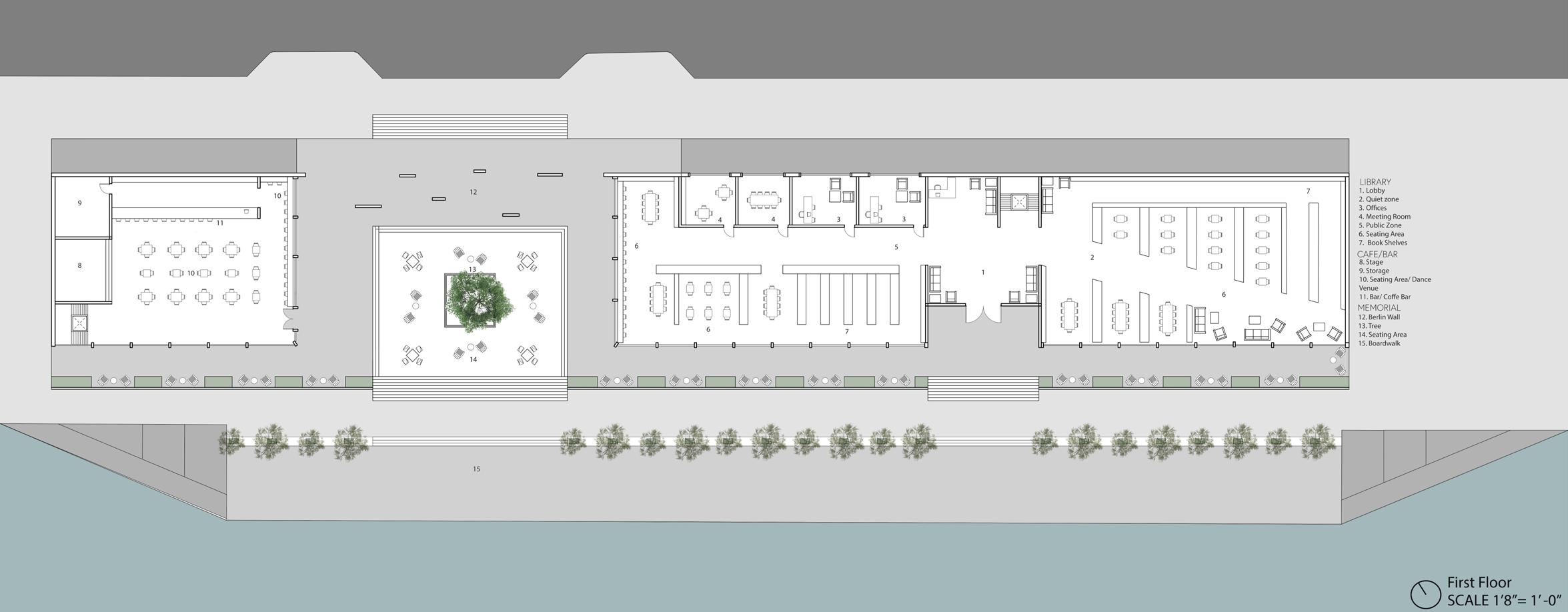

FIRST FLOOR 1/8”=1-0’

8x10 Timber Frame Post Double Glass Panel Thermal Barrier

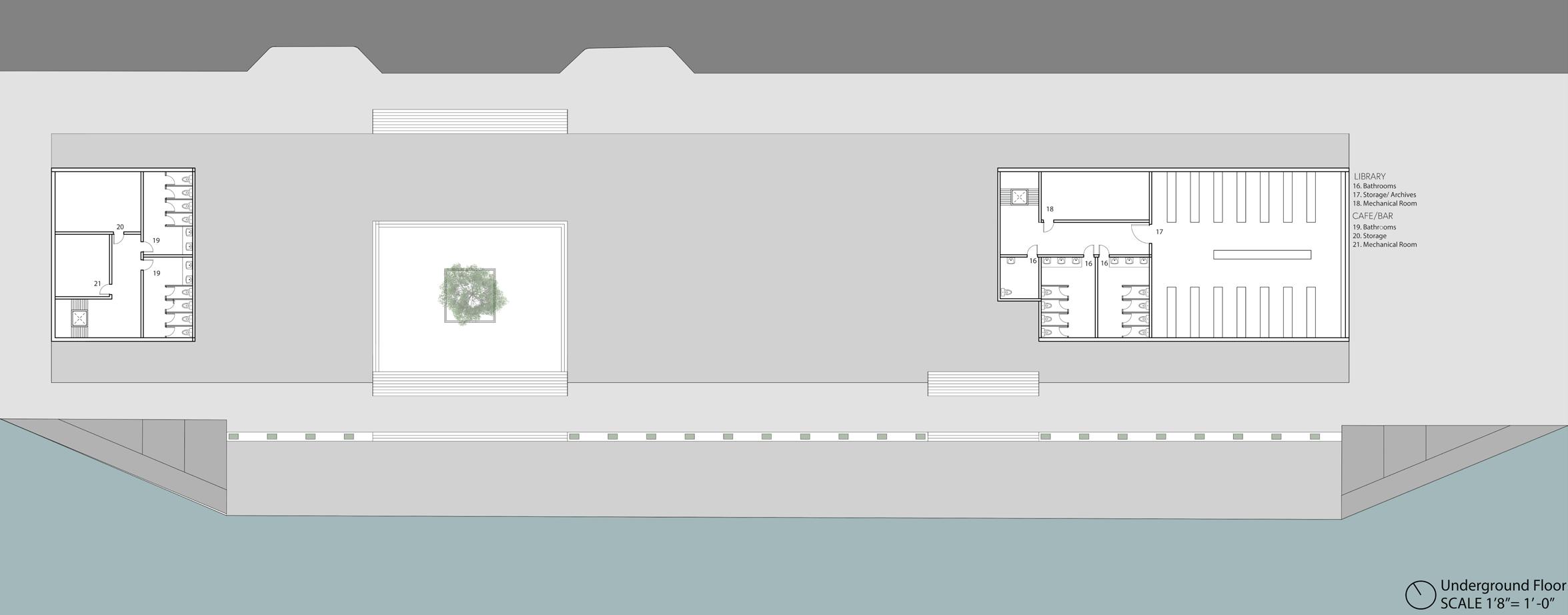

UNDERGROUNC PLAN 1/8”=1-0”

2x4 Horizontal Timber Stud

Half Timber-Panel Flashing

SECTION A 1/8”=1-0’

Floor Finishing Concrete Slab Insulation Dpm Hardcore Subsoil Footing

SECTION B 1/8”=1-0’

SECTION C 1/8”=1-0’

WALL SECTION SCALE: 1/2”=1’0 11

12

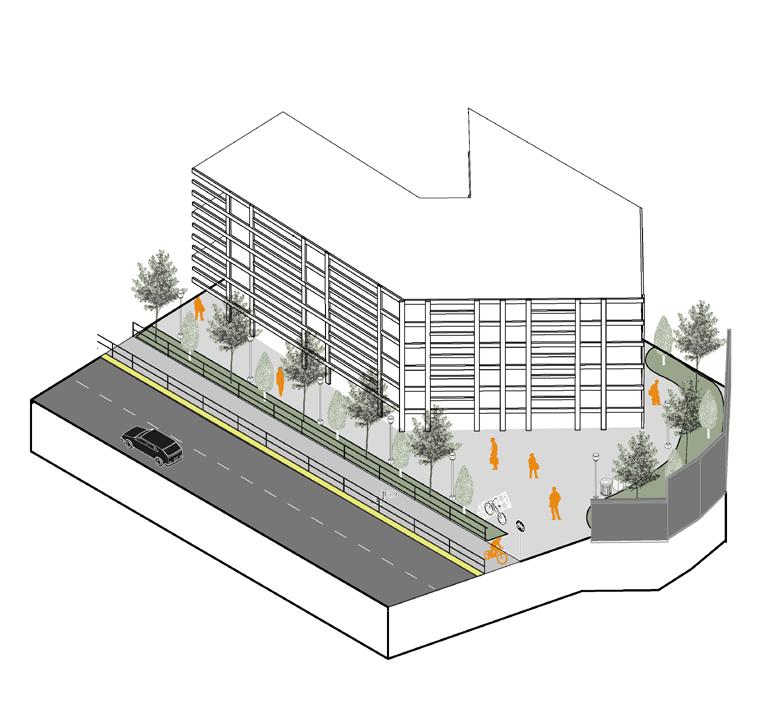

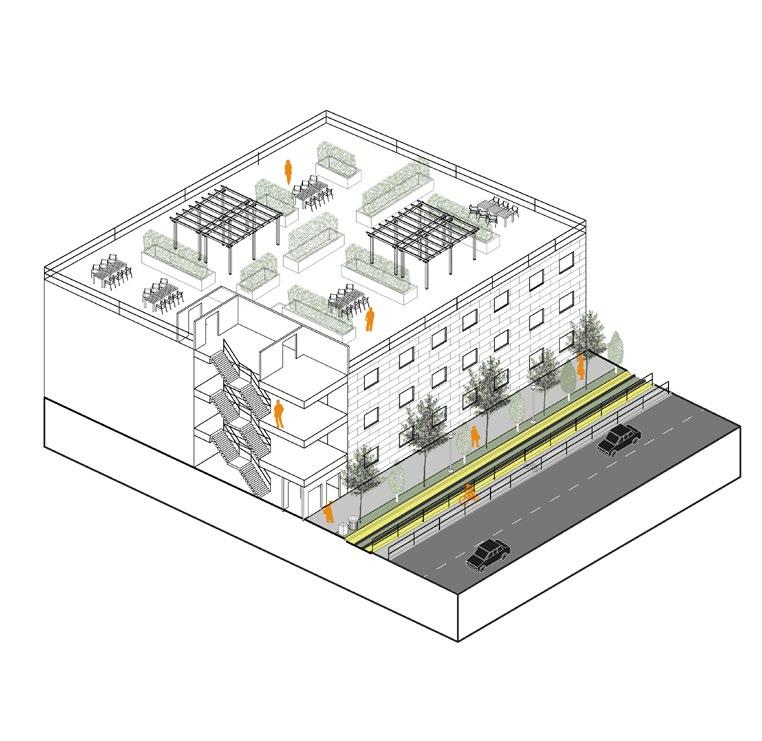

BM

Bridging Mattapan

Type:

Providing places to prosper through education, housing, and local business

Concept:

Community Empowerment

Concept Statement:

In the town of Mattapan, my concept focuses on community empowerment through strategic infrastructure development. By building essential structures and spaces, we aim to enhance accessibility, foster economic growth, and create a vibrant environment that empowers residents.

Through thoughtful planning and inclusive engagement, we aspire to catalyze positive change, improving the overall well-being and resilience of the Mattapan community.

13

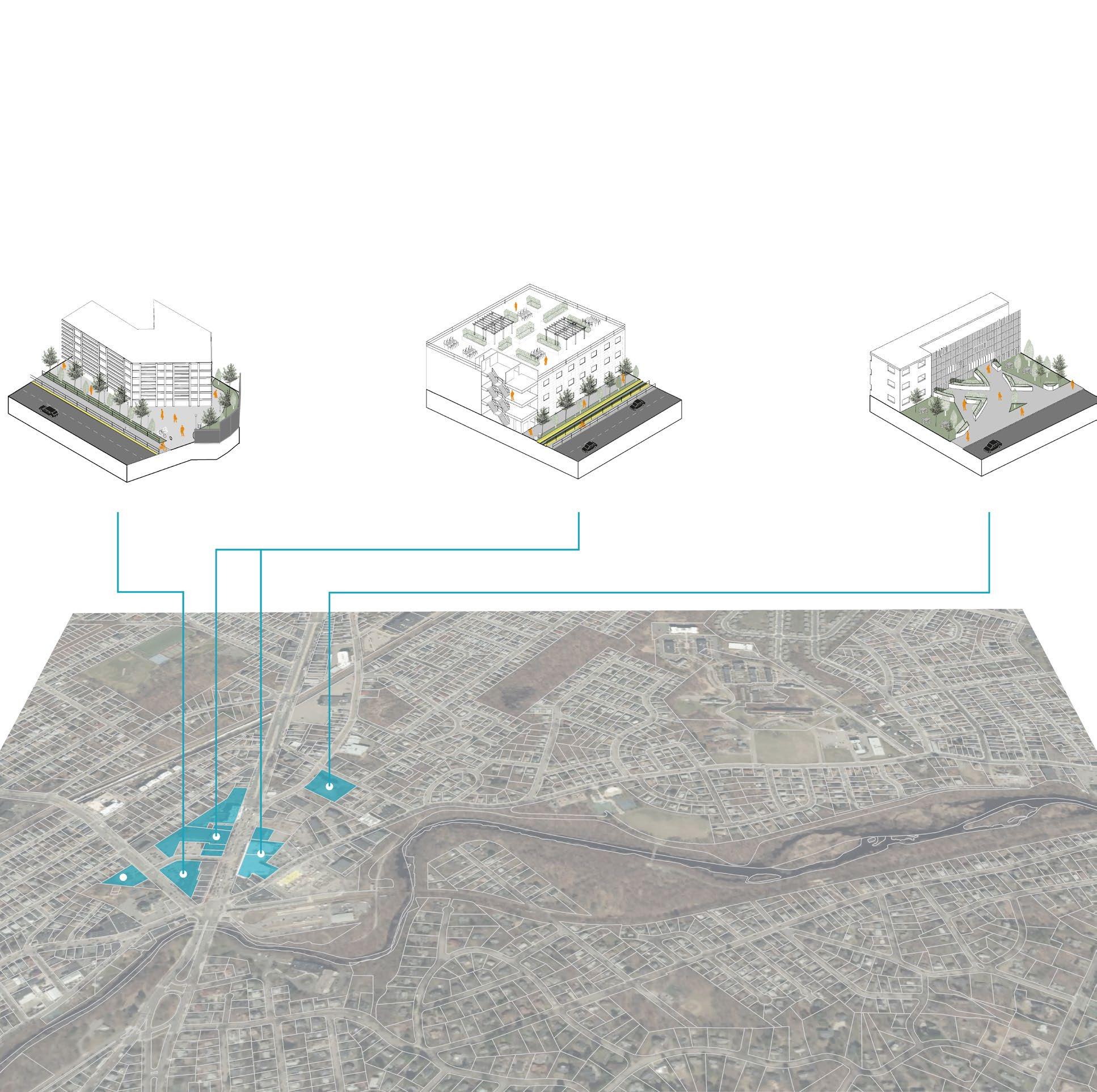

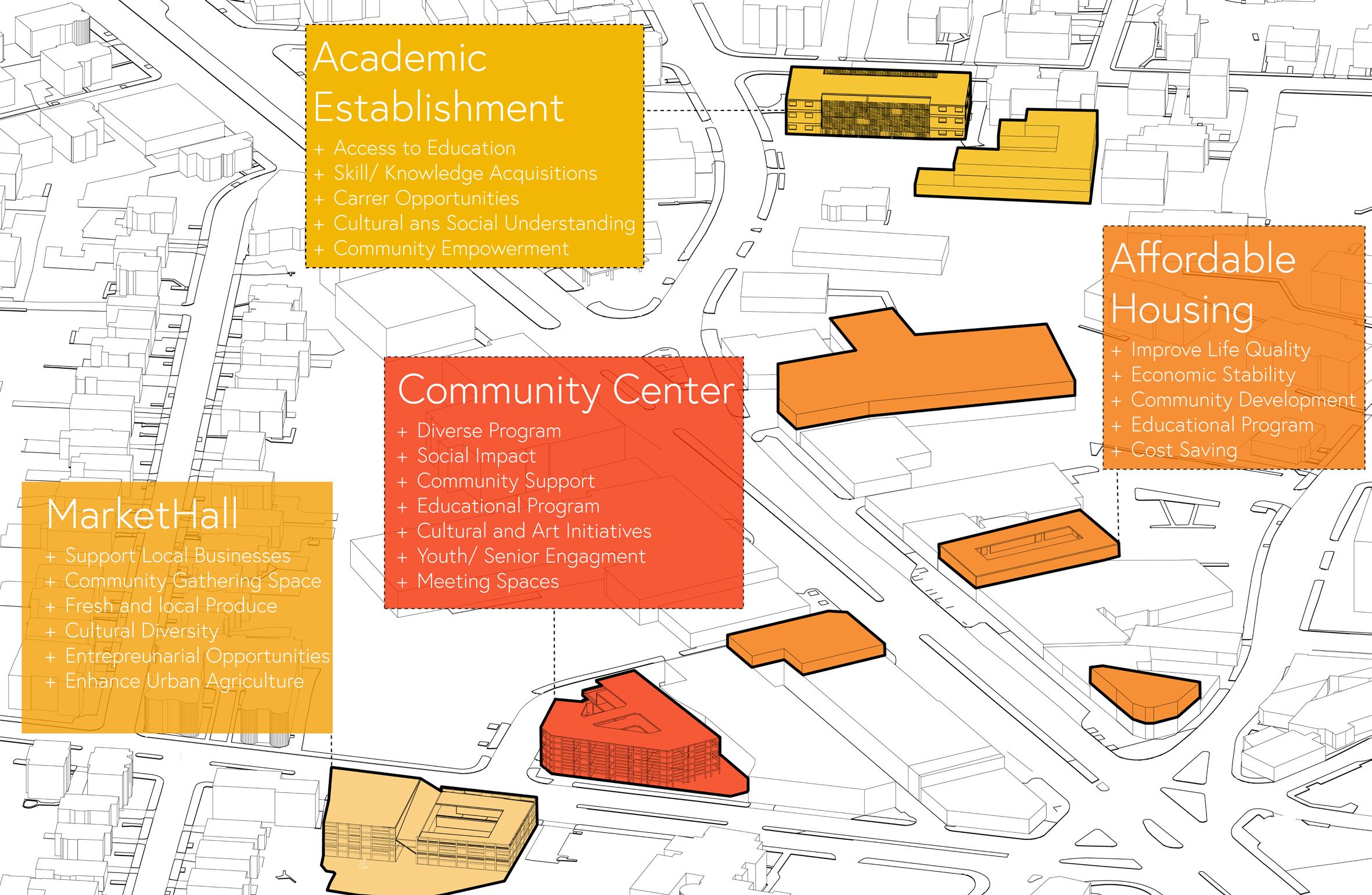

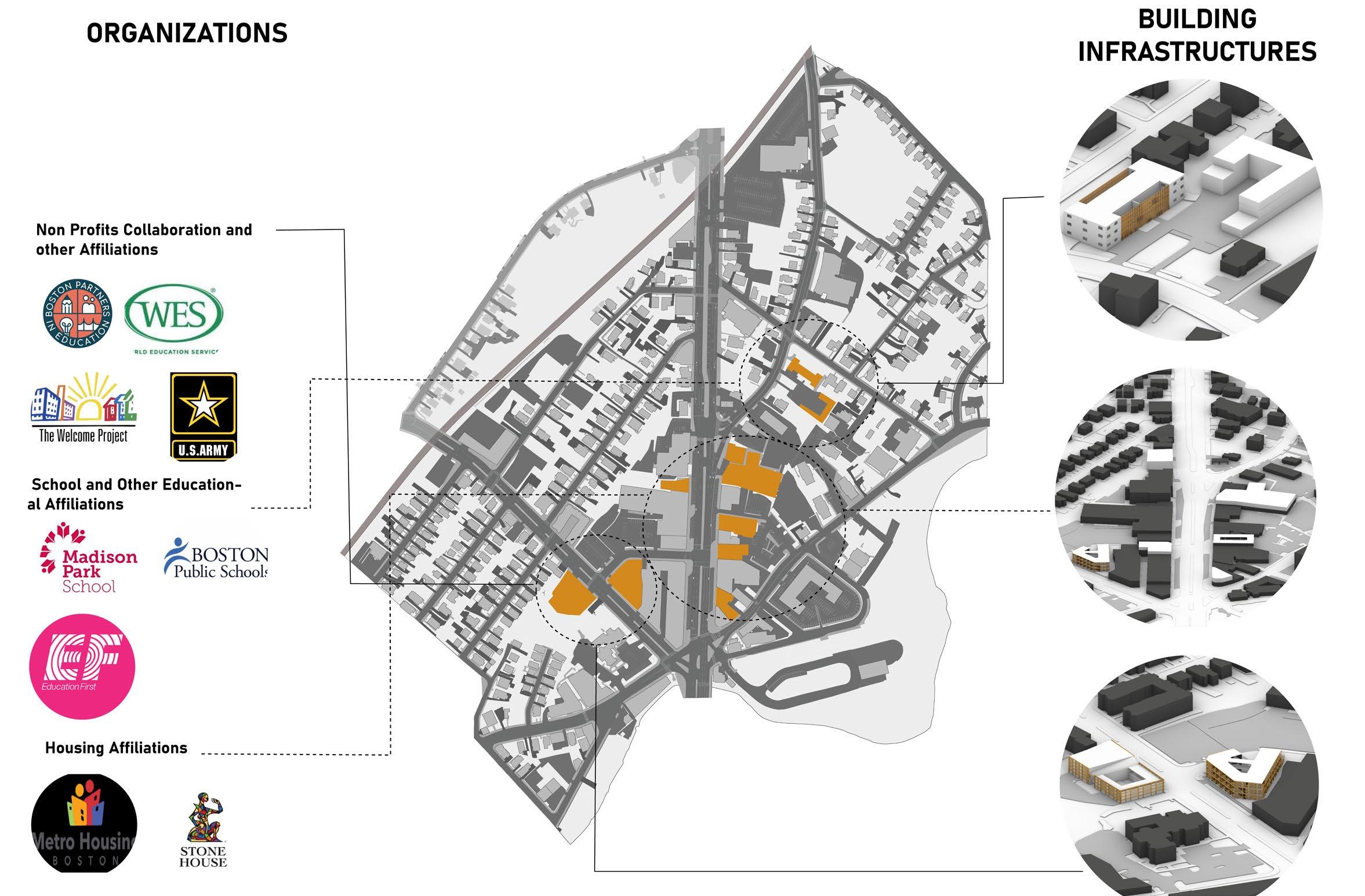

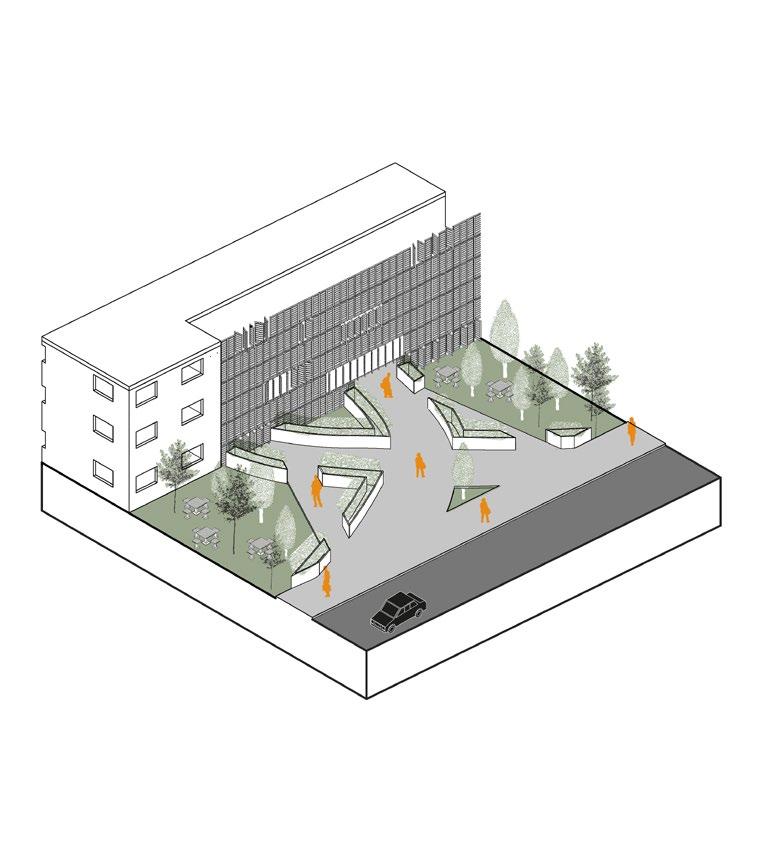

Benefits of Each Building Intervation

The Story In Mattapan, we’re empowering the community through focused building interventions. By strategically enhancing infrastructure, we aim to address needs, foster community pride, and create opportunities for residents to shape their neighborhood’s future.

Collaborations and Building Interventions 14

03

OFFICE PROJECTS

15

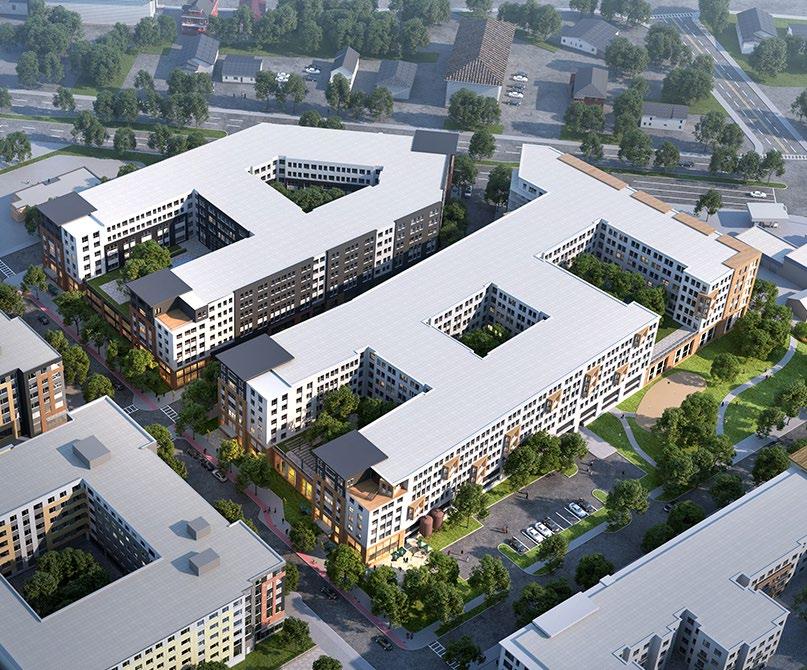

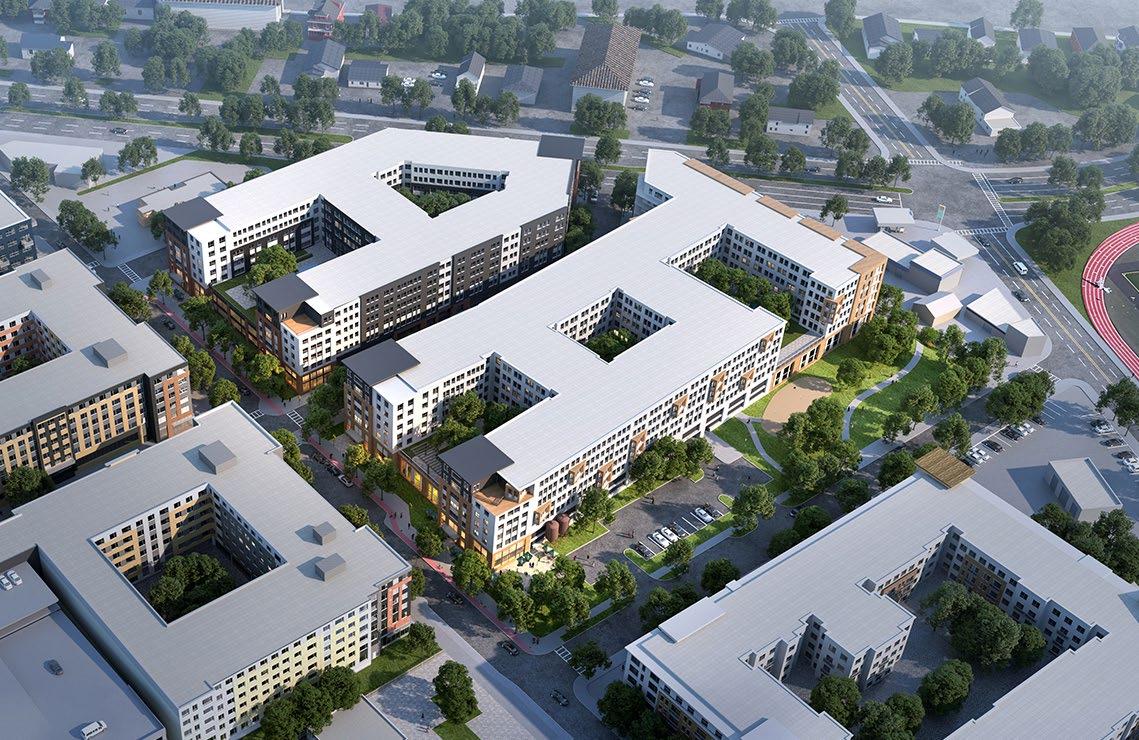

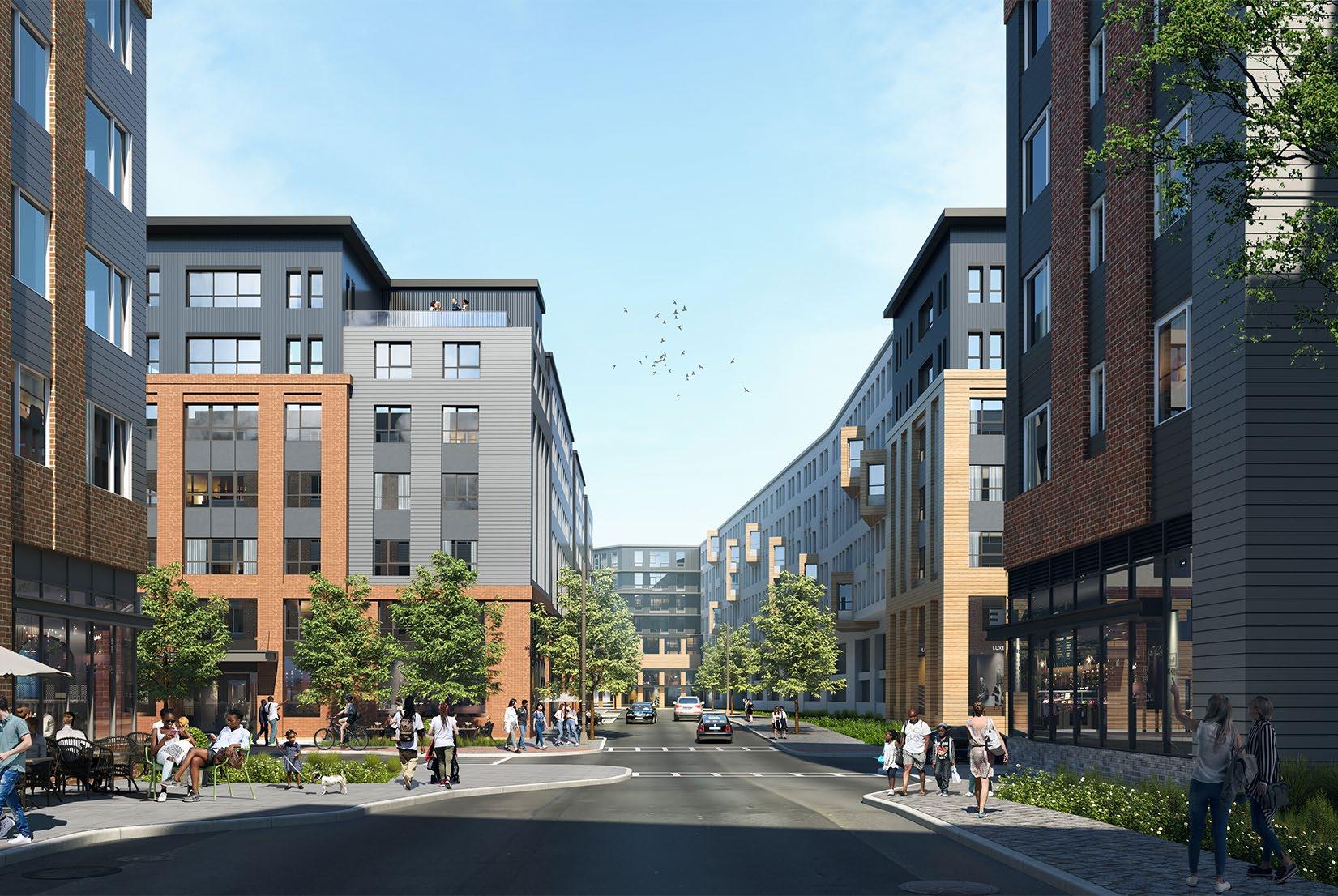

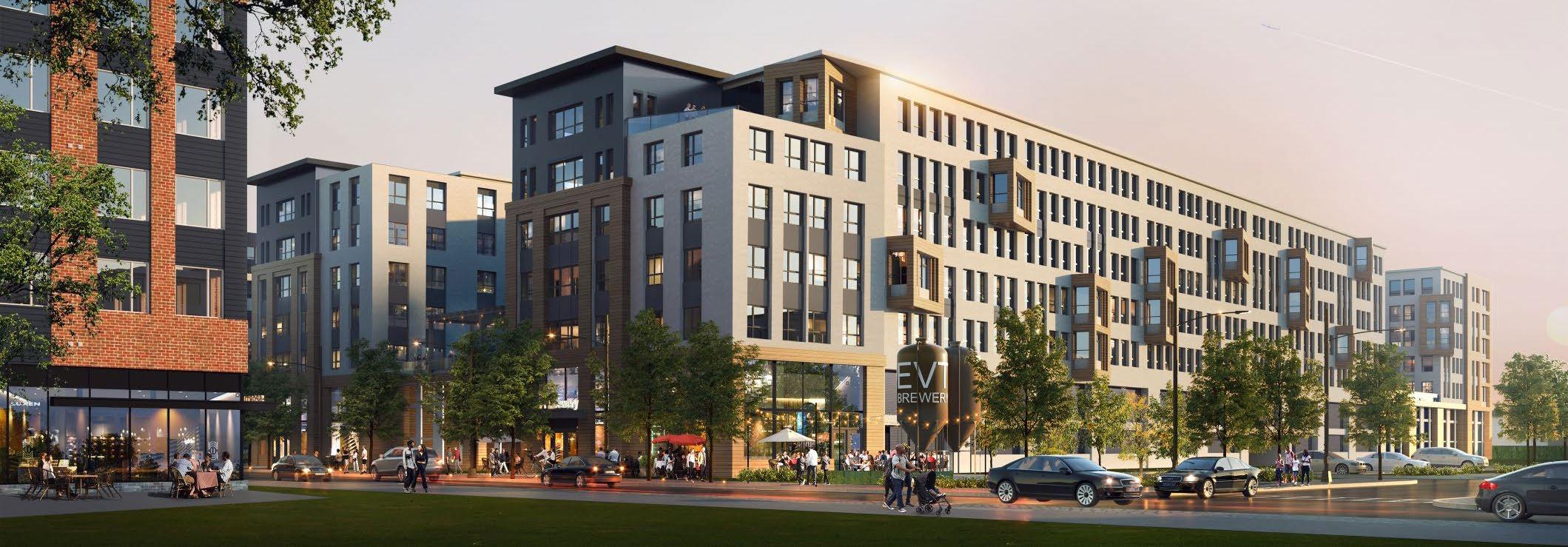

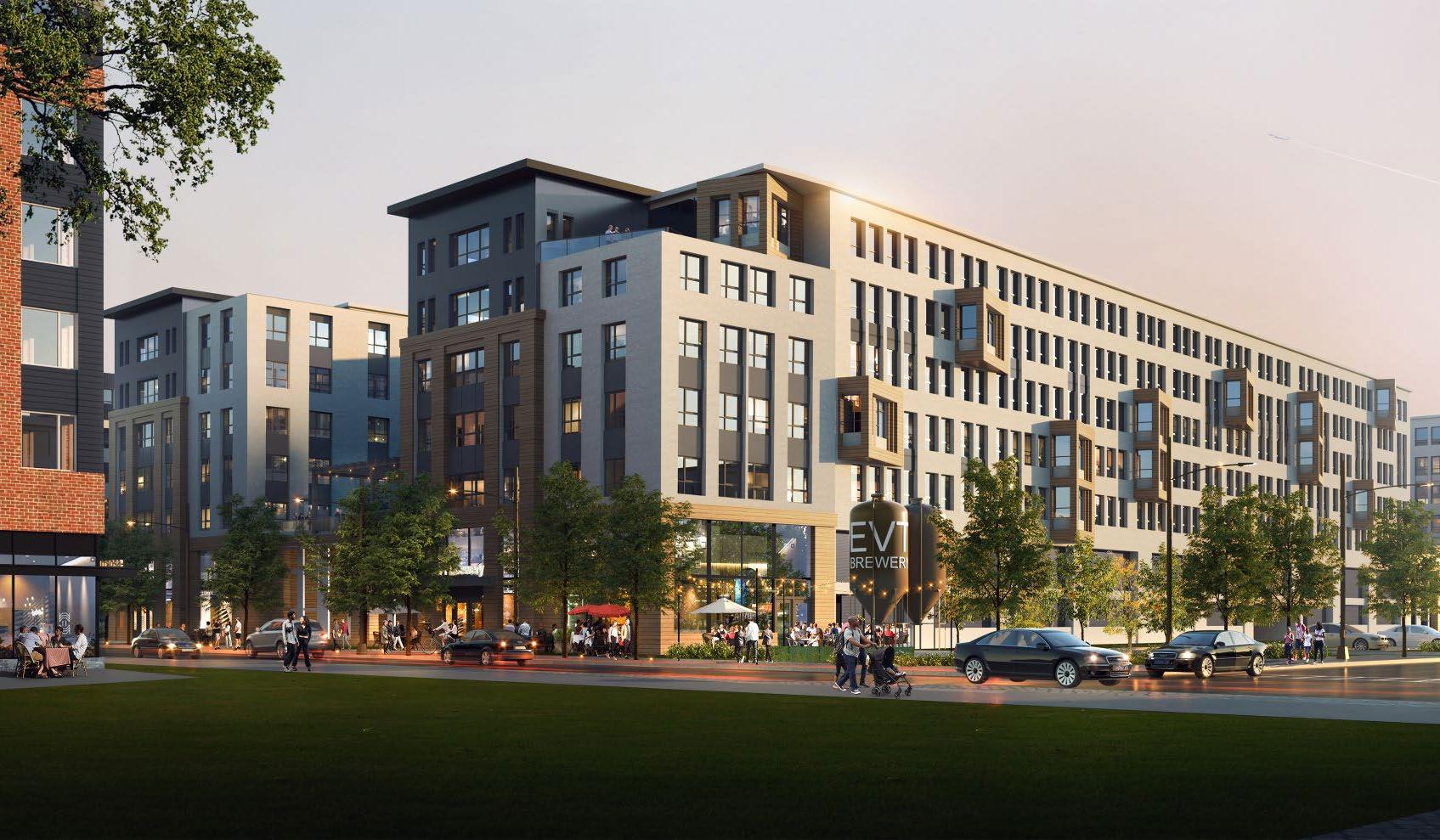

GS Type:

Greystar Our concept integrates commercial and residential spaces, fostering a vibrant community where people can live, work, and connect seamlessly. Thoughtful design ensures aesthetic harmony and convenience, creating a dynamic urban environment that enhances daily living and economic viability.

Group Members: Ryan Chemali, Saverio Battaglia, Kaylie Jackson, and Bruno Genessio

Concept:

Through thoughtful design, we aim to contribute to the local community’s vibrancy, enhance economic vitality, and provide residents with a modern, convenient, and interconnected lifestyle. Our vision seeks to establish an architectural landmark that reflects the spirit of Chelsea while fostering a harmonious blend of residential and commercial functions.

16

project informati

1690 Beach Bui

client information:

1690 Re Parkway

370 Merrimack St., Suite 337 Lawrence MA 01843 phone: 978.989.9900 www.cube3.com

Q

N

K

H

G

F

E

C

B

L1.2 - First Floor 8' - 6" Average Grade 5' - 0"

UNIT B6 384

13' - 7 1/8"

CORRIDOR WEST C305 TENANT STORAGE S309

3' - 11 5/8"

A-301

23' - 1 1/4"

UNIT A3 380

23' - 1 1/4"

68' - 10 3/4"

20' - 2 7/8"

UNIT A3 378

UNIT A4 390

UNIT A4 389

8' - 7 3/8"

8' - 8 7/8"

UNIT S5 374

UNIT A1 376

UNIT S3 392

UNIT S5.1 391

4 A-412

CORRIDOR WEST C303

ELEV. 4 EL4

UNIT S4 370

PARKING

SOG 1

CENTRAL COURTYARD CY302 5,688 SF

5 A-203

26' - 8 3/4"

UNIT A4 368

UNIT A4.1 G2 366

20' - 5 1/2"

ELEV. 3 1170

UNIT S4 362

ELEC RM S306

FCA 1

UNIT A4 454

CORRIDOR EAST 13 UNIT A3 C401 455 A-560

POS 2

AMENITY A301

5

4 A-560

POS EAST COURTYARD CY301 1

POS 1

POS 1

PARKING

SOG 1

SOG PARKING 1 G100

PARKING

TENANT STORAGE S307

POS 2

POS 1

CORRIDOR EAST 13 C601 A-560

UNIT A3 613

UNIT B1 510

CORRIDOR EAST 13 UNIT A3 C501 513 A-560

4 A-560 4 A-560

FCA 1

UNIT B1 410

CORRIDOR EAST 13 UNIT A3 - G2 C401 413 A-560

POS 2

UNIT B1 310

CORRIDOR EAST C301

4 A-560 FCL 1 4 A-560

UNIT A3 313

21

20 19.9

19

18

17

16

15.2

15

14

13

12

11

10

9

8.9

8

7

6

5

PARKING G100

4

3

2.5

Building Sections

UNIT A3 377

STAIR 4 ST304

T.O - Roof 86' - 2"

L7 - Seventh Floor 74' - 2"

UNIT B1 375

9' - 11"

UNIT S1 373

UNIT B2 371

UNIT A4 369

UNIT A1.1 367

UNIT A4.2 365

2

24' - 5 1/4"

issuance:

34' - 2"

key plan:

23' - 1 1/4"

drawing information:

23' - 1 1/4" UNIT A3 313

L4 - Fourth Floor 42' - 2"

L1.2 - First Floor 8' - 6" Average Grade 5' - 0" Bottom Garage Ramp 2' - 8 3/8"

UNIT A6 - HI 363

drawing revision

No.

42' - 4 5/8"

2 A-403

UNIT A1 314

UNIT B2 315

UP 3 A-402

DN

UP

UNIT B3 361

DN

STAIR 2 ST302

UNIT C2 317 UNIT B5 316

2 A-300

9' - 7 1/2"

34' - 1 1/2"

23' - 1 1/4"

23' - 1 1/4"

32' - 2 1/2"

16' - 1"

33' - 10"

24' - 5 1/4"

20' - 5 3/4"

24' - 11 1/2"

28' - 8 3/8"

9' - 7 3/8"

37' - 11 1/4"

73' - 2 1/4"

37' - 7 3/4"

36' - 6 3/4"

2 A-201

Third Plan

N

Third Floor Plan

1

1/16" = 1'-0"

A-103

A-10

1

East-West Section 2

1

1/16" = 1'-0"

A-301

A-301

Third FLoor

COPYRIGHT (C) 2023 CUBE 3 STUDIO LLC

MESH SCREENING - OHIO GRATINGS - ARCHITECTURAL MESH - L-62 STAINLESS STEEL/BRONZE (81.7% OPEN)

4

THIN BRICK (BOD - CLIP SYSTEM: DESANA BRICK SLIP (STAINLESS STEEL) ON ALLOY CLIP/BRACKET - SAND

1690 Revere Beach Parkway Everett, MA

FIBER CEMENT LAP SIDING, 6" EXPOSURE - BOD JAMES HARDIE ARCHITECTURAL COLLECTION - GRAY

6

FIBER CEMENT LAP SIDING, 6" EXPOSURE - BOD JAMES HARDIE ARCHITECTURAL COLLECTION - COBBLE STONE

7

FIBER CEMENT ACCENT PANEL - BOD JAMES HARDIE ARCHITECTURAL COLLECTION PANEL - GRAY SLATE

8

FIBER CEMENT VERTICAL PANEL - BOD HARDIE PANEL VERTICAL SIDING - 4X8 MAX PANEL - DARK GRAY

9

FIBER CEMENT VERTICAL PANEL - BOD HARDIE PANEL VERTICAL SIDING - COBBLE STONE

10

FIBER CEMENT PANEL - BOD HARDIE PANEL - GRAY

2/A-201

client information:

5

N

GREYSTAR

1 Federal Street, Suite 1804 Boston, MA 02110

NOTE: ALL MECHANICAL INTAKE/EXHAUST VENTS AND LOUVERS TO BE PAINTED TO MATCH ADJACENT MATERIAL.

5 A-350

2 A-300

_____________

2 A-301

_____________

_____________

T.O. Parapet 2 87' - 6"

DESIGN DEVELOPMENT

8"

T.O. Parapet 1 86' - 10"

A3F

A3

A3

A3

A3

A3

A3F

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3F

A3

A3

A3F

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3F

A3

A3

A3

A3

A2

A3

A3

A3

A3

B1

A2

B.O. Truss 83' - 2"

B2

L7 - Seventh Floor 74' - 2"

10' - 8"

B1

10' - 8"

9

B1

B1

B1

A3F

A3

A3

B1

A3F

A3

A3

A3

A3

A3

A3

5

A3

A3

A3

A3

A3

A3

A3

5

A3

A3

A3

A3

A3

A3

A3

A3

A3

B1

5

5

A3

A3

A3

A3F

A3

A3

A3

A3F

A3

A3

A3

A3

10' - 8"

B1

B1

A3F

A3

10' - 8"

B1

B1

B1

A3F

A3

A3

A3

A3

A3

A3

5

A3

A3

A3

A3

A3

A3

A3

A3F

A3

A3

A3

A3F

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3F

A3

A3 5

A3

A3

A3

A3

A3F

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3F

A3

A3

A3F

A3

A3F

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3F

A3

A3

A3

A3

A3

A3

5

A3

A3

A3

B1

A2

B2

A2

A3

A3

A3

B1

A2

B2

A3

A2

A3

A3

A3

B1

A2

B2

A3

A2

A3

A3

A3

B1

A2

B2

L6 - Sixth Floor 63' - 6"

6

9

A3

9 A3

5

A2

A3

9 A3

9 B1

A3

9

9 5

L5 - Fifth Floor 52' - 10"

9 A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

L4 - Fourth Floor 42' - 2"

9 A3

A3

10

10

10

10

10

A3

A3

10

A3

A3

10

10

10

10

1

1

4

1

3

1

3

1

3

1

1

3

1

3

1

1

1

3

1

3

3

3

3

3

AB

drawing scale:

As indicated

drawing date:

28 April 2023

project number:

22186.00

No.

Description

Date

S20 L1.2 - First Floor 8' - 6"

S21

5' - 3"

Author

drawing checked by:

L2 - Second Floor 19' - 6"

1

1

1

3

drawing by:

drawing revisions:

2

S55

11' - 0"

L3 - Third Floor 31' - 6"

10

10

key plan:

9

9

NOT FOR CONSTRUCTION

T.O - Roof 86' - 2"

drawing information:

12' - 0"

8"

8

12' - 0"

77' - 8"

1690 Revere Beach Parkway Building 2

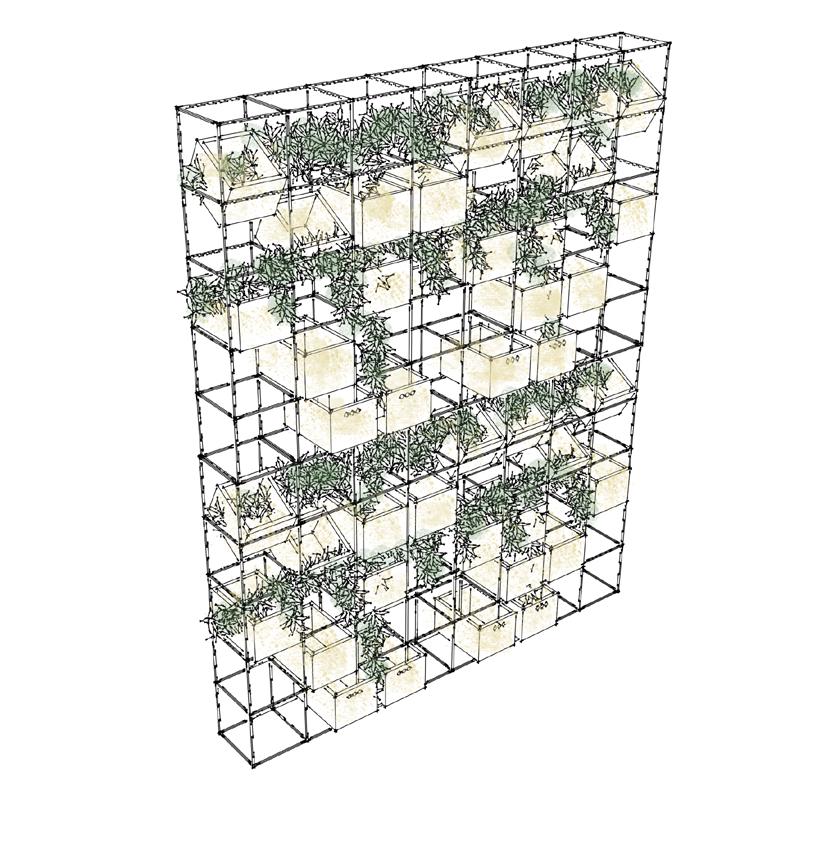

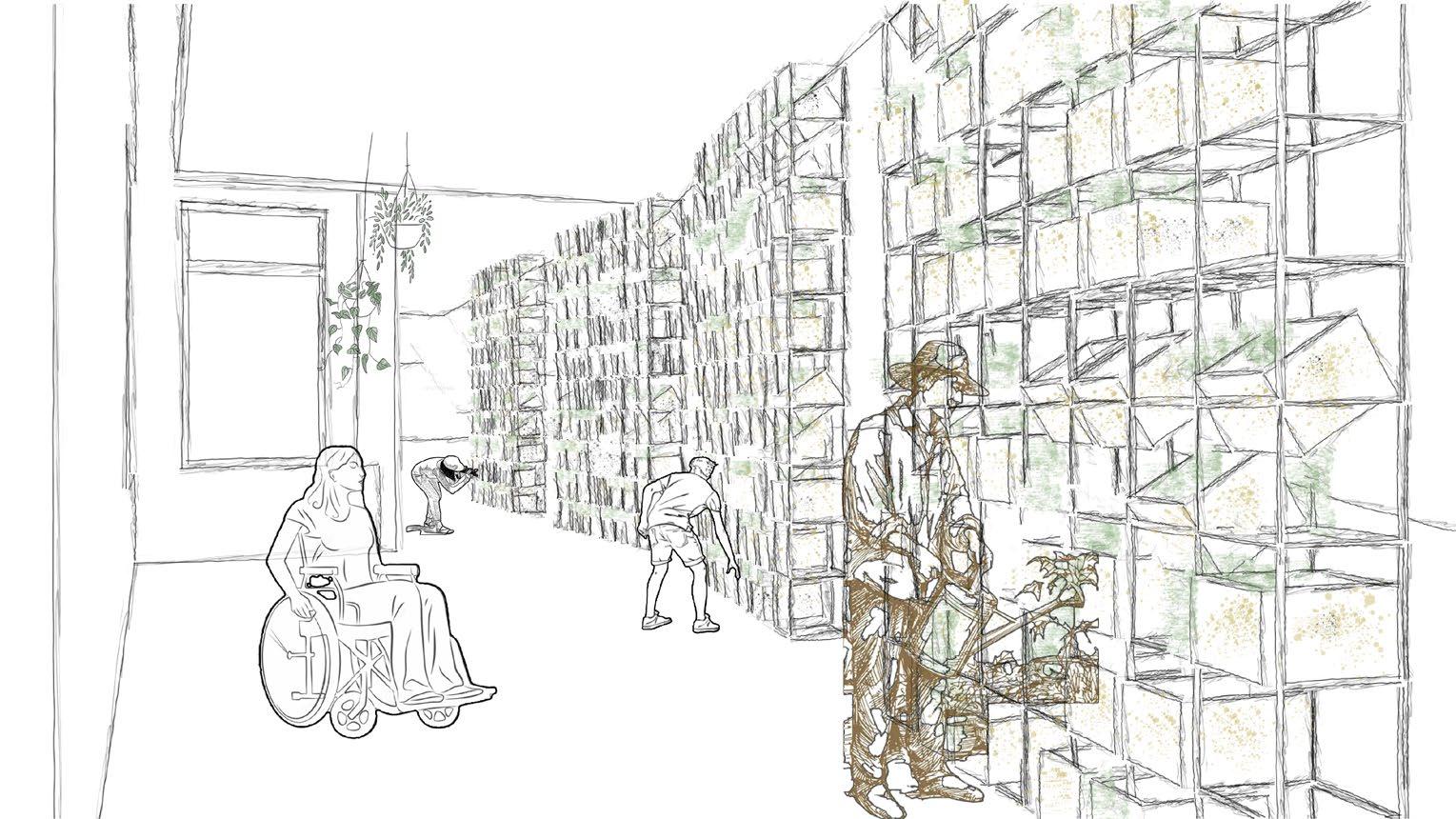

Residents can collectively cultivate a variety of plants, fostering a sense of community and environmental responsibility. This concept not only enhances the building’s aesthetic appeal but also creates a shared space for socializing, and reconnecting with nature within the urban environment.

consultant information:

3

issuance:

SMOOTH FACE CMU VENEER - SANDSTONE

project information:

370 Merrimack St., Suite 337 Lawrence MA 01843 phone: 978.989.9900 www.cube3.com

SMOOTH FACE CMU VENEER - GRAY

2

Average Grade 5' - 0" L1.0 Retail 1 First Floor 3' - 3" 18

17

2 A-301

_____________

16

15.2

15

14

13

12

11

10

2 A-300

9 8.9

8

7

6

5

3

2

1

South Elevation

2

1/16" = 1'-0"

A-201

_____________

T.O. Parapet 3 88' - 8"

2 A-350

9' - 0" 3' - 0"

1' - 4" 1' - 2"

_____________

A3

C1F

A3

A3

A3

A3

A3F

A3

T.O - Roof 86' - 2"

9

A3

A3

A3

A3

A3

A3

A3

A3F

A3

A3

A3F

A3

A3

A3

A3F

A3

A3F

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3F

A3

A3

A3

10' - 8"

C1F

A3

10' - 8"

9 A3

A3

C1F

A3

A3

A3

C1F

A3

A3F

A3

A3

A3

A3F

A3

A3

C1F

A3

A3F

A3

A3

A3

A3F

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

5

5

A3

A3F

A3

A3

A3F

A3

A3

5

A3

A3

A3F

A3

A3

A3

A3F

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

10' - 8"

A3

C1F

A3

A3

C1F

A3

A3F

A3

A3

A3

A3F

A3

A3

A3

A3

A3

5

5

9

A3

A3

A3F

A3

A3

A3

A3

A3F

A3

A3

A3F

A3

A3

A3

A3F

A3

A3F

A3

A3

A3

A3

A3F

A3

A3

A3

A3F

A3

A3

A3

A3

A3F

A3

A3

A3

5

A3F

A3

A3

A3

A3

A3

A3

A3F

A3

A3

A3F

A3

A3

A3

A3

A3

A3

A3F

A4 A4

A2 A2 A2

10' - 8"

C1F

A3

A3

B1

B1

S48

S47

S46

S45

S44

S43

A3

B1

A3F

A3F

A3

A3

A3

A3

A3

A3

A3F

B1

A2 A2 A2

A3F

A3F

A3

A3

A3

A3

A3

A3

A3F

B1

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

A3

10 S34

A3

A3

A3

10

4

A3

A3

A3

A3

A3

A3

A3

A3

11' - 0"

S12

S11

S10

S9

S8

S7

10

A3

A3

A3

10

A4 A4 L6 - Sixth Floor 63' - 6"

L5 - Fifth Floor 52' - 10"

A3

A3

A3

A3

A3

A3

A3

A3

A3

B2

A3

7

10

10

10

A2

A3

A3

A3

A3

A3

A3

A3

A3F

B1

A2 A2 A2

B1

7

7

A2 A2 A2

B1 L3 - Third Floor 31' - 6"

8

10

L4 - Fourth Floor 42' - 2"

4 A3F

1 S13

10

B.O. Truss 83' - 2" L7 - Seventh Floor 74' - 2"

5

4 S42

A4 A4

9

9 A3

A2 A2 A2

A4 A4

8

5 A3

9

A3

A3F 9

9

12' - 0"

83' - 8"

T.O. Parapet 2 87' - 6"

9

registration:

19

1 3

S2

1 3

1

1

3

3

1 3

1

1

3

3

1

L2 - Second Floor 19' - 6"

1

3

S32

S31

S30

3' - 6"

L1.2 - First Floor 8' - 6" Average Grade 5' - 0"

drawing name:

20 19.9

Exterior Elevations

drawing number:

21

A-201

L1.1 Retail 2 First Floor 5' - 0" 1

2

Building Elevations

2.5

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

North Elevation

1

1/16" = 1'-0"

A-201

Desc

5' - 6"

STAIR 3 ST303

11' - 7" 90°

Building Sections

architecture | interiors | planning 1

project number:

499' - 10 1/2" L5 - Fifth Floor 52' - 10"

EXTERIOR MATERIAL LEGEND

1/A-201

drawing date:

2 A-202

COPYRIGHT (C) 2023 CUBE 3 STUDIO LLC, ALL RIGHTS RESERVED

KEY PLAN

drawing checked drawing scale:

_____________

34' - 10"

L6 - Sixth Floor 63' - 6"

L2 - Second Floor 19' - 6"

SOG 1

UNIT A3 379

L3 - Third Floor 31' - 6" CMU 2

POS POS BIKE STORAGE 1 1 G205

PARKING G100

UNIT B2 381

12' - 0"

UNIT B1 610

FCL 1

UNIT B1 359

UNIT A1 312 28' - 7 7/8"

TRASH ROOM 2 TR302

3' - 8 1/4"

2' - 6"

4 A-560 POS 1

POOL 1652

UNIT A3 713

3' - 6"

PARKING G100

FCA 1

4 A-560

4 A-560

AMENITY A301

FCA 1

CORRIDOR EAST 13 C701 A-560

4 A-411

3 A-421

CORRIDOR EAST C304

3 A-422

UNIT B1 310

UNIT A3 311

drawing by:

EAST COURTYARD CY301 10,165 SF

8' - 8 7/8"

UNIT A1.1 364

UNIT A3 308

POOL 1,074 SF 2 A-203

3 A-203

SEE1/A-103.1

4 A-560

POS 2

CENTRAL COURTYARD CY302

CORRIDOR EAST 13 UNIT A3 C501 555 A-560

4 A-560

UNIT B1 710

DN

27' - 8"

6 A-203

24' - 5 1/8"

UNIT A3 309

8' - 3 1/4"

23' - 1 1/8"

1 A-203

4 A-203

SEE1/A-103.2

4 A-560

UNIT A4 390

UNIT A4 554

FCA 1

4 A-560

4 A-560

FCA 1

UP

registration:

CORRIDOR WEST C303

CORRIDOR EAST 13 UNIT A3 C601 655 A-560

4 A-560

10' - 8"

CORRIDOR WEST 13 UNIT A4 C403 490 A-560

UNIT A4 389

5

4 A-560

UNIT A4 654

4 A-560

10' - 8"

UNIT A4 489

POS 2

FCA 1

4 A-560

FCL 1

FCL 1

CORRIDOR EAST 13 UNIT A3 C701 755 A-560

10' - 8"

FCA 1

4 A-560

RCA 1

UNIT A4 754

drawing name:

POS 1

CORRIDOR WEST 13 UNIT A4 A-560 C503 590

FCA 1

4 A-560

drawing number:

4 A-560

WEST COURTYARD CY303

UNIT A4 589

FCA 1

4 A-560

POS 1

CORRIDOR WEST 13 UNIT A4 C603 690 A-560

FCL 1

83' - 8"

5

UNIT A4 689

4 A-560

10' - 8"

FCA 1

4 A-560

FCL 1

CORRIDOR WEST 13 UNIT A4 C703 790 A-560

UNIT B4 383

T.O. Parapet 2 87' - 6" T.O. Parapet 1 86' - 10"

75' - 8 3/8"

12' - 0"

UNIT A4 789

FCA 1

T.O. Parapet 3 88' - 8"

RCA 1

11' - 0"

RCA 1

4 A-560

25' - 0 3/4"

2 A-301

_____________

2 A-300

_____________

2 A-350

8' - 8 1/4"

(INTERIOR DESIGN AT AMENITY AREAS BY OTHERS)

8' - 8 3/4"

_____________

_____________

UNIT S5 - G2 306

AMENITY A301

7 A-203

UNIT A3 307

OPEN TO ABOVE

251' - 5 1/2"

20' - 5 3/4"

ELEC RM S301

23' - 1 1/4"

26' - 8 3/4"

NO CONS

TRASH ROOM 1 TR301

3 A-420

ELEC RM S302

48' - 10 1/4"

UNIT A3 387

3 A-204

3 A-404

1 A-300

STAIR 1 ST301 DN

UP

DE DEVEL

23' - 1 1/4"

24' - 5 1/8"

UNIT S5 328

8' - 7 5/8"

UNIT A1.1 330

24' - 5 1/4"

22' - 8 5/8"

UNIT A4 388

TRASH ROOM 3 TR303

2

1/16" = 1'-0"

UNIT A4.1 332

32' - 2 1/2"

UNIT S5 386

UNIT A4 334

TENANT STORAGE S303

8' - 7 5/8"

UNIT S5 336

UNIT A5 385

11' - 11 3/4"

2 A-204

6' - 7 3/4"

UNIT A4 321

UNIT B9 305

32' - 9 3/8"

31' - 3 3/8"

Date

L1.3 - Amenity First Floor 11' - 0"

3 A-401

ELEV. 1 1180

20' - 2 7/8"

22186.00

Description

UNIT S1 319

CORRIDOR EAST C301

8' - 8 7/8"

1 A-301

drawing revisions:

UNIT B1 - HI 323

65' - 6 1/4"

project number:

UNIT B2 329

ELEC RM S304

24' - 5 1/4"

28 April 2023

No.

North-South Section 2

UNIT A1.2 333

8' - 8 7/8"

23' - 1"

TENANT STORAGE S305

8' - 4 3/8"

23' - 1 1/4"

UNIT A2 340

UNIT A3 - G2 342

19' - 7 3/4"

UNIT A3 344

_____________

L2 - Second Floor 19' - 6"

A

UNIT A1.1 335

UNIT A3 327

registration:

R

UNIT B2 337

UNIT B1 331

drawing name:

S

drawing date:

AMENITY 304

DN

ELEV. 2 1181

WEST COURTYARD CY303 7,762 SF

4 A-204

(OPEN TO BELOW)

drawing number:

T

AB As indicated

9' - 1 7/8"

20' - 2 7/8"

U

Author

drawing scale:

UNIT A4 303

24' - 5 1/4"

27' - 9"

V

211' - 0 1/4"

L3 - Third Floor 31' - 6"

drawing by: drawing checked by:

32' - 2 1/2"

30' - 1 5/8"

W

issuance:

L5 - Fifth Floor 52' - 10"

L4 - Fourth Floor 42' - 2"

3' - 6" X

UNIT B2.1 339

1 A-204

76' - 8 3/4"

10' - 8"

FCA 1

POS 1

PARKING G100

6' - 1 3/4" 9' - 10"

23' - 1 1/4"

35' - 1 7/8"

UNIT S2 341

CORRIDOR WEST C303

35' - 3 7/8"

L6 - Sixth Floor 63' - 6"

33' - 10"

27' - 10 1/2"

BIKE STORAGE G205

12' - 0" 10' - 8"

POS 2

32' - 2 1/2"

11' - 3 1/2"

POS 1 SOG 1

UNIT B5 316

4 A-560

21' - 3 3/8"

(INTERIOR DESIGN AT AMENITY AREAS BY OTHERS)

10' - 11"

POOL ROOM G204

PARKING

SOG 1

LOBBY A100

POS 2

FCA 1

20' - 5 3/4"

174°

UNIT A3 343

24' - 5 1/4"

EAST COURTYARD CY301

FCA 1

UNIT B5 416

33' - 10"

4 A-410

UNIT A1 345

8' - 7 3/8"

4 A-560

33' - 3 1/8"

CORRIDOR EAST C302

CORRIDOR EAST C301

UNIT B2 - G2 347

STORAGE S308 CORRIDOR WEST C306

key plan:

2' - 6" 4 A-560

4 A-560

20' - 10 7/8"

127°

90° 3 3/4" 11' - 7"

UP

15' - 3 1/8"

14' - 8 5/8"

23' - 1 1/4"

3 A-202

UNIT C3 348

24' - 10 5/8" AMENITY A301

FCL 1

4 A-560

FCL 1

UNIT C1 301

11' - 4 1/8"

SEE1/A-103.2 20' - 2 7/8"

3' - 8 1/4"

42' - 8 3/4"

DN

1 A-202

37' - 7 3/4"

CORRIDOR EAST C301

POS 1

AMENITY A110

UNIT S5 - HI 418

UNIT B5 516

10' - 8"

CORRIDOR EAST C401

5

Sim

2 A-562

drawing information:

UNIT S1 319

UNIT S5 518

4 A-560

FCA 1

83' - 8"

UNIT S1 419

4 A-560

UNIT B5 616

L7 - Seventh Floor 74' - 2"

10' - 8"

FCA 1

POS 2

ELEV LOBBY EL201 SOG 1

UNIT S1 CORRIDOR EAST 13 519 C501 A-560

4 A-560

4 A-560

UNIT S5 618

RCA 1

UNIT B5 716

SEE1/A-103.1

project information: client information: consultant information:

UNIT B7 349

DESIGN DEVELOPMENT NOT FOR CONSTRUCTION

12' - 0"

AMENITY 304

CORRIDOR EAST C601

FCA 1

13 A-560

UNIT S5 718

8' - 6"

UNIT C4 302

13 A-560

CORRIDOR EAST C701

2' - 6"

4 A-560

RCA 3

UNIT S1 619

FCA 1

4 A-560

13 A-560

90°

UNIT C4 302

263' - 1 1/8"

STAIR 5 ST305

T.O. Parapet 1 86' - 10" T.O - Roof 86' - 2"

/4" 83

141' - 7 3/4"

34' - 0 5/8"

K P U A F B U E C S T R IT 5 4 1 S R A 4

4 A-560 5

UNIT S1 719

FCA 1

'33

K P U A F B U E C S T R IT 5 4 1 S R A 4

FCL 1

FCL 1

1 A-201

K P U A U F B S R T E C R 5 4 1 T IS A 4

T.O. Parapet 3 88' - 8" T.O. Parapet 2 87' - 6"

RCA 1

02 A-2

90°

K P U A F B U E C S T R IS 5 4 1 T R A 4

1 A-300

_____________

1 A-301

2 A-301

38' - 8"

3 A-405

_____________

5

/8" 63

143°

GREYSTAR

1 Federal Street, Suite 1804 Boston, MA 02110

N

'31

/8" 35

_____________

1690 Revere Beach Parkway Everett, MA

1 A-301

'65

" 5/8 11

1690 Revere Beach Parkway Building 2

02

'25

A-2

2 A-301

consultant information:

4

KEY PLAN

GRE

1 Federa 1804 B 0

architecture | interiors | planning

COPYRIGHT (C) 2023 CUBE 3 STUDIO LLC, ALL RIGHTS RESERVED

Vertical Garden Diagram 17

KEY PLAN architecture | interiors | planning 370 Merrimack St., Suite 337 Lawrence MA 01843 phone: 978.989.9900 www.cube3.com

project information:

2 A-350

1690 Revere Beach Parkway Building 2

N

1/4" = 1'-0"

1/4" = 1'-0"

4 A-350

6

6' - 0" WINDOW R.O.

G

1/4" = 1'-0" 1/4" = 1'-0"

Unit Plans

A-603

A-603

2 A-350

2' - 4 3/4"

1/4" = 1'-0"

issuance:

3' - 0 3/4"

3' - 4 3/4"

5' - 1 7/

2' - 11 1/2"

key plan:

W0 B4

W0 A4

AB

drawing scale:

As indicated

drawing date:

28 April 2023

project number:

22186.00

No.

Description

W0 B4

W0 B4

drawing revisions:

2' - 4 3/4"

Date

W A

W0 B4

7' - 3 7/8"

Unit S1 Reflected Ceiling Plan Unit S1 Framing2Plan 1/4" = 1'-0"

1/4" = 1'-0"

A-603

L4 - Fourth Floor 42' - 2"

1 A-530 1 A-601

L3 - Third Floor 31' - 6"

1 A-506

LIVING

KITCHEN

SLEEPING

PARKING G100

W0 B6

6 A-506

W0 A6

W0 B4

F

HWH

9 3/4"

5' - 1 7/8"

registration:

W0 A4

3' - 4 3/4"

L2 - Second Floor 19' - 6"

AHU D

CMU 2

7' - 3 7/8"

Garage Stem Wall 10' - 0"

A-603

CL.

L1.2 - First Floor 8' - 6"

W/D

36x48

13 A-602

Typ Wall Sections @ North & South Elevations C

J

BATHROOM

A

Average Grade 5' - 0"

Fiber Cement 3 Elevation Typ. Unit S1 Framing Plan Siding @ North & South 1/4" = 1'-0"

KC

drawing checked by:

3' - 3"

11' - 0" FLOOR TO FLOOR W0 B4

Average Grade 5' - 0"

Cement Garage Overhang Typ. 5 UnitFiber S2 Reflected Ceiling@ Plan 4 Siding

4 A-560

drawing by:

7' - 6" OPENING HEIGHT

12' - 0" FLOOR TO FLOOR

14' - 8 1/4" L1.2 - First Floor 8' - 6"

A

2 A-530

6' - 0" WINDOW R.O. 1' - 7"

FCL 1

W0 STEM B4 WALL

Garage Stem Wall 10' - 0"

CMU 2

L5 - Fifth Floor 52' - 10"

4

W0 B4

W0 A4

CL.

4 A-560

drawing name:

CMU BATHROOM 2 L1.2 - First Floor 8' - 6"

1 A-530

1 A-603 A-530

FCP 1

W0 A4

PARKING G100

STEM WALL

2 A-530

5 A-505

7' - 6" OPENING HEIGHT

W/D

D AHU

L6 - Sixth Floor 63' - 6"

drawing information:

1' - 7" 6' - 0" WINDOW R.O.

FCL 1

1' - 7"

POS 2

3' - 0 3/4"

12' - 0" FLOOR TO FLOOR HWH

F

4 A-560

W0 B4

NOT FOR CONSTRUCTION

6' - 0" WINDOW R.O.

10' - 8" FLOOR TO FLOOR

UNIT B2 371

POS 1 L2 - Second Floor 19' - 6"

DESIGN DEVELOPMENT

2 A-530

L3 - Third Floor 31' - 6"

W0 B4

14' - 8 1/4"

1' - 7" 6' - 0"

G

CL.

FCL 1

1 A-530

6' - 2 5/8"

2 A-530

W0 B6

1' - 7"

10' - 8" FLOOR TO FLOOR

79' - 0"

10' - 8" FLOOR TO FLOOR

FCA 1

L4 - Fourth Floor 42' - 2" 4 A-560

1 A-506

6 A-506

consultant information:

4' - 0" 9' - 4" FLOOR TO CEILING 10' - 8" FLOOR TO FLOOR

1' - 7" 1' - 7" 6' - 0" WINDOW R.O. 1' - 7" 1' - 7"

UNIT B2 471

1/4" = 1'-0"

L7 - Seventh Floor 74' - 2"

W0 A4

A

Unit S2 Floor Plan - 510 SF

6' - 0" WINDOW R.O. 1' - 7"

W/D

D

4 A-560

2' - 11 1/2"

L2 - Second Floor 19' - 6"

A-350

FCP 1

POS 1

Garage Stem Wall C 10' - 0"

1/4" = 1'-0"

C FCA 1

L5 - Fifth Floor 52' - 10"

4 A-560

1 A-530 HWH

F

5 A-505

KITCHEN

36x48

FCL 1

AHU UNIT B2 - G2 571

BATHROOM

6' - 0" WINDOW R.O.

79' - 0"

10' - 8" FLOOR TO FLOOR

POS 2

1

Wall Section @ Bump Out Typ. Unit S2 Floor Plan 3- 510 SF 1/4" = 1'-0"

UNIT A1.1 335

FCA 1

FCL 1

2 A-530

10' - 8" FLOOR TO FLOOR

6' - 0" WINDOW R.O.

SLEEPING 6 13 A-506 A-602

4 A-560

1 A-530

FCL 1

L3 -A-601 Third Floor 31' - 6"

1 A-506

SLEEPING

1 A-530

A-603

FCA 1

UNIT B2 671

36x48

6

1 A-530

KITCHEN

13 A-602

2 A-530

L4 - Fourth Floor 42' - 2" FCP 3

1 A-530

2 A-530

2 A-530

FCL 1

A-603

FCA 1

FCL 1

6' - 0" WINDOW R.O.

10' - 8" FLOOR TO FLOOR 10' - 8" FLOOR TO FLOOR

3' - 2" 6' - 0 5/8" 6 5/8" 1/4" = 1'-0"

1/4" = 1'-0"

Average Grade 5' - 0"

A-603

6' - 0" WINDOW R.O.

9' - 4" FLOOR TO CEILING

6' - 0" WINDOW R.O. 6' - 0" WINDOW R.O. 1' - 7" 6' - 0" WINDOW R.O. 1' - 7" 6' - 0" WINDOW R.O. 1' - 7"

Sim

UNIT B2 771 1 A-601

L7 - Seventh Floor 74' - 2" 4 A-560

L6 - Sixth Floor 63' - 6"

W0 B4

Unit S2 Framing Plan5 Unit S2 Reflected Ceiling Plan

Average Grade 5' - 0"

Wall Section @ Double Bump Out Unit(Podium) S2 Framing Plan

FCA 1

LIVING

2 A-530

6' - 0 3/4"

L1.2 - First Floor 8' - 6" W0 B4

W0 A4

W0 A6

STEM WALL

W0 A4 Garage Stem Wall 10' - 0"

W0 UNIT A1.1 B4 535

T.O. Parapet 2 87' - 6" T.O - Roof 86' - 2"

FCL 1

6 5/8"

W0 A6

1' - 7"

79' - 0" W0 B4

STEM WALL

L5 - Fifth Floor 52' - 10"

1 A-562

PARKING G100

RCA 1

GREYSTAR

1 Federal Street, Suite 1804 Boston, MA 02110

1 A-350

drawing number:

5 A-350

W0 B6

6' - 0 5/8"

Average Grade 5' - 0"

1/4" = 1'-0"

W0 B6

6 5/8"

L1.2 - First Floor 8' - 6"

Wall Section @ 7th Floor Bump Out

PARKING G100

3' - 9 1/4"

7' - 4 3/8"

Garage Stem Wall 10' - 0"

5' - 2 1/2"

W0 B6

W0 B6

11' - 0" FLOOR TO FLOOR

11' - 0" FLOOR TO FLOOR

W0 B4

4' - 2 3/4"

PARKING G100

POS 1

L2 - Second Floor 19' - 6" W0 A4

4' - 0"

4' - 0" 9' - 4" FLOOR TO CEILING

6' - 0" WINDOW R.O. 1' - 7" 6' - 0" WINDOW R.O. 1' - 7" 6' - 0" WINDOW R.O. 1' - 7" 6' - 0" WINDOW R.O. 1' - 7"

L2 - Second Floor 19' - 6"

FCL 1

FCL 1

A-603

1 A-530

FCL 1

3' - 9 1/4"

1 A-530

FCP 1

3' - 0 3/4"

6 A-506

Wall Sections

W0 B4

2' - 6 1/4"

FCA 1

5' - 2 1/2"

2 A-530

LIVING 5 A-505

10 3/4"

POS 1

POS 1

4 A-560

2' - 6 1/4"

10 3/4"

W0 A4

7' - 6" OPENING HEIGHT

1 A-506

UNIT B2 381

UNIT A1.1 W0 635 B4

W0 B4

L6 - Sixth Floor 63' - 6"

2 A-530

POS 2

L3 - Third Floor 31' - 6" 5 A-505

3' - 2"

12' - 0" FLOOR TO FLOOR

5 A-505

POS 2 L3 - Third Floor 31' - 6"

L4 - Fourth Floor 42' - 2"

1/4" = 1'-0"

1 A-530

FCL 1

2 A-530

UNIT B2 - G2 481

FCA 1

6' - 0" WINDOW R.O.

10' - 8" FLOOR TO FLOOR

1 A-530

1 A-530 4 A-560 FCP 2 3 A-530

UNIT B1 375

Sim

FCA 1

L7 - Seventh Floor 74' - 2"

FCP 3

2 A-562

1' - 7"

L4 - Fourth Floor 42' - 2"

2 A-530

L5 - Fifth Floor 52' - 10"

12' - 0" FLOOR TO FLOOR

1' - 7"

POS 2

UNIT B1 475

FCA 1

6' - 0" WINDOW R.O.

FCL 1

FCA 1

2 A-530

10' - 8" FLOOR TO FLOOR

79' - 0" 4 A-560

UNIT B3 361

10' - 8" FLOOR TO FLOOR

6' - 0" WINDOW R.O. 1' - 7" 6' - 0" WINDOW R.O.

1 A-530

1' - 7"

10' - 8" FLOOR TO FLOOR 79' - 0"

FCA 1

1 A-530

UNIT B2 581

4 A-560

UNIT A1.1 735

1 A-530

FCL 1

4 A-560

2 A-530

FCA 1

L6 - Sixth Floor 63' - 6"

4 A-560

UNIT B2 681

5

2 A-530

7' - 4 3/8"

UNIT B3 461

FCA 1

L5 - Fifth Floor 52' - 10"

4 A-560

1 A-530

2 A-530

UNIT B1 575

1 A-530

FCL 1

Unit S2 Reflected Ceiling Plan

FCL 1 2 A-530

FCA 1

L7 - Seventh Floor 74' - 2"

2 A-530

FCL 1

1 A-530

FCL 1

4 A-560

FCL 1

UNIT B2 781

T.O. Parapet 2 87' - 6" T.O - Roof 86' - 2"

4' - 2 3/4"

UNIT B3 561

UNIT B1 675

FCA 1

L6 - Sixth Floor 63' - 6"

2 A-530

FCA 1

10' - 8" FLOOR TO FLOOR

10' - 8" FLOOR TO FLOOR

1 A-530 4 A-560

10' - 8" FLOOR TO FLOOR

9' - 4" FLOOR TO CEILING

6' - 0" WINDOW R.O.

FCL 1

1 A-530

RCA 1

T.O. Parapet 2 87' - 6" T.O - Roof 86' - 2"

3' - 0 3/4"

FCA 1

FCA 1

FCL 1

6' - 0" WINDOW R.O.

UNIT B3 661

UNIT B1 775

L7 - Seventh Floor 74' - 2"

2 A-530

1' - 7"

10' - 8" FLOOR TO FLOOR

4 A-560

11' - 0" FLOOR TO FLOOR

Sim

FCP 3

1' - 7"

FCA 1

1 A-562

2 A-530

10' - 8" FLOOR TO FLOOR

4' - 0" 9' - 4" FLOOR TO CEILING

FCL 1

UNIT B3 761

RCA 1

T.O. Parapet 2 87' - 6" T.O - Roof 86' - 2"

1' - 7"

RCA 1

T.O. Parapet 2 87' - 6" T.O - Roof 86' - 2"

10' - 8" FLOOR TO FLOOR

RCA 1

10' - 8" FLOOR TO FLOOR

5 A-350

10' - 8" FLOOR TO FLOOR

1 A-350

12' - 0" FLOOR TO FLOOR

4 A-350

4' - 0"

3 A-350

client information:

1690 Revere Beach Parkway Everett, MA

A-350

Unit S1 Floor Plan - 479 SF 1/4" = 1'-0"

Unit S1 Reflected Ceiling Plan 1 1/4" = 1'-0" A-603

COPYRIGHT (C) 2023 CUBE 3 STUDIO LLC, ALL RIGHTS RESERVED

18

COPYRIGHT (

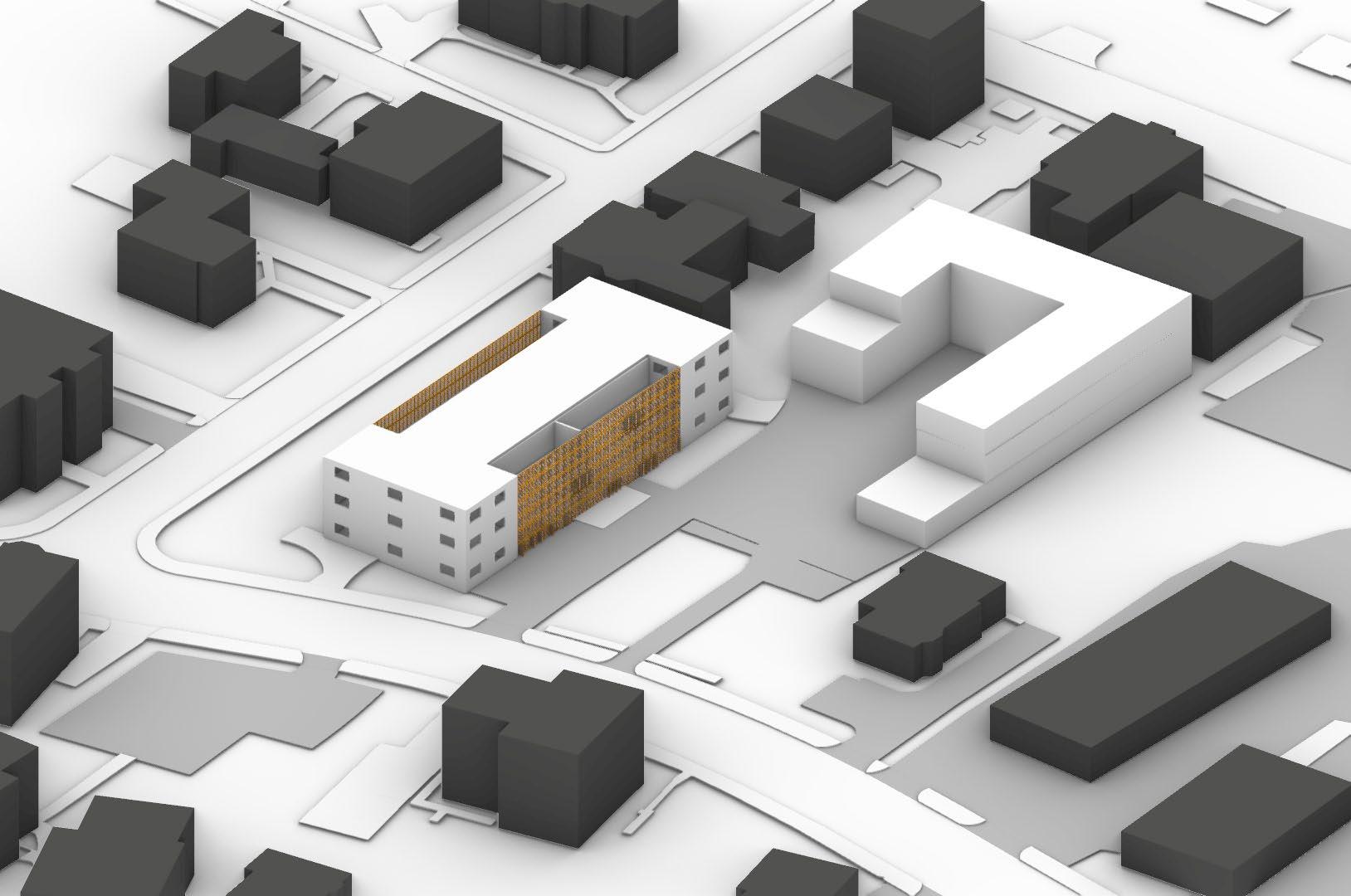

NB Type:

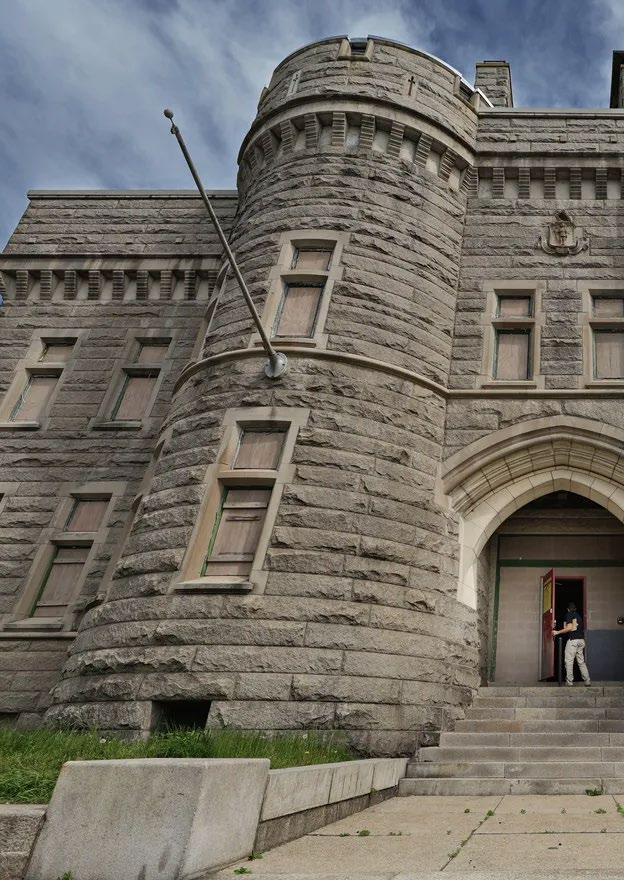

New Bedford Armory LAA was hired by the City of New Bedford to advance the redevelopment of the historic 1.3-acre Armory site into mixed-income housing, focusing on two feasibility scenarios: Scenario B (87 units, 49 parking spaces, 123,110 GSF) and Scenario C (47 units, 54 parking spaces, 88,010 GSF).

Group Members: Ryan Chemali, Leonardi Aray, Camilla Maruca

Concept:

The New Bedford Armory redevelopment transforms a historic 1.3-acre site into mixed-income housing, preserving the Head House and Drill Hall while adding new units and parking. The project responds to the city’s tight housing market and rising demand, creating a sustainable, community-focused model that blends history with modern living.

20

SCENARIO A

SCENARIO B

SCENARIO C

SCENARIO D

Scenario B was selected, featuring full rehabilitation of the Head House and Drill Hall, a new double-loaded corridor building replacing the Maintenance Shop and Garage, ground-level parking in both structures, new dormers for housing within the Drill Hall’s gable roof, and preservation of the Pleasant Street garage wall.

Four housing scenarios were developed for the 1.29-acre historic Armory site, with Scenario B and C advanced to create mixed-income housing while retaining the Headhouse and Drill Hall for Historic Tax Credit eligibility.

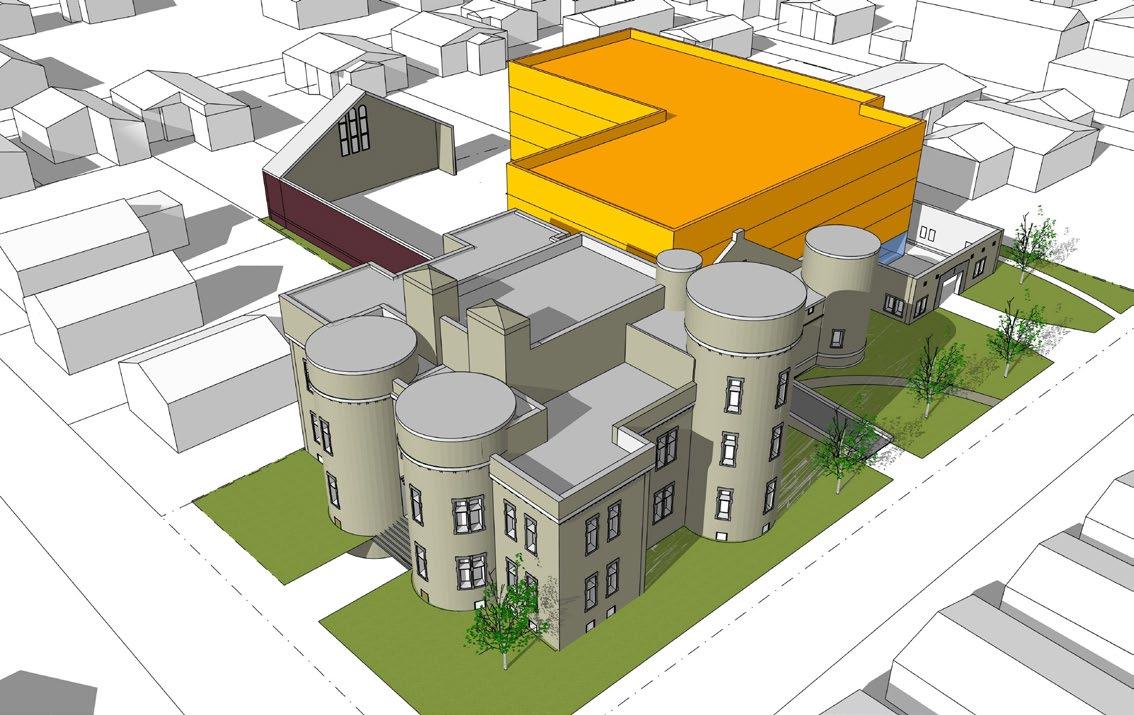

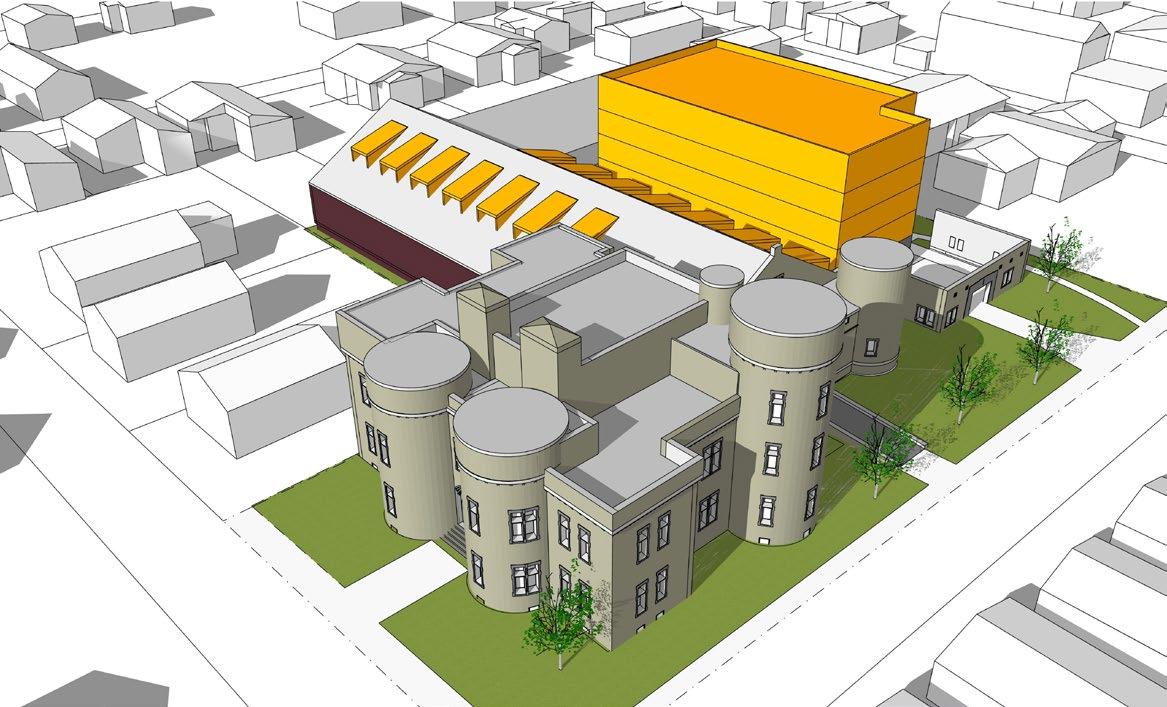

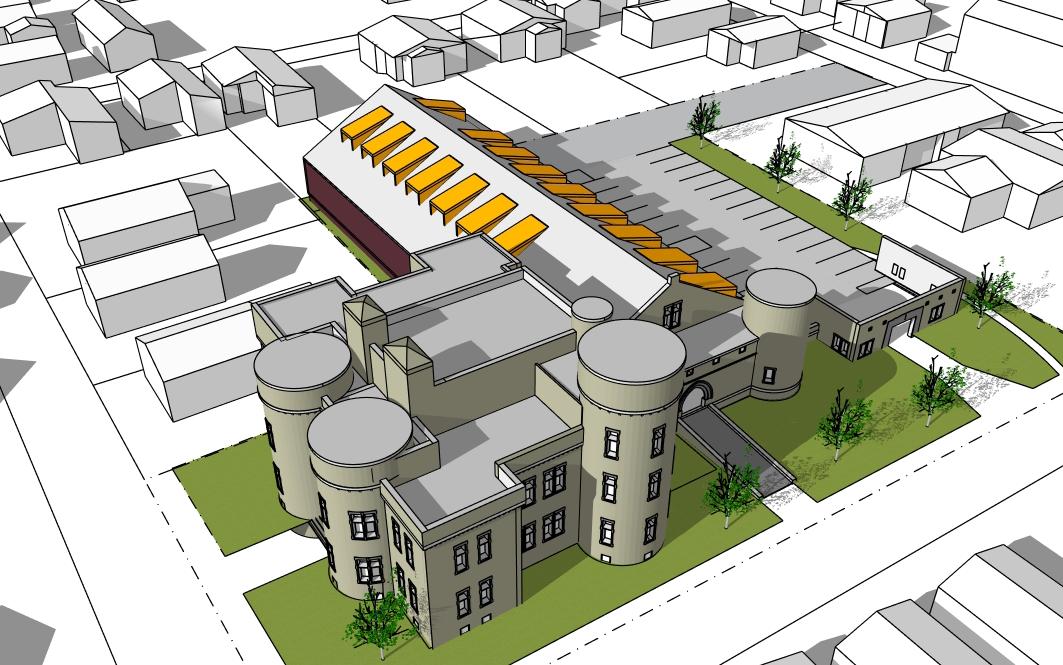

New Bedford Armory Redevelopment Scenarios Headhouse

Drill Hall

DRAFT Maintenance Shop

SCENARIO A Housing Units Parking GSF

18 0 22,990

27 24 55,000

4 12 8,700

32 11 33,200

81 47 119,890

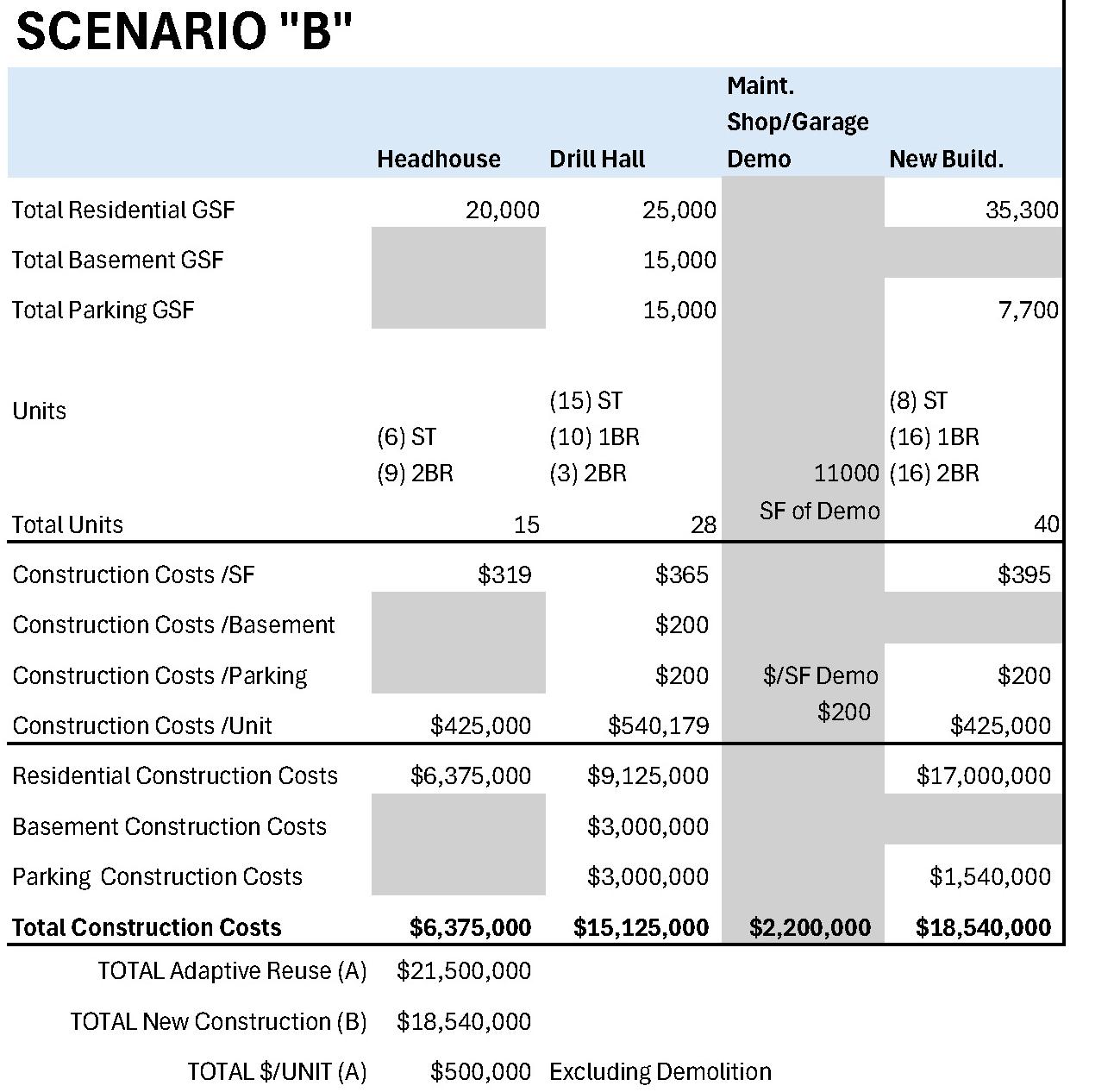

SCENARIO B Housing Units Parking GSF

18 0 22,990

28 30 55,000

0 0 0

40 19 43,400

86 49 121,390

18 0 22,990

28 30 55,000

0 0 0

0 24 8,300

46 54 86,290

18 0 22,990

0 0 0

0 0 0

65 57 93,600

83 57 116,590

SCENARIO C Housing Units Parking GSF SCENARIO D Housing Units Parking GSF

Lot Size 57,300 SF New Building TOTAL

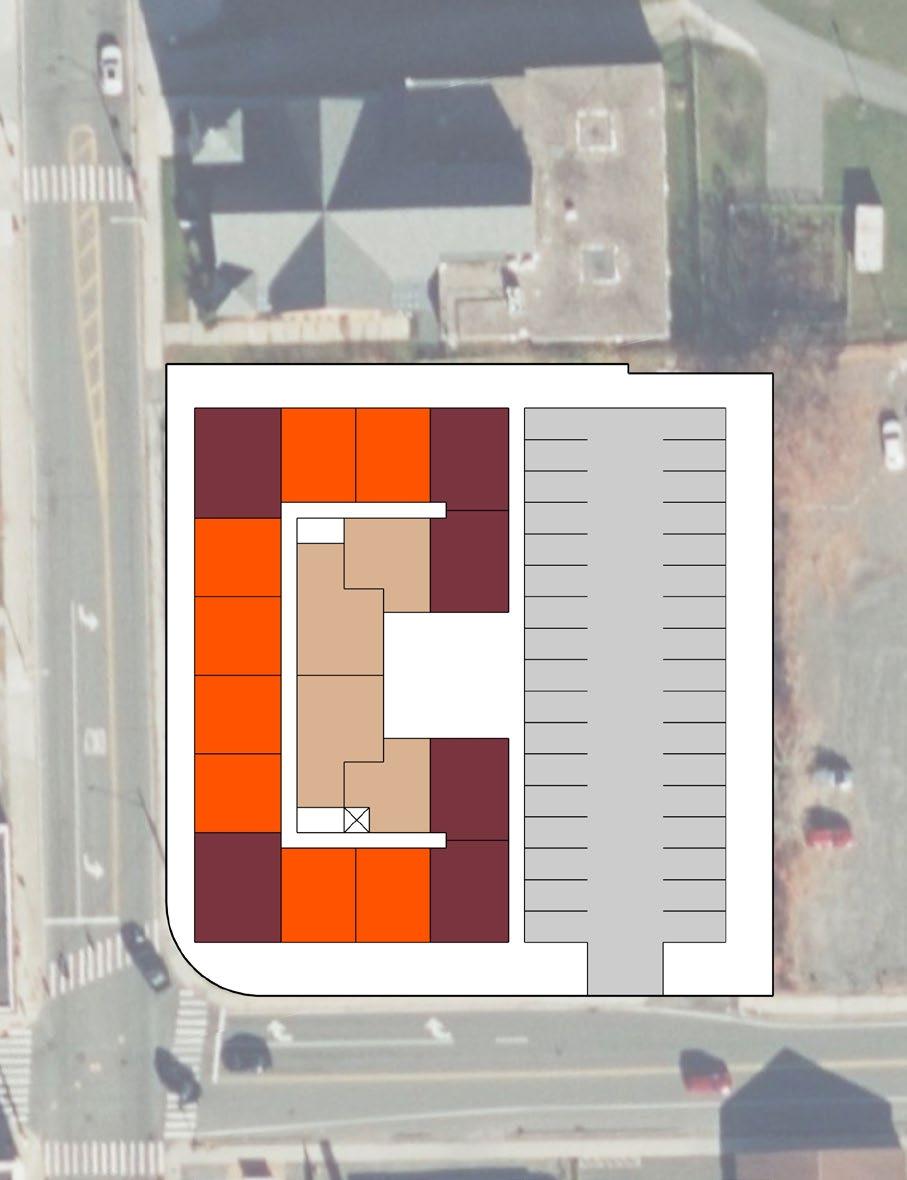

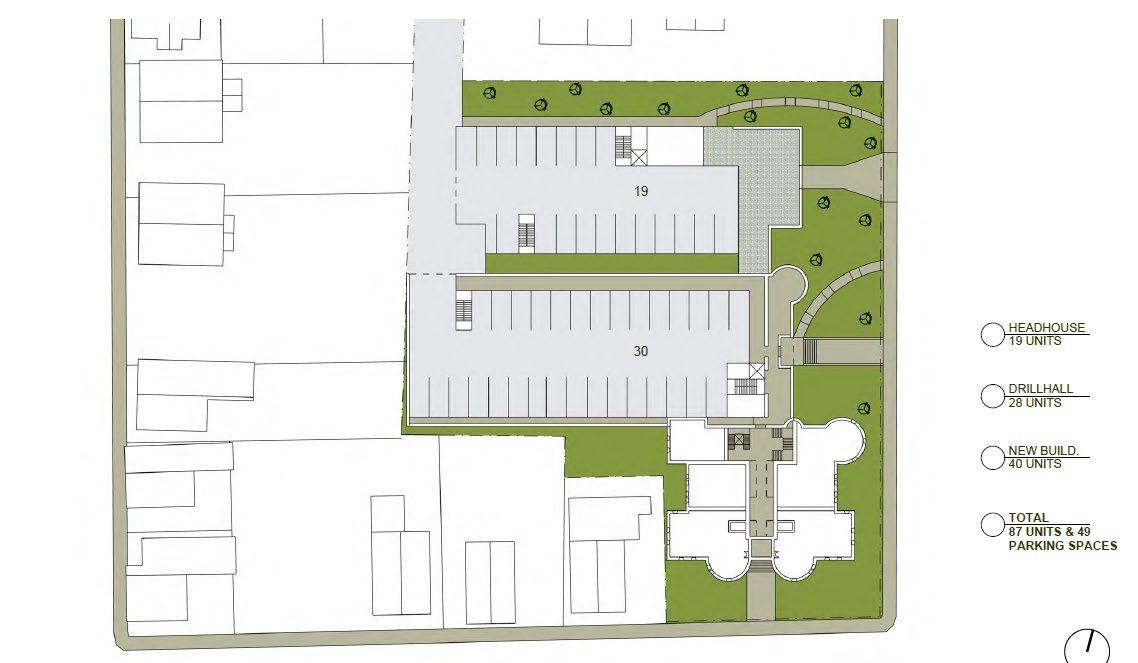

SCENARIO B- SITE PLAN

HEAD HOUSE- BASEMENT

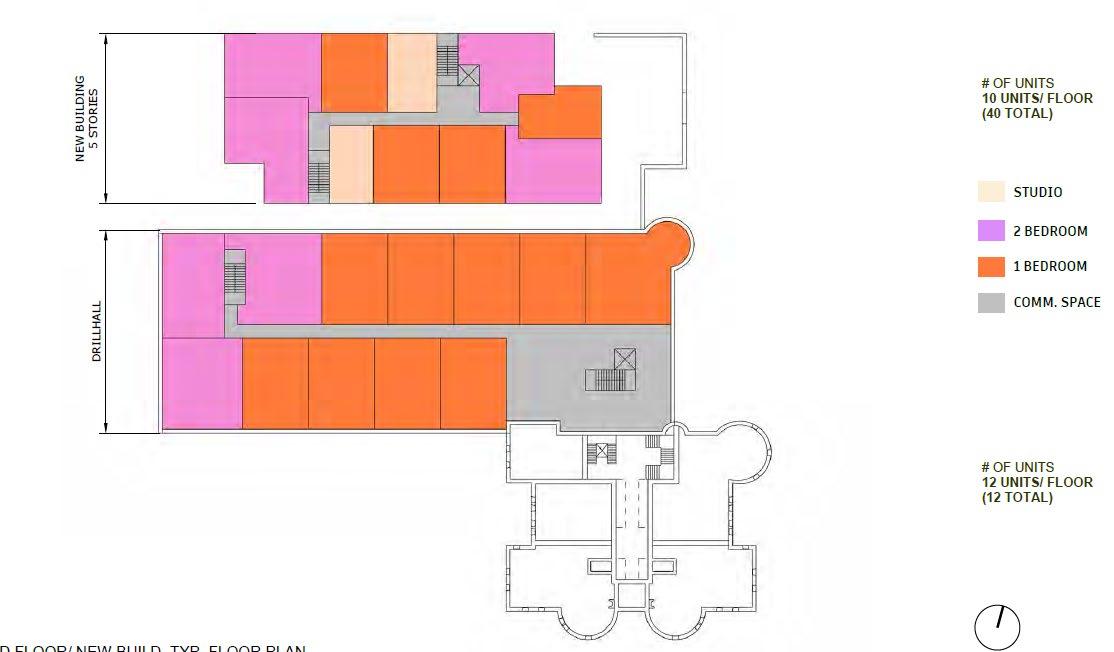

SCENARIO B- SECOND FLOOR/ NEW BUILD. TYP. FLOOR PLAN

HEAD HOUSE- 1ST FLOOR

HEAD HOUSE- 2ND FLOOR

HEAD HOUSE- 3RD FLOOR

21

PH Type:

Pittsfiled Housing Plan The plan focuses on converting vacant or underused buildings into housing, developing empty lots, and creating mixed-use projects that combine residential units with retail or office space.

It also emphasizes affordable and workforce housing to meet the needs of essential workers and a variety of residents.

Group Members: Ryan Chemali, Leonardi Aray

Concept:

The goal is to revitalize downtown by increasing the residential population, supporting the local economy, and transforming vacant properties into active community spaces. The plan promotes sustainable growth, walkability, and provides clear guidance for developers through project pipelines, zoning updates, and incentives.

22

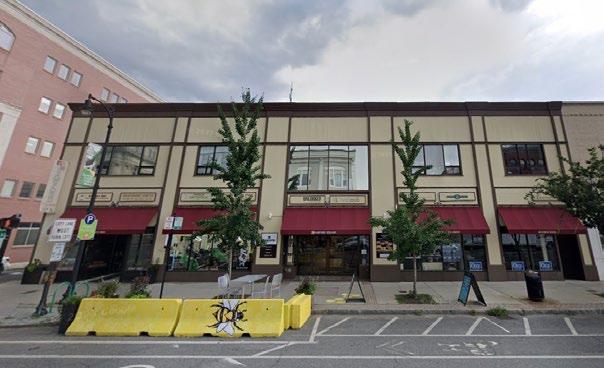

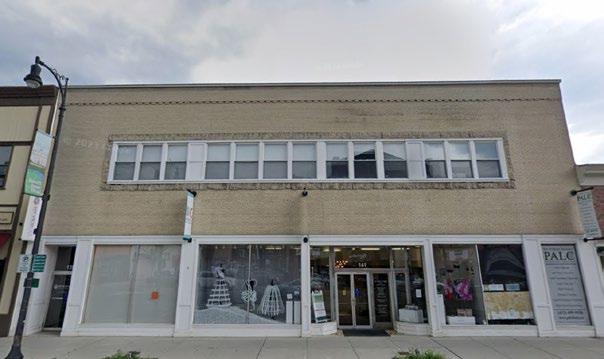

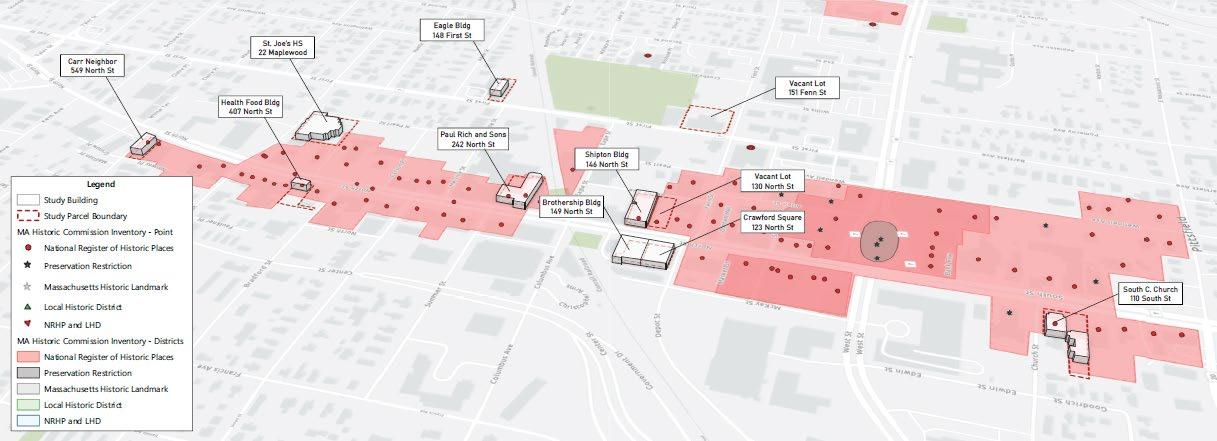

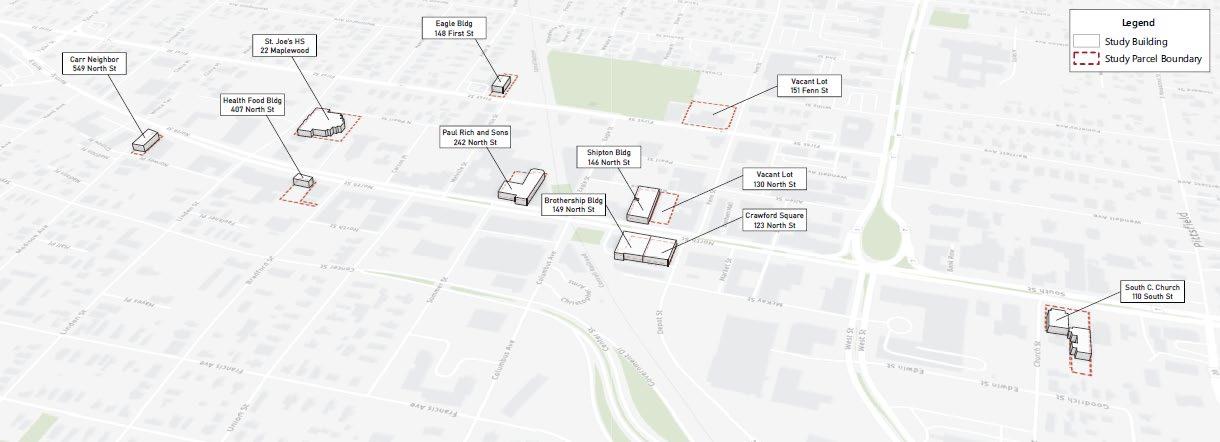

Downtown Pittsfield is a walkable, mixed-use district with historic architecture, where the City is promoting residential and mixed-use development through identified Opportunity Sites, guided by the Downtown Creative District design standards and historic preservation incentives, including federal and state tax credits and matching grants; While ensuring cohesive urban design, adaptive reuse of vacant or underused buildings, and adherence to street-front regulations that encourage multi-family and commercial uses.

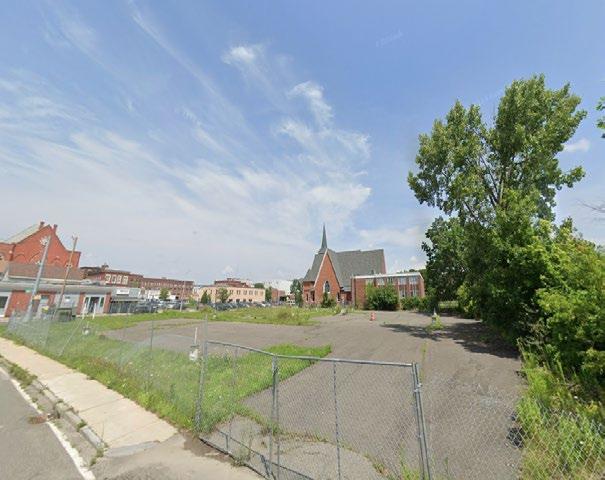

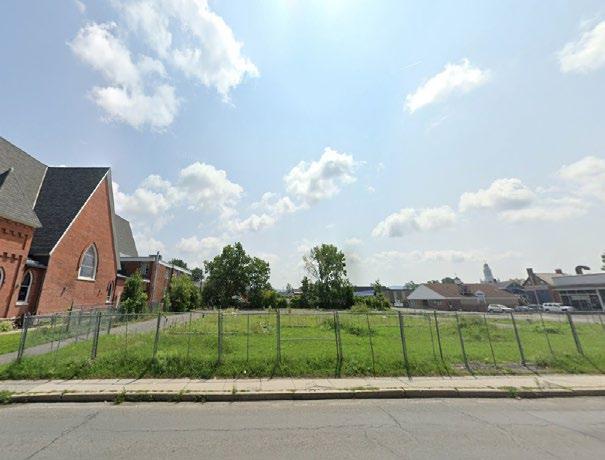

VACANT LOT

151 Fenn Street

t ax imi 'M L 60 ries o t S 4

99'-11"

64'-0"

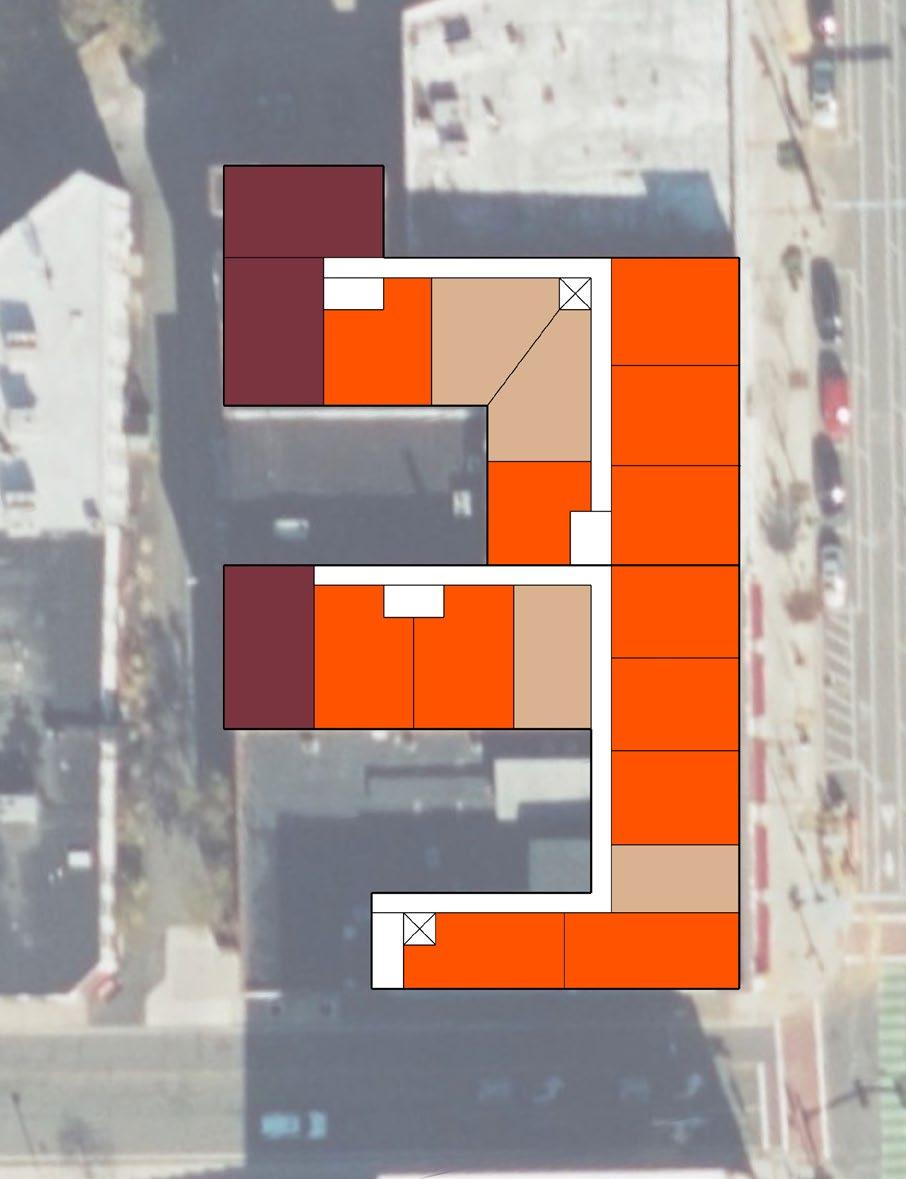

Comm. SF

Res.SF

1st Floor

13,400 ft²

2,000 ft²

S|1BR|2BR|3BR

Dwelling Unit

15,400 ft² /Floor

2nd-4th Floor

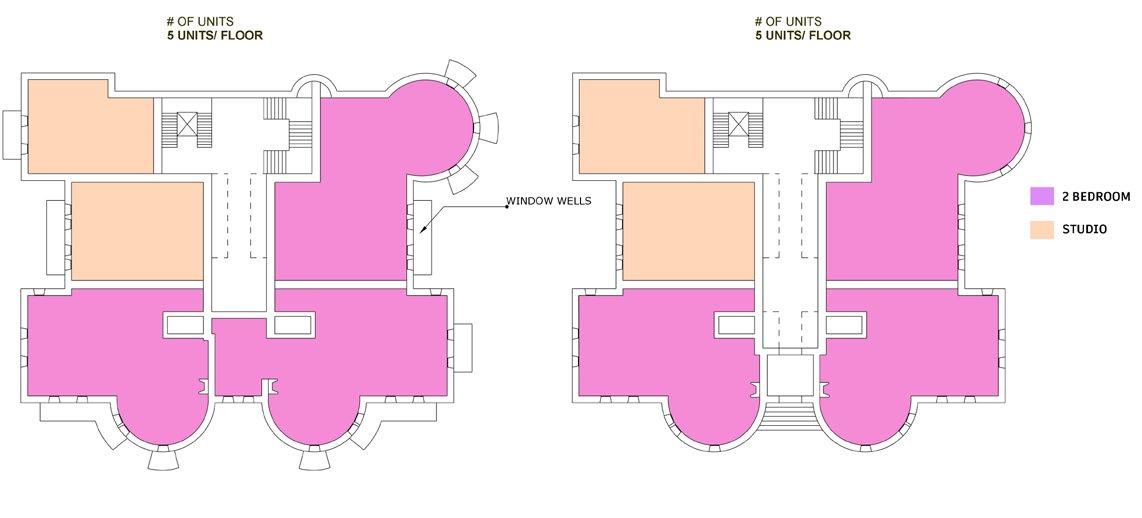

4-S|8-1BR|6-2BR 18 Units

Total

Housing Scenario

54 Units

New Construction

34

39'-11"

4

EXISTING BUILDING

3

EXISTING BUILDING

65'-0"

Levels

170'-0"

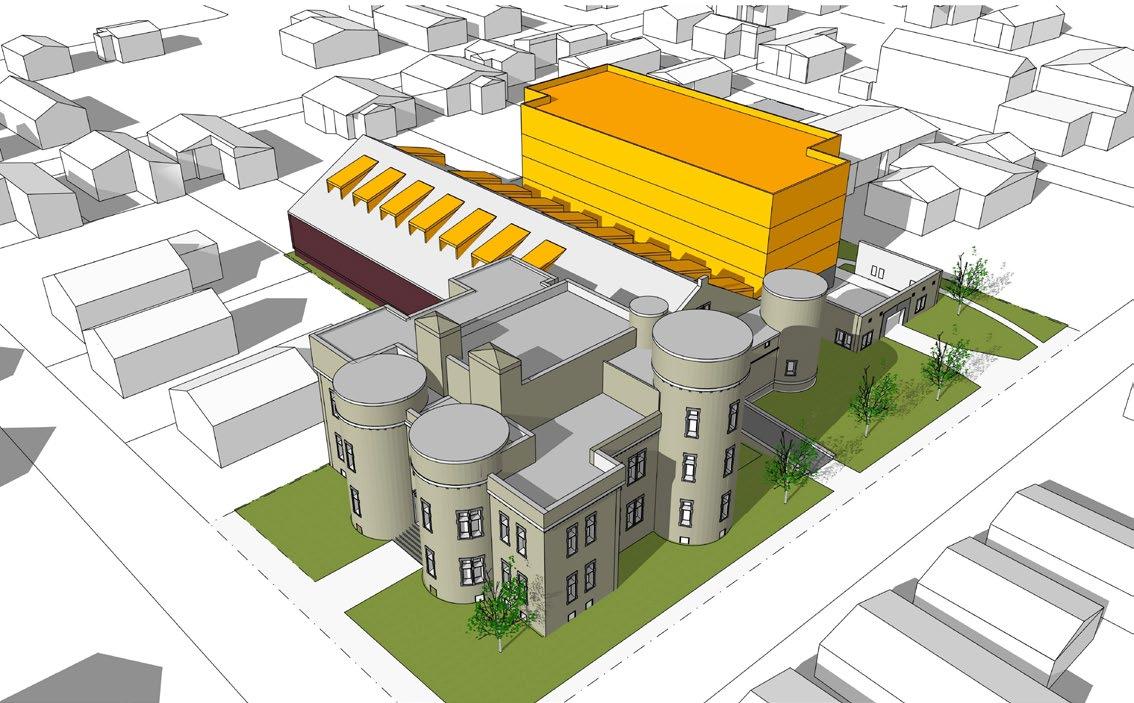

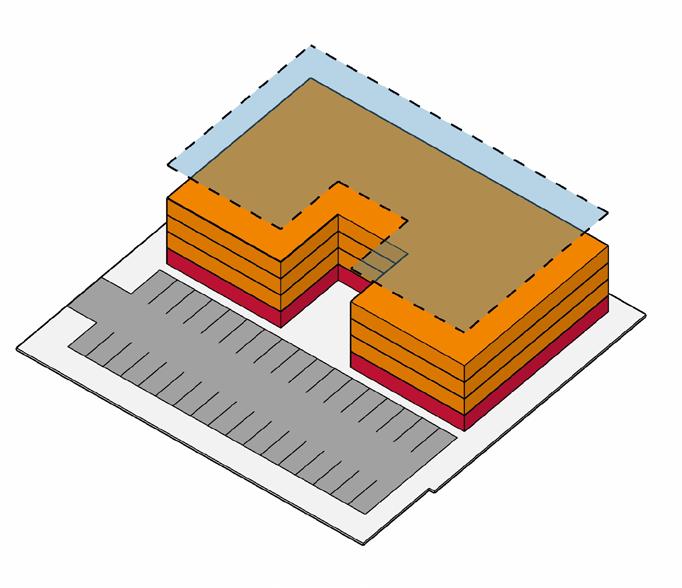

1 AXONOMETRIC PROJECTION

40'-0"

65'-0"

First St

nn

Fe

PROPERTY LINE

St

Fenn St

1 BEDROOM

STUDIO

OPPORTUNITY SITES

2 BEDROOM

+/- 710 ft²

+/- 630 ft²

+/- 800 ft²

ZONING NOTES: Residential are allowed on the ground floor after the first parcel depth from a Primary street. Parking must be located on side or rear yard.

2 TYP. FLOOR PLAN, LEVELS 2-4

VACANT LOT

10' Min Rear Setback

149 North Street & 123 North Street

89'-0"

90

'M

3S

rth

Brothership Building

AXONOMETRIC PROJECTION

Levels

Comm. SF

Res.SF

1st Floor

7,900 ft²

2,900 ft²

2nd Floor 1st Floor

8,200 ft² 11,900 ft²

2nd Floor

+/- 600 ft²

Total

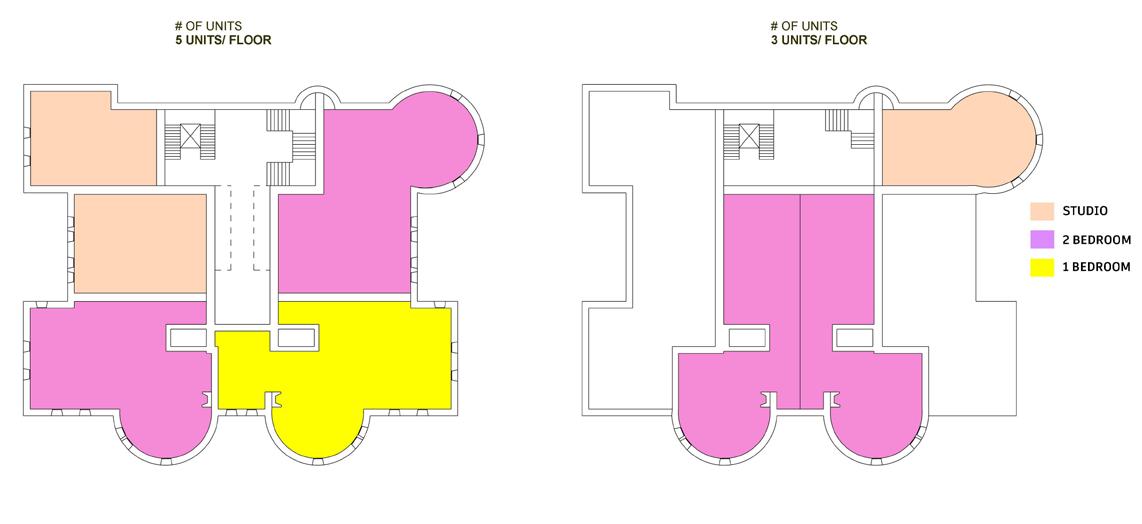

2-S|5-1BR |2-2BR 9 Units

9 Units

Dwelling Unit

1,700 ft² 9,000 ft²

STUDIO

S|1BR|2BR|3BR

10 Units

Housing Scenario

92'-0" 41'-0"

1

St

Convert Second Floor to Housing

2-S|7-1BR|1-2BR 10 Units

1 BEDROOM +/- 750 ft²

North St

No

66'-0"

ies

BROTHERSHIP BUILDING

3

CRAWFORD SQUARE

55'-0"

92'-0"

2 BEDROOM +/- 900 ft²

ZONING NOTES:

4

106'-0"

Crawford Square

it

tor

24'-0"

DOWNTOWN CREATIVE DISTRICT

ax

Lim

77'-0"

ies

40'-0"

tor

41'-0"

6S

60'-0"

23'-0"

40'-0"

BROTHERSHIP BUILDING & CRAWFORD SQUARE

PROPERTY LINE

Depot St

Building with principal frontage on a Primary street are required to have an active ground floor. No residential units or offices are allowed on the ground floor. Parking must be located on side or rear yard.

2 TYP. FLOOR PLAN, LEVELS 2-3

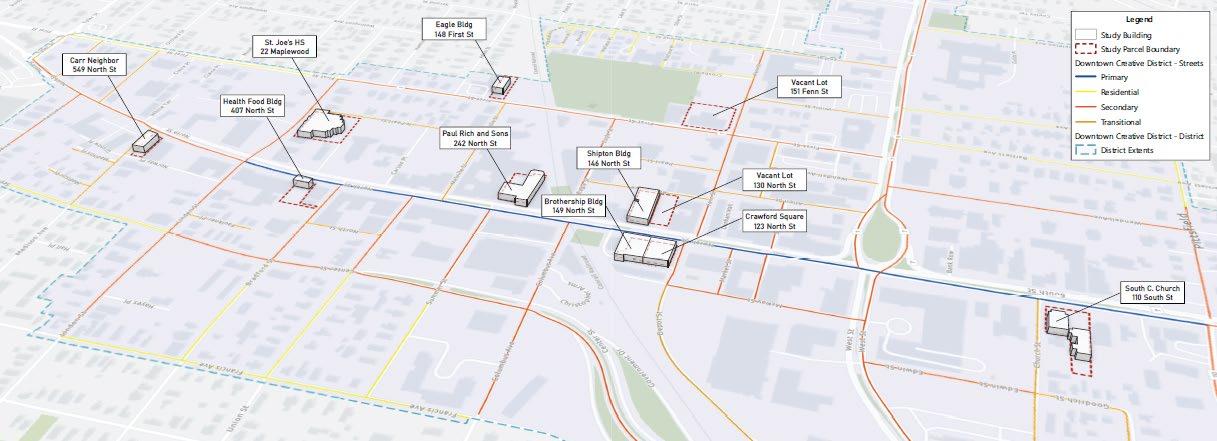

REGISTERED HISTORIC DISTRICTS

ADAPTIVE REUSE

23

FC Type:

Frye Circle Senior housing renovation an $2.5M overhaul of 11 buildings, including full ventilation and plumbing replacement, ADA and standard unit upgrades, and long-term infrastructure renewal.

Group Members: Ryan Chemali, Leonardi Aray, Camilla Marruca, Jacob Stoke

Concept:

What began as a modest ventilation upgrade evolved into the comprehensive revitalization of Frye Circle’s dated 1979 senior housing. The project addressed decades of deferred maintenance, transforming outdated buildings into healthy, accessible, and modern living environments for elderly residents.

24

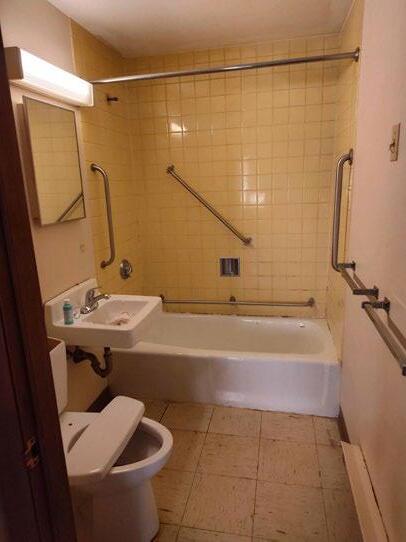

SCOPE B (20 BATHROOMS) AND/OR SCOPE K (20 KITCHENS) BATHROOM AND/OR KITCHEN RENOVATIONS INCLUDE REPLACING ALL PLUMBING WITHIN WET WALLS

SHOWER ROD AND FLANGES 1204-2 MODEL BY ASI PANASONIC MODEL RGE110THA WHISPER SUITE 110 CFM VENTILATION FAN, HUMIDITY SENSOR (VERIFY LOCATION OF FAN)

INSULATED FIRE RATED CEILING ACCESS PANEL MIN. 20" X 30" ITK BY NYSTROM OR EQUAL

8' - 9" V.I.F.

87" TALL CABINET, DEPTH: 24" W/ MOULDING

NOT FOR CONSTRUCTION

3RD FLOOR UTILITY ROOM & CRAWL SPACE

4

NEW FLOORING

SWITCH TO VANITY LIGHT

CONSULTANTS

6" MIN.

SCOPE K

HOT WATER TANK REPLACEMENT NOT INCLUDED IN CONTRACT

PROJECT

WATERPROOF ADHESIVE

TRANSITION SLIP

3 2

KITCHEN

WOOD FRAME

Project Status: CD Date: 09/17/2025 File: LAA/Projects/2415 Drawn by: CM/JS/RC Checked by: LA

TYPE 2 FLOORING TRANSITION DETAIL 12" = 1'-0"

5

A303 NEW FLOORING

REF.

EXISTING VCT

REMOVE ALL SUBSTRATE TO STUDS. REPLACE WITH NEW 5/8" TYPE X MOISTURE RESISTANT

•

NEW WALL COVE, USE COVE FORMER BY MANUFACTURER

SEMI-PERMANENT THRESHOLD ADAPTOR

2X4 5/8 GYP TYPE X FLOOR TO CEILING TO FIT NEW ELECTRICAL PANEL

A5-A6

C3-C4

F1-F2

*

A3-A4

C1-C2

BUILDING TYPE A,B,C,D,E,F,G

A1-A2

#

BUILDING A

E7-E8

BUILDING TYPE H,J,K,L

*

BUILDING NUMBER

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

BUILDING E

E1-E2 G5-G6

D5-D6 REVISIONS

G7-G8

D7-D8

UNIT NUMBER

*

1st 2nd 3rd

G3-G4

FLOORS

BUILDING L

G1-G2 J6-J7-J8

L6-L7-L8 L9-L10

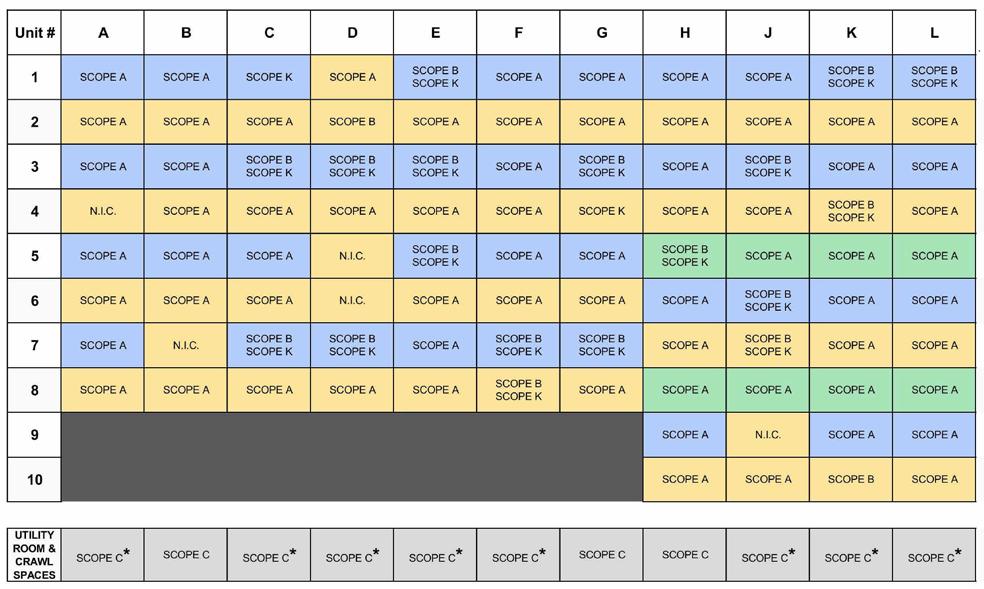

BUILDING INDEX 11 BUILDINGS - 96 UNITS 1st 2nd 3rd TOTAL

A, B,C,D,E,F,G INCLUDING ACCESSIBLE UNITS

28

28

H,J,K,L

8

16

16

Description

N.I.C.

1.

2.

3.

4.

5.

6.

•

• • •

F

LE

IRC

C RYE

0' - 4"

#

TYPE 2 SHOWER CURB DETAIL 3" = 1'-0"

4

-

REVISIONS

NO.

Date

Description -

W15

W24

W24

W21 ANGLE

OPEN SHELF END CABINETS, AT BOTH ENDS

OPEN SHELF END CABINETS, AT BOTH ENDS

W21 ANGLE

W24

W24

W15

REMOVE GYP BOARD AND REPLACE WITH NEW 5/8" TYPE X MOISTURE RESISTANT WHERE NOTED INSTALL RANGE, HOOD VENT, CABINETS, AND SINK INSTALL ALTRO OPERETTA INSTALL NEW LIGHTING FIXTURES INSTALL NEW GRANITE SURFACE COUNTERTOP INSTALL TOP-FREEZER REFRIGERATOR BY FRIGIDAIRE MODEL #FFHT1425VV

RANGE HOOD, 24" CONVERTIBLE, BRAON GLACIER BCSEK1 SERIES OR EQUAL

KITCHEN SINK & FAUCET. ELKAY ELUHAD211545PD, SINGLE BOWL, STAINLESS STEEL, 18 GAUGE, FITS 24" CABINET. KINGSTON FAUCET #KB761, 8" TO CENTER, TWIN LEVER HANDLES, ADA

NEW COUNTERTOP W/ 4" BACKSPLASH

GENERAL SCOPE- B AND/OR K

BUILDING H

K3-K4-K5

• •

DRAIN SHOWER PAN MORTAR BED

INSTALL ALTRO AQUARIUS REPLACE EXISTING DOORKNOBS BY J SERIES SOLSTICE LEVER, BY SCHLAGE. AGED BRONZE FINISH OR BY THE LHA INSTALL LOW CURB SHOWER BY BESTBATH OR EQUAL INSTALL MOUNT TOILET PAPER HOLDER INSTALL SHOWER ROD INSTALL NEW SINK INSTALL GRAB BARS, NON-RUSTING AND SLIP RESISTANT INSTALL STAINLESS STEAL MIRROR INSTALL 26x15 FOLDING SHOWER SEAT. SEE NOTES INSTALL HAND HELD SHOWER. SEE NOTES INSTALL NEW LIGHTING FIXTURES REPLACE EXISTING FAN BY PANASONIC MODEL RG-E110THA WHISPER SUITE 110 CFM VENTILATION FAN, HUMIDITY SENSOR INSTALL NEW 5/8 FIRE RATED MOISTURE RESISTANT GYP. REPLACE ALL PLUMBING WITHIN WET WALLS WHERE SHOWN

•

STAMP

SCOPE K- KITCHEN

-

H1-H2

BUILDING J

K9-K10

40

*

Date

H3-H4-H5

J1-J2 L6-L7-L8

D1-D2

NO.

BUILDING D

BUILDING G

H9-H10

J3-J4-J5

L3-L4-L5 L1-L2

56

H6-H7-H8

J9-J10

D3-D4

50% (1:2) SLOPE MAX

SCOPE B- BATHROOM

-

E3-E4

J3-J4-J5 SAMPLE ADDRESS

T-SHAPED RUBBER WATER STOPPER

NEW 1/2" PLYWOOD

NEW WORK OUTLINE: STAMP

E5-E6

N.I.C.

ACCESSIBLE UNIT

*

A7-A8

F3-F4

SITE PLAN LEGEND

*

B1-B2 C5-C6

C7-C8

TYPE 2 PROPOSED 1/2" = 1'-0"

ANDOVER HOUSING AUTHORITY

3' - 0"

*

*

F5-F6

F7-F8

1

B3-B4

CLIENT

ELECTRICAL PANEL, CIRCUITING FOR BATHROOM AND KITCHEN AREA, EXHAUST FAN UNIT, AND NEW LIGHTING AND LIGHTING CONTROLS SEE ELECTRICAL PLAN E203 PAINT ALL WALLS AND CEILINGS UPPER FLOOR UNITS: REPLACE SUBFLOOR BENEATH BATHROOM AND KITCHEN. ADD ADHESIVE AND ALTRO FLOORING OR EQUAL. NO SEAMS

NOTE: CHANGES IN FLOOR FINISH MATERIALS SHALL HAVE AN EDGE STRIP OR THRESHOLD THAT IS BEVELED AT A RATIO OF ONE-IN-TWO (1:2) (50%) ON BOTH SIDES

K1-K2

RESIDENTIAL CASEWORK (CABINETS) BY ADVANTA, OR EQUIVALENT. FULL OVERLAY DOORS, STYLE, AND FINISH BY ARCHITECT. PROVIDE AND INSTALL 6"- 16" PULLS FOR ALL CABINET DOORS

3' - 0"

EC

FRY

BUILDING C

BUILDING F

ALTRO AQUARIUS SHEET FLOORING

2' - 0"

LE IRC

• •

ANDOVER HOUSING AUTHORITY

2' - 0"

B7-B8

CLIENT

BUILDING B

2' - 0"

B5-B6

Project Status: CD Date: 09/17/2025 File: LAA/Projects/2415 Drawn by: CM/JS/RC Checked by: LA

ALL FLOOR, WALL AND CEILING ASSEMBLIES ADJACENT TO OTHER DWELLING UNIT OR COMMON AREAS EXPOSED TO FRAMING OR WHERE EXISTING FINISHES ARE REMOVED SHOULD BE REPAIRED AS FOLLOWS: PROTECT ANNULAR SPACES AND FLOOR/WALL JOINTS TO THE ROUGH MATERIAL USING INTUMESCENT FIRESTOP SEALANT AND CAULKS, FIRE BARRIER CAULK CP25WB+ BY 3M (ASTM E814 OR UL 1479) OR EQUIVALENT, OR SOLID FIREBLOCKING. FIREBLOCKING AND DRAFTSTOPPING SHALL BE INSTALLED IN COMBUSTIBLE CONCEALED LOCATIONS AS TO FORM AN EFFECTIVE BARRIER BETWEEN FLOORS AND AT THE TOP OF THE FLOOR. USE 2 ” NOMINAL LUMBER OR 1/2” GYPSUM BOARD WHERE ACCESS TO THE CAVITY IS POSSIBLE. FOR SMALLER OPENINGS, UNFACED FIBERGLASS BATT INSULATION USED AS FIREBLOCKING SHALL FILL THE ENTIRE CROSS SECTION OF THE WALL CAVITY TO A MINIMUM HEIGHT OF 16 INCHES MEASURED VERTICALLY. WHERE PIPING, CONDUIT OR SIMILAR OBSTRUCTIONS ARE ENCOUNTERED, THE INSULATION SHALL BE PACKED TIGHTLY AROUND THE OBSTRUCTION. ELECTRICAL BOXES MUST BE LISTED FOR USE IN FIRE-RESISTANCE-RATED ASSEMBLIES. FIREBLOCKING OF THE ANNULAR SPACE AROUND ANY NEW VENT SHALL BE INSTALLED TO REMAIN IN PLACE AND RESIST THE PASSAGE OF FLAME. INSTALL NEW 2” NOMINAL LUMBER AS TO FORM CONTINUOUS FIREBLOCKING BEHIND NEW GYPSUM BOARD AT 16 ” O.C. MAX. ATTACH LUMBER TO EXISTING STUDS WITHIN THE CAVITY. MAINTAIN THE INTEGRITY OF PLASTER OR OTHER SUBSTRATE ON THE OPPOSITE SIDE OF THE ASSEMBLY. TYPE “W” RUSTPROOF SCREWS AT LEAST 3/8 ” INTO FIREBLOCKING. USE USG SHEETROCK BRAND FIRECODE COMPOUND OR EQUAL PER MANUFACTURER INSTRUCTIONS. SUBFLOOR: INSTALL 1 LAYER 5/8 ” PLYWOOD OVER EXISTING SUBSTRATE. INSTALL FIREBLOCKING AND FIRE CAULKING AS NOTED ABOVE.

•

NOTE: SHEET VINYL INSTALLATION INCLUDING ADHESIVE, ACCESSORIES, UNDERLAYMENT AND SUBSTRATE, PER MANUFACTURER SPECS

LEGEND

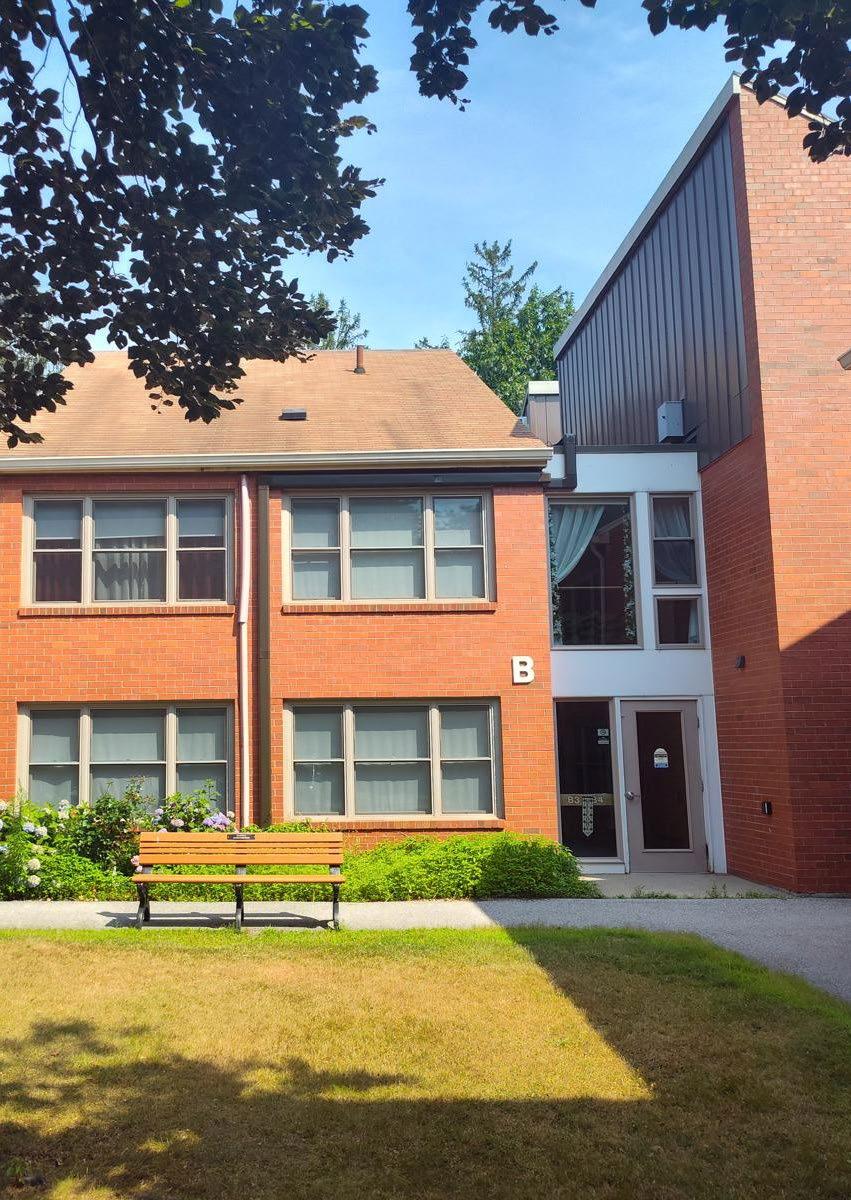

ANDOVER VENILATION IMPROVEMENTS, 667-3 FRYE CIRCLE, ANDOVER, MA

FIREBLOCKING NOTES

MULTI PIECE CURBED SHOWER

BY BESTBATH OR EQUAL

• 7' - 0" V.I.F.

CONSULTANTS

PROJECT

HAND HELD SHOWER. WITH FLOW REGULATOR, ATTACHED TO A 60" LONG FLEXIBLE HOSE AND AN ADJUSTABLE MOUNTING BAR (42" TO 72").

FAUCETS AND MIXING VALVES SHALL BE OPERABLE WITH A CLOSED FIST AND SHALL NOT REQUIRE GRASPING, PINCHING, ETC. MIXING VALVES SHALL BE CENTERED HORIZONTALLY ON PACK PARTITION. ELIMINATE EXISTING SHOWER HEAD ON SIDE WALL.

WALL CABINETS

ANDOVER VENILATION IMPROVEMENTS, 667-3 FRYE CIRCLE, ANDOVER, MA

2' - 10"

0' - 5" 3' - 3"

2' - 10"

ALTRO OPERETTA OR ALTRO AQUARIUS

EXISTING FLOORING

NOT FOR CONSTRUCTION

TYPE 2 BATHROOM ELEVATION 1/2" = 1'-0" SHOWER SEAT. FOLDING WALL-MOUNTED SEAT, 1" DIAMETER, 18 GAUGE STAINLESS STEEL TUBING. WALL MOUNT BRACKETS 12 GAUGE. PHENOL SEAT SURFACE, FIRE AND MILDEW RESISTANT. 26 X 15. SEAT SHOULD BE INSTALLED TO SUSTAIN DEAD WEIGHT OF 250 LB FOR 5 MINUTES. COLOR BY ARCHITECT.

BATHROOM AND/ OR KITCHEN

7' - 0" V.I.F.

N.I.C.

7

SCOPE B

REMOVE GYP BOARD AND REPLACE WITH NEW 5/8" TYPE X MOISTURE RESISTANT

1035 Cambridge Street, Suite 1 Cambridge, MA 02141 p: 617.270.3912 www.larayarchitects.com

TOILET ADA, ELONGATED, WETS BY SLOAN

SHOWER SEAT, SEE NOTES

UNIT TYPE 2 SHOWER ELEVATION 1/2" = 1'-0"

6

SINK CABINET D: 21" W: 30" H: 34" MAX. QUARTZ COUNTERTOP BY CAMBRIA SINK FAUCET: AVID BY KOHLER

1' - 6"

NON EXISTENT UNIT *

NOTE: MULTI-PIECE, SUBWAY TILE INSTALLATION BY BESTBATH OR EQUAL IN QUALITY

EXISTING FLOORING

7

A303

AT SHOWER, TILEWALLS TO CEILING

A303

2' - 0"

6

1 1/2" MIN.

2ND FLOOR

NEW PARTITION

BATH ROOM

1' - 6"

1ST FLOOR

SEAT

5' - 0"

1035 Cambridge Street, Suite 1 Cambridge, MA 02141 p: 617.270.3912 www.larayarchitects.com

1' - 5"

7' - 6" V.I.F.

TABLE LEGEND

Leonardi Aray Architects

GRAB BARS, TYP. STAINLESS STEEL 1-1/2" OUTSIDE DIAMETER, NON-RUSTING AND SLIP RESISTANT. 1-1/2" CLEARANCE FROM WALL. BLOCKING AT EVERY LOCATION

18" VERTICAL GRAB BAR

24" VERTICAL GRAB BAR

ACCESS PANEL

2' - 6" FINISHED

2' - 10"

NEW 2X4 MOISTURE RESISTANCE GYP PARTITION

Leonardi Aray Architects

TILE TO CEILING 24" X 30" FIXED TILT MIRROR 535 SERIES BY ASI

32" GRAB BAR

24" (D) TALL CABINET

SCOPES LIST SCOPE A: BATHROOM REPAIRS SCOPE B: BATHROOM RENOVATIONS SCOPE K: KITCHEN RENOVATIONS SCOPE C: VENTILATION & HWT. UTILITY ROOM & CRAWL SPACE REPAIRS SCOPE D: ASSESSMENT AND CLEANING OF ROOF DRAINAGE UNDERGROUND LINES FOR ALL BUILDINGS EXCEPT BUILDING D ALL UNITS INCLUDE WET WALL REPAIRS

LIGHTING FIXTURE, REFER TO E100 & M100

B12

2

NOTE: ALL PRODUCT MANUFACTURERS NOTED ON THE DRAWINGS INDICATE THE BASIS OF DESIGN. SEE SPECIFICATIONS FOR APPROVED EQUALS

B12

24" SMART SLIDE-IN INDUCTION RANGE WITH ANTI-SCRATCH GLASS COOKTOP IN STAINLESS STEEL BY SAMSUNG MODEL NSI6DG9100SRAA / NSI6DG9100SRAA

B33 EZR

B33 EZR

TYPE 2 KITCHEN STOVE ELEVATION 1/2" = 1'-0"

3

B12

A303

B24

TYPE 2 KITCHEN SINK ELEVATION 1/2" = 1'-0"

UNIT TYPE 2 (SIM. TO TYPE 3) PLAN & INTERIOR ELEVATIONS

BUILDING K

A001 1

SITE PLAN 1" = 30'-0"

The scope of work included bathroom repairs and full renovations, kitchen renovations, ventilation upgrades, hot water tank and utility room improvements, crawl space repairs, and the assessment and cleaning of underground roof drainage lines across the property.

SITE PLAN & NOTES

SCOPE A (69 UNITS) REMOVE GYP., TILES, AND ALL SUBSTRATES TO STUDS

Leonardi Aray Architects 1035 Cambridge Street, Suite 1 Cambridge, MA 02141 p: 617.270.3912 www.larayarchitects.com

LIVING ROOM

SCOPE C VENTILATION & HWT. UTILITY ROOM & CRAWL SPACE

NOT FOR CONSTRUCTION

REUSE EXISTING FIXTURES

FAN SCHEDULE Leonardi Aray Architects

UNIT TAG

SERVICE

LOCATION

TOTAL AIR CAP. (CFM)

E.S.P. IN INCHES OF W.G.

BHP

MOTOR HP

FRPM

SONES

TYPE OF FAN

TYPE OF DRIVE

DAMPER TYPE

EF-1

UTILITY EXHAUST

ROOF

200

0.3

0.04

1/8

1750

11.9

DOWN BLAST

DIRECT

MD

1035 Cambridge Street, Suite 1 Cambridge, MA 02141 p: 617.270.3912 www.larayarchitects.com

V/PH/HZ MANUFACTURER MODEL REMARK

NOT FOR CONSTRUCTION

FAN CAP

CONSULTANTS

115/1/60

GREENHECK

AE-10420-A8

SEE NOTES

CONSULTANTS

FAN

1.

2.

3.

4.

KITCHEN CURB WOOD NAILER

PROJECT BEDROOM

5' - 0"

ANDOVER VENILATION IMPROVEMENTS, 667-3 FRYE CIRCLE, ANDOVER, MA

1

7' - 0"

TYPE 1 FLOOR PLAN - BUILDINGS H,J,K,L 3/8" = 1'-0"

1.

NEW MEMBRANE

2.

INSTALL BLOCKING @ FLOOR & ROOF PENETRATIONS AROUND DUCT WORK APPLY ALTROMASTIC 100 SEALING FLOORING PENETRATIONS

PROJECT

ANDOVER VENILATION IMPROVEMENTS, 667-3 FRYE CIRCLE, ANDOVER, MA Project Status: CD Date: 09/17/2025 File: LAA/Projects/2415 Drawn by: CM/JS/RC Checked by: LA

EX. 1" RIGID INSULATION EX. ROOF DECKING FLANGE MIN. 4"

8' - 6"

9' - 1"

NOTE:

ADHESIVE

EX. MEMBRANE

EXISTING CONDITION

2' - 6"

MIN 24" PREFAB. CURB BY GREENHECK OR EQUAL, 1 1/2" INSULATION MIN.

HOT AIR WELDED AND SEALANT

Project Status: CD Date: 09/17/2025 File: LAA/Projects/2415 Drawn by: CM/JS/RC Checked by: LA

BATHROOM

ALL CENTRIFUGAL ROOF MOUNTED FANS TO BE PROVIDE WITH 18" HIGH PREFABRICATED ROOF CURB. PROVIDE GRAVITY DAMPER. ALL FANS SHALL BE PROVIDED WITH DISCONNECT SWITCH. ALL FANS SHALL BE CONTROLLED BY A 7-DAY PROGRAMMABLE TIMER CONTROL.

2

2' - 6"

WORK OUTLINE- SCOPE A (SEE TABLE A001) : BATHROOM

FAN ROOF DETAIL 3" = 1'-0" CLIENT

CLIENT

ANDOVER HOUSING AUTHORITY

ANDOVER HOUSING AUTHORITY

REMOVE GYP., TILE, AND ALL SUBSTRATES TO STUDS

BATHROOM

3' - 11"

5' - 0"

EXTENT OF WORK • • • • • • BEDROOM

REPLACE ALL PLUMBING WITHIN WET WALLS INSTALL NEW 5/8 FIRE RATED MOISTURE RESISTANT GYP. INSTALL BEST BATH SHOWER ENCLOSURE AROUND SHOWER WHERE SHOWN REPLACE FAN IN KIND BY PANASONIC MODEL RG-E110THA WHISPER SUITE 110 CFM VENTILATION FAN HUMIDITY SENSOR PAINT BATHROOM WALLS AND CEILING REUSE EXISTING FIXTURES & ACCESSORIES UNLESS OTHERWISE NOTED

STAMP

#

#

2 A404

STAMP

-

-

EF-1

Roof 24' - 0"

BEDROOM

0' - 9" REVISIONS

EXPOSED DUCKWORK

NO.

Date

Description -

REVISIONS

NO. KITCHEN KITCHEN

Date

Description

8" MAIN RISER

-

BACKDRAFT DAMPER TYP.

Second Floor 16' - 0" 100 CFM

UTILITY ROOM

100 CFM

LIVING ROOM

CRAWL SPACE

LIVING ROOM

1

2

TYPE 2 (SIM. TO TYPE 3) FLOOR PLAN BUILDINGS A,B,C,D,E,F,G 3/8" = 1'-0"

3

TYPE 3 (SIM. TO TYPE 2) FLOOR PLAN BUILDINGS A,B,C,D,E,F,G 3/8" = 1'-0"

BUILDING TYPE A,B,C,D,E,F,G SECTION 3/8" = 1'-0"

First Floor 8' - 0"

A404 SECTION BUILDING A,B,C,D,E,F,G & VENTILATION

A201 SCOPE A- BATHROOM REPAIRS

25

TM

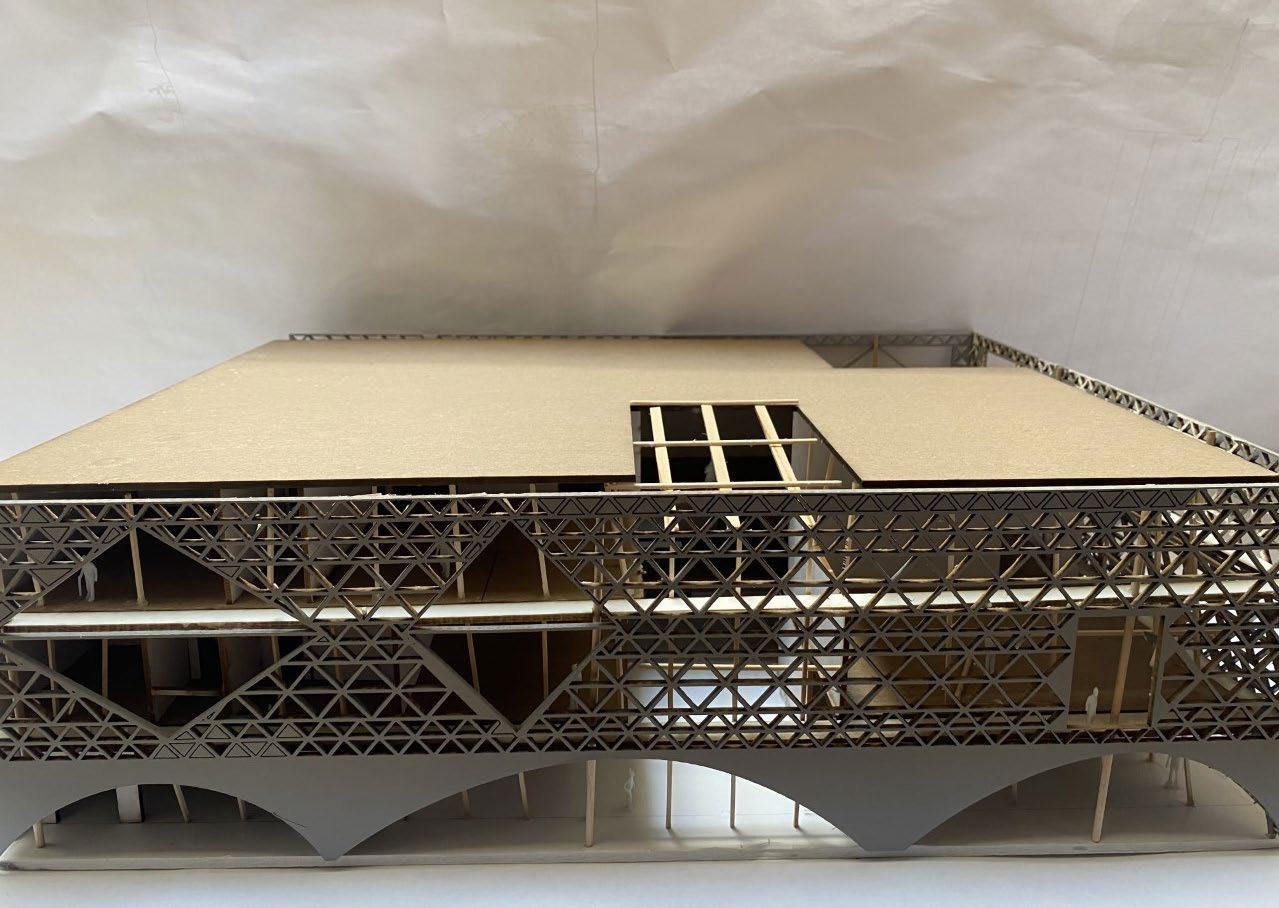

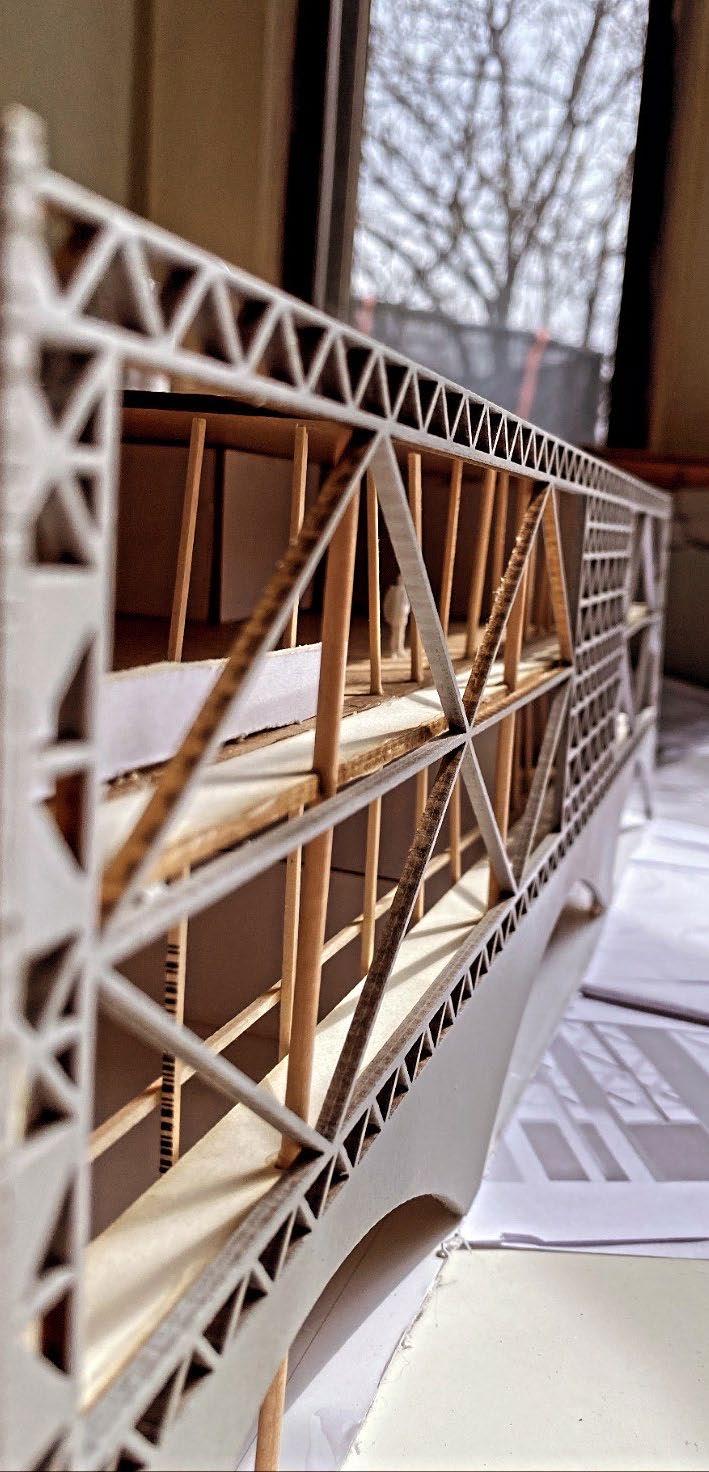

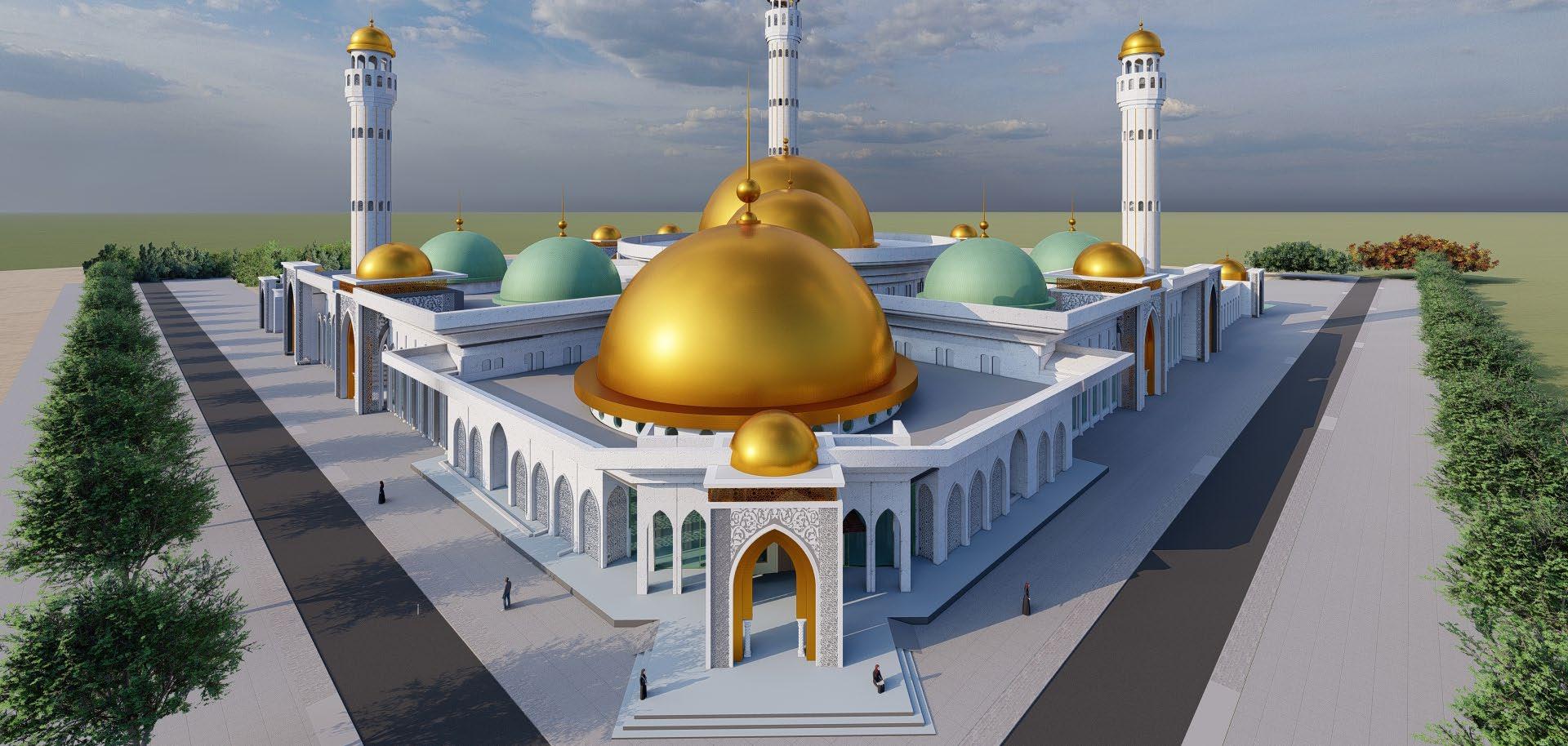

Tivavouane Mosque

Type:

The religious chief of the Tivaoune region has collected money to rebuild the mosque that was built in 1907. The architect wanted to preserve the plan layout and overall building envelope to preserve its authenticity.

Group Members:

Ryan Chemali, Ibou Paye, Malick Faye, Aboubacar Traore

Concept:

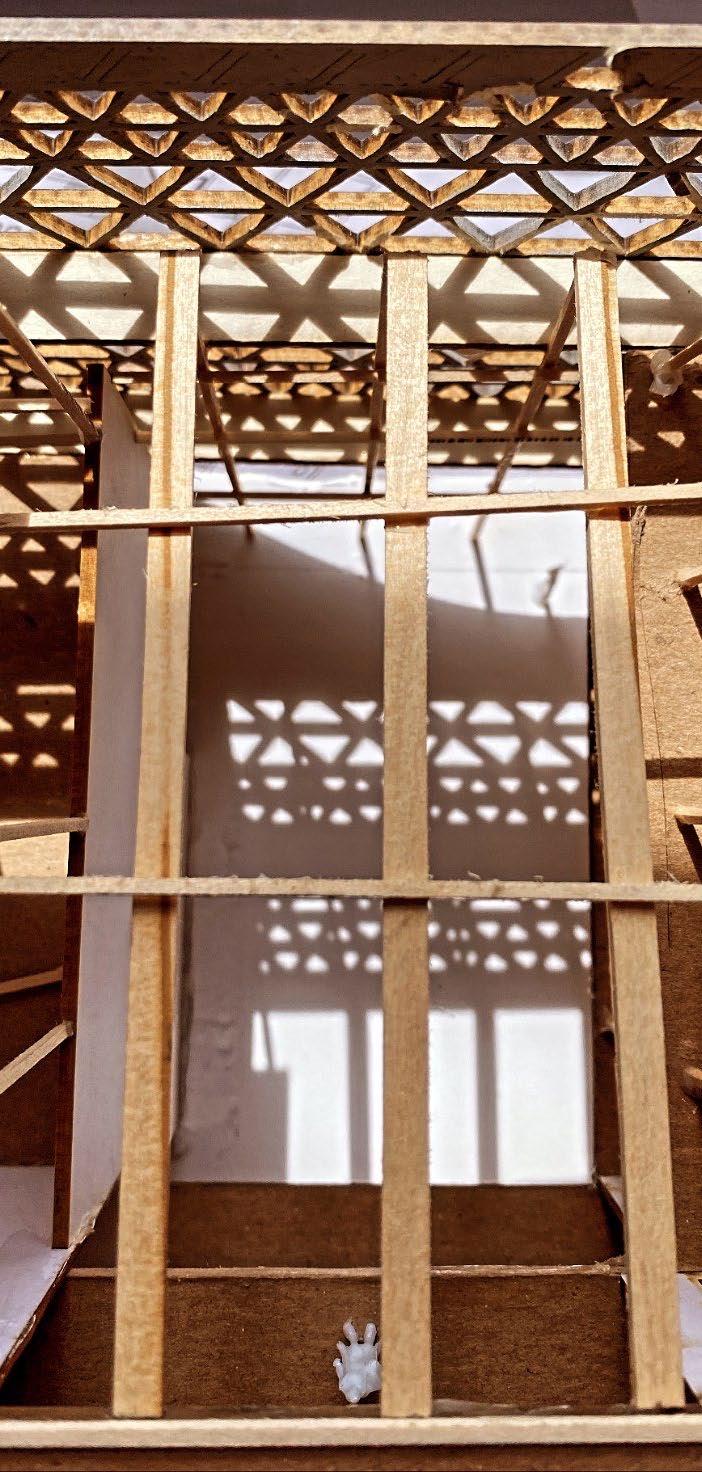

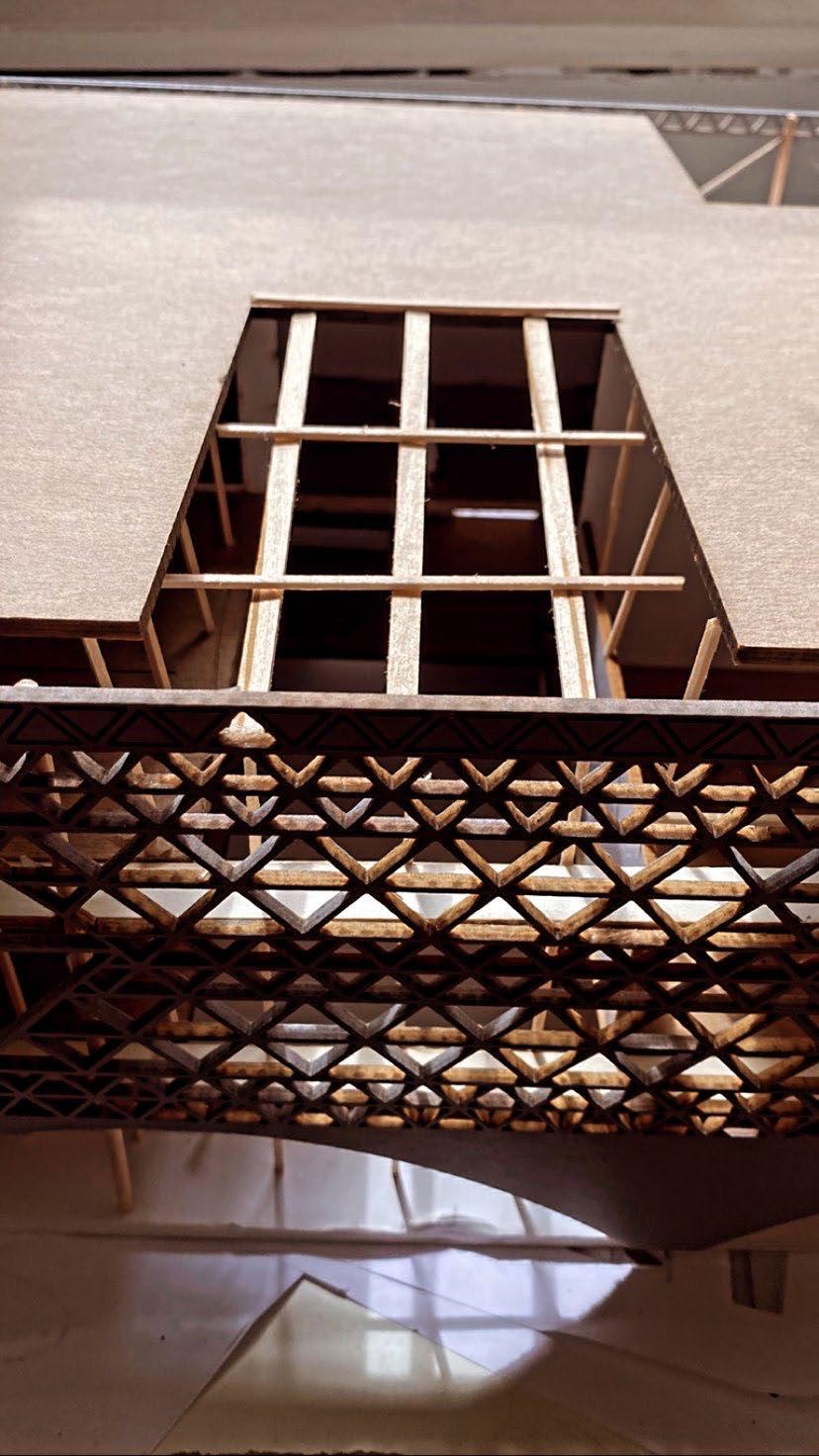

the mosque has preserved the original envelope to pay homage to the previous chef and the cultural heritage of Tivaouane. Moreover, the Tivaouane Mosque is not only a holly place but a national landmark for the Senegalese

26

.73 .42

3.20

.31

.30 .42

.87

.05

.74

.30

+72.80

3.20

2.60

3.00

3.60

.20

1.73

1.20

16.41

3.20

4.54

2.92

+76.00

.74

2.00

3.20

1.83

1.00

+69.60

3.20

1.00

.74

.20

.75

+66.40

2.00

1.21 .30.30.30 .31

9.45

+60.00

°09

82 D

L

.1

.20

35 R 00

31

1.00

19 .1

9.45

2.00

3.20

1.00

.20

+63.20

.

87

00

79

L

3.20

.3

D 82 00 R

2.00

.8 1

1

22

00

°09

.1

95 .3

1 00 .5

1

00 .4

.4 00

3.20 1.00

.4 82

°09

.3 38

.3

3

3

64 .

56 .2

=R 3 83. =R

55 .

2 89.

=R 2 87.

06 .

39 .5

95 .3

3

81 .6

56 .2

53 .

56 .

56 .

1 36 .0

89 .3

.3 46

1 00 .0

01 .4

5

.1 54 45 .1 1

09 .

1

2

2 179.1 .1 69 .1 14.11

5 16 .

29.2

96 .

06.1

1 20 .0

96 .

68.2

05 .2

44 .

9

96 .

06.1

.9 79.

2

84

00 .4

78

.2

02

.6 2

98 .4

06 .1

°09

06.4

49 .1

1

.1 06

08 .3 1 25 .3

.3

05

68 .

84 .3

54 .3

.5 48

15 .3 1

.3

82 .0

15

2 25 .4

.3 39 .2

62 .0 1

12

08.1

98 .5

4 15 .

97 .2

3=

R

85 .3

83.

R

2

05 .

32 .

2.2=R 01 01 81.

3= R 689.

2= 87 .

35 .3

08 .

.3 05 05 .3

.3 45

2 94 .4

.3 52

00 .1

05 05 .3 .2

2 88 .

09 .1

52 .

m aR

03 .

04 .

.3 01

51 .2 1

06 .1

68 .2

05 .3

05 .3

A cc se E S tn re er iv it ec ne oP

05 .3

qi tr

05 .3 05 .3

05 .3

ep .5 17

38 . .2 13 .5 00

49 .51 ec iv ne reS ite se rtn cc E A

.6

2

02

.3

.

09

.2

.3

.3

05

24

ep

.2

.

08

.3

05

.2

06

.1

22 .

57

I ss S eu oce 8.2 u 8 sr 4 3 2 .

1

50 .9 .

°09

29

.7

57

26

.8

51

62 .

.4

18 .

.2 86

18

°09

.

aR

5

.3

24

.

52

.4

26

.3

05

m

saS

.

30

1 .3 78

°09

SECIVRES ECNANETNIAM & SEUQINHCET EEUQSOM ²m20.701 15

3

iV

ed

s

ru

ap

tr

ei

a

lb

tu

oi

sn

67

64

1

05 .3

A cc se E S tn re r iv ite ec ne

12

32 .

4.

.1 5

41 51 61 71 81 91

3

.7

85

.7

54 .

90

4

.

02

.2

5

.2

00

11 .4

09 .

05 .3

05 .3

eu

08

05 .3

.51

07 .8

99 .4

.4 50 23.3 06.1

1 20.2

08.1

9

44 .9 82 .2

24 .

37 .

7 64 .

7 51 .

1199..

.21 20 .4

°0 .1 06

.2

06 .1

07

.0 3.

03 .

03

.5 74 .1 30 .2 32

.2

72

.3

32

56 .

1 64 .0

31 .0 1

80 .9

14 .8

68 .8

09 .

49 .6

52 .6 05.1

84.8

81 . 7 6.1

.1

32 .

05

81 .1

00 .3

18.

55

53 .5

62 .5

75 .3

99 .

74

.5 67 .

.5

09 .

08

.4 41

.45

26.8

.3 55

.1 02

37 .2

.

32

.7 10

21 .3

05.3R

.

52.1

47

14.75 8.97

47 .3

71.3

1 °91

.3 64 .1 77

22.90 1.50

.30 .20 8.32

8.12

8.02

.00

2.20

2.95

03 2 1 55 . . 0 6.

°33 1

57 .2 .

52

3.20 3.65

1.90 1.85 8.73

6.08 4.98

2.20 6.32

5.52

10 .2

.

79

1.00

.6 33

6

00 .4 17

42

71

.5

.85 1.54

32 .5

.3 °79

EYAF KCILAM ODWAM .G.L.P.D ETCETIHCRA emoR ed efaC- sialaP ud ecnediseR etiorD- EGATE eme8 35 53 328 / 08 74 228 )122( : LET 57 74 228 )122( : XAF LAGÉNÉS - RAKAD

11.00

21

21 .3

.3

ns.cra @ eyaf : liam-E

6.28

6.85

04 .7

3.20

9.45 1.40 5.98

4.73

8.32

8.32

8.32

05 .2 52 .

.

52

22 .6

3.20 3.20 3.20 3.20 3.20 3.20

5.10 3.40

3.15 6.55

3.40

3.20

4.93

4.30

1.35

2.60

16.00

.20 2.60 .20

14.00

1805 .5 .2

3.20

1.80 7.80 72.74

1.80 7.80 1.80

1.80 7.26

2.00 .26 .94 2.20

2.09 .10 5.91

1.80 3.32

1

1 57 .2

3.20 2.00 .20 1.00 1.80

2.00 .20 1.00 2.00 7.80

49.50

.99 2.00 .20 1.00 1.80

2.00 .20 1.00 2.00 7.80

.20 1.00 2.00 .20

17.53 1.60 1.26

1.60

1.60

1.85

1.60 1.26

1.85

12.95

edacra 11.4

12.65

edacra

9.63

39. 05.

7

.

60

.35 1.04 .15.85

70.3

39.5

21 31

8

.2 43

.3

.3

.4

moc.liamg @ 91scinhcetihcra 6.85

39.5

9

43

0

.0

.35 1.20

71.

05. 39.

.2 30

.3

01

36

2

05

.3

05

.3

05

57

°38

04

.3

.3

05

.

11

70

E

1

iV

ed

13

.

1

s

ru

ap

tr

ei

.2

llah sreilacsE

13

e sru uss oc I eS

a

lb

tu

oi

sn

12

.2 20

.

.2

13

saS

.1

.3

s

ru

p

2

.8

70 iV

ed

.5 88

csA rmP

csA rmP

05

20

iv

.3

05

R7

1.35

71.

62.

.2 65

2

ed

05

62

29.77 .67 .73

edacra edacra 11.4

°09 .2 13

3

ru s

1

p

5

tra

2

.2

ei

a tr

ei

a

lb

tu

oi

sn

.3

.

09

a

3

48

lb

.3

.3

.4 27

tu

05

05

.

06

oi

TEJORP LARENEG NALP 003/ 1 : ELLEHCE

.2 02

3

.

05

1

2 3

4

18

e sru uss oc I eS

.1

.3

.3

R1

1.10

.5 18

.11

54

14.00

.

53

1.19

.2 05

4.17

.1 00

9.63

.2 05

.

68 .

84

16

94

TN

.3

05

.

05 00

.4

ed iv

02

ECIDNI

1

.3

ru

.3

sn

.3

NOISSIME ETAD

.0 59

05

.1

ap

07

.1 00

tr

2

aR

ei

3

m

a

R

ep

lb

s

05

c-B

.4

tu

EE

09

oi

4

.

52

sn

.3

1202 erbmeceD 12

iV

ed

3

.3

.2

°98

.2

05

iv

05

FIREV

s

ru

ap

tr ei

a

lb

tu

oi

sn

00

ed

.3

NISSED

.

52

s

05

DD-PI -TA-DM

csA rmP

.2

ru

P

.3

AIDD -EYAF.M.M

00

p

llaH csA-csE

31

.1

tra

csA P r.m 3

90

ps al

.3

ei

tro

05

93

GENERAL PLAN

08

1

saS

.3

05

.1

c

o et

e

lb a

M

ru

an ed

=h

.2

57

m

05

tu

47

.

M

.3

oi

qi

.3

.2

.1 08

3

ce

r na

61

SE

ru

08

e

.

05

M

M

rc

05 sn

eu

05

NALP

1

1

na

2

.

90

oc

41 51 61 71 81 91

.1 40

et

3

.1 16

e

4

.

32

ps

8

al

5

.1

an

.3

.4

.3

et

.

06

ed

.

22

=h

6

4

.2

05

7

2 .7 60

57

.3

21 31

8

.3 49

m

05

41

ESAHP

.5 46

iv

.8

.3

.

15

.2

T

İO EL TT 6 SE 02 EF 2m

ed

52

05

R

uo

n

no

04

.3

.1 06

ru

s

05

4

éd

on

m

m

eé

92 .

11 01 9

neitertnE

60.2

ei

tr ap

.

08

.2

.2 05

05.

lb a

.3

05

EXE

51

.

32

tu

05

EEUQSOM EDNARG ELBMESNE'D NALP

°43

teraniM m65

01.3

.3

oi

.2 74

1R 11.5

.5 92

21

78.4

03.8

.1 75

iv

sn

snoitavresbO

)12' ceD 81 reitnahc ed noinuer( sehcrA sed noisserppuS FIDOM

.3 73

ed

65.8 65.8

s

iv

NOITUCEXE 003/1 : ellehcE

.

56

ru

ed

.

09

M.M.FAYE- DDIA

.5 13

p

.4

s

.1

MD-AT- IP-DD

VERIF

.

52.R

.8

1 .1 73 .

75

tra

85.1

OT

ei

79.

ba

05.

tu l

05.2

oi

.6 81

sn

79.

M

41 ru

.1 00

.

56

1

eirelaG semmeF ²m832: frus

55

°09

°09

05.2

ru

iv

60.2

ed

71

3 2 1

p

8

.4

.9 52

99.

e

ru s

.3

tra

.

32

DESSIN

05.2

p

05

ei

.

31

11

°09

.0 41

2 .2 47

.

00 1

30.1

tra

itu

lb a

05

.

00 1

05.2

ei

.3

sn o

M O 2m H S 00 ET 21 TE Lİ

05

.2 05

.3 68

36.1

.0

.0

10.1

a

05

.2

M

rc

.

85

.

89

12.6 44.7

57.6

.4 69

00

54+ 00

05.2

lb

SE na

00

.6 .2

20.

56.

.0 1

79.

tu

.3

oc

70.2

oi

05

csA rmP

et

.R 45

e

87.8

ps

00

MODIF Suppression des Arches (reunion de chantier 18 Dec '21)

B-c 21 Decembre 2021

secca'd 7e4p.3maR %5

al

.3

.35

.2 05

06.1

16.00

.1 00

.6 06 .7 37

.

86

38

05.2

74.3

sn

iv ne reS ite se rtn cc E A

9

.3

an

.1

51

1

semmeF eeuqsoM m11 psH

49.2

05.3

.2 ec

llah sreilacsE 27

ed

05 .

24

.1

65

.2

05 .1

00

.6 33

.6 20

36.8

=h

.3

A

B

.4

03,R

75.3

.2

02

.20

.1 10

.6 09

8

64.3

57

05

4.5

EXE

INDICE DATE EMISSION

architechnics19 @ gmail.com

74.3

m

.3

.2

92

.0

.9

38 .

01

.3 .1

.

.8

45

.

25

12

s se riel te ac lli sE oT se llaH cc A .3

25

: egarvuO'd ertiaM ayinuossA ruoN uotaamaJ noitaicossA )euqitehporP noitidart al ed ereimul al ed elcreC(

COUPE AA

E-mail : faye @ arc.sn

59.9

.3

05.

62

.2

00

52

09

40.4

68

48

.3 05

.1

73.

.2 93

.3 04

15.3

.3

39.

24.5

.2

.4

58.6

68

EUQITROP DUS -EERTNE

59.2

05

09

05.5

14.3

68 .3

.3

04

06

.

32

47.7

.1 89

.4 95

.

32

.3

05

5.

.6 03

1

.2

.3 83

.1

00

epmaR %5

tnevuA eertne

68

Echelle : 1/200

MAWDO MALICK FAYE ARCHITECTE D.P.L.G. Residence du Palais -Cafe de Rome 8eme ETAGE -Droite TEL : (221) 822 47 80 / 823 35 53 FAX : (221) 822 47 75 DAKAR - SÉNÉGAL

.11

20

32.

secca'd 52.8

.3

.3

PHASE

51

8 64.

77.2

.1 34

.3

1

61.3

ENAUOAVIT ED ELLIV

28.5

06.1

16.3

06.1

49.2

06.1 2

49.2

65

74.3

duS eirelaG ²m071:frus 49.1

TE NOITCURTSNOC ED TEJORP TNEMEVEHCA'D ENAUOAVIT ED EEUQSOM EDNARG AL ED

14

2

.4

.2

.8

C

06

1

.4

.5

92

72

31

92

68

EXECUTION

PLAN

.6 32

.R

43

.1 61

54+ .9

35

E

.

76.2

3

33

.9

.2

.1

06

59

23

.1

.4

54+

9

.1

.5

37

05 1

0 0.

.9

.9

93

0

.

17

.1

.3

.5

.

24

06,R

43.

06

.2

37

00

58.11

20.21 .4

33

.95

41

.1

09

52

82.11

06.R

.21 20

.1

52

.4

54

.1

06

82

.3

00

05

.3

31.3

.4 52 .1 06

.1

. 04

32

.

44

.1

.3

68

.1

.3 66.3 1 1

45

.3

.4

70 06

68

LAGÉNÉS UD EUQILBUPÉR

00

86

eeuqsoM YS kcilaM jdaH idyeS m58.6 psH

03.R

81

nolaS noitpecer ed

nolaS etnettA

.3

Observations

04.R

.2

60

68

Maitre d'Ouvrage : Association Jamaatou Nour Assouniya (Cercle de la lumiere de la tradition Prophetique)

2

72.2

35.11 48.12

ettecaf ne ertuoP rehcnalp uaevin

06

.1

.1 96

53

.1

37

.3

19

.1

.3

00

29

1 20.2

08.7

.1 53

.

31

.

68

.3

.2

94.3

.3

64 .

32

.

36

87

54+

39.

2 0. 2 1

52.2

6.1

02

.1

.2

.4

05.

68 .3

.3

93

05

01

9

02

.1

03

.9

R

01.2

.4

.3

10

.

.9

57

.11

sereirp ed ellaS m41 psH 51.53

70

4

04

00

.8

°0

.3

euqehtoilbiB

nolaS noitpecer ed

44.

E.G lacoL avK0001

.3

58

3

61

30.3

03

03

C

°09

05

82.11

ettecaf ne ertuoP rehcnalp uaevin

63

81

.2

64

.

31.

.4

mamI enoZ

llaH eertnE

74

91.7

30

02.1

· ·

.1

.2

.4

1

.

01.2

40.3

00.2R

.1

.7

.81

.2 05

5.15

.1 30

32

T

04

00

51

R

.9 35

.3

17

.1

44.9

.1

.2 05

.

.3

52

36.1

UQINHCET LACOL

00

24

05

17

.5

4

32

65

22.7

.

.3

.

85.11

27.

.

.6 22

eertnE llaH edanlapsE etoC

02

46 E .2 .1 av0K0001 ENEGORTCELE EPUORG 03 1.1 .

TBGT LACOL + OFSNART 2 03 .3

00

.3

etnettA

.3

uaeruB nicedeM

81

llaH teranim dnarG m41:psH

44

79

.11

33

lioT

m27.5: psH

61.4

.4 70

COUPE AA ( ECHELLE : 1 /200 Modification 2 Coupoles partie centrale 18/01/2022

lacoL TBGT

.5

.2

04.R

03

.1 52 92.1 02.

.4 34

.4

62

30 .5

05

65

48

47.1

20

65 .1

6

.

94

.

88

92

.3

.1

.7

1

.2 03

.R 06

00.

2

37.5R

te edanalpsE seuqitamotuA slosaraP ²m01621

3

1

05

00

6

.21

.1

77

eirelaG eertne m23.8: psH

.

48

3.

.2

53.4 .8

62.5

.9

92.3

02.

A

.3

.8

uo

5

08.1

R

68

lacoL ofsnarT setsoP 2 ²m34

03.R

.8 08

05.2

10

05

.4

.3

.

47

75.9

3

02

05

10.

46

ed ellaS snioS

F

.

68

1 .2

.3

.1

54.

5 15.

6

20.21

36 .21

44.2

.3

68

.3

68

93

05

00

05

.1

57.9

.2

noitatlusnoC

79.1 4 °741 7.1

+ 6.26

2

.2

2

.

06.1

00.9 52.2

05.2

11.2

06

noitatlusnoC

40.2

.3

.9

05

.4

.2

.2

36

68

1

et

.4 00

69.

35

.3

.

20

.

05

22.9

22.9

05.2

6 .5

68

.2

.2 37

.4 02

69.

.

noitavresbO

59

.3

.1

18

00

81

0

.3

83

2

05

00

.3

05.2

.1

68

.8

.4

.2

.9 55

06.

78 4.4

+11.75

.1

85

05

05

.2

54.R

50

.3

25

.3

.1

99.

.9

68

.5

02

05

10

05

45

95

56

°911

.2

.3

.2

.3

.1

1

90.

.8

.9

20

05 05

75

00

54+

05.2

droN eirelaG ²m071:frus 54+

.2

50

+14.75

VILLE DE TIVAOUANE

0

.2

12.9

2

00.

3

PROJET DE CONSTRUCTION ET D'ACHEVEMENT DE LA GRANDE MOSQUEE DE TIVAOUANE

.3

.

.9 15

05.2

01.3

10.

RÉPUBLIQUE DU SÉNÉGAL

36

45

.0

00

.9

79.2

50.2

21

49.

.3

68

.2

.2

.7

89.

1.20

n

.

02

.3 53 1.4 5

21

1

05.2

.76

no

2R

.2 76

.4 55

00.

1

.7 31

.1 50

69.

semmoH noisnetxE m11 psH

50.2

99.2

E

68

.3

61 22

eirelaG5.2 noisnetxe 51.

1 ²m832: frus

.1

89.54

25.91

.3

6

.

.

60

05.2

13.81

aR d epm secca' 5 % 04.3

52.8

68

25

80.R 05 06

00

.2

67.3

.2

02

37.3R

6.85

8

.

.9

.

79.

.3

68

+18.40

.45

R=3.1

05

.0 00

.

55

.1 60

05.2

.5 03

.5

51

5.90

.2

45

05

05

85

78.2

1.04 .85

.2 37

.2 53

71

00

69.

secca'd epmaR %5

tnevuA eertne

.2

02

.

02

68

+21.60

+11.77

éd on

.2

56

.2

05.2

R1 4.8 9

.3

53

69.

68

32.

6.70

83

.2

.4

21

05.2

3R

82.31

8.60

.2

05

89.

00.

69.3

1.04 .85

04

.1 00

15.8

05.2

.3

.2

32.

1.54

.3

m m eé

1. .0 69

secca'd epmaR %5

EUQITROP TSE - EERTNE .5

02

+24.80

+ 9.07

.15

13

.1

00

.1

85

40.42

6.70 6.30

.2

51

79.

0

.9

73.3

R1 .66

62

53

60

.3

25

2 2.

93.9

1.40 .30

.3

1

.2 14

96.21

+28.00

.2 02

.35

05

00 .

2 .4

.2 54

84

05.2

R1 1.25

.1 60

2

.8 52

6.85

.2 44

69.

.3

25

.1 36

5.85

.2 63

03.R

.3

74 .

.6 49

77.4

00.3R

5

1.05 .65

2

.1 00

.4 42

05.2

.21

.2 05

63.

84

.1

6

.9

79

+31.20

.

94

.29

.2 16

.

05

.3

51

.2

.2 02

1.95

.1 10

.3 53

29.1

.3

68

.1

2.06

.3

15 .1

.2

3 8.

16

10.10

05

.

52

05.

.3

68

3

6.45

.3

.

60

05.5

.4

°74

.3

68

.

68

6.20

.3 38

.

52

86

45

.2

89

1

°63

08.1

3

.

68

79

,55

.2

76

.2

44.8

72.8

01.3

64.

59.2 59.2

.3

SECTION A 1/200

.5

.2 00 5. 2 0

05.

.3

68

3

.3

.50

00

.

52

+40.80

+22.90

.50

09

55.8

9

94

29.77

.

04 .

01

.

52

60.2

9

°0

6

.7 18

+34.40

.50

.3

.2 R

07.2R

°0

3

.

68

.3

68

+37.60

1.63

m65 teraniM ²m281: fruS

.2

.

68

1

01

25 07

3 2 1

7.2

.3

6

.

21

.3

68

.3

68

+44.00

R1

07

.

04 .

01

.3

1

.3

11

6

.7

86

1

tnemeganemA - cdR nalP milC euqinhceT lacoL 2202/80/ 30 - 0101:hcE

68

+47.20

.2 42

68

2

7.80

R 00 -GE 3ø

1.00

06 .1

.20

.2 34

2.00

42

.7

57

.01

.7 28

.20

1

1

1 .3

R-GE 002ø

69 .3

68

.4

.3

68

+50.40

00

.3 00

7.80

.5

.4

.3

68

.2 63

27

64

R 00 -GE 3ø

.6 89

RGE

3

.64

3ø

13

A 0 -GE h/³ s/m 02ø m 9 68 .2 .64 3

3.20

1.80

1.80

2.00

4.0

00

67

m

h/³

.

63

A-GE 051ø s/m 9.1 h/³m 65.331 2.0

.3

68

+53.60

4.0

A 0 -GE h/³ s/m 03ø m 5.

6 0 2.0 5.3 31

R

1.00

.1 94

2

.

37

A 0 -G s/m 03ø E 3.1

R-GE 051ø

22

00

82

D

00

R 00 -GE 3ø

L

.20

+56.80

COUPE BB ( Mosquee Seydil Malick SY - EXTENSION) ECHELLE : 1 /200 RÉPUBLIQUE DU SÉNÉGAL

VILLE DE TIVAOUANE

PROJET DE CONSTRUCTION ET D'ACHEVEMENT DE LA GRANDE MOSQUEE DE TIVAOUANE Maitre d'Ouvrage : Association Jamaatou Nour Assouniya (Cercle de la lumiere de la tradition Prophetique) EXECUTION Observations

Echelle : 1/200

COUPE BB

1

1

.2

42

.3 11 57 .2 1

21 .6

.3

.

52

52

.

.1 16

.3

42

.1 63

.2

84

51

.3

.1

60 .1

74

.2

84 .4 2

56

.2

3= 81.

R

R 2=

00

R 2=

.0

89.

.

1

2R

06 .

87.

.4

no

05

00.

.2

éd

.2

76

R=3

.38

71

.

55

55

.4

21

on

37

.2 05

.1

55

.6 81

22

56 .2

.2

69.

.4

.

.

05

.7

03.R

05

eirelaG2 noisnetxe 51.1 ²m832: frus

.2

00 60 .1

79.

56

.

1

05

.2

18

.

89 .3

.1 00

36 .0

1

1

56

.4

.3

05

2

.1

.9

.3

.1

05

.2

03

00

05

.3

00

.1

.3 05

05.2

80

05

00

10

.6

.3

32

89.

46

05.2

.6

.1

05

.2

99. .2 05

.

37

.1

.8

54

68

64 .7

.3 55

.

32

.7 10

2 179.1 .1 2

.1

69 .0 1

16 .5

96 .

20 .

96 .2 05

00 .4

°09

62 02 .

21

.2

.2 .3

=R

85

83.

3 R

3 05 .

.3 45

2.00

m

eé

92

.4

.8

éd

no

et

on

m

°43

52

.3

1

.1 73 .

75

.2

.3 05

1

.3 68

.

75

01.3

65.8

00 .1

1

88

.2

05.

84 .2

3 2 1

05

teraniM m65

94

.4

2

78.4

03.8 .6

.2

05.

05 .2 20 .2 20 .2 08

3

29

1

1

.0 59

01

.3

04

.

.4 27

68 .2

1

.

07

60.2

2

.0

1

.2

NOISSIME ETAD

elartneC elopuoC noitacifidoM 2202 reivnaJ

81

1202 erbmeceD 12

CDR SEREIRP ED SELLAS SED NALP

60.2

FIREV

70.2

AIDD -EYAF.M.M

71

85.1

ECIDNI

79.

c-B

.3 73

.R

45

ESAHP

NISSED

05.2

87.8

EXE

DD-PI -TA-DM

79.

NALP

)12' ceD 81 reitnahc ed noinuer( sehcrA sed noisserppuS FIDOM

52.R

05 .

32 .

2.2=R 01 01 81.

3= R 689.

2=

.2

n

08

05

.3

°09

R

uo

87.

.3 35

.

1

51

1.40

55

.

secca'd 7e4p.3maR %5

8.63

°09

56

snoitavresbO

74.3

16.20

.5

05.2

6.17

13

99.

2.25

49.2

05.3

9.21

49

39 .2 15

1

97

9

.4

.0

.9 52

°0

eirelaG semmeF ²m832: frus

.2

00

05.2

7.98 4.44

.1

1

12

1 .0 62 .5 98

.

30.1

36.8

1.35

.9 .3

05

.3 84 .3

.4

°09

1

54+

00

47

15.3

edanalpsE

75.3

3.79

.4

.0

1

05.2

5.52

11

2

1

25

41

.0

.3

38

10.1

1.00

44

.9

98

08 .3

1 .3 25

54 3 15 .

.0

15

1

.3

00

82

.0

58.6

64.3

.35 1.40

84

.4

.1 06

.2 78 .1 06

.5 48

.0

38

1

.

05.2

14.00

.8 14.11

29.2

23.3

06.1 68.2

06.1

2 79.

06.4

00

05.5

14.3

68

1

.

08.1

08.1

.0

.9

09

79.

.45

07

.4 50

06.1

1 20.2

.4

5

.

92

.

86

56.

.

6

epmaR %5

.6 05

.

33

secca'd 52.8

.1 00

51

.2

45

semmeF eeuqsoM m11 psH

03,R

61.3

tnevuA eertne

74.3

.201.15

1

.4 2 99

1 .2 03

21 .3

05

.

06.1

09

.4

.6 20

C

69 16.3 .4

06.1

49.2

06.1

C

65

74.3

duS eirelaG ²m071:frus

1

56

.4

.8

49.2

.2

05

.1

00 .2 05

.4

92

92

05.2

.20

45 .1 .

09

51 .7

1 .2 20

.8

92

72

.2

31

20.

54+ .9

35

59.9

2.60

.1 65

52

.2

.1

06

40.4

2.60

.

9

54+

E

B

.

8 73.

2

00

24.

.9

93

.4

59

9

.

24 .4 00

20.21

22

.2

.3

.20

1

.6 52

05.1

55 .5

53 32 .

.9

79

20

52

.4

93 93

04

.20

1 .0 30 .2 05

.6 33

.

32

06

.4 02

.1

2.60

.5

8 14 .

09 . .6 49

74 .5 1199..

05 .2

6.1

.1

88 .

14 .4

81 . 7

84.8

00 .

2

1 °91

.3 64 .1 77 .2

02 .1

37

52.1

05.3R

39. 05.

89

2.60

70.3

14

2

39.5

1

.4

.5

.

96

.2 30

.3

.

.1

.

44

.1

06

05. 39.

71.

.2

1

.2 20

05

.5 95

.20

71.

62.

65

.5

33

.

62

°09 2 .

13

.5 68

1

.

52

.2

60

06

.2

05

62.11

09

A

edacra 11.4

36.1

.1 51

.3

58.11

.21

.1

.1

06

.1

. 04

.4

70

05.

5

45

82.11

06.R

39.

24.5

edacra

12.6 44.7

.R

06

20.21

03.R

.3

32

.

59.2

57.6

1

04.R

81

.1

37

32 .3

19

28.5

39.5

06.1

76.2

eeuqsoM YS kcilaM jdaH idyeS m58.6 psH

35.11 48.12

03.5

40

5.52

edacra edacra 11.4

72.2

R

01.2

nolaS noitpecer ed

02.

.45

.1

39.

.1

.

nolaS noitpecer ed

17.2

14.00

37

05.

51.53

32

5.52

.5

.11

54

82.11

63

.3

2.60

.5

17

.1

.3

9

.3

83

44.9

.20

.2

37

29

°0

07

.3

31

47.7

18.1

.20

05

1R

.21

erialucric ertuoP elopuoc uaevin

48.7

.1 34

07.

.20

00 .1

11.5

1 47.1

20

43.

moc.liamg @ 91scinhcetihcra

.2

18

20.21

.4

.

05

.

53

.5

91.7

LAGÉNÉS UD EUQILBUPÉR

EYAF KCILAM ODWAM .G.L.P.D ETCETIHCRA emoR ed efaC- sialaP ud ecnediseR etiorD- EGATE eme8 35 53 328 / 08 74 228 )122( : LET 57 74 228 )122( : XAF LAGÉNÉS - RAKAD

72

.

00

5

etnettA

.1

PRAYING FLOOR PLAN

.1

.4

64

.

81

4

ENAUOAVIT ED ELLIV

00

.3 66.3 1 1

.4

48

70

44.

TE NOITCURTSNOC ED TEJORP TNEMEVEHCA'D ENAUOAVIT ED EEUQSOM EDNARG AL ED

00 .1

86

54+

17

05

53

T

52.

05 .2

.8 31

sereirp ed ellaS m41 psH

mamI enoZ

40.3

05.

.

30

30.3

.1

.2

08 87

.11

01.2

64

36 .3

.2

.2

.11

65

6

.

52

77.1

3.32

24

.7 04

2

.

74

3

.4

m27.5: psH

llaH eertnE

.1

.6

.

32

.3

93

05

.4

5

15.

09

32

65 .3

17

.9

85.11

.6 06 .7 37

.1

lioT

.

.1 52 92.1 02.

61.4

77.2

2.20

.1 24

00 .0 1

2

00 .1

57

6

.9

.3

uaeruB nicedeM

81

.1 61

Maitre d'Ouvrage : Association Jamaatou Nour Assouniya (Cercle de la lumiere de la tradition Prophetique)

.2

.8

01

54.

26

euqehtoilbiB

54.0uaeviN CDR SEREIRP ED SELLAS SED NALP

PROJET DE CONSTRUCTION ET D'ACHEVEMENT DE LA GRANDE MOSQUEE DE TIVAOUANE

05

58

10.

20.2

37.3R

ECHELLE : 1 /200

CC

°09

05

57.9

NOITUCEXE

COUPE FF( ZONE GRAND MINARET)

.

.

68

.8

62.5

4

78.2

2

10

27.

32.

00.

43.4

4 4.

65 .1

.1

02.

.4

03

llaH teranim dnarG m41:psH

002/1 : ellehcE

RÉPUBLIQUE DU SÉNÉGAL

74

.1

46

.3

77

eirelaG eertne m23.8: psH

: egarvuO'd ertiaM ayinuossA ruoN uotaamaJ noitaicossA )euqitehporP noitidart al ed ereimul al ed elcreC(

VILLE DE TIVAOUANE

.

.2

06

.2

ed ellaS snioS

79.1 4 °741 7.1

36.1

architechnics19 @ gmail.com

85

05

04.R

06

noitatlusnoC

21

00.9

.2

.

40.2

MAWDO MALICK FAYE ARCHITECTE D.P.L.G. Residence du Palais -Cafe de Rome 8eme ETAGE -Droite TEL : (221) 822 47 80 / 823 35 53 FAX : (221) 822 47 75 DAKAR - SÉNÉGAL

E-mail : faye @ arc.sn

.3

.

.2

05

81

44.2

69.3

M.M.FAYE- DDIA

05.2

.1

noitatlusnoC

32.

MD-AT- IP-DD

VERIF

44

79

05

02.4

.R 06

78

.4

04

06.1

12.9

3

.2

73.3

DESSIN

.1

54.R

27.1

34.

05

40.42

MODIF Suppression des Arches (reunion de chantier 18 Dec '21)

B-c

.

05

69.

1

04.

.2

93.9

EXE 21 Decembre 2021

.9 55

05.2

.9

90

37.5R

INDICE

69.

05.

56

°911

COUPE CC

PHASE

.4

01

00

.

45

91.4

2

.9

51

36

DATE EMISSION

05.2

57.1 05.2

R

5.97

.3

.1

.9

15

.1 50

69.

05

00

.2

89

77.2

05.2

18.1

05.2

1

25.

75.9

14.00

.2

05

1

.

droN eirelaG

Echelle : 1/200

PLAN

2.60

05

.1

31

.0

30

42

89.54

.1

54+

E

F

2.72

10

56

.2

90.

EXECUTION Observations

2.48

.3

.2

.3

.

05

.0

00

.9

92.2

noitavresbO

11.12

05

05

75

.

85

.9

05.2

35

.2

.3 05

05

noisnetxE )semmoH( m11 psH

06.

PROJET DE CONSTRUCTION ET D'ACHEVEMENT DE LA GRANDE MOSQUEE DE TIVAOUANE

noitatalid ed tnioJ liateD epuoC semmoH noitnetxE SEREIRP ED SELLAS edanalpsE étoC

Maitre d'Ouvrage : Association Jamaatou Nour Assouniya (Cercle de la lumiere de la tradition Prophetique)

5.52

.3

.

5

21

.5

05.2

03

25.91

00.11

tnevuA eertne

VILLE DE TIVAOUANE

SECTION C 1/200

Novembre 2021

36

45

53 .

1 .7 31

64

R

.0

uo

.

00 08

et

.2

06

.

.8

13.81

53. 02

RÉPUBLIQUE DU SÉNÉGAL

61

.9

05

.2 37

05.2

secca'd epmaR %5

00.1

COUPE CC ( Mosquee Seydil Malick SY - EXTENSION) ECHELLE : 1 /200

.

45

.2

edanalpsE

80.R 05

.4

00

03 . . 0 6.

3

.2 53

.4

02

69.

noitatalid ed tnioJ liateD nalP semmoH noitnetxE SEREIRP ED SELLAS edanalpsE étoC

COUPE EE( ZONE GRAND MINARET) ECHELLE : 1 /200

n

.

02

.3 53

51

1

0.98 R1

2.25

.3

.1

60

4.60

m

83

00

60

05.2

6.85

.2

.2 .1

noitatalid ed tnioJ

m

04

53 89.

6.85

eé

1. .0 69

15.12

.3

.1

00 .2

05.2

07.1 05.2

13

51

79.

15.8

6.60

.2

.2 14

05.2

14.00

62

53

2

.6

69.

°74

secca'd epmaR %5

5.40

.3

.1

.4

96.21

87.

67.

05

00

.3

95

08.1

55 .

.2

49

77.4

54

.2

.1

03.R

.60

15

00

05.5

.

42

.30 .30

22

.6

.2

.2

05.2

59.2

60

63.

64.

59.2

44

56 .2

1

1

56.00

°33

2

05

10

.5

39

1

°63

55.8

9

.2

.20

.

.

05

29.1

.30 .30

.3

45

05

3

05.

.30 .30

38

.

.

53

44.8

72.8

°0

9.95

.

.2 00

52

.3

.

.5

.2

9

86

52

09

05

°0

01.3

.60

04 .

01

.2

5

52

05.

.60

.3

00

2 7.

07.2R

60.2

.30 .30

01

.

52

R

.

1.35

.3

m65 teraniM ²m281: fruS

.2

3 2 1

.60

07

.

04 .

01

11.05

.3

38

07

architechnics19 @ gmail.com

1.43

1.70

.4

°09

.2 25

E-mail : faye @ arc.sn

82

MAWDO MALICK FAYE ARCHITECTE D.P.L.G. Residence du Palais -Cafe de Rome 8eme ETAGE -Droite TEL : (221) 822 47 80 / 823 35 53 FAX : (221) 822 47 75 DAKAR - SÉNÉGAL

3

M.M.FAYE- DDIA

76 .2

MD-AT- IP-DD

VERIF

1805 .5 .2

DESSIN

896 .42.

3

MODIF Suppression des Arches (reunion de chantier 18 Dec '21)

B-c 21 Decembre 2021

05 .2

EXE

INDICE DATE EMISSION

.

PLAN PHASE

52

SECTION B 1/200

As mentioned, the plans haven’t changed since 1907; However, the plans and sections give an idea of divided room prayers throughout the mosque. The open gathering space has new technological features with sun-shading sensors to make people comfortable due to sun exposure.

Also, we can see separate rooms for men and women to offer privacy for believers.

°98

ns.cra @ eyaf : liam-E

27

The mosque counts multiple Islamic architectural features such as gold ornaments, mashrabiya, and pointed arches. These features emphasize power, wealth, and cultural heritage in Islam; Therefore, it was important for the architect to design a safe space for believers in order to satisfy their needs and comfort

04

OTHER WORK

29

01

Gēçit

A visionary open-air museum in Türkiye unites history, nature, and modern design through a sustainable Welcome Center and a path that transforms ruins into immersive cultural spaces

30

02

Monument De la Divinitee Africaine

“ Le Temple de la divinité Africaine “ reflects my conception of the Senegalese culture through my, knowledge experiences and adventures.

31

03

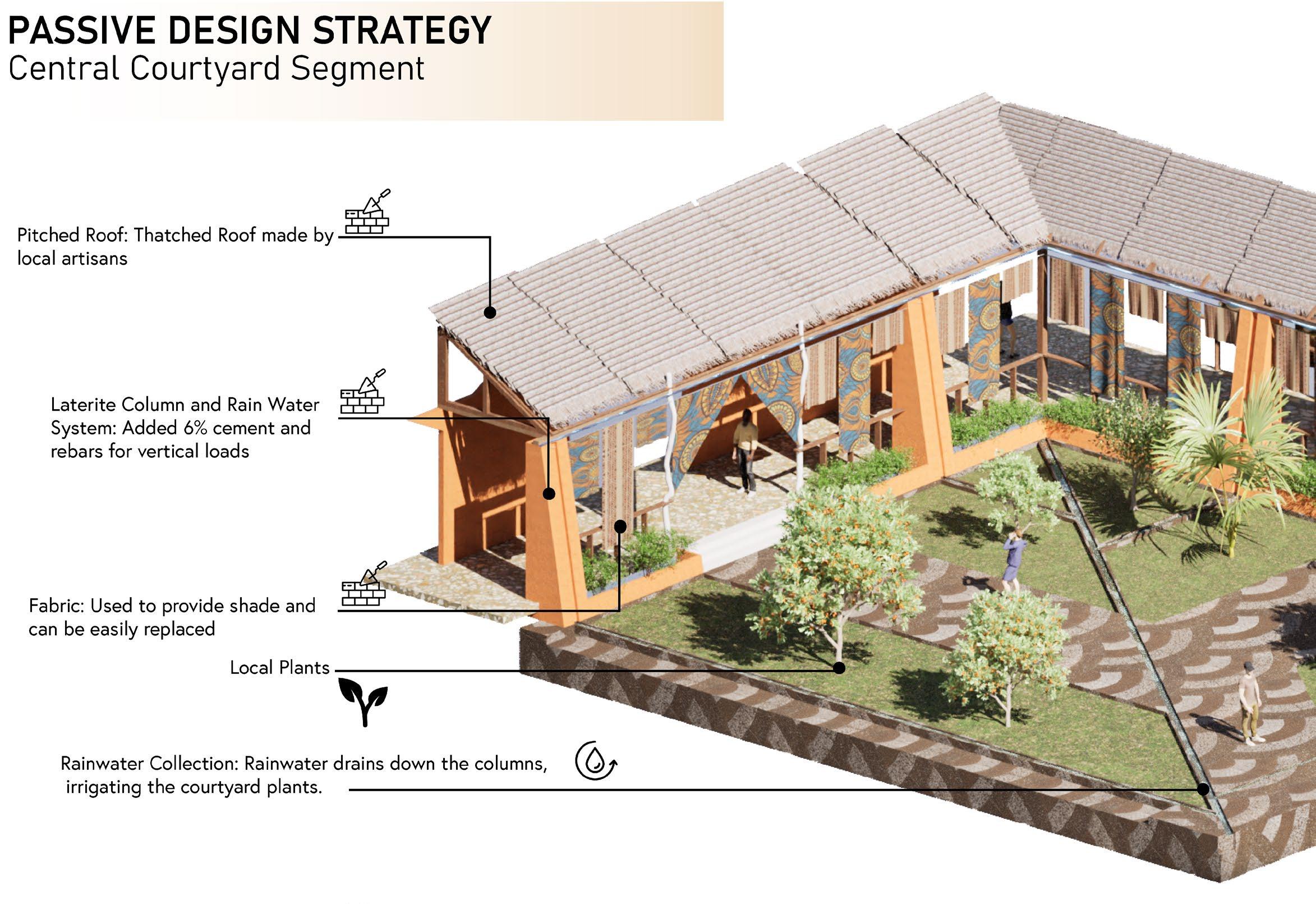

Eco-Marché Sikasso

The Eco Market of Sikasso promotes sustainable agriculture by linking tradition and modernity to support the local economy and protect the environment.

32

04

The Olive House Next Door

Embracing Simplicity and sutainability living off grid by blending the timeless charm of tradition with the lines of modernity

33

THANK YOU

RYAN CHEMALI

571-232-9770

ryanchemali@gmail.com

34
