GridVolt Terra 233 Datasheet

Page 1

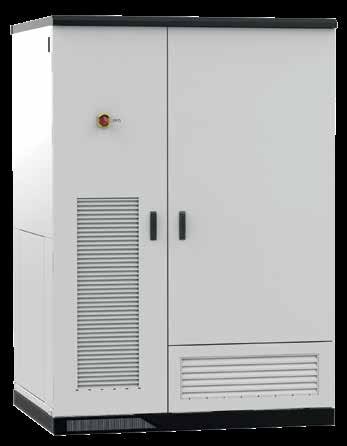

GridVolt Terra 233

233kWh / 100kW Liquid Cooled ESS with Direct PV Integration

Terra 233

GridVolt Terra 233 is an all-in-one integrated energy storage system (ESS) in a convenient cabinet form factor for outdoor installation.

Terra 233 features an optional DC-DC converter with 4x MPPT trackers allowing up to 100kW of solar PV to be directly connected without additional inverters.

Easy installation

Pre-wired cabinet with battery and PCS/inverter. Minimal installation labour required.

Direct PV Integration

4x built-in MPPT trackers for 100kW of direct solar PV integration (optional).

Smart Energy Management

Effortless integration with GridVolt Energy Manager for multiple use cases (PV self-consumption, peak shaving, demand response and more).

Seamless Backup Power

Integrated Static Transfer Switch / STS for seamless backup power (optional).

Safe and secure

LFP cells for safety, integrated aerosol fire suppression.

Modular and expandable

Multiple units can be connected in parallel for larger systems.

Integrated liquid cooling

Integrated liquid cooling for maximum battery performance and lifespan.

Battery

Battery cell type

Rated energy capacity

Rated battery voltage

Voltage range

Cell capacity

Charge/discharge rate

AC Output

Power

PV Input (optional)

PV Voltage

Number of MPPTs

Max input current

Rated Input Power

Transfer Switch / STS (optional)

General

Dimensions (W*D*H)

Certifications

Versions

233kWh Battery

air cooling

≤4000m (derating above 2000m)

1375*1350.5*2050 mm

2,500kg

Aerosol based fire suppression

Integrated pack and cabinet level detection and suppression

IEC62619, CE, UL1973, UL9540A, UN38.3, RoHS, IEC

61000-6-2:2019, EN IEC 61000-6-4:2019, EN 62109-2:2011, EN 62109-1:2010, IEC 62109-2:2011, IEC 62109-1:2010, EN 50549, G99 (UK)
