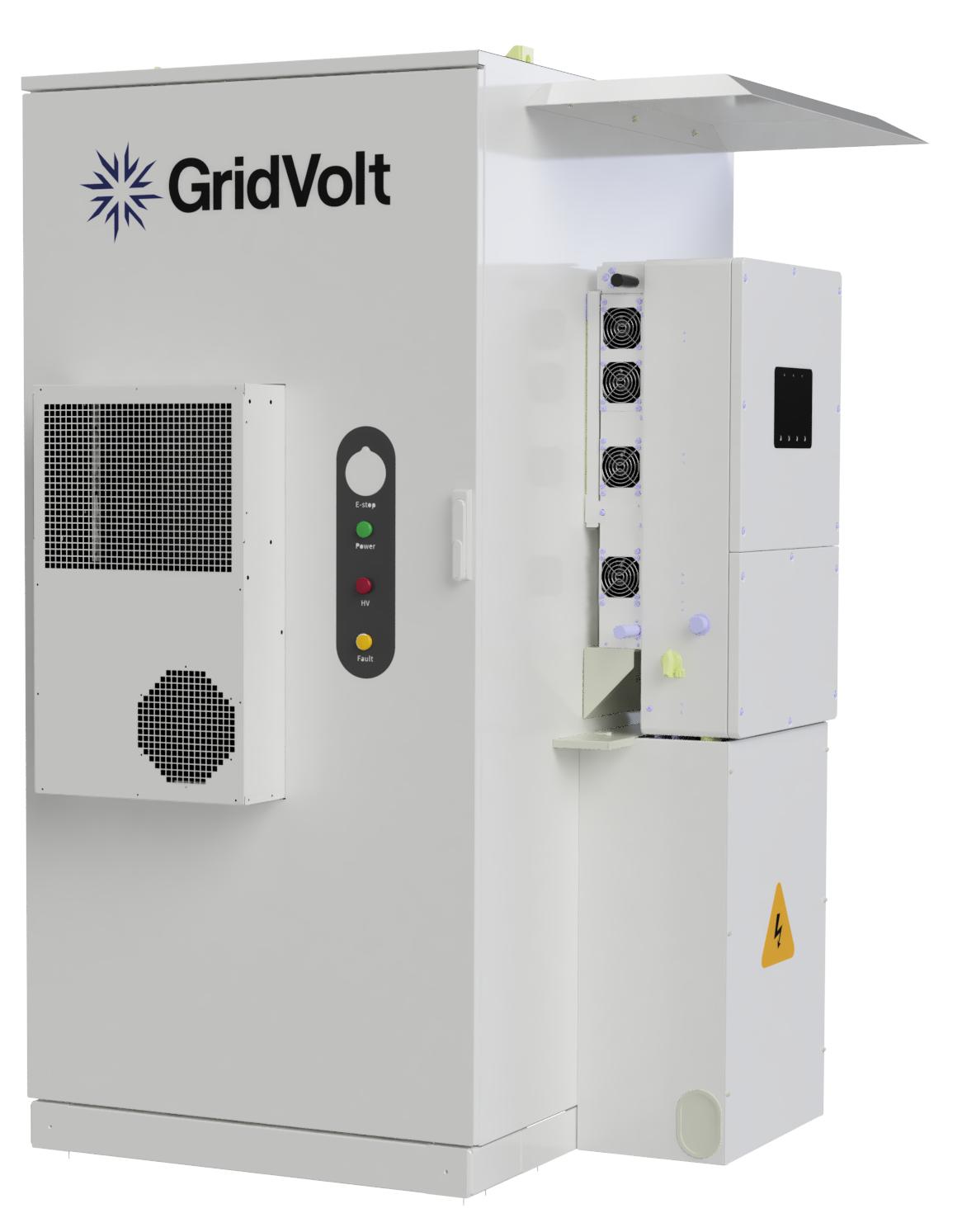

GridVolt Hybrid 109
109kWh Hybrid Energy Storage System
Hybrid 109
All-in-one energy storage system with 50kW Solis hybrid inverter, integrated changeover switch and generator input.
Direct PV Integration
Easy PV integration through Solis hybrid inverter.
Seamless Backup Power
Integrated changeover switch and generator input (< 20ms changeover).
Smart Energy Management
Seamless integration with GridVolt Energy Manager.
Easy installation
Single unit with battery & inverter pre-wired for outdoor installation.
Safe and secure
LFP cells for safety, integrated aerosol fire suppression
Modular and expandable
Multiple units can be connected in parallel
Battery
Battery cell type
Rated energy capacity
Rated battery voltage
Voltage range
Charge/discharge rate
PV Input
PV Voltage
Max PV input power
Number of MPPTs / Strings per MPPT
AC Output
Rated Power
Nominal Voltage
Nominal Frequency
THDi
380 / 400V AC, 3P+N+PE
50/60 Hz < 3%
THDu < 3%
General
DOD
Cycle life
Cooling
Operating temperature
Humidity
Altitude
Dimensions (W*D*H)
Weight
Fire suppression
Certifications
Grid connection certificates
95% (25°C ± 2°C)
≥10,000 cycles
Integrated air cooling
-25~55°C
0-95% RH (non-condensing)
≤4000m (derating above 2000m)
1270*1340*2094 mm 1,800kg
Aerosol based fire suppression integrated
UN38.3, EN 50549-10, VDE-AR-N 4105, IEC 61000, IEC 62477, IEC 62619
EN50549 (Ireland), UK (G99), France, Germany, Spain, Italy, Belgium, South Africa, Austria, Sweden and more
