PROGRAM TINY HOUSE ON WHEELS

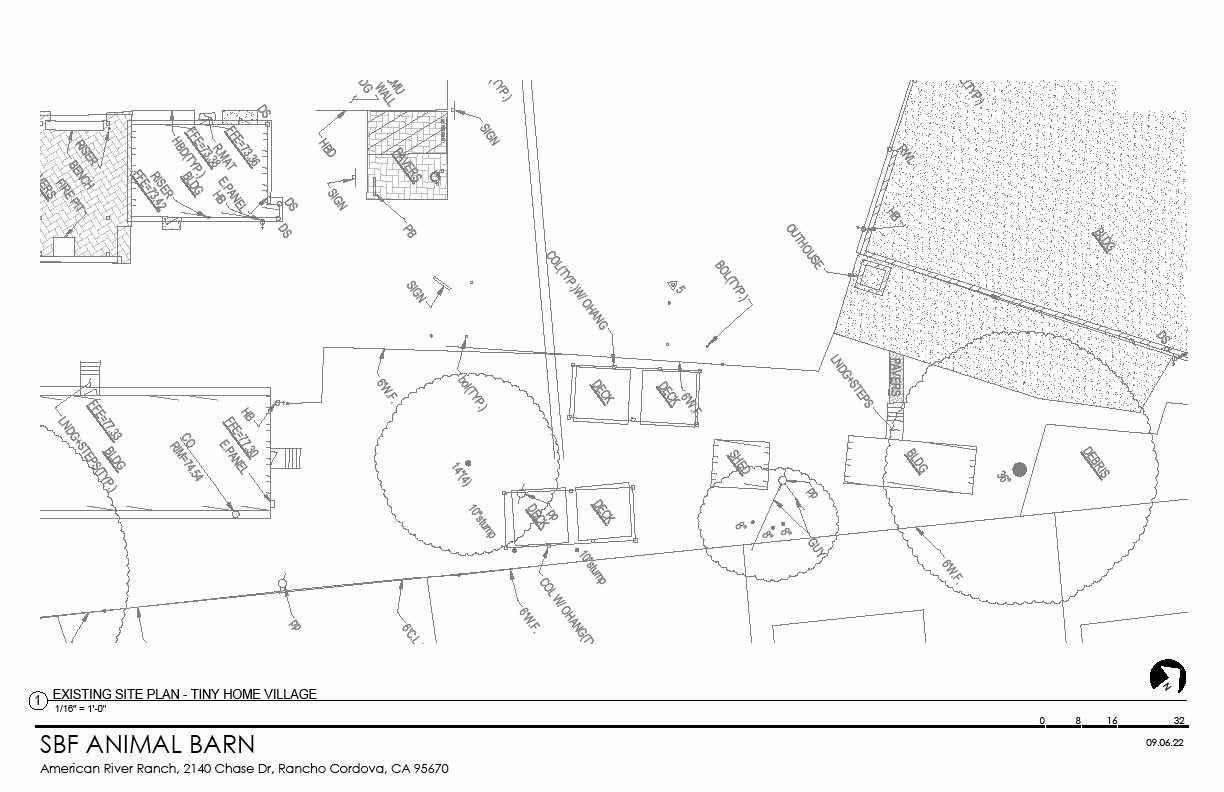

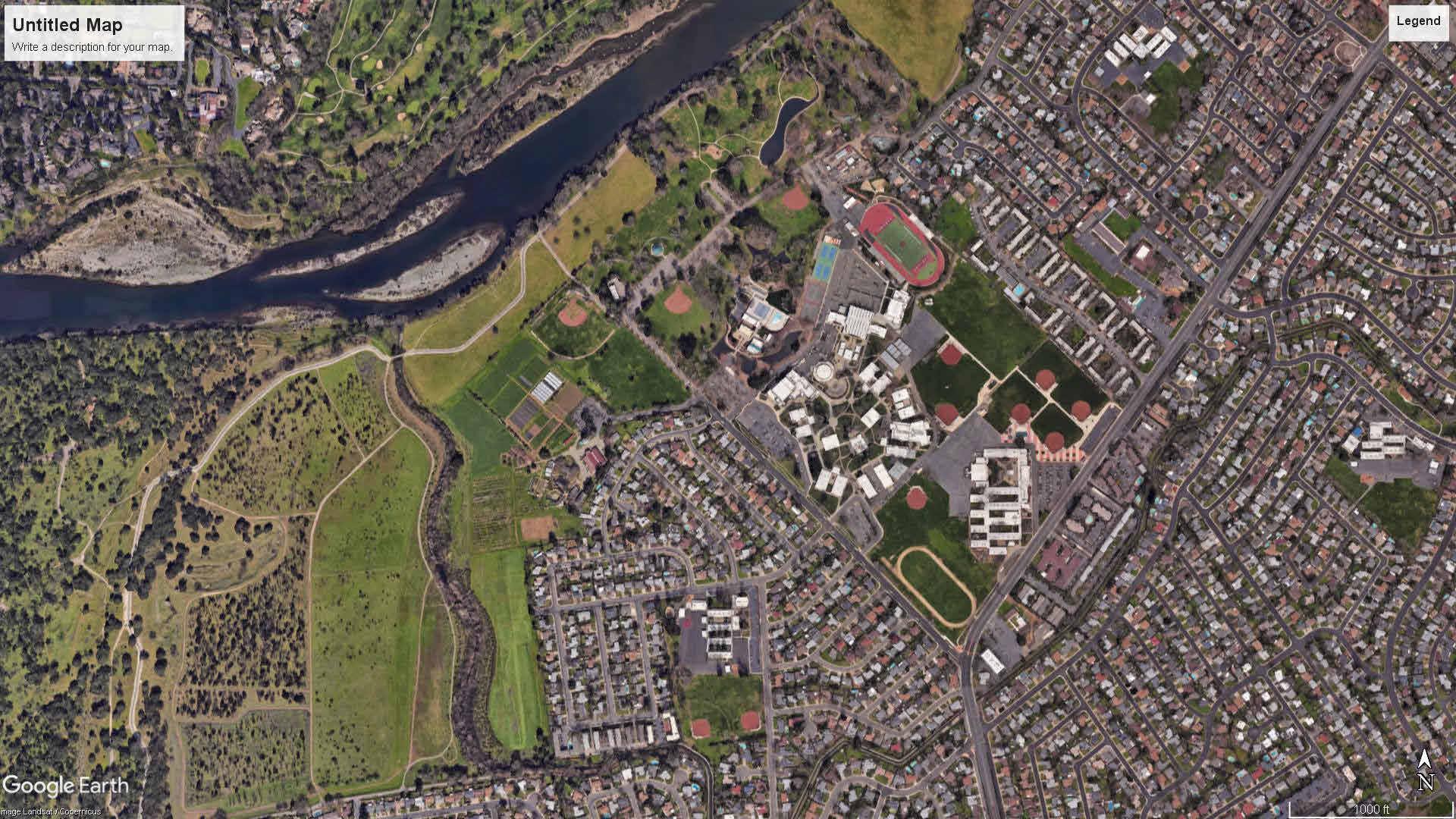

VICINITY MAP
ABBREVIATIONS
PROJECT DESCRIPTION
A6
A7
A8
A9
A10
SHEET INDEX
A12
A13
A14 ROOF FRAMING
A15 FLOOR & LOFT FRAMING PLANS

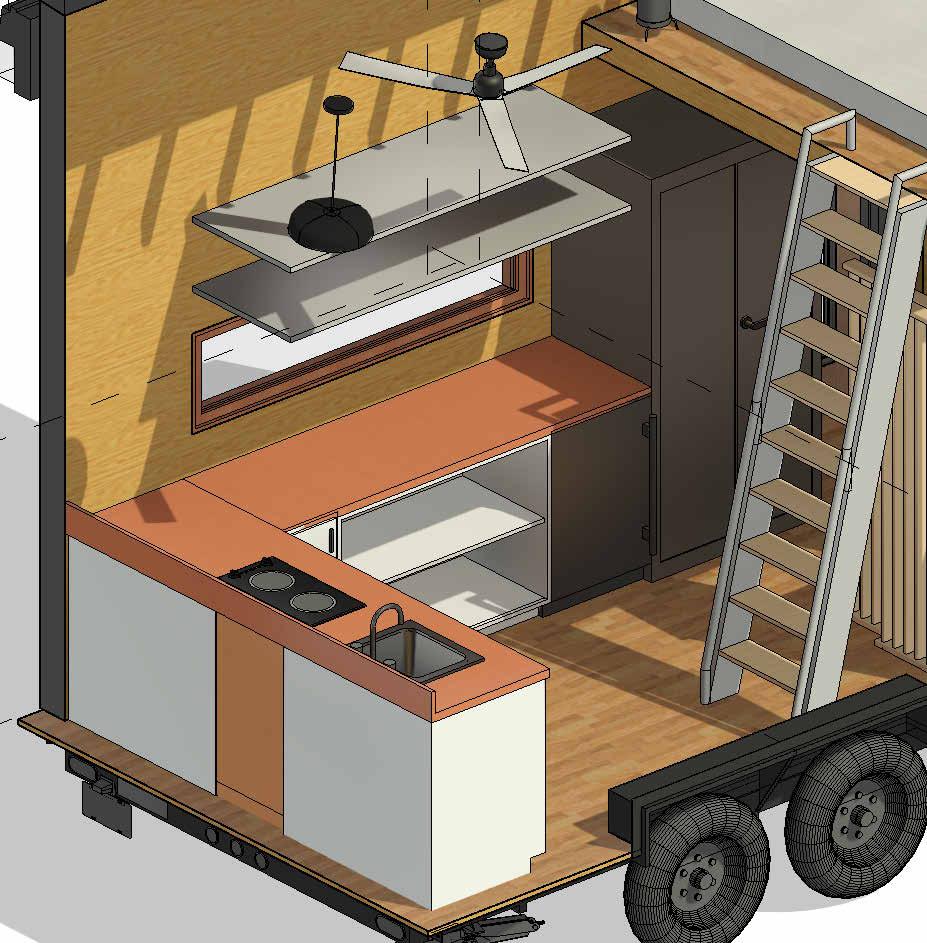

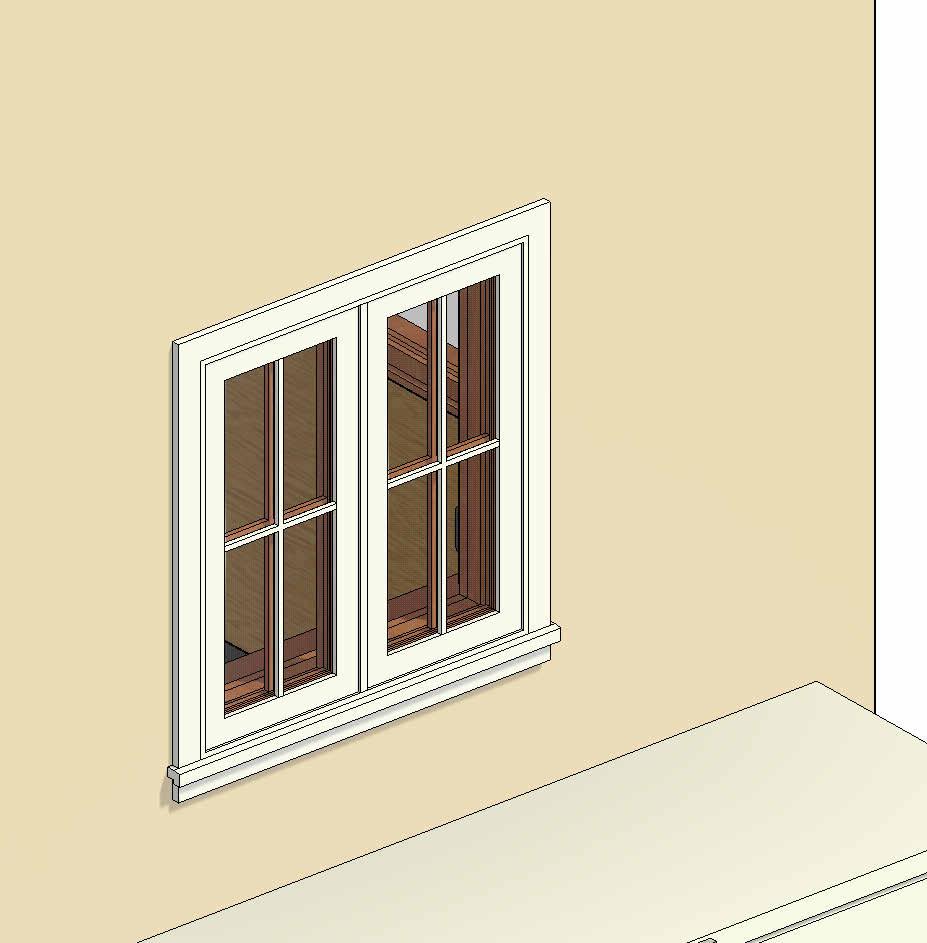

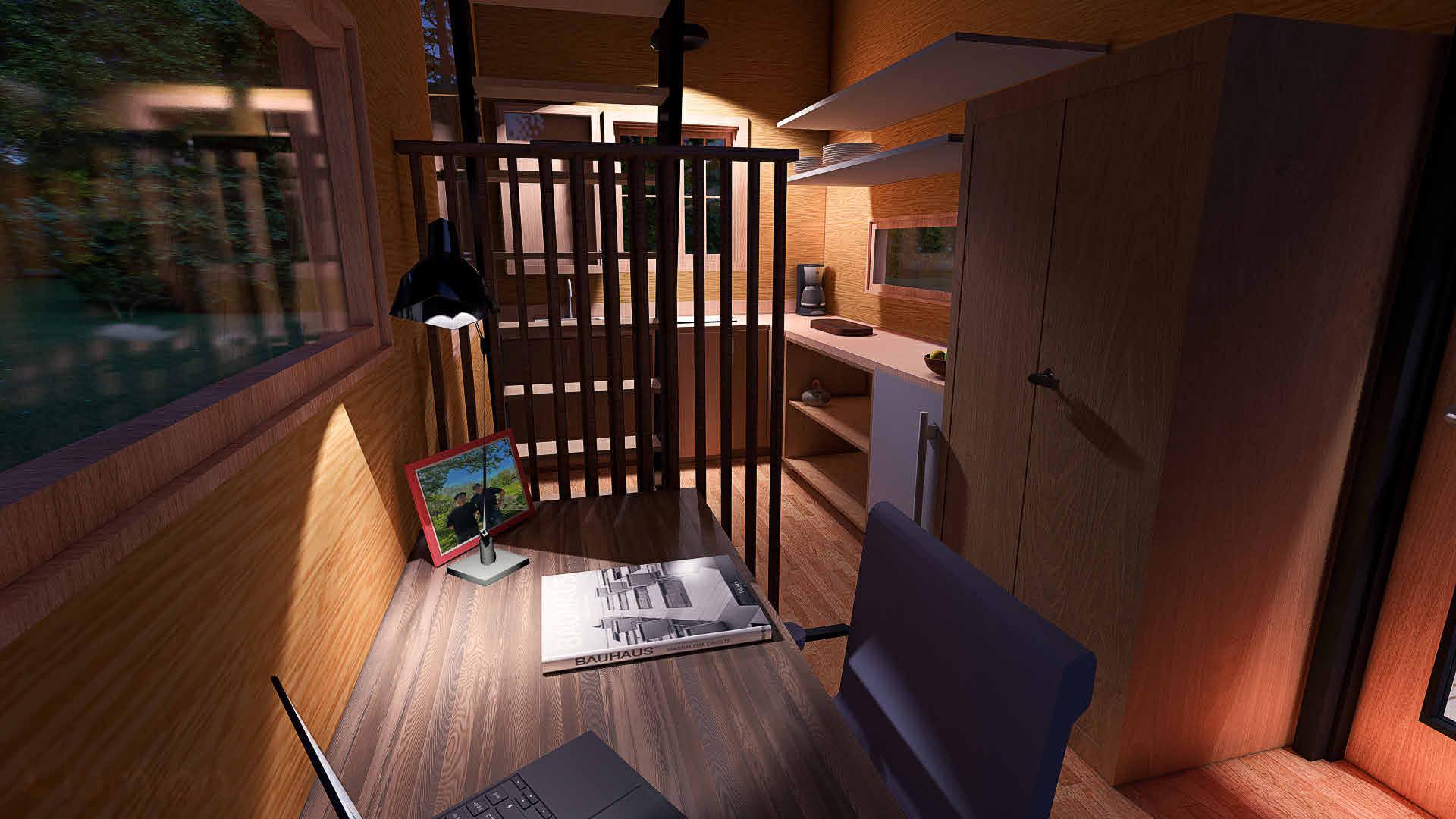

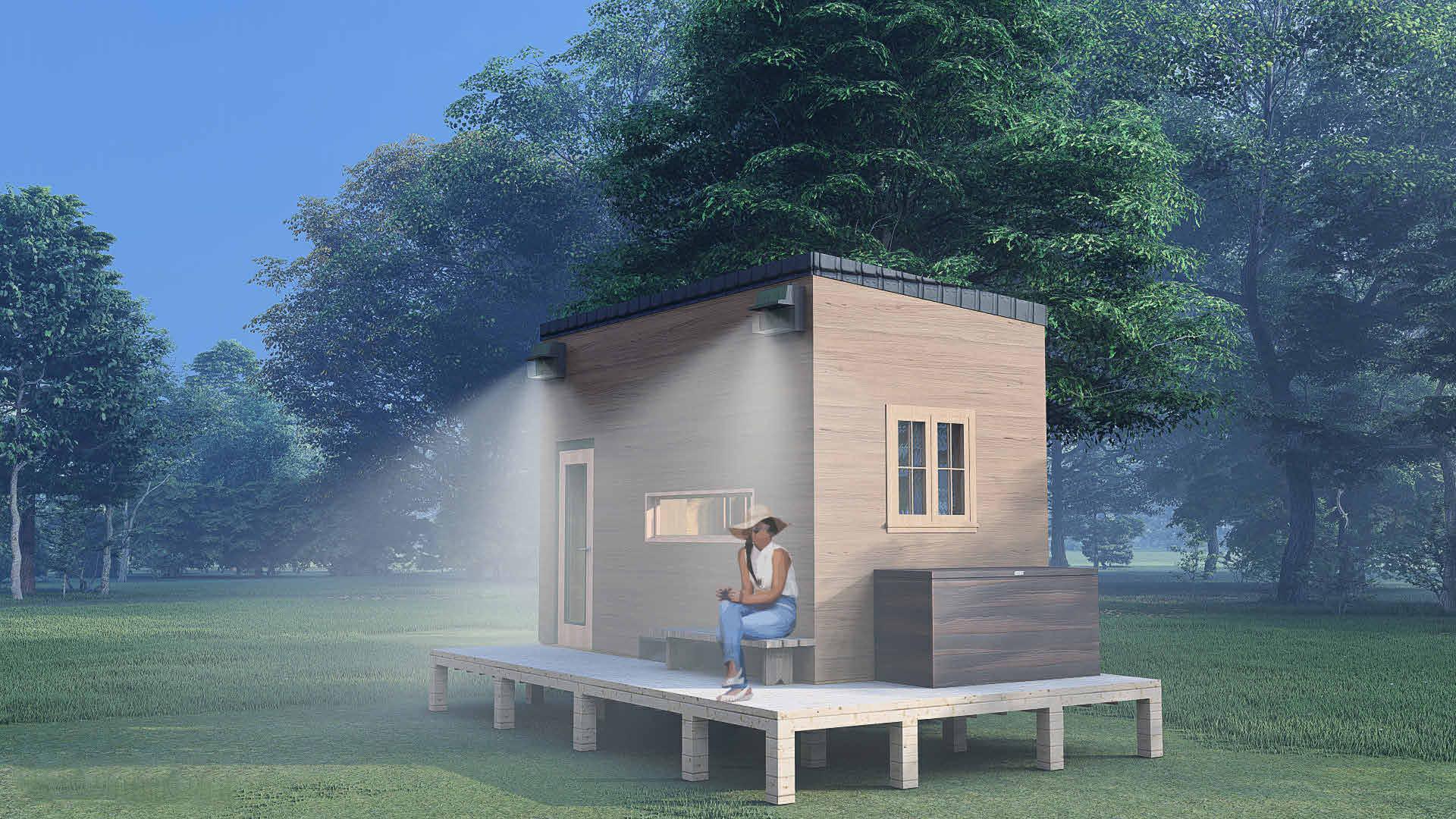

A16 INTERIOR RENDER

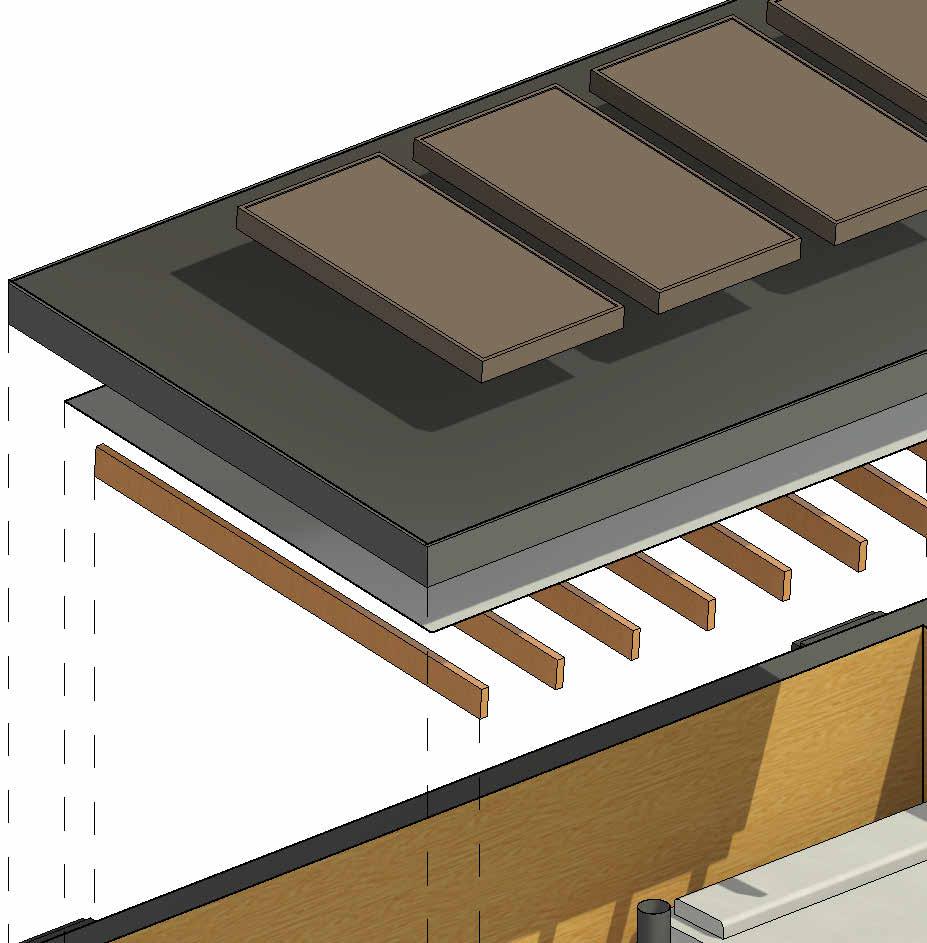

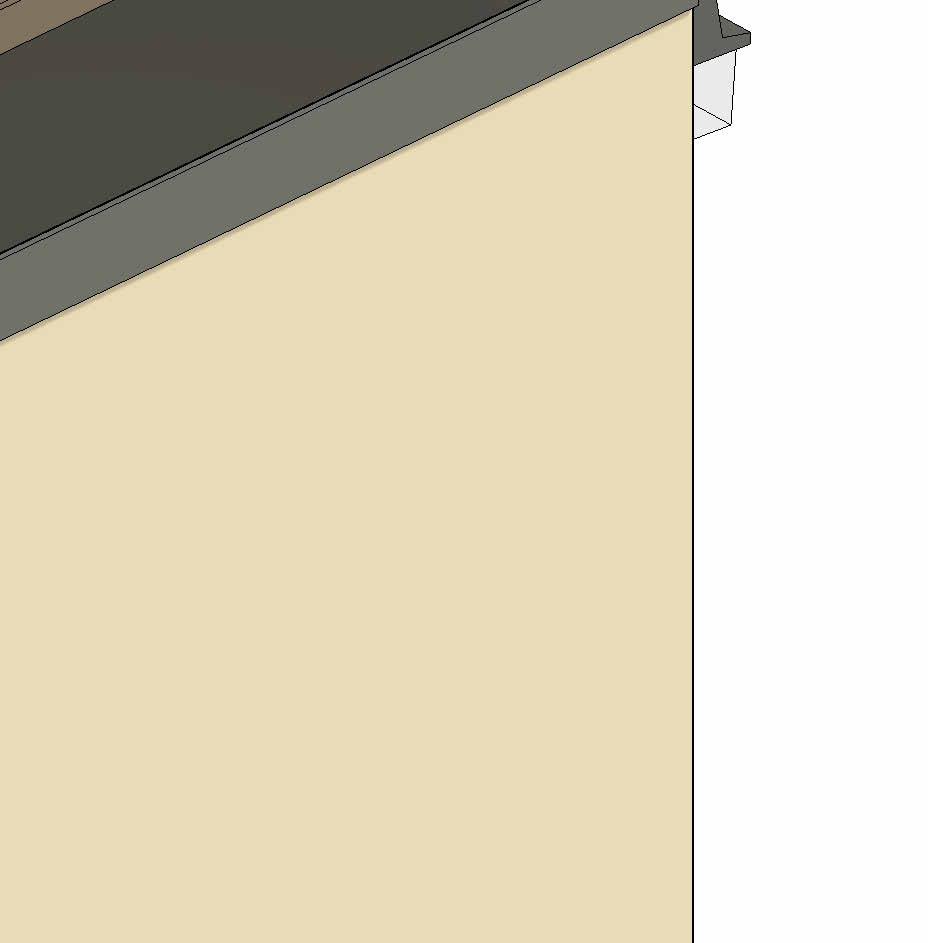

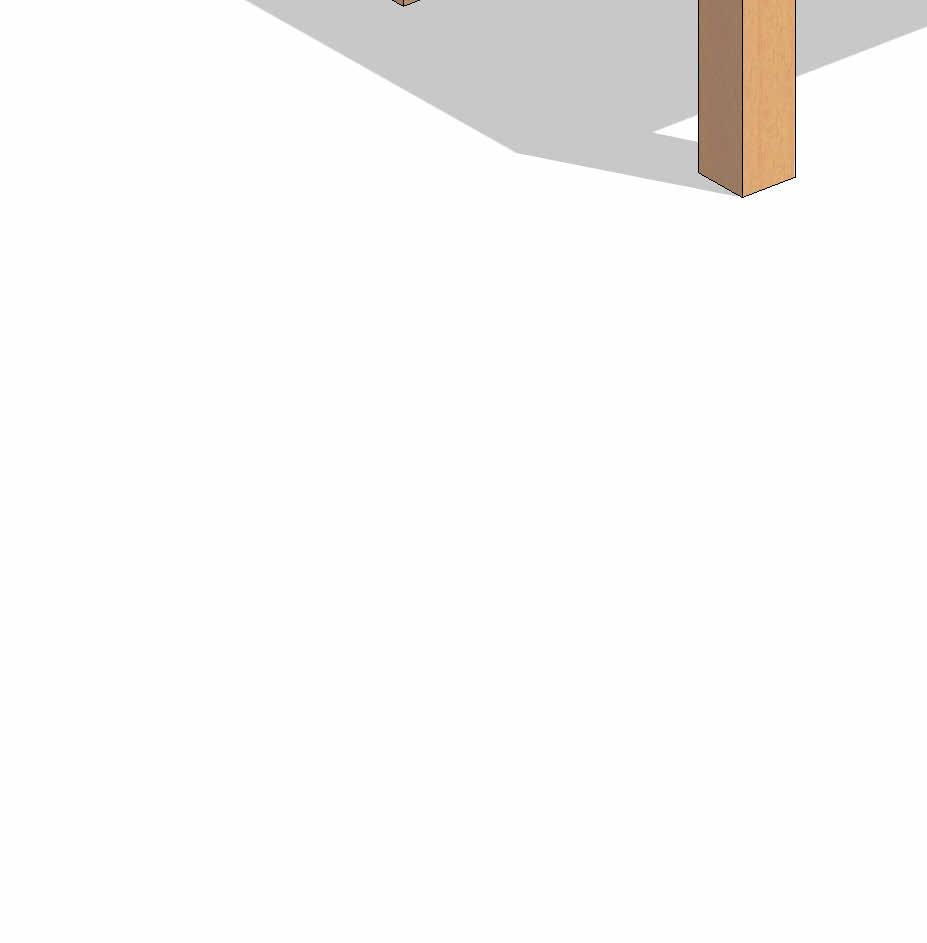

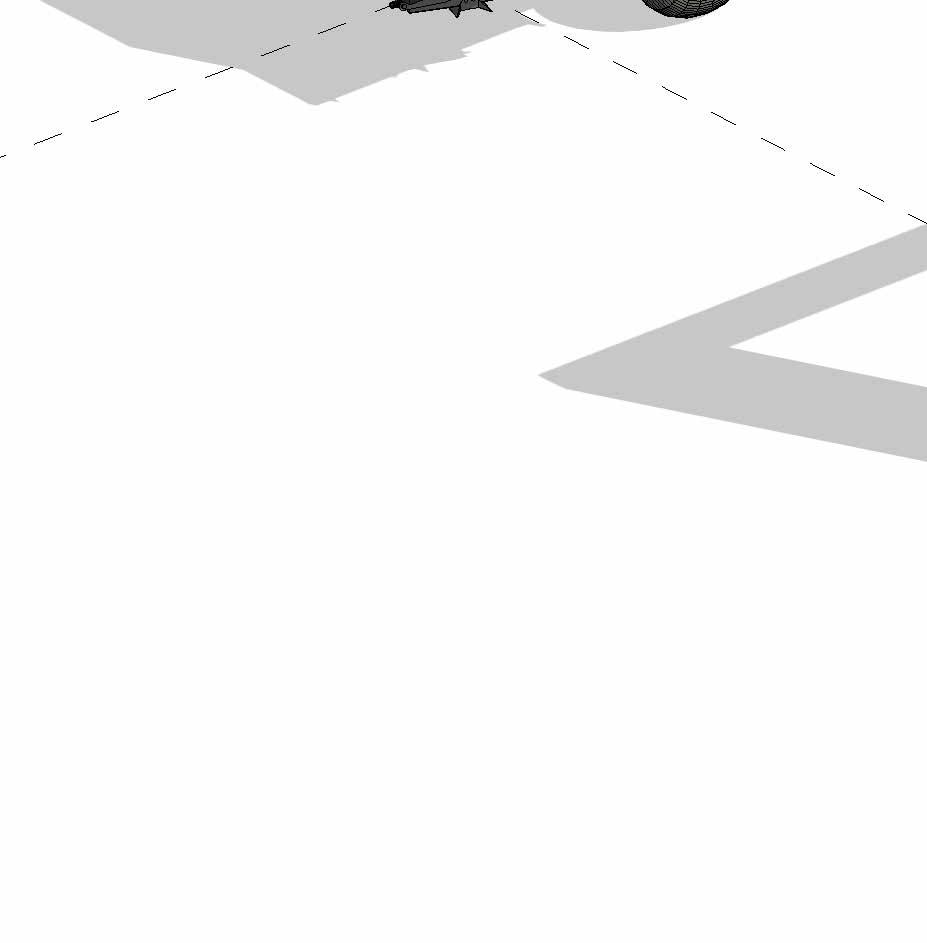

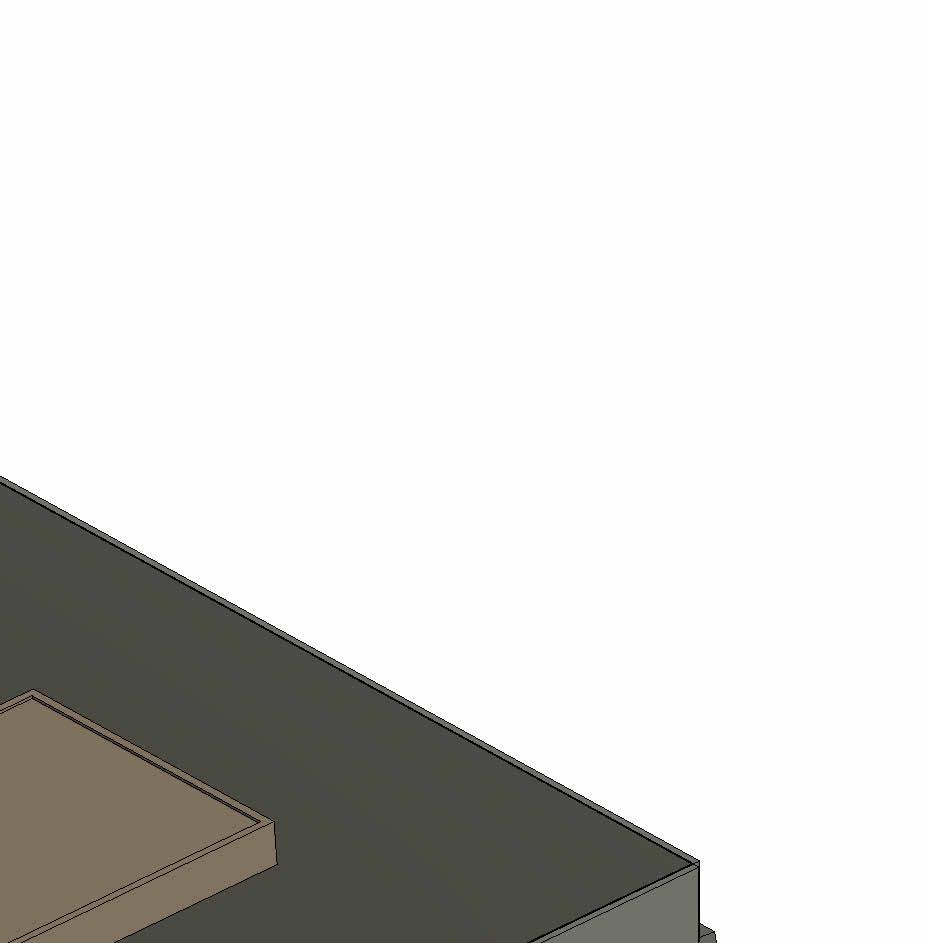

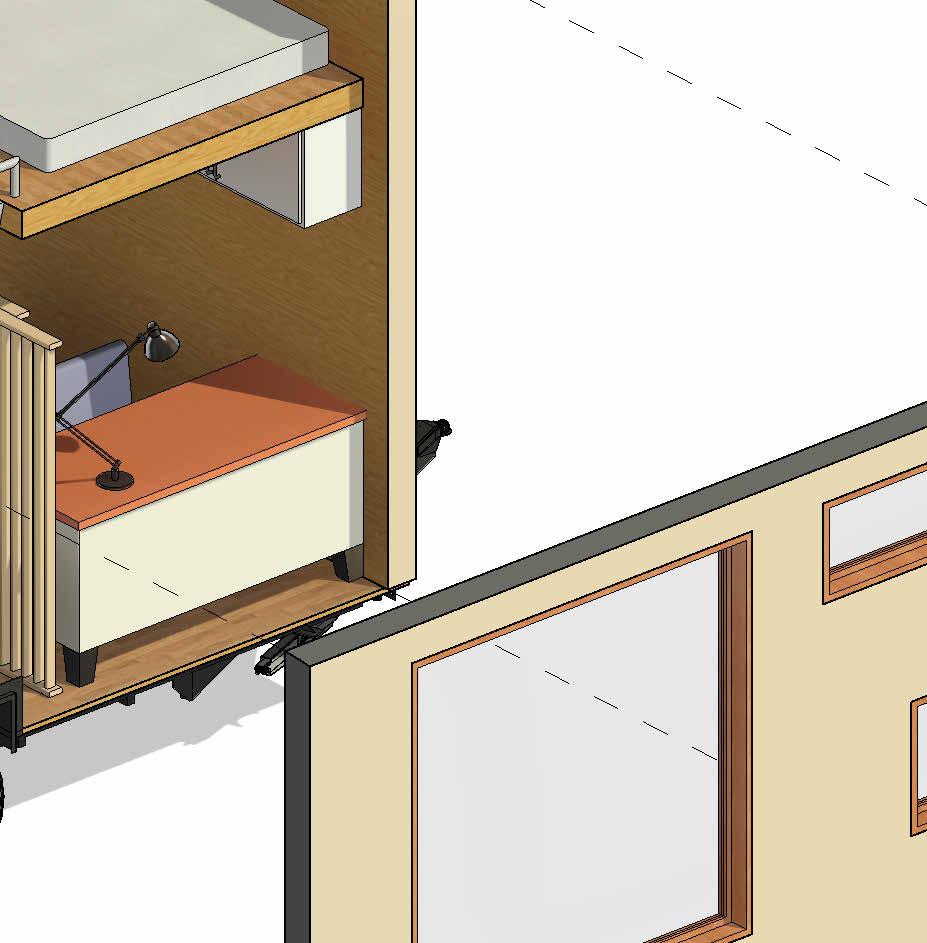

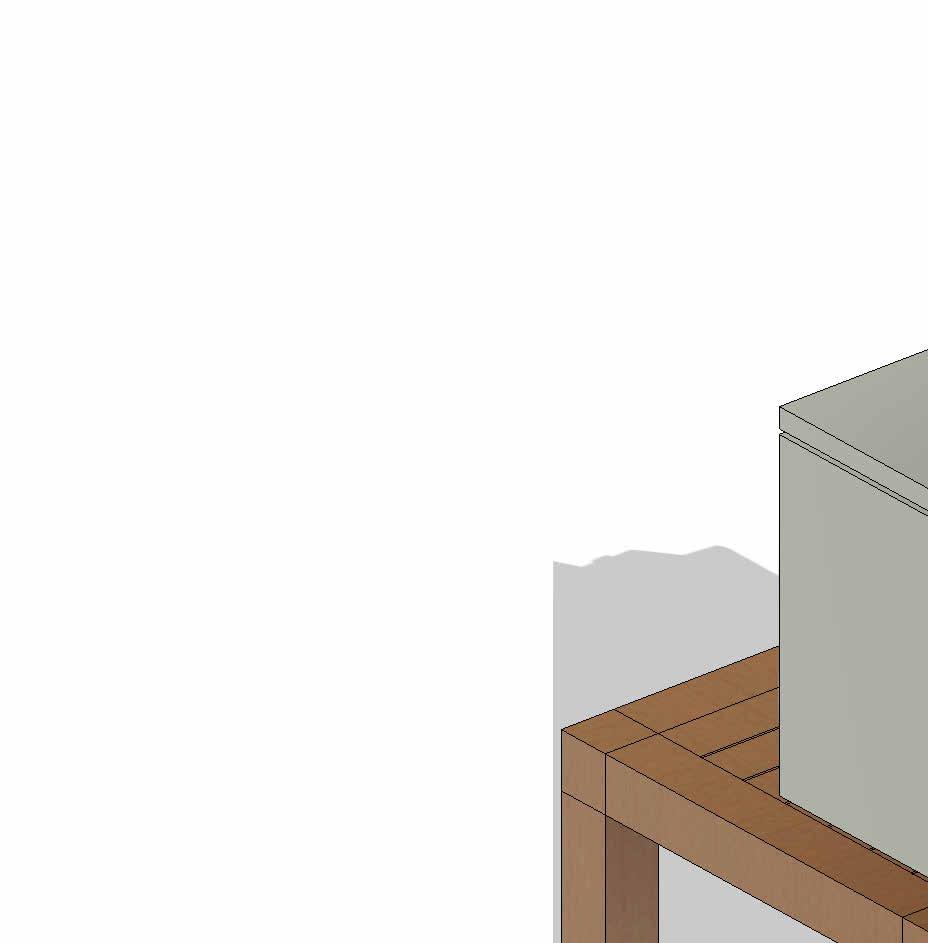

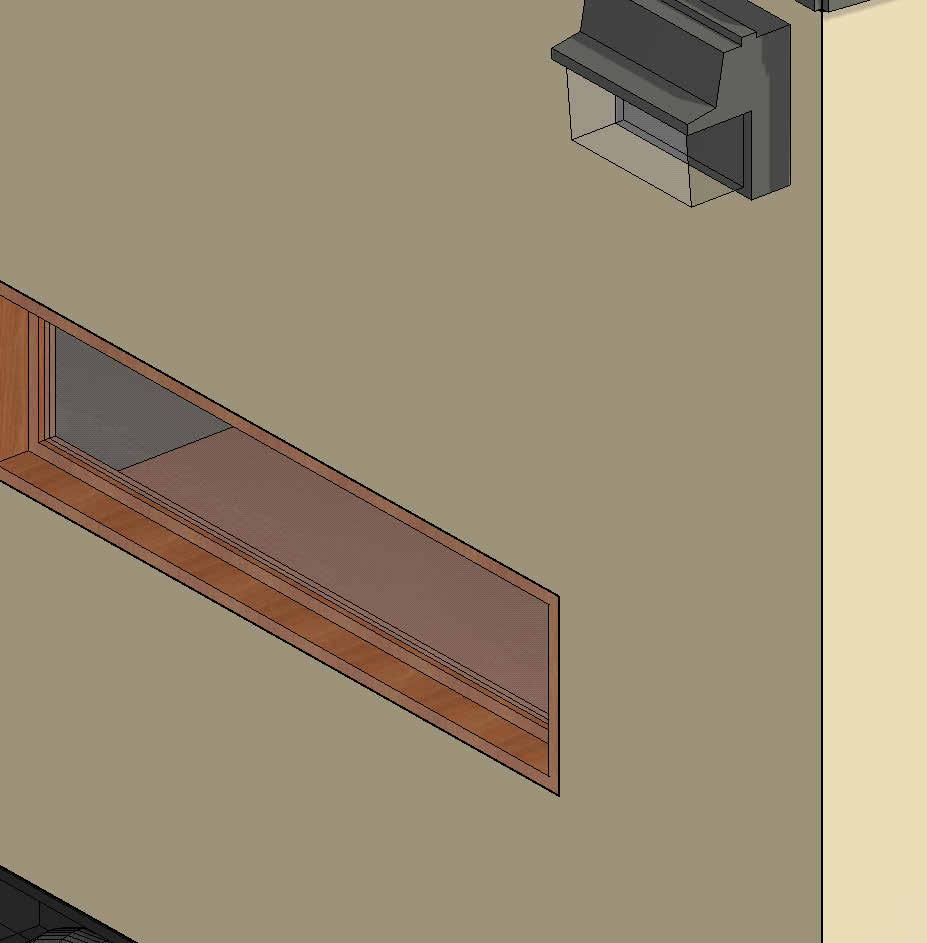

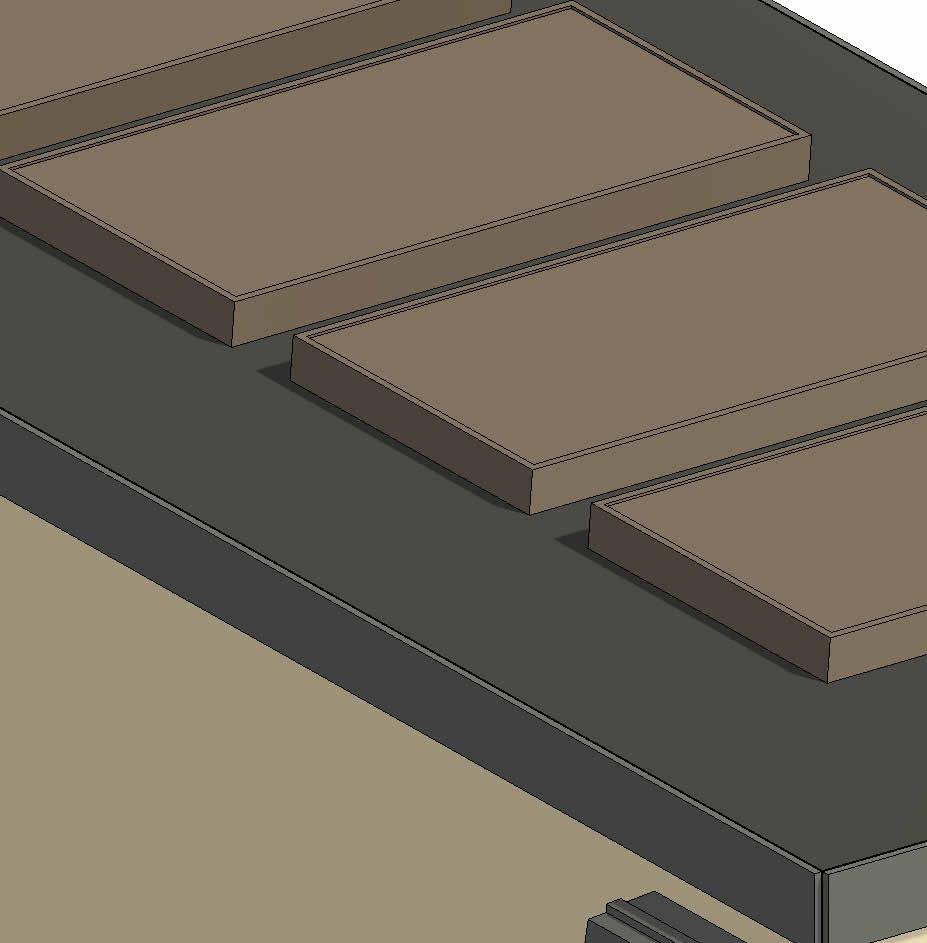

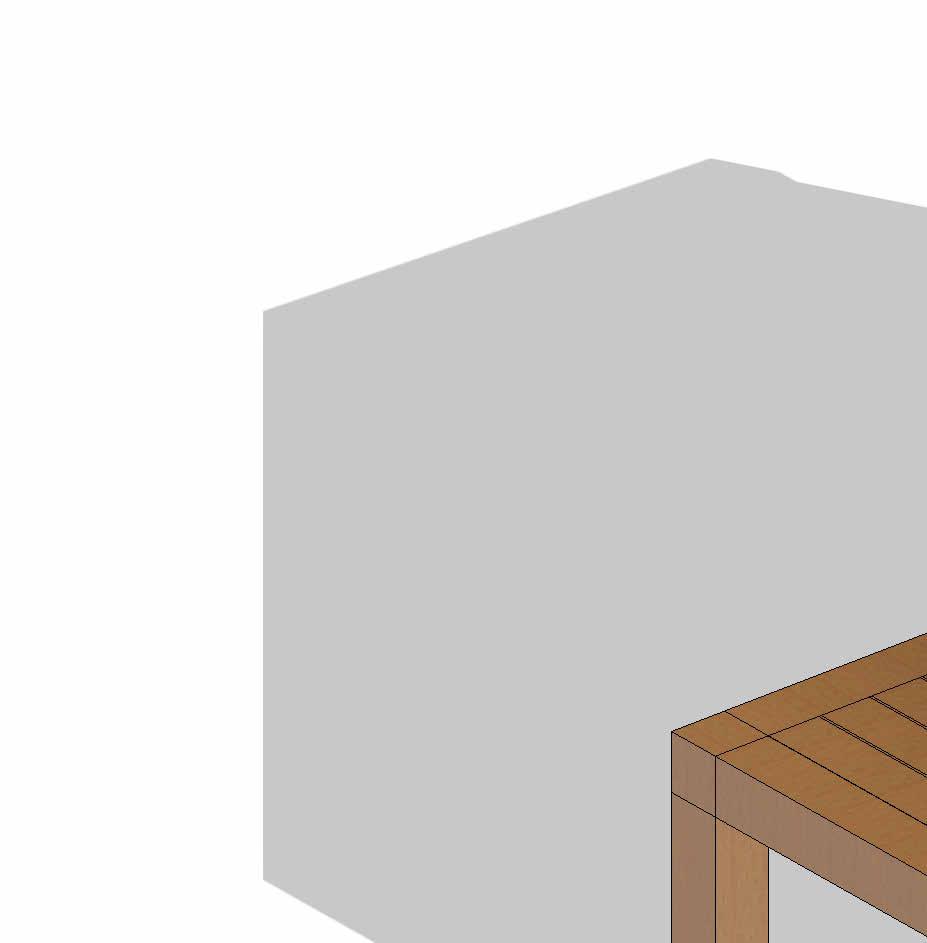

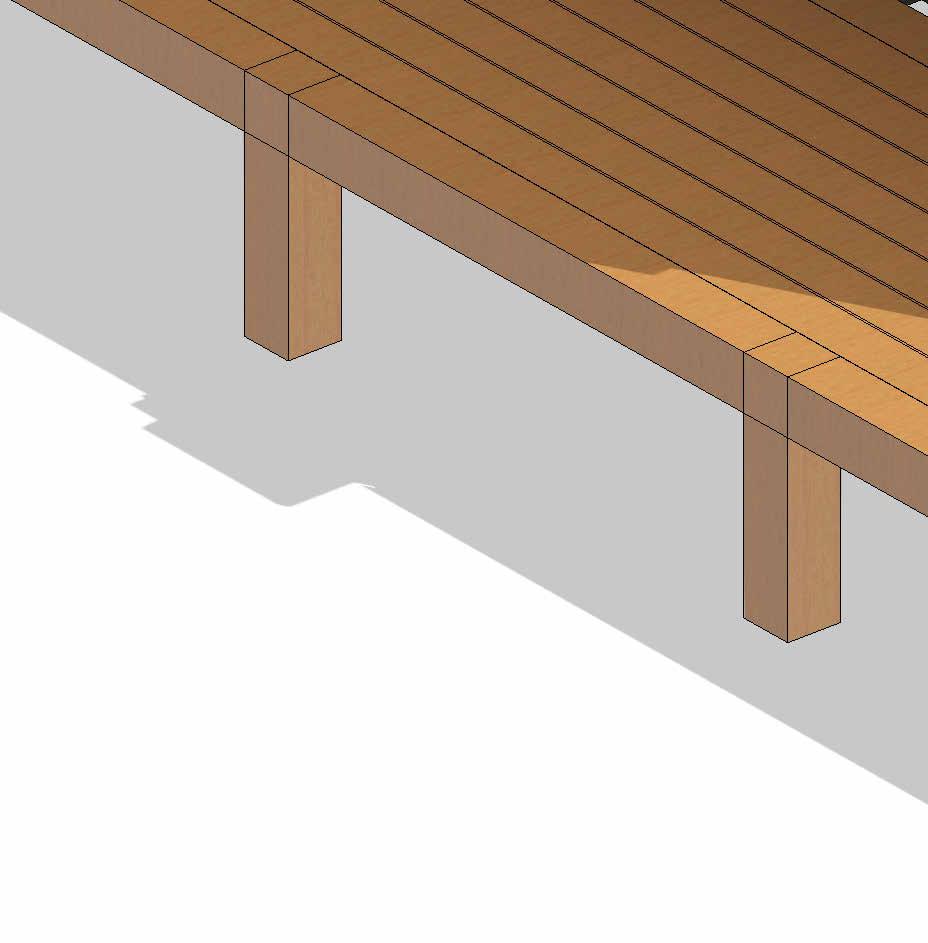

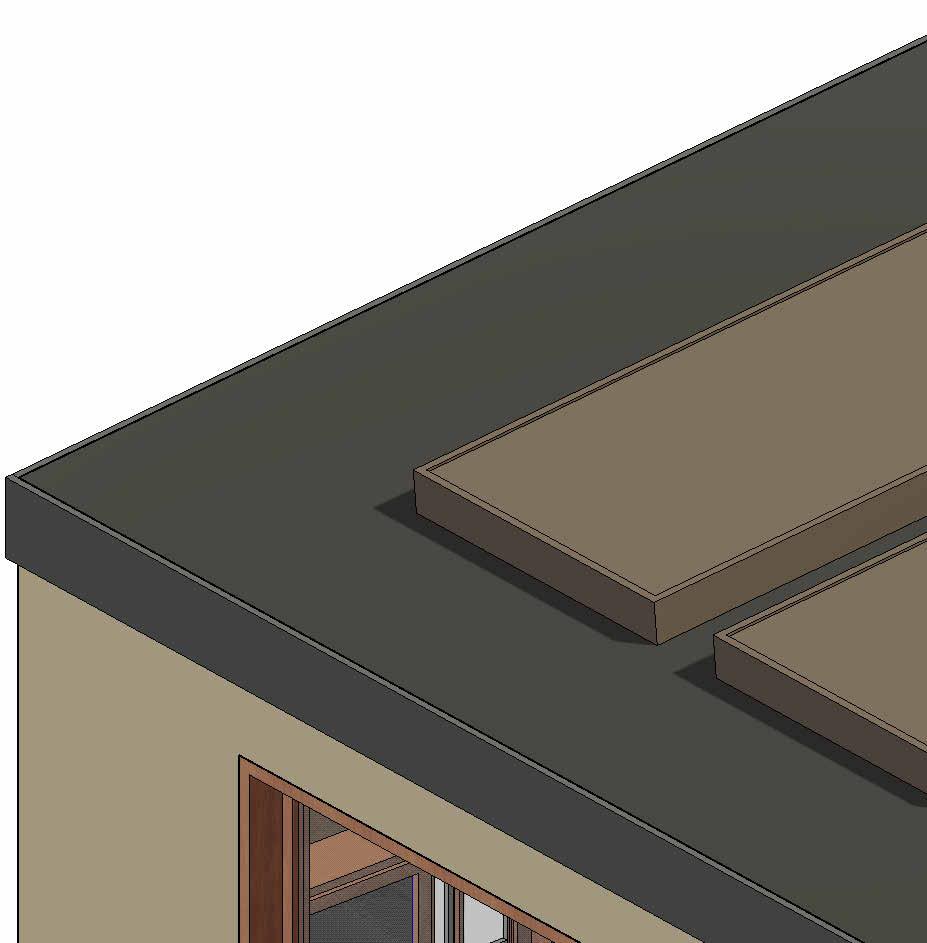

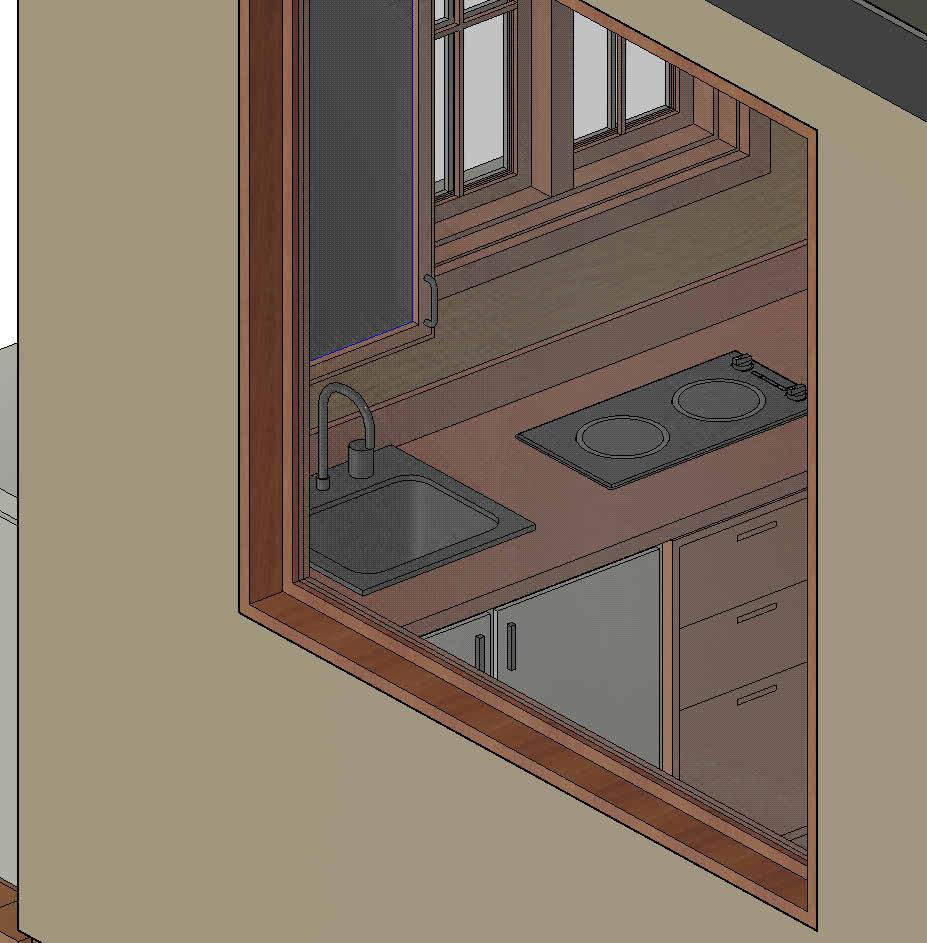

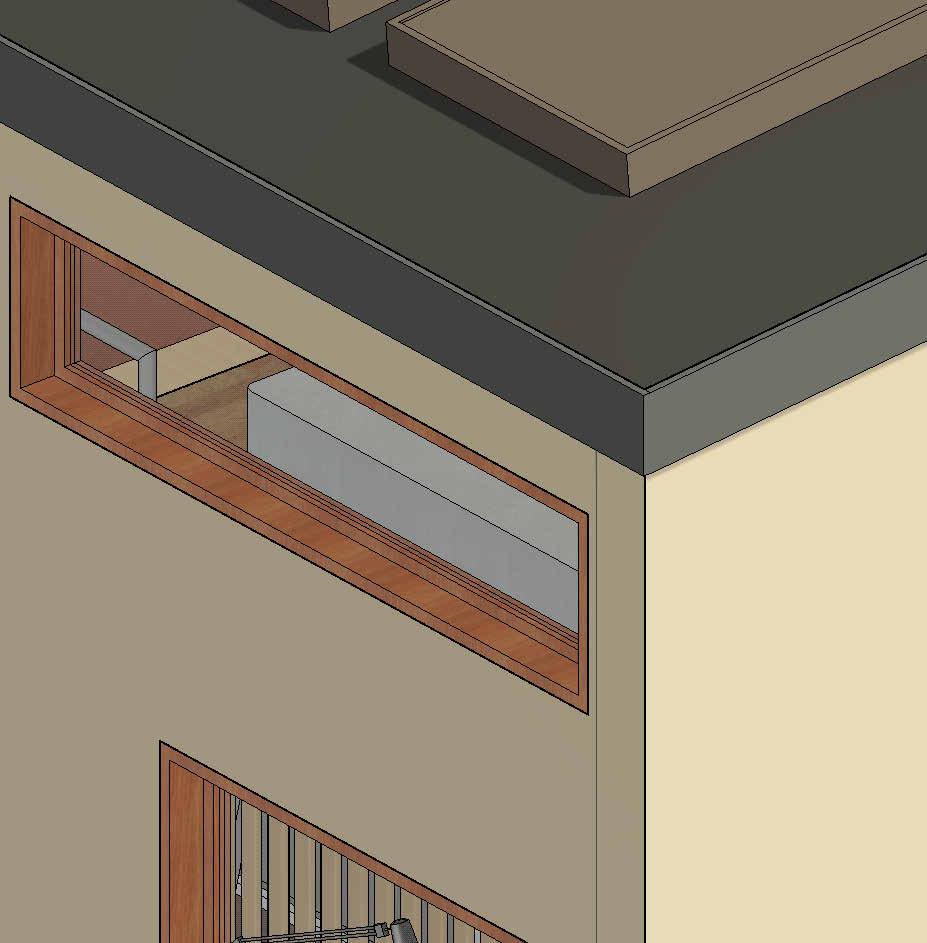

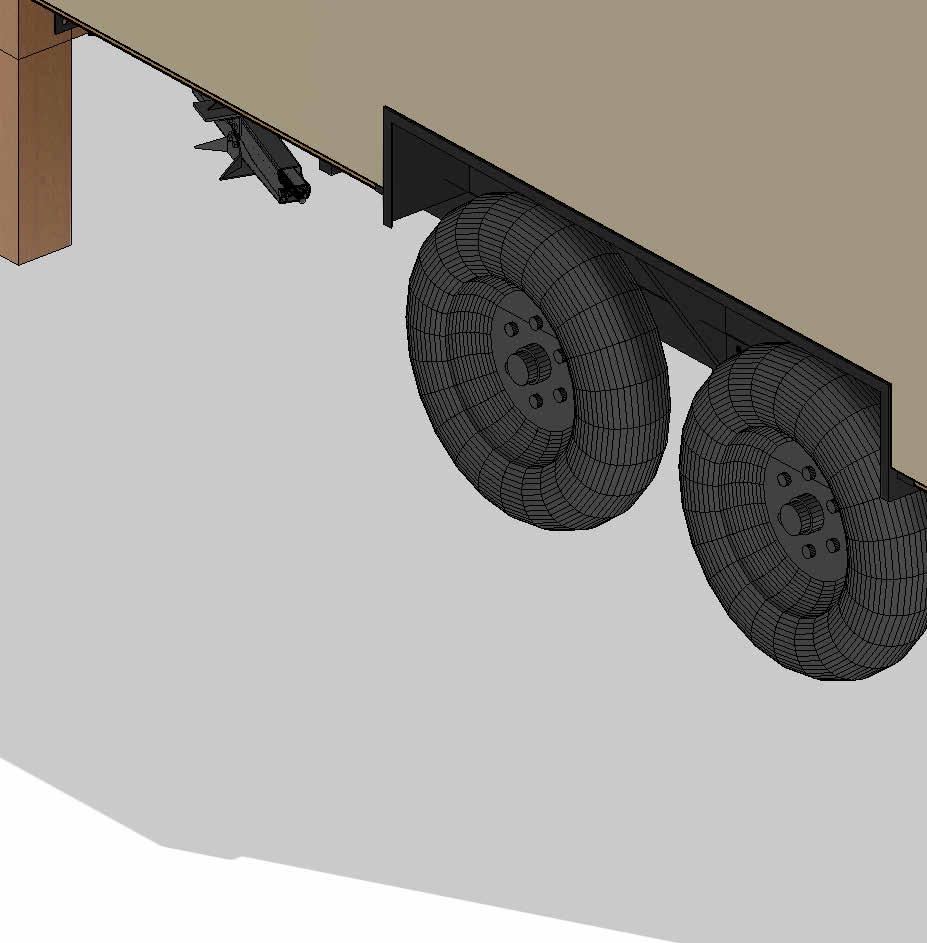

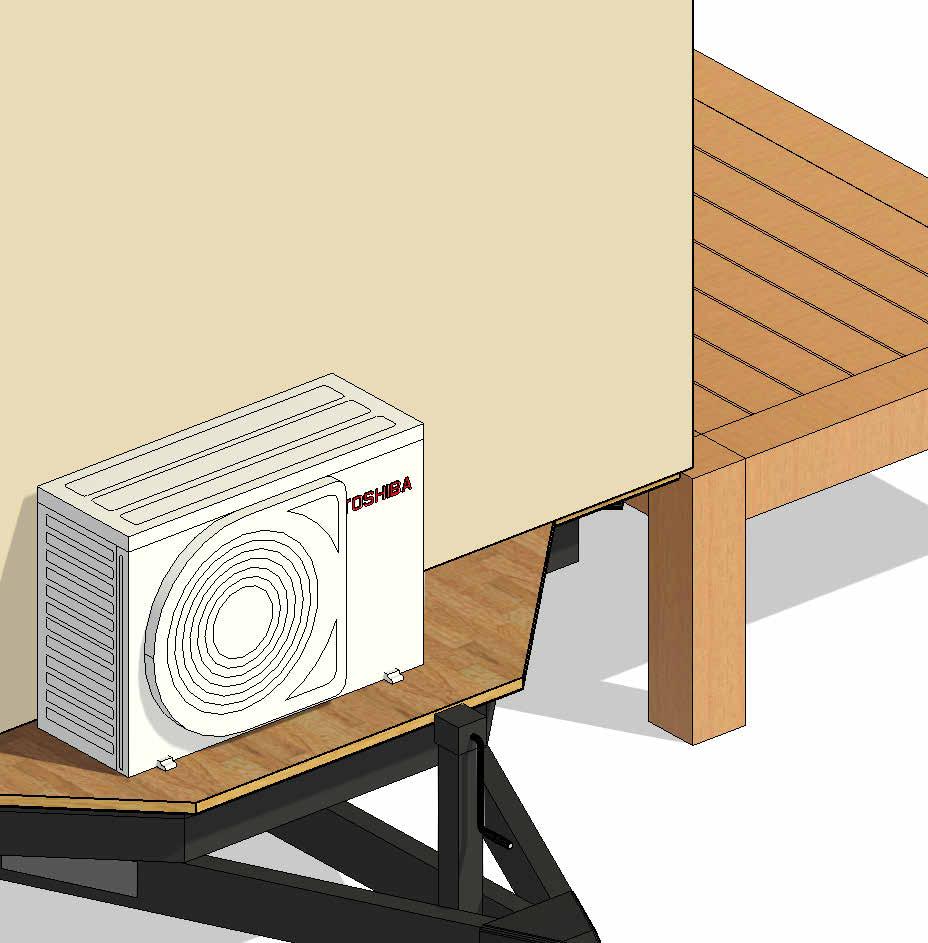

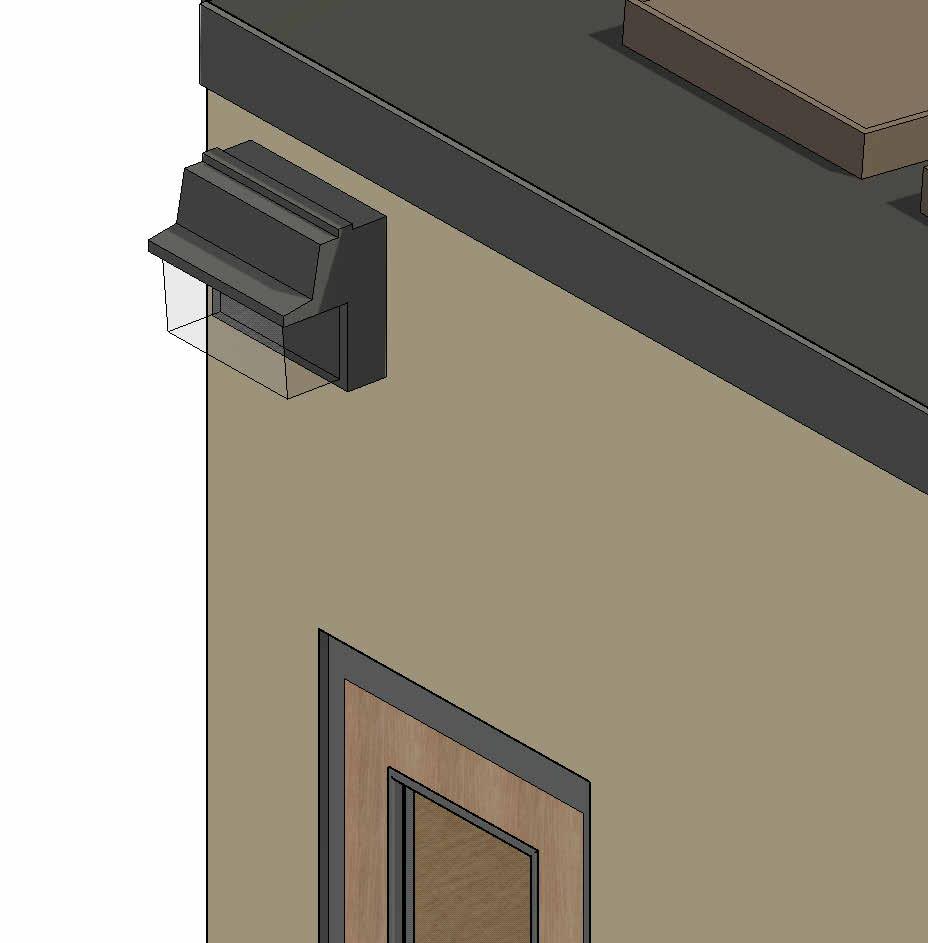

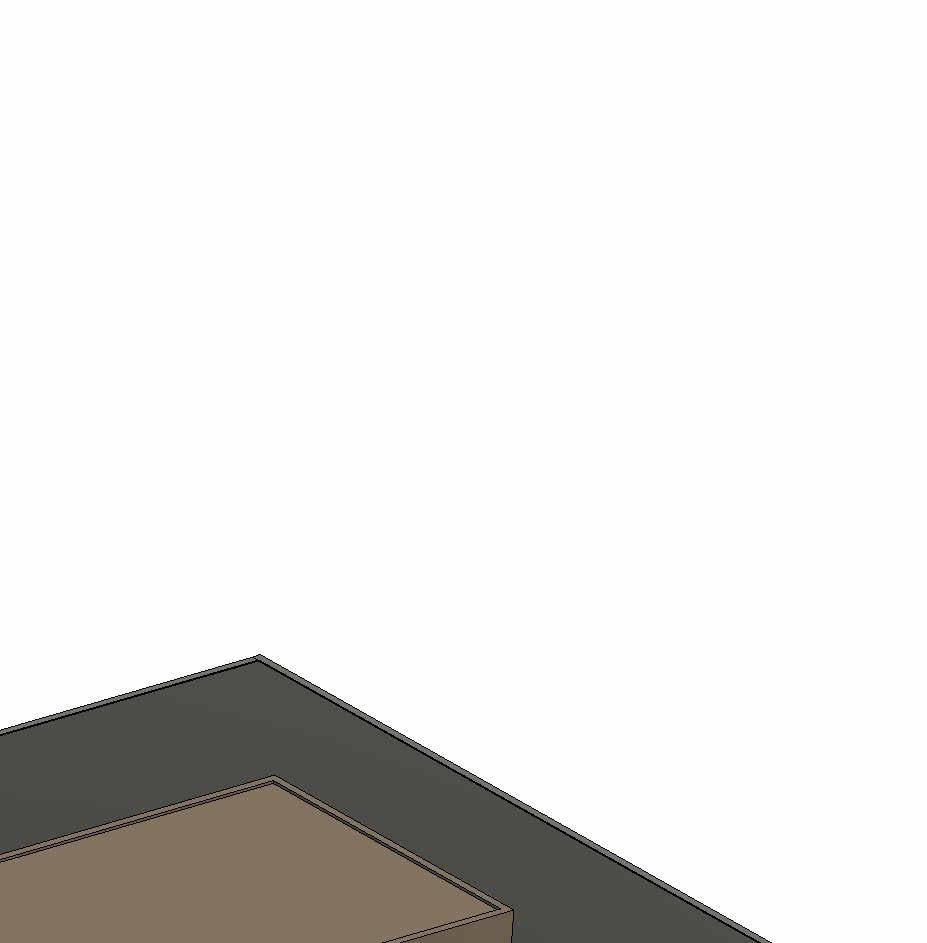

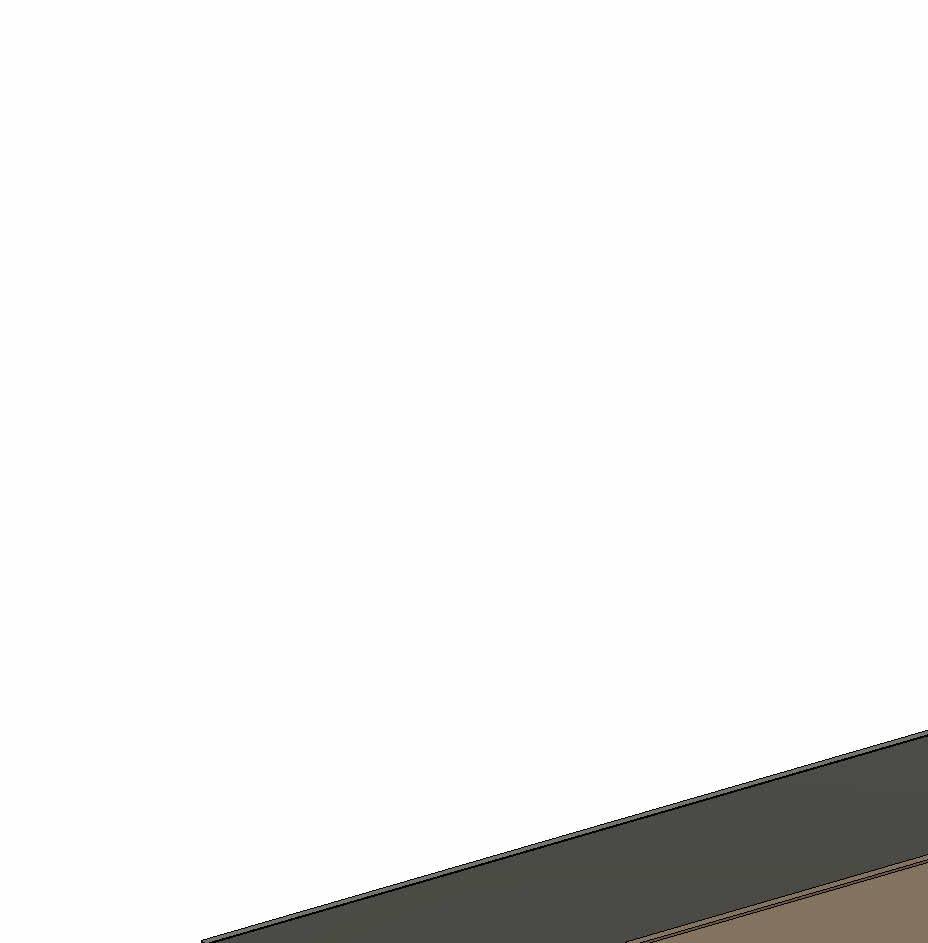

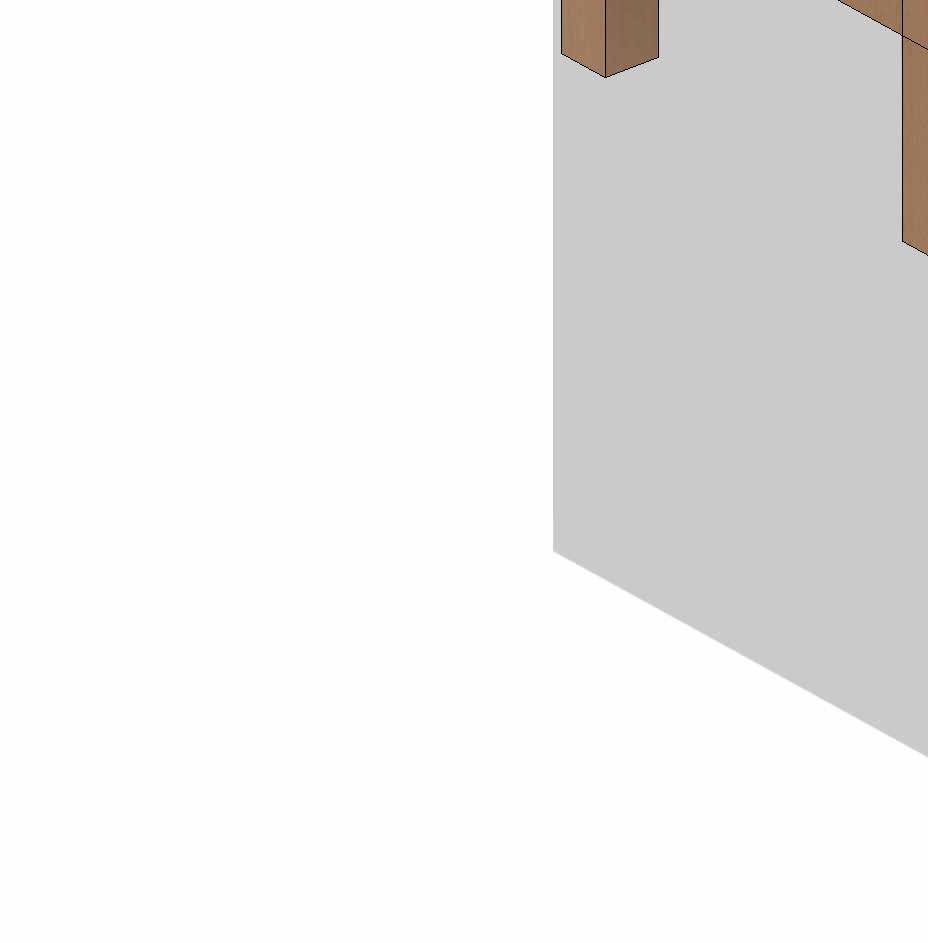

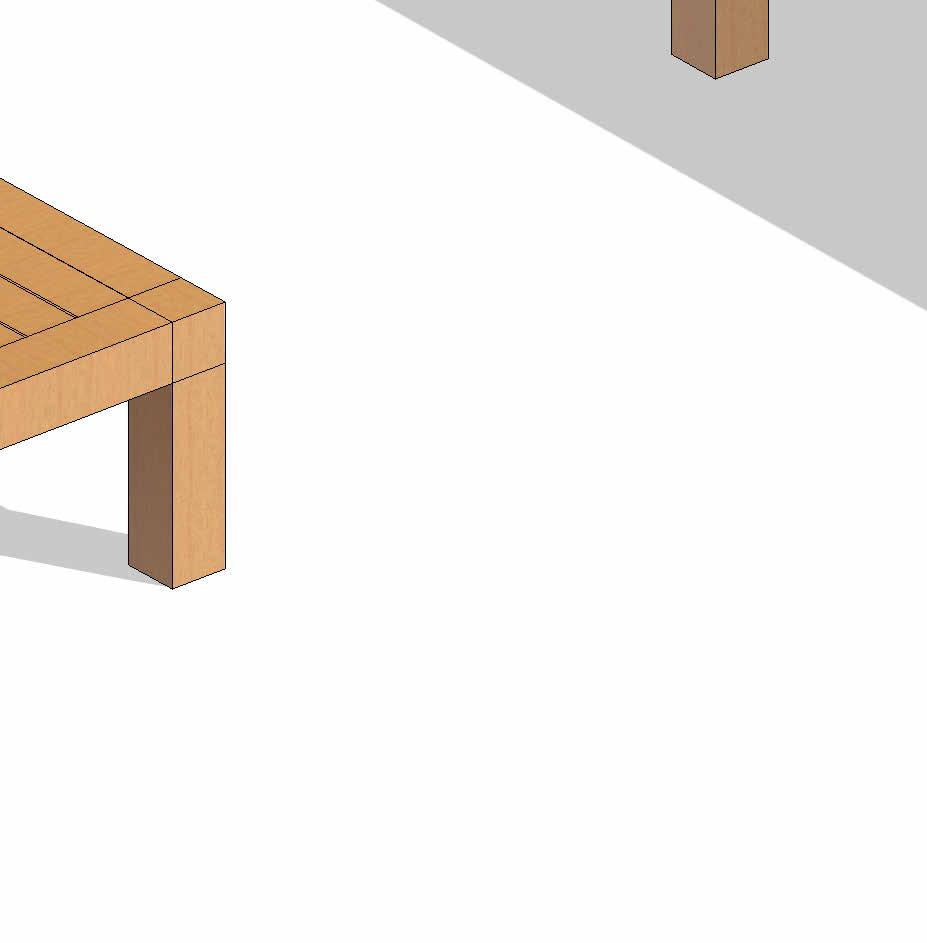

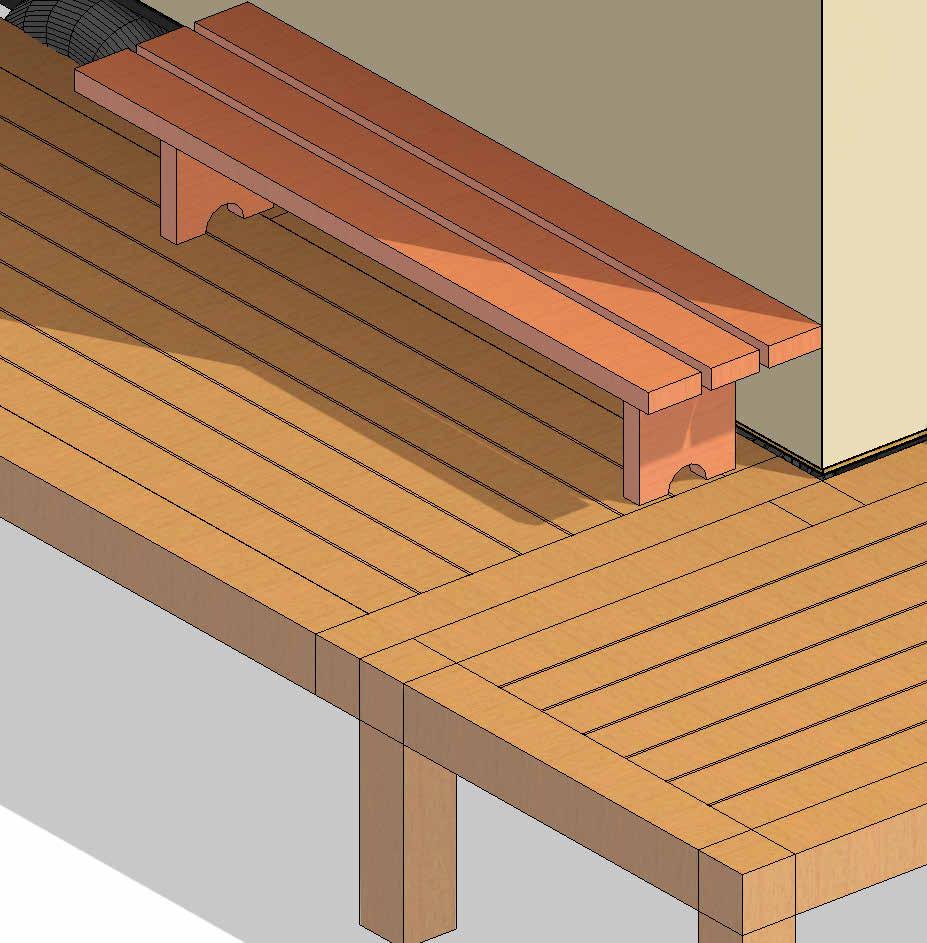

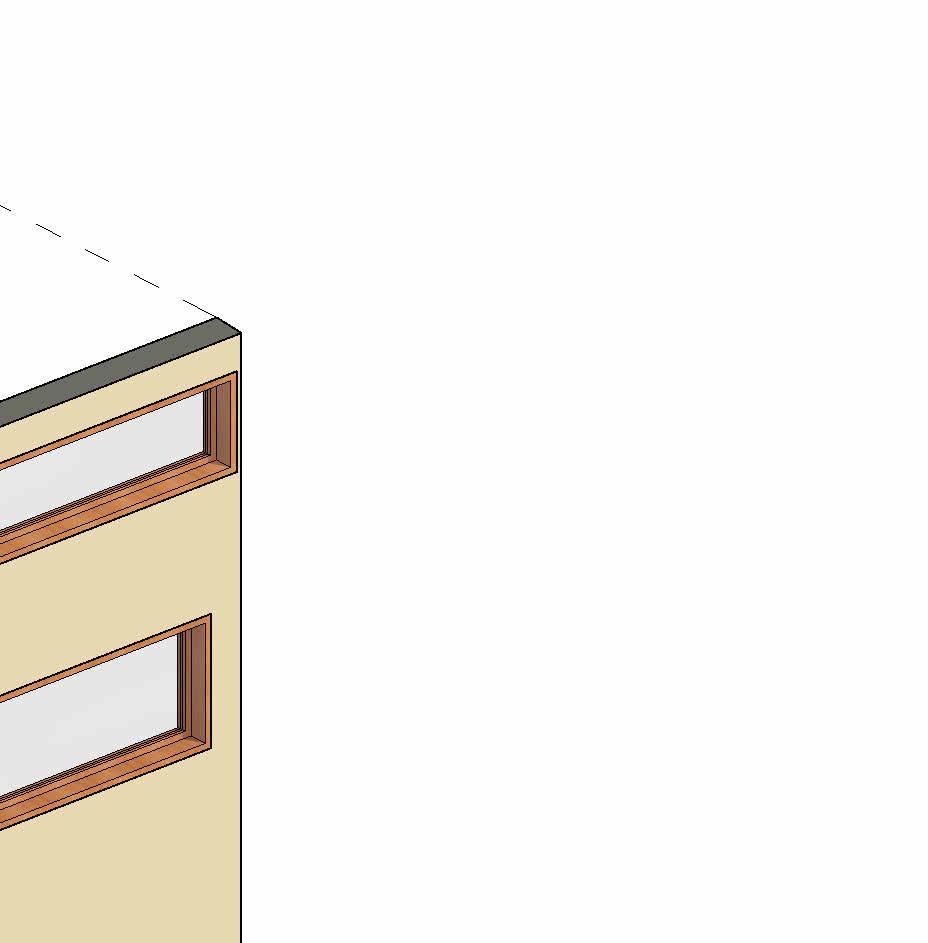

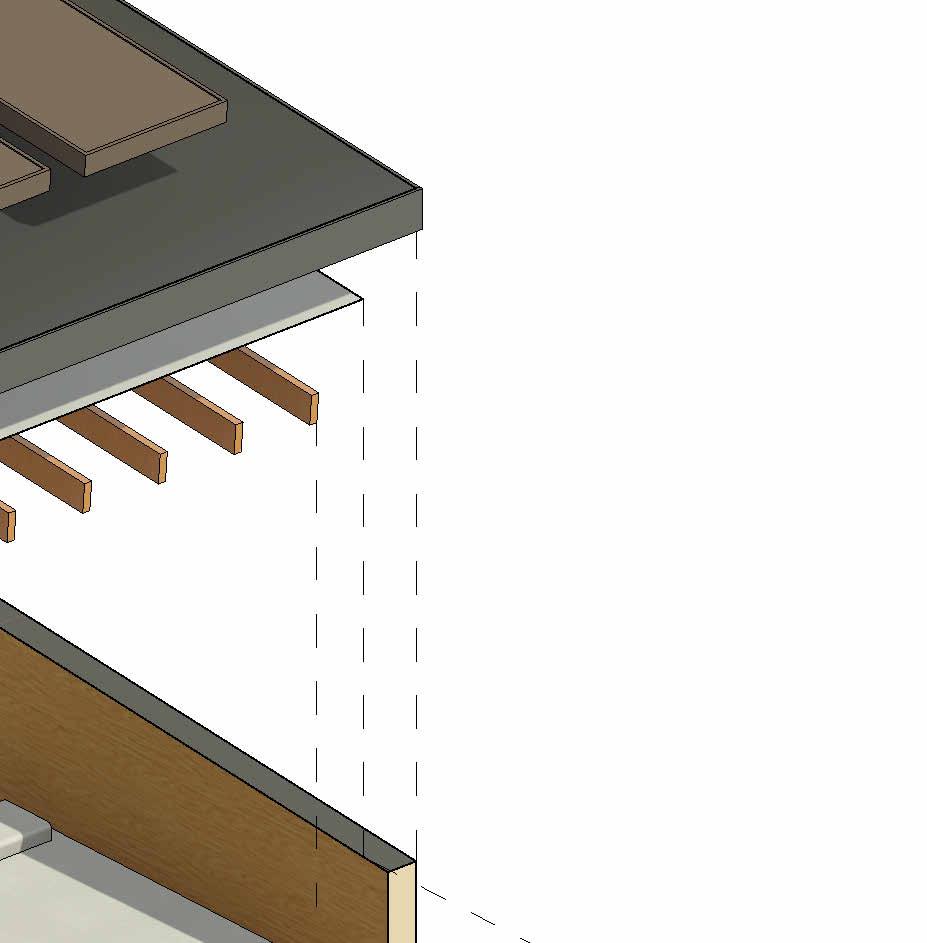

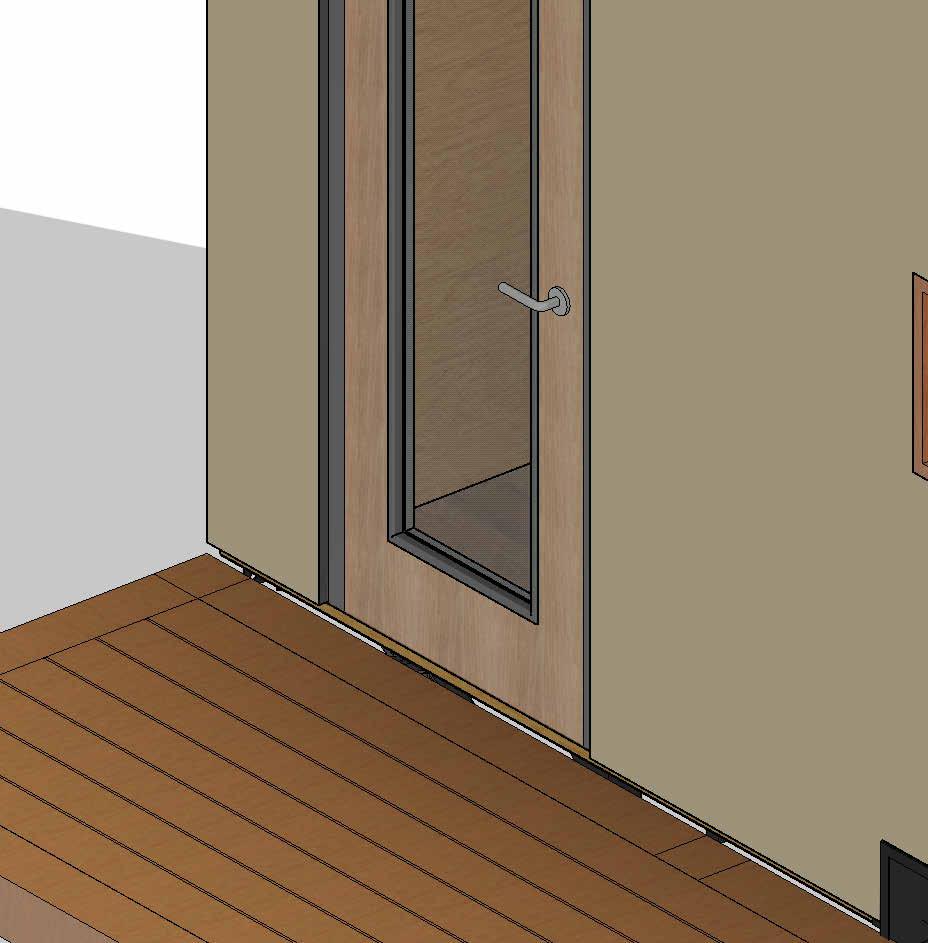

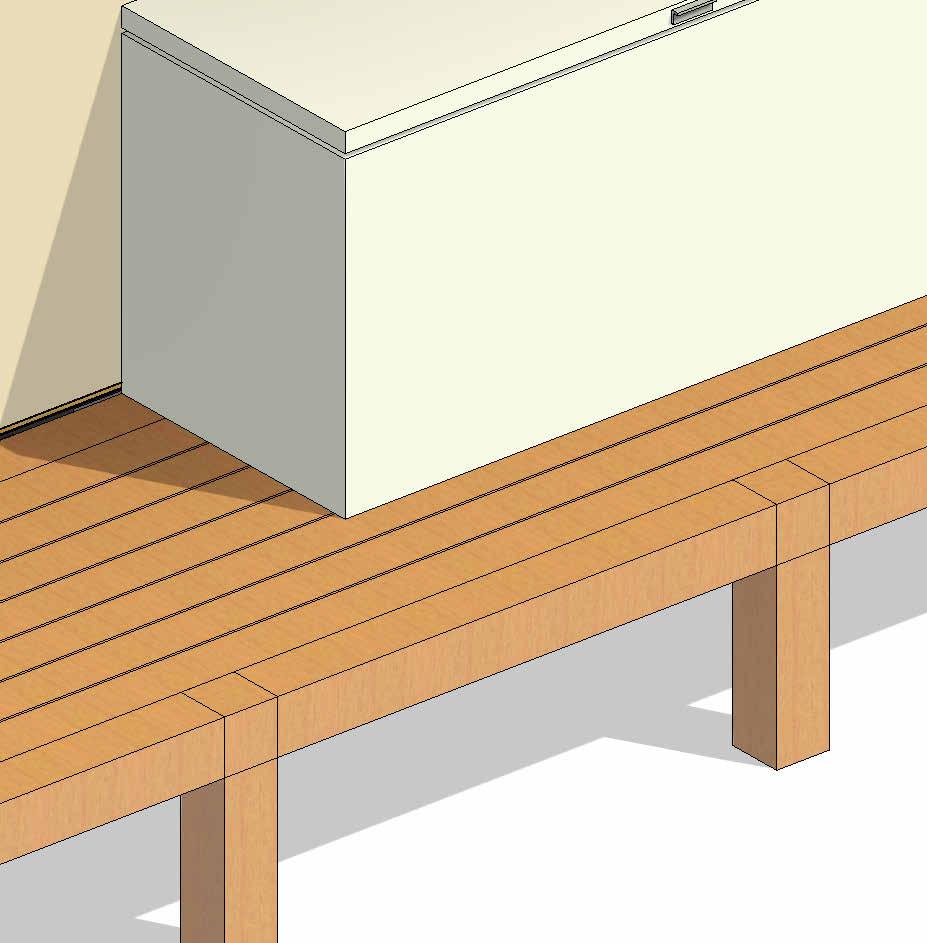

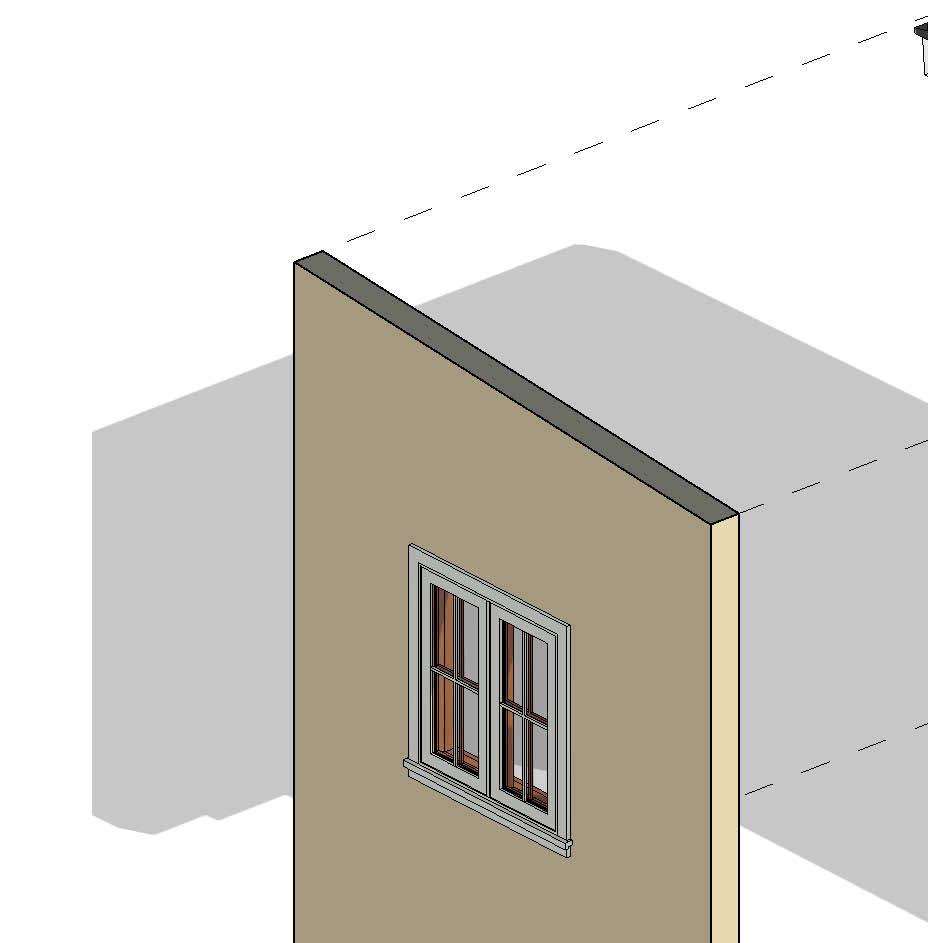

A17 AXONOMETRIC VIEWS
SYMBOLS LEGEND
TINY
FLOOR PLAN NOTES
FLOOR PLAN LEGEND
ROOF PLAN NOTES
1/2" = 1'-0"
SIZES INDICATED ON THE SCHEDULE ARE NOMINAL ONLY. REFER TO DETAILS AND FIELD
CONDITIONS TO DETERMINE EXACT SIZE.
ALL WINDOWS SHALL BE DUAL GLAZED WITH WEATHER-STRIPPED OR LOW NFILTRATION FRAMES MEETING ANSI AIR FILTRATION STANDARDS.
SAFETY GLAZING SHALL BE INSTALLED IN THE FOLLOWING LOCATIONS PER CBC2406.4: THE EXPOSED AREA OF AN INDIVIDUAL PANE IS GREATER THAN 9 SQUARE FEET. THE BOTTOM EDGE OF THE GLAZING IS LESS THAN 18 INCHES ABOVE THE FLOOR. THE TOP EDGE OF THE GLAZING IS GREATER THAN 36 INCHES ABOVE THE FLOOR. ONE OR MORE WALKING SURFACE(S) ARE WITHIN 36 INCHES, MEASURED HORIZONTALLY AND IN A STRAIGHT LINE, OF THE PLANE OF THE GLAZING.
DOOR GENERAL NOTES
ON
SCHEDULE ARE NOMINAL
REFER TO DETAILS AND FIELD
TO DETERMINE EXACT SIZE. ALL WINDOWS SHALL BE DUAL GLAZED WITH WEATHER-STRIPPED OR LOW NFILTRATION FRAMES MEETING ANSI AIR FILTRATION STANDARDS.
SAFETY GLAZING SHALL BE INSTALLED IN THE
INSIDE WITHOUT THE USE OF A KEY, SPECIAL KNOWLEDGE, OR EFFORT. FLUSH BOLTS OR SURFACE BOLTS ARE PROHIBITED. REFER TO TITLE 24 SECTION 110.6 FOR EXTERIOR DOOR REQUIREMENTS.
INTERIOR ELEVATION
ELECTRICAL GENERAL NOTES
PROVIDE A MINIMUM OF 2-20 AMP SMALL APPLIANCE CIRCUITS FOR THE KITCHEN COUNTERTOPS. SUCH CIRCUITS SHALL HAVE NO OTHER OUTLETS. LOADS SHALL BE BALANCED (CEC 210-52(B) (2)).
RANGE HOOD TO BE MINIMUM 100 CFM RATED.
PROVIDE DIMMER SWITCHES AT ALL NON HIGH-EFFICACY LIGHTING IN ALL ROOMS.
PROVIDE PHOTO AND MOTION SENSOR CONTROL AT ALL EXTERIOR NON HIGH-EFFICACY LIGHTING.
ELECTRICAL PLAN LEGEND
110V DUPLEX A.F.C.I.
SMOKE DETECTOR CEILING MOUNTED
CEILING MOUNTED LIGHT FIXTURE
WALL MOUNTED LIGHT FIXTURE, EXTERIOR
ROOF FRAMING NOTES
FRAMING NOTES
TINY
