Modular Ax Carpet Collection

M ODUL A R A X M I N STE R Hospitality

ABOUT

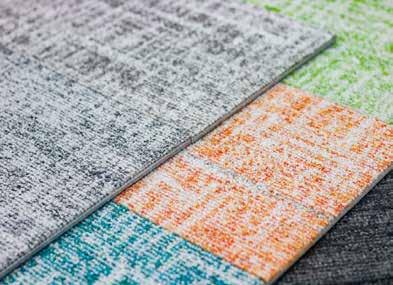

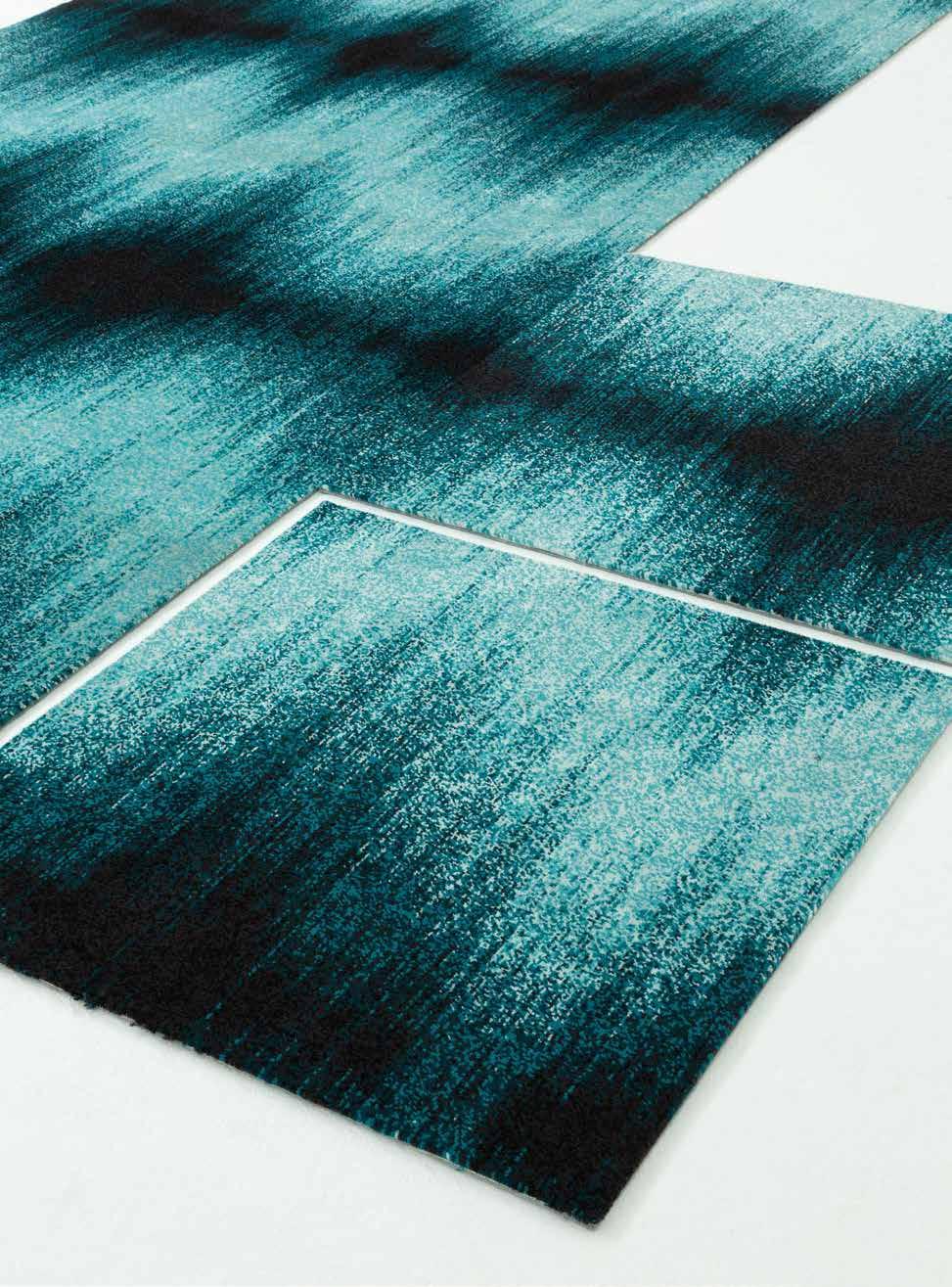

Modular Axminster

Royal Thai unsurpassed manufacturing diversity continues to evolve unique floor covering solutions for all commercial sectors, engineered to provide facility management with the best return on investment. Our unique modular axminster carpet expands the unlimited design options and durability of woven Axminster carpet into the realm of custom engineered large scale Axminster tiles. Showcasing beauty as well as dimensional stability in either 80% wool / 20% nylon pile fiber or 100% nylon pile fiber.

The product is developed to create a practical “releasable” floor covering solution to allow facility management expedient uplift & replacement of the ‘system’ for ease of maintenance and access to under a raised flooring systems. Reducing disturbance to operations through faster installation time, labor cost by up to 60% and eliminating expensive floor preparation of hard substrates prior to initial installation.

Additional benefits of Modular Axminster include: • • • • •

• • • • • • •

Customized design options Clear pattern and color definition of Axminster Luxurious quality to see and touch Flexible pile weight/height for diverse traffic conditions Optional Backing Systems Premise™ backing offers: -Enhanced acoustical propensity -Reduced energy costs from increased thermal propensity Choice of module sizes available Reduced wastage factor vs. broadloom Excellent durability and abrasion resistance Easy storage and transportation logistics Decrease in installation and operational closure time by up to 50% Access to under floor cables Reduced cleaning and maintenance

Modular Axminster

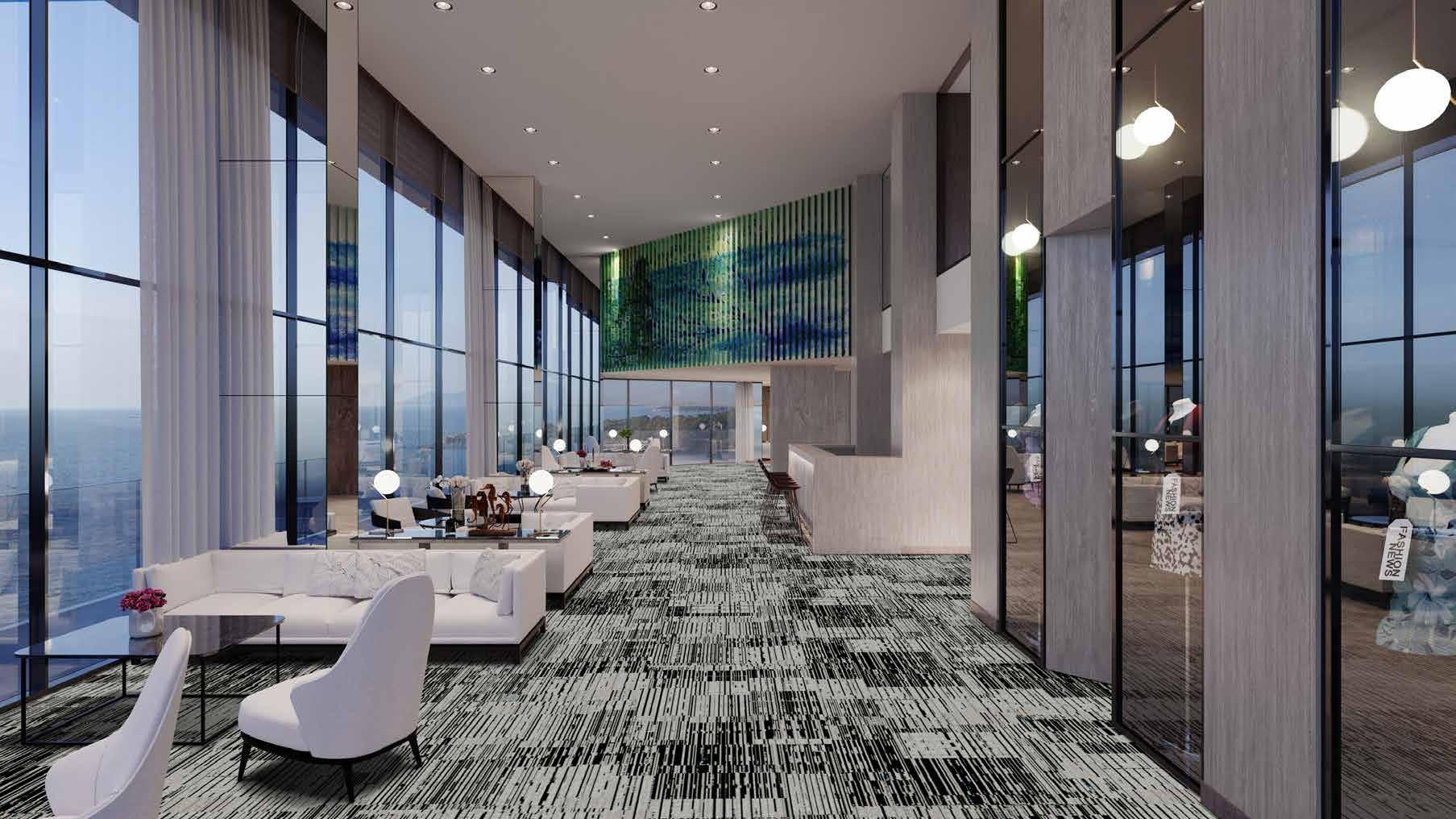

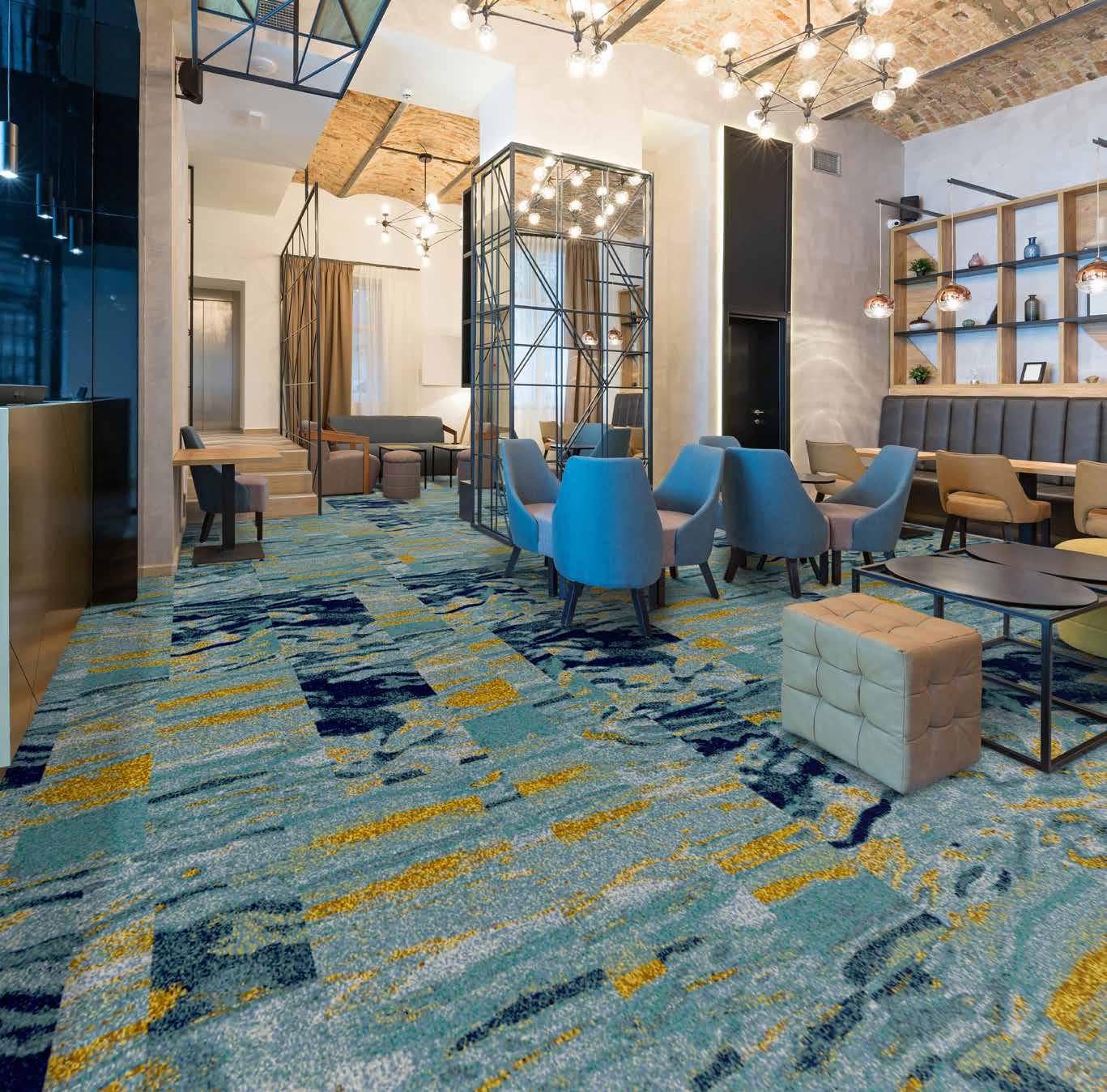

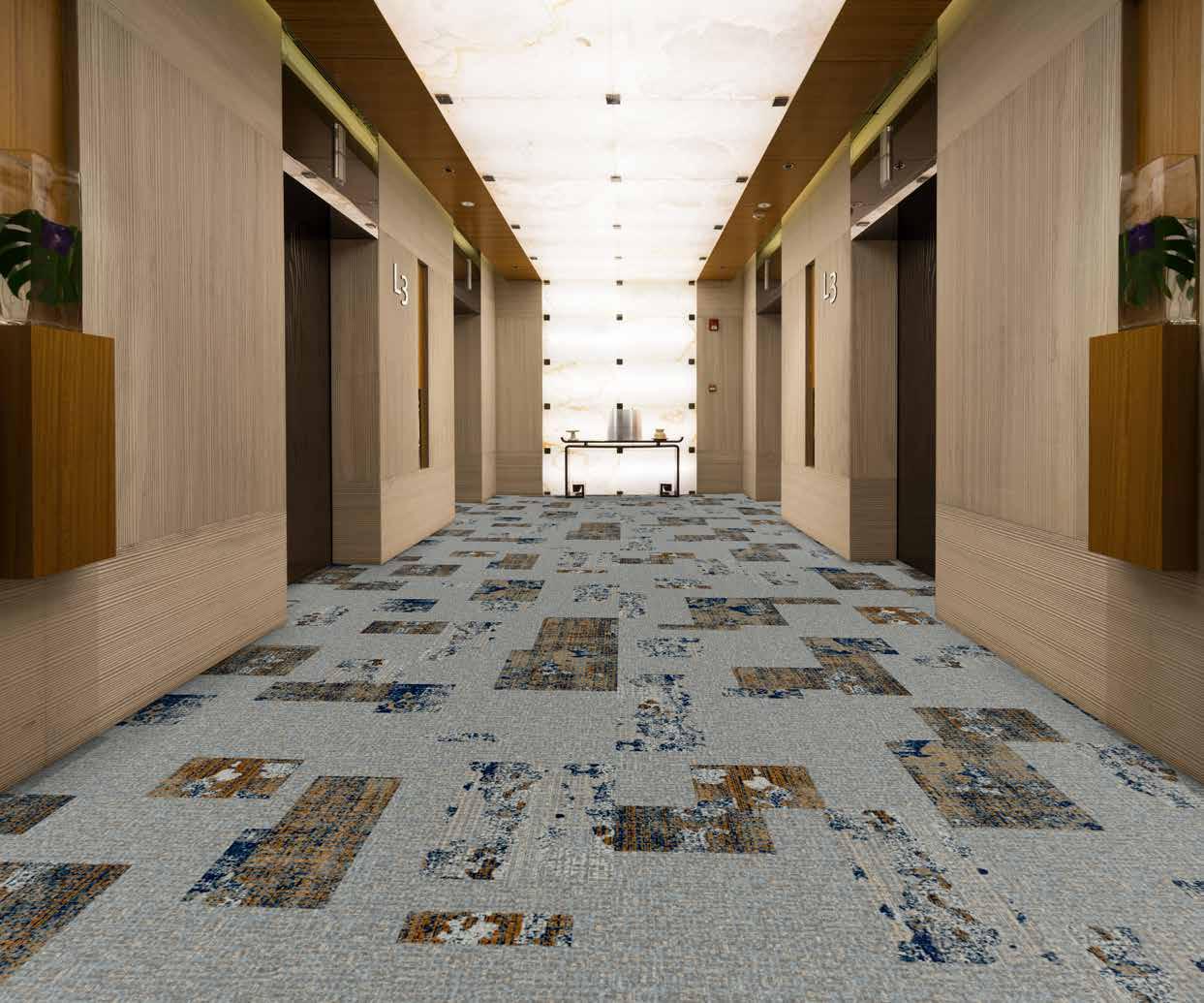

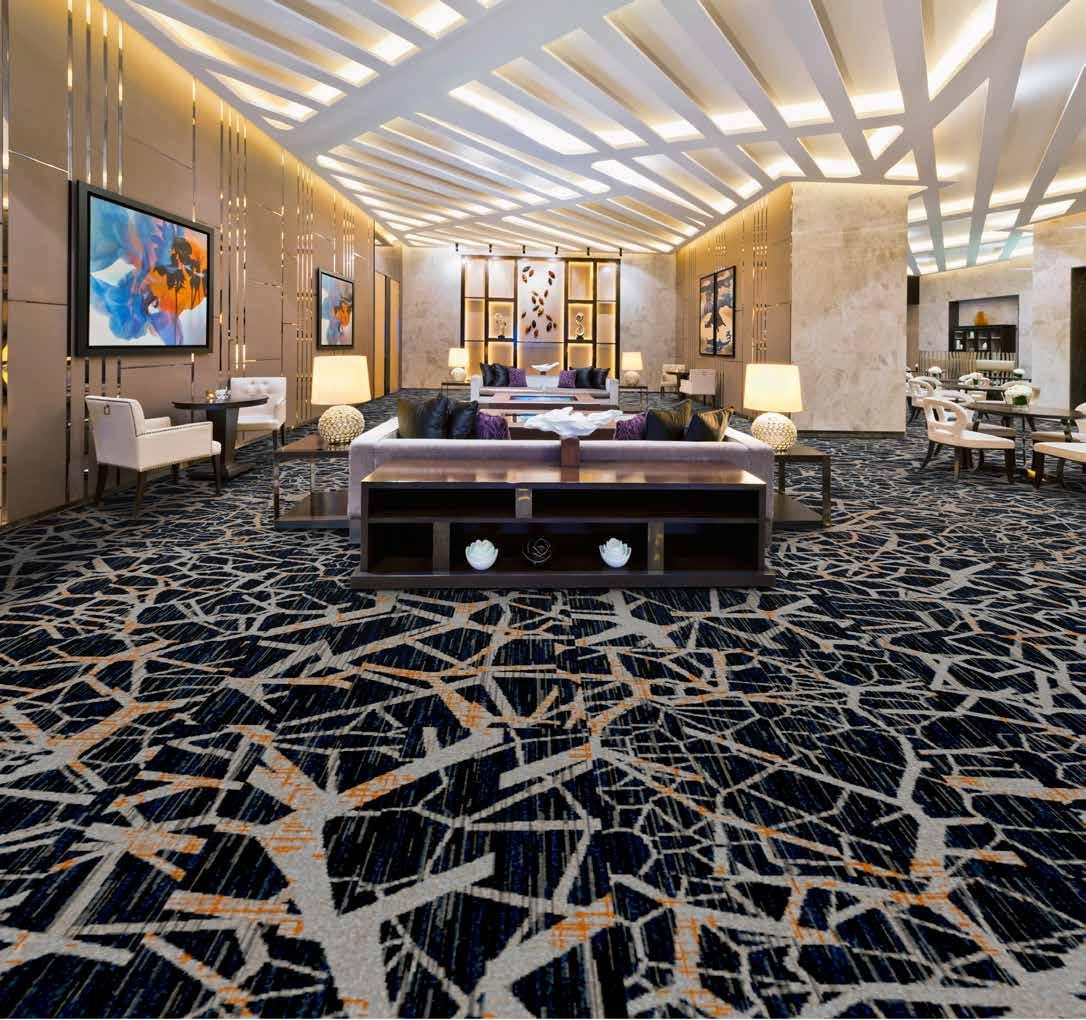

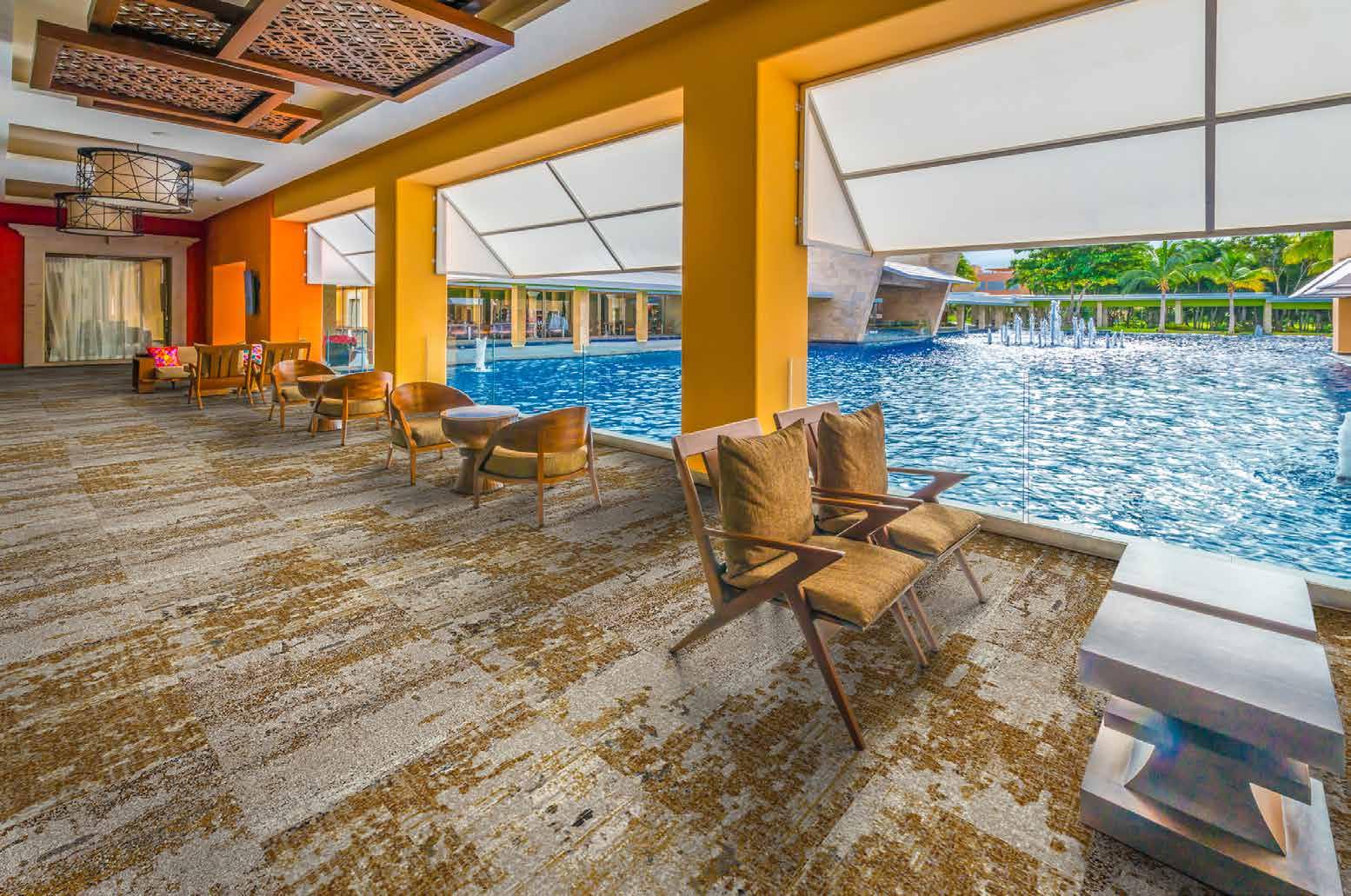

HOTEL

4

NT-038621-3 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

Hotel

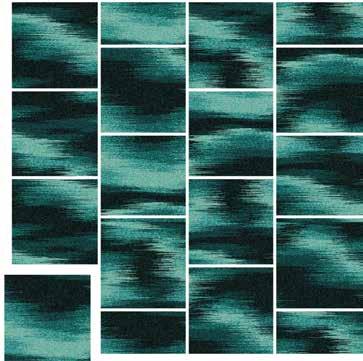

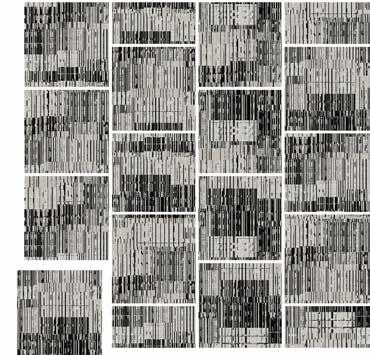

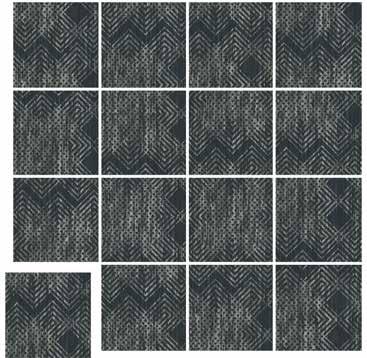

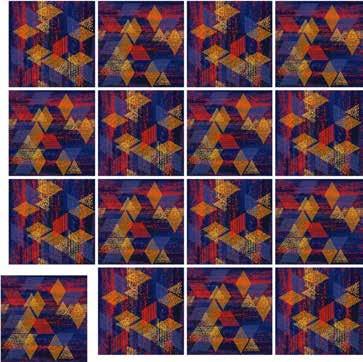

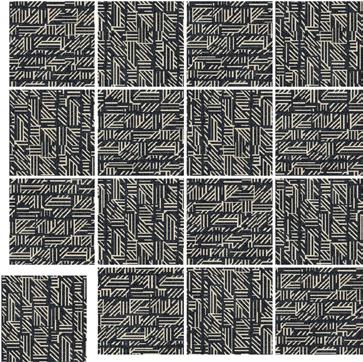

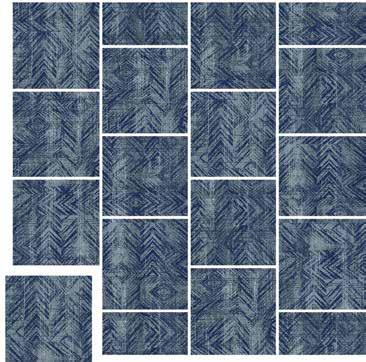

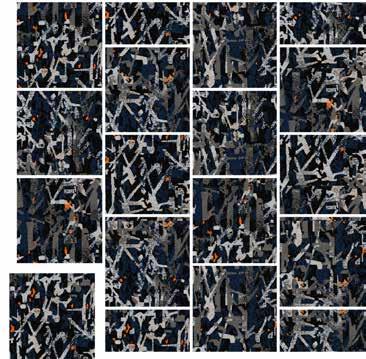

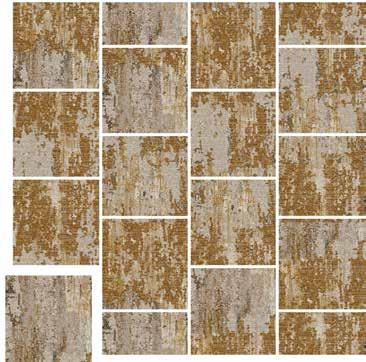

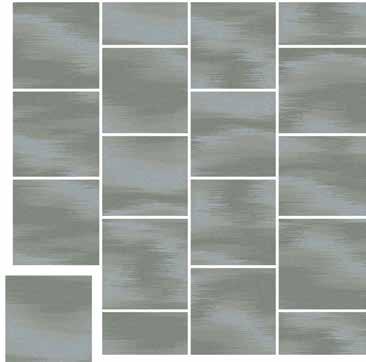

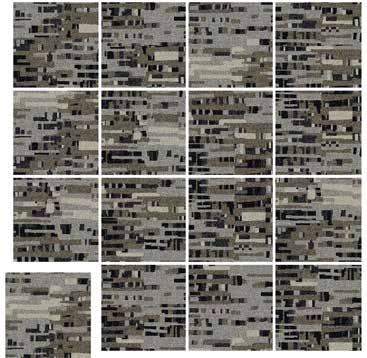

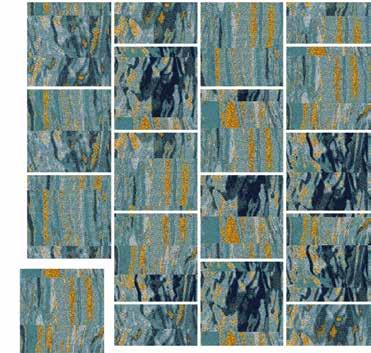

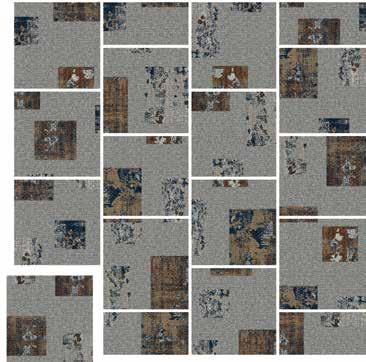

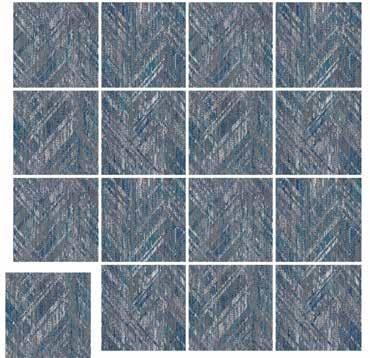

16 Tile Module Random Cut

5

6

Modular Axminster

Hotel

7

Modular Axminster

NT-038650-3 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

8

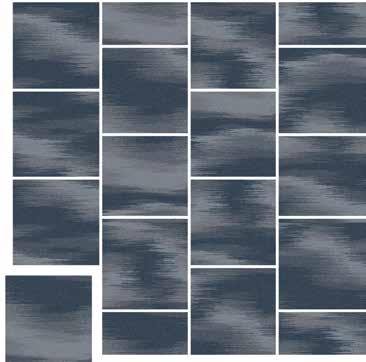

16 Tile Module Random Cut

NT-045566-2 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

Hotel

16 Tile Module Random Cut

9

10

Modular Axminster

Hotel

11

12

Modular Axminster

NT-045567-2 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

Hotel

16 Tile Module Random Cut

13

Modular Axminster

NT-046154-1 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

14

16 Tile Module Random Cut

Hotel

15

16

Modular Axminster

Hotel

17

Modular Axminster

NT-046681-1 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

18

16 Tile Module Random Cut

NT-046604-1 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

Hotel

16 Tile Module Random Cut

19

20

Modular Axminster

Hotel

21

Modular Axminster

NTN045547-3 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

22

16 Tile Module Random Cut

Hotel

23

Modular Axminster

NTN045542-2 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

24

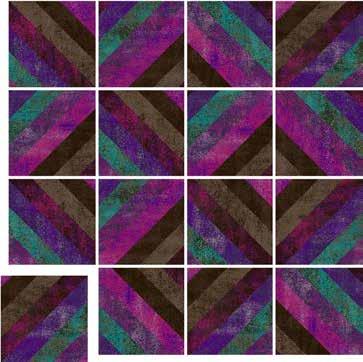

16 Tile Module 4 Tile Repeat

Hotel

25

26

Modular Axminster

NT-045568-2 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

Hotel

16 Tile Module Random Cut

27

Modular Axminster

NT-045568-5 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

28

16 Tile Module Random Cut

NT-045568-3 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

Hotel

16 Tile Module Random Cut

29

30

Modular Axminster

Hotel

31

Modular Axminster

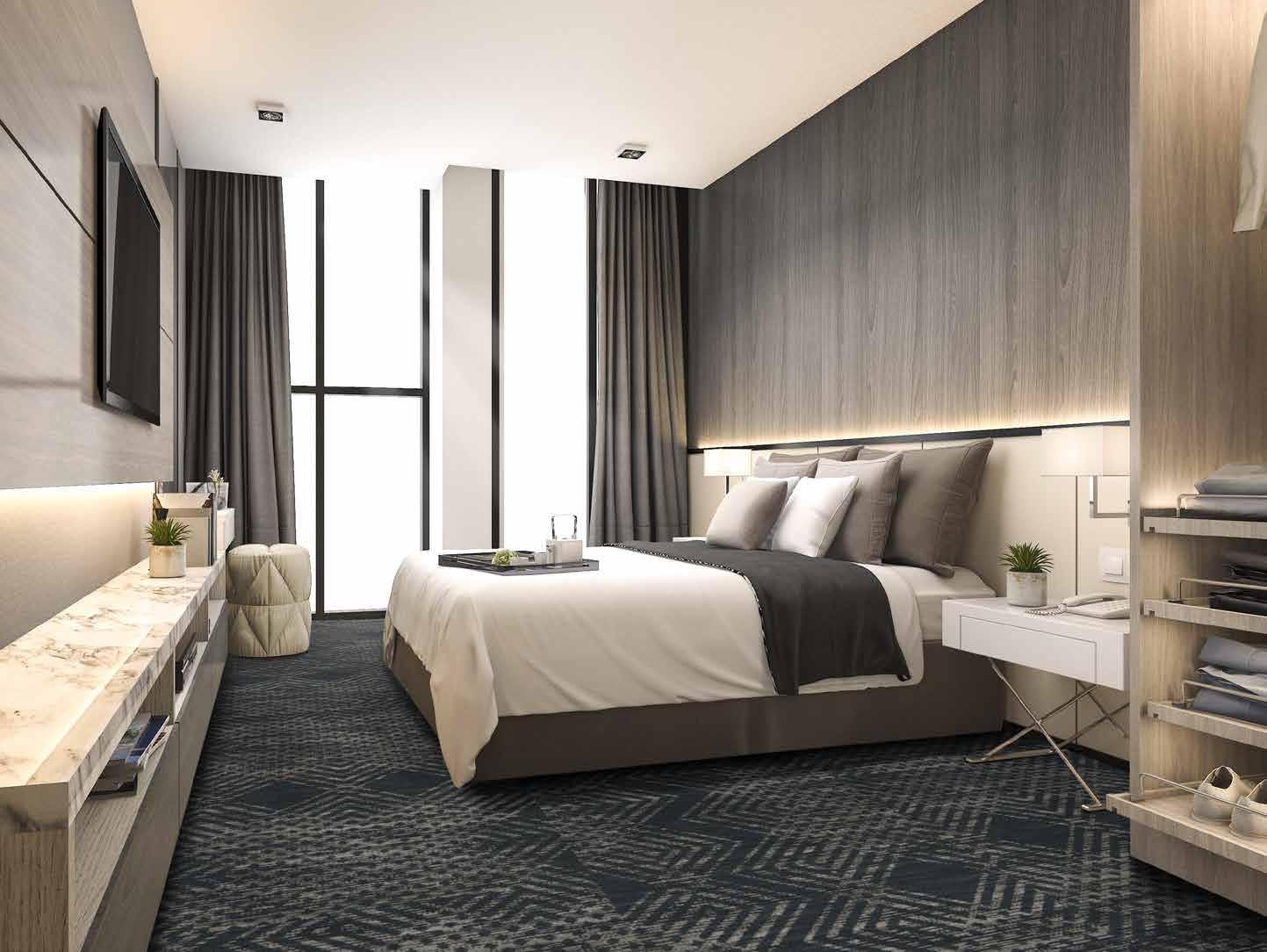

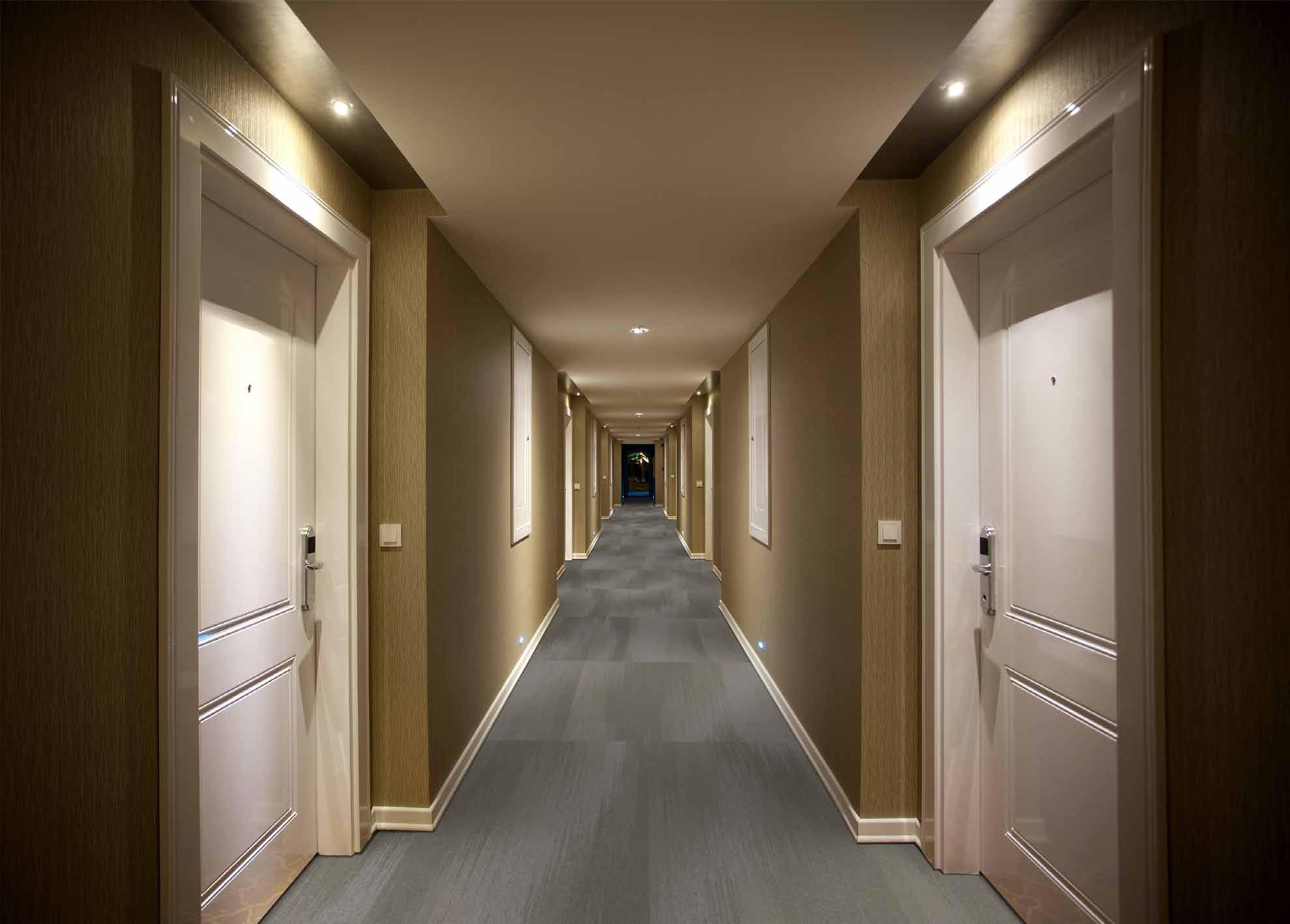

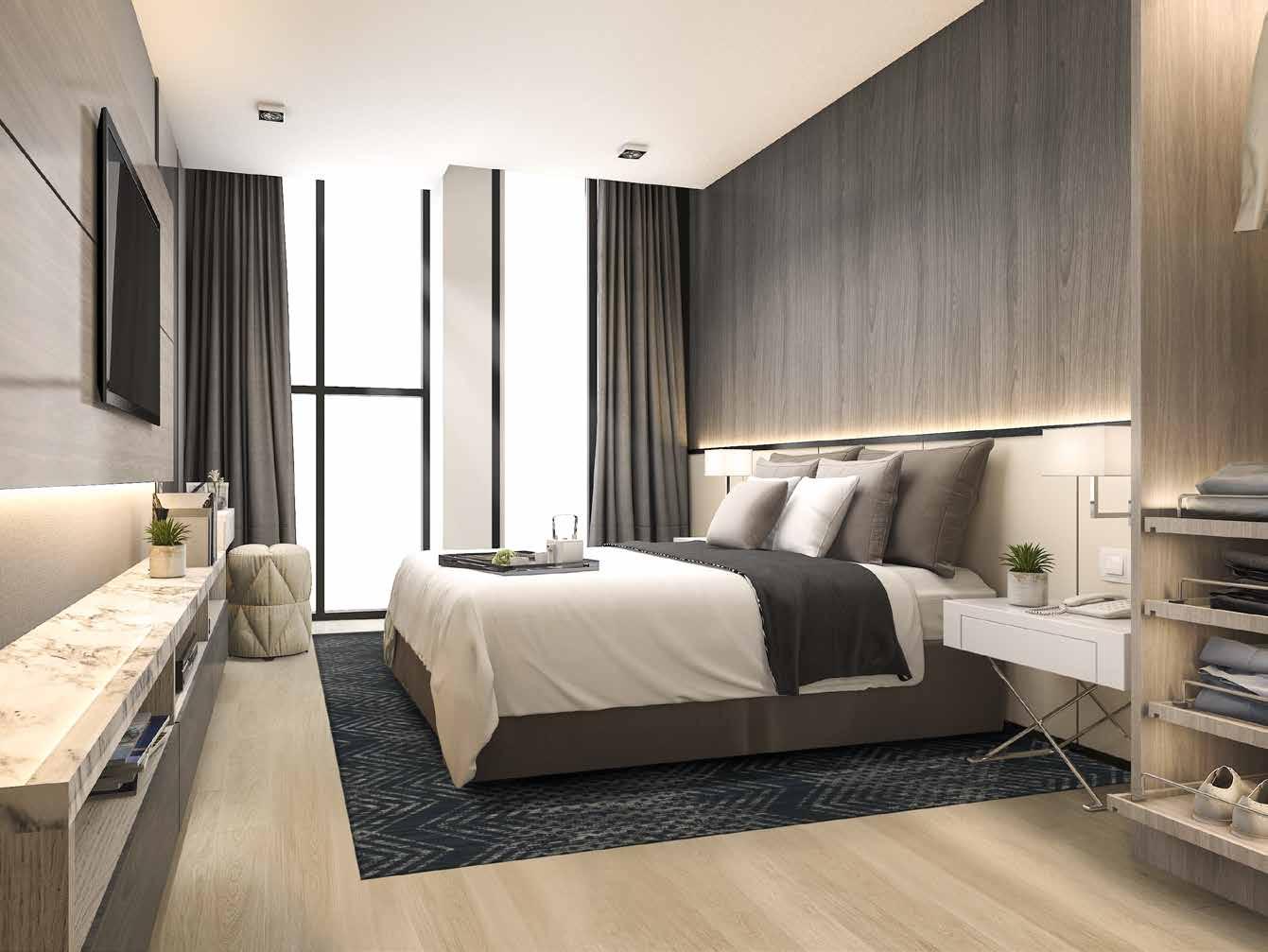

GUEST ROOMS

32

NT-048008-1 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

Hotel

16 Tile Module Random Cut

33

34

Modular Axminster

Hotel

35

Modular Axminster

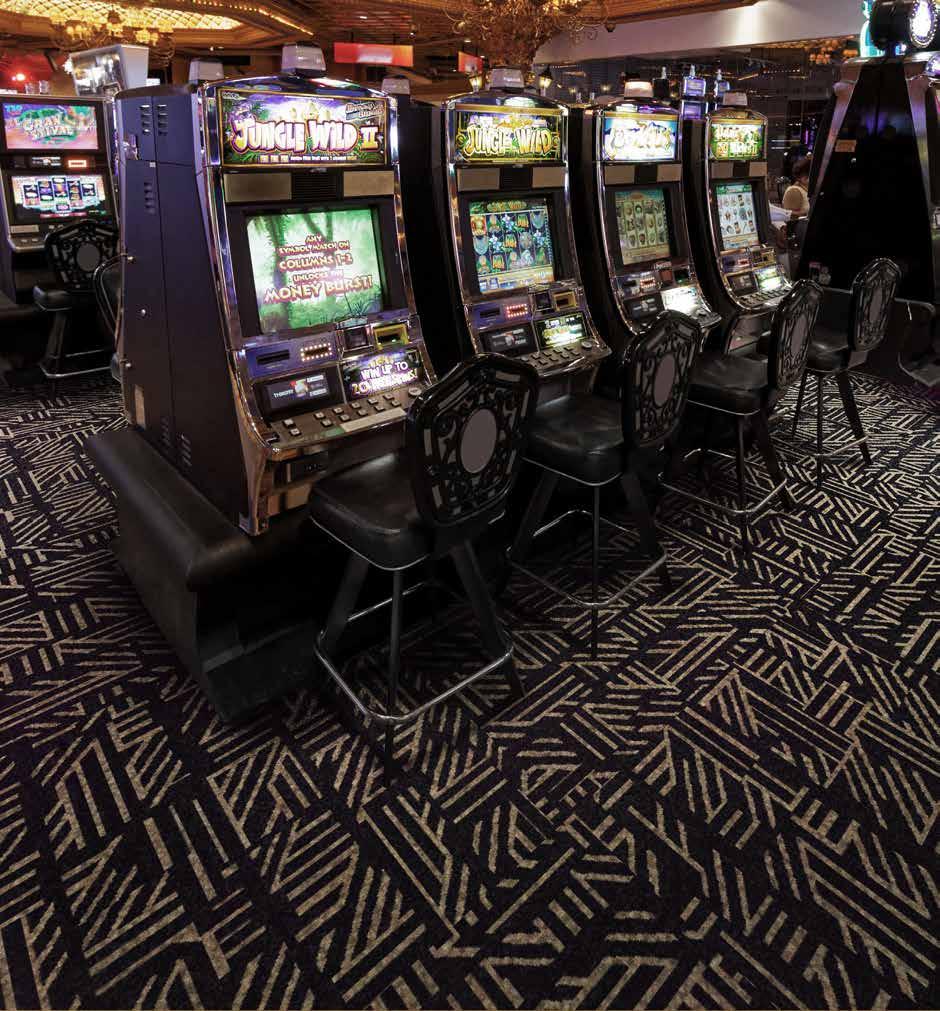

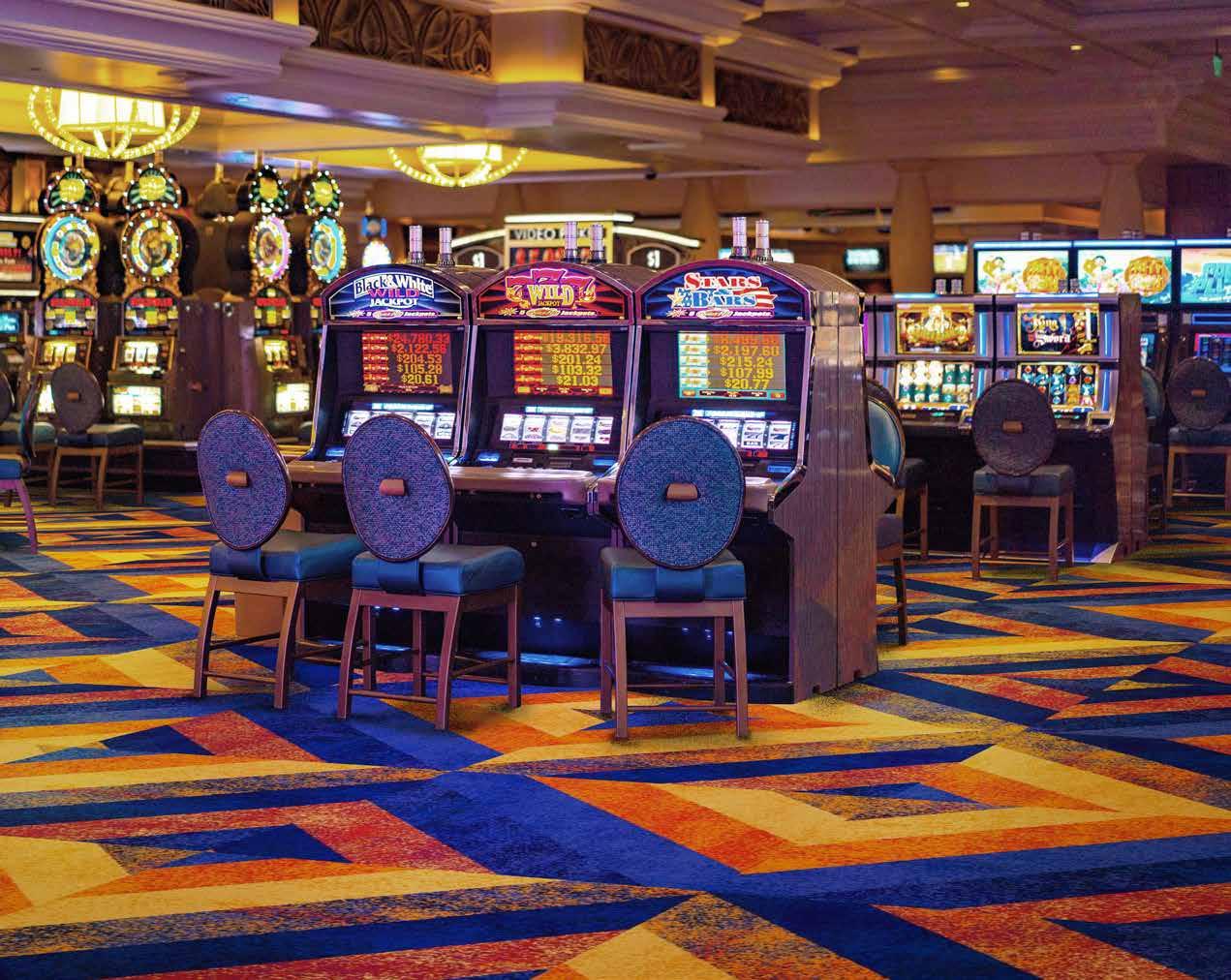

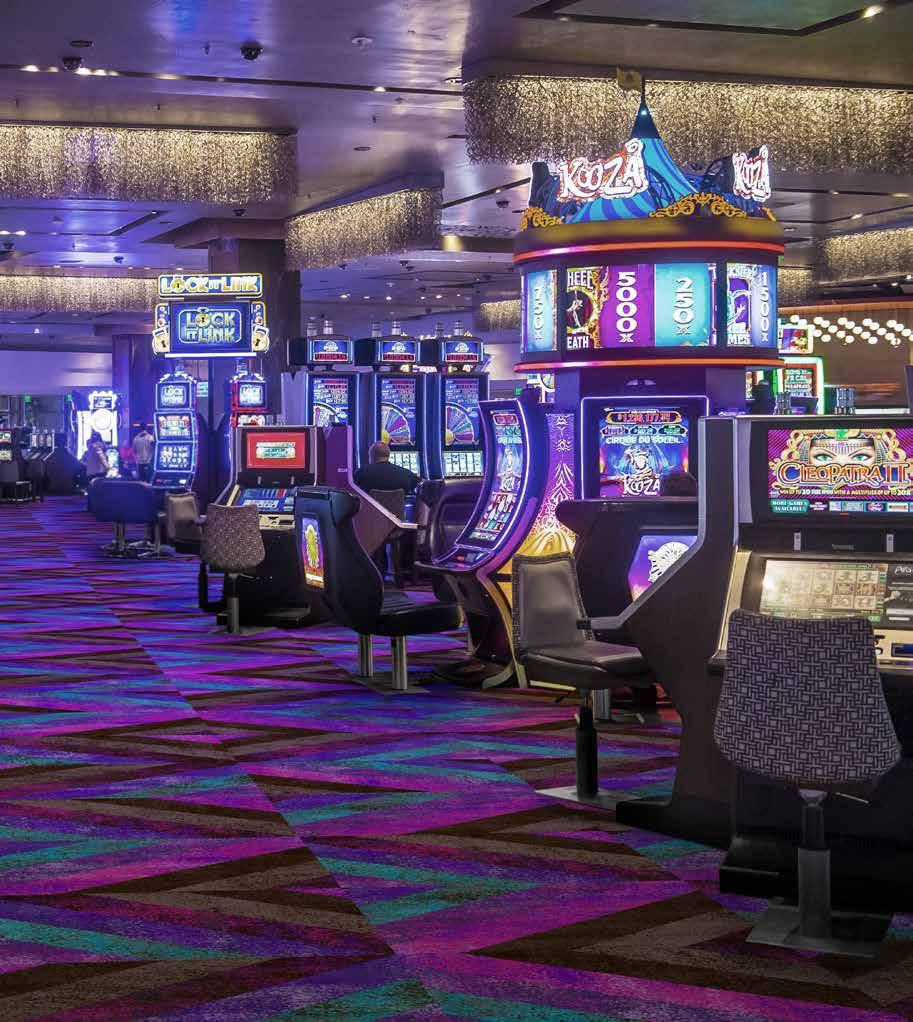

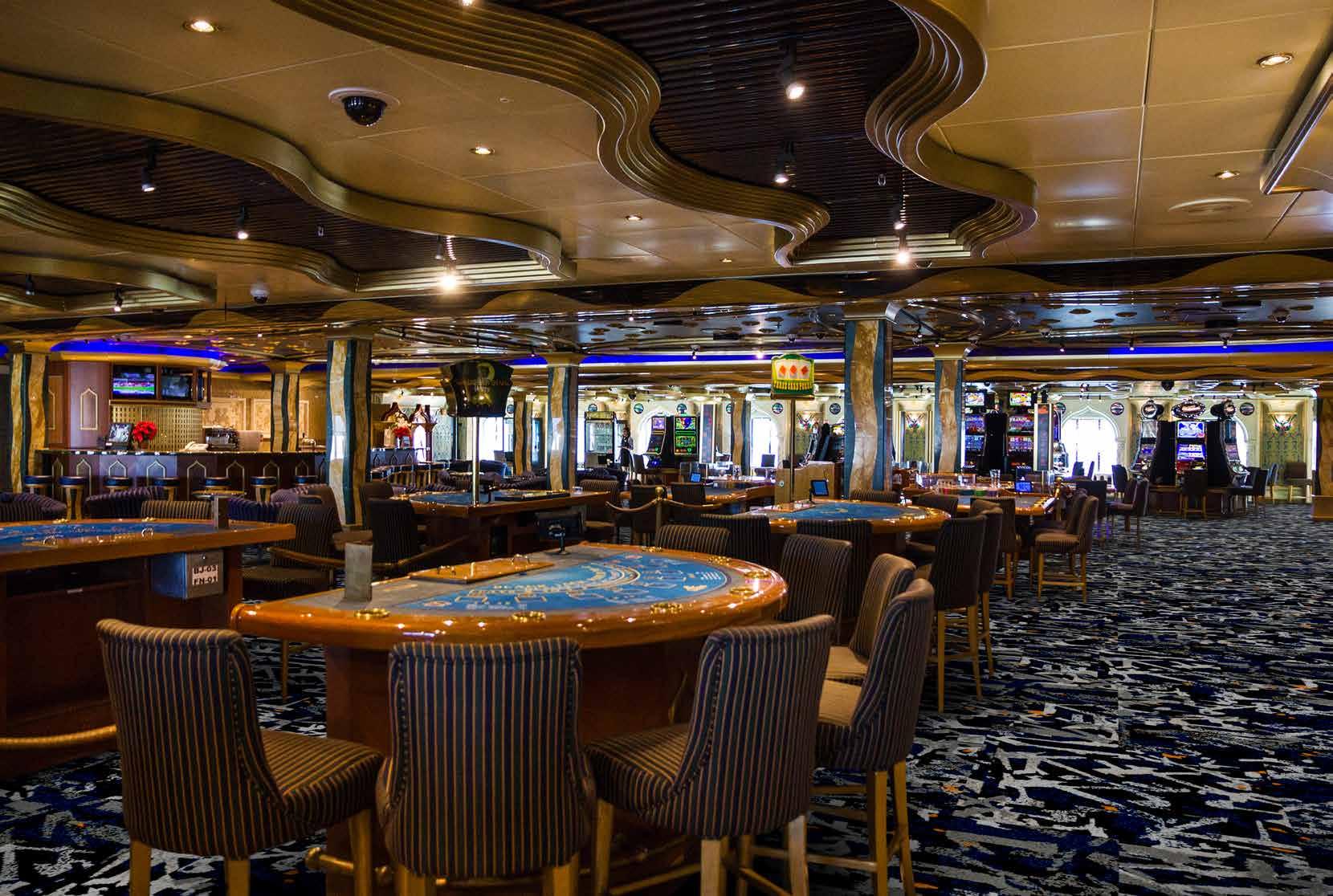

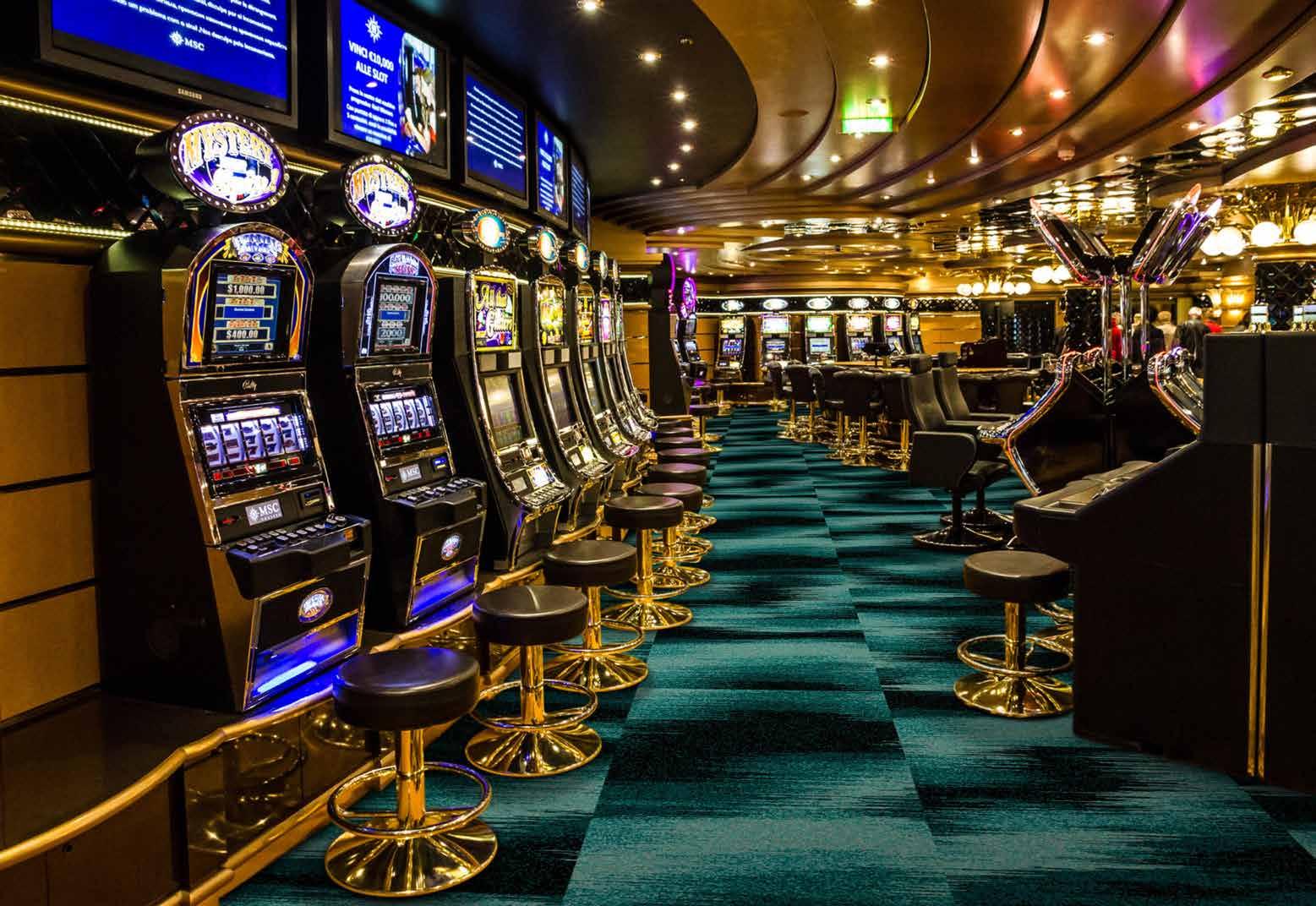

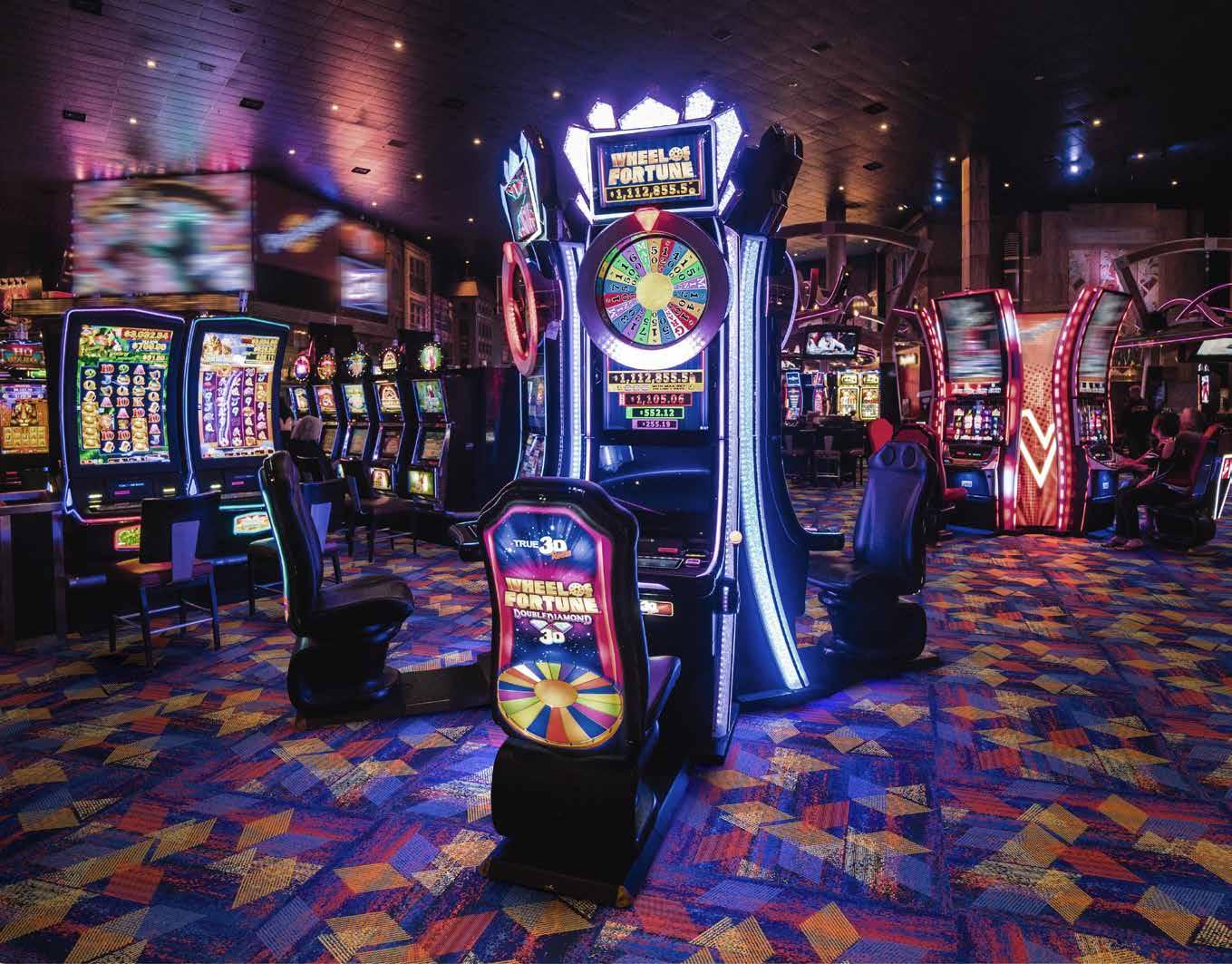

GAMING

44

NT-045570-1 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

Gaming

16 Tile Module Random Cut

45

Modular Axminster

NT-045568-1 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

46

16 Tile Module Random Cut

Gaming

47

48

Modular Axminster

CU057367P001 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

Gaming

16 Tile Module Random Cut

49

50

Modular Axminster

GU048521P001 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

Gaming

16 Tile Module Random Cut

51

52

Modular Axminster

GU048521P002 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

Gaming

16 Tile Module Random Cut

53

54

Modular Axminster

GU048514P001 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

Gaming

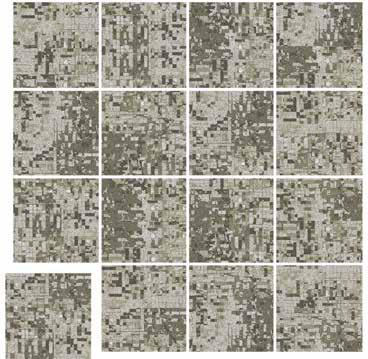

16 Tile Module Single Tile Quarter Turn

55

Modular Axminster

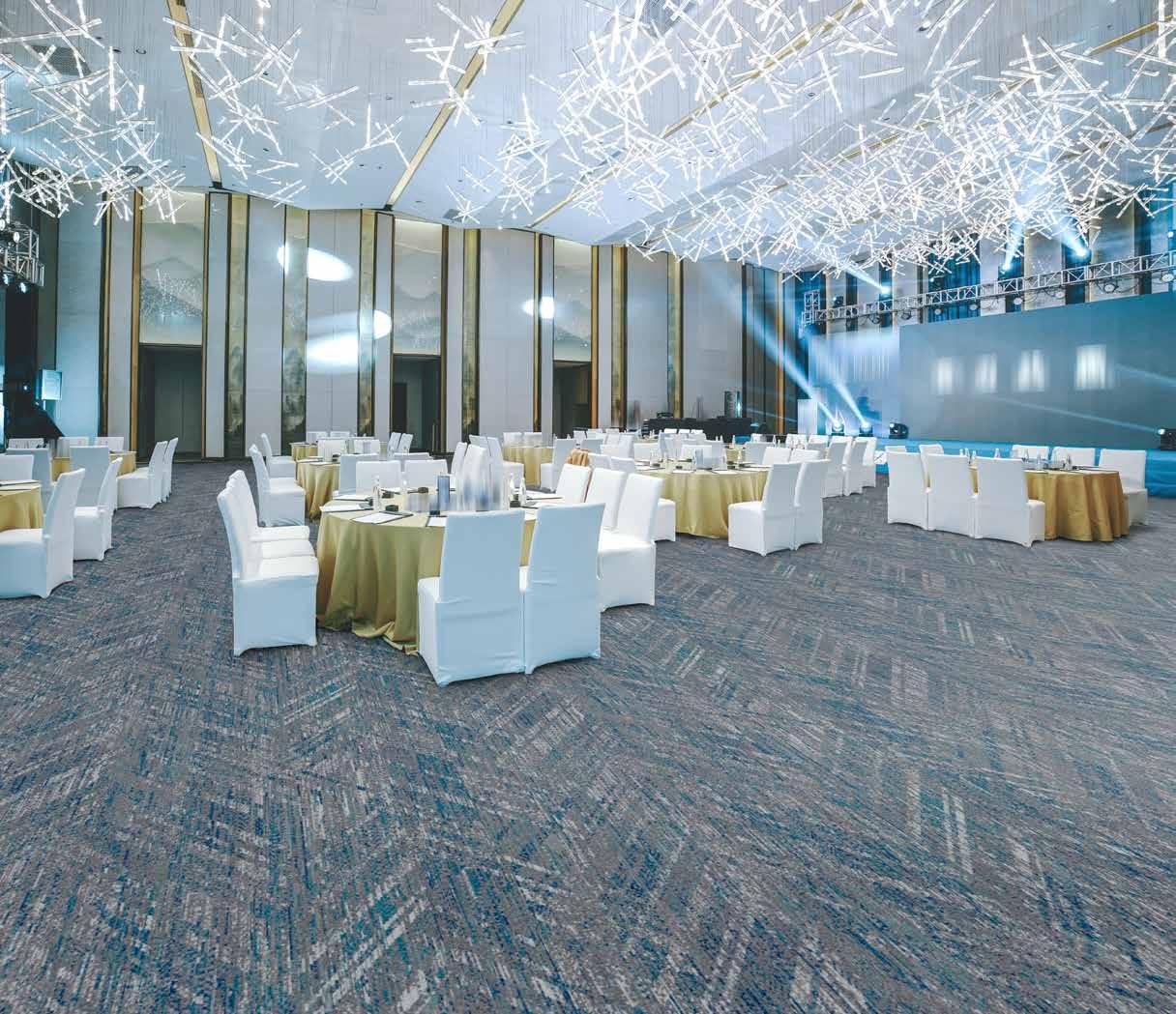

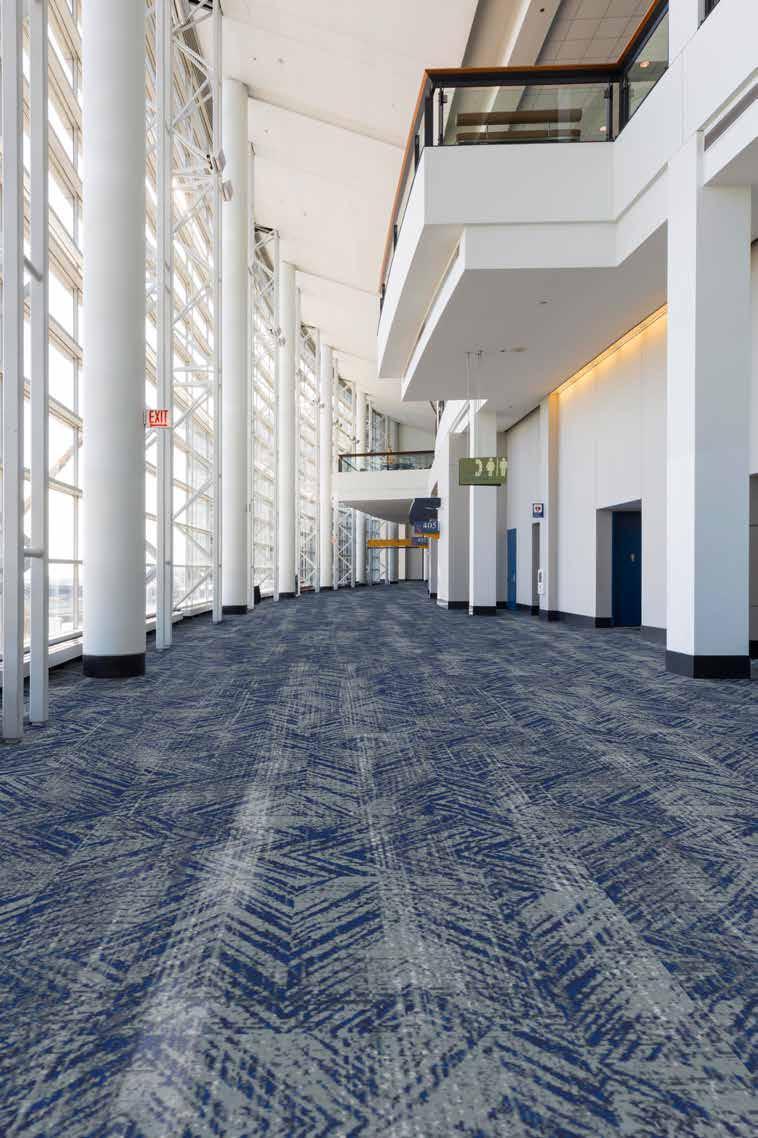

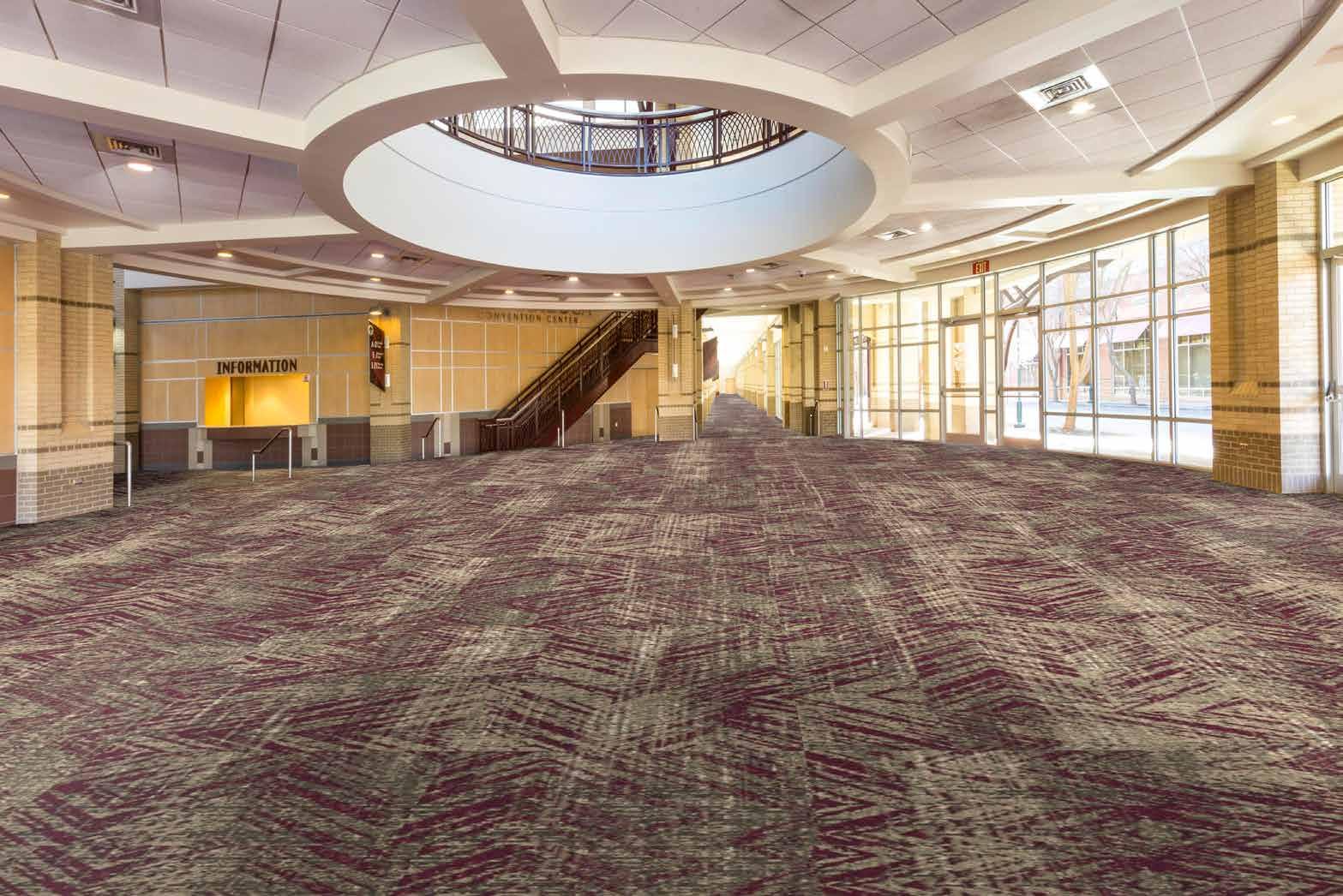

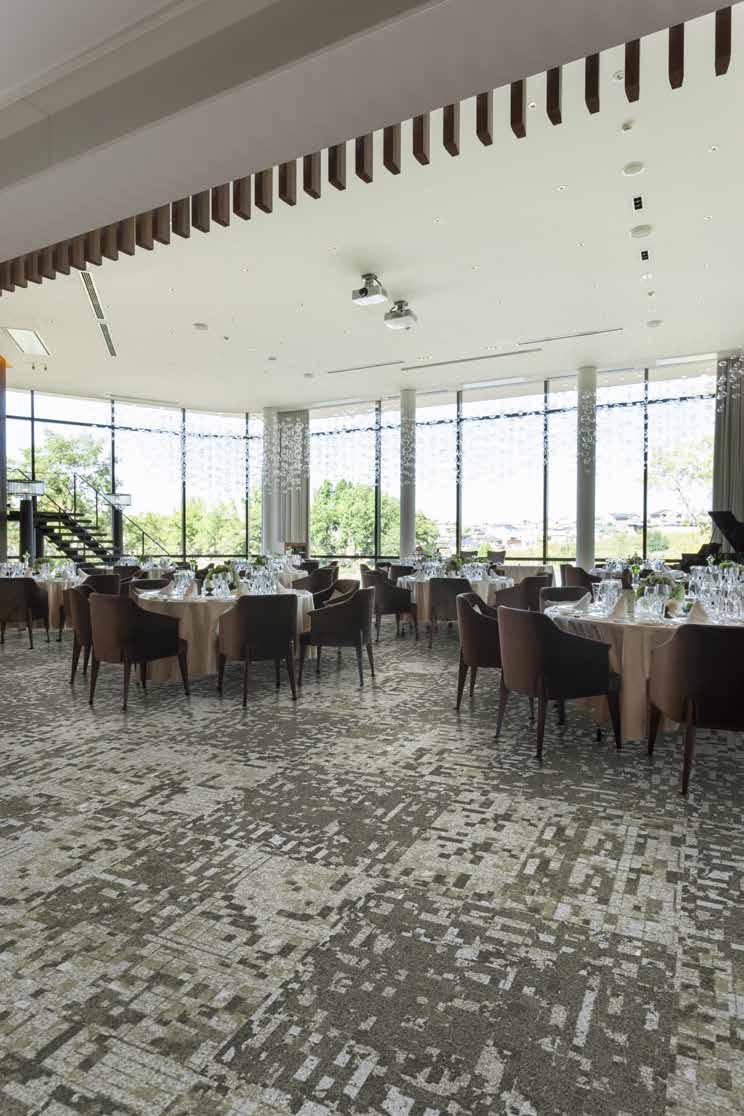

CONVENTION CENTER

56

BU049604P001 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

Convention Center

16 Tile Module Random Cut

57

Modular Axminster

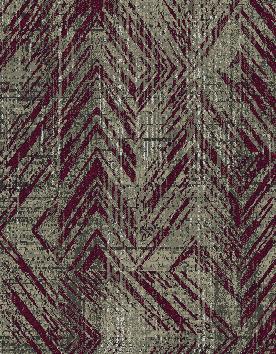

BU049604P002 Single Tile: 1M X 1M (39.36” X 39.36”) Available in 36” X 36”

58

16 Tile Module Random Cut

Convention Center

59

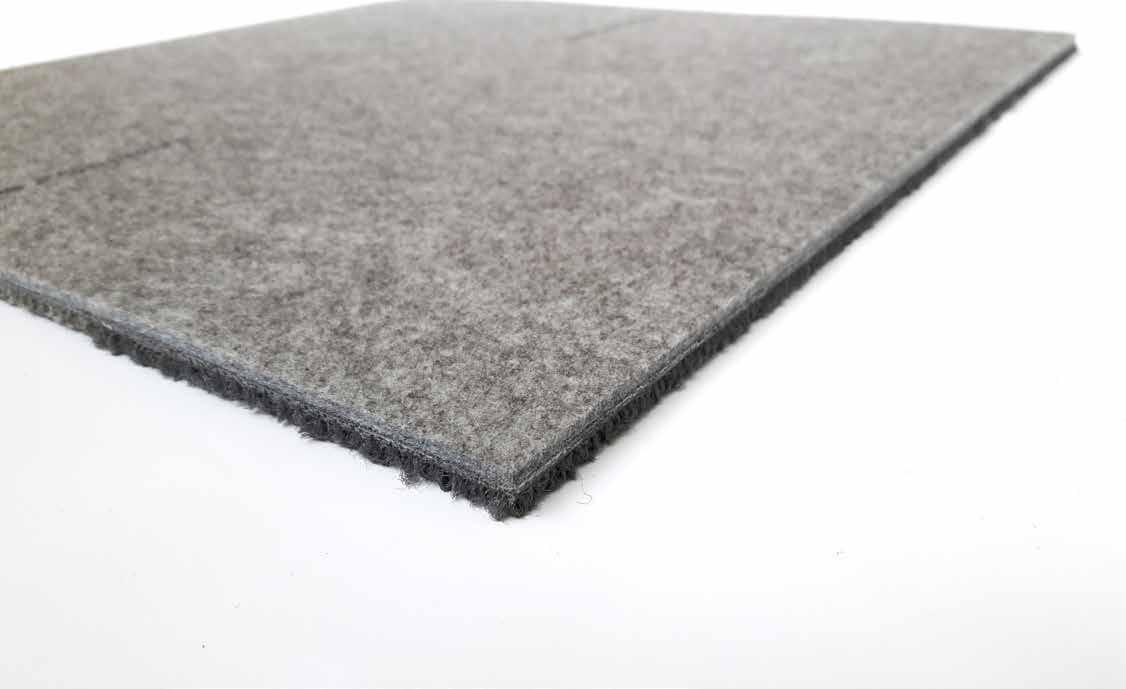

AXMINSTER TILE WITH PREMISE RECYCLED CUSHION BACKING

Made From 80% Post-Consumer Material Reeineered from Discarded Drinking Water Bottles Plus 5% Post-Industrial Recycled PET LEED Credit Contribution Materials & Resources:

Building Product Disclosure and Optimization - Option 2: Demonstrating Multi-attribute Environmental Product Declarations Optimization: NSF140 Platinum Cerified Building Product Disclosure and Optimization - Option 2: Bio-based Materials, ASTM D6866 Souring of Raw Materials Building Product Disclosure and Optimization - Option 1: Health Product Declaration Material Ingredients Option 2: Contains no ingredients listed on the REACH authorization or candidate list Indoor Environmental Quality: Low Emitting Materials

CRI Green Label Plus Certified

International Standards

60

We apply strict quality control at all stages of production, in compliance with ISO 9001. However, the carpet manufacturing process is a complex series of operations and variations in the specifications could occur. This will not have any detrimental effect on the product. We reserve the right to amend this specification without prior notice.

S P E C I F I C AT I O N S

80% WOOL/20% NYLON 6,6 EcoSoft® BACKING

80% WOOL/20% NYLON 6,6 EcoSoft® BACKING

80% WOOL/20% NYLON 6,6 EcoSoft® BACKING

Quality

Axminster Tile w/EcoSoft® Back

Quality

Axminster Tile w/EcoSoft® Back

Quality

Axminster Tile w/EcoSoft® Back

Construction

Gripper Axminster

Construction

Gripper Axminster

Construction

Gripper Axminster

Pile Content

80% Wool / 20% Nylon 6,6

Pile Content

80% Wool / 20% Nylon 6,6

Pile Content

80% Wool / 20% Nylon 6,6

Yarn Count

R 660/2 Tex, 2/47’s Dewsbury

Yarn Count

R 660/2 Tex, 2/47’s Dewsbury

Yarn Count

R 660/2 Tex, 2/47’s Dewsbury

Pitch Per Inch

7 (27.6 per dm)

Pitch Per Inch

7 (27.6 per dm)

Pitch Per Inch

7 (27.6 per dm)

Rows Per Inch

9 (35.5 per dm)

Rows Per Inch

10 (39.4 per dm)

Rows Per Inch

11 (39.4 per dm)

Pile Height

.250” (6.4 mm)

Pile Height

.250” (6.4 mm)

Pile Height

.250” (6.4 mm)

Pile Weight

36.2 oz/sy (1227 gm/sm)

Pile Weight

40.2 oz/sy (1363 gm/sm)

Pile Weight

44.02 oz/sy (1500 gm/sm)

Total Weight

132.3 oz/sy (4487 gm/sm)

Total Weight

137.7 oz/sy (4669 gm/sm)

Total Weight

143.3 oz/sy (4858 gm/sm)

Backing Thickness

0.351” (8.9 mm)

Backing Thickness

0.351” (8.9 mm)

Backing Thickness

0.351” (8.9 mm)

Total Thickness

0.493” (12.5 mm)

Total Thickness

0.493” (12.5 mm)

Total Thickness

0.493” (12.5 mm)

Tuft Density

63

Tuft Density

70

Tuft Density

77

Pile Density

5212

Pile Density

5760

Pile Density

6337

Backing Yarns

Polyester/ Polypropylene

Backing Yarns

Polyester/ Polypropylene

Backing Yarns

Polyester/ Polypropylene

Backing Structure

EcoSoft® 80% Post Consumer Recycled Content

Backing Structure

EcoSoft® 80% Post Consumer Recycled Content

Backing Structure

EcoSoft® 80% Post Consumer Recycled Content

Tile Size

1 m. x 1 m.

Tile Size

1 m. x 1 m.

Tile Size

1 m. x 1 m.

Flammability

ASTM D2859 CPSC FF 1-70 Pill Test

Flammability

ASTM E-648 Class I Radiant Panel

Flammability

ASTM E662-01 Smoke Density <450

Flammability

BS 4790 Hotel Metal Nut <20 Low Radius

Electrostatic Propensity

AATCC 134/ISO 6356 Permanent Anti-Stat Less Than 3.5 KV

Insect Resistance

Fully Mothproofed

LEED

Credits 4.3, 2.1/2.2, 4.1/4.2, 6

International Standards

ISO 9001:2000 / ISO 14001:2004

Also available in 100% 6.6 Nylon, please consult your Royal Thai Representative for the specification that best suits your project.

61

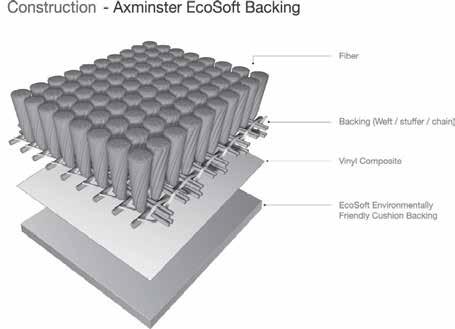

AXMINSTER WITH PREMISE

®

® Backing Axminster with Premise AXMINSTER WITH PREMISE BACKING TM

Pile Fibre Pile Fibre Backing (Weft/Stuffer/Chain) Backing (Weft/s tuffer/chain)

Thermoplastic Compound Vinyl Co mpo site

Premise® Backing Premise Backing TM

80% Post-consumer recycled content backing system

To date Premise® has recycled over 787 million PET bottles from polluting our planet...

Be a part of this mission!

Premise® Outstanding Features WITH PVC BACKING AXMINSTER > 85% recycled content backing > 100% recyclable > Superior Acoustical Propensity backing outperforms hardback tile by Pile Fibre 150% to 175% per Green Star IEQ10 internal noise level requirements > Excellent Dimensional Stability BS EN 986 less than 0.15%

Modular Axminster

> Compliance to Indoor Air Quality by CRI Monitoring program Backing (Weft/st uffer/chain) Co mpo site > Cushioning reduces wear and tear, fiber crush andVinyl user fatigue > Premise® backed modular axminster carpet contribute up to 6 LEED Fibre gl as s tiss ue points

62

PVC botto m coat

Projects in United States —

• Ameristar Council Bluffs, Council Bluffs IA • Boyd’s Gold Coast Hotel and Casino, Las Vegas NV • Casino Arizona, Scottsdale AZ • Casino Queen, East St. Louis IL • Desert Diamond Casino, Tucson AZ • Fort Hall Casino, Fort Hall ID • French Lick Casino, French Lick IN • Gardens Casino, Hawaiian Gardens CA • Isle of Capri Casinos (various US locations) • Lotus Casino, Sacramento CA • Lucky Dragon Hotel and Casino, Las Vegas NV • Niagara Falls Casino, New York • Pechanga Hotel and Casino, Temecula CA • Sands Bethlehem, Bethlehem PA • The Bicycle Club Casino, Bell Gardens CA • The Cosmopolitan, Las Vegas NV • The Venetian Hotel and Casino, Las Vegas NV • The Mansion at MGM, Las Vegas36”NV36” 39.36”) • The Palazzo Hotel and Casino, Las Vegas NV • Tulalip Casino, Marysville WA • Twin Rivers Casino, Lincoln RI • Vee Quiva Casino, Laveen AZ • Viejas Hotel and Casino, Alpine CA • Wynn Encore, Las Vegas NV X

X

X

International Projects —

• Aquis Casino in Canberra, Australia • Grand Lisboa, Macau • Marina Bay Sands, Singapore • MGM, Macau • Sands, Macau • SBM, Monte Carlo • Scarborough Casino, UK • Solaire Resort and Casino, Philippines • Star Vegas Resort and Casino, Cambodia • Venetian Cotai, Macau • Wynn, Macau

63

OUR MISSION & ASPIRATIONS At Carpets Inter, our mission is clear: to achieve a net-zero carbon footprint by 2050.

We are deeply committed to aligning our cultural values and daily operations with the United Nations' Sustainable Development Goals. Every day, we focus on implementing innovative strategies and leveraging advanced technologies that drive meaningful reductions in our environmental impact.

Our dedication extends beyond simply addressing climate change; we aim to improve the health and sustainability of the planet’s entire biosphere.

Embracing the principles of a circular economy, we are determined to make a significant, positive contribution to creating a cleaner, greener, and more sustainable future—for the planet, its people, and all living systems.

Sludge to Soil A Sustainable cycle is reimagined Eco friendly dyeing and 100% Recycled water Royal Thai has been operating a 100% water recycling system for its manufacturing water waste, since 2014. This initiative provides a valuable eco-friendly dyeing system where zero effluent is released into the environment and a safe and efficient water source for other manufacturing processes including our kitchens toilets and gardens.

Brands of TCM Corporation PLC.

A Sustainable cycle reimagined | 1

A sustainable solution for waste

“Sludge”

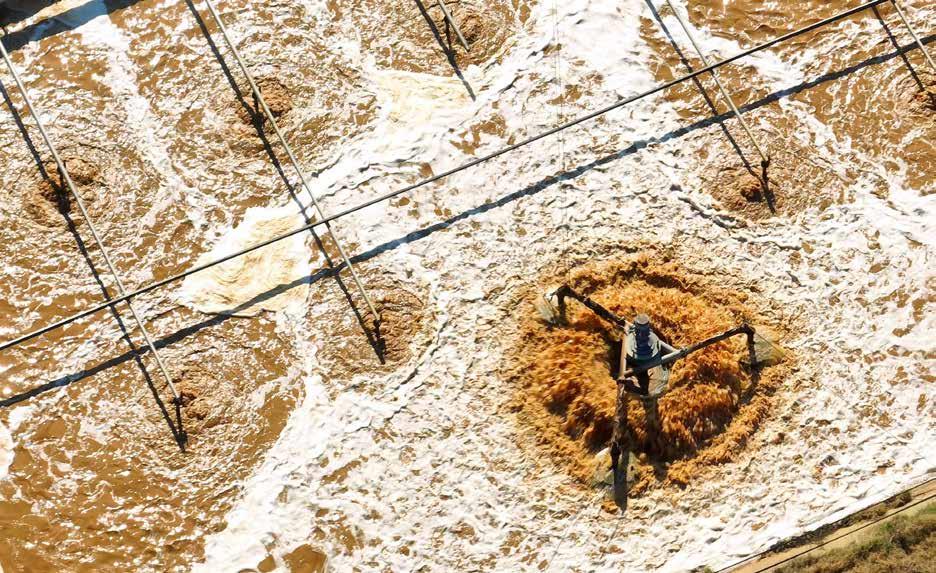

Through the recycling process, pure water is separated from contaminated water using a series of steps. During these processes, the water contamination is converted into solid waste known as "sludge." Normally, this waste sludge would be disposed of in a landfill. However, our manufacturing plant, situated in a rural farming area, maintains a close relationship with nature and strives to utilize waste responsibly to keep it out of landfills. By collaborating with a local fertilizer company, we discovered an eco-friendly solution for our waste sludge, which not only kept it out of landfills but also repurposed it, giving it a new life.

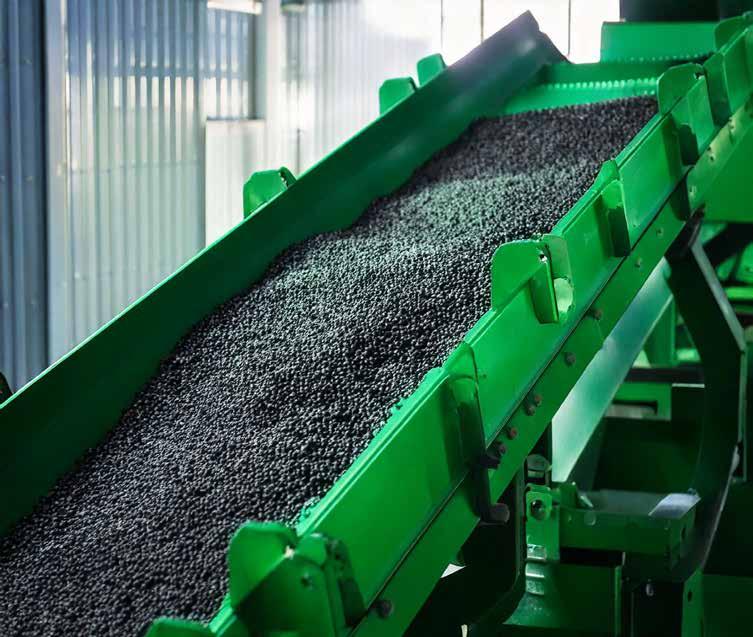

Organic Fertilizer driving healthy crops, healthy soil and carbon capture A partnership with a dynamic forward looking local fertilizer company allowed the transformation of the solid waste into an essential base material for producing high-grade organic fertilizer, benefiting the cultivation of crops like pineapple, cassava, sweetcorn, and rubber trees. The fertilizer can aid crop yield for the local growers by between 10% to 50%.

Brands of TCM Corporation PLC.

A Sustainable cycle reimagined | 2

Humus – Nature’s

“Black Gold” Organic fertilizers do a lot more than just provide nutrients for growing crops; they also contribute to the creation of humus which is the single most important determinant of success in high-production agriculture and a powerhouse stimulator for the soil to assist sequestering CO2.

Humus is a dark, organic material that forms when plant and animal matter decay. It's like nature's own fertilizer that enriches the soil. In agriculture, humus plays a crucial role by improving soil structure, retaining moisture, and providing essential nutrients for plant growth. Farmers love humus because it helps plants grow strong and healthy.

Organic fertilizers, like compost and manure, are rich in organic matter that breaks down into humus over time. When farmers use organic fertilizers, they add more organic material to the soil, promoting the formation of humus.

Waste equals Food As in nature, the concept of "waste equals food" embodies the idea that in a natural ecosystem, there is no true waste. Instead, every byproduct or waste material generated by one organism becomes a valuable resource or nutrient for another organism in the ecosystem. This efficient cycle continuously recycles and reuses resources, promoting sustainability, and minimizing waste accumulation. Essentially, nature operates in a closed-loop system where what may be considered waste for one organism serves as nourishment or raw material for another, showcasing the intricate balance and interconnectedness of natural systems.

Brands of TCM Corporation PLC.

A Sustainable cycle reimagined | 3

Contributing to Carbon Capture The solution is right under our feet OXYGEN CARBON DIOXIDE

2014

2015

2016

2017

2018

2019

2020

2021

2022

2023

0.01 Mil Kg.

2.47 Mil Kg.

2.40 Mil Kg.

2.10 Mil Kg.

1.75 Mil Kg.

3.15 Mil Kg.

3.50 Mil Kg.

1.83 Mil Kg.

1.64 Mil Kg.

4.09 Mil Kg.

CARBON

Organic farming methods, such as incorporating compost, cover cropping, and reduced tillage, help increase organic matter in the soil. This organic matter acts like a sponge, capturing carbon dioxide from the atmosphere during photosynthesis and storing it in the soil as stable carbon compounds. Studies indicate that organic farming systems can sequester approximately 2,100 kg of carbon per hectare annually, highlighting the significant role organic practices play in mitigating climate change.

Since 2014, we have contributed to produce 15.5 million kg of organic fertilizer to farming 5,350 acres of Thailand’s Cropland each year.

Study: "Carbon Sequestration in Agricultural Soils: A Review of Management Practices" by Powlson et al. (2001)

Recycled water 100%

Waste Sludge donated 2000 tons

Fertilizer manufactured 15.5 million kg

Agricultural land improvement Approx 5350 acres Data reference (2014 – 2023)

Brands of TCM Corporation PLC.

A Sustainable cycle reimagined | 4

?

Healthy soil and Carbon Capture The sludge donated has contributed to the fertilization of over 5,350 acres of Thailand’s agricultural cropland

DID

No credits for Carbon Capture!

The waste-to-fertilizer process contributes to the production of healthy soil and carbon capture through the production of Humus.

However, there is no carbon credit or offset award for this process to the company.

YOU Know

Improving soil can offset emissions However, there is no carbon credit or offset award for this process to the company. If we were to rebuild organic matter by just 1% in US agricultural soils – “4.5++ billion tonnes” of the CO2 gas would be sequestered from the atmosphere into agricultural farmland representing over 50% offset of their emissions.

Carbon Water Filter Carbon in our soil acts like your carbon water-filter. It captures heavy metals and toxins that are unwanted in the water supply, eliminates the need in agriculture for toxic chemical fertilizers (pesticides) and as a result prevents the contamination of our water table and fresh water supply.

Enhancing Soil Health Cultivating a thriving microbial ecosystem is key for the decomposition of organic matter, a process that enriches the soil while also improving its texture and facilitating optimal air flow.

The carbon present in soil serves as an effective natural filter, trapping heavy metals and toxins to prevent them from contaminating our drinking water.

Brands of TCM Corporation PLC.

Increasing Crop Yields Healthy soil promotes better root development, leading to increased nutrient absorption and water retention, resulting in up to 25 higher crop yields.

Minimizing Harmful Pesticide Usage Soils rich in nutrients and plants that are properly fertilized tend to deter pests. These pests are usually attracted to plants that are stressed or lacking in nutrients, making them more vulnerable to infestations. By ensuring the fertility of the soil and the health of the plants, farmers can effectively reduce the need for pesticides, maintaining pest control through natural health and balance.

A Sustainable cycle reimagined | 5

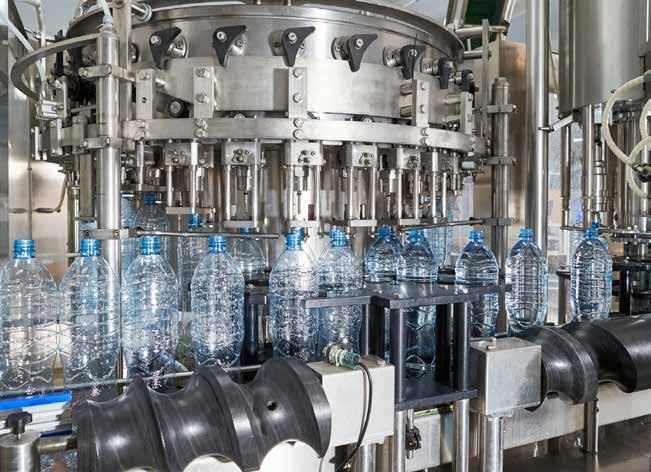

Waste to Wow Transforming an Eco Headache into Sustainable Magic Plastic pollution has become one of the most pressing environmental challenges of our time, with single-use PET bottles emerging as a symbol of the pervasive issue.

Every year, millions of bottles are discarded worldwide, finding their way into landfills, rivers, and oceans, where they persist for centuries, wreaking havoc on ecosystems and wildlife. But amidst the alarming tide of plastic waste; there shines a beacon of hope: the innovative use of recycled PET bottles in the production of interior surfaces.

Brands of TCM Corporation PLC.

Waste to Wow | 1

Reshaping Environmental Challenges into Sustainable Solutions Globally, over 500,000 M PET bottles are produced annually, equivalent to roughly 1 million bottles per minute.That's enough to stretch around the Earth more than 20 times each day!

Shockingly, only a fraction of these bottles is recycled, with estimates suggesting that less than 10% are effectively collected and repurposed.

The environmental impact is staggering: PET bottles can take up to 450 years to decompose, releasing harmful chemicals into the soil and water during their slow decay.

Additionally, countless marine animals and birds suffer each year from ingesting or becoming entangled in plastic waste; it's estimated that over 100,000 marine mammals are dying annually from plastic pollution.

Amid this crisis, a growing movement is reshaping the narrative around plastic waste. Leveraging innovation and sustainability, forward-thinking companies are transforming discarded PET bottles into stylish, functional products, offering a glimmer of hope in the battle against plastic pollution.

Brands of TCM Corporation PLC.

Waste to Wow | 2

EcoSoft, a pioneering product by Royal Thai since its 2005 launch, stands out for its innovation. Designed as an eco-friendly alternative to traditional PVC backings, EcoSoft is crafted from 85% recycled PET bottles, highlighting its commitment to sustainability. It has earned acclaim not only for its environmental benefits but also for its superior underfoot comfort and enhanced acoustic properties. Impressively, nearly 1 billion PET bottles have been recycled for use in EcoSoft's production process.

PET Flake

Brands of TCM Corporation PLC.

PET raw fiber

Recycled PET Bottles Plastic pollution

PET Carded Fiber

PET Felt

Waste to Wow | 3

A Member of TCM Corporation PCL.

Going Solar

The future is bright with solar made products

Energy conservation is a dual commitment for our company, blending fiscal responsibility with environmental stewardship. By prioritizing efficiency and sustainability, we have effectively lessened our reliance on conventional energy sources. The incorporation of solar power into our manufacturing processes sets the stage for a greener, more eco-conscious future.

In the last twenty years, dedicated work in technology and energy management has led to a significant 40% decrease in electrical energy use. Building on this progress, the implementation of solar arrays is now revolutionizing our energy environment.

From sunlight to success:

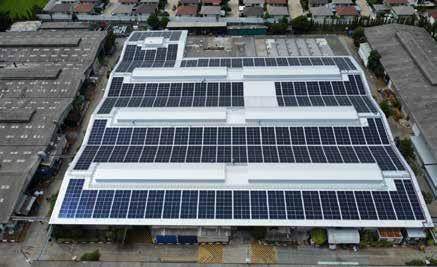

Our commitment to Solar-Powered production In 2021, the implementation of our first solar array marked a pivotal step in harnessing renewable energy specific to manufacturing. The facility in Thailand receives abundant sunlight thanks to its geographical location, making it an optimal choice for this implementation.

Solar Power Sustainability | 1

A Member of TCM Corporation PCL.

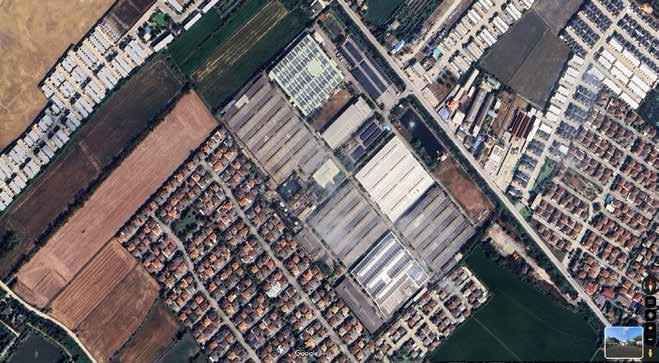

factory

Solar Ph 1 | 2022 1 MWp

Warehouse

ROYAL THAI Yarn Process Eco Dying

Office Needlepunch

Solar Ph 4 | 2028

Axminster

Solar Ph 3 | 2026

1 MWp

0.8MWp Tufting Carpet Tile

Hand Tuft

Solar Ph 2 | 2024 1 MWp

Energy consumption per unit carpet mfg

KW/Sqm

Reduction in fossil fuel usage

10.0

from energy reduction initiatives and Solar power program

8.0

Projected Solar Power

6.0

4.0 Fossil fuel based energy usage 2.0

2000

2005

2010

2015

2020

2025

2030

The initial 1 MWp solar system installation demonstrated immediate benefits and set the stage for the subsequent rollout of a second installation of 1 MWp in 2024. Plans for additional phases in 2026 and 2028 will expand our solar power generation capacity to 4 MWp, the equivalent of nearly 70% of our current daytime electrical usage.

This transition is integral to our broader goal of attaining net-zero greenhouse gas emissions by 2050, a commitment set forth in 2023 that aligns with our global vision for sustainable operations.

Solar Power Sustainability | 2

A Member of TCM Corporation PCL.

Key benefits of

solar power

The adoption of solar power brings forth several substantial benefits.

cool

cool

Reduced

Smaller

Greenhouse Gas Emissions

Carbon Footprint

Solar power substantially cuts down on the emissions associated with conventional electricity production, contributing to a healthier planet.

The use of solar panels translates directly to reduced carbon emissions, reinforcing our dedication to environmentally considerate practices.

Sustainability in Operations Reliance on solar power demonstrates a long-term sustainable approach to energy usage, one that is renewable and less harmful to the ecosystem.

20% (2023)

Long term

COST Savings The use of solar power systems can reduce electricity costs leading to long term financial benefits and reduced product cost.

The inclusion of solar power in our energy portfolio is a crucial step towards reducing our environmental impact. By harnessing the sun's renewable energy, we showcase our dedication to sustainability and a greener future.

This transition not only benefits the environment but also highlights our commitment to innovation in clean energy solutions.

Solar Power Sustainability | 3

THAILAND

+66 2314 5402 bangkok@royalthai.com

HONG KONG

+852 23598900 hongkong@royalthai.com

SINGAPORE

+65 6235 2477 singapore@royalthai.com

INDIA

+91 124 469 3901 india@royalthai.com

AMERICAS

+1 800 433 2440 calhoun@royalthai.com

MIDDLE EAST

+9714 451 7659 dubai@royalthai.com

UNITED KINGDOM

+44 7741 261203 unitedkingdom@royalthai.com

ROYALTHAI.COM
