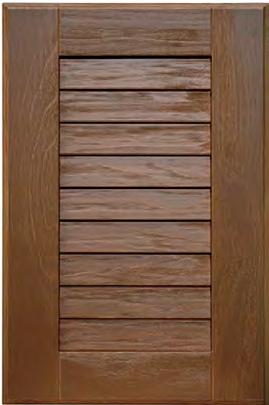

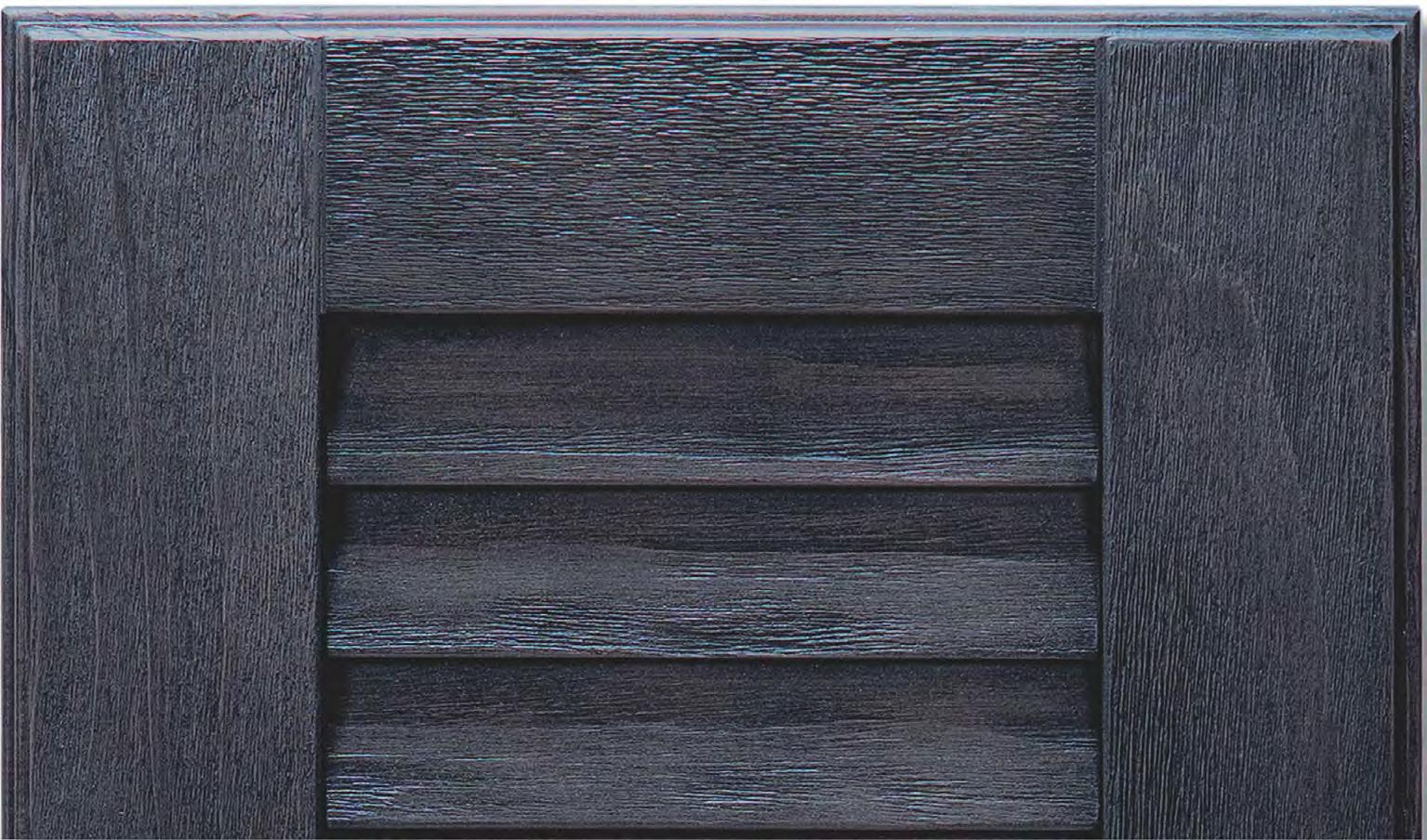

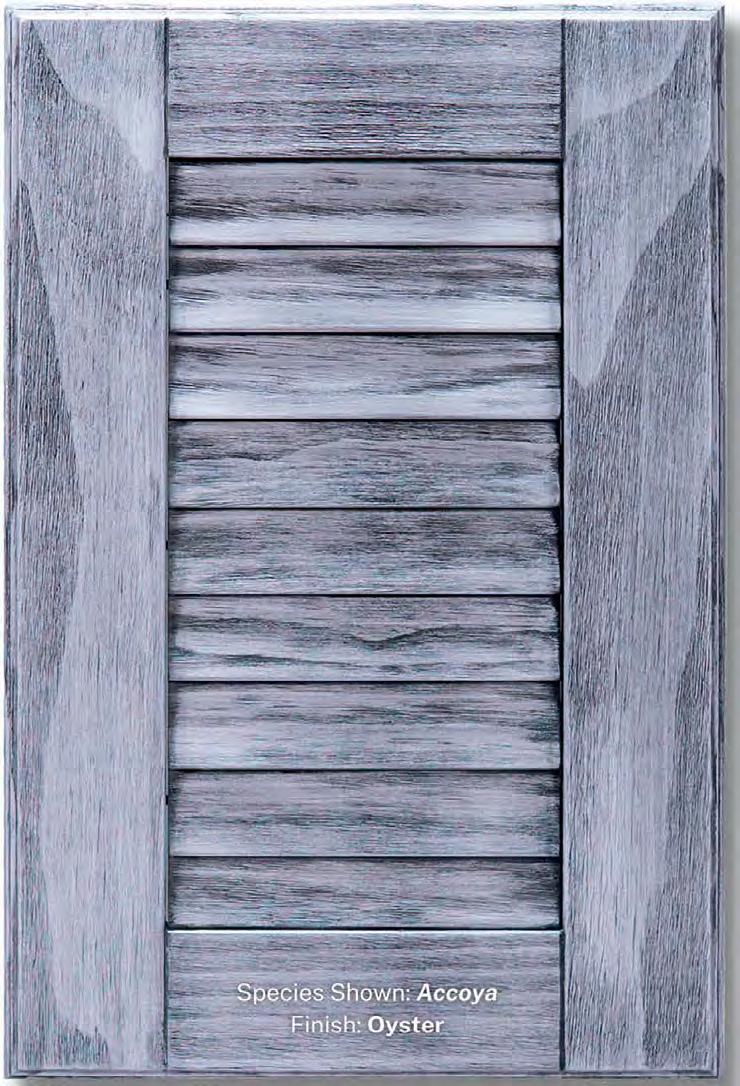

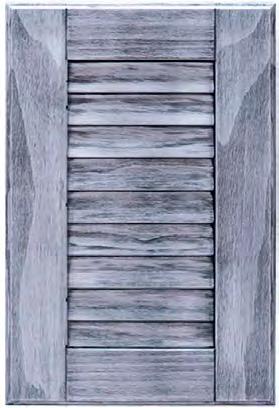

LOUVER DOOR
Specifications
SPECIES AVAILABLE: Accoya
CONSTRUCTION: 1" thick Stiles & Rails, 5/8" Panel
RAIL WIDTH: 2 ¾"
MINUMUM/MAXIMUM DOOR WIDTH: 12"/24"
MINUMUM/MAXIMUM DOOR HEIGHT: 12"/60"
DRAWER FRONTS: The top drawer face is always a 7" high SLAB. drawer fronts over 8" can be ordered in a stile and rail configuration for an additional cost
FINISHED BACK OF DOOR: Painted Base Color only, no glaze
The center louveris accomplished by stacking 6" wideT & G moldings. The moldings "float" between thestiles and rails utilizing our patent pending design. This method of assembly mitigates movement that may split the frame or damage the paint.

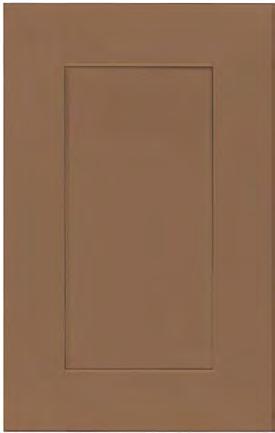

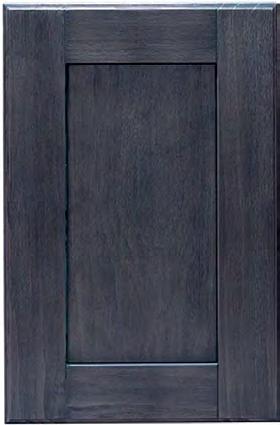

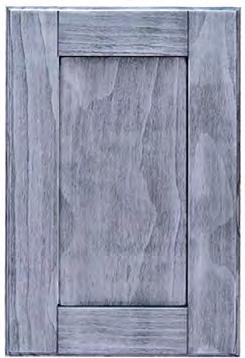

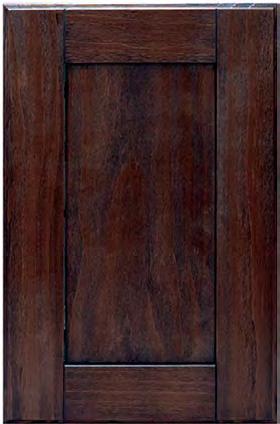

SHAKER DOOR
Specifications
SPECIESAVAILABLE:Accoya
CONSTRUCTION: 1" thick Stiles & Rails, 5/8" Panel
RAILWIDTH: 2 ¾"
MINIMUM/MAXIMUMDOORWIDTH: 12" / 24"
MINIMUM/MAXIMUMDOORHEIGHT: 12" / 60"
DRAWERFRONTS: The top drawer face is always a 7" high SLAB. drawer fronts over 8" can be ordered in a stile and rail configuration for an additional cost
FINISHED BACKOFDOOR: Painted Base Color only, no glaze
Thecenterpanelis"floating"between thestilesandrails utilizingourpatentpendingdesign.This methodofassembly mitigates movement thatmaysplittheframeordamagethe paint.

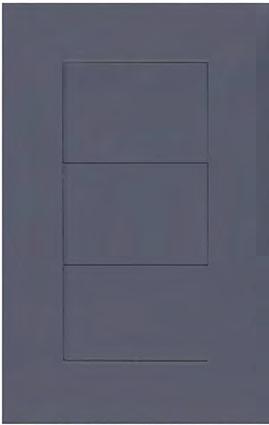

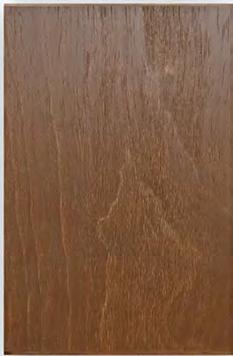

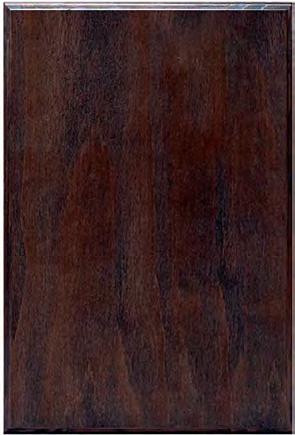

SLAB DOOR / DRAWER
Specifications
SPECIES AVAILABLE: Accoya
CONSTRUCTION: Slab
MINUMUM/MAXIMUM DOOR WIDTH: 12" - 24"
MINUMUM/MAXIMUM DOOR HEIGHT: 12" - 60"
DRAWERFRONTS: 1" thick slabwith integral edge detail
GRAIN DIRECTION, DOOR: Graindirection is verticalon doors, horizontalgrain not available
GRAIN DIRECTION, DRAWER: Graindirection is horizontalon drawers, vertical grainnot available
FINISHED BACK OF DOOR: Painted base coloronly, no glaze
SpeciesShown:Accoya
Finish: Wave Crest
SONOMA DOOR/DRAWER

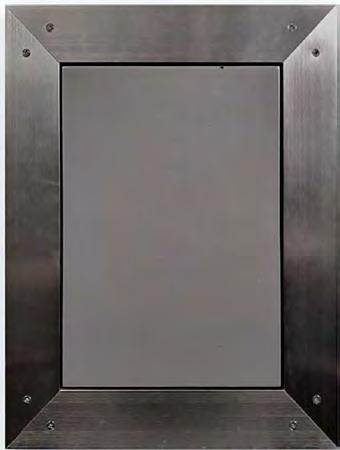

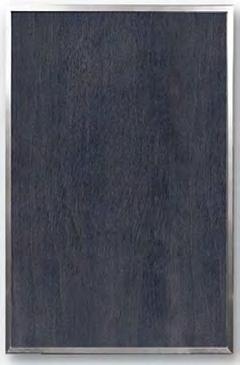

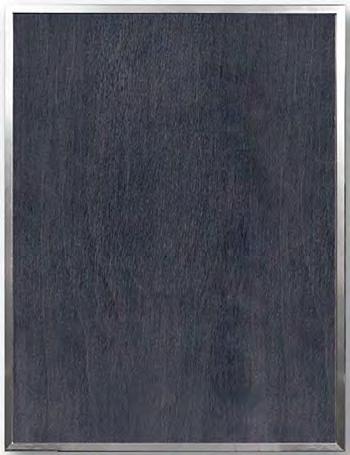

NEO DOOR/ DRAWER FRONT
Specifications
AVAlLABLE: BrushedAluminumfinishorpowdercoatedBlack available
CONSTRUCTION: Aluminumwitheithera1/4"thickcompactor 3/4"thickAccoyainsert
ALUMINUM RAIL Width: Front3/8"Wandbackis21/8"W. Therearemiterjointsinthecorners
MINUMUM/MAXIMUM DOOR WIDTH:12"/24"
MINUMUM/MAXIMUM DOOR HEIGHT:12"/60"
GRAIN DIRECTION, DOOR: Graindirectionisverticalondoorpanel
GRAIN DIRECTION, DRAWER: Graindirectionishorizontalon drawers,verticalgrainnotavailable.Topdrawerisalways7"high
FINISH OPTIONS: NeodoorsareavailablewithallWindsweptand Sonomacolorselections
FINISHED BACK OF DOOR: Accoyabackwillbebasecoloronly, Compactwillbesameasface
SONOMA FINISHES
SEAWHITE
POLARWHITE (GLOSS)
•GLOSSCOLORS SUBJECTTO UPCHARGE
HOW IT'S MADE:
Layers of sustainably harvested kraft paper are impregnated with thermosetting phenolic resins. The surface decorative finish layers are then applied on both sides and a transparent topcoat is added to the surface layers. This is cured to enhance weather and light protectingproperties. The panels are then subjectto high heatand pressure to bond the material into a non-porous, homogeneous material that is dense and perfect for outdoor surfaces likeour cabinetry.
DESIGN CONSIDERATIONS:
Compact doors, drawers and panels are available with a sleek, ebony-polished edge, offering a clean, contemporary look. ZahBuilt has proprietary 5/8" (16mm) thick

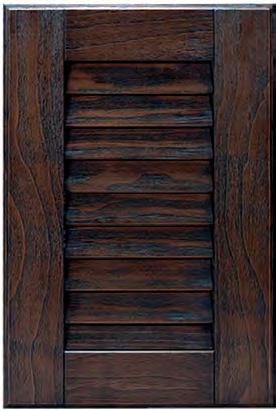

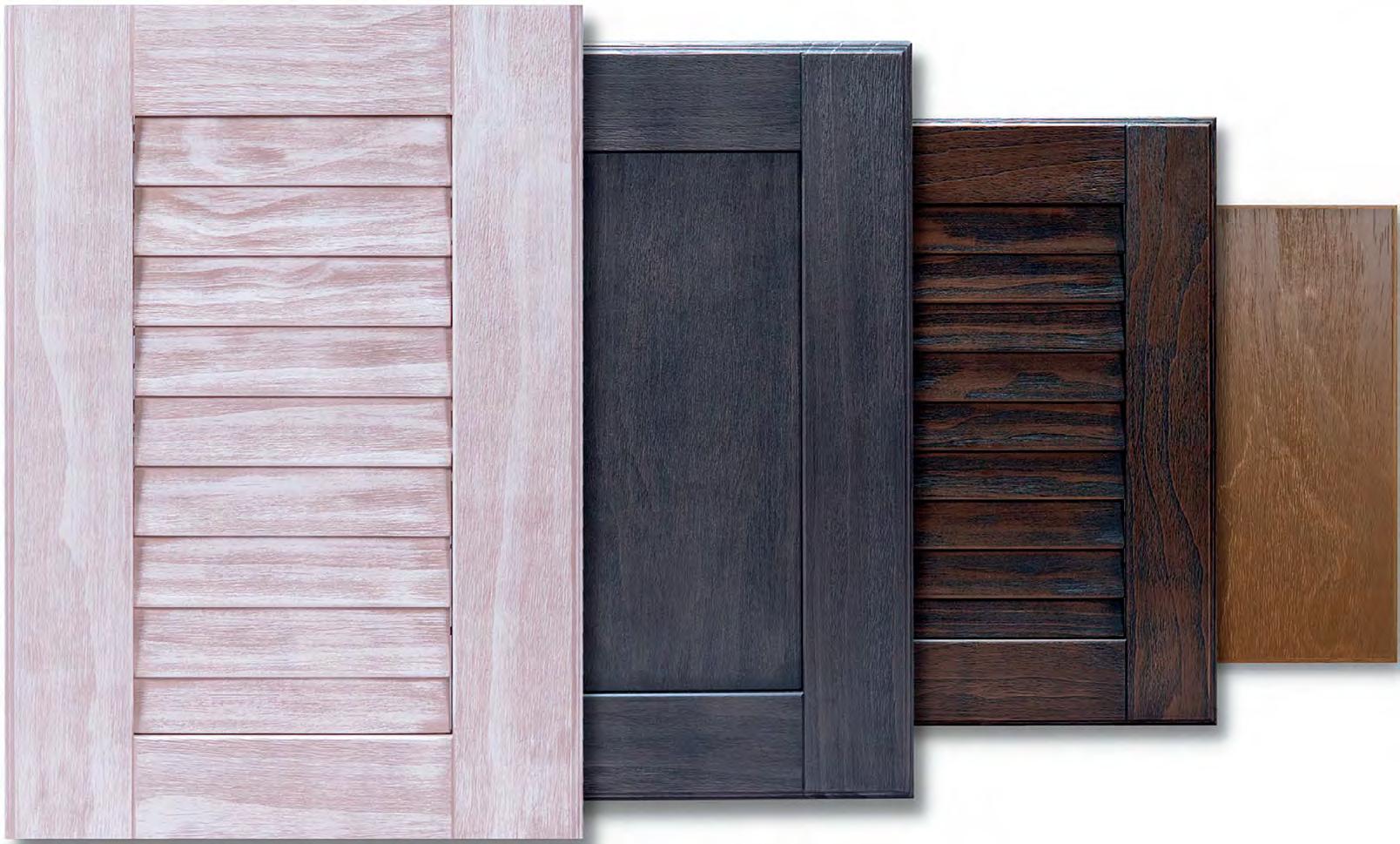

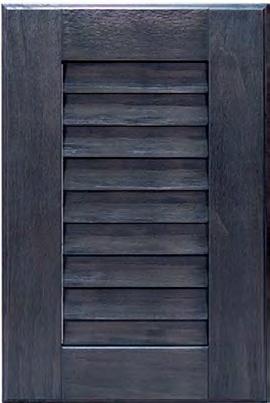

WINDSWEPT LOUVER DOOR FINISHES
DESIGN CONSIDERATIONS:
Doors painted inWhite will come standard with a white door back. all other paint colors, stain and glaze or weathered finishes come standard with base color back, regardless of cabinet interior color.
WINDSWEPT LOUVER DOOR FINISHES

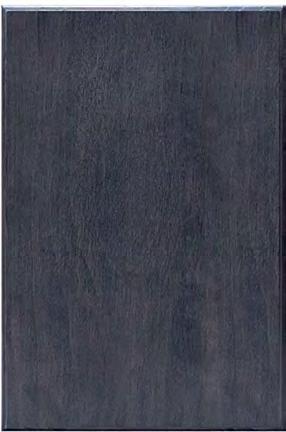

WAVECREST(BACK)
DESIGNCONSIDERATIONS:
Doors painted in White will come standard with a white door back, all other paint colors, stain and glaze or weathered finishes come standard with base color back, regardless of cabinet interior color.

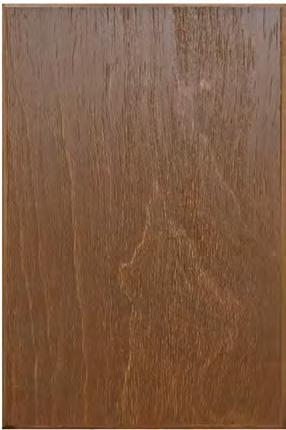

SAHARA

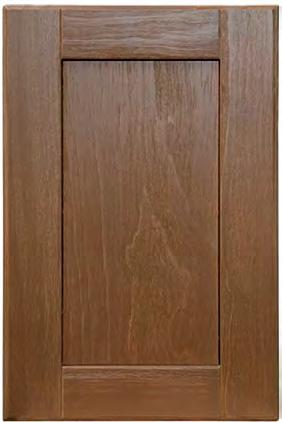

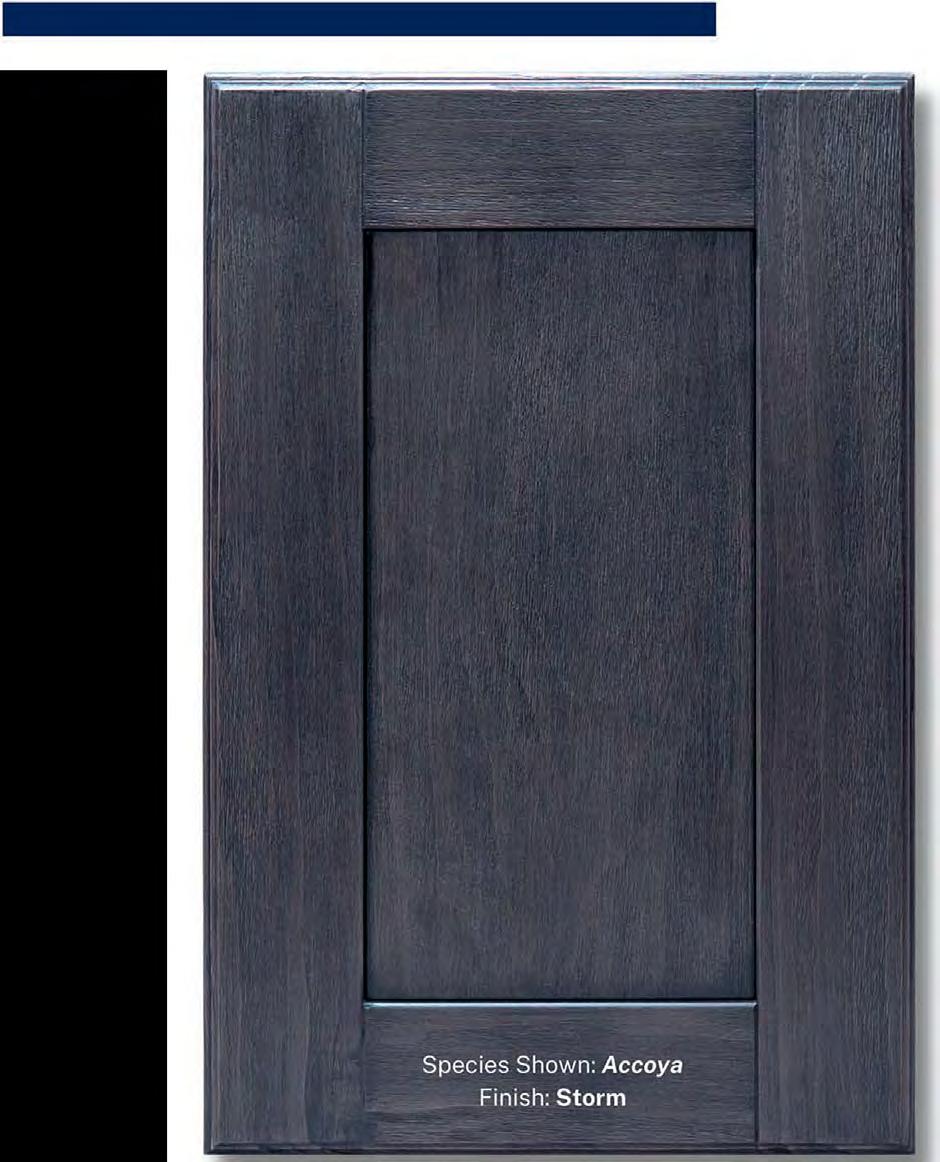

WINDSWEPTSHAKER DOOR FINISHES
DESIGN CONSIDERATIONS:
Doors painted in White will come standard with a white door back, all other paint colors, stain and glaze or weathered finishes come standard with base color back, regardlessof cabinet interior color.
WINDSWEPT SHAKER DOOR FINISHES
DESIGN CONSIDERATIONS:
Doors painted in White will come standard with a white door back, all other paint colors, stain and glaze or weatheredfinishes come standardwith base color back, regardless of cabinetinterior color.
WAVECREST
STORM
SAHARA
WAVECREST(BACK) STORM(BACK)
SAHARA(BACK)

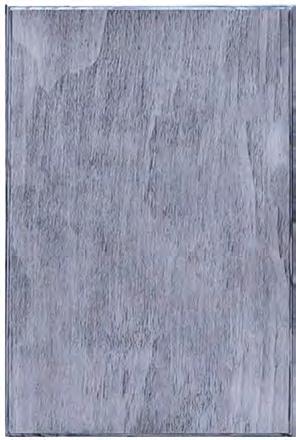

WINDSWEPT SLAB DOOR FINISHES
DESIGN CONSIDERATIONS:
DoorspaintedinWhitewillcome standardwitha whitedoorback,allotherpaintcolors, stainand glazeorweathered finishescomestandardwith basecolorback, regardlessofcabinetinterior color.
WINDSWEPTSLAB DOOR FINISHES
DESIGN CONSIDERATIONS:
DoorspaintedinWhitewillcomestandardwitha whitedoorback,allotherpaintcolors,stainand glazeorweatheredfinishescomestandardwith basecolorback,regardlessofcabinetinterior color.
WAVECREST
STORM
SAHARA
WAVECREST(BACK)
STORM(BACK) SAHARA(BACK)
DECORATIVE APPLIED PANELS
AP {Width x Height x Style x Finish)
Design Considerations:
• Only available in custom sizes
• Reference the specifications section for additionalinformation and limitations
• Appliance panels, please input the exact size required
• Note door style, color, width and height
CUSTOM COLOR OPTIONS
WINDSWEPTCUSTOMCOLORPROGRAM
Design Considerations:
• Onlyavailableinsolidcolors,noglazes
• Standardselectionofsolidpaintcolors
• $250 NETsamplecostforapprovalismandatory
• Add2weekstoleadtime
• Approximate10%costincreaseoverstandard Windsweptdoorcost COMPACTCUSTOMCOLORPROGRAM
DesignConsiderations:
••Askyoursalesrepforcurrentselectionsandlead time
• Add8-12weekstoleadtime
• $2,500 NETcostforcustomcolor
• Approximate15% costincreaseoverCompact doorcost
WCCP
CCCP
CABINET CONSTRUCTION SPECIFICATIONS

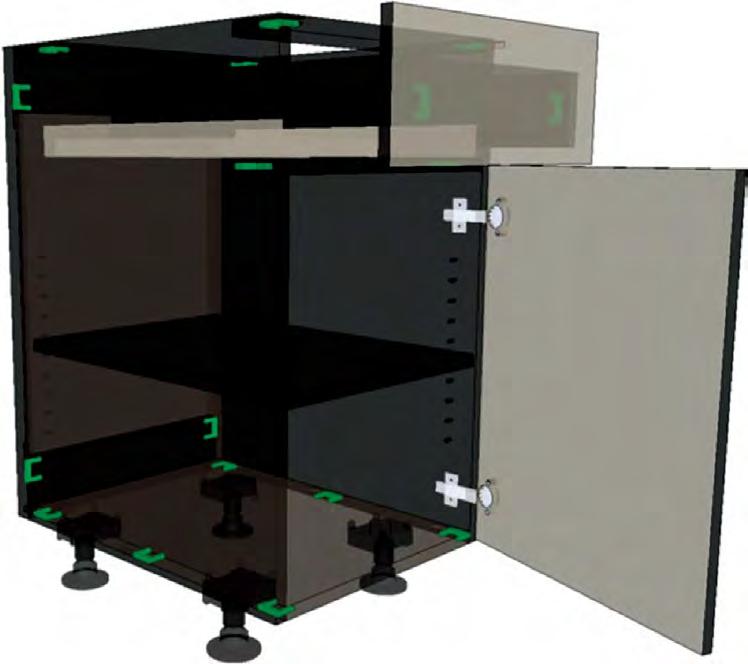

CABINETBOX
Cabinet sides, top and bottom are constructed with a 3/4" thick, lightweight HOPE (LOPE) polymarineboardthatus UVstable. Itis NOT PVC.
Allofthecomponentsareassembledwith"lockdowels"rM. Thesefasteners aremade fromhighstrengthplasticandCNCmachinedintothecabinetparts.
EDGEBANDING
Thereisnoedgebanding, the LOPEissolidblack andallcabinetedgesare black. The full overlay door covers all but 1/8" of the edge. This also eliminates possible edgebandingpointoffailure.
CABINETBACK
Allcabinetshavea1/4"thick(LOPE) backwith 4"nailerstopandbottom.
SHELVES
Shelves are 3/4" thick LOPE. There are shelf holes drilled in 32mm (1 1/4") increments. Allshelvesarefulldepth.
DRAWERBOXES
Standard drawer boxes are constructed with 3/4" LOPE sides and back with a 1/4" thick bottom and assembled with lock dowels. Full extension soft-close bottom mount slidesaretreatedforcorrosion.
DOORHINGES
Hingesaresoft-closestainlesssteel 110° concealedhingeswith6wayadjustment.
FINISHEDENDS
Finished ends can be purchased loose. Finished end panels are the thickness of the speciespanel,whichadds totheoverall widthofacabinet.
TOE KICK
Allbaseandtall cabinets areconstructedon adjustable leglevelers.31/2"to5"high. Additionalheightlevelersandspacersavailable.
CABINET STANDARDS
GENERAL SPECIFICATIONS:
Wemanufacturerour cabinetboxesusing 3/4"BlackLOPE (Low DensityPolyurethane). LOPE is UV stable. Assembly isdonewith lock dowels. LOPEis notPVC
CABINET SIZES:
Available in sizes listedonly. To increase the depth of a cabinet, modification charges willapply. See modification section for up-charges.
MINIMUMCABINET WIDTH: With doors: 9" W based on theminimum width of availabledoor styles. Withdrawers: 12" W
MAXIMUMCABINET WIDTH: To be warrantied, the maximum width of a specific cabinettype isthe width listed as the largestavailable.
MINIMUMHEIGHT: Withdoors: 12" H
MAXIMUM HEIGHT: 901/2"
STANDARD CABINET DEPTHS (DEFAULTS):
Wall cabinets: 12" D I Base cabinets: 24" D I Grill base cabinets: 28" D I Burner base cabinets: 28" D I Wall depth cabinets: 12" D I
Basedepth tall cabinets: 24" D
MAXIMUM DEPTH: 32" D. When the depth is increased for cabinets with drawers and/or roll out drawers, the drawer box depth remains 20" regardless of cabinet depth.
FINISHED ENDS:
ZahBuilt provides finished ends as an applied panel, subjectto additional up-charges.
TOEKICK:
ZahBuiltprovides plastic leglevelersthat are adjustable from 3 1/2" Hto 5" H. We alsoofferdoormatching toe kick planks
EDGEBANDING
There isno edgebanding, the LOPE is solid black and all cabinetedges are black. The full overlay doorcovers all but1/8" ofthe edge. This also eliminates possible edgebanding point of failure.
