Composite Drawing

I wanted to take the audience through my eyes and how I interacted with the house, my room included. The architectural drawing call-outs show a day in my life, using isometric, perspective, elevation, and plan views. I have activity in house through my housemates sitting, socializing, doing game nights, and coming back from the classes. I wanted to illustrate the supportive community of housemates I have become a part of. This house was completed in 1892 meaning it has beautiful Corinthian columns and framing that decorated the walls, door frames, and windows of the house, giving it this warm-homey feeling. While this is one of the main aspects I focused on for my final, it was also the most challenging because of all the tiny detailed work.

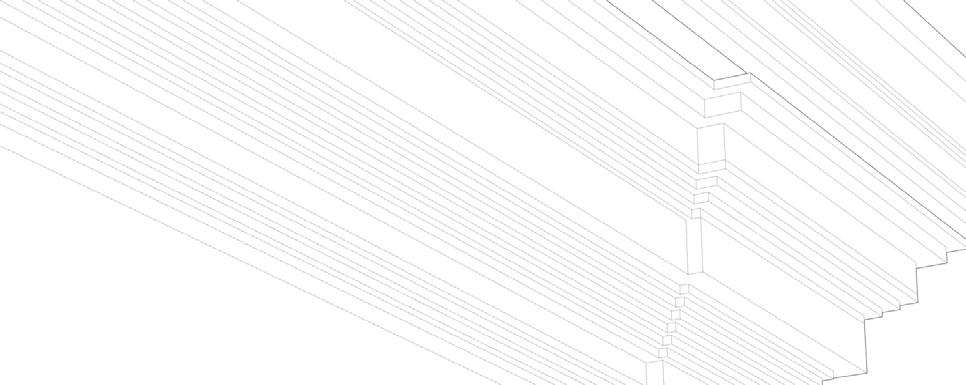

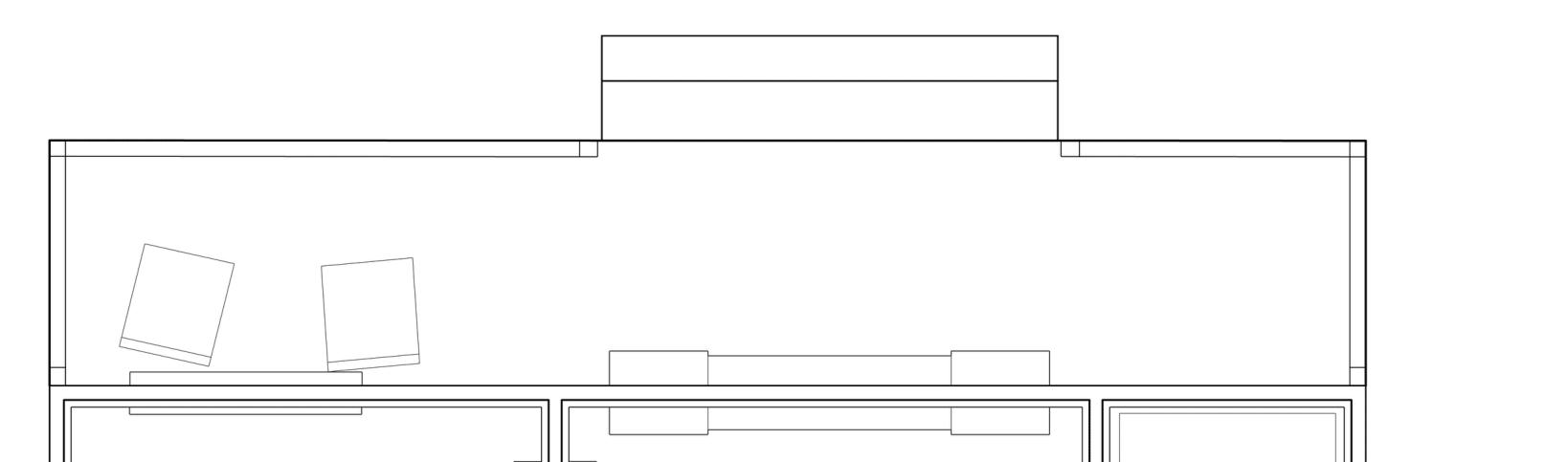

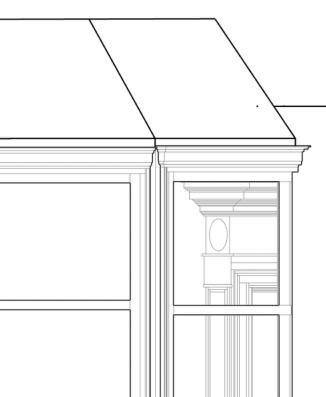

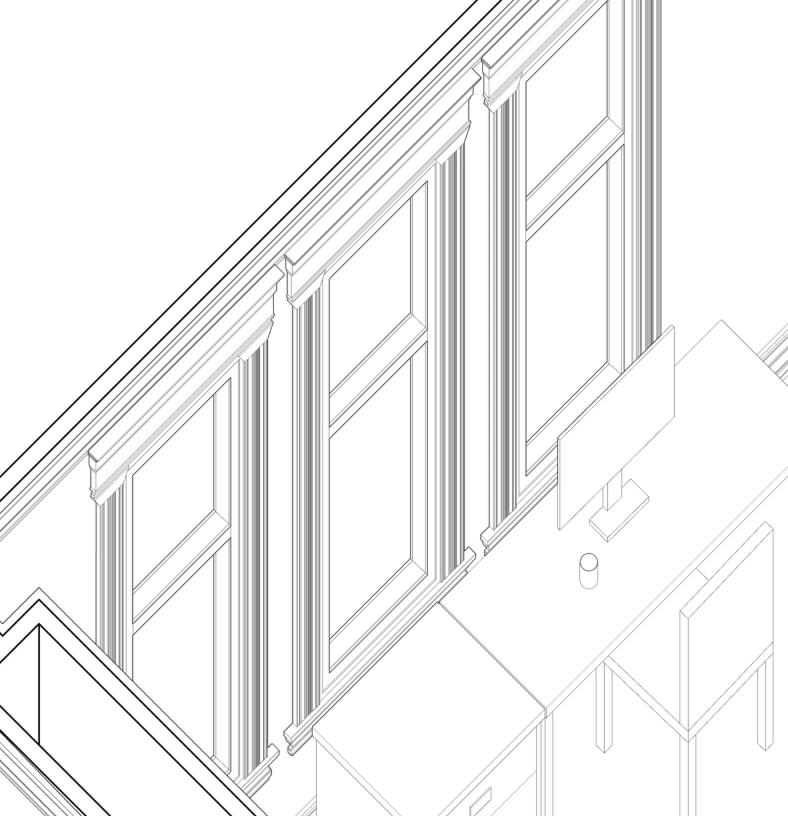

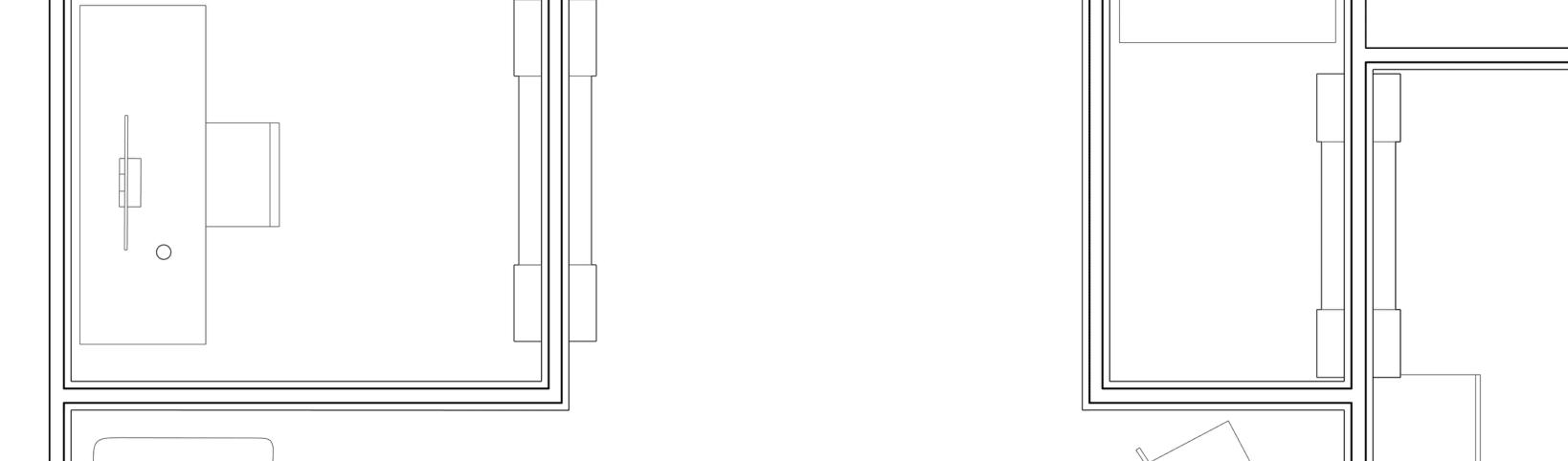

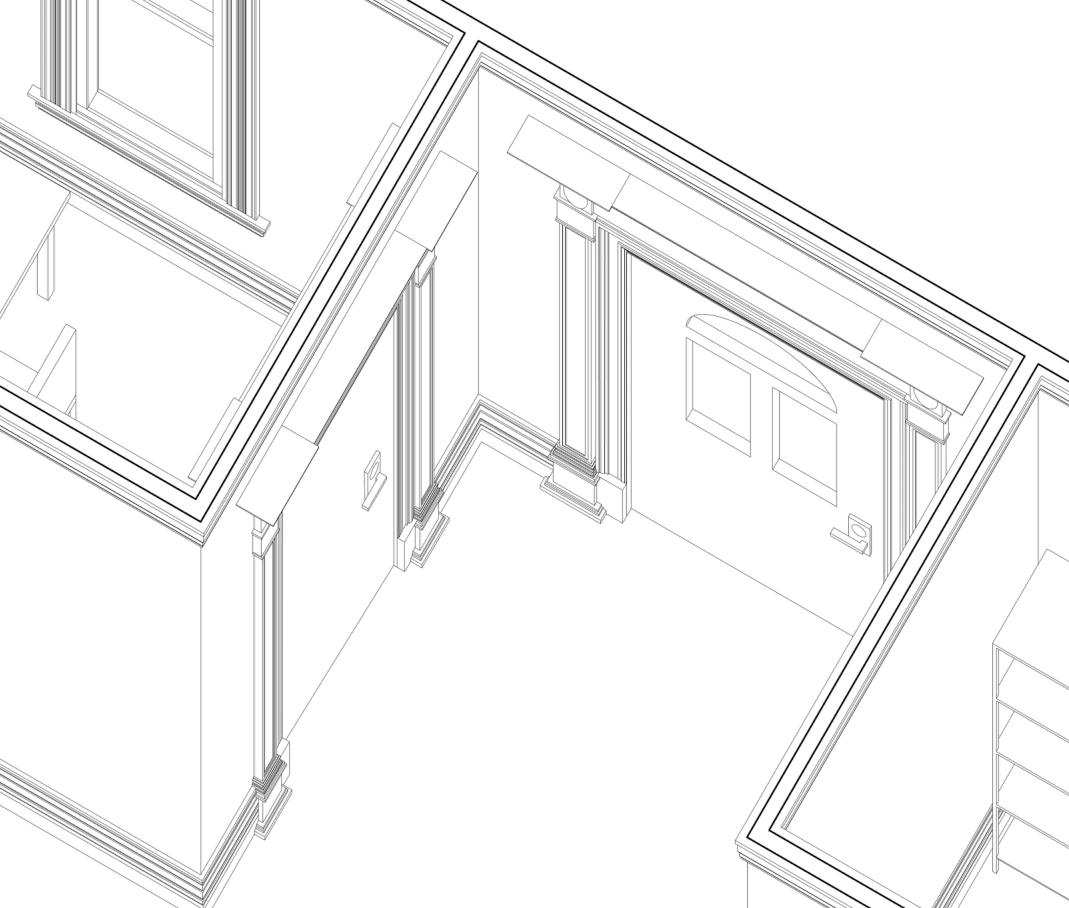

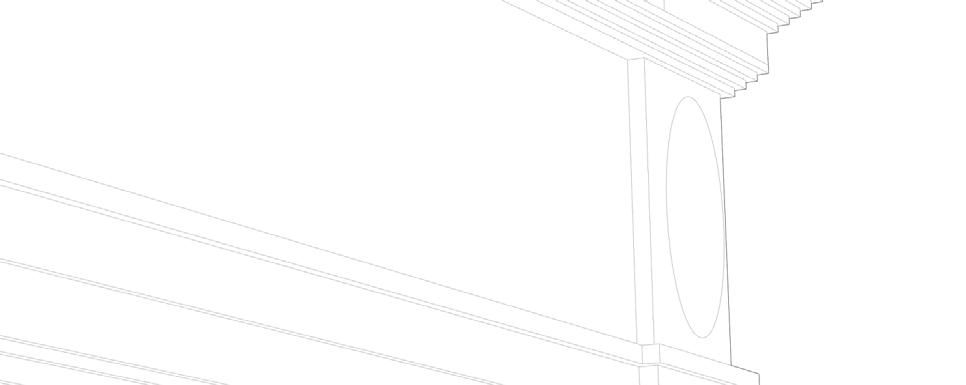

Below I have also attached the Rhino linework prior to when I went into Illustrator to start adding décor elements. All of the linework was made 2D from my 3D model. I found that although I was challenging to model the entire house in 3D it allowed me to challenge myself and really learn the software by being able to break down these beautiful framing designs into simple geometric shapes.
