PLATES AND ANGLE BRACKETS

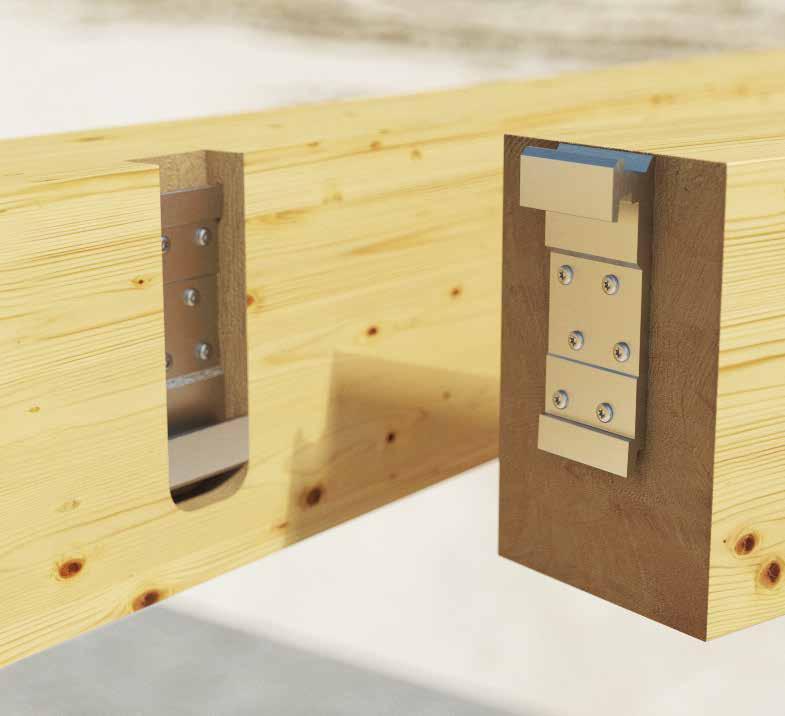

CONCEALED CONNECTORS

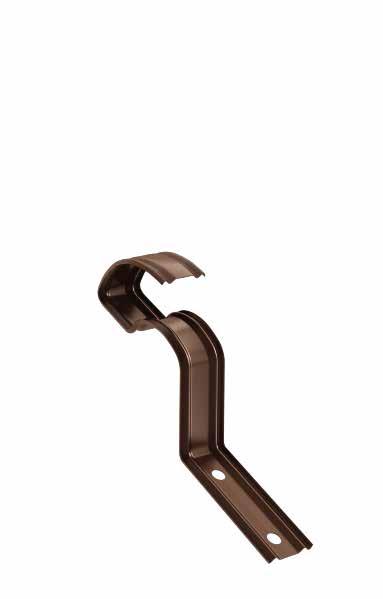

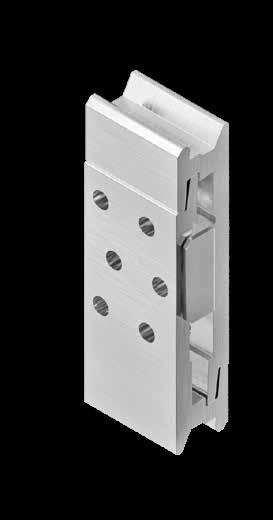

HANGERS

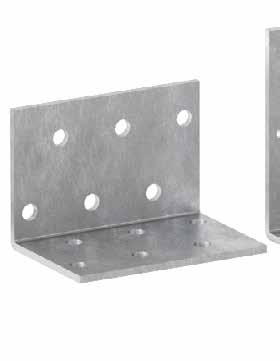

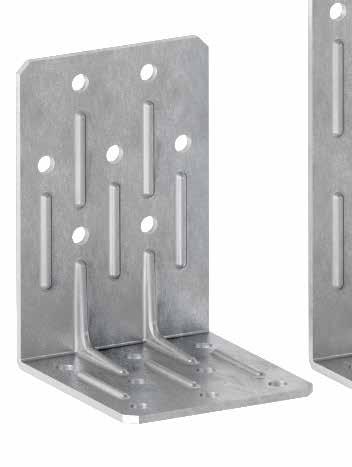

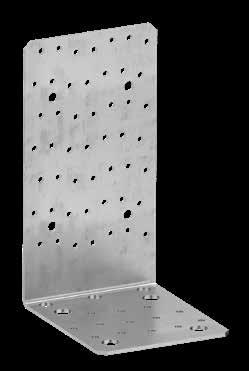

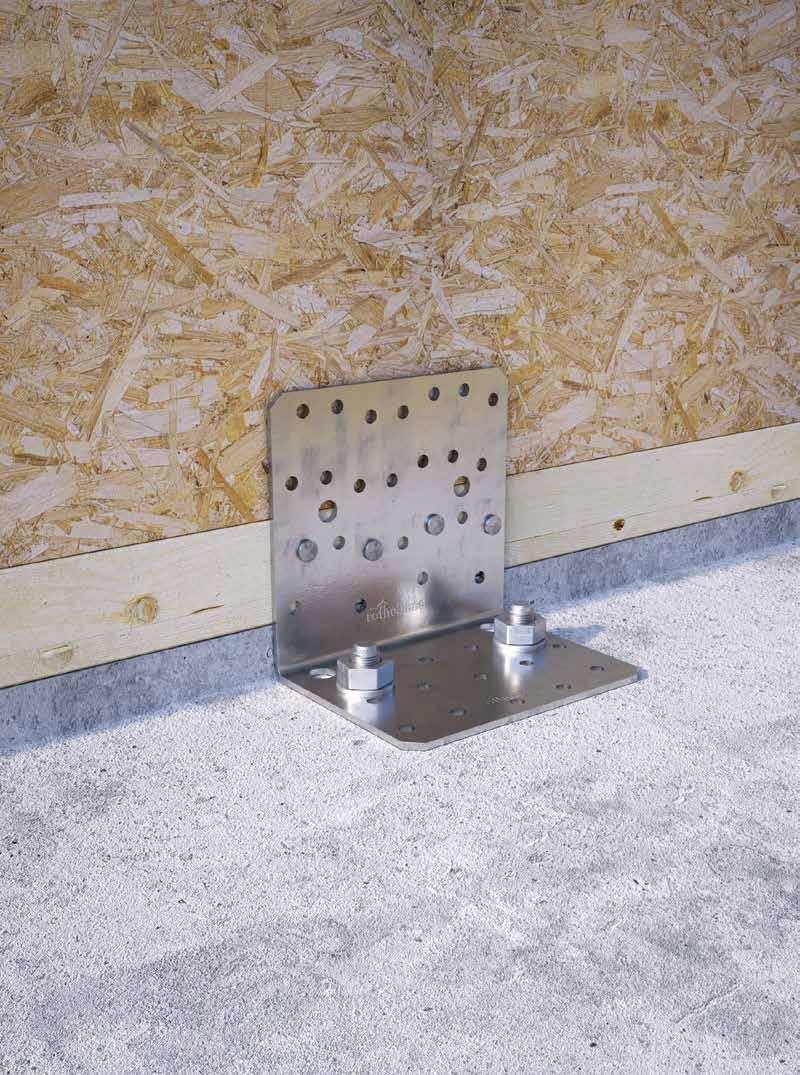

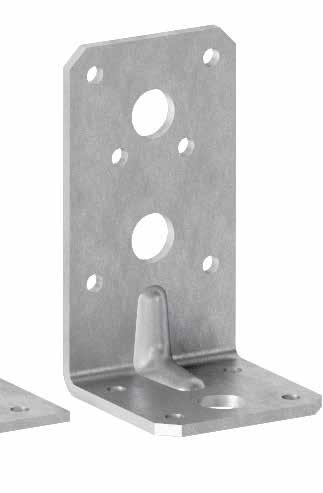

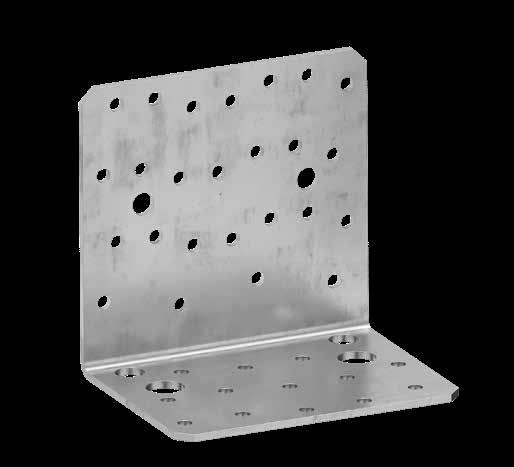

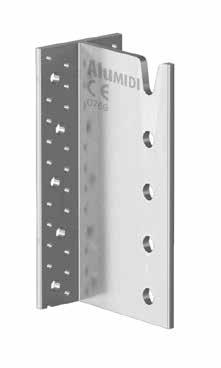

STANDARD ANGLE BRACKETS

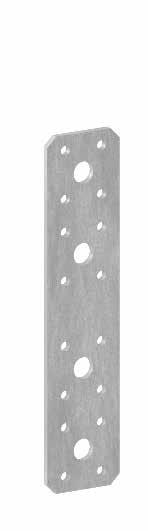

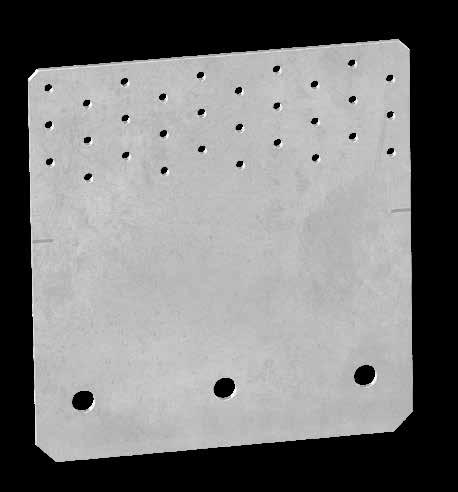

PLATES
SHEAR PLATES

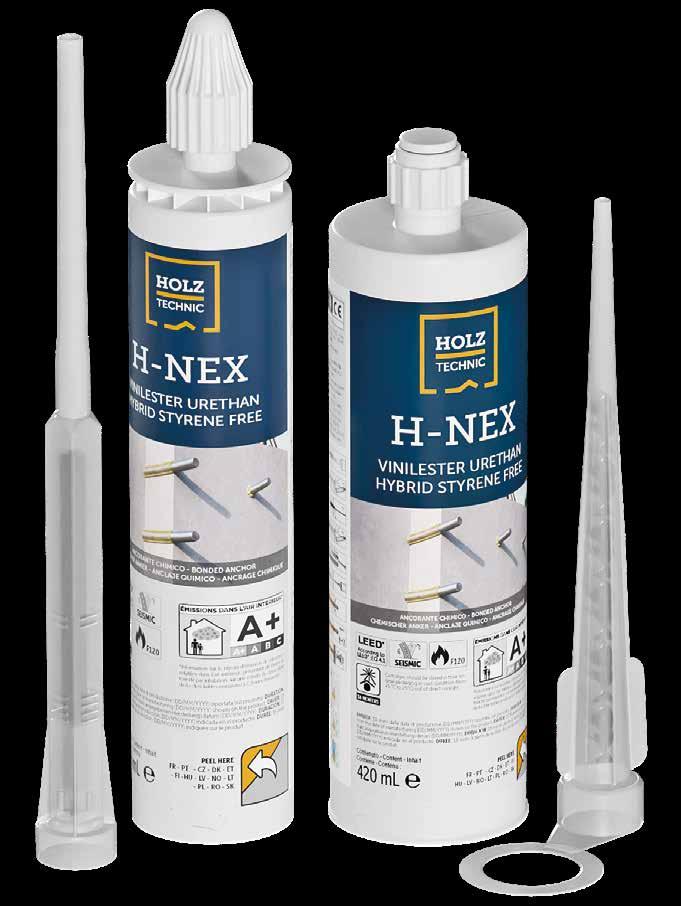

CHEMICAL ANCHORS

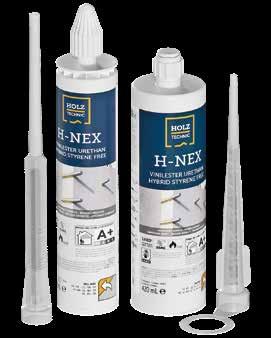

EPOXY ADHESIVES
SCREW ANCHORS
HEAVY ANCHORS

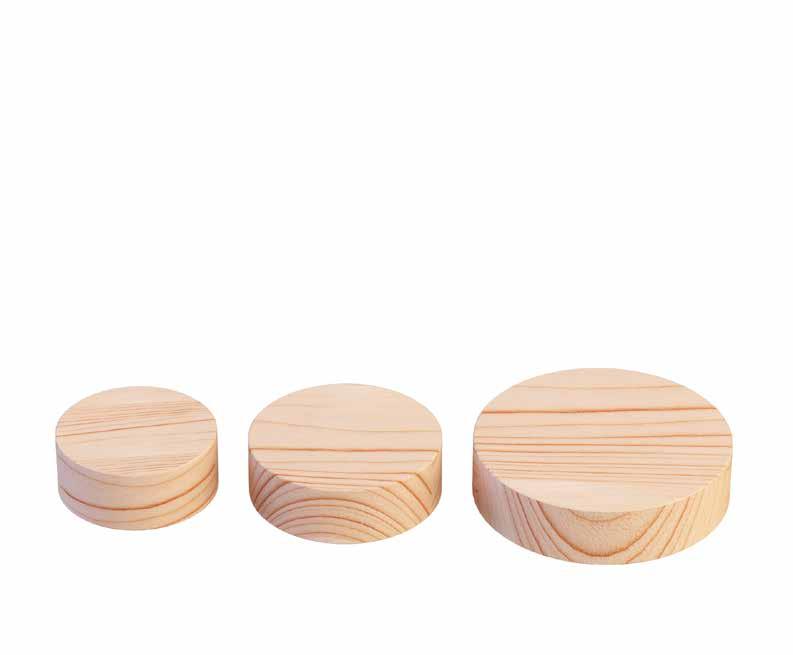

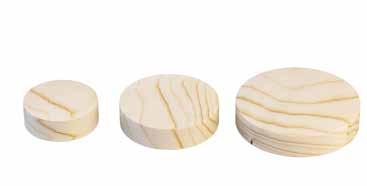

PLUGS

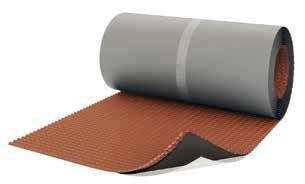

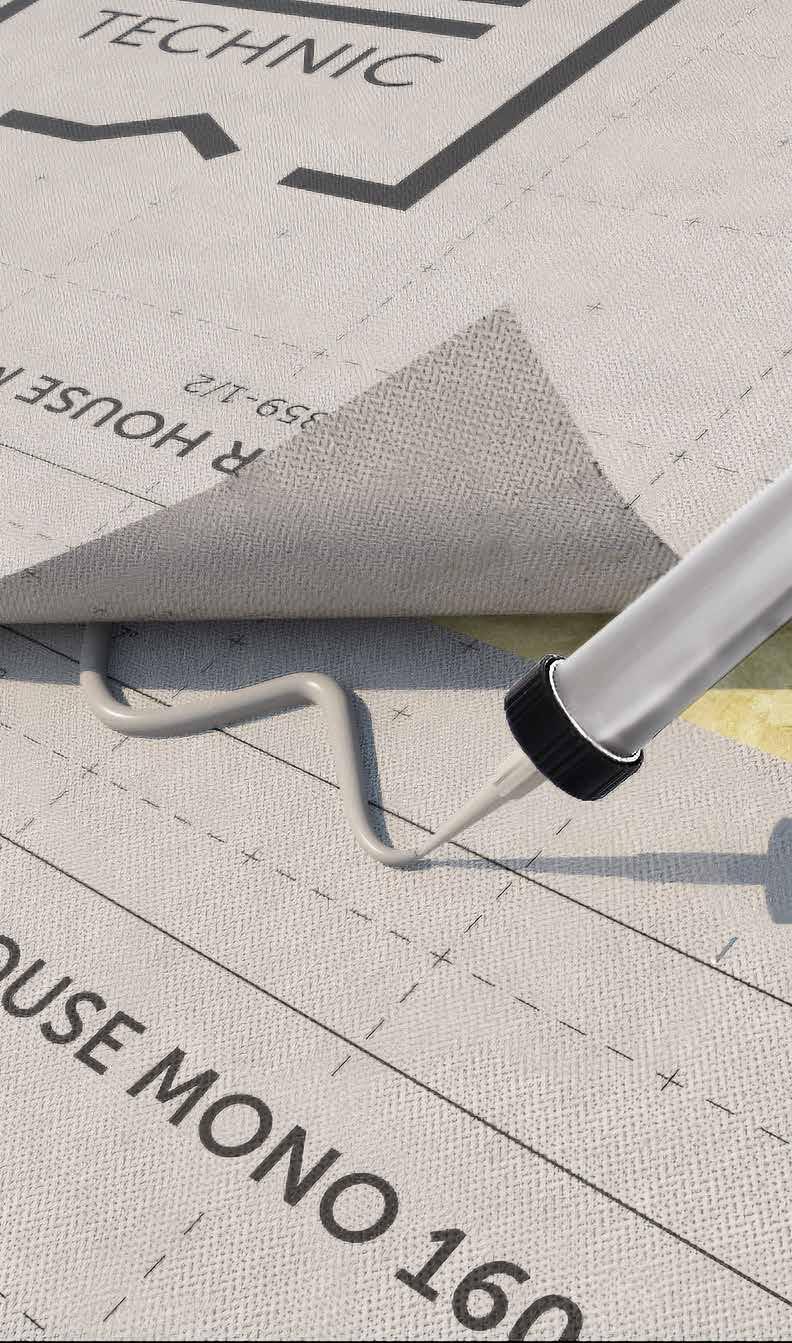

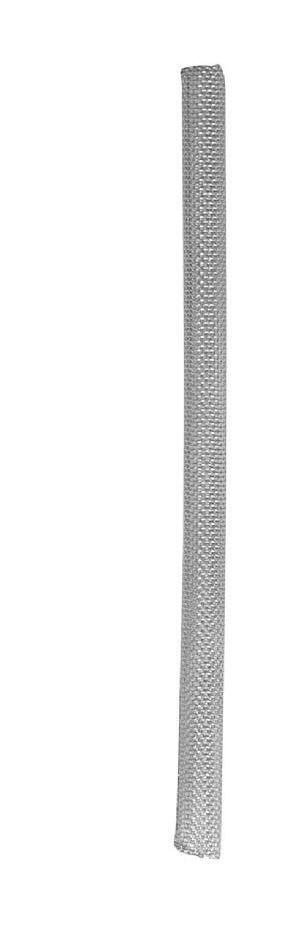

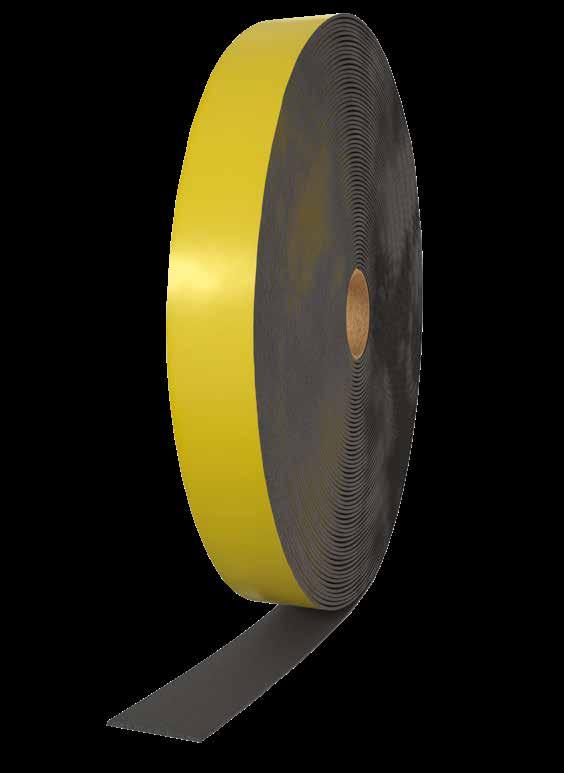

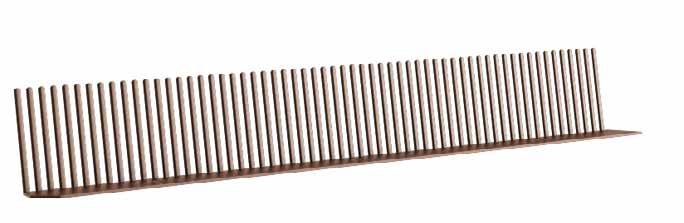

SEALANTS, TAPES AND PROFILES WINDOW SEALING

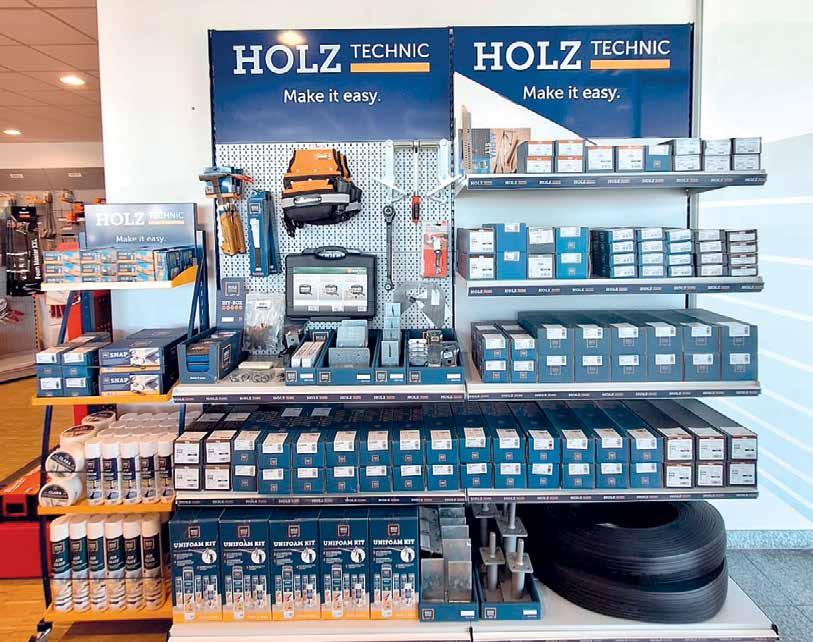

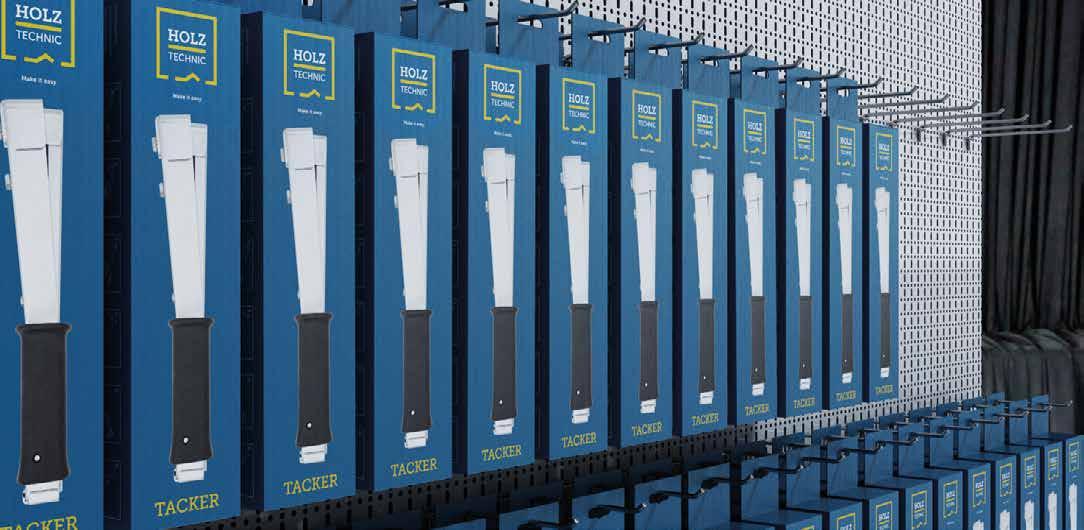

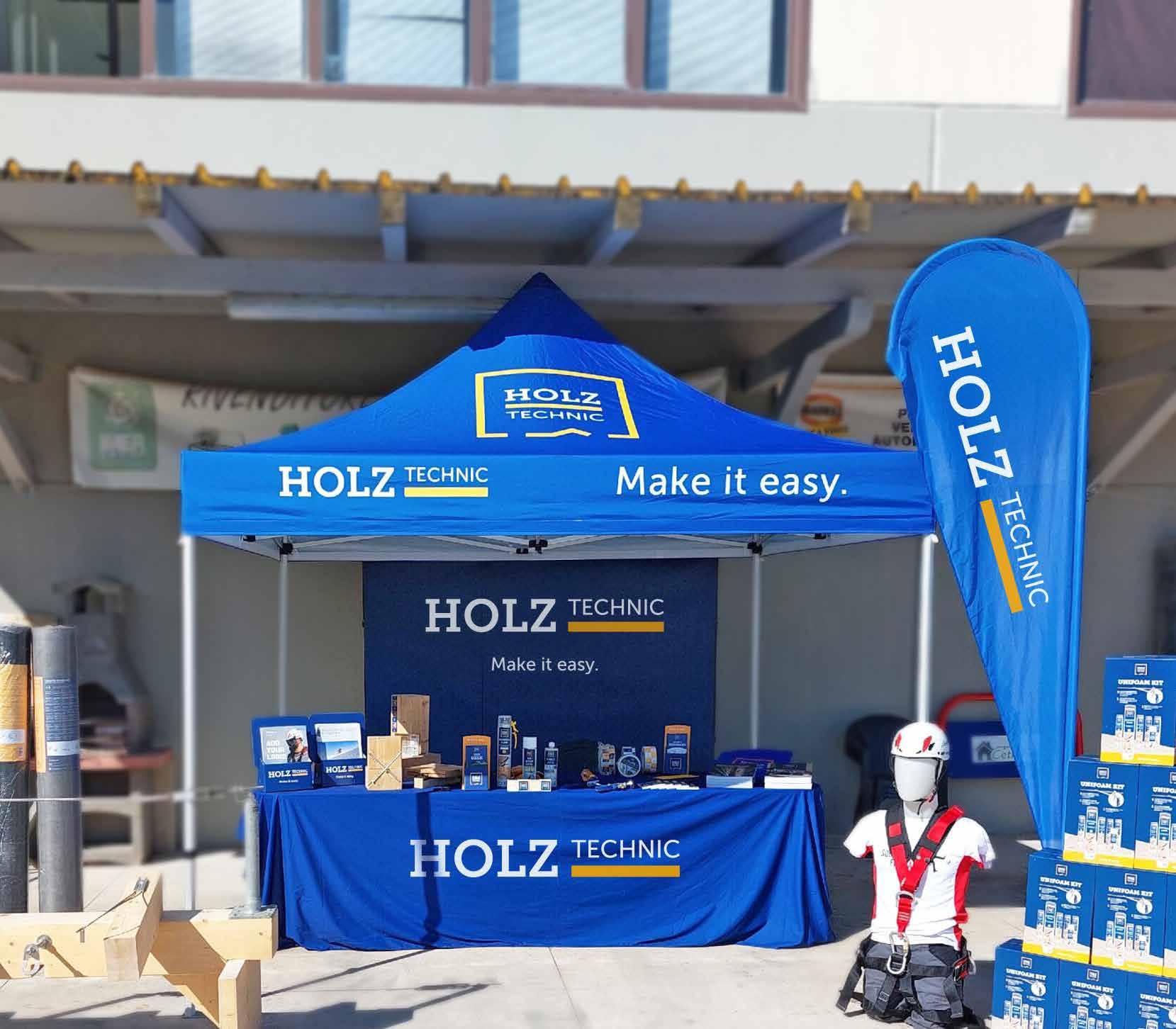

DISPLAY SYSTEM
GIVE VISIBILITY TO YOUR DISPLAY SPACE
Choose the display solutions that best suit your needs.
Maximise the effectiveness of every area by showcasing products according to your strategy and making the most of the available space.
POP TOOLS provides practical tools to enhance your point of sale and organise your display effectively.
Modular shelving – either in series or standalone –and communication supports direct the customer’s attention and promote product turnover.
APPLICATION SETTINGS
FOR TIMBER CONSTRUCTION AND DIY
HOLZ TECHNIC offers a complete range of solutions for timber construction and DIY, designed for professional distribution. Screws, connectors, tools, sealants, soundproofing products and waterproofing systems ensure high performance, durability and easy installation. Each product is designed to optimise on-site efficiency and highlight the full potential of timber – whether for professional or private use.

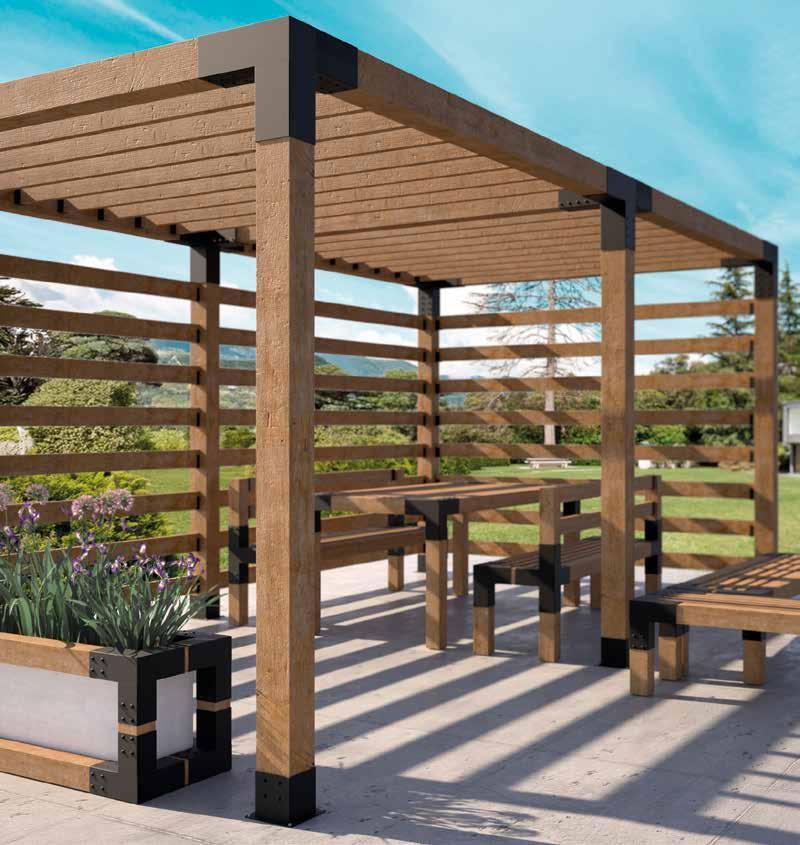

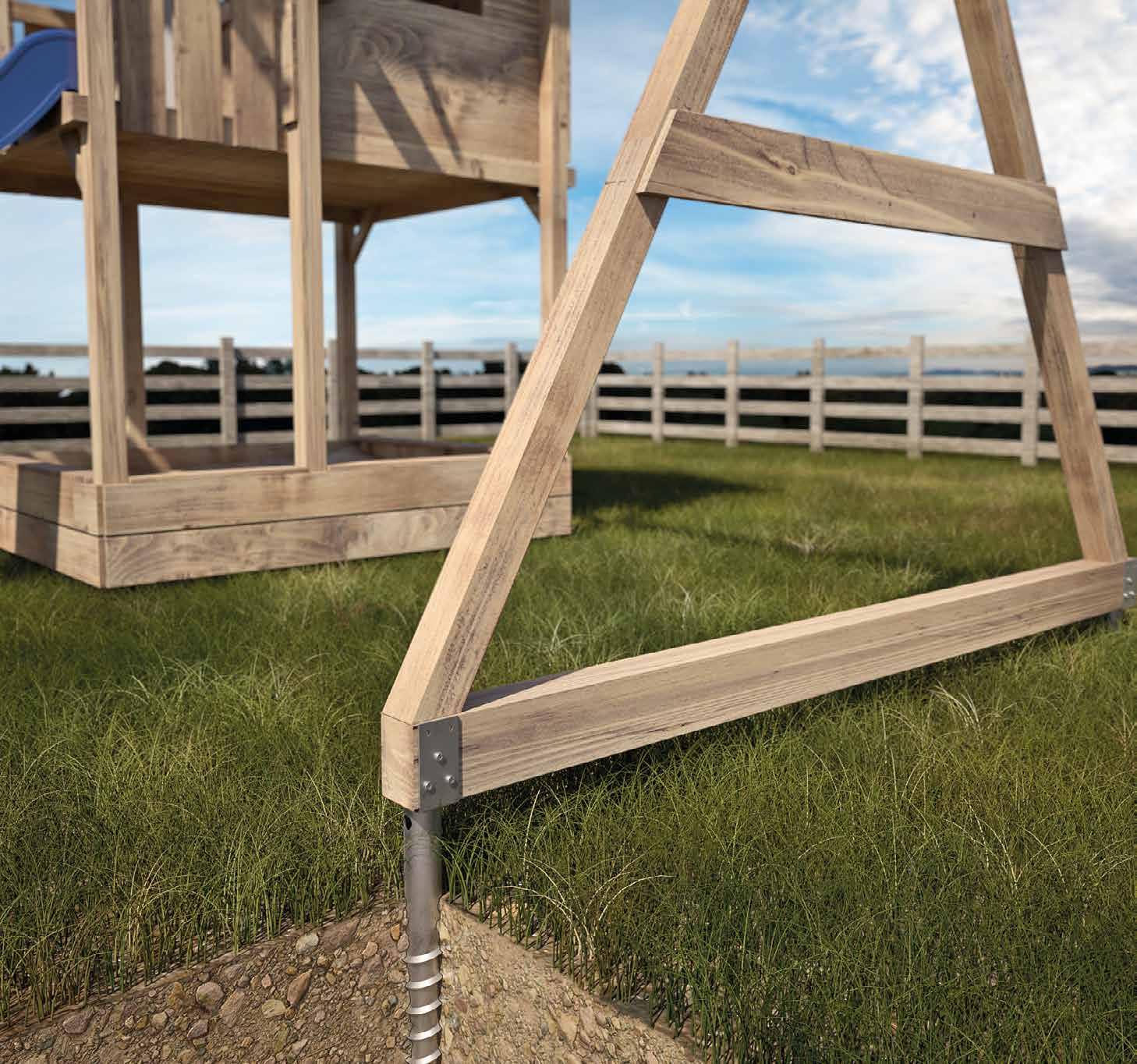

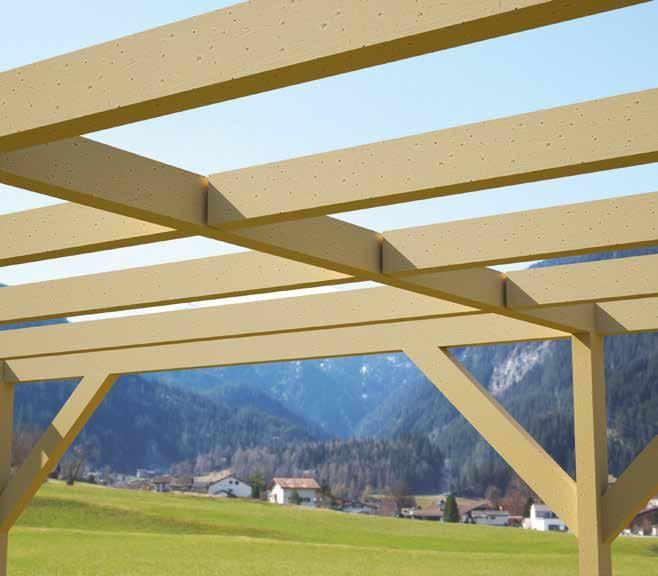

GAZEBOS
Style and functionality for your outdoor space: durable and easy to assemble.
FENCES

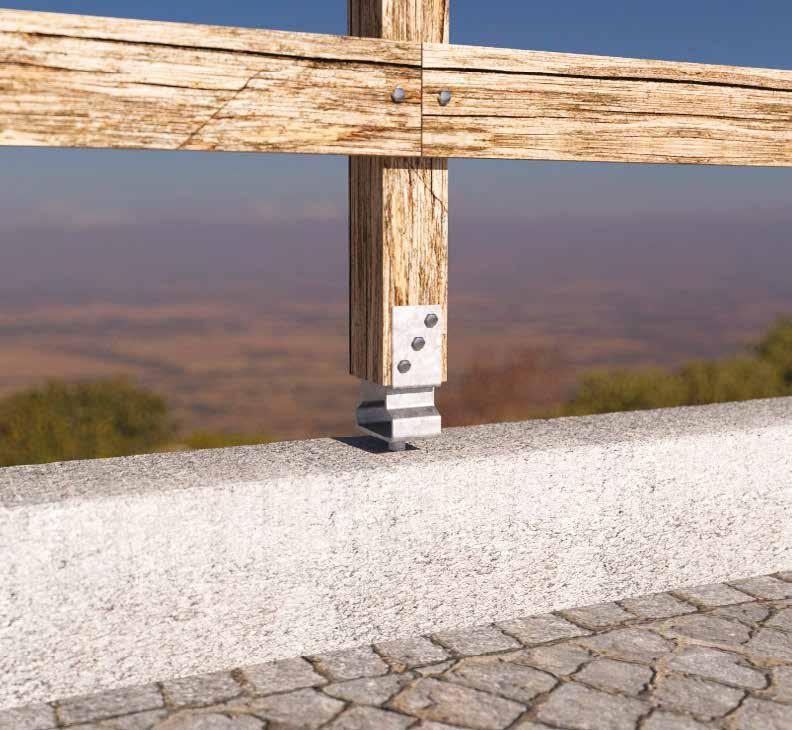

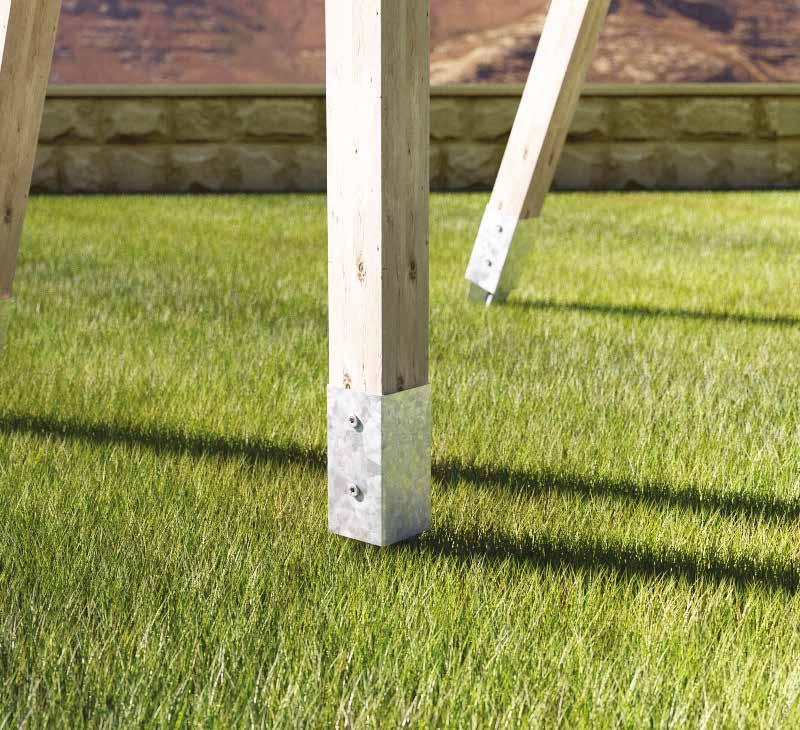

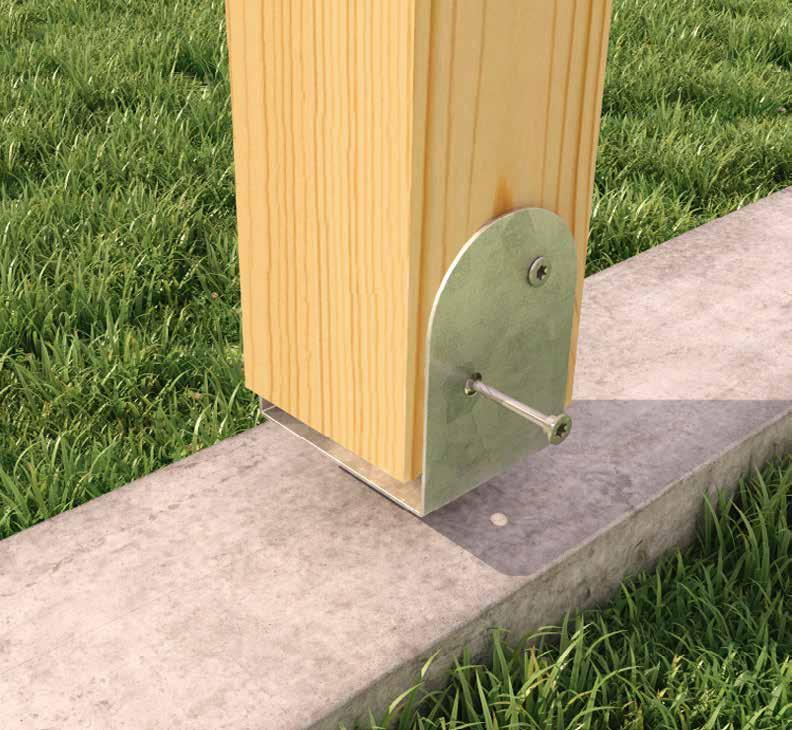

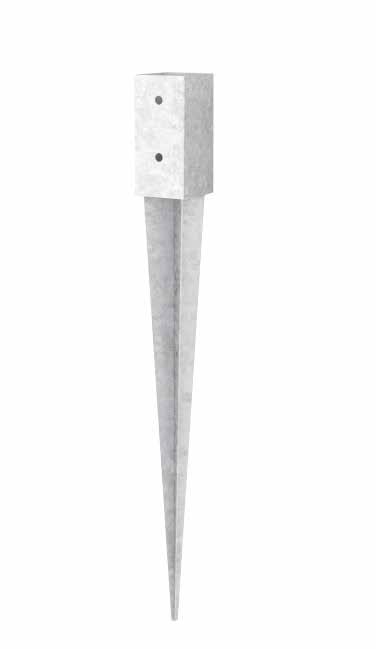

Connectors and post bases for timber fences – stable, modular and weather-resistant.
FURNITURES FOR OUTDOOR
Corrosion-resistant fastenings for outdoor timber furniture.
CANOPIES
Solutions for building long-lasting timber canopies for entrances, carports and walkways.

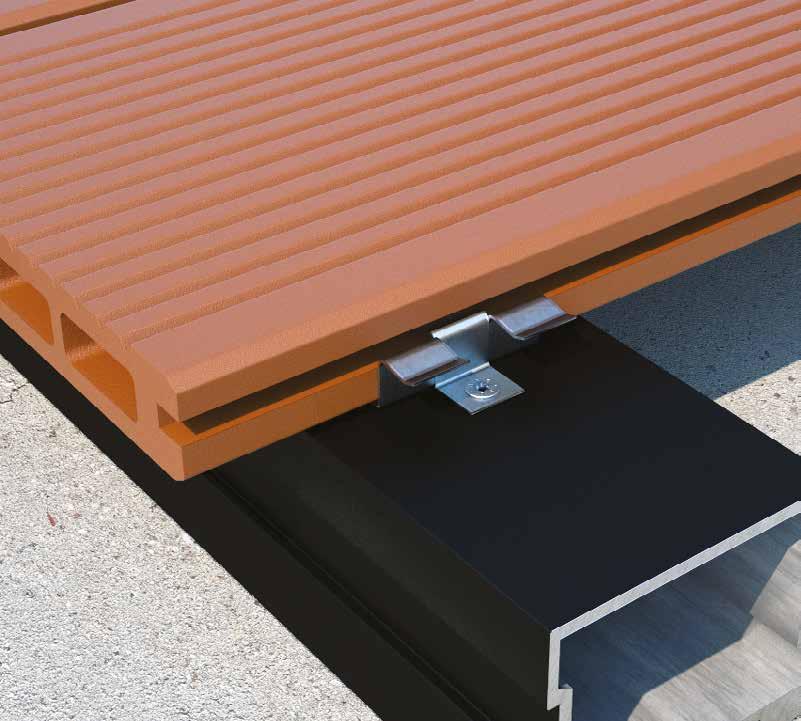

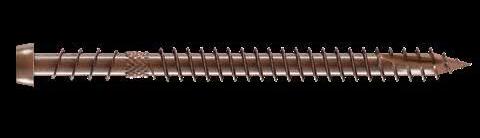

FLOORS AND DECKS
Connectors for ventilated installation and concealed fastening of exterior decking boards.
WORK TOOLS

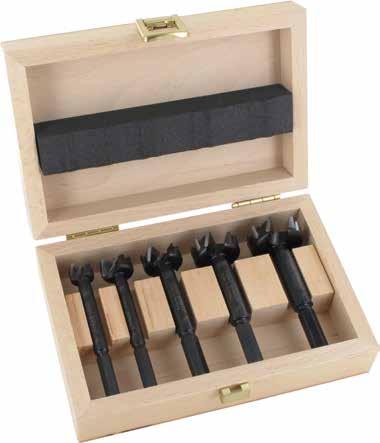

Professional tools for working with timber precisely, quickly and safely.

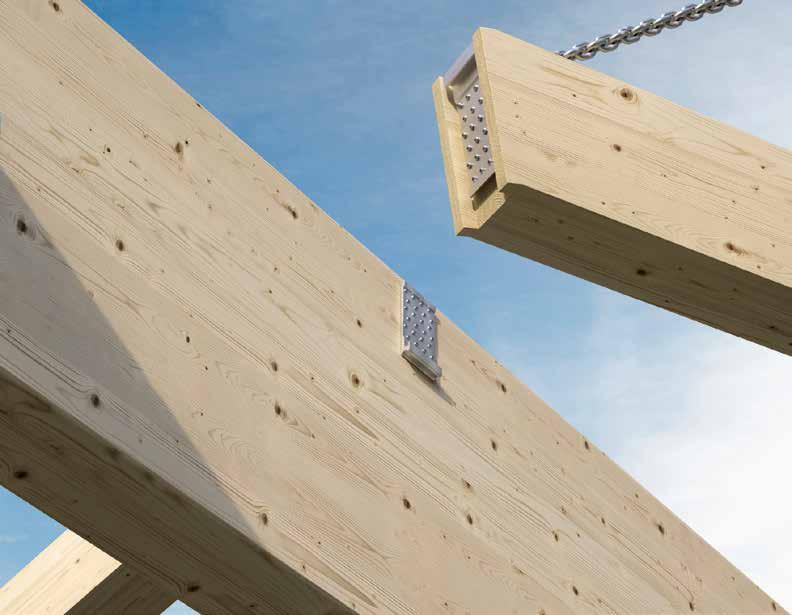

TIMBER BUILDINGS
Complete systems for structural connections: screws, plates, angle brackets and technical accessories for solid timber and CLT frame construction.
COMPOSITE FLOORS
Certified connectors for timberconcrete floor slabs: maximum efficiency in material interaction.
ROOFS
Structural fastenings for main beams, secondary beams and insulation assemblies.
VENTILATED FACADES

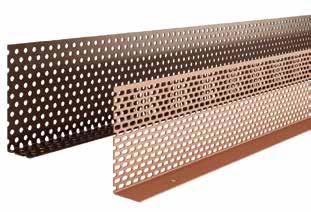

Technical components for timber substructures and cladding: top-tier ventilation and durability.

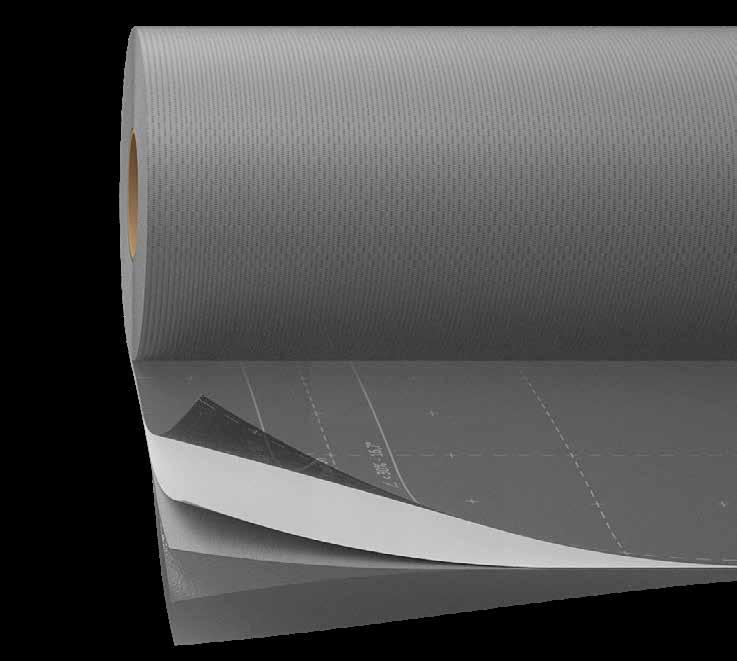

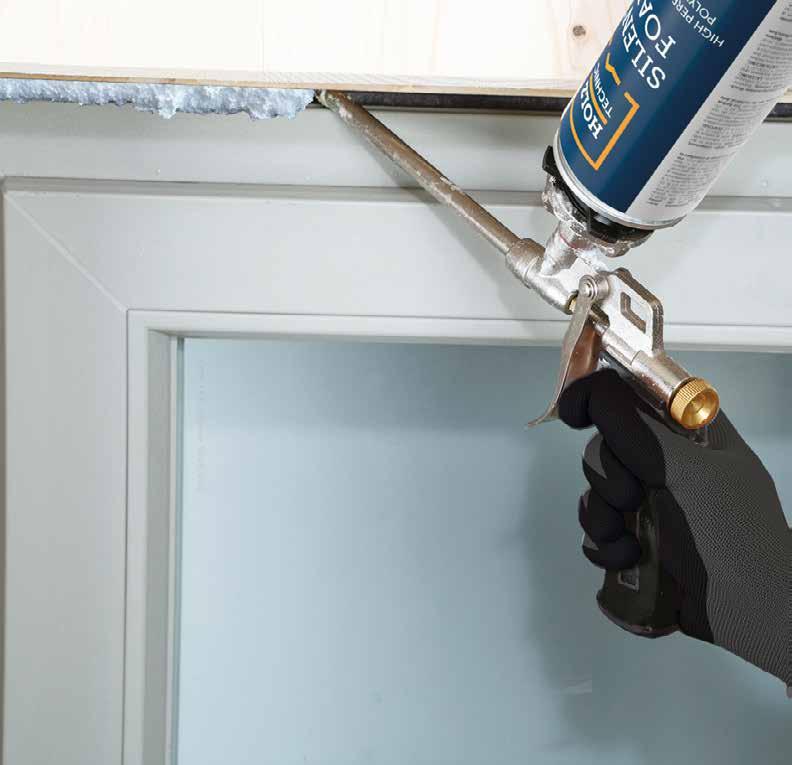

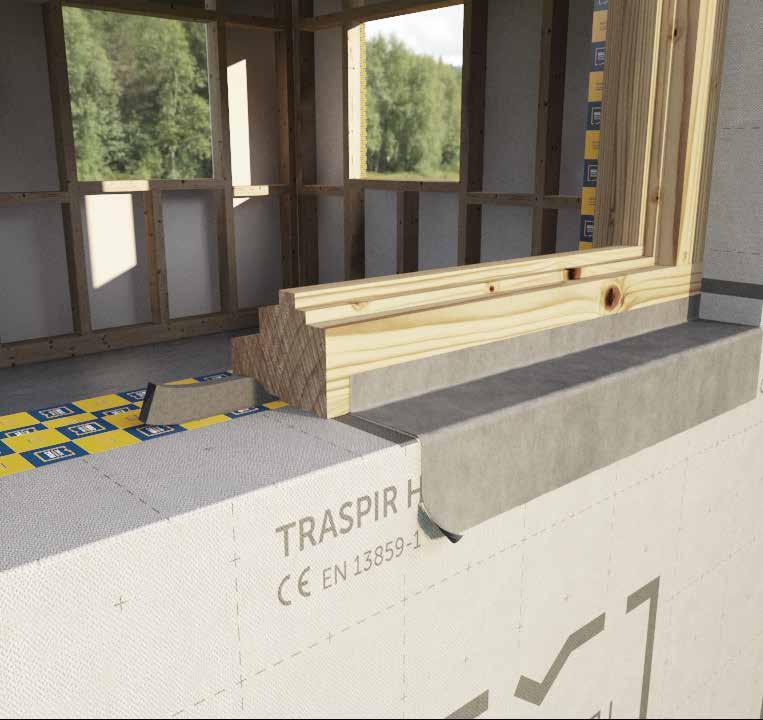

SEALING OF WINDOWS/ DOORS
Solutions for air, water and wind tightness at the junctions between window frames and the structure, compatible with timber construction systems.

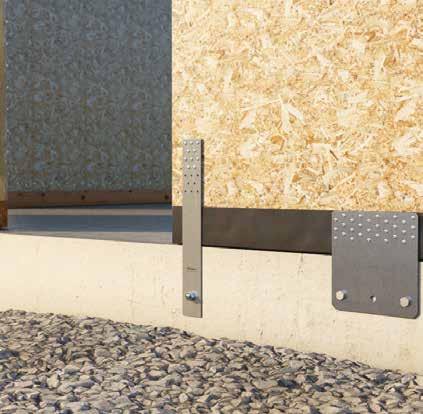

GROUND CONNECTION AND WATERPROOFING
System for ground clearance and protection against rising damp.
THREE FORMATS, ONE APPROACH: ORDER, EFFICIENCY, SAVINGS

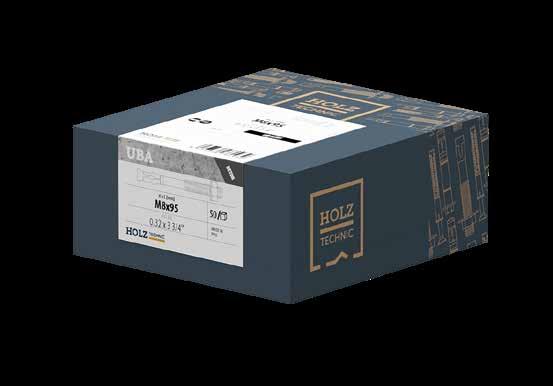

HOLZ TECHNIC screws and anchors are packaged in three box formats, all with the same width. This approach reduces the number of packaging types, optimises logistics and allows for more efficient use of cardboard.
ENVIRONMENT
KEY FACTORS FOR CONNECTOR DURABILITY
SERVICE CLASS
Service classes describe the environmental conditions to which a timber element or joint is exposed during use. Temperature and humidity influence the average moisture content in the material, directly affecting its mechanical performance. The reference values are established by Eurocode 5.
EXPOSURE
internal external but covered external exposed external in contact with water
elements within insulated and heated buildings sheltered elements (i.e. not directly exposed to rain or precipitation), in uninsulated and unconditioned structures
ATMOSPHERIC CORROSIVITY CLASSES
elements directly exposed to the weather and not permanently exposed to water
elements immersed in soil or water (e.g. foundation piles and marine structures)
Atmospheric corrosion depends on factors such as relative humidity, pollution levels, the presence of airborne chlorides and the type of joint exposure (indoor, protected outdoor or exposed outdoor). Exposure is classified in the CE category, which is based on category C as defined in EN ISO 9223. Atmospheric corrosivity only affects the exposed part of the connector.
DISTANCE FROM THE SEA
POLLUTION
> 10 km from the coast from 10 to 3 km from the coast from 3 to 0,25 km from the coast < 0,25 km from the coast
WOOD CORROSIVITY
Corrosion caused by wood depends on the wood species, wood treatment and moisture content. Exposure levels are defined by category TE according to EN 14592:2022.
The corrosivity of wood only affects the connector part inserted in the wooden element.
TIMBER pH AND TREATMENT
MOISTURE
CONTENT OF THE WOOD
SERVICE CLASS
SCREWS FOR TIMBER

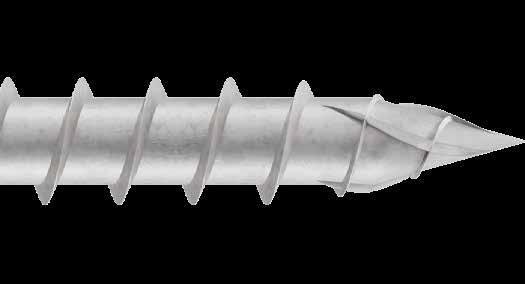

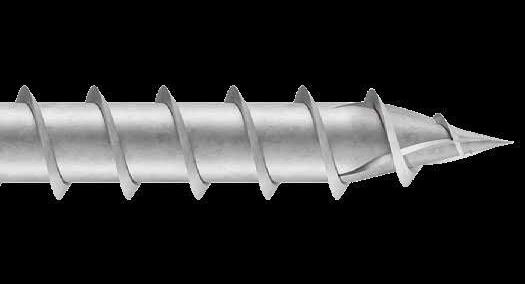

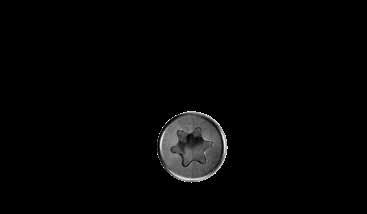

NEW 3 THORNS TIP
HIGH PERFORMANCE AT EVERY STAGE OF INSTALLATION
Designed to reduce screwing time and ensure precision – even on delicate ma terials – the 3 THORNS tip stands out for its sharp geometry, raised slitting ele ments and continuous thread all the way to the tip. Centre alignment is instant, initial effort is significantly reduced, and the screw penetrates securely without damaging edges or surfaces.
THREAD ALL THE WAY TO THE TIP
The corkscrew-style thread provides immediate grip and facilitates screw insertion during installation.
Raised slitting elements aid insertion, re duce driving effort and minimise damage to the timber
FAST GRIP
pull-through after 2 seconds
The full thread all the way to the end of the 3 THORNS tip, combined with its slitting profile, ensures immediate penetration into the timber element and helps reduce installation time
MINIMAL EFFORT
force needed for initial grip
The force required to start driving a screw with a 3 THORNS tip is minimal: this reduces operator fatigue and lowers battery consumption on power tools
SPEED AND EASE OF INSTALLATION
GREATER PRECISION
the sharp geometry of the tip prevents slippage
The pointed shape of the 3 THORNS tip allows for easy installation even on coated chipboard panels (e.g. melamine): the screw stays in place without damaging the resin-coated surface.
Thanks to its raised counter-thread slitting elements, the 3 THORNS tip acts like a pilot hole, allowing reduced edge distances; ideal for use in joinery elements and furniture panels – even in very thin materials.
An extensive experimental campaign was conducted to test the performance of small-diameter screws with the 3 THORNS tip across various commonly used materials, such as melamine-faced, plated or MDF panels.
PLYWOOD FIR

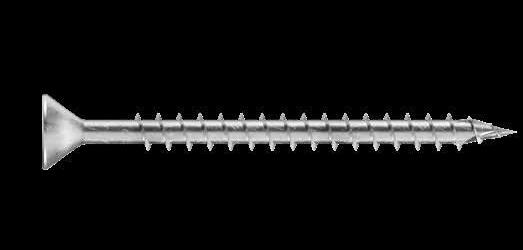

COUNTERSUNK HEAD SCREW FOR TIMBER
For more information about the SNK screw, see page 22.
SURFACE SIDE (LATERAL FACE)
MDF/MELAMINEFACED MDF
HTS-HT
FULL THREAD SCREW FOR WOODWORK Ø4 x 50 mm
For more information about the HTS-HT screw see page 20.
Screws can be installed with minimal edge distances and tight spacing without damaging the visible surface or the internal panel structure, even on mixed materials.
SHORT SIDE (NARROW FACE)

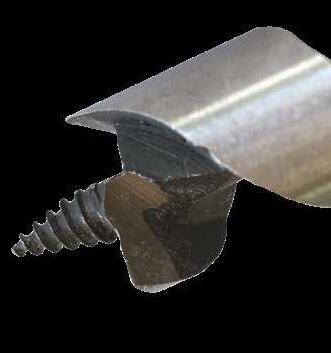

The 3 THORNS tip geometry allows screws to be driven into the thickness of the workpiece, making it an effective solution for joining two panels together.
SCREW SET HT

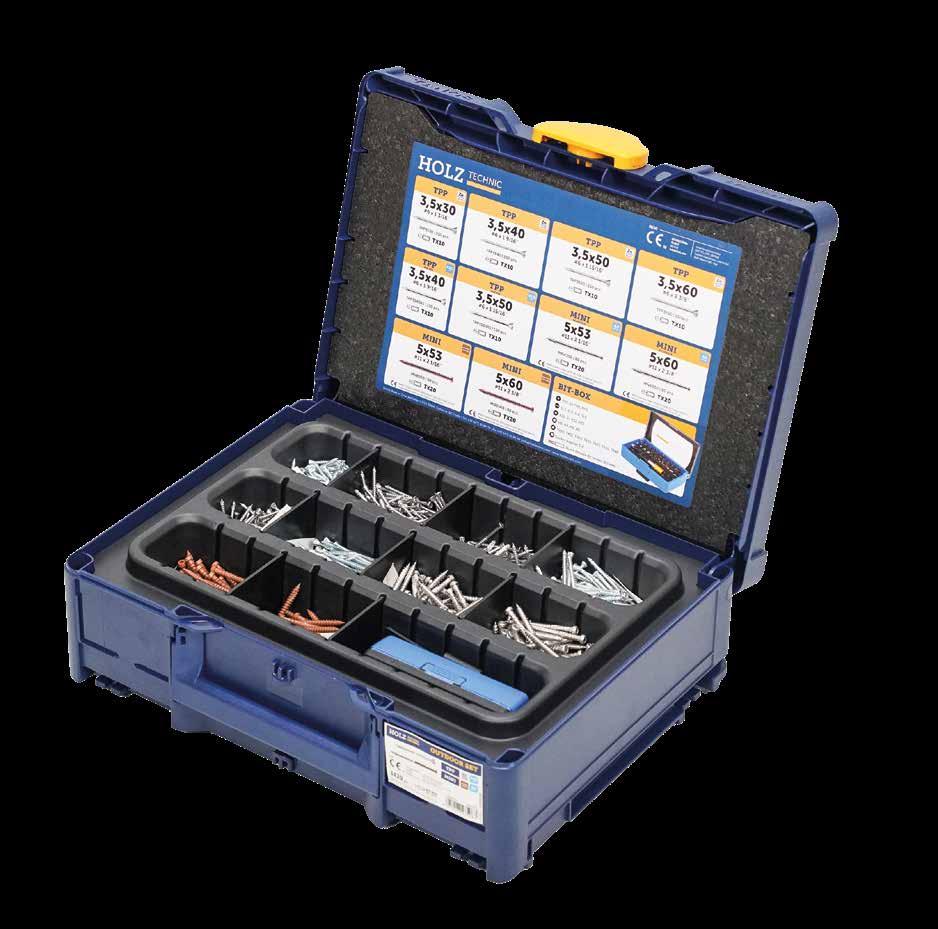

SCREW ASSORTMENT IN CARRY CASE
• Joinery assortment (SCREWSETHT1): HTS-HT screws, diameters from 3 to 5 mm, lengths from 16 to 80 mm
• Outdoor assortment (SCREWSETHT2): TTP and MINI screws, diameters from 3.5 to 5 mm, lengths from 30 to 70 mm
• Carry case with TANOS system, compatible and stackable with other brands using the same standard (e.g. Mafell)
JOINERY ASSORTMENT
OUTDOOR ASSORTMENT
A maximum fastening thickness
SMALL HEAD SCREW
• The 60° head and 3 THORNS tip allow easy insertion of the screw into thin timber without causing splitting
• Ideal for fastening tongue-and-groove boards, battens, timber profiles and other small-sized elements

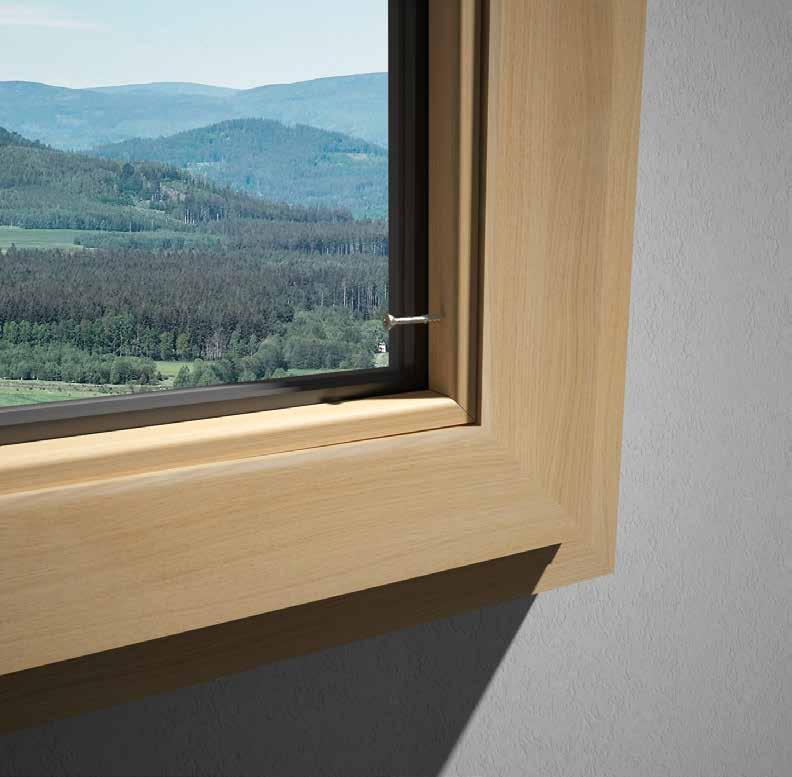

• Perfect for fastening timber glazing beads for windows
Data sheet available online
ENVIRONMENT
MATERIAL
A maximum fastening thickness
TPP AISI410
SMALL HEAD SCREW
• The 60° head and 3 THORNS tip allow easy insertion of the screw into thin timber without causing splitting
• Ideal for fastening tongue-and-groove boards, battens, window glazing beads and other small elements
• Martensitic stainless steel. It is the top-performing stainless steel in terms of mechanical strength
• Suitable for outdoor applications and acidic woods, but away from corrosive agents (chlorides, sulphides, etc.)
Data sheet available online
ENVIRONMENT
MATERIAL
HTS-HT
FULL THREAD SCREW FOR WOODWORK
• The 3 THORNS tip allows for installation without pre-drilling hole, even in delicate materials like melamine-faced, veneered or MDF panels used in joinery and furniture.
• The total thread is 80% the length of the screw for maximum coupling efficiency with fibre board panels
• Fine threading guarantees exceptional screwing accuracy in joinery work and on MDF panels
• Countersunk head with smooth under-head for excellent compatibility with metal hinges
• TX drive for maximum stability and secure installation
• Many sizes also available in compact FAST BOX packaging
ENVIRONMENT
MATERIAL
HTS-HT FAST BOX
FULL THREAD SCREW FOR WOODWORK
• HTS-HT screws in optimised packs featuring the most commonly used sizes in joinery, assembly and DIY
• HTS-HT countersunk head screw with smooth under-head for excellent compatibility with metal hinges
• The total thread is 80% the length of the screw for maximum coupling efficiency with fibre board panels
• 3 THORNS tip, for immediate grip and without pre-drilling hole, even in delicate materials like melamine-faced, veneered or MDF panels used in joinery and furniture
• TX drive for maximum stability and secure installation
COUNTERSUNK HEAD SCREW FOR TIMBER

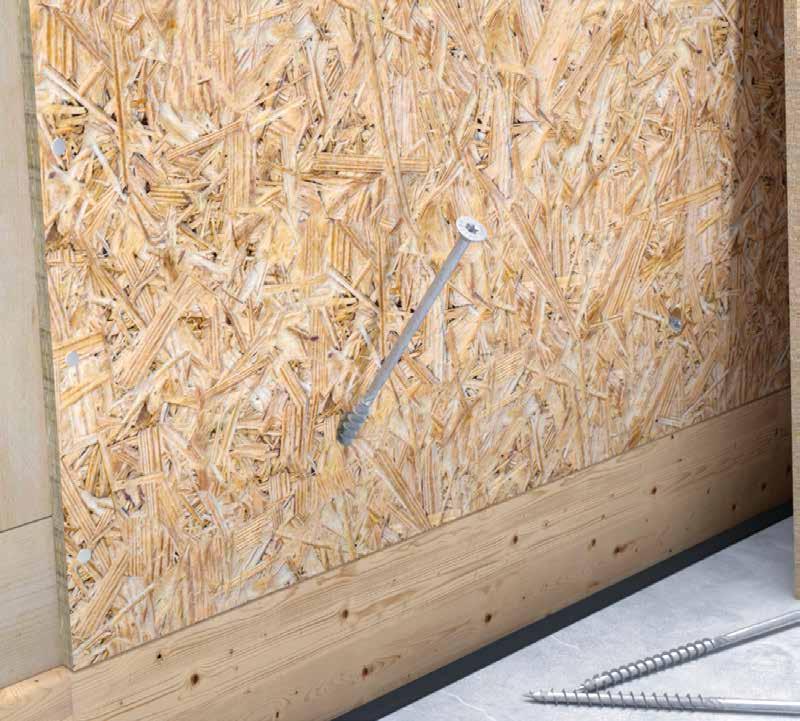

• Approved universal screw for various structural applications, from small carpentry to timber buildings
• Thanks to the 3 THORNS tip, minimum installation distances are reduced. More screws can be used in less space and larger screws in smaller elements. Project costs and implementation time are reduced
• Certified for use on CLT and high density woods such as LVL
• Excellent tensile and yield strength of steel. Very high torsional strength for secure screwing
SNK EVO
COUNTERSUNK HEAD SCREW FOR TIMBER
• Same mechanical performance as SNK, but with the added corrosion resistance of the EVO coating, based on epoxy and aluminium flakes
• With the 3 THORNS tip, screw grip becomes more reliable and faster, while maintaining the usual mechanical performance
• It can be used for service class 3 outdoor applications and under class C4 atmospheric corrosion conditions (coastal and industrial areas) tested by the Research Institutes of Sweden - RISE
• Coating suitable for outdoor use on wood species with an acidity level (pH) greater than 4, such as spruce, larch and pine
ENVIRONMENT
MATERIAL
SC3 C4 T3
SNK EVO BUCKET
EVO SCREWS IN BUCKET
• SNK EVO universal structural screws available in practical packaging
• Packaging that ensures durability even in rainy conditions
• PET plastic box, durable, impact-resistant and reusable
For more information about the SNK EVO screw, see page 24.
ENVIRONMENT MATERIAL
FLANGE-HEAD SCREW FOR TIMBER
• Universal flange-head screw for various applications, from small structures to timber buildings
• Thanks to the 3 THORNS tip, minimum installation distances are reduced. Project costs and implementation time are reduced
• The flange head acts as an integrated washer, providing high tensile strength. Ideal in the presence of wind or variations in timber dimensions
• Certified for structural applications stressed in any direction relative to the fibre, use on CLT and high density woods such as LVL
FLANGE-HEAD SCREW FOR TIMBER
• Same mechanical performance as TLL, but with the added corrosion resistance of the EVO coating, based on epoxy and aluminium flakes
• With the 3 THORNS tip, screw grip becomes more reliable and faster, while maintaining the usual mechanical performance
• It can be used for service class 3 outdoor applications and under class C4 atmospheric corrosion conditions (coastal and industrial areas) tested by the Research Institutes of Sweden - RISE
• Coating suitable for outdoor use on wood species with an acidity level (pH) greater than 4, such as spruce, larch and pine
WASHER WITH GASKET FOR METAL SHEET page 74
METAL SHEET CAP WITH PE GASKET page 75
page 314-316
COACH SCREW
• Appropriate for use with plates in steel-to-timber applications, thanks to its hexagonal head
• Screw certified with the CE mark, in accordance with EN 14592
• Geometry in accordance with DIN 571 and UNI 704
(*) Without CE marking.
COACH SCREW
• Stainless steel A2 | AISI304 for outdoor use (service class 3)
• Appropriate for use with plates in steel-to-timber applications, thanks to its hexagonal head
• Geometry in accordance with DIN 571 and UNI 704
FULL THREAD SCREW WITH CYLINDRICAL HEAD
• Ideal for joining beams with concealed fastenings and no visible hardware, as well as for stitching joints in CLT floor and wall panels
• The cylindrical head is ideal for concealed joints. Ensures fire protection and seismic performance
• Deep thread and high-strength steel for excellent tensile performance
• Ideal for building gazebos and decks substructures
ENVIRONMENT
MATERIAL
GWZ EVO FRAME
FULL THREAD SCREW WITH CYLINDRICAL HEAD
• Structural cylindrical head screw coated with EVO epoxy coating and aluminium flakes
• Ideal for joining small timber elements, such as crossbeams and uprights of light-frame structures
• It can be used for service class 3 outdoor applications and under class C4 atmospheric corrosion conditions tested by the Research Institutes of Sweden - RISE
• The 3 THORNS tip reduces installation distances
Data sheet available online
ENVIRONMENT
MATERIAL
COUNTERSUNK HEAD SCREW FOR TIMBER page 24
FLANGE-HEAD SCREW FOR TIMBER page 27
LEWIS BITS

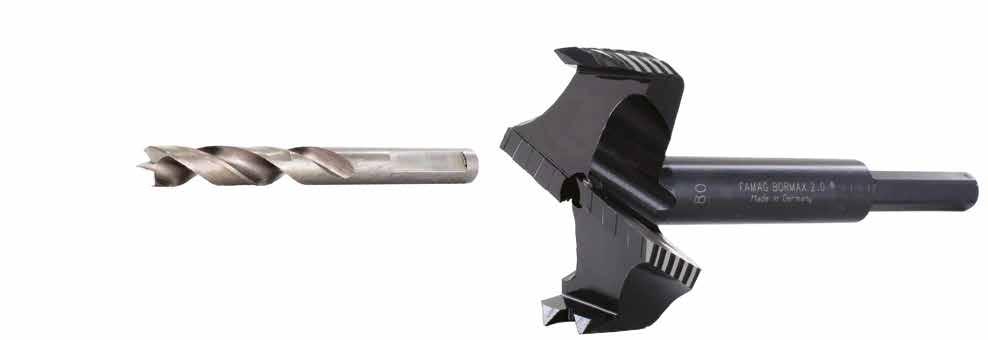

TWIST DRILL BITS FOR SOFTWOOD page 314
SC3 C4 T3
DOUBLE THREAD SCREW FOR INSULATION LAYER

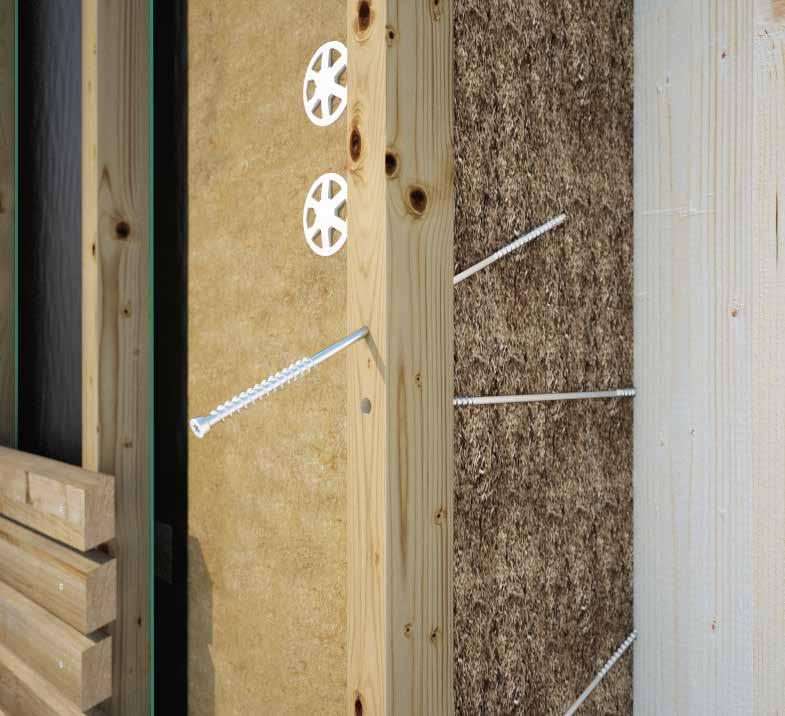

• Allows continuous, uninterrupted fastening of roof insulation package. Limits thermal bridges in compliance with energy saving regulations
• Connector for hard, soft and façade insulation, CE certified according to ETA-11/0030
• The cylindrical head is ideal for hidden insertion into batten
• Using the 3 THORNS tip, minimum installation distances are reduced, making it possible to fasten on small-sized elements

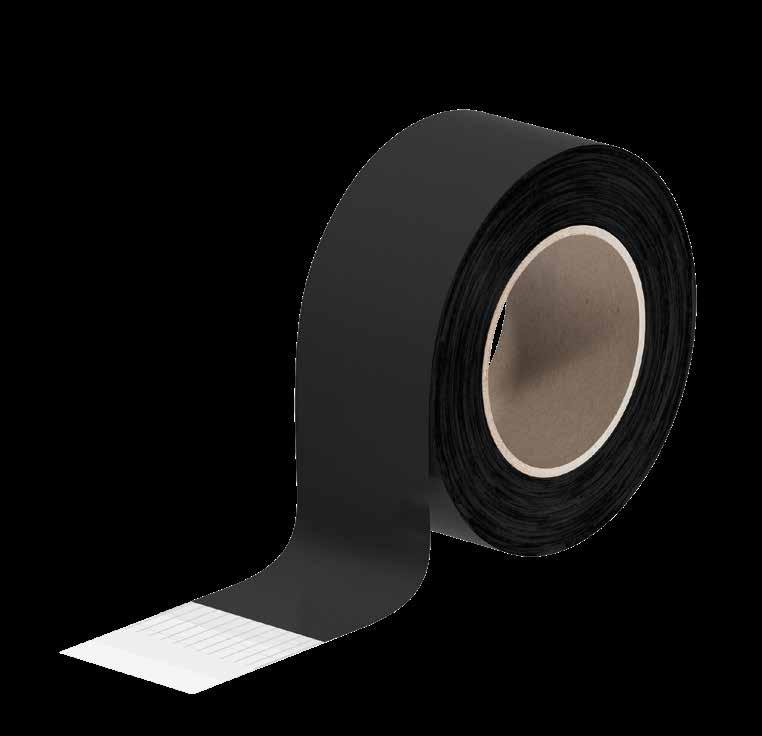

NAIL SEALING TAPE page 221
DOUBLE-SIDED NAIL POINT SEALANT TAPE page 221
FOR FASTENING INSULATION TO BRICKWORK page 167
CLC
TIMBER-TO-CONCRETE CONNECTOR
• CTC is the connector for timber-concrete composite floors
• Mixed timber-concrete floors are an effective solution for achieving high performance in terms of strength and stiffness on both existing and new floors
• During installation, the under head counter-thread serves as “correct installation” indicator and increases the fastener tightness inside the concrete
• Certified, self-drilling, reversible, quick, dry and non-invasive system. Ideal for slab recovery
Data sheet available online
ENVIRONMENT
MATERIAL

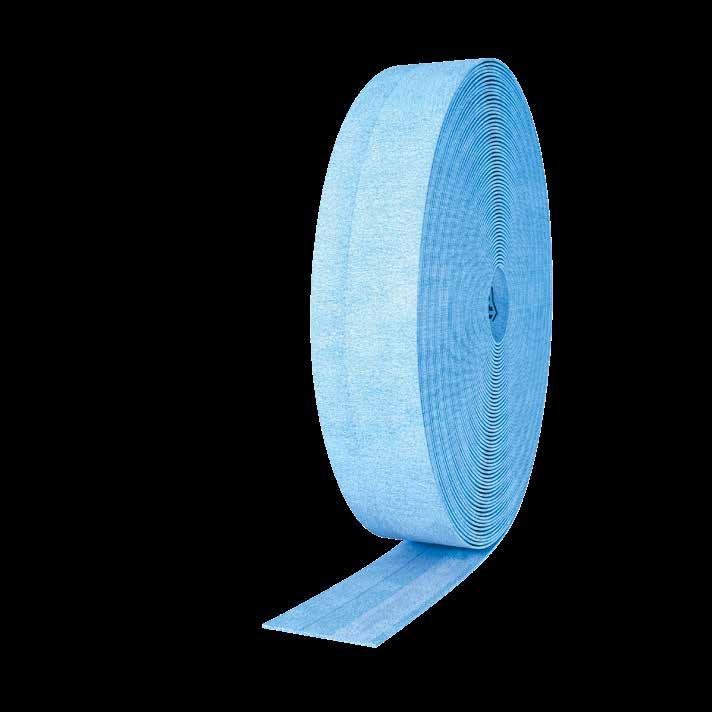

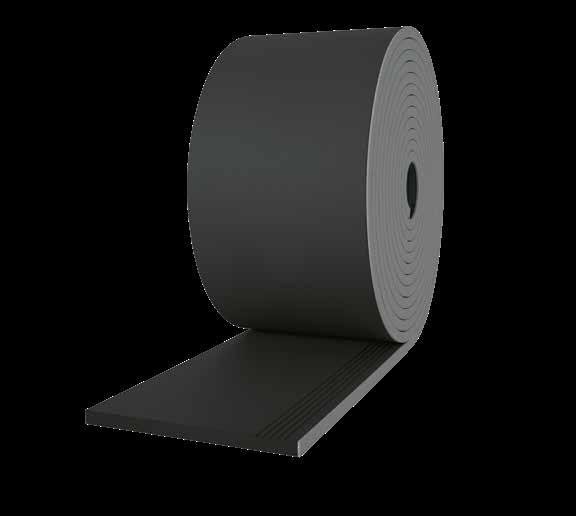

RESILIENT UNDERSCREED MEMBRANE MADE OF BITUMEN AND POLYESTER FELT page 251
SPREADSHEET “CLC CALCULATOR” Download the “CLC calculator” at www.holztechnic.com/en/fogli-di-calcolo
SELF-ADHESIVE PERIMETER STRIP page 249

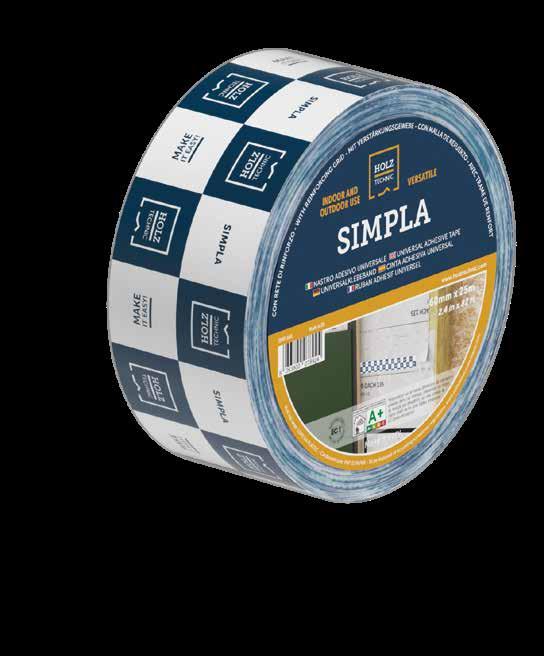

TAPE page 212

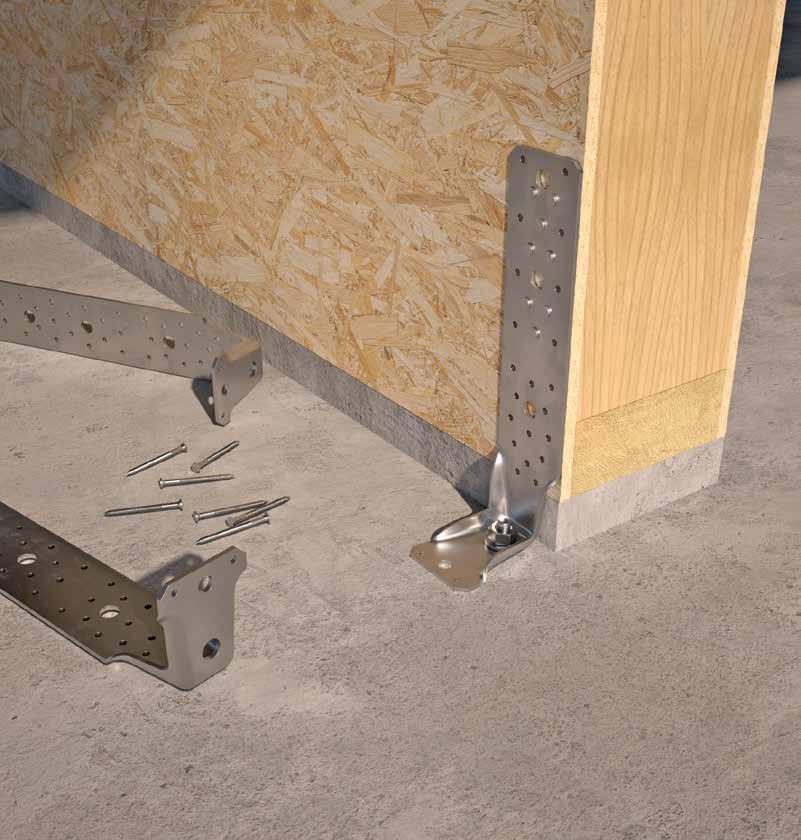

LBA-HT

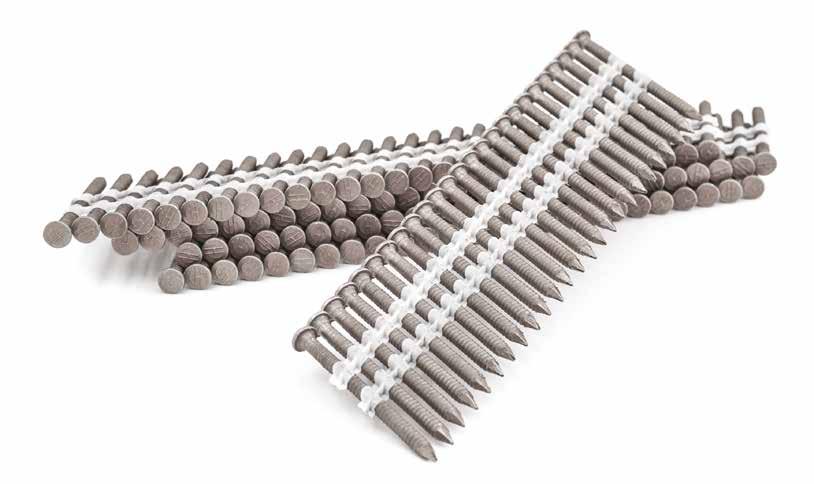

ANKER NAIL
• Nail with knurled shank for improved pull-out strength
• Certified nail in accordance with ETA for fastening metal plates to timber structures
• The highest shear and tensile strength values on the market
• Also available in A4 | AISI316 stainless steel
Data sheet available online
CLASS MATERIAL
Zn 410 ELECTRO PLATED A4 AISI 316
LBA-HT LBAI
LBA-HT - loose nails
LBA-HT 25 PLA
LBA-HT 34 PLA
Compatible with hand-held manual nailgun HH3731
LBAI - loose nails

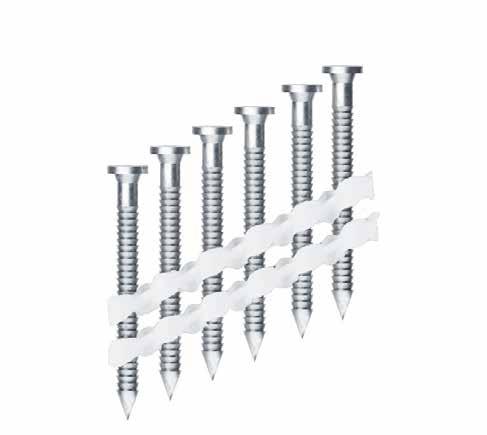

LBA-HT 25 PLA - plastic strip-bound nails 25°
LBA-HT 34 PLA - plastic strip-bound nails 34° RELATED PRODUCTS
Compatible with strip magazine nailgun 34° ATEU0116.

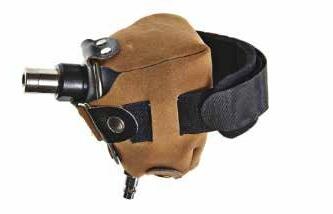

HAND-HELD NAILGUN WITH CHARGER page 296 HAND-HELD MANUAL NAILGUN page 296
ROUND-HEAD SCREW AND FLAT
UNDERHEAD
• Screw developed and certified for metal plate applications
• The geometry of the head, designed to fit into the hole in the metal plate, ensures excellent static performance
• Outstanding shear and tensile strength values
• Tested and certified for use on a wide variety of engineered timbers such as CLT, GL, LVL, OSB and Beech LVL
Data sheet available online
ENVIRONMENT
MATERIAL
Upon request, EVO version is available.
TIMBER-TO-TIMBER PLATE FOR TENSILE LOADS from page 105 CONCEALED TIMBER-TOTIMBER CONNECTOR from page 78
AND WITHOUT HOLES from page 84
KGL EVO
SCREW WITH C4 EVO COATING AND PAN HEAD
• Multi-layer EVO coating based on epoxy and aluminium flakes. No rust after 1440 hours of salt spray exposure (ISO 9227)
• It can be used outdoors in coastal and industrial areas
• Ideal for applications on post bases, metal profiles and generally for connections on both thin and thick plates
• Reinforced head ensures stronger connections on thick plates
SBD-HT
SELF-DRILLING DOWEL
• The new tapered self-perforating tip minimises insertion times in timber-to-metal connection systems (up to a thickness of 10 mm)
• The cylindrical countersunk head ensures an optimal appearance and meets fire-resistance requisites
• The new tapered tip allows installation in hard-toreach positions (with reduced application force)
• Horizontal installation requires 25 kg of applied force; Vertical installation requires 40 kg of applied force
• Self-drilling system for concealed timber-to.steel joints. It can be used with screw guns running at 600-2100 rpm with:
- steel S235 ≤ 10.0 mm
- steel S275 ≤ 10.0 mm
- steel S355 ≤ 10.0 mm
ENVIRONMENT
MATERIAL
SMOOTH DOWEL
• S355 (Ø16 and Ø20) and S235 (Ø8 and Ø12) steel dowel provides maximum shear strength in structural applications
• Tapered end for an easy insertion of the fastener into the pre drilled timber element. Available in 1,0 m long version
• Certified dowel not holding CE marking
Data sheet available online SERVICE CLASS
STA - smooth dowel made of S235-S355 carbon steel
STA A2 | AISI304 - stainless steel smooth dowel(1)
TIMBER-TO-TIMBER SPACER SCREW
• Under-head thread with specially designed geometry to create and regulate a space between the joined materials
• The differentiated double thread is excellent for adjusting the position of the battens on the façade and ensuring vertical alignment
• Ideal for levelling panels, battens, ceilings and floors
ENVIRONMENT
MATERIAL
DOUBLE THREAD SCREW WITH
• Carbon steel screw with coloured anti-rust coating for outdoor use in service class 3 on non-acidic woods (T3)
• A4 stainless steel version | AISI 316 for environments with high atmospheric or wood corrosivity
• The inverse under-head thread ensures excellent grip. Small inverted conical head for excellent concealed effect
• The three-lobed body makes it possible to cut the timber grain during screwing.
• Application on timber boards with density of < 780 kg/m3 (without pre-drilling hole) and < 880 kg/m3 (with pre-drilling hole). It can be used on WPC boards with pre-drilling hole
• Available in MINI STRIP bound version to increase installation speed
green sand
ORGANIC COATING
MINI COLOR
(*) Full threaded screw.
MINI COLOR STRIP
• Bound version available for fast and accurate installation
• Ideal for large projects DOUBLE THREAD SCREW WITH CONCEALED HEAD IN THE BOUND VERSION
MINI COLOR STRIP
page 299 CONCEALED CONNECTOR AND SPACER FOR DECKS page 54
SNK EVO
COUNTERSUNK HEAD SCREW FOR TIMBER
• Same mechanical performance as SNK, with the added corrosion resistance of the EVO coating, based on epoxy and aluminium flakes
• With the 3 THORNS tip, screw grip becomes more reliable and faster, while maintaining the usual mechanical performance
• Coating suitable for outdoor use (coastal and industrial areas) on wood species with a pH above 4, such as spruce, larch and pine
• No rust after 1440 hours of salt spray exposure (ISO 9227)
A
NOTE: Further information and codes on page 24.
NOTE: On vertical surfaces and finishes such as façades, coating residue released during screw installation may cause dark marks around the fastening point.
SNK EVO BUCKET
SNK EVO SCREWS IN BUCKET
• Also suitable for decks applications
For more information about the SNK EVO screw, see page 24.
ROUND-HEAD SCREW AND REINFORCED SHANK
• Countersunk teardrop-shaped head with curved surface for a pleasant look and firm grip with the bit
• Increased shank diameter and high torsional strength for strong and safe screwing
• Made of A2 | AISI305 austenitic stainless steel. Offers high corrosion resistance
• Suitable for outdoor applications up to 1 km from the sea and on most class-T4 acidic woods
Data sheet available online
A maximum fastening thickness ENVIRONMENT
MATERIAL
BFO BUCKET
BFO SCREWS IN BUCKET 1000
• Also suitable for decks applications
BFO BUCKET
BFO SCREWS IN BUCKET 1000
• Available in a practical 1000-piece pack
• The packaging ensures durability even in rainy conditions
• PET plastic box, durable, impact-resistant and reusable
For more information about the BFO screw, see page 47.
SCA-HT BUCKET
SCA-HT SCREWS IN BUCKET 1000
• Partially threaded screw optimised to provide good performance at a low cost. Smooth under-head ideal for fastening stainless steel clips and hinges
• Available in a practical 1000-piece pack
• The packaging ensures durability even in rainy conditions
SNK EVO BUCKET
SNK EVO SCREWS IN BUCKET
• Available in a practical 1000-piece pack
• The packaging ensures durability even in rainy conditions
• PET plastic box, durable, impact-resistant and reusable
For more information about the SNK EVO screw, see page 24.
COUNTERSUNK CYLINDRICAL HEAD SCREW
• Special tip with sword-shaped geometry designed to efficiently drill very high-density woods
• The larger diameter under-head thread ensures an effective grip, guaranteeing good coupling of the timber elements. Concealed head
• For outdoor use in highly aggressive environments, on timber boards with density of < 780 kg/m3 (without pre-drilling hole) and < 1240 kg/ m3 (with pre-drilling hole). It can be used on WPC boards with pre-drilling hole
• In A2 | AISI 304 stainless steel, suitable for vertical surfaces and finishes such as façades
A maximum fastening thickness
ENVIRONMENT
Data sheet available online MATERIAL
ZKK A2 | AISI304
NOTE: On vertical surfaces and finishes such as façades, coating residue released during screw installation may cause dark marks around the fastening point.
SCREW WITH COUNTERSUNK HEAD
• Thanks to the 3 THORNS tip, minimum installation distances are reduced. More screws can be used in less space and larger screws in smaller elements
• New tip, special asymmetrical umbrella thread, elongated reamer cutter and under-head cutting ribs provide the screw with higher torsional strength and safer screwing
• A2 austenitic stainless steel. Offers high corrosion resistance
• Suitable for outdoor applications up to 1 km from the sea in class C4 on most class-T4 acidic woods
• For application on timber boards with density of < 470 kg/m3 (without pre-drilling hole) and < 620 kg/m3 (with pre-drilling hole)
Data sheet available online
ENVIRONMENT
MATERIAL
A maximum fastening thickness
A
DISTANCE FROM THE SEA
RESISTANCE TO CHLORIDE EXPOSURE
Comparison of atmospheric corrosion resistance between different zinc coatings and stainless steels used in timber screws, considering only the influence of chlorides (salt spray) and without maintenance, based on EN 14592:2022 and EN 1993-1-4:2014.
KGA
UNIVERSAL PAN HEAD SCREW
• The flat under-head accompanies absorption of the shavings, preventing the timber from cracking and thus ensuring an excellent surface finish
• Thanks to the 3 THORNS tip, minimum installation distances are reduced. More screws can be used in less space and larger screws in smaller elements
• Special asymmetric “umbrella” thread with increased length (60%) for higher grip. Fine thread for the utmost precision when tightening is complete
• Martensitic stainless-steel: the top-performing stainless steel in terms of mechanical strength
• Suitable for outdoor applications and on acidic woods, but away from corrosive agents (chlorides, sulphides, etc.)
• Suitable for timber boards with density of < 780 kg/m3 without pre-drilling hole and WPC boards with pre-drilling hole
Data sheet available online
ENVIRONMENT
MATERIAL
AKK
SELF-DRILLING SCREW
• AKK COLOR in carbon steel with coloured anti-rust coating for outdoor use on non-acidic woods (T3). Concealed effect on dark substructures and clips
• AKK AISI 410: Version in AISI 410 martensitic stainless steel, suitable for outdoor applications and acidic woods, not exposed to corrosive agents (e.g. chlorides, sulphides, etc.)
• Self-perforating timber-to-metal tip with special chip-clearing tip. Ideal for fastening timber or WPC boards to aluminium substructures
• 4X20 mm short version ideal for fastening clips, plates and angle brackets to aluminium substructures. It can be used to fasten aluminium-to-aluminium overlaps
• Outdoor use. Timber boards with density of < 880 kg/m3 on aluminium with a thickness of < 3.2 mm (without pre-drilling hole)
Data sheet available online
ENVIRONMENT
AKK COLOR AKK AISI
A maximum fastening thickness
(*) Full threaded screw.
s thickness, steel plate S235/St37 thickness, aluminium plate
(*) Full threaded screw.
(**)Screw with double thread.
s thickness, steel plate S235/St37 thickness, aluminium plate
EASY DECK
TIMBER DECKING INSTALLATION AND FASTENING SET
• Complete set for building a timber deck up to 5 m2, with exposed fastening
• MINI screws with coloured anti-rust coating ensure fast, durable and aesthetically pleasing fastening
• DECK BAND UV tape protects the substructure battens, extending their service life
• BASE PAD spacers raise the substructure off the ground, improving long-term durability
• SNAP clips maintain the correct spacing between the substructure and decking boards, promoting micro-ventilation
CONCEALED CONNECTOR AND SPACER FOR DECKS page 54
DOUBLE THREAD SCREW WITH CONCEALED HEAD page 44 GRANULAR RUBBER SUBSTRATE page 59
PRODUCT GUIDE BY m2
BUTYL TAPE FOR PROTECTING BATTENS page 60
Refer to the table to check the number of pieces needed for the EASY DECK set, based on the decking area using exposed fastening. The highlighted column shows the quantities included in the EASYDECK5 pack, suitable for 5 m².
* Values rounded off from the m2 measurement. The values shown in the table are indicative estimates of the required number of screws, connectors, supports and tape based on surface area. They are intended as general guidelines for installers. For correct installation, it is recommended to use the decks clamp (CRAB MINI/MAXI) and a screwdriver equipped with a clutch for the application
CONCEALED CONNECTOR AND SPACER FOR DECKS
• Versatile. It can be used both as a concealed connector for boards and as a spacer between boards and battens
• Designed to be used in combination with a second identical element. Assembling two pieces allows functionalities to be combined, increasing efficiency and ease of use
• Used as a spacer, it creates micro-ventilation under the boards and thus, prevents water stagnation and ensures excellent patio durability
• PP (Polypropylene) material provides excellent durability at an affordable price
Data sheet available online MATERIAL FASTENING ON BOARDS
FASTENERS
MINI - fastening on timber
ZKK
- fastening on hardwood
FLAT
CONCEALED FASTENING FOR DECKS
• Completely hidden. The black coating ensures a highly attractive result
• Fast, easy installation thanks to the single-screw fastening and the integrated spacer-tab for precise spacing. Ideal for use in combination with the PROFID spacer
• Makes it possible to install deck planks regardless of the position of the grooving (symmetrical). Ribbed surface provides high mechanical strength
• Outdoor use. Fastening of timber or WPC boards on substructures in timber, WPC or aluminium
• Aluminium with organic black-coloured coating
Data sheet available online
MATERIAL
FASTENING ON BOARDS
MINI - fastening on timber and WPC
[in]
FASTENERS see page 44 see page 22
COLOR - fastening on aluminium
CONCEALED CONNECTOR FOR TIMBER BOARDS
• Available in different sizes for applications on boards with different thickness and joints of varying width
• The A2 | AISI 304 stainless steel ensures high resistance to corrosion
• The micro-ventilation between the boards promotes the durability of the timber elements
• Ideal for boards with asymmetrical grooving
FASTENERS
TOOL
GAP 3
CONNECTOR FOR DECKS AND FAÇADES
• Made of A2 | AISI304 stainless steel for high corrosion resistance
• Ideal for floors with narrow joints (from 3,0 mm)
• For symmetrically grooved boards such as those in WPC or high-density timber
• For outdoor use in aggressive environments, with fastening of timber or WPC boards on substructures in timber, WPC or aluminium
FASTENERS
CONNECTOR FOR DECKS AND FAÇADES
• In bright zinc plated carbon steel to provide good performance at a low cost
• Ideal for floors with narrow joints (from 3,0 mm). Fastening is performed before the board is positioned
• For symmetrically grooved boards such as those in WPC or high-density timber
• Fastening of timber or WPC boards on substructures in timber, WPC or aluminium
FASTENERS
CONNECTOR FOR DECKS
• Completely concealed, ensures a highly attractive result. Ideal for both decks and façades. Available in metal and plastic
• The micro-ventilation between the boards prevents water stagnation and ensures excellent durability. The larger bearing surface ensures that the substructure is not crushed
• Assembly stop for an accurate and simple installation of the fastener. Slotted holes to follow movements of the timber
• Allows replacement of individual boards
• Version in A2 stainless steel, ideal for decks near aggressive environments or highly deformable wood species
Zn 410
TERRALOCK A2
FASTENERS
For wood species prone to deformation, the metal version is recommended.
FASTENERS
MINI A4 | AISI316/MINI COLOR- fastening on timber and WPC for
ROOT-RESISTANT SHEET
• The polypropylene non-woven fabric (50 g/m2) effectively separates the terraces substructure from the ground
• Prevents the growth of grass and roots and provides protection for the substructure. Permeable to water, allowing it to flow off
• For joints and overlaps, use DECK BAND UV tape
TERRA COVER DECK BASE
GRANULAR RUBBER SUBSTRATE
• Available in sheet (GRANULOMAT 1,25 x 10 m), roll (GRANULOROLL and GRANULO100) or pad (BASEPAD 8 x 8 cm). The wide variety of formats allows for extremely versatile use
• Made of granules of recycled rubber thermal-bonded with polyurethane. Resistant to chemical interactions, maintains its characteristics in time and is 100% recyclable
• The thermal-bonded rubber granules dampen vibrations, thus insulating against impact noise. Also ideal as a wall barrier and resilient strip for acoustic separation
• Perfect as a base for decks substructures; its water permeability makes it ideal for outdoor applications
DECK BAND UV
ADHESIVE BUTYL TAPE FOR PROTECTING BATTENS
• Ideal for protecting battens from water and UV rays. It can be used for both decks and façades, protecting and extending the life of the timber battens
• The black aluminised butyl-based compound ensures high resistance to UV rays that penetrate between the joints of boards
SQUARE SECTION PROFILE
• The EPDM profile creates micro-ventilation under the boards and thus, prevents water stagnation and provides excellent terrace durability
• The EPDM ensures excellent durability. With a density of over 1200 kg/m3, it ensures high crushing resistance and is also ideal for high loads
• It allows to create uniform joints easily STAR FOR DISTANCES
• The 5 most common dimensions in the construction of decks and façades in a single tool
ALU TERRACE
ALUMINIUM PROFILE FOR DECKS
• ALUTERRA30 version for standard loads. ALUTERRA50 version, in black, for very high loads; can be used on both sides
• ALUTERRA50 designed with a very high inertia so that the SUPPORTS can be positioned every 1,10 m (along the profile midline), even with high loads (4,0 kN/m2)
• The substructure made of aluminium profiles ensures excellent decks durability. The drainage channel allows water to run off and generates effective micro-ventilation
• Versions in aluminium and in anodised aluminium (class 15) in graphite black
• Substructure for decks, ideal when used in combination with SUPPORT, side-fastened using AKK screws. Durable system, ideal for outdoor applications
Data sheet available online
Upon request, P=3000 mm version is available.
ACCESSORIES FASTENERS
ADJUSTABLE SUPPORT FOR DECKS
• The Small version (SUP-S) can be raised by up to 37 mm, the Medium version (SUP-M) by up to 220 mm and the Large version (SUP-L) by up to 1025 mm. All versions are height adjustable
• Sturdy system, suitable for heavy loads: SUP-S and SUP-M support up to 400 kg, SUP-L up to 1000 kg
• All versions are compatible with a dedicated head for side fastening to the batten, in either timber or aluminium. Also available: SUPLHEAD3 head for tile finishes
• Ideal for raising and levelling the substructure in outdoor applications
• UV-resistant and suitable also for aggressive environment conditions. Ideal for use in combination with ALU TERRACE profile
• With the SUPLKEY wrench, the SUP-L can be adjusted from above, ensuring maximum stability with tiled surfaces
SUPPORT SUP-L
SUPMEXT30 extension cable for SUP-M, SUPLEXT100 extension for SUP-L
ACCESSORIES
SUPLKEY key for adjustment from
ADJUSTABLE SUPPORT FOR DECKS
• The height-adjustable support can easily adapt to variations in substrate level. The rise improves ventilation under the battens
• Can be adjusted both from below, with a SW 10 wrench, or from above, using a flat-tip screwdriver. Fast, convenient, versatile system
• The TPE plastic support base reduces the noise produced by footsteps. The ball-joint can adapt to uneven surfaces
• Bright zinc plated carbon steel
• Raising and levelling of the substructure
Get the most out of your display areas using our systems! Get more information from your Technical Consultant.
SELF-DRILLING SCREW FOR STEEL, HEXAGONAL HEAD
• Self-perforating, chip-clearing tip. Excellent drilling capacity in steel up to 6 mm (1.5 mm for the L = 22 mm version)
• Self-tapping thread for steel and hexagonal head with dummy washer SW 10
• Carbonitrided steel screw with galvanic treatment and white zinc plating
• Complete with integrated washer with EPDM seal for watertight fastening
Data sheet available online
ENVIRONMENT
MATERIAL
s drillable thickness of metal plate (steel or aluminium) A thickness of fixture
SAR6322
MTS A2
SCREWS FOR METAL SHEET
• Ideal for use in combination with WBAR washers to achieve water-tight fastening to metal sheet; requires a pre-drill
• The hexagonal head facilitates any need for removal
• The A2 | AISI304 stainless steel ensures high resistance to corrosion and excellent durability, even in aggressive environments
page
page
SELF-DRILLING TIMBER-TO-METAL SCREW
• Special self-perforating, chip-clearing tip in carbon steel, effective on aluminium and steel. Thread protection fins during timber pullthrough.
• The head and body are made of A2 | AISI304 stainless steel, thus providing high resistance to corrosion
• Very sharp under-head ribs for a clean finish on the wooden element
• Direct fastening, without pre-drilling hole, of timber elements to steel substructures (maximum thickness: 6,0 mm)
Data sheet available online
ENVIRONMENT
MATERIAL
A maximum fastening thickness
A s
sS thickness, steel plate S235/St37
sA thickness, aluminium plate
ALWAYS AT THE RETAILER'S SIDE
Your technical consultant is your first point of contact – for questions about installation, staff training, set-up support or general troubleshooting.
Additionally, you can rely on our customer service and engineering support team.
TIMBER-TO-METAL SELF-DRILLING SCREW
• CE Certified in accordance with 14592
• Self-perforating, chip-clearing tip for drilling up to 8 mm on aluminium and 6 mm on steel
• Thread protection fins: maximum threading efficiency and timber-to-metal bonding
• Very sharp under-head ribs for a perfect surface finish on the wooden element
• Ideal for timber-to-metal structural applications requiring quality, safety and consistent performance
A maximum fastening thickness Data sheet available online
ENVIRONMENT
MATERIAL
sS thickness, steel plate S235/St37 sA thickness, aluminium plate
SC2 C2 T2
TIMBER-TO-METAL SELF-DRILLING SCREW
• CE Certified in accordance with 14592
• Self-perforating, chip-clearing tip for drilling up to 10 mm on aluminium and 8 mm on steel
• Thread protection fins: maximum threading efficiency and timber-to-metal bonding
• Optimised partial thread for fastening sandwich panels to steel, including thick profiles
• Very sharp under-head ribs for a perfect surface finish on the wooden element.
Data sheet available online
ENVIRONMENT
MATERIAL
FAS A4
SCREWS FOR FAÇADES
• Thanks to its flange head, partially threaded body and self-tapping tip, it is the perfect screw for fastening façade panels (HPL, fibre cement, etc.) on timber substructures
• A4 | AISI316 austenitic stainless steel for high corrosion resistance
• Ideal for environments adjacent to the sea in corrosivity class C5 and for insertion on the most aggressive timbers in class T5
• Available in white, grey or black for perfect colour uniformity with the panel
• The colour of the head can be customised on request
RANGE OF COLOURS AVAILABLE:
ENVIRONMENT
MATERIAL
FAS A4 - stainless steel
FAS W - white
FAS N - black
FAS G - grey anthracite
RAL 9010
RAL 9005
SC3 C5 T5
MCS A2
SCREW WITH WASHER FOR METAL SHEET
• A2 | AISI304 stainless steel screw with integrated A2 | AISI304 stainless steel washer and EPDM gasket
• The A2 | AISI304 stainless steel ensures high resistance to corrosion.
• Convex head with TX impression for secure fastening of sheet metal on timber or plaster
• Perfect for fastening metal carpentry elements such as gutters and sheet metal flashings to timber substructures in outdoor environments
• Available in copper, white and chocolate brown
Data sheet available online
ENVIRONMENT
MATERIAL
RANGE OF COLOURS AVAILABLE:
MCS A2 - stainless steel
MCS M - chocolate brown
MCS CU - copper finishing
MCS B - light grey
RAL 8017
SC3 C4
WBAR
STAINLESS STEEL WASHER WITH SEALING GASKET
• Perfect watertight closure and excellent sealing thanks to the EPDM gasket
• Designed for outdoor use: flexible EPDM gasket and A2 | AISI 304 stainless steel washer, UV-resistant
• Compatible with TLL EVO Ø6 screws (without pre-drilling on sheet metal up to 0.7 mm) or with A2 stainless steel MTS screws (with pre-drilling)
• Perfect for application on sandwich panels, corrugated panels and faux roofing tiles
Data sheet available online ENVIRONMENT
SELF-DRILLING SCREW FOR STEEL, HEXAGONAL HEAD page 67
FLANGE-HEAD SCREW FOR TIMBER page 27 PRE-PAINTED METAL SHEET CAP WITH PE GASKET page 75
page 204
PRE-PAINTED METAL SHEET CAP WITH PE GASKET
• Pre-painted carbon steel caps; the 40x50 mm version is also available in aluminium
• PE gasket for a watertight seal, available in sizes compatible with common sheet metal
• Available in a variety of colours to suit every roofing aesthetic requirement
SCREW FOR TIMBER page 27
SELF-DRILLING SCREW FOR STEEL, HEXAGONAL HEAD page 67
HIGH PERFORMANCE ANGLE BRACKETS
PLATES FOR TENSILE STRESS
SHEAR PLATES PERFORATED PLATES
CONCEALED HOOK TIMBER-TO-TIMBER CONNECTOR
• An excellent solution for small temporary structures requiring disassembly and reassembly for the summer. It can be surface-mounted or concealed to ensure fire resistance
• It fastens with one type of screw: SBL for indoor applications, LBS EVO for outdoor applications in non-aggressive conditions
• Also available in convenient KITS with screws and accessories included, tailored for the most common applications
Data sheet available online
not included!
Screws and LOCK STOP are not included in the package.
(1) Number of screws for connector pair.
(2) Number of connector pairs.
LOCK STOP | LOCKING DEVICE FOR Flat
Without CE marking.
FASTENERS
• Three practical kits in different sizes designed for the most common applications. They can be used with small section beams for structures, gazebos and furniture.
• Fastened with one type of screw (included): LBS EVO for outdoor applications in non-aggressive conditions.
• An excellent solution for small temporary structures requiring disassembly and reassembly for the summer.
LOCK T MIDI
CONCEALED HOOK TIMBER-TO-TIMBER CONNECTOR
• Ideal for canopies, pergolas, floors or heavy “post-and-beam” frame construction; excellent installation tolerance
• It fastens with one type of screw: LBS for indoor applications, LBS EVO for outdoor applications in non-aggressive conditions
• It can be surface-mounted or concealed to ensure fire resistance
LOCKSTOP not included!
Screws and LOCK STOP are not included in the package.
(1) Number of screws for connector pair.
(2) Number of connector pairs.
LOCK STOP | LOCKING DEVICE FOR Flat
* Without CE marking.
FASTENERS
SBL | ROUND-HEAD SCREW AND FLAT UNDERHEAD
SBL EVO | C4 EVO ROUND-HEAD SCREW AND FLAT UNDERHEAD
INSTALLATION METHODS
CORRECT INSTALLATION
Install the beam by lowering it from the top, without tilting it. Ensure proper seating and coupling of the connector at both the top and bottom, as shown in the figure.
INCORRECT INSTALLATION
Partial and incorrect coupling of the connector. Ensure that both flanges of the connector are properly seated in their respective seats.
LOCK C
CONCEALED HOOK TIMBER-TO-CONCRETE CONNECTOR
• Quick installation on concrete. Easy to hook system with screw-in anchors on concrete and self-drilling screws on timber
• Fastening on concrete is concealed. When installed without grooving, it generates an aesthetically pleasing joint shadow
• The timber beams can be easily removed for seasonal requirements
Screws and LOCK STOP are not included in the package.
(1) Number of screws and anchors for connector pair.
(2) Number of connector pairs.
FASTENERS
LOCK STOP | LOCKING DEVICE FOR Flat
* Without CE marking.
ALUMINI HT
CONCEALED BRACKET WITHOUT HOLES
• It allows to connect secondary beams with limited width (starting from 55 mm)
• Strengths in all directions: vertical, horizontal and axial. Also suitable for angled joints, both timber-to-timber and timber-to-concrete
• The use of HBS PLATE EVO screws and SBD-HT self-drilling dowels allows excellent installation tolerance
FASTENERS
HBS PLATE EVO | C4 EVO PAN HEAD SCREW
SBD-HT | SELF-DRILLING DOWEL
SKS | SCREW ANCHOR WITH COUNTERSUNK HEAD
ALUMIDI HT
CONCEALED BRACKET WITH AND WITHOUT HOLES
• Large load capacity. Version without holes to be used with SBD-HT self-drilling dowels and with holes to be used with STA smooth dowels
• Strengths calculated in all directions: vertical, horizontal and axial. They can be used in inclined joints
• Optimal hole spacing both for timber and reinforced concrete joints
Data sheet available online SERVICE CLASS
MATERIAL
ALUMIDI HT WITHOUT HOLES
ALUMIDI WITHOUT HOLES WITH UPPER NOTCH
ALUMIDI WITH HOLES
ALUMAXI WITH HOLES
ALUMAXI WITHOUT HOLES FASTENERS
SBD-HT | SELF-DRILLING DOWEL
LBA-HT | ANKER NAIL
BSA
METAL HANGER WITH EXTERNAL WINGS
• It can be used on both timber and concrete
• Possibility of fastening the beam rotated in relation to its axis, with simultaneous application of vertical and lateral force
• Standardized, certified, fast and inexpensive system. Also suitable for fastening on OSB and for use with I-Joist
2 pieces large size
Without CE marking.
(1)n H number of fasteners on the main beam (2)n J number of fasteners on the secondary beam
page
METAL HANGER WITH INTERNAL WINGS
• Thanks to the internal wings, the junction is almost entirely “concealed”
• Possibility of fastening the beam rotated in relation to its axis, with simultaneous application of vertical and lateral force
• Standardized, certified, fast and inexpensive system. Also suitable for fastening on OSB
sheet available online
(1) n H number of
ANGLE BRACKET FOR WOODWORK
• The ideal angle bracket for small joinery requirements, angled board joints or for reinforcing small timber structures
• It can be used in timber-to-timber configuration with screws (SNK or HTS-HT)
• It can be used in timber-to-masonry configuration with anchors (NDK) and screws (HTS-HT)
MATERIAL
STANDARD ANGLE BRACKET FOR SMALL CONNECTIONS
• Angle bracket for every occasion, also for reinforcing small timber structures
• It can be used in timber-to-timber configuration with screws (SNK, HTS-HT or SBL)
• It can be used in timber-to-masonry configuration, using 11 mm holes with anchors
MATERIAL
ANGLE BRACKET 70
• Perfect for small frames and simple structures
• It can be used on timber with screws (SBL) or nails (LBA-HT) or on concrete using 11 mm holes with anchors
• The reinforced version features a reduced thickness for maximum performance at the best price
Data sheet available online
MATERIAL
ANGLE BRACKET 90
• Suitable for reinforcement and assembling timber structures, ideal for timber frame houses
• It can be used on timber with screws (SBL) or nails (LBA-HT) or on concrete using 11 mm holes with anchors
• The reinforced version features a reduced thickness for maximum performance at the best price
Data sheet available online
ANGLE BRACKET 100 FOR SHEAR LOADS
• The most classic of the shear angle brackets is available in versions with or without reinforcement: universal use, ideal for frame houses or small CLT houses
• 5 mm holes for fastening on timber with screws (SBL) or nails (LBA-HT)
• 11 mm and 13 mm holes for certified fastening on concrete with anchors. Available in 2 versions: with and without reinforcement
• The reinforced version features a reduced thickness for maximum performance at the best price
Data sheet available online
ANGLE BRACKET 170 FOR SHEAR LOADS
• Ideal for small CLT houses
• Extended angle brackets for fastening raised elements (on kerb or platform)
• 5 mm holes for fastening on timber with screws (SBL) or nails (LBA-HT) and 13 mm holes for fastening on concrete with anchors
Data sheet available online
ANGLE BRACKET FOR SHEAR LOADS
• Ideal for frame houses or small CLT houses
• Asymmetrical angle bracket with a width of only 50 mm, designed for installation in small spaces
• 5 mm holes for fastening on timber with screws (SBL) or nails (LBA-HT) and 13 mm holes for fastening on concrete with anchors
Data sheet available online
STANDARD ANGLE BRACKET
• Standard angle brackets, ideal for all small joinery connections
• Ideal for timber-to-timber connections, thanks to 5 mm holes
• Available in two models in A2 stainless steel, ideal for visible applications or for excellent durability outdoors
REINFORCED ANGLE BRACKET
• Reinforced standard angle brackets, ideal for all small joinery connections
• Perfect for timber-to-timber connections, thanks to 5 mm holes
• Available in 4 versions
ANGLE BRACKET FOR FACADES SERVICE
• It is ideal for façade cladding on new and existing structures
• Fastening on timber battens with screws (SBL) or nails (LBA-HT)
• 8,5 mm slotted holes for fastening to timber, masonry or concrete walls
135° ANGLE BRACKET
• Ideal for timber-to-timber connection of small bracings inclined at 45°, inside trusses or frame walls
• 5, 11 and 13 mm holes for maximum fastening versatility
• Available in two models to meet all fastening requirements
STAINLESS STEEL ANGLE BRACKET
• A2 | AISI304 stainless steel for outdoor use in service classes 1, 2 and 3 and for excellent durability
• Fasten with stainless steel nails and anchors
• The arrangement and size of the fastening holes ensure optimal application and performance in any situation
JOKER 100
ANGLE BRACKET 100 FOR SHEAR AND TENSILE LOADS
• Versatile angle bracket with an excellent cost-performance ratio
• Partial nailing, suitable for CLT or frame walls, even with grout
• Excellent strength values for forces in all directions, with the possibility of use in timber-to-timber or timber-to-concrete configurations
Data sheet available online
Number of holes:
FASTENERS
JOKER 150
ASYMMETRIC ANGLE BRACKET FOR SHEAR AND TENSILE LOADS
• Asymmetric 55 mm angle bracket, perfect for tight spaces and offering outstanding performance
• Extremely versatile: the additional washer on concrete provides higher strength
• Excellent strength values for forces in all directions, with the possibility of use in timber-to-timber or timber-to-concrete configurations
• The new NINO15080S model offers exceptional performance with fewer fasteners
Number of holes:
Number of holes:
FASTENERS | NINO15080S
JOKER 200
HIGH ANGLE BRACKET FOR SHEAR AND TENSILE LOADS
• Tall angle bracket, ideal for CLT walls with raised installation (on a kerb or timber platform with a maximum height of 12 cm)
• On concrete, the additional washer provides excellent strength
• Excellent strength values for forces in all directions, with the possibility of use in timber-to-timber or timber-to-concrete configurations
Number of holes:
TITAN F
ANGLE BRACKET FOR HIGH SHEAR LOADS
• For fastening on platform beams or on the stringers of the frame structures. Available in timber-to-timber or timber-to-concrete versions
• Certified values even with partial nailing, with very good shear strength even on low platform beams
• Two fastening options, in order to avoid interference with the rods in the concrete support
Data sheet available online SERVICE CLASS MATERIAL
TIMBER-TO-CONCRETE
TIMBER-TO-TIMBER
Number of holes: ROUND-HEAD SCREW AND FLAT UNDERHEAD page 35
PRODUCTS SCREW-IN ANCHORS page 158
NAIL page 34
TITAN N
ANGLE BRACKET FOR HIGH SHEAR AND TENSILE LOADS
• Ideal for CLT walls, with the option for partial fastening in the presence of grout or base plates
• Available in timber-to-timber or timber-to-concrete versions, with excellent shear and tensile strengths
• On concrete, TCW washers provide excellent tensile strength Two fastening options, in order to avoid interference with the rods in the concrete support
SCREW AND FLAT UNDERHEAD page 35
TIMBER-TO-CONCRETE
Number of holes:
TIMBER-TO-TIMBER
Number of holes:
TITAN WASHER | WASHER FOR TIMBER-TO-CONCRETE ANGLE BRACKET
NAIL page 34
TENSILE ANGLE BRACKET FOR FRAME STRUCTURES
• Ideal for tension fastening of timber struts in frame structures to concrete
• Available in different thicknesses and heights
• Usable with or without washer, depending on the loads
WZU 90/155
WZU 200/300/400
(*)Washer included in the package.
REINFORCED TENSILE ANGLE BRACKET
• The most classic of the tensile angle brackets: ideal for tensile fastening of CLT or frame walls
• Hole size and disposition designed for an optimal application in any situation
• Reinforced base, to be fastened by screw (on timber) or anchor (on concrete)
Data sheet available online
Number of holes:
Number of holes:
Number of holes:
HOLD DOWN FOR HIGH TENSILE LOADS
• Hold-down with high tensile strength, for CLT or frame buildings
• Available in 4 sizes to be combined with 4 washers to meet all static performance requirements
• Large rod bore allows for effective anchoring in concrete
WHT PLATE C
TIMBER-TO-CONCRETE PLATE FOR TENSILE LOADS
• Ideal for making tensile connections between the timber wall and the reinforced concrete substructure
• Available in two versions: WHT PLATE 440 ideal for framed structures and WHT PLATE 540 ideal for CLT structures
• Possibility of installation even in the presence of bedding mortar
Number of holes:
Number of holes:
WHT PLATE T
TIMBER-TO-TIMBER PLATE FOR TENSILE LOADS
• Ideal for making tensile connections between CLT panels. Ready-to-use plates: calculated, certified for tensile loads on timber-to-timber joints
• Available in five versions of different thickness, height and strength. Fastening with HBS PLATE Ø8 screws
• Ideal for multi-storey buildings for different floor thickness values.
WHTPT300 WHTPT530 S350 Z275
WHTPT600 WHTPT720 WHTPT820 S355 Fe/Zn12c
TITAN PLATE C
TIMBER-TO-CONCRETE PLATE FOR SHEAR LOADS
• Ideal for making shear connections between the timber wall and the reinforced concrete substructure
• Available in 2 versions. TCP300 with increased thickness, optimised for CLT, with possibility of installation even in the presence of bedding mortar
• Designed to be partially or completely fastened with nails or screws
Data sheet available online
of holes:
ROUND-HEAD SCREW AND FLAT UNDERHEAD page 35
TITAN PLATE T
TIMBER-TO-TIMBER PLATE FOR SHEAR LOADS
• Ideal for making shear connections between two CLT panels or between a CLT panel and a timber beam
• Available in three versions, calculated, certified and ready to use
Number of holes:
Number of holes:
FASTENERS
LBA-HT | ANKER NAIL
SBL | ROUND-HEAD SCREW AND FLAT UNDERHEAD
PERFORATED PLATE
• Perfect for a wide range of structural joints in timber that require tensile strength
• Several versions are available, designed to face all timber construction needs. The LBV plates can form simple beam and joist joints through to the most important inter-story connections
• Fastening on timber with screws (SBL) or nails (LBA-HT). Optimal cost/performance ratio
PERFORATED STRAP
• Simple and effective system to achieve floor bracing. It is available in thicknesses of 1,2 and 3,0 mm
• CLIPFIX60 for securing the strap end – ideal for easily creating floor and roof bracing in any situation
• The new CLIPTIE40 is a cost-effective solution for tensioning steel strap
• Fastening on timber with screws (SBL) or nails (LBA-HT). Available in 50 m or 25 m rolls to be cut on site
Data sheet available online
TENSIONERS
1
(1)The set includes two right-hand and two left-hand plates.
STANDARD PLATE
• Flat plates suitable for all small fastening requirements
• Optimised drill holes in 5, 11 and 13 mm diameters for use with screws, nails and connectors of different diameters
• Available in 5 different versions
UNI ANCHOR PLATE FOR JOISTS
• Ideal for fastening joists to platform beams
• Fastening with screws (SBL) or nails (LBA-HT)
• The same model can be installed on the right or left side of the beam. Two anchors are recommended for each joint
The same model can be installed on the right or left side of the
How do our products work? Where and how should they be used? What’s new on the shelf?
With our OPEN HOUSE days, your customers can watch live demonstrations by our technicians and enjoy detailed insights into the unique features of each product.
STRUCTURAL POST BASES
The wide selection of post bases allows designer to meet multiple design and aesthetic needs. The combination of different geometrical features and coatings offer a complete range of solutions.
Adjustable post bases allow height adjustment from the ground to adapt to uneven installation surfaces, while fixed post bases ensure high resistance to shear and moment forces.
ADJUSTABLE POST BASE
• Allows ground clearance to prevent water splash and stagnation, improving durability. Combines visual appeal with low cost. Also available in a kit with fasteners
• Height adjustable according to functional or aesthetic needs
• The base is characterised by an auxiliary hole for inserting screws into the column (not included)
Data sheet available online
Screws are not included and must be ordered separately.
R60 KIT
• The kit includes the post base complete with fasteners for both timber and concrete
Package include:
R6080M
R60100L
R10 - R20
ADJUSTABLE POST BASE
• Thanks to the double-thread system concealed by a sleeve, height can be adjusted even after installation, ensuring a clean look
• Aesthetically pleasing finish thanks to DAC COAT coating
• The base is characterised by an auxiliary hole for inserting screws into the column (not included)
Data sheet available online
R10
Screws are not included and must be ordered separately.
R20
R10
R20
ADJUSTABLE POST BASE WITH RECTANGULAR BASE
• Height-adjustable post base with excellent cost/performance ratio
• Convenient installation of the anchors in the rectangular base version
• Outdistanced from the ground to prevent water splash and stagnation and ensure high durability. Aesthetically pleasing finish thanks to DAC COAT coating
(*)Stainless steel A2 | AISI304 version.
ADJUSTABLE POST BASE WITH SQUARE BASE
• Height-adjustable post base with excellent cost/performance ratio
• The square bottom plate remains within the footprint of the column for an aesthetically pleasing appearance
• Outdistanced from the ground to prevent water splash and stagnation and ensure high durability. Aesthetically pleasing finish thanks to DAC COAT coating
ADJUSTABLE POST BASE FOR CONCRETE
• Height-adjustable post base with rod for insertion into concrete. Aesthetically pleasing finish thanks to DAC COAT coating
• The rod can be inserted into the concrete during casting, or installed later using a chemical anchor
• Height is adjusted simply by rotating the base plate
EASY TIE
“T” SHAPED POST BASE FOR DIY
• Concealed post base kit available in 5 versions for posts from 90 x 90 mm to 200 x 200 mm
• The practical kit includes the post base, elevation element, washers and self-drilling dowels, which eliminate the need for a pre-drilling in timber, simplifying installation and tolerance management
• The 25 mm elevation element allows the bottom plate to be hidden, providing excellent aesthetic results while increasing the durability of the timber
F80 SMALL
Product not sold individually, only as part of the kit.
F80 LARGE
Product not sold individually, only as part of the kit.
“T” SHAPED POST BASE
• Moment-resisting connection with unidirectional fixed-end constraint
• Available in 2 versions: without holes, to be used with self-drilling dowels and with holes, to be used with smooth dowels or bolts
• Totally concealed installation. The F70 LIFT element allows the bottom plate to be concealed for excellent aesthetics
F7080 F70100 - F70100L F70140 - F70140L LIFT S235 HDG55 F70180 - F70180L F70220 - F70220L S355 HDG55
CROSS-SHAPED POST BASE
• Moment-resisting connection with unidirectional fixed-end constraint
• Available in two versions: without holes for use with self drilling dowels, smooth dowels or bolts; with holes, for use with XEPOX epoxy adhesive
• Totally concealed installation
Data sheet available online
fastening with dowels or bolts
fastening with XEPOX epoxy adhesive
Without CE marking.
SELF-DRILLING DOWEL page 37 SMOOTH DOWEL page 38
ANCHORS page 155
page 152
HIGHLY-RESISTANT POST BASE
• Compressive strengths suitable for large structures. Ideal for large columns
• The fixed-height post base can be mounted on threaded rods with a nut and counter-nut to adjust its height. A layer of mortar can be added under the base
• Hidden fastening on the timber element
Data sheet available online
CLASS MATERIAL
HEAVY ANCHOR page 161
page
ANCHORS page 155
page
P10 - P20
EMBEDDED TUBULAR POST BASE
• To be embedded in concrete, it allows keep the column distant from the ground ensuring high durability of the wood
• The column can be installed at a distance of more than 30 cm from the ground in accordance with DIN 68800
• Available in hot-dip galvanised P10 version and height-adjustable P20 version with DAC COAT finish
Data sheet available online
SERVICE CLASS
MATERIAL
P10
P20
MODULAR SYSTEM FOR PERGOLAS AND GAZEBOS
• Enables the construction of pergolas in any shape or size
• Only square-section timber components are required, with no machining needed. Available dimensions: 90 x 90 mm (4’’ x 4’’), 120 x 120 mm, 140 x 140 mm (6’’ x 6’’)
• Galvanising and black RAL9005FT paint ensure optimal durability and visual appeal. The included screws are colour-matched
Data sheet available online
MATERIAL
PERGO3WAY
Painted timber screws included.
PERGO4WAY
Painted timber screws
PERGOSHOE
Painted timber screws included.
PERGOPOST
LIFT not included in the box.
Painted timber screws included.
SINGLE PERGOLA WITH SUNSHADE
the proposed options vary depending on the size of the timber elements
rafters positioned on the roof or wall.
(*)The indicated quantity refers to the number of rafters positioned on the roof or wall. (*)The indicated quantity refers to the
the proposed options vary depending on the size of the timber elements
BENCH WITH BACKREST
BENCH
BOARD
STORAGE BOX
LIGHT FOUNDATIONS, SOLID PROJECTS
Foundation screws: practical, fast, sustainable and reversible.
For anchoring medium and small structures without excavation, concrete or waste.
Ideal for dry installation, even on difficult terrain.
Get more information from your technical consultant
NON-STRUCTURAL POST BASES
What do fences, pergolas, carports, railings and other small structures have in common?
The need to fix vertical timber elements to the ground. The wide choice of standard post bases, with multiple geometries and dimensions, leads to more than 130 combinations shown in the table.
F10 - F50
SQUARE SLEEVE POST BASE
• Sleeve-style post base for posts ranging from 70 x 70 mm to 200 x 200 mm
• The integrated riser element ensures good durability of the column
• Can be fastened to timber using KGL EVO screws, 8 mm in diameter (not included)
SERVICE CLASS MATERIAL
F1080 not included in the ETA document.
COLOURED SQUARE SLEEVE POST BASE
• Grey sleeve post base for square columns
• The integrated riser element ensures good durability of the column
• Screws included; fasteners are coloured like the post base
PERGOPOST BLACK
Painted timber screws included. Anchors for concrete non included. LIFT not included in the box.
PERGOPOST BROWN
Painted timber screws included.
Anchors for concrete non included. LIFT not included in the box.
PERGOPOST WHITE
FI10 - FI50
STAINLESS STEEL SQUARE SLEEVE POST BASE
• Stainless steel sleeve post base for excellent durability and aesthetics
• AISI304 stainless steel ensures excellent durability performance. The integrated riser element ensures good durability of the column
• Suitable for square columns with a cross-section of up to 200 x 200 mm
SERVICE CLASS MATERIAL
FI10
FI50
SQUARE SPIKED POST BASE
• Post base with cross-shaped bottom to be driven directly into the ground, without the need for a concrete support
• Ideal for the construction of fences, walkways or other structures resting directly on the ground
• Suitable for square columns of different sizes
M70S100 and M70S120 not included in the ETA document.
SLEEVE POST BASE WITH CONCEALED BASE
• Refined design: the anchors remain hidden inside the post base
• The concealed base allows installation close to the edge of the concrete support
• Used in conjunction with the LIFT riser element, it ensures good durability of the column
WALL-MOUNTED POST BASE
• Sleeve post base for wall fastening
• Lateral fastening allows installation on any vertical concrete or masonry surface
• Suitable for square columns
• Zinc plated steel sleeve post base
• Suitable for round columns of different sizes
• Available in 4 models ROUND SLEEVE POST BASE
ROUND SPIKED POST BASE
• Post base with cross-shaped bottom to be driven directly into the ground, without the need for a concrete support
• Ideal for the construction of fences, walkways or other structures resting directly on the ground
• Suitable for round columns of different sizes
M70R120 not included in the ETA document.
OPEN POST BASE WITH CONCEALED BASE
• Aesthetically pleasing: the anchors remain hidden inside the post base
• In the event of rain, the column remains exposed to the air on two sides for rapid drying
• Used in conjunction with the LIFT riser element, it provides good durability of the column
LIFT not included in the box.
POST BASE WITH FLANGES
• Suitable for square columns of different sizes
• The integrated riser element ensures good durability of the column
• In the event of rain, the column remains exposed to the air for rapid drying
OPEN POST BASE
• Suitable for square columns of different sizes
• Used in conjunction with the LIFT riser element, it provides good durability of the column
• In the event of rain, the column remains exposed to the air for rapid drying
DOUBLE SLEEVE POST BASE
• Suitable for square or rectangular columns of any width
• The integrated riser element ensures good durability of the column
• In the event of rain, the column remains partially exposed to the air on two sides, for rapid drying
*1 piece refers to a pair of plates.
DOUBLE SLEEVE POST BASE WITH 4 mm THICKNESS
• Suitable for square or rectangular columns of any width. The rounded shape of the upper part improves the aesthetic result
• The integrated riser element ensures good durability of the column
• In the event of rain, the column remains partially exposed to the air on two sides, for rapid drying
*1 piece refers to a pair of plates.
DOUBLE “L” POST BASE
• Suitable for square or rectangular columns of any size
• It can be installed with internal or external wing
• Available in 2 models
*1 piece refers to a pair of
DOUBLE POST BASE WITH INTERNAL WINGS
• Suitable for square or rectangular columns of any size
• Internal wing version, to be fastened on concrete with 2 anchors
• Available in 2 models
CLASS MATERIAL
*1 piece refers to a pair of plates.
DOUBLE POST BASE WITH EXTERNAL WINGS
• Suitable for square or rectangular columns of any size
• External wing version, to be fastened on concrete with 2 anchors
• Available in 2 models
piece refers to a pair of plates.
DOUBLE POST BASE WITH EXTERNAL WINGS
• Suitable for square or rectangular columns of any size
• External wing version, to be fastened on concrete with 4 anchors
• Available in 2 models
CLASS MATERIAL
*1 piece refers to a pair of plates.
“U” POST-BASE
• U-shaped post base, suitable for square or rectangular columns of any width
• The shape of the post base allows the post to be raised, improving durability over time
• 5 mm thickness for excellent resistance
BRACKET POST BASE
• Bracket post base suitable for square or rectangular columns of any width
• In the event of rain, the column remains exposed to the air on two sides for rapid drying
• 5 mm thickness for excellent resistance
CLASS MATERIAL
M30 120 without CE marking.
SC3
“U” SHAPED POST BASE FOR CONCRETE
• U-shaped post base with rod to be inserted into the concrete, suitable for square or rectangular columns of any width
• The rod can be inserted into the concrete during casting or installed later using a chemical anchor
• 5 mm thickness and Ø20 mm rod for excellent strength
“U” SHAPED POST BASE FOR CONCRETE
• Post base with rod for insertion in concrete
• Suitable for round columns of different sizes, it can be installed on sloping surfaces
• The rod can be inserted into the concrete during casting or installed later using a chemical anchor
OPEN POST BASE FOR CONCRETE
• Post base with rod for insertion in concrete
• Suitable for square or rectangular columns of different sizes, it can be installed on sloping surfaces
• The rod can be inserted into the concrete during casting or installed later using a chemical anchor
ROUND SLEEVE POST BASE WITH ROD
• Sleeve post base with rod for insertion in concrete
• Suitable for round columns of different sizes, it can be installed on sloping surfaces
• The rod can be inserted into the concrete during casting, or installed later using a chemical anchor
POST BASE WITH INTERNAL CORE FOR CONCRETE
• Post base with internal core and rod for insertion into concrete. The internal knife plate is pre-drilled for inserting dowels or bolts
• It can be installed raised above the concrete to increase the durability of the timber
• The rod can be inserted into the concrete during casting or installed later using a chemical anchor
INCLINABLE POST BASE
• Inclinable post base, suitable for square or rectangular columns of any width
• It can be installed on inclined surfaces at any angle
• 5 mm thickness for excellent resistance
CLASS MATERIAL
RISER FOR POST BASES
• Galvanised steel riser for use with flat-base post bases
• It allows the base of the timber element to be raised by 20 mm, allowing it to be ventilated
• The small footprint of only 60 x 60 mm allows the use of even the smallest post bases
CAP FOR SQUARE AND ROUND COLUMN
• Steel column cap with HOT DIP coating
• It ensures excellent durability of the column, avoiding water stagnation and direct contact between rainwater and timber fibres
• Available in different sizes, in circular or square shape
BRACE
HINGED PLATE
• Hinged plate with internal knife plate for joints with inclined rectangular- or round-section elements, such as pergolas, fences, and pile structures
• HOT DIP galvanic coating for durability in outdoor applications
• Version in A2 stainless steel | AISI 304, ensuring durability in aggressive environments and on class-T4 acidic woods
BRACE
BRACE A2 | AISI304
JOINTS FOR ROUND POSTS
• HOT DIP galvanic coating for durability in outdoor applications
• Ideal for fences with circular section wooden elements
ROUND
GATE FASTENERS
• HOT DIP galvanic coating for durability in outdoor applications
• Available in multiple sizes for the construction of timber garden gates, even with large dimensions
GATE LATCH
CLOSING BOLT
GATE FLOOR
CANE BOLT
GATE HOOK
PIN FOR STRAP
GATE HINGE
HINGE
GATE BAND
CHEMICAL AND METAL ANCHORS
VINYL ESTER CHEMICAL ANCHOR WITHOUT STYRENE
• CE option 1 for cracked and uncracked concrete
• Certified use for post-installed threaded rods and reinforcing rods according to ETA-20/0363 Option 1
• C2 Seismic performance category (M12-M16)
• Complies with LEED ®, IEQ Credit 4.1
• A+ Class: emission of volatile organic compounds (VOC) in living environments
• Certified for masonry use in solid and semi-hollow material (categories b, c, d)
• Dry, wet concrete or submerged holes
• Certified for use on aerated autoclaved concrete blocks (AAC)
Data sheet available online
Shelf life from date of manufacture: 12 months for 300 ml, 18 months for 420 ml. Storage temperature between +5 and 25° C. Nozzle included in the package.
AVAILABLE ACCESSORIES
spare nozzle for 300 and 420 ml cartridges
page 284
page 165
HIGH-PERFORMANCE HYBRID CHEMICAL ANCHOR
• Urethane-methacrylate based resin
• CE option 1 for cracked and uncracked concrete
• C2 Seismic performance category (M12-M24)
• Certified fire resistance F120
• Complies with LEED® v4.1 BETA
• A+ Class: emission of volatile organic compounds (VOC) in living environments
• Ideal for extra-heavy anchors and post-installed reinforcement rods
• Excellent long-term creep behaviour
• Dry or wet concrete
• Concrete with submerged holes
• Appliation from below allowed.
• Certified installation also with hollow drill bit
Data sheet available online RELATED PRODUCTS
Shelf life from date of manufacture: 18 months. Storage temperature between +5 and 25° C. Nozzle included in the package.
AVAILABLE ACCESSORIES
TWO COMPONENTS EPOXY ADHESIVE
• High-performance two-components epoxy adhesive. It can be used in combination with rods, perforated plates or sandblasted plates
• 5 different densities available; it can be applied by brush, percolation or spatula
• In cartridges for practical and fast use or in 3 litre and 5 litre sizes for larger volume joints. Long shelf life, up to 36 months, reduces waste and simplifies stock management
• Ideal for restoration work, particularly for reconstructing the heads of decayed beams
XEPOX P - primer
XEPOX L - liquid
XEPOX F - fluid
For XEPOXF400 nozzle included in the package.
XEPOX D - dense
Nozzle included in the package.
XEPOX G - gel
SPARE NOZZLE FOR CARTRIDGES page 287
page 286
SCREW-IN ANCHORS
• Suitable for uncracked concrete
• Hexagonal head of increased size
• Thread is suitable for dry fastening
• Electrogalvanized carbon steel
• Through fastening
• No fastener expansion
Data sheet available online
ENVIRONMENT
MATERIAL
hexagonal head
d1 external diameter of anchor
L anchor length
tfix maximum fastening thickness
h1,min minimum hole depth
hnom nominal anchoring depth
hef effective anchoring depth
d0 hole diameter in the concrete support
dF maximum hole diameter in the element to be fastened
SW wrench size
Tinst tightening torque
SKR EVO
SCREW-IN ANCHORS
• Suitable for uncracked concrete
• Hexagonal head of increased size
• Thread is suitable for dry fastening
• C4 EVO coating
• Through fastening
• No fastener expansion
Data sheet available online
ENVIRONMENT
MATERIAL
hexagonal head anti-corrosion coating
d1 external diameter of anchor
L anchor length
tfix maximum fastening thickness
h1,min minimum hole depth
hnom nominal anchoring depth
hef effective anchoring depth
d0 hole diameter in the concrete support
dF maximum hole diameter in the element to be fastened
SW wrench size
Tinst tightening torque RELATED PRODUCTS
ADJUSTABLE POST BASE page 117 ANGLE BRACKETS FOR SHEAR AND TENSILE FORCES from page 95
POCKET AIR PUMP FOR HOLE CLEANSING page 287
SKS EVO
SCREW-IN ANCHORS
• Countersunk head for fastening timber elements
• Suitable for uncracked concrete
• Optimised thread for dry fastening
• C4 EVO coating
• Through fastening
• No fastener expansion
Data sheet available online
ENVIRONMENT
MATERIAL
hexagonal head anti-corrosion coating
d1 external diameter of anchor L anchor length
tfix maximum fastening thickness
h1,min minimum hole depth
hnom nominal anchoring depth
hef effective anchoring depth
d0 hole diameter in the concrete support
dF maximum hole diameter in the element to be fastened
dK head diameter
Tinst tightening torque RELATED PRODUCTS
SELF-EXPANDING SEALING TAPE FOR WINDOWS/DOORS page 232
SELF-TAPPING SCREW FOR MASONRY page 160
SPECIAL
TAPES, CAN BE PLASTERED from page 233
SKR | SKS | SKP
SCREW-IN ANCHORS FOR CONCRETE CE1
• CE option 1 for cracked and uncracked concrete
• Seismic performance category C1 and C2 (M10-M16)
• Through fastening
• No fastener expansion
• Flange head with self-locking knurling for metal-to-concrete applications (SKR-SKP)
• Countersunk head for timber-to-concrete applications (SKS)
• Flange head for thin plate applications (SKP)
ENVIRONMENT
MATERIAL
hexagonal head with mock washer
(1)Installation requires an impact screwdriver with torque values not exceeding those indicated in the table.
d1 external diameter of anchor
L anchor length
tfix maximum fastening thickness
h1,min minimum hole depth
hnom nominal anchoring depth
hef effective anchoring depth
d0 hole diameter in the concrete support
dF maximum hole diameter in the element to be fastened
SW wrench size
Tinst tightening torque
SC2 C2 T2
countersunk head
(1)Installation requires an impact screwdriver with torque values not exceeding those indicated in the table. (2)Anchor for non-structural redundant systems (EAD 330747-00-0601).
d1 external diameter of anchor
L anchor length
tfix maximum fastening thickness
h1,min minimum hole depth
hnom nominal anchoring depth
hef effective anchoring depth
d0 hole diameter in the concrete support
dF maximum hole diameter in the element to be fastened
Tinst tightening torque
convex head
(1)Installation requires an impact screwdriver with torque values not exceeding those indicated in the table. (2)Anchor for non-structural redundant systems (EAD 330747-00-0601).
d1 external diameter of anchor
L anchor length
tfix maximum fastening thickness
h1,min minimum hole depth
hnom nominal anchoring depth
hef effective anchoring depth
d0 hole diameter in the concrete support
dF maximum hole diameter in the element to be fastened
Tinst tightening torque
CONCEALED BRACKET WITHOUT HOLES page 83
CONCEALED TIMBER-TOTIMBER CONNECTOR page 78
ANGLE BRACKETS FOR SHEAR AND TENSILE FORCES from page 95
SBM | ZBM
SELF-TAPPING SCREW FOR MASONRY
• Appropriate for direct fastening on compact and semi-solid materials: natural stone, concrete, solid bricks and hollow bricks
• The countersunk head (SBM) allows PVC window frames to be installed without damaging the frame
• The cylindrical head (ZBM) is able to penetrate and remain embedded in timber frames
• Strength values in different substrates tested in cooperation with the Institute for Window Technology (IFT) in Rosenheim
• The HI-LOW thread allows secure fastening even close to the edges of the support
ENVIRONMENT
MATERIAL
cylindrical head screw countersunk screw Data sheet available online
CE1 HEAVY ANCHOR C2 SEISMIC CATEGORY (M10- M12-M16)
• CE option 1 for cracked and uncracked concrete
• Seismic performance category C2 (M10- M12-M16)
• Electrogalvanized carbon steel
• Fire resistance R120
• Complete with nut and washer
• Suitable for dense materials
• Torque-controlled expansion
• Use of a filler is possible to eliminate annular space and improve seismic performance
HEAVY ANCHOR
• Complete with nut and washer
• Long thread
• Electrogalvanized carbon steel
• Through fastening
• Torque-controlled expansion
• Suitable for dense materials
CE7 HEAVY ANCHOR
• CE option 7 for uncracked concrete
• Electrogalvanized carbon steel
• Complete with nut and washer
• Long thread
• Extra-long multiway expansion clamp
• Suitable for dense materials
• Torque-controlled expansion
Data sheet available online
AB7 EXTRALONG large size washer ISO 7093
AB1-A4
CE1 HEAVY ANCHOR
SEISMIC CATEGORY C1
• CE option 1 for cracked and uncracked concrete
• Seismic performance category C1
• Fire resistance R120
• Complete with nut and washer
• Suitable for dense materials
• Through fastening
• Torque-controlled expansion
Data
HEAVY ANCHOR WITH CE1 LOOP FASTENER SEISMIC CATEGORY C2
• CE option 1 for cracked and uncracked concrete
• Seismic performance category C1 and C2
• Electrogalvanized carbon steel
• Fire resistance R120
• 8.8 grade screw with hexagonal head and washer
• Suitable for dense materials
• Torque-controlled expansion
CE NYLON PLUG WITH SCREW
• Certified use for cracked and uncracked concrete, solid and hollow brick masonry (categories of use a, b, c)
• R90 fire resistance for Ø10 mm
• Plastic anchor for use in concrete and masonry, in non-structural applications
• Complete with zinc plated steel screw with countersunk head
• Through fastening
LSCREW
NYLON HAMMER PLUG WITH SCREW
• Multi-expansion nylon anchor
• Cylindrical collar
• Through fastening
• Complete with convex head screw nail
NDK
UNIVERSAL NYLON PLUG
• Excellent for application on most common solid and semi-hollow building materials
• Non-through 1 and through 2 fastening
• Robust side ribs to prevent rotation of the anchor 1
• S-cut with special anti-rotation wings 2
• Polyamide (Nylon) anchors
LONG UNIVERSAL NYLON PLUG
• Countersunk collar to prevent the dowel from sliding into the hole
• Installation with diameters of 10 mm or greater allows fastening of heavy, thick profiles
• Optimal for fastening on semi-hollow materials: perforated and hollow bricks
• Through fastening
• Polyamide (Nylon) anchors
d0 hole diameter in the concrete support Lt anchor length dCOACH SCREW coach screw diameter
IHP | IHM
BUSHINGS FOR PERFORATED MATERIALS
• Available in two versions: plastic (Polyamide) and metal
• Ideal for application on semi-hollow materials in combination with V-NEX and P-NEX chemical anchors
d0 hole diameter in the concrete support Lt anchor length
d0 hole diameter in the concrete support Lt anchor length
THREADED ROD CL. 5.8 WITH NUT AND WASHER
• Complete with nut (ISO4032) and washer (ISO7089)
• 5.8 and 8.8 steel with bright zinc plated
• Optimised lengths to maximise rod strength in concrete applications and to avoid waste
5.8 STEEL CLASS THREADED ROD
d0 hole diameter in the support dF
8.8 STEEL CLASS THREADED ROD
d0 hole diameter in the support dF hole diameter in the element to be fastened
INSULA WASHER
WASHER TO FASTEN INSULATION TO WOOD
• Ideal for use with SNK and SNK EVO screws, Ø6 and Ø8,and length depending on thickness of the insulation to be fixed
• Incorporated hole cover to avoid thermal bridges
• Large internal cavities for proper adhesion of plaster
• Has a system that prevents the screw from pulling out
ANCHOR FOR FASTENING INSULATION TO BRICKWORK
• Ø8 PVC double expansion anchor with preassembled steel nails, for fastening to concrete and brickwork
• It has CE marking in accordance with ETA, with certified resistance values
• Double expansion with preassembled steel nails allows for fast versatile fastening on concrete and brickwork
HEXAGONAL HEAD BOLT WITH NUT
• Cylindrical metal connector with CE marking according to EN 14592
• Carbon steel of strength grade 8.8 for all hexagonal head bolts (KOS)
• Hexagonal head bolt supplied with an incorporated nut (for the carbon steel version)
8.8 steel class - electrogalvanized DIN 601 Amax
The maximum fastening thickness (Amax) is calculated considering the
ROUND HEAD BOLT WITH NUT
• Round head bolt supplied with an incorporated nut (for the carbon steel version)
• Carbon steel of strength grade 4.8 for all hexagonal head bolts (KOT)
4.8 steel class - electrogalvanized DIN 603 (ISO 8677)
1000 4.8
THREADED ROD
4.8 steel class - electrogalvanized DIN 975
THREADED ROD
8.8 steel class - electrogalvanized DIN 975
MGS 2200 4.8
THREADED ROD
4.8 steel class - electrogalvanized DIN 975
MGS AI 975 MGS 1000 8.8
THREADED ROD
A2-70 (A2 | AISI304) stainless steel DIN 975
ULS 9021
LARGE WASHER
HV 100 steel - electrogalvanized DIN 9021 (ISO 7093*)
(*) ISO 7093 differs from
REINFORCED LARGE WASHER
HV 100 steel - electrogalvanized DIN 440 R
ULS 440 ULS 1052
REINFORCED XL WASHER
HV 100-250 steel - electrogalvanized DIN 1052
125
HV 100 steel - electrogalvanized DIN 125 A (ISO 7089)
HEXAGONAL NUT
8 steel class - electrogalvanized DIN 934 (ISO 4032*)
(*)ISO 4032 differs from DIN 934 for parameter h and, for diameters M10, M12, M14 and M22 also for the SW parameter.
CONNECTING NUT
8 steel class - electrogalvanized DIN 6334
BLIND NUT
6 steel class - electrogalvanized DIN 1587
Single-piece turned nut.
BLIND NUT
A2 (A2 | AISI304) stainless steel DIN 1587
Single-piece turned nut.
HEXAGONAL NUT
A2-70 (A2 | AISI304) stainless steel DIN 934 (ISO 4032*)
(*)ISO 4032 differs from DIN 934 for parameter h and, for
SELF-LOCKING NUT
A2-70 (A2 | AISI304) stainless steel DIN 985 (ISO 10511*)
(*)ISO 10511 differs from DIN 995 for parameter h and, for
WASHER
A2 | AISI304 stainless steel DIN 9021 (ISO 7093-1*)
(*) ISO 7093 differs from DIN 9021 in the surface hardness.
MEMBRANES
BREATHABLE MONOLITHIC
BREATHABLE
ADHESIVE MEMBRANES
VAPOUR BARRIERS AND
BITUMINOUS
CHOICE OF PRODUCTS
MAXIMUMSAFETY
ATMOSPHERICTOPOFBEAM AGENTS
INDIRECT
INDIRECT
EXPOSURETOUVRAYSBEAMBOTTOM
ALU BAND
INTERNA SIMPLA SPRINTA SIGNO
CEMENTA IN CLARA
SUPRA BAND
BUTYL BAND
ELASTIC GLUE
MONOLITHIC MEMBRANES
MONOLITHIC MEMBRANES
MICROPOROUS MEMBRANES
CHARACTERISTICS
Thermal stability
Durability and stability with ageing
UV stability
Chemical stability
Low reaction to fire
Breathability (water vapour)
Watertightness
Airtightness
Resistance to heavy rain
Mechanical resistance
Slipping resistance
Resistance to pollutants
CHARACTERISTICS
Thermal stability
Durability and stability with ageing
UV stability
Chemical stability
Low reaction to fire
Breathability (water vapour)
Watertightness
Airtightness
Resistance to heavy rain
Mechanical resistance
Slipping resistance
Resistance to pollutants
On site, membranes are often exposed to multiple stress factors simultaneously, such as mechanical stress, weathering and UV radiation – situations that are difficult to replicate in standard testing.
This is why the range of monolithic membranes was developed, which have less degradation than a microporous film when exposed to ultraviolet radiation, pollutants or other sources of stress.
NOTE: The membranes are intended for use underneath discontinuous roof coverings and behind external wall coverings to prevent the penetration of wind and water from outside. They also provide temporary protection against weathering. In the case of prolonged exposure or extreme events, external protection systems are recommended.
TRASPIR HOUSE MONO 135
HIGHLY BREATHABLE MONOLITHIC MEMBRANE
• The monolithic structure of the membrane and the special polymers used ensure excellent long-term durability
• High protection against heavy rain during temporary exposure to the elements on site. The monolithic functional film and reduced mass per unit area makes it possible to obtain an excellent, cost-effective product
• Quick installation and perfect sealing, thanks to the integrated double tape
Data sheet available online
properties tensile strength MD/CD: 200/160 N/50mm resistance to nail tearing MD/CD: 160/190 N
TRASPIR HOUSE MONO 160
HIGHLY BREATHABLE MONOLITHIC MEMBRANE
• High durability over time and resistance to UV rays and heat. Ideal for façade applications
• Voluntary environmental certifications EPD and LCA
• High resistance against heavy rain during temporary exposure to weather during construction
Data sheet available online
TRASPIR HOUSE MONO 190
HIGHLY BREATHABLE MONOLITHIC MEMBRANE
• The monolithic film ensures breathability through a chemical reaction
• The continuous and homogeneous layer creates a complete barrier against the passage of water
• The mass per unit area of the membrane ensures mechanical strength and protection during construction
Data sheet available online
properties value
composition PP - monolithic - PP
mass per unit area 190 g/m2 water vapour transmission (Sd) 0,2 m
mechanical properties
N/50mm
MD/CD: 220/230 N
METAL RACK START
COD. 1x 06HTSBODY 1x 06HTSCOMP
Accessories
COD. 06HTSTFLY
HT START FLYER HOLDER
Accessories
COD. 06HTSTROLL
HT START ROLL HOLDER
Accessories
COD. 06HTSTWHL
HT START WHEELS 4 pcs.
TRASPIR FACADE MONO
HIGHLY BREATHABLE MONOLITHIC MEMBRANES RESISTANT TO UV RAYS
• Membranes ideal for façades with joints of varying widths, where no more than 40% of the surface remains exposed
• The monolithic structure makes the membranes extremely stable and heat resistant, ensuring excellent long-term performance
• High water resistance, thermal and dimensional stability and excellent weather resistance
Data sheet available online
TRASPIR EVO UV 115
properties value
composition PU - PP
mass per unit area 115 g/m2
water vapour transmission (Sd) 0,08 m
mechanical properties tensile strength MD/CD: 150/110 N/50mm resistance to nail tearing MD/CD: 130/170 N
façade open joints up to 30 mm, maximum 20% exposed surface
TRASPIR FELT EVO UV 210
properties
value
composition PU - PL
mass per unit area
water vapour transmission (Sd)
mechanical properties
210 g/m2
0,15 m
tensile strength MD/CD: 380/420 N/50mm resistance to nail tearing MD/CD: 220/210 N
façade open joints up to 30 mm, maximum 30% exposed surface
TRASPIR EVO UV 210
properties value
composition acrylate - PL
mass per unit area
210 g/m2
water vapour transmission (Sd) 0,04 m
mechanical properties tensile strength MD/CD: 300/200 N/50mm resistance to nail tearing MD/CD: 120/120 N
façade open joints up to 50 mm, maximum 40% exposed surface
TRASPIR HOUSE 110
HIGHLY BREATHABLE MEMBRANE
• It has passed ASTM E331 and Sintef water penetration resistance testing, ensuring a waterproof barrier at 300 Pa, making it the ideal solution for providing temporary protection during construction and in the event of accidental breaks in the cladding
• Voluntary environmental certifications EPD and LCA
• Quality certified by the Norwegian SINTEF and the French CSTB institute (E450 Jf C2)
Data sheet available online
MD/CD: 250/165 N/50mm
to nail tearing MD/CD: 115/135 N
TRASPIR HOUSE 135
HIGHLY BREATHABLE MEMBRANE
• The high breathability of this membrane promotes the drying of any infiltrations, protecting the structure
• It optimizes the wind tightness of the structure, protecting it from the entry of hot air in summer and cold air in winter
• A layer that ensures the thermal effectiveness of the insulation, protects the envelope and improves the materials durability
Data sheet available online
TRASPIR HOUSE 150
HIGHLY BREATHABLE MEMBRANE
• It is designed for application on the outer and inner side of walls and roofs
• Certified by the French body CSTB, which attests to the membrane's mechanical performance, classifying it as class E1 Sd1 TR2
• Highly breathable membrane for roofs with an excellent cost-performance ratio
Data sheet available online
properties
composition
mass per unit area
- PP - PP
g/m2
water vapour transmission (Sd) 0,02 m
mechanical properties tensile strength MD/CD: 350/210 N/50mm resistance to nail tearing MD/CD: 190/225 N
TRASPIR HOUSE 170
HIGHLY
BREATHABLE MEMBRANE
• It optimizes the wind tightness, protecting from the entry of hot air in summer and cold air in winter
• The high breathability of this membrane promotes the drying of any infiltrations, protecting the structure
• Highly breathable membrane for roofs with an excellent cost-performance ratio
Data sheet available online
properties value
composition PP - PP - PP
mass per unit area 170 g/m2
water vapour transmission (Sd) 0,02 m
mechanical properties tensile strength MD/CD: 330/230 N/50mm resistance to nail tearing MD/CD: 190/230 N
TRASPIR HOUSE 200
HIGHLY BREATHABLE MEMBRANE
• High mass per unit area and mechanical strength ensure excellent performance.
• Thanks to its composition, it is also suitable for applications on uneven and rough substrates that could damage lighter membranes
• The double tape integrated in the TT version ensures quick installation and professional sealing
Data sheet available online
properties
360/270 N/50mm
230/270 N
ORGANIZE YOUR MEETING AT OUR SITE!
The headquarters in Cortaccia (BZ), northern Italy, is fully equipped to host meetings and training sessions: more than 100 seats, showroom, test centre for hands-on trials, and a full range of services and activities.
ARE YOU INTERESTED?
Contact the Technical Consultant who supports you!
TRASPIR METAL
3D MATS FOR METAL ROOFS
• They ensure reduction of airborne and heavy rain noises. Values tested and certified
• Also ideal in combination with BYTUM or TRASPIR to create a micro-ventilation layer in both wall and roof installations
• They promote micro-ventilation of metal roofs, preventing corrosion
Data sheet available online
TRASPIR 3D COAT TT
MD/CD: 300/225 N/50mm resistance to nail tearing MD/CD: 170/150 N
properties value
composition PP
mass per unit area 350 g/m2
thickness 7.5 mm
mechanical properties tensile strength NET MD/CD: 1.3/0.5 N/50mm elongation NET MD/CD: 95/65%
LABORATORY MEASUREMENTS
SOUNDPROOFING VENTILATION
VENTILATION
SOUNDPROOFING
ADHESIVE MEMBRANES
MAXIMUM PROTECTION, MINIMUM INSTALLATION TIME
• Fully adhesive membranes that simplify installation and reduce application times.
• They protect panels from water damage and weathering during transport and on-site handling
ECONOMIC SAVINGS
SAFETY membranes are non-slip, high weight, suitable for different application contexts
DEFENCE ADHESIVE
SELF-ADHESIVE PROTECTIVE MEMBRANE FOR BUILDING ELEMENTS
Available in different widths on request.
BARRIER ALU NET ADHESIVE 300
SELF-ADHESIVE REFLECTIVE VAPOUR BARRIER Sd > 1500 m
VAPOR ADHESIVE 260
SELF-ADHESIVE VAPOUR CONTROL MEMBRANE
TRASPIR
ADHESIVE 260
Available in different widths on
TRASPIR EVO UV ADHESIVE
BREATHABLE SELF-ADHESIVE MEMBRANE SELF-ADHESIVE BREATHABLE MONOLITHIC
MEMBRANES AND CLIMATIC ZONES
Some solutions are more suitable than others depending on the climate zone and the building system chosen. This section contains examples to help guide you in selecting the right product.
ARCTIC/COLD CLIMATE TEMPERATE CLIMATE
EXAMPLES OF WALL APPLICATION
CLIMA ADAPT - TRASPIR HOUSE MONO - TRASPIR HOUSE
TRASPIR HOUSE MONO - TRASPIR HOUSE
ADAPT - VAPOR HOUSE
TRASPIR HOUSE MONO - TRASPIR HOUSE
ADAPT - TRASPIR HOUSE MONO - TRASPIR HOUSE
ADAPT - TRASPIR HOUSE MONO - TRASPIR HOUSE
TRASPIR
TRASPIR
CLIMA
CLIMA
CLIMA
CLIMA
TRASPIR HOUSE MONO - TRASPIR HOUSE - BYTUM
TRASPIR HOUSE MONO - TRASPIR HOUSE
TRASPIR HOUSE MONO - TRASPIR HOUSE - BYTUM
TRASPIR HOUSE MONO - TRASPIR HOUSE
TRASPIR HOUSE MONO - TRASPIR HOUSE - BYTUM
- VAPOR HOUSE
TRASPIR HOUSE MONO - TRASPIR HOUSE
ADAPT - VAPOR HOUSE
TRASPIR HOUSE MONO - TRASPIR HOUSE
CLIMA ADAPT - TRASPIR HOUSE MONO - TRASPIR HOUSE
ADAPT - TRASPIR HOUSE MONO - TRASPIR HOUSE
- VAPOR HOUSE STOP HOUSE - VAPOR HOUSE
HOUSE MONO - TRASPIR HOUSE
TRASPIR HOUSE MONO - TRASPIR HOUSE - TRASPIR METAL
VAPOR HOUSE
STOP HOUSE - VAPOR HOUSE
TRASPIR HOUSE MONO - TRASPIR HOUSE
VAPOR HOUSE
TRASPIR HOUSE MONO - TRASPIR HOUSE
TRASPIR HOUSE MONO - TRASPIR HOUSE
TRASPIR HOUSE MONO - TRASPIR HOUSE
TRASPIR HOUSE MONO - TRASPIR HOUSE - TRASPIR METAL
HOUSE MONO - TRASPIR HOUSE TRASPIR HOUSE MONO - TRASPIR HOUSE
TRASPIR HOUSE MONO - TRASPIR HOUSE - TRASPIR METAL
CLIMA
STOP HOUSE ALU NET 100
REFLECTIVE VAPOUR BARRIER Sd 150 m
• Its improves the energy performance of the construction panels by reflecting heat inwards, increasing thermal resistance
• Thanks to reinforcing grid, it is not affected by mechanical stress or by staples and nails
• Specific material with the function of limiting the passage of vapour from the hot part to the cold part of structures
Data sheet available online
STOP HOUSE NET 110
• Transparent, ensuring quick and easy installation
• The reinforcement grid offers great resistance, even in the event of pressure caused by the insulating material being blown
• Specific material with the function of limiting the passage of vapour from the hot part to the cold part of structures, avoiding the formation of condensation VAPOUR BARRIER Sd
STOP HOUSE 190 BARRIER SD150
VAPOUR BARRIER Sd 145 m
• Made of extruded polyethylene, it offers several possible applications, from temporary protection on the construction site to vapour control within the layers
• Also available in a 3,2 m version, it is also ideal for waterproofing floors
• Transparent, ensuring quick and easy installation
Data sheet
properties
(Sd)
MD/CD: > 206/180 N/50mm
MD/CD: > 147/165 N
CLIMA ADAPT 80
MEMBRANE WITH VARIABLE VAPOUR DIFFUSION
• If it comes into contact with a high amount of moisture, it changes from a vapour barrier to a breathable product, ensuring that the structure dries out
• Tested by external scientific bodies who have also simulated its behaviour in real conditions
• Voluntary environmental certifications EPD and LCA
Data sheet available online
CLIMA CONTROL 105
MEMBRANE WITH VARIABLE VAPOUR DIFFUSION
• Ideal to increase energy performance for reconditioning existing structures
• Thanks to its transparency, the membrane is immediately installed on the substructure
• The reinforcement grid offers great resistance to the membrane, even in the event of pressure caused by the insulating material being blown
Data sheet available online
properties
CLIMA CONTROL NET 145
MEMBRANE WITH VARIABLE VAPOUR DIFFUSION
• The special PA film ensures maximum protection for walls and excellent security in insulation
• Thanks to its transparency, the membrane is immediately installed on the substructure
• Ideal to increase energy performance for reconditioning existing structures
Data sheet available online
VAPOR HOUSE IN 120
VAPOUR CONTROL MEMBRANE
• Membrane for controlling the passage of water vapour in timber structures and houses
• It is transparent, making it easy to install when insulating from the inside or for installation between beams
• Voluntary environmental certifications EPD and LCA
Data sheet available online
properties value
composition PP - PP
mass per unit area 120 g/m2
water vapour transmission (Sd) 30 m
mechanical properties
tensile strength MD/CD: 220/180 N/50mm(*) resistance to nail tearing MD/CD: 160/205 N(*)
(*) Average values, see declaration of performance for minimum values.
VAPOR HOUSE NET 110
VAPOUR CONTROL MEMBRANE WITH REINFORCEMENT GRID
• It is a lightweight vapour control membrane with high mechanical performance thanks to the reinforcement grid
• It can also be used on the top of beam as UV stability during construction is ensured
• It prevents the uncontrolled passage of warm, moist air through the stratigraphy, thus avoiding the risk of interstitial condensation
Data sheet available online
properties
VAPOR HOUSE 140
VAPOUR CONTROL MEMBRANE
• Designed for application on the inside and outside of roofs and walls
• It regulates the passage of moisture preventing the formation of interstitial condensation within the insulation
• UV resistant, it can be used directly on top of the wooden plank
Data sheet available online
VAPOR HOUSE 150
VAPOUR CONTROL MEMBRANE
• It regulates the passage of moisture preventing the formation of interstitial condensation within the insulation
• UV resistant, it can be used directly on top of the wooden plank
• This product offers excellent value for money
Data sheet available online
VAPOR HOUSE NET 180
VAPOUR CONTROL MEMBRANE WITH REINFORCEMENT GRID
• Thanks to its composition, it is also suitable for applications on uneven and rough substrates that could damage lighter vapour barriers
• The TT version offers fast installation and perfect sealing thanks to the integrated double tape, which makes it a more cost-effective solution compared to traditional taping installation
Data sheet available online
properties value
composition PE - PE
- PE - PP mass per unit area 180 g/m2
water vapour transmission (Sd) 10 m
mechanical properties tensile strength MD/CD: > 270/250 N/50mm resistance to nail tearing MD/CD: > 230/250 N
BITUMINOUS MEMBRANES
BITUMINOUS MEMBRANE
• CE-marked as a flexible membrane for waterproofing discontinuous roofs
• Full range with an excellent weight-to-thickness ratio, ensuring ease of handling and flexibility
• They ensure great mechanical strength and durability thanks to the reinforcing layer UNDER-TILE
750 BYTUM 1100
BYTUM BASE 2500
SELF-ADHESIVE UNDER-TILE BITUMINOUS MEMBRANE
• It is the ideal solution on flat roofs in combination with the BYTUM SLATE 3500 slated membrane as the final visible layer
• The bituminous-modified compound ensures flexibility and workability even at low temperatures, and allows installation without the use of naked flames or heat
• When used as an underlay on slopes up to 5°, this adhesive bituminous membrane ensures excellent waterproofing
mm
BYTUM SLATE 3500
SELF-ADHESIVE
UNDER-TILE
SLATED BITUMINOUS MEMBRANE
• It can be used for flat roofs as the final visible layer in combination with the self-adhesive and self-sealing sheath, BYTUM BASE 2500, for optimal waterproofing
• The slated surface ensures permanent UV stability
• The lateral adhesive strip ensures waterproofing even at the points where membranes overlap
SHINGLE
• Final waterproof covering layer CE marked according to ETA. Weatherproof and acoustically insulated against heavy rain
• Unlimited UV resistance thanks to the slate top layer
• Ideal in combination with a bituminous under-tile shield for effective waterproofing on low pitches
SHINGLE RECTANGULAR
SHINGLE BIBER
BITUMINOUS
TRAINING MEETINGS
In just two hours, we’ll walk you through the key features and benefits of our products. Let us come to you.
WHO IT'S FOR Retail salespersons, sector managers, sales network
LOCATION Your store
PURPOSE To train your team and boost their knowledge of our product range
RESULTS A broader product mix, increased turnover and the opportunity to tap into a growing market
SEALANTS, TAPES AND PROFILES
ACRYLIC TAPES
AIR BITUM
BITUMINOUS MEMBRANE SEALANT SPRAY, READY FOR USE
• Waterproofs and seals providing weather resistance
• It is effective on all types of support and shapes
• Ideal for sealing infiltrations on roofs, gutters, pipes and more
• The special elastomer-modified bituminous formula ensures a product that after drying resists both weathering and salt corrosion
AIR GLUE
• Contact adhesive for timber, metal, rubber, vinyl, plastic, cardboard, concrete and other materials
• Improves the adhesion of acrylic tapes to materials such as concrete and fibrous insulation layers
• It can be used both indoors and outdoors
• Adjustable spray width
ELASTIC GLUE
HIGH ELASTICITY UNIVERSAL ADHESIVE GLUE FOR INTERNAL USE
• For an elastic and airtight bonding of membranes
• Excellent adhesion to stone, concrete, plaster, timber and metals
• Perfect with all membranes from the HOLZ TECHNIC range
BONDING GLUE
HIGH ELASTICITY UNIVERSAL ADHESIVE GLUE FOR EXTERNAL USE
• Also for outdoor use, it provides excellent water resistance
• Glue for membranes and sealant for joints
• Very high adhesion on the most common building materials
UNIVERSAL FOAM
MULTI-PURPOSE POLYURETHANE FOAM
• Polyurethane foam for interiors, EC1 Plus certified for its low volatile compound emissions
• Reaction to fire B3 (DIN 4102-1)
• The special formula reduces expansion after application, avoiding excessive pressure on glued elements
• Versatile solution for filling voids such as joints, gaps around pipes and spaces in general
UNIFOAM KIT
• Multipurpose polyurethane foam for filling voids such as joints, gaps around pipes and other spaces
• Automatic long tube gun for foams application
• Universal cleaner suitable for removing fresh polyurethane foam
Package include:
SILENT FOAM
HIGH PERFORMING SOUNDPROOFING SEALING POLYURETHANE FOAM
• Reaction to fire B3 (DIN 4102-1)
• For assembly of timber, PVC or aluminium door and window frames
• Perfect adhesion to any building material, including EPS and XPS sheets
• Airtight even after trimming thanks to closed-cell structure
• Classified EC1PLUS for emissions of organic volatile compounds according to GEV test procedure
SILENT FOAM B2
HIGH PERFORMING SOUNDPROOFING SEALING POLYURETHANE FOAM
• For assembly of timber, PVC or aluminium door and window frames
• Reaction to fire B2 (DIN 4102-1)
• Suitable for both indoor and outdoor use, thanks to the very low volatile compound emission rate
LIQUID MEMBRANE
ACRYLIC WATERPROOFING WITH BRUSH OR SPRAY APPLICATION
• Ready to use, for durable, weatherproof and UV-resistant waterproofing
• Based on synthetic resins in aqueous dispersion
• Solvent-free
• The synthetic resin mix is elastic and resistant to any movement of the sealed cracks
• Suitable for complex construction details and resistant to micro-cracking. Ideal for both industrial environments and coastal areas
FOAM REMOVER
UNIVERSAL CLEANER SUITABLE FOR REMOVING FRESH POLYURETHANE FOAM
• Quick and effective removal of unhardened polyurethane foam from any surface
• Dual use: gun-mounted or spray-applied
• Indispensable for cleaning foam guns
Data sheet available online
CODE content colour pcs [ml] [US fl oz]
FOAMREM500 500 16.91 colourless 12
RELATED PRODUCTS
PROFESSIONAL GUN FOR 310 ml CARTRIDGES page 284
GUN FOR 600 ml SOFT CARTRIDGES page 286
AUTOMATIC LONG TUBE GUN FOR FOAMS page 285
HOW IS THE TAPE MADE?
REMOVABLE LINER
removable silicone film
FINGERLIFT
protruding section, simplifies liner removal
CORE cardboard or plastic cylinder around which the tape is wound
GLUE
adhesive mass
• acrylic mix in aqueous dispersion
• UV-crosslinked acrylic mix
• butyl
• bituminous
REINFORCING LAYER
reinforcing polymeric grid
• rectangular mesh
• diagonal mesh
GLUE
adhesive mass
• acrylic mix in aqueous dispersion
• UV-crosslinked acrylic mix
• butyl
• bituminous
PRIMER layer that serves as a binder between support and glue
SUPPORT film onto which the adhesive is applied
• PE film
• PP film
• aluminium film
• non-woven fabric
• paper
TYPE OF GLUE
UV-CROSSLINKED ACRYLIC MIX
• Suitable for smooth surfaces
• Elastic ACRYLIC MIX IN AQUEOUS DISPERSION
• Thermally stable
• UV stable
BUTYL
• Suitable for very irregular and porous surfaces
• Deformable
• UV stable over time
• Thermally stable
• Effective at low temperatures
• Suitable for irregular surfaces
• Deformable BITUMINOUS
TAPE SELECTION
UNIVERSAL SINGLE-SIDED HIGH-ADHESION TAPE
• Universal tape with excellent initial tack and high adhesion strength on any surface. It can be used both indoors and outdoors
• Ensured adhesion over time even at low temperatures and on dusty, porous or damp surfaces
• Available in various sizes, also with pre-cut liner, for easy installation even in complex corners and edges
Data sheet available online
Thickness: 0,34 mm
COMPOSITION:
1 support: PE film
2 glue: acrylic dispersion without solvents
3 reinforcing layer: reinforcing polyester grid
4 glue: acrylic dispersion without solvents
5 release liner: silicone paper
SPRINTA
UNIVERSAL SINGLE-SIDED TAPE WITHOUT RELEASE LINER
• It can be applied both indoors and outdoors, providing fast and secure sealing
• No separation film means less waste to dispose of, for greater environmental sustainability
• It can be easily torn off thanks to the serrated edges that facilitate cutting the tape without the use of scissors or cutters
• Speed installation and good adhesion strength on most common building materials
Data sheet available online
Thickness: 0.25 mm
COMPOSITION:
1 support: PE film
2 glue: solvent-free UV-crosslinked acrylic
3 reinforcing layer: polyester reinforcing grid
4 glue: solvent-free UV-crosslinked acrylic
SIMPLA
UNIVERSAL SINGLE-SIDED TAPE
• Versatile tape with progressive adhesion and long-lasting hold on various substrates
• Ideal for prefabrication, thanks to the specially formulated glue and the wide range of available formats
• The type and amount of glue used makes it suitable even for high-temperature conditions
Thickness: 0,28 mm
COMPOSITION:
1 support: PE film
2 glue: acrylic dispersion without solvents
3 reinforcing layer: polyester reinforcing grid
4 glue: acrylic dispersion without solvents
5 release liner: silicone paper
INTERNA
SINGLE-SIDED TAPE FOR INDOOR USE
• The pre-formed carrier allows easy sealing of complex corners and edges
• It is also available with pre-cut liner for faster installation
• Reinforced paper support, ideal for indoor use; airtightness ensured over time
Thickness: 0,33 mm
COMPOSITION:
1 support: paper reinforced with protective film
2 glue: acrylic dispersion without solvents
3 release liner: silicone paper
UNIVERSAL TRANSPARENT SINGLE-SIDED TAPE
• Transparent and discreet, it is invisible when applied to any surface
• Exceptional adhesive strength, effective at both high and low temperatures and in the presence of moisture, for fast and secure application
• Extremely reliable in outdoor applications, UV stable and rain resistant
• Ideal for repair work where an invisible finish is required
Thickness: 0,27 mm
COMPOSITION:
1 support: PE film
2 glue: acrylic dispersion without solvents
3 reinforcing layer: reinforcing polyester grid
4 glue: acrylic dispersion without solvents
5 release liner: silicone paper
EXTERIOR FAÇADE TAPES
MULTI BAND UV
UV stability with open joints up to 30 mm wide, with a maximum of 20% of the surface exposed to UV rays
FRONT BAND UV 210
UV stability with open joints up to 50 mm wide, with a maximum of 40% of the surface exposed to UV rays
FACADE BAND UV
UV stability with open joints up to 50 mm wide, with a maximum of 40% of the surface exposed to UV rays
DECK BAND UV
Permanent UV stability. Ideal for decks and façades
MULTI BAND UV
SPECIAL UV-RESISTANT HIGH-ADHESION TAPE
• Waterproof adhesive sealing tape, multifunctional and flexible, easy to apply
• The fire reaction rating B-s1, d0 and flame-retardant capability according to EN 13501-1 have been tested in combination with the TUVA breathable membrane for façades.
• Applied outdoors, it has permanent stability and UV resistance
RESISTANT TO UV RAYS CAN BE PLASTERED
Thickness: 0,7 mm Data sheet available online
COMPOSITION:
1 support: 3-layer monolithic membrane highly resistant to UV rays
2 glue: acrylic dispersion without solvents
3 release liner: PP film
RESISTANT TO UV RAYS DISCREET APPEARANCE
RESISTANT TO UV RAYS DISCREET APPEARANCE HIGH/LOW TEMPERATURES
RESISTANT TO UV RAYS NAIL POINT TESTED DURABILITY
FRONT BAND UV 210
UNIVERSAL SINGLE-SIDED TAPE, HIGHLY RESISTANT TO UV RAYS
• Excellent aesthetic result when paired with TRASPIR FACADE MONO
• Fire rating of B-s1,d0: it does not spread the flame in case of fire, contributing to the passive protection of the structure
• The membrane backing the tape ensures high thermal stability and UV resistance
Data sheet available online
0,5 mm
COMPOSITION:
1 support: TRASPIR FACADE MONO
2 glue: acrylic dispersion without solvents
3 release liner: PP film
FACADE BAND UV
UNIVERSAL SINGLE-SIDED TAPE, RESISTANT TO UV RAYS
• Thanks to its high UV stability, it is ideal for sealing façades with open joints
• Developed for application on breathable façade membranes, with a concealed finish for excellent visual results
• The PP backing and the special adhesive achieve a very high thermal stability
Data sheet available online
COMPOSITION:
1 support: PP film
2 glue: acrylic dispersion without solvents
3 reinforcing layer: reinforcing polyester grid
4 glue: acrylic dispersion without solvents
5 release liner: silicone paper
ALU BAND
REFLECTIVE SINGLE-SIDED ADHESIVE TAPE FOR INDOOR USE
• Special glue and aluminium backing provide high thermal stability without compromising tack
• It can be applied to thermo-hydraulic structures, thanks to its high thermal reflectivity
• The aluminium backing offers high vapour protection and is ideal in combination with the STOP HOUSE ALU line
Data sheet available online
Thickness: 0,06 mm
COMPOSITION:
1 support: aluminium film
2 glue: acrylic dispersion without solvents
3 release liner: PP film
ALU BUTYL BAND
REFLECTING BUTYL ADHESIVE TAPE
• The butyl glue offers excellent adhesion on the most common surfaces, even very porous ones
• The reinforced aluminium backing protects the butyl mixture, ensuring that the seal lasts after installation
• Thanks to the reinforced backing, it has outstanding mechanical properties and the tape is tear-resistant
Data sheet available online
COMPOSITION:
1 support: reinforced aluminium film
2 glue: grey adhesive butyl compound
3 release liner: PE film
DECK BAND UV
BUTYL ADHESIVE TAPE
• Suitable for both decks and façades, it protects the timber battens from humidity and heavy rain
• The reinforced aluminium backing ensures permenent UV resistance
• The mix closes over the perforations and remains perfectly watertight
COMPOSITION:
1 support: UV-stable anthracite-coloured reinforced aluminium film
2 glue: grey adhesive butyl compound
3 release liner: PE film
BLACK BAND
UNIVERSAL SINGLE-SIDED BUTYL TAPE
• Universal and expandable up to 300%, it seals any crack on the most widely used construction materials
• Self-sealing, ideal for quick sealing on difficult junctions and highly irregular surfaces; self-sealing even at low temperatures.
• Fast setting, with easy release film. The 80 mm version has a pre-cut liner to facilitate installation in corners or complex locations
Data
COMPOSITION:
1 support: high density PE film
2 glue: black adhesive butyl compound
3 release liner: easy-release PP film
BUTYL BAND
DOUBLE-SIDED UNIVERSAL BUTYL TAPE
• Reinforced with a polyester mesh for compactness and high mechanical resistance
• Appropriate for airtight seals for timber-to-timber and/or timber-to-concrete joints
• Butyl is also perfectly suited for installation in tight spaces and on irregular profiles without resistance
ADHESIVE
s = tape thickness
COMPOSITION:
1 glue: grey adhesive butyl compound
2 reinforcing layer: reinforcing polyester grid
3 glue: grey adhesive butyl compound
4 release liner: silicone paper
SUPRA BAND
UNIVERSAL DOUBLE-SIDED BUTYL TAPE WITH HIGH ADHESION
• Water and air resistant, it ensures adhesion even to wet supports and at low temperatures
• Very soft and adaptable, it is excellent for sealing timber-to-timber and/or timber-to-concrete joints, compensating for the natural movements of the materials
• Effectively seals even damp or porous surfaces, with no need for additional products
s = tape thickness Data sheet available online
COMPOSITION:
1 release liner: silicone paper
2 glue: double-sided grey butyl compound
FIRE STRIPE GRAPHITE
FLEXIBLE INTUMESCENT GASKET
• Intumescent gasket that ensures safety: in case of fire, it expands three-dimensionally to block flames, smoke and gases. Asbestos-free
• Blocks smoke, gas and flames; tested on linear joints in horizontal and vertical constructions
• Easy to cut with scissors or a utility knife, and straightforward to apply thanks to the adhesive surface
Data sheet available online
s = tape thickness
USER-FRIENDLY INTUMESCENT PREFABRICATION
COMPOSITION:
1 support: intumescent elastomer
2 glue: acrylic dispersion without solvents
3 release liner: silicone paper
NAIL BAND
BUTYL NAIL POINT SEALANT TAPE
• Thanks to its modified butyl formulation, it ensures excellent durability even when subjected to thermal stress
• Also suitable for low-temperature applications, butyl ensures excellent adhesion to structures in harsh environmental conditions
• Due to its elasticity, butyl tends to seal around the screw or nail
Data sheet available online
COMPOSITION:
1 support: PE film
2 glue: grey adhesive butyl compound
3 release liner: PP film
HIGH-ADHESION NAIL SEALING TAPE
• The closed cell polyethylene structure ensures the opening created by the fastening systems is waterproof
• Also available in 5 mm thickness and 70 mm width for more secure sealing
• With the help of LIZARD unwinder, installation is easy and fast, done directly on the ventilation battens
COMPOSITION:
1 support: PE foam
2 glue: acrylic dispersion without solvents
FILLUM GEMINI
• Thanks to the double adhesiveness it ensures continuous adhesion between the membrane and batten, avoiding water accumulation in drilled points
• With the help of LIZARD, installation is easy and fast, done directly on the ventilation battens
• The closed cell polyethylene structure ensures that the opening created by the fastening is waterproof
COMPOSITION:
1 glue: acrylic dispersion without solvents
2 support: PE foam
3 glue: acrylic dispersion without solvents
4 release liner: silicone paper
NAIL POINT
NAIL POINT
START BAND
WATERPROOF PROFILE WITH HIGH MECHANICAL RESISTANCE
• It is elastic and easy to install even around corners and it is resistant to perforations or mechanical fastening
• It is also suitable as a general-purpose wall barrier, it protects walls against rising damp over time, even at extreme temperatures
• Also available in an adhesive version, ideal when applied in combination with ALU START, for an infallible connection to the ground
COMPOSITION:
EPDM-based synthetic rubber
COMPOSITION:
1 support: EPDM-based synthetic rubber
2 glue: acrylic dispersion without solvents
3 reinforcing layer: reinforcing polyester grid
4 glue: acrylic dispersion without solvents
5 release liner: PP film
CONNECT BAND
DAMP-PROOF COURSE BARRIER FOR IRREGULAR SUBSTRATES
• It protects timber from rising damp and ensures excellent airtightness
• Double protection provided by the EPDM profile and self-expanding polyurethane foam tapes. Compensates for any irregularities in the substrate
• Extremely thermostable and flexible even at low temperatures
COMPOSITION:
1 EPDM-based synthetic rubber
2 elastic polyurethane foam with additives
COMPOSITION:
1 EPDM-based synthetic rubber
2 elastic polyurethane foam with additives
3 glue: double-sided grey butyl compound
4 release liner: PP film
LEVEL BAND
DAMP-PROOF COURSE BARRIER FOR FOUNDATIONS
• It resists moisture from rising through capillary action, while offering excellent resistance to water, air and wind
• Available in three versions, it is ideal both as a wall barrier and to seal vertical wall-to-wall joints
• The soft and elastic polyethylene profile allows it to be installed even in complex shapes and angles
CONSTRUCTION SEALING
COMPRESSIBLE SEALING GASKET FOR REGULAR JOINTS
• It can be applied during construction or during prefabrication to seal timber-to-timber joints
• This product has been used to test the fire resistance of linear joints in CLT
• Tested acoustic performance: up to 4 dB noise reduction when used as a wall gasket
COMPOSITION:
1 Expanded and extruded EPDM
TIE BEAM STRIPE
• Flexible and easy to work, thanks to the soft and shapeable mixture
• Resilient profile for connecting the platform to the concrete
• The pre-formed profile adapts well to surfaces, ensuring air and water tightness at all times TIE BEAM SEALING PROFILE
COMPOSITION:
1 Extruded compact EPDM
SELF-ADHESIVE BITUMINOUS BAND, CAN BE PLASTERED
• Plasterable technical fabric, ideal for applications involving plaster finishes
• It protects walls against rising damp over time
• Also suitable as a general sealing wall barrier or window/door node waterproofing product
COMPOSITION:
1 release liner: silicone paper
2 glue: black adhesive bituminous compound
3 support: non-woven PP fabric
BYTUM BAND PROTECT
SELF-ADHESIVE BUTYL BAND, CAN BE PLASTERED
• The butyl glue ensures excellent adhesion and deformation capacities, compensating for the natural movement of the timber
• Plasterable technical fabric, ideal for applications involving plaster finishes
• The mix ensures high adhesion even at low temperatures. Durable and thermally stable
Data sheet available online
COMPOSITION:
1 release liner: PP film
2 glue: grey adhesive butyl compound
3 support: non-woven PP fabric
GROUND BAND
SELF-ADHESIVE BITUMINOUS MEMBRANE
• The special elastoplastomeric bituminous compound allows effective application between +5 °C and +30 °C
• Self-adhesive, for faster installation. It does not require the use of flame, minimising risks to timber
• High-density polyethylene backing film makes it waterproof and extremely resistant to punching shear
Data sheet available online
Thickness: 1,5 mm
COMPOSITION:
1 release liner: silicone paper
2 glue: black adhesive bituminous compound
3 support: high density cross-laminated PE film
RADON FLOOR
WATERPROOF RADON GAS BARRIER FOR FOUNDATIONS
• Radon and vapour barrier that prevents radon gas from infiltrating the building envelope
• Resistant across a wide temperature range, including cold climates
• The double layer of low-density PE ensures the membrane’s waterproofing
Data sheet available online
Thickness: 0,4 mm
COMPOSITION:
1 top layer: low density PE film
2 lower layer: low density PE film
WINDOW SEALING
DOORS, WINDOWS AND STRUCTURE
WINDOW SEALING
To ensure the effectiveness of a door or window, continuity is essential across all air and wind sealing layers. Even a high-performance door or window, if installed incorrectly, can compromise the efficiency of the entire system and fall short of the end user’s expectations.
WHAT IT MUST GUARANTEE
ENERGY SAVING
ADJUSTMENT
THERMO-HYGROMETRIC
HOUSING COMFORT
NATURAL AERATION
NATURAL LIGHTING
ELASTIC RESPONSE
WHAT IT MUST RESIST
UV RAYS
HEAVY RAIN
TEMPERATURE CHANGES
WIND NOISE POLLUTION
FIRE
SOUNDPROOFING
THERMAL INSULATION
THREE LEVELS OF PROTECTION
The three-level method is used in many European countries to ensure correct installation of doors and windows. Air tightness, wind tightness and thermal-acoustic insulation are all key aspects to be considered in every stage of the design. HOLZ TECHNIC offers specific solutions for each of these levels.
CORRECT DESIGN OF THE INSTALLATION JOINT
Absence of all three levels, the probability of condensation and water infiltration in the structure is high.
WINDOWS FASTENING
The absence of any one of these three levels compromises the performance of the others.
HOLZ TECHNIC’s SBM | ZBM screws have been tested by IFT Rosenheim, an internationally recognised institute for doors and windows. The tests certify tensile, shear and compression performance on brick, concrete and autoclaved aerated concrete substrates.
The official IFT assessment icons are shown in the catalogue as a guarantee of recognised quality.
The range is completed by SKS EVO, ideal for direct fastening to concrete, and SHS AISI410, stainless steel for installations on exposed or acidic timber.
The HT100 angle brackets and other metal plates by Holz Technic offer numerous solutions for fastening subframes, sills, or other support elements for doors and windows to masonry or concrete.
OUR SOLUTION
CEMENTA OUT, CEMENTA IN, COMPRIMO and FENESTRA : the combined use of these products ensures maximum protection against wind and air, while also providing thermal and acoustic insulation. The combination of HT products increases comfort levels and promotes energy savings.
The joint performs flawlessly from an acoustic and thermo-hygrometric point of view.
SELF-EXPANDING SEALING TAPE
• After expansion, it remains elastic and stable over time, providing reliable protection against water, dust and wind
• It has passed the most stringent tests on harmful emissions, ensuring safe installation even indoors
• Supplied with a plastic core to prevent moisture absorption during construction, which could cause unwanted swelling
Data
COMPOSITION:
elastic polyurethane foam with additives
FENESTRA
SELF-EXPANDING SEALING TAPE FOR WINDOWS/ DOORS
• It seals the joints of doors and windows from air and heavy rain while maintaining the thermal-acoustic properties over the entire depth
• For cracks between 6 and 15 mm. It adapts to the surface, ensuring air and water tightness by acting as a vapour control membrane
• Ensures a high level of thermal and acoustic insulation.
COMPOSITION: elastic polyurethane foam with additives
CEMENTA IN
SPECIAL HIGH-ADHESION TAPE, CAN BE PLASTERED
• Its excellent adhesion makes it ideal for application on most surfaces
• The PP liner can be easily removed even in tight spaces or corners, without risk of tearing.
• Plasterable technical fabric
• The easy-release PP liner provides a quick and easy installation. The pre-cut versions allow the tape to be concealed behind cladding or plaster, for a clean and precise result
Thickness: 0,5 mm
COMPOSITION:
1 support: 2-layer PP vapour control membrane
2 glue: acrylic dispersion without solvents
3 release liner: easy-release PP film
CEMENTA OUT
SPECIAL HIGH-ADHESION TAPE, CAN BE PLASTERED
• Its excellent adhesion makes it ideal for application on most surfaces
• The PP liner can be easily removed even in tight spaces or corners, without risk of tearing.
• Plasterable technical fabric
• The easy-release PP liner provides a quick and easy installation. The pre-cut versions allow the tape to be concealed behind cladding or plaster, for a clean and precise result
Thickness: 0,7 mm
COMPOSITION:
1 support: breathable 2-layer PP membrane
2 glue: acrylic dispersion without solvents
3 release liner: easy-release PP film
UNIVERSAL SINGLE-SIDED HIGH-ADHESION TAPE
For more information about the product see page 212.
UNIVERSAL SINGLE-SIDED TAPE
For more information about the product see page 213.
INTERNA
SINGLE-SIDED TAPE FOR INDOOR USE
For more information about the product see page 213.
SILENT FOAM
HIGH PERFORMING SOUNDPROOFING SEALING POLYURETHANE FOAM
Data sheet available online
For more information about the product see page 207.
SILENT FOAM B2
HIGH PERFORMING SOUNDPROOFING SEALING POLYURETHANE FOAM
Data sheet available online
For more information about the product see page 207.
FLY FOAM
For more information about the product see page 285.
SELF-EXPANDING SEALING TAPE
SELF-EXPANDING SEALING TAPE
DECK BAND UV
BUTYL ADHESIVE TAPE
For more information about the product see page 218.
FACADE BAND UV
UNIVERSAL SINGLE-SIDED TAPE, RESISTANT TO UV RAYS
For more information about the product see page 216.
MULTI BAND UV
SPECIAL UV-RESISTANT HIGH-ADHESION TAPE
For more information about the product see page 215.
BYTUM BAND
SELF-ADHESIVE BITUMINOUS BAND, CAN BE PLASTERED
For more information about the product see page 226.
PROTECT
SELF-ADHESIVE BUTYL BAND, CAN BE PLASTERED
For more information about the product see page 226.
HT100
ANGLE BRACKET 100 FOR SHEAR LOADS
For more information about the product see page 90.
SMALL HEAD SCREW
• The 60° head and 3 THORNS tip allow easy insertion of the screw into small thickness without creating openings in the timber
• Ideal for fastening tongue-and-groove boards, battens, timber profiles and other small-sized elements
• Perfect for fastening timber glazing beads for windows
ENVIRONMENT
MATERIAL
SBM | ZBM
SELF-TAPPING SCREW FOR MASONRY
• Appropriate for direct fastening on compact and semi-solid materials: natural stone, concrete, solid bricks and hollow bricks
• The countersunk head (SBM) allows PVC window frames to be installed without damaging the frame
• The cylindrical head (ZBM) penetrates timber easily and remains embedded in the frame
ENVIRONMENT
MATERIAL
For more information about the product see page 160.
SKS EVO
SCREW-IN ANCHORS WITH HEXAGONAL HEAD
• Countersunk head for fastening timber elements
• Suitable for uncracked concrete
• Optimised thread for dry fastening
• C4 EVO coating
• Through fastening
• No fastener expansion
ENVIRONMENT
MATERIAL
For more information about the product see page 157. For more information about the product see page 19.
SOUNDPROOFING
SILENT WALL BYTUM
A SOLUTION FOR EVERY TYPE OF NOISE
STRUCTURAL NOISE
Structure-borne noise occurs when sound travels through the structure, spreading vibrations not only to adjacent rooms but also to non-communicating spaces.
Solve the problem at its source – use PIANO, ALADIN STRIPE or GRANULO STRIPE
STRUCTURAL-LEVEL INTERVENTION
Install PIANO, ALADIN STRIPE or GRANULO above and below the slab to interrupt noise transmission through the structure.
IMPACT NOISE
Walking, moving a chair, moving any object resting on the floor leads to mechanical excitation of the floor and, consequently, to what is known as impact noise.
Forget the broomstick trick – use SILENT FLOOR BYTUM, SILENT FLOOR PE, SILENT FLOOR PUR, SILENT FLOOR 3D, SILENT EDGE, SILENT UNDERFLOOR, GRANULO
POSSIBILITY OF INTERVENTION ONLY FROM ABOVE
Add a resilient layer with SILENT FLOOR PUR, SILENT FLOOR BYTUM, SILENT FLOOR PE, SILENT FLOOR 3D and a an acoustic topping or double solid layer (44 + 34,6 kg/m2).
Make a raised floor system with battens and resilient layer PIANO A, SILENT FLOOR PUR in strips, SILENT UNDERFLOOR, FILLUM, GEMINI, GIPS BAND, CONSTRUCTION SEALING and a double solid layer (44 + 34.6 kg/m2).
Values obtained from laboratory tests on CLT floor.
SILENT FLOOR PUR SILENT FLOOR PUR
PIANO
PIANO
AIRBORNE NOISE
It is transmitted in the air and is part of our everyday life: chatting, listening to music, playing with children.
You can always turn the volume down, but you can also explore SILENT WALL BYTUM, SILENT WALL BYTUM SA, GIPS BAND, SILENT GIPS
VERTICAL PARTITIONS | LOW-THICKNESS RENOVATION
Bonded coating is a commonly used method for acoustic upgrades because it allows, in just a few centimetres of thickness, a significant improvement in the sound rating of the partition.
Add mass by pairing SILENT WALL BYTUM or SILENT WALL BYTUM SA to the plasterboard panel.
Add SILENT FLOOR PUR as a resilient layer between the base structure and the plasterboard.
Add resilient layers such as PIANO A, SILENT FLOOR PUR in strips, and pair SILENT WALL BYTUM or SILENT WALL BYTUM SA with the plasterboard.
ACOUSTIC AND SEALING
The sound wave propagates in the air, which makes it easy to spread and difficult to control. Precise design of airtightness and service systems ensures careful consideration of all aspects, without overlooking the details that could compromise the building’s acoustic performance.
The solution is not “up in the air” – discover all the products in the chapter “SEALANTS, TAPES AND PROFILES”.
PIANO
RESILIENT SOUNDPROOFING PROFILE
• It reduces impact sound and noise transfer, for an excellent acoustic comfort
• Comprehensive range designed to optimise soundproofing according to the load: from lightweight, low-mass floors to high-load, multi-storey buildings
• Available in pre-cut versions to obtain multiple widths with fewer product codes. Dry installation with mechanical fastening
• Stable material, resistant to chemical attack and long service life
MATERIAL
Extruded and expanded EPDM
ACOUSTIC PERFORMANCE
ACOUSTIC IMPROVEMENT
RESULTS
• Certified values for application as a resilient profile within structures
• K ij measured for different PIANO hardness levels
The European Technical Assessment (ETA) provides an independent procedure at European level for assessing the essential performance characteristics of non-standard construction products. acoustic improvement
PIANO A is a resilient profile designed for low loads. Its effectiveness as a decoupling element for ribs in dry floor slabs has been successfully tested by the University of Innsbruck.
addition of the dry system with PIANO
addition of dry system without PIANO
PIANO A
PIANO B
PIANO D
PIANO E
PIANO C
ALADIN STRIPE
RESILIENT SOUNDPROOFING PROFILE
• Tested by the Industrial Research Centre of the University of Bologna in accordance with the ISO 10848 standard
• Available in pre-cut versions to obtain 4 different widths, with only two variants. Rapid dry installation by mechanical fastening
• Thanks to the EPDM mix, the product can compensate for the expansion of wood or of materials in general
Data sheet available online
MATERIAL
Extruded and expanded EPDM
ACOUSTIC PERFORMANCE
ACOUSTIC IMPROVEMENT
To monitor the performance of our products, we also invest in on-site measurement campaigns.
ALADIN has achieved highly satisfactory results in terms of impact noise.
GRANULO STRIPE
RESILIENT GRANULAR RUBBER SOUNDPROOFING PROFILE
• Resilient material for decoupling vertical partitions from ceilings
• Made with elastomer compounds derived from recycled end-of-life tyres, it is 100% recyclable
• Available in various formats, also suitable for external applications such as structural substrates (PAD, ROLL and MAT)
• Also usable as a wall break on timber-to-concrete or masonry connections
Data sheet available online
MATERIAL
ACOUSTIC PERFORMANCE grainy rubber
RESILIENT SUPPORT FOR BATTENS AND RIBS OF FLOORS OR DECKS
ACOUSTIC IMPROVEMENT
RESILIENT PROFILE FOR BATTENS AND RIBS OF FLOORS OR DECKS
GRANULO was tested within the experimental campaign of the BIGWOOD research project in combination with solutions for inspectable floors.
SUBSTRATE FOR SCREEDS AND DECKS
GRANULO has been tested in 8 different configurations Its effectiveness is demonstrated by the results published at www.zenodo.org/communities/bigwood-interreg
SILENT UNDERFLOOR
RESILIENT
STRIP FOR FLOOR UNDERBATTENS AND SUPPORTING WALLS
• Acoustically decouples the ribs of the substructure of a double wall and also acts as a sealing tape for nail perforations
• Made from expanded EPDM and acrylic glue, it can be easily applied to battens thanks to its adhesive surface and removable liner
• Thanks to its special mix, it is stable over time. It is not affected by chemical attacks and impermeable to water
SILENT GIPS
PRE-ENGRAVED, SELF-ADHESIVE THERMAL-ACOUSTIC DECOUPLING TAPE FOR PLASTERBOARD STRUCTURES
• It allows the plasterboard wall to be completely detached, preventing the transmission of vibrations to the floor or ceiling
• The pre-cuts on the profile indicate the area for the upright and the two areas where the plasterboard panels are to be positioned
• The double-sided adhesive profile allows for easy and fast installation without the need for additional adhesives
GIPS BAND
SINGLE-SIDED NAIL
SEALANT
TAPE FOR PROFILES
• It can be used at the same time as a vibration damper and as a nail sealing for the ribs of the counter-wall structure
• Thanks to LIZARD unwinder, installation is easy and fast; it can be applied directly on the battens or on the uprights
• Acoustically tested in different configurations at the Universities of Bolzano and Padua
• Correctly installed, it increases the soundproofing power by more than 4 dB
SILENT EDGE
SELF-ADHESIVE PERIMETER STRIP
• The self-adhesive backing and pre-cut format make it practical and quick to apply on site
• Together with the products of the SILENT FLOOR range, it can create screeds with high acoustic performance
• It allows for acoustic insulation of the ceiling without having to turn up the underscreed foil
MATERIAL ACOUSTIC PERFORMANCE
closed cell polyethylene IMPACT NOISE
VERSION WITH POLYETHYLENE STRAP
UNIVERSAL VERSION Data sheet available online
AIRBORNE NOISE
SILENT FLOOR PUR
HIGH-PERFORMANCE RESILIENT RECYCLED POLYMER UNDERSCREED FOIL
• The special composition offers excellent elasticity, with acoustic performance exceeding 30 dB
• Efficacy certified by the laboratories of the University of Bologna's Industrial Research Centre
• Polyurethane, a high-grade polymer, maintains elasticity and consistent performance over time. The upper membrane is waterproof
• The life cycle of the product is absolutely sustainable, the PU agglomerate is made by recovering production waste and is completely recyclable
Data sheet available online
(1)1.5 m of polyurethane agglomerate and vapour barrier + 0.1 m of vapour barrier for overlap with integrated adhesive strip. (2)Without considering the overlap area.
properties value fields of use underscreed material polyurethane agglomerate + waterproofing membrane dynamic stiffness s’ from 7.4 to 12.5 MN/m3
ACOUSTIC IMPROVEMENT
APPLICATION ON FLOORS
1 concrete slab (s: 50 mm)
2 SILENT FLOOR PUR (s: 20 mm)
APPLICATION ON WALL
3 CLT panel (s: 200 mm) 1 plasterboard panel
timber battens 3 strips of SILENT FLOOR PUR (s: 10 mm)
OSB
insulation material such as rock wool
Thanks to the addition of the floating screed system on the raw CLT.
Add the supporting wall to the base frame and decouple it using strips of SILENT FLOOR PUR.
AIRBORNE NOISE IMPACT NOISE
SILENT FLOOR BYTUM
RESILIENT UNDERSCREED MEMBRANE MADE OF BITUMEN AND POLYESTER FELT
• Made from an elastoplastomeric bitumen soundproofing sheet coupled with a resilient non-woven polyester fibre fabric, it absorbs footfall vibrations by up to 20 dB
• The bituminous compound tends to seal itself around fastenings, contributing to the system’s impermeability
• The foil is a continuous element, impermeable to water and air and extremely durable thanks to its bituminous nature
• Ideal in structural rehabilitation, in application with timber-to-concrete connectors
Data sheet available online
(1)1 m bituminous membrane with felt + 0.05 m bitumen membrane for overlap. (2)Without considering the overlap area.
properties value fields of use underscreed
material elastoplastomeric bitumen - non-woven polyester fibre fabric dynamic stiffness s’ single layer: 27 MN/m3 - double layer: 14.5 MN/m3
SILENT FLOOR NET 3D
BREATHABLE MEMBRANE WITH THREE-DIMENSIONAL RESILIENT MAT
• The three-dimensional mat offers high mechanical strength and maintains its functionality even after installation and during site works, reducing impact noise
• The product consists of a three-layer membrane that ensures breathability, air and water impermeability even during installation
• It can also be used as a micro-ventilation layer in both wall and roof, keeping adjacent layers dry and improving thermo-acoustic performance
• The fabric protects the three-dimensional mesh from impurities or processing residues that would compromise its functionality
Data sheet available online
properties value
fields of use underscreed
material three-dimensional mat in PP + breathable membrane and protective non-woven fabric dynamic stiffness s’ 21 MN/m3
AIRBORNE
SILENT FLOOR PE
RESILIENT POLYETHYLENE UNDERSCREED MEMBRANE MADE OF CLOSED CELL
• Thermal-acoustic membrane made of closed-cell polyethylene foam – flexible and lightweight
• The closed-cell structure makes it watertight and therefore extremely resistant and durable. Furthermore it is also incompressible and maintains its effectiveness over time
• Excellent value for money thanks to the optimised compound
Data sheet available online
properties value fields of use underscreed material closed cell polyethylene dynamic stiffness s’ 43 MN/m3
SILENT WALL BYTUM
SOUNDPROOFING AND WATERPROOFING BITUMINOUS MEMBRANE
• Made from elastoplastomeric bitumen covered with non-woven fabric on both sides, free from lead and harmful substances
• The high density (6 kg/m2) contributes to excellent airborne noise reduction despite the sheet’s limited thickness.
• Mechanical fastening allows the product to be applied to any surface, compensating for irregularities
• Its format and composition make it ideal in all situations where an increase in system mass is required
Data
properties
fields of use
value
heavy element for improving the soundproofing of floors and walls mass per unit area 6 kg/m2
focus excellent quality-price ratio
SILENT WALL BYTUM SA
SOUNDPROOFING AND WATERPROOFING SELFADHESIVE BITUMINOUS MEMBRANE
• Made from self-adhesive elastoplastomeric bitumen, with one side covered in polypropylene non-woven fabric and the other protected by a removable siliconised film during installation
• The pre-cut self-adhesive side allows for quick and precise installation, both horizontally and vertically, without the need for mechanical fastenings
• With a high density (5 kg/m2), it absorbs up to 27 dB
• It also acts as an excellent barrier to air and water
properties
fields of use
value
heavy element for improving the soundproofing of floors, walls and systems mass per unit area 5 kg/m2
focus self-adhesive
ROOF ELEMENTS
NET ROLL
FLEXIBLE VENTILATED UNDER-RIDGE
• The flexible polypropylene ventilation fabric is extremely adaptable during installation
• Shapeable aluminium straps ensure perfect contiguity with any roof covering
• The central fabric is sewn and glued to the side strips, providing double security over time
STANDARD ROLL
• The polypropylene fabric provides excellent flexibility during installation and a large surface area for ventilation
• The butyl adhesive tape offers excellent adhesion on ridge tiles and tiles
• The aluminium side strips ensure exceptional UV stability and durability over time
FLEXIBLE VENTILATED UNDER-RIDGE Data sheet available online
METAL ROLL
FLEXIBLE VENTILATED ALUMINIUM UNDER-RIDGE
• The special 4 cm wide butyl adhesive tape ensures strong, immediate and long-lasting adhesion to various surfaces
• The chosen metallic material ensures good UV stability even in demanding climates
• Perforated aluminium ensures proper air circulation inside the roof covering
Data sheet available online
PEAK EASY
VENTILATED RIGID RIDGE ROLL
• Completely made of metal. It ensures high durability characteristics
• Quick and easy to install, it ensures perfect contiguity with any type of roof covering
• It provides excellent UV and weather stability, even in harsh climate zones
BRUSH VENT
RIGID UNDER-RIDGE WITH SIDE BRUSHES
• Quick installation thanks to the soft lateral bristles that adapt perfectly to the roof profile
• The bristles provide effective protection against water and are UV-stable
• It prevents the entry of birds, insects and rodents
VENTILATED UNDER-RIDGE FOR SINGLE PITCH
• The special butyl adhesive tape ensures strong, immediate and long-lasting adhesion to various surfaces
• Perfect for the ventilation of single-pitch roofs against a vertical wall
• High-quality materials for long-lasting durability
(1)Aluminium strap length. (2)Products available only upon order.
PEAK ONE PEAK VENT AISI 430
RIGID RIDGE ROLL KIT
• Modular kit with under-ridge, screws and adjustable brackets for fast and effective fastening
• The robust stainless steel grid and pleated aluminium wings ensure durability and stability over time
• The perforation of the linear element and the support brackets ensures effective ventilation
(1)Products available only upon order.
Installation requires as many brackets and ventilation elements as linear metres of ridge must be used, plus one initial support bracket. Each bracket must be fastened with at least 4 screws: 2 into the battens and 2 into the ventilation element.
EXAMPLE: for a 5 m ridge, 5 ventilation elements, 6 brackets and 24 self-drilling screws are required.
PEAK HOOK
RIDGE FASTENING HOOK FOR PLAIN AND SHAPED TILES
• For fast and secure dry fastening of ridge tiles to the underlying batten
• Available in different versions and colours, they adapt to different types of roofs, ensuring perfect shade harmony
• They ensure the stability of the ridge without using foam or mortar, in full compliance with UNI 9460
(1)Products available only upon order.
PEAK HOOK universal version
PEAK HOOK shaped version
SUPPORT BATTEN
METAL BATTEN-HOLDERS
• They allow fastening of the timber batten supporting the under-ridge.
• Available in various versions and sizes to suit different types of roof systems; the height-adjustable version allows for adjustments after installation
• Made entirely of steel for high durability
available only upon order.
ALU FLASH CONNECT
ALUMINIUM AND SELF-ADHESIVE BUTYL CHIMNEY CONNECTION
• Butyl adhesive adheres perfectly to any surface, creating a waterproof and long-lasting seal
• Easy to cut with a utility knife or scissors; the pleated band adapts in three dimensions during installation
• It provides excellent UV and weather stability
SOFT FLASH CONNECT
EPDM AND SELF-ADHESIVE BUTYL CHIMNEY
• Extremely flexible three-dimensional surface for universal sealing of roof elements (chimneys, gutters, joints, skylights, etc.)
• Permanent UV stability; made from high-quality materials with excellent durability characteristics.
• It can be modelled by hand without special tools
(1)Products available only upon order.
MANICA ROLL
LEAD AND SELF-ADHESIVE BUTYL CHIMNEY CONNECTION
• Smooth surface, easy to mould
• Permanent UV stability and guaranteed impermeability
• Excellent resistance to weathering, even in challenging climates
MANICA
SEALING SLEEVE WITH SHRINK TUBING AND CLAMP
• Sleeve, heat shrink tubing and metal clamp ensure waterproofing
• The three models with a base of slated bituminous concrete, PVC and FPO/ PP make it possible to choose the most suitable base for the roofing sheath
• The materials are weather-resistant, stabilised against UV radiation, resistant to high and low temperatures, oxidation and ageing
MANICA POST
ADHESIVE SEALING SLEEVE FOR OUTDOORS
• The aluminium coating ensures permanent UV stability
• Butyl adhesive on the underside, highly effective on all materials and resistant to thermal stress
• Excellent for waterproofing lifeline supports such as TOWER
MANICA LEAD
LEAD PROFILE WITH EPDM SLEEVE
• Waterproofing kit consisting of an extremely resistant lead profile and a perfectly sealing EPDM sleeve
• It can be used on roofs with different slopes
• For waterproofing anchor poles with a diameter of 48 mm
SNOW STOP
SNOW STOPPER HOOKS FOR RIDGE TILES AND TILES
• They ensure roof stability by slowing down the fall of accumulated snow blocks
• Available for ridge tiles, Marseille and Portuguese type tiles and beaver tails, in different colours
• They protect eaves gutter from being pushed by snow blocks
(1)Products available only upon order.
TILE STOP WIND
PRE-SHAPED BRACING HOOKS FOR TILES
• They prevent tiles from overturning in the event of wind
• Used to anchor tiles along the edges of the roof slope, at the eaves, ridge and around chimneys or other openings
• For dry installation of the roof in full compliance with the UNI 9460 standard
Data sheet available online
TILE STOP WIND COPPO
PRE-SHAPED BRACING HOOKS FOR RIDGE TILES
• They prevent ridge tiles from overturning in the event of wind, ensuring roof stability
• Used to anchor ridge tiles along the edges of the roof slope, at the eaves, ridge and around chimneys or other openings.
• For dry installation of the roof in full compliance with the UNI 9460
TILE STOP S
S PRE-SHAPED HOOKS FOR PLAIN TILES
• They anchor the next tile to the one below, ensuring a stable and long-lasting connection
• They are installed dry, without mortar or polyurethane foams in full compliance with the UNI 9460 standard
• Available in various materials, colours and for a complete range
(1)Products available only upon order.
steel AISI 204
Siena red brown copper
TILE STOP L
L PRE-SHAPED HOOKS FOR PLAIN TILES
• They can be used as starting hooks in the eaves and as section-dividing hooks in the pitch, to relieve the weight of the upper rows of tiles
• For a ventilated, dry and long-lasting roof
• Dry mechanical fastening eliminates the need for mortar or foams, in line with current regulations
Data sheet available online
(1)Products available only upon order.
steel AISI 204
Siena red brown copper
VENT MESH
FLEXIBLE VENTILATION GRID
• Available in various materials, colours and heights to suit all types of roof systems
• Available on a roll for quick and easy installation
• It prevents the entry of birds and insects allowing continuous ventilation of the roof
available only upon order.
VENT GRILLE
PVC VENTILATION GRID
• Made of extremely weatherproof, impact and UV resistant material
• It protects the air entry section from animals and insects that might prevent ventilation
• It allows quick installation and effective roof protection
VENT FOLD
PRE-BENT GRID FOR VENTILATION
• Rigid pre-folded meshes allowing effective ventilation and protecting the eaves line from intrusion
• Easy installation thanks to the support foot, it can also be used to protect ventilated façades
• Made from extremely weather-resistant materials
(1)Products available only upon order.
VENT SHAPE
SHAPED VENTILATION GRILLES FOR ROOFS MADE WITH TILES AND ROOF TILES
• Made of perforated or expanded metal sheet, they are weather-resistant and UV-stable
• Pre-bending and shaping simplify installation, with no need for additional supports
• The ventilation grilles provide ample air intake along the entire eaves line, preventing the intrusion of birds
Other versions and dimensions are available on request. (1)Products available only upon order.
(1)Products available only upon order.
brown brown brown brown
VENT SHAPE version for roof tile VENT
VENT SHAPE version for
BIRD COMB
STANDARD EAVES BIRD COMBS
• The flexible comb made from a polymer mix perfectly adapts to any roof profile, preventing the entry of birds and insects
• Available in various colours and heights, including a raised-base version to avoid the first batten at the eaves
• Made of high quality polypropylene, weatherproof, impact and UV resistant
(1)Products available only upon order.
BIRD COMB without batten H = 60 mm
brick red
brick red
brick red brown brown brown black black black
BIRD COMB without batten H = 100 mm
BIRD COMB with 25 mm batten and H = 85 mm
BIRD COMB EVO
TWIN ROW EAVES BIRD COMB
• Featuring twin rows of perforated teeth to ensure maximum ventilation while protecting against bird intrusion
• Made of high quality polypropylene, weatherproof, impact and UV resistant
• Also available with raised base to increase the support thickness of the first row of tiles, aligning it with the slope of the roof
(1)Products available only upon order.
BIRD COMB EVO without batten H = 70 mm
BIRD COMB EVO without batten H = 110 mm
brick red brick red
red brick red brown brown
BIRD COMB EVO with 25 mm batten and H = 90 mm
BIRD COMB EVO with 25 mm batten and H = 130 mm
BIRD SPIKE
RIGID BIRD SPIKES
• It prevents birds from roosting and nesting on ledges, windowsills and other architectural elements
• Available in all-steel and in steel and polycarbonate, with one or two rows of needles
• The version with a polycarbonate base blends in with the surrounding elements
RAIN TUBE
TEMPORARY DOWNPIPE FOR CONSTRUCTION SITE PHASES
• It protects building façades during construction or renovation work
• A practical, economical and easy-to-install temporary solution
• Useful through to final installation of drainpipes
BEAM PULLER AND PANEL PULLER
DRILL BITS AND CUTTERS
WOOD REPAIR
JELLY-HT
PAINTING MACHINE FOR ELEMENTS
• It allows to apply the impregnating agent on timber elements quickly and easily on 1, 2, 3 or 4 sides at the same time
• Two operators can apply the impregnating agent to up to 200 m2 per hour on four sides simultaneously
• The excess impregnating agent is recovered and reused, thus reducing consumption compared to brush application. Use only water-based paints
PECKER
HAMMER FORGED FROM A SINGLE PIECE OF METAL
• The specially developed two-component plastic securely joins the handle and grip, ensuring a stable hold. Ideal for on-site work and timber construction
• Forged from a single piece to prevent head detachment and increase impact force
• Grooved head reduces slippage during nailing
• The tip can be driven into the timber to move heavy beams safely. Equipped with magnetic nail holder
PERFECT FOR DISPLAY AT YOUR POINT OF SALE
• Thanks to the pre-punched label, it can be easily displayed on countertop or wall hooks
• The customer immediately recognises the product and can assess its weight and grip
8 SIZES RATCHETING WRENCH
• Ratchet spanner with through hole and 8 bushings of varying sizes
• 4 ring wrenches in one tool. The long hardened steel handle allows effective tightening of nuts and bolts and ensures ratchet durability
• Switches easily from clamping to loosening mode, and vice versa
10/M6 - 13/M8 - 14/M8 - 17/M10
BOLTS, RODS, WASHERS AND NUTS from page 167
19/M12 - 22/M14 - 24/M16 - 27/M18
HEXAGONAL HEAD BOLT WITH NUT page 170 SCREW-IN ANCHORS page 155
TOOL BAG
• Tool bag with two spacious pockets and integrated belt with clip
• It contains a swivel metal hammer holder, a universal loop and useful pockets for pens, rulers and more
• In genuine leather, designed to withstand heavy site use
TOOLBAG
PERFECT FOR DISPLAY AT YOUR POINT OF SALE
• Thanks to the pre-punched label, it can be easily displayed on countertop or wall hooks
• Essential in any professional tool assortment
CARPENTERS’ PENCILS
• Two versions: for timber (HTMATG) and for masonry (HTMATB)
• Made of high quality red beech wood. The tip can be sharpened with a simple knife
• Durable graphite pencils, designed for the typical demands of construction sites
PROFESSIONAL CUTTER
• Supplied with anti-corrosion split blades and triple sharpening
• Black ABS plastic body with IPA-free rubber coating, impact-resistant
• Narrow and safe blade guide, also suitable for working in wet conditions
FOLDING RULER
• 90 degree opening with trigger
• Integrated goniometer for angle measurements
• Deep measurement marking for greater durability
FILLIT
UNIVERSAL CASE FOR STORAGE AND TRANSPORT
• Case with 12 internal compartments, also ideal for anchors, bolts and accessories, customisable to the tradesperson’s needs
• Sturdy design, stackable and easy to transport
• Compatible with cases from major power tool brands, keeping everything close at hand
• Load capacity 20 kg
page 18
ANCHORS GUN
• Compatible with most common 420 mL anchor cartridges
• Aluminium handle and metal trigger. Robust, rotating frame resistant to deformation
• Light weight, only 1 kg
FLY LITE
PROFESSIONAL GUN FOR 310 mL CARTRIDGES
• Compatible with all standard 310 mL sealant and anchor cartridges
• Aluminium handle with metal trigger. Robust, rotating frame resistant to deformation
• Nozzle cleaning needle is attached to the handle
• Light weight, only 620 g
FLY FOAM
AUTOMATIC LONG TUBE GUN FOR FOAMS
• Compatible with standard bayonet-fit foam cartridges
• Gun with screw for flow regulation
• Metal body and ergonomic handle
• Light weight, only 286 g
MULTI-PURPOSE POLYURETHANE FOAM HIGH PERFORMING SOUNDPROOFING SEALING POLYURETHANE FOAM UNIVERSAL CLEANER SUITABLE FOR REMOVING FRESH POLYURETHANE FOAM EASY TO CLEAN WITH FOAM REMOVER
Available in the new cardboard packaging: perfect for display in your retail store! page 206 page 207 page 209
FLY FOAM
FLY SPRAY
SPRAY CAN GRIP
• Turns any spray can into a convenient and precise application tool
• No paint on fingers, no effort required – ideal for covering large surfaces
• Easy to handle, ready to use at any time and reusable multiple times
SPECIAL GUN FOR TWO-COMPONENT ADHESIVE
• Suitable for XEPOX line cartridges, such as XEPOXF400 and XEPOXD400
• Push rod and dispensing mechanism in special anti-corrosion alloy
• 25:1 transmission ratio
FLY SOFT
GUN FOR 600 ML SOFT CARTRIDGES
• Perfect for all soft cartridges up to 600 ml such as OUTGLUE600, SUPGLUE600, ELAGLUE600, BONGLUE600
• Durable aluminium body, push rod mechanism with reinforced lever
• 14:1 transmission ratio for fluid delivery
SPARE NOZZLE FOR CARTRIDGES
• Universal connection for chemical cartridges
• Flexible tube
POCKET AIR PUMP FOR HOLE CLEANSING
• Ensures effective hole cleaning, essential before the installation of heavy-duty and chemical anchors
• Fast and easy use. Economical alternative to a compressor
• Long, flexible hose for deep holes
LAMA
• Toothed saw blade for rigid and hard insulation; wavy knife blade for flexible and soft insulation. Blade tip suitable for cutting insulation materials
• 280 mm long and 2 mm thick stainless steel blade
• Ergonomic handle for a stable grip and precise cutting
KOI
TAJIMA CARPENTER'S SAW
• Cross-toothed rip saw for cutting all types of timber, both along and across the fibres
• Equipped with a comfortable two-component handle and safety case for the blade
• Fluorine coating for superior cutting performance
FUGU
TAJIMA CARPENTER'S SAW
• Japan double-toothed rip saw for precise cutting of any type of timber, both along and across the fibres
• With rattan handle, foldable for tool-free blade replacement
• Triple-sided sharp teeth for fast, effective cutting; induction-hardened teeth for extended durability
PANEL PULLER
• For the precise assembly of solid timber walls, stacked board floors, glulam elements and prefabricated components
• 360° rotating plates allow use even in hard-to-reach areas, such as corners and roof inclinations
• Quickly secured with screws and leaves no visible marks on the timber
GEKO MINI
PANEL PULLER
• Compact panel puller for everyday use, suitable for timber frame construction, interior fittings, staircases and windows
• Full rotation allows GEKO MINI to adapt easily in any direction, even on complex surfaces
• The REVIX ratchet acts as a handle. Only one is needed to install all the GEKO MINI units required for the project. Must be ordered separately
BEAM PULLER
• Four-sided knurled hooks for optimal force transmission in timber
• Riveted joints, stronger than welds during fastening
• Spare hooks available, quick to replace
Showcase safety with our
GIRAFFE
ASSEMBLY SUPPORT
• For quick and easy assembly of walls and floors made of timber elements
• GIR3000 equipped with quick adjustment with automatic fastener Made of aluminium, it is very light
• The new calculation tool enables quick and simple analysis of multiple application configurations
HOOK FOR TIMBER ELEMENTS TRANSPORT
• The built-in jaws hold down the screw head in the wall
• It can be used for axial and transversal loads
• Certified pursuant to the Machinery Directive 2006/42/EC
RAPTOR
RIGGING DEVICE FOR TIMBER ELEMENTS
• Compatible with various fastening configurations and ideal for main on-site applications: up to 6 screws for maximum loads, 4 or 2 screws for lighter elements – always with symmetrical installation
• The plate adapts to different lifting configurations, working effectively in tension, shear, and at all intermediate chain angles
• Certified pursuant to the Machinery Directive 2006/42/EC
RAPTOR MINI
SMALL RIGGING DEVICE FOR TIMBER ELEMENTS
• Secured with just two screws, the plate is installed in seconds. The integrated swivel hook ensures safe and versatile lifting, even in confined spaces
• Ideal for timber structures and small elements, the plate is sturdy yet easy to handle. It optimises time and improves safety when handling components.
• Certified pursuant to the Machinery Directive 2006/42/EC
RAPMINI VGS PLATE Ø11 mm
For more information on fasteners, see the technical data sheet at www.holztechnic.com
REUSABLE LIFTING BELT FOR TRANSPORT WALLS AND PRECAST ELEMENTS
• Polyester belt, available in two lengths and two capacities
• Safety factor 7:1, capacity up to 1250 kg
• Reusable until signs of wear appear
LIFTING STRAP WITH TILTING SYSTEM
• Reusable lifting system ideal for Timber Frame elements
• Certified for lifting and reusable according to EN 1492-1 with a safety factor of 7:1
• Hole required in the element: 45 mm
PRO AIR 50
VERTICAL OIL-FREE COMPRESSOR WITH 50 L ANTIRUST TANK
• Vertical version easy to transport around the construction site with its large puncture-proof wheels
• Powerful two-cylinder motor with a suction capacity of 300 l/min.
• The inside of the tank is painted with a special product that prevents rust which typically occurs with condensation water.
• Maximum pressure 10 bar
• Weight 41 kg
NAILGUNS
HH3515
• For 16° collated nails. Possibility of adjusting the depth of the nails and the direction of the exhaust air
• Supplied in a carrying case
HH3539
• For 16° collated nails. Possibility of adjusting the depth and direction of the exhaust air. Change from single to contact release
• Supplied in a carrying case
HH12100700
• Gas-powered Anker nailgun for paper-collated strip nails
• Operates independently of compressed air thanks to battery and gas cartridge
ATEU0116
• Hand-held nailgun with charger for 34° taped Anker nails up to 60 mm long
HH3731
• Hand-held manual nailgun for loose Anker nails of any length
• Numerous accessories make it suitable for various applications. The magnetic guide helps precise
tioning of loose nails
• Complete with carry bag
COLLATED NAILS
• D16° smooth raw-steel collated nails in roll, ring nails in galvanised steel
ANKER COLLATED NAILS
• Anker K25° galvanised nails with plastic binding, perfect for fastening perforated sheets, angle brackets, etc.
• Anker K34° galvanised nails with plastic binding
LBA-HT
ANKER NAIL
• Nail with knurled shank for greater withdrawal resistance, designed for use with metal plates
• CE certified in accordance with ETA for fastening metal plates to timber structures
• Also available in A4 | AISI316 stainless steel
HAMMER TACKER
HAMMER STAPLER
• Durable hammer stapler for fastening membranes, acoustic tapes and more
L TACKS - galvanised
Available in the new cardboard packaging: perfect for the hook display in your store.
CATCH
SCREWING DEVICE
• With CATCH, even long screws drive in quickly and safely, with no risk of bit slippage
• Particularly useful for screwing in corners, where it’s difficult to apply much force
• Available in two versions, compatible with the most commonly used screw sizes
BIT STOP
AUTOMATIC SCREWING DEVICE WITH DEPTH STOP
• For even countersinking of screws, ideal on decks and façade panels where screw heads remain visible
• Including one TX2525 bit
• For 25 mm long bits with 1/4" shank
TORQUE LIMITER
TORQUE LIMITER
• Thanks to the TORQUE LIMITER, screws can be driven safely without exceeding the set torque. This is particularly important for metal-to-timber connections
• The two new versions now cover the most common torque ranges. Adjustments can be made with extreme ease. A scale on the product indicates the set value
• Thanks to the internal clutch, the device is permanently lubricated and requires no maintenance
• Large selection of bits for the entire range of screws
• High quality ensures long life
• Colour-coded markings allow quick identification of the correct bit
BIT-BOX
BOX OF 32 BITS WITH MAGNETIC DRIVER BIT HOLDER
• Shockproof hard plastic case with swivel hook, to be attached to operator’s belt, shelves or other supports
• Quick-opening design for easy bit changes; includes 32 assorted pieces and magnetic driver bit holder
CASE CONTENTS:
PH1, 2x PH2, PH3
SL3, SL4, SL5, SL6 PZ1, 2× PZ2, PZ3
H3, H4, H5, H6 TX10, TX15, TX20, TX25, TX27, TX30, TX40
Socket Adapter 1/4”
Quick Release Bit Holder (60 mm)
BIT-BOX DISPLAY
THE BOX THAT TURNS INTO A COUNTER DISPLAY
• Compact, practical and ideal for self-service retail: perfect for counters, checkout areas or shelf displays
WOOD REPAIR
INJECTION SYSTEM FOR WOOD REPAIRS
• Ideal for repairing knot holes, long splits, timber imperfections and difficult repairs
• Thanks to the cooling block, the filling material hardens within seconds and can be sanded immediately. The glue is paintable
• Ecological and non-toxic sticks in different colours. UV-resistant. The black version can be used in the marine sector for boat repairs
PLASTUK
BICOMPONENT PUTTY FOR INDOOR AND OUTDOOR REPAIRS
• Putty for wood, plastic, metal and stone. Applicable in large quantities, good adhesion and excellent repair capacity
• Available in different colours for the various types of timber
• By adding up to 10% RESTO KITT it is possible to create custom hues
Other hues available on request.
RESTO KITT
INDOOR REPAIR PUTTY
• Fast-drying putties available in various colours. Mixable and easy to sand, ideal for repairing damaged timber surfaces such as furniture, stairs, windows, doors and the like
• Environment-friendly and solvent-free. If the product hardens, use water or alcohol to soften it
• Easy to work with and rapid drying. Once dry, it can be sanded and painted
CAPS AND PINS
TAP1
CAPS MADE OF SPRUCE, ALONG GRAIN
(1)To close the Ø55mm recess of the WASP hook. (2)To close the Ø65mm recess of the WASPL hook.
TAP2
CAPS MADE OF LARCH, ALONG GRAIN
TAP3
CAPS MADE OF SPRUCE, KNOTTED
TAP4
TAP5
CAPS MADE OF SPRUCE TIMBER, TIMBER HEAD
RIF
TIMBER PINS - BEECH
RIF1000
TIMBER PINS - 1 m, BEECH
PATCHES, NAILS AND PLUGS
TIMBER PATCHES FOR REPAIRS OF GLULAM, FIR TIMBER
Compatible with the ATEU0500 patch
ANGULAR PATCHES - FIR
PATCHES FOR SURFACE REPAIR IN SPRUCE
CORNER PATCHES
Compatible with the PATCHILLO patch
OAK TIMBER NAIL, CYLINDRICAL AND OCTAGONAL
TIMBER PLUGS
CAP TOP
TARPAULIN FOR ROOFS
• Each size includes a reinforced lifting hook for easier placement
• Thanks to the metal fastening eyelets positioned every metre, the tarpaulin can be easily secured to the roof
• The large mass per unit area and the type of material ensure better mechanical resistance and durability over time
• Polyester truck tarpaulin made from recycled raw material, coated with matt lacquered PVC
Other sizes and/or customised tarpaulins available on request.
CAP PLUS
TARPAULIN FOR ROOFS
• Good mechanical characteristics resistant to both tension and tearing
• Thanks to the metal fastening eyelets positioned every metre, it is possible to fix the tarpaulin firmly to the roof
CAP ECO
TARPAULIN FOR ROOFS
• The black inner fabric gives better resistance to UV rays
• Thanks to the metal fastening eyelets positioned every metre, it is possible to fix the tarpaulin firmly to the roof
WEDGES
LEVELLING WEDGES
• The sharp toothing of the profiles makes it possible to adjust the height and lock the elements precisely, even laterally
• Moisture-resistant, also suitable for outdoor environments
• Do not break if pierced by nails or screws
(*) TransPack 245 (70 green - 60 orange - 75 brown - 40 yellow).
Get the most out of your display areas using our systems! Get more information from your Technical Consultant.
CRAB MINI
ONE-HANDED DECKS CLAMP
• Ideal for any type of timber. The rubber pads protect the boards from damage
• Also ideal for vertical applications, such as façades
CRAB MAXI
BOARD CLAMP, LARGE MODEL
• For clamping 5 to 7 boards simultaneously, depending on width
• The swivel handle allows precise adjustments
CRABMAXI
CRABMAXISET
BEAVER
CARPENTER’S SQUARE
• Made of stainless steel highly flexible and stable at the same time; it bends easily, without causing permanent deformation
• Millimetre scale on the long side, both inside and outside
• With marking holes every 5 mm
PEACOCK
ALFA SQUARE
• For carpentry shaping operations
• Stainless steel with permanently engraved scale
• With marking holes every 5 mm
BEEKIT
COMPLETE SET OF CARPENTER'S SQUARES
• Three classic marking tools in one set: carpenter’s square, rafter square and sliding T bevel
• Stainless steel with permanently engraved scale
• With marking holes every 5 mm
PEACOCK DUO
ALFA DOUBLE SQUARE
• Special marking device with centre-mounted dial and large stop
• Dimensions 800 x 360 x 5 mm with 0.5° pitch
• Stainless steel with permanently engraved scale
ALUMINUM SLIDING T BEVEL
• Small tools for precise transfer of angles and inclinations
• With mobile spring steel guide
FLAMINGO EMU
ALUMINIUM CARPENTER’S SQUARE
• With indication of measurements on both sides
• Two versions available
JIG ALU STA
DRILLING TEMPLATE FOR ALUMIDI AND ALUMAXI
• For drilling dowel holes easily, quickly and precisely
• Suitable for both ALUMIDI and ALUMAXI
• 3 mm stainless steel, for long service life
JIG VGZ 45°
TEMPLATE FOR CONNECTIONS WITH 45° SCREW
SMOOTH DOWEL page 38
• Its shape allows an easy and fast screwing of any type of screw with a precise inclination of 45°
• Thanks to the markings, the most common timber construction joints – single or double – can be easily made without complex measurements
• 3 mm stainless steel, for long service life
ALUMIDI HT
CONCEALED BRACKET WITH AND WITHOUT HOLES page 84
SNAIL CV
STANDARD WOOD DRILL BIT
• With centre tip, 2 main cutters and peripheral cutters
• For stable drilling in softwoods and certain European hardwoods
LEWIS BITS
TWIST DRILL BITS FOR DEEP DRILLING IN SOFT AND EUROPEAN HARDWOODS
• With round-section twist flute, threaded tip, very high quality main cutting edge and roughing tooth
• Version with independent head and hex shank (starting from Ø8 mm), maximum length 1010 mm
• Made of specific alloy steel for tools (WS). The tip is machined from a single piece
F1410426 26 1.024 13 1/2 460 18 1/8 380 15 1
F1410428 28 1.102 13 1/2 460 18 1/8 380 15 1
F1410430 30 1.181 13 1/2 460 18 1/8 380 15 1 F1410432 32 1.260 13 1/2 460 18 1/8 380 15 1 F1410440 40 1.575 13 1/2 460 18 1/8 380 15 1 F1410450 50 1.969 13 1/2 460
1/16 1 F1410312 12 0.472 11,8 7/16 320 12 5/8 255 10 1/16 1
F1410314 14 0.551 13 1/2 320 12 5/8 255 10 1/16 1
F1410316 16 0.630 13 1/2 320 12 5/8 255 10 1/16 1
F1410318 18 0.709 13 1/2 320 12 5/8 255 10 1/16 1
F1410320 20 0.787 13 1/2 320 12 5/8 255 10 1/16 1
F1410322 22 0.866 13 1/2 320 12 5/8 255 10 1/16 1
F1410324 24 0.945 13 1/2 320 12 5/8 255 10 1/16 1
F1410326 26 1.024 13 1/2 320 12 5/8 255 10 1/16 1
F1410328 28 1.102 13 1/2 320 12 5/8 255 10 1/16 1
F1410330 30 1.181 13 1/2 320 12 5/8 255 10 1/16 1
F1410332 32 1.260 13 1/2 320 12 5/8 255 10 1/16 1
F1410405 5 0.197 4,5 3/16 460 18 1/8 380 15 1
F1410406 6 0.236 5,5 7/32 460 18 1/8 380 15 1
F1410407 7 0.276 6,5 1/4 460 18 1/8 380 15 1
F1410408 8 0.315 7,8 5/16 460 18 1/8 380 15 1
F1410409 9 0.354 8,0 5/16 460 18 1/8 380 15 1
F1410410 10 0.394 9,8 3/8 460 18 1/8 380 15 1
F1410412 12 0.472 11,8 7/16 460 18 1/8 380 15 1
F1410414 14 0.551 13 1/2 460 18 1/8 380 15 1
F1410416 16 0.630 13 1/2 460 18 1/8 380 15 1
F1410418 18 0.709 13 1/2 460 18 1/8 380 15 1
F1410420 20 0.787 13 1/2 460 18 1/8 380 15 1
F1410422 22 0.866 13 1/2 460 18 1/8 380 15 1
F1410424 24 0.945 13 1/2 460 18 1/8 380 15 1
LEWIS - LONG
LEWIS - INCH
SNAIL BITS
TWIST DRILL BITS FOR HARDWOOD, MELAMINE-FACED BOARDS AND OTHER MATERIALS
• Very high quality polished drill bits, with 2 main cutting edges and 2 roughing teeth
• Special twist with smoothed flute for an efficient chip evacuation.
2 3, 4, 5, 6, 8, 10, 12, 13, 14, 16
For TL and SL see the indications in the table aside (short versions).
CUTTER FOR WOOD
PRECISION CUTTER FOR TIMBER
• The central punch ensures guided milling and thus maximum precision
• Thanks to the guide, even slant drilling can be carried out without problems
• Centering tip included
DRILL BIT FOR PRE-DRILLING
CENTERING DRILL BIT
HEADS
DRILL BIT CUTTER
CUTTER FOR TWIST DRILL BITS WITH SHANK Ø13 mm
• For drilling and milling in a single step
• The two main grooved cutting edges and the toothed cutting edge minimize friction and the feed forces
• The central punch and an Allen key are included in the supply
CAP CUTTER
MILLING CUTTER TO MAKE TIMBER CAPS
• For making timber caps, damaged knots or to repair timber damage
• Useful cap length max. 70 mm
• Made of WS tool-grade alloy steel, it ensures top performance with BORMAX and BORMAX 3
FOR SOFT WOOD, EUROPEAN HARD WOOD, FIBRE BOARDS AND MDF AND OTHER MATERIALS
• The two staggered grooved main cutters and serrated peripheral cutter significantly reduce feed force and friction
• For free hand and stationary use
• Fast drilling in soft wood, European hard wood, chipboard, MDF etc.
COUNTERBORE CUTTER FOR ZKK, KKA, MINI SCREWS
• For simultaneous decks screw pre-drilling and counterboring
• To avoid possible timber discolouration, remove drill shavings immediately
• Supplied with Allen key
BORMAX 3 HM
UNIVERSAL ALL-ROUNDER DRILL BIT, ALSO FOR EXOTIC HARD TIMBERS, MELAMINE-LINED PANELS AND OTHERS
• Forstner bit for hard materials
• For free hand and stationary use
• Fast drilling of all timber materials: European and exotic hard wood, coated and uncoated chipboard, MDF. Also effective on many plastics
DRILL STOP
SET OF DRILL BITS AND COUNTERBORE CUTTER WITH SWIVEL DEPTH STOP
• For simultaneous drilling and countersinking, with controlled depth
• The rotating depth stop stops when it touches the workpiece, leaving no marks on the timber
• Pilot drill depth is adjustable; countersink has a 60° angle
BLADES
BLADE FOR BAND SAWS
• High-quality spare blades for band saws
BLADE FOR BAND SAWS - MAFELL Z3 / Z5, WITH POSTERIOR TOOTHING
BLADE FOR BAND SAWS - MD DARIO
BLADE FOR MANUAL BAND SAWS - HEMA / PROTOOL CODE
This catalogue is the exclusive property of Rotho Blaas and may not be copied, reproduced or published, totally or in part, without prior written consent. All violations will be prosecuted according to law.
The most up-to-date technical documentation is available on the Holz Technic website. Rotho Blaas is not liable for any printing errors related to technical data, drawings, references to weights and measurements, and translations in the catalogues.
Rotho Blaas reserves the right to modify its product range, characteristics, technical specifications and other documentation at any time without prior notice. Installers, designers, engineers, users and buyers must visit www.holztechnic.com before each use of a product.
Each product is designed for the specific load capacities and applications outlined in the technical documentation, in accordance with the limitations and additional information provided therein. While the products are engineered for a wide range of applications, Rotho Blaas disclaims any liability for determining their suitability for a specific use. It is the sole responsibility of the user to assess the product’s appropriateness for the intended application and to ensure proper installation. Each intended use of a product must be evaluated and approved by qualified professionals.
Rotho Blaas does not guarantee the legal or design conformity of the data and calculations provided. The calculation tools provided are for indicative purposes only and serve as a purely technical-commercial aid to support sales activities. The values resulting from "test" are based on the actual experimental investigations results and valid only for the test conditions specified.
Rotho Blaas does not guarantee and in no case can be held responsible for damages, losses and costs or other consequences, for any reason (warranty for defects, warranty for malfunction, product or legal responsibility, etc.) deriving from the use, inability of use or non-conforming use of the product.
Images are for illustrative purposes only and may not fully represent the product’s features. Accessories shown in pictures and renderings may not be included. Packaged quantities may vary.
In the event of discrepancies between the language versions of the catalogue, the Italian text shall be considered the official version and take precedence over all other translations.
The general purchase conditions of Rotho Blaas Srl are available on the website www.rothoblaas.com.
All rights reserved © 2025 ROTHO BLAAS SRL All renderings © ROTHO BLAAS SRL
Publication date - 15/10/2025
ICONS AND MATERIALS LEGEND
ASTM TESTED tested according to ASTM standards
Passive House certified component classification GEV - EMICODE
classification according to French decree no. 2011-321
S355 Fe/Zn12c
carbon steel with electrolytic galvanising Fe/ Zn12c
S275 Fe/Zn12c S275 carbon steel with electrolytic galvanising Fe/ Zn12c
S450 Z275 Z275 bright zinc plated S450GD carbon steel
S235 DAC COAT S235 carbon steel with special coating DAC COAT
S235 HDG55 S235 carbon steel with hot dip galvanising
S355 HDG55
S235 THERMO DUST
S235 THERMO DUST
S235 THERMO DUST
S235 HDG
S355 carbon steel with hot dip galvanising
S235 carbon steel with thermosetting powder coating
S235 carbon steel with thermosetting powder coating
S235 carbon steel with thermosetting powder coating
S235 carbon steel with hot galvanising
S235 ELECTRO PLATED S235 electrogalvanized carbon steel
Fe/Zn zinc-plated carbon steel
CARBON STEEL PRE PAINTED pre-painted carbon steel
