WATCH WINDER USER MANUAL
CONTACT
CONTACT@ROTELUX.COM
+852 44432368( WhatsApp )
WWW.ROTLEUX.COM
Your watch winder will start and stop rotating within a pre-programmed interval. Detailled info in the Rotation MODE Table.
ROTELUX Watch Winders can be powered by Adapter
1 Register New Fingerprings
A. Press the SET button to register your fingerprint.
B. When the green light is on for 5 seconds, place your finger 6 times. With each plascement, the green light is on for 2 seconds. The solid green light signifiles that your fingerprint has been registered. Repeat the instruction from A. to set another fingerprint.
2 Fingerprints Unlocking
3 Fingerprints Capacity
You can register a maximum of five different fingerprints. The solid red light indicates the fingerprint capacity is full.
4 Delete Fingerprints
A. Press the"SET" button formore than 3 seconds to deletethe registered fingerprint.
B. The green light will flash 5 times, indicating that all the registered fingerprints have been removed. Place your registered fingerprint on the lock. A green light will turn on and the door will open. If the fingerprint is unregistered, a red light will turn on, and the door will remain locked.
Red Light
Green Light
HOW TO SETUP & CONFIGURATION
1 2
1
Once the power adaptor is plugged,press the power switch to turn ON (standy mode) and OFF.
2
Only use the ROTELUX power adapter. This will avoid any damage to the Watch winder.
Tap to turn ON/OFF the LED
Select the rotor number to set its TPD and Rotor Direction. “0" will select all rotors
Select from 5 pre-set TPD (Turns-per-day) 650/900/1350/1800/2200
Choose rotation direction for selected rotor Clockwise/Couter-clockwise/Both Clockwise
Tap to ON/OFF the selected rotor

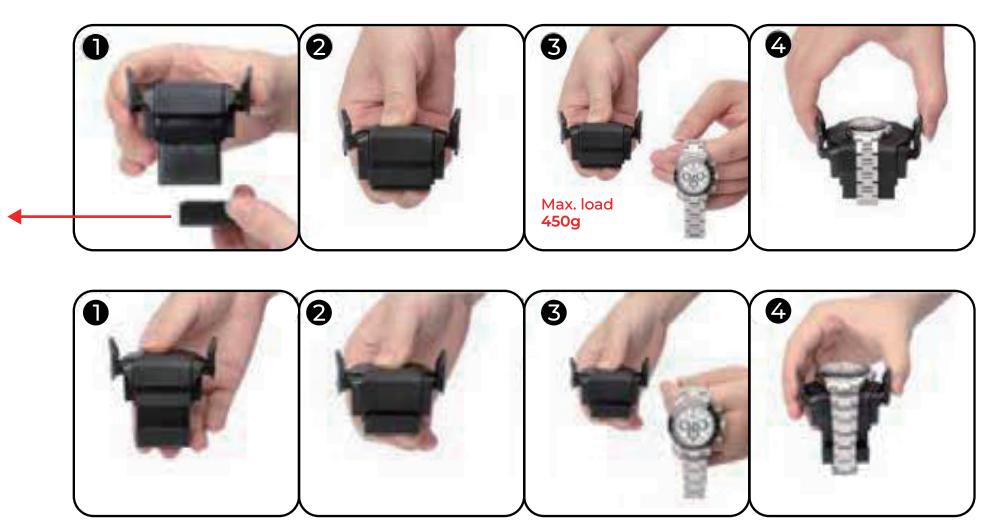

WATCH INSTALLATION ON WATCH PAD
Removable bracket to accomodate smaller straps
Prior placing your watch in the watch winder, ensure the watch has been fully wound with correct time and date.
The flexible watch pillow adapts to various watch sizes.
The recommended strap inner diameter is 45 mm-65 mm. The recommended dial diameter is less than or equal to 50mm with a thickness of up to 20mm.
We advise you to adapt your inner diameter strap to at least 45mm before you put your watch onto the watch pillow. lf your strap inner diameter is less than 45mm,we recommend you remove the bracket under the watch pillow to fit your watch.
Men's wristwatches :
Can be inserted easily into the watch pillow without unlocking the band buckle.
Women's wristwatches :
We advise releasing the band buckle first, then adapting the watch onto the pillow, and finally locking the band buckle on one side of the band buckle.
MODE A
The watch winder rotates one interval per hour depending on the number of rotations selected(TPD).
Per Day)
Please note that the watch winder is programmed to turn, rest and turn again for each setting. The watch winder will not turn constantly to prevent over winding of your watch.
This is the normal operation for the watch winder.
Note: The data is based on using an Ac adapterValues may vary depending on the weight of different watches.
MAINTENANCE FOR USE
1 Before removing your watch from the winder, make sure the watch winder switched to off mode.lt avoids possible damage to the winder and your wristwatch.
2 Please turn off the power for half a day after continuous use for more than one month which maintains the machine's service.
3 The bearing capacity of every rotator is 450g.Please make sure the loading capacity is below 450g.
4 Please do not manually turn the rotator, because the electricity generated may damage to the circuit board.
5 Please do not place the watch winder near magnetic fields, under direct sunlight or humid areas.
Your collection of watches deserves the best and that's exactly what ROTELUX Watch Winder provides.
Thank you for letting us be a part of safe guarding yourcherished timepieces.
