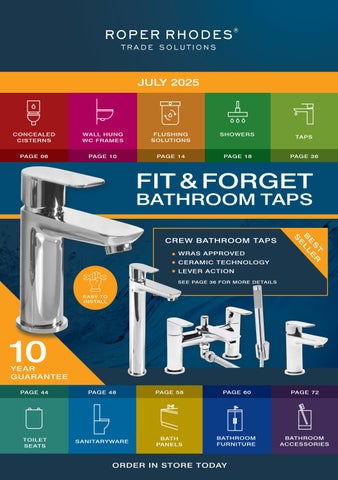

Trade Solution July 2025 by roperrhodes

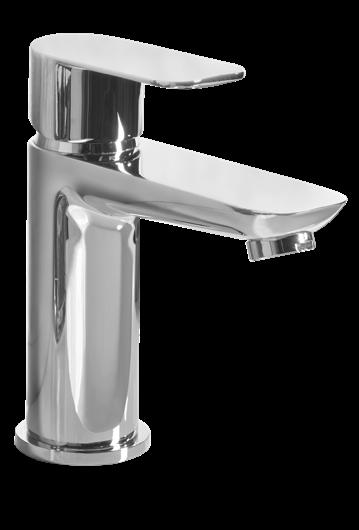

WRAS APPROVED CERAMIC TECHNOLOGY

LEVER ACTION SEE PAGE 36 FOR MORE DETAILS

DESIGNED TO LAST

At Roper Rhodes we pride ourselves in creating products that are made to last. Designed by our teams of specialists here in the UK exclusively for British & Irish bathrooms, each product is researched, fine tuned and tested with third party organisations before it makes it into our brochure. It’s through this rigorous testing process, we are able to offer 5,10 year & lifetime guarantees on most of our products. 10 Year Guarantee Including Cartridge

10 Year Guarantee

GUARANTEE

COOL TOUCH TECHNOLOGY

ENSURES THE BAR VALVE IS NOT HOT TO TOUCH

OUR PATENTED SECURE-FIX QR TECHNOLOGY KEEPS SEAT FIRMLY IN PLACE

SCAN NOW FOR MORE INFORMATION

5 YEAR GUARANTEE

LIFETIME GUARANTEE

TR ADE SOLUTIONS

MAXIMUM PERFORMANCE

200,000 CYCLE ENDURANCE TESTED

Water saving cisterns featuring an adjustable dual flush (6/3litres) providing the option of flushing more efficiently. Tested in accordance with British & European standards meaning the cisterns have passed a 200,000 cycle endurance test and are subject to a performance test prior to packaging to give you total confidence in our product.

TORRENT CONCEALED CISTERN - BOTTOM INLET TR9001

FLUSH BUTTON

dual flush chrome button supplied with cistern

BOTTOM INLET entry valve

200,000 CYCLE endurance tested

OVER 800,000 INSTALLED IN UK HOMES

AIR GAP TECHNOLOGY

AIR GAP technology

PNEUMATIC flush operation

POLYSTYRENE insulation jacket

135mm DEEP designed to work with low height and slim depth furniture units

Air gap arrangement for back flow prevention. Type AG Air Gap inside cisterns. AUK1 arrangement possible on all cisterns. Meets latest water regulation enforcements. WRAS approved inlet valve. Built-in silencer to reduce water fill noise levels.

• 6/3 litres

• Air Gap technology

• Bottom entry inlet valve

• Top or front flush plate mounting

• ½” BSP connection

• Polystyrene insulation jacket

• Pneumatic flush valve

• with chrome flush button

434(W) X 365(H) X 140(D)mm

• 6/3 litres

• Air Gap technology

• Side entry inlet valve

• 1/2” BSP connection

• Polystyrene insulation jacket

• Pneumatic flush valve

• Supplied with chrome flush button

464(W) X 365(H) X 140(D)mm

COMFORT HEIGHT CONCEALED CISTERN TR9008

SCAN NOW FOR MORE TECHNICAL INFORMATION

• 6/3 litres

• Air Gap technology

• Bottom entry inlet valve

COMFORT HEIGHT CISTERN

Developed to allow comfort height back to wall pans to be used in 820mm high furniture

• Developed specifically to allow comfort height back to wall pans to be used in 820mm high furniture

• Top or front flush plate mounting

• ½” BSP connection

• Polystyrene insulation jacket

• Pneumatic flush valve

• with chrome flush button

437(W) X 324(H) X 165(D)mm

IN-WALL CONCEALED CISTERN TR9009

IDEAL FOR TILED IN APPLICATIONS

SCAN NOW FOR MORE TECHNICAL

All parts serviceable through flush plate aperture. 150mm height adjustment

• 6/3 litres

• Air Gap technology

• Ideal for tiled in applications

• ½” BSP connection

• Polystyrene insulation jacket

• Pneumatic flush valve

• All parts serviceable through flush plate aperture

• Internal isolation valve, 150mm height adjustment

• Top or front flush plate mounting

• Requires flush plate/button, or contactless sensor (available separately)

600(W) X 745max(H) X 138-194(D)mm

FLUSHING UPGRADES

Alternative flush buttons, plates and sensors are available to pair with our cisterns, see page 16.

200,000 CYCLE ENDURANCE TESTED

200,000 CYCLE ENDURANCE

TR ADE SOLUTIONS

WATER SAVING

Our concealed cisterns and wall hung WC frames feature an adjustable dual flush (6/3 litres) providing the option of using less water and flushing more efficiently

ENDURANCE TESTING

200,000 CYCLE ENDURANCE

All cisterns are tested in accordance with British & European standards meaning they have passed a 200,000 cycle endurance test

STRENGTH & STABILITY

All wall hung WC frames are designed and tested to 400KG

100% QUALITY ASSURANCE

200,000 CYCLE ENDURANCE

All cisterns are subject to performance testing prior to packing to give you peace of mind

SPACE SAVING

Our wall hung WC frames are slim depth allowing you to maximise space within the bathroom

10 GUARANTEES For concealed cisterns For WC frame components

5 YEAR GUARANTEE

YEAR GUARANTEE

PERFORMANCE & RELIABILITY

Ideal for a seamless wall hung installation. Our WC frames come complete with a 6/3 litre dual flush cistern with anti-condensation jacket for insulation, and are tested in accordance with British & European standards meaning they have passed a 200,000 cycle endurance test. All our frames are WRAS approved and come with a 10 year guarantee on the frames and 5 years for the concealed cistern components.

WALL HUNG WC FRAME SOLUTIONS

WORKING PRESSURES

0.2-10.0bar working pressure

½” BSP brass connections

ADJUSTABLE DEPTH

EASY ACCESS

internal brass isolation valve to facilitate easy maintenance

INSULATION

polystyrene insulation jackets to minimise condensation and noise levels

TESTED

one piece blow moulded HDPE cistern tanks 100% leak tested at factory

COMPATIBILITY

180mm or 230mm fixing centres to suit all WCs designed to BS EN 33

FIXINGS SUPPLIED

all fixing hardware supplied, including Fischer fixings

SPACE SAVING slim depth to maximise room space

CHOICE

choice of flush plates or remote sensor available see pages 14-15

ADJUSTABLE

adjustable flush plate mounting to cover a variety of finished wall thickness

ADJUSTABLE

adjustable pneumatic dual flush valves, factory set at 6 & 3L

STRENGTH

strong metal frames designed to support up to 400KG

PROTECTION

all first fix protectors supplied to protect during application of wall finishes

ADJUSTABLE LEGS

COMPATIBILITY

waste pipe elbow and adaptor supplied, compatible with 90mm and 110mm waste

DON’T FORGET

Flush plates and sensors are available to pair with the WC frames, see pages 14-15.

1.17M WALL HUNG

WC FRAME TR9006

For WC frame components

For concealed cisterns

SCAN NOW FOR MORE TECHNICAL INFORMATION

RRP INC VAT £362 .00

Use for in-wall applications

• 6/3 litres

• Includes fittings

• Requires flush plate/button, or contactless sensor (available separately)

• 200mm height adjustment

500(W) X 1168(H) X 140-200(D)mm

1.0M WALL HUNG WC FRAME TR9015

5 YEAR GUARANTEE

For WC frame components

YEAR GUARANTEE

For concealed cisterns

SCAN NOW FOR MORE TECHNICAL INFORMATION

RRP INC VAT £362 .00

Ideal for boxed in applications, especially under windows

• 6/3 litres

• Requires flush plate/button, or contactless sensor (available separately)

• 200mm height adjustment

500(W) X 1000(H) X 167-215(d)mm

WALL HUNG FRAME SOLUTIONS

0.82M WALL HUNG WC FRAME TR9005

SCAN NOW FOR MORE TECHNICAL INFORMATION

For WC frame components

For concealed cisterns

Can be used with 600mm & wider furniture WC units

• 6/3 litres

• Optional Furniture Adaptor Kit

• Requires flush plate/button, or contactless sensor (available separately)

• 200mm height adjustment

500(W) X 820(H) X 167-215(D)mm

FURNITURE ADAPTOR KIT TR9007

For use with the 0.82M wall hung WC frame TR9005 when used in furniture to prevent play from furniture main fascias

DON’T FORGET

0.4M WC/BIDET FRAME TR9018

For WC frame components

SCAN NOW FOR MORE TECHNICAL INFORMATION

Compact half height WC frame suitable for use in narrow back to wall units including 500mm wide

• For use with Torrent, Cascade or comfort height cisterns

• Can also be used for bidets

• 200mm height adjustment

• Use with the comfort height cistern to allow wall hung pans to be set at a higher position

400(W) X 400(H) X 170-335(d)mm

FLUSH PLATES

Flush plates and sensors are available to pair with the WC frames, see pages 14-15.

FLUSHING SOLUTIONS

Pair with a wall hung frame or upgrade your cistern flush to a dual flush plate

SENSOR FLUSH PLATE SOLUTIONS

CONTACTLESS DUAL FLUSH SENSOR PLATE TR9025

Place hand in front of the black glass-fronted plate to activate either a reduced or full flush, the plate lights up to indicate activation.

• Contactless flushing.

• Powered by 4x AA batteries. (easy to change, no tools required)

• Low battery power alarm (battery life in excess of 1 year).

• Dual flush.

• Manual override flush.

• Illuminates on operation.

• Use on wall hung frames & In-wall cisterns (not compatible with slim depth furniture).

210(W) X 137(H)mm

TOUCH OPERATED DUAL FLUSH SENSOR PLATE TR9016

The lightest touch of the plate will initiate the flush, the plate lights up to indicate activation.

• Touch operated.

• Powered by 4x AA batteries (easy to change, no tools required).

• Low battery power alarm battery life in excess of 1 year).

• Dual flush.

• Manual override flush.

• Illuminates on operation.

• Use on wall hung frames & In-wall cisterns (not compatible with slim depth furniture).

210(W) X 137(H)mm

Recommended for in-wall installations

Recommended for furniture or lower height installations

FLUSHING SOLUTIONS

A small and discreet contactless flush upgrade option for concealed cisterns.

Simply wave your hand in front of the sensor to activate the flush, or hold your hand in place to activate the long flush.

• Provides a touchless flush, with just the wave of a hand.

• Powered by 4x AA batteries (easy to change, no tools required).

• Low battery power alarm.

• Battery life in excess of 1 year (normal domestic conditions, good quality batteries).

• Hold hand for two beeps for long flush.

• Works through surfaces up to 25mm thick including ceramic tiles, fascias & worktops.

• Includes Black, Brushed Brass, Chrome, Gunmetal "buttons" to indicate sensor location.

Please Note: Brushed Nickel & Brushed Bronze are sold separately.

buttons supplied with cistern as standard Compatible, so long as provision is made for maintenance access Compatible when used in standard depth furntiure only

CONCEALED CISTERNS

Take

STYLE & ENGINEERING TR

COOL TOUCH TECHNOLOGY

ENSURES THE BAR VALVE IS NOT HOT TO TOUCH

Our selection of modern bar valve shower systems have simple single function or dual function configurations, which control 2 water outlets that complement the flow of water with precision and power. Easy to install, these systems bring performance and style together.

TEMPERATURE CONTROL precision control allows you to set your desired temperature

TURN HANDLE for flow control

PUSH BUTTON simple on/off control

SIMPLE MODERN TECHNOLOGY

Our choice of push button showers provide the easiest showering experience yet with set and forget temperature and flow control. This also makes showering even easier for those with limited mobility.

JOY

DC3003

• Cool Touch technology ensuring the valve is not hot to the touch during use.

• Temperature and flow volume control including on/off button

• 110mm 3 function push button control shower handset

• Anti-Scald thermostatic control for safe showering

• Adjustable riser rail brackets to suit existing wall fixings

• Includes bar valve compression quick fixing kit

• Min pressure 0.2bar

JOY

DUAL FUNCTION BAR SHOWER SYSTEM

DC3004

• Cool Touch technology ensuring the valve is not hot to the touch during use.

• Temperature and flow volume control including on/off button

• 225mm overhead shower

• 110mm 3 function push button control shower handset

• Anti-Scald thermostatic control for safe showering

• Height adjustable riser rail

• Includes bar valve compression quick fixing kit

• Min pressure 0.5bar

Easy to use on/off push button, turn handle for flow control

Shower

PUSH BUTTON BAR SHOWERS

EASY TO INSTALL

Complete with a bar valve compression quick fixing kit for easy installation

JOY PUSH BUTTON DUAL FUNCTION BAR SHOWER SYSTEM TR3038

SCAN NOW FOR MORE TECHNICAL INFORMATION £316 .67 EX VAT RRP INC VAT £380 .00

• Cool Touch technology ensuring the valve is not hot to the touch during use.

• Temperature and flow volume control including on/off button

• 225mm overhead shower

• 110mm 3 function push button control shower handset

• Anti-Scald thermostatic control for safe showering

• Height adjustable riser rail

• Includes bar valve compression quick fixing kit

DON’T FORGET

• Min pressure 0.5bar

COORDINATING TAPS

For coordinating taps to match the shower system please see page 38.

•

• Height adjustable riser rail

• Includes bar valve

•

ECO BAR SHOWERS

• Includes water saving regulator

• Cool Touch technology ensuring the valve is not hot to the touch during use

• 115mm 3 function shower handset

• Anti-Scald thermostatic control for safe showering

• Adjustable riser rail brackets to suit existing wall fixings

• Includes bar valve compression quick fixing kit

• Reduce water flow without compromising shower experience

• Min pressure 0.2bar

• Includes water saving regulator

• Cool Touch technology ensuring the valve is not hot to the touch during use

• 225mm overhead shower

• 115mm 3 function shower handset

• Anti-Scald thermostatic control for safe showering

• Height adjustable riser rail

• Includes bar valve compression quick fixing kit

• Reduce water flow without compromising shower experience

• Min pressure 0.5bar

COORDINATING TAPS

For coordinating taps to match the shower system please see page 38.

• Cool Touch technology ensuring the valve is not hot to the touch during use.

• Temperature and flow volume control including on/off button

• 200mm overhead shower

• 85mm x 120mm 3 function shower handset

• Anti-Scald thermostatic control for safe showering

• Height adjustable riser rail

• Includes bar valve compression quick fixing kit

• Min pressure 1.0bar

SPIRIT DUAL FUNCTION BAR SHOWER SYSTEM DC3007

SCAN NOW FOR MORE TECHNICAL INFORMATION £290 .00 EX VAT RRP INC VAT £348 .00

• Cool Touch technology ensuring the valve is not hot to the touch during use.

• 200mm overhead shower

• 85mm x 120mm 3 function shower handset

• Anti-Scald thermostatic control for safe showering

• Height adjustable riser rail

• Includes bar valve compression quick fixing kit

• Min pressure 0.5bar

COORDINATING TAPS

For coordinating taps to match the shower system please see pages 36-39.

•

• Cool Touch technology ensuring the valve is not hot to the touch during use

• 200mm overhead shower

• 110mm 3 function shower handset

• Anti-Scald thermostatic control for safe showering

• Height adjustable riser rail

• Includes bar valve compression quick fixing kit

• Min pressure 1.0bar

• Cool Touch technology ensuring the valve is not hot to the touch during use

• 200mm overhead shower

• 65mm x 85mm Single function shower handset

• Anti-Scald thermostatic control for safe showering

• Height adjustable riser rail

• Includes bar valve compression quick fixing kit

• Min pressure 1.0bar

• Cool Touch technology ensuring the valve is not hot to the touch during use

• 200mm overhead shower

• 80mm x 95mm Air-drive single function shower handset

• Anti-Scald thermostatic control for safe showering

• Height adjustable riser rail

• Includes bar valve compression quick fixing kit

• Min pressure 1.0bar

For coordinating taps to match the

and black showers please see pages 36-39.

CONCEALED DUAL FUNCTION SHOWER SYSTEMS

CREW CONCEALED DUAL FUNCTION SHOWER SYSTEM WITH SHOWER HEAD & HANDSET

ERGO CONCEALED DUAL FUNCTION SHOWER SYSTEM WITH SHOWER HEAD & HANDSET

TR3011

• Separate flow & temperature controls

• 200mm stainless steel overhead shower

• 125mm 3 function push button control shower handset

• Anti-Scald thermostatic control for safe showering

• Quick fix riser rail, allowing easy removal for cleaning

• Includes easy fix brass shower arm and elbow

• Min pressure 1.0bar

TR3006

• Separate flow & temperature controls

• 200mm stainless steel overhead shower

• 125mm 3 function push button control shower handset

• Anti-Scald thermostatic control for safe showering

• Quick fix riser rail, allowing easy removal for cleaning

• Includes easy fix brass shower arm and elbow

• Min pressure 1.0bar

TR3007

• Separate flow & temperature controls

• 200mm stainless steel overhead shower

• 120mm x 120mm 3 function push button control shower handset

• Anti-Scald thermostatic control for safe showering

• 826mm long riser rail

• Includes easy fix brass shower arm and elbow

• Min pressure 1.0bar

SPIRIT

DUAL FUNCTION SHOWER SYSTEM WITH SHOWER HEAD AND HANDSET TR3010

• Separate flow & temperature controls

• 200mm stainless steel overhead shower

• 120mm x 120mm 3 function push button control shower handset

• Anti-Scald thermostatic control for safe showering

• 826mm long riser rail

• Includes easy fix brass shower arm and elbow

• Min pressure 1.0bar

• Separate flow & temperature controls

• 200mm overhead shower

• 70mm single function shower handset

• Anti-Scald thermostatic control for safe showering

• 710mm long riser rail

• Includes easy fix brass shower arm and elbow

• Min pressure 1.0bar

REGATTA

DUAL FUNCTION SHOWER SYSTEM WITH SHOWER HEAD & HANDSET TR3015

• Separate flow & temperature controls

• 200mm overhead shower

• 70mm single function shower handset

• Anti-Scald thermostatic control for safe showering

• Riser rail and shower arm can be cut to length to suit installation

• Includes 15mm compression fixing kit

• Min pressure 1.0bar

COORDINATING TAPS

For coordinating taps to match the shower system please see pages 36-40.

SHOWER ACCESSORIES

Recite shower kit SVKIT23

ROUND FIVE FUNCTION HANDSET

SVHEAD23

ROUND

CHROME SVACS03

ROUND MICROPHONE HANDSET WITH ELBOW OUTLET & HOSE

MATT

SVACS41

ROUND MICROPHONE HANDSET WITH ELBOW OUTLET & HOSE CHROME SVACS19

ROUND SINGLE FUNCTION HANDSET SVHEAD24 ROUND

AIR-DRIVE SQUARE SINGLE FUNCTION HANDSET SVHEAD28

& SHOWER HANDSET HOLDER SVACS11

• Durable thermoset design

• Soft close seat

• Ideal for shower cubicles

• Folds up flat to the wall when not in use

• Durable thermoset plastic design

• Easy to install

• Holds up to 200kg

365(W) x 360(H)mm unfolded

• Compact design

• Ideal for shower cubicles

• Folds up flat to the wall when not in use

• Durable thermoset plastic design

• Chrome plated trim

• Easy to install

• Holds up to 160kg

350(W) x 328(H)mm unfolded

380W) x 287(H)mm unfolded

Compact polypropylene design

Folds up flat to the wall when not in use

Detachable from wall bracket

Fixings supplied / Easy to install Holds up to 160kg

QUALITY TAPS AT GREAT PRICES

Our eco TR1135 chrome basin mixer combines efficient water flow with a stylish design to reduce water usage and conserve resources.

The Act TR1135 tap’s cold Start feature reduces energy use, saving around 305.5 kWh annually.

Basin mixers & mini basin mixers are supplied with click waste. Act basin and mini basin mixer are now installed with a FR06 flow restrictor see page 41 for futher details on flow restrictors.

QUALITY TAPS AT GREAT PRICES

ALTERNATIVE BATH FILLING SOLUTIONS

Smartflow Bath Filler (square) SVACS07 Chrome

Smartflow bath filler

• Click waste

• Extendable overflow tube

• One or two inlets

Smartflow Bath Filler (square) SVACS39 Matt Black

Smartflow Bath Filler (round) SVACS02 Chrome

Smartflow bath filler (round) SVACS23 Matt Black

Traditional Smartflow Bath Filler SVACS12 Chrome

SHOWER WATER SAVERS

Mount between the valve & hose for shower valves with handsets or your bath shower mixer. Mount between head & arm on your fixed shower heads. We do not recommend the use of regulators with bath taps or fillers as you will want your bath to fill as quickly as possible.

BASIN MIXER WATER SAVERS

Produce aerated water flow. Simple to install into the aerator housing of basin mixer. Available in a range of flow ratings.

BASIN TAP WATER SAVERS

Install into the inlet of the tap. One required for each tap, therefore please purchase in pairs. Available in a range of flow ratings.

Universal click basin wastes are suitable for a variety of basin types. The waste body is comprised of two parts making it adjustable in depth.

Universal open basin wastes have a fixed open waste cover which ensures water flows from the basin at all times. Suitable for basins without an integrated overflow.

Universal

*For use on basins without an overflow

PATENTED SECURE-FIX QR TECHNOLOGY KEEPS SEAT FIRMLY IN PLACE SOFT CLOSE TOILET SEATS

OEM REPLACEMENT SEAT COMPATIBILITY

IMEX ESSENCE, XCITE, FLITE, SUBURB VITRA S20

ROCA INSPIRA SQUARE LAUFEN PALOMBA

RAK SERIES 600 TWYFORDS E100 SQUARE

IDEAL STANDARD – I.LIFE

Weight 2.1kg, highly durable thermoset plastic, single button quick release for ease of cleaning, soft close hinges with technology keeping the seat firmly in place, top fixings, hard wearing, impact resistant.

Weight 2.3kg, highly durable thermoset plastic, quick release for ease of cleaning, soft close hinges with top fixings, hard wearing, impact resistant.

OEM REPLACEMENT SEAT COMPATIBILITY

IDEAL STANDARD CONCEPT, FREEDOM, CONCEPT AIR, CONTOUR 21, PROFILE 21, SANDRINGHAM 21 SOTTINI ISARCA, SANTORINI

HARDWEARING, IMPACT RESISTANT SURFACES

Weight 2.3kg, highly durable thermoset plastic, single button quick release for ease of cleaning, soft close hinges with technology keeping the seat firmly in place, top & under fixings, hard wearing, impact resistant.

OEM REPLACEMENT SEAT COMPATIBILITY

IMEX

ARCO, BLADE, DURO, IVAN

VILLEROY & BOCH

SUBWAY, SUBWAY 2.0, SUBWAY 3.0, ARCHITECTURA, AVENTO, O.NOVO

VITRA

S50, ZENTRUM, INTEGRA

ROCA

INSPIRA ROUND, ONA, MERIDIAN-N, NEXO

DURAVIT

D-NEO, DURAVIT NO. 1

LAUFEN

SONAR, KARTELL, PRO TWYFORDS E100 ROUND

RAK

RESORT, TONIQUE, COMPACT

R2 RADAR, DEBUT

TAVISTOCK MICRA EVO

OEM REPLACEMENT SEAT COMPATIBILITY

IMEX

ARCO, BLADE, DURO, IVAN

VITRA S50, ZENTRUM, INTEGRA ROCA

INSPIRA ROUND, ONA, MERIDIAN-N, NEXO

DURAVIT

D-NEO, DURAVIT NO. 1

LAUFEN

SONAR, KARTELL, PRO TWYFORDS E100 ROUND

RAK

RESORT, TONIQUE,

OEM REPLACEMENT SEAT COMPATIBILITY

RAK

COMPACT, COMPACT

DELUX, RESORT, TONIQUE

VITRA S50, ZENTRUM

PURA

ARCO, FLITE, ICE

V&B

ARCHITECTURA, SUBWAY, SUBWAY2.0, O.NOVO

ROCA

MERIDIAN-N, NEXO

LAUFEN - PRO

Weight 2.5kg, wrap around design, highly durable thermoset plastic for strength and longevity, soft close hinges with technology keeping the seat firmly in place, extremely hard wearing impact resistant surfaces with anti-bacterial protection.

Weight 1.5kg, regular / universal design, bottom fix adjustable seat, polypropylene plastic seat

Weight 1.8kg, standard size replacement WC seat, Highly durable thermoset plastic, dual button quick release for ease of cleaning, soft close hinges keeps seat firmly in place, top & under fixings, hard wearing impact resistant, universal seat.

Weight 1.8kg, highly durable thermoset plastic for strength and longevity, adjustable hinges with technology keep seat firmly in place, top fixings, extremely hard wearing, impact resistant surface, universal seat.

Weight 2.2KG, a heavy duty wrap over toilet seat compatible with most WCs, highly durable thermoset plastic for strength and longevity, adjustable hinges with technology keep seat firmly in place, non-slip buffers, extremely hard wearing impact resistant surfaces with an anti-bacterial finish.

Weight 2.4kg, contemporary wrap over lid design, highly durable thermoset plastic for strength and longevity, extremely hard wearing impact resistant surfaces with anti-bacterial protection.

Weight 2.8kg, highly durable moulded wood with polyurethane high gloss painted finish.

Weight 2.4kg. a heavy duty sandwich seat which fits most standard shaped toilets,supplied with stainless steel hinges. Extremely hard wearing impact resistant surfaces.

Weight 1.7kg, highly durable thermoset plastic, adjustable under fix stainless steel hinges, hard wearing, impact resistant, universal size.

COMFORT HEIGHT WC SOLUTIONS

THE TALLER OPTION

Comfort height WCs sit several cm taller than standard WCs, making them ideal for taller, less able or elderly users. The extra height of the WC helps keep the knees at a more comfortable angle. See pages 52-55 for all comfort height WCs.

400mm approx

COMFORT HEIGHT

SMART DESIGN

EASICLEAN

RIMLESS TECHNOLOGY

EXTRA COMFORT

460mm

HYGIENIC

MAKING LIFE A LITTLE EASIER

Many of our WCs on pages 52 & 54 feature Easi-clean rimless technology. Designed with convenience in mind, germs have nowhere to hide with these WCs as water is projected around the bowl upon flushing, ensuring it is completely clean.

CLOSE COUPLED FLUSHING SENSOR UPGRADE

CLOSE COUPLED SENSOR FLUSH KITS

With a simple wave of the hand, hygienic, contactless flushing is now here for close coupled WCs.

• Two sizes are available depending on the size of the flush button hole in the cistern lid.

• The button kits have been designed to retro-fit to existing WCs which have paddle operated flush valves.

• For cisterns which have pneumatic or cable operated flush valves, or where the button “screws in” directly to the flush valve, then the flush valve will also need to be swapped to our TR9033 valve which has a 2” base.

• Use TR9031 to upgrade a Debut Close Coupled WC page 52

• Use TR9032 to upgrade a Coast Comfort Close Coupled WC page 54

CLOSE COUPLED WCS

Pair the sensor with a close coupled cistern making the WC more hygienic see page 52 & 54

WC BUNDLE OPTIONS

Pan height 400mm excluding seat, rimless design, cistern and fixings included, price also includes thermoset seat DC4044-SF

376(W) x 770(H) x 625(D)mm

Pan height 400mm excluding seat, rimless design

376(W) x 400(H) x 625(D)mm

Pan height 400mm excluding seat, rimless design, cistern and fixings included, price also includes PP seat DC4043

376(W) x 770(H)x 625(D)mm

Concealed fixings, 6/4L flush, Supplied with chrome flush button, ø38mm flush button upgrades available.See page 57. 376(W) x 360(H) x 160(D)mm

Weight 1.8kg, slim design, Highly durable thermoset plastic, single button quick release for ease of cleaning, soft close hinges keeps seat firmly in place, top & under fixings. Upgrade options available. See page 57. 363(W) x 426(D)mm Weight 1.4kg, thermoset plastic, slim design, top fix soft close hinges, single button quick release for easy cleaning, Upgrade options available. See page 57. 363(W) x 435(D)mm

DEBUT 4 PIECE SET DC14070

Complete 4 piece bathroom set including:

Open back WC pan, 6/4L cistern, Soft close seat DC4044-SF, 540 basin with single tap hole & overflow, full height pedestal

BUNDLE DEAL

DEBUT STANDARD CLOSE COUPLED WC

RIMLESS

Concealed fixings included, rimless design, compatible with wall hung WC frames.

360(W) x 320(H) x 510(D)mm

DWHPAN

DC4044-SF

DEBUT FULLY ENCLOSED CLOSE COUPLED WC

RIMLESS RIMLESS

Concealed fixings, 6/4L dual flush inc air gap, rimless design, Contactless flush button upgrades available see page 57.

360(W) x 810(H) x 650(D)mm

Product Code

Pan DCCPAN

Cistern

Fully enclosed WC pan, concealed fixings inc air gap, 6/4L dual flush, Flush button upgrades available see page 57.

360(W) x 835(H) x 650(D)mm

DEBUT COMFORT HEIGHT CLOSE COUPLED WC

COMFORT HEIGHT

Pan height 460mm excluding seat, open back design, concealed fixings, 6/4L dual flush inc air gap, Contactless flush button upgrades available see page 57.

360(W) x 870(H) x 650(D)mm

DEBUT COMFORT HEIGHT FULLY ENCLOSED CLOSE COUPLED WC DEBUT WALL HUNG WC

RIMLESS

COMFORT HEIGHT

Pan height 460mm excluding seat, fully enclosed WC pan, concealed fixings inc air gap, 6/4L dual flush, rimless design, Flush button upgrades available see page 57.

360(W) x 875(H) x 650(D)mm

SPACE SAVING SOLUTIONS

COMFORT HEIGHT

Pan height 460mm excluding seat, concealed fixings, compatible with concealed cisterns. 360(W) x 460(H) x 520(D)mm

RIMLESS

Concealed fixings , compatible with concealed cisterns, rimless design. 350(W) x 400(H) x 515(D)mm

DEBUT TOILET SEAT OPTIONS

Weight 2.4kg, thermoset plastic, top fix, lift off quick release hinges for easy cleaning, soft close hinges, Upgrade options available, see page 57. 365(W) x 440(D)mm

Weight 2.4kg, thermoset plastic, slim design, top fix, adjustable hinges with technology keeps the seat firmly in place, easy one button quick release hinges, soft close hinges, see page 57 365(W) x 432(D)mm

COAST STANDARD HEIGHT CLOSE COUPLED WC

Pan height 410mm excluding seat, concealed fixings, 5/3L dual flush inc air gap technology, rimless design, contactless flush button upgrades available see page 57.

370(W) x 825(H) x 640(D)mm

COAST COMFORT HEIGHT CLOSE COUPLED WC

Pan height 460mm excluding seat, open back design, concealed fixings, 5/3L dual flush inc air gap technology, rimless design, contactless flush button upgrades available see page 57.

370(W) x 875(H) x 640(D)mm

COAST FULLY ENCLOSED CLOSE

Pan height 410mm excluding seat, concealed fixings, 5/3L dual flush inc air gap technology, rimless design, contactless flush button upgrades available see page 57.

370(W) x 825(H) x 640(D)mm

COAST COMFORT HEIGHT

FULLY ENCLOSED CLOSE COUPLED WC

Pan height 460mm excluding seat, fully enclosed design, concealed fixings, 5/3L dual flush inc air gap technology, rimless design, contactless flush button upgrades available see page 57.

370(W) x 875(H) x 640(D)mm

Pan height 355mm excluding seat, concealed fixings, Fastening holes to sides of WC, concealed fixings included.

370(W) x 355(H) x 490(D)mm

SPACE SAVING SOLUTIONS

Pan height 410mm excluding seat, concealed fixings , compatible with concealed cisterns, rimless design.

370(W) x 410(H) x 490(D)mm

Pan height 460mm excluding seat, concealed fixings, compatible with concealed cisterns, rimless design.

370(W) x 460(H) x 490(D)mm

Premium slim look wrap over toilet seat, Weight 2Kg, thermoset plastic, top fix lift-off quick release hinge for ease of cleaning,soft close hinges. Suitable for use with all Coast WCs.

369(W) x 418(D)mm

Weight 1.8kg, Highly durable thermoset plastic, dual button quick release for ease of cleaning, soft close hinges keeps seat firmly in place, top & under fixings.

455(W) x 445(D)mm

CONTACTLESS FLUSH

Upgrade the close coupled cistern to a contactless flush button see page 57.

UNIVERSAL BASINS

Single tap hole, overflow 450(W) x 515(H) x 375(D)mm

Single tap hole, overflow 545(W) x 525(H) x 440(D)mm

tap hole, overflow

x 870(H) x 440(D)mm

Suitable for standard depth furniture minimum depth 275mm, supplied with cutting template for worktop and fascia, single tap hole, overflow.

475(W) x 150(H) x 420(D)mm

Suitable for slim depth furniture, min depth 218mm, supplied with cutting template for worktop and fascia, single tap hole, overflow. 475(W) x 150(H) x 370(D)mm

WC UPGRADES

FLUSH BUTTON UPGRADES

Debut & Dana Flush Buttons ø38mm

Matt Black TR9026 INC

Brushed Bronze TR9051

REPLACEMENT FLUSH BUTTON Ø48MM

Coast Flush Buttons ø48mm

Debut ø38mm Close Coupled Sensor Flush Button Kit

Brushed Bronze TR9052

Coast ø48mm Close Coupled Sensor Flush Button Kit

OPTIONAL SEAT HINGE UPGRADES DEBUT, COAST & DANA

Seat Hinge Packs

For use with DSCTS2 and COSCTS:

Matt Black DC4011

Gunmetal DC4028

Brushed Bronze DC4045

COORDINATING TAPS

For coordinating taps to pair with your basins please see pages 36-39.

Seat Hinge Packs For use with DSLSCTS-SF & DC4044-SF:

Matt Black DC4019

Brushed Bronze DC4047

100% WATERPROOF ISOCORE BATH PANELS

Gloss white painted finish, top lip to secure under bath Panel 455(H) - 12mm thick

Plinth 140(H) - 12mm thick

Gloss white painted finish Panel 520(H) - 9mm thick

PEACE OF MIND

A revolutionary, 100% waterproof material which will not degrade with exposure to moisture.

A lightweight material which is 30% lighter than MDF.

Easy to cut without the need to re-seal, and do not need to be fully sealed during installation.

Lifetime guarantee for all Isocore bath panels

GREAT VALUE BATH PANELS

Panel

Plinth

Check

HANDLE UPGRADE OPTION

Chrome handles supplied as standard, or upgrade to a matt black or brushed brass handle. See page 61.

POD CURVED FURNITURE

Pod curved furniture unit includes, soft close hinges, dark grey internals, choice of handle colours, ceramic basin

POD CURVED FURNITURE - GLOSS WHITE FINISH

POD CURVED FURNITURE - MATT LIGHT GREY FINISH

POD CURVED FURNITURE - MATT STORM GREY FINISH

CURVED EDGE MODULAR FURNITURE

500(W)

HANDLE UPGRADE OPTION

COVET FLAT FURNITURE

Chrome handles supplied as standard, or upgrade to a matt black or brushed brass handle. See page 63.

Covet flat fronted furniture unit includes, soft close hinges, dark grey internals, choice of handle colours, ceramic basin

COVET FLAT FURNITURE - GLOSS WHITE FINISH

COVET FLAT FURNITURE - MATT LIGHT GREY FINISH

COVET FLAT FURNITURE - MATT STORM GREY FINISH

SQUARE EDGE MODULAR FURNITURE

L-SHAPE BATHROOM FURNITURE

Left

HANDLE UPGRADE OPTION

Chrome handles supplied as standard, or upgrade to a matt black handle details below.

LED perimeter, infrared sensor, heated demister pad, can be hung landscape or portrait, IP44

450 x 700 x 26

600 x 800 x 26

1000 x 600 x 26

600ø x 26

800ø x26

LED perimeter, touch sensor, heated demister pad, can be hung landscape or portrait, IP44 400(W) x 800(H) x 30(D)mm

White frame finish to match furniture 500(W) x 700(H) x 32(D)mm

GUARANTEES

Ambient backlighting LEDs with colour changing technology, contactless controls, heated demister pad, can be hung landscape or portrait, IP44

Super bright LED perimeter, touch sensor, heated demister pad, IP44

All Trade Solutions Mirrors come with a 5 year guarantee against manufacturing defects and a 2 year guarantee for electrical components. Super

LED perimeter, CCT technology, mirrored side panels, charging socket, touch sensor, heated demister pad, IP44

ILLUMINATED CABINET OPTIONS

AVANT ALUMINIUM SINGLE DOOR CABINET

AV44AL

LED lighting, rocker switch, shaver socket, soft close door,2 internal shelves (adjustable), IP44

510(W) x 650(H) x 135(D)mm

CABINETS

AVANT ALUMINIUM DOUBLE DOOR CABINET AV60AL FLOW SINGLE DOOR CABINET FWC050

LED lighting, touch sensor, mirrored sides, heated demister, charging socket, double sided mirror door with soft close, surface mounted or recessed, 2 smoked glass shelves, IP44

500(W) x 650(H) x 130(D)mm

LED lighting, rocker switch, shaver socket, soft close doors, 2 internal shelves (adjustable), IP44

670(W) x 6650(H) x 135(D)mm

DOUBLE DOOR CABINET FWC060

LED lighting, touch sensor, mirrored sides, heated demister, charging socket, double sided mirror door with soft close, surface mounted or recessed, 2 smoked glass shelves, IP44

600(W) x 650(H) x 130(D)mm

EXTRA STORAGE - PRACTICAL DESIGN

REFLECT SINGLE DOOR CABINET

RFC045

MIRROR SIDES

Double sided mirror door, dark grey interior, soft close doors, 2 internal shelves (adjustable)

450(W) x 650(H) x 140(D)mm

REFLECT DOUBLE DOOR CABINET

RFC060

MIRROR SIDES

Double sided mirror doors, dark grey interior, soft close doors, 2 internal shelves (adjustable)

600(W) x 650(H) x 140(D)mm

600MM DOUBLE DOOR CABINET TIMBER AM6051.W

Gloss white finish, soft close doors, 2 internal shelves (non adjustable)

600(W) x 650(H) x 115(D)mm

000' S SPARE PARTS

We hold stock of thousands or spare parts, giving you total assurance should you require to use this service. Please get in touch with our customer support experts, who can assist with any spare part queries - sales@roperrhodes.co.uk

ACCESSORIES

x 125(D)mm

x 90(H) x 65(D)mm

x 45(H) x 75(D)mm

BATHROOM ACCESSORIES

MADISON SMALL BASKET

WB10.02

Available in a chrome finish

132(W) x 30(H) x 105(D)mm

MADISON BOTTLE BASKET

WB80.02

MADISON LARGE CORNER BASKET

WB40.02

Available in a chrome finish

x 50(H) x 180(D)mm

MADISON DOUBLE BOTTLE BASKET

WB90.02

x 45(H) x 112(D)mm Available

x 260(H) x 112(D)mm

MADISON DOUBLE CORNER BASKET

WB50.02

MADISON SHOWER CADDY

WB70.02

AFTER SALES SERVICE

CUSTOMER SUPPORT TEAM

We have a dedicated customer service team on hand to help with any of your product queries. We have built an excellent reputation over the 40 years we’ve been in business. By choosing Trade Solutions you can be assured of the very best support for your products. Call us today from 8am on 01225 303900 or alternatively email us sales@roperrhodes.co.uk

000’s SPARE PARTS

We hold stock of thousands of spare parts, giving you total assurance should you require to use this service. Please get in touch with our customer support experts, who can assist with any spare part queries, email us at sales@roperrhodes.co.uk or alternatively visit our website to view our spares brochure - tradesolutions.roperrhodes.co.uk/spares-repairs

EXTRA ONLINE PRODUCT INFO

Additional technical product information including fitting instructions and how to guides can be viewed on our website, head to our dedicated Trade Solution section for further information - tradesolutions.roperrhodes.co.uk
