CAPTAIN’S KIT | EIGHT.3

For months, we challenged every accepted norm. Every fit issue. Every performance compromise. Every product that felt unfinished. When a group of passionate riders, designers, engineers, and dreamers gather around a common goal, magical things can happen.

The result became Ronix. Not a company chasing trends. A company obsessed with experience.

THE RONIX DESIGN PHILOSOPHY From the very beginning, we set out to solve problems.

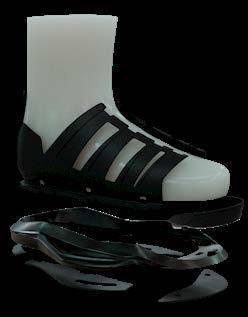

Bindings weren’t comfortable, so we created the first true wakeboard boot featuring our proprietary Intuition heatmoldable liner. Traditional baseplates created unnecessary separation between rider and board, so we developed the first baseless system. We introduced a two-piece chassis that wraps and adapts to the shape of a rider’s foot as the laces tighten.

We believed changing surf fins shouldn’t feel like taking out the garbage, so we developed a tool-less button fin system.

We built floating carbon fins because nobody enjoys watching their favorite fin slowly disappear beneath the surface.

We created Speedwalls because boards should ride faster and last longer. We created rocker lines independent of the bottom of the board that allow a bigger sweet spot. We introduced countless constructions that have changed the way we look at water contact, takeoffs, landings and swing weight.

When foiling was viewed as intimidating and frustrating, we introduced innovations like adjustable masts and vertical stabilizers that made the learning process more intuitive and enjoyable.

Over twenty years later, our philosophy remains unchanged.

Identify friction. Create solutions. Improve the experience.

MADE AT RONIX WHO IS RONIX? Ronix is a family in both the literal and metaphorical sense.

For more than 30 years our crew has been responsible for many of the milestones that shaped riding sideways behind a boat. We created the first compression molded wakeboard, wakesurfer, and wakeskate in the 90’s. Mike Murphy introduced us to the world of flight in the 80’s, and we helped bring the Air Chair to life and introduced a generation of riders to the feeling of flight.

Then, in the winter of 2006, we sold our past and went back to Square 1. Ronix was never meant to be a continuation.

It was meant to be a reset. That winter became a period of reflection. We examined every aspect of the sport and asked ourselves a simple question: What actually improves the experience? Because progression without purpose eventually becomes noise. Innovation without intention can become its own obstacle. We found freedom in replacing the pressure of advancement with the clarity of experience.

Our products are built to jump, fly, slash, float, carve, and most importantly surprise you. Our vision extends far beyond shape design. The manufacturing process is just as important as the finished product. Every category we create contains materials, or construction techniques unique to Ronix. It’s one thing to build a carbon foil. It’s another to build one from pre-preg spread tow carbon in an autoclave facility in an asymmetric layup where no two laminates are applied exactly the same. It’s one thing to make a wakeboard boot. It’s another to create dedicated liner and shell lasts that mirror a rider’s natural stance while eliminating hot spots and dead space through a doublelasted construction process. We are the only wakeboard, wakesurf, and foil company that does not share factories with competitors. We also continue to invest in doing more with less. PVC-free footwear. Petroleum-free resins. Waterbased adhesives. Neoprene made of limestone. Etc. etc. A growing list of choices that reduce environmental impact while improving performance.

Every detail has conviction.

Every material has purpose.

Every rider will appreciate the difference.

BUILT BEYOND STANDARD

TABLE OF CONTENTS RONIX WAKESURFERS

04

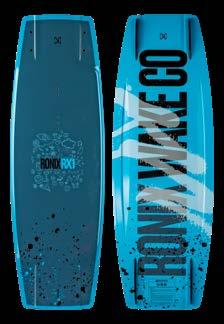

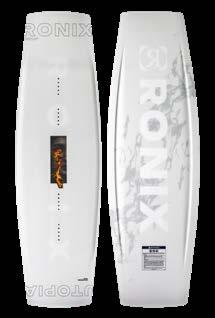

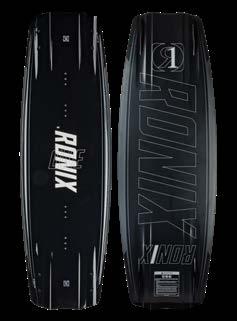

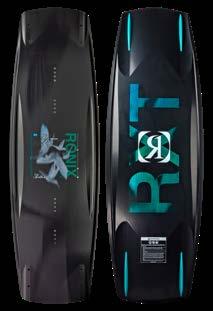

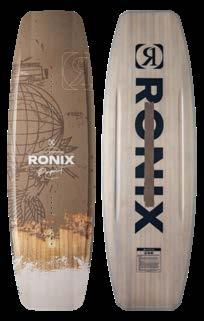

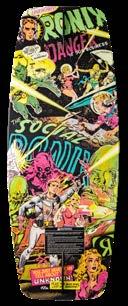

WAKEBOARDS

24

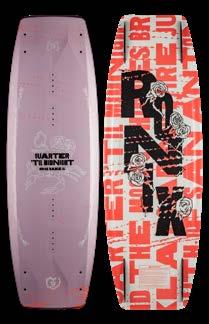

PARK BOARDS

38

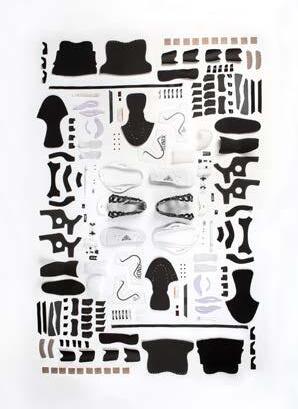

FOOTWEAR

44

WAKEFOILS

58

WAKESKATES

74

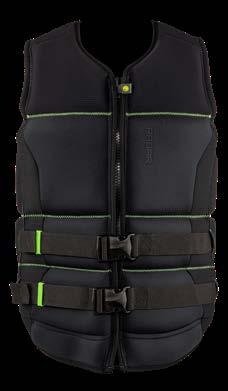

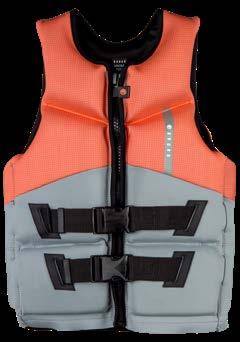

CGA VESTS

76

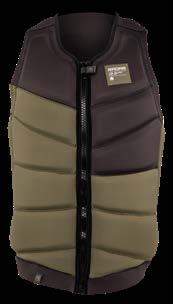

IMPACT JACKETS

91

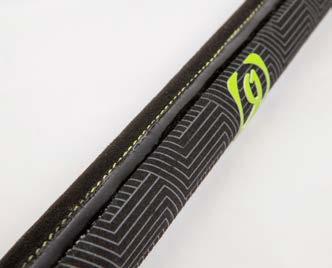

ROPES & HANDLES

96

CASES

105

APPAREL

108

ACCESSORIES

110

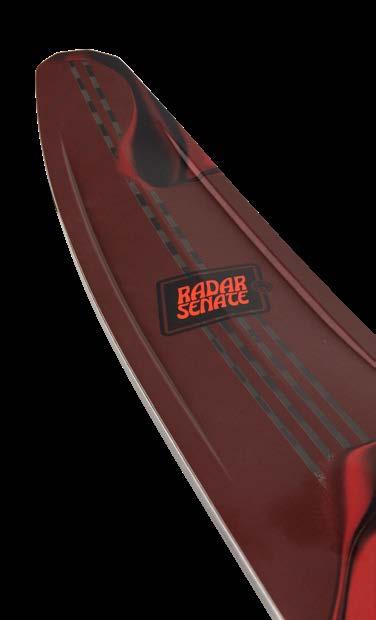

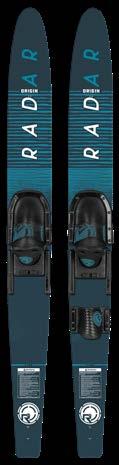

RADAR WATERSKIS

112

BOOTS

134

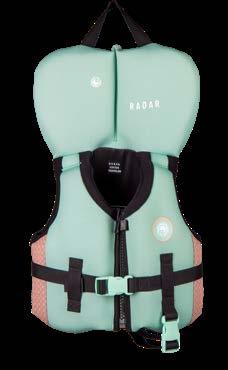

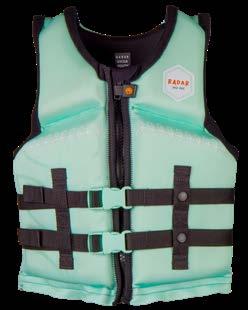

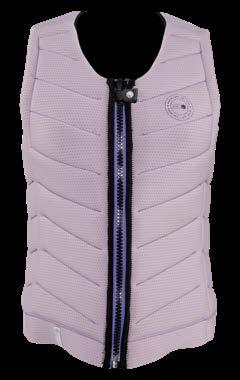

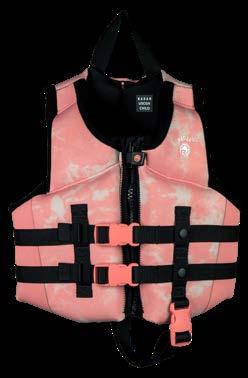

VESTS

140

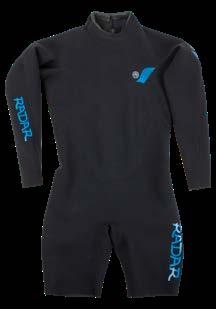

WETSUITS

150

GLOVES

152

ROPES & HANDLES

156

COMBO SKIS

162

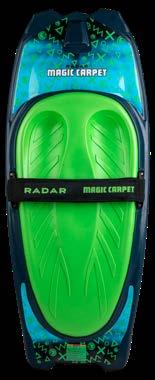

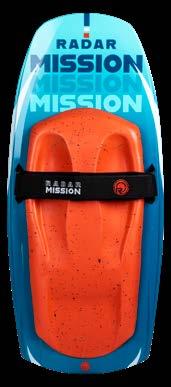

KNEEBOARDS

163

TUBES

164

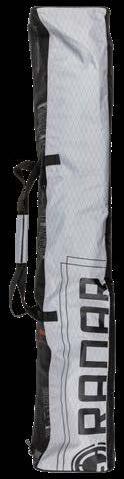

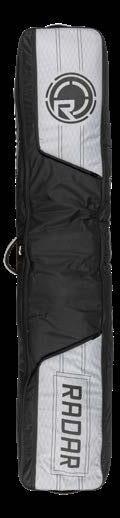

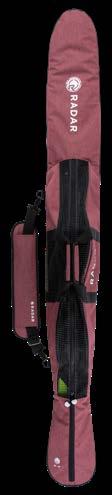

CASES

170

APPAREL

172

ACCESSORIES

173

CAPTAIN’S KIT CLEANERS

178

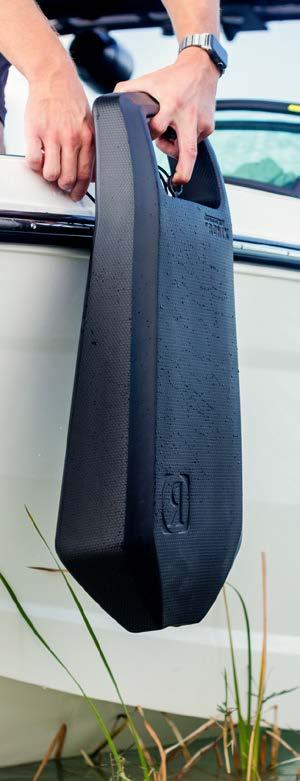

FENDERS

179

ACCESSORIES

180

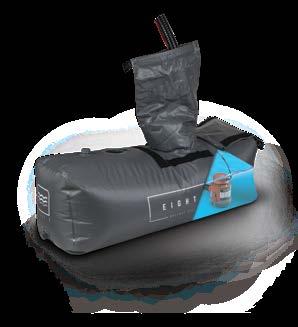

EIGHT.3 BALLAST

182

ACCESSORIES

186

SURF SHAPES 101 With all of these shapes, sizes and constructions - how do you determine which one is right for you? The first step is to decide if you are looking for a skimmer, traditional surfer, or a hybrid deck.

$ SKIMMER

SURF

HYBRID

A fast, responsive board relying less on the fin. Preferred by riders that want a board that will break free easier for 360s and other tricks – these riders typically use a shorter length board than they would on a traditional surfer.

Smooth, fluid linked turns riding higher on the water with more pressure on the back half of the board to generate force through a turn.

For riders that like a little bit of everything - generating power through a bottom turn, but still releasing easily off the waterline.

$$$ 4 RONIX WAKESURF

SURF CONSTRUCTIONS 101 Why so many surf constructions? All of our surfers can be put into one of four categories in varying price points. Those that prioritize lightweight, extra energy, extra dampening and of course durability – or those that want a combination of two of them.

$ HIGH ENERGY + DURABILITY

EXTRA DAMPENING + DURABILITY

More hole shot response out of a turn with added power off the lip. One uses foam from Italy.

The other uses laminates from France. Both are high-powered constructions and the pinnacle of reaction and control.

A term rarely said in surfing is suspension.

Choppier water conditions, steeper wakes, foamy lips, or just want a smoother feel. It’s hard to beat the plush ride found in a lightweight foam and a dampening wood exterior.

LIGHTWEIGHT Sometimes less is more.

This category offers some of our most affordable value on some, and others have added carbon snap with a low swing weight delivery.

EXTRA DURABILITY All our boards are built with the first in class materials that won’t break down over time.

But these series put even more emphasis on the oops factor. No need to apologize when a board drops on the dock.

$$$ WAKESURF RONIX 5

6 RONIX WAKESURF

WAKESURF RONIX 7

ENERGY + DURABILITY

SURF CONSTRUCTIONS Ten different constructions each with a specific energy, swing weight, and durability, for its intended price point and riding style.

DAMPENING + DURABILITY

DARK MATTER Makes up 27% of the universe and now powers our latest surf construction.

Handmade in the same building where Ronix was founded in the good ol’ US of A using the most advanced aerospace materials available for that perfect blend of feedback and reactivity. Now featuring Speedwalls – ride faster and deeper into the pocket.

DAMPENING + DURABILITY

ELEMENT CORE

KOAL CLASSIC

A 100% Paulownia wood wrapped around our lightweight surf core.

Where science and nature meet for response and improved dampening.

A hand shaped design made from a core like its saltwater brethren then mixed with some classic wood laminates for improved dampening.

LIGHTWEIGHT

LIGHTWEIGHT

ENERGY + DURABILITY

CARBON AIR CORE 4 An explosive feeling from our most responsive carbon construction. Using a high-end spread tow carbon weave for the ultimate in reaction. Upgraded energy is now a pump away. Now featuring Speedwalls – ride faster and deeper into the pocket.

DAMPENING + DURABILITY

MARSH “MELLOW” Lightweight like a surfer, durable like a wakeboard, and forgiving like a marshmallow. A Standard Core with a bamboo base delivers one of the smoothest rides in surfing.

LIGHTWEIGHT

FLYWEIGHT PRO

FLYWEIGHT

STANDARD CORE

The lightweight feel of a Flyweight mixed with the extra reaction of a Carbon Air Core 4. This construction combines elements of 2 of our bestselling high-end constructions.

Less is more. These cores are designed with a minimalist approach, keeping the purest form of surf in mind. For many riders - lighter is better.

Recently we took our more affordable core and put it on a surf diet. Now even price point boards are made using vacuum bagged lightweight surf cores.

8 RONIX WAKESURF

EXTRA DURABILITY

EXTRA DURABILITY

SONIC CORE

TUFF TECH

A rocket ship core and a durable wakeboard construction for the next generation of surfers. A fast but forgiving, inside wrapped with a strong outside.

We took our popular Koal Classic and threw it in a mold and then wrapped it in our bulletproof Surface Skin.

This durable, lightweight, and more affordable option with a protective laminate breaking up the water creating less resistance.

EXTRAS

EXTRAS

EXTRAS

HANDMADE BY ROBOTS Every surfer we make removes human error. All our cores are machined to the exact tolerance we spec’d out.

EXTRAS

LAVA RESIN

VENTS

BIO RESIN

A high temperature resin used on all our surfers, built to withstand Mother Nature’s extreme heat.

Hate to break it to you but even surfers get a little gassy. No worries though, when your favorite deck is acting up, we have an exit strategy for that unwanted discharge.

Without sacrificing response or strength, these boards are made with resin made from plants. Free of the petroleum discharge of traditional crude oil-based resins.

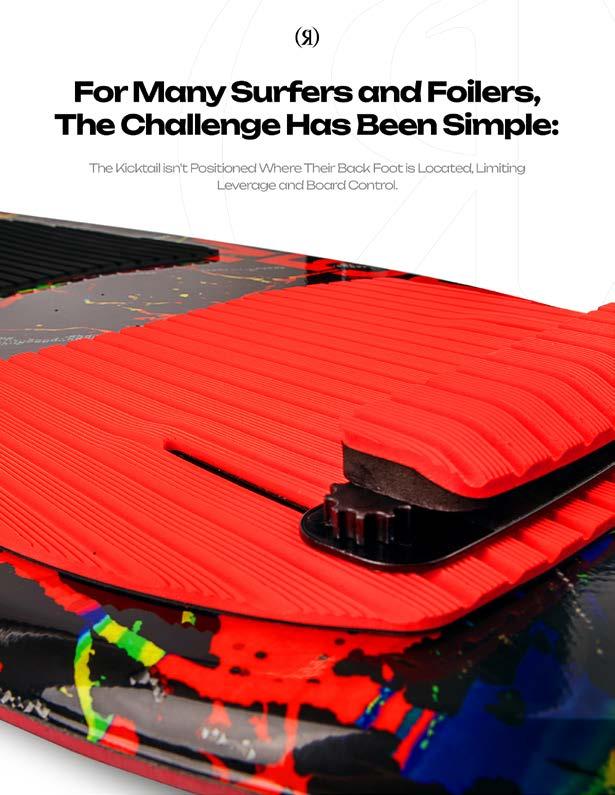

TRACTION

RECYCLED FOAM Eco-approved recycled foam traction putting an emphasis on save and salvage. Performance-minded pattern for added grip.

TRACTION

BLENDED GROOVED EVA EVA with machined grooves blended with a soft rubber compound for a softer feel without sacrificing grip.

Similar compound foam as our machined EVA sprinkled with some added comfort.

TRACTION

MACHINED EVA High performance EVA built to withstand years of swells with as much traction as you can get out of foam. Most of these boards come with an arch support for your back foot, concave on your front foot for greater response, and an extra tall kicktail for added leverage.

WAKESURF RONIX 9

MOUNTING SYSTEMS BUTTON FIN SYSTEM A patent-pending design with over 5 years of development is now proudly available on most of our 2027 wakesurf lineup. Typically, with a fin attachment system the rider must generate the force to release the fin. With the Button system the energy comes from the internal design - at your disposal for an effortless release with a simple press of a button. Enjoy *Button Fins are only compatible with surf models using the button system.

FIN-S FIN SYSTEM Another simple and proven tool less attachment mechanism. Using Spring Lock Technology, with an intuitive 2-stage engagement and removal. *Fin-S Fins are only compatible with surf models using the Fin-S system.

BOTTOM MOUNT WITH TOOL FIN SYSTEM Not every Ronix surfer is a click away from riding. A few of our models still require a trusty tool to adjust the placement of a fin. An allen wrench is included with these surf models. *Bottom Mount W/ Tool Fins are only compatible with surf models using the button system.

FLOATING

BLUEPRINT CARBON

CHEESE GRATER CARBON

More than just thin profiled tracking devices that cut harder, cleaner, and initiate turns with a timeless surf feel – they also have some phenomenal swimming skills. A carbon epoxy layup also makes them our stiffest, most responsive construction compatible with our Button Technology.

You know that sensation when a beautiful block of Wisconsin’s finest is about to get shredded through the grater? Each slice so fluidly created by a simple motion. Ever wonder what would happen with that same contraption on the water? Magical things. Mad scientists in tiny white lab coats created a fin with side perforations allowing small particles of water to pierce through the side of the fin for either a loose or locked in feel, depending on the fin placement.

SIZE

1” CENTER 2.5” CENTER 3” CENTER 3” LEFT 3” RIGHT 3.5” CENTER 3.5” LEFT 3.5” RIGHT 4” CENTER 4” LEFT 4” RIGHT 4.5” CENTER 3.5”(2) | 3” (1) 3 PACK

BUTTON

FIN-S

X X X

X X X X X X X X X X X X X

X X X X

X X

SIZE

BUTTON

3.5” A SIDE 3.5” B SIDE

X X

DROP THROUGH FIN SYSTEM Some skimmers need to be thin – really really thin. Because of that we don’t have enough depth to insert one of our magnificent fin systems.

So instead – take one from our wakeboard playbook and drop a screw through the board. *Drop Through Fins are only compatible with surf models using the button system.

FLOATING

PIVOT CARBON Everybody is looking for an edge – now you have a new way to cut corners with a quicker turning radius.

Pivot fins have a shorter base than our classic Blueprint fins for an easy shortcut.

SIZE

3.5” LEFT 3.5” RIGHT 4” LEFT 4” RIGHT

10 RONIX WAKESURF

BUTTON

FIN-S

X X

X X X X

FLO THRU CARBON The sensation of hitting the gas pedal without spinning the tires.

The Flo-Thru fin was designed for increased speed and less drag without sacrificing traction. Up your flow with the Flo-Thru fin.

SIZE

3.5” LEFT 3.5” RIGHT 4” LEFT 4” RIGHT

BUTTON

FIN-S

X X

X X X X

FLOATING

NUB CARBON Every great band needs a rhythm guitarist. They thicken up the sound, maintain momentum and add layers of variety to the music. Let us present to you the rhythm guitarist of surf fins. Our 1.8” NUB fin may not have the stage presence of the more raked Blueprint, quicker turning Pivot, or faster Flo Thru Fins, but they add stability to your aquatic navigation.

SIZE

BUTTON

FIN-S

X

X X X

1.8” CENTER 1.8” LEFT 1.8” RIGHT

ALOHA FIBERGLASS

BLUEPRINT FIBERGLASS

Nostalgic surf performance. The Aloha fin distinguishes itself in the Ronix fin lineup with a greater surface area while maintaining a shorter fin height.

By embracing a keel-style shape the Aloha Fin features more total length.

This maintains board stability and hold in the wave without the feeling of increased drag. The result is a single fin that grips - but still has the medium tempo to compliment the personality of a longboard.

A similar rake and outline as the floating version. These standard fins are made of a traditional fiberglass.

They don’t have the response of our carbon version - but are just as predictable on cutbacks.

SIZE

SIZE

1” CENTER 2.5” CENTER 3” CENTER 4” CENTER

BUTTON

FIN-S

X X X X

X X

BUTTON

3.6” CENTER

X

ALFRED FIBERGLASS

SWITCH FIBERGLASS

KID’S FIBERGLASS

Named in honor of the great polycarbonate pioneer. A solid overall fin for the average recreational level surfer. These transparent creations will compliment an entry level surfer.

Thin profiled skimmers are cool; kids are cool and combine the two with some cool fins designed for our Switch Skimmer series. Short and wide profile outer fins that prevent the board from sliding out. While a sleek, tall 1.8” center fin has all the traction needed for any beginner to help guide their pintail ways.

Smaller in stature, but perfect in performance for the next generation of surfers. Designed specifically for the Kid’s Series. These fins can easily be adjusted with an Allen wrench.

SIZE

BUTTON

2.3” CENTER

X

TURBO 3000 PROP

2.3” CENTER 2.9” CENTER

BOTTOM MOUNT

X X

X X

SIZE

.8” CENTER 1.8” CENTER

SIZE

1.5” CENTER

BOTTOM MOUNT

X

DROP THROUGH

X X

WAKESURF RONIX 11

MEN’S SKIM

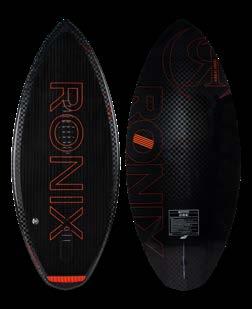

OSMO SKIMMER

SKIMMER

CARBON AIR CORE 4

DARK MATTER

A PURE SKIM FEEL WITH A NEXT-GEN HEARTBEAT

THE FASTEST, MOST EXPLOSIVE SKIMMER IN OUR RANGE - BUILT AT H.O.M.E. IN THE USA

CATEGORY

FIN SYSTEM

RIDING LEVEL

(1) - 2.5”

CATEGORY

FIN SYSTEM

HIGH ENERGY + DURABILITY

BUTTON FINS INCLUDED

RIDING LEVEL

ADVANCED/ INTERMEDIATE

(1) - 2.5”

Blueprint | Carbon | Floating

(1) - 1”

Blueprint | Carbon | Floating

PAD

MADE AT H.O.M.E. THE USA

EVA BLENDED W/ RUBBER

From day one the Osmo was designed to be the proving ground for Ronix innovation. A platform where all the most advanced materials, constructions and ideas come together – at the birthplace of Ronix in the good ‘ol US of A. H.O.M.E. – Herb O’Brien’s Manufacturing Experience is where we assemble space age innegra imported from France, petroleum free Bio resin, Speedwalls that build stronger and faster boards, floating carbon fins made from our patented Button Fin System. Dylan Mathews’ signature twin-tip, wider-profile skimmer with minimal rocker carries more speed for technical style tricks and allows riders to sit deeper in the pocket. Our best-selling high-end skimmer has also become a favorite among intermediate riders. The locked in speed that creates a more powerful explosion off the wake – also acts as an easier board for us mortals to carry more glide - riding with less effort.

HIGH ENERGY + DURABILITY

BUTTON FINS INCLUDED

ADVANCED/ INTERMEDIATE

Blueprint | Carbon | Floating

(1) - 1”

Blueprint | Carbon | Floating

PAD

EVA BLENDED W/ RUBBER Two different rocker lines, an electric inner construction and a stronger faster outer construction. For riders who want that pure skim feel with a next-gen twist. This lowvolume shape delivers less swing weight and quicker spins and is now upgraded with Speedwalls — these urethane sidewalls make the board faster, tougher, and ride higher on the water. The Carbon Air Core 4 packs a punch thanks to its high-grade spread tow carbon, the same ingredients used in our elite foil line. With a reinvented rockerline, a smooth arc through the middle and flatter rails for more speed and stability.

LENGTH (IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

LENGTH (IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

48 51 55

UP TO 165 145 + 170 +

9.7 10.6 11.8

1.7 1.8 2

21 21.5 22

53 58

UP TO 175 160 +

8.8 10.5

2.2 2.4

21.2 21.2

12 RONIX WAKESURF

MEN’S SKIM

BLUNT NOSE SKIMMER

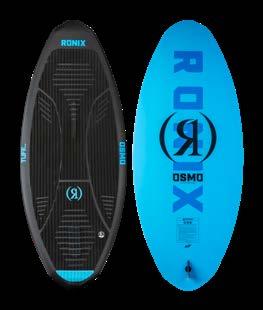

OSMO SKIMMER TUFF TECH

ELEMENT CORE

A SKIMMER WITH A LITTLE BIT MORE CALM IN THE CHAOS CATEGORY

EXTRA DAMPENING + DURABILITY

FIN SYSTEM

BUTTON FINS INCLUDED

(1) - 2.5”

RIDING LEVEL

ALL LEVELS

Blueprint | Carbon | Floating

(2) - 1.8”

PAD

Nub | Carbon | Floating

EVA BLENDED W/ RUBBER

THE SAME PROVEN SHAPE OF OUR DARK MATTER OSMO – AT A MORE AFFORDABLE VALUE CATEGORY

FIN SYSTEM

RIDING LEVEL

FINS INCLUDED

EXTRA DURABILITY ALL LEVELS

BUTTON (1) - 2.5”

Blueprint | Fiberglass

(1) - 1”

PAD

EVA BLENDED W/ RUBBER

Blueprint | Fiberglass

The Blunt Nose has extra speed, stability, grip and dampening. A new breed of skimmer for riders who want the agility of a thin, pintail skim board — but with the added steadiness of a wider longboard nose. The result?

Faster starts, more confident tricks, and a whole new level of versatility on smaller wakes. Built with a lightweight surf core wrapped in a Paulownia wood laminate exterior, this board delivers a smooth, dampened ride that absorbs energy instead of amplifying it. Complete with outer Nub fins giving a rider a touch more grip when you want it— without feeling locked down. Just balanced. Predictable.

Fun. Deep water starts, spins, airs — all require less effort.

You know what might be even better than having one of the most advanced high-end skimmers out there? Having a second version of that same proven shape that’s easier on the wallet and built for a broader range of riders. New for this year, we present a more accessible take on the legendary Dylan Mathews Signature Osmo series. Still featuring the same proven fast, explosive, bulletproof construction, and extra stable platform that made the original such a favorite. The result is uncompromised universal skim appeal. A wide-body shape with a clean rocker line and balanced twin outline that rides fast in either direction. A design notorious for carrying effortless pocket speed, giving riders the freedom to drift deeper into the wave and still stay connected to the energy of the ride.

LENGTH (IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

LENGTH (IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

54 58

UP TO 200 170 +

10.3 12.1

2.2 2.4

20.8 20.8

51 55

145 + 170 +

10.6 11.8

1.8 2

21.5 22

WAKESURF RONIX 13

MEN’S SKIM

MEN’S SURF

SOUTH SHORE SKIMMER

DNA

FLYWEIGHT PRO

STANDARD CORE | WITH STRAPS THIS IS WHERE EFFORTLESS 360’S BEGINS CATEGORY

FIN SYSTEM

RIDING LEVEL

FINS INCLUDED

LIGHTWEIGHT

BUTTON

BEGINNER / INTERMEDIATE

(2) - 2.5”

Blueprint | Fiberglass

MACHINED EVA

CATEGORY

FIN SYSTEM

RIDING LEVEL

FINS INCLUDED

LIGHTWEIGHT

BUTTON

ADVANCED/ INTERMEDIATE

(2) - 4.5”

Flo-Thru | Carbon

(1) - 1.8”

PAD

(1) - 3”

PAD

POWER AND HANGTIME WHEN YOU ASK FOR IT, FORGIVENESS WHEN YOU NEED IT

Blueprint | Fiberglass

Nub | Carbon | Floating

RECYCLED EVA

Skim style tricks and a stable three fin configuration at our most affordable skim option. A handmade construction made with a similar foam as our most advanced Flyweight core. The Standard Core Skimmer makes that 360 spin even easier and has more stability than a traditional skimmer.

This board delivers confidence, flow, and progression. The gateway for skim purists when ridden with a single fin and provides a more confident ride with three fins. Comes complete with adjustable foot straps. The gateway to your pintail expedition is simple, approachable, and ready to grow with you.

The Flyweight Pro DNA offers the best of both worlds — the feel of a forgiving daily driver and the instant power of a competition-ready surfer. Designed to boost higher airs and effortless 3s without having to pump to stay in the wave. Handmade with USA S-Glass for a quicker reaction time, this is a board that rips in comps but is still fun and forgiving for intermediate riders chasing their first tricks.

A shape that sparks progression and leaves a smile a mile wide. Last year we came out with all new 4’2 and 4’5 sizes - shorter in length and sleeker in volume but still hold the title - King of Airs. Equipped with a Flo Thru fin with bottom turn drive, and off the lip release like no other fin you have ever used.

LENGTH (IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

53 58 62

UP TO 180 165 + 180+

11.6 13.8 15.8

2.1 2.3 2.4

21 21 21

4’2” 4’5” 4’8”

UP TO 180 150 + 165 +

16.3 19.2 20.3

2.7 2.9 2.9

20 20.5 20.5

14 RONIX WAKESURF

MEN’S SURF

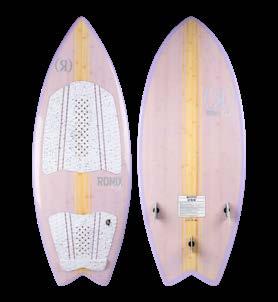

ATLANTIK

FISH

OCEAN-INSPIRED SURFBOARD FOR YOUR FRESHWATER JOURNEY

THE 1 BOARD QUIVER - OUR MOST POPULAR SERIES, CREATED FOR ALL STYLES AND ABILITIES

CATEGORY

FIN SYSTEM

CATEGORY

RIDING LEVEL

FINS INCLUDED

FLYWEIGHT

LIGHTWEIGHT

KOAL CLASSIC

BUTTON

ADVANCED/ INTERMEDIATE

(2) - 3.5”

Pivot | Carbon | Floating

Nub | Carbon | Floating

EVA BLENDED W/ RUBBER

BUTTON FINS INCLUDED

(2) - 4”

RIDING LEVEL

Blueprint | Fiberglass

ALL LEVELS

(2) - 1.8”

PAD

FIN SYSTEM

EXTRA DAMPENING + DURABILTIY

(1) - 3”

Blueprint | Fiberglass

PAD

MACHINED EVA

The bucket tossing high performance slash master with a reactive tip and locked in added a new adjective for 2027 – Top Water Speed. We went back to the blue room and kept that powerful locked in feel this quad is notorious for – and turned up the volume on glide with a recently updated rail design and a new faster rockerline. A lightweight construction, allowing the board to feel freer and the carbon stringers for extra kick in this already reactive surfer.

Ocean roots, lake-born energy.

Our best selling model is a timeless funboard. This versatile shape has stood the test of time through generations of surf design. A clean bottom, efficient rockerline, and smooth rails combined with the swallowtail Fish profile allows it to ride loose, breaking free on the top of the lip, yet still responsive for a bottom turn drive that will get you there on time. You’ll get recreational level ease and stability from this smooth ride – a perfect board for us inlanders looking for wake slashing adaptability. A legacy surfer for a reason – no drama – just good rides.

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

4’5” 4’7” 4’9”

UP TO 170 UP TO 190 170 +

18.9 21 23.4

3.8 3.9 4.1

19.4 20.1 20.8

4’6” 5’ 5’6”

UP TO 175 155 + 170 +

16.8 19.6 21.6

4 4 4

20.6 21.6 21.6 WAKESURF RONIX 15

MEN’S SURF

ALOHA LONGBOARD

TAKEOFF

A TOES ON THE NOSE LONGBOARD WITH GREAT SPEED, FORGIVENESS, AND A MODEST PRICE TAG

A WIDE PROFILE, EFFORTLESS BEGINNER BOARD, GENERATING NATURAL GLIDE SPEED WITH UNIQUE CONSTRUCTION

MARSH “MELLOW”

CATEGORY

FIN SYSTEM

EXTRA DAMPENING + DURABILITY

BUTTON FINS INCLUDED

(1) - 3.6”

RIDING LEVEL

MARSH “MELLOW”

CATEGORY

FIN SYSTEM

EXTRA DAMPENING + DURABILITY

BUTTON FINS INCLUDED

(3) - 3”

Blueprint | Fiberglass

RIDING LEVEL

ALL LEVELS

Blueprint | Fiberglass

ALL LEVELS

PAD

PAD

EVA BLENDED W/ RUBBER

EVA BLENDED W/ RUBBER

Good vibes and soul turns. The world needs more relaxation and faster riding longboards. Like any proven longboard shape, we designed the Aloha with a stable, easygoing, soul-turn feel that you can comfortably walk up and down the board with. Now you can preserve your speed with the added volume throughout the nose section. A pronounced concave allows this board to turn harder and quicker than most other longboards out there. A soft top construction prevents those unwanted dings but also provides added dampening with a bamboo laminate on the base. Chase the endless summer with a classic Waikiki-inspired hang ten special – now with a faster shape and more forgiving construction. This Sunday cruise toes-on-the-nose special is made with a unique Paulownia wood exterior for extra suspension, mixed with our lightweight surf core.

Sometimes we need those days and a product to remind us why there is no feeling like riding sideways on the water.

Buckle up, the Takeoff is designed to jumpstart your surf journey. With a wide nose, high-volume shape, and forgiving soft construction, it’s the fastest, most stable ride for new riders. Unlike thin, sharp-edged beginner boards that prioritize grip, the Takeoff trades a little traction for extra down-the-line speed and a looser, cruisier feel. A true blend between a fast longboard nose and a playful fish-style tail, it’s perfect for building confidence with extra speed and dampening with its unique wood construction while also having fun right out of the gate. The easiest way to get going—and keep going.

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

5’2”

150 +

30.3

3.9

21.5

4’4” 4’8”

UP TO 190 170 +

16.5 18.6

2.1 2.1

20.5 21.5

16 RONIX WAKESURF

MEN’S HYBRID

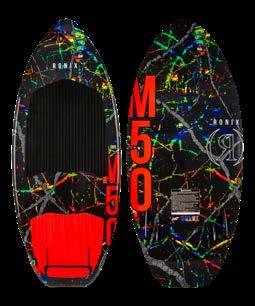

M50

SEA CAPTAIN

THE HYBRID PRODIGY IS A SHAPE THAT REFUSES LABELS - MADE AT H.O.M.E. THE USA

LOCKED IN RESPONSE FROM A HARD CHARGING THRUSTER WITH A STEADY HAND

CATEGORY

CATEGORY

FIN SYSTEM

RIDING LEVEL

(3) - 3”

DARK MATTER

TUFF TECH

FIN SYSTEM

HIGH ENERGY + DURABILITY

BUTTON FINS INCLUDED

(2) - 3.5”

RIDING LEVEL

ADVANCED / INTERMEDIATE

Cheese Grater | Carbon | Floating

(2) - 1.8”

Nub | Carbon | Floating

PAD

MADE AT H.O.M.E. THE USA

ADJUSTABLE KICKTAIL

The M50 doesn’t force a style – it follows yours. Our most performance driven universal shape and construction. The M50 brings the best of skim and surf worlds together with a fast, intuitive ride that adapts to any style making it the all-encompassing one-board quiver. This board comes complete with Speedwalls for added strength and glide, a quad fin setup, a tail outline that aids drive, and a last year addition of a touch more rocker for powerful turns.

Built with eco-friendly Dark Matter construction, the M50 is ready to match your energy whether you’re tossing buckets or locking in 3-shuvs. Comes with our unique Cheese Grater fins—tight or loose, depending on which side you mount them. A fast and responsive quiver killer. The ultimate hybrid shape made with the most advanced construction.

Proudly made at H.O.M.E. in the USA. Whether you are into skim style shapes, longboards, thick, thin, fast, loose, or locked in designs – this covers the widest spectrum of styles.

BUTTON

EXTRA DURABILITY

FINS INCLUDED

ALL LEVELS

Blueprint | Fiberglass

PAD

MACHINED EVA The Sea Captain is an on the rail driver surfer. Inspired for riders looking for on-the-gas edge hold. This board has a narrower outline with sharper rails and bevels allowing it to sit deeper in the water and set a stronger edge through a turn. For the rider that wants a strong, committed cutback, but also wants to feel more connected. This is a quicker reacting version of our other proven traditional surfers. Made from our Tuff Tech construction featuring a lightweight core – mixed with an exterior that can withstand a little extra abuse. Confident, controlled, and always ready to draw a clean line.

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

4’5” 4’10”

UP TO 190 170+

11.6 12.6

3.6 3.6

22 22

4’4” 4’7” 4’10”

UP TO 180 UP TO 200 160 +

13.5 14.5 15.5

3.7 3.9 4.1

19.8 19.9 20 WAKESURF RONIX 17

MEN’S HYBRID

NORTH SHORE STANDARD CORE IT’S A SWEET SPOT FINDER CATEGORY

FIN SYSTEM

RIDING LEVEL

FINS INCLUDED

LIGHTWEIGHT

BUTTON

BEGINNER / INTERMEDIATE

(2) - 2.5”

Blueprint | Fiberglass

(1) - 3”

PAD

MACHINED EVA

Blueprint | Fiberglass

New for 2027 we are so proud to unveil the perfect pocket friendly surfer that doesn’t speed up or slow down on you.

Another chameleon-style board that adapts to your riding style. This do it all shape won’t have the hairpin turning ability of the M50 – or that floaty feel of our Fish series – this is more of a cruise control series. By maintaining a constant speed, riders can focus more on riding and less on managing the board’s energy. A series for new to mid-level surfers that prioritize predictability and reliability in a series equipped for a variety of riding styles - instead of equipped for a spectrum. One of our lightest constructions we offer delivering less swing weight and a 3-fin configuration that can easily be adjusted with our patented quick release button fin system.

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

4’9” 5’2”

UP TO 195 175 +

20.2 22

3 3

21.2 21.2

18 RONIX WAKESURF

XL SERIES

WAVE KING XL SKIMMER

WAVE KING XL SURFER

THE 360 SPECIAL FOR RIDERS IN THE 200+ LB. CLUB

GRANDE SIZE, WITH SUPERCHARGED TURNS RECEIVED A NEW SHAPE FOR THIS YEAR

KOAL CLASSIC CATEGORY

FLYWEIGHT

FIN SYSTEM

EXTRA DAMPENING + DURABILITY

BUTTON FINS INCLUDED

(3) - 3”

RIDING LEVEL

Blueprint | Carbon | Floating

ALL LEVELS

CATEGORY

FIN SYSTEM

RIDING LEVEL

FINS INCLUDED

LIGHTWEIGHT

BUTTON

ALL LEVELS

(2) - 3.5”

Blueprint | Carbon | Floating

PAD

(1) - 3”

EVA BLENDED W/ RUBBER

PAD

EVA BLENDED W/ RUBBER There is a new general in the skim world built with intention. A one size only ride created for XL riders offering over twice the surface area of some of our other skimmers.

A responsive concave bottom design, fast rockerline, but most importantly the volume to have any boss of the waterway exploring their 360’s with a newfound comfort.

Made from our best-selling Koal Classic construction for a blend of less weight and more dampening and our new super easy to use button fin system. The Wave King series features a test team of riders up to 300 lbs. riding either the easier-to-360 skimmer version, or stronger rail-to-rail surf version.

Blueprint | Carbon | Floating

Bigger rider looking to toss some performance driven buckets? The Wave King series features a test team of riders up to 300 lbs. riding either the more powerful cutback surf version or the easier-to-360 skimmer model. New for this year we have our second installment of this XL surfer going 1.5” wider and 3” shorter. The result is more glide and edge hold along with less swing weight. A smooth floaty rail and fast rockerline inspired by one of our favorite ocean surfers we have made over the years, and most importantly, a volume to keep any size waterman locked in with the wave. Made in our lightweight Flyweight construction with our super easy-to-use button fin system and three lockedin floating fins for a stable, formidable new surfer. We’ve also had a blast riding this shape in standing-wave parks without a boat. This Wave King comes with a leash plug so you can ride your local river swell. More board. More glide.

More room to play.

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

5’1”

200 +

16.4

2.6

22.5

5’4”

200 +

29.6

3.7

21.6

WAKESURF RONIX 19

WOMEN’S SKIM

MOMENT SKIMMER

AURA SKIMMER

A NEW SKIMMER THAT LOOKS, RIDES, AND IS BUILT LIKE NO OTHER BOARD OUT THERE

THICKER PROFILE, MORE COMPOSED ALTERNATIVE TO OUR OTHER HIGH-END WOMEN’S SKIMMER

CATEGORY

FIN SYSTEM

CATEGORY

FIN SYSTEM

FINS INCLUDED

RIDING LEVEL

FINS INCLUDED

CARBON AIR CORE 4

HIGH ENERGY + DURABILITY RIDING LEVEL

ADVANCED / INTERMEDIATE

BUTTON (1) - 2.5”

Blueprint | Carbon | Floating

(1) - 1”

Blueprint | Carbon | Floating

PAD

EVA BLENDED W/ RUBBER The 2027 Moment, a breakthrough high performance skim board that delivers instant success from day one, reduces frustration and supports you as you progress. Beginners will connect instantly and ride with confidence, intermediates will unlock the next level, and advanced riders will push their boundaries like never before. Developed over a full year of R&D in collaboration with professional rider Ava Stewart, every inch of this board, from its swing weight to its carbon body and symmetrical diamond shape, delivers precision. The symmetrical diamond creates a fast release and a free feel all while giving the rider complete control for quick transitions. No matter your level, this is your Moment.

FLYWEIGHT

LIGHTWEIGHT

BUTTON

ADVANCED / INTERMEDIATE

(1 ) - 2.5”

Blueprint | Carbon | Floating

(1) - 1”

PAD

Blueprint | Carbon | Floating

EVA BLENDED W/ RUBBER

A lightweight women’s-specific shape and construction. We are proud to introduce the Aura - a lighter, more compact version of the Osmo. This women’s skimmer is built with our ultra responsive Flyweight construction—perfectly tuned for women skimmers looking for a forgiving yet reactive board with less swing weight and effortless control.

Responsive underfoot and spring-loaded off the lip, this board proves that precision and power don’t need to come in a big package.

LENGTH (IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

LENGTH (IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

46 51

UP TO 130 UP TO 160

6.3 7.4

1.1 1.3

19.5 20.5

48 52

UP TO 150 UP TO 175

9.8 10.5

1.7 1.8

21 21

20 RONIX WAKESURF

WOMEN’S SURF

WOMEN’S HYBRID

FISH

SEA CAPTAIN

A TIMELESS FUN BOARD FOR ALL STYLES / ABILITIES, A 1 BOARD QUIVER WITH A SURFY, FLOATY FEEL

HAIRPIN TURNS AND ADDED DURABILITY IN THIS WOMEN’S SERIES

CATEGORY

FIN SYSTEM

CATEGORY

FIN SYSTEM

FINS INCLUDED

RIDING LEVEL

FINS INCLUDED

KOAL CLASSIC

EXTRA DAMPENING + DURABILITY

TUFF TECH

BUTTON

RIDING LEVEL

(2) - 4”

ALL LEVELS

(1) - 3”

PAD

Blueprint | Fiberglass

ALL LEVELS

Blueprint | Fiberglass

PAD

EXTRA DURABILITY

MACHINED EVA A classic feel, tuned for smooth riding. This versatile shape has stood the test of time through generations of surfer design and construction. A clean bottom, fast rockerline, and smooth rails combined with the swallowtail Fish profile allows it to ride loose, breaking free on the top of the lip, yet still responsive for a bottom turn drive that will get you there on time. You’ll get recreational level ease and stability from this smooth ride – a perfect board for us inlanders looking for wake slashing adaptability. Our longest running series is a true classic for the first lady of the waterway.

BUTTON (3) - 3”

Blueprint | Fiberglass

EVA BLENDED W/ RUBBER The Sea Captain is an on the rail driver surfer. Inspired for riders looking for on-the-gas edge hold. This board has a narrower outline with sharper rails and bevels allowing it to sit deeper in the water and set a stronger edge through a turn. For the rider that wants a strong, powerful cutback, but also wants to feel more connected. This is a quicker reacting version of our other proven traditional surfers. Made from our Tuff Tech construction featuring a lightweight core – mixed with an exterior that can withstand a little extra abuse.

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

4’5” 4’10”

UP TO 170 UP TO 180

14.2 18.9

3.7 4

20.6 21.6

4’4” 4’7”

UP TO 170 UP TO 200

13.5 14.5

3.7 3.9

19.8 19.9 WAKESURF RONIX 21

KID’S SKIM

KID’S SURF

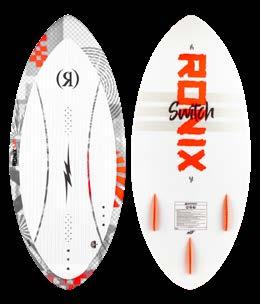

SWITCH SKIMMER TUFF TECH

FIND YOUR RHYTHM IN THIS NEW SKIM SERIES

ALPHA SQUAD SEA CAPTAIN STANDARD CORE

CATEGORY

FIN SYSTEM

DROP THROUGH

A QUICK REACTING SURFER PROUDLY DESIGNED BY AND BUILT FOR THE NEW LEADERS OF THE ENDLESS SUMMER – THE ALPHA GENERATION

RIDING LEVEL

FINS INCLUDED

CATEGORY

FIN SYSTEM

RIDING LEVEL

FINS INCLUDED

EXTRA DURABILITY ALL LEVELS

(1) - 1.8”

Switch | Fiberglass

PAD

(1) - .8”

EVA BLENDED W/ RUBBER

Switch | Fiberglass

LIGHTWEIGHT

BUTTON

ALL LEVELS

(1) - 2.9”

Alfred | Fiberglass

PAD

Magic under your kid’s feet with a platform like no other kid’s series. A unique rocker line with a center concave that cushions landings and settles the board after tricks. While on the gas, speed comes from the outer edge with a flat spot that will easily build up energy for the next maneuver.

This new all-encompassing skimmer of speed and stability covers the spectrum of styles and abilities. Made from our Tuff Tech construction featuring a lightweight core – mixed with an exterior that can withstand a little extra abuse.

The Switch is also complete with two different fin options designed specifically for this board.

MACHINED EVA

(2) - 2.3”

Alfred | Fiberglass

A hard charging thruster for the new leaders of the endless summer. A series for riders that have outgrown their kid’s surfer and are ready for a smaller size version of one of our best-selling adult shapes. The Alpha Squad Sea Captain allows the teenage surfer to move into a shape based on the adult Sea Captain. Made from our lightweight Standard Core construction, the Sea Captain shape features a hybrid profile which is great for kids who like surf or skim style wake surfing. Built for the next generation of riders chasing bigger turns, bigger airs, and longer summers.

LENGTH (IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

43 47

UP TO 90 UP TO 135

3.5 4.1

1.5 1.8

19.4 20

4’2”

UP TO 160

12.6

3.5

19.6

22 RONIX WAKESURF

KID’S SURF

BOY’S

GIRL’S

POWERTAIL

BOY’S | GIRL’S FISH

THE MOST DRIVE/PUSH IN A KID’S SURFER, DESIGNED FOR KIDS THAT DON’T KNOW HOW TO PUMP YET OR ARE RIDING BEHIND SMALL WAVES

A VERSATILE FUN BOARD FOR THE HOMIE’S UP TO 80 LBS.

SONIC

CATEGORY

EXTRA DURABILITY RIDING LEVEL

SONIC

CATEGORY

FIN SYSTEM

BOTTOM MOUNT Tool Included

EXTRA DURABILITY RIDING LEVEL

ALL LEVELS

FINS INCLUDED

ALL LEVELS

PAD

(1) - 2.3”

Turbo 3000 | Fiberglass

PAD

MACHINED EVA

(1) - 2.3”

FIN SYSTEM

BOTTOM MOUNT Tool Included

FINS INCLUDED

(1) - 2.3”

Turbo 3000 | Fiberglass

MACHINED EVA

Bottom Mount | Fiberglass

(1) - 2.3”

Bottom Mount | Fiberglass

(2) - 1.5”

(2) - 1.5”

Bottom Mount | Fiberglass

Bottom Mount | Fiberglass

The most drive/push in a kid’s surfer. Designed for kids that don’t know how to pump yet or are riding behind small size waves. Small wake? No problem with the added drive of a Powertail. The surfer combines the stable aspects of a Longboard, the bottom turn drive of a Thruster, and the ability to air out like no other kid’s board out there. There has never been a board with this much surface area in the tail for bigger airs off the top deck, that can also easily be ridden behind smaller size boat wakes. With 3 fins this board will track harder and feel more secure in the water.

Also comes with a performance award sticker pack with the various tricks that should be on any grom’s to do list.

But most importantly it has a little extra assistance by our propelled turbo 3000 fin. A stable, high speed grom ride.

Built with our lightweight kid’s specific Sonic construction that take’s the beating so progression doesn’t have to.

An all-around kid’s surfer for every style and ability. A thin profiled, 3’9 length, all-around fun board. A deep swallow tail that can easily break free on the top of the lip yet has the bottom turn drive to get you there quickly. A versatile shape that withstands time in the progression of surfer designs and constructions. A clean bottom, fast rockerline, and smooth rails combined with the swallowtail Fish profile allows it to ride loose, breaking free on the top of the lip, yet still responsive for a bottom turn drive that will get you there on time. You’ll get recreational level ease and stability from this smooth ride – a perfect board for us inlanders looking for wake slashing adaptability. A ride for all styles and abilities. With 3 fins this board will track harder and feel more secure in the water. It also comes with a performance award sticker pack with the various tricks that should be on any grom’s to do list. But most importantly it has a little extra assistance by our propelled turbo 3000 fin.

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

LENGTH (FT/IN)

WEIGHT (LBS)

VOLUME (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

3’9”

UP TO 100

12

3.1

17.3

3’9”

UP TO 80

7.3

2.9

17.3

WAKESURF RONIX 23

PULL. CURE. REACT.

We pull the fiberglass laminates tight before the board is cured in the mold. The result is fiberglass strands loaded with tension and ready to react. A construction built for quicker energy transfer, increased glide speed, and added hangtime.

FOUND ON ONE BLACKOUT RXT BLACKOUT UTOPIA 24 RONIX WAKEBOARDS

WAKEBOARDS RONIX 25

ENERGY

ROCKER

A board’s performance is not only affected by the rocker – but also by the ingredients on the inside. For decades we have used countless cores that store and release energy for different reasons. We rate all of our boards 1 though ten. 10 Being the most instant - 1 being most stored energy.

3-STAGE An exaggerated rocker line with a later arc and a higher degree of angle provides a more straight up explosive pop.

This style of rocker creates more of an instant buck off the wake.

INSTANT Instant energy takes place the second the tip of the board hits the wake. For riders that can handle the added kick.

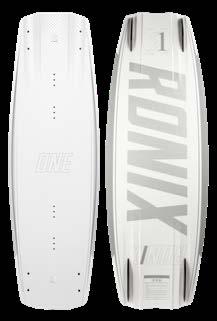

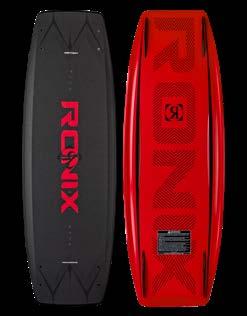

RXT ONE BLACKOUT

BETTER

VAULT/KRUSH

BEST

ONE

BLACKOUT/LEGACY

ONE LEGACY SUPREME RISE RX1

NEUTRAL Doesn’t have the radioactive amplitude of instant energy, or the postponed kick of its stored counterpart. Neutral energy prefers to sit quietly in the middle of takeoff purgatory – not too quick, not too late.

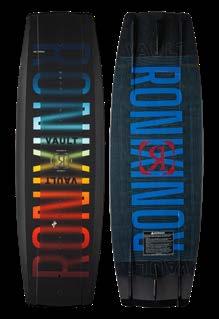

PARKS DISTRICT VAULT QUARTER ‘TIL MIDNIGHT

CONTINUOUS An earlier arc with a mellower degree will have a smoother, more consistent glide up the wake. A rider will be able to carry more speed up the transition and land tricks farther out into the flats.

129 DISTRICT

STORED A delay in the energy means the rider is given more time to generate the full lift while the power builds from the tip all the way to the tail of the board. A construction that’s easier on your body.

BETTER

PARKS

BEST

RXT

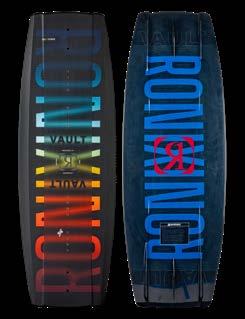

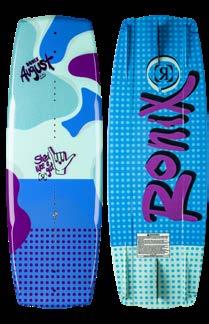

KRUSH 125 + 130 VAULT VISION AUGUST

HYBRID A combination of the traits of 3-Stage and Continuous rocker lines. For the rider who wants to dictate what style of snap they will have depending on how they edge into the wake.

BETTER

DISTRICT/QTM

26 RONIX WAKEBOARDS

BEST

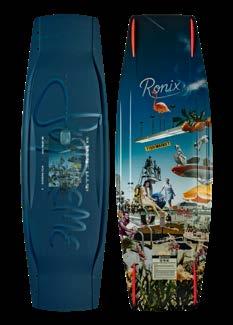

SUPREME/RISE

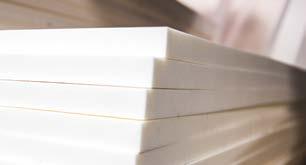

CORES

CORES

BLACKOUT TECHNOLOGY

AIR CORE 3

What happens when white lab coat innovations meet nondisclosure agreements? Blackout Technology – reduced swing weight, increased amplitude and the ultimate in feedback – unfortunately we are sworn to secrecy on the ingredients. But what we can tell you is we have a new crazy pretension fiberglass.

A lightweight responsive, Italian import, foam core.

CORES

CORES

LEGACY CORE

MODELLO CORE

A new twist on an old classic. This gem took attributes of our popular Modello Core and then added dampening qualities. The result is a quiet board even on those loud days with less-than-ideal water conditions. Preferred by all levels of riders that are looking for high end shapes with a forgiving construction.

Our super saucy Mod Pour foam is a blend of atoms made with our highest strength to weight ratio. Setting the standard of the most refined recipe of poured foam for new to intermediate level riders.

WAKEBOARDS RONIX 27

SIDEWALLS

SIDEWALLS

SIDEWALLS

SPEEDWALLS

KRYPTO CABLE

MONOCOQUE

Vertical poured urethane creates more top water speed and a durable bumper that prevents delamination.

Multiple fibers are brewed and then woven together to make a stronger compound. The Krypto Cable surrounds the profile of the board and is fused together with the core.

Combined with our monocoque laminated glass, this cable makes the sidewalls the strongest part of the board – not the weakest.

A wrapped glass from the bottom to the top so the flash line is no longer the weak point of the board but is now the strongest. A more durable construction and a torsionally stiffer ride. Interweaving works in greetings and in boards.

MATERIALS

MATERIALS

PRE-TENSION FIBERGLASS

M6 INSERTS

We recently developed a process that gives a Blackout wakeboard a takeoff packed with extra energy, but maintains the smooth landings of a forgiving fiberglass. We created a machine that pulls the fiberglass tight when it goes into the mold – these loaded fibers make for a stiffer snap – without sacrificing water feel.

The Euros have it figured out. A higher thread count means more hold on a shallower depth. So now we can go to thinner profiled boards with a shorter insert without sacrificing boot lock down. The result is boards with more feel and contact on the water. Available on every series.

MATERIALS

MATERIALS

MAGIC CARPET

LOW FRICTION BASE

We are always sourcing new fiberglass materials trying to find that perfect weave allowing just enough resin to bleed through and adhere to our Magic Carpet.

Developed to get you there quicker. A bottom sheet that’s not a drag.

28 RONIX WAKEBOARDS

ECO

ECO

ECO

ENERGY

BIO RESIN

PVC FREE

Several years ago we flipped the switch to solar. Most of our boards, skis, surfers and skates have been powered by the sun for many moons.

We have switched several products to a plant-based resin without sacrificing strength in anyway– yup skis and surfers made from lettuce. Free of the petroleum discharge of traditional crude oil based resins.

Every year there are 40 million tons of PVC produced. Fortunately, since the inception of Square One, all our footwear has been made without phthalates.

WAKE FINS

WAKE FINS

RAMP

ASYM

The purist fin. A clean ride with the least amount of turbulence. Precision edge hold and a powerful cutback.

High speeds in a straight line, without the locked in feel when turning. A combination of Ramp and Free Agent.

.8” | 1.0” | 1.2”

.6” | .8”

WAKE FINS

WAKE FINS

FREE AGENT

HOOK

A molded-in feel on a detachable fin. Rides loose, relaxed, and will break free with ease. The ultimate freeride feel.

For riders that are in choppier water conditions or new riders that want the most locked-in stable fin.

.8”

1.75” WAKEBOARDS RONIX 29

MEN’S

RXT

ONE

OUR LATEST PROGRESSION OF FAST HIGH-END BOARDS GOT A MAJOR UPGRADE

A NEW ERA BEGINS IN THE WORLD OF ADVANCED 3-STAGE ROCKER BOARDS

RIDING STYLE

ENERGY

RIDING STYLE

ENERGY

RIDING LEVEL

FINS INCLUDED

RIDING LEVEL

FINS INCLUDED

BLACKOUT TECHNOLOGY

BOAT

BLACKOUT TECHNOLOGY

INSTANT

ADVANCED

BOAT

4 - 1”

ADVANCED

4 - .8”

ROCKER

INSTANT 4 - 1”

RAMP

ROCKER

CONTINUOUS

RAMP

4 - .8”

3-STAGE

FREE AGENT

ASYM

Response, feel and ultra-soft landings all found in this modern, continuous rocker high end board. A lightweight reactive mystery recently received a new shape and for this year a construction unlike anything in compression molding.

After years of development, we are unveiling pretension fiberglass. As the laminates go into the mold, we pull the fibers tight which ignites the energy of the glass. Typically, you must wait for the glass to react from the energy created by the displacement of the wake to recoil the energy of the board. Now the fibers are always ready to rock. We are getting data where riders can increase their flight time up to 21%. #truestory. Aside from the new ingredients the RXT continues to be our flagship board for progressive riders that want to carry more momentum off the wake and land further into the flats with smoother, predictable take offs. A lenient shape that will correct itself without penalizing off target landings. Made by smart scientists in lab coats that like fast, lightweight, forgiving boards.

The legacy of hangtime continues into its 21st season with the most reactive rockerline leaving the water and a smooth edge hold while riding on the water. A refined, freeride feel with our lightweight, advanced Blackout Construction. The best in elevation is even more impressive with our latest innovation – Pre-Tension Glass. The hurdle in wakeboards has always been that riders want a stiff, reactive take off – and a soft and subtle landing and trying to find that balance point of those two opposing spectrums has always been difficult. We created a machine that preloads the fibers before it goes into the mold creating a stiffer more reactive take off but still has a soft, predictable landing. A wider outline and a lightweight forgiving core, for the rider that wants a bigger sweet spot with added stability, that planes easier at slower speeds with an unmatched explosive vertical rockerline. Take the journey of flight to a new elevation.

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

136 140 144 148

UP TO 170 155 - 195 165 - 205 180+

2.4 2.5 2.6 2.7

21.5 - 25.5 22.5 - 26.5 23.5 - 27.5 23.5 - 27.5

807 857 867 873

16.8 17 17.2 17.2

134 138 142 146

UP TO 165 145 - 185 160 - 200 175+

2.2 2.3 2.4 2.5

21.5 - 25.5 22.5 - 26.5 23.5 - 27.5 24 - 28

779 808 846 870

16.6 16.8 17 17

30 RONIX WAKEBOARDS

MEN’S

ONE

SUPREME

OUR LONGEST RUNNING SERIES KNOWN FOR ITS VERTICAL TAKEOFF AND ADDED FORGIVENESS

A HIGH-END SHAPE AND CONSTRUCTION FOR ANY STYLE OF RIDING

RIDING STYLE

ENERGY

RIDING STYLE

ENERGY

RIDING LEVEL

FINS INCLUDED

RIDING LEVEL

FINS INCLUDED

LEGACY CORE

BOAT

AIR CORE 3

NEUTRAL

ADVANCED

BOAT

4 - 1”

ADVANCED

4 - .8”

ROCKER

INSTANT 4 - 1”

RAMP

ROCKER

3-STAGE

RAMP

4 - .8”

HYBRID

ASYM

ASYM

Hangtime heritage with our longest running series known for its vertical take offs and forgiving ride on the water. This CNC machined foam has improved dampening qualities to bridge that gap between powerful drive, soft landings, and extra comfort in rough water conditions.

Recently we widened this popular shape creating a bigger sweet spot that can be ridden easier at slower speeds.

Over two decades ago we sat in a barn working with wakeboarding’s royalty – Danny Harf - and reimagined how to create a new style of ride that would define a mellower transitioned freeride turn, with more forgiving traits than other advanced boards. Over the years we continue to add more glide speed, creating less resistance and strain on your body, for a smoother take off. This latest generation is designed for riders that want that extra boost that comes with this iconic rockerline in a more comfortable explosion.

A non-stereotyped, adaptable board for the rider that wants a little bit of everything. The Supreme is based on blends - every aspect of the rail, rocker, fins, and construction will cater to a riders specific needs. Featuring a hybrid rocker that has a combination of both a continuous and 3-Stage rocker. A shape inspired by an emerging riding style that wants either a faster or more explosive take off depending on how much edge hold the board has. A rocker line unlike any other, with a big flat spot on the outer rails of the board so riders that approach the wake on edge can experience the perfect vertical take-off. Then, the middle of the board has a progressive continuous rocker for a smoother, faster, out-into-the flats style jump. Recently Jake Pelot redesigned this shape with less weight and more water feel in mind. Our lightweight and lively Italian imported Air Core foam and our thinnest profile makes this new Supreme easier to convert 360’s into 540’s from its low volume swing weight. Superior adaptability enters season #8.

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

134 138 142 146

UP TO 165 145 - 185 160 - 200 175+

2.2 2.3 2.4 2.5

21.5 - 25.5 22.5 - 26.5 23.5 - 27.5 24 - 28

779 808 846 870

16.6 16.8 17 17

137 141 145

UP TO 170 155 - 195 170 - 210

2.6 2.7 2.8

22 - 26 23 - 27 24 - 28

810 841 872

16.8 17 17.2

WAKEBOARDS RONIX 31

MEN’S

PARKS

DISTRICT

OUR EASIEST RIDING HIGH END BOARD – HAS SOME ARC WE BORROWED FROM OUR ALPINE FRIENDS

A VERSATILE DESIGN THAT WILL ADAPT TO YOUR RIDING STYLE

RIDING STYLE

ENERGY

RIDING STYLE

ENERGY

RIDING LEVEL

FINS INCLUDED

RIDING LEVEL

FINS INCLUDED

MODELLO CORE

BOAT

MODELLO CORE

NEUTRAL

INTERMEDIATE/ ADVANCED ROCKER

BOAT

NEUTRAL

INTERMEDIATE/ ADVANCED

4 - 1” RAMP

4 - .8”

4 - 1” RAMP

ROCKER

FREE AGENT

CONTINUOUS

HYBRID

A whole new style of riding options and added comfort on the water featuring tip/tail arcs, Speedwalls and tee box technology. For higher end riders can use this snowboard tip to execute a perfect tail slide on the water, and intermediate riders will have an easier time through whitewash and landings. Ride with less effort and longer rides. A shape with more stability, speed, and freedom allowing you to extend your wakeboarding career for many years to come. Hexagon dimples through the entire bottom of the board will reduce friction from the water and create a board that will break free unlike any other shape out there. We continued to reduce the side cut of this series, and that added volume makes it easier to ride at slower speeds with more controlled landings.

A mid-range blend of every style. The chameleon of conforming wakeboards. This board has the rare trait of adapting to you, regardless of your style or ability. We took one of our best-selling all-purpose series that rides without stereotypes and made it lighter, delivering more feedback, and noticeably softer landings. The District, with its hybrid rocker, ranges from smooth/low maintenance turns to wide open high-speed cuts. With fast, predictable takeoffs, to explosive wake to wake jumps, this is a series that bridges multiple riding philosophies. By approaching into the wake flat riders’ will notice a strong, energetic 3-stage lift - but If you approach the wake while on rail you will notice a smoother, faster fast take-off and landing. Riders who tend to distribute their weight evenly will experience a freeride, floaty feel when they initiate turns. On the flip side, riders can experience hairpin turns with quick edge transitions if they shift their weight to the tail of the board.

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

138 143 148

UP TO 165 145 - 185 170 +

2.4/3.5 2.5/3.6 2.6/3.7

21.5 - 25.5 23 - 27 24 - 28

818 860 902

16.9 17.1 17.3

134 138 144 150

UP TO 165 150 - 190 170 - 210 190+

2.5 2.6 2.7 2.8

19.5 - 25.5 20 - 26 21.5 - 27.5 21.5 - 27.5

803 837 878 905

17 17.2 17.4 17.4

32 RONIX WAKEBOARDS

MEN’S

WOMEN’S

VAULT

RISE

THE BUILDING BLOCK TO YOUR WAKEBOARDING ADVENTURE

BUILT FOR FLIGHT - THE MOST ADVANCED WOMEN’S SERIES

RIDING STYLE

ENERGY

RIDING STYLE

ENERGY

RIDING LEVEL

FINS INCLUDED

RIDING LEVEL

FINS INCLUDED

MODELLO CORE

BOAT

AIR CORE 3

NEUTRAL

BEGINNER / INTERMEDIATE

BOAT

INSTANT

ADVANCED

2 - 1.75”

4 - 1”

HOOK

RAMP

4 - .8”

ROCKER

ROCKER

HYBRID

The best introduction to wakeboarding. For over 20 years we have been designing boards recognizing that your shoulders and hips are not always parallel while wakeboarding. Your body is crossed up riding toe-side, and more inline riding heel-side, and every aspect of the Vault takes this into consideration for proper riding. Vertical sidewalls and shorter molded in fins on your heelside edge creates more glide with a quicker release. Longer molded in fins and sharper rails on your toeside edge creates more water contact for a stronger, stable edge hold. One of the most common hurdles while learning how to wakeboard is having the tail wash out on the toe-side edge and these unique features help keep a rider locked in. All the while with our most naturally centered rocker line. This arc was designed to be ridden from a neutral stance, allowing the rider to stay balanced and relaxed. An outline, bottom features, construction all created for the perfect foundation.

Big Jumps and wide-open cuts from our performance driven women’s series with all new sizes this year. A lightweight reactive construction tailored to our women’s specific shape developed by a community of female riders looking for the lightest and most efficient glide speed of any women’s wakeboard ever imagined. We sourced a foam from Italy that reduced the overall weight but over 20%. Then we were asked to create a fast board that is responsive but won’t ever create a steep edge hold, and make sure the design prevents the rider from generating too much load line. We married two of our most successful rockerlines combining the speed of the RXT and the kick of the One and added a construction living up to the name Air Core with the least amount of swing weight, and more hole shot response out of a turn. Then we developed a shape with bottom channels that worked for riders on an intermediate level - all the way to high end riders like Giulia Castelli. Rise to a new level in women’s wakeboarding.

3-STAGE

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

130 135 140 145

UP TO 125 UP TO 165 145 - 185 170 - 210

2.4 2.5 2.6 2.7

19 - 25 19.5 - 25.5 21 - 27 22 - 28

757 787 836 875

16.4 16.7 16.9 17

ASYM

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

133 137

100 - 140 120 - 160

2.5 2.6

18 - 22 19 - 23

772 803

16.5 16.7

WAKEBOARDS RONIX 33

WOMEN’S

QUARTER ‘TIL MIDNIGHT

KRUSH

MODELLO CORE

MODELLO CORE

A BUILDING BLOCK TO WOMEN’S WAKEBOARDING

A WOMEN’S ONE BOARD QUIVER RIDING STYLE

NEUTRAL

RIDING LEVEL

INTERMEDIATE/ ADVANCED

ENERGY

RIDING LEVEL

FINS INCLUDED

BOAT

ENERGY

BOAT

RIDING STYLE

STORED

BEGINNER / INTERMEDIATE

FINS INCLUDED

4 - 1” RAMP

2 - 1.75” HOOK

ROCKER

ROCKER

3-STAGE

A series that adapts to your style and comfort level. A mid-range board has the rare trait of adapting to you, regardless of your style or ability. This board has the rare trait of adapting to you, regardless of your style or ability. With its hybrid rocker, ranges from smooth/low maintenance turns to wide open high-speed cuts. With fast, predictable takeoffs, to explosive wake to wake jumps, this is a series that truly covers the spectrum. Riders that approach the wake flat into the wake will notice a strong, explosive 3-stage lift. If you approach the wake while on rail you will notice a smooth, blended rocker line with an uninterrupted fast take-off and landing. Riders who tend to distribute their weight evenly will experience a freeride, floaty feel when they initiate turns. On the flipside, riders can experience hairpin turns with quick edge transitions if they shift their weight to the tail of the board.

The best introduction to wakeboarding. For over 20 years we have been designing boards recognizing that your shoulders and hips are not always parallel in wakeboarding.

Your body is crossed up riding toe-side, and more inline riding heel-side, and every aspect of the Vault takes this into consideration for the proper foundation to your riding. More vertical sidewall and shorter molded in fins on your heelside edge creates more glide with a quicker release. While a longer molded in fin and sharper rail on your toeside edge creates more water contact for a stronger more secure edge hold. One of the most common things while learning how to wakeboard is having the tail wash out on toe edge and these unique features help keep a rider locked in. All the while with our most naturally centered rocker line. This arc was designed to be ridden very neutral weight distribution putting the rider in a more relaxed weight distribution. An outline, bottom features, and construction all created to provide the perfect foundation for riding.

HYBRID

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

129 134 138

UP TO 120 115 - 155 130 - 170

2.4 2.5 2.6

18.5 - 24.5 19.5 - 25.5 20 - 26

750 803 837

16.5 17 17.2

130 135 140

UP TO 125 120 - 160 140 - 180

2.4 2.5 2.6

19 - 25 19.5 - 25.5 21 - 27

757 787 836

16.4 16.7 16.9

34 RONIX WAKEBOARDS

KID’S

RX1

129 DISTRICT

THE PODIUM WAKEBOARD FOR THE NEXT GENERATION

THE ONLY KID’S BOARD THAT WILL ADAPT TO YOUR RIDING STYLE

AIR CORE 3 RIDING STYLE

MODELLO CORE ENERGY

BOAT

INSTANT

RIDING LEVEL

4 - 1” 4 - .8”

3-STAGE

RIDING LEVEL

FINS INCLUDED

NEUTRAL

INTERMEDIATE/ ADVANCED

RAMP

ROCKER

ENERGY

BOAT

FINS INCLUDED

ADVANCED

RIDING STYLE

4 - 1” RAMP

ASYM

ROCKER

A youthful blend of the RXT and the One series. Ever wonder what would happen if you put the most iconic 3 stage board – The One – and the fastest continuous rocker board – the RXT in a blender and hopped it up with the same core as the Supreme series? You’d get the RX1 – an advanced boys’ and girls’ wakeboard line for the pre-teen and early-teen high-end rider. Built with our lightweight Italian-machined Air Core 3 foam, the RX1 combines the speed and consistency of the RXT with the explosiveness of the One, all packed into a shape sized for the next generation. Finally, they can experience the same high energy, low swing weight ride that adults have.

Wakeboarding is one of the most fun things anybody can do – and we are so pumped that kids can now ride to their full potential. Stay tuned for new content from the RX1 crew.

HYBRID A mid-range blend of every style. The chameleon of conforming wakeboards. This board has the rare trait of adapting to you, regardless of your style or ability. We took one of our best-selling all-purpose series that rides without stereotypes and made it lighter, delivering more feedback, and noticeably softer landings. The District, with its hybrid rocker, ranges from smooth, low-maintenance turns to wide open high-speed cuts. With fast predictable takeoffs, to explosive wake to wake jumps, this is a series that truly covers the spectrum. Riders that approach the wake flat into the wake will notice a strong, explosive 3-stage lift. If you approach the wake while on edge, you will notice a smooth, blended rocker line with an uninterrupted fast take-off and landing. Riders who tend to distribute their weight evenly will experience a freeride, floaty feel when they initiate turns. On the flipside, riders can experience hairpin turns with quick edge transitions if they shift their weight to the tail of the board.

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

129

UP TO 125

2.3

18 - 22

757

16.5

129

UP TO 125

2.4

18.5 - 24.5

750

16.5 WAKEBOARDS RONIX 35

KID’S

125 VAULT

125 KRUSH

A YOUTH DESIGN THAT RECOGNIZES YOUR SHOULDERS AND HIPS ARE NOT AWAYS PARALLEL IN WAKEBOARDING

THE FOUNDATION BUILDER FOR GIRL RIDERS UP TO 110 LBS.

MODELLO CORE

MODELLO CORE

RIDING STYLE

ENERGY

RIDING LEVEL

FINS INCLUDED

BOAT

ENERGY

RIDING LEVEL

FINS INCLUDED

BOAT

STORED

BEGINNER / INTERMEDIATE

RIDING STYLE

STORED

BEGINNER / INTERMEDIATE

2 - 1.75” HOOK

2 - 1.75” HOOK

ROCKER

ROCKER

3-STAGE

3-STAGE The best introduction to wakeboarding. A youth design that recognizes your shoulders and hips are not always parallel in wakeboarding. For over 20 years we have been designing boards recognizing that your shoulders and hips are not always parallel in wakeboarding. Your body is crossed up riding toe-side, and more inline riding heel-side, and every aspect of the Vault takes this into consideration for the proper foundation. Vertical sidewalls and shorter molded in fins on your heelside edge creates more glide with a quicker release. While longer molded in fins and sharper rails on your toeside edge creates added water contact and stability. One of the most common hurdles while learning how to wakeboard is having the tail wash out on toe edge and these unique features help keep a rider locked in. All the while with our most naturally centered rocker line.

This arc was designed to be ridden very neutral weight distribution putting the rider in a more relaxed weight distribution. An outline, bottom features, construction all created for the perfect foundation to riding.

The best introduction to wakeboarding. A youth design that recognizes your shoulders and hips are not always parallel in wakeboarding. For over 20 years we have been designing boards recognizing that your shoulders and hips are not always parallel in wakeboarding. Your body is crossed up riding toe-side, and more inline riding heel-side, and every aspect of the Vault takes this into consideration for the proper foundation to your riding. More vertical sidewall and shorter molded in fins on your heelside edge creates more glide with a quicker release. While a longer molded in fin and sharper rail on your toeside edge creates more water contact for a stronger more secure edge hold. One of the most common things while learning how to wakeboard is having the tail wash out on toe edge and these unique features help keep a rider locked in. All the while with our most naturally centered rocker line. This arc was designed to be ridden very neutral weight distribution putting the rider in a more relaxed weight distribution. An outline, bottom features, construction all created for the perfect foundation to riding.

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

125

UP TO 110

2.3

18 - 24

733

16.3

125

UP TO 110

2.3

18 - 24

733

16.3

36 RONIX WAKEBOARDS

KID’S

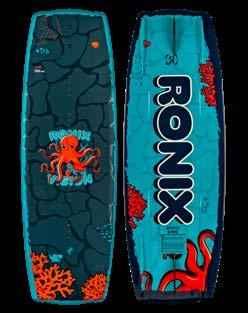

VISION

AUGUST

EVERY ASPECT OF THIS BOY’S SHAPE/CONSTRUCTION WAS DESIGNED FOR STABILITY AND PROGRESSION

EVERY ASPECT OF THIS GIRL’S SHAPE/CONSTRUCTION WAS DESIGNED FOR STABILITY AND PROGRESSION

RIDING STYLE

ENERGY

RIDING STYLE

ENERGY

RIDING LEVEL

FINS INCLUDED

RIDING LEVEL

FINS INCLUDED

MODELLO CORE

BOAT

MODELLO CORE

STORED

BEGINNER / INTERMEDIATE

BOAT

STORED

BEGINNER / INTERMEDIATE

2 - 1.75” HOOK

2 - 1.75” HOOK

ROCKER

ROCKER

The gateway for riders as young as 4 years’ old. Every aspect of this kid’s shape/construction was designed for stability and progression. Designed and created by the grom’s modern prospect, recognizing that wakeboarding is the only board sport where your hips and shoulders aren’t parallel. A symmetrical shape with asymmetric features designed solely for the needs of the next generation of rippers. Your body is in an unbalanced position edging into the wake toeside, so we created a thinner, sharper rail to help set an easier, more confident edge. Then on your heelside your body is more comfortable in an aligned position, so we added a fuller vertical rail to generate more top water speed over the water. Come into the wake flat without much edge hold? No worries, we have more volume in the ends to help generate natural lift off the wake. Our Grom Glass offers a lighter layup for more feel with the water, and less swing weight in the air. A rockerline designed to assist a rider in a relaxed, neutrally balanced position. Flip the lights off and check out the glow in the dark images of the Vision.

The gateway for riders as young as 4 years’ old. Every aspect of this kid’s shape/construction was designed for stability and progression. Created by grom’s recognizing that wakeboarding is the only board sport where your hips and shoulders aren’t parallel. A symmetrical shape with asymmetric features designed solely for the needs of the next gen. of rippers. Your body is in an unbalanced position edging into the wake toeside, so we created a thinner, sharper rail to help set an easier, more confident edge.

Then on your heelside your body is more comfortable in an aligned position, so we added a fuller vertical rail to generate more top water speed over the water. Come into the wake flat without much edge hold? No worries, we have more volume in the ends to help generate natural lift off the wake. Our Grom Glass offers a lighter layup for more feel with the water, and less swing weight in the air.

A rockerline designed to assist a rider in a relaxed, neutrally balanced position. Be sure and check out the scratch and sniff scent hidden in this board.

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

120

UP TO 80

2.4

14-20

674

15.8

120

UP TO 80

2.4

14-20

674

15.8

3-STAGE

3-STAGE

WAKEBOARDS RONIX 37

FLEX ZONES

FLEX RATINGS

VARIABLE FLEX

We have a flex testing machine that can gauge the recoil of a board. The higher the number - the more the board will want to react back to its original rocker line, while the smaller number means the board will be softer and more adaptive on rails.

Trent Stuckey’s signature flex pattern – got a major electric new upgrade. We added Pretension Glass, loading the laminate before it enters the mold, creating up to 20% more speed and hangtime off features.

VARIABLE UTOPIA 42 SOFTER

TIP/TAIL RATING

REACTIVE 99

SOFTER

CENTER RATING

REACTIVE

TIP/TAIL RATING

REACTIVE

CENTER RATING

REACTIVE

TIP/TAIL RATING

REACTIVE

CENTER RATING

REACTIVE

TIP/TAIL RATING

REACTIVE

CENTER RATING

REACTIVE

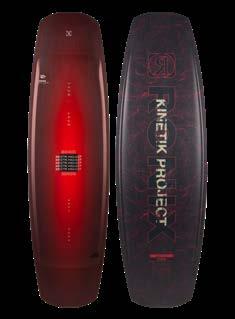

TRUE FLEX KINETIK PROJECT 51 SOFTER

TRUE FLEX Traditional park boards flex as a single structure. True Flex separates the construction into two independent wood sections with the strength layer placed in the middle.

The result is a softer, more natural flex pattern that bends farther, rebounds smoother, and creates a feel unlike any cable board we’ve built.

52 SOFTER

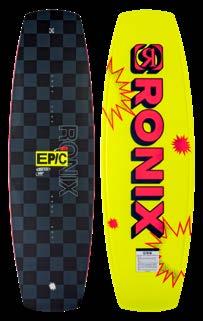

EPIC 51 SOFTER 52 SOFTER

SPRINGBREAK 51 SOFTER 52 SOFTER

ALL OVER FLEX We love pushing flex patterns in new directions, but not every rider is asking for a science experiment. We offer All Over Flex – a conventional board construction for a traditional riding style at the park.

ALL OVER FLEX PINPOINT

48 SOFTER

TIP/TAIL RATING

REACTIVE 100

SOFTER

CENTER RATING

REACTIVE

CABLE BOARDS RONIX 39

MATERIALS

PARK BOARD CONSTRUCTIONS Most Ronix Ronix parks boards feature the following.

MATERIALS

PRE-TENSION GLASS The first of its kind that ignites the fibers so the rider doesn’t have to.

This one piece construction will take off with speed and energy like no other construction.

MATERIALS

SPEEDWALLS

KRYPTO CABLE

Vertical poured urethane creates more top water speed and acts as a durable bumper from those floating menaces at a cable park.

Different fibers are brewed and then woven together to make a stronger compound. The Krypto Cable surrounds the profile of the board and is fused together with our core.

Combined with our monocoque laminated glass, this cable makes the sidewalls the strongest part of the board – not the weakest.

MATERIALS

MATERIALS

MONOCOQUE

SINTERED BASE

A wrapped glass from the bottom to the top so the flash line is no longer the weak point of the board – but is now the strongest. A more durable construction and a torsionally stiffer ride. Interweaving works in greetings and in boards.

Our exclusive super durable base was formulated from a powder by heating the material in a sintering furnace above its melting point until the particles bond to one another.

A higher purity compound that preserves its bond overtime. No obstacle is safe at cable parks with our jib friendly base.

MATERIALS

MAGIC CARPET

M6 INSERTS

We are always sourcing new fiberglass materials trying to find that perfect weave allowing just enough resin to bleed through and adhere to our Magic Carpet.

The Euros have it figured out. A higher thread count means more hold on a shallower depth. So now we can go to thinner profiled boards with a shorter insert without sacrificing boot lock down. The results are boards with more feel and contact on the water.

Found on every series.

40 RONIX CABLE BOARDS

MATERIALS

CORE

PAULOWNIA WOOD Wood is good at the park for riders that want a more durable ride. Made from renewable trees – this cable friendly Paulownia timber delivers a snowboard influenced kick off the wake, and unique ollie and press on rails.

MEN’S

UTOPIA TRENT STUCKEY’S LATEST THIN PROFILED MASTERPIECE GOT A MAJOR UPGRADE THIS YEAR RIDING STYLE

ROCKER

RIDING LEVEL

FLEX

PARK

3-STAGE

ADVANCED

TAPERED

TIP/TAIL: 42 | CENTER: 99

A name synonymous with Ronix and progression for a decade – has a new additive – pretension glass. As the laminates go into the mold, we pull the fibers tight which ignites the energy of the glass. Now the fibers are always ready to rock - and we are getting data where riders can increase their flight time up to 21%. #truestory.

Trent was looking for a conventional wood layup but wanted to have the board taper through the tip and tail to the thinnest profile of any Ronix board. The result is a board that locks into a tip or tail press easier than anything we have ever ridden which works well for both beginners and seasoned pros. A relaxed rocker line in a class all by itself which allows for speed on the water and stability on features, and the curve between the boots provides softer landings. The curve outside of the boots has a 3-stage flat spot that allows a rider to make a more controlled connection when on a rail. On the bottom of the board the channels are pulled in which means you will not feel them while riding a feature. The Utopia also has a tip/tail concave to lock onto those pipe features as well as enhance on water performance. Trent also wanted finite stance options, so the inserts are spaced 25% closer together and we added 4 additional inserts for a greater spread of stance widths.

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

143 147 151

UP TO 170 UP TO 175 150-200

3.2 3.3 3.5

19-25 20 - 26 20 - 26

832 865 899

16.7 16.9 17.1 CABLE BOARDS RONIX 41

MEN’S

KINETIK PROJECT

EPIC

A CLASSIC SHAPE WITH A NEW CONSTRUCTION

TIPPING THE SCALES OF PLIABILITY

RIDING STYLE

ROCKER

RIDING STYLE

ROCKER

RIDING LEVEL

FLEX

RIDING LEVEL

FLEX

PARK

CONTINUOUS

INTERMEDIATE/ ADVANCED

TRUE FLEX

TIP/TAIL: 51 | CENTER: 52

PARK

CONTINUOUS

INTERMEDIATE/ ADVANCED

TRUE FLEX

TIP/TAIL: 51 | CENTER: 52

Dominik Hernler has been synonymous with fast, aggressive park riding for years. One focused on a softer belly called Flexbox 1. The other on a softer tip and tail called Springbox 2. Now for this year we just have a board that is incredibly soft everywhere – featuring True Flex, where there is a top wood layer that can flex independently of the bottom wood layer. The result is aquatic freedom, allowing the board to contort however you want it to. Combine that with the Kinetik’s fast rocker line and extra locked-in channel design.

What would happen if you took all those predictable features of a soft yielding board and massively turned up the volume? Something pretty Epic. A series that’s been in the works for years. The first of its kind that’s incredibly strong - but doesn’t feature a top glass. Instead, the Epic has a traditional bottom glass - and a first ever mid glass that provides the strength but then has a top laminate over it all. So now these two constructions can work independently of one another creating what we call True Flex. The softest cable board we’ve ever built, while remaining one of the most durable. For the rider that wants the smoothest transition in flex and rebound. A construction and feel on the water unlike any park board out there.

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

144 150 156

UP TO 165 140 - 190 180 +

2.4 2.5 2.6

20.5 - 25 21.5 - 26 21.5 - 26

833 861 886

16.6 16.6 16.6

141 145 149 153

UP TO 165 145 - 195 170 + 180 +

2.9 3 3.2 3.3

20 - 26 20 - 26 21 - 27 21 - 27

831 851 881 901

17.1 17.1 17.3 17.3

42 RONIX CABLE BOARDS

MEN’S

WOMEN’S

PINPOINT

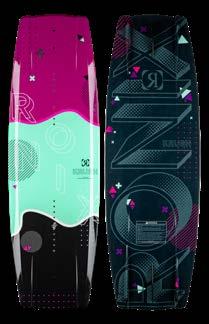

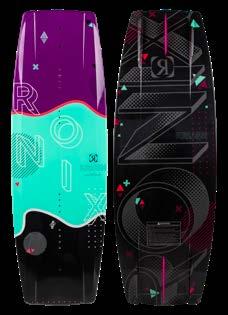

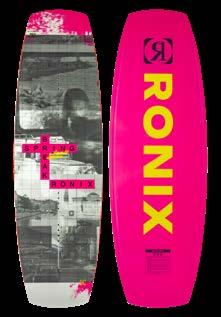

SPRING BREAK

BEAUTY IN SIMPLICITY

A NEW WAY TO LOOK AT FLEX IN A WOMEN’S BOARD

RIDING STYLE

ROCKER

RIDING STYLE

ROCKER

RIDING LEVEL

FLEX

RIDING LEVEL

FLEX

PARK

CONTINUOUS

INTERMEDIATE/ ADVANCED

ALL OVER

TIP/TAIL: 48 | CENTER: 100

PARK

CONTINUOUS

INTERMEDIATE/ ADVANCED

TRUE FLEX

TIP/TAIL: 51 | CENTER: 52

Our flagship model of consistency recently got even softer.

The Pinpoint was introduced with a classic shape and construction - and a smooth release off the water and press on rails. Now we offer even lower numbers in our flex charts.

The channels are shorter and moved in further from the rail of the board to give you a buttery, playful feel on the water but are there for you when you need to get on the pepper.

The Pinpoint offers a concave in the nose and tail to help you lock in and add stability to those crucial moments on the rail. When it comes to flex the Pinpoint is beauty in simplicity - with a classic wood construction and fiberglass lay up. Soft from the tip through the mid-section to the tail. Focusing on fun and the enjoyment of a park board that any rider can appreciate. For all you gibbers looking to hit handrails, pipes or just rounded features at your local park. Enjoy presses, softer landings and all the elements of park riding that make it unique. Much like Jules Charraud who admits a simplistic beauty to his riding, the Pinpoint delivers the perfect blend of playfulness and performance to your park riding experience.

The softest park board in our range – featuring a 2-piece construction. What would happen if you took all those predictable features of a soft yielding board and massively turned up the volume? A series that’s been in the works for years. The first of its kind that’s incredibly strong - but doesn’t feature a top glass. Instead, the Spring Break has a traditional bottom glass - and a first ever mid glass that provides the strength but then has a top laminate over it all.

So now these two constructions can work independently of one another creating what we call True Flex. Jamie Lopina’s signature board is the softest cable board we’ve ever built, one of the most durable boards of all time and tipping the scales of pliability. For the rider that wants the smoothest transition in flex and rebound. A construction and feel on the water unlike any park board out there.

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

SIZE (CM)

WEIGHT (LBS)

ROCKER (IN)

STANCE (IN)

SA (SQ IN)

MAX WIDTH (IN)

137 142 147 152

UP TO 150 UP TO 170 140-190 170 +

3 3.1 3.1 3.2

19 - 25 20 - 26 21 - 27 21 - 27

795 839 897 928

16.6 16.9 17.2 17.3

141 145

UP TO 165 145 - 195

2.9 3

20 - 26 20 - 26

831 851

17.1 17.1

CABLE BOARDS RONIX 43

For over 20 years, we’ve stayed true to our mission of making the experience on the water the best that it can be.

We believe nothing should interfere with the raw emotions experienced during a set. Our footwear is designed to allow the rider to effortlessly communicate with the board beneath them, no pressure points, no dead spaces, no headaches, just clear, comfortable communication.

For those that have experienced the unmatched fit and performance of Ronix footwear, we welcome you back and we’re excited to reveal the latest and greatest for 2027. For those that haven’t, we hope that your curiosity will propel you to slide your feet in, lace them up, and realize what you’ve been missing.

MAINFRAME 2.0 HIGH CUT RONIX SHELL LAST Designed for the optimum forward lean in wake

HIGH CUT SKELETON Adaptable full-height support that adjusts as the rider cinches

TOE CAP Full size range (US 6 – US 14)

BASEPLATE Robust baseless design for the maximum board feel and a rigid connection to the skeleton

SHOCK PAD Impact-absorbing and board protection RXT ONE – WHITE ONE – BLACK SUPREME BOA® UTOPIA RISE

44 RONIX FOOTWEAR

PERFECT FIT INTUITION CUSTOM FIT The best fitting boots. Period. Don’t believe us? Just cook them up and try them on. Intuition+ heat-moldable liners create a fit unique to your anatomy. With the ability to size up or down by heat molding, you will never find a better fitting boot. Because no two feet are the same.

RXT

RISE

ONE – WHITE

KINETIK PROJECT EXP

ONE – BLACK

UTOPIA

SUPREME BOA®

FOOTPRINT EXP

DOUBLE LAST A mechanical form replicating the shape of a human foot.

It is used by shoemakers to manufacture footwear to the ideal shape. Combine these two lasts and you have a boot without hot spots and dead space to help create that perfect fit.

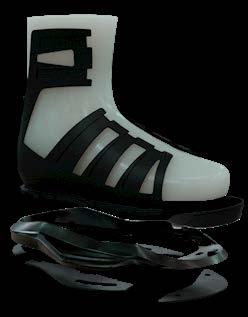

MAINFRAME 2.0 LOW CUT RONIX SHELL LAST Exclusively designed for wake

LOW CUT SKELETON

RONIX LINER LAST This form is used to mold the inside of Ronix liners, where your foot meets the boot. Our unique shape contours around your foot to maximize a consistent fit.

Adaptable support as the rider cinches for walkable, and adjustable open-toe boots

TOE CAP Full size-range (US 2 – US 14)

BASEPLATE Robust baseless design for the maximum board feel and a rigid connection to the skeleton

SHOCK PAD Impact absorbing and board protection KINETIK PROJECT EXP

DIVIDE

FOOTPRINT EXP

HALO

PARKS

LUXE

ANTHEM BOA

VISION

DISTRICT

AUGUST

®

RONIX SHELL LAST This form is used to mold the outer shell of your boot.

Developed and designed for Ronix chassis systems, our shell last gives the boot its shape and structure.

FOOTWEAR RONIX 45

LINERS

S.O.L.E.

STAGE 2 LINERS

SOFT ORTHOTIC LANDING EXPERIENCE

A hybrid design featuring dual density foam to increase response. Built in ankle supports for heel hold.

PARKS ANTHEM BOA® DISTRICT HALO

STAGE 1 LINERS Premium lightweight comfort offering the broadest size range. Built in ankle supports for heel hold.

DIVIDE LUXE VISION AUGUST

WOMEN’S CUSTOM FIT Our women’s line offers a unique shape and construction to amplify comfort and performance. Lowered height, softer foam – fit for a female.

RISE HALO LUXE

PRO S.O.L.E. A space-age material formula designed to react quicker, boost higher and land softer.

RXT

SUPREME BOA®

ONE – WHITE

UTOPIA

ONE – BLACK

RISE

EXP S.O.L.E. A lightweight, rugged, walkable footbed featuring durable EVA foam for superior cushioning and traction.

KINETIK PROJECT EXP FOOTPRINT EXP

CLASSIC S.O.L.E. Time tested and rider approved. Featuring a versatile foam molded with that classic Ronix comfort.

PARKS

HALO

ANTHEM BOA®

LUXE

DISTRICT

VISION

DIVIDE

AUGUST

KID’S CUSTOM FIT A kid’s foot has different proportions than an adult, so we design our kid’s chassis and footwear independent from their adult counterpart. The youth have some short / wide feet and this design reflects that.

VISION AUGUST

CLOSURES BOA® FIT SYSTEM Our exclusive partnership with BOA® ensures the rider will experience a precise fit every time they lace them up. The BOA® Fit System delivers a micro-adjustable, precision fit, engineered and guaranteed to perform in the toughest conditions. The BOA® dials and laces are guaranteed for the lifetime of the product on which they are integrated.

SUPREME BOA® ANTHEM BOA®

46 RONIX FOOTWEAR

VECTRAN CORE LACE SOFT TOUCH PULL

LOCKING WHEEL

AUTOLOCK Slide to lock, pull to release... It’s that simple.

RXT

HALO

ONE – WHITE

LUXE

ONE – BLACK

VISION

SUPREME BOA®

AUGUST

RISE

KINETIK PROJECT EXP

PARKS

UTOPIA

DISTRICT

FOOTPRINT EXP

FLEX FLEXFORM Our proprietary automotive grade elastomer is designed to withstand extreme tear and abuse. Found in high flex locations of our footwear, flexform will keep you performing to the highest level longer than ever before.

KINETIK PROJECT EXP

DIVIDE

ANTHEM BOA®

RXT

KINETIK

ONE

ADDED ADAPTABILITY

ADDED RESPONSE

COMBINATION OF BOTH

TPU FLEXIBLE STRAP

LOW FRICTION NYLON WEBBING

STAINLESS STEEL LOCKING HOOKS

SUPERSTRAPS Leverage meets elasticity. A unique fusion of low-friction nylon webbing paired with an elastomer strap to create effortless tightening and perfect fit. Adjustable strap lengths allow for ideal fit regardless of foot size.

KINETIK PROJECT EXP ANTHEM BOA®

RESPONSE 3D MOLDED TOE CAPS 3D molded toe caps are designed around the Ronix last to create a perfect fit. We use the different material compounds to accommodate different riding styles.

FOOTWEAR RONIX 47

MEN’S

ONE - WHITE

ONE - BLACK

A REDESIGNED ICON WITH NODS TO ITS HERITAGE

PURPOSE BUILT FOOTWEAR THAT OUTPERFORMS THE REST

FLEX

8/10

SOFT

FIRM

10/10

RESPONSIVENESS FLUID

INSTANT

PERFORMANCE

10/10

ENTRY

ADVANCED

FEATURES AUTOLOCK TECHNOLOGY 3D MOLDED TOE MAINFRAME 2.0 HIGH CUT TECHNOLOGY

FLEX

8/10

SOFT

FIRM

FEATURES AUTOLOCK TECHNOLOGY CORDURA BALLISTIC NYLON 3D MOLDED TOE

SMOOTH SKIN LINING

10/10

RESPONSIVENESS

FEETBELTS ANKLE SHIELDS

FLUID

HEAT MOLDABLE INTUITION+ LINER

INSTANT

MAINFRAME 2.0 HIGH CUT TECHNOLOGY SMOOTH SKIN LINING FEETBELTS ANKLE SHIELDS

SUPERFABRIC® FLEXFORM 3D HEEL PANEL INJECTED HEEL COUNTER PRO S.O.L.E.

PERFORMANCE

10/10

ENTRY

ADVANCED

HEAT MOLDABLE INTUITION+ LINER SUPERFABRIC® FLEXFORM 3D HEEL PANEL INJECTED HEEL COUNTER

TYLER HIGHAM ENDORSEMENT

PRO S.O.L.E.

The timeless classic that started it all, and for 2027, this One has a brand-new construction. Sculpted out of the latest advanced materials, this boot is ready for anything that comes its way. Perfect for the rider that is looking for quick edge-to-edge responsiveness and enhanced support in key areas. Our 3D molded components rule out any dead space around your feet, or between our proprietary Intuition+ heat moldable liner and Mainframe 2.0 High Cut skeleton. Take a set on these Ones and see for yourself why this has been our flagship since the beginning. The One - for those that demand maximum response.

DANNY HARF ENDORSEMENT

Progression isn’t limited to what happens on the water. It also happens in the products we build. The One boot has progressed to a new level with an all-new construction.

Purposefully shaped with advanced materials, this boot is built to withstand heavy landings and harsh conditions.

The stiffer nature translates to quicker edge-to-edge responsiveness, and more support in key areas. Our redesigned 3D molded components eliminate dead space around your feet. As we reflect on how wakeboard footwear has evolved, this One has been at the forefront every step of the way.

US

UK

EUR

JAP

US

UK

EUR

JAP

6-7 8 9 10 11 12 13-14

5-6 7 8 9 10 11 12-13

38-39 41 42 43 45 46 47-48

24-25 26 27 28 29 30 31-32

6-7 8 9 10 11 12 13-14

5-6 7 8 9 10 11 12-13

38-39 41 42 43 45 46 47-48

24-25 26 27 28 29 30 31-32

48 RONIX FOOTWEAR

MEN’S

RXT

SUPREME BOA®

A FLEXIBLE BOOT FOR A STYLISH RIDER

EXPERIENCE UNREAL BOARD FEEL WITH THE BOA® FIT SYSTEM

FLEX

5/10

SOFT

FIRM

FEATURES PIZZA BOY SOCKS - AN RXT EXCLUSIVE AUTOLOCK TECHNOLOGY

9/10

RESPONSIVENESS FLUID

INSTANT

10/10

ENTRY

ADVANCED

7/10

SOFT

FIRM

FLEXFORM 3D MOLDED TOE SMOOTH SKIN LINING

8/10

RESPONSIVENESS

MAINFRAME 2.0 HIGH CUT TECHNOLOGY

FLUID

FEETBELTS

PERFORMANCE

FLEX

INSTANT

HEAT MOLDABLE INTUITION+ LINER SUPERFABRIC® FLEXFORM 3D HEEL PANEL

8/10

PERFORMANCE ENTRY

ANKLE SHIELDS

ADVANCED

PRO S.O.L.E.

FEATURES AUTOLOCK TECHNOLOGY MAINFRAME 2.0 HIGH CUT TECHNOLOGY CORDURA BALLISTIC NYLON BOA® FIT SYSTEM SMOOTH SKIN LINING FEETBELTS HEAT MOLDABLE INTUITION+ LINER FLEXFORM 3D HEEL PANEL ANKLE SHIELDS PRO S.O.L.E. JAKE PELOT ENDORSEMENT

MASSI PIFFARETTI ENDORSEMENT

The RXT has always lived at the junction of flex and support. Massi is well known for adding some extra Italian spice to every trick in his bag. He demands a boot that is unrestrictive in some areas, while maintaining support in others, and this RXT is up to the task. Our proprietary Intuition+ perforated liner enhances flex and eliminates any voids between your foot, the liner, and the Mainframe 2.0 High Cut Skeleton. Slide into the RXTs and see how far you poke your favorite grab.

Returning for its sophomore season, the Supreme BOA® offers a fit and design unlike anything we’ve built before.

Our exclusive partnership with BOA® has allowed us to pioneer the industry’s first BOA® PerformFit Wrap system.

BOA® is known for delivering a micro-adjustable, precision fit, engineered and guaranteed to perform in the toughest conditions. Combining this ingenuity with our proprietary Intuition+ heat moldable liner, and the Mainframe 2.0 High Cut skeleton, the Supreme BOA® is supportive, durable, and ready for whatever comes next. Take a ride on the new school boot that checks every box. For riders wanting convenience and precision.

US

UK

EUR

JAP

US

UK

EUR

JAP

6-7 8 9 10 11 12 13-14

5-6 7 8 9 10 11 12-13

38-39 41 42 43 45 46 47-48

24-25 26 27 28 29 30 31-32

6-7 8-9 10 11 12 13-14

5-6 7-8 9 10 11 12-13

38-39 41-42 43 45 46 47-48

24-25 26-27 28 29 30 31-32

FOOTWEAR RONIX 49

MEN’S

PARKS

ANTHEM BOA®

THE MOST ADAPTABLE CLOSED TOE BOOT

PERFORMANCE DRIVEN ADJUSTABILITY

5/10

FLEX SOFT

FIRM

7/10

RESPONSIVENESS FLUID

INSTANT

6/10

PERFORMANCE ENTRY

FEATURES AUTOLOCK TECHNOLOGY MAINFRAME 2.0 LOW CUT TECHNOLOGY

FLEX

6/10

SOFT

FIRM

BUILT IN ANKLE SUPPORT FLEXFIT STAGE 2 LINER 3D MOLDED TONGUE CLASSIC S.O.L.E.

RESPONSIVENESS

6/10

FLUID

INSTANT

PARKS BONIFAY ENDORSEMENT

FEATURES BOA® FIT SYSTEM MAINFRAME 2.0 LOW CUT TECHNOLOGY BUILT IN ANKLE SUPPORT STAGE 2 LINER SUPERSTRAPS® 3D MOLDED TONGUE CLASSIC S.O.L.E.

6/10

PERFORMANCE

ADVANCED

ENTRY

ADVANCED

Closed toe board control with open toe adjustability, that’s the Parks. This remarkably comfortable hybrid is constructed to open and close seamlessly around your foot, regardless of your foot’s shape. With this design, you’re able to fit more feet sizes in a closed toe boot without sacrificing fit. Get out on the water and experience the benefits of a closed toe boot.

Want the latest and greatest tech, without sacrificing adjustability? Look no further than the Anthem BOA. This adjustable marvel is packed with the heel toe response usually reserved for pro model closed toe boots. Built on our Mainframe 2.0 chassis and harnessed together with the BOA® Fit System on the lower section and a Superstrap around the ankle. This easy-to-use closure combo offers the ability for the rider to adjust the fit on the fly.

US

UK

EUR

JAP

US

UK

EUR

JAP

6-7 8-9 10 11-12 13-14

5-6 7-8 9 10-11 12-13

38-39 41-42 43 45-46 47-48

24-25 26-27 28 29-30 31-32

5-8.5 7.5-11.5 10.5-14.5

4-7.5 6.5-10.5 9.5-13.5

37-41.5 40-45.5 44-48.5

23-26.5 25.5-29.5 28-32.5

50 RONIX FOOTWEAR

MEN’S

DISTRICT

DIVIDE

BLENDING EXTRA SUPPORT AND CUSHIONING

EXTRA SOFT, LIGHTWEIGHT, AND ADAPTABLE

5/10

FLEX SOFT

FIRM

5/10

RESPONSIVENESS FLUID

INSTANT

PERFORMANCE

5/10

FEATURES AUTOLOCK TECHNOLOGY MAINFRAME 2.0 LOW CUT TECHNOLOGY

FLEX

4/10

SOFT

FIRM

BUILT IN ANKLE SUPPORT STAGE 2 LINER MOLDED HEEL PANEL CLASSIC S.O.L.E.

RESPONSIVENESS

4/10

FLUID

INSTANT

AUTOLOCK TECHNOLOGY MAINFRAME 2.0 LOW CUT TECHNOLOGY BUILT IN ANKLE SUPPORT STAGE 1 LINER CLASSIC S.O.L.E.

4/10

PERFORMANCE ENTRY

The District is the perfect bridge between the lightweight super adjustable Divide boot and the extra supportive performance driven Anthem boot. Constructed with our exclusive Stage 2 high grade foam to create a perfect balance of comfort, adjustability, and adaptive memory.

Designed for riders looking for solid support with the option to fit multiple sizes. Your feet will thank you.

FEATURES

ADVANCED

Our most affordable adult boot that doesn’t cut corners.

Built on the adaptive Mainframe 2.0 Low Cut chassis, the Divide boot has everything you need for making lasting memories on the water. With our AutoLock lacing system, Stage 1 foam, and a revolutionary customized skeleton, this boot continues to separate itself from the others in ease of entry, adjustability, and comfort.

US

UK

EUR

JAP

US

UK

EUR

JAP

5-8.5 7.5-11.5 10.5-14.5

4-7.5 6.5-10.5 9.5-13.5

37-41.5 40-45.5 44-48.5

23-26.5 25.5-29.5 28-32.5

5-8.5 7.5-11.5 10.5-14.5

4-7.5 6.5-10.5 9.5-13.5

37-41.5 40-45.5 44-48.5

23-26.5 25.5-29.5 28-32.5

FOOTWEAR RONIX 51

WOMEN’S

RISE

HALO

TOP-TIER PERFORMANCE DESIGNED AROUND A WOMAN’S FOOT

MOST SUPPORTIVE ADJUSTABLE WOMEN’S SPECIFIC BOOT

7/10

FLEX SOFT

FIRM

8/10

RESPONSIVENESS FLUID

INSTANT

FEATURES AUTOLOCK TECHNOLOGY MAINFRAME 2.0 HIGH CUT TECHNOLOGY

FLEX

5/10

SOFT

FIRM

FEETBELTS WOMEN’S CUSTOM FIT

RESPONSIVENESS

HEAT MOLDABLE INTUITION+ LINER

5/10

FLUID

INSTANT

FLEXFORM 3D HEEL PANEL

8/10

PERFORMANCE ENTRY

PRO S.O.L.E.

ENTRY

AUTOLOCK TECHNOLOGY MAINFRAME 2.0 LOW CUT TECHNOLOGY BUILT IN ANKLE SUPPORT STAGE 2 LINER MOLDED HEEL PANEL CLASSIC S.O.L.E.

5/10

PERFORMANCE

ADVANCED

FEATURES

ADVANCED

Here at Ronix, we recognize that a woman’s foot has different proportions and their footwear should be designed accordingly. To create the perfect fit, we utilize softer foam and offer a lower cut that is better suited for ladies looking to level up their skills. Constructed with the Mainframe 2.0 High Cut skeleton, the FlexForm 3D heel panel, and the newly added Feetbelts, every subtle movement can be efficiently transferred from your feet to the board. Lace into the Rise boot, and let her rip. For riders wanting premium comfort, adaptability and progression.

These one-of-a-kind, premier open toe boots are built with Stage 2 liners for all day comfort and support that is unrivaled in women’s wake footwear. Built atop the MainFrame 2.0 chassis, recognizing every aspect of your foot for a more customized fit with added memory in the foam. Reinforced comfort and adjustability.

US

UK

EUR

JAP

US

UK

EUR

JAP

W6 W7 W8 W9

3.5 4.5 5.5 6.5

36.5 37.5 39 40.5

23 24 25 26

W6-W8.5 W8-W10.5

3.5-6 5.5-8

36.5-39.5 38.5-42

22-24.5 24-27

52 RONIX FOOTWEAR

WOMEN’S

KID’S

LUXE

KID’S PARKS

EXTRA SOFT, ADJUSTABLE, AND LIGHTWEIGHT

HIGH END ADAPTABLE FOOTWEAR FOR THE YOUTH

4/10

FLEX SOFT

FIRM

4/10

RESPONSIVENESS FLUID

INSTANT

FEATURES AUTOLOCK TECHNOLOGY MAINFRAME 2.0 LOW CUT TECHNOLOGY

ENTRY

5/10

SOFT

FIRM

BUILT IN ANKLE SUPPORT STAGE 1 LINER CLASSIC S.O.L.E.

4/10

PERFORMANCE

FLEX

RESPONSIVENESS

7/10

FLUID

INSTANT

6/10

PERFORMANCE

ADVANCED

ENTRY

FEATURES AUTOLOCK TECHNOLOGY MAINFRAME 2.0 LOW CUT TECHNOLOGY BUILT IN ANKLE SUPPORT FLEXFIT STAGE 2 LINER 3D MOLDED TONGUE CLASSIC S.O.L.E. PARKS BONIFAY ENDORSEMENT

ADVANCED

Built with our adaptive MainFrame 2.0 chassis, the Luxe contours to every aspect of your foot when you lace up the AutoLock system. Constructed from a soft, lightweight Stage 1 foam, the Luxe is a top-of-the-line, universal boot with a price that is easy on the pocketbook.

Created by our sports icon – Parks Bonifay who has been wakeboarding for over 3 decades. The Parks boot has features that make it easy to adjust for varying feet sizes – yet still has similar locked in heel-toe response of our advanced closed toe models. A remarkably comfortable hybrid boot designed for the needs of the next generation.

US

UK

EUR

JAP

US

UK

EUR

JAP

W6-W8.5 W8-W10.5

3.5-6 5.5-8

36.5-39.5 38.5-42

22-24.5 24-27

4-5

3-4

36-37

22-23

FOOTWEAR RONIX 53

KID’S

VISION

AUGUST

EVERY ASPECT IS DESIGNED FOR THE NEXT GEN

EXTRA SOFT AND EASY TO GET INTO

3/10

FLEX SOFT

FIRM

FEATURES AUTOLOCK TECHNOLOGY BUILT IN ANKLE SUPPORT

FLEX

3/10

SOFT

FIRM

MAINFRAME TECHNOLOGY

RESPONSIVENESS

3/10

FLUID

PERFORMANCE ENTRY

STAGE 1 LINER

3/10

INSTANT

FLUID

INSTANT

3/10

PERFORMANCE

ADVANCED

AUTOLOCK TECHNOLOGY BUILT IN ANKLE SUPPORT MAINFRAME TECHNOLOGY

RESPONSIVENESS

CLASSIC S.O.L.E.

FEATURES

STAGE 1 LINER CLASSIC S.O.L.E.

3/10

ENTRY

ADVANCED

The first of its kind, a fit engineered specifically for kids.

Built on our Mainframe chassis to adapt to the feet of wakeboarding’s future as they cinch up our AutoLock lacing mechanism. A fully loaded, easy entry, comfortable boot, constructed for the next generation. The Vision - because kid’s feet aren’t just smaller adult feet.

Built for the next generation of girls discovering just how fun wakeboarding can be. Extra soft Stage 1 foam, easy-touse AutoLock lace locks, and the Mainframe chassis come together to create an easy-riding favorite. The August because kid’s feet aren’t just smaller adult feet.

US

UK

EUR

JAP

US

UK

EUR

JAP

K2-K6 5-8.5

1.5-5.5 4-7.5

33-38 37-41.5

21.5-24.5 23-26.5

K2-K6

1.5-5.5

33-38

21.5-24.5

54 RONIX FOOTWEAR

PARK

UTOPIA THE PERFECT BLEND OF FLEX, COMFORT, AND PERFORMANCE FOR EVERY TERRAIN OF WAKEBOARDING FLEX

6/10

SOFT

FIRM

FEATURES AUTOLOCK TECHNOLOGY FLEXFORM 3D MOLDED TOE SMOOTH SKIN LINING

RESPONSIVENESS

9/10

FLUID

INSTANT

PERFORMANCE

10/10

ENTRY

ADVANCED

MAINFRAME 2.0 HIGH CUT TECHNOLOGY FEETBELTS HEAT MOLDABLE INTUITION+ LINER SUPERFABRIC® FLEXFORM 3D HEEL PANEL ANKLE SHIELDS PRO S.O.L.E. TRENT STUCKEY ENDORSEMENT

Lap after lap, set after set, this Utopia is built to perform in all the different disciplines of wakeboarding. We’ve taken everything we’ve learned behind the boat, around the cable, and through the winch habitats and combined it into one. With familiar features like the Mainframe 2.0 High Cut chassis, our proprietary Intuition+ heat-moldable liner, and the rigidity of a SuperFabric® tongue, this boot combines the best attributes from every corner of wakeboarding. See for yourself how Trent Stuckey controls and commands his wakeboard.

PARK FOOTWEAR

Bring in the reinforcement. We use specific materials and processes for the rider that is going in and out of their boots all day long. Without sacrificing that classic Ronix comfort – these three boots are built park tough.

US

UK

EUR

JAP

6-7 8 9 10 11 12 13-14

5-6 7 8 9 10 11 12-13

38-39 41 42 43 45 46 47-48

24-25 26 27 28 29 30 31-32 FOOTWEAR RONIX 55

PARK

KINETIK PROJECT EXP

FOOTPRINT EXP ADAPTABILITY MEETS AFFORDABILITY IN A WALKABLE PARK BOOT

FOOT ON THE GAS RESPONSIVENESS

9/10

FLEX SOFT

FIRM

10/10

RESPONSIVENESS FLUID

INSTANT

PERFORMANCE

10/10

ENTRY

ADVANCED

FEATURES AUTOLOCK TECHNOLOGY

FLEX

6/10

SOFT

FIRM

3D MOLDED TOE MAINFRAME 2.0 LOW CUT TECHNOLOGY CORDURA BALLISTIC NYLON SMOOTH SKIN LINING

RESPONSIVENESS

7/10

FLUID

INSTANT

SUPERSTRAPS WALKABLE HEAT MOLDABLE INTUITION+ LINER SUPERFABRIC® INJECTED HEEL COUNTER

From charging at kickers, to unlocking the perfect nose press, to traversing through rugged terrain in pursuit of the next winch clip, the Kinetik Project EXP is up to the task.

The Mainframe 2.0 Low Cut chassis helps set the tone for immediate response and outstanding durability. The stiffer shell translates to faster edge-to-edge transitions, and support where it’s needed most on harsher landings. Our proprietary Intuition+ walkable heat-moldable liner allows the rider to navigate any terrain without worry. The perfect boot for your next mission.

AUTOLOCK TECHNOLOGY VELCRO STRAP CORDURA BALLISTIC TWILL NYLON MAINFRAME 2.0 LOW CUT TECHNOLOGY WALKABLE HEAT MOLDABLE INTUITION+ LINER EXP S.O.L.E.

7/10

SECONDARY LACE COLOR OPTION

ADVANCED

JULES CHARRAUD ENDORSEMENT

PERFORMANCE ENTRY

EXP S.O.L.E. DOMINIK HERNLER ENDORSEMENT

FEATURES

The most affordable boot in the world of cable walkables - the Footprint EXP. Don’t let the price tag fool you, we’ve packed tons of features into the versatile boot - Cordura Ballistic Twill Nylon fabric, a walkable heat moldable Intuition+ liner, Mainframe 2.0 Low Cut skeleton, just to name a few. Leave your mark with the Footprint EXP. Built for riders who spend more time on features than behind the boat.

US

UK

EUR

JAP

US

UK

EUR

JAP

6-7 8 9 10 11 12 13-14

5-6 7 8 9 10 11 12-13

38-39 41 42 43 45 46 47-48

24-25 26 27 28 29 30 31-32

6-7 8 9 10 11 12 13-14

5-6 7 8 9 10 11 12-13

38-39 41 42 43 45 46 47-48

24-25 26 27 28 29 30 31-32

56 RONIX FOOTWEAR

THERMOMATIC BOOT HEATER

M6 RONIX BOOT HARDWARE

FEATURES

FEATURES

M6 RONIX SHARKTOOTH BOOT HARDWARE

110V | 220V

Set of 4 black

FEATURES + Set of 4 black

M6 RONIX BASELESS BOOT HARDWARE

RONIX COMPLETE LACE KIT

RONIX AUTOLOCK KIT

FEATURES

FEATURES

FEATURES

Set of 4 black

Set of 4 laces and AutoLocks

Set of 4 Laces and AutoLocks

Compatible w/ baseless chassis 2010-2018

Available in Black, White and Blue

Available in Black

RONIX SUPERSTRAP KIT

INTUITION HOME FIT KIT

FEATURES

RONIX WARRANTY TACKLE BOX

Available in Black

FEATURES

Custom-fit your Intuition+ liners at home

Everything you need to fix what’s broken

FEATURES Compatible with all Ronix & Radar Intuition+ models Available in two sizes: US 6 – 9 and US 10 -14 FOOTWEAR RONIX 57

58 RONIX WAKEFOILS

WAKEFOILS RONIX 59

THE RONIX EXTRA MILE WHY WOULD A COMPANY KNOWN FOR ITS LINEAGE IN WAKEBOARDING CLAIM TO BE MAKING THE WORLDS BEST WAKEFOILS?

CONSTRUCTIONS Most wings and masts are compression molded. This will get you a nice strong part every time. Few will take it one step further and will make a compression molded part with prepreg carbon. Now a rider will have a strong part with a slightly cleaner flash line by not having any unneeded resin that can accumulate around the edge. Then there are a couple companies that make all their carbon products using autoclave and prepreg carbon. Far and away the cleanest, strongest, and most efficient in the water.

MATERIALS Not impressed by the fact that we make our parts like an F1 diffuser? Let’s talk carbon. Most carbon products in foiling are woven fibers. They work great, they are strong, they are light, and they are the easy to produce. If you put extra priority on consistency and energy you need a spread toe carbon. But then within that menu there are endless options. We use one of the highest grades of spread toe.

This carbon fiber costs us over 3x the price of a traditional woven carbon – but lives up to the name Shadow Carbon mimicking your movements as your body shifts directions.

HISTORY Our journey of flight started out modifying foils in the summer of 1984 on the Colorado River. We had wild experiences using foils on kneeboards, wakeboards and even combo sis – yeah true story – we flew on two skis (it was pretty sketchy). We had some amazing experiences riding all things levitation which led us to making the original Air Chair many moons ago. Foiling never left us and for the past four decades – levitation has been in our DNA as enthusiasts and as creators.

WHAT’S NEXT? We introduced what we feel is the most advanced foil board for riders that like to drive off their front foot with the new Valkyrie. In foiling you need leverage – now you can have a kicktail with every drive you make. This kicktail has 4” of forward and back movement and will adjust to any alpine stance or duck foot stance a rider might require.

Quick Connect Foil Hardware – a new quick and easy tool less system engaging your mast to and from a board. Last but not least we have a new beginner foil board using technology typically found in the alpine world.

BOARD CONSTRUCTIONS

PROCESS

SUPERCONDUCTOR

Every layer of high-grade autoclave produced carbon is set for a specific placement. We don’t just slap a bunch of layers on one side – flip it over and do the same on the other. Each layer serves a different purpose of preventing the mast from collapsing – but equally important is preventing it from twisting. To truly create anti-twist masts, you must place each layer in a different degree of angle.

No two laminates are ever placed in the same origin. This required well over 100 samples of testing to determine the optimum angle.

We have two wildly different high end riding styles that both have one thing in common – energy. The Blackbird and Valkyrie share the Superconductor construction that have electricity under your feet unlike anything we have ever ridden involving something rarely said in the world of foiling - dense PVC foam. With the Superconductor we really wanted to put an emphasis on the reactivity of the construction. Most ocean surfboards, wake surfers are made with foam under 10 lb. density. But a couple years ago we started experimenting with foil boards up to 6 times the density of most surfers. One of our riders said, “this board feels like it’s conducting its own energy” and the name Superconductor stuck. Our proprietary extra packed PVC foam mixed with a full carbon layup brings about energy we have never experienced in foiling. High input is delivering an equally high output.

DESIGNS VERTICAL STABILIZER

Ever notice while you are boarding an airplane that there is a rear stabilizer – and a vertical stabilizer? But your foil set up has never come with the latter option? Why do planes have them? It provides directional stability preventing the aircraft from wobbling or yawing side to side. Well, it does the same thing on your foil set up too. Not only that, but it also de-magnifies that aggressive launch angle out of the water. Now a rider gets a smooth start and a more controlled turn. Compatible on any Ronix fuselage.

ADJUSTABLE MAST

SHORTER MAST – EASIER START TALLER MAST – MORE EXHILARATING With the shift mast you get both of those feelings in one, ranging in size from 17” to 26”. Four easy adjustment options each in 3” increments to truly cover the whole spectrum of beginner to intermediate to semi advanced level riding.

The lower two heights is where you will focus on deepwater starts and the basics principles of turning with the rope.

Then by advancing to the next two sets of mast heights a rider can learn to interact with the wave and eventually transfer waves without the rope. Compatible on any Ronix fuselage.

60 RONIX WAKEFOILS

TUFF TECH The focus of the Superconductor is based on building energy and increasing reaction time. The Tuff Tech is the opposite – recreational level foilers are looking to minimize mistakes and another easy way to do that is to purposefully absorb the energy for a smoother ride that will minimize mistakes. Built with a Tuff Tech exterior and wrapped in a poured urethane sidewall – this extra strong construction is also created to deflect more water for those untimely landings.

VALKYRIE

BLACKBIRD

SUPERCONDUCTOR EXPLOSIVE LONG HAUL SWEEPING PUMPS WITH LOCKED IN TIGHT TURNS – AND AN ELECTRIFYING CONSTRUCTION CONSTRUCTION

SUPERCONDUCTOR RIDING LEVEL

A HEART PUMPING THRILL RIDE FOR QUICK INITIATED TURNS, HIGH ELEVATED PUMPS – AND AN ELECTRIFYING CONSTRUCTION

CATEGORY

HIGH ENERGY PAD

ADVANCED

SUPERCONDUCTOR | WITH STRAPS

EVA BLENDED W/ RUBBER

Equally as energetic as its Blackbird sibling – that high cadence vertical pump is now substituted for a melodic forward sweeping pump. The Valkyrie is best suited for riders that have longer strides that propels with more natural forward motion at a mellower cadence. This parabolic shape also locks in on powerful drawn out turns. High speed wide open quick radius turns you never thought possible all while holding a strong edge hold. A tapered profile packed with reactive materials for riders that prioritize big reactive strides in their pumping. Usually preferred by high end riders that naturally ride with more weight on their front foot. Made with a highpowered full carbon construction using a foam 6x denser than most traditional surf or foil cores.

CONSTRUCTION

CATEGORY

RIDING LEVEL

PAD

SUPERCONDUCTOR ADVANCED

HIGH ENERGY EVA BLENDED W/ RUBBER

Short burst, high vertical pumps, with quick initiated turns and a tight turning radius. The sprinter of high-end foil boards. The Blackbird will do everything quickly. This rider usually has a shorter stride that is built for an explosive force in small/repetitive doses. Complete with foot straps for the rider that likes to add airtime into their quiver.

Usually preferred by high end riders that naturally ride with more weight on their back foot. Made with a highpowered full carbon construction using a foam 6x denser than most traditional surf or foil cores.

LENGTH (FT/IN)

SIZE (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

ADV. WEIGHT RANGE (LBS)

LENGTH (FT/IN)

SIZE (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

ADV. WEIGHT RANGE (LBS)

4’3

23.2

2.3

19.1

ALL SIZES

3’10” 3’10”

13 20

2.2 2.2

18.8 18.8

ALL SIZES ALL SIZES WAKEFOILS RONIX 61

FRONT WING 101 This is where it all starts. The personality of your levitating experience. A proper flight begins and ends with a front wing set to your cadence and velocity. Before we tell you about our collection of products, let’s understand the science behind Aspect Ratios (a division of the chord width by the wingspan). Here’s a look at our feathered friends and how they have evolved their wings, and how we are mimicking them in the world of aquatic flight.

LONGER WINGSPAN (A) A longer wingspan with a narrower depth outline and a thinner profile allows flight over long distances without as much flapping. – Basis of glide.

HIGHER ASPECT RATIO (B) As speed increases, wingspans expand, get narrower, flatter, and more streamlined at the end.

A

727

B

TUFF TECH | WITH STRAPS

MEDIUM WINGSPAN (C)

THE DEBUT OF OUR V2 DESIGN BASED ON A TONE SETTING FLIGHT FOR A SMOOTH STABLE, CENTERED NATURAL RIDING POSITION

A medium wingspan with a deeper depth outline allows it to soar with reliability, while the elliptical outline creates a quicker reacting turn.

CONSTRUCTION

MID ASPECT RATIO (D)

PAD

TUFF TECH

EVA BLENDED W/ RUBBER

RIDING LEVEL

BEGINNER / INTERMEDIATE

A detuned version of its sleek HA counterpart. Still a thin profile, with a fairly flat outline, just shorter, wider, and with more arc in the leading edge.

KICKTAIL

ADJUSTABLE

CATEGORY

NEUTRAL ENERGY + EXTRA DURABILITY For riders that prioritize stability through limiting mistakes.

This person wants a mild temperament board. So many riders’ needs are to absorb energy – not create it. A neutrally balanced board with a flat top deck and with the help of foot straps a rider can always feel in a very grounded, controlled position. This board also spotlights deflection from the water – with the help of exaggerated bevels and tip/tail rocker. Combine that with another first – arc technology tips – we have a snowboard inspired tip that further prevents the all-too-common dreaded submarine when the board approaches the water at an angle. In addition to coming with footstraps for added security through the learning process – it also comes with an adjustable kicktail that will adjust to almost any desired side to side angle or forward or back placement a rider would ever look for. This design and construction will help give you the foundation to learn the basics of pumping through your internal metronome.

LENGTH (FT/IN)

SIZE (LTRS)

ROCKER (IN)

MAX WIDTH (IN)

INTER. WEIGHT RANGE (LBS)

ADV. WEIGHT RANGE (LBS)

4’1” 4’6”

11.9 13.4

3.1 4.2

20 20

UP TO 180 160+

ALL SIZES ALL SIZES

62 RONIX WAKEFOILS

C

D

SHORTER WINGSPAN (E) Built for short distances with emphasis on increased stability and effortless controlled turns.

– Basis of Balance

LOWER ASPECT RATIO (F) As stability increases wingspans shorten, get wider, thicker, more elliptical, and curl up at the end.

E

F

HIGH ASPECT FRONT WINGS

SPEED FRONT WINGS

SHADOW CARBON

SHADOW CARBON

GLIDE EFFICIENCY MEETS LOW END STALL SPEED, MIXED WITH OUR TIGHTEST TURNING RADIUS; BIG CUTS AND, EVEN A BIGGER TOP END

THE BLEND OF OUR CRUISER BALANCE SERIES AND OUR HIGH-POWERED HIGH ASPECT WINGS

Finally, a High Aspect wing with unparalleled drive designed for the very distinct needs of riding behind a boat.

There are a lot of fast wings out there - but in wakefoiling we prioritize stall speed and tight arcing turns as much as more as we do glide speed. Most high aspect wings are used in conditions where there is an endless supply of power coming from a 5-foot wave in prone foiling or a 20+ mph wind in wing foiling. Our challenge was to embrace a high aspect style of front wing shape that features a superior reduction in drag for an acceleration that holds more energy maximizing pump and glide. But what’s really unique is this front wing gives a rider the ability to effectively execute tricks and wave transitions with a consistent and precise feeling. Made with an unmatched spread tow carbon autoclave construction and some design theories that have never been used in foiling. Enjoy the sensation of increased energy and hydrodynamic proficiency with this new High Aspect Series. The most efficient wing in the Ronix line, the new High Aspect front wing was designed for the experienced foiler who appreciates the performance benefits of high-speed riding and increased attack angle, without sacrificing stall speed and tight banked turns.

High Aspect performance meets Balance stability. The bridge between the extra smooth and stable Balance series and the unbridled horsepower of our new High Aspect series. For the rider that prioritizes a little bit of everything in their ride. Created for riders with a foiling background looking for natural glide, pumping efficiency and the secret sauce stability found in our Balance series. Easy to initiate and maintain pumps with a new slightly lower modulus construction. Typically, fast wings are high maintenance and need a lot of attention – and once they don’t have it they will fade out and the rider’s momentum is gone. We added a concave running through the bottom of the front wing – and this drastically helps keep momentum even at slower speeds or in flat water conditions. Much like its Balance series sibling we also added a little twist on the end of the winglets to keep your flight riding high. Not only can you pump easier with the Speed edition relative to our Balance series – each push generates significantly more energy. A striking hydrodynamic design created to amplify your path of 4th wave adventures. A smaller 1130cm² size will have more agility through a turn, added speed in a straight line - just not quite the natural lift of its bigger brother 1530cm² version, and the 1330cm² the blend of both the personalities.

SIZE (CM2)

WING SPAN (CM)

AVERAGE CHORD (CM)

ASPECT RATIO

SIZE (CM2)

WING SPAN (CM)

AVERAGE CHORD (CM)

ASPECT RATIO

910 1010

86.3 90.9

12.1 12.1

8.2:1 8.2:1

1130 1330 1530

77.1 84 90

16 17.6 18.7

5.3:1 5.3:1 5.3:1 WAKEFOILS RONIX 63

BALANCE FRONT WINGS

REAR STABILIZER 101

HYBRID CARBON

A SHAPE, CONSTRUCTION AND EVEN ARTWORK DESIGNED FOR THE GREATEST MAIDEN VOYAGE OF YOUR LIFE

Uping the ante on consistency and stability. Rhythmic flow of a sequence of movements. A common theme in analyzing foils is getting great drive and lift but having a hard time controlling it. The board will skyrocket to the top, plunge to the bottom, or somewhere in between. This series of wings will ask you what floor on the elevator do you want to reach – and most importantly – keep you there because of our unique twist winglet design. A nimble turn that will easily roll over to edge with its elliptical outline and additional width. It will quickly set you in the sweet spot, keep you on your specified flight pattern and do it with a quicker reacting edge hold. High grade carbon fibers are molded in our proprietary autoclave machine for the cleanest and most exact manufacturing process available in foiling. Then we paint white over the carbon fiber so the rider can have a frame of reference of where they are in relation to the depth of the water.

SIZE (CM2)

WING SPAN (CM)

AVERAGE CHORD (CM)

ASPECT RATIO

1300 1600

76 84

18.5 20.5

4.4:1 4.4:1

64 RONIX WAKEFOILS

A stabilizer assists with either a roll (turning where the board will roll onto edge to create a turn) or yaw style turn (where the tail of the board will wash out to initiate a turn), the pitch (how much attack angle a foil will create) and glide (the natural speed) of your foil. All three of these new stabilizers have a different complementary temperament for each of these traits. We are proud to present our trio of good Samaritans that are always there to pick up the pieces left behind from the more boisterous front wing counterpart. The stabilizer should be just that - always stabilizing you. The yang to your other end of the fuselage ying. If duty calls for extra glide your stabilizer should be able to jump on the gas. Accidentally send it a little too hard on a yaw style turn your stabilizer should be able to lock in and guide you back to a normal path.

HIGH ASPECT REAR STABILIZER

SPEED REAR STABILIZER

OUR MOST EFFICIENT GLIDE PERFORMANCEORIENTED STABILIZER TO DATE

A BLEND OF THE ADDED GLIDE OF OUR HIGH ASPECT AND THE EXTRA STABILITY FOUND IN OUR BALANCE REAR STABILIZER

SHADOW CARBON

Unparalleled drive and cutbacks. Following the lead of the new High Aspect Front wing this stabilizer maintains the feeling of balance and consistency even at higher speeds.

Additionally, an important consideration in any HA rear stabilizer is its ability to confidently load and hold energy through a turn. This is achieved on the High Aspect Rear stabilizer by using winglets that are tapered into the wing tip to allow for a reduction in turbulence while providing a confident hold. This allows the rider to build power pushing through and maintaining angle when loading energy during a turn. Dial in your flight path and feel confident in your foil’s ability to handle higher speed maneuvers.

SHADOW CARBON

A fast wing needs a similar output from its stabilizer. One portion stability of our Balance stabilizer and 1 portion of our incredibly fast new High Aspect series – we proudly present our 3rd generation Speed Stabilizer. This stabilizer will have more flow and freedom of our three options for a rider that puts an emphasis on glide and quickly changing directions with more of a yaw style turn creating a tight turning radius. The thought is to have a pronounced concave on the top of the stabilizer – this pocket makes for a faster overall design but more importantly it greatly improves the stall speed. Even if you aren’t in the pocket of the wave or in a powerfully executed stride of pumping, this shape gives you that safety net to regain your composure to gain momentum or added height.

SIZE (CM2)

WING SPAN (CM)

AVERAGE CHORD (CM)

ASPECT RATIO

SIZE (CM2)

WING SPAN (CM)

AVERAGE CHORD (CM)

ASPECT RATIO

135

31.3

4.3

7.3:1

180

34

5

6.4:1 WAKEFOILS RONIX 65

BALANCE REAR STABILIZER

VERTICAL STABILIZER

THE VOICE OF REASON MOUNTED ON THE BACK OF YOUR LINK 3D FUSELAGE

FOILING WILL NEVER BE THE SAME – OR AS DIFFICULT

A co-pilot with a conscious. The voice of reason mounted on the back of your Link Fuselage is there to conduct your voyage as you navigate the seas. A low temperament design that helps steer the ship and bail you out of a jam when off axis. The perfect amount of grip for those new to foiling – yet still has enough speed to transfer on the second wave. A wider base, added rake, slightly thicker profile, turned up winglets and our signature autoclave construction. The Balance wing puts an emphasis on lift and grip. The two hardest aspects of learning how to foil are generating a consistent lift while you learn how to pump and maintaining stability as you learn how the nuances of turning. Phenomenal beginner stabilizer? Most definitely.

But also preferred by high end riders that want a little extra lift and stability on the back of their sleek High Aspect front wing. A proven low temperament design.

A commitment to the new era in flight continues. Whether you are a new rider looking for every advantage to your journey – or an intermediate rider looking to step into an advanced series the vertical stabilizer is an easy add on that will greatly change your experience. The world’s only vertical stabilizer that will easily slide on any Ronix fuselage to help control and maintain your flight pattern in a way never thought imaginable. Short boards, tall masts, and big front wings are so much fun to ride – but bring about a new abrupt take off that can be hard to control even for riders with a lot of foiling experience. This stabilizer slows down that take off so a rider will have a much smoother transition start. Then, once you are riding, this stabilizer will act as a center fin locking in with every turn. Now a rider will have more of a controlled pitch and an easier to navigate locked in turn. Once a rider feels they have that foundation – the stabilizer can easily slide off to bring out the full personality of our foil set ups.

SIZE (CM2)

WING SPAN (CM)

AVERAGE CHORD (CM)

ASPECT RATIO

SIZE (CM2)

240

35

7.4

5.1:1

26

SHADOW CARBON

66 RONIX WAKEFOILS

ALLOY

MAST TOP PLATE

MAST TOP PLATE

HYBRID CARBON

ALLOY

A SOLID LOCK BETWEEN ANY BOARD AND A PULSE, FLUID, OR SHIFT MAST

A SOLID LOCK BETWEEN YOUR BOARD AND YOUR PULSE, FLUID, OR SHIFT MAST

Made from a high-grade alloy and CNC’d for an exact fit.

Then wrapped in our spread tow carbon for a little extra kick out of a turn and glide in a straight away.

Made from a high-grade alloy and CNC’d for an exact fit.

LINK FUSELAGE

LINK 3D FUSELAGE

PREMIER MANUFACTURING AND MATERIALS FOR A RIDER THAT WANTS EXTRA SNAP OUT OF A TURN AND FEEDBACK WITH THEIR PUMPING

THE LINK 3D IS THE INTERSECTION TO THE MAST, FRONT WING, AND REAR STABILIZER WITH PERFECTION IN EVERY NUANCE

High energy output. Premier manufacturing and materials for a rider that wants extra snap out of a turn and feedback with their pumping. The Link is the intersection to the mast, front wing and rear stabilizer with perfection in every attribute. This streamlined conical design achieves the highest marks of anything we have ever tested in rigidity and water efficiency. A strong efficient link is in many ways the driving force to a smooth, predictable foiling experience. This version is made with our premier form of manufacturing and materials with autoclave and Shadow Carbon.

Solid consistent rhythm. The Link 3D is the intersection to the mast, front wing and rear stabilizer with perfection in every nuance. Each fuselage starts out as a high-grade alloy in the shape of a long brick and is then milled on a 3 axis CNC machine to the exact dimension for the perfect fit between the connection points. This streamlined conical design achieves the highest marks of anything we have ever tested in rigidity and water efficiency. A strong efficient link is in many ways the driving force to a smooth predictable foiling experience.

LENGTH (CM)

LENGTH (IN)

LENGTH (CM)

LENGTH (IN)

39

15

39

15

LINK

LINK 3D

SHADOW CARBON | 39CM

ALLOY | 39CM

WAKEFOILS RONIX 67

VELO MAST

PULSE MAST

SHADOW CARBON | 29”

HYBRID CARBON | 29”

A DEDICATION TO NATURAL GLIDE WRAPPED IN SOME GROUNDBREAKING TECHNOLOGY

1 PART CARBON LIVELINESS – 1 PART ALUMINUM STABILITY

A high-end 29” mast that shadows your movements.

Our latest version of the Velo Mast is checking all the lighter, faster, stronger boxes. Recently we reduced the weight by upwards of 1 lb. all the while creating a stiffer, more reactive product. Welcome to the building block of our high-end anti twist pleasure seeker. Countless suppliers, years of sourcing, and hundreds of prototypes (we miss you white lightning) led to this – the spirit of carbon working in a way we only dreamed imaginable. Enjoy down the line drive mixed with a hard charging hairpin arc as you make hundreds of feet from your boat a levitating aquatic gymnasium. Fabricating a lightweight carbon mast is easy. Crafting an electrifying mind reading device that will predict your next and every move – that requires a persevering dedication to transcendent materials and processes. This was arguably the biggest undertaking in the history of Ronix. We needed a spread tow carbon fiber that would evenly disperse the energy in a way we haven’t ever experienced in a traditional carbon fiber, then we applied each laminate in its own unique degree of angle that will highlight your every move. This is where the name Shadow came about; as we started to ride our rotating clockwork of laminates, we noticed the mast was mimicking our movements, not fighting our weight changes. How does this happen? Anti-twist – there is so much torsional strain happening while foiling, and your mast is constantly fighting with this stress. So, we created a truly anti-twist layup that will always put you in the driver’s seat of your motions. Last but not least, is Velo – short for velocity. You can now transfer to the 4th wave with the same ease as you could our aluminum mast on the second wave.

Our latest incubation in the foil laboratory. A height and shape based off our Velo mast – with a construction that is a fusion of carbon and Alloy. What happens when you mix the rhythmic jazz sounds of our Fluid mast and the rock and roll octaves of Velo Mast? You get our New 29” Pulse – part smooth mixed alloy, and part heart pounding high grade spread tow carbon for a new aquatic good vibes voyage. From a personality perspective we wanted a blended mast that took traits of our other the mast series – and from a pricing perspective we wanted a mast that will fill in that gap. The result is a mast that any high-end rider will be able to get their wake thief on with, and a temperament that makes it an easy progression mast to grow with – especially when paired with our vertical stabilizer.

SIZE (IN)

HEIGHT (CM)

SIZE (IN)

HEIGHT (CM)

29

74

29

74

68 RONIX WAKEFOILS

FLUID MAST

SHIFT 4 IN 1 MAST

ALLOY | 24” / 28”

ALLOY | 17”/ 20”/ 23”/ 26”

A STABLE, MEDIUM TEMPO MAST

FINALLY, A SETUP THAT MAKES FOILING FUN AND EASY. THREE VARYING MAST HEIGHTS TO LEARN THE PROGRESSION OF FLIGHT WITH

Stay high, stay consistent, stay fluid. Speed, lift and travel usually override arguably the most important aspect of your mast – the flow. We have tested a variety of foils in the marketplace. A common theme was feeling the foil setup turning in stages. Each pivot would be good for another “X” degrees until you finally arced through a sectioned turn. We were looking for an effortless turn like you get from ripping powder. A shape manifested with a built-in metronome to keep a consistent, prolonged cadence. The temperament of this mast will see you through the progression of flight all the way to second wave exploration nearly 80 feet from the boat. A fluid session will always have you feeling in control of your ride as you comfortably stand upright in a natural foil position. Don’t let it fool you though -it’s still very much capable of jumping on the gas for a port to starboard wave transfer – just with smooth, linked predictable turns.

28” HEIGHT

This 28” size is designed for bigger waves that have a deeper undercurrent. You need to set the front wing deeper into the water line for a bigger wave.

For several decades people have experienced the feeling of flight. Hard to beat the sensation of levitating a couple feet from the water’s surface. The hurdle has always been a taller mast is a lot more fun, but also infinitely harder to learn on. So, we changed that. We created and patented the world’s only telescoping adjustable mast. For several decades people have experienced the feeling of flight. Hard to beat the sensation of levitating a couple feet from the water’s surface. The hurdle has always been that a taller mast is more exhilarating, but also infinitely harder to learn on. So, we changed that. We created and patented the world’s only telescoping adjustable mast. The 3 major aspects of foiling are learning to deep water start, turn, and interact with the wave - now you can have one mast that will progress through these stages. Four options in one to take you through the entire evolution of this amazing sport.

New for this year the mast has a 4th adjustment height and extends all the way to 26”.

24” HEIGHT

If you are riding behind a jet ski, pontoon boat, waterski boat, unweighted V drive wake boat there won’t be as much water turning underneath. So, a 24” mast is a perfect length for that shallower power zone. If you are using too tall of a mast and have a shallow wave - the wing will be too far below the power zone and the foil won’t hook up the way, it should with a shorter mast.

SIZE (IN)

HEIGHT (CM)

SIZE (IN)

HEIGHT (CM)

24 (BLACK) 28 (SILVER)

61 71

17 20 23 26

43 51 58 66 WAKEFOILS RONIX 69

HIGH ASPECT | VELO SERIES

SPEED | PULSE SERIES

ABILITY: EXPERT

ABILITY: ADVANCED

SPACE AGE MATERIALS MEET F1 TECHNOLOGY MANUFACTURING MIXED WITH ULTRA EFFICIENT FOIL DESIGNS

THE PERFECT BLEND OF CONTROL AND REACTIVENESS, SPEED AND STABILITY

We’ve all heard it. High Aspect. Look at our version of thin, wide and reactive. Why would a wakeboard company claim to be making the ultimate high end set up? First is construction - we recently developed a new core in our Velo mast with the same proven reaction time and turning radius – now it is just truly effortless gliding in the water.

As you go thinner and narrower chord width it is easy to create unwanted flex in your wing resulting in instability and loss of power. On our wing construction – no expense was spared, like most of our foil set ups we use a high grade prepreg spread tow carbon fiber manufactured in our exclusive autoclave factory. The advancement was how many layers of carbon we are using and where we apply those fibers. Most of our laminates are wrapping from top to bottom or vice versa – creating torsional rigidity unlike anything we have ever ridden that thin – allowing us to get more power out of smaller engine size. Our white lab coats engineers would be bummed if we disclosed the nuances – but we truly feel this is the premier High Aspect for the needs of wake. Big cuts and even bigger top end speed. A setup that prioritizes the ultimate in glide efficiency.

Everything about this high-end wing, stabilizer, mast, and construction is based on tempo and speed. Less chord width, and thinner profile than our Balance wing series. A more forgiving lower modulus makeup delivering smoother control. The perfect hybrid collection for a rider looking to take their journey deep into the distance of the boat, all the while having the discipline with stall speed and consistency.

Recently added to the family is a smaller 1130cm front wing for smaller riders in any condition or average size riders looking for more of the top end speed and hairpin arcs found in our High Aspect series. Also, we created a mast specific for the Speed series called the Pulse. The Pulse mast won’t quite have the top end glide of our Velo model, but this more affordable option has a consistent tight turning radius still offering a dose of efficient natural glide. This technological marvel of components and design theories is ideal for established advanced riders looking for more low-end torque than you would find in a High Aspect series or those just coming off their Shift mast set up looking for a faster, more reactive series. Your ticket stub to being a member of the Wake Thief Club with the capability of riding as far back as 20 waves – trust us we have done it.

INCLUDED

INCLUDED

Velo Mast - 29”

Pulse Mast - 29”

Carbon Link Fuselage - 39cm

Carbon Link Fuselage - 39cm

High Aspect Front Wing - 910cm2 or 1010cm2

Speed Front Wing - 1130cm2 / 1330cm2 / 1530cm2

High Aspect Rear Stabilizer - 135cm2

Speed Rear Stabilizer - 180cm2

Complete Hardware W/ Case

Complete Hardware W/ Case

Protective Wing / Stabilizer / Mast Sleeves

Protective Wing / Stabilizer / Mast Sleeves

Padded Foil Kit Case

Padded Foil Kit Case

Lift and Speed Shim

Lift and Speed Shim

BEST PAIRED WITH

BEST PAIRED WITH

Valkyrie Board

Blackbird Board

70 RONIX WAKEFOILS

BALANCE | 28” FLUID SERIES

BALANCE | 24” FLUID SERIES

ABILITY: INTERMEDIATE

ABILITY: INTERMEDIATE

A PERFORMANCE-READY ENTRY MODEL

THE BRIDGE BETWEEN BEGINNER AND HIGH-END FOIL OFFERINGS. OR RIDERS BEHIND A SMALL TO MID-SIZE WAVE

Created for fluidity, Balance and progression. This option has a bigger pumping zone with a taller 28” Fluid Mast and a front wing that lives up to its name The favorite foil set up of many of us at Ronix when we had a moderate baseline on how to foil – this is when we realized we could have a setup that has powerful pumps, solid response, down the line speed, and overall performance rivaling carbon setups that are twice the price. Our self-proclaimed white lightning best ridden behind mid to larger size waves, this set up is offered in either size of our Balance wing series. These wings will ask you what floor on the elevator do you want to reach – and most importantly – keep you there because of our unique twist winglet design. This lower modulus autoclave carbon constructed front wing series is available in two sizes - either a nimbler turning 1300cm. that will easily roll over to edge with its more elliptical outline and thin trailing edge. Or a more explosive 1600cm. for a rider than prioritizes adding pumping efficiency. This series will quickly set you in the sweet spot, keep you on your specified flight pattern and do it with a consistent, stable edge hold. Stay high, stay consistent, stay fluid with even tempo mast and a wing at a mid level price point.

INCLUDED

Always there to keep you inline, this mild temperament set up keeps the good vibe train moving by putting you in the right position to succeed. Designed for riders new to foiling all the way up to advanced foilers riding behind a small to mid-size wave. The mast is short enough (24”) that coordinated riders can start off with this height of a mast, while still tall enough that you can grow into a solid performer on first and second wave adventures. The Balance 1300 creates a nimble turn that will easily roll over to edge with its elliptical outline and additional width. It will quickly set you in the sweet spot, keep you on your specified flight pattern, and do it with a consistent, stable edge hold. We love the fact that the carbon wing is painted over in white so you can easily see where the front wing is relative to the waterline to help prevent breeching. This Role Model is the bridge between beginner and high-end foil offerings. A Fluid mast with even tempo mast and a wing that is upping the ante on constancy and stability.

INCLUDED Fluid Mast - 24” Alloy Link 3D Fuselage - 39cm

Fluid Mast - 28”

Balance Front Wing - 1300cm2

Alloy Link 3D Fuselage - 39cm

Balance Rear Stabilizer - 240cm2

Balance Front Wing - 1300cm2 / 1600cm2

Vertical Stabilizer - 26cm2

Balance Rear Stabilizer - 240cm2

Complete Hardware W/ Case

Vertical Stabilizer - 26cm2

Protective Wing / Stabilizer Sleeves

Complete Hardware W/ Case

Padded Foil Kit Case

Protective Wing / Stabilizer Sleeves

Lift and Speed Shim

Padded Foil Kit Case Lift and Speed Shim

BEST PAIRED WITH

BEST PAIRED WITH

727 Board

727 Board WAKEFOILS RONIX 71

BALANCE | SHIFT & 28” FLUID SERIES ABILITY: BEGINNER/ INTERMEDIATE

THE MOST COMPREHENSIVE FOIL SET UP ON THE MARKET FROM LEARNING HOW TO START TO 3RD WAVE ADVENTURES

Far and away the most complete set up in foiling. The ideal set up for those new to the sport, and a secondary mast included to complete your flight journey to a more advanced level. Welcome to the Stairway to the Heaven.

The gateway to your flight enchantment all the way up to some long-distance deep wave travels. This patent pending Shift Mast will accomplish three things for you. 1. Make deep water starts a breeze. 2. Give you the confidence to turn your foil kit and really understand the correct body position as you navigate your set up through the waters.

3. Begin your journey of flying without a handle in smaller wave conditions. Featuring our adjustable shift mast in 4 varying heights will advance your riding as you are ready to the next higher mast height. Once you feel comfortable with your Shift Mast - time to bolt on the additional 28” Fluid Mast and take your riding to new heights.

INCLUDED

BALANCE | SHIFT SERIES ABILITY: BEGINNER

THE GATEWAY TO FLIGHT – THE EASIEST FOIL SET UP AVAILABLE TO EXPERIENCE FOILING’S UPS AND DOWNS

Our best-selling set up for a reason - now has two additional mast heights. Welcome to the Stairway to the Heaven. The gateway to your flight enchantment. This patent pending Shift Mast will accomplish three things for you. 1. Make deep water starts a breeze. 2. Give you the confidence to turn your foil kit and really understand the correct body position as you navigate your set up through the waters. 3. Begin your journey of flying without a handle.

Featuring our adjustable shift mast in four varying heights that will advance your riding as you progress to the next higher mast height. The Balance 1300 creates a nimble turn that will easily roll over to edge with its elliptical outline and additional width. It will quickly set you in the sweet spot, keep you on your specified flight pattern and do it with a consistent, stable edge hold. We love the fact that the carbon wing is painted over in white so you can easily see where the front wing is relative to the waterline to help prevent breeching.

Shift 4 In 1 Mast - 17”/20“/23”/26“

INCLUDED

Fluid Mast - 28”

Shift 4 In 1 Mast - 17”/20“/23”/26“

Alloy Link 3D Fuselage - 39cm

Alloy Link 3D Fuselage - 39cm

Balance Front Wing - 1300cm2

Balance Front Wing - 1300cm2

Balance Rear Stabilizer - 240cm2

Balance Rear Stabilizer - 240cm2

Vertical Stabilizer - 26cm2

Vertical Stabilizer - 26cm2

Complete Hardware W/ Case

Complete Hardware W/ Case

Protective Wing / Stabilizer Sleeves

Protective Wing / Stabilizer Sleeves

Padded Foil Kit Case

Padded Foil Kit Case

Lift and Speed Shim

Lift and Speed Shim

BEST PAIRED WITH

BEST PAIRED WITH

727 Board

727 Board

72 RONIX WAKEFOILS

ADJUSTABLE FOOT STRAPS

PROTECTIVE NEO SLEEVES

HARDWARE KIT

The 727 and Blackbird Foil boards come complete with two adjustable foot straps. An easier foil experience learning deep water starts begins with having your feet secure in these straps.

600 Denier Nylon Padded Neo Sleeves to protect your front wing, rear stabilizer and mast.

3 | Front Wing Screws - Torx T30 Countersunk Screw M6 *25MM 4 | Foil Board Track Screws & Inserts Quick Connect Screw M6*45MM 2 | Rear Stabilizer Screws - Torx T30 Countersunk screw M6 *14MM (M6 *16MM) 2 | Fuselage To Mast Screws - Torx T30 Countersunk Screw M8 *30MM Anti-Seize Grease

VELO MAST

PULSE MAST

3 | Front Wing Screws - Torx T30 Countersunk Screw M6 *25MM 4 | Foil Board Track Screws & Inserts Quick Connect Screw M6*45MM 2 | Rear Stabilizer Screws - Torx T30 Countersunk screw M6 *16MM 4 | Mast Top Plate + Fuselage To Mast Screws - Torx T30 Countersunk Screw M8 *30MM Anti-Seize Grease

QUICK CONNECT TRACK SCREWS Make micro-adjustments to your mast location without leaving the water.

Twist the T-handle to release pressure, slide the mast forward or back, then tighten it down. The handle can be lifted and indexed into 10 different positions, so it always faces forward and stays streamlined when the board reconnects with the water.

SHIMS We offer 2 metal shims that are mounted between the fuselage and the rear stabilizer – one shim is designed for more speed while the other is created for added lift. Every Ronix set up has the rear stabilizer mounted below the fuselage, and can easily attach a shim between the two.

FLUID 24” / 28” MAST

3 | Front Wing Screws - Torx T30 Countersunk Screw M6 *25MM 4 | Foil Board Track Screws & Inserts Torx T30 Truss head Screw M6 *35MM 2 | Rear Stabilizer Screws - Torx T30 Countersunk screw M6 *16MM 4 | Mast Top Plate + Fuselage To Mast Screws - Torx T30 Countersunk Screw M8 *40MM Anti-Seize Grease SHIFT 4 IN 1 ADJUSTABLE MAST

3 | Front Wing Screws - Torx T30 Countersunk Screw M6 *25MM 4 | Foil Board Track Screws & Inserts Torx T30 Truss head Screw M6 *35MM 2 | Rear Stabilizer Screws - Torx T30 Countersunk screw M6 *16MM 4 | Mast Top Plate + Fuselage To Mast Screws - Torx T30 Countersunk Screw M8 *40MM 2 | Adjustable Mast Side Inserts + Screws - Torx T30 Customized Anti-Seize Grease

T30 T-HANDLE

FOIL STAND

The Torque T30 Stainless Steel T-Handle is an anti-rust tool that works for all Ronix foil hardware.

Each stand is crafted by us in the good ol’ US of A where all of our foil products are designed. What better flex than to perch your new Shadow Carbon set up in the middle of your living room.

WAKEFOILS RONIX 73

THE SOCIAL

ROVE KARVER

CONSTRUCTION

CONSTRUCTION

ROCKER

ROCKER

FINS

FINS

A fun board skate that’s good for your soul. We appreciate good vibes more today than we ever have. There is nothing like the enjoyment of being with your crew of family and friends partaking in wake’s great adventures. With the Social you’ll experience the freedom of jumping on a board sans footwear and sessioning the water in such a pure way. The shape of the skate incorporates the concave and built-in kick tail with the performance of our high-end wakeboard construction. We took our popular Electric Collective series and made a compression molded version filled with our magical Modello foam. The result is our most buoyant and durable skate designed for social aquatic gatherings of like-minded congenial harvesters. It is such a fun sport, and we are proud to offer a model catering to its innocence.

A fun board skate that’s good for your soul. We appreciate good vibes more today than we ever have. There is nothing like the enjoyment of being with your crew of family and friends partaking in wake’s great adventures. With the Social you’ll experience the freedom of jumping on a board sans footwear and sessioning the water in such a pure way. The shape of the skate incorporates the concave and built-in kick tail with the performance of our high-end wakeboard construction. We took our popular Electric Collective series and made a compression molded version filled with our magical Modello foam. The result is our most buoyant and durable skate designed for social aquatic gatherings of like-minded congenial harvesters. It is such a fun sport, and we are proud to offer a model catering to its innocence.

SIZE (IN)

WEIGHT (LBS)

ROCKER (IN)

CENTER (IN)

SA (SQ IN)

SIZE (IN)

WEIGHT (LBS)

ROCKER (IN)

CENTER (IN)

SA (SQ IN)

42 45

UP TO 170 165+

2.1 2.3

15.6 16

680 712

40 42 44

UP TO 180 155+ 165+

1.8 1.9 2

16.2 16.2 16.2

594 623 653

MODELLO/EVA TOP DECK

MAPLE WOOD/ EVA TOP DECK

BLENDED

BLENDED

1.2” (2) SKATE FINS

74 RONIX WAKESKATES

1.75” (3) HOOK WAKE FINS

41

45

ELECTRIC COLLECTIVE CONSTRUCTION

MAPLE WOOD/ EVA TOP DECK ROCKER

BLENDED FINS

1.2” (2) SKATE FINS The wood constructed alternative concave skate. Created with a smooth, explosive lift like the rest of our skates, and with built-in concave/ kicktail for skaters looking for stability and board control. Without being anymore sensationalized than we already are, we think we found a way to bottle the emotion of the “it” factor. An electrifying marine dance that our wood board riding forefathers would be proud of.

SIZE (IN)

WEIGHT (LBS)

ROCKER (IN)

CENTER (IN)

SA (SQ IN)

41 45

UP TO 180 160+

1.8 2

15.4 16.2

567 621

WAKESKATES RONIX 75

L50 VS. L70 Let’s talk Newtons. In water safety, a Newton is the standard unit used to measure buoyancy, or the lifting force of a life vest. Roughly 10 Newtons equals 1 kilogram (2.2 pounds) of flotation. For years, U.S. Coast Guard approved life jackets required a minimum of 70 Newtons of buoyancy, providing approximately 7 kilograms (15.4 pounds) of lift. For 2027, that changed. North America has now approved 50 Newton life jackets, aligning with standards that have existed in many other parts of the world for years. What does that mean? The new L50 category sits roughly halfway between a traditional impact jacket and a conventional L70 Coast Guard Approved vest. It isn’t designed for everyone. Instead, it offers strong swimmers in calm, sheltered conditions with immediate rescue access a thinner, lighter, and more flexible alternative. Less flotation. More mobility. A new option for riders who prioritize freedom of movement without sacrificing Coast Guard approval.

VEST FILES For 2027, we offer four men’s and four women’s CGA fits, providing a personalized fit for nearly every body type.

CAPELLA 4.0 | L50 SERIES Our new benchmark for flexibility. This streamlined design delivers a level of mobility previously unseen in a Coast Guard Approved vest. Built around our cylindrical construction, flotation is distributed around the entire torso, prioritizing side protection and buoyancy as much as the chest and back for a more balanced fit and feel.

Designed for standard to long torsos.

CAPELLA 3.0 | L70 SERIES Our timeless blend of flotation, comfort, and mobility, offering added buoyancy in the chest area and a thinner, more flexible profile through the stomach. Built with the same cylindrical construction as the Capella 4.0, buoyancy is distributed more evenly around the torso while maintaining the additional flotation of an L70 vest. The result is a secure fit with enhanced side protection and freedom of movement. Designed for standard to long torsos.

YES | L70 SERIES Is it Coast Guard Approved? Yes. Was it designed with a lightweight, minimalist philosophy? Yes. Will your jokes get funnier? Yes. Will the fashion police take notice? Also yes.

Beyond the questions, the Yes is a thoughtfully designed CGA vest blending clean styling, eco-conscious materials, and all-day comfort. A versatile fit accommodates both standard and longer torsos.

STANDARD | L70 SERIES Can’t justify the ticket price of our technology jackets, but don’t want to compromise buoyancy? For riders looking for dependable flotation at our most approachable price, the Standard delivers everything required and nothing unnecessary. Its lower-cut profile is ideal for shorter to standard torsos and makes it particularly comfortable while sitting in a boat or relaxing between sets. Simple.

Comfortable. Reliable.

CGA FRONT FOAMS

DIAMOND FLEX FOAM Diamonds are now a man’s best friend too! A siped pattern in our foam for a primo formation around your body. Found on Cushion Foam.

CGA BACK FOAMS

CGA FRONT & BACK FOAMS

CGA FRONT FOAMS

CUSHION FOAM

2 TO 1 FOAM

Foam made from the heavens of softness.

The foam starts in the chest at 2” thick, then fades to 1” thick around your waist. Buoyancy where you need it, and mobility where you want it.

CGA BACK FOAMS

FIT

SUPPORTIVE FOAM

FOAM TIE STRAPS

MANHATTAN TAILORED FIT

For the rider that wants extra pressure on their back with built in lumbar support. Power and response in your jacket.

We tuck our foam in a harness so there is no shift between the shell and the inner foam.

We went deep into the outfitting process and borrowed some principles from lifelong NYC tailors who know what it takes to form a flawless fit. Mr. Manhattan created ideal dimensions in 8 different sizes.

FIT

FUNCTION

FIT

WOMEN’S TAILORED FIT

CYLINDRICAL CONSTRUCTION

TWO DIFFERENT TORSO FITS

We took our award winning fit and adapted it for a woman’s physique in three of our models.

There was this homie named Capella from back in the day. He knew the earth was round. We ripped off his theories and made our vests round. A cylindrical fit that curves to your body unlike any flat vest. The only vest of its kind.

We offer a variety of standard to long torso jackets - and also short to standard jackets that are also ideal for sitting down regardless of height.

CGA VESTS RONIX 77

FIT

FUNCTION

SKIVED FOAM

WATER RESISTANT LINER

Every CGA jacket has 45° edges to improve flexibility and reduce bunching.

FUNCTION

FUNCTION

78 RONIX CGA VESTS

FUNCTION

NECK & ARM HOLE FLEECE LINER

Sometimes those arms like to flap – these bigger holes let you roll the windows down with ease.

ECO

Neoprene is normally made of petrochemicals - instead we use neoprene made from Limestone.

It also lasts longer and is more comfortable.

Extra smooth to the touch – and extra repellent to water. A velvety harvest baptized from the strands of goodness.

OVERSIZED ARM HOLES

A neoprene sponge material that moves side to side when you do.

NATURE’S NEOPRENE

SILK SKIN

You know that annoying face you make when you must try on your buddy’s wet life vest? Not no more.

We created a liner that greatly reduces water seeping into a vest, and most importantly, reducing the weird “wet vest” face.

2 WAY STRETCH

ECO

FUNCTION

ECO

Happy kids = happy boating.

Nothing makes kids happier than the soft fleece lining on our vests.

That’s why all our little tyke models come equipped with this happy technology.

H20 YARN

H20 GLUE

A wide selection of our fabrics are knitted with yarn made from recycled plastic bottles.

Most of our neoprene is laminated together with a water-based glue.

MEN’S

TROOPER

ATLAS

CAPELLA 4.0

CAPELLA 4.0

US/CANADA COAST GUARD APPROVED

US / CANADA COAST GUARD APPROVED

L50 – LOW PROFILE CGA – RECOMMENDED FOR CONFIDENT SWIMMERS ONLY

L50 – LOW PROFILE CGA – RECOMMENDED FOR CONFIDENT SWIMMERS ONLY

The name says it all. Much like its land-dwelling siblings this vest creates aquatic law and order. Protecting us from the unknowns that lurk beneath us with its buoyant but flexible new design that is over 25% thinner than last year’s yet still approved by the Coast Guard. Built free from any abrasion with our new Silk Skin fabric for a softer ride down buoyancy cove. Still not impressed? The Trooper is also guaranteed to regulate your beverages temperature with a built in coldy holdy.

Atlas carried the world - a feat almost as monumental as this new CGA vest. This jacket is over 25% thinner than its high-end wake floating predecessor. A cylindrical circumference lightweight slim contoured new extra flexible CGA vest. It is made from Silk Skin fabric that has softness tuned up irresponsibly high. Along with all of our Capella 4.0’s we offer technology guaranteed to regulate a beverages temperature with a built in coldy holdy.

FEATURES

FEATURES

NEW L50 Buoyancy

Neoprene Outer Layer

NEW L50 Buoyancy

Silk Skin Outer Layer

Manhattan Tailored Fit

Water Resistant Liner

Manhattan Tailored Fit

Water Resistant Liner

Standard & Longer Torso Fit

2 Way Stretch

Standard & Longer Torso Fit

2 Way Stretch

Cylindrical Fit

Foam Tie Straps

Cylindrical Fit

Foam Tie Straps

Chest & Back Cushion Foam

Oversized Arm Holes

Chest & Back Cushion Foam

Oversized Arm Holes

Skived Foam

Comes with Cold Holdy

Diamond Flex Foam

Comes with Cold Holdy

Silk Skin Outer Layer

Skived Foam

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

S M L XL 2XL

33-36 36-39 39-42 42-45 45-48

84-91 91-99 99-107 107-114 114-122

S M L XL 2XL

33-36 36-39 39-42 42-45 45-48

84-91 91-99 99-107 107-114 114-122 CGA VESTS RONIX 79

MEN’S

PHANTOM

APOLLO

CAPELLA 4.0

CAPELLA 4.0

US/CANADA COAST GUARD APPROVED

US/CANADA COAST GUARD APPROVED

L50 – LOW PROFILE CGA – RECOMMENDED FOR CONFIDENT SWIMMERS ONLY

L50 – LOW PROFILE CGA – RECOMMENDED FOR CONFIDENT SWIMMERS ONLY

Some products make a statement. The Phantom disappears. Built around our new cylindrical Capella 4.0 platform, this is the thinnest CGA vest we have ever created.

More flexibility. More freedom. Less awareness that you’re wearing flotation at all. A ultra thin chest profile that disperses foam around your sides for adding protection on your rib cage. A symphony of bubbles could be poured and cooled with your built in coldy holdy. A marvel of flexible excellence awaits in this new 25% tinner jacket.

For 13 years, we designed, tested, and innovated at Lake Ronix, just minutes from Cape Canaveral. In honor of that chapter, we are proud to present the latest in flexible flotation: the Apollo. Built around our new cylindrical Capella 4.0 platform, this creative powerhouse delivers the freedom and flexibility of our favorite impact jackets with buoyancy that still meets CGA certification. A new Coast Guard Approved jacket that is 25% thinner than anything we have previously developed. And yes, your beverage gets its own launch pad with a built-in Cold Holdy.

FEATURES NEW L50 Buoyancy

Lightweight 3D Mesh Outer Layer

FEATURES

Manhattan Tailored Fit

Water Resistant Liner

NEW L50 Buoyancy

Lightweight 3D Mesh Outer Layer

Standard & Longer Torso Fit

2 Way Stretch

Manhattan Tailored Fit

Water Resistant Liner

Cylindrical Fit

Foam Tie Straps

Standard & Longer Torso Fit

2 Way Stretch

Chest Cushion Foam

Oversized Arm Holes

Cylindrical Fit

Foam Tie Straps

Back Supportive Foam

Comes with Cold Holdy

Chest Cushion Foam

Oversized Arm Holes

Back Supportive Foam

Comes with Cold Holdy

Skived Foam

Tyler Higham Signature Vest

Skived Foam SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

S M L XL 2XL

33-36 36-39 39-42 42-45 45-48

84-91 91-99 99-107 107-114 114-122

S M L XL 2XL

33-36 36-39 39-42 42-45 45-48

84-91 91-99 99-107 107-114 114-122

80 RONIX CGA VESTS

MEN’S

KOAL

VOLCOM

CAPELLA 3.0

YES

US COAST GUARD APPROVED

US/CANADA COAST GUARD APPROVED

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

Every surfer needs a home break. The Koal is ours. A tapered design creates maximum lift where you need it and maximum freedom where you don’t. This Capella features the most in buoyancy , but we still have mobility through the waist that gradually gets thinner from your shoulders to your waistline. The ultimate The endless summer barrel vest also has a cylindrical design that emphasizes additional padding around your rib cage and disperses the flotation more evenly around your body.

Flotation without impeding surf flexibility.

Did you know stones float? When you look at the Volvom Stone logo you feel it-you don’t just see it. For decades Volcom has built a culture around individuality, creativity, and doing things their own way. Together we created a Coast Guard approved vest with the same philosophy.

Together we created a Coast Guard approved vest with the same philosophy. Timeless fit, eco-conscious materials, and the freedom to move without distraction.

FEATURES

FEATURES

Manhattan Tailored Fit

Water Resistant Liner

Manhattan Tailored Fit

Skived Foam

Standard & Longer Torso Fit

Oversized Arm Holes

Standard & Longer Torso Fit

Lightweight 3D Mesh Outer Layer

Chest Cushion Foam

2 Way Stretch

Cylindrical Fit

Water Resistant Liner

Back Supportive Foam

H20 Glue

Chest Cushion Foam

2 Way Stretch

Skived Foam

Nature’s Neoprene

Back Supportive Foam

Oversized Arm Holes

Neoprene Outer Layer

H20 Yarn

2 To 1 Foam SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

S M L XL 2XL 3XL 4XL

31-34 34-37 37-40 40-43 43-46 46-49 49-52

79-86 86-94 94-102 102-109 109-117 117-124 124-132

S M L XL 2XL 3XL

31-34 34-37 37-40 40-43 43-46 46-49

79-86 86-94 94-102 102-109 109-117 117-124

CGA VESTS RONIX 81

MEN’S

DYNO

BLACKJACK

YES

YES

US/CANADA COAST GUARD APPROVED

US/CANADA COAST GUARD APPROVED

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

Let’s take a trip down TV memory lane. You remember one of the all-time greats called Good Times? Jimmie Walker goes into story time mode talking about how his girlfriend’s smile lights up the night – dyno mite!!! In honor of of the comedic greats we offer a Eco-friendly North American approved masterpiece - the Dyno. Bold, lighthearted and safe – all in one.

We doubled down on our eco-friendly material design with our latest CGA vest - the Blackjack. A stealth look and a fit created by a renowned suit tailor in NYC. True story, we hired a respected tailor to design the perfect fit from Small to 3XL. Be sure to hold when a dealer is showing a 6 - and check out our latest floating device.

FEATURES

FEATURES

Manhattan Tailored Fit

Water Resistant Liner

Manhattan Tailored Fit

Water Resistant Liner

Standard & Longer Torso Fit

2 Way Stretch

Standard & Longer Torso Fit

2 Way Stretch

Chest Cushion Foam

Oversized Arm Holes

Chest Cushion Foam

Oversized Arm Holes

Back Supportive Foam

H20 Glue

Back Supportive Foam

H20 Glue

Skived Foam

Nature’s Neoprene

Skived Foam

Nature’s Neoprene

Lightweight 3D Mesh Outer Layer

H20 Yarn

Lightweight 3D Mesh Outer Layer

H20 Yarn

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

S M L XL 2XL 3XL

31-34 34-37 37-40 40-43 43-46 46-49

79-86 86-94 94-102 102-109 109-117 117-124

S M L XL 2XL 3XL

31-34 34-37 37-40 40-43 43-46 46-49

79-86 86-94 94-102 102-109 109-117 117-124

82 RONIX CGA VESTS

MEN’S

REALM

COVERT

STANDARD FIT

STANDARD FIT

US / CANADA COAST GUARD APPROVED

US / CANADA COAST GUARD APPROVED

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

At Ronix we love sourcing advanced materials, designing beautiful products – and also more affordable practical items that just make sense - like the Realm. Designed to fit shorter to standard torsos – also ideal to wear while sitting on a jet ski or a boat with its more compact fit. Don’t let its unassuming lane of specs and features fool you - a must for many spectators and water patrons.

Buoyancy on a budget. Without a heavy sigh, this vest is a flat traditional construction – but it has a certain je ne sais quoi. You see, this little floatable tiger has a spirit that is just undeniable and comes in at our most affordable value. Designed to fit shorter to standard torsos – also ideal to wear while sitting on a jet ski or a boat with its more compact fit.

FEATURES

FEATURES

Short & Standard Torso Fit

2 Way Stretch

Short & Standard Torso Fit

2 Way Stretch

Chest Cushion Foam

Oversized Arm Holes

Chest Cushion Foam

Oversized Arm Holes

Back Supportive Foam

H20 Glue

Back Supportive Foam

H20 Glue

Skived Foam

Nature’s Neoprene

Skived Foam

Nature’s Neoprene

Lightweight 3D Mesh Outer Layer

H20 Yarn

Lightweight 3D Mesh Outer Layer

H20 Yarn

Water Resistant Liner

Water Resistant Liner

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

S M L XL 2XL 3XL

35-37.5 37.5-40 40-42.5 42.5-45 45-47.5 47.5-50

89-95 95-102 102-108 108-114 114-121 121-127

S M L XL 2XL 3XL

35-37.5 37.5-40 40-42.5 42.5-45 45-47.5 47.5-50

89-95 95-102 102-108 108-114 114-121 121-127 CGA VESTS RONIX 83

WOMEN’S

RISE

ECHO

CAPELLA 4.0

CAPELLA 4.0

US/CANADA COAST GUARD APPROVED

US/CANADA COAST GUARD APPROVED

L50 – LOW PROFILE CGA – RECOMMENDED FOR CONFIDENT SWIMMERS ONLY

L50 – LOW PROFILE CGA – RECOMMENDED FOR CONFIDENT SWIMMERS ONLY

The Rise name has always stood for women’s specific fit and performance. Now the collection enters flotation with a vest that fits like no other. We are proud to debut the thinnest profile, lightest and most flexible CGA vest ever developed. New for this year we have a jacket that fits more like an impact vest but still provides certified flotation.

A lightweight, cylindrical CGA vest with added flexibility.

For years, we have been developing Coast Guard-approved jackets with the freedom and mobility of your favorite impact vest. The world debut of the new voice of the water – Echo is our thinnest-profile jacket to date - the new voice of low-profile flotation.

FEATURES

FEATURES

NEW L50 Buoyancy

Neoprene Outer Layer

NEW L50 Buoyancy

Lightweight 3D Mesh Outer Layer

Women’s Tailored Fit

Water Resistant Liner

Women’s Tailored Fit

Water Resistant Liner

Standard & Longer Torso Fit

2 Way Stretch

Standard & Longer Torso Fit

2 Way Stretch

Cylindrical Fit

Foam Tie Straps

Cylindrical Fit

Foam Tie Straps

Chest & Back Cushion Foam

Oversized Arm Holes

Chest & Back Cushion Foam

Oversized Arm Holes

Skived Foam

Comes with Cold Holdy

Skived Foam

Comes with Cold Holdy

Neoprene Outer Layer

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

XS S M L

32-35 35-37 37-39 40-42

81-89 89-94 94-99 102-107

XS S M L

32-35 35-37 37-39 40-42

81-89 89-94 94-99 102-107

84 RONIX CGA VESTS

WOMEN’S

SKYE

SUPERNOVA

CAPELLA 4.0

CAPELLA 3.0

US/CANADA COAST GUARD APPROVED

US/CANADA COAST GUARD APPROVED

L50 – LOW PROFILE CGA – RECOMMENDED FOR CONFIDENT SWIMMERS ONLY

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

Skye was inspired by the riders who are always looking beyond the double up, the next slaysh, the next possibility.

The ones who treat every calm morning and every glassy sunset like an unopened letter from the water. The sky spends all day becoming something else. Curiosity should too. We are proud to debut the lightest, thinnest and most flexible Coast Guard approved vest to date.

The ultimate women’s CGA vest for riders wanting maximum CGA float – and a tapered foam design that gradually gets thinner from your shoulders to your waistline. The thin profile through your stomach makes it so much easier to crouch down for a well- executed wakeboard grab or to be in a more relaxed surf body position. The Supernova vest also has a cylindrical design that emphasizes additional padding around your rib cage and disperses the floatation more evenly around your body.

Built with more flotation that our new Capella 4.0 line up.

FEATURES NEW L50 Buoyancy

Lightweight 3D Mesh Outer Layer

Women’s Tailored Fit

Water Resistant Liner

Standard & Longer Torso Fit

2 Way Stretch

FEATURES

Cylindrical Fit

Foam Tie Straps

Women’s Tailored Fit

Skived Foam

Chest & Back Cushion Foam

Oversized Arm Holes

Standard & Longer Torso Fit

Neoprene Outer Layer

Skived Foam

Comes with Cold Holdy

Cylindrical Fit

Water Resistant Liner

Chest Cushion Foam

2 Way Stretch

Back Supportive Foam

Oversized Arm Holes

2 To 1 Foam

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

XS S M L

32-35 35-37 37-39 40-42

81-89 89-94 94-99 102-107

S M L XL

35-37 37-39 40-42 43-45

89-94 94-100 101-108 109-115 CGA VESTS RONIX 85

WOMEN’S

AVALON

DAYDREAM

YES

STANDARD FIT

US/CANADA COAST GUARD APPROVED

US/CANADA COAST GUARD APPROVED

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

Ohhh YES! Ladies rejoice there is a fabulous fitting North American CGA masterpiece with the same features as our popular Men’s Yes line of vests – now scaled for a woman’s torso. A more affordable option than our Capella series, and greater range of motion than our Daydream vest.

Safety doesn’t take a vacation. Our most affordable CGA vest is still packed with features for female shredders looking for solid buoyancy and comfort in a functional design. A wishful creation of the imagination.

FEATURES

FEATURES

Short & Standard Torso Fit

2 Way Stretch

Women’s Tailored Fit

Water Resistant Liner

Chest Cushion Foam

Oversized Arm Holes

Standard & Longer Torso Fit

2 Way Stretch

Back Supportive Foam

H20 Glue

Chest Cushion Foam

Oversized Arm Holes

Skived Foam

Nature’s Neoprene

Back Supportive Foam

H20 Glue

Lightweight 3D Mesh Outer Layer

H20 Yarn

Skived Foam

Nature’s Neoprene

Water Resistant Liner

Lightweight 3D Mesh Outer Layer

H20 Yarn

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

S M L XL 2XL

35-37 37-39 40-42 43-45 46-48

89-94 94-100 101-108 109-115 116-122

S M L XL

33-36 36-39 39-42 42-45

84-91 91-99 99-107 107-114

86 RONIX CGA VESTS

KID’S

DRIVER’S ED

PROM QUEEN

CAPELLA 3.0

CAPELLA 3.0

US/CANADA COAST GUARD APPROVED

US/CANADA COAST GUARD APPROVED

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

Peak performance in a teen vest. You might still have to drive with your parents – but at least you will have the most innovative design in a Coast Guard Life Vest. Teenage years are about freedom – and this vest gives them even more of it, with tapered 2-to-1 foam and a cylindrical design for a better fit and added mobility.

Jump on stage and accept our teen CGA crown. This CGA vest was designed for the Prom Queen of the lake. Built around a cylindrical design with tapered 2-to-1 foam, no other teen vest fits like it.

FEATURES

FEATURES Tailored Fit

2 To 1 Foam

Standard & Longer Torso Fit

Skived Foam

Tailored Fit

2 To 1 Foam

Cylindrical Fit

Lightweight 3D Mesh Outer Layer

Standard & Longer Torso Fit

Skived Foam

Chest Cushion Foam

Water Resistant Liner

Cylindrical Fit

Lightweight 3D Mesh Outer Layer

Back Cushion Foam

2 Way Stretch

Chest Cushion Foam

Water Resistant Liner

Back Supportive Foam

Oversized Arm Holes

Back Cushion Foam

2 Way Stretch

Back Supportive Foam

Oversized Arm Holes

SIZE

WEIGHT (LBS)

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

WEIGHT (LBS)

CHEST SIZE (IN)

CHEST SIZE (CM)

TEEN

95-125

30-33

76-84

TEEN

95-125

30-33

76-84 CGA VESTS RONIX 87

KID’S

NEPTUNE

ATLANTIS

CAPELLA 3.0

CAPELLA 3.0

US/CANADA COAST GUARD APPROVED

US/CANADA COAST GUARD APPROVED

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

A boys’ model for a very important size. Not quite ready to fill out a teen vest – but no longer a grom fitting into our popular youth series. For several years we developed this series with a panel of riders just hitting the century mark on the scale so we could determine the right fit. And so the Junior Neptune Capella was born. Same proven technology as the rest of our other high-end vests.

A girls’ model for a very important size. Not quite ready to fill out a teen vest – but too tall to fit into our popular youth series. For the past several years we have been developing this new series with a panel of riders just hitting the century mark on the scale so we could determine the right fit. And so the Junior Atlantis Capella was born. A new size – with the same proven technology as the rest of our other highend vests.

FEATURES Tailored Fit

2 To 1 Foam

FEATURES

Standard & Longer Torso Fit

Skived Foam

Tailored Fit

2 To 1 Foam

Cylindrical Fit

Lightweight 3D Mesh Outer Layer

Standard & Longer Torso Fit

Skived Foam

Chest Cushion Foam

Water Resistant Liner

Cylindrical Fit

Lightweight 3D Mesh Outer Layer

Back Cushion Foam

2 Way Stretch

Chest Cushion Foam

Water Resistant Liner

Back Supportive Foam

Oversized Arm Holes

Back Cushion Foam

2 Way Stretch

Back Supportive Foam

Oversized Arm Holes

SIZE

WEIGHT (LBS)

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

WEIGHT (LBS)

CHEST SIZE (IN)

CHEST SIZE (CM)

JUNIOR

75-105

27-30

68.5-76

JUNIOR

75-105

27-30

68.5-76

88 RONIX CGA VESTS

KID’S

YOUTH US/CA COAST GUARD APPROVED

YOUTH US/CA COAST GUARD APPROVED

TODDLER US COAST GUARD APPROVED

CHILD US/CA COAST GUARD APPROVED

TODDLER US COAST GUARD APPROVED

CHILD US/CA COAST GUARD APPROVED

TOP GROM

LAGUNA

BOY’S STANDARD FIT

GIRL’S STANDARD FIT

COAST GUARD APPROVED

COAST GUARD APPROVED

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

The standard in luxury kids’ life jackets. All of these vests are softer, extra comfortable, and most importantly, they float.

This series has every premium innovation we could come up with. These jackets are made from a plush inner and outer neoprene material, have added fleece to further that lavish feeling, and forgiving neoprene covered webbing straps. Everything about this series of kid’s CGA jackets is designed for added coziness and durability, to allow for more time in the water or on the boat.

The standard in luxury kids’ life jackets. All of these vests are softer, extra comfortable, and most importantly, they float.

This series has every premium innovation we could come up with. These jackets are made from a plush inner and outer neoprene material, have added fleece to further that lavish feeling, and forgiving neoprene covered webbing straps. Everything about this series of kid’s CGA jackets is designed for added coziness and durability, to allow for more time in the water or on the boat.

FEATURES

FEATURES

Fleece Liner

Fleece Liner

Neoprene Outer Layer

Neoprene Outer Layer

Neo Webbing Cover

Neo Webbing Cover

Chest Cushion Foam

Chest Cushion Foam

Back Supportive Foam

Back Supportive Foam

2 Way Stretch

2 Way Stretch

SIZE

WEIGHT (LBS)

WEIGHT (KG)

SIZE

WEIGHT (LBS)

WEIGHT (KG)

YOUTH CHILD TODDLER

64 - 88 33 - 55 UP TO 30

29-40 15-25 UP TO 14

YOUTH CHILD TODDLER

64 - 88 33 - 55 UP TO 30

29-40 15-25 UP TO 14 CGA VESTS RONIX 89

KID’S

YOUTH US/CA COAST GUARD APPROVED

YOUTH US/CA COAST GUARD APPROVED

TODDLER US COAST GUARD APPROVED

CHILD US/CA COAST GUARD APPROVED

TODDLER US COAST GUARD APPROVED

CHILD US/CA COAST GUARD APPROVED

VISION

AUGUST

BOY’S STANDARD FIT

GIRL’S STANDARD FIT

COAST GUARD APPROVED

COAST GUARD APPROVED

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

L70 – THICKER PROFILE CGA – FROM OUR MOST TIME-TESTED RECIPE OF ADDED FLOTATION

The foundation of kids’ CGA jackets. Using materials and designs that will keep your child comfortable for an all-day boating adventure. Available in three vest sizes for the up and coming lake day legends.

The foundation of kids’ CGA jackets. Using materials and designs that will keep your child comfortable for an all-day boating adventure. Available in three vest sizes for the up and coming boat captains.

FEATURES

FEATURES

Fleece Liner

Fleece Liner

Lightweight 3D Mesh Outer Layer

Lightweight 3D Mesh Outer Layer

Chest Cushion Foam

Chest Cushion Foam

Back Supportive Foam

Back Supportive Foam

2 Way Stretch

2 Way Stretch

SIZE

WEIGHT (LBS)

WEIGHT (KG)

SIZE

WEIGHT (LBS)

WEIGHT (KG)

YOUTH CHILD TODDLER

64 - 88 33 - 55 UP TO 30

29-40 15-25 UP TO 14

YOUTH CHILD TODDLER

64 - 88 33 - 55 UP TO 30

29-40 15-25 UP TO 14

90 RONIX CGA VESTS

FIT

FIT

IMPACT JACKETS Roughly ½ the rebound of our CGA files – these jackets are meant for shallow settings where shock reduction and flexibility are the focal point – not flotation.

SHORT / STANDARD VS. STANDARD / LONG TORSO FIT It can be just a little awkward when your belly button is saying hello. So, we have two different length torso fits.

ATHLETIC FIT VS. STANDARD FIT

OVERSIZED ARM HOLES

MANHATTAN TAILORED FIT

Sometimes those arms like to flap – these bigger holes let you roll the windows down with ease.

Designed entirely for the avid waterman. We went deep into the outfitting process and borrowed some principles from lifelong NYC tailors who know what it takes to form a flawless fit. Mr. Manhattan created ideal dimensions in 8 different sizes.

In addition to varying lengths, we also offer two distinct chest builds.

Some riders are stocky – others are slender – we wanted an impact jacket for each version.

FIT

FIT

STANDARD & LONGER TORSO FIT Vests that fit traditional chest lengths or longer versions - it’s just a little awkward when your belly button is saying hello.

FUNCTION

FUNCTION

WOMEN’S TAILORED FIT

STITCHED

BY ROBOTS

We took our award winning fit and adapted it for a woman’s physique.

We have a robot that can thread the needle and weave the dream like no other lifejacket. Stitching our way to happiness with 39 precision individual flex segments.

FUNCTION

SILK SKIN

4 WAY STRETCH

The least abrasive material to ever be used in the life vest world. Extra smooth to the touch – and extra repellent to water.

Your body can end up in some contorted positions when you are riding - this material has the mobility to take that journey with you.

FUNCTION

WATER RESISTANT LINER You know that annoying face you make when you have to try on your buddy’s wet life vest? Not no more.

We created a liner that greatly reduces water seeping into a vest, and most importantly, reducing the weird “wet vest” face.

IMPACT VESTS RONIX 91

MEN’S

MIXTAPE

VADER

IMPACT

CE APPROVED

IMPACT

NON CGA

CE APPROVED

Before playlists became infinite and disposable, a mixtape required choices. Every song earned its place. The order mattered. The opening track was an introduction. The closing track was a goodbye. The spaces between songs often said as much as the songs themselves. Correlation between the significance of mixtapes and this spell-binding impact jacket you ask? Not much – we are just fans of both.

NON CGA

Most everything we sell is conceptualized by the Big 3 – Reps, Riders, and Retailers. The engineers at Ronix have been thinking of their ultimate aquatic dream machine for years now. So they bought a robot and had it craft a vest with roughly three times the number of segments of a traditional impact jacket for the ultimate in mobility. Then we worked with a leading textile supplier on a new fabric that takes soft to the touch to a new level, aka Silk Skin.

FEATURES 42 Flex Zones

Neoprene Outer Layer

FEATURES

Manhattan Tailored Fit

Water Resistant Liner

46 Flex Zones

Neoprene Outer Layer

Short & Standard Torso Fit

4 Way Stretch

Manhattan Tailored Fit

Silk Skin

Athletic Fit

Oversized Arm Holes

Standard & Long Torso Fit

Water Resistant Liner

Cylindrical Fit

Chest Zipper Pocket

Athletic Fit

4 Way Stretch

Chest & Back Super Cush Flex Foam

Massi Piffa Signature Vest

Cylindrical Fit

Oversized Arm Holes

Chest & Back Flex Foam

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

S M L XL 2XL

31-34 34-37 37-40 40-43 43-45

79-86 86-94 94-102 102-109 109-114

XS S M L XL 2XL

28-31 31-34 34-37 37-40 40-43 43-45

71-79 79-86 86-94 94-102 102-109 109-114

92 RONIX IMPACT VESTS

MEN’S

SUPREME

PRESIDENTE

IMPACT

CE APPROVED

IMPACT

NON CGA

CE APPROVED

The pinnacle of unassuming flamboyance. When we think of Jake Pelot and this Supreme jacket, we think of modesty.

It’s fitting that the two like each other; our sport’s most stylish rider prefers this unpretentious chic impact jacket with Impact CE Approval.

NON CGA

Conceptualized by the boss of Ronix, this 5-year classic returns with a timeless construction, fit, and look. This timeless piece is our best-value impact jacket – yet still comes with our 4-way stretch, and extra smooth Silk Skin.

FEATURES

FEATURES

18 Flex Zones

Neoprene Outer Layer

18 Flex Zones

Neoprene Outer Layer

Manhattan Tailored Fit

Silk Skin

Manhattan Tailored Fit

Silk Skin

Standard & Long Torso Fit

Water Resistant Liner

Standard & Long Torso Fit

Water Resistant Liner

Athletic Fit

4 Way Stretch

Athletic Fit

4 Way Stretch

Cylindrical Fit

Oversized Arm Holes

Cylindrical Fit

Oversized Arm Holes

Chest & Back Flex Foam

Chest & Back Flex Foam

Jake Pelot Signature Vest

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

S M L XL 2XL

31-34 34-37 37-40 40-43 43-45

79-86 86-94 94-102 102-109 109-114

XS S M L XL 2XL

28-31 31-34 34-37 37-40 40-43 43-45

71-79 79-86 86-94 94-102 102-109 109-114 IMPACT VESTS RONIX 93

MEN’S

WOMEN’S

COVENANT

MOON STONE

IMPACT

CE APPROVED

IMPACT

NON CGA

NON CGA

Covenant is a promise with roots and a jacket made for flexibility and the never-ending changes that come with every ride. An ageless, casual fitting impact jacket made with extra 4-way stretch and smooth Silk Skin. Built on the architecture of trust and adaptability.

FEATURES

The engineers at Ronix have been thinking of their ultimate aquatic dream machine for years now. So they bought a robot and had it craft a vest with roughly three times the number of segments of a traditional impact jacket for the ultimate in mobility. Then we worked with a leading textile supplier on a new fabric that takes soft to the touch to a new level, aka Silk Skin. 38 segments – each created with extra mobility in mind.

18 Flex Zones

Neoprene Outer Layer

Manhattan Tailored Fit

Silk Skin

Standard & Long Torso Fit

Water Resistant Liner

FEATURES

Casual Fit

4 Way Stretch

38 Flex Zones

Neoprene Outer Layer

Cylindrical Fit

Oversized Arm Holes

Women’s Tailored Fit

Silk Skin

Standard & Long Torso Fit

Water Resistant Liner

Athletic Fit

4 Way Stretch

Cylindrical Fit

Oversized Arm Holes

Chest & Back Flex Foam

Ava Stewart Signature Vest

Chest & Back Flex Foam

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

S M L XL 2XL

33-36 36-39 39-43 43-46 46-49

84-91.5 91.5-99 99-109 109-116 116-124.5

XS S M L XL

26-28 29-32 33-35 36-38 39-41

66-72 73-82 83-90 91-97 98-104

94 RONIX IMPACT VESTS

WOMEN’S

RISE

CORAL

IMPACT CE APPROVED

IMPACT NON CGA

CE APPROVED

NON CGA

A lightweight impact fashion garment. Ladies, we would like to cordially invite you to the world of lightweight impact vests. The Rise might not check the buoyancy box with the Coast Guard - but has independence in its mobility with flex foam.

The latest impact jacket to grace the waterway. This new stunner shares similar lines as the Rise impact jacket. For tenacious swimming females that are okay with sacrificing buoyancy for reduced weight and greater mobility with flex foam.

FEATURES

FEATURES

15 Flex Zones

Neoprene Outer Layer

18 Flex Zones

Neoprene Outer Layer

Women’s Tailored Fit

Silk Skin

Women’s Tailored Fit

Silk Skin

Short & Standard Torso Fit

Water Resistant Liner

Standard & Long Torso Fit

Water Resistant Liner

Athletic Fit

4 Way Stretch

Casual Fit

4 Way Stretch

Chest & Back Flex Foam

Oversized Arm Holes

Chest & Back Flex Foam

Oversized Arm Holes

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

XS S M L XL

26-28 29-32 33-35 36-38 39-41

66-72 73-82 83-90 91-97 98-104

XS S M L XL

28-30 31-33 34-37 38-40 41-43

66-72 73-82 83-90 91-97 98-104 IMPACT VESTS RONIX 95

NYLON W/ SILICONE BUMPER END CAPS The One handle has a nylon-based construction with soft silicone honeycomb hand bumpers.

SILICONE END CAPS We developed an ultralightweight, silicone-molded end cap durable enough for summer’s wear and tear.

SILICONE SEAM GRIP CLOSURE

TAPED SEAM GRIP CLOSURE

We’ve gone from that old baseball stitching weave to a Silicone Seam that is buttery smooth on your hands.

Provides a seamless material grip wrapped around our airplane aluminum dowels and dual density EVA foam.

96 RONIX ROPES & HANDLES

BARLOCK Whether it’s on our nylon-overmolded or Dyneema-covered end caps, all our handles feature BarLock to help prevent twisting. An anti-roll handle helps the rider focus on riding behind the boat, rather than re-gripping the handle after each trick or pass across the wake.

3D BADGES Seamless 3D heat-transfer badges.

SPECTRA FUSION ROPE We developed an exclusive Spectra Fusion rope with our Holland Dyneema factory. These fibers are 30% stronger and lighter than traditional Dyneema or Spectra rope. After a 30-minute set your arms will thank you.

BIMINI SPINNER QUICK CONNECT Our latest quick-connect carabiner sits near the Bimini edge, helping you switch between wake, surf, and foil ropes in a snap. Includes two extension sections to accommodate different bimini and pylon lengths.

SURF/WAKE/FOIL ROPE SPINNER 2 ft. spinner attachment that keeps your surf rope and wake/foil mainlines from getting tangled. Attaches to your pylon or tower.

STRETCH SECTION 2’1” diameter bungee section that attaches to your pylon or tower, helping slingshot you and your board into the surf pocket with ease.

ROPES & HANDLES RONIX 97

WAKE

WAKE

NORTH HANDLE

RXT MAINLINE

END CAP MOLDED SILICONE BARLOCK

80 Ft Floating, ultra-thin, Spectra Fusion mainline

GRIP TACKY HIDE GRIP

New age Spectra Fusion, 30% stronger

FEATURES Buoyant technology - it floats 16-Strand Spectra Fusion w/ 100% Dyneema core

FEATURES

Abrasion free, snag resistant cover

Dyneema BarLock = less handle rotation

One 45 ft. section

Extra tacky hide grip material w/ taped seam closure

Seven total takeoff sections

T6 Lightweight aircraft aluminum dowel

One - 10 ft. takeoff section

Filled inside with EVA for floatation

Four - 5 ft. takeoff sections

Handle strung with 12-strand Dyneema rope

Two - 2.5 ft. takeoff sections

Removable 24-strand Spectra Fusion 3 ft. section

Comes with rope caddy

Compatible with “T” wrap handle

HANDLE LENGTH (IN)

DIAMETER (IN)

TOTAL LENGTH (FT)

SECTIONS

15

1.15

80

8

WAKE

WAKE

R8 MAINLINE 80 Ft floating hard silicone coated Dyneema mainline, with embossed honeycomb pattern.

FEATURES

T-WRAP YOKE SECTIONS GRIP EVA

We proudly present a second handle for your front hand so you can enter the wake preloaded with a wrap. Complete with an EVA grip handle and a 3 foot mainline.

Ultra-thin round silicone coated cover Two-tone colored mainline Buoyant technology - it floats!

100% Dyneema core

FEATURES

Abrasion free, snag resistant cover

24 Strand Spectra Fusion

85ft. total length including handle

3 ft. Section

One 45 ft. section

4 in. Wide EVA wrap handle

Seven total takeoff sections One - 10 ft. takeoff section Four - 5 ft. takeoff sections Two - 2.5 ft. takeoff sections Comes with rope caddy

MAINLINE LENGTH (FT)

SECTIONS

LENGTH (IN)

80

8

28

98 RONIX ROPES & HANDLES

WAKE

WAKE

RXT COMBO

ONE COMBO

MAINLINE FLOATING ULTA-THIN SPECTRA FUSION ROPE

MAINLINE R8 - TWO-TONE WITH EMBOSSESD PATTERN

GRIP 3D MOLDED HIDE GRIP

GRIP TACKY HIDE GRIP

FEATURES

FEATURES

Dyneema BarLock = less handle rotation Extra tacky hide grip w/ 3D molded diamond dual density EVA T6 Lightweight aircraft aluminum dowel

One 45 ft. section

Extra tacky hide grip material w/ taped seam closure

One - 10 ft. takeoff section Four - 5 ft. takeoff sections

T6 Lightweight aircraft aluminum dowel

Two - 2.5 ft. takeoff sections

Handle strung with 12-strand Dyneema rope Filled inside with EVA for floatation 85 ft. total length including handle

One 45 ft. section

Nylon BarLock = less handle rotation

Seven total takeoff sections

Comes with rope caddy

Filled inside with EVA for floatation

Compatible with “T” wrap handle

One - 10 ft. takeoff section Four - 5 ft. takeoff sections Two - 2.5 ft. takeoff sections

Handle strung with 12-strand Dyneema rope

Removable 24-strand Spectra Fusion 3 ft. section

Seven total takeoff sections

85 ft. total length including handle

Comes with rope caddy Removable 24-strand Spectra Fusion 3 ft. section Compatible with “T” wrap handle

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

15

80

1.3

8

15

80

1.25

8

WAKE

WAKE

SUPREME COMBO

COMBO 6.0

MAINLINE R8 - TWO-TONE

MAINLINE R6

GRIP TACKY HIDE GRIP

GRIP 3D MOLDED HIDE

FEATURES

FEATURES

Dyneema BarLock = less handle rotation Extra tacky hide grip w/ 3D molded diamond dual density EVA T6 Lightweight aircraft aluminum dowel Handle strung with 12-strand Dyneema rope Filled inside with EVA for floatation

Seven total takeoff sections

Hide grip with 3D molded pattern for an extra tacky grip

One - 10 ft. takeoff section

Nylon BarLock = less handle rotation

Four - 5 ft. takeoff sections

3 mm thick memory foam

Two - 2.5 ft. takeoff sections

Handle strung with 12-strand Dyneema rope

Comes with rope caddy

Filled inside with EVA for flotation

Removable 24-strand Spectra Fusion 3 ft. section

Comes with rope caddy

Compatible with “T” wrap handle

Available in: Neon Green, Azure Blue, Tan

85 ft. total length including handle One 45 ft. section

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

15

80

1.15

8

15

80

1.15

6 ROPES & HANDLES RONIX 99

WAKE

WAKE

WAKE

COMBO 5.5

COMBO 5.0

MAINLINE R6

MAINLINE R6

GRIP 3D MOLDED HIDE – W/ “T” WRAP HANDLE

GRIP 3D MOLDED HIDE

WOMEN’S COMBO MAINLINE SOLIN GRIP EXTRA TACKY HIDE

FEATURES

FEATURES

Hide grip with 3D molded pattern for an extra tacky grip

Hide grip with 3D molded pattern for an extra tacky grip

FEATURES Hide with embroidered grip

Dyneema BarLock = less handle roll

Dyneema BarLock = less handle roll

Dyneema BarLock = less handle roll

3 mm thick memory foam

3 mm thick memory foam

2 mm thick memory foam

Handle strung with 12-strand Dyneema rope

6 in. “T” wrap handle

Handle strung with 12-strand Dyneema rope

Filled inside with EVA for flotation

Handle strung with 12-strand Dyneema rope

Comes with rope caddy

Comes with rope caddy

Filled inside with EVA for flotation

Available in: Tan/Grey, Neon Yellow, White

Comes with rope caddy Available in: Tan/Grey, Neon Yellow, White

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

15

80

1.15

6

WAKE

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

15

80

1.15

6

14

70

1

4

WAKE

WAKE

COMBO 4.0

COMBO 3.0

COMBO 2.0

MAINLINE SOLIN

MAINLINE SOLIN HYBRID PE

MAINLINE LOW STRETCH PE

GRIP 3D MOLDED HIDE

GRIP EMBROIDERED HIDE

GRIP EMBROIDERED HIDE

FEATURES

FEATURES

FEATURES

Hide grip with 3D molded pattern for an extra tacky grip

Hide with embroidered grip

Hide with embroidered grip

Dyneema BarLock = less handle roll

Dyneema BarLock (anti-roll)

3 mm thick EVA

3 mm thick memory foam

Comes with rope caddy

Handle strung with 12-strand Dyneema rope

Available in: Blue/Yellow, Red/Grey, White/Grey

3 mm thick memory foam Handle strung with 12-strand Dyneema rope Filled inside with EVA for flotation

Filled inside with EVA for flotation Comes with rope caddy

Comes with rope caddy

Available in: Black, Blue, Red

Available in: Black, Blue, Red

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

15

75

1.15

5

15

70

1.15

4

15

65

1.15

4

100 RONIX ROPES & HANDLES

WAKE

WAKE

COMBO 1.0

KID’S COMBO

MAINLINE LOW STRETCH PE

MAINLINE LOW STRETCH PE

GRIP TPR RUBBER GRIP

GRIP EMBROIDERED HIDE

FEATURES

A kid’s combo setup created for small hands, big dreams and a line with some give.

Tacky TPR rubber grip 7 in. pencil floats for flotation Comes with rope caddy

FEATURES 7 in. pencil floats for flotation Comes with rope caddy

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

15

65

1

4

SURF

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

12

65

.94

6

SURF

RECON

SURF

RECON BUNGEE

RECON BUNGEE

SURF ROPE

SURF ROPE

FEATURES

FEATURES

Extra tacky hide taped seams w/ 3D badge grip

Extra tacky hide taped seams w/ 3D badge grip

Inside EVA for flotation

Inside EVA for flotation

HD Paracord ultra-light rope

3 mm thick memory foam

3 mm thick memory foam

Bimini Quick Connect Carabiner w/ Spinner Section

HD Paracord ultra-light rope

HD Paracord ultra-light rope

Comes with rope caddy

Comes with rope caddy

BIMINI QUICK CONNECT SURF ROPE FEATURES Extra tacky hide taped seams w/ 3D badge grip Inside EVA for flotation 3 mm thick memory foam

*ONLY USE WITH LAST SECTION OF ROPE *ONLY USE WITH BIMINI UP/IN-USE

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

11

30

1.15

6

11

25

1.15

5

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

11

25

1.15

5

ROPES & HANDLES RONIX 101

SURF

SURF

SURF

425 SPINNER

425 BUNGEE

SURF ROPE

SURF ROPE

FEATURES

FEATURES

Carbon synthetic leather wrap cover

Carbon synthetic leather wrap cover

Nylon semi BarLock (anti-roll)

Nylon semi BarLock (anti-roll)

Hide grip w/ 3D molded pattern for an extra tacky grip

Hide grip w/ 3D molded pattern for an extra tacky grip

3 mm thick memory foam

3 mm thick memory foam

Set your rope to your exact length using the spinner

Reflective strip braided with PE Rope

808 BUNGEE SURF ROPE FEATURES Hide with screened grip w/silicone end caps Inside EVA for flotation 3 mm thick memory foam 6 in. two-tone machined foam floats 2 ft. Bungee section helps you get into the pocket faster

Reflective strip braided with PE Rope

2 ft. Bungee section helps you get into the pocket faster

Swivel attachment to minimize rope twisting

Comes with rope caddy

Comes with rope caddy

Comes with rope caddy *ONLY USE WITH LAST SECTION OF ROPE

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

11

30

1.25

9

11

30

1.15

9

11

25

1.15

4

SURF

SURF

SURF

808 BUNGEE

808 BUNGEE

949 BUNGEE

SURF ROPE

SURF ROPE

SURF ROPE

FEATURES

FEATURES

FEATURES

Hide with screened grip w/silicone end caps

Hide with screened grip w/silicone end caps

Hide with embroidered grip

Inside EVA for flotation

Inside EVA for flotation

3 mm thick memory foam

3 mm thick memory foam

3 mm thick memory foam

7 in. Foam floats

6 in. two-tone machined foam floats

6 in. two-tone machined foam floats

2 ft. Bungee section helps you get into the pocket faster

2 ft. Bungee section helps you get into the pocket faster

2 ft. Bungee section helps you get into the pocket faster

Comes with rope caddy

Comes with rope caddy

Comes with rope caddy

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

11

25

1.15

4

11

25

1.15

4

10

25

1.15

5

102 RONIX ROPES & HANDLES

SURF

SURF

SURF

949 BUNGEE

949 BUNGEE

949 BUNGEE

SURF ROPE

SURF ROPE

SURF ROPE

FEATURES

FEATURES

FEATURES

Hide with embroidered grip

Hide with embroidered grip

Hide with embroidered grip

3 mm thick memory foam

3 mm thick memory foam

3 mm thick memory foam

7 in. Foam floats

7 in. Foam floats

7 in. Foam floats

2 ft. Bungee section helps you get into the pocket faster

2 ft. Bungee section helps you get into the pocket faster

2 ft. Bungee section helps you get into the pocket faster

Comes with rope caddy

Comes with rope caddy

Comes with rope caddy

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

10

25

1.15

5

10

25

1.15

5

10

25

1.15

5

SURF

SURF

WOMEN’S 808 BUNGEE SURF ROPE

SURF

WOMEN’S 949 SURF ROPE

FEATURES Hide with screened grip w/silicone glitter end caps Inside EVA for flotation

SURF ROPE FEATURES Tacky Lycra grip

FEATURES

3 mm thick memory foam

Tacky Lycra grip

7 in. Foam floats Comes with rope caddy

3 mm thick memory foam

3 mm thick memory foam

KID’S

7 in. Foam floats

6 in. Two-tone machined foam floats 2 ft. Bungee section helps you get into the pocket faster Comes with rope caddy

2 ft. Bungee section helps you get into the pocket faster Comes with rope caddy

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

11

25

1.15

4

10

25

1.15

4

8

25

1

4

ROPES & HANDLES RONIX 103

FOIL

FOIL

727 FOIL COMBO

727 FOIL MAINLINE

MAINLINE PE LOW STRETCH

MAINLINE PE LOW STRETCH

GRIP 3D MOLDED TACKY HIDE GRIP

A specific rope and handle package for foiling. Want to foil in the first wave or second wave? We have you covered, no matter where you’re riding. Our 14” wide synthetic carbon handle with multi sectional mainline will get you where you want to be.

A specific mainline for foiling, simply attach any wakeboard handle to this mainline and you’re ready to foil. Want to foil in the first wave or second wave? We have you covered, no matter where you’re riding. Our multi sectional mainline will get you where you want to be.

FEATURES Low stretch 5/16 in. 16-strand PE rope Comes with a rope caddy

FEATURES Hide grip w/3D molded honeycomb dual density grip.

3 mm Thick memory foam Inside EVA for floatation Comes with a rope caddy

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

DIAMETER (IN)

SECTIONS

MAINLINE LENGTH (FT)

SECTIONS

14

77.5

1.3

10

72.5

10

SURF/ WAKE/FOIL

SURF/ WAKE/FOIL

BIMINI QUICK CONNECT SPINNER ATTACHMENT

SPINNER ATTACHMENT

For boats where the pylon is too far away from the Bimini’s edge, we have a solution for you. Our new quick connect carabiner that’s near the Bimini edge to help you switch out your wake, surf or foil ropes in a snap.

You know what the closest thing to gum in your hair is? A tangled rope. Fortunately, we have a cure for it - the 2 ft. spinner section zigs when your rope & handle zigs.

FEATURES + Attaches to pylon + For surf, foil & wakeboard ropes

FEATURES

5FT SURF ROPE EXTENSION ATTACHMENT

If you need a longer surf rope or or lost a section, this extra 5 ft. section is sold separately to help you out.

FEATURES PE low stretch rope

*ONLY USE WITH LAST SECTION OF ROPE

Pylon Spinner attachment PE low stretch rope Last Section - Carabiner Quick Connect *ONLY USE WITH LAST SECTION OF ROPE *ONLY USE WITH BIMINI UP/IN-USE LENGTH (FT)

SECTIONS

LENGTH (FT)

LENGTH (FT)

4

3

2

5

104 RONIX ROPES & HANDLES

DEMPSEY SURF CASE

BIMINI BOARD CASE

Twice as much padding as our standard board bags, because your surf-constructed board deserves to get there safely.

Bimini top 4pc surfboard rack. *Do not exceed 20 MPH.

FEATURES

Holds 4 boards in individual sleeves

Super durable padded shell

4 Fin pockets, 2 per side

Shoulder strap

Includes 8 adjustable webbing straps to anchor to your Bimini frame

FEATURES

Fin protector 1 External zippered pocket Internal board divider – fits two boards inside 5’2” case includes a 3D fin opening STYLE

SIZE (FT/IN)

ROUND NOSE POINTY NOSE

5’2” 5’9”

SURF SOCK

SURF SOCK

SURF SOCK

Protect your favorite fragile aquatic slasher from the dings, bumps, and day-to-day rigors of lake life.

Protect your favorite fragile aquatic slasher from the dings, bumps, and day-to-day rigors of lake life.

Protect your favorite fragile aquatic slasher from the dings, bumps, and day-to-day rigors of lake life.

ROUND NOSE SIZE (FT/IN)

POINTY NOSE SIZE (FT/IN)

WIDE NOSE SIZE (FT/IN)

4’4” 6’

4’4” 5’1” 6’

6’

CASES RONIX 105

LINKS WHEELIE PADDED BOARD CASE

BATTALION PADDED BOARD CASE

SQUADRON PADDED BOARD CASE

The ultimate traveling piece on wheels for all your marine festivities.

A padded traveling den. Roomy enough to fit all your stash.

A semi-padded board bag with enough features to leave your board with a smile on her face.

FEATURES

Durable padded shell

FEATURES

TSA approved combination Lock

Shoulder strap

Durable half padded shell

Durable padded shell

1 External zippered pocket

Shoulder strap

FEATURES

Wheelie transportation with dual end carry handles

1 External zippered pocket

1 Internal zippered pocket Heavy duty YKK zipper SIZE (CM)

SIZE (CM)

SIZE (CM)

UP TO 153

UP TO 145

UP TO 145

DAWN PADDED BOARD CASE

COLLATERAL NON PADDED BOARD CASE

BULWARK NEO SLEEVE

You wouldn’t want your new Rise Collection to get dinged up, would you? This bag is proportioned to fit any women’s boat/boot set up in our line.

FEATURES Durable half padded shell Shoulder strap

We also have a really nice unpadded board bag at an affordable value.

FEATURES 1 External zippered pocket Shoulder strap

Think of it as a jimmy for your board. A responsible choice at our most affordable value.

FEATURES Prevents unprotected traveling dings Shoulder strap

1 External zippered pocket SIZE (CM)

SIZE (CM)

SIZE (CM)

UP TO 145

UP TO 145

UP TO 136 UP TO 146 UP TO 155

106 RONIX CASES

FOIL KIT PADDED CASE

FOIL PADDED BOARD CASE

PORTSIDE GEAR CASE

Every foil kit comes with a variation of this extra padded gem.

A levitating locker neatly labeled to have an organized day on the lake. Pockets for multiple masts, fuselages, your favorite wing, mast, hardware kit, and more.

Flight 727 requires the correct luggage. Complete with a butterfly opening so you can carry your full quiver without disassembling your foil kit.

THE bag for all the extra boat-life cargo. Toss it in, zip it up, and let the breathable side mesh do its drying thing.

FEATURES

Large oversized backpack

FEATURES

Super durable double padded shell 600D water-resistant interior poly canvas material

Heavy duty mesh side gussets to let your gear breathe

Heavy duty padded case

Padded backpack strap 3 External pockets

Foil zipper opening for easy access when loading your board with the foil attached

Water-resistant liner Individual labeled pockets inside for each foil part

FEATURES

Three carrying options: handles, shoulder strap, or hidden backpack straps

2 Inside pockets

1 inside pocket Fits up to 4ft. 8in. (146cm.)

L (IN)

W (IN)

H (IN)

VOL (L)

H (IN)

W (IN)

H (CM)

W (CM)

L (IN)

W (IN)

H (IN)

VOL (L)

13

36

6

46

59

24

149.9

61

14.75

17.75

24.25

104

TRANSFER TRAVEL LUGGAGE

DRAWSTRING SACK Your new favorite adventure bag is ready when you are. The Ronix Drawstring Sack is made from the highest of quality material and strong-like-bull rope cord.

Perfect for any destination.

FEATURES Split level design Multiple compartments

SURF FIN CASE Fits all your surf fins with 5 individual mesh pockets.

FEATURES Small and compact Holds up to 5 sets of fins of any configuration Will also hold our foil hardware case Built in hanging system

Mesh dividers Heavy duty zipper Telescope pulling handle Two-wheeler L (IN)

W (IN)

H (IN)

VOL (L)

14

14.5

29

110

CASES RONIX 107

SEA BANDIT T-SHIRT

MEGACORP T-SHIRT

PARK LIFE T-SHIRT

1996 was a beautiful summer – gone but not forgotten

FEATURES

FEATURES

A manifestation of financial supremacy

Did you know green is associated to tranquility and good luck

SIZES

SIZES

SIZES

S

M

L

XL

2XL

S

M

L

XL

2XL

S

M

L

XL

2XL

LAKE LIFE T-SHIRT

MANIFESTO HOODIE

WET/DRY NEO SHELL

FEATURES

FEATURES

FEATURES

Welcome to cotton utopia

A nod to the past with this new/old hoody

Water repellant outer shell

SIZES

SIZES

SIZES

S

M

L

108 RONIX APPAREL

XL

2XL

S

M

L

XL

2XL

S

M

L

XL

2XL

MEN’S UV SHADE WICK DRY HOODIE

WOMEN’S UV SHADE WICK DRY HOODIE

FEATURES

FEATURES

A buffet of wick drying excellence

SIZES

S

M

L

XL

2XL

BOY’S UV SHADE WICK DRY LONG SLEEVE

GIRL’S UV SHADE WICK DRY LONG SLEEVE

Blocking sun and wicking moisture since not very long ago

FEATURES

FEATURES

Breathable wickability for the homies

After riding fashion and protection

SIZES

SIZES

SIZES

YOUTH CHILD TODDLER

YOUTH CHILD TODDLER

S

M

L

XL

HEAD HONCHO PONCHO

RONIX CHANGE PONCHO

GENESIS 5-PANEL HAT

FORESTER 5-PANEL HAT

FEATURES

FEATURES

FEATURES

FEATURES

Change towel and boat coat in one

Dry and warm at the same time

Snap Back Hat

Perforated Hat - Nylon Lock

SIZES

SIZES

SIZES

ONE SIZE FITS MOST

ONE SIZE FITS MOST

ONE SIZE FITS MOST

Bottom Pockets have inside zippers for easy access inside to help tie/untie your boardie’s, shorts, pants, etc.

SIZES

S/M

L/XL

APPAREL RONIX 109

RONIX ICON DIE-CUT STICKER

RONIX LOGO DIE CUT STICKER

RONIX LOGO STICKER

RONIX STICKER SHEET

FEATURES

FEATURES

FEATURES

FEATURES

Iridescent Color

Available in Black and White

Available in Black and White

Available individually or in a 25 pack

9 different ways to raise the flag on your favorite board riding brand

SIZES

SIZES

SIZES

7” X 7”

2.5” X 9” 3” X 15” 24”

5” X 5”

REVERSIBLE

NON-REVERSIBLE

RONIX SEA BANDIT STICKER

RONIX COLDYHOLDY

RONIX KEYCHAIN FLOAT

RONIX KID’S BOOK

FEATURES

REVERSIBLE FEATURES

FEATURES

FEATURES

Available individually or in a 25 pack

Reversible neoprene beverage temperature regulator

Assorted 5 pack - Buoyancy foam included - she’s a floater

Teach those kids to wakeboard

NON-REVERSIBLE FEATURES Nonreversible neoprene beverage temperature regulator Attaches to your vest strap

110 RONIX ACCESSORIES

RONIX BOARD BENCH

RONIX 3 X 10 BANNER FEATURES

RONIX BOARD STAND

FEATURES

Nicest grommets in the biz

FEATURES Another made at H.O.M.E. masterpiece equipped to hold 7 of your favorite boards, and 8 button powered surf fins.

Lounge in style

WAKEBOARD/ SURF HANGER FEATURES Suspends your wakesurfers/ wakeboards to consolidate space Surf Hanger is available for Fin-S or Button Available individually or in a 25 pack

RONIX BOARD STRAP WEBBING HANGER FEATURES Holds 4 wakeboards, surfboards or foilboards Two webbing clips for attachment

RONIX ROPE CADDY

RONIX FEATHER BANNER

RONIX EASY UP TENT

FEATURES

FEATURES

FEATURES

Nylon rope and handle caddy

It’s actually made out of polyethylene not feathers.

Sorry if the description is misleading

A 10’ x 10’ portable structure of awesomeness

Velcros together Brass grommet for easy storage Available individually or in a 25 pack

ACCESSORIES RONIX 111

WELCOME TO RADAR SKIS

At Radar, we believe the smallest details make the biggest difference. Every product in this collection exists for a reason—designed with purpose, refined through testing, and built to create a cleaner connection between skier and water. We don’t believe in adding complexity where it isn’t needed. We believe in solving problems and making skiers better. We’re independent. Skier driven. Committed to making products that earn their place every time you leave the dock.

We’re proud of what we build and grateful to be part of your time on the water.

Thanks for your trust.

ENJOY THE RIDE.

RADAR SKIS

FOUR SKIS. FOUR BUILDS. PERFORMANCECORRECT DESIGN. Our design approach is simple.

We created four distinct ski shapes, each engineered to perform at the highest level possible for a specific skier and speed range.

Not reduced performance—purpose-built performance.

Each shape features a specific surface area and design philosophy intended to maximize efficiency, connection, and confidence at its intended speed.

Select your speed, and you’ve selected the best ski for your purpose.

114 RADAR SKIS

From there, we offer four different construction options designed to maximize your selected shape for the conditions you most often find yourself in.

Not lower cost simply to meet a price point. Not less performance—different performance characteristics for different environments.

Purposeful combinations of materials create distinct sensations on the water. Some feel lighter and more responsive. Others feel more dampened, composed, and controlled when conditions become less than ideal.

Purpose-driven choices designed to make every set better.

SKIS RADAR 115

MATERIALS Discovering the marriage between new designs and the advancements in available materials long drove Herb O’Brien. Never satisfied with ‘the way it’s always been done,’ Herb knew that it was a symbiotic relationship between the two components that really created the magic. New materials allow for innovative developments in design, and vice versa. It’s at the Radar Lab where we discover what is possible and bring our new ideas to light. Every concept that ends up in a Radar ski is born here and every Vapor is hand-produced in this special place that Herb built. From Radar Lake to lakes around the world, yours included, we hope you enjoy the ride.

TEXTREME SPREAD TOW CARBON ADVANTAGE HIGHER STRENGTH-TO-WEIGHT RATIO

Spread tow carbon allows for denser fiber packing with fewer overlaps and gaps, maximizing load-bearing material while reducing unnecessary weight.

REDUCED FIBER CRIMP

Traditional carbon weaves create fiber crimp at crossover points, reducing efficiency under load. The flatter spread tow structure minimizes crimp for improved stiffness, strength, and consistency.

IMPROVED RESIN DISTRIBUTION

A more uniform fabric structure promotes cleaner resin flow during curing, reducing voids and creating a more consistent composite throughout the ski.

LIGHTER WEIGHT

By optimizing fiber layout and reducing excess resin, Textreme creates a lighter, faster, and more responsive ski.

TEXTREME CARBON

SIGMATEX CARBON

Textreme® spread tow carbon reduces weight while increasing strength and consistency throughout the ski. Its advanced laminate structure creates a more predictable flex pattern and long-term durability—performance trusted everywhere from America’s Cup race boats to Tour de France bikes.

Sigmatex is a leader in advanced carbon fiber construction.

Their computer-controlled weaving process allows ultra-high modulus carbon to be laid with exceptional precision—creating a lighter, more consistent laminate with immediate response and clean energy through the finish of the turn.

M-100 CORE

M-80 CORE

Engineered from a 100 KG/M3 core construction, the M-100 Core is defined by its consistent flex memory—delivering the same predictable response from set 5 to set 500.

Light, connected, and incredibly precise, it’s built for skiers chasing consistency at the highest level.

Engineered from an 80 KG/M3 core construction, the M-80 Core delivers a more controlled response with smooth energy transfer and consistent flex memory. Designed to stay predictable from set 5 to set 500, it creates a connected, confident feel on the water.

116 RADAR SKIS

AERO CORE

ALL-TERRAIN CORE

Aero Core is our exclusive polyurethane formulation, engineered for an exceptional strength-to-weight ratio.

Its deeper riding position creates a smooth, controlled feel on the water—delivering forgiveness, consistency, and confidence through every turn.

Built from a polyurethane core with integrated Paulownia wood stringers, the All-Terrain Core delivers the most forgiving ride in the Radar line. Smooth through the wakes and easy into turns, it creates confidence without sacrificing connection to the ski.

TRUE FEEL BASE

CPD BIO RESIN

True Feel Base technology maximizes bevel contour directly in the mold, creating a cleaner connection between ski and water. The result is increased grip, more consistent edge engagement, and stronger direction through the finish of the turn.

CPD Bio Resin utilizes 28% renewable plant-based resources while maintaining the same molecular structure, strength, and performance as traditional resin systems.

The result is uncompromised durability and response with a reduced environmental impact—a better build for the future of skiing.

CLOSED-CHAIN CONSTRUCTION Closed-Chain Construction fully integrates each material and structural layer into one connected system—from the top deck to the base. This unified construction creates superior energy transfer from tip to tail, resulting in a more responsive, consistent, and connected feel on the water.

SKIS RADAR 117

VAPOR Built for the smallest margins. Evolution with purpose.

The Vapor Series is our most refined expression of speed, balance, and connection. For 2027, we set out with a clear objective: create more space and encourage earlier movement into the turn. What followed became the most meaningful evolution of the Vapor shape to date—the result of hundreds of thousands of hours behind the boat studying how great skiers move, where speed is created, and how a ski can better support those movements.

Designed by Matt Rini, the new Vapor shape rolls into the turn earlier and creates stronger tip-down drive out of the finish. The result is more space off the second wake, smoother more continuous acceleration across course, and a more aggressive path into and out of the turn.

The entire platform feels more unified—tip, forebody, and tail working together as one connected system to carry speed and direction without interruption. It rolls with less effort, responds with greater consistency, and allows the skier to move freely without managing the ski beneath them. The result is a ski that rewards movement, rewards commitment, and creates confidence through connection.

Familiar at a glance. Different where it counts.

This is Vapor—evolved with purpose.

FEATURE FUNCTION SPOTLIGHT FORWARD DRIVE GEOMETRY By narrowing the forebody 100/1000” and widening the tail 50/1000”, the new Vapor shape is designed to reward forward movement through the turn. Beneath your feet, the ski naturally encourages tip-down drive and continued momentum—helping skiers move into stronger, more connected positions with less effort and interruption.

SKIS RADAR 119

VAPOR

VAPOR

PRO BUILD

LITHIUM

BUILT FOR THE MOMENT.

PURE VAPOR DNA. REFINED FOR CONTROL.

Built with our M-100 core and Textreme spread tow carbon construction, the Vapor Pro delivers the most responsive, connected feel in the series. Every movement is met with immediate feedback—efficient through the wakes, precise into the finish, and composed under load. It rewards intent, rewards aggression, and carries speed with minimal input.

Designed by Matt Rini, the Vapor Pro is for skiers pushing the limits of what’s possible. Nothing held back.

Built with our M-80 core and Sigmatex carbon construction, the Vapor Li delivers a composed, controlled response without sacrificing performance. Smoother rebound and predictable acceleration create a consistent connection to the water through every pass. It rewards commitment, responds with control, and carries speed with a smooth, settled feel. Designed by Matt Rini, the Vapor Li makes highperformance skiing more approachable without giving anything up. Control, without compromise.

TERRAIN

FEATURES

COURSE SPEED RANGE (MPH)

32-36

M-100 CORE

TERRAIN

Lightweight, high density (100 KG/M3), most response, high memory-retention properties.

COURSE

TEXTREME CARBON

SPEED RANGE (MPH)

Lighter, stronger composites.

SPEED RANGE (KPH)

52-58

BIO RESIN

Plant based and better.

FEATURES M-80 CORE

32-36

SIGMATEX CARBON

Consistent, controlled flex & rebound.

SPEED RANGE (KPH)

TRUE FEEL BASE

A better connection to the water.

Lightweight, high density (80 KG/M3), controlled response, high memory-retention properties.

52-58

BIO RESIN

Plant based and better.

TRUE FEEL BASE

A better connection to the water.

CLOSED-CHAIN CONSTRUCTION

CLOSED-CHAIN CONSTRUCTION

Uninterrupted transfer of energy.

Uninterrupted transfer of energy.

RADAR LAB MADE Thanks Herb.

RADAR LAB MADE Thanks Herb.

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

65 66 67 68 69.5

110-145 125-175 160-195 180-220 200+

49-65 56-79 73-88 82-100 90+

344.841 355.537 366.393 377.412 394.251

65 66 67 68 69.5

110-145 125-175 160-195 180-220 200+

49-65 56-79 73-88 82-100 90+

344.841 355.537 366.393 377.412 394.251

120 RADAR SKIS

VAPOR

VAPOR

GRAPHITE

T.R.A.

WHERE CONFIDENCE MEETS CONSISTENCY.

BUILT FOR WHAT’S NEXT. PURE VAPOR PROGRESSION.

Built with our machined polyurethane Aero Core and Sigmatex carbon construction, the Vapor Graphite delivers the most stable, composed ride in the series. Its calmer, more controlled feel stays connected through variable water—smoothing inconsistencies while maintaining speed and direction. It rolls onto edge early, continues to drive, and carries speed with a quiet confidence. Designed by Matt Rini, the Vapor Graphite brings consistency to the forefront of high-performance skiing. Confidence, built in.

Built with a lightweight, kid-specific layup around our Lithium construction, the Vapor TRA brings the full Vapor design philosophy to the next generation of skiers.

Fast, balanced, and easy to move on, it delivers high-end performance in a platform designed to support growing skiers. With earlier roll into the turn, stronger direction through the finish, and smooth acceleration across the course, the Vapor TRA rewards movement naturally and encourages progression without unnecessary effort.

Designed by Matt Rini, the Vapor TRA delivers true Vapor DNA in a lightweight package built for the future of skiing.

Built to progress.

TERRAIN

COURSE/ CROSSOVER SPEED RANGE (MPH)

32-36

FEATURES AERO CORE

Machined polyurethane construction for a settled, controlled feel that excels through the most varying conditions.

SIGMATEX CARBON

Consistent, controlled flex & rebound.

SPEED RANGE (KPH)

52-58

BIO RESIN

TERRAIN

FEATURES

SPEED RANGE (MPH)

Lightweight, high density (80 KG/M3), controlled response, high memory-retention properties.

COURSE

M-80 CORE

26-36

Plant based and better.

TRUE FEEL BASE

A better connection to the water.

CLOSED-CHAIN CONSTRUCTION

SIGMATEX CARBON

Consistent, controlled flex & rebound.

SPEED RANGE (KPH)

43-58

BIO RESIN

Plant based and better.

TRUE FEEL BASE

Uninterrupted transfer of energy.

A better connection to the water.

RADAR LAB MADE

CLOSED-CHAIN CONSTRUCTION

Thanks Herb.

Uninterrupted transfer of energy.

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

65 66 67 68 69.5

110-145 125-175 160-195 180-220 200+

49-65 56-79 73-88 82-100 90+

344.841 355.537 366.393 377.412 394.251

RADAR LAB MADE Thanks HERB.

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

65

110-145

49-65

344.841 SKIS RADAR 121

SENATE Predictability that performs. Built from the same new shape as the Vapor Series—with an additional 2/10” of width for optimized performance at slower speeds—the Senate carries forward the same design progression in a more intuitive, user-friendly platform. The result is earlier, more consistent roll into the turn, stronger tip-down drive out of the finish, and effortless direction through the wakes.

Smooth, balanced, and connected, the Senate builds speed naturally—allowing skiers to move into stronger, more progressive positions without unnecessary effort. It’s a ski that creates rhythm from the first pass and confidence with every turn. Performance, made accessible.

FEATURE FUNCTION SPOTLIGHT PERFORMANCE WIDTH Built from the same updated design philosophy as the new Vapor, the Senate maintains the active wet surface that gives the ski its roll, grip, and drive. Rather than simply scaling the shape wider, additional surface area is created outside the concave—adding support and lift at slower speeds without sacrificing connection or performance through the wakes. The result is simple: you can slow the boat down without slowing down how aggressively you ski.

SKIS RADAR 123

SENATE

SENATE

PRO BUILD

LITHIUM

PURE SENATE PERFORMANCE. BUILT TO MOVE FORWARD.

PURE SENATE DNA. REFINED FOR CONTROL.

Built with our M-100 core and Textreme spread tow carbon construction, the Senate Pro delivers the highest level of response and acceleration in the series. The Vapor shape, with an additional 2/10” of width, creates earlier roll, stronger tip-down direction, and efficient speed at slower speeds. It rewards commitment, builds angle naturally, and carries speed with an effortless feel. Designed by Matt Rini, the Senate Pro brings high-end performance to an intuitive platform. Performance, without hesitation.

Built with our M-80 core and spread tow carbon construction, the Senate Lithium delivers a smooth, composed response with progressive speed. The Vapor shape, with an additional 2/10” of Performance Width, creates earlier roll, stronger direction out of the finish, and effortless flow across the course. It rewards commitment, responds with control, and carries speed with a connected feel. Designed by Matt Rini, the Senate Lithium makes highend skiing more intuitive. Control, without compromise.

TERRAIN

TERRAIN

FEATURES

COURSE

M-100 CORE

SPEED RANGE (MPH)

28-34

Lightweight, high density (100 KG/ M3), most response, high memoryretention properties.

TEXTREME CARBON Lighter, stronger composites.

SPEED RANGE (KPH)

46-55

BIO RESIN

Plant based and better.

COURSE/ CROSSOVER SPEED RANGE (MPH)

28-34

A better connection to the water.

M-80 CORE

Lightweight, high density (80 KG/M3), controlled response, high memory-retention properties.

SPREAD TOW CARBON Lighter, less resin, faster.

BIO RESIN

SPEED RANGE (KPH)

TRUE FEEL BASE

FEATURES

46-55

Plant based and better.

TRUE FEEL BASE

A better connection to the water.

CLOSED-CHAIN CONSTRUCTION

CLOSED-CHAIN CONSTRUCTION

Uninterrupted transfer of energy.

Uninterrupted transfer of energy.

RADAR LAB MADE Thanks Herb.

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

67 69

150-195 200+

68-88 90+

379.794 402.807

124 RADAR SKIS

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

65 67 69 71

UP TO 160 150-195 190-220 200+

UP TO 77 68-88 85-100 90+

357.458 379.794 402.807 414.485

SENATE

SENATE

GRAPHITE

ALLOY

WHERE CONSISTENCY LEADS PERFORMANCE.

BUILT FOR EVERY CONDITION. PERFORMANCE WITHOUT LIMITS.

Built with our polyurethane Aero Core and 100% carbon fiber construction, the Senate Graphite delivers the most stable, composed ride in the series. The Vapor shape, with an additional 2/10” of Performance Width, creates earlier roll, stronger tip-down direction, and smooth speed across the course. Its deeper ride absorbs changing conditions while maintaining momentum and rhythm. Designed

by Matt Rini, the Senate Graphite brings confidence and composure to every turn. Confidence, built in.

TERRAIN

COURSE/ CROSSOVER SPEED RANGE (MPH)

28-34

100% CARBON FIBER

Built with our All-Terrain Core—featuring a polyurethane foundation with integrated paulownia wood inlays—and wrapped in 100% carbon fiber, the Senate Alloy is designed to maintain speed, connection, and control through changing water conditions. Based on the same new shape as the Vapor, its additional 2/10” Performance Width creates earlier roll into the turn, stronger tip-down direction out of the finish, and efficient speed with a stable, confidencebuilding feel. The result is a ski that stays composed when conditions become unpredictable—rewarding commitment while maintaining smooth, controlled acceleration across the course. Designed by Matt Rini, the Senate Alloy delivers high-end performance built for real-world skiing.

Confidence in every condition.

CARBON RODS

TERRAIN

FEATURES AERO CORE

Controlled response through all conditions.

Light, fast, consistent.

Zonal flex for the optimum layup.

SPEED RANGE (KPH)

46-55

BIO RESIN

Plant based and better.

CROSSOVER SPEED RANGE (MPH)

CLOSED-CHAIN CONSTRUCTION

Uninterrupted transfer of energy.

26-34

FEATURES ALL TERRAIN CORE

Auto-Damping for confidence-inspiring performance.

100% CARBON FIBER Light, fast, consistent.

SPEED RANGE (KPH)

43-55

BIO RESIN

Plant based and better.

CLOSED-CHAIN CONSTRUCTION

Uninterrupted transfer of energy.

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

65 67 69 71

UP TO 160 150-195 190-220 200+

UP TO 77 68-88 85-100 90+

357.458 379.794 402.807 414.485

65 67 69 71

UP TO 160 150-195 190-220 200+

UP TO 77 68-88 85-100 90+

357.458 379.794 402.807 414.485 SKIS RADAR 125

LYRIC

LYRIC

GRAPHITE

ALLOY

BUILT TO MOVE WITH YOU. PERFORMANCE, IN SYNC.

SMOOTH BY NATURE. BUILT TO MOVE FREELY.

Built on the proven Senate platform and tuned specifically for female skiers, the Lyric Graphite delivers smooth, connected performance with a lighter, more efficient feel. Its Graphite construction pairs our polyurethane Aero Core with carbon fiber laminates to create a ride that feels stable, predictable, and effortlessly controlled.

With earlier, more consistent roll into the turn and strong direction through the finish, the Lyric delivers smooth, natural movement while maintaining speed, rhythm, and connection to the water. The result is a ski that rewards commitment without demanding excess effort— encouraging strong, progressive movement with a calm, composed feel. Designed by Matt Rini, the Lyric Graphite brings together control, efficiency, and confidence in one purpose-built design. Confidence in motion.

Built on the proven Senate platform and tuned specifically for female skiers, the Lyric Alloy pairs our All-Terrain Core construction with carbon fiber laminates to deliver smooth, confidence-building performance across a wide range of conditions. Lightweight, stable, and easy to move on, it creates a connected feel that remains calm and predictable from turn to turn. With earlier, more consistent roll into the turn and strong direction through the finish, the Lyric Alloy maintains speed naturally while encouraging smooth, efficient movement across the water. The result is a ski that feels approachable without limiting progression—rewarding confidence, consistency, and time on the water. Designed

by Matt Rini, the Lyric Alloy blends comfort, control, and performance into one intuitive platform. Easy to trust. Fun to push in any conditions.

TERRAIN

TERRAIN

COURSE/ CROSSOVER SPEED RANGE (MPH)

28-34

FEATURES AERO CORE

Controlled response through all conditions.

100% CARBON FIBER Light, fast, consistent.

BIO RESIN

46-55

SPEED RANGE (MPH)

26-34 43-55

CLOSED-CHAIN CONSTRUCTION

ALL TERRAIN CORE

Auto-Damping for confidenceinspiring performance.

100% CARBON FIBER Light, fast, consistent.

SPEED RANGE (KPH)

Plant based and better.

SPEED RANGE (KPH)

CROSSOVER

FEATURES

BIO RESIN

Plant based and better.

CLOSED-CHAIN CONSTRUCTION

Uninterrupted transfer of energy.

Uninterrupted transfer of energy.

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

63 65 67

UP TO 130 120-160 150-195

UP TO 59 54-73 68-88

345.800 357.458 379.794

63 65 67

UP TO 130 120-160 150-195

UP TO 59 54-73 68-88

345.800 357.458 379.794

126 RADAR SKIS

T.R.A.

T.R.A.

BOY’S

GIRL’S

BUILT FOR WHAT’S NEXT. PERFORMANCE STARTS HERE.

BUILT FOR WHAT’S NEXT. PERFORMANCE STARTS HERE.

Built on the same new Senate platform as the adult series, the Boy’s TRA brings progressive shape design to the next generation of skiers. Its lightweight, kid-specific carbon construction creates a ski that feels balanced, responsive, and easy to move on—encouraging confidence from the very first pass. With earlier, more consistent roll into the turn and stronger direction through the finish, the Boy’s TRA delivers a ride that is both forgiving and more aggressive than ever before. It builds speed naturally, carries momentum with less effort, and helps young skiers move into stronger positions with confidence. The result is a ski that encourages progression naturally—rewarding confidence, supporting development, and making every set more fun. Designed by Matt Rini, the Boy’s TRA delivers high-end design progression in a lightweight package built for the future of skiing. Built to progress.

Built on the same new Senate platform as the adult series, the Girl’s TRA brings progressive shape design to the next generation of skiers. Its lightweight, kid-specific carbon construction creates a ski that feels balanced, responsive, and easy to move on—encouraging confidence from the very first pass. With earlier, more consistent roll into the turn and stronger direction through the finish, the Girl’s TRA delivers a ride that is both forgiving and more aggressive than ever before. It builds speed naturally, carries momentum with less effort, and helps young skiers move into stronger positions with confidence. The result is a ski that encourages progression naturally—rewarding confidence, supporting development, and making every set more fun. Designed by Matt Rini, the Girl’s TRA delivers high-end design progression in a lightweight package built for the future of skiing. Built to progress.

TERRAIN

TERRAIN

CROSSOVER SPEED RANGE (MPH)

20-34

FEATURES ALL TERRAIN CORE

Auto-Damping for confidenceinspiring performance.

100% CARBON FIBER Light, fast, consistent.

SPEED RANGE (KPH)

34-55

BIO RESIN

CROSSOVER SPEED RANGE (MPH)

20-34 34-55

CLOSED-CHAIN CONSTRUCTION

ALL TERRAIN CORE

Auto-Damping for confidenceinspiring performance.

100% CARBON FIBER Light, fast, consistent.

SPEED RANGE (KPH)

Plant based and better.

FEATURES

BIO RESIN

Plant based and better.

CLOSED-CHAIN CONSTRUCTION

Uninterrupted transfer of energy.

Uninterrupted transfer of energy.

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

63 65

UP TO 130 120-160

UP TO 59 54-73

345.800 357.458

63 65

UP TO 130 120-160

UP TO 59 54-73

345.800 357.458 SKIS RADAR 127

UNION Back to your best.

Built around a proven Vapor shape, the Union Series blends refined tunnel radius and bevel design with an additional 4/10” of width outside the tunnel to create lift, balance, and support at slower speeds. The result is a ski that rides higher on the surface of the water—feeling fast, nimble, and easy to move on without demanding excessive effort from the skier.

Smooth, predictable, and confidence-building, the Union maintains direction naturally while allowing skiers to move freely and reconnect with the rhythm of skiing. It’s a platform designed to encourage progression through comfort, control, and consistency—not by asking the skier to work harder. Whether returning to the water or simply looking for a more supportive ride, the Union Series delivers proven Vapor DNA in a more approachable form. Return to confidence.

FEATURE FUNCTION SPOTLIGHT HIGH-SPEED FLOW LINE The Union shape uses straighter lines from the wide point through the tail to create a more efficient path for water flow across the ski. By reducing unnecessary drag and resistance, the ski maintains speed, connection, and smooth movement across the wakes—even at slower boat speeds. The result is a ski that carries the feel and rhythm of true slalom performance, with everything working in your favor.

UNION

UNION

MEN’S

WOMEN’S

RETURN TO FORM.

BACK TO YOUR BEST. SUPPORTIVE BY DESIGN.

Built around a proven Vapor shape, the Men’s Union blends refined tunnel radius and bevel design with added width outside the tunnel to create balance, support, and easy acceleration at slower speeds. The result is a ski that feels stable and connected from the moment you lean away from the boat. Smooth, predictable, and easy to trust, the Men’s Union rolls naturally into the turn, maintains direction with less effort, and allows skiers to move confidently without fighting the platform beneath them.

It’s a ski designed to support progression naturally— helping returning skiers rebuild rhythm, confidence, and connection to the water one set at a time. The Men’s Union delivers approachable performance built on proven Vapor DNA. Confidence starts here.

Built around a proven Vapor shape, the Women’s Union combines a lighter carbon construction with an additional 4/10” of width outside the tunnel to create lift, balance, and support at slower speeds. The result is a ski that rides higher on the surface of the water—feeling nimble, stable, and easy to move on from the very first turn. Smooth, predictable, and confidence-building, the Women’s Union maintains direction naturally while allowing skiers to move freely without excessive effort. Its supportive platform encourages rhythm, connection, and progression through comfort and consistency on the water. The result is a ski that helps skiers settle in quickly, trust their movements, and simply enjoy being back behind the boat. The Women’s Union delivers approachable performance built on proven Vapor DNA. Confidence comes naturally.

TERRAIN

CROSSOVER SPEED RANGE (MPH)

24-32

FEATURES ALL TERRAIN CORE

TERRAIN

100% CARBON FIBER

SPEED RANGE (MPH)

Auto-Damping for confidenceinspiring performance.

Light, fast, consistent.

SPEED RANGE (KPH)

40-52

CROSSOVER 24-32

BIO RESIN

SPEED RANGE (KPH)

Uninterrupted transfer of energy.

ALL TERRAIN CORE

Auto-Damping for confidenceinspiring performance.

100% CARBON FIBER Light, fast, consistent.

Plant based and better.

CLOSED-CHAIN CONSTRUCTION

FEATURES

40-52

BIO RESIN

Plant based and better.

CLOSED-CHAIN CONSTRUCTION

Uninterrupted transfer of energy.

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

65 67 69 71

UP TO 160 150-195 175-230 220+

UP TO 73 59-86 79-104 100+

370.061 393.18 417.005 429.093

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

65 67

UP TO 160 150-195

UP TO 73 59-86

370.061 393.184 SKIS RADAR 129

OPEN WATER SERIES Always within reach. The Open Water Series is built to be the ski every boat and every dock should have close by. Easy out of the water, stable through every ride, and smooth from turn to turn, it delivers a ride that anyone can step into and enjoy. Designed to behave like a true slalom ski, the Session rolls naturally onto edge and carves with a smooth, intuitive feel—bringing more performance than traditional wide designs ever could. When the lake turns glass or the day slows down, the Session is ready—turning simple moments on the water into the ones you remember most.

The ski that keeps everyone on the water.

FEATURE FUNCTION SPOTLIGHT GRIP RAILS 2.0 Wider skis naturally create more lift and support, but they can also become harder to roll onto edge and hold direction through the wakes. Grip Rails 2.0 address this by channeling water flow toward the center of the ski— creating a more connected, controlled feel beneath your feet. The result is a wide ski that maintains the roll, grip, and edge control of a true slalom ski while delivering the easy starts and support that define the Session.

SESSION

SESSION

MEN’S

WOMEN’S

EASY UP. EASY ON EDGE.

EASY OUT OF THE WATER. EASY ON EDGE.

Built for easy starts, smooth rides, and long days on the water, the Men’s Session delivers confidence from the very first pull. Stable at slower speeds and intuitive through every turn, it’s a true slalom ski designed to keep everyone connected to the fun of skiing. Real Skiing. Pure Fun.

Built for smooth starts, balanced turns, and confidence from the very first pull, the Women’s Session delivers a stable, intuitive ride that feels natural from edge to edge.

Predictable at slower speeds and easy to trust across the water, it’s a true slalom ski designed to make every set more enjoyable. Real Skiing. Pure Fun.

TERRAIN

CROSSOVER SPEED RANGE (MPH)

20-30

FEATURES ALL TERRAIN CORE

TERRAIN

100% CARBON FIBER

SPEED RANGE (MPH)

Auto-Damping for confidenceinspiring performance.

Light, fast, consistent.

SPEED RANGE (KPH)

34-49

CROSSOVER 20-30

BIO RESIN

Plant based and better.

34-49

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

65 67 69 71

UP TO 160 150-195 175-230 220+

UP TO 73 59-86 79-104 100+

416.134 442.131 468.930 482.924

ALL TERRAIN CORE

Auto-Damping for confidenceinspiring performance.

100% CARBON FIBER Light, fast, consistent.

SPEED RANGE (KPH)

SIZE (IN)

FEATURES

BIO RESIN

Plant based and better.

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

65 67

UP TO 160 150-195

UP TO 73 59-86

416.134 442.131 SKIS RADAR 131

GRAVITON In trick skiing, smooth is fast. Moving efficiently from one trick to the next requires a ski designed to carry speed, grip the water when required, and release cleanly when asked.

The Graviton Series utilizes a single clean radius allowing it to roll and drive into the next trick with predictability and ease. A shortened underfoot flat spot increases glide and creates cleaner, more consistent surface spins. A subtle concave through the tip and tail allows the ski to decelerate smoothly between tricks, helping maintain timing and rope tension into the next movement. Designed to keep momentum where it matters.

FEATURE FUNCTION SPOTLIGHT TRUE-CENTER MOUNTING The Graviton Series features true-center mounting for both hand and toe tricks. For hand tricks, an additional set of inserts positions your center of mass over the ski’s functional center for balanced, predictable response. For toe tricks, dedicated ankle-centering inserts place your ankle directly at mid-ski for natural control and consistent rotation. One ski. Two modes. Ready when you are.

GRAVITON

GRAVITON

STANDARD

JOEL POLAND LTD

PRECISION, REFINED.

AT THE LEADING EDGE.

Designed by Matt Rini, the Graviton Series delivers clean release, consistent pop, and confident landings for modern trick skiing. Rooted in competition yet inspiring a new wave of riders, it’s built for skiers chasing scores or rediscovering the fun of trick skiing.

Built with Joel Poland and designed by Matt Rini, the LTD Graviton delivers the precision, consistency, and clean release demanded at the highest level of trick skiing.

Proven at the highest level, with the freedom to keep trick skiing fun.

TERRAIN

TERRAIN

COMPETITION/ CROSSOVER SPEED RANGE (MPH)

FEATURES PVC CORE

Lightweight and durable.

TEXTREME CARBON

Lighter, stronger composites.

COMPETITION/ CROSSOVER SPEED RANGE (MPH)

FEATURES PVC CORE

Lightweight and durable.

TEXTREME CARBON Lighter, stronger composites.

12-24

BIO RESIN

Plant based and better.

12-24

BIO RESIN

SPEED RANGE (KPH)

TRUE FEEL BASE

SPEED RANGE (KPH)

TRUE FEEL BASE

22-40

A better connection to the water.

RADAR LAB MADE

Plant based and better.

22-40

A better connection to the water.

RADAR LAB MADE

Thanks HERB.

Thanks HERB.

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

SIZE (IN)

SKIER WEIGHT (LBS)

SKIER WEIGHT (KG)

SA (SQ IN)

41 42 43

UP 140 130-170 160-220

UP TO 63 59-77 73-100

407.552 427.682 448.290

41 42 43

UP 140 130-170 160-220

UP TO 63 59-77 73-100

407.552 427.682 448.290 SKIS RADAR 133

VAPOR CHASSIS

INTUITION® LINERS

The Vapor Chassis pushes the boundaries of boot design through a rigid lower skeleton formed with a three-part mold construction. Delivering the control and response of a hard shell while maintaining the fit, comfort, and connection that define Radar’s hybrid boot philosophy.

Developed through our exclusive partnership with Intuition®, these lightweight, heat-moldable liners use preformed Intuition foam to create a precise, personalized fit— delivering improved comfort, connection, and long-lasting performance.

FEATHER FRAME 2.0 CHASSIS

BOA® FIT SYSTEM

The modular Feather Frame Chassis seamlessly integrates the mounting system, baseplate, and shell into one connected platform—bringing skiers closer to the ski for improved feel, performance, and unmatched compatibility.

The BOA® Fit System delivers fast, micro-adjustable precision for a secure, consistent fit every time you step in.

Integrated throughout the Radar Boot Collection, it creates a connected feel with improved comfort, response, and control on the water.

CARBITEX®

WRAP TECH

Carbitex is a flexible carbon fiber textile engineered to deliver immediate response and uncompromising support.

Its reactive nature creates an unmatched connection to the ski—transferring energy efficiently while still allowing natural movement and flexibility.

Wrap Tech fuses the external skeleton of the boot to the base textile layer which gives the boot the ability to conform to the shape of your foot, in turn giving you more response.

®

134 RADAR FOOTWEAR

VAPOR

CARBITEX VECTOR BOA®

PRECISION. REENGINEERED.

The Vapor Boot has been reengineered to create a more connected, responsive feel between skier and ski.

An extended Carbitex carbon fiber cuff increases lateral support and response, while a reinforced toe box connection improves fore/aft energy transfer for cleaner input through the tip of the ski. The upgraded BOA M4 Fit System delivers a more precise fit, while the updated Intuition heat-moldable liner features a stiffer SuperFabric tongue for improved support and cleaner energy transfer throughout the turn. Built for skiers seeking precision at the highest level.

OPEN TOE, REDEFINED.

The Carbitex Vector BOA® wraps the Feather Frame 2.0 chassis in Carbitex® OmniFlex to deliver a more connected open toe experience—combining natural movement, immediate response, and clean edge engagement with the adaptable fit and versatility that define open toe performance.

FEATURES BOA® Fit System Carbitex OmniFlex Wrap Tech Level 4

FEATURES

Molded 3D Tongue

BOA Fit System ®

Symmetrical Fit

Carbitex OmniFlex Upper

Feather Frame 2.0 Chassis

Fully Molded Lower Skeleton

Available on Aluminum Plate

Dual Density Intuition Liner Molded 3D SuperFabric Tongue Vapor Chassis

US

UK

EUR

JAP

US

UK

EUR

JAP

6-7 8 9 10 11 12 13-14

5-6 7 8 9 10 11 12-13

38-39 41 42 43 45 46 47-48

24-25 26 27 28 29 30 31-32

5-8 7-11 10-14

4-7 6-10 9-13

38-41 40-45 42-48

23-26 25-29 28-32

S STD XL

FOOTWEAR RADAR 135

VECTOR BOA®

LYRIC BOA®

VERSATILITY, REFINED.

REFINED FOR RESPONSE.

The Vector BOA® delivers a stable, connected ride with a fit that’s easy to dial and built to perform. Featuring the BOA® Fit System and a balanced, responsive chassis, it provides confident support, natural movement, and dependable control across a wide range of skiing styles and conditions.

The Lyric BOA® is designed specifically for female skiers— pairing a narrower ankle pocket and adjusted cuff profile with balanced support and natural movement. Featuring Carbitex® OmniFlex and the BOA® Fit System, it delivers a connected feel, clean control, and a precise, repeatable fit on the water.

FEATURES FEATURES

BOA® Fit System Wrap Tech Level 2

BOA® Fit System

Molded 3D Tongue

Carbitex OmniFlex

Symmetrical Fit

Wrap Tech Level 2

Feather Frame 2.0 Chassis

Molded 3D Tongue Symmetrical Fit Feather Frame 2.0 Chassis

US

UK

EUR

JAP

5-8 7-11 10-14

4-7 6-10 9-13

38-41 40-45 42-48

23-26 25-29 28-32

136 RADAR FOOTWEAR

S STD XL

US

UK

EUR

JAP

6-9 8-12

4-6.5 6-10

37-40 39-44

22.5-25 24-28.5

S STD

PRIME BUILT ON THE SAME FOUNDATION.

The Prime is designed to deliver a secure, confident fit from the first step in—built around the same last as our highestperformance boots. The result is a familiar, locked-in feel that provides stability, comfort, and dependable control without overcomplicating the experience. Simple by design and easy to use, it delivers consistent support and a reliable connection to the ski for a wide range of skiers. Secure.

Comfortable. Ready to go.

FEATURES Symmetrical Fit Soft Density Footbed Feather Frame 2.0 Chassis

US

UK

EUR

JAP

2-6 5-8 7-11 10-14

1.5-5.5 4-7 6-10 9-13

33-38 38-41 40-45 42-48

21.5-24.5 23-26 25-29 28-32

XS S STD XL

CARBITEX VECTOR BOA® HRT

CARBITEX VECTOR BOA® ARTP

The BOA® system is the simplest way to ensure a perfect fit time and time again. We married that BOA® dial to our HRT for those that want the freedom of a rear toe plate but the control of a back boot.

FEATURES BOA® Fit System Carbitex OmniFlex Independent Floating Tongue Contoured Footbed Feather Frame 2.0 Chassis

FEATURES

*Also Available on Aluminum Plate

BOA Fit System

Symmetrical Fit

Carbitex OmniFlex

Feather Frame 2.0 Chassis

Wrap Tech Level 3

Available on Aluminum Plate

®

Molded 3D Tongue

US

UK

EUR

JAP

5-8 7-11 10-14

4-7 6-10 9-13

38-41 40-45 42-48

23-26 25-29 28-32

S STD* XL

US

UK

EUR

JAP

5-8 7-11 10-14

4-7 6-10 9-13

38-41 40-45 42-48

23-26 25-29 28-32

* FEATHER FRAME FRAME SIZE

* ALUMINUM PLATE SIZE

VECTOR BOA® ARTP

ARTP

FEATURES

FEATURES

BOA® Fit System

Independent Floating Tongue

Independent Floating Tongue

Contoured Footbed

Contoured Footbed

Feather Frame 2.0 Chassis

S STD* XL

Feather Frame 2.0 Chassis

US

UK

EUR

JAP

5-8 7-11 10-14

4-7 6-10 9-13

38-41 40-45 42-48

23-26 25-29 28-32

138 RADAR FOOTWEAR

S STD XL

US

UK

EUR

JAP

5-8 7-11 10-14

4-7 6-10 9-13

38-41 40-45 42-48

23-26 25-29 28-32

S STD XL

LYRIC BOA® ARTP

RUBBER SLALOM RTP

FEATURES BOA® Fit System

FEATURES

Carbitex OmniFlex

Full Rubber

Independent Floating Tongue

Contoured Footbed

Contoured Footbed

Aluminum Plate

Feather Frame 2.0 Chassis

US

UK

EUR

JAP

6-9 8-12

4-6.5 6-10

37-40 39-44

22.5-25 24-28.5

S STD

US

UK

EUR

JAP

4-7 7-10 10-13

3-6 6-9 9-12

36-40 40-44 44-48

22-25 25-28 28-31

XS/S M/L XL/2XL

RUBBER TRICK RTP FEATURES Full Rubber Contoured Footbed Aluminum Plate

US

UK

EUR

JAP

4-7 7-10 10-13

3-6 6-9 9-12

36-40 40-44 44-48

22-25 25-28 28-31

XS/S M/L XL/2XL FOOTWEAR RADAR 139

TAILORED FIT We design our vests to fit better by building them around a body form. This ensures that you get a snug, comfortable fit so you can think less about adjusting your vest and more about skiing.

FLEECE LINER The use of fleece in the arms and neck openings of our kid’s vests ensure that they won’t get chafing on those tender areas.

MODULAR SEGMENTATION

WATER RESISTANT LINER

Modular Segmentation allows specific vest panels to be added, removed, or adjusted to fine-tune the fit, flexibility, and impact protection for different skiing styles and personal preferences. The result is a more customizable vest that adapts to the skier—not the other way around.

Water-resistant liners help reduce water absorption so vests stay lighter and dry faster between sets. The result is a more comfortable feel on the water—and less time putting on a cold, wet vest before your next ride.

140 RADAR VESTS

TAPERED FOAM By tapering the foam from thicker in the chest to thinner through the waist, we’re able to fine-tune mobility and flexibility throughout the vest. This targeted profile reduces restriction and allows the vest to move more naturally with the skier.

SMART SEGMENTATION The segmentation we choose in each vest is purposeful to enhance movement on a ski. Allowing a skier to move through a run is at our forefront when choosing cut lines.

STRETCH FABRIC By combining 2-way and 4-way stretch materials, we’re able to fine-tune how each vest fits and moves. Areas that require support stay secure and locked in, while zones built for mobility maintain the flexibility and elasticity needed for natural movement on the water.

JP MOD IMPACT

TITLE IMPACT

PRECISION, PERSONALIZED.

TOURNAMENT FIT, REFINED.

NON CGA

CE APPROVED

Designed with Joel Poland, the JP MOD Vest features a modular segmented design that allows key panels to be added, removed, or swapped between foam densities to fine-tune flexibility, flotation, and impact protection. Built for high-performance skiing with an athletic fit that moves naturally on the water.

NON CGA

New for 2027, the Title Vest features an updated fit with a longer torso and a more accommodating shape for improved overall comfort and fit. Built specifically for tournament skiing, it delivers premium comfort, unrestricted mobility, and a clean, tailored fit on the water.

FEATURES

FEATURES

Manhattan Tailored Fit

Manhattan Tailored Fit

Slalom-Ready Arm Openings

Slalom-Ready Arm Openings

Flex Foam

Modular Side Foam Inserts

4-Way Stretch Neoprene

Flex Foam

CE Approved Impact Jacket

4-Way Stretch Neoprene Available in: Jet Black & Grey/Olive Green

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

XS (BLACK ONLY) S M L XL 2XL

28-31 31-34 34-37 37-40 40-43 43-45

71-79 79-86 86-94 94-102 102-109 109-114

S M L XL 2XL

31-34 34-37 37-40 40-43 43-45

79-86 86-94 94-102 102-109 109-114

142 RADAR IMPACT VESTS

LYRIC IMPACT

X 4.0

SUPPORT, REFINED.

BUILT TO MOVE. APPROVED TO SKI.

NON CGA

US/CANADA COAST GUARD APPROVED

New for 2027, the Lyric Vest features an all-new shape built specifically for tournament skiing. Compression Fit construction uses targeted support zones with reduced stretch in key areas to create a secure, powerful feel while maintaining the mobility and comfort needed for highperformance skiing.

Built around the new L50 Coast Guard Approved standard, the X 4.0 rethinks how a CGA vest fits and moves.

Cylindrical construction distributes flotation around the torso to create a balanced fit that stays comfortable and moves naturally on the water. Designed for experienced watermen who prioritize mobility, comfort, and freedom of movement.

FEATURES Womens Tailored fit

FEATURES

Slalom-Ready Arm Opening

Manhattan Tailored Fit

Smart Segmentation

Cushion Foam

Flex Foam

Smart Segmentation

4-Way Stretch Neoprene

2-Way Stretch Neoprene

Impact Jacket

Water-Resistant Liner US and Canadian Coast Guard Approved

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

XS S M L XL

26-28 29-32 33-35 36-38 39-41

66-71 74-81 84-89 91-97 98-104

S M L XL 2XL

33-36 36-39 39-42 42-45 45-48

84-91 91-99 99-107 107-114 114-122

VESTS RADAR 143

SURFACE

STAPLE

SIMPLE BY DESIGN.

COMFORT COMES STANDARD.

US/CANADA COAST GUARD APPROVED

US/CANADA COAST GUARD APPROVED

Built specifically for waterskiing, the Surface combines a clean fit with dependable Coast Guard Approved performance. Comfortable, easy to move in, and designed to make time on the water feel even better.

A great vest should feel natural the moment you put it on.

The Staple delivers a comfortable fit, dependable Coast Guard Approved performance, and all-day wearability built for seasons on the water.

FEATURES

FEATURES

Water Resistant Liner

Water Resistant Liner

2-Way Stretch

2-Way Stretch

Over Sized Arm Holes

Over Sized Arm Holes

US and Canadian Coast Guard Approved

US and Canadian Coast Guard Approved

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

S M L XL 2XL

31-34 34-37 37-40 40-43 43-46

79-86 86-94 94-102 102-109 109-117

S M L XL 2XL

31-34 34-37 37-40 40-43 43-46

79-86 86-94 94-102 102-109 109-117

144 RADAR CGA VESTS

CAMEO 4.0

AURA

BUILT TO MOVE. APPROVED TO SKI.

SIMPLE BY DESIGN.

US/CANADA COAST GUARD APPROVED

US/CANADA COAST GUARD APPROVED

Built around the new L50 Coast Guard Approved standard, the Cameo 4.0 rethinks how a CGA vest fits and moves.

Cylindrical construction distributes flotation around the torso to create a balanced fit that stays comfortable and moves naturally on the water. Designed for experienced waterwomen who prioritize mobility, comfort, and freedom of movement.

Built specifically for waterskiing, the Aura combines a clean fit with dependable Coast Guard Approved performance.

Comfortable, easy to move in, and designed to make time on the water feel even better.

FEATURES Water Resistant Liner 2-Way Stretch

FEATURES

Over Sized Arm Holes US and Canadian Coast Guard Approved

Women’s Tailored Fit Cushion Foam Smart Segmentation 2-Way Stretch Neoprene Water-Resistant Liner US and Canadian Coast Guard Approved

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

SIZE

CHEST SIZE (IN)

CHEST SIZE (CM)

XS S M L

32-35 35-37 37-39 40-42

81-89 89-94 94-99 102-107

S M L XL

35-37 37-39 40-42 43-45

89-94 94-99 102-107 109-114 CGA VESTS RADAR 145

BOY’S TEEN T.R.A.

GIRL’S TEEN T.R.A.

READY FOR MORE.

FREEDOM TO SKI.

COAST GUARD APPROVED

US/CANADA COAST GUARD APPROVED

Built specifically for teen skiers, the Boy’s Teen T.R.A. combines a comfortable fit with Coast Guard Approved performance and unrestricted movement for more confidence every time they leave the dock.

Built specifically for teen skiers, the Girl’s Teen T.R.A. combines a comfortable fit with Coast Guard Approved performance and unrestricted movement for confidence every time they leave the dock.

FEATURES

FEATURES

Lightweight PVC Foam

Lightweight PVC Foam

Tailored Fit

Tailored Fit

2-Way Stretch

2-Way Stretch

Water Resistant Liner

Water Resistant Liner

Coast Guard Approved

US and Canadian Coast Guard Approved

SIZE

CHEST SIZE (LBS)

CHEST SIZE (KG)

SIZE

CHEST SIZE (LBS)

CHEST SIZE (KG)

TEEN

75-125

34-57

TEEN

75-125

34-57

146 RADAR CGA VESTS

BOY’S YOUTH T.R.A.

GIRL’S YOUTH T.R.A.

FREEDOM TO MOVE.

FREEDOM TO MOVE.

COAST GUARD APPROVED

US/CANADA COAST GUARD APPROVED

Built specifically for young skiers, the Boy’s Youth T.R.A. combines a comfortable fit with dependable Coast Guard Approved performance. Easy to wear and built for movement, it’s designed to keep every set fun.

Built specifically for young skiers, the Girl’s Youth T.R.A. combines a comfortable fit with dependable Coast Guard Approved performance. Easy to wear and built for movement, it’s designed to keep every set fun.

FEATURES

FEATURES

Fleece Lined Neck and Arm Holes

Water Resistant Liner

2-Way Stretch

2-Way Stretch

Coast Guard Approved

Over Sized Arm Holes US and Canadian Coast Guard Approved

SIZE

CHEST SIZE (LBS)

CHEST SIZE (KG)

SIZE

CHEST SIZE (LBS)

CHEST SIZE (KG)

YOUTH

50-90

23-41

YOUTH

64 - 88

29-40

CGA VESTS RADAR 147

BOY’S CHILD

GIRL’S CHILD

ADVENTURE STARTS HERE.

ADVENTURE STARTS HERE.

US/CANADA COAST GUARD APPROVED

US/CANADA COAST GUARD APPROVED

Built specifically for future skiers, the Boy’s Child vest combines dependable Coast Guard Approved performance with a comfortable fit designed for long days on the water.

Easy to wear and built for fun from the very first set.

Built specifically for future skiers, the Girl’s Child vest combines dependable Coast Guard Approved performance with a comfortable fit designed for long days on the water.

Easy to wear and built for fun from the very first set.

FEATURES

FEATURES

Fleece Lined Neck and Arm Holes

Fleece Lined Neck and Arm Holes

2-Way Stretch

2-Way Stretch

US and Canadian Coast Guard Approved

US and Canadian Coast Guard Approved

SIZE

CHEST SIZE (LBS)

CHEST SIZE (KG)

SIZE

CHEST SIZE (LBS)

CHEST SIZE (KG)

CHILD

33 - 55

15-25

CHILD

33 - 55

15-25

148 RADAR CGA VESTS

BOY’S TODDLER

GIRL’S TODDLER

START THEM YOUNG.

START THEM YOUNG.

COAST GUARD APPROVED

COAST GUARD APPROVED

Built for the smallest members of the crew, the Boy’s Toddler vest combines dependable Coast Guard Approved performance with all-day comfort designed for life on the water. Fleece-lined anti-chafe zones keep little ones comfortable, while an easy-wearing fit is built to stay happy from dock to sunset.

Built for the smallest members of the crew, the Girl’s Toddler vest combines dependable Coast Guard Approved performance with comfort designed for long days on the water. Fleece-lined anti-chafe zones and an easy-wearing fit help keep little ones happy from dock to sunset.

FEATURES

FEATURES

Fleece Lined Neck and Arm Holes

Fleece Lined Neck and Arm Holes

2-Way Stretch

2-Way Stretch

Coast Guard Approved

Coast Guard Approved

SIZE

CHEST SIZE (LBS)

CHEST SIZE (KG)

SIZE

CHEST SIZE (LBS)

CHEST SIZE (KG)

TODDLER

UP TO 30

UP TO 14

TODDLER

UP TO 30

UP TO 14 CGA VESTS RADAR 149

LONG SLEEVE SHORTY

JOHN TOP

BUILT FOR THE IN-BETWEEN.

Built for cool mornings and long days on the water, the John Top adds lightweight warmth while creating a more comfortable connection beneath your vest. It helps reduce vest movement, keeps wet neoprene off your skin, and disappears once your set begins.

THE LAYER YOU’LL ALWAYS REACH FOR.

Warm through the upper body and unrestricted below the waist, the Long Sleeve Shorty is designed to extend your season without changing the way you ski. Less drag, natural movement, and comfort that lets you focus on the water instead of the temperature.

FEATURES 4-Way Super Stretch

FEATURES

Taped Seams

4-Way Super Stretch

2 mm Thickness

Glued and Blind Stitching

Glide Skin Chest

Taped Seams 2 mm Thickness Vapor Lock Neoprene Barrier Back Zip

SIZE

HEIGHT (FT,IN)

WEIGHT (LBS)

CHEST (IN)

WAIST (IN)

SIZE

HEIGHT (FT,IN)

WEIGHT (LBS)

CHEST (IN)

WAIST (IN)

S M L XL 2XL

5’8”-5’10” 5’9”-5’11” 5’10”-6’ 5’11”-6’1” 6’-6’2”

135-155 155-170 170-190 190-210 210-230

37.5-39 39-41 41-43.5 43.5-46 46-48.5

29.5-31 31-33 33-35 35-37 37-39

S M L XL 2XL

5’8”-5’10” 5’9”-5’11” 5’10”-6’ 5’11”-6’1” 6’-6’2”

135-155 155-170 170-190 190-210 210-230

37.5-39 39-41 41-43.5 43.5-46 46-48.5

29.5-31 31-33 33-35 35-37 37-39

150 RADAR WETSUITS

RADAR SHIN GUARD

RADAR SPRAY LEG

PROTECTION WHERE IT COUNTS.

KEEP THE BURN AT BAY.

As bindings evolved, one thing became clear: rear shin protection matters. Built with Hex-Protect cushioning, the Radar Shin Guard helps reduce impacts and keeps you focused on skiing—not the bruises.

Built to reduce spray burn, the Radar Spray Leg adds lightweight protection so you can stay comfortable and focused on your skiing.

FEATURES

FEATURES

Lightweight Foam

Hex-Protect Padding

4-Way Stretch

Integrated Internal Shin Pad Pocket

Non-Coast Guard Approved

SIZE

SIZE

HEIGHT (IN)

HEIGHT (CM)

S/M L/XL

S M L

13-14 15-16 17-18

33-36 38-41 43-46 SHIN GUARDS RADAR 151

GLOVE TECH BOA® FIT SYSTEM

PRE-CURVED FINGERS

Dial in the perfect fit every time.

Prevents material from bunching in your palm.

EXTERNAL GRIP DOWEL

DOUBLE LAYER PALM

Take the strain off your forearms and ski longer.

Two layers of Amara for the best palm protection.

NEOPRENE STRETCH ZONE

NYLON BACKHAND A material that stretches in every direction.

Neo is placed only where you need your glove to stretch.

DOUBLE GAUGE THREAD

POWER-PULL Simple and efficient backhand closure.

Thicker thread for better and longer lasting seams.

ARIAPRENE

STEALTH FLEX

Allows the glove to breathe easily and flex perfectly.

A precision blend of stretch and durability.

ARAMID PALM

INSIDE-OUT

Our most durable palm material.

Sewn inside-out to give your fingers relief from pesky stitching.

AMARA PALM

THUMB BUMPER

The stickiest palm material on the market.

A neoprene bumper that prevents handle wear.

AIRKNIT MESH

PALM PROTECTORS

Forms perfectly to your hand for a precise fit.

Nobody likes blisters.

MEN’S SIZES

US

EURO

WOMEN’S SIZES

US

EURO

KID’S SIZES

US

EURO

XS S M L XL 2XL

6.5-7.5 7.5-8.5 8.5-9.5 9.5-10.5 10.5-11.5 11.5-12.5

8 9 10 11 12 13

XXS XS S M L

5-6 5.5-6.5 6-7 6.5-7.5 7-8

6.5 7 7.5 8 8.5

S M L

4.5-5.5 5-6 5.5-6.5

6 6.5 7

152 RADAR GLOVES

AIRKNIT-K BOA®

VAPOR-K BOA®

VAPOR-A BOA®

FEATURES

FEATURES

FEATURES

Airknit Mesh

Ariaprene

Ariaprene

BOA® Fit System

BOA® Fit System

BOA® Fit System

Inside Out Stitching

Inside Out Stitching

Inside Out Stitching

Double Gauge Thread

Double Gauge Thread

Double Gauge Thread

Aramid Palm

Neoprene Stretch Zone

Neoprene Stretch Zone

Pre-Curved Fingers

Aramid Palm

Amara Palm

Pre-Curved Fingers

Pre-Curved Fingers

SIZE

SIZE

SIZE

XS

XS S

M

L

XL

S

M

L

XL

2XL

XS

S

M

L

XL

2XL

2XL

VICE

FUSE-K

FUSE-A

FEATURES

FEATURES

FEATURES

External Grip Dowel

Velcro Double Lock System

Velcro Double Lock System

Inside Out Stitching

Inside Out Stitching

Inside Out Stitching

Double Gauge Thread

Double Gauge Thread

Double Gauge Thread

Stealth Flex Backhand

Neoprene Stretch Zones

Neoprene Stretch Zones

Amara Palm

Aramid Palm

Amara Palm

Pre-Curved Fingers

Pre-Curved Fingers

Pre-Curved Fingers

SIZE

SIZE

SIZE

XS

S

M

154 RADAR GLOVES

L

XL

2XL

XS

S

M

L

XL

2XL

XS

S

M

L

XL

2XL

PODIUM

RANGE

FEATURES

FEATURES

Double Gauge Thread

Nylon Backhand

Full Amara Construction

Embossed Amara Palm

Double Layered Palm

Double Gauge Thread

Pre-Curved Fingers

Thumb Bumper

LYRIC-A BOA® FEATURES Ariaprene BOA® Fit System Inside Out Stitching Double Gauge Thread Neoprene Stretch Zone Amara Palm Pre-Curved Fingers

SIZE

XS

SIZE

S

M

L

XL

2XL

XS

SIZE

S

M

L

XL

LYRIC

T.R.A.

FEATURES

FEATURES

Power-Pull Closure System

Power-Pull Closure System

Inside Out Stitching

Inside Out Stitching

Double Gauge Thread

Double Gauge Thread

Neoprene Stretch Zone

Neoprene Stretch Zone

Amara Palm

Amara Palm

Pre-Curved Fingers

Pre-Curved Fingers

Convert to Fingerless

Convert to Fingerless

SIZE

SIZE

XXS

XS

S

M

L

K|S

2XL

XXS

XS

S

M

L

PALM

PROTECTORS FEATURES Neoprene Construction Split Finger Entry Fits Under Gloves

SIZE

K|M

K|L

ONE SIZE FITS MOST GLOVES RADAR 155

HANDLE TECH BARLOCK Our unique tying method ensures the handle won’t roll and that all power is transferred to your lean.

SUPERGRIP The grippiest rubber compound they could brew up in the lab. Our new rubber is all grip and no slip so you can rip more than ever before.

SILICONE ENDCAPS Silicone is lightweight and durable, making the ideal material to protect the ends of your handle.

DIAMOND GRIP This special material offers the precise blend of comfort and grip. Wrapping the bar in Diamond Grip ensures keeping your hands soft and your spray big.

PRE-STRETCHED Pre-stretching the rope is the only way to make sure you have a perfect pull from your very first set.

LOOPED ROPE By looping the connection point on the rope, you can easily remove sections and have a perfect fit to your pylon.

KNOTLESS ROPE Utilizing a special tying method allows us to build a rope with no knots in the connection points. Just slip the rope over the pylon and go skiing.

DEEP-V The V built into this handle perfectly balances the ski so you have one less thing to worry about, simply slip the ski into the bridle and off you go.

156 RADAR ROPES & HANDLES

CARBON BARLOCK HANDLE

VAPOR BARLOCK HANDLE

VAPOR BARLOCK HANDLE

FEATURES

FEATURES

FEATURES

5mm. Carbon Barlock Endcap

BarLock Silicone Endcap

BarLock Silicone Endcap

SuperGrip

SuperGrip

SuperGrip

Pre-Stretched

Pre-Stretched

Pre-Stretched

HANDLE LENGTH (IN)

DIAMETER (IN)

HANDLE LENGTH (IN)

DIAMETER (IN)

HANDLE LENGTH (IN)

DIAMETER (IN)

13 13 13

1.0 1.062 1.10

12 12 12 12

.940 1.0 1.062 1.10

13 13 13 13

.940 1.0 1.062 1.10

VAPOR BARLOCK ARC HANDLE

VAPOR CUSTOM HANDLE

VAPOR CUSTOM HANDLE

FEATURES

FEATURES

FEATURES

Silicone Endcap

Silicone Sleeves

Silicone Sleeves

SuperGrip

SuperGrip

SuperGrip

Pre-Stretched

Pre-Stretched

Pre-Stretched

HANDLE LENGTH (IN)

DIAMETER (IN)

HANDLE LENGTH (IN)

DIAMETER (IN)

HANDLE LENGTH (IN)

DIAMETER (IN)

13 13

1.0 1.062

12 12 12 12

.940 1.0 1.062 1.10

13 13 13 13

.940 1.0 1.062 1.10

158 RADAR ROPES & HANDLES

WOMEN’S VAPOR CUSTOM HANDLE FEATURES Silicone Sleeves SuperGrip Pre-Stretched

VAPOR KNOTLESS MAINLINE

VAPOR LOOPED MAINLINE

FEATURES

FEATURES

80 Strand Double Woven Fiber

80 Strand Double Woven Fiber

Pre-Stretched

Pre-Stretched

Silicone ID Sleeves

Silicone ID Sleeves

Color Coded Sections

Color Coded Sections

Easy Slide Shortening Loops

Quick-Connect Shortening Loops

HANDLE LENGTH (IN)

DIAMETER (IN)

MAINLINE LENGTH (FT)

SECTIONS

MAINLINE LENGTH (FT)

SECTIONS

12

1

55

9

55

9

CONTROL MAINLINE

CONTROL MAINLINE

FEATURES

FEATURES

80 Strand Fiber

80 Strand Fiber

Pre-Stretched

Pre-Stretched

Silicone ID Sleeves

Silicone ID Sleeves

Shortens Through 43 Off (9.75m.)

Shortens Through 38 Off (11.25m.)

Color Coded Sections

Color Coded Sections

Simple Cinch Shortening Loops

Simple Cinch Shortening Loops

CONTROL BARLOCK PRO HANDLE FEATURES Double Dipped Endcaps SuperGrip Double Braided Yoke Pre-Stretched

MAINLINE LENGTH (FT)

SECTIONS

MAINLINE LENGTH (FT)

SECTIONS

HANDLE LENGTH (IN)

DIAMETER (IN)

70

10

70

8

13

1.062 ROPES & HANDLES RADAR 159

CONTROL BARLOCK TEAM HANDLE

CONTROL BARLOCK ARC HANDLE

CONTROL BARLOCK ELLIPTICAL HANDLE

FEATURES

FEATURES

FEATURES

Double Dipped Endcaps

Double Dipped Endcaps

Double Dipped Endcaps

Double Braided Yoke

Double Braided Yoke

Double Braided Yoke

Pre-Stretched

Pre-Stretched

Pre-Stretched

HANDLE LENGTH (IN)

DIAMETER (IN)

HANDLE LENGTH (IN)

DIAMETER (IN)

HANDLE LENGTH (IN)

DIAMETER (IN)

13

1

13

1

13

1

CONTROL PRO PACKAGE

CONTROL TEAM PACKAGE

CONTROL ARC PACKAGE

FEATURES

FEATURES

FEATURES

Double Dipped Endcaps

Double Dipped Endcaps

Double Dipped Endcaps

80 Strand, 10 Section Mainline

64 Strand, 8 Section Mainline

64 Strand, 8 Section Mainline

Pre-Stretched

Pre-Stretched

Pre-Stretched

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

13

75

13

75

13

75

160 RADAR ROPES & HANDLES

CONTROL ELLIPTICAL PACKAGE

SURE GRIP PACKAGE FEATURES Tacky TPR Grip

FEATURES

FEATURES

6 in. Finger Protectors

Double Dipped Endcaps

Diamond Grip Deep-V Handle

Foam Floats

64 Strand Mainline

4 ft. V-Bridle

Vinyl Sleeves

Pre-Stretched

DIAMOND GRIP PACKAGE

5 Section Package – Red/White 8 Section Package – Silver/White

Vinyl Covered Rope 6 in. Finger Protectors Foam Floats Handle Available Individually

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

13

75

13

75

15

75

GLOBAL DIAMOND GRIP PACKAGE

GLOBAL PACKAGE FEATURES Rubber Handle

TRICK/ KNEEBOARD /FREERIDE PACKAGE

FEATURES

FEATURES

Diamond Grip Handle

HD Tacky Suede Grip

6in. Finger Protectors

6 in. Finger Protectors Foam Floats Vinyl Sleeves

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

HANDLE LENGTH (IN)

MAINLINE LENGTH (FT)

13

75

12

75

14

75 ROPES & HANDLES RADAR 161

X-CALIBER

ORIGIN

FIREBOLT

Surface area is buoyancy. Buoyancy is your friend. The X-Caliber combos are designed with high-end tech for the most efficient sidecut found in two skis. The additional surface area under foot adds stability and keeps the skis riding smoothly. These skis feature our renowned Cruise Boot for comfort and connection.

The Origin combos are made to get you up and on top of the water efficiently, in the most traditional manner. The narrower profile makes them nimble once on top.

Sliding adjustable horseshoe bindings complete the package.

Built as a scaled version of the X-Calibers, the Firebolts give young skiers the tools to progress. A removable stabilizer improves balance and control, while adjustable bindings and a dual-handle training rope make learning easier.

FEATURES Molded EVA Cruise Boot

FEATURES Horseshoe Bindings

FEATURES

Progressive Profile Sidecut

Color Me Marker Pack

Trainer Bar Included with 59” Pair

Trainer Bar Rope and Handle

Wide Profile Sidecut Trainer Bar Included With 59” Pair SIZE (IN)

SIZE (IN)

SIZE (IN)

59 67

59 67

46

162 RADAR COMBOS

MISSION

HAWK

This revolutionary shape makes edging a breeze and pops off the wake cleanly. Its twin tip technology allows it to be ridden forward or backward with ease.

The state-of-the-art pad has knee wells and high angled footwalls that hold you in place under the strap like never before.

A narrowed tip profile and 3.2” swallowtail define the easy edging slalom style Hawk. Removing surface area from the tip allows the board to roll and hold on edge and the swallowtail speeds up turns and increases holding power. The retractable fins can give you the utmost grip when dropped down or loosen up the board when hidden.

FEATURES

MAGIC CARPET Our modern kneeboard shape has a recessed EVA foam pad and single handle hook for the little ones to climb aboard. The design has increased surface area farther forward for stability and more pronounced molded in fins make it easy to ride.

Aero Core

FEATURES

FEATURES

Carbon Laminates

Durable Roto Shell

Durable Roto Shell

EVA Pad

Recessed Pad

Dual Locking Strap

Single Locking Strap

SIZE

SIZE

SIZE

ONE SIZE FITS MOST

ONE SIZE FITS MOST

ONE SIZE FITS MOST

Recessed Pad Single Locking Strap

KNEEBOARDS RADAR 163

CHASE 2

CHASE 3

Pick a friend and get to tubing. The Chase 2 can be towed in both directions and has a mount for a POV camera, so you can check the footage of your wipeout later!

The Chase 3 offers endless fun all summer long. With room for three you’ll be laughing with your buddies as you bounce through the wakes and glide on a long whip.

Spoon-O-Vation reduces the drag so you keep your speed and connect clean with the wake for maximum boost.

FEATURES Spoon-O-Vation

Neoprene Knuckle Guards

Neoprene Seat Padding

420 Denier Nylon Cover

FEATURES

Two Tow Points

30 Gauge PVC Bladder

Spoon-O-Vation

Neoprene Knuckle Guards

POV Camera Mount

2 Cup Holders

Neoprene Seat Padding

840 Denier Nylon Cover

Two Tow Points

30 Gauge PVC Bladder

POV Camera Mount

2 Cup Holders

RIDERS (QTY)

SIZE (IN)

RIDERS (QTY)

SIZE (IN)

2

66 X 64

3

80 X 80

CHASE 4

LIFTOFF

There’s room for the whole family on this tube. Whether your crew is out for a tube ride or you’re tied up to the dock and putting the cup holders to good use, you’ll be enjoying life on the Chase 4.

Our oversized deck tube provides fun for everyone. With a ton of surface area and side bolsters for support, you can carry speed on a Liftoff like never before.

FEATURES

FEATURES Spoon-O-Vation

840 Denier Nylon Cover

Spoon-O-Vation

840 Denier Nylon Cover

Neoprene Knuckle Guards

30 Gauge PVC Bladder

Neoprene Seat Padding

30 Gauge PVC Bladder

Marshmallow Soft Top

Side Bolsters

POV Camera Mount

3 Cup Holders

Neoprene Knuckle Guards

RIDERS (QTY)

SIZE (IN)

RIDERS (QTY)

SIZE (IN)

4

96 X 85

3

65 X 68

164 RADAR TOWABLES

FALKOR

ASTRO

The Falkor is the latest addition to the Deck series and has room for the whole family. Pile on and let the fun begin!

The Astro is a crowd favorite with its nimble size. Easy to launch off the wake and even easier to maneuver, the Astro has a ton of bang for your buck.

FEATURES Spoon-O-Vation

840 Denier Nylon Cover

FEATURES

Neoprene Knuckle Guards

30 Gauge PVC Bladder

Spoon-O-Vation

420 Denier Nylon Cover

Marshmallow Soft Top

Side Bolsters

Neoprene Knuckle Guards

30 Gauge PVC Bladder

Marshmallow Soft Top

Side Bolsters

RIDERS (QTY)

SIZE (IN)

RIDERS (QTY)

SIZE (IN)

4

76 X 100

2

51 X 60

ORION 2

ORION 3

Our classic Orion tube is a round adventure waiting to happen. Spoon-O-Vation allows this tube to carry speed and pop off the wakes!

Our classic Orion tube in a bigger size. The world’s most favorite tube now has room for one extra person!

FEATURES

FEATURES Spoon-O-Vation

840 Denier Nylon Cover

Spoon-O-Vation

840 Denier Nylon Cover

Neoprene Knuckle Guards

30 Gauge PVC Bladder

Neoprene Knuckle Guards

30 Gauge PVC Bladder

Marshmallow Soft Top

Marshmallow Soft Top

RIDERS (QTY)

SIZE (IN)

RIDERS (QTY)

SIZE (IN)

2

60

3

75 TOWABLES RADAR 165

VORTEX

UFO

The tube that started it all, the Vortex remains a staple in our line as a classic tube that anyone can enjoy.

A classic tube with a modern twist. The UFO is an oversized donut tube with an inflatable seat cushion.

FEATURES

FEATURES

Spoon-O-Vation

420 Denier Nylon Cover

Neoprene Knuckle Guards

Neoprene Knuckle Guards

30 Gauge PVC Bladder

420 Denier Nylon Cover

Inflatable Seat Cushion

30 Gauge PVC Bladder

RIDERS (QTY)

SIZE (IN)

RIDERS (QTY)

SIZE (IN)

1

48

2

64

EDGE 2

EDGE 3

The Edge 2 will send you on the ride of your life. Designed with a higher tow point configuration to eliminate spray combined with a thicker bladder that allows the tube to have more top water speed and increased glide.

The Edge-3 is faster and more fun than ever. With a higher tow-point and a futuristic shape you’ll be skipping and screaming on the edge of the tube.

FEATURES

FEATURES Spoon-O-Vation

840 Denier Nylon Cover

Spoon-O-Vation

420 Denier Nylon Cover

Neoprene Knuckle Guards

30 Gauge PVC Bladder

Neoprene Knuckle Guards

30 Gauge PVC Bladder

Marshmallow Soft Top

Winged Bolsters

Marshmallow Soft Top

Winged Bolsters

RIDERS (QTY)

SIZE (IN)

RIDERS (QTY)

SIZE (IN)

2

78 X 62

3

84 X 68

166 RADAR TOWABLES

VZ

WAVE RIDER

GALAXY

The Wave Rider takes a traditional deck tube to the next level. Its elevated surface construction allows it to have less contact with the water which means less drag and more speed.

Big doesn’t always mean bulky, the oversized Galaxy has impressively low drag thanks to Spoon-O-Vation. Climb aboard the triangle of fun and see for yourself!

FEATURES

FEATURES Spoon-O-Vation

Neoprene Knuckle Guards

Spoon-O-Vation

840 Denier Nylon Cover

Neoprene Elbow and Knee

840 Denier Nylon Cover

Neoprene Knuckle Guards

30 Gauge PVC Bladder

Padding

30 Gauge PVC Bladder

Two Tow Points

Side Bolsters

Marshmallow Soft Top

RIDERS (QTY)

SIZE (IN)

RIDERS (QTY)

SIZE (IN)

3

64 X 84

4

120 X 130

ASTEROID

ORBIT

You’ll be flying to the brink of the stratosphere in the Asteroid. Our unique shape gives tons of top water speed but the donut bolster ensures that you stay flying on top of the water and not flipping through it.

Hang on for the ride of your life. Our oversized ring of fun will have you on the edge of your seat with its high top water speed. Worry not, the donut bolster will bring you right to the brink of tipping but keep you gliding on top of the water.

FEATURES Spoon-O-Vation

840 Denier Nylon Cover

FEATURES

Neoprene Knuckle Guards

30 Gauge PVC Bladder

Spoon-O-Vation

840 Denier Nylon Cover

Marshmallow Soft Top

Donut Bolster

Neoprene Knuckle Guards

30 Gauge PVC Bladder

Marshmallow Soft Top

Donut Bolster

RIDERS (QTY)

SIZE (IN)

RIDERS (QTY)

SIZE (IN)

3

80

4

112 TOWABLES RADAR 167

REEF LOUNGE

CLOUD

Lounging on the lake in the summer is never more relaxing than in the Radar Reef. With seats for four and cup holders galore you’ll find yourself floating and soaking up the sun every weekend.

Our floating mat is fully modular and can connect to the Reef for a flotilla of fun. The best part, when you’re done just deflate it and fold it up for easy storage.

FEATURES

26 Gauge PVC

26 Gauge PVC 6 Cup Holders Sandbag Anchor

FEATURES Link and Lounge Zipper Connection

Built-in Cooler Link and Lounge Zipper Connection

Welded Anchor Points

RIDERS (QTY)

SIZE (IN)

SIZE (FT)

4

95 X 95

5 X 10

AQUA LOUNGER

HYDROFLOAT

The Aqua Lounger is the ultimate fun in the sun toy. Blow it up and float it out, in the pool, in the lake, or at the beach, the Lounger will lounge anywhere.

Lay in the sun all summer long, this fun float will have you lounging in style.

FEATURES

26 Gauge PVC

26 Gauge PVC

2 Cup Holders

2 Cup Holders

Welded Anchor Points

FEATURES

Welded Anchor Points Fold-out Footrest

RIDERS (QTY)

RIDERS (QTY)

SIZE (IN)

1

2

42 X 64

168 RADAR TOWABLES

RIVER FRIDGE Be the life of the party with this floating circle of fun; the removable inner cooler holds a ton of drinks, and the outer ring has room for a multitude of bevies!

FEATURES 26 Gauge PVC 6 Cup Holders Welded Anchor Points

RIDERS (QTY)

PARTY

TEAM WHEELIE CASE

UNPADDED GEAR CASE

FEATURES

Top Entry Zipper

FEATURES

Reinforced Riveted Handles Rip-Stop Outer

WOMEN’S PADDED SLALOM CASE

FEATURES

FEATURES

Oversized Storage

Top Entry Zipper

Top Entry Zipper

Fits all Radar Skis

Oversized Boot Zone

Oversized Boot Zone

Inside Storage Pocket

Inside Storage Pocket

Breathable Mesh

Breathable Mesh

Rip-Stop Outer

Heavy Duty Wheels

MEN’S PADDED SLALOM CASE

Fully Padded Oversized Pockets Fits all Radar Skis

L (IN)

W (IN)

H (IN)

L (IN)

W (IN)

H (IN)

HEIGHT (IN)

HEIGHT (IN)

71

12

8

71

7

12

63-67 68-71

63-67

170 RADAR CASES

TRICK NEO SLEEVE

FLIGHT LUGGAGE

FEATURES

FEATURES

Neoprene Padding

4-Wheel Roller

SIZE (IN)

ONE SIZE FITS MOST

SLALOM NEO SLEEVE W/ FIN PROTECTOR

SLALOM NEO SLEEVE

FEATURES

For Wide Platform Skis

For Narrow Platform Skis Fin Protector 4-Way Stretch Neoprene

FEATURES 4-Way Stretch Neoprene Silk Skin liner Nylon Webbing Strap

LOADED TOOL KIT FEATURES 8” Calipers Wing Angle Gauges Allen Wrench Bag Also Sold Individually

Carry-On Size SIZE (IN)

VOLUME (LTRS)

71

40

SIX PACK COOLER FEATURES Nylon Insulated Cooler Snack Pouch SIZE (IN)

ONE SIZE FITS MOST

Silk Skin liner Nylon Webbing Strap

SIZE (IN)

SIZE (IN)

ONE SIZE FITS MOST

ONE SIZE FITS MOST

CASES RADAR 171

MOMENT TEE

MFG TEE

WELCOME TEE

EAST ISLAND TEE

SIZES

SIZES

SIZES

SIZES

S

M

L

XL

2XL

S

M

L

XL

2XL

S

M

L

XL

2XL

S

M

L

XL

LYRIC TEE

FIRST LIGHT HOODIE

SOLAR HOODIE

CREW SOCKS

SIZES

SIZES

SIZES

SIZES

S

M

L

S

M

L

XL

2XL

S

M

L

XL

2XL

ONE SIZE FITS MOST

PADDLER’S SUN HAT

BACKSIDE SNAPBACK

RADAR JGS 5-PANEL HAT

CHANGE PONCHO

SIZES

SIZES

SIZES

SIZES

ADJUSTABLE

ADJUSTABLE

ADJUSTABLE

ONE SIZE FITS MOST

172 RADAR APPAREL

2XL

BOAT BLANKET

LACE LOCK KIT FEATURES

RADAR BUNGEE KIT

FEATURES

2 Bungees w/ Locks and 2

FEATURES

Everything you need to fix

Laces w/ Locks LENGTH (IN)

WIDTH (IN)

58

84

CALIPERS FEATURES Make sure your fin is dialed.

4 Bungees w/ Bungee Locks

WARRANTY TACKLE BOX what’s broken.

WING ANGLE GAUGES

BOOT SCREWS

BOOT SCREWS

FEATURES

FEATURES

FEATURES

Screw it

Red, Orange, Yellow, Green

7º/7.5º, 8º/8.5º, 9º/9.5º

PRO COMP ADJUSTABLE FIN

PRECISION FIXED FIN SYSTEM

OPEN WATER FIN FEATURES

ALUMINUM SLALOM WING

FEATURES

FEATURES

Used on Session

FEATURES

Used on Vapor, Senate Pro,

Used on Senate Alloy, Lyric,

Senate Lithium, Senate

T.R.A. and Union

1 Wing Set

Graphite and Lyric Graphite

ACCESSORIES RADAR 173

COMBO FIN FEATURES Fits on X-Calibers and Origins

CARBON/ G10 SEQUENCE PLATE

CARBON/ G10 FRONT PLATE

FEATURES

Adjustable Mounting

BOA® Aluminum and Graviton

COMBO HEEL ASSEMBLY

COMBO REAR TOE STRAP

FEATURES

ALUMINUM PLATES FEATURES Fits on Vapor, Carbitex Vector

Micro-Adjustable

COMBO TOE RUBBER

COMBO TOE ASSEMBLY

FEATURES

FEATURES

FEATURES

FEATURES

Adult and Jr. Available

Adult and Jr. Available

Adult and Jr. Available

Adult and Jr. Available

VAPOR BOOT LINER

COMBO TRAINER BAR

SPRAYMAKER

PLAYING CARDS

FEATURES

FEATURES

FEATURES

FEATURES

Spray it high, watch it fly

Custom branded deck of cards

Intuition+ makes it comfy

Adult and Jr. Available

174 RADAR ACCESSORIES

RADAR NATION STICKER

RADAR ICON STICKER

RADAR LAKE STICKER

FEATURES

FEATURES

FEATURES

Rep the family logo

The only logo that matters in

Used on Session

skiing

AURA STICKER

SKI TEAM STICKER FEATURES Find a friend, we’re going

water skiing

RADAR STICKER SHEET

10” RADAR DIE CUT STICKER

3” RADAR DIE CUT STICKER

FEATURES

FEATURES

FEATURES

FEATURES

Skiing is fun for everyone

Stickers for the entire family

Available in black and white

Available in black and white

SWERVE STICKER

RADAR COLDYHOLDY LIFE VEST

RADAR COLDYHOLDY

FEATURES

Keeps Cans Cold

FEATURES Slap one on your buddy’s truck, they’ll thank you later

Keeps Cans Cold

FEATURES Reversible

BEER BELT FEATURES Holds 6 Canned Bevvies Pouch For Snacks Clips Around Your Waist Removable Coldy-Holdies

Looks Awesome!

ACCESSORIES RADAR 175

RADAR BUOY KEYCHAIN

RADAR KID’S BOOK

SKI STRAP WEBBING HANGER

RADAR NATION FLAG

FEATURES

FEATURES

FEATURES

FEATURES

Buoys will be buoys

Teach those kid’s to ski

Hang those skis with pride

One Radar Nation for all

3 X 10 BANNER

FEATHER BANNER

EASY-UP TENT

UMBRELLA

FEATURES

FEATURES

FEATURES

Stay in the shade on a hot day

2 different designed options -

Fly the Radar flag

A 10’ x 10’ tent as cool as you are

BUNGEE BOAT DOCK TIE

TRAILER BOAT GUIDES

FEATURES

FEATURES

MOTOR BOX PROTECTOR /ROPE HOLDER

Quick Clip

3’ Length

FEATURES

FEATURES

Radar Branded banner Action banner

Neoprene Float Adjustable From 3’ To 6’.

176 RADAR ACCESSORIES

3’ Length

BOSTON VALVE FEATURES Works with all Radar Tubes.

2.7 PSI HIGH PRESSURE PUMP FEATURES

2.5 PSI HIGH PRESSURE PUMP

12V ELECTRIC PUMP

SKIER DOWN FLAG

FEATURES

FEATURES

FEATURES

High Volume Air Flow

Padded Handle

Interchangeable Adapters

Embossed Flag

120V

Direct Battery Connection

Interchangeable Adapters

Alligator Clip Connector

High Volume Air Flow

High Volume Air Flow

Runs on 12V Power

Interchangeable Adapters

DOG COLLAR

DOG VEST

SIZE

LENGTH (IN)

SIZE

GIRTH (IN)

LENGTH (IN)

S M L

13-15.5 15-17.5 17-20.5

XXS XS S M

10-16.5 12-19.5 14-23 16-26.5

8-12.5 10-13.5 12-15 14-17.5

DOG LEASH FEATURES Bungee Section LENGTH (FT)

5

6K TUBE ROPE

4.1K TUBE ROPE

2.3K TUBE ROPE

FEATURES

FEATURES

FEATURES

60 Feet

60 Feet

60 Feet

Rated to 6000 Lbs.

Rated to 4100 Lbs.

Rated to 2375 Lbs.

For Towing Six Riders or 1020 Lbs

For Towing Four Riders or 680 Lbs

For Towing Two Riders or 340 Lbs

Neoprene Float

Neoprene Float

Neoprene Float

Assorted Colors

Assorted Colors

Assorted Colors

WATERSKI BOAT TOW HARNESS FEATURES Heavy Duty Carabiners 1” Nylon Webbing

ACCESSORIES RADAR 177

UPHOLSTERY CLEANER

ALL-PURPOSE CLEANER

Cleans, conditions, and shines your vinyl upholstery.

Regular use will extend the life of the product and protect your investment. If you like Piña Colada and getting’ caught in the rain you will dig this smell.

For use on all surfaces of your boat. Gentle on soft surfaces but tough enough to remove build up. Freshly brewed with that classic Coconut aroma.

FEATURES

16 oz Bottle

16 oz Bottle Available in 1 or 6 Pack Pinch Free Sprayer

Adjustable Spray Filter Environmentally friendly

HARD SURFACE CLEANER Cleans, waxes, and protects fiberglass and gel coat. Another environmental gem to shine your baby - leaving you with a Pineapple fragrance.

FEATURES 16 oz Bottle Available in 1 or 6 Pack Pinch Free Sprayer 178 CAPTAIN’S KIT CLEANERS

FEATURES Available in 1 or 6 Pack Pinch Free Sprayer

Adjustable Spray Filter Environmentally friendly

ODOR ELIMINATOR For use on carpets, life jackets, boots, wetsuits and more to neutralize odor and keep them smelling fresh. In addition to fighting the funk this aroma neutralizing cocktail will leave a lasting scent of Fresh Laundry.

FEATURES 16 oz Bottle

Adjustable Spray Filter

Available in 1 or 6 Pack

Environmentally friendly

Pinch Free Sprayer

Adjustable Spray Filter Environmentally friendly

ONE HAND CINCH

NON-MARKING SURFACE FINISH

AUTO-LEVELING WEIGHT DISTRIBUTION

XL BOAT FENDER Our XL boat fender is designed to protect the modern-day taller gunnel boat with the largest footprint of any molded EVA option.

LARGEST FOOTPRINT

Compared to other popular models this XL Fender measures 25% wider, and 21% longer for that much needed added cushioning.

SHOCK ABSORBING FOAM

If you are like us, the thought of unneeded compression on your boat will keep you up at night. A high memory/hard durometer non-marking EVA foam will cure those sleepless nights by protecting your baby even during chaotic swell days on the lake.

UPRIGHT WEIGHT DISTRIBUTION

Want something stable? Make it bottom heavy. This proportionate weight distribution is designed to keep The XL Fender in the classic perched position even when not cinched tight.

ONE HAND CINCH

Lock with ease = we took one from our boot playbook and created an easy cinch design. The adaptive flex line connection allows for movement with water, while keeping your boat steady and protected.

FEATURES Unique curvature that naturally forms to your boat’s hull shape 27” (68.5cm) Long x 12” (30.5cm) Wide x 4.5” (11.5cm) Thick Low center of gravity for auto-leveling Auto lock lacing system for simplistic use Solid core bungee, allowing the fender to flow and move with water FENDERS CAPTAIN’S KIT 179

RONIX HAPPY HOUR BOAT FENDER

SMOKED CARBON

HAPPY HOUR BOAT FENDER There are gatherings, events, parties, and then there are flotillas of extra magnitude on the merry Maritime meter, and when you have these types of grand occasions you need to tie up with the “it factor”. That “it factor” comes wrapped in a carbon smoke durable exterior with high strength welded seams. Dancing the delicate fine line of saying “I like to party” but at the same time its 10ft x 20in. size leaves no disparity it will protect any wake boat in undulating water conditions. We are also fan favorites of this device on our dock year-round at our test center at Lake Ronix.

The smaller but efficient inflatable fenders that are always up for a good time. Easily inflated.

FEATURES Small inflation/deflation valve 4ft mooring line DIAMETER (IN)

LENGTH (IN)

8 10

18 28

FEATURES .6 mm embossed PVC tarpaulin 4-Layer hot air welded seams Halkey Roberts non-return valve

Two 2” Stainless steel D-rings Two 10’ Nylon Braided ropes

DIAMETER (IN)

LENGTH (FT)

20

10

15 FT MOORING LINE

20 FT MOORING LINE

A stress relieving option to tie up your nautical prize.

A stress relieving option to tie up your nautical prize.

FEATURES

FEATURES

3/8” Diameter Nylon Double Braided Line 15in. Cleat Loop

180 CAPTAIN’S KIT ACCESSORIES

6500lbs Tensile Strength For Boats Up To 20ft

1/2” Diameter Nylon Double Braided Line 15in. Cleat Loop

9500lbs Tensile Strength For Boats Up To 30ft

CAPTAIN’S KIT CARABINER It closes, it locks – but most of all its vinyl coating protects. A carabiner with some compassion for your gel coat.

FEATURES 11mm Thick / 316 Round Bar Stainless Steel Vinyl Dipped Protection Cover

Snap Hook w/Screw Locking Feature 2500 lbs. Tensile Strength

6FT. QUICK RELEASE ADJUSTABLE BUNGEE BOAT DOCK TIE You can tie it, you can loop it, now you can cinch it. Taking innovations from our favorite dirt bike tie down, this new strap makes it even quicker and easier to attach your boat to the dock.

FEATURES 3/8” Diameter Nylon Double Braided Line 15in. Cleat Loop

WEBBING DOCK TIE An easy lock adjustable tie up best paired with a Happy Hour Boat Bumper.

FEATURES Adjustable in length from 3ft to 6ft

Adjustable in length from 3ft to 6ft Webbing pull strap with quick cinch release

TRAILER BOAT GUIDES We don’t want to say it is guaranteed you won’t be published on Qualified Captain by purchasing The Ronix Trailer Boat Guides, but these navigating friends will greatly reduce your chances of being Insta-famous for the wrong reason.

FEATURES Available in 3ft and 4ft Set of 2 ACCESSORIES CAPTAIN’S KIT 181

DRYBAG ROLL TOP CHAMBER BUCKLE CLOSURE TELESCOPE COVER HEAVY DUTY SHELL

HEAVY DUTY SHELL

SUBMERSIBLE PUMP

VENT PORT

HIGH FLOW FILL PORT

ANTI-ROLL DESIGN

VENT PORT ANTI-ROLL DESIGN

10’

DRAIN PORT

DRAIN PORT

TELESCOPE

PLUG ‘N PLAY

HIGH FLOW FILL PORT

ANTI-ROLL DESIGN

Spring loaded quick connect male adaptor

Trapezoid anti-roll shape

1 1/2” diameter fill port Check valve water gate with watertight rubber cap

VENT PORT

Compatible with Eight.3 3000GPH or 3700GPH pumps

Two sided vent slots allowing extra air to escape while filling

DRYBAG ROLL TOP CLOSURE

DRAIN PORT

Drybag roll top closure

1 1/8” NPT drain port

Easy drop in pump chamber Fits all Eight.3 high power pumps

HEAVY DUTY SHELL

Easy clasp buckle closure

Crafted using reinforced durable materials

TELESCOPE COVER Covers dry bag chamber when not in use

SUBMERSIBLE PUMP Two submersible 12 volt pumps 3700GPH 20AMP power adaptor (suggested for use on 2010 boats and newer) 3000GPH 12AMP power adaptor (suggested use on 2009 boats and older) 12ft long water hose to fill and drain 1.5” diameter hose 15ft long 12V power adaptor with on/off toggle switch

ANTI-ROLL DESIGN Trapezoid anti-roll shape

VENT PORT Two sided vent slots allowing extra air to escape while filling

DRAIN PORT 1 1/8” NPT drain port

HEAVY DUTY SHELL Crafted using reinforced durable materials High strength welded seams 182 EIGHT.3 BALLAST

High strength welded seams

TRAPEZOID

TRAPEZOID

Drop the pump in, set it and forget it. This telescoping system allows you to use a pump that is up to 3 times faster than any conventional plug & play setup.

The direct connection to your boat’s existing plumbing, that fits most V-drives with enough room left over to put your Ronix products on top.

FEATURES

FEATURES

TELESCOPE

Telescoping chamber with roll-top closure system 0.6 mm heavy duty tarpaulin material High strength welded seams

PLUG ‘N PLAY

1.5” diameter fill port Three 1 1/8” NPT external drain/vent ports Trapezoid shape to reduce roll

0.6 mm heavy duty tarpaulin materials High strength welded seams Four 1 1/8” NPT external fill/ drain/vent ports

Available to use as an external ballast with our 1200GPH pump system Trapezoid shape to reduce roll

WEIGHT (LBS)

WEIGHT (KG)

DIMS (IN)

DIMS (CM)

WEIGHT (LBS)

WEIGHT (KG)

DIMS (IN)

DIMS (CM)

400 800 1100

182 363 500

41 X 18 X 14.5 50 X 24 X 18 50 X 27 X 22

104 X 46 X 37 127 X 61 X 46 127 X 69 X 56

400 800 1100

182 363 500

41 X 18 X 14.5 50 X 24 X 18 50 X 27 X 22

104 X 46 X 37 127 X 61 X 46 127 X 69 X 56

BOOST SACS You know that feeling when the curl is off a little bit for wakeboarding, and you must reluctantly ask your buddy to move over a just a smidge? Now you won’t have to with our 25 and 50lb Boost Sacs – easily transportable wake balancing alternatives. Just enough weight to combat the dreaded whitewash - toss a handful of them inside the gunnel and have an epic size wave without taking up any space.

FEATURES Sturdy 1000 Denier Nylon Cover

2” Heavy Duty Nylon Strap

3 Inside Heavy-Duty Vinyl Sacs

Weighted With Steel Pellets

WEIGHT (LBS)

WEIGHT (KG)

DIMS (IN)

DIMS (CM)

25 50

11 23

12 X 9 X 3 13 X 12 X 3.5

30 X 23 X 8 33 X 30 X 9

BALLAST EIGHT.3 183

MALIBU & AXIS PLUG ‘N PLAY Plug ‘N Play Ballast 0.6 mm heavy duty tarpaulin materials High strength welded seams 1 1/8” NPT fill and drain ports 2021/2025 Malibu series includes a 1 1/8” NPT Thread to 1” or 3/4” Quick Connect

MALIBU BOAT MODELS

AXIS BOAT MODELS

22 LSV

21 VLX

22 MXZ

19 20 21 22 23 24 25 26

18 19 20 25 26

MA 145

16 17 18 19 20 21

MA 140

22 VLX

MA 115

MA 108 STD

MA 115

MA 108 STD

22 23 24 25 26

MA 115 MA 140

MA 108 STD

MA 115 STD MA 120 MAX

MA 155

16 17 18 19 20 21 22 23 24 25 26

20 21 22 23 24 25 26

MA 115

MA 80

MA 108

24 MXZ 18 19 20 21 22 23 24 25 26

MA 115 STD MA 120 MAX

MA 160

M 220 MA 80 STD MA 90 MAX

21 22 23 24

MA 140 STD MA 115 MAX

MA 165

M 235 18 19

MA 90

MA 170 M 242 24 25 26

MA 150

21 MLX

184 EIGHT.3 BALLAST

MA 90

MA 80 STD MA 90 MAX

MA 125

MA 80 STD

16 17 18 19 MA 90 STD 20 MA 100 MAX 21 22

REAR

REAR

MA 125

REAR

MA 90 MA 125

MA 80 STD MA 90 MAX

REAR 16 17 18 MA 90 STD 19 MA 100 MAX 20 21 22

REAR

MA 130

23 24 25 26

REAR

REAR

MA 80 MA 90

MA 125

REAR

REAR

A245

T22 16 17 18 19 20 21

REAR 16 17 MA 90 STD 18 MA 100 MAX 19 20 21 MA 90 STD 22 MA 100 LRG 23 MA 135 MAX 24 A225

T23

M 230

19 20 21

REAR

A22

25 26

MA 120

16 17 18 19 20 21 22 23 24 25 26

REAR

20 VTX

26 LSV 23 24 25 26 27

16 17 18 21 LX

25 LSV 16 17 18 19 20 21 22 23 24 25 26

MA 80 STD MA 90 MAX

A24 REAR

23 MXZ

23 LSV 16 17 18 19 20 21 22 23 24 25 26

MA 90

A20

REAR

24 MA 90 STD 25 MA 100 LRG 26 MA 135 MAX T220 22 23 24 25 26

REAR

REAR

MA 80 STD MA 90 MAX

MA 125

T235 23 24 25 26

MA 125

MA 130

REAR

REAR

MA 90 MA 100

MA 125

REAR

REAR

T250 22 23 MA 90 STD 24 MA 100 LRG 25 MA 135 MAX 26

MA 125

1 1/8” NPT VENTED VALVE PLUG OR AUTO VENT PORT (PARTS INCLUDED)

1 1/8” NPT VENTED VALVE PLUG OR AUTO VENT PORT (PARTS INCLUDED)

1 1/8” FILL / DRAIN FRONT AND BACK PORTS 1 1/8” FILL / DRAIN FRONT AND BACK PORTS

MALIBU & AXIS

MALIBU

MA 80

MA 108

Auto-Vent 1 1/8” NPT to 3/4” Quick Connect

Auto-Vent 1 1/8” NPT to 1 1/8” Quick Connect

MA 90

MA 115

Auto-Vent 1

” NPT to 3/4” Quick Connect

PORT/STBD SPECIFIC KIT

Auto-Vent 1 1/8” NPT to 1 1/8” Quick Connect

1/8

MA 100

MA 120

Auto-Vent 1 1/8” NPT to 3/4” Quick Connect

Auto-Vent 1 1/8” NPT to 1 1/8” Quick Connect

MA 135

MA 140 ” NPT to 3/4” Quick Connect

Auto-Vent 1 1/8” NPT to 1 1/8” Quick Connect

Auto-Vent 1

1/8

PART #

WEIGHT (LBS)

WEIGHT (KG)

DIMS (IN)

DIMS (CM)

MA 80 MA 90 MA 100 MA 135

400 550 750 900

182 250 341 409

50 X 21 X 11 50 X 21 X 17.5 50 X 21 X 19 50 X 21 X 25

127 X 53 X 28 127 X 53 X 44 127 X 53 X 48 127 X 53 X 63.5

MA 145 Auto-Vent 1 1/8” NPT to 1 1/8” Quick Connect

MA 150 Auto-Vent 1 1/8” NPT to 1 1/8” Quick Connect

MA 155 1 1/8” NPT VENTED VALVE PLUG OR AUTO VENT PORT (PARTS INCLUDED)

Auto-Vent 1 1/8” NPT to 1 1/8” Quick Connect

MA 160 Auto-Vent 1 1/8” NPT to 1 1/8” Quick Connect

MA 165 Auto-Vent 1 1/8” NPT to 1 1/8” Quick Connect

1 ” FILL / DRAIN PORT AND STARBOARD PORTS 1/8

MA 170 Auto-Vent 1 1/8” NPT to 1 1/8” Quick Connect

AXIS MA 125 Auto-Vent 1 1/8” NPT to 1 1/8” Quick Connect

MA 130 Auto-Vent 1 1/8” NPT to 1 1/8” Quick Connect PART #

WEIGHT (LBS)

WEIGHT (KG)

DIMS (IN)

MA 125 MA 130

650 800

295 363

70 X 54 X 10.5 178 X 137 X 27 74 X 63 X 10 188 X 160 X 25

PART #

WEIGHT (LBS) WEIGHT (KG) DIMS (IN)

DIMS (CM)

MA 108 MA 115 MA 120 MA 140 MA 145 MA 150 MA 155 MA 160 MA 165 MA 170

550 EA 570 EA 650 EA 400 EA 300 EA 250 EA 400 EA 430 EA 150 EA 550 EA

127 X 51 X 48 104 X 48 X 52 104 X 52 X 67 104 X 48 X 40.6 104 X 47 X 33 89 X 41 X 30.5 124 X 45 X 43 126 X 52 X 42 88 X 38 X 24 127 X 71 X 50

249 259 295 182 136 182 182 195 68 249

50 X 20 X 19 41 X 19 X 20.5 41 X 20.5 X 26.5 41 X 19 X 16 41 X 18.5 X 13 35 X 16 X 12 49 X 17.7 X 16.8 49.5 X 20.5 X 16.5 34.6 X 15 X 9.4 50 X 28 X 19.5

DIMS (CM)

BALLAST EIGHT.3 185

TELESCOPE PUMP

PLUG ‘N PLAY PUMP

This pump is the reason why our setup can fill and drain up to 3 times faster than any other system. Can only be used with Eight.3 Telescope Ballast.

Can’t justify the price tag of the fastest pump out there? We offer a 1200GPH ballast pump system.

FEATURES

1200GPH Pump

3700GPH 20AMP power adaptor (suggested for use on 2010 boats and newer) 3000GPH 12AMP power adaptor (suggested for use on 2009 boats and older) Anti-airlock protection Won’t burn impeller if left on without water

Stainless steel impeller shaft Rust and corrosion protection 15ft Long 12V power adaptor with on and off switch 12ft long water hose to fill and drain

FEATURES 12V DC / 5AMP fuse power adaptor 15ft long power cord 10ft long x 1” dia. fill and drain hose

Includes fill/drain adaptor that attaches to the top port of your Eight.3 Plug ‘N Play system Can only be used on Eight.3 Ballast Systems

1.5” diameter hose

1 1/8” FLOW-RITE STRAIGHT QUICK CONNECT HOSE FITTING

1 1/8” FLOW-RITE ELBOW QUICK CONNECT HOSE FITTING

This 1” straight quick connector has an easy release system on one side that attaches to your Eight.3 ballast bag adaptor. The other side has a hose barb fitting that can clamp onto any boat’s 1” to 1 1/8” diameter internal Plug ‘N Play pump hose system.

This 1” elbow quick connector has an easy release system on one side that attaches to your Eight.3 ballast bag adaptor.

The other side has a hose barb fitting that can clamp onto any boat’s 1” to 1 1/8” diameter internal Plug ‘N Play pump hose system.

SKU # 247420

SKU # 247430

186 EIGHT.3 ACCESSORIES

1” NPT THREAD TO 11/8” FLOW-RITE QUICK CONNECT ADAPTOR

1” NPT THREAD VENTED VALVE PLUG

A 1 1/8” NPT thread adaptor to 1” quick connect that attaches to all Eight.3 ballast system port valves. This adaptor attaches securely and watertight to both the 1” straight and 1” elbow quick connect hose fittings.

1 1/8” NPT port caps are all made with two-sided vent slots which help burp the bag of all extra air while filling, without needing to take the cap off completely and potentially losing it - more water equals more weight. These port cap threads are twice as long, for a water tight fit.

SKU # 247440

SKU # 247500

3/4” FLOW-RITE ELBOW QUICK CONNECT HOSE FITTING

1” NPT THREAD TO 3/4” FLOWRITE QUICK CONNECT ADAPTOR

This 3/4” elbow quick connector has an easy release system on one side that attaches to your Eight.3 ballast bag adaptor. The other side has a hose barb fitting that can clamp onto any boat’s 3/4” diameter internal Plug ‘N Play pump hose system.

A 1 1/8” NPT thread adaptor to 3/4” quick connect that attaches to all Eight.3 ballast system port valves. This adaptor attaches securely and watertight to the 3/4” elbow quick connect hose fittings.

SKU # 247450

SKU # 247460

PLUG ‘N PLAY PUMP BALLAST ADAPTOR WITH CAP

RUBBER FILL CAP

This adaptor fits in all Eight.3 PNP ballast system top ports.

For those needing more than one ballast system to create their perfect wave.

Replacement rubber fill cap for your telescope ballast system.

SKU # 247505

SKU # 247510

ACCESSORIES EIGHT.3 187

RONIXWAKE.COM RADARSKIS.COM SQUAREONECO.COM SQUARE ONE DISTRIBUTION 35214 SE Center St. Snoqualmie, WA 98065

1-888-RONIX-CO | 1-888-766-4926 RONIX ACTION PHOTOS Brit McCarty @britjunephotography

RADAR ACTION PHOTOS Jason Lee BlurryPhotos.com

We reserve the right to change details without notice - but you’re clairvoyant, you’ll figure it out. Sizing is just a recommendation we encourage you to try out our products first.
