SC-45125-2

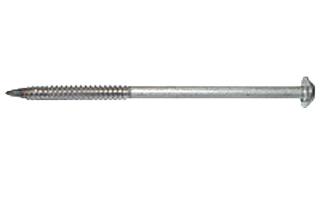

Screw 4.5 x 125 mm (0.177 x 4.92 in) for plastic plug
The screw fixes the clic clamp and the round base to the wall.
FEATURES / BENEFITS
Stainless steel, for plastic clic clamp with round base RB 80-4 and plastic plug plug-6-1
Technical features
STRUCTURE
Product Line
Radiating Cable Accessories
Product Type Installation Hardware
Installation Hardware Type Screw
Transmission Line Type
Coaxial Cable Type
Cable
Configuration
MECHANICAL SPECIFICATIONS
RADIAFLEX®cable with copper foil as outer conductor, all sizes, cable type RLK, RLV and RAY
Radiating Cable
Screw for Clic clamp
Angle member adpter threads 4.5mm
Material Stainless Steel, A4
Thread mm (in) 4.5mm
Length mm (in) 125 (4.92)
TEMPERATURE SPECIFICATIONS
Installation Temperature
°C (°F)
-50 to 85 (-58 to 185 )
Operation Temperature °C (°F) -50 to 85 (-58 to 185 )
Storage Temperature °C (°F) -50 to 85 (-58 to 185 )
