TECHNICAL DATA SHEET

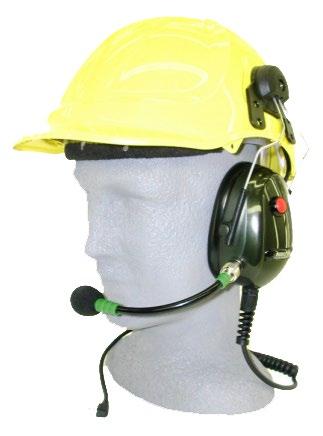

PRODUCT NAME: HSP-7
Two-Way Communication Headset
PRODUCT
DESCRIPTION
High Noise Environment Communications Hard Hat
Headset
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a fieldreplaceable mic boom and noise-cancelling microphone.
The HSP-7 headset is custom-manufactured to your requirements.
1 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection LFLV
From DC-Light, Your Best Connection
PRODUCT APPLICATION
• Mining
• Industrial Communications
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
KEY FEATURES
• Leather-covered headband
• Olive drab colour
• Noise-cancelling microphone
• -28dB noise reduction
• Lightweight (376 grams)
• ISO 9001:2015 certified manufacturing
• 12 month warranty on headset
TESTED BY THE NATIONAL ACOUSTIC LABORATORIES TO AS/NZS 1270:2002
2 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection

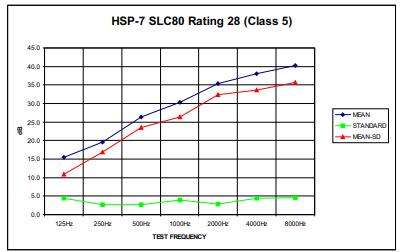

SLC80 Rating28 CLASS 5 MASS 376g CLAMP FORCE 11.0N Test Frequency (Hz) 125 250 500 1000 2000 4000 8000 Mean Attenuation 15.4 19.5 26.3 30.3 35.3 37.9 40.2 Standard Deviation 4.4 2.7 2.7 3.8 2.8 4.4 4.5 Mean Minus SD 11.0 16.8 23.6 26.5 32.5 33.5 35.7
TECHNICAL DATA SPECIFICATION
Model Number
Termination
Connector
Microphone
Earphones
3 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection
HSP-7
Style Hardhat mounting, stainless steel arms Cups ABS Colour Olive drab
Cabling Main Custom manufactured to suit each radio make and model Length Various Intercup Twisted pair, PUR sheath
To suit nominated radio accessory port Push to Talk IP67 sealed (red) push button
Boom MB-102,
adjustable,
replaceable Element Noise cancelling electret condenser
Infinitely
field
Sensitivity -71dB +/- 3.5dB @ 1kHz (0dB=1v/µbar) Impedance 1.6k Ω +/- 30% @ 1kHz (RI= 2kΩ) Response 300 to 4000Hz
Type
300
Response 300 to
@ 1kHz +/-45Ω Weight Grams 376
Rating
TE
AVAILABLE Part Number Termination Connector Image
H700 Hytera TC-700 Connector HSP-7-IC41S I-COM IC-41S Connector HSP-7-IC41W I-COM IC-41W Connector
Dynamic Impedance
Ω x 2 wired in parallel
3500Kz
Sound Conversion
SLC80 Rating 28 (Class 5)
RMINATIONS
HSP-7-
HSP-7-IP100 I-COM IP100 Connector
HSP-7-M300
HSP-7-MTRBO
Motorola GP-300 Connector
Motorola XPR6000 Connector
HSP-7- PSRP
Simoco SRP-8000 Connector
HSP-7- STP80
Sepura STP-8 & 9000 Connector
HSP-7-T500
HSP-7-U075
HSP-7-V160
HSP-7-V820
Tait T5000 Connector
Uniden UH-075 Connector
Vertex V160 Connector
Vertex VX-820 Connector
