TECHNICAL DATA SHEET

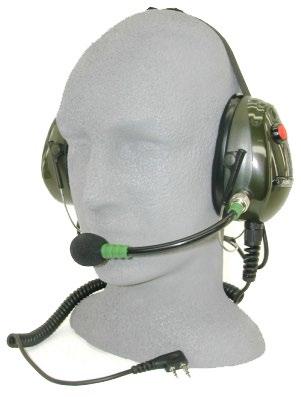

PRODUCT NAME: HSP-6
Two-Way Communication Headset
PRODUCT
DESCRIPTION
High Noise Environment
Communications
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a fieldreplaceable mic boom and noise-cancelling microphone.
The HSP-6 headset is custom-manufactured to your requirements.
1 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection LFLV
From DC-Light, Your Best Connection
PRODUCT APPLICATION
• Mining
• Industrial Communications
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
KEY FEATURES
• Leather-covered headband
• Olive drab colour
• Noise-cancelling microphone
• -24dB noise reduction
• Lightweight (450 grams)
• ISO 9001:2015 certified manufacturing
• 12 month warranty on headset
TESTED BY THE NATIONAL ACOUSTIC LABORATORIES TO AS/NZS 1270:2002
2 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection

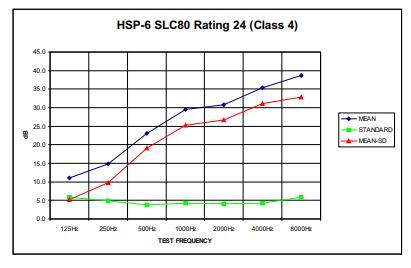

SLC80 Rating24 CLASS 4 MASS 450g CLAMP FORCE 11.2N Test Frequency (Hz) 125 250 500 1000 2000 4000 8000 Mean Attenuation 10.9 14.8 23.0 29.4 31.0 35.2 38.6 Standard Deviation 5.7 5.0 3.8 4.3 4.0 4.1 6.0 Mean Minus SD 5.2 9.8 19.2 25.1 27.0 31.1 32.6
TECHNICAL DATA SPECIFICATION
Model Number
Style Behind the neck headband
Cabling
Termination
Connector
Microphone
Earphones
3 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection
HSP-6
Cups ABS Colour Olive drab
Main Custom manufactured to suit each radio make and model Length Various Intercup Twisted pair, PUR sheath
To suit nominated radio accessory port Push to Talk IP67 sealed (red) push button
Boom
Element Noise
condenser
MB-102, Infinitely adjustable, field replaceable
cancelling electret
Sensitivity -71dB +/- 3.5dB @ 1kHz (0dB=1v/µbar) Impedance 1.6k Ω +/- 30% @ 1kHz (RI= 2kΩ) Response 300 to 4000Hz
300
Response 300 to
@ 1kHz +/-45Ω Weight Grams 450
Conversion Rating SLC80
Part Number Termination Connector Image HSP-6-IA22E I-COM IA22E Connector HSP-6-IC41W I-COM IC41W Connector
HSP-6-M300 Motorola GP-300
Type Dynamic Impedance
Ω x 2 wired in parallel
3500Kz
Sound
Rating 24 (Class 4) TE RMINATIONS AVAILABLE
HSP-6-K310-2XPTT Kenwood TK-3310 Connector
Connector
HSP-6-M328
Motorola GP-328 Connector
HSP-6- R7 Motorola R7 Connector
HSP-6- STP80 Sepura STP-8000 Connector
HSP-6-TP81 TP8100 Connector
