TECHNICAL DATA SHEET

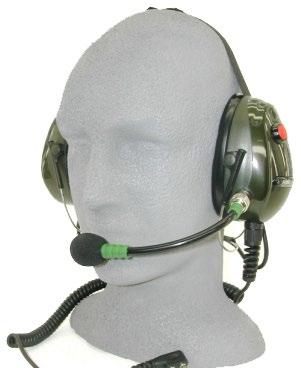

PRODUCT NAME:
HSP-6- HELI
Two-Way Communication Headset
PRODUCT
DESCRIPTION
High Noise Environment
Communications
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a fieldreplaceable mic boom and noise-cancelling microphone.
The HSP-6-HELI headset comes standard with a TP-120B plug.
1 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection LFLV
From DC-Light, Your Best Connection
PRODUCT APPLICATION
• Aviation
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
KEY FEATURES
• Leather-covered headband
• Olive drab colour
• Noise-cancelling microphone
• -24dB noise reduction
• Lightweight (450 grams)
• ISO 9001:2015 certified manufacturing
• 12 month warranty on headset
TESTED BY THE NATIONAL ACOUSTIC LABORATORIES TO AS/NZS 1270:2002
2 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection

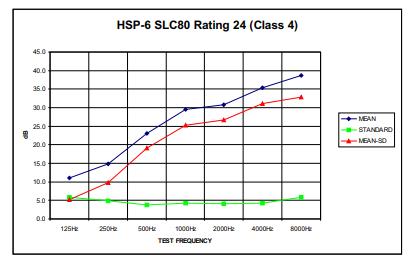

SLC80 Rating24 CLASS 4 MASS 450g CLAMP FORCE 11.2N Test Frequency (Hz) 125 250 500 1000 2000 4000 8000 Mean Attenuation 10.9 14.8 23.0 29.4 31.0 35.2 38.6 Standard Deviation 5.7 5.0 3.8 4.3 4.0 4.1 6.0 Mean Minus SD 5.2 9.8 19.2 25.1 27.0 31.1 32.6
Model
Cabling
Termination
Style Behind the neck headband
Cups ABS
Colour Olive drab
Main
Length 900mm, part coiled
Intercup Twisted pair, PUR sheath
Earphones
3 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection
Number HSP-6- HELI
Four independently wire lap screened conductors, PUR sheath
button
Boom MB-102,
adjustable, field replaceable Element Noise cancelling electret condenser
300
Connector To suit nominated radio accessory port Push to Talk IP67 sealed (red) push
Microphone
Infinitely
Sensitivity -71dB +/- 3.5dB @ 1kHz (0dB=1v/µbar) Impedance 1.6k Ω +/- 30% @ 1kHz (RI= 2kΩ) Response
to 4000Hz
Type Dynamic
300 Ω x 2 wired in parallel Response 300 to 3500Kz @ 1kHz +/-45Ω Weight Grams 450 Sound Conversion Rating SLC80 Rating 24 (Class 4) TE RMINATIONS AVAILABLE Part Number Termination Connector Image
TP-120B
TECHNICAL DATA
Impedance
HSP-6- HELI
plug
SPECIFICATION
