TECHNICAL DATA SHEET
PRODUCT NAME:
HSP-2-XXXX
Two-Way Radio Communication Headset
PRODUCT
DESCRIPTION
High Noise Environment Communications Headset
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a fieldreplaceable mic boom and noise-cancelling microphone.
The HSP-2 headset is custom-manufactured to suit each radio make and model.
1 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection LFLV
From DC-Light, Your Best Connection
PRODUCT APPLICATION
• Commercial Aviation
• Mining
• Industrial Communications
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
KEY FEATURES
• Leather-covered headband
• Military green colour
• Noise-cancelling microphone
• -28dB noise reduction
• Lightweight (408 grams)
• ISO 9001:2015 certified manufacturing
• 12 months warranty on headset
TESTED BY THE NATIONAL ACOUSTIC LABORATORIES TO AS/NZS 1270:2002
2 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection

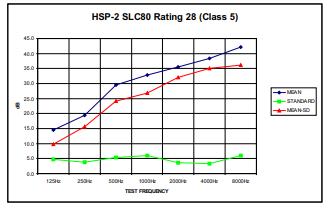

SLC80 Rating28 CLASS 5 MASS 408g CLAMP FORCE 10.1N Test Frequency (Hz) 125 250 500 1000 2000 4000 8000 Mean Attenuation 14.6 19.3 29.5 33.0 35.5 38.3 42.2 Standard Deviation 4.8 3.9 5.3 5.8 3.4 3.2 6.0 Mean Minus SD 9.8 15.4 24.2 27.2 32.1 35.1 36.2
TECHNICAL DATA SPECIFICATION
Model Number
Cabling
Termination
Style Headband with leather cover over stainless steel band Cups ABS Colour Military Green
Intercup Twisted pair, PUR sheath
Connector To suit nominated radio accessory port
Push to Talk IP67 sealed (red) push button
Microphone
Impedance 1.6k Ω +/- 30% @ 1kHz (RI= 2kΩ) Response 300 to 4000Hz
Earphones
TE RMINATIONS AVAILABLE
3 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection
HSP-2
Main Custom manufactured to suit each radio make and model Length Various
Boom MB-102, Infinitely adjustable, field replaceable Element Noise cancelling electret condenser Sensitivity -71dB +/- 3.5dB @ 1kHz (0dB=1v/µbar)
Type Dynamic
Impedance 300 Ω x 2 wired in parallel Response 300 to 3500Kz @ 1kHz +/-45Ω Weight Grams 408 (including standard plug)
Sound Conversion Rating SLC80 Rating 28 (Class 5)
Part Number Termination Connector Image HSP-2 Various
as below -
HYTERA
I-COM
,
HSP-2- E3600M GME TX-3600 Mobile Connector HSP-2- H700
TC-700 Connector HSP-2-IA16E
A16E Connector
HSP-2-IA24 I-COM IC-A24 Connector
HSP-IC41W I-COM IC-41W Connector
HSP-2-IM72 I-COM IC-M72 Connector
HSP-2-K340 KENWOOD TK-340 Connector
HSP-2-MDP24 MOTOROLA DP2400 Connector
HSP-2-T9300M TAIT TM-9300 Connector
HSP-2-UH5000 UNIDEN UH-5000 Connector
HSP-2-V160 VERTEX V160 Connector
