TECHNICAL DATA SHEET
PRODUCT NAME:

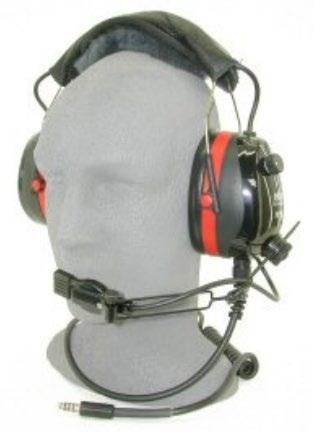

HMP-12-HELI
Two-Way Communication Headset
PRODUCT
DESCRIPTION
High Noise Environment Communications Headset
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a fieldreplaceable mic boom and noise-cancelling microphone.
The HMP-12-HELI comes standard with Nexus TP-102 (U93A/U) plug
1 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection
LFLV
From DC-Light, Your Best Connection
PRODUCT APPLICATION
• Helicopter Aviation
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
KEY FEATURES
• Leather-covered headband
• Red and black colour
• Noise-cancelling microphone
• -28dB noise reduction
• Lightweight (471 grams)
• ISO 9001:2015 certified manufacturing
• 12 month warranty on headset
TESTED BY THE NATIONAL ACOUSTIC LABORATORIES TO AS/NZS 1270:2002
2 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection

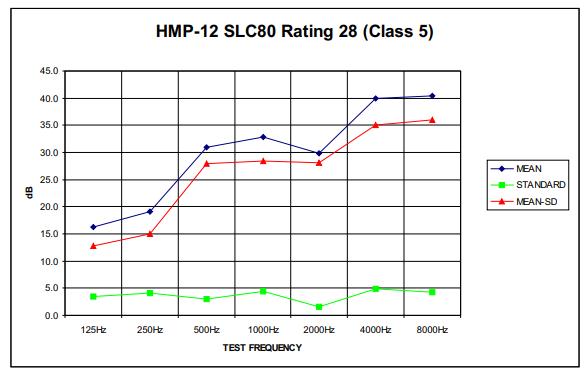

SLC80 Rating28 CLASS 5 MASS 471g CLAMP FORCE 10.1N Test Frequency (Hz) 125 250 500 1000 2000 4000 8000 Mean Attenuation 16.4 19.2 30.9 32.9 29.7 39.9 40.3 Standard Deviation 3.5 4.1 2.9 4.3 1.7 4.9 4.3 Mean Minus SD 12.9 15.1 28.0 28.6 28.0 35.0 36.0
TECHNICAL DATA SPECIFICATION
Model Number
Cabling
Termination
HMP-12-HELI
Style Stainless steel headband with leather cover
Cups ABS
Colour Red & Black
Main Four independently wire lap screened conductors, PUR sheath
Length 840mm part coiled
Intercup Twisted pair, PUR sheath
Connector
Volume Control
Microphone
Aeroplane: PJ-055 & PJ-068
Location Left hand side earcup
Cabling Twisted pair, 2 Kevlar strain cords, PUR sheath
Boom Mil MK-1564 stainless steel black nickel finish
Element M87/AIC Noise cancelling dynamic
Sensitivity 50.4 to 112uV @ 1kHz/SPL 103dB
Impedance 5 Ω @ 1kHz +/-20 Ω
Response 200 to 6000Hz
Noise cancelling 15dB
Earphones
Weight
Type Dynamic
Impedance 300 Ω x 2 wired in parallel
Response 300 to 3500Kz @ 1kHz +/-45Ω
Grams 471
Sound Conversion Rating
SLC80 Rating 28 (Class 5)
TE RMINATIONS AVAILABLE
3 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection

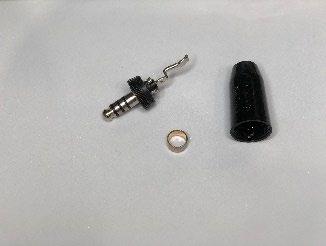

Part Number Termination Connector Image HMP-12-HELI TP-102
