TECHNICAL DATA SHEET
PRODUCT NAME:
HMP-12-GA
General Aviation Headset
PRODUCT
DESCRIPTION
High Noise Environment Communications Headset
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a fieldreplaceable mic boom and noise-cancelling microphone.
The HMP-12-GA comes standard with PJ-055 and PJ-068 plugs.
1 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection LFLV
From DC-Light, Your Best Connection
PRODUCT APPLICATION
• General Aviation
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
KEY FEATURES
• Leather-covered headband
• Red and black colour
• Noise-cancelling microphone
• -28dB noise reduction
• Lightweight (471 grams)
• ISO 9001:2015 certified manufacturing
• 12 month warranty on headset
TESTED BY THE NATIONAL ACOUSTIC LABORATORIES TO AS/NZS 1270:2002
2 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection

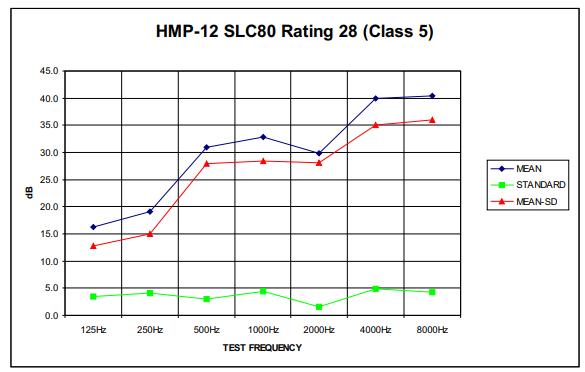

SLC80 Rating28 CLASS 5 MASS 471g CLAMP FORCE 10.1N Test Frequency (Hz) 125 250 500 1000 2000 4000 8000 Mean Attenuation 16.4 19.2 30.9 32.9 29.7 39.9 40.3 Standard Deviation 3.5 4.1 2.9 4.3 1.7 4.9 4.3 Mean Minus SD 12.9 15.1 28.0 28.6 28.0 35.0 36.0
Model Number
Cabling
Termination
HMP-12-GA
Style Stainless steel headband with leather cover
Cups ABS
Colour Red & Black
Main Four independently wire lap screened conductors, PUR sheath
Length 1440mm
Intercup Twisted pair, PUR sheath
Connector Aeroplane: PJ-055 & PJ-068
Volume Control
Microphone
Location Left hand side earcup
Boom Mil MK-1564 stainless steel black nickel finish
Element M87/AIC Noise cancelling dynamic
Sensitivity 50.4 to 112uV @ 1kHz/SPL 103dB
Impedance 5 Ω @ 1kHz +/-20 Ω
Response 200 to 6000Hz
Noise cancelling 15dB
Earphones
Type Dynamic
Impedance 300 Ω x 2 wired in parallel Response 300 to 3500Kz @ 1kHz +/-45Ω Weight
RMINATIONS AVAILABLE
3 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection
Grams 471
Conversion Level SLC80 Rating 28 (Class 5)
Part Number Termination Connector Image HMP-12-GA PJ055 & PJ088
Sound
TE
TECHNICAL DATA SPECIFICATION
