PRODUCT NAME: ROJ-150B
GPS L1/L2, Galileo, GLONASS, Beidou Repeater System
TECHNICAL DATA SHEET
PRODUCT DESCRIPTION

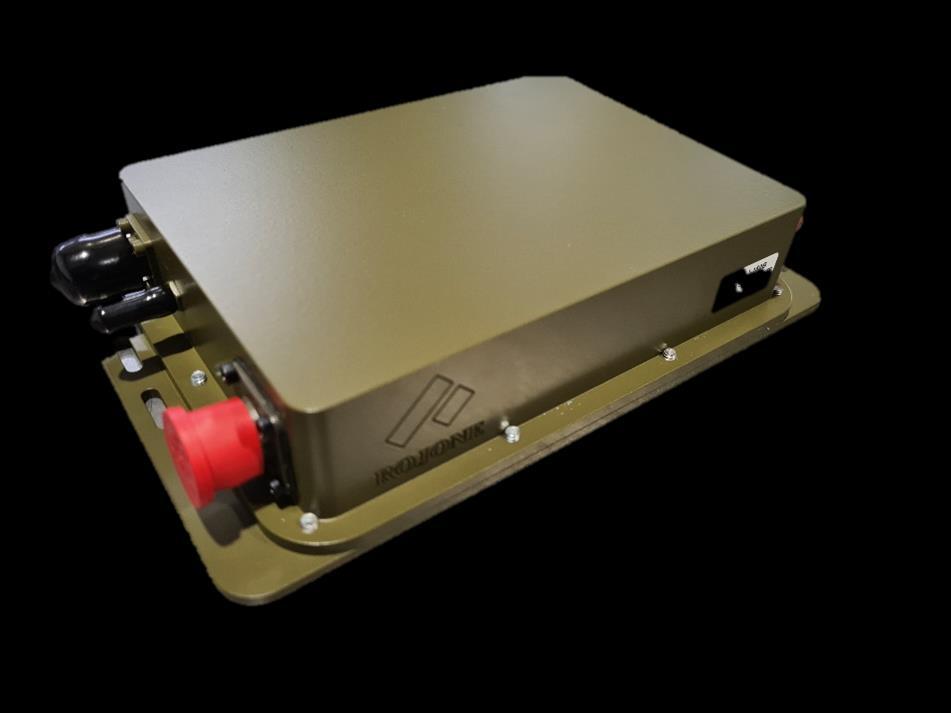

ROJ-150B GNSS Repeater for Military use
The ROJ-150B is our fourth generation GPS repeater system designed for both Mobile (vehicle) and fixed (hangar/workshop) use and follows on from our highly successful ROJ–172, installed throughout Australia and at sea. Designed from the ground up the ROJ-150B is software configurable by the factory to meet the client’s exact technical requirements.
Installed inside armored vehicles this unit provides a steady GPS signal to both embarked personnel and installed equipment. Our unique design removes the requirementforadedicatedinternaldesignatedantenna,savingspace inanalready congested environment.
1 | 44 Aero Road Ingleburn, NSW, 2565 Australia P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au
PRODUCT APPLICATION
• Armoured Vehicles
• Flight Maintenance
• Flight Operations
• Indoor Testing
• Indoor Training
• Containerised communication systems
KEY BENEFITS
• Protect personnel
• Protect equipment
• Reduce fuel consumption
• Improve alert status
• Constant GPS signal for embarked passengers
KEY FEATURES
• High sensitive RX gain
• Super high blocking performance for airbase applications
• Good radiation patterns
• No interruption to GPS receievers at 5m away from hangar
• Safe for personnel and weapons
• Australian designed
• Australian made
• Supported locally
2 | 44 Aero Road Ingleburn, NSW, 2565 Australia P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au
TECHNICAL DATA SPECIFICATION
ROJ-150B Frequency
MHz – 1615 MHz
MHz – 1310 MHz
Impedance 50 Ω
RF Gain Confirgurable by 30dB programmable step attenuator in 1dB steps and bypass amps
35 dB mac typ. Regular output
58 dB max typ. Leaky feeder output
I/O Return Loss Typ. >15 dB
Output RF Power Configurable
OIP3 > -20 dBm
Isolation Alarm On N/A
RF Connectors SMA In, SMA regular output, N leaky feeder output
Power Supply
Range 8V – 58V
Size 186 x 120 x 31 mm Weight 1200
3 | 44 Aero Road Ingleburn, NSW, 2565 Australia P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au
Specifications
1560
1170
Item No. Description

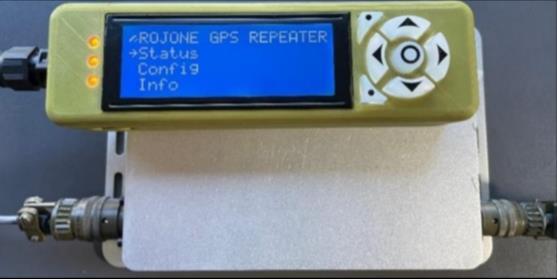

Configuration and Calibration unit for install T-RAD-600FR T-RAD® coaxial cable, radiating, LSZH, 50 Ω TC-EZ-600-NMH-X Connector, N Male, Ezifit, LMR-600 TC-EZ-600-NF-X Connector, N Female, Ezifit,
LMR-600
Termination,
grams
ROJ-150BCONFIG
Crimp,
RO-NM-TERM-2W-6G
N Male, 2 Watt
RECOMMENDED ACCESSORIES
PERFORMANCE – GAIN CONTROL RANGE & FILTER STOP BANDS
AllGain-LeakyFeederAmpEnabled
RestofGain-LeakyFeederAmpBypassed
AllBackendAmplifiersBypassed
MaxStepAttenuatorandAllBackendAmplifierBypassed
4 | 44 Aero Road Ingleburn, NSW, 2565 Australia P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au
0 0.250.50.75 1 1.251.51.75 2 2.252.52.75 3 3.253.53.75 4 Frequency(GHz) DiplexerStopBandPerformanceandTotalGainControlRange -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 System Gain (dB) 1.24GHz 1.591GHz DB(|S(2,1)|) LFPORT_0ATT_AMP1_AMP2 DB(|S(2,1)|) LFPORT_0ATT_BAMP1_AMP2 DB(|S(2,1)|) LFPORT_0ATT_BAMP1_BAMP2 DB(|S(2,1)|) LFPORT_30ATT_BAMP1_BAMP2

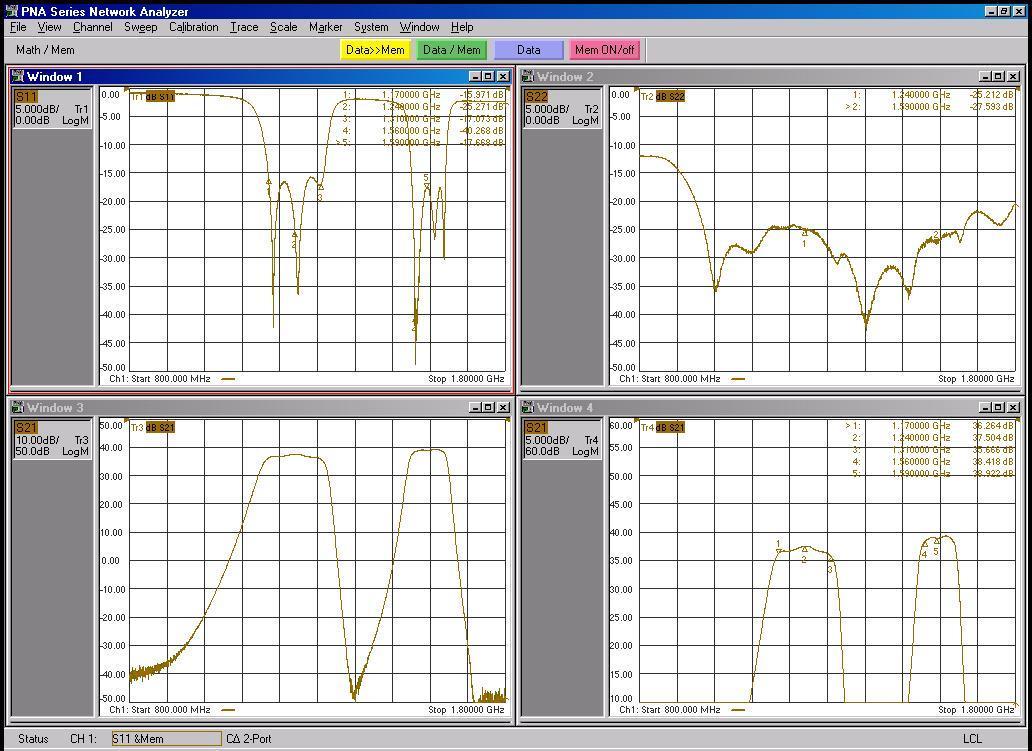

– PASSBANDS & IN OUT
PERFORMANCE
RL (TYPICAL)
5 | 44 Aero Road Ingleburn, NSW, 2565 Australia P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au Vin (V) Lin (A) Power (W) 8 0.43 3.44 9 0.38 3.42 10 0.34 3.40 12 0.29 3.48 16 0.22 3.52 24 0.15 3.60 30 0.12 3.60 POWER CONSUMPTION
LOAD)
(FULL
