ROJ-150B - DATASHEET 2026

L1/L2 GPS (GNSS) Repeater for Military Mobile Vehicles, Bunker or Containers Order No: ROJ-150B Applications › › › › › › ›

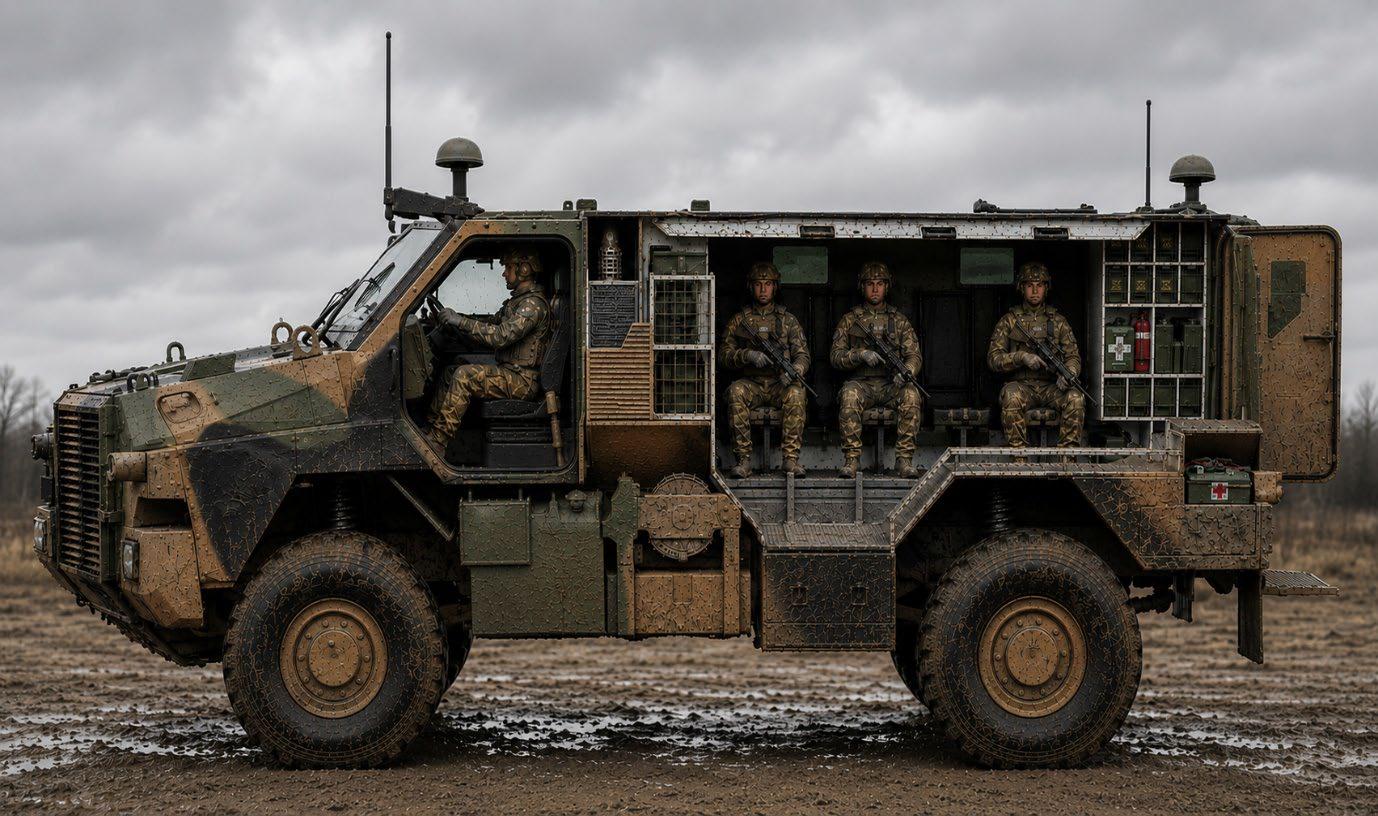

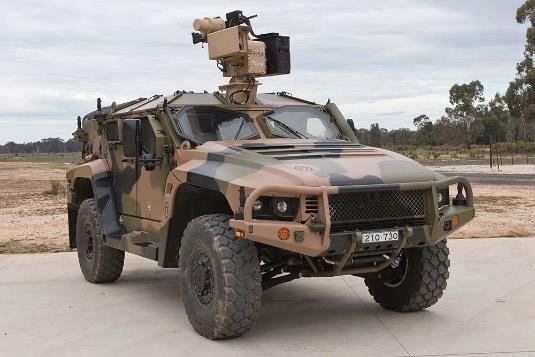

Armoured Personnel Carriers (APCs) and protected military vehicles Bushmaster Protected Mobility Vehicles and similar defence platforms Command shelters, tactical operations centres, and mobile command posts Military bunkers and hardened facilities with limited GNSS reception Maritime and naval platforms requiring internal GNSS signal distribution Defence infrastructure requiring reliable GNSS synchronisation Support of man-pack radios, Blue Force Tracking systems, navigation devices, and other GNSS-enabled equipment

Benefits › › › › › › › › › ›

Ensures continuous GNSS availability within shielded or signaldenied environments Enables immediate GNSS acquisition when personnel exit vehicles, shelters, or bunkers Improves operational readiness and situational awareness for deployed personnel Reduces risk of GNSS signal loss through redundant antenna architecture Minimises interference with mission-critical RF communications systems Able to integrate with existing GNSS antenna & dual redundancy Supports multiple GNSS-dependent systems from a single repeater platform Reduces installation complexity and lifecycle costs through configurable design Proven reliability with over 20 years of successful deployment across Australian defence applications Delivers trusted, sovereign Australian-made capability for defence and critical infrastructure users.

Key Features › › › › › › › › › › › ›

4th Gen intelligent GNSS/GPS repeater with full-band GNSS retransmission capability Wireless and wired GNSS signal distribution for multiple onboard systems Configurable architecture for mission flexibility across multiple platforms Dual redundant active antenna inputs with automatic fault detection and switching High-sensitivity receiver gain with steep roll-off bandpass filtering to minimise RF interference Selectable output power levels and configurable amplification to suit varying operational environments Dual outputs supporting passive retransmit antennas, radiating coax and wired splitters Wide 8–58 VDC input range compatible with military vehicle power systems NVG-compatible status/fault indication LED Compact, lightweight design with simple installation and plug-in configuration controller Optimised for leaky feeder cable retransmission for confined vehicle environments Australian designed, manufactured, and proven in operational service with the Australian Defence Force

ROJ-150B – Military APC GPS Repeater

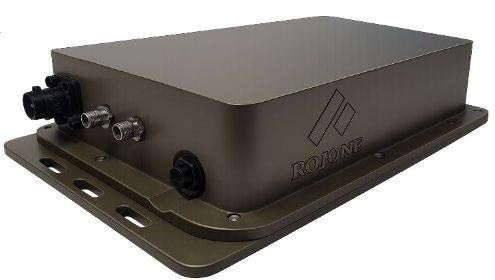

Product Overview ROJ-150B Intelligent GNSS/GPS Repeater System The ROJ-150B represents Rojone's fourth-generation intelligent GNSS/GPS repeater technology, specifically engineered to reliably retransmit satellite navigation signals in environments where direct GNSS reception is limited, degraded, or unavailable. Designed for military and critical infrastructure applications, the ROJ-150B provides both wireless and wired GNSS signal distribution to multiple GPS-enabled subsystems, ensuring continuous positional awareness and operational readiness.

Developed to support modern defence mobility requirements, the ROJ-150B is a compact, lightweight, and cost-effective solution ideally suited for installation in Armoured Personnel Carriers (APCs), protected mobility vehicles, command shelters, bunkers, and other enclosed environments where GNSS signal penetration is restricted. The system can be factory-configured or field-reconfigured, providing exceptional flexibility to meet evolving mission requirements and platform integration needs.

By maintaining continuous GNSS signal availability within vehicles and protected facilities, the ROJ-150B enables soldiers to keep man-pack radios, navigation equipment, situational awareness systems, and personal GPS receivers synchronised at all times. This capability allows personnel to achieve immediate satellite acquisition and location lock upon exiting a vehicle or protected structure, enhancing operational effectiveness and reducing mission delays.

The ROJ-150B is built upon more than two decades of proven GNSS repeater experience. Rojone GNSS repeater systems have been successfully deployed throughout the Australian Defence Force and have provided continuous service across every Royal Australian Air Force (RAAF) base in Australia for over 20 years. The technology has also been deployed in New Zealand defence applications and demanding maritime environments, including naval flight deck installations.

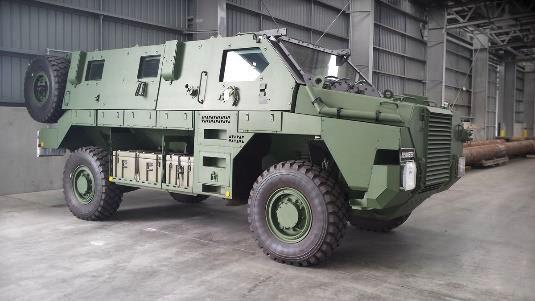

Proudly designed and manufactured in Australia, the ROJ-150B is currently deployed within the Australian Defence Force as part of the highly successful Thales Australia Bushmaster Protected Mobility Vehicle program, demonstrating its proven performance, reliability, and suitability for mission-critical defence operations.

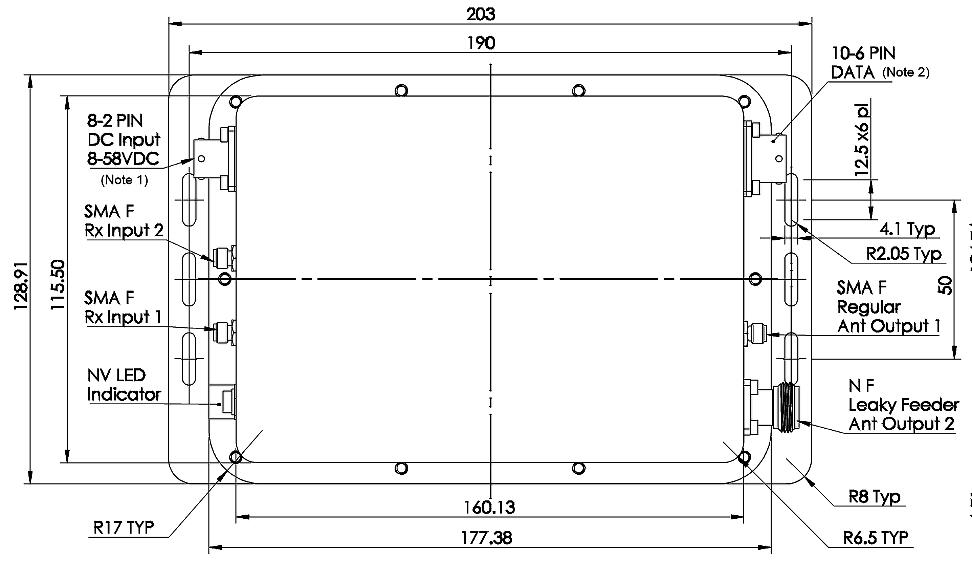

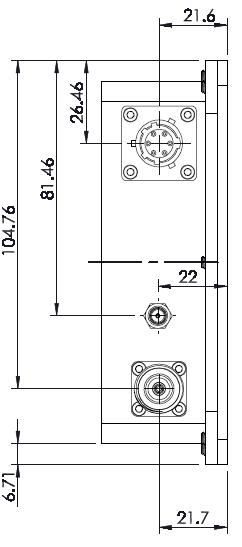

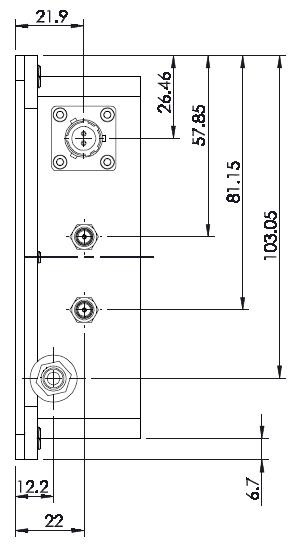

Mechanical Dimensions

Page | 2

ROJ-150B – Military APC GPS Repeater

Technical Specifications Specifications

ROJ-150B

Frequency

1560 MHz – 1615 MHz 1170 MHz – 1310 MHz

Impedance

50 Ω

RF Gain

Configurable by 31.5dB program -10 to 35 dB max typical regular output -10 to 55 dB max typical leaky feeder output

I/O Return Loss

Typ. >20 dB

Output RF Power

Configurable to suit each installation

Antenna Bias Voltage

Selectable with 700mW max O/P per antenna input, 2.5v, 3.3V, 4.1V, 5.0V, 6.9V, 8.2V & 12.0V

OIP3

> -20 dBm

Connectors

SMA Female - Antenna Primary & Secondary SMA Female - Regular RF output N Female leaky feeder antenna in vehicle DC Input connector, Circular, 2 Male Contact, Mil-C-26482 Series 1/VG95328 Receptacle Configuration Controller, Interface, Circular, 6 Female Contact Mil-C-26482 Series 1/VG95328 Receptacle

Power Supply

Flexible Power Range 8V – 58V

Size

Compact 203mm x 129mm x 40 mm (8”x 5”x 1.58”)

Weight

1.2 Kg (2.65 pounds)

Designed & built to

MIL-STD-810G, Mil-STD-461F, IP64 Rated machined & plated aluminum housing finished low sheen military green

Power Consumption Vin (V)

Lin (A)

Power (W)

8

0.43

3.44

9

0.38

3.42

10

0.34

3.40

12

0.29

3.48

16

0.22

3.52

Page | 3

ROJ-150B – Military APC GPS Repeater

Performance Gain Control Range & Filter Stop Bands Regular outputs typically have a 35dB max gain & 55dB on the radiating antenna cable output. The module has an internal 30dB, 1dB step attenuator & a 20dB bypass selectable amplifier over the regular output stage.

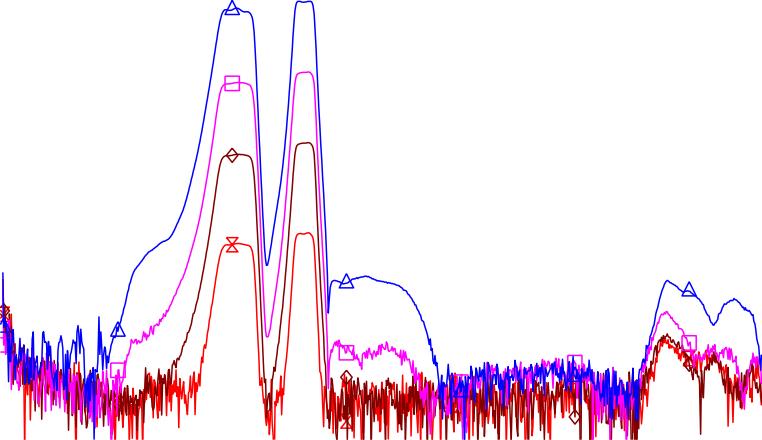

Additionally, the upper & lower GNSS bands can be individually enabled or disabled as required. The plot below shows the full configurable gain range & typical selectivity provided by the 8th-order filter.

Diplexer Stop Band Performance and Total Gain Control Range All Gain - Leaky Feeder Amp Enabled Rest of Gain - Leaky Feeder Amp Bypassed

System Gain (dB)

70 60 50 40 30 20 10 0 -10 -20 -30 -40 -50 -60 -70 -80

All Backend Amplifiers Bypassed

DB(|S(2,1)|) LFPORT_0ATT_AMP1_AMP2 DB(|S(2,1)|) LFPORT_0ATT_BAMP1_AMP2 DB(|S(2,1)|) LFPORT_0ATT_BAMP1_BAMP2 DB(|S(2,1)|) LFPORT_30ATT_BAMP1_BAMP2

Max Step Attenuator and All Backend Amplifier Bypassed

1.24 GHz

1.591 GHz

0 0.25 0.5 0.75 1 1.25 1.5 1.75 2 2.25 2.5 2.75 3 3.25 3.5 3.75 4 Frequency (GHz)

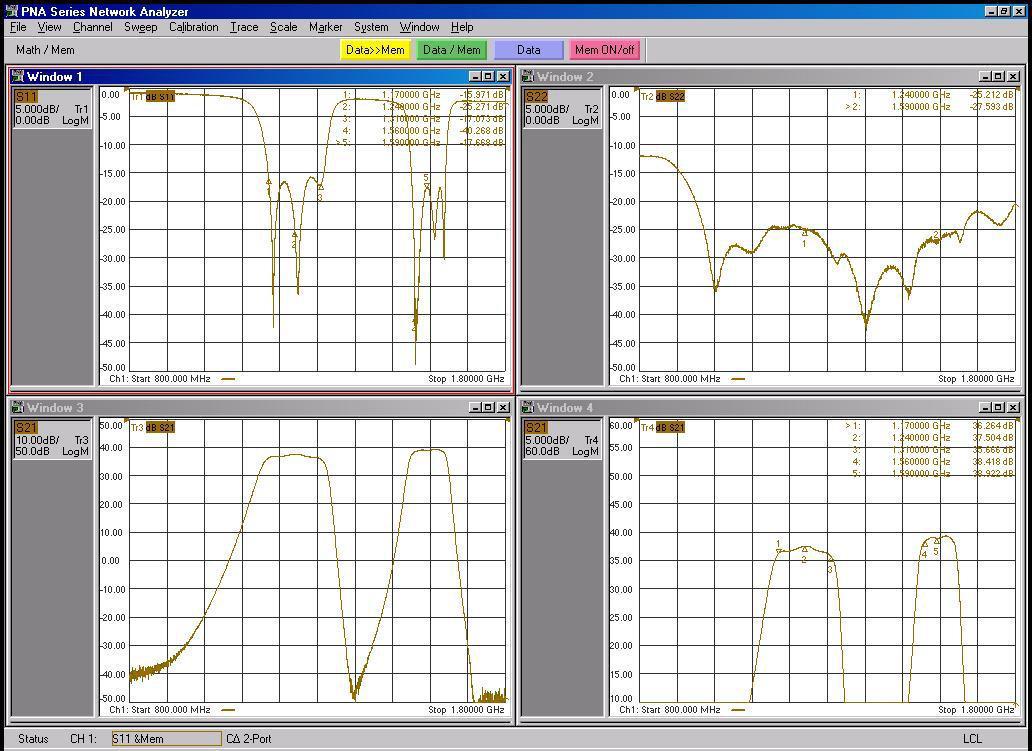

Passbands & In Out RL (Typical)

Page | 4

ROJ-150B – Military APC GPS Repeater

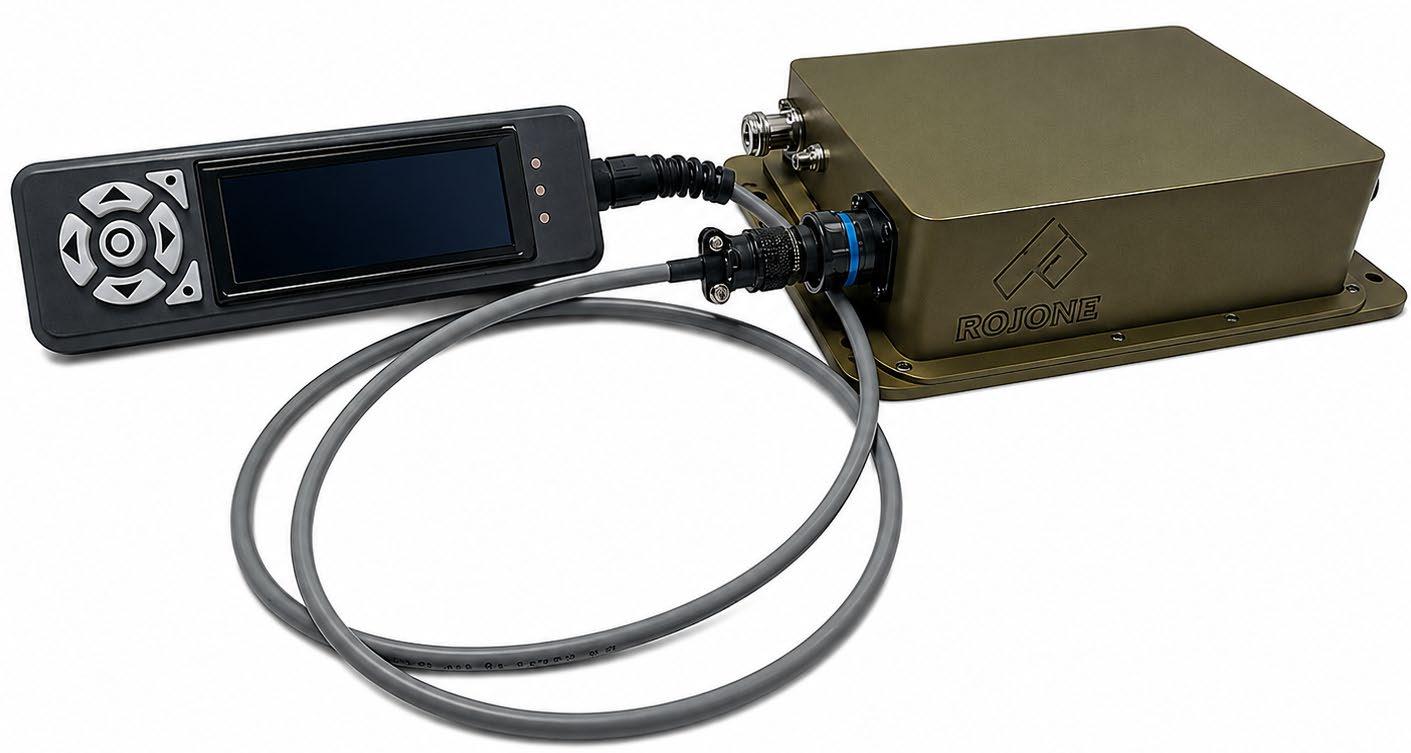

Order Code: ROJ-150BCONFIG Configuration Controller / Display

The Configuration Controller is primarily intended for the initial configuration and commissioning of the ROJ-150B GNSS Repeater Module.

The Configuration Controller is only required during system setup to configure each ROJ-150B repeater in accordance with the specific platform and installation requirements. Once the configuration is complete, the controller is disconnected and removed from the repeater module.

All configurable parameters, including active antenna DC bias voltage selection, gain and attenuation setting to prevent oscillation, are accessed through the Configuration Controller interface. Selected settings are stored in the repeater's non-volatile memory, ensuring retention of configuration data without the controller during normal operation.

The integrated display dashboard provides immediate visibility of key system information, including configured operating parameters, antenna connection status, and repeater health and fault conditions.

The Plug-and-Play Configuration Controller has been designed as a temporary setup tool to eliminate the risk of inadvertent configuration changes during operational use. This architecture removes the requirement for a permanently installed display, reducing system size, weight, power consumption (SWaP), and overall cost while enhancing operational reliability.

For day-to-day operation, the ROJ-150B incorporates an NVG-compatible status LED that provides a clear indication of operational status and fault conditions, ensuring rapid system verification and operator confidence in mission-critical environments.

Page | 5

ROJ-150B – Military APC GPS Repeater

Accessories Options for Installation Item No. ROJ-150BCONFIG T-RAD-600FR TC-EZ-600-NMH-X TC-EZ-600-NF-X

Description Configuration Controller for the setup required for the installation of a single unit or many ROJ-150B Repeater modules.

T-RAD® coaxial cable, radiating, LSZH, 50 Ω In vehicle, the Radiating Antenna Cable length is determined by the installation requirement per meter Connector, N Male, EziFit, LMR-600 for Radiating Antenna cable Connection to ROJ150B Note: Crimp tool required for termination cable Connector, N Female, EziFit, Crimp, LMR-600 connection to terminating load end Note: Crimp tool required for termination to cable

RO-NM-TERM-2W-6G

Termination, N Male, 2 Watt to terminate open end of the Radiating Antenna Cable

AMA-2301-4T-R200CAPM

Splitter, 1200-1700MHz, 4 Way, 50Watt, TNC Female, 3 Ports DC Blocked 200Ohm Resistive

TC-LP-GPX-05-NFF

Lightning Protector, 1-2Ghz, 90VDC, DC Pass, 50W,50Ohm, N Female-Female

TC-LP-GPX-05-SFF

Lightning Protector, 1-2Ghz, 90VDC, DC Pass, 50W,50Ohm, SMA Female-Female

A-GPSV3AR5X13O

GPS Active Antenna L1/L2/L5 Beidou Glonass B1/B2/B3 38dB N Female

A-GPSVPT5X13O

Antenna, Passive GLONASS L1/L2/L5, Beidou Glonass B1/B2/B3

Configuration Power Pk

Power Pack (24v AUS) with PT06E-8-2S Connector for Non-Vehicle Power Supply

For further information, contact: Email: sales@rojone.com.au Tele: +61 2 9829155 Web: www.rojone.com.au
