TECHNICAL DATA SHEET
PRODUCT CODE:
RO-NF-TNCFR

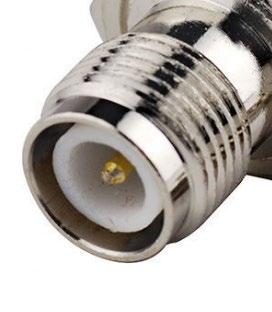

Adaptor, N Female to TNC Female, Reverse Polarity. (TNC Female Body, Male Pin)
PRODUCT
DESCRIPTION

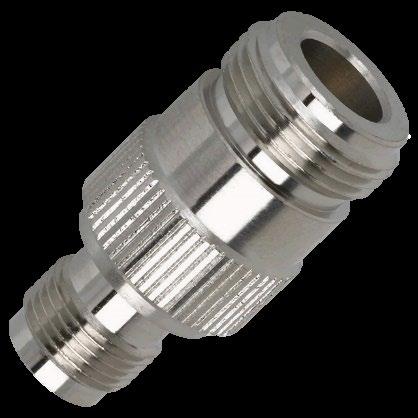

Adaptor, N Female to TNC Female, Reverse Polarity (TNC Female Body, Male Pin)
This adapter features an N- type female interface on one end and a TNC female reverse pin interface on the other, allowing for compatibility between different coaxial systems. It is commonly used in wireless communication, antenna systems, and RF applications due to its reliability and performance in high-frequency environments. The reverse pin configuration of the TNC connector ensures proper mating with standard TNC male connectors, preventing mismatches. Constructed with high-quality materials, this adapter provides excellent durability and signal integrity.
LFLV
PRODUCT APPLICATION
• Wireless Systems
• Communication Systems
• Antenna Systems
TECHNICAL DATA SPECIFICATION
KEY BENEFITS
• Low VSWR
• Easy installation
Specifications
Number of interfaces 2
Interface type N Female to TNC Female
Interface direction Straight
Centre Conductor Bronze/plating Ni/Au
Body Brass/plating CuSnZn3
Nut Brass/plating CuSnZn2
Casing Brass/plating CuSnZn1
Insulator PTFE
Gasket Silicone Rubber
Impedance 50 Ω
Insertion Loss ≤0.2dB VSWR ≤1.22:1/3G
2 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection
