TECHNICAL DATA SHEET
PRODUCT CODE:
RO-78EIA-LCF12-070
7/8” EIA Connector for LF ½”-50 Corrugated Copper Cable
PRODUCT
DESCRIPTION

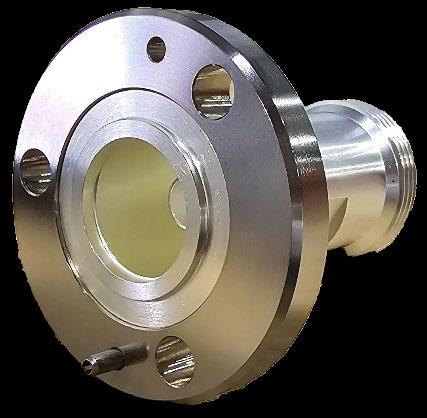

7/8” EIA Connector, LF ½”-50 Corrugated Copper Cable, Plast 2000
The RO-78EIA-LCF12-070 connector offers optimal, low-loss signal transmission and extremely sustainable, cost-effective connections. Suitable for applications across diverse industries, including mobile communication, broadband, and radar technology. This connector ensures a robust and reliable connection even in challenging environments such as the desert, marine, or space. It is ideal for air dielectric cables and is designed with sealed flanges and inlets for maximum reliability. Compliance with the EIA STD RS-225, DIN EN 122150 and MIL-F 24044 standards makes this connector suitable for pressurised systems and outdoor installations.
From DC-Light, Your Best Connection P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia
LFLV
From DC-Light, Your Best Connection
PRODUCT APPLICATION
• Mobile Communications
• Broadcast Applications
• Measurement
• Satellite
KEY BENEFITS
• Cut and Fit (CAF) single step installation
• Effective protection again moisture and soiling
• Outstanding lossless mobile communication from DC-3.8GHz
2 | P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au 44 Aero Road Ingleburn, NSW, 2565 Australia From DC-Light, Your Best Connection
TECHNICAL DATA SPECIFICATION
