TECHNICAL DATA SHEET
PRODUCT CODE:
RO-78EIA-CE-002
Rigid Line Coupling Element 7/8”
PRODUCT
DESCRIPTION

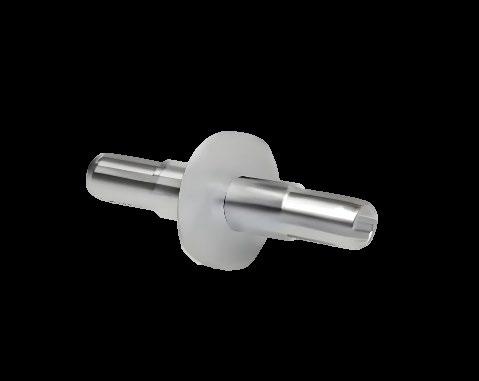

Rigid Line Coupling Element 7/8”
The 7/8” Rigid Line Coupling Element is a precision-engineered component designed for seamless integration into 7/8" EIA rigid transmission lines. Crafted with meticulous attention to detail, it ensures optimal signal transmission efficiency within high-frequency communication systems. Its robust construction, utilising high-quality materials, guarantees durability and reliability even in demanding environments. Equipped with industry-standard interfaces, it facilitates easy installation and compatibility with existing infrastructure. From telecommunications to broadcasting, this coupling element stands as a cornerstone in maintaining signal integrity and network performance.
LFLV
PRODUCT APPLICATION
• Broadcast applications
• Telecommunications applications
KEY BENEFITS
• Accommodation of misalignments
• FEP Insulation
• Shock absorption
• Vibration absorption

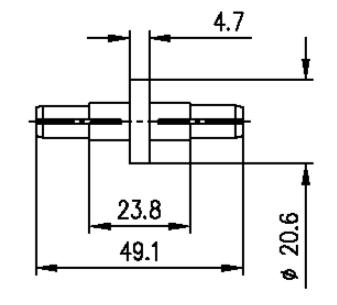

TECHNICAL DATA SPECIFICATION
Specifications
Connector Type 7/8” EIA
Impedance 50Ω
Frequency Range 0-1 GHz
VSWR ≤ 1.01
Frequency Range 1-2.7 GHz VSWR ≤ 1.02
Frequency Range 2.7-5 GHz
VSWR ≤ 1.07
Inner Conductor Copper Alloy, Silver Plated
Other Metal Parts Stainless Steel Insulation FEP
Sealing Silicone Rubber
Standards IEC 339 50-22-3
Weight 60 grams
Package Inclusions 3 x Hexagon screw (M6x30)
3 x Hexagon nut
6 x Washer
3 x Spring washer
