RO-78EIA-78EIA-RA Datasheet

TECHNICAL DATA SHEET

PRODUCT CODE:

RO-78EIA-78EIA-RA

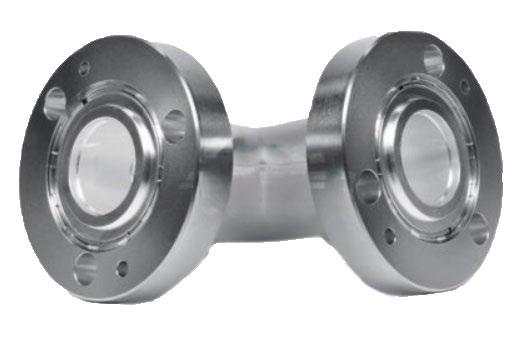

Adapter 7/8EIA -7/8EIA, Right Angle

PRODUCT

DESCRIPTION

7/8 EIA Interseries Adapter

Crafted with high-quality materials and precise manufacturing techniques, the RO-78EIA-78EIA-RA ensures minimal signal loss and impedance mismatch in RF transmission lines. The 90° bend allows for smooth redirection of RF signals, optimising signal flow within the system. Its 7/8" EIA interface ensures compatibility with standard RF connectors, facilitating easy integration into existing setups. With its robust construction and reliable performance, this elbow is ideal for demanding RF applications in telecommunications, broadcasting, and aerospace industries.

From DC-Light, Your Best Connection

PRODUCT APPLICATION

• Pressure tight systems

• Aerospace applications

• Telecommunications applications

KEY BENEFITS

• Low insertion loss

• Low VSWR

• PTFE Insulation

• Designed for outdoor applications

TECHNICAL DATA SPECIFICATION

Specifications

Number of interfaces 2

Interface type 7/8” (EIA) 50Ω per IEC 60339-2

Interface direction Right angle

Waveguide component type Elbow

Frequency range DC-5.3GHz

Cut-off frequency 6.3GHz (H11 mode)

Average power rating 7.6 kW @ 100 MHz (at 40˚C ambient temperature) 5.0 kW @ 230 MHz (at 40˚C ambient temperature) 2.6 kW @ 860 MHz (at 40˚C ambient temperature)

Proof voltage rating 3800 V

Proof voltage rating remark (at sea level (NN))

Insertion loss co-efficient/100m 1.21 dB @ 100 MHz (at 20˚C ambient temperature) 1.84 dB @ 230 MHz (at 20˚C ambient temperature) 3.55 dB @ 860 Mhz (at 20˚C ambient temperature)

Weight 590 grams
