TECHNICAL DATA SHEET
PRODUCT CODE:
RO-10F3-024NH
24 strand Indoor/Outdoor
Fibre Optic Cable
PRODUCT
DESCRIPTION
24 Strand Fibre Optic Cable

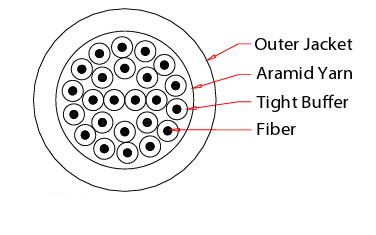

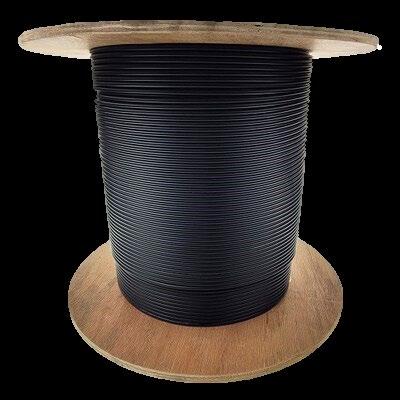

This black 1000-foot spool of indoor/outdoor rated fiber optic distribution cable is intended for long-distance runs at high speeds. It comprises 24 single-mode fibers (9-micron core) inside a water-blocking Aramid yarn wrapped in a black PVC outer jacket. Single-mode fiber is optimised to work with fiber optic equipment using light wavelengths of 1310nm (nanometers) or 1550nm. The cladding diameter is 125 microns. The core and cladding of our black bulk indoor/outdoor fiber optic cable are constructed using a highquality Corning SMF-28 Ultra single-mode fiber that is ITU-T
G.657.A1 compliant and backward compatible with other legacy single-mode fibers. This cable is Riser Rated (CMR), which complies with UL-1666. It is for usage in vertical tray applications without environmental air. Examples are cable runs between floors through cable risers or in elevator shafts. These cables self-extinguish and prevent the flame from traveling up the cable in a vertical burn test. This fiber optic cable is solidly constructed, UL-rated and RoHS-compliant.
From DC -Light, Your Best Connection
PRODUCT APPLICATION
• Riser
• Duct
• Indoor/Outdoor
TECHNICAL DATA SPECIFICATION
KEY BENEFITS
• Easy product identification with printed , durable jacket
• OFNR Rated construction
• Water blocking aramid yarn stre ngth
Specifications
Fibre Count 24
Outer Jacket Material Flame Retardant PVC
Outer Jacket Colour Carbon Black Strength Member Aramid Yarn
Tight Buffer Material Flame Retardant PVC
Tight Buffer Colour Available in 12 TIA/EIA colour as standard
Operating Temperature -40˚C to + 70˚C
Storage Temperature -40˚C to + 70˚C
Flame Rating UL1666 | UL1685 (FT4)
Physical Characteristics Value (24 Fibre Count)
Core Size 9 µm
Wavelength 1310/1550 nm
Max Attenuation 0.5/0.4 dB/km
Link Length 1000/5000 m (1/10Gb/s@1550nm)
