NEX10™
Radiall’s NEX10™ series is a miniature and lightweight RF Coaxial connector with excellent intermodulation performance for outdoor telecom applications up to 20 GHz.
Growing demand for new generation equipment within the Telecom market requires a top performance solution with exceptional benefits and features. To develop this solution, Radiall has partnered with two leading RF connector manufacturers to develop a new compact extremely robust Low PIM connector: NEX10™.
With exceptional performance up to 20 GHz in order to meet the performance needs of customers, NEX10™ also features a compact design which is 50% smaller than 4.3-10. This unique solution also offers separation of electrical and mechanical reference planes, which maximizes intermodulation performance under static, dynamic, vibrations and torque stress conditions.
NEX10™ is available in multiple configurations:
• Jack: square flange, bulkhead
• Plug: straight & right angle
• Screw-on & push-pull coupling mechanism

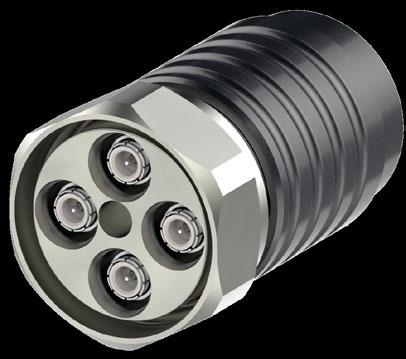

• Multi-coax
• Additional boot
• Jumper
NEX10™ meets market needs by providing 4.3-10 connector advantages in a smaller size. The more robust and lightweight interface design allows for multi-coax interconnection solution.
Test/Characteristics
Impedance
Frequency
PIM (Passive Intermodulation)
Power
Return Loss (typical)
Durability
Mating Characteristics
Interface Retention Force
Values/Remarks
50 Ω
DC to 20 GHz
-166dBc, 2x43dBm for all coupling types (static and dynamic)
250W @ 25°C
100W @ 85°C
50W @ 105°C
250W @ 25°C
36db @ up to 4 GHz
34db @ up to 6 GHz
30db @ up to 10 GHz
20db @ up to 20 GHz
100 min.
2 GHz
500 for test and measurement types
Quick Lock engagement force: 50N
Screw-on recommended torque: 3Nm
Quick-Lock 150 N min., Screw 500 N min.
Bending Force >5Nm
Screening Effectiveness
Surge Current
FEATURES & BENEFITS
• Robust design for outdoor use
DC to 6 GHz (screw-on): -110 dB min.
DC to 3 GHz (quick-lock): -90dB min.
3 to 6 GHz (quick-lock): -70dB min.
±1 kA 10/350 μs pulse and ±4 kA 8/20 μs pulse
±5 kA 10/350 μs pulse and ±20 kA 8/20 μs
• Low PIM, independent of applied torque
• Multiple coupling mechanism of push pull and torque
• RF shielding
• Optimized for ¼” super-flexible corrugated and smaller flexible cables
• 12.7mm minimum flange height
• Contact areas protected from damage
APPLICATIONS
• Small Cell and MIMO
• DAS/In-building
• Antennas, radios and filter output
• Outdoor and Indoor
• Applications requiring PIM stability in a compact size
• Multi-coax/Blind mate applications
