Microwave High Power Terminations
The best choice for High Performance and Quality
Radiall is renewing its range of High Power Terminations from 30 to 200 Watts, available with Type N, SMA, 7-16 and TNC connections. This comprehensive offer ensures outstanding performance and quality, at a competitive price.

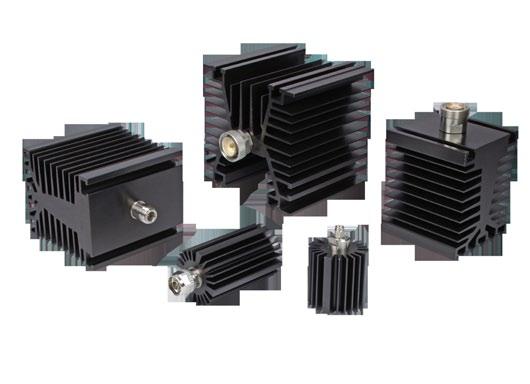

High Power Terminations from 30 to 200W up to 6 GHz:
Microwave global range
• Available with 4 types of connections: Type N, SMA, 7-16 and TNC (male and female interfaces) • Conduction version is available for applications where cooling fan form factors need to be adapted • Custom design available upon request Electrical Performance: • Frequency range: DC-6 GHz • VSWR max 1.3 @ 6 GHz • Peak Power = 2 kW

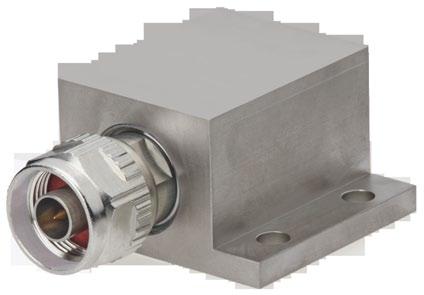

Conduction model
Features Competitive Offering
Reliable Solution
Safe Range
• Excellent performance: frequency, VSWR, and Peak Power • Reduced size and form factors • Competitive pricing, delivery, and service

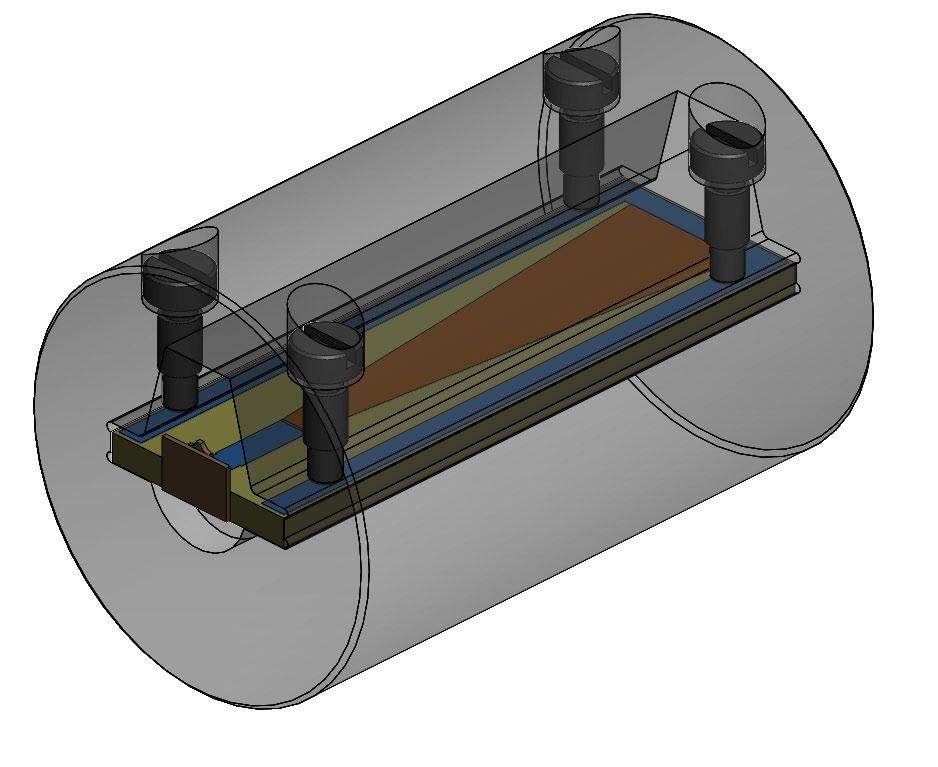

• New Radiall terminations use purely mechanical retention, no compound, and no crimp to increase product robustness • Temperature shrinkage is compensated through a spring loaded contact • Outstanding electrical performance (see graph page 2)
• RoHS compliant • Complies with standard MIL39030 • Complies with ISO/IEC 17025 • Fully tested, approved, and certified by an Independent test laboratory
