In 2017, Rojone purchased the design, manufacturing rights, and test equipment from Mobile One Electro Acoustics. This acquisition enabled the continued domestic production of the company’s High Noise Environment Headsets, Communication Leads, and consumable products. Over the past eight years, Rojone has made significant efforts to integrate the Mobile One Electro Acoustics designs into its ERP and Quality Management Systems. Simultaneously, we have been developing the necessary expertise to customise and service these components locally at our facilities in Ingleburn, NSW.
Through this acquisition, Rojone implemented production and quality processes improving manufacturability while maintaining the Australian standards and approval of the originally designed product. This move has also allowed us to maintain greater control over the quality and supply chain of our products. Our dedicated team has been working diligently to merge the innovative Mobile One Electro Acoustics designs with our advanced systems, ensuring seamless operations and enhanced product offerings. Additionally, our ongoing focus on building in-house knowledge has equipped us with the skills to tailor these components to specific customer needs and provide exceptional after-sales service, strengthening our commitment to local manufacturing and customer satisfaction.
Contact Us
Sydney Office:
44 Aero Road, Ingleburn, NSW, 2565
Sydney, Australia
Email: sales@rojone.com.au
Phone: +61 2 9829 1555
Perth Office:
Contact: Warren Boucaut
Email: warren@rojone.com.au
Phone: 0407 426 233
Cairns Office:
Contact: Robert Grabowski
Email: robert@rojone.com.au
Phone: +61 2 9829 1555
PRODUCT DESCRIPTION
HSP -1
Rojone headsets are proudly Australian made and are tested and certified with AS/NZS1270-2002, Acoustics –Hearing Protectors. Made with precision, this headset features a field replaceable mic boom and noise cancelling microphone.
The HSP-1 headset features a Nexus TP-120B plug as standard however, other connection configurations are available.
KEY FEATURES
• Leather- covered headband
• Oliva drab colour
• Noise-cancelling microphone
• -31dB noise reduction
• Lightweight (423 grams)
• ISO 9001:2015 certified manufacturing
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
• 12 months warranty on headset

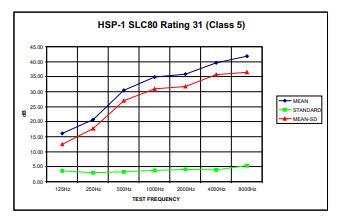

TECHNICAL DATA SPECIFICATION
Model Number
HSP-1
Style Headband with leather cover over stainless steel band
Cups ABS
Colour Olive Green
Cabling
Main Four independently wire lap screened conductors, PUR sheath
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a field-replaceable mic boom and noise-cancelling microphone.

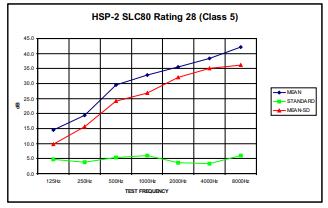

The HSP-2 headset is custom-manufactured to suit each radio make and model.
KEY FEATURES
• Leather- covered headband
• Olive drab colour
• Noise-cancelling microphone
• -28dB noise reduction
• Lightweight (408 grams)
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
• ISO 9001:2015 certified manufacturing
• 12 months warranty on headset
TECHNICAL DATA SPECIFICATION
Model Number
Style Headband with leather cover over stainless steel band
Cups ABS
Colour Olive drab
Cabling
Termination
Microphone
Main Custom manufactured to suit each radio make and model
Length Various
Intercup Twisted pair, PUR sheath
Connector To suit the nominated radio accessory port
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a field-replaceable mic boom and noise-cancelling microphone.

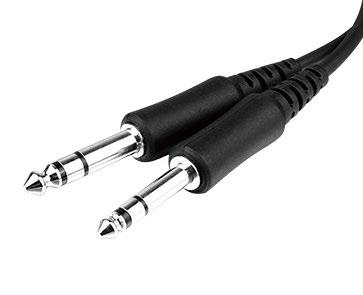

The HSP-2-GA headset features a PJ-068 & PJ-055 plug as standard.
KEY FEATURES
• Leather- covered headband
• Olive drab colour
• Noise-cancelling microphone
• -28dB noise reduction
• Lightweight (408 grams)
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
• ISO 9001:2015 certified manufacturing
• 12 months warranty on headset
HSP -2- GA
TECHNICAL DATA SPECIFICATION
Model Number
Style Headband with leather cover over stainless steel band
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a field-replaceable mic boom and noise-cancelling microphone.
The HSP-2-HELI headset features a TP-120B plug as standard
KEY FEATURES
• Leather- covered headband
• Olive drab colour
• Noise-cancelling microphone
• -28dB noise reduction
• Lightweight (408 grams)
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
• ISO 9001:2015 certified manufacturing
HSP
TECHNICAL DATA SPECIFICATION
Model Number
Style Headband with a leather cover over stainless steel band with lambswool comfort pad

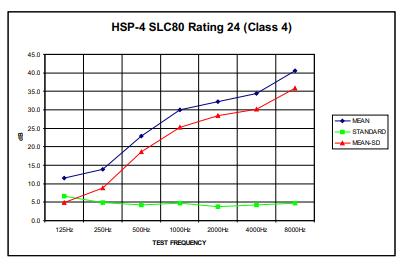

Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a field-replaceable mic boom and noise-cancelling microphone.
The HSP-4 headset features a TP-120B plug as standard
KEY FEATURES
• Leather- covered headband
• Olive drab colour
• Noise-cancelling microphone
• -24dB noise reduction
• Lightweight (357 grams)
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
• ISO 9001:2015 certified manufacturing
• 12 month warranty on headset
TECHNICAL DATA SPECIFICATION
Model Number
Style Behind the neck headband over the stainless steel band Cups ABS
Colour Olive drab
Cabling
Main Four independently wire lap screened conductors, PUR sheath
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a field-replaceable mic boom and noise-cancelling microphone.
The HSP-5 headset features a TP-120B plug as standard
KEY FEATURES
• Leather- covered headband
• Olive drab colour
• Noise-cancelling microphone
• -28dB noise reduction
• Lightweight (423 grams)
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
• ISO 9001:2015 certified manufacturing
• 12 months warranty on headset

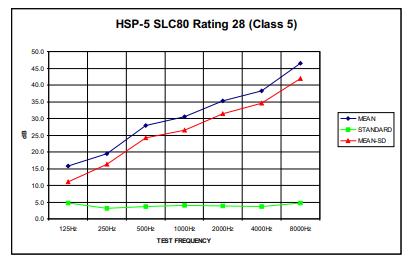

TECHNICAL DATA SPECIFICATION
Model Number
HSP-5

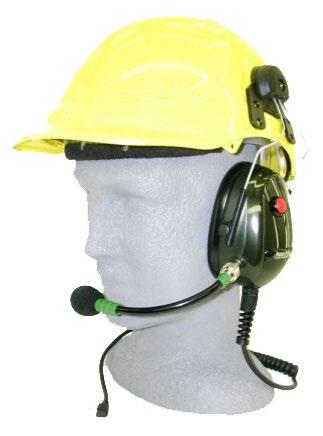

Style Hard hat mounting with stainless steel arms and resin plastic Cups ABS
Colour Olive drab
Cabling
Termination
Microphone
Main Four independently wire lap screened conductors, PUR sheath

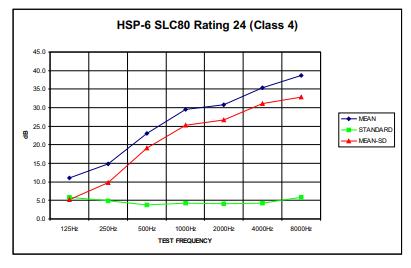

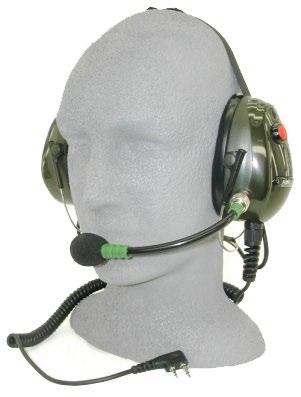

Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a field-replaceable mic boom and noise-cancelling microphone.
The HSP-6 headset is custom-manufactured to your requirements.
KEY FEATURES
• Leather- covered headband
• Olive drab colour
• Noise-cancelling microphone
• -24dB noise reduction
• Lightweight (450 grams) fi f
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
• ISO 9001:2015 certified manufacturing
• 12 months warranty on headset
TECHNICAL DATA SPECIFICATION
Model Number HSP-6

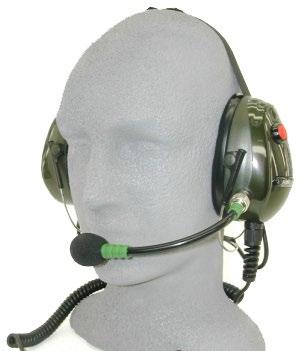

Style Behind the neck headband
Cups ABS
Colour Olive drab
Cabling
Termination
Microphone
Main Custom manufactured to suit each radio make and model
Length Various
Intercup Twisted pair, PUR sheath
Connector To suit the nominated radio accessory port
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a field-replaceable mic boom and noise-cancelling microphone.
The HSP-6-HELI headset comes standard with a TP-120B plug.
KEY FEATURES
• Leather- covered headband
• Olive drab colour
• Noise-cancelling microphone
• -24dB noise reduction
• Lightweight (450 grams)
fi f
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
• ISO 9001:2015 certified manufacturing
• 12 months warranty on headset
TECHNICAL DATA SPECIFICATION
Model Number
Style Behind the neck headband
Cups ABS
Colour Olive drab
Cabling
Termination
Microphone
Main Four independently wire lap screened conductors, PUR sheath
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a field-replaceable mic boom and noise-cancelling microphone.
The HSP-7 headset is custom-manufactured to your requirements.
KEY FEATURES
• Leather- covered headband
• Olive drab colour
• Noise-cancelling microphone
• -28dB noise reduction
• Lightweight (376 grams)
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
• ISO 9001:2015 certified manufacturing
• 12 months warranty on headset

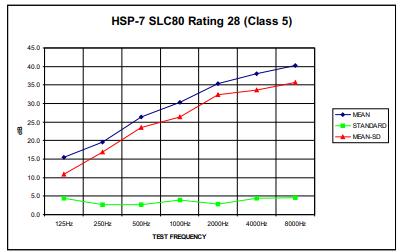

TECHNICAL DATA SPECIFICATION
Model Number
HSP-7
Style Hardhat mounting, stainless steel arms
Cups ABS
Colour Olive drab
Cabling
Termination
Microphone
Main Custom manufactured to suit each radio make and model
Length Various
Intercup Twisted pair, PUR sheath
Connector To suit the nominated radio accessory port
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a field-replaceable mic boom and noise-cancelling microphone.
The HSP-7-HELI headset comes standard with a TP-120B plug.
KEY FEATURES
• Leather- covered headband
• Olive drab colour
• Noise-cancelling microphone
• -28dB noise reduction
• Lightweight (450 grams)
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
• ISO 9001:2015 certified manufacturing
• 12 months warranty on headset
TECHNICAL DATA SPECIFICATION
Model Number
Style Hardhat mounting, stainless steel arms
Cups ABS
Colour Olive drab
Cabling
Termination
Microphone
Main Four independently wire lap screened conductors, PUR sheath
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a field-replaceable mic boom and noise-cancelling microphone.
The HMP-12-GA comes standard with PJ-055 and PJ-068 plugs.
KEY FEATURES
• Leather- covered headband
• Olive drab colour
• Noise-cancelling microphone
• -28dB noise reduction
• Lightweight (471 grams)
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
• ISO 9001:2015 certified manufacturing
• 12 months warranty on headset
TECHNICAL DATA SPECIFICATION
Model Number HMP-12-GA
Style Stainless steel headband with leather cover and lambswool comfort pad
Cups ABS
Colour Red & Black
Cabling
Main Four independently wire lap screened conductors, PUR sheath
Boom Mil MK-1564 stainless steel black nickel finish
Element M87/AIC Noise cancelling dynamic
Sensitivity 50.4 to 112uV @ 1kHz/SPL 103dB
Impedance 5 Ω @ 1kHz +/-20
Response
Noise Cancelling 15dB
Earphones

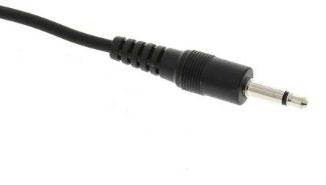

TERMINATIONS AVAILABLE
PRODUCT DESCRIPTION
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a field-replaceable mic boom and noise-cancelling microphone.
The HMP-12-HELI comes standard with Nexus TP-102 (U-93A/U) plug
KEY FEATURES
• Leather- covered headband
• Olive drab colour
• Noise-cancelling microphone
• -28dB noise reduction
• Lightweight (471 grams) f
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
• ISO 9001:2015 certified manufacturing
• 12 months warranty on headset
H MP - 12 - HELI
TECHNICAL DATA SPECIFICATION
Model Number
HMP-12-HELI
Style Stainless steel headband with leather cover and lambswool comfort pad
Cups ABS
Colour Red & Black
Cabling
Main Four independently wire lap screened conductors, PUR sheath
Boom Mil MK-1564 stainless steel black nickel finish
Element M87/AIC Noise cancelling dynamic
Sensitivity 50.4 to 112uV @ 1kHz/SPL 103dB
Impedance 5 Ω @ 1kHz +/-20 Ω
Response 200 to 6000Hz
Noise cancelling 15dB
Earphones Type
Impedance
TERMINATIONS AVAILABLE
PRODUCT DESCRIPTION
H MP - 12 - PB
Rojone headsets are proudly Australian-made, tested, and certified with AS/NZS1270-2002, Acoustics Hearing Protectors. Made with precision, this headset features a field-replaceable mic boom and noise-cancelling microphone.
The HMP-12-PB comes standard with a PJ-051 plug as standard.
KEY FEATURES
• Leather- covered headband
• Olive drab colour
• Noise-cancelling microphone
• -28dB noise reduction
• Lightweight (471 grams)
KEY BENEFITS
• Clear Communications
• Increased Productivity
• Protects against hearing loss
• Improved working conditions
• ISO 9001:2015 certified manufacturing
• 12 months warranty on headset
TECHNICAL DATA SPECIFICATION
Model Number
HMP-12-PB
Style Stainless steel headband with leather cover
Cups ABS
Colour Red & Black
Cabling
Termination
Main Four independently wire lap screened conductors, PUR sheath
Use with JEDI platform, XTS portables, HT1000, JT1000, MT2000, MTS2000, MTX838, MTX1000, MTX8000, MTX900, XTS200, XTS2500, XTS3000, XTS3500, XTS5000
MGM3 Use with MAXTRAX, GM-300, GM-900
MAPX APX-5000/6000
MDP24 DP2400, DP2600
MTRBO MOTOTRBO DIGITAL series portables DP3400/3401, 4400/4401, 4600/4601, 4800/4801, DP3600/3601 & SL4010
DP450 DP450 Series
SEPURA STP80 STP8000, STP9000 Series
SIMOCO PSRP All 8000 and 9000 series
TP81 All TP8100 Series
TAIT
Uniden
Vertex
TP91 All TP9100, TP9300, TP9400 series
U052 UH-052
U040 UH-040, UH-042, UH-050, UH-052, UH-044
U055 UH-053, UH-055, UH-056, UH-057
U060 UH-060SX, UH-042SX, UH-047SX, GPS205
VA150 VXA-150
V820 VX820 Series, VX821 Series, VX824 Series, VX829 Series
V160 VX160, VX180, VX350, VX420, VX426

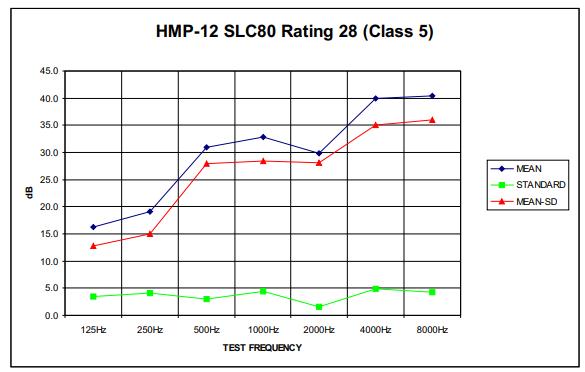

WHAT IS AN SLC 80 Rating
The SLC80 Rating of a hearing protector, ear plugs or headset is a simple number and class rating derived from a test procedure outlined in the Australian/ New Zealand Standard, AS/NZS 1270: 2002. It provides a consumer with a simple number guide to the level of noise attenuation that can be expected from a particular hearing protection device (HPD). However, because we humans have heads that come in all shapes and sizes, some with or without eyeglasses, beards or long hair, the level of protection achieved for each person could be different. The SOUND LEVEL CONVERSION (SLC80) rating is the difference between the C-weighted sound level of the environment where the HPD is worn and the Aweighted sound level reaching the wearer's ears. The SLC value includes a mean minus one standard deviation correction to ensure that the stated degree of noise reduction is obtained on 80% of occasions. For this reason, it is called SLC80, and the 80 indicates the percentage protection rate.
The test procedure can be separated into two very different areas;
1) Mechanical Testing
Hearing protectors and headsets, like all things new, seem pretty good when worn for the first time; however, all things wear, headbands stretch, etc. To compensate for this wear factor and obtain a real-world test result, the HPD under test is pre-aged. This is done by subjecting the HPD to the effects of heat, cold, being dropped and having the headband flexed many times to simulate everyday use. The mass or weight is recorded and expressed in grams on the test certificate, which is the clamping force in Newton’s. This gives the user further information on which to base their decision on the potential overall comfort the HPD may provide. No one wants to work an 8-hour shift and feel as if they have a lead weight on their head or their head is in a vice.
2) Audiometric Testing
This is a subjective test; a minimum of sixteen (twenty for ear plugs) human test subjects are selected at random. Each subject is then given a hearing test to establish whether they fall into the "Normal Hearing" category, as outlined in the standard. The attenuation of the HPD is determined by measuring each subject's hearing threshold with and without the HPD fitted. The difference between these two thresholds is the so-called real-ear attenuation of the HPD. This is done by presenting each test subject with pulsed 1/3 octave pink noise of a known value at the following frequencies: 125, 250, 500, 1000, 2000, 4000 and 8000Hz and recording their hearing threshold. This data calculates the mean ear attenuation and standard deviation at each frequency
Subtracting the standard deviation from the mean gives us the mean minus standard deviation, which, when subtracted from the band level, provides us with the attenuation.
SLC80 Calculation
SLC80 Calculation 30.14 HMP-1 SLC80 30

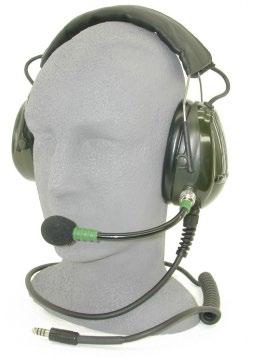

Using the test data for our HMP-1 headset, the following formula is then applied: The SLC80 value is 100 minus the logarithmic summation of all the attenuated levels.
SLC80 = 100 – 10 Log10 (105.89 + 106.38 + 106.34 + 106.14 + 106.33 + 105.79 + 105.25) = 100 - 69.86 = 30.14, which is rounded to 30.
HPD is also given a class rating as outlined below once the SLC80 rating is known. CLASS SLC80, dB 1 10 to 13
It must be remembered that the SLC80 rating is not an exam mark where above a certain number you pass and below you fail; it is a means by which, in conjunction with the information contained in the Australian /New Zealand standard AS/NZS 1269.3:2005 Occupational noise management - Hearing protector program you can start to address the problems of hearing loss due to noise exposure for your given environment.
If you wish to gain a deeper understanding of the SLC80 rating or how to apply these ratings to your workplace, copies of the standards can be obtained from the following.
