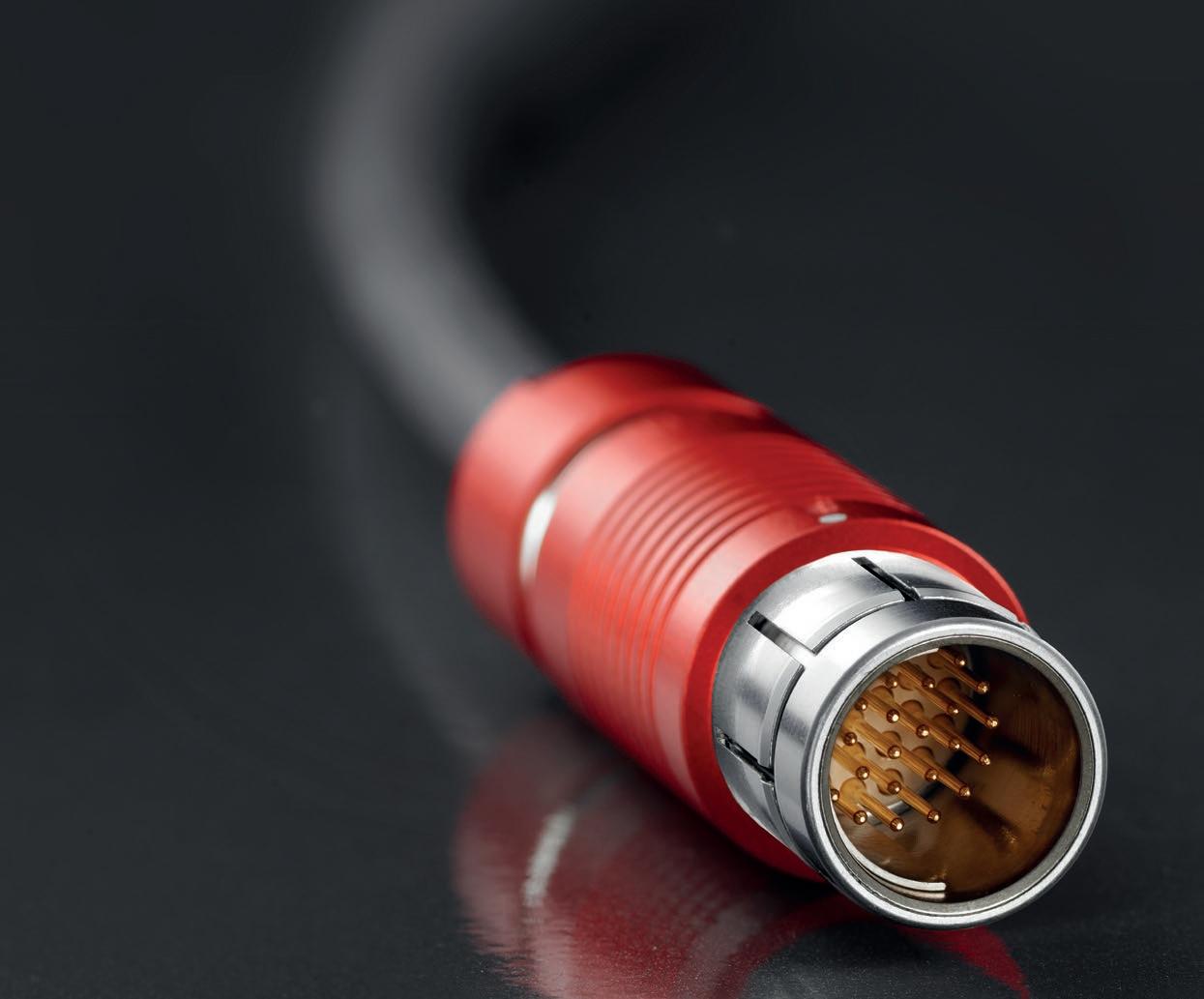

FISCHER CORE SERIES ALULITE ULTRALIGHT RUGGED HIGHLY CONFIGURABLE ■ 50% lighter than brass equivalent ■ Over 10,000 mating cycles ■ Sealed up to IP68 or hermetic ■ 360°C EMC shielded ■ Wide range of colors for visual coding

Australian Representatives ROJONE, PTY LTD. Tel: 02 9829 1555 E: sales@rojone.com.au www.rojone.com.au

2TO 27

CONTACTS

AVAILABLE SIZES 1:1*

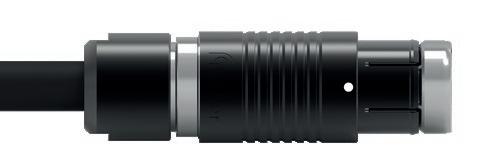

BODY STYLES PLUGS CABLE MOUNTED

102 (2 to 9 contacts)

BODY STYLES

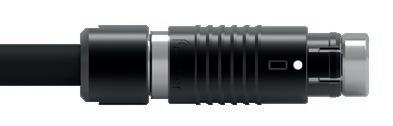

S

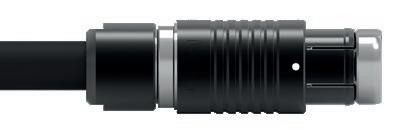

SC

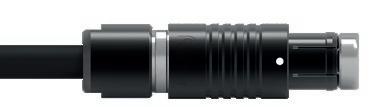

SS / SSC

Locking system Sealing Design

Push-pull IP50 to IP68 Standard

Quick-release IP50 to IP68 Standard

Push-pull / Quick-release IP50 to IP68 Short for overmolding

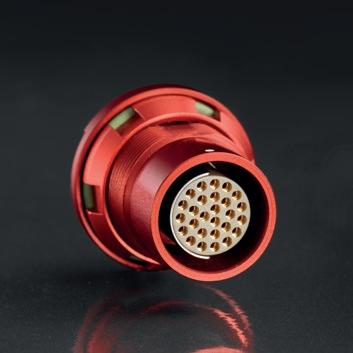

103 (2 to 12 contacts) RECEPTACLES PANEL FRONT MOUNTED

1031 (10 to 19 contacts)

BODY STYLES

D

DEU / DEE

IP50 Rear-projecting

IP68 / Hermetic Rear-projecting

BODY STYLES

DBPU / DBPE

DBPLU / DBPLE

Sealing Design

IP68 / Hermetic Rear-projecting

IP68 / Hermetic Front-projecting

Sealing Design

104 (2 to 7 contacts)

PANEL REAR MOUNTED

105 (2 to 9 contacts) 0

10

20

30

40

50

60

70 mm

Additional sizes available. Ask your sales representative for details. *Actual size 1:1 when printed at full size on A4 paper.

CUSTOMIZED SOLUTIONS ■

Easy to integrate in product design

■

PCB, solder, crimp contacts

■

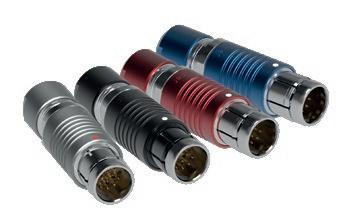

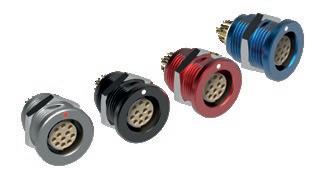

Available in black, grey, red and blue**

**Other colors are available on request.

RUGGED AND DURABLE ■

Operating temperature -50°C +150°C

■

Excellent strength-to-weight ratio

■

Easy connect /disconnect even with gloves

■

Over 10,000 mating cycles
