RF OVE R FIBE R VIDEO/AU DIO LIN K EXTEND ER DVB-T & M icrowave Fre que n cy

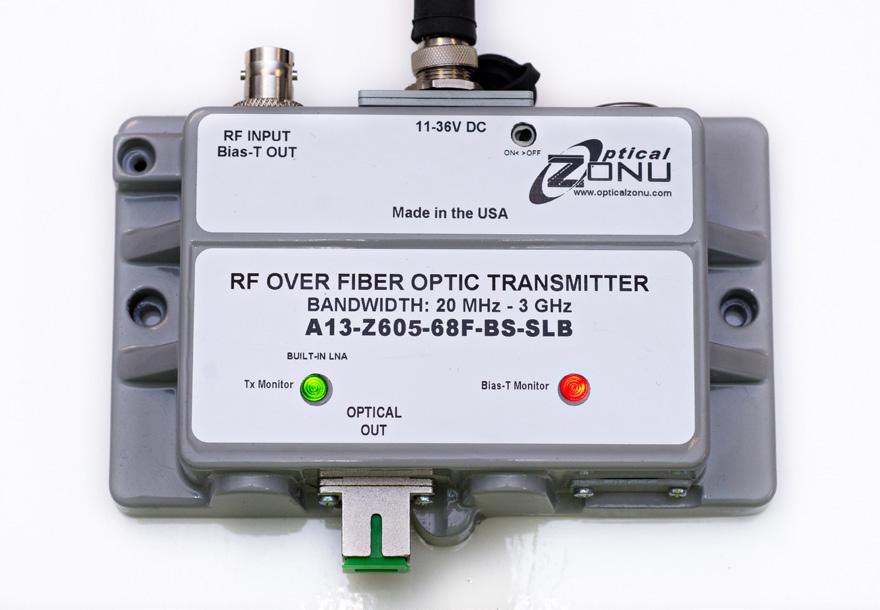

Features Transmitter (Tx) Module • Built-In Bias-T to power antenna • Bias-T On & Off Sliding Switch • Input Supply Voltage 11-36V DC
DVB-T
• Optical Link Status LED Indicator
Description
• Bias-t Status LED Indicator
Broadcast professionals are required to cover various events at large venues. One
• ST (FC/APC or SC/APC optional)
of many challenges encountered is to increase the range of their RF camera,
• 50 Ω BNC RF Connector • 2.11 mm Jack Power Connector (L722AS – Switchcraft) • Dimensions: 5” x 3.5” x 1.5” (L x W x H)- 12.7 cm x 8.9 cm x 3.8 cm • Weight: 250 grams Receiver (Tx) Module • AC Coupled RF Output • Built-In DC Blocking • Input Supply Voltage 11-36V DC • Optical Link Status LED Indicator
wireless microphone and PL system equipment. Optical Zonu’s Fiber Optic Link is designed to enhance the broadcaster’s coverage by transporting RF signals between RF audio and video antennas to their receivers transparently over long distances. It can carry any RF signal within the range of 20 MHz to 3 GHz (optional extended bandwidth of 20 MHz to 6 GHz available) with virtually no loss, making it a better choice than traditional coaxial cable links. Fiber optic cable offers almost unlimited area coverage by greatly increasing the
• ST (FC/APC or SC/APC optional)
link distance over single mode or multimode fiber optic cable. This link is designed
• 50 Ω BNC RF Connector
specifically with broadcast professionals in mind and it supports most commonly
• 2.11 mm Jack Power Connector (L722AS – Switchcraft)
used interfaces such as BNC (RF impedance) and ST (optical connection). The link
• Dimensions: 5” x 3.5” x 1.5” (L x W x H) - 12.7 cm x 8.9 cm x 3.8 cm
consists of low profile, standalone, semi-rugged Tx and Rx modules with power supplies.
• Weight: 250 grams
Applications • RF Microphone Signal Distribution • RF Camera Signal Distribution • Wireless PL System Distribution over fiber (Requires Transceiver Modules)
